Important Information – Quick Reference
We strongly urge that you read the information provided in pages referred hereunder which will help in road safety and prevent inconvenience
1
Warranty Coverage...............................................................................................................................................
Refer WI&MG* (P.g. 14)
2
Maintenance Schedule and Lubrication Chart......................................................................................
Refer WI&MG* (P.g.25 / 28)
3
Roadside Assistance ............................................................................................................................................
Refer WI&MG* (P.g. 9)
4
Schedule Service (Free/Paid)...........................................................................................................................
Refer WI&MG* (P.g. 23)
5
Location Of Vehicle Identification Number (VIN)......................................................................................
Refer (P.g. 2-22)
6
Location Of Fuse Box And Fuse Details........................................................................................................
Refer (P.g. 2-7)
7
Changing A Flat Tyre.............................................................................................................................................
Refer (P.g. 2-14)
8
Understanding The Warning Lamps.............................................................................................................
Refer (P.g. 4-3)
9
Use Of Seats Belts And Child Restraint.......................................................................................................
Refer (P.g. 6-10 / 6-16)
10
Understanding The Airbag Function..............................................................................................................
Refer (P.g. 7-1)
11
If Your Vehicle Is Submerged...........................................................................................................................
Refer (P.g. 15-8)
12
Driving Through Water.......................................................................................................................................
Refer (P.g. 15-9)
13
Opening And Closing The Hood/Bonnet.....................................................................................................
Refer (P.g. 19-4)
14
Location Of Battery And Its Maintenance..................................................................................................
Refer (P.g. 19-13)

*Warranty Information & Maintenance Guide

1 INTRODUCTION AND SAFETY PRECAUTIONS
1.1 Introduction
Dear Customer,
Congratulations on purchasing Mahindra MARAZZO. Your vehicle has been designed to provide years of safe and dependable service, as long as it is used and maintained in accordance with the instructions provided in this manual.
All persons who will use and/or maintain this vehicle must read, understand and follow all warnings and instructions provided in this manual. This Owner's Manual should be considered an integral part of the vehicle and should remain with the vehicle. However, nothing in this manual, and none of the safety devices installed in the vehicle, are a substitute for careful operation and common sense. Always make sure that your vehicle is in optimum working order, and take note of the road and weather conditions under which you are using your vehicle.
If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. For list of Mahindra Authorised dealers visit our website.
https://www.mahindramarazzo.com
Alternatively, you can contact Mahindra at:
•  1800-209-6006 (Toll free)
•  customercare@mahindra.com
We extend our best wishes for safe and pleasurable motoring.
Sincerely,
MAHINDRA & MAHINDRA LTD
Graphic
Servicing and Summary Data
•  For all issues concerning the vehicle and for any need of spare parts, contact only the Authorised Mahindra Dealer network
•  We recommend you always use genuine Mahindra spare parts when performing repairs on the vehicle
•  We suggest that you record the vehicle data in the Warranty and Information Guide for future references
1.2 Safety Symbols
Carefully read, understand and follow the safety symbols/ instructions given in this manual.
Legend of the Symbols
To emphasise information and procedures regarding safety, use, maintenance, etc., the following symbols are used throughout the manual:
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.
NOTICE indicates important information relevant to the vehicle, the vehicle's use or to sections of this manual to which particular attention must be paid for optimum use of the vehicle.
If you see this symbol, it indicates “no,” “do not,” “do not do this,” or “never”.
Graphic
1.3 General Safety Information and Instructions
Failure to follow the warnings and instructions provided in this manual could result in failure of the vehicle, an accident and/or serious personal injury.
1. Carefully read, understand and follow the warnings and instructions given in this manual. This manual is an essential part of the product. Keep it in the vehicle’s glove box for future reference.
2. First-aid kit placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point in time.
3. Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage.
4. Never use a mobile phone or any device with headphone while driving. This may take your focus off the road and lead to accidents.
5. Please be advised that many service and repair tasks require specialised knowledge, tools and experience. General mechanical aptitude may not be sufficient to properly service or repair your vehicle. If you have any doubt whatsoever regarding the ability to properly service or repair your vehicle, please contact your Authorised Mahindra Dealer or a qualified technician.

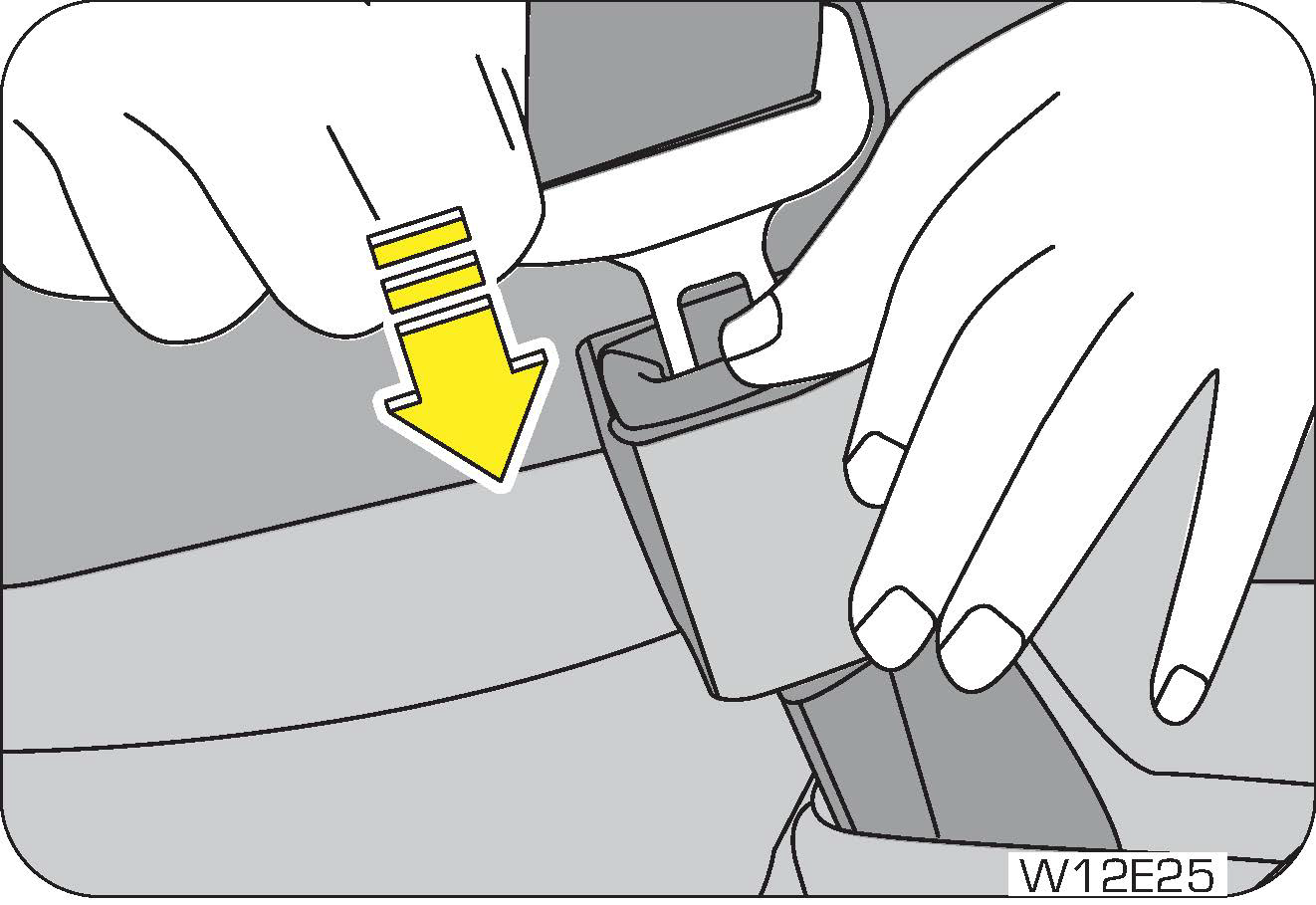

6. Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately.
7. Always start and operate the engine in a well-ventilated area. If in an enclosed area, vent the exhaust to the outside. Do not modify or tamper with the exhaust system.
8. Examine tyres for excessive tread wear and uneven wear patterns. Check for stones, nails, glass, or other objects lodged in the tread and check sidewalls for any cuts, cracks, or other signs of wear. Replace as necessary.
9. Always maintain the safety labels affixed to your vehicle in a good legible condition.
10. All signal lamps, buzzers, shields, guards and other protective safety devices must always remain in place and in good, proper working condition.
11. The lifespan of Mahindra products depend on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by an Authorised Mahindra Dealer or a qualified mechanic. If the inspection reveals any damage or excessive wear, immediately replace or have the component serviced.
12. We recommend that you use only genuine parts supplied by Mahindra. The use of non-Mahindra parts will not be covered by warranty.
13. Never crawl under or be in close proximity to the vehicle when it is lifted off the ground (by a jack), unless the vehicle is properly supported with jack stands, wheel chocks and other appropriate safety devices.
14. Never attempt any repairs or adjustments to any component while the vehicle is in motion. Always switch off the engine, and wait for the engine to come to a complete stop before performing any repairs or adjustments.
15. The vehicle identification plates are the only legal identification reference, hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. The customer is responsible for any possible tampering with the plates, which will immediately void the warranty.
16. Do not attempt sharp turns, abrupt manoeuvres, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the centre of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier.
1.4 To Owners of a Mahindra Vehicle
When first driving the vehicle after long periods of non-use, you may experience a temporary drive disturbance. This is a characteristic of the tyres and should be no reason for concern. The condition should correct itself within 5-15 kms. of driving. If the disturbance persists, have the tyres checked by an Authorised Mahindra Dealer.
Driving and Alcohol
Your driving ability can be seriously impaired by alcohol even if the blood alcohol level is far below the legal minimum. Drunken driving is one of the most frequent causes of accidents.
Never drink and drive. Drinking and driving will lead to an accident resulting in serious personal injury.
Driving and Drugs/Medication
Your driving ability can be seriously impaired through the use of prescription or non-prescription drugs or medication (even cough syrup). If you are taking any sort of drug or medication, be sure that it will not affect your driving ability.
Mobile Phones Warning
Use of electronic devices such as mobile phones, computers, portable radios or other by the driver while driving is dangerous. In exceptional condition, if use of a mobile phone is necessary despite this warning, use a handsfree system to ensure that the hands are free to drive the vehicle. Even handsfree do not ensure that due to distraction an accident will not happen.
Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country.
Driving Long Distances
When you are driving over long distances, follow these tips so that you have a safe journey:
•  Lack of sleep or fatigue will impact your ability to drive safely
•  Exercise your eyes by shifting the focus of your eyes to different parts of the road
•  Use stimulating beverages such as coffee or tea
•  Relax and stay calm
•  Take breaks at regular intervals
Protecting Our Environment
All of us should play our part in protecting our environment. Judicious vehicle usage and ensuring hazardous waste disposal (including cleaning and lubrication fluids) are important steps towards this initiative.
Mahindra vehicles conform to existing emission norms (standards). Adhering to the periodical maintenance schedule and using Mahindra genuine parts will help retain emission performance of the vehicle and is a pre-requisite for emissions warranty coverage.
Servicing
If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. A list of dealers can be found in the Dealer Directory Supplement or on the Internet.
Alternatively, you can contact us on 1800-209-6006 / customercare@mahindra.com.
Running-in
Driving smoothly during first 1,000 kms. will help to prevent abnormal and premature system wear. Proper running-in will improving the life of drivetrain and vehicle components.
A new engine may consume more oil during the first 1,000 kms. of running. This should be considered as a normal part of break-in and not interpreted as any problem with the engine.
Mahindra Genuine Parts
Mahindra uses high quality parts for building the vehicles.
In the event that any parts need replacement, we recommend that you use only Mahindra genuine parts.
Non-Mahindra parts may harm vehicle performance and will not be covered by your Mahindra warranty.
To avoid counterfeit parts and to protect our brand image, Mahindra genuine parts are packed in a branded carton. Look for the “Mahindra Genuine Parts” logo.
Graphic
Any unauthorised modifications or alterations to this vehicle or failure to use appropriate specification and quality spare parts could seriously affect vehicle roadworthiness and safety leading to an accident, resulting in serious injury.
Mahindra Genuine Accessories
A wide selection of quality accessories are available through your Authorised Mahindra Dealer. These accessories have been specifically engineered to allow you to personalise your vehicle to suit your requirements and complement its style and aerodynamic appearance.
Each accessory is made from high quality materials and meets Mahindra's rigid engineering and safety specifications. Every Mahindra accessory installed according to the Mahindra installation provisions comes with the respective accessory warranty.
Consult your Authorised Mahindra Dealer for detailed information about accessories available for your specific model variant.
For maximum vehicle performance and safety considerations, always keep the following information in mind:
•  The company does not take any responsibility for consequential damages / injuries resulting due to fitment of unauthorised aftermarket accessories and / or tapping / cutting wires in the wiring harness
•  When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Authorised Mahindra Dealer for specific weight information
•  Bull bars and nudge guards are not recommended
•  Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems
•  Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Authorised Mahindra Dealer
Vehicle Safety
When leaving your vehicle unoccupied:
•  Always remove the ignition key when you park the vehicle
•  Close all the windows completely and lock all the doors
•  Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors
1.5 Audio/Infotainment Manual
Please refer the user e-manual in infotainment for details regarding:
•  Audio/Video functions
•  Bluetooth functions
•  Navigation (if equipped)
•  Map upgradation details
•  Handsfree usage
To upgrade the maps in your navigation system (if equipped), please refer the Infotainment manual.
2 GENERAL
2.1 Feature Matrix

In view of the policy of continuously improving our products, we reserve the right to alter specifications or designs without prior notice and without liability/obligation. Illustrations do not show the vehicle in the standard form. Please be aware that this manual may apply to various models/variants. As a result you may find some explanations for equipment not installed on your vehicle. All the information, illustration, and specifications in this manual are based on the latest product information available at the time of publication.
We recommend you to contact the nearest Authorised Mahindra Dealer for latest features applicable to your vehicle.
FEATURE
M2
M4+
M6+
Technology
Driver Information System (DIS)
4.2" Monochrome IBN Negative Screen
4.2" Monochrome IBN Negative Screen
4.2" IPS Colour TFT Screen
Mahindra Blue Sense App

ü
ü
Take Rest Reminder
(@200 km/2.5 hrs non-stop driving whichever is early)

ü
ECO Sense *

ü
Turn by Navigation indicator in Cluster (With onboard Navigation)

ü
18 CM (7") Colour touch screen infotainment Display with GPS. USB (Audio/Video), Bluetooth Audio, Handsfree Call, IPOD connectivity & Picture Viewer, Configutable Wallpaper

ü
Audio System With FM/AM+AUX+USB+iPOD+MP3

4.2"
Audio System
7"
Resistive Feather Touch
SMS Read Out

ü
E-Manual

ü
Micro Hybrid Technology (Engine Stop/Start)*
ü
ü
ü
Global Light intensity control

ü
Cornering Lamp

ü
Engine Immobiliser
ü
ü
ü
Roof Antenna(Rod Type)

ü
ü
Personal Reminder
(Anniversary, Birthday, Vehicle Anniversary)

ü
Service Reminder
ü
ü
ü
Fuel Level Remider
ü
ü
ü (with voice alert)
Park Lamp - On Reminder
ü
ü
ü
Clock
Digital
Digital
Digital / Analog
Stopwatch

ü
Overspeed Warning
ü
ü
ü
Comfort
Steering Mounted Audio, Phone & Cluster Controls

Audio Controls only
ü
HVAC
Manual
Manual
FATC
Rear Air-Conditioner (Diffused Air Circulation)
(2nd & 3rd Row On Roof)
ü
ü
ü
Electric Power Assisted Steering (EPAS)
ü
ü
ü
Adjustable ORVMs
Manual
Electric
Electric
Seat Upholstery
Fabric
Fabric
Premium Fabric
Seat Height Adjustment Front Row

Driver Seat
Driver Seat
Multi-Point Lumbar Support Front Row

ü
Style
Alloy Wheels

16”
17”
Spare Wheel
16” Steel
16” Steel
16” Steel
Front & Rear Fog Lamps
(With Access Cover for Tow Hook)
ü
Convenience
Power Windows
ü
ü
ü
Power Windows With Express Up-Down & Anti-Pinch
Driver Side Only
Central Locking Including Lift Gate
ü
ü
ü
Flip Key - RKE
ü
ü
ü
Conversation Mirror

ü
Illuminated Passenger Side Vanity Mirror

ü
Front Power Outlet
12V Socket
12V Socket,
1 USB
12V Socket,
1 USB
Front Media Outlet
1 USB, 1 AUX
1 USB, 1 AUX
Rear Power Outlet (1 USB Charging only)
ü
ü
ü
Rear Wiper & Washer

ü
ü
Head Lamps
(Twin Chamber - Multi Focal Reflectors Halogen)
ü
ü

Head Lamps
(Twin Chamber With Projector Low Beam)

ü
Luggage Lamp

ü
Follow-Me-Home Head Lamps

ü
3rd Row Reading Light

ü
Fuel Lid Opener - Push To Open
ü
ü
ü
Bottler Holders 2 Front & 2 Rear
ü
ü
ü
Sunglass Holder

ü
Moulded Storage on Frt & rear door for map / magazine with integrated cup / bottle holder
ü
ü
ü
Centre Console
With Storage compartment and cup holders
With Storage compartment and cup holders
Storage bin + Cup holder + Tambor door
ECO Mode*
ü
ü
ü
Safety
Dual Airbags (Driver & Co-Driver)
ü
ü
ü
Passenger Airbag OFF Switch & Indication
ü
ü
ü
ABS With Electronic Brake Distribution (EBD) &
Brake Assist (BA)
ü
ü
ü
ISOFIX Child seat Mount (2nd Row Outboard Side)
ü
ü
ü
Child Safety Lock on Rear Doors
ü
ü
ü
Reverse Park Assist System (RPAS)
ü
ü
ü
Rear Camera With Steering Adaptive Parking Guidelines Display

ü
Impact Sensing Auto Door Unlock
ü
ü
ü
Speed Sensing Auto Door Lock
ü
ü
ü
Rear Defogger With Auto Timer

ü
ü
Car Theft Alarm

ü
ü
Emergency Call

ü
Side Impact Beams
ü
ü
ü
Crumple Zones for Crash Protection
ü
ü
ü
Seat Belt Remainder Alert For Driver and Front Passenger Seat
ü
ü
ü
2.2 Dimensions
Dimension & Weights
mm
Wheel Base
2760 mm
Overall Length
4585 mm
Overall Width
1866 mm
Overall Height
1774 mm
Track Width (Front & Rear)
1600 mm
2.2.1 Front View
Graphic
2.2.2 Rear View
Graphic
2.2.3 Side View
Graphic
2.3 Bulb Specification
Lamp Bulb
Wattage
Bulb Type
No. of Bulbs per Vehicle
Head Lamp - High Beam
12V 55W
H7 55W
2
Head Lamp - Low Beam
12V 55W
H7 55W
2
Turn Signal Lamp (Front)
12V 21W
WY21W
2
Position Lamp
12V 5W
W5W
2
Front Fog/Cornering Lamp
12V 35W
H8 35W
2
Stop Lamp
12V 21W
P 21W/5W
2
Turn Signal Lamp (Rear)
12V 10W
WY10W
2
Reverse Lamp
12V 10W
W10W
2
Parking Lamp (Rear)
12V 5W
P 21W/5W
2
Fog Lamp (Rear)
12V 21W
P21W
2
2.4 Fuses & Relays
A fuse is the most common electric protection device. A fuse is placed in an electrical circuit, so that when current flow exceeds the rating of the fuse, it blows off.
The element in the fuse melts, opening the circuit and preventing other components of the circuit from being damaged by the over current. The size of the metal fuse element determines the rating. Once a fuse blows off, it must be replaced with a new one.
Switch the ignition and all electrical equipment OFF before touching or attempting to change a fuse.
The replacement fuse rating should be the same as the one you are replacing.
You can identify a blown fuse by a break in the filament. All fuses except high current fuses are push fit. A fuse puller should be used to remove the fuse from its position.
Fuse puller is available at both Engine compartment and Instrument panel fuse boxes.
Graphic
Graphic
2.4.1 Engine Compartment Fuse Box
Engine compartment fuse box is located adjacent to vehicle battery.
Graphic
To open the fuse box cover press the lock on engine side and push the cover back and lift it.
Graphic
Spare fuses are provided in the fuse box for replacement of blown fuses. Ensure the correct rating fuse is replaced with the blown fuse.
Fuse Layout :
Graphic
FUSES
FUSE NO.
CIRCUIT
FUSE RATING
F1
CAB BATT. 1
60A
F2
GLOW PLUG
40A
F3
CAB BATT. 2
60A
F4
STARTER SOLENOID
40A
F5
ABS MOTOR
40A
F6
EMS
40A
F7
COOLING FAN
60A
F8
ABS SOLENOID
25A
F9
CAB BATT. 3
60A
F10
AMT BAT1
30A
F11
NOT USED
NOT USED
F12
H/L HIGH BEAM
15A
F13
H/L LOW BEAM
15A
F14
HORN
15A
F15
FOG/CORNERING LAMP
10A
F16
EMS B+
5A
F17
NOT USED
NOT USED
F18
NOT USED
NOT USED
F19
NOT USED
NOT USED
F20
NOT USED
NOT USED
F21
SCR
5A
F22
AMT BAT2
15A
F23
FUEL FEED PUMP
15A
F24
AC CLUTCH
10A
F25
NOT USED
NOT USED
F26
EMS BATT. 1
10A
F27
NOT USED
NOT USED
F28
NOT USED
NOT USED
F29
STOP LAMP
15A
F30
NOT USED
NOT USED
F31
EMS BATT. 2
15A
F32
NOT USED
NOT USED
F33
**
15A
RELAY NO.
CIRCUIT
RELAY TYPE/RATING
R1
COOLING FAN LOW RELAY
ISO MAXI/12V-70A
R2
GLOW PLUG RELAY
ISO MAXI/12V-70A
R3
COOLING FAN HIGH RELAY
ISO MAXI/12V-70A
R4
STARTER SOLENOID RELAY
ISO MINI/12V-40A
R5
BREAK LAMP RELAY
ISO MINI/12V-40A
R6
NOT USED
NOT USED
R7
EMS ECU RELAY
ISO MINI/12V-40A
R8
NOT USED
NOT USED
R9
HEAD LAMP LOW BEAM
ISO MICRO/12V-20A
R10
HORN RELAY
ISO MICRO/12V-20A
R11
FRONT FOG LAMP RELAY RH
ISO MICRO/12V-20A
R12
SCR RELAY
ISO MICRO/12V-20A
R13
AC COMPRESSOR RELAY
ISO MICRO/12V-20A
R14
FRONT FOG LAMP RELAY LH
ISO MICRO/12V-20A
R15
FUEL FEED PUMP RELAY
ISO MICRO/12V-20A
R16
HEAD LAMP HI BEAM
ISO MICRO/12V-20A
2.4.2 Instrument Panel Fuse Box
This fuse box as located below the Instrument panel on the driver side. To access the fuse box, pull out the top panel as shown in image to access the fuse box.
Graphic
Fuse puller is available at the left side of fuse box.
Graphic
Fuse Layout :
Graphic
FUSES
FUSE NO.
CIRCUIT
FUSE RATING
F34
POWER WINDOW MASTR
40A
F35
BLWR
40A
F36
B+ MBFM-2
5A
F37
B+ DIAGNOSTIC
5A
F38
B+ INFOTAINMENT
15A
F39
CRANK AMT/EMS
5A
F40
PARK
10A
F41
TAILGATE ACTUATOR
10A
F42
IGN EPS
5A
F43
POWER FOLD/ANTI PINCH
15A
F44
B+ MBFM-1
20A
F45
B+ IMMO/ ITS
5A
F46
B+ IC/FATC
10A
F47
ORVM SW IP, HL COMBI IP, RR AC RL COIL IP, FR BLWR RLY COIL IP, DEMISTR RLY COIL IP
10A
F48
IGN ITS/RVC/INFO/FRNT & RR USB ILLUMNTN
5A
F49
AIRBAG
10A
F50
IGN ABS
5A
F51
REAR FOG
10A
F52
REAR DEFOGGER
20A
F53
KEY IN
5A
F54
INTERIOR LAMP
10A
F55
REVERSE
10A
F56
ACC INFOTAINMENT
5A
F57
IGN MBFM/IC/FATC
5A
F58
POWER WINDOW REAR
30A
F59
REAR AC
30A
F60
B+ MBFM-3
20A
F61
NOT USED
NOT USED
F62
POWER ECO/PAB LED
5A
F63
REAR WIPER
10A
F64
IGN IMMO/EMS
10A
F65
P/O FRONT
15A
F66
ACC FATC/MBFM
5A
F67
WIPER FRONT
25A
F68
IGN AMT
10A
SPARE
5A
SPARE
15A
SPARE
20A
SPARE
25A
SPARE
30A
RELAYS
RELAY NO.
CIRCUIT
RELAY RATING
R9
BLOWER RELAY
ISO MINI/12V-40A
R10
REV RELAY (AMT)
ISO MINI/12V-40A
ACCESORY CUT OFF RELAY NORMALLY CLOSED (MT)
R11
DEMISTER RELAY
ISO MICRO/12V-20A
R12
LIFT GATE RELAY
ISO MICRO/12V-20A
2.4.3 Battery Mounted Fuse Box
The battery mounted fuse box is connected to the positive terminal of the battery. Functionality of this battery mounted fuse box is to provide short circuit protection to alternator, power supply to engine compartment fuse box and also to the EPS motor.
Graphic
Battery mounted fuse box consists of following fuses:
In the above image– 80 amp (Pos D) fuse connects to engine room fuse box.
150 amps (Pos B) fuse connects to alternator B positive.
80 amps (Pos A) fuse connects to EPS motor.
2.5 Flat Tyre
In case of a flat tyre during driving, reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place well away from traffic. Park on a level spot with firm ground. Stop the engine and turn ON your hazard warning flashers.
Firmly apply the parking brake. Have everyone come out of the vehicle on the side away from traffic.
Never stop your vehicle in a traffic lane to change a tyre. Risk of being hit by an oncoming vehicle. Keep driving until you reach a safe location.
Lifting a vehicle to change a tyre or perform maintenance is very dangerous if you do not have the requisite tools, safety equipment and training. The jack provided along with the vehicle is to be used only for changing a spare tyre. It is never to be used to perform any other maintenance or repair on the vehicle.
Never place any part of your body under any portion of the vehicle when it is supported only by the jack. You could be crushed by the vehicle if it falls off a jack. Keep bystanders away from the vehicle.
Find level, solid ground that is clear of oncoming traffic. If you cannot find a safe place to stop, it is better to drive on a flat tyre and damage the rim than it is to risk being hit by oncoming traffic.
After changing a flat tyre, never store the tyre or other equipment in the passenger compartment of the vehicle. This loose equipment could strike an occupant in the event of a sudden stop or collision. Store all of these items in the proper place.
The following sections outline the procedure for changing a flat tyre;
2.5.1 Tool Kit
The tool kit is located in under the second row right side seat.
Graphic
The tool kit consists of the following tools packed in a PVC tool bag:
•  Screw Driver
•  Jack Operating Lever
•  Tow Bar
•  DEO Spanner 10mm x 12mm
•  Wheel Spanner
Graphic
A
PVC Bag
D
Tow Bar
B
Screw Driver
E
Deo Spanner 10mm X 12mm
C
Jack Operating Lever
F
Wheel Spanner
Jack is located on the left side of the luggage compartment. To remove the Jack out follow the below process:
•  Fold the 3rd row Left side seat and pull out the trim cover snaps as shown in the illustration
•  Unstrap the Velcro which holds the jack
Graphic
Graphic
•  Lift the jack upwards inside the trim
•  Slide the bottom of jack towards out of the trim and take out.
Graphic
Graphic
2.5.2 Spare Wheel Removal
Spare wheel is located below the floor at the rear end of the vehicle. It is held in place by a securing nut underneath the rear luggage compartment floor carpet.
Follow the below steps to remove the Spare wheel from vehicle:
•  Locate the plug covering the securing nut on the rear end panel trim.
•  Remove the plug using flat screw driver or a coin by rotating in anti-clockwise direction
Graphic
Graphic
•  Rotate and Loosen the securing nut counter clockwise to winch down/lower the secured spare wheel to the ground
Graphic
Graphic
•  Remove the securing bracket by tilting it and take out of the spare wheel hub
Graphic
•  Remove/pull away the spare wheel out of vehicle
2.5.3 Wheel Nut Loosening
Center Wheel Cap (If applicable) - Remove the wheel cap by inserting the flat screw driver in the slot provided in wheel cap .
Graphic
Full Wheel Cover (If applicable) - Remove the full wheel cover by pulling the lugs of the wheel cover.
Graphic
Do not try to pry off the wheel cover by hand alone. Take due care in handling the wheel cover to avoid unexpected personal injury.
Always loosen the wheel nuts before raising the vehicle. Turn the wheel nuts counter clockwise to loosen. To get maximum leverage, fit the spanner to the nut so that the handle is on the right side. Grab the spanner near the end of the handle and push down on the handle. Be careful that the spanner does not slip off the nut. Do not remove the nuts, but loosen them by one or two turns.
Graphic
Do not apply force with your legs (or stand) on the wheel spanner while tightening the wheel nuts.
Block the wheel diagonally opposite the flat tyre to keep the vehicle from rolling when it is jacked up. When blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.
2.6 Jack Points
Front jack up point - On the chassis long member behind the front wheels.
Rear jack up point - On the chassis long member in front side of rear wheels.
Graphic
Graphic
2.6.1 Jacking
Position the jack at the correct jacking point. Make sure the jack is positioned on a level and solid ground. Ensure that no one is in the vehicle.
Block the wheel diagonally opposing the flat tyre to keep the vehicle from rolling when it is jacked up. While blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.
Graphic
A
Flat Tyre
B
Chock Blocks
To raise the vehicle, insert the jack handle into the jack and rotate it clockwise with the wheel spanner(Insert the slot provided in wheel spanner and jack handle end). As the jack touches the vehicle and begins to lift, check that it is properly positioned. Raise it high enough so that the spare tyre can be installed. Remember that you will need more ground clearance when putting the inflated spare tyre than when removing the flat tyre.
Make sure to locate the jack properly in the jacking point. Raising the vehicle with an improperly positioned jack will damage the jack and may allow the vehicle to fall off the jack and cause personal injury.
•  Use the jack only for lifting the vehicle during wheel changing
•  Do not raise the jack with any person inside the vehicle
•  When raising the vehicle, do not place any objects on top of or underneath the jack
•  Raise the vehicle only high enough to remove and change the wheel
•  Follow jacking instructions
•  Do not start or run the engine while your vehicle is supported by the jack
Never get under the vehicle when the vehicle is supported by the jack alone.
Remove the wheel nuts. Remove the flat tyre straight off and then place it aside. Roll the spare wheel into position and align the holes of the disc with the bolts. Lift the wheel and hand tighten the top wheel nut. Wiggle the wheel and press it back over the other bolts.
Re-instal the wheel nuts with the tapered end inward and tighten by hand. Press the wheel inward and tighten the wheel nuts further.
Before lowering the wheel, hand tighten the nuts in diagonal sequence so that wheel is flush against the hub/drum.
Graphic
Never use oil or grease on the bolts or nuts. Doing so may lead to over tightening of the nuts, wheel nut spanner slip, damage the bolts and also may cause personal injuries. Also, nuts may loosen and the wheels may fall off, which could cause a serious accident. If there is oil or grease on any bolt or nut, clean before installing wheel nuts.
Rotate the jack handle anti clockwise using the wheel spanner to lower the vehicle, making sure the handle remains firmly fitted onto the wheel spanner. Lower the vehicle completely and tighten the diagonally opposite wheel nuts using the wheel nut spanner. Make sure the wheel spanner is securely engaged over the nut. Tighten each nut a little at a time in the diagonally opposite order as shown. Repeat the process until all the nuts are tight. Do not use any other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot.
Graphic
Firmly tighten the wheel nuts as per the sequence shown in the illustration , two to three times.
Improperly or loosely tightened wheel nuts are dangerous. The wheel can wobble or come off. This can result in loss of vehicle control and cause a serious accident. Always make sure all the wheel nuts are properly/securely tightened to the specified torque.
When lowering the vehicle, make sure all portions of your body are clear off the vehicle as it is lowered to the ground. Have the wheel nuts tightened with the torque spanner to 120 Nm, as soon as possible after changing wheels.
If you have rotated, repaired, changed your tyres or changed the wheel rims, re-torque the wheel nuts after driving about 1,000 kms (Torque 120 Nm).
Put the wheel cap (if equipped) into position aligning the nozzle on the wheel to the nozzle clearance on the wheel cover. Tap it firmly on the sides with your hand to snap it into place.
Check the air pressure of the replaced tyre. If the pressure is lower than recommended, drive slowly to the nearest service station and inflate to the correct pressure. If it is too high, adjust it until it is correct. Always re-instal the valve cap after checking or adjusting tyre pressure. If the cap is not replaced, dirt and moisture could get into the valve core and cause air leakage. If you lose a valve cap, buy another and instal it as soon as possible.
Wheel balancing and Wheel Alignment to be done after tyre puncture rework.
Steering centering calibration (Steering Angle Sensor) to be performed if you have done Wheel Alignment, repaired, changed your tyres or changed the wheel rims. Contact an Authorised Mahindra Dealer for assistance.
2.7 Restore all the Tools, Jack and Flat Tyre Securely
Restore the tools and Jack in their respective storage locations.
Graphic
Jack Re-fitment:
•  Insert the jack by sliding the top portion inside the trim
•  Lift the jack upwards inside the trim
•  Tighten the Strap of the Velcro with the jack
•  Fix the trim cover and unfold the 3rd row left seat
Align the spare wheel bracket to the centre hub of the wheel. Winch up the flat tyre to the floor at the rear of the vehicle. Firmly tighten the securing nut and refit the plug on the rear end panel trim.
Graphic
Graphic
Double check to ensure the tyre is snug against the rear floor of the vehicle. The spare wheel bracket/cable may be damaged if the vehicle is driven with the spare wheel loosely mounted.
Drive slowly to the nearest service station and inflate to the correct pressure. Always reinstall the valve cap after checking or adjusting tyre pressure, dirt and moisture could get into the valve core and cause air leakage or valve damage.
Replace the original tyre once punture/rework done. Provided spare wheel in the vehicle should be used only as temporary.
2.8 Vehicle Identification Number (VIN)
Graphic
Vehicle Identification Number (VIN) is the legal identity of your vehicle. The vehicle identification number is stamped on the VIN plate riveted on to the bottom of the B-Pillar on the driver side.
2.9 Engine Number
Graphic
The engine number sticker is pasted on top of cam cover. The engine number is also stamped on the VIN plate riveted on to the bottom of the B-Pillar on the driver side.
2.10 Technical Specifications
Technical Specifications
ENGINE
D15 1.5 Litre
Displacement/Cubic Capacity
1497 cc
Type
DI Turbocharged Intercooled
Compression Ratio
16 (± 0.5): 1
Max. Engine output, (kW @ RPM)
90.2 kW @ 3500 RPM (Power Mode)
73.3 kW @ 3500 RPM (Economy Mode)
Max. Torque (Nm @ RPM)
300 Nm @ 1750 - 2500 RPM
200 Nm @ 1575 - 3000 RPM
TRANSMISSION
Type
Manual Transmission (MT)
No. of Gears
6 Forward, 1 Reverse
STEERING
Type/Description
Electric Power Assisted Steering
Steering Wheel Diameter
385±3
BRAKES
Service Brake
Hydraulic Vacuum Assisted with ABS Function
Front
Disc
Rear
Disc
Parking Brake
Mechanical, Acting on rear Wheels
WHEELS & TYRES
Rim
6JX16 – Steel / 6.5JX16 - Alloy, 6.5JX17 - Steel / 6.5Jx17 - Alloy
Tyres
P215/65 R16 98 H /T, P215/60 R17 96 H
Type
Radial Tubeless
Laden Tyre Pressure
(front & rear), (kg/cm 2)
Front - 2.25 kg/cm 2, Rear - 2.25 kg/cm 2 ( for R16 tyre)
Front - 2.46 kg/cm 2, Rear - 2.46 kg/cm 2 ( for R17 tyre)
FUEL
Fuel Capacity
45 litres
ELECTRICAL SYSTEM
System Voltage
12V
Battery
65Ah
3 VEHICLE OVERVIEW
3.1 Front Overview
Graphic
A
Hood
B
Windshield Wiper
C
Front Windshield
D
Outside Rearview Mirror (ORVM)
E
Side Indicator Lamp
F
Head Lamp Low Beam
G
Parking Lamp / DRL*
H
Fog Lamp* / Cornering Lamp*
I
Head Lamp High Beam
J
Front Indicator Lamp
* if equipped
3.2 Rear Overview
Graphic
A
Rear Windshield / Demister
B
High Mounted Stop Lamp
C
Roof Antenna*
D
Rear Wiper*
E
Rear Parking Lamps
F
Reverse Lamp
G
Brake/Park Lamp
H
Rear Fog Lamp*
I
Rear Turn Indicator
J
Rear Camera*
* if equipped
3.3 Instrument Panel Overview
Graphic
A
Side Vents
L
ESS (Engine Stop Start)
B
Side Defrost Vents
M
Accelerator/ Brake/ Clutch Pedal*
C
Windshield Defrost Vents
N
Parking Brake
D
Front Co-passenger Airbag
O
Power Outlet/ AUX/ USB Port*
E
Infotainment Screen *
P
Storage box with Tambour Door
F
Centre Vents
Q
USB Charger*
G
Steering Controls*
R
Gear Lever / TGS Lever*
H
Instrument Cluster
S
Hazard Switch
I
Horn Pad/Driver Airbag
T
HVAC Controls
J
Steering Wheel
U
Glove Box
K
ECO* / Head Lamp Levelling Switches
* if equipped
4 INSTRUMENT CLUSTER OVERVIEW
4.1 Instrument Cluster
TFT Type
Graphic


LED Type
Graphic
A
Tachometer
D
Fuel Gauge
G
Gear Indicator
B
Temperature Gauge
E
Speedometer
H
Mode Switch
C
Warning/Tell-tale Lamps
F
Odometer / Tripmeter
I
Set Switch

4.2 Warning Lamps Overview
Graphic
4.3 Warning Lamps
Sr. No.
Symbol
Warning Lamp/Tell-Tale
Lamp Pre-check
Lamp Status while Engine running
Action/Remarks
A1
Graphic
DPF Indicator Lamp
Yes
Continuously ON
If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
A
Graphic
Left Turn Indicator
No
Slow or Fast Blinking
Indicates left turn lamp is blinking
Slow Blinking: Normal operation
Fast Blinking: One /more left turn lamp bulb has fused. Have the bulb replaced
B
Graphic
ECO Lamp
No
Continuously ON
Indicates that your vehicle is running in Economy mode. If lamp does not turn ON after pressing ECO switch or If lamp ON without pressing ECO switch, contact an authorized Mahindra dealer immediately
C
Graphic
Airbag Warning Lamp *
For about 2 secs.
Continuously ON
Indicates malfunction of the airbag system. Contact an Authorised Mahindra Dealer immediately
D
Graphic
ABS Warning Lamp
For about 2 secs.
Continuously ON
Indicates malfunction of the ABS system. Contact an Authorised Mahindra Dealer immediately
E
Graphic
Right Turn Indicator
No
Slow or Fast Blinking
Indicates right turn lamp is blinking
Slow Blinking: Normal operation
Fast Blinking: One / more right turn lamp bulb has fused. Have the bulb replaced
F
Graphic
Battery Charging System Warning Lamp
Continuously ON till Engine
Continuously ON
Indicates malfunction in charging system. Contact Authorised Mahindra Dealer for assistance
G
Graphic
Water-in-Fuel
Yes
Continuously ON
Indicates water-in-fuel. Drain the water from filter or contact an Authorised Mahindra Dealer for assistance
H
Graphic
EPS Warning Lamp
After Pre-check Continuously ON till Engine Starts
Continuously ON
Indicates malfunction on Electronic Power steering system. Contact an Authorized Mahindra dealer immediately.
I
Graphic
Vehicle Armed Status Lamp
No
Blinking
Slow Blinking: Vehicle is armed with the remote
Fast Blinking/Continuously ON: Indicates a system malfunction
Contact an Authorised Mahindra Dealer immediately
J
Graphic
Parking Lamp
No
Continuously ON
Indicates Parking Lamp is ON
K
Graphic
Front Fog Lamp Indicator *
No
Continuously Lamp ON
Indicates front fog lamp is ON
L
Graphic
Start/Stop Lamp*
No
Continuously ON or Blinking
Continuously ON: Engine is in auto stop mode
Blinking: Stop/Start is about to stop the engine
Fast Blinking: Stop/Start is inhibited due to unhealthy battery conditions
M
Graphic
High Engine Coolant Temperature Warning Lamp
Yes
Continuously ON
Engine temperature very high. Contact Authorised Mahindra Dealer immediately
N
Graphic
Rear Fog Lamp Indicator *
No
Continuously ON
Indicates rear fog lamp is ON
O
Graphic
Door Ajar Warning Lamp
No
Continuously ON
Indicates one or more doors and/or boot/hood are open
P
Graphic
Parking Brake ON/Brake Fluid Low Warning Lamp
Yes
Continuously ON
Either one of below conditions:
1. Park Brake might be engaged
2. Brake fluid level might be low
Q
Graphic
Low Fuel Warning Lamp
No
Continuously ON
Indicates fuel level has reached the reserve level. Re-fuel immediately.
R
Graphic
Low Engine Oil Pressure Warning Lamp
Continuously ON till Engine Starts
Continuously ON
Indicates engine oil pressure is low. Check oil level and top-up or contact an Authorised Mahindra Dealer for assistance
S
Graphic
OBD Check Lamp
Continuously ON till Engine Starts
Continuously ON
There is a potential malfunction related to emission system, contact an Authorised Mahindra Dealer immediately
T
Graphic
Seat Belt Warning Lamp
Yes
Continuously ON
If tell-tale is not turning OFF even after fastening the seat belt, contact an Authorised Mahindra Dealer for assistance
U
Graphic
Check Engine Lamp
For about 2 secs.
Continuously ON or Blinking
Indicates a potential malfunction in the EMS, contact an Authorised Mahindra Dealer immediately
V
Graphic
Glow Plug Indicator
For about 2 secs.
Continuously ON
Indicates a malfunction in the starting system. Contact an Authorised Mahindra Dealer immediately
W
Graphic
Cruise Control Indicator *
Yes
Continuously ON
Indicates vehicle is in Cruise mode
X
Graphic
Head Lamp High Beam Lamp
No
Continuously ON
Indicates Head lamp high beam is ON
Y
Graphic
REGEN Indicator
No
Continuously ON/Blinking
It indicates the DPF Manual Regeneration is Required.
It indicates currently DPF Manual Regeneration is in progress.
Z
Graphic
DEF Indicator Lamp
Yes
Continuously ON
It indicates that either DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the ‘EMISSION CONTROL SYSTEM”
* if equipped / select models or variants only
5 EMISSION CONTROL SYSTEM
The emission control system is a highly effective system which controls exhaust emissions from the engine and crucial for meeting emission norms specified by law.
Your vehicle is equipped with the following emission control systems for meeting BS VI emission norms.
1. Diesel Oxidation Catalyst (DOC)
2. Selective Catalytic Reduction(SCR)
3. Diesel Particulate Filter (DPF)
In order to ensure proper function of the emission control systems, it is mandatory to get your vehicle inspected and maintained by an authorized Mahindra dealer. The maintenance schedule in this manual need to be followed.
It is also extremely important to use correct grade of fuel, Confirming to IS 1460; 2017 BS VI Specification.
5.1 Diesel Oxidation Catalyst (DOC)
A diesel oxidation catalyst (DOC) is an after treatment component that is designed to convert carbon monoxide (CO) and hydrocarbons (HC) into carbon dioxide (CO2) and water (H2O).
5.2 Selective Catalytic Reduction(SCR)
Selective Catalytic Reduction (SCR) is an advanced active emission control technology system that injects a liquid-reducing agent through a special catalyst into the exhaust stream of a diesel engine. The reductant is called as Diesel Exhaust Fluid (DEF). The DEF sets off a chemical reaction that converts nitrogen oxides into nitrogen and water which is then expelled through the vehicle tailpipe.
5.2.1 Diesel Exhaust Fluid (DEF) MaxiCLEAN
To enable SCR system work efficiently and to ensure emission compliance, It is recommended to use MaxiCLEAN DEF meeting IS 17042 (or) ISO 22241 specification.
Refilling DEF is part of regular maintenance service. DEF consumption is highly dependent on driving conditions/pattern. It may be necessary to refill DEF reservoir in-between the scheduled service, You need to monitor DEF Indicator Tell Tale and symbols/text messages displayed on infotainment screen / Cluster.
MaxiCLEAN DEF is available at all the authorized Mahindra dealers in variable packs. Individual DEF Packs may have specific filler neck, for filling DEF in the vehicle. While refilling DEF, Ensure no spillage on the body of self and vehicle to avoid any stains or inconvenience.
It is unlawful to tamper with or remove any component of the after treatment system. It is strongly recommended not to use DEF which is not meeting above specification. Further, this may lead to emission non-compliance and warranty will be void.
•  Use Genuine DEF MaxiCLEAN always.
•  Incase of non-availability of above Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used.
•  Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.
•  Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.
•  DEF quality and purity can be ensured only if it is stored properly. Hence ensure the storage of DEF in cool, dry place between storage.
•  Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.
•  While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.
•  If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels.
•  DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged.
•  In such a case , do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance.
5.2.2 Contamination/ Incorrect DEF
In the event that incorrect or contaminated fluid is filled inside DEF Tank, contact an authorized M&M dealer to determine the appropriate repair direction.
5.2.3 Handling of DEF
•  Ensure that DEF does not come into contact with skin, eyes, or clothing
•  Keep DEF out of the reach of children
•  In case if any part of the body is in contact with DEF, clean affected area immediately with plenty of water
•  If DEF contacted with eyes, flush with plenty of water immediately and seek medical help.
•  If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical help.
•  Don’t store DEF refill containers inside the vehicle. Ammonia vapors may escape from container which have a pungent odor and are particularly irritating for skin, mucous membranes and eyes. Inhaling ammonia vapors may cause burning eyes, nose and throat, as well as cough and watering eyes.
•  When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.
•  If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed.
5.2.4 DEF Operating Condition
DEF will freeze at -11°C (12.2°F). This is natural phenomenon. The DEF system in the vehicle is designed considering this and does not require any external heating or additives to avoid freezing.
The Diesel Exhaust Fluid (DEF) system purges to prevent damage from freezing. Do NOT disconnect battery power within 20 minutes of switching the ignition key off. Failure to comply may result in vehicle or property damage.
5.2.5 Refilling DEF
Your Vehicle DEF Filler Neck is located near the Fuel filler Neck. The DEF storage tank is located under the body.
Following below steps to refill the DEF:
1. Park the vehicle on level ground and switch OFF the ignition.
2. Press the fuel lid gently once to open.
Graphic
3. Rotate the DEF filler cap in anti-clockwise direction and remove.
4. Fill DEF from the Container Pack. Each container pack has unique mouth and filling provision. Ensure utilizing the same and avoid spillage. Example. 10 Lit. Pack provided with filler tube.
5. Fill DEF as required. Maximum Storage capacity 20 litre. Minimum filling 5.0 liter.
6. Rinse with water or use sponge wetted with water to clean the components/surfaces in case of DEF spills over.
7. Put the DEF filler cap back in its place and tighten in the clock wise direction, then close the fuel lid shut.
8. Switch the ignition ON
9. Verify that there is no warning regarding DEF low level. If DEF Level Low warning is still appearing, Check enough quantity filled, If still problem persist Contact nearest Authorized Mahindra Dealer immediately.
10. DEF is being monitored through iSmart tool during regular service at dealership and quantity will be filled accordingly.
5.3 Diesel Particulate Filter (DPF)
The Diesel particulate filter (DPF) is an integral part of the vehicle exhaust gas emission reduction systems and it removes the soot from (Particulate matter) the exhaust gas. Unlike a disposable air filter, the DPF is regenerative filter. Regeneration is triggered automatically according to the driving conditions which burns of the accumulated particles/soot. In other words, the active burning by engine control system and high exhaust gas temperature caused by normal/high driving condition burns and removes the accumulated soot. The process is called as DPF Active Regeneration.
However, if the vehicle continues to be driven at either of the following conditions the accumulated soot may not be automatically removed because of low exhaust gas temperature.
1. Heavy traffic driving conditions, especially in city
2. Frequent short trips
3. Low speed for a long time
Graphic
When more than a certain amount of soot deposited, the DPF and REGEN lamp illuminates.
If the DPF and REGEN lamp turns ON while driving the vehicle, then it indicates DPF regeneration has not occurred successfully. At this moment, we suggest DPF regeneration must be done through a specific methodology.
Instrument Cluster Telltale & Alerts – M6
Graphic
The same is as mentioned below:
1. Take vehicle to highway and drive for 20–30 mins @ speeds above 60 kms/hr until the lamp to extinguish (or)
2. Perform Park Regeneration as per the below procedure
Unless the REGEN warning lamp is ON the regeneration sequence will not start even if the switch is pressed.
•  Park the vehicle safely in a well ventilated levelled open space and free of any flammable material
•  Shift the gear lever to Neutral with the engine running and apply the parking brake
A: Menu Switch, B: Scroll Switch, C: OK Switch
Graphic
•  Press “MENU” switch in steering wheel & toggle until ODO/TRIP displayed in cluster.
•  Then Press the “DOWN” switch in steering wheel until “REGEN REQUIRED” is displayed in cluster.
•  Long press the “OK” switch in steering wheel until “REGEN REQUESTED” displays.
•  Then REGEN telltale will blink and “REGEN STARTED” message will appear in Cluster and engine idle speed will increase indicating regeneration has started if all conditions are met.
•  While Regeneration is happening “REGEN IN PROGRESS” message will appear in Cluster till the regeneration process is completed.
•  Park Regeneration can take up to 30 minutes to complete. Once completed the “REGEN COMPLETED” message and DPF and REGEN Lamp in cluster will turn OFF
Park Regeneration process may not start if certain conditions are not satisfied and “REGEN NOT STARTED” message will appear in cluster.
Park Regeneration process may get aborted in between if certain conditions are not met and “REGEN ABORTED” message will appear in cluster.
Instrument Cluster Telltale & Alerts – M2 & M4+
Graphic
If the DPF and REGEN lamp turns ON and the message “REGEN REQUIRED“ appears in cluster while driving the vehicle, then it indicates DPF regeneration has not occurred successfully. At this moment, we suggest DPF regeneration must be done through a specific methodology.
The same is as mentioned below:
1. Take vehicle to highway and drive for 20–30 mins @ speeds above 60 kms/hr until the lamp to extinguish (or)
2. Perform Park Regeneration as per the below procedure
Unless the REGEN warning lamp and REGEN REQUIRED message is ON the regeneration sequence will not start even if the switch is pressed
•  Park the vehicle safely in a well ventilated levelled open space and free of any flammable material
•  Shift the gear lever to Neutral with the engine running and apply the parking brake
•  Press “MODE” switch in cluster & toggle until “rEGEn” menu displayed in Cluster
•  Then Press and hold the “SET” switch in cluster until “REGEN REQUESTED” is displayed in Cluster
•  Then REGEN telltale will blink and “REGEN STARTED” message will appear in cluster and engine idle speed will increase indicating regeneration has started if all conditions are met.
•  Park Regeneration can take up to 30 minutes to complete. Once completed the “REGEN COMPLETED”message and DPF and REGEN Lamp in cluster will turn OFF
Park Regeneration process may not start if certain conditions are not satisfied and “REGEN NOT STARTED”message will appear in cluster.
Park Regeneration process may get aborted in between if certain conditions are not met and “REGEN ABORTED”message will appear in cluster.
Diesel Fuel
It is recommended to use the regulated automotive diesel fuel confirming to IS 1460: 2017 spec only.
If the diesel fuel with high sulfur content (more than 10 PPM) and unspecified additives are used, it can cause the DPF system damage and emission warranty issues.
•  During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.
•  In order to avoid burns & personal injury, stay yourself away from exhaust system.
•  Follow speed limits & traffic regulations as defined by local jurisdiction while doing forced regeneration.
5.4 Alerts in Cluster
5.4.1 DPF Alert
DPF Alert message will appear when the DPF is clogged. Contact Authorised Mahindra Dealer immediately for assistance.
High
Low
Graphic
Graphic
5.4.2 DEF Alert
Introduction
Graphic
DEF Tell Tale will get illuminated and relevant messages will be flashed on Cluster screen due to any of the following reasons:
•  DEF level low
•  Incorrect DEF detected
•  DEF dosing malfunction
It is unlawful to tamper with or remove any component of the after treatment system. It is strongly recommended not to use DEF which is not meeting above specification. Further, this may lead to emission non-compliance and warranty will be void.
5.4.3 DEF Level Indication
When DEF level in tank fall below pre-defined values, warnings are flashed in four stages. These four warning stages are explained below:
High Variant
Low Variant
High Variant
Low Variant
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic

Irrespective of the warning stages, once DEF level is low, 5.0 liter of DEF needs to be filled. If the warnings continue even after refill, contact nearest authorized Mahindra dealer immediately.
In absence of DEF level low warning, refilling is not recommended.
Total DEF quantity inside the DEF Tank should never be more than 20 liter. Overfilling may result in system/component failure. Only authorized Mahindra dealer will be able to correctly determine quantity of DEF present inside tank. Hence if you are refilling the DEF yourself, fill only 5.0 liter, in case DEF Low level warning is flashed.
If the DEF warning lamp turns on due to the DEF level, refill the DEF tank. Failure to refill may cause the engine start restriction.
5.4.4 DEF Quality
If SCR system detects quality of DEF inside the tank is not meeting IS 17042 (or) ISO 22241 specification, warnings will flashed in four stages. These four warning stages are explained below:
High Variant
Low Variant
High Variant
Low Variant

Graphic
Graphic
Graphic
Graphic

Graphic
Graphic
Graphic
Graphic
Graphic
Graphic


If the DEF warning lamp turns on due to the DEF quality, see contamination/incorrect fluid for corrective action. Failure to correct may cause the engine start restriction.
5.4.5 DEF Dosing Malfunction
If SCR system detects any malfunction due to failures in components or tampering, warnings are flashed in four stages. These four stages are explained below:
High Variant
Low Variant
High Variant
Low Variant
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic


If the DEF warning lamp turns on due to dosing malfunction, see your authorised Mahindra dealer to have this repaired. Failure to repair the system may cause the engine start restriction.
5.5 Instrument Cluster Tell-Tale
Graphic
Do's & Don’ts
Selective Catalytic Reduction(SCR)

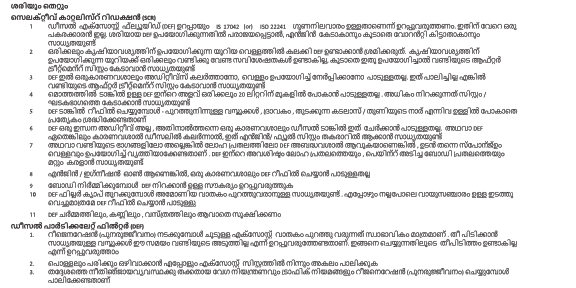

•  Diesel Exhaust Fluid (DEF) IS 17042 (or) ISO 22241 specification can be used.
•  Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.
•  Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.
•  Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.
•  While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.
•  DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged
•  If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels
•  Do not refill the DEF with Engine ON or ignition ON state
•  Ensure proper filling access for DEF filling during vehicle body building
•  When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.
•  Ensure that DEF does not come into contact with skin, eyes, or clothing
Diesel Particulate Filter (DPF)
During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.
In order to avoid burns & personal injury, keep yourself away from exhaust system.
Follow speed limits & traffic regulations as Defined by local jurisdiction while doing forced regeneration

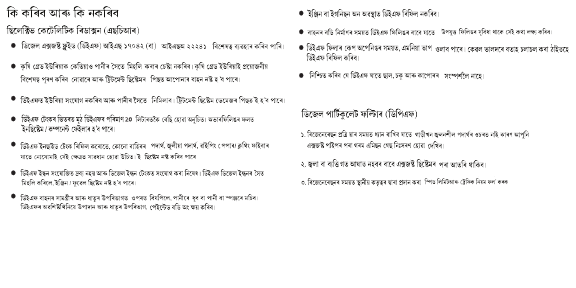

5.6 Instrument Cluster Tell-Tale -Assames
Graphic
Graphic

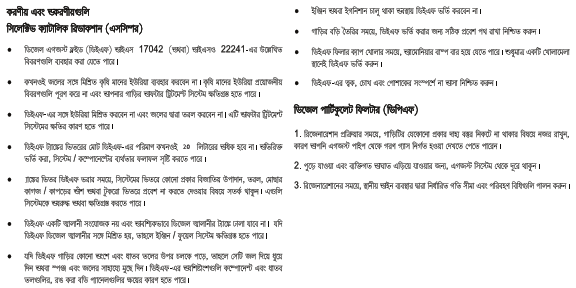

5.7 Instrument Cluster Tell-Tale -Bengali
Graphic
Graphic

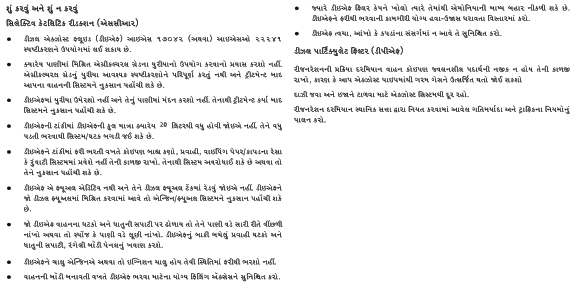

5.8 Instrument Cluster Tell-Tale-Gujarathi
Graphic
Graphic
5.9 Instrument Cluster Tell-Tale-Hindi
Graphic
Graphic
5.10 Instrument Cluster Tell-Tale-Kannada
Graphic
Graphic
5.11 Instrument Cluster Tell-Tale-Malayalam
Graphic
Graphic

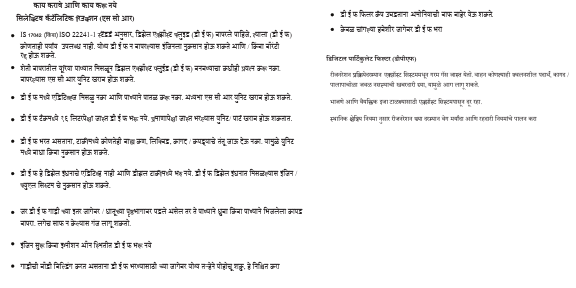

5.12 Instrument Cluster Tell-Tale-Marathi
Graphic
Graphic

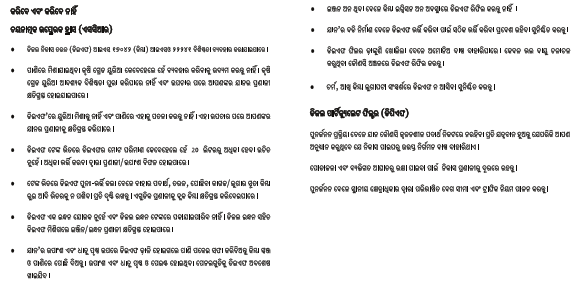

5.13 Instrument Cluster Tell-Tale-Oriya
Graphic
Graphic
5.14 Instrument Cluster Tell-Tale-Tamil
Graphic
Graphic
5.15 Instrument Cluster Tell-Tale-Telugu
Graphic
Graphic
6 SEATS AND SEAT BELTS
6.1 Front Seats
6.1.1 Sitting in Correct Position
Graphic
Follow the tips below for a comfortable and safe journey:
•  Sit in an upright position with the base of your spine pressed against the seat back
•  The driver and front passenger seat head restraint has 5 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head
•  Maintain sufficient distance between yourself and the steering wheel. Maintain at least a ten inch (10") distance from the centre of the steering wheel to your chest
•  The top curve of the steering wheel should align with your chin for ideal road visibility
•  Adjust your seat and seat back angle such that your wrists rest on the steering wheel
•  Ensure your legs are in bent position while fully depressing the clutch pedal
The seat should be adjusted while still maintaining control of the foot pedals (able to fully depress the clutch pedal), steering wheel (rest the wrists on the steering wheel) and your view of the instrument panel controls.
Never adjust the driver's seat while the vehicle is in motion. The seat may unexpectedly move and cause the driver to unintentionally operate the accelerator or brake, or turn the steering wheel, causing loss of control of the vehicle, an accident or serious personal injury. Adjust the driver's seat only when the vehicle is not in motion.
Never put objects under the seats. They may interfere with the seat-lock mechanism or unexpectedly activate the seat position adjusting lever, causing the seat to suddenly move, resulting in loss of control of the vehicle, an accident or serious personal injury.
While adjusting the seat, do not put your hands under the seat or near the moving parts. This may lead to injuries.
6.1.2 Front Seat Slide
Graphic
Move the seat forward or backward by lifting the adjustment lever located under the seat front and release once the desired position is reached.
While adjusting the seat, make sure the latch engages fully and the seat is locked firmly in the desired position. An unlocked seat may move in a sudden stop or collision, causing injury to the person in that seat. Push and pull on the seat to be sure it is locked.
6.1.3 Front Seat Recline
Graphic
To adjust the seat back, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.
The seat belts provide maximum protection in a frontal or rear collision when the occupants are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen, or the shoulder strap may contact your neck. The more the seat is reclined, the greater the risk of serious injury.
When returning the rear-reclined seat back to its upright position, make sure you support the seat back while operating the lever.
6.1.4 Front Seat Lumbar Adjustment (if equipped)
Graphic
Both the front seat backs have lumbar adjustment feature. The lumbar contour of the lumbar support can be adjusted by means of the adjusting wheel on the inner side of the seat back.
Properly adjusted lumbar support provides adequate back support essential during long journeys.
Do not use force, rotate the lumbar adjustment lever beyond the extreme stop positions in either direction.
6.1.5 Front Seat Height Adjustment (if equipped)
Graphic
The driver seat height can be raised or lowered as per comfort.
To RAISE the seat height, lift the seat height adjust handle upwards repeatedly, release the lever once the desired seat height is reached.
To LOWER the seat height, push down the seat height adjust handle repeatedly. Release the lever once the desired seat height is reached.
Do not adjust the height of seat while vehicle is in motion.
6.2 Head Restraint
The head restraint comprises the padded portion which contacts your head and is inserted/locked in receptacles on the top of the seat back.
Your vehicle seats are equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of rear collision.
Graphic
Always align top of the head restraint with the top of your head or as close to it as possible. To raise the head restraint, press the lock knob and pull the restraint up. To lower the head restraint, press the lock knob and push the head restraint down.
The head restraint can be pulled out completely by depressing the locking button while pulling the restraint out.
Align the head restraint shafts over the holes on the seat top and push the restraint straight down till you hear the lock click.
Keep the seat back as upright as possible, so the headrest is behind, not beneath, and almost touching your head.
Never drive with the head restraints not properly adjusted, head restraints removed or inserted in a flipped condition. With no support behind your head, your neck could be seriously injured in a collision.
Head restraints are provided for Front row, Second row and Third row outboard occupants.
6.3 Second Row Captain Seats (if equipped)
Graphic
Loading luggage on the seats is dangerous. The luggage can become a projectile that could hit and injure passengers in a sudden stop or collision. Luggage should always be kept on the floor.
To avoid serious injury, do not sit on or place objects on a folded seat back while the vehicle is moving.
6.3.1 Second Row Seat Recline
Graphic
To change the second row seat back angle, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward and release the lever. Make sure the recline lever returns to its original position and the seat back is locked in place by rocking the seat back forward/backward.
When returning the rear-reclined seat back to its upright position, make sure you support seat back while operating the lever.
6.3.2 Second Row Seat Folding (Third Row Seat Access)
The second row seat on left hand side can be flipped forward to provide way to access to the third row.
•  Lower the second row seat head restraint to the lowest position (else it will obstruct and hit the floor while folding)
Graphic
Graphic
•  Lift the lever located on the outward side of the seat to fold and flip the seat
•  As the seat leans forward halfway through, foldable seat lock gets unlocked to enable it to flip / fold
Graphic
Graphic
•  For Ingress, lift the lever by holding it at the bottom
•  For Egress, pull the lever by holding at the top of the lever
•  Push seat back to rear side of vehicle for locking
•  Pull seat back for upright position till it locks in desired position
•  Push seat cushion downward by sitting on it (>45 kg) for locking seat cushion
Return the seat back to its upright position in one continuous motion to securely lock the seat and in turn avoiding seat flipping forward suddenly leading to injuries.
If this happens, release the seat lock by pulling the lever and repeat the procedure.
Be cautious when placing your hands around the seat anchors. You could pinch your hands or fingers between the seat anchor and the seat. Hold the edge of the seat when lowering it into place. Never place your hands between the seat anchor and the seat.
6.4 Second Row Bench Seat (if equipped)
Graphic
Second row bench seat is of 60:40 split configuration. The required seat back rest alone can be adjusted as per convenience.
6.4.1 Second Row Seat Recline
Graphic
To change the second row seat back angle, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward and release the lever. Make sure the recline lever returns to its original position and the seat back is locked in place by rocking the seat back forward/backward.
When returning the rear-reclined seat back to its upright position, make sure you support seat back while operating the lever.
6.4.2 Second Row Seat Folding (Third Row Seat Access)
Graphic
The second row seat on left hand side can be flipped forward to provide way to access to the third row.
•  Lower the second row seat head restraint to the lowest position (else it will obstruct and hit the floor while folding)
•  Turn the lever towards counter clockwise as shown in image to fold and flip the seat
•  As the seat leans forward halfway through, foldable seat lock gets unlocked to enable it to flip / fold
•  Push seat back to rear side of vehicle for locking
•  Pull seat back cushion for upright position till it locks in desired position
•  Push seat bottom cushion downward by sitting on it (>45 kg) for proper locking seat cushion
Return the seat back to its upright position in one continuous motion to securely lock the seat and in turn avoiding seat flipping forward suddenly leading to injuries.
If this happens, release the seat lock by turn the lever and repeat the procedure.
Be cautious when placing your hands around the seat anchors. You could pinch your hands or fingers between the seat anchor and the seat. Hold the edge of the seat when lowering it into place. Never place your hands between the seat anchor and the seat.
6.5 Third Row Seats
Graphic
Graphic
Access to or exit from third row seat and luggage area is possible by completely folding the second row left hand side seat. Second row features captain seats (Individual seat configuration). Though both seats can be folded, only left hand side seat alone can be folded and flipped to gain access to third row seat.
6.5.1 Third Row Seat Folding
The third row seats can be folded flat to maximise the luggage space.
To fold the third row seat, unlock the seat back by pulling the lever on the rear of the seat back outwards.
Graphic
Graphic
Similarly, lower the other half of third row seat to get a completely flat surface.
Graphic
6.6  Seat Belts
6.6.1 General Warnings and Instructions
At least once each month, inspect the seat belt webbing for any cuts, tears, or other signs of wear (such as fraying along the edges). Also inspect the anchors, retractors, and buckles to be sure they are tight and operational.
•  All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimise the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger
•  In a rollover crash, an un-belted person is significantly more likely prone to injury than a person wearing a seat belt

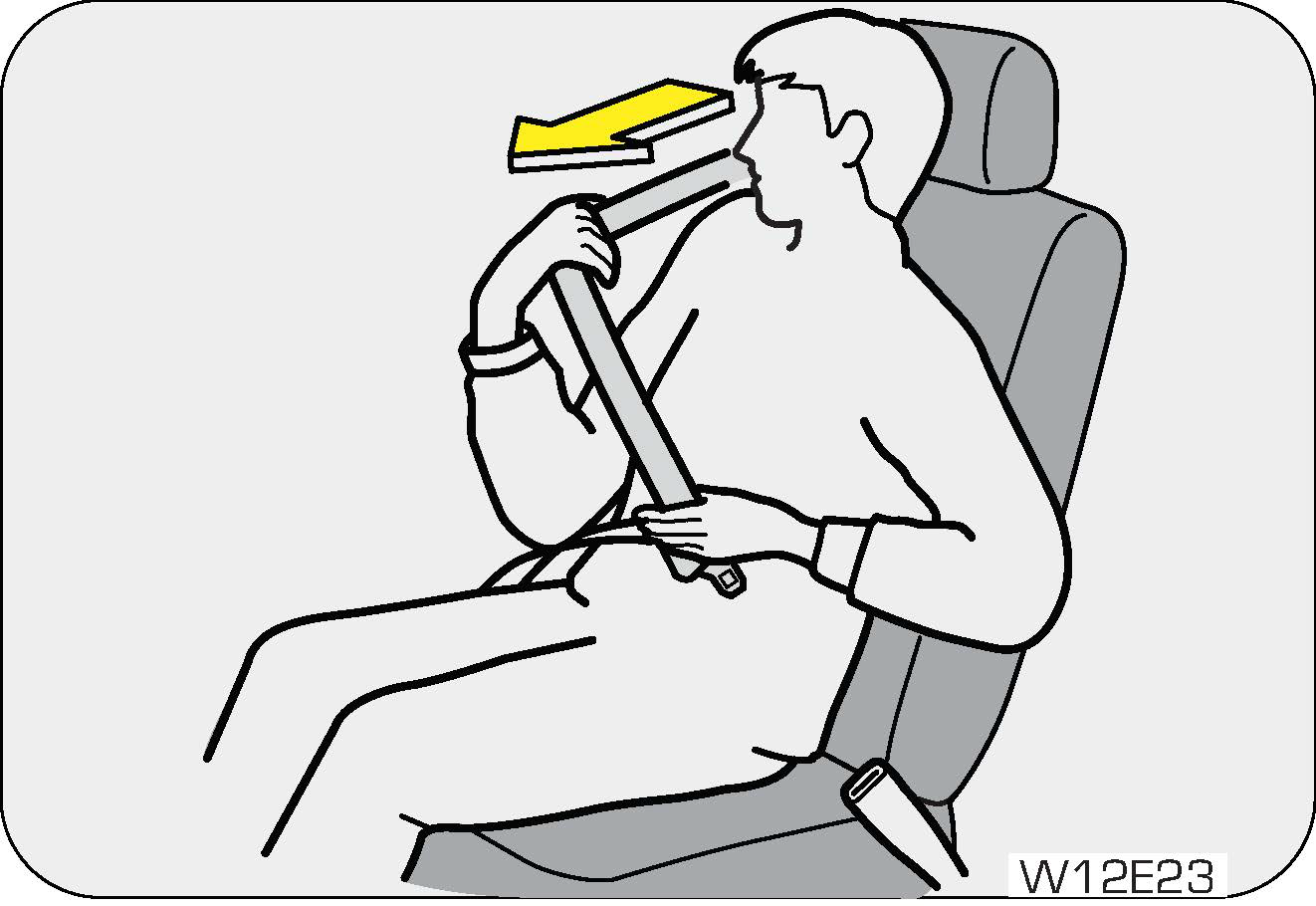

•  In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an armrest, a pocketbook, or any external objects should be between you and the seat belt. Improper wearing of a seat belt will reduce the protection in an accident

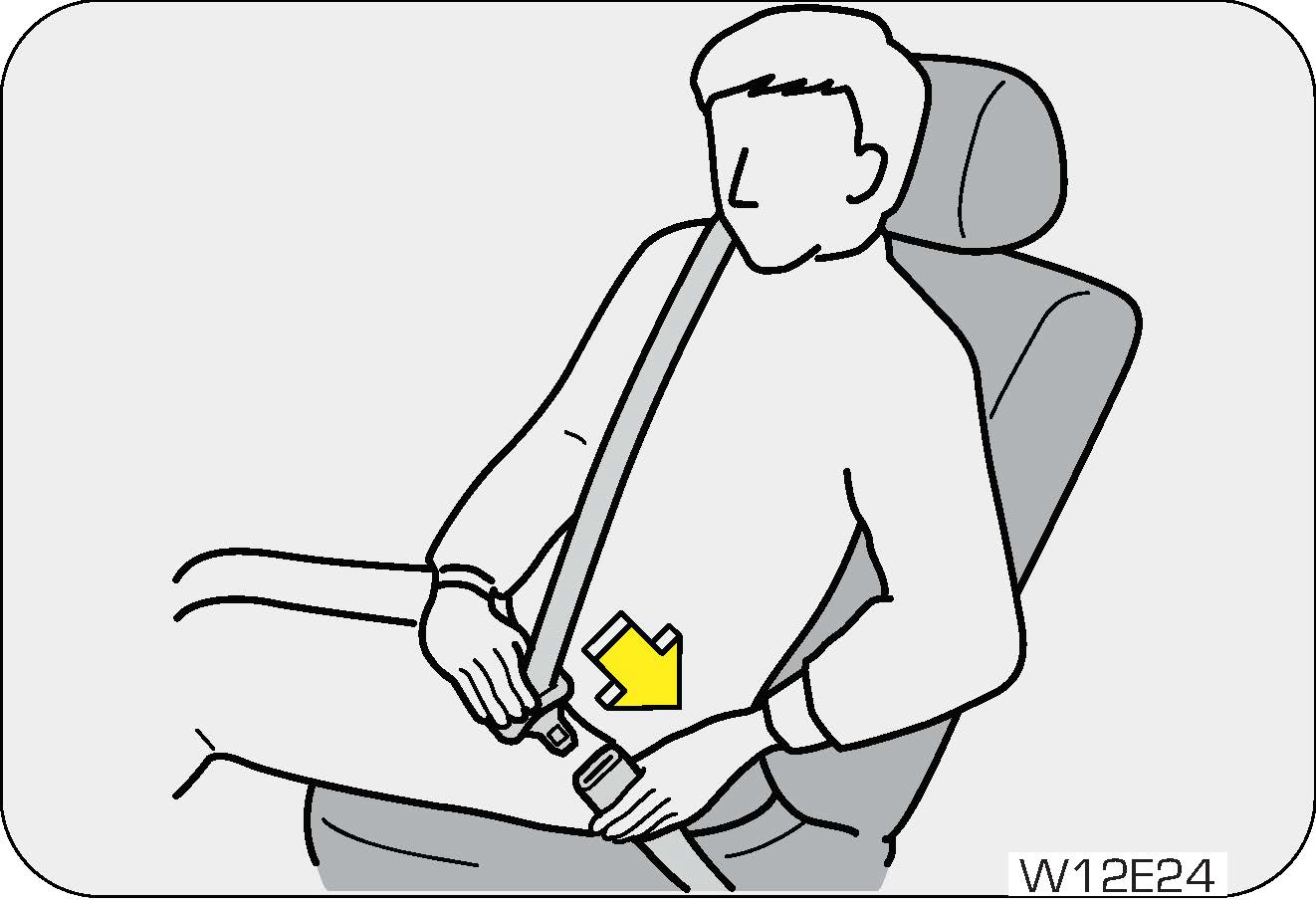

•  Seat belts should be adjusted as tightly as possible, consistent with comfort to properly secure the wearer in the seat
Graphic
•  The seat belts provided for your vehicle are designed for people of adult size, must be properly used and maintained
•  For usage of adult seat belt to secure children, refer to section on manual for child seat positions and use a child restraint system
Graphic
•  Passengers should not move out of or change seats while the vehicle is moving. A passenger who is not wearing a seat belt can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle during a crash or emergency stop
•  Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash
•  An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Authorised Mahindra Dealer inspect the seat belt system after an accident
•  Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle
Never use a damaged seat belt system. A damaged seat belt will not provide protection in an accident, resulting in serious injury.
•  Seat belt systems can be prone to abuse. They are not indestructible. They must be handled with care to avoid damage
•  Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbing are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts
•  Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer
Seat Belts - Patients
Persons with serious medical conditions should also wear a seat belt. Consult your doctor for specific recommendations before travel.
Seat Belts - Pregnant Women
Graphic
Pregnant women must also wear seat belts. Consult your doctor for specific recommendations.
The lap belt should be worn snugly and as low as possible over the hips. The shoulder belt should be worn across your shoulder, but never across the stomach area. When worn properly, the seat belt will protect both the mother and the foetus in an accident or emergency stop.
A pregnant woman should never wear the seat belt across the stomach area. This could lead to serious injuries to the foetus and/or the pregnant mother.
Never wear twisted seat belts. Excessive forces will be transferred from the belt to the wearer, in a collision, resulting in serious personal injury.
Each seat belt is meant for use by one person only. Using one seat belt for more than one person at a time is dangerous. The seat belt will not be able to spread the impact forces properly leading to serious injuries.
Never put a belt around a child being carried on the occupant's lap. This could lead to serious injuries.
Seat Belt Usage is necessary to:
•  Reduce the possibility of being thrown from your vehicle
•  Reduce the possibility of injuries to upper body, lower body and legs during an accident
•  Hold the driver in a position which allows better control of the vehicle
Children who are too large for child restraint systems should always occupy the rear seat and use the vehicle seat belts. The lap portion should be fastened snug on the hips and as low as possible and the shoulder strap should be across the child's shoulder, not the neck or face. If you are unable to position the strap across the child's shoulder, the child should remain in a booster seat. Frequently check the seat belt to be sure it remains snug and in position. A squirming child could cause the seat belt to come out of position.
6.6.2 Fastening the Seat Belt (3-Point type)
Graphic
Graphic
Graphic
Adjust the seat as needed, sit up straight and well back in the seat. To fasten your seat belt, pull the webbing out of the retractor and insert the metal tab into the buckle. An audible “click” would be heard when the tab locks into the buckle. Pull up on the shoulder strap to tighten the lap belt across your hips. The seat belt retractor will pull in any slack in the shoulder strap. A slow and easy motion will allow the belt to extend and let you move your body around freely.
Periodically check the seat belt as you ride to be sure it remains snug and in position. If there is a sudden stop or impact, the belt will lock into position. It will also lock (restrict) if you try to lean forward too quickly.
If the driver or co-driver seat belt is not fastened when the ignition is switched ON, the seat belt warning lamp illuminates and chimes beat will turn till seat belt fastened. Refer “Warning Lamps” in the “Features and Control” chapter for further details.
6.6.3 Unfastening the Seat Belt (Both 3-Point & 2-Point)
Graphic
To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.
Never insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and may cause damage to the buckle mechanism, thereby making the seat belt ineffective in an accident, resulting in serious personal injury.
Graphic
6.6.4 Seat Belt Warning Lamp
Graphic
If the seat belts are unbuckled and engine speed is more than 850 rpm for 60 seconds, The seat belt warning lamp illuminates and the buzzer chimes for next 100 seconds reminding the driver and front passenger to fasten the seat belt. However the warning lamp will continue to illuminate till the seat belt fastens properly.
The co driver telltale lamp is on centre console.
6.7 Seating Positions for Child Restraint System (CRS)
Use a child restraint system only if the child is not big enough to properly wear the seat belts. Else, use the regular seat belt instead of the child restraint system. Make child to seat in the rear seat and use the child anchor or seat belt. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. Always secure a child in a proper child restraint system in accordance with age and size of the child as recommended by the child restraint system manufacturer
Do not allow children to stand up or kneel on either the rear or the front seats. An unrestrained child could suffer serious injuries during emergency braking or collision.
It is also not recommended that children travel sitting on your lap as it does not provide sufficient restraint.
Mass Group
Child Seating Position Table
Front Passenger
Rear Passenger
PAB ON
PAB OFF
Rear LH Outboard
Rear RH outboard
Group 0 up to 10 kg
Ø
Rear-facing child restraint system using belt
Rear-facing child restraint system using ISOFIX
Group 0+ up to 13 kg
Ø
Group II 9 up to 18 kg
Ø
Group II 15 up to 25 kg
Ø
Forward-facing child restraint system using belt

Group III 22 up to 36 kg
Ø

PAB - Passenger Airbag
Graphic
Graphic
6.8 Child Restraint System (CRS) using ISOFIX (if equipped)
Legend:
IU — Suitable position for using universal rearward facing child restraint system using “ISOFIX and Top tether”.
IUF— Suitable position for using universal forward facing child restraint system using “ISOFIX and Top tether”
Ø — Not Suitable position for using child restraint system using “ISOFIX and Top tether”
Mass Group
Child Seating Position Table
Front Passenger
Rear Passenger
PAB ON PAB OFF Rear LH Outboard Rear Centre Rear RH outboard
Group 0 up to 10 kg
Ø
U
IL / IUF
Ø
IL / IUF
Group 0+ up to 13 kg
Ø
U
IL / IUF
Ø
IL / IUF
Group II 9 up to 18 kg
Ø
U
IL / IUF
Ø
IL / IUF
Group II 15 up to 25 kg
Ø
UF
_
_
_
Group III 22 up to 36 kg
Ø
UF
_
_
_

PAB - Passenger Airbag
Location of ISOFIX & Top tether
Graphic
•  Always perform the installation and removal of the child seat using the  “ISOFIX  and Top Tether” system as stated in the instructions from the manufacturer of the child seat
•  If child seat interfere with front seat, please adjust the front seat position and seat back to clear the interference
6.8.1 Passenger Occupant Detection System (PODS)
Graphic
PODS system is to detect the presence of occupant in the seat.
Graphic
If occupant is present and not wearing seat belt, seat belt reminder warning lamp will come ON till the seat belt is buckled.
Seat belt buzzer audible warning will come ON 35 sec once, if any of the driver/co-driver seat belt is in unbuckled condition & any of the below condition are met.
•  Vehicle speed above 24 kmph
•  Vehicle speed above 10 kmph for 10 sec.
•  Time elapsed is more than 30 sec after drive enable press
7 SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
The Supplemental Restraint System (SRS) includes airbags, pre-tensioners and ECU. The airbags are designed to provide further protection to the vehicle occupants in addition to the primary protection provided by the seat belts and seat belt pre-tensioners.
The primary components of the system are the sensors which measure the crash severity. In the event of a significant frontal impact, the SRS airbags inflate to work in conjunction with the seat belts and help reduce injuries mainly to the driver's and front passenger's head/chest.
Seat belts are the primary restraint system in the vehicle. An airbag provides supplemental protection in addition to the seat belts.
All occupants, including the driver, should always wear their seat belts to minimise the risk of severe injury in the event of a crash.
Airbags are more effective in reducing injuries when the seat belts are worn.
7.1 Airbags
Your vehicle is equipped with the following airbags:
•  A frontal airbag for the driver in Steering wheel hub
Graphic
•  A frontal airbag for the front passenger in the passenger side instrument panel
Graphic
They are indicated by “AIRBAG” embossed on the covers.
An airbag is not designed to deploy in every type of crash. Depending on the type of accident or impact, the front airbags independently deploy thereby protecting the occupants. It is not necessary that ALL the airbags deploy during an accident.
To minimise the risk of severe injury in the event of a crash, every passenger must always wear their seat belt (see the chapter on Seat Belts in this manual). The airbags inflate very quickly with great force. Do not position any part of your body too close to airbag, you or especially children could be seriously injured/killed by a deploying airbag.
7.2 Driver and Front Passenger Airbag
Your vehicle is equipped with a Supplemental Restraint System (Airbag) and lap/shoulder belts at both the driver and front passenger seating positions. The indications of the system's presence are the letters “AIRBAG” embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.
The SRS is designed to deploy the front airbag only when an impact is sufficiently severe and when the impact angle is less than ± 30° from the forward longitudinal axis of the vehicle.
Graphic
Graphic
Front airbag are not intended to deploy in side-impact, rear impact or rollover crashes. In addition, front airbag will not deploy in frontal crashes which are below the prescribed deployment threshold where risk of serious injuries is low.
Do not place any objects over the airbag or between the airbag and yourself.
7.3 Passenger Airbag Switch
Graphic
A
ON/Activated
B
OFF/Deactivated
Passenger airbag (PAB) can be switched OFF/deactivated manually by ignition key when there is no passenger in co-driver seat or if any child sitting on co-driver seat.
PAB ON/OFF switch is located on the left side surface of the instrument panel.
•  Customer should deactivate when there is no passenger in
co-driver seat or if any child sitting on co-driver seat
•  When switch is in OFF condition tell-tale will be ON on IP switch bank and message will come in cluster only high and high plus variants
•  Once the PAB is made off, If customer wants to activate again then PAB deactivation switch to made ON manually by using key
Graphic
A
Co-Driver Seat Belt Reminder
B
PAB Deactivation Indicator
•  To operate the switch vehicle key should be used
7.4 Airbag System Malfunction Lamp
Graphic
Airbags do not require any regular maintenance of service. The airbag system malfunction lamp illuminates when the ignition is ON, and it turns OFF after about 3 seconds. as self check confirming normal operations of airbag system and malfunction lamp.
This lamp monitors airbag sensor assembly, airbag sensors, indicator lamp, seat belt pre-tensioner assemblies, inflators, interconnecting wiring and power sources.
If either of the following conditions occur, there is a malfunction of the airbags or seat belt pre-tensioner. Immediately contact your Authorised Mahindra Dealer.
•  The lamp does not glow when the ignition is switched ON or glows beyond six (6) secs. after switching the ignition ON
•  The lamp comes ON at any other time, even briefly
•  The lamp comes ON intermittently
Never make any modifications to your vehicle which could affect the performance of your airbag system. In particular, changes to the vehicle frame, bumpers, bull bar, front fenders, ride height, suspension, seat belts, interior trim, seats or steering wheel (especially covers, pads or other trim), could prevent proper deployment of the airbag. If you need to make any modifications to accommodate any disability you may have, please contact your Authorised Mahindra Dealer.
Never try to open or strike the airbag cover. If the airbag cover is cracked or damaged in any way, the airbag may not function as intended. Take the vehicle to an Authorised Mahindra Dealer.
Even if the airbags do not deploy during an accident, take your vehicle to an Authorised Mahindra Dealer for a thorough inspection of the airbag and seat belt systems, no matter how minor the accident. The airbag system could have been damaged, and may not work as intended in the future, resulting in serious injury.
7.5 Airbag Inflation/Deployment
The airbag sensors constantly monitor the forward deceleration of the vehicle. If an impact results in a forward deceleration beyond the designed threshold level, the system triggers the airbag inflators. This initiates a chemical reaction which quickly fills the airbags with non-toxic gas.
Upon deployment, tear seams moulded directly into the pad covers separate under pressure from the expansion of the airbags. Further opening of the covers allows full inflation of the airbags. A fully inflated airbag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.
After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to manoeuvre or operate other controls.
Deployment of the airbags happen in a fraction of a second, producing a loud noise releasing a ‘white smoke’ and residue along with a non-toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing. Be sure to wash off any residue with soap and water as soon as possible to prevent any potential skin irritation. If you can safely exit the vehicle, you should do so immediately.
Airbag deployment may cause windshield to break.
•  Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury
•  Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once
•  Do not cover the steering wheel, instrument panel with any object (e.g. dash panel covers) which may prevent the airbags from inflating properly
•  The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle
The front passenger should never sit on the edge of the seat, stand near the glove compartment, rest feet or other parts of the body on the dashboard when the vehicle is moving.
Graphic
The driver or front passenger who is too close to the steering wheel or dashboard can be seriously injured during airbag deployment.
•  The driver must sit as far back as possible from the steering wheel while still maintaining control of the vehicle
•  The front passenger must sit as far back as possible from the dashboard
•  Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury
Graphic
Graphic
•  Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor
•  All vehicle occupants must be properly restrained using the seat belts
•  All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts
•  Front airbags can injure occupants improperly positioned in the front seats
•  Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual
•  Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags
•  Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses
7.6 Child Restraint and Airbag
Graphic
Never place a rear-facing child restraint in the front passenger’s seat. If the airbag deploys, injuries to the child may be fatal.
In addition, do not place front-facing child restraints in the front passenger’s seat either. If the front passenger airbag inflates, it could cause serious or fatal injuries to the child.
Extreme Hazard! Do not use a rear-facing child restraint on a seat protected by an airbag in front of it!
Never put a child restraint in the front passenger’s seat. If the front passenger airbag inflates, it can cause serious or fatal injuries.
Never hold an infant or child on your lap. The infant or child could be seriously injured in the event of a crash. All infants and children should be properly restrained in appropriate child safety seats or seat belts in the rear seat.
Instal the child restraint system on the rear outboard seats, and securely lock the child restraint system in position with the help of ISOFIX.
Always Buckle Children (ABC) in the back seat. It is the safest place for children of any age to ride.
7.7 Airbag Deployment
Graphic
The images shown in this section are for illustrative purpose only. They may not look like your model/variant or vehicle.
Front Airbag
Front airbag are designed to inflate in a frontal collision depending on the intensity, speed or angles of impact of the front collision.
Airbag Non-deployment
Impacts below a pre-determined threshold level may not cause the airbag to deploy in the following cases:
•  Collision with Utility Poles or Trees -
Graphic
Airbags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated to one area and the full force of the impact is not delivered to the sensors.
•  Under-ride Situations -
Graphic
Running under a truck's may not provide the decelerations necessary for airbag deployment. Airbags will not inflate in this “under-ride” situation where deceleration forces that are detected by sensors are significantly low.
Rear-end Collisions -
Frontal airbags are not designed to inflate in rear collisions, where occupants are moved backward away from the airbags by the force of the impact. In this case, inflated airbags would not be able to provide any additional benefit.
Graphic
•  Frontal Impact -
Frontal impact beyond 30º range from head-on to the vehicle.
Graphic
•  Potholes or Stepped Surfaces -
Driving into a big pothole, stepped surface or hitting the far side of a hole/incline will not inflate the airbag.
Graphic
•  Rollover -
Graphic
Airbags will not inflate in rollover accidents where airbag deployment would not provide protection to the occupants.
Frontal Side Swipe Impact -
Graphic
Frontal offset impact to the vehicle may not provide the deceleration force necessary for airbag deployment. In an angled collision, the force of impact may direct the occupants in a direction where the airbags would not be able to provide any additional benefit, and thus the sensors may not deploy any airbags.
7.8 Airbag Replacement
Self-servicing or tampering with the airbag system is dangerous. An airbag could accidentally deploy causing serious injuries, or will not deploy when there is a need. Always take your vehicle to an Authorised Mahindra Dealer for inspection and repairs.
7.9 Self Removing SRS Related Parts
Self removing the instrument panel, steering wheel, seat belts or airbag related parts or sensors is not recommended. Airbags could accidentally activate and cause serious injuries, or they may not deploy when there is a need. Visit an Authorised Mahindra Dealer if these parts must be removed.
7.10 Airbag Disposal
Improper disposal of an airbag or a vehicle with live airbags can be extremely dangerous. Approach an Authorised Mahindra Dealer to do these jobs.
7.11 Airbag Repair
If the front airbag cover or IP airbag cover shows signs of damage or having been removed, the vehicle should be towed to the nearest Authorised Mahindra Dealer for repair. Do not attempt to self repair or reinstal the cover.
7.12 Airbag Maintenance
For cleaning the airbag covers/areas, use only a soft dry cloth or one which has been moistened with plain water. Solvents or cleaners could adversely affect the airbag covers and proper deployment of the system.
8 LOCKS AND KEYS
Your MARAZZO vehicle comes with Remote Flip key. The keys operate all locks in your vehicle including those of the doors and ignition with steering lock. We advise you to keep one of these keys in a safe place for emergency use, but not in the vehicle. Should you lose your keys or if you need replacement keys, they can be ordered through an Authorised Mahindra Dealer.
Graphic
RKE
Remote Keyless Entry
Key Number Tag:
Your key number is shown on the Aluminium tag attached to the key. It is recommended that you record the key number and store in a safe place.
There is a limitation (max 2 keys at a time) to the number of keys that can be programmed. The minimum timeframe required to supply the duplicate keys is 20 days after all the formalities are completed. Please contact the Authorised Mahindra Dealer to understand the formalities involved.
Never leave the key in the ignition switch with children in the vehicle. A child could switch on the ignition, start the engine, operate power windows and other controls, or move the vehicle, resulting in personal injuries to the bystanders and/or children seated inside.
8.1 Doors
8.1.1 To Open a Door from Inside
Pull the door lever away from the door and push the door outward to open.
Graphic
A : Lock
B : Unlock
8.1.2 To Open a Door from Outside
Pull the door handle firmly outwards to unlock and swing the door open.
Graphic
8.1.3 Locking / Unlocking Individual Doors from Inside
Individual doors can be locked/unlocked from inside by the respective door lock tabs.
Lift the lock tab outwards to unlock or press the tab inwards to lock that particular door.
Graphic
A : Lock
B : Unlock
Locking the driver door from inside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.
8.1.4 Manual Locking / Unlocking Doors from Outside
The driver/co-driver door can be manually locked/unlocked from outside by using conventional key. The key is bi-directional; you can insert it into the keyhole either way. Turn the key anti-clockwise to lock or clockwise to unlock the door.
Graphic
A : Lock
B : Unlock
A keyhole is provided in the driver door to lock/unlock the doors manually from outside.
Locking the driver door from outside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.
8.1.5 Locking / Unlocking the Back Door
Press the back door open button on the Remote to unlock the back door. The hazard lamps flash three times indicating the same.
Then press the switch on the bottom of the back door as shown in the illustration and pull back door to open.
Graphic
To close the back door, lower the back door half way down and allow it to fall on its own weight. The door will be locked automatically.
Graphic
8.2 Central Locking System
All doors of the vehicle including fuel lid can be simultaneously locked or unlocked from the driver door.
8.2.1 Central Locking / Unlocking All Doors from Outside
To manually lock/unlock all the doors from outside using the conventional key, turn the key anti-clockwise /clockwise respectively in the driver door keyhole.
Graphic
A : Lock
B : Unlock
If any doors are open when central locking is activated, the system locks the open doors when they are closed.
Central locking ALL the doors in the vehicle can also be done using the Remote key. Refer the relevant sections in this chapter for more details.
8.2.2 Central Locking / Unlocking All Doors from Inside
Press the driver door lock tab down (A) to lock or lift the lock tab up (B) to unlock all doors simultaneously.
Graphic
A : Lock
B : Unlock
8.2.3 Child Safety Rear Door Lock
Your vehicle is equipped with left and right side child safety rear door locks. When the lock mechanism is engaged, the rear door(s) cannot be opened from the inside. The door(s) can only be opened from the outside.
To activate the child safety right rear door lock, push the lever down (A) till you hear a distinct click indicating the activation of the child lock.
To de-activate the child safety right rear door lock, pull the lever up (B) till you hear a distinct click indicating the deactivation of the child lock.
Graphic
A : Activate/Lock
B : De-activate/Unlock
If the rear doors are not operable from inside, ensure that the child safety locks have been disabled.
Mahindra strongly recommends that the child safety rear door locks be used whenever there are children travelling in the rear seat.
8.3 Remote Keyless Entry (RKE) System (Flip Key With Remote)
The front side of the Remote has three control buttons: Unlock, Lock and Trunk button. There is also a mechanical key release button (E).
The Remote Keyless Entry (RKE) system operates on Radio Frequency (RF). You can insert the key into the ignition with either side up.
Graphic
A : LED
B : Lock / Search (Long press >1 sec)
C : Trunk button
D : Unlock
E : Mechanical key release button
Press the mechanical key release button to open the key blade.
Graphic

8.3.1 Precautions While Handling Remote key
•  Do not cover the key grip with any material that cuts off RF waves
•  Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight
•  Do not put the key in any liquid or wash it in an ultrasonic washer
8.3.2 Remote key Status LED
LED present on Remote would be indicating the user about the Remote lock/unlock/trunk button input and also health of Remote battery.
8.3.3 To Lock and Arm the Vehicle with Remote
Press the lock button on the Remote for locking and arming the vehicle.
When the vehicle is successfully locked and armed using the Remote, the hazard lamps flash once.
If there are any doors open, the hazard lamps flash five times along with audible beeps indicating the same.
Graphic
The audible beeps heard during the door open status can be muted/unmuted by pressing the lock and trunk button on the Remote together for more than 1 sec.
•  If any of the doors, except the driver door, are open while locking the vehicle with Remote , the vehicle locks all doors (door locks) irrespective of the open door/doors. When the open door(s)
is/are closed later, the vehicle is locked and armed
•  If the driver door is open while locking the vehicle with Remote, the vehicle is not locked or armed. Close the driver door and lock the vehicle again with Remote to arm the Theft detent system
8.3.4 Unlock and Disarm the Vehicle with Remote
Press the unlock button on the Remote to unlock and disarm the vehicle. When the vehicle is unlocked and disarmed using Remote , Hazard lamps or Front and Rear Park lamps flash twice based on the variant.
Graphic
8.3.5 Theft Alarm
If there was an unauthorised attempt to open/start the vehicle by someone from the time you had locked and armed the vehicle to the time you press the unlock button of Remote, the hazard lamps flash four times along with an alarm indicating the attempt.
If this occurs, press the “UNLOCK” button on the Remote to disarm the security alarm.
Using the ignition key to open the door, when the vehicle was locked and armed with Remote will be treated as unauthorised by the system setting off the alarm.
When vehicle is armed by Remote , opening the door from inside by operating the door inner handle will activate the vehicle theft alarm. Press the unlock button on the Remote to cancel the alarm.
8.3.6 Back Door Open
Graphic
Press the back door open button on the Remote to unlock the back door. The hazard lamps flash three times indicating the same.
After pressing the button, open the trunk door by pressing the Trunk release switch on trunk door before Auto Re-locking
8.3.7 Search Function
Graphic
The search function can be used to locate the vehicle in a parking lot. Press the Lock button on the Remote for more than 1 sec. continuously to activate the search function.
When the Search function is ON, the hazard lamps flash for approx. 30 secs. helping you to locate your vehicle. To extend the search, press the search button again which will flash the hazard lamps for another 30 secs. Again press the Lock button on the Remote for more than 1 sec. continuously to de-activate the search function.
The head lamps also turn ON when UNLOCK button is pressed twice (enabling the Lead Me to Vehicle (LMV) feature). For the first UNLOCK command, the doors are unlocked, and for the next UNLOCK command, the head lamps turn ON enabling you to safely board/locate the vehicle in the night.
Search function works both during Locked/Unlocked conditions of the vehicle.
8.3.8 Mute/Unmute the Alarm/Beeps
Graphic
The alarm or beeps heard when one of the doors are open can be muted/unmuted. Press the lock and Trunk buttons together for more than 3 secs. to swap between mute and unmute. Hazard lamps will flash once to indicate the change in status.
The beeps heard during the door open situation can be muted/unmuted. There are NO BEEPS during normal locking/unlocking of doors.
8.3.9 Panic Alarm Function
Graphic
The panic alarm function can be used during emergencies to draw the attention of onlookers/bystanders. Press the lock button on the Remote for more than 1 sec. continuously when the key is in the ignition to activate the panic alarm.
8.3.10 Auto Locking
This feature enables all doors to lock automatically, when all doors are closed and vehicle speed greater than 20 kmph.
8.3.11 Auto Unlocking
All doors are unlocked automatically, when the vehicle is halted, key is removed from ignition.
In Airbag variants, in an unfortunate event of an accident, Auto Unlock of doors takes place if the crash conditions are met.
8.3.12 Auto Re-locking (If applicable)
After unlocking the vehicle using Remote , if none of the doors are opened in 45 secs., Auto re-lock of all doors will happen.
In case of an accident/collision where a SRS has been activated (E.g. airbag), all the doors are unlocked automatically .
8.3.13 Auto Re-lock on Master Actuator Unlock
Once Auto locking happened and if the Master Actuator was unlocked at any vehicle speed, next Auto lock will reoccur when the vehicle speed goes below 5 kmph and again crosses 20 kmph with all the doors in closed condition.
8.3.14 Auto Re-lock On Any Door Open
Once Auto locking is occurred, and if any door is opened when vehicle speed is less than 5 kmph, Auto Lock will reoccur only when vehicle speed crosses 20 kmph in all doors closed and master actuator in lock condition.
8.3.15 Anti Lockout
This feature will not allow the doors to lock, when in ignition On condition, if any door is open and someone tries to lock the doors by using inside master actuator.
However, if repeatedly attempt to lock for 3 times then, doors will get locked.
8.3.16 CDL Unlock
Central Door Locking system unlocks the doors when user presses the master actuator on driver door or by turning off the Ignition key and taken out of key barrel.
There are no visual indications for this operation.
8.3.17 Auto Unlock On Ignition OFF
When Ignition is switched off, all doors will get unlocked automatically, if locked.
There are no visual indications for this operation.
8.3.18 Auto Unlock Upon Crash
In vehicles equipped with airbags, Auto Unlock of doors takes place in case of an unfortunate event of an accident and airbags are deployed.
8.3.19 Thermal Protection
Door lock mechanism does not respond to remote/CDL requests, if Lock / Unlock are performed 8 or more times within 20 secs.
Lock / Unlock will not happen for 20 secs. and after lapse of this time limit, it will function normally.
8.3.20 Remote key Operating Range
Using Remote, you can lock/arm or unlock/disarm the vehicle from distances approx. 30ft.(9m).
Graphic
If there is reduction in Remote range, please follow the steps below:
•  Check the distance: The Remote key may be too far from the vehicle. Stand closer to the vehicle during rain or bad weather
•  Check the location: Other vehicles or objects may be blocking the signals. Take a few steps to the left or right, hold the Remote key higher, and try again. Moreover, closeness to a radio transmitter such as radio station tower, airport transmitter, mobile or CB radios may lead to reduction in range of Remote key
•  Check the Remote key battery: See battery replacement procedure, given later in this section
•  If the Remote key is still not working correctly, contact an Authorised Mahindra Dealer
8.3.21  Battery Specification
Battery Voltage
3 V
Battery Capacity
225 mAh
8.3.22 Remote key Battery Replacement
If the Remote key operation is inconsistent when any of the buttons are pressed, it indicates that the Remote battery is weak. The rear side of the Remote is snap fitted. Using a small screw driver or similar tool, pry or separate the two halves of the casing.
Graphic
Pull out the batteries and discard the same. Insert new batteries as per the recommended specification. While fitting the new battery, ensure the positive side of the batteries face up. Align both the halves of the Remote and press to snap fit. Check operation of the Remote key.
This product contains a lithium button cell. If the button cell is swallowed, severe internal burns can occur within a mere two hours and lead to death.
Keep new or removed batteries away from children. If the battery compartment does not close securely, discontinue use and keep away from children.If you think that batteries have been swallowed or are stuck in any part of the body, seek medical help immediately.
While prying the Remote case, take care not to damage the battery. Do not touch the battery terminals or contacts.
Perchlorate material needs special handling and disposal. Refer to local regulations.
8.3.23 If Remote key is Lost
If you have lost the programmed Remote key, contact an Authorised Mahindra Dealer for procuring a new Remote key.
While programming a new key set, you will have to submit all the keys available with you, to an Authorised Mahindra Dealer.
Please note that there is a limitation (max. 2 keys at a time) to the number of keys that can be ordered. The minimum timeframe required to supply the duplicate keys is 20 days after all the formalities are completed. Please contact the Authorised Mahindra Dealer to understand the formalities involved.
If you make your own duplicate key, you will not be able to deactivate the theft detent devices or start the engine.
If the key is stolen or lost, communicate to an Authorised Mahindra Dealer for de-activating the function of the lost or stolen key. This is essential to avoid unauthorised access using the misplaced key.
Only Remote key transmitters programmed to your vehicle electronics can be used for remote locking and unlocking of your vehicle.
8.4 Theft Detent Warning System
8.4.1 Arming of Vehicle
Once all the doors are closed and locked with remote by pressing lock button , Theft Detent warning system would get activated.
8.4.2 Theft Detent Trigger
If any one tries to manipulate the Ignition or manually opens the doors, Theft Detent warning system alarm is activated by blinking the turn lamps and blowing siren for 27 secs.
Once the alarm is triggered, it can be disabled by pressing unlock button on remote or switching on the Ignition by using valid key.
8.5 Engine Immobiliser System
An Engine Immobiliser System is a security system that prevents the vehicle from being operated by an unauthorised keys. The Engine immobiliser prevents the engine from being started unless it recognises signals from the correct coded key. When a wrong key is inserted or a theft attempt is detected, the alarm is set off, and the hazard lamps flash along with a siren.
The system is automatically activated when the key is removed from the ignition.
8.5.1 Features of the Immobiliser System:
•  Prevents the vehicle being started by anyone not in possession of the correct vehicle key
•  The vehicle is automatically protected after the key is removed from the ignition. At every ignition ON, if the vehicle does not recognise the correct key code, the engine check lamp will illuminate/blink and the engine cannot be started
•  The vehicle will not be protected until the key has been taken out of the ignition
If the engine check lamp flashes or remains continuously illuminated after the ignition being switched ON, there is a system malfunction. Contact an Authorised Mahindra Dealer immediately.
Inserting the correct coded key in the ignition and switching the ignition ON, automatically deactivates the system. This enables the engine to start.
In the event of the vehicle not starting with the correct key, switch off the ignition for a minimum of 1 minute and attempt to start the vehicle again.
Do not modify, remove or disassemble the engine immobiliser system. Any unauthorised changes or modifications can affect proper operation of the system and will void your warranty.
The security system will be activated only when the vehicle is locked using the Smart Key. Locking the doors with the manual key will not activate the security system.
Using the ignition key to open the door, when the vehicle was locked and armed with Smart Key will be treated as unauthorised by the system setting off the alarm. Press the unlock button on the Smart Key to cancel the alarm.
9 FEATURES AND CONTROL
9.1 Quadruple Switch
Graphic
A : ORVM
B : Front LH Passenger Window
C : Rear LH Window Switch
D : Driver Door Window
E : Rear RH Window Switch
F : Power Window Lock
The quadruple power window switch on the driver door armrest/handle controls the following functions:
•  Both LH and RH ORVM folding
•  ORVM selector
•  ORVM adjustment
•  Power window functions of all doors in the vehicle
•  Power window safety switch that enables/disables power window operation of rear doors when operated independently from the respective doors
9.1.1 Power Windows
Power windows can be operated only when the ignition is “ON” position.
The driver can operate all the power windows in the vehicle through the quadruple switch on the driver door armrest/handle.
Graphic
Graphic
Other passengers in the vehicle can raise or lower their respective window glasses individually by using the separate switches provided on each of the door trim pads/armrests.
To lower/raise the window glass push/pull, the power window switches respectively.
Do not operate the power windows frequently when the engine is OFF. This will drain the vehicle battery.
If you operate the switches often during a short period of time, the system might become inoperable for a certain duration to prevent damage due to overheating. The system will return to normal functioning shortly.
It is recommended to operate one window switch at a time.
While operating the power windows, check for obstructions like head, hand, etc. which may lead to personal injuries.
Power Window Control after IGN OFF - The power window control will be available for 30 secs after IGN OFF condition.
9.1.2 Power Window Lock Switch
The main power window quadruple switch in the driver door trim has a power window lock switch to enable or disable operation of rear passenger window switches.
To disable the rear passenger power windows, press the window lock switch down.
To revert to normal operation, press the window lock switch again.
Graphic
9.1.3 Smart Power Window with Anti-Pinch (applicable for driver door only) (if equipped)
Smart power window is one of the significant safety features with the anti-pinch function, which automatically reverses the direction of glass if an obstruction is detected during the express up mode.
This feature consists of three functions:
•  Auto UP
•  Auto DOWN
•  Anti-Pinch during Auto UP
Graphic
Auto UP
Pull the power window switch up for a moment and release. The glass moves all the way up automatically. You do not need to hold the switch till the glass closes.
Auto DOWN
Press the power window switch down for a moment and release. The glass moves all the way down automatically. You do not need to hold the switch till the glass comes down.
Anti-Pinch during Auto UP
During Auto Up if any obstacle is detected with the force value ranging between 70~100 N (~7-10 kg), the controller senses the load and reverses the direction of the glass to downward direction for almost full stroke length.
However, if the force against the glass is less than the specified value, then this function does not operate.
If power window anti-pinch is used continuously for more than 20 times, the power window express feature will have thermal cut off and it will not operate for 20 secs and after that for one cycle it will operate and once the temperature comes to nominal then it will start operating normally
9.2 Mirrors
9.2.1 Manual ORVM (if equipped)
Graphic
Integrated exterior rearview mirrors on both the sides facilitate maximum rear view information to the driver.
Both the ORVMs are hinged and can be manually folded or unfolded. This avoids hindrances in narrow areas and parking slots. Make sure that you fully engage the mirror in its support, while folding or unfolding.
Objects seen in convex mirrors are much closer than they appear. Do not overestimate the distance of the objects that you see in the mirrors.
9.2.2 Electric ORVM (if equipped)
Graphic
The electric exterior mirror adjustment switch is located on the driver door trim/handle. The joystick on the switch can be used to select the left/right mirror and also to adjust the respective mirror.
9.2.3 Electric Foldable ORVM (if equipped)
Mirror Fold Function
To fold the ORVM assembly, rotate the joystick to lock position as shown in the below figure
ORVM will get fold automatically when:
•  Key is in out condition, Mirror is already in unfold condition and RKE LOCK is pressed or
•  IGN in ON condition and mirror is already in unfolded condition and ORVM switch is OFF to ON
Graphic
Mirror Unfold Function
Graphic
To unfold the ORVM assembly, rotate the joystick from lock to L or R position as shown in the below figure
ORVM will get unfold automatically when:
•  IGN in ON condition, Mirror is already in folded condition and ORVM switch is ON to OFF or
•  Key is in out condition, Mirror is already in folded condition and ORVM switch is OFF condition and IGN is made ON
9.3 Interior Mirrors
There are two interior mirrors, one is a conversation mirror (fish eye type) and other interior rearview mirror.
Graphic
A
Conversation Mirror
C
Day/Night Adjust Tab
B
Interior Rearview Mirror

9.3.1 Conversation Mirror (if equipped)
The conversation mirror can be used to converse with the rear passengers in the vehicle. Press the mirror cover to lower the conversation mirror. Close the mirror back and press to lock the mirror in position.
Graphic
Graphic
9.3.2 Interior Rearview Mirror
The interior rearview mirror provides the rearview information to the driver and also aids during reversing.
Graphic
This mirror has day and night (anti-glare) positions. The night position reduces glare from head lamps of vehicles behind you. Flip the tab (A) on the bottom edge of the mirror to select the day or night position.
9.4 Sun Visor
Sun Visors are provided for both driver and co-driver above the windshield. The sun visors can be used for either frontal or sideward shade, to reduce glare or to shut out direct rays of the sun.
Pull down the sun visor to block the glare of the sun. The sun visor can also be swivelled to the side as shown.
Graphic
Graphic

A : Sun Visor Extension
B : Ticket Holder

In certain variants, a vanity mirror is provided on the back of the front passenger sun visor.
Light above the Sun visor will be ON once you slide and open the Vanity mirror.
9.5 Sun Shade(if equipped)
Sun Shades are provided on both the rear door trim. The Sun Shades can be used for sideward shade, to reduce glare or to shut out direct rays of the sun.
Graphic
Lift the Sun Shade by holding the handle (A) and to block the glare of the sun and lock it over the slot (B) provided.
9.6 Utility Holders
9.6.1 Console Tray(if equipped)
Console tray provided on centre console can be closed by sliding the door.
Graphic
Graphic
Do not place large or heavy objects on the foldable trays, accessing the centre console storage will be difficult.
Ensure the tray cover is latched properly once closed.
9.6.2 Multi Storage Box (if equipped)
The multi storage box is located on top of Instrument Panel above the infotainment screen.
It can be used for storing small items like mobiles, wallets, tickets, etc.
Graphic
Do not store big items in the multi storage box. On rough or uneven roads, spilling the contents and leading to distraction.
9.6.3 Glove Box
The glove box is located just below the Left side of Instrument panel. To open, gently pull the lever and lower the lid. To close the glove box, raise the lid all the way up and gently press to lock the lid.
Graphic
It is suggested to keep copies of all vehicle documents along with the Owner’s Manual Kit in the glove box for reference when needed. There is also a pen holder inside the glove box for convenience.
To avoid the possibility of injury in case of an accident or a sudden stop, glove box lids should be kept closed when the vehicle is in motion.
9.6.4 Cup Holders (if equipped)
Centre Console Cup Holder :
Graphic
The cup holder located in the floor console between the front seats, It can be used for small cups or cans that are closed or have a lid.
Third row Cup holder :
Graphic
The cup holders are located on both the left and right side trims.
Only sealed cups/cans with lid to be used in the cup holders.
Use caution when using the cup holders. A spilled beverage that is very hot can injure driver or passengers. Spilled liquids can also damage interior trim and electrical components. Any spilled beverage can also startle the driver and cause a loss of control of the vehicle resulting in an accident.
9.6.5 Bottle Holders
Bottle holders are located on both the front door lower trims. You can use them to store maps, papers, small books, bottles, etc.
Graphic
Graphic
Only sealed/closed bottles are to be used in the bottle holders.
9.6.6 Seat Back/Magazine Pocket
The seat back pockets are located on the back of the front seats for holding lightweight papers/books/magazines, etc.
Graphic
To avoid injury, do not place large or hard objects in the seat back pockets. Do not put more than 1 kg weight in seat back pockets.
9.6.7 Grip Handle
Foldable grip handles are provided above the front (passenger only), second row and third row outboard seats.
Graphic
9.6.8 Coat Hook
The second row outboard passenger seats grip handles feature a coat hook for hanging your coat, shirts, etc.
Graphic
Hang lightweight articles only. Hanging excess/bulky weight/items may cause breakage of the hook and inconvenience to the passengers.
9.6.9 Second Row Captain Seat Armrest (if equipped)
Graphic
The second row seats have an armrest which can be folded.
9.6.10 Sun Glass Holder
Roof mounted sun glass holder is an integral part of the front interior lamp.
Graphic
Graphic
Press the lid to release the latch and lower the holder. It is strategically positioned to be accessed easily by both the driver and front passenger.
Do not access the sun glass holder while you are driving. It may distract your concentration and could lead to an accident.
9.7 Horn
Press the pad on the steering wheel to blow/sound the horn.
The horn functions even when the ignition has been switched OFF.
Graphic
9.8 Interior Lamps
Interior lamps comprise front/rear roof lamps, map reading lamps, ambience lamps and ignition key ring illumination. These lamps can be used for an illuminated entry. In auto mode, the roof lamps (courtesy lamps) and ignition key ring illuminate when any of the doors are opened. Once all doors are closed, the interior lamps switch OFF.
9.8.1 Front Roof Lamp
The front roof lamps are located in the roof console above the interior rearview mirror.
The roof lamp can be switched ON pressing the lens on the lamp. Press the lens again to switch OFF the roof lamp.
Graphic
A : Permanent ON
B : Door/Auto Mode
C : Permanent OFF
9.8.2 Reading Lamp (if equipped)
Reading lamp is provided on the both sides of roof for third row occupants.
Press the lamp once to switch ON.
Graphic
Do not leave the roof reading lamp in permanent ON mode. This will drain your vehicle battery.
9.8.3 Second Row Roof Lamp
The second row roof lamp is located on the roof above the second row seats. The courtesy lamp can be switched ON/OFF by the switch on the lamp.
The roof lamp switch has three operation modes to choose from:
•  The roof lamp remains permanently ON in this position irrespective of the door open status
•  The roof lamp remains in DOOR/AUTO mode in this position
•  The roof lamp remains permanently OFF in this position
Graphic
A
Permanent OFF
C
Permanent ON
B
Door/Auto Mode
The operation of the courtesy lamp in Auto/Door mode is as follows:
•  Roof lamp switches ON, dims and goes OFF after a preset delay once RKE/PKE unlock is performed
•  Roof lamp switches ON when any of the doors is/are open
•  Roof lamp dims and goes OFF after 20 secs delay upon closing of all doors
•  Roof lamp dims and goes OFF immediately on RKE lock or manual key lock after all doors are closed
•  If any of the doors are not closed properly, the roof lamp switches OFF automatically once the vehicle speeds > 20 kmph
•  Roof lamp goes OFF with ignition ON and all doors closed properly
The roof lamp will be turned ON in the case of an accident in a SRS equipped variant provided the roof lamp switch is in “Door/Auto” mode.
9.8.4 Boot Lamp (if equipped)
The Boot lamp is located in the right side of rear luggage space area.
This lamp will get switched ON when Boot is opened and switch OFF when it is closed.

Graphic
9.8.5 Glove Box Lamp (if equipped)
This lamp is located inside the Glove box.
It will get switched ON when Glove box is opened and switch OFF when it is closed.

Graphic
9.9 Power Outlet
The 12V power supply socket is provided for power take OFF. Electrical equipment/appliances like mobile phone charger, cigarette lighter, etc. can be used in the outlets.
The power sockets function only when the ignition is in ACC or ON positions. It is recommended to use the power sockets when the engine is ON to avoid battery drain.
The power outlet are located in the compartment below the centre bezel switch bank.
Graphic
To avoid serious injury:
•  Close the power outlet cap when not in use
•  Do not allow children to use or play with the power outlet
•  When using electrical appliances, strictly follow the manufacturer's instruction manual
•  Never use the power outlet for electric heaters while sleeping
•  Never insert foreign objects into the power outlet
•  Never use malfunctioning electrical appliances
•  Never insert inappropriate or badly fitting plugs into the power outlet
Do not modify, disassemble or repair the power outlet in any way. Doing so may result in unexpected malfunction or fire, which could cause serious damage to equipment and/or personal injuries. Contact an Authorised Mahindra Dealer for any necessary repairs.
To prevent injuries and accidents, secure all electrical appliances before use. Do not use any appliance that may:
•  Distract the driver while driving, or hamper safe driving
•  Result in a fire or burn injuries due to the appliance rolling, falling or overheating
•  Emit steam, while the windows of the passenger compartment are closed
•  Use the power outlets only when the engine is running. Remove the plug from the power outlet after using the electric device. Using the power outlets when the engine is OFF or leaving the electric device plugged in for many hours may cause the battery to drain
•  Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V
•  Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle
9.10 AUX and USB Ports
The AUX and USB ports are provided on the centre switch bezel below the infotainment controls and on the rear side of centre console.
Front USBs can be used as an input to the music system. You can connect iPods, USB memory sticks, etc. as an input and listen to the music through the vehicle speakers.
Graphic
Graphic
A : Front USB Ports
B : AUX
C : Rear USB Ports (USB 1– 1Amp Op, USB 2– 2Amp Op)
Rear USB is only for charging.
It is recommended to connect an input device only when the vehicle is stationary. Trying to connect an input device while driving may distract your attention and lead to accidents.
9.11 Exterior Lamps
9.11.1 Lighting Control Stalk
The lighting control stalk is located on the right hand side of the steering wheel and is a part of the combination switch.
It controls operations of parking lamps, head lamps, head lamp beam selection, high beam flashing, front/rear fog lamps and turn signals when the ignition switch is ON.
Graphic
Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to “O” on the switch to switch OFF all lamps.
9.11.2 Turn Signals
Graphic
A : Turn Signal - Left
B : Turn Signal - Right
Taking a Right Turn :
•  Push the lighting control stalk clockwise to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right
After you have completed your right turn, the stalk will automatically return to the neutral position switching OFF all the lamps.
Taking a Left Turn :
•  Push the lighting control stalk anti-clockwise to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left
•  After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF all the lamps
If the turn signal lamps on the instrument panel flash faster than normal, there may be a possibility that one or more of the turn signal lamp bulbs have blown. Replace the blown bulb immediately.
9.11.3 Parking Lamp ON
Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “1st detente” position on the switch to switch ON the parking lamps.
Graphic
The tail lamp, license plate lamp, instrument panel illumination lamps and all interior switches are also activated when the parking lamp is switched ON.
Park/Position Lamps will not be switched off automatically. User has to turn it off manually.
9.11.4 Head Lamp ON
Graphic
Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “2nd detente” position on the switch to switch ON the head lamps.
9.11.5 Head Lamp Low/High Beam
Switch ON the head lamp, and push the lighting control stalk down (away) from steering wheel to switch ON the head lamp high beam or lift/pull the lighting control stalk up towards the steering wheel to switch ON the head lamp low beam. In head lamp high beam, the high beam tell-tale lamp in the instrument cluster illuminates indicating high beam option selected.
Graphic
A : Low Beam
B : High Beam
Your vehicle head lamps are vented and moisture may be collected on the inside of the head lamp lens under certain climatic and geographical conditions. This moisture will evaporate once the head lamps have been switched ON for a few minutes.
9.11.6 Head Lamp Flash
Graphic
Pull the lighting control stalk (from the head lamp low beam position) towards the steering wheel to instantaneously flash the head lamp high beam. The head lamp flash works only when the head lamp is OFF or in low beam position.
9.11.7 Head Lamp Levelling System
When the vehicle is either fully or partially loaded, it may have an upward inclination disturbing the head lamp aiming. A correct head lamp setting provides good visibility to the driver with minimum inconvenience to other road users.
To properly aim the head lamp beam, use the head lamp levelling switch. This switch is located on the right side of the steering column shroud in the instrument panel. This switch has four positions marked as 0, 1, 2 & 3.
Graphic
Switch Position
Vehicle Loading Condition
0
Driver/Driver with Front Passenger
1
Driver + Front passenger + Second row occupied
2
All seats occupied
3
All seats occupied with luggage OR Driver with luggage at extreme rear side
Select the suitable switch position depending on the pay load as advised in the table.
The headlights can only be adjusted when the low beam is switched ON
9.11.8 Power ECO Switch (if equipped)
Power economy switch helps you to improve the fuel efficiency of the vehicle. It is located on the driver panel next to the Head lamp levelling switch.
Press the switch gently once to switch between modes. The ECO mode is indicated by LED illumination in the switch. Whenever ECO switch is pressed in vehicle, the ECO lamp will turn ON in Cluster and it will indicate that the vehicle is running in economy mode.
Graphic
Power or Economy mode can be changed at any time in vehicle running condition. Select the suitable mode depending on the requirement.
If the vehicle is in ECO mode, when engine is switched off and restarted, still vehicle will be in ECO mode. ECO ON or OFF is indicated by the light in the ECO mode button.
9.11.9 Instrument Panel Switch Pack
Graphic
SI No.
Switches
A
Passenger Seat belt indication
B
Passenger Airbag De-activation status
C
Dummy Switch
D
Hazard Switch
E
HDC*
F
ESP*
G
Engine Stop Start Switch*

*If equipped
•  When Passenger buckles to seat belt, then indication will go OFF otherwise it will be ON
•  When PAB switch in ON position, then Passenger air bag De- activation status will be OFF
9.11.10 Cornering Lamp (if equipped)
Graphic
Cornering lamps are integrated in both the Fog lamps.
Respective side Cornering lamps turn ON when a sharp turn is taken.
They help in illuminating the road in the direction of turn.
The following conditions are to be met for the lamps to switch ON:
•  Ignition ON
•  Head lamp is ON
•  Sharp turn taken
Both side Cornering lamp will turn ON during Respective side Cornering lamp activation if Foglamp switch is ON.
9.11.11 Daytime Running Lamp (DRL) (if applicable)
To enable DRL;
•  In day time whenever the engine is in running condition and park switch is in OFF position, DRL is enabled
To disable DRL;
•  Whenever the engine is in running condition and park lamp is ON, DRL will get switch to park mode
9.11.12 Global Intensity Control (If applicable)
Backlights intensity can be controlled to have pleasant view in the cabin.
Intensity is adjusted by using infotainment system, in ignition on and park lamp on condition.
Backlights can be put off by turning the park lamp position to off.
9.11.13 Fog Lamps (if equipped)
Fog lamps are to be used along with head lamp low beam, to improve the vision during foggy and misty conditions.
9.11.14 Front Fog Lamps ON
To switch ON the front fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk clockwise aligning the front fog lamp icon to the “arrow” on the inner fixed stalk as shown.
The front fog lamp indicator in the instrument cluster indicates the operation status.
Graphic
Fog lamps will turn ON only if parking lamp is ON.
9.11.15 Fog Lamps OFF
Graphic
Align the “O” of inner rotary switch on the lighting control stalk to the “arrow” mark on the inner fixed stalk as shown to switch OFF the fog lamps.
9.11.16 Rear Fog Lamp
To switch ON the rear fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk clockwise aligning the rear fog lamp icon to the “arrow” on the inner fixed stalk as shown.
The rear fog lamp indicator in the instrument cluster indicates the operation status.
Graphic
The rear fog lamps can be switched ON only along with the front fog lamps.
9.11.17 Welcome Lamp (if equipped)
Welcome lamp located on the bottom of both left and right ORVM’s.
They provide illumination outside the front doors either RKE is unlocked or any of the door are open.
Graphic
Graphic
9.11.18 Follow-Me Home (FMH) (if equipped)
This feature helps the driver and passengers to easily get out of the vehicle during poor light conditions. The head lamp low beam and entry assist lamps are turned ON for about 20 secs. assisting the passengers to find their way.
To activate FMH:
•  Switch OFF the parking lamps
•  Remove the ignition key
•  Press the RKE lock button 2 times
•  Head lamp and entry assist lamp switches ON for 20 secs. unless cancelled by UNLOCK signal
For FMH to be activated, the vehicle should have been driven with the park lamps or auto head lamp ON before switching OFF.
To extend the FMH feature further for 20 secs., press RKE LOCK button. This FMH extension can be availed for maximum 3 minutes from the first activation.
With FMH mode ON; First LOCK signal received from RKE will lock the doors and subsequent LOCK signal is used to toggle the head lamp ON and OFF.
To deactivate FMH:
•  Switch ON the parking lamps
•  Switch the ignition key to either ACC or ON in position
•  Press the RKE lock button 2 times
•  Head lamp and entry assist lamp switches ON for 20 secs. and switched OFF automatically
With FMH mode ON, if UNLOCK signal is received twice from RKE; the feature gets deactivated and cannot be extended further. Also, the doors are unlocked and vehicle disarmed.
9.11.19 Lead Me to Vehicle (LMV) (if equipped)
LMV is the feature that switches the head lamp and entry assist ON for 20 secs. helping the passengers to reach the parked vehicle safely and comfortably at night.
LMV is activated:
•  Pressing the unlock button on the RKE two times under poor light conditions (if vehicle is equipped with auto head lamp)
•  Pressing the unlock button on the RKE two times when FMH was activated while locking the vehicle previously (if vehicle is not equipped with auto head lamp)
LMV is de-activated:
•  At the end of 20 secs. after activation
•  When any door is opened
•  Ignition is switched ON
•  LOCK command is received from RKE
To extend the LMV feature further for 20 secs., press RKE UNLOCK button. This LMV extension can be availed for maximum 3 minutes from the first activation.
With LMV mode ON; First UNLOCK signal received from RKE will unlock the doors and subsequent UNLOCK signal is used to toggle the head lamp ON and OFF.
9.11.20 Hazard Warning Lamp
The hazard warning lamp switch is located in the centre bezel switch bank on the instrument panel.
To turn the hazard warning lamp ON, push the switch in. All the turn signal lamps flash. The instrument cluster turn indicator lamps also flash indicating the same. To turn OFF, push the switch again.
Graphic
The turn lamps do not work when the hazard warning lamps are operational.
9.12 Windshield Wipers
9.12.1 Wiper Control Stalk
Graphic
A : High Speed (HI)
B : Low Speed (LO)
C : Intermittent (INT)
D : Off
E : Flick-Wipe (MIST)
9.12.2 Wiper Off
The wipe function is OFF when the wiper control stalk is in neutral position (D).
9.12.3 Flick-Wipe (Mist)
Push the wipe control stalk to position (E) for a flick-wipe, hold to operate the wipe continuously (simultaneously lift the wiper stalk towards the steering wheel to operate the wash). The stalk automatically comes back to position (D) when released.
9.12.4 Intermittent (INT) Mode
Intermittent (INT) wiping is selected when the wipe control stalk is pushed down to position C. In the INT mode, the wiper operates on preset intervals.
The delay between each wipe can be programmed from 1 to 60 sec according to the rain by the user.
Programming of the INT delay time is as follows;
•  Turn the wiper stalk to position C, wiper will start wiping
•  Turn the wiper stalk to OFF position, before wiper starts second wipe
•  Turn the wiper stalk to position C again after the required delay and the same delay will be programmed
•  On keeping wiper ON position C, the wiper will wipe again with the programmed delay
9.12.5 Low Speed Wiping
Push the wipe control stalk down to the position (B) to operate the wiper at a fixed low speed.
9.12.6 High Speed Wiping
Push the wiper control stalk down to position (A) to operate the wiper at a fixed high speed.
The wipe/wash function can be activated only when the ignition is in “ON” position.
9.12.7 Wipe/Wash
Pull/Lift the wiper control stalk towards the steering wheel from any position to activate wipe/wash function. Washer fluid from front washer reservoir is pumped and sprayed onto the windshield. The wipers wipe the windshield 3 times after the washer spray is stopped and wipe once after 5 secs. Hold the stalk in position for continuous spray of washer fluid.
Graphic
When wiper is in OFF or Intermittent mode:
After completion of the wipe/wash cycle, wipers return to their bottom position.
If the wipers are in Intermittent mode and DWELL delay is less than or equal to 5 secs., then the wiper will continue in the Intermittent mode.
If the wipers are in Intermittent mode, and DWELL delay is more than 5 secs., then a further single wipe will be performed 5 secs. after the wash/wipe cycle. After the drip wipe (last wipe), wiper returns to normal Intermittent wipe.
9.12.8 Rear Wiper
Graphic
Rotate the outer rotary switch on the wiper control stalk to align the “arrow” on the stalk to the rear wipe “ON” position to operate the rear wiper.
9.12.9 Rear Wash
Graphic
The rear windshield wash & wipe operates 3 to 4 times or as long as the stalk end is turned/rotated to the rear wash position. Wiping will continue for few secs. after releasing the stalk end switch.
If you switch OFF the ignition before switching OFF the wiper, the blades stop at random on the windshield. Switch ON the ignition and move wiper stalk to 'MIST' position to return the wipers to the park position, provided the wiper stalk is in OFF position.
Using a windshield washer in freezing temperature could be dangerous. The washer fluid could freeze on the windshield, and block your vision resulting in an accident. If you operate your vehicle below freezing temperatures , use washer fluid with anti-freeze protection.
•  Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass
•  It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass
•  Do not operate the windshield washer for more than
10 secs. or when the reservoir is empty
9.12.10 Windshield Washer - Front & Rear
There are two nozzles with two adjustable washer jets in the front (on the bonnet). Using a pin, the eye ball jets can be adjusted precisely for direction. Always direct the washer jet to hit the middle of the windshield. This will enable the wiper blade to wipe the complete width of the windshield.
Graphic
In the rear, one nozzle with twin adjustable washer jets are provided for the rear windshield wash. Adjust the nozzle to direct the washer jet to hit the middle of rear windshield using a pin. Rear windshield washer fluid is supplied from front washer reservoir located in the Engine compartment.
9.13 Micro Hybrid Technology (Engine Stop/Start System(ESS)) (If applicable)
Overview of the System
Graphic
9.13.1 How Does the ESS Work?
Let’s take a simple example of driving in traffic conditions within your city. Assume that your vehicle has stopped at a traffic junction due to a red signal. The following steps illustrate how the system functions.
•  The vehicle has come to a halt at a traffic signal, is in the neutral gear and the clutch pedal is released
•  The ‘ESS’ lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period
Graphic
•  The ‘ESS’ lamp will illuminate in the instrument cluster indicating the engine was stopped by the ESS system.
•  Once the signal turns green, press the clutch pedal and the engine starts immediately
•  The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on
For auto stop to happen the following major conditions are to be met
•  ESS system is in active condition by default and can be turned off using the selection switch.
•  Bonnet is fully closed
•  In the current ignition cycle, the vehicle has crossed 2 kmph at least once
•  Current status of the engine is idling
•  Vehicle speed is zero
•  Accelerator pedal and clutch pedal are fully released
•  Vehicle battery should be in healthy condition
•  Engine is warm. This is an extra precaution to ensure safe working of the engine
•  Gear is in neutral
For auto start to happen the following major conditions are to be
•  Vehicle should have been stopped by the ESS system
•  Gear lever is in the neutral position
•  Vehicle speed is zero
•  ESS switch is in active mode
•  Bonnet should be closed
•  Clutch pedal is fully pressed (to restart)
9.13.2 Frequently Asked Questions (FAQ)
1. What is the advantage of this system?
The ESS system aids in attaining better fuel efficiency of your vehicle and thus reducing your running costs. However, the mileage improvement will depend upon various parameters such as prevailing traffic, driving patterns, etc.
2. What are the other advantages of this system?
•  Since the engine is switched off during traffic signals/ jams, considerable amount of carbon dioxide release to the atmosphere is avoided. This reduces global warming and thus provides us with a sustainable planet to live in.
•  Ability to restart the engine by pressing the clutch pedal
•  Reduces noise pollution at traffic signals
3. Is it possible to start the engine through the clutch pedal for the first time?
No, the engine can be cranked only with the ignition key for the first time. If the engine is stopped automatically by the system, only then it is possible to start the engine through the clutch
4. Whether the system will get activated as soon as the engine is started the first time with the ignition key?
The system will get activated only after the completion of engine temperature dependent warm up period which may extend up to 15 minutes. This is to ensure better performance of the engine in terms of fuel economy and durability.
5. Are there any safety precautions to be followed?
Yes, when the engine is turned OFF at traffic signals/jams with heavy electrical loads like head lamp or AC switched ‘ON’. If the duration of such stops are long, it is recommended to keep the engine ‘ON’ and the ESS system in ‘OFF’ position.
6. What is to be done, if I don’t want the system to stop my engine at traffic signals/jams?
The system can be turned OFF by switching OFF the Stop/ Start selection switch.
7. Whether the A/C will function, if the engine is switched off?
No, the A/C will not work. However the blower will be in operation when the ignition is ON.
8. What will happen if I keep the clutch continuously pressed at traffic signals/jams?
The system will not stop the engine if the clutch is continuously pressed since it indicates the driver’s intention of moving the vehicle immediately.
9. When the battery charge is low, whether the engine will be switched off?
If the battery charge drops below a certain level, the system will not stop the engine so as to preserve the battery from further draining.
10. Whether I will be able to operate the engine with the normal ignition key?
Yes, normal operation with the ignition key is always possible.
11. Whether the vehicle will start (or) stop in gear?
The vehicle will not start or stop automatically in gear to ensure safety. It will do so only in the neutral position of the gear shift lever.
12. Whether the system will stop my engine in moving traffic?
No, the engine will be stopped only when the vehicle speed is zero continuously for more than 2 sec.
13. Whether the audio system will be switched OFF, when the engine shuts down?
No, the audio system will not be switched OFF and you can continue to enjoy the music.
14. Whether the engine will re-crank whenever the clutch pedal is pressed?
No, when the engine is running, the starter motor will not attempt to re-crank.
15. If any component involved in the system fails, what will happen?
The system has a built-in diagnostic module which understands the failure and immediately goes to bypass mode. In the bypass mode the engine can be turned ON and OFF with ignition key as usual.
16. Are there any indications to show that engine does not stop due to poor battery charge state?
Yes, if all other conditions except battery charge are met, the ESS lamp blinks faster for 7.5 seconds and the engine does not switch OFF.
10 INSTRUMENT CLUSTER FEATURES
TFT Type
Graphic


LED Type
Graphic
A
Tachometer
D
Fuel Gauge
G
Gear Indicator
B
Temperature Gauge
E
Speedometer
H
Mode Switch
C
Warning/Tell-tale Lamps
F
Odometer / Tripmeter
I
Set Switch
The instrument cluster comprises the Tachometer, Speedometer, Trip Meter (A & B), Set/Mode switch, Odometer, Fuel Gauge, Coolant Temperature Gauge, Warning Lamps and Telltale Indicators.
10.1 Tachometer
Graphic
The tachometer indicates the real-time engine speed in thousands of RPM (revolutions per minute). Each division is 250 RPM. Operating the engine at very high RPM may lead to excessive engine wear and low fuel economy. Maintain steady engine speed below 2500 RPM and do not accelerate or decelerate abruptly.
Do not over-accelerate the engine during idling, this can cause severe engine damage and would be treated as abuse of the engine which is not covered by warranty.
10.2 Speedometer
Graphic
The speedometer indicates the real-time road surface speed of the vehicle in kilometres per hour.
The vehicle speedometer is affected by size of the tyres used. If the size of the tyres are changed from those fitted at the factory, the speedometer might not display the correct road surface speed and distance travelled.
10.2.1 Over Speed Alert Buzzer
Primary level
Secondary level:
Buzzer will trigger single chime in every 2 minutes when the vehicle speed reaches 80 kmph. once primary level chime is triggered, it will continue playing until speed is reduced to 76 kmph or goes beyond 120 kmph. Buzzer will trigger periodic chime when the vehicle speed reaches 120 kmph and chime will continue playing until vehicle speed is reduced to 114 kmph. Below this speed primary level chime will be triggered and will continue till 76 kmph.
10.3 Trip / Odometer
TFT Type
Select ODO / TRIP meter in screen by pressing Menu switch (A) on steering wheel.
A: Menu Switch, B: Scroll Switch, C: OK Switch
Select between ODO / Trip A / Trip B / Trip AC by toggling the Scroll switch (B).
Graphic
Graphic
Graphic
LED Type
Press the MODE button on Cluster switch to cycle through Odometer and Trip meter displays.
Graphic
Graphic
10.4 Odometer
The odometer records and displays the total distance travelled in kms. Odometer cannot be reset.
TFT Type
LCD Type
Graphic
Graphic
10.5 Tripmeter
Trip meter displays the elapsed distance travelled since the last trip reset.
TFT Type: Select between Trip A, Trip B and Trip AC by toggling Scroll switch (B) on steering wheel.
Graphic
Graphic
Press and hold OK switch for 2.5 secs. to reset trip to zero.
LED Type
Graphic
Select between Trip A, Trip B and Trip AC by toggling MODE switch (B) on instrument cluster.
The trip meters A, B & AC meter can be reset to zero by pressing SET (A) button for more than 3 secs.
10.6 Engine Coolant Temperature Gauge
The engine coolant temperature gauge functions only when the ignition is switched ON. It indicates the instantaneous engine coolant temperature. The coolant temperature varies with changes in weather, load on engine and driving pattern. Temperature rises from Cold (C) (white Colour) to Hot (H) (Red Colour).
TFT Type
Graphic
TFT Type
When coolant temperature reaches the red zone, the high engine coolant temperature warning lamp illuminates.
In such situations, switch OFF the AC and observe for any improvements in temperature gauge. If not, stop the vehicle and allow the engine to cool down. Check the coolant level in the coolant reservoir and top-up if required. If the engine is still heating up, contact your nearest Authorised Mahindra Dealer.
Never remove the Degassing tank cap when the engine is hot. The engine coolant is under pressure and could splash on to skin/eyes causing severe burns. Wait for the engine to cool down before adding coolant to the reservoir.
Do not continue driving the vehicle with an overheated engine. This will lead to damage of engine components and engine seizure.
10.7 Fuel Level Gauge
The fuel level gauge functions only when the ignition is switched ON. It gives the status of the fuel level in the fuel tank. F indicates the tank is full (45 litres), E indicates the tank is empty.
TFT Type
When the fuel level reaches the reserve, the level of Fuel will be displayed in RED colour. The Red display indicates the fuel in the tank reaches the low level (approx. 5 litres).
Graphic
LED Type
When the fuel level reaches the reserve, the last 2 bars are displayed. The last bar in the display blinks when the fuel in the tank reaches the low level (approx. 5 litres).
The amount of fuel required to fill the tank up may be less than the specified tank capacity, as a small amount of reserve fuel always remains in the tank.
On inclines or curves, due to the movement of fuel in the tank, the fuel level may fluctuate or the last bar may flash earlier than usual. Always check the fuel level when the vehicle is on level road.
If the last bar flashes even after filling sufficient fuel, contact your Authorised Mahindra Dealer as soon as possible.
When all the bars in the display starts blinking / flashing, contact the nearest Authorised Mahindra Dealer at the earliest.
10.8 Clock Screens
TFT Type
Select Clock screen in screen by pressing Menu button (A) on steering wheel.
Digital /Analog/ Stopwatch displays can be selected by toggling the Scroll switch.
Digital Clock: Digital clock can be selected only through Clock type in setting menu
Analog Clock (If equipped): Analog clock can be selected only through Clock type in setting menu
Graphic
Graphic
Date and clock setting will not be available in TFT cluster. Change in Date and clock in infotainment will be reflected in cluster automatically
Stop Watch (If equipped): Stop watch can be accessed through scroll button (B) in clock screen.
Graphic
Reset and Pause Stop watch by pressing OK button (C) in steering wheel. Short press for Pause and Long press for Reset.
10.9 Fuel Computer
TFT Type
Graphic
In Fuel computer, Average Fuel Efficiency (AFE) and Distance to Empty (DTE) will get displayed in screen.
Select Fuel computer in screen by pressing Menu button (A) in steering wheel.
10.10 Average Fuel Efficiency (AFE)
Graphic
Once Fuel computer is selected, Average Fuel Efficiency is displayed on the Screen.
AFE is calculated based on the Last TRIP cycle.
10.11 Distance to Empty (DTE)
Graphic
Distance to Empty is the approximate distance can be covered with the available fuel. This display can be selected by toggling Scroll button (B) in steering wheel.
10.12 Drive Information (if equipped)
In Drive Information, Drive Duration and Average Speed will get displayed in screen.
Select Drive Information in screen by pressing Menu button (A) in steering wheel.
10.12.1 Drive Duration
Graphic
Drive Duration is the elapsed time from the start of this trip cycle.
Once Drive Information is selected, Drive Duration is displayed on the Screen.
10.12.2 Average Speed (If equipped)
Graphic
Average Speed is calculated based on the total distance covered and time taken from the start of this trip cycle. This display can be selected by toggling Scroll button (B) on steering wheel.
10.13 Warning History (If equipped)
In Warning History, all alerts registered in memory will get displayed. If anything is going abnormal in the driving cycle is displayed in cluster.
Press Menu button (A) and select Warning History screen in cluster.
TFT Type
Graphic
Graphic
Following are the warning information available.
10.14 Full Screen Alerts (if equipped)
Press Menu button (A) and select Full Screen Alerts screen in cluster. Following are the warning information available.
Alerts
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic

10.15 Turn By Turn (TBT) Alerts (if equipped)
Press Menubutton (A) and select TBT Alerts screen in cluster.
This will only get enabled when in the infotainment a destination is selected.
Alerts
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic
Graphic

10.16 Special Alerts (if equipped)
Press Menu button (A) and select Special Alerts screen in cluster.
Following are the Special Alerts information available.
Door Open Alerts
Graphic
Bonnet open
Graphic
Right Rear Door open
Graphic
Right Front Door open
Graphic
All Doors open
Graphic
Tailgate open
Graphic
Left Front Door open
Graphic
Left Rear Door open

Steering Alerts
Graphic
Graphic

Reminder Alerts
Graphic
Graphic
Graphic
Graphic
10.17 Settings
Settings can be accessed through pressing menu button (A) on steering wheel switch.
10.17.1 Clock setting
Settings menu will be accessible only when vehicle is stationary.
Select clock through Scroll button B on steering wheel.
Graphic
Graphic
Selection between Analog and Digital displays can be done through scroll (B) and OK (C) button.
Graphic
Clock and calendar is in sync with infotainment. Any change in infotainment will reflect on cluster.
10.17.2 Anniversary Reminder (if equipped)
•  Anniversary schedule can be accessed through pressing menu button (A) on steering wheel switch
Graphic
•  Select the required anniversary reminder from the list displayed through scroll button (B)
Graphic
Graphic
•  Once slot selected, press OK button (C) on Steering wheel switch
Graphic
•  To Enter name select ‘Set Name’ through scroll down button (B) and press OK (C). Then it will enter into ‘Set Name’ page
Graphic
Enter the name via combination of scroll Button (B) and OK button (C). Select confirm to enter the name.
•  Set the Date by combination of scroll Button (B) and OK button (C)
Graphic
Select confirm to set birthday reminder
Same action is applicable for below reminders as well.
•  Wedding anniversary
•  Vehicle anniversary
•  Personal Reminder (Has to be accessed through menu [A] button)
Resetting Anniversary reminders
Select the anniversary you want to reset by following steps
•  Once the slot is selected. Press and hold OK button (C) for 3 secs. Below message will popup
Graphic
•  To reset select ‘Reset’ and press OK button (C) to confirm
Graphic
10.17.3 Alert Description (If equipped)
Take a break will appear if the vehicle is driven more than 2hrs 30 mins continuously or 250 kms without taking break more than 10 mins.
Graphic
10.18 Warning / Tell-tale Lamps in the Instrument Cluster
Graphic
A1
DPF Indicator Lamp
N
High Engine Coolant Temperature Warning Lamp
A
Right Turn Indicator
O
Door Ajar Warning Lamp
B
ECO Lamp
P
Parking Brake ON/Brake Fluid Low Warning Lamp
C
Airbag Warning Lamp *
Q
Low Fuel Warning Lamp
D
ABS Warning Lamp *
R
Low Engine Oil Pressure Warning Lamp
E
Left Turn Indicator
S
OBD Check Lamp
F
Battery Charging System Warning Lamp
T
Seat Belt Warning Lamp
G
Water-in-Fuel Warning Lamp
U
Check Engine Lamp
H
EPS Warning Lamp
V
Glow Plug Indicator
I
Vehicle Armed Status Lamp
W
Cruise Control Indicator @ *
J
Parking Lamp
X
Head Lamp High Beam Lamp
K
Front Fog Lamp Indicator *
Y
REGEN Indicator
L
Engine Start/Stop
Z
DEF Indicator Lamp
@ if equipped
* Come ON momentarily with ignition ON and go OFF in few secs.
10.18.1 Park Lamp
Graphic
The Park lamp indicator illuminates whenever park lamp is switched ON through Combination switch. During ignition OFF if park lamp is ON with driver door open, buzzer alert will be audible for 6 secs.
10.18.2 ECO Lamp ( if available)
Graphic
Whenever ECO switch is pressed in vehicle the ECO lamp will turn ON in Cluster and it will indicate that the vehicle is running in economy mode. If ECO switch is pressed but still ECO lamp is not turning ON or without pressing ECO switch if ECO lamp is ON, contact an authorized Mahindra dealer immediately.
10.18.3 Seat Belt Warning Lamp
Graphic
If the seat belts are unbuckled and engine speed is more than 850 rpm for 60 seconds, The seat belt warning lamp illuminates and the buzzer chimes for next 100 seconds reminding the driver and front passenger to fasten the seat belt. However the warning lamp will continue to illuminate till the seat belt fastens properly.
The co driver telltale lamp is on centre console.
10.18.4 Turn Lamps
Graphic
The turn lamp arrows in the instrument cluster flash showing the direction indicated by the turn signals. A sudden increase in the rate of flashing indicates failure of one or more of the lamp bulbs. Have them replaced as soon as possible.
10.18.5 Airbag Warning Lamp
Graphic
The airbag warning lamp in the instrument cluster illuminates when the ignition is switched ON and tell tale goes off in 4 secs. irrespective of engine condition. If the lamp remains ON continuously or flash intermittently, contact an Authorised Mahindra Dealer immediately.
Following conditions indicate airbag malfunction:
•  Lamp fails to go OFF after engine is started
•  Lamp does not illuminate at all
•  Illuminates while driving
Contact an Authorised Mahindra Dealer immediately when the airbag warning lamp indicates a system malfunction. The airbag may not deploy when needed, which could result in serious or fatal injury, or it might deploy unexpectedly or unnecessarily, which may result in personal injury.
10.18.6 Front Fog Lamp (if equipped)
Graphic
The front fog lamp telltale indicates the status of the front fog lamp. The front fog lamp can be switched ON only when the parking lamp is ON.
10.18.7 Engine Stop/Start Lamp (if equipped)
Graphic
The engine Stop/Start lamp illuminates when the ignition is switched ON and goes OFF after about 3 secs. The Engine Stop/Start lamp flashes when the vehicle/engine is about to stop through the Engine Stop/ Start System. The lamp illuminates continuously when the vehicle/engine has been switched OFF by the Engine Stop/Start System. On restarting the vehicle / engine again by using the clutch/key, the lamp goes out.
10.18.8 Low Fuel Warning Lamp
Graphic
When the fuel level in the fuel tank falls below the reserve limit, the low fuel warning lamp is illuminated. Refuel sufficiently and the lamp goes out. If the lamp continues to remain ON even after refuelling, contact an Authorised Mahindra Dealer.
10.18.9 Glow Plug Indicator
Graphic
Glow plug indicator illuminates when the ignition is turned ON and Glow plug is activated. It automatically goes OFF when the glow plug reaches the required temperature. Contact an Authorised Mahindra Dealer if the glow plug lamp does not illuminate with ignition ON or illuminates while driving.
10.18.10 Vehicle Armed Status Lamp
Graphic
The vehicle armed status lamp flashes intermittently (few secs. frequency) once the ignition is switched OFF and the vehicle security system is armed (when locked using the RKE).
Fast blinking indicates a malfunction in the engine immobiliser system. Contact an Authorised Mahindra Dealer immediately.
10.18.11 Rear Fog Lamp (if equipped)
Graphic
The rear fog lamp telltale indicates the status of the rear fog lamp. The rear fog lamp can be switched ON only when the front fog lamp is ON.
10.18.12 High Engine Coolant Temperature Warning Lamp
Graphic
The high engine coolant temperature warning lamp flashes when the coolant temperature is above 108ºC. It starts to flash a when the temperature reaches 110ºC and will be continuously ON with buzzer alert when the temperature reaches 113ºC.
The “red” bars in the temperature gauge also flash in the same frequency as the high temperature warning lamp when the above set temperature thresholds are reached.
Do not continue driving the vehicle with an overheated engine. This may result in engine damage, which will not be covered by the limited warranty.
10.18.13 Water-in-Fuel Warning Lamp
Graphic
The water-in-fuel warning lamp illuminates when the accumulation of water in the fuel filter reaches the maximum permissible limit. The fuel filter needs to be drained. Contact an Authorised Mahindra Dealer.
Do not continue driving the vehicle with the Water-in-Fuel Warning Lamp ON. This may result in fuel pump / other fuel system component damage, which will not be covered by the limited warranty.
10.18.14 Cruise Indicator
Graphic
The cruise control lamp illuminates when the ignition is switched ON and goes off in about 2 secs. indicating normal status. The lamp blinks if the accelerator is depressed, while in cruise mode.
When SET+ button in the steering wheel is pressed, cruise control is activated and the lamp illuminates indicating the vehicle is in cruise mode.
When CRUISE OFF button in the steering wheel is pressed, the cruise mode is deactivated and the lamp goes OFF indicating that the vehicle is not in cruise mode.
If the lamp does not illuminate when the vehicle is in cruise mode or does not go OFF when the vehicle is out of cruise mode, there is a possible malfunction in the lamp or the cruise control system. Have the vehicle checked by an Authorised Mahindra Dealer.
10.18.15 Low Engine Oil Pressure Warning Lamp
Graphic
The low engine oil pressure warning lamp illuminates when the ignition is switched ON and goes off when the engine started. If the lamp remains ON even after starting the engine, or illuminates while driving, stop immediately, check the oil level after 2-3 minutes. If low, add engine oil to the “MAX” level and check status. If problem persists, contact an Authorised Mahindra Dealer immediately.
Operating the vehicle with the low oil pressure warning lamp ON could cause sudden unexpected engine failure and loss of vehicle control, resulting in an accident and/or serious personal injury.
Do not run the engine with low oil pressure warning indicator ON. This may result in engine damage, which will not be covered by the limited warranty.
10.18.16 Check Engine Lamp
Graphic
The check engine lamp illuminates when the ignition is switched ON and goes out in 3 secs. indicating normal status. The lamp blinks or illuminates continuously if there is a fault in the engine management system. Switch OFF the engine immediately. Contact the nearest Authorised Mahindra Dealer for necessary repairs.
10.18.17 Parking Brake Lamp
Graphic
The lamp illuminates when Parking brake is engaged or when brake fluid level is low or when front brake pads are worn. If the lamp illuminates while driving, do the following:
•  Check if the parking brake is engaged. If yes, disengage it
•  Check if brake fluid level is low. If yes, top-up brake fluid to the required level
Clean the top of the brake fluid reservoir before removing the cap. Make sure no dirt, impurities or other items fall into the reservoir. Do not leave the cap off for more than a few minutes. Any contaminants, impurities or moisture in the brake fluid can affect brake operation, resulting in an accident.
If the brake warning lamp comes ON while driving, the brake system might not be working properly. The pedal might be harder to operate or might go closer to the floor and it can take longer to stop. Pull off the road carefully and stop the vehicle. Have the vehicle towed to the nearest Authorised Mahindra Dealer for checks or repairs.
Driving the vehicle with the brake warning lamp ON or when you suspect brake trouble is very dangerous and could result in serious injuries. Have your vehicle towed to an Authorised Mahindra Dealer.
10.18.18 OBD Check Lamp
Graphic
The OBD check lamp illuminates when the ignition is switched ON and remains ON till the engine is started indicating normal status. If the lamp remains ON, it indicates a potential malfunction.
There may be a malfunction in:
•  The fuel management system
•  The emission control system
•  Systems which affect emissions
Such malfunctions may result in excessive emissions. Contact an Authorised Mahindra Dealer immediately.
10.18.19 Head Lamp / High Beam Lamp
Graphic
The head lamp high beam telltale illuminates whenever the head lamps are switched ON to high beam or when the head lamp flash is used.
10.18.20 Anti-Lock Brake System (ABS) Malfunction Lamp (if equipped)
Graphic
The ABS malfunction lamp illuminates when the ignition is switched ON and goes OFF after about 2 secs. If the ABS malfunction lamp continues to remain ON or illuminates while driving (and the brake system warning lamp is OFF), ABS will not operate. But the brake system will still operate conventionally. In this condition, the wheels can lock during severe braking. Have the vehicle checked by an Authorised Mahindra Dealer as soon as possible.
However, if ABS malfunction lamp and brake warning lamp are simultaneously glowing, there is a severe malfunction in the ABS. Operate the vehicle with extreme care and have the vehicle checked as soon as possible at an Authorised Mahindra Dealer.
10.18.21 EPS Warning Lamp
Graphic
EPS warning lamp Indicates malfunction on Electric Power steering system. Contact an Authorized Mahindra dealer immediately.
When EPS is failed. vehicle can still be driven with increase in steering effort.
10.18.22 Battery Charging System Warning Lamp
Graphic
The battery charging system warning lamp illuminates when the battery is not being charged or when there is a malfunction in the alternator.
This lamp illuminates when the ignition is switched ON and goes out as soon as the engine is started. If the lamp continues to remain ON even after starting the engine, it is an indication that the battery is not being charged or there is a malfunction in the alternator. Check the alternator drive belt for looseness/breakage. If the drive belt is okay, switch OFF all unnecessary electrical equipment and recheck. Contact an Authorised Mahindra Dealer for further assistance.
10.18.23 Door Ajar Warning Lamp
Graphic
The door ajar warning lamp illuminates when any of the doors including the hood and back door are open during ignition ON. The buzzer chimes when the vehicle speed more than 2 kmph. The lamp and chime goes OFF when all the doors are closed properly.
10.18.24 DPF Indicator Lamp
Graphic
If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “‘EMISSION CONTROL SYSTEM”.
10.18.25 DEF Indicator Lamp
Graphic
If the DEF indicator is ON in the engine running condition then DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the ‘EMISSION CONTROL SYSTEM”.
10.18.26 REGEN Indicator Lamp
Graphic
It indicates the DPF Manual Regeneration is Required.
Also it is ON when manual regeneration is in progress
11 REVERSE PARKING ASSIST SYSTEM (RPAS)
(if equipped)
Reverse parking assistance system is provided to aid the driver while parking the vehicle in reverse at a speed of less than 5kmph.
While reversing, RPAS will detect the obstacles at the rear side of the vehicle within the sensing zone, which cannot be viewed through the internal rear view mirror and the outside rear view mirrors.
The RPAS will then alert the driver by sending out sound alarms at different frequency to indicate proximity of the obstacle from the vehicle.
The alert sound level is proportional to the distance.
Lesser the distance, shorter the interval between beeps.
11.1 RPAS Sensors
Four RPAS sensors are located at the rear bumper to assist driver for hassle-free parking.
Graphic
Magnetic devices present in the detection range could vastly affect the sensor performance and the distance displayed may not be accurate.
Always keep the sensors clean and free from ice formation, dust, water etc. for proper working of the system.
Do not press or shock the sensors by hitting or using a high-pressure water gun while washing. The sensors could be damaged.
11.2 Driving and Operation
•  RPAS is an aiding system. Under no circumstances mahindra will accept any responsibility or can be held liable for any direct or indirect, incidental or consequential damage caused by this system
•  System will not sense pot holes, trenches or drainages which are below the ground level
•  Repainting of the sensor will affect the performance of the system
Activation & De-activation of RPAS
•  The vehicle should be in IGN ON state to activate the reverse parking assistance system
•  RPAS will be activated automatically when reverse gear is engaged and deactivate when reverse gear is disengaged
•  When the obstacles come in the sensing range, the systems start giving the indication based on the distance and direction of the obstacles as defined in the detecting zones. The closer the obstacles, more display bars illuminated & beeps alerts
11.3 RPAS Information on Infotainment
Graphic
RPAS display on the infotainment screen gives the following information:
•  Left Corner zone indicates obstacle on left side
•  Left Centre zone indicates obstacle left centre side
•  Right Centre zone indicates obstacle on right centre side
•  Right Corner zone indicates obstacle on right side
12 bars in centre and 8 bars in corner indicate how close the obstacle is from the vehicle rear bumper, with bar 1 being very close and bar 12 being distant.
Centre sensor coverage range is 120 cm and corner sensor coverage range is 80 cm
11.4 Operation of RPAS
1. Start the vehicle (IGN is turned ON)
2. Change the gear to reverse (engage the reverse gear).The RPAS will be displayed as like below in the infotainment screen.
Graphic
3. Start moving the vehicle in the reverse direction
4. Display bars in the respective direction will glow according to obstacles in its path
Graphic
5. Distance indicator will display the distance in multiples of 2 cm, whichever is shortest
6. The Beep sound can be heard from the driver side speaker. Frequency of the beep will increase if obstacle comes closer (crossing each display bar) and the sound will be continuous if any of the obstacle is less than 50 cm.
7. The RPAS distance displayed will be the minimum of distances sensed by left and right sensors. And 120 cm is the maximum detection range.
Graphic
For Example:
Assume 2 obstacles are placed as mentioned below:
•  Obstacle at left at 76 cm
•  Obstacle at right at 98 cm
On engaging the gear in reverse, infotainment will display as below:
Graphic
Since obstacle is at 76 cm in right - minimum distance is shown in the distance indicator.
Along with this beep sound can be heard from driver side speaker. Frequency of the beep will increase if obstacle comes closer and the sound will be continuous if any of the obstacles is less than 50 cm.
11.5 Pay Attention
1. If display bars in any one of the sides are displayed with cross marks, contact an Authorised Mahindra Dealer
Graphic
2. If all display bars are displayed with cross marks, contact an Authorised Mahindra Dealer.
Graphic
3. Obstacle in the blind zone cannot be sensed by the system.
Graphic
4. Please check the condition of the obstacle behind your vehicle before reversing. In some cases, the display may be not as same as reality due to the installed sensor level, obstacle shape and reflection condition.
Graphic
5. Point B will be detected sooner or later, but A may not be detected at all.
Graphic
6. Not all obstacles are detected from 120 cm. For instance, a person is detected from 75 cm because of the weak reflection or absorption of the waves of the clothes.
Graphic
7. The distance indication may move up and down due to different sizes of the obstacle at different positions.
Graphic
8. Though the obstacle is in the sensing zone, obstacle may not be detected since the ultrasonic waves are not reflected back to the sensor.
Graphic
9. The obstacle of a conical shape may not be detected, since the ultrasonic waves get reflected away.
Graphic
11.6 Limitations of RPAS
•  System may not sense obstacles like wire mesh, handrail, small objects which are below the bumper level
•  System may not sense obstacles with cotton or spongy surface, which will absorb ultrasonic waves emitted by RPAS
•  System performance is dependent on the reflection angle of the obstacle
•  System may give false alert without obstacles while reversing the vehicle on grasslands, gravels and bumpy roads considering it to be an obstacle
•  System may alert you by sensing the ground when the bumper is not fitted in its intended position or when the vehicle is overloaded
•  System may give false signal while the vehicle moves from plain ground to a slope terrain and vice versa
•  System may give false signal by sensing the ground when the bumper is tilted more from the normal position or when the vehicle is heavily overloaded
•  System may give false signal an alarm during heavy rain, snow and heavy wind conditions
•  The shape of the obstacle may prevent a sensor from detecting it. Some obstacles for example as follows:
–  Sharply-angled objects
–  Tall or curved curb
–  Low obstacles (with height of 40 cm above ground level)
–  Tall obstacles with upper sections projecting outwards in the direction of the vehicle
•  Depending upon the shape of the obstacle and other environmental factors, the detection distance may shorten or detection may be impossible
•  Obstacles may not be detected if they are too close to the sensor
•  Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once
•  Because of other ultrasonic sources, sensor may give false alarm for e.g., sweeping machines, high pressure steam cleaners and neon lights
•  Due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves, the vicinity of the vehicle is noisy. It may cause sensor to give false alarm
11.7 Reverse Parking Assistance System (RPAS) - Type-2 (if equipped)
Activation & de-activation of RPAS
•  The Vehicle should be in IGN ON state to activate the Parking assistance system
•  RPAS will be activated automatically when reverse gear is engaged
•  RPAS will be deactivated when reverse gear is disengaged or IGN OFF
•  When the obstacles come in the sensing range, the system starts giving the alert beeps.
The frequency of RPAS Alert beeps will increase as the obstacle comes closer to the vehicle and when the obstacle comes very close to the vehicle the alert beeps will become continuous
Operation of RPAS
1. Start the vehicle.
2. Change the gear from neutral to reverse for RPAS alerts. Self-check beep will come from RPAS buzzer to indicate RPAS system activation.
3. Start moving the vehicle in reverse direction.
4. The alert beeps will become more rapid as the vehicle approaches the obstacle.
5. The Beep sound can be heard from Instrument cluster. Frequency of the beep will increase if obstacle comes closer and the sound will be continuous if any of the obstacle is less than 50 cm.
Pay Attention:.
If there is no self-check beep from RPAS Buzzer after Reverse gear, contact an Authorised Mahindra Dealer
If there is only 3 second continuous beep coming from RPAS Buzzer after Reverse gear, contact an Authorised Mahindra Dealer
12 REAR VIEW CAMERA (RVC) (if equipped)
Rear View Camera is located under the tail gate applique.
Graphic
Rear View Camera assists the driver when reversing & manoeuvring the Car at lower speeds. It has the following features:
•  Wider Rear View
•  Zoom-In View
•  Static & Dynamic Guidelines
•  Parking Assistance with Voice Guidance [Parallel & Perpendicular Parking]
•  RPAS Sensor Overlays
12.1 Feature Description
12.1.1 Wider Rear View
Rear view camera (RVC) provides a wider 125 Deg Horizontal View and 98 Deg Vertical View.
It overcomes the limitation of IRVM, where the ground is visible only after a distance from the vehicle rear. Whereas with the RVC, the ground will be visible right after 30 cm, from the Vehicle’s Rear.
12.1.2 Zoom-In View
Graphic
Press the Zoom-In button to view objects closer and press the Zoom-Out button to go back to the normal parking.
12.1.3 Static & Dynamic Guidelines
•  Static Guidelines indicate the placement of the vehicle with respect to the ground plane.
For example
During parking, we can compare the Static Guidelines against the Parking Slot Lines, to know if our vehicle placement is in line with the parking slot lines. Dynamic Guidelines indicate the path the vehicle will traverse with the current steering angle.
•  Dynamic Guidelines indicate the path the vehicle will traverse with the current steering angle
Graphic
This will help the driver in adjusting the steering, so that the vehicle does not hit any obstacles on its way.
Colour coding on the dynamic lines help in assessing the distance of the obstacles from the vehicles’ rear. In the RVC Video, if the Red coloured section of the Dynamic Line falls on the object, then the Object is within 1 metre distance from the vehicle’s rear. Likewise Yellow indicates 1-2 mts, Green indicates 2-5 mts.
12.1.4 Parking Assistance with Voice Guidance
This feature assists the driver during parallel and angular parking. It assists the driver during parking, through visual overlays and voice guidance.
Normal Parking
Graphic
Select the CAR Info Tab from the home screen and then Rev Cam option. By default, the normal parking mode is selected.
Angle Parking
This parking guides the driver to park the vehicle in a right angle parking slot, and also helps to park into 60 degree parking slots.
Select the CAR Info Tab from the home screen and then Rev Cam option.
1. Choose the angle parking function —
Graphic
After selection of the Angle parking feature, then Infotainment display’s the below screen:
Graphic
After selection, then start driving the vehicle to front of the selected parking slot and bring the vehicle to a standstill, when the vehicle back side ahead of the selected parking slot and display shows the selected slot.
2. Choose the target position to park —
Drive the vehicle backward and ensure the green OR blue overlay approaching the edge of the target parking slot. Stop the vehicle when the guided arc connects to the parking slot edge as shown. Turn the steering wheel to the maximum position, the green/blue overlay disappears and the dynamic/static overlay appears on the screen.
3. Drive the vehicle backward, and finish the parking —
Drive the vehicle backward, turn the steering wheel back to the initial position when the static overlay becomes parallel to the target parking spot as shown. Continue backing until the whole vehicle is over the target parking spot as shown:
Graphic
4. Press Exit button to go to Infotainment functions.
Parallel Parking
This parking guides the driver to park the vehicle between the free spaces available (more than 6 m length) from one rear end of vehicle bumper parked to another vehicle bumper parked in parking area as shown. Select the CAR Info Tab from the home screen and then Rev Cam option:
1. Choose the “Parallel parking” function on HMI
Graphic
After selection, the infotainment displays the below screen:
Graphic
Start driving the vehicle in forward gear to front of the selected parking slot in a way that vehicle rear side is facing the selected parking slot and camera shows the selected slot. Choose the parking position on right side/left side and make sure that no obstacles/vehicles are in the blue box area after the red pole. The red pole should match with the front/rear bumper of the parked vehicle. Red pole is used as a reference for the desired starting position as shown.
Ensure there is enough space (min. 3 ft) sideways between your vehicle and the parked vehicle before engaging reverse.
Graphic
2. Parking in selected slot
Start adjusting the steering wheel to desired side (left/right) and confirm the parking area. Keep adjusting the steering wheel until the box colour turns to green colour as shown.
Graphic
Green colour: Represents suitable parking location. You can try an attempt to park.
Red colour: Represents unsafe/potential risk parking. Your vehicle may hit the side of the vehicle already parked.
Blue colour: Represents unsafe/potential risk parking. Final parking length will be larger than the desired length of parking space. May lead to wrong vehicle direction movement.
Green/Blue/Red colours in this mode show are for guiding the vehicle to the parking slot and it would not detect the obstacles or alert the driver in that zone. It is the sole responsibility of the user to ensure there are no obstacles/vehicles which can lead to damage while parking.
3. Parking
Once the box turns to green colour, hold the steering wheel in the same position and start driving back. Green colour box is replaced with an arc line when the vehicle starts moving. When the arc touches the parking slot end position, stop the vehicle and rotate the steering wheel to the maximum in the opposite direction. Arc is then replaced by dynamic & static parking lines. Continue to park the vehicle in the same steering wheel position.
Graphic
4. Complete parking
Return the steering wheel to centre, and back the vehicle to the desired area when the fixed parking guideline becomes parallel to the desired parking slot.
5. Press Exit button to go to Infotainment functions.
Voice Guidance during Parking Assistance
To make the parking assistance user-friendly, voice guidance is given when you select parking assistance. RVC publishes a signal ‘Guided Voice Request’, which shall be used by the infotainment to play the voice guidance.
12.2 Screen View Selection
12.2.1 Full View with Options ribbon on the top
Graphic
12.2.2 Full View
Graphic
12.2.3 Split View with RPAS Overlays
Graphic
12.3 Entry and Exit Conditions
12.3.1 Auto Entry
Whenever you apply the reverse gear, the infotainment will enter into ‘Rear View Camera Mode’ and displays the video.
12.3.2 Manual Entry
You can view the reverse video, by selecting Reverse View Camera Option present on the Infotainment Screen, irrespective of the gear position.
Below is the path:
Home → Car-Info → Reverse View Camera
Graphic
You cannot enter into RVC Mode, through the infotainment screen button, if the vehicle is in forward gear and vehicle speed exceeds 20 kmph
12.3.3 Auto Exit
•  If Infotainment has entered ‘RVC Mode’ due to reverse gear, then the exit out of the mode happens only when you disengage reverse gear
•  If Infotainment has entered ‘RVC Mode’ due to manual entry, and the vehicle is in forward gear and vehicle speed exceeds 20 kmph, then the Infotainment will exit the ‘RVC Mode’
12.3.4 Manual Exit
If Infotainment has entered ‘Reverse View Camera Mode’ due to Manual entry, then the screen will show a cancel button, which can be used to exit the ‘RVC Mode’, at any point of time.
12.4 Camera Fitment Location
12.4.1 Camera Maintenance
Always keep the Camera lens clean from dust. Presence of dirt in lens may lead to poor image quality.
Always use clear water & soft nonabrasive cloth to clean the lens.
Don’t clean the camera lens and the area around the rear view camera with a power washer.
•  In case of any RVC-related issues, the Infotainment shall display ‘Contact Service Centre’. If you happen to see such a message, then the vehicle needs to be taken to the Service Centre. Avoid using the Rear-View Camera under these circumstances
Graphic
•  If Camera is not working, then the Infotainment display will be shown with Blue screen with only RPAS distance information alone in the display
Graphic
12.5 System Limitations
•  The reverse view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C)
•  Under certain circumstances given below, the rear view camera system will work with limitation or will not function fully
— In heavy rain, snow or fog.
— At night or in very dark places.
— If the camera is exposed to very bright light sources.
— Display may flicker, if the camera area is lit by LED or fluorescent lighting.
•  If there is a sudden change in temperature, from cold to hot areas
•  If the camera lens got dirty or obstructed
•  If the rear of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Authorized Mahindra Service Center
•  Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid reverse view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle.
•  The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera
•  Images shown on the display is a mirror-inverted manner, as like the rearview mirror. Make sure that no persons or animals and any objects/materials in the manoeuvring area. Pay attention and ensure safety before manoeuvring the Car. Driver is legally responsible for their car
•  The reverse view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately
•  Avoid using of rear view camera, if you are having eye colour blindness or impaired colour vision
•  Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases avoid using guidelines to judge the distance. Since it leads to miss-adjustments and increase the risk of collision with your car
•  It is driver’s responsibility to identify the suitable parking area to park his car safely
•  Rear-view video is shown, whenever reverse gear is applied, but it cannot be used as a rear-view monitoring system, which cannot replace the driver for looking into exterior and interior view mirrors
Rear View Camera is only meant to aid the driver and to enhance convenience while parking. It does not in any way replace the driver’s abilities and driving skills while using this system.
Under any circumstances, Mahindra accepts no responsibility and cannot be held liable for any direct or indirect, incidental or consequential damage caused by this system.
13 STEERING AND BRAKES
13.1 Steering
Your vehicle is equipped with an Electric power steering system (EPS). There is no fluid reservoir to check or fill. EPS uses energy from the battery to decrease the driver's effort in steering the vehicle. The EPS system will give you good vehicle response and increased ease of manoeuvrability in tight spaces. If for some reason the power assist is interrupted, it will provide mechanical steering capability to steer the vehicle. Under these conditions, you will observe a substantial increase in steering effort.
When driving in rough/off roads, hold the steering wheel rim, do not hold the wheel spokes. A sudden bump can jerk/turn the wheel and injure your hand. This may also lead to loss of vehicle control.
The EPS warning light should only be illuminated with the ignition ON before starting the engine.
If the warning light remains illuminated after the engine has been started, there will be no assistance from power steering. The vehicle may be driven using the mechanical steering system although it is not recommended as the effort to turn the steering wheel will be significantly high. In this case, contact an Authorised Mahindra Dealer immediately.
Keep both hands on the steering wheel, with the thumbs resting on the outer wheel rim.
To help prevent damage to the power steering motor:
•  Never hold the steering wheel to the extreme right or the extreme left for more than a few secs. when the engine is running
If the Electric power steering system breaks down (or if the engine is turned OFF), you can still steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•  Under inflated tyre(s) on any wheel(s)
•  Uneven vehicle loading
•  High crown in the centre of the road
•  High crosswinds
•  Wheels out of alignment
•  SAS (Steering Angle Sensor) calibration
•  Wheels out of balance
•  Loose or worn suspension components
13.1.1 Tilt Steering
Graphic
The steering wheel can be adjusted for rake as required using the lever in the steering shroud under the steering wheel.
To tilt/adjust the steering wheel:
1. Pull the tilt lever down to unlock.
Graphic
2. Raise or lower the steering wheel to the desired position.
3. Push the tilt lever back up to its original position to lock the steering.
Improperly locked steering wheel could cause loss of control and lead to accidents. Never adjust the steering wheel while driving.
13.2 Steering Controls - Audio (if equipped)
Graphic
The steering wheel also houses switches to control the main audio functions.
13.2.1 Steering Audio Operations
Graphic
A
Mute
D
Source Selection (SRC)
B
Volume + / -
(Toggle Type)
E
Seek Up / Down
(Toggle Type)
C
Call Disconnect
(Push Type)
F
Call Connect
(Push Type)
•  TO TURN AUDIO ON/OFF - Press the mute button for 2 secs.
•  SOURCE - Press SOURCE button to toggle between AUX, CD, TUNER & USB mode
•  VOLUME CONTROL - Press ‘+’ and ‘-’ button to increase or decrease the volume
•  MUTE - Press MUTE button to mute audio while in TUNER and AUX mode and pause the song while in USB mode
•  USB MODE - Press 'UP' / 'DOWN' button to go to
next / previous track
TUNER MODE - Press 'UP' / 'DOWN' button to go to next / previous frequency. Press 'UP' / 'DOWN' button for 2 secs. to AUTO TUNE
13.3 Brakes
Your vehicle is equipped with disc brakes in the front and rear wheels.
Disc brakes offer good braking capability and reduced stopping distance. Wet brake discs result in reduced braking efficiency. After a car wash or driving the vehicle through water, pump the brake pedal mildly while driving to remove the film of water from the brake pads.
Brake pads feature mechanical wear indicator. When the brake pad is worn, metallic squeal noise is heard indicating the pad wear. Have them replaced immediately.
Driving with wet brakes is dangerous. Stopping distance increases considerably when braking.
Dry the brakes by driving at very slow speed and applying the brakes lightly until the brake performance becomes normal.
Even if the power assist (vacuum assistance) is completely lost, the brakes will still work. The brake pedal would be much harder than normal and the vehicle stopping / braking distance will be longer than usual.
13.3.1 Parking on a Hill/Incline
If you have to park facing uphill, select first gear and turn the front wheels away from the kerb. If you have to park facing downhill, select reverse gear and turn the front wheels towards the kerb. Always ensure that the vehicle is in gear and parking brakes is engaged before leaving the vehicle.
13.3.2 Parking Brake
Graphic
To apply the parking brake, hold and pull the park brake lever up as firmly as possible. When the parking brake is applied with the ignition ON, the brake warning lamp in the instrument cluster illuminates. To release the parking brake, pull the parking brake lever up slightly, press the release button on the bottom of the lever and lower the parking brake lever completely.
The brake warning lamp indicates only the parking brake status. It does not indicate the degree of brake application. Be sure the parking brake is firmly set when parked and the gear shift lever is in gear. When parking on a hill; first apply the parking brake; after that shift the gear lever to 1st gear. This will avoid the load on the transmission, locking mechanism may make it difficult to move the shift lever out of gear.
Be sure the parking brake is fully disengaged before driving off. Failure to do so can lead to brake problems due to excessive heating of the rear brakes. It will also result in reduced fuel efficiency; lowered brake pad life and rear brake squeal.
•  The parking brake should be adjusted as per recommended maintenance schedule
•  Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission in gear. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in personal injury
•  Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could move the vehicle leading to accidents
•  The parking brake should always be applied when the driver is not in the vehicle
Engaging the parking brake while the vehicle is in motion can cause the rear wheels to lock up. You could lose control of the vehicle and cause an accident.
13.4 Hazard on Panic Braking
Hazard lamps are turned on automatically, upon panic braking when the vehicle speed is greater than 100 kmph. Hazard Lamps will flash for 5 secs. to indicate oncoming traffic.
13.5  Hazard Activation Upon Crash
Hazard lamps are turned on automatically in case of an unfortunate event of an accident where Airbags are deployed. In such a scenario, the hazard lamps will be on for 30 min or it can be turned off by operating Hazard switch (Off to On) or Ignition reset (Ignition Off and On)
Once activated hazard remains on for 30 minutes by default
Deactivation
•  30 minutes since activation is elapsed
•  Hazard switch On to Off transition is made
•  IGN turned Off and again turned On
13.6 Vehicle Breakdown Warning
In case of a brake down, hazards would be turned on automatically to indicate oncoming traffic. This feature will come into action upon opening the bonnet when vehicle speed is less than 5 kmph.
13.7 Anti-Lock Brake System (ABS)
Graphic
The Anti-lock Brake System (also called as ABS) is designed to help prevent lock-up of the wheels and stable stopping of vehicle during a sudden, panic emergency braking or braking on slippery road surfaces. The ABS system takes input from wheel speed sensors and brake pedal switch to control the brake fluid pressures at the wheels to avoid wheel lock-up. It allows vehicle to be steered during braking.
The minimum speed for ABS to function is 12 kmph. ABS is activated only during wheel lock conditions where ABS takes over and prevents wheel lock.
During the ABS operation, a slight pulsation may be felt in the brake pedal to indicate ABS is active. You may also hear motor noise from the engine compartment. It is recommended to hold the brake pedal firmly while the ABS is active rather than pumping the brake pedal.
Depressing the brake pedal on slippery road surfaces as on a manhole cover, a steel plate at a construction site, a joint in a bridge, etc. on a rainy day, tends to activate the anti-lock brake system.
Graphic
The ABS warning lamp lights up when you switch ON the ignition and should go out after a few secs. If the ABS warning lamp does not go out or if it comes ON while driving, it means there is a fault in the ABS system. In both cases, the normal braking system remains efficient, exactly as on a vehicle without ABS. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.
The ABS is not designed to shorten the stopping distance: Always drive at a moderate speed and maintain a safe distance from the vehicle in front of you. The stopping distance may be longer in the following cases:
•  Driving on rough, gravel or snow-covered roads
•  Driving with tyre chains installed
•  Driving over the steps such as the joints on the road
•  Driving on roads where the road surface is pitted or differences in surface height
Do not overestimate the Anti-lock Brake System: Although the Anti-lock Brake System assists in providing vehicle control, it is still important to drive with all due care and maintain a moderate speed and safe distance from the vehicle in front of you. There are limits to the vehicle stability and effectiveness of steering wheel operation even with ABS active.
If tyre grip performance exceeds its capability, or if hydroplaning occurs during high speed driving in the rain, the Anti-lock Brake System will not assist with vehicle control.
13.8 Electronic Brake Force Distribution (EBD)
(if equipped)
EBD, as a subsystem of the ABS system, controls the effective adhesion utilisation of the rear wheels. EBD aids in distributing the brake forces more evenly leading to better vehicle stability during braking.
Typically, the front end carries more weight and EBD distributes less braking pressure to the rear brakes avoiding a lock up/skid.
For example, under light loads EBD applies less effort to the rear brakes and for heavy loads it allows full braking effort to the rear wheels.
A fault with EBD is indicated by illumination of the brake as well as ABS warning lamps. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.
14 HEATING, VENTILATION AND AIR-CONDITIONING SYSTEM (HVAC)
HVAC system provided in the vehicle enables occupants to automatically/manually adjust air flow distribution pattern, air flow rate, air intake mode and air temperature inside passenger compartment. By appropriately adjusting the control knobs/switches provided on the HVAC control panel, located on centre console, occupant’s comfort can be ensured. HVAC system also helps in defrosting and defogging / de-misting the windshield and windows.
Air flow direction can be further controlled by adjusting louvres of air vents. An air filter is provided at the inlet of HVAC blower.
Engine coolant is utilised to heat the cabin air. For cooling the cabin air, an air-condititioning circuit based on the vapour compression refrigeration cycle is used. The air-condititioning system uses a refrigerant along with a suitable lubricating oil. Although being non-ozone depleting, the refrigerant is a greenhouse gas, hence once allowed to escape in the atmosphere, it adversely affects the environment by contributing to global warming/climate change.
Refrigerant used in system is a hazardous liquefied gas and is under high pressure. The refrigerant is colourless and has ethereal or faint sweetish odour. Exposure of refrigerant to skin or eyes may cause irritation and frostbite. They can also cause suffocation, dizziness and loss of concentration. When mixed with compressed air or certain other refrigerants, it may form flammable mixture. Never try to service HVAC system yourself which would involve refrigerant handling.
- If you sleep while operating the air conditioner or heater with all the windows closed, You may suffocate to death due to lack of ventilation. When you operate the air conditioner or heater, ventilate frequently.
Multiple vents are provided for distributing the air, being force-circulated by HVAC blower, throughout the passenger compartment.
To ensure sufficient air flow and hence adequate HVAC system performance, air flow path should be kept free of obstructions. Keep system’s air intake, located near plenum appliqué, free of snow, leaves and other debris. Also keep the area in front of air vents free of any obstruction inside the cabin.
14.1 HVAC Overview
Graphic


A
Side Defrost Vents
B
Windshield Defrost Vents
C
Side Vents
D
Centre Vents
E
Foot Vents
F
HVAC Controls
14.1.1 Centre/Side Vents
Graphic
A
Adjustable Louvres
B
Thumb Wheel
Two centre vents are located on top of the infotainment screen in the centre console. The two side vents are located one each at the left and right extreme ends of the instrument panel. Both the centre and side vents provide air flow to the front seat passengers.
Rotate the thumb wheel (B) left to close or right to open the air vent. Direct air to the desired direction by the adjusting Louvres(A) up/down or left/right.
14.1.2 Defrost Vents - Side/Windshield
Graphic
There are four defrost vents in your vehicle: two side defrost and two windshield defrost vents. They are located just below the windshield. The side defrost vents prevent the front windows from de-misting.
14.1.3 Second/Third Row Roof Vents
For second row cooling HVAC blower unit/vents are mounted on the centre of the roof. The vents have adjustable Louvres to direct the air flow.
Graphic
The Roof mounted HVAC blower unit/vents supplies cooling to 2nd and 3rd row passengers.
Graphic
14.2 Climate Control
There are two types of climate control depending on the variant:
Automatic Climate Control
Graphic
A
Temperature Control Dial
G
Front Windshield Defrost
B
Economy Button (ECon)
H
Air Distribution Mode
C
AC ON
I
Fresh Air Mode
D
Re-circulation Mode
J
Auto Mode
E
Rear AC (2nd and 3rd row)
K
Blower Fan OFF
F
Blower Fan Speed Control Dial
L
Rear Windshield Defrost
Manual Climate Control
Graphic
A
Temperature Control Dial
G
Front Windshield Defrost
B
Economy Button (ECon)
H
Floor Defrost Mode
C
AC ON
I
Floor Mode
D
Re-circulation Mode
J
Face Floor Mode
E
Rear AC (2nd and 3rd row)
K
Face Mode
F
Blower Fan Speed Control Dial
L
Rear Windshield Defrost
14.3 Temperature Control
Graphic
A
Cool Air
B
Hot Air
By operating the temperature control knob, temperature of air being discharged from various vents can be adjusted to the desired level. Engine coolant is utilised to heat, whereas the air-conditioner is used to cool the air inside the AC unit. Based upon selected position of the temperature control dial, the desired discharged air temperature can be obtained.
By rotating the dial counter-clockwise and setting it to the extreme left position, cool air is discharged.
When the dial is rotated clockwise, the discharged air progressively starts getting warmer.
By rotating the dial further in the clockwise direction and setting it to the extreme right position, hot air is discharged.
14.4 Blower Speed Control
The controls differ depending on the variant (Automatic or Manual Climate Control).
For Automatic Climate Control Variants
Graphic
Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.
To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).
The same is also indicated in the infotainment screen (in Automatic Climate Control equipped vehicles).
The blower speed control dial is also used to switch ON the blower alone when needed. Use the OFF button on the switch bank to switch OFF the blower.
This blower speed control does not control the air flow to third row vents.
Graphic
The blower OFF button turns the blower OFF. This in turn switches OFF the AC also.
The blower alone can be switched ON by rotating the blower control dial.
For Manual Climate Control Variants
Graphic
Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.
To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).
To switch OFF the blower, rotate the dial to “0”.
Second and Third Row Blower Speed Control
A blower control is provided on the HVAC module mounted on Roof. This vent is to control the air flow to the third row vents.
Graphic
Second and third row AC is switched ON by the Rear AC button on the central switch bank. The airflow is controlled by the blower control on the Roof mounted blower unit.
14.5 Economy Button (ECon)
Graphic
Graphic
ECON switch turns ON economy mode. During ECON AC operation, the system automatically cuts OFF at a higher temperature than normal AC. The operation can be used during mild weather conditions for better fuel efficiency. Comfort level may be compromised during this operation.
LED on the button indicates the status of the button. Press the ECON switch again to turn OFF economy mode.
14.6 Air-Conditioner ON (AC ON)
Graphic
Graphic
This button turns the air-conditioner ON or OFF. Adjust the temperature control dial as per the temperature requirement. LED on the button indicates the status. Push the button to turn ON/OFF the AC.
When the air-conditioner is functioning, air gets cooled and de-humidified before being circulated inside the cabin. In hot weather conditions, it will take a slightly longer time to cool the interior as compared to cooler weather. Fuel consumption will be relatively higher if the vehicle is being driven with the air-conditioner ON.
AC will function only when both engine and blower are switched ON.
•  In certain operating conditions when the engine gets overheated, the engine management system may switch off the air-conditioner intermittently
•  The air-conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system
•  During extreme cold weather conditions, the air-conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold
•  When air-conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle
14.7 Re-circulation Mode
Graphic
Graphic
To set the HVAC system to recirculation mode, press the recirculation mode button. The LED on the button illuminates, indicating the recirculation mode is active.
In this intake mode, the air from inside the passenger compartment will be sucked by the blower and utilised further to ventilate /cool / heat the cabin.
For quick cabin cooling/heating or while driving through dusty/polluted region, re-circulation mode can be selected for short periods. Driving with this mode active, may lead to better fuel economy and longer HVAC filter life.
However, running the air-conditioner in re-circulation mode for long will make cabin air too dry and oxygen level drops inside the cabin turning the air stale. On the contrary, keeping air intake control in recirculation mode for long, with air-conditioner switched OFF, will make cabin air too humid and are more likely to become foggy. Hence, never drive in recirculation mode for long, shift back to fresh air mode as soon as possible.
Never keep recirculation mode selected continuously for long. Prolonged use of the HVAC system in recirculation mode may cause windshield/windows to mist/fog-up, impairing visibility which can lead to an accident, endangering you and others.
14.8 Fresh Air Mode
Automatic Climate Control
To set the HVAC system to fresh air mode, press the fresh air mode button. The LED on this button illuminates, indicating that fresh air mode is active.
In this intake mode, fresh air from outside the vehicle is sucked by the blower and utilised further to ventilate/cool/heat the cabin.
Graphic
Manual Climate Control
Graphic
To set the HVAC system to fresh air mode, press the re-circulation mode button again. The LED on this button switches OFF, indicating that fresh air mode is active.
14.9 Rear AC
The rear AC provides cooling for the second and third row AC vents. LED on the button indicates the status.
The rear AC can be switched ON only when the AC button (front/second row AC) is ON.
Graphic
14.10 Auto Mode (Automatic Climate Control only)
Graphic
The auto mode can be used to control the complete air-conditioning operation of the vehicle automatically. The auto mode controls blower fan speeds, air intake mode, temperature and modes (vents) based on the set temperature.
All the air-conditioning operations can also be controlled manually as explained in the previous sections.
14.11 Air Distribution Mode Button
Air distribution mode button allows you to select the below air flow patterns:
•  Face Mode
•  Face and Floor Mode
•  Floor Mode
•  Floor Defrost Mode
•  Defrost Mode
Depending on the variant, the operation of air distribution mode changes.
For Automatic Climate Control
Graphic
Each press of mode switch changes the flow pattern accordingly.
The air distribution inside the vehicle can be chosen by the Mode button.
For Manual Climate Control
Graphic
Press the required mode button on the switch bank.
14.11.1 Air Distribution - Face Mode
Graphic
Air is discharged through the centre and side vents on the instrument panel, and through the roof vents.
Corresponding information is displayed on the infotainment screen.
14.11.2 Air Distribution - Face & Floor Mode
Graphic
Air is discharged through the centre, side and foot vents on the instrument panel, and through the roof vents.
Corresponding information is displayed on the infotainment screen.
14.11.3 Air Distribution - Floor Mode
Graphic
Air is discharged through the foot/floor vents on the instrument panel.
Corresponding information is displayed on the infotainment screen.
14.11.4 Air Distribution - Floor Defrost Mode
Graphic
Air is discharged through the foot/floor vents, windshield vents and side defrost vents on the instrument panel.
Corresponding information is displayed on the infotainment screen.
14.11.5 Air Distribution - Defrost Mode
Graphic
Air is discharged through the windshield vents and side defrost vents on the instrument panel.
Corresponding information is displayed on the infotainment screen.
14.12 Rapid Cabin Cooling
For rapid cooling of the cabin, the following AC settings are recommended:
1. Make sure that all the windows are fully closed
2. Set the blower to maximum speed
3. Fully open the vents and adjust louvres to direct air toward face
4. Set the air distribution control to face mode
5. Set air intake control to fresh air mode
6. Turn the air-conditioner ON
7. Set the temperature control dial to extreme left (coolest) position
For faster cabin cooling, you can select re-circulated air intake mode initially. Once passenger compartment reaches a comfortable temperature, shift to fresh air mode. Also blower speed and temperature control knob can be re-adjusted as desired.
If your vehicle was parked in the hot sun with all the windows closed, drive the vehicle with windows open for the first few minutes. This will help in venting the hot interior air out and allow the air-conditioner to cool the cabin quickly.
14.13 Rapid Cabin Heating
For rapid heating of the cabin, the following AC settings are recommended:
1. Make sure that all the windows are fully closed
2. Set the blower to maximum speed
3. Set the air distribution control to foot mode
4. Set air intake control to fresh air mode
5. Set the temperature control dial to extreme right (hot) position
6. For de-humidified heating, switch the air-conditioner ON
For faster cabin heating, you can select re-circulated air intake mode initially. Once passenger compartment reaches a comfortable temperature, blower speed and temperature control knob can be re-adjusted as desired.
In extreme cold weather conditions, the engine coolant takes time to get heated up. Hence, it might take a while for hot air discharge, even when blower is running and temperature control dial is set to hot position.
14.14 Front Windshield Defogging/De-misting
Graphic
Front windshield glass defogger switch is located on the blower speed control dial in the central switch bank. Press the switch once to activate the defogger. The lamp on the switch illuminates upon activation. AC is turned ON automatically (if the AC was in OFF condition).
•  Air is discharged through the windshield defroster vents and side defroster vents.
•  Fresh air mode enabled, to reduce the humidity inside the cabin (If recirculation mode was active before pressing the front defogger switch, system is switched to fresh air mode automatically).
•  Blower speed is increased to SPEED 3, if the blower speed was below speed 3 prior pressing the front defogger switch (No change to blower speed if the prior blower speed was 3 or higher before pressing the front defogger switch).
•  Temperature of the air coming out of defrost vents shall be as per the user set temperature.
•  Press front defog switch again to TURN-OFF the front defogging as soon as the fog /frost is cleared. (All setting reverts back to the one which was used before selecting the defogger mode).
14.15 Rear Windshield Defogging/De-misting
Graphic
Rear windshield glass defogger switch is located on the temperature control dial in the central switch bank. Press the switch once to activate the defogger. The lamp on the switch illuminates upon activation and the defogger heats the rear windshield clearing the fog / frost.
Switch OFF the defogger by pressing the switch once as soon as the fog / frost is cleared.
If the windshield defogger switch is not switched OFF manually, it will turn OFF automatically after a pre-defined time, based on ambient temperature.
If you want to switch the defogger ON again, press the defogger switch again.
On second and subsequent activations of the rear windshield defogger in the same ignition cycle, the defogger ON time will be half the duration of the first activation.
14.16 Points to Remember
•  For quickly defogging/de-misting/defrosting outside of windshield, it is advisable to operate the windshield wiper/washer for few times intermittently
•  If snow has deposited on windshield, use ice scraper to remove ice deposited before using wiper
•  In freezing weather, warm the windshield with the defroster before using the windshield washer. Also use a washer fluid having anti-freezing properties. These will help prevent the washer fluid from freezing on your windshield
•  Dirty/contaminated windshield would make misting/fogging-up worse. Always keep the inside and outside of windshield clean
•  Reduced air flow because of clogged HVAC filter or any other obstructions in air flow path may lead to inadequate defogging/de-misting/defrosting performance. If air flow seems to have considerably reduced, get the filter cleaned or replaced immediately. Air flow path should be kept free of obstructions
•  Reduced cooling performance from air-conditioner may lead to inadequate defogging/de-misting/defrosting. If cooling effect seems to have dropped considerably, get the air-conditioning system checked by an Authorised Mahindra Dealer
Your vehicle is equipped with a HVAC filter. If the AC performance is considerably low, it is recommended to have the HVAC filter checked at the nearest Authorised Mahindra Dealer.
Never operate HVAC system with the filter removed. This may result in premature failure of system components.
15 STARTING AND DRIVING THE VEHICLE
15.1 Safety Tips - Before Starting Your Vehicle
General
•  Before starting the vehicle, inspect the inside and outside of the vehicle; look for any damages, leaks, loose parts, foreign objects/debris. Contact an Authorised Mahindra Dealer if required
•  Before starting your journey, check the working of all safety devices/components especially brakes, steering, lamps, signals and tyres. In case you suspect any system/devices are not working properly, contact Authorised Mahindra Dealer
•  Adjust the seat headrest, steering wheel and fasten the seat belt as described in this manual. Never perform any seat / steering adjustments when the vehicle is in motion
•  Start the vehicle only when seated and belted in the driver's seat
The Engine Management System controls the engine's idle speed. When the engine starts, idle RPM runs higher than normal in order to warm the engine. The engine idle speed RPM reduces once the engine warms up.
Never start your vehicle in a closed garage or in an enclosed area. Exhaust fumes can be toxic. Always keep the garage door open or start the engine in an open area.
Mirror Adjustment
Ensure that the rearview mirror and both the ORVM’s are adjusted for an unobstructed view of the road behind.
Exterior Lamps
Have someone observe and confirm normal operation of all exterior lamps while you work on the controls from the driver seat. Also, check functioning of all lamps in the instrument panel.
Door Latches
Check for positive closing, latching, and locking of all doors, both from inside and outside.
Fluid Leaks
Check the area under the vehicle after an overnight parking for fuel, power steering fluid, brake fluid, engine coolant, oil, or other fluid leaks. If leaks are observed, contact an Authorised Mahindra Dealer.
15.2 Starting the Engine
Make sure all vehicle occupants are properly seated in their seats and have buckled their safety belts. For more information on seat, headrest positioning, safety belts and their proper usage, refer to the “Seat Belts” section in this manual.
Before cranking the engine
•  Make sure the gear shift lever is in neutral
•  Make sure the parking brake is engaged. Turn the key to IGN position but do not turn the key to start
•  Few warning lamps briefly illuminate. See “Warning Lamps in the Instrument Cluster” section for more information
1. Shift the gear shift lever to neutral position.
2. Apply parking brake.
3. Turn the ignition ON.
4. Do not press the accelerator.
5. Turn the key momentarily to the START position to crank the engine.
6. Once the engine starts, release the key; it will return to the IGN position.
Do not continue cranking after the engine has started. This will lead to damage of the starter and other engine components.
7. If the engine fails to start, attempt to restart after about 10 seconds
8. If the engine fails to start even after repeated attempts as per the procedure given above, contact the nearest Authorised Mahindra Dealer.
To prevent damage to the starter, wait 10 secs before attempting to restart the engine.
If the vehicle battery has discharged, use booster cables, a booster battery or a battery from another vehicle to start. Jump-starting a vehicle can be dangerous if done improperly. Refer to the “Jump-starting procedure” section in this manual.
If the engine still fails to start, contact an Authorised Mahindra Dealer for assistance. The idle speed is controlled automatically and it will decrease as the engine warms up.
Observe the following when the engine is running:
•  All warning lamps are OFF
•  Low oil pressure lamp is OFF
After idling for a few secs., release the parking brake, depress the clutch, shift the gear shift lever to 1st gear, release the service brake pedal, drive by releasing the clutch and depressing the accelerator pedal simultaneously.
15.3 Stopping the Engine
Before turning the engine OFF, always allow the engine to return to normal idle speed and run for few secs. This assures proper cooling and lubrication of the turbocharger. This is particularly necessary after any hard driving.
To reduce the risk of personal injury, before turning OFF the engine and leaving the vehicle, always:
•  Keep your right foot on the service brake pedal
•  Turn front wheels towards the road curb
•  Switch OFF the ignition, turn the key to the steering lock position and remove the key
•  Firmly engage the parking brake
•  Move the gear shift lever to 1st gear position (reverse gear if parking on an incline)
•  Slowly release the service brake pedal
•  Lock your vehicle when leaving
15.4 Exhaust Gases
Protection against exhaust gas entry into the vehicles interior is considered in the design of the exhaust system.
•  Vehicle exhaust contains Carbon Monoxide, Carbon Dioxide, Nitrogen Oxides, Hydrocarbons and Particulate Matter. These are potential environmental and health hazards
•  Avoid inhaling the exhaust gases. Carbon Monoxide is a colourless and odourless gas and can cause unconsciousness or even death
•  If the exhaust system is damaged for any reason or you notice a change in the exhaust noise, have the vehicle checked by an Authorised Mahindra Dealer immediately
•  Do not start the vehicle in a closed garage or in an enclosed area where ventilation is poor for the exhaust gases
•  Since the engine compartment and exhaust system components are hot and can ignite a fire, do not park or leave the vehicle with the engine idling over dry grass, leaves, paper, rags or any combustible material
Never keep the engine running when the vehicle is parked in an area which is not properly ventilated. This could lead to serious respiratory problems and/or death.
15.5 Driving Your Vehicle
15.5.1 Pedals
Graphic
A
Accelerator Pedal
B
Brake Pedal
C
Clutch Pedal
15.5.2 General Driving Precautions
Always observe the following precautions to minimise the risk of accidents leading to serious personal injury or damage to your vehicle.
•  Before you drive your vehicle, please read this manual carefully
•  Before you start driving, check proper operation of the brakes and steering system
•  If, while driving, you hear any strange noise or feel unusual vibration, or if you have any concerns whatsoever, or if any warning lamps illuminate or buzzers sound, park/stop the vehicle in a safe location as soon as possible. Identify the cause and take any necessary remedial action. Contact your Authorised Mahindra Dealer if necessary
•  Never overload or improperly load your vehicle
•  Always be attentive while driving and follow safe driving practices
•  Always maintain the recommended inflation pressure in tyres
•  Always drive at a safe speed appropriate for given driving conditions. You must follow the speed limits
•  While backing up, keep a constant lookout for people, particularly children, or other obstructions or hazardous material that might be present behind the vehicle
•  Avoid loading any items on the roof that will raise the vehicles centre of gravity and make your vehicle more unstable
•  Loaded vehicles, with a higher centre of gravity, may handle differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle
•  Always slow down in gusty crosswinds. Because of its profile and higher centre of gravity, your vehicle is more sensitive to side winds than an ordinary passenger car. Slowing down will allow you to have much better control
•  When driving off-road or on rugged terrain, do not drive at excessive speeds, jump, make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover causing serious injury. You are also risking expensive damage to your vehicle's suspension and chassis
•  Maintain steering wheel control at all times, especially on rough terrains. Sudden changes in terrain can result in abrupt steering wheel motion. Make sure you grip the steering wheel from the outside. Do not grip the spokes
•  If the vehicle goes from one type of surface to another (e.g. from concrete to gravel/sand/mud/snow) there will be a change in the way the vehicle responds, especially the way it responds to steering, braking and accelerating inputs
•  Be extremely careful when driving on pavements made slippery by loose sand, water, gravel, snow or ice
•  If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake or steering application. Ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface
•  It may be safer to stay on the apron or shoulder of the road and slow down gradually before returning to the pavement. You may lose control if you do not slow down or if you turn the steering wheel too sharply or abruptly
•  In an unavoidable emergency situation where a sudden sharp turn must be made, turn the steering wheel only as rapidly and as far as required to avoid the emergency. Excessive steering will result in less vehicle control. Additionally, smooth variations of the accelerator and/or brake pedal pressure should be utilised if changes in vehicle speed are called for. Avoid abrupt steering, acceleration or braking which could result in an increased risk of loss of vehicle control, vehicle rollover and/or personal injury. Use all available road surfaces to return the vehicle to a safe direction of travel
15.5.3 Off-Road Driving Precautions
•  When driving off-road or on rugged terrains, never over speed or make sharp turns. This may cause loss of control or vehicle rollover causing serious injury
•  Maintain steering wheel control at all times. Sudden changes in terrain can result in abrupt steering wheel motion
•  Do not drive horizontally or diagonally across steep slopes, your vehicle can tip over sideways. Driving straight up or straight down is preferred
•  Drive cautiously to avoid vehicle damage from concealed objects such as rocks and stumps. You should either know the terrain or map-out your route before driving in the area
•  Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud or water
15.5.4 If your vehicle is submerged
If Your stationary Vehicle is Submerged up to over the bumper
Graphic
•  Contact your Mahindra Authorised Dealer immediately
•  Have the vehicle towed to nearest Mahindra Authorised Dealer to check any entry of water into the engine
•  All fluids including engine and transmission fluids required to be changed incase of water ingress and contamination
Never attempt to start the engine, without the advice from Mahindra Authorised Dealer technician.
•  Never drive through water when it flows above the bottom portion of the bumper or above the tyre centre line
•  The engine could get damaged internally, if attempts are made to cross through deep water
•  Wet brake discs have a lower coefficient or friction resulting in reduced braking efficiency. Dab the brake pedal while driving to remove the film of water
15.5.5 Driving Through Water
Although your vehicle is capable of driving through shallow water, there are a number of precautions that must be considered before entering the water.
Never drive through still water that is higher than the bottom of the axle hubs. Not following this instruction will allow water to enter vehicle components causing internal damage to the components, affecting driveability, safety, emissions and reliability.
When driving through water, drive very slowly and at constant speed, less than 8 kmph. Drive with accelerator pedal in OFF and control speed, using only the brakes. At higher speed waves can be generated by the front of the vehicle. These water waves may enter air intake, causing severe engine damage or cause a vehicle to get stalled.
You must slow down while driving through shallow water. Speeding may cause water to splash onto the windshield, impairing your vision. In extreme conditions, you may get a water wedge formation between the road and tyre causing loss of control in the vehicle.
•  The ground under the water might not be firm which could result the water being deeper than expected when driving the vehicle through it
•  Do not stop or shut OFF the engine while immersed in water. It helps in preventing water getting inside the exhaust pipes
•  When backing down a ramp, do not allow the exhaust tail pipe to immerse in water
•  Water can wash the grease from wheel bearings, causing rusting and premature failure. It may also enter the differentials, transmission and transfer case, reducing the oil's lubricating qualities. If these are submerged in water, the lubricants should be replaced as required
•  Water entering the transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damaging the transmission
•  Sand, mud/sludge that has accumulated in brake drums and around brake discs may affect braking efficiency. This may also damage brake system components. Wet brakes cannot stop the vehicle as effectively as dry brakes. Drying can be improved by driving the vehicle slowly while applying light pressure on the brake pedal
•  When driving through water, traction or brake capability may be limited. Always perform a maintenance inspection after each day of off-road driving that has taken you through water
15.5.6 Flowing Water
If the water is swift flowing and rising (as in storm run-off) avoid crossing until the water level recedes and/or the flow rate is reduced.
The flowing water can erode the streambed causing your vehicle to sink into deeper water.
Determine the exit point(s) that are downstream of your entry point to compensate for drifting.
15.5.7 After Driving Off-Road or through Water
Off-road operation puts more stress on your vehicle than does most on-road driving. Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud, or water.
•  After going off-road, it is always a good idea to check for damage. Completely inspect the underbody of the vehicle for any damages
•  Check for accumulations of plants or bushes. or polyethylene / plastic. These could be a fire hazard. They might also hide damage to fuel lines, brake tubes/hoses, etc.
•  Inspect all the tubes/hoses and check for any fluid leakages
•  Get heat exchangers (radiator and condenser) cleaned
•  Check threaded fasteners for looseness, particularly on the chassis, drivetrain components, steering, suspension and brakes. Retighten them, if required, and torque to the values specified in the ‘Repair Manual’
•  We also recommend that the vehicle be checked at the Authorised Mahindra Dealer for any water entry into the transmission/axle or the engine
Abrasive material in any part of the brakes may cause excessive wear or unpredictable braking. You might not have full braking power when needed leading to accidents. If you have been operating the vehicle in off-road conditions, get the brakes checked and cleaned as necessary.
•  If any unusual vibration is experienced, check the wheels for impacted material. Impacted material can cause a wheel imbalance. Get it inspected/corrected as soon as possible
•  After driving through deep water, inspect your vehicle fluids and lubricants (engine oil, transmission/transfer case/axle oils) to ensure the fluids have not been contaminated
15.6 Tips for Better Fuel Economy
Give due consideration to the points listed below for better performance of vehicle and enhancement of fuel economy:
•  Smooth, moderate operation will yield savings in fuel
•  Steady speeds without stopping will usually give the best fuel economy
•  Ensure that the parking brake is fully released
•  Idling for long periods of time will waste fuel
•  Anticipate stopping; slowing down may eliminate the need to stop
•  Sudden or hard accelerations reduce fuel economy
•  Warming up a vehicle in neutral on cold mornings is not required and may reduce fuel economy
•  While idling, put the gear shift lever in the neutral position
•  Resting your foot on the clutch pedal while driving will reduce fuel economy
•  Combine errands and minimise stop-and-go driving
•  Keep tyres properly inflated. It is recommended to check your tyre pressure in the morning when the tyre is cold
•  Use recommended Lubricants. Refer to the Maintenance Section for specifications and capacities
•  Operating with lower quantity or specification may reduce fuel efficiency
•  Replace the fuel filter, air filter and AC filter at the recommended intervals
•  Shift gears at the recommended speeds and RPM bands only. Refer to the Gear Shifting Speed table for further details
•  Control the maximum speed between 90 and 100 kmph in 6th gear to achieve the best fuel efficiency
•  Follow the recommended maintenance schedule and perform the owner maintenance checks recommended
•  Heavily loading a vehicle or towing a trailer will reduce fuel economy
•  Carrying unnecessary weight may reduce fuel economy
•  Adding certain accessories to your vehicle may reduce fuel economy
•  Driving on flat terrains offer improved fuel economy as compared to driving on hilly terrains
•  Close windows during high speed driving for better fuel economy
•  It is recommended to refuel in the morning (cold ambient temperature condition)
15.6.1 How to Calculate Fuel Efficiency (Mileage)
1. Ensure recommended tyre pressure is maintained.
2. Refuel your vehicle till the fuel gun at the fuel station with auto-cut-off.
3. Reset trip meter to zero.
4. Drive at a moderate speed for a minimum distance of 150 kms.
5. Refuel at the same fuel station till the auto-cut-off.
6. Assuming ‘a’ litres of fuel was filled and ‘b’ was the trip meter reading. Fuel Efficiency = b/a kmpl.
15.7 Ignition Switch (if equipped)
Graphic
An illuminator ring is provided on the face of the ignition switch to help in locating the ignition switch at night. The ring will illuminate the moment the driver door is opened and will remain glowing till the driver door is closed.
The different positions of the ignition switch are:
LOCK - This is the ignition and steering lock position. The vehicle circuits and engine is completely switched OFF. The steering wheel is also locked and the key can be removed from the ignition only in this position.
ACC - The steering is unlocked and can be rotated. In this position, all electrical circuits are enabled. Use this mode when you want to listen to music, etc., with the engine temporarily switched OFF.
ON - All electrical circuits are enabled. Some of the warning or information lamps illuminate in this position. While some of the lamps will go out after a few secs., some will continue to remain ON till the engine is started. When the vehicle is being driven, ignition switch remains in the ON position.
Do not leave the ignition in ON when the engine is OFF. This could lead to battery drain and ignition switch damage.
START - This position is to start the engine by cranking the starter motor. This is a momentary position. When the key is turned to start position, the starter cranks the engine. Once the engine is running, release the key, and the key reverts back to ON position and the starter motor disengages from the engine.
Do not continue cranking after the engine has started. This will lead to damage of the starter and other engine components.
If turning the key is difficult, jiggle the steering wheel from side to side and try again.
The key can be removed only in the LOCK position. When the key is removed, the steering column lock is activated and the steering wheel cannot be turned.
Never return the key to the LOCK position or try to remove the key, when the vehicle is in motion. Removing the key allows the steering wheel to lock. You will lose the control of the vehicle and may cause serious accident. Remove the key only when the vehicle is parked.
15.8 Transmission
The first few shifts on a new vehicle may be somewhat rough. This is a normal phenomenon, and precision shifts will develop within the initial few hundred kilometres of running.
15.8.1 Gear Lever
Your vehicle is fitted with manual transmission having six forward and one reverse gear. This shift pattern is imprinted on the gear lever knob. The transmission is fully synchronised in all forward gears, so shifting to either a higher or a lower gear is easily accomplished. The clutch pedal should be depressed fully while shifting, and then released slowly.
Graphic
15.8.2 Gear Indicator
The target gear lever position is indicated in the centre of the speedometer dial.
Graphic
15.8.3 Neutral Position
This position stops the transmission of power from the engine to drive axle. With the gear lever in neutral and brakes released, the vehicle can move freely by pushing or towing. The engine can be started in this mode. It is always recommended to keep the brake pedal depressed in this position. It is advisable to shift into neutral when the vehicle is standstill for longer durations with the engine idling.
Coasting the vehicle with the gear lever in neutral and engine ON/OFF is not recommended. In an event of panic braking, you will not have the power of engine braking to slow down the vehicle. This may lead to personal injury or accident.
Do not leave the vehicle with the gear lever in neutral position. Always engage manual parking brake before leaving the vehicle, to prevent any vehicle movement leading to possible injury to a bystander or damage to vehicle.
15.8.4 Gears 1-6
Use the gears 1 to 6 as per vehicle load, road/traffic conditions or as per requirement. The current gear selection is indicated in the cluster.
Always depress the clutch fully before moving the gear lever from the current position to any desired position. Perform up-shifts or down-shifts one gear at a time, do not jump gears.
15.8.5 Recommended Gear Shifting Speeds
While driving, shift the gears as per recommended speeds for getting optimal Fuel Efficiency.
Upshifting
Shift Range
Vehicle Road Speed
(kmph)
Tolerance (kmph)
1–2
16
+/- 2
2–3
27
3–4
41
4–5
53
5–6
64
Downshifting
Shift Range
Vehicle Road Speed
(kmph)
Tolerance (kmph)
2–1
13
+/- 2
3–2
24
4–3
38
5–4
49
6-5
59
Shift gears at suitable road speeds to safeguard the transmission components. Avoid driving in high RPM’s (>3000 RPM).
When parking on an incline, gear alone may not be sufficient to prevent the vehicle from moving. Always set the manual parking brake in addition to shifting the gear lever into gear. It is also recommended to turn the front wheels towards the road curb.
15.8.6 Reverse
Graphic
This gear is to enable the vehicle to move in the reverse direction. Move the gear lever into this position only after the vehicle has come to a complete stop and the gear lever is in neutral position.
The reverse lock ring located immediately below the gear shift knob must be pulled upward while moving the shift lever to the reverse (R) position.
To avoid transmission damage, shift into or out of reverse gear only after the vehicle has come to a complete stop and the engine is at idle speed. It is recommended you wait approximately for three secs. in neutral gear before shifting into or out of reverse gear.
For brief stops, e.g. at traffic lights, keep the gear shift in neutral and hold the vehicle with the brake pedal. For prolonged stops, it is recommended to switch OFF the engine and apply the parking brake. When stopping the vehicle on an uphill gradient, do not hold it with the clutch/accelerator; use the brake to avoid unnecessary clutch wear/heat buildup.
Do not leave children unattended in the vehicle or with access to an unlocked vehicle. Children could move the gear lever, which could result in an accident or serious injury.
On slippery/wet road surfaces, never downshift in order to obtain braking action. This could result in a wheel slip and reduced vehicle control.
15.8.7 Uphill and Downhill Driving
To prevent the engine from labouring at a low RPM when driving uphill gradients or with your vehicle heavily loaded, downshift when necessary to maintain engine RPM within the best torque range. Similarly, while driving downhill, downshift to utilise the engine braking in an optimum manner.
15.9 Engine Idling
The idle speed is controlled automatically and it will decrease as the engine warms up.
Observe that all warning lamps are OFF when the engine is running.
After idling for a few secs, follow the below steps to drive away:
1. Release the parking brake.
2. Depress the clutch.
3. Shift the gear lever to 1st gear.
4. Release the service brake pedal.
5. Drive by releasing the clutch and depressing the accelerator pedal simultaneously.
15.9.1 Engine Idling - In Cold Weather
Avoid full throttle operation when the engine is cold and prolonged idling at low ambient temperatures. Long periods of idling may be harmful to your engine. Combustion chamber temperatures can drop so low that the fuel may not burn completely. Incomplete combustion allows carbon and varnish to form on piston rings and injector nozzles. Also, the unburned fuel can enter the crankcase, diluting the oil and causing rapid wear to the engine.
You must fuel this vehicle with Ultra Low Sulfur Diesel. For smooth functioning and reliable operation of the engine during cold weather conditions, use winter diesel for refuelling which is available at filling stations during winter months. Check with your fuel retailer for details.
The recommended engine coolant mixture will work fine till ambient temperatures do not drop below -32ºC approx. For ensuring above performance, it is a must that you use only recommended engine coolant.
15.10 Cruise Control (if equipped)
Cruise control allows you to maintain a set speed without the need to keep your foot on the accelerator pedal. It should be used for cruising on straight, open highways. Never use it for city driving, inclines, winding roads, slippery roads, heavy rain or in bad weather conditions.
It works on the closed loop system principle to maintain the set speed of the vehicle; the system controls the fuel injection of the engine in order to maintain the set speed.
Graphic
Graphic
A
Resume
D
TFT Personalisation
B
Cruise Set +/-
E
TFT Screen Up/Down
C
Cruise Off
F
Enter/OK-TFT
Cruise control enhances your comfort while driving and allows you to effortlessly maintain the desired lane speed limit. Improper use of the cruise control can lead to an accident.
Cruise control is designed to operate above a vehicle speed of 20 kmph for all gears except 1st and reverse gears. The cruise lamp in the instrument cluster functions only if the cruise control is active.
Cruise control will function only under the following conditions:
•  The vehicle is cruising above 20 kmph
•  Engine RPM above 1200
•  Clutch pedal released
•  Brake pedal released
•  Cruise is activated first time in an ignition cycle by SET + / SET - button
•  Subsequent cruise engagements can be done by RESUME SET+ /SET- buttons in the same ignition cycle
Cruise control is deactivated under the following conditions:
•  CRUISE OFF button is pressed
•  Brake or clutch pedal depressed
If the vehicle speed exceeds the cruise set speed by 30 kmph by accelerator pedal intervention
•  If vehicle speed is increased by 10 kmph for more than 30 secs. by pressing the accelerator pedal
When Set+/Set- switch is pressed for more than 12 secs. (In this case, vehicle will not go into cruise mode in that ignition cycle. In order to restore the cruise function, switch OFF the ignition, wait for 30 secs. and switch ON the ignition)
Cruise influencing error indicated by Check Engine Lamp, OBD lamp, etc.
15.10.1 Cruise Control Activation
Drive the vehicle to the desired cruising speed (any value greater than 20 kmph), press and hold the SET+ button until the cruise lamp in the instrument cluster illuminates.
If cruise is deactivated (e.g. by depressing brake to handle an intervention in the road etc.) in current driving cycle, reactivate the Cruise to the last active Cruise Speed by pressing the RESUME button.
Cruise control may not hold the set speed when you are going up or down hills, and the vehicle may come out of cruise control. This is indicated by the cruise lamp going OFF in the instrument cluster.
15.10.2 Cruise Control De-activation
You can cancel cruise control in any of the following ways:
•  Press the CRUISE OFF button in the steering wheel
•  Press the brake pedal
•  Gear selector moved into neutral
•  HDC or ESP becomes active
15.10.3 SET + Button
SET + button is used to activate cruise control and also to increase the cruise set speed.
To increase the speed in very small amounts, press the SET + Button. Each time you press, the cruise set speed increases by about 2 kmph. When you wish to continuously increase the cruising speed, press and hold the SET + Button and release when the desired speed is reached.
15.10.4 SET - Button
To decrease the speed in small amounts, press the SET - Button. Each time you press, the cruise set speed decreases by about 2 kmph.
When you wish to continuously decrease the cruising speed, press and hold the SET- Button. When the desired speed is reached, release the button.
If switch is pressed for more than 12 secs., the switch is assumed to be malfunctioning and the cruise functionality ceases to function in that ignition cycle. To resume functionality, ignition has to be toggled.
The cruise control is a convenience system designed to assist the driver during vehicle operation. The driver must at all times remain alert of road / traffic conditions and responsible for the vehicle brake operation / steering control.
Never activate cruise control in traffic or when driven in adverse road conditions (heavy rains, windy, slippery etc.)
15.10.5 RESUME Button
With the help of RESUME, you can opt for the previous set cruising speed of the vehicle in the same ignition cycle. This is best explained with the following example:
1. Assume, you have activated cruise mode and set the vehicle speed at 50 kmph.
2. Due to an obstacle or a sharp turn, you have deactivated the cruise mode either by pressing the brake pedal or by switching OFF the CRUISE control.
3. Vehicle comes out of the cruise mode.
4. When the road condition is suitable to switch over back to cruise control mode, press RESUME button once. The system activates the cruise control mode to the previous cruising speed of 50 kmph.
5. To resume the previous cruise set speed, the vehicle speed should be above 20 kmph.
15.10.6 Override Function
This function enables user to ramp up the cruising speed to overtake front vehicle.
The cruising speed can be increased by using accelerator pedal. User has to complete this action within 30 secs. to maintain the cruise mode. If user exceeds the 30 secs. limit, cruise mode will be deactivated.
15.11 Fuel
Graphic
Use only commercially available vehicular Ultra-low Sulfur Highway Diesel that meets the BIS standard (diesel fuel confirming to IS 1460;2017 BS-VI specification or equivalent). Information on diesel quality can normally be found in the fuel pump. Please contact filling station personnel in case labels in the pump cannot be found.
Do not fill any other fuel which is not meeting the above spec or add any non-recommended fuel additive and supplements.
If incorrect or unapproved fuel is filled incidentally by negligence, do not start the vehicle. Contact an Authorized Mahindra Dealer to have the fuel system drained completely.
15.11.1 Fuelling during Winter
During freezing weather, if fuel is not winterised or is insufficiently winterised, waxing/gelling may start in fuel, leading to interruption in fuel supply to engine. For smooth functioning and reliable operation of the engine during cold weather conditions, use winterised ULSD which are available at the filling stations during winter months. Check with your fuel retailer for further details.
Avoid inhaling fuel vapors and any skin or clothing contact. Direct skin contact with diesel or the inhalation of fuel vapor may affect your health.
It is recommended maintaining a minimum of 10 liters of fuel in the fuel tank. Driving the vehicle till the fuel tank is empty or complete dryness is not recommended. Always have sufficient fuel in the tank. Check the fuel level prior to starting your journey.
It is unsafe to keep or carry fuel in a separate container in the vehicles. This may cause fire hazard either in static or vehicle operating condition.
15.11.2 Fuel-Lid Opening and Closing
Follow the below steps to open the Fuel lid:
1. Press the UNLOCK button on RKE/Smart key.
2. Then press the fuel lid gently once to open.
Graphic
3. Turn the fuel cap counter-clockwise to open. Refuel and put the cap back in its place and tighten in the clockwise direction till three distinct clicks are heard. Close the fuel lid shut.
Don't press the fuel lid when ignition is ON. If pressed, fuel door will open automatically when switching OFF ignition. Ensure the fuel cap and lid are securely closed before starting the vehicle.
Fuel filler lid cannot be released when the vehicle speed is more than 20 kmph. Fuel filler lid operation is limited to 8 times/minute. Avoid unnecessary usage of fuel filler lid button.
15.11.3 Manual Fuel Door Override
In case of RKE failure, follow the below process to open the fuel door:
1. Open the trim on luggage compartment (Jack area).
2. Remove the jack from the storage area.
3. Pull the mechanical Fuel lid lever as shown in the illustration to unlock the fuel lid.
Graphic
4. Then press the fuel lid gently once to open.
5. Turn the fuel cap counter-clockwise to open. Refuel and put the cap back in its place and tighten in the clockwise direction till three distinct clicks are heard. Close the fuel lid shut.
Ensure the fuel cap and lid are securely closed before starting the vehicle.
16 WHEELS AND TYRES
16.1 Tyre Information
Graphic
A
RADIAL TYRES OR BIAS-PLY TYRE
B
“TUBELESS” OR “TUBE TYPE”
C
TYRE SIZE
D
MAX. LOAD LIMIT
E
TREAD WEAR
16.2 Tyre Rating
Your vehicle is originally equipped with tyres supplied by a reputable manufacturer. If you ever have any questions regarding your tyres, please refer to literature supplied by the tyre manufacturer, or to the separate tyre warranty provided by the tyre manufacturer. You may also contact Authorised Mahindra Dealer directly, or the tyre manufacturer.
The tyre rating of MARAZZO is:
•  215/65 R16 98 H/T
•  215/60 R17 96 H
Tyre rating is explained as below:
Graphic
Tyre size (Example: 215/65 R16 98H)
Callout (A) : 215 (Three-digit number) : This number gives the width in millimetres of the tyre from sidewall edge to sidewall edge. This is called as “Section Width”.
Callout (B) : 65 (Two-digit number) : This number, known as the aspect ratio, gives the tyres ratio of height to section width.
Callout (C) : R : This is the Tyre Construction Code. The “R” stands for Radial.
Callout (D) :16 (Two-digit number) : This number is the wheel or rim diameter in inches.
Callout (E) : 98 (Two or three-digit number) : This number is the tyres load index. It is a measurement of how much weight each tyre can support.
Callout (F) : H : Tyre speed rating or speed symbol. Never drive the vehicle faster than the tyre speed rating. The speed rating denotes the speed at which a tyre is designed to be driven for extended periods of time under a standard condition of load and inflation pressure.
16.2.1 Speed Rating
SPEED SYMBOL
MAX. SPEED CAPABILITY
SPEED SYMBOL
MAX. SPEED CAPABILITY
KM/HR
KM/HR
L
120
T
190
M
130
U
200
N
140
H
210
P
150
V
240
Q
160
W
270
R
170
Y
300
S
180
Z
240+
16.3 Tyre Label (Vehicle Placard)
Graphic
Graphic
Tyre Label (Vehicle Placard) is located on the driver side inner B-pillar. This placard tells you important information about tyre size designed for your vehicle, and the tyre inflation pressures for the front & rear tyres.
MARAZZO COLD TYRE INFLATION PRESSURE
bar/psi/kPa
TYRE
P 215/65 R16
P 215/60 R17
R 16
2.2/32/220 (Front and Rear)
R 17
2.4/35/240 (front and Rear)
•  Use alloy wheel nut for16” steel spare wheel in M8
•  Do not use spare wheel for tyre rotation, in case of temporary spare wheel used
•  Two or more temporary tyres should not be used on one vehicle
•  Tyre pressure of temporary wheel is to be checked at least once in a month
•  Use the compact spare tire only in an emergency
•  Drive the shortest possible distance with temporary spare tyre
•  “120 km/hr” is the maximum speed you are permitted to drive with this tyre. Never drive faster than 120 km/hr, Do not accelerate quickly, brake suddenly or drive at high speed through bends
•  After fitting the temporary spare wheel, the tyre pressure must be checked as soon as possible
Never overload your vehicle. Overloading can cause tyre failure, affect vehicle handling, and increase your stopping distance, resulting in an accident and/or serious personal injury.
Improper inflated tyres can adversely affect vehicle handling or can fail unexpectedly, resulting in an accident and/or serious personal injury.
16.4 Tyre Pressure
Proper Tyre inflation pressure is essential to the safe and satisfactory operation of your vehicle. Three primary areas are affected by improper Tyre pressure:
•  Safety
•  Economy
•  Ride Comfort and Vehicle Stability
Proper Tyre inflation contributes to a comfortable and safe ride. Overinflating produces a jarring and uncomfortable ride. Both underinflation and overinflation affect the stability of the vehicle and can produce a feeling of sluggish response or over responsiveness in the steering. Unequal Tyre pressures can cause erratic and unpredictable steering response or may cause the vehicle to drift left or right.
Improper inflation pressures can cause uneven wear patterns to develop across the Tyre tread. These abnormal wear patterns will reduce tread life resulting in a need for earlier Tyre replacement. Under inflation also increases Tyre rolling resistance and results in higher fuel consumption.
The proper cold Tyre inflation pressure is listed in the Tyre Label (Vehicle Placard), located on the front passenger side inner B-pillar.
16.4.1 Inspection and Adjustment Procedure
The Tyre pressure should be checked and adjusted, as well as inspected for signs of Tyre wear or visible damage, at least once a month. Use a good quality pressure gauge to check Tyre pressure. Do not make a visual judgement when determining proper inflation. Radial Tyres may look properly inflated even when they are underinflated. At the same time, each Tyre should be inspected for signs of Tyre wear or visible damage.
Inflation pressures specified on the placard are always cold Tyre inflation pressures. Cold Tyre inflation pressure is defined as the Tyre pressure after the vehicle has not been driven for at least three hours, or driven less than 1 km after a three-hour period. Check Tyre pressures more often if subject to a wide range of outdoor temperatures, as Tyre pressures vary with temperature changes. Tyre pressures change by approximately 1 psi (7 kPa) per 7°C of air temperature change. Keep this in mind when checking Tyre pressure inside a garage, especially in the winter.
When it was new, the spare Tyre in your vehicle was fully inflated. However, a spare Tyre can lose pressure over time. In order to avoid being stranded, check the spare Tyre air pressure frequently.
16.4.2 Inflating Your Tyres
Safe operation of your vehicle requires that your Tyres are properly inflated. Remember that a Tyre can lose up to half of its air pressure without appearing flat.
At least once a month or before long trips, inspect each Tyre and check the Tyre pressure with a Tyre gauge (including spare Tyre). Inflate all Tyres to the recommended inflation pressure.
Under-inflation is the most common cause of Tyre failures and may result in severe Tyre cracking, tread separation or “blowout,” with unexpected loss of vehicle control and increased risk of injury. Under-inflation increases sidewall flexing and rolling resistance, resulting in heat buildup and internal damage to the Tyre. It also may result in unnecessary Tyre stress, irregular wear, loss of vehicle control and accidents.
Always inflate your Tyres to the recommended pressure even if it is less than the maximum inflation pressure information found on the Tyre. The recommended Tyre inflation pressure is found on the Tyre Label which is located on the front passenger side inner B-pillar. Failure to follow the Tyre pressure recommendations can cause uneven tread wear patterns and adversely affect the way your vehicle handles.
If you overfill the Tyre, release air by pushing the metal stem in the centre of the valve. Then recheck the pressure.
After inspecting or adjusting the Tyre pressure, always reinstal the valve stem cap (if equipped). This will prevent moisture and dirt from entering the valve stem, which could damage the stem, resulting in an unexpected loss of Tyre pressure, an accident and/or personal injury.
16.4.3 Radial Ply Tyres
Combining radial ply Tyres with other types of Tyres on your vehicle will cause your vehicle to handle poorly, resulting in an accident and/or personal injury. Always use radial Tyres in sets of four. Never combine them with other types of Tyres.
Cuts and punctures in radial Tyres are repairable only in the tread area because of sidewall flexing. Consult your Authorised Mahindra Dealer for radial Tyre repairs.
16.4.4 Tread Wear Indicators (TWI)
Tread wear indicators are moulded into the bottom of the tread grooves. They will appear as bands when the tread depth becomes 1/16 inch (2 mm). When the indicators appear in two or more adjacent grooves, the Tyre should be replaced.
Avoid abrupt manoeuvring and braking. This can cause Tyre deterioration and lead to loss of steering or braking control.
16.4.5 Life of Tyre
The service life of a Tyre is dependent upon various factors including but not limited to:
•  Driving style
•  Tyre pressure
•  Distance driven
Tyres and the spare Tyre should be replaced after six years, regardless of the remaining tread. Failure to follow this warning can result in sudden and unexpected Tyre failure, leading to an accident and/or personal injury.
Keep dismounted Tyres in a cool, dry place with as little exposure to light as possible. Protect Tyres from contact with oil, grease and fuels.
Do not use a Tyre, wheel size or speed rating other than that specified for your vehicle on the Tyre placard. Combinations of unapproved Tyres and wheels may change suspension geometric and performance characteristics, resulting in changes to steering, handling and braking of your vehicle. This can cause unpredictable handling, stress to steering and suspension components. You could lose control of the vehicle or the Tyre can unexpectedly fail, resulting in an accident and/or personal injury.
Replacing original Tyres with Tyres of a different size may result in false speedometer and odometer readings.
16.4.6 Snow Chains
Snow chains cannot be used on these Tyres.
In case of harsh winter driving conditions, it is recommended using winter Tyres with the same specifications for better stability, safety and performance.
16.5 Tyre Rotation Recommendations
Type 1 - Applicable for all 5 Steel / 5 Alloy Wheels
Graphic
Tyres on the front and rear axles of vehicles operate at different loads and perform different steering, handling, and braking functions. For these reasons, they wear at unequal rates and develop irregular wear patterns.
Rotation will increase tread life, help to maintain mud, snow, and wet traction levels, and contribute to a smooth, quiet ride. Follow the recommended Tyre rotation frequency for your type of driving.
Type 2 - Applicable for 4 Alloy wheels and Spare wheel with Steel rim
It is recommended rotating the Tyres as per the “Maintenance Schedule”.
The suggested rotation method is the “forward-cross” shown in the diagram. The benefits of rotation are especially worthwhile with aggressive tread designs such as those on On/Off-road type Tyres.
Graphic
Rotation will increase tread life, help to maintain mud, snow, and wet traction levels, and contribute to a smooth, quiet ride. Follow the recommended Tyre rotation frequency for your type of driving. More frequent rotation is permissible if desired. The reasons for any rapid or unusual wear should be corrected prior to rotation being performed.
16.5.1 Changing a Flat Tyre
Refer to “If you have a Flat Tyre” section in the general chapter for details.
16.5.2 Wheel Tightness
When you change a wheel, remove all rust and dirt at all locations where the wheel contacts the wheel hub. Use a scraper or wire brush to be sure that you remove all rust and dirt. A loose wheel could have damaged or elongated the holes in the rim, or damaged the rim/hub assembly. If any of the wheel studs or nuts are damaged, contact the nearest Authorised Mahindra Dealer.
Always tighten the nuts in a criss-cross sequence. Never use oil or grease on your wheel studs or nuts.
Never overtighten the nuts on the wheel stud. You could damage the stud or the nut.
Torque tighten the wheel nuts to the specified value at the nearest Authorised Mahindra Dealer .
The tyres fitted in this vehicle meet the requirements of BIS and they comply with the requirements under the Central Motor Vehicles Rules (CMVR) 1989.
17 EMERGENCIES
17.1 Hazard Warning Flashers
Graphic
The hazard warning flasher button is located in the central bezel switch bank. Press the button to turn ON the hazard warning flashers, all directional turn signals will flash to warn oncoming traffic. This is an emergency warning system and should be used only when there is an emergency. Use it when your vehicle is disabled and is a safety hazard for other motorists. Hazard warning flasher will work in all positions of the ignition key and even when the vehicle is fully locked.
With extended use, the hazard warning flasher may drain your vehicle battery.
17.2 Vehicle Does Not Start - Checks
Before making these checks, make sure you have followed the correct starting procedure and that you have sufficient fuel.
If the engine is not cranking or is cranking too slowly / intermittently
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are firmly fastened, switch ON the interior lamps.
3. If the lamps do not illuminate, glow dim or go OFF when the starter is cranked, then it indicates a weak or discharged battery. Try jumpstarting. Follow ‘jumpstarting’ instructions given later in this chapter.
4. Check the fuses in the Engine Compartment Fuse Box and Central Fuse Box.
If the engine cranks normally, but does not start
1. If the lamp illumination is normal, engine is cranking normally, but the engine does not start even after repeated cranking, it needs adjustment or repair. Contact an Authorised Mahindra Dealer.
2. During winter, use non-winter diesel or due to extreme cold conditions, the vehicle may not start. Contact an Authorised Mahindra Dealer for further assistance.
To prevent damage to the starter, do not crank the engine for more than 15 secs. at a time. Wait 10 to 15 secs. before trying again.
If the engine stalls while driving
Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. Turn ON your hazard warning flashers and check for any malfunction lamps in the instrument cluster. Turn the ignition OFF, wait for approximately 90 secs. and try starting the engine again. If the vehicle still does not start, contact an Authorised Mahindra Dealer.
If the engine stalls while running, the power assist for the brakes will not work. Braking will be much harder than usual.
If the engine speed does not increase
If the engine speed does not increase when the accelerator pedal is depressed, there may be a problem in the Engine Management System, electrical or electronic controls. In case of certain faults, the engine may go to limp home mode, which is indicated by the check engine lamp. Have your vehicle checked by an Authorised Mahindra Dealer as soon as possible.
17.3 Vehicle Overheating
If the needle in the temperature gauge in the instrument cluster is all the way up to the H and/or the high engine coolant temperature warning lamp is ON, your engine has overheated.
If the engine is getting overheated, the Engine Management System reduces engine power substantially and may even shut the engine OFF; it is dangerous to continue driving when the engine has overheated. You need to first cool the engine down before starting to drive again.
Follow the below instructions to cool the engine down:
•  Progressively reduce the vehicle speed and bring the vehicle to a stop at the side of the road
•  Turn ON the hazard warning flashers
•  Keep the engine running at idle
•  Engage the parking brake
•  Switch off the air-conditioner
•  Wait till the engine coolant temperature drops sufficiently such that the needle in the temperature gauge is around halfway between C and H
Now switch the engine OFF and carefully open the bonnet/hood to visibly inspect the engine cooling system parts. Be cautious while doing an inspection as vehicle parts will still be too hot. Verify that the engine coolant level in the coolant recovery tank is maintained between the 'Min' and 'Max' mark. Check for possible fluid leakages. Check for damages to heat exchangers and connecting hoses. Also verify that the radiator shrouds, engine fan blades and the engine belt all are in good condition.
If any evidence of failure is observed, contact the nearest Authorised Mahindra Dealer for help. In case, no system leakage/ failure is suspected, driving can be continued.
Either due to severe operating conditions or due to any system leakages or failures, the engine can get overheated. However, if the engine is getting overheated repeatedly, even in normal operating conditions, get the vehicle checked by an Authorised Mahindra Dealer as soon as possible.
Refer to the 'High Engine Coolant Temperature' section under the 'Features and Control' chapter for details.
If the high engine coolant temperature warning is ignored, the engine shuts OFF abruptly to safeguard engine components from overheating and consequent failure. Abrupt engine shut-off can lead to uncontrollable driving condition and accidents.
Stay clear of hot and rotating vehicle parts while visually inspecting the vehicle. The coolant inside the cooling system is under high pressure and temperature. Never open the pressure cap of the degassing tank when the engine is hot. Not taking precautions may lead to serious injury to your skin/eyes.
For optimum performance of the cooling system, you must maintain the required coolant level and use only recommended engine coolant.
17.4 Jump Starting
If your vehicle's battery has run down, you may be able to start the engine by using a standalone booster battery.
But before going ahead with this procedure ensure that the battery is the cause of vehicle not starting. To confirm this, few simple tests can be conducted as follows;
•  Check the headlights - Are they dim or bright? If they are dim, it's likely your battery is dead. If your headlights are bright, you do not have a dead battery and a jump start may not help
•  Try to start your vehicle -Does it turn over very slowly, or does it crank quickly? If it cranks quickly, you do not have a dead battery and a jump start may not help. If it cranks slowly, or not at all, you probably have a dead battery
Open the bonnet and locate the battery (near the left side fender). Identify the positive and negative terminals.
•  The positive terminal will be marked with a plus sign (+) and will usually have a RED cable attached on it.
•  The negative terminal will be marked with a minus sign (-) and will usually have a BLACK cable attached to it
Check the physical condition of the battery. Inspect batteries for cracks, leaks or any other damage. If you find any of these things, do not jump start the vehicle. Call Mahindra Road Side Assistance or replace the battery. If the weather is very cold, remove the refill caps and check the condition of the electrolyte. If it seems slushy or like ice, do not attempt jump-starting until it thaws.
1. Wear safety gear (goggles or face guard and gloves) if you have it.
Graphic
It may be necessary to remove the disabled vehicle’s battery cables from the battery terminals and clean both cables and terminals. Use a stiff wire brush to remove all corrosion. Reconnect the cables to the battery terminals and jump the vehicle.
2. Untangle and unwind your jumper cables. Like your batteries, your jumper cables will probably have red and black cables and will have heavy duty clamps to connect to the battery terminals. You must make sure that the red and black ends of your jumper cables never touch each other once they are connected to the batteries; permitting them to do so can result in serious arcing and/or damage to vehicle
3. Connect the jumper cables in the order described below;
•  Connect one red clamp of the jumper cable to the positive (+) terminal of the discharged battery
•  Connect other end of the red clamp to the positive (+) terminal of the booster battery
•  Connect one black clamp of the jumper cable to the negative (-) terminal of the booster battery
•  Connect the other end of the black clamp to the negative (-) terminal of the discharged battery
•  Crank the engine for starting
•  Once the vehicle gets started, carefully remove the jumper cables in the reverse order of attachment
Graphic
Make sure none of the cables are dangling into the engine compartment, where they could be exposed to moving parts.
4. Remove the jumper cables once the vehicle starts. Do this in the reverse of the order in which they were attached, and don't let any of the cables or clamps touch each other (or dangle into the engine compartment)
•  Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery
•  Disconnect the other end of the black clamp from the negative (-) terminal of the booster battery
•  Disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery
•  Disconnect the other end of the red clamp from the positive (+) terminal of the discharged battery
Replace any positive (+) red post protective covers if applicable (You have had to remove or open these in the beginning) These covers help prevent accidental short circuiting of the battery
5. Keep the recently-disabled vehicle's engine running. Run the vehicle above idle (slightly revved up with your foot on the accelerator). This should give the battery enough charge to start the vehicle again. If it does not, you probably have a dead battery or a dying alternator
Improper jump starting procedures can result in battery explosion and acid burn hazard.
Loosely connected battery cables could damage the electronic control units.
To disconnect battery terminals wait for at least 2 minutes to allow discharge of high voltage or it could lead to personal injury.
While disconnecting, always disconnect the -VE terminal first and while connecting, always connect the -VE terminal last.
Do not connect battery terminals with opposite polarity, it will lead to alternator failure
Towing a vehicle to start could be dangerous. The vehicle being towed could surge forward when the engine starts, causing the tow vehicles to collide, injuring the occupants.
Modern vehicles with electronic management systems should not be jump started without ‘protected’ jump starter leads.
17.5 Limp Home Mode
Limp Home Mode is an emergency situation declared by the EMS (Engine Management System) due to failure of one/more critical sensors/actuators. In this mode, the EMS (Engine Management System) will revert back to basic minimum requirement (fuel quantity/injection timings) to aid the driver to bring the vehicle back to the nearest workshop. Needless to say, the drivability & fuel consumption will be greatly affected.
If vehicle acceleration worsens or if there is a drop in vehicle performance, there might be a malfunction in the engine management system which triggers/activates the Limp Home Mode. This condition is accompanied by the check engine lamp illuminating in the instrument cluster. In this mode, the vehicle speed is limited and the accelerator pedal may not function normally. It is recommended you contact an Authorised Mahindra Dealer immediately for assistance.
17.6 Towing
Front Tow Hook
Graphic
Rear Tow Hook
Graphic
Tow hook is a screw on type and it is available in the tools pouch below second row seat on floor.
Remove/pry out the Tow hook cover in the Front/Rear bumper using a screwdriver, Screw in the tow eye in the counter clockwise direction (tow eye is LH threaded) by holding the cover and tighten. Fasten a cable or chain specifically intended for use in towing vehicles to the towing hook.
The rear Tow hook should be used when your vehicle is utilised for towing other vehicles.
If your vehicle needs to be towed, call a professional towing service. If a towing service is unavailable in an emergency, your vehicle may be temporarily towed by a towing cable or chain.
17.6.1 Towing Equipment
Towing Options
Variant
2WD
Sling type towing (Front wheel lift)
x
Sling type towing (Rear wheel lift)
x
Flatbed towing
ü
Towing by all 4 wheels
ü
Towing equipment are of two types:
•  Sling-type equipment - The tow truck uses metal cables with hooks on both ends. These hooks go around parts of the frame or suspension and lift the end of the vehicle off the ground. This is not a good method of towing as it may damage the vehicle's suspension and body. Avoid a tow with sling type equipment
•  Flat-bed equipment - Your vehicle is loaded on the back of a truck. This is the safest and best way of towing
Graphic
18 MAINTENANCE
18.1 General Owner's Information
Your vehicle has been designed for fewer maintenance requirements with longer service intervals to save both your time and money. However, each regular maintenance, as well as day-to-day care is more important to ensure a smooth, trouble-free, safe and economical operation.
It is the owner's responsibility to make sure the specified maintenance, including general maintenance service is performed. Note that both the new vehicle limited warranty and emission control system limited warranties specify that proper maintenance and care must be performed. See Service Coupon Booklet for complete warranty information.
Where to go for service?
Mahindra technicians are well trained specialists and are kept up to date with the latest service information through technical bulletins, service tips and in dealership training programmes. They learn to work on Mahindra vehicles before they work on your vehicle, rather than while they are working on it.
You can be confident that your Authorised Mahindra Dealer service department does the best job to meet the maintenance requirements on your vehicle reliably and economically.
Get the most from your vehicle with routine maintenance
Routine maintenance is the best way to help ensure you get the performance, dependability, long life and better resale value you expect from your vehicle. This is exactly why we've put together this Maintenance Section. It outlines the services required to properly maintain your vehicle and when they should be performed. The focus is on maintaining your vehicle while it's running great, which goes a long way toward preventing major repairs and expenses later.
Here are a few suggestions to help you get started on routine maintenance:
•  Familiarise yourself with your vehicle by going through your Owner's Manual
•  Take a few minutes to review this Maintenance Section
•  Make it a habit to use this manual to record scheduled maintenance in the Service Coupon Booklet
•  Consult with your Authorised Mahindra Dealer for all your vehicle's needs
18.1.1 Suggestions for Obtaining Service for your Vehicle
Prepare for the Appointment
If you have warranty work to be done, be sure to have the right papers with you. All work to be performed may not be covered by the warranty. Discuss additional charges with the service manager. Keep a maintenance log of your vehicle's service history.
Prepare a List
Make a written list of your vehicle's problems or the specific work you want done. If you've had an accident or work done that is not on your maintenance log, let the service adviser know about it.
Be Reasonable with Requests
If you list a number of items and you must have your vehicle by the end of the day, discuss the situation with the service adviser and list the items in order of priority.
18.1.2 Need Assistance?
It is recommended talking to an Authorised Mahindra Dealer service manager first. Most matters can be resolved with this process. If for some reason you are still not satisfied, talk to the general manager or owner of the dealership.
If an Authorised Mahindra Dealer is unable to resolve the concern, you may contact any Mahindra Customer Care Executive. They would need the following information:
Owner's name and address, owner's telephone number (home and office), Authorised Mahindra Dealer name, Vehicle Identification Number (VIN), vehicle delivery date and mileage.
18.1.3 Warranty Information
Read the Warranty Information given in the ‘Warranty Information & Maintenance Guide’ for the terms and provisions of Mahindra warranties applicable to this vehicle. Mahindra genuine parts, fluids, lubricants and accessories are available at any Authorised Mahindra Dealer. They will help keep the vehicle operating at its best.
18.1.4 Protect your Warranty
Routine maintenance is not only the best way to help keep your vehicle performing as intended, it's also the best way to protect your warranty. Failure to perform scheduled maintenance specified in the Service Coupon Booklet will invalidate warranty coverage on parts affected by the lack of maintenance. We can't stress enough how important it is to keep records of all maintenance. Damage or failures due to neglect or lack of proper maintenance are not covered under warranty.
Keeping maintenance records is easy with the service coupon booklet
It's important to document the maintenance of your vehicle. For your convenience to maintain records of service, the scheduled maintenance coupons are provided in the service coupon booklet. Every time you bring your vehicle in for scheduled maintenance, be sure to present this booklet and certify the work. Also record the date of service and mileage at the time of service. This will make record keeping easy and, should your vehicle ever require warranty coverage, you will have all the documentation to show you've properly maintained it.
18.1.5 Oils, Fluids and Flushing
In many cases, fluid discolouration is a normal operating characteristic by itself, and does not necessarily indicate a concern or that the fluid needs to be changed. However, discoloured fluids that also show signs of overheating and/or foreign material contamination should be inspected immediately by a qualified expert such as the factory trained technicians at your Authorised Mahindra Dealer. Your vehicle's oils and fluids should be changed at the specified intervals or in conjunction with a repair.
18.1.6 Chemicals and Additives
Non-Mahindra approved chemicals or additives are not required for factory recommended maintenance. In fact, Mahindra recommends against the use of such additive products unless specifically recommended by Mahindra for a particular application.
Your vehicle is very sophisticated and built with multiple complex performance systems. Every manufacturer develops these systems using different specifications and performance features. That's why it's important to rely on your Authorised Mahindra Dealer to properly diagnose and repair your vehicle.
When planning your maintenance services, consider your Authorised Mahindra Dealer for all your vehicle's needs.
18.1.7 Get the most from your Service and Maintenance visits
Getting your vehicle serviced at an Authorised Mahindra Dealer adds great value to your vehicle in number of ways. Hence, it is recommended to service your vehicle at an Authorised Mahindra Dealer only.
18.1.8 Maintenance Interval
Mahindra establishes recommended maintenance intervals based upon engineering testing to determine the most appropriate mileage to perform the various maintenance services. This protects your vehicle at the lowest overall cost to you. Mahindra recommends that you do not deviate from the maintenance schedules presented in this Maintenance Schedule.
18.1.9 Vehicle Self Maintenance - General Precautions
•  Refer to relevant sections of the manual before starting
•  Set the parking brake
•  Block the wheels to prevent the vehicle from moving unexpectedly
•  Turn OFF the engine and remove the key
•  Stay clear of hot vehicle parts
•  Avoid repeated contact with fluids
•  Do not let fuel, coolant and other fluids spill over electrical and hot vehicle parts
•  Keep all open flames and other burning material like cigarettes away from the battery and all fuel-related parts
Do not start/run the engine when any engine/peripheral parts are removed.
18.2 Opening and Closing the Hood
The hood release lever is located in the driver side footwell area, below the instrument panel. To open hood follow the steps below:
1. Pull the lever below the driver side instrument panel to release the hood.
Graphic
2. Lift the hood a little to access the safety latch holding the hood striker. This safety latch is located below the hood at the centre.
3. Lift the safety latch and lift the hood.
Graphic
4. Hood is supported by a stay rod. Lift the safety latch and lift the hood.
Graphic
•  Do not open the hood immediately after a drive; the engine compartment will be very hot
•  Always double check to be sure that the hood is firmly latched before driving away. If it is not latched properly, the hood could open while the vehicle is being driven, causing a total loss of visibility, resulting in an accident
•  Do not move the vehicle with the hood in the raised position, as vision is obstructed
To close the hood, follow the below steps:
1. Remove the stay rod supporting the hood by slightly lifting the hood
2. Bring the hood near to its self-opening/closing position
3. Now, push the hood to close and ensure the primary latch is engaged
4. Before driving off, check hood is locked properly with primary latch fully engaged
Bonnet Open Hazard - When the bonnet is open and vehicle is in unlock condition:
•  Hazard lamps flash continuously to alert the user that the bonnet is open
•  Hazard cluster telltale also flashes
To stop the warning, do any one of the following:
•  Close the bonnet
•  Press the hazard button TWICE
•  Change the turn signal stalk position
•  Drive the vehicle > 10 kmph
18.3 Engine Compartment

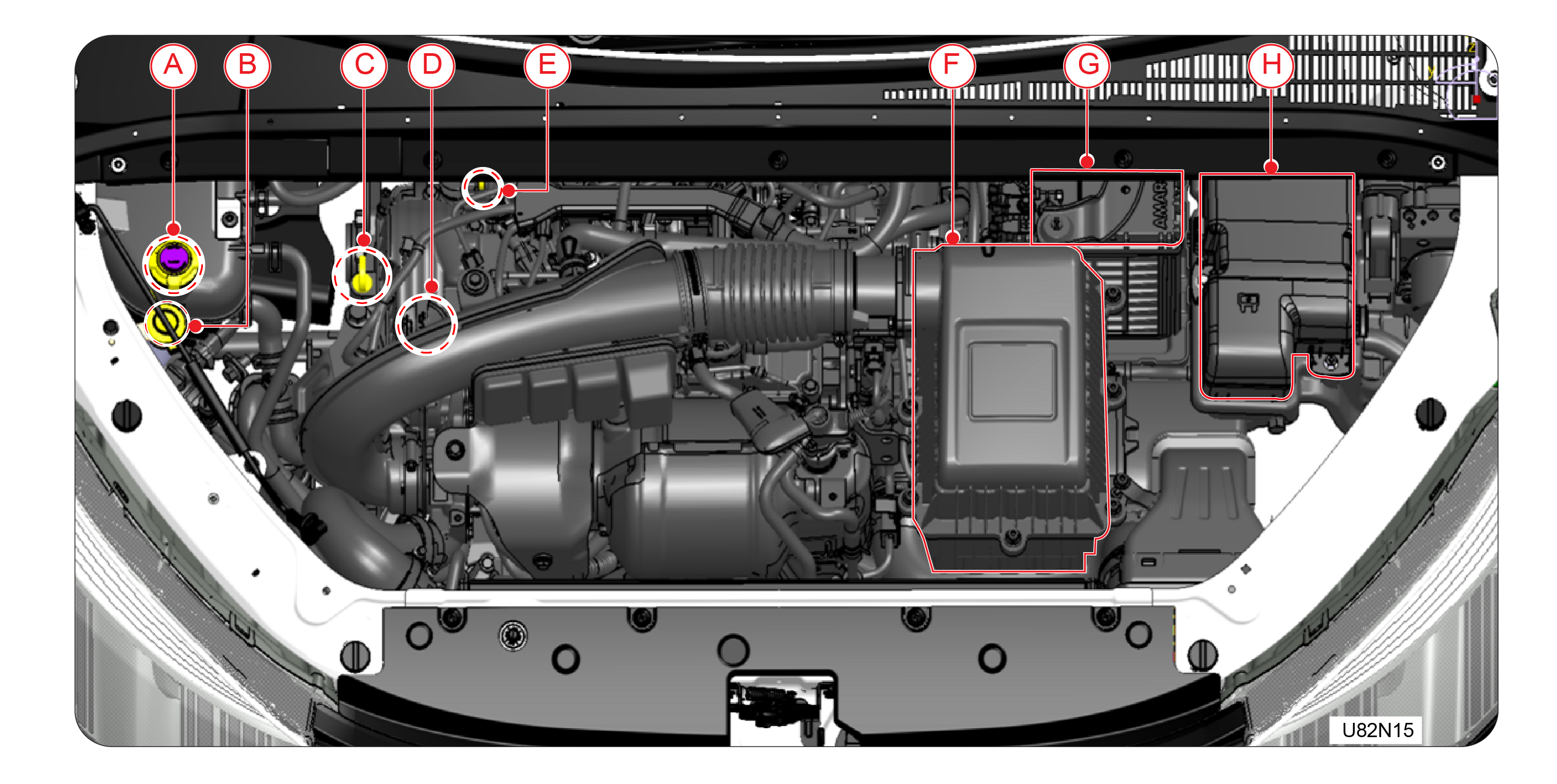

Graphic
A
Degassing Tank
E
Brake Fluid Reservoir
B
Front Windshield Washer Fluid Reservoir
F
Air Filter
C
Dipstick
G
Battery
D
Engine Oil Cap
H
Engine Compartment Fuse Box
Maintenance is classified as below:
•  General Maintenance
•  Scheduled Maintenance
18.4 General Maintenance
Exercise extreme caution when the hood is open and engine is ON.
Listed below are the general maintenance items that should be performed frequently. In addition to checking the items listed below, if you notice any unusual noise, fluid leakages, smell or vibration, you should investigate the cause or take your vehicle to your Authorised Mahindra Dealer or a qualified service shop immediately.
Make these checks only with adequate ventilation if you intend to run the engine.




In the Engine Compartment
•  Front windshield washer fluid level
•  Engine coolant level
•  Battery condition
•  Brake/Clutch fluid level
•  Engine oil level
•  Fluid leaks
•  Hoses, joints and pipes for any abnormalities
Inside the Vehicle
•  Lights
•  Warning lamps
•  Windshield wipe and wash
•  Steering wheel
•  Seats
•  Seat belts
•  Accelerator pedal
•  Brake pedal
•  Brakes
•  Parking brake
•  Gear lever shift mechanism
Outside the Vehicle
•  Lamps
•  Fluid leaks
•  Doors and engine hood latches
•  Tyre inflation pressure
•  Tyre surface/thread and wheel nuts
18.5 In the Engine Compartment
18.5.1 Fluid Leaks
Check the engine compartment and the underbody of the vehicle for any leaks. If you smell fuel vapour or notice any leak, have the cause found and corrected immediately.
18.5.2 Engine Oil
Engine oil has the primary functions of lubricating and cooling the inside of the engine. It plays a major role in maintaining the engine in proper working order. Therefore, it is essential to check the engine oil regularly.
18.5.3 Engine Oil Consumption
It is normal for engines to consume some engine oil during operation.
Causes of consumption in a normal engine are as follows:
•  Oil is used to lubricate pistons, piston rings and cylinders. Thin films of oil, left over when pistons move in cylinders, are sucked into the combustion chamber due to high negative pressure generated when the vehicle is decelerating. This oil gets burnt in the combustion chamber
•  Oil is also used to lubricate the stems of intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burnt there
•  Engine oil consumption depends on the operating conditions in which the vehicle is driven. Oil consumption will be more due to high speed driving and frequent acceleration and deceleration. A new engine may consume more oil since its pistons, piston rings and cylinder walls are not conditioned
18.5.4 Checking/Topping the Engine Oil
•  Make sure the vehicle is on level ground
•  Turn the engine OFF and wait a few minutes for the oil to settle down into the oil sump
•  Apply the parking brake
•  Open the hood, use stay rod to support the hood. Protect yourself from engine heat
•  Locate and carefully remove the engine oil level dipstick
•  Wipe the dipstick with a clean cloth. Insert the dipstick fully, then remove it again
•  If the oil level is between “Min” and “Max” marks, the oil level is acceptable. DO NOT ADD OIL
•  If the oil level is below or near the “Min” mark, add enough oil through the oil filler cap to raise the level within the “Min” and “Max” marks. Wait for few minutes after every top-up for the oil to settle down before checking the level
Graphic
•  Oil levels above the “Max” mark may cause engine damage/poor performance
•  Put the dipstick and the oil filler cap back and ensure it is fully/properly seated
Graphic
To avoid possible oil loss and injury due to hot blow-by gas, DO NOT operate the vehicle with the engine oil level dipstick and/or the engine oil filler cap removed.
Draining/Changing of engine oil should always be done by an Authorised Mahindra Dealer.
18.5.5 Checking/Topping Engine Coolant Level
•  Park the vehicle on flat-horizontal surface. Keep the parking brake fully engaged. Shut-off the engine
Graphic
•  Wait till the engine cools down and hence coolant temperature comes down to normal room temperature
•  The coolant level should be between “MIN” and “MAX” marking provided on the degassing tank
•  In case the coolant level is below the “MIN” marking, the coolant should be topped-up
•  The coolant should be filled till the level rises above the “MIN” but remain below the “MAX” marking on the degassing tank
•  However, if the degassing tank is found to be near empty, it is recommended that the system be checked at an Authorised Mahindra Dealer
Never open the pressure cap when the engine is hot. Hot coolant may splash resulting in serious personal injury or severe burns by the erupting liquid.
Top-up only with recommended Ready To Use (RTU) coolants for ensuring performance, anti-freezing and corrosion protection. Do not add water directly. Mixing with other brand of coolants is not recommended and should be avoided.
Draining or changing of engine coolant should always be done by an Authorised Mahindra Dealer.
18.5.6 Checking/Topping Brake/Clutch Fluid
Graphic
The brake and clutch systems are supplied fluid from the same reservoir.
The brake fluid level will drop slowly as the brakes wear, and will rise when the brake components are replaced. Fluid levels between the “MIN” and “MAX” lines are within the normal operating range; there is no need to add fluid. If the fluid levels are below the “MIN” mark, the performance of the systems could be compromised; the brake/clutch operation could be spongy and gear change harder. Top-up the recommended brake/clutch fluid till the “MAX” mark or contact an Authorised Mahindra Dealer immediately.
Carefully clean the cap on the reservoir before you remove it and be sure no debris fall in the reservoir. Do not keep the reservoir open for longer than necessary to add brake fluid.
Use only brake/clutch fluid that meets Mahindra specifications. Refer to ‘Lubricant and Capacities’ section.
Draining or changing of brake fluid should always be done by an Authorised Mahindra Dealer.
18.5.7 Windshield Washer Fluid Top-up
Graphic
Top-up windshield washer reservoirs as and when required.
The windshield washer tank is located next to the right side head lamp in the engine bay. It supplies fluid to both front and rear washer.
In very cold weather conditions, fill the reservoir with washer fluid premixed with anti-freeze.
If you operate your vehicle in temperatures below 4.5ºC, use washer fluid with anti-freeze protection. Failure to use washer fluid with anti-freeze protection in cold weather could result in impaired windshield vision and increase the risk of injury or accident.
18.6 Maintenance - Inside the Vehicle
18.6.1 Lights
Make sure the headlights, stop lights, tail lights, turn signal lights and other lights are all working. Check headlight aim.
18.6.2 Warning Messages and Lamps
Check all warning lamps appearing in the instrument cluster and DDAS. Refer to the relevant sections in this manual for further details.
18.6.3 Seats
Check that all seat controls such as seat adjusters, seat back recliner, etc. operate smoothly and that all latches lock securely in any position. Check that the head restraints move up and down smoothly and that the locks hold securely in any latched position.
18.6.4 Seat Belts
Check that the seat belt system such as buckles, retractors and anchors operate properly and smoothly. Make sure the belt webbing is not cut, frayed, worn or damaged.
18.6.5 Accelerator Pedal
Check the pedal for smooth operation, uneven pedal effort or stickiness. Check the foot well and remove obstructions, if any.
18.6.6 Brake Pedal
Check the pedal for smooth operation and proper clearance. Check the foot well and remove obstructions, if any.
18.7 Maintenance - Outside the Vehicle
The following checks should be carried out from time to time, unless otherwise specified.
18.7.1 Lamps
Check and ensure proper functioning of all exterior lamps.
18.7.2 Fluid Leaks
Check the engine compartment and the underbody of the vehicle for any leaks. If you smell fuel vapour or notice any leak, have the cause found and corrected immediately.
18.7.3 Doors and Engine Hood
Check all doors and latches including the tailgate for proper functioning. Make sure the engine hood secondary latch secures the hood from opening when the primary latch is released.
18.7.4 Tyre Inflation Pressure
Check the Tyre pressure with a pressure gauge every week.
18.8 Battery
Your vehicle is equipped with a Mahindra genuine battery. For longer, trouble-free operation, keep the top of the battery clean and dry. Also, make certain the battery cables are always tightly fastened to the battery terminals.
If you see any corrosion on the battery or terminals, remove the cables from the terminals and clean with a wire brush. To prevent corrosion, apply petroleum jelly to the battery terminals. Tighten loose terminals and hold down clamp nuts only enough to keep the battery firmly in place. Tightening excessively may damage the battery terminals.
18.8.1 For Best Battery Service
•  Keep the battery securely mounted
•  Keep the battery top clean and dry
•  Keep the terminals and connections clean, tight and coated with petroleum jelly or terminal grease
•  Rinse any spilled electrolyte from the battery immediately with a solution of water and baking soda
Do not disconnect battery terminals while the engine is running. This will adversely affect all electronic controllers.
While removing the battery, always disconnect the negative terminal first. And while installing the battery, ensure the negative terminal is connected last.
It is recommended that the negative battery cable terminal be disconnected from the battery if you plan to store your vehicle for an extended period of time. This will minimise the discharge of your battery during storage.
Battery fluid is a corrosive acid solution; do not allow battery acid to contact eyes, skin or clothing. Don't lean over battery when attaching clamps or allow the clamps to touch each other. If acid splashes in the eyes or on the skin, flush contaminated area immediately with large quantities of water.
A battery generates hydrogen gas which is flammable and explosive. Keep any flame or spark away from the vent holes.
Keep batteries out of reach of children. Battery posts, terminals and related accessories contain lead and lead components. Wash hands after handling batteries.
If the battery has been disconnected or a new battery has been installed, the clock (if equipped) and the preset radio (if equipped) stations must be reset once the battery is reconnected.
The replacement battery must meet the specification of the originally fitted battery.
18.9 Wiper Blades
Lift the wiper arm from its position. Expose the blade lip for inspection. Clean the wiper blade lips with water applied with a soft sponge. If the wiper blade is not wiping the glass satisfactorily or is worn-out, cut, cracked or bulging, get it replaced at an Authorised Mahindra Dealer.
18.9.1 Changing the Wiper Blade
1. Lift the arm and position the wiper blade at right angles to the wiper arm.
Graphic
2. Press the retaining clip in the opposite direction, disengage the wiper blade and pull it off the arm.
Graphic
3. Hold the end of the rubber and pull until the tabs are free of the metal support.
4. Carefully insert the new blade rubber. Then instal the blade assembly in the reverse order of removal.
To prevent damage to the windshield, don’t let the wiper arm slap down on to it.
18.10 Appearance Care and Protection
18.10.1 Washing the Exterior
•  Wash your vehicle regularly with cool or lukewarm water and a neutral pH soap
•  Never use strong household detergents or soap, such as dish washing or laundry liquid. These products can discolour and spot painted surfaces
•  Never wash a vehicle that is ‘hot to the touch’ or during exposure to strong, direct sunlight
•  Always use a clean sponge or car wash mitt with plenty of water for best results
•  Dry the vehicle with a chamois or soft terry cloth towel in order to eliminate water spotting
•  It is especially important to wash the vehicle regularly during the winter months, as dirt and road salt are difficult to remove and cause damage to the vehicle
•  Immediately remove items such as gasoline, diesel fuel, bird droppings and insect deposits; they can cause damage to the vehicle's paint work and trim over time
18.10.2 Engine Compartment
Graphic
Do not wash the engine or engine compartment with pressurised water.
18.10.3 Exterior Chrome
•  Wash the vehicle first, using cool or lukewarm water and a neutral pH shampoo
•  Use the custom bright metal cleaners, available at your Authorised Mahindra Dealer. Apply the product as you would wax to clean chrome parts; allow the cleaner to dry for a few minutes, and then wipe off the haze with a clean, dry rag
•  Never use abrasive materials such as steel wool or plastic pads as they can leave scratches on the chrome surface
•  After polishing the chrome parts, you can also apply a coating of Premium Liquid Wax, available at your Authorised Mahindra Dealer, or an equivalent quality product to help protect from environmental effects
18.10.4 Paint Chips
•  Authorised Mahindra Dealers have the exact touch-up paint to match your vehicle's colour
•  Take your vehicle to an Authorised Mahindra Dealer for paint touch-up or paint repairs
•  Remove particles such as bird droppings, tree sap, insect deposits, tar spots, road salt and industrial fallout before repairing paint chips
•  Always read the instructions before using the products
18.10.5 Aluminium Wheels and Wheel Covers (if equipped)
Aluminium wheels and wheel covers are coated with a clear coat of paint finish. In order to maintain their shine:
•  Clean weekly with wheel and Tyre cleaner, which is available at your Authorised Mahindra Dealer. Heavy dirt and brake dust accumulation may require agitation with a sponge. Rinse thoroughly with a strong stream of water
•  Never apply any cleaning chemicals to hot or warm wheel rims or covers
•  Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergents
18.10.6 Plastic (Non-painted) Exterior Parts
Use only approved products to clean plastic parts. These products are available with your Authorised Mahindra Dealer. You can use these cleaners:
•  For routine cleaning of plastic parts
•  For tar or grease spots
•  For plastic head lamp lenses
18.10.7 Windows and Wiper Blades
The front/rear windshield, side windows and the wiper blades should be cleaned regularly. If the wipers do not wipe properly, substances on the vehicle's glass or the wiper blades may be the cause. These may include hot wax treatments used by commercial car washes, water repellent coatings, tree sap, or other organic contamination; these contaminants may cause squeaking or chatter noise from the blades, and streaking and smearing of the windshield.
To clean these items follow these tips:
•  The windshield, rear windows and side windows may be cleaned with a non-abrasive cleaner such as Clear Spray Glass Cleaner, available at your Authorised Mahindra Dealer
•  The wiper blades can be cleaned with alcohol or Premium Windshield Washer Concentrate, available at your Authorised Mahindra Dealer. This washer fluid contains a special solution in addition to alcohol which helps remove the hot wax deposited on the wiper blade and windshield. Be sure to replace wiper blades when they appear worn or do not function properly
•  Do not use abrasives, as they may cause scratches
•  Do not use fuel, kerosene, or paint thinner to clean any glass parts
If you cannot remove those streaks after cleaning with the glass cleaner or if the wipers chatter and move in a jerky motion, clean the outer surface of the windshield and the wiper blades using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaning solution. After cleaning, rinse the windshield and wiper blades with clean water. The windshield is clean if beads do not form when you rinse the windshield with water.
Do not use sharp objects, such as a razor blade, to remove decals, as it may cause damage to the glass or rear windshield heater grid lines (if equipped).
18.10.8 Instrument Panel/Interior Trim and Cluster Lens
Do not use chemical solvents or strong detergents when cleaning the steering wheel or instrument panel.
Clean the instrument panel, interior trim areas and cluster lens with soap and water using soft microfibre / cotton cloth / sponge, then with a clean and dry white cotton cloth; you may also use Dash and Vinyl Cleaner on the instrument panel and interior trim areas.
•  Avoid cleaners or polishes that increase the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection
•  Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens
If a staining liquid like coffee/juice has been spilled on the instrument panel or on the interior trim surfaces, clean as follows:
•  Wipe up spilled liquid using a clean white cotton cloth
•  Apply vinyl cleaner to the wiped area and spread around evenly
•  Apply cleaner to a clean white cotton cloth and press the cloth onto the soiled area and allow this to set in at room temperature for 30 minutes
•  Remove the soaked cloth, and if it is not soiled badly, use this cloth to clean the area with a rubbing motion for 60 secs.
•  Following this, wipe area dry with a clean white cotton cloth
18.10.9 Interior Maintenance
For fabric, carpets, cloth seats, safety belts and seats:
•  Remove dust and loose dirt with a vacuum cleaner
•  Remove light stains and soil with carpet and upholstery cleaner
•  If grease or tar is present on the material, spot-clean the area first with a stain remover
•  Do not use household cleaning products or glass cleaners, which can stain and discolour the fabric and affect the flame retardant abilities of the seat materials
•  Do not use cleaning solvents, bleach or dye on the vehicle's safety belts, as these actions may weaken the belt webbing
18.10.10 Leather Seats (where applicable)
Your leather seating surfaces have a clear, protective coating over the leather:
•  To clean, use a softmicrofibre / cotton / sponge cloth with a leather and vinyl with approved cleaners. Dry the area with a soft cloth
•  To help maintain its resiliency and colour, use the leather care kit, available from an Authorised Mahindra Dealer
•  Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners. These products may cause premature wearing of the clear, protective coating
In some instances, a colour or dye transfer can occur when wet clothing comes in contact with leather upholstery. If this occurs, clean the leather immediately to avoid permanent staining.
18.10.11 Underbody
Flush the complete underside of your vehicle frequently. Keep body and door drain holes free from packed dirt. You can also use an anti-corrosion spray for the underbody to avoid rusting and corrosion especially for vehicles in coastal places.
18.11 Air-Conditioning System Maintenance
Your vehicle's air-conditioning is a sealed system. Any major maintenance, such as recharging should be done by a qualified technician. However, you can do a few things by yourself to make sure the air-conditioning works efficiently.
Run the air-conditioning system at least once a week, even during the cold weather months. Run it for at least ten minutes with the engine running at normal operating temperature. This circulates the lubricating oil contained in the refrigerant.
Whenever you get the air-conditioning system serviced, make sure the service facility uses a refrigerant recycling system. This system captures the refrigerant for re-use. Releasing the refrigerant into the atmosphere may cause damage to the environment.
18.12 Vehicle Storage
If you are leaving your vehicle for more than 2 weeks you may want to take stopping to protect your battery. Disconnect the negative cable from the battery. Anytime you store your vehicle, or keep it out of service (i.e. vacation) for two weeks or more, run the air-conditioning system at idle for about five minutes in the fresh air mode and high blower speed setting. This will ensure adequate system lubrication to minimise the possibility of compressor damage when the system is started again.
It is recommended storing the vehicle in a covered, clean, dry, well levelled, ventilated and closed place.
18.13 Winter Care
18.13.1 Dealing with Ice
Make sure you have window ice scrapers and de-icers for the locks. When you're stuck, having a small shovel is useful to dig out of the snow. The weight of a bag of sand in the trunk will give added traction in rear-wheel drive vehicles and can be used to sprinkle on the snow and ice to gain better traction. And don't forget personal protection such as a warm coat, hat, gloves and a blanket, in case you get stuck in a storm.
18.13.2 Keep Enough Fuel in the Tank
Never let the fuel level in the tank drop below the half-full mark. A sudden storm with unexpected heavy rains could leave you stranded for hours. Having adequate fuel supply will allow you to idle the engine from time to time to keep warm.
Do not:
•  Tap the ice on the window to crack it or chip it for a good place to start scraping. You could end up cracking more than the ice and end up with a cracked or shattered windshield/window
•  Pour warm or hot water on the windshield to melt ice. This will crack your windshield
18.13.3 During Winter Storage
Start the engine occasionally, here are a few pointers to keep in mind:
•  Run it in a well-ventilated area. Carbon monoxide can build up quickly
•  Run for a minimum of 20 minutes to allow the engine to come up to the normal operating temperature. This will allow the oil to circulate and will also open up the thermostat so that your radiator anti-freeze circulates as well
•  Start up the air-conditioner and/or heater and run both for 10 minutes or so. Again, circulating fluids is essential for good life of the system
18.13.4 Exterior
Wash and wax your car to provide an extra layer of protection to your paint.
18.13.5 Vinyl and Rubber
Use a good conditioner on all vinyl and rubber parts to prevent from drying out.
18.13.6 Interior
Clean the glass, shampoo the carpets, dig in between the seats to see what's there, clean the upholstery in all nooks and corners.
18.13.7 Engine
Check all hoses and wires to make sure everything is in good condition and replace any that need to be. The last thing to do is to make sure the internal components of the engine remain lubricated and don't corrode.
If the engine is being started after a very long period of non-use, warm up the engine at an idle speed for 2-3 minutes before driving the vehicle.
18.14 Bulb Replacements
18.14.1 Head Lamp Bulb Replacement
Graphic
The head lamp bulb can be replaced without removing the head lamp assembly from the vehicle.
To replace the head lamp bulb:
•  Ensure ignition is switched OFF
•  Remove rear dust cover from the head lamp
•  Remove the bulb assembly with connector from the head lamp by unlocking the wire clamp
•  Detach the bulb assembly from the wiring connector near to the head lamp
•  Insert the connector into the new bulb (of the same wattage), and follow the reverse procedure to assemble the bulb assembly in the headlight assembly
•  Clamp the bulb assembly by wire clamp properly
Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol.
To avoid burning yourself, do not replace the light bulbs when they are hot. Halogen bulbs have pressurised gas inside and are to be handled with special care. Mishandling it may cause the bulb to burst or shatter. Hold the bulb with its metal/plastic holder/base and do not touch the glass part with bare hands.
Using bulbs with units of higher output capacity/wattage is illegal and may damage your vehicle’s electrical system.
Replacement bulbs must meet the specification of originally fitted bulbs.
18.15 Projector Head Lamp (if equipped)
Graphic
A
Head Lamp High Beam
C
Front Indicator Lamp
B
Head Lamp Low Beam (Projector)

Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol.
To avoid burning yourself, do not replace the light bulbs when they are hot. Halogen bulbs have pressurised gas inside and are to be handled with special care. Mishandling it may cause the bulb to burst or shatter. Hold the bulb with its metal/plastic holder/base and do not touch the glass part with bare hands.
Using bulbs with units of higher output capacity/wattage is illegal and may damage your vehicle’s electrical system. Replacement bulbs must meet the specification of originally fitted bulbs.
