Important Information – Quick Reference | |
We strongly urge that you read the information
provided in pages referred hereunder which will
help in road safety and prevent inconvenience
|
1
|
Warranty
Coverage.............................................................................................
|
Refer WSIG* (P.g. 14)
|
2
|
Roadside Assistance
....................................................................................
|
Refer WSIG* (P.g. 9)
|
3
|
Schedule Service
(Free/Paid).................................................................
|
Refer WSIG* (P.g. 23)
|
4
|
Maintenance Schedule
& Lubrication Chart.................................................................................
|
Refer WSIG* (P.g. 24 & 28)
|
5
|
Location Of Vehicle Identification
Number (VIN).............................................................................
|
Refer (P.g. 2-23)
|
6
|
Location Of Fuse Box And Fuse Details
Details.................................................
|
Refer (P.g. 2-5)
|
7
|
Changing A Flat
Tyre............................................................
|
Refer (P.g. 2-13)
|
8
|
Understanding The Warning
Lamps................................................................
|
Refer (P.g. 4-5)
|
9
|
Understanding The Airbag
Function..........................................................
|
Refer (P.g. 7-1)
|
10
|
Use Of Seat Belts And Child
Restraint......................................
|
Refer (P.g. 6-6 & 6-12)
|
11
|
Co driver lift and slide
seat.........................................................
|
Refer (P.g. 6-4)
|
12
|
Convertible Soft
Top.....................................................
|
Refer (P.g. 9-23)
|
13
|
If Your Vehicle Is
Submerged..................................................................................
|
Refer (P.g. 14-22)
|
14
|
Driving Through
Water.........................................
|
Refer (P.g. 14-23)
|
15
|
OFF Road Driving Precautions
Precautions.....................................
|
Refer (P.g. 14-22)
|
16
|
Opening And Closing The
Hood.....................................
|
Refer (P.g. 17-4)
|
17
|
Location Of Battery And Its
Maintenance.....................................
|
Refer (P.g. 17-6 & 17-18)
|
*Warranty and Service Information Guide
|
||
Note:
In view of our policy of continuously improving our
products, we reserve the right to alter specifications,
designs or features without prior notice and without
liability. We recommend you to refer the Variant
Matrix in the Brand official website or contact the
nearest Authorised Mahindra Dealer for the list of
features applicable to your vehicle.
|
||
The vehicle's software and security measures are
subject to ongoing development. Similar to computers
and mobile device operating systems, the software and
security features of the car might also receive
irregular updates.
|
If you see this symbol, it indicates “no,” “ do not,” “do not do this,” or “never”.
|
|

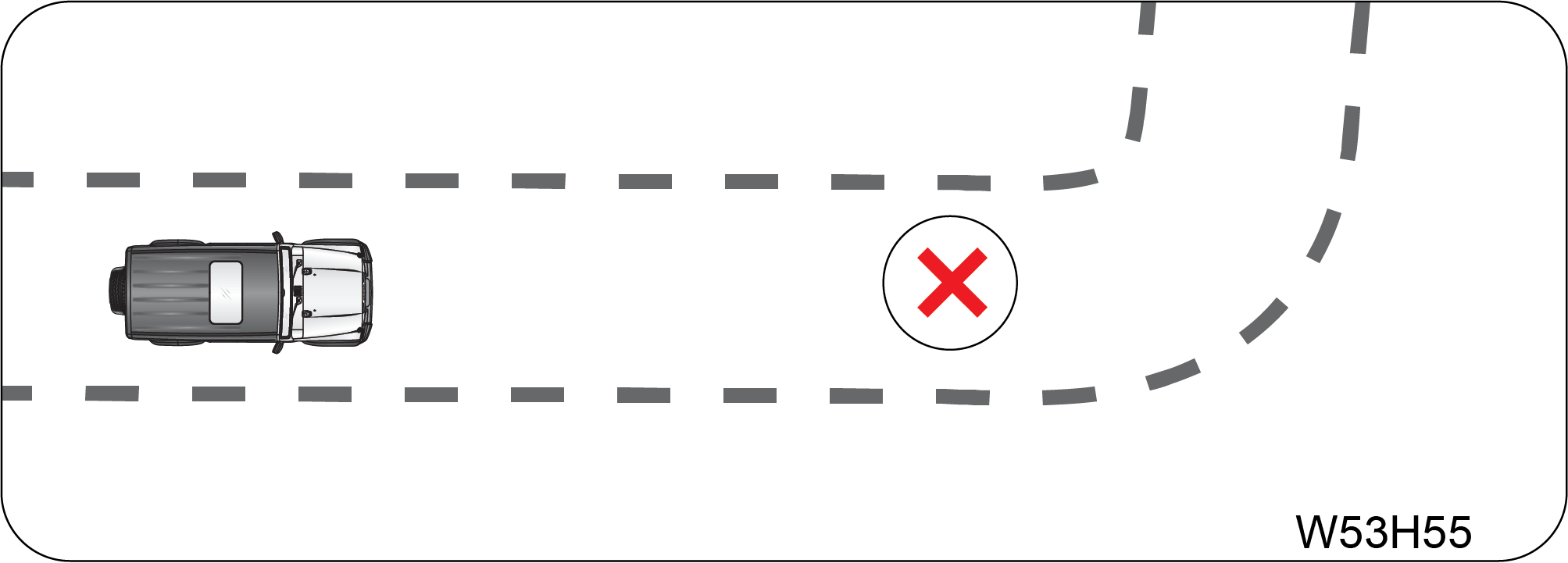

1. | First-aid kit is placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point of time. |
2. | Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage. |
3. | Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately. |
4. | The lifespan of Mahindra products depends on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by a Mahindra Authorised Dealer or a qualified Technician . If the inspection reveals any damage or excessive wear, immediately replace, or have the component serviced. |
5. | The vehicle identification plates are the only legal identification reference; hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. It is illegal to remove or alter the numbers in the VIN plate. |
6. | Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the center of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier. |
• | Take breaks at regular intervals |
• | Lack of sleep or fatigue will impact your ability to drive safely |
• | Exercise your eyes by shifting the focus of your eyes to different parts of the road |
• | Use stimulating beverages such as coffee or tea |
• | Relax and stay calm |
• | The company shall not be liable / responsible for any damages / injuries, including consequential damages / injuries, resulting due to fitment of unauthorised aftermarket accessories and / or tapping / cutting wires in the wiring harness When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Mahindra Authorised Dealer for specific weight information |
• | Bull bars and nudge guards are not recommended |
• | Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems |
• | Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Mahindra Authorised Dealer and can potentially affect the vehicle performance. |
• | Always remove the ignition key when you park the vehicle |
• | In case of PKE, please lock and take the key fob with you |
• | Close all the windows completely and lock all the doors |
• | Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors |
1. | Do not sleep in a parked car with closed windows. In particular, if you stay or sleep in the car with the engine running and the air conditioner or heater turned on, you can suffocate to death |
2. | Sleeping in a closed space with the engine running puts you at high risk of suffocation from the exhausts |
3. | While sleeping, you may accidentally touch the gear shift lever or accelerator and thereby cause an accident |
4. | While sleeping in the car with the engine running, you may accidentally step on the accelerator, thereby overheating the engine and exhaust pipe and causing a fire |
• | If the safety mode is activated, pull over and stop the vehicle to a safe location immediately and contact your Mahindra dealer. Then drive slowly or have the vehicle towed to a Mahindra Authorised Dealer according to the dealer’s instruction and have your vehicle checked by a Technician |
• | If you continue to drive in this state, normal driving is not maintained due to the fixed engine rpm and engine can stop. But even more importantly, continued driving with this state may damage the drive system |
• | The vehicle you bought is equipped with a large number of precision parts that have passed through countless experiments and tests. |
• | These parts are deeply and systematically interwoven. Therefore, if any part is modified or altered without authorization, may under perform or cause critical damage to the vehicle and human life |
|
|
Engine number sticker available on vacuum pump cover near Turbo charger. Engraving Engine number location is available on
engine Block crankcase near starter motor.
|
|

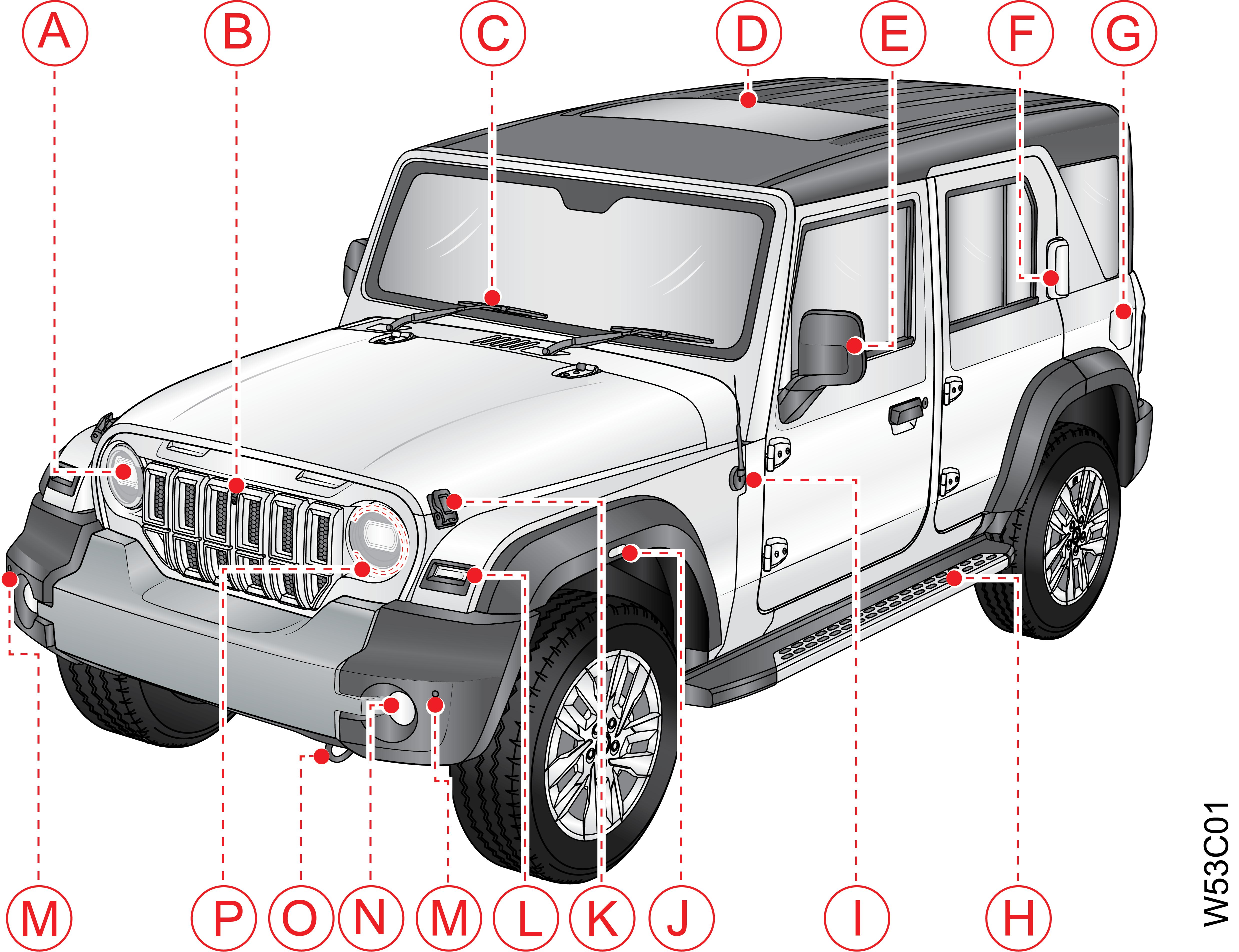

A |
Head Lamp High / Low Beam |
B |

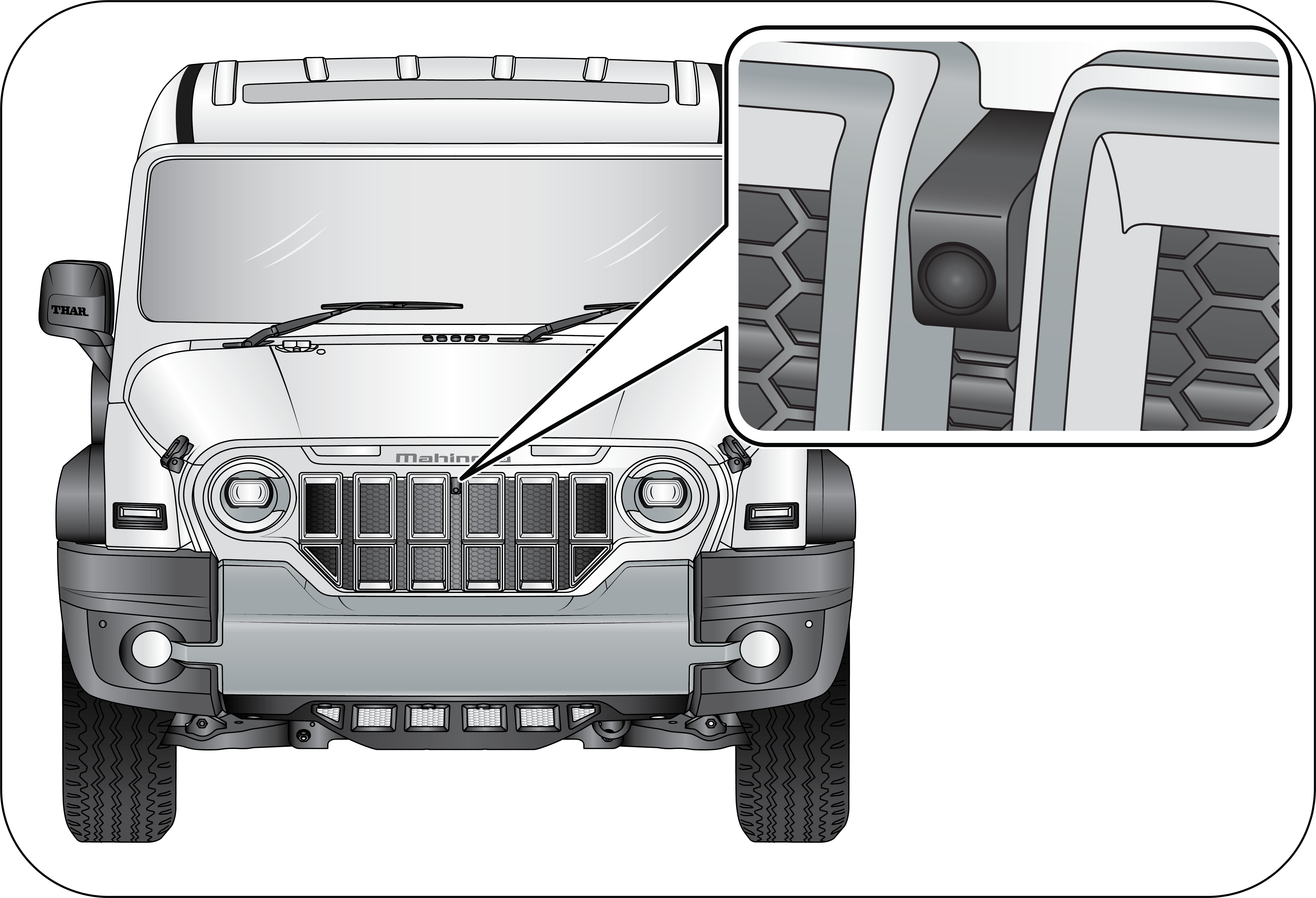

Front Camera* |
C |
Front Windshield Wiper |
D |

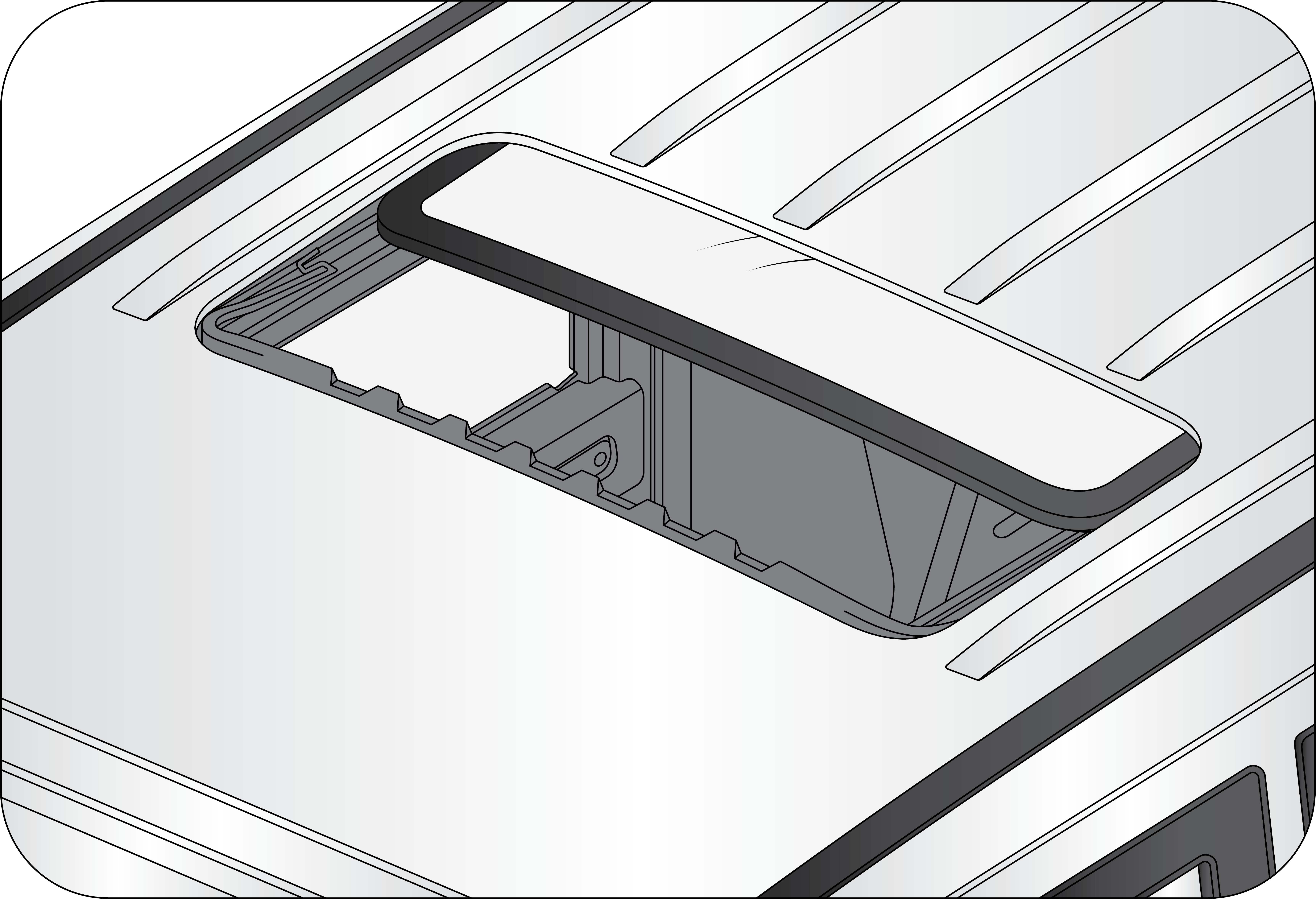

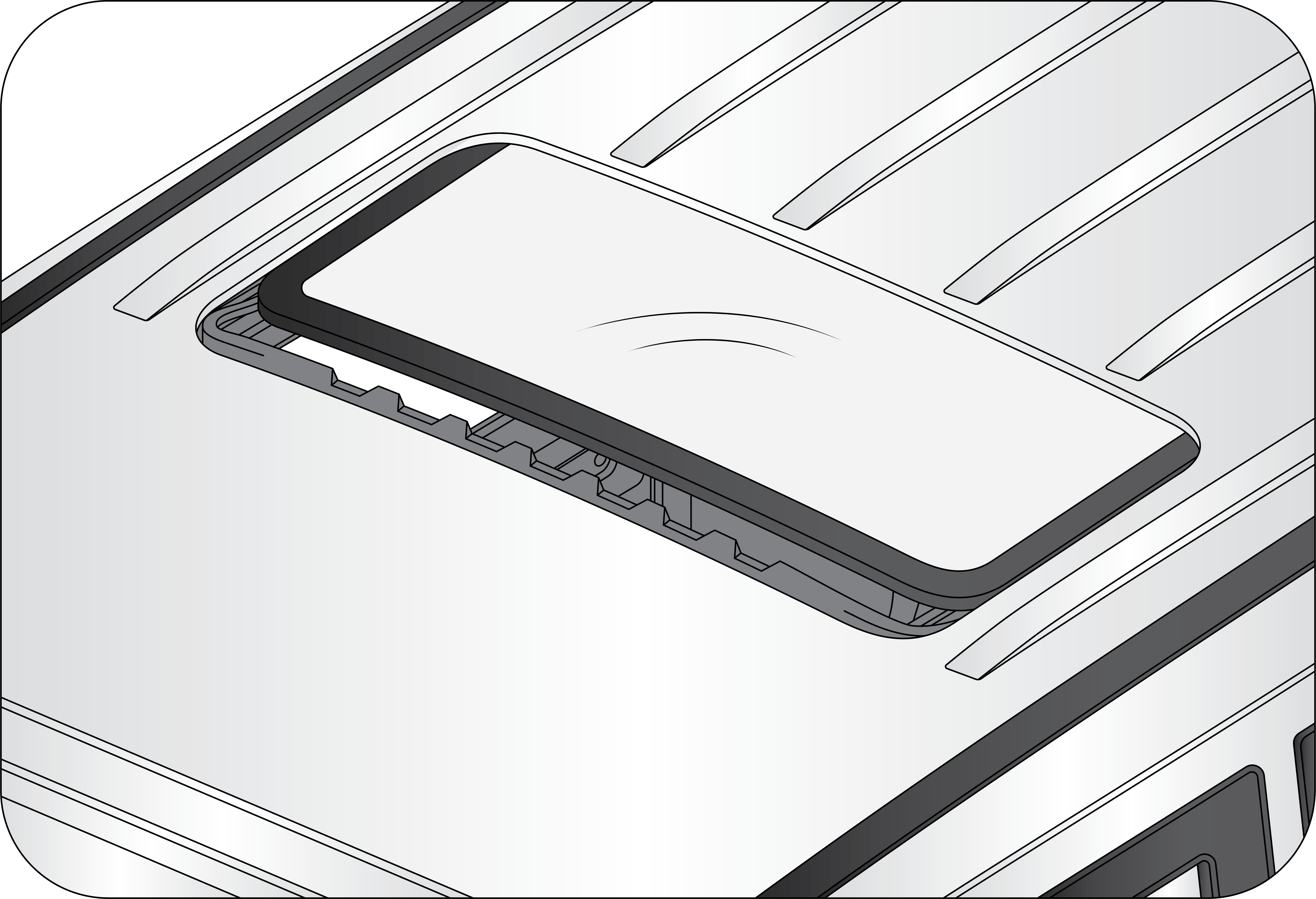

Sunroof* / Skyroof* |
E |
Outside Rear View Mirror |
F |
Rear Door Handle |
G |
Fuel Tank lid |
H |
Foot Step* |
I |
Antenna |
J |
Side Repeater |
K |
Hood Latch |
L |
Turn Indicator |
M |
Park Sensors* |
N |
Fog / Cornering Lamp* |
O |
Front Tow Hook |
P |
Day Time Running Lamp (DRL)*/Parking Lamp |
* - If equipped |
|

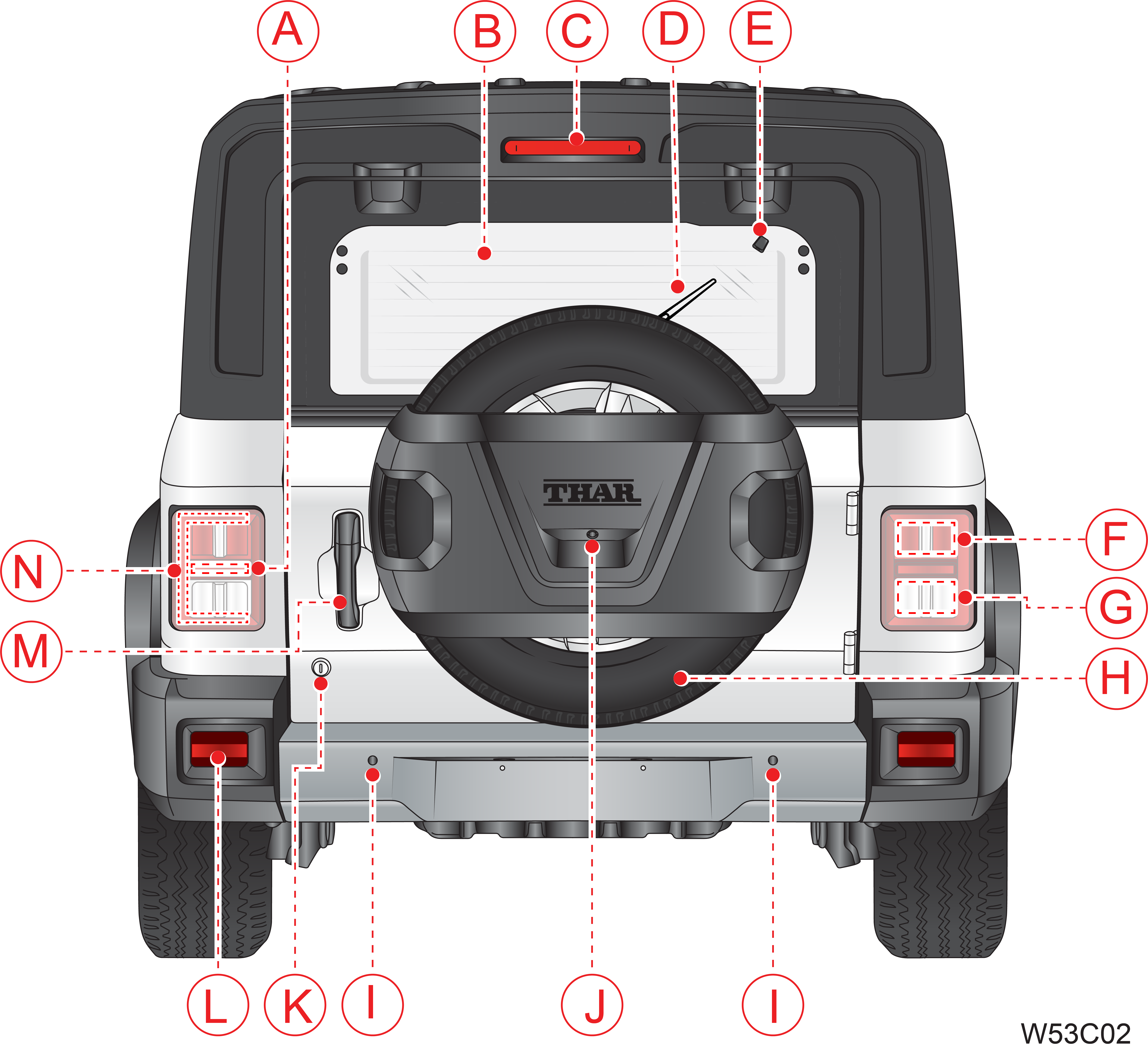

A |
Turn Signal Lamp |
B |
Rear Flip up Window |
C |
High Mounted Stop Lamp |
D |
Rear Wiper* |
E |
Rear Wiper Washer |
F |
Rear Stop Lamp |
G |
Reverse Lamp |
H |
Spare wheel |
I |
Park Assist Sensors |
J |
Rear View Camera* |
K |

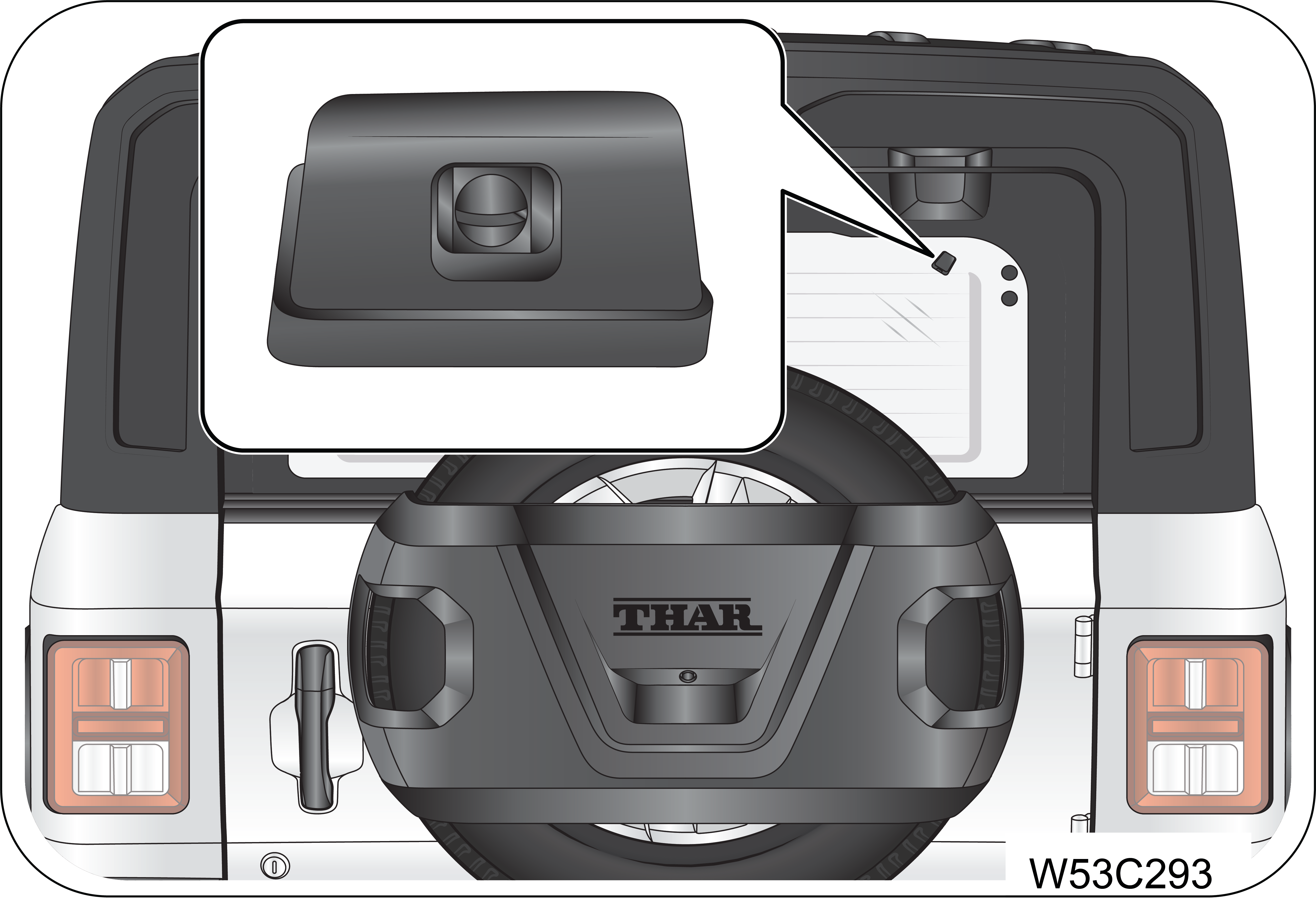

Rear Swing Gate key hole |
L |
Rear Reflector |
M |
Rear Swing Gate Handle |
N |
Tail Lamp |
* - If equipped |
Instrument Panel Overview
|
A |

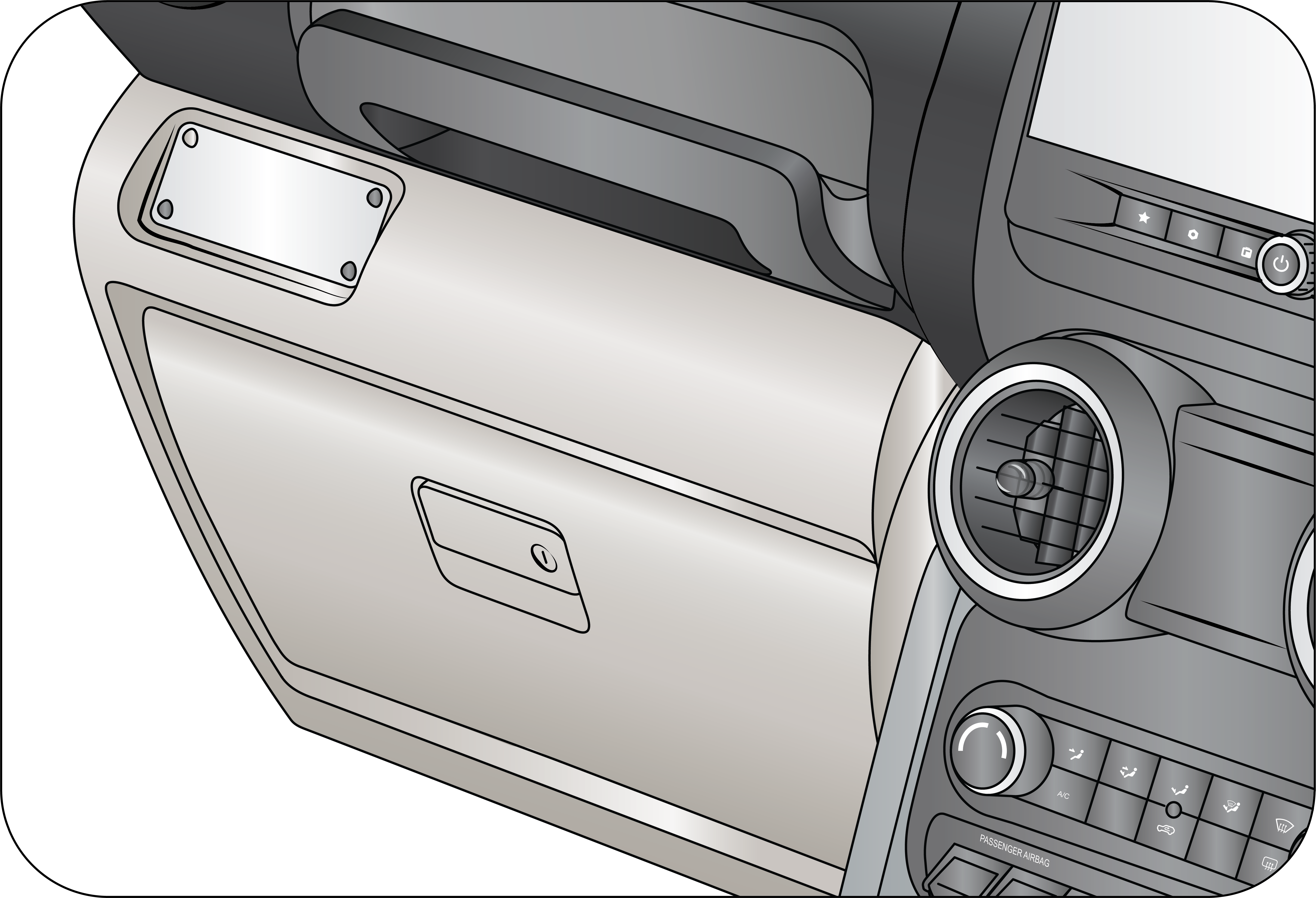

IP Branding Plate |
B |
Grab Handle |
C |
Passenger Airbag |
D |
HVAC Controls |
E |
Infotainment Screen* |
F |
Steering controls Switches |
G |
Horn Pad/Driver Airbag |
H |
Steering wheel |
I |
Instrument Cluster |
J |
Driverside Switch Bank |
K |
USB Port |
L |
Wireless Charger* |
M |
Can/Bottle holder |
N |
Driver Side Arm Rest |
O |
Rear Ticket Holder |
P |
2nd Row USB Port |
Q |
Parking Brake |
R |
4WD/2WD Shift Lever |
S |
Manual Transmission* / Automatic Transmission Gear Lever* |
T |
Center Fascia Switch Bank |
U |
Glove Box |
* – If equipped |
• | Customer must produce valid mobile number, communication address & email ID for KYC registration. for registration purpose. |
• | Preferred mobile number entered during the KYC process will be the login for Adrenox mobile app. |
• | After successful KYC registration, customer must download the “ADRENOX connect” mobile application from Google Play store or iOS app store. |
• | You can select sign up option from login page which redirects to sign up page |
• | Then enter registered Mobile number given in KYC form for connected services and click on Generate OTP |
• | OTP with a validity will be sent to the same mobile number |
• | If OTP is not received, you can request the OTP again by clicking on "Resend OTP" |
• | After entering valid OTP, click on “Verify My account” |
• | On successful verification you will be notified with a message " Account Verified" |
• | You will be directed to "Terms and Condition" with "I Agree" option on successful authentication |
• | Tap on the Forgot Password? link from login page |
• | In forgot password page, enter the registered mobile number for connected services and click on Generate OTP |
• | Enter the OTP and click on Next button |
• | Enter New Password and Confirm Password and tap on Save button |
• | Tap on the top Left corner from home screen |
• | Click on My Account and select Change Password |
• | Page will open with Old password, New password and Confirm password fields |
• | Fill all the required field and tap on save button |
FEATURE |
DESCRIPTION |
---|---|
Alerts |
|

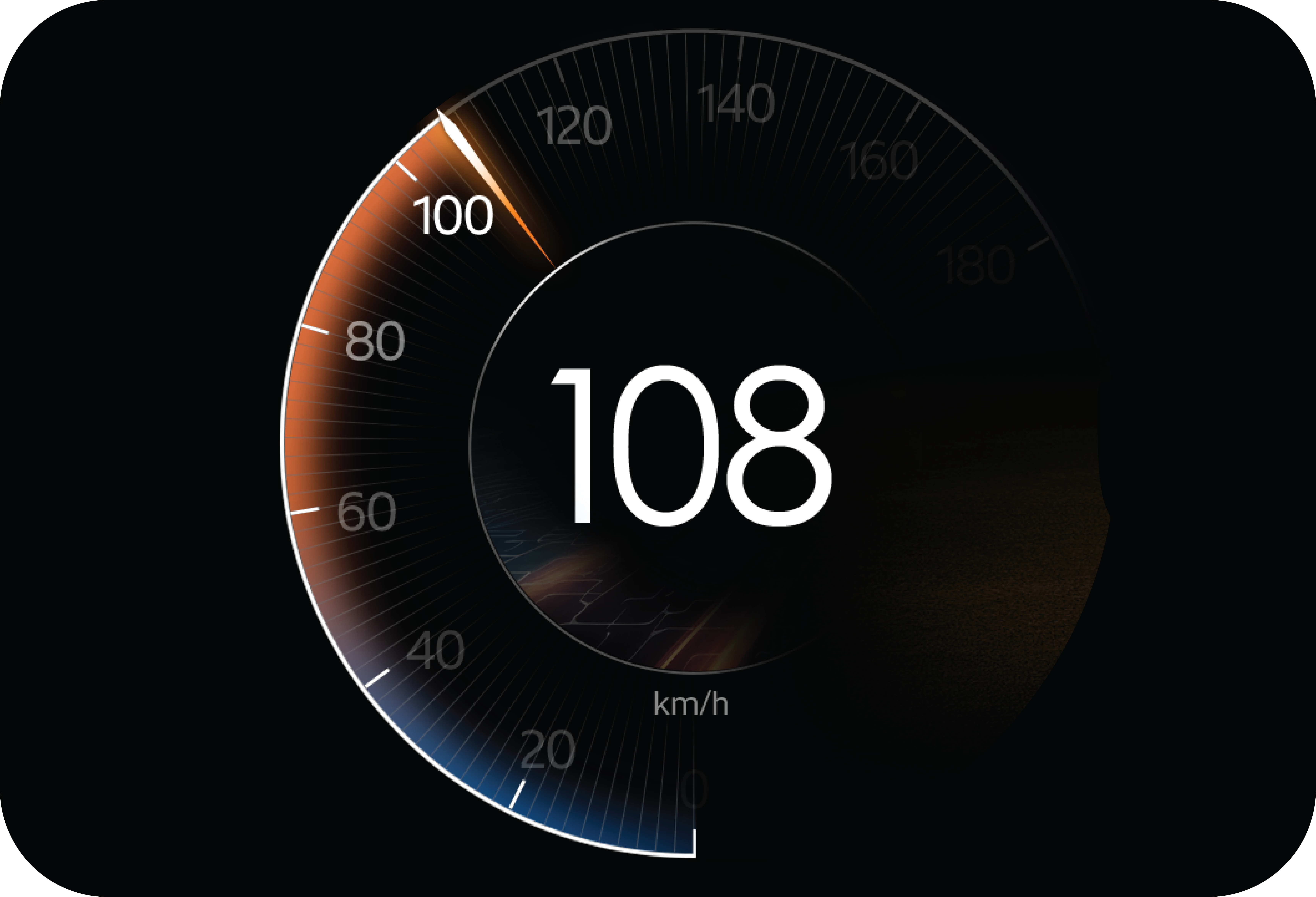

Over Speed Alert |
When your car exceeds the set speed limit. This speed limit value can be set under alert configuration in mobile application |
High Engine Temperature Alert |
Alerts when Engine temperature beyond the predefined limit |

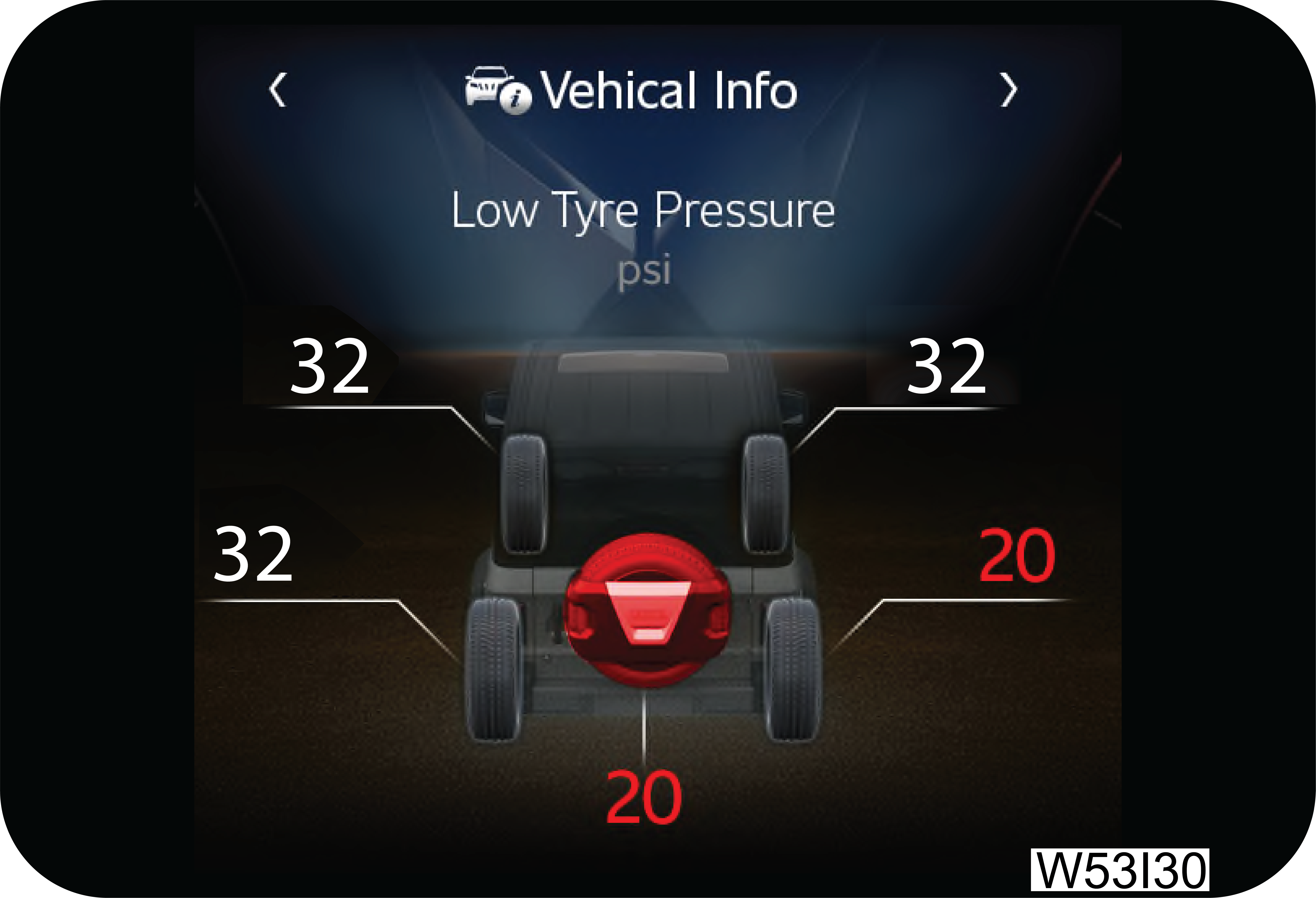

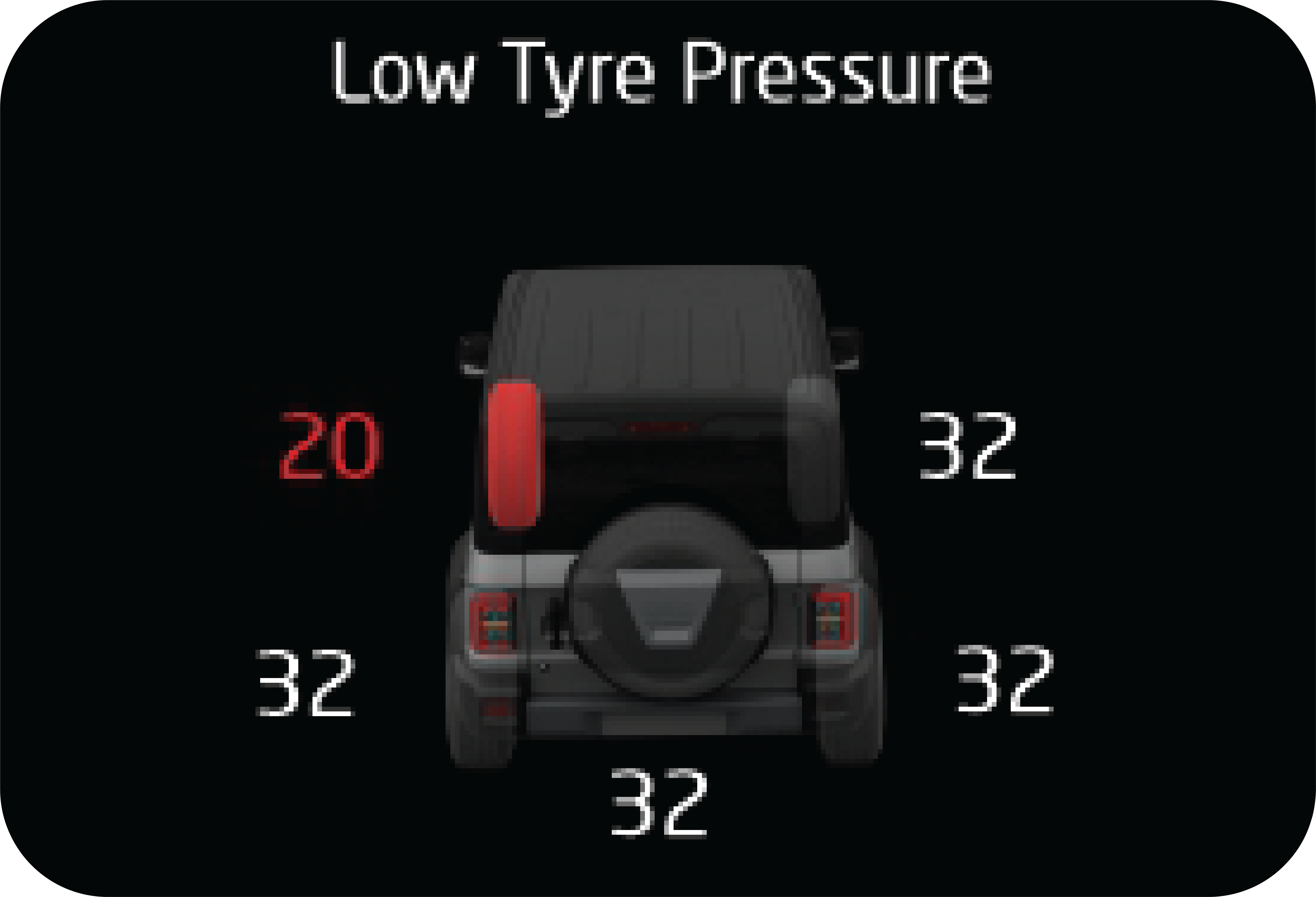

Tyre Pressure Alert |
Alerts on excessive/very low and high tyre pressure and navigate to nearby petrol station |
Lamp Status Alert |
Alerts when vehicle park lamp left in ON condition while locking the vehicle
Notifies when the vehicle park lamp is left in ON condition and helps to turn OFF remotely via mobile application |
Vehicle Start/Stop Alert |
Notifies when normal vehicle start /stop event is detected |

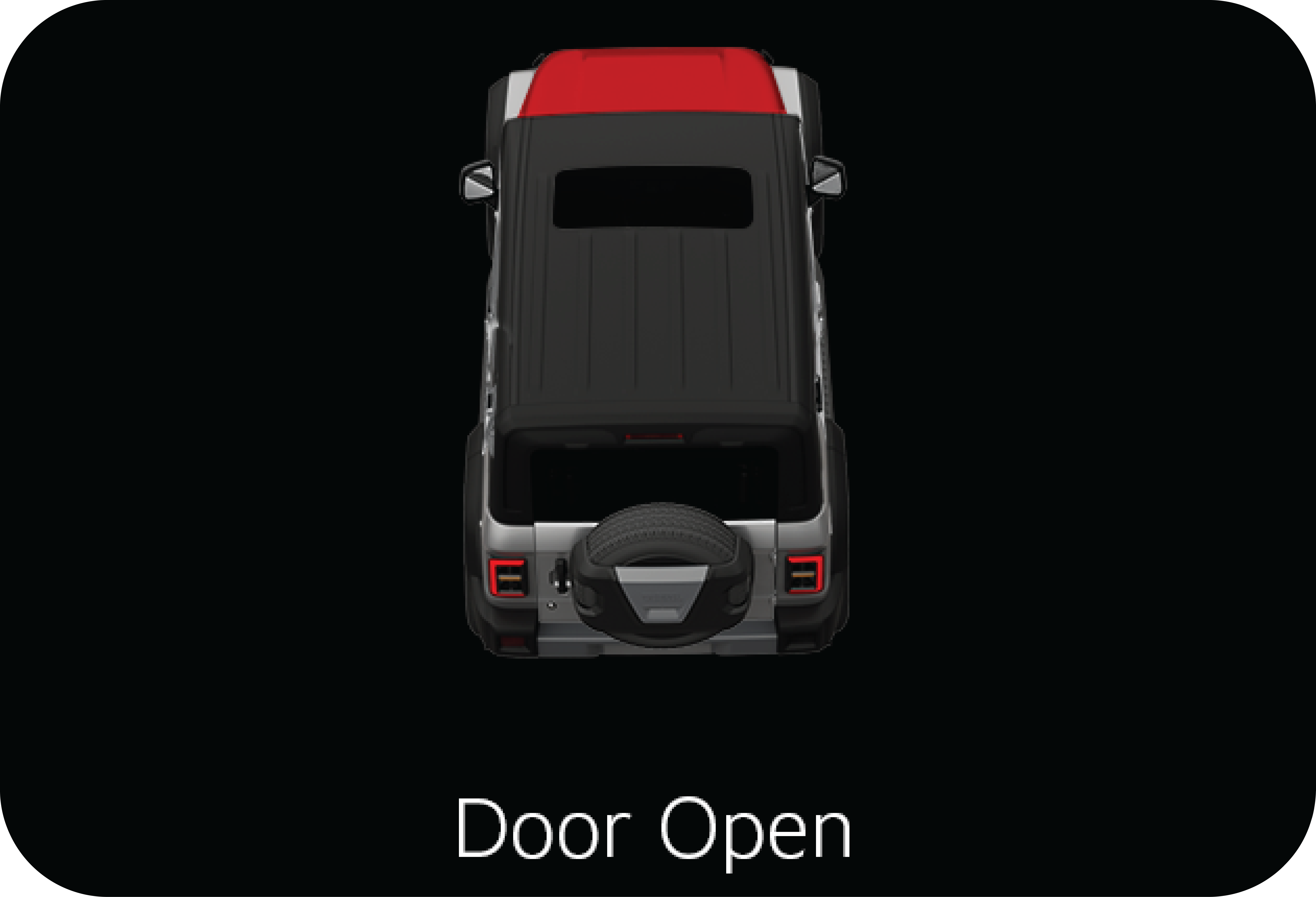

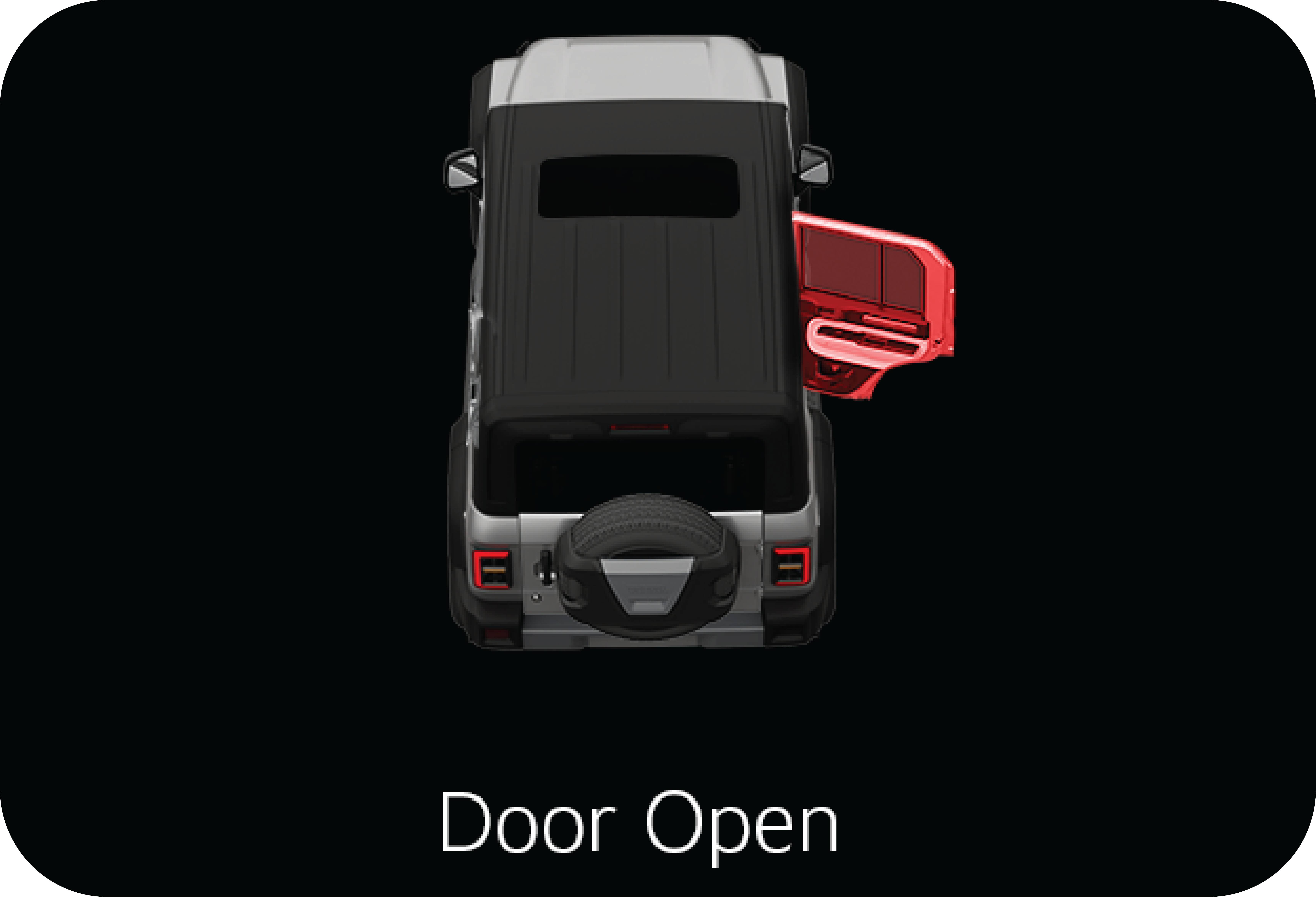

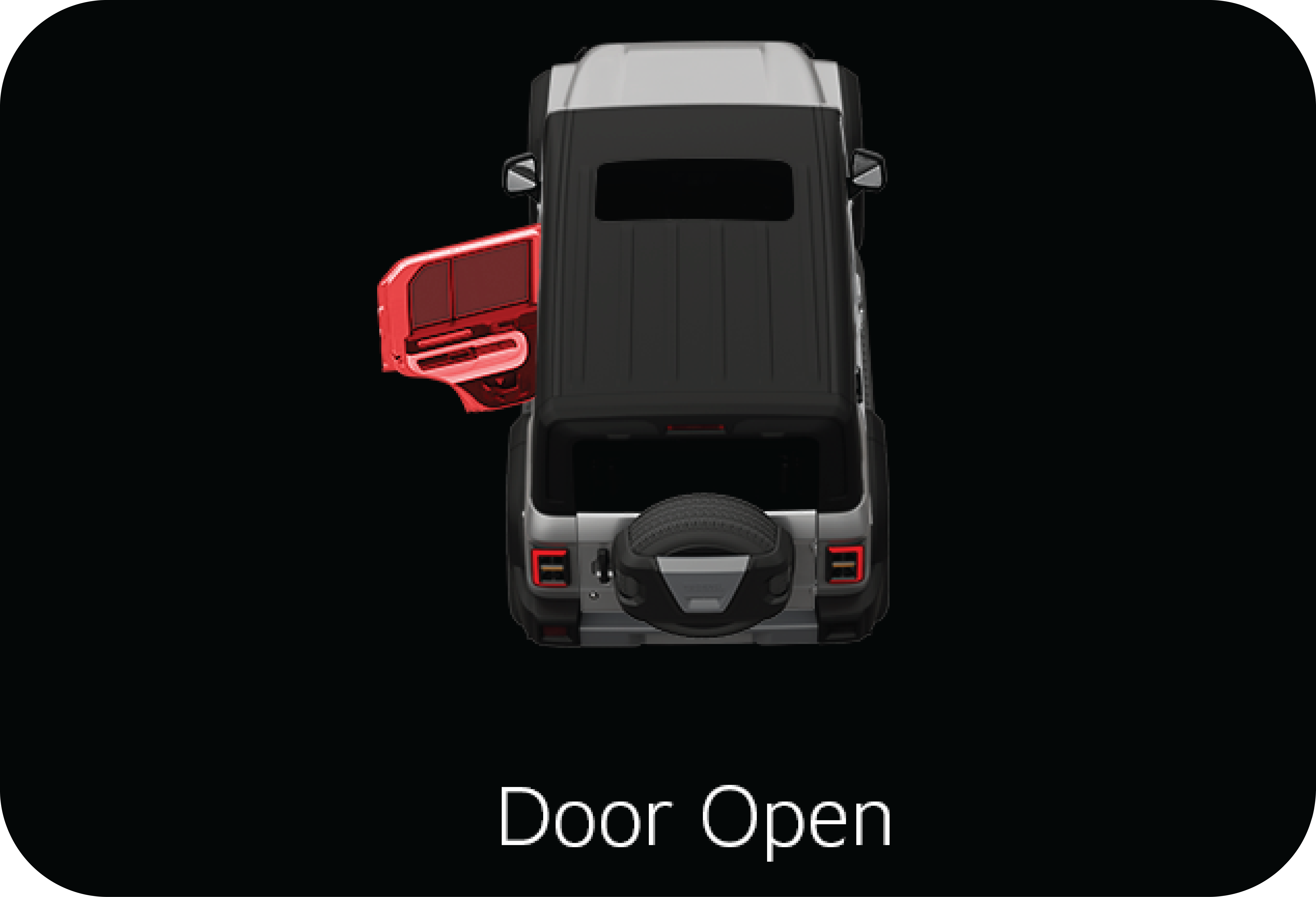

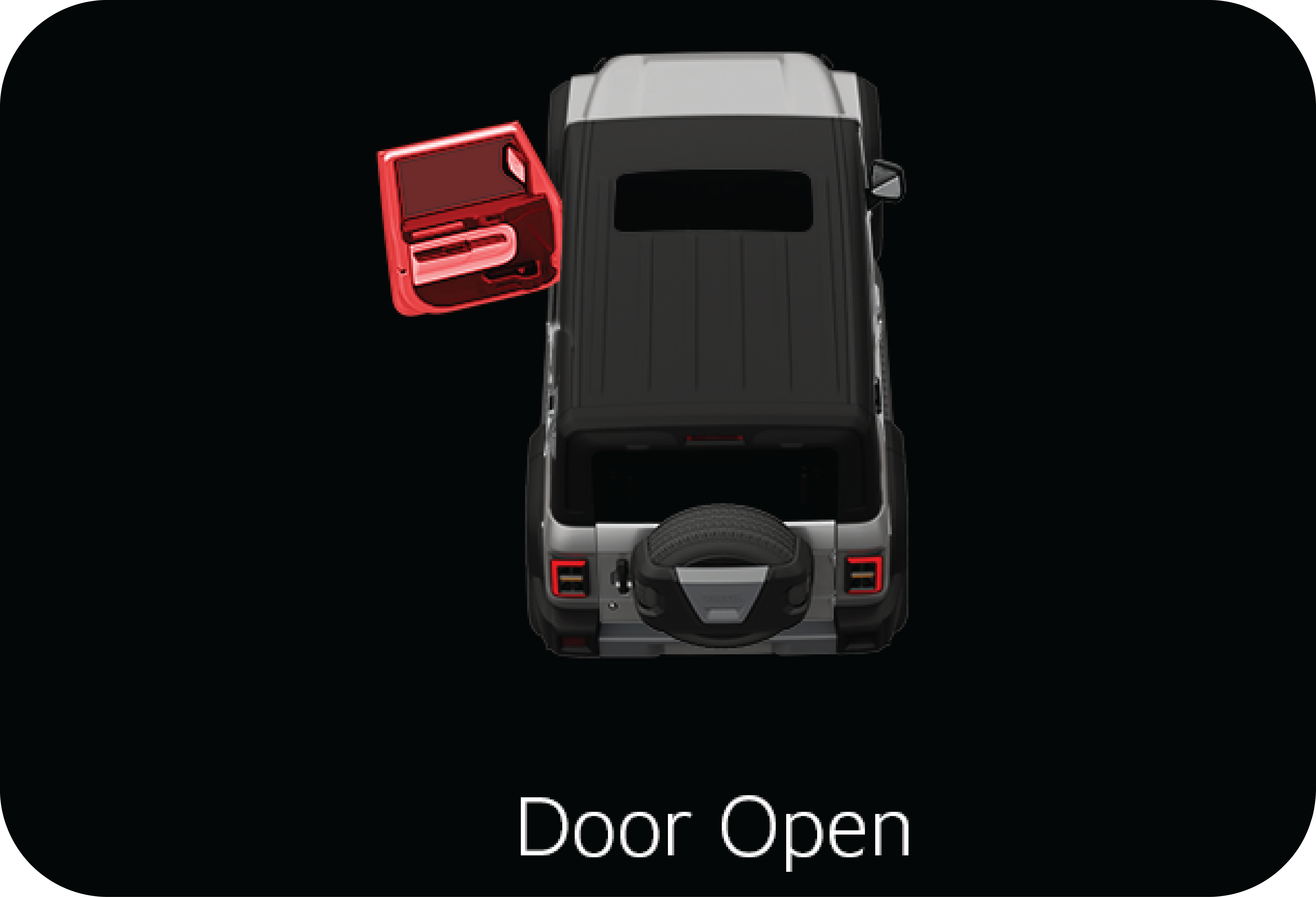

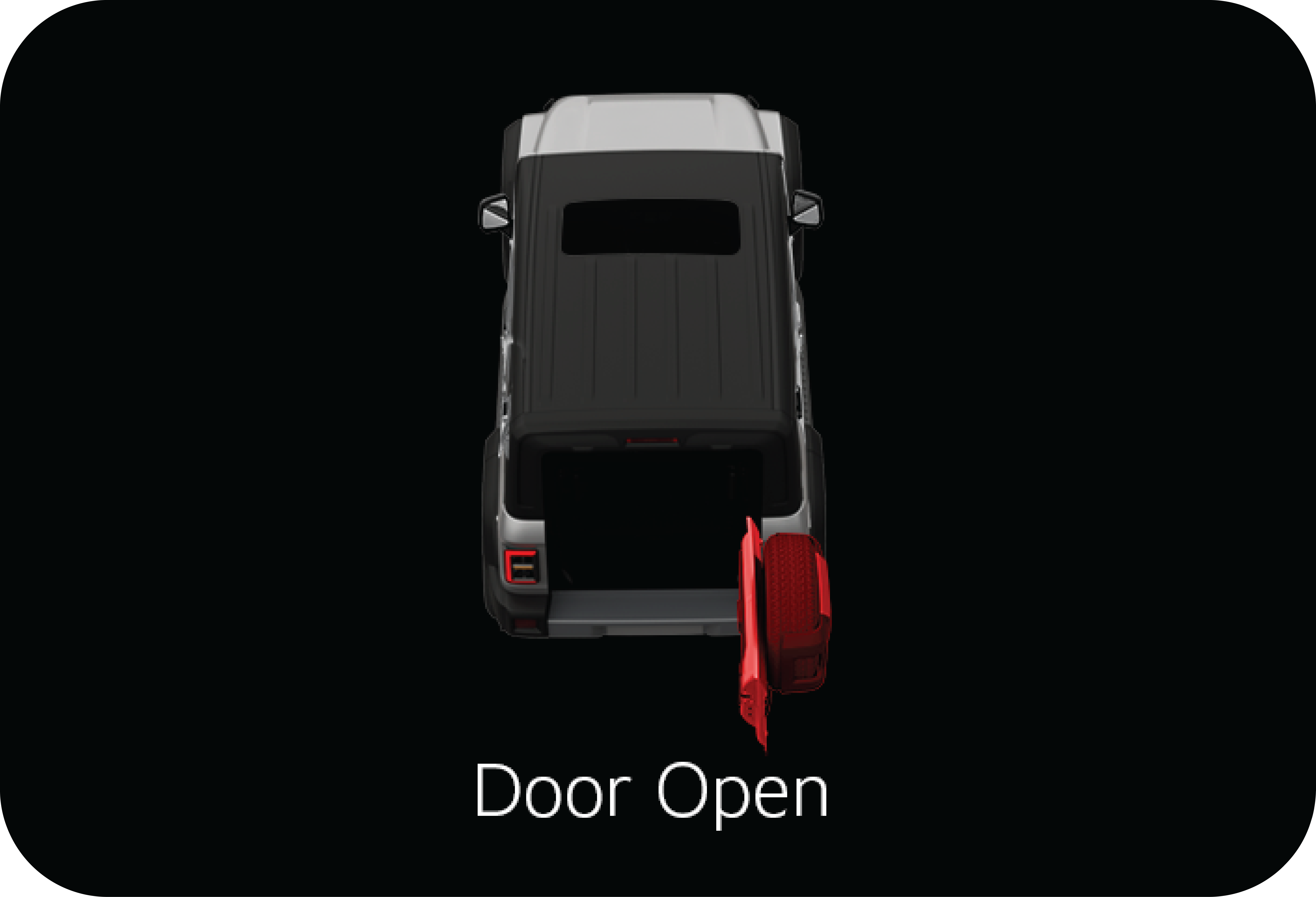

Door Open Alert |
Notifies when any of the doors open while vehicle is moving and also when you trigger for door lock and the door remains open
unintentionally
|
Geo-Fence Alert |
Alerts when your vehicle moves out of a set boundary area
Helps you to create virtual boundary for any region and will be notified whenever your vehicle moves in or out of that boundary |
Unauthorized vehicle entry Alert |
Alerts the user when any unauthorized entry in the vehicle is detected |
Low Fuel Alert |
Identifies low fuel level and notifies in your mobile application. Helps you to nearby fuel station |
Route Deviation Alert |
Alerts the user when the vehicle deviates from the pre-defined path |
Time Fencing Alert |
Notifies you when any movement of vehicle is detected during set time period |
Seat Belt Alert |
Notifies you whenever the driver/ co-driver is not wearing the seat belt during vehicle movement in mobile application |
Insurance expiry Alert |
Suggests in advance to renew the Insurance as expiry date of Insurance approaches
Notifies you in advance when the insurance is about to expire |
PUC expiry Alert |
Notifies you in advance when the PUC is about to expire |
Engine Idle Alert |
Alerts when engine idling is detected for a set period of time. Time can be configured in mobile application |
Personalised Safety Alert |
Alerts the user via a personalised beloved ones voice prompt when the vehicle crosses the speed limit |

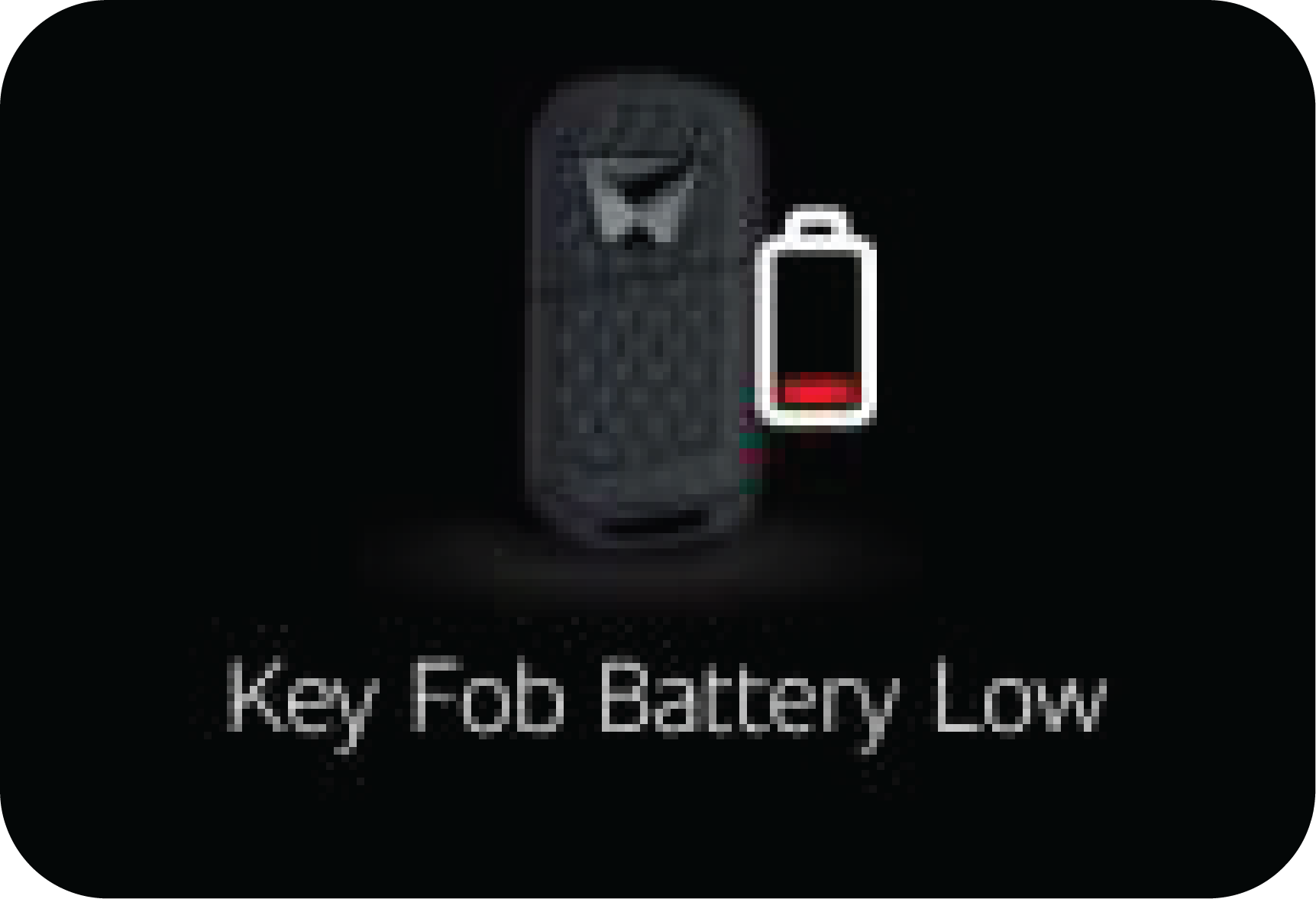

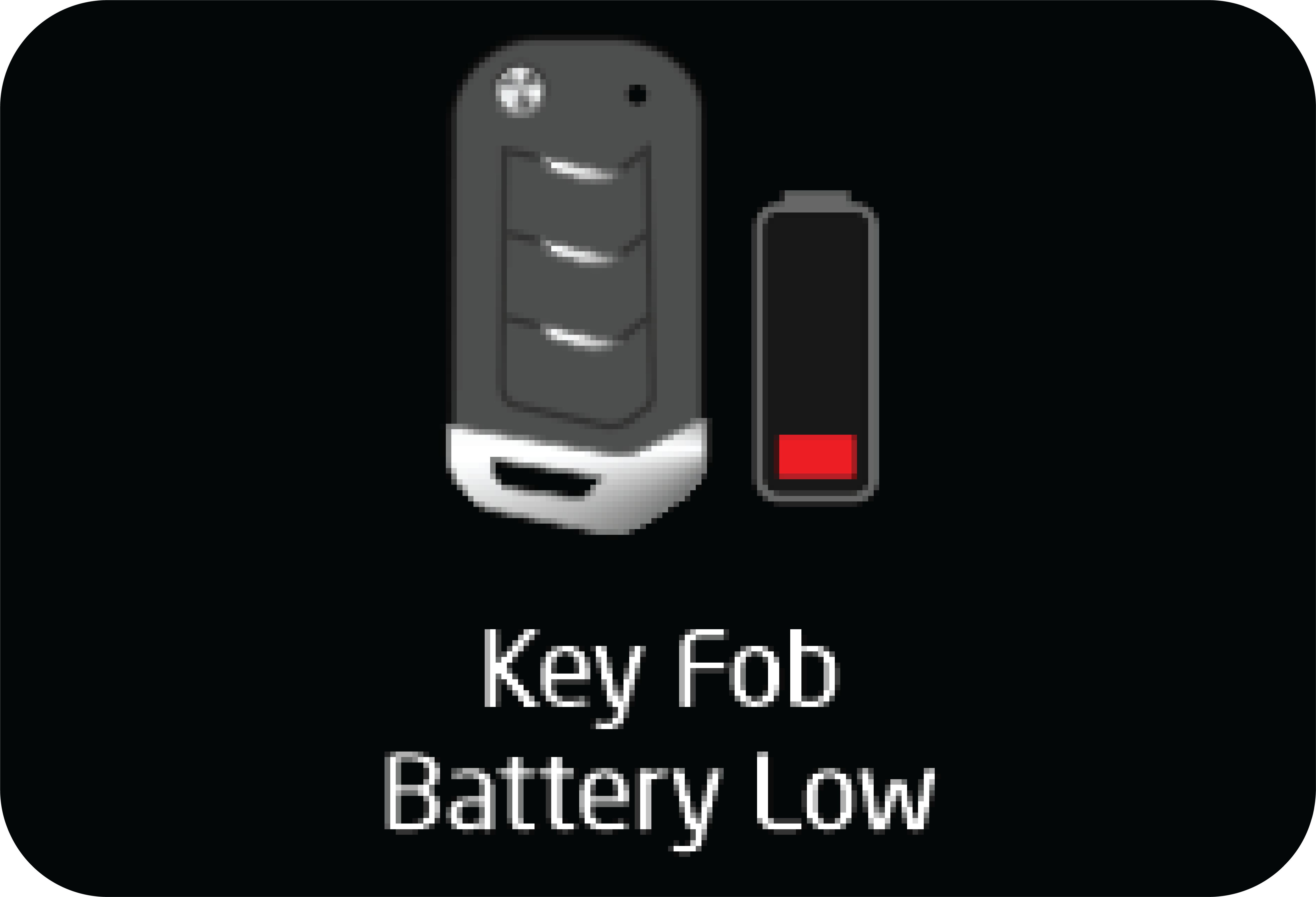

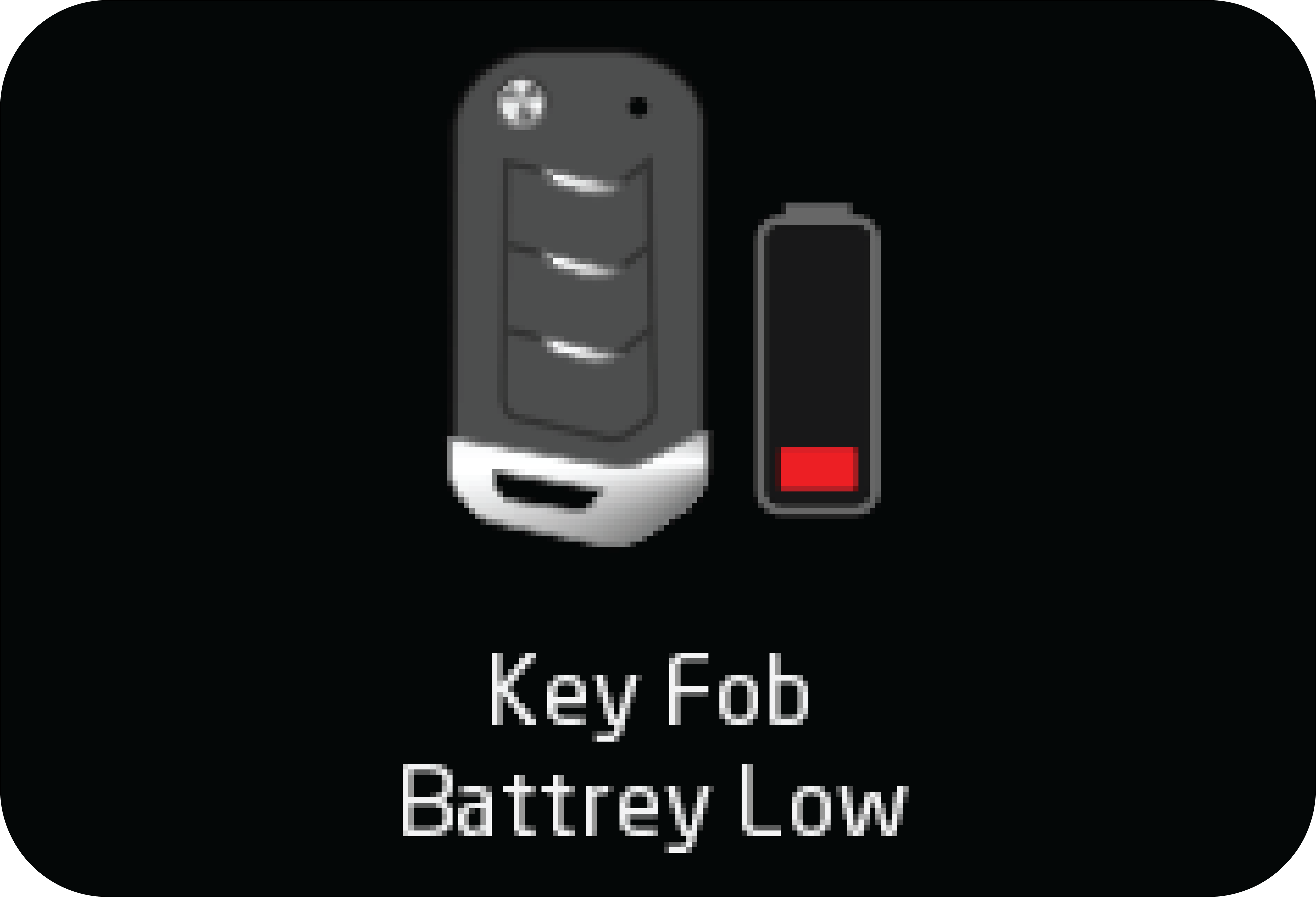

PKE / RKE low battery alert |
This feature alert’s the user when key battery is low |
Low DEF alert |
This feature alert’s the user when DEF level is low |
DPF choke alert |
This feature alert’s the user when Diesel Particulate filter is about to choke |
Location Based Service |
|
Live tracking |
GPS based vehicle tracking system for tracking vehicle’s location anywhere and at any point of time
Helps to provide the real time vehicle location when vehicle is in movement
Helps in sharing the vehicle location for a set time to your family and friends |
Save Route / Save Place |
Provision to save a route /place |
Find my car |
Helps to identify the vehicle’s location and directs you to locate your vehicle |
Share my car location |
Share your car's location with friends and family |
Push to car |
Allows the user to push routes/location from the mobile app to the vehicle |

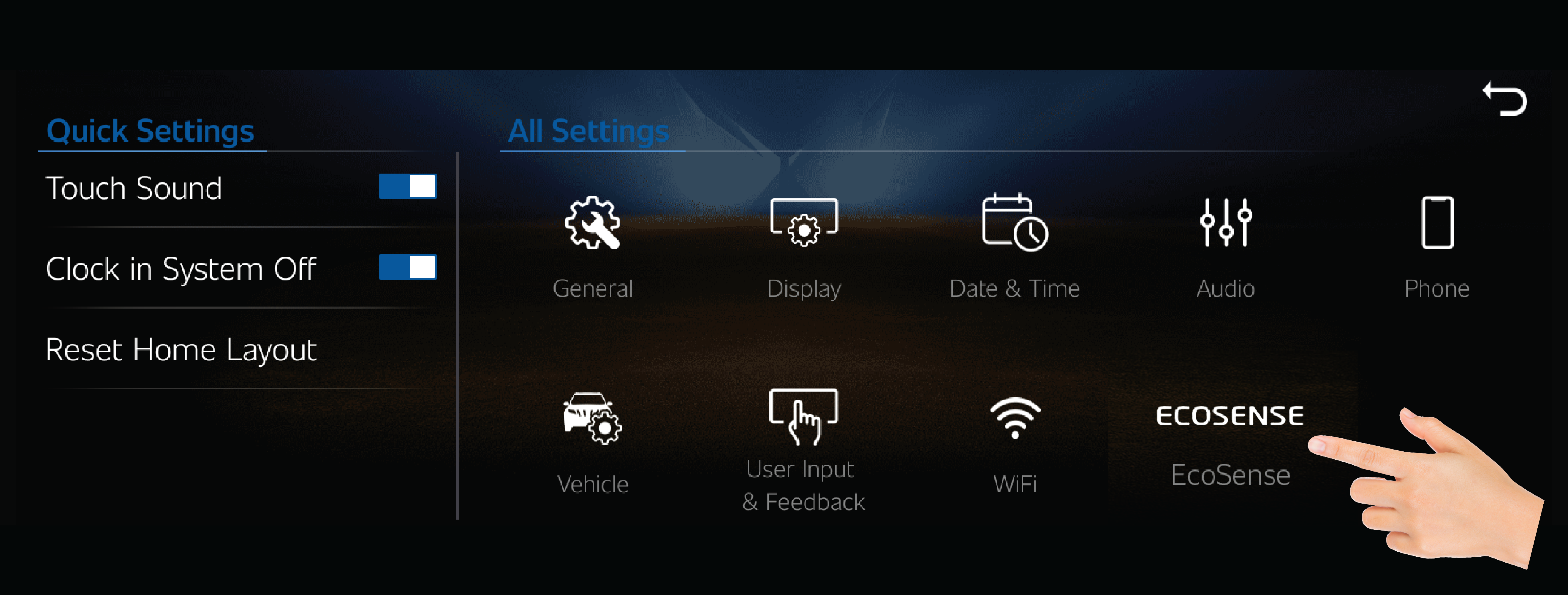

Ecosense |
Provides the details about the driving behavior for each trip |
Trip History |
Provides detailed information about the trips |
Trip Replay |
Provides glimpse of the trip in a form of a short video |
Pit Stops |
Provides information and navigational access to nearby restaurant, ATM, Mahindra Dealership and so on |
Trip tagging |
Allows user to tag the trips as personal/official |
Restroom suggestion |
Allows user to search & navigate to nearby rest room facilities from Mobile app |
Read Vehicle Status |
|

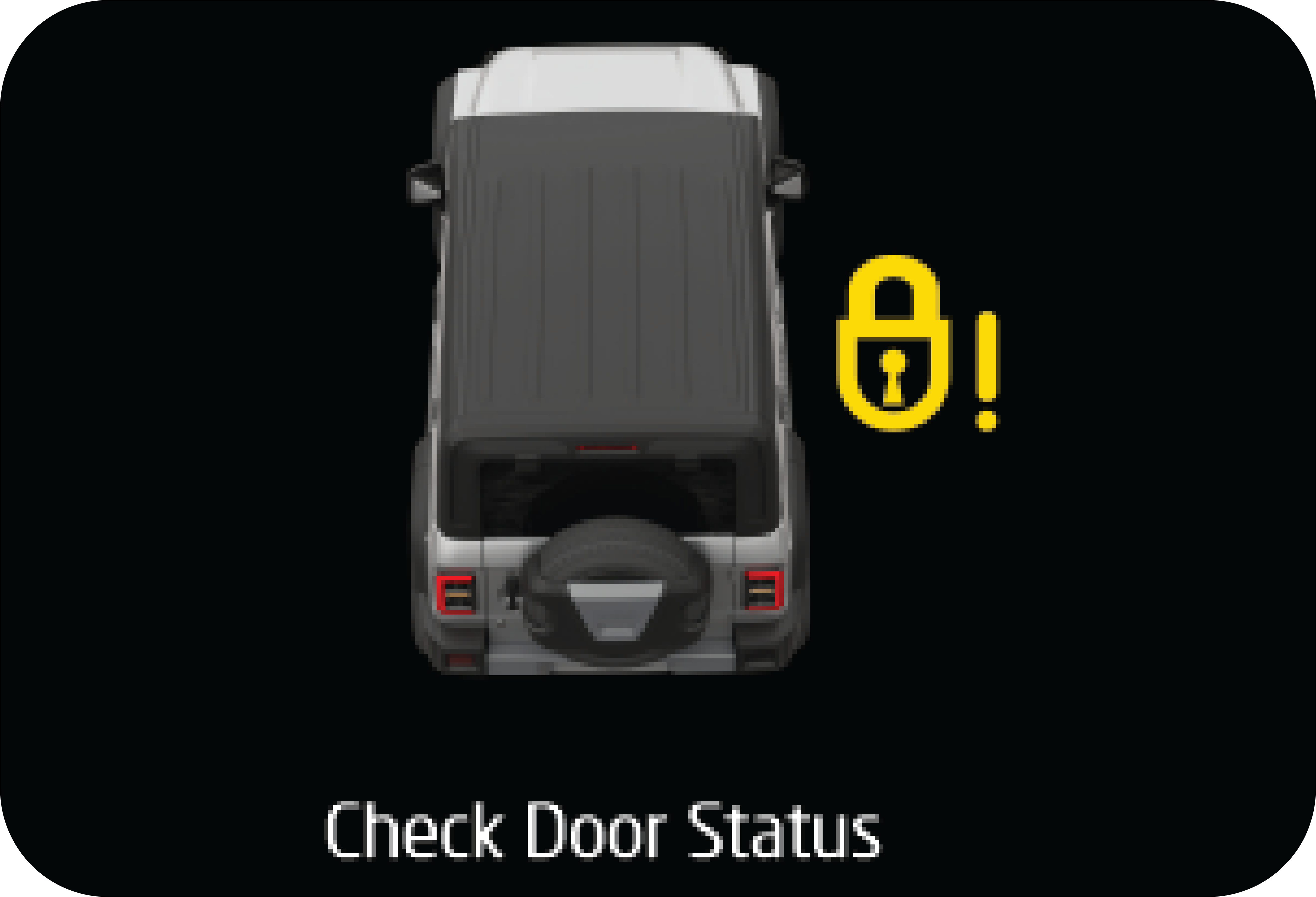

Check door status |
Allows the user to view the current status of the vehicle door |
Check tyre pressure |
Allows the user to view the current status of tyre pressure |
Check lamp status |
Allows the user to view the current status of the lamp |
Check ODO |
Allows the customer to check the odometer of the vehicle |

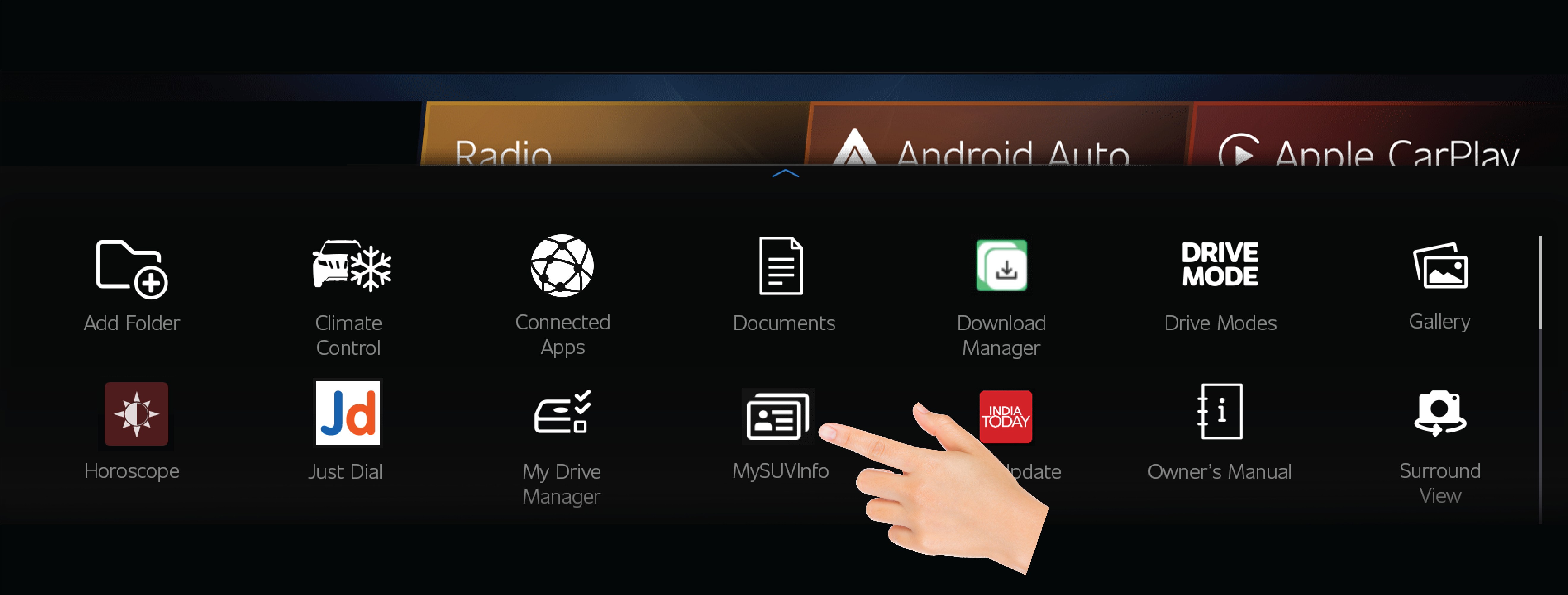

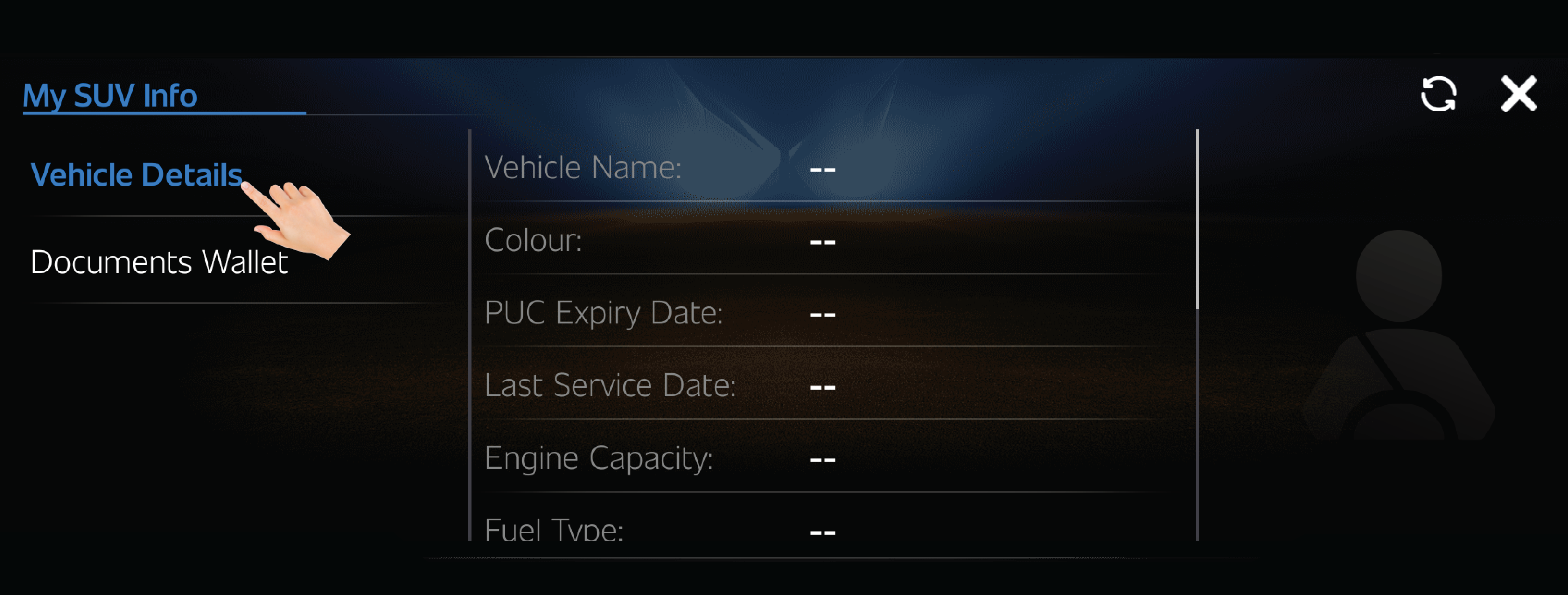

My SUV info |
Essential information about the vehicle like VIN, Variant and so on |
Check AC Status |
Allows the user to view the current status of the AC |
Check Distance to empty |
Helps to check distance to empty range i.e. the distance can be covered with the available fuel |
Seat Belt Status |
Helps the user to check the Driver/Co-Driver seat belt is buckled or not |
Safety |
|
E-Call |
In case of accident, Emergency call will be triggered from vehicle, SMS will be sent to M4U & Emergency contacts along with
the current vehicle location.
|

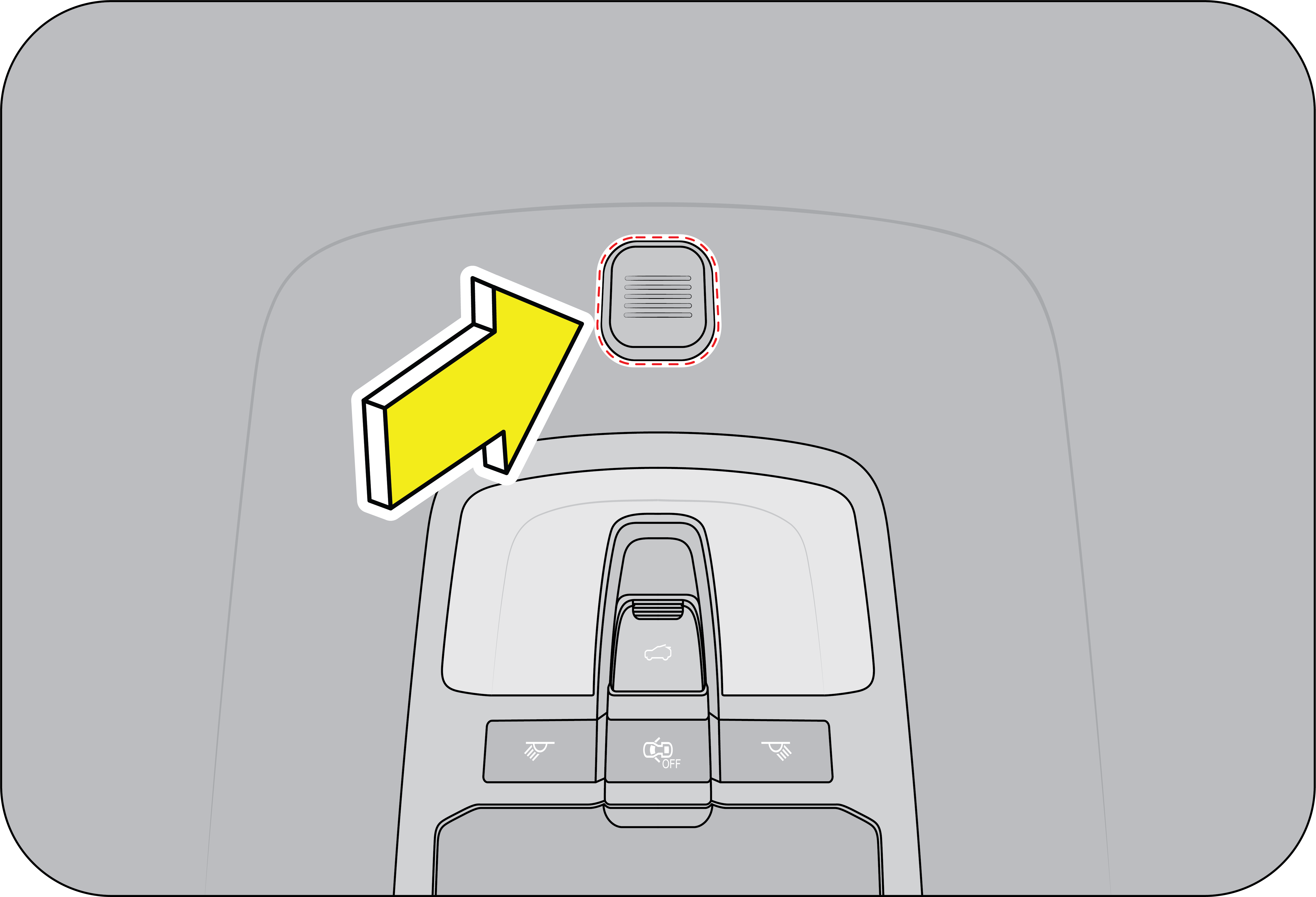

SOS Button |
In case of SOS is initiated, SOS call will be triggered from vehicle, SMS will be sent to M4U & Emergency contacts along
with the current vehicle location
|

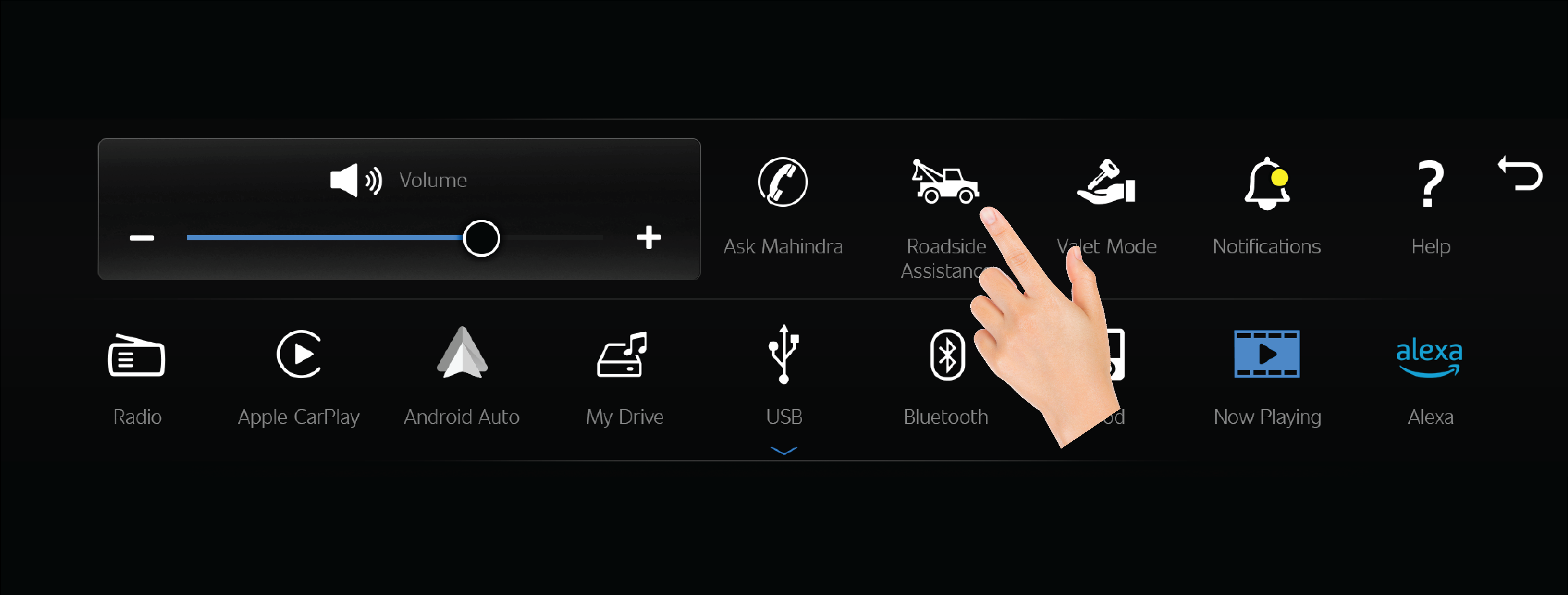

Road Side Assistance |
Allows the user to reach out for help in case of vehicle breakdown |
Remote Function |
|

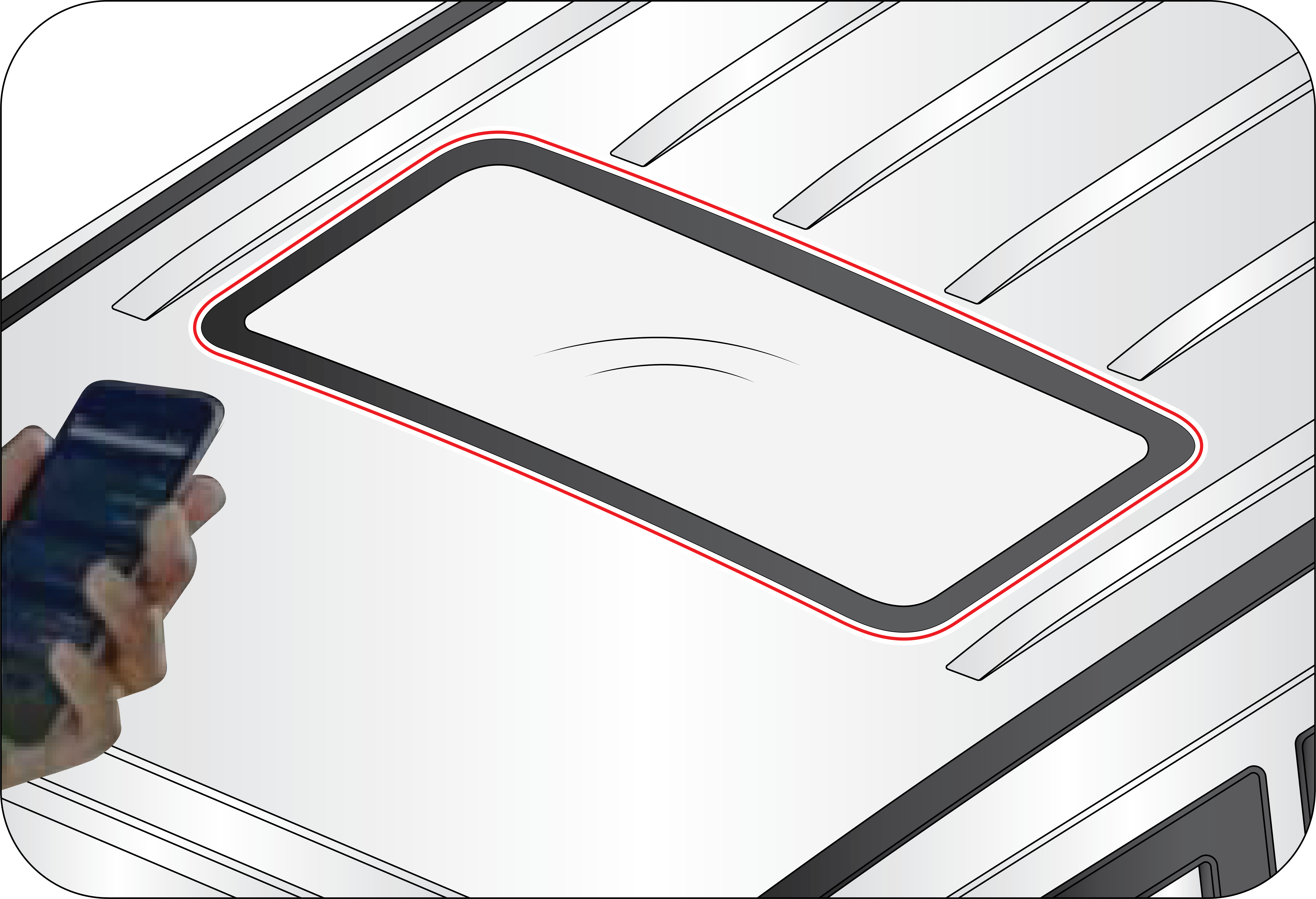

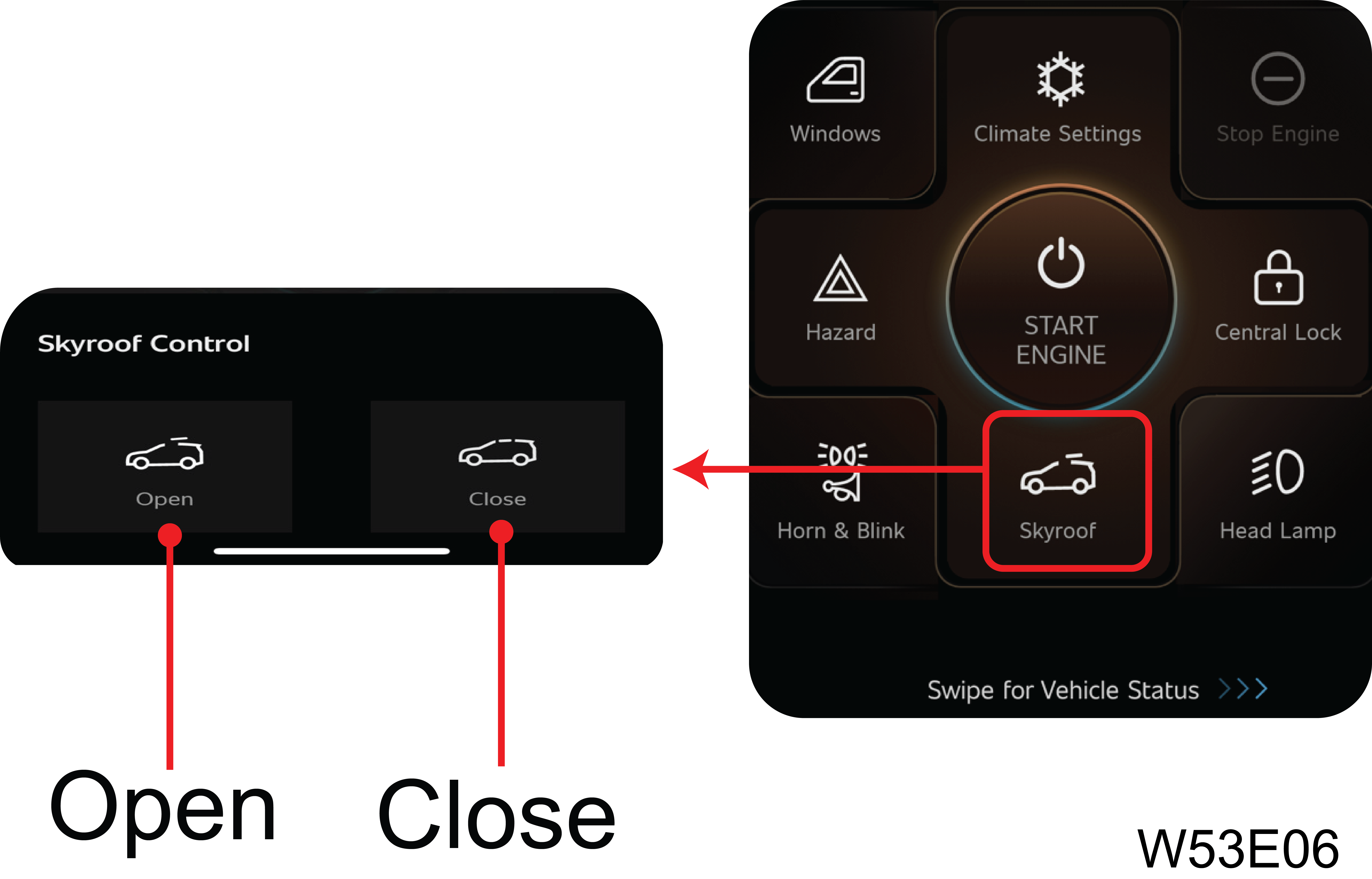

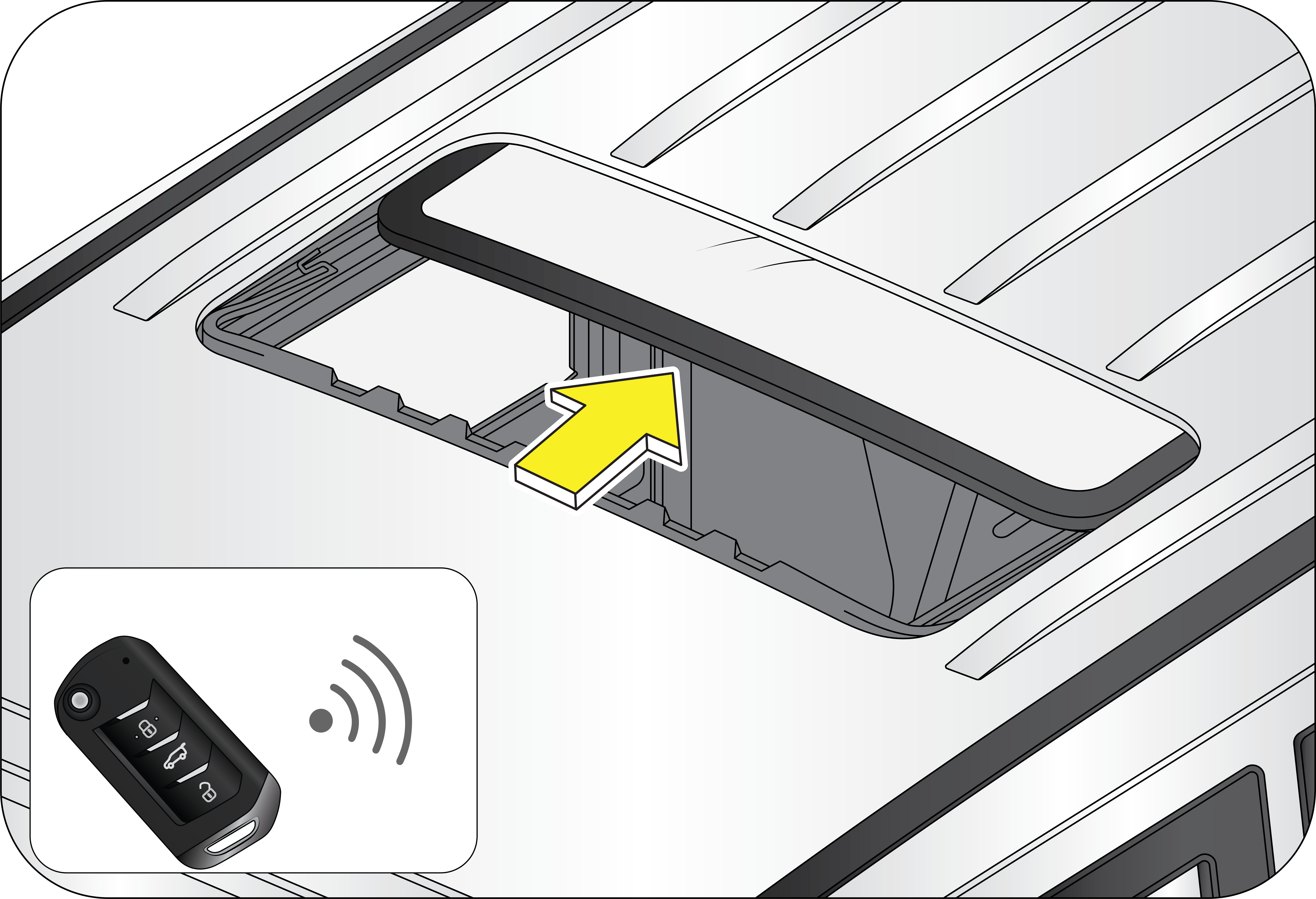

Remote Skyroof control |
Allows the user to remotely control Skyroof using mobile app |

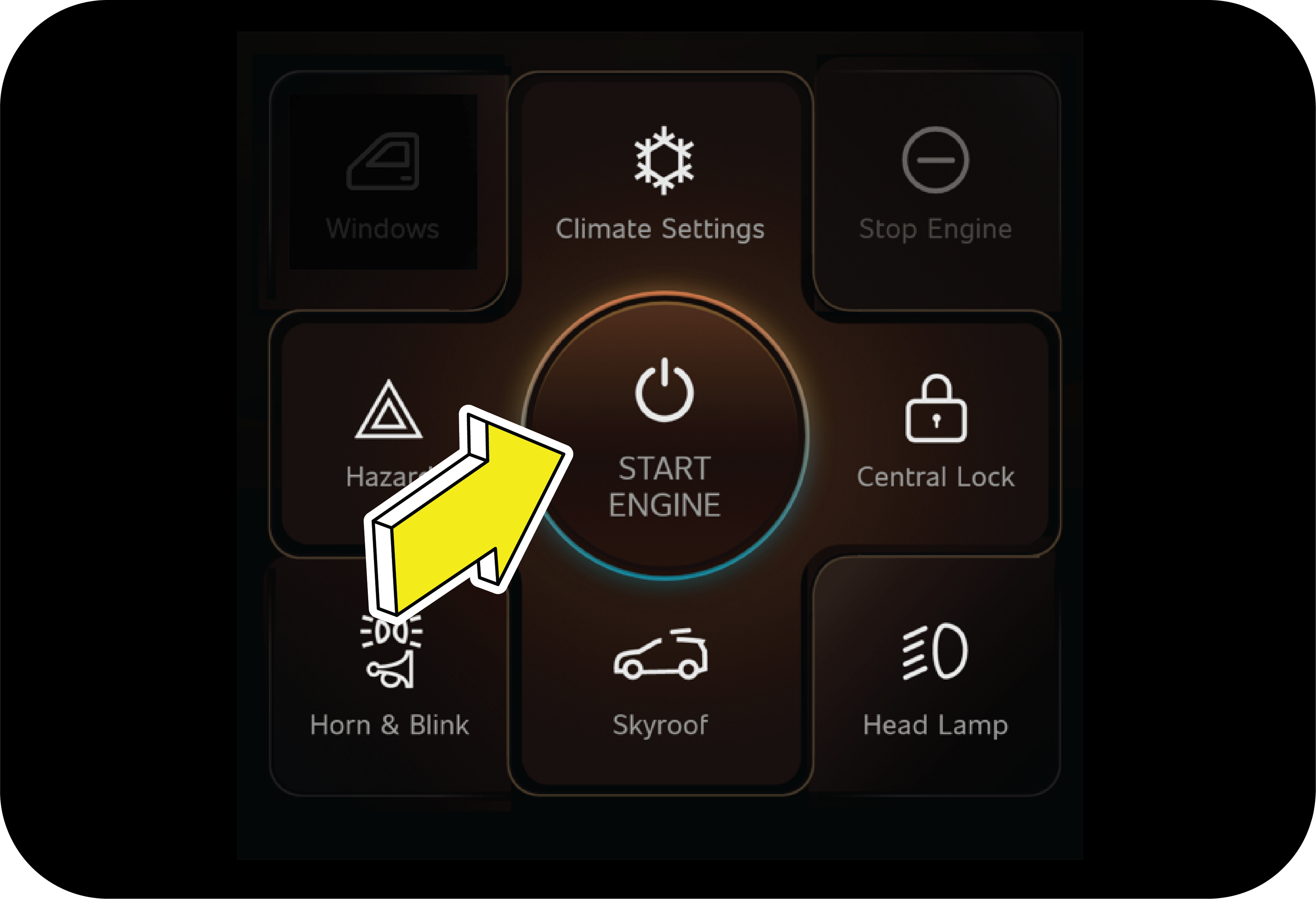

Remote Start/ Stop |
Allows the user to remotely start or stop the vehicle using mobile app |

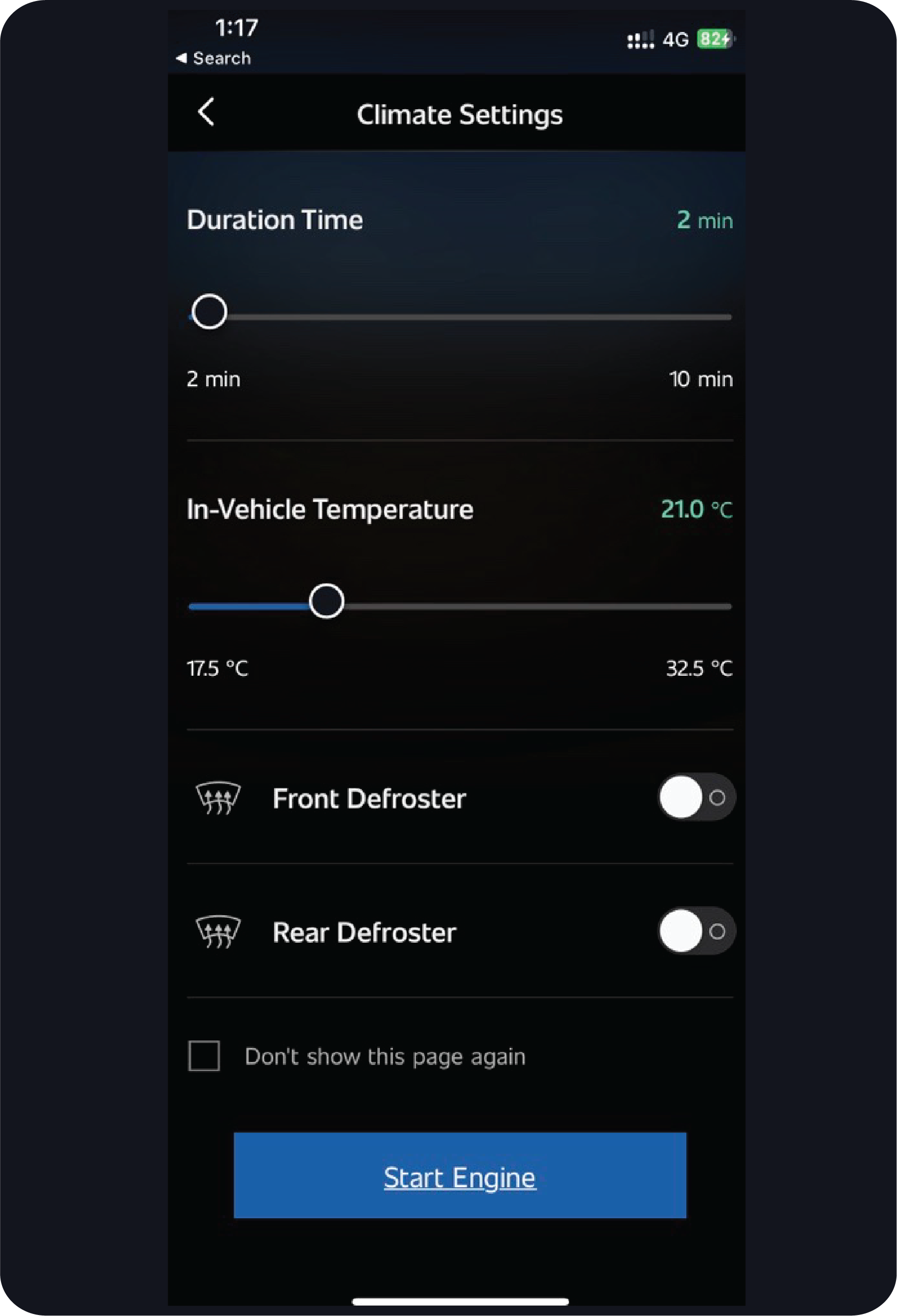

Remote Climate control |
Allows the user to remotely configure the in- vehicle temperature during remote start using mobile app |

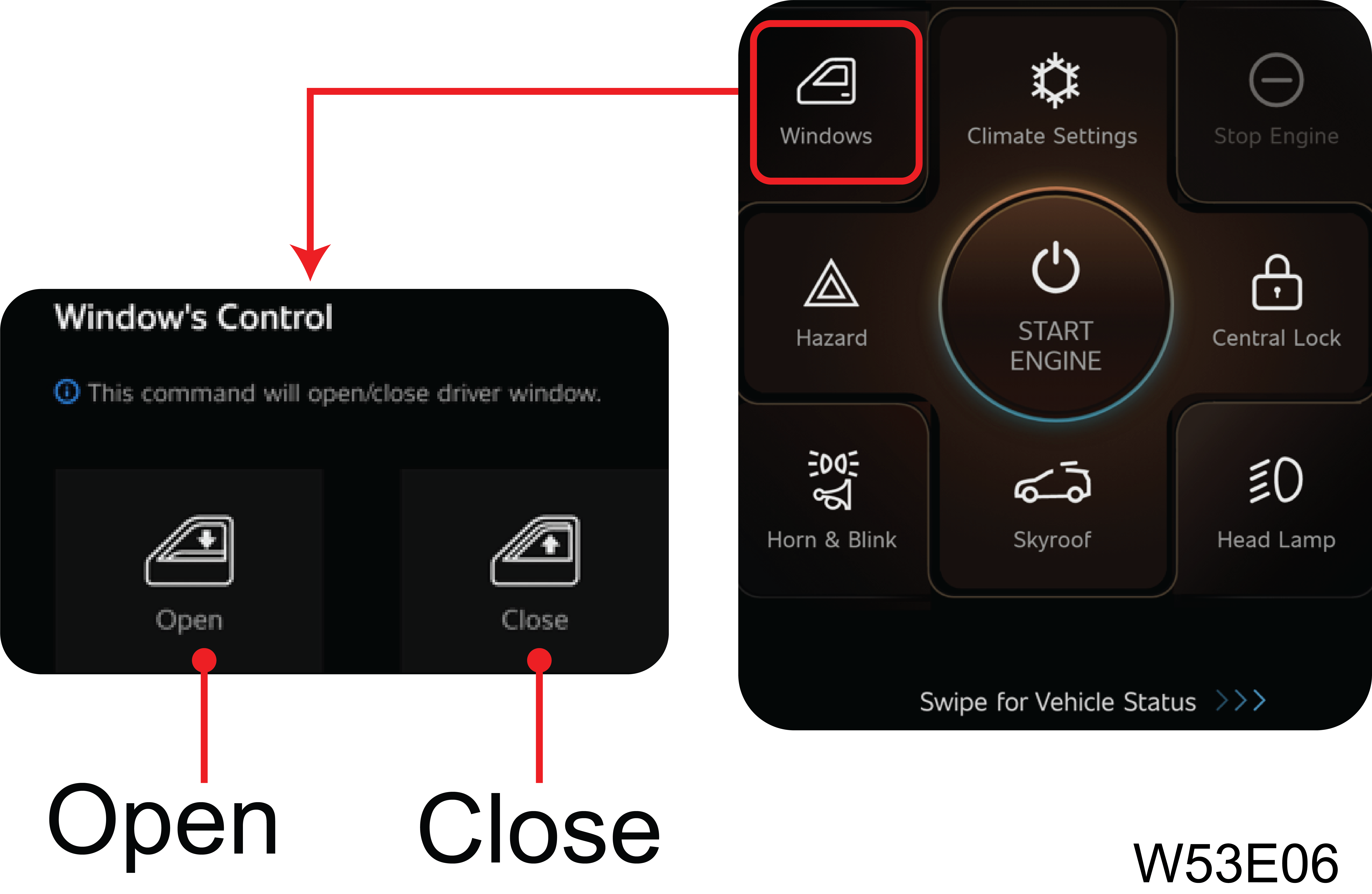

Remote window Up/Down |
Allows the user to remotely control the Driver window (with anti-pinch) using mobile app |
Remote Door Lock/Unlock |
Provide access to the vehicle by remotely locking and unlocking the doors when vehicle is stationary |
Remote Lamp On/Off |
Allows the user to remotely turn on or off the lamps using mobile app |
Locate my SUV |
Allows the user to remotely locate the vehicle by turning on the horn and lights |

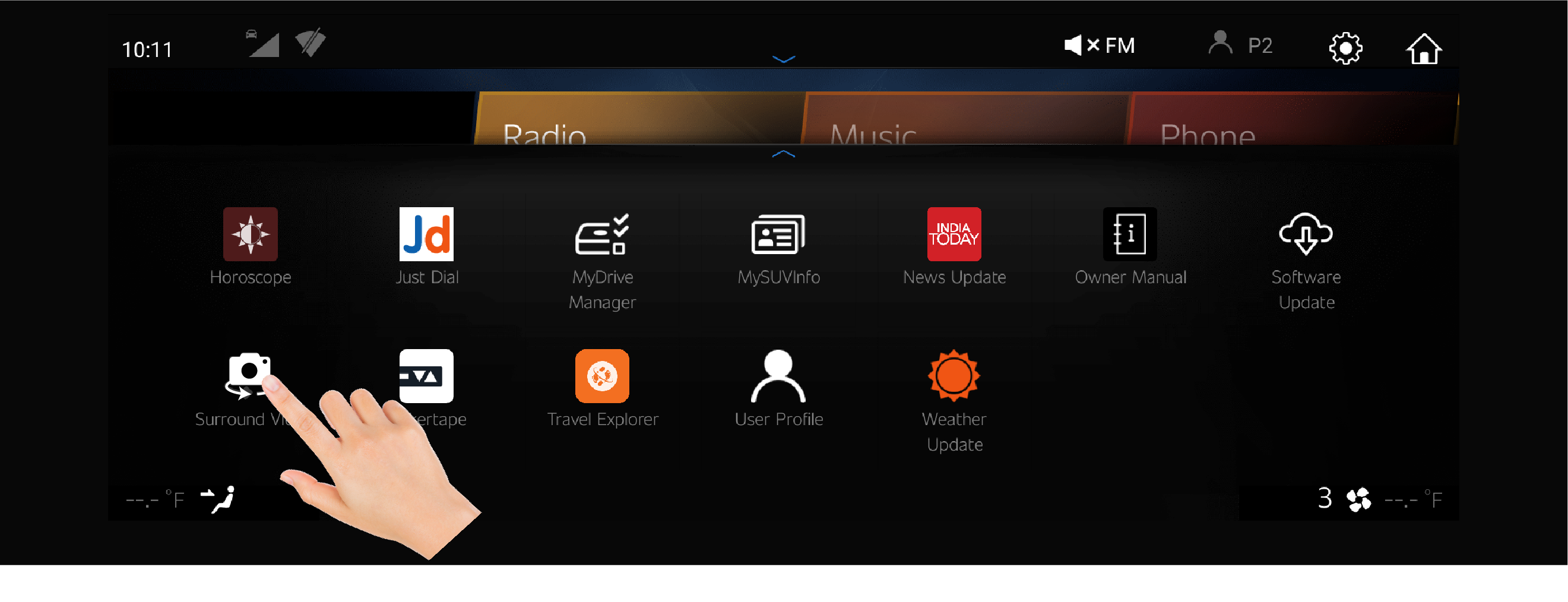

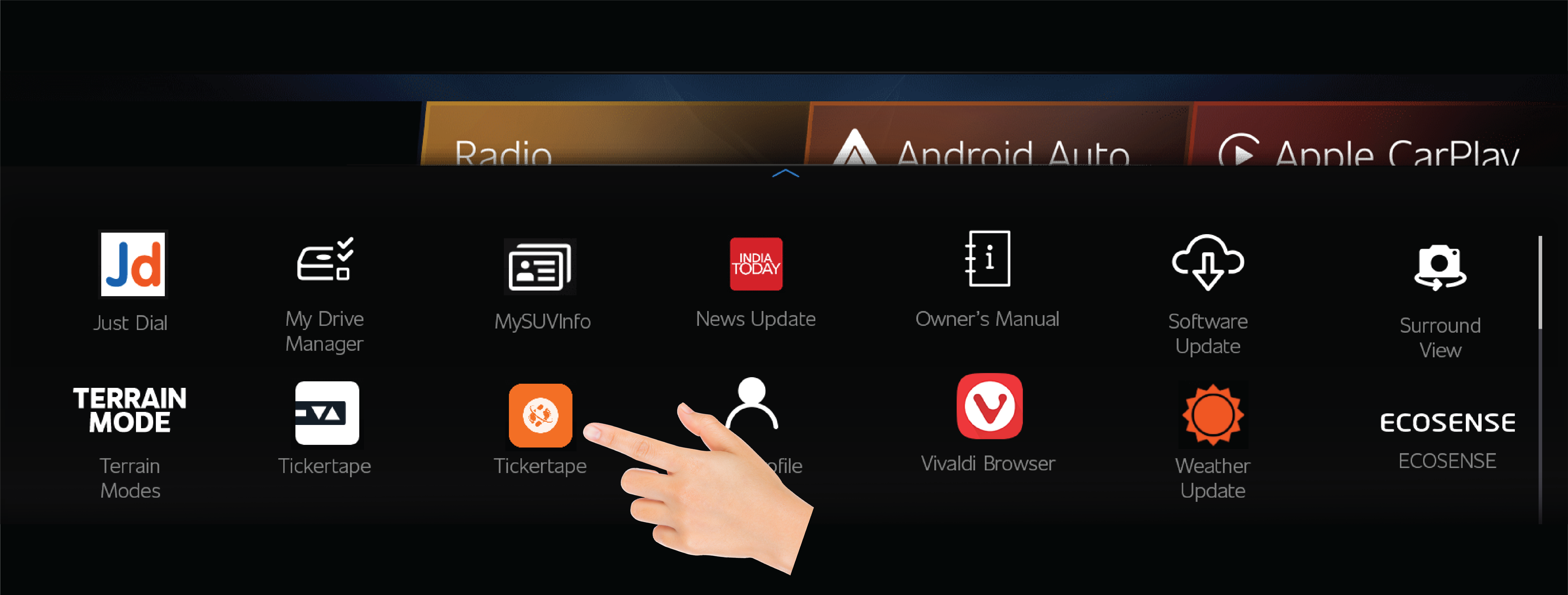

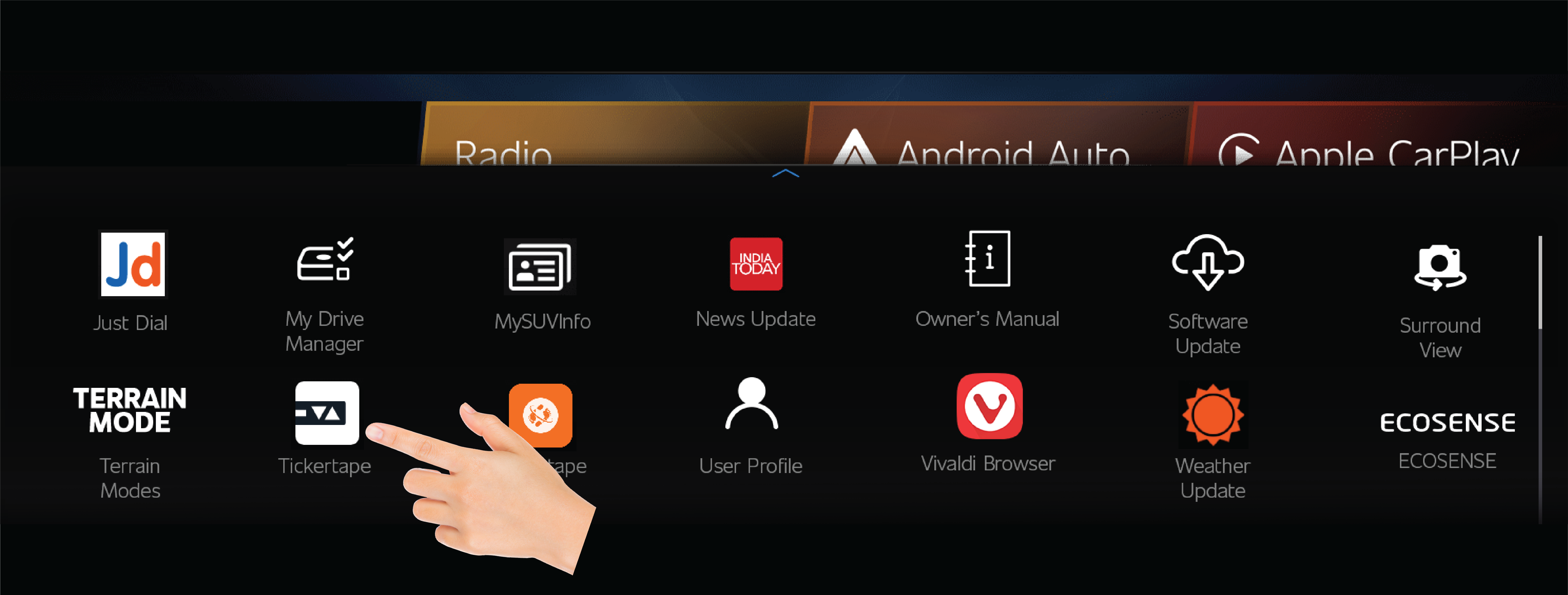

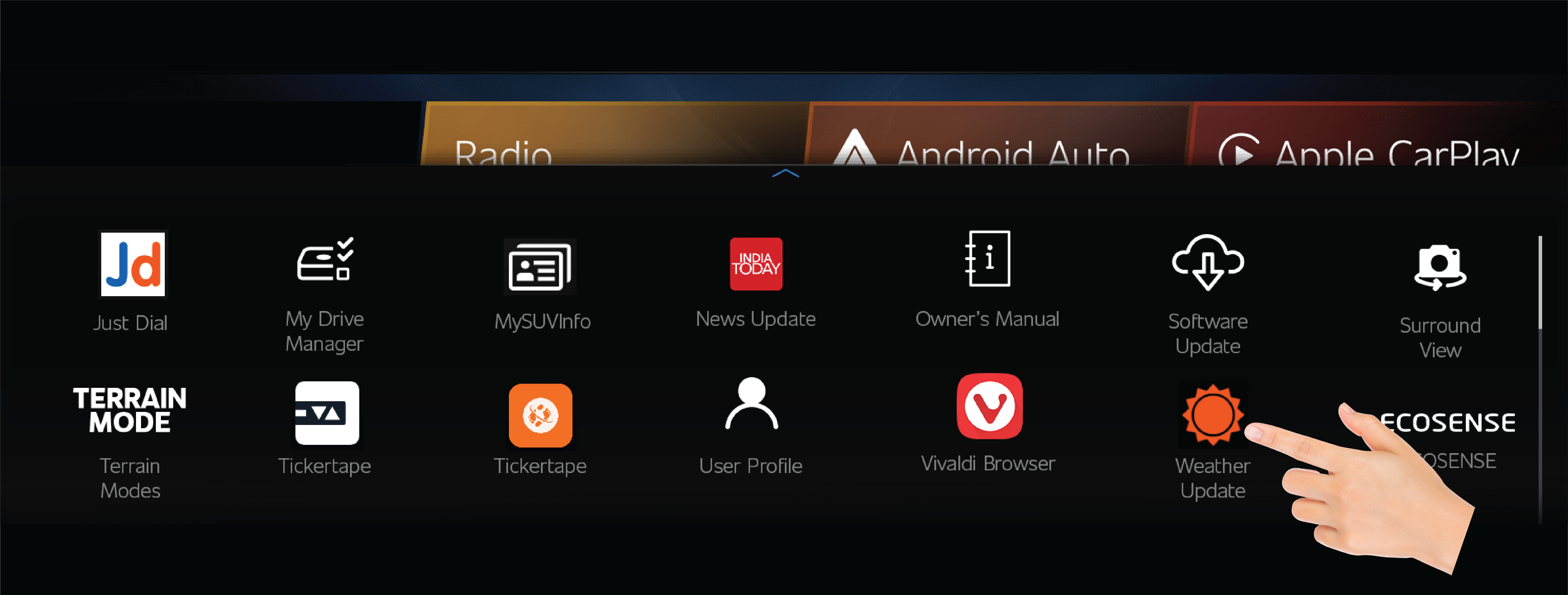

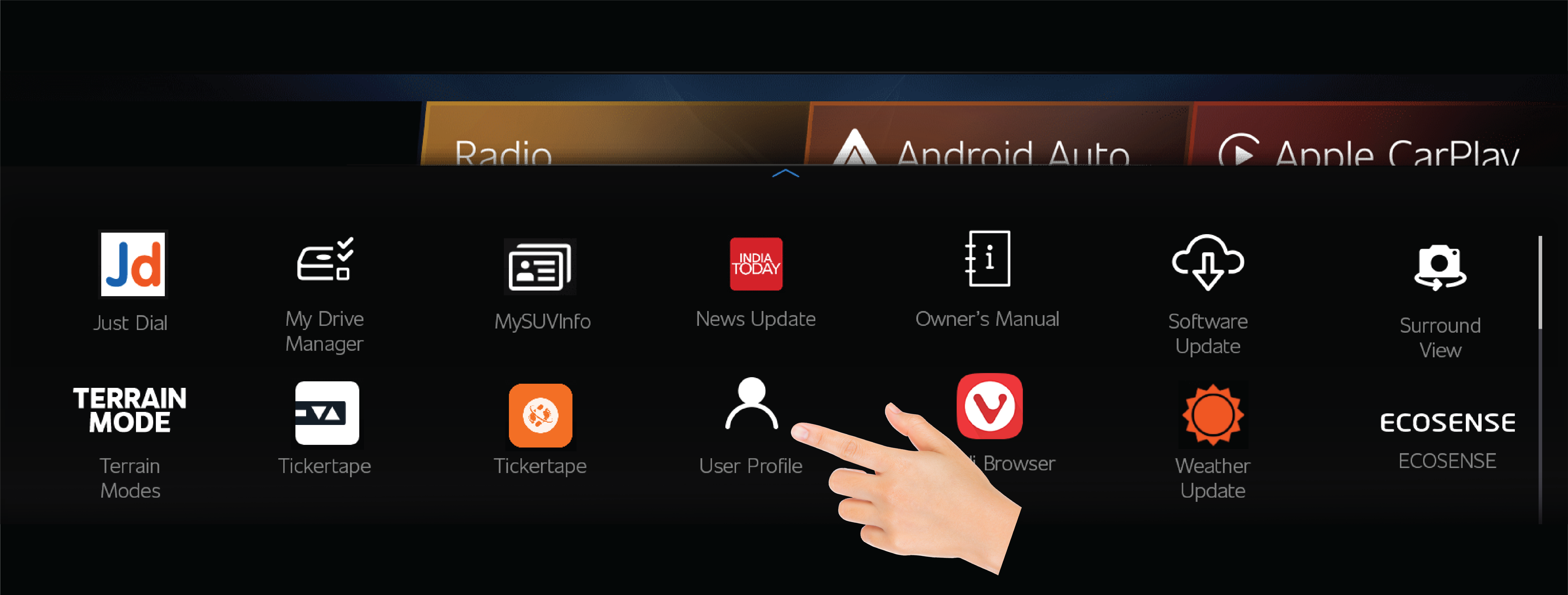

Partner Features |
|

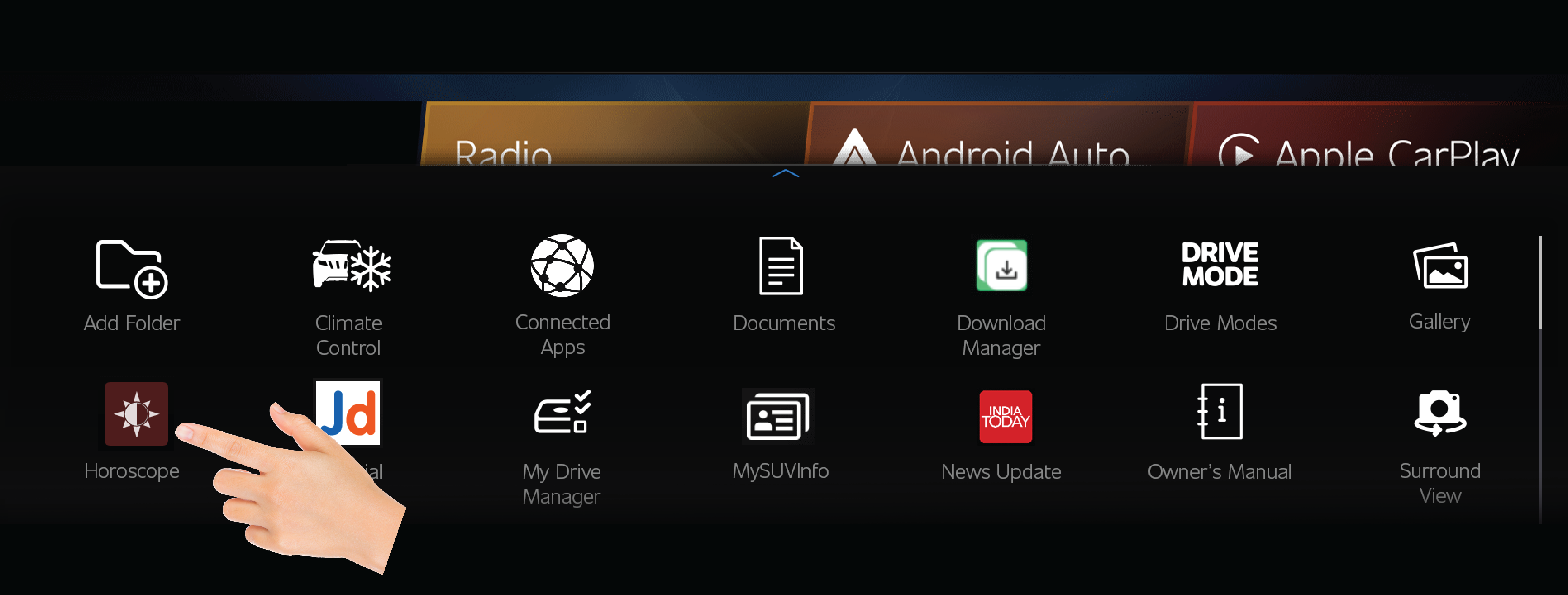

Horoscope |
Allows the user to view daily fortune as per his/her zodiac sign. |

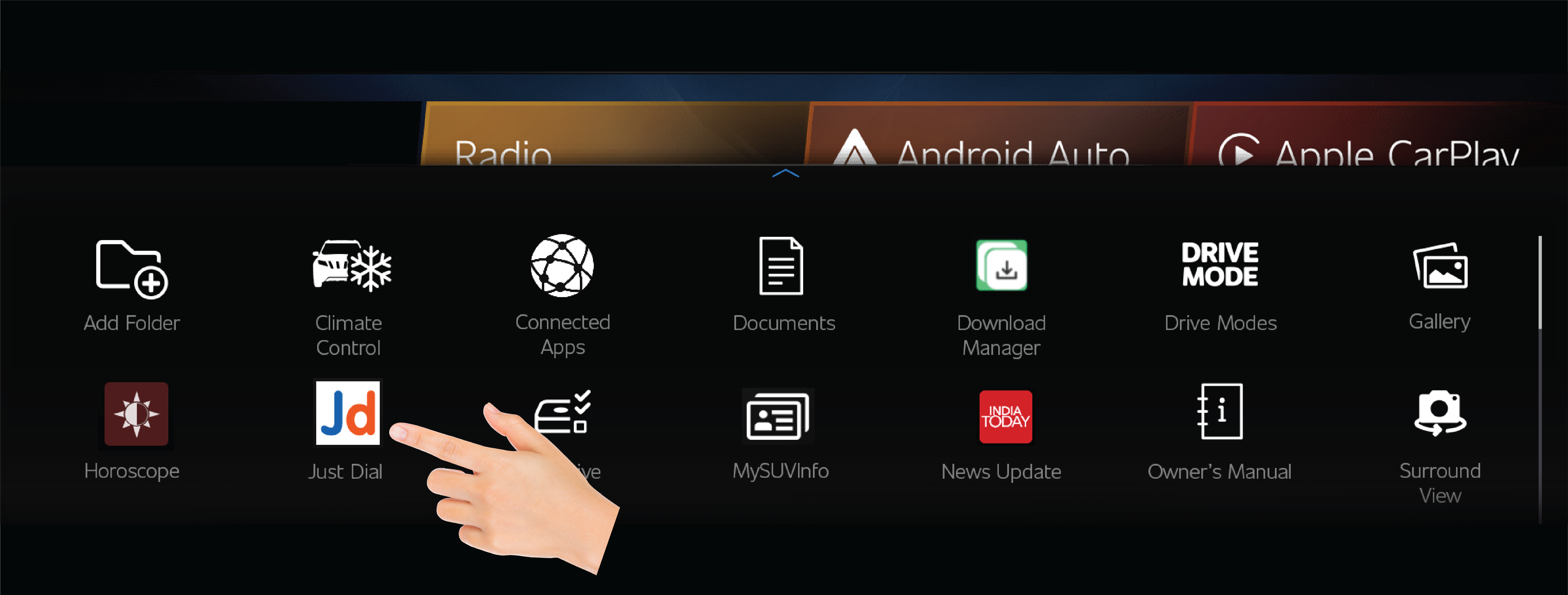

Just dial |
Allows the user to search for various services using the Just Dial app in the infotainment |
India Today |
Allows the user to browse through news using India Today app in the infotainment |
Weather Update |
Allows the user to view weather information using the Accuweather app in the infotainment |
Travel Explorer |
Allows the user to search for amusement places and more using the Travel Advisor app in the infotainment |
Ticker Tape |
Allows the user to view market shares & trends using Ticker tape app on infotainment |
Others |
|
E-Manual |
E-Manual section in mobile apps provides videos with instructions, guidance, or information about AdrenoX features. |
In-Home Alexa |
Allows the user to check the vehicle status and perform remote function using Alexa (voice commands) |

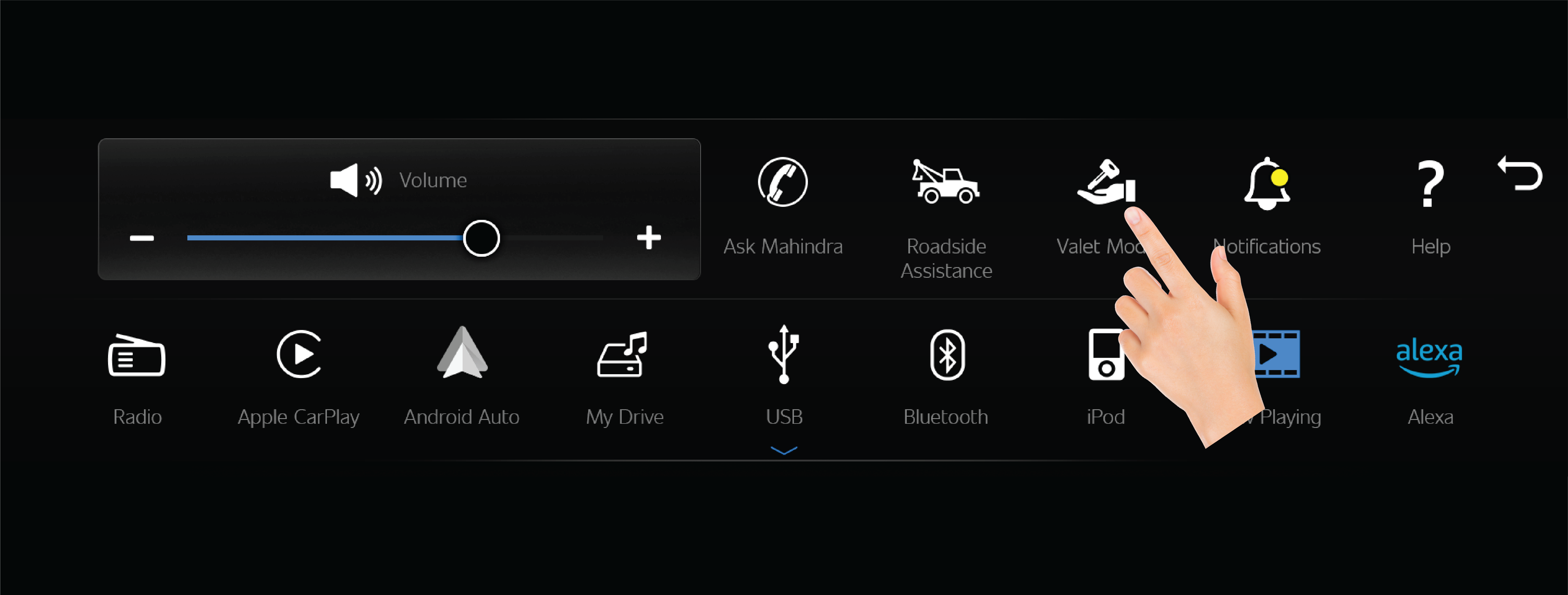

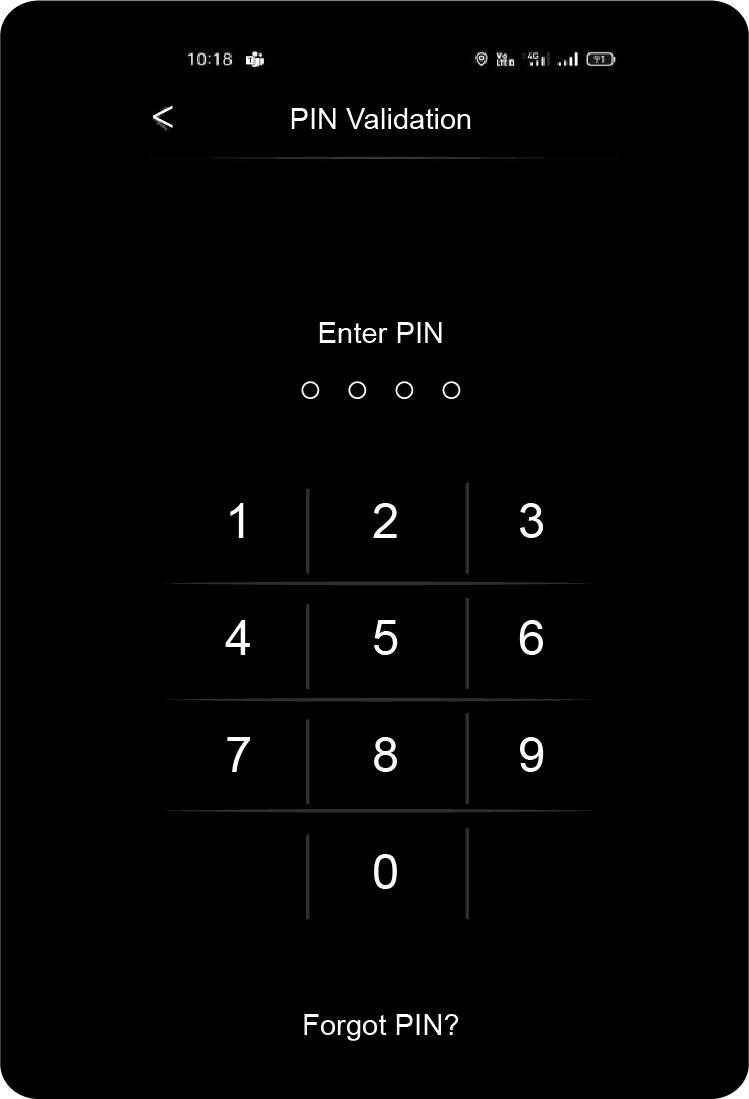

Valet Mode |
Allows the user to set the vehicle in a predefined state when giving the vehicle for valet parking. The default PIN to access
the Valet mode will be 1234
|
Contact us |
Any Query / Enquiry about the product, Get info on Mahindra. Send an Inquiry on any car model. Dealers will get back to the
customer on details
|
Fuel Diary |
Maintains a systematic log of the all the fuel filling events and provides a clear representation of the fuel filled and the
amount spent
|
mGreetings |
Greetings to the user on special occasions |
Do-Not Disturb |
Avoids distraction while driving by not pushing any AdrenoX Connect app notification when mobile is detected in the vehicle |

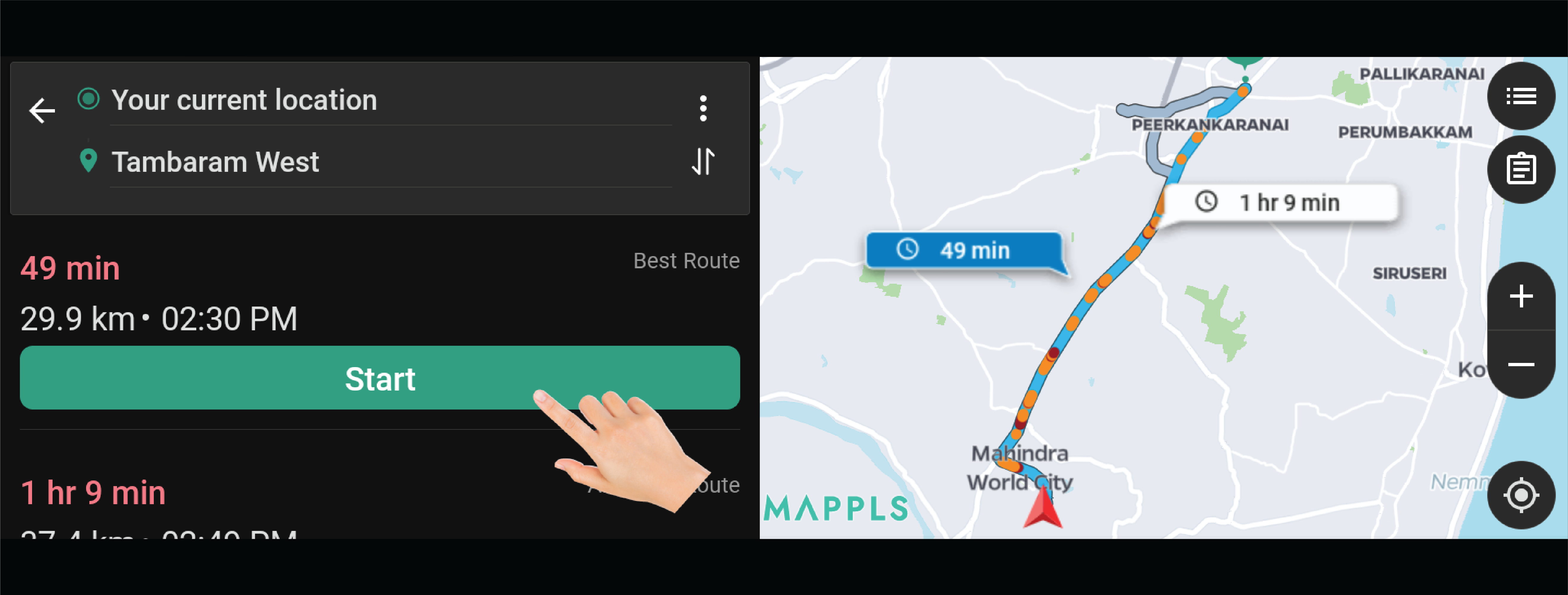

Journey Planner |
Allows the user to plan a journey by providing some basic information |
Request app Access |
Allows the user to share the vehicle access to two more users |

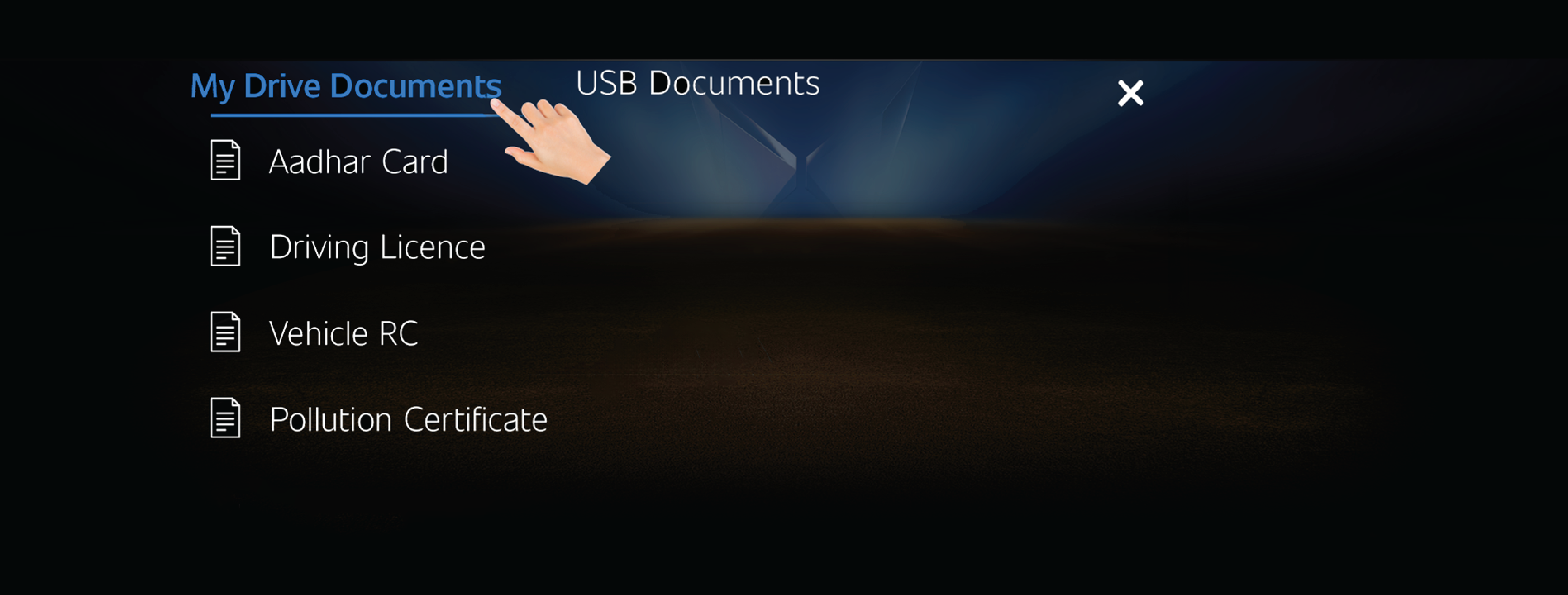

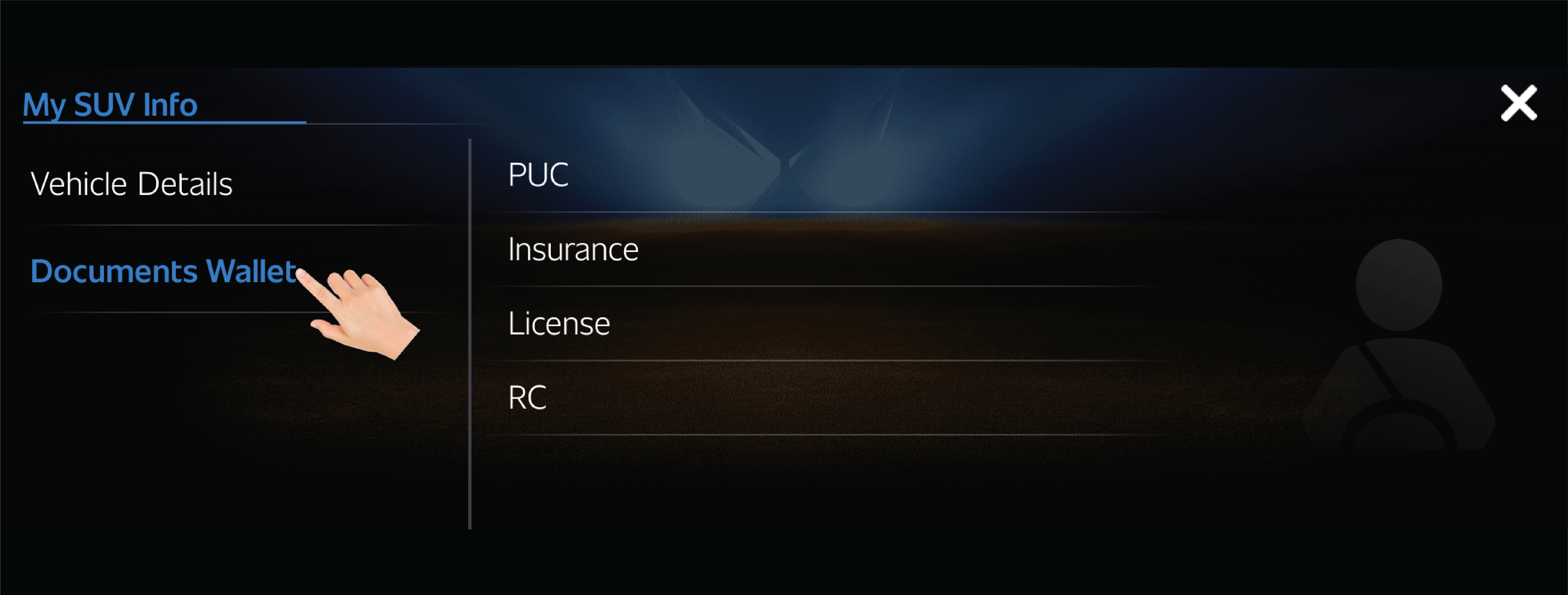

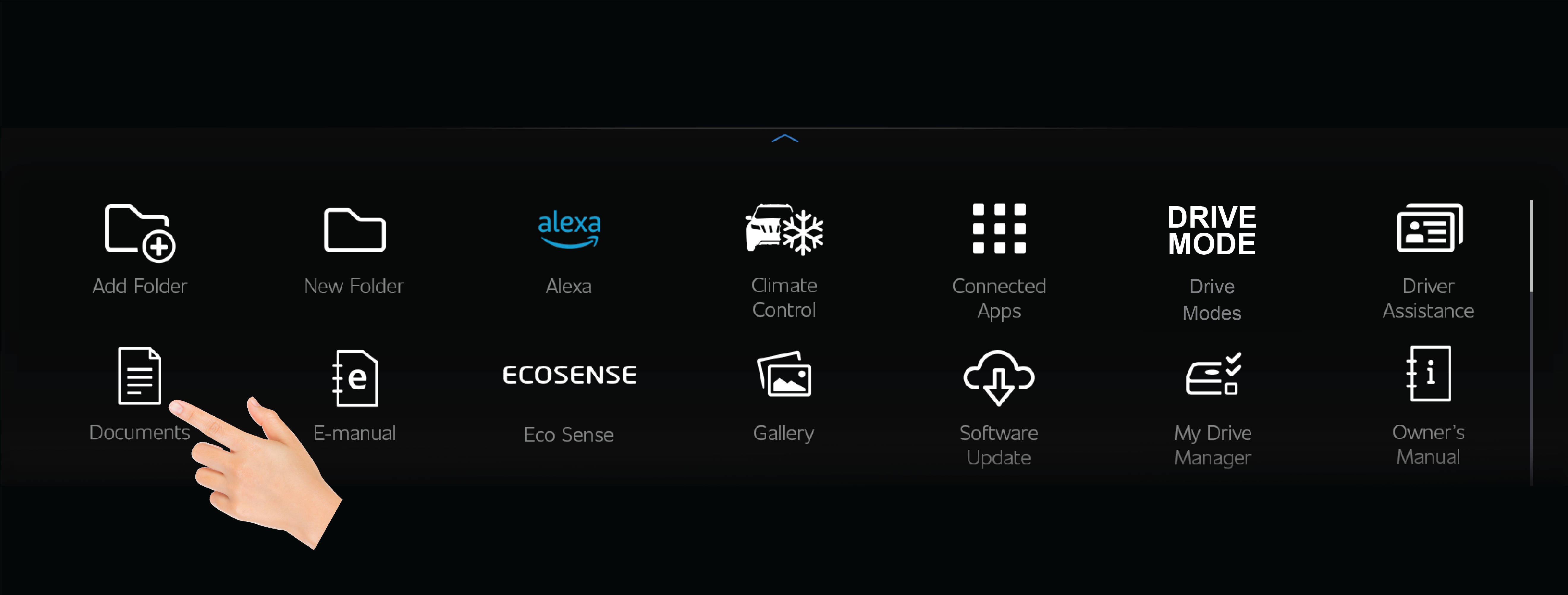

My Documents |
Storage and retrieval of documents such as Driving license, Insurance, PUC etc |

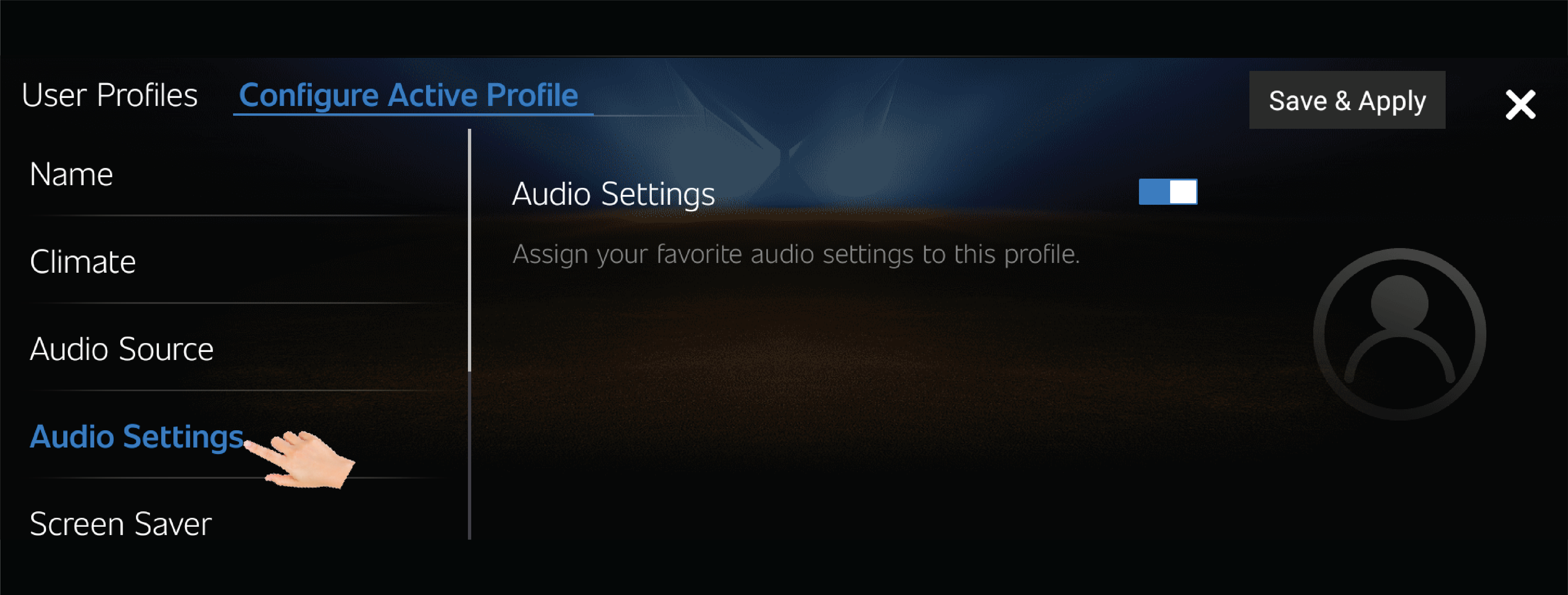

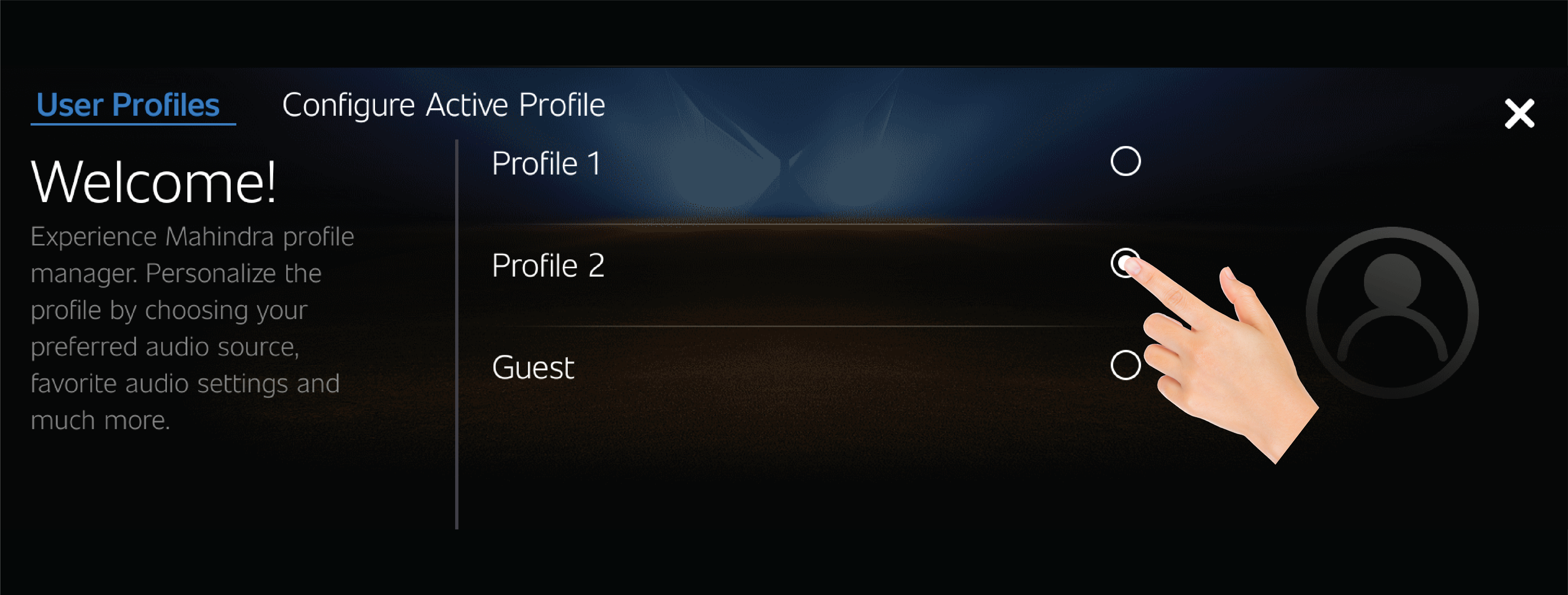

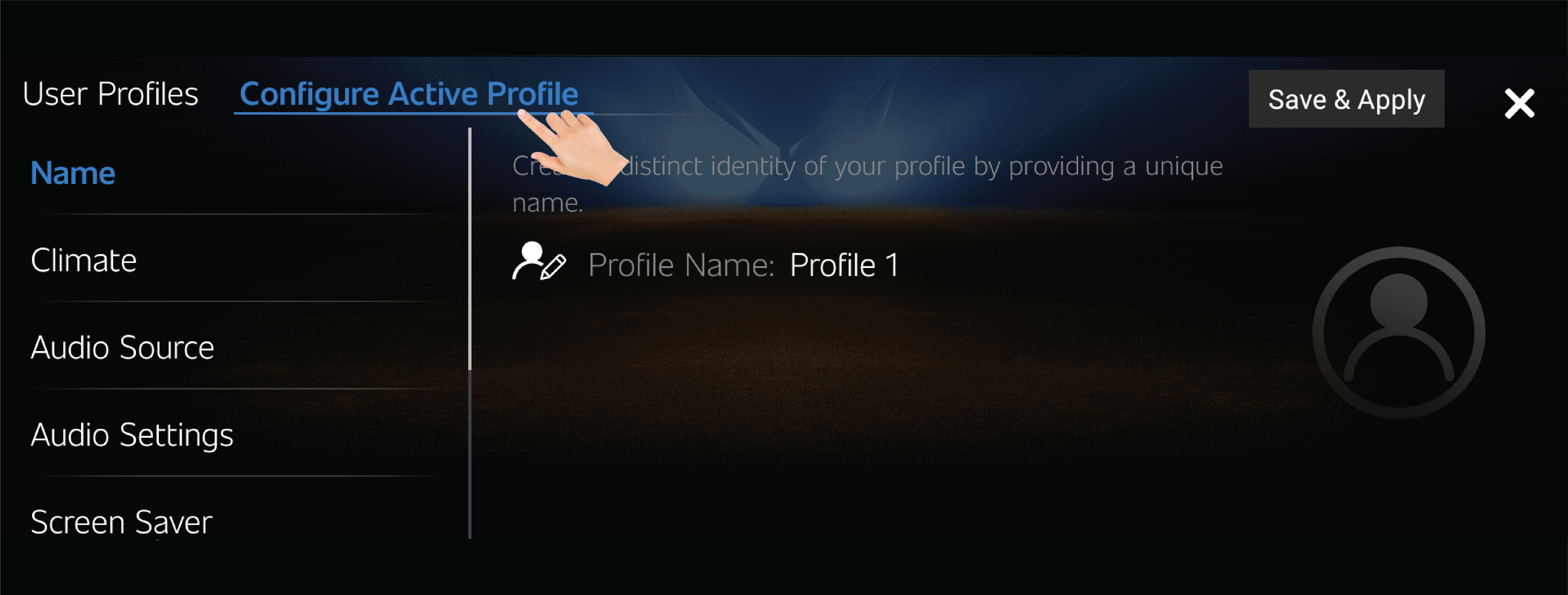

Profile Manager |
Allows the user to connect the mobile app profiles with the vehicle profile thereby providing sync between both |
To-do list |
Allows the user to create time based/location- based events that remind the user at the specified time |
Smart Wearables |
Allows the user to perform all the read and remote functions through the smart watch (applicable for both Android and iOS) |
Pick up Reminder |
Allows the user to create an event that reminds the user at the specified time |
Service Booking |
Allows the user to schedule a service by directing to the M4U app |
Driver on call |
Allows users to search for nearby drivers availability for hire through Mobile app |

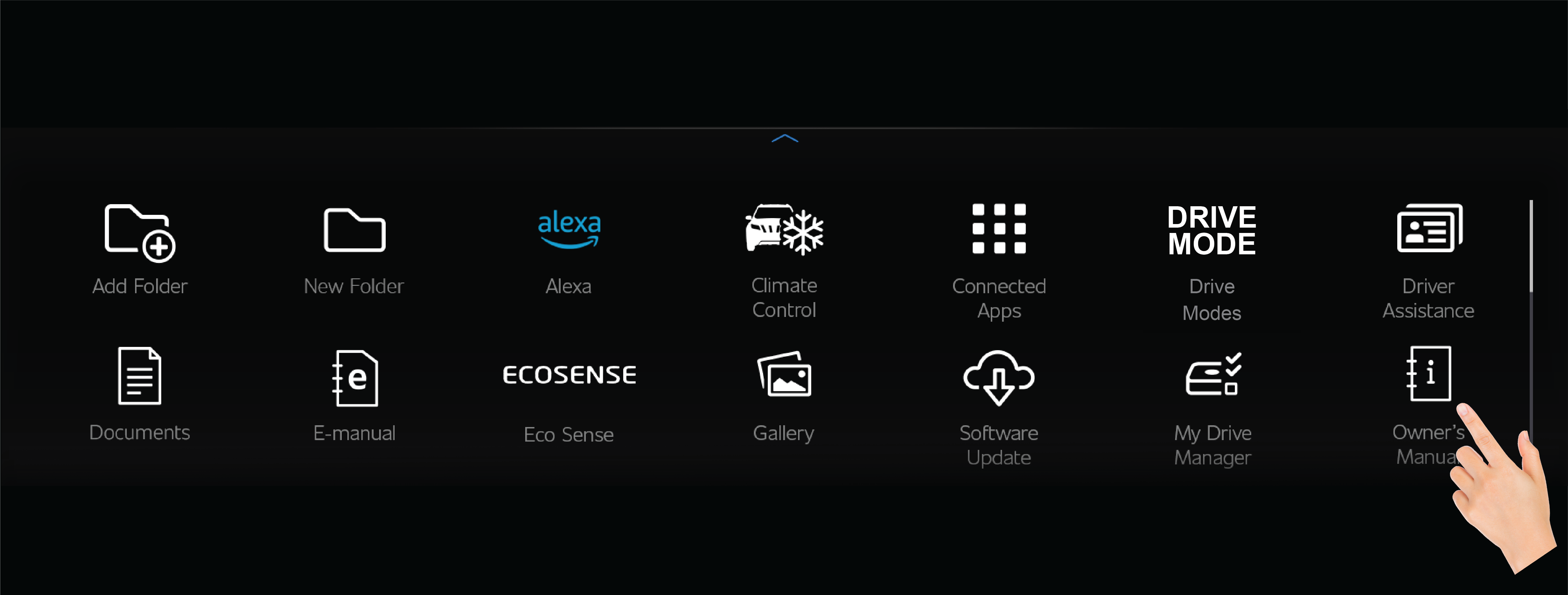

Owners Manual |
Allows users to view User manual document on infotainment |
M-Lens |
Allows users to scan the tells tales from mobile camera & provides detailed information on the tell-tale function on Mobile
app
|
Toll Dairy |
This Feature helps to check the toll amount for the selected route & toll amount can be recharged via Adrenox App as well.
Feature also provides you alert whenever your toll balances goes low.
|
Personalized Greetings |
Personalized welcome message, which will be configurable by the user & he/she will be welcomed with the audio uploaded by
them (Ex: Kids voice, Favorite music, Favorite hero dialogues)
|
Subscription Manager |
Allows user to view details of AdrenoX service subscription & enables for renewal of Subscription on Mobile app |

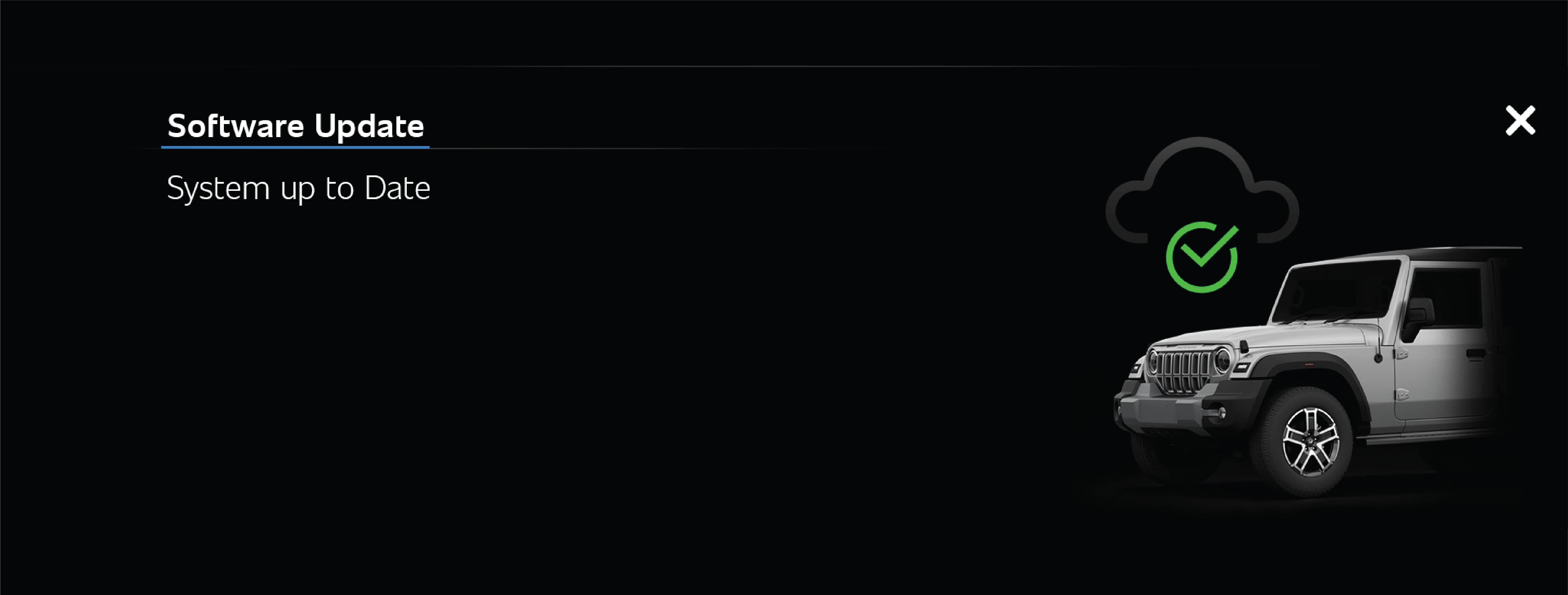

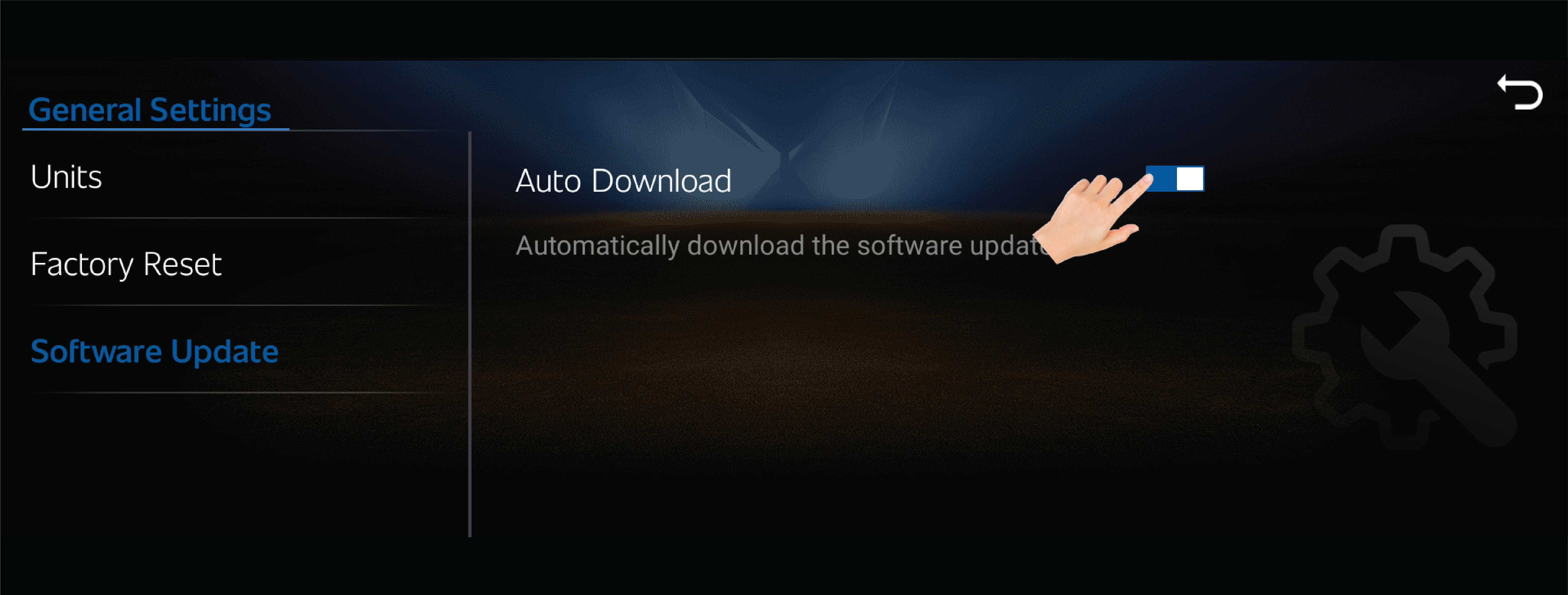

Software Update |
Allows user to download & install latest software updates provided by OEM |
Calendar |
Allows user to sync calendar from mobile & view the important events on infotainment system. |
Manufacturer update |
Allows users to receive announcements made by OEM on Offers, Product launch, Maintenance etc., on mobile app |
Social connect |
Allows users to share personal experience on vehicle such as Trips, Saved favorite locations on social media platforms such
as Whatsapp, twitter etc., through mobile app
|

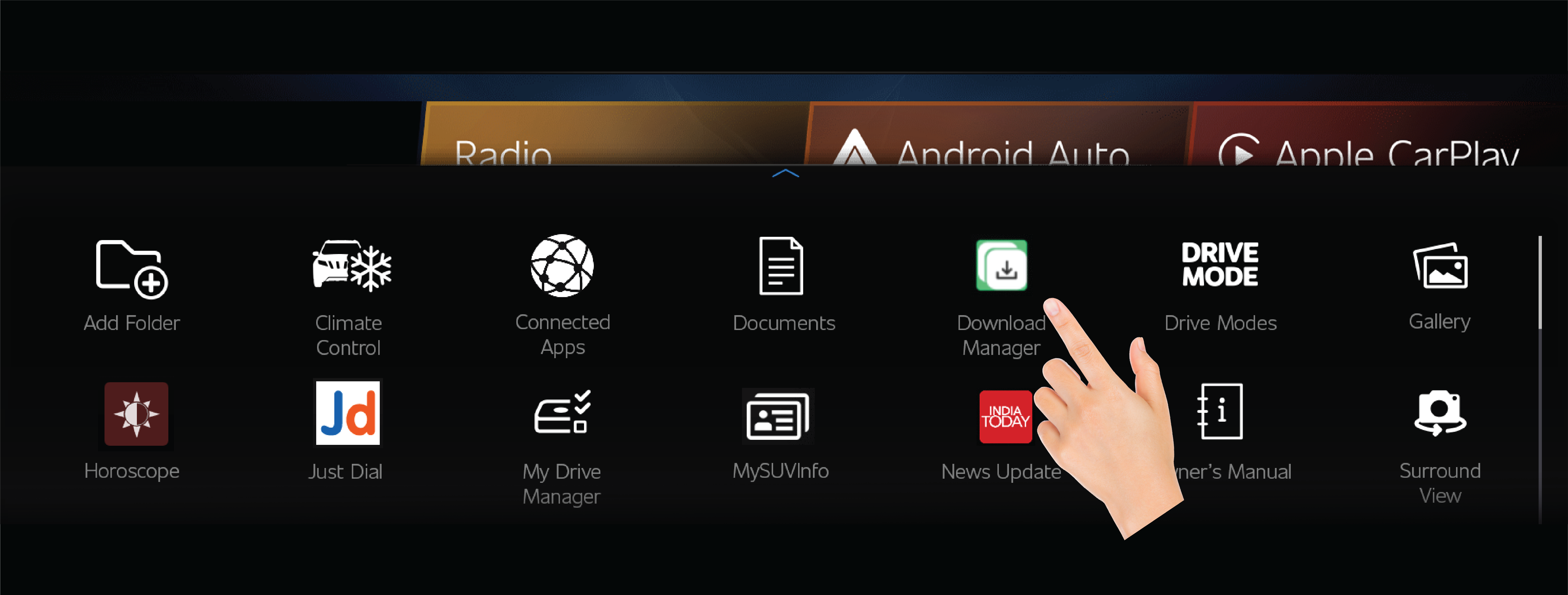

Mahindra Download Manager |
Allows users to update partner apps to latest version for seamless experience |

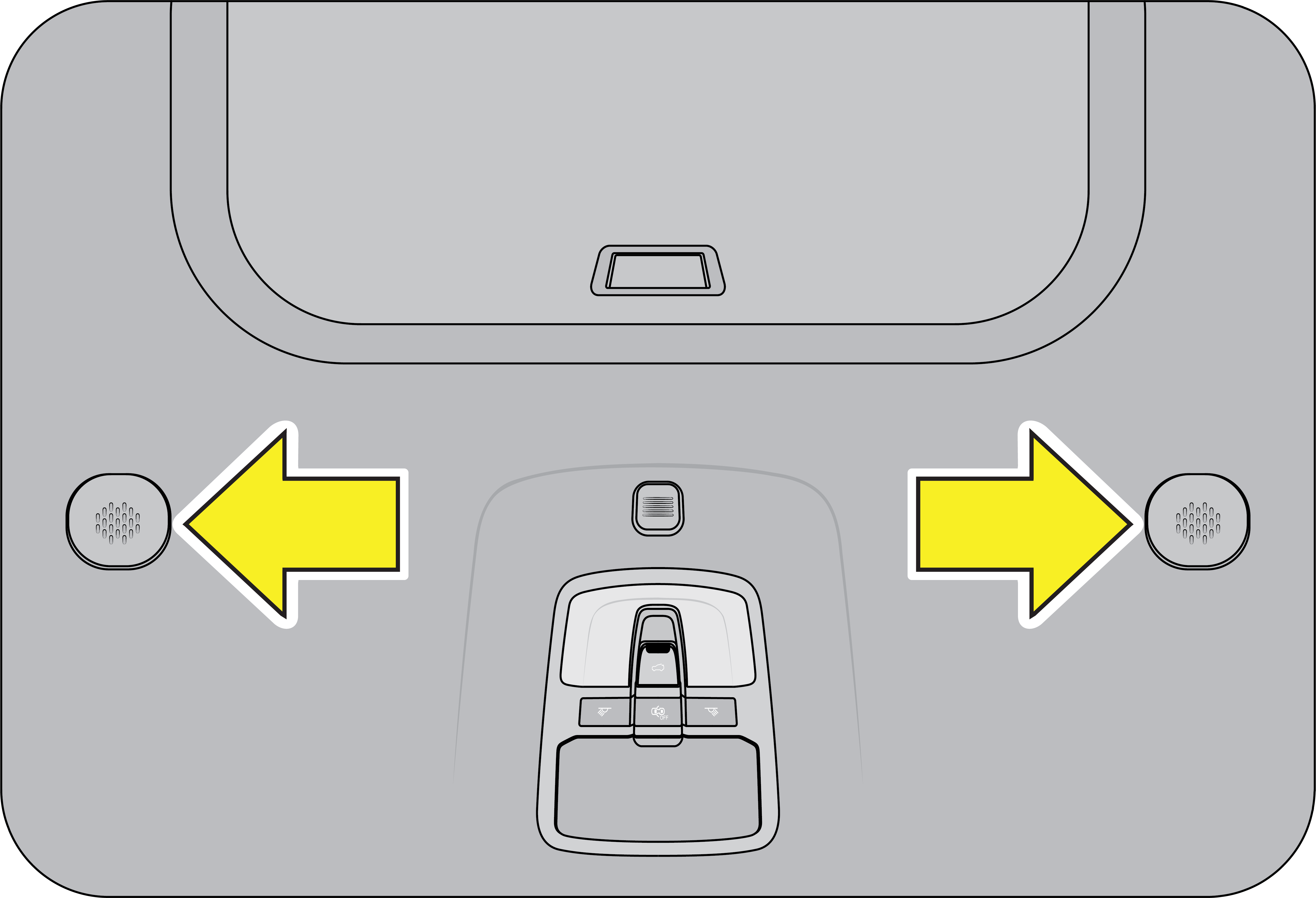

In Car Voice Assist |
Allows user to pair & access Alexa voice assistant inside vehicle. Explore Alexa’s services such as Trending events, News,
Weather, Navigation, music etc.,
|
In-home Alexa |
Allows the user to check the vehicle status and perform remote function using Alexa (voice commands) |
Eco Sense Leader Board |
Based on Eco score, The user’s driving pattern will be ranked for Country, state & district wise |
|
Follow the tips below for a comfortable and safe journey;
|
• | Maintain sufficient distance between yourself and the steering wheel. Maintain at least a ten inch (10") distance from the centre of the steering wheel to your chest |
• | The top curve of the steering wheel should align with your chin for ideal road visibility |
• | Adjust your seat and seat back angle such that your wrists rest on top of the steering wheel freely |
• | Ensure your legs are in a bent position while fully depressing the clutch pedal |
Front Seat Slide
Move the seat forward or backward by lifting the adjustment lever located under the seat front and release once the desired
position is reached.
|
|
Front Seat Recline
To adjust the seat back, lift the recline lever located on the outboard side of the seat, lean back and release the lever
at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.
|
|
Driver Seat Height Adjust
Lift/Push the seat height adjustment lever located on the outboard side of the driver seat to raise/lower the seat. Adjust
the seat height such that you are able to depress the clutch pedal completely.
|
|
Driver and Co-Driver Ventilated Seats (if equipped)
Seat Ventilation is a special feature with an additional air circulation of the driver and Co-driver seats.
It ventilates the seat temperature for comfortable driving.
|
|
• | The ventilated seat uses the interior air for ventilation. Make sure that it is used together with the air conditioner |
• | The ventilated seat is not a cooling/heating seat which blows out cold air from it |
• | Don’t put your hand in the bottom of the cushion when the ventilated seat is in operation. Otherwise, the running ventilation fan may cause you to be frightened or injured |
• | If there is any problem with the seat ventilation system, Contact Mahindra Authorised service center for further assistance. |
• | Do not place any sharp or heavy object on the passenger seat as this could damage the ventilation system by cracking the seat upholstery. |
• | If any liquid spills, clean it up right away. Wait until the seat is dry before using the air ventilation feature. The performance of the seat ventilation system may be impacted by liquid contact. |
• | Do not use the ventilated seat in the following situations:
|
• | Never use a solvent to clean the seats, including petrol, paint thinner, benzene, alcohol or alcohol-based products. |
• | In above condition, the ventilated seat will operate for a short period of time and will be turned off for better functionality of ventilation fan |
• | If small vent holes on the surface of the seat cushions and seatbacks are clogged with dust and dirt, the air flow from the ventilated seat may weaken. In this case, clean the seat surface by the vacuum cleaner |

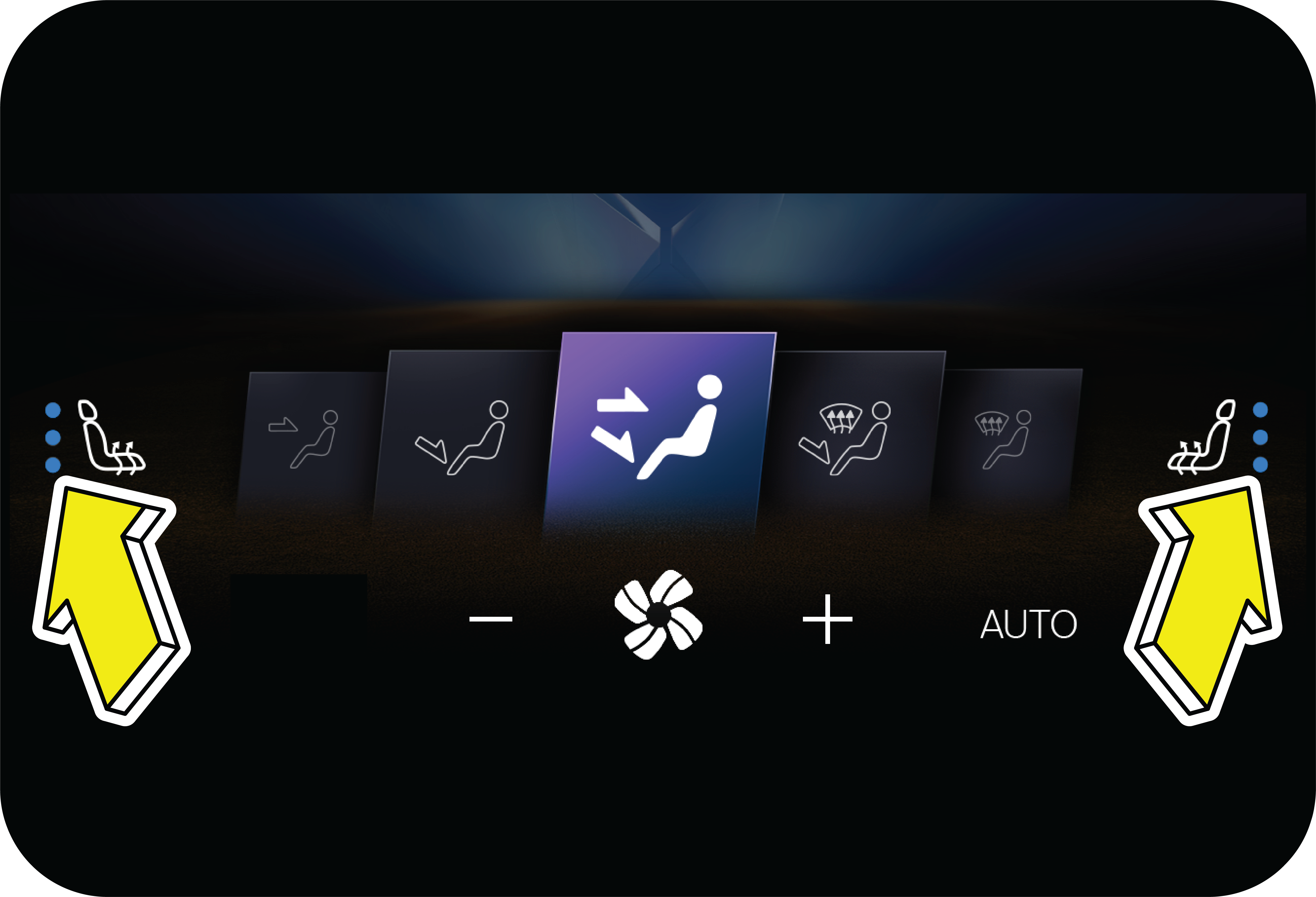

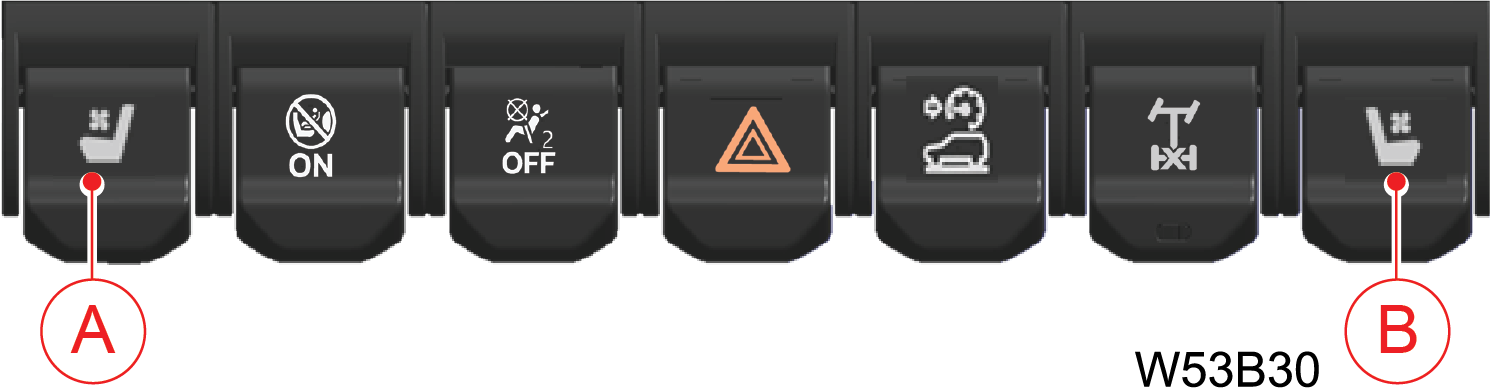

A
|
Co-Driver Ventilated Seat Control Switch
|
B
|
Driver Ventilated Seat Control Switch
|
|
The Power seat control switch is provided side of the driver seat in the valence cover.
It is advanced 6-way electrical adjustments for the driver seat. It is equipped with electrically-operated power slider, power
recliner and power height adjustment mechanisms.
|
|
• | Power seats will be operated even when the ignition switch is turned to the “OFF” position. However, to prevent battery discharge, operate your seats when the engine is running |
• | Do not use two or more seat adjustment buttons simultaneously. It can damage the motor. Be sure to operate the electric seat button one by one |
• | Do not forcibly operate any power adjustment switch if the seat comes in contact with other object and cannot be adjusted anymore |
• | If the power seats are not operational, the seats should be checked and fixed before any driving |
|
To adjust the second row seat back, lift the recline lever located on the outboard side of the seat, lean back and release
the lever at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.
|
|
The 2nd Row 60/40 P seat back can be folded to load cargo on top of it. Operate the lever on the side of the 60/40 P seat.
This lever actuates the backrest fold mechanism. Release the lever once the backrest has folded completely.
|
|
|
|
The Second Row 60P seat features armrest with cup holder.
|
|
To open the armrest, simply pull on the tab given at the top of the armrest (as shown).
When armrest is not required, push back the armrest into the 60P backrest.
|
|
Before returning the folded seat back to the normal position. Pull the rear seat belt out of the seat back so that the seat
belt is not jammed with the holding latch.
|
• | Do not fold or unfold the rear seat when the vehicle is moving |
• | Make sure that there is nobody on the folded seatback and in cargo area |
• | If you put sharp or heavy objects on the seatback, there might be some damage to the seatbacks or even to the seats |
• | Without completely lowering the second row head restraints or with excessively reclined front seat back, there may be some damage to the head restraints or the centre console if the second row seats are folded |
• | Take care that there are no objects placed on the rear seat cushion before folding the rear seat back down as any sharp features in the object may damage the seat cover |
• | All necessary driver’s seat adjustments should be made before any driving |
• | Make sure that your seat is completely locked after adjusting |
• | Any object that might damage the seat should not be placed on the seat |
• | Removed or improperly adjusted head restraints can result in serious head and neck injuries in case of a collision. Make sure that the head restraints are in place and adjusted before driving |
• | Do not recline the seat back more than needed for comfort while vehicle is in motion. The seat belt is the most effective when the passenger sits back and straight up in the seat. If the seat back is reclined too much, then the risks of sliding under the lap belt and getting injured are increased |
• | Do not leave children unattended in parked vehicles. This can cause unexpected accident |
• | You can be hurt by the edges of the mechanism of the seat when trying to get the small objects (cigarette lighters, coins, credit cards) under the seat or caught between the seat and the centre console. Wear protective gloves to prevent injury |
• | Never try to adjust the seat while the vehicle is moving |
• | Unexpected movement of the seat or seat back can cause loss of control |
• | Take care not to bother the passenger behind you when adjusting the seat position |
• | Sit upright in the centre of the seat and wear the seat belt properly |
• | Do not place any objects in the path of seat back movement. Any obstruction in this path prevents the seat back from being locked, causing severe injuries or death during a collision |
• | Always raise the seat back to the proper upright position before driving |
• | Never drive the vehicle with the seat folded. In a collision, you will be seriously killed or injured as you lose the protection the seat belt can provide |
• | To avoid unexpected accidents including severe injuries and death, sit in the position so that the distance between the steering wheel and your chest is at least 10 inches, as long as you are comfortable with driving |
• | Do not place a cigarette lighter on the floor or between the seats. The gas in the lighter container under the seat is potentially flammable when it is released from the container when the seat is moved |
• | Additional cushion between you and the seat cushion reduces the frictional force and could make you slide under the seat belt. This could result in serious injury or death |
• | Do not insert your hands under the seat or in the path of the seat movement when adjusting the seat. Your hands or fingers could get trapped between the seat and the frame |
• | Do not ride with the seat back reclined too much. You could slide under the seat belt in a collision, which could result in severe injury or death. Also, you cannot be protected by the seat belt and the belt can strangle you or even cut into your stomach. Therefore, sit up straight in your seat by keeping your seat back upright while driving |
• | When returning the seat back to the upright position, hold the seat back with your one hand and pull the release lever with the other hand. The more the seat back is reclined, the greater the restoring force of the seat back is. If you do not hold the seat back while adjusting the seat back, you could be injured by the restoring force |
• | All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimize the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger. |
• | In a rollover crash, an un-belted person is significantly more likely prone to Injury than a person wearing a seat belt |
• | In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an arm rest, a pocketbook, or any external objects should be between you and the seat belt. Improperly worn of a seat belt will reduce the protection in an accident. |
• | Seat belts should be adjusted as tightly as possible, consistent with comfort to properly secure the wearer in the seat.
|
• | The seat belts provided for your vehicle are designed for adults must be properly used and maintained. |
• | For usage of adult seat belt to secure children, refer to section of manual for child seat positions and use a child restraint systems |
• | Passengers should not move out of or change seats while the vehicle is in motion. Passenger who does not wear the seat belts will be under a high risk of thrown against the vehicle inside hard parts, against other occupants or out of the vehicle during emergency stop or collision. |
• | Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash |
• | An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Mahindra Authorised Dealer inspect the seat belt system after an accident |
• | Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle |
• | Seat belt systems are prone to abuse. They are not indestructible. They must be handled with care to avoid damage |
• | Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbings are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts |
• | Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer |
|
The lap belt should be worn snugly and as low as possible over the hips. The shoulder belt should be worn across your shoulder,
but never across the stomach area. When worn properly, the seat belt will protect both the mother and the foetus in an accident
or emergency stop.
|
• | Reduce the possibility of being out from your vehicle during an accident. |
• | Reduce the possibility of injuries to upper body, lower body and legs during an accident |
• | Hold the driver in a position which allows better control of the vehicle |
|
To protect you and your passengers in the event of an accident, it is highly recommended that the seat belts should be used
by all occupants inside of your vehicle.
|
Seat Location |
Seat Belt Type |
Driver Seat
|
Seat belt with Retractor Pretensioner & load limiter (RPLL)
|
Co-Driver Seat
|
Seat belt with Retractor Pretensioner & load limiter (RPLL)
|
2nd Row LH (40P)
|
Seat belt with Emergency Lock Retractor (ELR) for outboard occupant
|
2nd Row RH (60P)
|
Seat belt with Emergency Lock Retractor (ELR) for outboard and center occupant
|
|
In the event of a crash being detected, the belt pretensioner locks the seat belt by drawing back the seat belts on the driver’s
and passenger’s torso and pelvis to prevent the driver and passenger being thrown forward. The seat belt pretensioner combined
with the seat belt and airbag further increases safety.
|
|
Operation of pretensioner: When a severe frontal impact occurs, seat belt pretensioners pull back the seat belts immediately to restrain the occupants
to their seats.
|
|
Operation of load limiter: After frontal collision, the load limiter releases the seat belt to prevent the occupant from being injured due to belt force.
|
• | Before driving, all occupants should fasten their seat belts. If not, the occupants can seriously be injured in a collision or sudden manoeuvring of the vehicle |
• | Sometimes you may have to apply strong force to pull the webbing out of the retract |
• | Each seat belt should be used by only one occupant at a time |
• | Seat belts and airbag’s can significantly minimise possible injury to occupants. But they cannot perfectly protect occupants from fatal collisions or injury |
• | Modifications and improper maintenance for the safety systems could cause serious injury. The safety systems including seat belts should be checked and repaired by only a Mahindra Dealer or Mahindra Authorised Service centre |
• | An infant or small child should always be restrained in an infant or child restraint |
|
|
||||||
|
|
|
|
• | Periodically check the seat belt as you ride to be sure it remains snug and in position. If there is a sudden stop or impact, the belt will lock into position. It will also lock (restrict) if you try to lean forward too quickly. |
|
You can adjust the height of the shoulder belt anchor for maximum comfort and safety of both front seats. If the height of
the seat belt is too near your neck, you will not be getting the most effective protection.
|
|
|
|
|
• | Infants and tiny children should always be restrained in an infant or child restraint system (CRS). |
• | Never install a rear-facing child restraint in the front seat with front passenger airbag ON condition. A child in a rear-facing child restraint installed in the front seat can be seriously injured if the front passenger airbag deploys. Secure a rear-facing child restraint in the rear seat (if equipped). |
• | A front-facing child restraint should be secured in the rear seat whenever possible. If installed in the front passenger seat, adjust the seat as far back as it will go. When installing a child restraint system, follow the instructions provided by the manufacturer.. |
• | When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle. |
• | In a collision an unrestrained child, even a tiny baby, can become a missile inside the vehicle. The force required to hold even an infant on your lap can become so great that you could not hold the child, no matter how strong you are.. |
• | Do not allow a child in the cargo areas while the vehicle is moving condition. |
• | If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle. Never allow a child to put the shoulder belt under an arm or behind their back |
• | Please note that the three-point seat belt is designed for a person who is taller than 140 cm |
• | Never place a rear-facing child restraint in the front passenger seat with front passenger airbag, because of the danger that an inflating passenger airbag could impact the rear-facing child restraint and kill the child. Passenger Airbag turn OFF is mandatory to use passenger seat to carry child. |
• | Use only the recommended and suitable child restraint systems. Follow the manufacturer’s instructions for installation and use of the child restraint system in vehicle. |
• | Do not carry your child on your lap while driving. You cannot resist against the impact pressure in an accident. The child could be crushed between you and the parts of vehicle |
• | Remember that a child restraint seat left in a concealed vehicle can cause it to be very hot. Check the seating surface before putting your child in the child restraint |
• | When your child restraint is not in use, remove it from the vehicle or keep it secured with a seat belt to prevent it from being thrown forward in case of a sudden stop or an accident |
• | When installing a child restraint system, do not let the seat belts come across the child’s neck, follow the installation instructions |
Table of vehicle handbook Information on Child Restraint Systems Installation Suitability for Various Seating Positions
|
|||
|
|
|
|
Mass Group |
Front Passenger (with ON/OFF Switch) |
Rear out board |
Rear Center |
Mounting method of Child seat in vehicle |
|
With Passenger Airbag ON |
With Passenger Airbag OFF |
||||
O ~ up to 10 kg (0 ~ 9 months)
|
X
|
U
|
U
|
U
|
Rear facing seat using 3-point seat belt
|
O+ ~ up to 13 kg (0 ~ 2 years)
|
X
|
U
|
U
|
U
|
Rear facing seat using 3-point seat belt
|
I ~ 9 to 18 kg (9 months ~ 4 years)
|
X
|
U/UF
|
U
|
U
|
Rear facing/forward facing seat using 3-point seat belt
|
II ~ 15 to 25 kg (4 years ~ 6 years)
|
UF
|
UF
|
U
|
U
|
Forward facing seat/Booster seat using 3-point seat belt
|
III ~ 22 to 36 kg (6 years ~ 12 years)
|
UF
|
UF
|
U
|
U
|
Forward facing seat/Booster seat using 3-point seat belt
|
• | User must read and follow the instructions provided in manual for the Child Restraint System installations in vehicle using the Adult Seat belt system (or) using the ISOFIX & Top-tether feature |
• | Failure to follow all the warnings and instructions could be a Serious risk to Child safety or even may lead to death, if
an accident occurs.
|

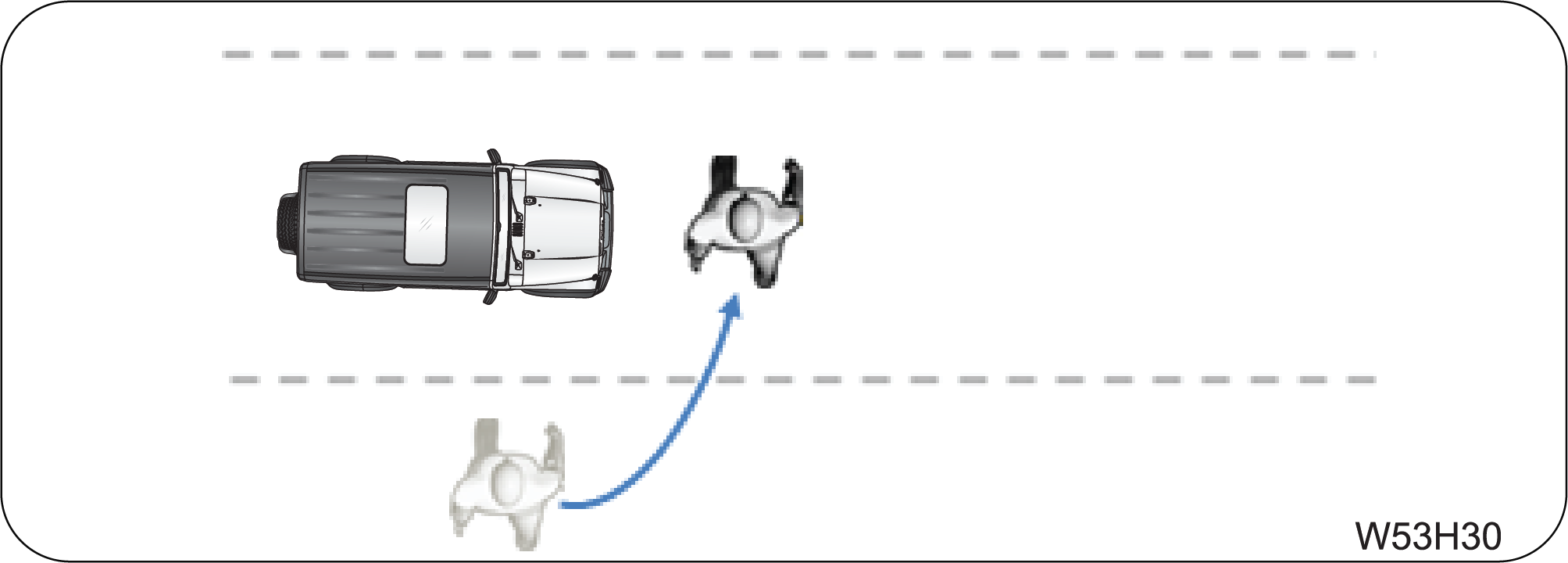

• | Do not leave /allow children to stand in front of vehicle holding grab handle when the passenger airbag in ON condition. |
• | If a child is seated in front seat it may cause serious injury or even death during accident when PAB deploys due to force |
• | Never install a rearward facing child restraint system on front passenger seat when passenger airbag is ON condition while on ride. |
• | Properly read and follow the instructions provided by the manufacture for installation of child restraint system. |
• | Never hold a child in your lap or arms when the vehicle is moving condition, sudden braking or while collision child may thrown on away/trapped in vehicle, which could cause serious risk |
• | Don’t modify the passenger seat or forcefully fit the child restraint system which is having ISOFIX fixing provision can damage the seat. |
|
|
• | The ISOFIX lower latch anchors (rods) are located in rear seats bottom position. Their locations (1) are shown in the illustration |
• | Insert the child restraint attachments into the ISOFIX lower latch anchors (rods) until it clicks. Refer Child seat installation manual. |
• | Do not use the seat belt for installing the ISOFIX child restraint |
• | When using the “ISOFIX” lower latch system (rod), all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of un-retracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the un-retracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint. |
• | Child restraint anchorages are designed to withstand only those loads imposed by correctly-fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle |
There are two top tether rods/rear anchors on the seat base back side of the rear row front facing seats.
|
|
1. | Remove the headrest from the rear row seat |
2. | Place the child restraint on the rear row seat |
3. | Connect the tether connector in child restraint to the top tether rod/ rear anchor. Securely tighten the child restraint by adjusting the webbing of the child restraint system (CRS) tether connector. Follow the clear instructions provide in the CRS manual |
• | The top-tether/ rear anchor is the supplemental device to secure the child restraint system after engaging it by the ISOFIX rod/lower latches. Therefore, do not secure the child restraint system only with the seat back anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death. |
• | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation |
• | Make sure the latches of the child restraint system are Firmly latched to the ISOFIX rod/lower latches. In this case, you can hear the “click” sound/ latch indications provided on seat. |
• | Incorrectly installed child restraint system may cause an unexpected personal injury. |
• | Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints |
• | The tether strap may not work properly if attached somewhere other than the correct top tether rod/rear anchor provided on seat back. |
• | Don’t put the top tether strap over the head restraint of rear row seat which is not the correct methods and may cause risk. |
• | Rock the child restraint to check if it is securely installed. Refer to instructions provided by the manufacturer of the child restraint. |
• | Do not install the child restraint of such size if it hinders the operations of front seat which may cause problem to front occupants. |
Table of Information on ISOFIX Child Restraint Systems Installation Suitability for Various ISOFIX Positions
|
|||
|
|
|
|
Mass group |
Size Class |
Fixture |
Vehicle ISOFIX Seating Positions |
||
Front Passenger |
Rear out board |
Rear Center |
|||
Carrycot (Newborn Baby)
|
F
|
ISO/L1
|
X
|
X
|
X
|
G
|
ISO/L2
|
X
|
X
|
X
|
|
Group 0: up to 10kg (~9 months)
|
E
|
ISO/R1
|
X
|
IL
|
X
|
Group 0+: up to 13kg (~0 – 2 years)
|
E
|
ISO/R1
|
X
|
IL
|
X
|
D
|
ISO/R2
|
X
|
IL
|
X
|
|
C
|
ISO/R3
|
X
|
IL
|
X
|
|
Group I 09 to 18kg (~9months – 4 years)
|
D
|
ISO/R2
|
X
|
IL
|
X
|
C
|
ISO/R3
|
X
|
IL
|
X
|
|
B
|
ISO/F2
|
X
|
IUF/IL
|
X
|
|
B1
|
ISO/F2X
|
X
|
IUF/IL
|
X
|
|
A
|
ISO/F3
|
X
|
IUF/IL
|
X
|
|
Group II (15 to 25kg)
|
X
|
IL
|
X
|
||
Group III (22 to 36kg)
|
X
|
IL
|
X
|
Table of Vehicle Handbook Information on i-Size Child Restraint Systems for Installation in Various seating Positions |
||||
Restraint device figure |
Front Passenger (With ON/OFF Switch) |
Rear out board |
Rear Center |
|
With Passenger Airbag ON |
With Passenger Airbag OFF |
|||
i-Size Child Restraint System |
X |
X |
i-U |
X |
Key of letters be inserted in the above table
i-U: Suitable for i-Size “universal” Child Restraint System forward and rearward facing.
i-UF: Suitable for forward-facing i-Size “universal” Child Restraint System only.
X: Seating position not suitable for i-Size “universal” Child Restraint systems. |
Recommended Child Seat to Use in Vehicle: Mahindra & Mahindra recommends Britax Romer DUALFIX / PRO M i-Size child seats for up to 18 Kg children. These seats are
available at Mahindra dealerships.
|
|||||
Mass Group
|
CRS Manufacturer
|
Model
|
Type
|
Installation in Vehicle
|
Attachment Method
|
Group 0 : up to 10 kg (0 to 9 months)
|
Britax Römer
|
DUALFIX / PRO M
|
i-Size
|
Rearward facing
|
ISOFIX base frame with support leg
|
Group 0+ : up to 13 kg (0 to 2 years)
|
Britax Römer
|
DUALFIX / PRO M
|
i-Size
|
Rearward facing
|
ISOFIX base frame with support leg
|
Group I : 9 to 18 kg (9 months to 4 years)
|
Britax Römer
|
DUALFIX / PRO M
|
i-Size
|
Rearward facing
|
ISOFIX base frame with support leg
|
• | Use only the approved Child Restraint System (CRS) for better safety of your child. |
• | Mahindra is not responsible for the personal injury and property damage due to the defect of child restraint system. |
• | Use the proper type of child restraint system suitable for the weight and size for your baby. |
• | Use the child restraint system at recommended seating location only and follow the instructions. |
• | Child restraint has 5 categories based on the weight as below:
|
• | Group 0 & 0+ : Rear-facing child restraint fitted on the rear seat (use of ISOFIX with Base & Support Leg is recommended). |
• | Group I: Forward-facing child restraint fitted on the rear seat (use of ISOFIX & Top Tether is recommended). |
• | Group II & III: Booster seat fitted on the rear seat with seat belt fastened. Always follow the installation procedure and use instructions provided by the manufacturer of the booster seat. |
• | The anchor provided on rear seat base back is the supplemental device to secure the child restraint system after engaging it by the lower latches. Therefore, do not secure the child restraint system only with the seatback anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death. |
• | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation. |
• | Make sure the latches of the child restraint system are latched to the lower latches. In this case, you can hear the “click” sound and color indications. |
• | The child restraint seat strap may not work properly if attached somewhere other than the correct seatback anchor provided on the rear seat base back side behind the seat carpet. Follow the instructions provided on the seat back for the details of anchor location. |
• | Make sure that the child restraint system is firmly secured by rocking it in different directions. |
• | Incorrectly installed child restraint system may cause an unexpected personal injury. |
|

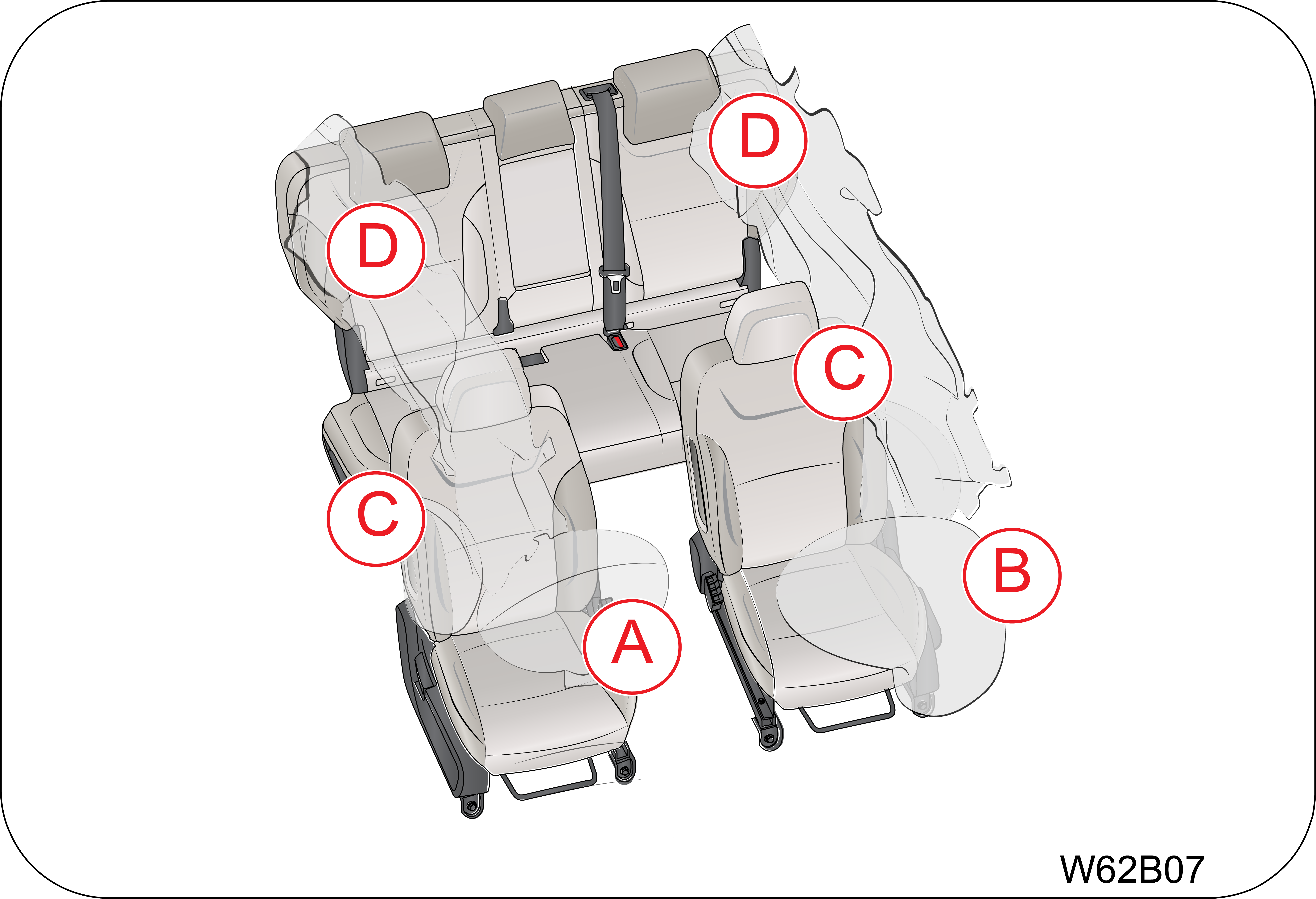

A:Driver Airbag
B: Front Passenger Airbag
C: Side impact Airbag (If equipped)
D: Two curtain airbags (if equipped)
|
|
Driver’s Airbag : A frontal airbag for the driver in Steering wheel hub
|
|
Passenger’s Airbag : A frontal airbag for the front passenger in the passenger side instrument panel
|
Driver Airbag |
Front Passenger Airbag |
|
|
|

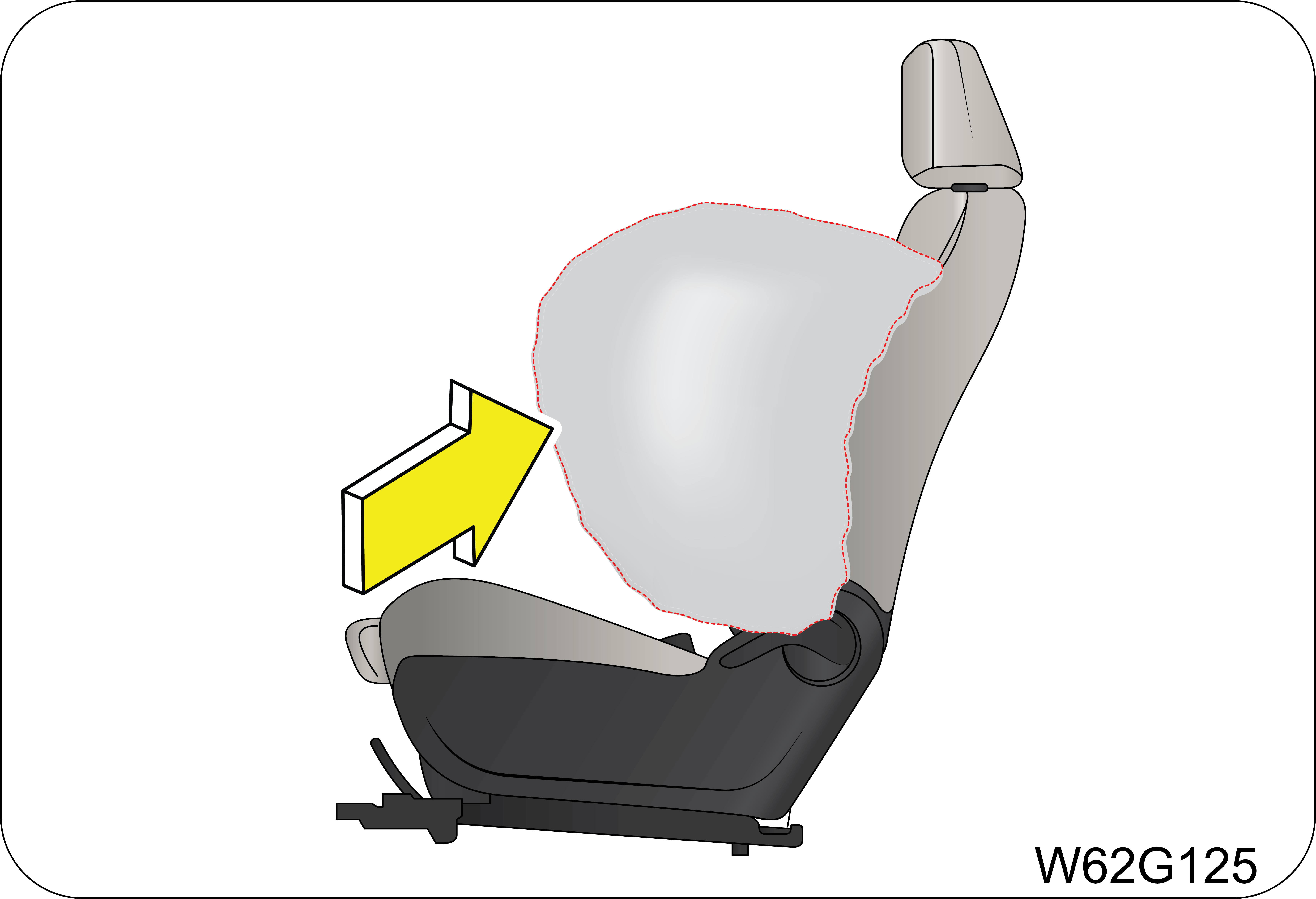

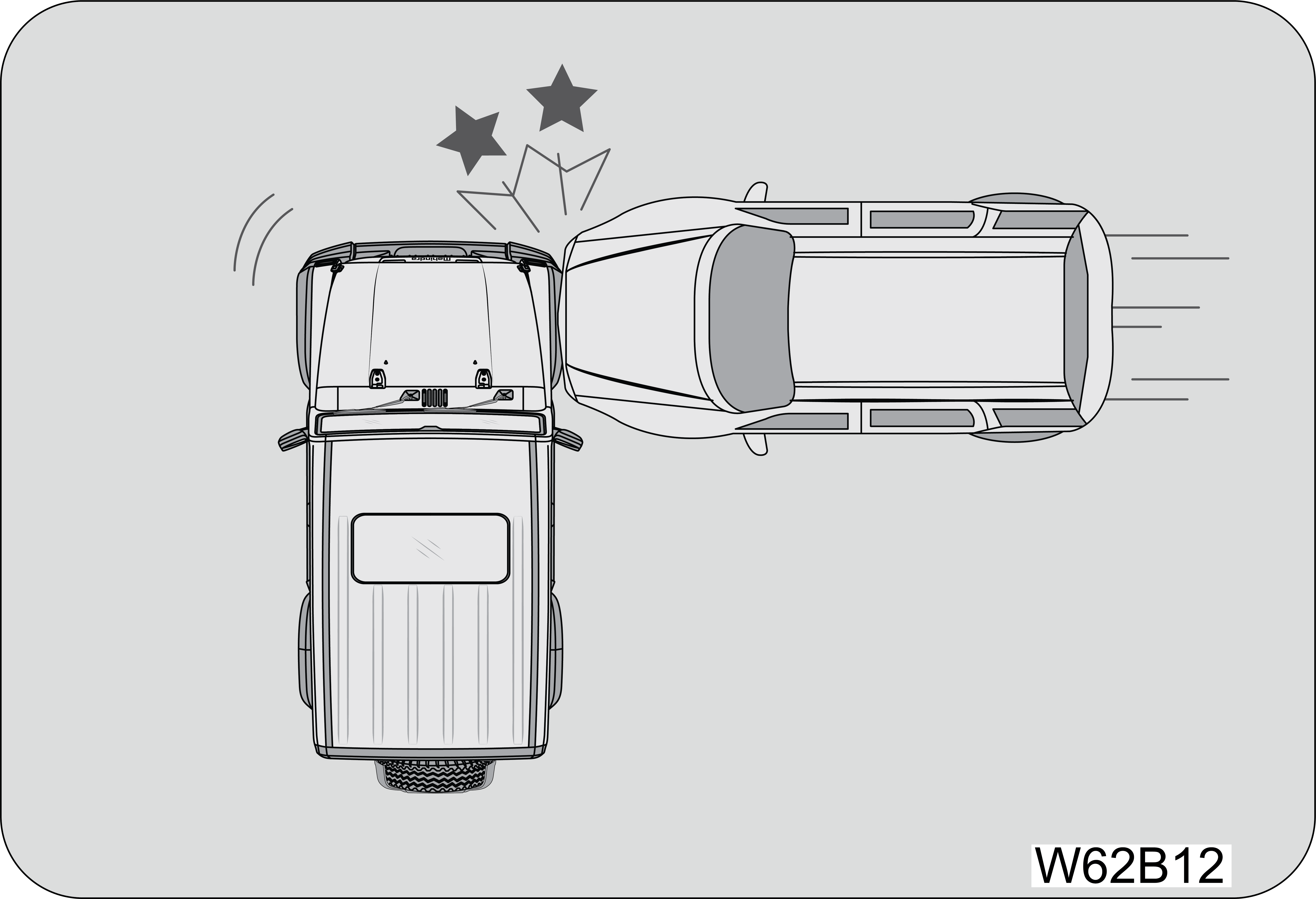

Your vehicle is equipped with side impact airbag in both the front seats. The purpose of the airbag is to provide the vehicle's
driver and/or the front passenger with additional protection during side impacts or collisions.
|
|
|
• | In the case of a side collision, the curtain airbag may be deployed together with the relevant side airbag on the side the collision occurs |
• | The side impact airbag is supplementary to the seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side impact conditions severe enough to cause significant injury to the vehicle occupants |
• | For best protection from the side impact airbag system and to avoid being injured by the deploying side impact airbag, all seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passengers arms and hands should be placed on their laps |
• | Do not use any accessory seat covers. Use of seat covers could reduce or prevent the effectiveness of the system |
• | Do not install any accessories on the side or near the side impact airbag |
• | Do not place any objects over the airbag or between the air bag and yourself |
• | Do not place any objects (an umbrella, bag, etc.) between the door and the seat. Such objects may become dangerous projectiles and cause injury if the supplementary side impact airbag inflates |
|
|
• | In the case of a side collision, the side airbag may be deployed together with the relevant curtain airbag on the side the collision occurs |
• | In order for side and curtain airbag to provide the best protection, both front seat occupants and outboard rear occupants should sit in an upright position with the seat belts properly fastened. Importantly, children should sit in a proper child restraint system in the rear seat |
• | When children are seated in the rear outboard seats, they must be seated in the proper child restraint system. Make sure to position the child restraint system as far away from the door side as possible, and secure the child restraint system in a locked position |
• | Do not allow the passengers to lean their heads or bodies onto doors or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain airbag |
|

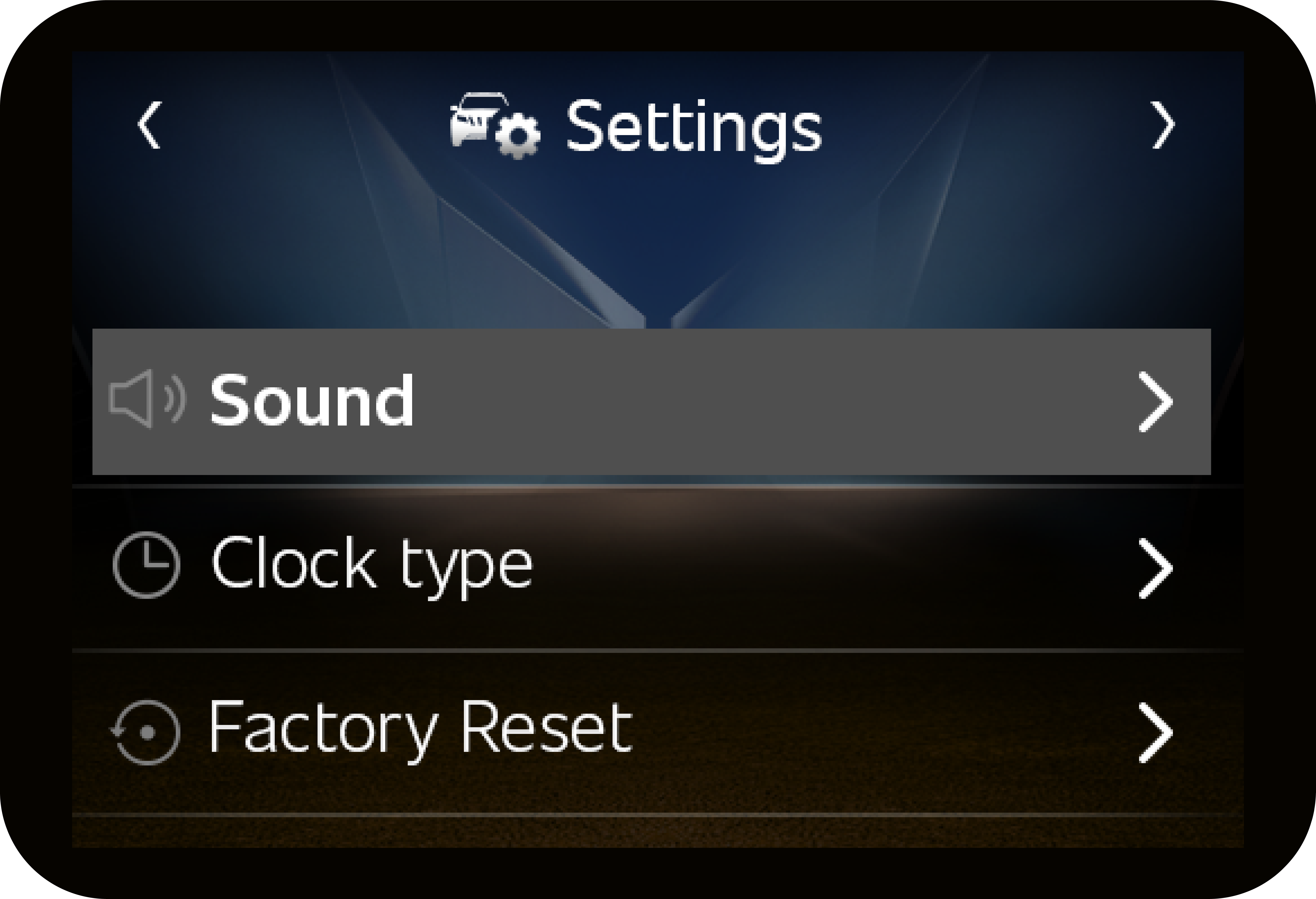

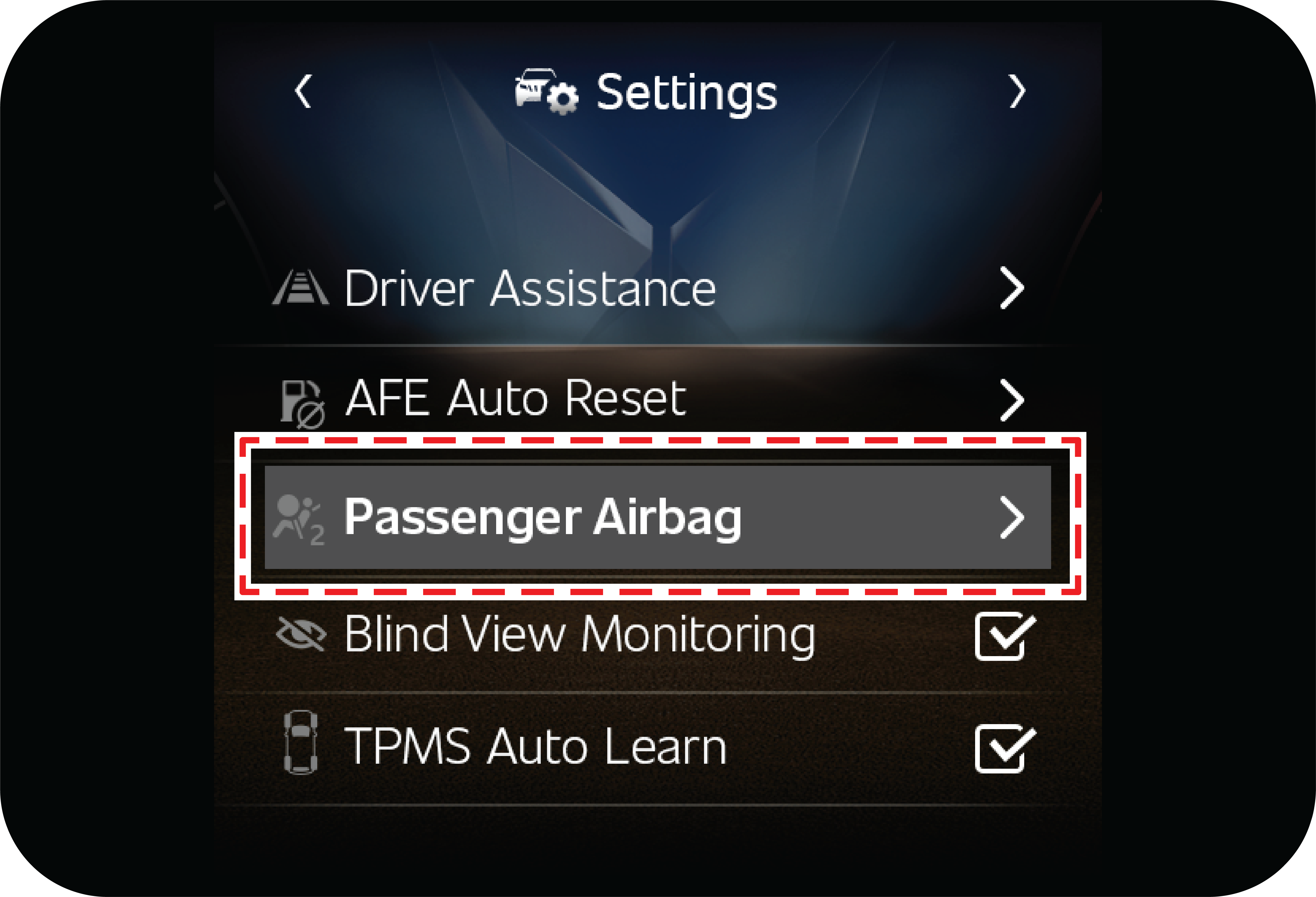

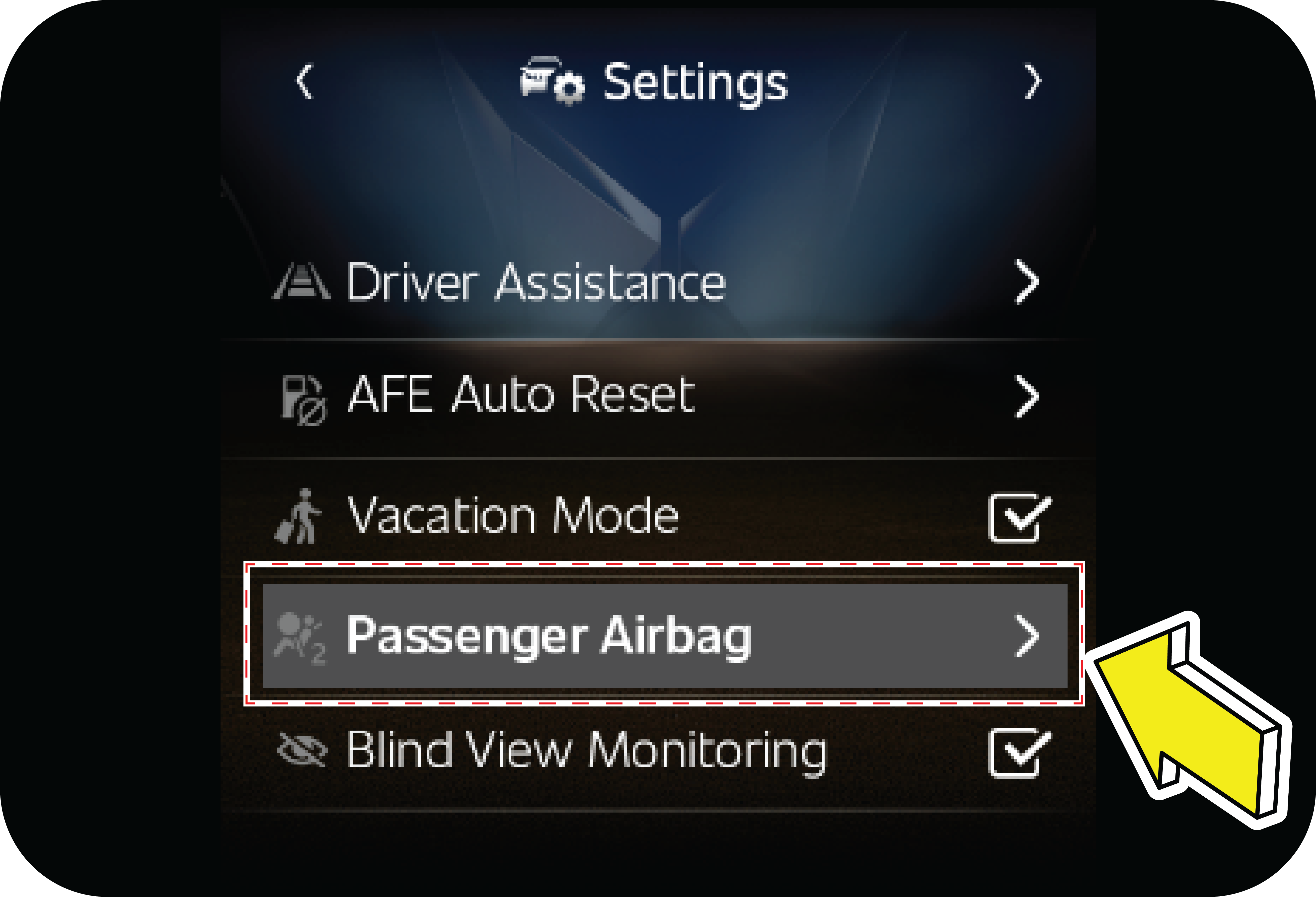

2. Press OK to enter setting. Press UP/DOWN to navigate to Passenger Air bag option.
|
|

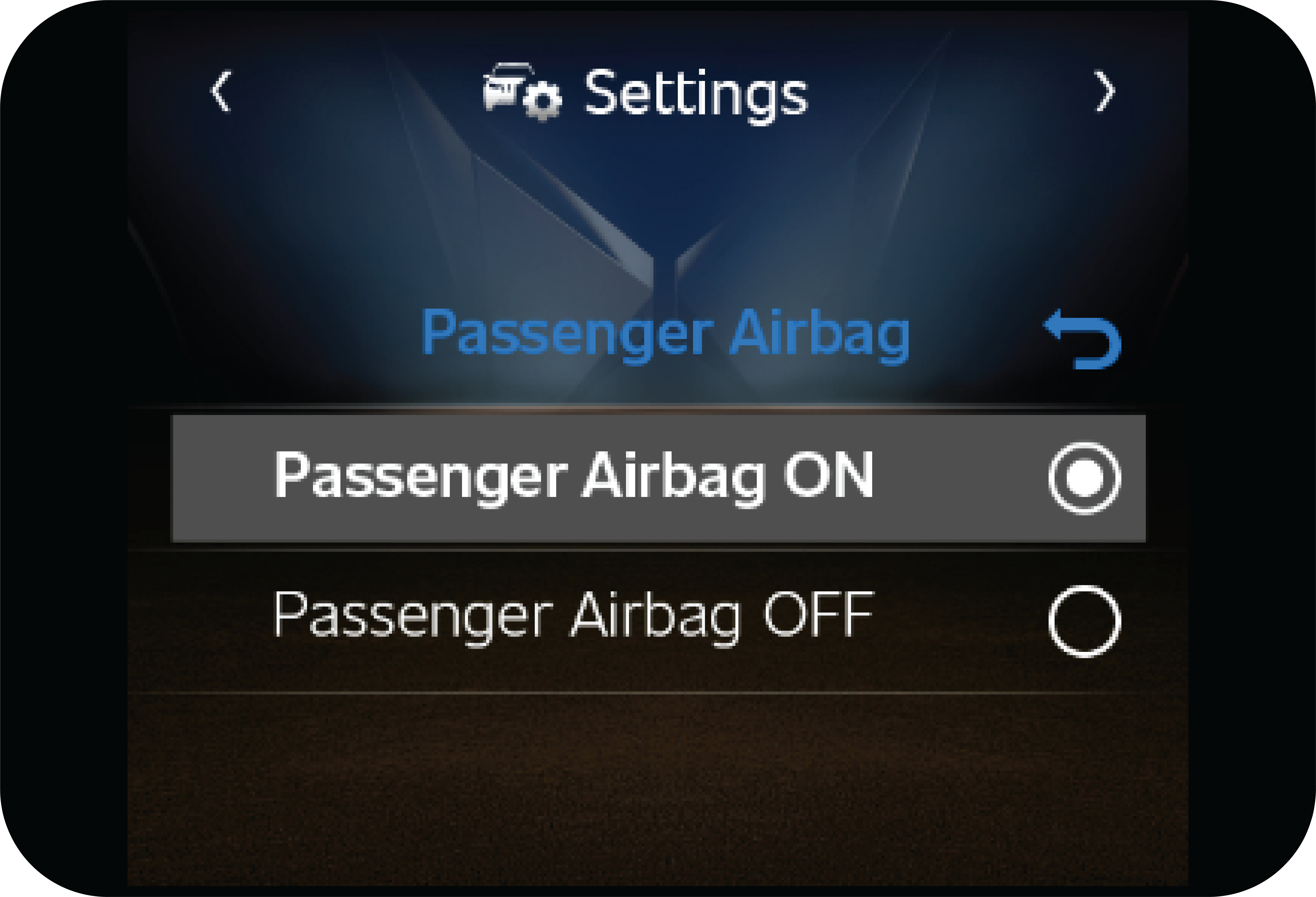

3. Press OK to select following screen will appear.
|
|

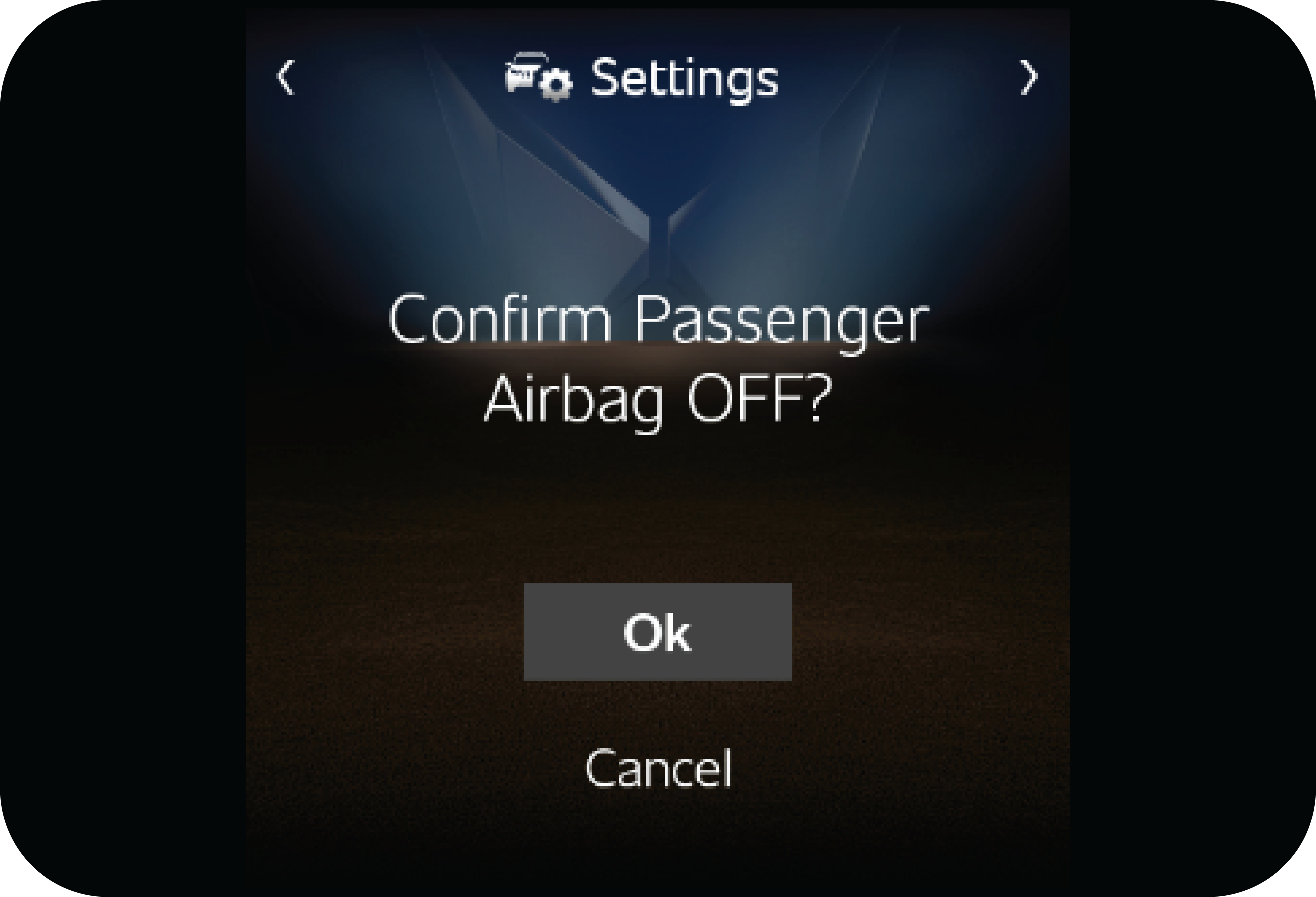

4. Use Up/Down buttons to navigate to the option. Press OK to select Pop-up will appear to confirm selection.
|
|
5. Press OK to select a option. Confirm your selection by selecting OK or Cancel.
|
|

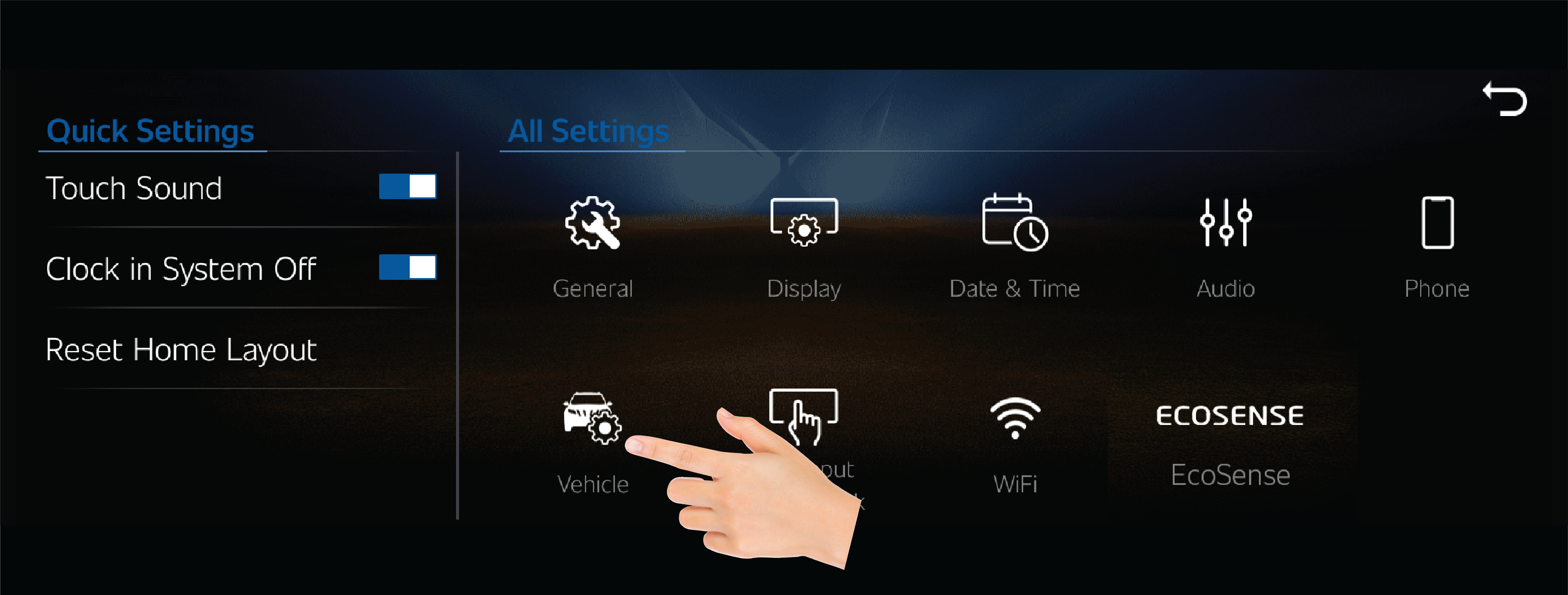

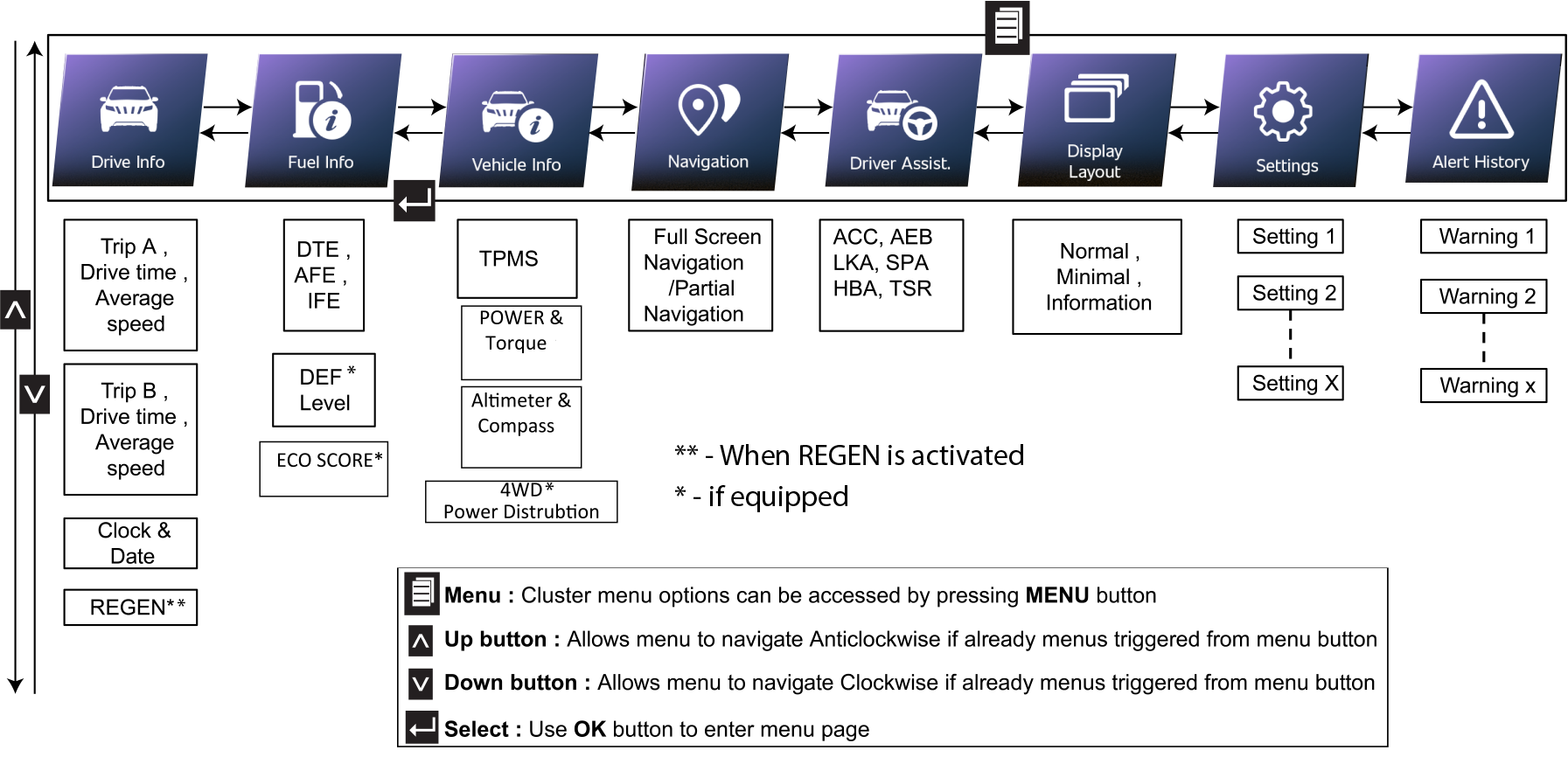

1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate to Passenger Airbag option
|
|
3. Press OK to Select following screen will appear. Use Up/Down button to navigate to the option. Press OK to select, a pop-up
will appear to confirm the selection.
|
|
4. Press OK to select a option. Confirm your selection by selecting OK or Cancel.
|
• | The lamp does not glow when the ignition is switched ON or glows beyond six (6) secs. after switching the ignition ON |
• | The lamp comes ON at any other time, even briefly |
• | The lamp comes ON intermittently |
• | Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury |
• | Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once |
• | Do not cover the steering wheel, instrument panel with any object (e.g. dash panel covers) which may prevent the airbags from inflating properly |
• | The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle |
|
The front passenger should never sit on the edge of the seat, stand near the glove compartment, rest feet or other parts of
the body on the dashboard when the vehicle is moving.
|
• | The driver must sit as far back as possible from the steering wheel while still maintaining control of the vehicle |
• | The front passenger must sit as far back as possible from the dashboard |
• | Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury |
|
|
• | Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor |
• | All vehicle occupants must be properly restrained using the seat belts |
• | All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts |
• | Front airbags can injure occupants improperly positioned in the front seats |
• | Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual |
• | Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses |
|
|
• | On the front passenger’s sun visor |
|
The images shown in this section are for illustrative purpose only. They may not look like your model/variant or vehicle.
Front Airbag: Front airbag are designed to inflate in a frontal collision depending on the intensity, speed or angles of impact of the
front collision.
|
|

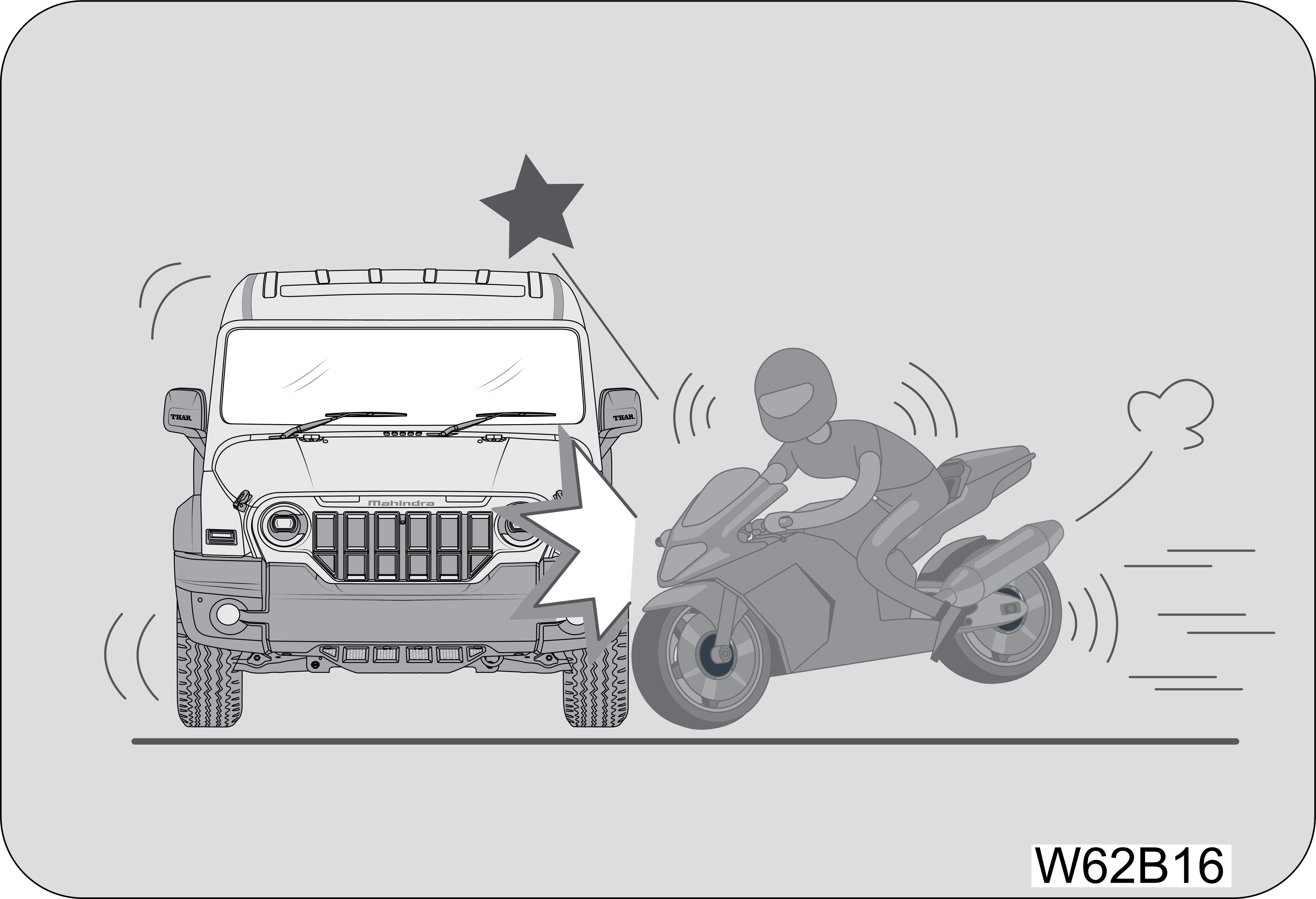

Airbags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is
concentrated to one area and the full force of the impact is not delivered to the sensors.
|
|
Running under a truck may not provide the decelerations necessary for airbag deployment. Airbags will not inflate in this
“under-ride” situation where deceleration forces that are detected by sensors are significantly low.
|
|

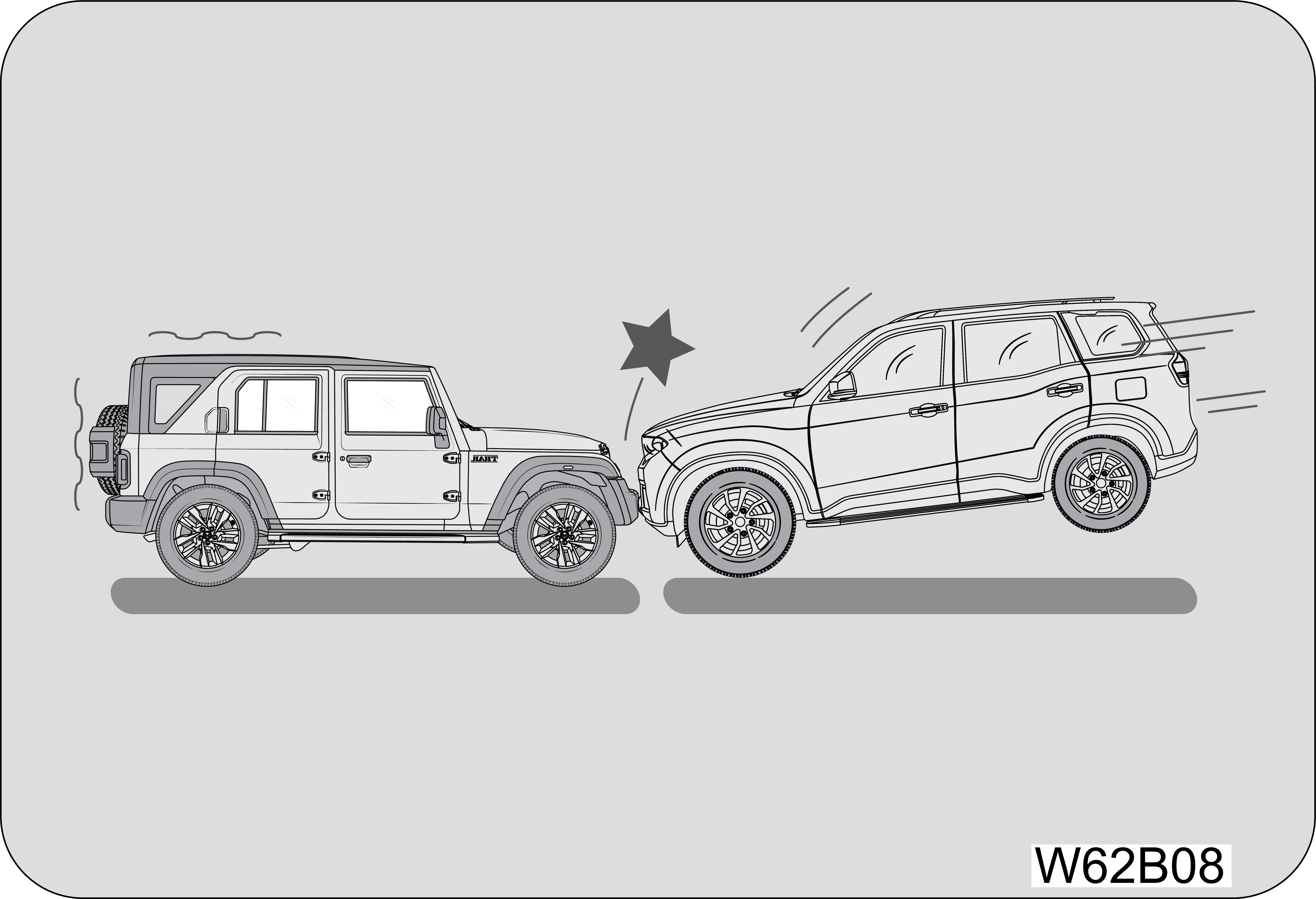

Frontal airbags are not designed to inflate in rear collisions, where occupants are moved backward away from the airbags by
the force of the impact. In this case, inflated airbags would not be able to provide any additional benefit.
|
|

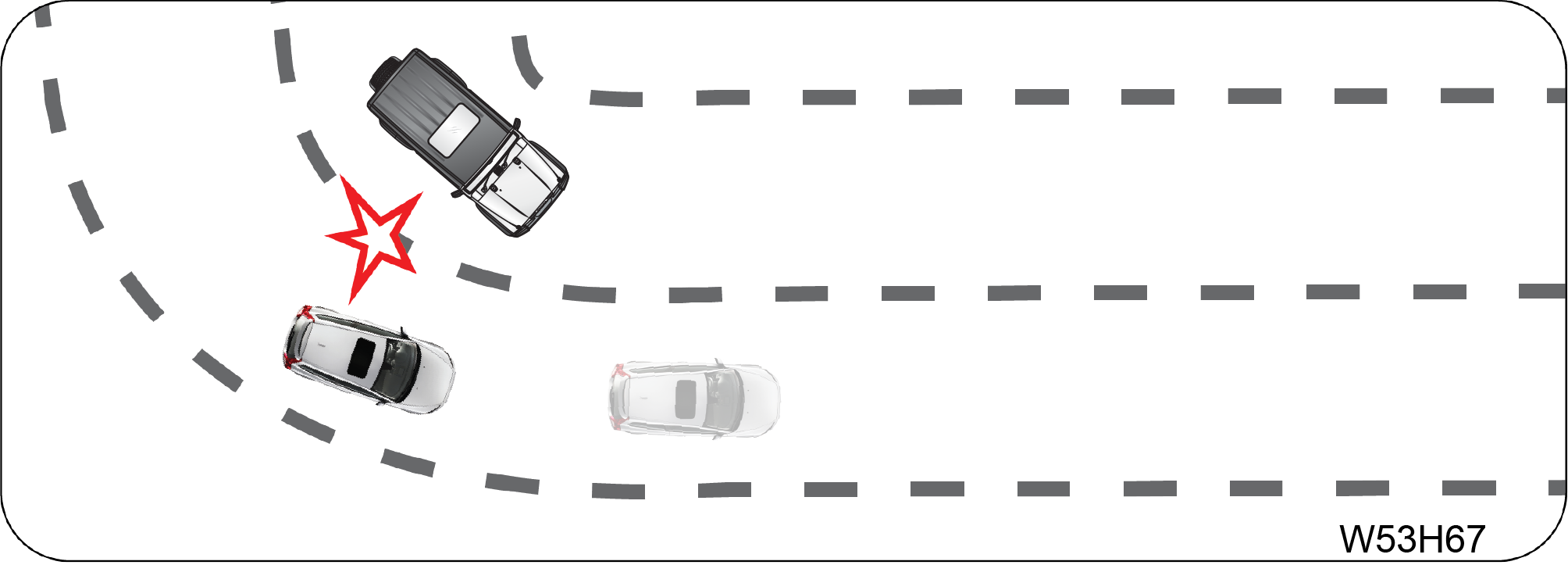

Frontal impact beyond 30º range from head-on to the vehicle.
|
|

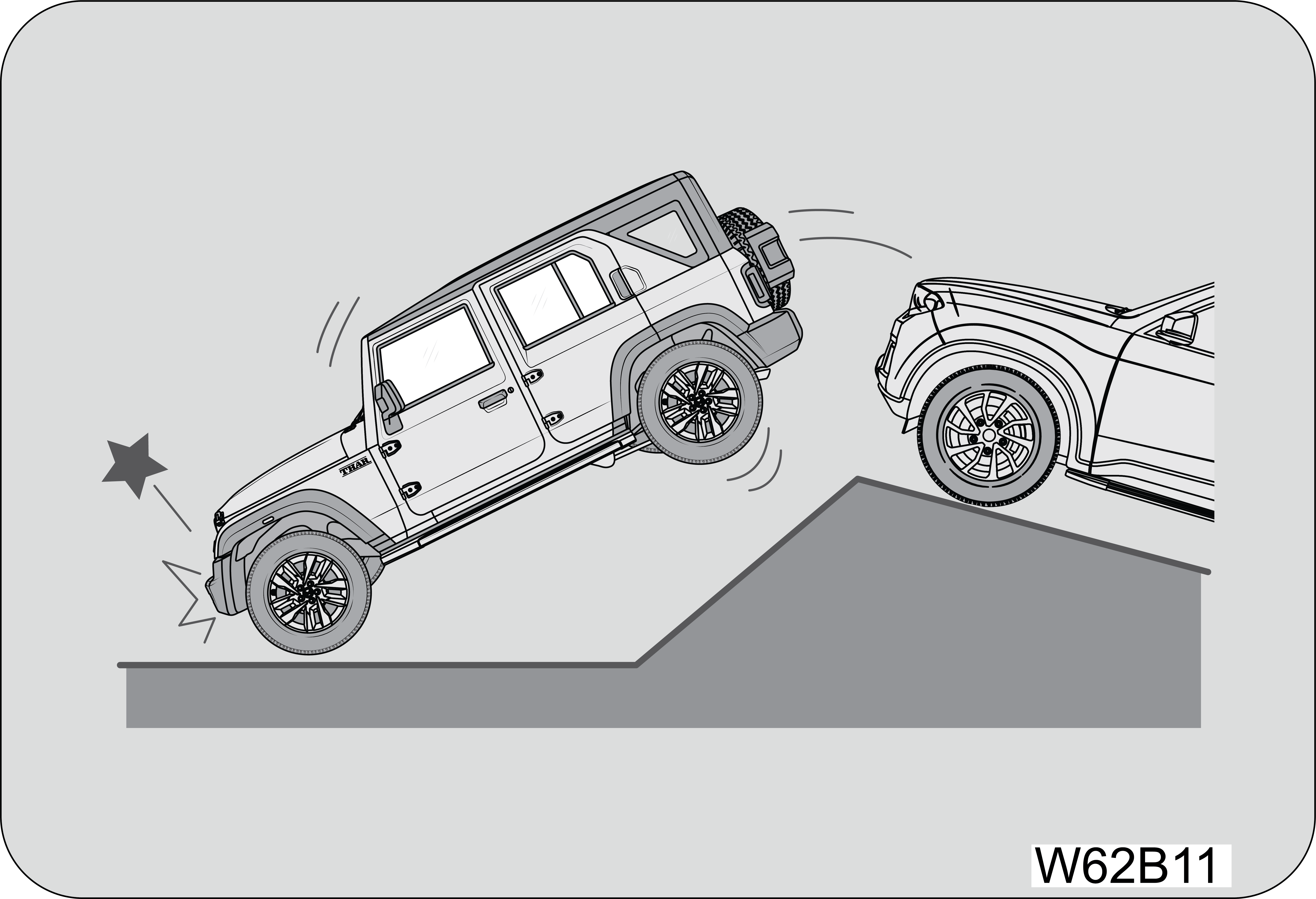

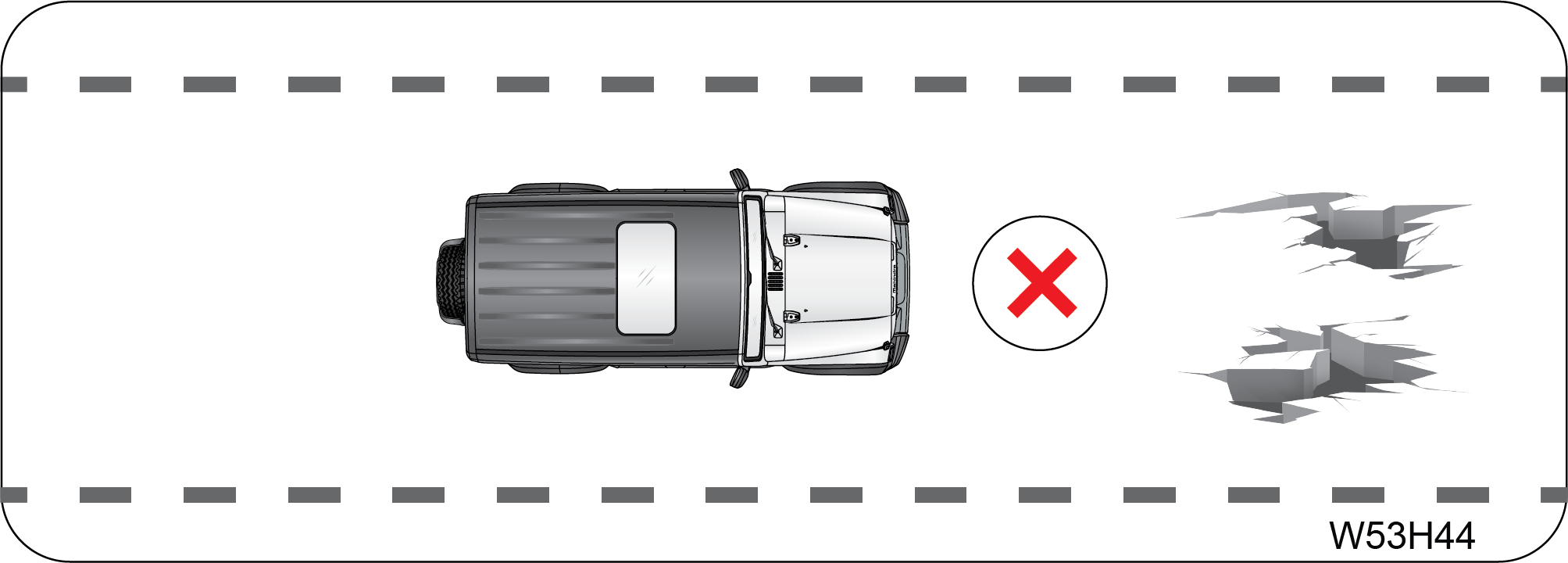

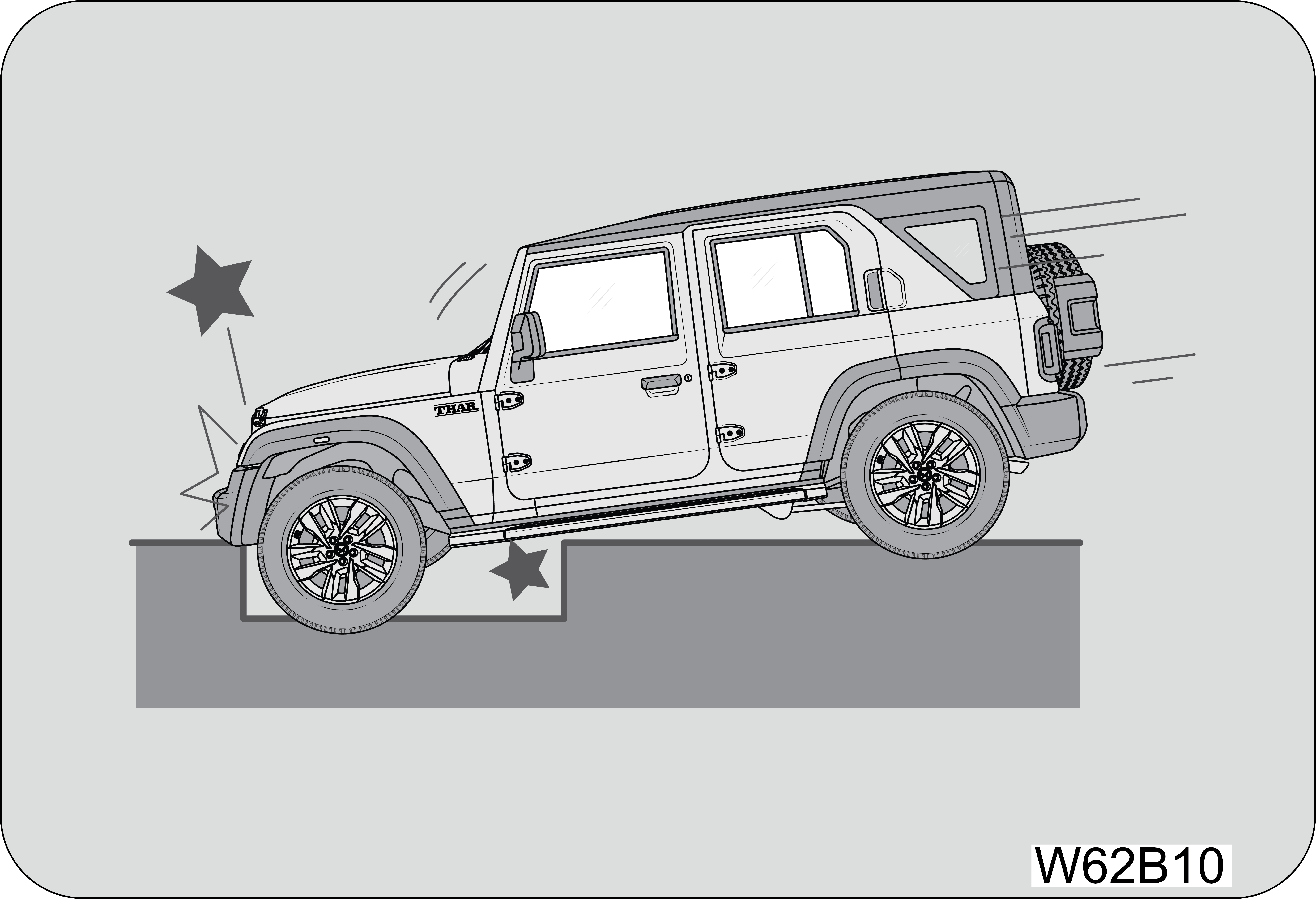

Driving into a big pothole, stepped surface or hitting the far side of a hole/incline will not inflate the airbag.
|
|
Airbags will not inflate in rollover accidents where airbag deployment would not provide protection to the occupants.
|
|
Frontal offset impact to the vehicle may not provide the deceleration force necessary for airbag deployment. In an angled
collision, the force of impact may direct the occupants in a direction where the airbags would not be able to provide any
additional benefit, and thus the sensors may not deploy any airbags.
|
|

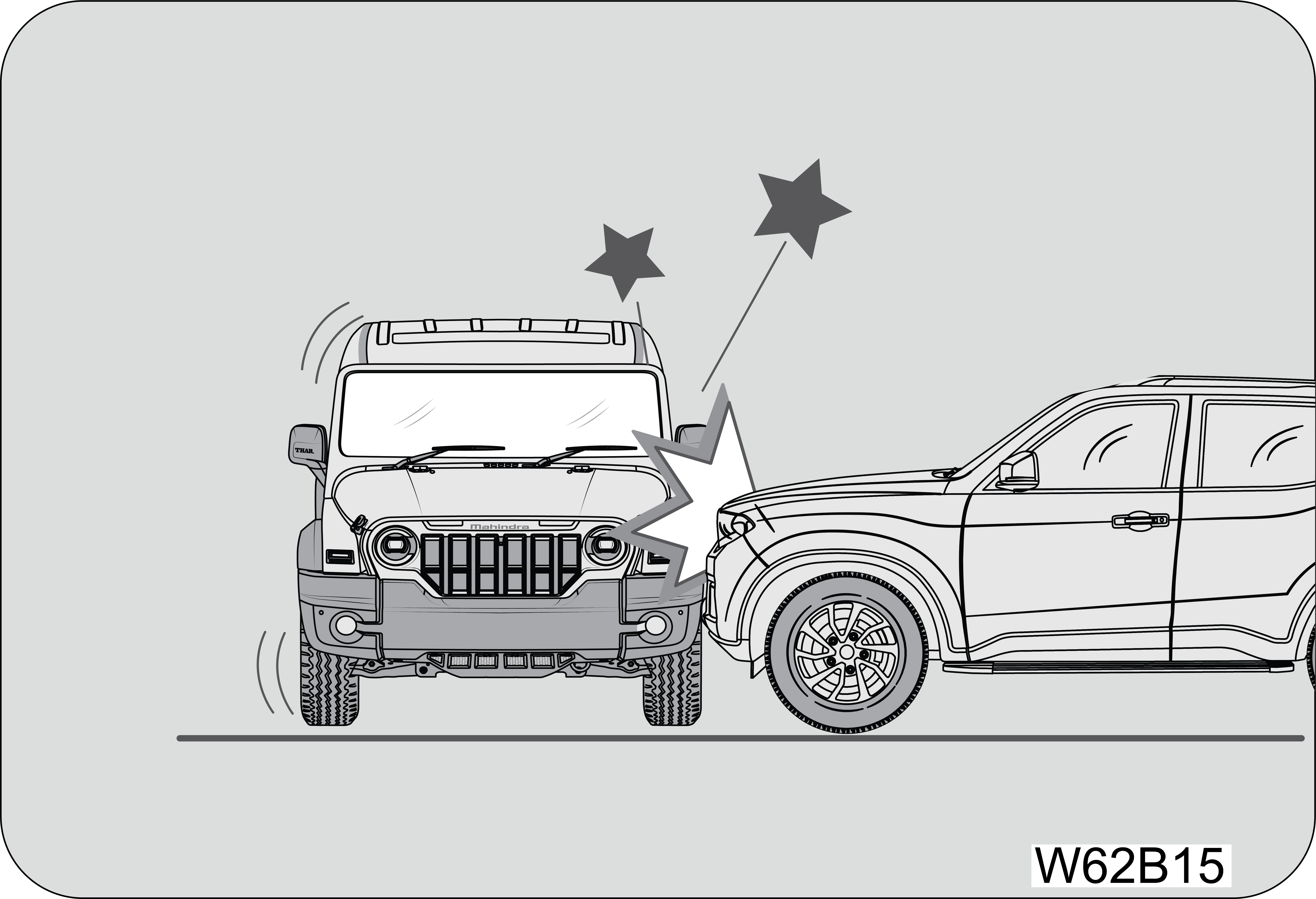

A frontal collision occurs when the front ends of two vehicles collide
|
|

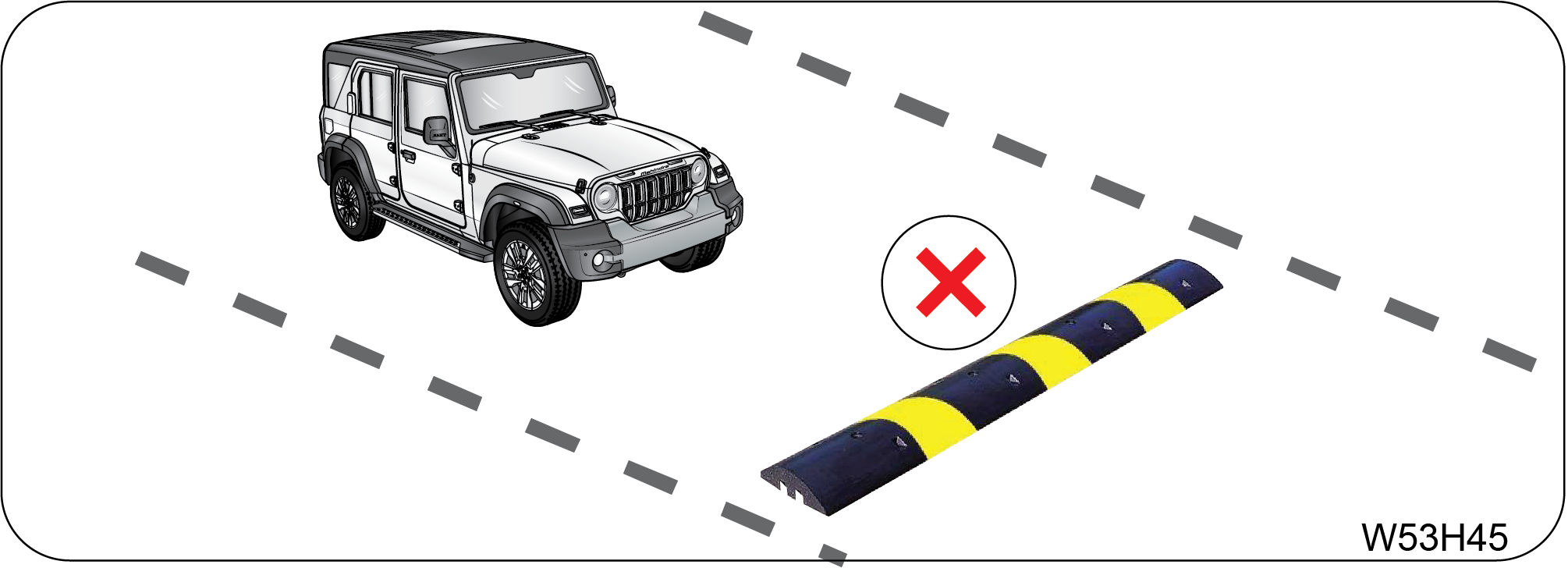

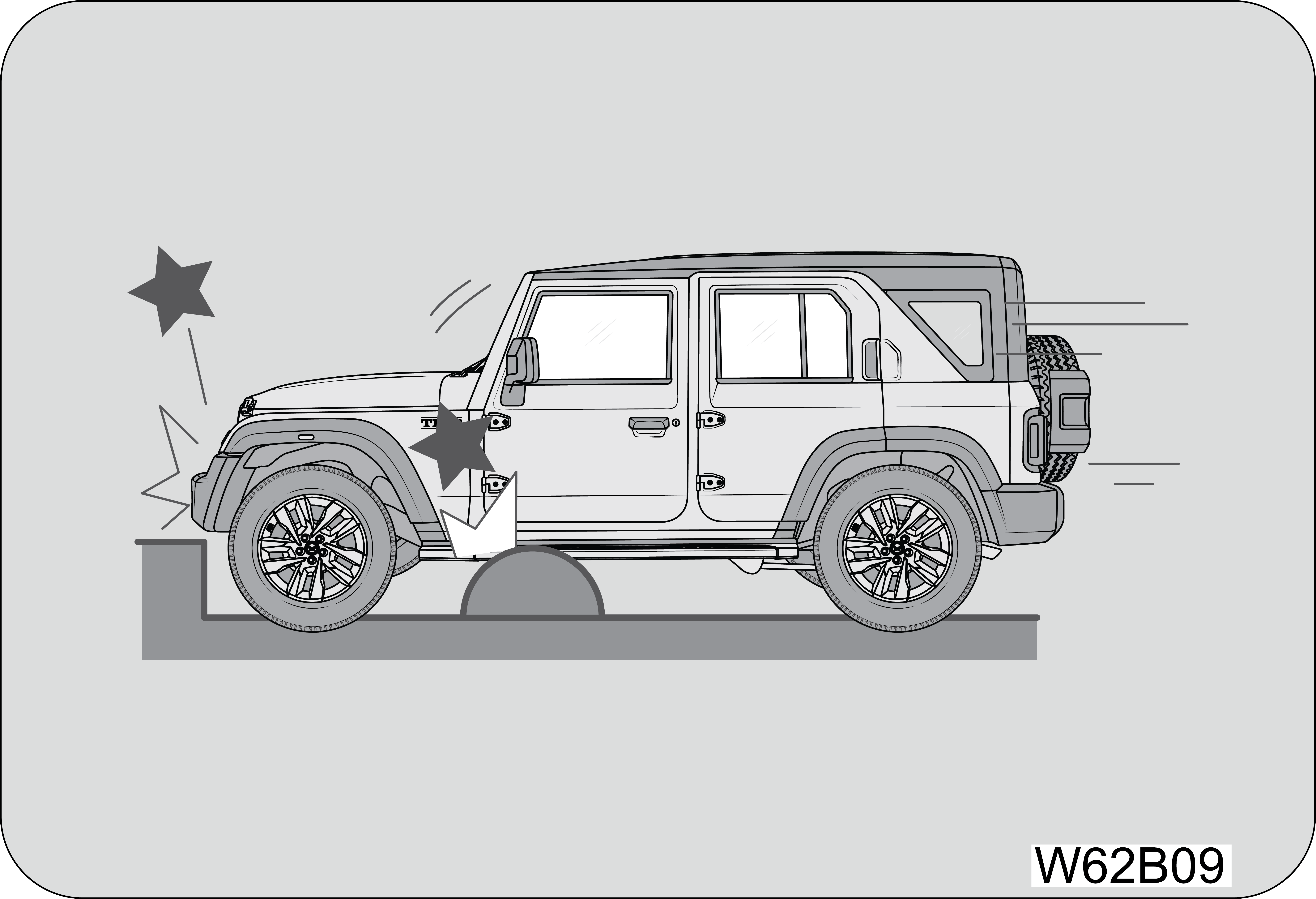

When a vehicle hits a curb or bump
|
|
When a vehicle falls into a deep hole or ditch
|
|
When a vehicle experiences a hard landing or fall
|
|

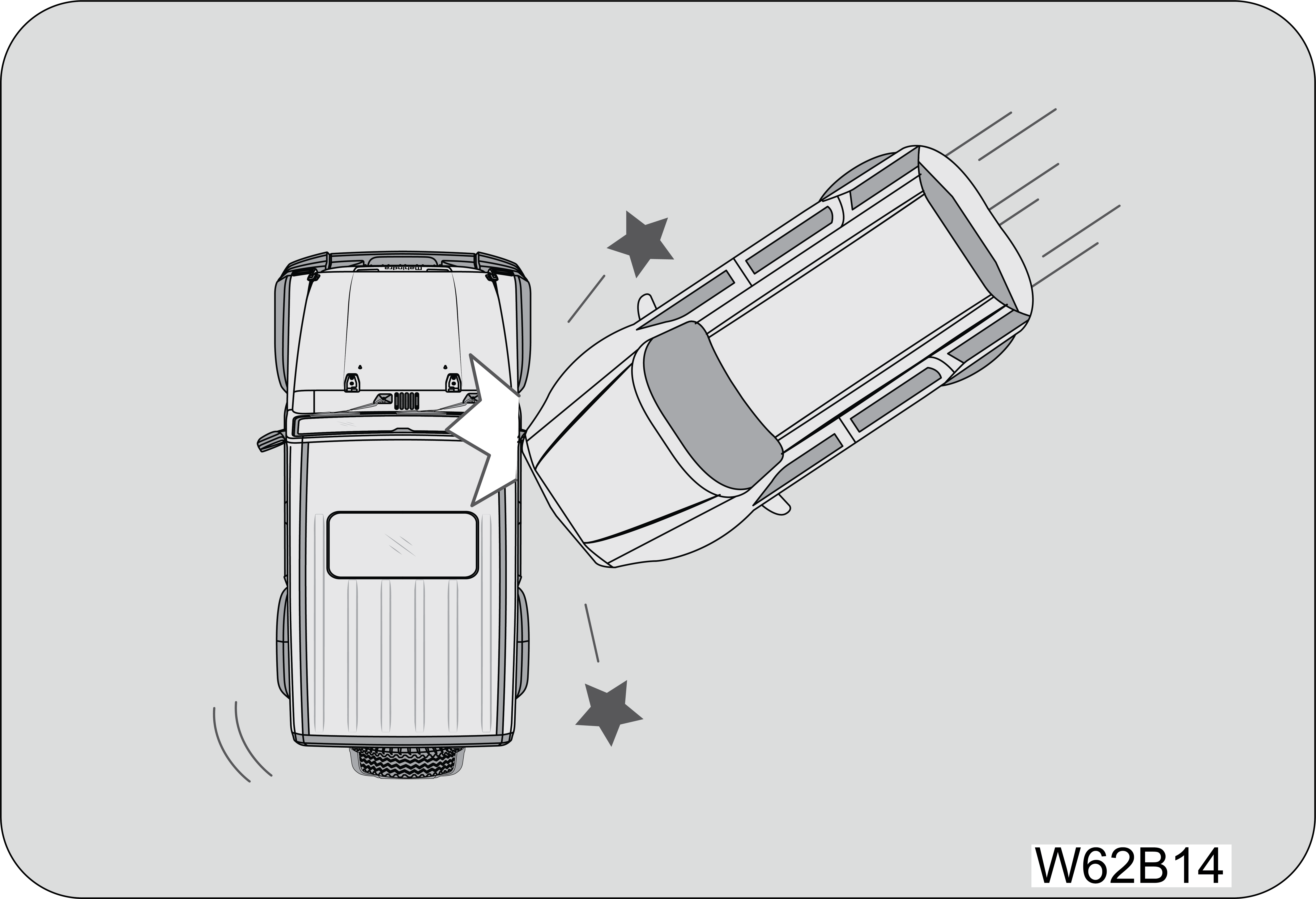

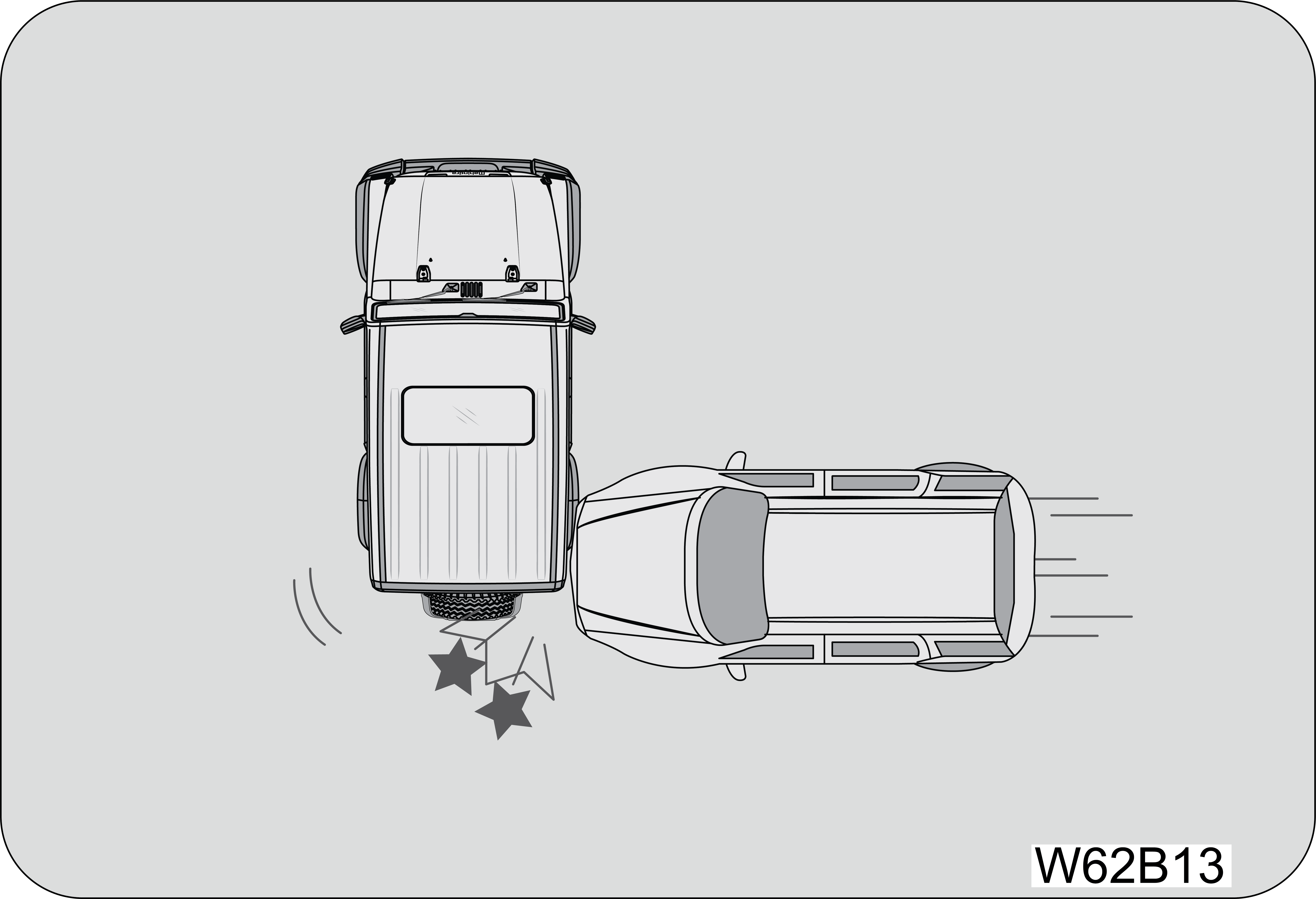

In the event of a side impact to the vehicle body, excluding the passenger compartment, several areas of the vehicle are typically
affected.
|
|
|
|

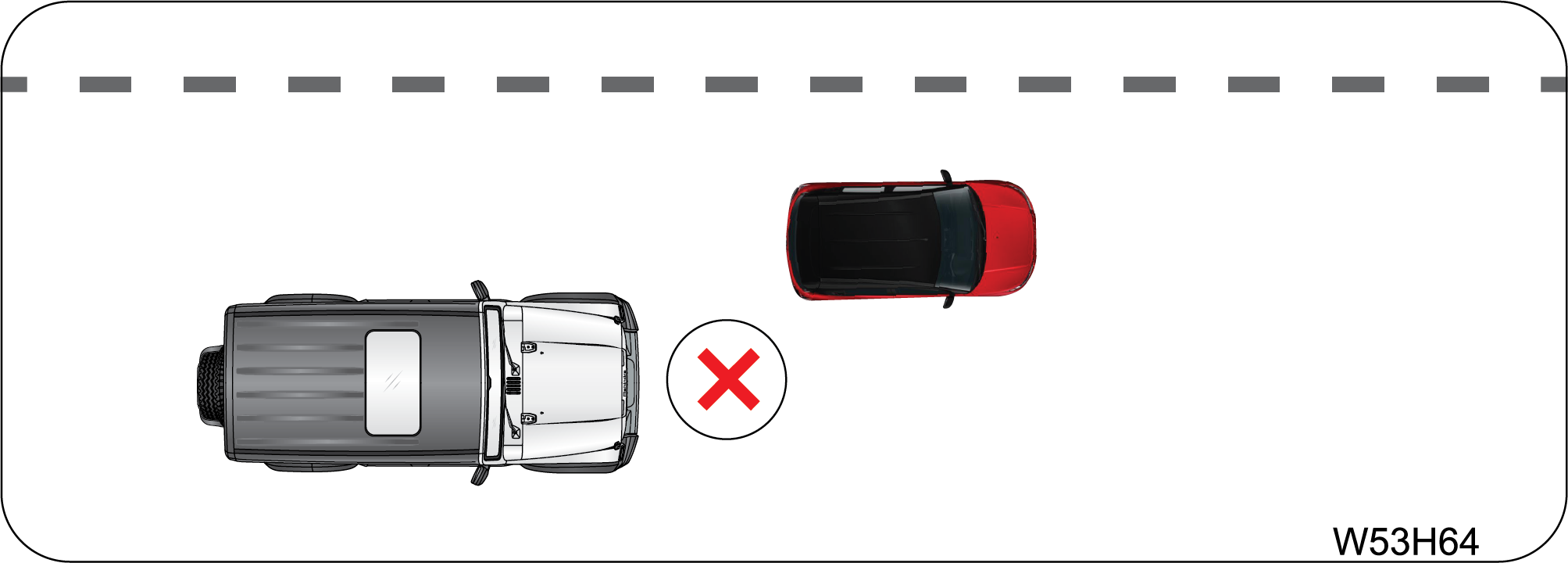

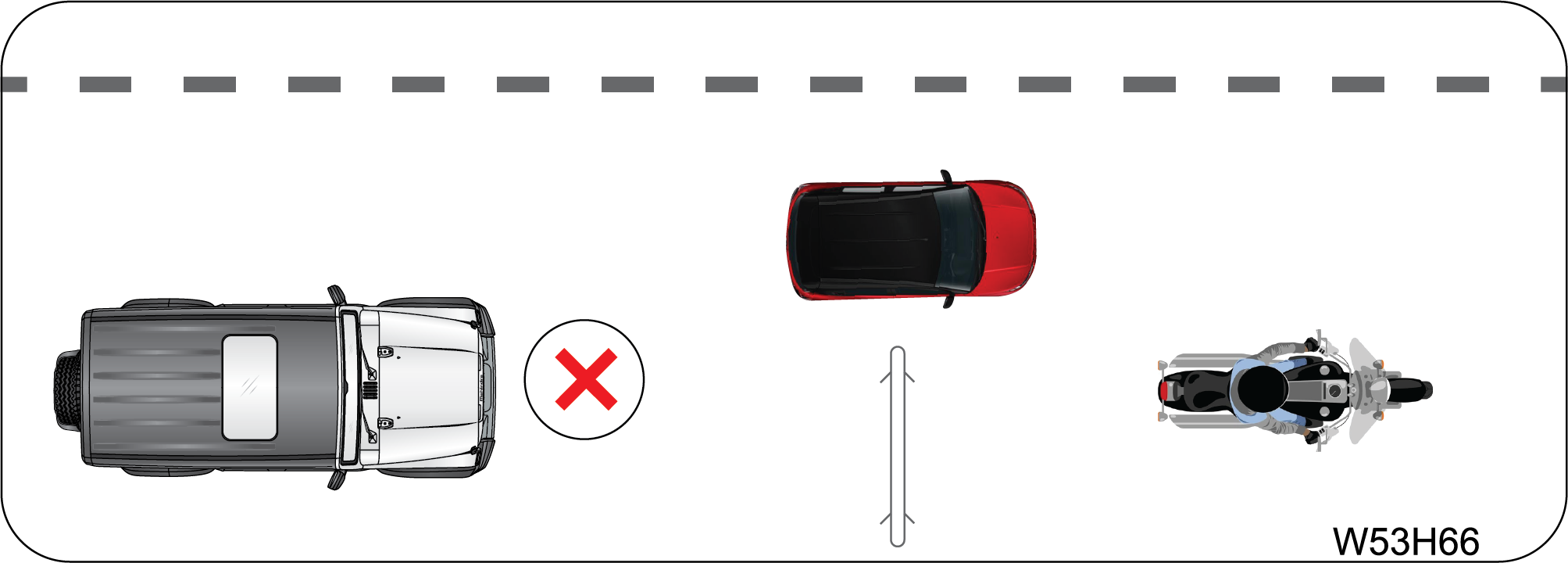

When a vehicle is impacted from the side at an oblique angle
|
|
When a vehicle is impacted from the side by a high-hood vehicle
|
|

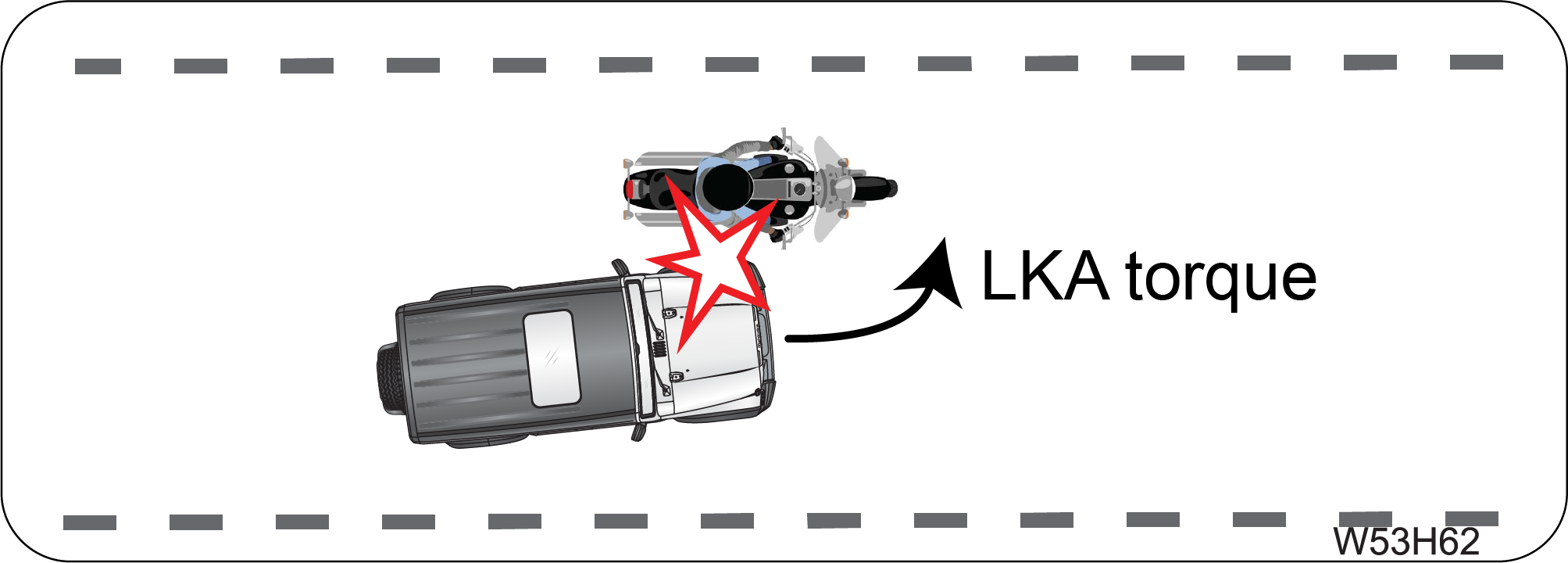

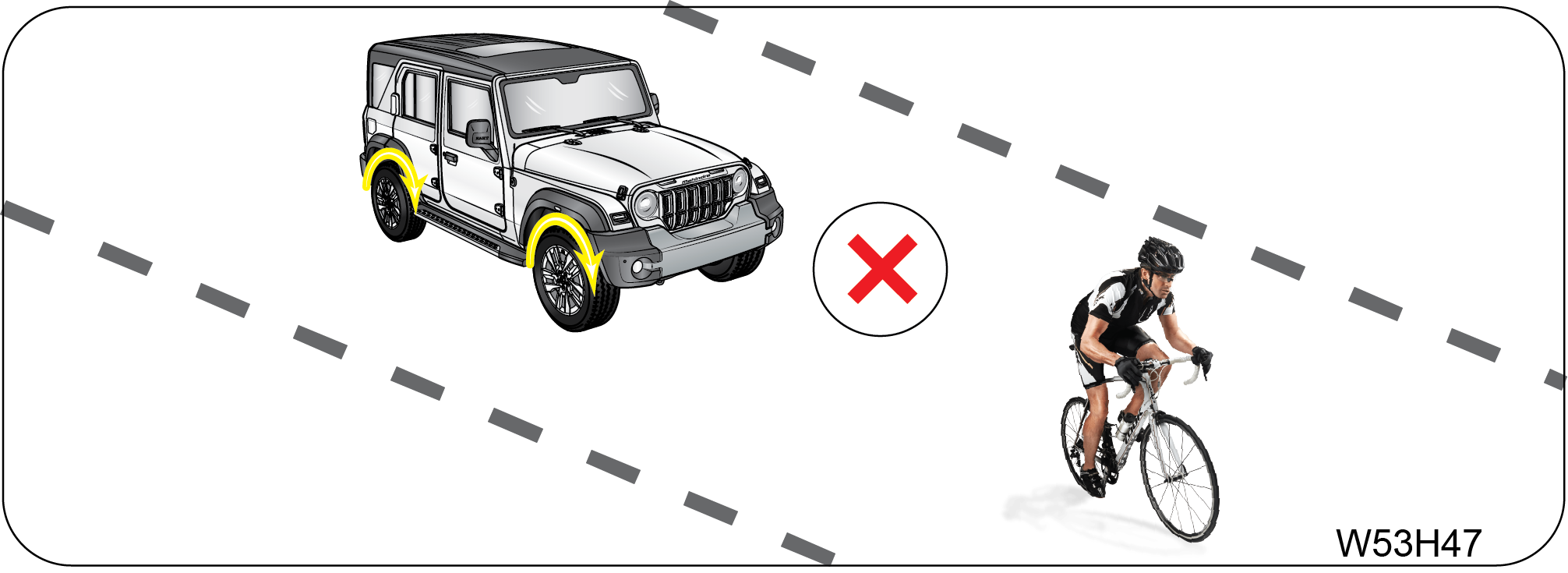

When a vehicle is impacted from the side by a motorcycle or bicycle
|
A
|

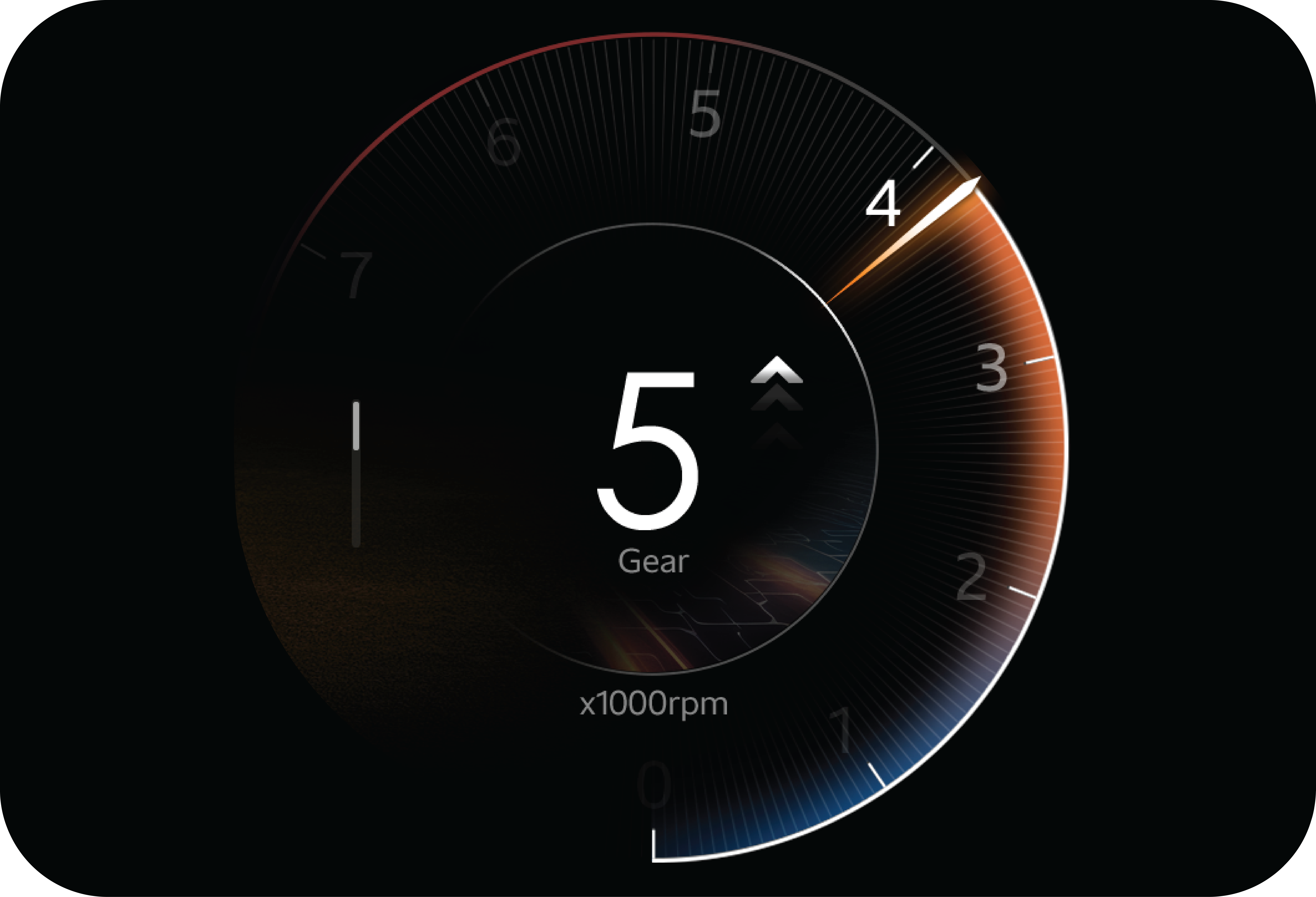

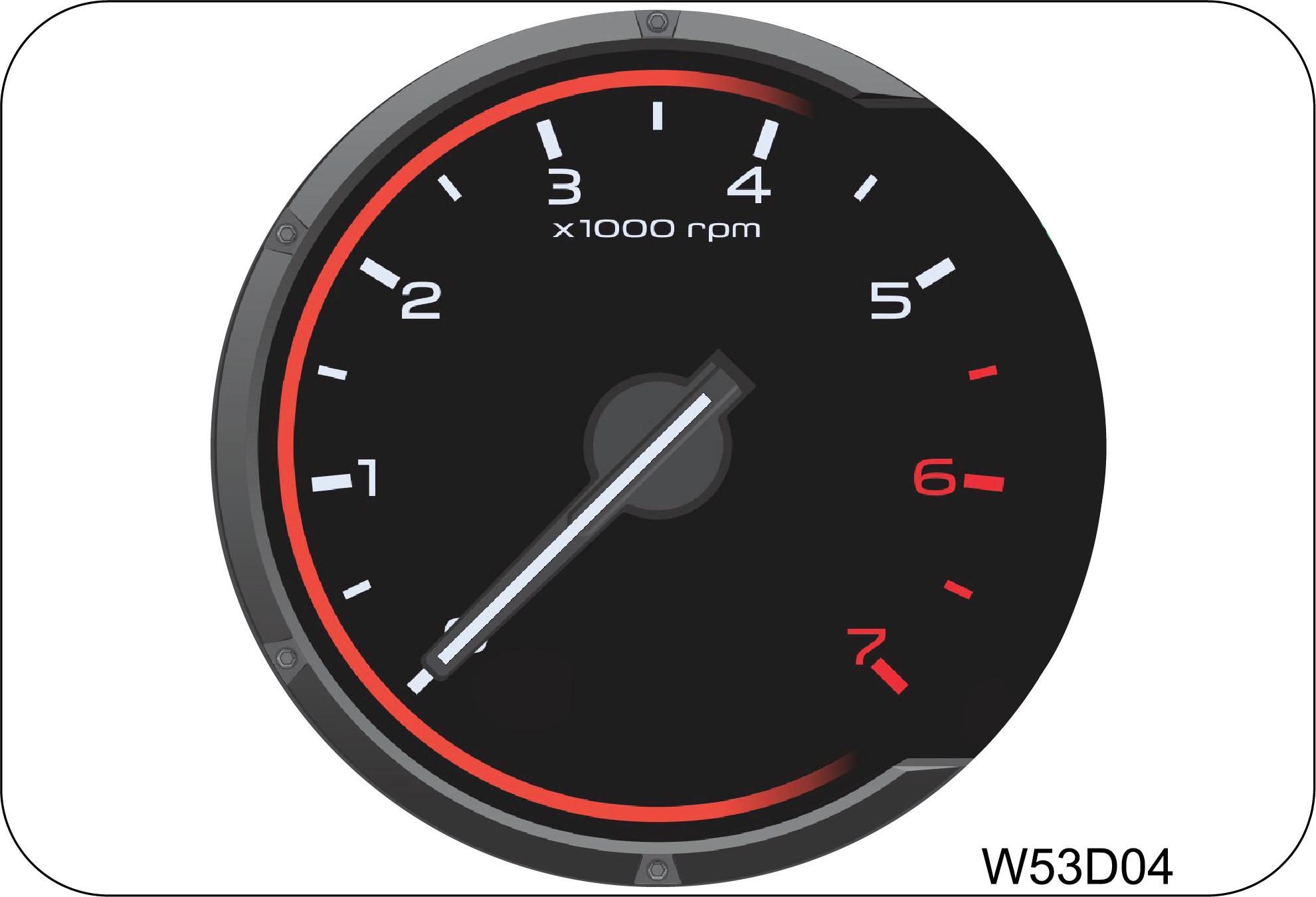

Tachometer/RPM Gauge
|
F
|
Fuel Gauge
|
B
|
Temperature Gauge
|
G
|
Drive Mode
|
C
|
Time
|
H
|
Odometer
|
D
|

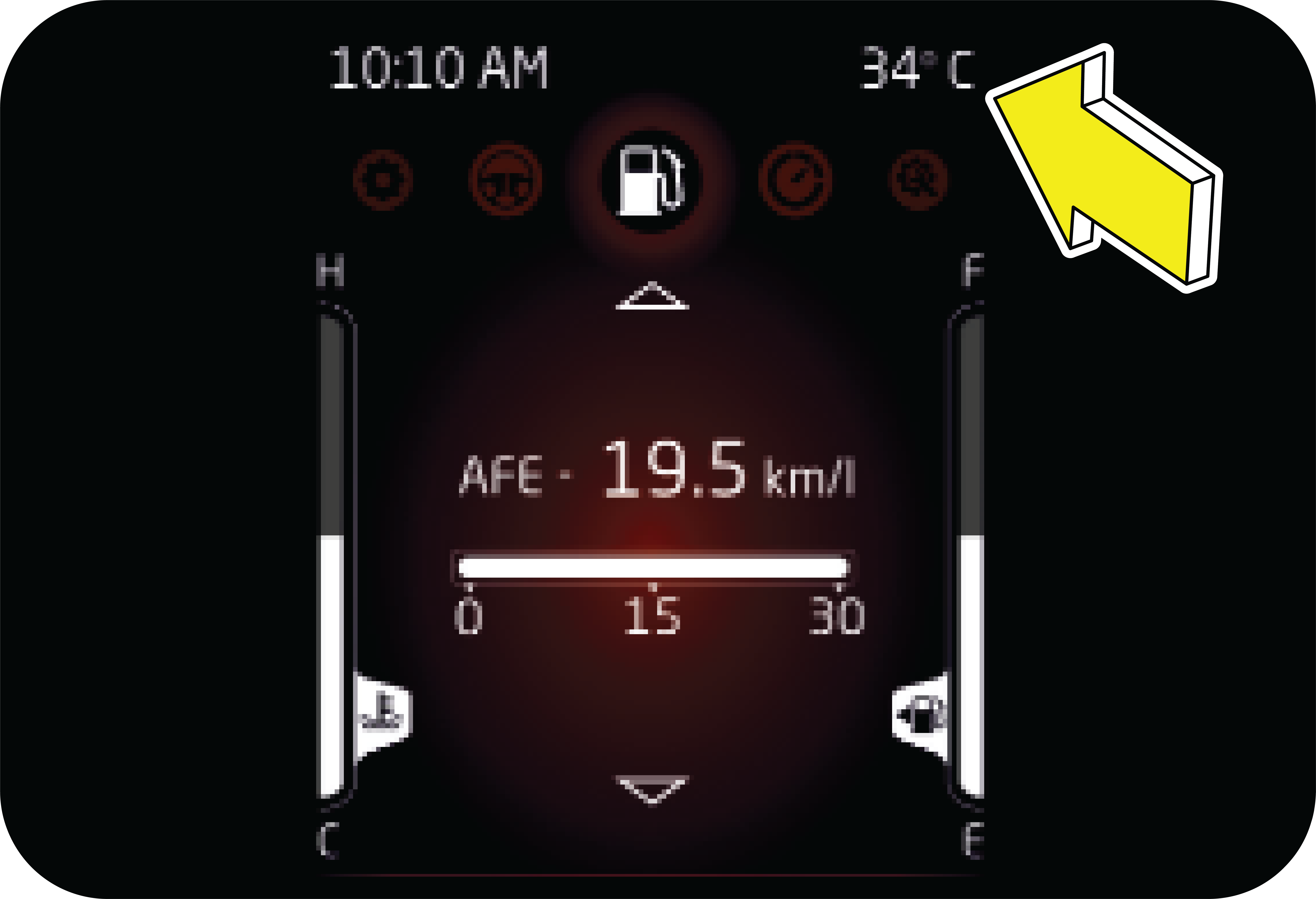

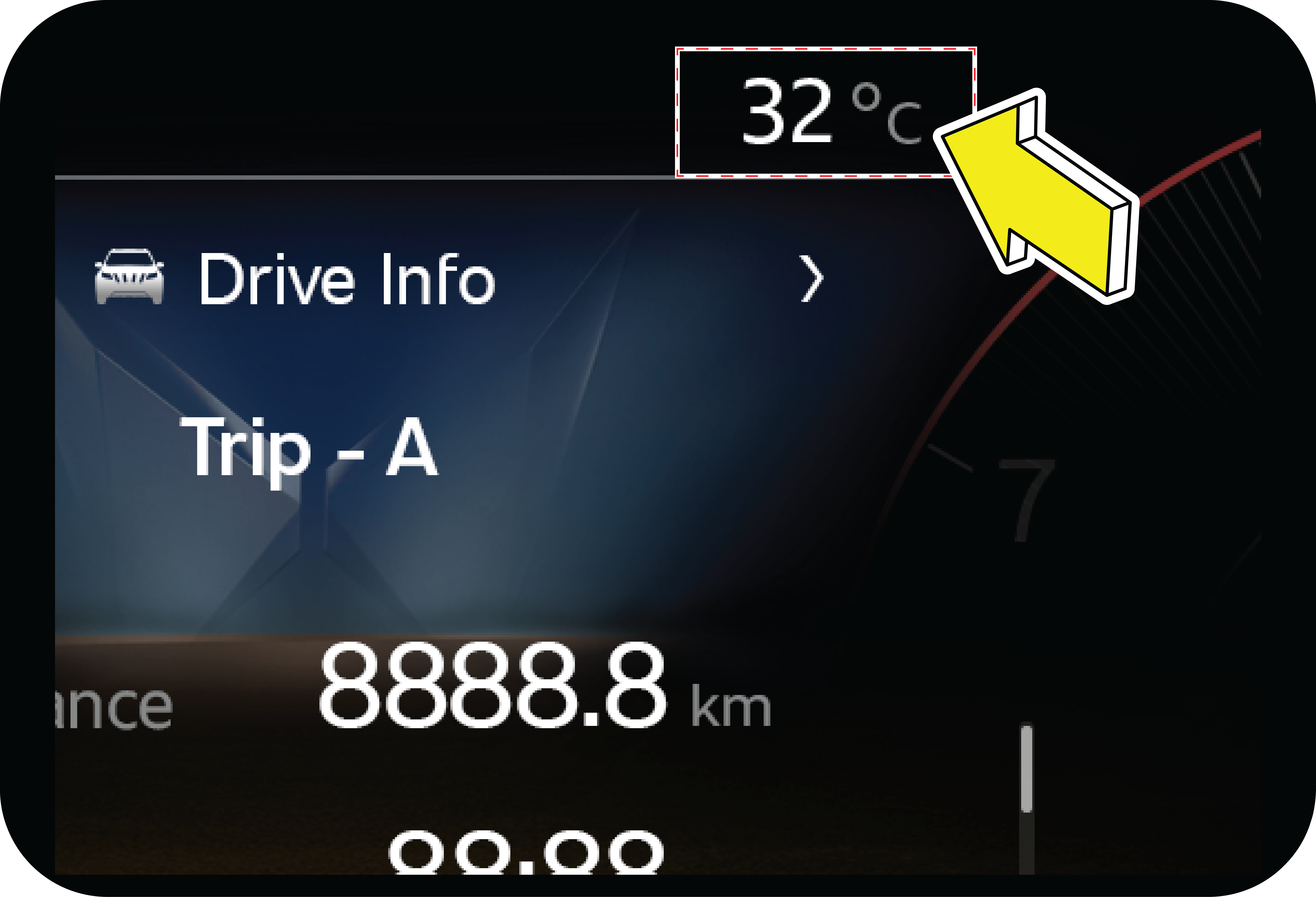

Outside Ambient Temperature
|
I
|
Trip A, B & DTE
|
E
|
Speedometer
|
J
|

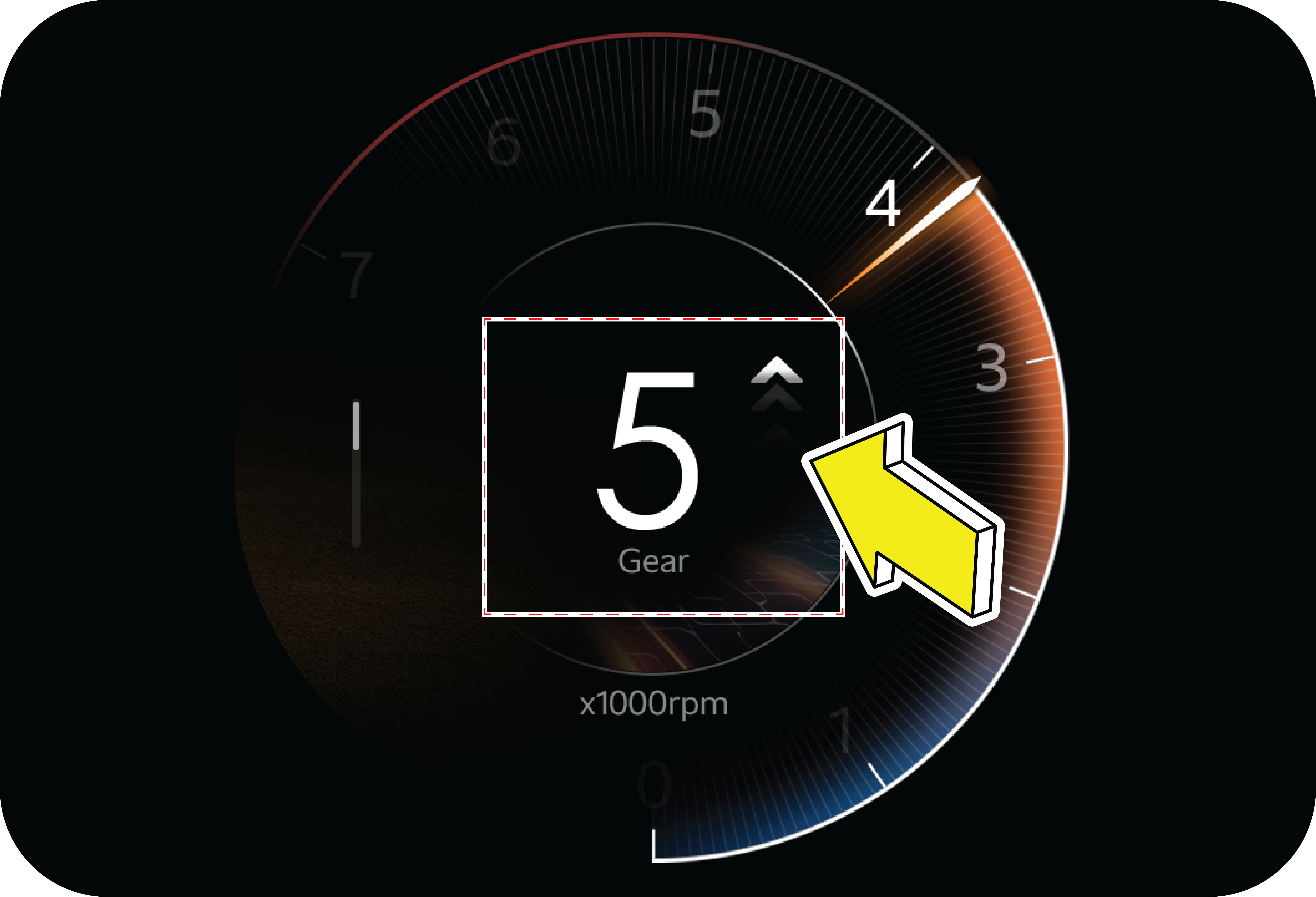

Gear Display
|

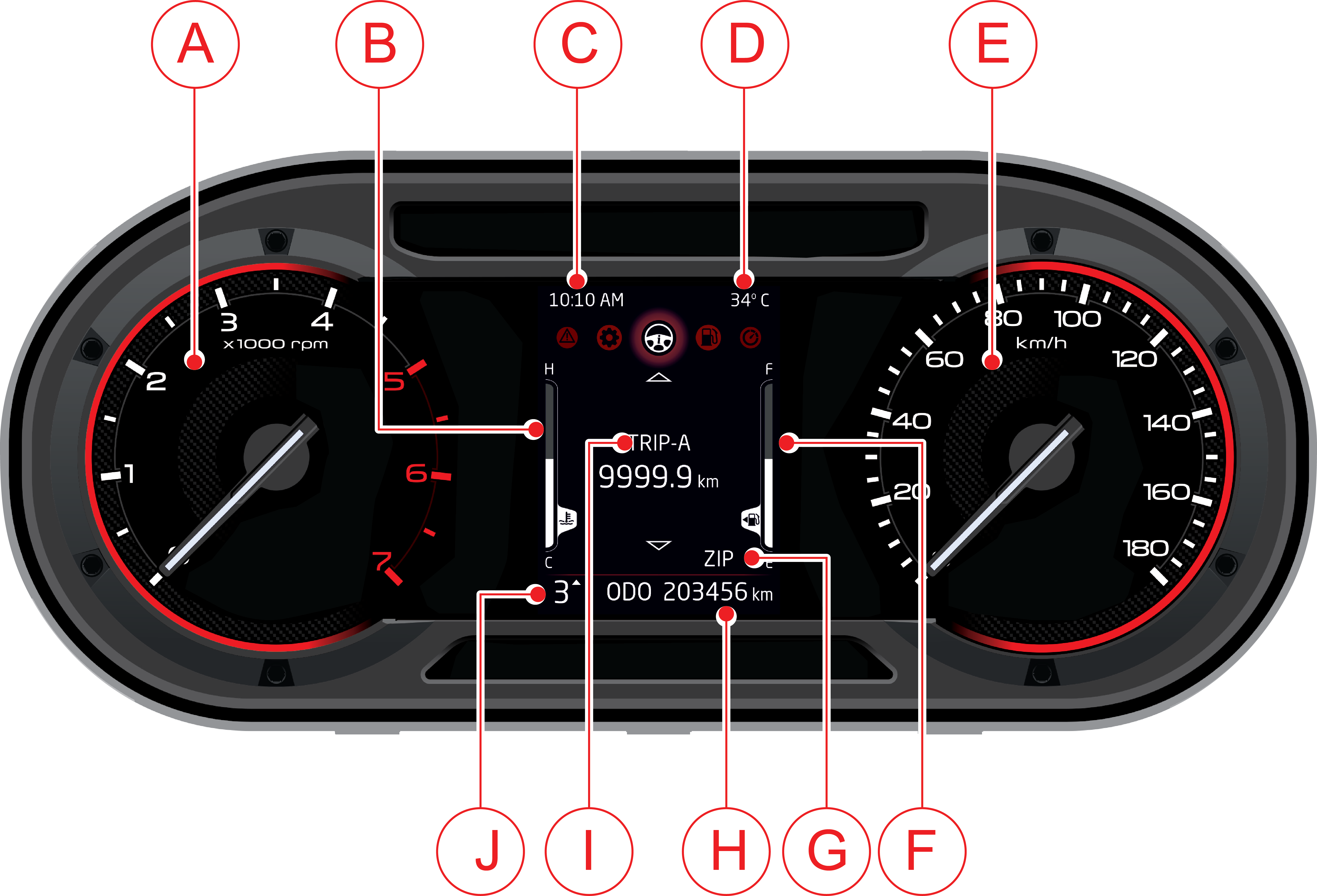

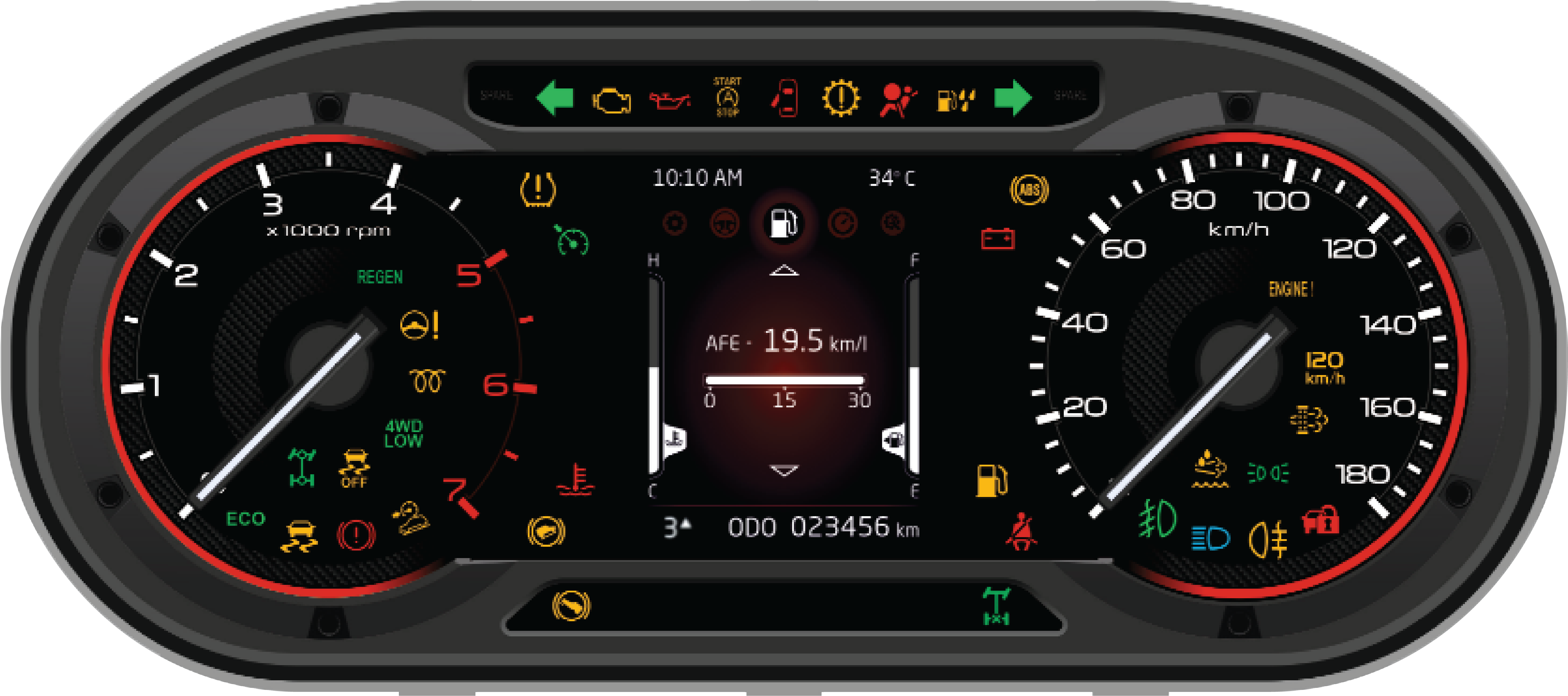

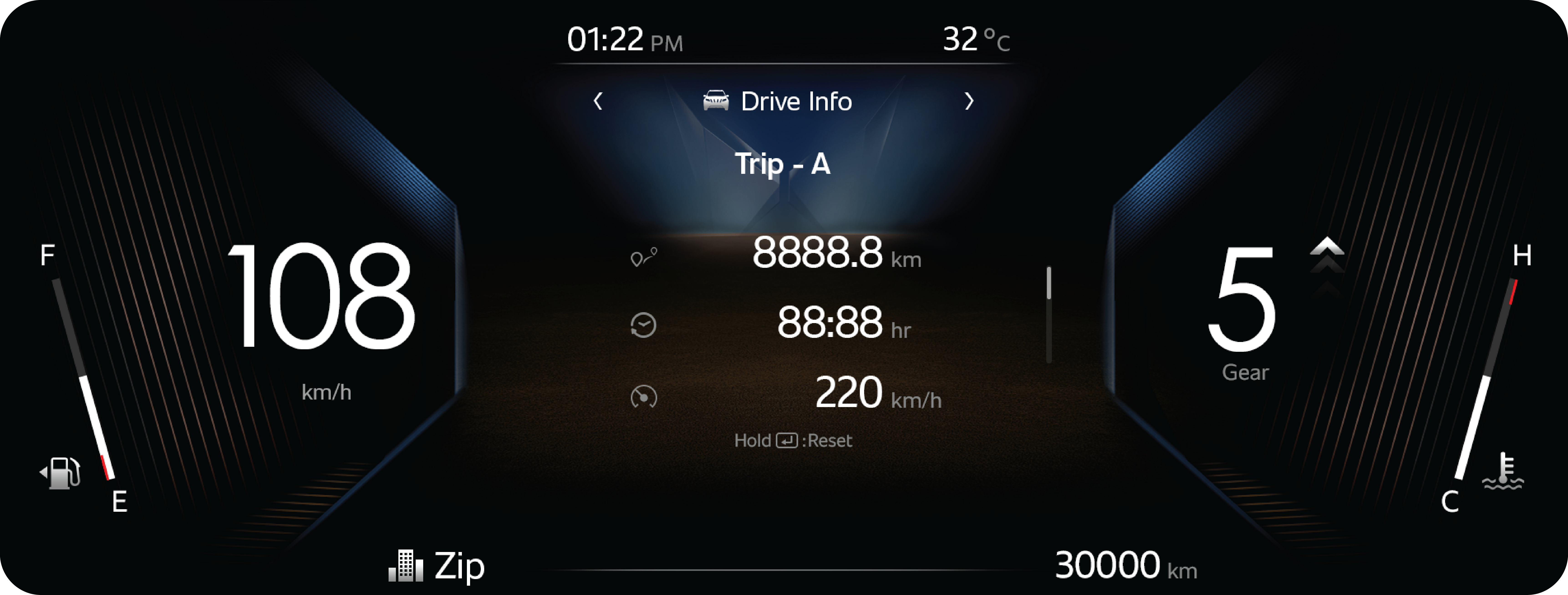

A
|
Speedometer
|
G
|
Gear Display
|
B
|
Time
|
H
|
Odometer
|
C
|
Drive Info
|
I
|
Digital Speedo Meter
|
D
|
Outside Ambient Temperature
|
J
|
Current Drive Mode
|
E
|
Tachometer/RPM Gauge
|
K
|
Fuel Gauge
|
F
|
Temperature Gauge
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
• | Primary level: Buzzer will trigger single chime in every 110 seconds when the vehicle speed reaches 80 kmph. once primary level chime is triggered, it will continue playing until speed is reduced to 76 kmph or goes beyond 120 kmph. |
• | Secondary level: Buzzer will trigger periodic chime when the vehicle speed reaches 120 kmph and chime will continue playing until vehicle speed is reduced to 114 kmph. Below this speed primary level chime will be triggered and will continue till 76 kmph. |
TFT |
Digital |
|
|
TFT |
|
|

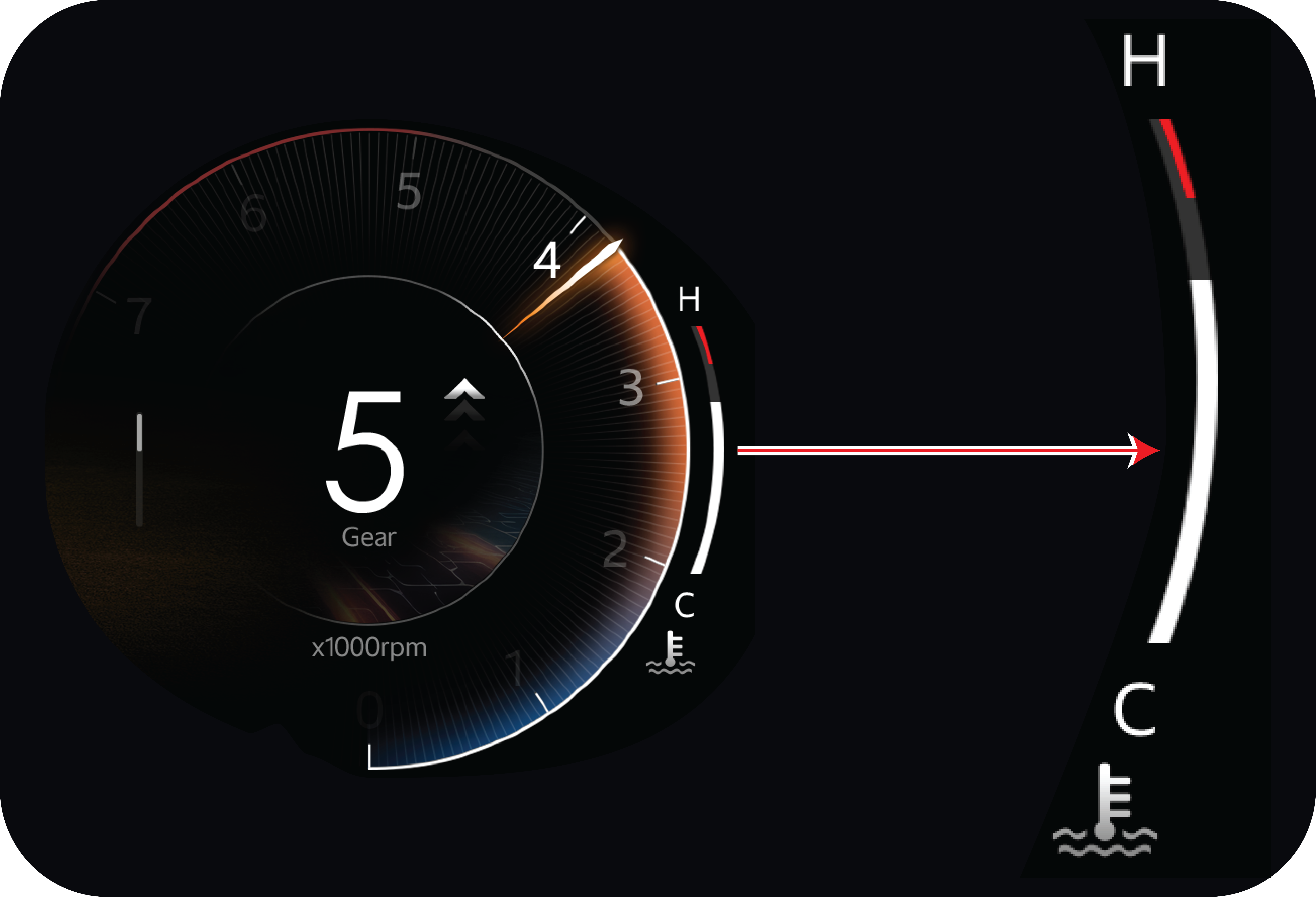

If the gauge moves beyond the normal operating range toward “H” mark. it represents that engine is overheating. This will
also be notified through blinking or continuously ON Engine high temperature lamp.
|
Digital |
|
|
If the gauge moves beyond the normal operating range toward “H” mark. it indicates the engine overheating that may damage

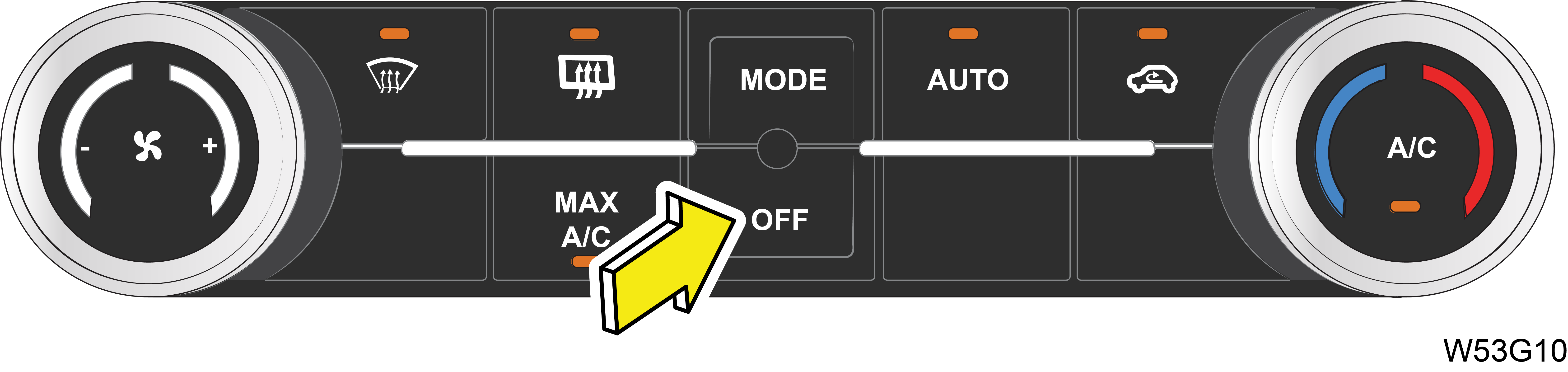

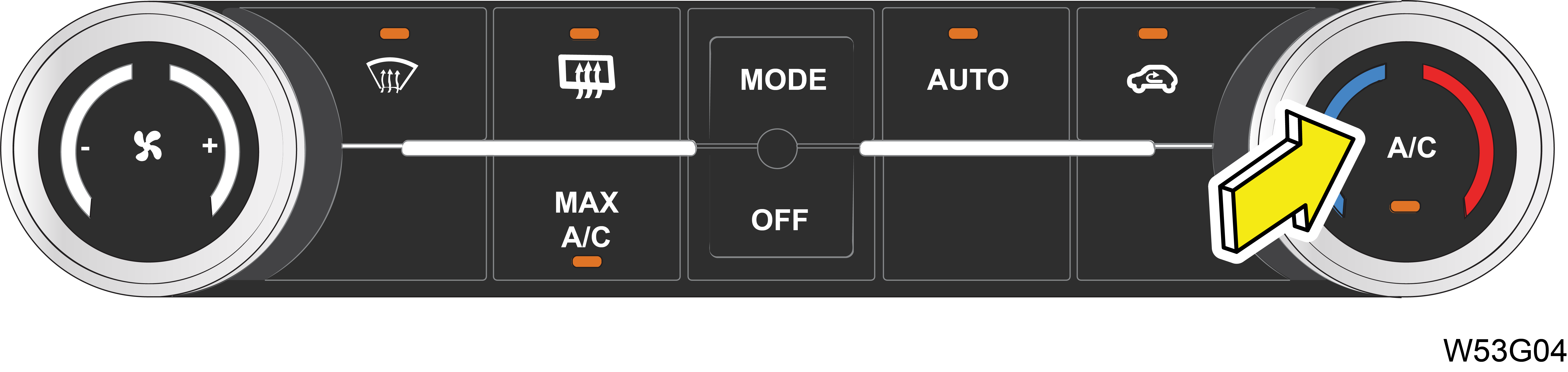

the engine. Allow engine to cool. In such situations switch OFF the AC and observe any improvements in the temperature gauge.
If not, stop the vehicle and allow the engine to cool down. Check the coolant level in the coolant reservoir and top-up if
required. If the engine is still overheating, contact your nearest Mahindra Authorised Dealer.
|

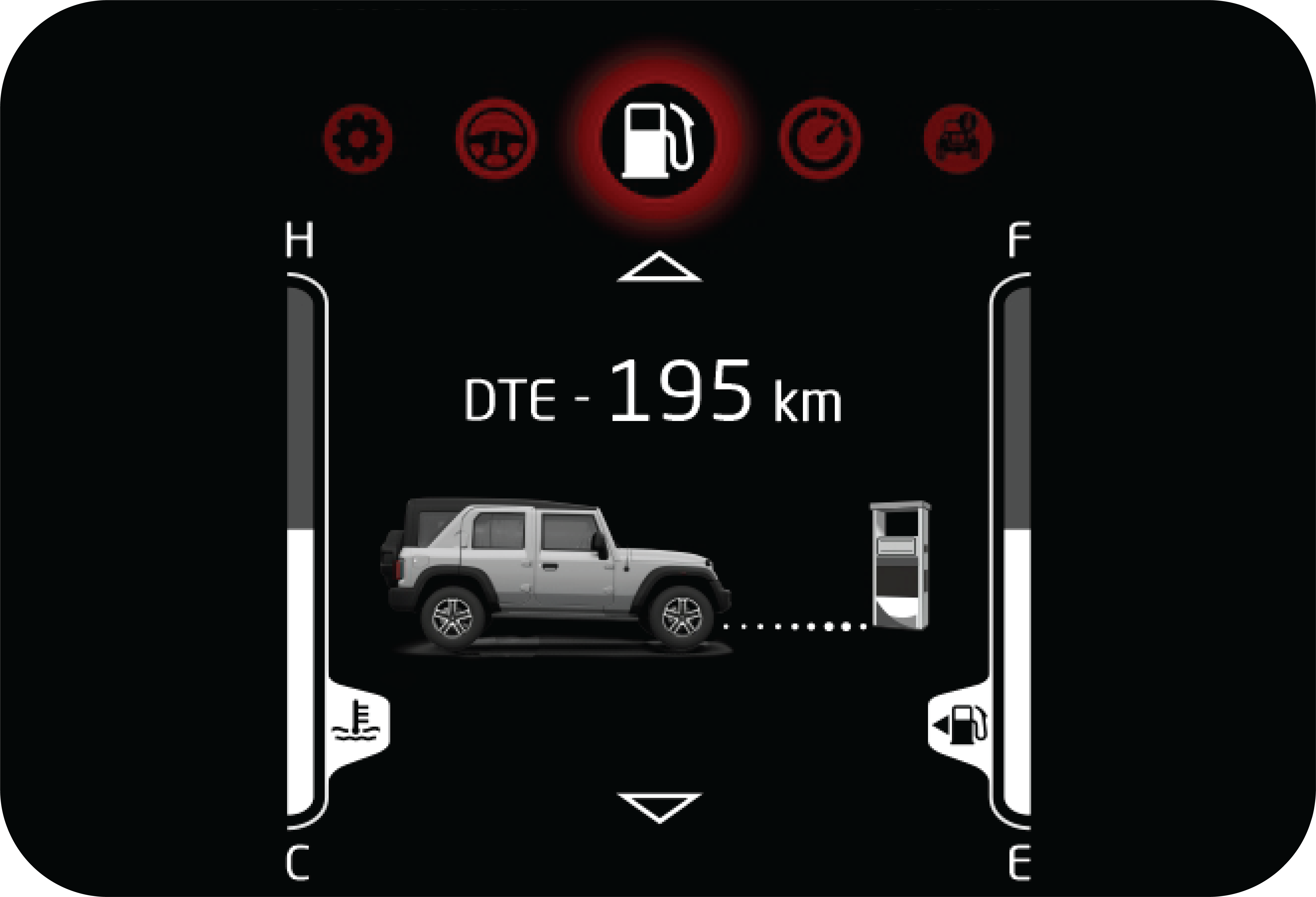

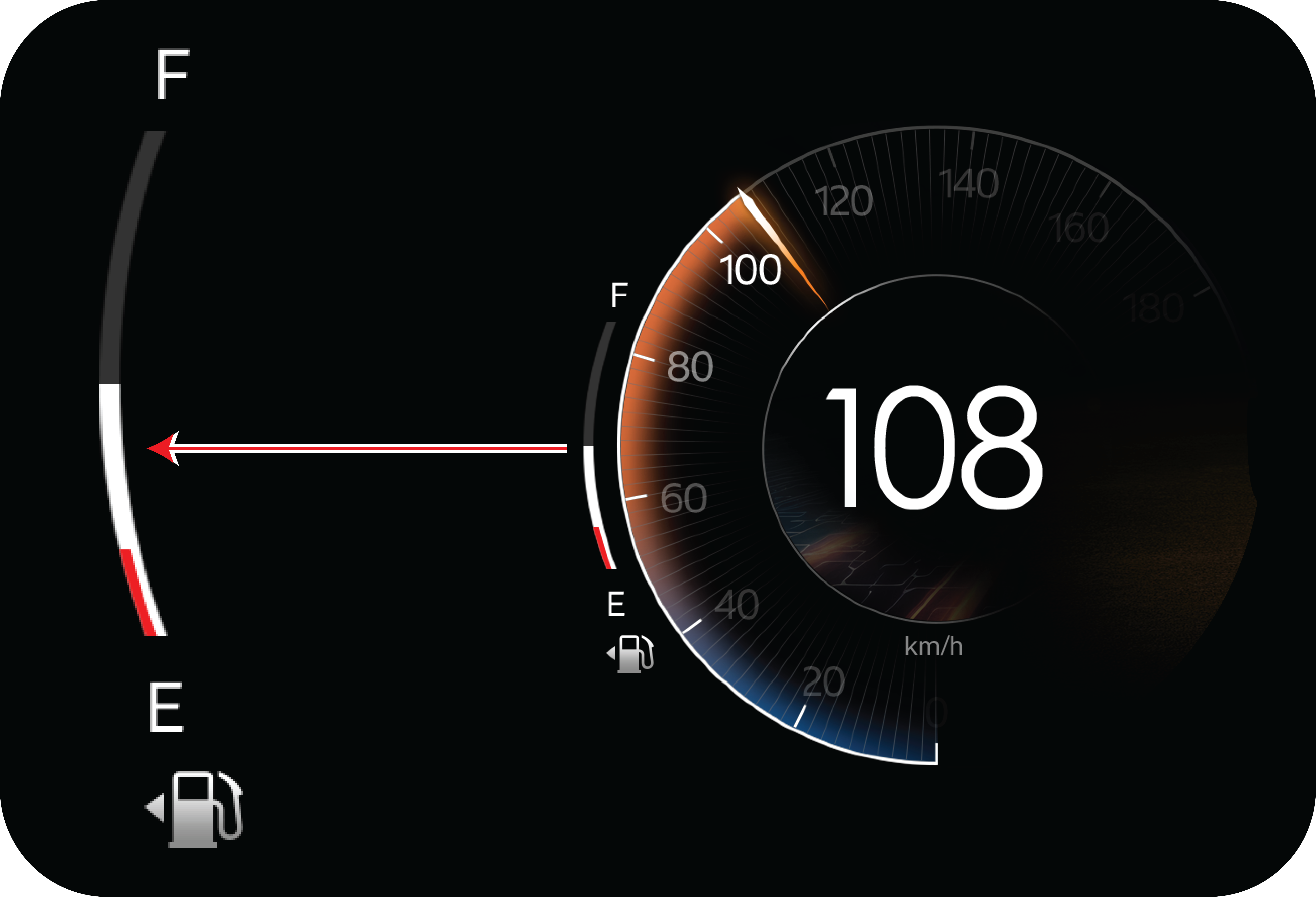

The fuel level gauge functions only when the ignition is switched ON. It gives the status of the fuel level in the fuel tank.
F indicates the tank is full (57 +/- 2 litres), E indicates the tank is empty.
|
|
TFT |
Digital |
|
|
TFT |
Digital |
---|---|
|
|
TFT |
Digital |
|
|
|

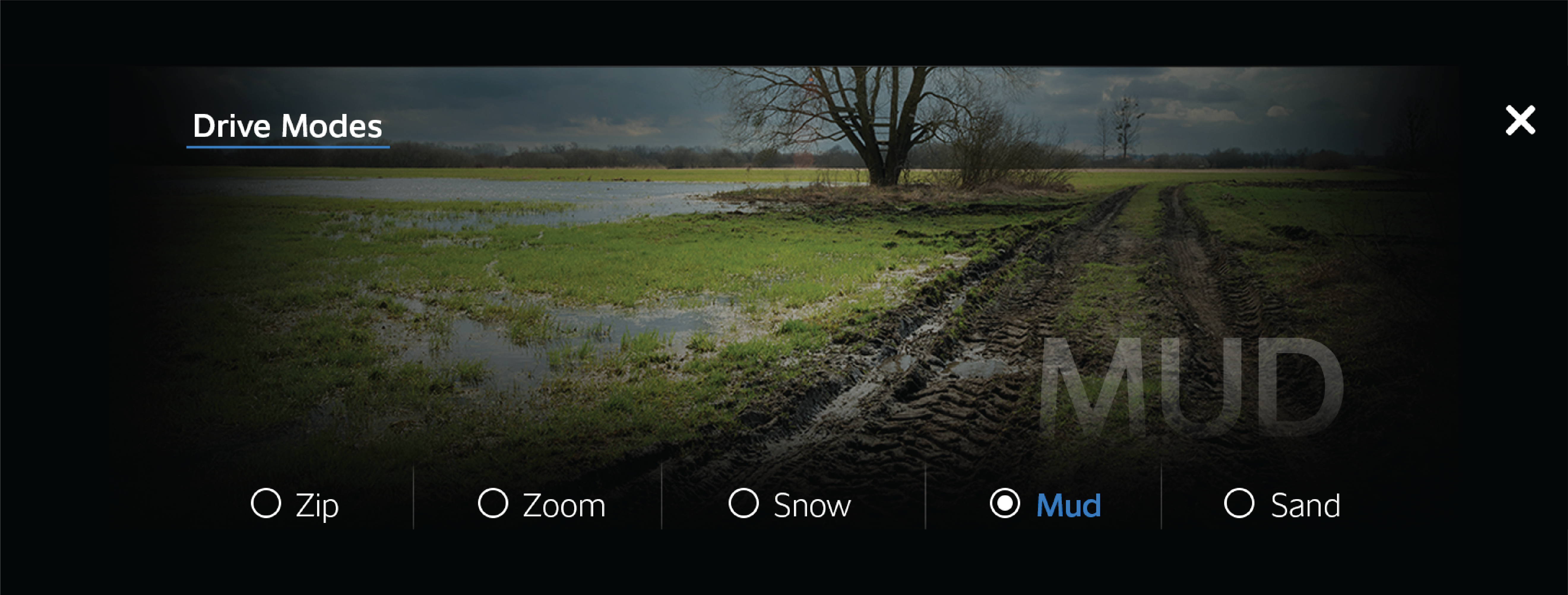

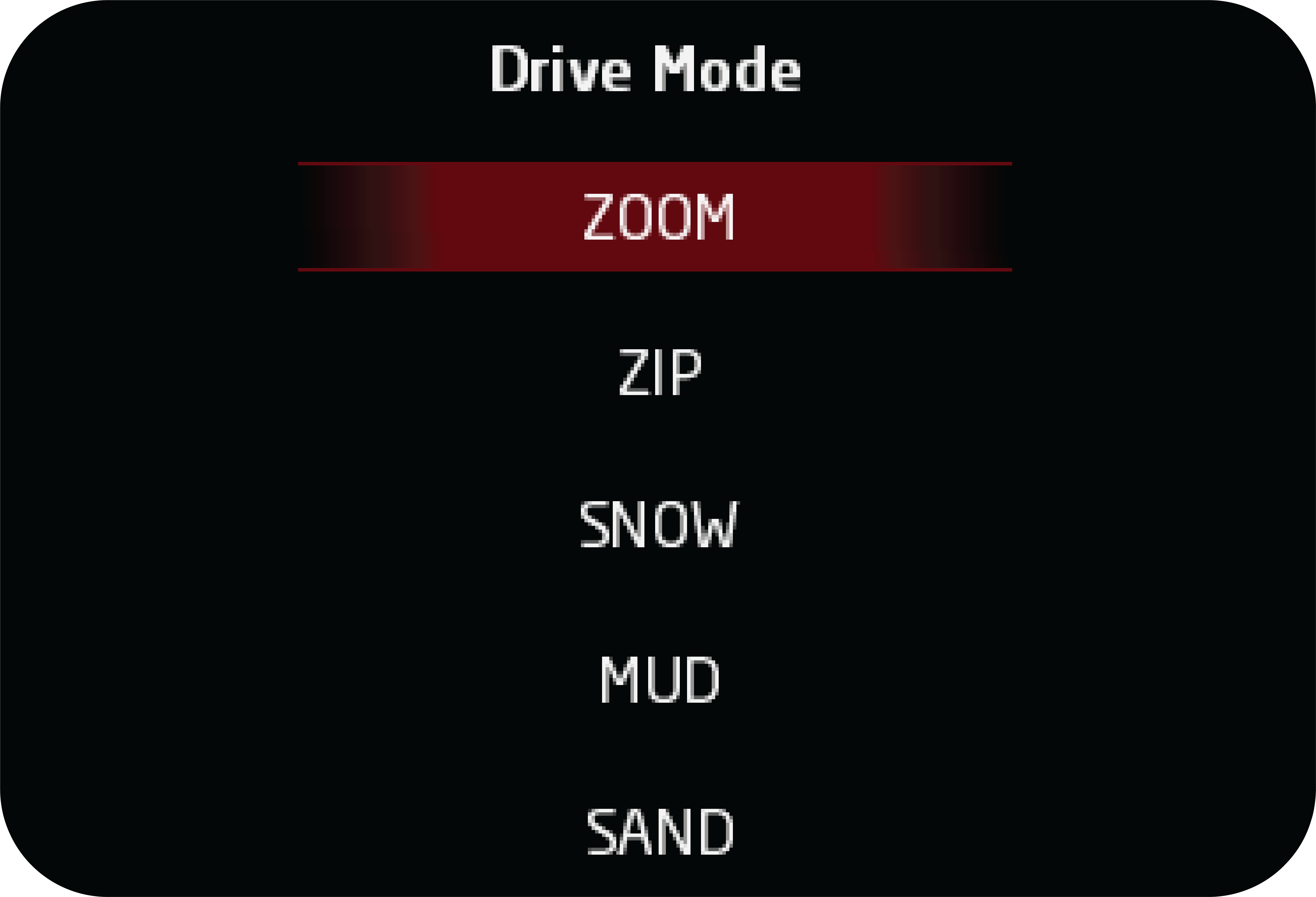

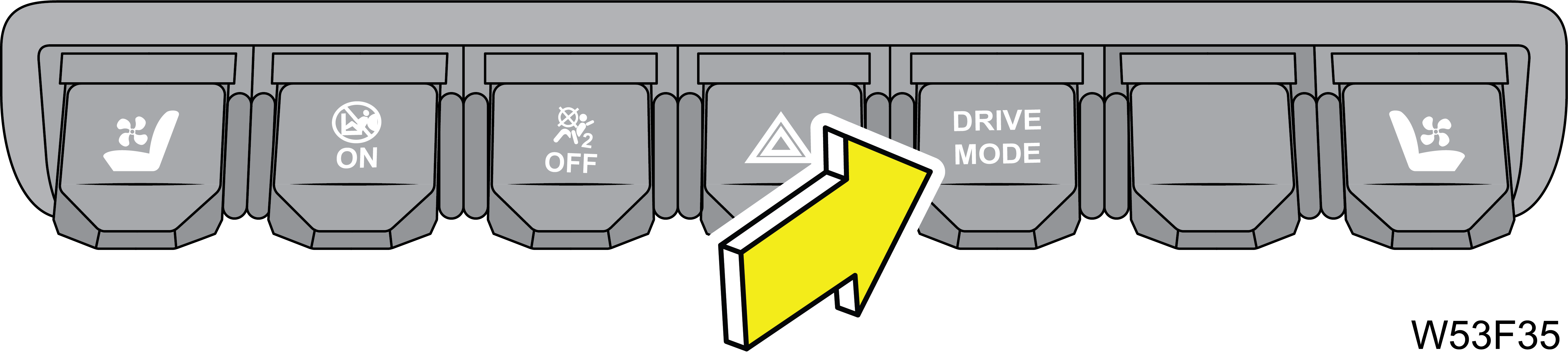

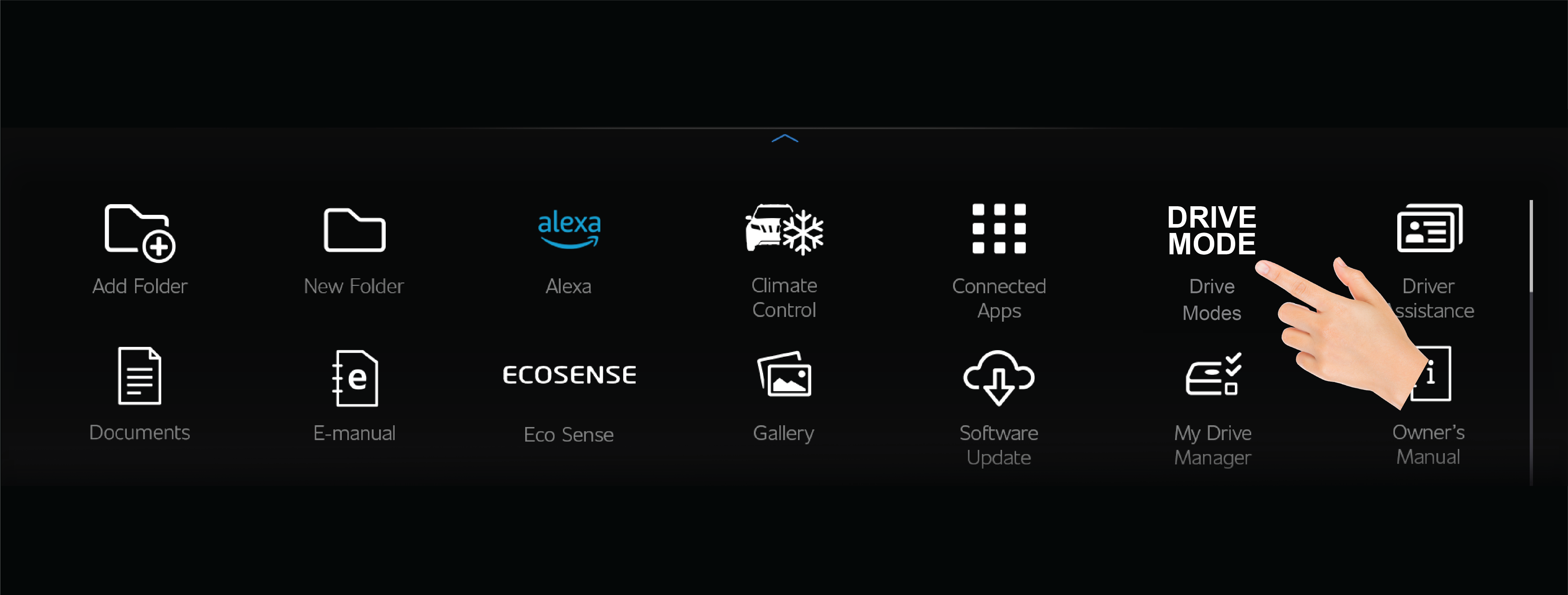

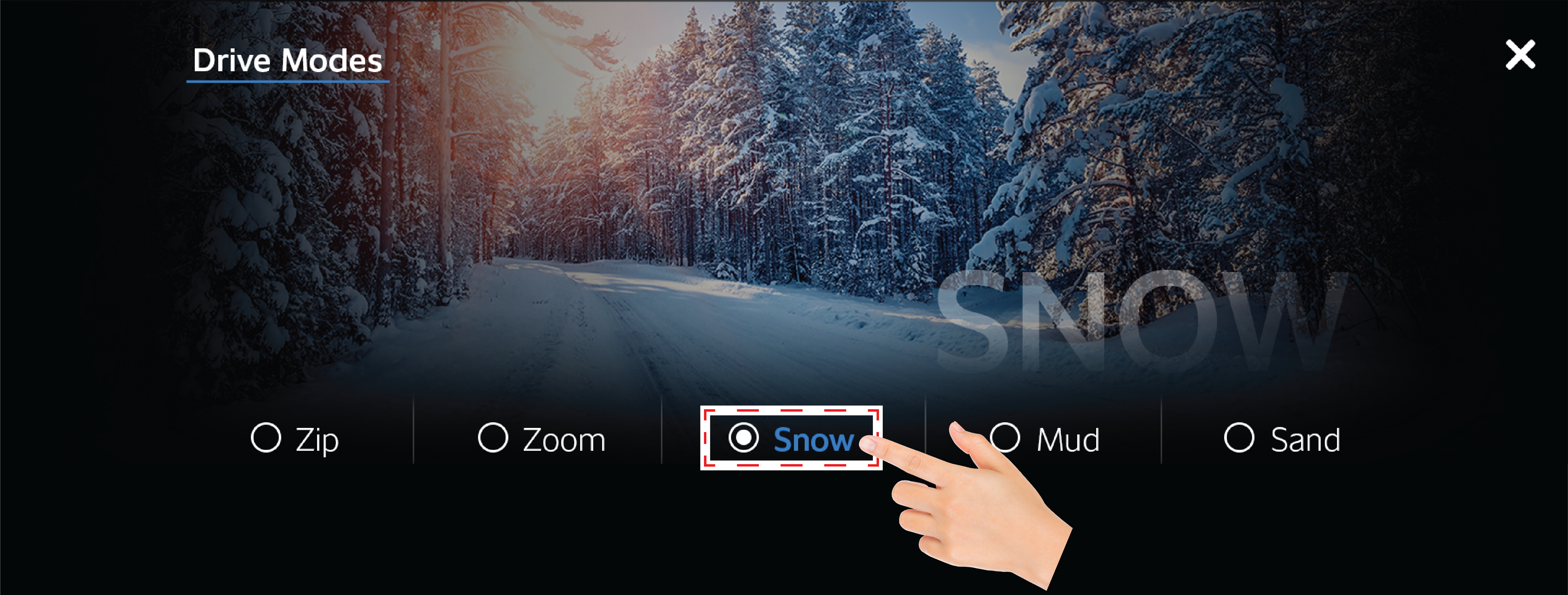

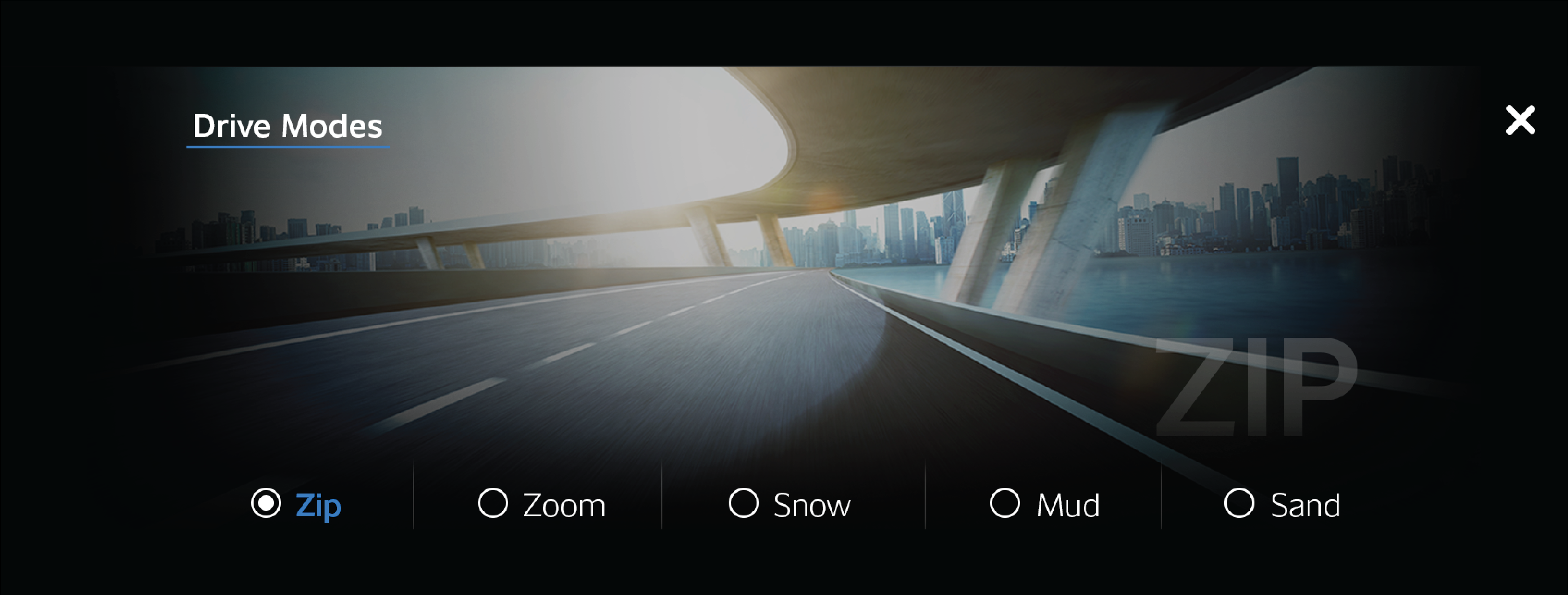

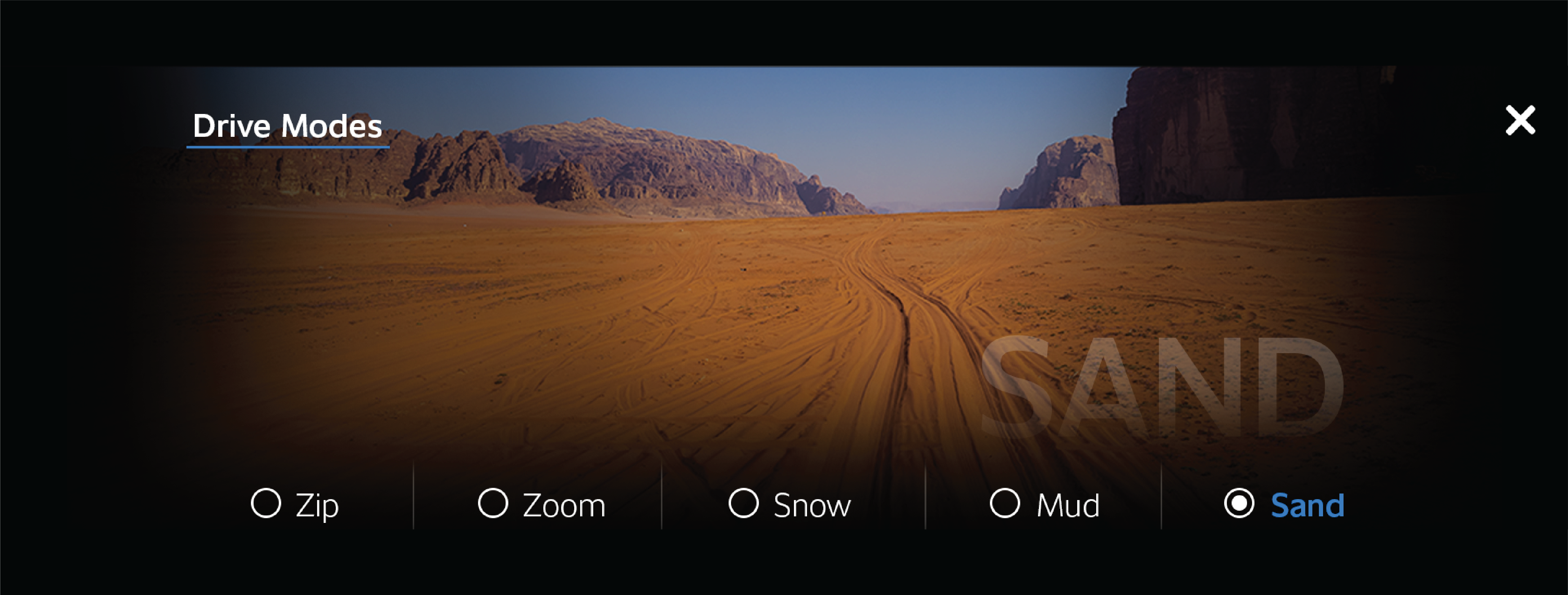

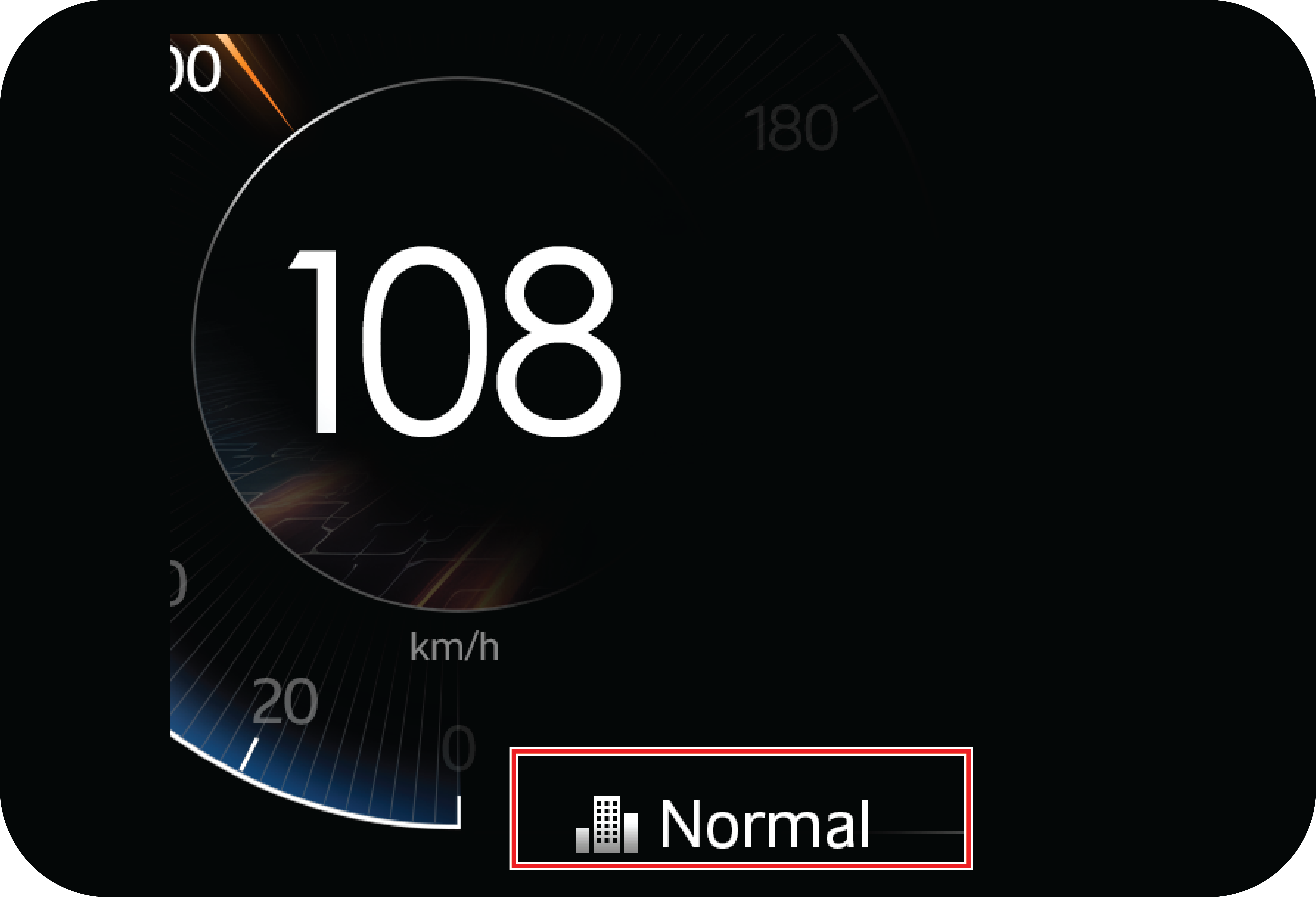

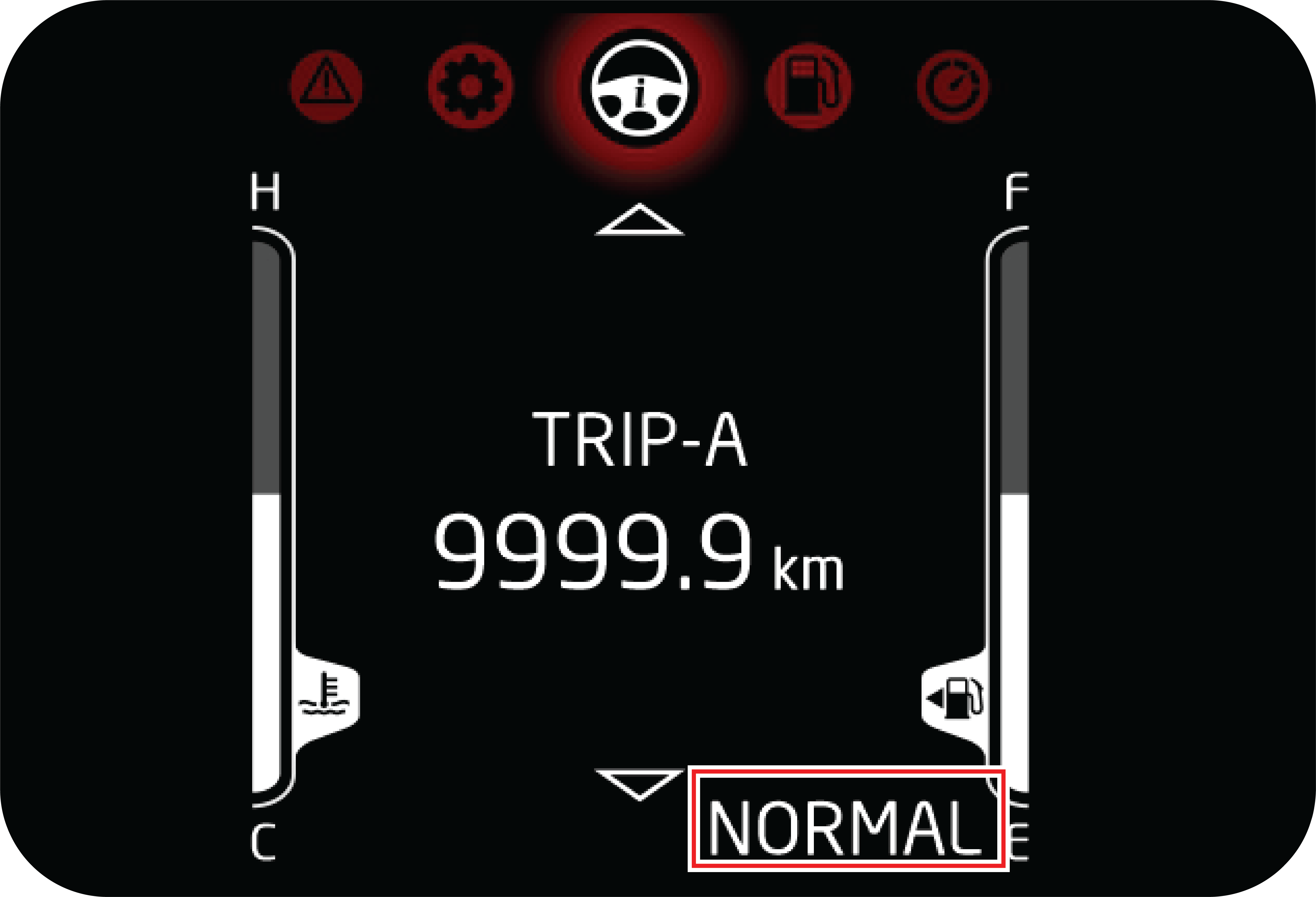

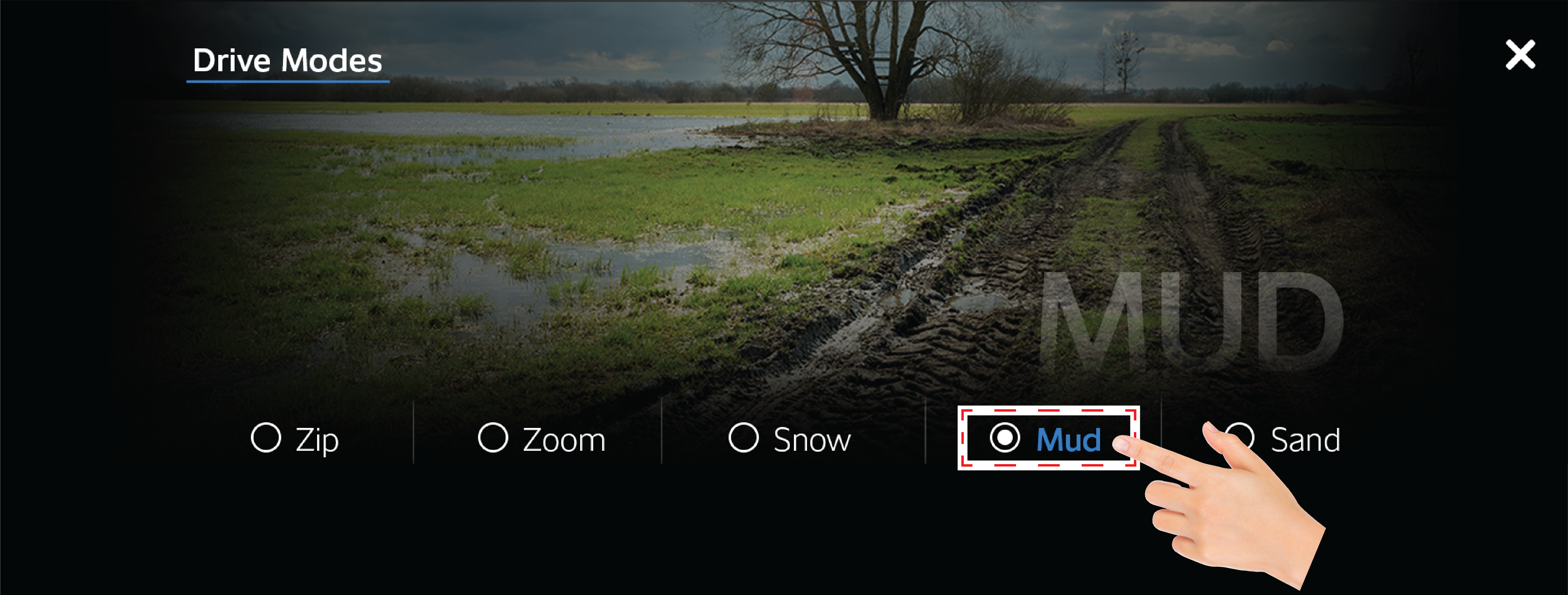

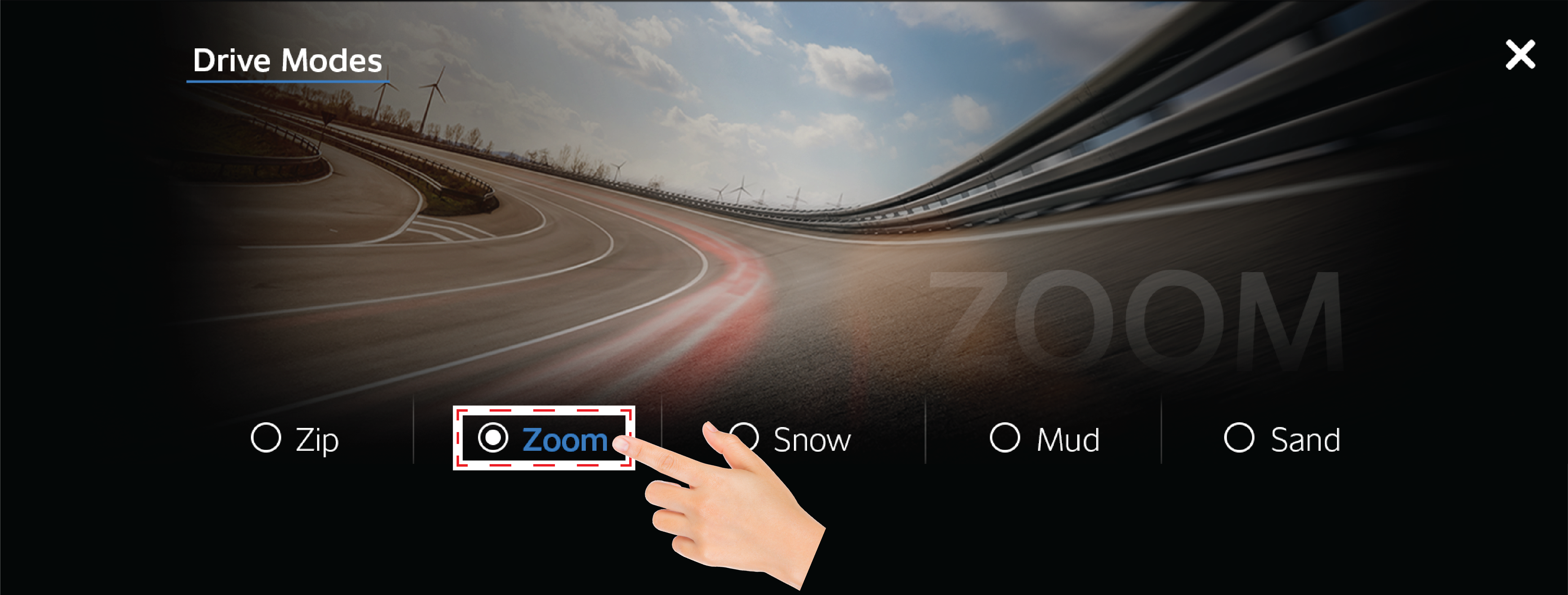

TFT: Drive selection menu part of cluster will display the current drive mode.
|
|

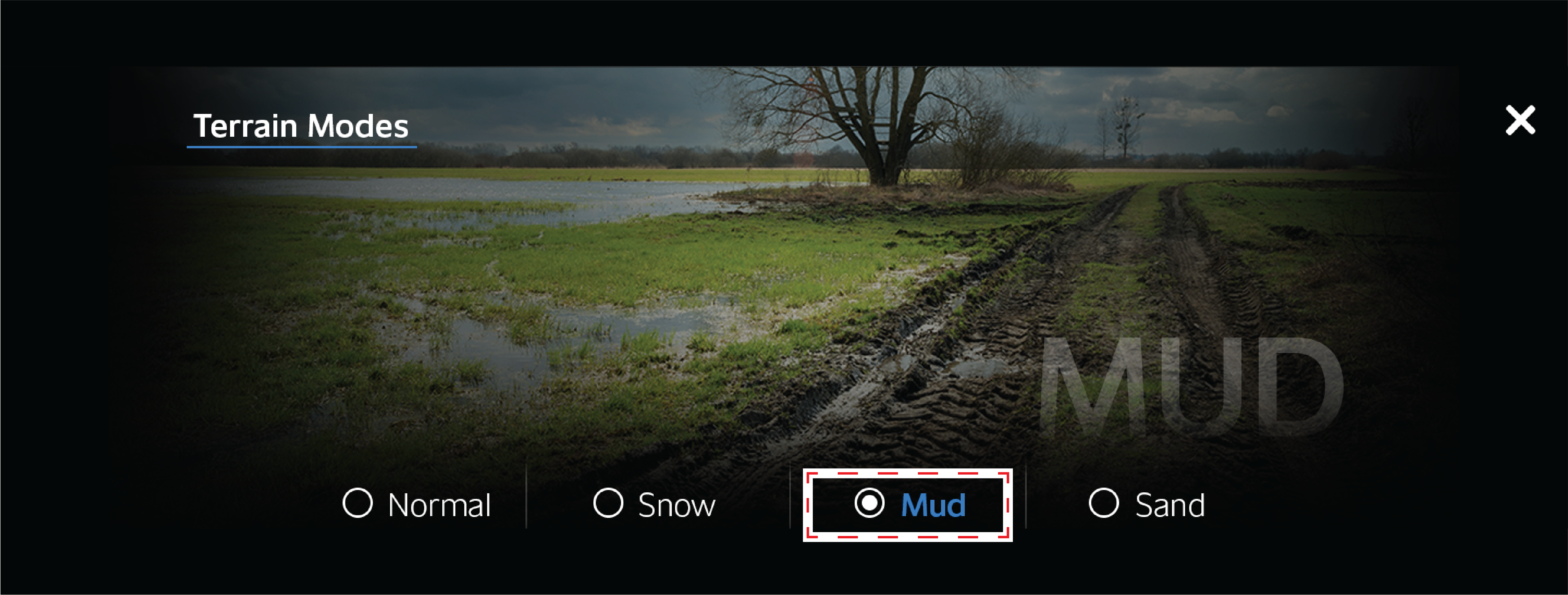

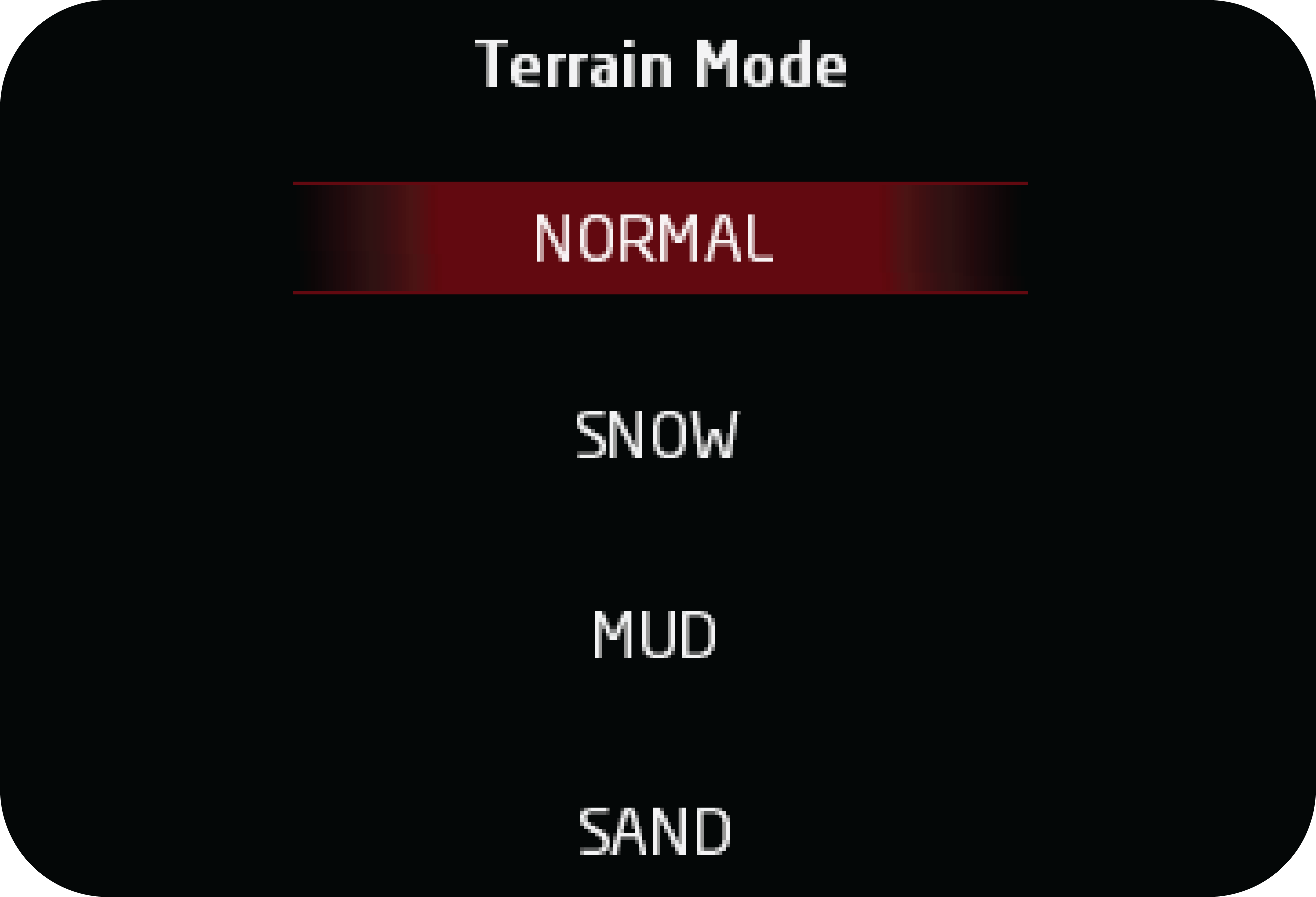

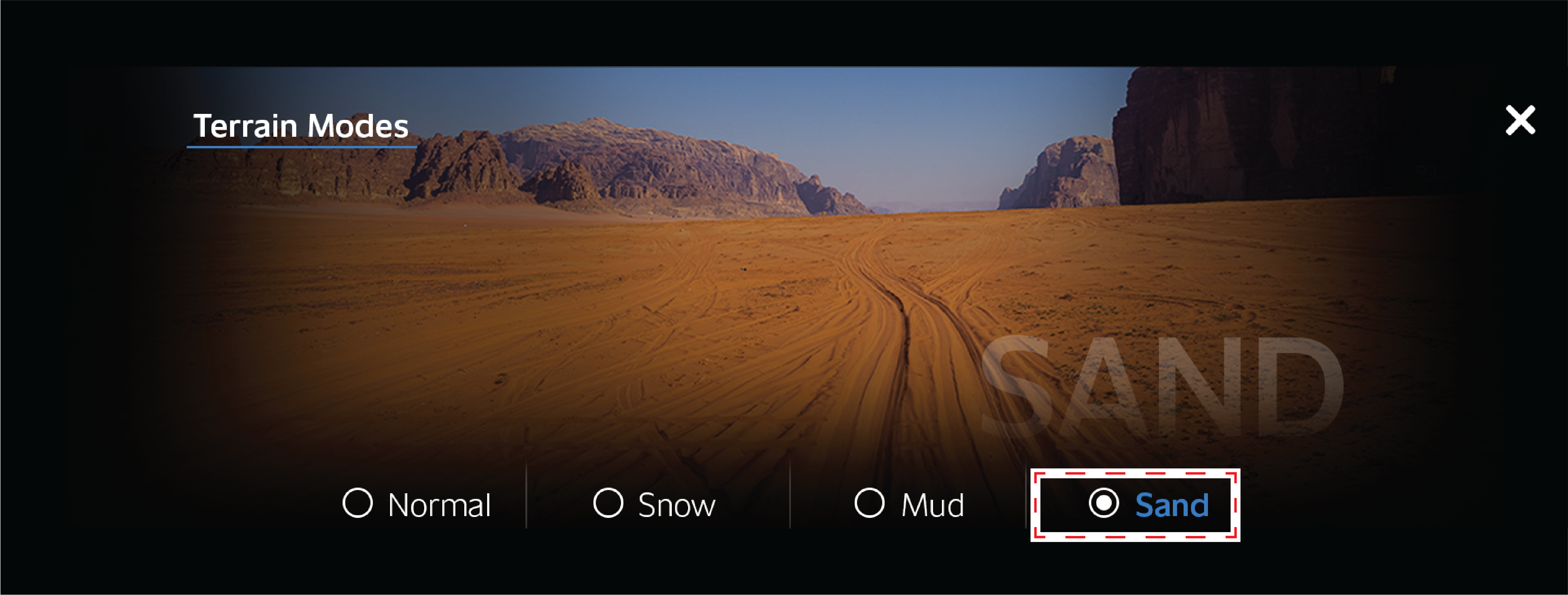

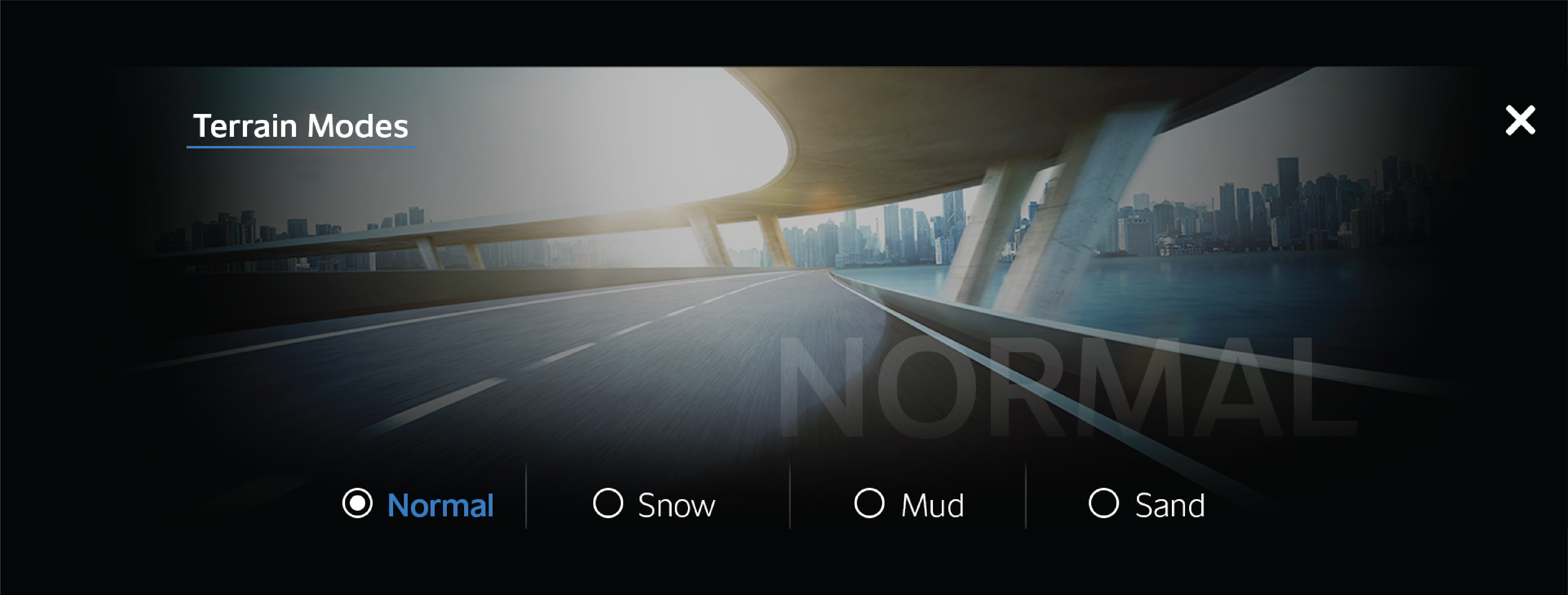

TFT: Drive selection menu part of cluster will display the current terrain mode.
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|

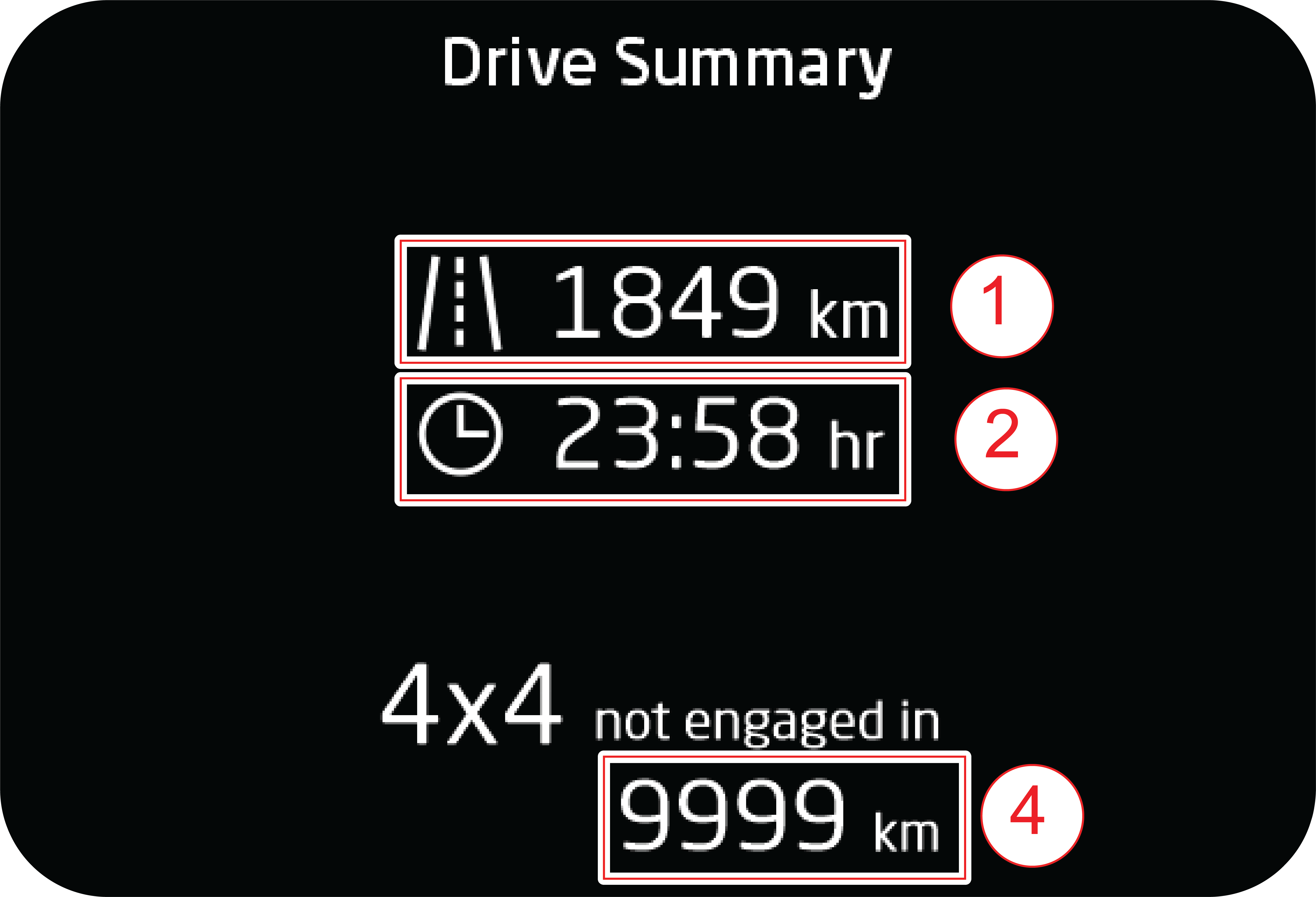

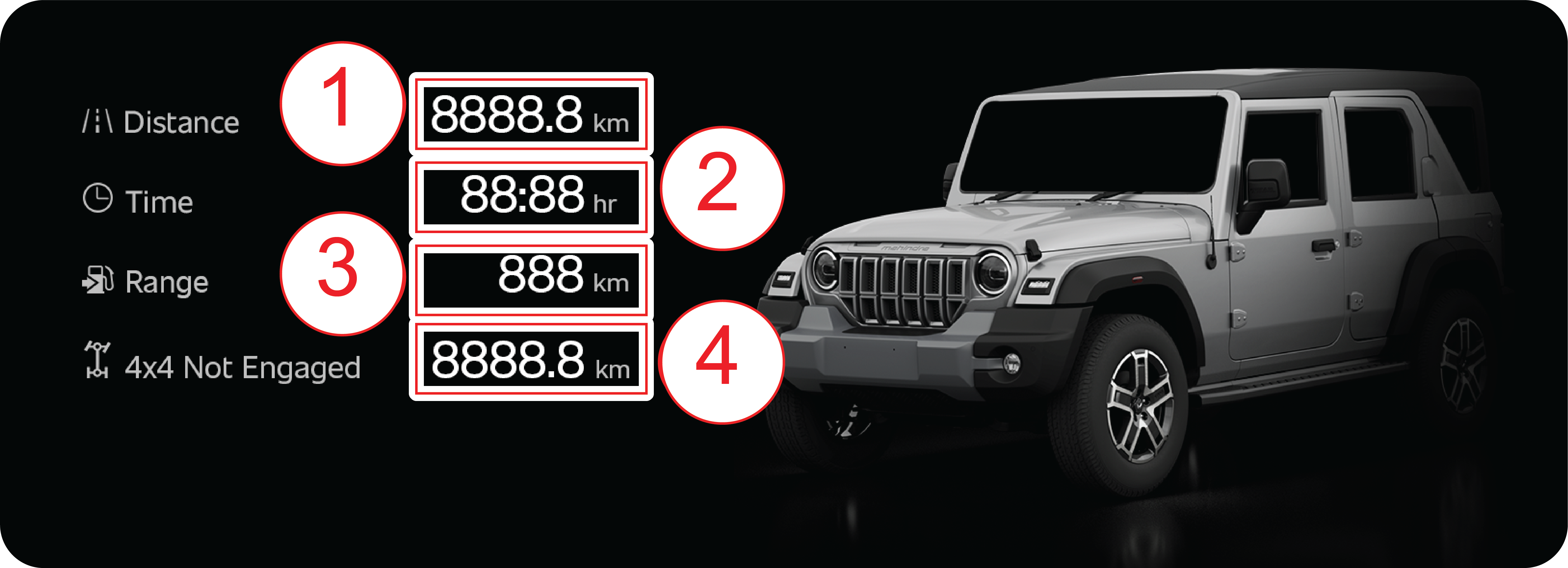

This screen will appear when Ignition is turned off. Following information will be displayed:
|
||
1
|
Distance in IGN cycle
|
It displays the total distance travelled in an Ignition cycle.
|
2
|
Drive time in IGN cycle
|
It displays the total time for which engine was ON in the Ignition cycle.
|
3
|
DTE
|
It represents the current DTE value.*
|
4
|
4x4 Not engaged
|
4x4 Not engaged is displays the distance travel in an ignition cycle without 4x4 engage distance.*
|
* - It represent few variants only it will display
|
|

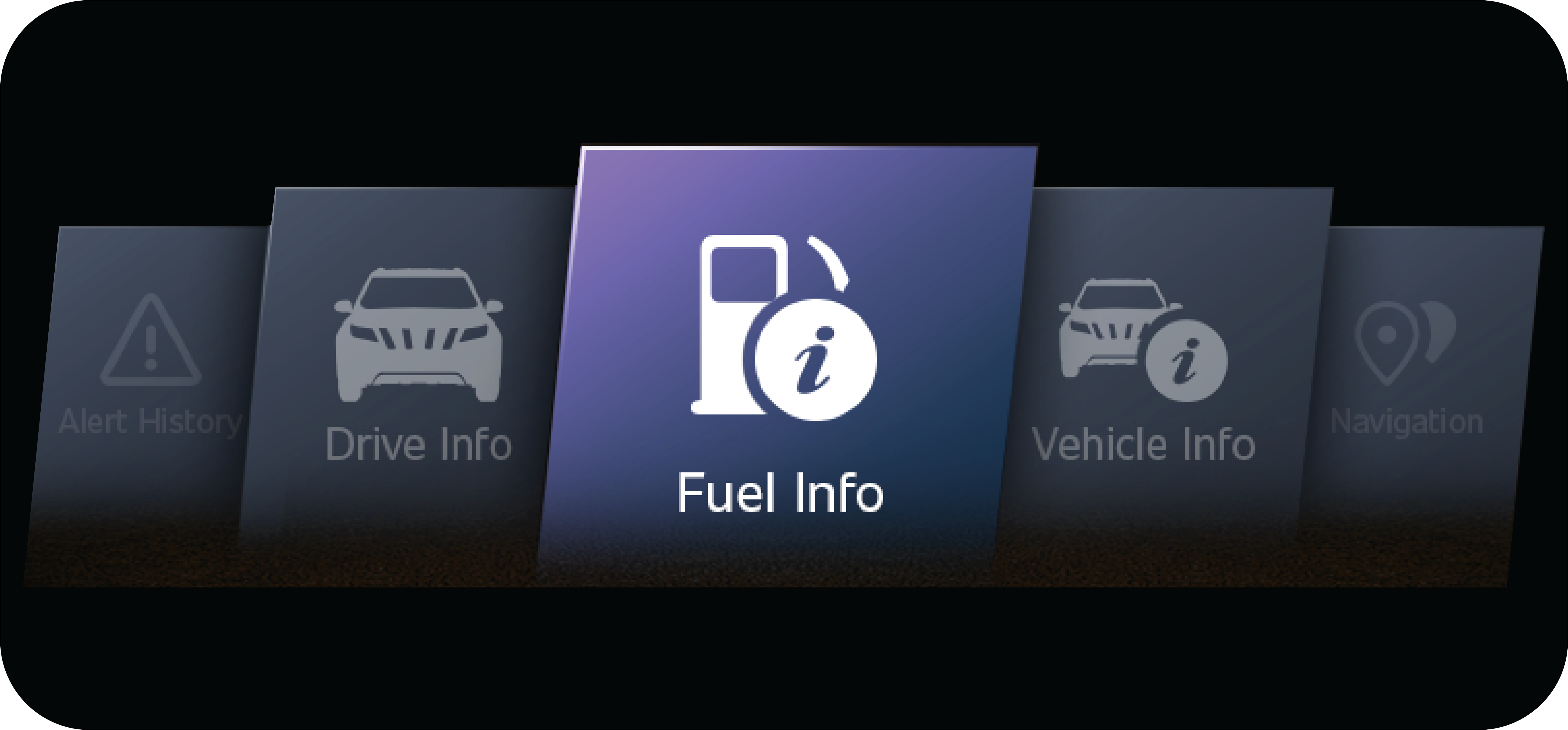

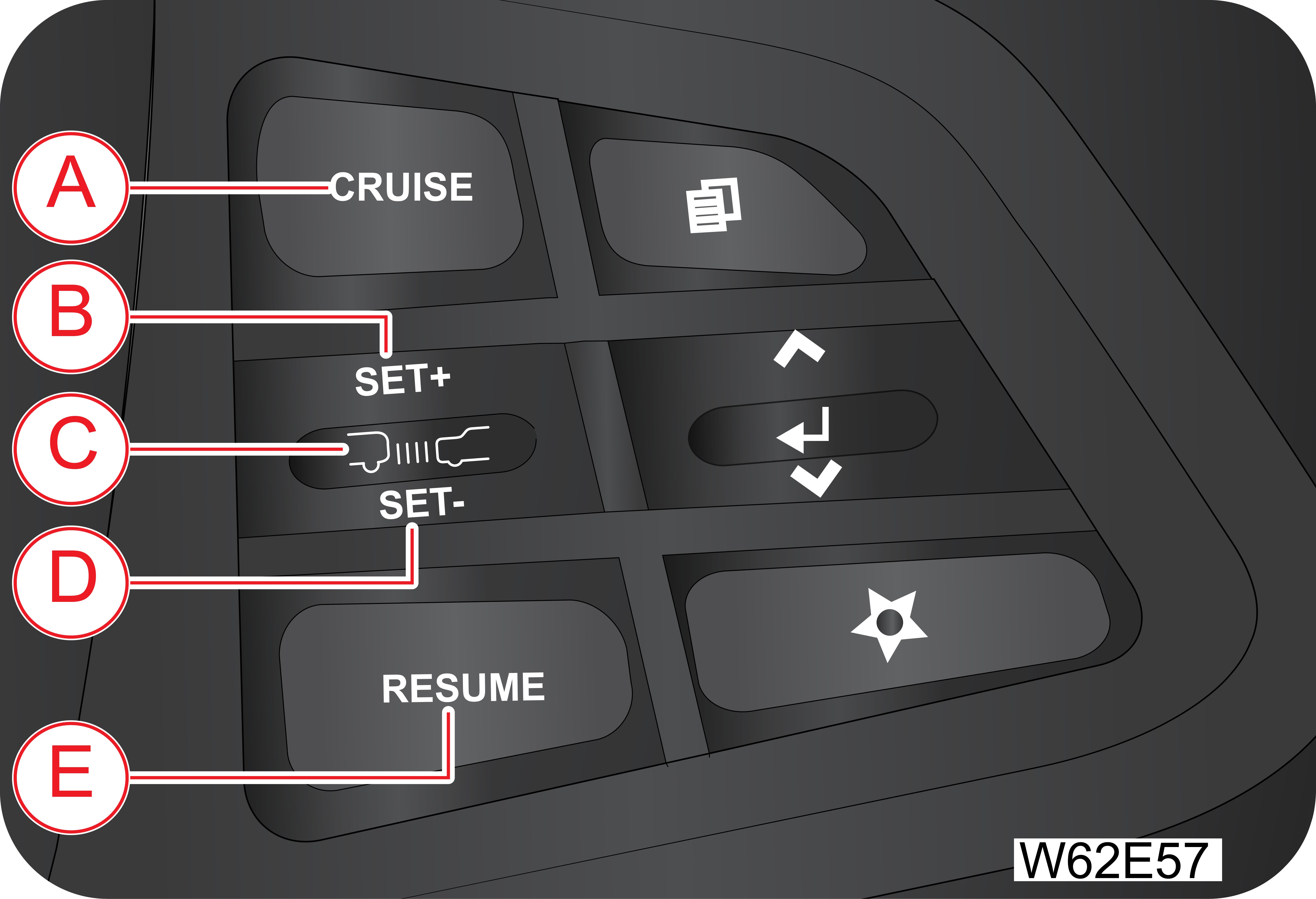

Instrument cluster control switches located in the driver side switch bank.
|
1 |
UP button: Used to scroll vertically |
2 |
DOWN button: Used to scroll vertically |
3 |

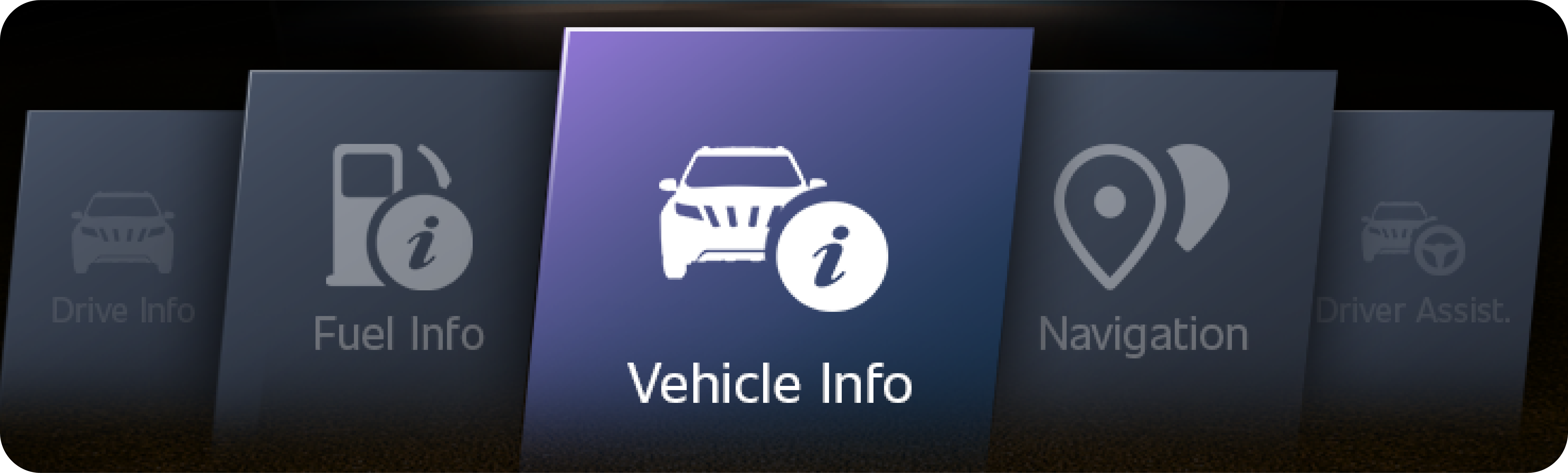

MENU button: Horizontal scrolling i.e., change in menu |
4 |
OK button: Select a option |
A |
Menu button: Horizontal scrolling i.e., change in menu |
B |
UP button: Used to scroll vertically up direction |
C |
OK button: Select a option |
D |
Down button: Used to scroll vertically down direction |
E |
Favorite button: Select a Favorite option |

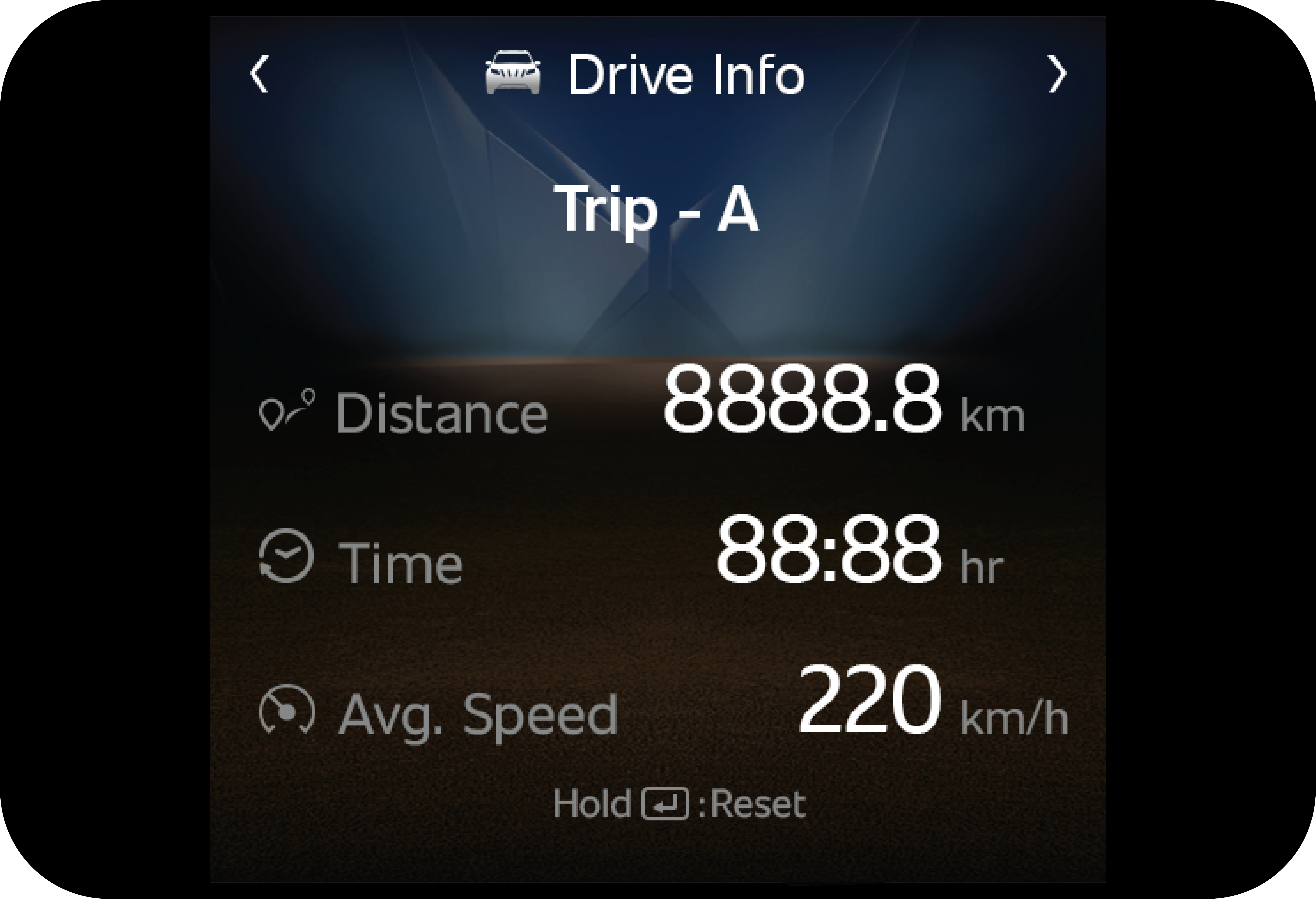

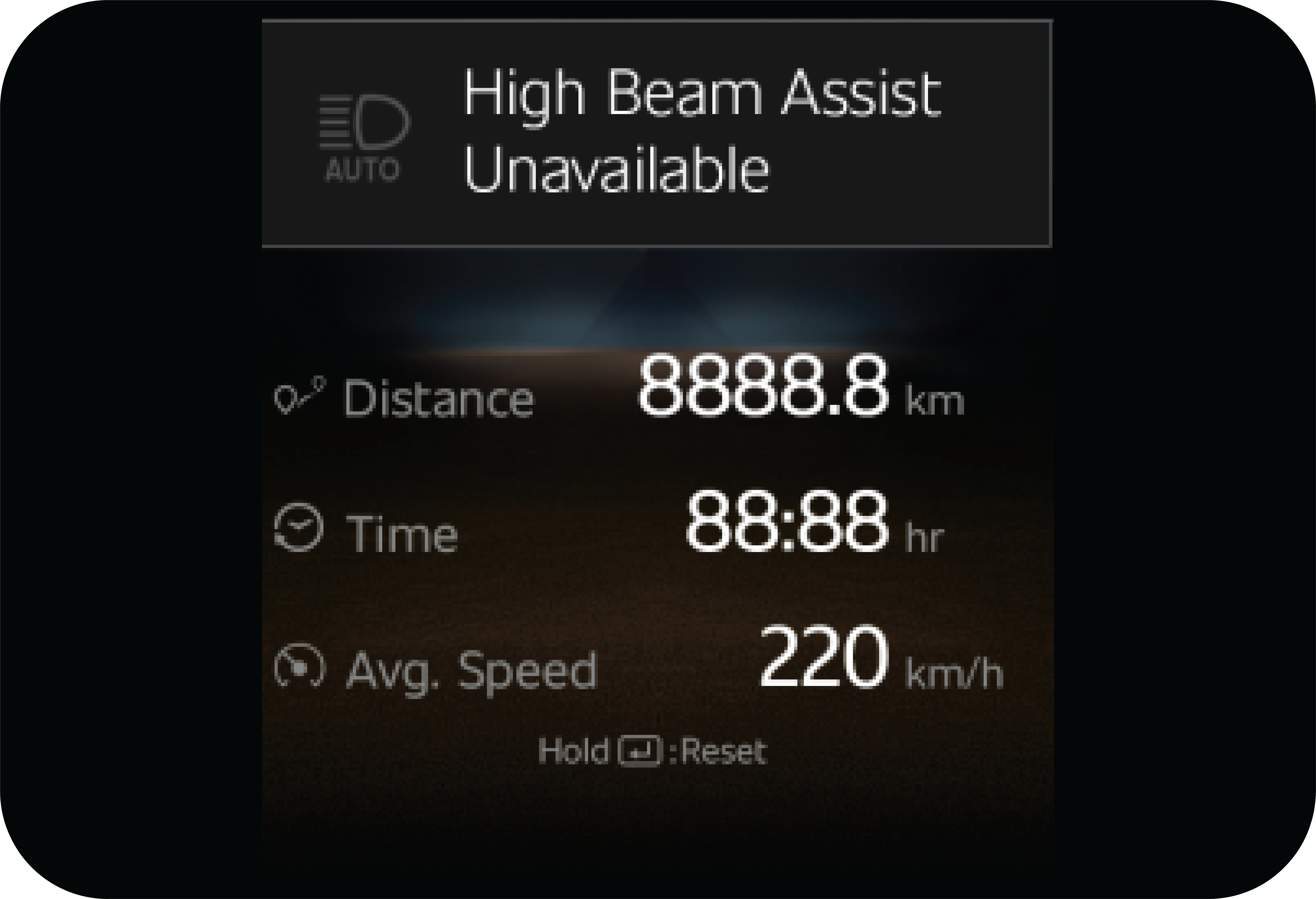

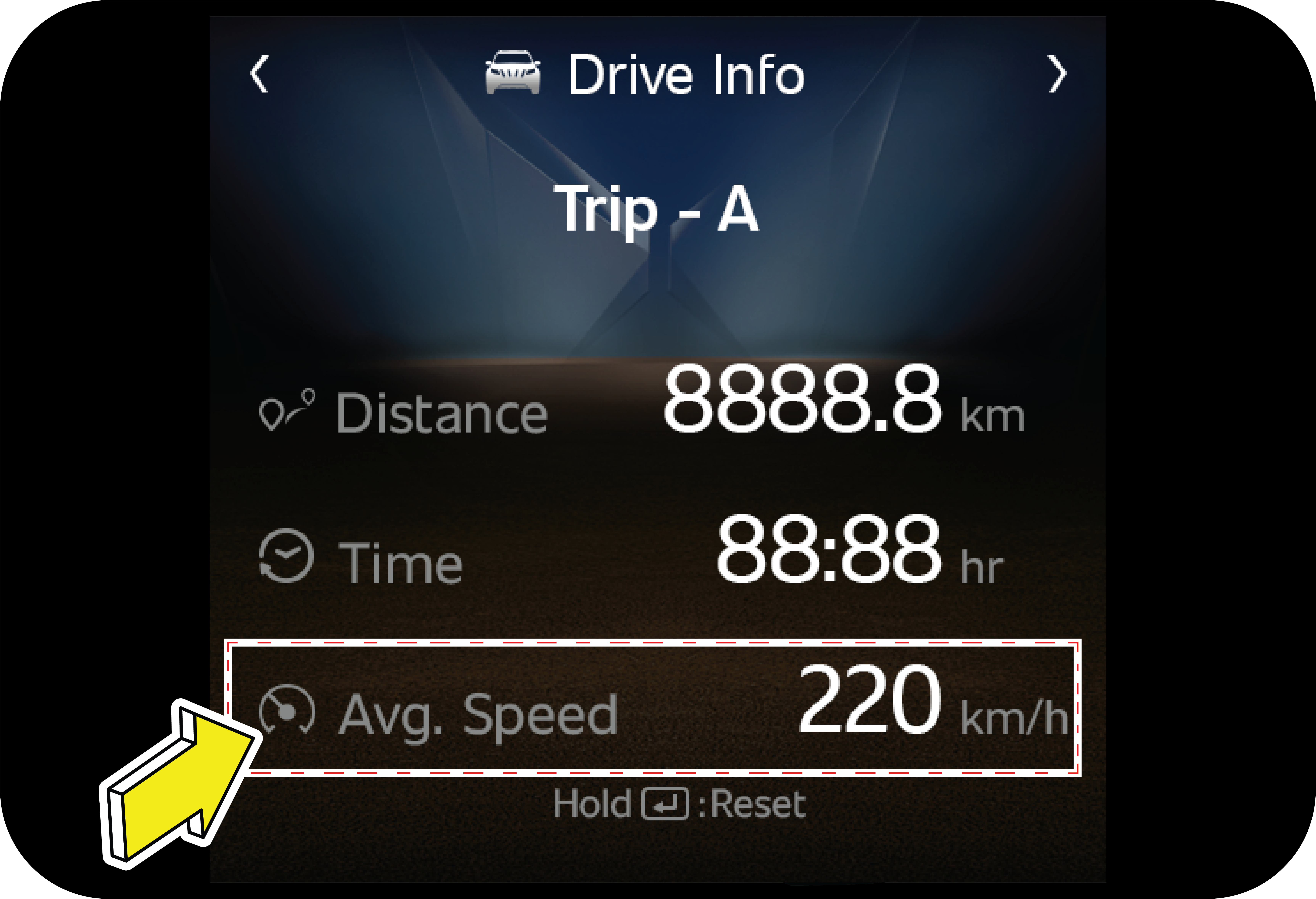

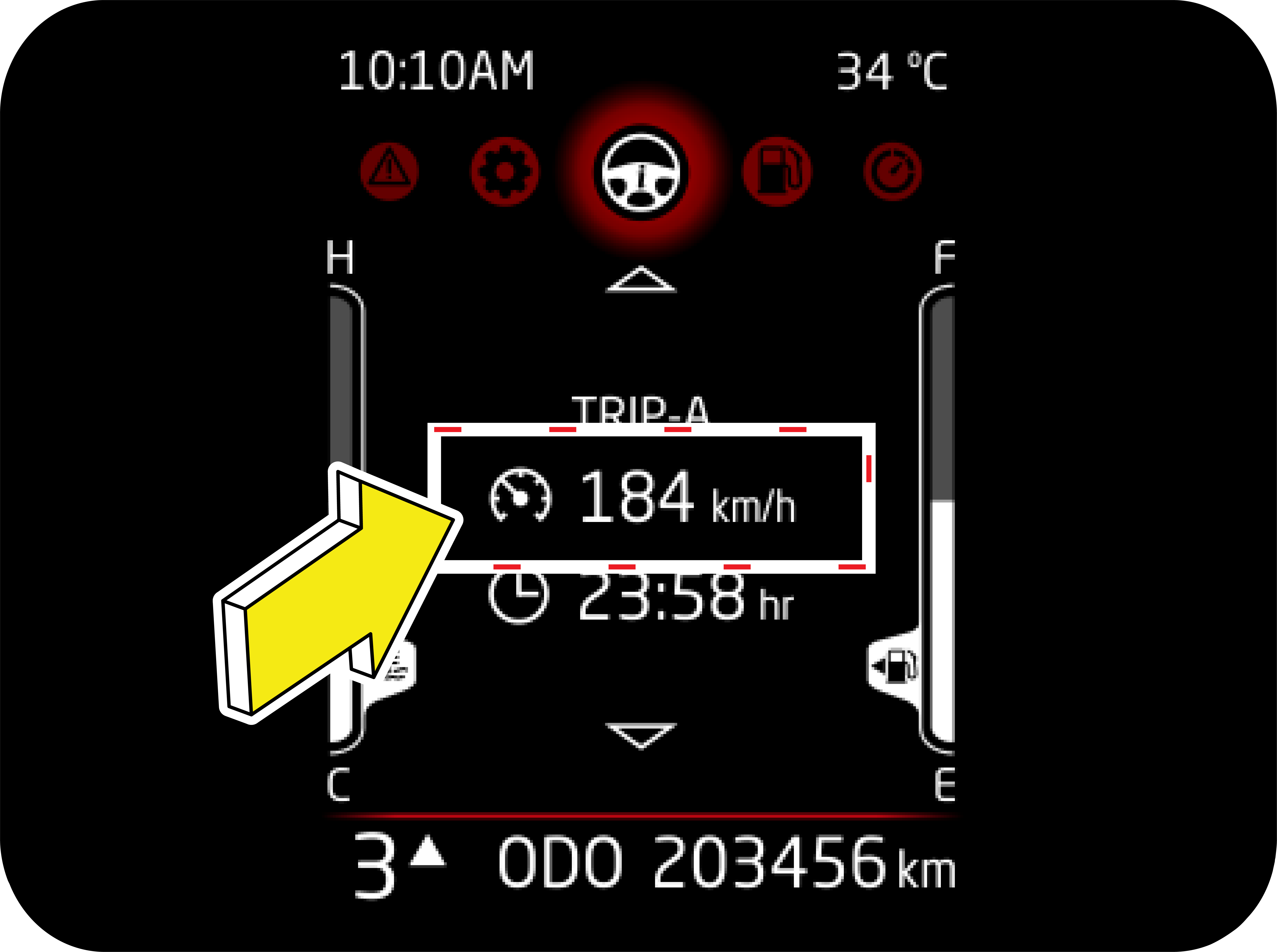

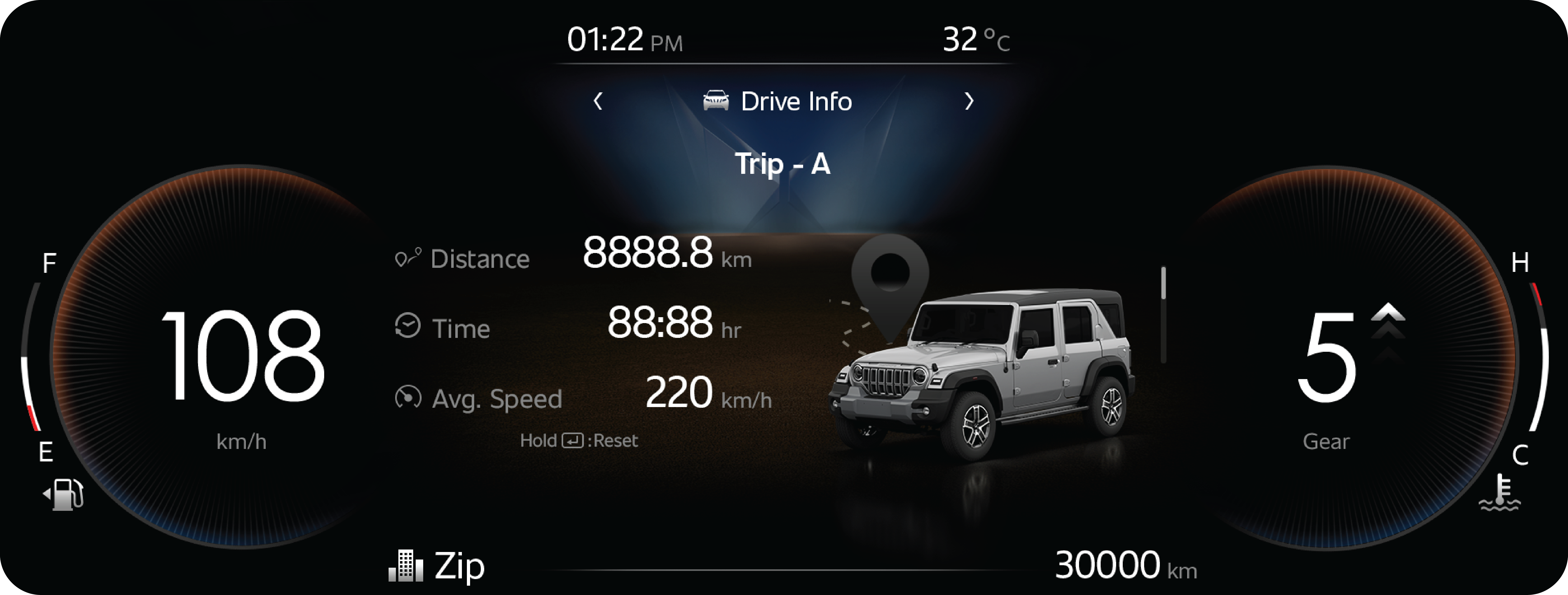

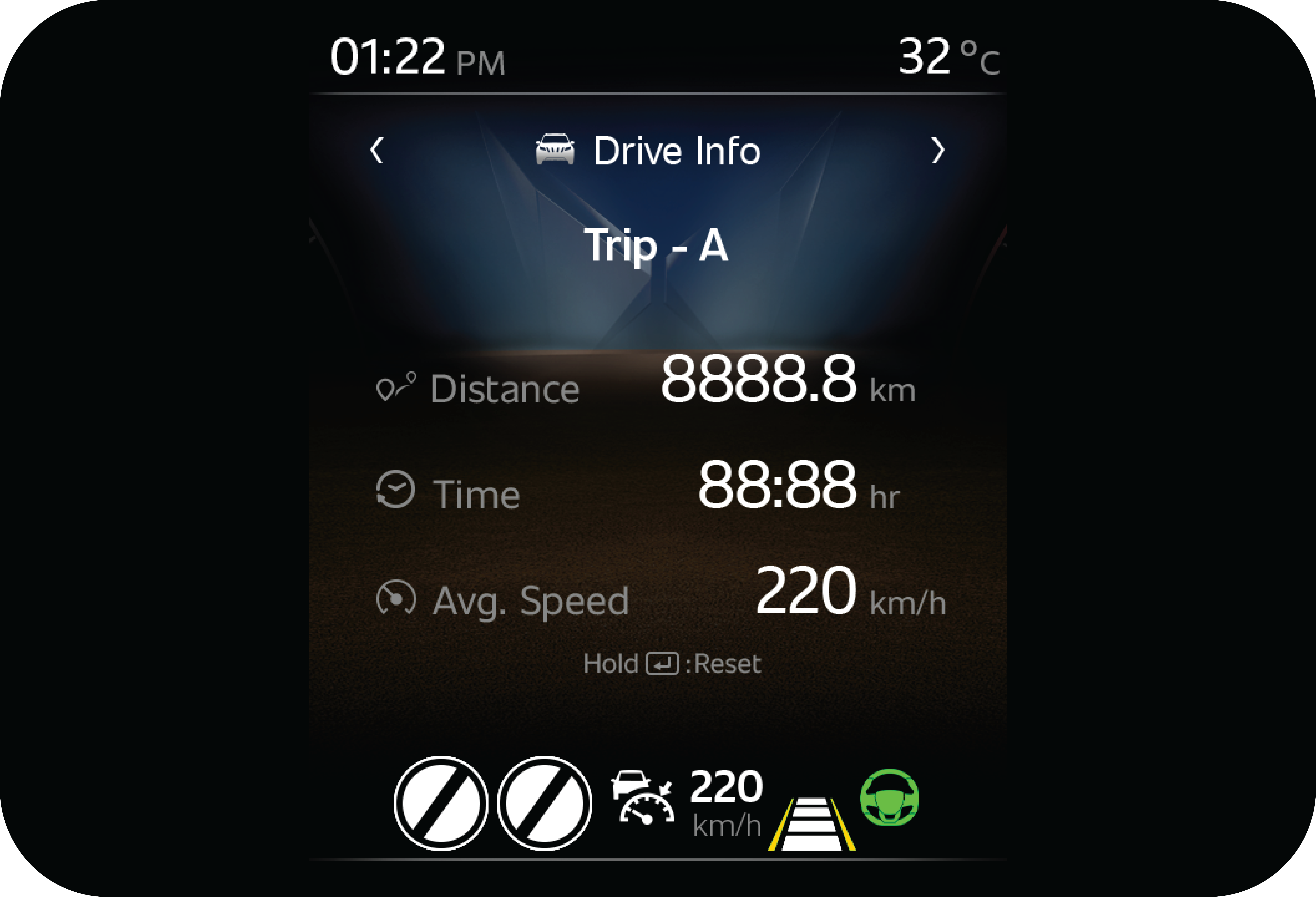

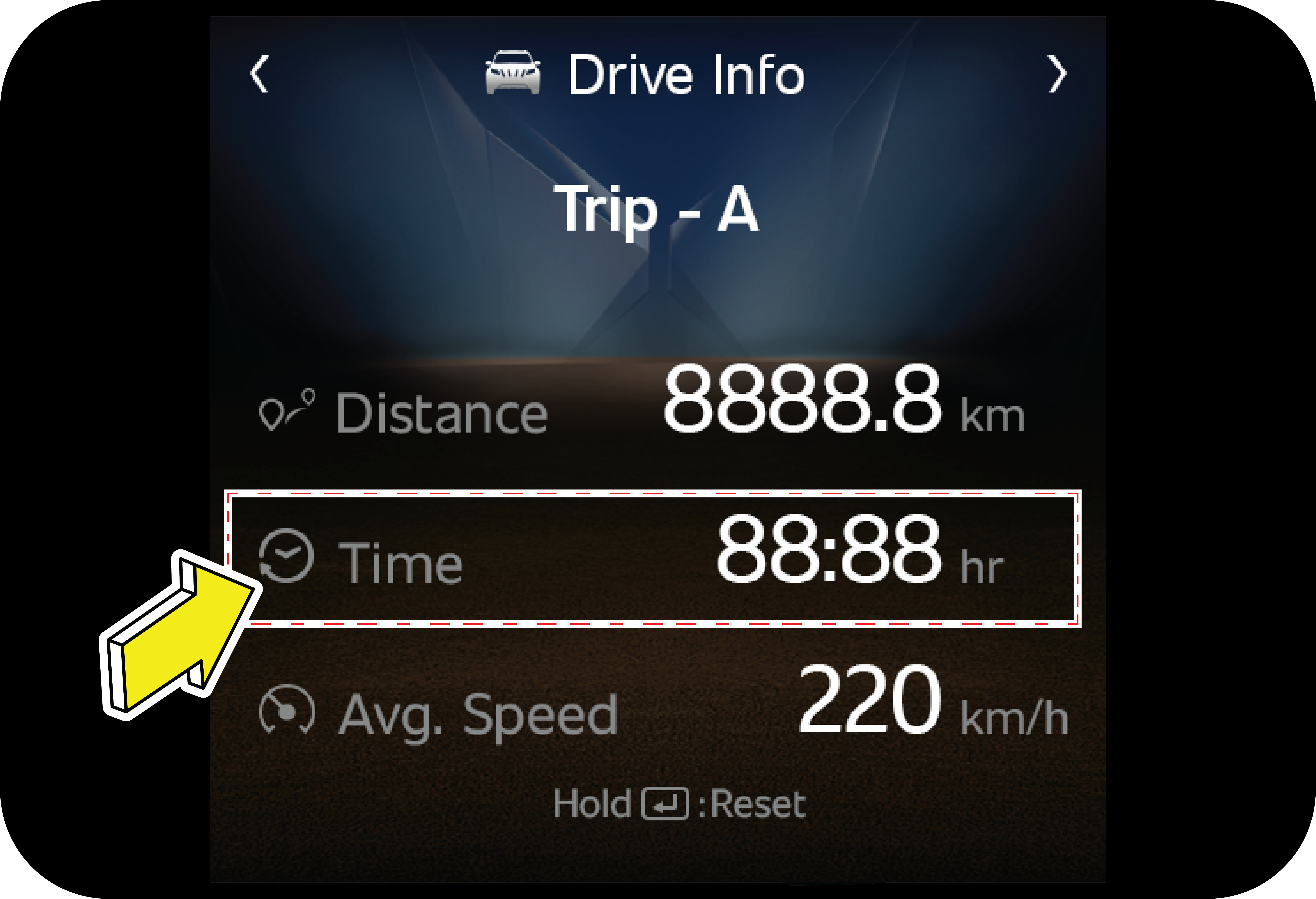

TFT: Two trip meters are available with max range of 9999.9 km. These are available in drive info menu and can be accessed using
Steering wheel UP/DOWN switch or driver side switch bank switches.
Digital: Select TRIP A / TRIP B available in drive Info menu and can be accessed using UP/Down switch in the steering wheel switch.
Trip meter can be reset by long press of OK. Resetting trip will reset average speed and drive time associated with the particular
trip.
|
Variants |
Trip A |
Trip B |
||
Min |
Max |
Min |
Max |
|
TFT |
0 |
9999.9 |
0 |
9999.9 |
Digital |
0 |
9999.9 |
0 |
9999.9 |

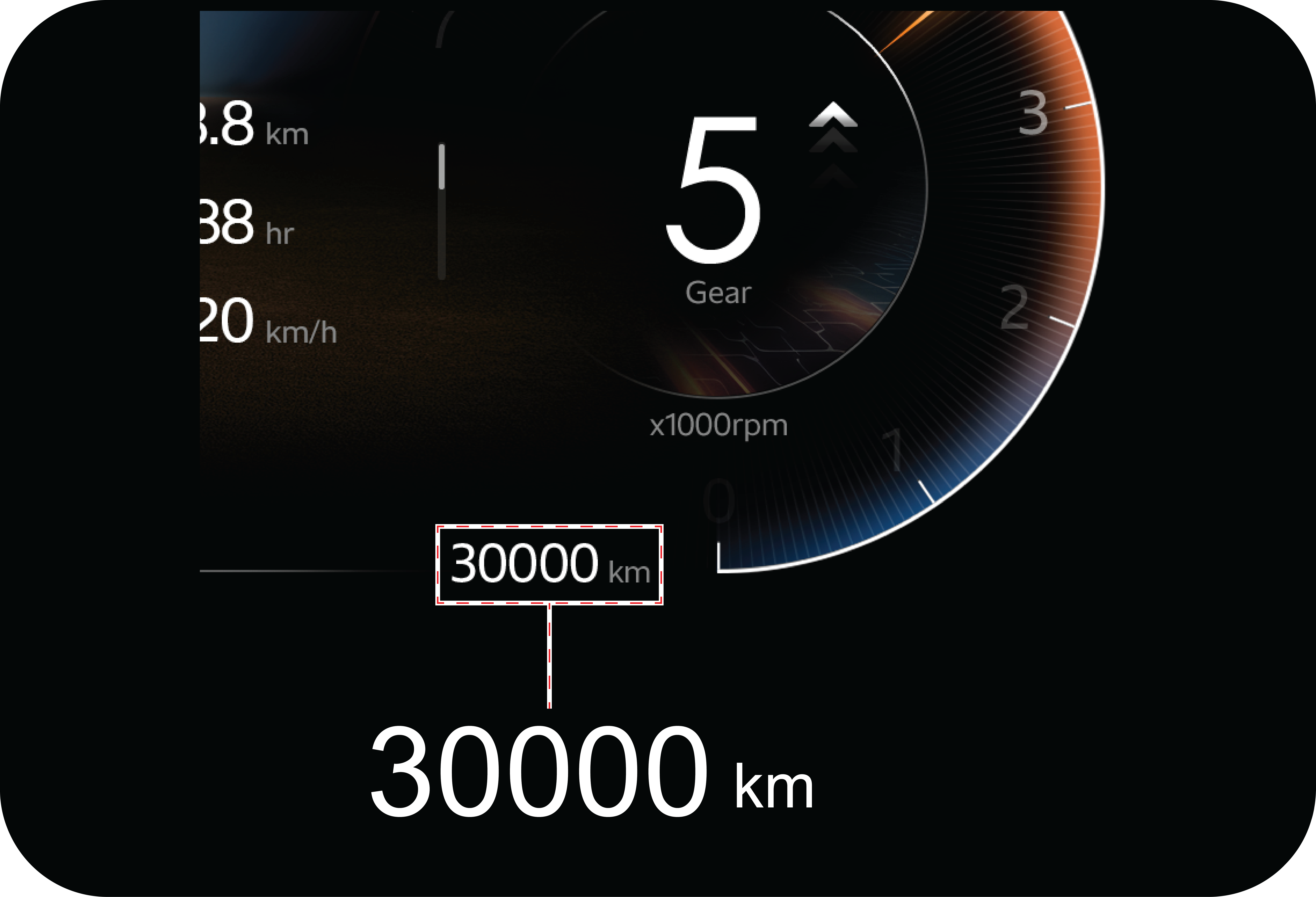

TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
|

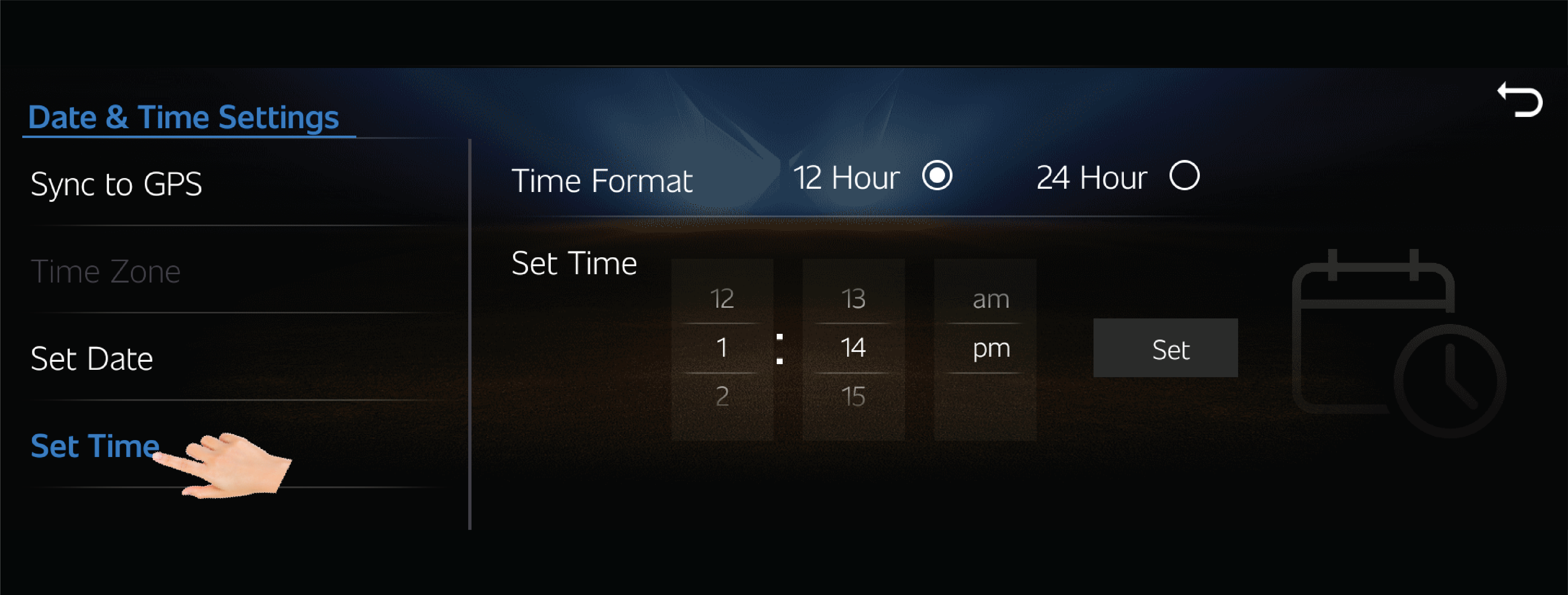

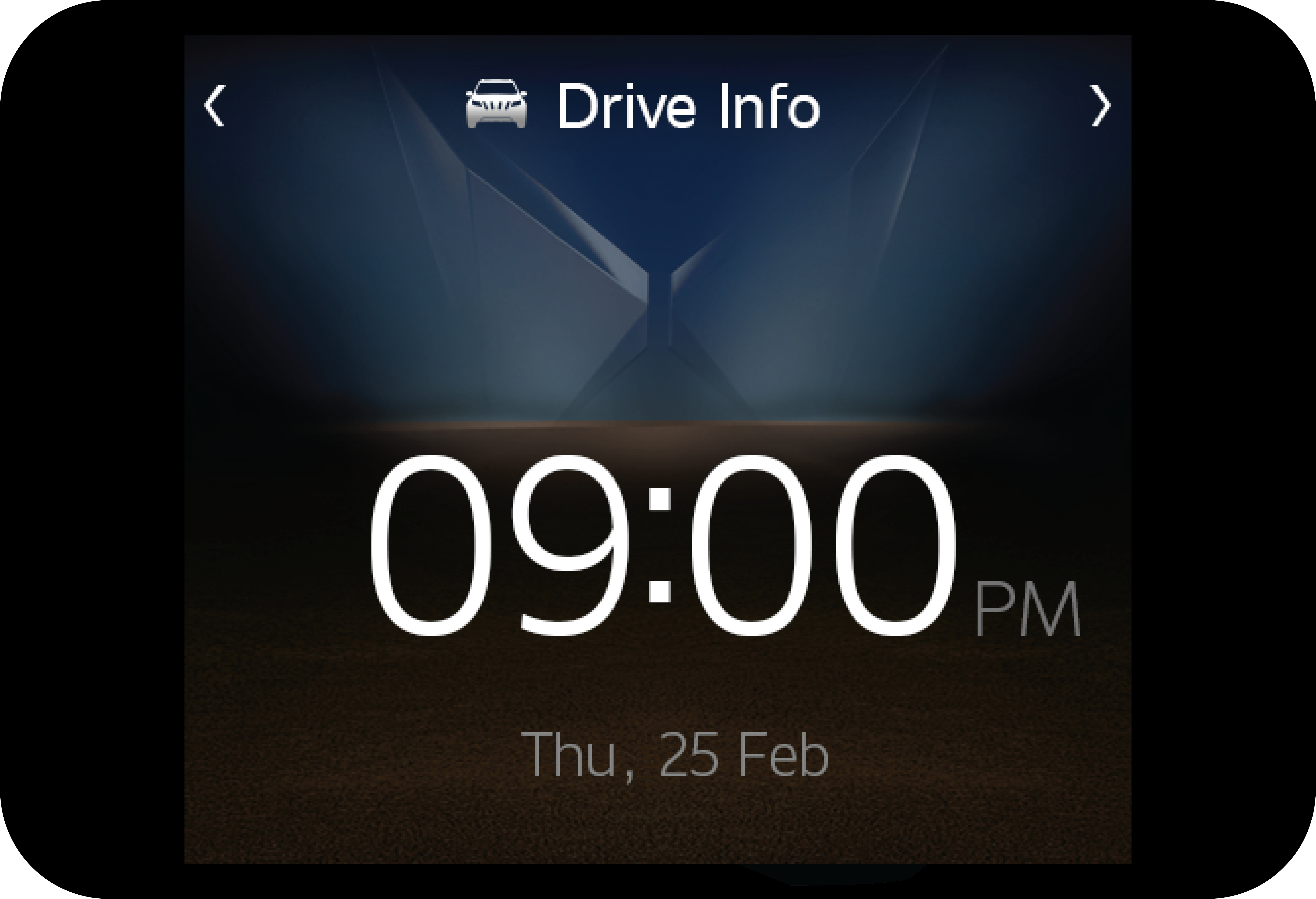

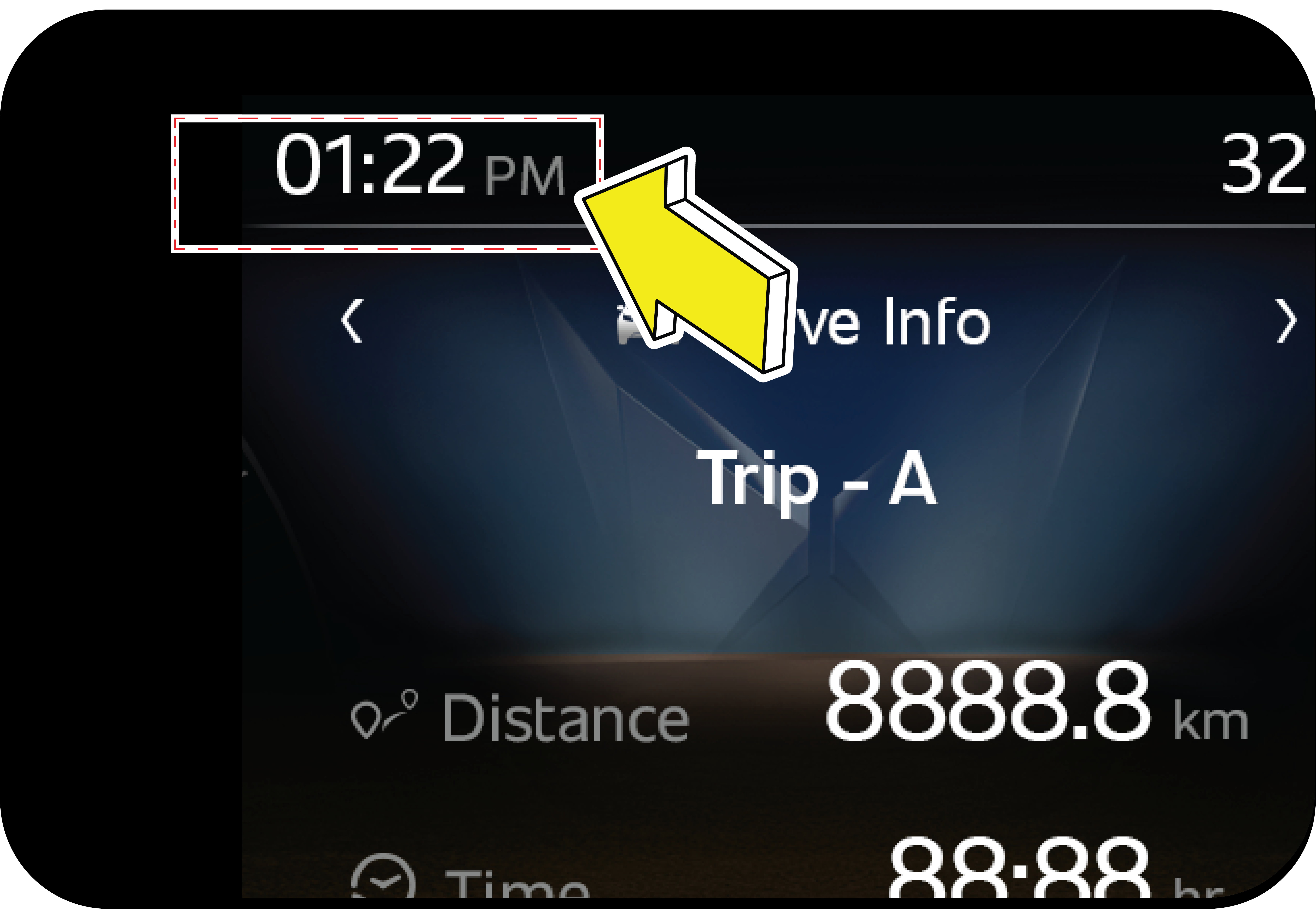

Steps to set time (Type 1)
1. Browse to settings, using MENU button
2. Press OK to enter.
3. Select Clock and then clock setting to change system time.
4. Press OK to change to particular digit. Highlight will change to "Dash". In this state, you can use UP/DOWN button to change
time.
|
Digital |
|
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
TFT |
Digital |
|
|
|

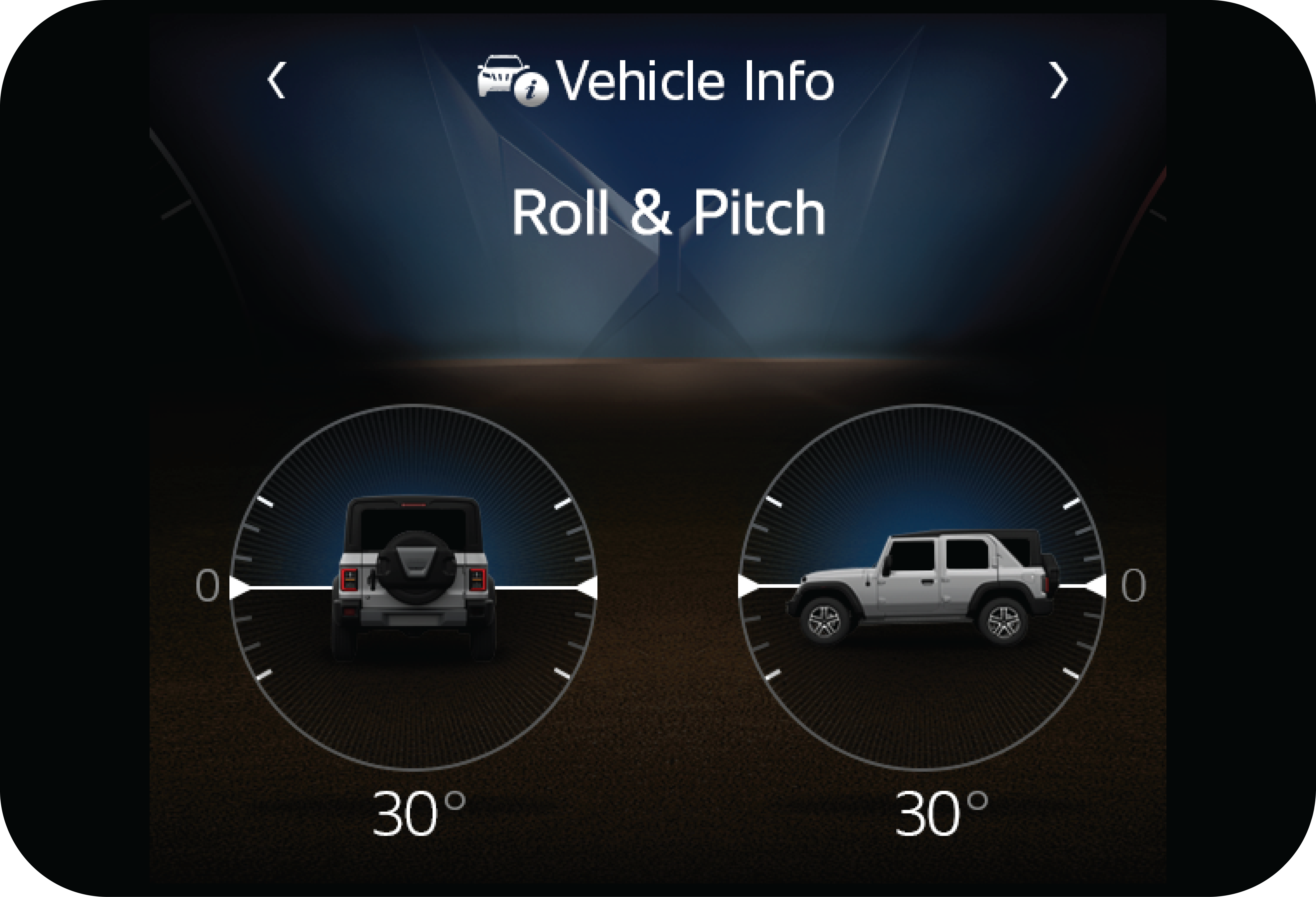

This screen referring to seems to be displaying the Roll and Pitch angles of a vehicle. These angles are crucial for understanding
the vehicle's orientation and movement dynamics.
|
|

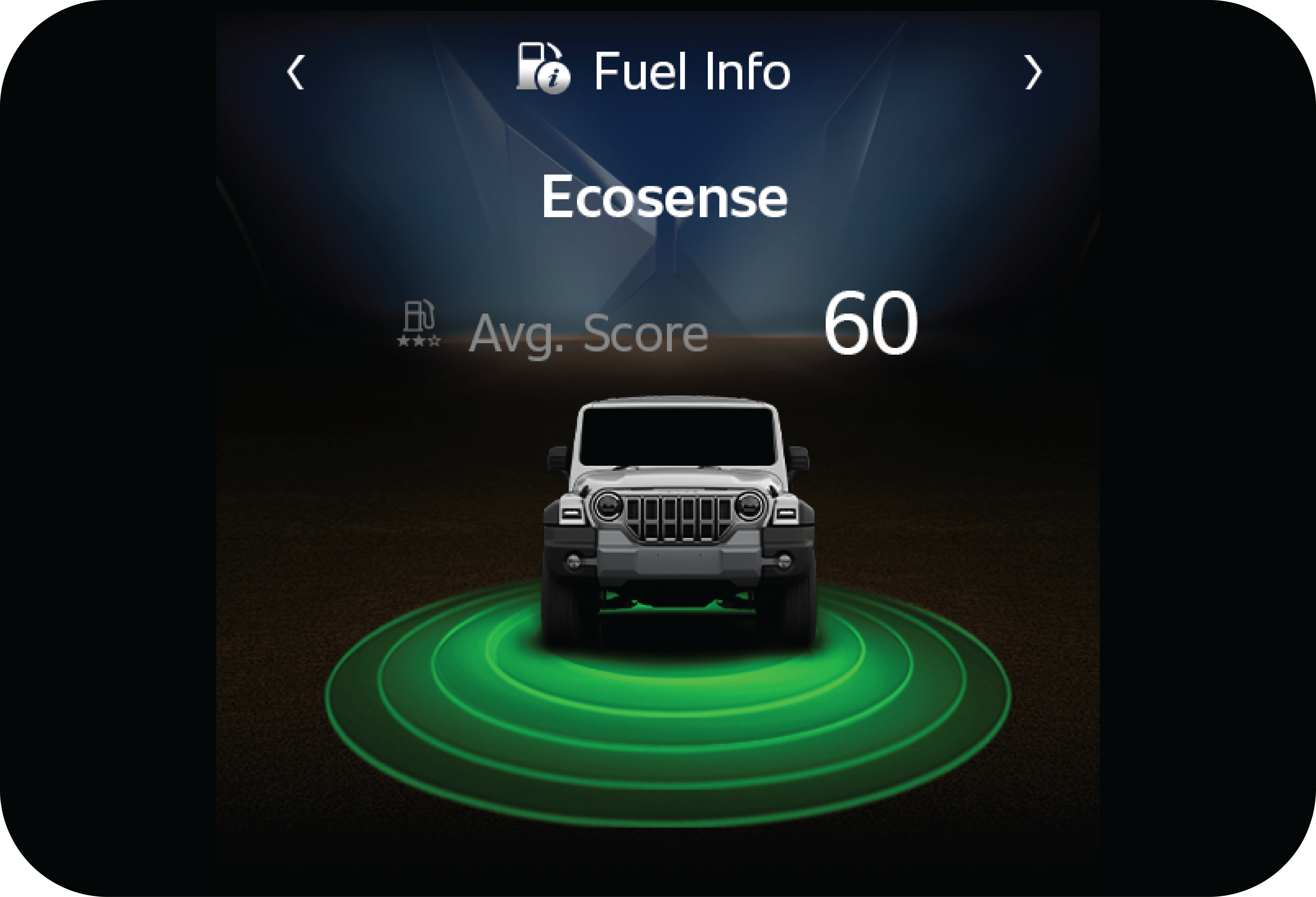

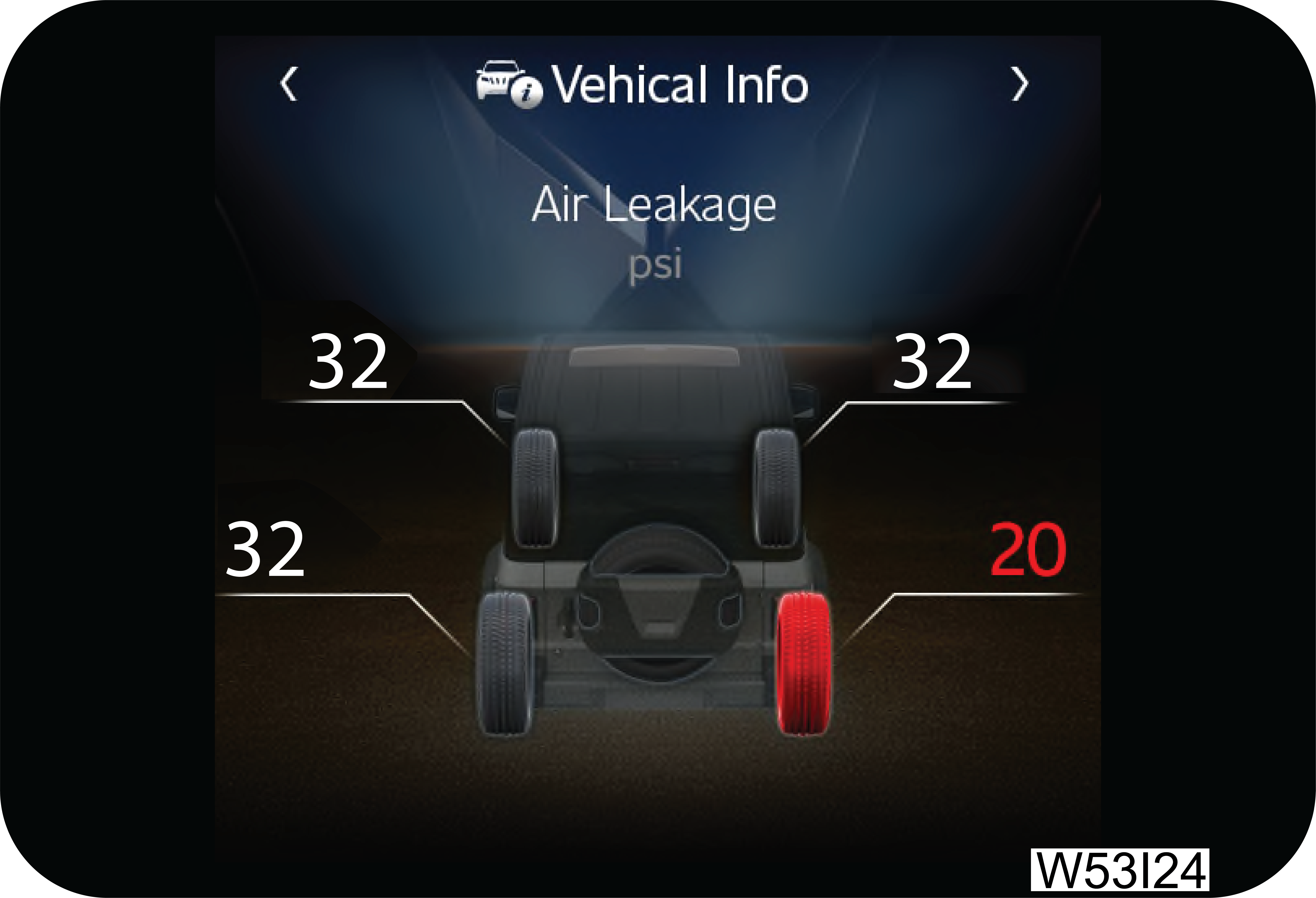

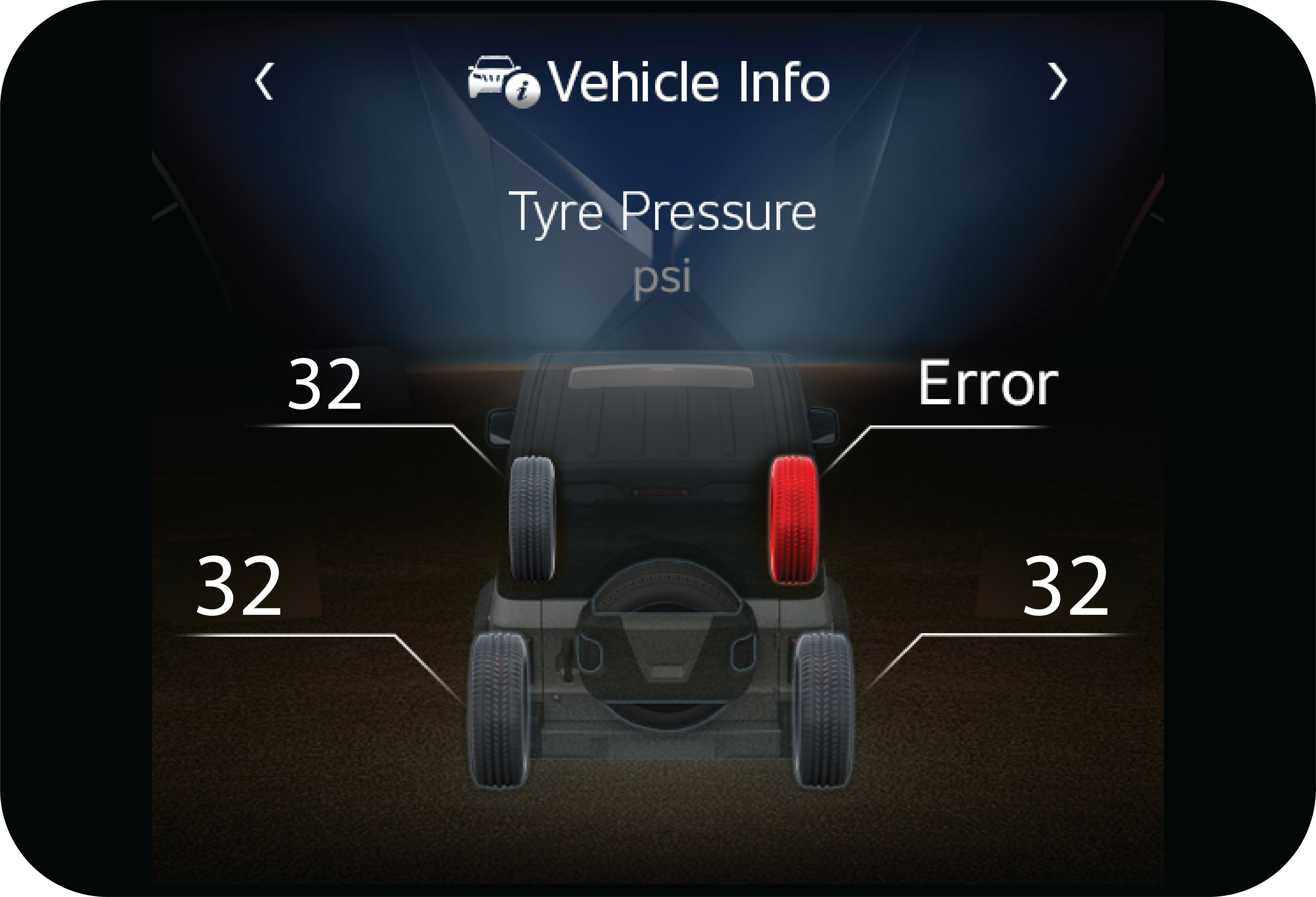

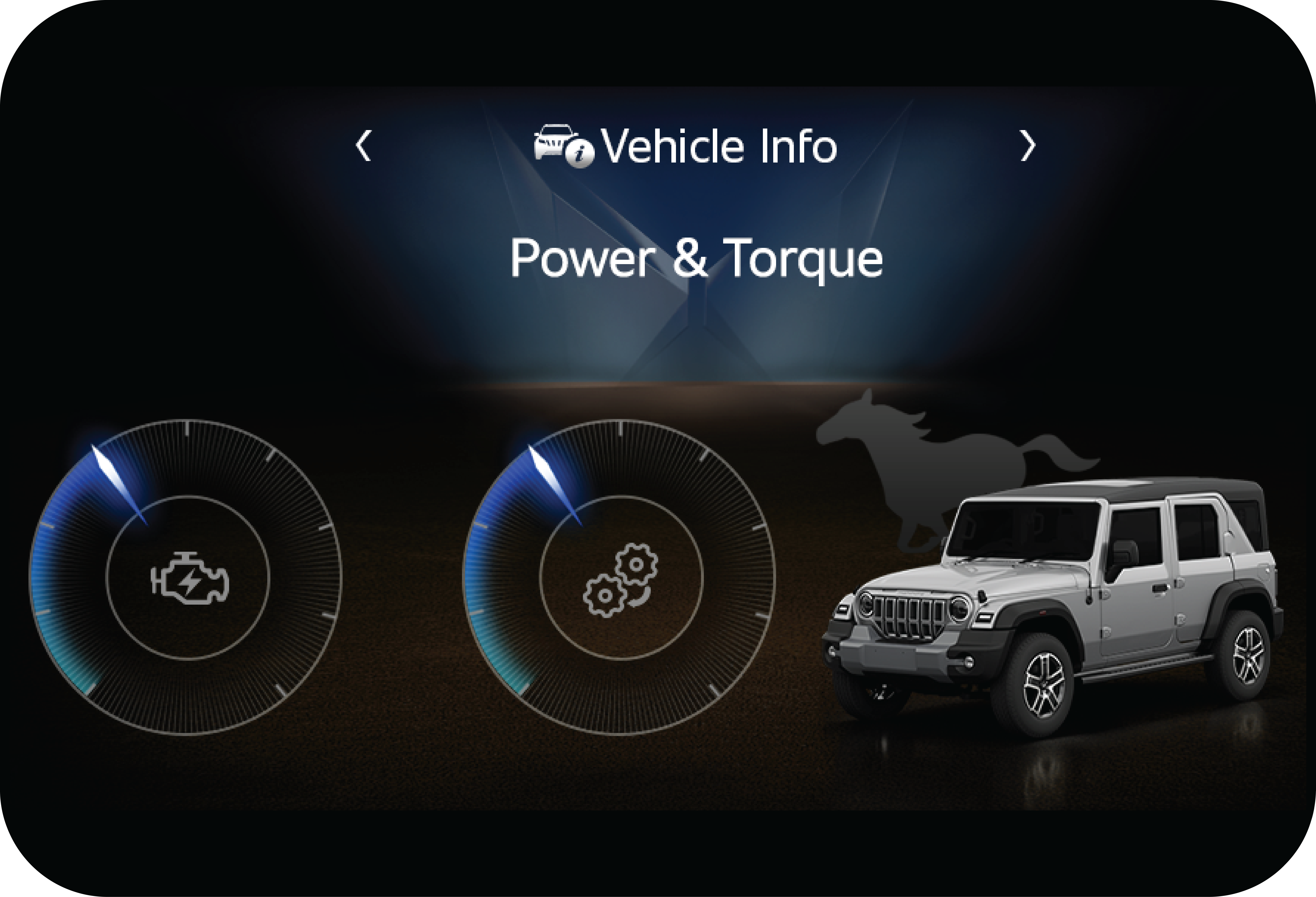

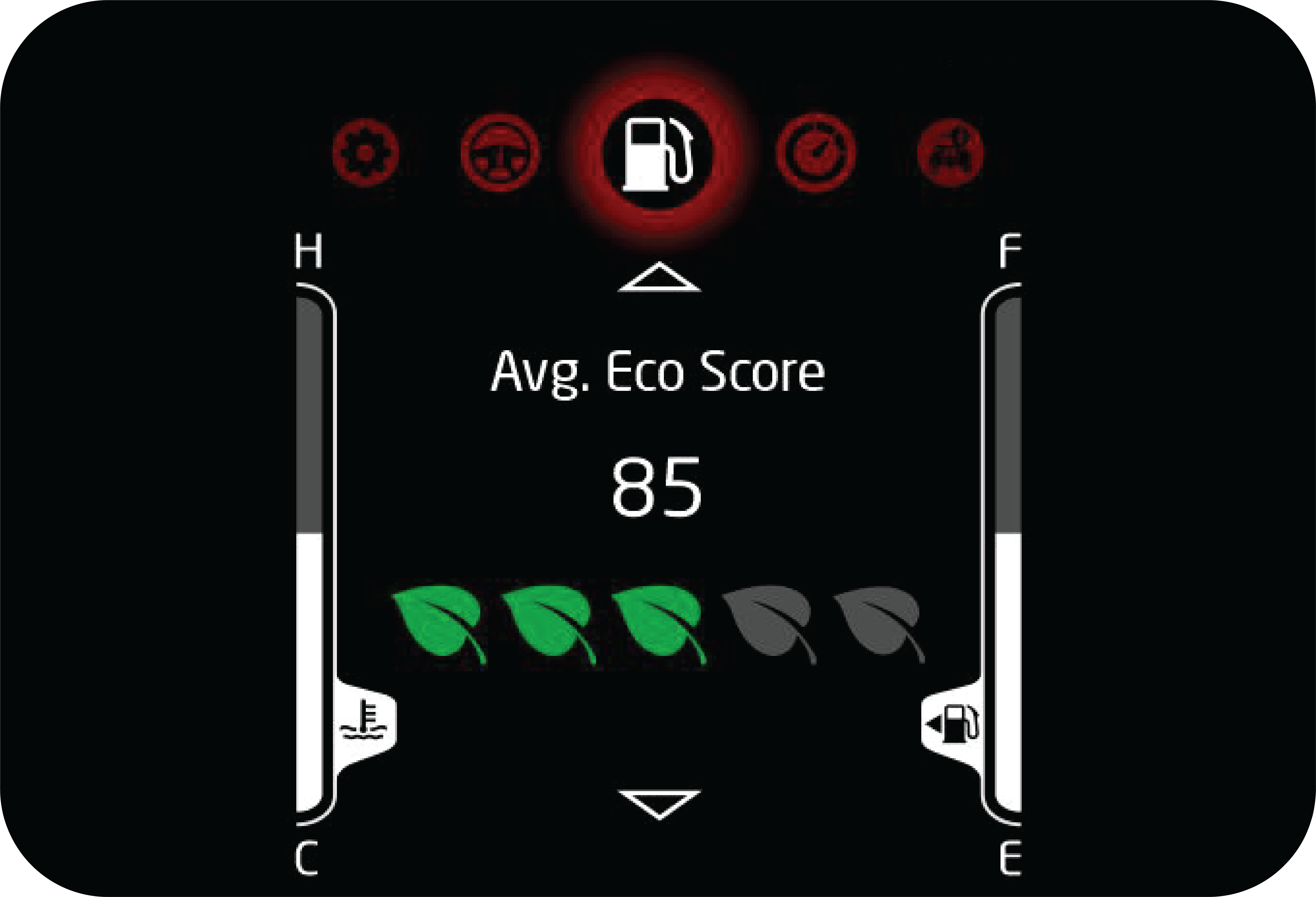

This screen indicates real-time information about the vehicle’s current power and torque output relative to their maximum
achievable values.
|

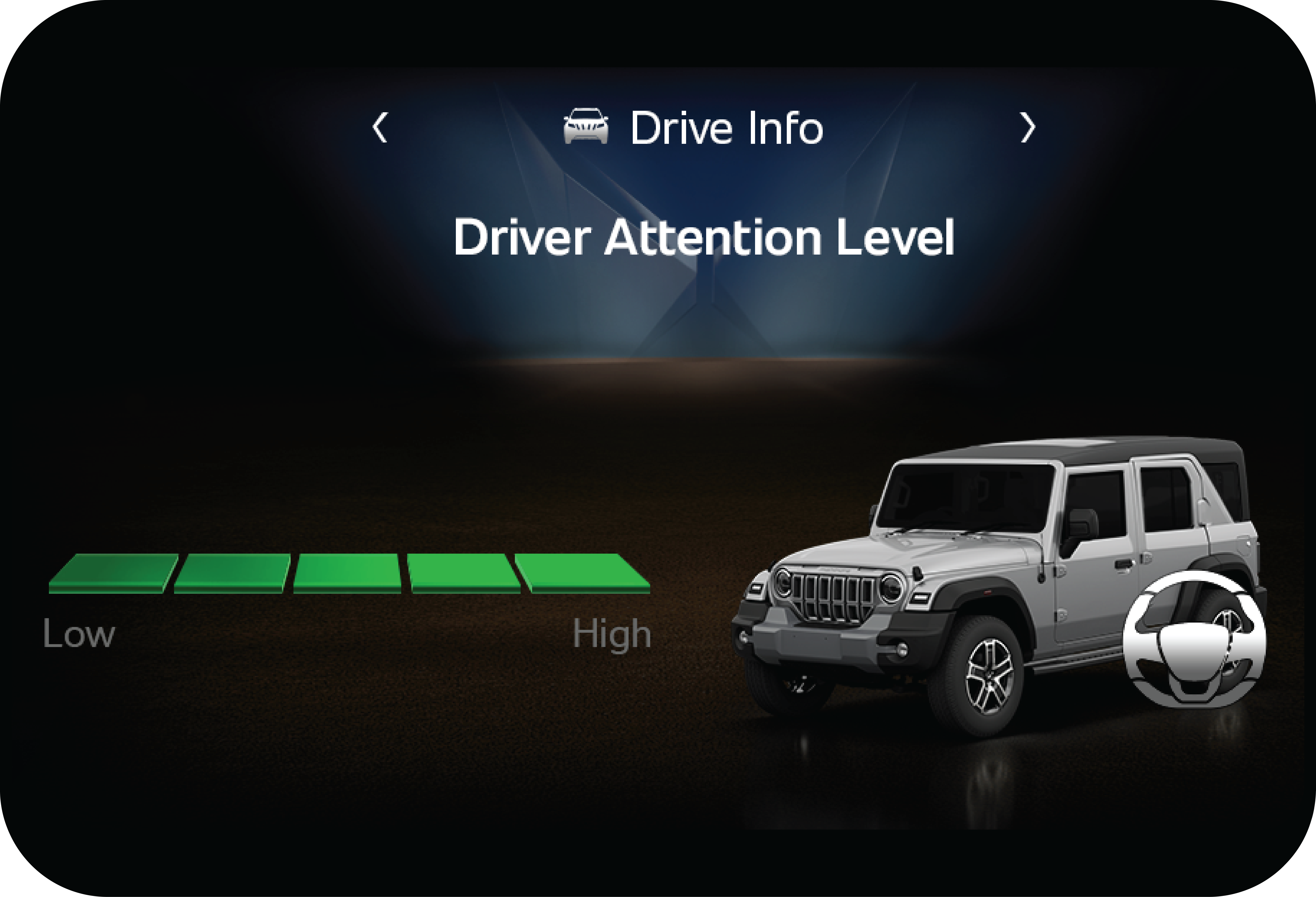

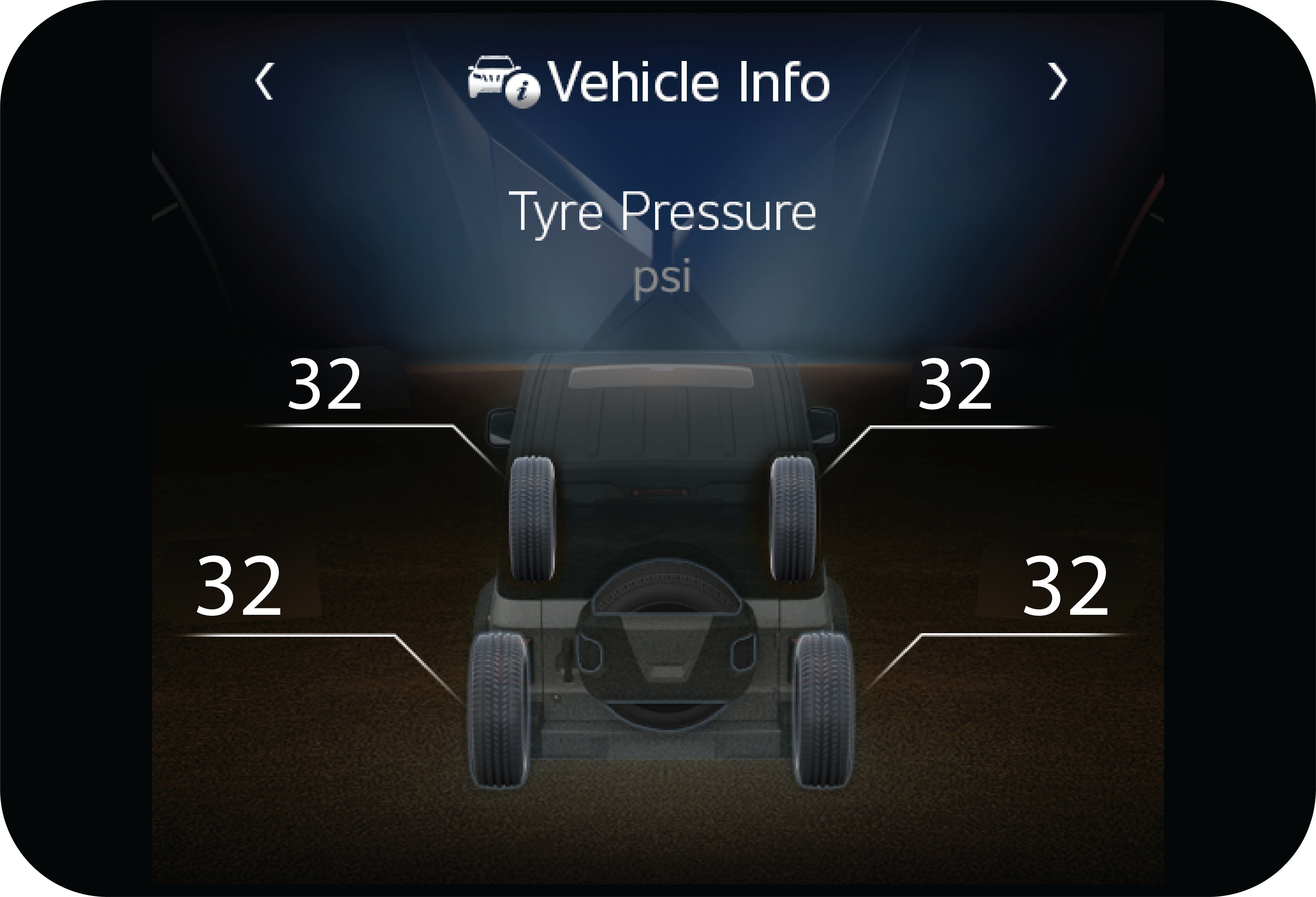

TFT |
Digital |
|
|
TFT |
||||||||||
|
|
Digital |
|
|

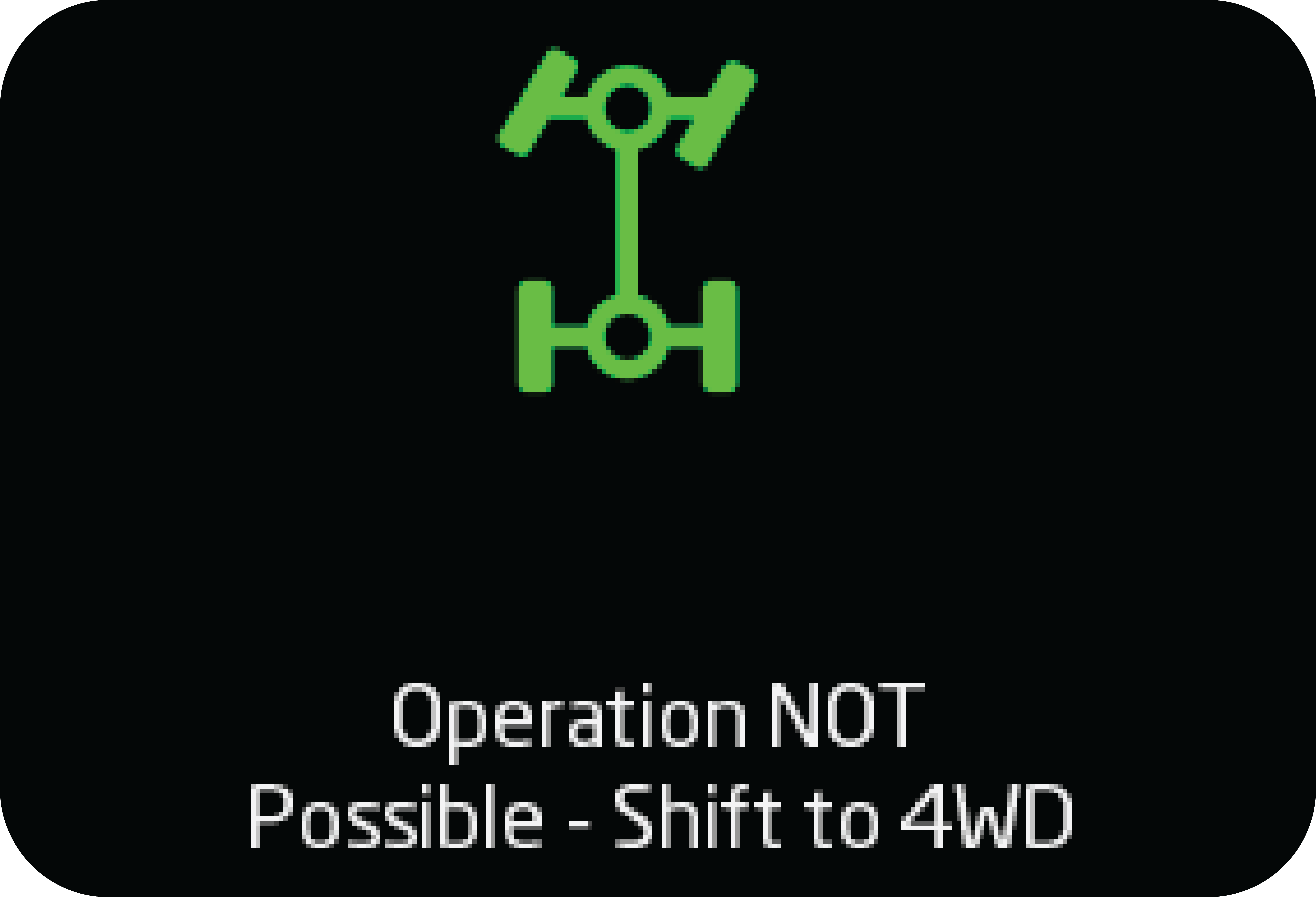

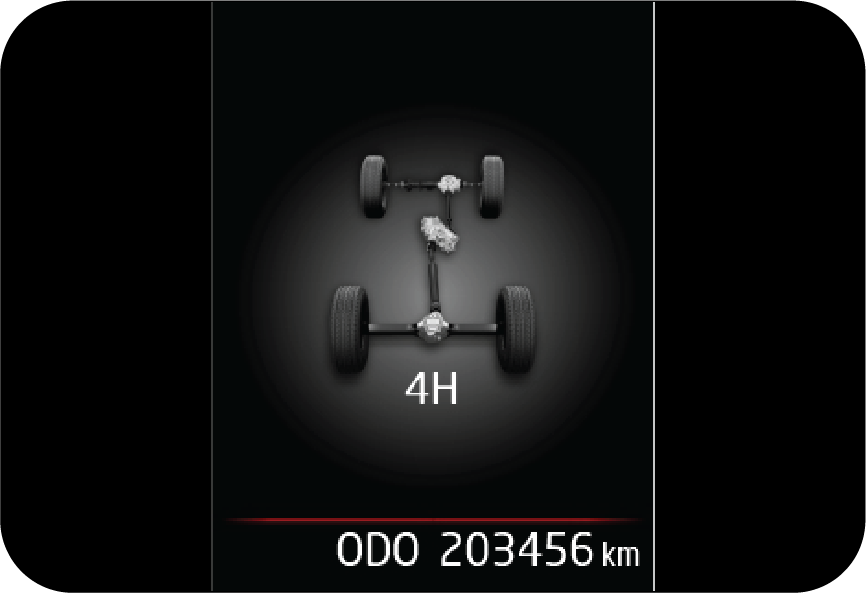

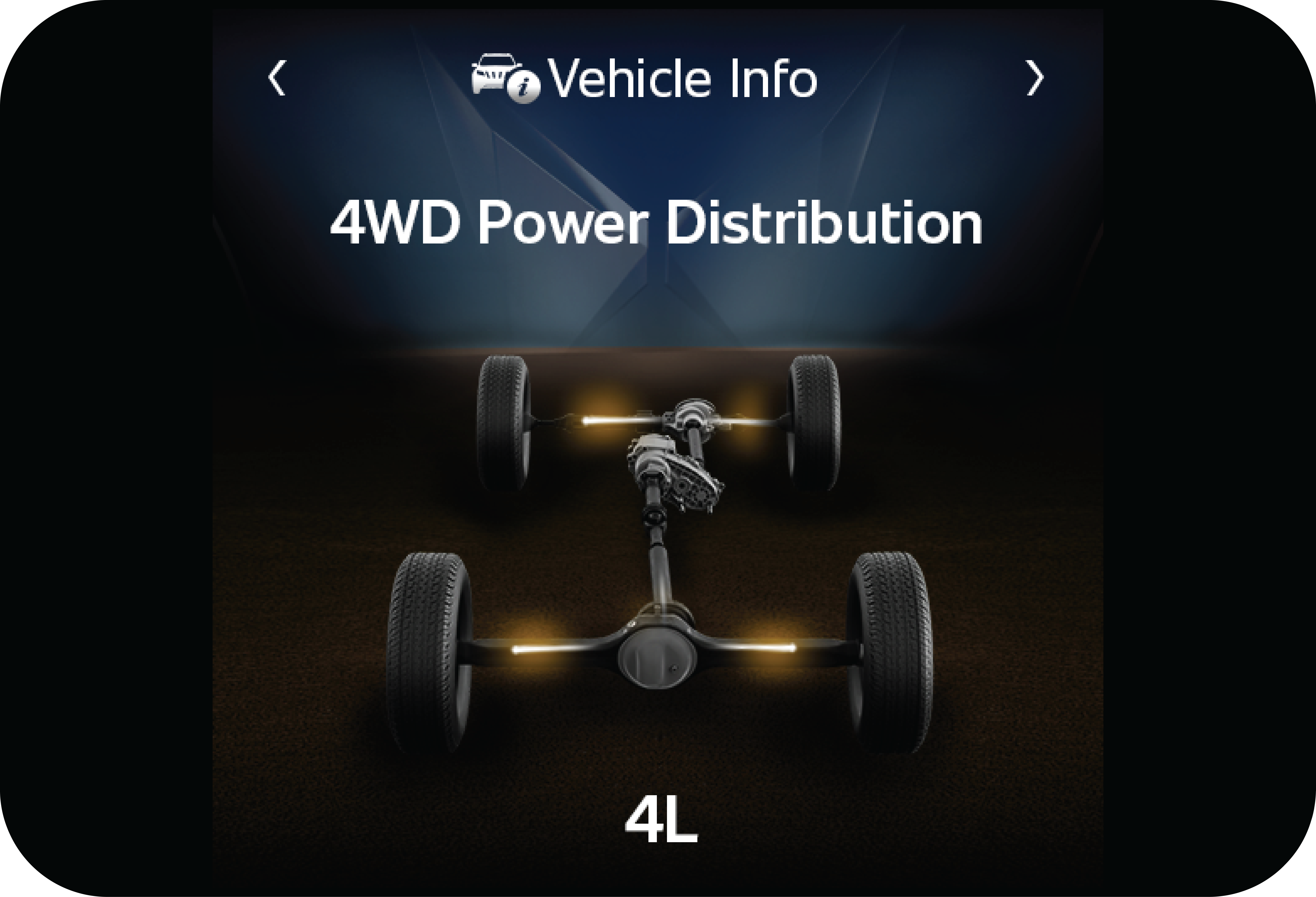

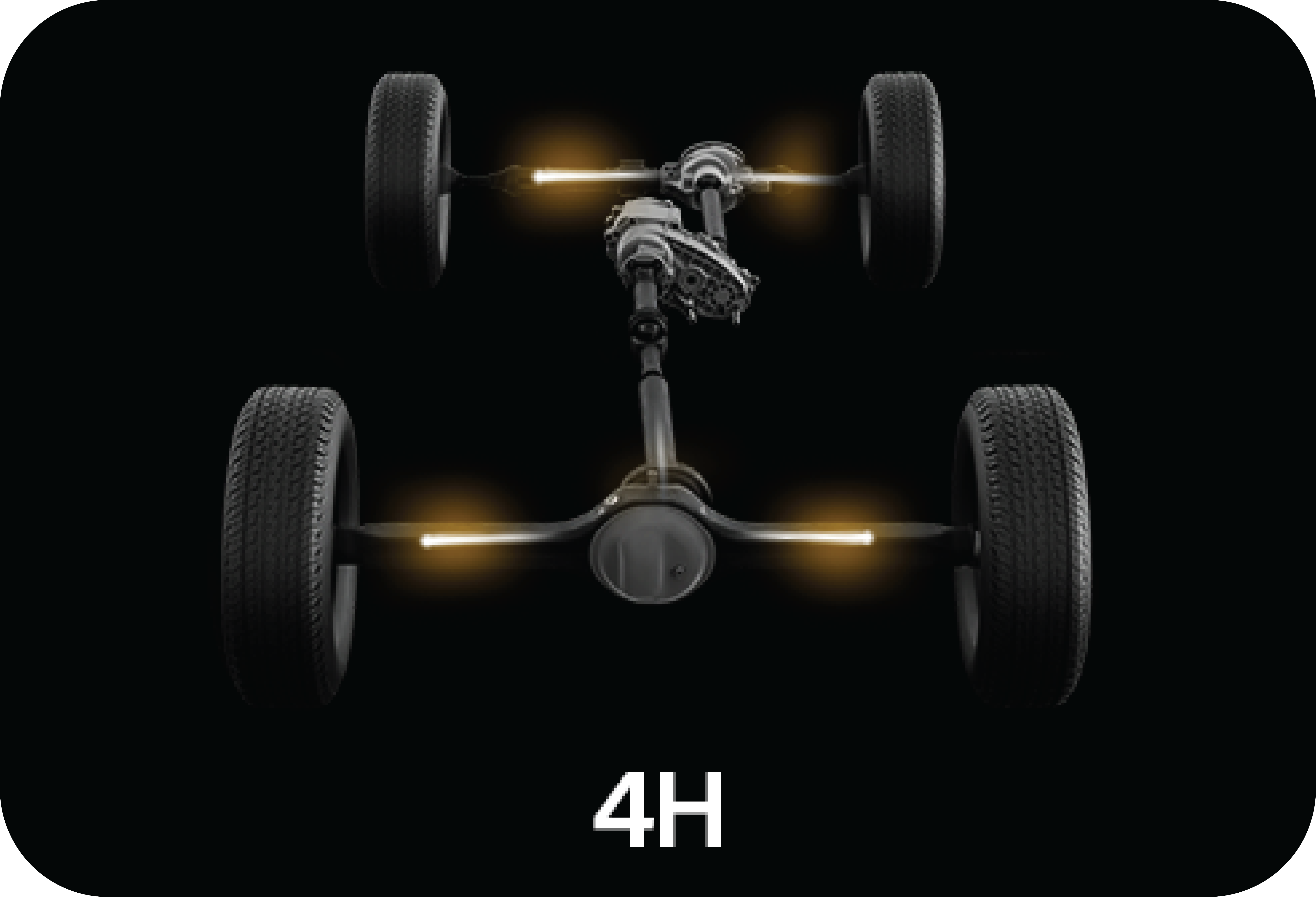

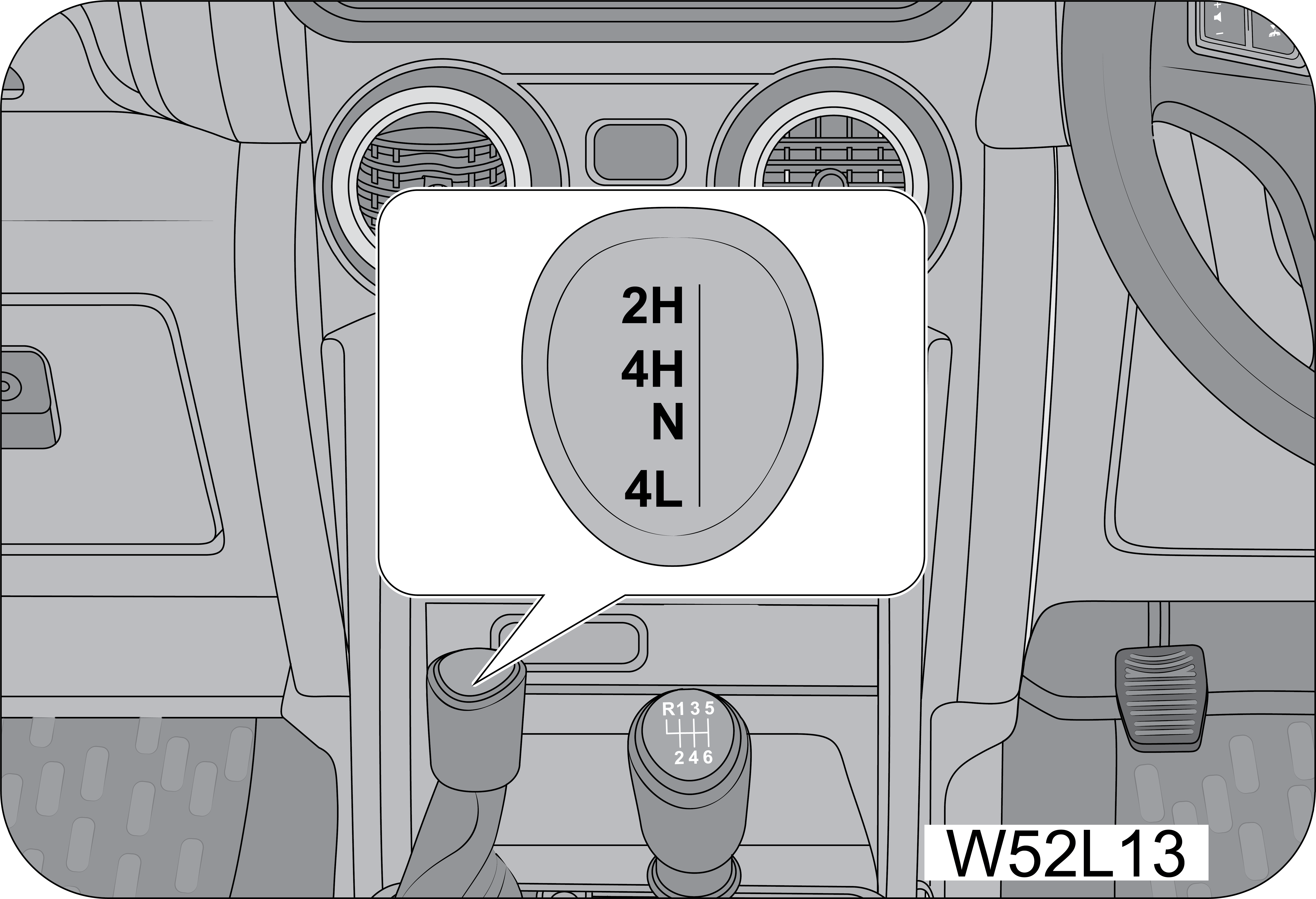

1. Any mode to 4WD High: alert with “4H” and animation will be displayed

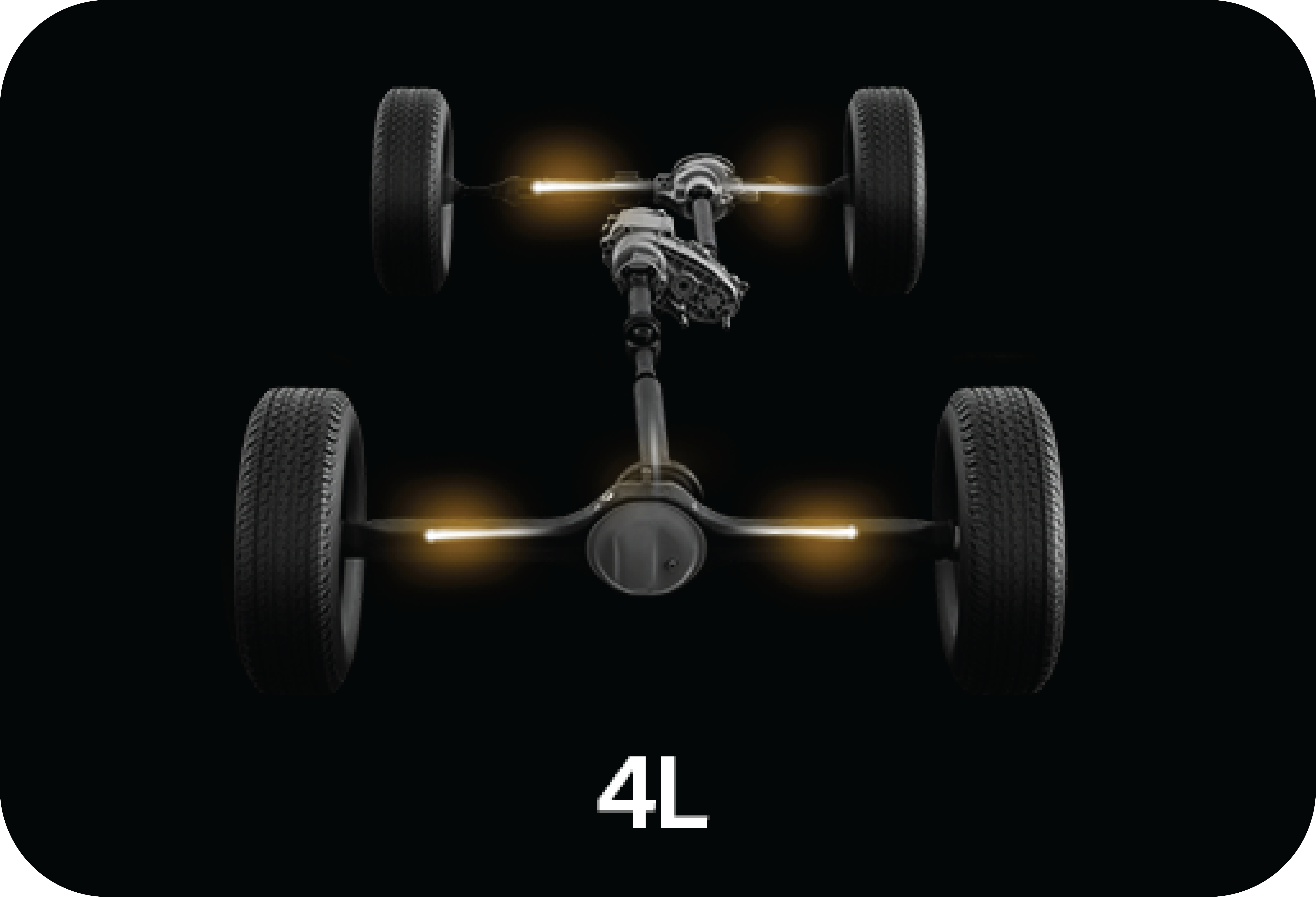

2. Any mode to 4WD Low: alert with “4L” and animation will be displayed.
|

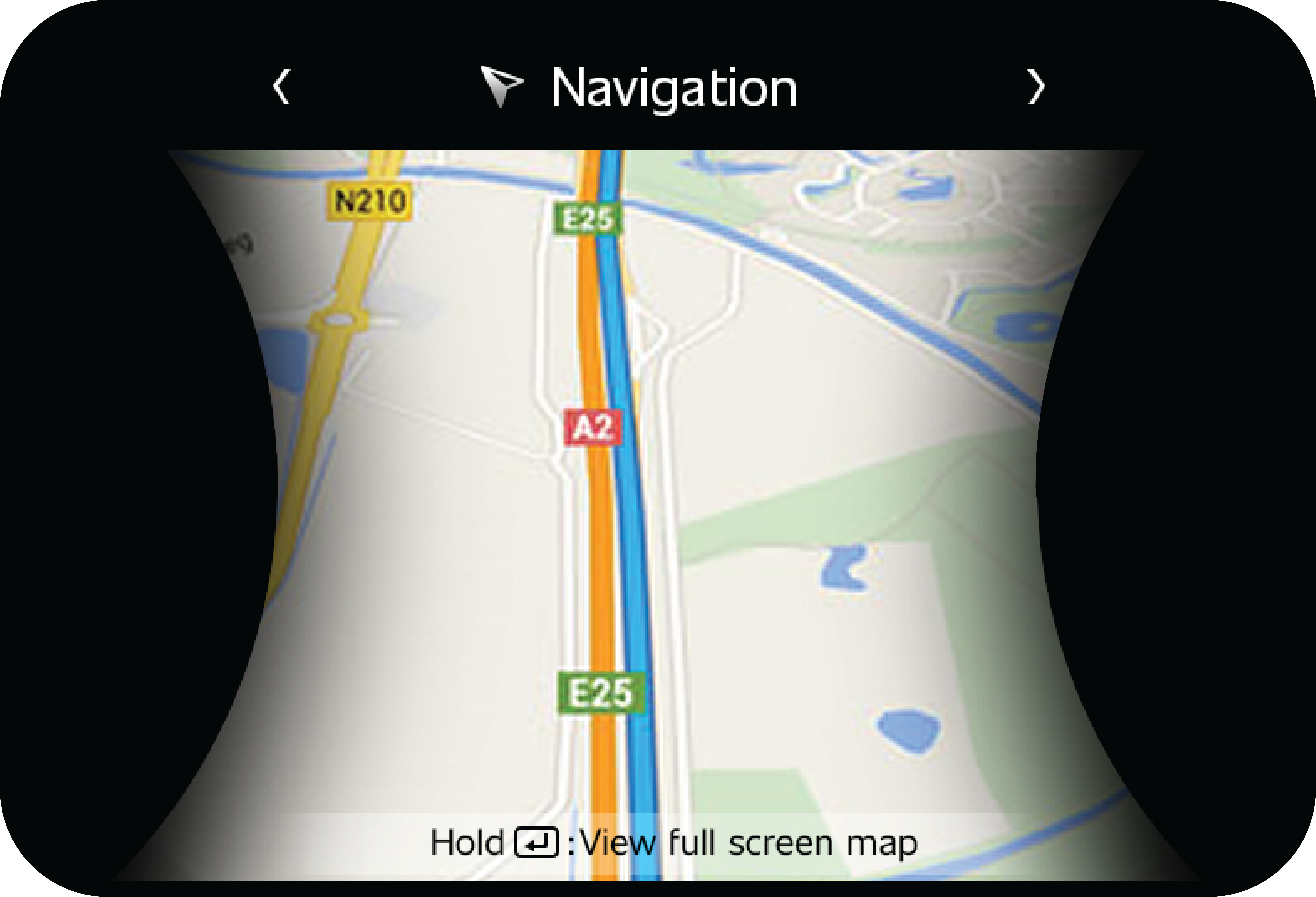

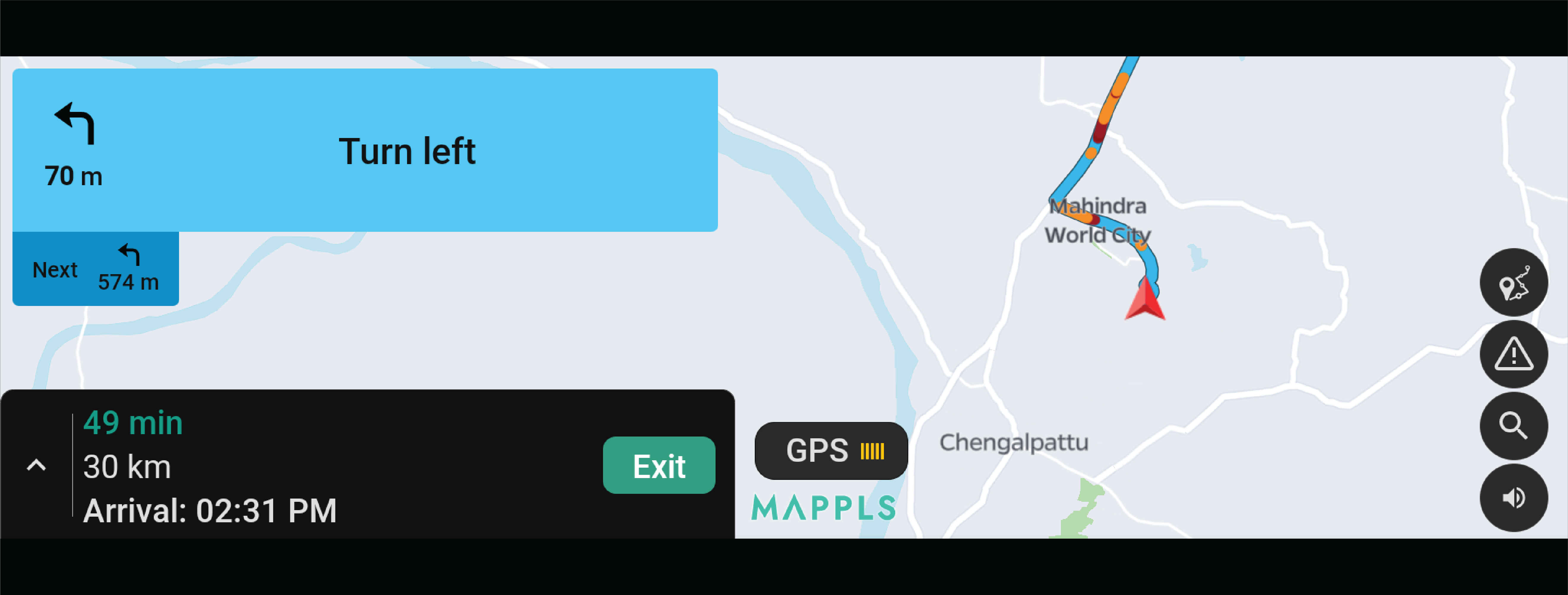

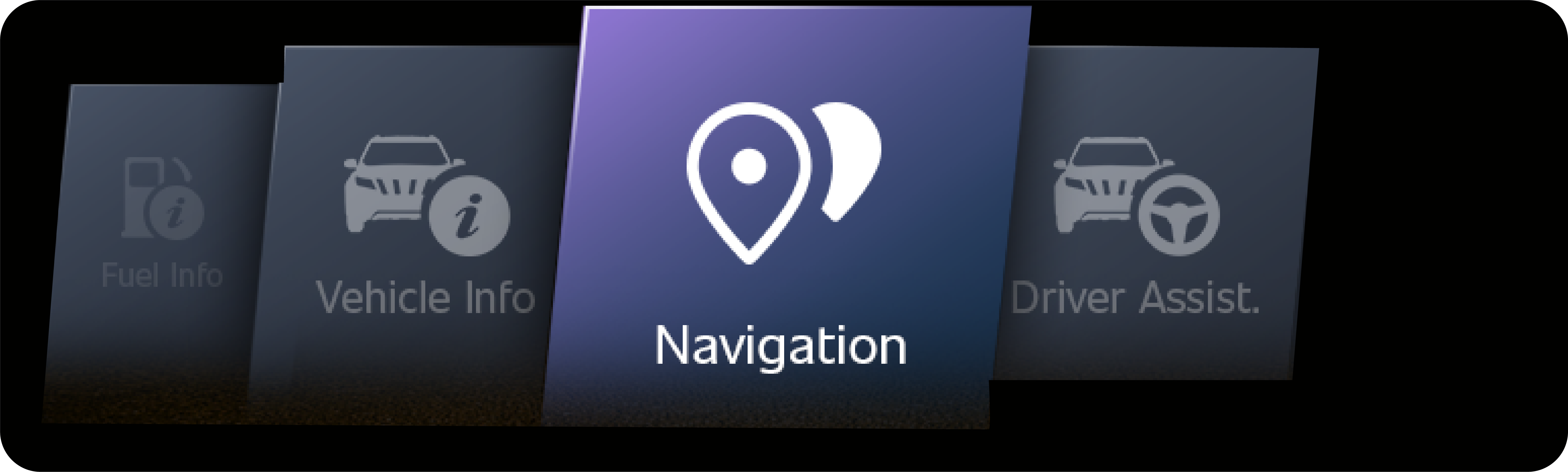

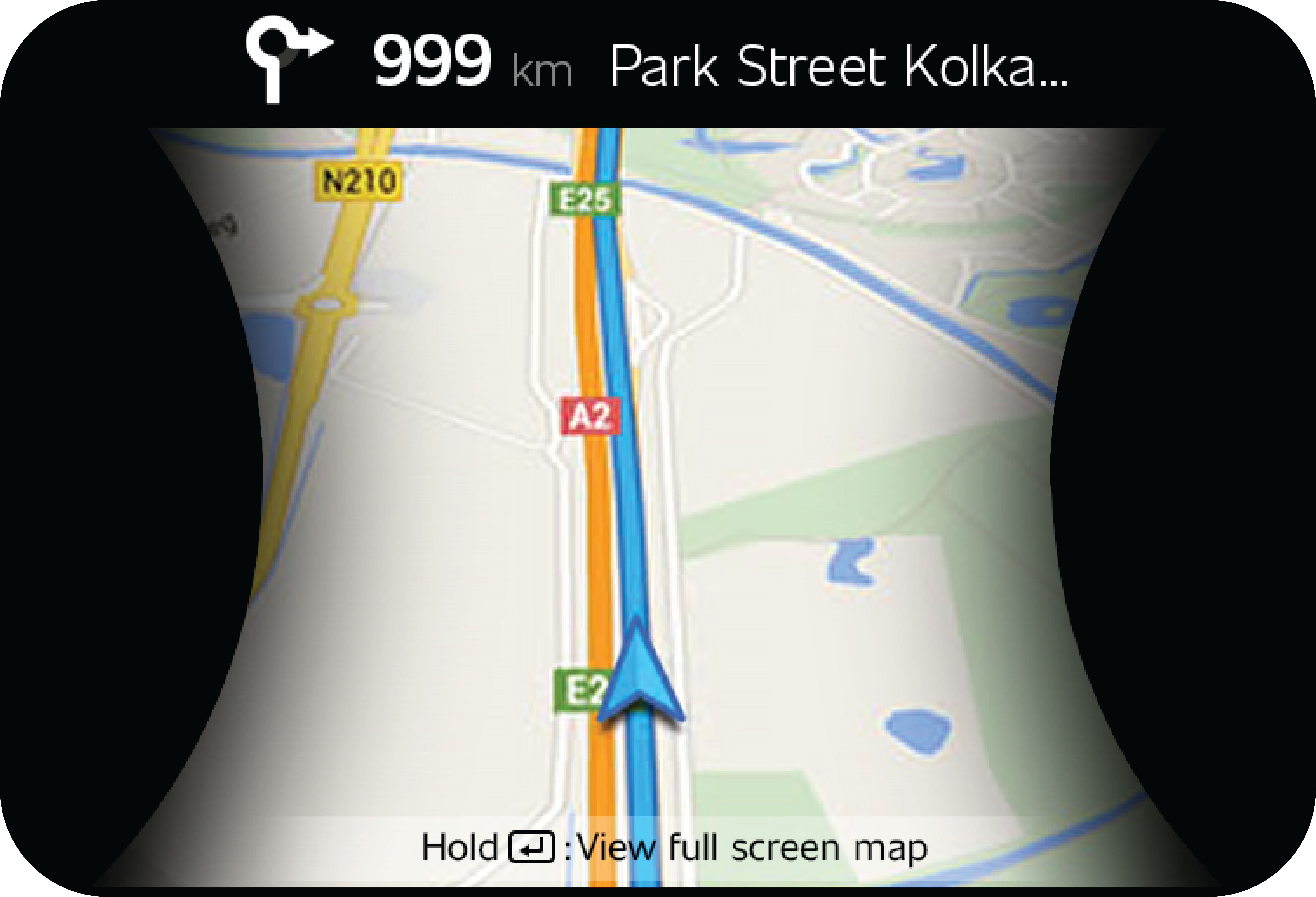

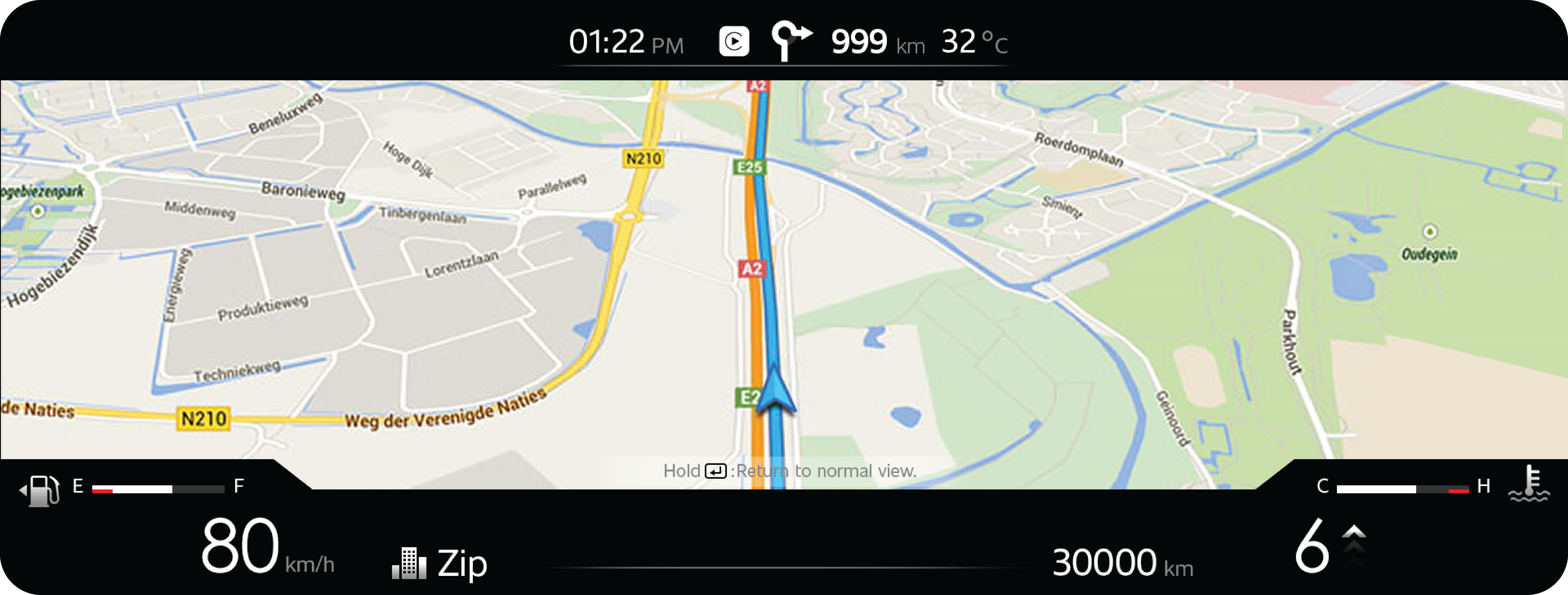

Partial Screen Navigation |
Turn by Turn Navigation |
|
|

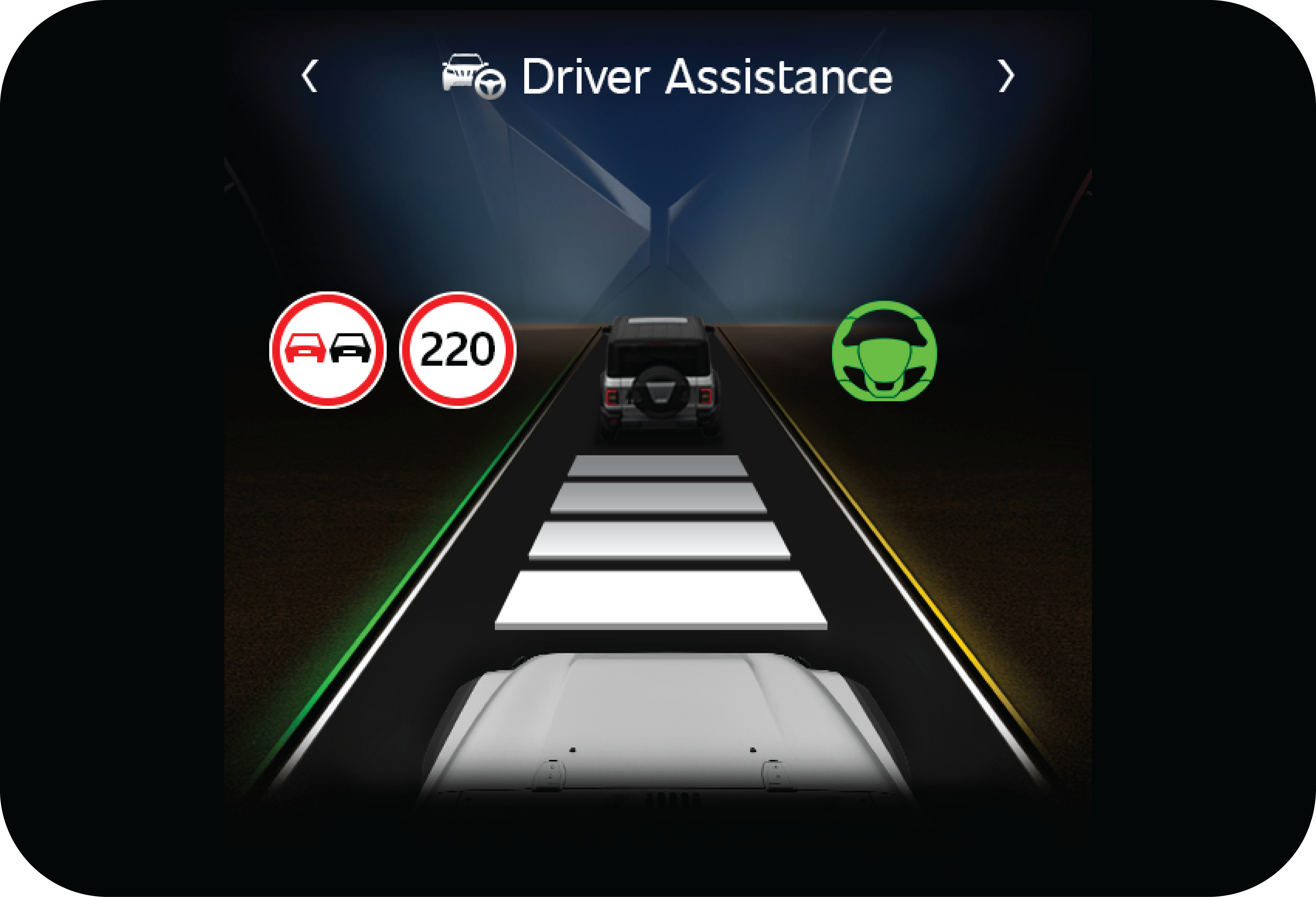

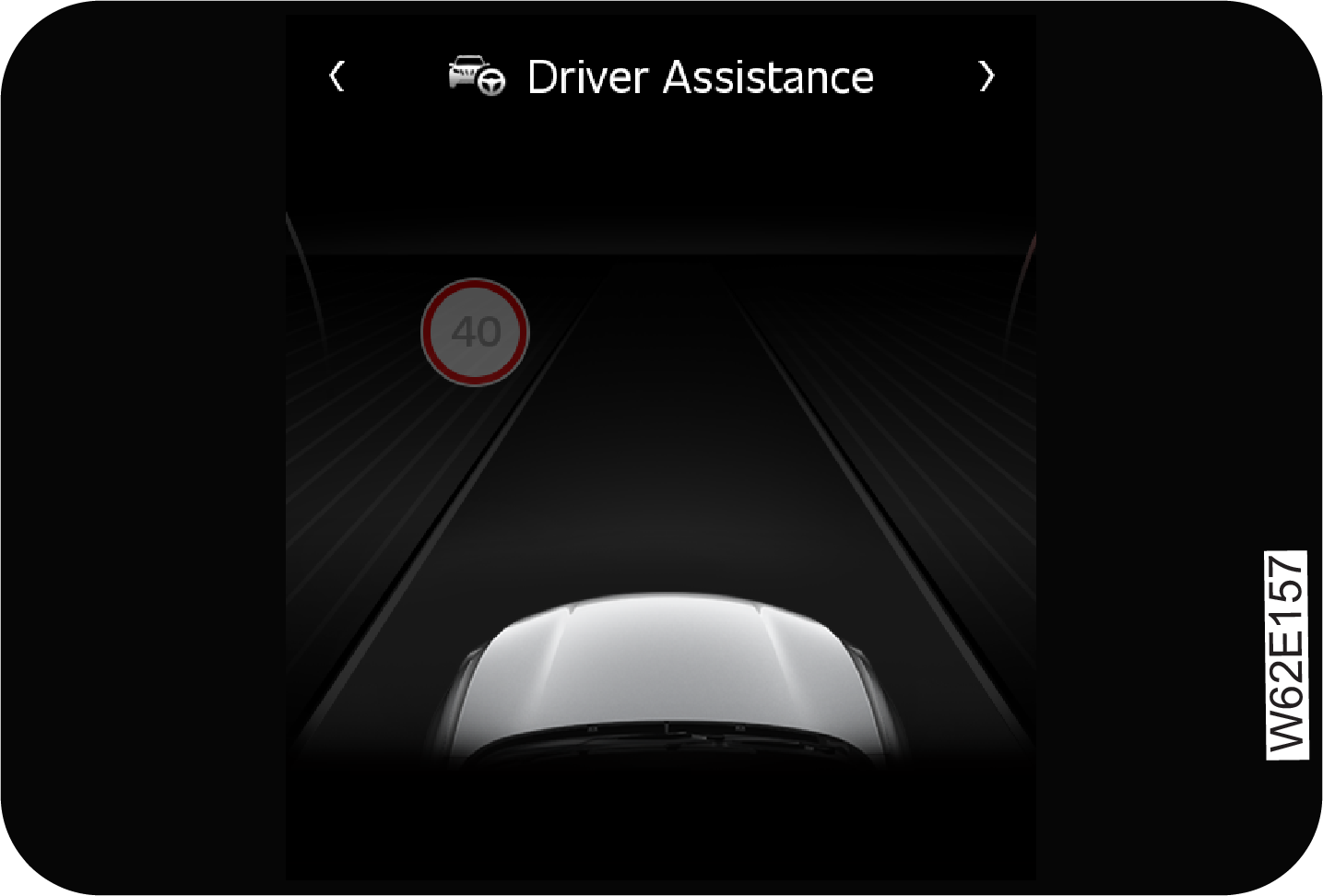

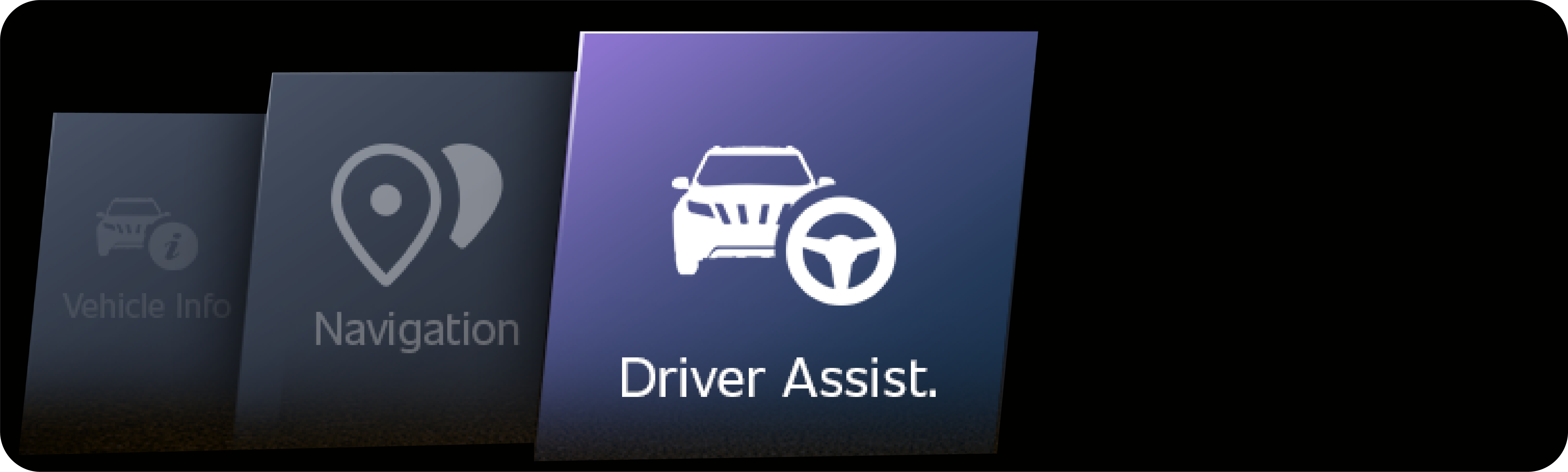

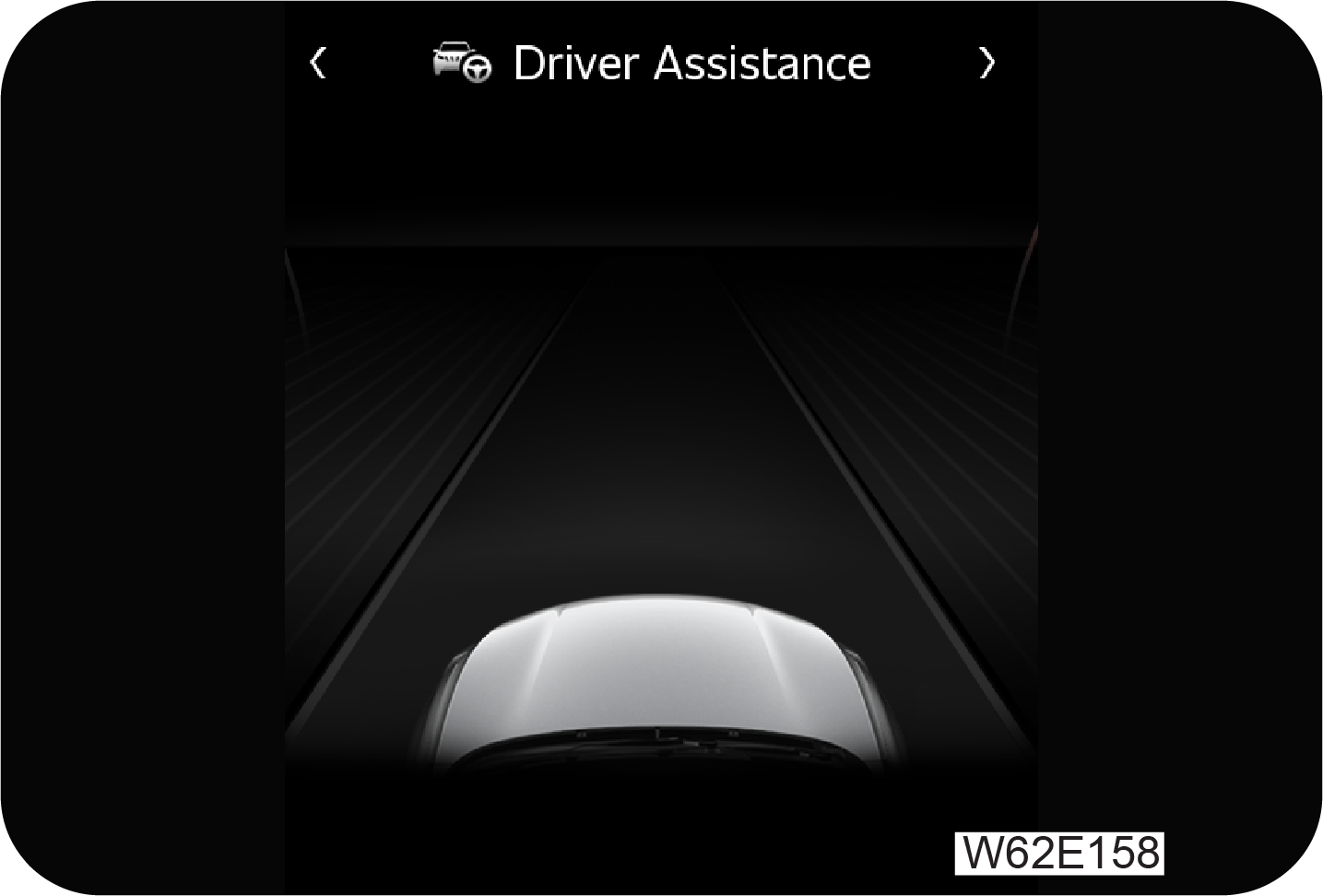

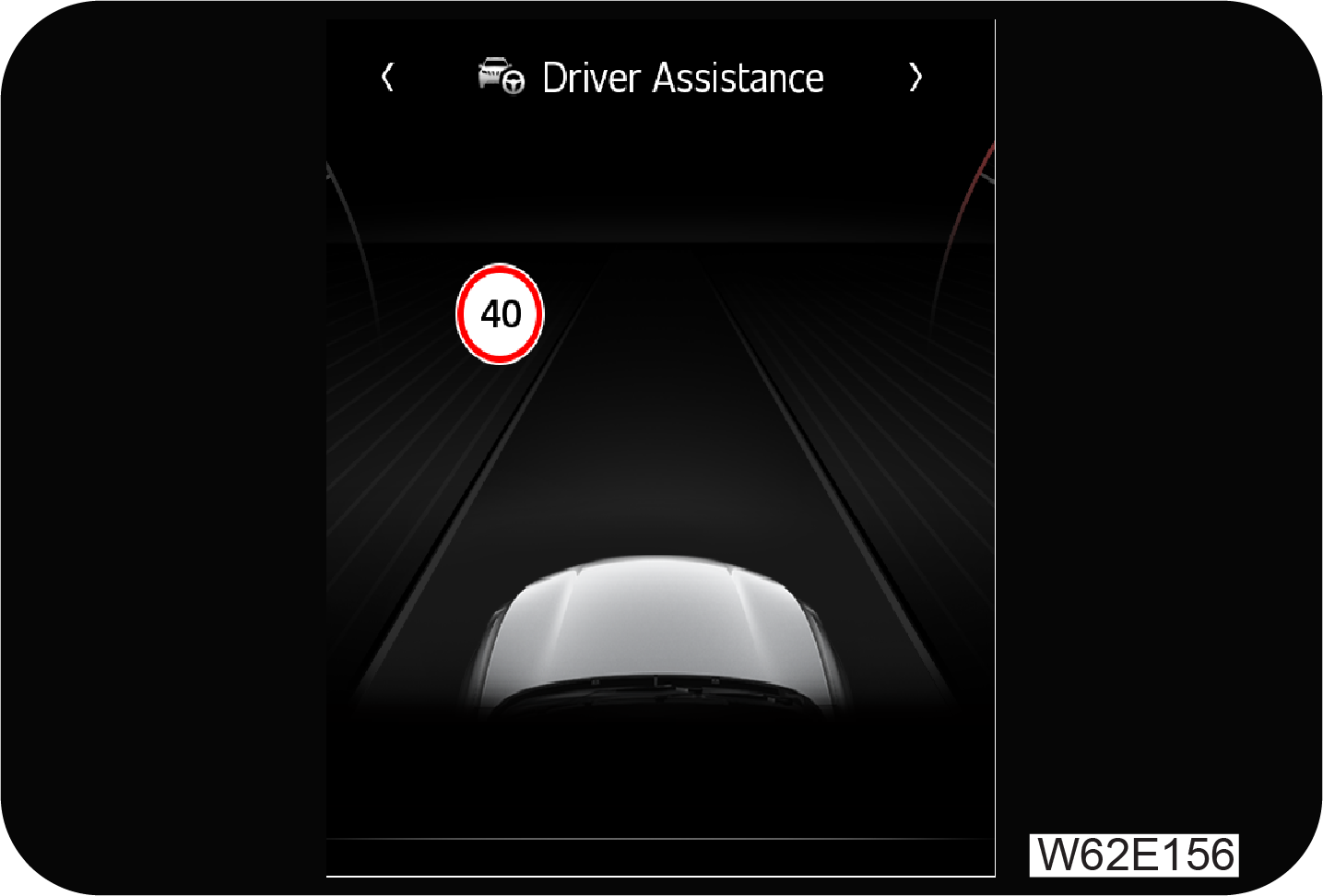

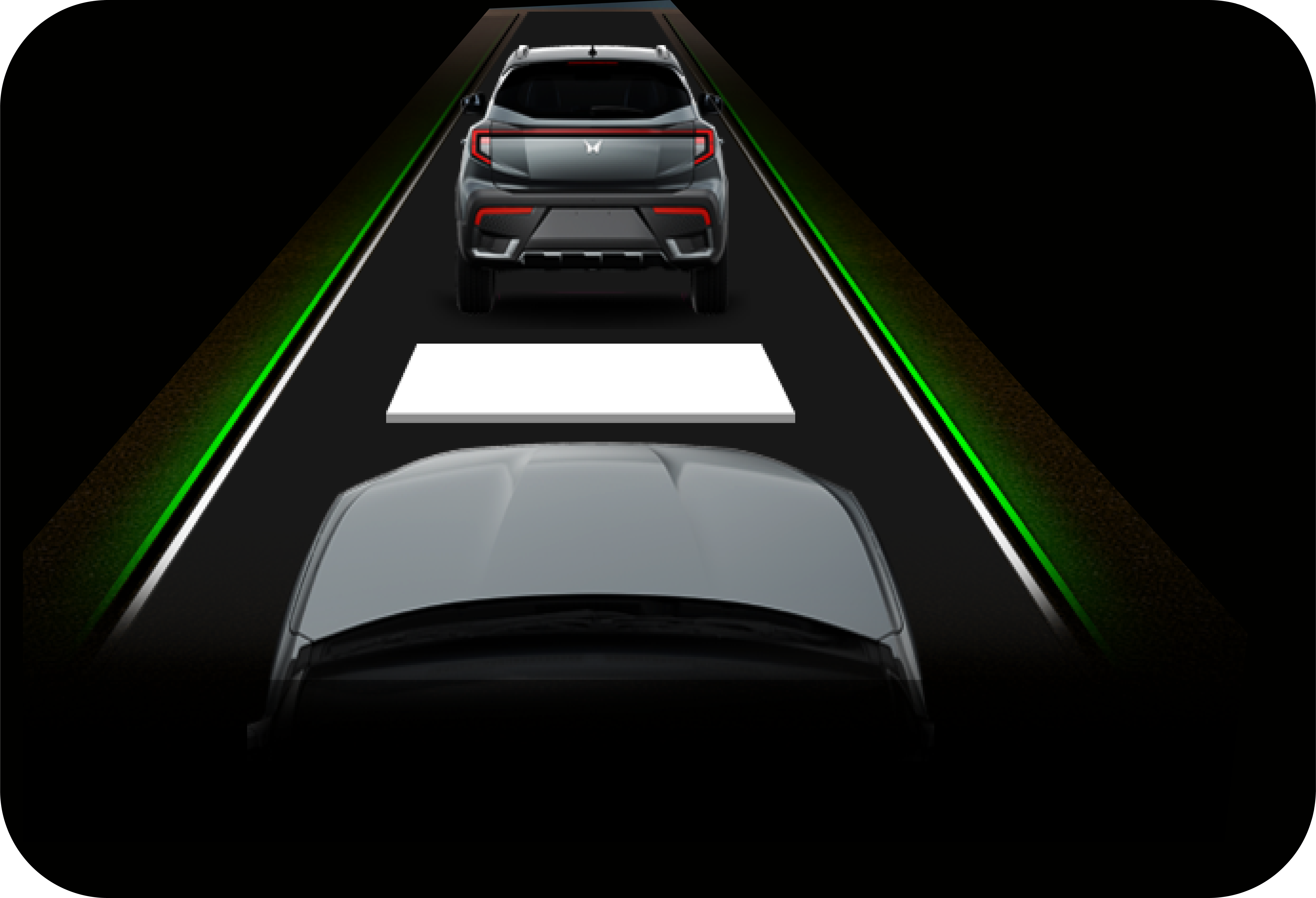

Driver Assistance Menu View |
Non Driver Assistance Menu View |
|
|
|
|

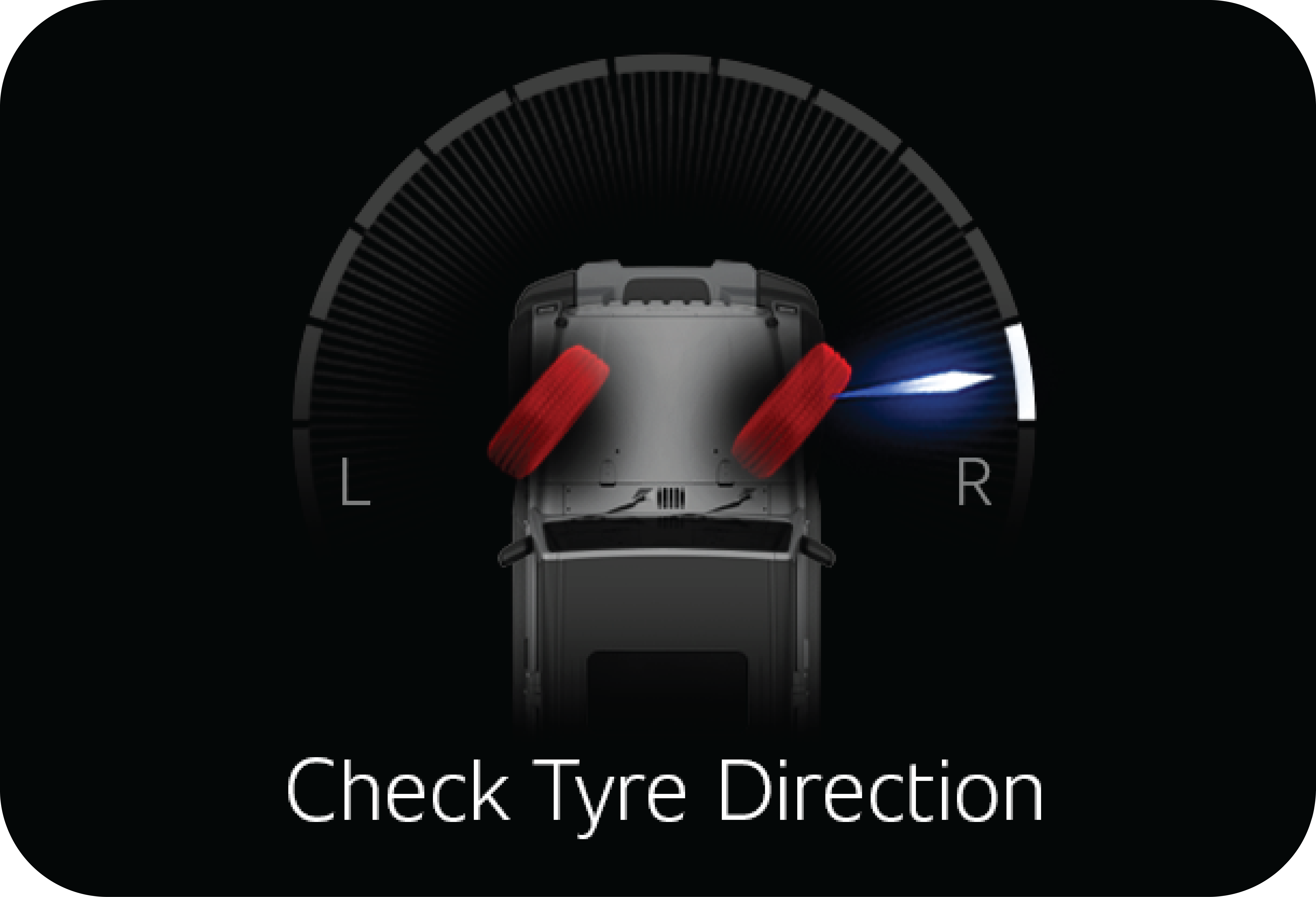

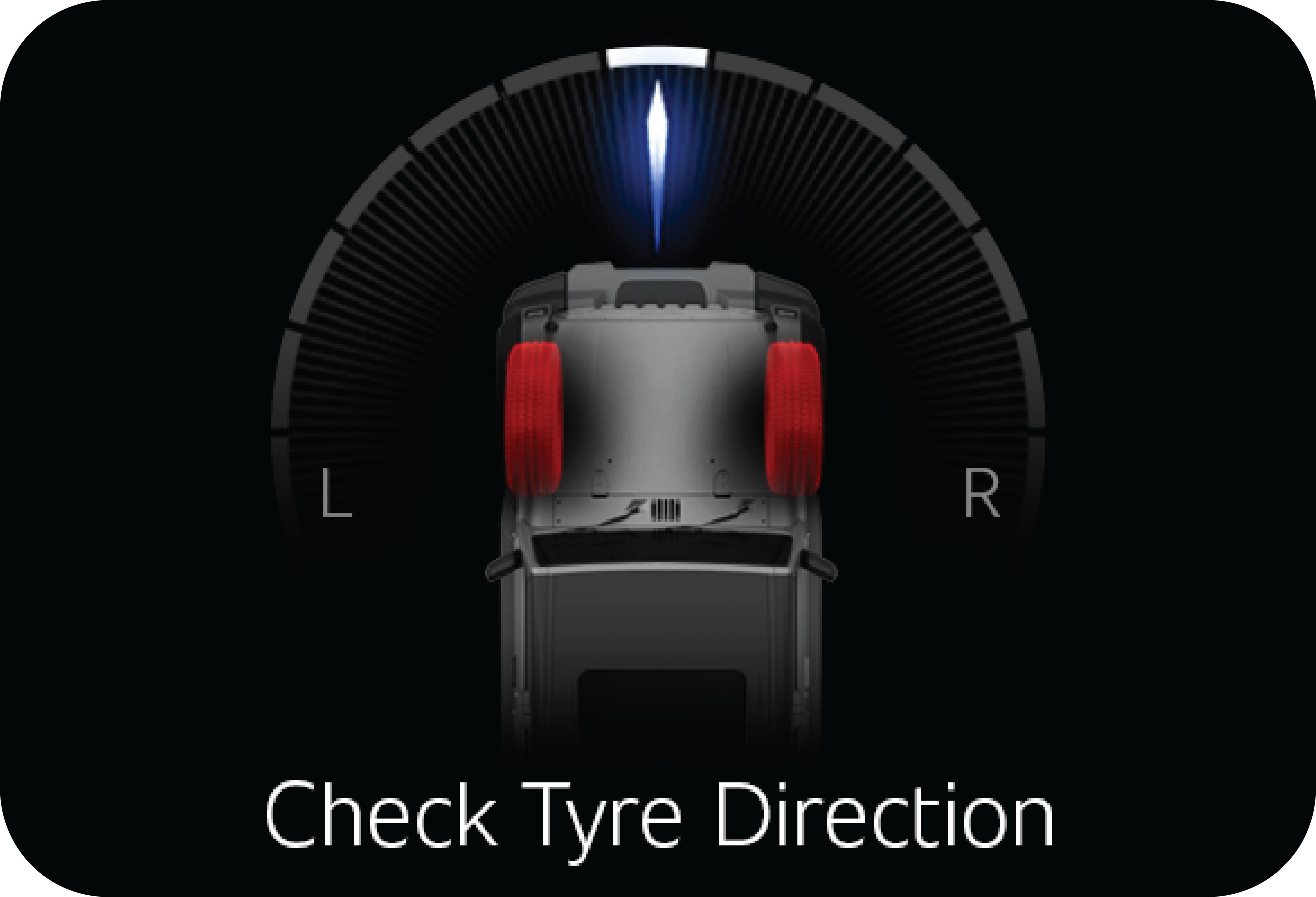

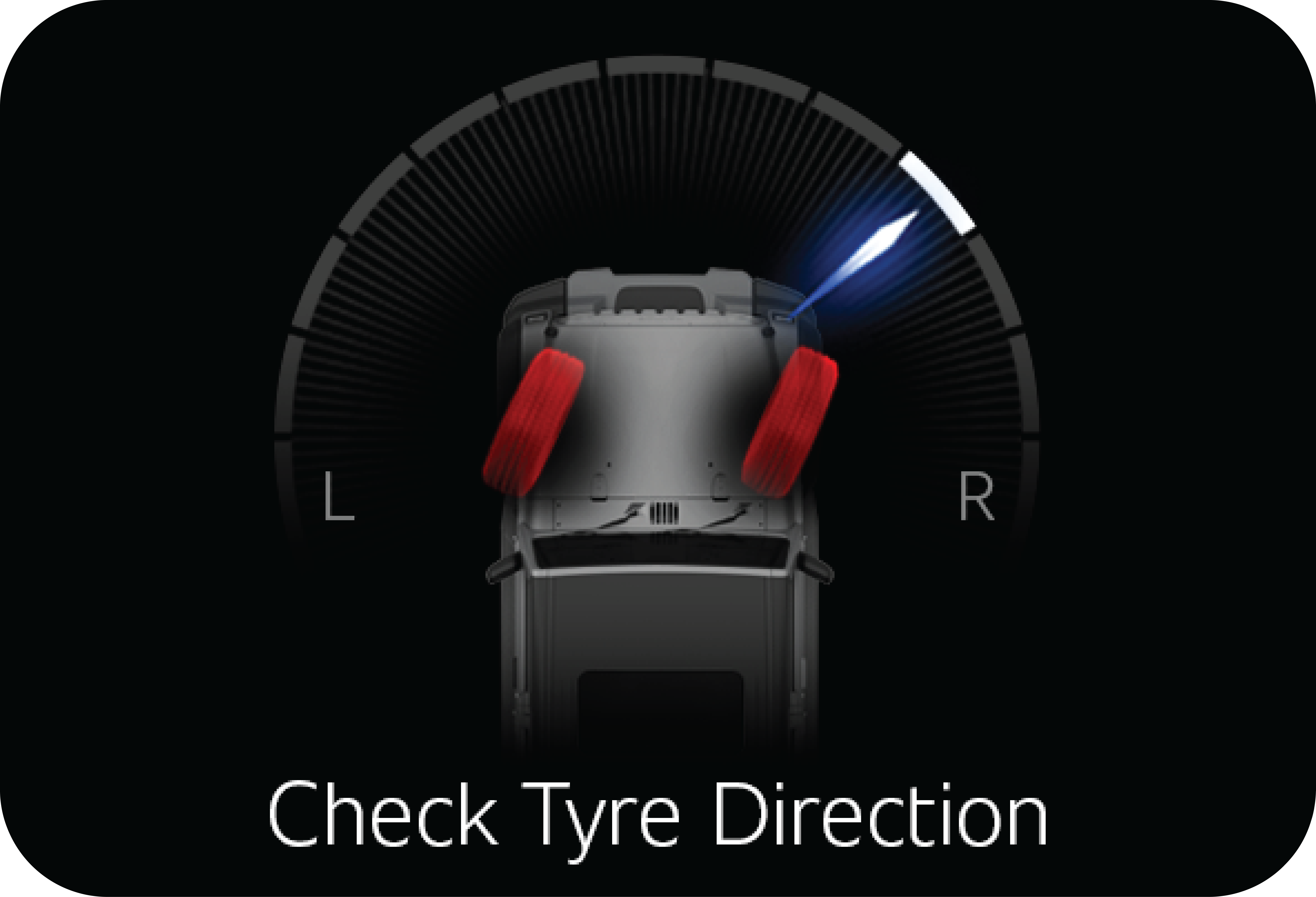

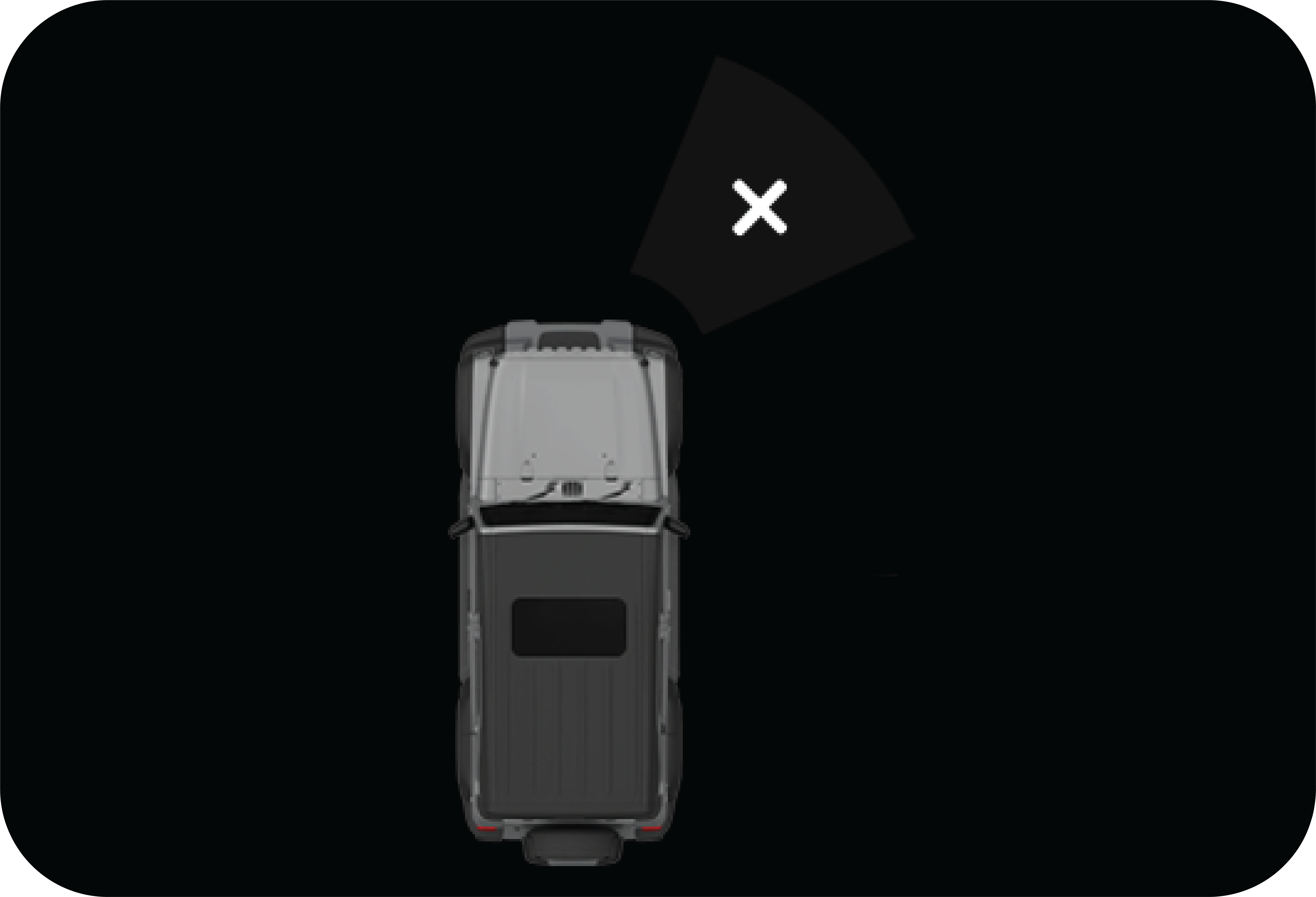

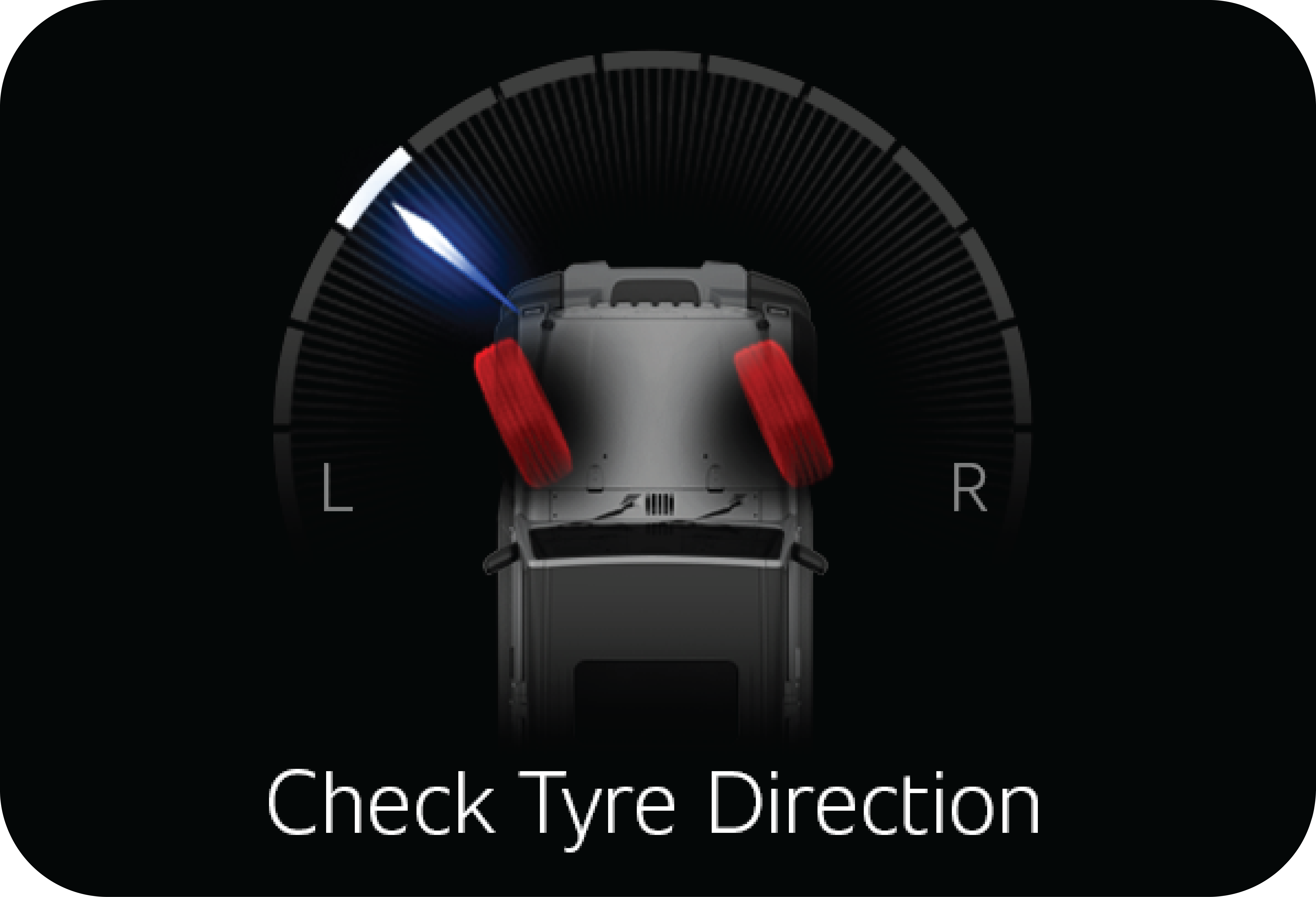

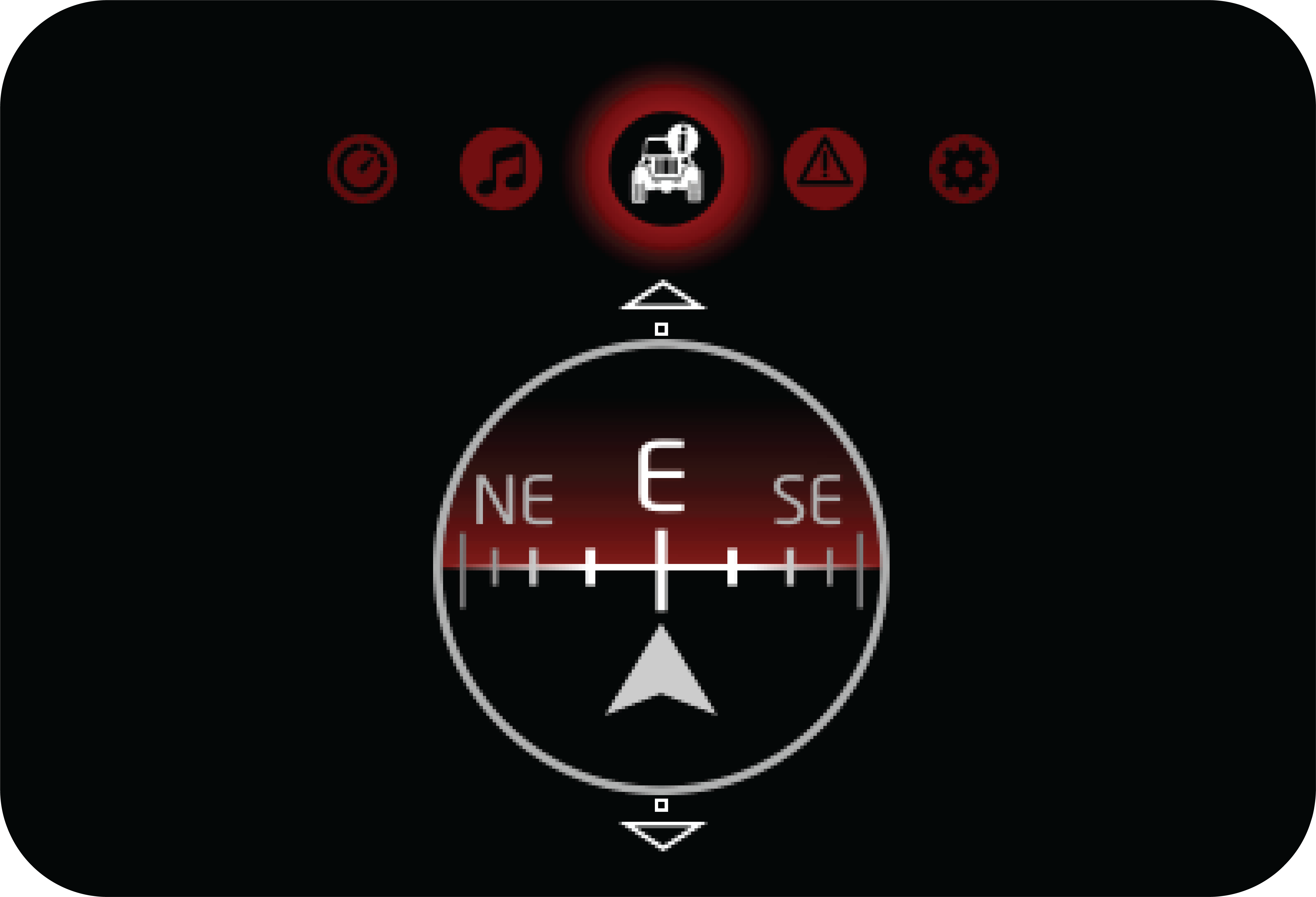

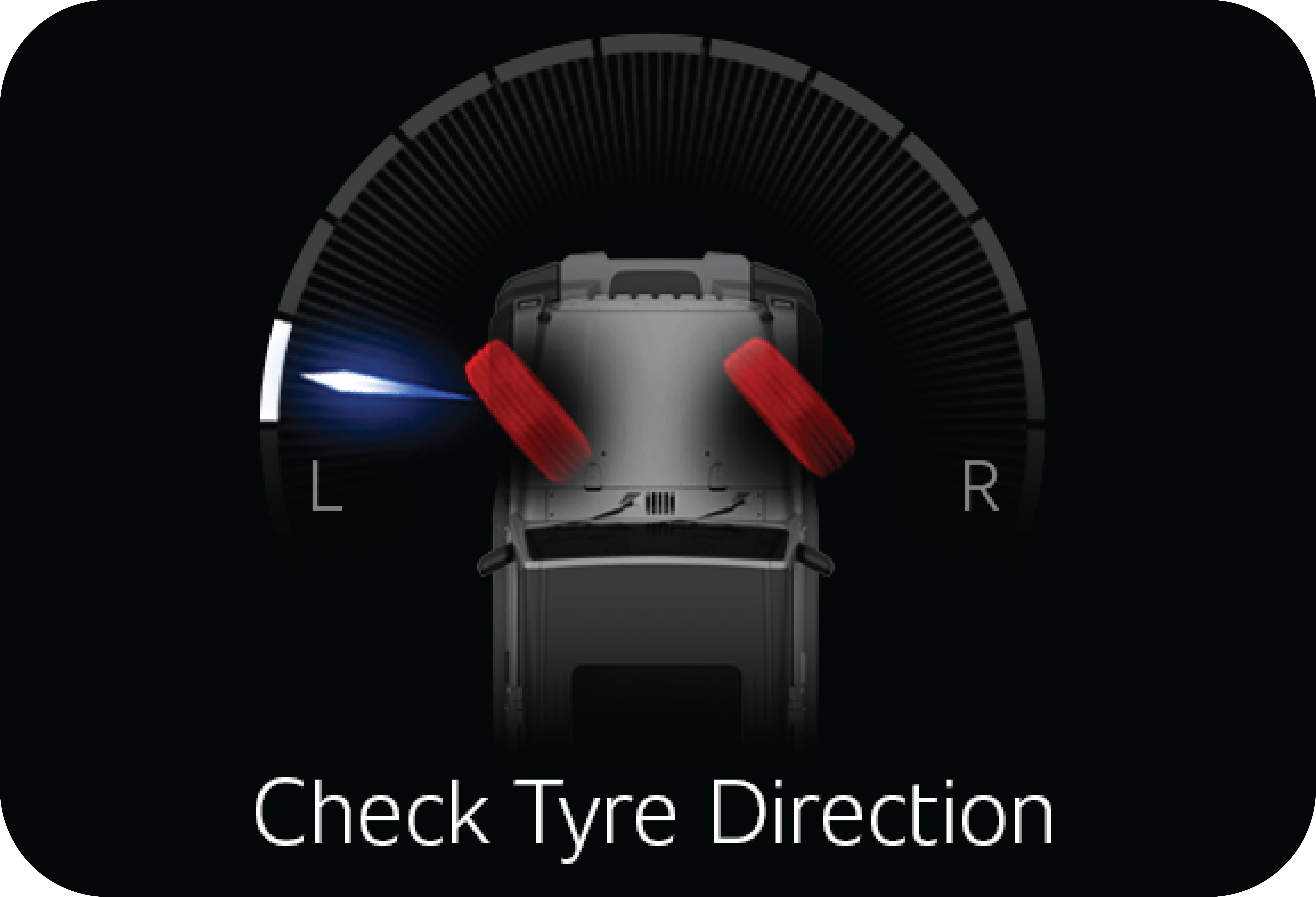

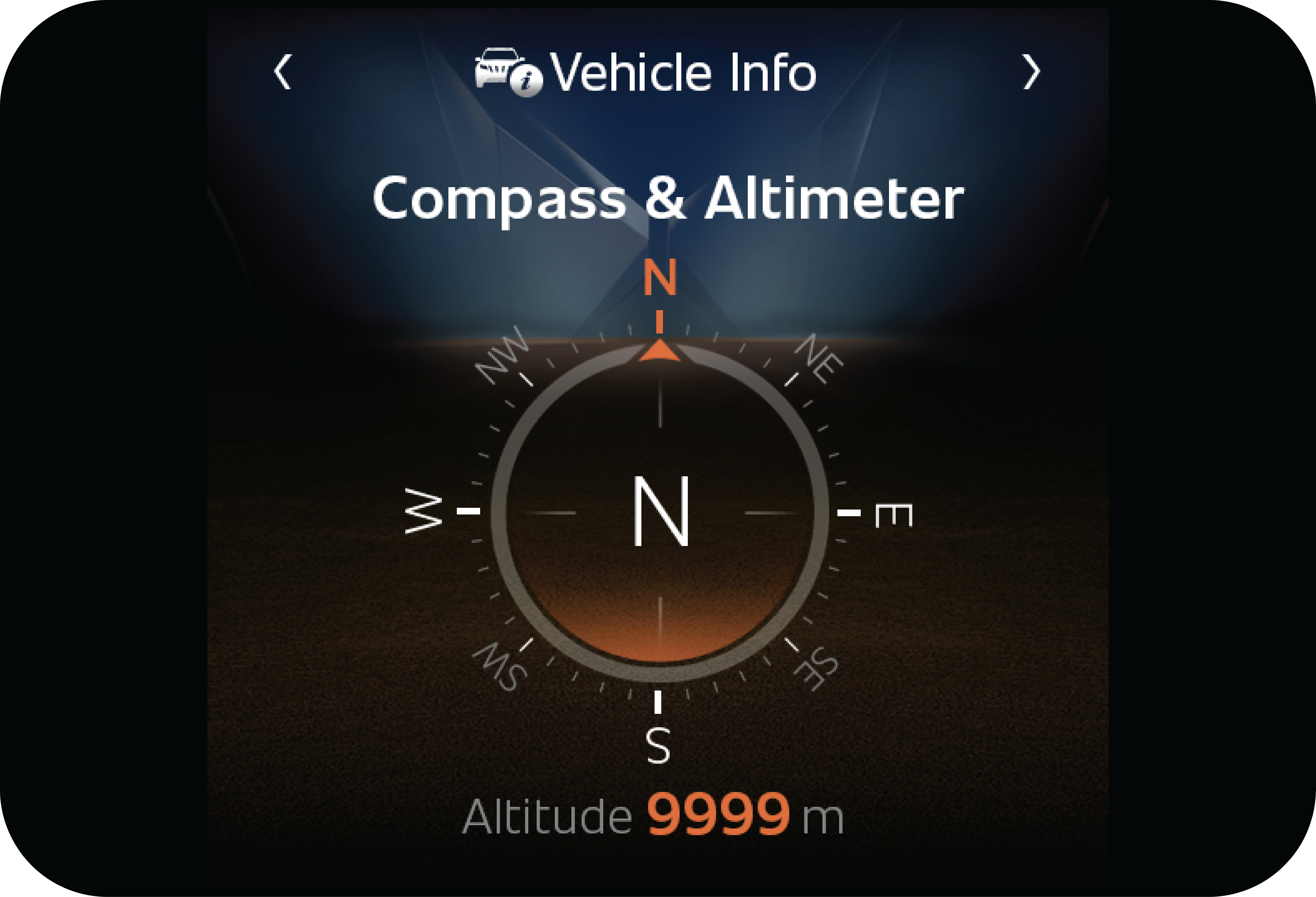

This feature is available as an Alert as well as standalone page.
Alert: Intuitively notifies the user before start of drive. Alert will trigger if conditions are met. Refer alert section. Based
on direction alert may go out or can be continuously ON.
|
Standalone page: User can navigate to this page to check current direction of tire even while driving.
|
|

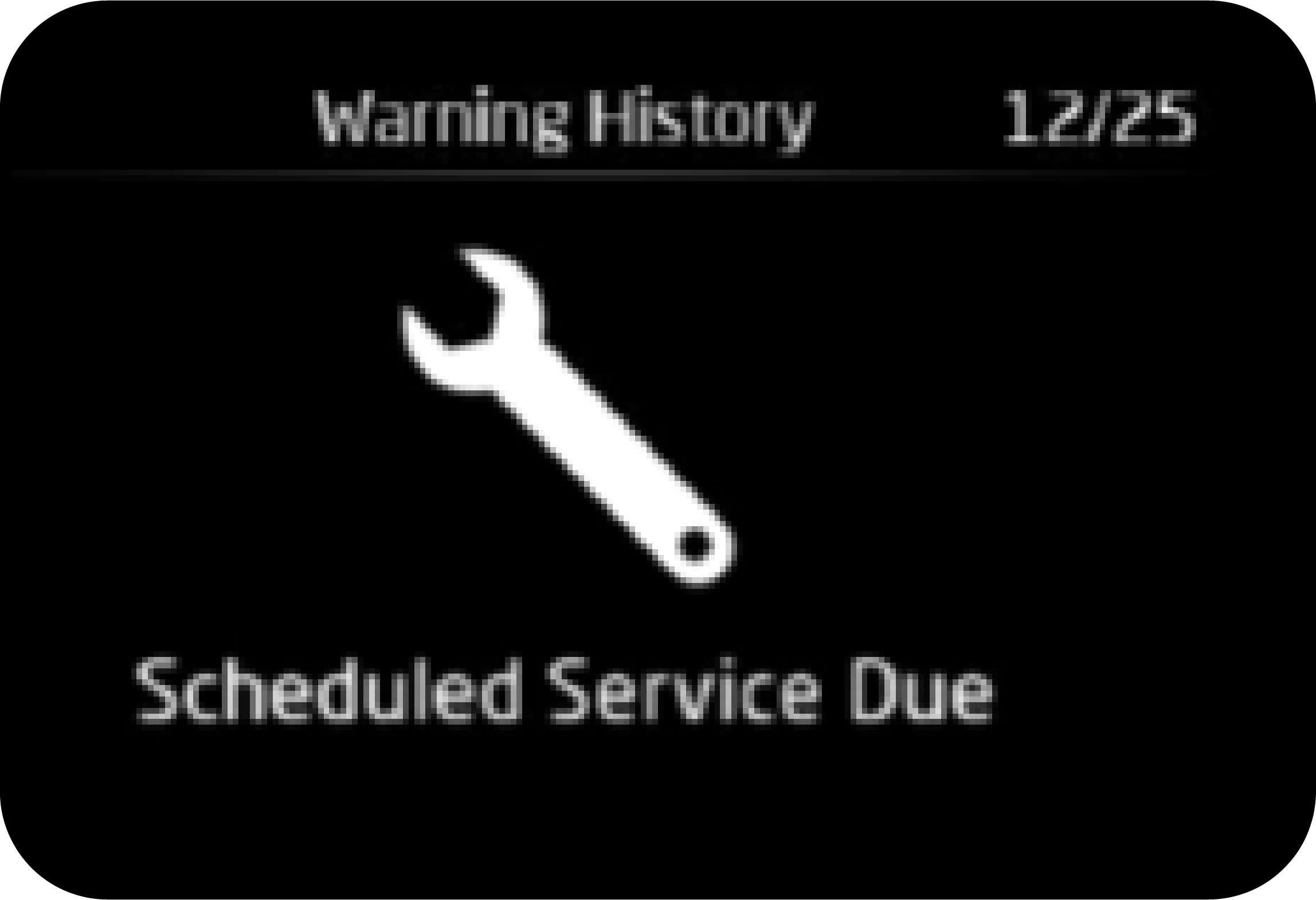

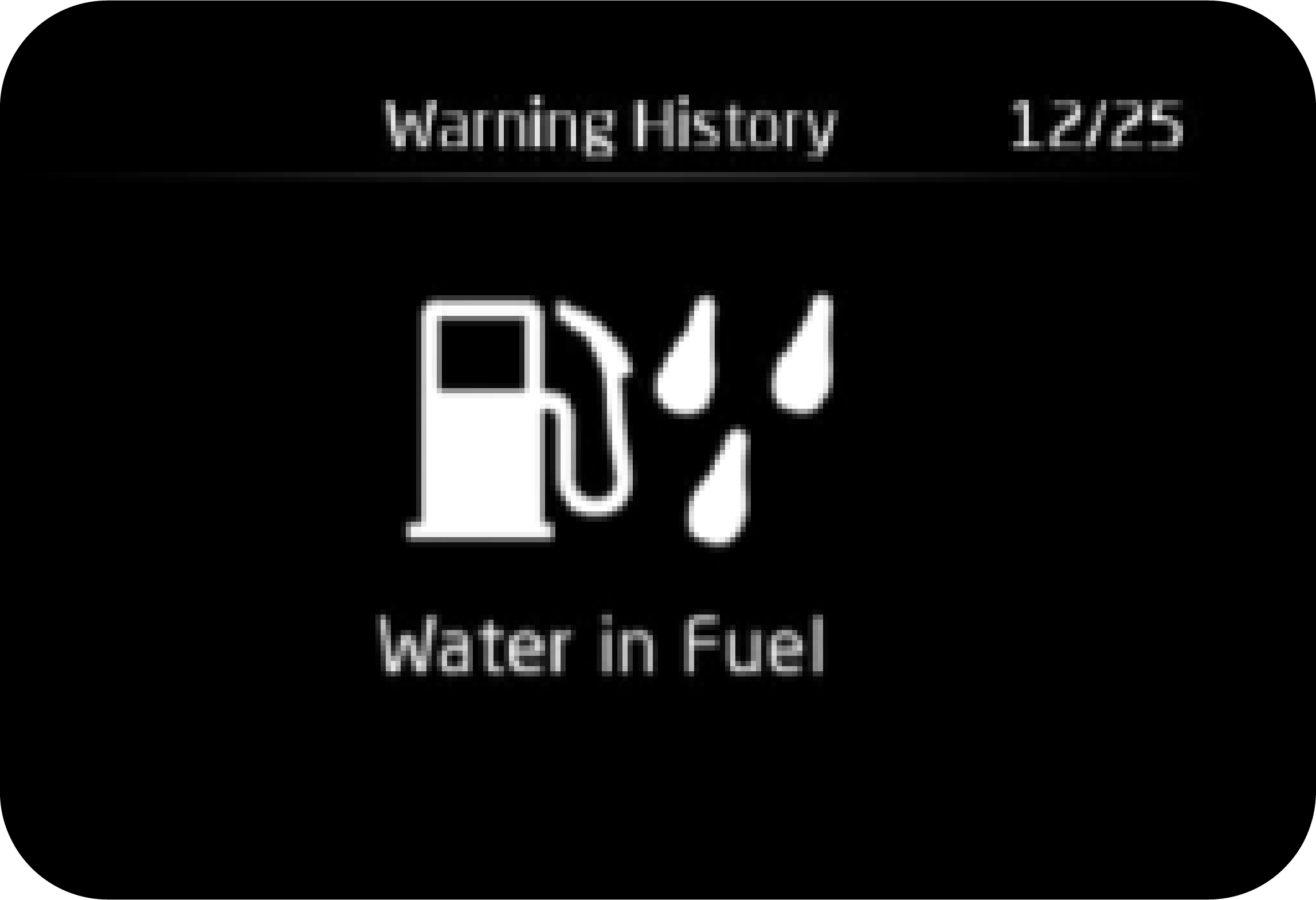

This feature allows you to check the live warnings in the instrument cluster. It is represented by exclamation mark inside
a triangle.
Steps to access:
1. Use Menu Switch to access the warning history.
2. Once you are on screen as in Figure 1, Press OK to enter the warning history.
|
|
|
|
|
|
|
|
|
|
|
1. Clock (if sync not available) |
|
Clock |
Time Format |
|
|
2. Temperature unit (if applicable) |
3. Passenger Airbag |
|
|
|
1. Press the MENU button provided in the switch panel and navigate to Settings Option.
|
|
2. Press OK button to enter in settings and following screen will appear.
|
|
3. Press Up/Down buttons to navigate to Passenger Airbag ON/OFF option.
|
|
4. Once select the Passenger ON/OFF option, Press OK to confirm selection and following message will appear on screen.
5. Confirm the option by selecting “Ok or Cancel” using Up/Down and Press the OK button.
|
|

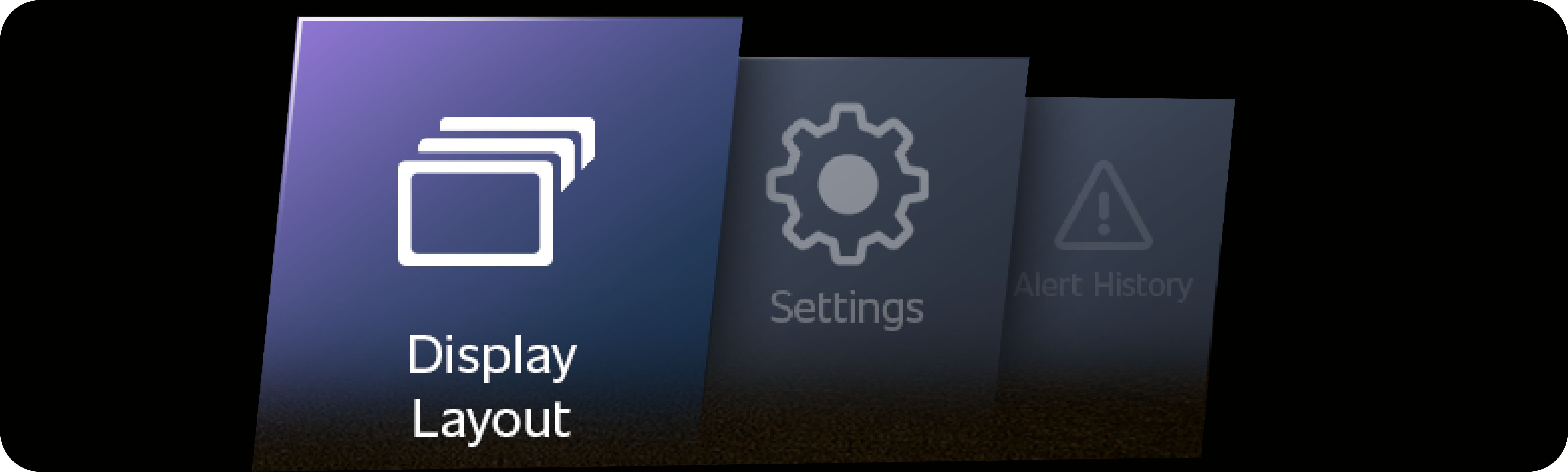

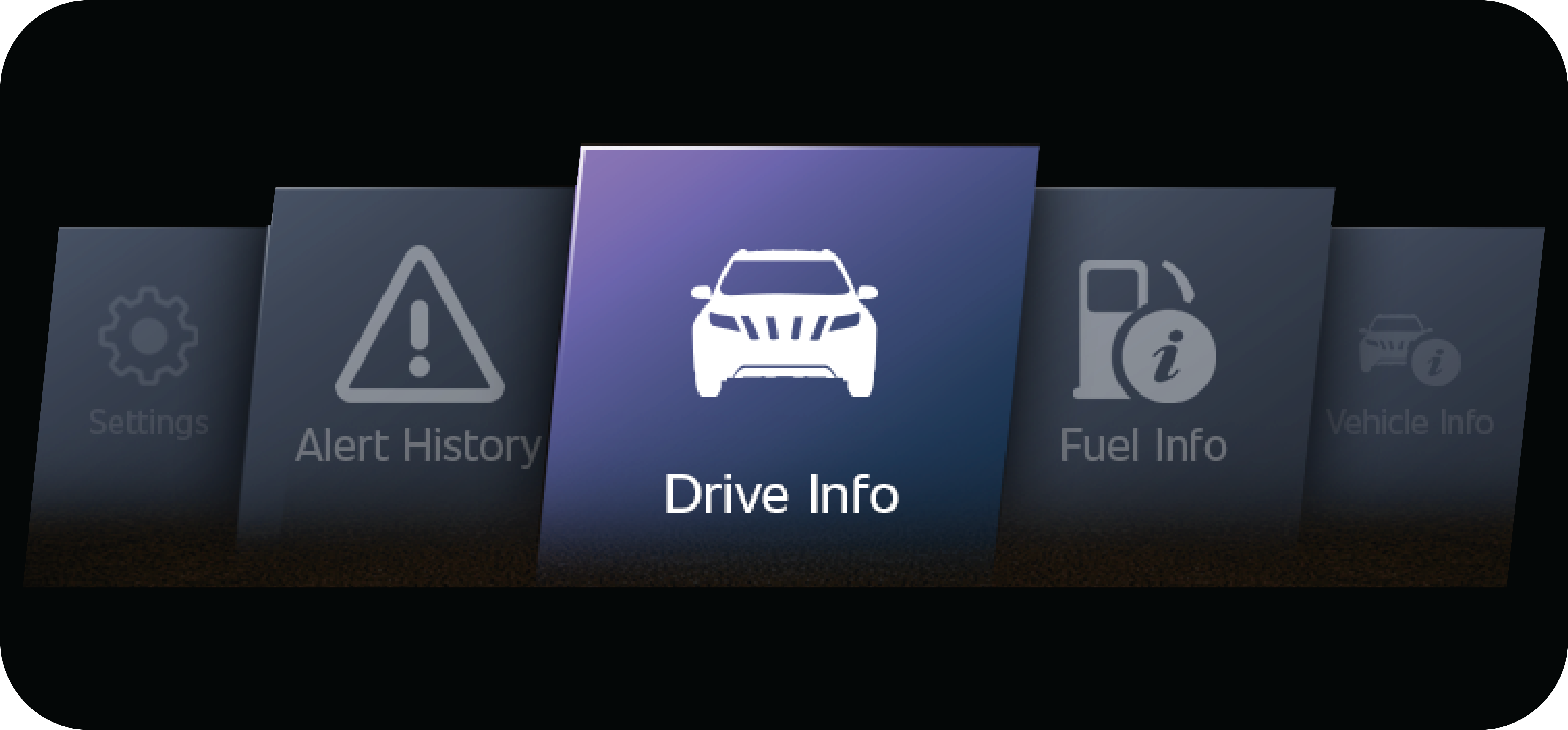

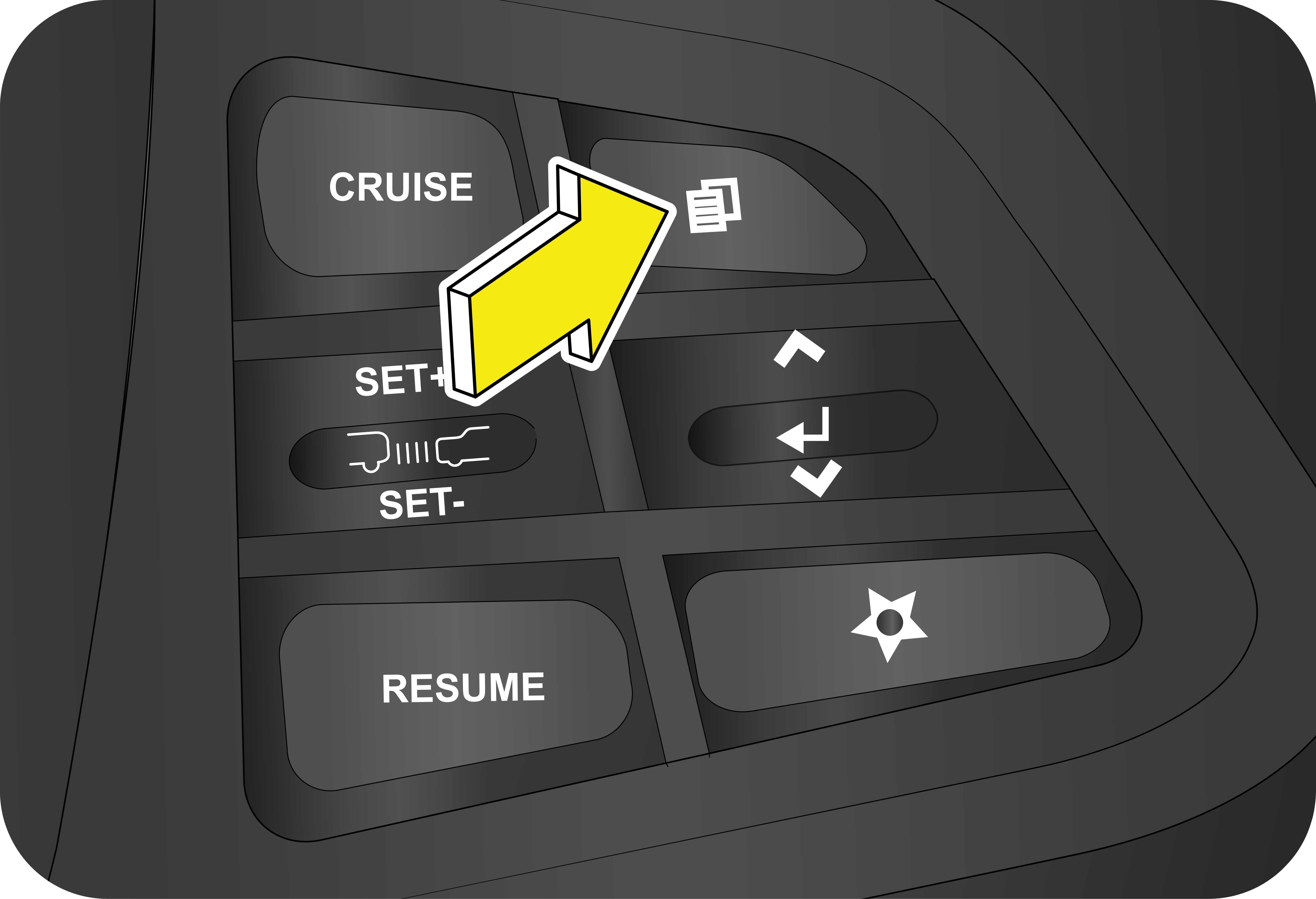

Settings can be accessed by pressing MENU switch
To enter inside settings, press ok.
|
|

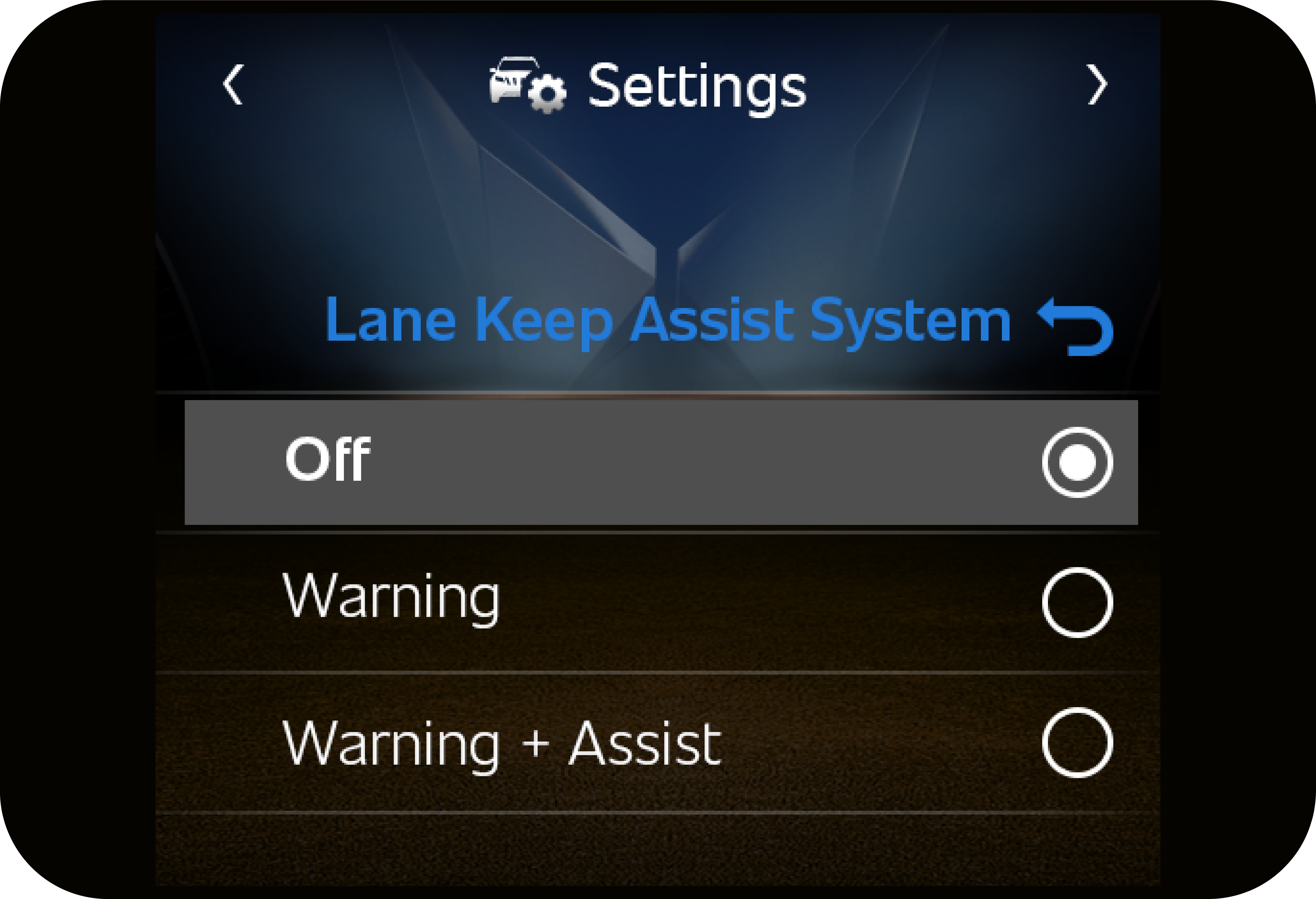

1. Navigate to Setting menu using MENU button.
|
|

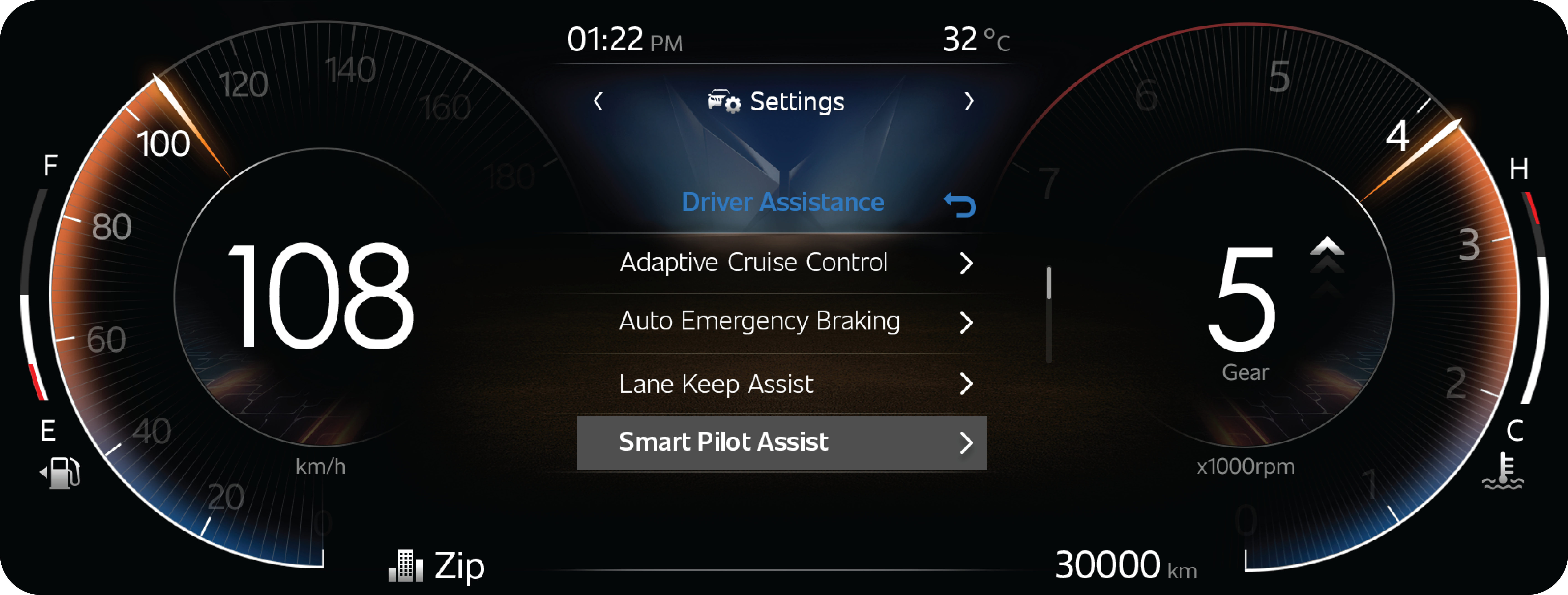

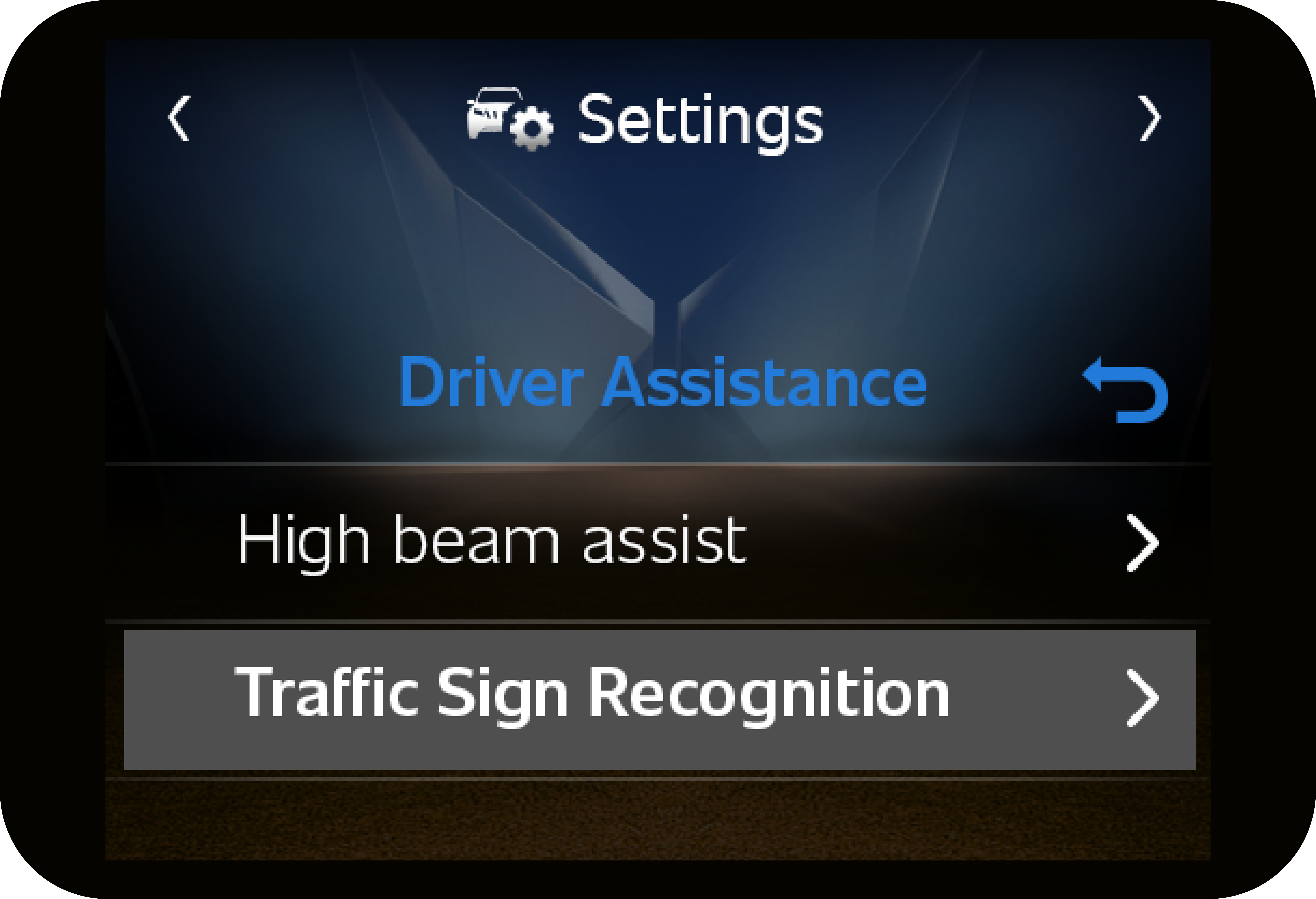

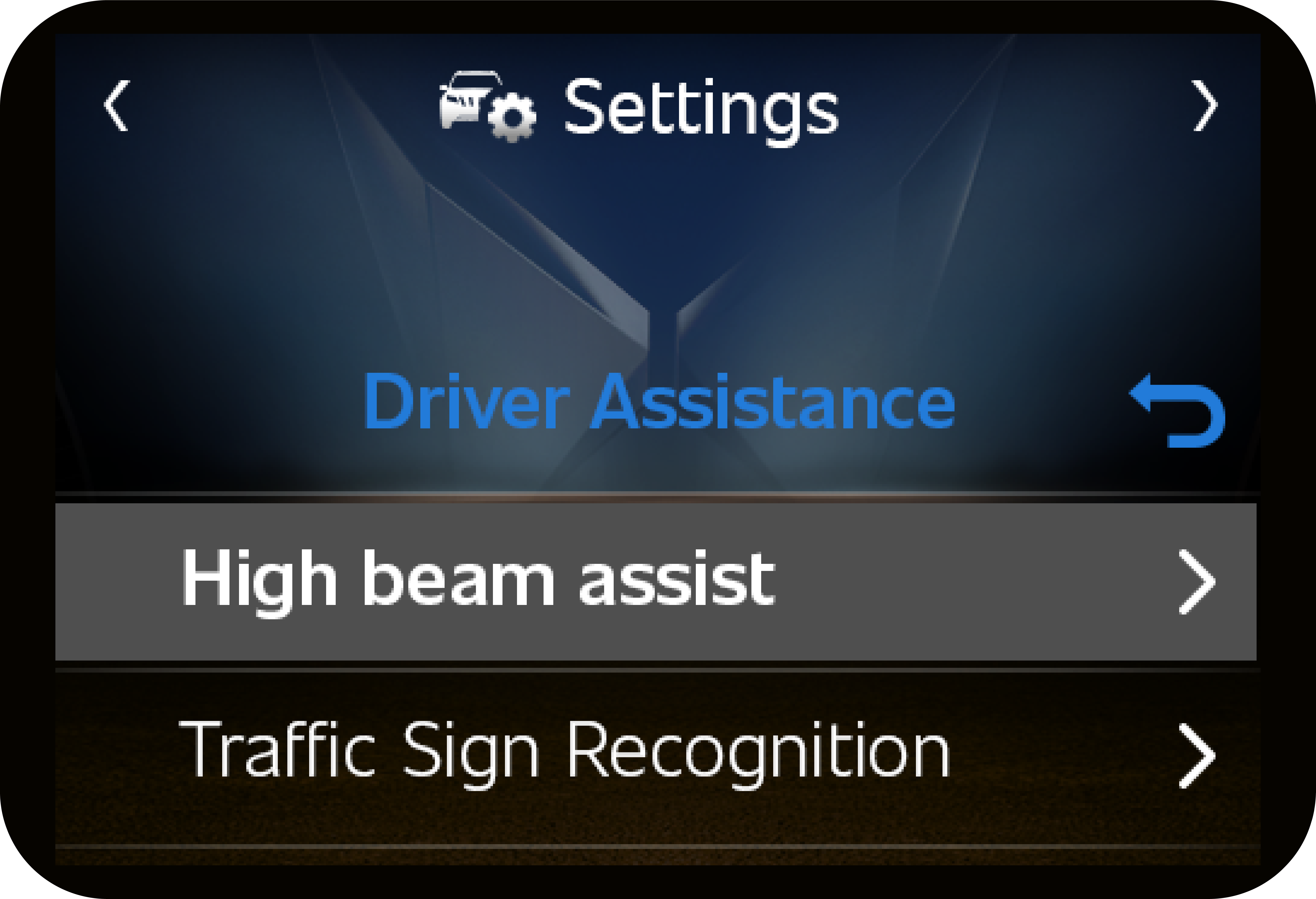

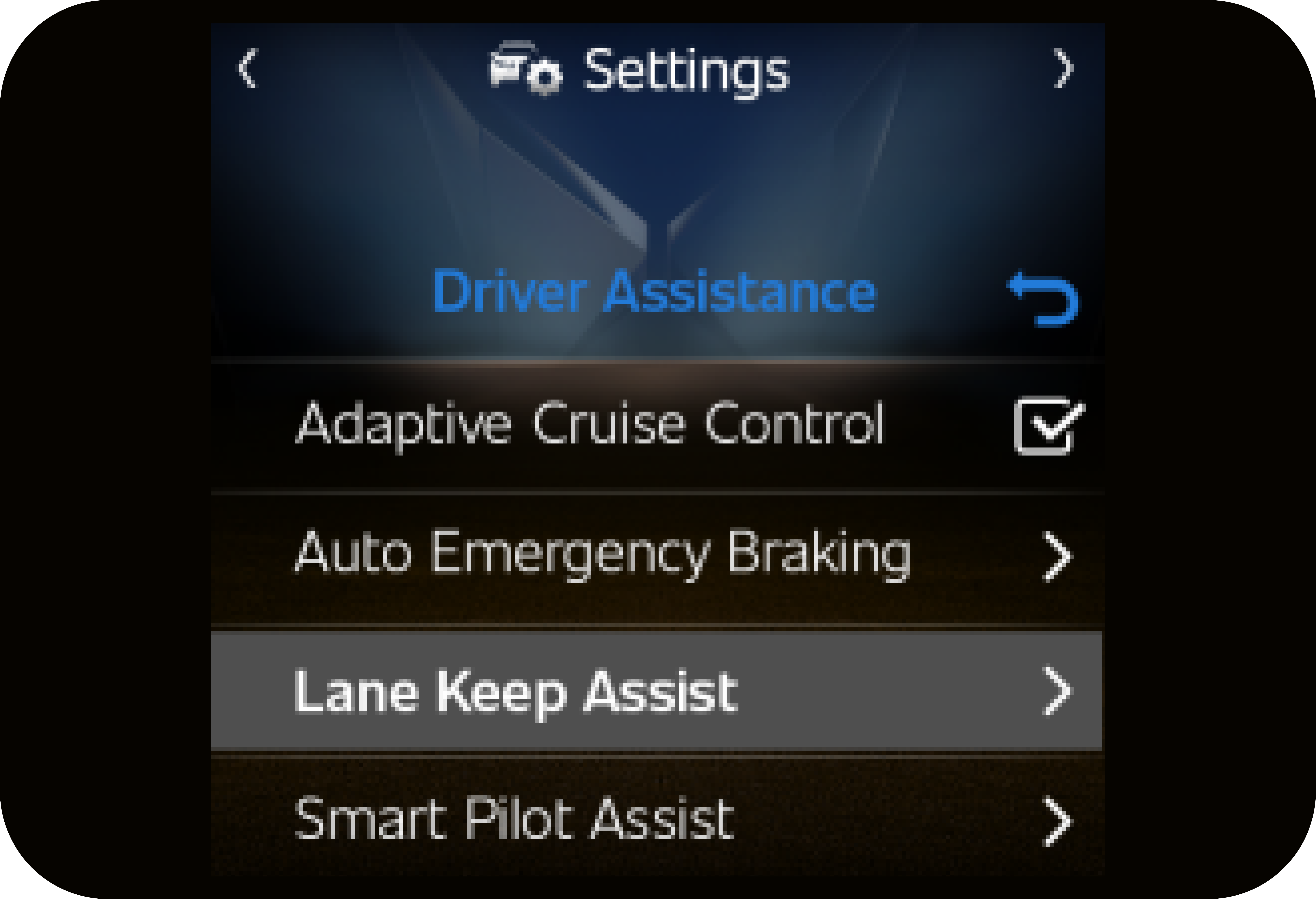

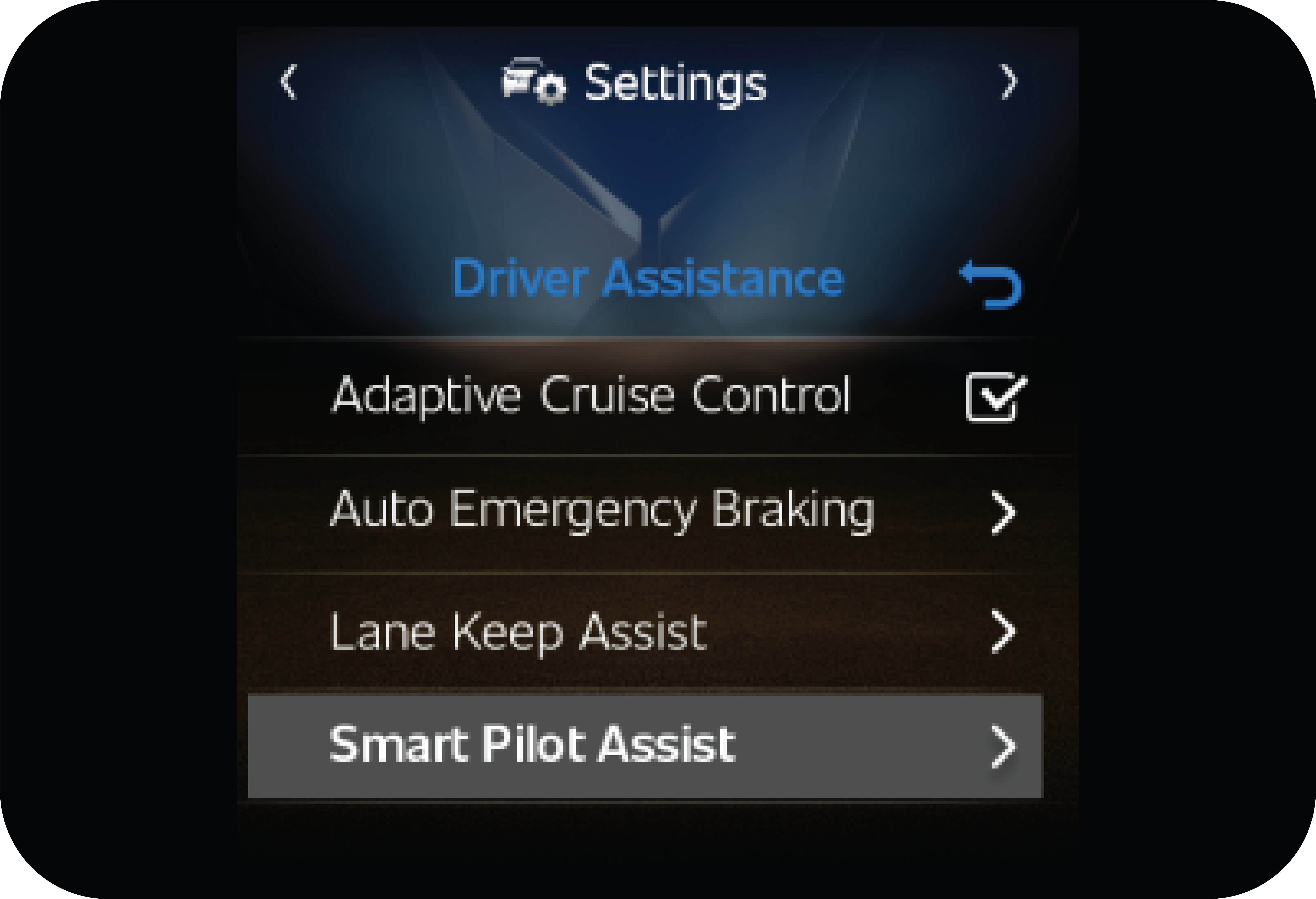

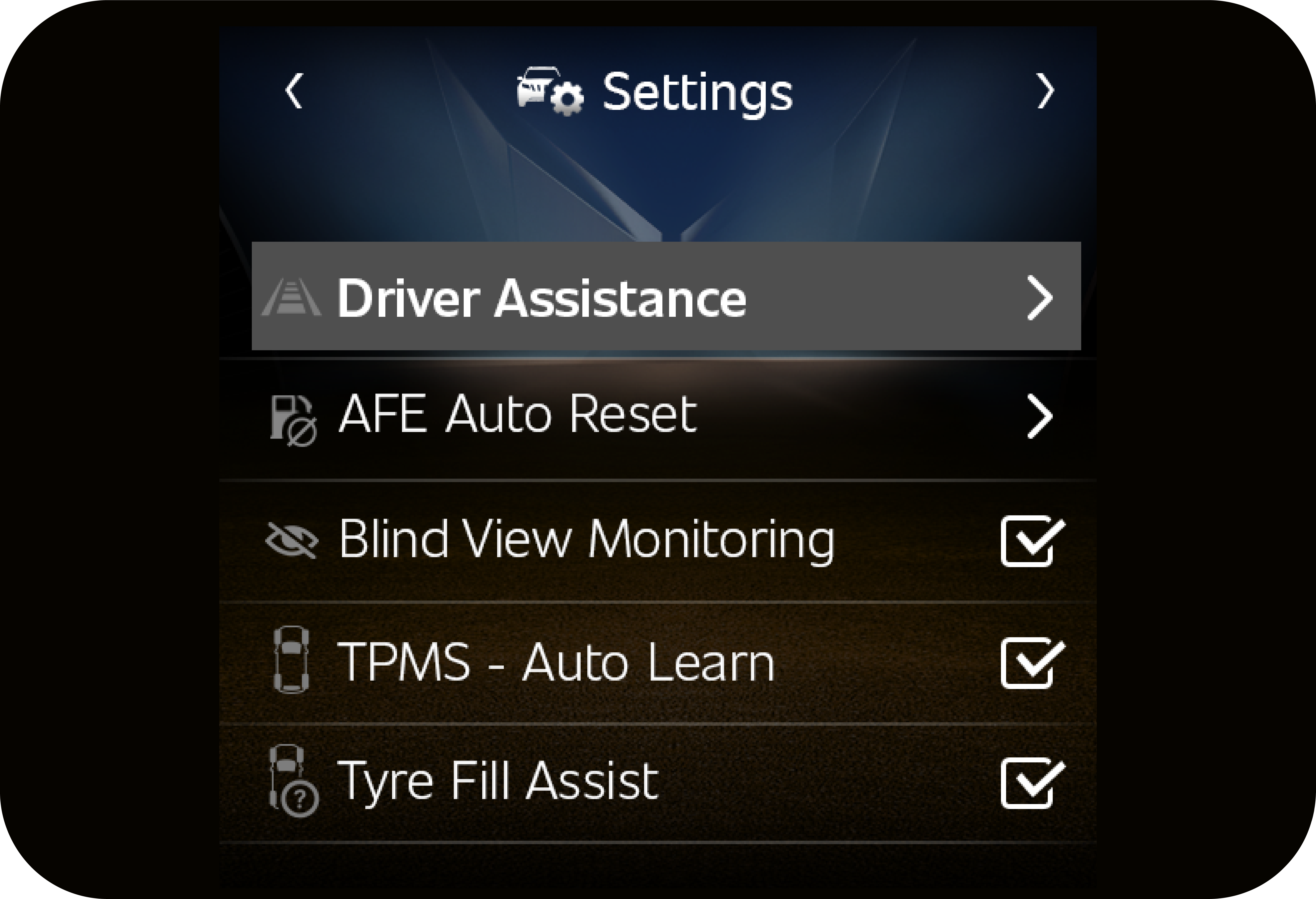

2. Press OK to enter setting. Press Up/Down button to navigate to Driver Assistance option.
|
|

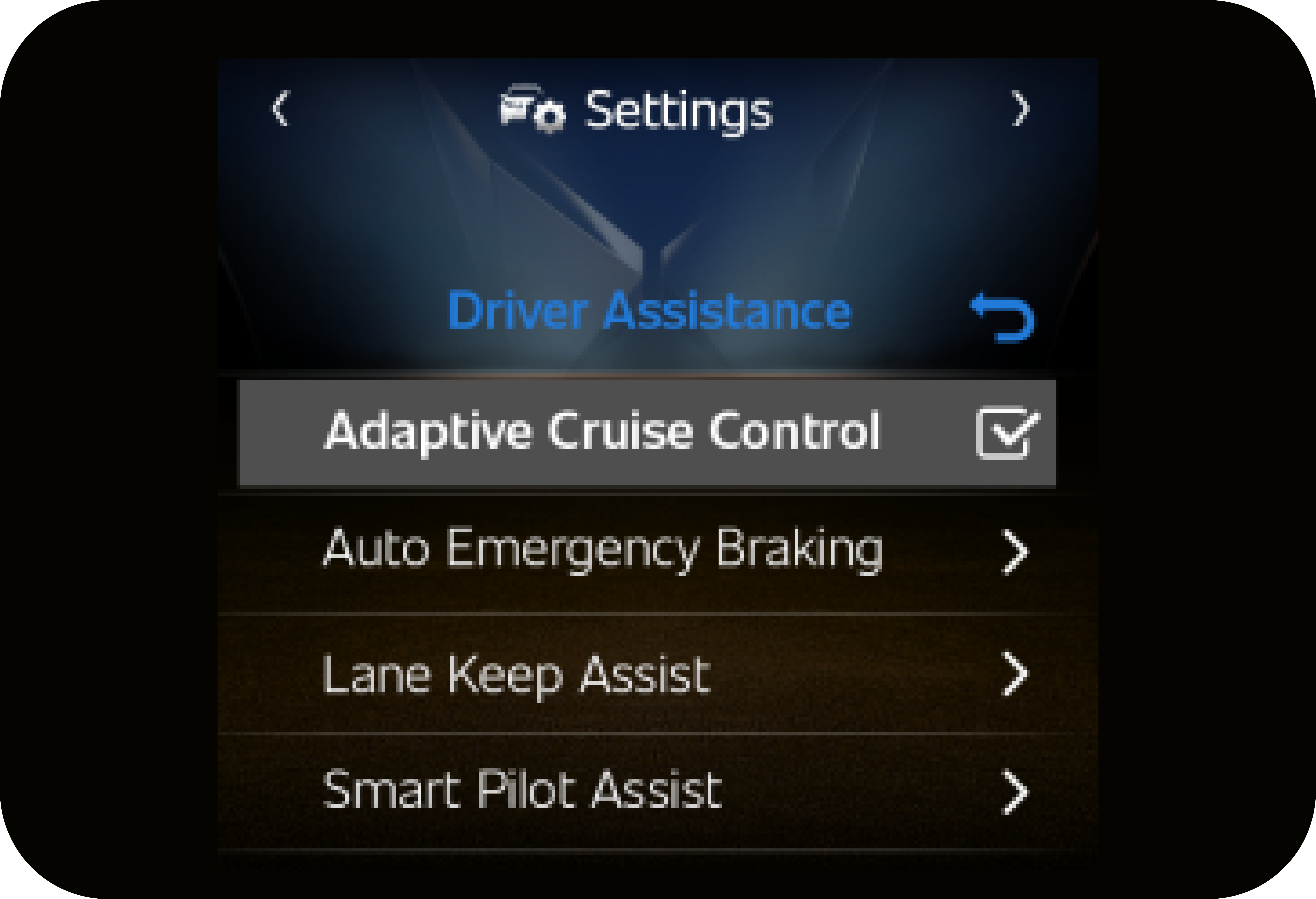

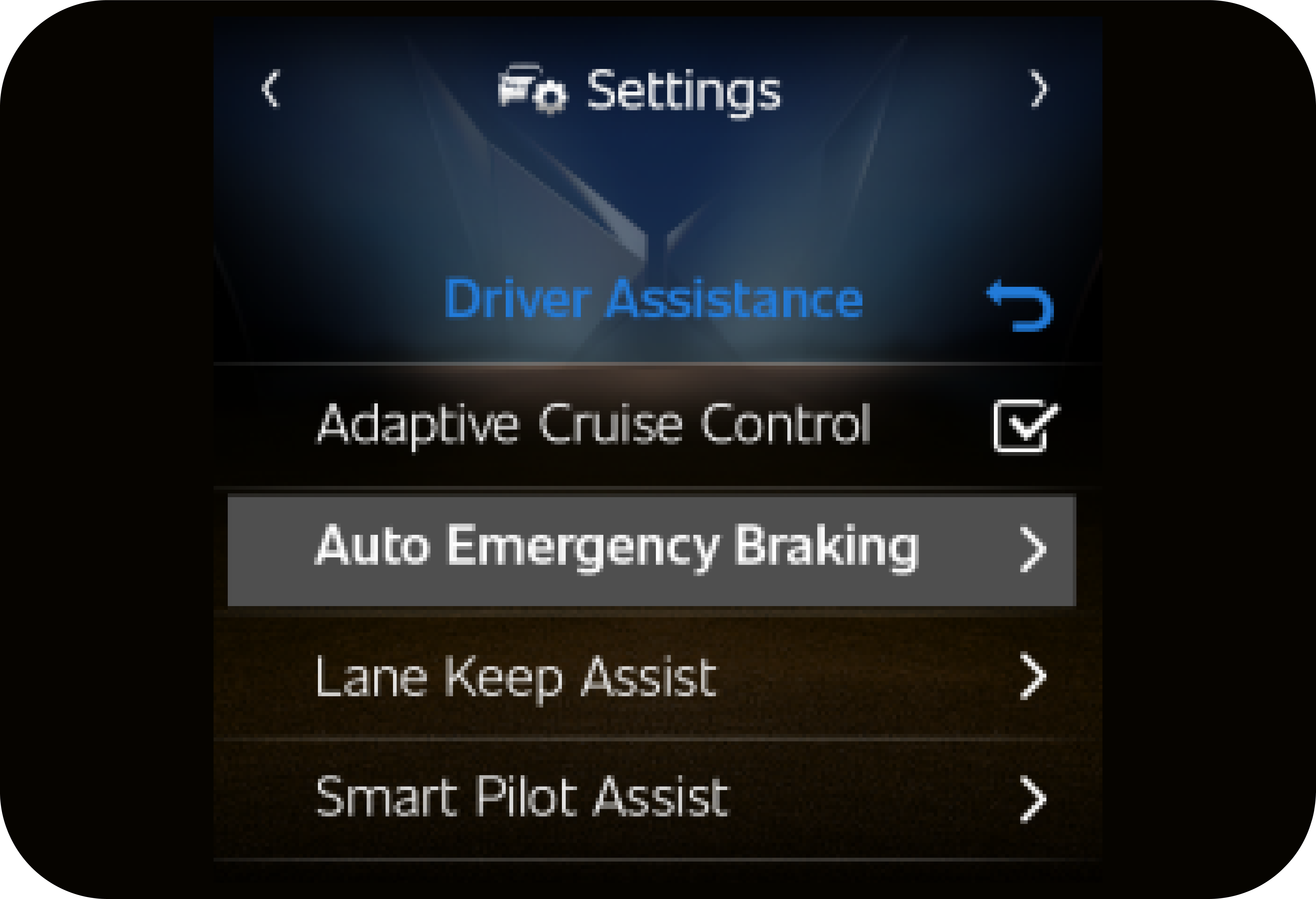

3. Press OK to enter Driver Assistance option. Use Up/Down button to navigate driver assistance features and press OK button
to select the corresponding feature options.
|
|

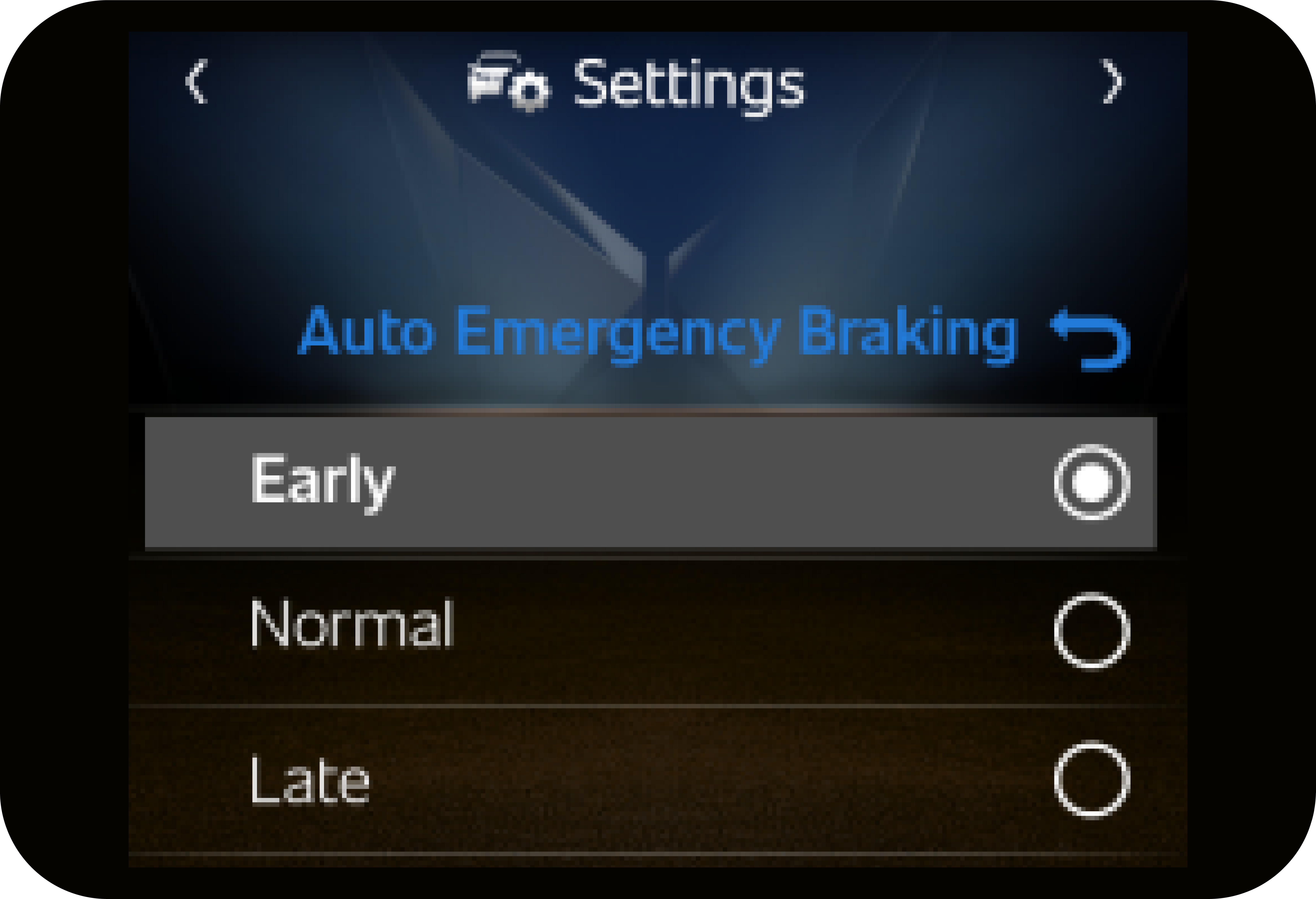

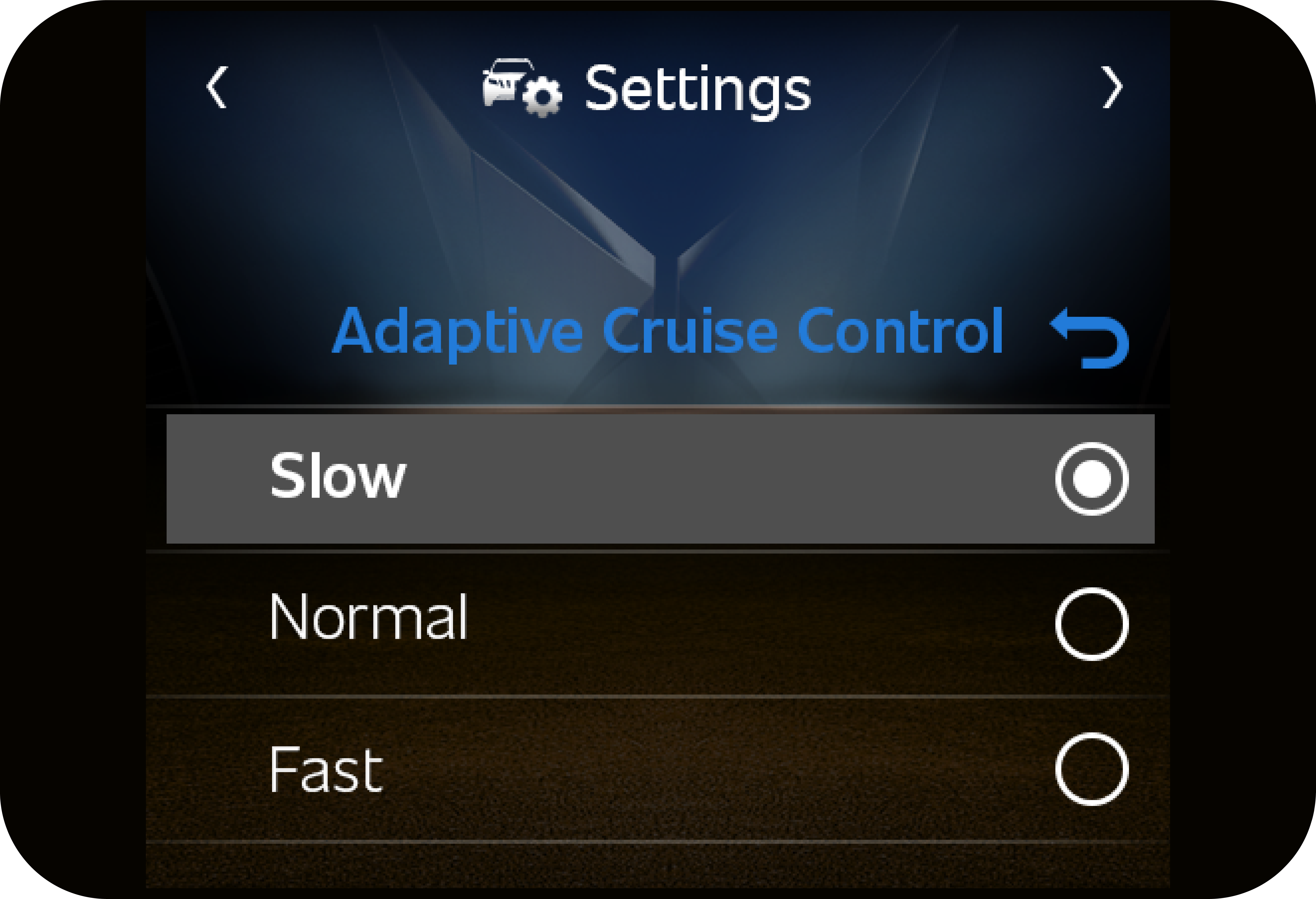

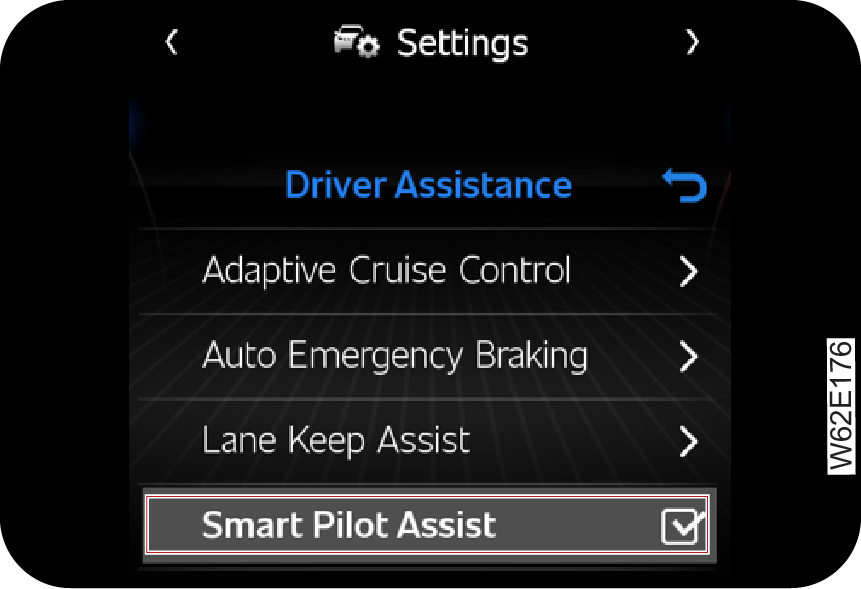

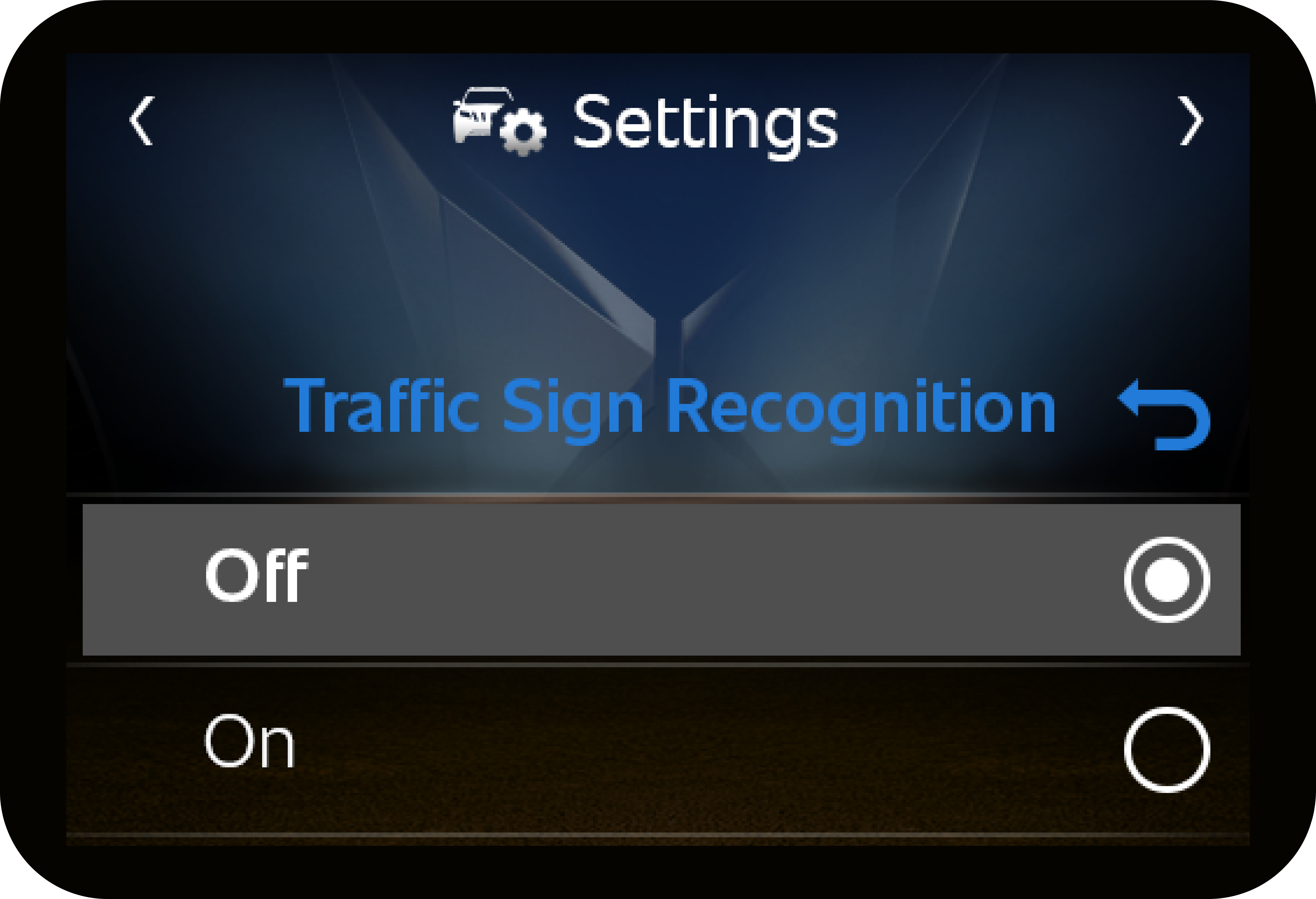

4. Use Up/Down button to navigate to the options and press OK button to select the corresponding option.
|
|

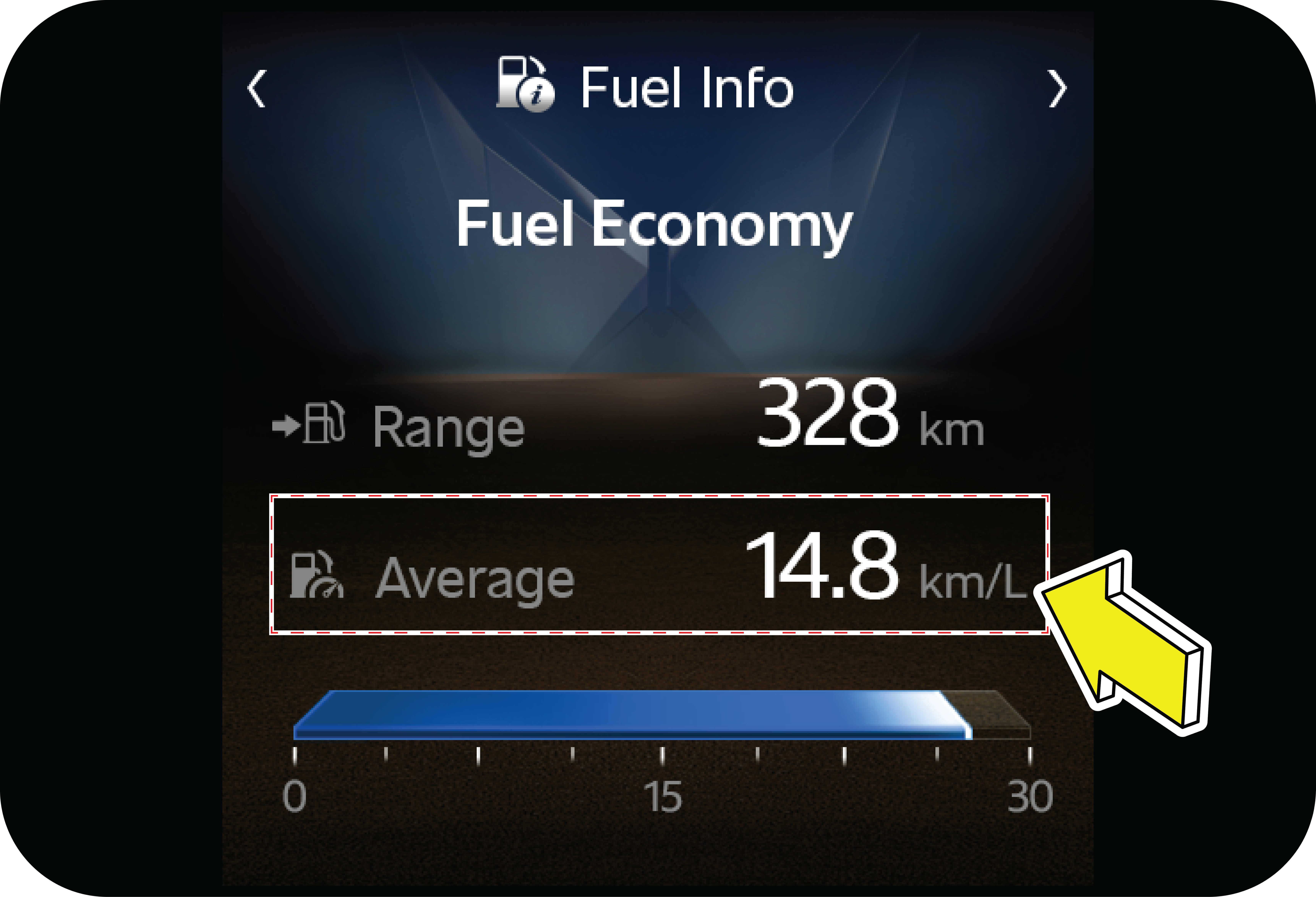

1. Navigate to Setting menu using MENU button.
|
|

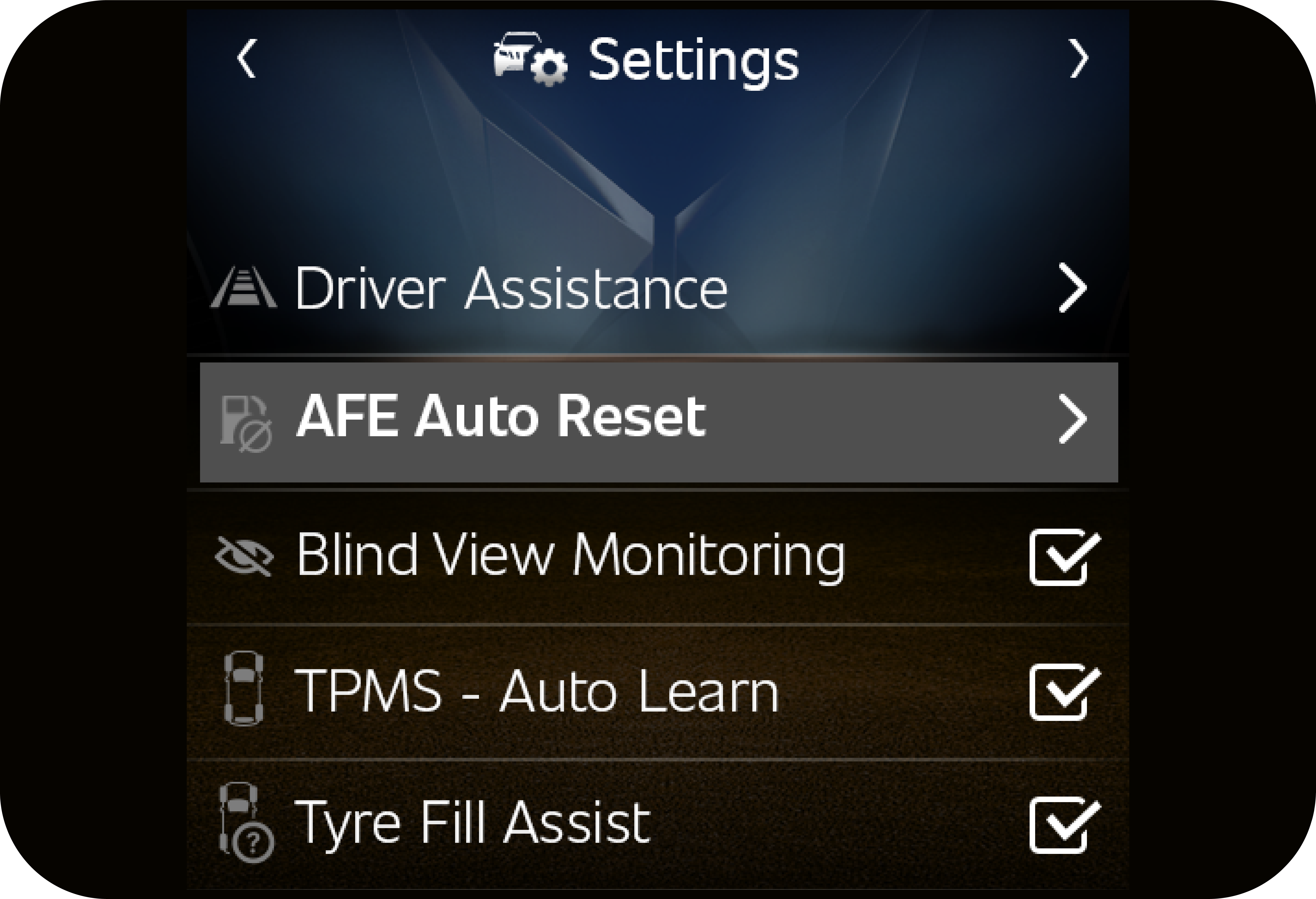

2. Press OK to enter setting. Press Up/Down button to navigate to AFE Auto Reset option
|
|

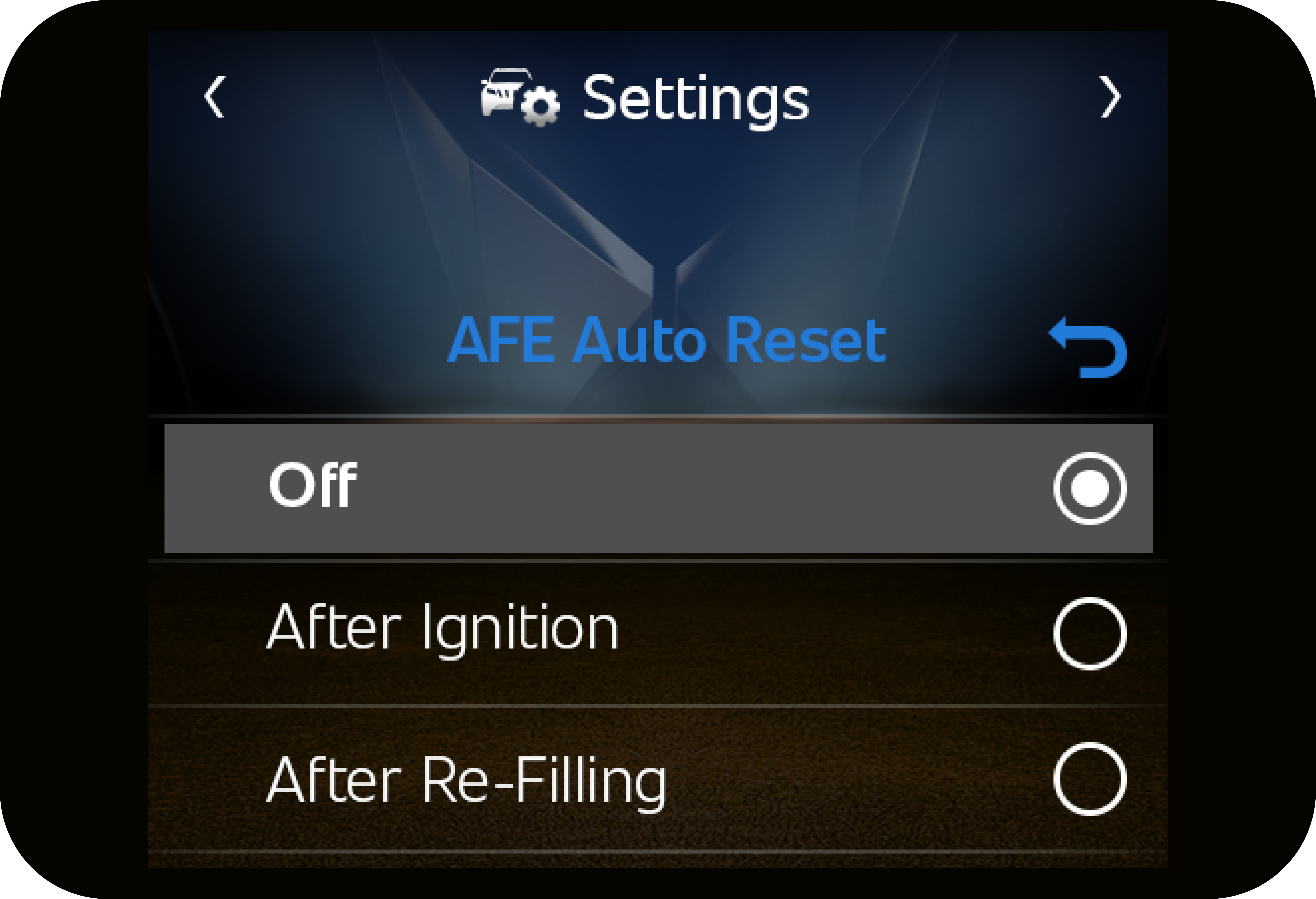

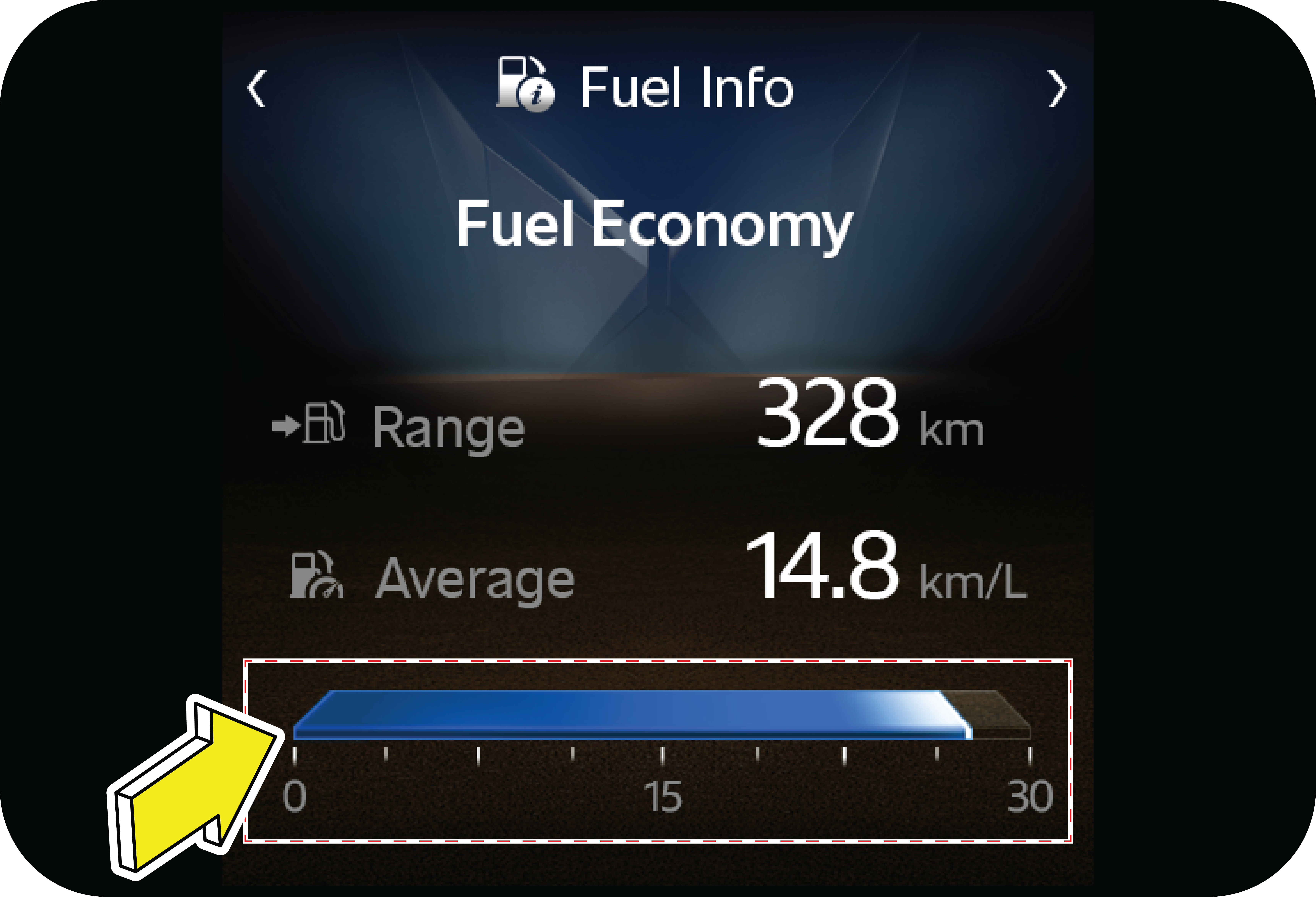

3. Press OK to enter AFE Auto Reset option. Use Up/Down button to navigate to the option. Press OK to select.
|
|

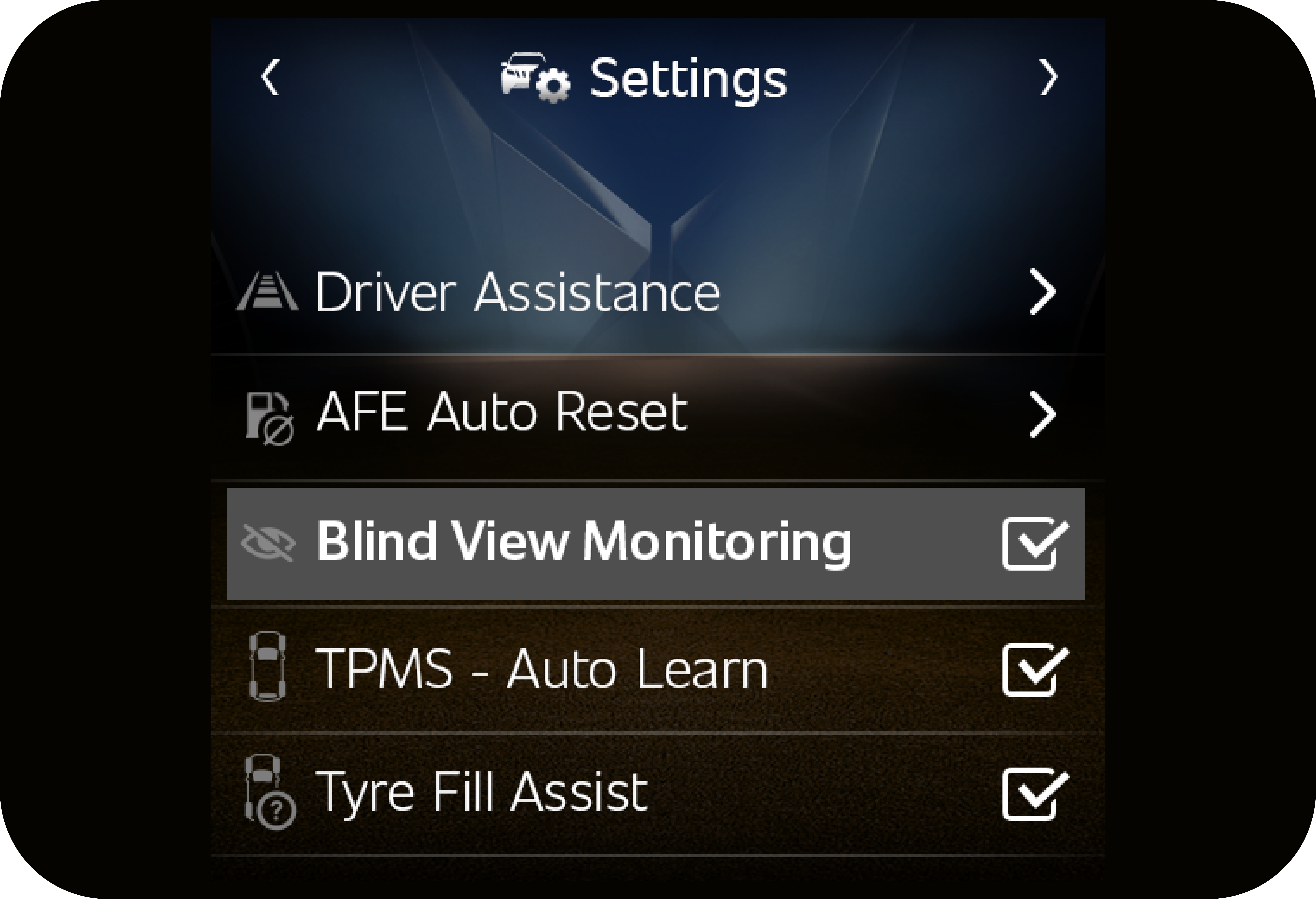

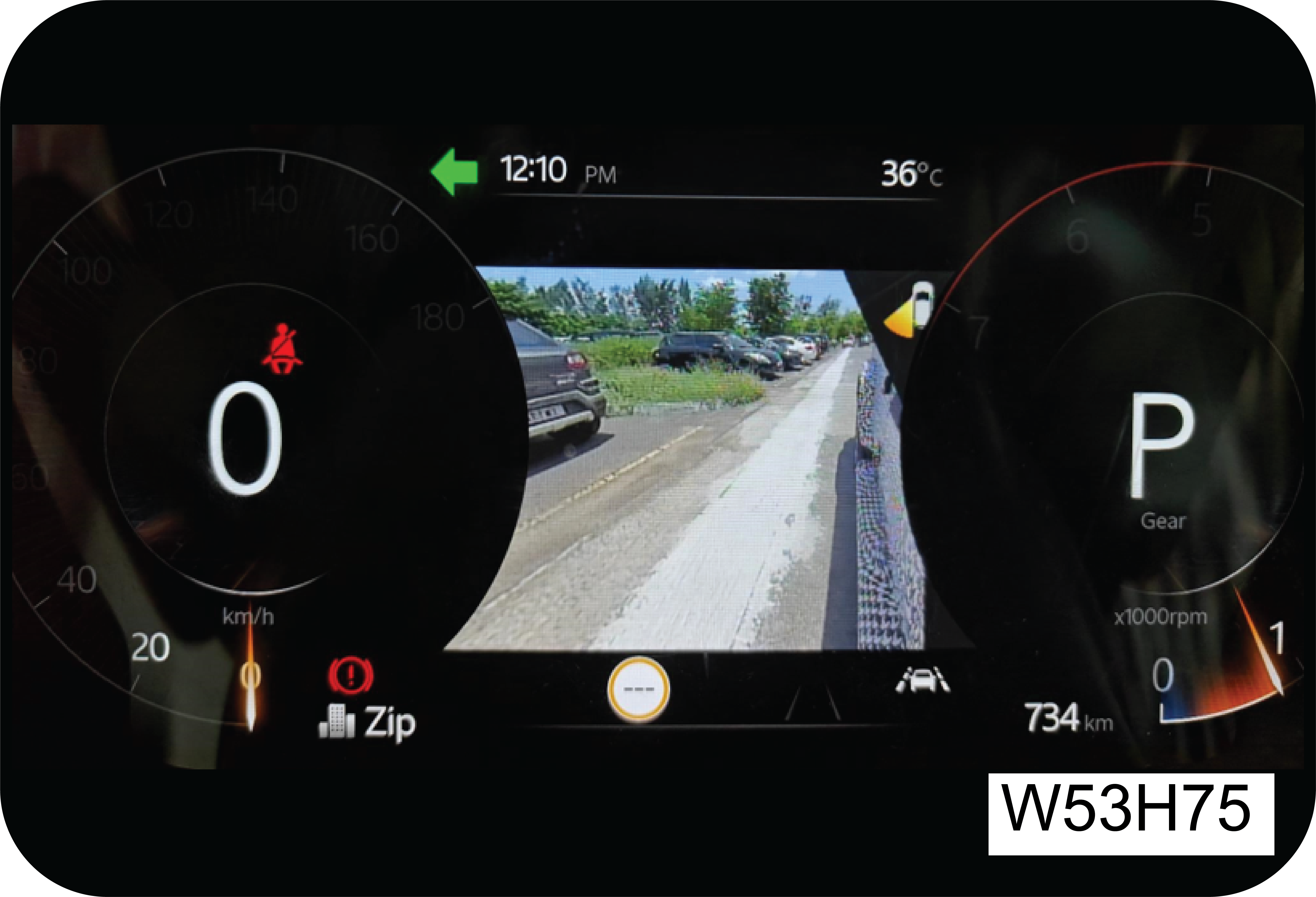

1. Navigate to Setting menu using MENU button.
|
|

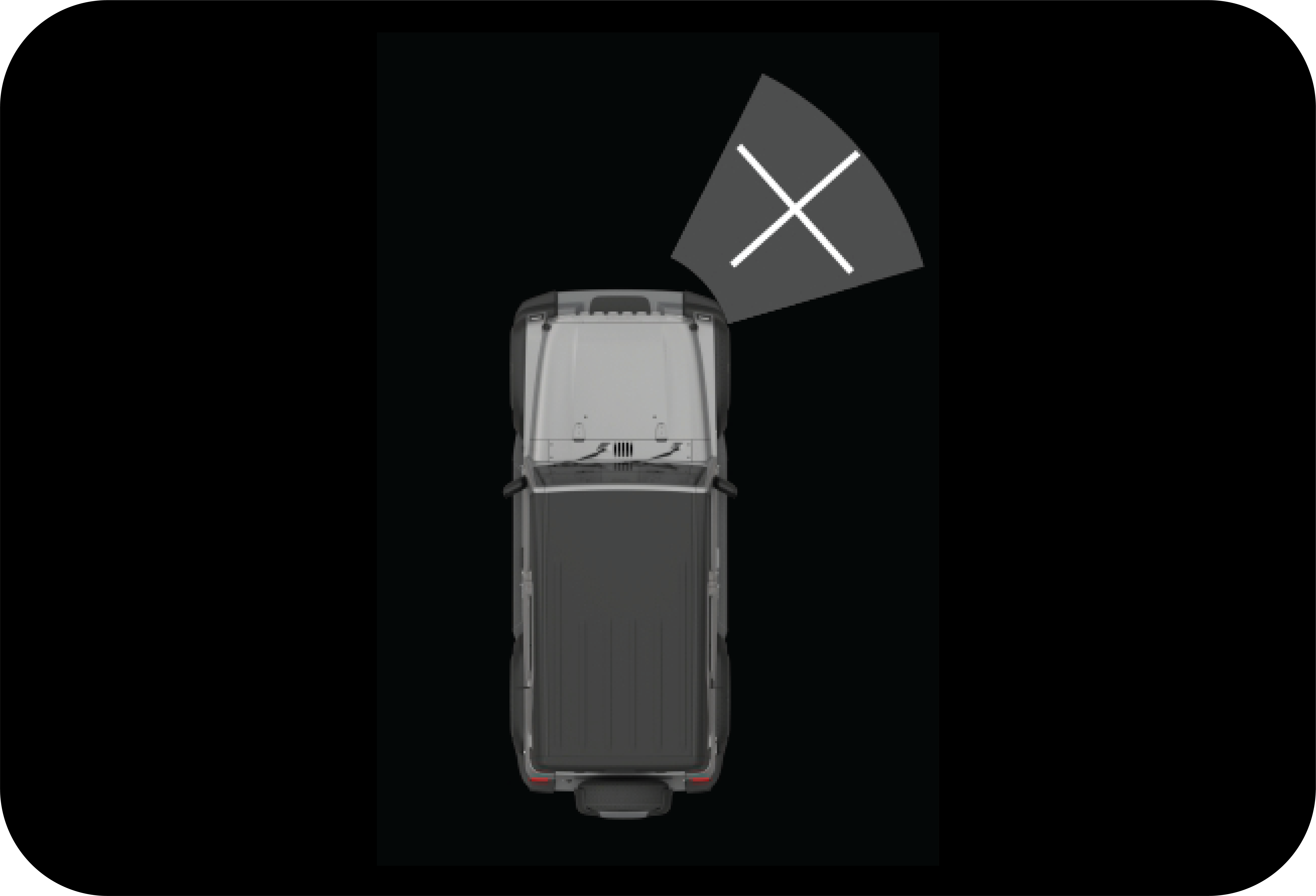

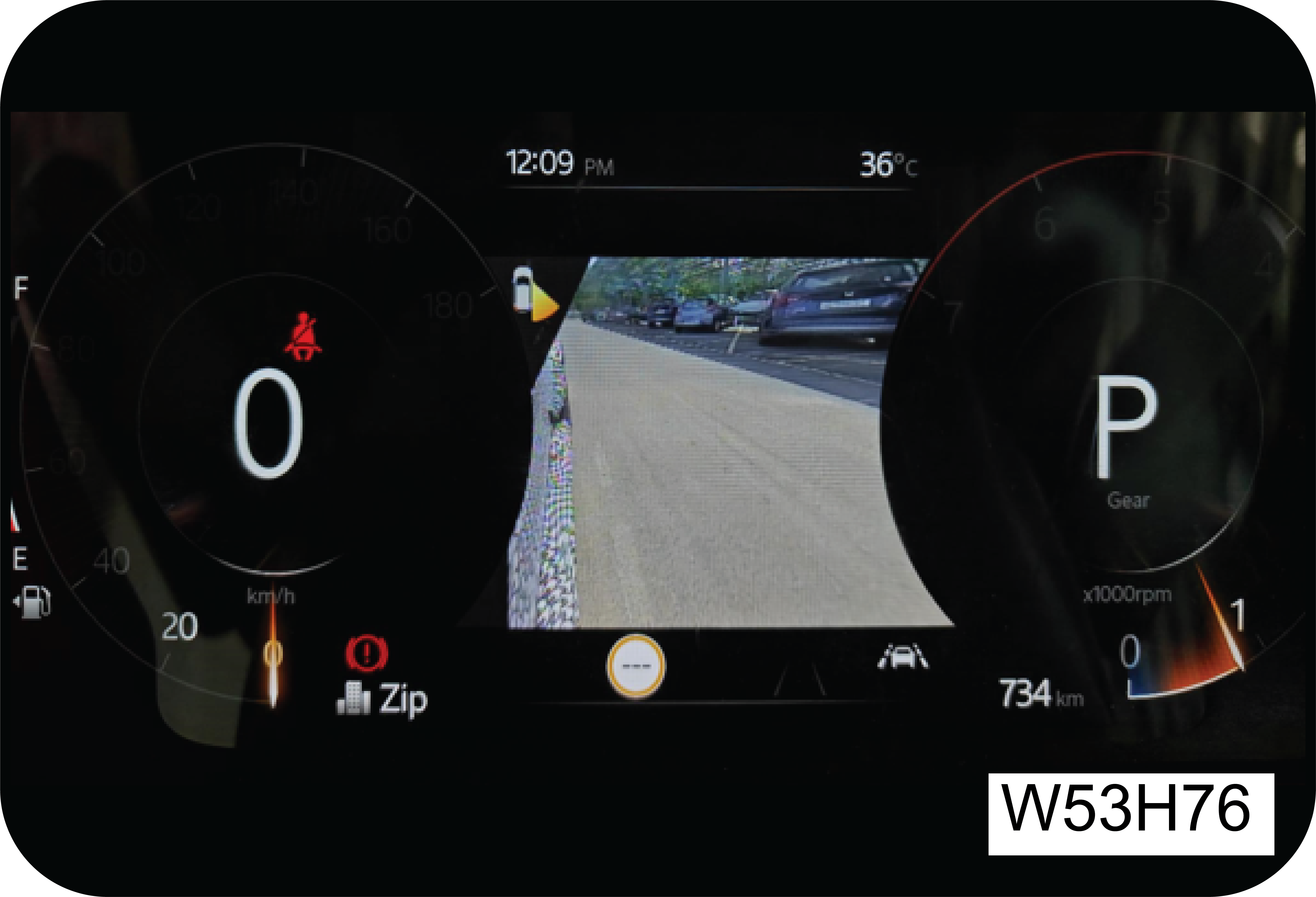

2. Press OK to enter setting. Press Up/Down button to navigate to Blind View Monitoring Option
3. Press OK to Enable / Disable the Blind View Monitoring Option.
|
|
1. Navigate to Setting menu using MENU button.
|
|

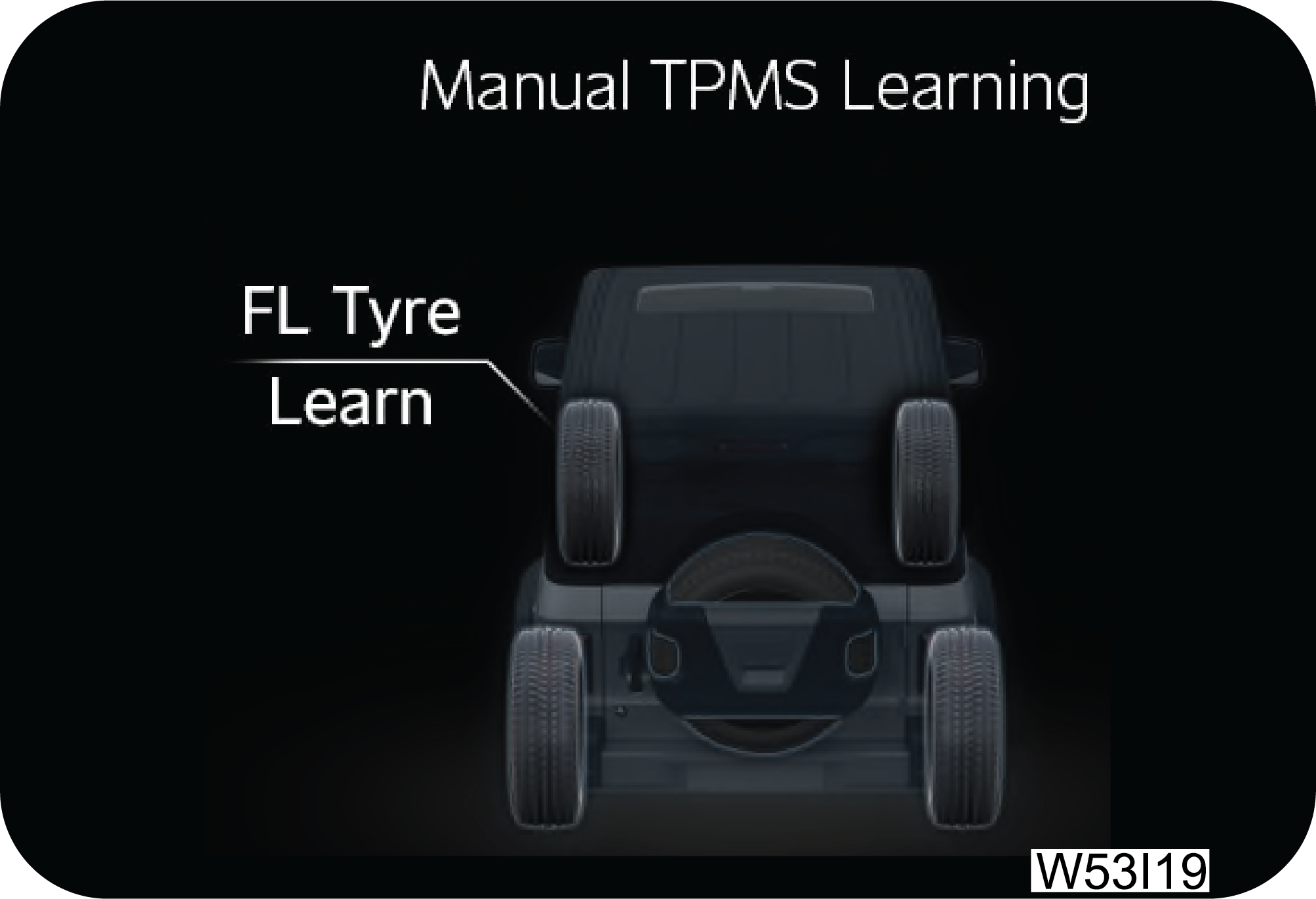

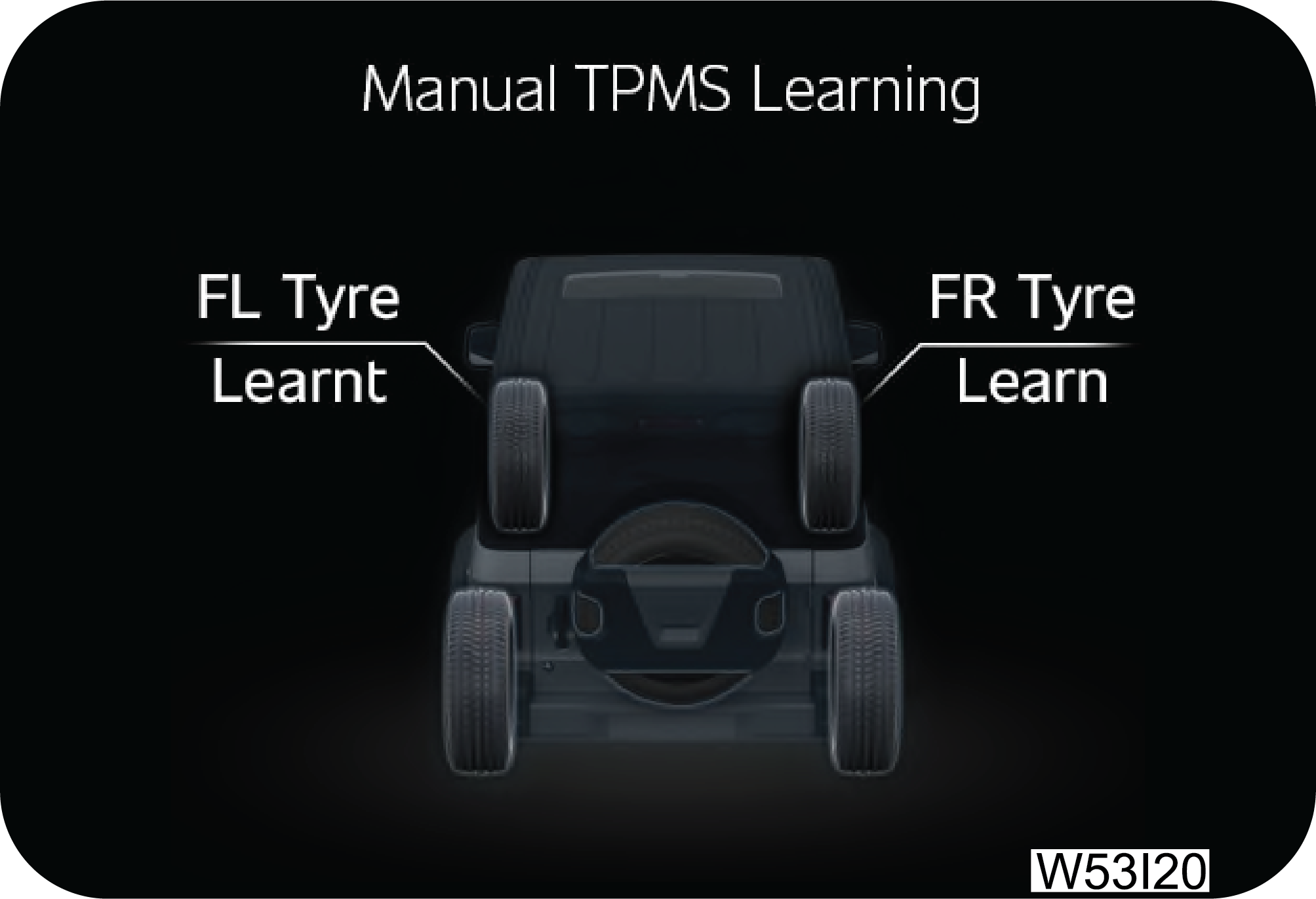

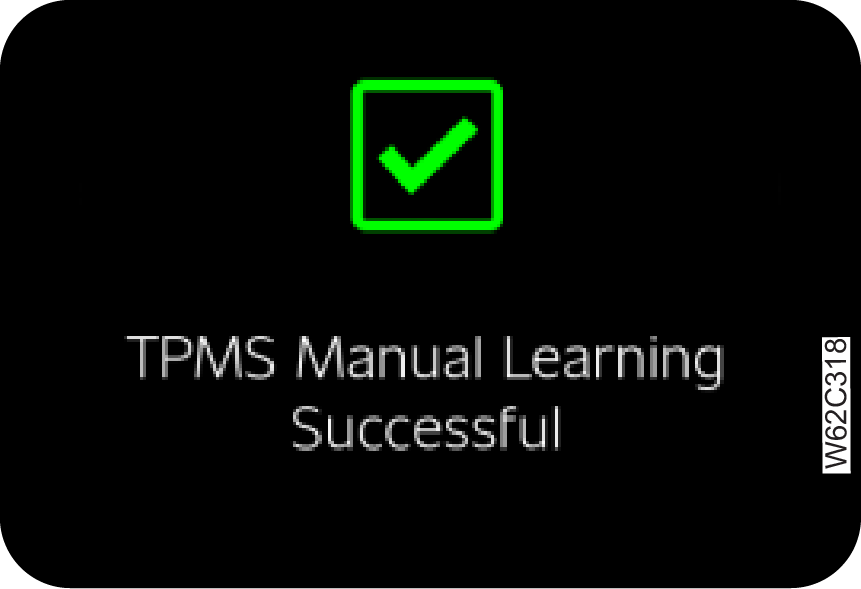

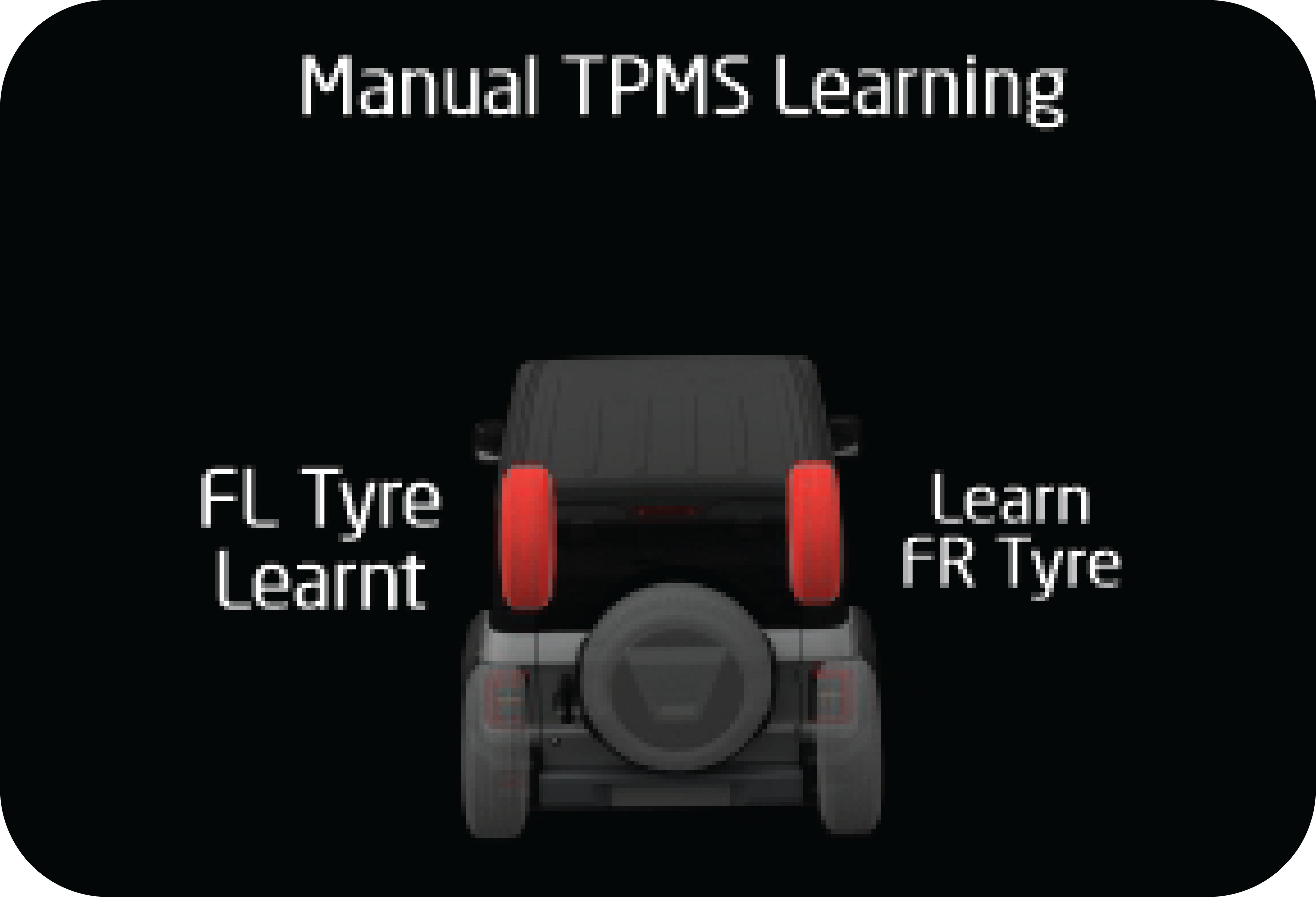

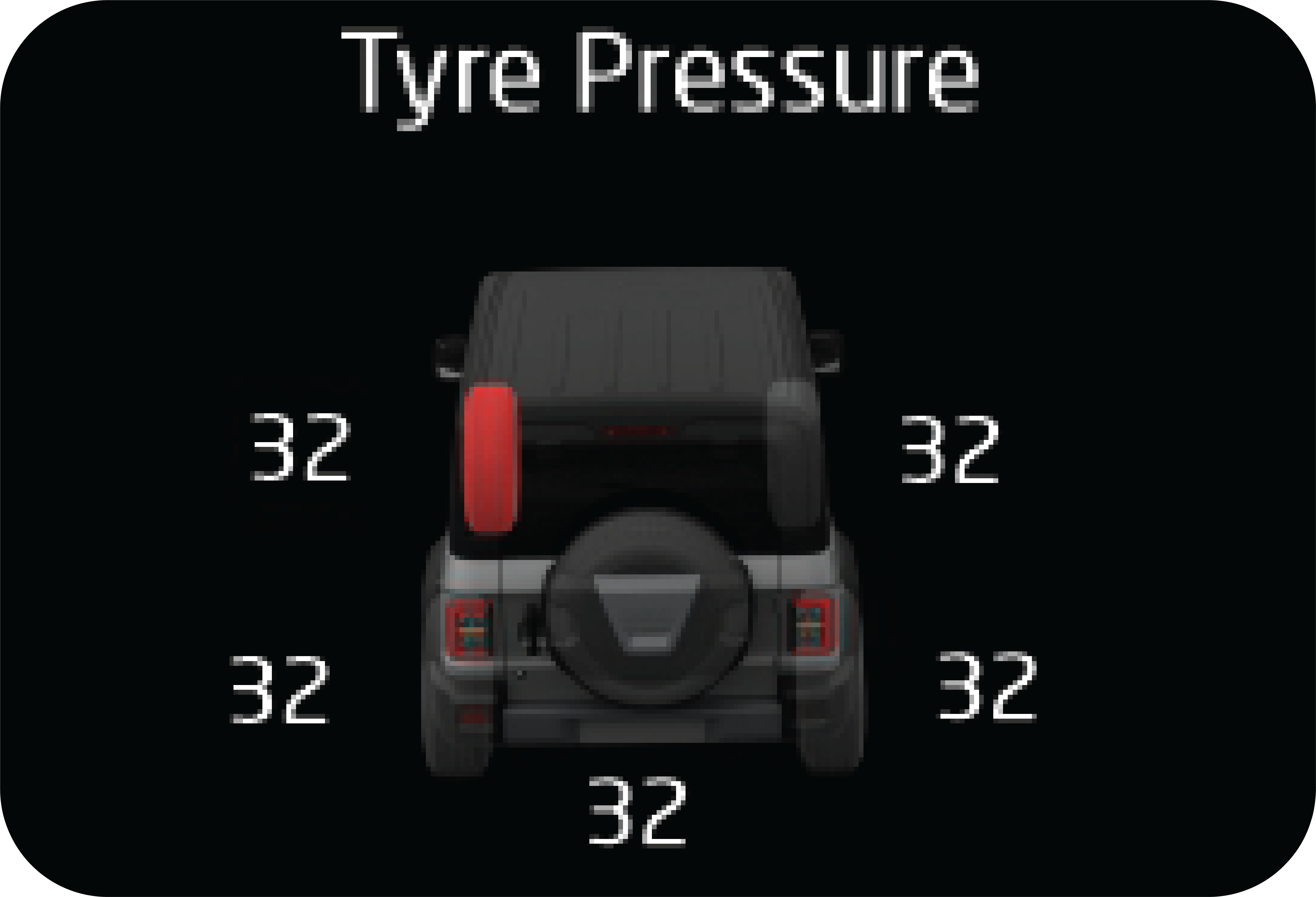

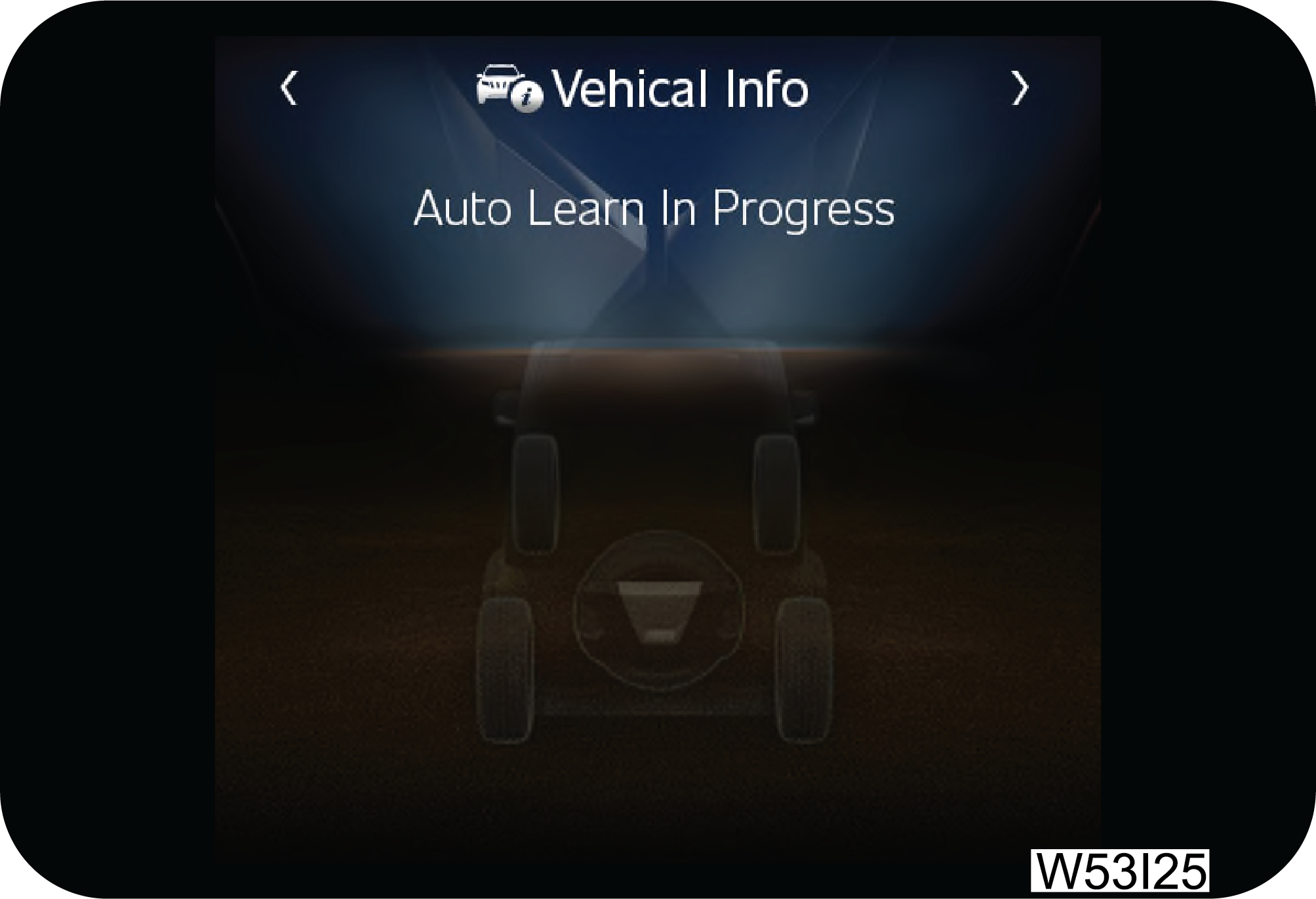

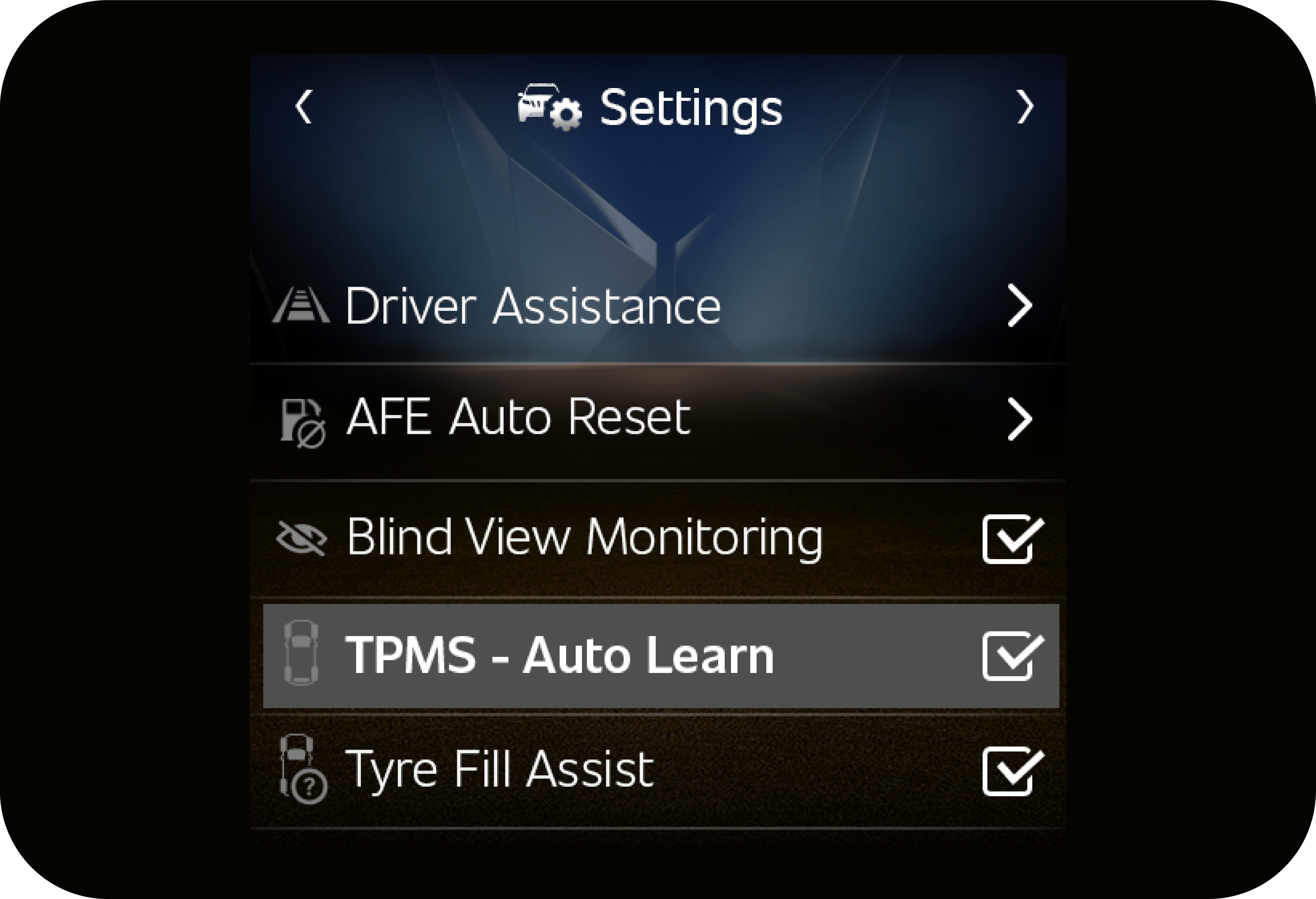

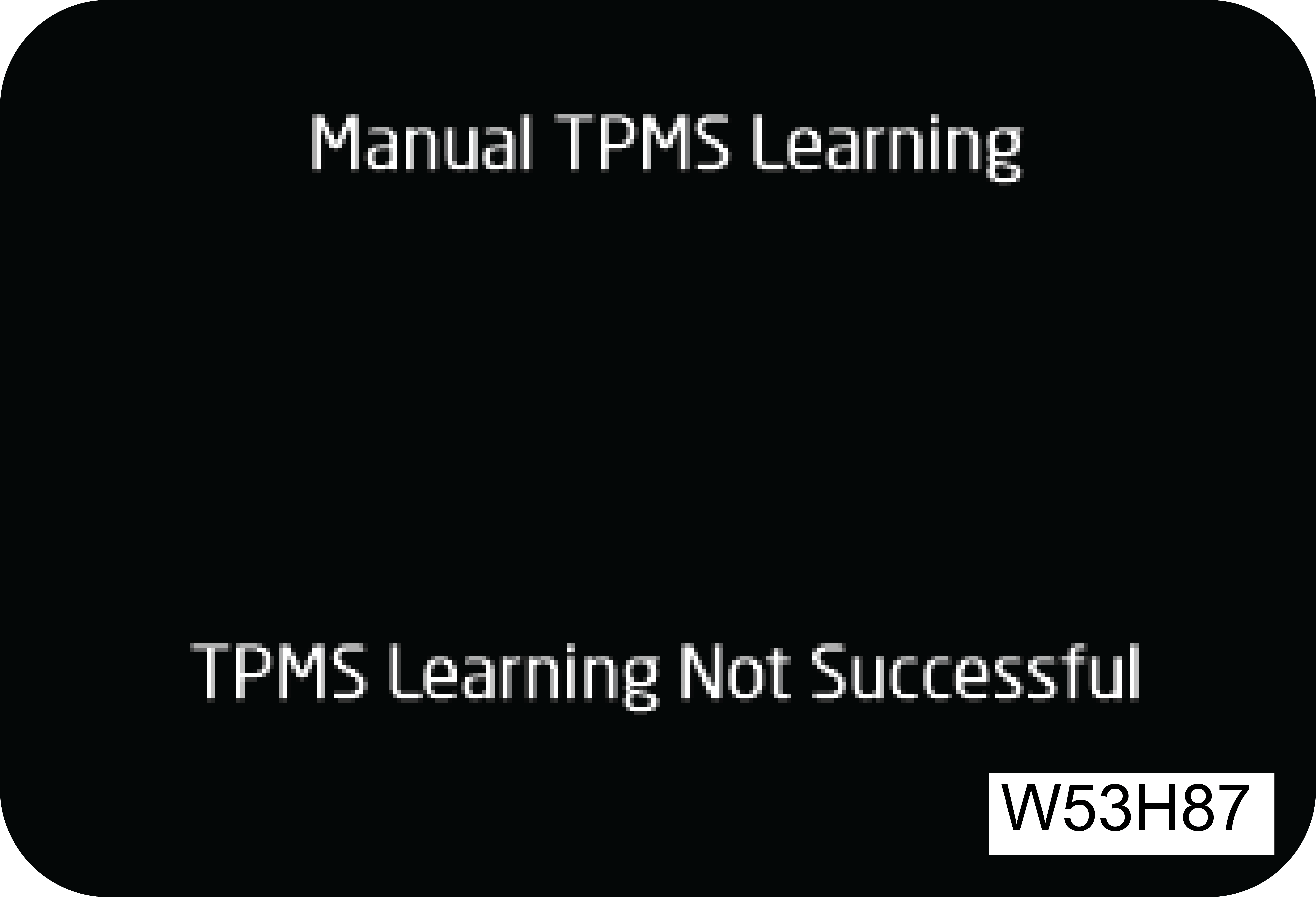

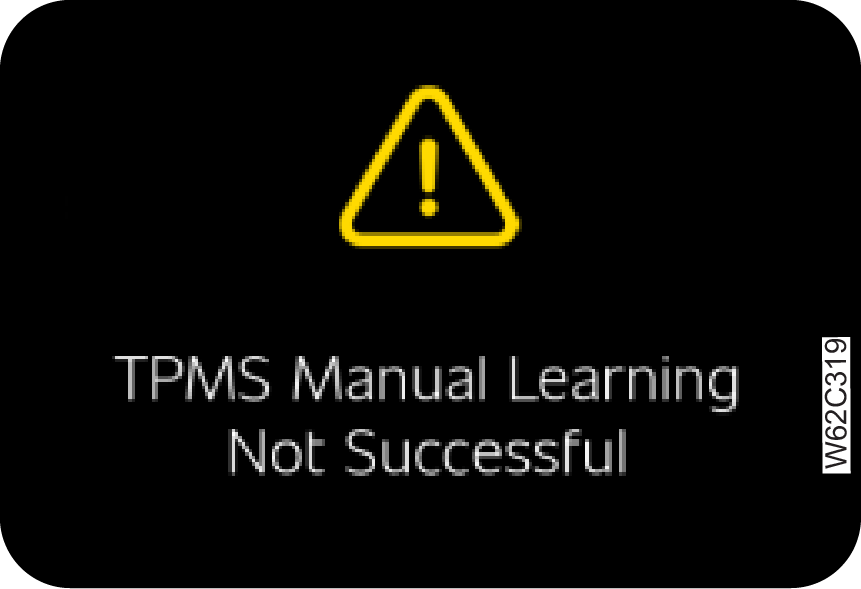

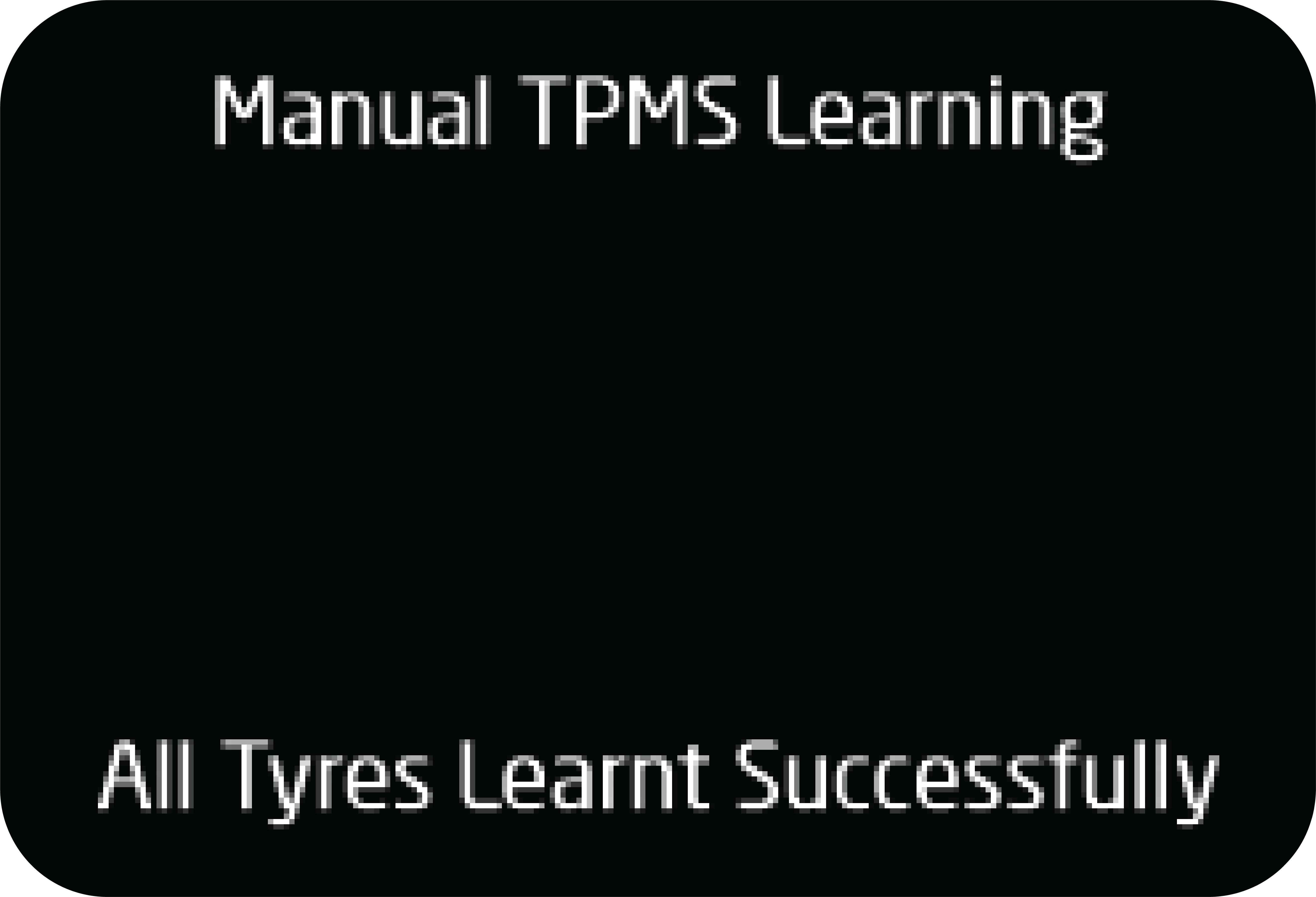

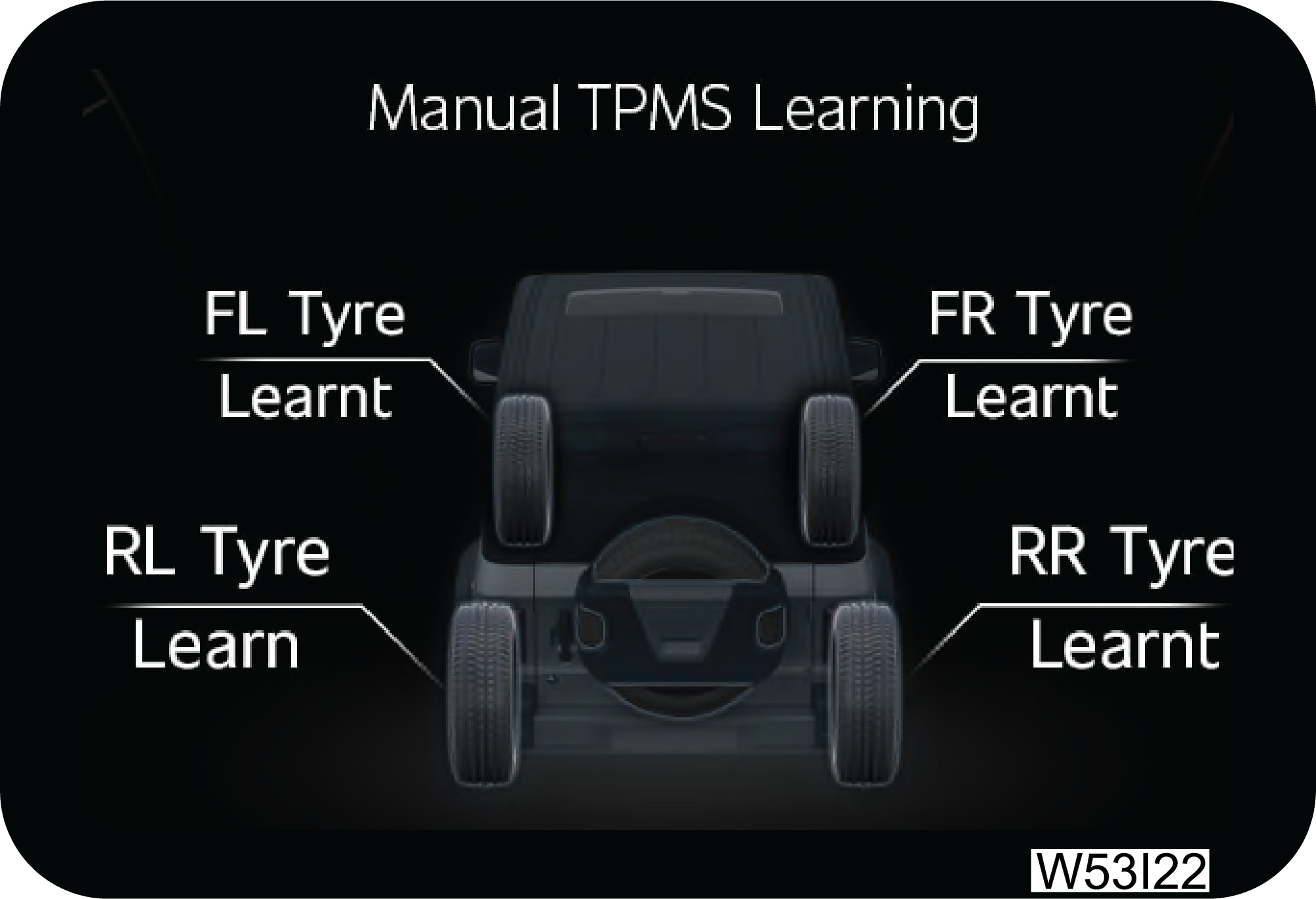

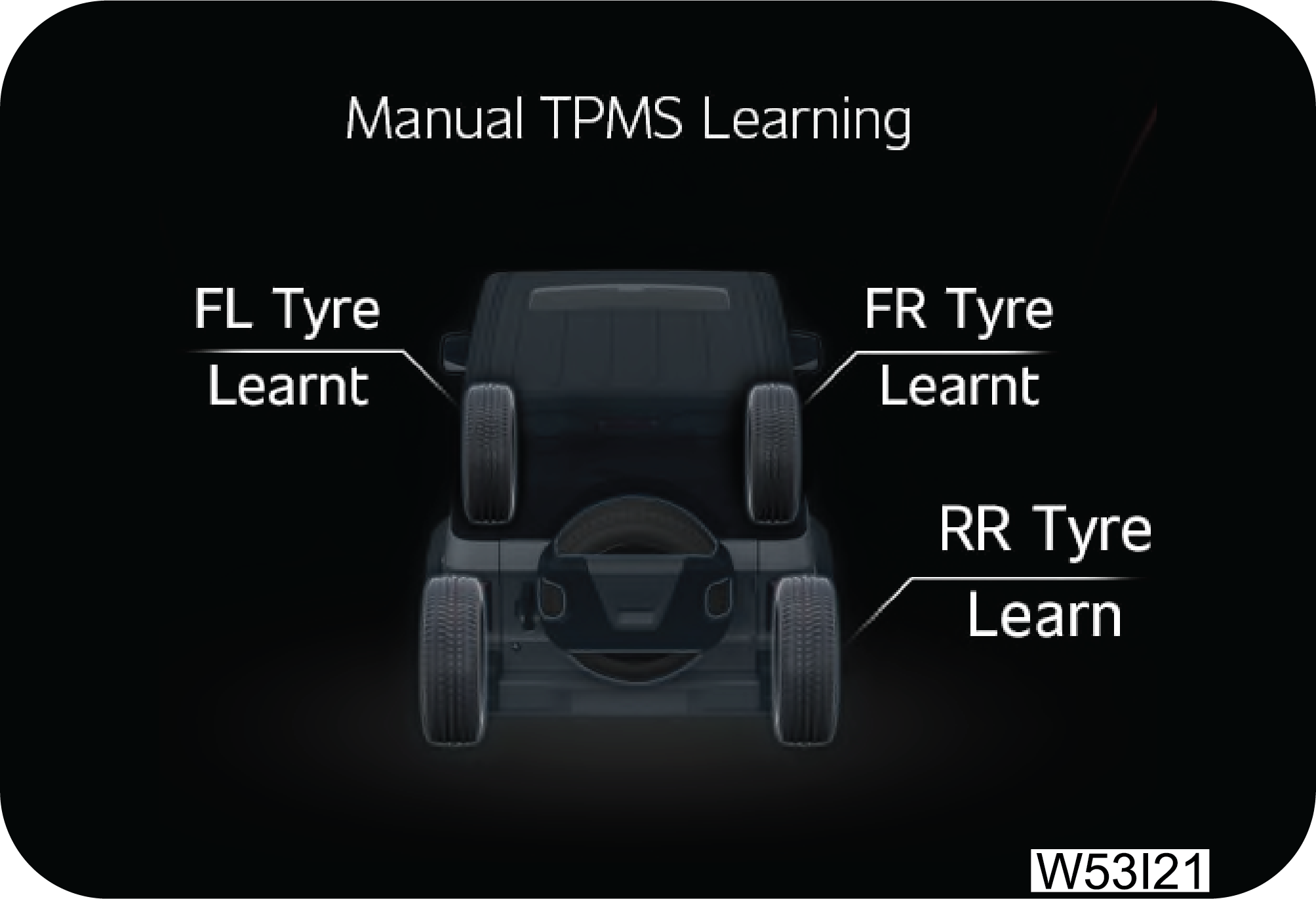

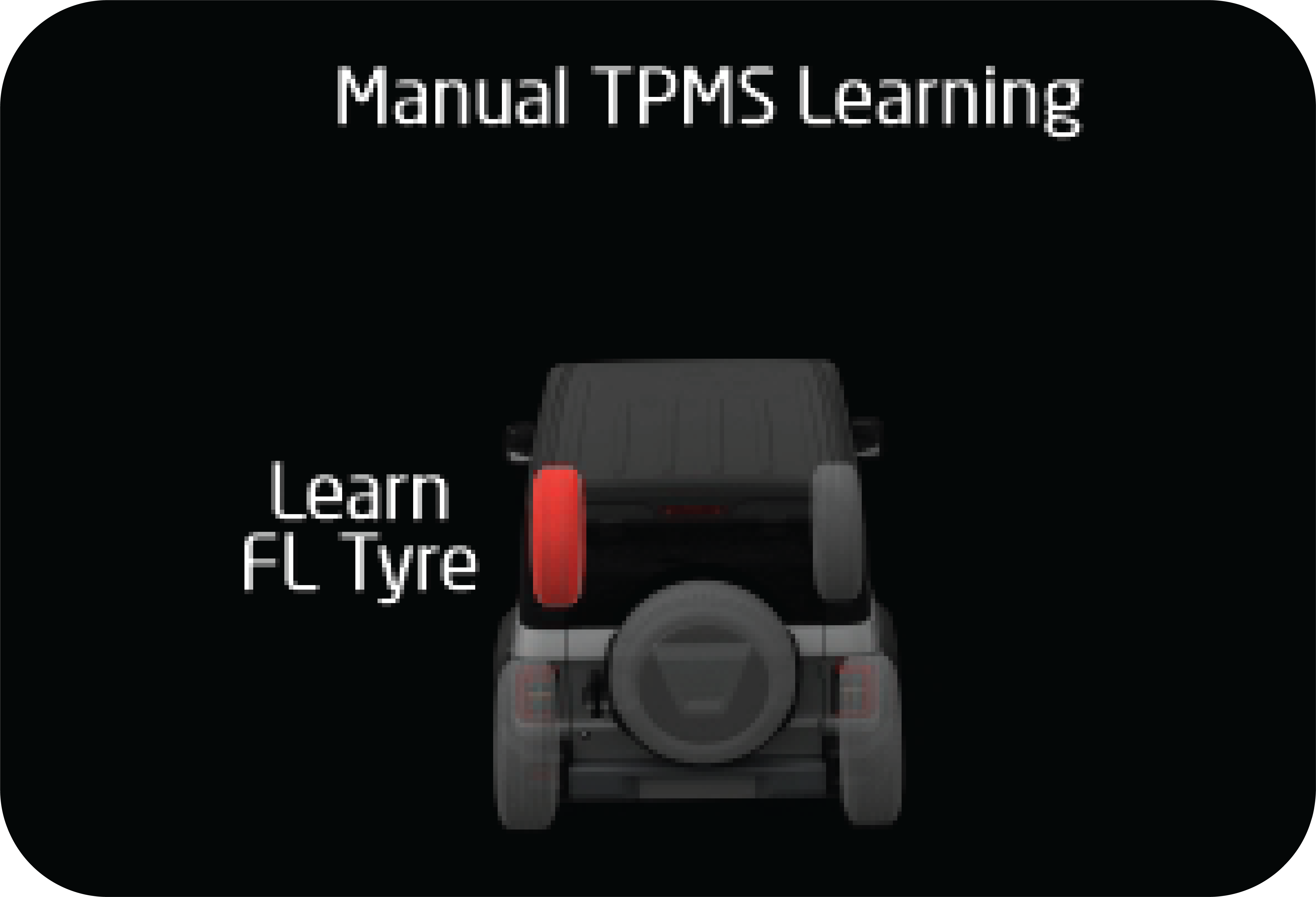

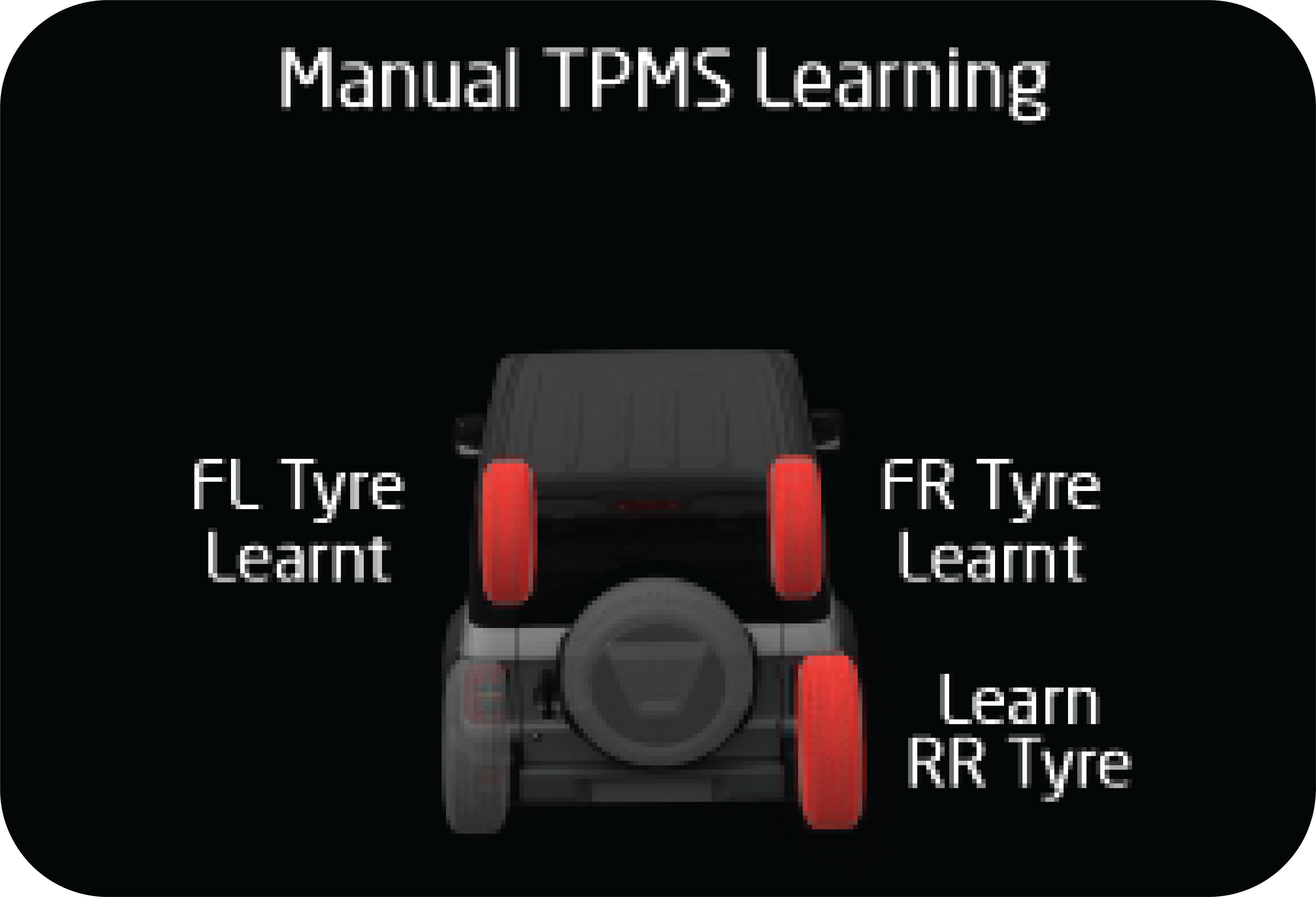

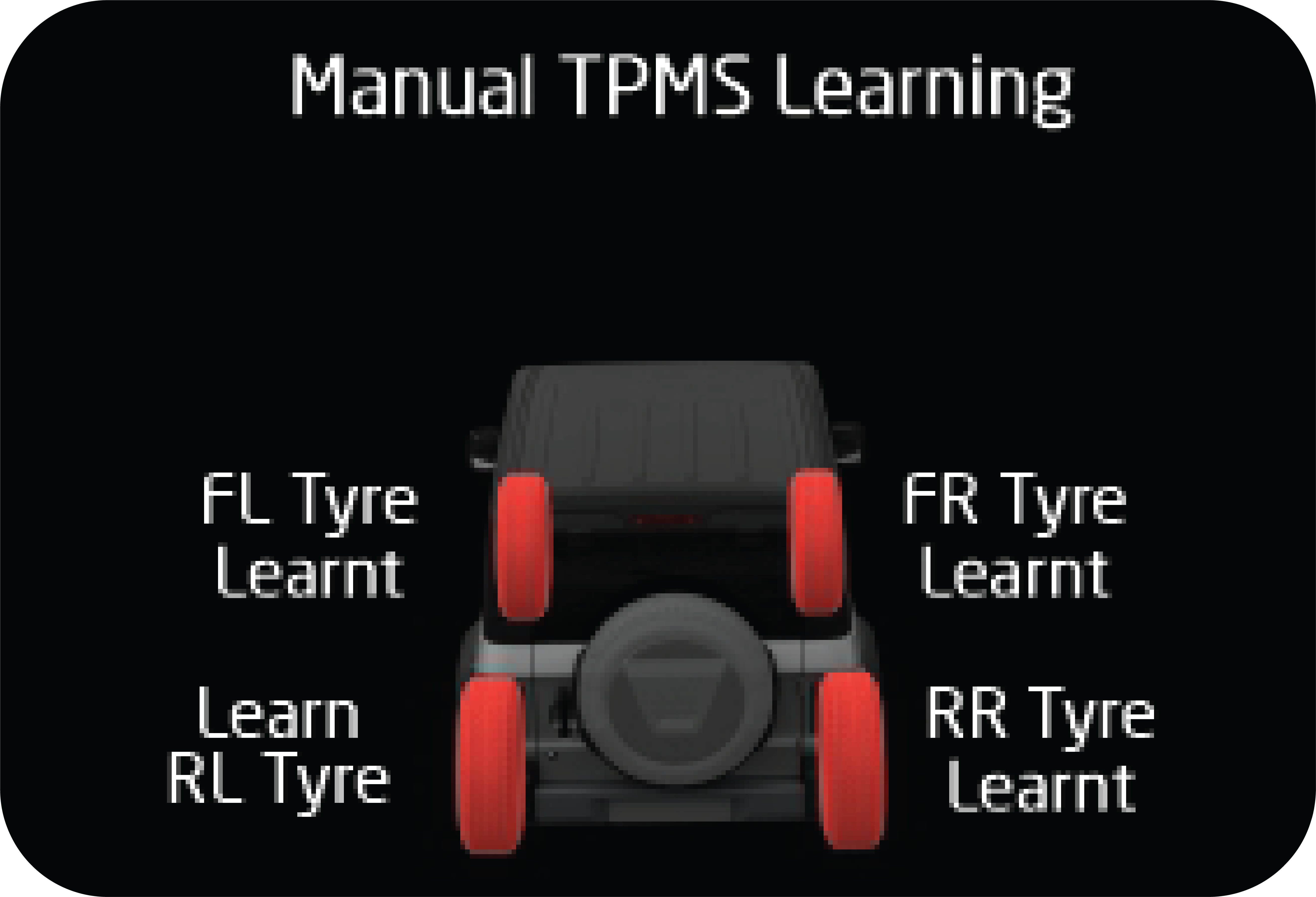

2. Press OK to enter setting. Press Up/Down button to navigate to TPMS-Auto Learn Option
3. Press OK to Enable / Disable the TPMS-Auto Learn Option.
|
|
1. Navigate to Setting menu using MENU button.
|
|

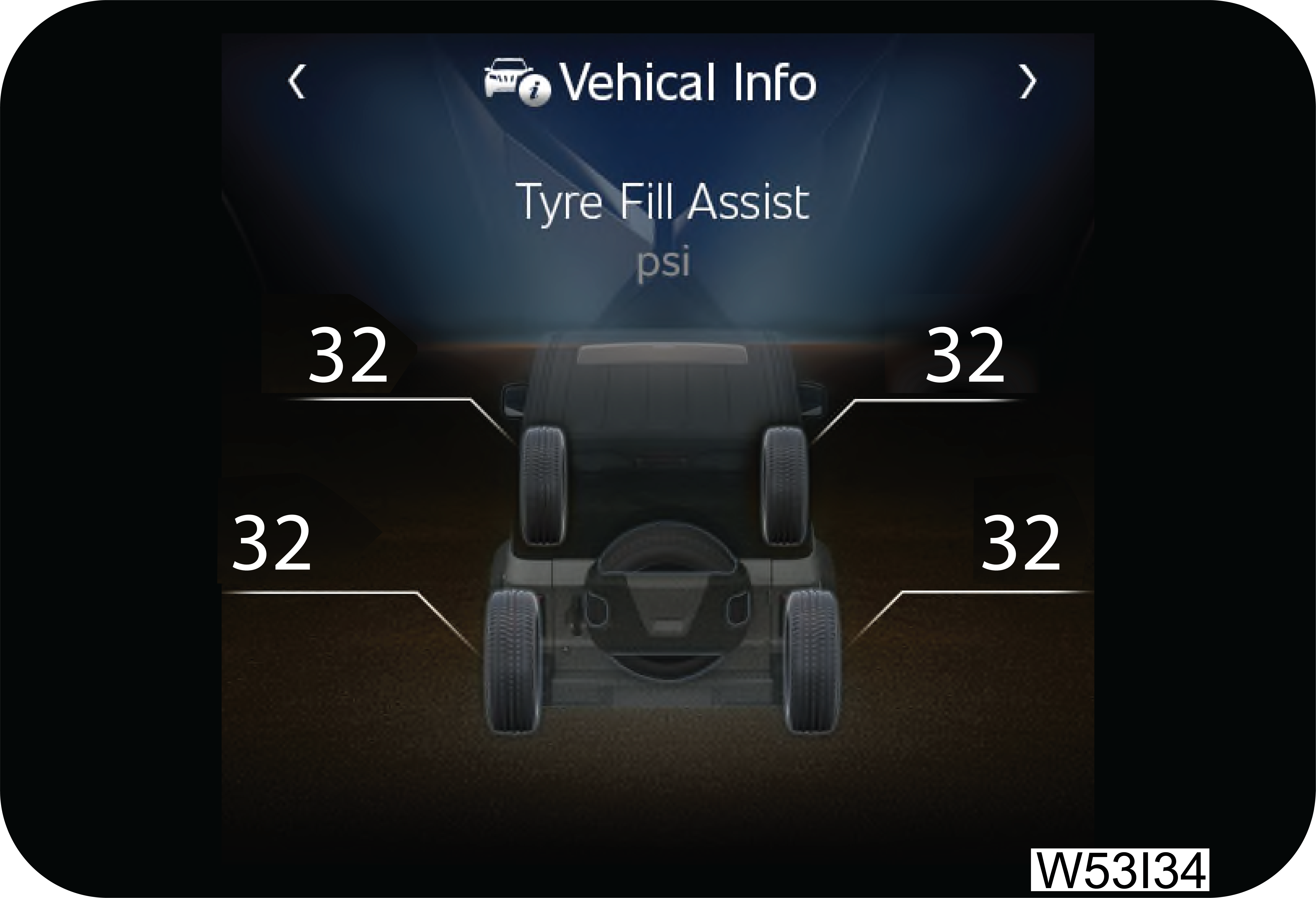

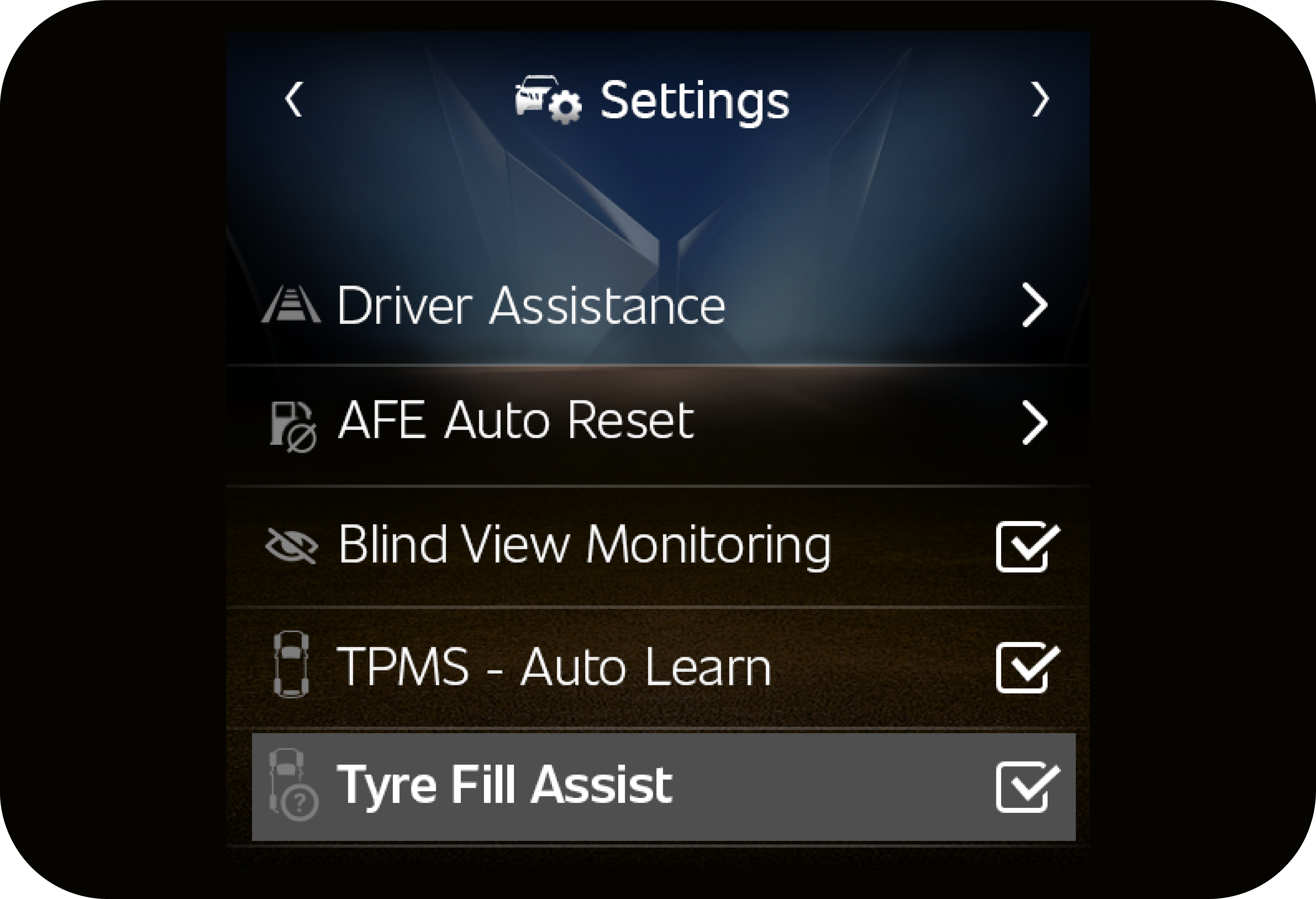

2. Press OK to enter setting. Press Up/Down button to navigate to Tyre Fill Assist Option
3. Press OK to Enable / Disable the Tyre Fill Assist Option.
|
|
1. Navigate to Setting menu using MENU button.
|
|

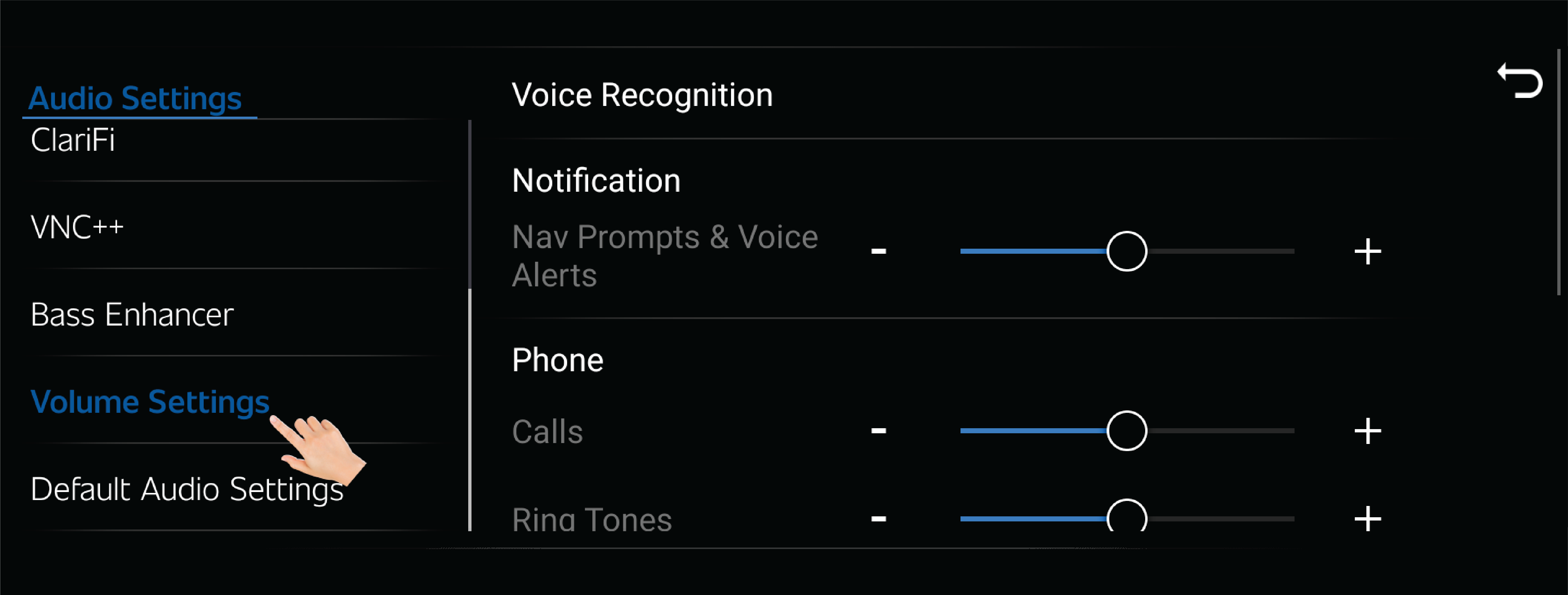

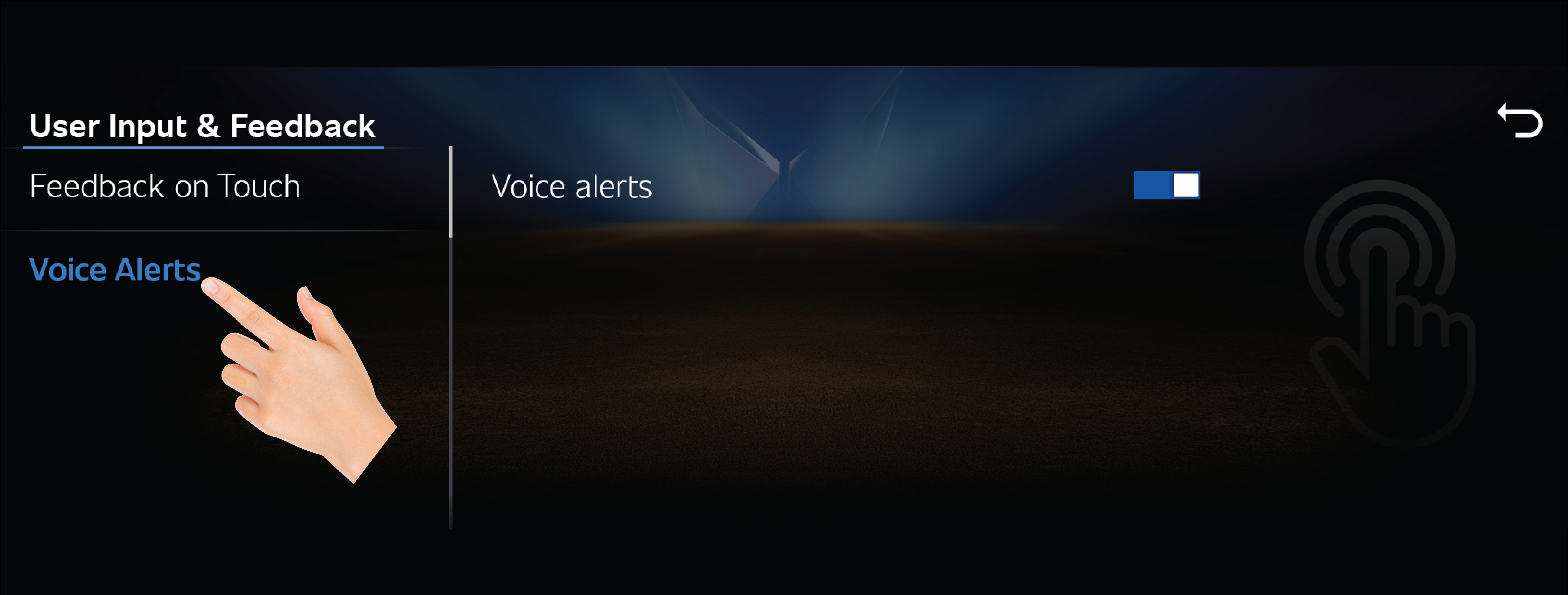

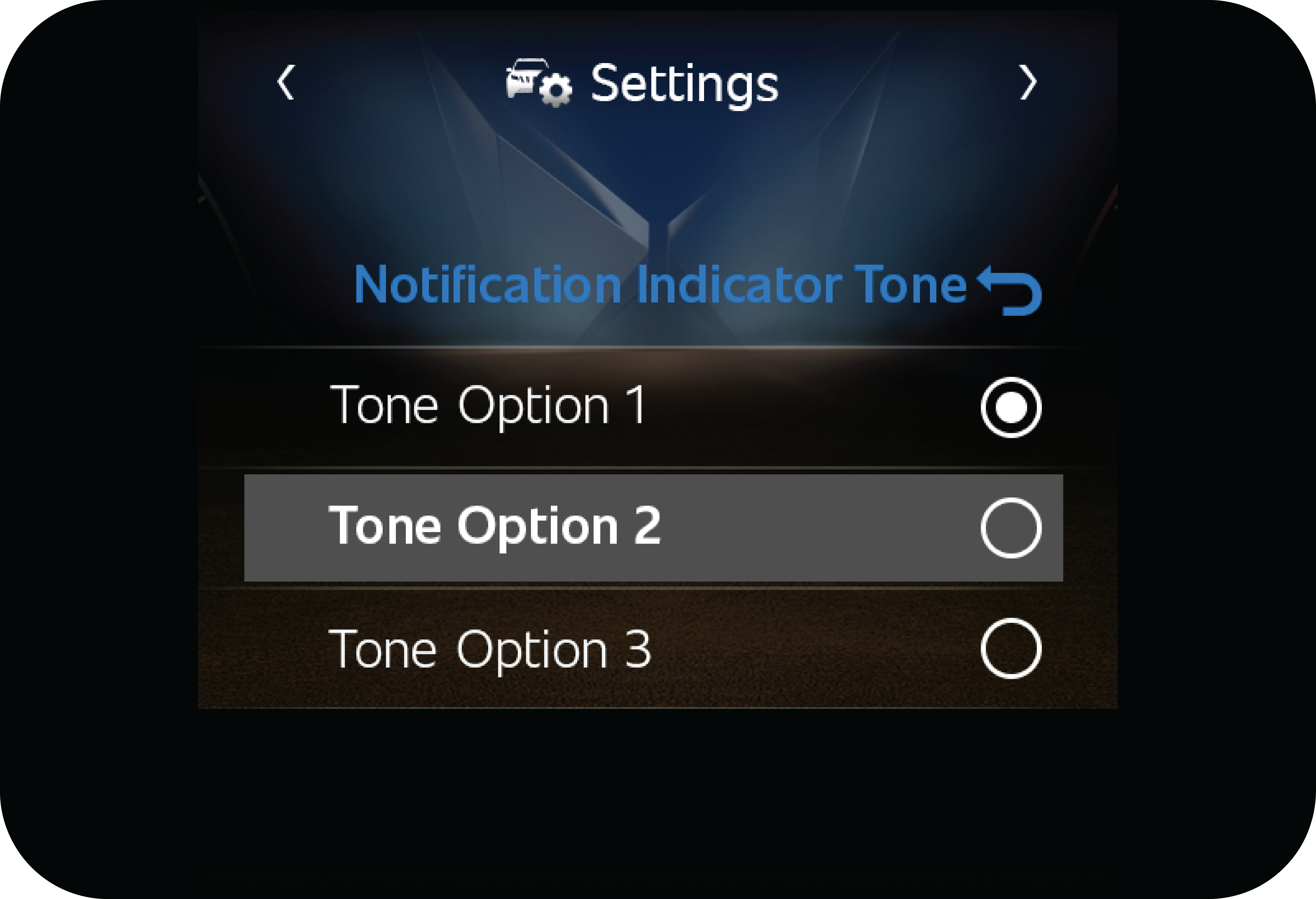

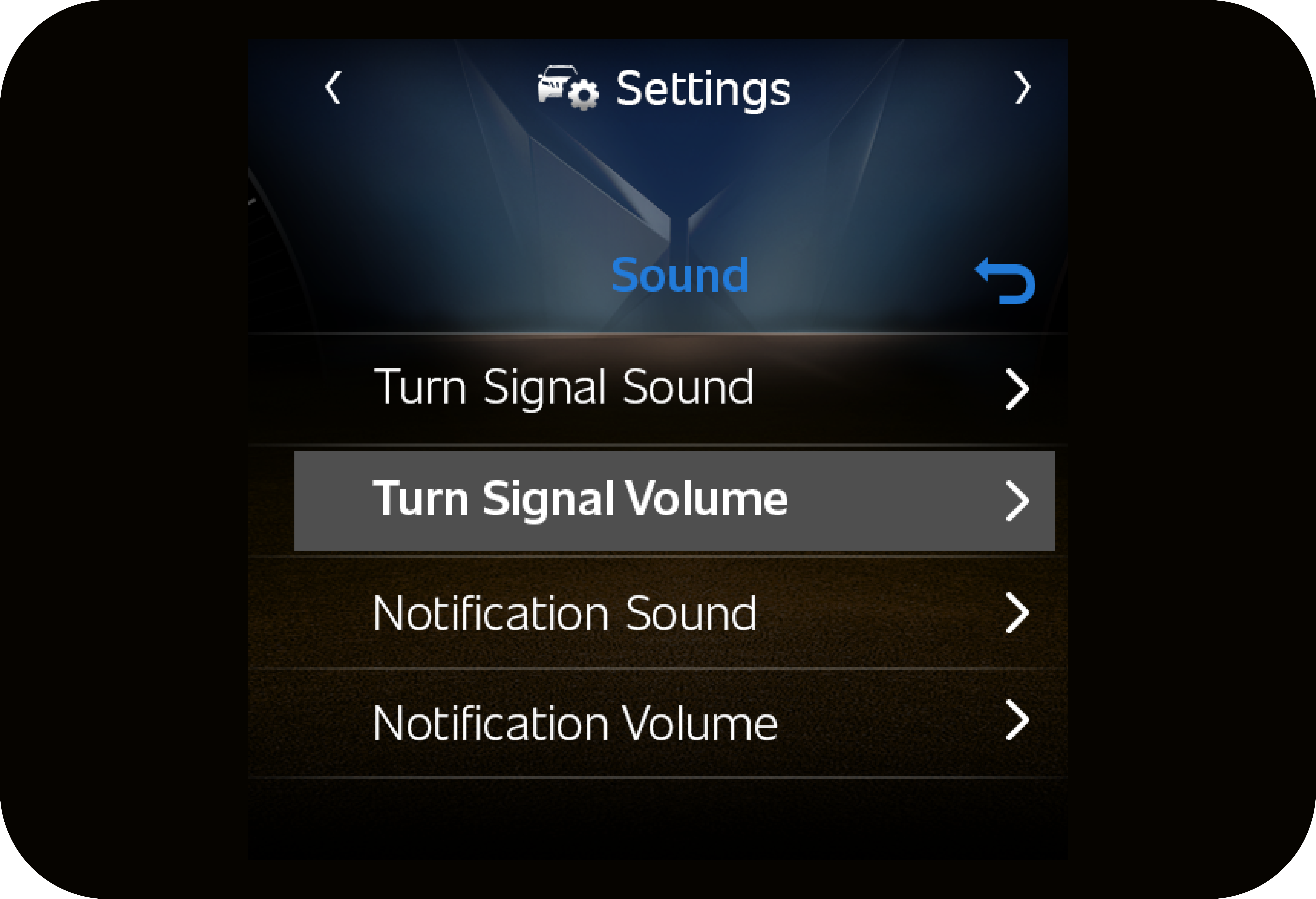

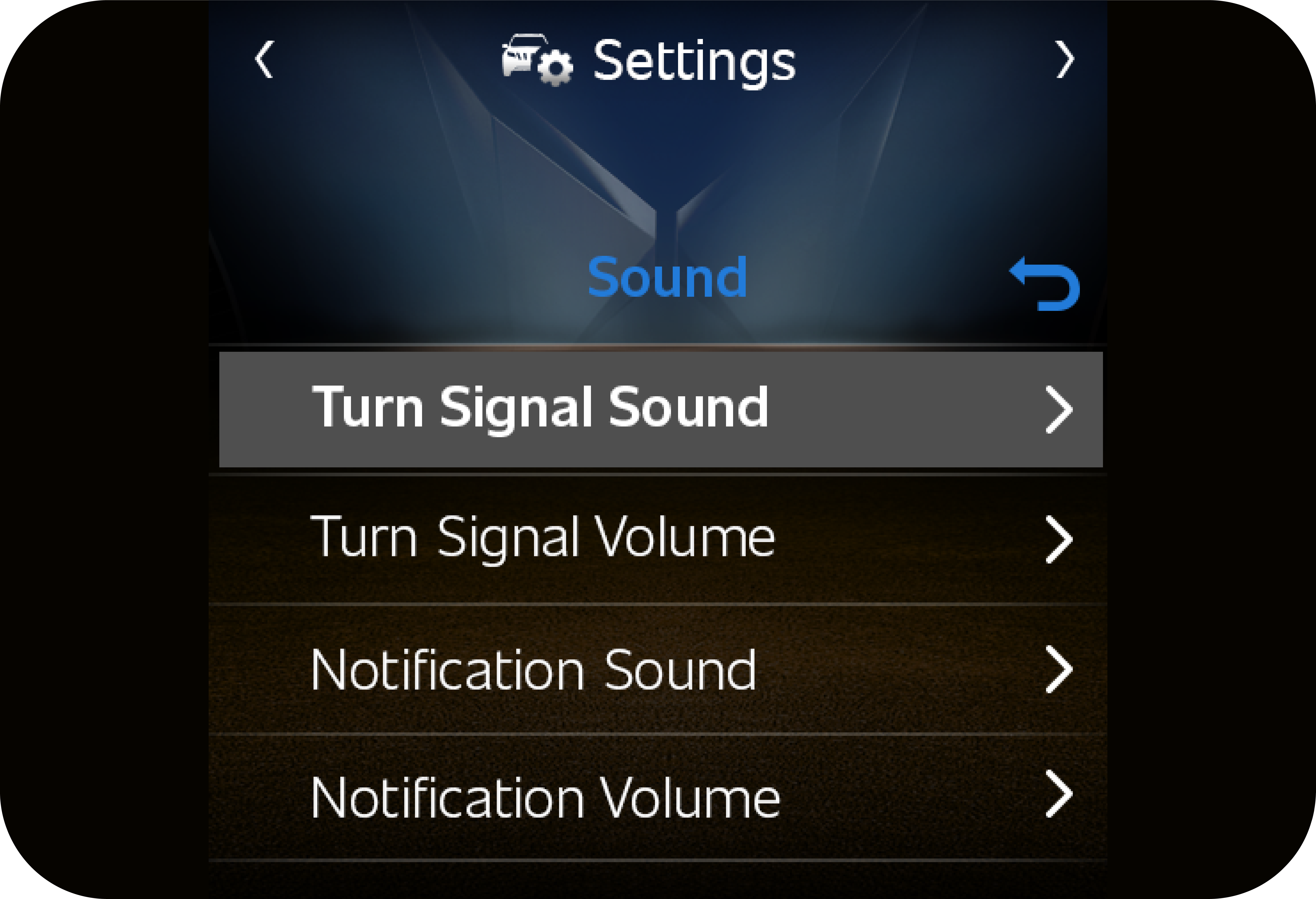

2. Press OK to enter setting. Press Up/Down button to navigate to Sound Option.
|
|
3. Press ok to enter Sound Option. Use Up/Down button to navigate to the option. Press OK to enter Sound Options
|
|

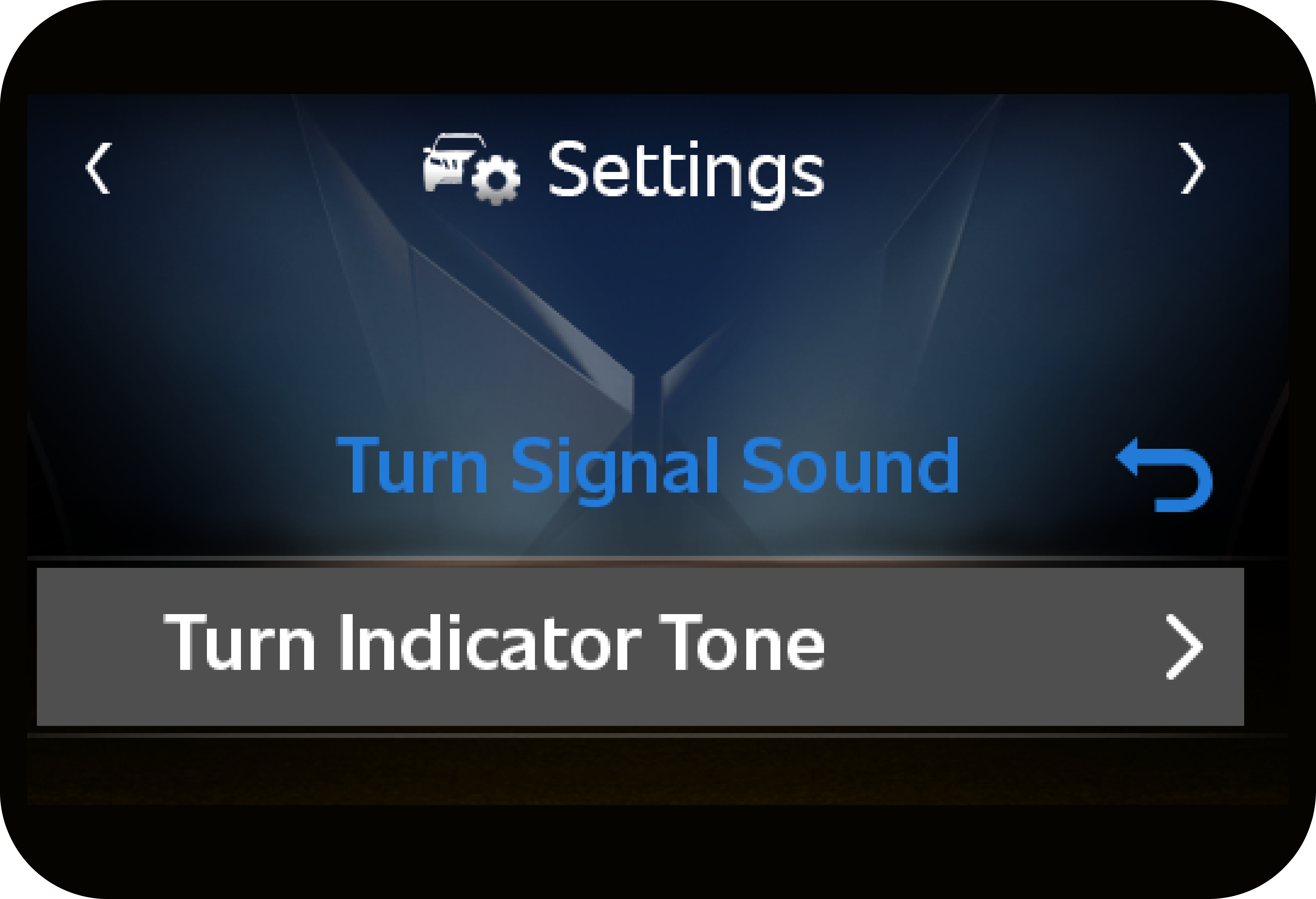

4. Press OK to enter Turn Indicator Tone
|
|
4. Use Up/Down button to navigate to the option. Press OK to select.
|
|

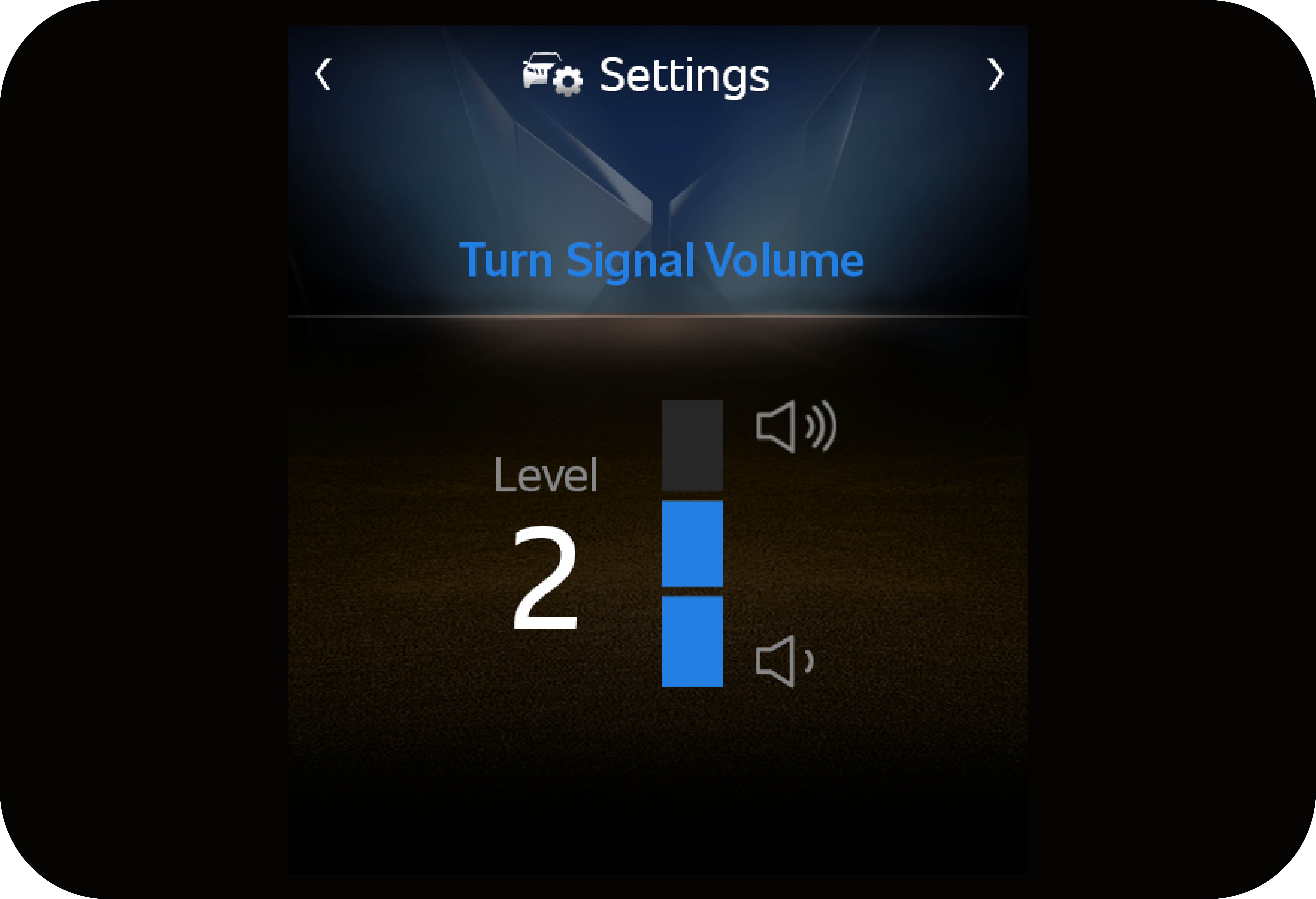

5. Use Up/Down button to Select the volume Level. Press OK to enter Volume Option.
|
|
6. Up/Down button to select the volume levels. Press OK to select. Once selected it will return to previous page.
|
|

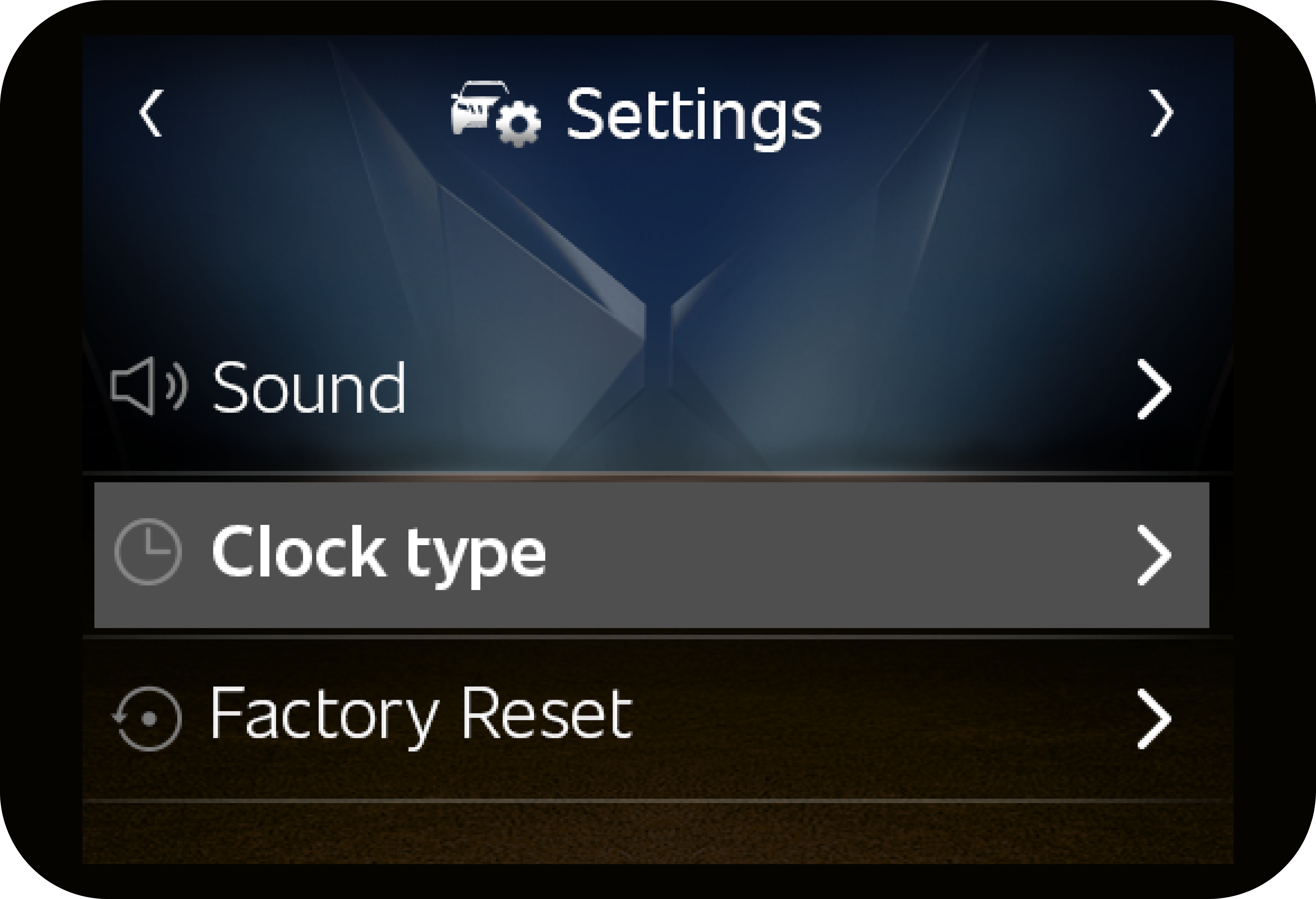

1. Navigate to Setting menu using MENU button.
|
|

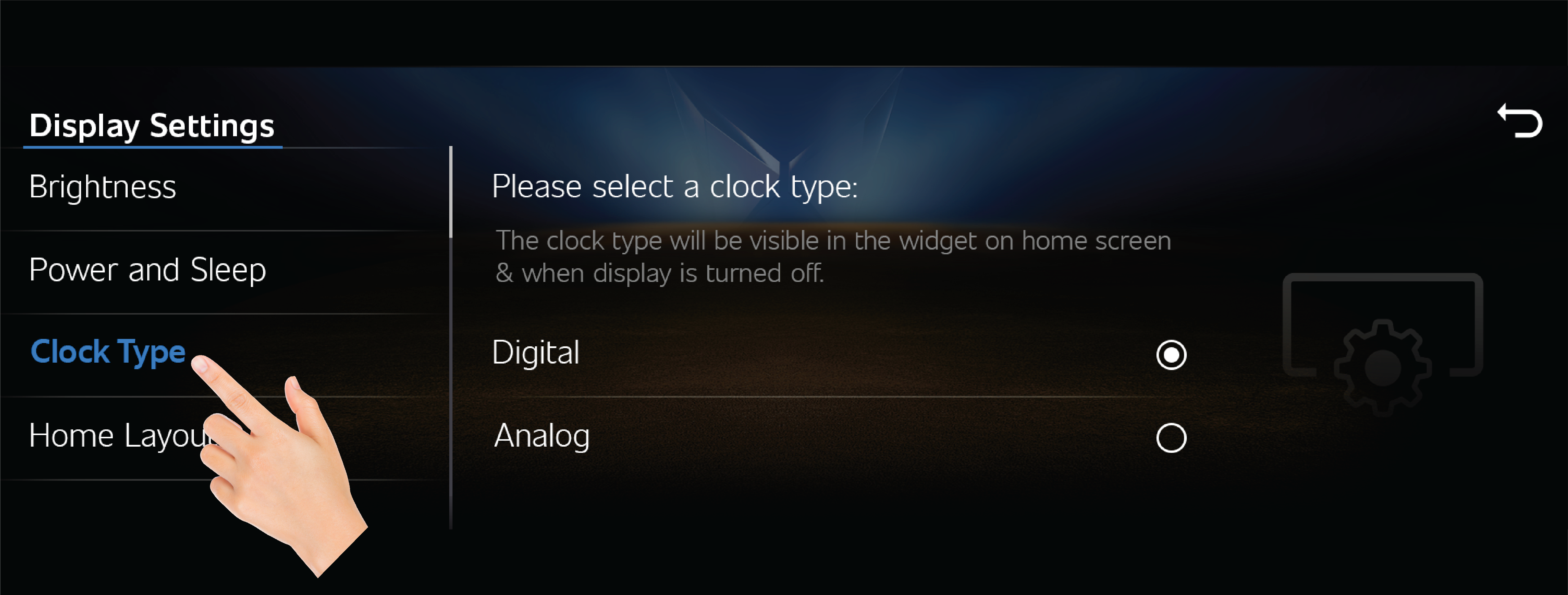

2. Press OK to enter setting. Press Up/Down button to navigate to Clock Type Option.
|
|

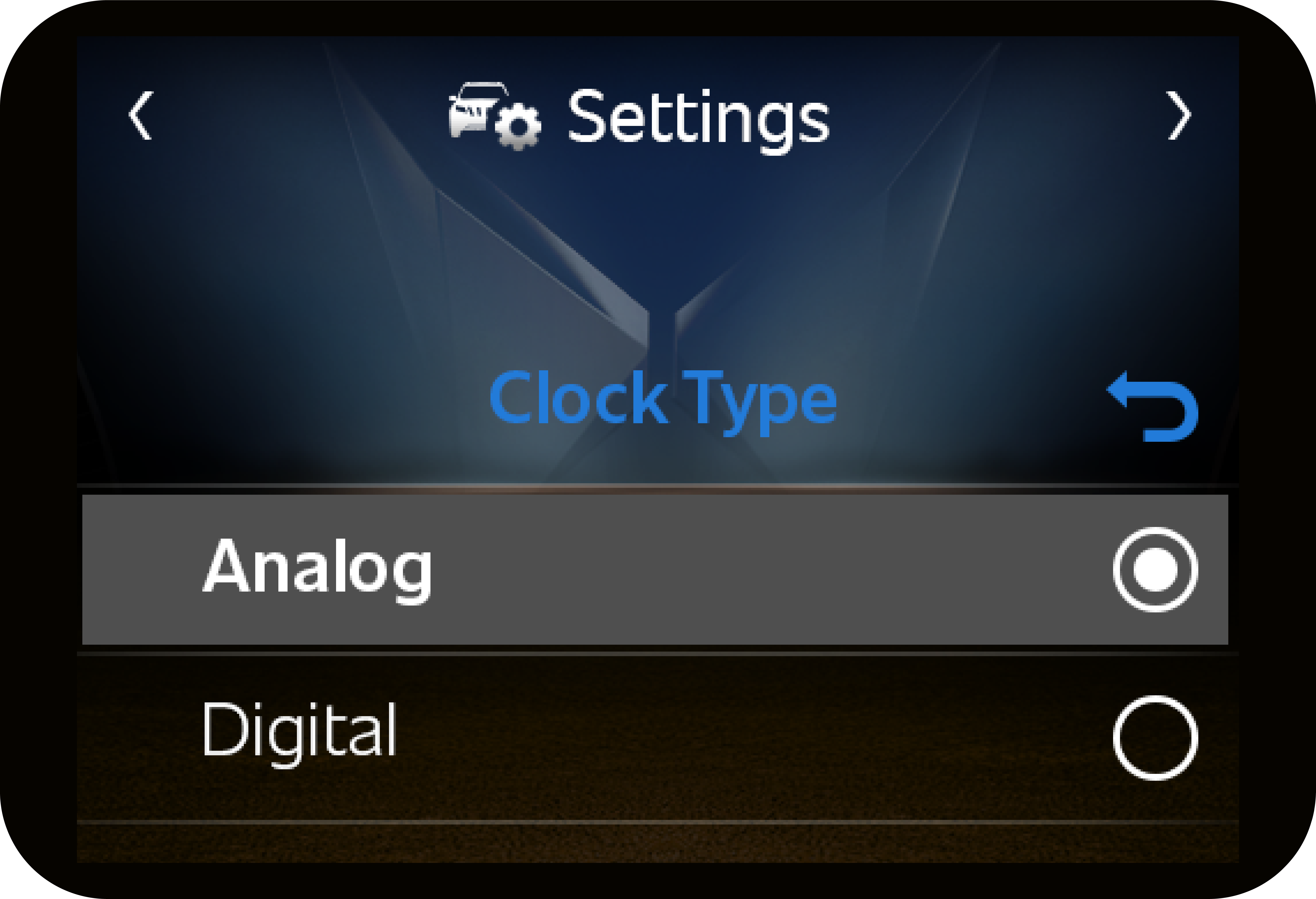

3. Press ok to enter Clock Type option. Use Up/Down button to navigate to the option. Press OK to select.
|
|
1. Navigate to Setting menu using MENU button.
|
|

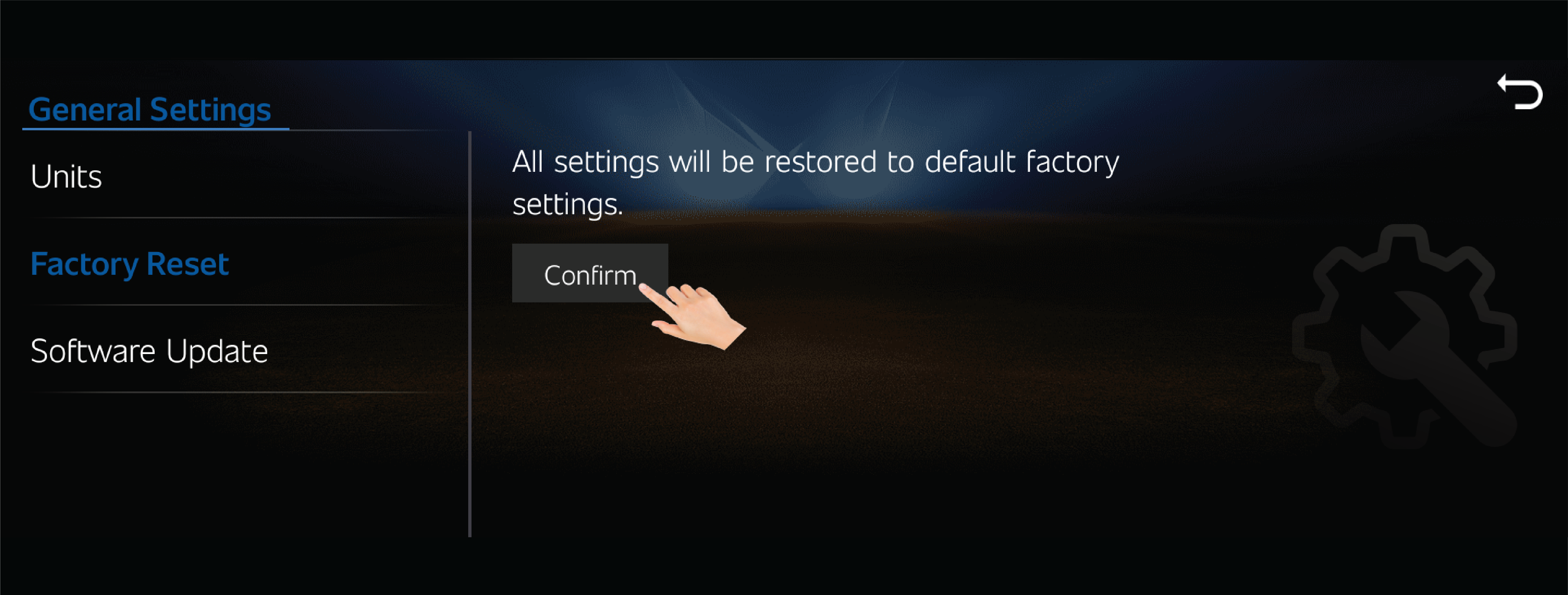

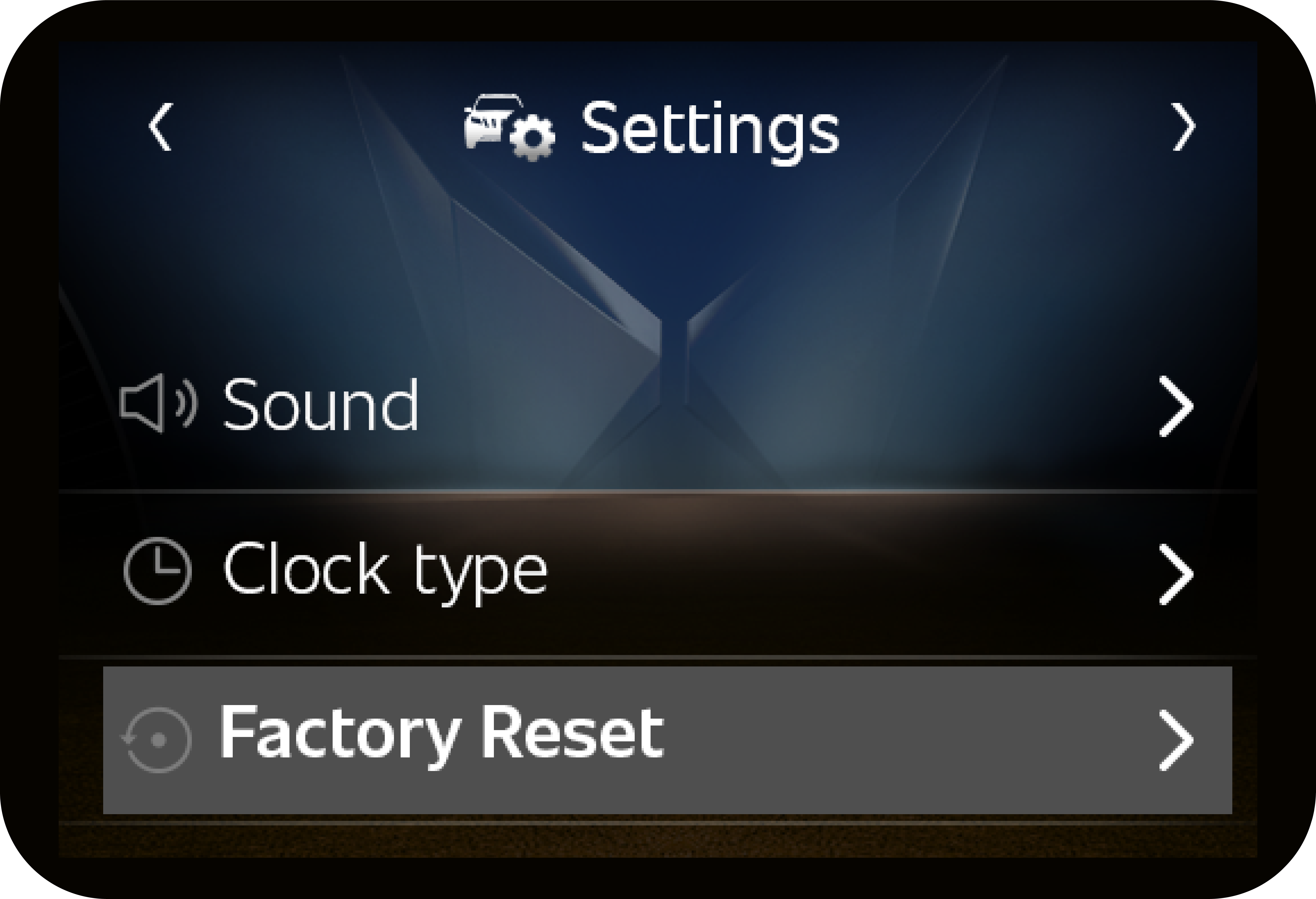

2. Press OK to enter setting. Press Up/Down button to navigate to Factory Reset Option.
|
|

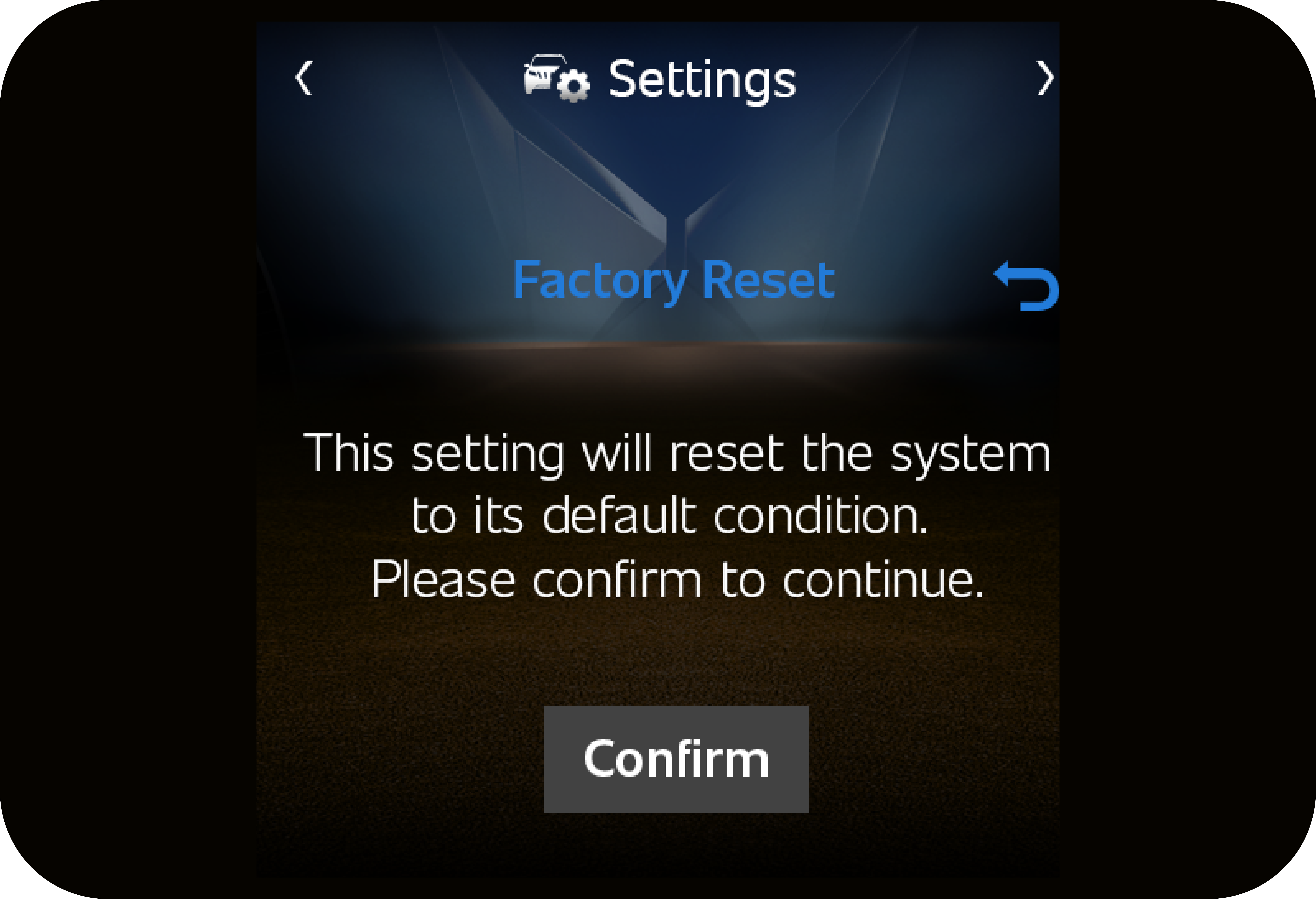

3. Press OK to Select following screen will appear. Use Down button to select Confirm.
|
|

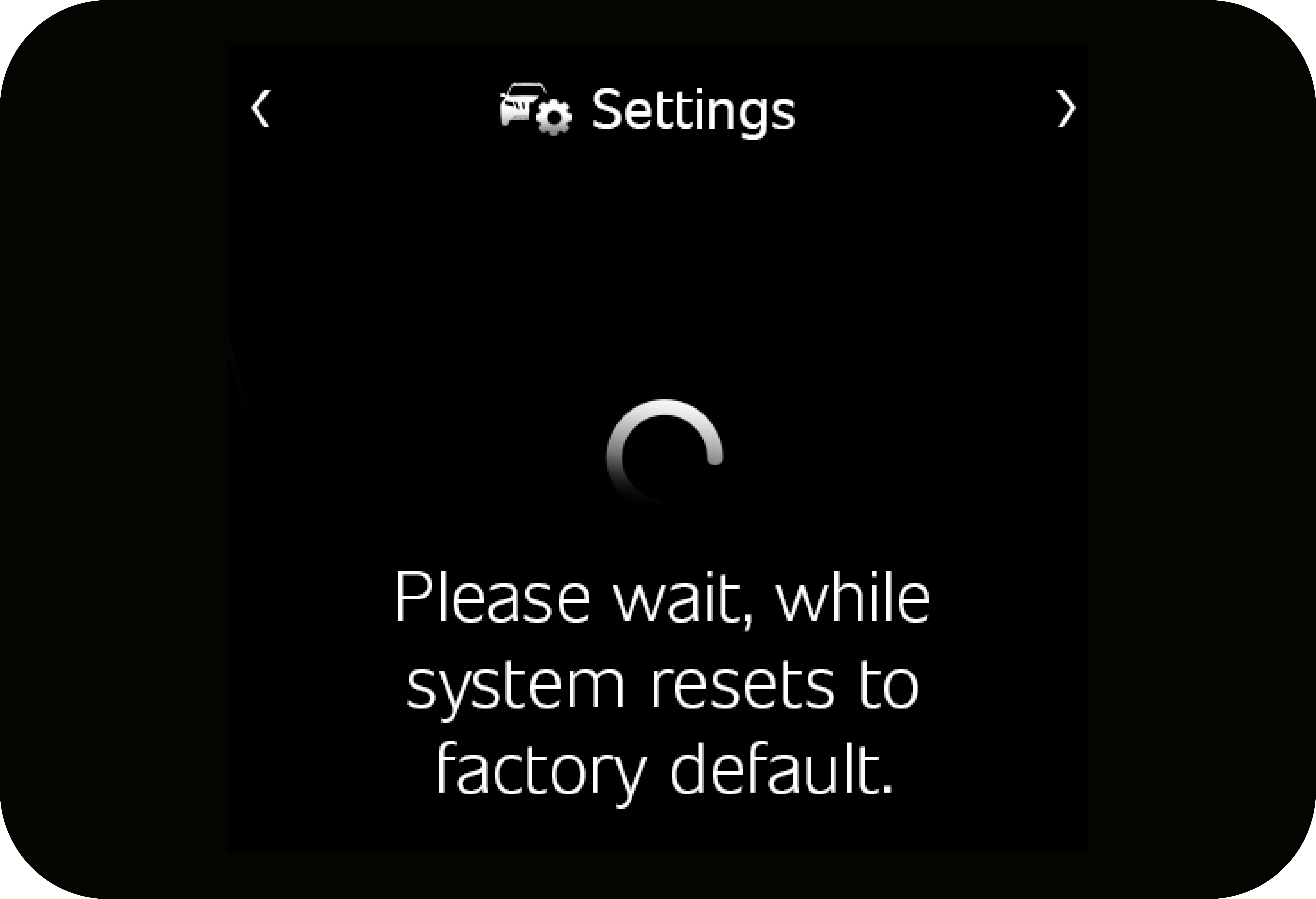

4. Press OK to start factory reset process.
|
1. | To go to the main settings screen from any settings menu, use Up/Down buttons to go to the top of the menu screen and press the OK button. |
2. | In the settings screen, if no option is selected for a long time. The screen will go to the previous displayed screen. |
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate to Passenger Airbag option
|
|
3. Press OK to Select following screen will appear. Use Up/Down button to navigate to the option. Press OK to select, a pop-up
will appear to confirm the selection.
|
|
4. Press OK to select a option. Confirm your selection by selecting OK or Cancel.
|

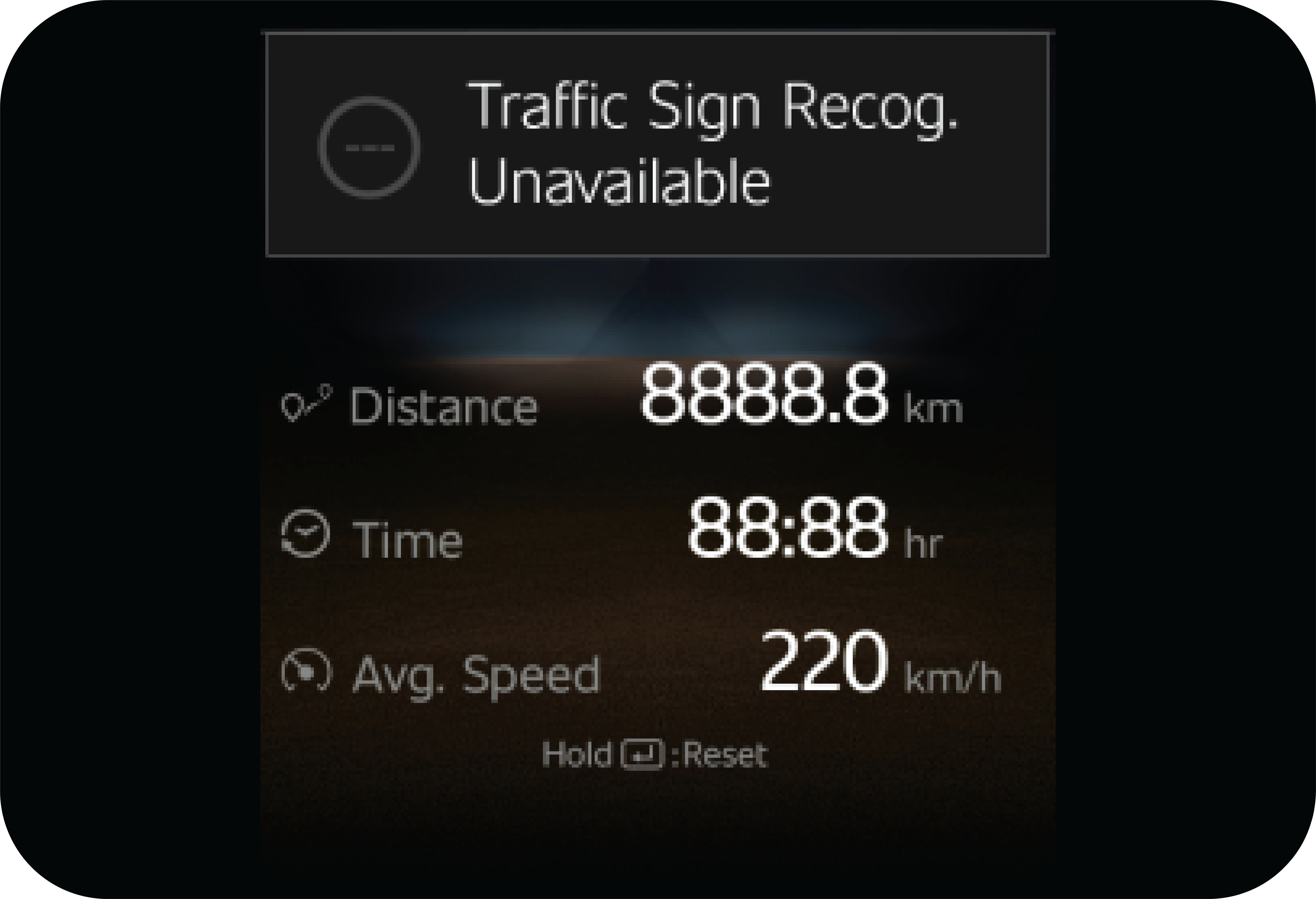

Display (TFT) |
Display (Digital) |
Operating Conditions |
---|---|---|
|
|

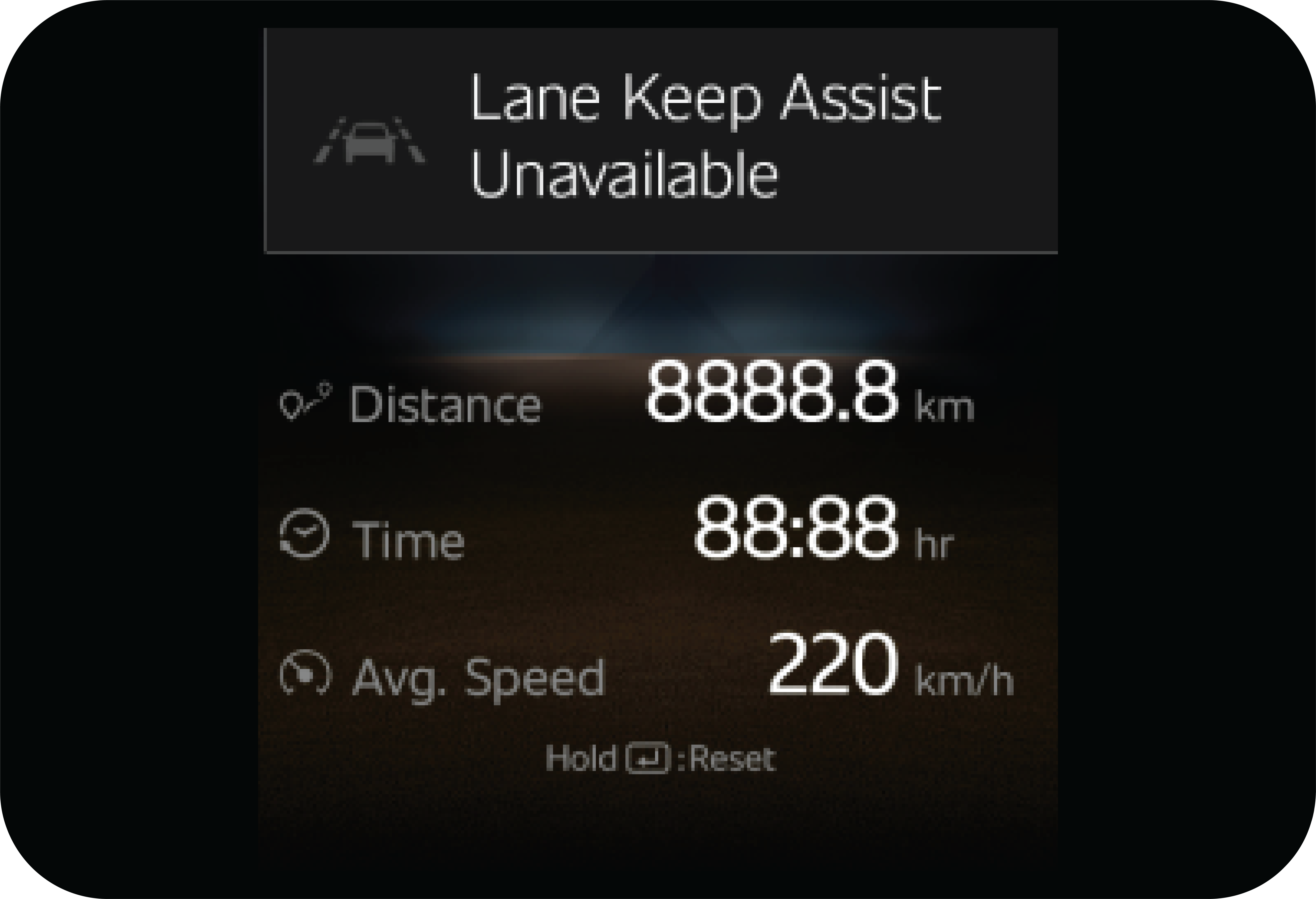

This alert will come when ABS related malfunction is detected |
|
|
This alert will come when EBD related malfunction is detected |
|
|
This message is displayed when the engine check warning lamp is turned ON and engine has been running. |
|
|
This message comes on when the ESP system is faulty, and engine has been running. |
|
|

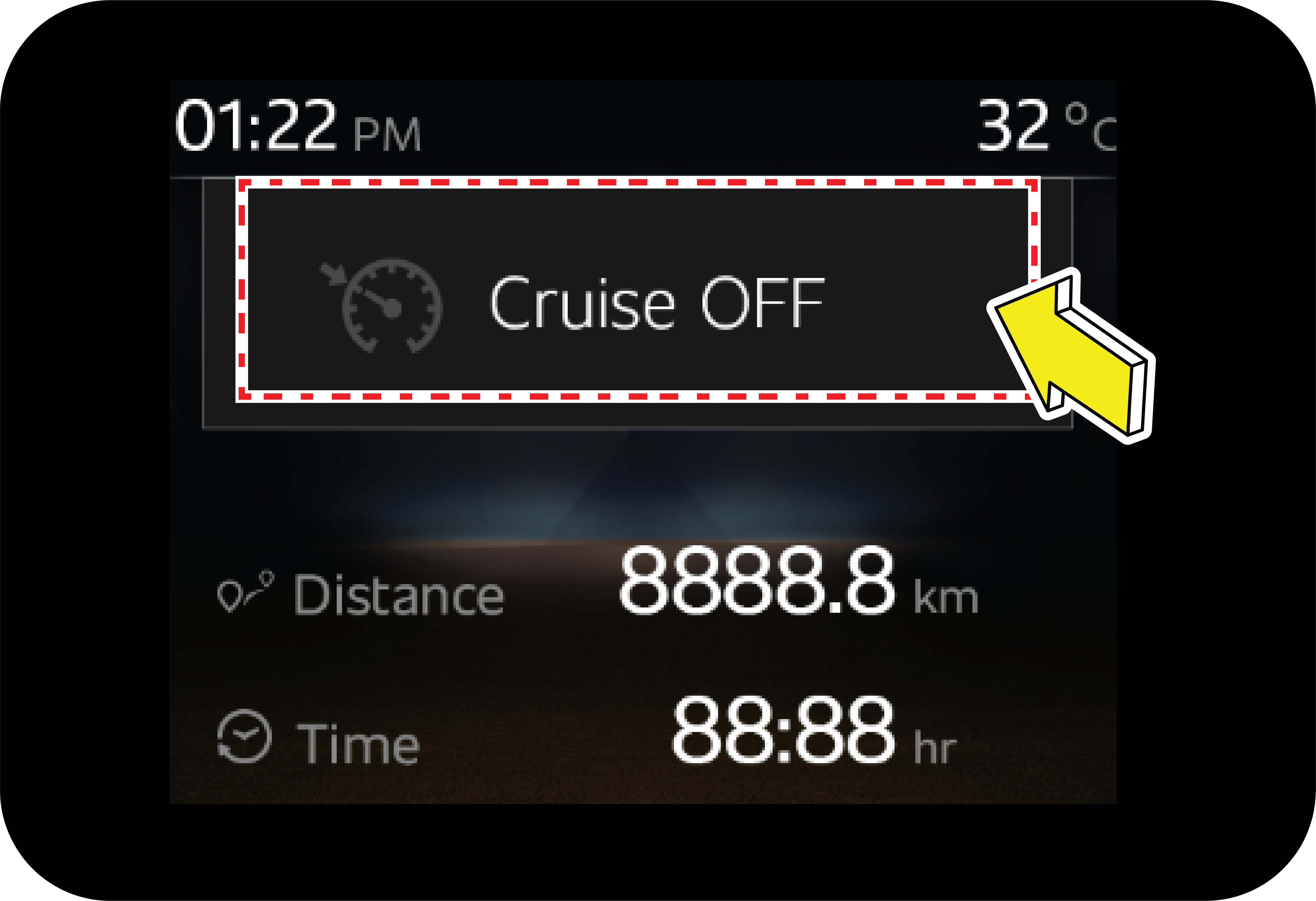

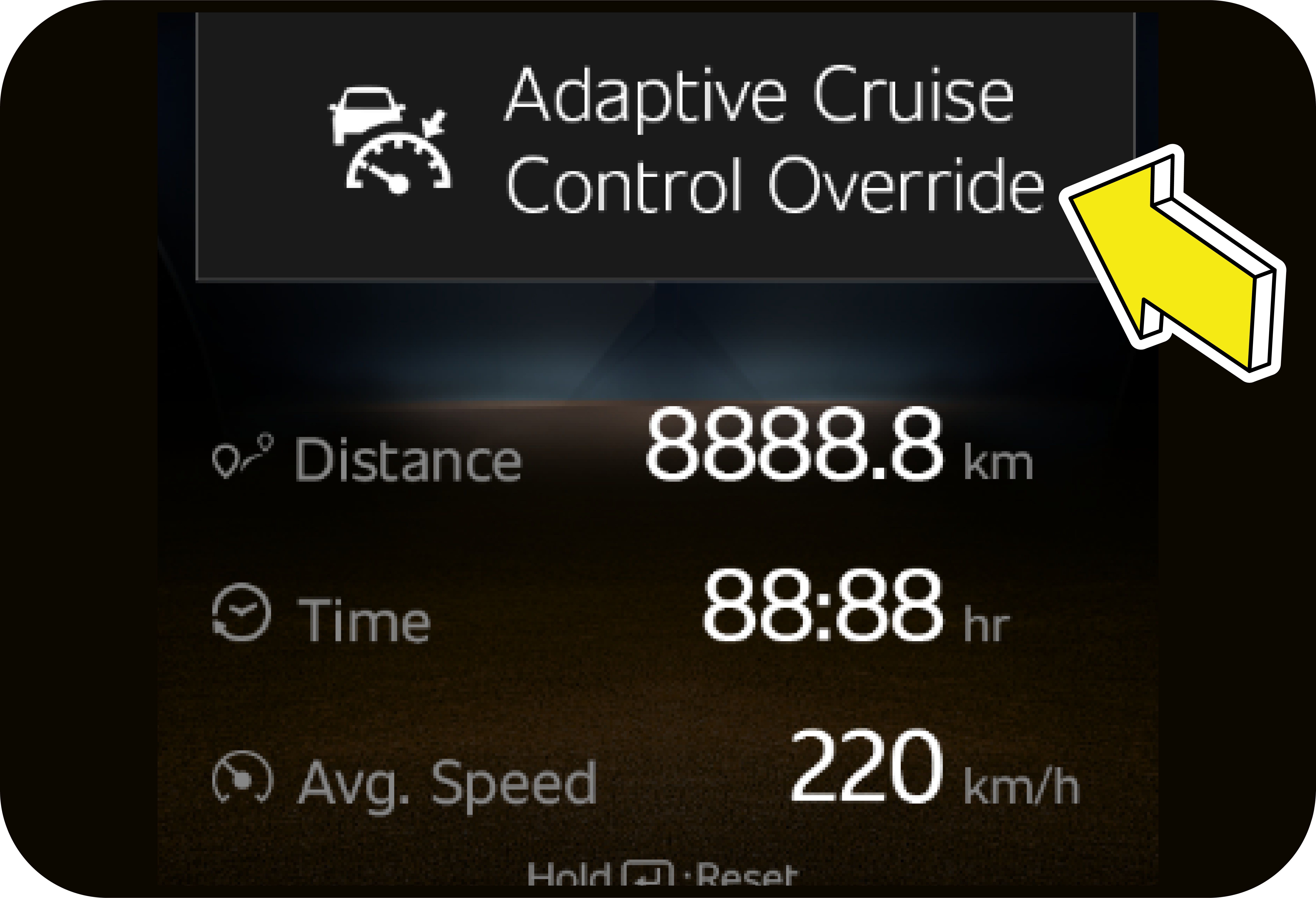

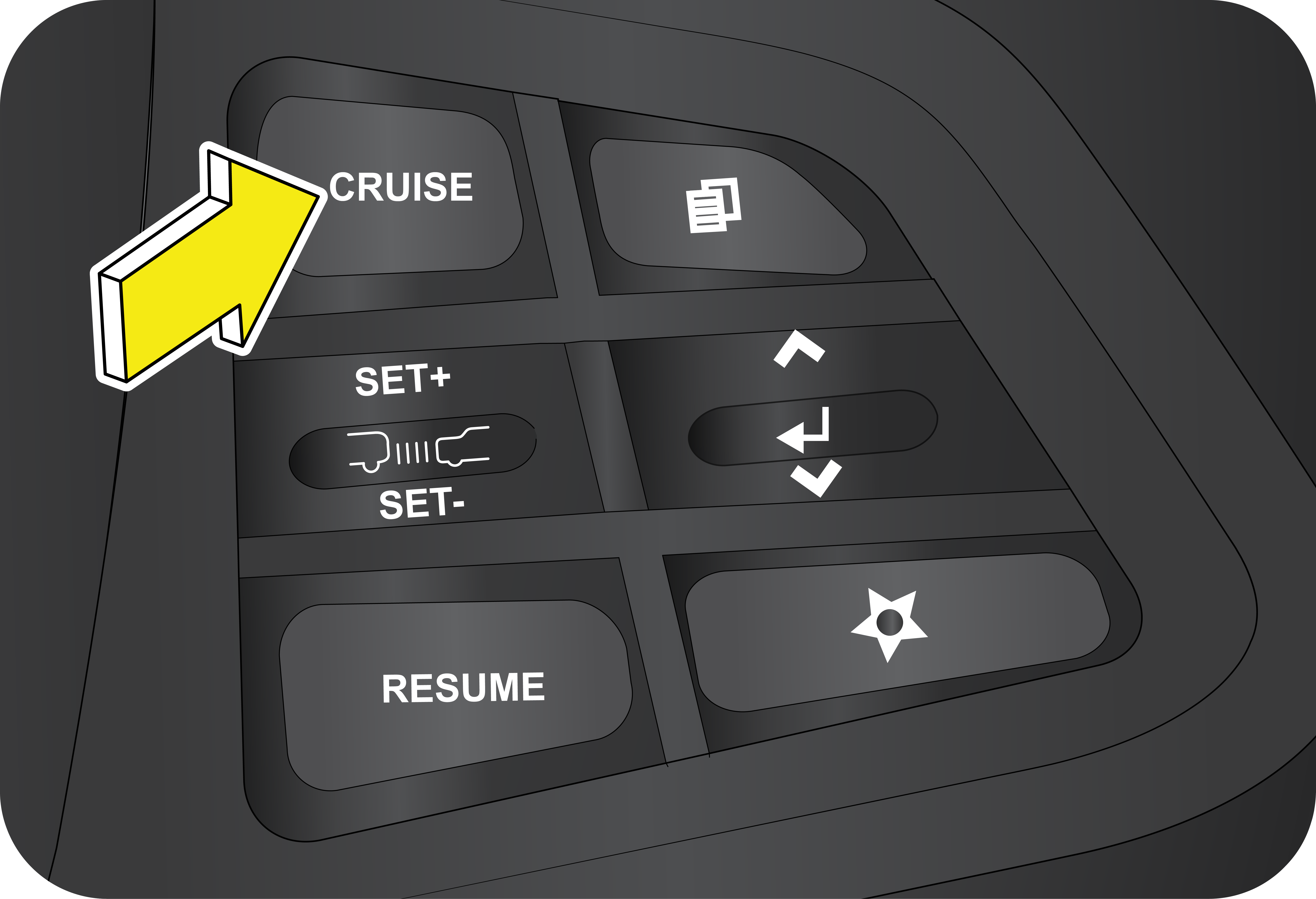

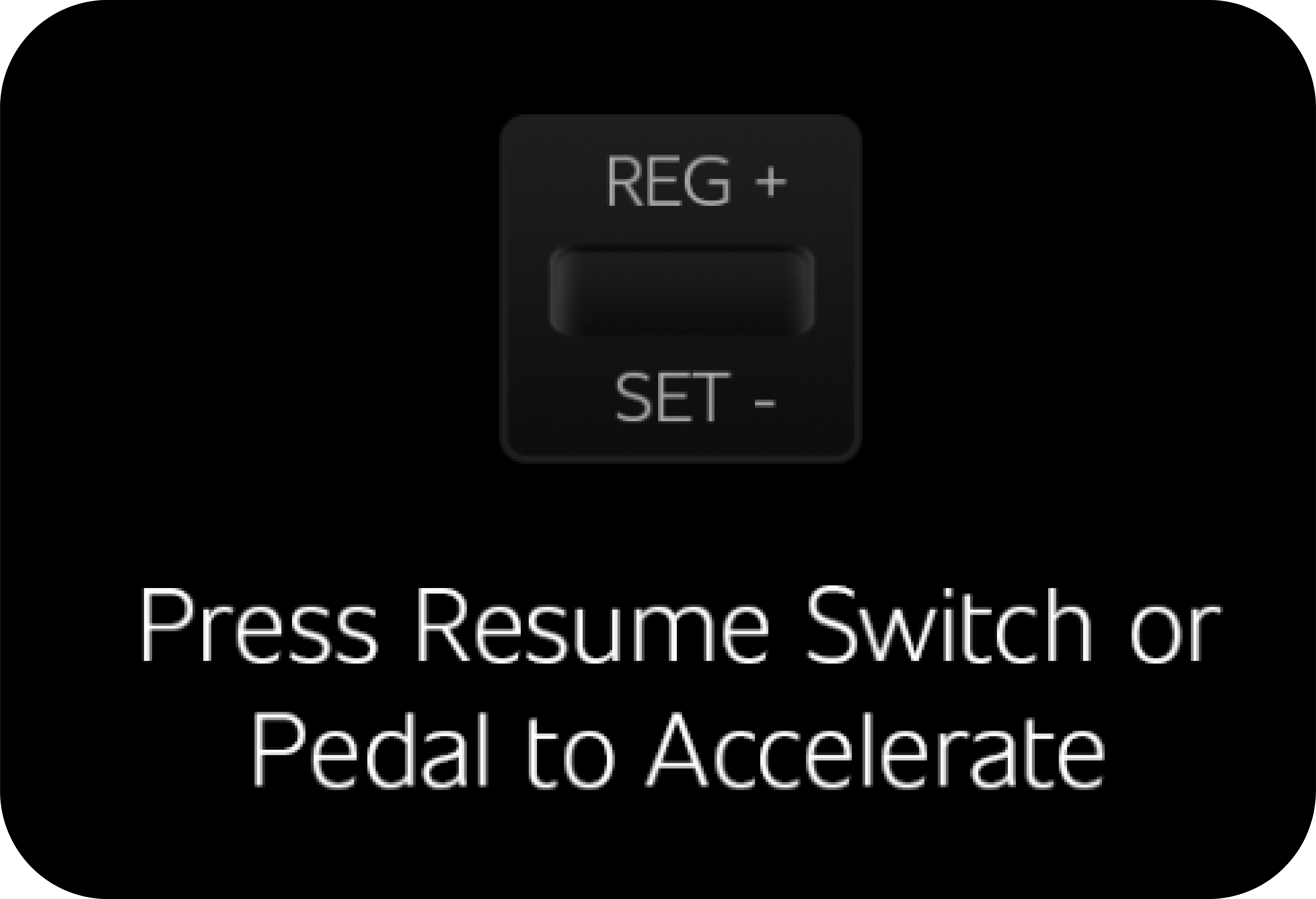

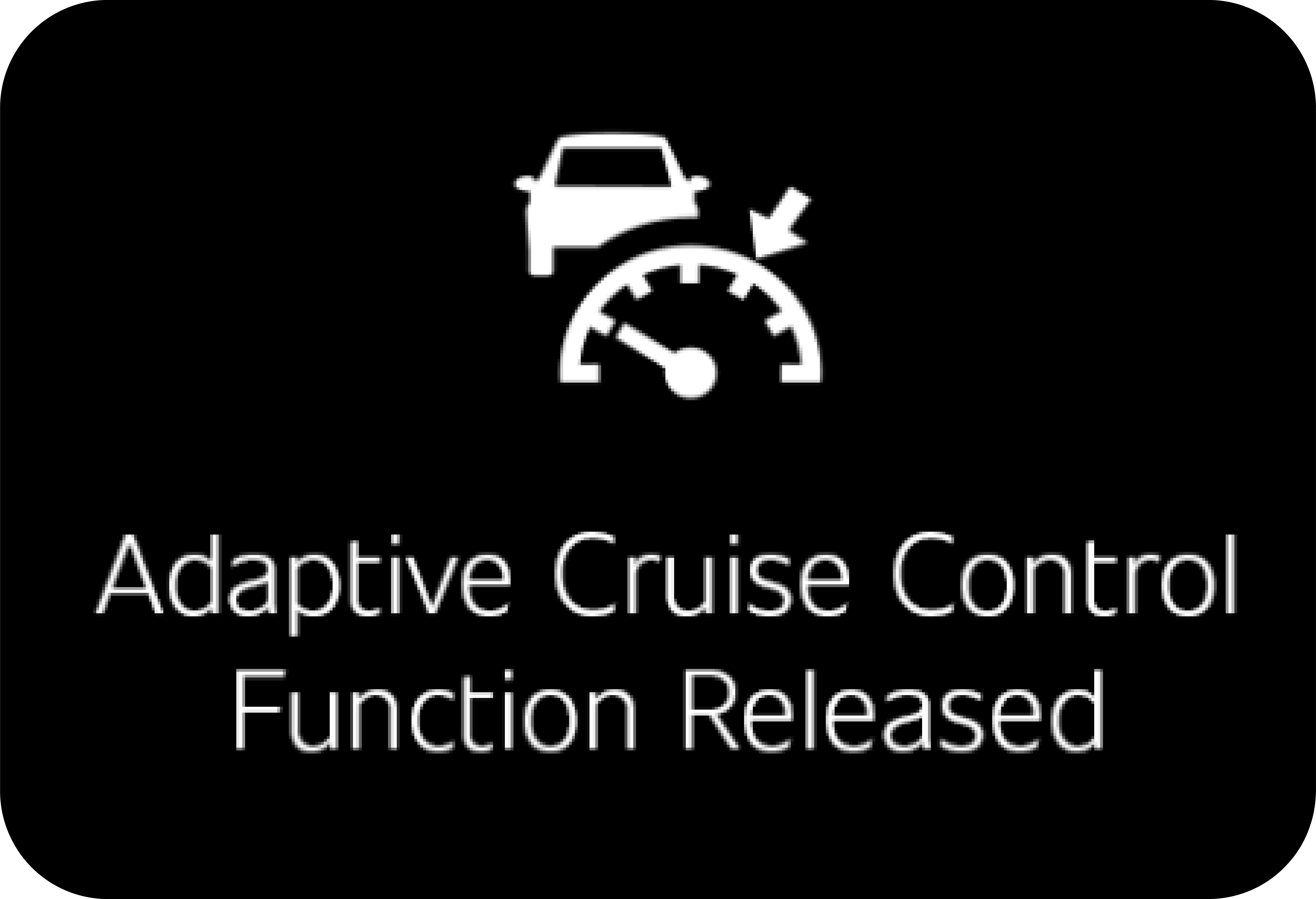

This message comes when cruise mode is turned OFF manually using switch. |
|
|

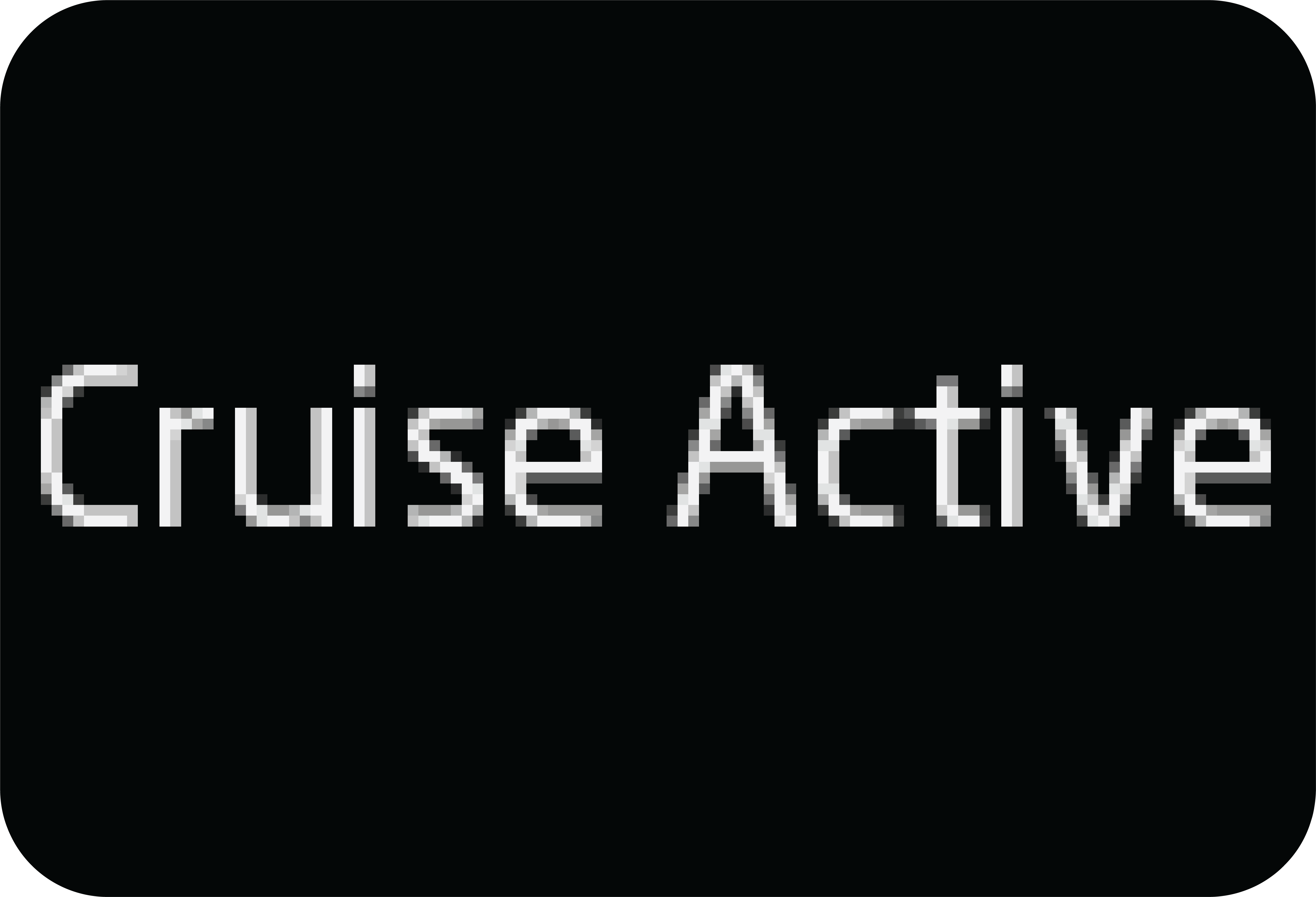

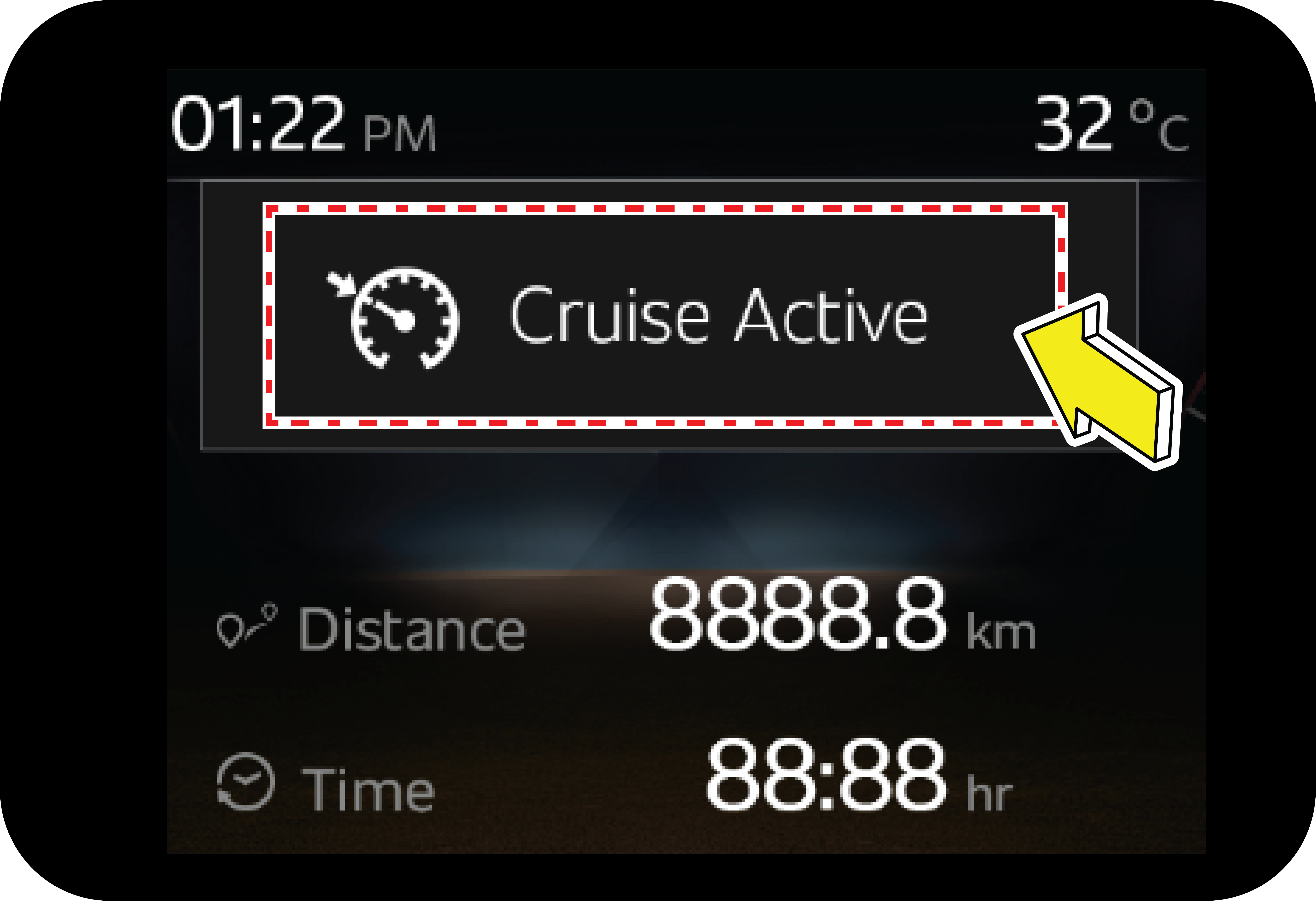

This message comes when cruise mode is turned ON. |
|
|

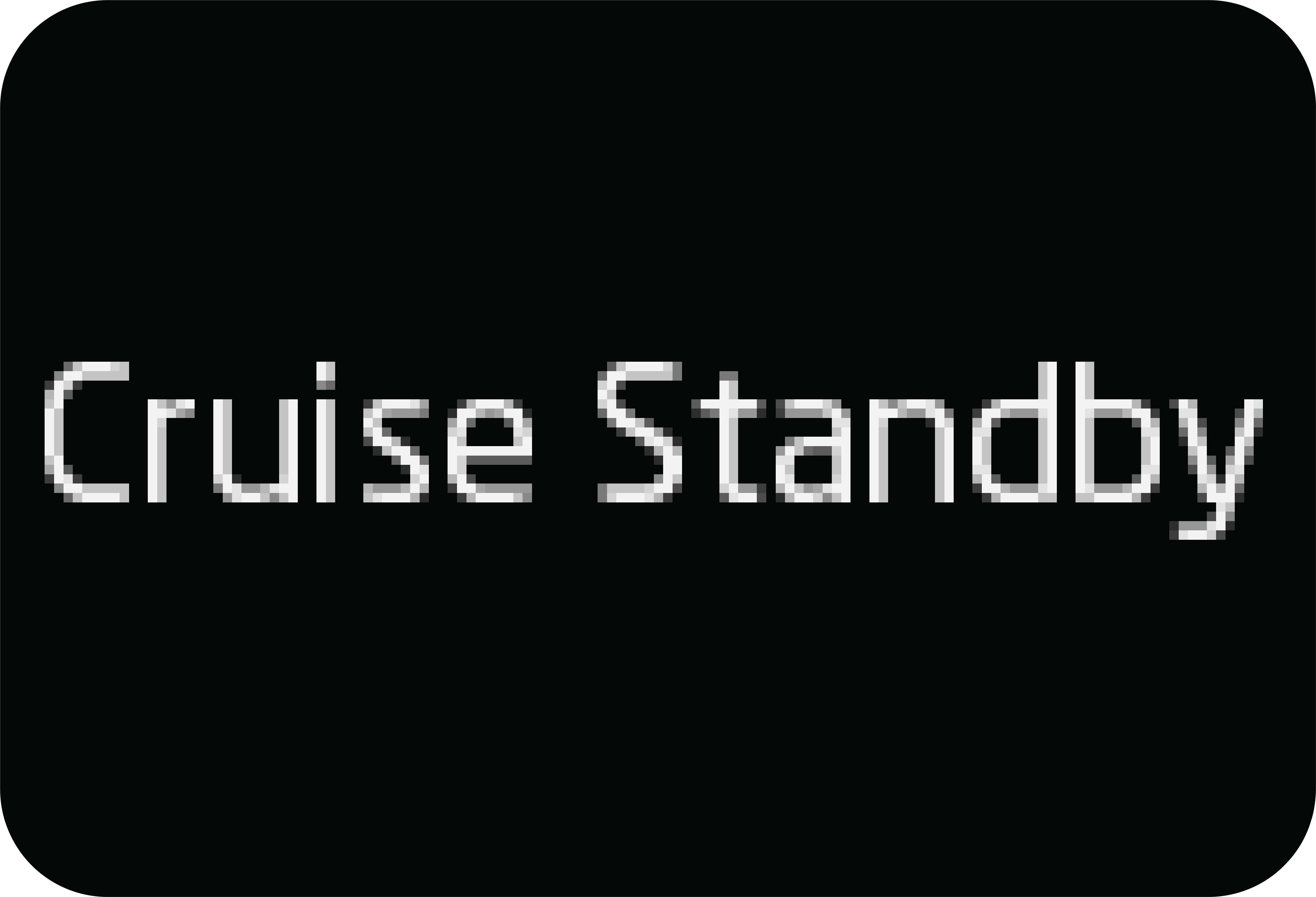

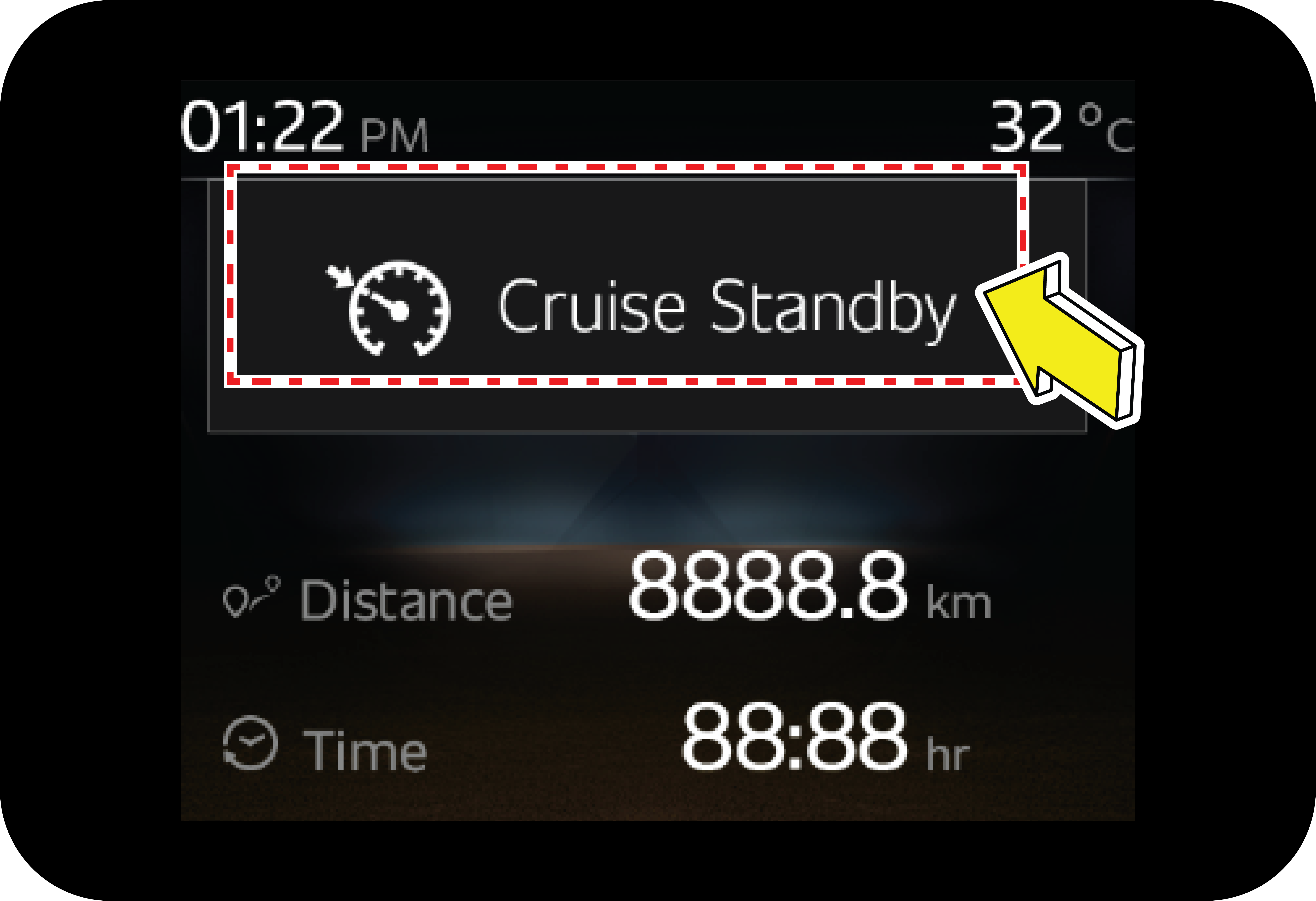

This message comes when Cruise Standby mode is enabled while driving. |
|
|
When the engine oil pressure warning light is ON and engine has been running. |
|
|
This message comes when engine temperature high telltale is ON and engine has been running. Indicates that engine temperature
is high.
|
|
|

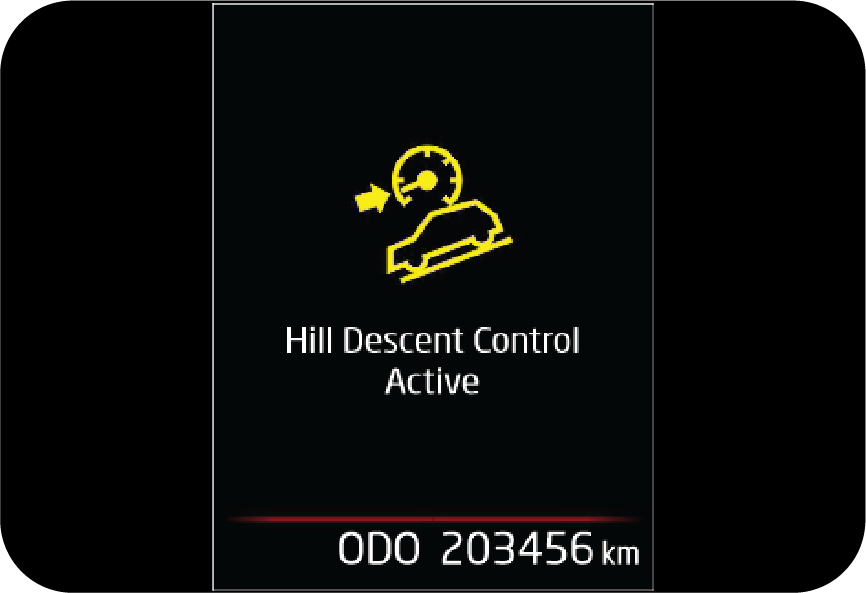

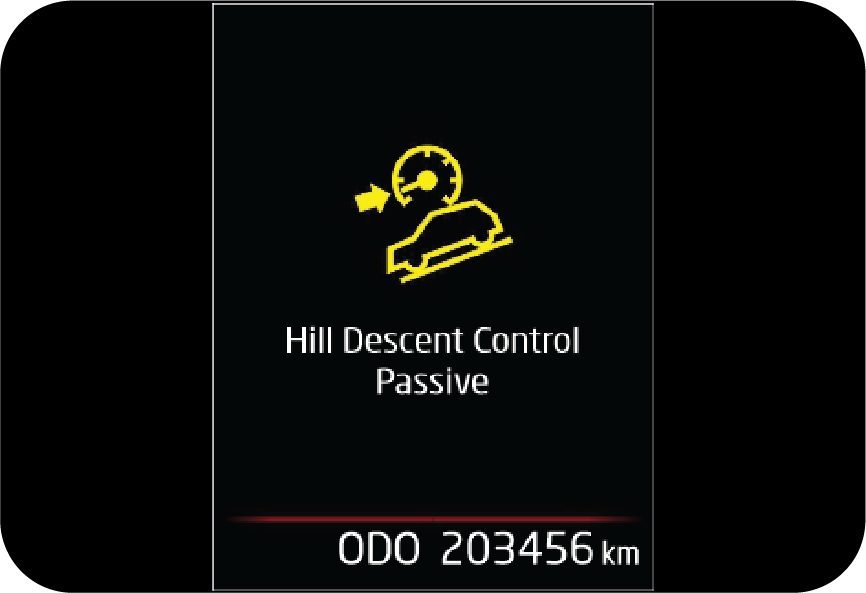

This message will get pop up when HDC control is necessary. HDC actively controlling the brakes to maintain vehicle speed
while descending hills
|
|
|
This message will get pop up when HDC feature is disabled by pressing the HDC button in driver side switch bank again or HDC
activation conditions are override.
|
|
|

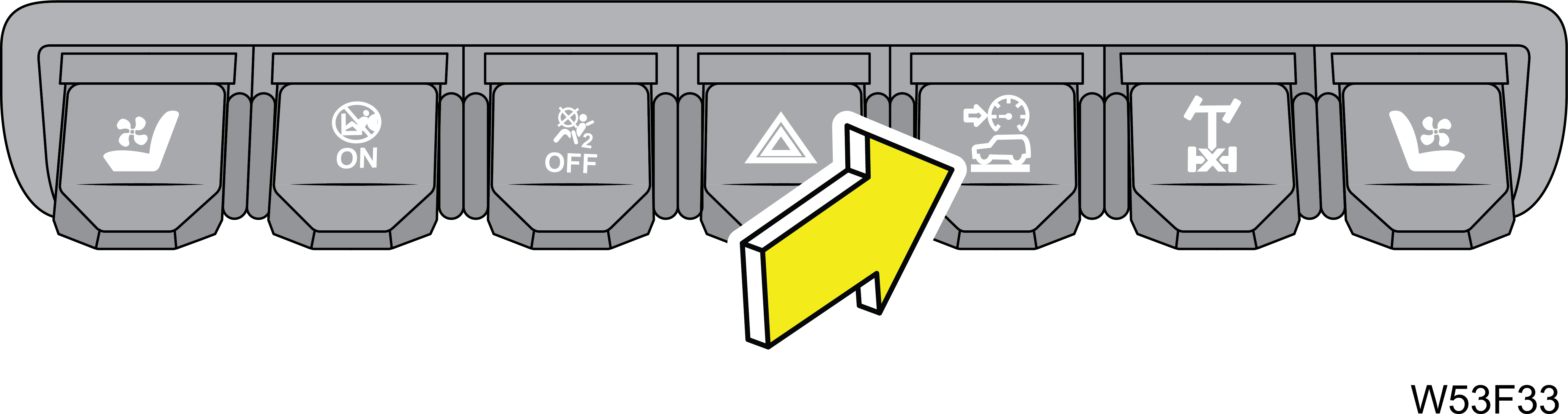

This message will pop up when HDC feature is enabled by pressing the HDC button driver side switch bank. HDC function is ready
for action but activation conditions are not met.
|
|
|
This alert is displayed when the Hill Descent Control function is not available because of a malfunction in the system. (If
equipped)
|
NA |
|
This alert is displayed when the Hill Hold Control function is not available because of a malfunction in the system. |
|
|

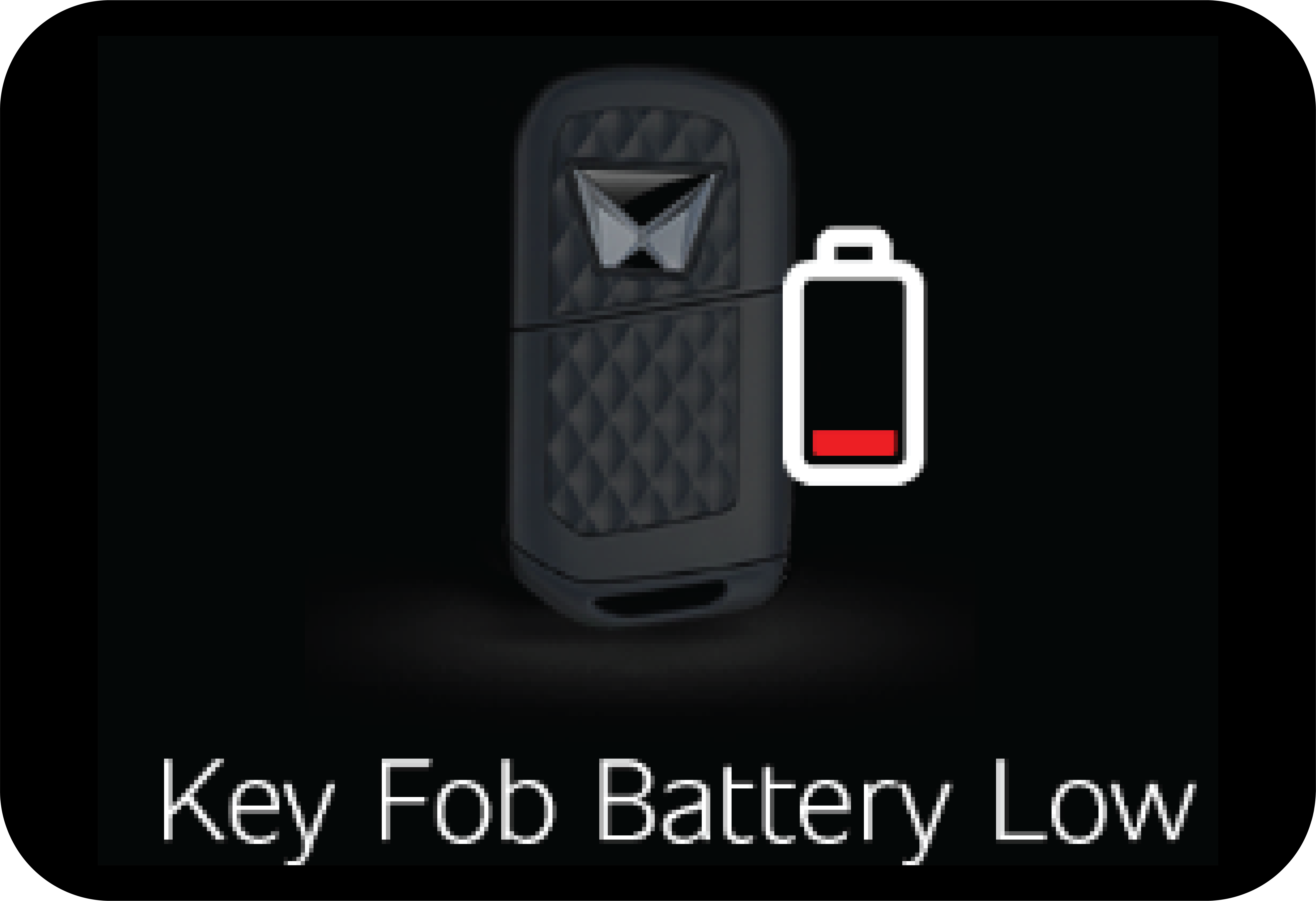

This alert will come when Remote key fob battery is low . (if Equipped). |
|
|
This alert will be displayed when key is left in barrel and IGN is turned OFF and door is opened. ( if equipped ) |
|
|
This message comes when brake fluid level is low and engine has been running. |
|
|
This message comes when fuel level warning lamp is ON or Blinking and engine has been running. |
|
|
This message comes when passenger airbag is turned OFF. |
|
|

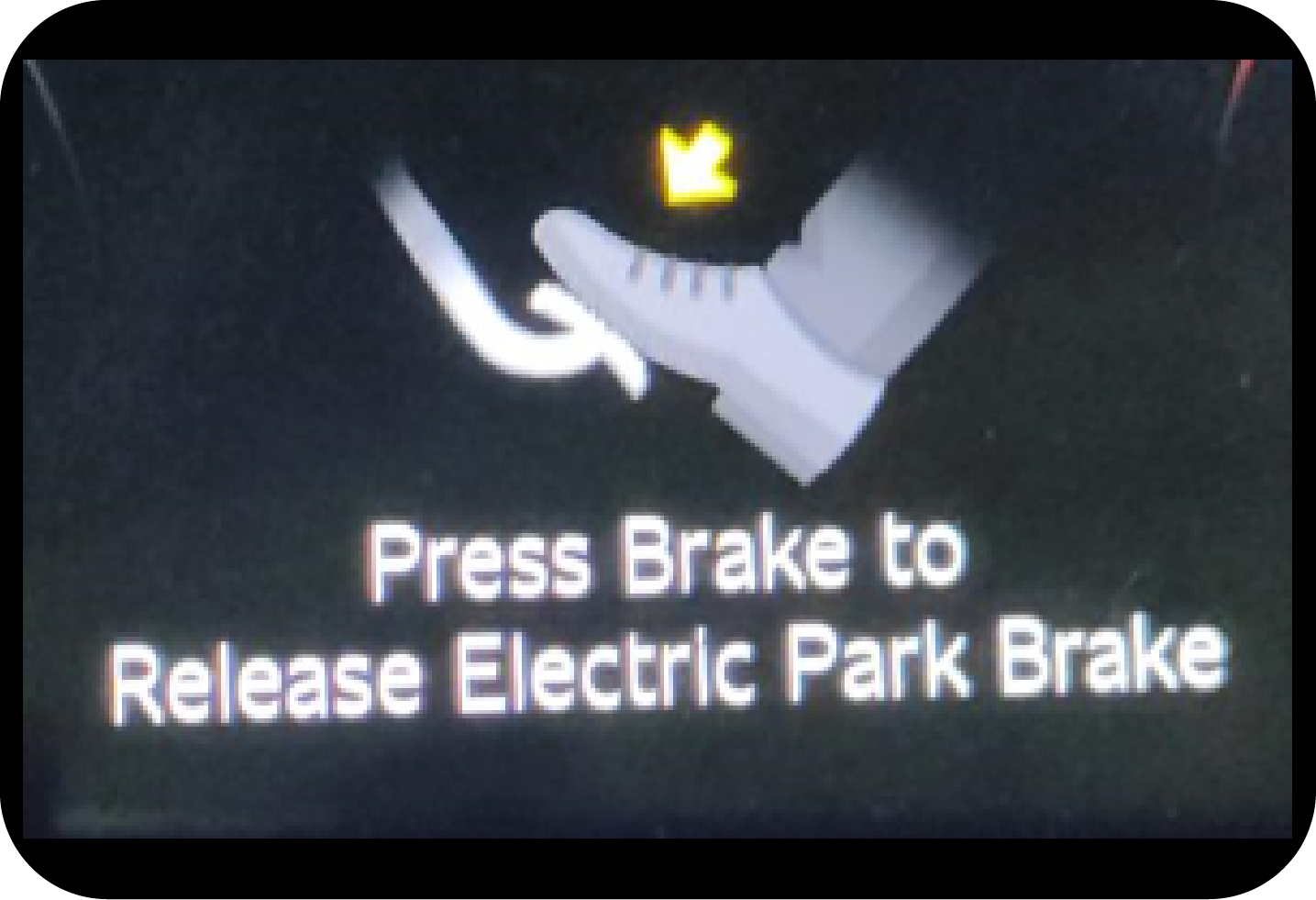

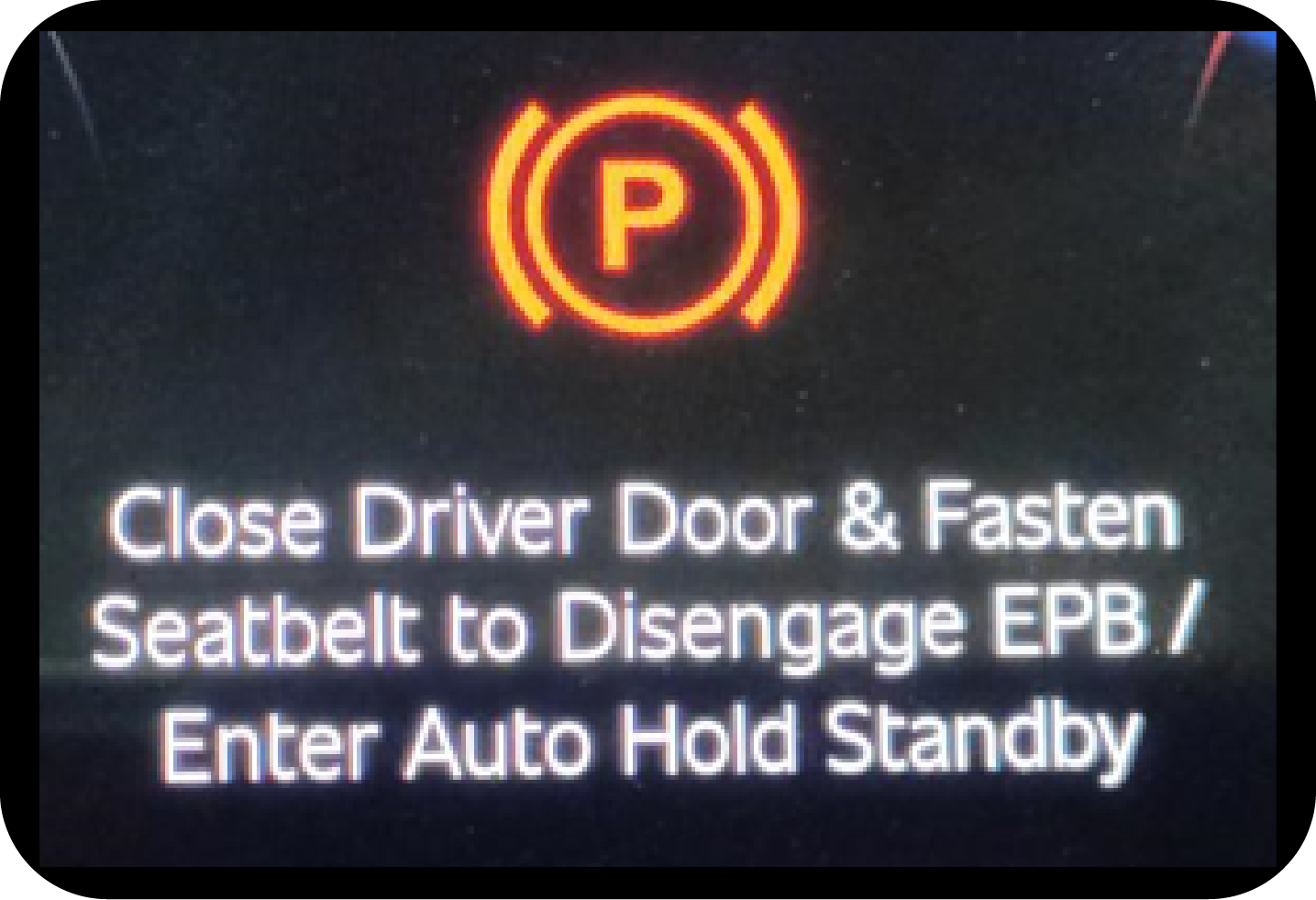

This message comes when you try to move the vehicle when park brake is still engaged. |
|
|
This message comes on when the tail lamps are ON with the ignition in the "OFF" state. |
|
|
This message comes when vehicle has crossed scheduled service limit. |
|
NA |

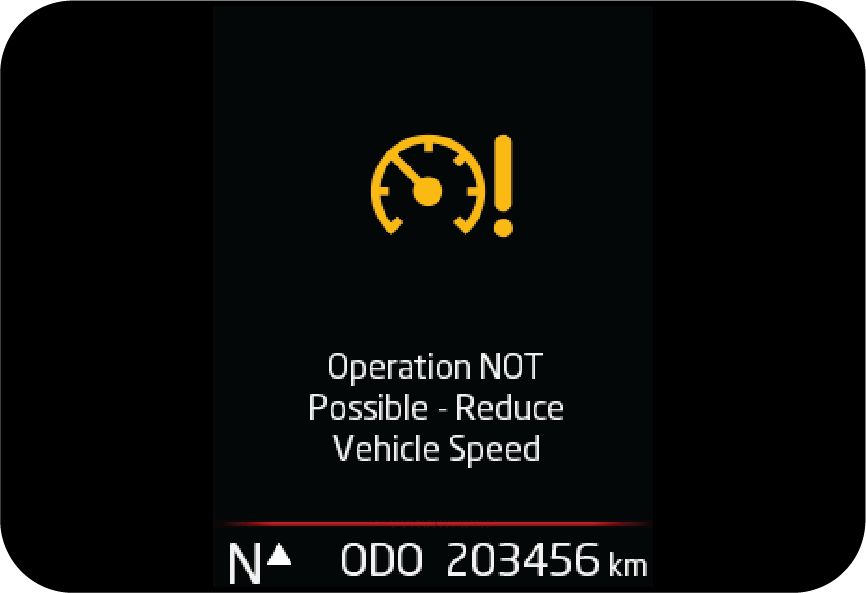

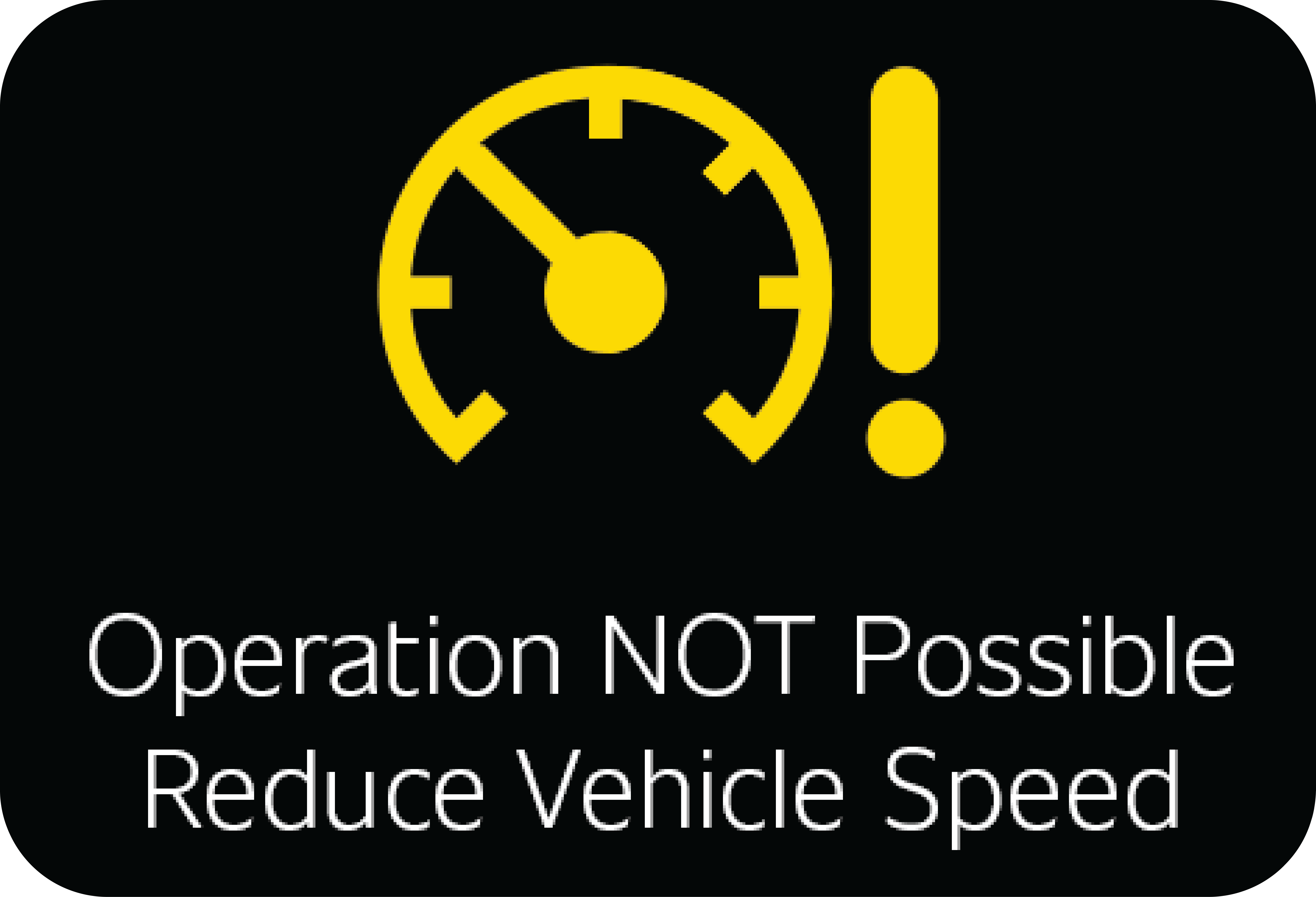

This message comes when you try to change settings while driving the vehicle (i.e., vehicle speed is greater than 2kmph).
This message comes with a timeout of 5 secs, after that is goes to TRIP A screen through settings screen.
|
|
|

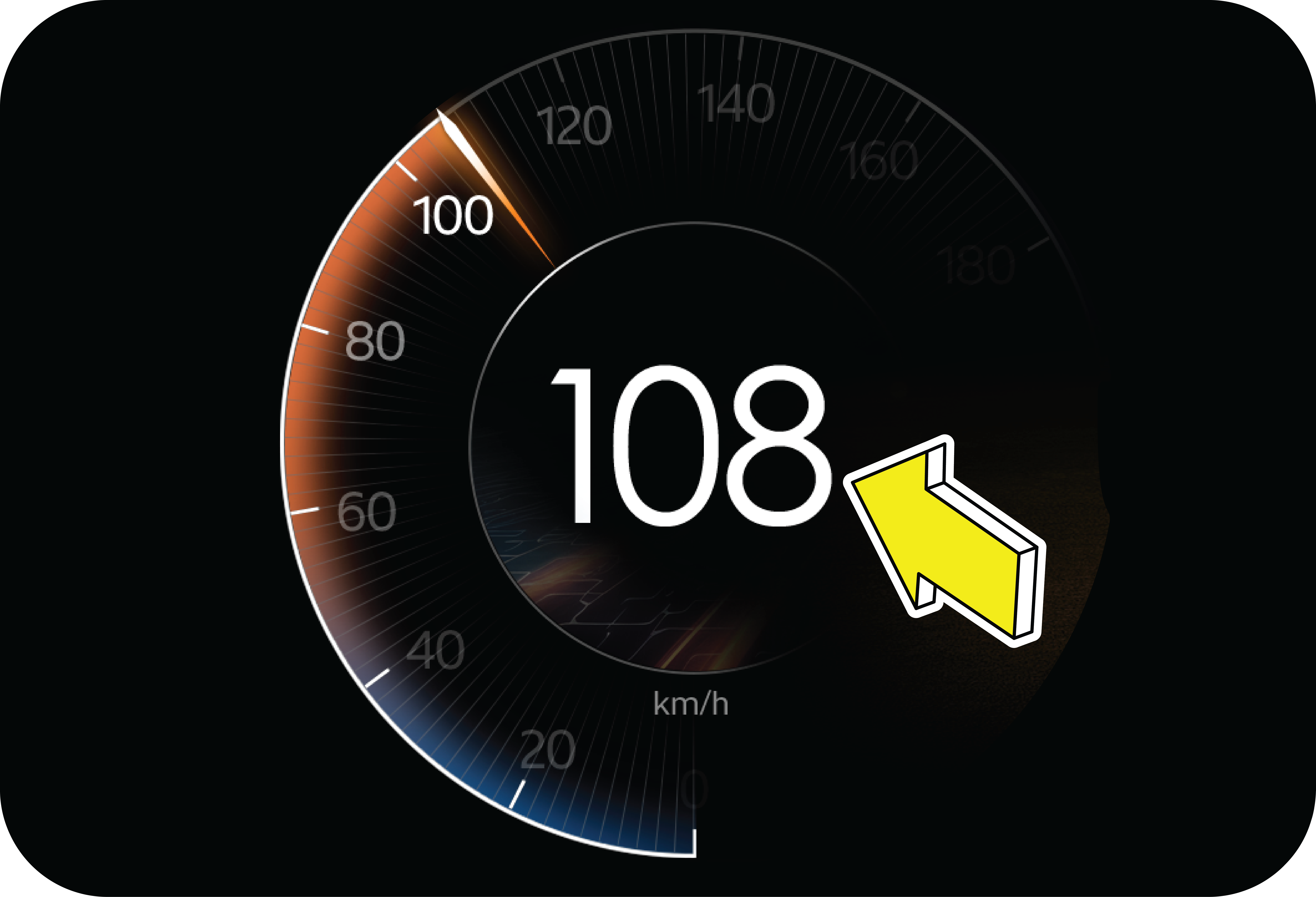

This message comes when you are driving vehicle above 120 kmph. (if equipped) |
|
|
This message comes when water is detected in fuel filter and engine has been running. It is applicable for diesel variants
only.
|
|
|
This message comes when either of driver or passenger (if occupied) seatbelt is unbuckled. |
|
|

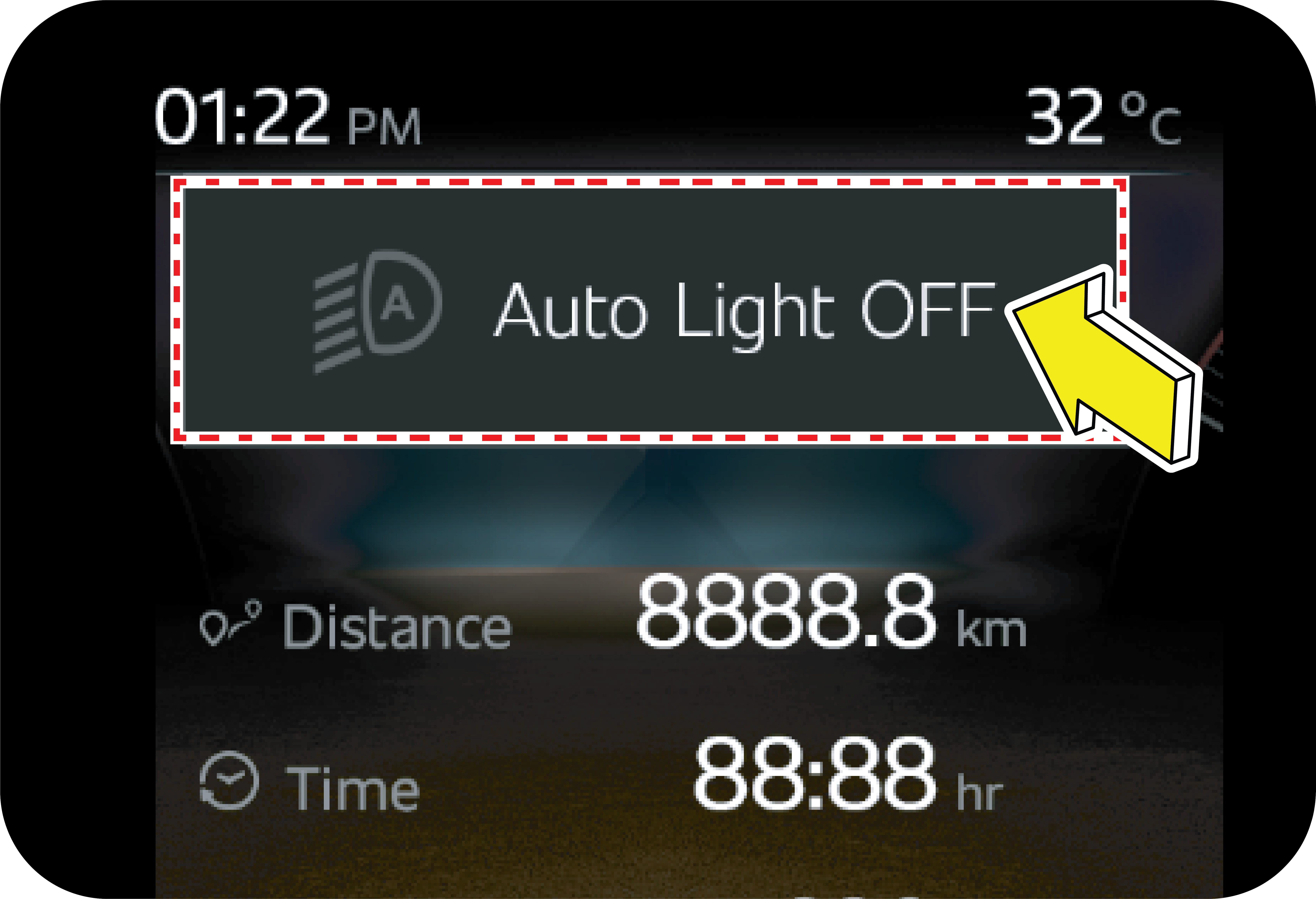

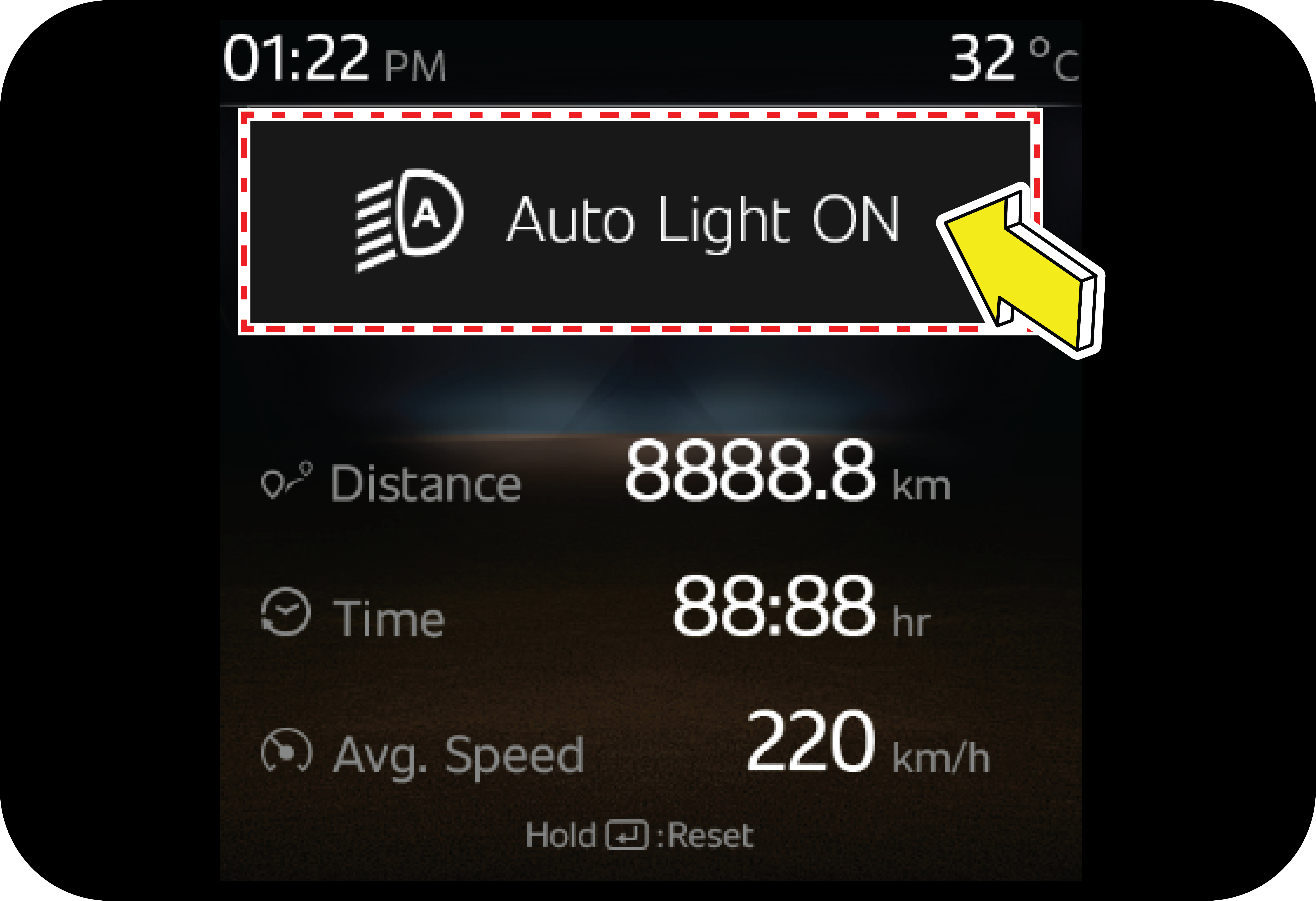

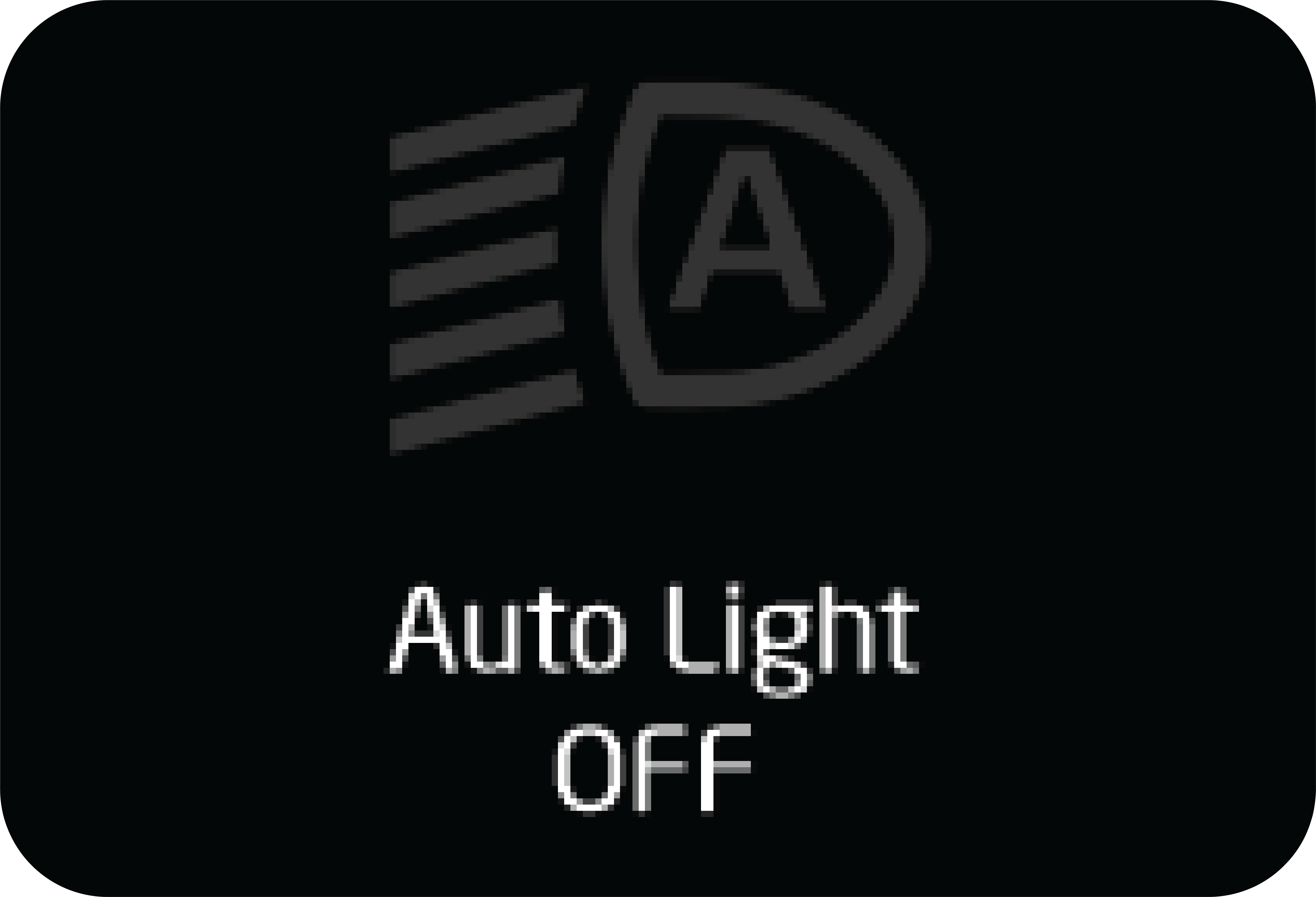

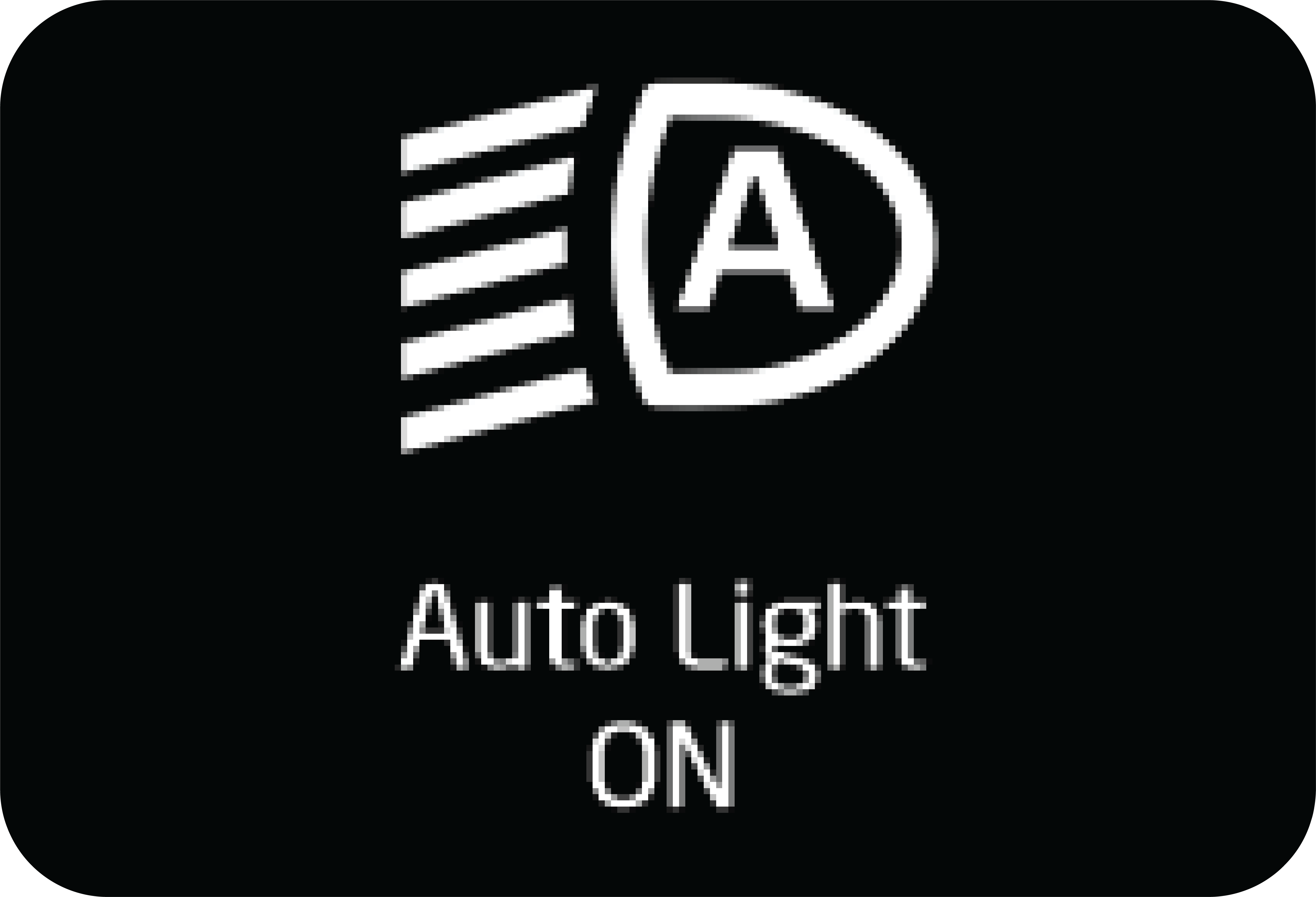

The warning screen will be displayed if Automatic Light functionality is turned ON. |
|
|
The warning screen will be displayed if Automatic Light functionality is turned OFF. |
|
|

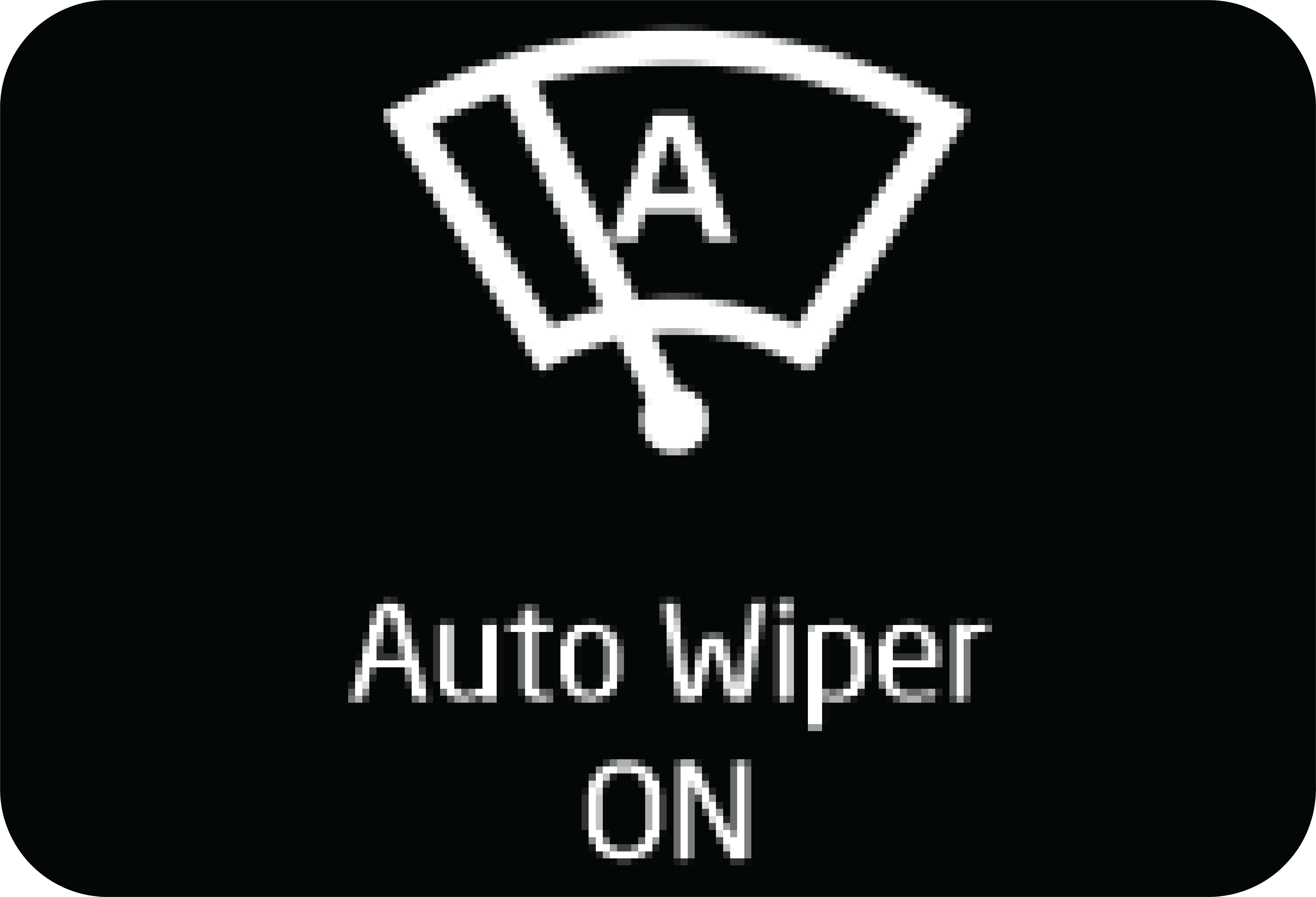

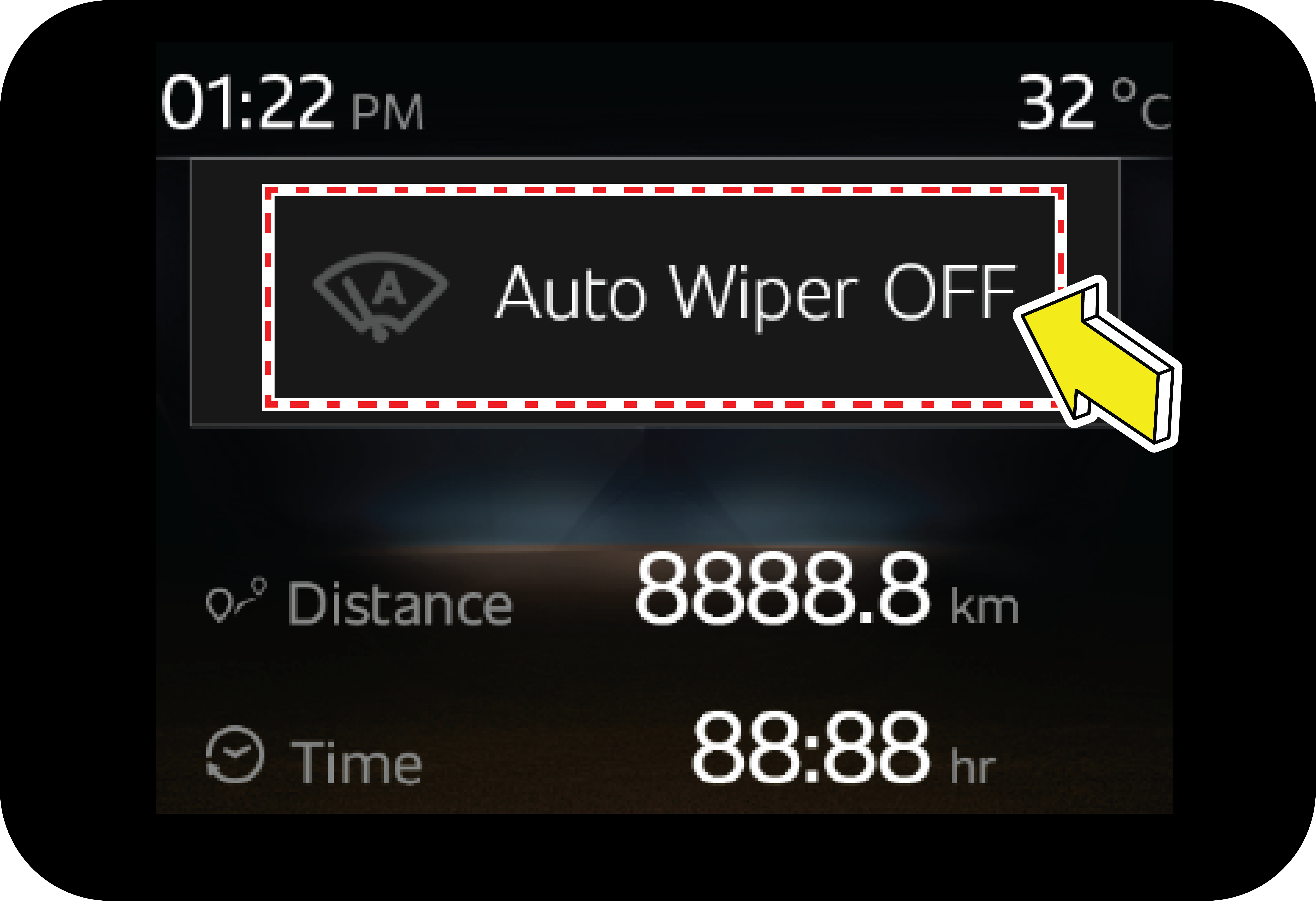

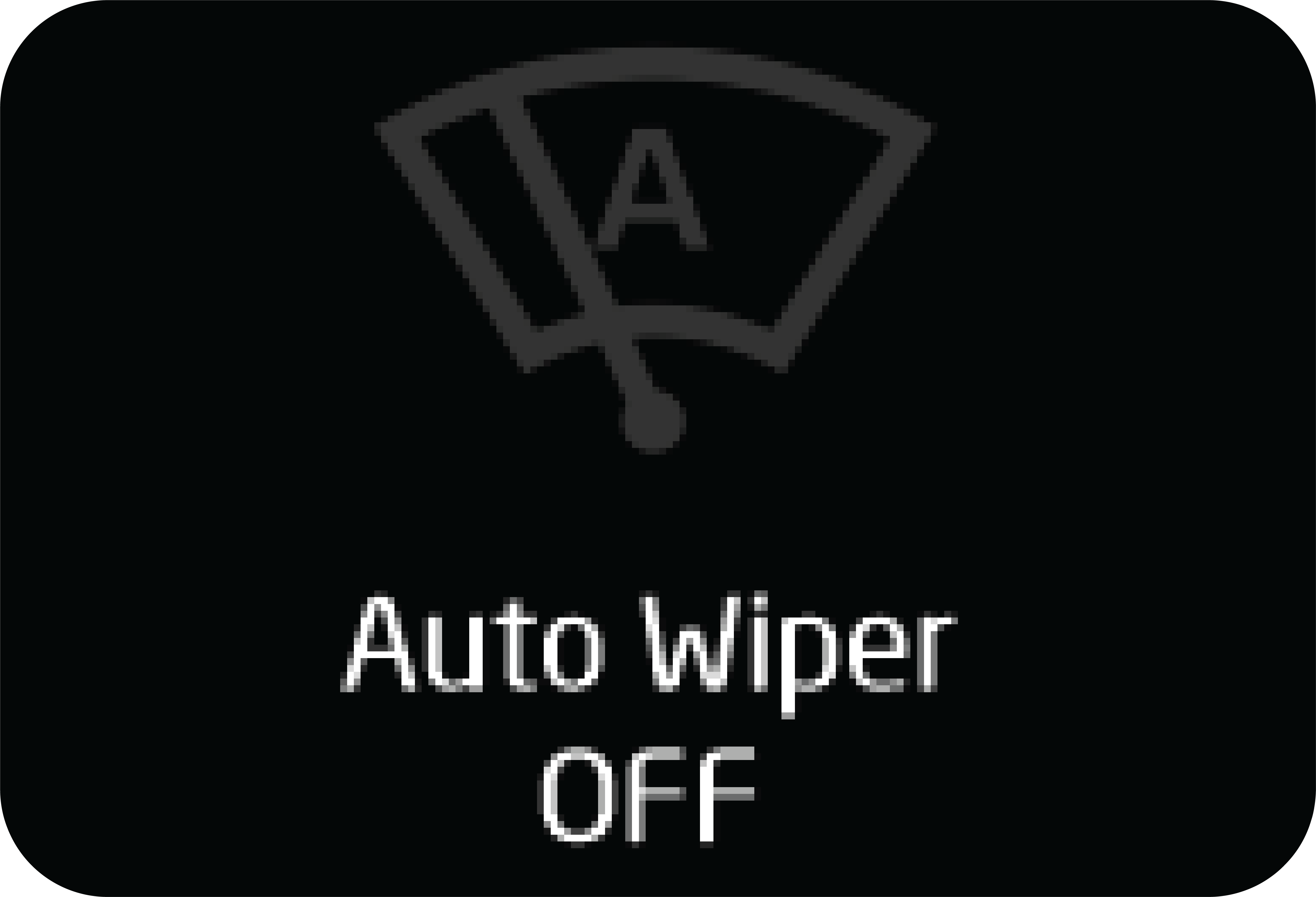

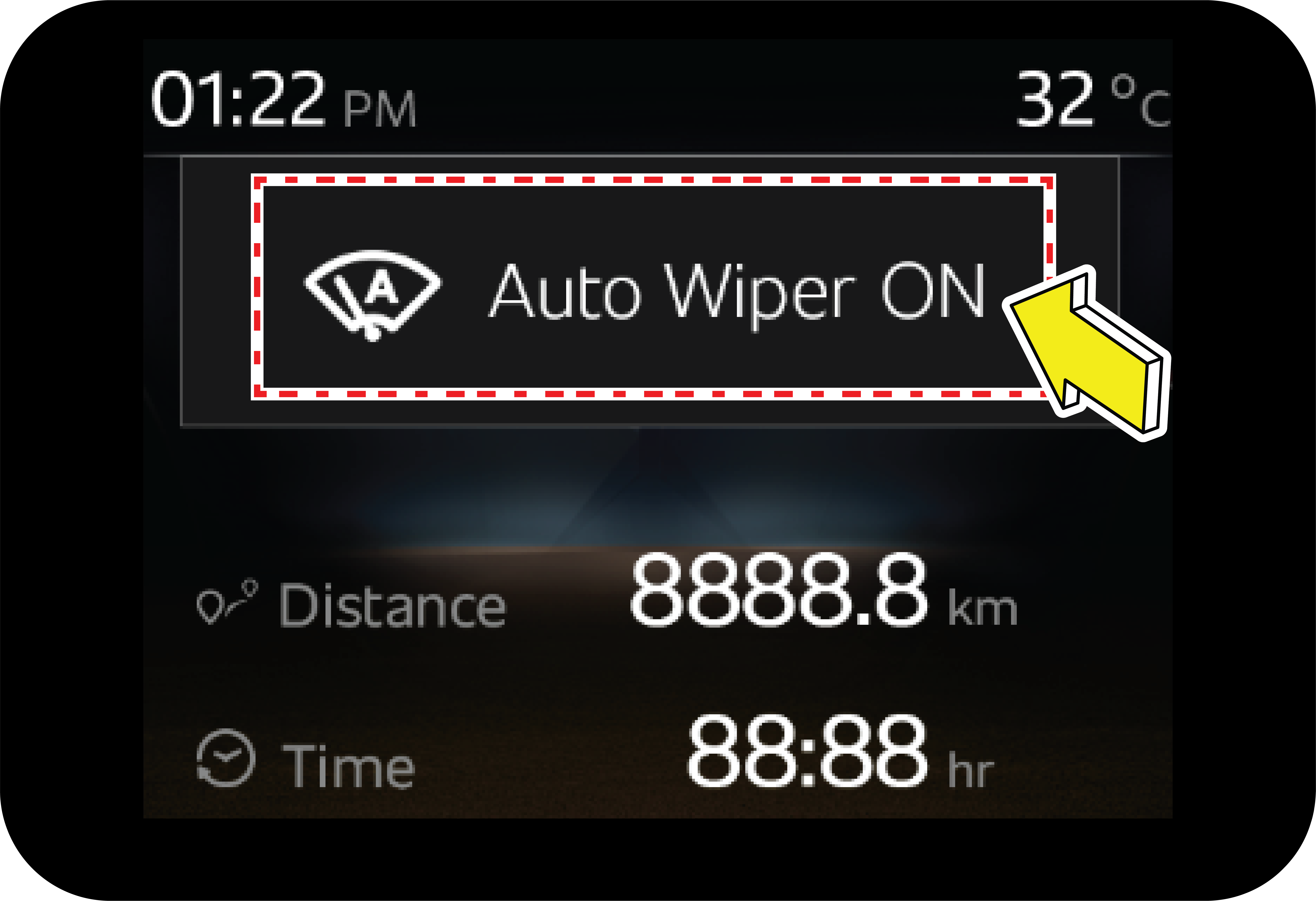

The warning screen will be displayed if Automatic Wiper functionality is turned ON. |
|
|
The warning screen will be displayed if Automatic Wiper functionality is turned OFF. |
NA |
|

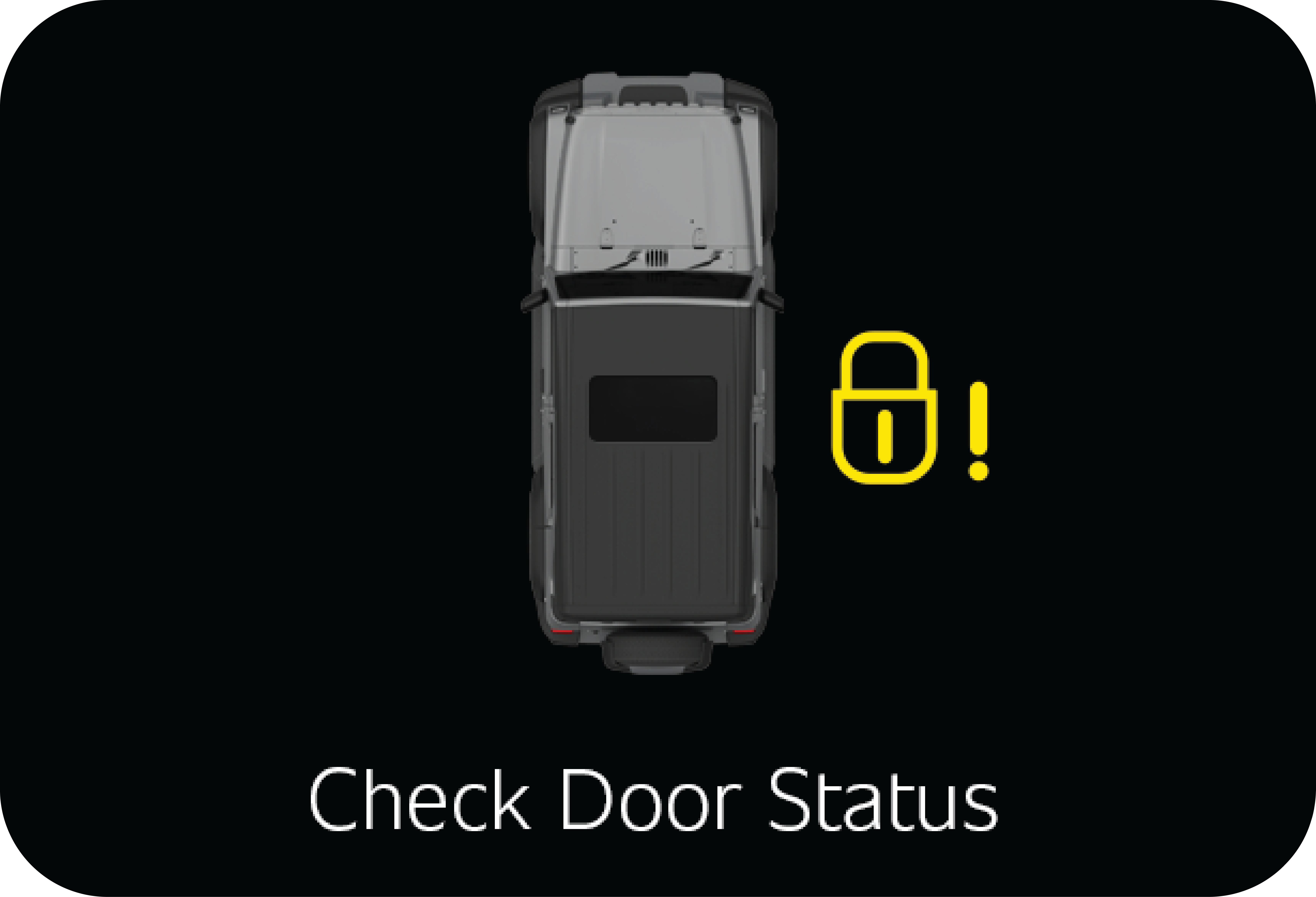

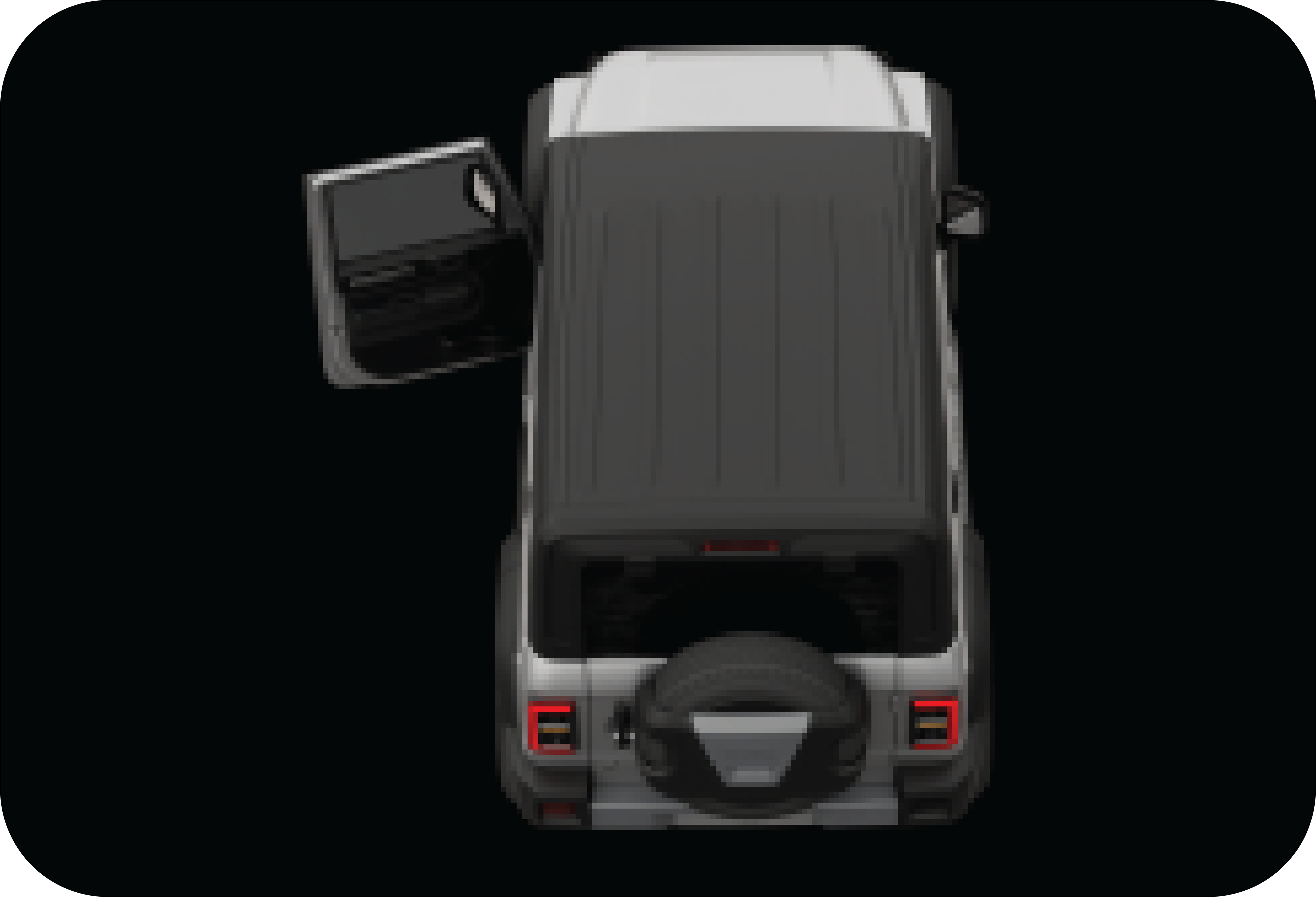

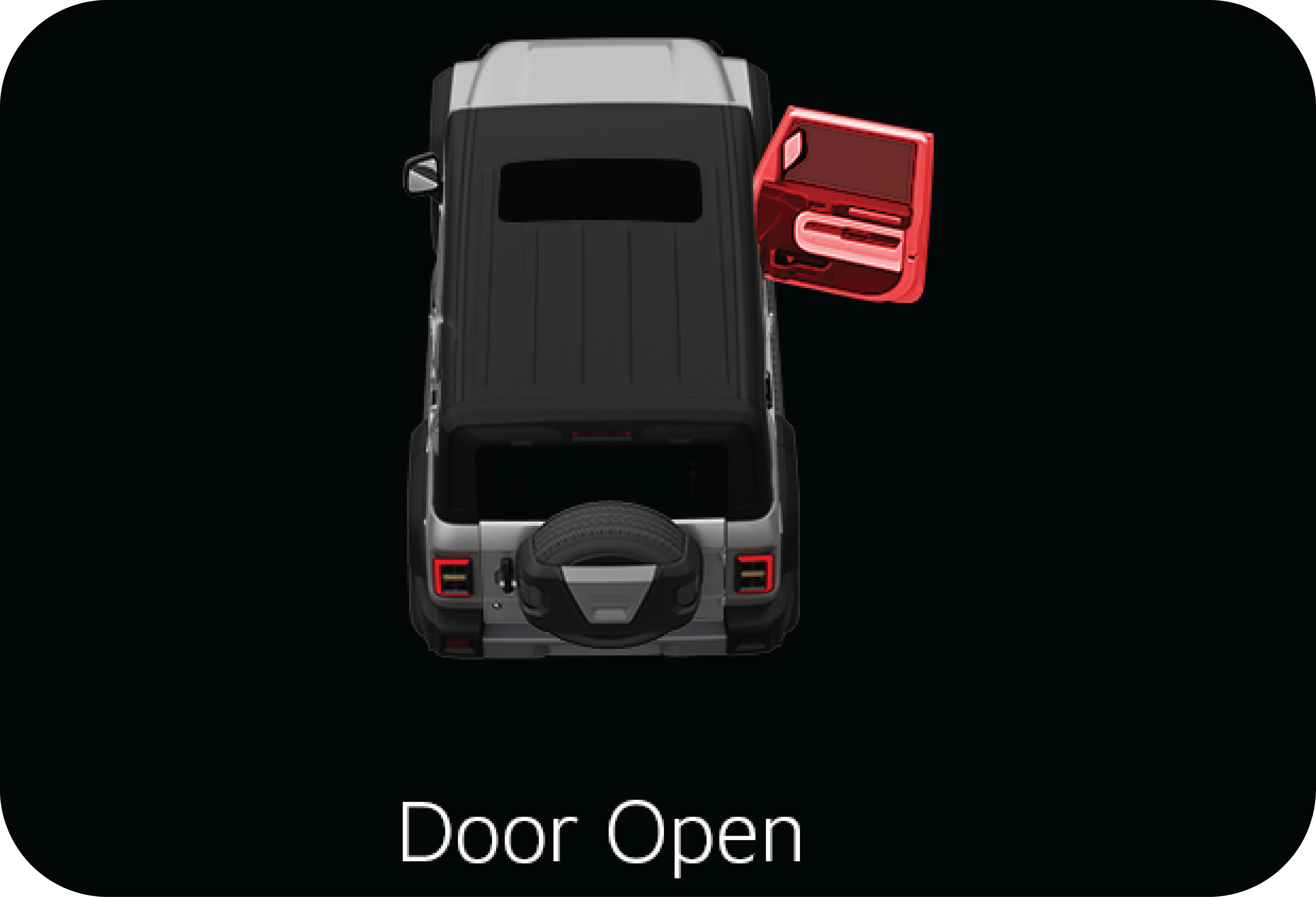

The alert is displayed when ignition is off and any door is opened, if a mobile is placed on the wireless charging tray, an
alert will appear on the cluster.
|
NA |
|

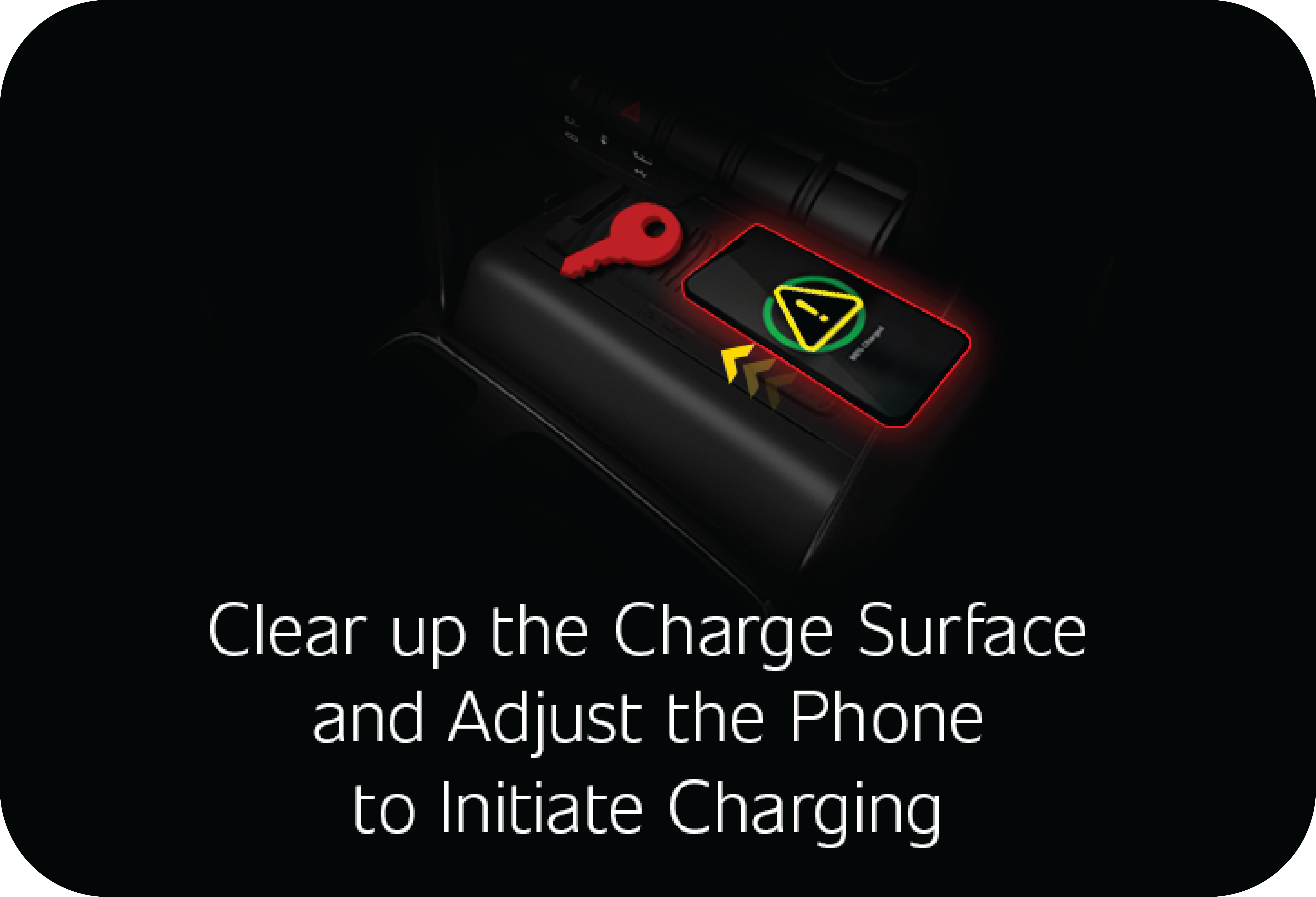

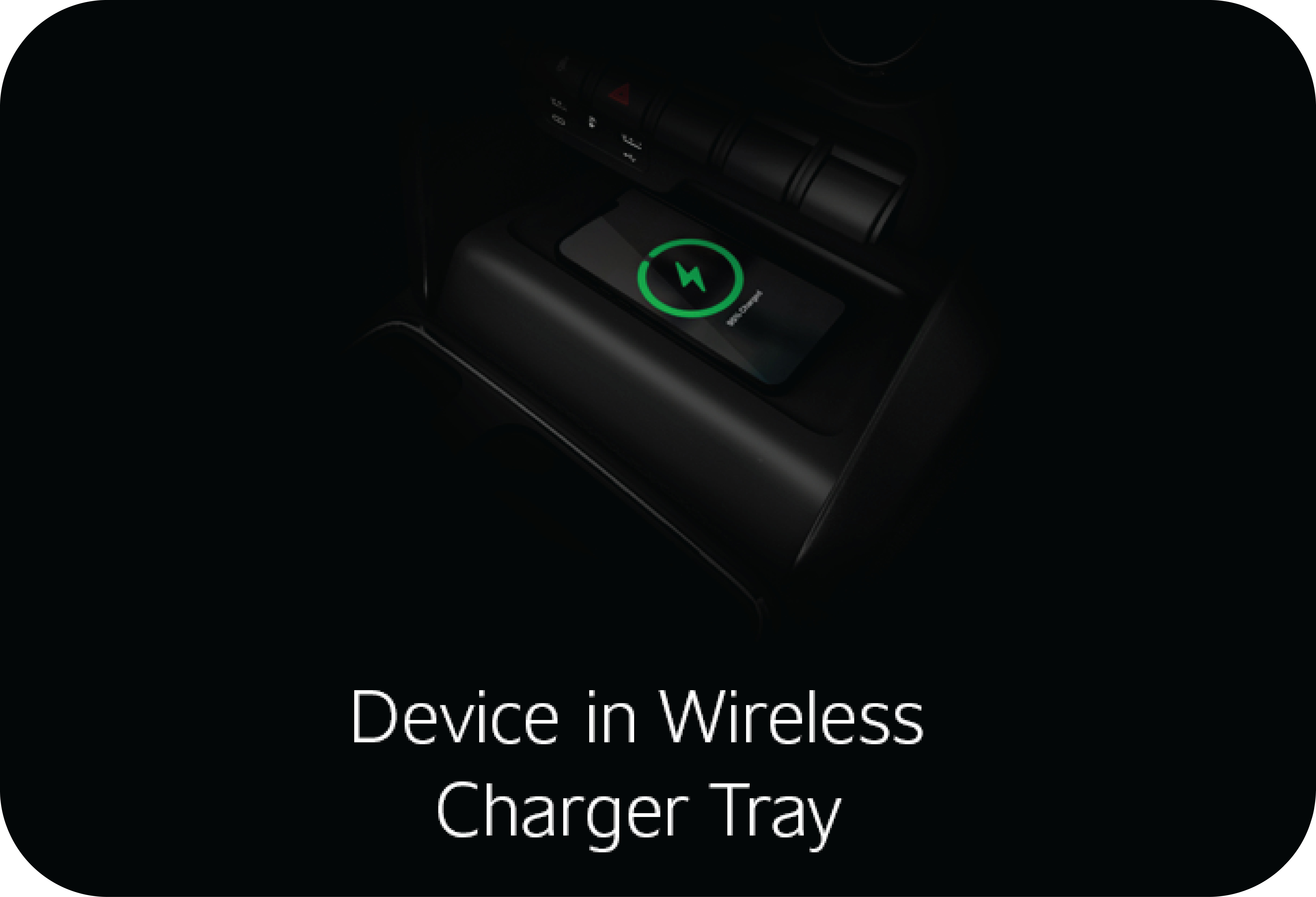

This alert is displayed when a coin or metallic object is placed on the antiskid mat & the phone is kept on the object leading
to poor charging of phone. This will also be displayed if the phone is detected in a incorrect position on the charging tray.
The must be cleared and adjust the phone to allow it to charge optimally.
|
NA |
|

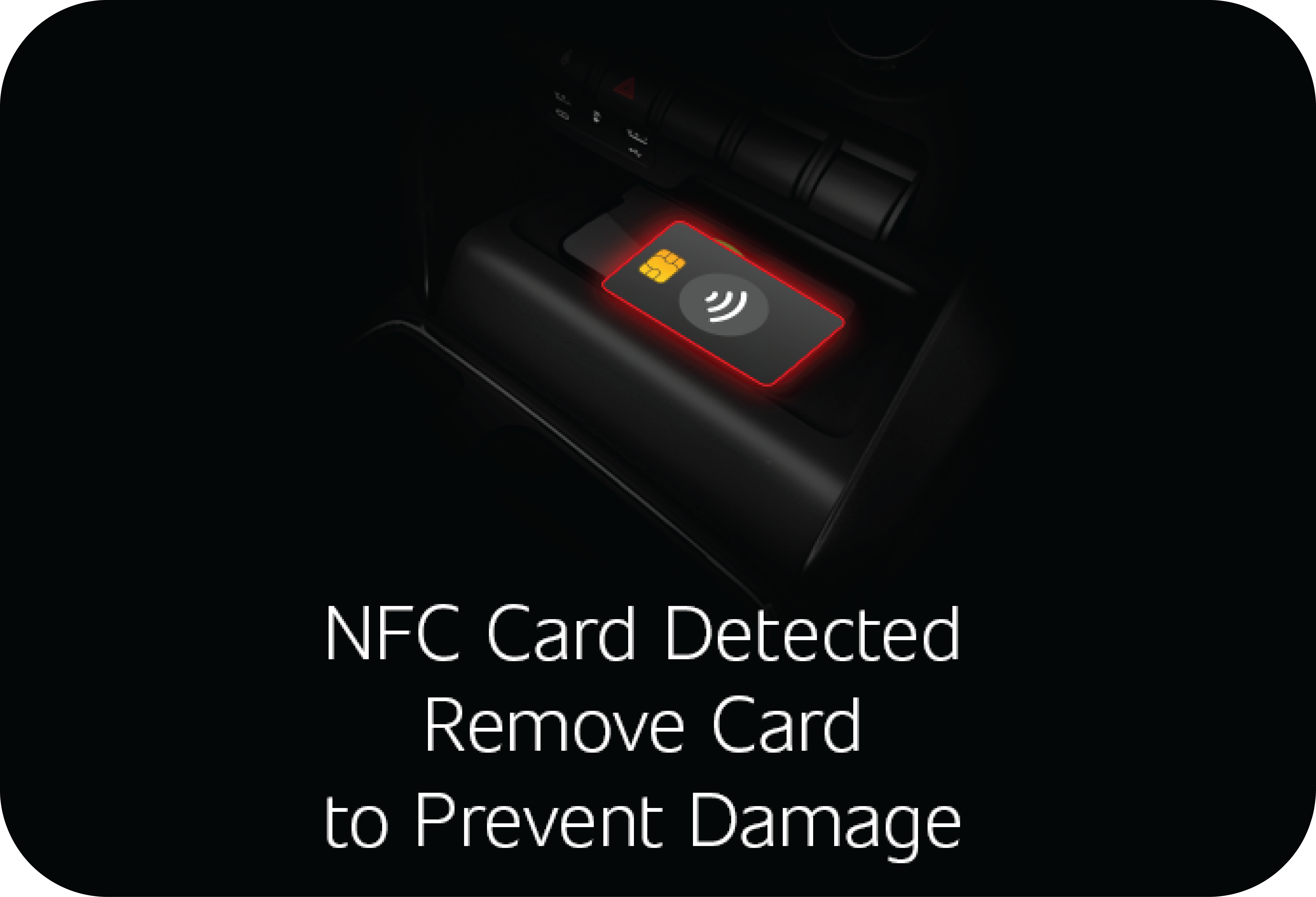

This alert is displayed when the NFC cards placed between the mobile and wireless charging pad, Charging will not happen for
30 seconds and will get notified, to remove and protect the card.
|
|
|

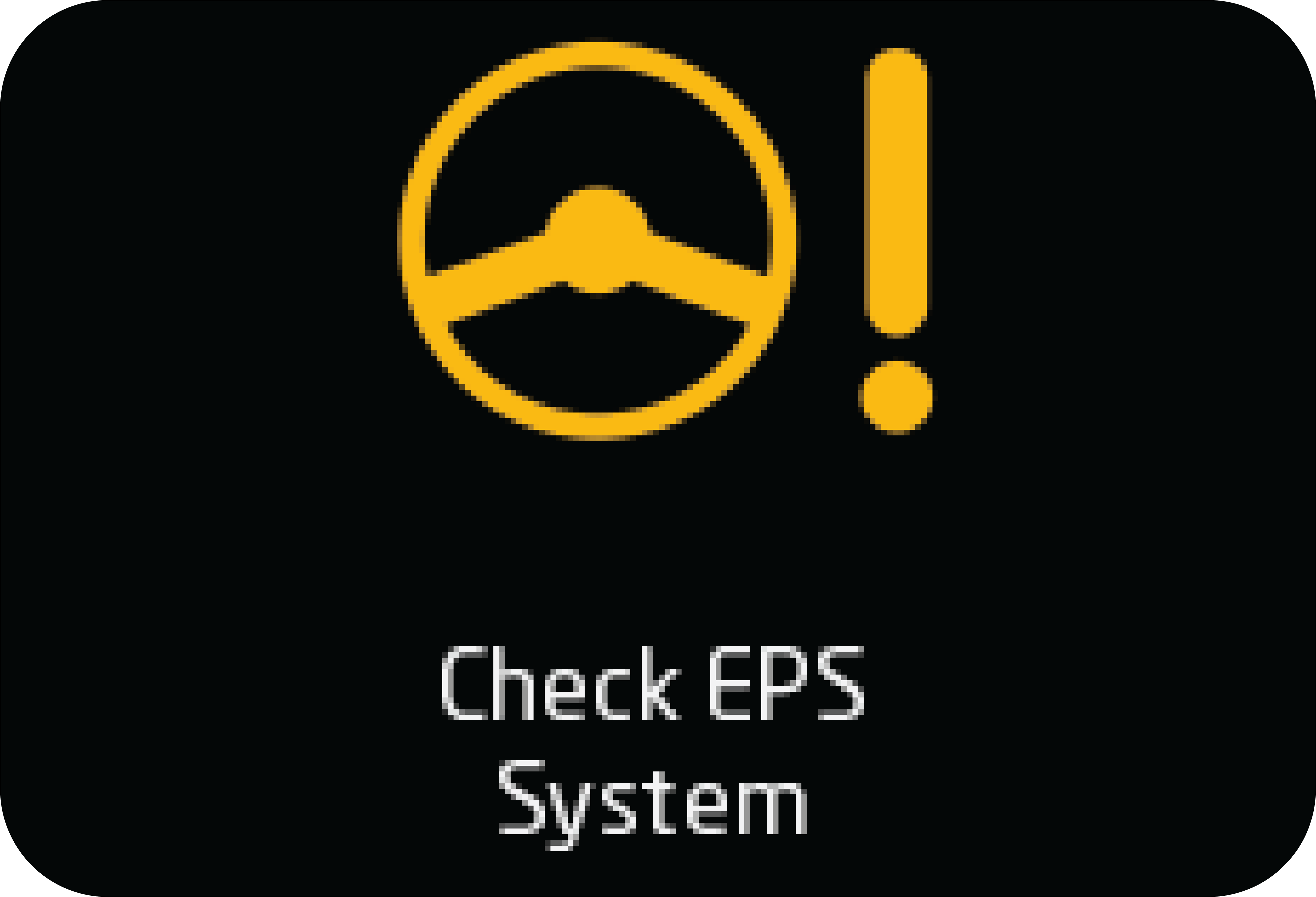

This alert is displayed when EPS related malfunction is detected in engine running condition. |
|
|
This alert remains on display for 60 seconds or until the passenger fastens their seat belt. It will pause and display back
if there is an important alert is present.
|
|
|

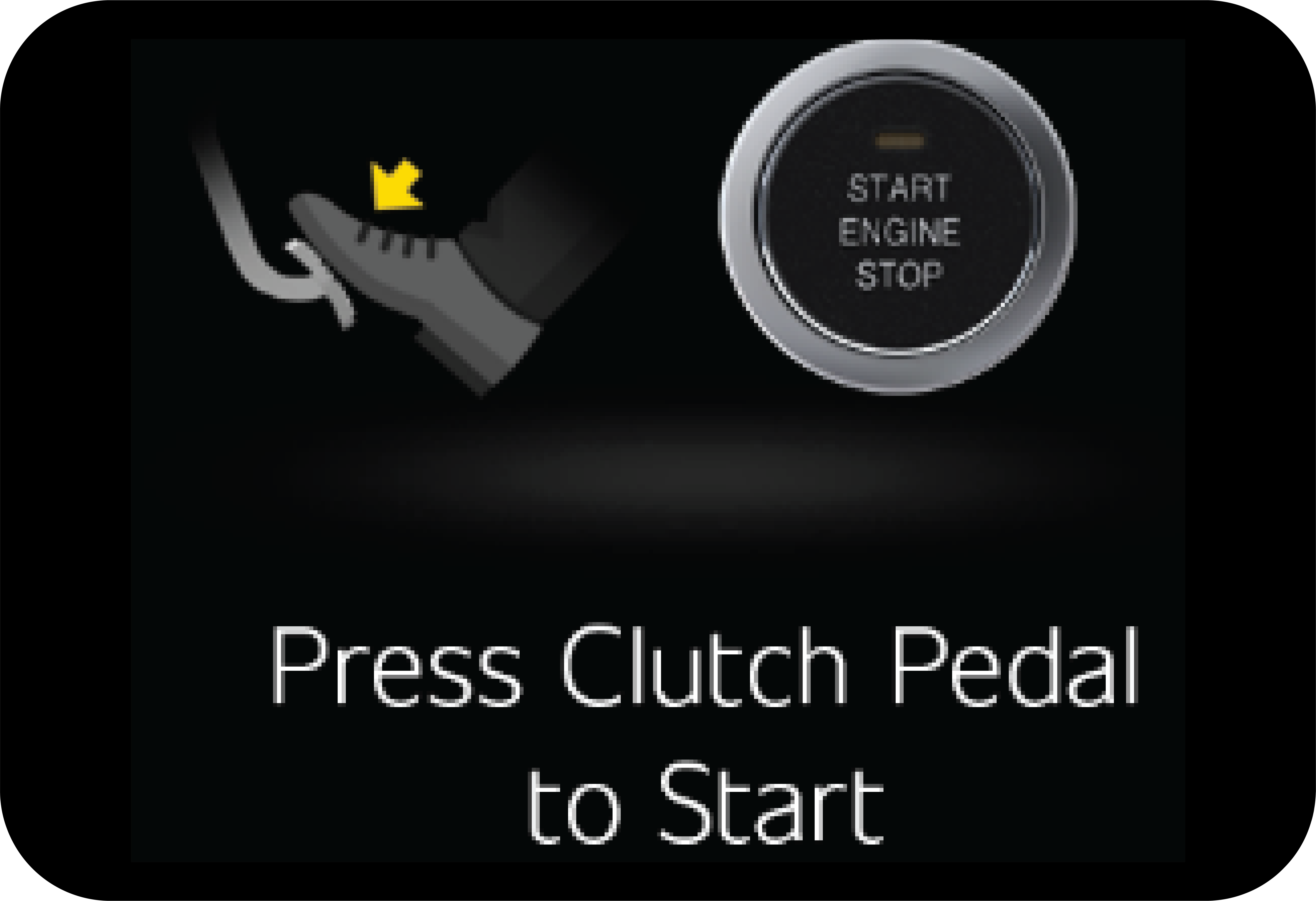

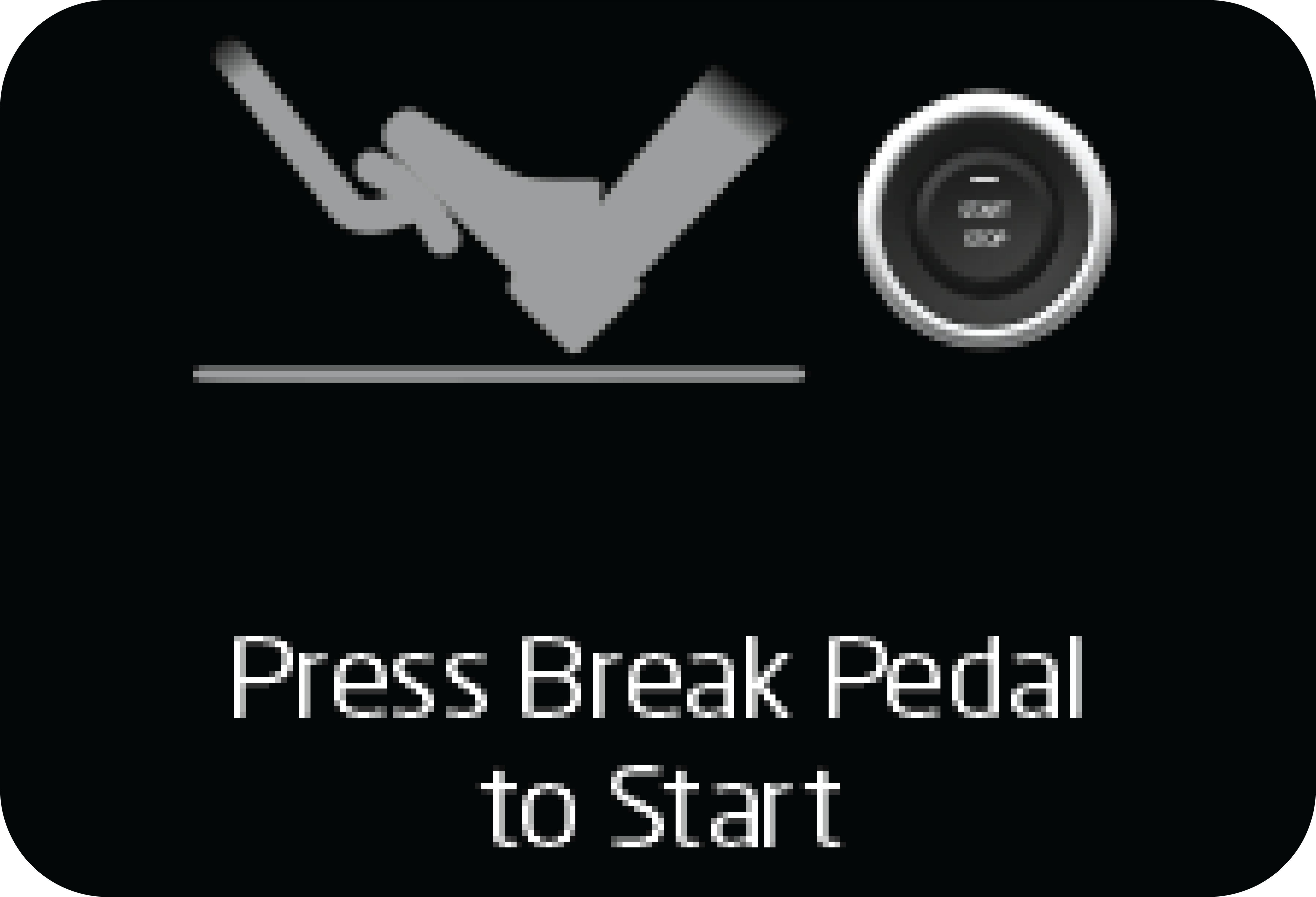

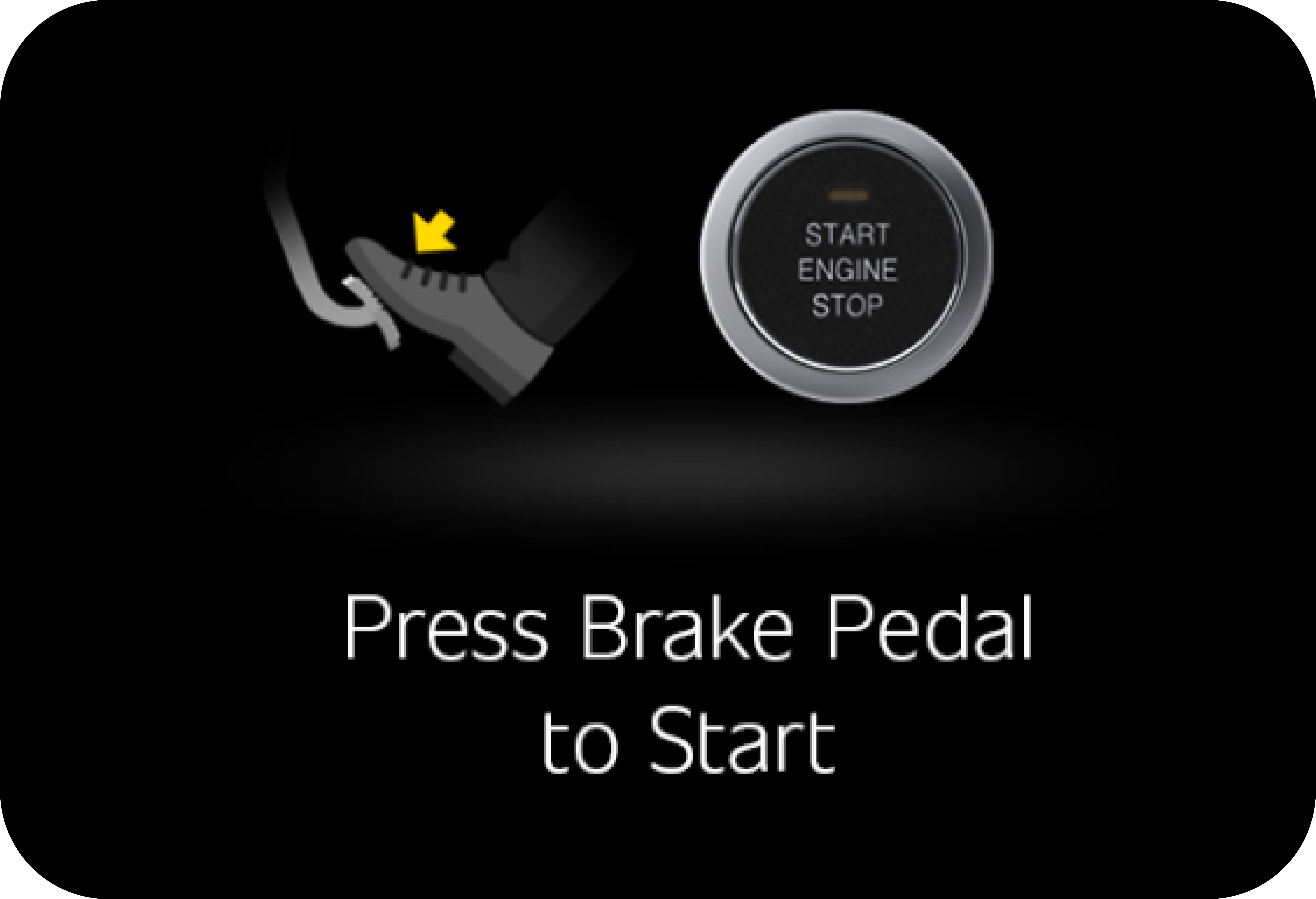

This alert is displayed when ignition is turned ON without pressing the brake pedal in AT Variants. |
|
|

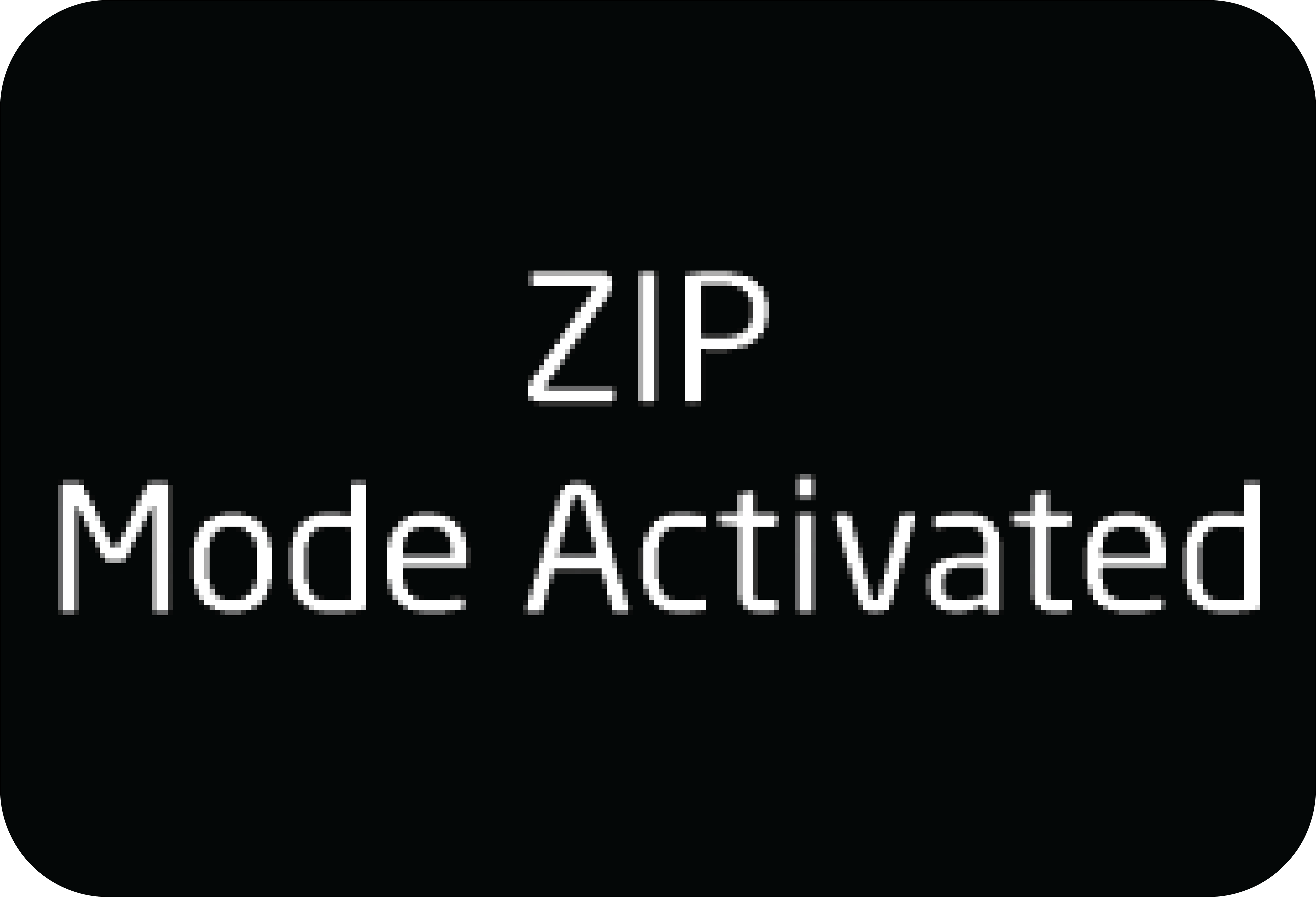

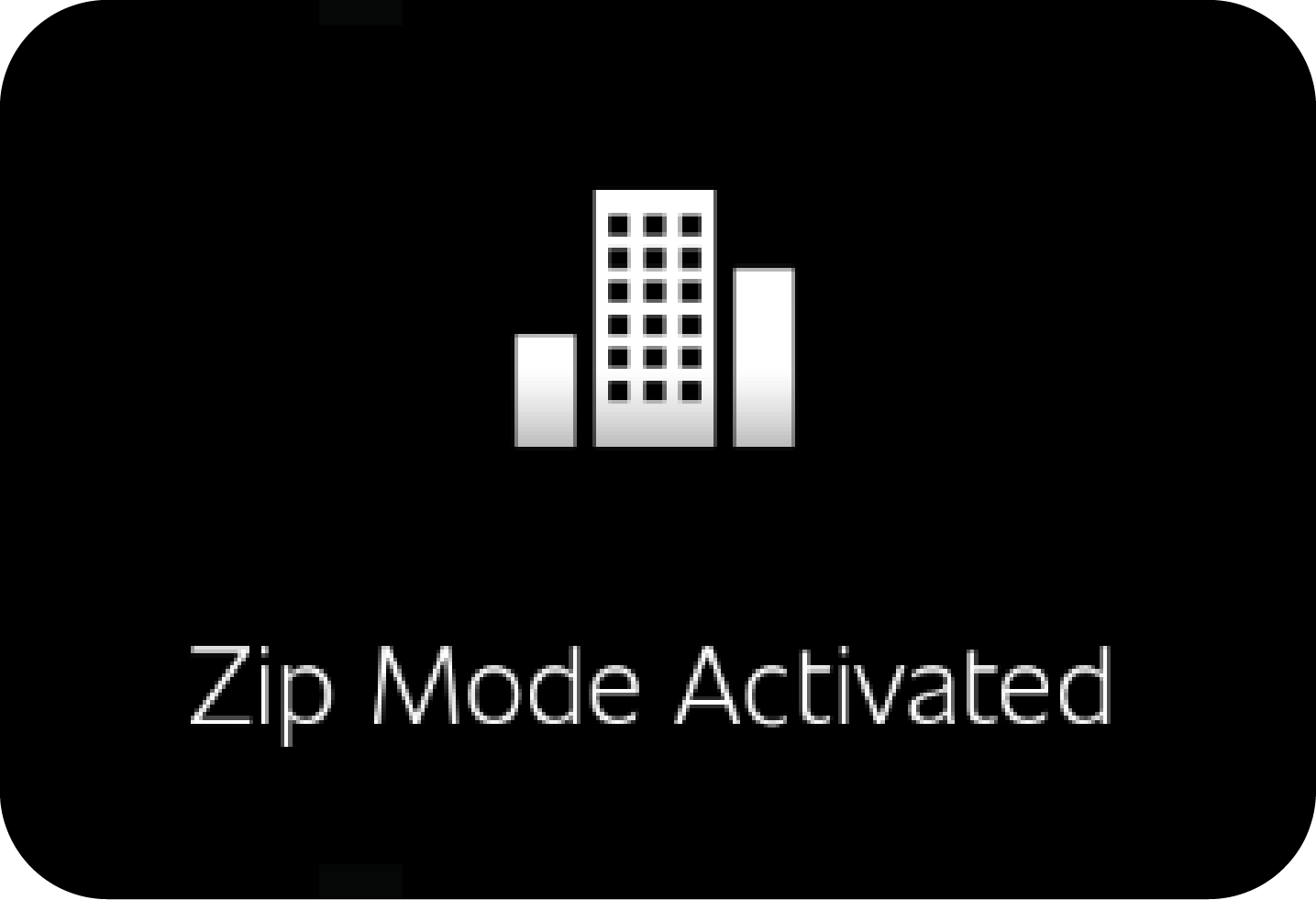

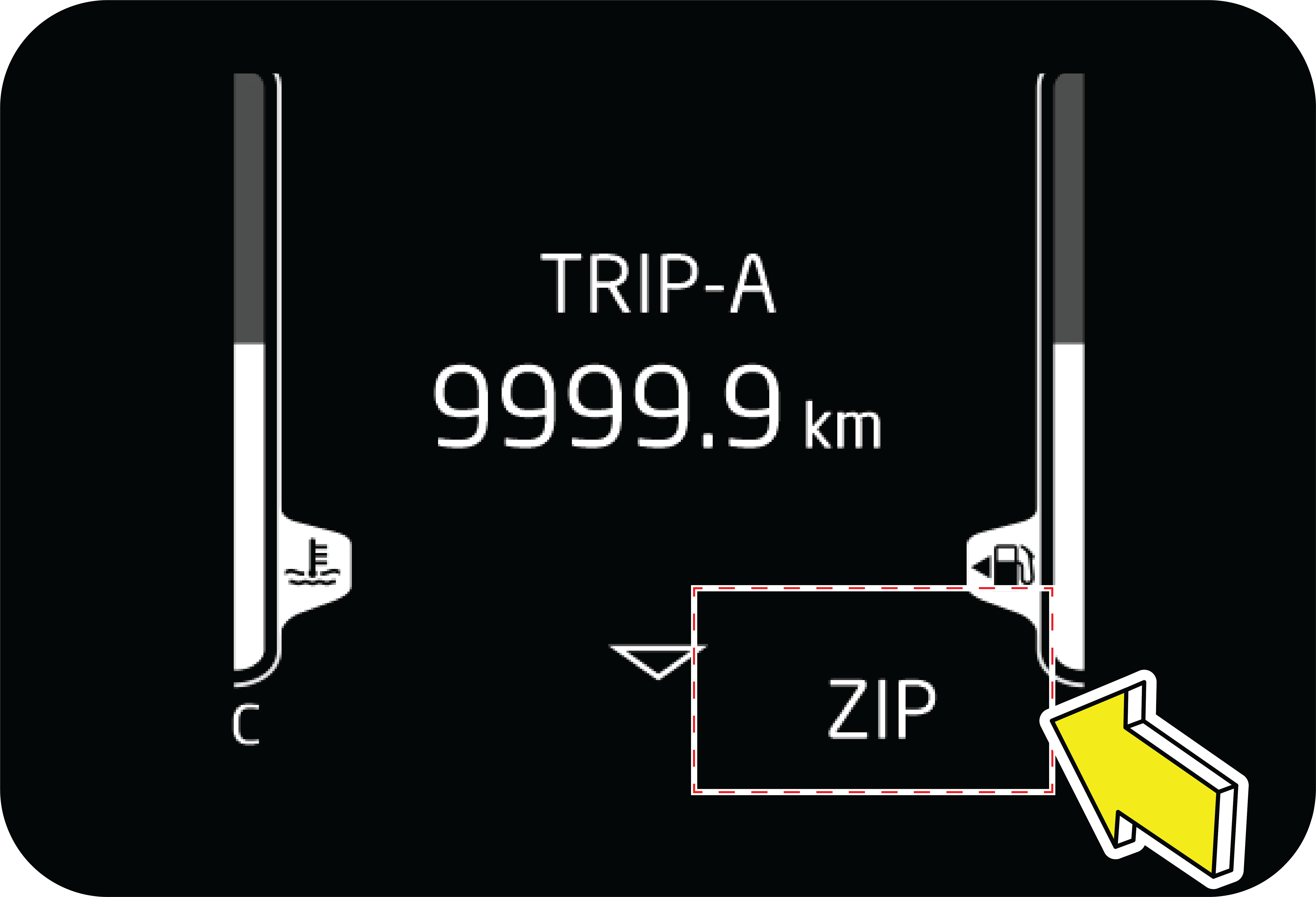

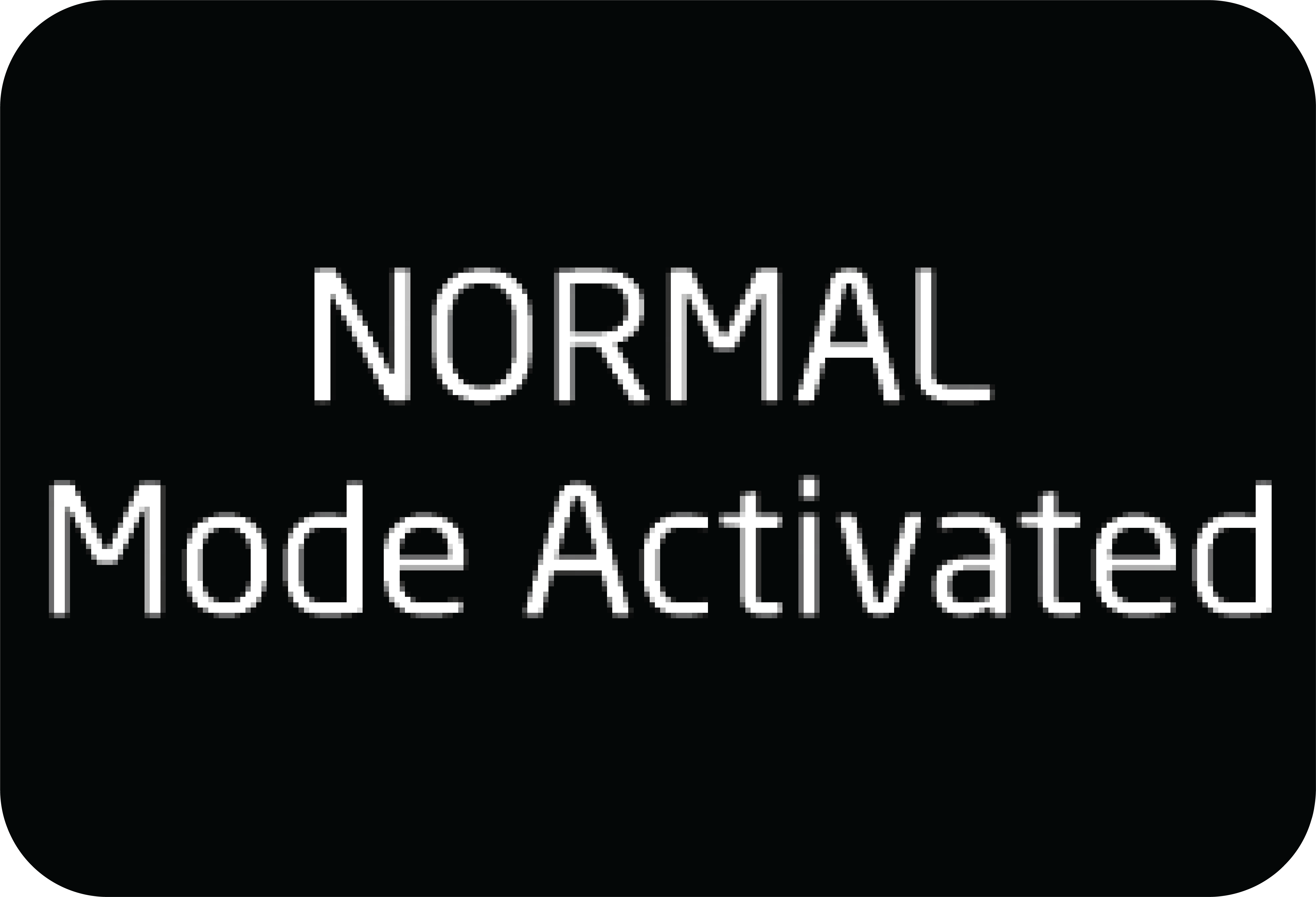

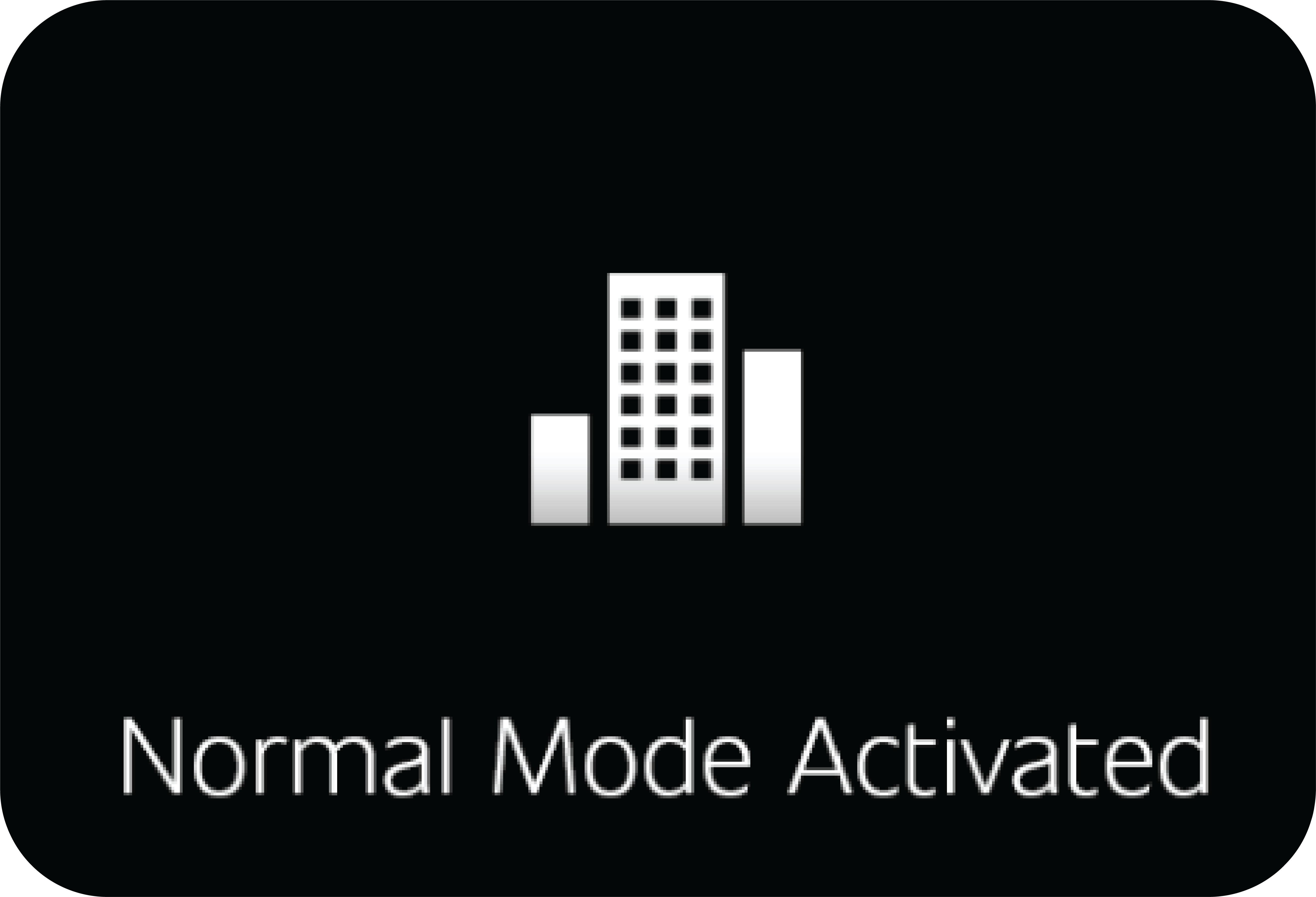

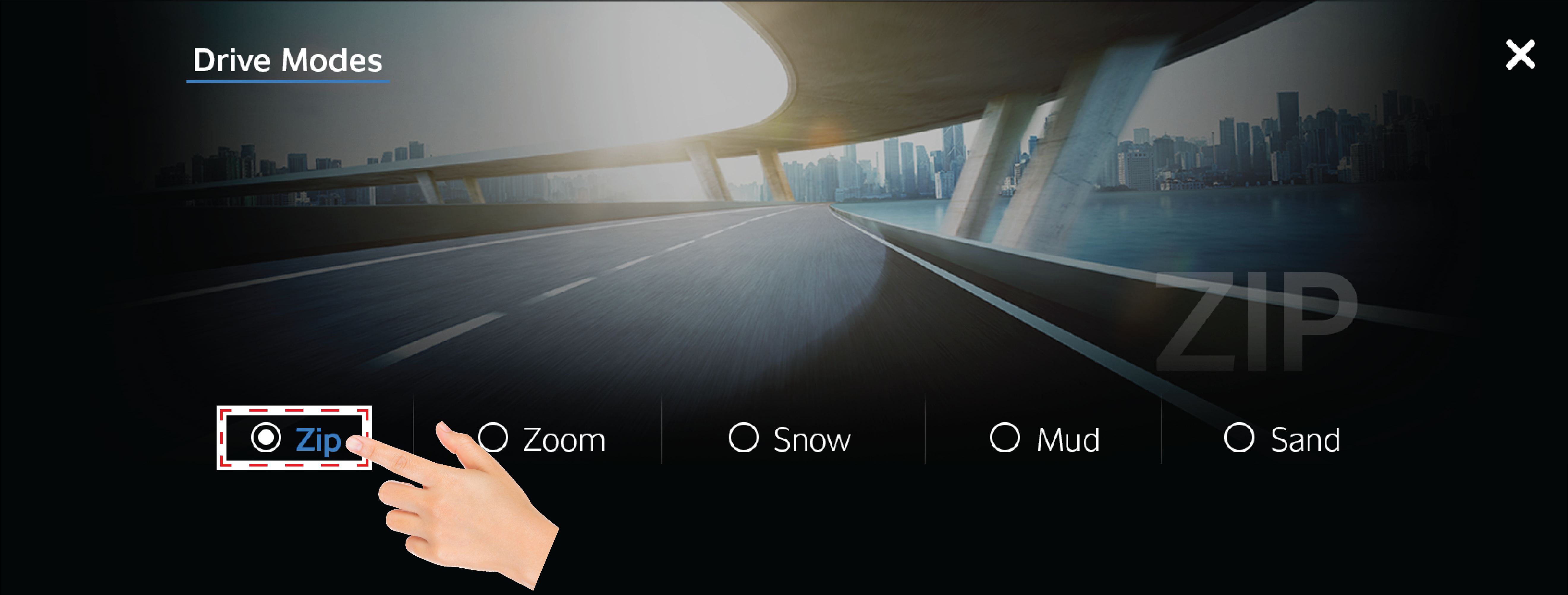

This alert is displayed when Zip mode is activated. |
|
|

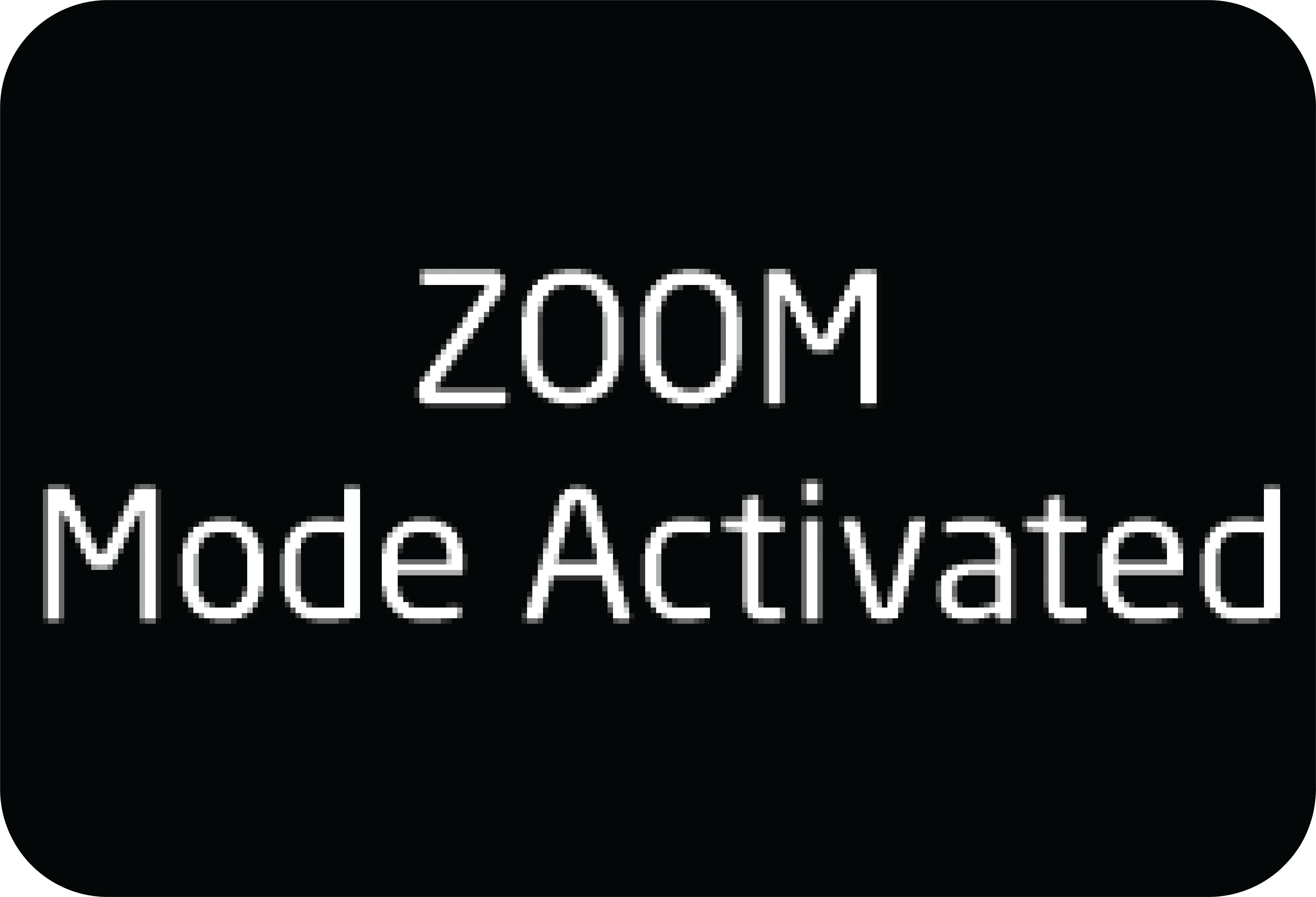

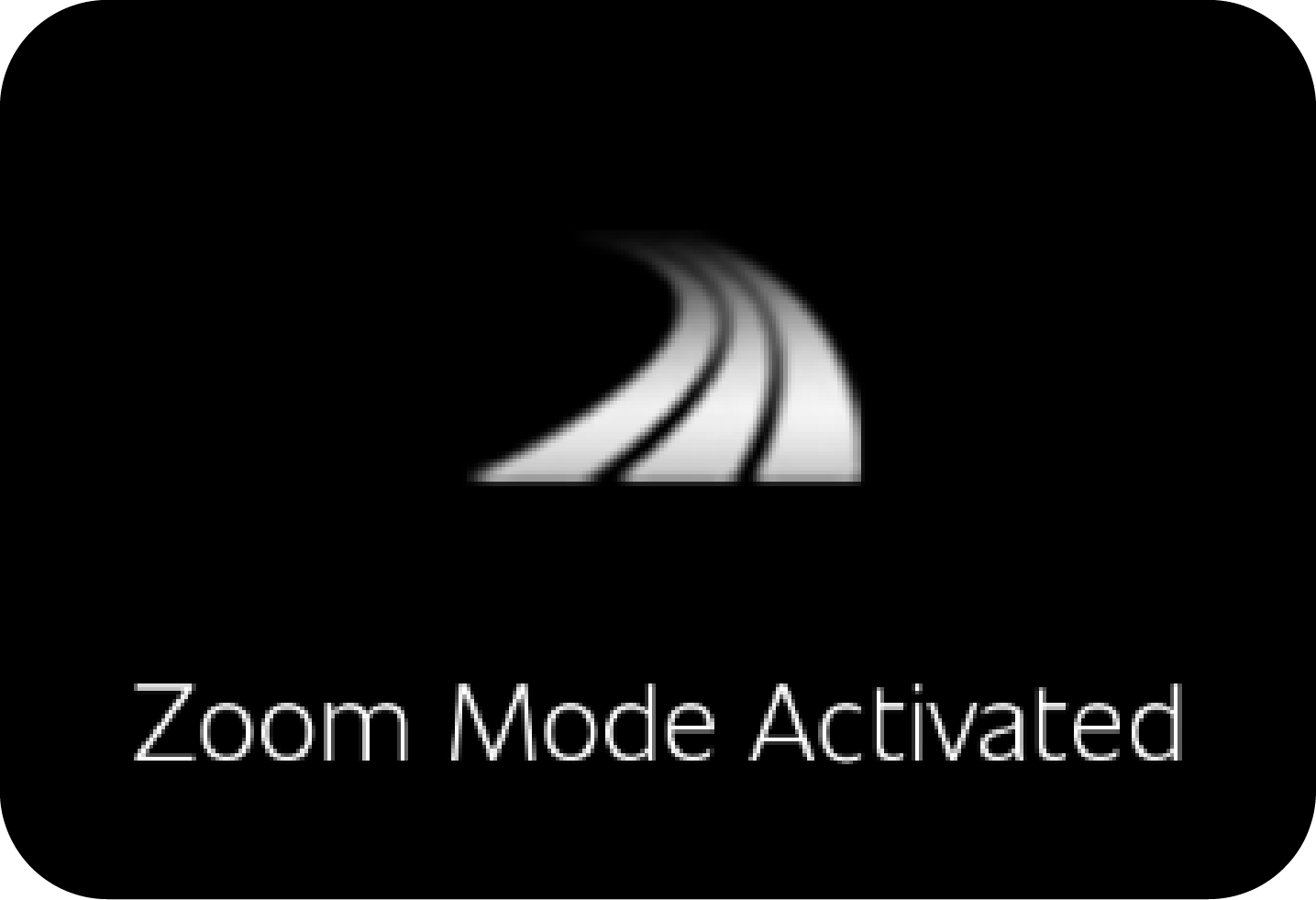

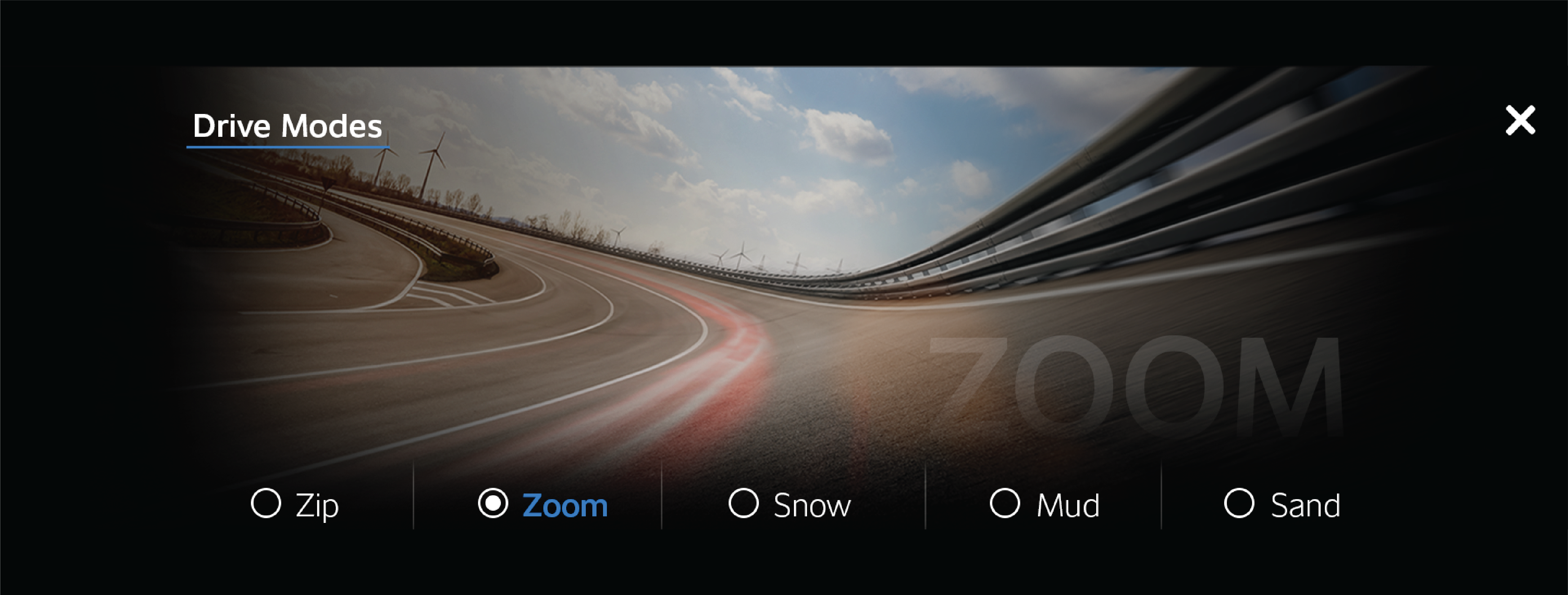

This alert is displayed when Zoom mode is activated. |
|
|

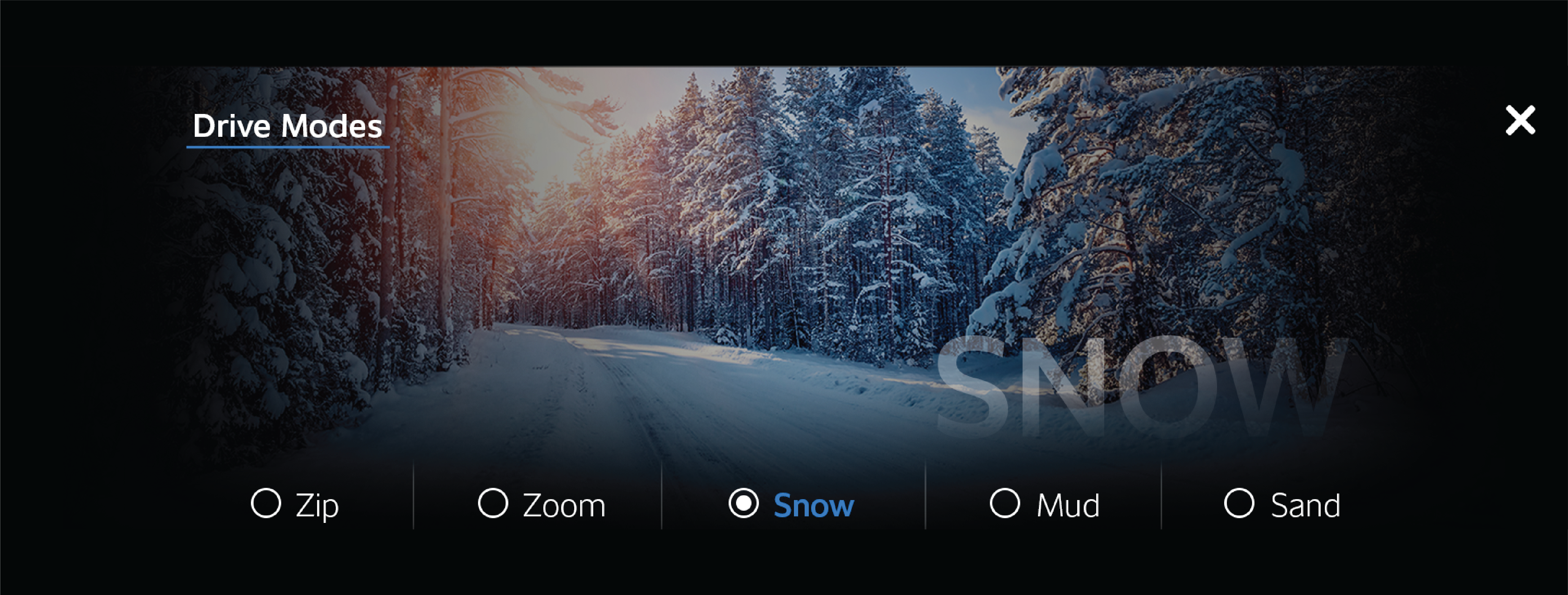

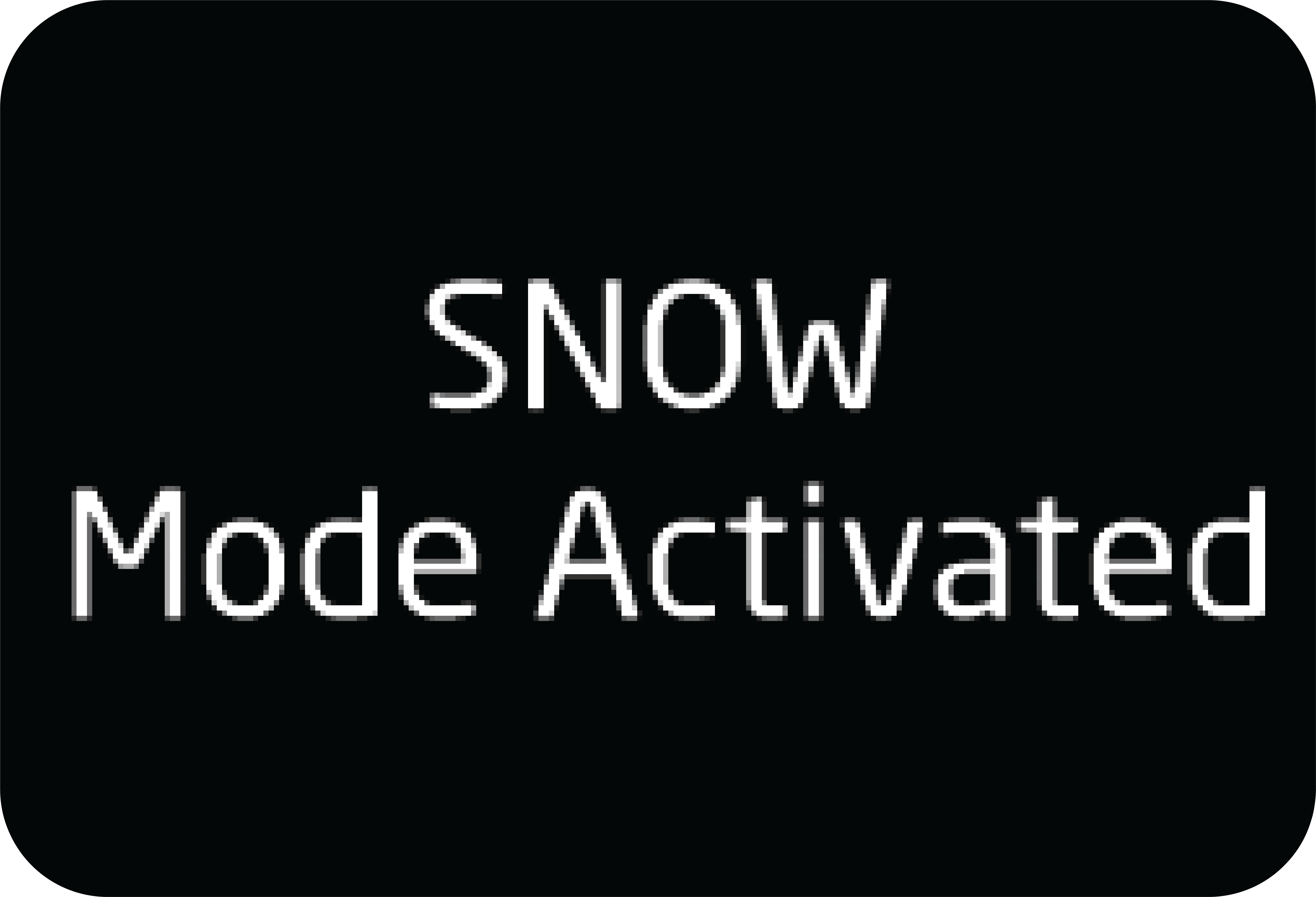

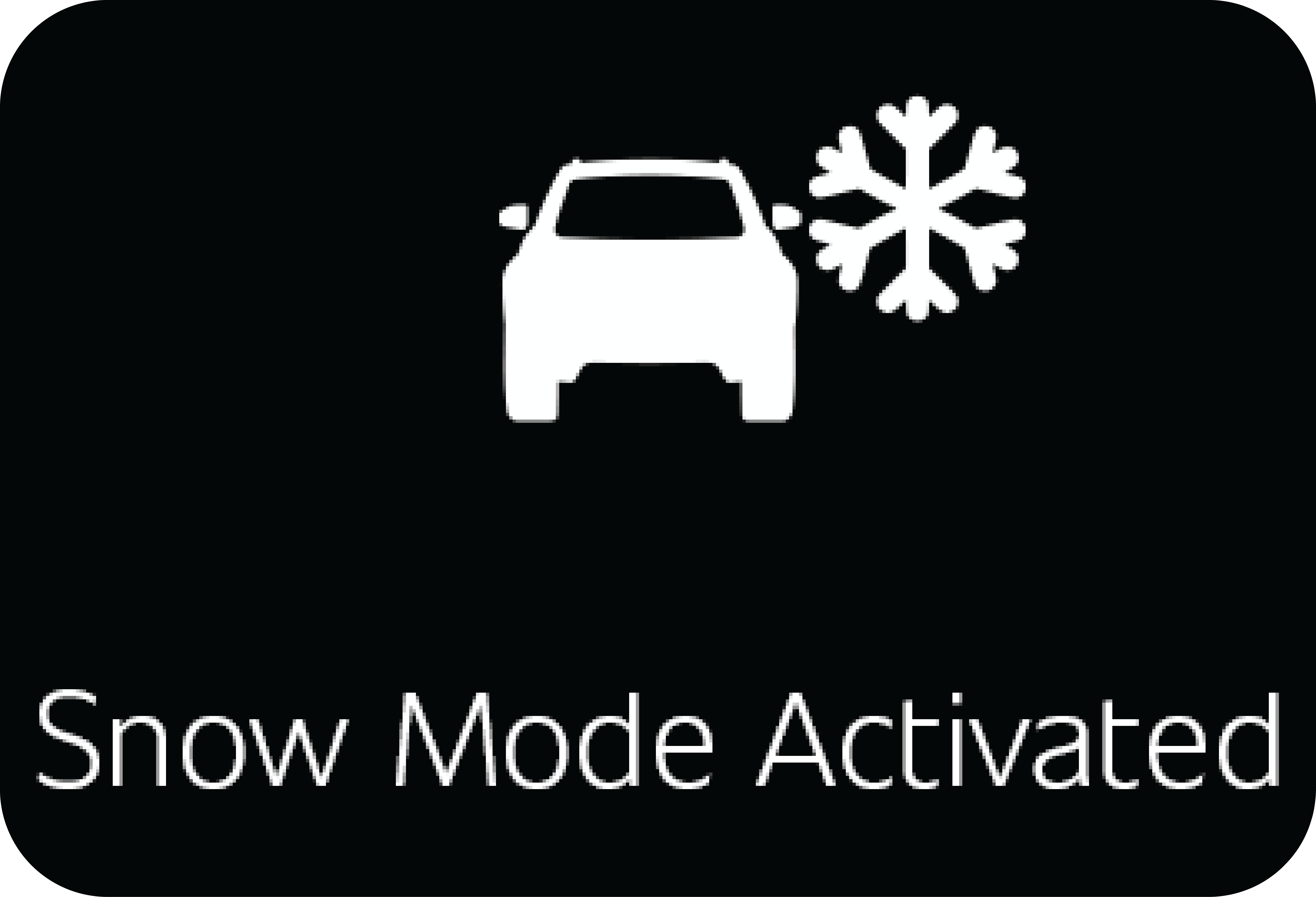

This alert is displayed when Snow mode is activated. |
|
|

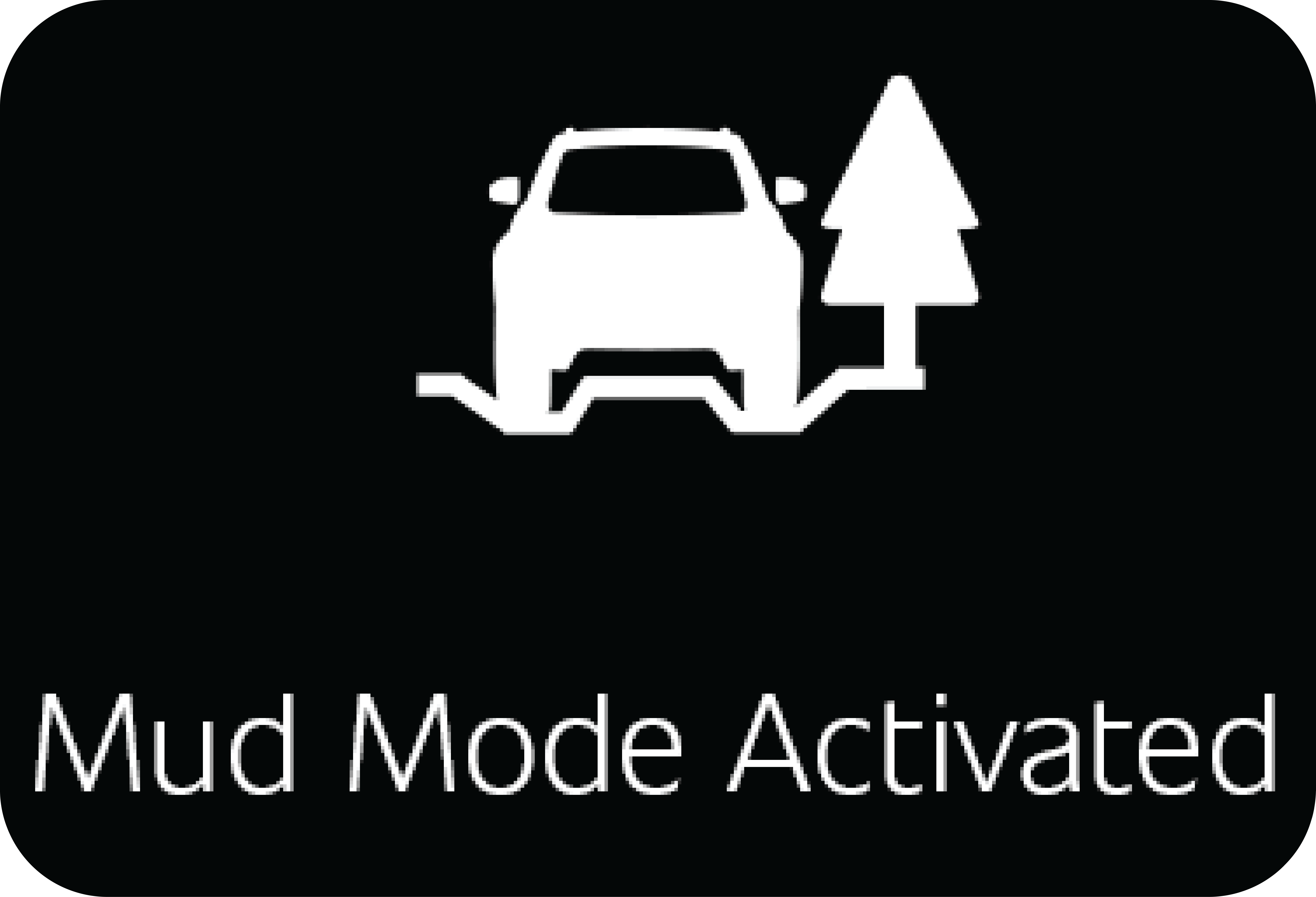

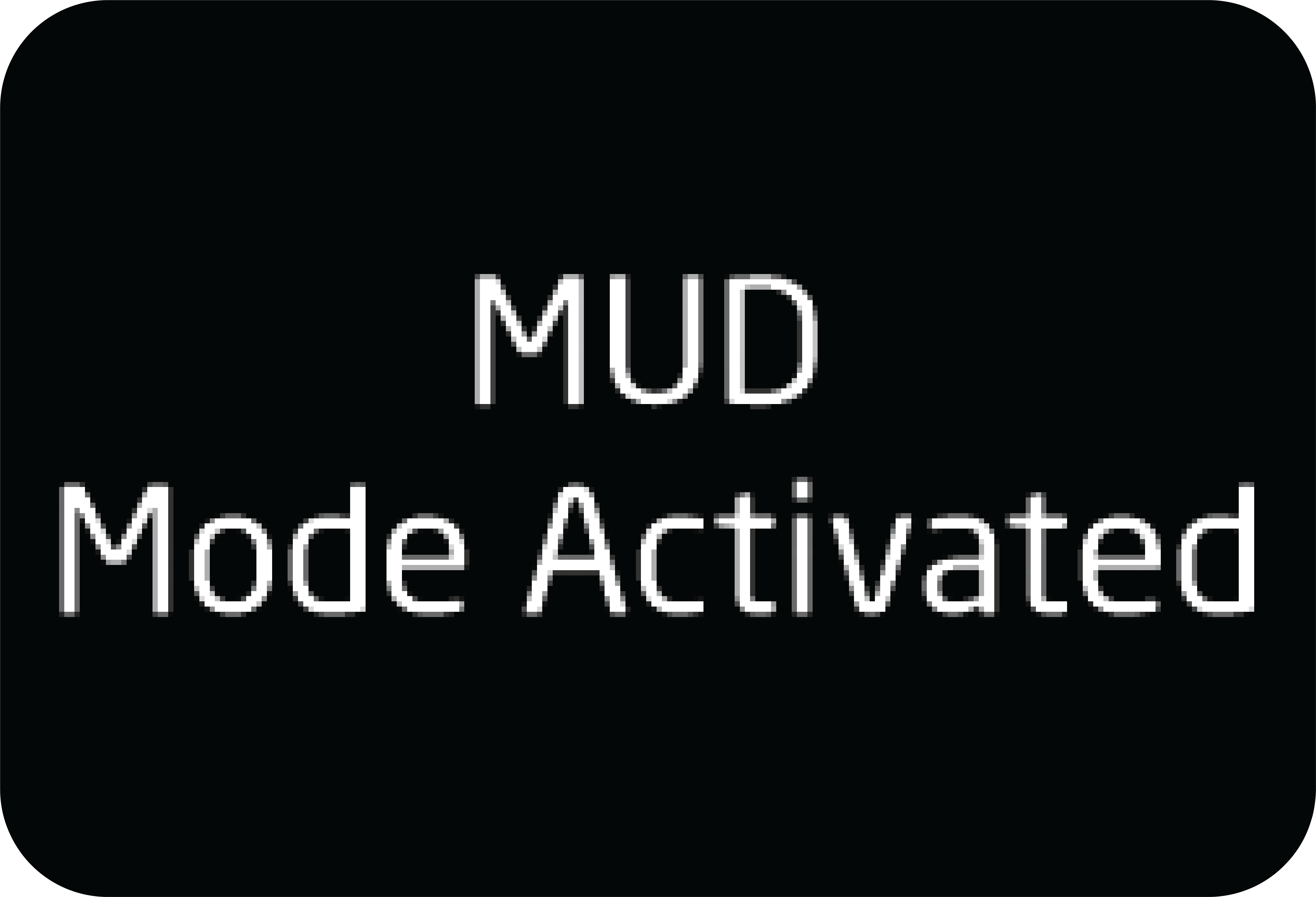

This alert is displayed when Mud mode is activated. |
|
|

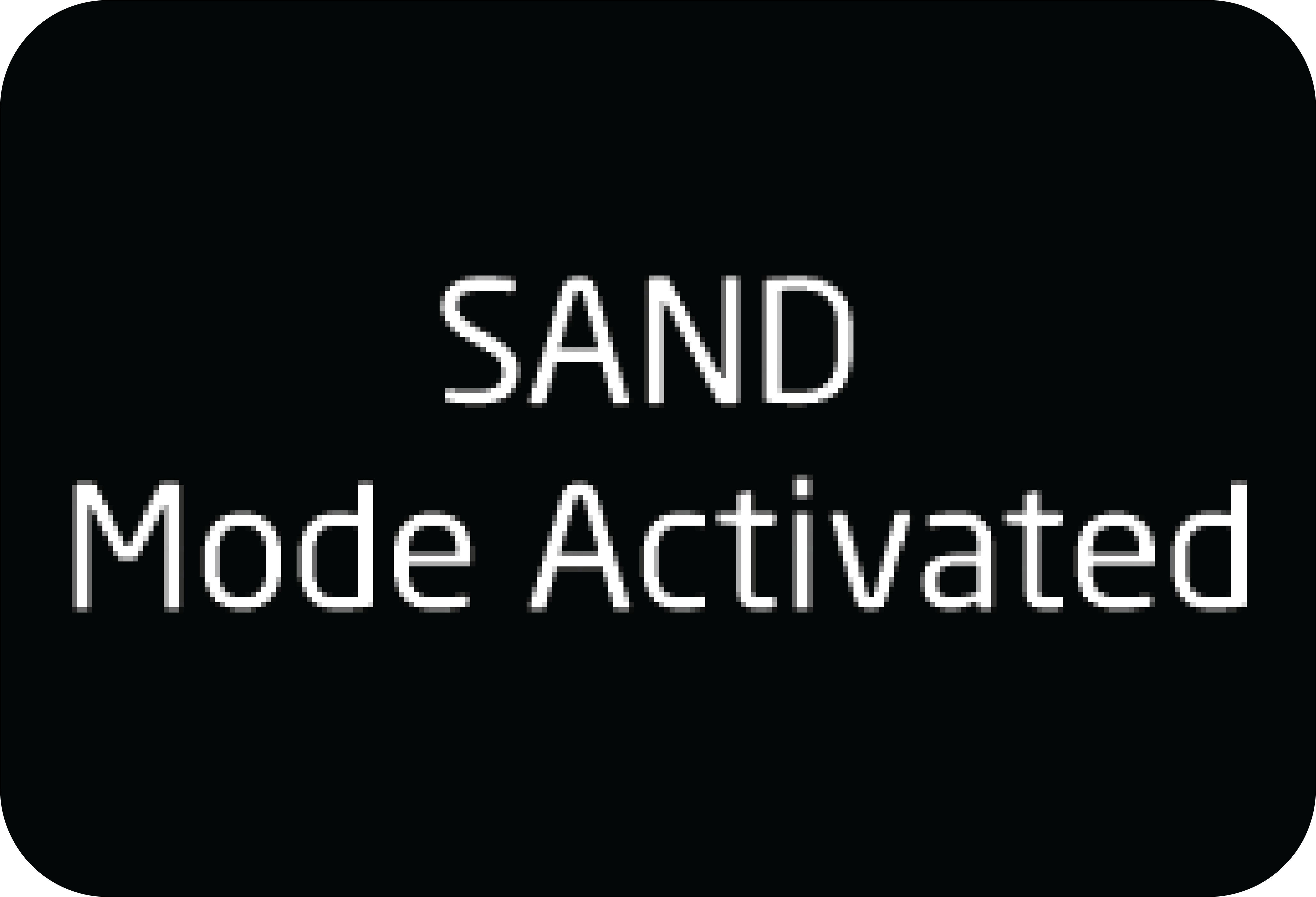

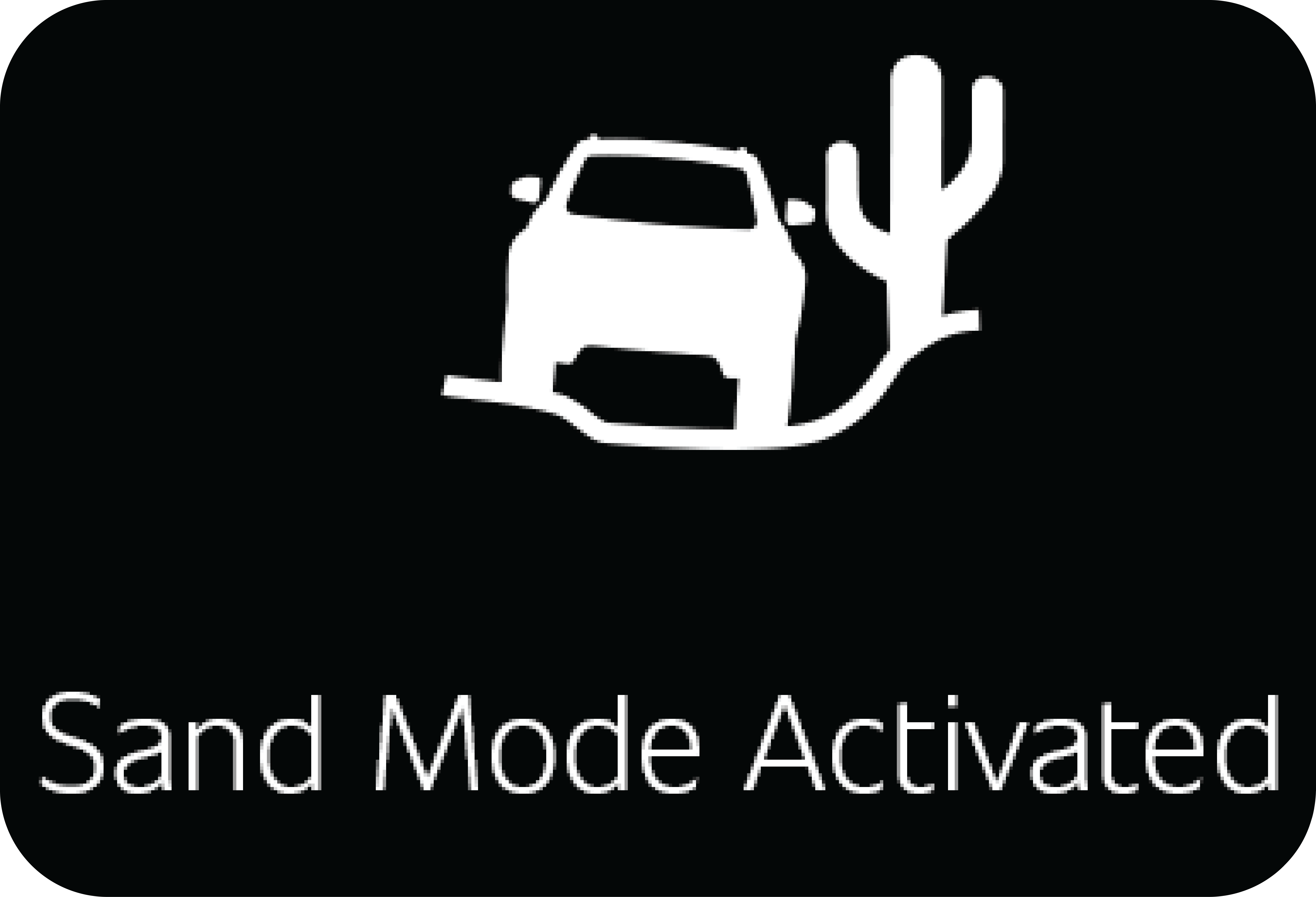

This alert is displayed when Sand mode is activated. |
|
|

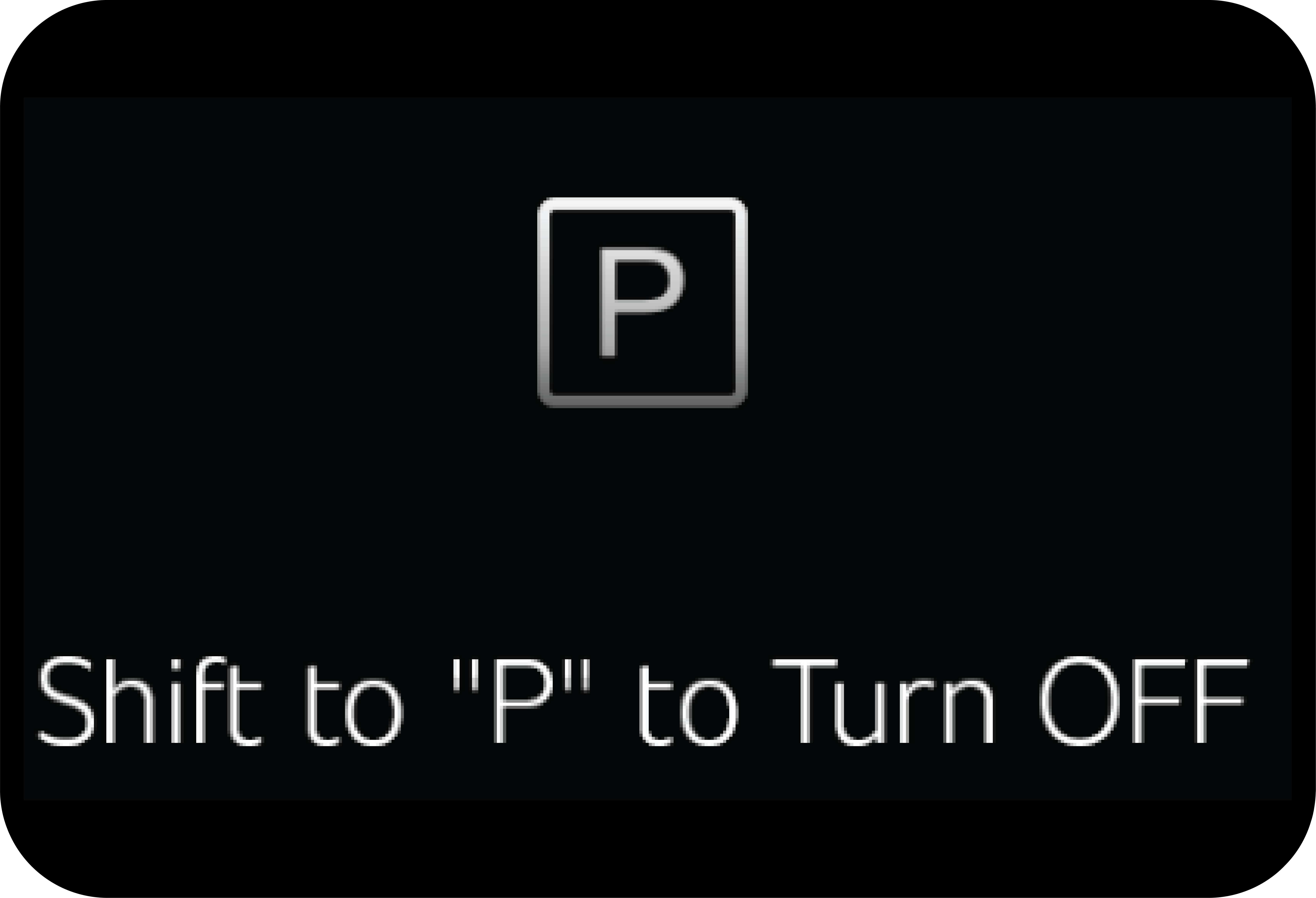

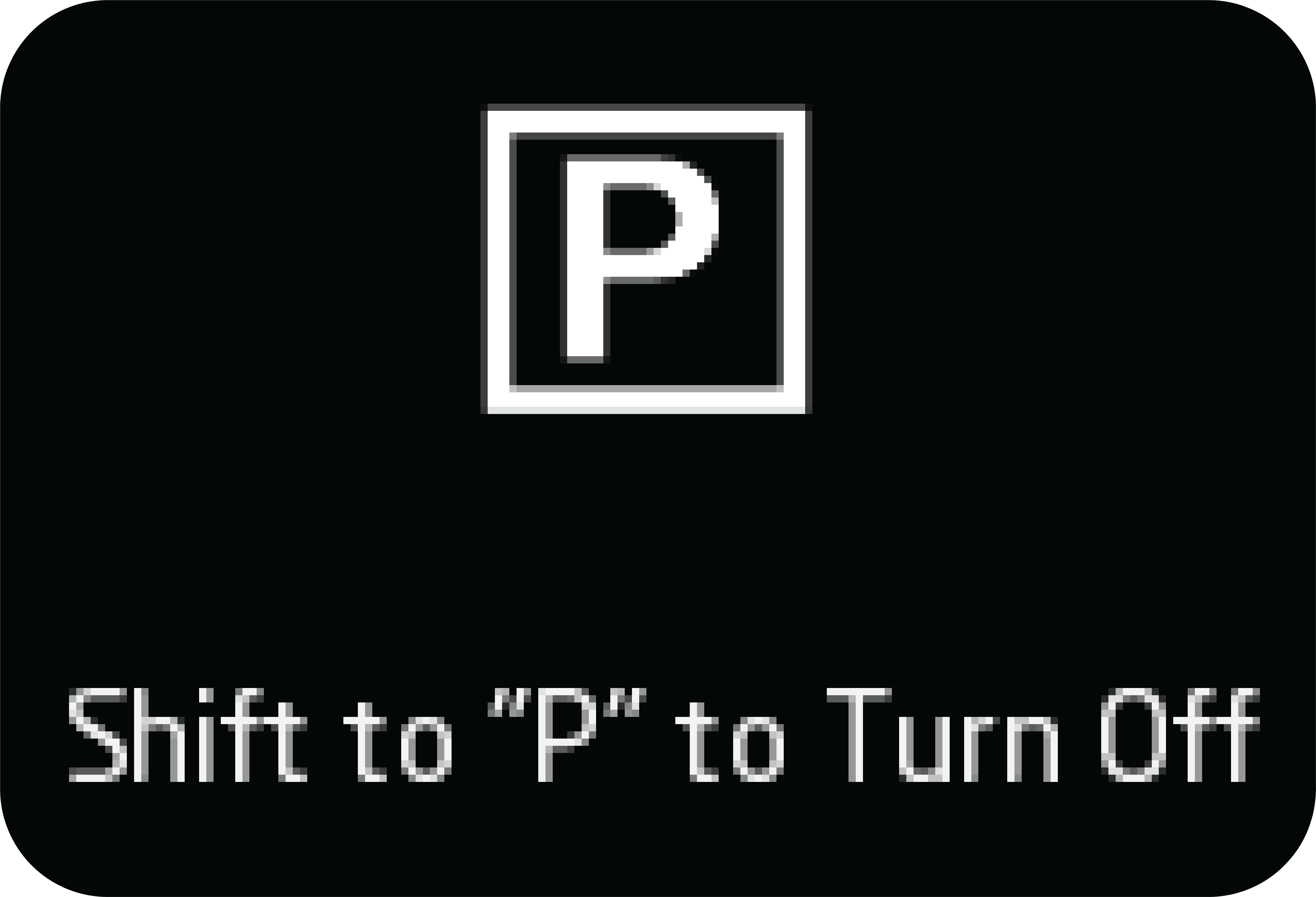

This alert will display, whenever the turning off the engine without shifting the gear “P” (AT Variants) |
|
|

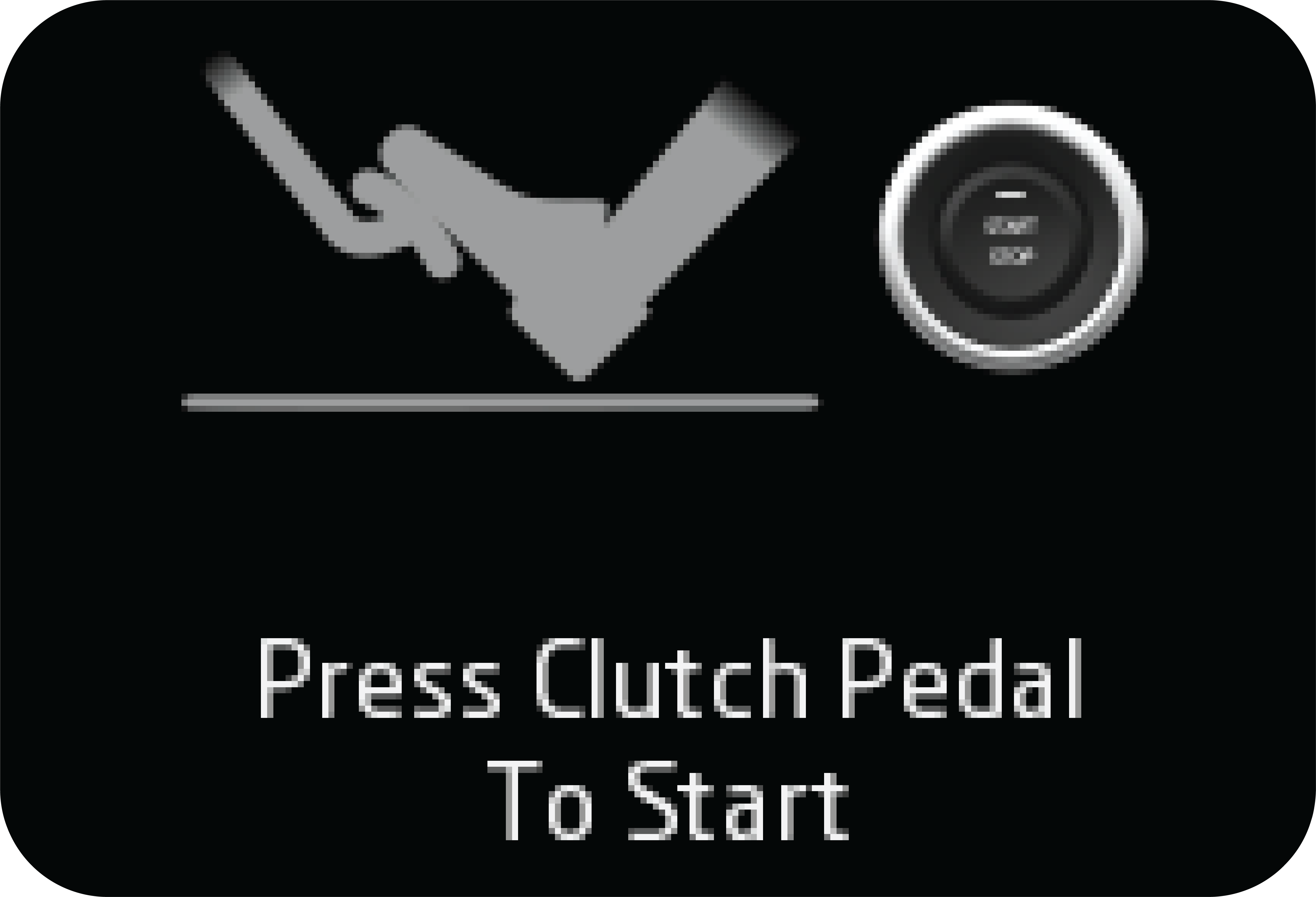

This alert is displayed whenever turning the on the without pressing the clutch (MT Variants) |
|
|

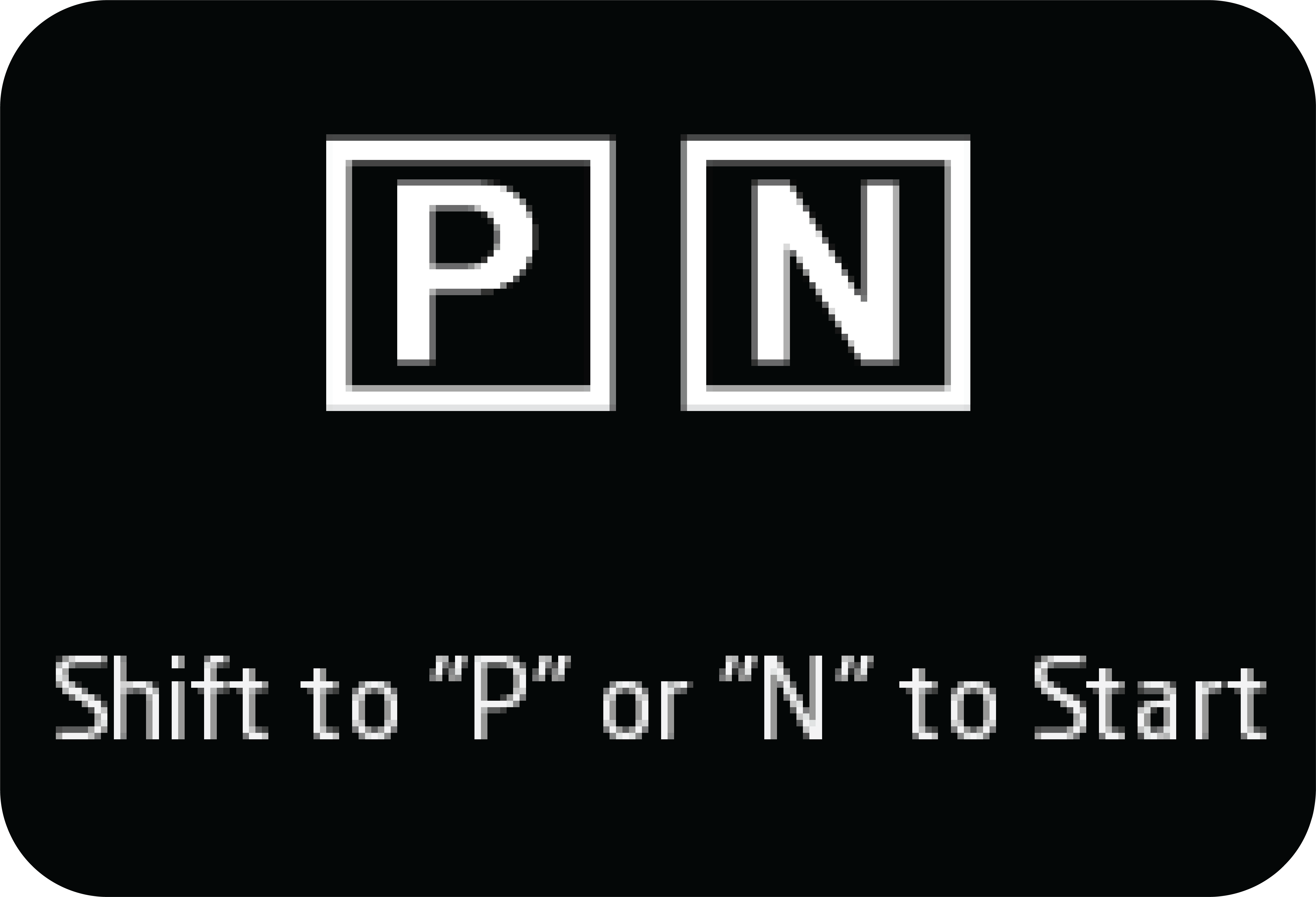

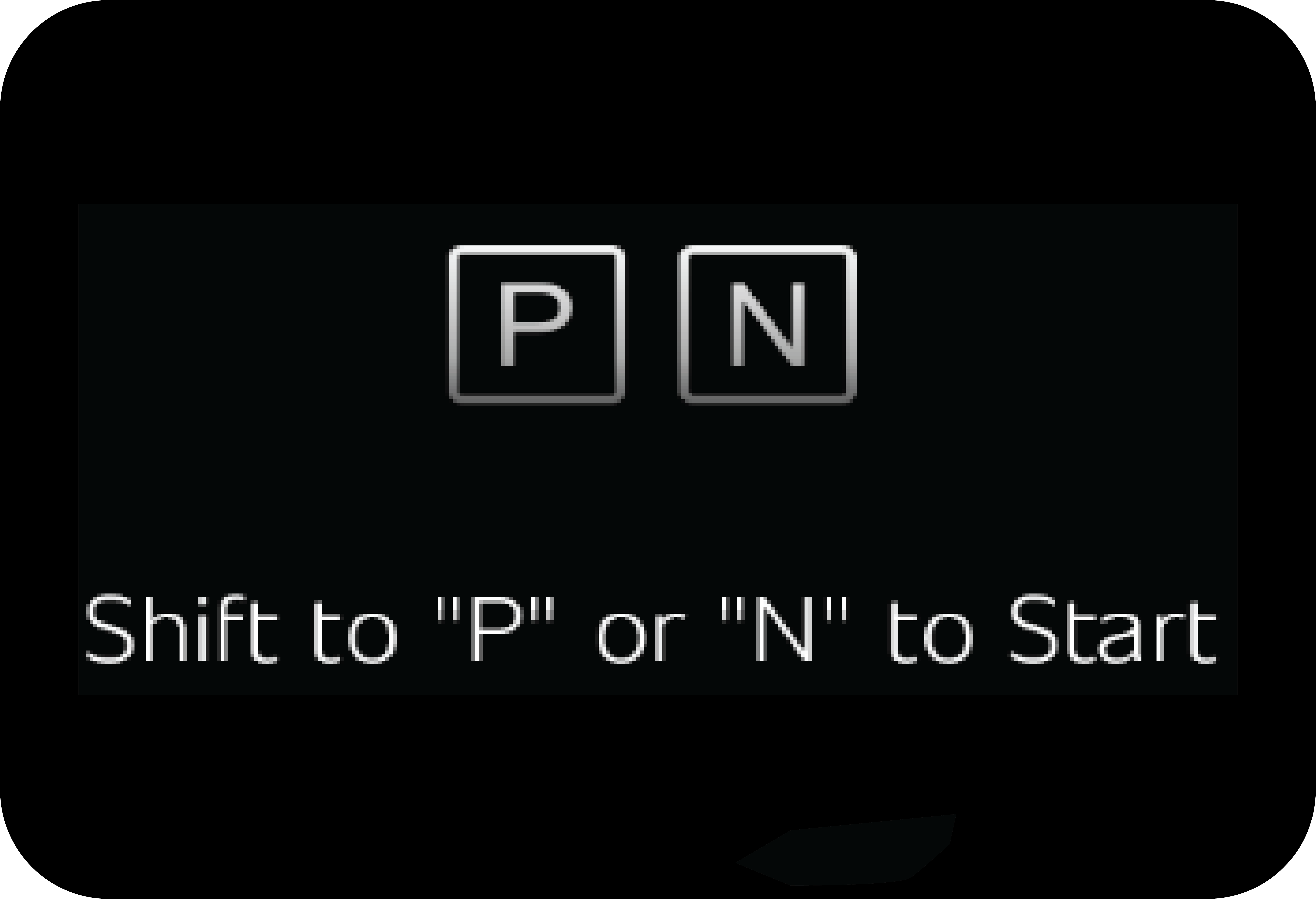

This message is displayed when driver tries to turn ON engine with the gear lever not positioned at P or N (AT Variants) |
|
|
This message is displayed when the driver changes the gear to 4H mode. |
|
|
This message is displayed when the driver changes the gear to 4L mode. |
|
|
This message will display, If try to disable the ELD when the vehicle is running. |
|
|

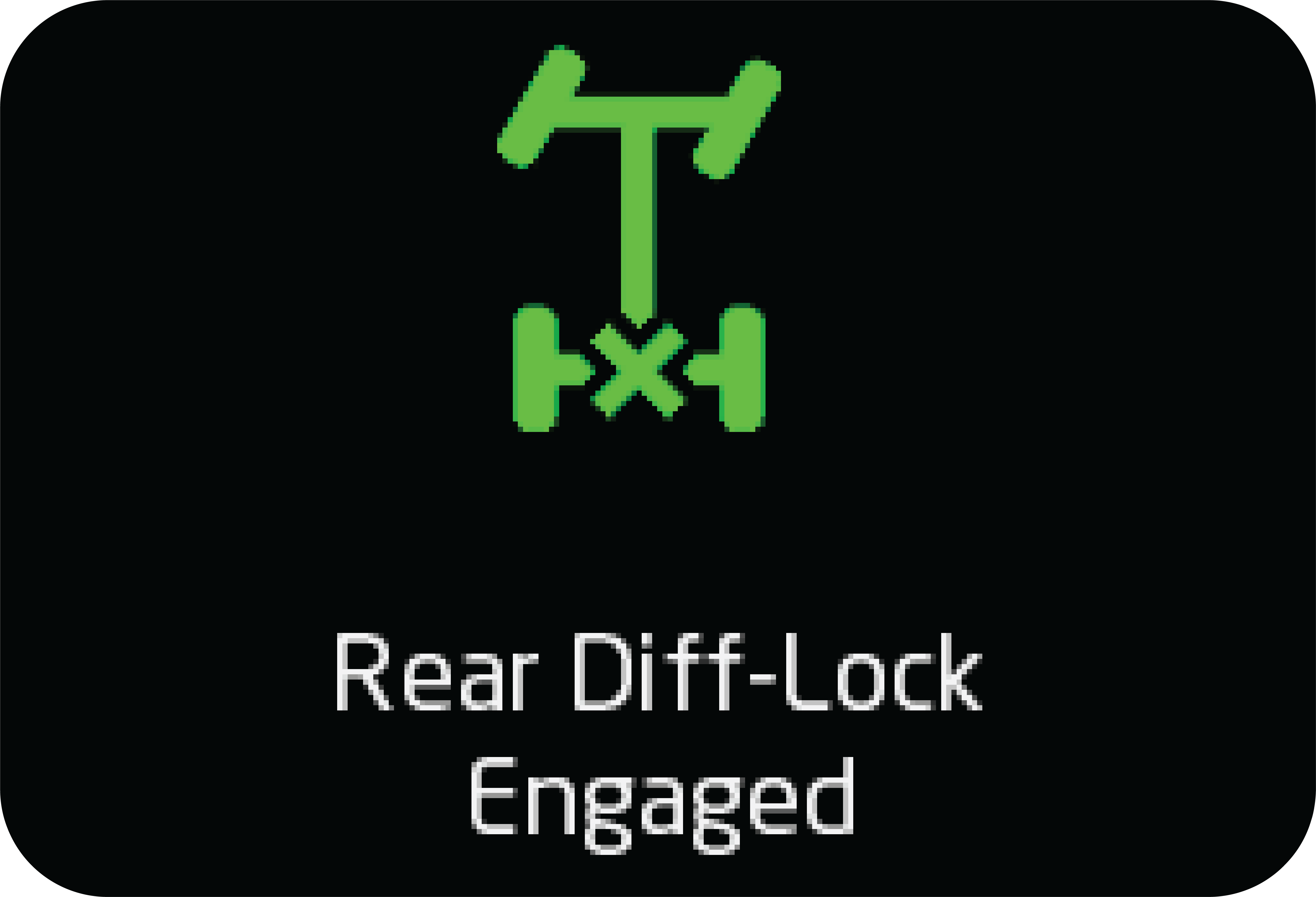

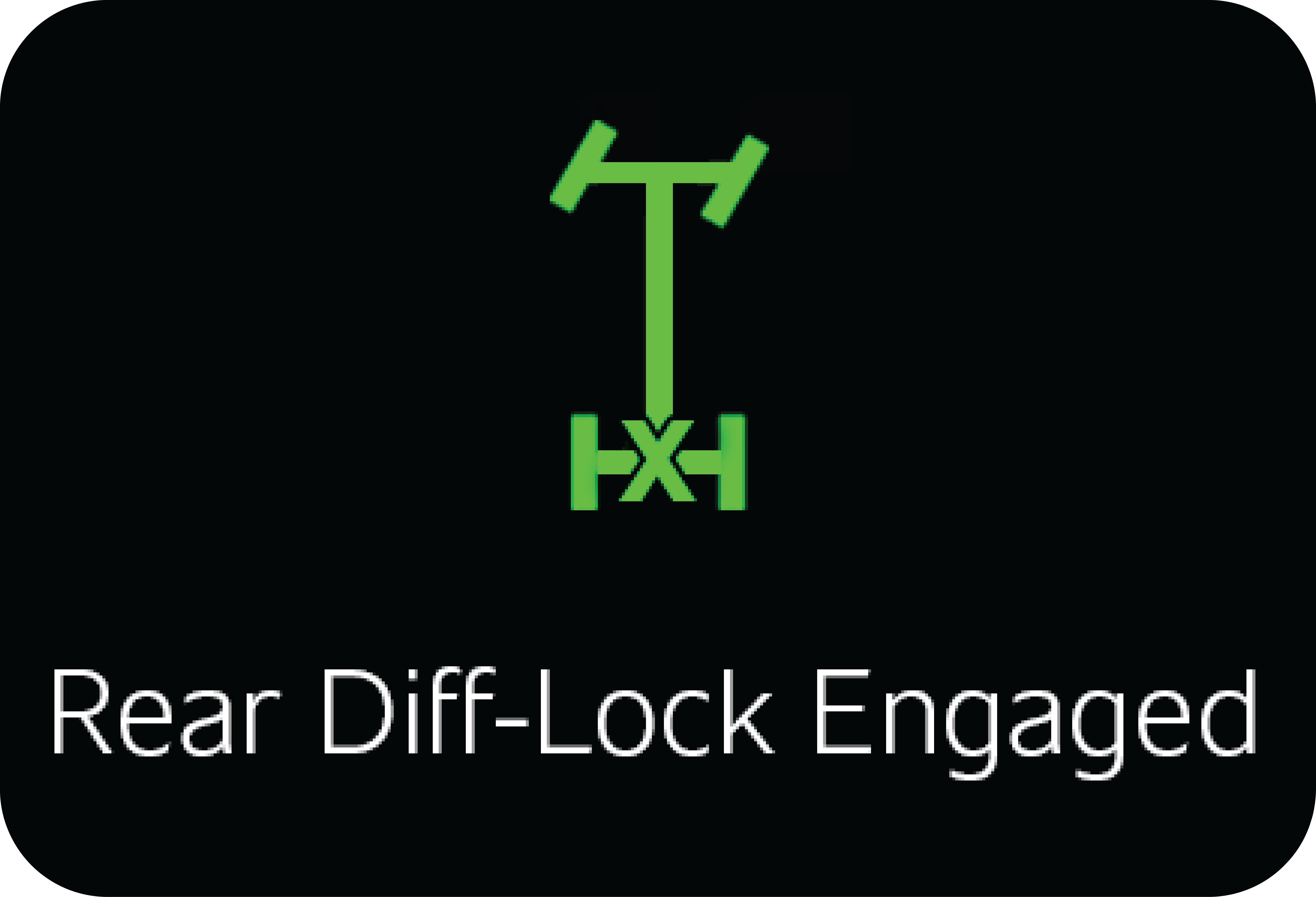

This message will display whenever ELD is engaged in 4 Wheel drive mode |
|
|
This message will display when the vehicle speed exceed 40 kmph when in ELD mode. |
|
|

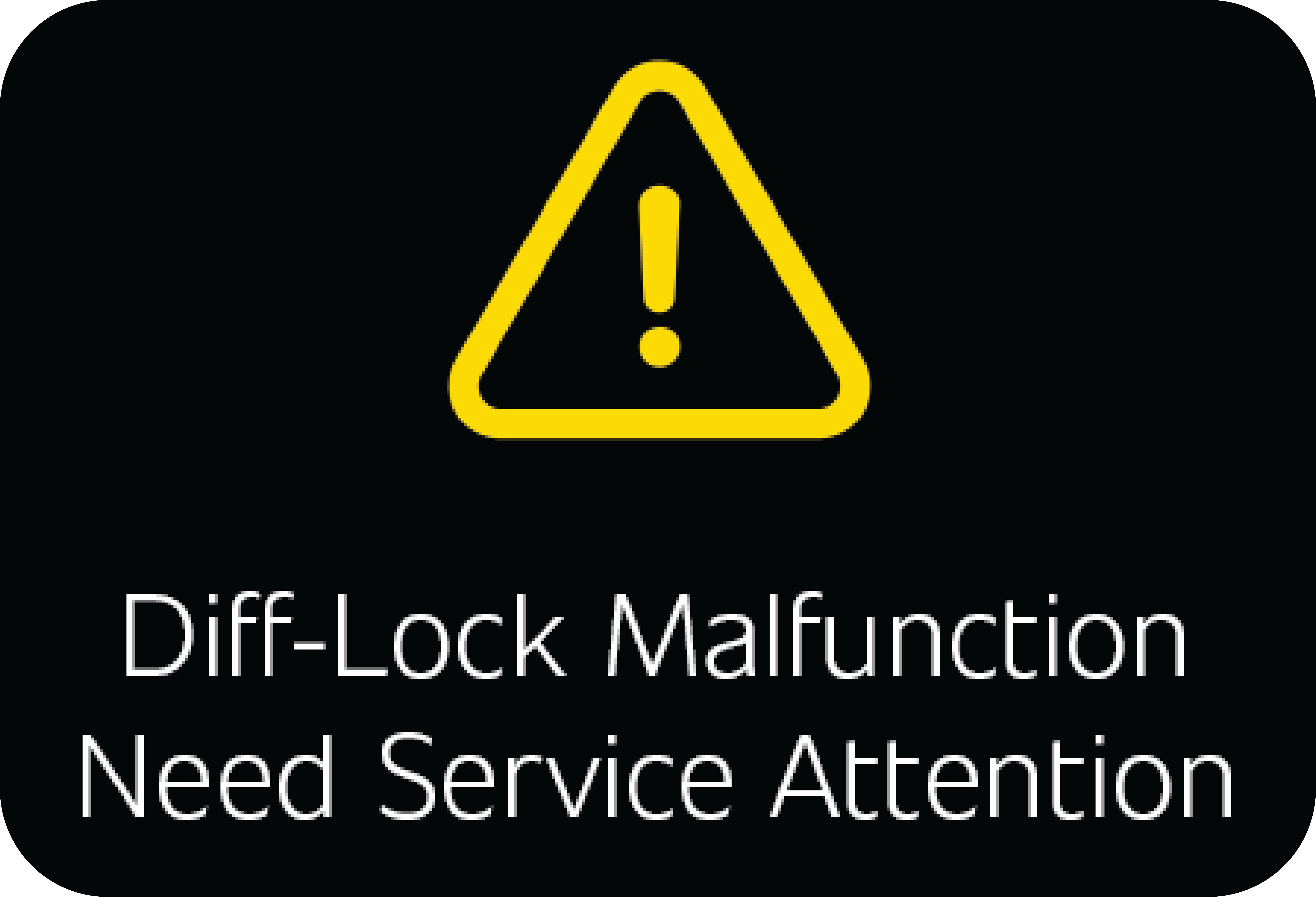

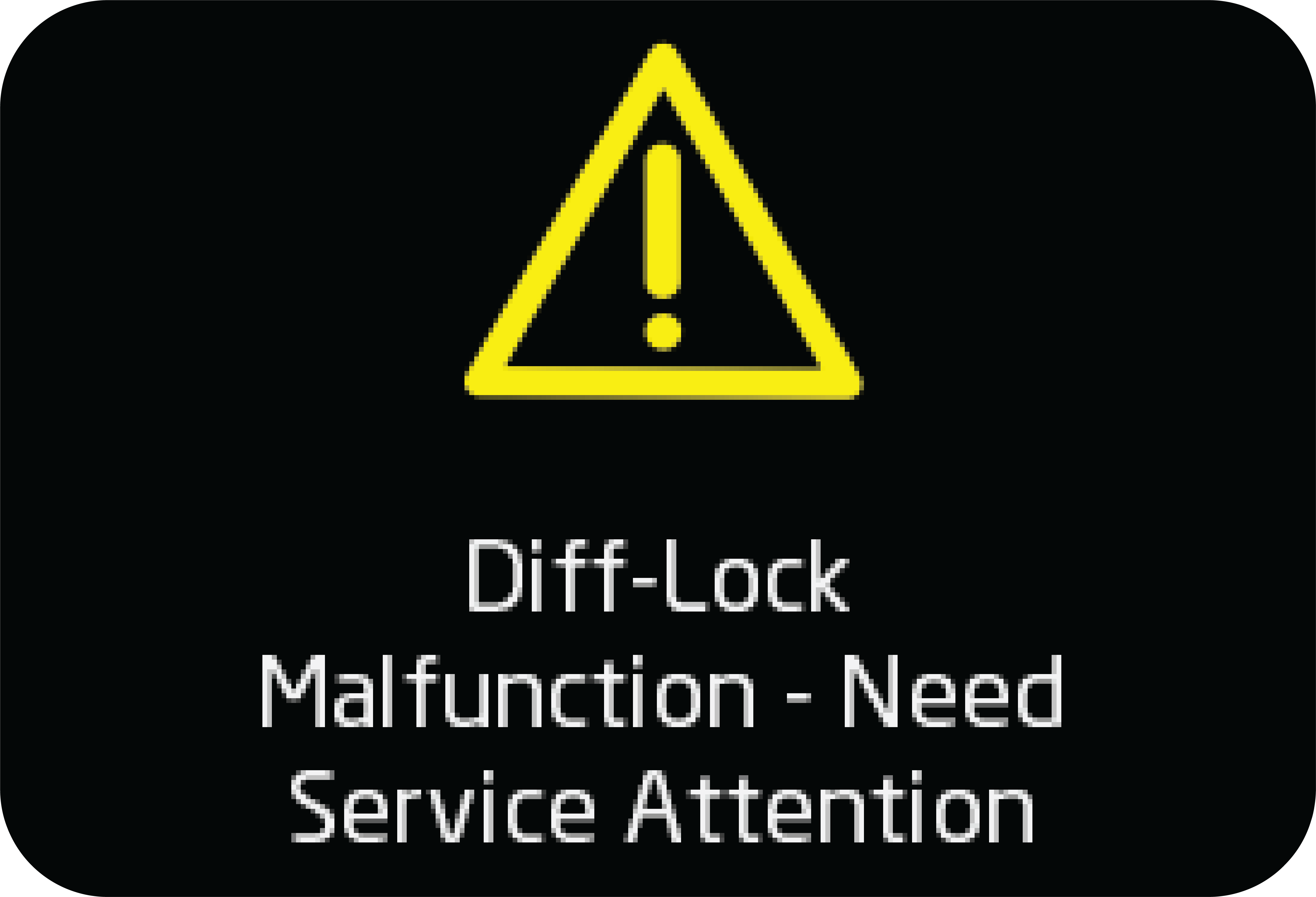

This message will display when ELD is Malfunctioning. |
|
|

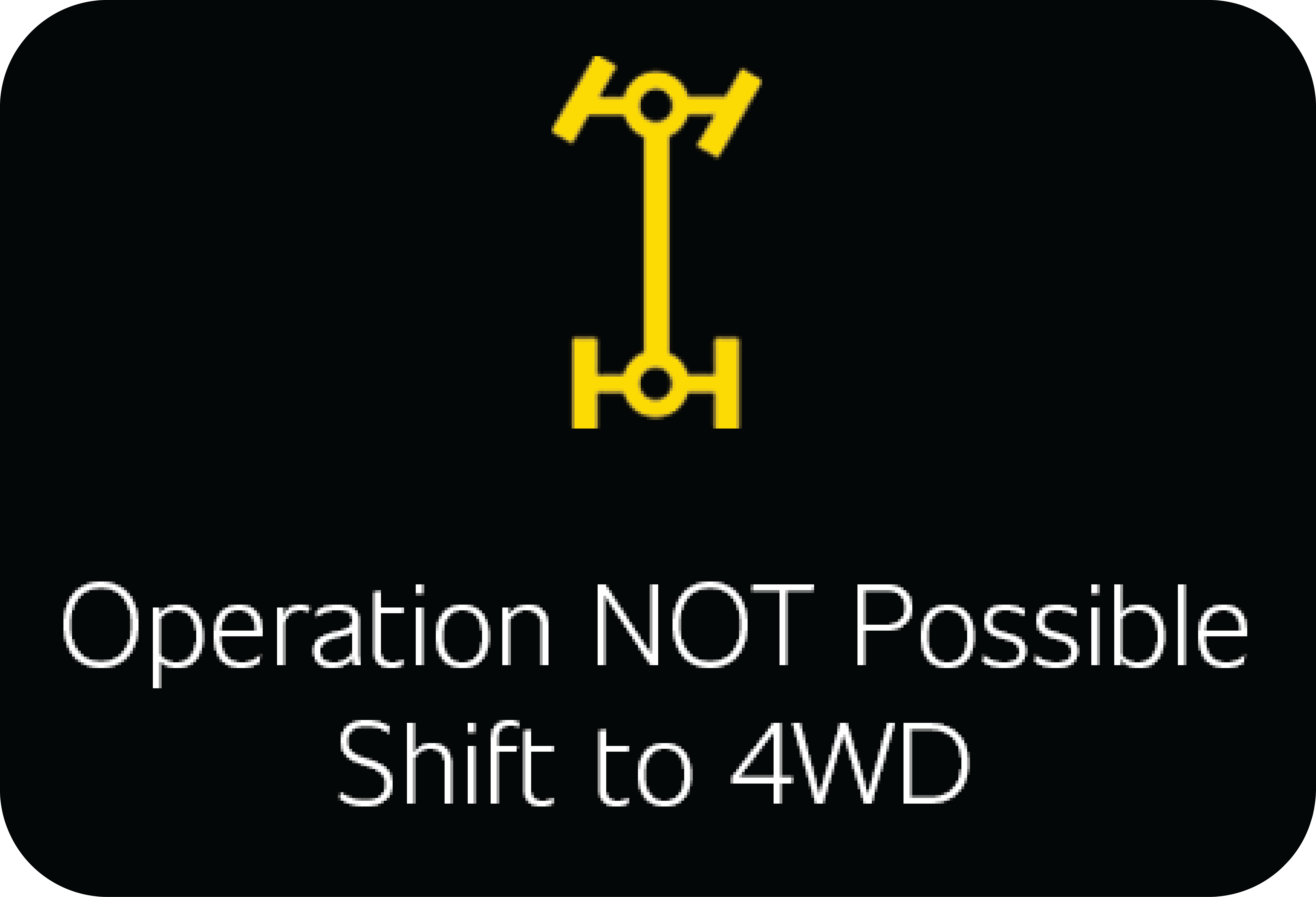

This message will display, If 4WD is not activated, when engage ELD |
NA |
|

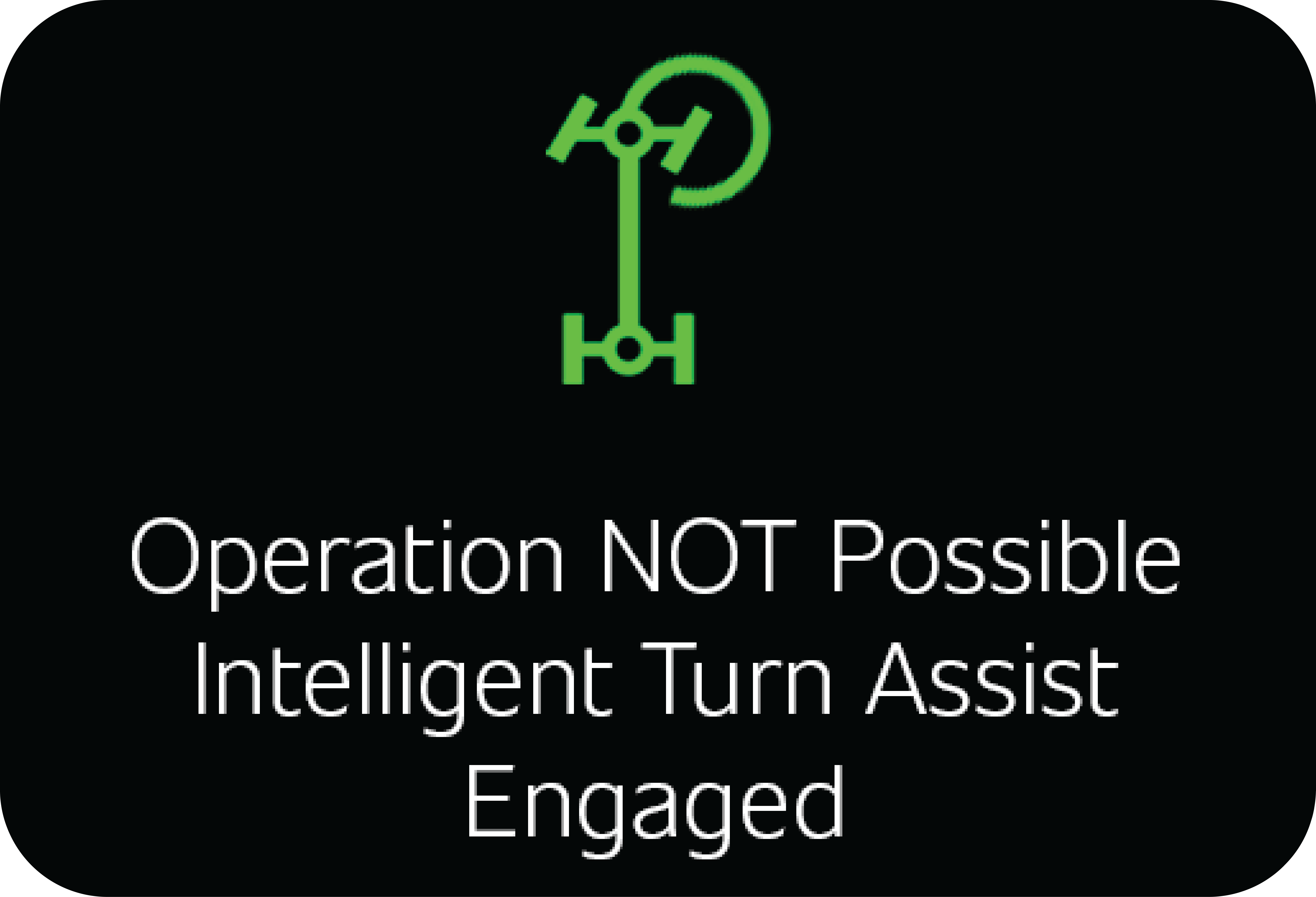

This message will display when engage ELD if ITA is already activated. |
NA |
|

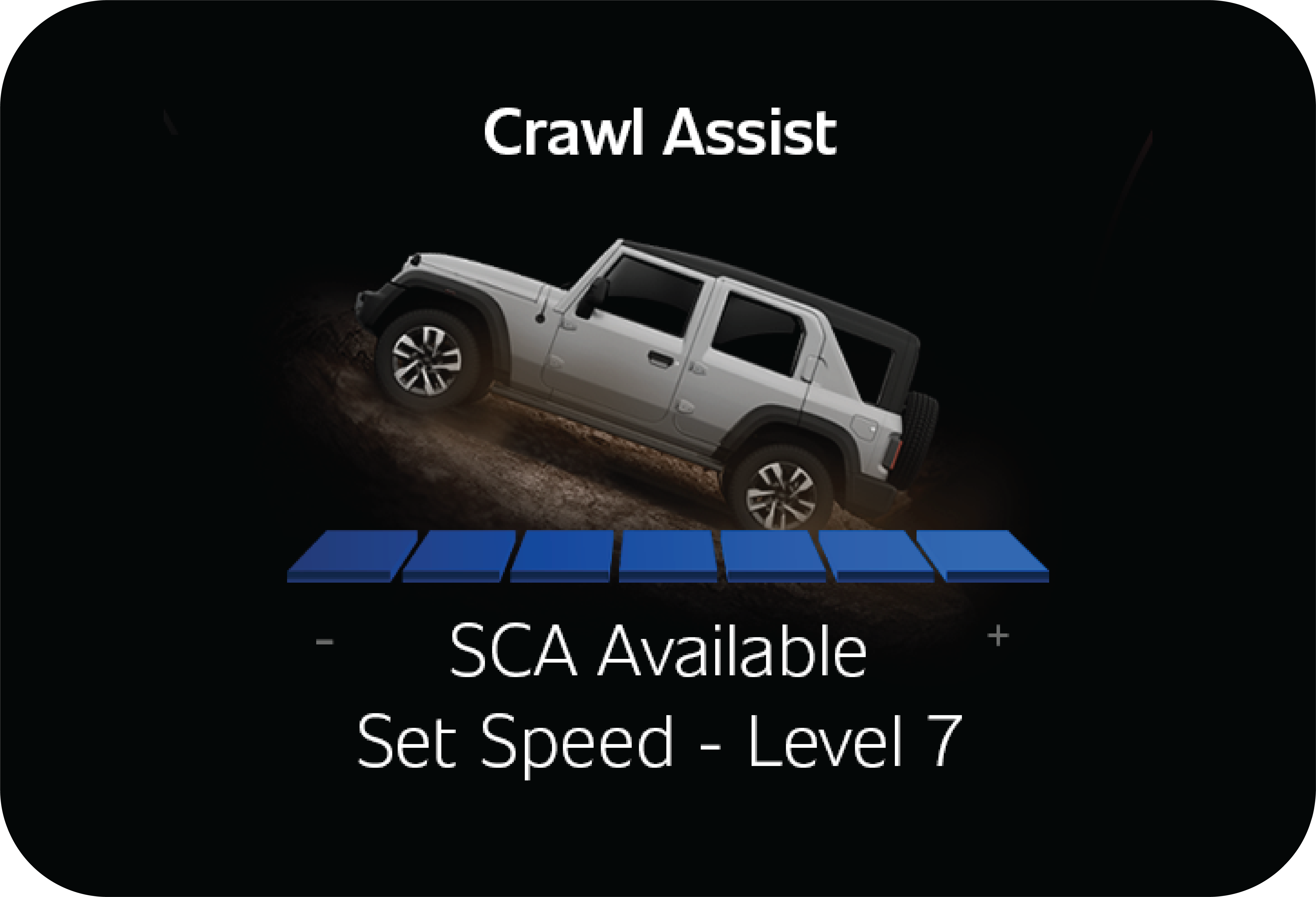

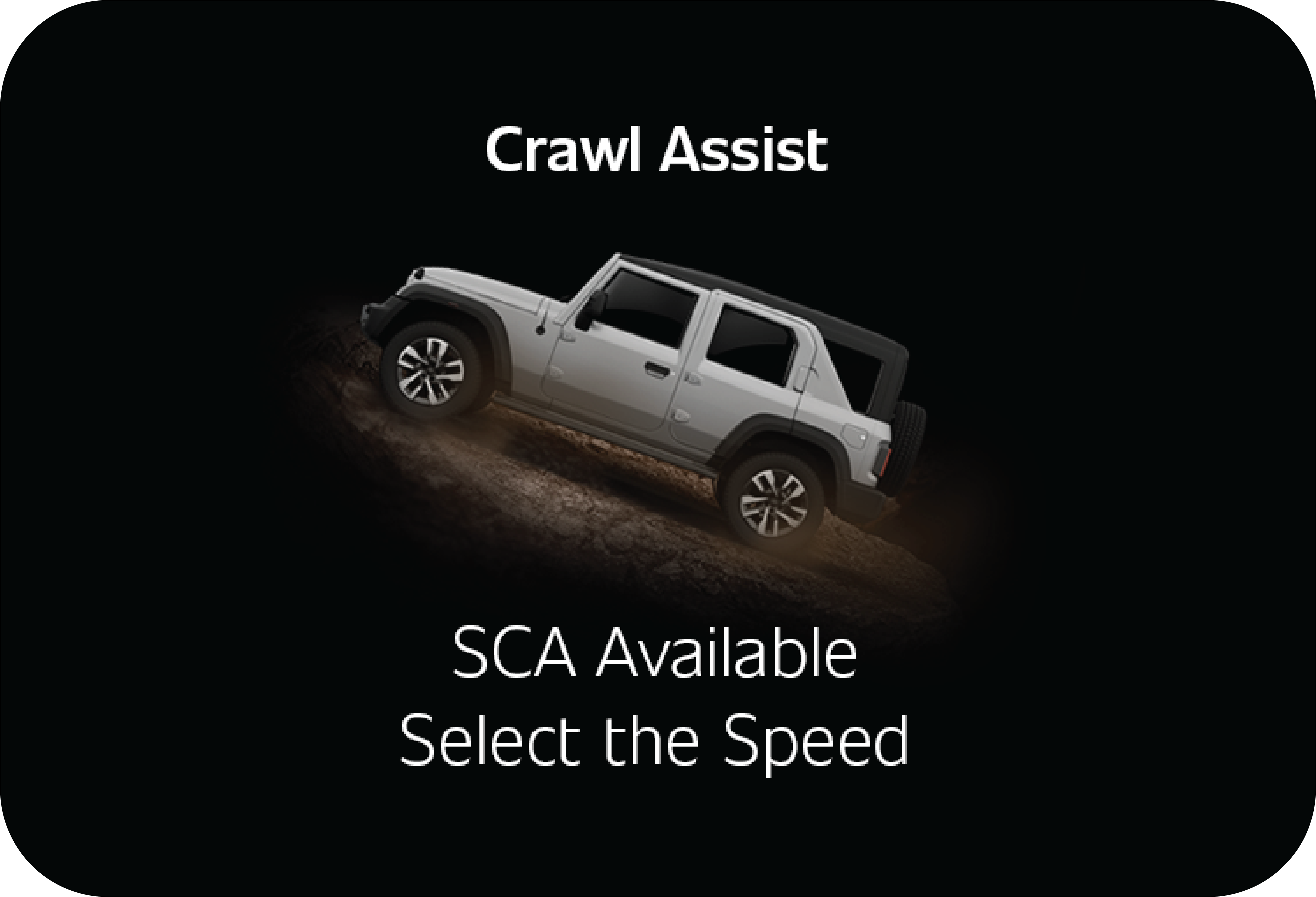

This message indicates the selected speed level from Level 1 to Level 7. |
NA |
|
This message displayed, when SCA is engaged. |
NA |
|

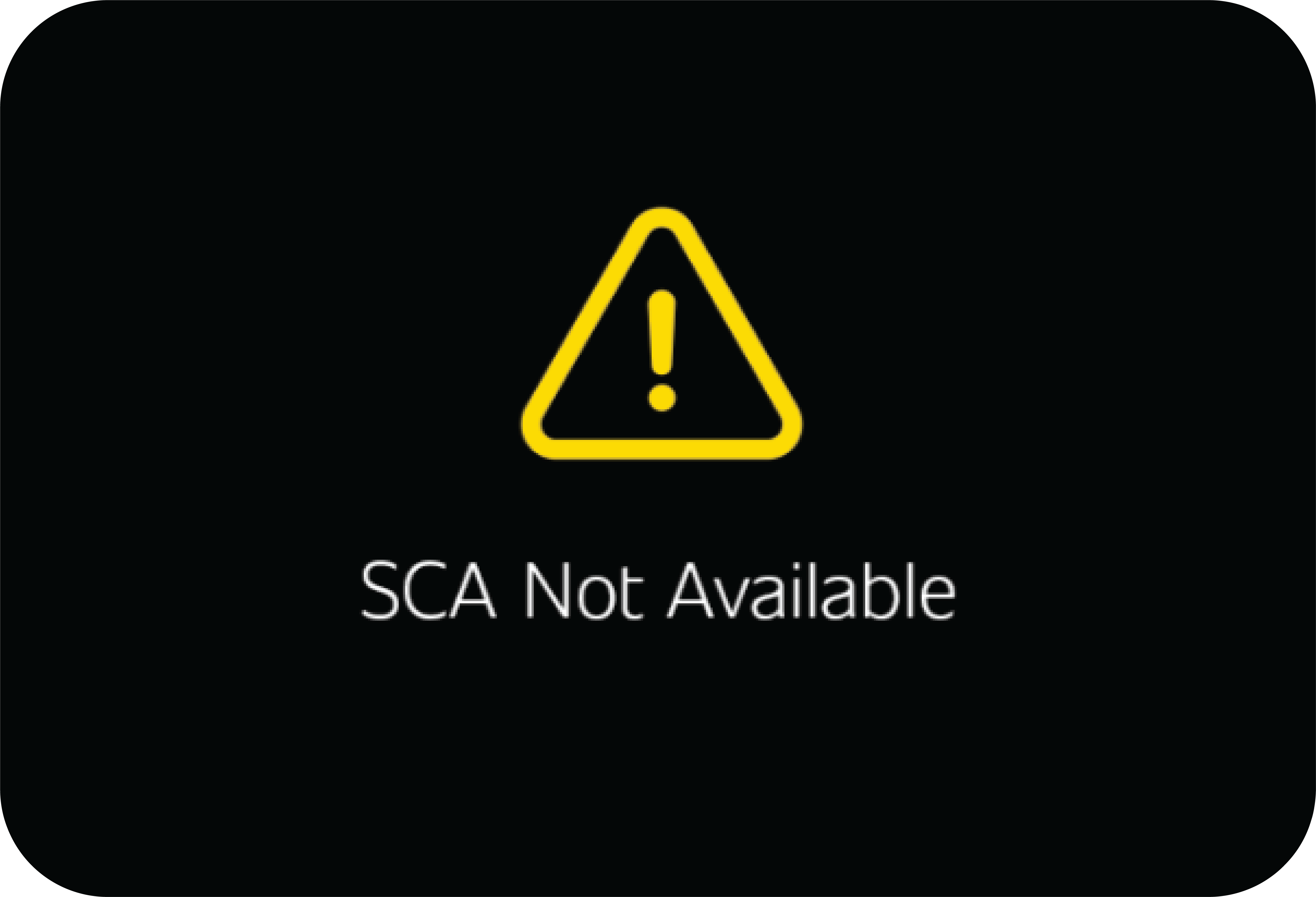

This message will displayed when SCA in malfunction state. |
NA |
|

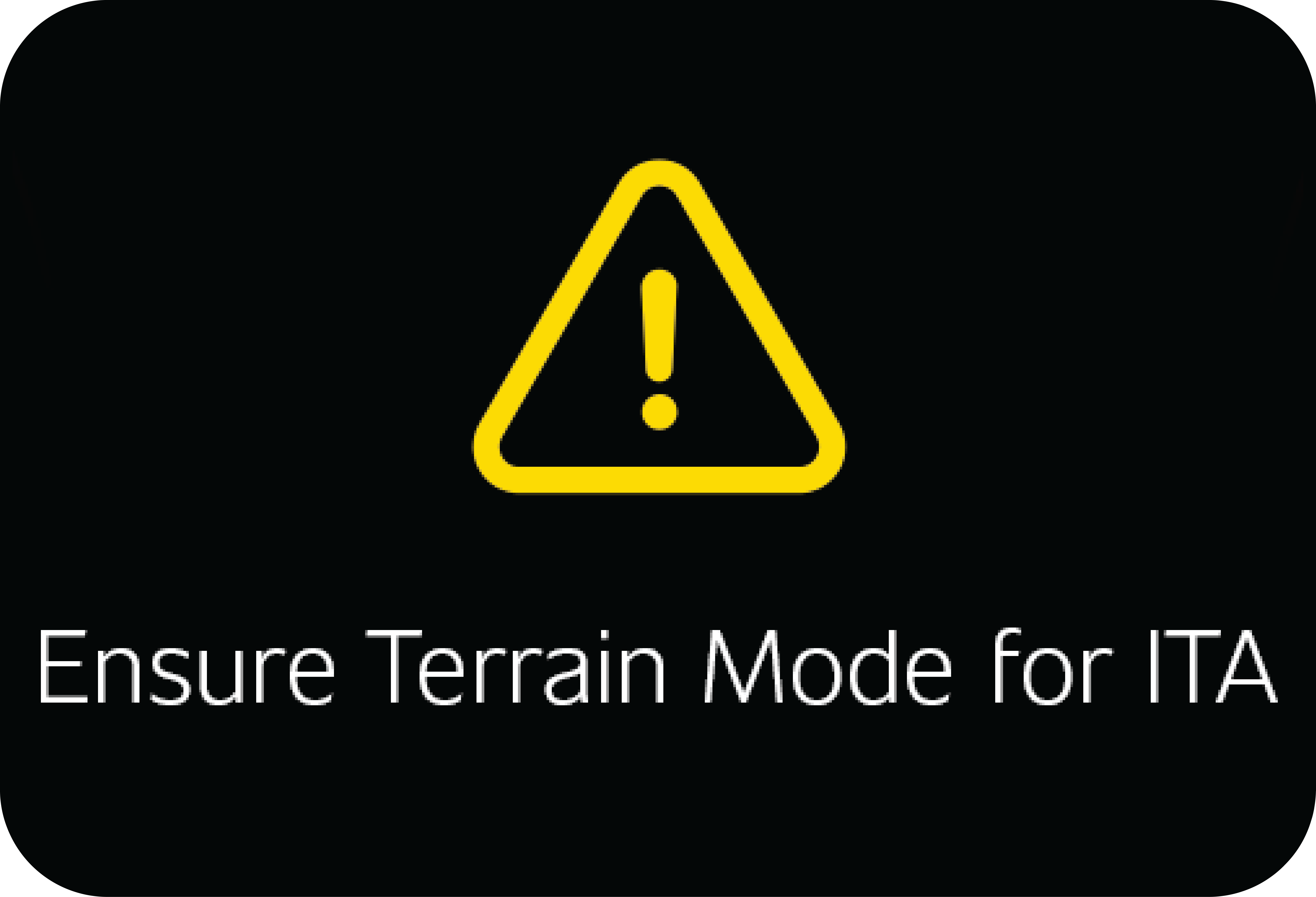

This message will display whenever try to engage ITA without terrain mode. |
NA |
|

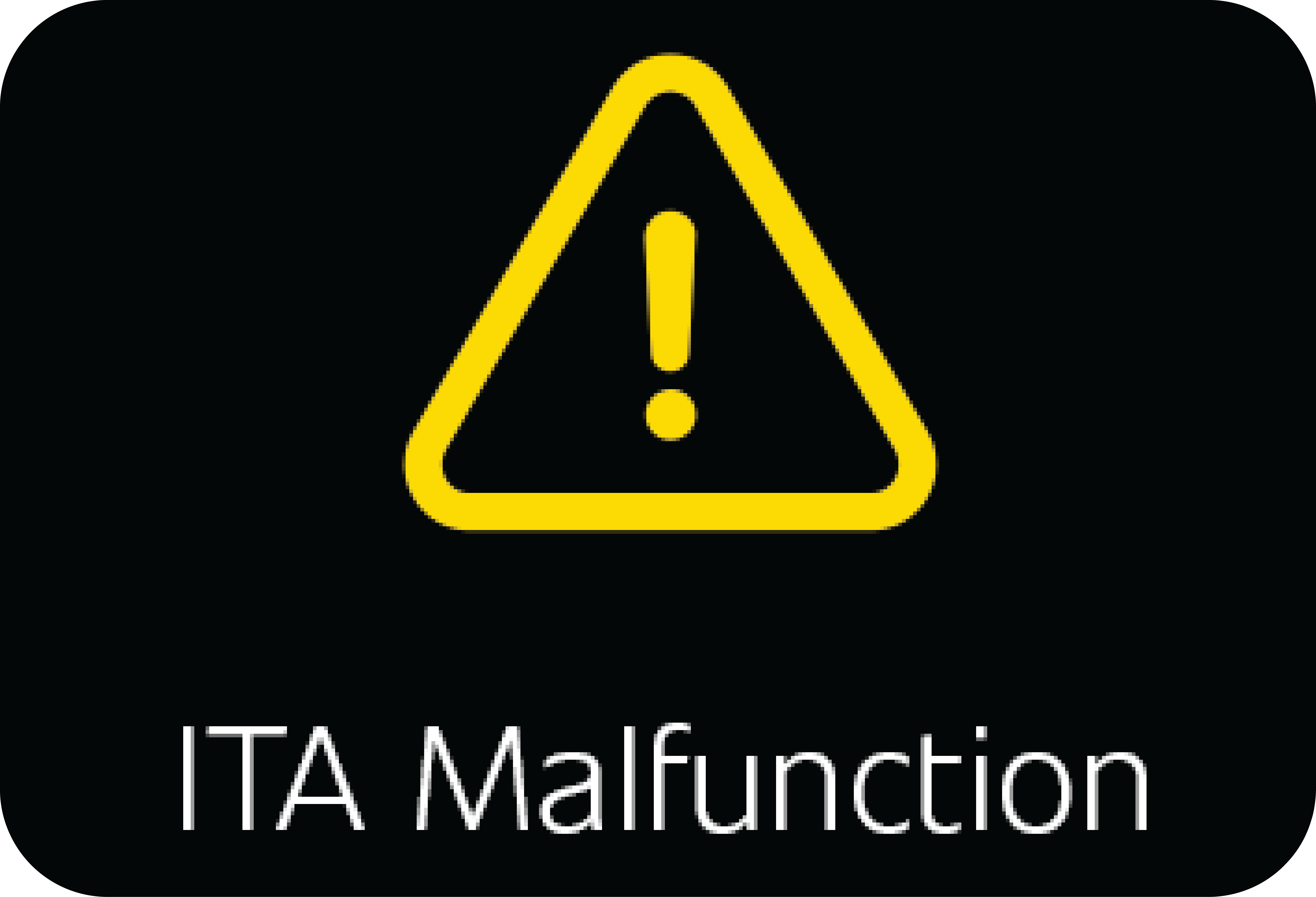

This message will displayed when ITA in malfunction state |
Display (TFT) |
Display (Digital) |
Operating Conditions |
---|---|---|
|
|

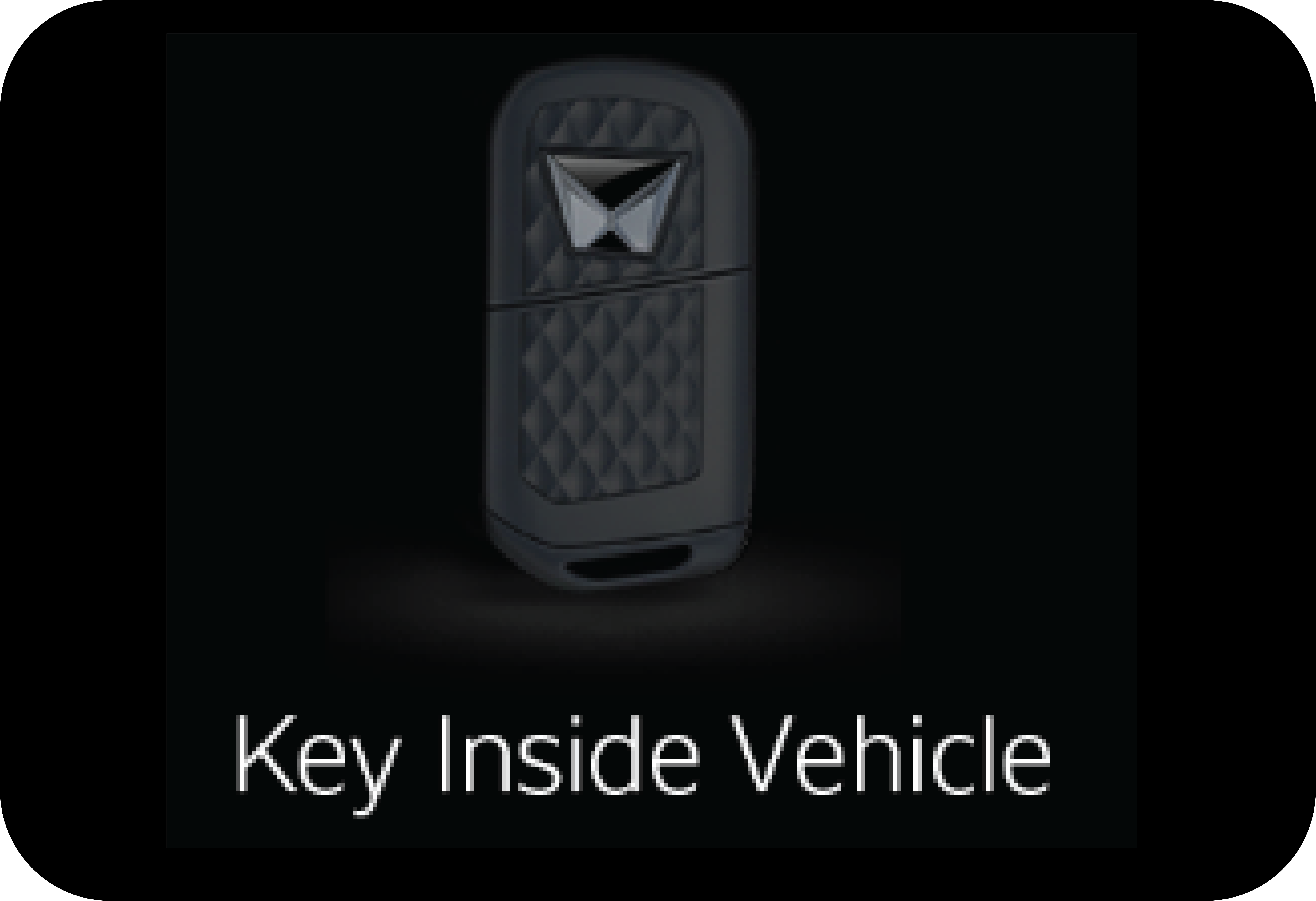

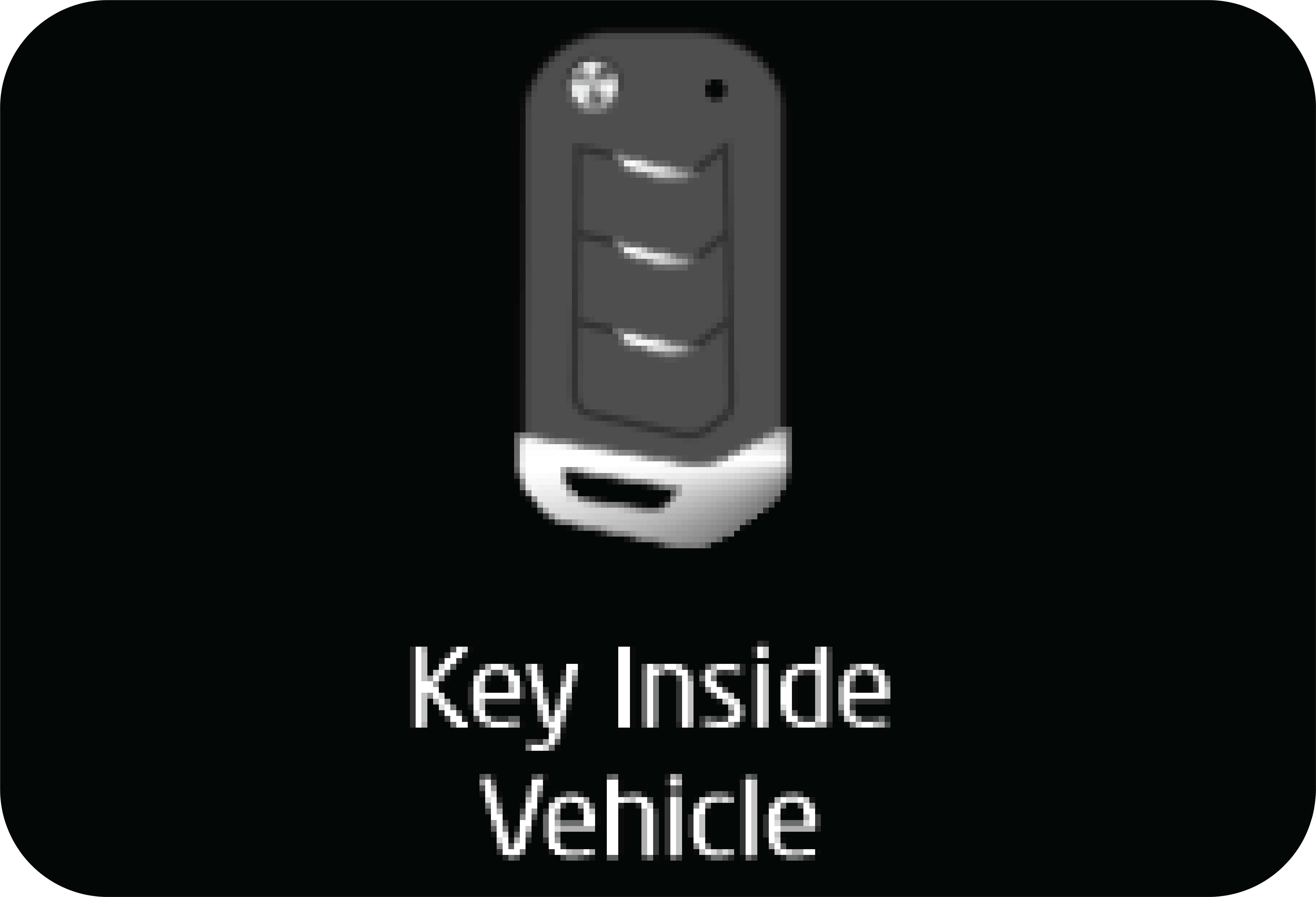

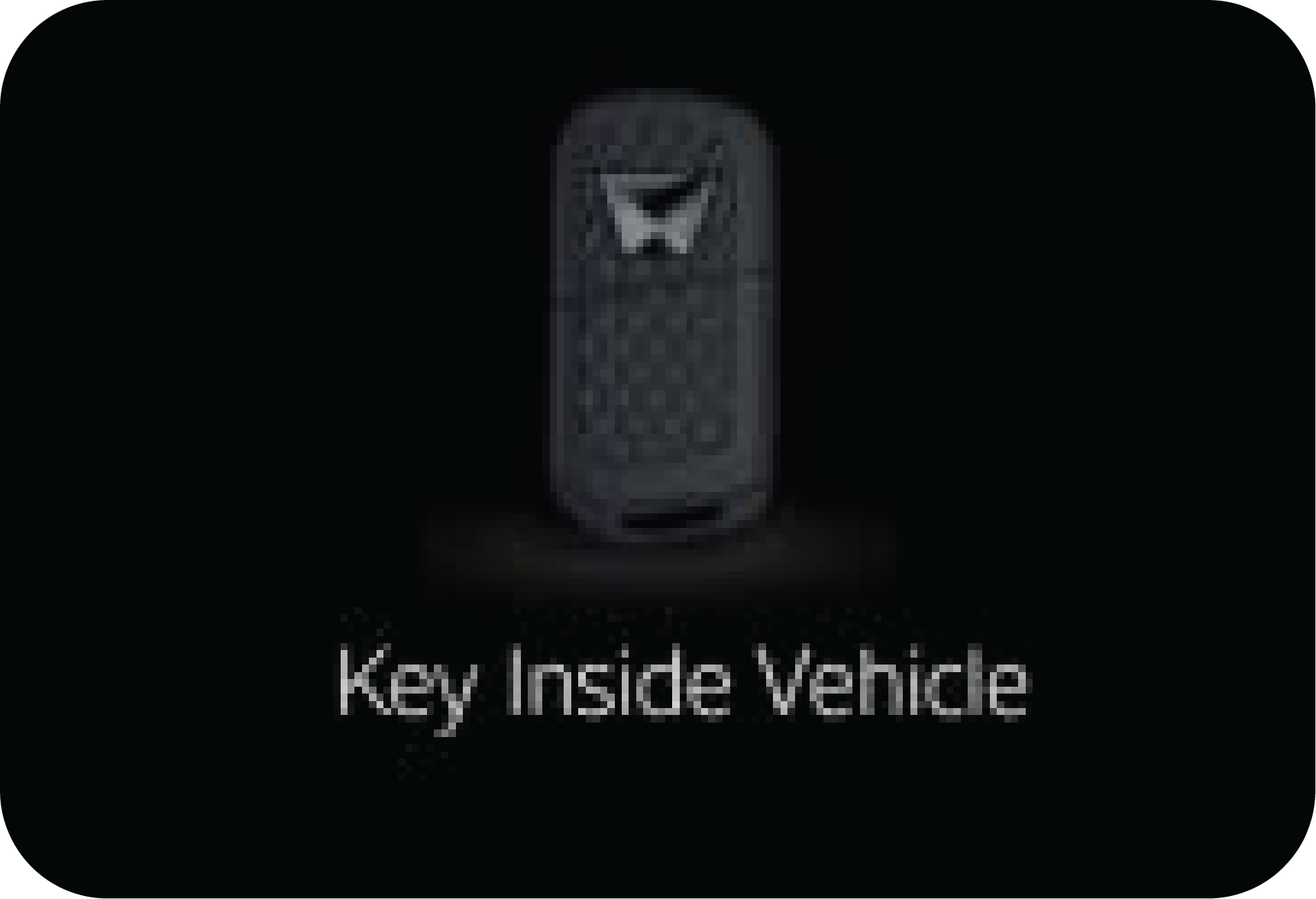

The warning will be triggered when key is inside the vehicle and you try to do Passive lock operation. |
|
|

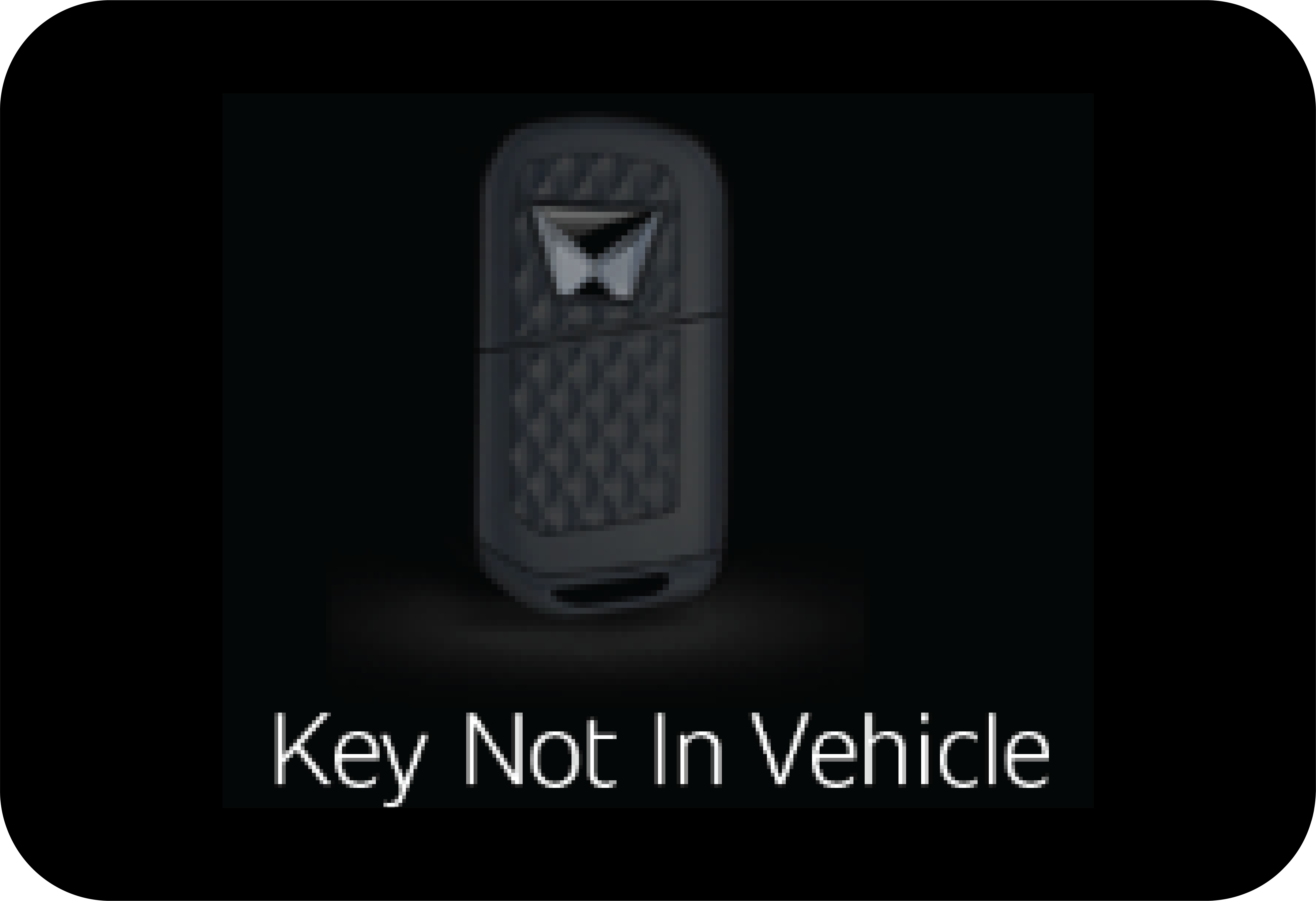

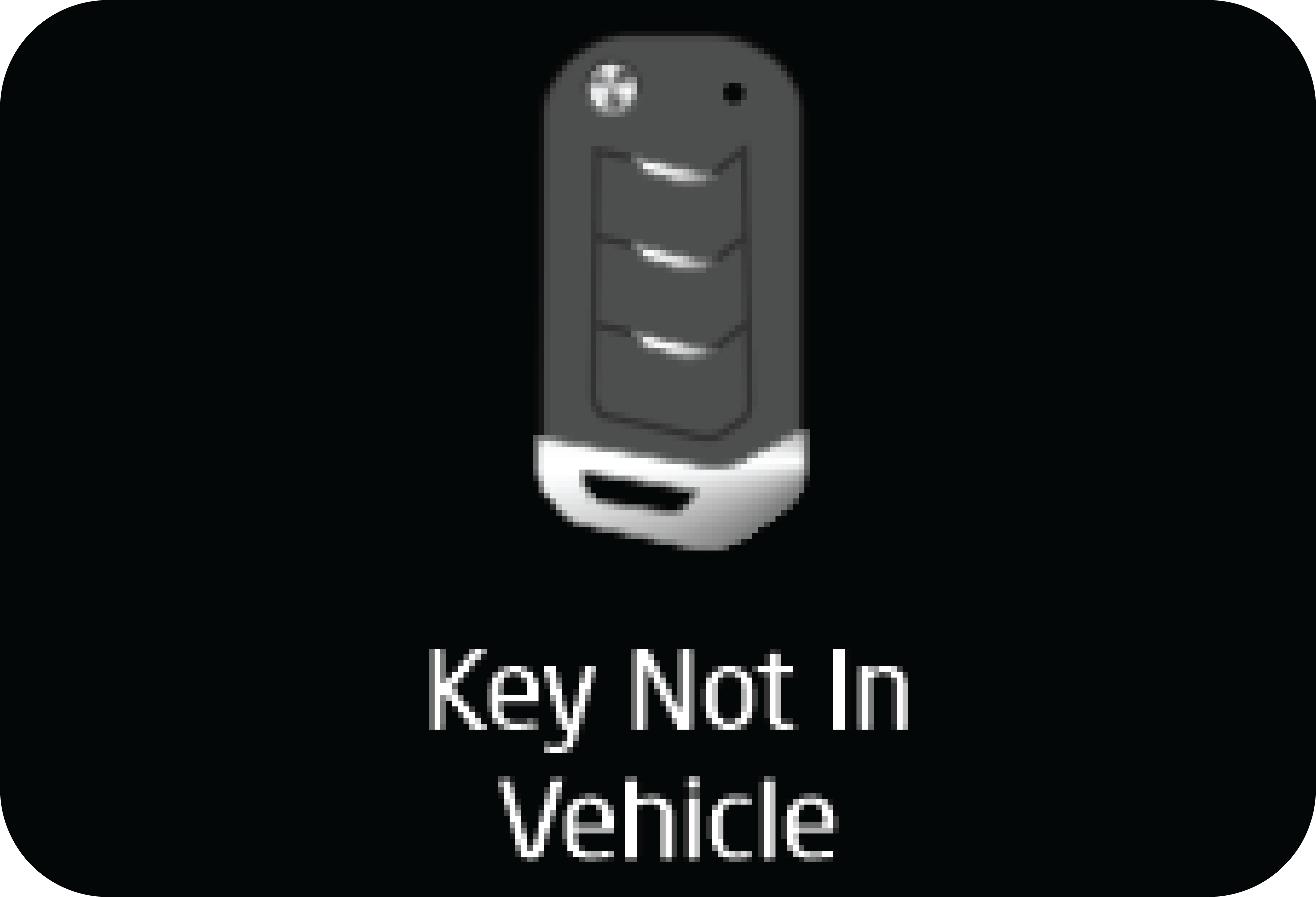

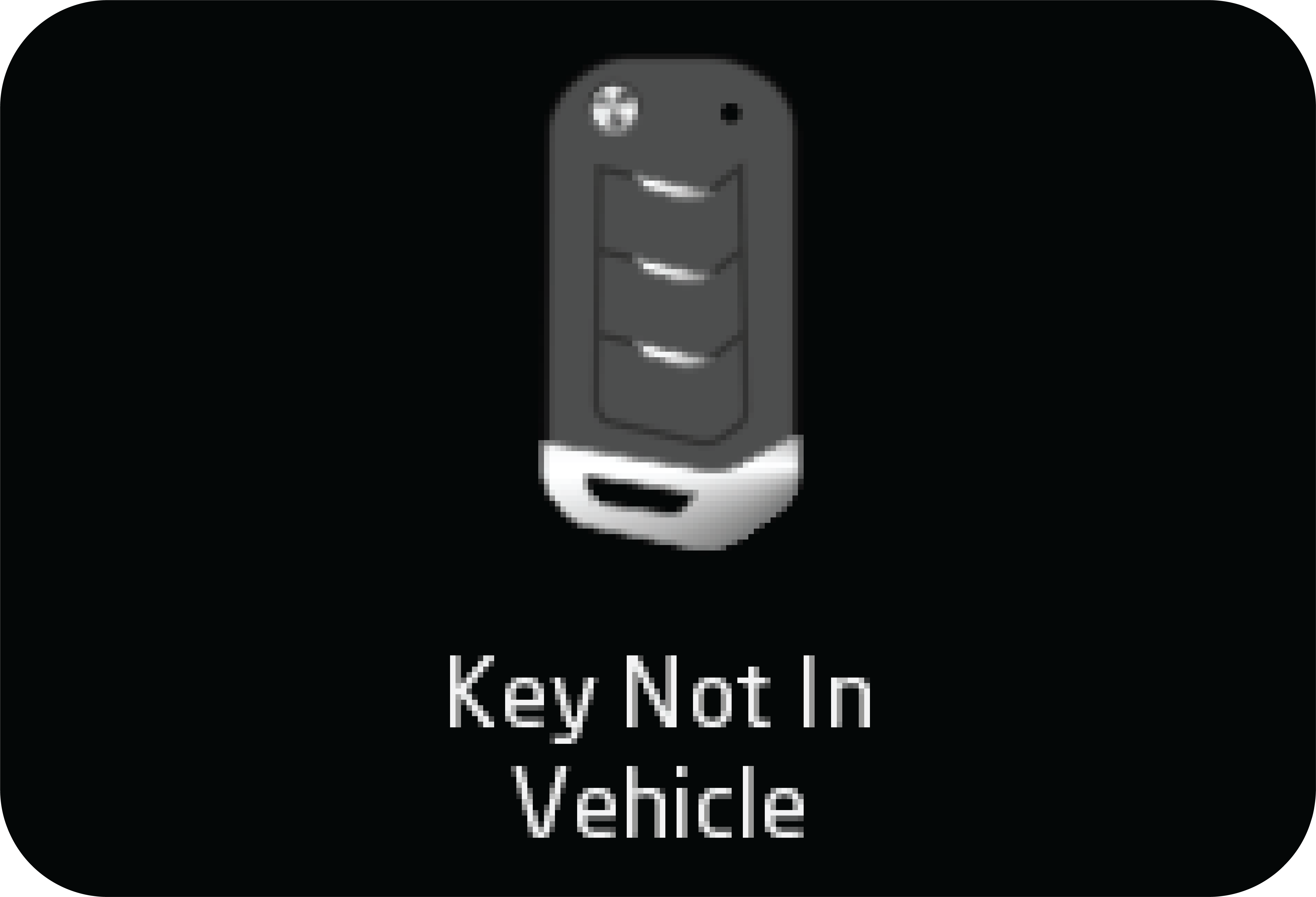

The warning will be triggered when vehicle is in cranked or in ignition ON condition, but key is not inside the vehicle. |
|
|

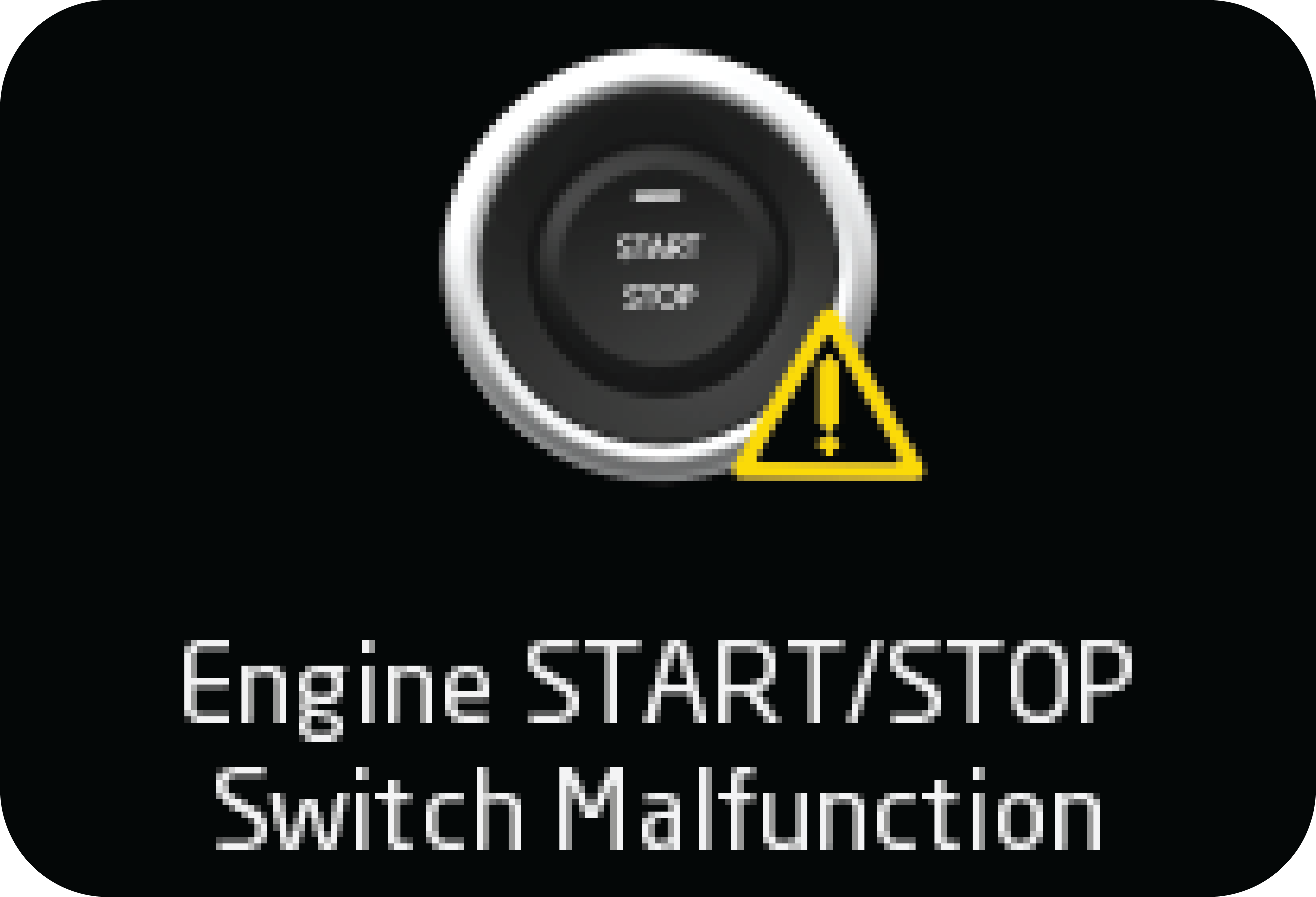

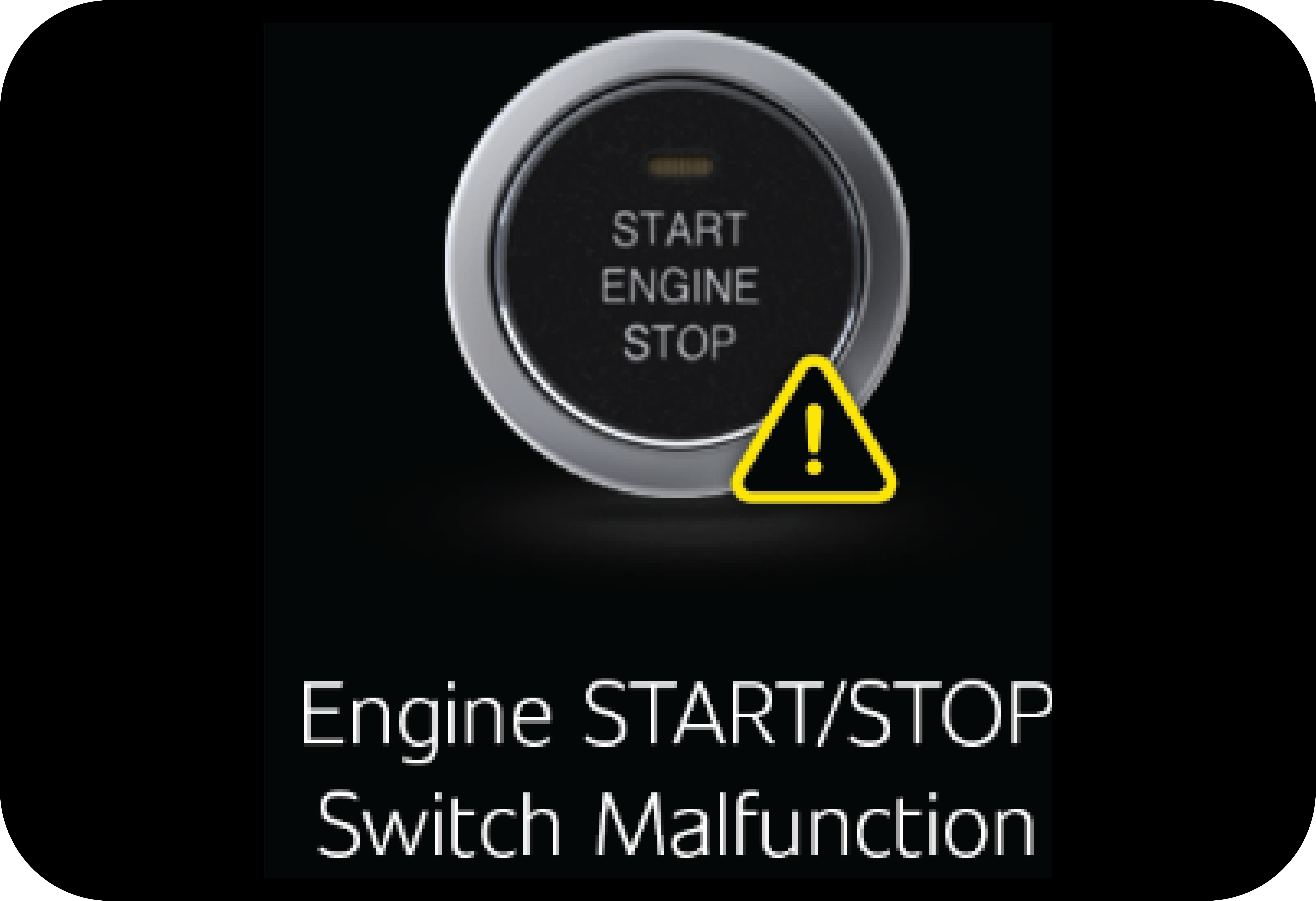

The warning will be triggered when start/stop switch stuck for more than 1 min. |
|
|

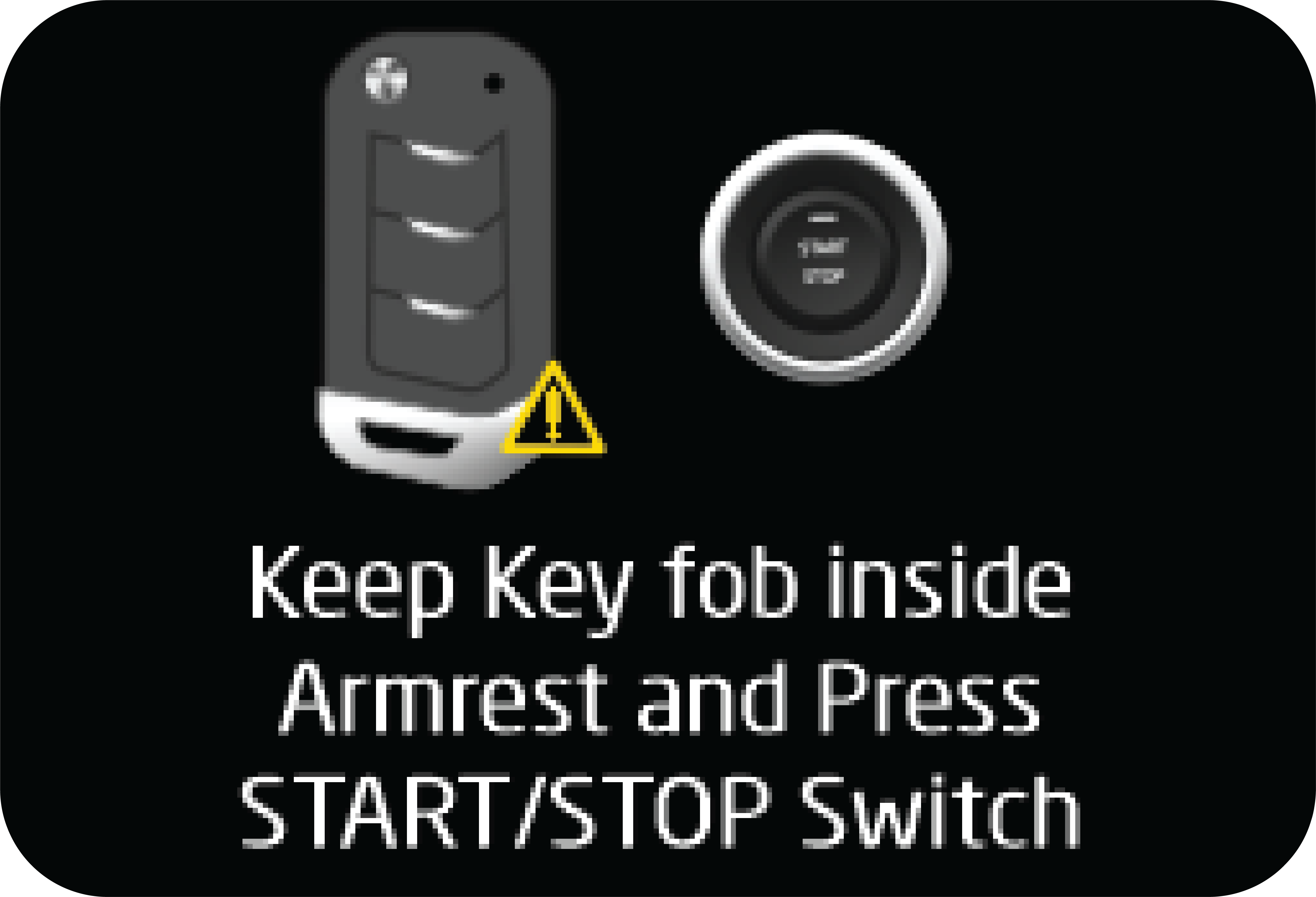

The warning will be triggered when user need to keep the key in key mark engraved in near park brake and then press the start/stop
switch to turn ON the vehicle.
|
|
|
The warning will be triggered when Key Fob battery is Low. |
|
|
The warning will be triggered when any door is open and user trying to do passive lock operation. |
Display (TFT) |
Display (Digital) |
Operating Conditions |
---|---|---|
|
|

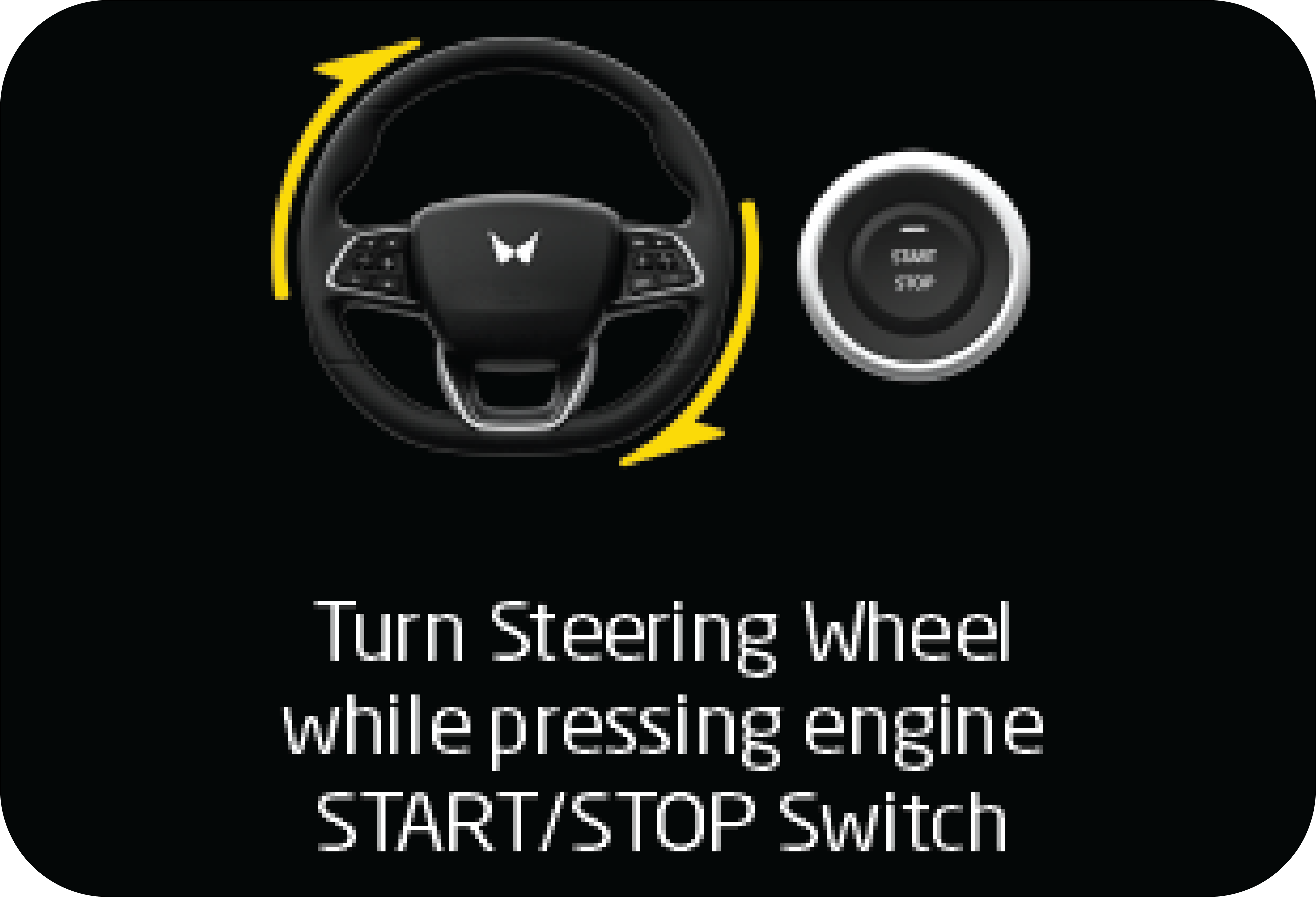

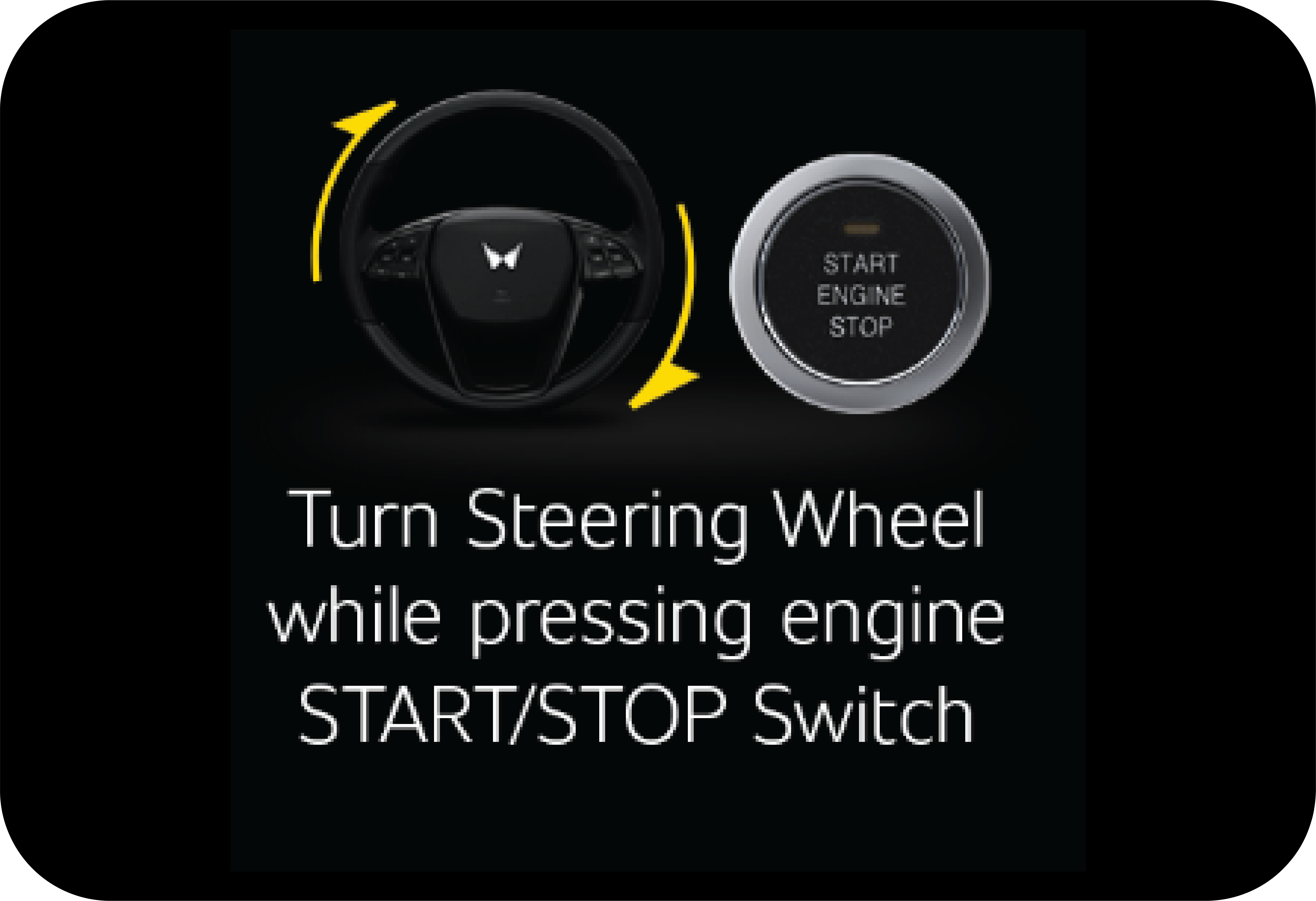

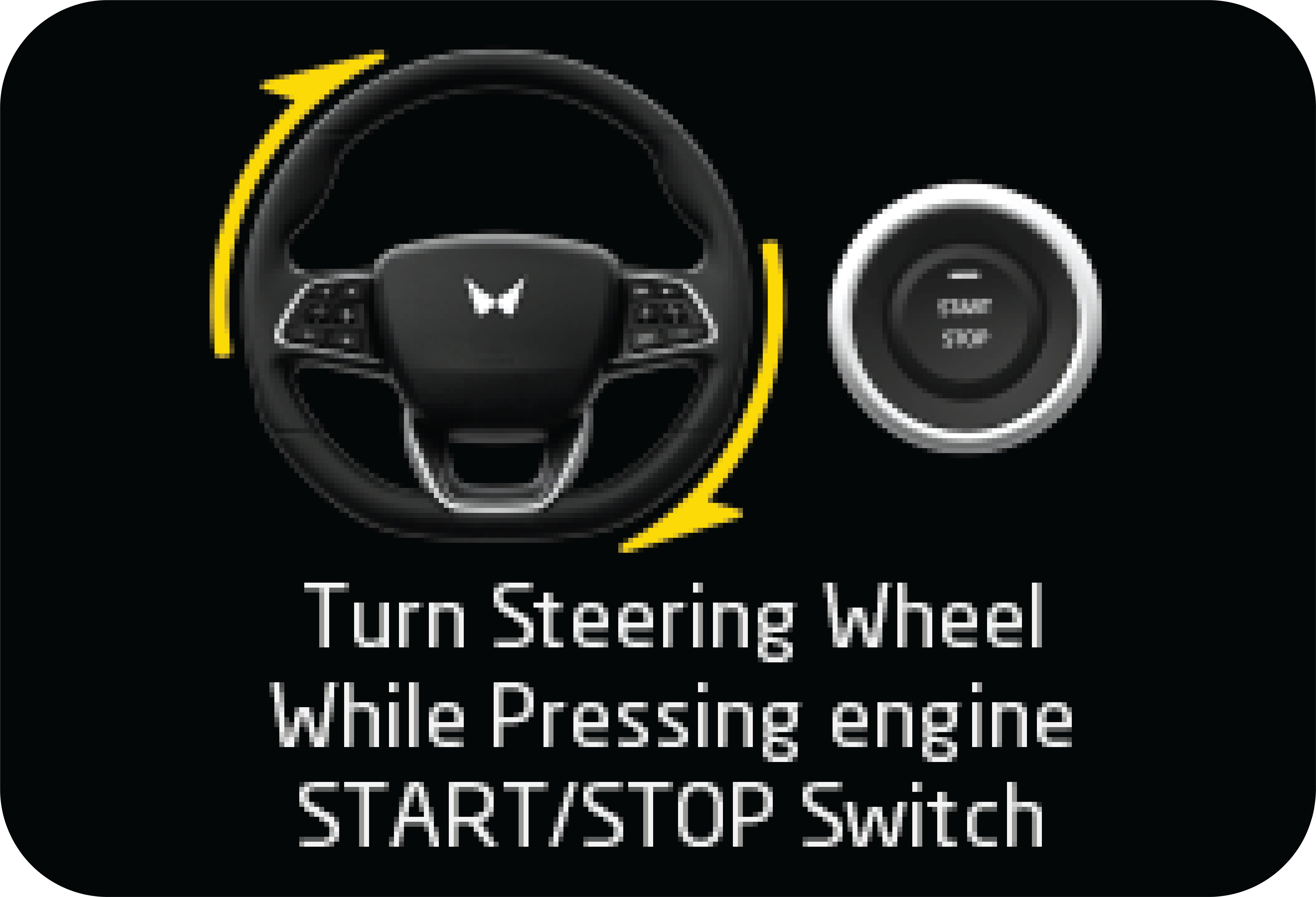

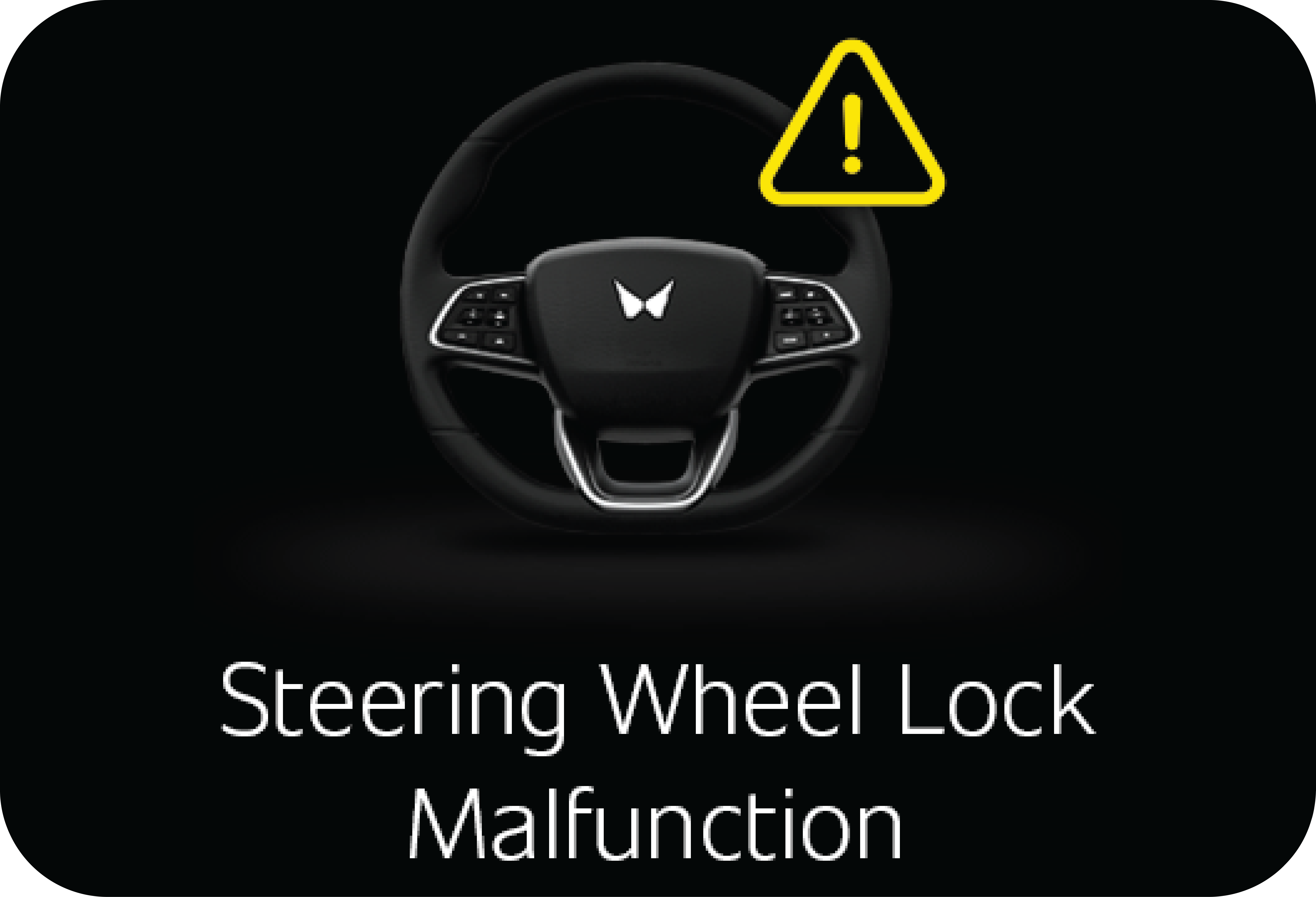

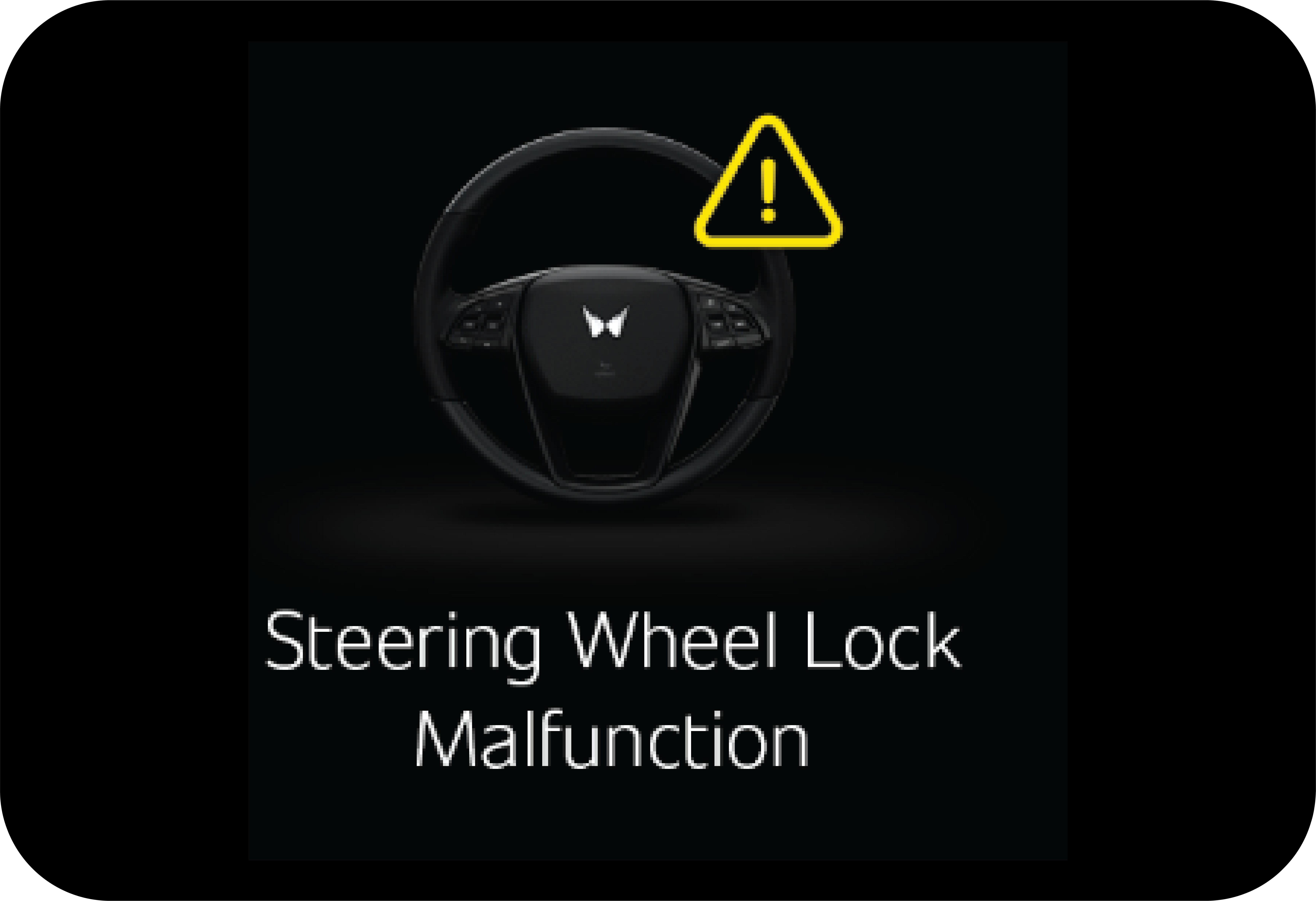

This is a temporary malfunction of ESCL and the message is displayed if the vehicle needs to be attempted to start while turning
the steering wheel.
|
|
|
This is a temporary malfunction of ESCL and the message is displayed if the steering column is not locked |
|
|

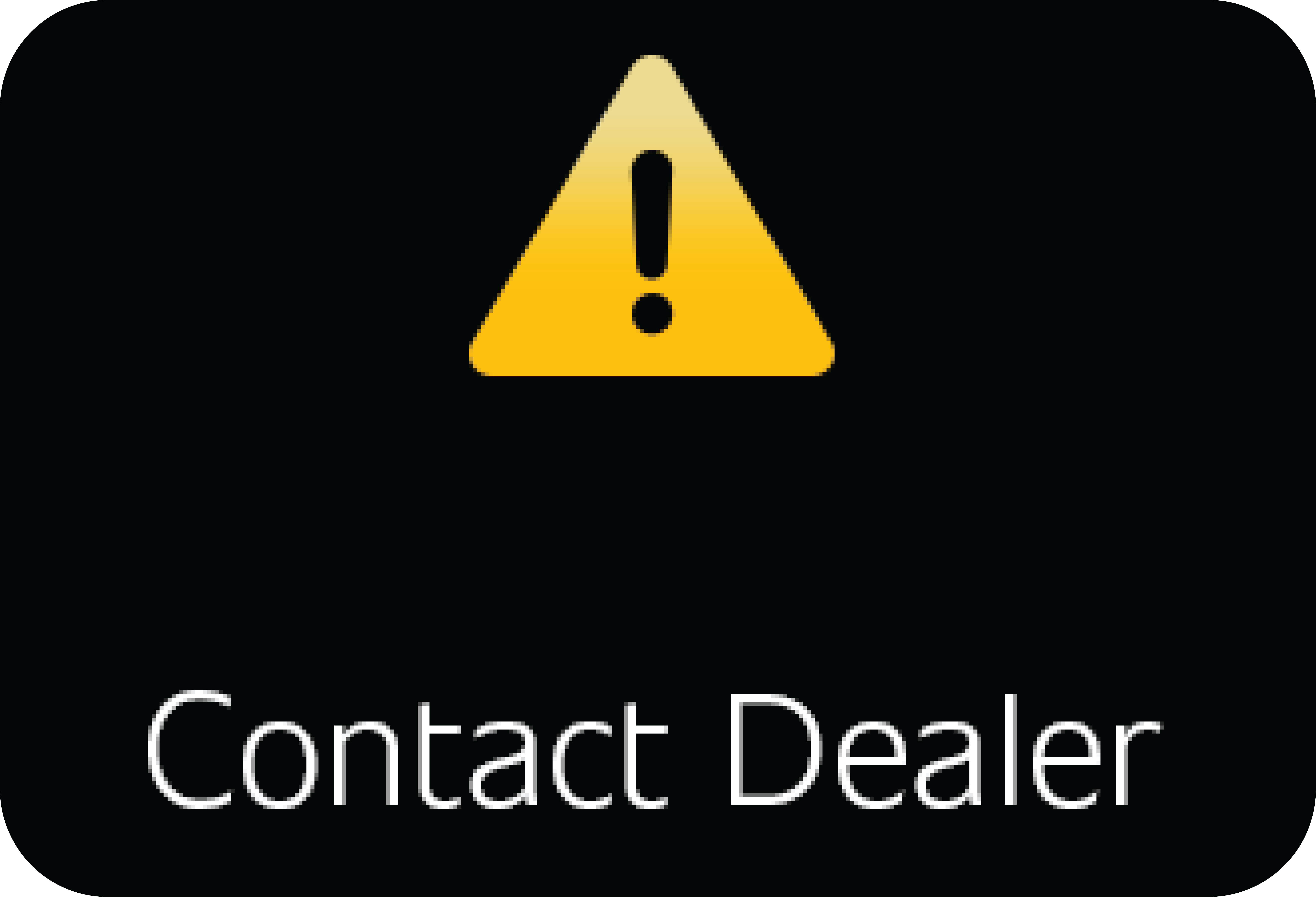

The message is displayed if the system check-up is required since the ESCL system is malfunctioning. |
|
|
The message is displayed if ESCL coding checkup is required. (Corresponding signal transmitted, with no coding between SKM
and ESCL)
|
TFT |
DIGITAL |
||
<Level 5> |
|||
|
|
|
|
<Level 3> |
|||
|
|
|
|
<Level 0> |
|||
|
|
1. | When vehicle speed is zero and parking brake engaged. |
2. | When vehicle speed is zero and vehicle is in neutral and clutch is not engaged. |
TFT |
DIGITAL |
Operating Conditions |
|
---|---|---|---|
|
|
Passenger door open
High: with animation
Low: No animation |
|
|
|

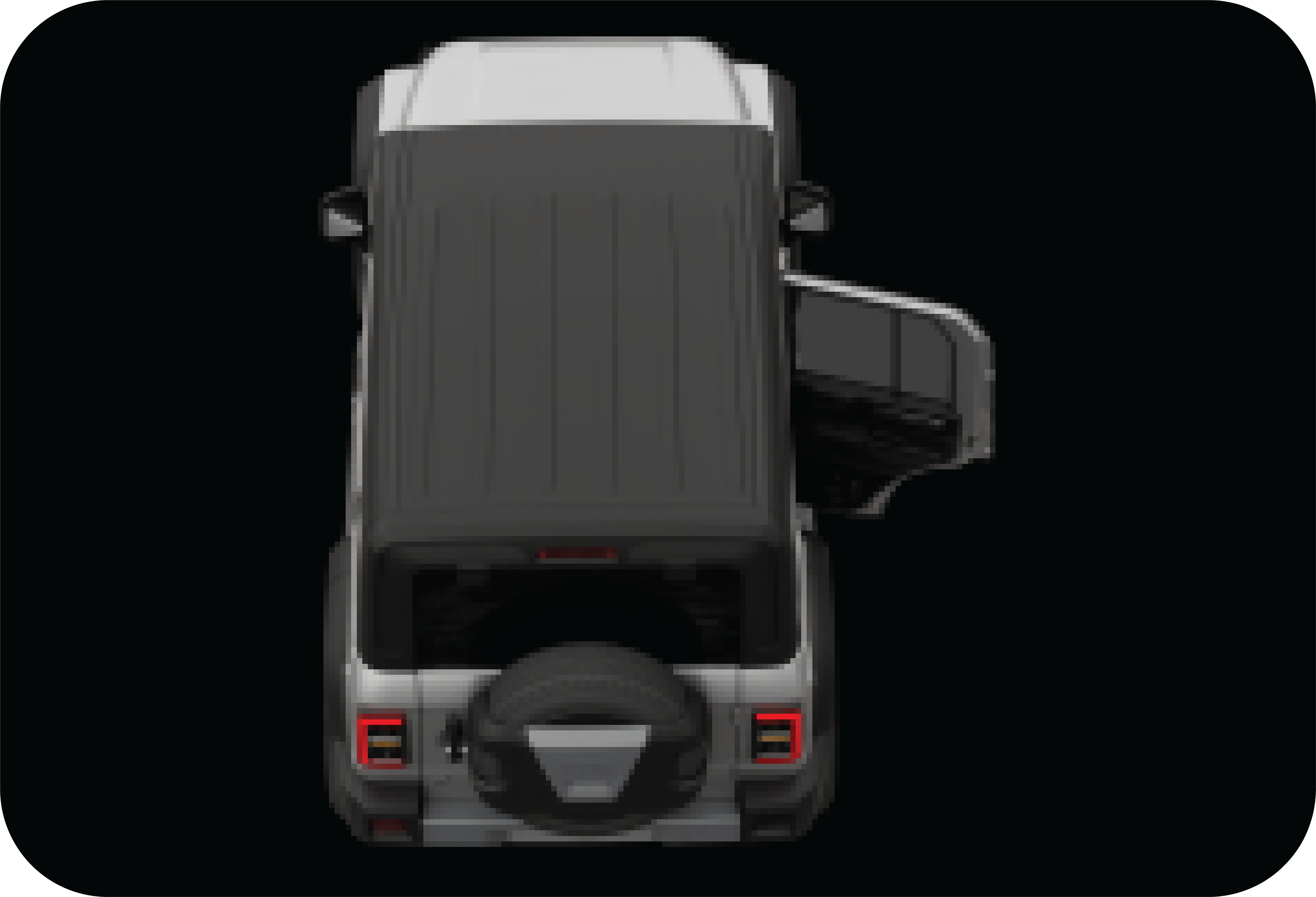

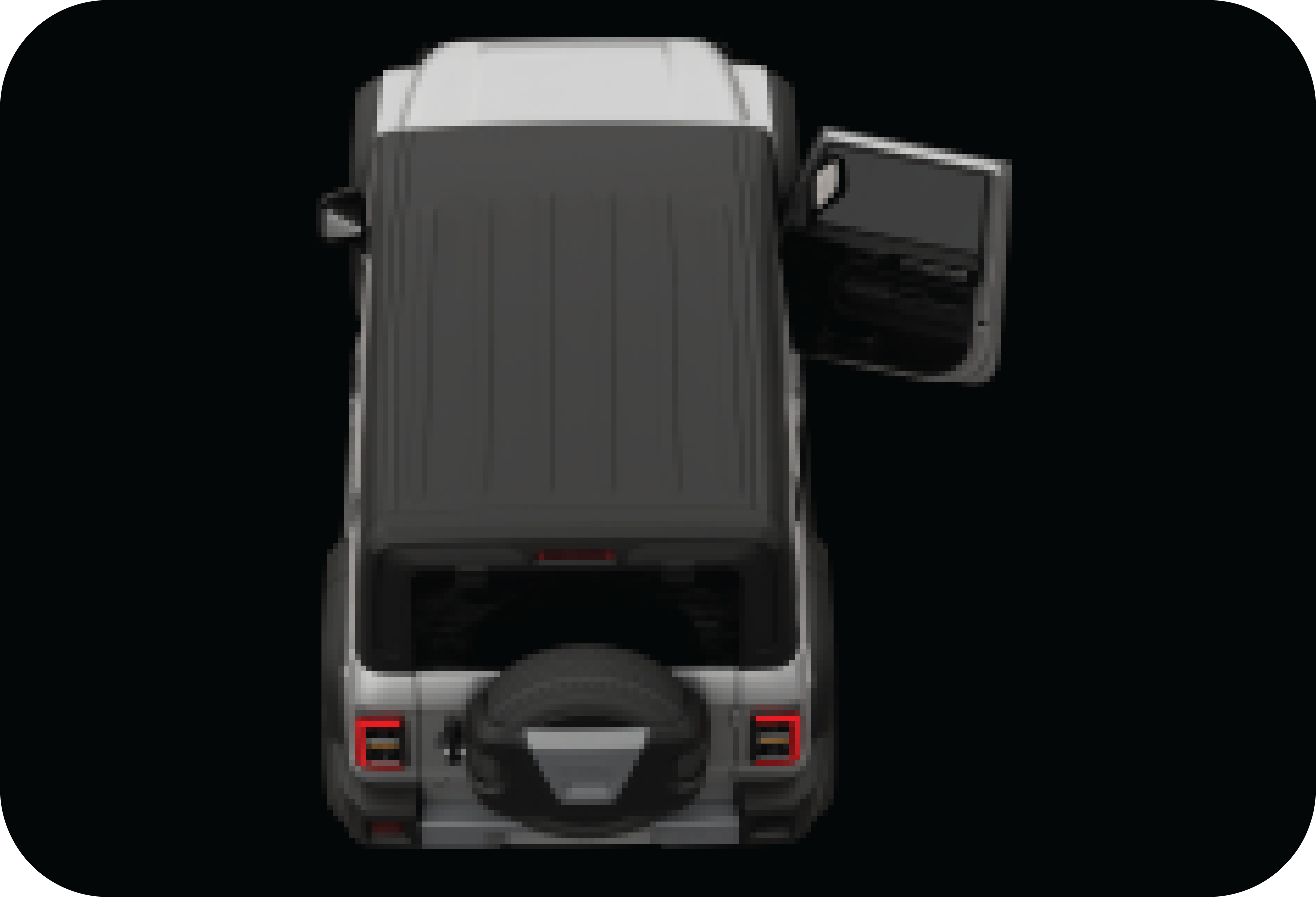

Driver door open
High: with animation
Low: No animation |
|
|
|
Hood Open
High/Low: Blinking |
|
|
|

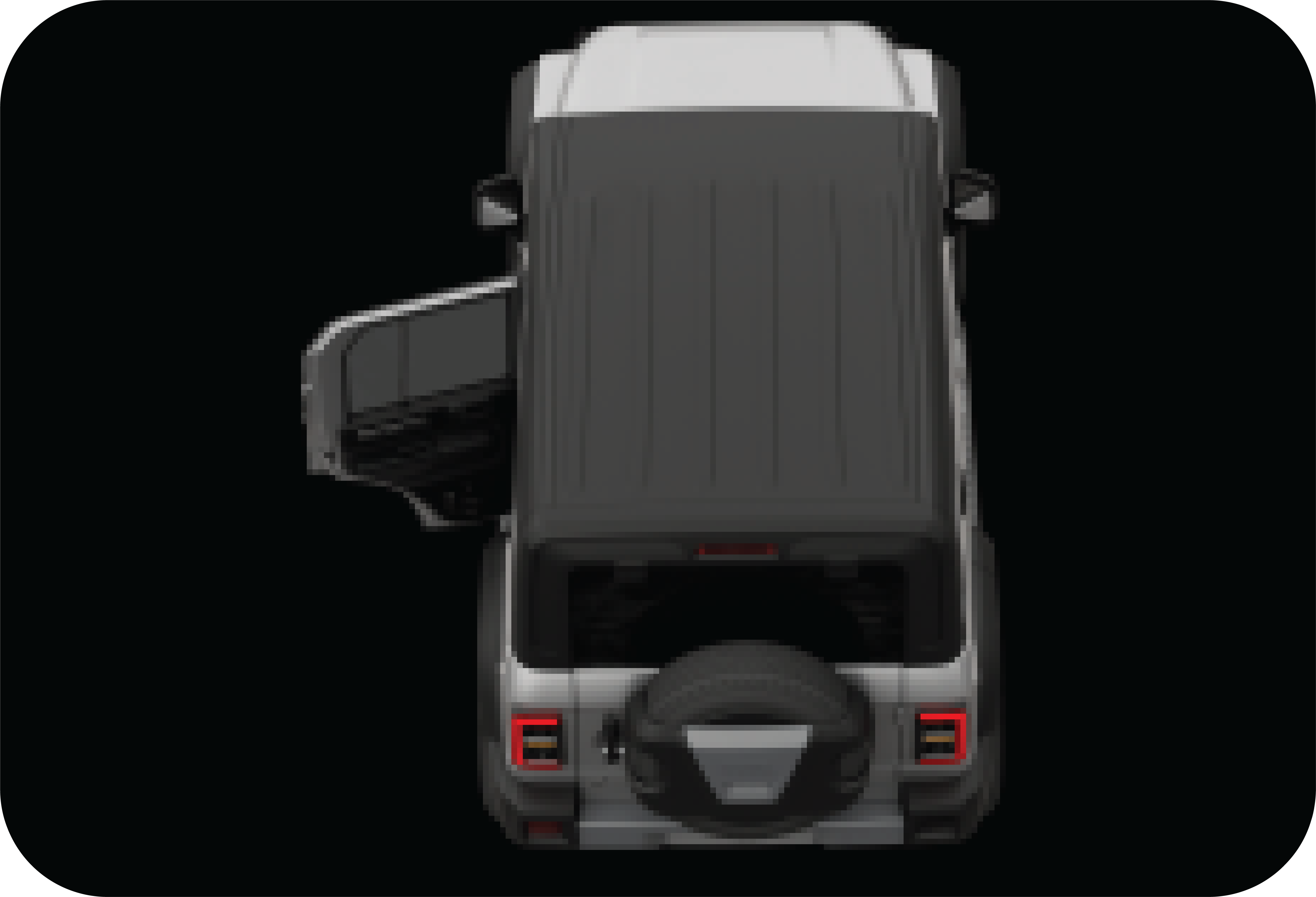

Rear door (LH) open
High: with animation
Low: No animation |
|
|
|
Rear door (RH) open
High: with animation
Low: No animation |
|
|
|

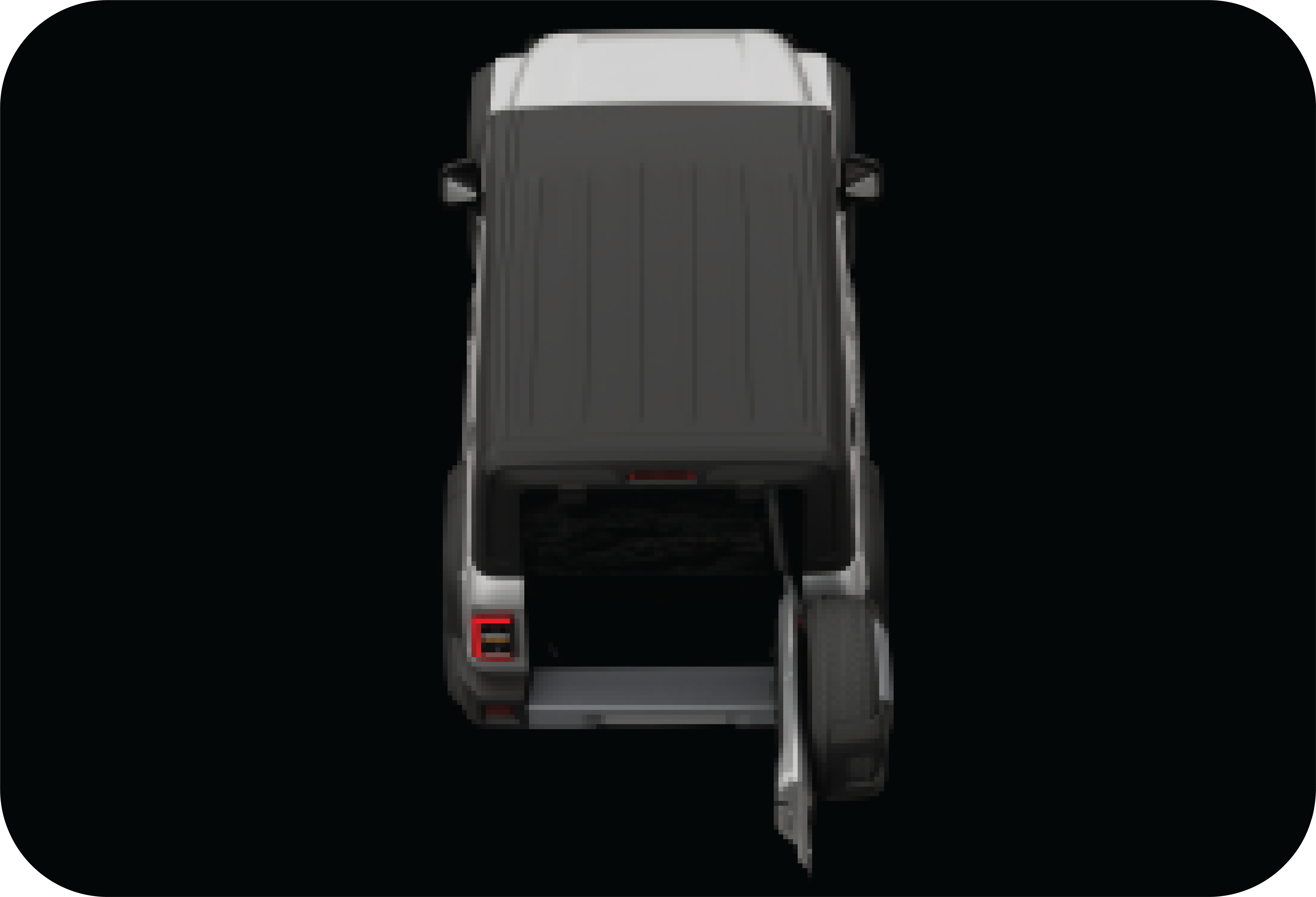

Tailgate open
High/Low: Blinking |
TFT |
DIGITAL |
|
|
Symbol |
Warning Lamp/Tell Tale |
Lamp Pre-check |
Lamp Status |
Action/Remarks |
---|---|---|---|---|
|
Left Turn Indicators |
No |
Slow or Fast Blinking |
Indicates left turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced |
|
OBD Check Lamp |
Yes |
Continuously ON or Blinking |
Telltale will always be ON till engine starts after which it will turn OFF. Telltale ON even after start of engine indicates
an emission system related failure. Contact an Mahindra Authorised Dealer immediately. |
|
Low Engine Oil Pressure Warning Lamp |
No |
Continuously ON |
Telltale will always be ON till engine starts after which it will turn OFF. Telltale ON even after start of engine indicates
low engine oil pressure. Contact an Mahindra Authorised Dealer immediately |
|
Engine Start/Stop telltale* |
No |
Continuously ON or Blinking |
CONTINUOUSLY ON: Engine is in auto stop mode Blinking: Stop/Start is about to stop the engine FAST BLINKING: Stop/Start is inhibited due to unhealthy battery conditions |
|
Door Ajar Warning Lamp |
No |
Continuously ON |
Indicates one or more doors are open |
|
AT Malfunction indicator Lamp* |
YES |
Continuously ON or Blinking |
Telltale is used to indicate an AT fault. Telltale Continuous ON means AT Fault. Contact Authorized Mahindra Dealer immediately
if the MIL Lamp doesn’t turn off after an ignition reset.
Blinking Telltale implies overheating of clutch due to abuse conditions. This is only to warn the customer and to prevent
a clutch damage. Telltale will turn off once the clutch temperature becomes normal. |
|
Airbag Warning Lamp |
Yes |
Continuously ON |
Indicates malfunction of the airbag system. Contact an Mahindra Authorised Dealer immediately |
|
Water in Fuel warning Lamp* |
Yes |
Continuously ON |
Indicates water in fuel filter. Drain the water from filter or contact an Mahindra Authorised Dealer for assistance |
|
Battery Charging System Warning Lamp |
No |
Continuously ON |
Telltale will be ON in ignition ON But engine is OFF. If it is ON in engine ON condition, it represents malfunction in charging
system. Contact an Mahindra Authorised Dealer for assistance |
|
Right Turn Indicators |
No |
Slow or Fast Blinking
|
Indicates right turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced |
|
ABS Warning Lamp |
Yes |
Continuously ON |
Indicates malfunction of the ABS system. Contact an Mahindra Authorised Dealer immediately
|
|
Check Engine Lamp |
Yes |
Continuously ON or Blinking |
Indicates a potential malfunction in the Engine System, contact an Mahindra Authorised Dealer immediately |
|
Overspeed Alert * |
No |
Continuously ON
|
Telltale will blink when vehicle is running at speed greater than 120 kmph |
|
DPF Indicator Lamp * |
Yes |
Continuously ON |
If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions
mentioned in the “EMISSION CONTROL SYSTEM” |
|
Parking Lamp |
No |
Continuously ON |
Indicates Park Lamp is ON |
|
Immobilizer |
No |
Continuously ON or Blinking |
Slow Blinking in IGN ON: vehicle has been turned on using an invalid key. Fast Blinking/Continuously ON: Indicates a system malfunction Contact an Mahindra Authorised Dealer immediately |
|
DEF Indicator Lamp* |
Yes |
Continuously ON |
It indicates that either DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions
mentioned in the “EMISSION CONTROL SYSTEM” |
|
Head lamp High Beam Indicator |
No |
Continuously ON |
Indicates Head lamp high beam is ON |
|
Front Fog Lamp Indicator * |
No |
Continuously ON |
Indicates front fog lamps are ON. |
|
Seat Belt Warning Lamp |
No |
Continuously ON |
If telltale is not turning OFF even after fastening the seat belt, contact an Authorised Mahindra Dealer for assistance |
|
Low Fuel Warning Lamp |
No |
Continuously ON or Blinking |
Telltale ON indicates that the fuel in the tank has reached the reserve level. Telltale blinking indicates a failure in the
fuel gauge. Contact Mahindra Authorised Dealer immediately. |
|
High Coolant Temperature Warning Lamp |
No |
Continuously ON or Blinking |
Telltale ON indicates that the engine coolant temperature is high. Telltale blinking indicates very high coolant temperature |
|
HHC Malfunction |
No |
Continuously ON |
Indicates malfunction of Hill Hold Control. Contact an Mahindra Authorised Dealer immediately |
|
HDC |
No |
Continuously ON |
Indicates malfunction of Hill Descend Control. Contact an Mahindra Authorised Dealer immediately |
|
Park Brake / EBD / Low Brake Fluid Telltale / EPB / Brake pad worn out* |
Yes |
Continuously ON |
Either one of the below conditions: 1. Park Brake might be engaged 2. Brake fluid level might be low 3. There is some concern in ABS/EBD failure. 4. Front Brake Pad wear worn out. Please contact Mahindra Dealer. |
|
ESC Malfunction Warning Lamp |
Yes |
Continuously ON or Blinking |
Blinking: Indicates ESC has taken control of the vehicle stability Continuously ON: Indicates a malfunction in the ESC system. Contact an Mahindra Authorised Dealer immediately |
|
ESC OFF Lamp |
Yes |
Continuously ON |
Indicates ESC OFF |
|
Glow Plug Indicator* |
No |
Continuously ON |
Indicates a malfunction in the starting system. Contact an Mahindra Authorised Dealer immediately |
|
REGEN Indicator Lamp* |
NO |
Continuously ON or Blinking |
ON: Regeneration is required Blink: Regeneration is in progress |
|
Cruise Control Indicator * |
Yes |
Continuously ON |
Indicates vehicle is in Cruise mode |
|
EPS Warning Lamp* |
After Pre-check Continuously ON till Engine Starts |
Continuously ON |
Indicates malfunction on Electronic Power steering system. Contact an Authorised Mahindra Dealer immediately |
|

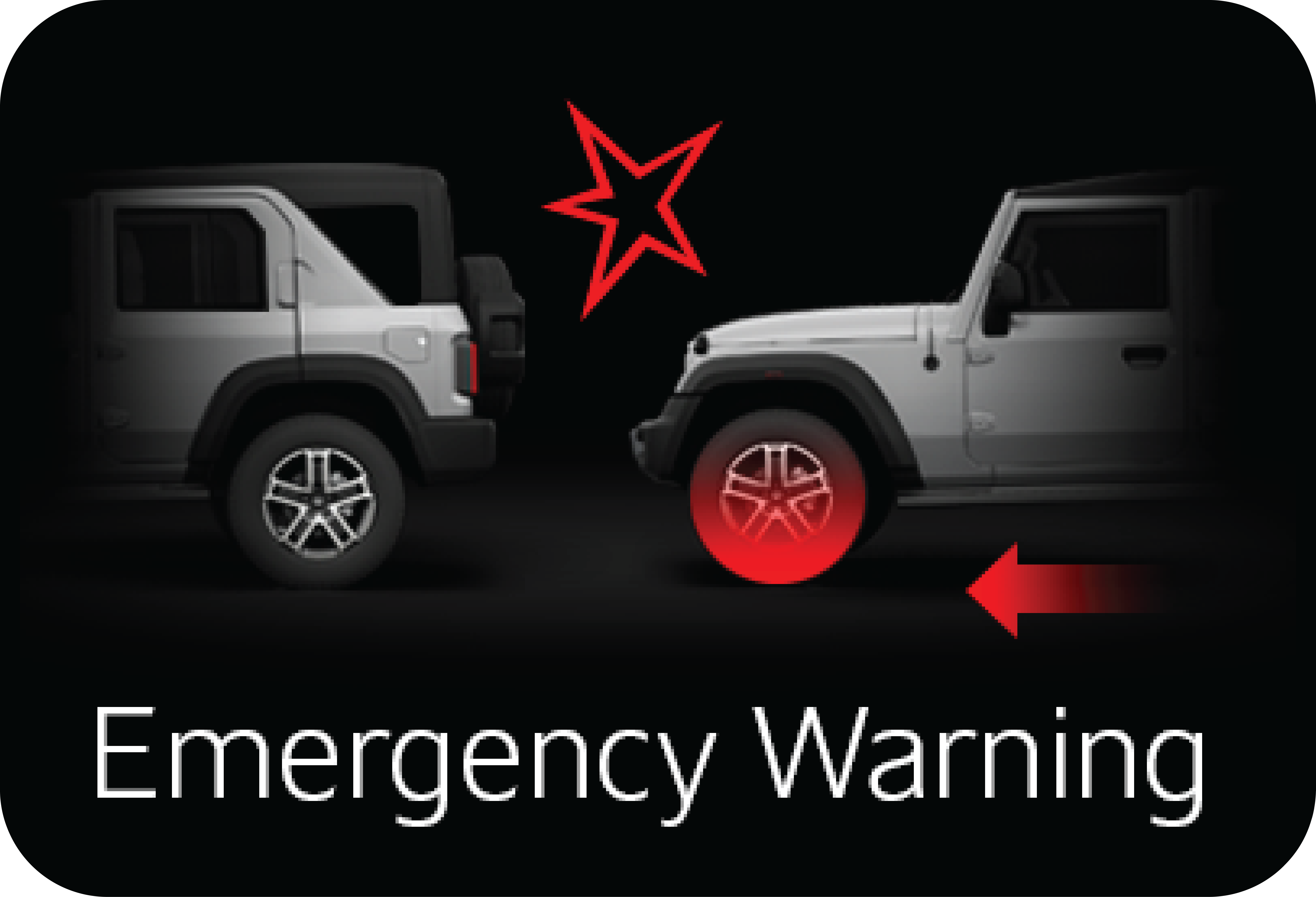

Automatic Emergency Braking System OFF telltale* |
No |
Continuously ON |
Indicates AEB system is turned off by user. |
|
Lane Keep Assist System*(LKA) |
No |
Continuously ON |
Indicates LKA system is in Standby state |
|
No |
Continuously ON or Blinking |
Indicates LKA system is in Active state Blinking: LKA system providing Warning to the user |
|
|
No |
Continuously ON or Blinking |
LKAS System fail/Malfunction. This warning message is displayed if there is a problem with LKAS system.Contact a Mahindra
Authorised Dealer immediately Blinking: Camera not calibrated properly |
|
|
Lane Departure Warning System*(LDW) |
No |
Continuously ON |
Indicates LDW system is in Standby state |
|
No |
Continuously ON or Blinking |
Indicates LDW system is in Active state Blinking: LDW system providing Warning to the user |
|
|
No |
Continuously ON or Blinking |
LDW System fail/Malfunction. This warning message is displayed if there is a problem with LDWS system. Contact a Mahindra
Authorised Dealer immediately Blinking: Camera not calibrated properly |
|
|
Smart Pilot Assist* |
No |
Continuously ON |
Indicates Smart Pilot Assist is in Standby state |
|
No |
Continuously ON or Blinking |
Indicates Smart Pilot Assist is in Active state |
|
|
No |
Continuously ON |
Smart Pilot Assist system fail/Malfunction. This warning message is displayed if there is a problem with SPA system. Contact
a Mahindra Authorised Dealer immediately |
|
|

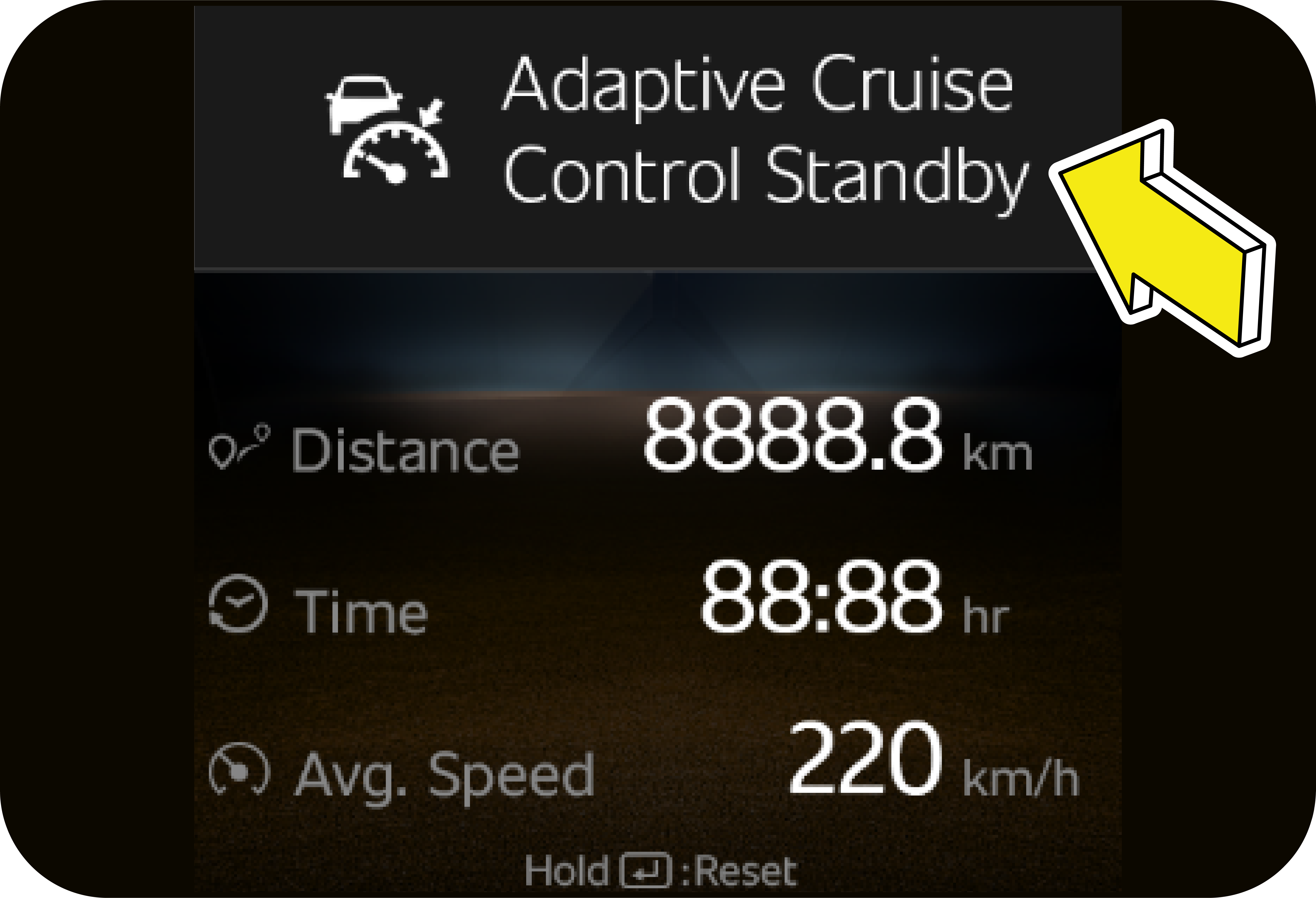

Adaptive Cruise Control* |
No |
Continuously ON |
Indicates Adaptive cruise control system is in standby state. |
|
No |
Continuously ON |
Indicates Adaptive cruise control system is in active state. |
|
|
No |
Continuously ON |
Indicates Adaptive cruise control system temporarily not available due to temporary abnormal condition. Check if radar is
blocked and clean. |
|
|
No |
Continuously ON |

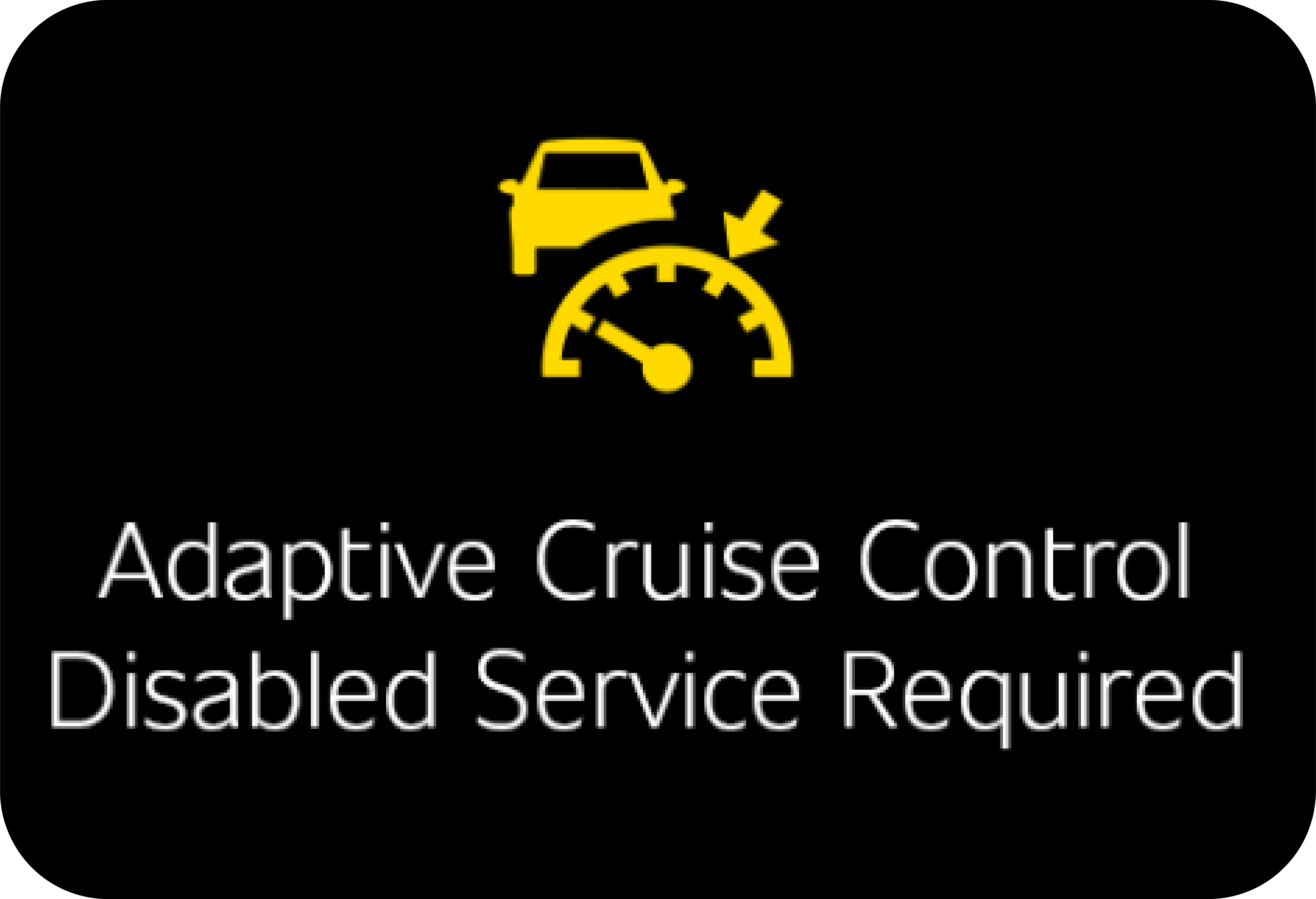

Indicates malfunction of Adaptive cruise control system. Contact a Mahindra Authorised Dealer immediately. |
|
|
Auto Vehicle Hold* |
No |
Continuously ON |
Indicates Auto Vehicle Hold in standby Mode. |
|
No |
Continuously ON |
Indicates Auto Vehicle Hold in Active Mode. |
|
|
No |
Continuously ON |
Indicates malfunction of Auto Vehicle Hold. Contact a Mahindra Authorised Dealer immediately |
|
|
EPB Malfunction* |
Yes |
Continuously ON |
Indicates malfunction of Electric Parking Brake. Contact a Mahindra Authorised Dealer immediately |
|
High Beam Assist* |
No |
Continuously ON |
Indicates high beam assist function is enabled/active. |
|

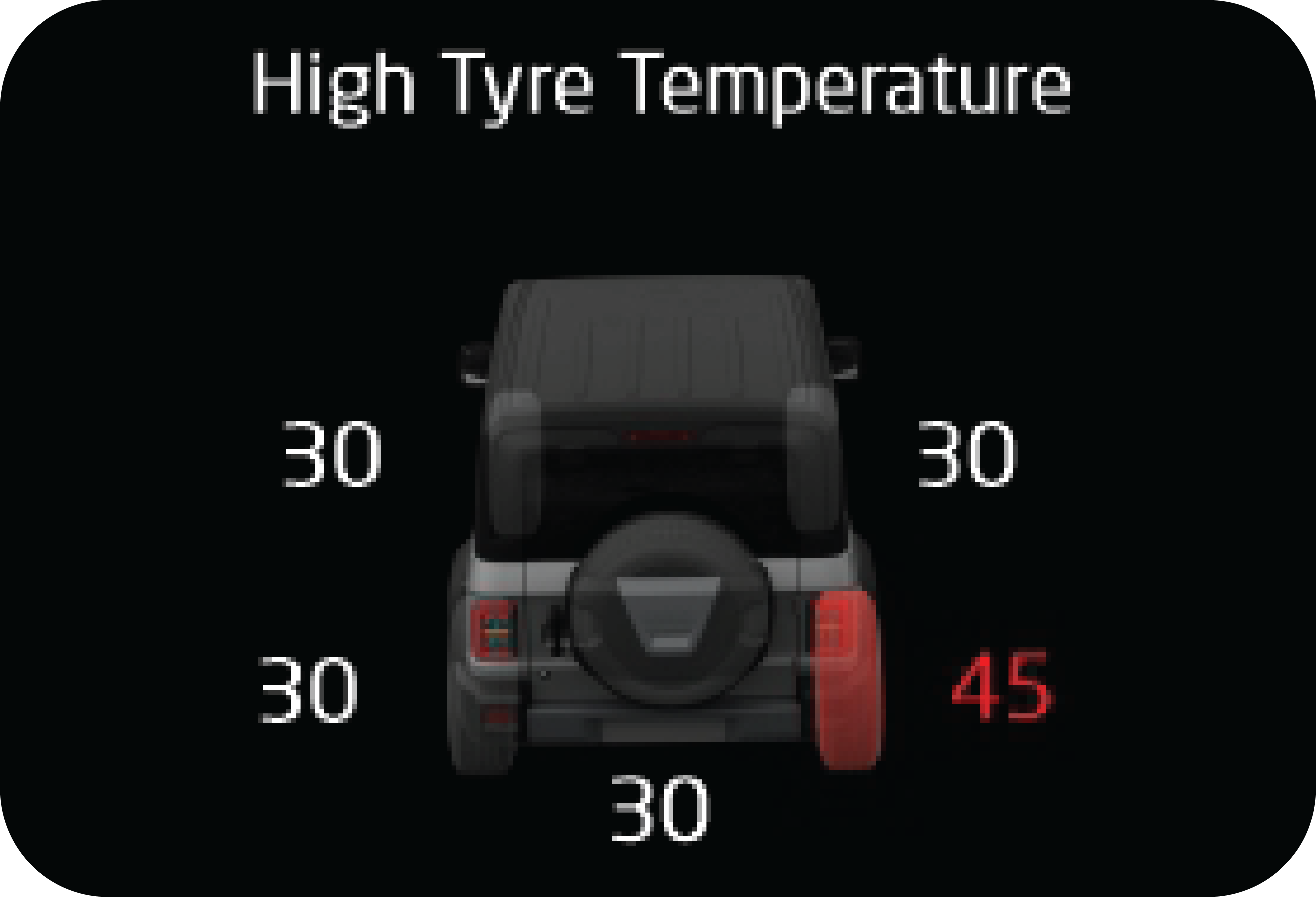

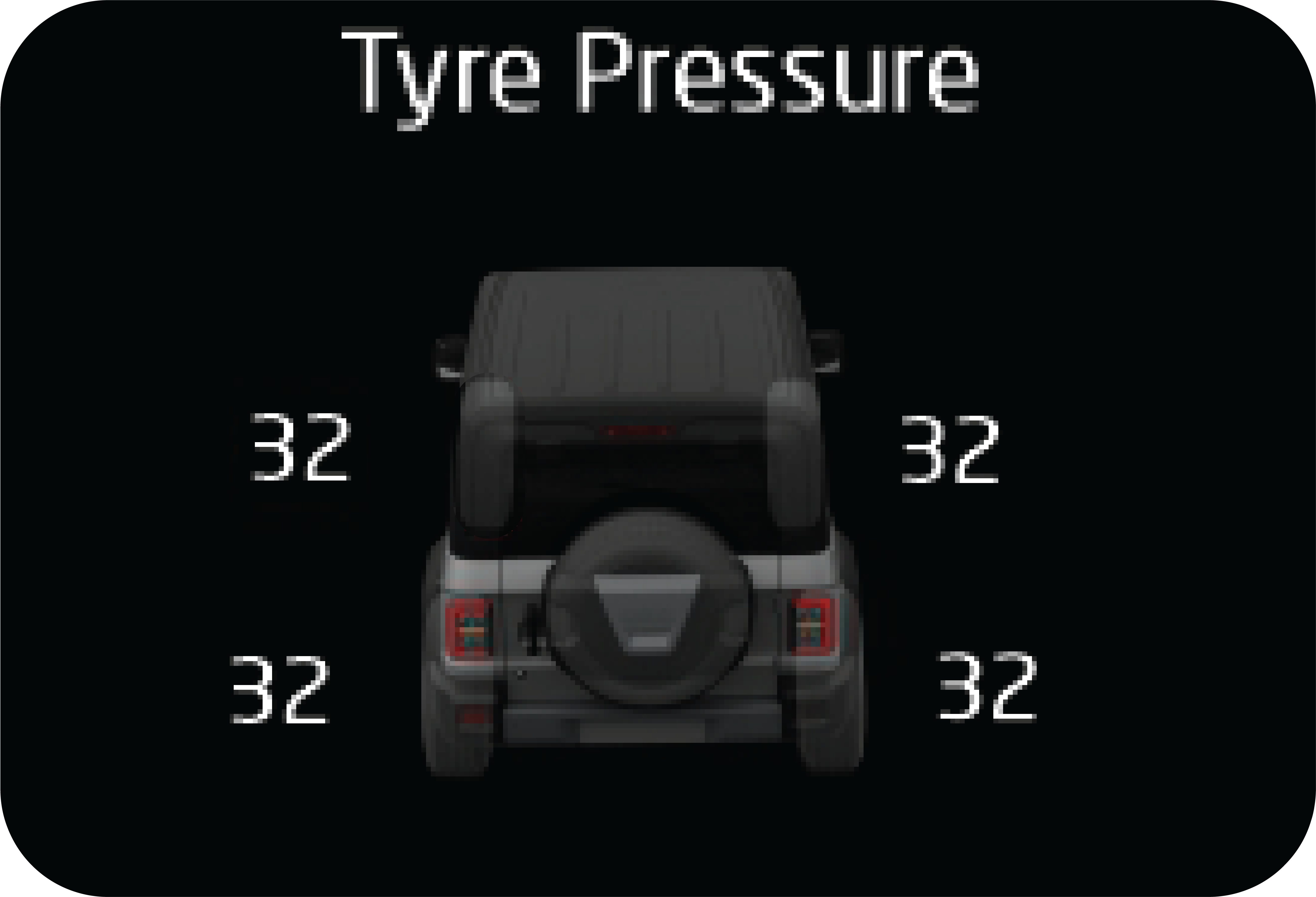

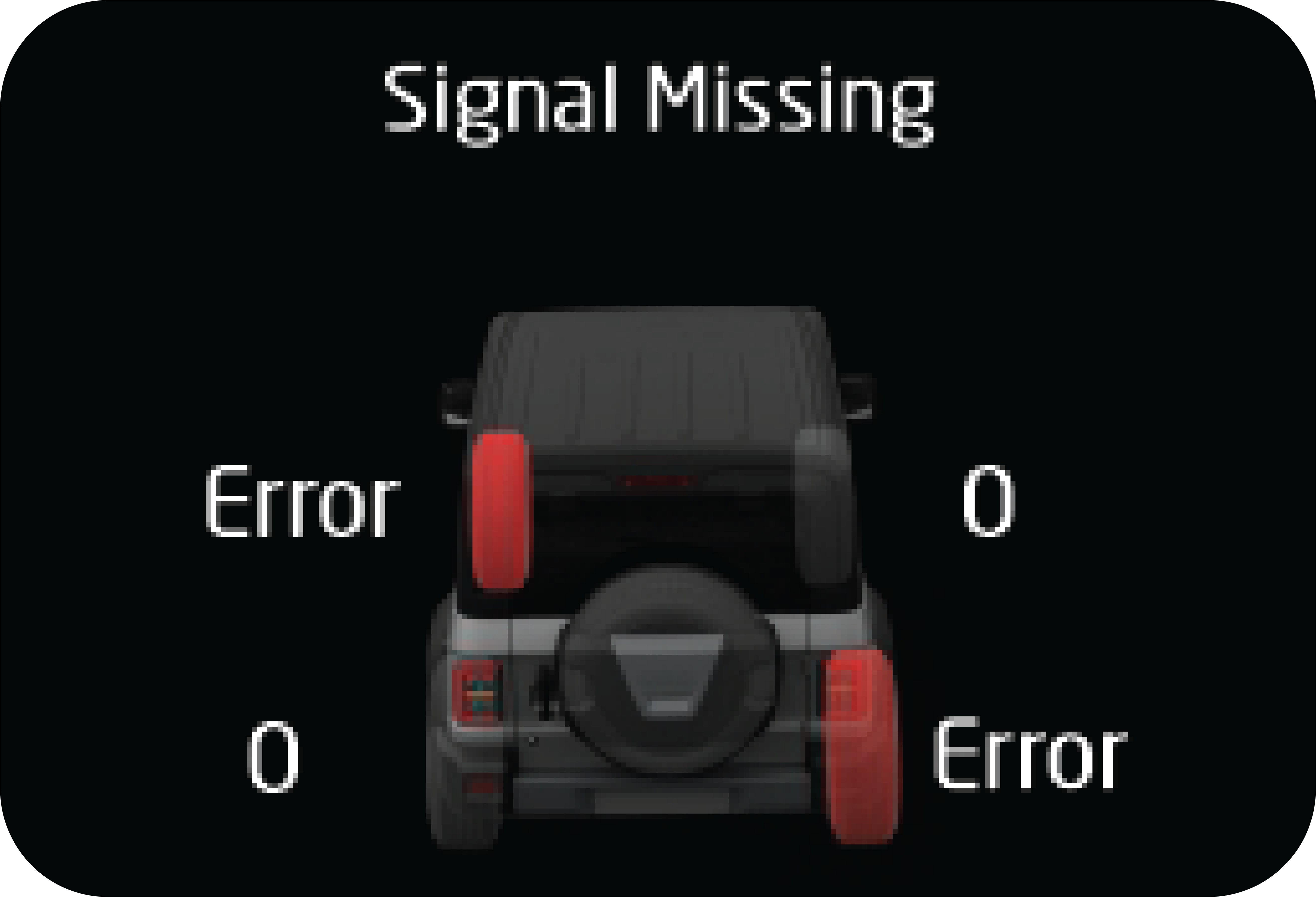

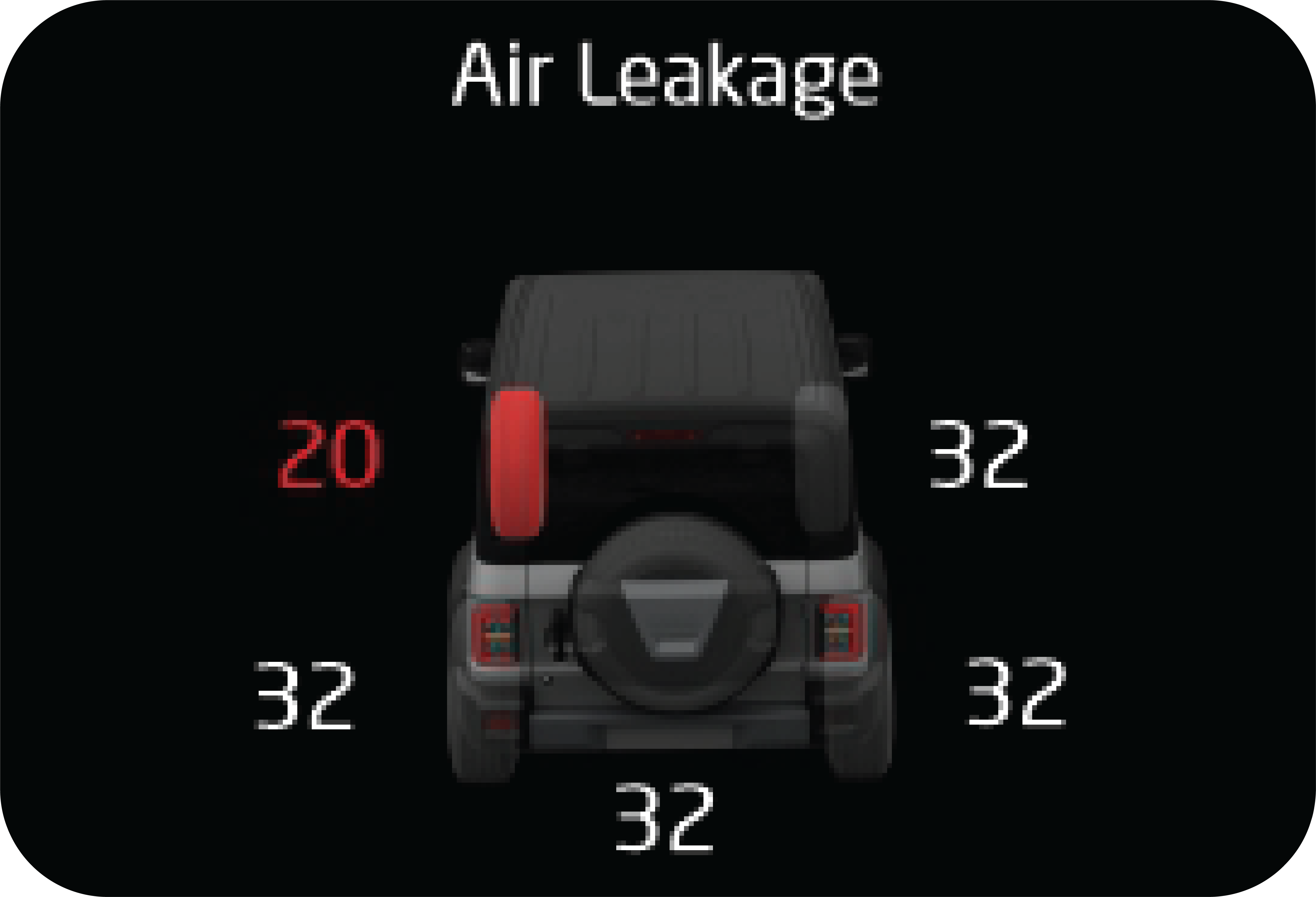

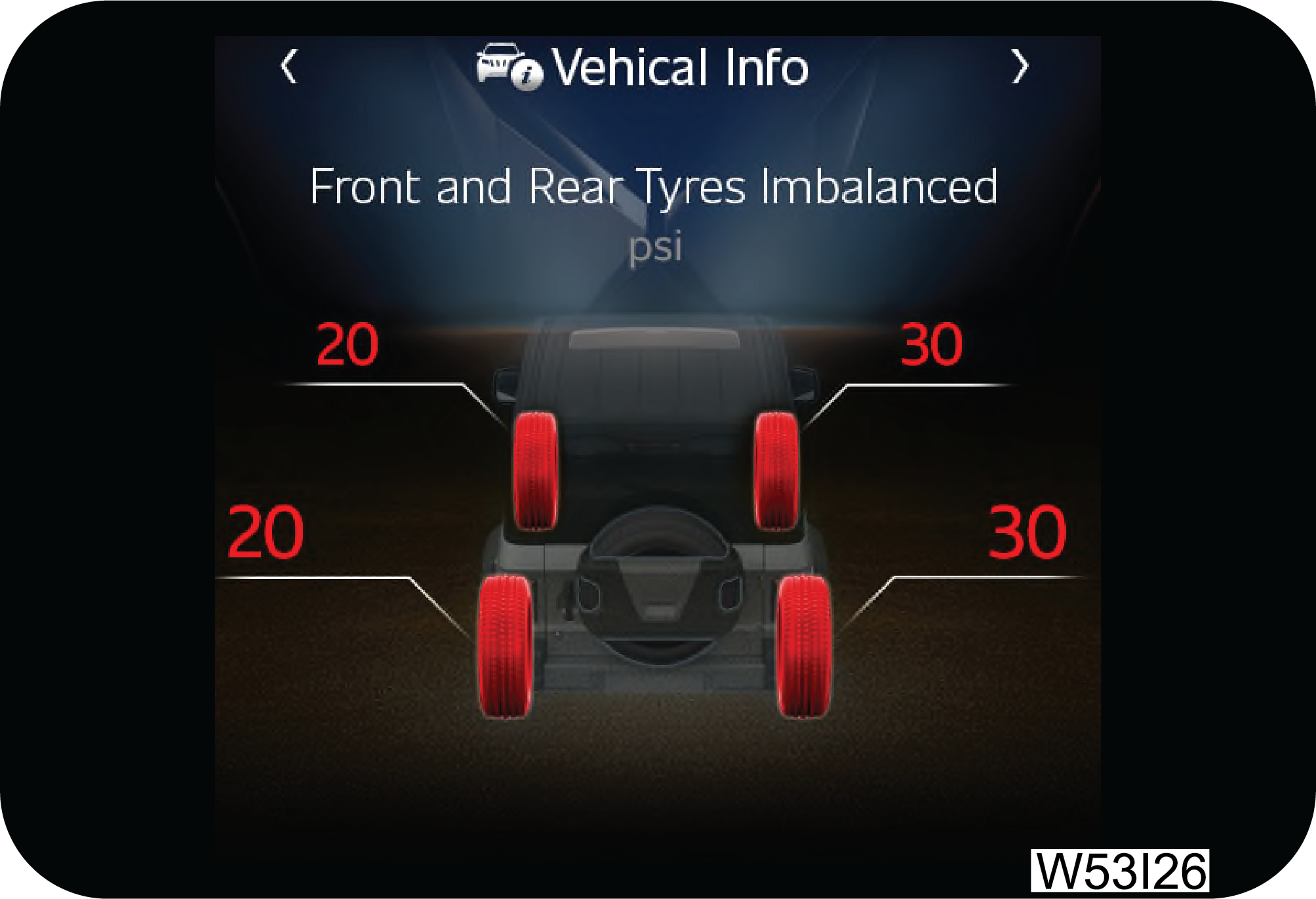

Tiretronics* |
Yes |
Continuously ON or Blinking |
Indicates low/high tyre pressure or possible malfunction in Tiretronics. Refer to Tiretronics section in INSTRUMENT CLUSTER
FEATURES/WHEELS AND TYRES chapter for further details |
|
4WD Low |
No |
Continuously ON or Blinking |
Blinking: Indicates 4 wheel drive low engagement is in progress.
ON: 4 Wheel drive low is engaged.
|
|
4WD High |
No |
Continuously ON or Blinking |
Blinking: Indicates 4 wheel drive high engagement is in progress.
ON: 4 wheel drive high is engaged..
|
|
Electronic Locking Differential (ELD) |
No |
Continuously ON or Blinking |
Indication will display whenever ELD engaged |
|
Intelligent Turn Assist |
No |
Continuously ON or Blinking |
Blinking: Indicates Intelligent Turn Assist (ITA) function is Active.
ON: Indicates Intelligent Turn Assist (ITA) function is standby/available for activation.
|
|
Smart Crawl Assist |
No |
Continuously ON |
Indicates Smart Crawl Assist is activated. |
* – If equipped |
• | Check if the parking brake/ Electric parking brake is engaged. If yes, disengage it |
• | Check if brake fluid level is low. If yes, top-up brake fluid to the required level |
• | Check if front brake pad is worn out. If yes, replace the front brake pads |
• | Lamp fails to go OFF after engine is started |
• | Lamp does not illuminate at all |
• | Illuminates while driving |
• | The fuel management system |
• | The emission control system |
• | Systems which affect emissions |
• | Pull the vehicle to the kerb and STOP the vehicle |
• | Shift the gear to Neutral |
• | Wait till the warning lamp turns-OFF |
• | If the warning lamp keeps blinking and not turning-OFF, Contact an Authorised Mahindra Dealer immediately |
|
Illuminates
|
There is a malfunction in AVH
|
|
Illuminates
|
AVH is in Standby mode
|
|
Illuminates
|
AVH is in Active mode
|
• | When the AUTO HOLD switch is operated, the AUTO HOLD system will be switched to READY mode and the "AUTO HOLD" indicator on the instrument cluster will be illuminated in white. |
• | Operating the AUTO HOLD switch again turns off the indicator and deactivates the AUTO HOLD system. |
|

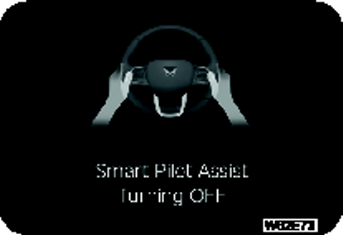

Illuminates
|
SPA system is in Standby state
|
|
Illuminates
|
SPA system is in Active state
|
|

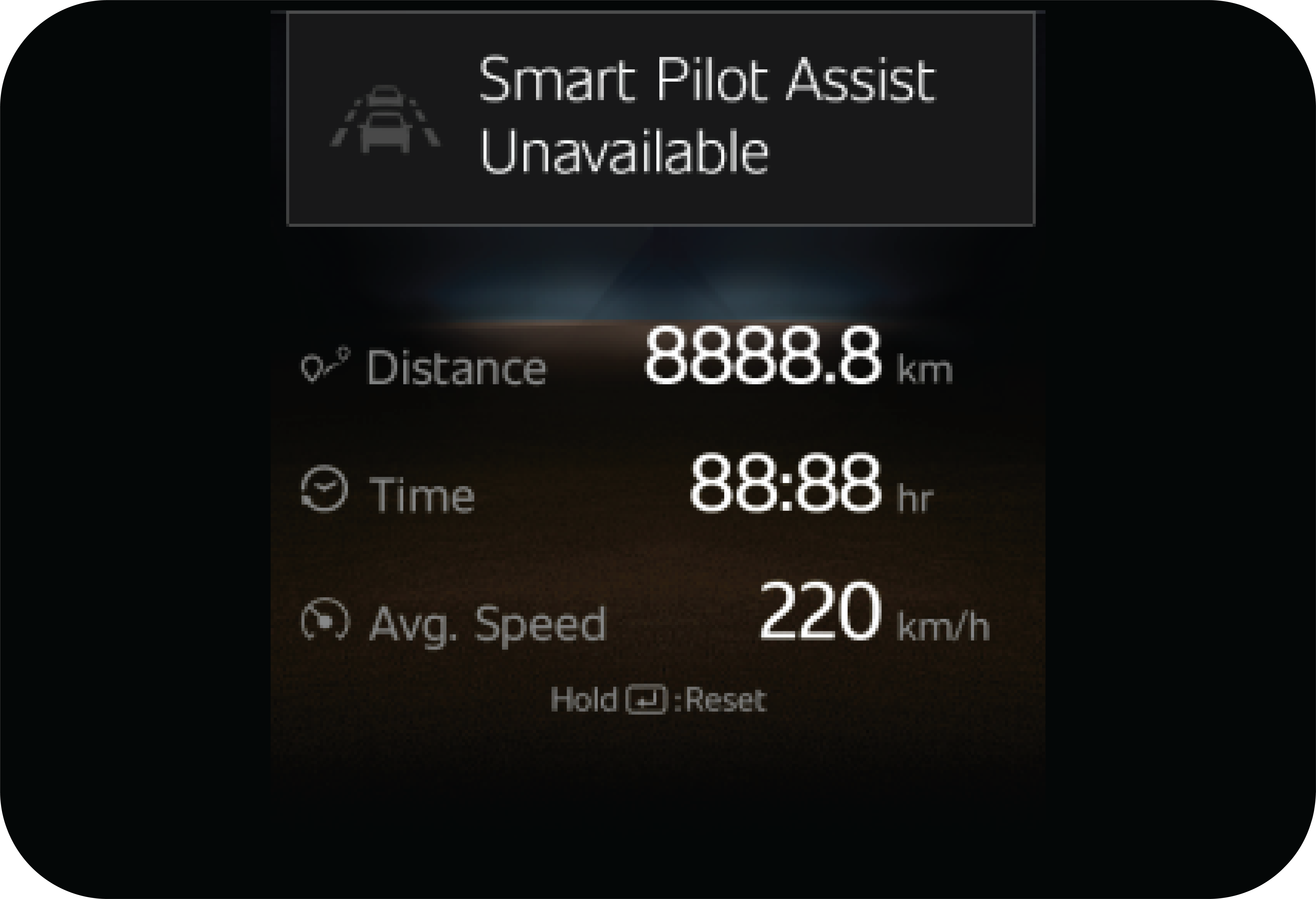

Illuminates
|
SPA system is in Not Working/Fail state
|

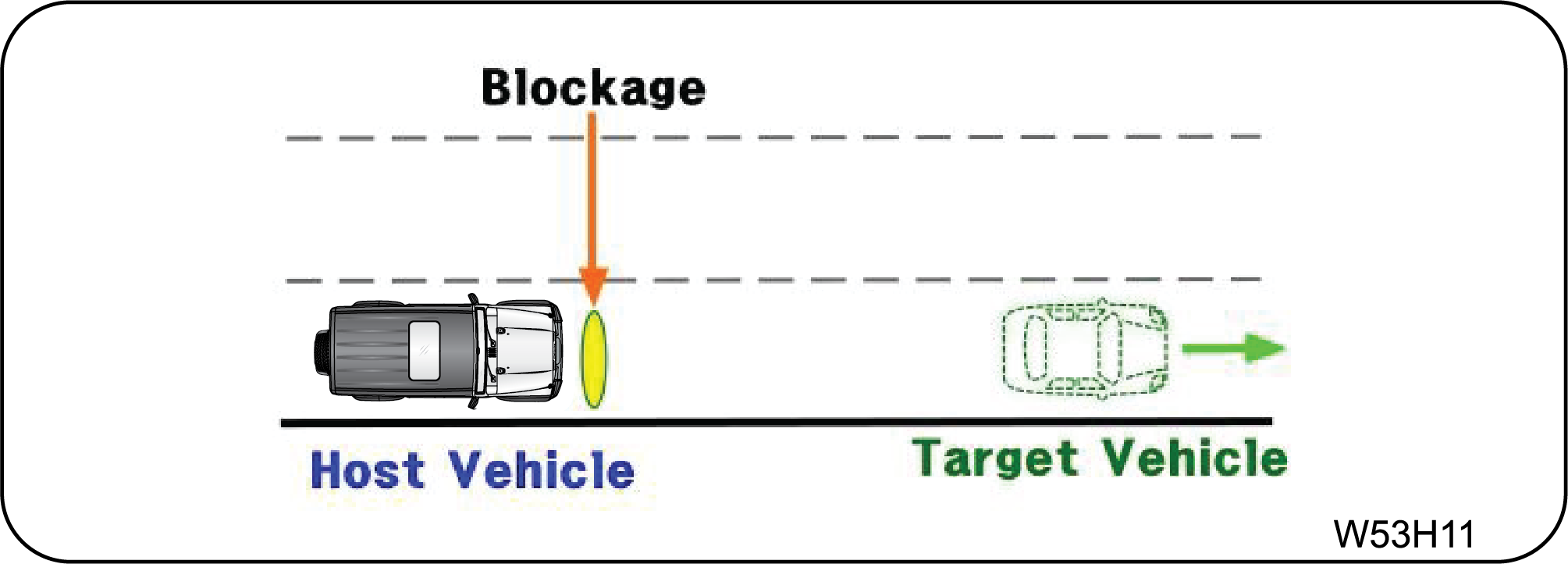

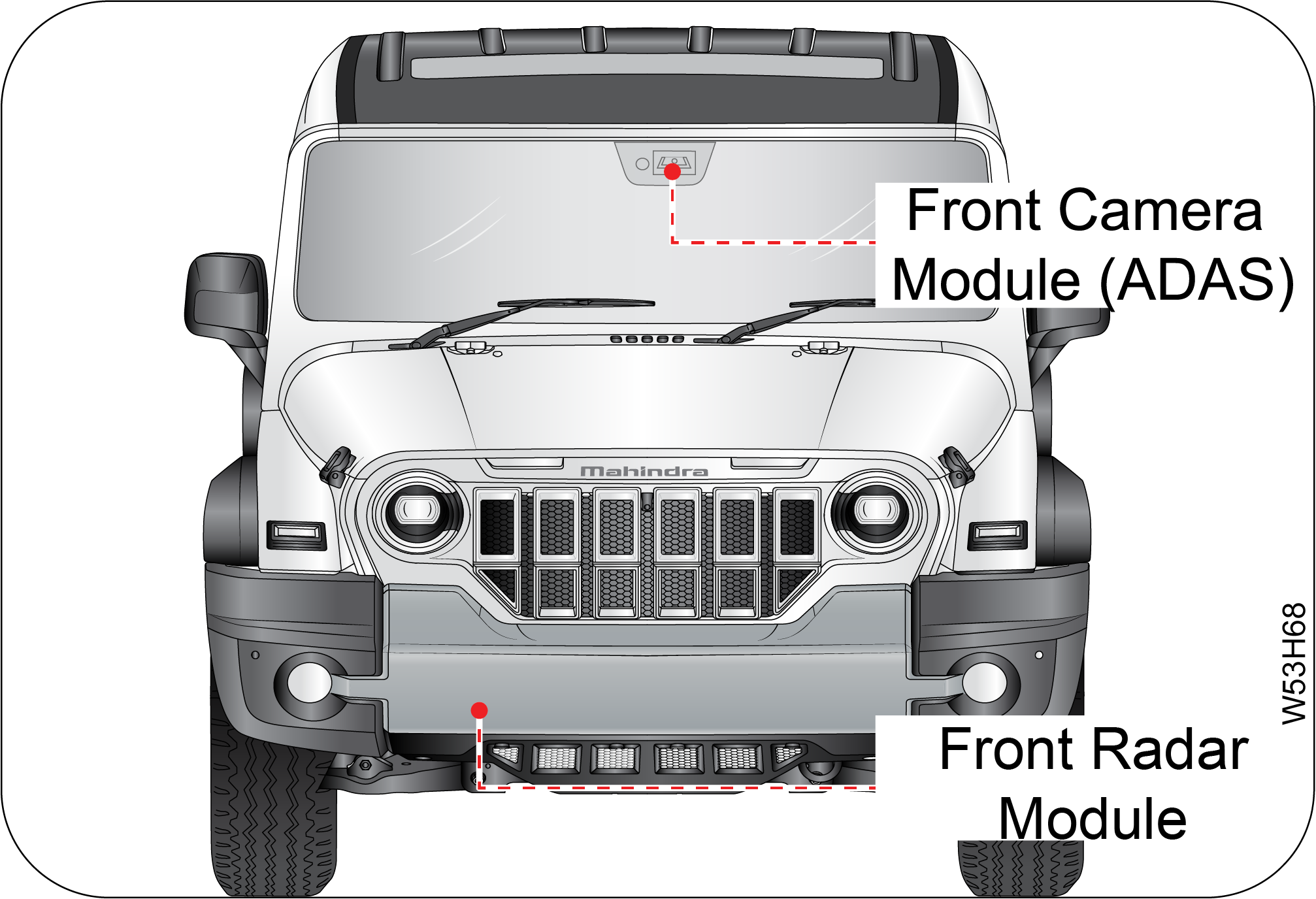

• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
|
Illuminates
|
ACC system is in Standby state
|
|
Illuminates
|

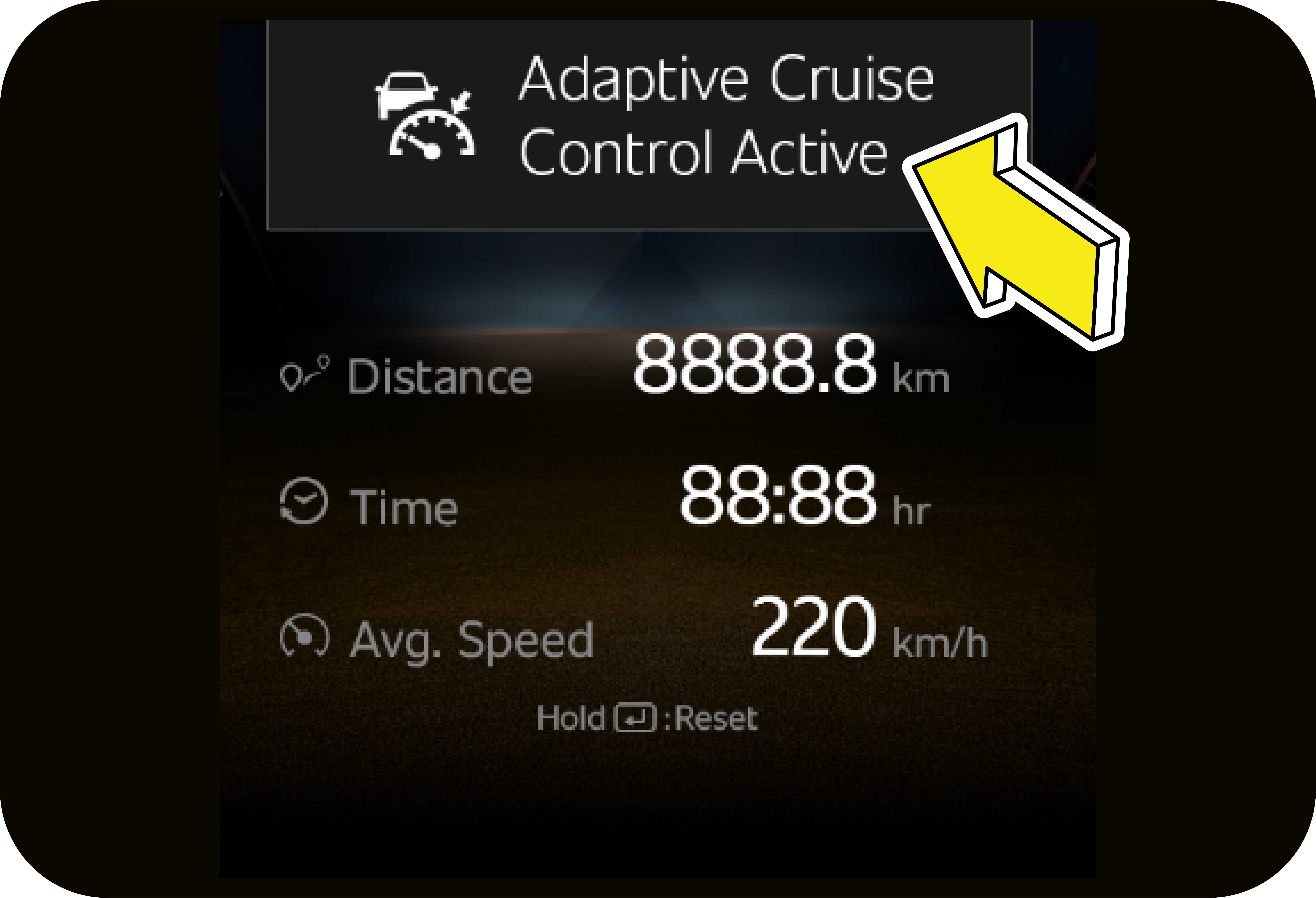

ACC system is in Active state
|
|
Illuminates
|
ACC system temporarily not available due to temporary abnormal condition
|
|
Illuminates
|
ACC system is Not Working/Fail State
|

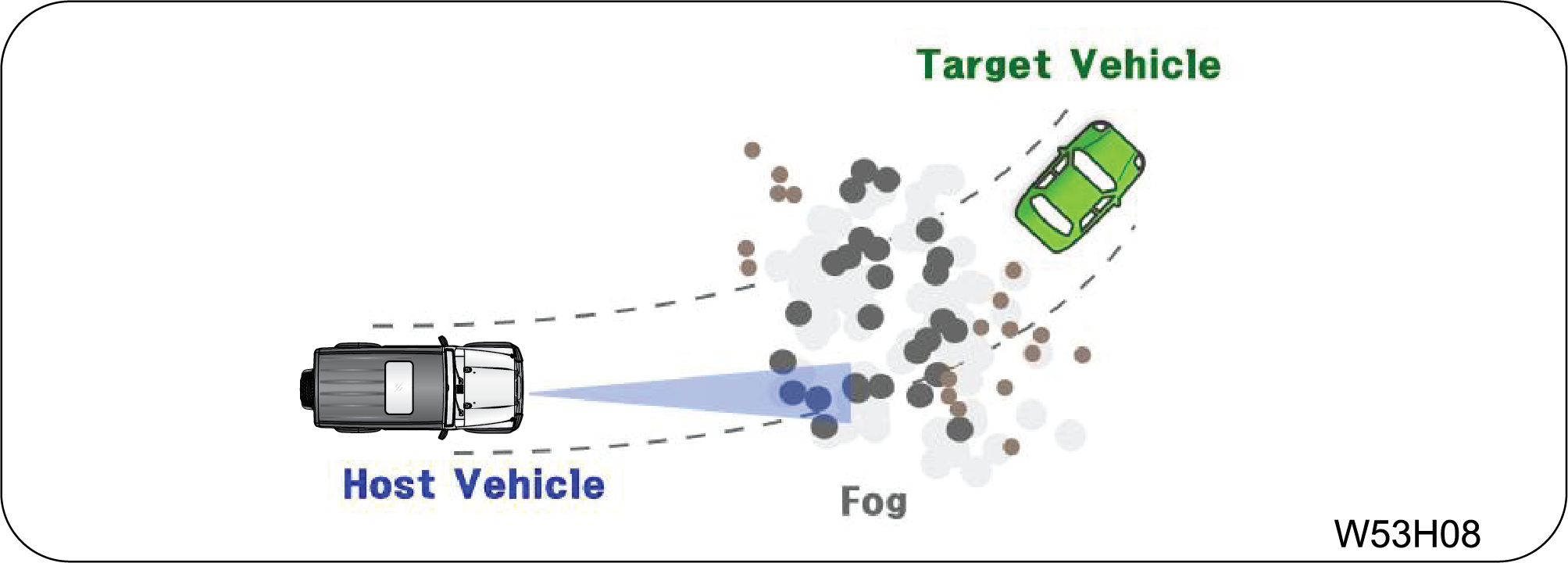

• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
|
Illuminates
|
LKA system is in Standby state
|
|
Illuminates
|
LKA system is in Active state
|
|
Illuminates
|
LKA system is in Not Working/Fail state
|
• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
|
Illuminates
|
LDW system is in Standby mode
|
|
Illuminates
|
LDW system is in Active state
|
|
Illuminates
|
LDW system is in Not Working/Fail state
|

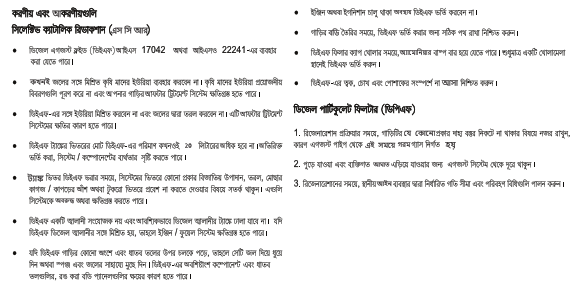

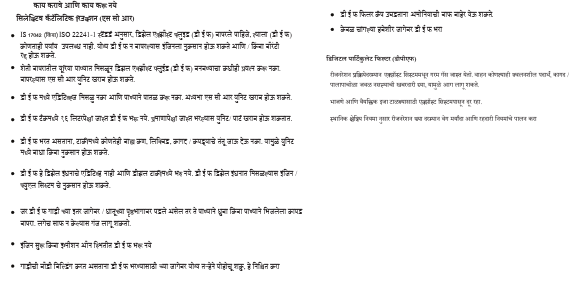

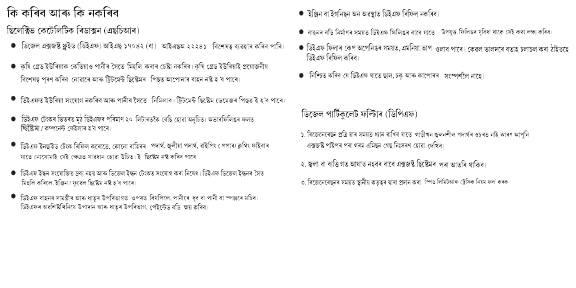

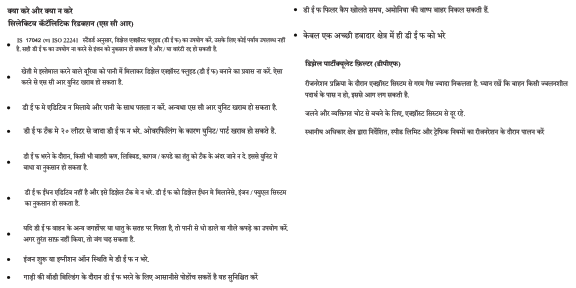

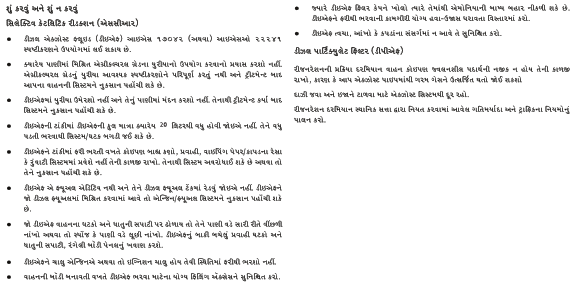

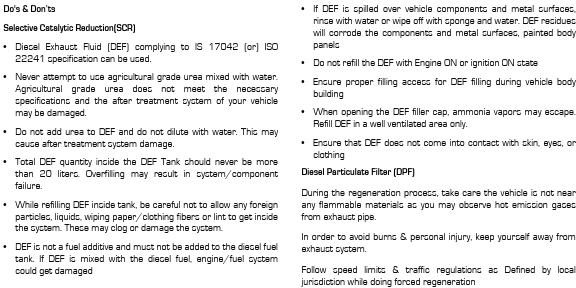

• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
1. | Diesel Oxidation Catalyst (DOC) |
2. | Selective Catalytic Reduction(SCR) |
3. | Diesel Particulate Filter (DPF) |
• | Use Genuine DEF MaxiCLEAN always. |
• | Incase of non-availability of above Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used. |
• | Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged. |
• | Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure. |
• | DEF quality and purity can be ensured only if it is stored properly. Hence ensure the storage of DEF in cool, dry place between storage. |
• | Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage. |
• | While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system. |
• | If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels. |
• | DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged. |
• | In such a case , do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance. |
• | Ensure that DEF does not come into contact with skin, eyes, or clothing |
• | Keep DEF out of the reach of children |
• | In case if any part of the body is in contact with DEF, clean affected area immediately with plenty of water |
• | If DEF contacted with eyes, flush with plenty of water immediately and seek medical help. |
• | If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical help. |
• | Don’t store DEF refill containers inside the vehicle. Ammonia vapors may escape from container which have a pungent odor and are particularly irritating for skin, mucous membranes and eyes. Inhaling ammonia vapors may cause burning eyes, nose and throat, as well as cough and watering eyes. |
• | When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only. |
• | If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed. |
|
1. Park the vehicle on level ground and switch OFF the ignition.
2. The fuel lid is manually locked/unlocked from outside by using conventional key.
3. Rotate the DEF filler cap in anti-clockwise direction and remove.
|
1. | Heavy traffic driving conditions, especially in city |
2. | Frequent short trips |
3. | Low speed for a long time |
Take vehicle to highway and drive for 20–30 mins @ speeds above 60 kms/hr until the lamp to turns off
|
(or)
Perform DPF Park Regeneration
|
• | Park the vehicle safely in a well ventilated levelled open space and free of any flammable material. |
• | Shift the gear lever to Neutral with the engine running and apply the parking brake. |
|
• | REGEN screen will appear in the drive info menu of instrument cluster when the REGEN telltale is ON |
• | REGEN screen will go OFF if REGEN telltale turns OFF. |
• | When in the REGEN screen of the drive info menu, long Press OK button to start park regeneration. |
• | Once regeneration starts, “In Progress” text will appear below REGEN. The engine idle speed will increase indicating regeneration has started.. |
• | Park Regeneration can take up to 30 minutes to complete. Once completed the REGEN warning lamp in the instrument cluster will turn OFF. The engine’s idling speed also returns to normal |
(or)
Take vehicle to Mahindra authorised dealer for assistance
|
• | During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe. |
• | In order to avoid burns & personal injury, stay yourself away from exhaust system. |
• | Follow speed limits & traffic regulations as defined by local jurisdiction while doing forced regeneration. |

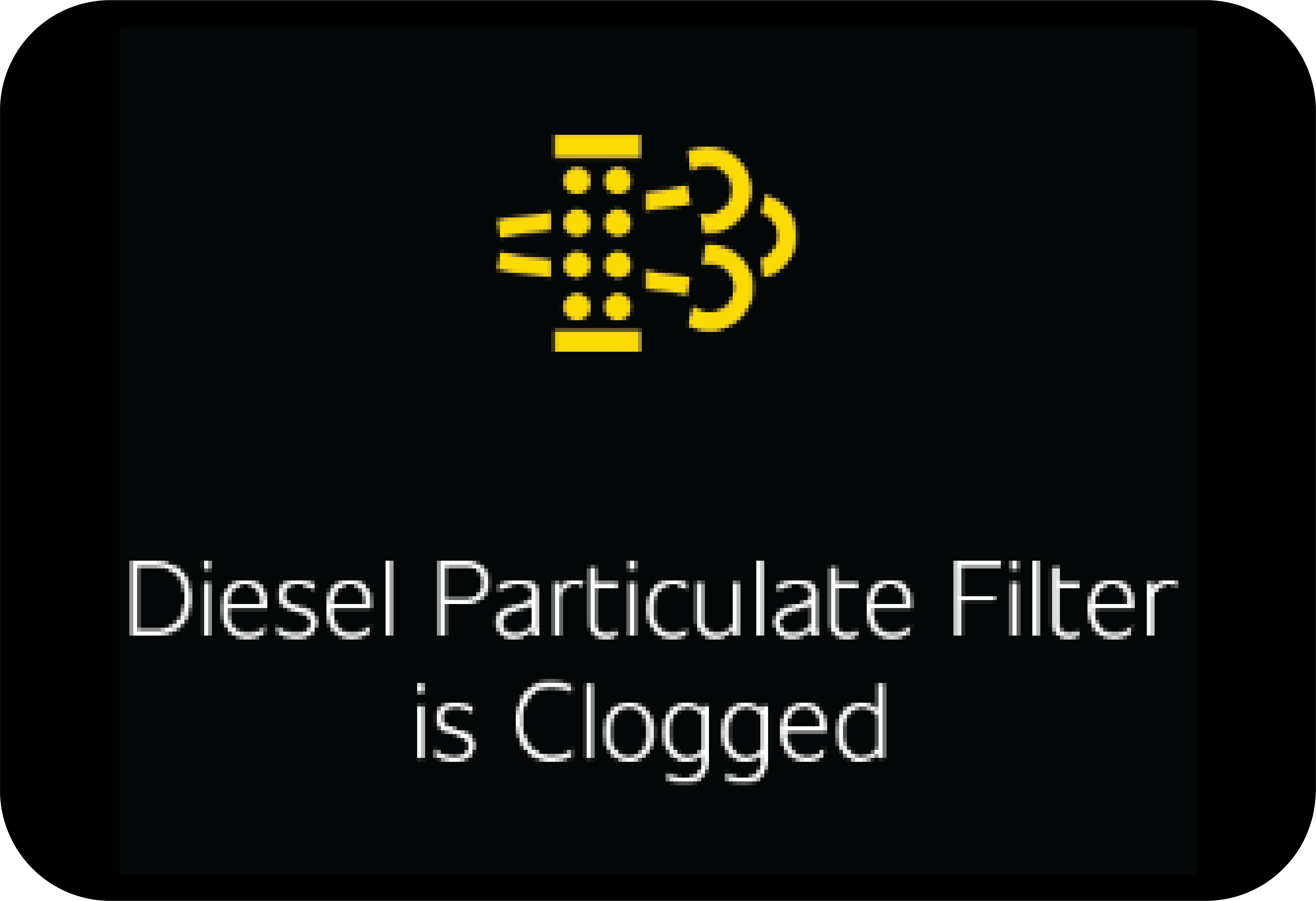

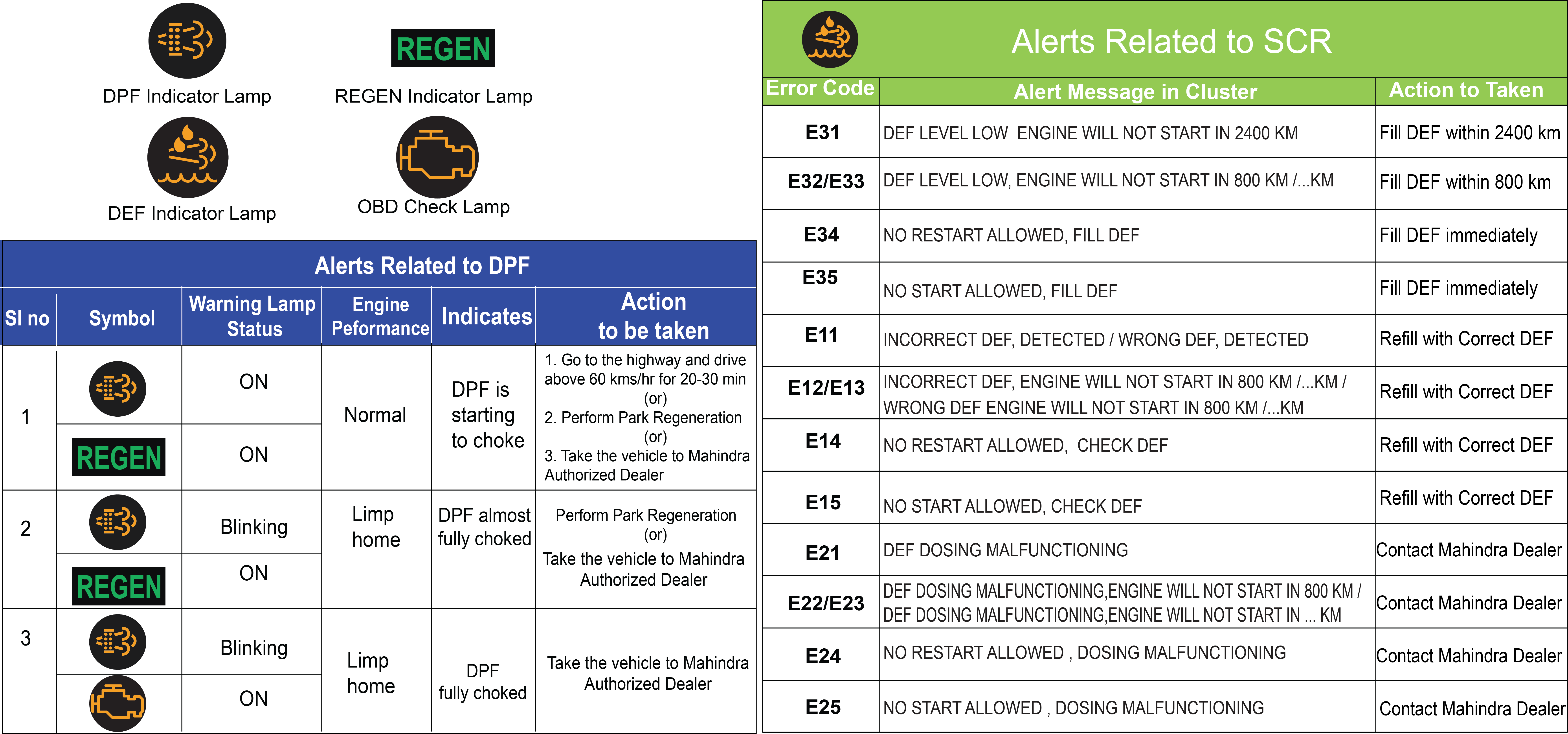

DPF is clogged
|
DPF Alert message will appear when the DPF is clogged. Contact Mahindra Authorised Dealer immediately for assistance.
|

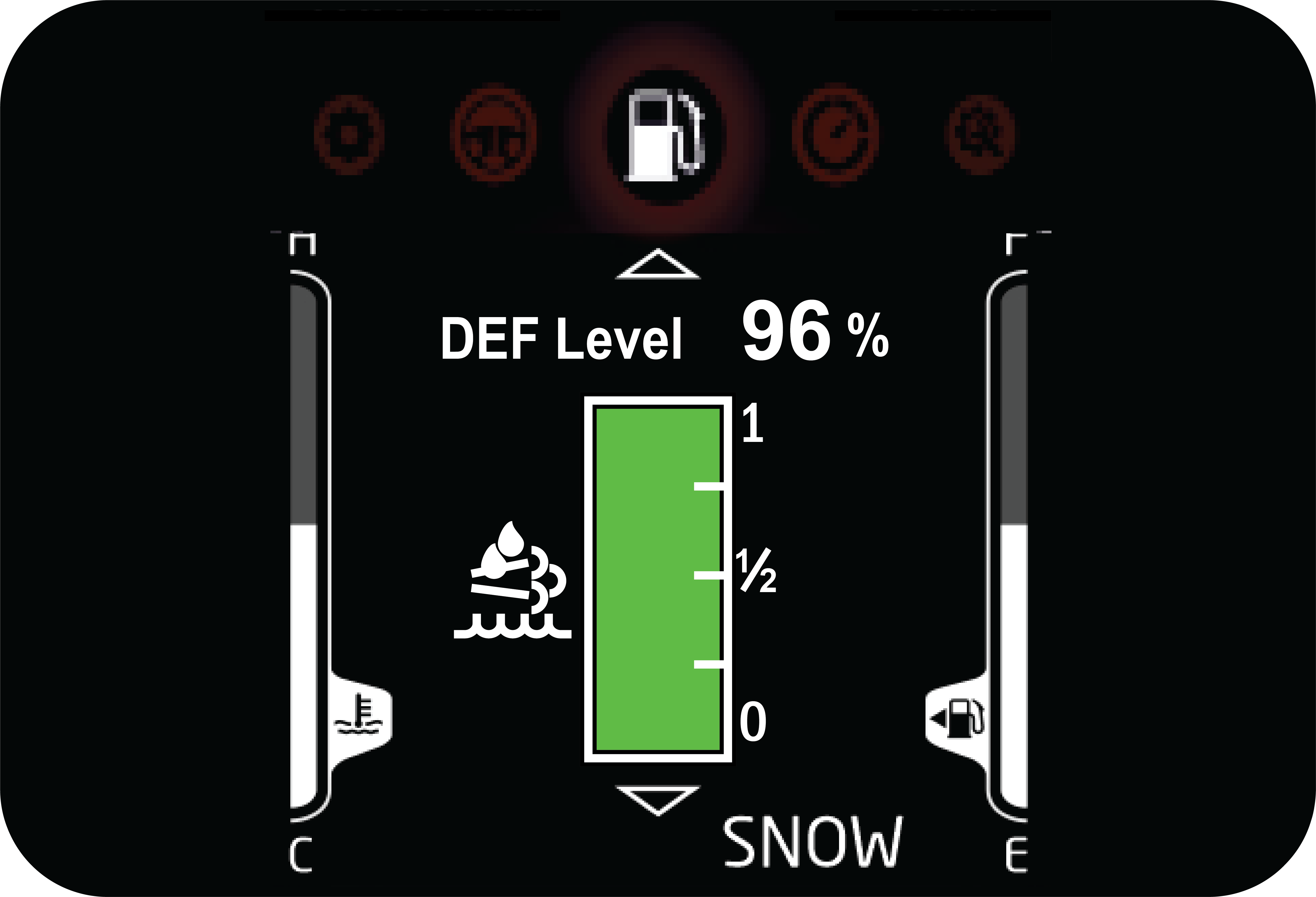

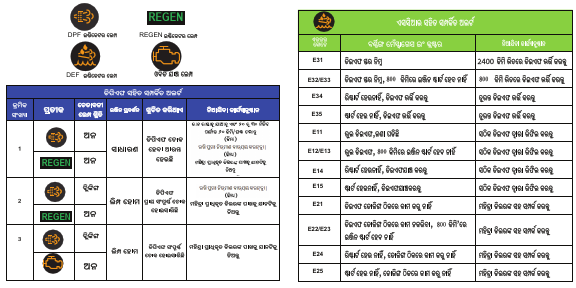

• | DEF level low |
• | Incorrect DEF detected |
• | DEF dosing malfunction |

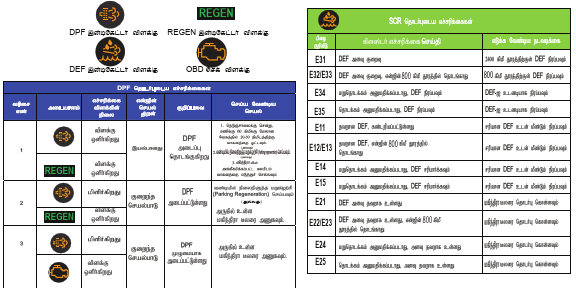

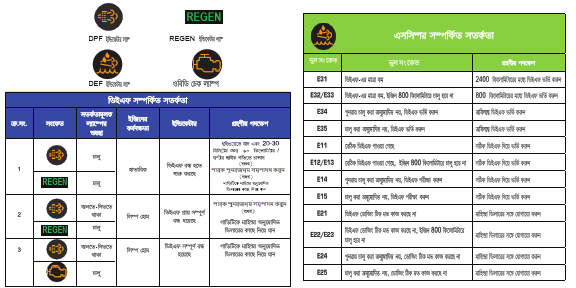

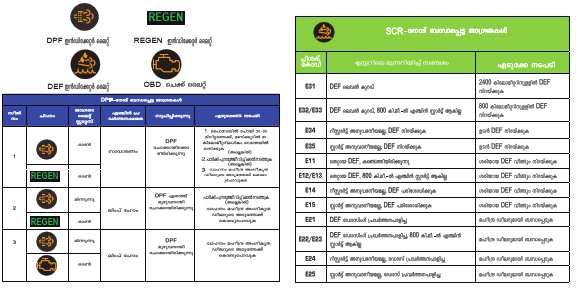

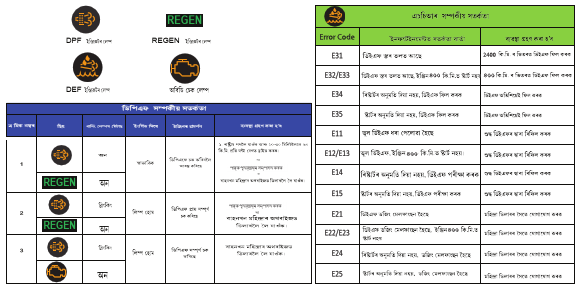

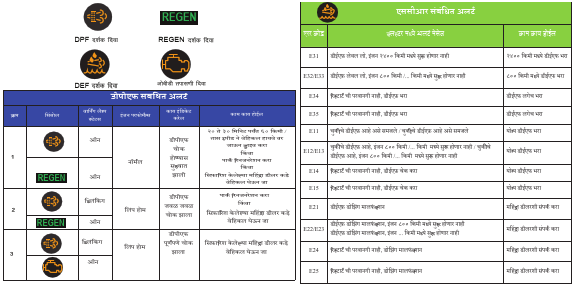

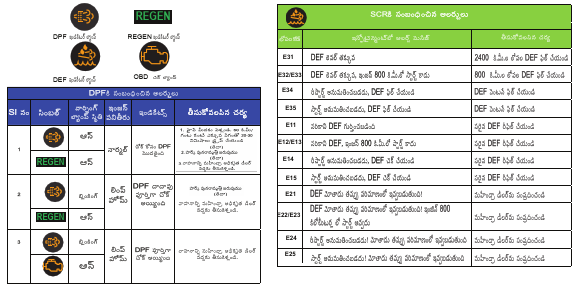

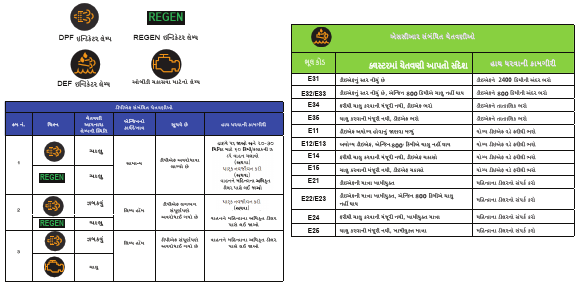

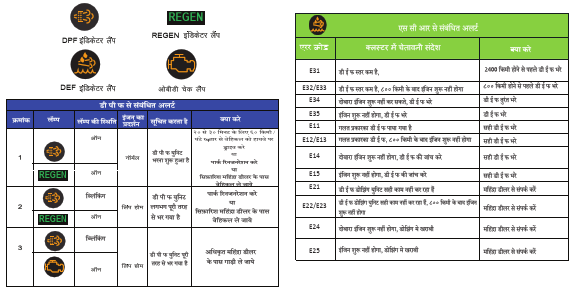

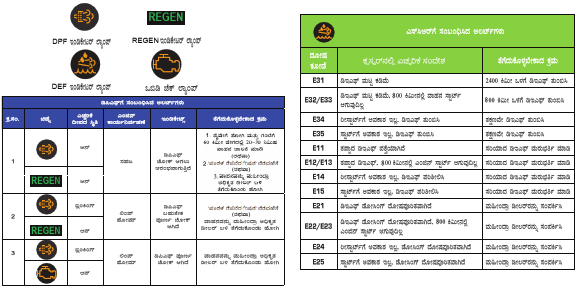

E31 |
E32 |
E33 |
|
|
|
E34 |
E35 |
|
|
|
E11 |
E12 |
E13 |
|
|
|
E14 |
E15 |
|
|
|
E21 |
E22 |
E23 |
---|---|---|
|
|
|
E24 |
E25 |
|
|
|
Regen Aborted |
Regen Completed |
||
---|---|---|---|
|
|
|
|
Regen Not Started |
Regen Requested |
||
|
|
|
|
Regen Required |
Regen Started |
||
|
|
|
|

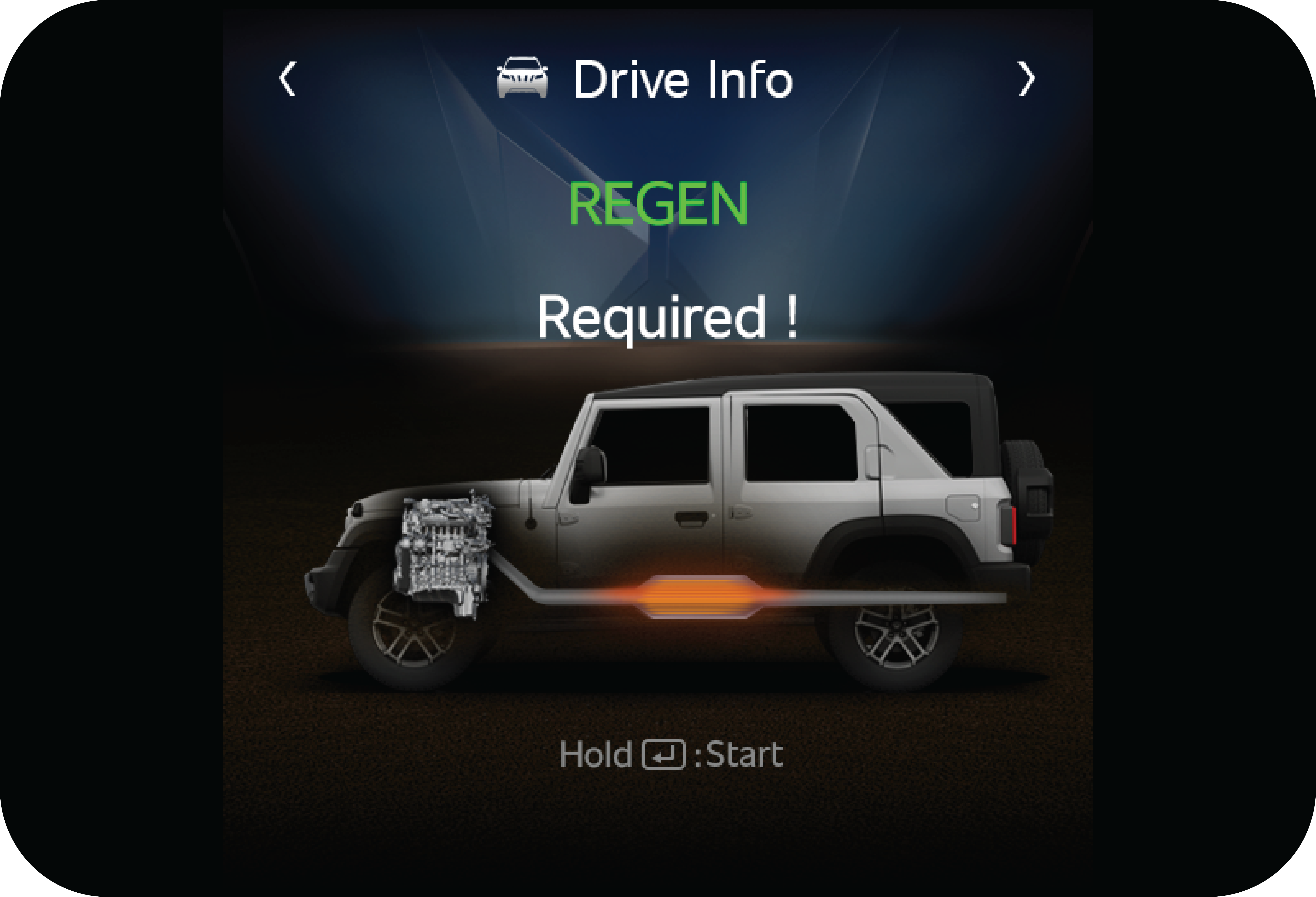

1. | If REGEN telltale is ON, navigate to Above page will be available only if regeneration can be done in vehicle and REGEN TT is ON. |
2. | Hold OK to start regeneration. |
3. | Once REGEN has started, Text in page will change to REGEN In Progress. |
|
Key Tag: Your key has a unique tag number which will be used incase of key lost. It is given on the tag attached to the key. It is
recommended that you record the key tag number and store in a safe place.
|

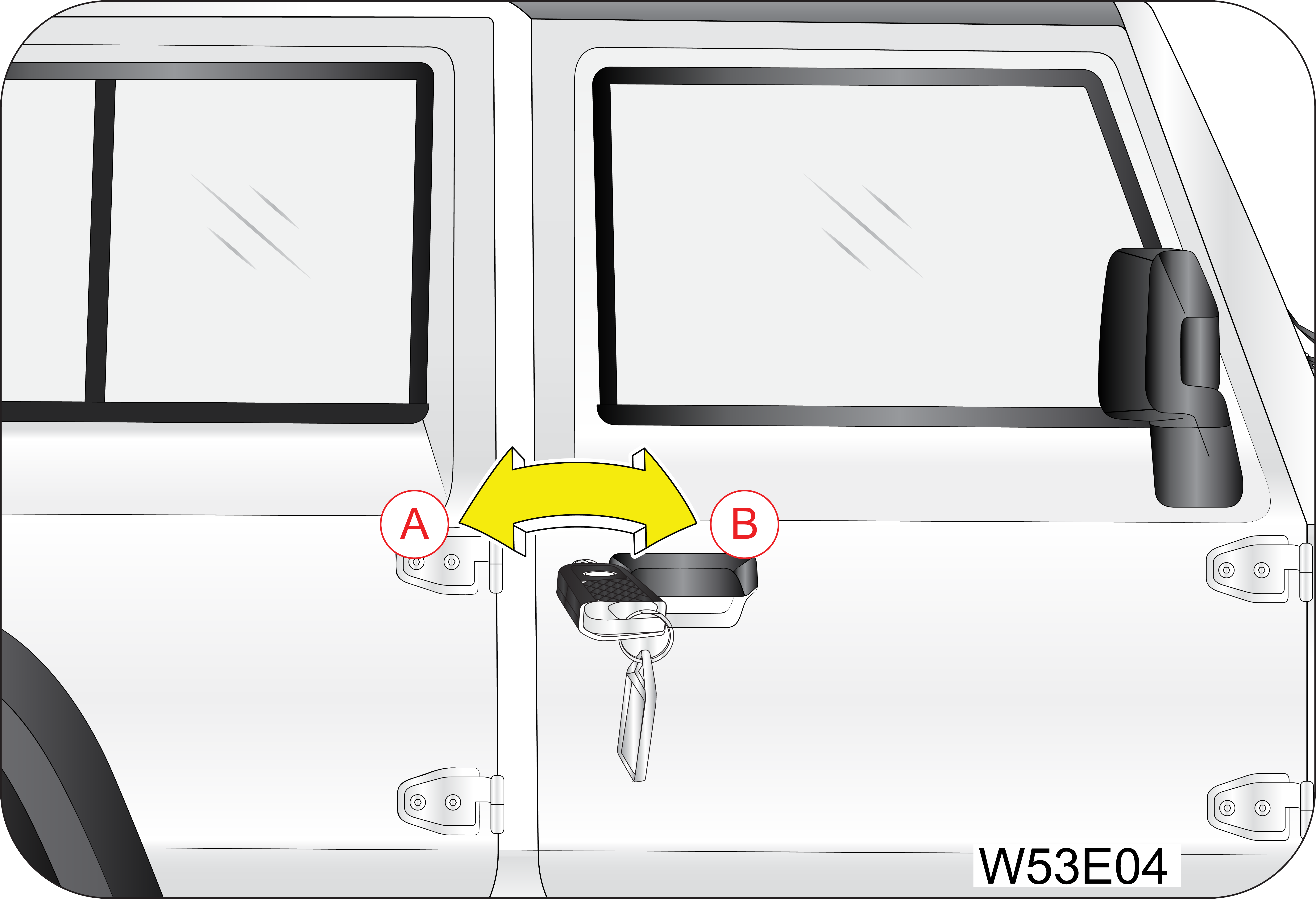

Front Side |
Rear Side |
|
|
A : Lock
|
B : Unlock
|
|
A : Unlock
B : Lock
|
|
To manually lock/unlock Swing Gate by using the key, turn the key anti-clockwise /clockwise respectively.
|
|
A : Unlock
B : Lock
|
|

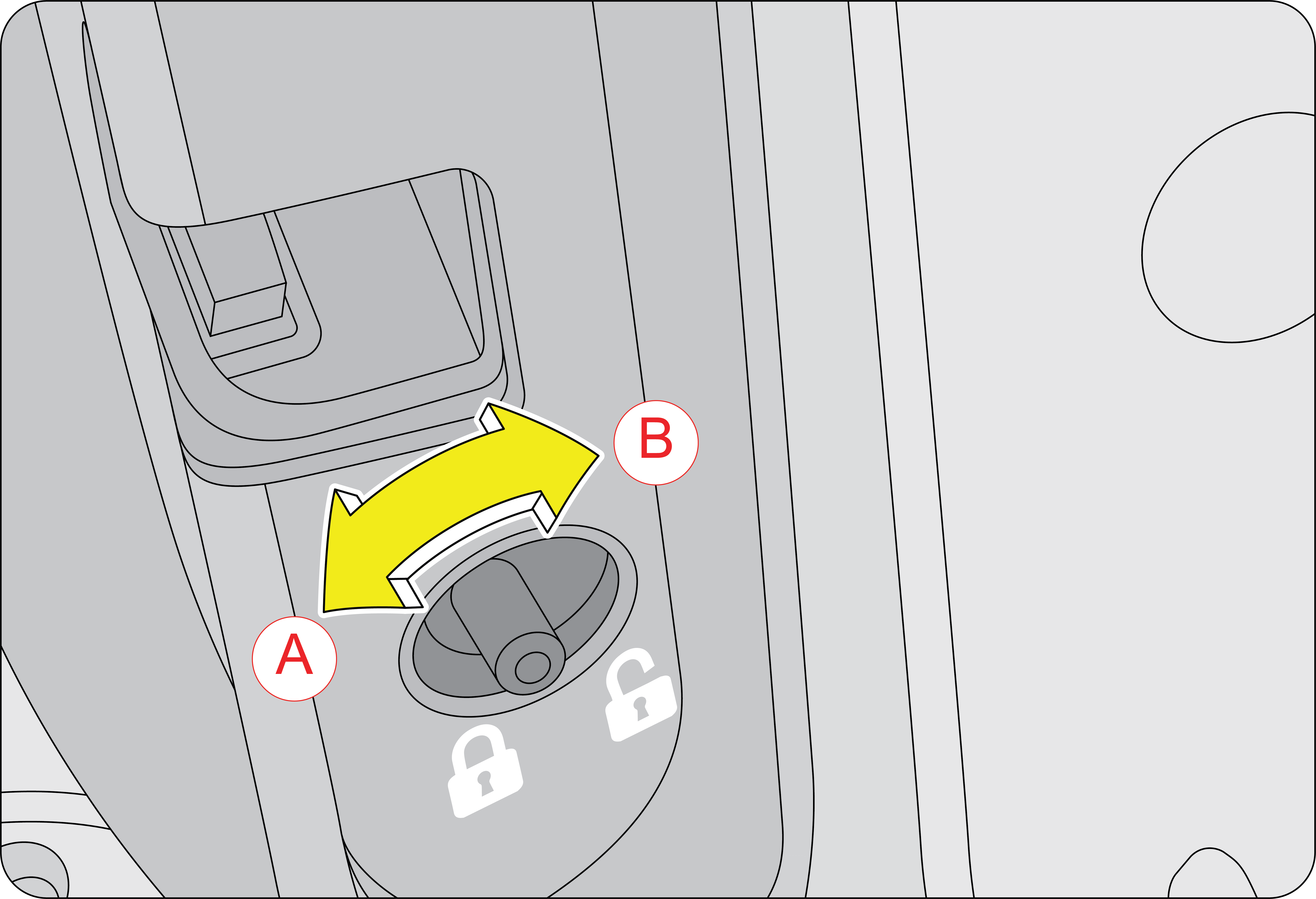

A : Lock
B : Unlock
|
|
|
To manually unlock the swing gate by using the key when opening the rear swing gate.
|
|
|
A
|
Driver Door Window Switch
|
D
|
Window Lock Switch (if equipped)
|
B
|
Rear RH Window Switch
|
E
|
Rear LH Window Switch
|
C
|
Center Door Lock Switch (if equipped)
|
F
|
Passenger’s Window Switch
|
Type 1 (if equipped) |
Type 2 (if equipped) |
|
|
|
Do not operate the power windows frequently. This will drain the vehicle battery.
If you operate the switches often during a short period of time, the system might become inoperable for a certain duration
to prevent damage due to overheating. The system will return to normal functioning shortly.
It is recommended to operate one window switch at a time.
|
|
|
|
• | Auto UP |
• | Auto DOWN |
• | Anti-Pinch during Auto UP |
|
A: LED
B: Lock
C: Search (Panic Alarm)
D: Unlock
|
|
Press the LOCK button on the key fob for locking and arming the vehicle.
|
|
Press the UNLOCK button on the key fob to unlock and disarm the vehicle.
|
|
A : LED
B : Lock
C : Search
D : Unlock
E : Mechanical key release button
|
|
Press the mechanical key release button to open the key blade.
|
• | Do not cover the key grip with any material that cuts off RF waves |
• | Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight |
• | Do not put the key in any liquid or wash it in an ultrasonic washer |
• | The Smart Key can malfunction if exposed to moisture or static electricity |
• | If the electronic steering lock is not getting unlocked
|

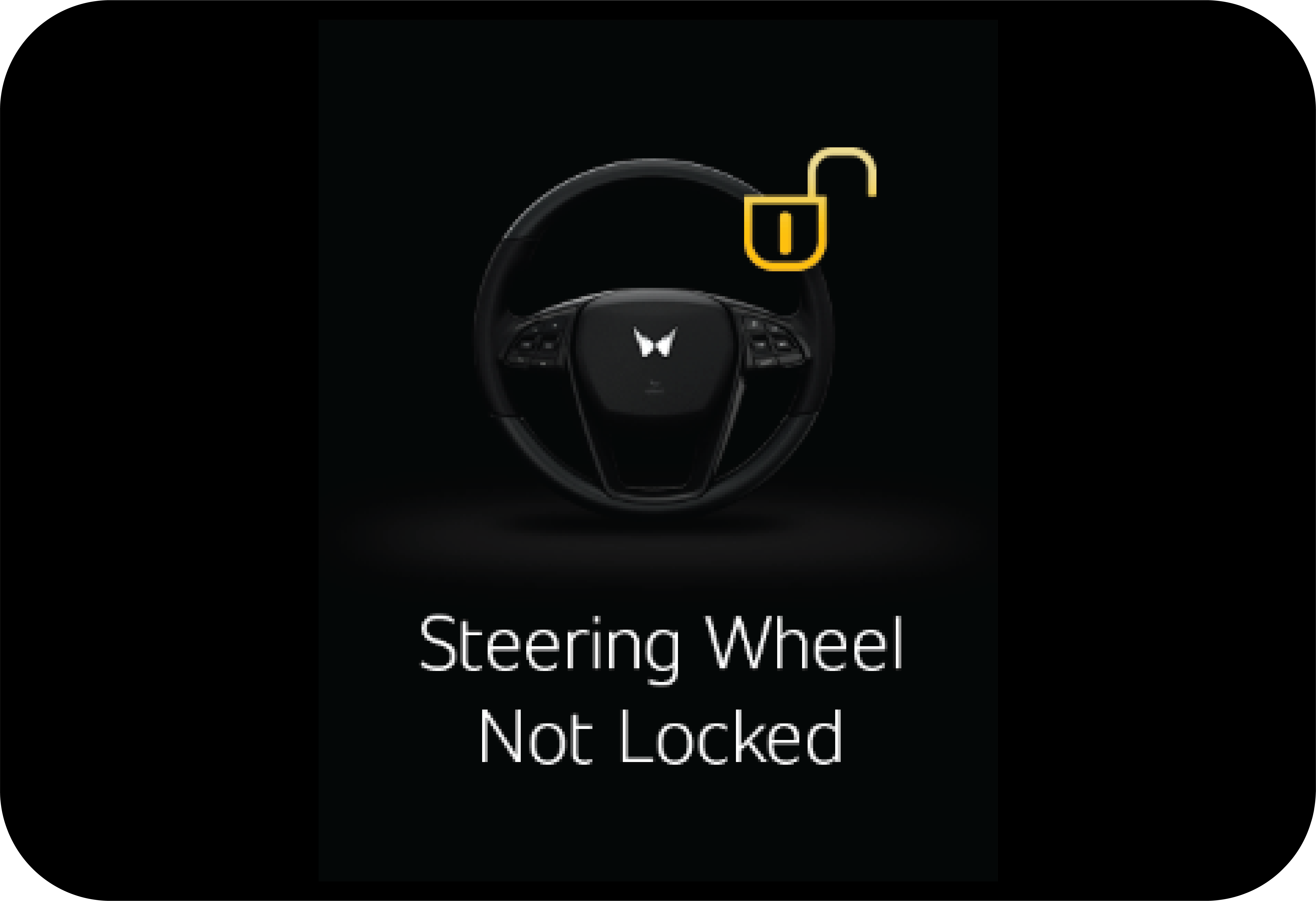

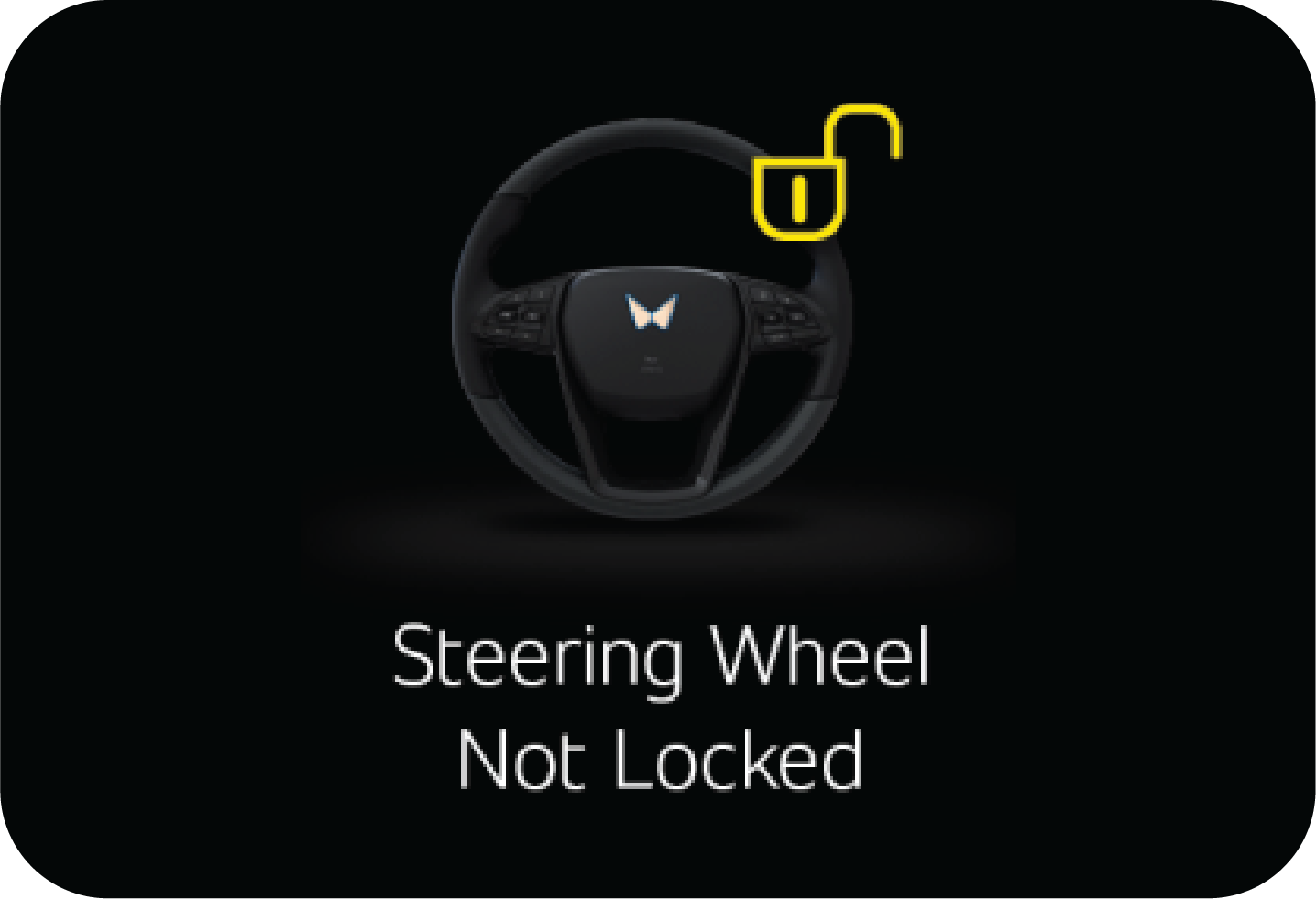

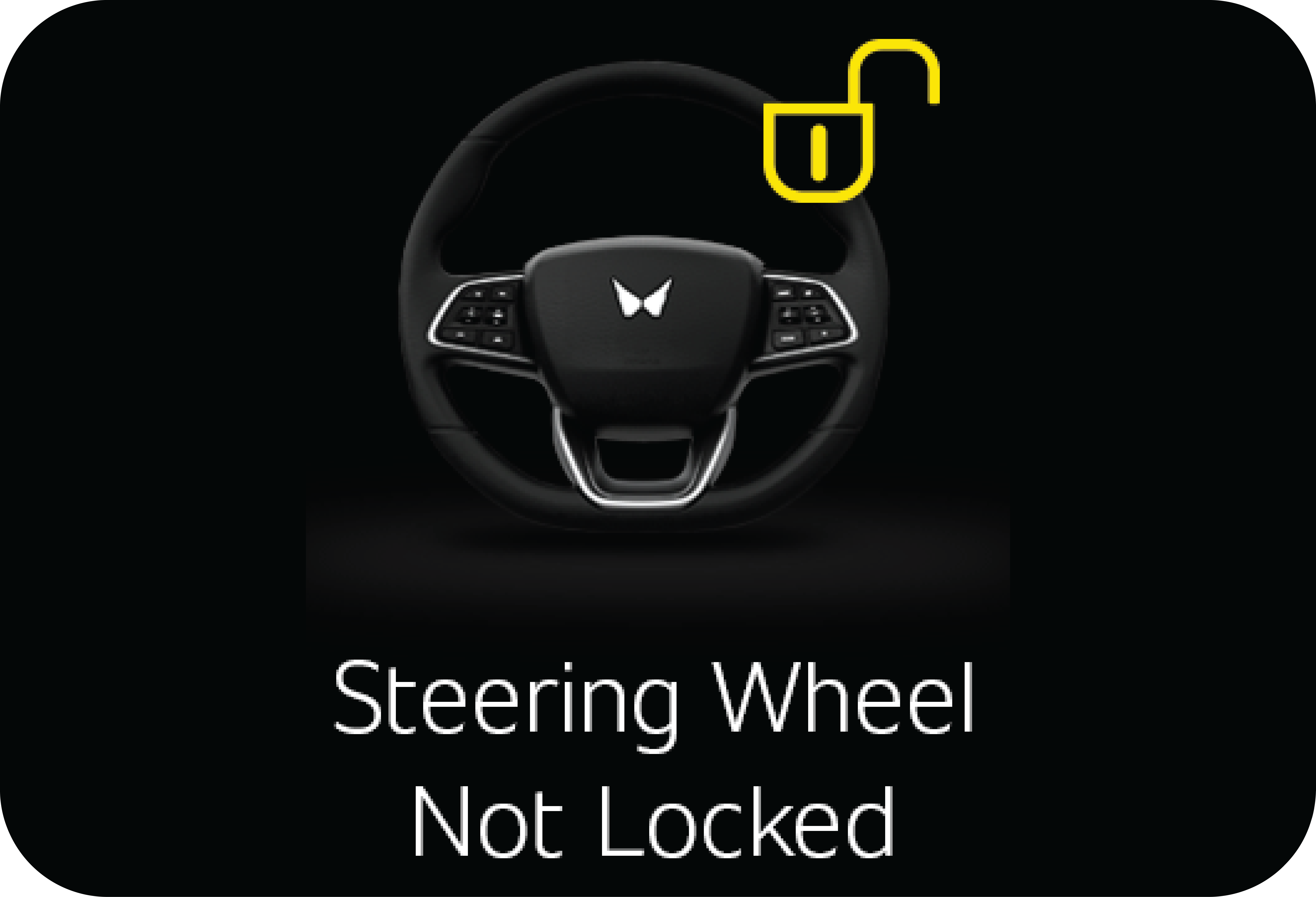

• | Steering wheel not lock warning
|

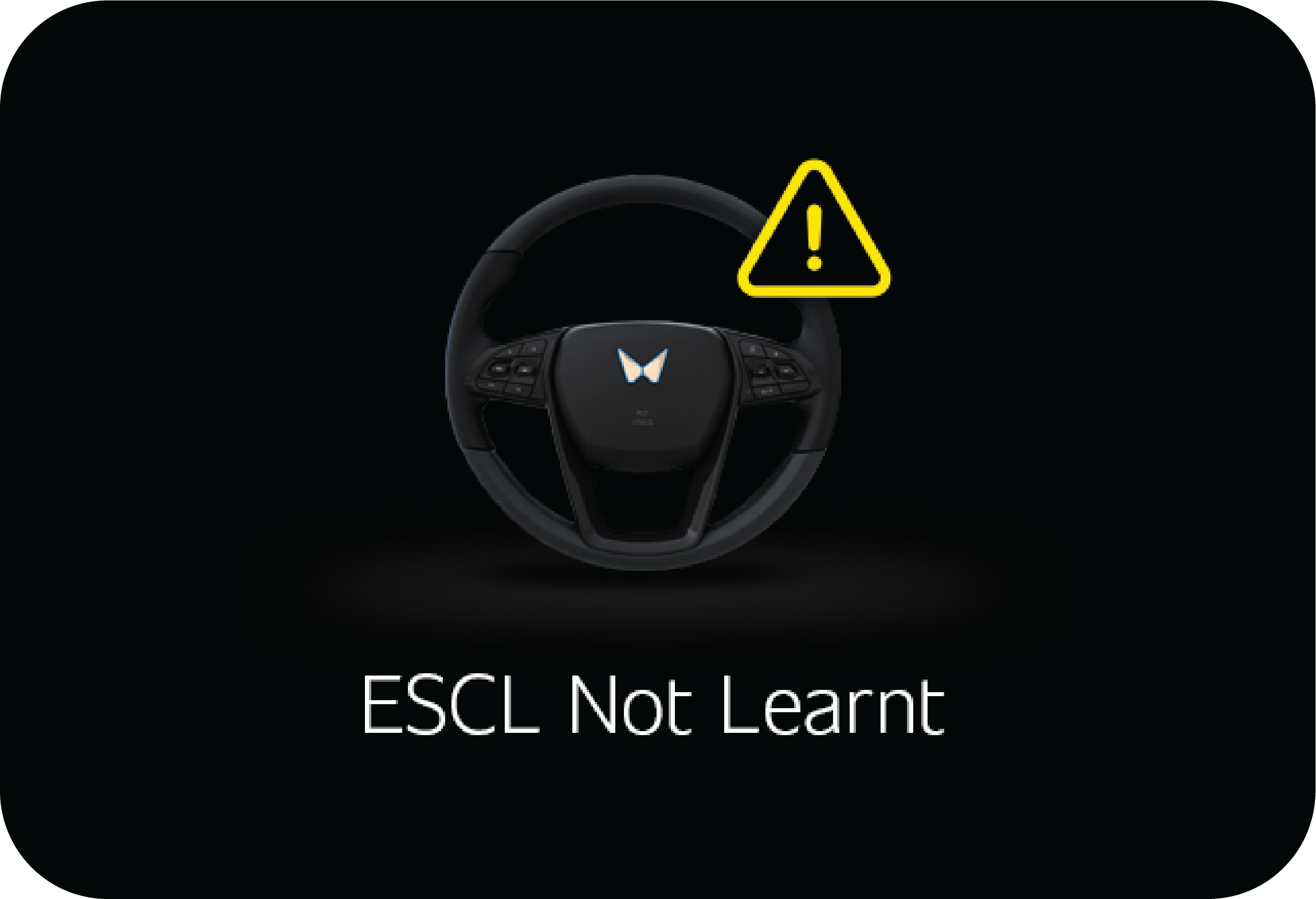

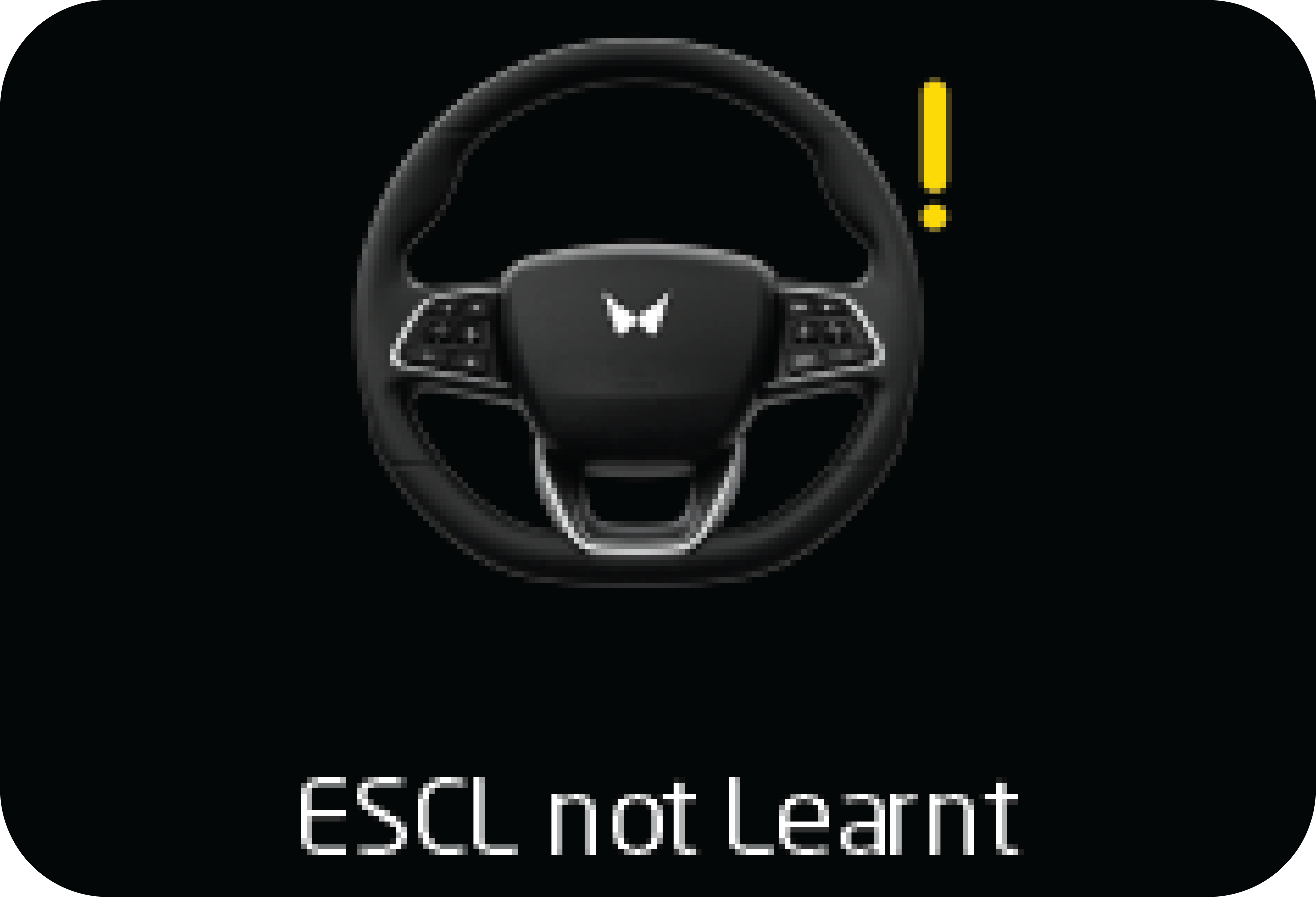

• | Electronic Steering lock module (ESCL) not learned warning.
|

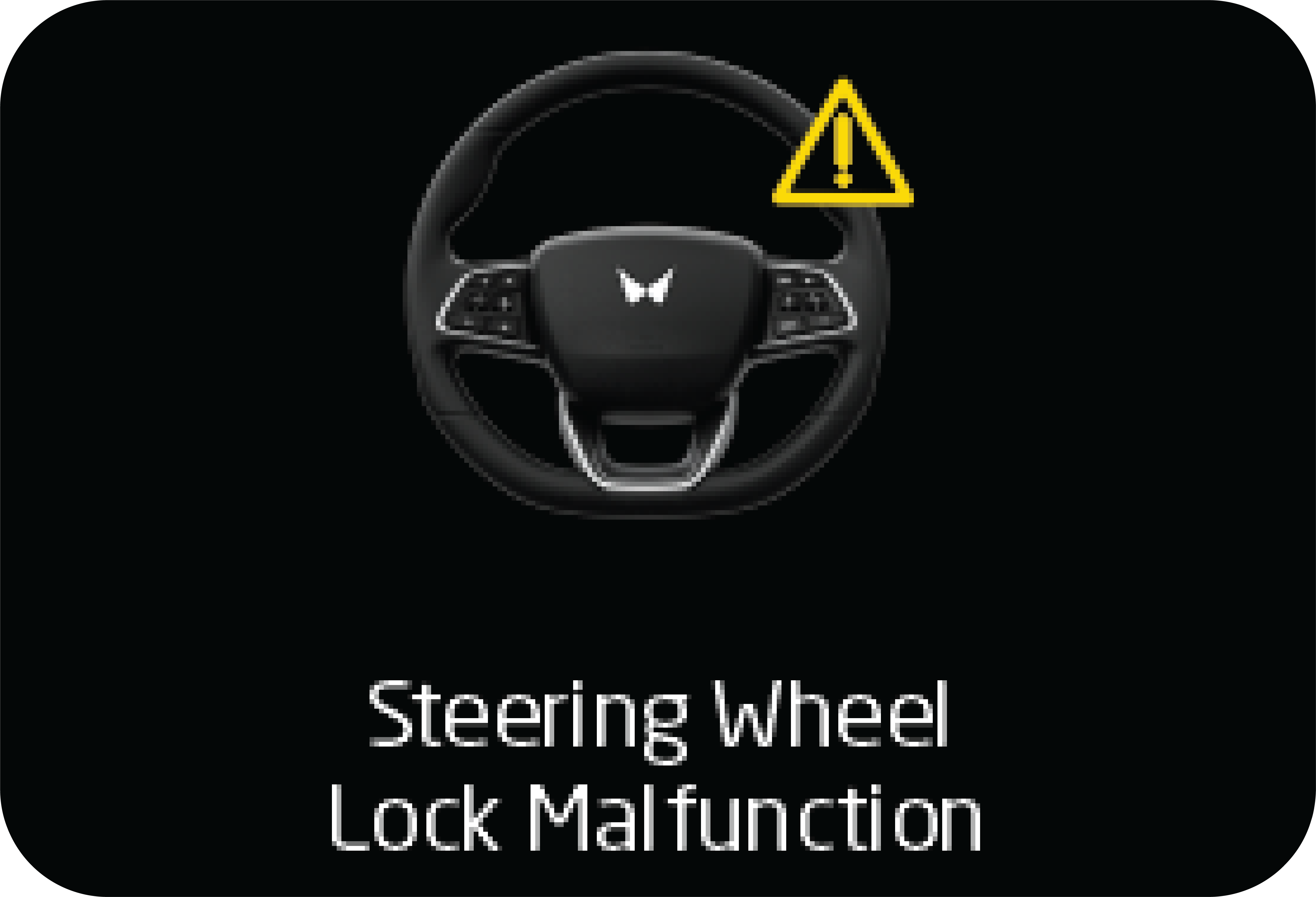

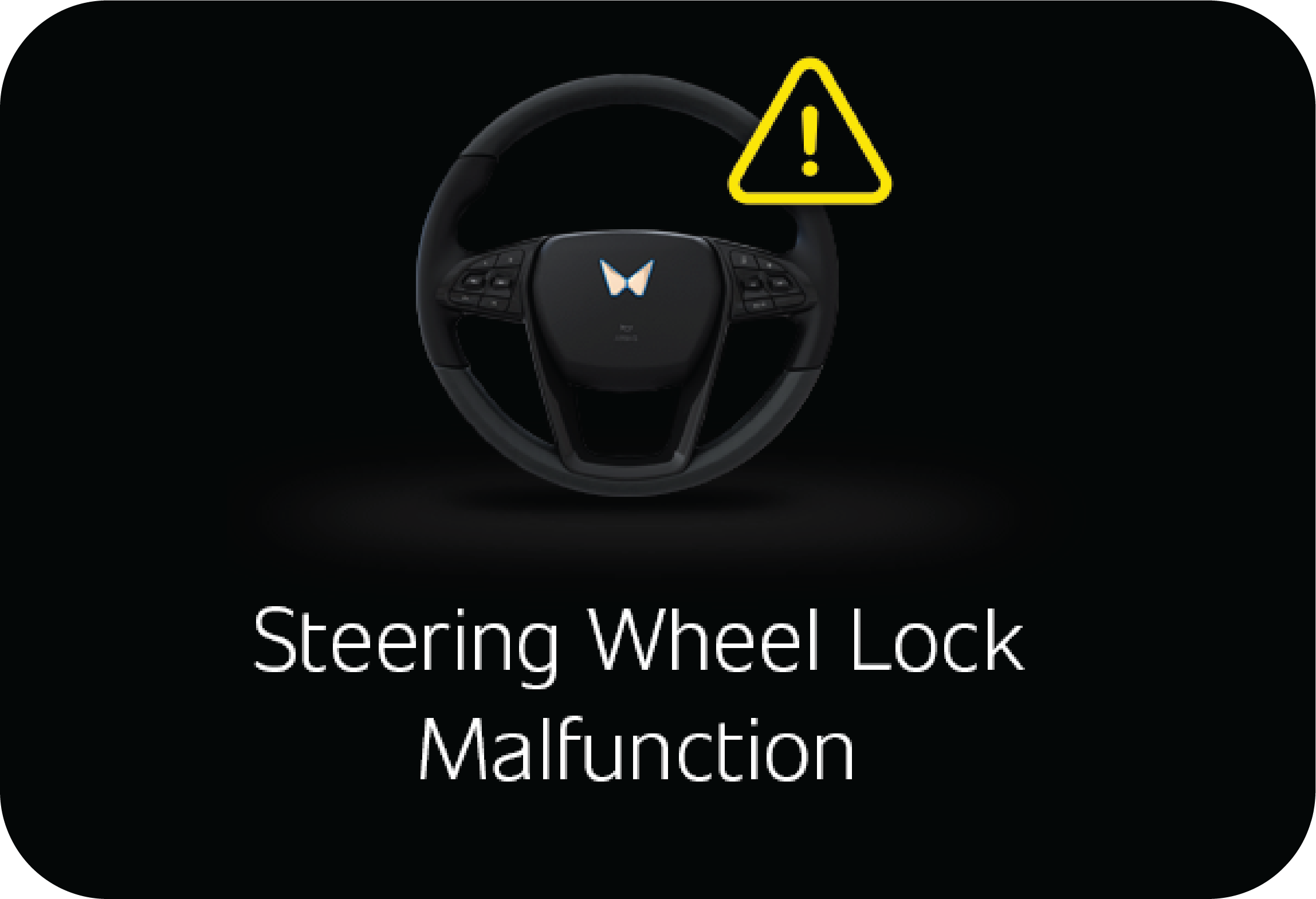

• | Steering wheel malfunction warning:
|
• | If the key is not detected inside the vehicle or far away from the driver which is not in detectable position
|
• | When engine start/stop button is ON or engine is in running condition with vehicle at standstill and if any door is opened,
the system checks for the Smart Key. If the Smart Key is not inside the vehicle, an alert in the Instrument cluster is displayed
along with a chirp for 5 times to indicate key not detected inside
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1. | To remove the mechanical key, press and hold the release button in the side of the key fob and pull the mechanical key head. |
2. | Insert the key into the keyhole in the door nearer to the door handle. Turn the key towards the rear of the vehicle to unlock and turn it towards the front to lock. |
3. | To reinstal the mechanical key, put the key into the key fob and push it until a click is heard |
• | The Smart Key is close to a radio station, airport or an area where there is a possibility of large radio transmissions which can interfere with the normal operation of the Smart Key |
• | The Smart Key is near a mobile or a cellular phone or some electronic gadgets like Laptop/Tablets. The signal from the Smart Key could be blocked by normal operation of your cell phone or smartphone. Avoid placing the Smart Key and your electronic gadgets in the same trouser or jacket pocket or in the bag and maintain adequate distance between the two devices |
• | Another vehicle Smart Key is being operated close to your vehicle |
• | Smart Key kept inside the glove box or top bin in the instrument panel may not be detected sometimes. Keep the Smart Key in the visible zone or in your pocket for getting it detected |
• | Keep the Smart Key away from the water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer’s vehicle warranty |
Battery Voltage |
3 V |
Battery Capacity |
225 mAh |
Battery Model No. |
2032 |
`
|
The rear side of the Remote is snap fitted. Flip open the key blade and use two fingers on the side of the fob and gently
pry open the battery cover.
|
• | All doors are closed properly |
• | Vehicle speed is greater than 20 kmph |
• | When Ignition is switched from ON to OFF, OR |
• | In the event of a crash |
• | No door status change for 45 sec after unlocking the vehicle using RKE/PKE |
|
Press the SEARCH/PANIC button on the RKE to locate the vehicle in a parking lot. Panic alarm can also bring attention to the
vehicle and surrounding area, warning about an intruder or seek for help when key is in key barrel.
|
• | Pressing the SEARCH button again switches OFF the alarm |
• | Pressing the UNLOCK button switches OFF the alarm and unlocks all doors |
|
The horn chirps can be muted / un-muted. Press the LOCK & SEARCH buttons together for 3 sec. to toggle between MUTE/UN-MUTE
mode. Hazard lamps will flash once to indicate the change in status.
|
|
Using RKE, you can lock/arm or unlock/disarm the vehicle from distances approximately 9 m (30 ft) This is in open area.
|
• | Check the distance: The RKE may be too far from the vehicle. Stand closer to the vehicle during rain or bad weather |
• | Check the location: Other vehicles or objects may be blocking the signals. Take a few steps to the left or right, hold the RKE higher, and try again. Moreover, closeness to a radio transmitter such as radio station tower, airport transmitter, mobile or CB radios may lead to reduction in range of RKE |
• | Check the RKE battery: See battery replacement procedure, given later in this section |
• | If the RKE is still not working correctly, contact an Mahindra Authorised Dealer |
|

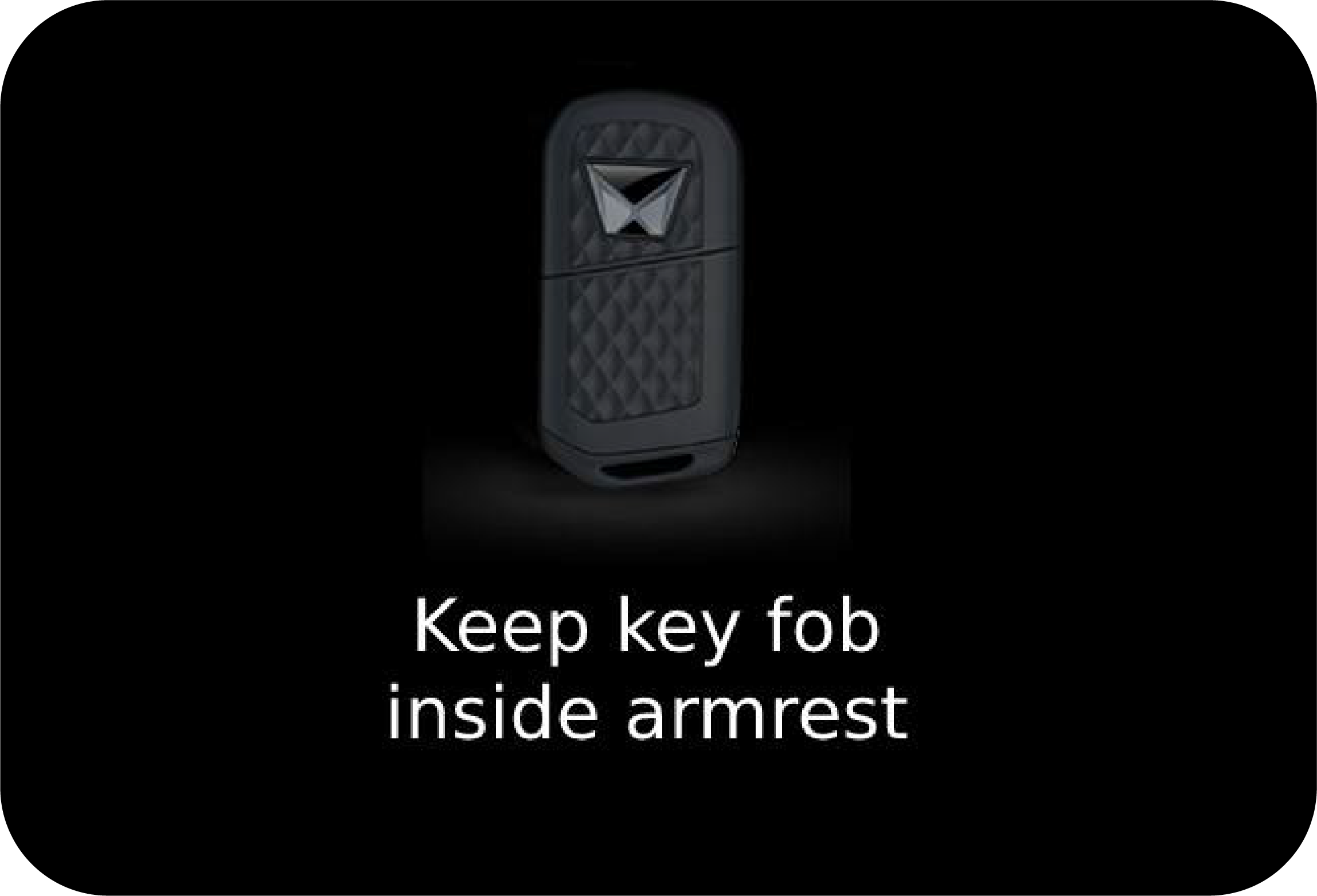

The Key fob is to be kept as shown in the image, key mark engraved near park brake, when the system requests, like in the
case of the below error message in the instrument cluster.
|
|
|
• | Do not cover the key grip with any material that cuts off RF waves |
• | Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight |
• | Do not put the key in any liquid or wash it in an ultrasonic washer |
• | Prevents the vehicle being started by anyone not in possession of the correct vehicle key |
• | The vehicle is automatically protected after the key is removed from the ignition. At every ignition ON, if the vehicle does not recognise the correct key code, the engine check lamp will illuminate/blink and the engine cannot be started |
• | The vehicle will not be protected until the key has been taken out of the ignition |
|
The hood release lever is located in the driver side foot well area below the instrument panel.
|
|
|
|
2. Lift the hood.
|
|
3. Support the hood by the stay rod
|
• | Do not open the hood immediately after a drive; the engine compartment will be very hot |
• | Always double check to be sure that the hood is firmly latched before driving away. If it is not latched properly, the hood could open while the vehicle is being driven, causing a total loss of visibility, resulting in an accident |
• | Do not move the vehicle with the hood in the raised position, as vision is obstructed |
1. | Remove the stay rod from the hood panel and place it in the retaining clip. |
2. | Lower the hood slowly and allow it to fall by its own weight. |
3. | Firmly press the catcher locks in the hood mounting bracket. This ensures that locks the hood in its fully closed position |
|
The fuel lid open switch is located in the driver side switch bank. Press the switch to open the fuel lid door.
|
|
|
|
|
|

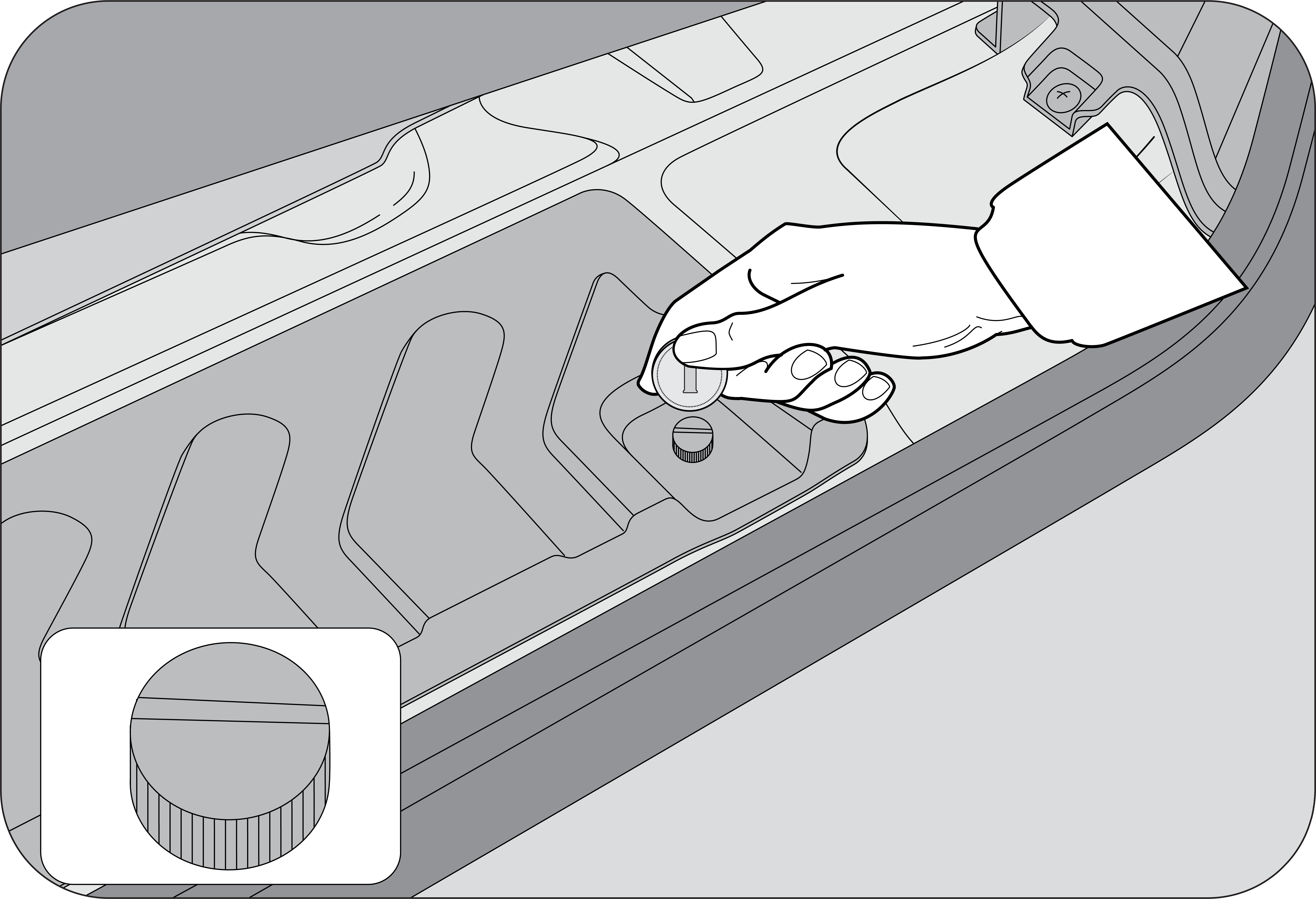

Open the trim on luggage compartment

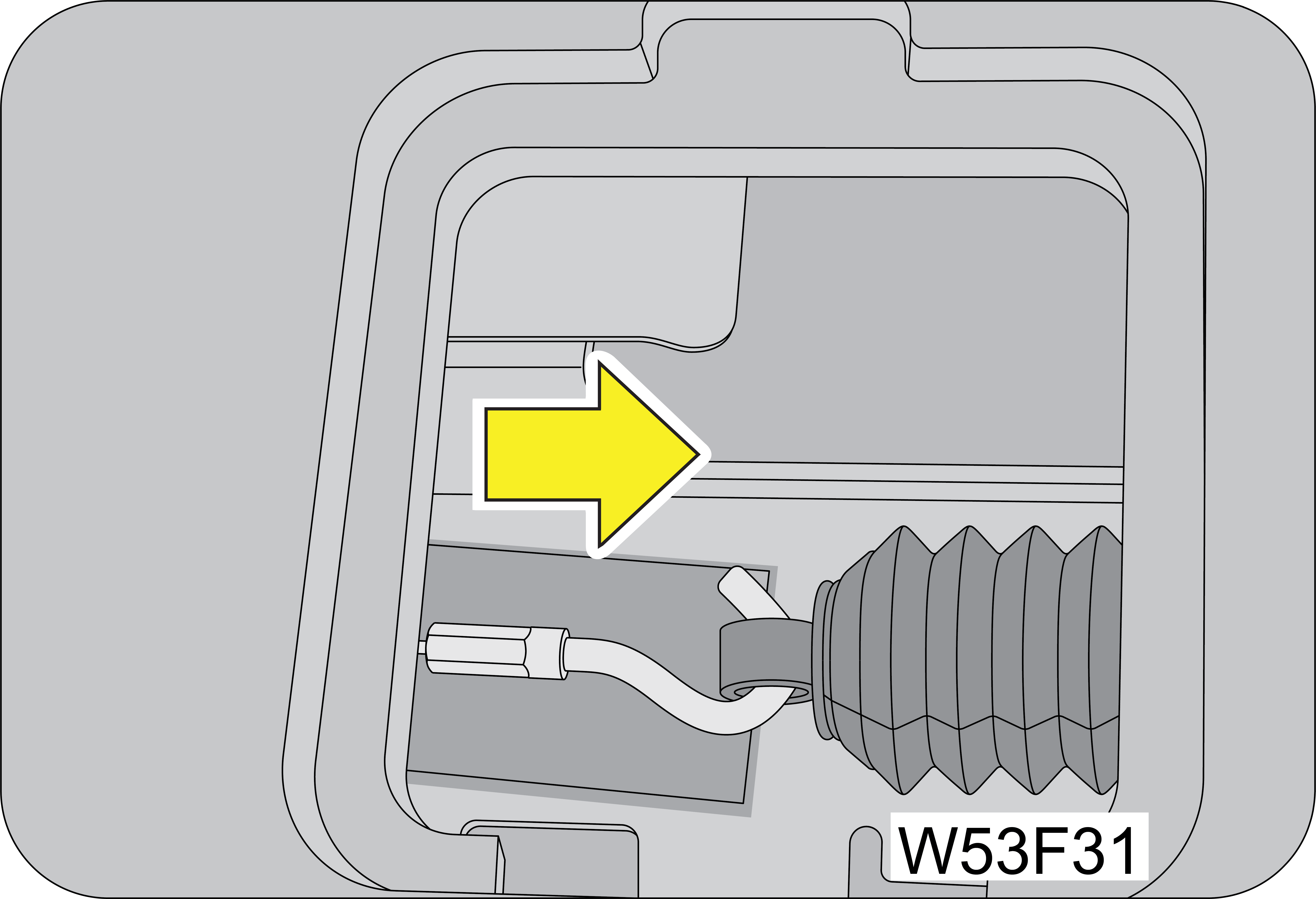

Pull the mechanical Fuel lid lever as shown in the illustration to unlock the fuel lid.
|
|
|
|

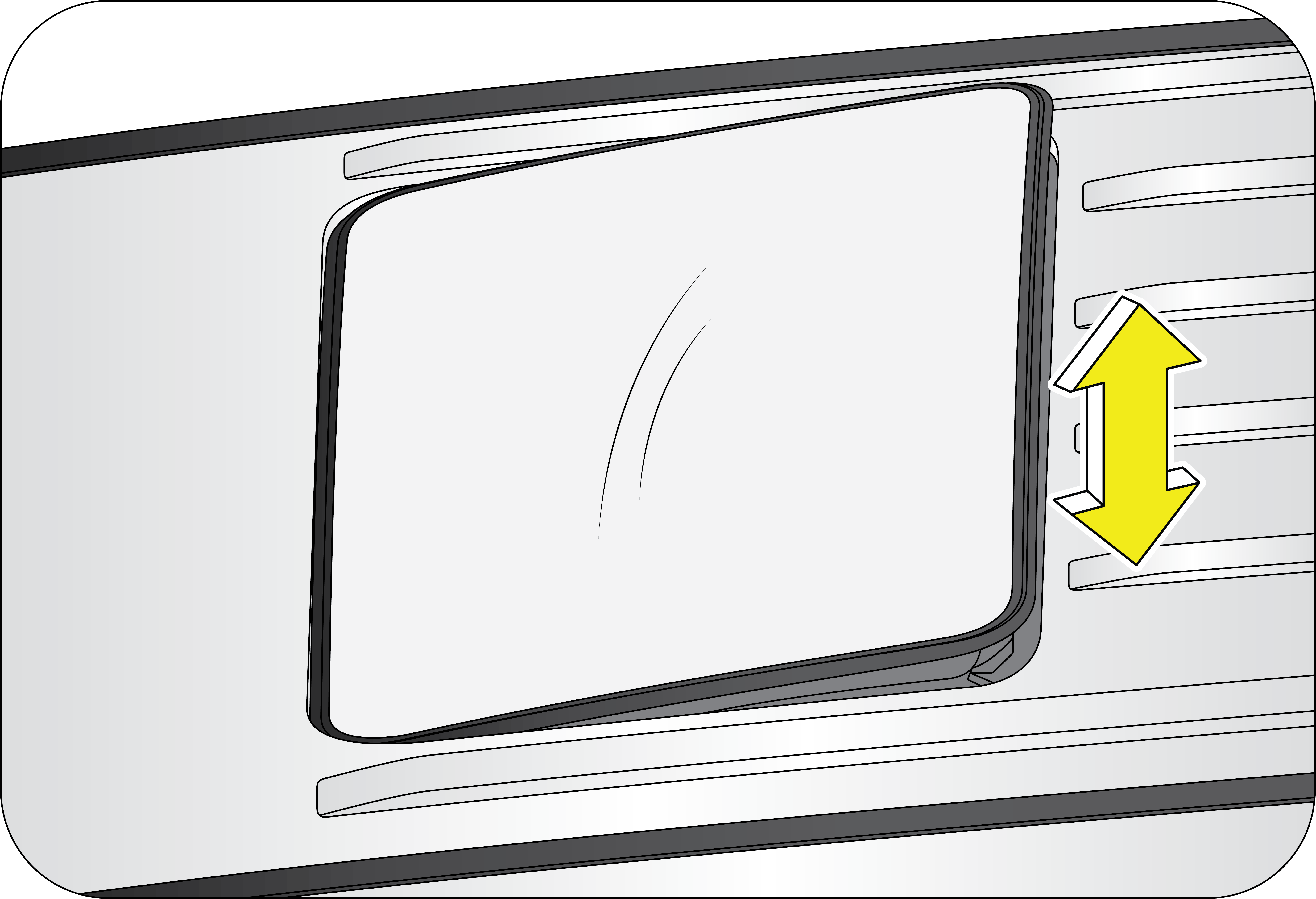

Integrated exterior rear view mirrors on both the sides facilitate maximum rear view information to the driver.

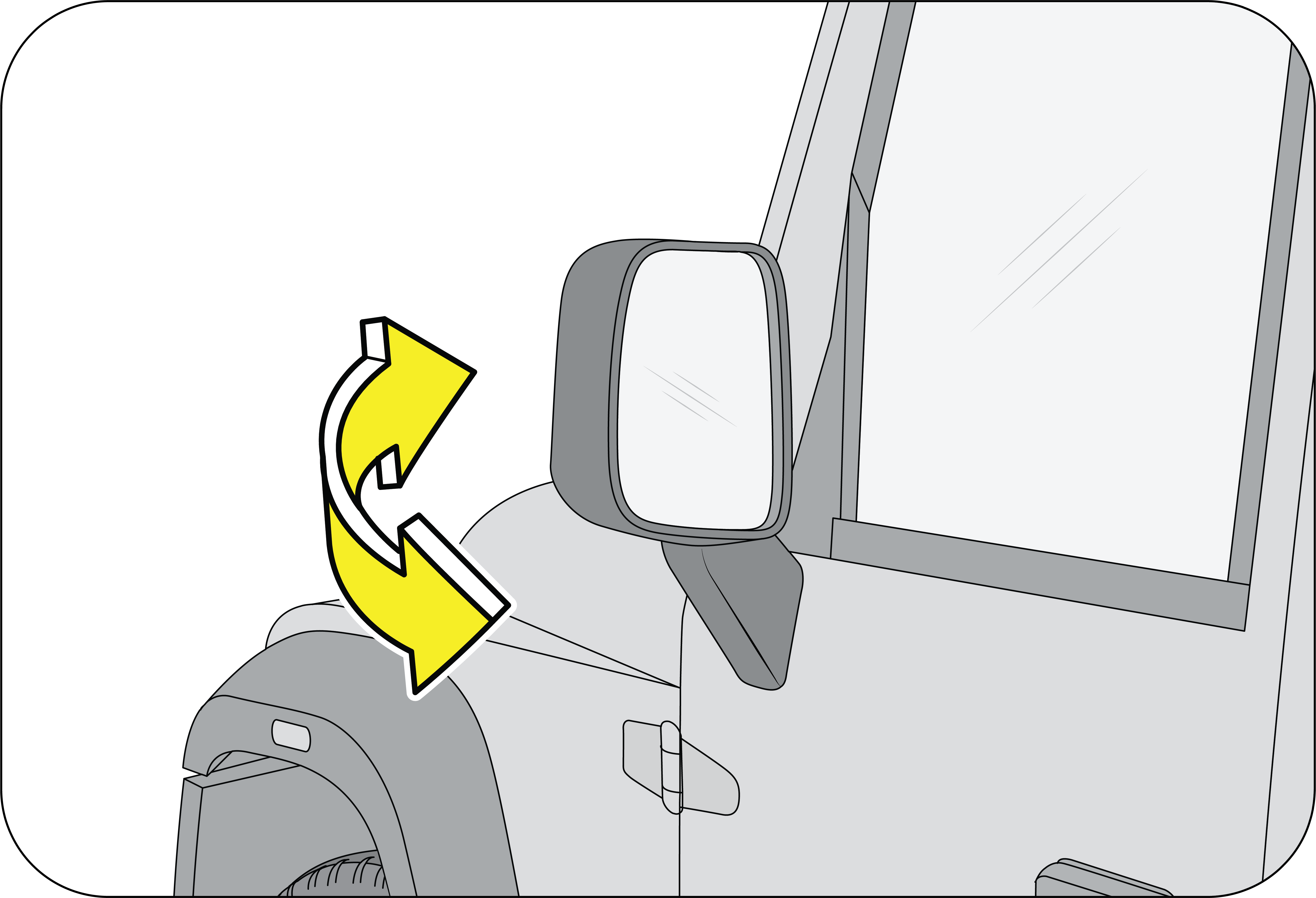

Both the ORVM’s are hinged and can be manually folded or unfolded. This avoids hindrances in narrow areas and parking slots.
Make sure that you fully engage the mirror in its support, while folding or unfolding.
|

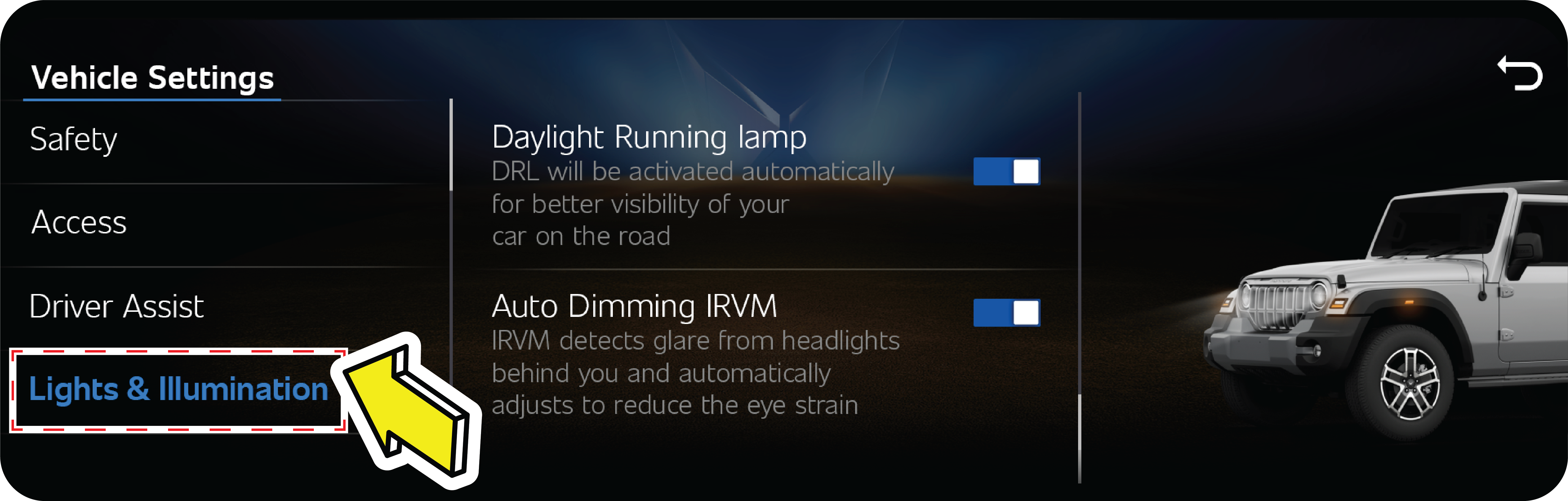

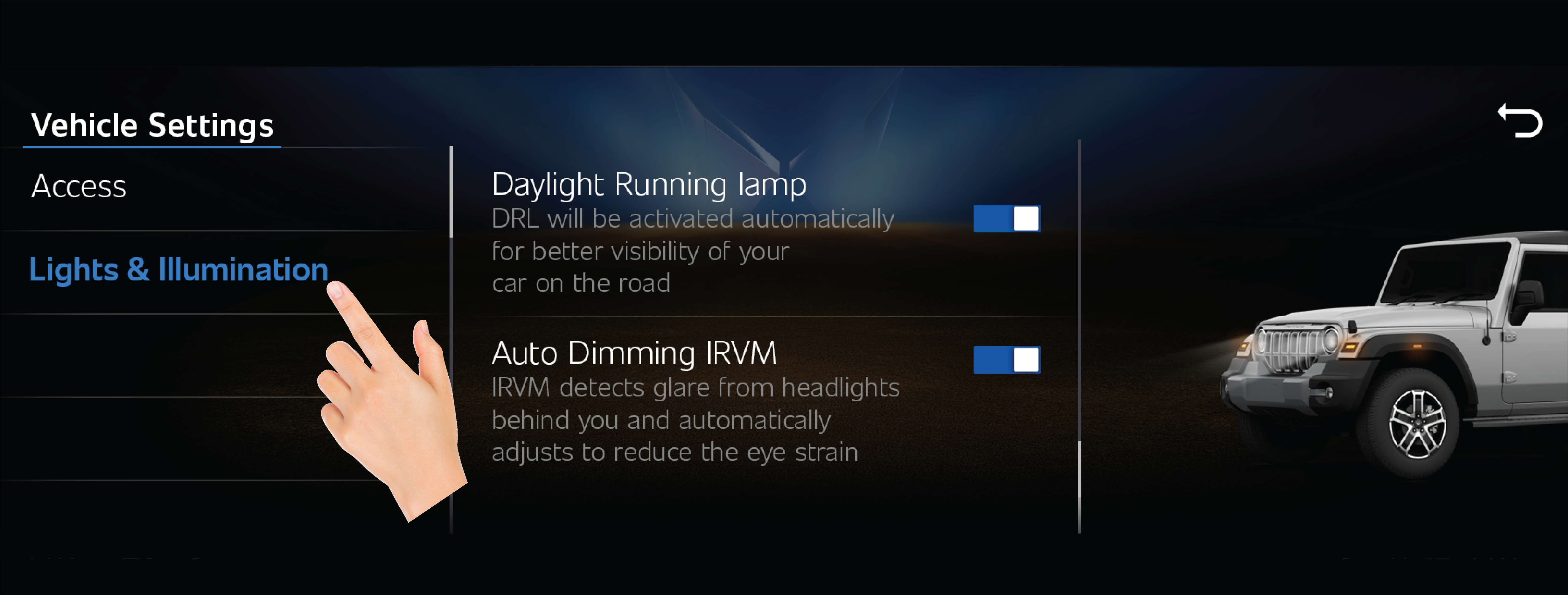

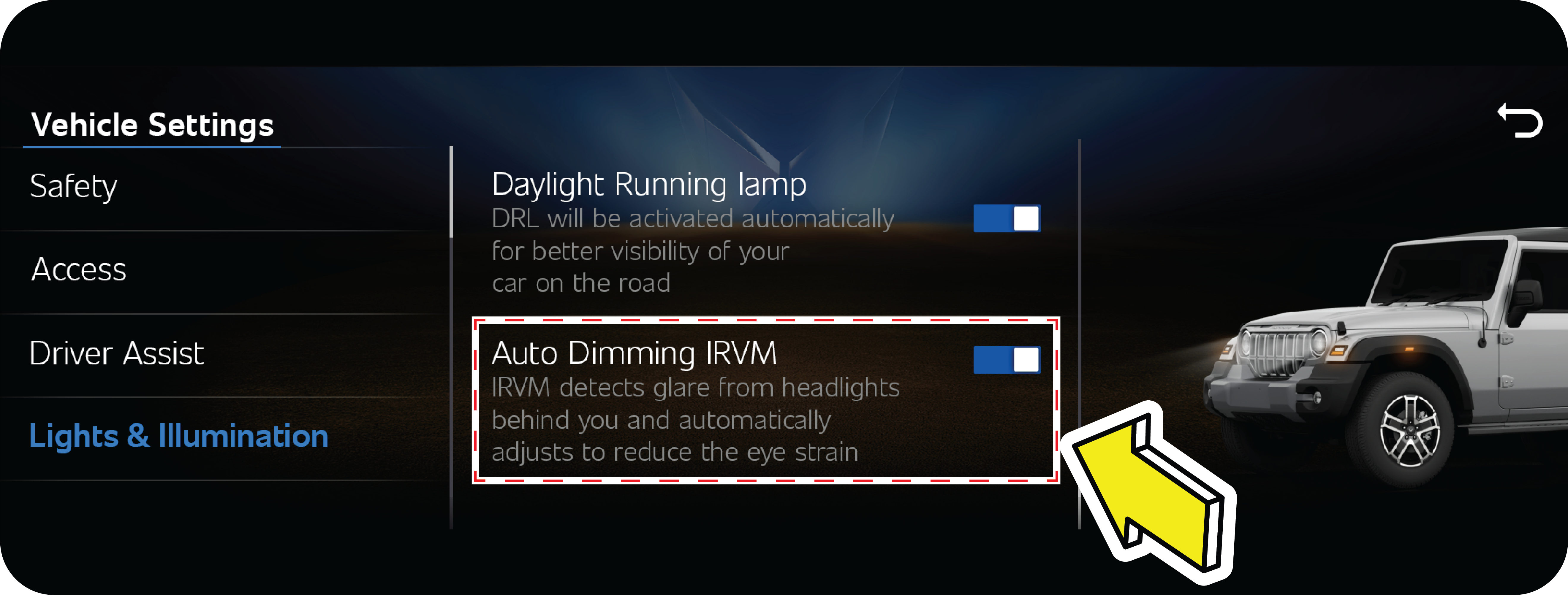

IRVM |
Front Sensor |
|
|
• | Under the following conditions, auto dimming function may not operate properly |
• | When the rear vehicle’s head lamp is not beamed directly to the inside rearview mirror’s sensor |
• | When the rear window has a dark tinted glass |
• | When the gear selector lever is in the R position, auto dimming function will be cancelled to obtain the best rearview |
• | For your safety, never adjust the mirror while the vehicle is in motion |
• | The electrolyte may come out when the mirror is broken. Do not allow it to contact your skin or eyes. If you accidentally get it in your eyes, flush with water and see your doctor |
• | For your safety, adjust the mirror before driving off the vehicle |
|

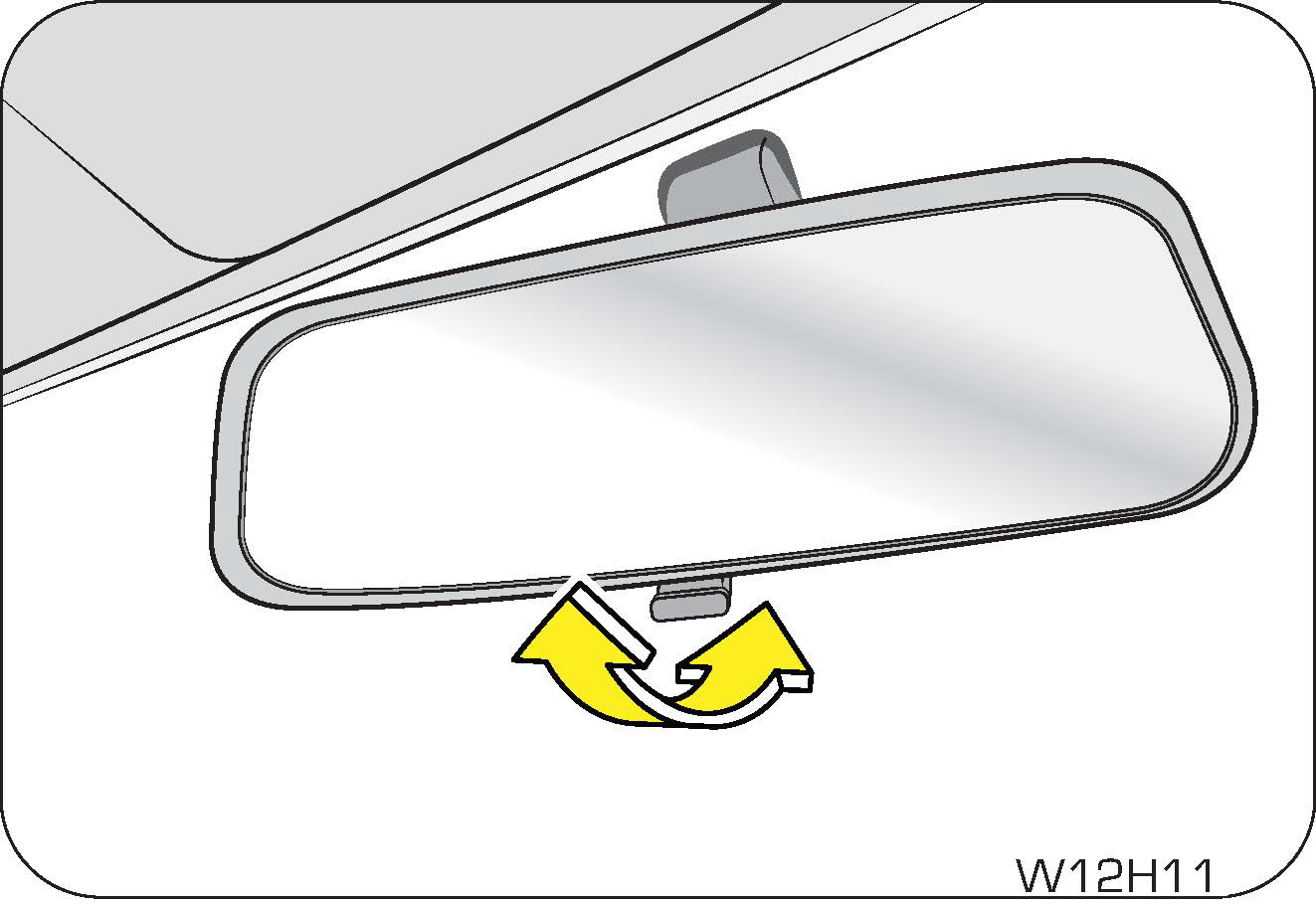

The interior mirror has day and night (anti-glare) positions. The night position reduces glare from head lamps of vehicles
behind you. Flip the tab on the bottom edge of the mirror to select the day or night position.
|
|
A: Type ‘C’ Charging Port
B: Type ‘A’ USB Port
|
• | Close the power outlet cap when not in use |
• | Do not allow children to use or play with the power outlet |
• | When using electrical appliances, strictly follow the manufacturer's instruction manual |
• | Never use the power outlet for electric heaters while sleeping |
• | Never insert foreign objects into the power outlet |
• | Never use malfunctioning electrical appliances |
• | Never insert inappropriate or badly fitting plugs into the power outlet |
• | Distract the driver while driving, or hamper safe driving |
• | Result in a fire or burn injuries due to the appliance rolling, falling or overheating |
• | Emit steam, while the windows of the passenger compartment are closed |
• | Remove the plug from the power outlet after using the electric device. Leaving the electric device plugged in for more time may cause the battery to drain |
• | Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V |
• | Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle |
|
A wireless mobile charging unit is located in front of the center console below the front USB ports.
|
|
|
|
The cup holder located in the floor console between the front seats, It can be used for small cups or cans that are closed
or have a lid.
|
|
The cup holders are located on both the left and right side trims.
Only sealed cups/cans with lid to be used in the cup holders.
|
|
Bottle holders are located on both the front door lower trims. You can use them to store maps, papers, small books, bottles,
etc.
Only sealed/closed bottles are to be used in the bottle holders.
|
|
|
|
The sun visors can be used for either frontal or sideward shade, to reduce glare or to shut out direct rays of the sun. The
sun visor can be swivelled to the side, to provide shade from the glare of the sun.
|
|
The grip handles are provided above the front row outboard seats.
|
|
Press the pad on the steering wheel to blow/sound the horn.
The horn functions even when the ignition has been switched OFF.
Horn will get activated when horn switch/pad is pressed
It will get deactivated when horn switch/pad is released or after 10 sec of continuously pressing.
|
|
|
|

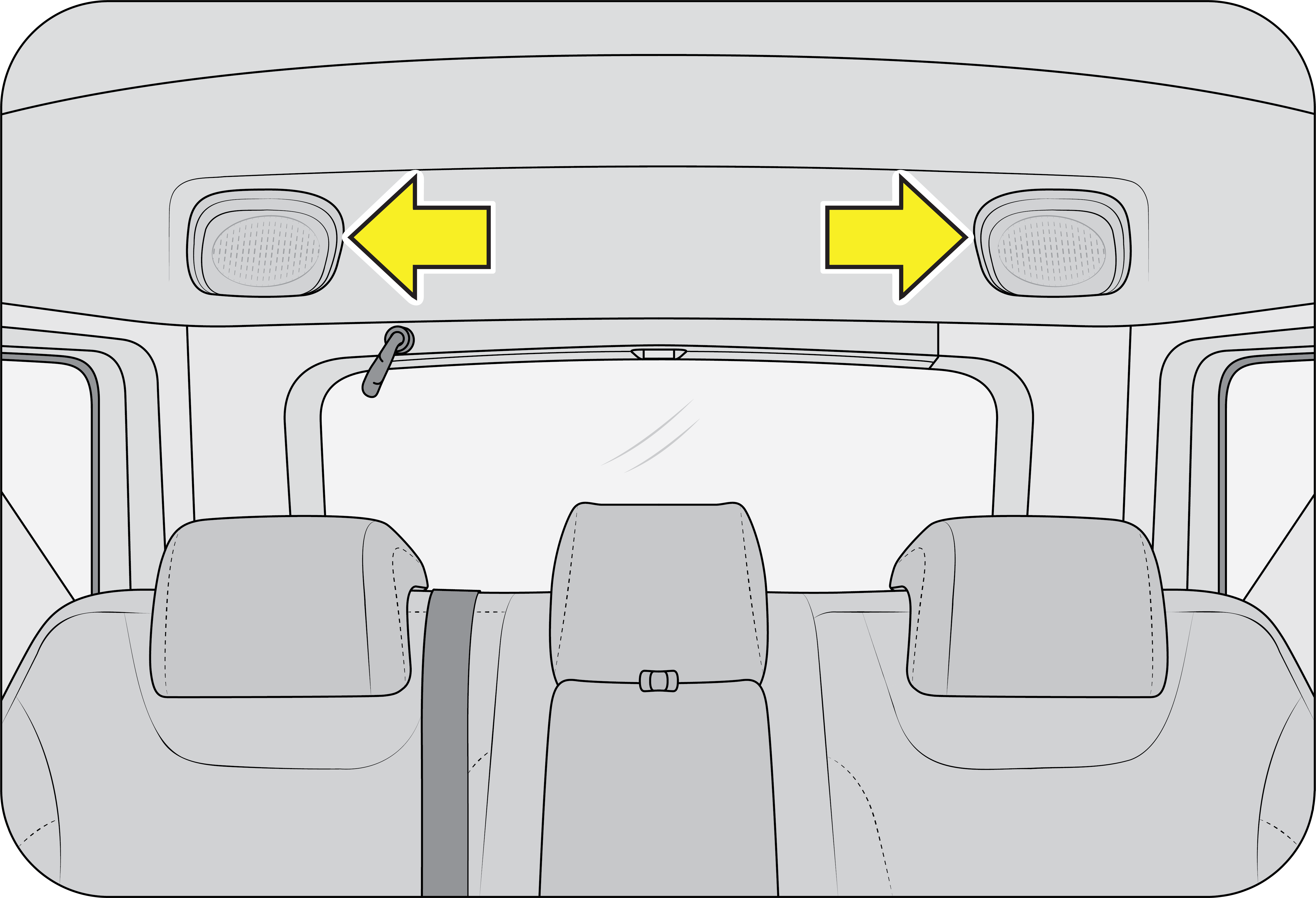

Tweeters: Tweeters are located on the roof panel.
|
|
Speakers and Tweeters: Speaker and Tweeter are located in door trims.
|
|
Sub woofer: It is located on the right-side trim.
|
|
The magazine pocket is on the right side trim. It can hold lightweight papers/books/magazines, etc.
Do not place large or hard objects in the magazine pockets. Do not put heavy objects in the magazine pockets.
|
S.NO |
Switches |
S.NO |
Switches |
A |
Fuel Lid Open |
E |
Turn Assist |
B |
ESP OFF |
F |
FPAS OFF |
C |
Foot Lamp |
G |
HDC |
D |
Smart Crawl Assist* |
H |
Engine Stop/Start button * |
S.NO |
Switches |
S.NO |
Switches |
A |
Ventilated Seat Co-Driver |
E |

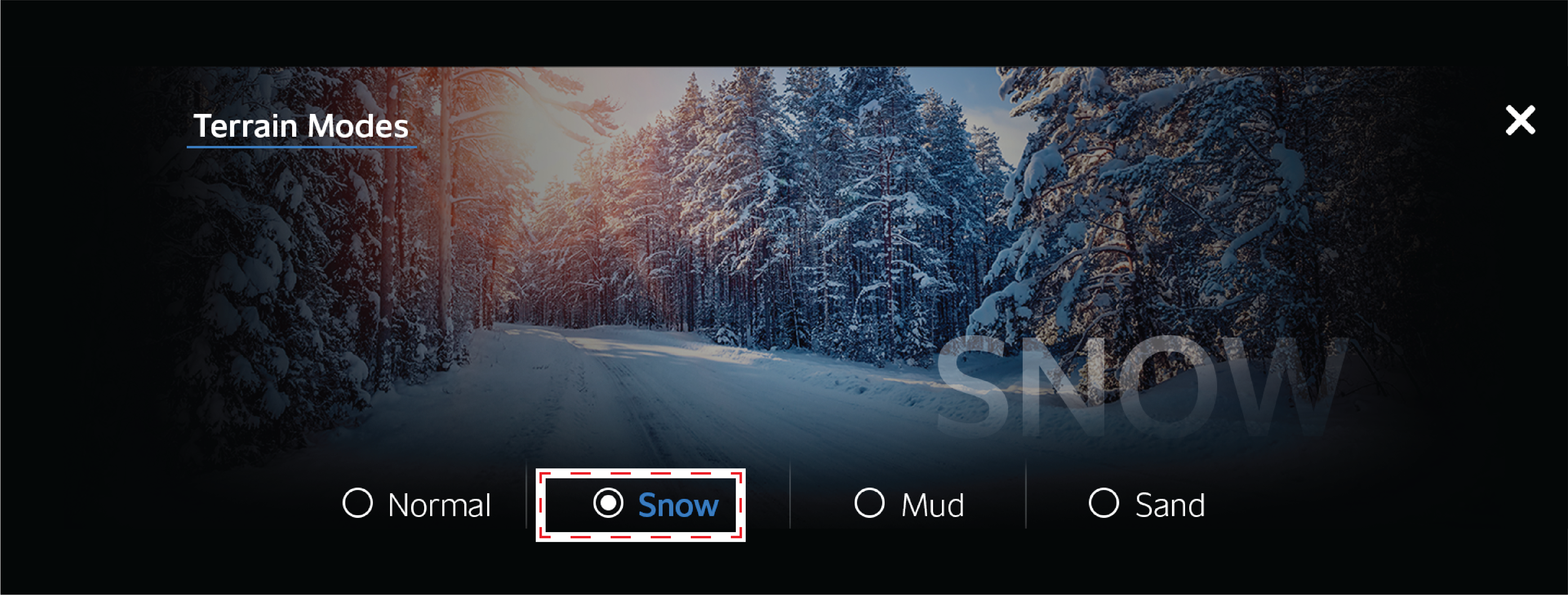

Terrain Mode 4*4 |
B |
PAB ON indicator |
F |
Electronic Locking Differential (ELD) |
C |
PAB OFF indicator |
G |
Ventilated Seat Driver |
D |
Hazard warning switch |

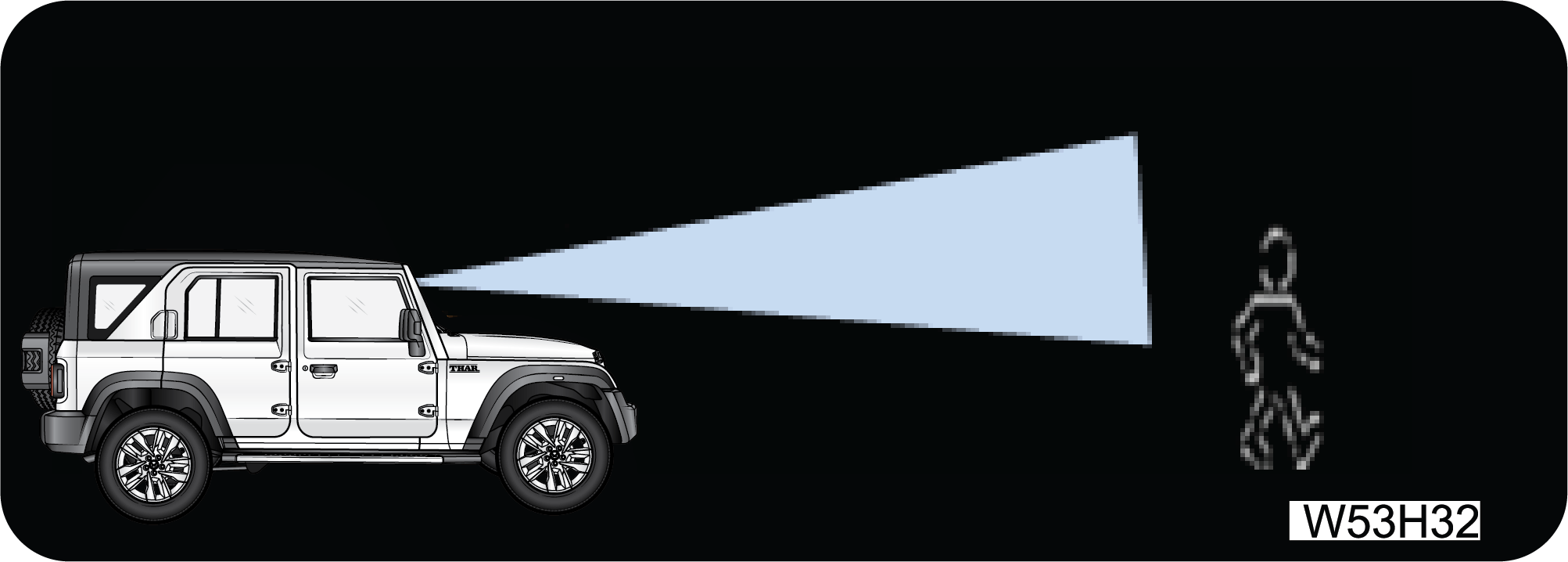

Type 1
|
|
|
|
• | Ignition transition from ON to OFF |
• | Park lamp ON to OFF |
• | Ignition key is out |
• | Open Driver door |
• | Head lamp low beam will turn ON for 20 seconds |
• | FMH ON 20 seconds expires |
• | Park lamp transition from OFF to ON |
• | Ignition transition from ON to OFF |
• | Park lamp ON to OFF |
• | Ignition key is out |
• | Double press RKE LOCK |
• | Head lamp low beam will turn ON for 20 seconds unless cancelled by the UNLOCK signal |
• | The first RKE LOCK command will be used for locking all doors |
• | Successive RKE LOCK commands will be used for toggling the current status of the head lamp low beam |
• | Each time FMH is extended, the head lamp low beam will be kept/turned on for the next 20 seconds |
• | If no extension is provided for 3 mins, FMH will get expired |
• | Park lamp transition from OFF to ON |
• | Ignition off to any other states |
• | FMH ON 20 seconds expires |
• | Max time of 3 mins has elapsed and no extension of FMH |
|
|
||||||
|
|
• | Successive UNLOCK commands received from RKE is used for toggling the current status of the head lamp low beam |
• | Each time LMV is extended the low beam will be kept/turned on for next 20 seconds |
|
|
||||||
|
|

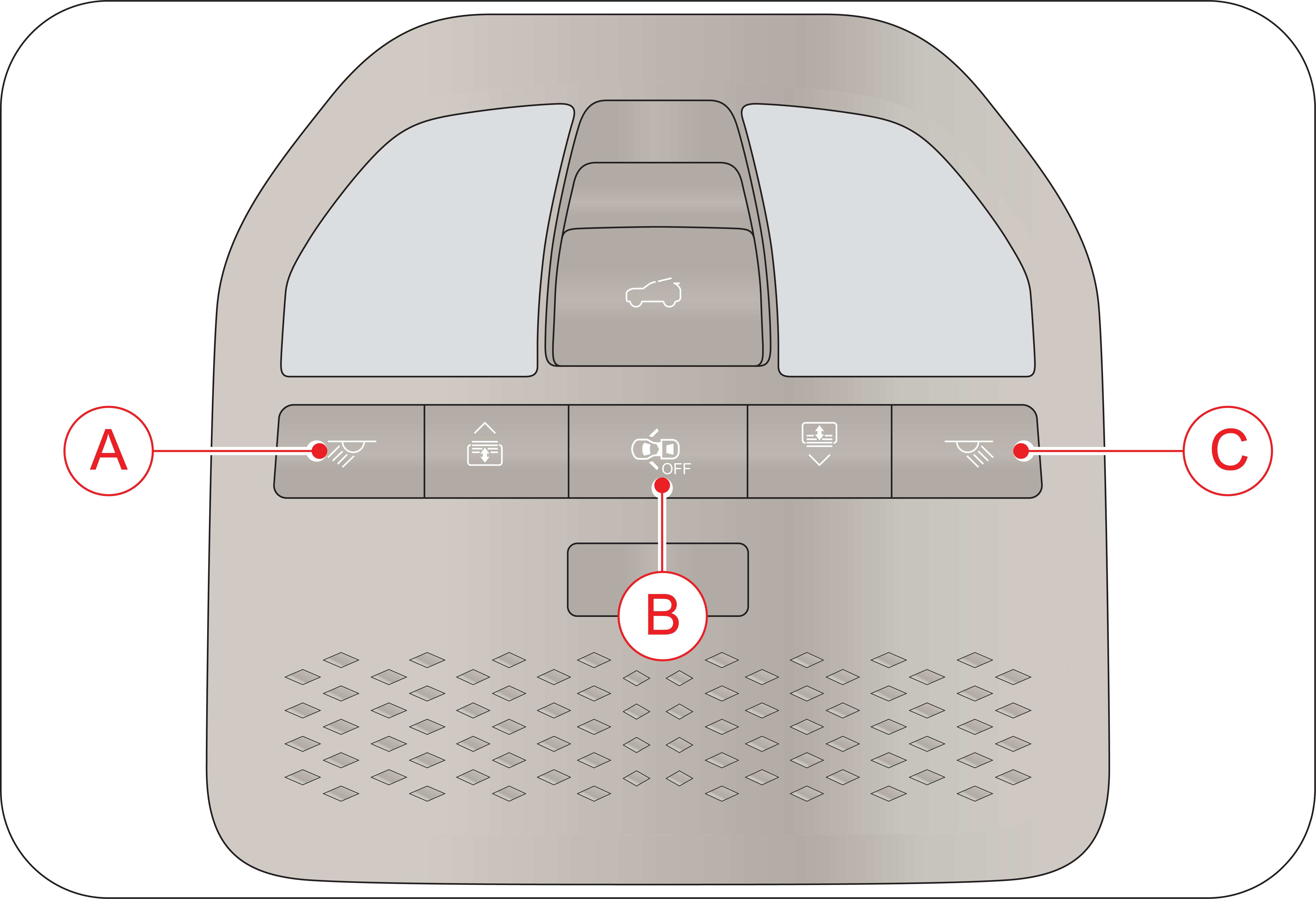

A
|
Map Reading Lamp- LH
|
C
|
Map Reading Lamp- RH
|
B
|
Door Mode Switch
|
• | Roof lamp switches ON, dims and goes OFF after a preset delay once RKE unlock is performed |
• | Roof lamp switches ON when any of the doors is/are open |
• | Roof lamp switches ON when Ignition on to ignition off all doors closed condition |
• | Roof lamps dim and go OFF after a preset delay upon closing of all doors during IGN OFF condition |
• | Roof lamps dim and go OFF immediately on RKE lock or manual key lock after all doors are closed |
• | If any of the doors are not closed properly, then the Roof lamps switch OFF automatically after a preset duration (during Key removal from key Barrel) or once the vehicle speed > 20 kmph |
• | Roof lamps go OFF with ignition ON and all doors closed properly |
|
Map reading lamps are located on the both sides of the roof near the grab handle above the second-row seats.
Do not leave the roof/map reading lamp in permanent ON mode. This will drain your vehicle battery.
|
• | Push the lighting control stalk clockwise to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right |
• | Push the lighting control stalk anti-clockwise to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left |
• | After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF turn indicator lamp. |
• | Do not clean the sensor with detergent or wax |
• | On a foggy, snowy, rainy, or cloudy day, be sure to use manual mode. The turning on or off time of the lamps varies depending on the weather, season, or circumstances |
• | Any aftermarket sunfilm or spray may cause the lighting system to malfunction |
• | When the switch is turned to the “AUTO” position, room, tail, and head lights might blink for a very short time. It is a normal phenomenon recognising the automatic setting |
• | There may be a difference between ambient light intensity sensed by the RLS sensor and the human eye. Hence it is possible that during low light conditions, the head lamp is activated early as the RLS sensor senses it as low intensity. This is a normal behaviour. |
A
|
Low Beam
|
B
|
High Beam
|
|
When the vehicle is either fully or partially loaded, it may have an upward inclination disturbing the head lamp aiming. A
correct head lamp setting provides good visibility to the driver with minimum inconvenience to other road users.
To properly aim the head lamp beam, use the head lamp levelling switch.
|
Switch Position |
Vehicle Loading Condition |
0
|
Driver only or Driver with front passenger
|
1
|
Driver + Front passenger + Rear seat occupied
|
2
|
All seats occupied
|
3
|
All seats occupied with luggage OR Driver with luggage at extreme rear side
|

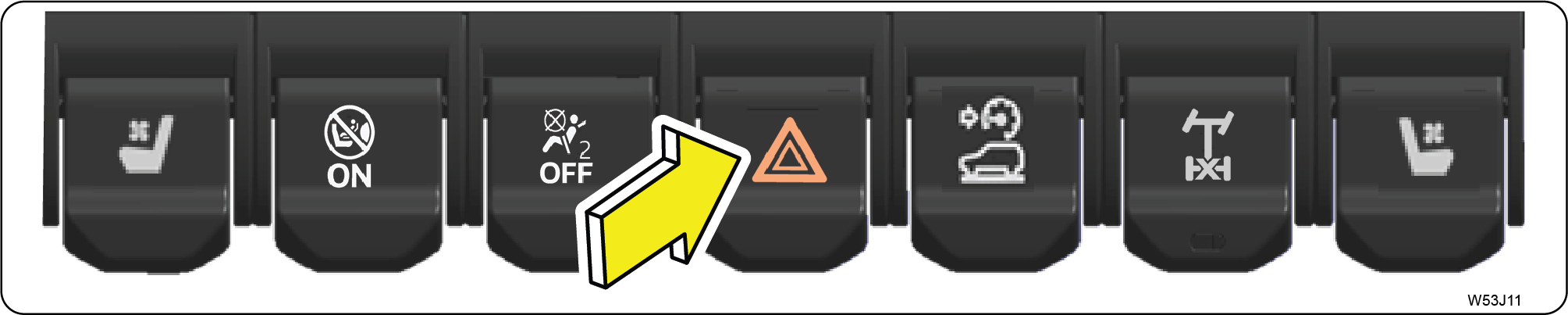

• | Crash — Hazard would be turned on for 30 mins |
• | Panic Braking — Hazard lamps are turned on automatically for 10 seconds during panic braking condition to indicate following traffic. |
|
A: Flick- Wipe (MIST)
B: Off
C: Intermittent (INT)/AUTO
D: Low Speed (LO)
E: High Speed (HI)
F: Rotary Switch
|

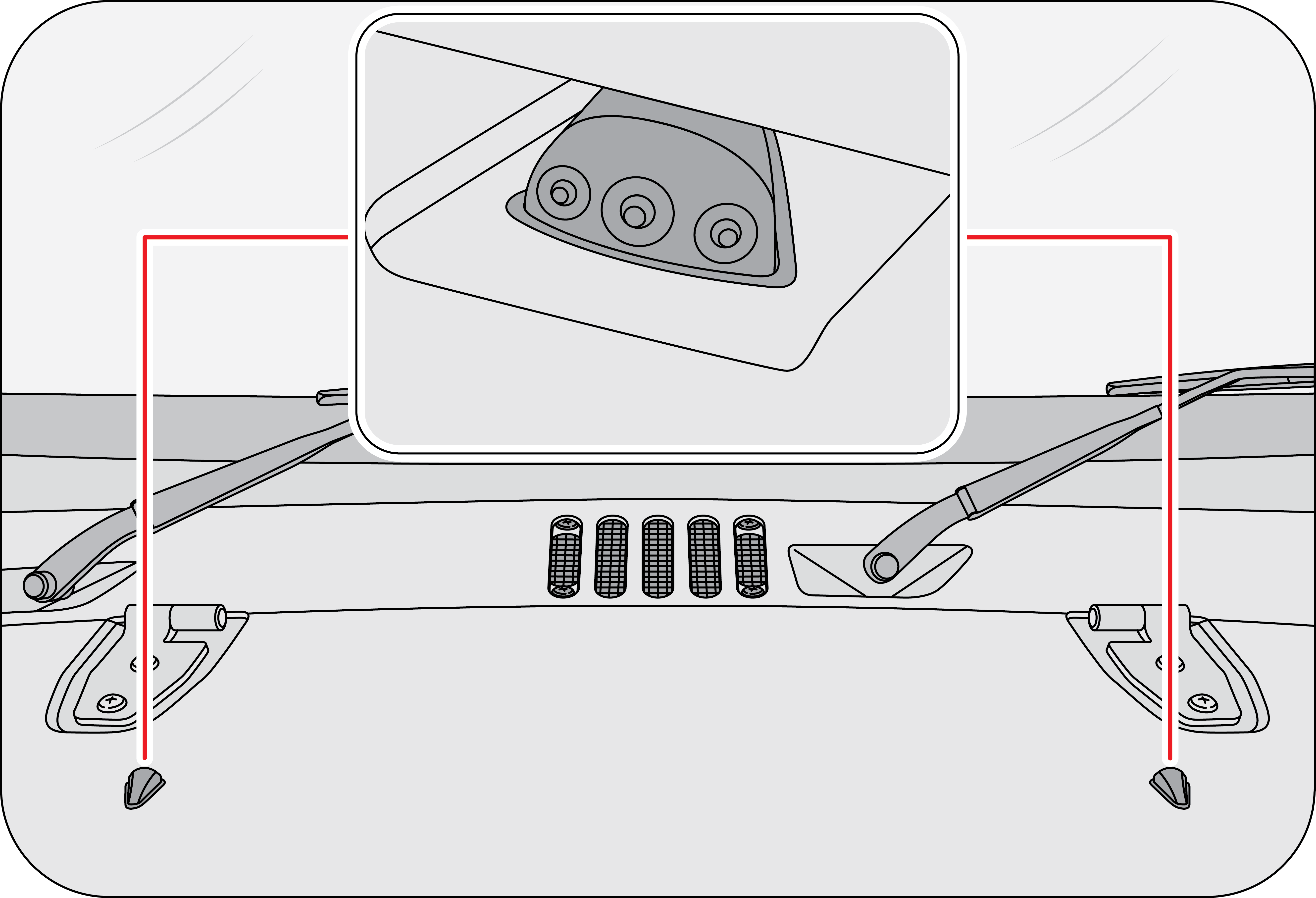

• | Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass |
• | It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass |
• | Do not operate the windshield washer for more than 10 secs. or when the reservoir is empty |
Front |
Rear |
|
|

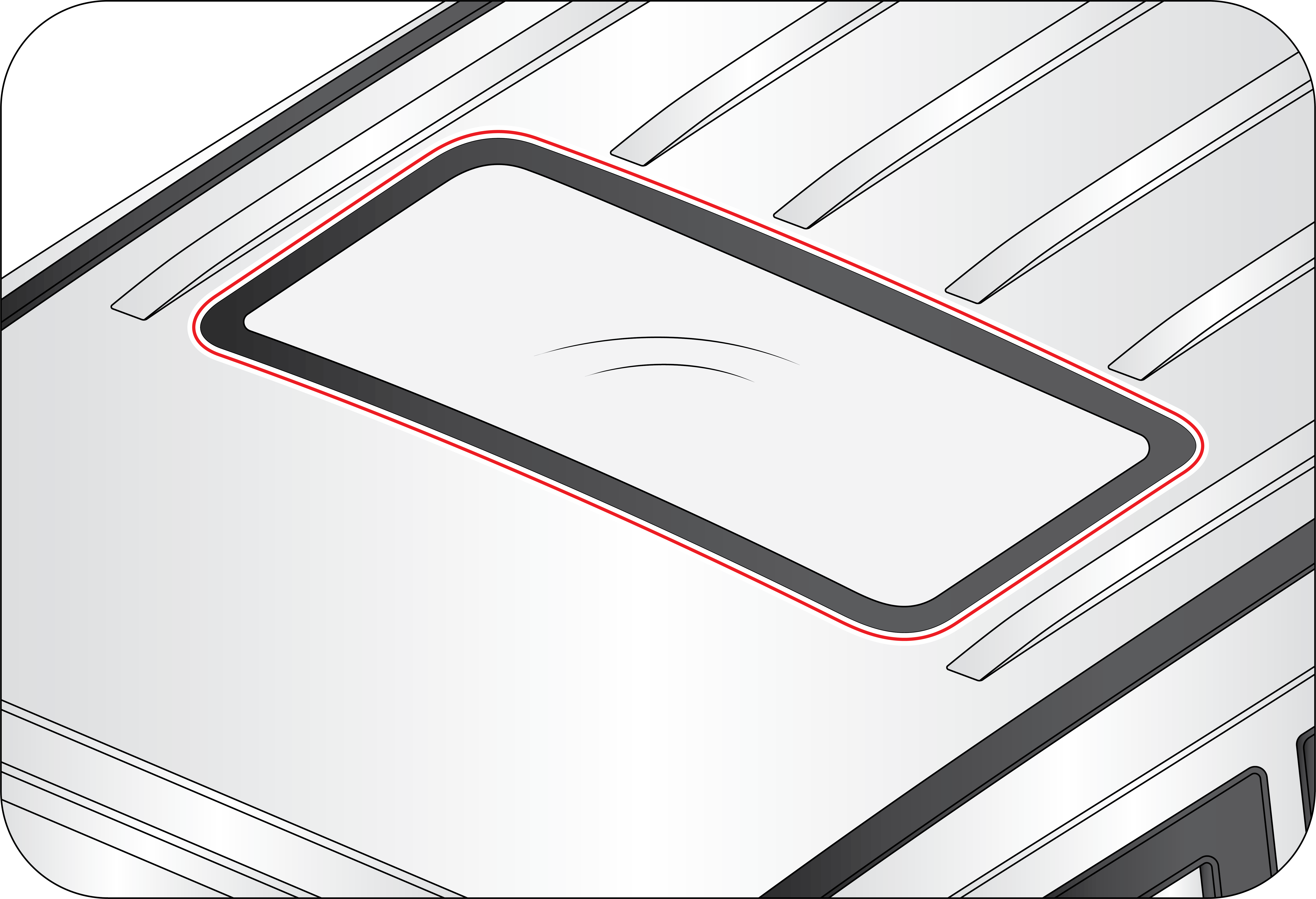

• | Even though the sunroof can be operated when the ignition key is in the ON position (the engine is not running), operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine is running |
• | When a desired sunroof operation is completed, release the switch. If you keep pressing the switch, it could cause a malfunction. Especially in winter, never operate the sunroof if moving areas are iced. Wait until the areas are deiced |
• | When leaving the vehicle unattended, be sure to completely close the sunroof. Otherwise, there is a great risk of vehicle theft. Or, the interior of the vehicle will be wet when it rains or snows |
• | When operating the sunroof, be aware of safety conditions before operation. Parts of the body can be trapped |
• | Clean up the circumference of sunroof regularly. Otherwise, operating the sunroof may cause a noise due to foreign material and dirt |
• | Opening the sunroof or driving with the sunroof open after a car wash or rain may lead to water entering |
• | Close the sunroof while driving in the dusty environment. The dusts or particles entered can cause operating problems |
• | If a roof rack system is installed on the vehicle roof or any cargo is secured to the roof rack, do not operate the sunroof. If you are required to operate the sunroof, carefully check that the roof rack system does not interfere with the sunroof and it is safe to open the sunroof |
• | Make sure that no passenger sticks out head, hand or any part of his/her body out of the sunroof opening while driving. There is a risk of personal injury when the vehicle is stopped suddenly |
• | Before operating the sunroof, make sure that no head, hand, finger, or any object is capable of being trapped. There is a risk of personal injury or even death |
|
|

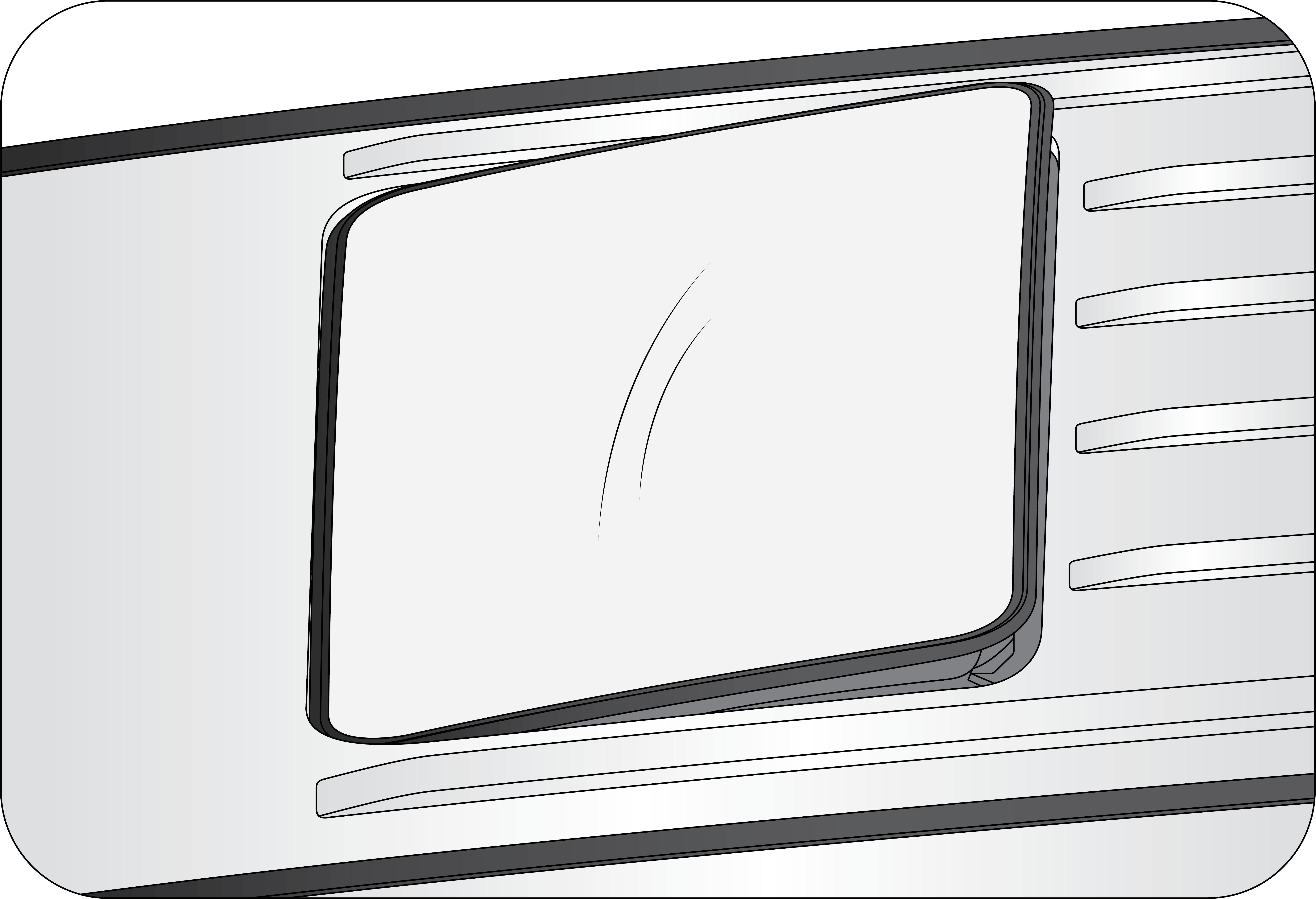

Sunroof Smart Open by Key Fob Unlock Button
|
|
|
|
• | Sunroof can be opened by long press unlock button. |
• | Sunroof movement can be stopped by pressing lock/unlock button during movement. |
Sunroof Close
|
|
|
|
Sunroof Smart Close by Key fob Lock button
|
|
|
|
• | Sunroof can be close by long press lock button. |
• | Sunroof movement can be stop by pressing lock/unlock button during movement |
|
If Rain sensor is equipped: In auto wipe mode or wiper LOW or HIGH mode, when wiper is ON for predefined time, cluster will request user feedback for
closing the sunroof. Using Steering “selection button/ center button” user can choose to close the Sunroof.
|
|
|
|

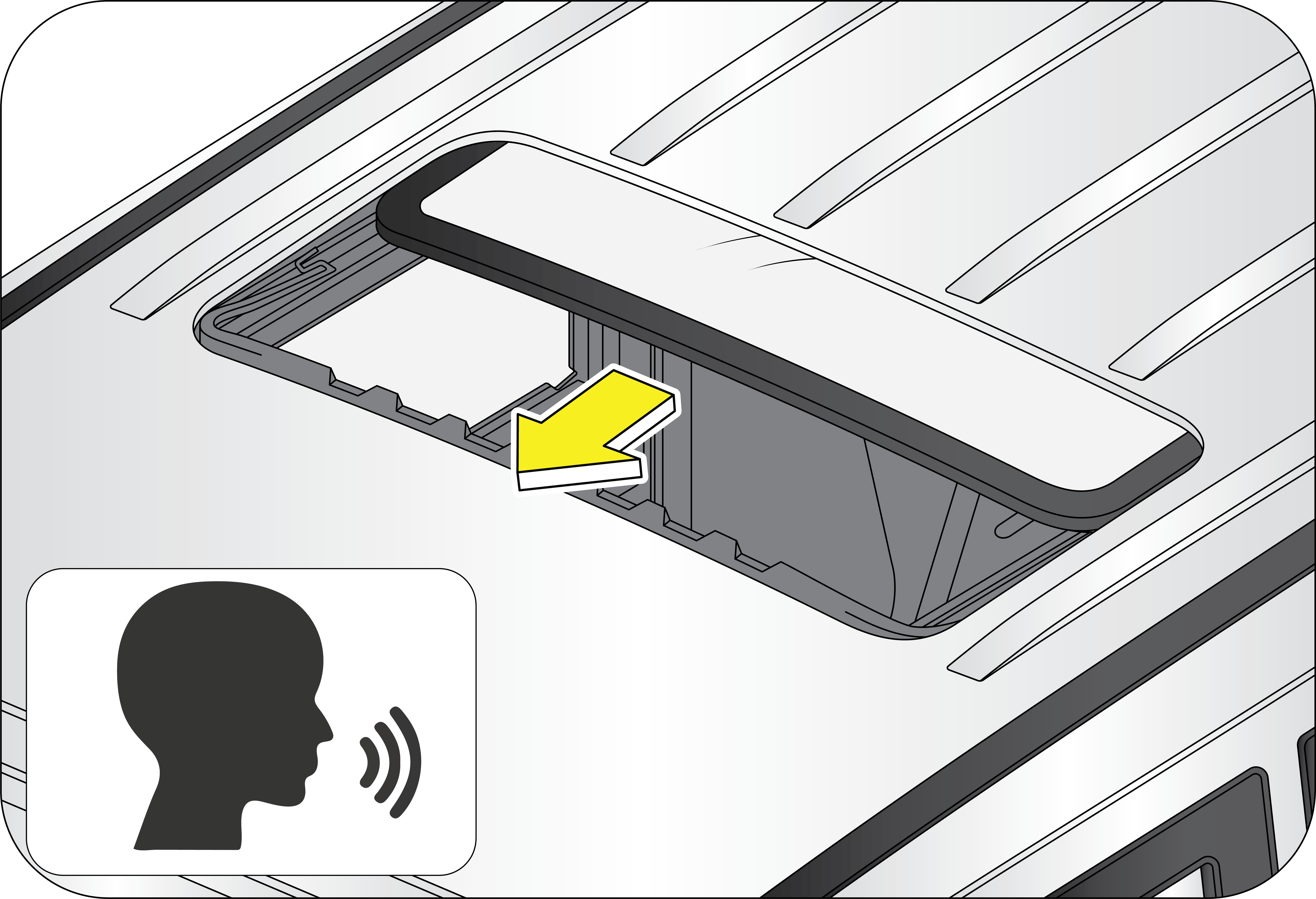

Sunroof Smart Control by Voice Recognition
User can open and close sunroof via Voice command through Alexa during Ignition ON
|
|
Sunroof Control by Authorised Mobile Phone Application
User can open and close sunroof via mobile phone with authorized application in Ignition OFF
|
|
|
|

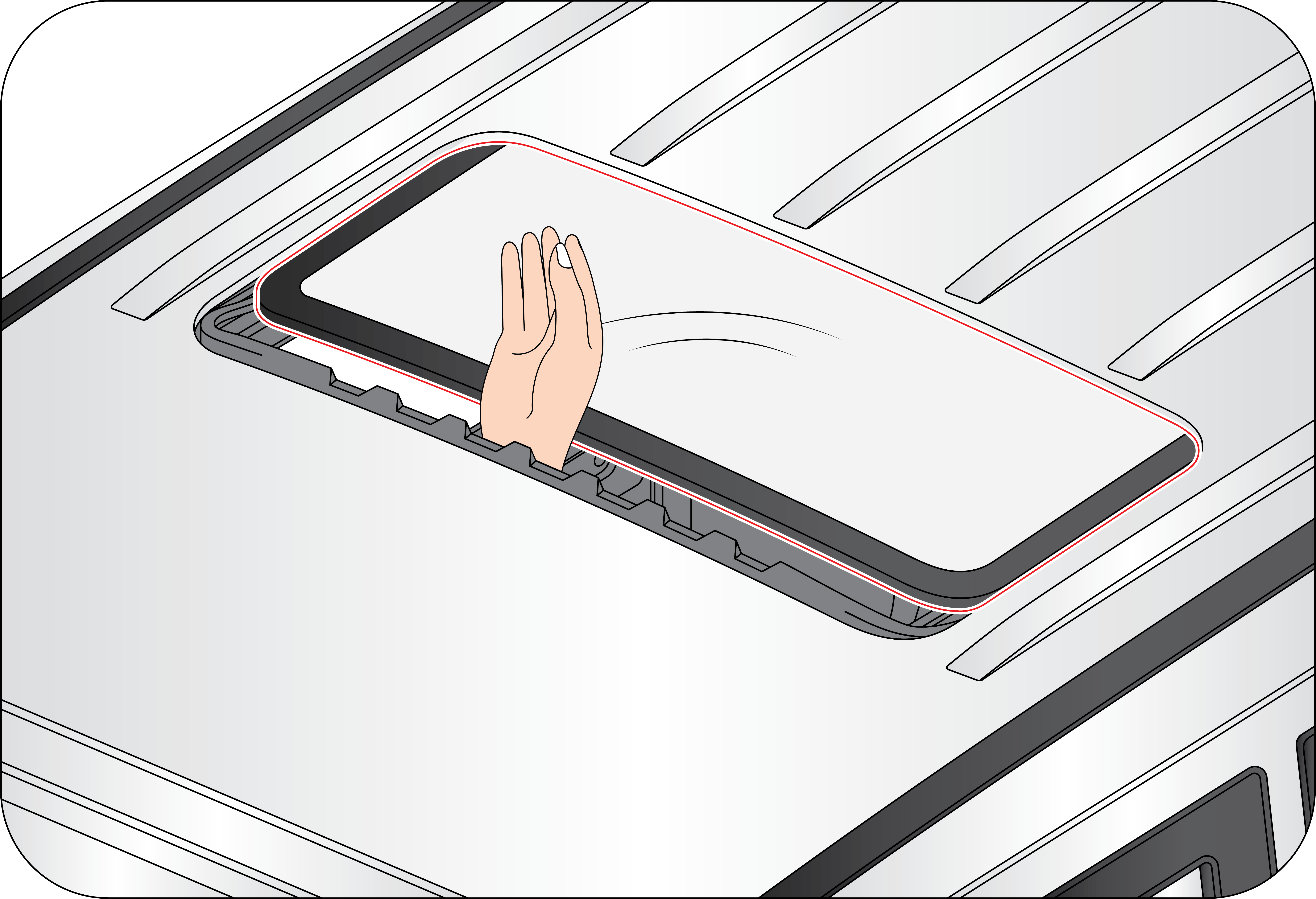

To prevent any body parts from being trapped by the sliding sunroof, an Anti-Pinch Function automatically opens the sunroof
when an object is trapped.
|
• | This safety function is available for the auto sliding sunroof close |
• | Sunroof safety function is supplemental and not always operable depending on circumstances (e.g. any electrical device in the vehicle, etc.), therefore, the driver should check safety at all times before operating the sunroof |
• | Never leave children or disabled persons in the vehicle – particularly if they have access to the vehicle key. Unsupervised use of the remote control vehicle key makes it possible to lock the vehicle, start the engine, turn on the ignition and operate the sunroof. |
• | Never stand or sit on sunroof glasses or roof. This can cause severe damage and would be treated as abuse of the sunroof which not covered by warranty. |
• | Never keep the Luggages / weights on top of the roof/sunroof. |
• | Any wet area found on the headliner shall be reported an Authorised Mahindra Dealer Immediately. |
• | Never close the sunshade during the sunroof glass is in open condition. This can cause the sunshade damage and would be treated as abuse of the sunroof which not covered by warranty. |
• | Without pinch protection, the power Sunroof will close with enough force to cause serious personal injury. |
• | Always be careful when closing the power Sunroof |
• | Pinch protection cannot prevent fingers or other parts of the body from being pressed against the edge of the roof; may result in injuries |
• | If the power Sunroof malfunctions, pinch protection may not function properly. Visit a Mahindra Authorized Dealer or an authorized Mahindra Service Facility for assistance. |
• | The sunroof does not completely close or open by operating the switch once |
• | The sunroof slides back to close. But the operation does not stop even after a complete close and tilts up the sunroof |
• | The opening gap remarkably decreases for the sliding open or tilt up |
• | The sunroof does not work |
• | Operation of the sunroof switch does not do anything or work properly. |
• | The operating process is not same as before due to discharged or disconnected battery. |
Initialization and Self Learning Procedure
|
||
|
|
|

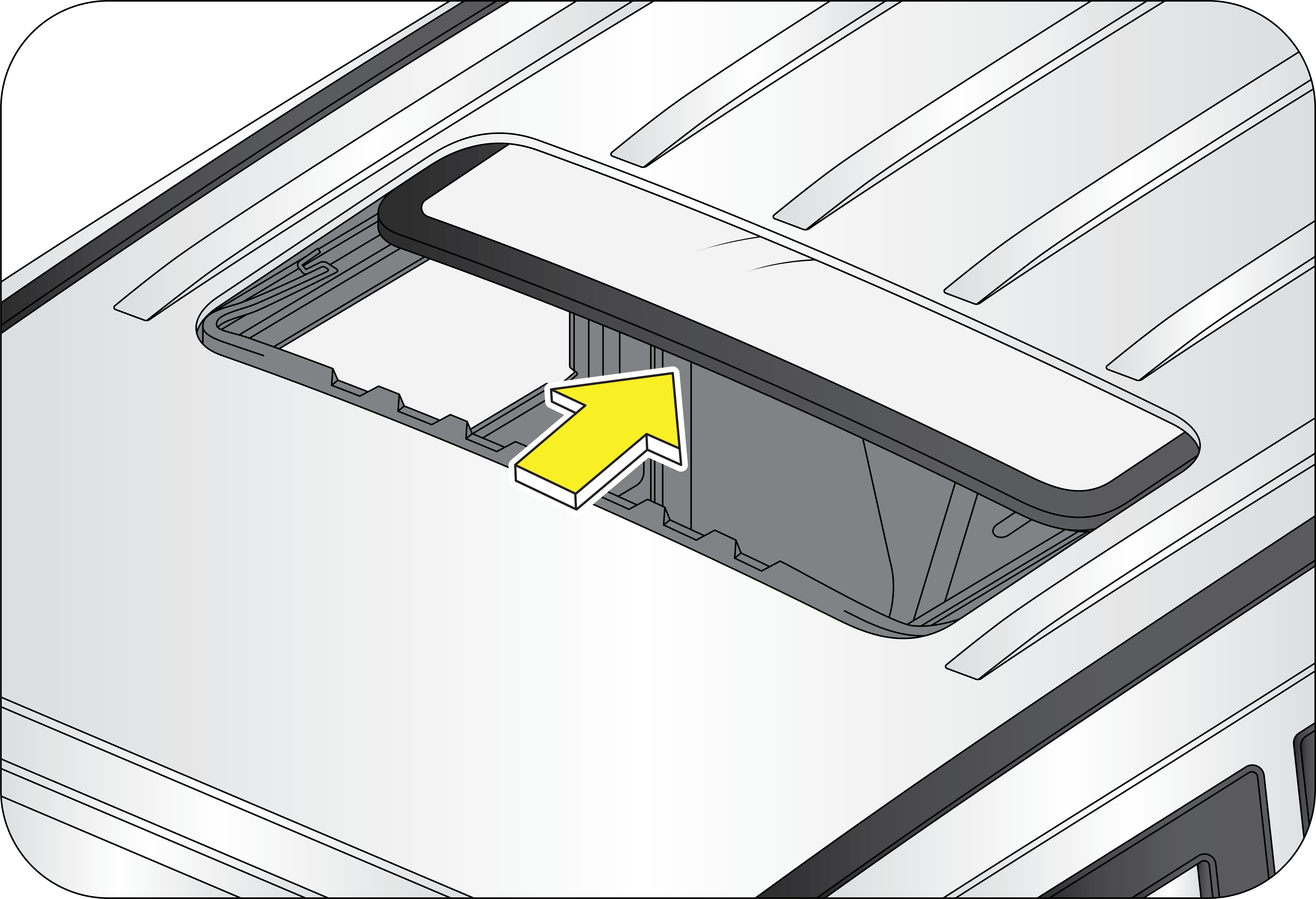

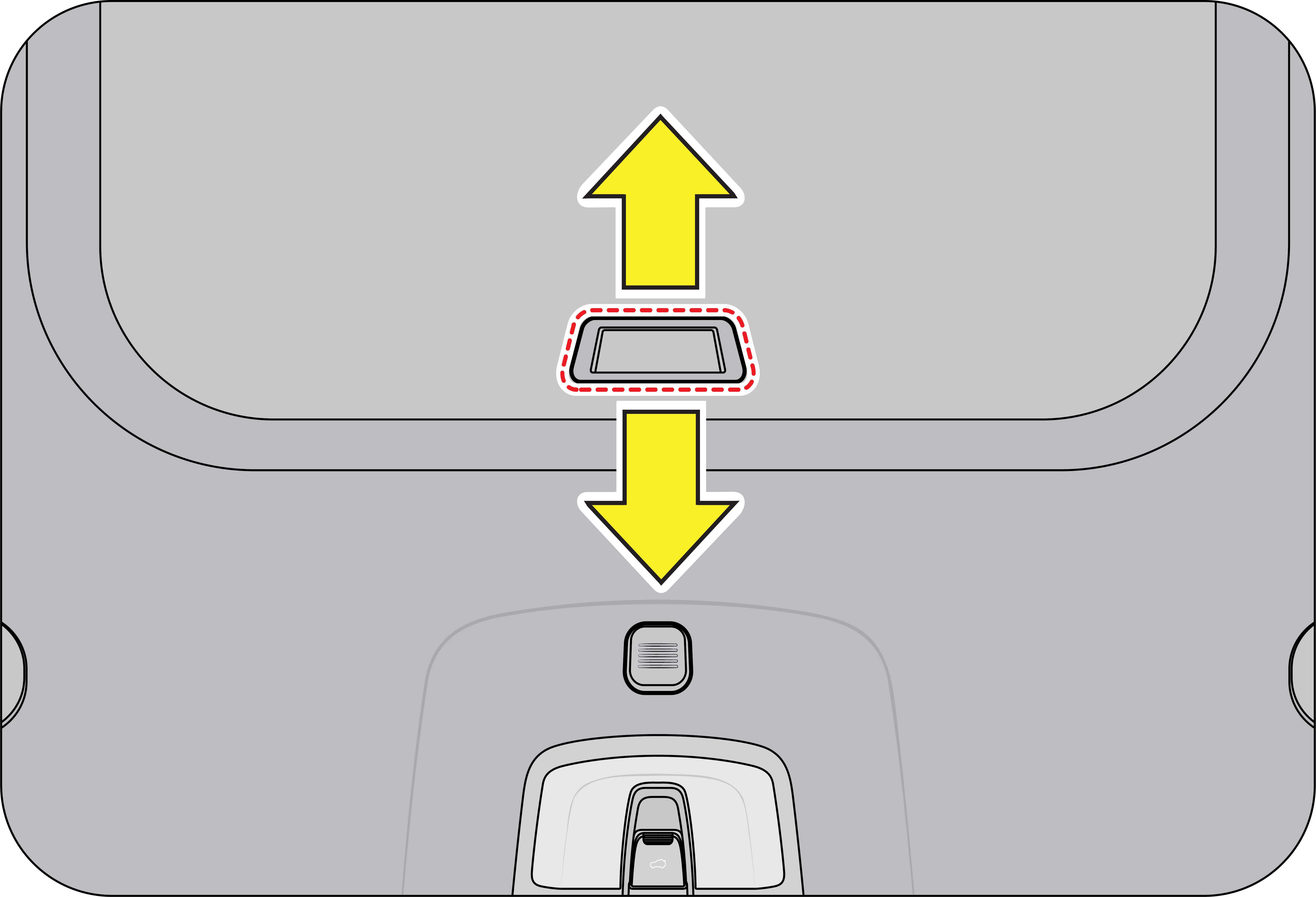

1. | Turn ON the ignition |
2. | Sunroof to be in TILT position. Press the ‘sunroof close switch’ and hold it for 9 to 10 seconds. During this process, Sunroof makes clicking sound at Tilt position. |
3. | Close Sunroof by again pressing Open switch. |
4. | The Re-Initializing command is complete, Check if the Express open/close features are working. |
1. | Sliding sunroof shall be in CLOSE position. |
2. | Press ‘sunroof close switch’ and keep the switch pressed continuously. Do not release the switch and wait for following actions to perform. |
3. | Once Sliding sunroof reaches to TILT position, will start its cycle after 5 sec, delay. |
4. | Sunroof start to self - learning, run from Tilt - Close - Partial Open – close. |
5. | Overall approx. 16 to 18 seconds @13.5V required to complete self-learning. |
6. | The Self learning command is complete. |
• | To help prevent damage, remove ice and snow from the sunroof before opening or tilting it in winter season |
• | Always close the Sunroof before leaving the vehicle or if it begins to rain. If the Sunroof is open or tilted, rain could enter the vehicle interior and cause extensive damage to the electrical system. This could result in further vehicle damage. |
• | Remove leaves and other objects from the Sunroof guiderails regularly either by hand or using a vacuum cleaner. |
• | If the power Sunroof malfunctions, pinch protection may not function properly. See a Mahindra Authorized Dealer or an authorized Mahindra Service Facility |
• | During sliding sunroof (one touch/manual) open operation, the sunshade will also open in synchronization with sliding sunroof glass. |
• | During sliding sunroof (one touch/manual) close operation, the sunshade will not close in synchronization with sliding sunroof glass. |
|
|
||||||
|
|
|
|
• | After cleaning of all visible particles, blow air into drain hose channel area to clean hose for mud in this area |
• | Now pour 1 litre of water in rain channel and check if water is draining or not |
|

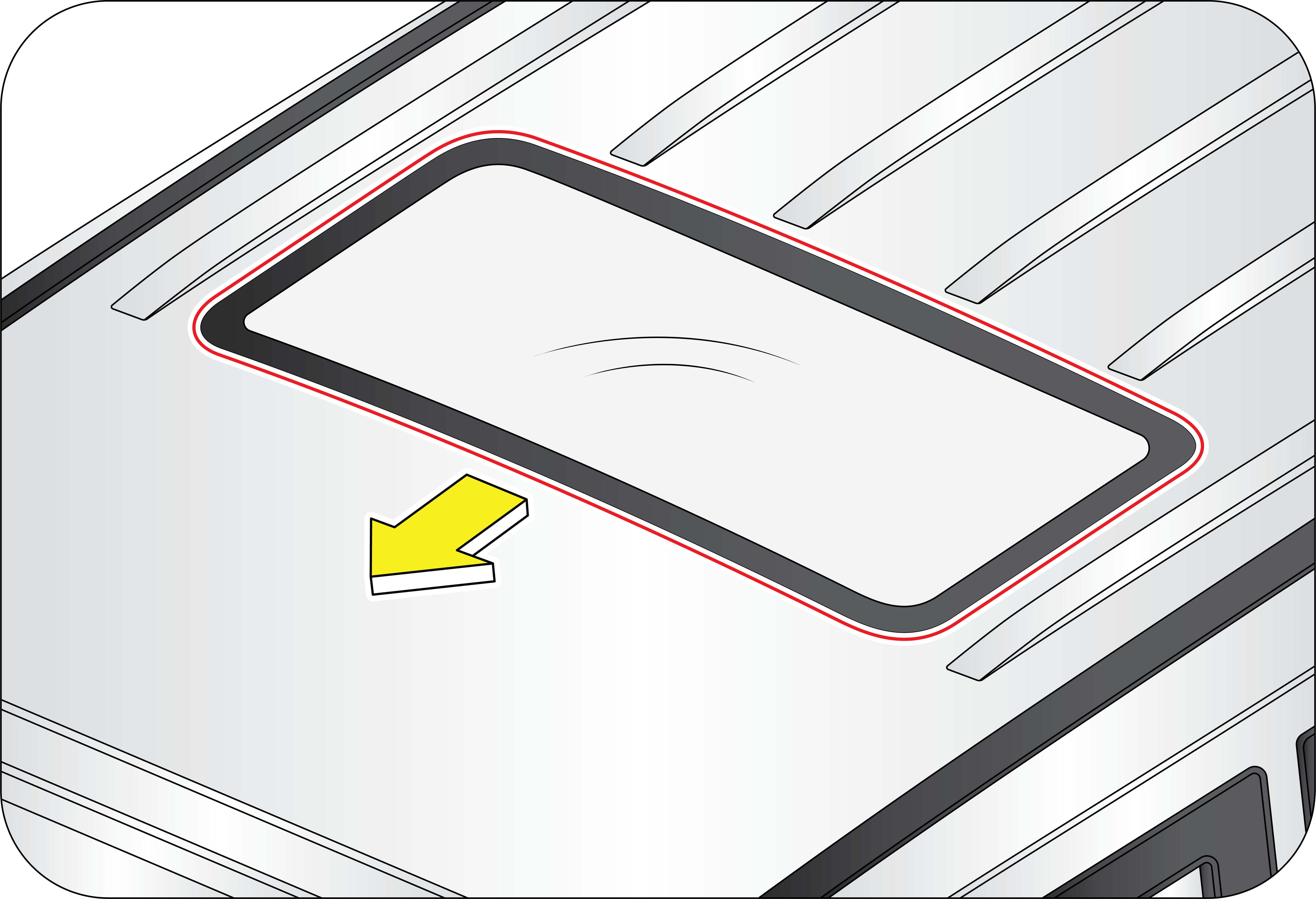

A skyroof will make the driving experience more enjoyable by bringing light and sunshine into the vehicle.
It provides a real open air feeling along with pure driving fun, with fresh air, your driving experience automatically becomes
significantly more relaxed.
|
• | Even though the skyroof can be operated when the ignition key is in the ON position (the engine is not running), operating the skyroof repeatedly with the engine turned off will run down the battery. Operate the skyroof while the engine is running. |
• | When a desired skyroof operation is completed, release the switch. If you keep pressing the switch, it could cause a malfunction. Especially in winter, never operate the skyroof if moving areas are iced. Wait until the areas are deiced. |
• | When leaving the vehicle unattended, be sure to completely close the skyroof. Otherwise, there is a great risk of vehicle theft. Or the interior of the vehicle will be wet when it rains or snows. |
• | When operating the skyroof, be aware of safety conditions before operation. Parts of the body can be trapped. |
• | Clean up the circumference of skyroof regularly. Otherwise, operating the skyroof may cause a noise due to foreign material and dirt. |
• | Opening the skyroof or driving with the skyroof open after a car wash or rain may lead to water entering. |
• | Close the skyroof while driving in the dusty environment. The dusts or particles entered can cause operating problems. |
• | If a roof rack system is installed on the vehicle roof or any cargo is secured to the roof rack, do not operate the skyroof. If you are required to operate the skyroof, carefully check that the roof rack system does not interfere with the skyroof and it is safe to open the skyroof. |
• | Make sure that no passenger sticks out head, hand or any part of his/her body out of the skyroof opening while driving. There is a risk of personal injury when the vehicle is stopped suddenly. |
• | Before operating the skyroof, make sure that no head, hand, finger, or any object is capable of being trapped. There is a risk of personal injury or even death. |
Switch Position |
Switch Press |
Operation |
---|---|---|
0
|
–
|
Switch Home / Neutral Position
|
1
|
Short Press
|
Tilt Open
|
2
|
Short Press
|
Skyroof Express Open
|
Long Press
|
Skyroof Manual Open
|
|
3
|
Short Press
|
Tilt Close / Skyroof Express Close
|
Long Press
|
Tilt Close / Skyroof Manual Close
|
|
4
|
Short Press
|
Tilt Close / Skyroof Express Close
|
Long Press
|
Tilt Close / Skyroof Manual Close
|
|
5
|
Short Press
|
Rollo Shade Express Open
|
Long Press
|
Rollo Shade Manual Open
|
|
6
|
Short Press
|
Rollo Shade Express Close
|
Long Press
|
Rollo Shade Manual Close
|
|
Press the Open switch to position (5) for Rollo Shade Express (Short Press) open. Manual (long press) open to stop at desired
position.
|
|
Push the Close switch to position (6) for Rollo Shade Express (Short Press) close. Manual (long press) close to stop at desired
position.
|
|
|
• | Pull down the switch to position (3) or (4) to stop at desired position while opening. |
|
|
• | Skyroof will open followed by Rollo shade open. |
• | Skyroof / Rollo shade movement can be stopped by pressing lock/unlock button during movement. |
|
|
• | Push up the switch to position (2) to stop at desired position while closing. |
|
|
• | Skyroof/Rollo shade movement can be stop by pressing lock/ unlock button during movement |
|
If Rain sensor is equipped: In auto wipe mode or wiper LOW or HIGH mode, when wiper is ON for predefined time, cluster will request user feedback for
closing the Skyroof. Using Steering “selection button/ center button” user can choose to close the Skyroof.
|
|
|
|
User can open and close skyroof via Voice command through Alexa during Ignition ON
|
|
User can open and close skyroof via mobile phone with authorized application in Ignition OFF
|
|
Tilt Up: Push Up the switch to position (1) for Skyroof Tilt Open from the Skyroof closed condition.
Skyroof will Tilt Open following Rollo shade half open.
|
• | This safety function is available for the Skyroof & Rollo shade. |
• | The anti-Pinch function is deactivated just before the Skyroof/Rollo shade closes. |
• | Skyroof/Rollo shade safety function is supplemental and not always operable depending on circumstances (e. g. any electrical device in the vehicle, etc.), therefore, the driver should check safety at all times operating the Skyroof/Rollo shade. |
• | When operating the Skyroof, be aware of safety conditions before operation. Parts of the body can be trapped. |
• | Do not stick out any part of your body out of the Skyroof even in stationary. |
• | Improper use of the Skyroof can result in serious personal injury. |
• | Never leave children or disabled persons in the vehicle – particularly if they have access to the vehicle key. |
• | Unsupervised use of the remote-control vehicle key makes it possible to lock the vehicle, start the engine, turn on the ignition and operate the Skyroof. |
• | Never stand or sit on Skyroof or roof. This can cause severe damage and would be treated as abuse of the skyroof which not covered by warranty. |
• | Never keep the Luggage / weights on top of the roof/ Skyroof. |
• | Any wet area found on the headliner shall be reported an Authorized Mahindra Dealer Immediately. |
• | Without pinch protection, the power Skyroof/Rollo shade will close with enough force to cause serious personal injury. |
• | Always be careful when closing the Skyroof /Rollo shade. Pinch protection cannot prevent fingers or other parts of the body from being pressed against the edge of the roof; may result in injuries. |
• | If the Skyroof/Rollo shade malfunctions, pinch protection may not function properly. Visit a Mahindra Authorized Dealer or an authorized Mahindra Service Facility for assistance. |
• | Consecutive several attempts to close Skyroof and Rollo Shade. |
• | Pinch protection is only for closing Skyroof and Rollo shade. |
• | Excessive Ice / Dirt accumulation on the Skyroof Glass / guide rails. |
• | Emergency close feature can be used, if Sliding Skyroof or Rollo shade consecutive reversal movement observed 3 times then continue with step 2 as below to use Emergency close feature. |
• | On the 4th attempt continuously Pull the Skyroof close switch to position (4) until it closes completely to ensure occupant privacy, safety & theft prevention from Skyroof open window. This is Emergency Close Feature. |
• | Once the Skyroof or Rollo Shade is completely closed, release the switch. |
• | Alternatively, User may wait for min. 30 seconds before operating Skyroof and Rollo Shade, then Skyroof can be operated with Normal Functions. |
• | If the Skyroof doesn’t operate as above, Contact Authorised Mahindra Dealer for assistance. |
• | After the fitment of Skyroof onto the vehicle body, it must be initialized. |
• | Whenever the Skyroof motors are removed and refitted or replaced without Skyroof removal from vehicle. |
• | Whenever the Skyroof glasses is removed and refitted or replaced without Skyroof removal from vehicle. |
• | In some cases, if the vehicle battery has been disconnected during sliding Skyroof/Rollo shade movement and reconnected or is dead or replace the fuse, the Skyroof must be initialized. Otherwise, Express (one touch) function (open/close/tilt) and pinch protection function will be deactivated. |
• | If the Skyroof/Rollo shade is stopped midway due to a discharged battery or power failure. |
• | The Skyroof/Rollo shade does not completely close or open by operating the switch once. |
• | The Skyroof slides back to close. But the operation does not stop even after a complete close and tilts up the Sliding Skyroof. |
• | The opening gap remarkably decreases for the sliding open or tilt up. |
• | The Skyroof/Rollo shade does not work. |
• | Operation of the Skyroof switch does not do anything or work properly. |
• | The operating process is not same as before due to discharged or disconnected battery. |
1. | Turn ON the ignition (Pre condition shall be Close position for both skyroof and Rollo shade) |
2. | Close the skyroof fully by pushing ‘skyroof close switch’ (4) and keep the switch pushed for 1-2 seconds after the roof is fully closed, till clicking sound comes from skyroof . |
3. | Close the Rollo shade fully by pushing ‘ Rollo Shade close switch’ (6) and keep the switch pushed for 1-2 seconds after the Rollo shade is fully closed, till clicking sound comes from Rollo shade. |
4. | The Initializing command is completed, Check if the Express open/close features are working. |
1. | Self-learning must be performed when skyroof/ rollo sunshade assembly is replaced or when false anti-pinch reversal movement (reversal without any obstruction) is noticed |
2. | . Keep the skyroof in tilt open pushing ‘skyroof tilt open switch (2)’ and push the skyroofclose switch (4) continuously. Do not release the switch and wait for following actions to perform. |
3. | Sliding skyroof will start opening after 5 sec pause and close automatically. Release the Switch to complete the procedure. |
4. | Keep the Rollo little open (Approx 100mm) by pushing ‘Rollo Shade open switch (5)’ and push the Rollo close switch (6) continuously. Do not release the switch and wait for following actions to perform. |
5. | Rollo will start opening after 5 sec pause and close automatically. Release the Switch to complete the procedure. |
6. | The Self learning command is complete. |
• | Self-learning procedure can be done only after the Initialization procedure. |
• | Self-learning procedure need to start within 4 seconds after Initialization, if not started within 4 seconds, then again initialization procedure to be performed. |
• | If the switch released in-between the self-learning procedure, then again initialization procedure to be performed. |
1. | Turn ON the ignition (Pre condition shall be Open or Close position for both skyroof and Rollo shade) |
2. | Close the skyroof fully by pushing ‘skyroof close switch’ (4) and keep the switch pushed till clicking sound comes from skyroof after closing (May take more than 8 seconds if one touch was still working) . |
3. | Close the Rollo shade fully by pushing ‘ Rollo Shade close switch’ (6) and keep the switch pushed till clicking sound comes from Rollo after closing (May take more than 8 seconds if one touch was still working) . |
4. | The Re-Initializing command is completed, Check if the Express open/close features are working. If the Initializing procedure is not completely performed, then it has to be run again from step 2. |
1. | Self-learning must be performed when skyroof/ rollo sunshade assembly is replaced or when false anti-pinch reversal movement (reversal without any obstruction) is noticed |
2. | Keep the skyroofin tilt open pushing ‘skyroof tilt open switch (2)’ and push the skyroofclose switch (4) continuously. Do not release the switch and wait for following actions to perform. |
3. | Sliding skyroof will start opening after 5 sec pause and close automatically. Release the Switch to complete the procedure. |
4. | Keep the Rollo little open (Approx 100mm) by pushing ‘Rollo Shade open switch (5)’ and push the Rollo close switch (6) continuously. Do not release the switch and wait for following actions to perform. |
5. | Rollo will start opening after 5 sec pause and close automatically. Release the Switch to complete the procedure. |
6. | The Self learning command is complete. |
• | To help prevent damage, remove ice and snow from the Skyroof before opening or tilting it in winter season. |
• | Always close the skyroof before leaving the vehicle or if it begins to rain. If the Skyroof is open or tilted, rain could enter the vehicle interior and cause extensive damage to the electrical system. This could result in further vehicle damage. |
• | Remove leaves and other objects from the Skyroof guiderails regularly either by hand or using a vacuum cleaner. |
• | If the Skyroof/Rollo shade malfunctions, pinch protection may not function properly. See a Mahindra Authorized Dealer or an authorized Mahindra Service Facility. |
• | The Rollo Shade can be opened and closed independently when the sliding Skyroof is in closed position. |
• | During sliding Skyroof express (one touch) open/tilt operation, Rollo shade will also open in synchronization with Sliding Skyroof (Express - Complete Open Feature). |
• | During sliding Skyroof express (one touch) close operation, Rollo Shade will not close in synchronization with sliding Skyroof. |
|
|
|
Do not blow air in drain hose channel before cleaning it manually – as the bigger leaves may go inside and block drain hose.
|
|
If water is not draining kindly contact the Mahindra Dealer or Mahindra Authorised Service Centre.
|
• | High Pressure washer nozzle jets should not be directed towards skyroof seals and Rubber components. |
• | Do not use High pressure water on skyroof area. |
• | It is recommended to wipe the seals with damp micro fiber cloth during cleaning. |
• | Skyroof rails and drain area should be cleaned using air blower. |
• | Skyroof & Power Window Smart Close- During ignition off with all doors closed, if the key fob lock button is pressed for more than 1 second, then doors will get locked and Skyroof & power window will get closed automatically. |
• | Skyroof & Power Window Smart Open- During ignition off, if the key fob unlock button is pressed for more than 1 second, then doors will get unlocked and Skyroof & Power window will be opened along with blower ON in fresh air mode (for approximately 40 seconds) |
1. | Ignition is off and |
2. | Doors in locked state and |
3. | Key fob is not inside the vehicle |
|
User set PIN will be required to execute AdrenoX commands
|
|

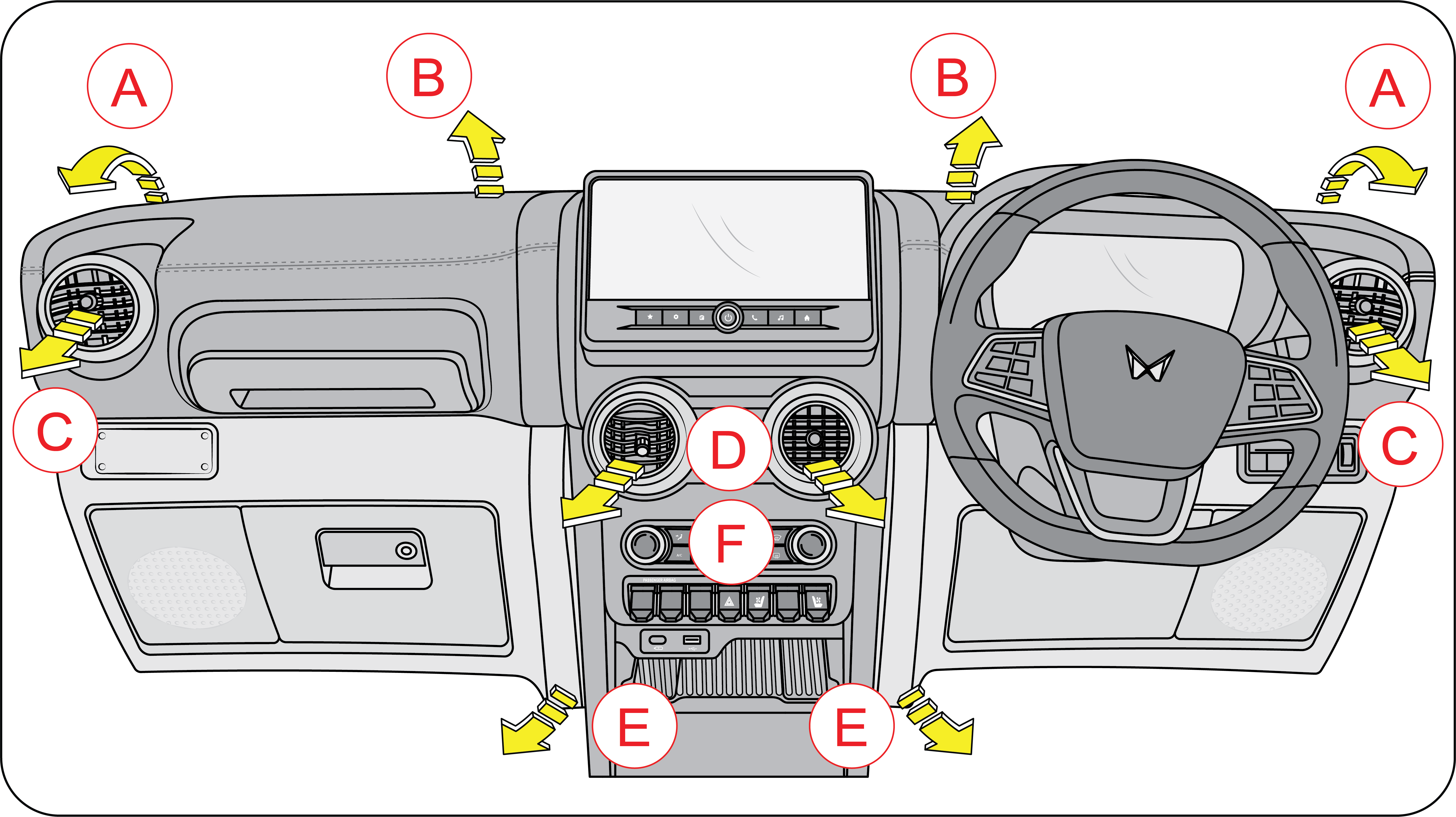

A |
Side De-misting Vents |
D |
Center Vents |
B |
Windshield Defrost Vents |
E |
Foot Vents |
C |
Side Vents |
F |
HVAC Controls |
|

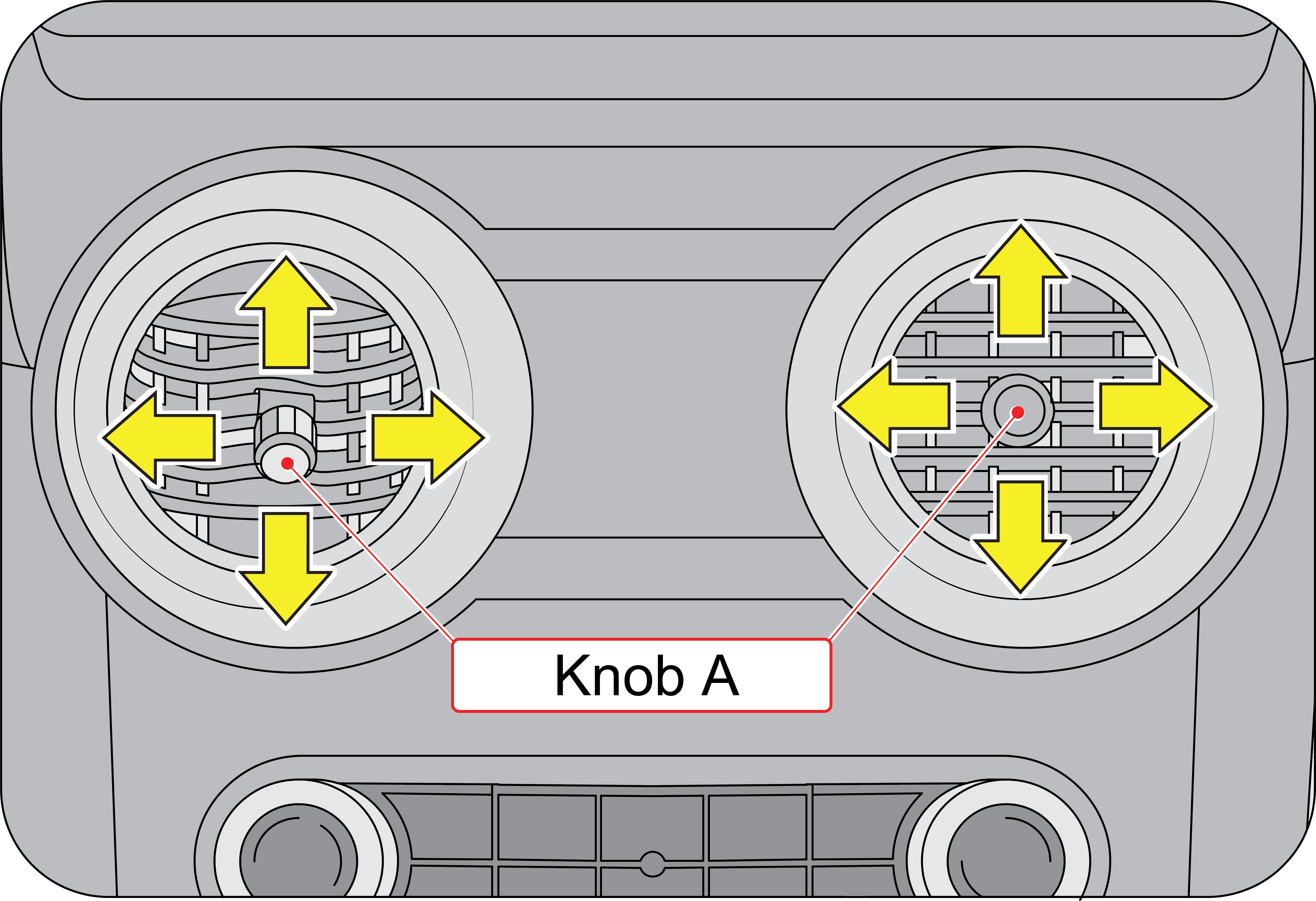

Center Vents
Two center vents are located below the audio system on the instrument panel. Both the center and side vents provide air flow
to the front seat passengers. Rotate the knob ( A) clock wise to shut off the air flow and anti-clockwise to allow the air
flow through the air vent. Direct air to the desired direction by the adjusting knob (A).
|
|
Side Vents
There are two side vents located one each at the left and right side of the instrument panel.
Rotate the knob ( A) clock wise to shut off the air flow and anti-clockwise to allow the air flow through the air vent.
Direct air to the desired direction by the adjusting knob (A).
|
|

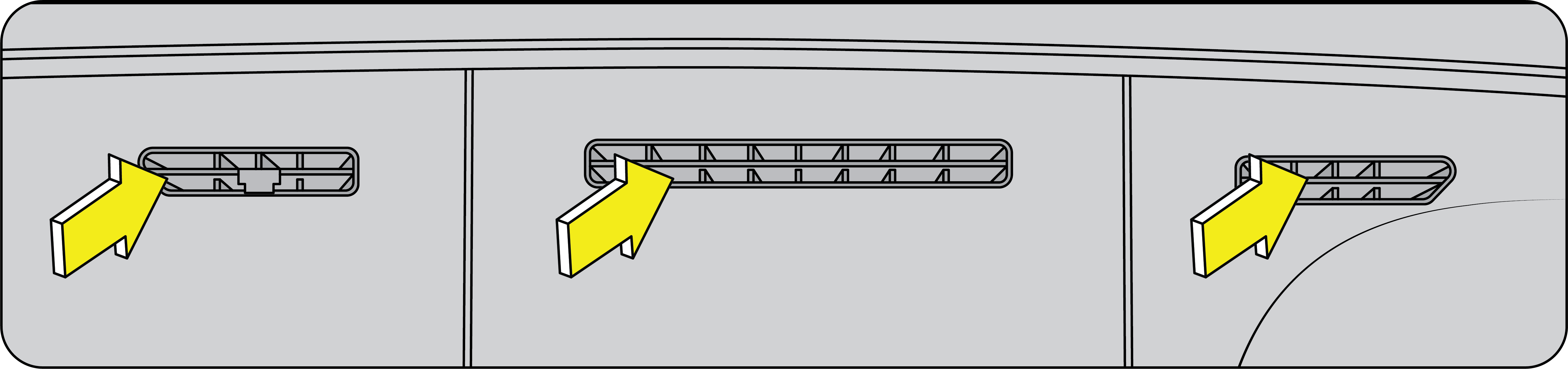

Defogger Vents: There are five defogger vents in your vehicle: two side defogger and three windshield defogger vents.
|

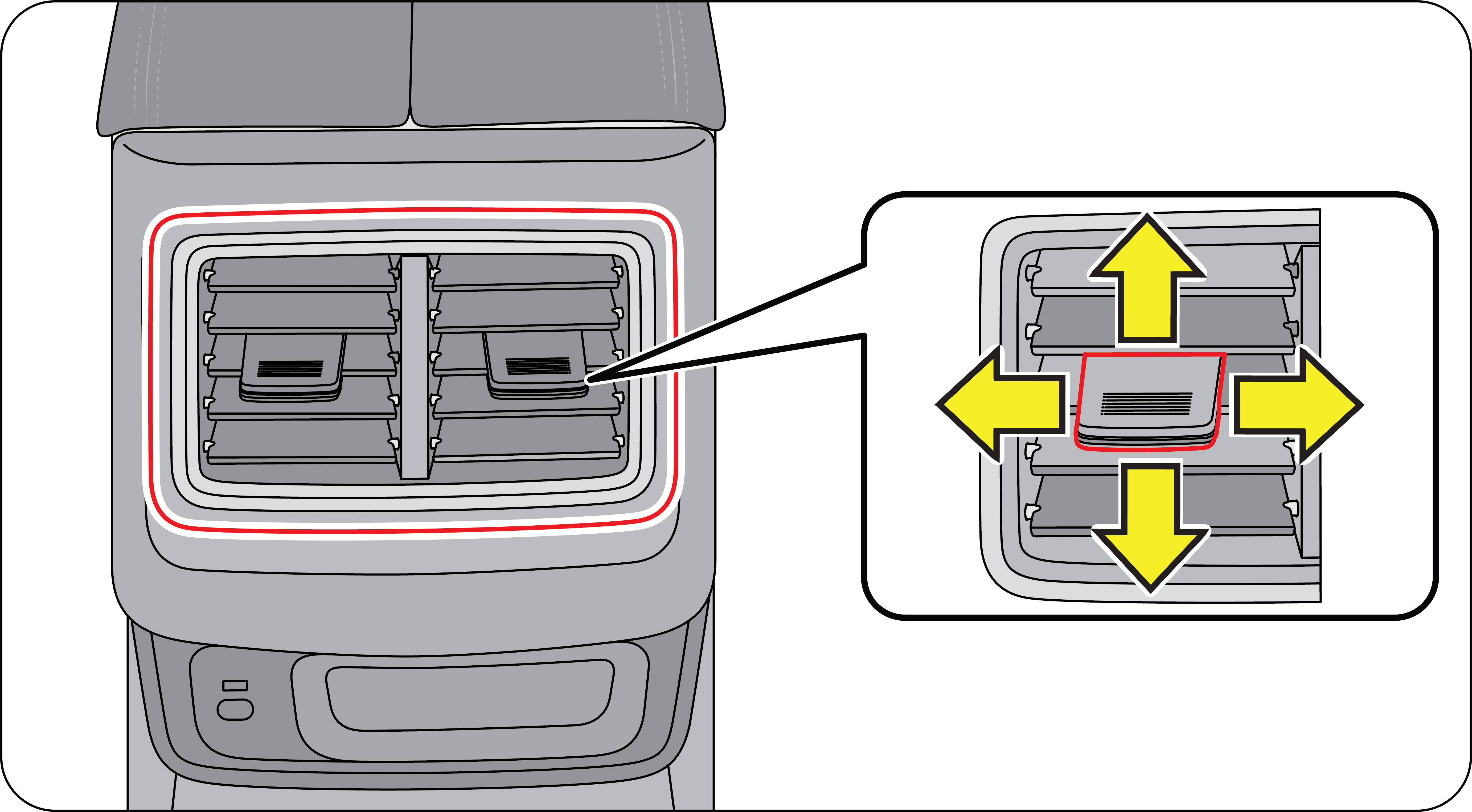

Second Row AC Vents: The second row AC vents are located on the rear side of the center console.
|
A |
Temperature control Knob |
E |
Rear Defogger switch |
B |
Air distribution/Mode switches |
F |
Recirculation mode switch |
C |
Front defogger switch |
G |
A/C switch |
D |
Blower speed control knob |
• | In certain operating conditions when the engine gets overheated, the engine management system may switch off the air conditioner intermittently |
• | The air conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system |
• | During extreme cold weather conditions, the air conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold |
• | When air conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle |
• | Face Mode — When face mode switch is pressed, air is discharged from the Center vents and side vents. This mode is most suitable for directing air flow towards the face of the passengers |
• | Face-Foot Mode — When Face-Foot mode switch is pressed, air is discharged from the Center vents, Foot vents and side vents. This mode is most suitable for directing air flow towards both the face and feet of passengers at the same time |
• | Foot Mode — When foot mode switch is pressed, air is discharged from the two foot vents. This mode is most suitable for directing air flow towards the feet of passengers seated on front seats |
• | Foot and Front Defogger Mode — When foot and front defogger mode switch is pressed air is discharged from the foot vents, side defogger vents and windshield defogger vents. This mode is most suitable for directing air flow towards the feet of passengers while de-misting/defogging. |
• | Front Defogger Mode — When Front Defogger mode switch is pressed air is discharged from the side defogger vents and windshield defogger vents. This mode is most suitable for directing air flow towards the front windshield to ensure de-misting / defogging. |

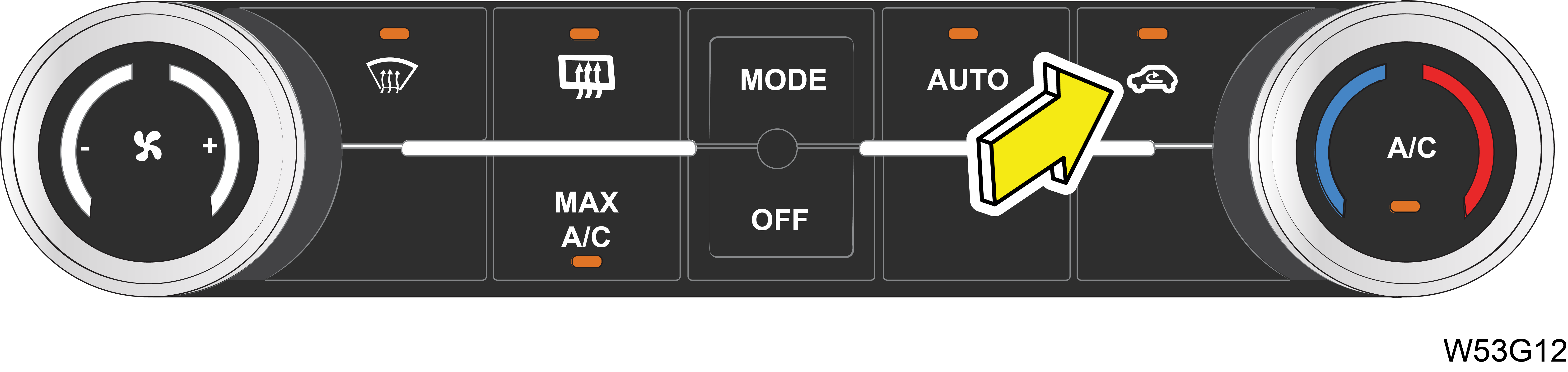

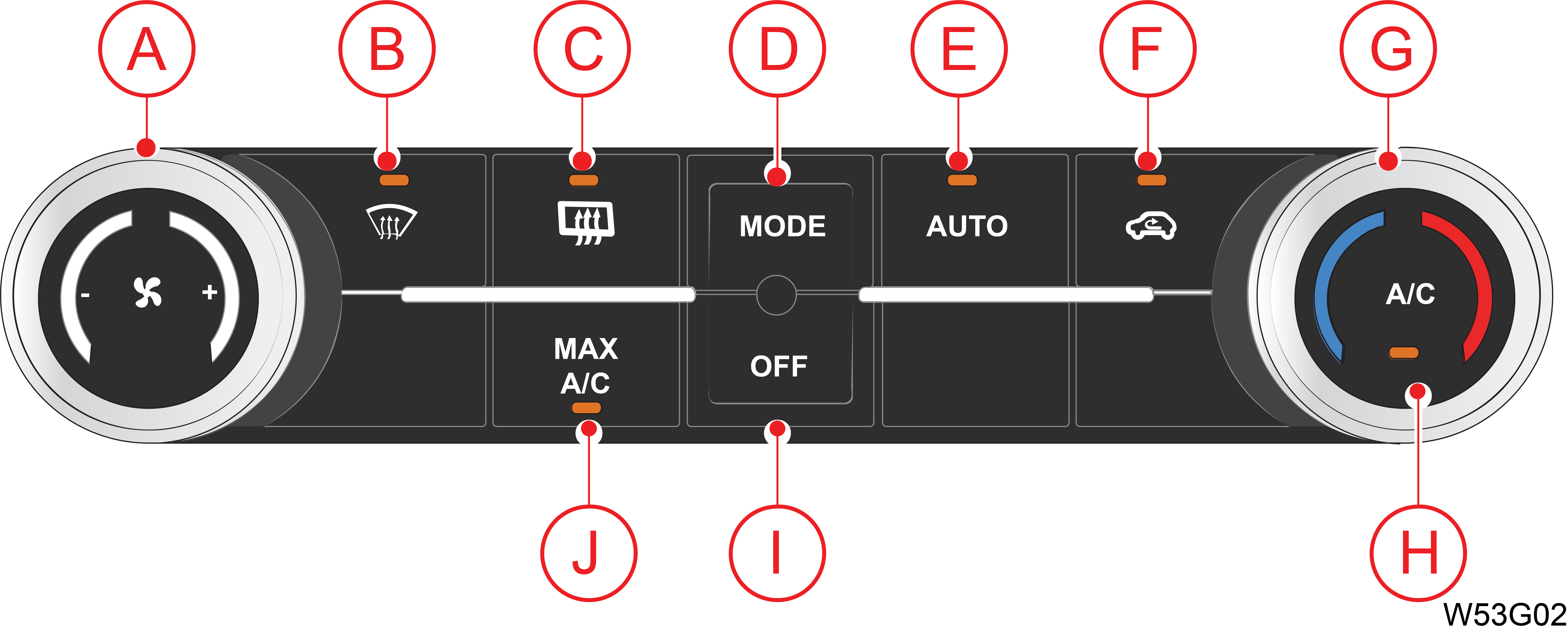

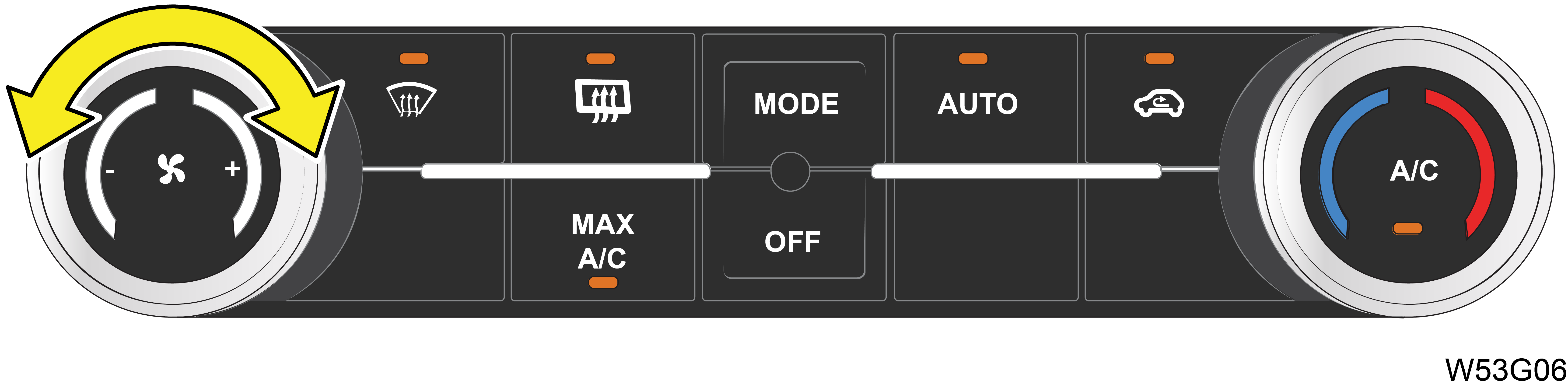

A |
Blower Speed Control knob |
F |
Recirculation Mode Switch |
B |
Front defogger switch |
G |
Temp control knob |
C |
Rear Defogger switch |
H |
A/C ON Switch |
D |
Mode Switch |
I |
OFF switch |
E |
Auto Mode Switch |
J |
MAX A/C Switch |
|

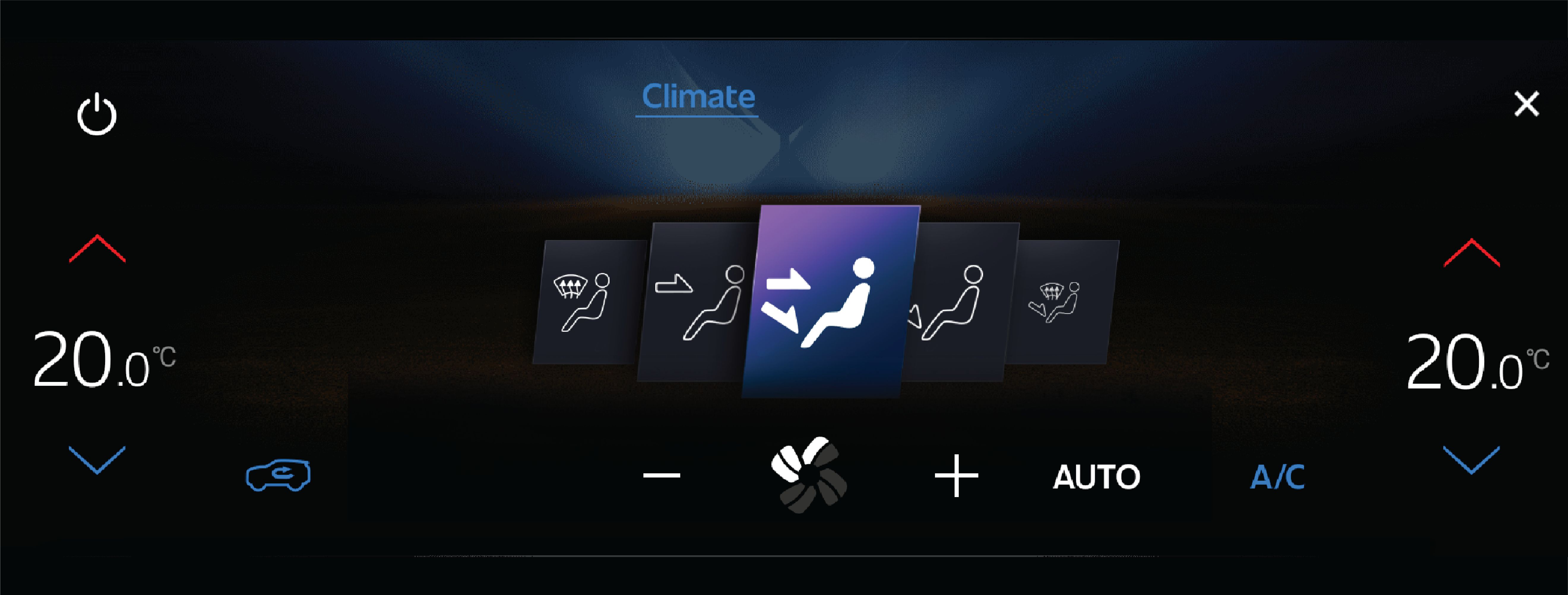

Above mentioned switches/knobs in FATC control panel is pressed/Rotated, respective icons and changes are displayed in the
infotainment screen.
|
|

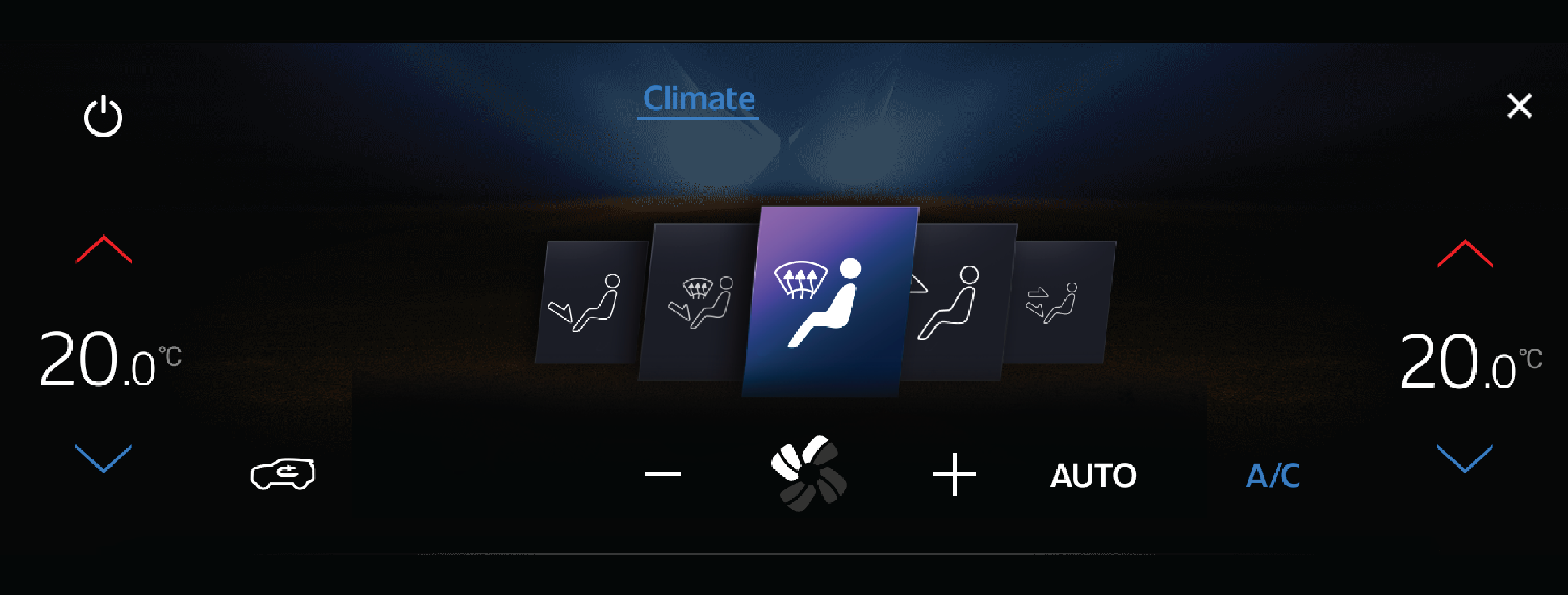

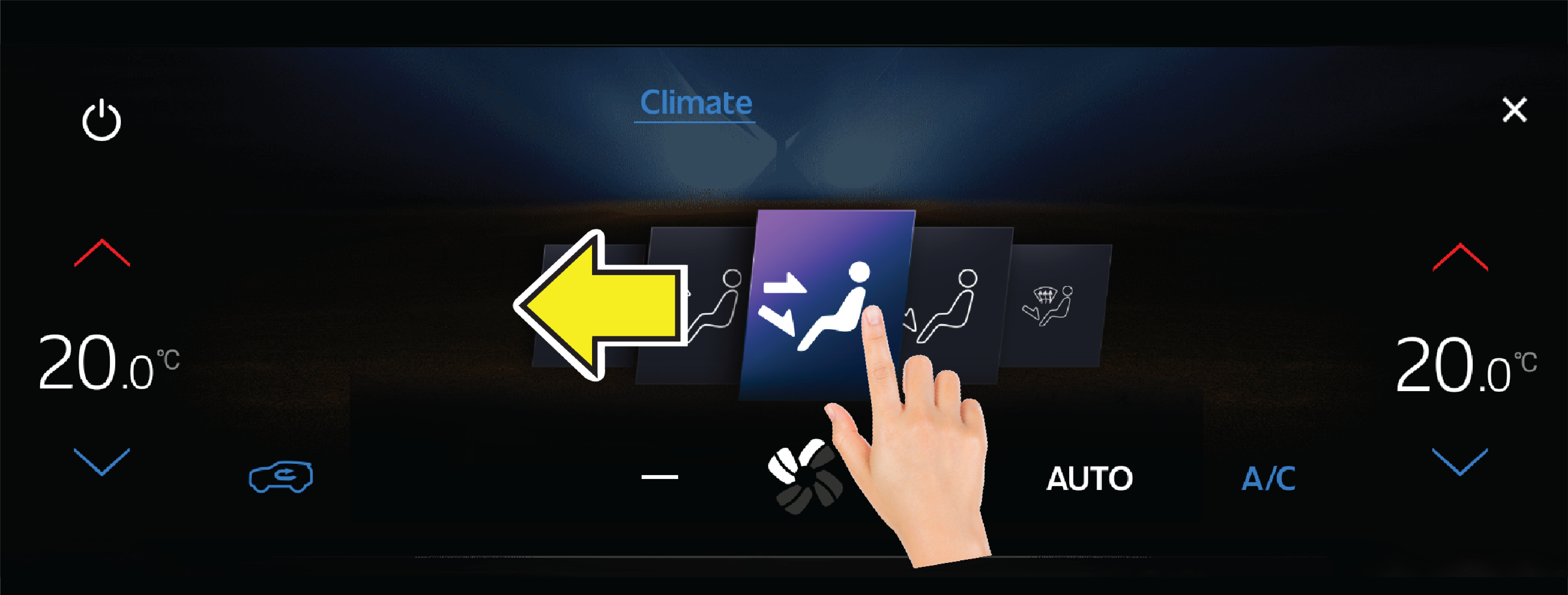

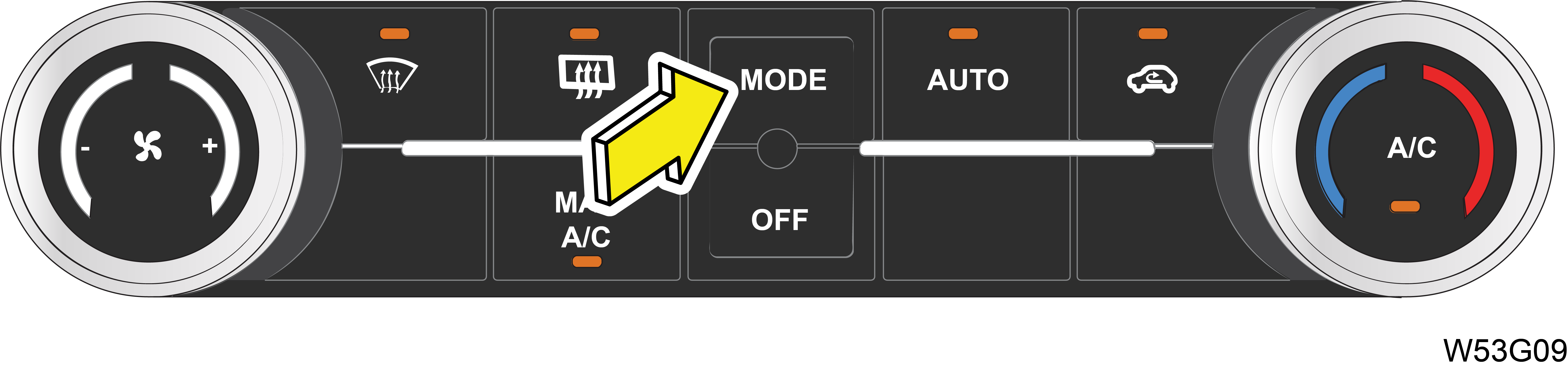

Face-Mode |
|
Foot-Mode |
|
Face/Foot-Mode |
|
Foot/Defogger-Mode |
1. | In cabin temperature is set to minimum |
2. | Blower fan speed is set to Max |
3. | Air intake mode is set to recirculation mode |
4. | Air distribution mode is set to Face mode |

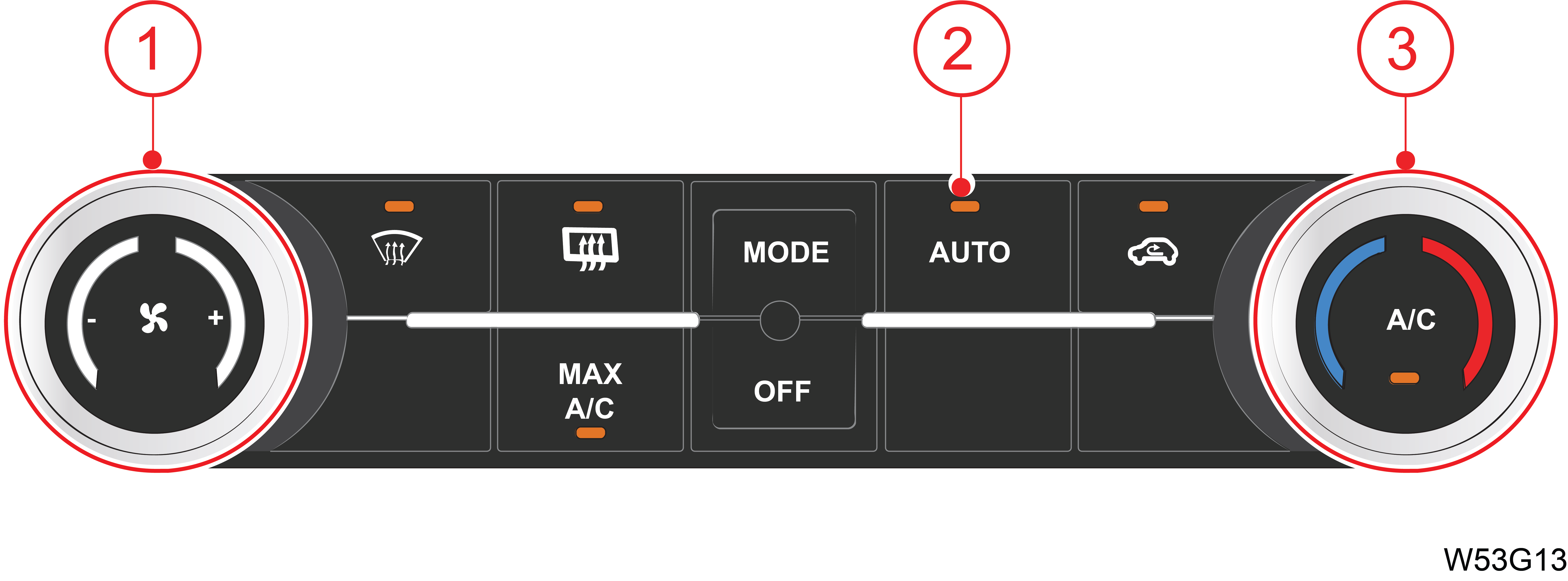

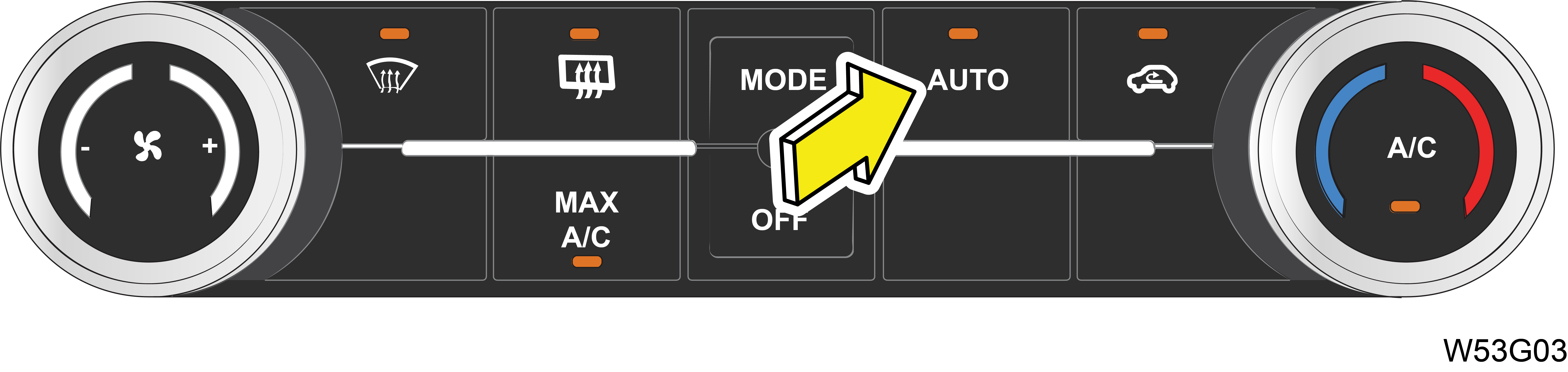

1 |
Blower Speed Control Knob |
2 |
Auto Indicator ON |
3 |
Temp Control Knob |

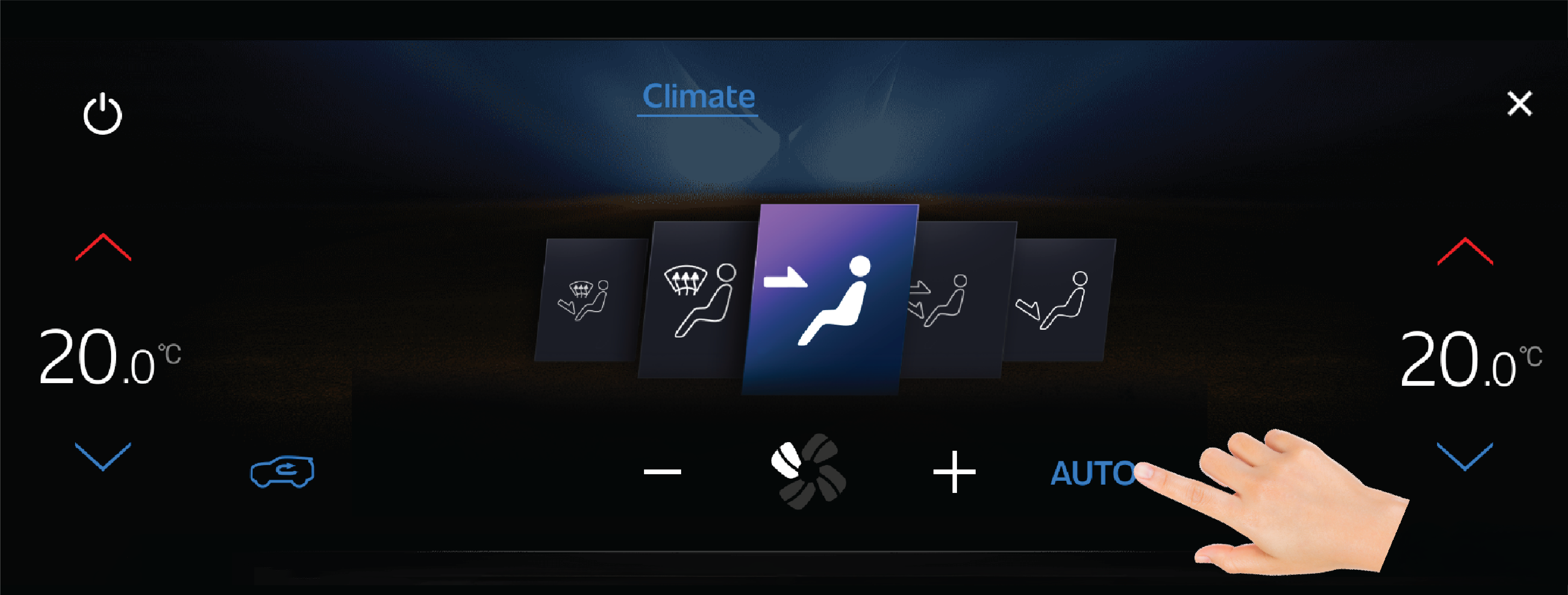

1. | Press the AUTO switch. |
2. | AUTO indicator is displayed on the Infotainment Screen. |
3. | Set the desired cabin temperature with the temperature control knob. |
4. | The temperature of the passenger compartment is automatically maintained according to the set temperature. |

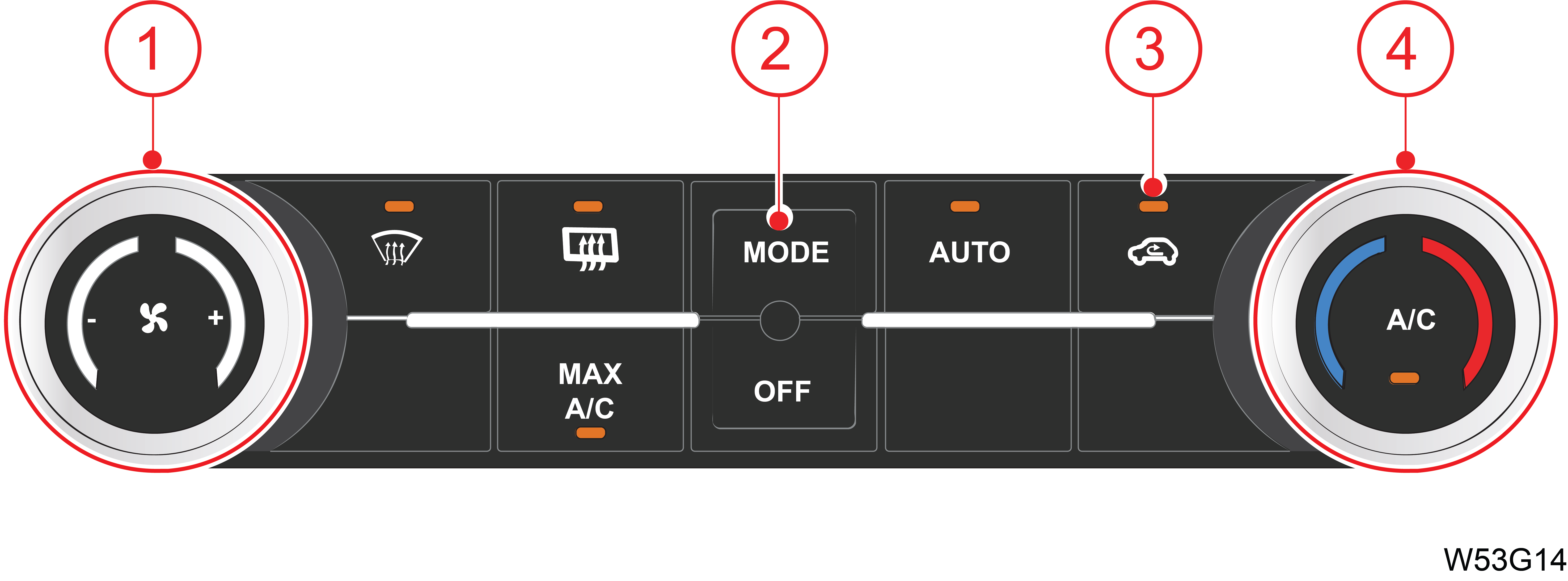

1 |
Blower Speed Control Knob |
3 |
Recirculation Mode Switch |
2 |
Mode Switch |
4 |
Temp Control Knob |

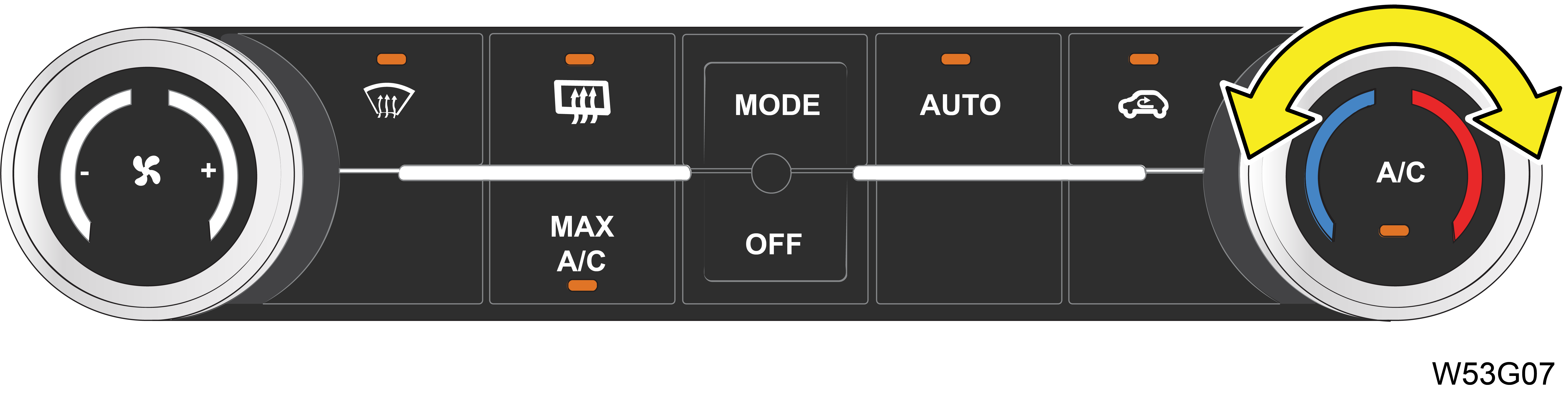

1. | Press AC ON switch |
2. | Set the desired temperature by rotating the temperature control knob |
3. | Adjust the blower speed by rotate the blower speed control knob |
4. | Select the air flow by pressing the air distribution/mode switch |
5. | Select the air source mode by pressing recirculation mode switch |
|
|

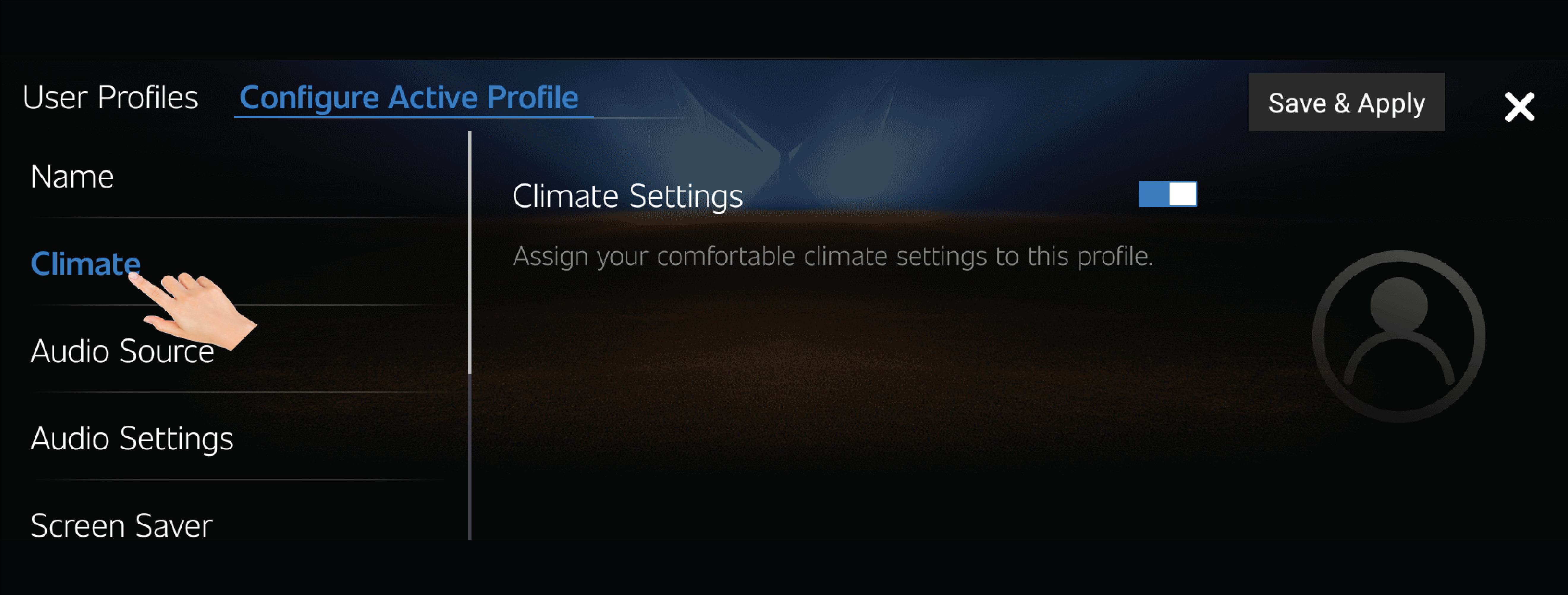

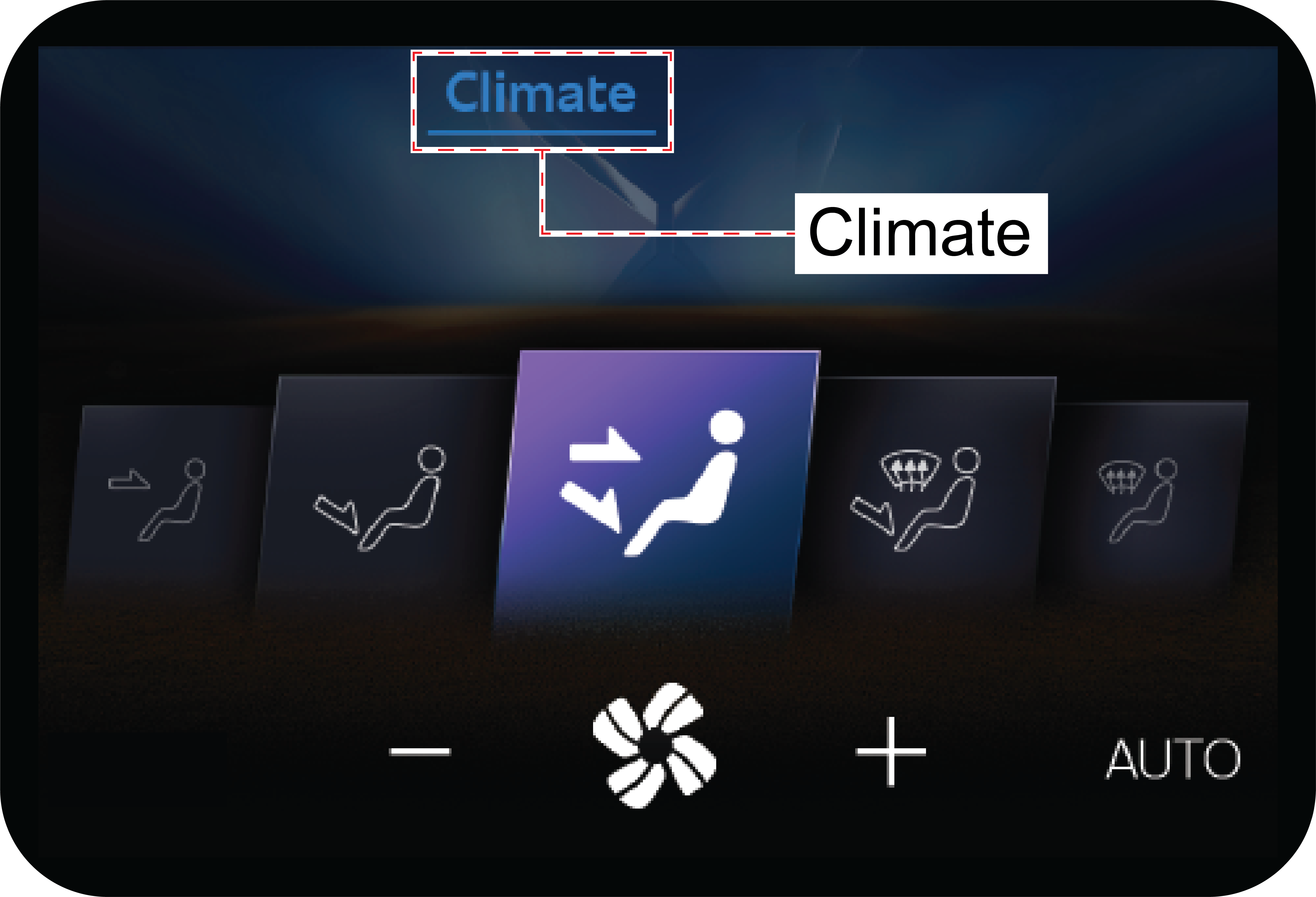

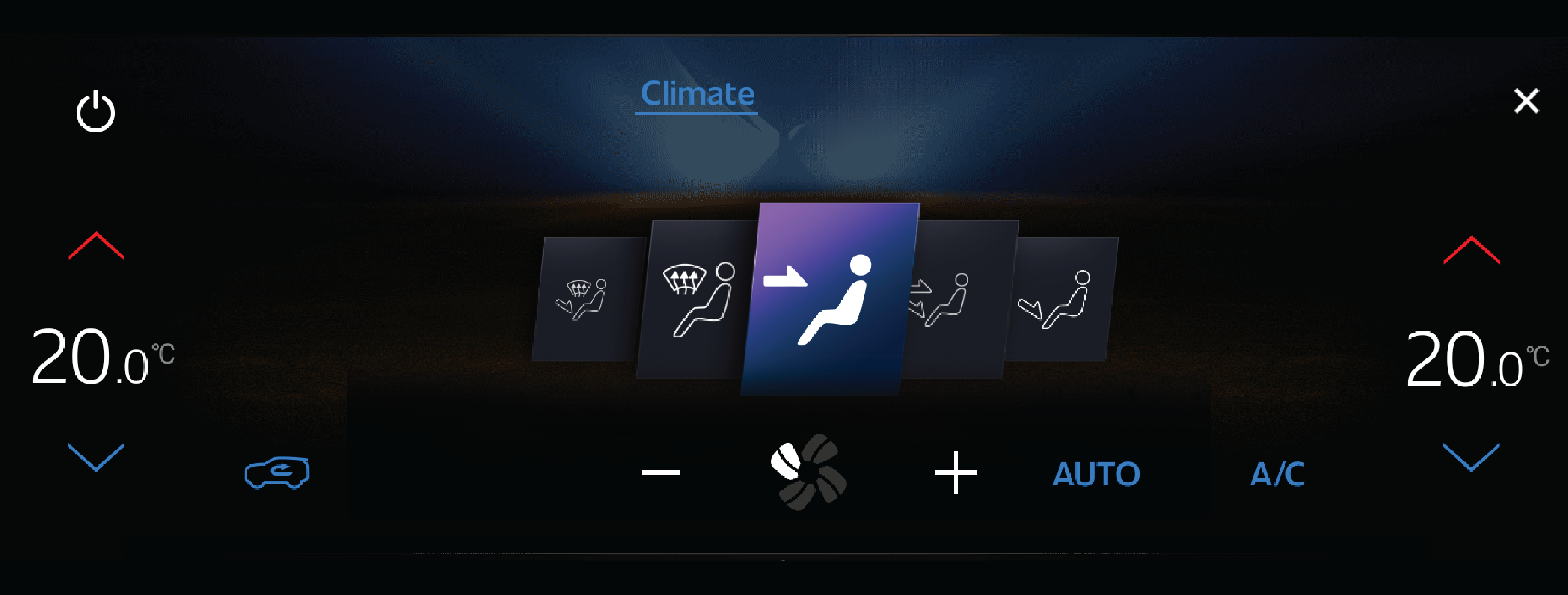

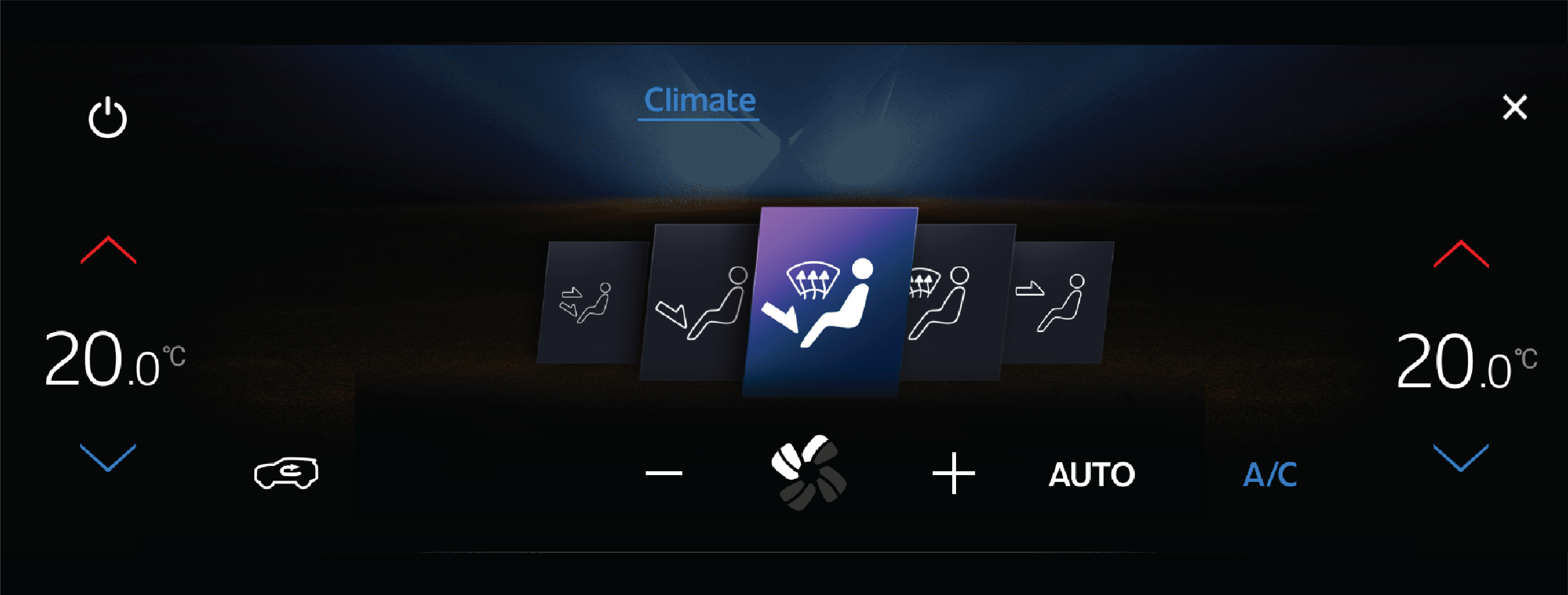

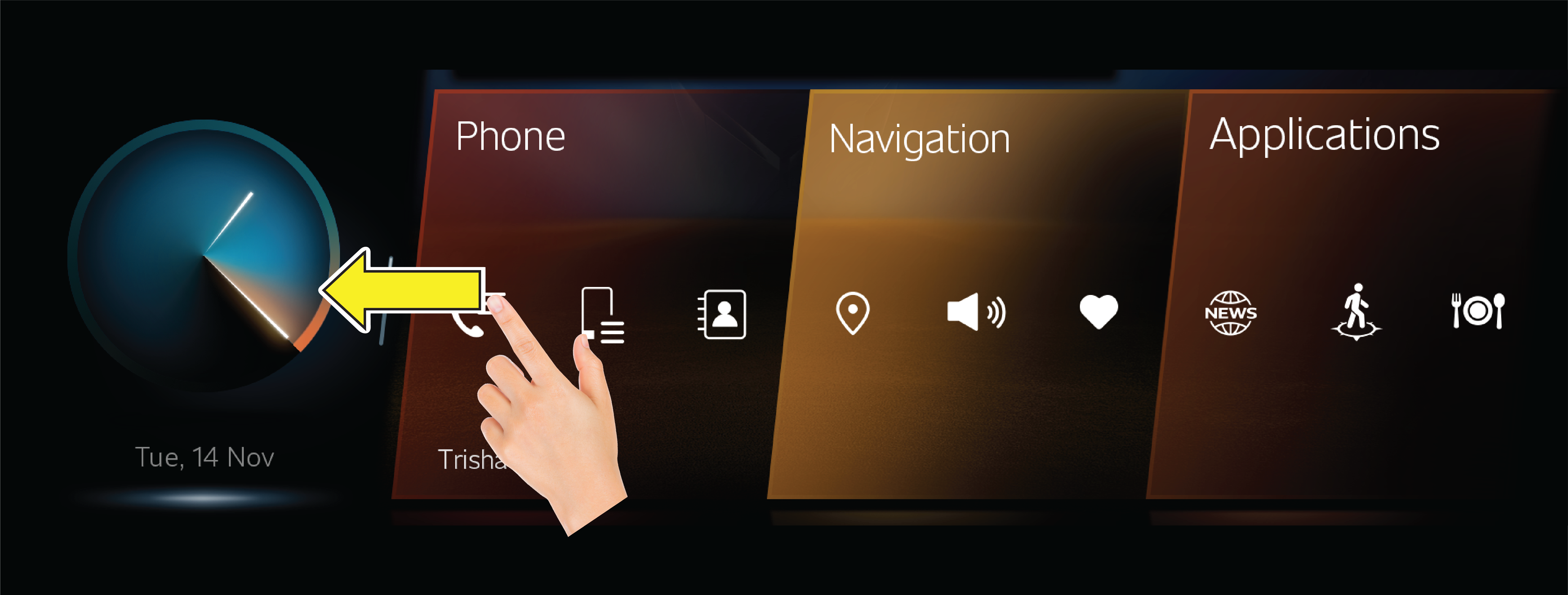

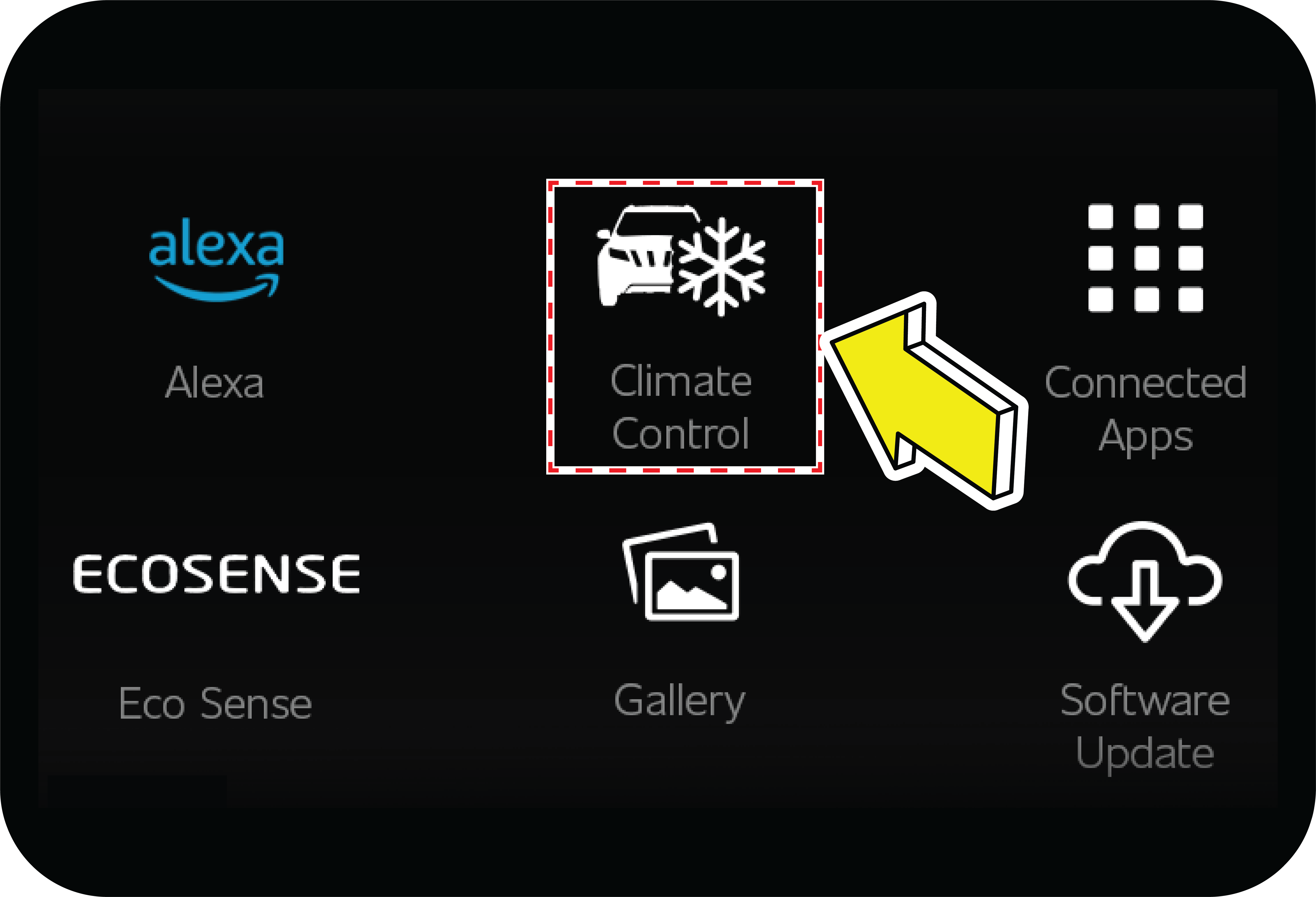

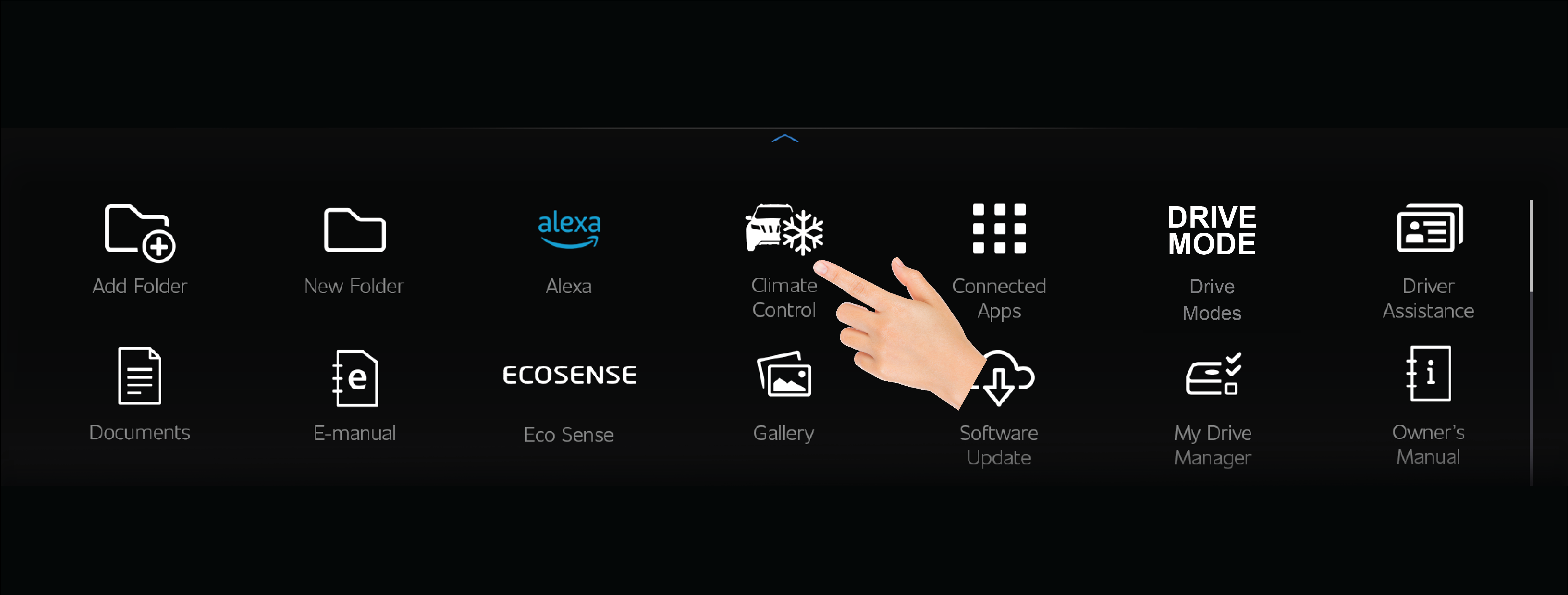

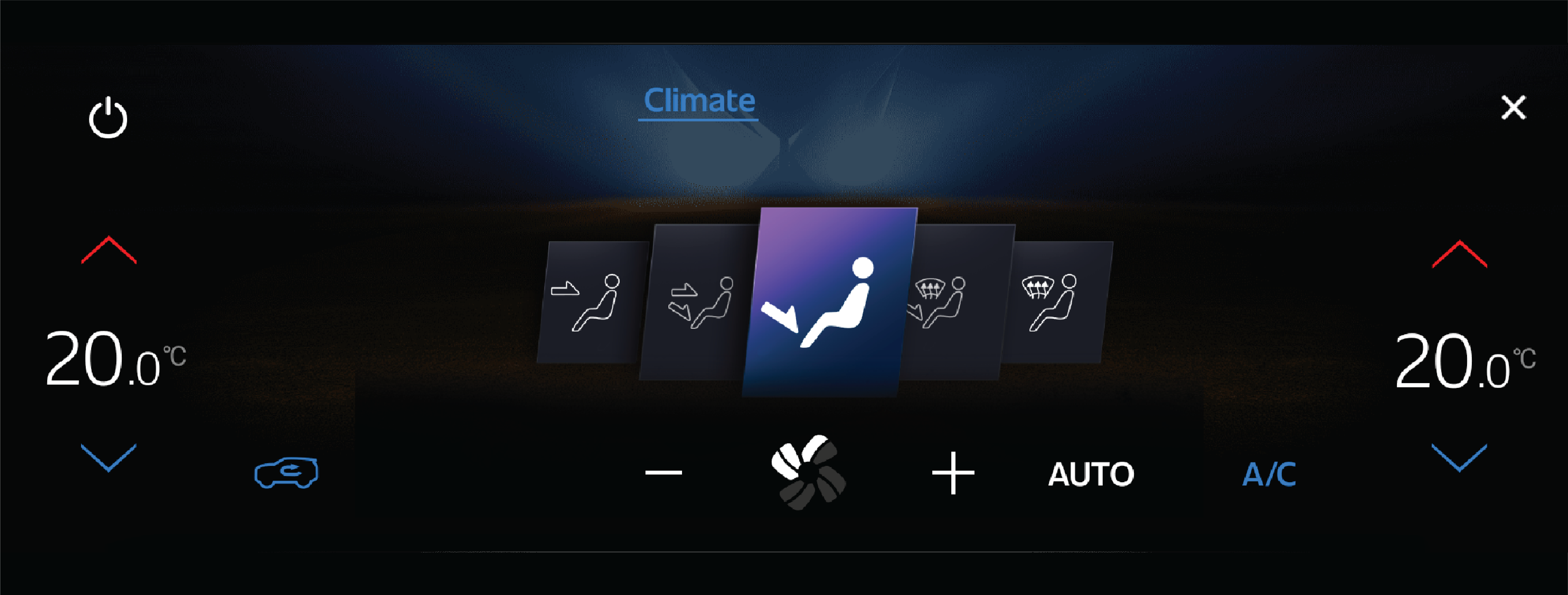

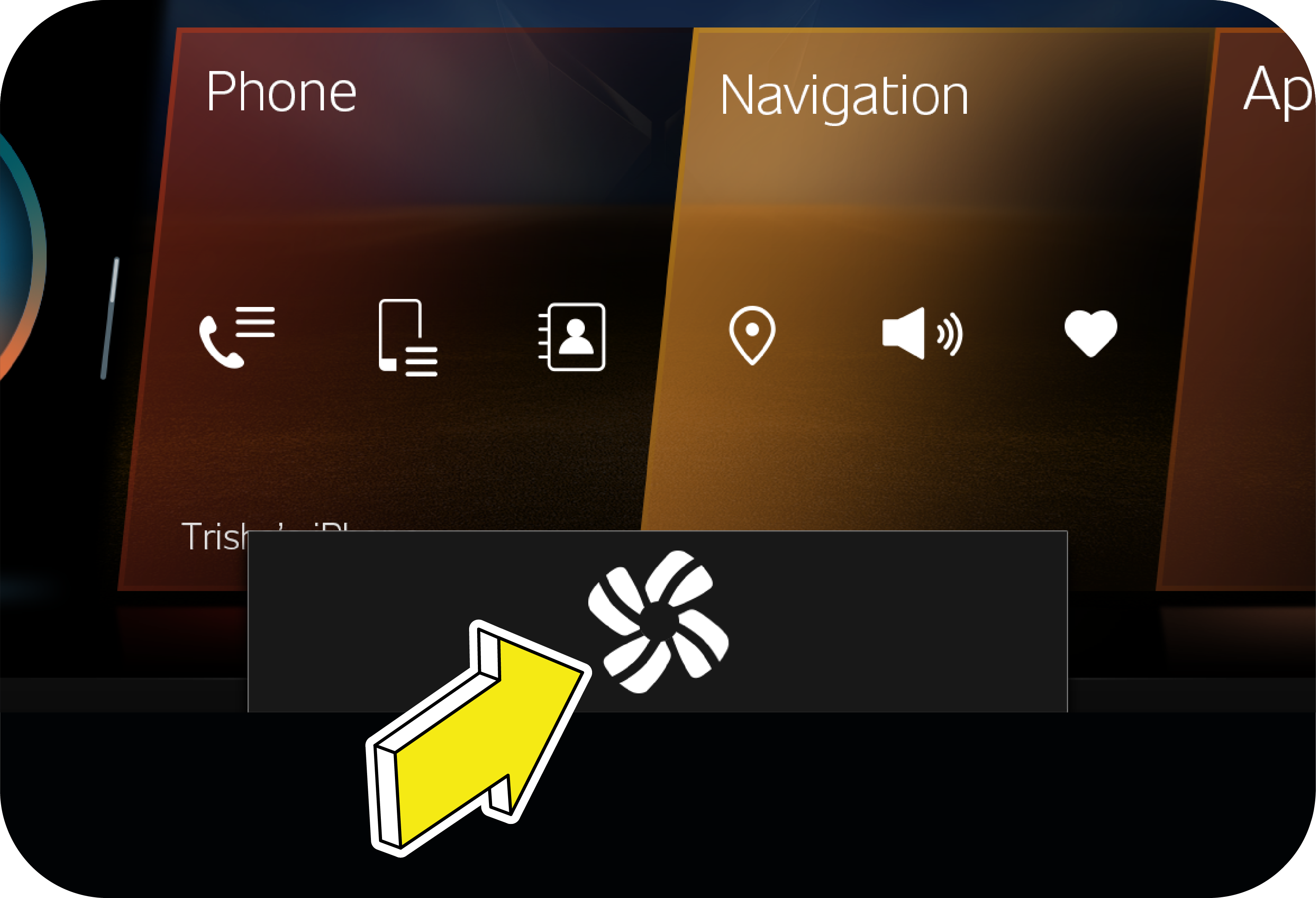

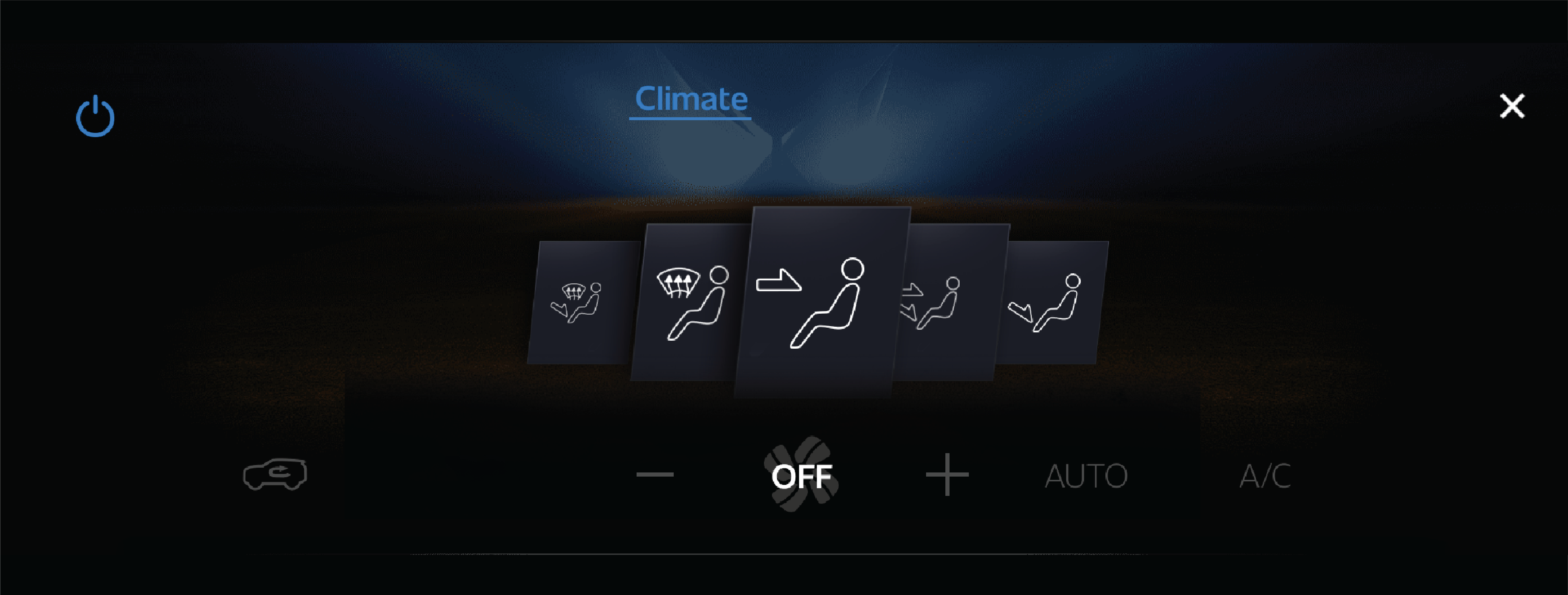

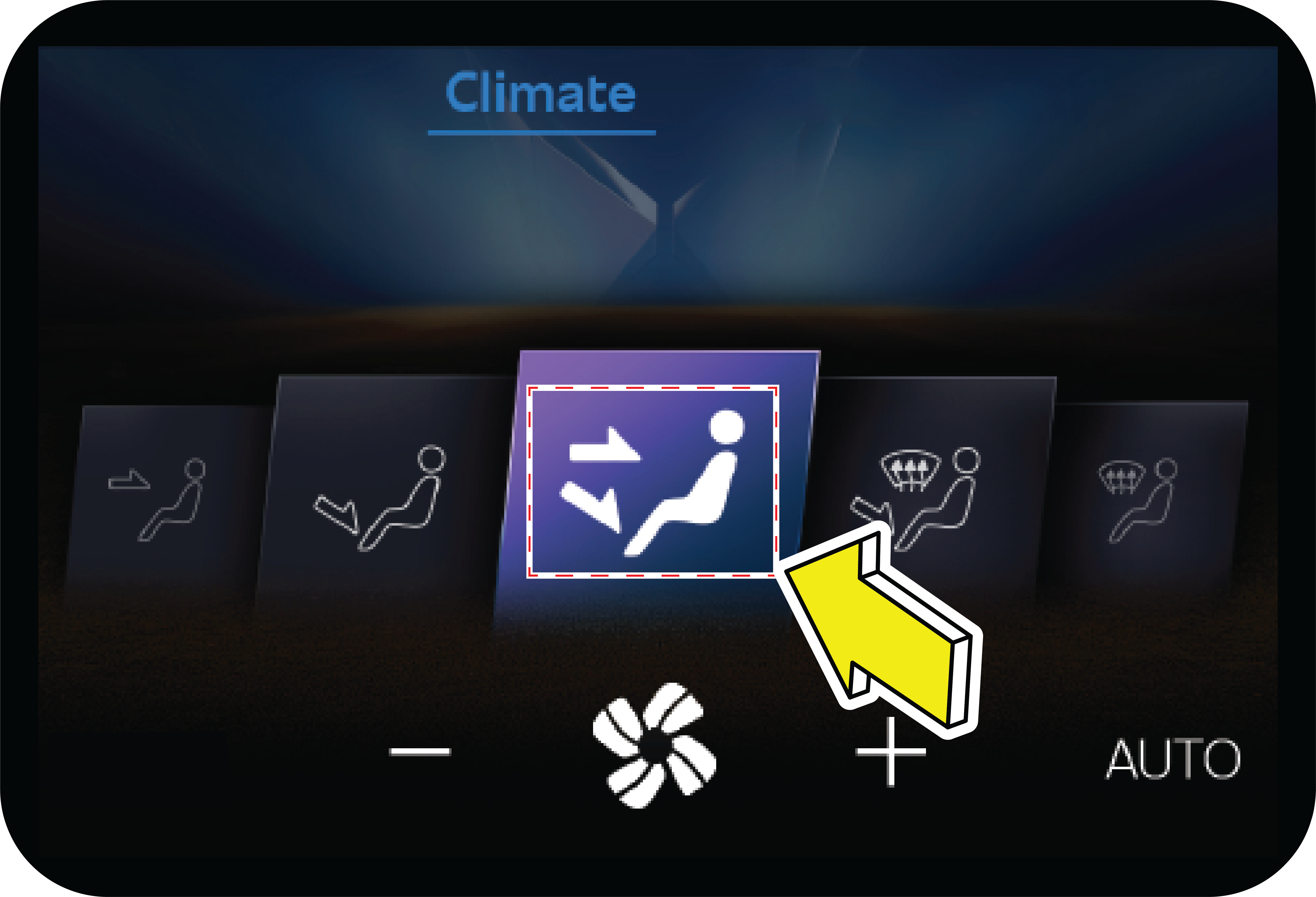

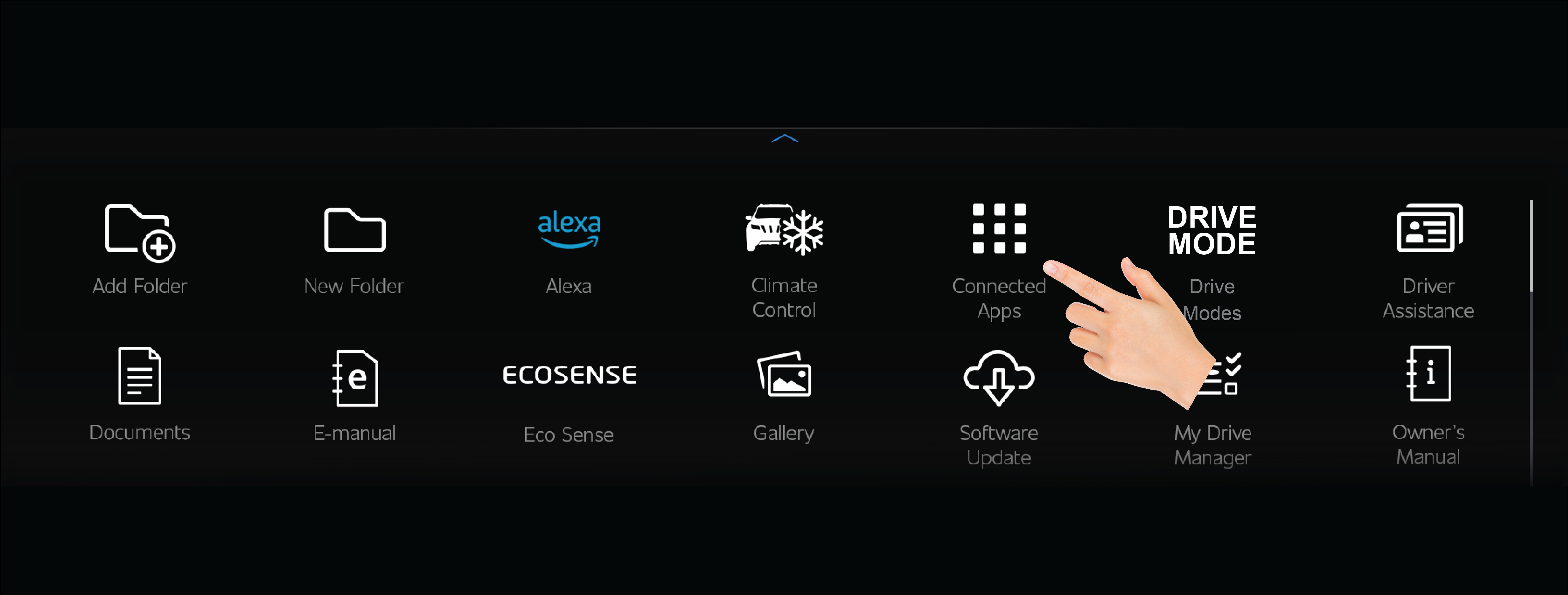

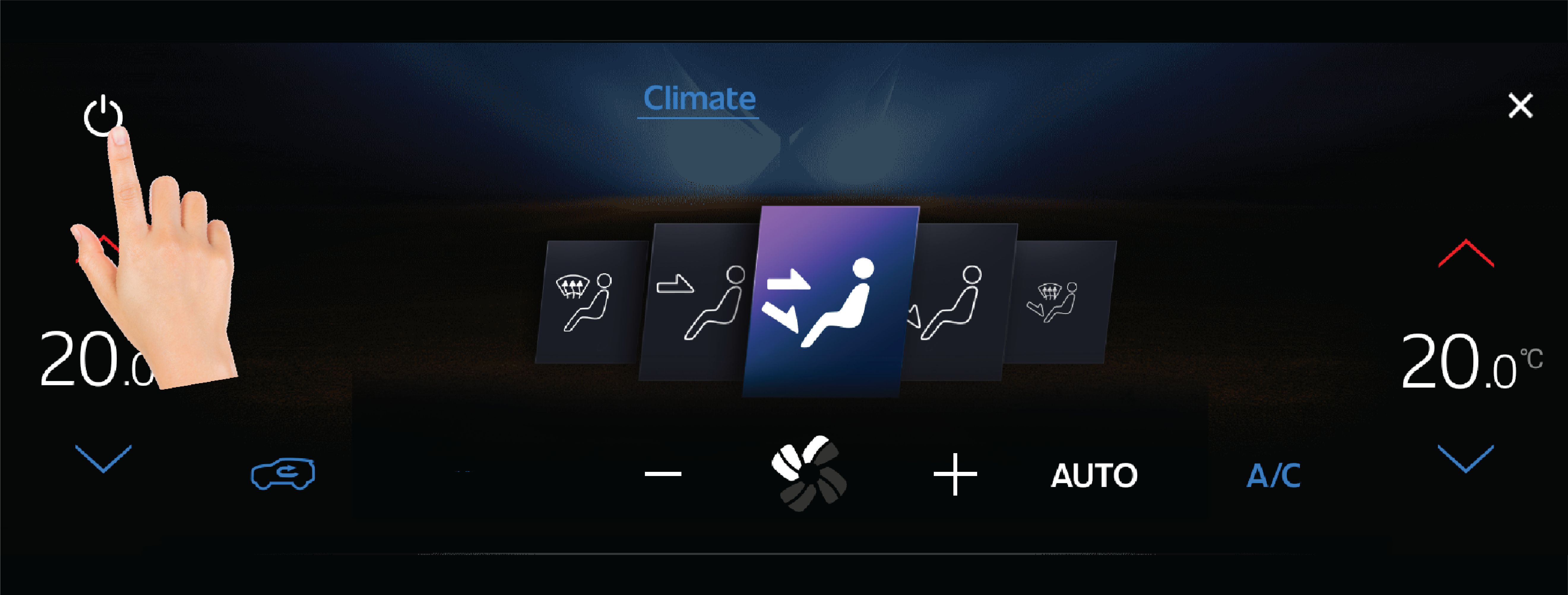

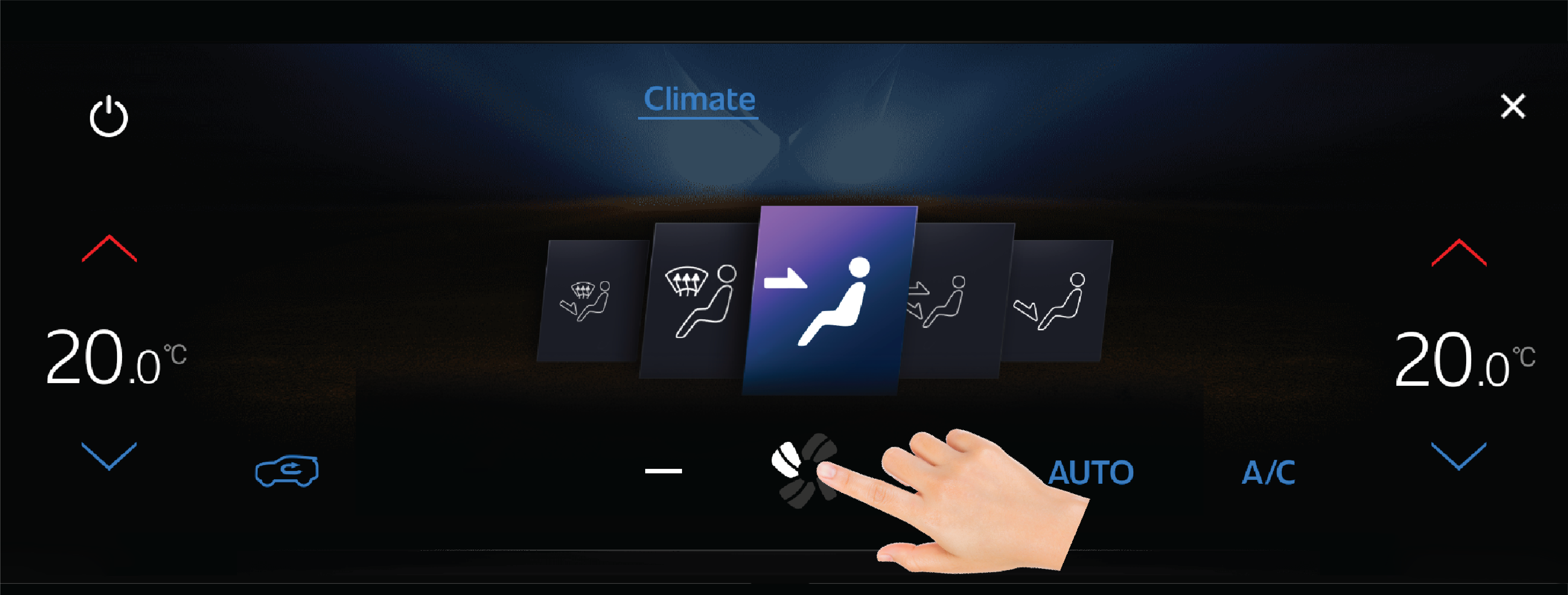

• | Under Climate control screen select Climate icon |
• | All HVAC setting can be changed by pressing respective symbols or buttons in climate screen |
|
|
|
Remote cooling feature allows user to control Cabin climate settings from outside the vehicle.
|
|
Remote cooling starts by automatically once we press "start engine" button in the Adrenox connect mobile App
|
|
|
||||||
|
|
|
When vehicle is started remotely using Adrenox connect mobile App, By default Cabin climate settings will be changed to 18
deg C in Auto mode.
|
1. | Duration time : User can select the time duration for which remote cooling will be active using Adrenox connect mobile App, Duration can be selected from minimum of 2 mins to maximum of 15 mins. |
2. | Cabin Temperature settings: User can change temperature settings during Remote cooling |
3. | Front defrost: User can Activate /De-activate front defrost during remote cooling by selecting front defrost option in mobile app |
4. | Rear Defrost: User can Activate /De-activate Rear defrost during remote cooling by selecting Rear defrost option in Adrenox connect mobile App, |
|
Remote cooling can be De-activated by using Mobile App. if vehicle is already in Remote start condition by Pressing start
engine button, Remote cooling will be deactivated.
In Mobile App customer will get notification if Remote cooling is failed.
|

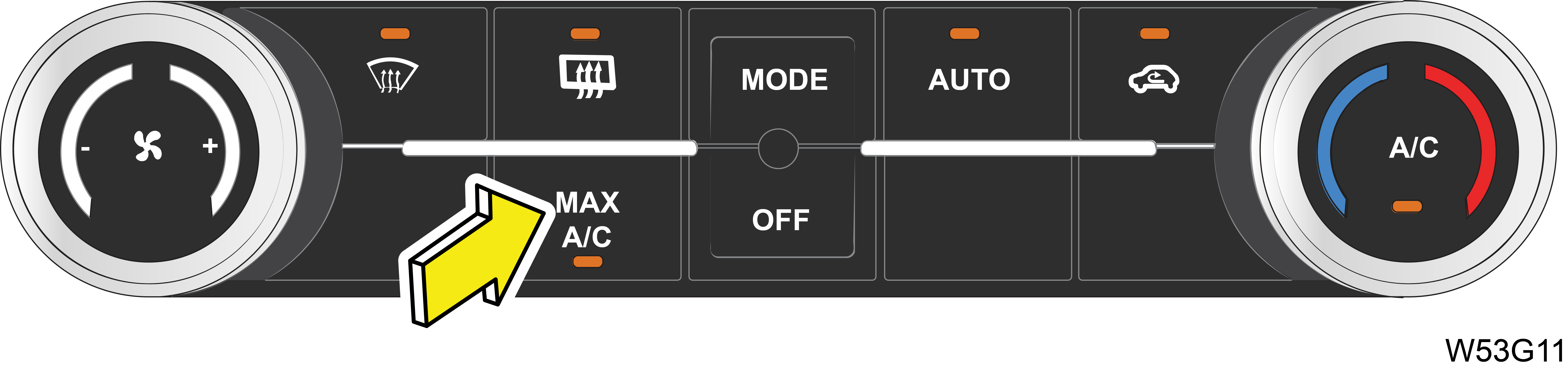

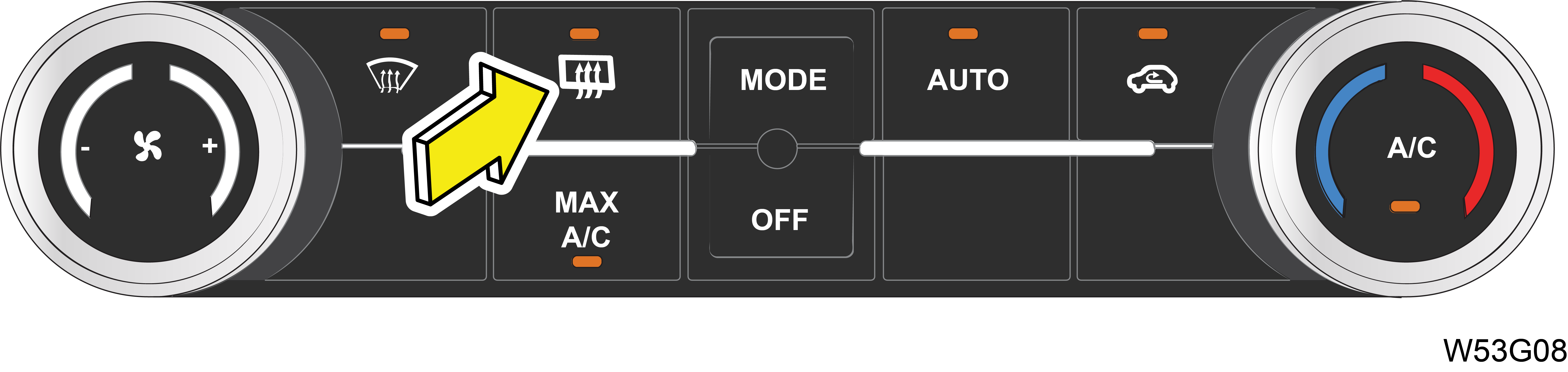

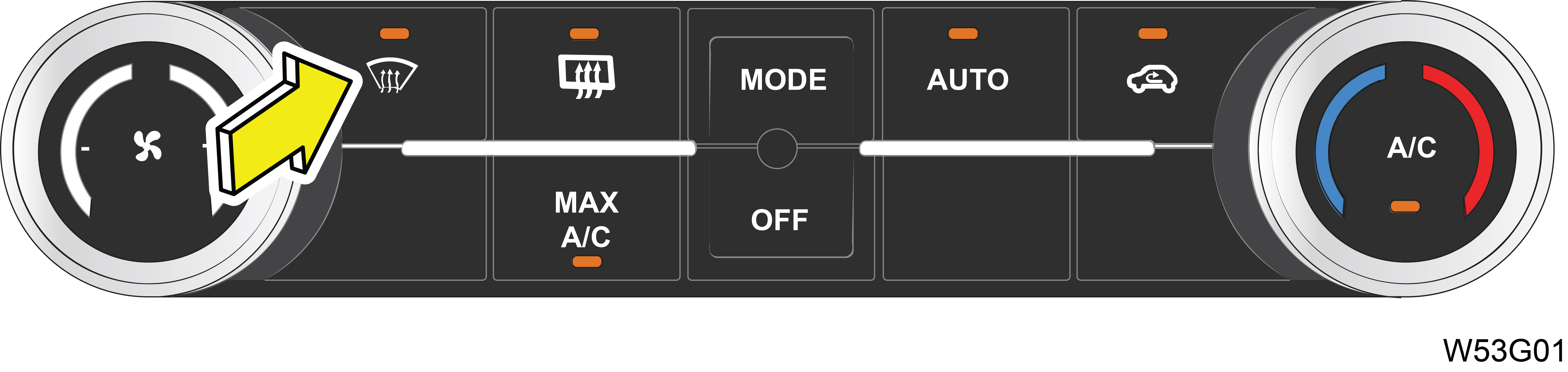

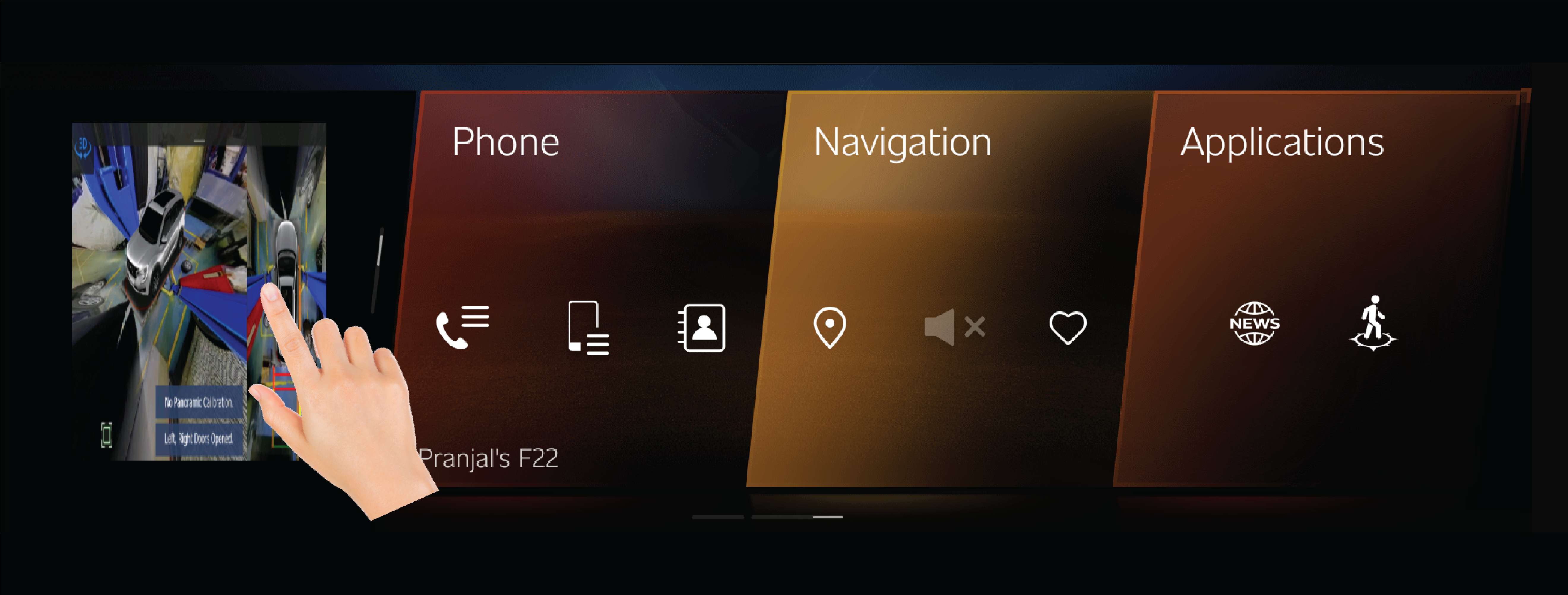

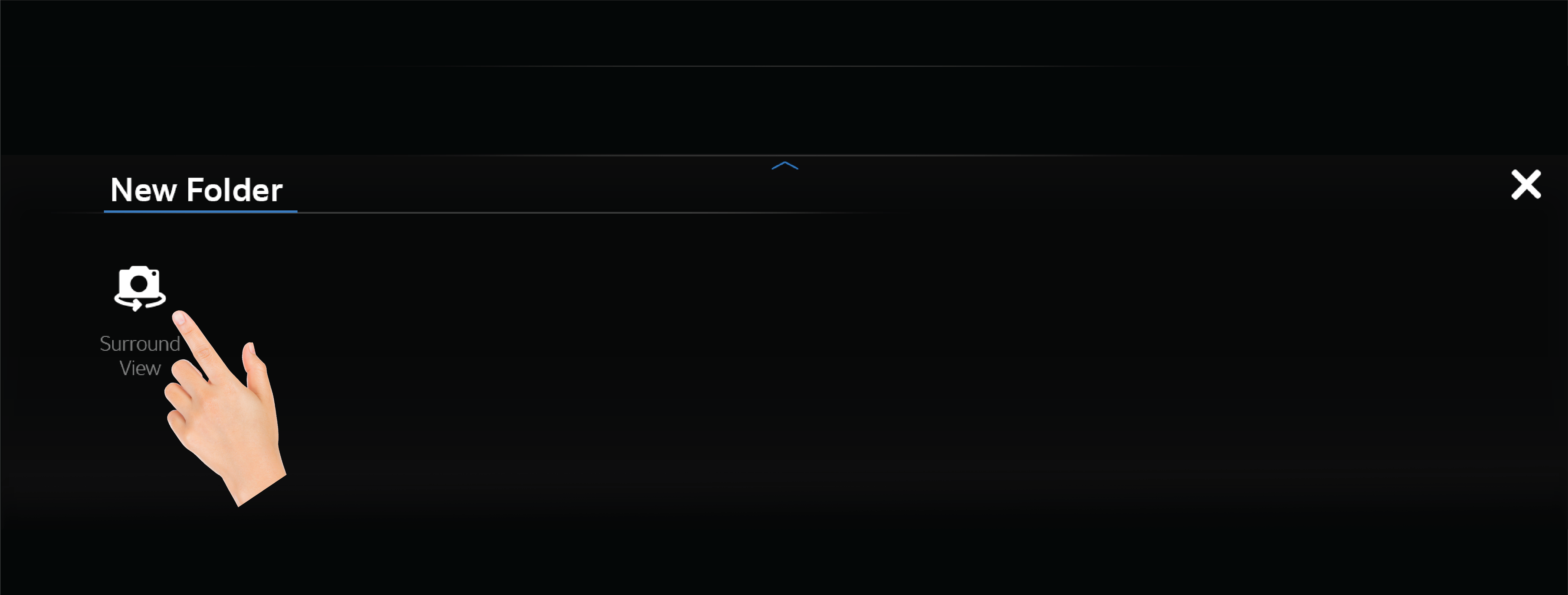

• | Make sure that all the windows are fully closed |
• | Fully open the vents and adjust Louvres to direct air toward face |
• | Turn ON AC |
• | Press MAX AC Switch |
• | Make sure that all the windows are fully closed |
• | Set the blower to maximum speed |
• | Fully open the vents and adjust Louvres to direct air toward face |
• | Set the air distribution control to face mode |
• | Set air intake control to recirculation mode |
• | Turn the air conditioner ON |
• | Set the temperature control knob to extreme left (coolest) position |
1. | Make sure that all the windows are fully closed. |
2. | Set the blower to maximum speed. |
3. | Set the air distribution control to foot mode. |
4. | Set air intake control to recirculation mode. |
5. | Set the temperature control knob to extreme right (hot) position. |
6. | For de-humidified heating, switch the air conditioner ON. So on rainy conditions if the heater is ON then also keep the AC ON. |
• | For quickly defogging/de-misting outside of front windshield, it is advisable to operate the windshield wiper/washer for few times intermittently |
• | If snow has deposited on windshield, use ice scraper to remove ice deposited before using wiper |
• | In freezing weather, warm the front windshield with the defogger before using the windshield washer. Also use a washer fluid having anti-freezing properties. These will help prevent the washer fluid from freezing on your windshield |
• | Dirty/contaminated windshield would make misting / fogging-up worse. Always keep the inside and outside of windshield clean |
• | Reduced air flow because of clogged HVAC filter or any other obstructions in air flow path may lead to inadequate defogging/de-misting performance. If air flow seems to have considerably reduced, get the filter cleaned or replaced immediately. Air flow path should be kept free of obstructions |
• | Reduced cooling performance from air conditioner may lead to inadequate defogging/de-misting. If cooling effect seems to have dropped considerably, get the air conditioning system checked by an Mahindra Authorised Dealer |
• | The cameras in Surround View System provide only the view and do not detect or alarm if any obstacles are in the view. Driver must check for the surrounding for any possible collisions with obstacles. |
• | There is a noticeable blind area of about 20cm where the cameras cannot see around the periphery of the vehicle. Driver must be careful to check for any obstacles in the blind areas. |
• | Surround View System provides the views by stitching the views from the four cameras with respect to their geometric orientations. If the position or the installation angle of any of the camera is changed e.g. after a collision, then do not use the feature for safety reasons as the image stitching may not be correct. |
• | If the exterior mirror is folded or out of place then image stitching may not be correct. |
• | Use the Surround View System only when all the doors and the tailgate are closed. |
• | The area around the vehicle is shown using the camera images and the car image is a standard graphic shown by the system. Hence the car image shown on the screen is not real and may not represent your actual vehicle. |
• | Objects and obstacles above the camera height or out of the field of view of the cameras are not displayed. |
• | Camera lenses distort the actual view surroundings to capture more coverage. The objects appear are altered and may not be dimensionally same as real as on the screen. |
• | The accuracy of the orientation decreases when the vehicle is raised/lowered based on the occupant’s weight. |
• | Select “Surround View” Icon from Infotainment screen. |
• | System activates when the ignition is ON and the shift lever is in the R (Reverse) position regardless of vehicle speed or switch position. |
|
|

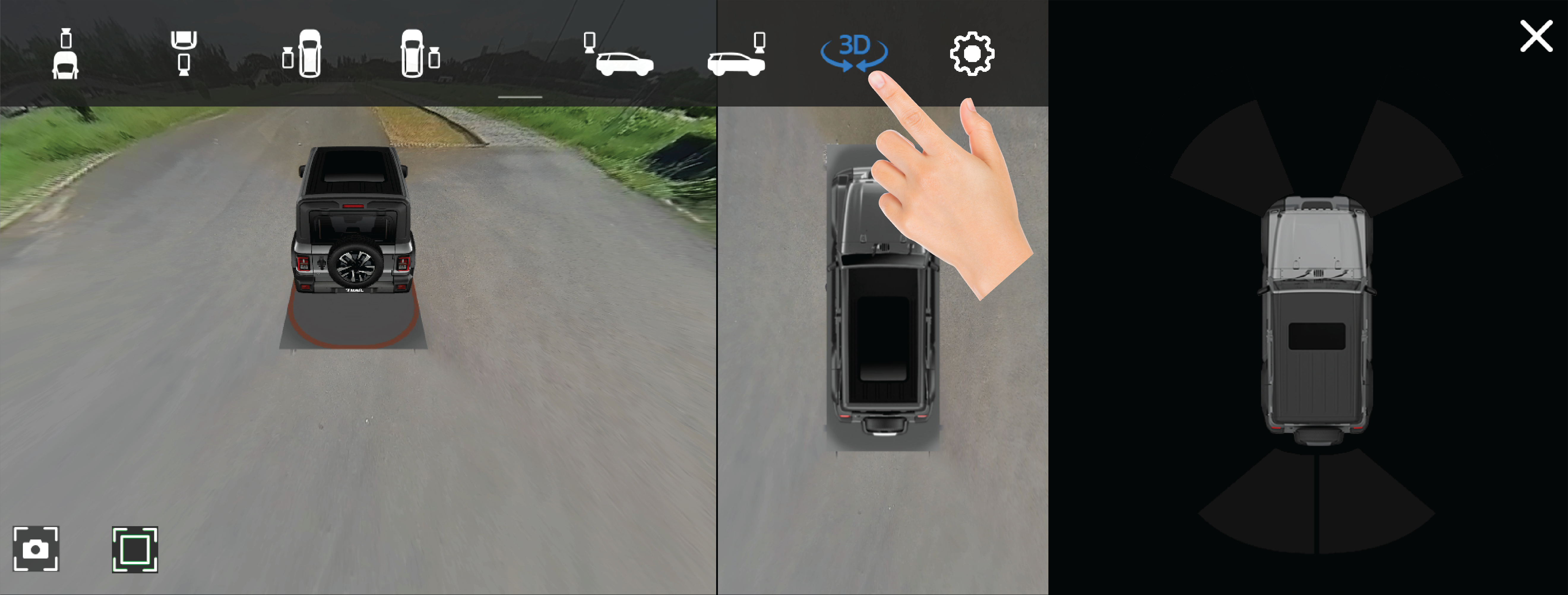

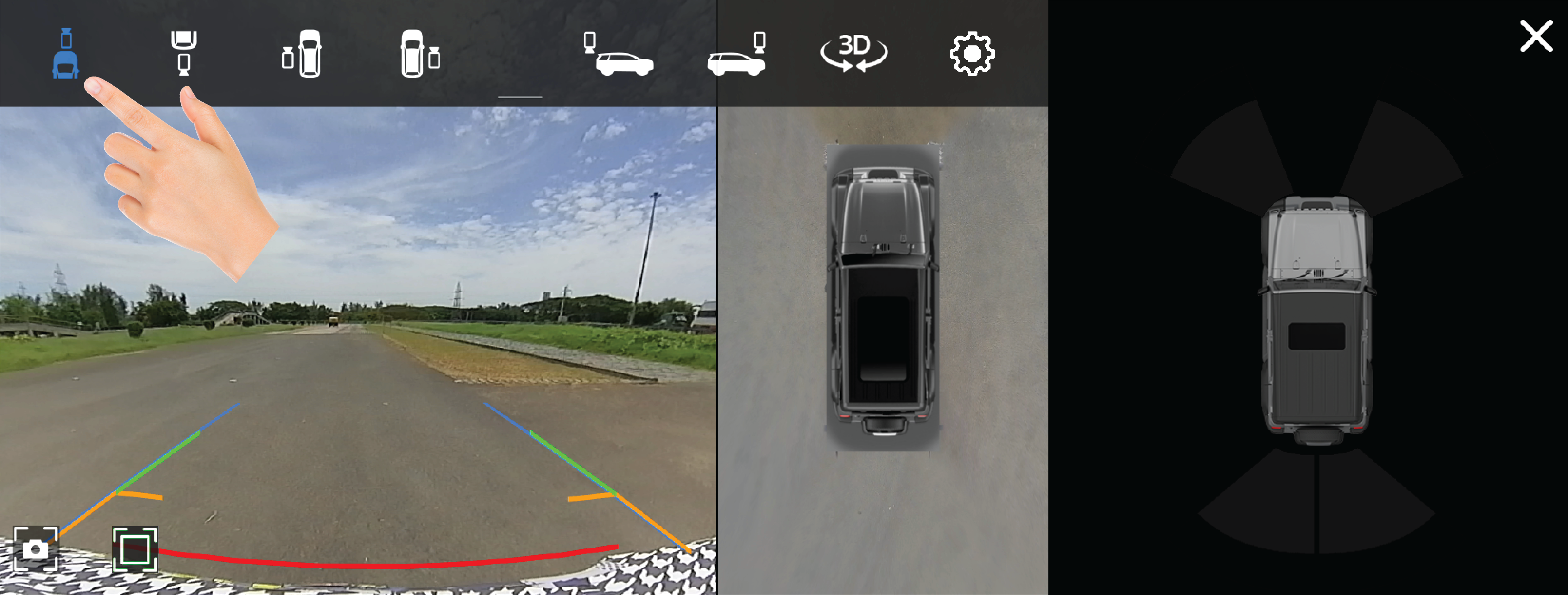

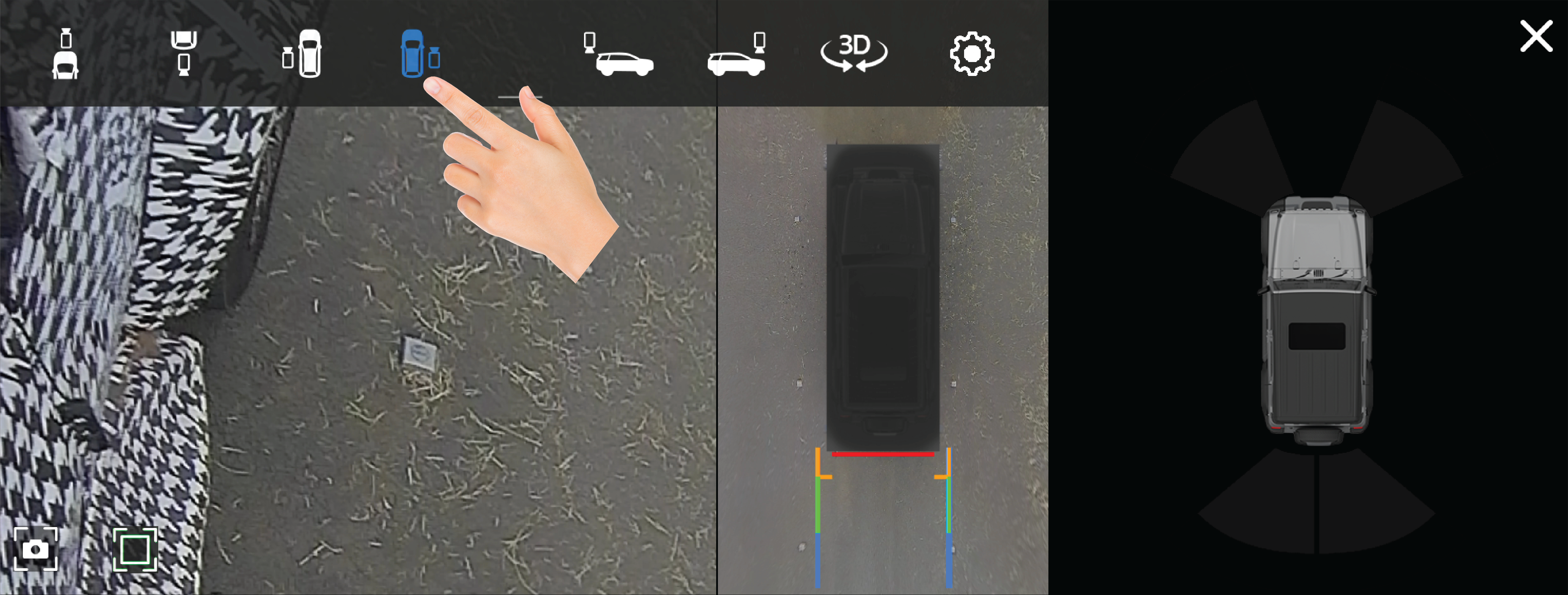

• | When driver activates SVS through Reverse gear or at lower speeds (< 15 km/h) then SVS display goes off if vehicle speed exceeds 15 km/h while driving forward. |
• | To display the icon bar, touch the notch in top middle of screen. |
• | Touch an icon 1-8 to select a desired view. |
|
|

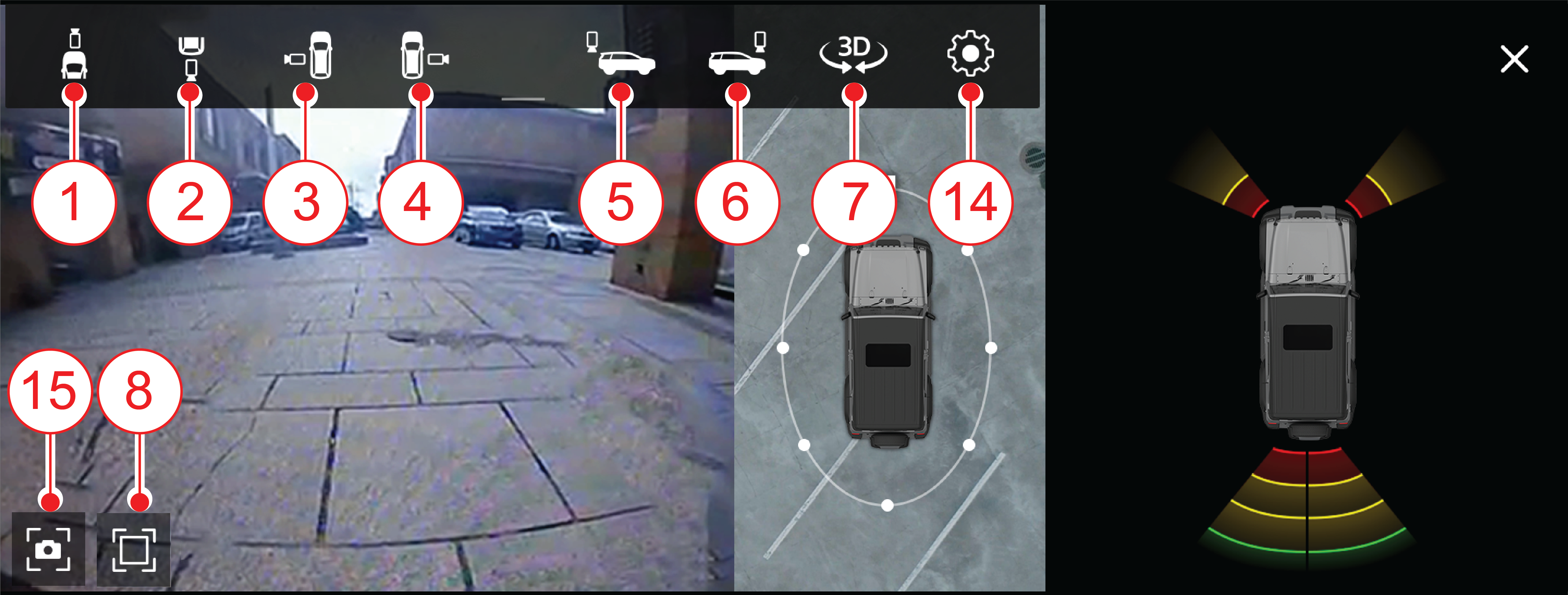

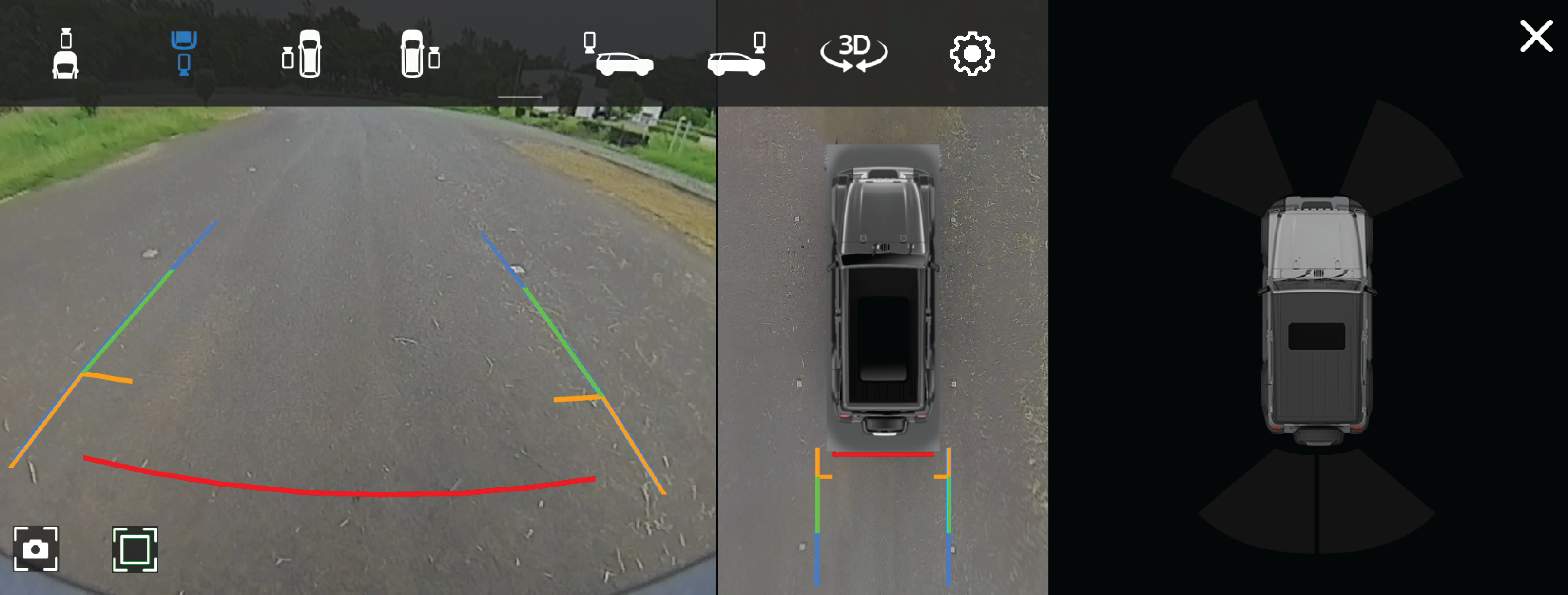

Sl. No |
Icons |
Description |
---|---|---|
1.
|
This view assists you with front surroundings view for maneuvering in front of the vehicle.
|
|
2.
|
This view assists you with front surroundings view for maneuvering in rear of the vehicle.
|
|
3.
|

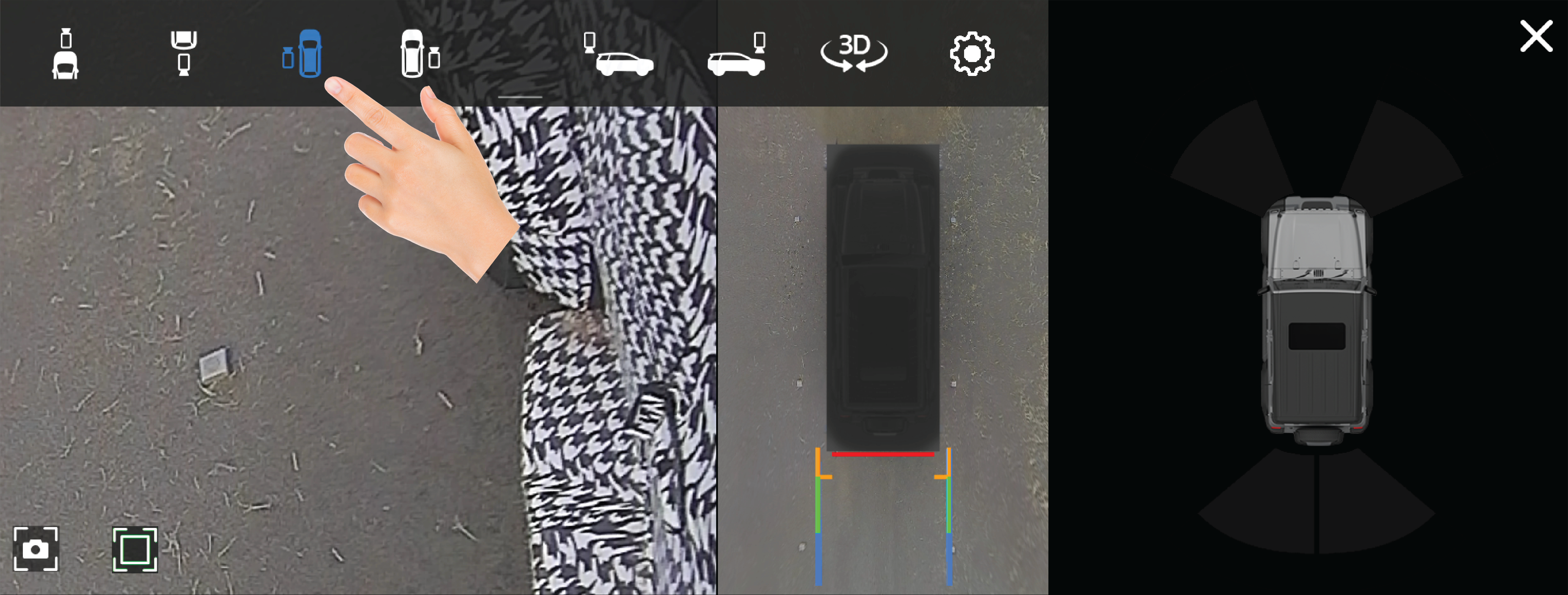

This view helps you with left side view near the front tire when parking.
|
|
4.
|
This view helps you with right side view near the front tire when parking.
|
|
5.
|
This view helps you to see the objects closer to rear bumper.
|
|
6.
|
This view helps you to see the objects closer to front bumper.
|
|
7.
|

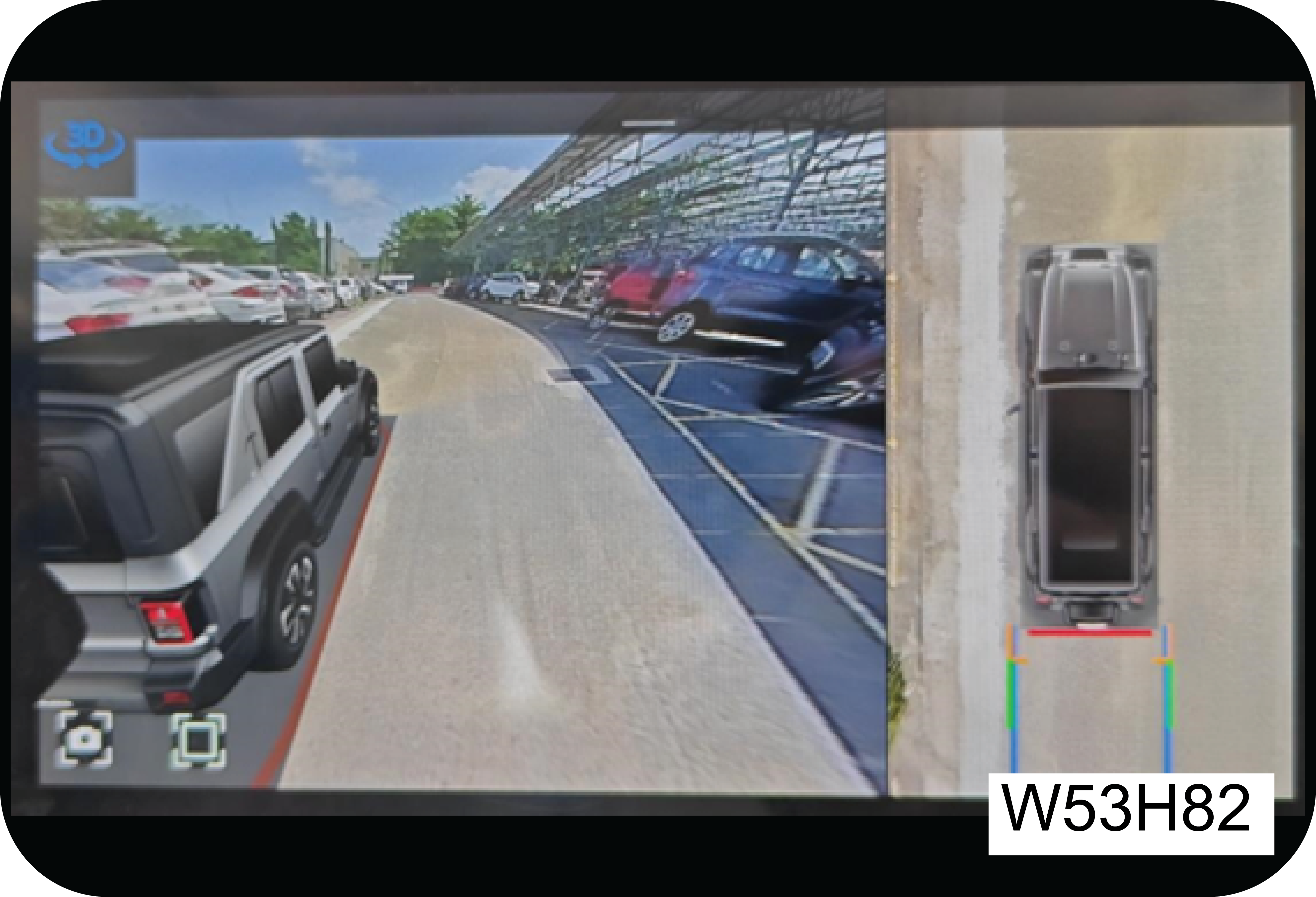

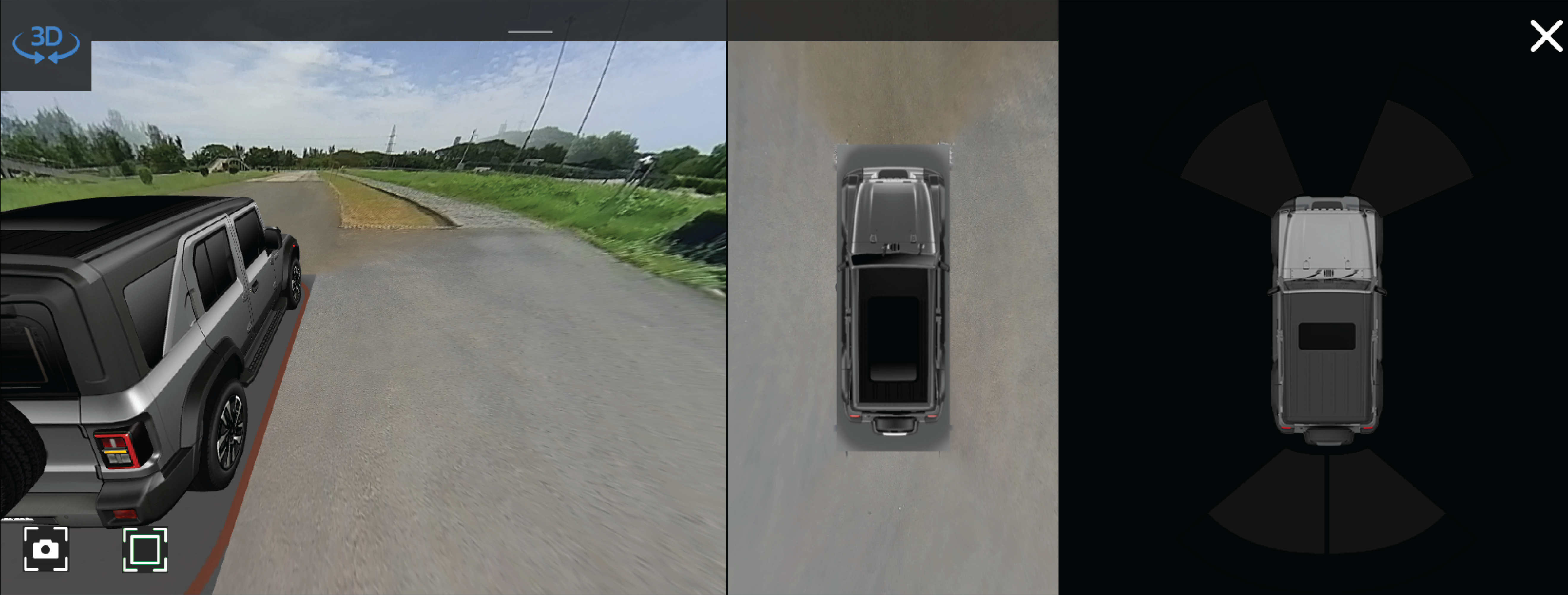

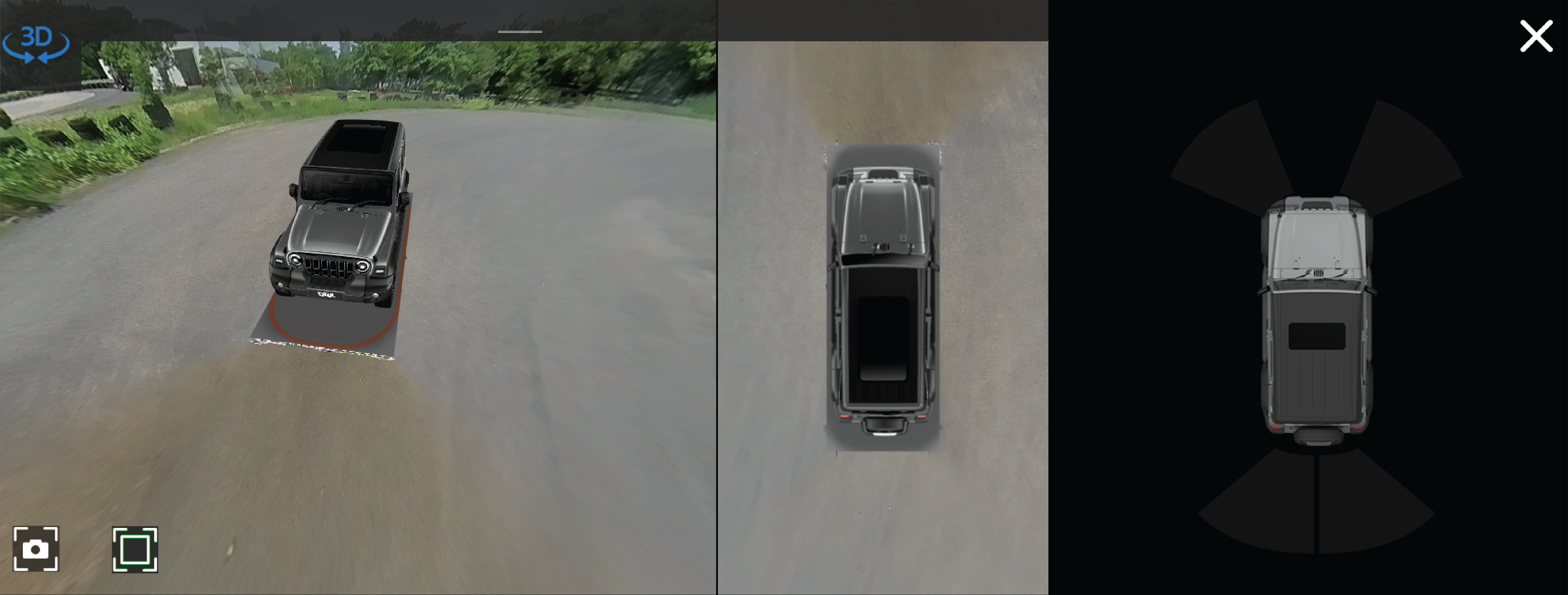

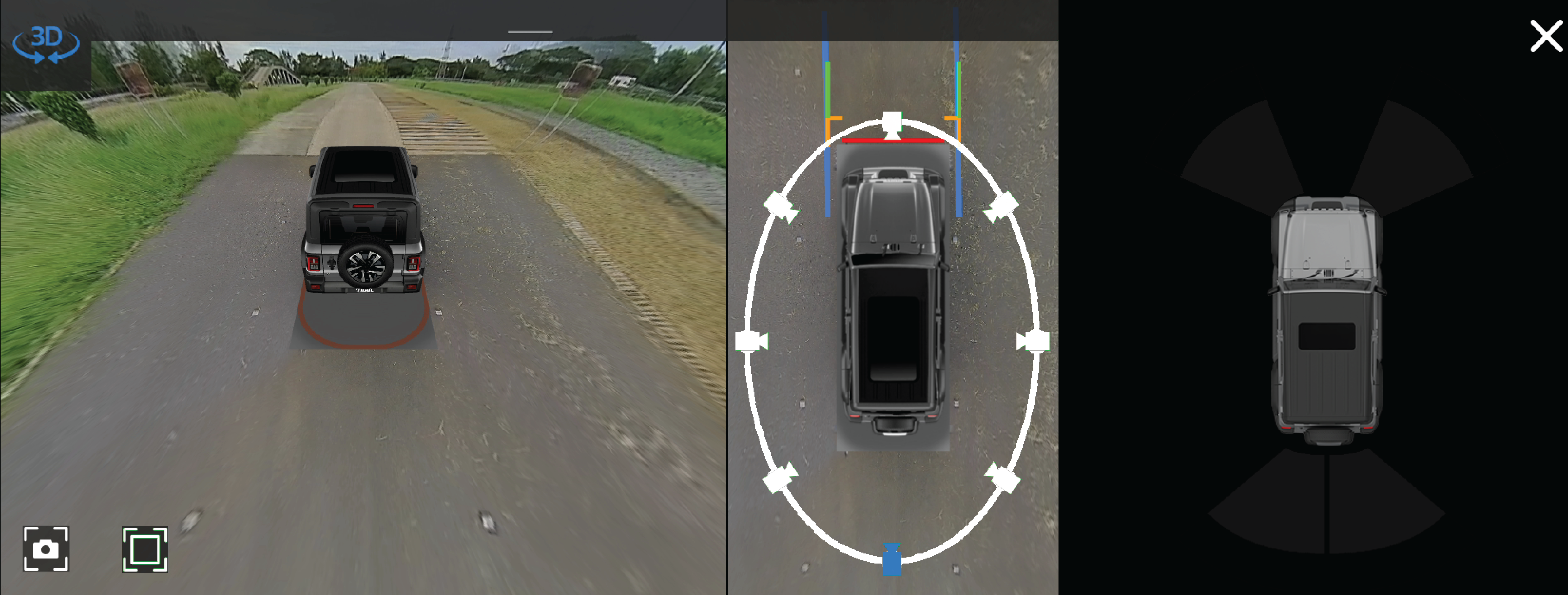

In these views, you can see the areas surrounding the vehicle in 3D.
|
|
8.
|

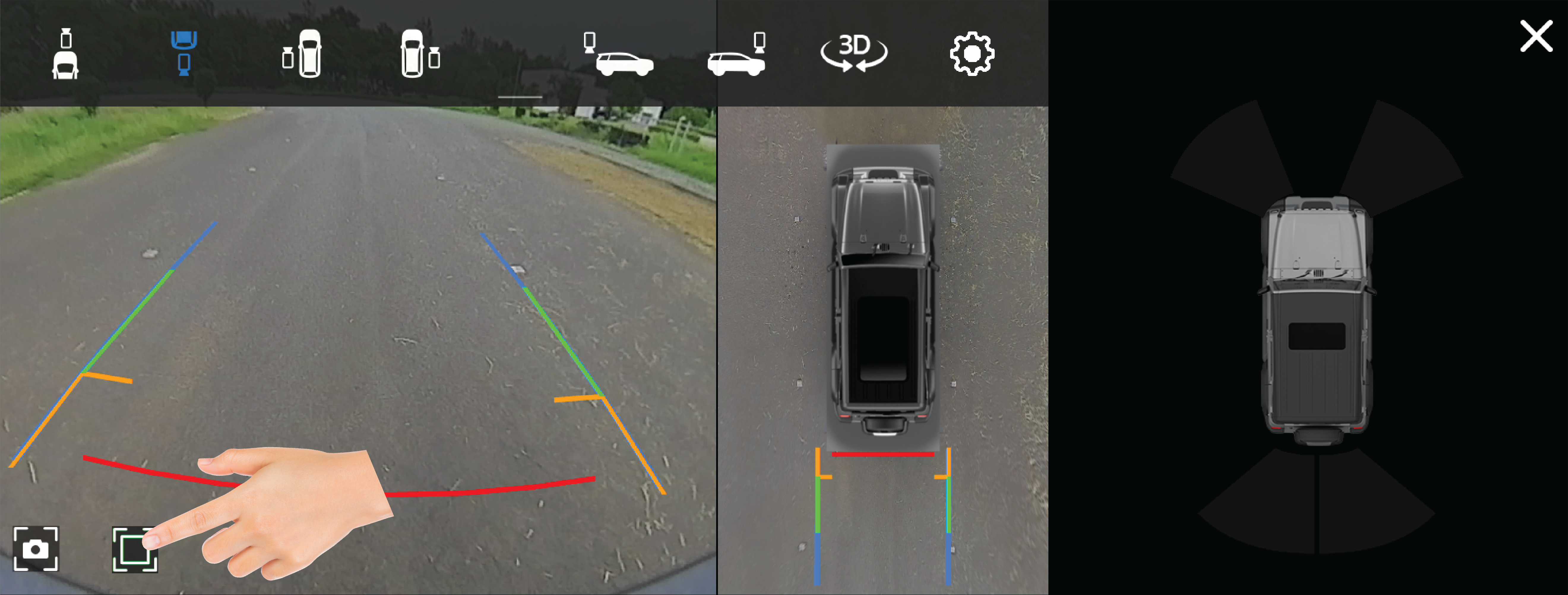

You can have each camera wider view (almost 180 degree view) by pressing this icon which helps in crossing junctions.

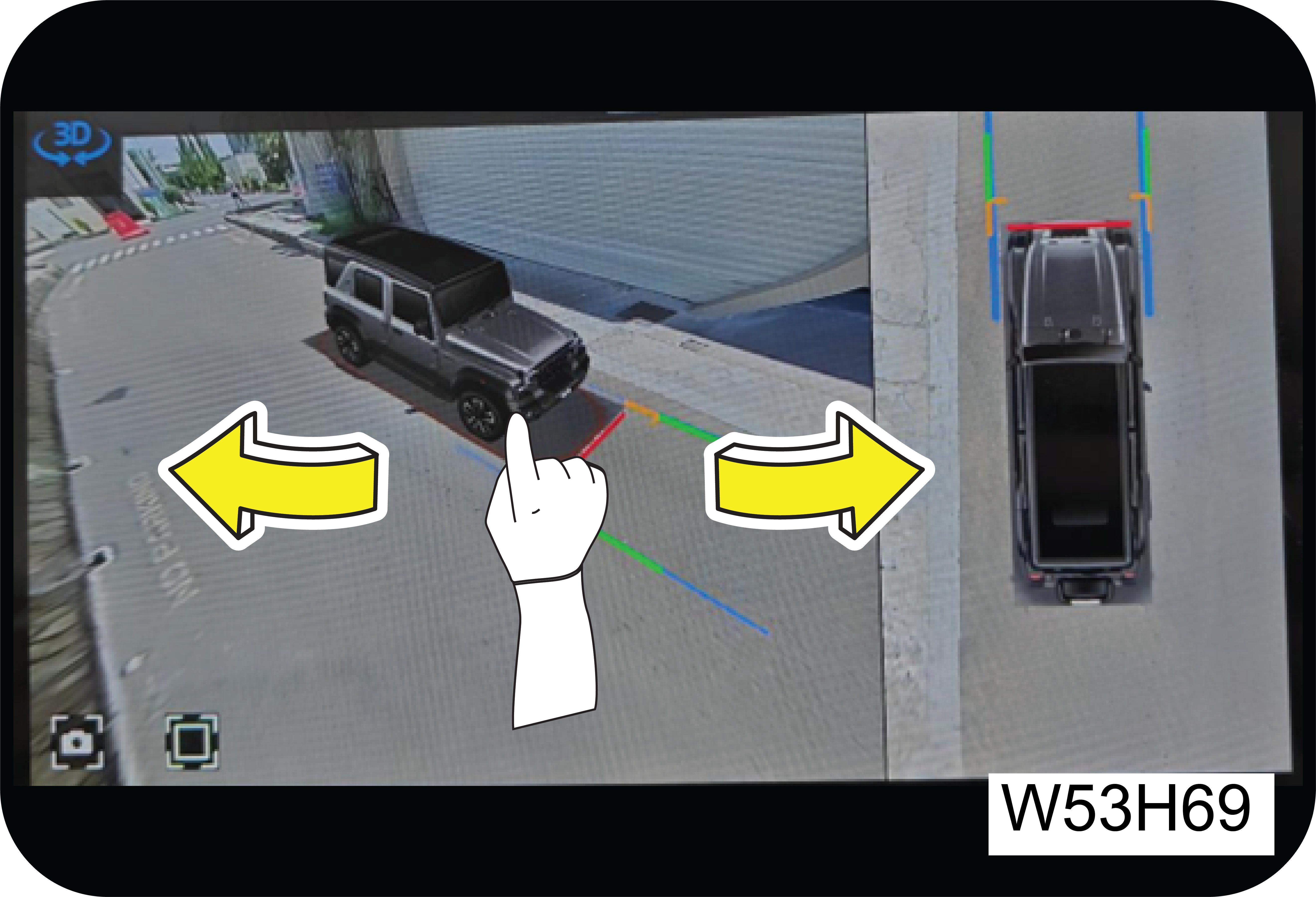

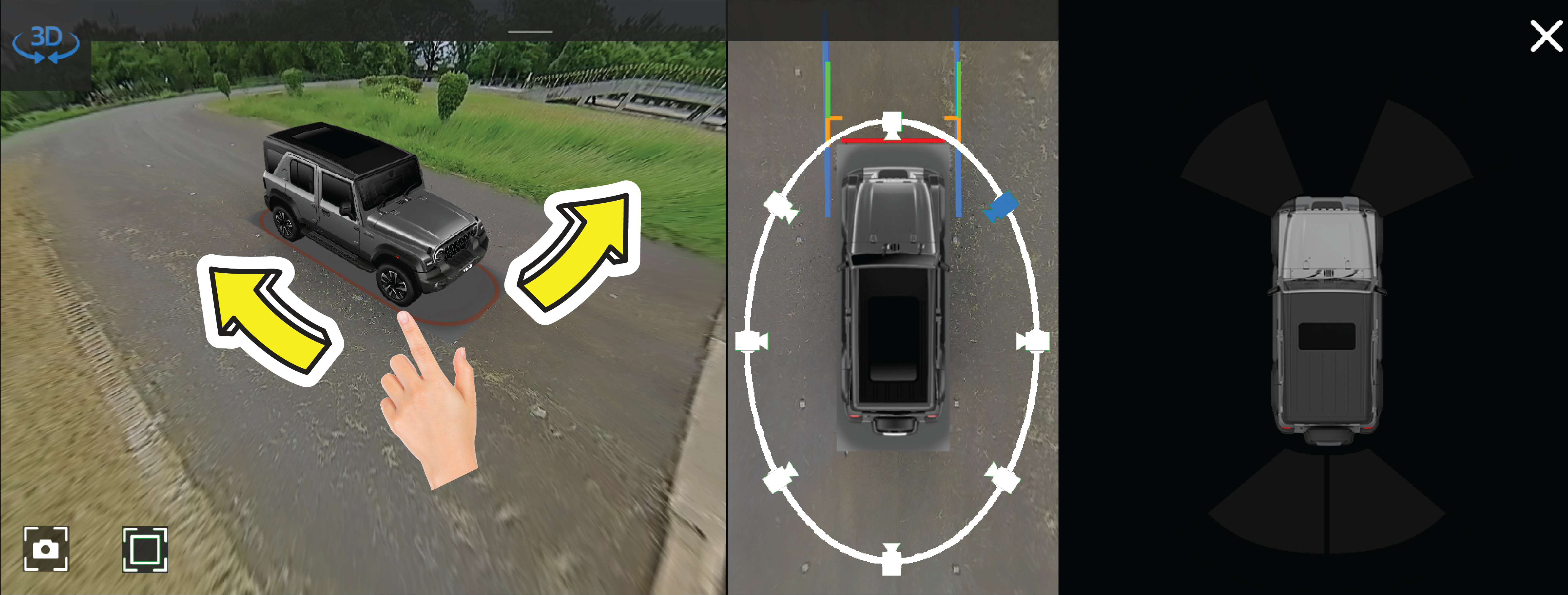

Also When you are in 3D surroundings mode , you can have 3D surroundings in full screen view by pressing this icon.
you can exit full screen view by touching icon.
|
|
9.
|

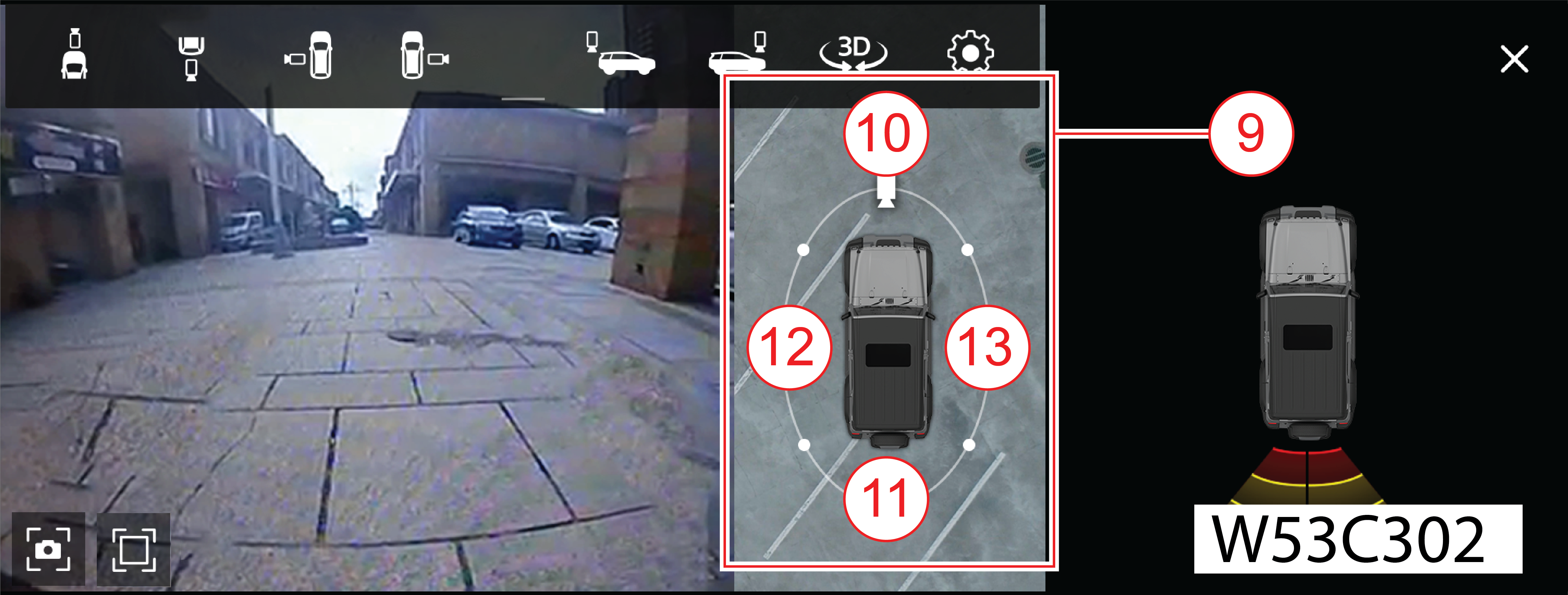

Refer Image No: W53C302
|
This view is bird’s eye view / 2D top view which gives top down view of vehicle surrounding by stitching all four camera images.
|
10.
|
Refer Image No: W53C302
|
When you touch this area, front surroundings view will be seen in the left screen area
|
11.
|
When you touch this area, rear surroundings will be seen in the left screen area
|
|
12.
|
When you touch this area, left surroundings will be seen in the left screen area
|
|
13.
|
When you touch this area, right surroundings will be seen in the left screen area
|
|
14.
|

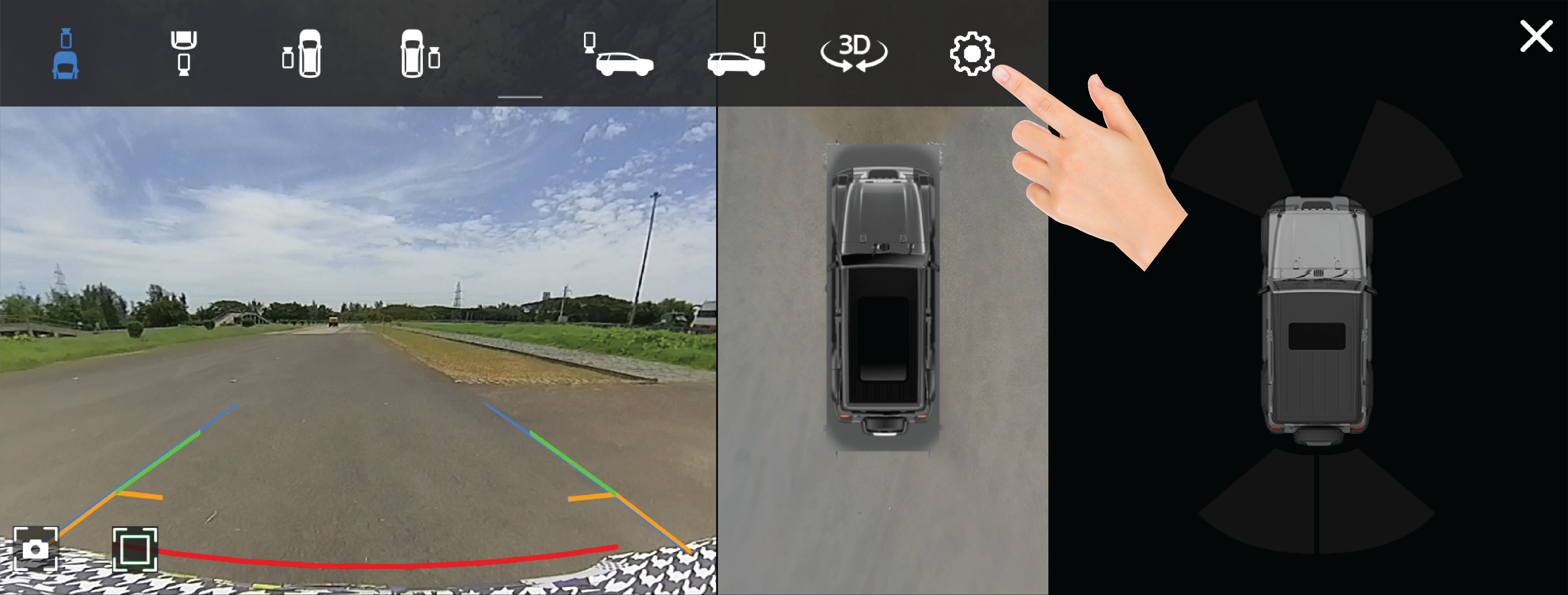

You can view SVS settings option using this Icon.
|
|
15.
|
You can capture screen shot of Infotainment screen using this Icon.
|
|

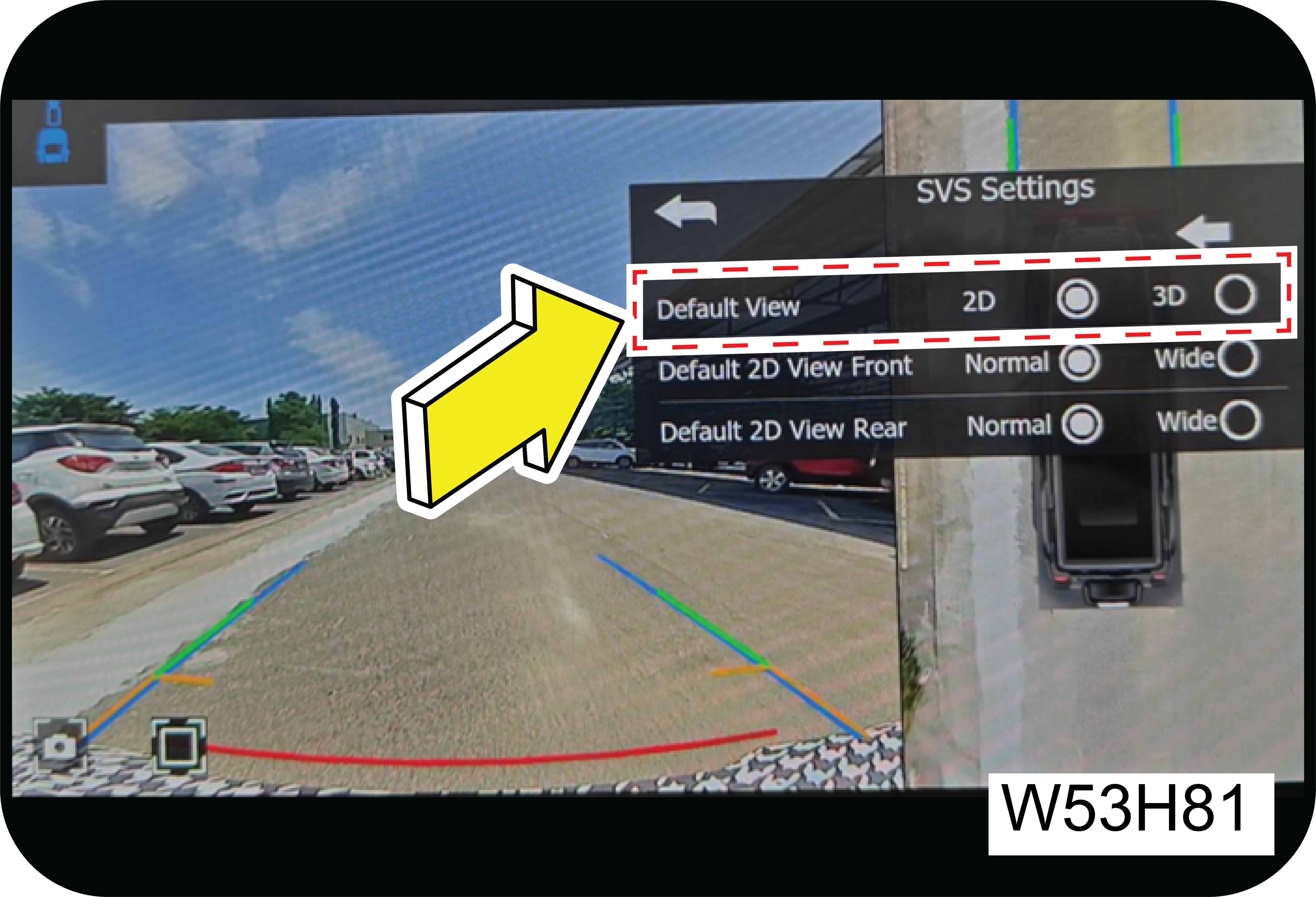

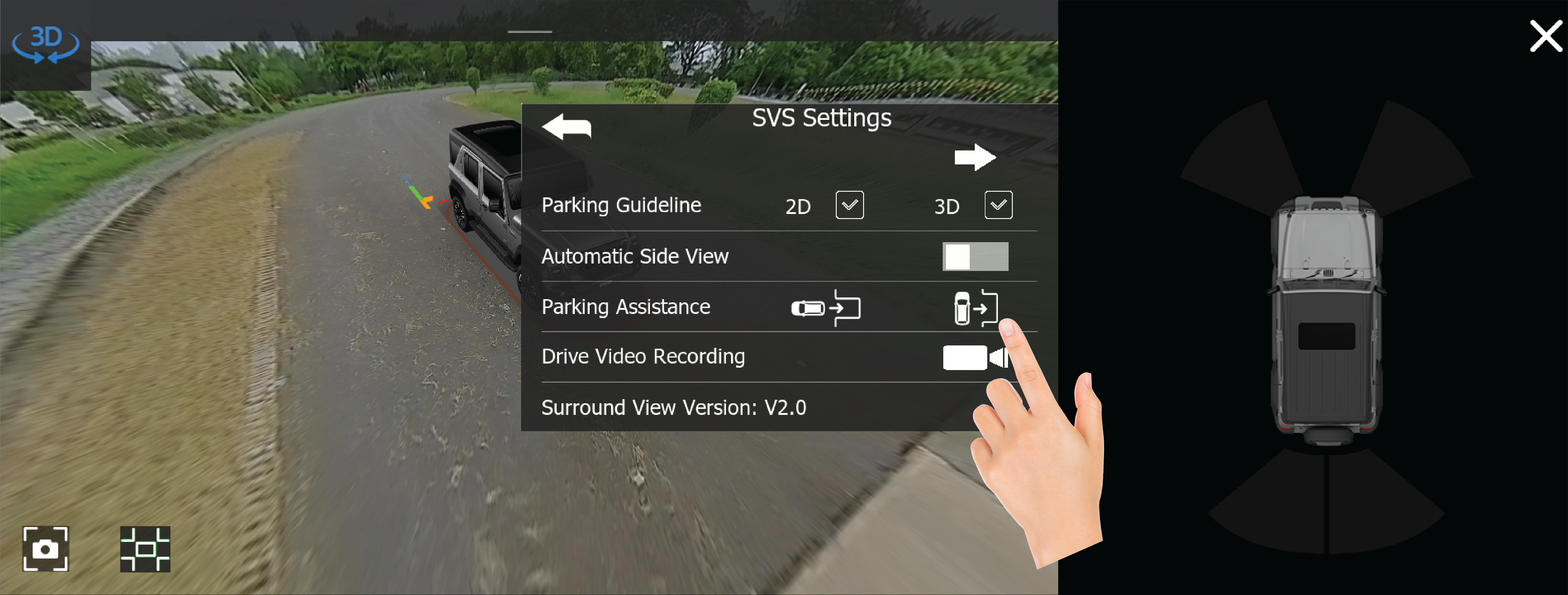

To select default view, touch SVS Settings icon and then touch
|
|

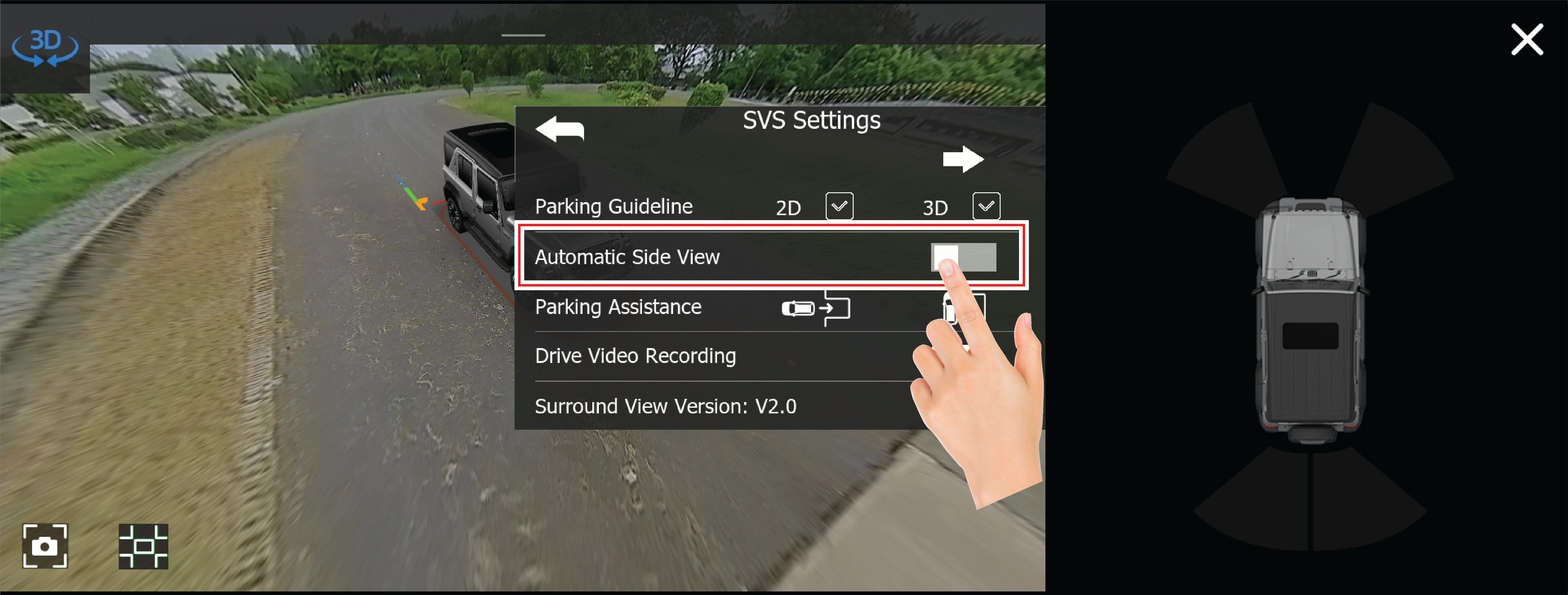

Automatic Side View: Touch SVS settings icon and enable Automatic Side View. You can see left/right 3D view in Infotainment when left/right turn
indicator is activated in forward /D gear.
|
|

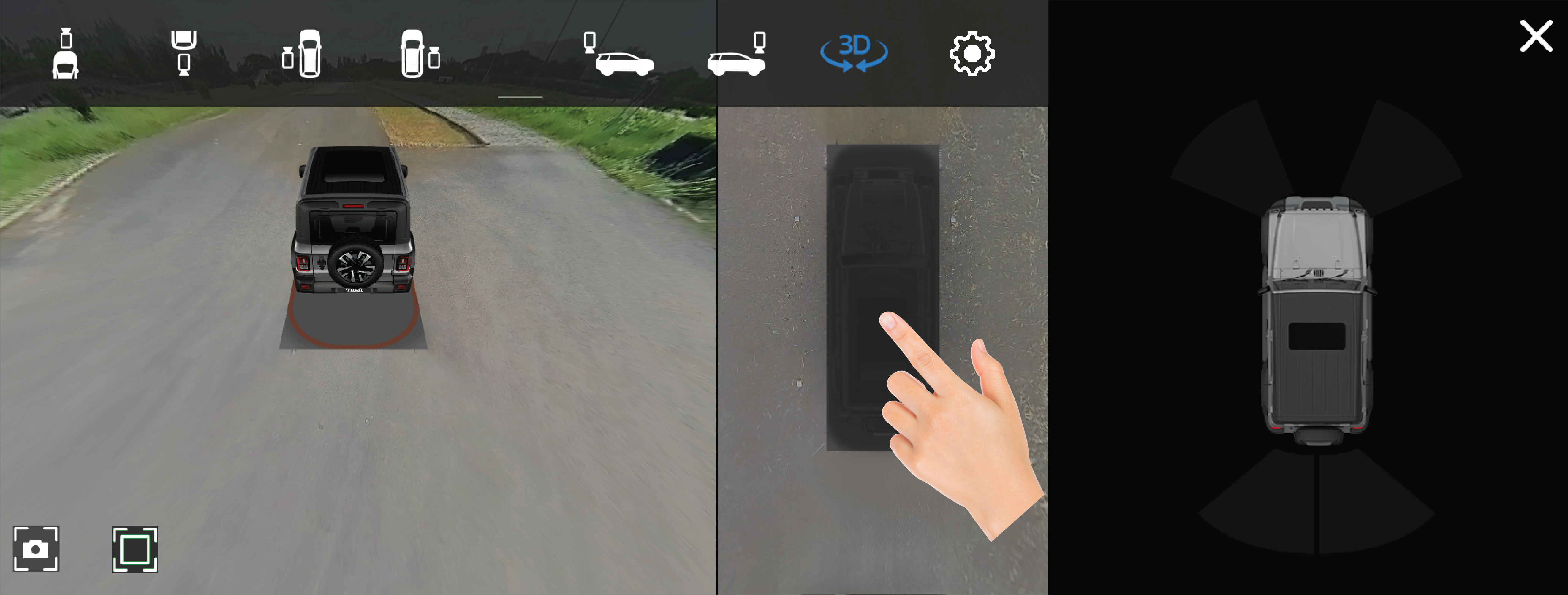

Until the vehicle moves, the bottom portion is shown as black opaque box
Touch again on SVS car in bird’s eye view to revert to opaque car model.
|
|

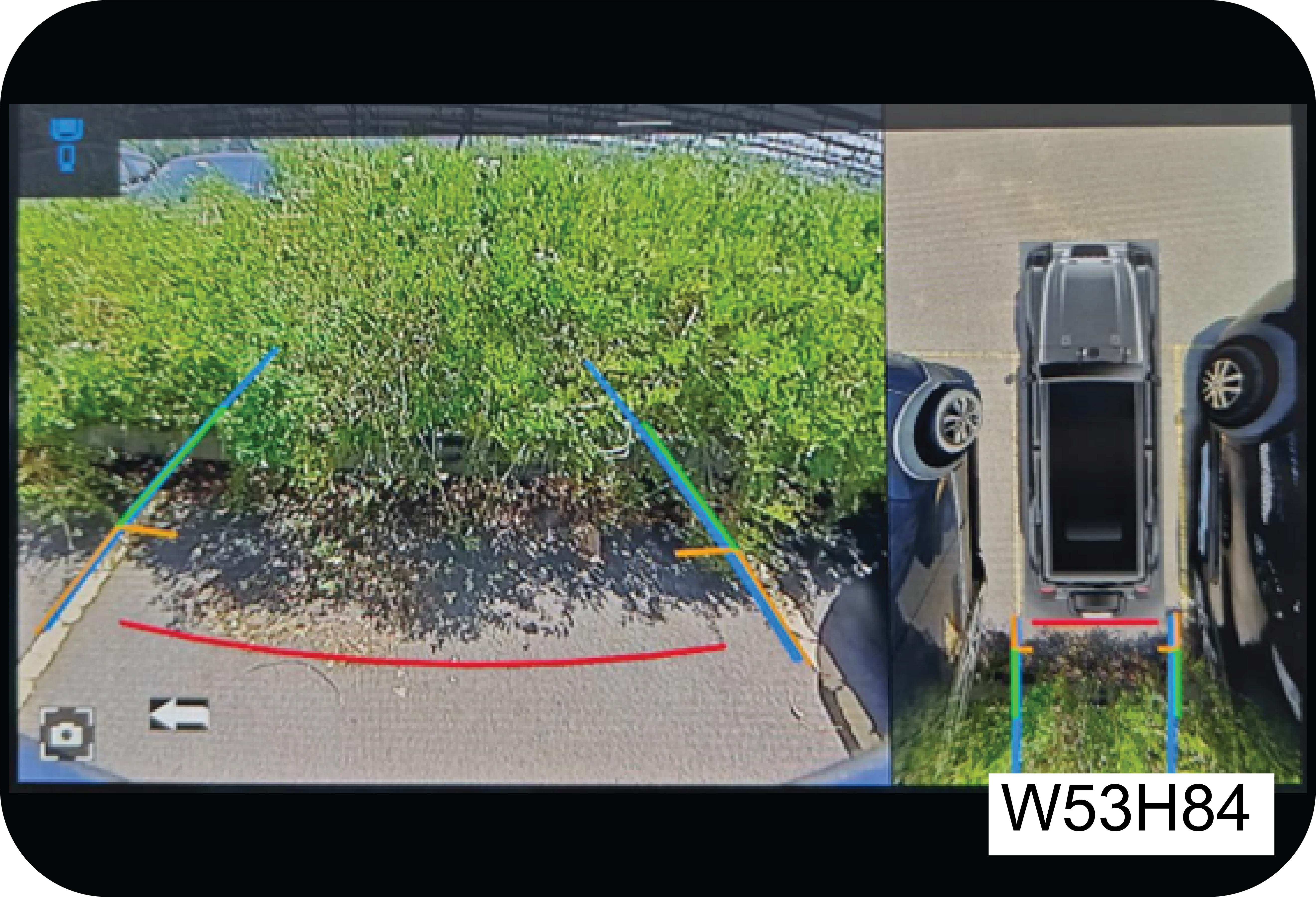

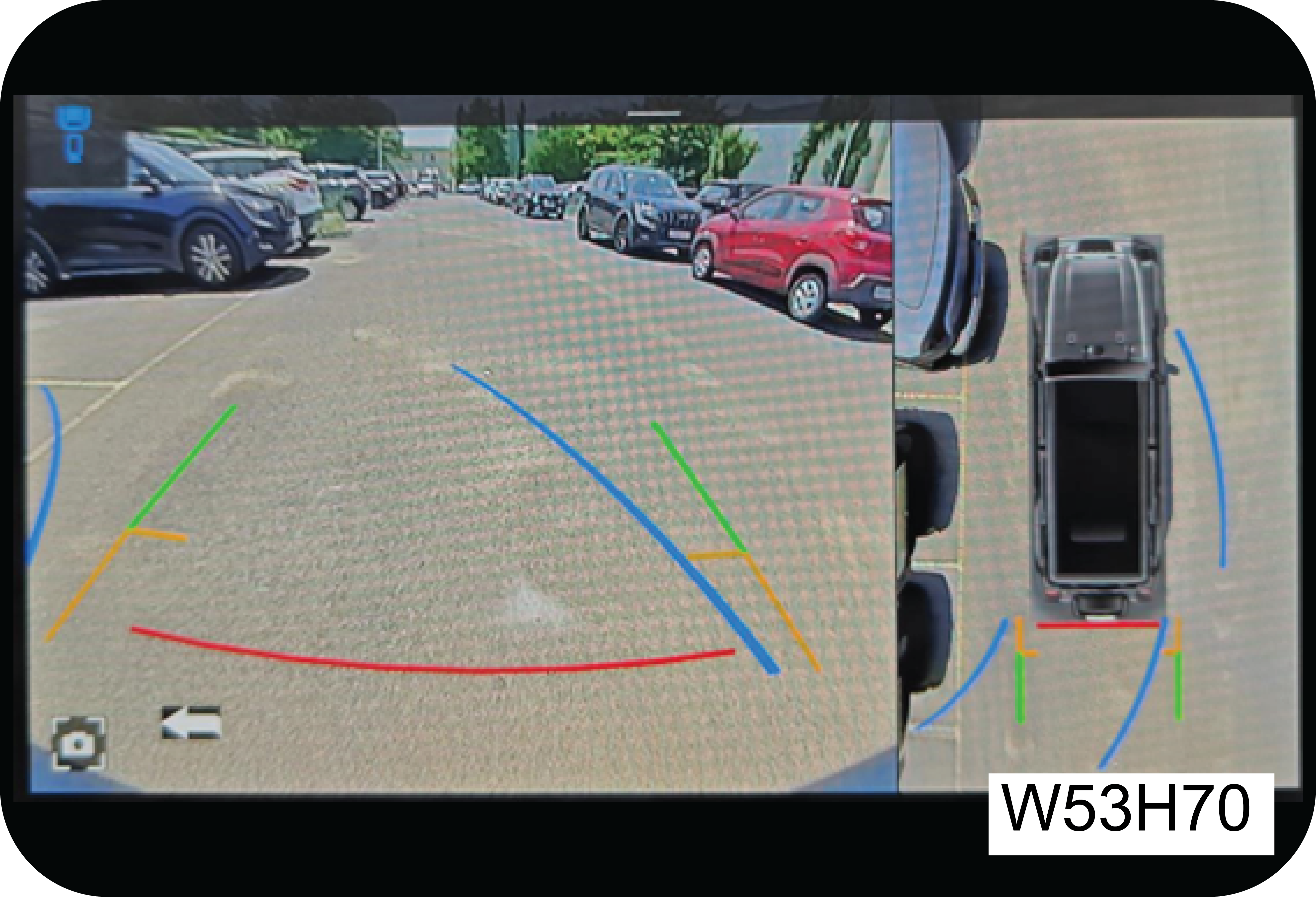

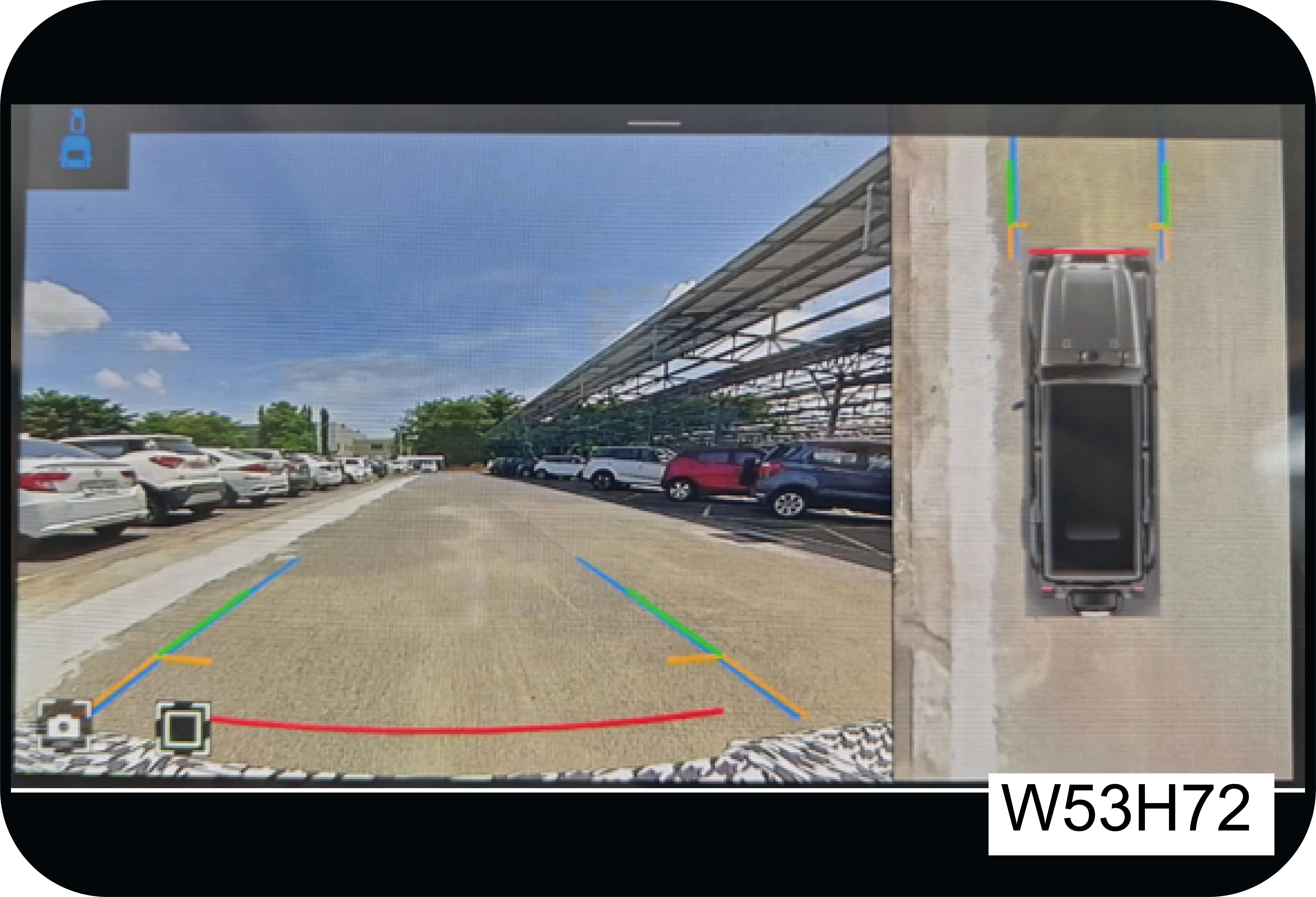

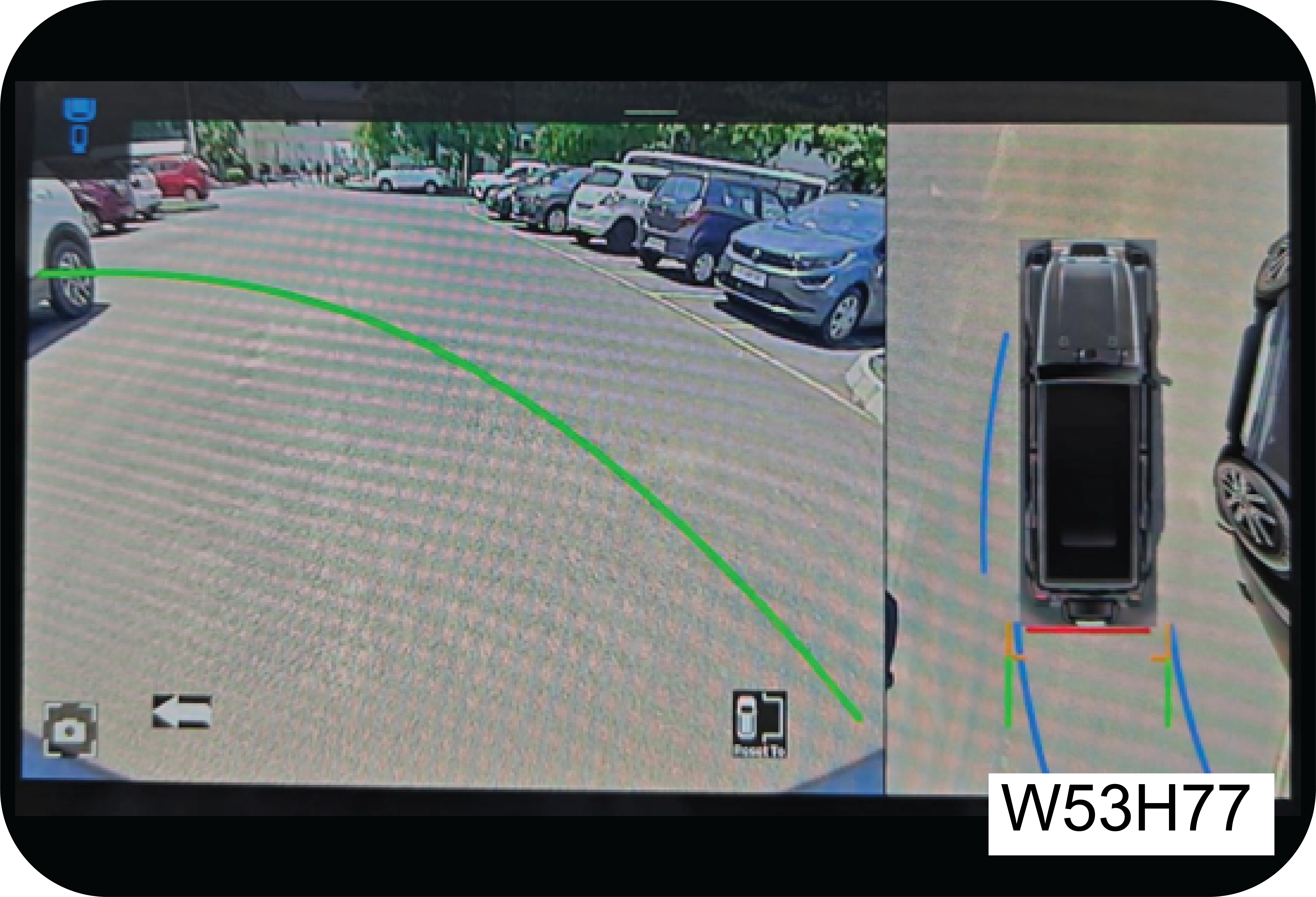

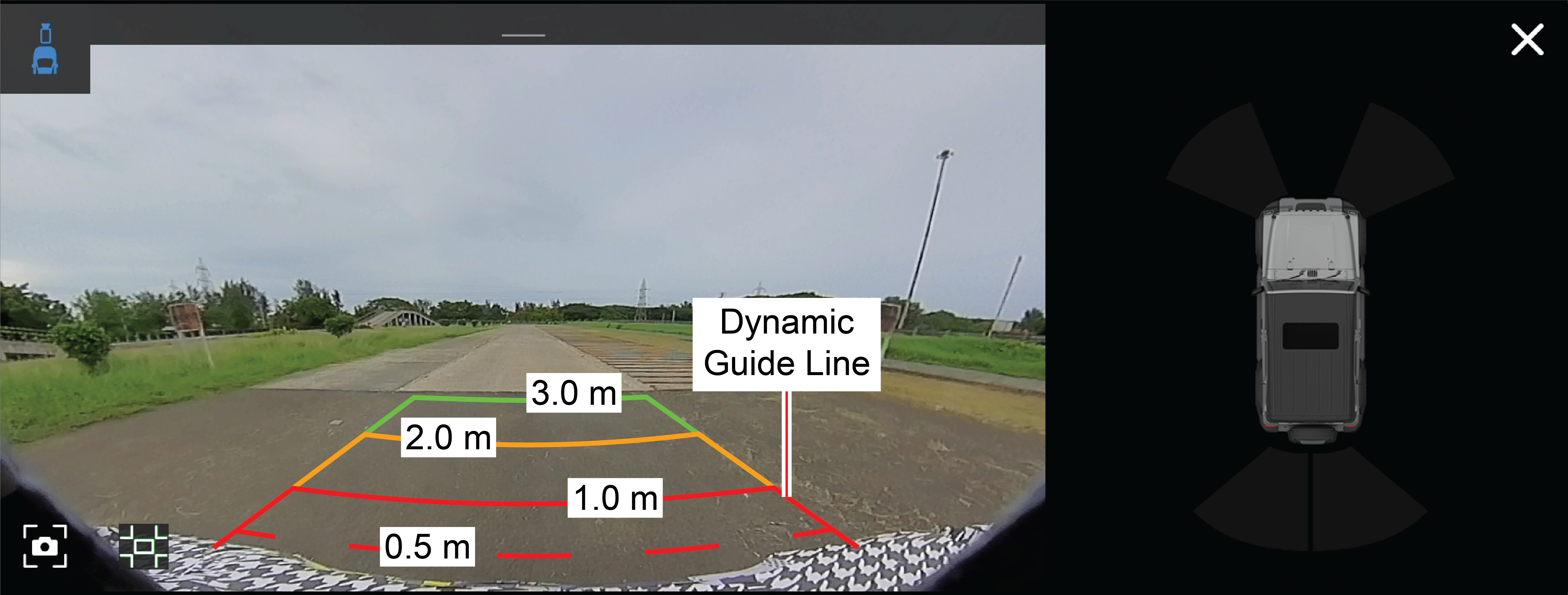

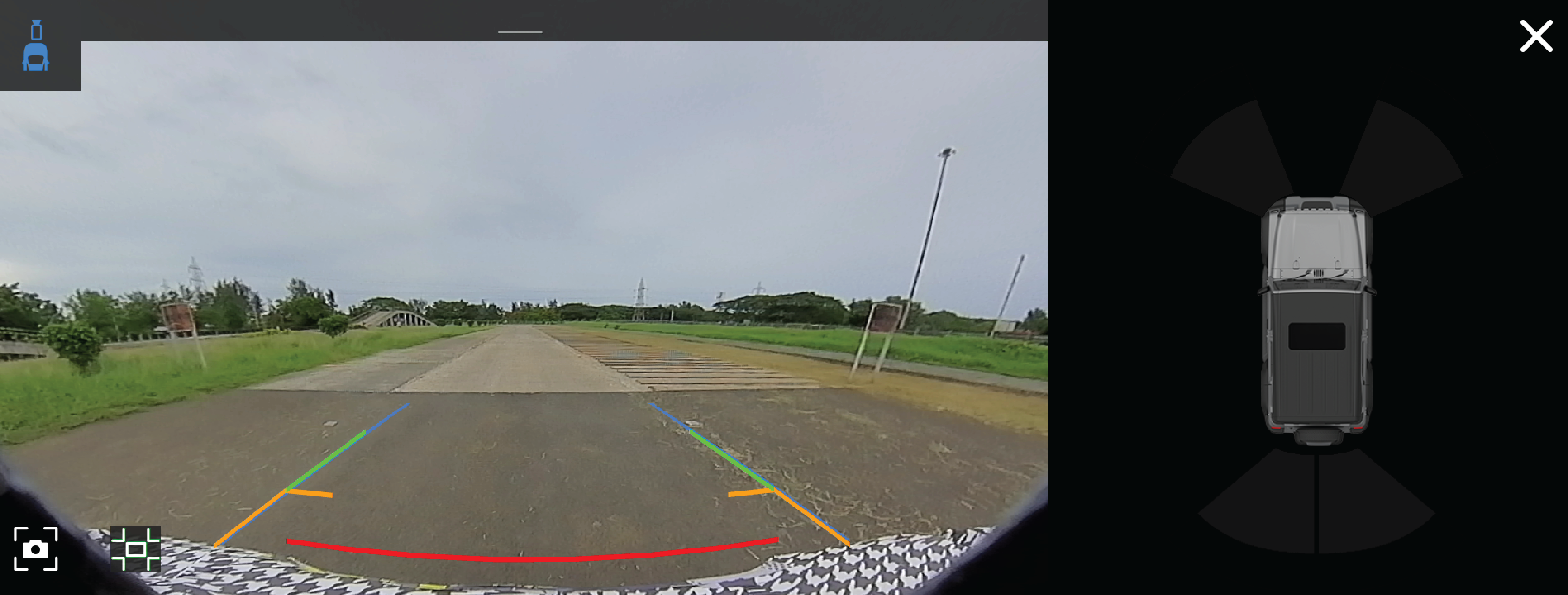

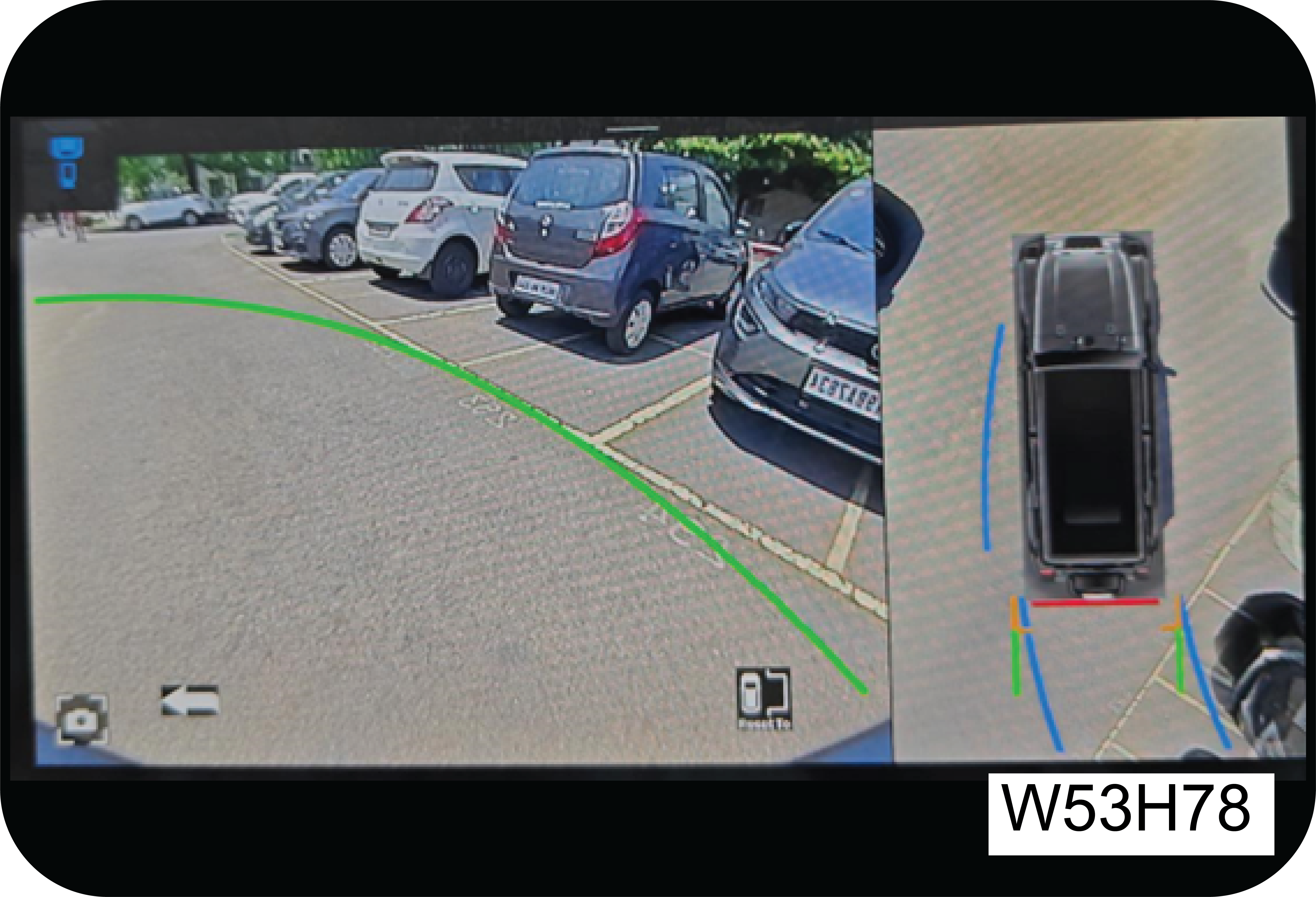

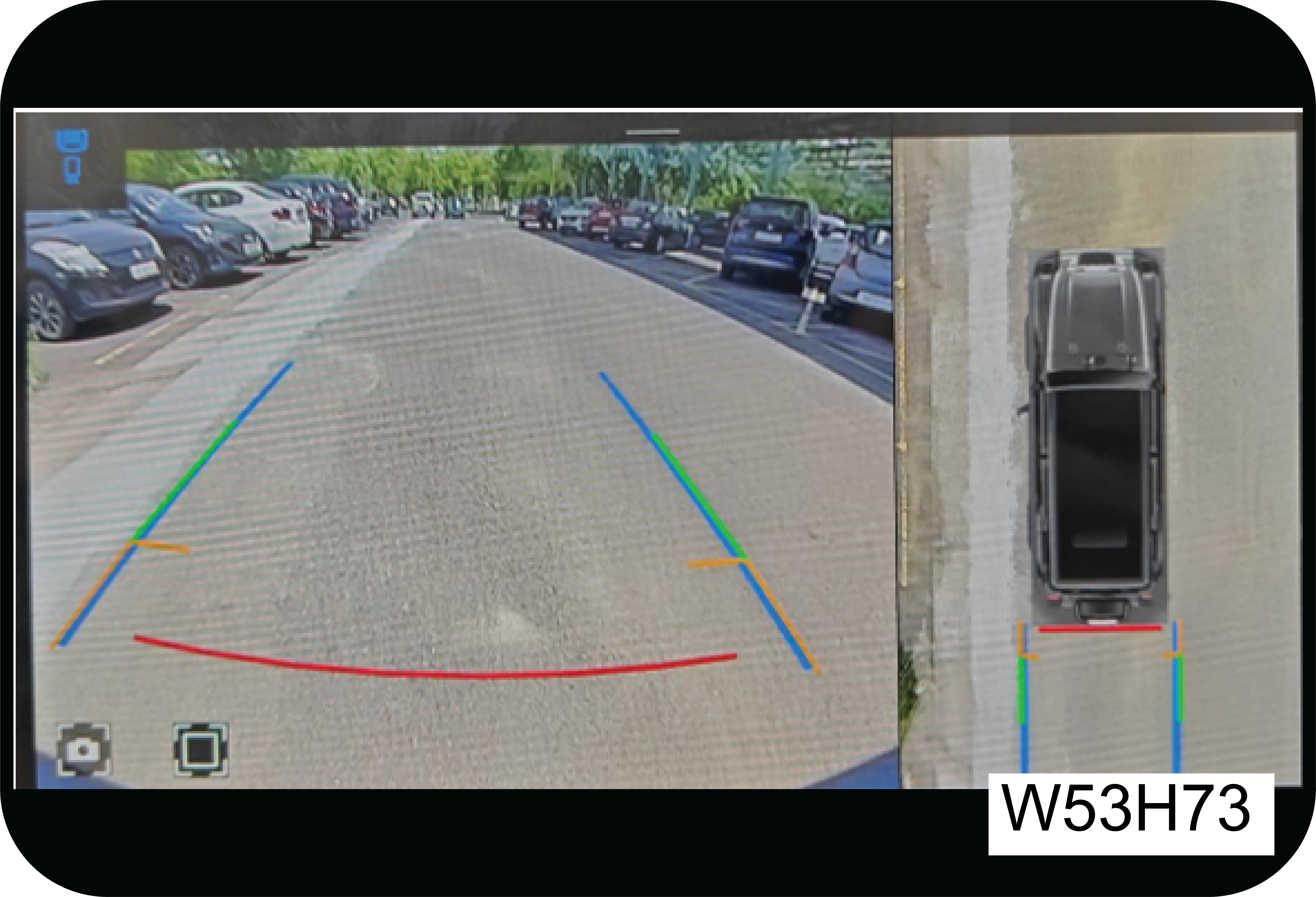

Dynamic Guidelines indicate the path the vehicle will traverse with the current steering angle.
|
• | Static Guidelines indicate the placement of the vehicle with respect to the parking slot. |
• | During parking, you can compare the Static guidelines against the Parking Slot Lines to know if your vehicle placement is in line with the parking slot lines. |
• | Color coding (Amber, Green, Blue) on the static lines help in assessing the distance of the obstacles [at the ground plane] from the vehicle’s boundary. |
|

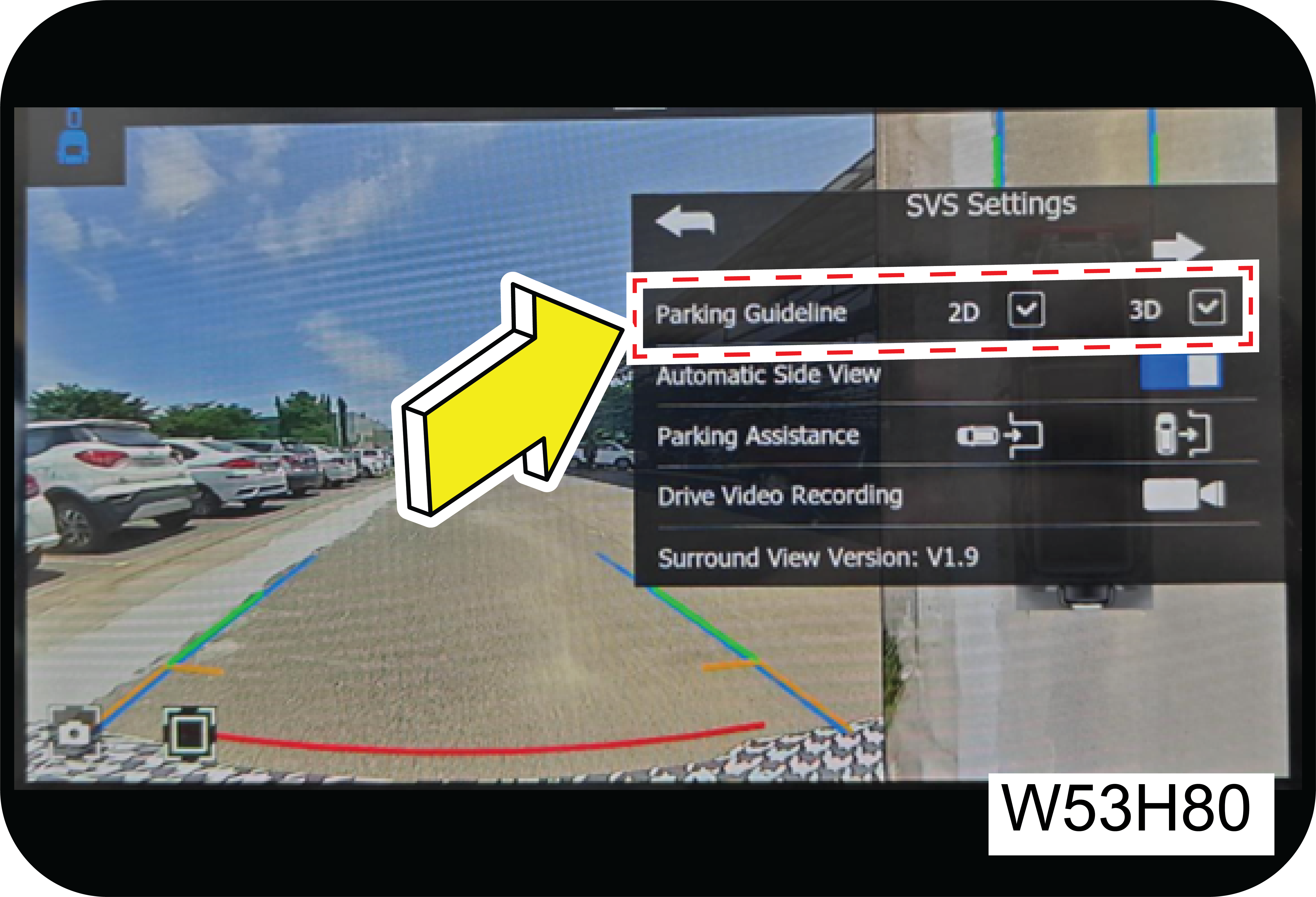

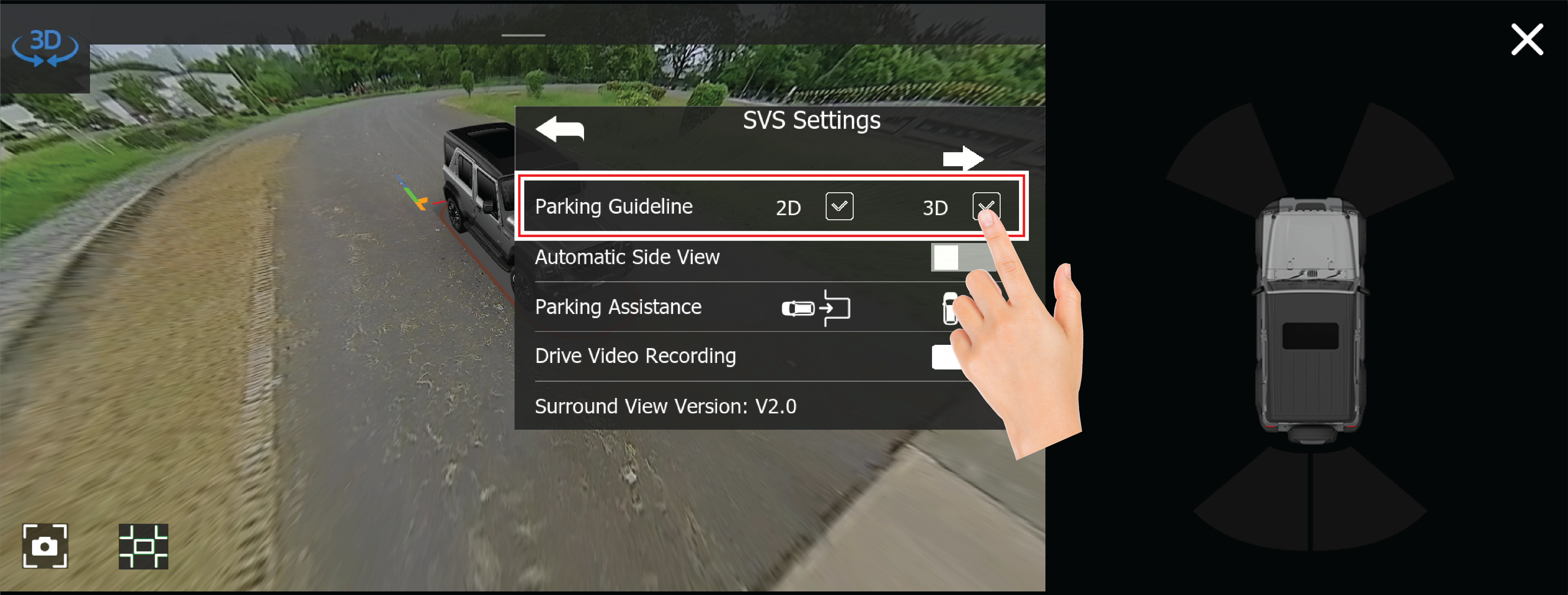

You can select from settings to have parking guidelines (Static and Dynamic) in 2D or/and 3D Views.
|
• | It is driver’s responsibility to identify the suitable parking area to park car safely. |
|

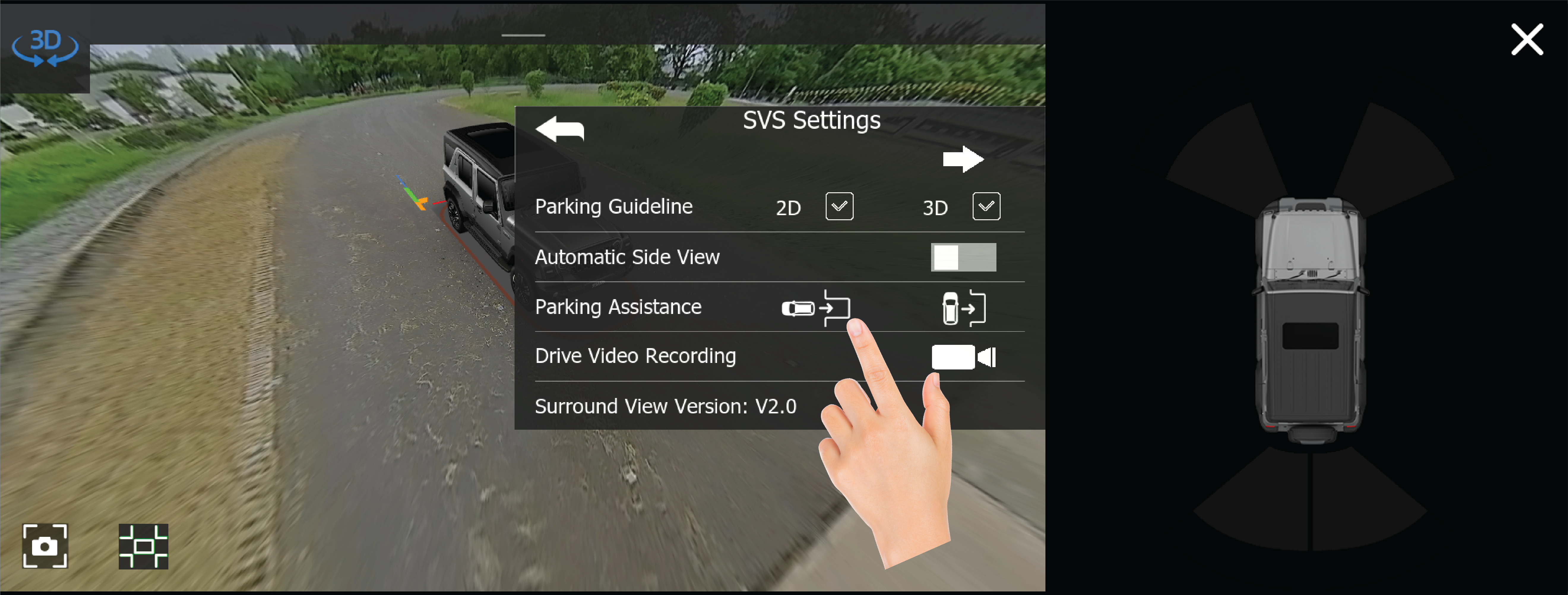

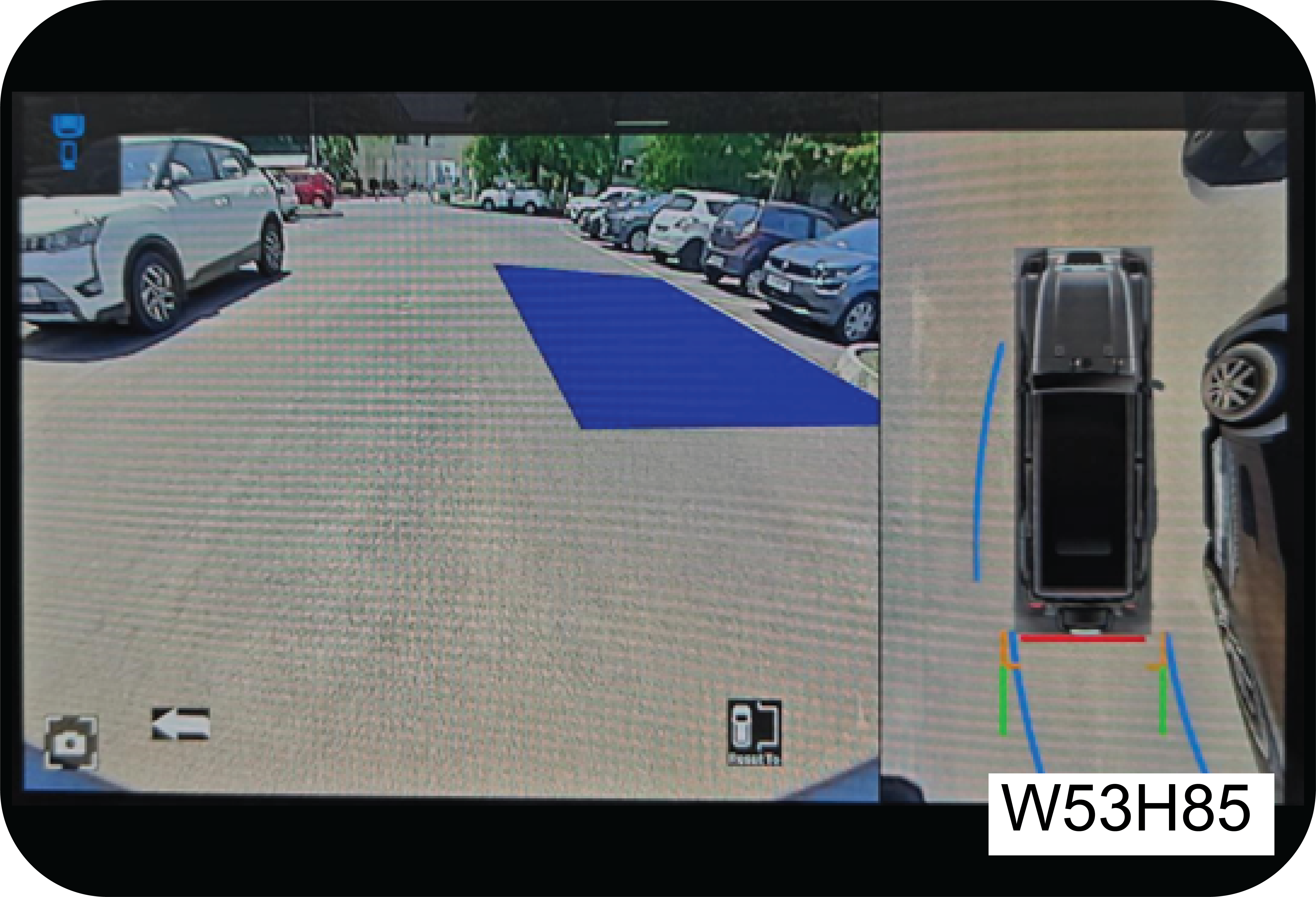

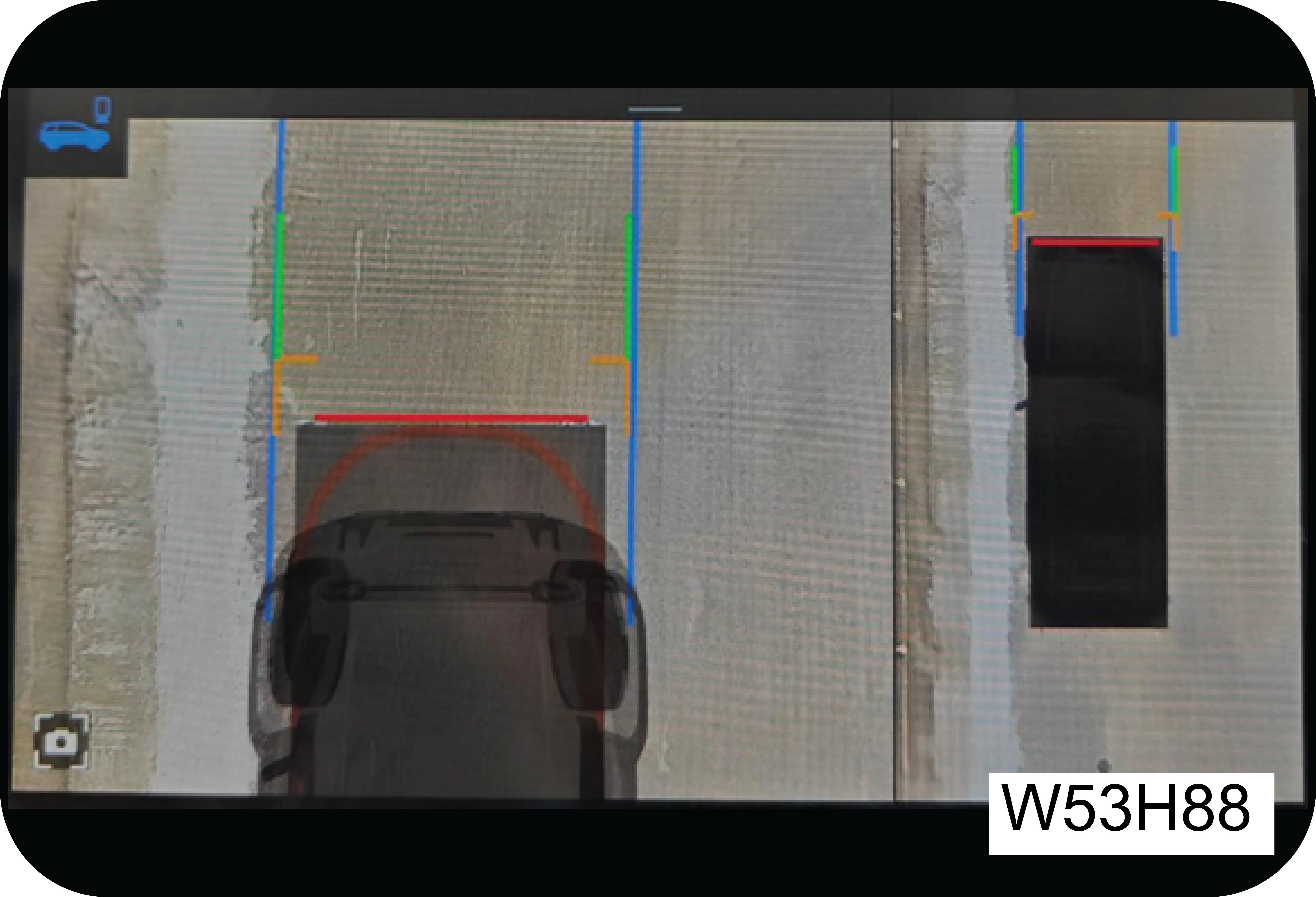

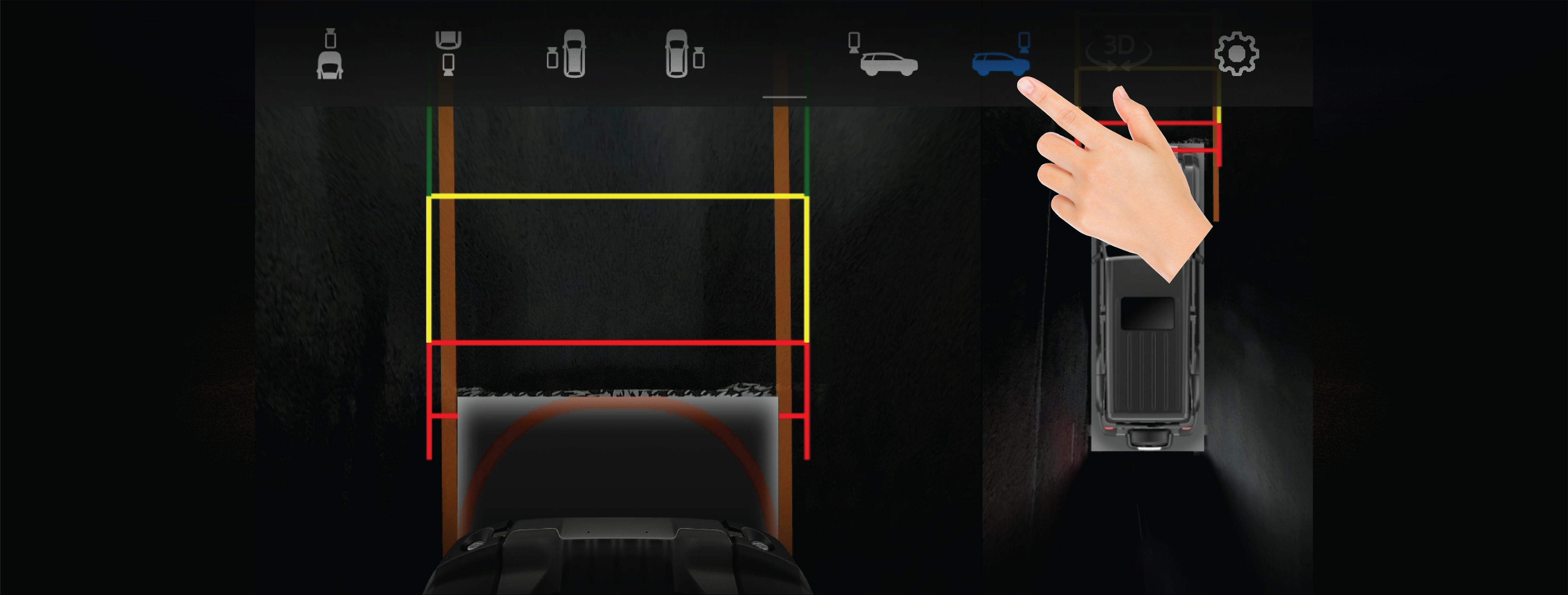

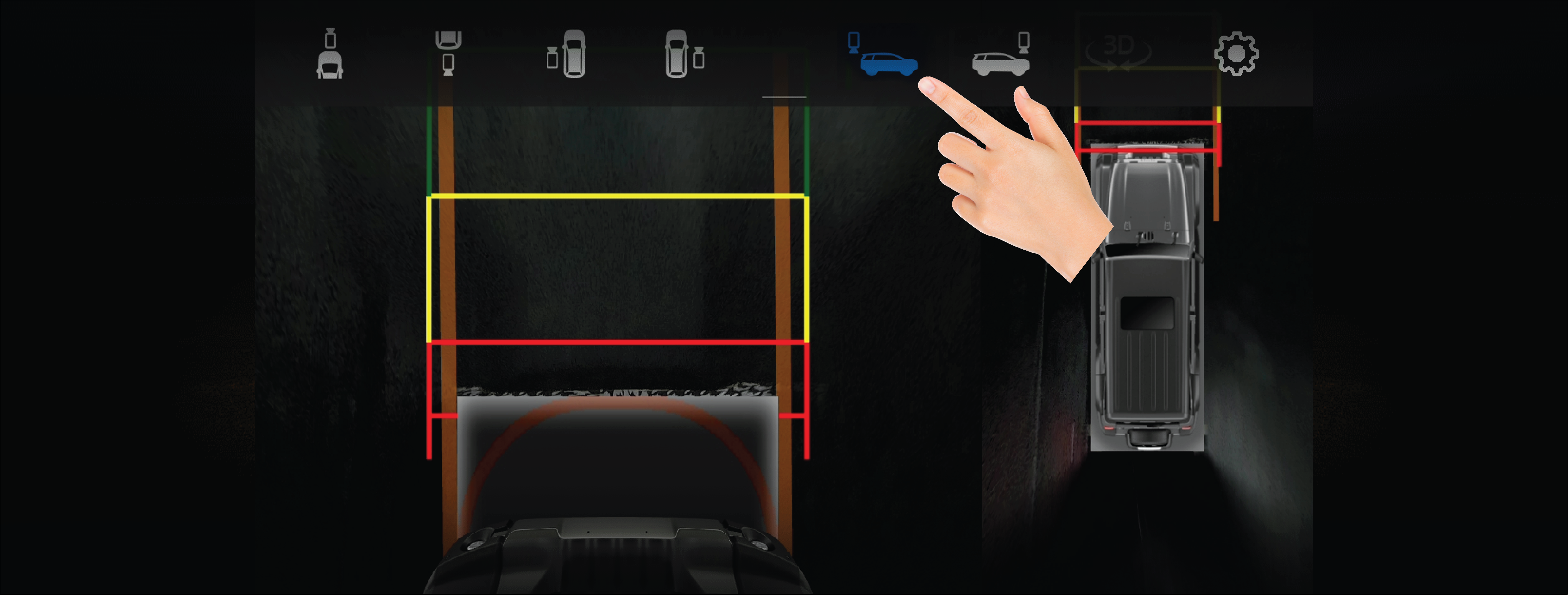

Choose Vertical Parking icon from SVS settings. Below overlays (Ref Img No: W53H71) will appear on either side.
|

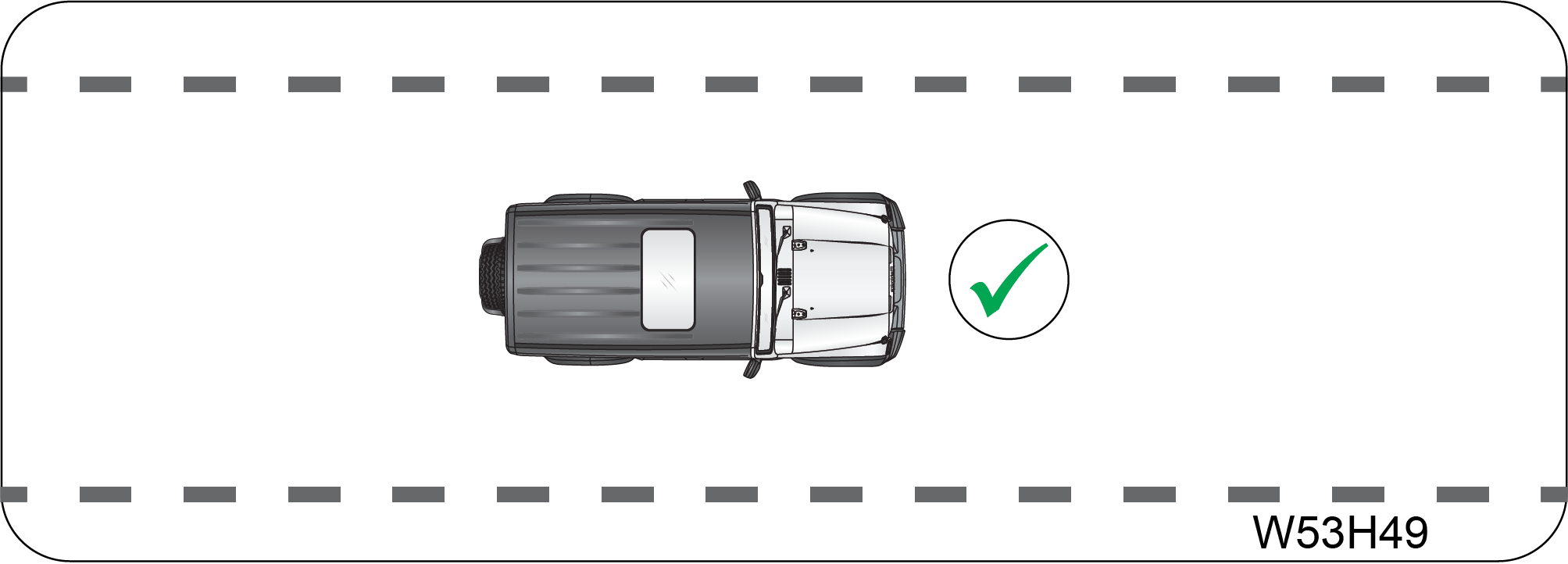

• | Move the vehicle either forward or backward so that the end point of the shortest arc [either blue or green, based on the side in which the vehicle will be parked], is coinciding with the parking slot line. (Blue arc line as shown in the image (Ref Img No: W53H71) |
• | Once it is done, turn the steering wheel in the direction of the parking slot, till the rack end/extreme end move of steering wheel. |
• | Start Reversing the vehicle until the static lines are parallel to the parking slot lines. Then, keep the steering straight, and reverse car until the vehicle is in final position in the slot. Parking is Complete |
• | Steering will be straight if both dynamic and static lines are overlapping |
|
|

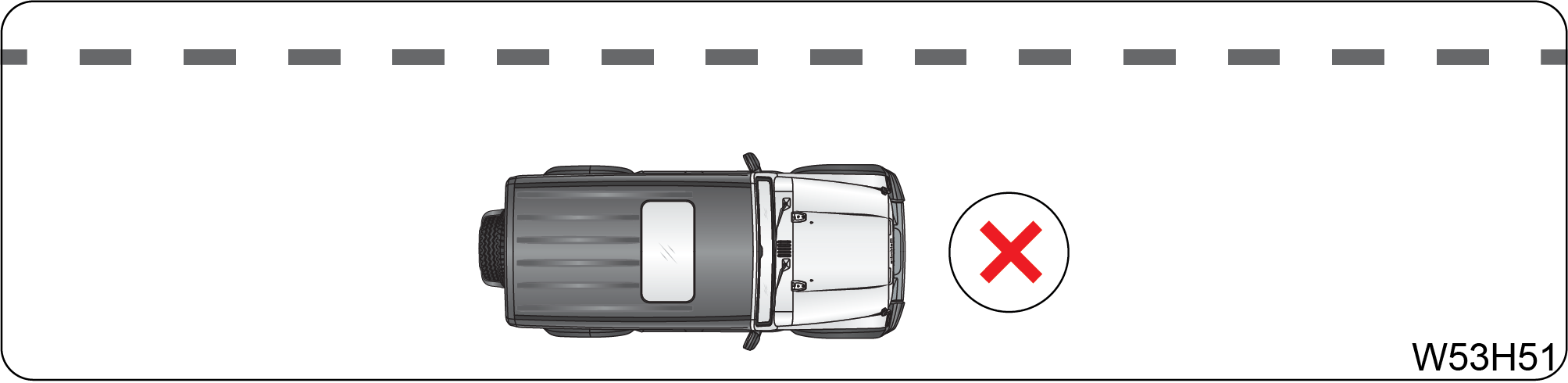

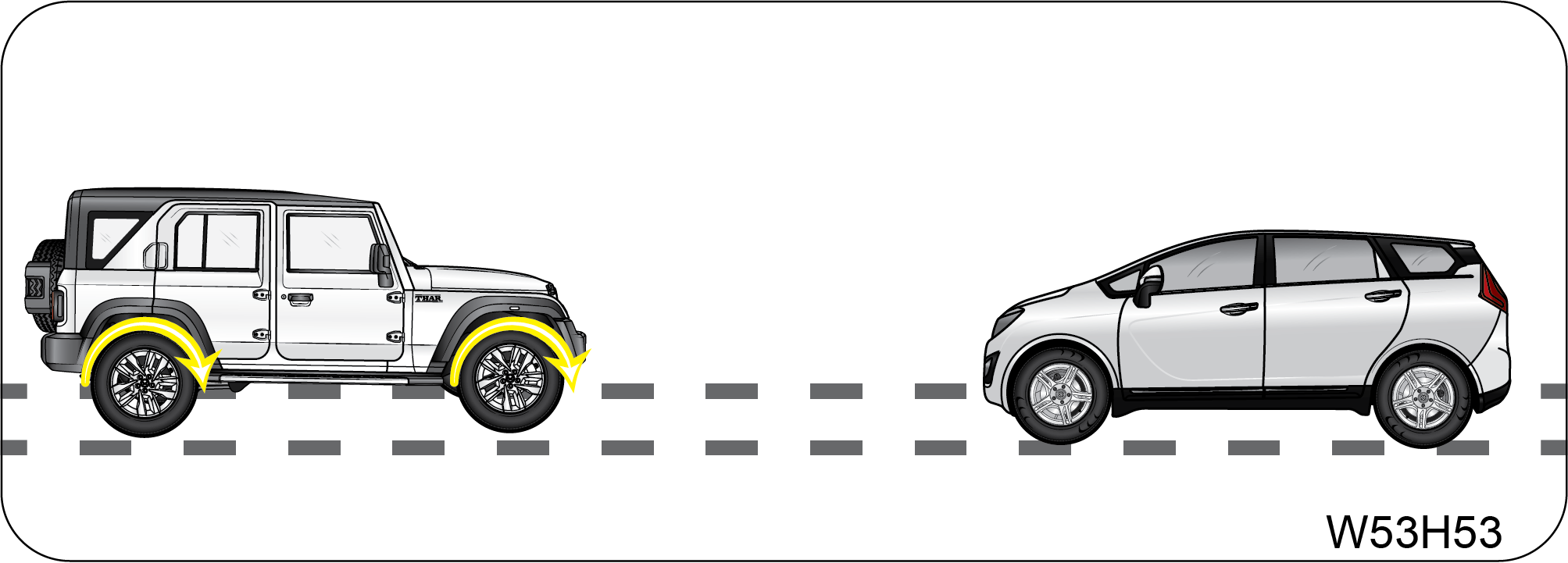

• | Drive ahead of the parking slot, so that Camera can have the parking slot view and choose Parallel parking icon from settings. |
|

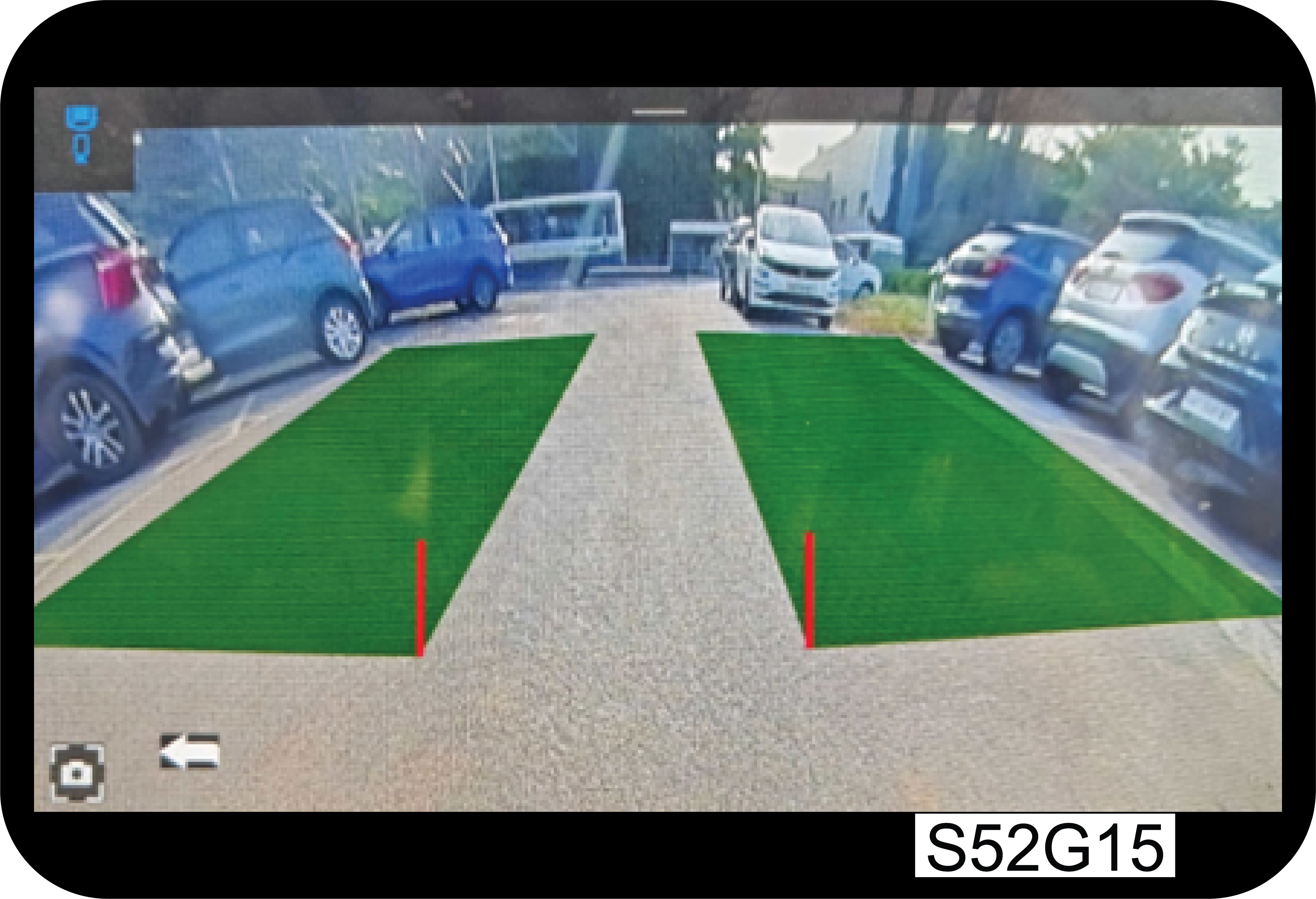

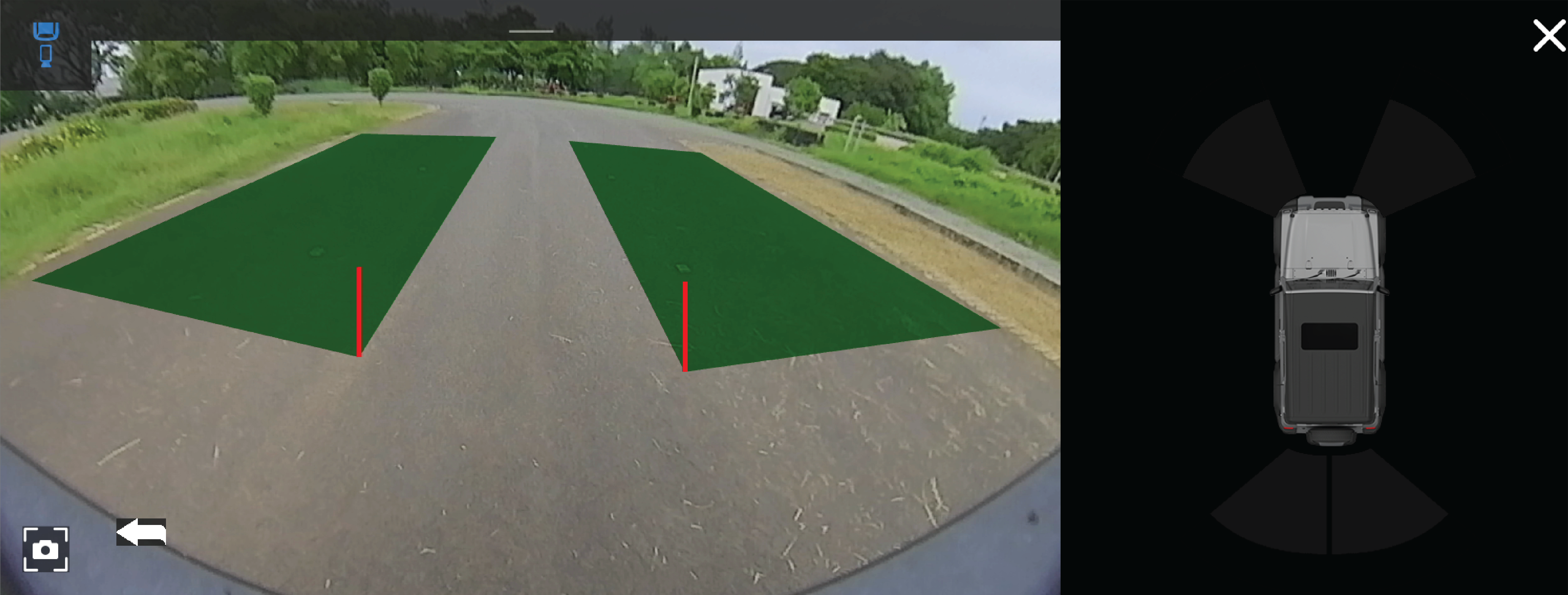

Two green rectangular boxes will appear on either side as below image(Ref Img No: S52G15)
|
• | Move the vehicle forward or backward, so that the one of the rectangular box is placed inside the parking slot |
• | Make sure there are no obstacles in the green parking slot after orange pole. |
• | Turn the steering wheel in the direction in which parking is intended. |
• | Hold the steering in the current position once selecting the parking area after turning the steering wheel as the area color turns green as in below image screens. |
|
|
|
|
|
|
• | Continue reversing the vehicle until the static lines are parallel to the parking slot lines. Then, keep the steering straight, and keep reversing the vehicle until the vehicle is in final position in the slot. Parking is Complete |
|
|
Left Side |
Right Side |
|
|
|

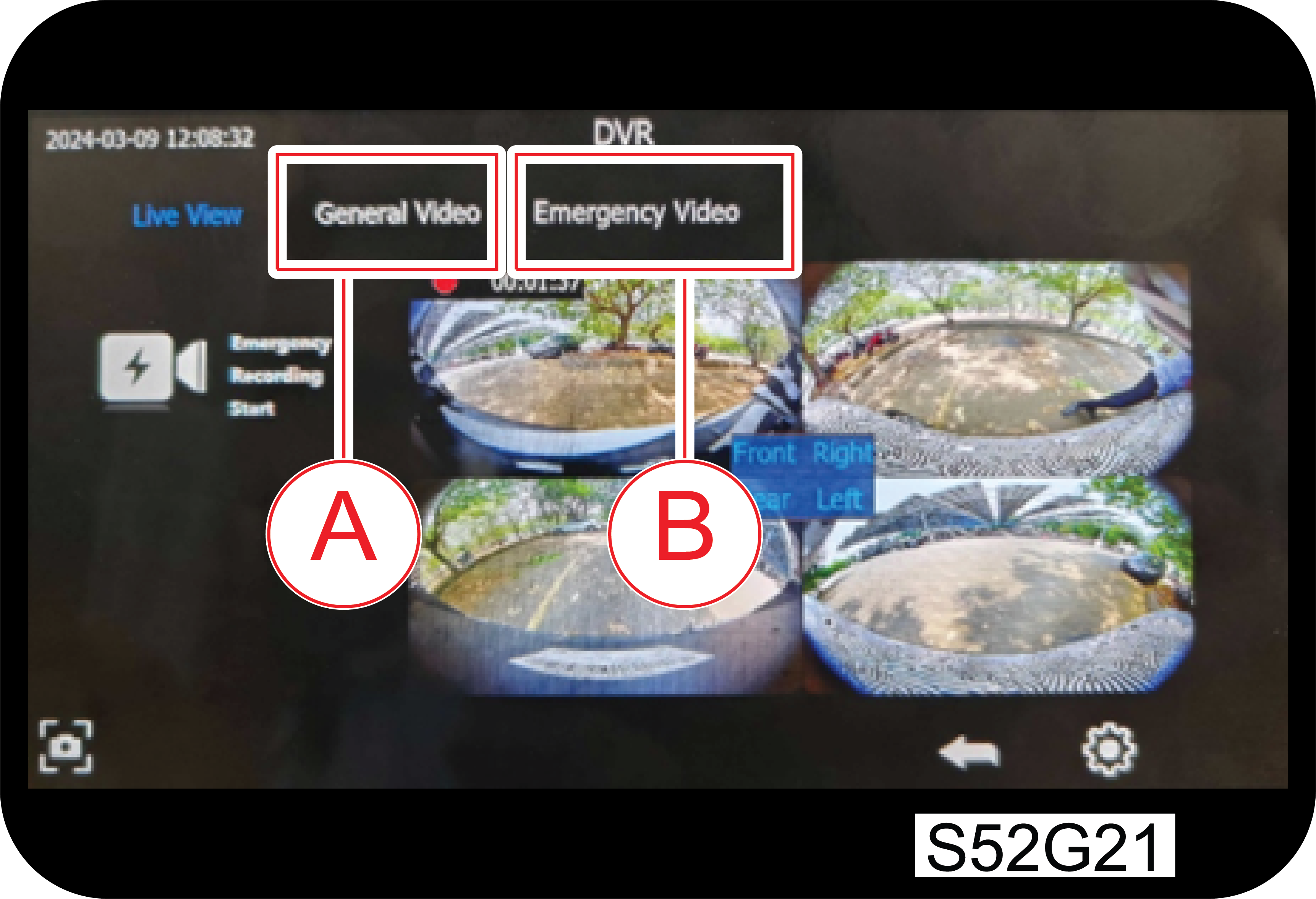

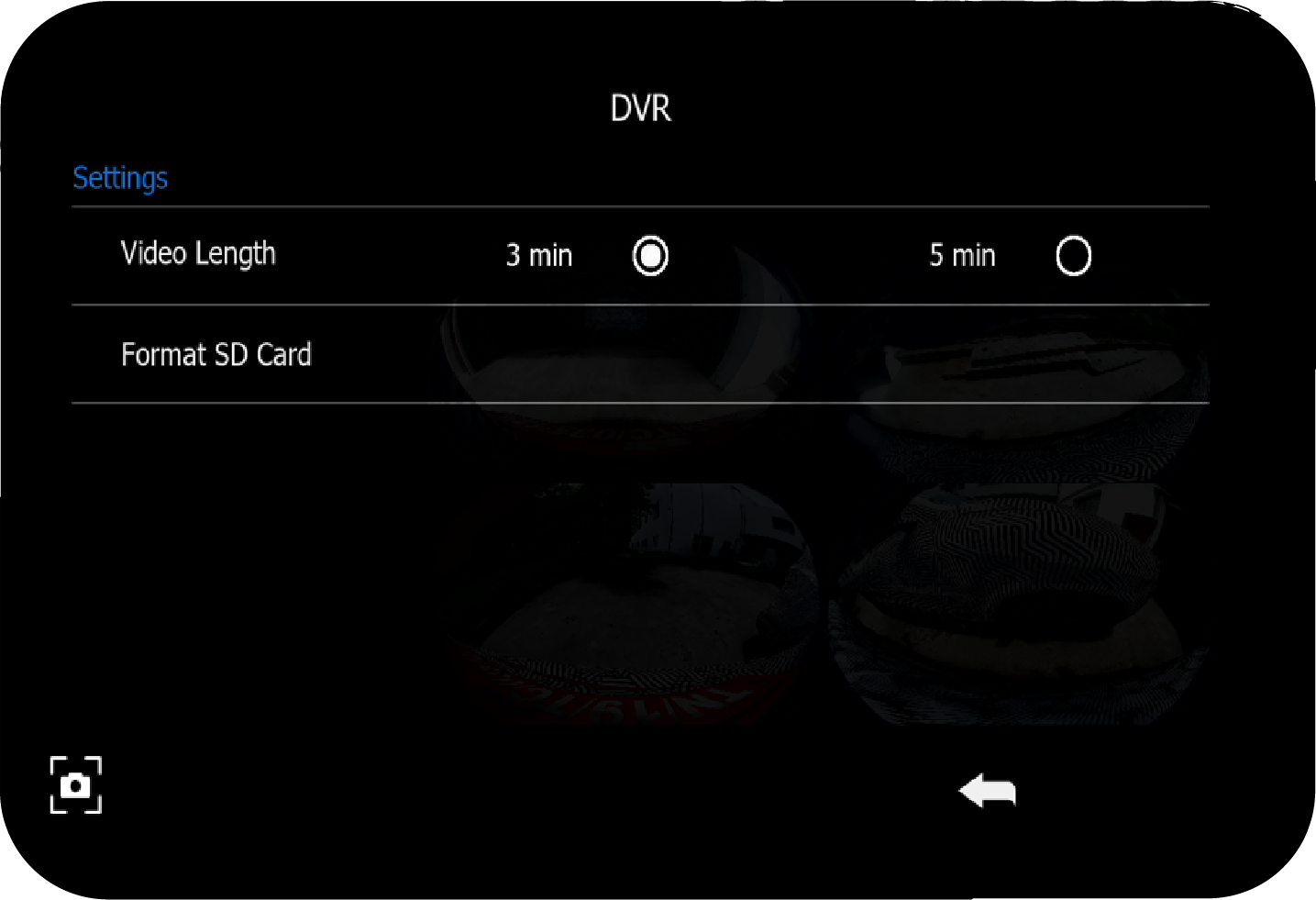

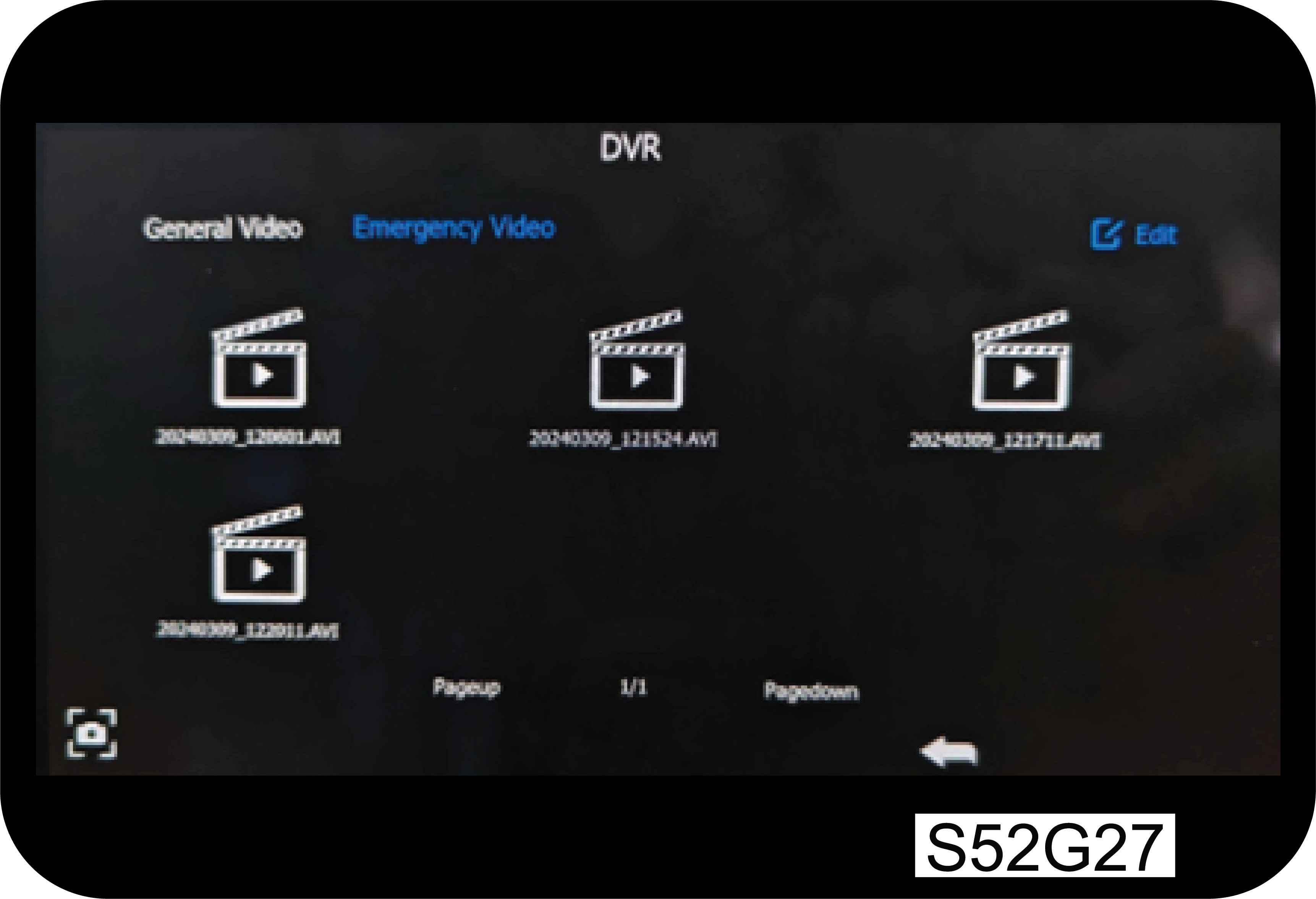

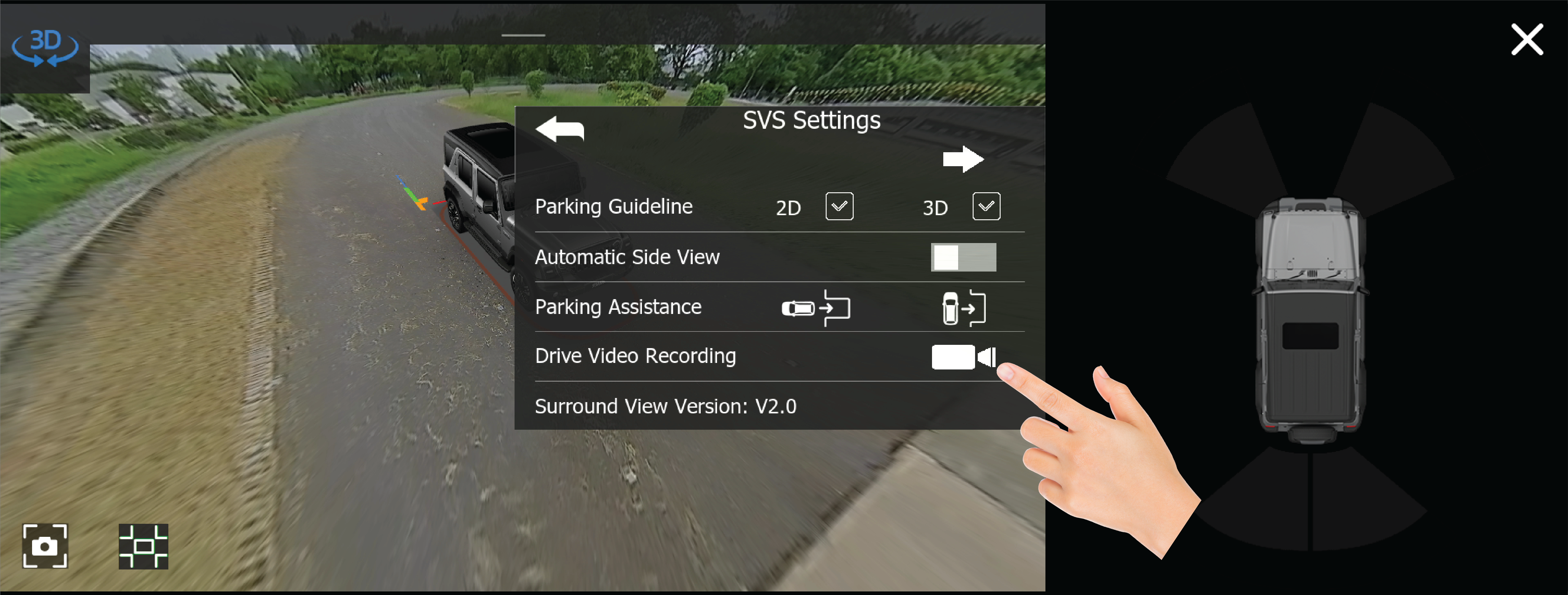

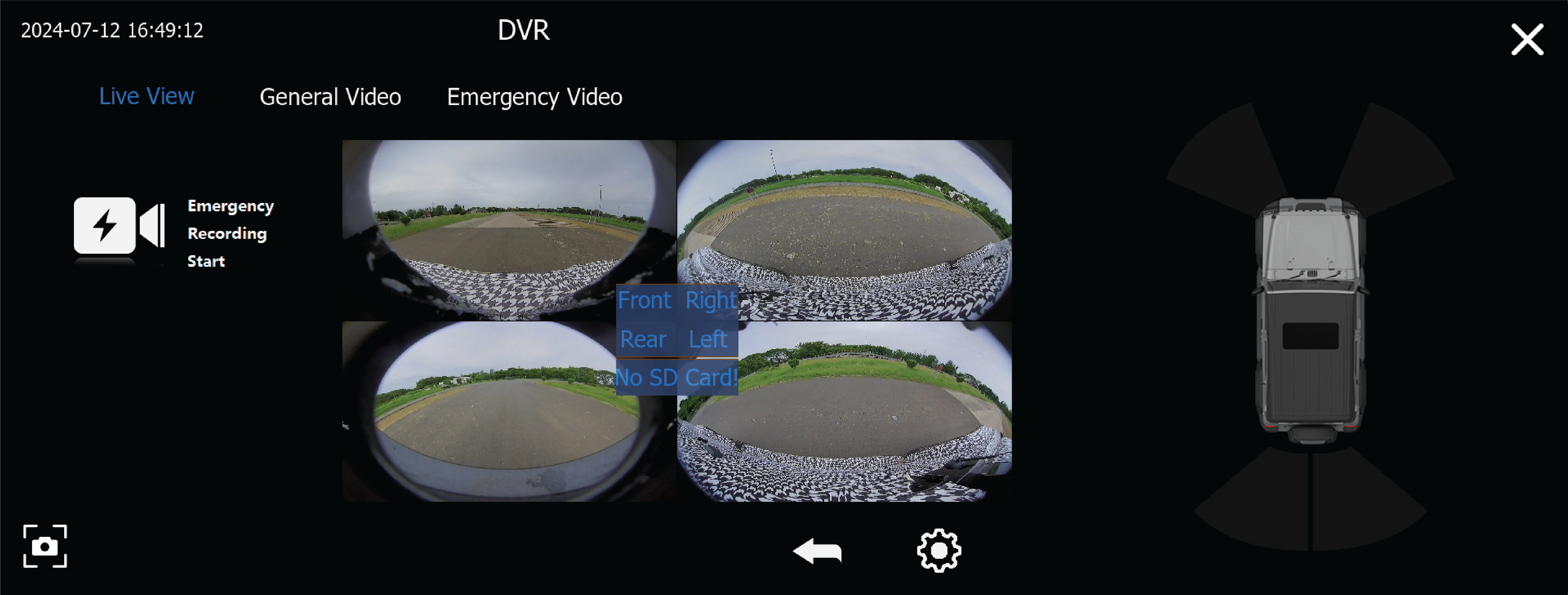

A: General Video
B: Emergency Video
|

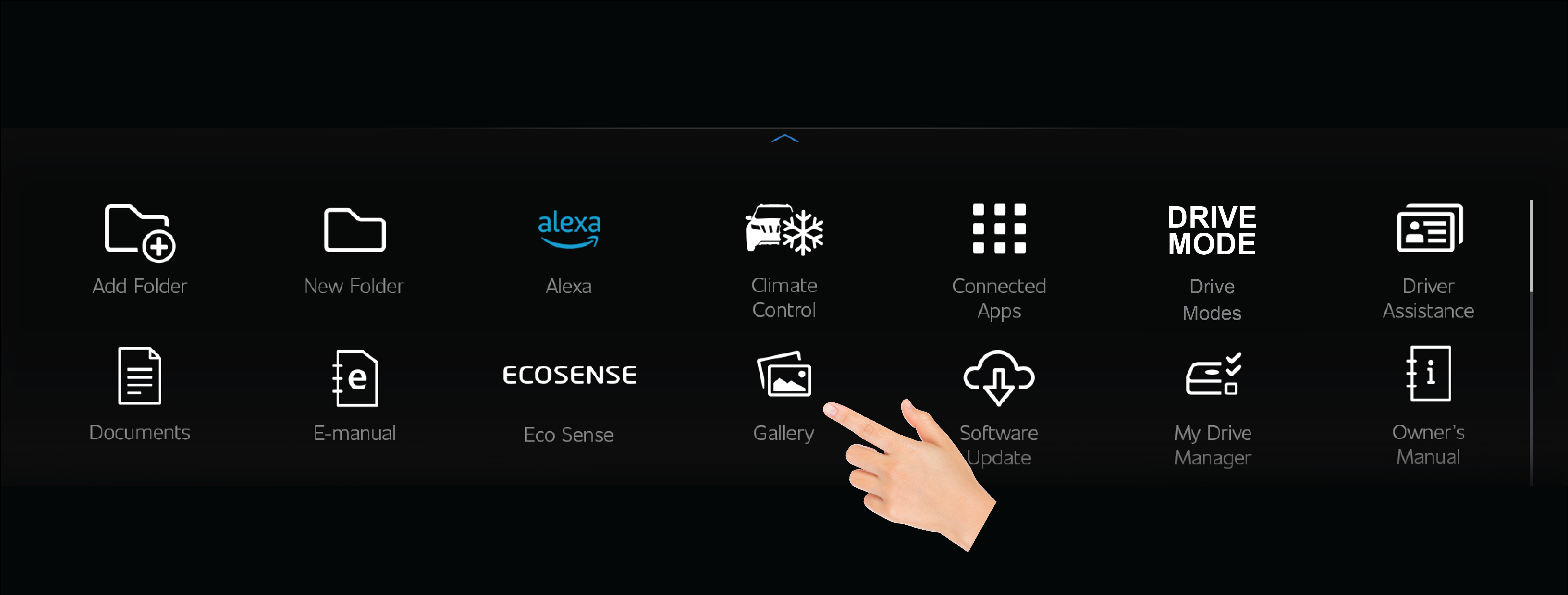

• | Under DVR interface, click "Emergency Video" folder or "General Video" folder to replay any video file. |
• | Saved video file name is as per date and time of recorded video. Video files are saved with .AVI file extension. Eg. File Name - 20151203_163028.AVI
20151203 - YYYYMMDD (Y-Year, M-Month, D-Day)
163028 - HHMMSS (H-Hour,M-Minute, S-Second)
|
• | Click the “edit” button to delete/move video files. |
|

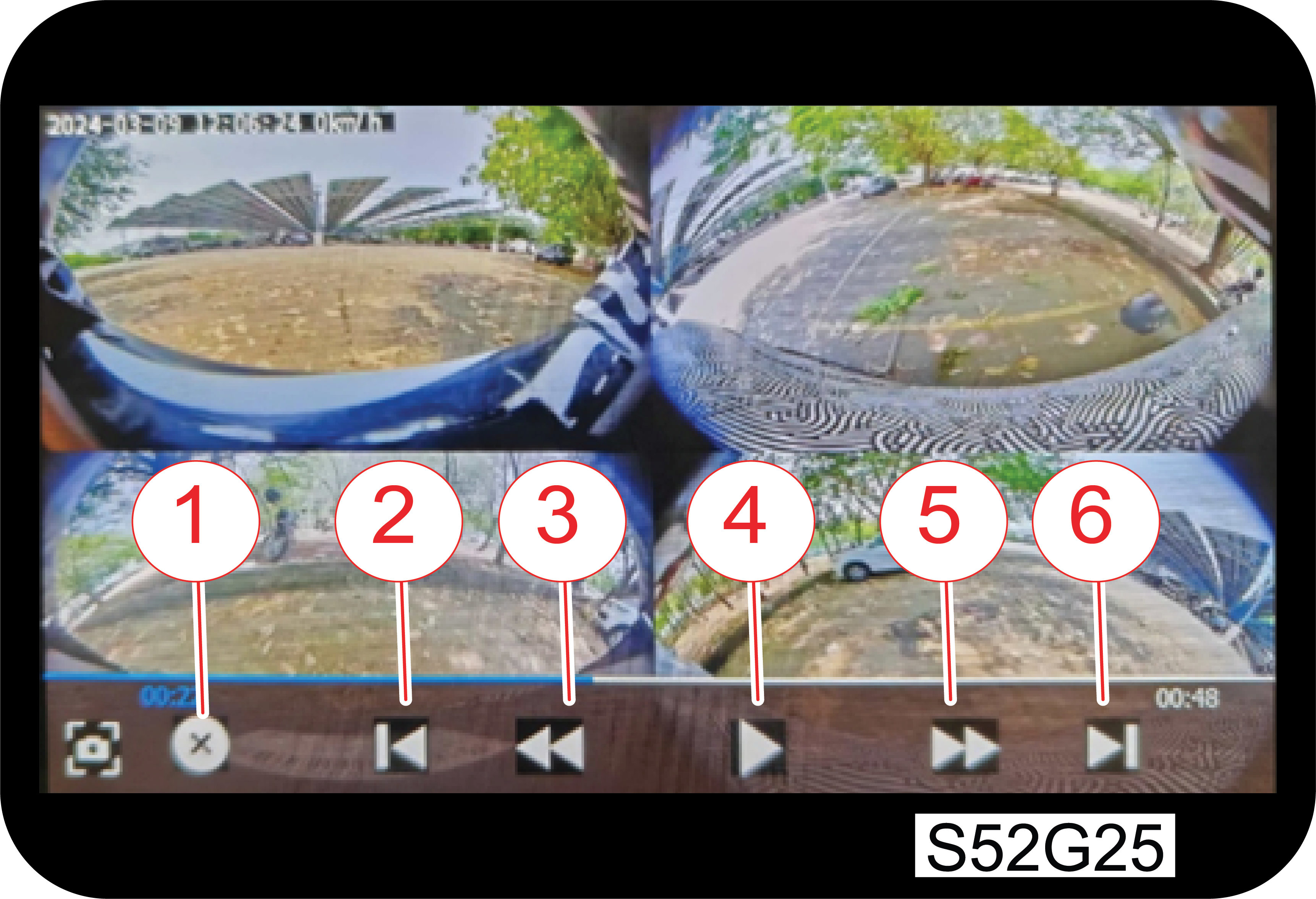

Playback and editing interface show as below:
|
|
1: To close a video
2: To replay previous video
3: To play video fast backward
4: Pause/play
5: To play video slow forward
6: To replay next video
|
|
|

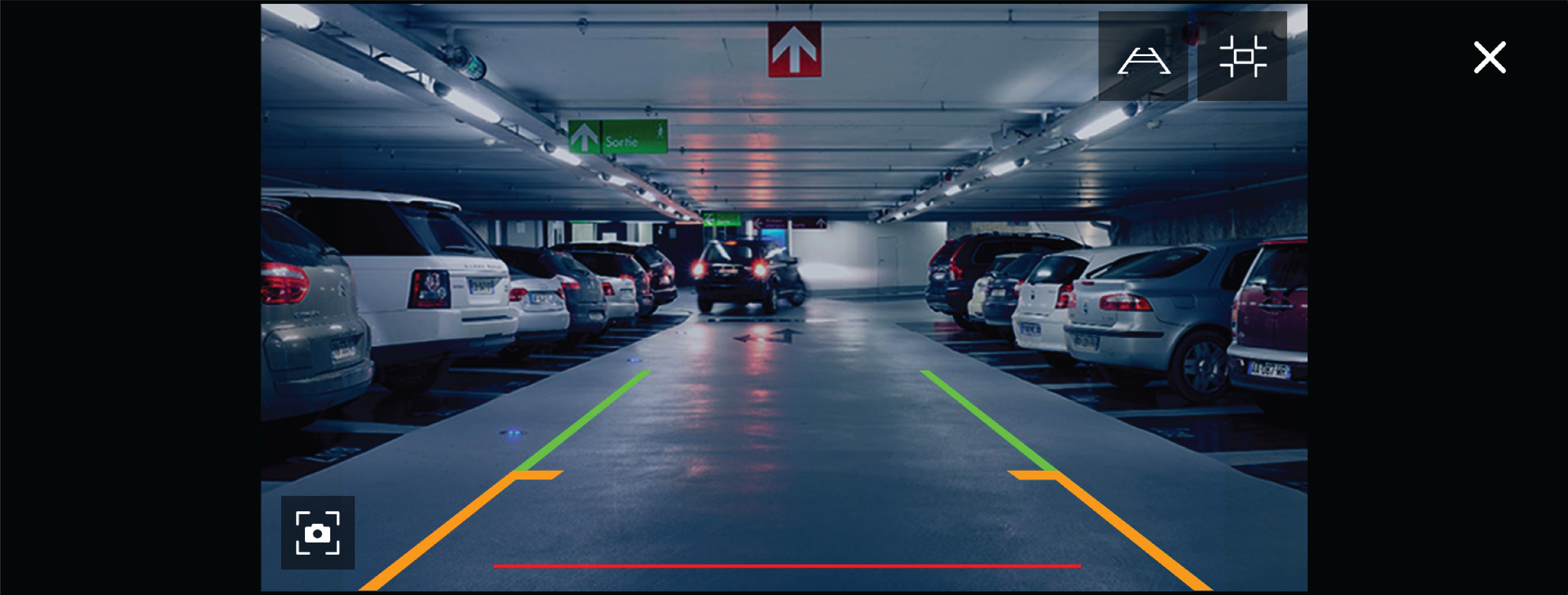

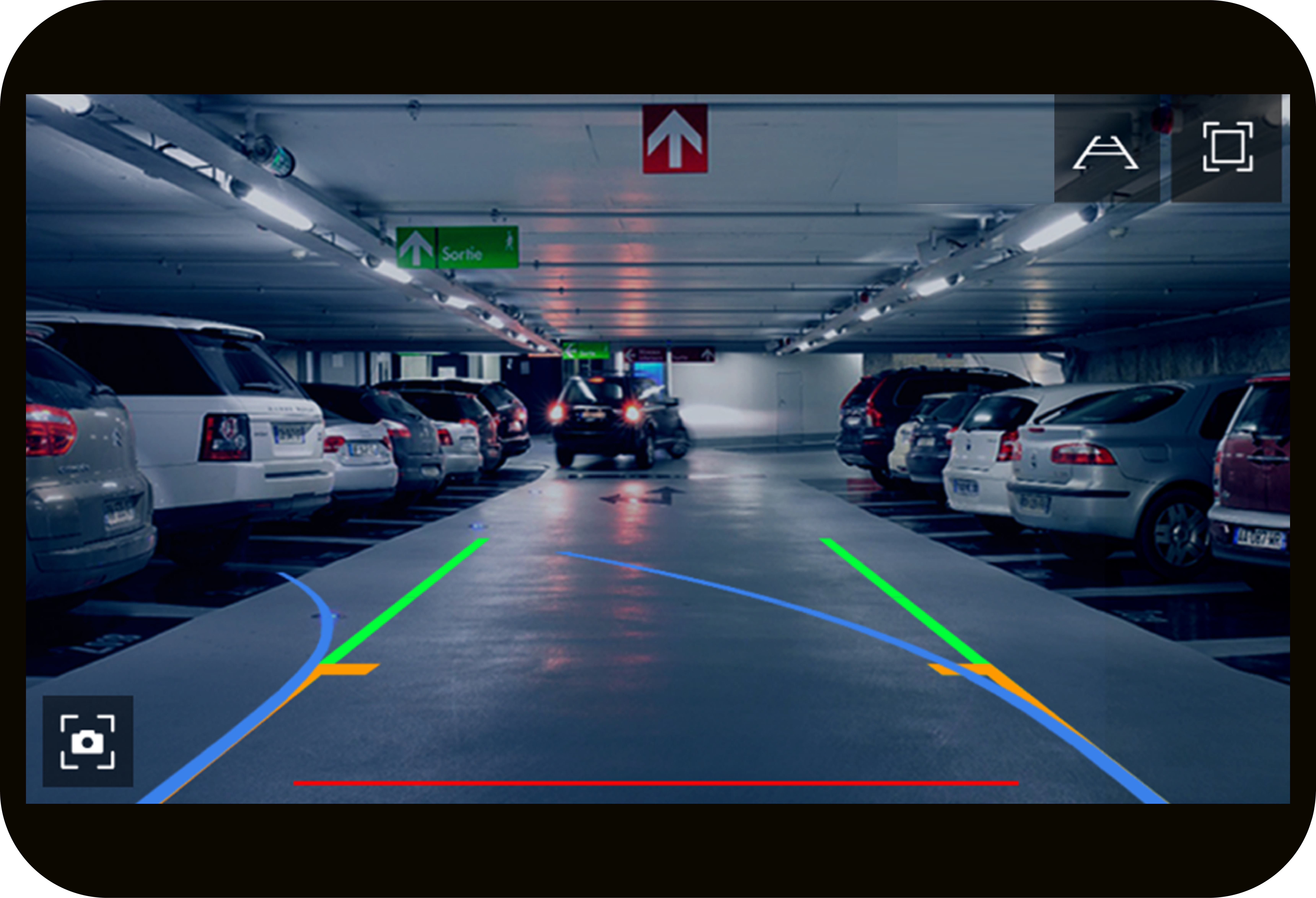

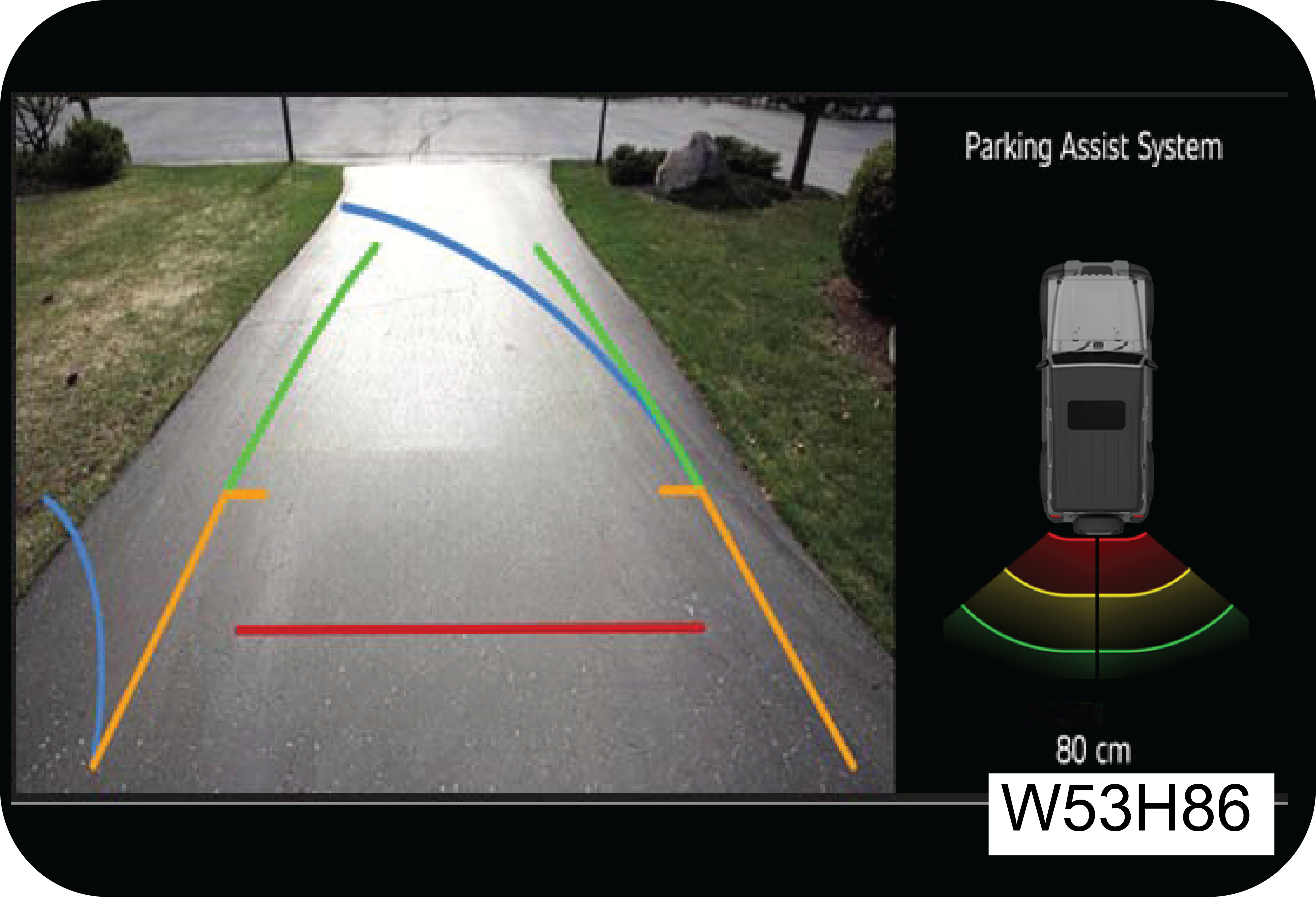

• | When there is any error in system/camera lost connection, the corresponding camera view on screen shows green color with an icon indicating camera error. Visit nearest Mahindra Service Center for assistance. |
• | In case of malfunction , system shows a pop-up message "Please Contact Service Center" |
• | Surround View System is subject to certain system limitation and may be unavailable or only partially available in the following situations: |
• | Video may get blur if camera is exposed to bright light and area around is dark/shadowed. |
• | SVS Camera images are reproduced slightly delayed and not in real time due to processing and stitching. |
• | Sometimes during SVS activation , you may not see stable video feed as some parameters update happens. |
• | When SVS is used in the area with AC light sources , black bands might be seen running in the video feed. |
• | If video file is corrupted , you may observe black screen while replaying the video and system will reset to default view. |
• | During video playback, you may observe green screen sometimes. |
• | DVR may not record properly if the power is interrupted in between of usage. e.g during crash, low battery, removal of battery and other reasons. |
• | Use SD card as fresh and formatted before first use and do not swap SD cards frequently. |
• | SVS is only a supplementary function and may display obstacles from a distorted perspective. |
• | Avoid using SVS if you are having eye color blindness or impaired color vision. |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car. |
• | SVS video is shown based on driver activation but it cannot be used to see a complete surrounding view which cannot replace the driver for looking into exterior and interior view mirrors. |
• | Some obstacles are hard to depict and thus very difficult recognize due to stitched images, hence sole-reliance on the system may result in a collision. |
• | Always keep all camera lens clean. Foreign materials on the camera lens can cause system error and reduced visibility. |
• | Always use clean water & soft nonabrasive cloth to clean the lens |
• | Don’t clean the camera lens and the area around the cameras with a power washer. |
• | When SVS parts need to be replaced due to damage/ non-functioning / any other reason or abnormal video with "No Panoramic Calibration" text , Visit nearest Mahindra Service Center for recalibration. |
• | Always clean camera lens smoothly and don’t apply much pressure. |
1. | Normal Mode and Full Screen Mode |
2. | Static & Dynamic Guidelines |
TFT |
|
Normal Mode |
Full Screen Mode |
|
NA
|
Digital |
|
Normal Mode |
Full Screen Mode |
|
|

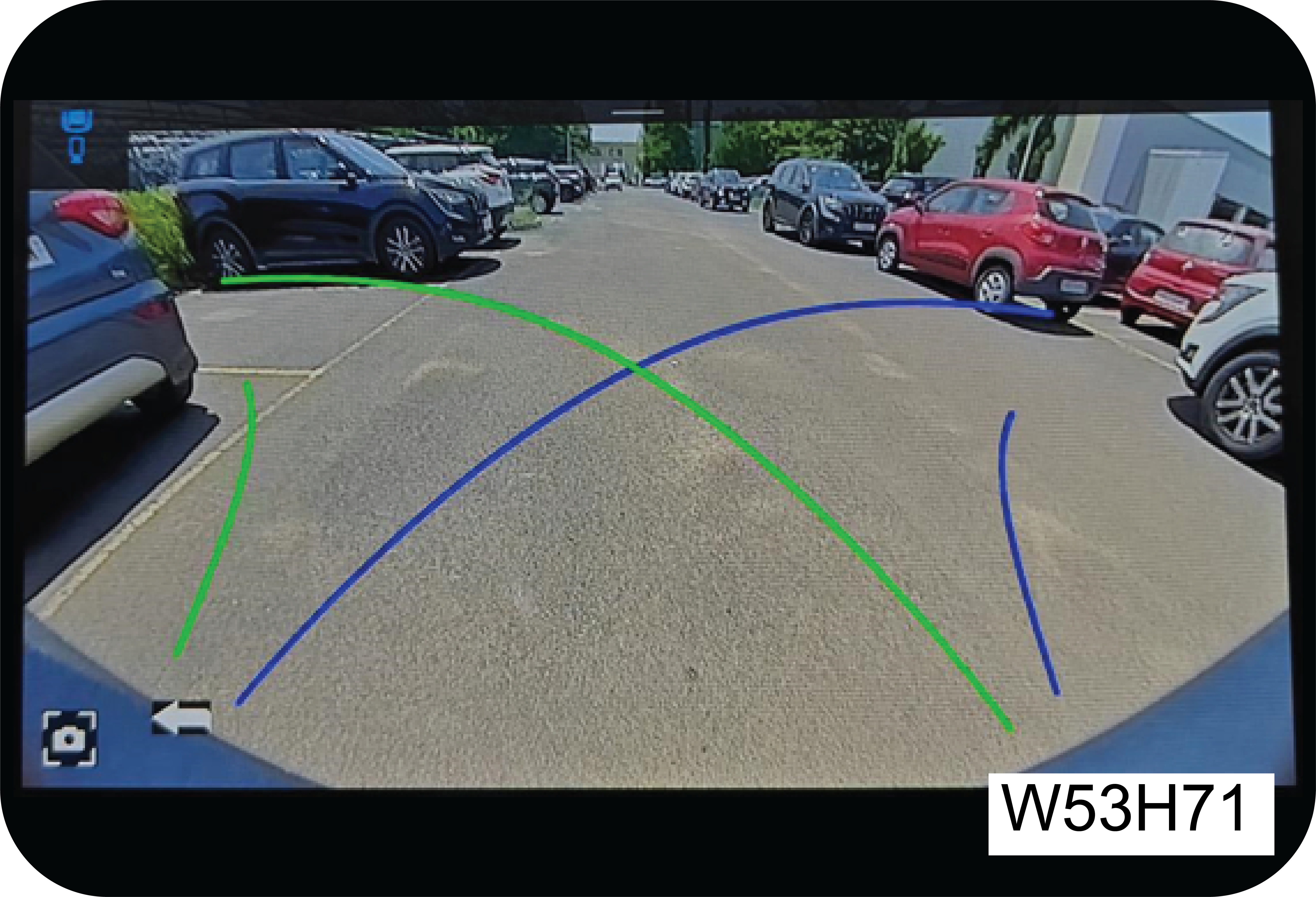

TFT |

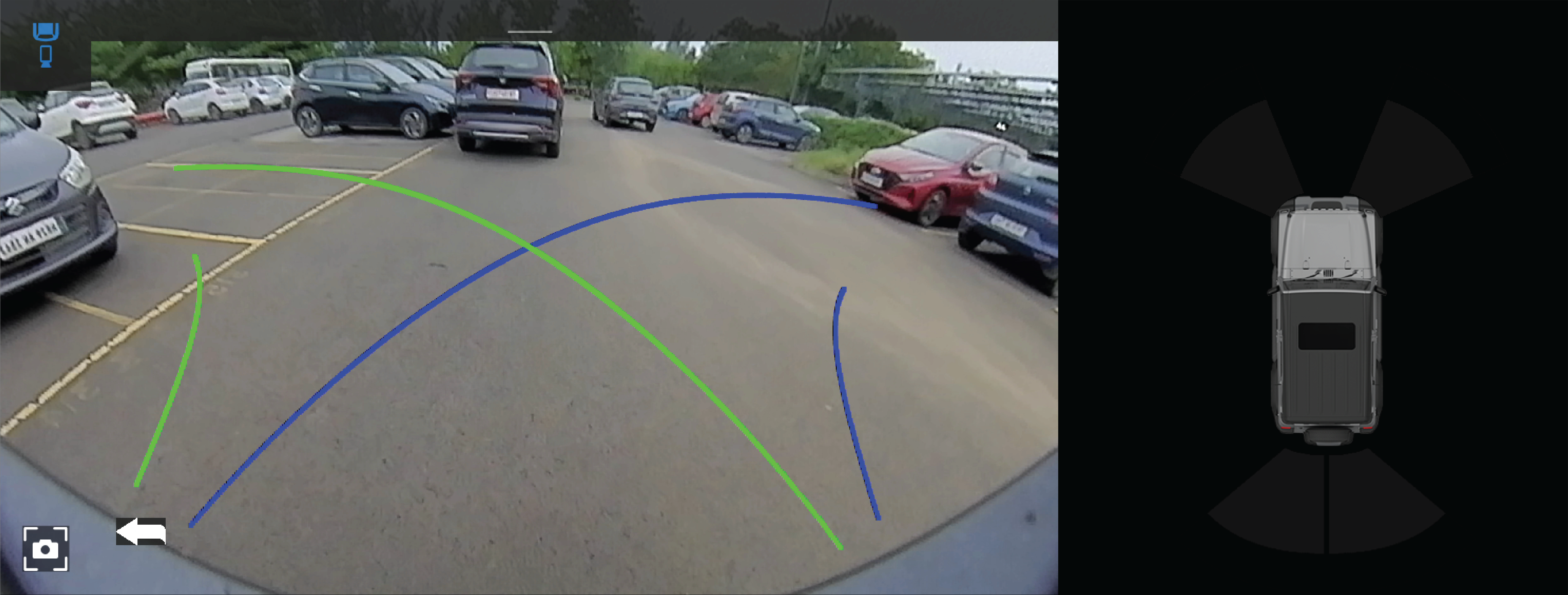

Digital |
|
|
S.No |
Icons |
Description |
1.
|
Screen Capture
|
To capture the current screen and save it in gallery.
|
2.
|
Automatic View switching
|
To toggle between front and rear view.
|
3.
|
Full screen
|
To change view to full screen mode.
|
4.
|
Guidelines
|
To enable and disable static and dynamic guidelines.
|
TFT |
Digital |
|
|

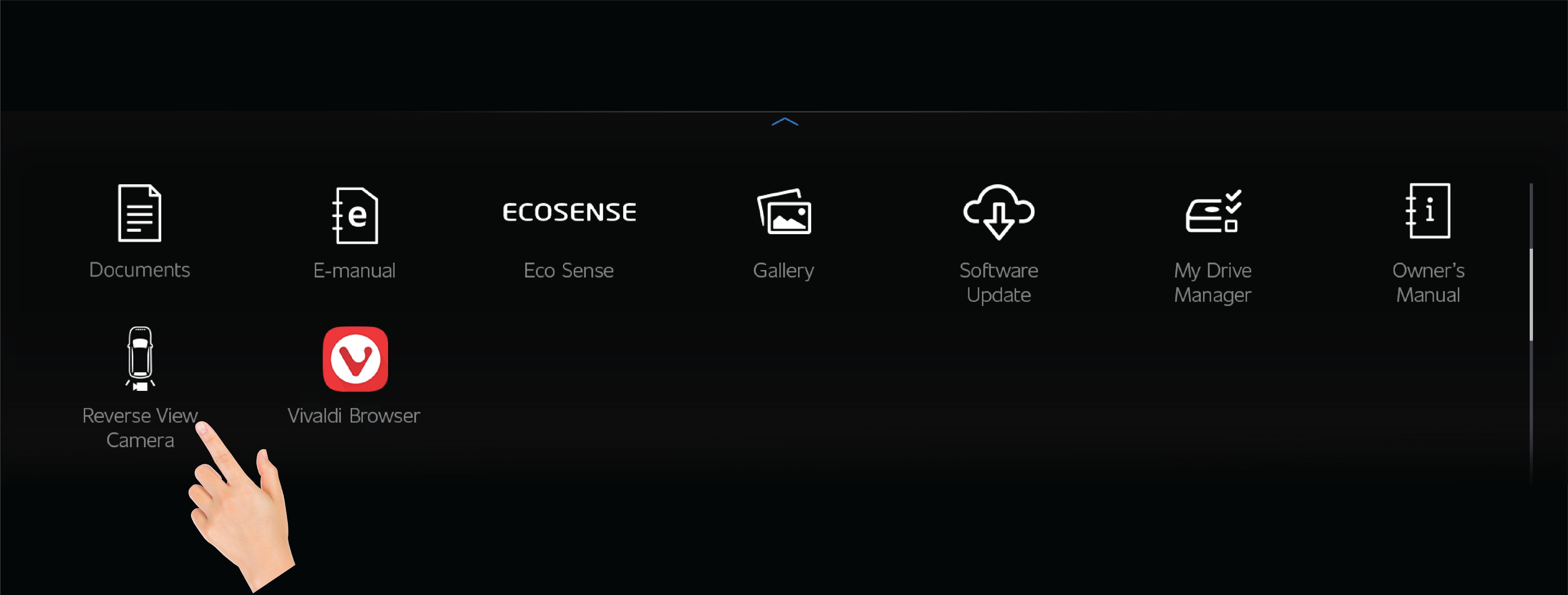

• | Infotainment has entered ‘RVC Mode’ due to reverse gear, then when driver disengages reverse gear to any other gear then Rear view mode will be closed/changed to front view depending on the gear |
• | Infotainment has entered ‘RVC Mode’, due to Reverse Camera selection present on the Infotainment, then RVC mode can be exited, by selecting the Cancel button appearing on the screen |
• | RVC Mode is exited, whenever vehicle is in forward gear and vehicle speed exceeds 20 kmph |
• | In case of any RVC-related issues, the Infotainment shall display Please ‘Contact Service Centre’ and vehicle needs to be
taken to the Service Centre. Avoid using the Rear-View Camera under these circumstances
|
• | If rear of your vehicle is damaged or if the Camera position is changed, please contact the nearest Mahindra Authorised Service Center, for recalibrating the Camera. |
• | Reverse view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C) |
• | Under certain circumstances given below, the rear view camera system will work with limitation or will not function fully: |
• | If there is a sudden change in temperature, from cold to hot areas |
• | If the camera lens got dirty or obstructed |
• | If the rear of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Mahindra Authorised Service Center |
• | Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid reverse view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle |
• | The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera |
• | Images shown on the display is a mirror-inverted manner, as like the rearview mirror. Make sure that no persons or animals and any objects/materials are in the manoeuvring area. Pay attention and ensure safety before manoeuvring the car. Driver is legally responsible for their car |
• | The reverse view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately |
• | Avoid using of rear view camera, if you are having eye colour blindness or impaired colour vision |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car |
• | It is driver’s responsibility to identify the suitable parking area to park his car safely |
• | Rear view video is shown, whenever reverse gear is applied, but it cannot be used as a rear view monitoring system, which cannot replace the driver for looking into exterior and interior view mirrors |
|
Front View Camera is located on front grill applique.
Front View Camera assists the driver while manoeuvring the Car at lower speeds. It has the following features:
|
TFT |
Digital |
Normal Mode |
Normal Mode |
|
|
TFT |
Digital |
|
|
S.No |
Icons |
Description |
1.
|
Screen Capture
|
To capture the current screen and save it in gallery.
|
2.
|
Automatic View switching
|
To toggle between front and rear view.
|
3.
|
Full screen
|
To change view to full screen mode.
|
4.
|
Guidelines
|
To enable and disable static and dynamic guidelines.
|
TFT |
Digital |
|
|
• | If the driver has selected entry to ‘FVC Mode’ by selecting Front View Camera option present on infotainment screen, then FVC mode exits when reverse gear is engaged. |
• | Infotainment has entered ‘FVC Mode’, due to front Camera selection present on the Infotainment, then FVC mode can be exited, by selecting the Cancel button appearing on the screen |
• | FVC Mode is exited, whenever vehicle is in forward gear and vehicle speed exceeds 20 kmph |
• | Front view can be exited through the hard button provided on the infotainment bezel irrespective of the entry condition. |
• | In case of any FVC-related issues, the Infotainment displays ‘ Please Contact Service Centre’ and vehicle needs to be taken to the Service Centre. Avoid using the Front-View Camera under these circumstances. |
• | If front of your vehicle is damaged or if the Camera position is changed, please contact the nearest Mahindra Authorised Service Center immediately. |
• | Front view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C) |
• | Under certain circumstances given below, the front view camera system will work with limitation or will not function fully: |
• | If the front of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Mahindra Authorised Service Center |
• | Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid front view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle |
• | The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera |
• | Make sure that no persons or animals or any objects/materials are in the manoeuvring area. Pay attention and ensure safety before manoeuvring the car. Driver is legally responsible for their car |
• | The front view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately |
• | Avoid using of front view camera, if you are having eye colour blindness or impaired colour vision |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car |
• | It is driver’s responsibility to identify the suitable parking area to park car safely |
|

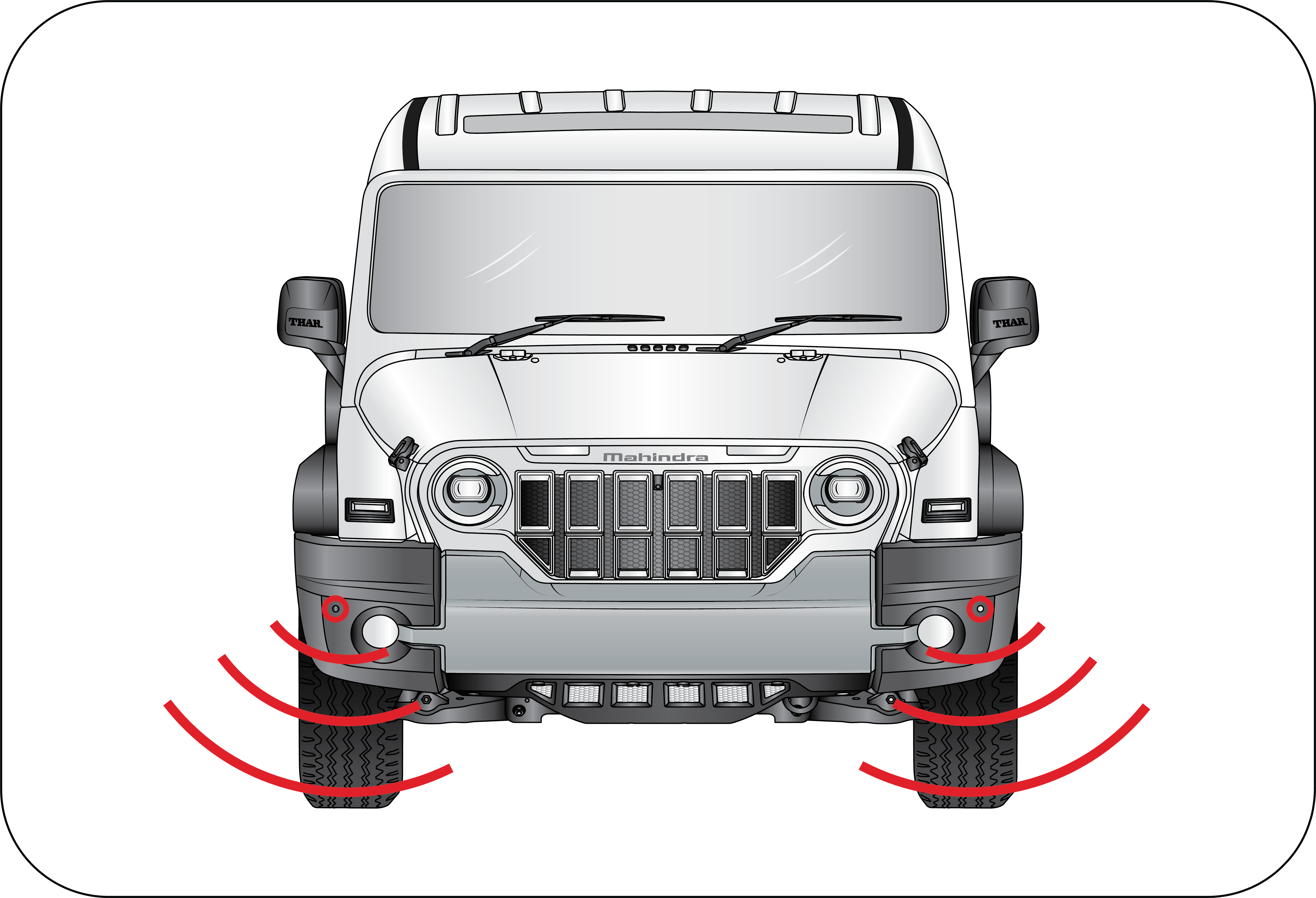

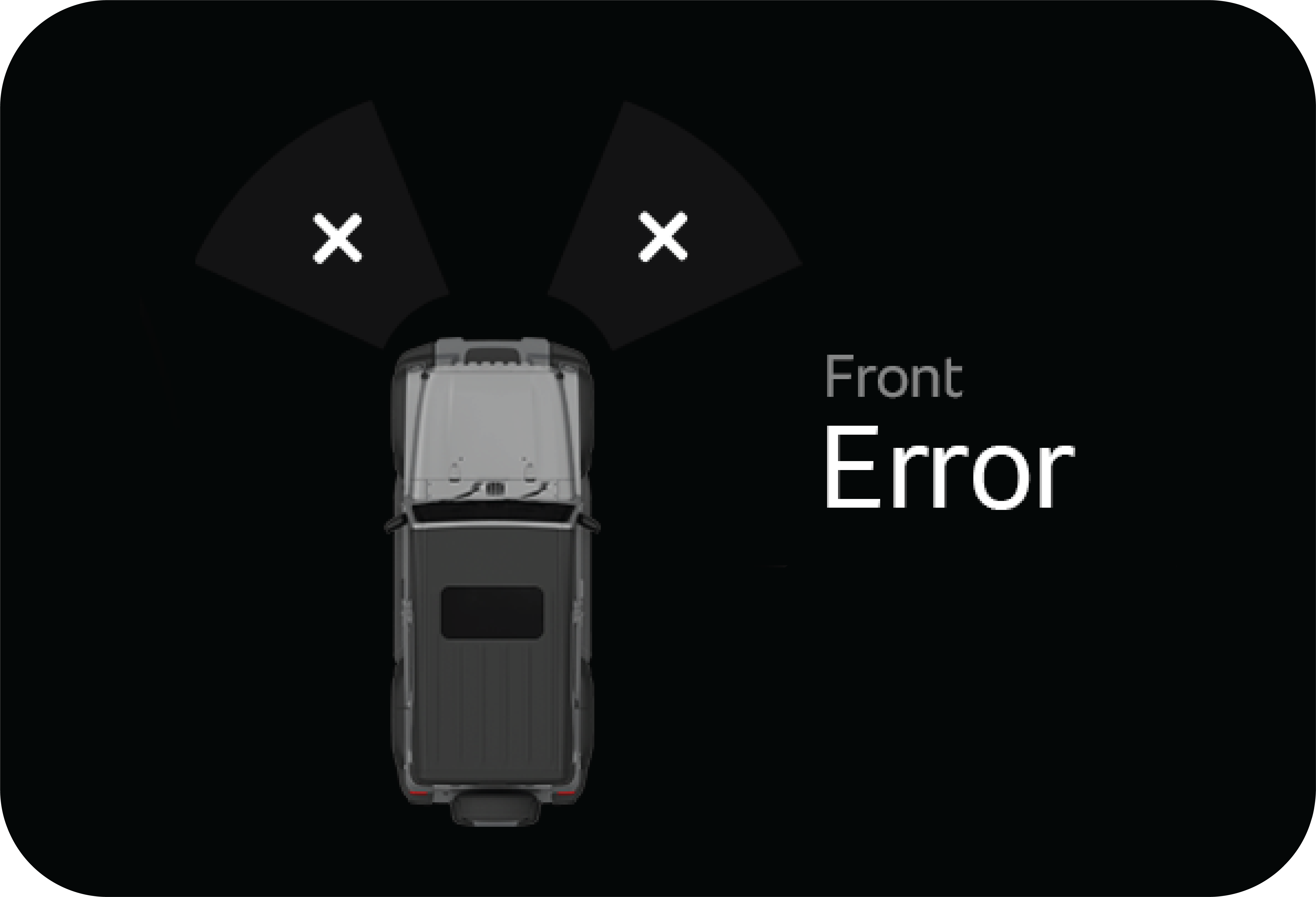

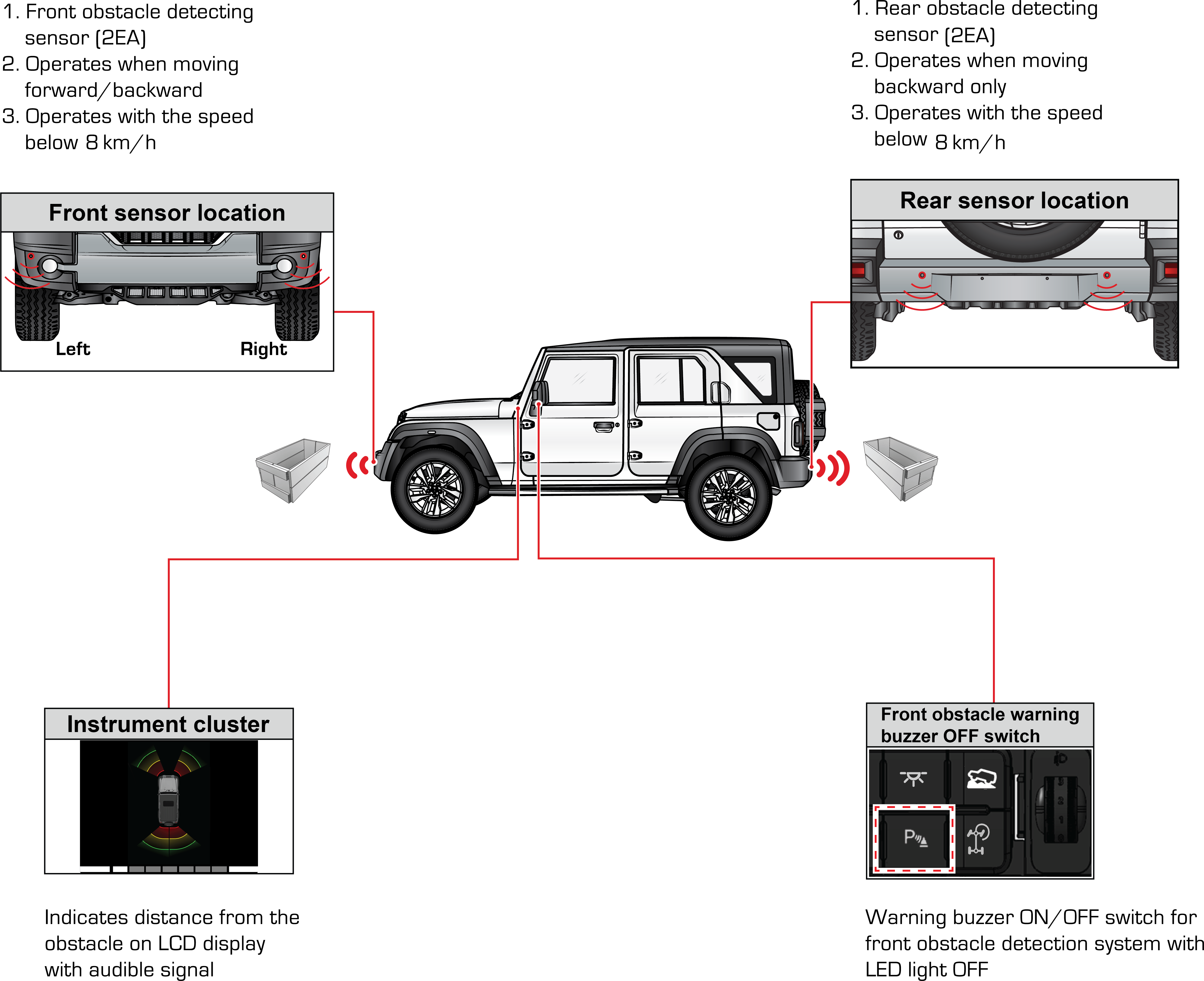

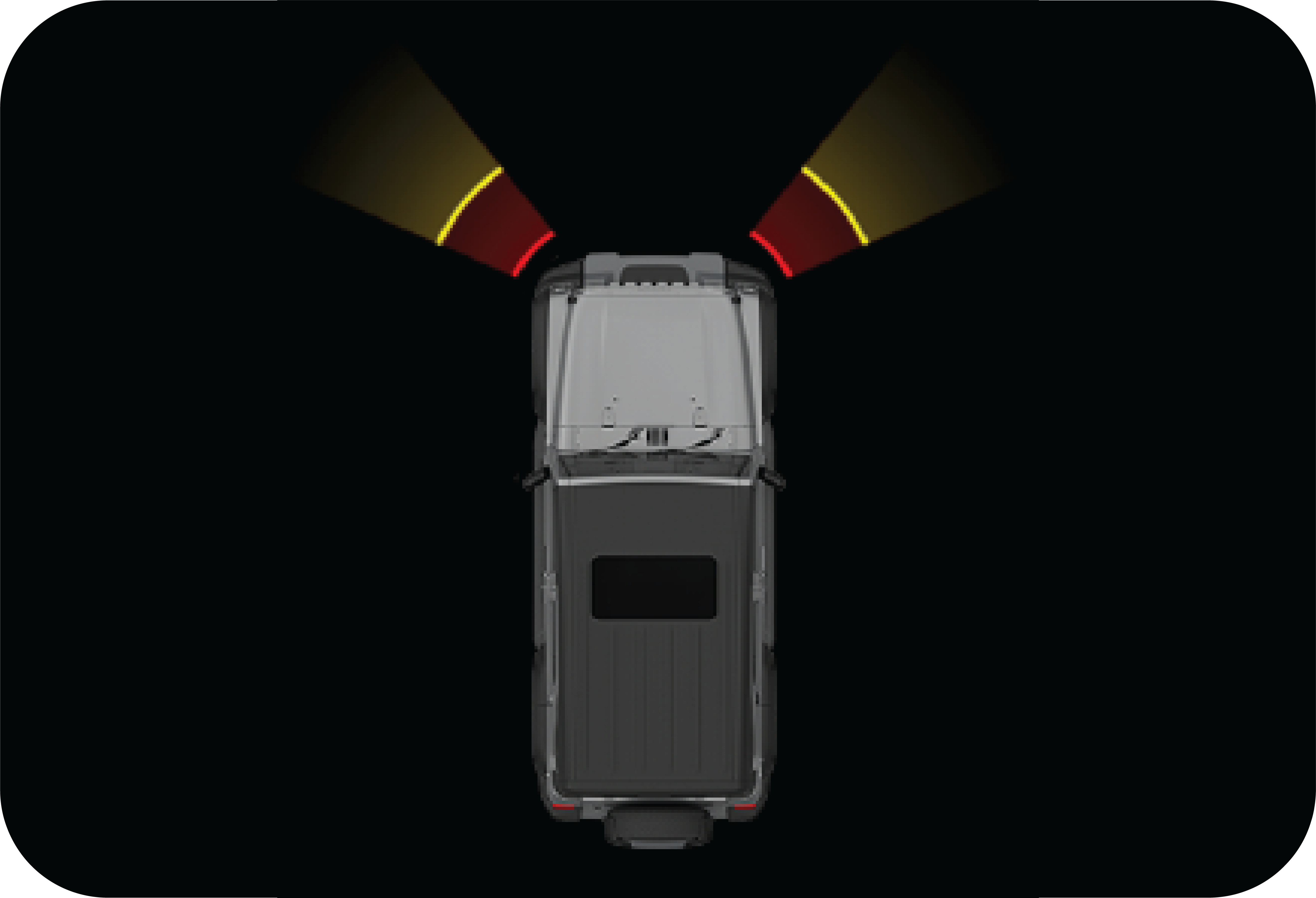

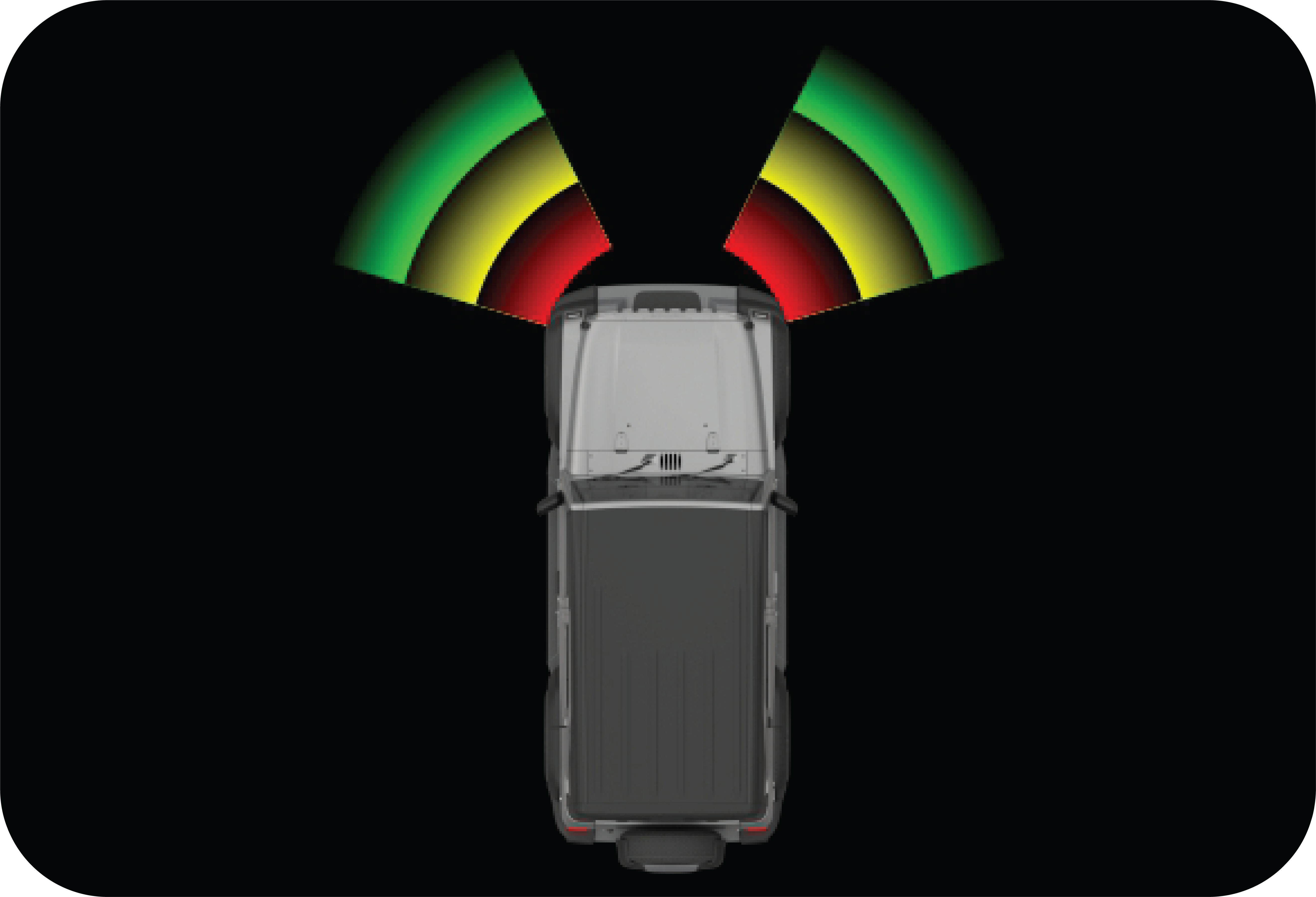

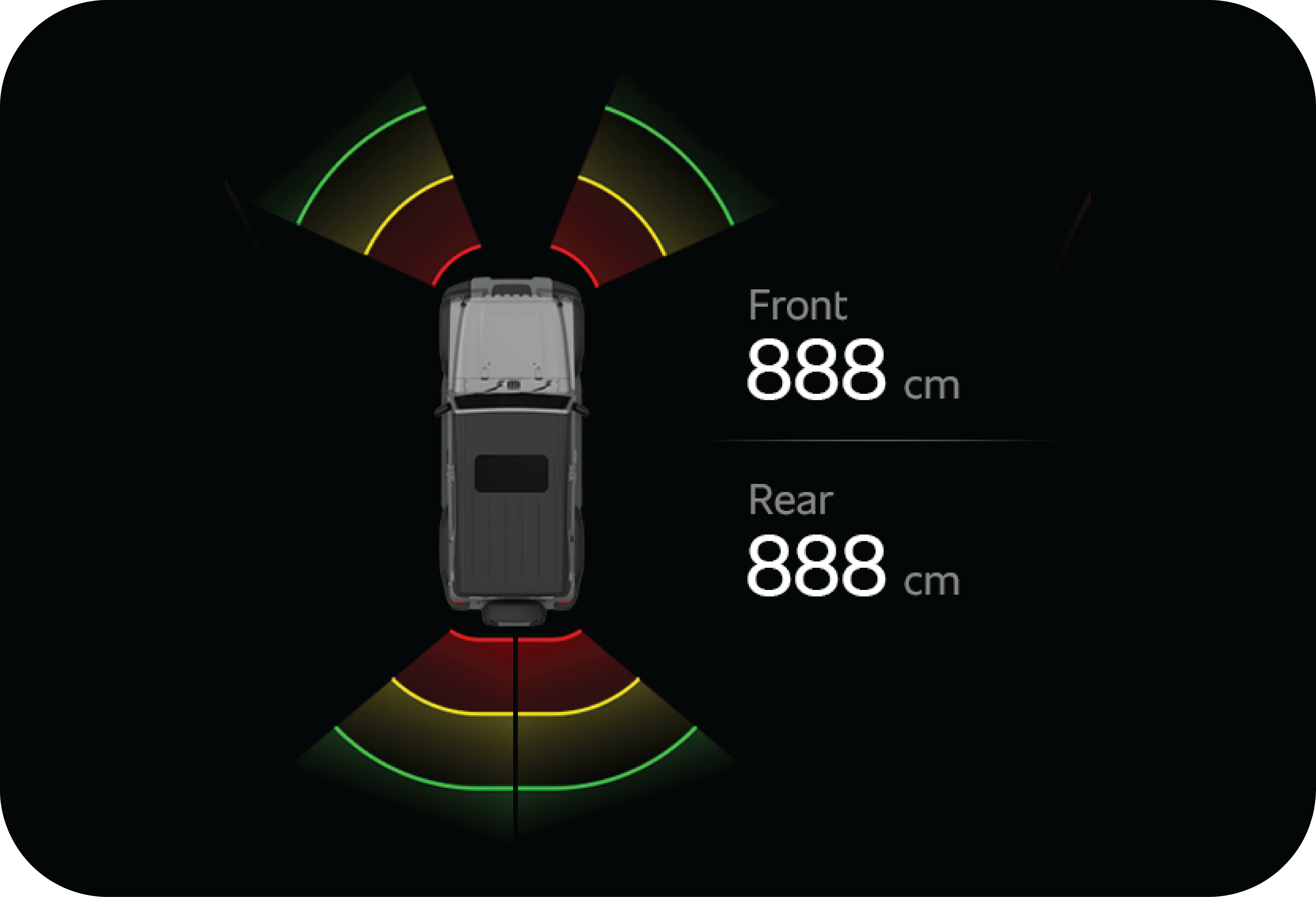

Front Sensor Location |

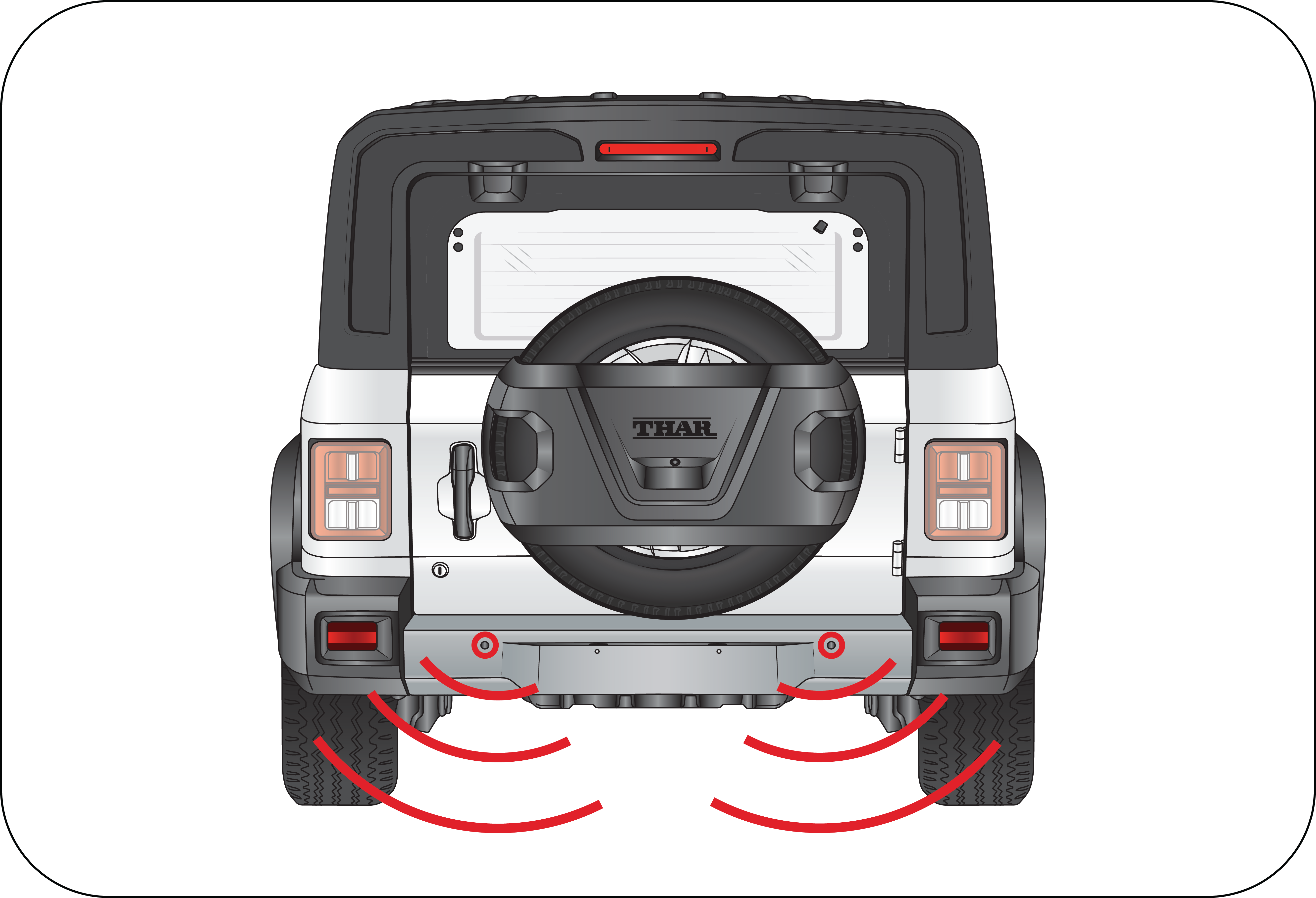

Rear Sensor Location |
|
|

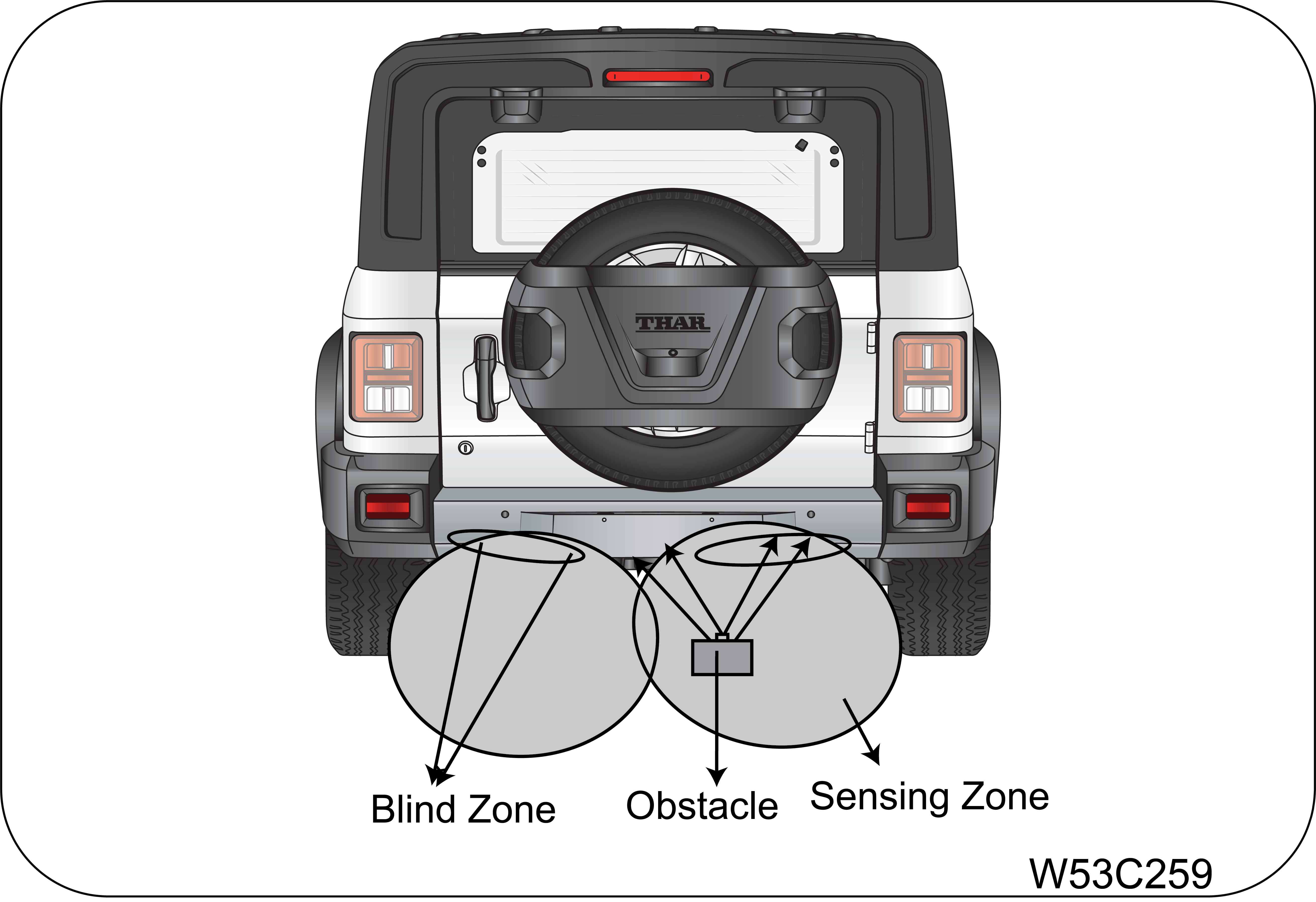

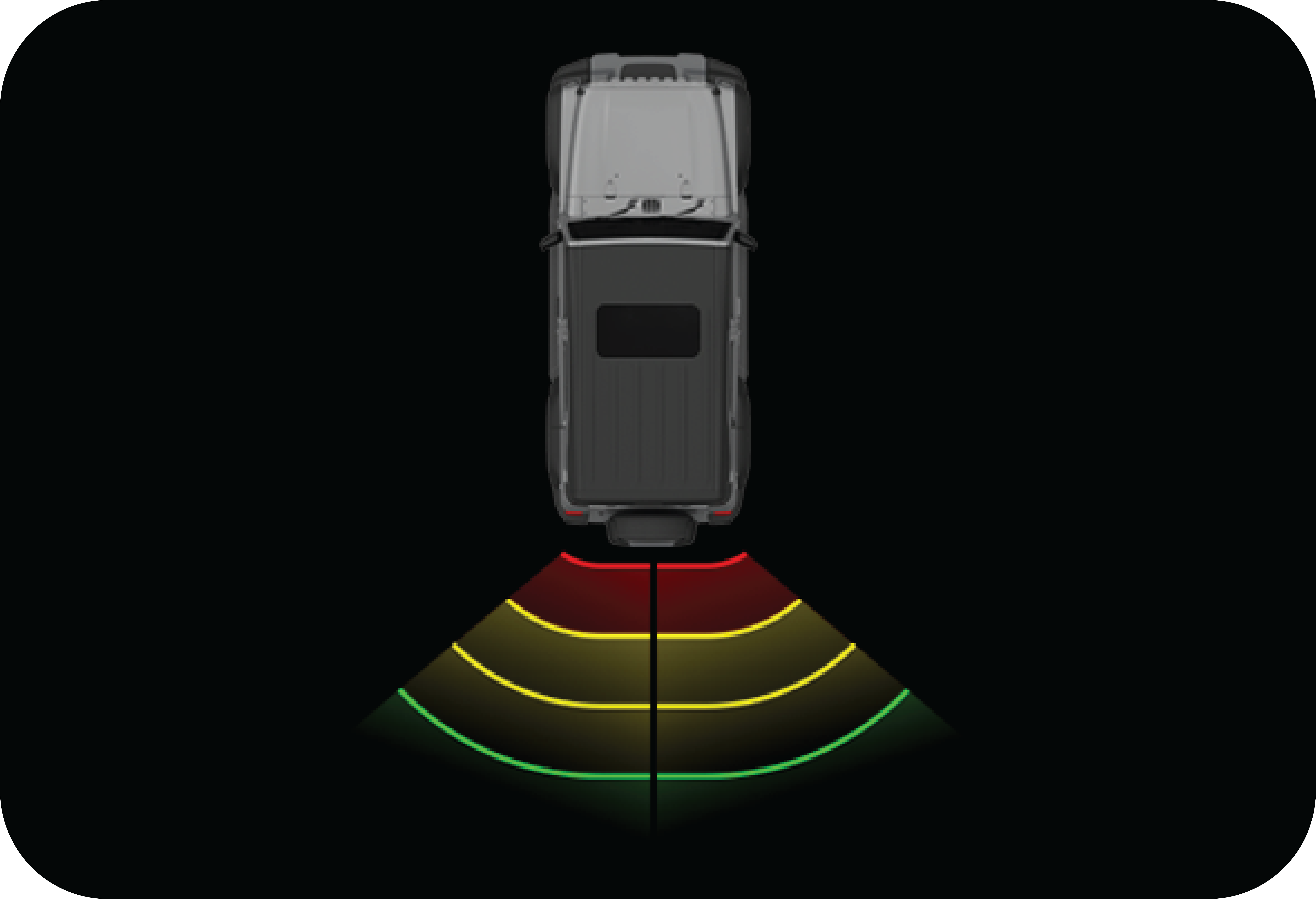

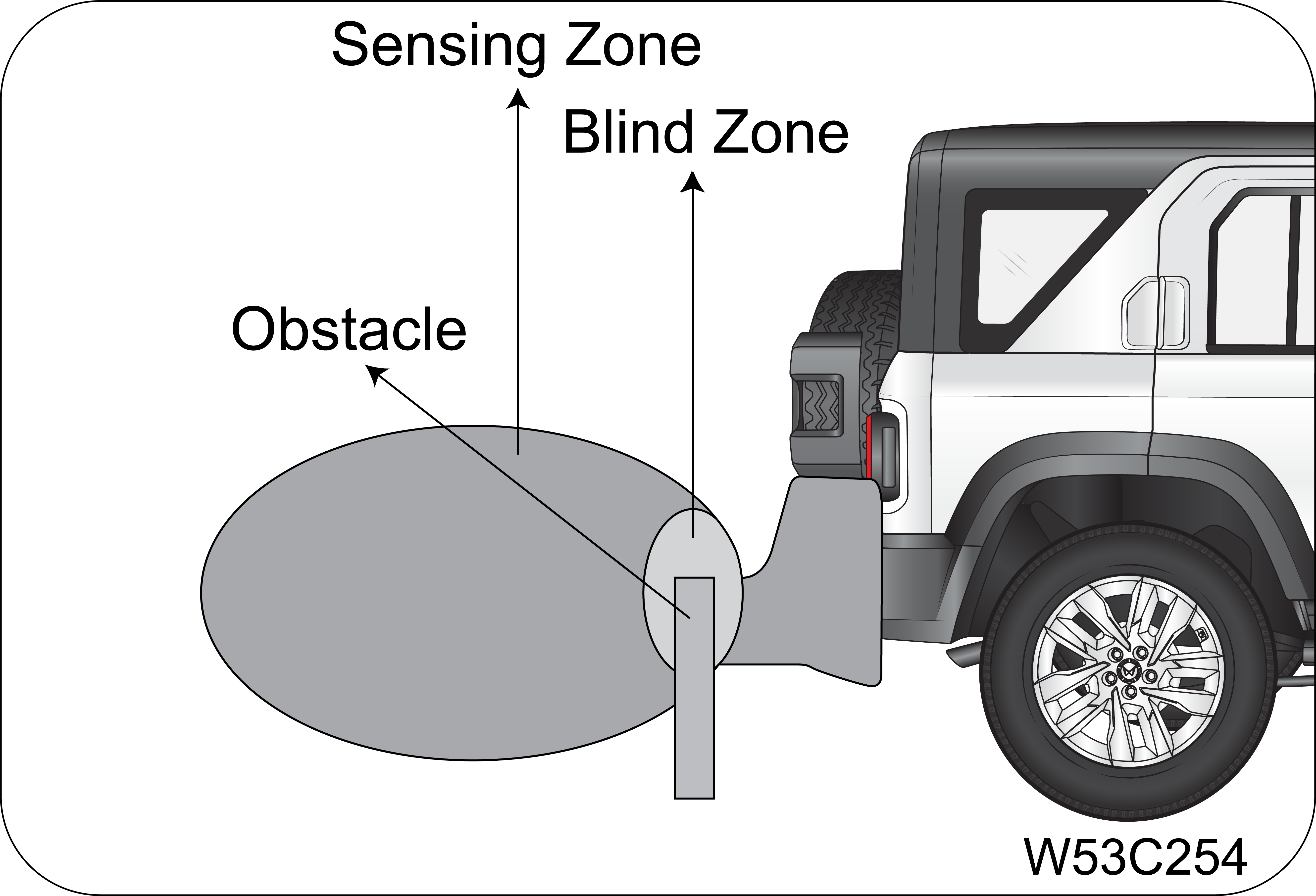

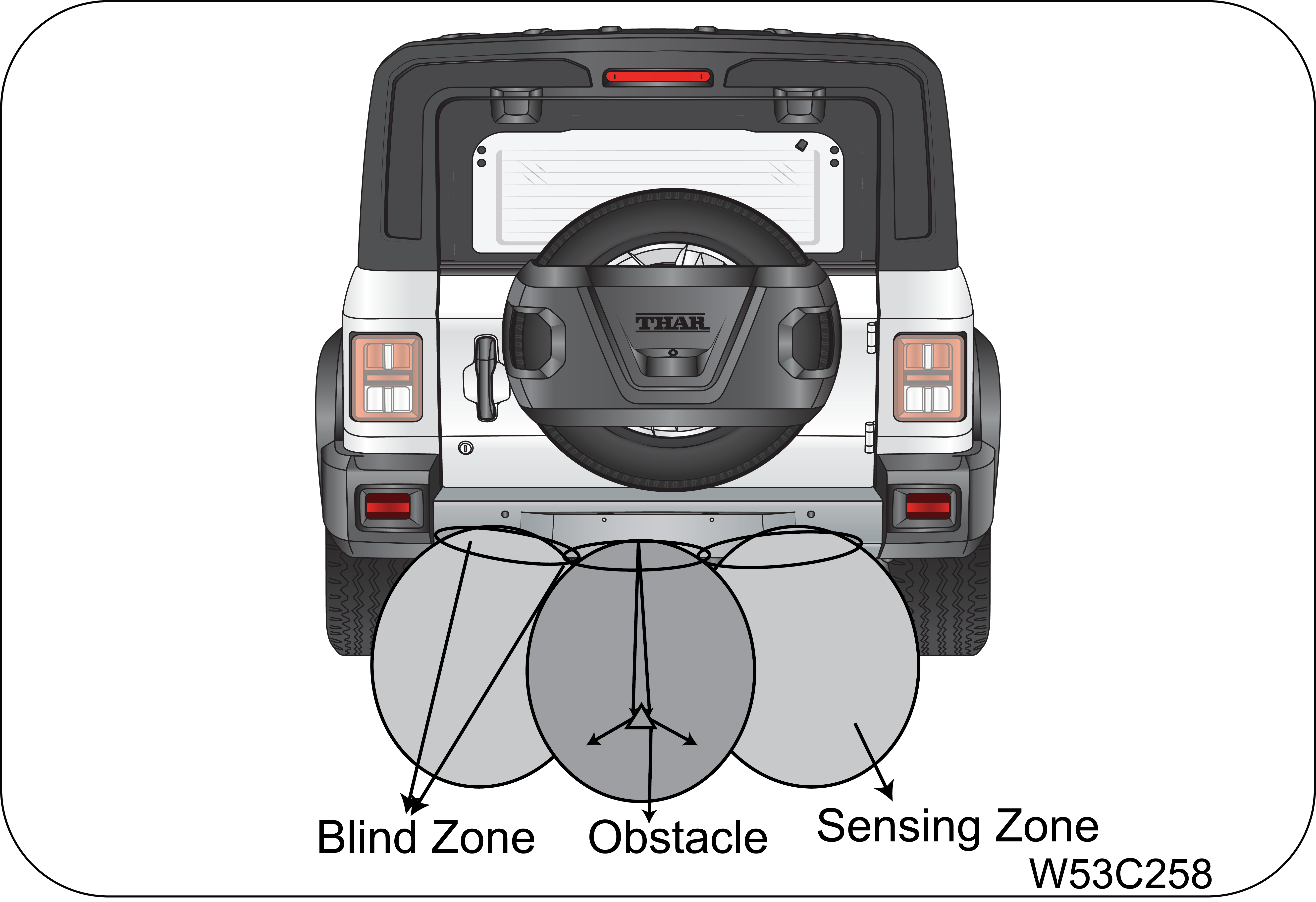

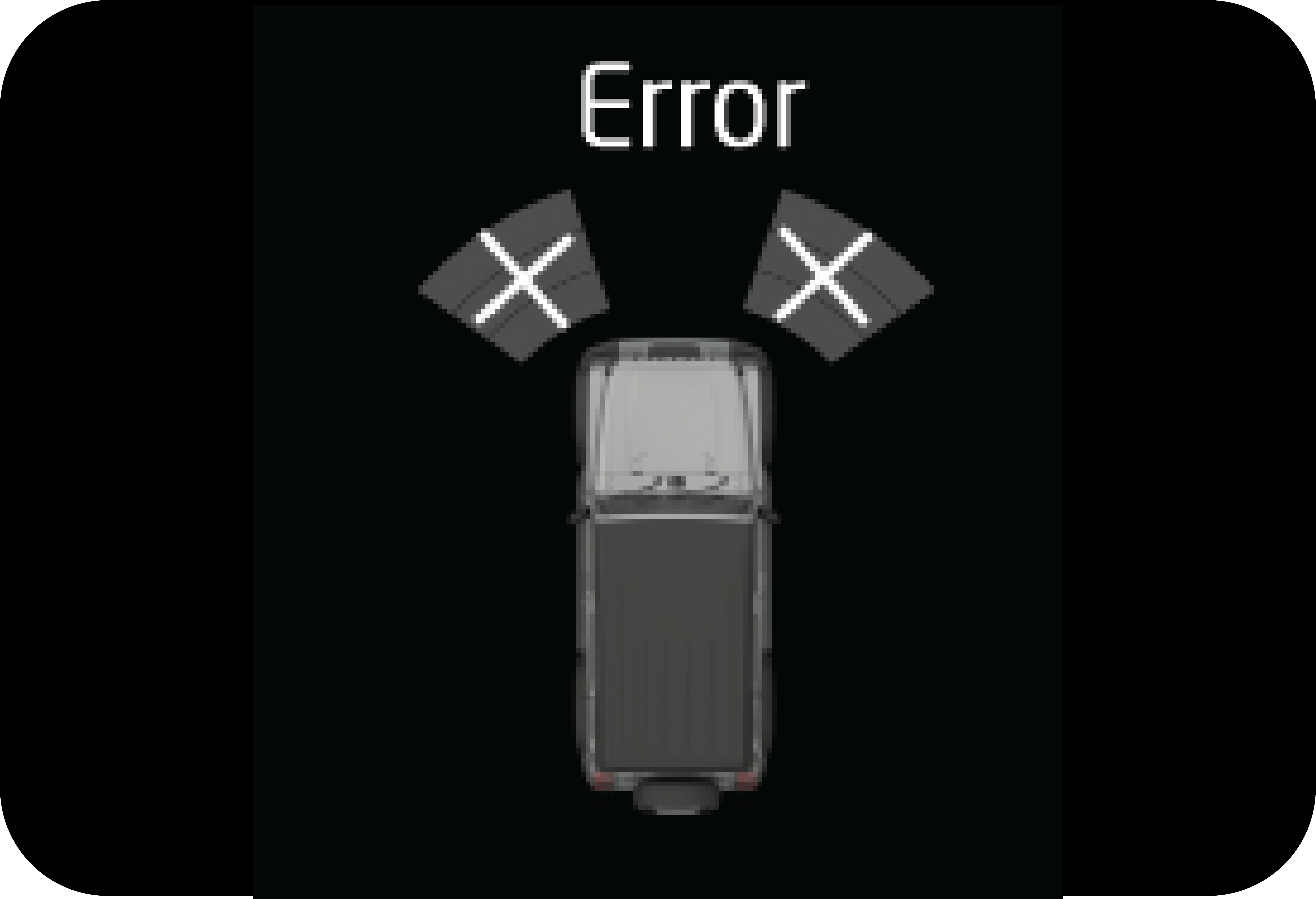

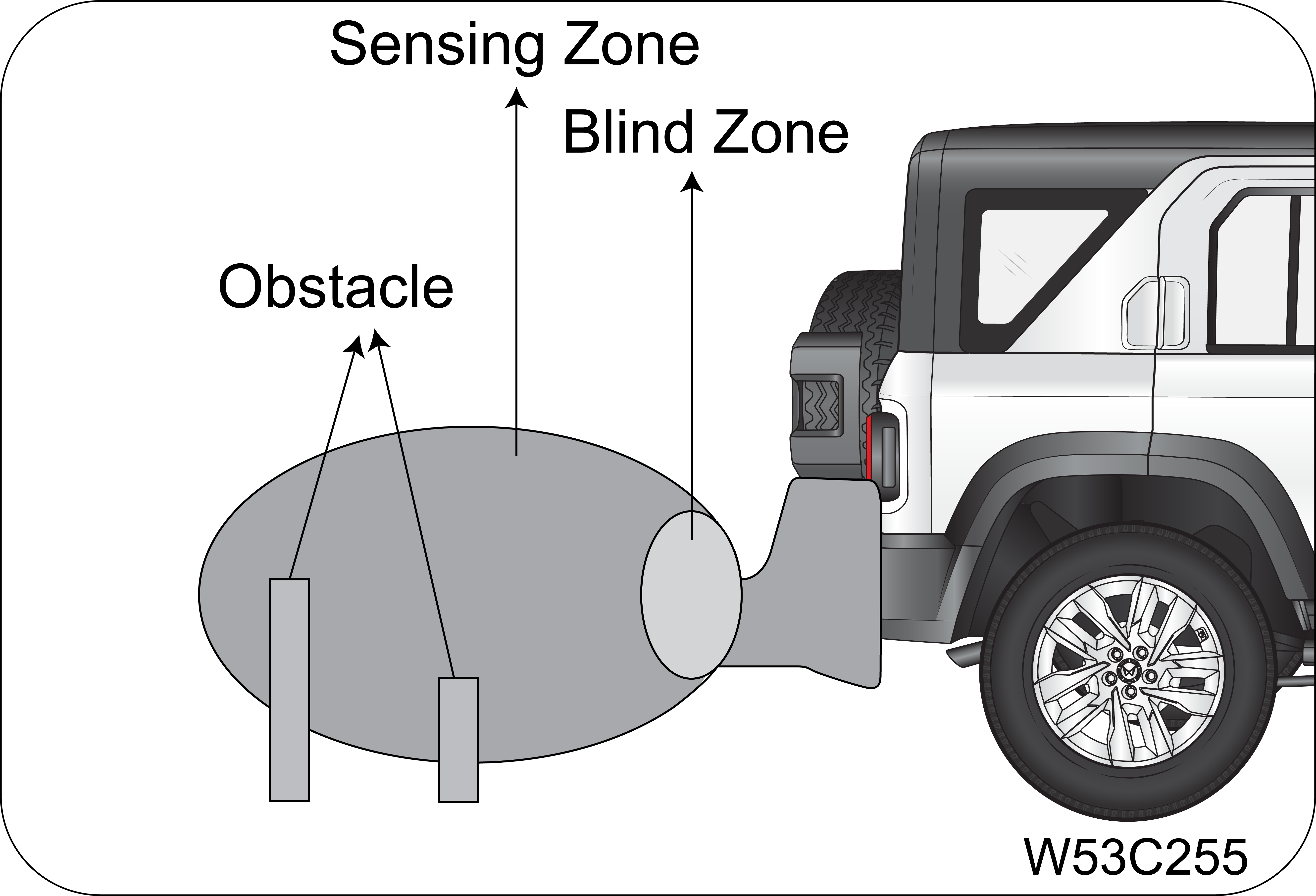

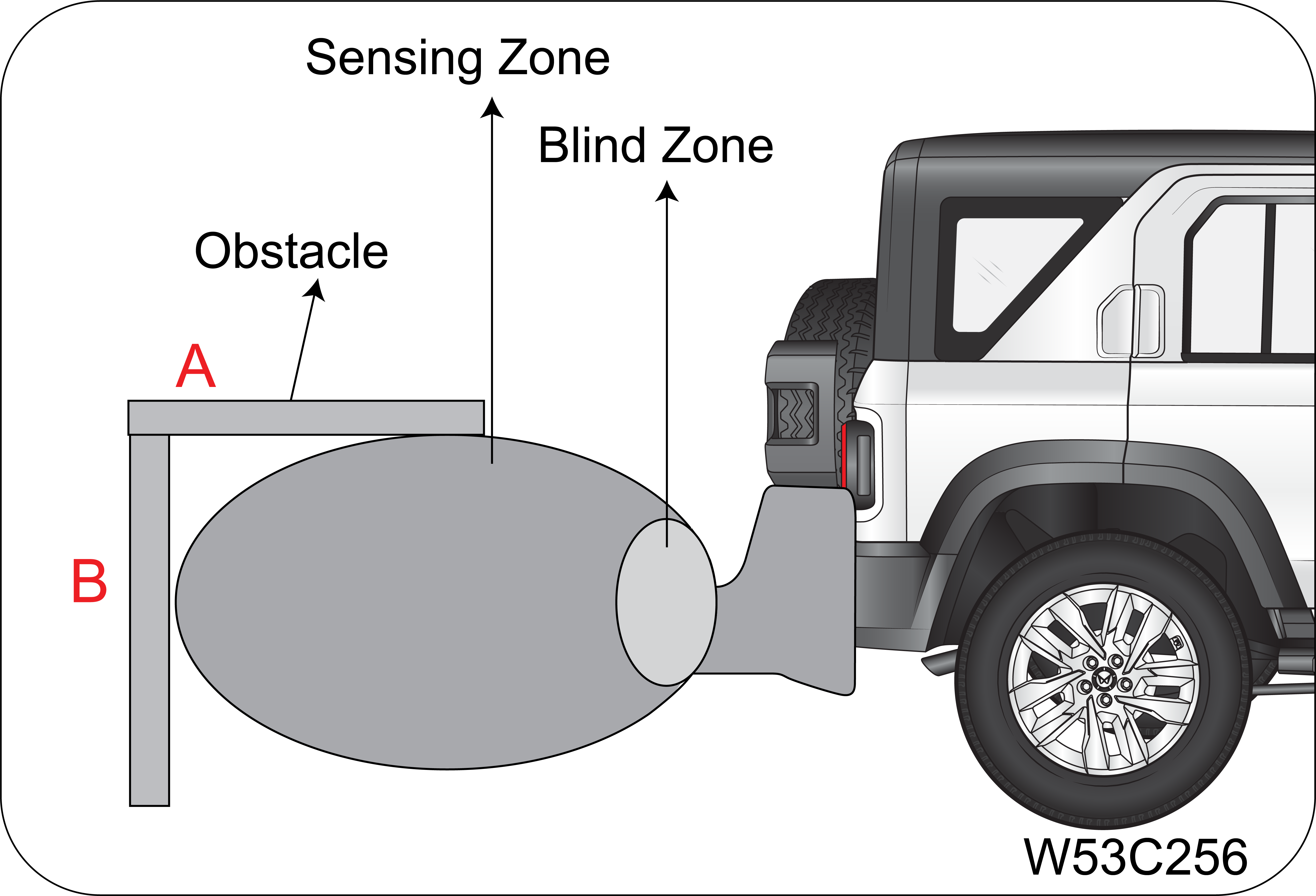

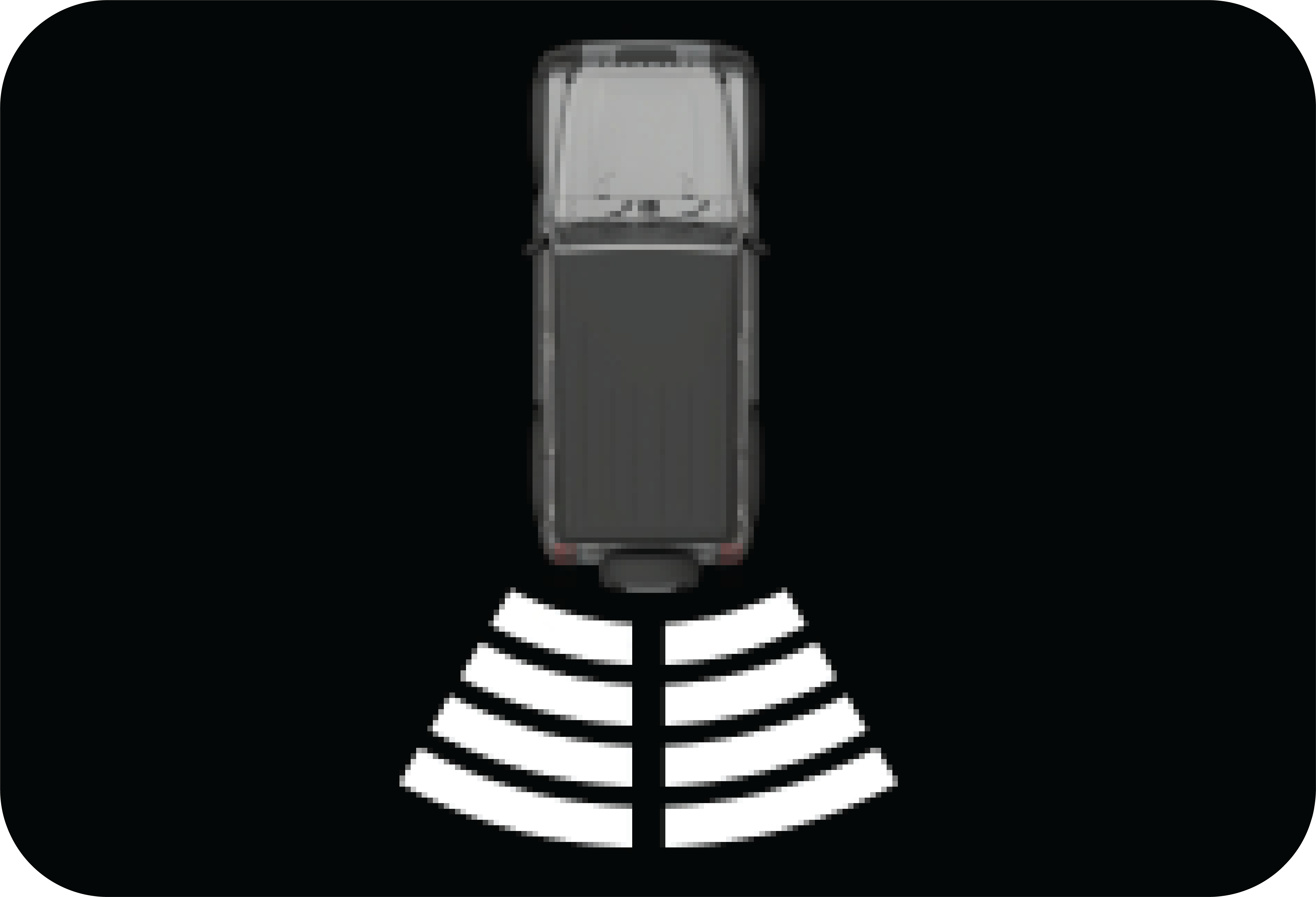

• | PAS is an aiding system. Under no circumstances mahindra will accept any responsibility or can be held liable for any direct or indirect, incidental or consequential damage caused by this system |
• | System will not sense pot holes, trenches or drainages which are below the ground level |
• | Repainting of the sensor will affect the performance of the system |
• | The Vehicle should be in IGN ON state to activate the Parking assistance system |
• | RPAS will be activated automatically when reverse gear engaged and Hand Brake is disengaged |
• | RPAS will get deactivated when reverse gear is disengaged or Hand brake is engaged |
• | FPAS will be activated automatically when Vehicle speed is in between 1 to 8 kmph and hand brake is dis engaged or clutch is pressed, Hand brake is disengaged and vehicle is standstill or reverse gear is engaged and hand brake is disengaged. |
• | FPAS will get deactivated when vehicle speed is more than 8 kmph or hand brake is engaged or reverse gear is disengaged. |
• | When the obstacles come in the sensing range, the system starts giving the indication based on the distance and direction of the obstacles as defined in the detecting zones. The closer the obstacles, more display bars illuminated & beeps alerts |
TFT |
Digital |
|
|
TFT |
Digital |
|
|

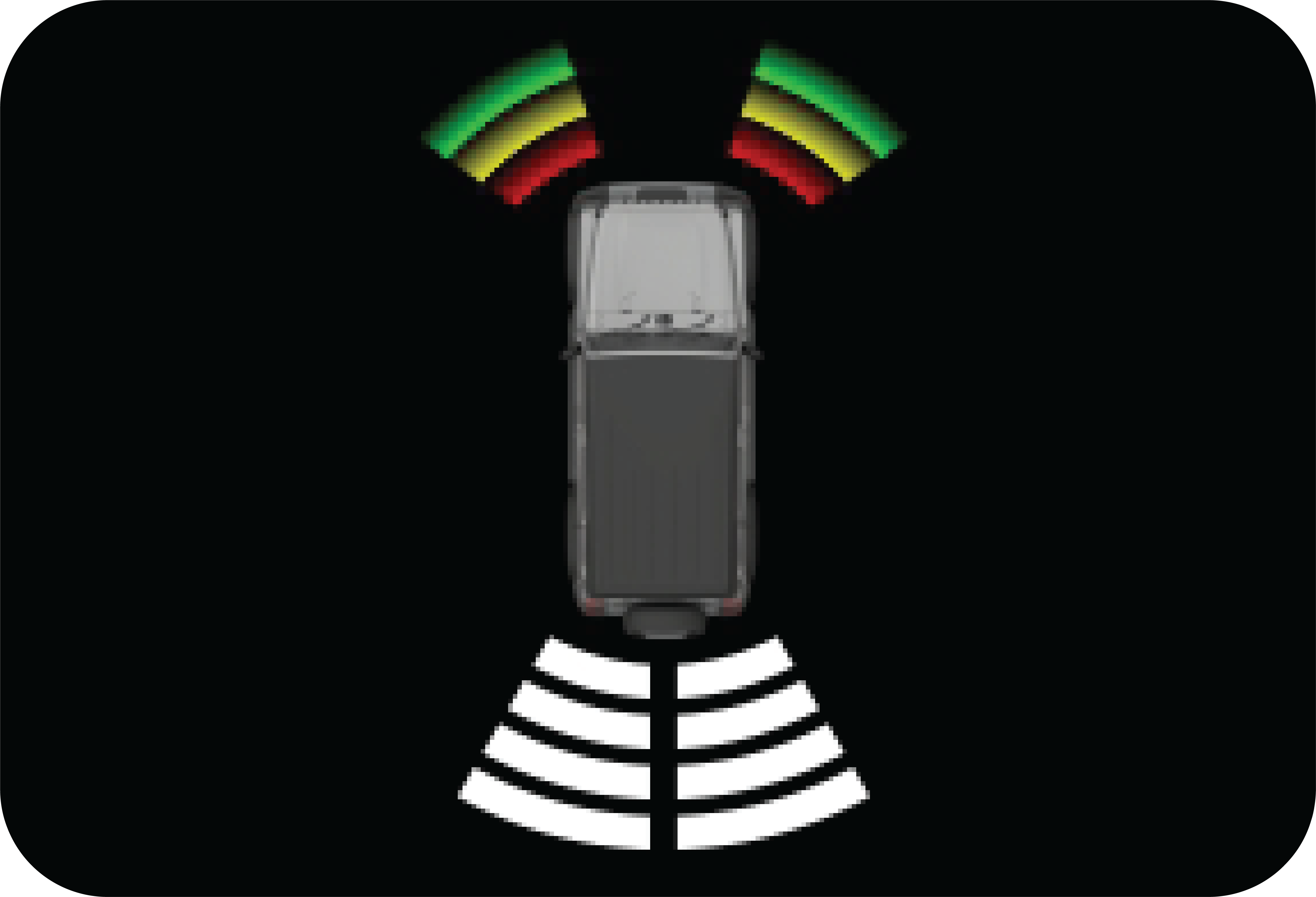

• | Left zone indicates obstacle on left side |
• | Right zone indicates obstacle on right side |
• | If Obstacle is in center then left and Right both zone will get highlight.. |
• | Left Corner zone indicates obstacle on left side |
• | Right Corner Zone indicates obstacle on the right side |
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
|
6. FPAS warning sound can be disabled using PAS Switch, available on IP. PAS switch LED will not glow when FPAS sound is in
active state and will be in ON state when PAS sound deactivated.
|

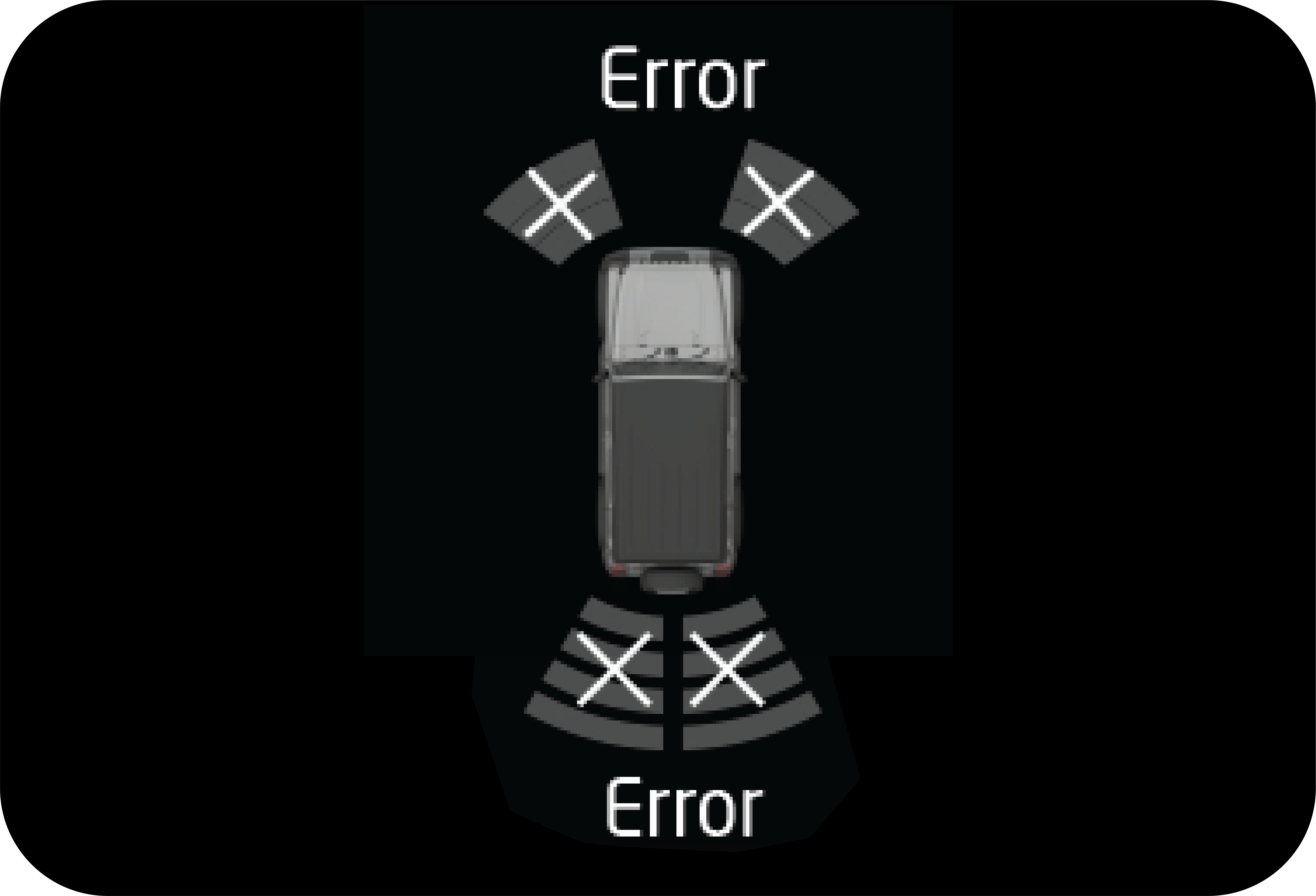

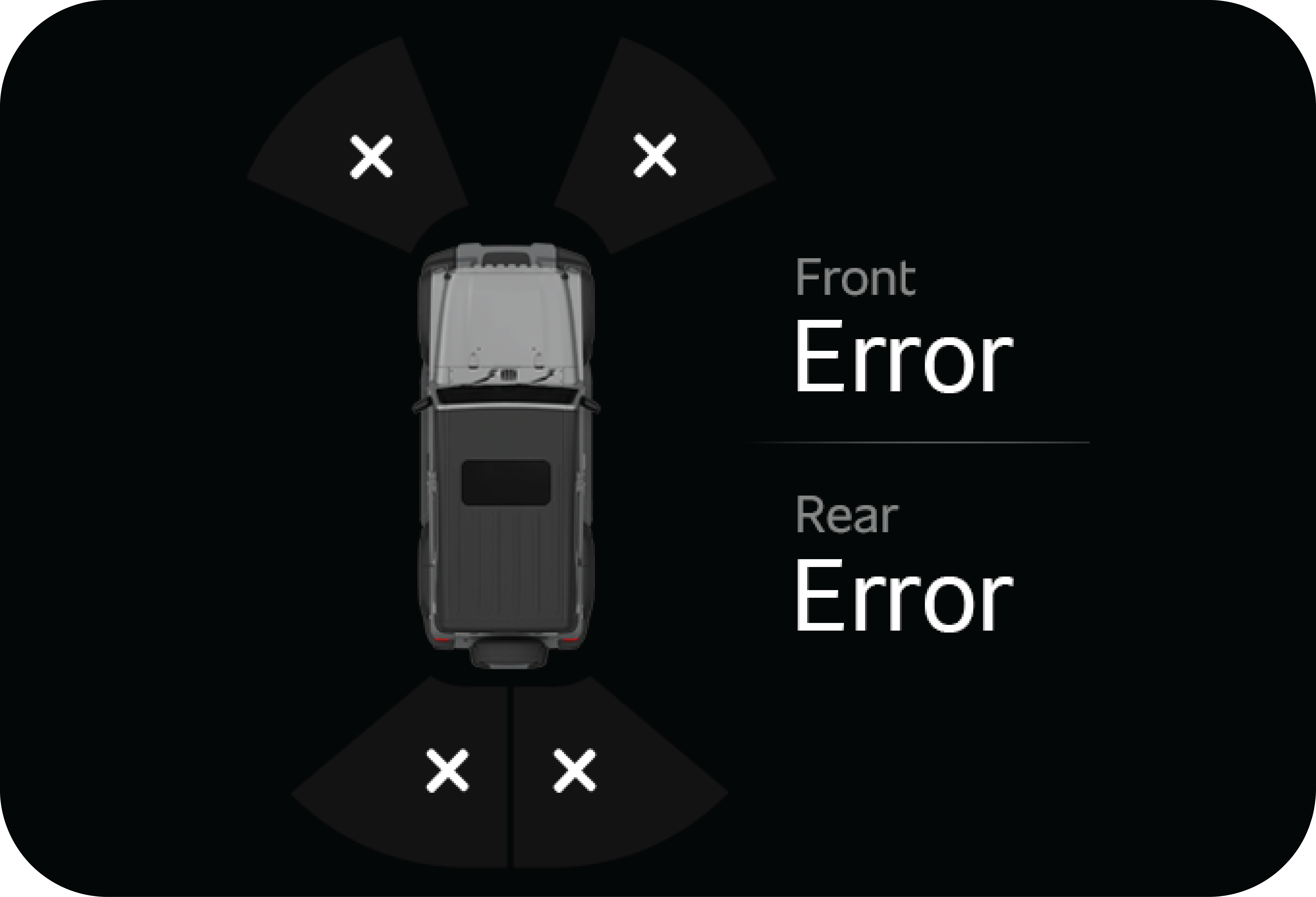

TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
|

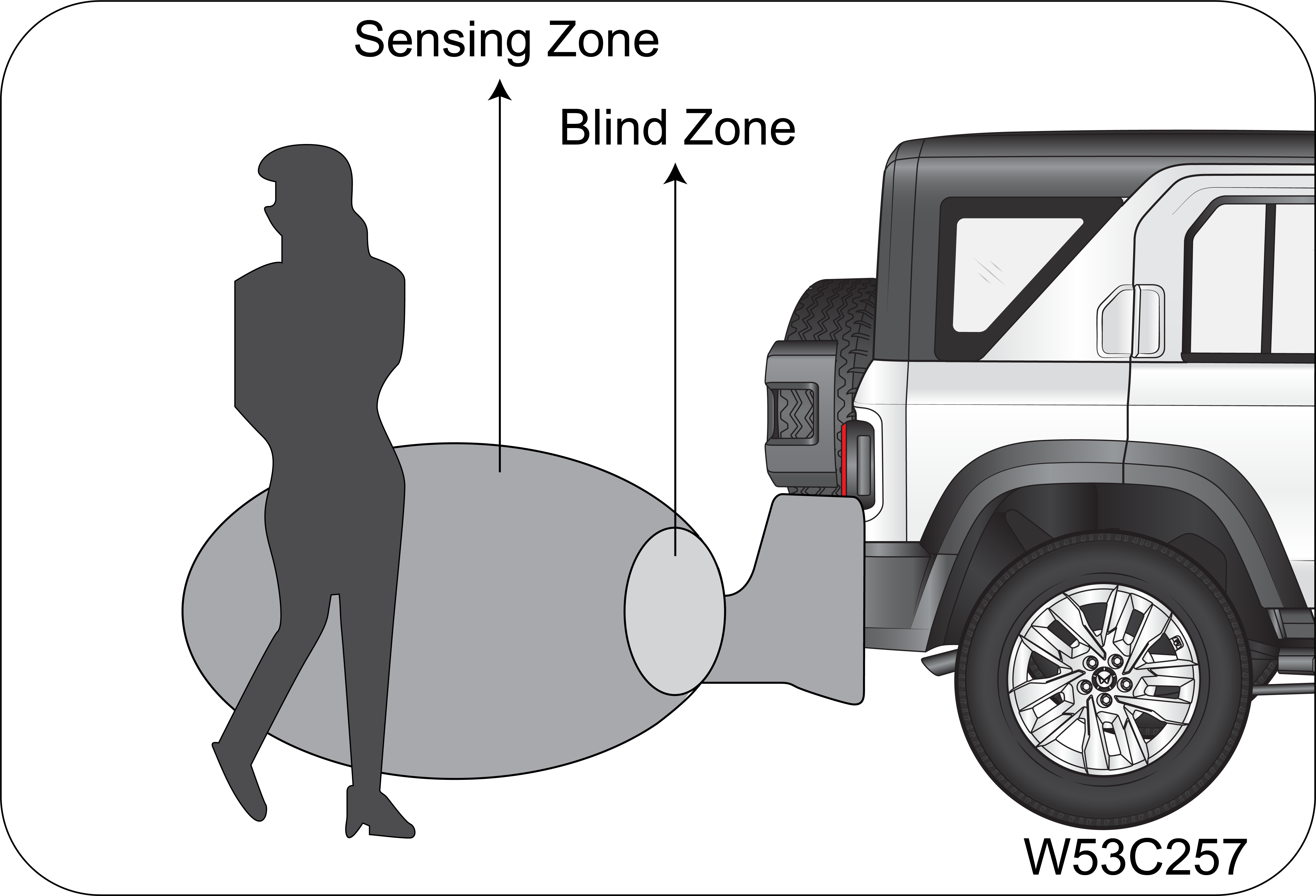

3. Obstacle in the blind zone cannot be sensed by the system. Applicable for all sensors.
|
|
4. Please check the condition of the obstacle behind and in front of your vehicle before moving. In some cases, the display
may be not as same as reality due to the installed sensor level, obstacle shape and reflection condition.
|
|
5. Point B will be detected sooner or later, but A may not be detected at all. Applicable for all sensors.
|
|
6. Not all obstacles are detected from 120 cm. For instance, a person is detected from 75 cm because of the weak reflection
or absorption of the waves of the clothes.
|
|
7. The distance indication may move up and down due to different sizes of the obstacle at different positions.
|
|
8. Though the obstacle is in the sensing zone, obstacle may not be detected since the ultrasonic waves are not reflected back
to the sensor.
|
|
9. The obstacle of a conical shape may not be detected, since the ultrasonic waves get reflected away
|
• | System may not sense obstacles like wire mesh, handrail, small objects which are below the bumper level |
• | System may not sense obstacles with cotton or spongy surface, which will absorb ultrasonic waves emitted by PAS |
• | System performance is dependent on the reflection angle of the obstacle |
• | System may give false alert without obstacles while parking/reversing the vehicle on grasslands, gravels and bumpy roads considering it to be an obstacle |
• | System may alert you by sensing the ground when the bumper is not fitted in its intended position or when the vehicle is overloaded |
• | System may give false signal while the vehicle moves from plain ground to a slope terrain and vice versa |
• | System may give false signal by sensing the ground when the bumper is tilted more from the normal position or when the vehicle is heavily overloaded |
• | System may give false signal an alarm during heavy rain, snow and heavy wind conditions |
• | The shape of the obstacle may prevent a sensor from detecting it. Some obstacles for example as follows:
|
• | Depending upon the shape of the obstacle and other environmental factors, the detection distance may shorten or detection may be impossible |
• | Obstacles may not be detected if they are too close to the sensor |
• | Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once |
• | Because of other ultrasonic sources, sensor may give false alarm for e.g., sweeping machines, high pressure steam cleaners and neon lights |
• | Due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves, the vicinity of the vehicle is noisy. It may cause sensor to give false alarm |
• | The Vehicle should be in IGN ON state to activate the Parking assistance system |
• | RPAS will be activated automatically when reverse gear is engaged and Hand Brake is disengaged |
• | RPAS will be deactivated when reverse gear is disengaged or Hand brake is engaged. |
• | When the obstacles come in the sensing range, the system starts giving the indication based on the distance and direction of the obstacles as defined in the detecting zones. The closer the obstacles, more display bars illuminated & beeps alerts. |
• | Left zone indicates obstacle on left side |
• | Right zone indicates obstacle on right side |
• | If obstacle is in center then right and left both zone will get highlight |
|
The RPAS will be displayed in the instrument cluster screen during obstacle detection.
3. Start moving the vehicle in reverse direction
|
|
4. Display bars in the respective direction will glow according to obstacles in its path.
|
|
5. The Beep sound can be heard from the driver side speaker. Frequency of the beep will increase if obstacle comes closer
(crossing each display bar) and the sound will be continuous if any of the obstacle is less than 50 cm.
|
• | The Vehicle should be in IGN ON state to activate the Parking assistance system |
• | RPAS will be activated automatically when reverse gear is engaged and Hand Brake is disengaged |
• | RPAS will be deactivated when reverse gear is disengaged or Hand brake is engaged |
• | When the obstacles come in the sensing range, the system starts giving the alert beeps. Closer the obstacles, higher the frequency of the alert beeps and when obstacle is very near to the vehicle, alert beeps will be continuous |
1. | Start the vehicle. |
2. | Change the gear from neutral to reverse and disengage the Hand brake for RPAS alert beeps. |
3. | Start moving the vehicle in reverse direction. |
4. | The alert beeps will become more rapid as the vehicle approaches the obstacle. |
5. | The Beep sound can be heard from the driver side speaker. Frequency of the beep will increase if obstacle comes closer (crossing each display bar) and the sound will be continuous if any of the obstacle is less than 50 cm. |
1. | Adaptive Cruise Control (ACC) |
2. | Collision mitigation System (AEB/FCW) |
3. | High Beam Assist (HBA) |
4. | Traffic Sign Recognition (TSR) |
5. | Lane Keep Assist System (LKA/LDW) |
6. | Smart Pilot Assist (SPA) |
|
Camera Maintenance: To avoid incorrect, partial or disabled ADAS functionality due to Camera sensor failure, following points to be taken care
of.
|

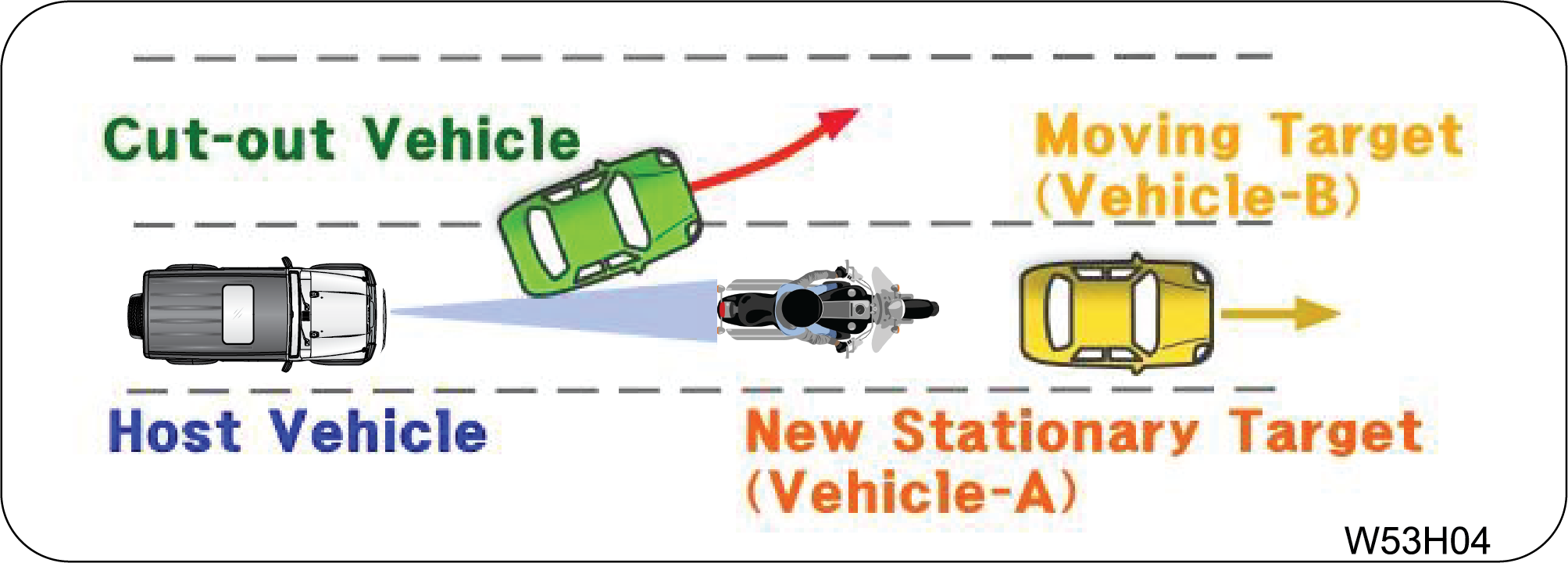

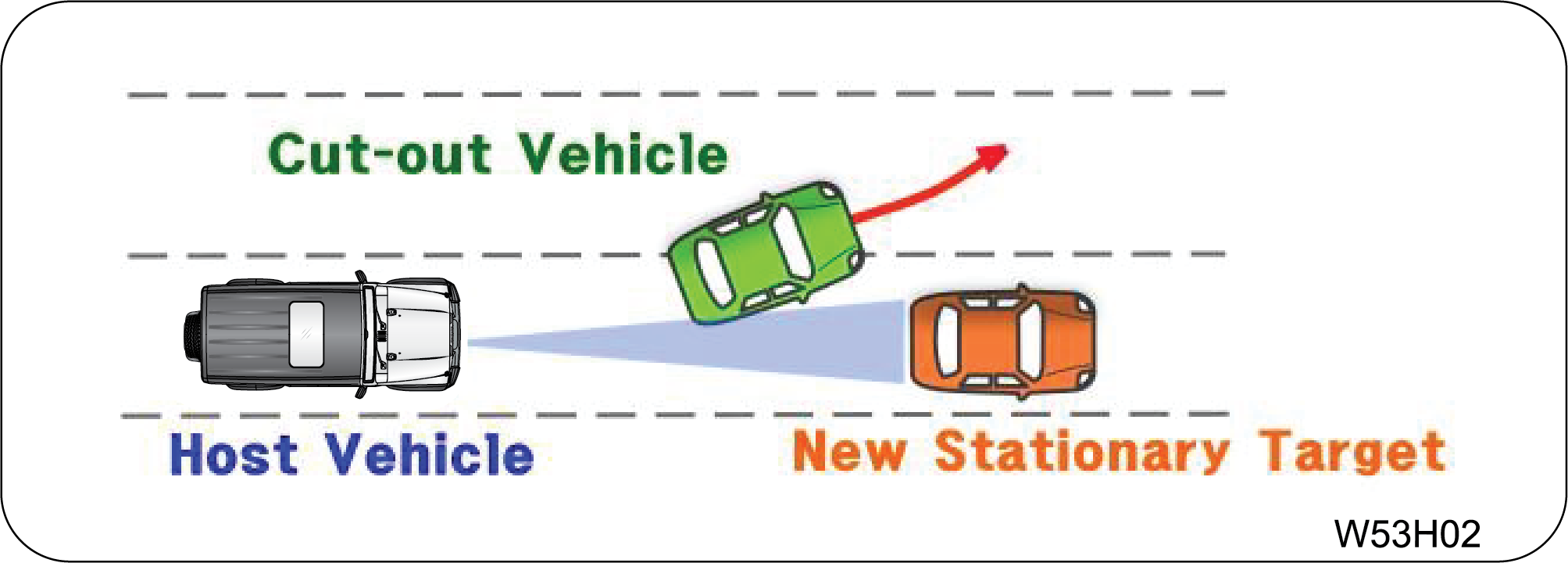

• | The outer area of the windshield must be cleaned regularly and to be kept free of dirt, oil, ice, water drops etc. |
• | If there is condensation in the inner side of windshield in front of Camera, use the de-mister to clear it. |
• | If there is any other dirt in the inner side of windshield in front of Camera, contact Mahindra Service Centre for cleaning. |
• | Stickers, window tinting, electronic toll devices or similar objects should not be attached on the windshield in front of camera. |
• | If the Camera needs to be removed or replaced, contact Mahindra Service Centre only. |
• | If the windshield portion in front of camera has any cracks/scratches/stone chips, it should be taken to Mahindra Service Centre for complete windshield replacement. |
• | If the vehicle met with any accident or impact, particularly for the front side, contact Mahindra Service Centre to check for any damage / calibration errors in the Camera. |
• | In case any modification to be done for Camera, beauty cover, Inside Rear View Mirror or Ceiling, contact Mahindra Service Centre. |
• | Any external object/accessories should not be installed on the hood area as it may affect the Camera’s field of view. |
• | Ensure that flag post on the bonnet is not blocking the camera view. |
• | The head lamp aimed should not be modified and in case of an head lamp replacement, head lamp aiming should be done by Authorised Mahindra Service Centre only |
• | If the Windshield or Camera is replaced, the Camera must be recalibrated at Authorised Mahindra Service Centre only. |
• | The Radar surface and bumper area in front of radar must be cleaned regularly and to be kept free of dirt, oil, ice, water etc. |
• | Any external object should not be installed on the front grill or front bumper area as it may affect Radar’s performance. |
• | Ensure that the number plate is not blocking the radar sensor. |
• | Avoid any kind of customization to the front bumper and the Radar, such as attaching stickers, installing flags or any metallic objects, painting etc. |
• | If the vehicle has met with an accident or impact, particularly an impact from the front side, then contact the Authorised Mahindra Service Centre to check for any damage to the Radar unit. |
• | If the Radar sensor needs to be removed or replaced, contact Mahindra Service Centre only. |
• | If any rework need to be done on front bumper or the Radar, the Radar must be recalibrated by the Authorised Mahindra Service Center only. |
• | ACC is an aid to assist the driver. It is not a collision avoidance system. |
• | Always drive carefully and attentively when using the ACC system. Read and understand the Owner’s Manual thoroughly before using the system. |
• | ACC is designed to be a supplementary driving aid. It is not, however, intended to replace the driver's attention and judgement. The driver is responsible for observing all traffic and safety rules, including maintenance of safe distance and speed and must intervene if Adaptive Cruise Control does not maintain a suitable speed or suitable distance to the vehicle ahead |
• | It is the driver’s responsibility to stay alert and to be in control of the vehicle at all times. |
• | Improper use of ACC can lead to a crash. |
• | ACC has limited braking capability and may not stop the vehicle in time to avoid a collision, if the front preceding vehicle decelerates quickly or a new vehicle cuts-in front always be prepared to apply brake. |
• | Failure to follow the alerts and instructions for proper use of system could result in serious injury. |
• | Always observe posted speed limits and do not set the speed over them. |
• | Use ACC in appropriate roads with proper lane marking and sign boards. |
• | Do not use ACC in busy areas where multiple road users cross the vehicles intended path. |
• | When two wheeler cuts out, ACC may not be able to identify the vehicle in front of two-wheeler. |
• | ACC may not be able to stop behind stopped vehicles. |
• | ACC may not be always able to follow two wheeler. |
|

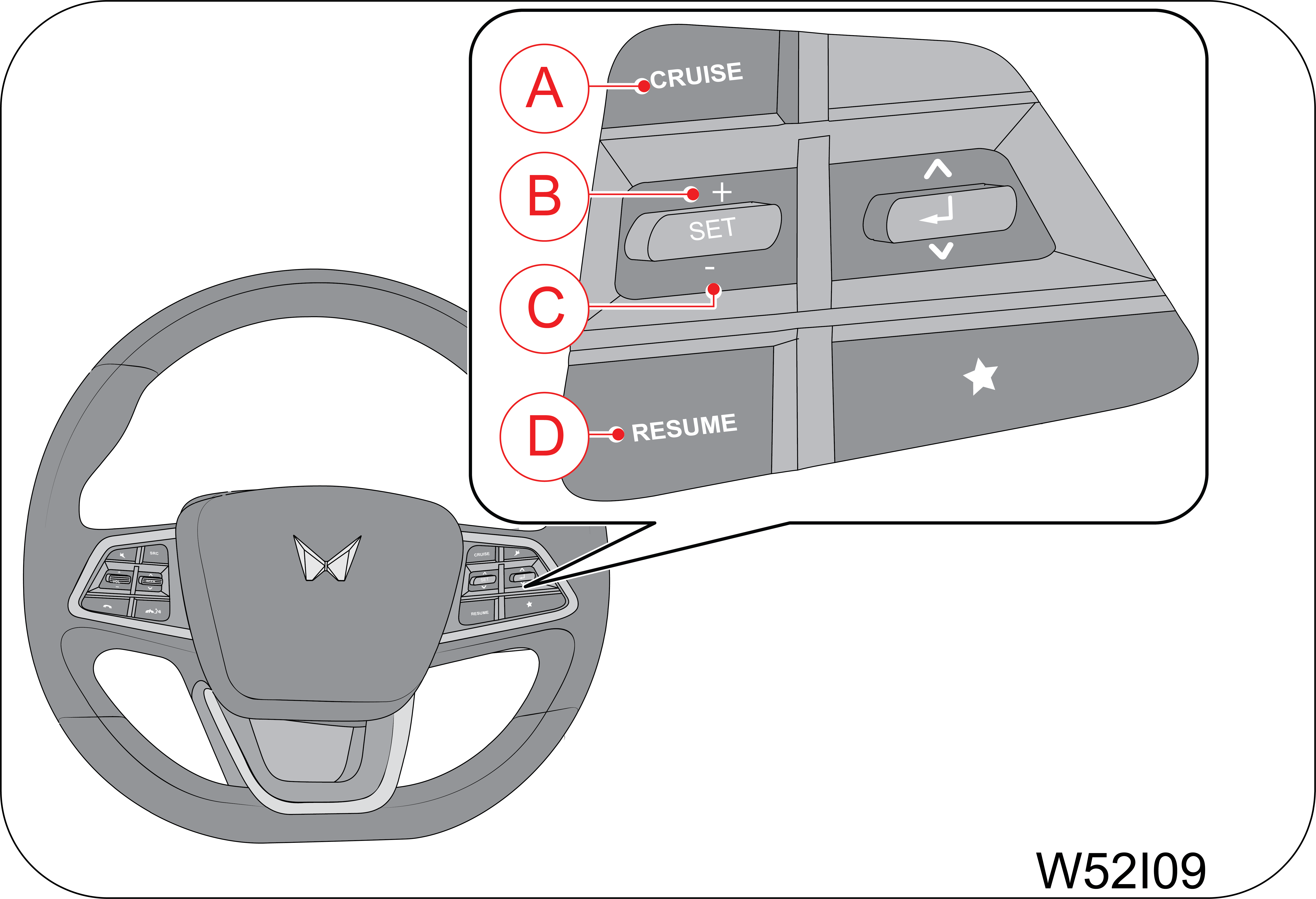

The ACC switches on the steering wheel consists of five switches which are used for ACC Operation.
|
Image |
Display |
Image |
Display |
---|---|---|---|
|
ACC Indicator
|
|
Time Gap
|
|
Set Speed
|
|
Front preceding vehicle Indicator
|
|
Press CRUISE switch to activate ACC feature. This turns ACC to Standby Mode.
|
|
|
|
• | The vehicle will not maintain previous set speed or previous time gap to the vehicle ahead. |
• | Press the ON/OFF switch again to deactivate ACC feature. |
• | If ACC indicator illuminates in red , there could be a problem with ACC system. visit nearby mahindra service center. |
|
Drive the vehicle to the desired speed (minimum 10 kmph) and Press Set+/Set- switch
|
|
|
• | ACC will maintain the vehicle speed as set by the driver. Once set, it will be confirmed by the ACC telltale light. After that no accelerator pedal input from driver need to be given. |
• | Set speed will be displayed as set by driver. |
• | Time interval bars will be displayed. |
• | If Set+/Set- switch is pressed when vehicle speed is below 30 kmph then ACC Set Speed will be initialized to 30 kmph. |
• | When there is a front preceding vehicle, user can set desired speed by pressing SET+/- switch below 30 kmph as there is no minimum desired speed requirement |
• | When front preceding vehicle and your vehicle are in stopped condition , apply brake and press SET+/SET-. Note that ACC will remain in standstill until the front preceding vehicle moves. |
Condition |
Alert |
---|---|

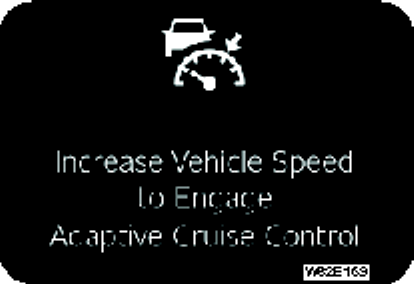

When traveling below 10 kmph and a vehicle ahead is not Detected
|
|

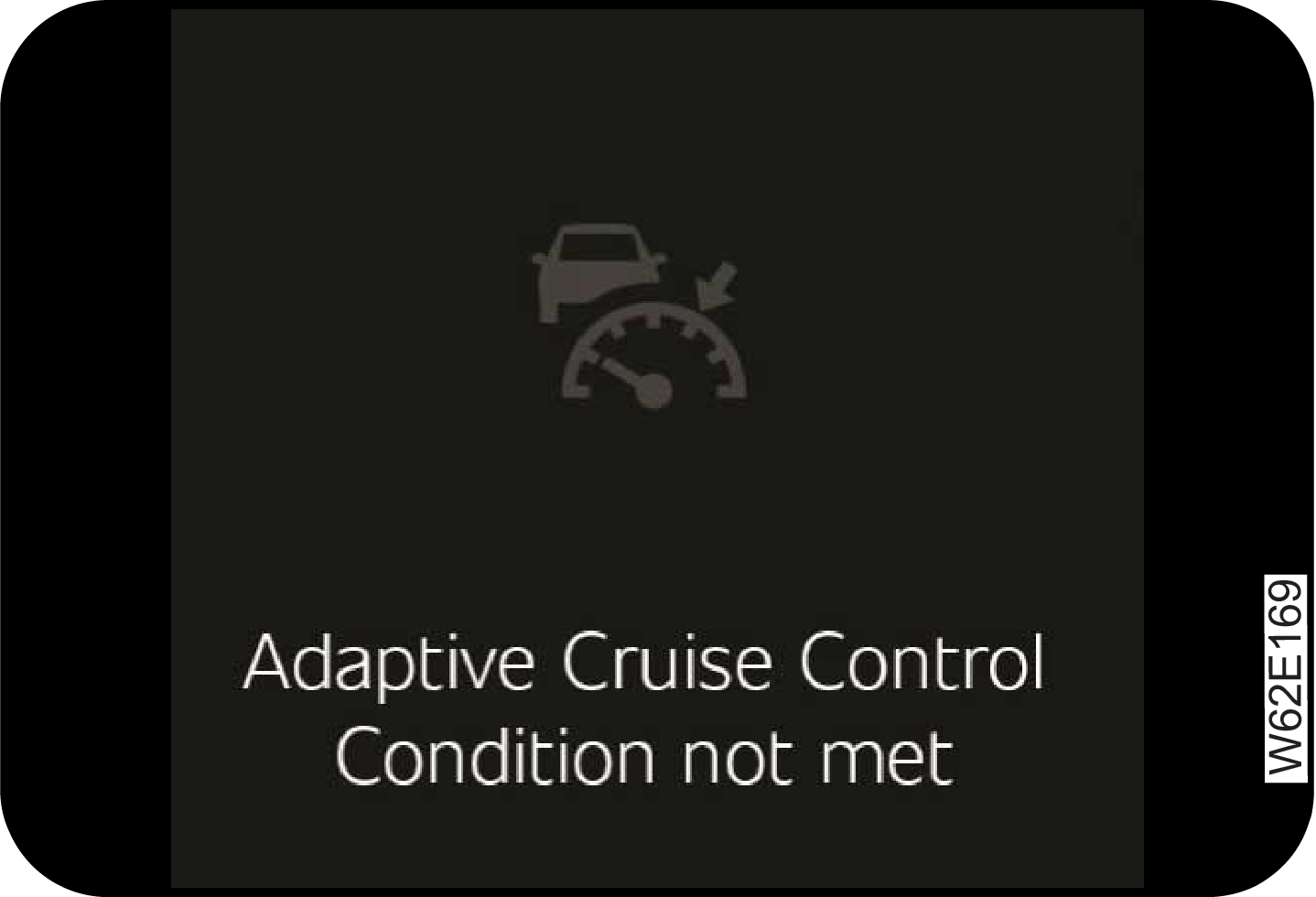

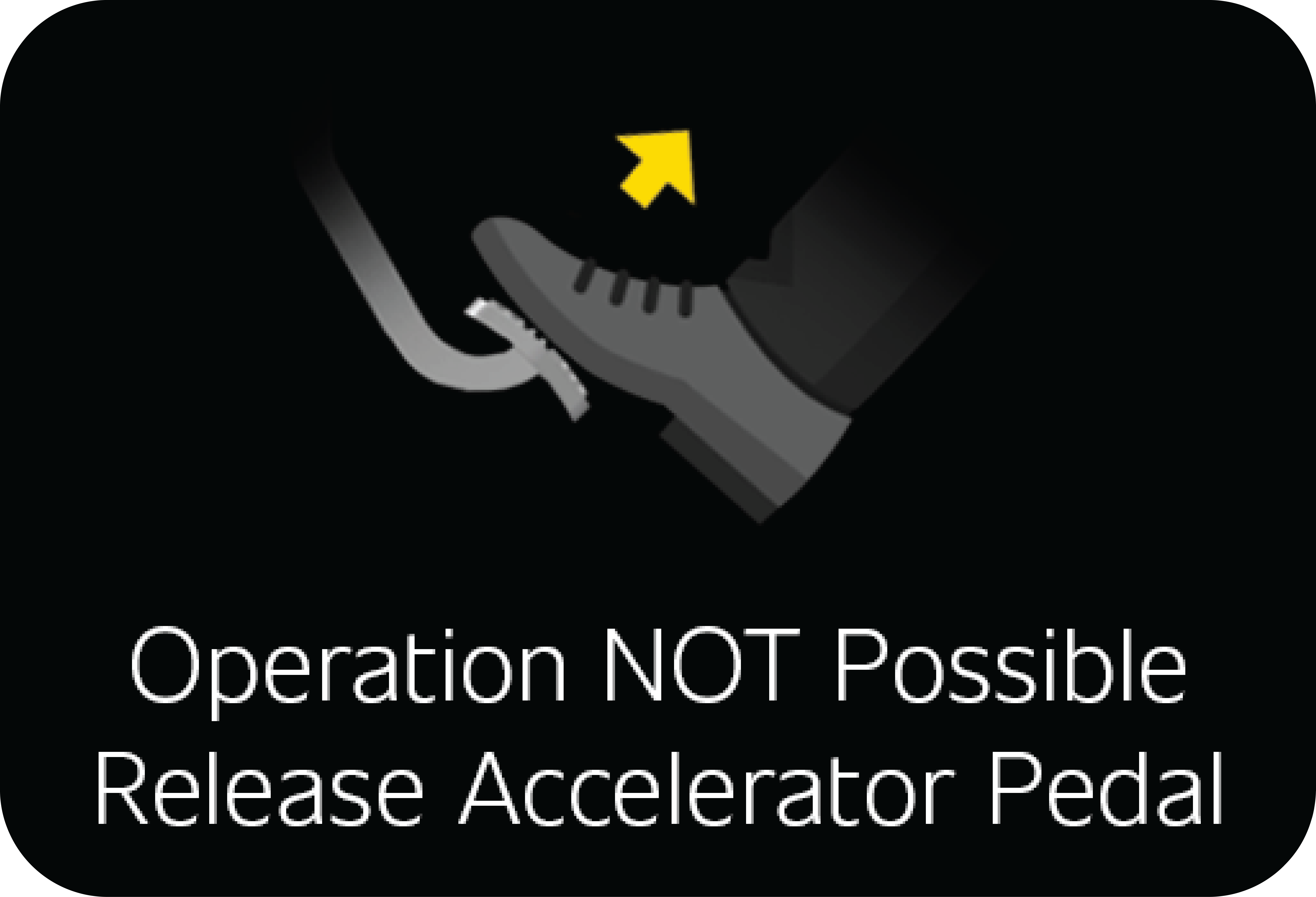

Condition |
Alert |
---|---|
When front preceding vehicle is very close or far away from host vehicle.
When the shift lever is not in D (Drive) Position
When the brakes are operated by the driver
|
|
When braking system unavailable.
|
|
When driving above maximum ACC operational speed limit.
|
|

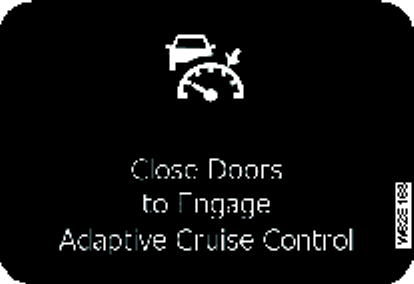

When driver door is open.
|
|
When Collision Mitigation System is unavailable.
|
|
When driver seat belt is not buckled.
|
|
ACC interacts with other systems, such as braking, steering, EMS (Engine Management System), ACC Switch etc. If any of these
systems are not functioning properly, ACC cannot be activated.
|

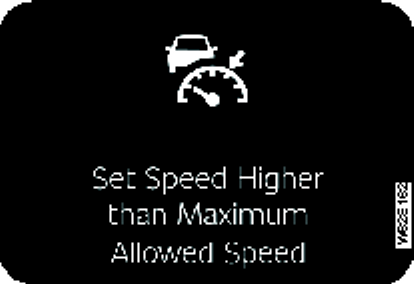

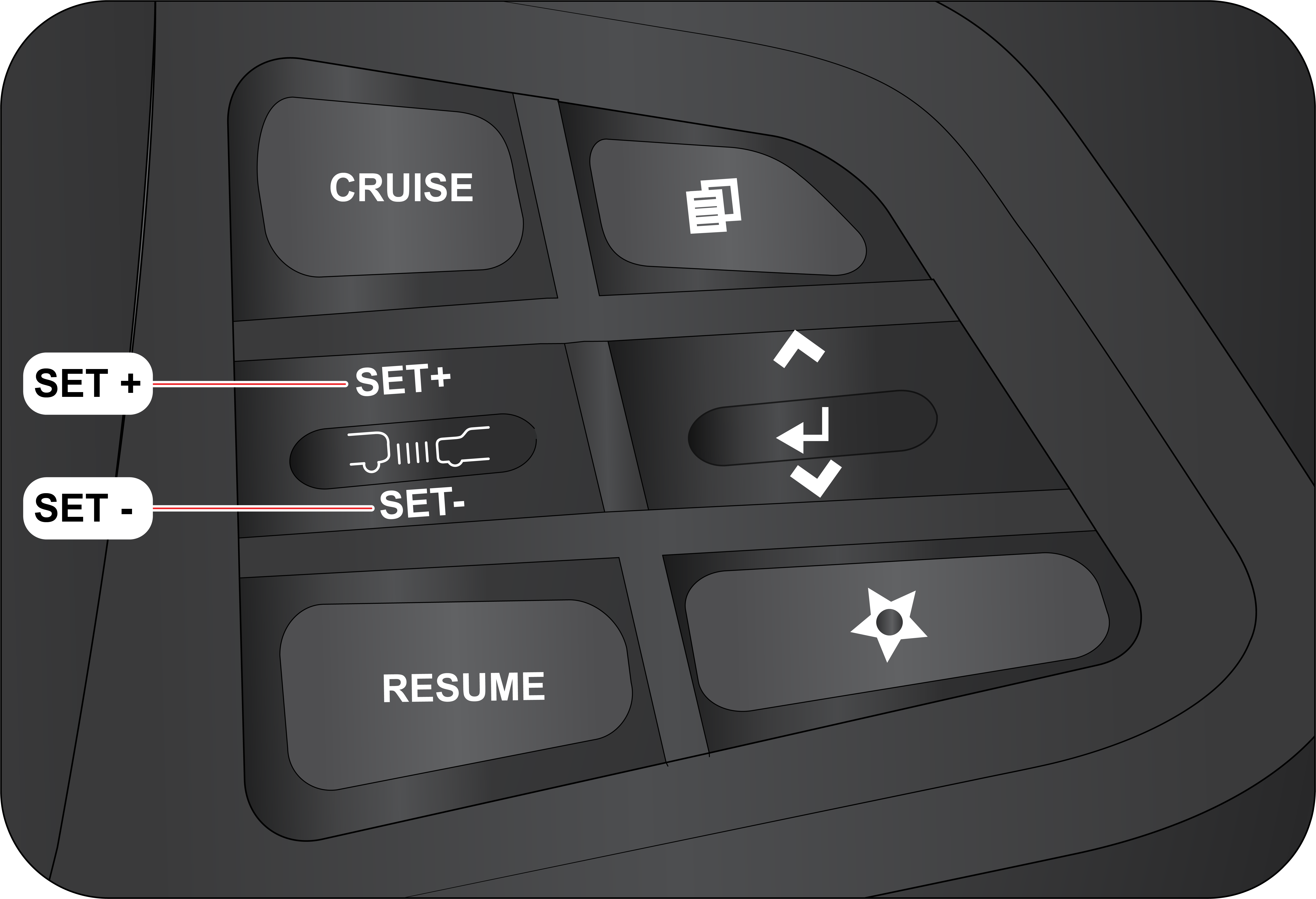

• | Press and quickly release the SET+ switch to increase the set speed by 1 kmph |
• | Press and hold the SET+ switch to increase the set speed by 10 kmph. The set speed will be increased to the next nearest multiple of 10. Continuous hold / stuck of SET +/- button for 60 sec will turn OFF ACC. |
• | Release the switch when the desired set speed reached. |
• | Press and quickly release the SET- switch to decrease the set speed by 1 kmph |
• | Press and hold the SET- switch to decrease the set speed.by 10 kmph. The set speed will be decreased to the next nearest multiple of 10 |
• | Release the switch when the desired set speed reached. |
• | The set time gap value of the current ignition/driving cycle will be used for the next ignition/driving cycle. |
• | When the system is used for the first time after starting the engine, the time gap value is set to the maximum value (Level 4). |
|
|
|
|
|
If it takes more than 3 seconds for the front preceding vehicle to begin moving again, ACC will be set to Standby and the
stop-hold function will activate. A pop-up alert message “Press Resume Switch or Pedal to Accelerate” will be displayed
for driver to resume.
|
1. | Press RESUME button |
2. | Slightly tap the accelerator pedal |
3. | Increase the speed above 10 kmph and press the RESUME button |
|

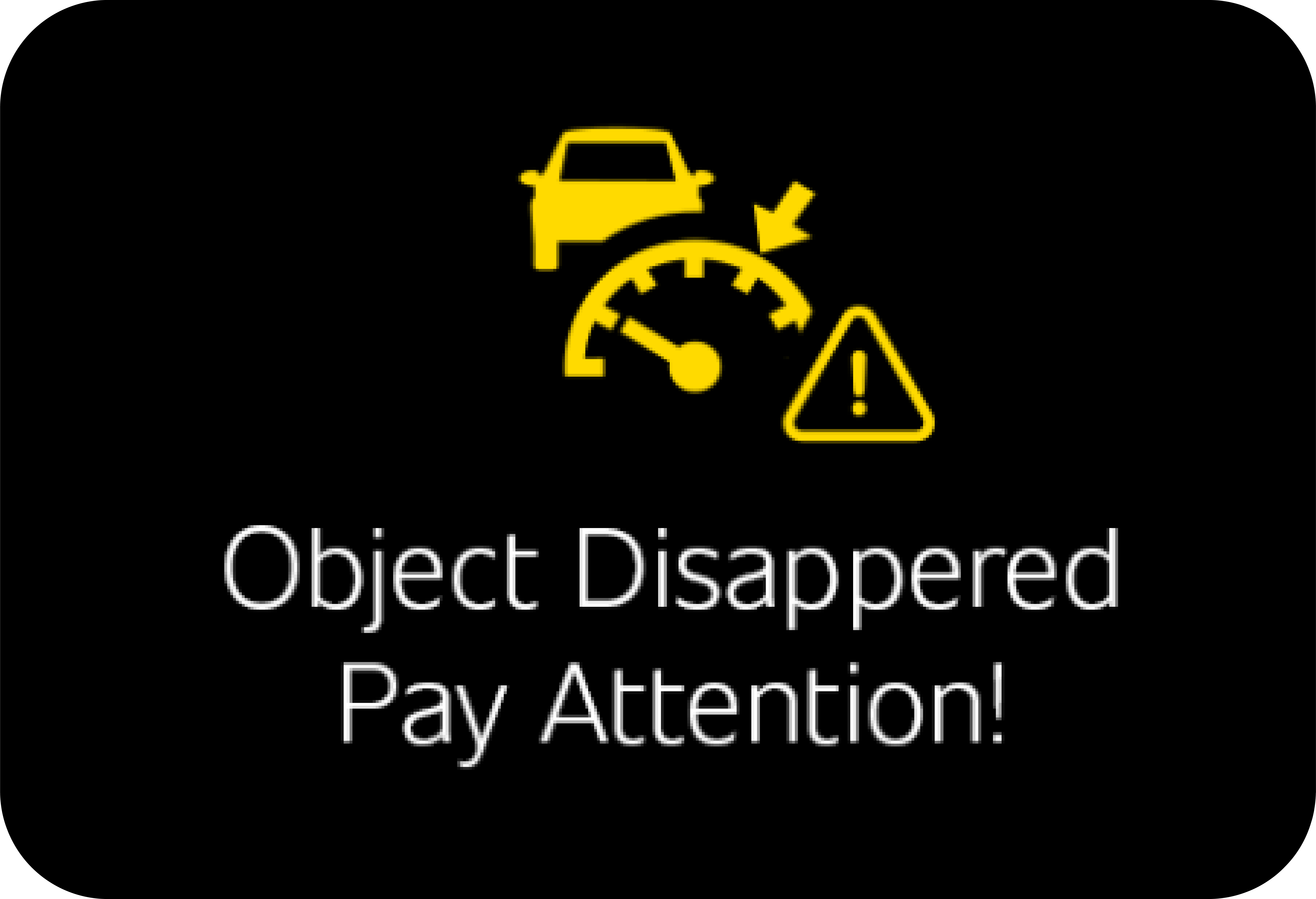

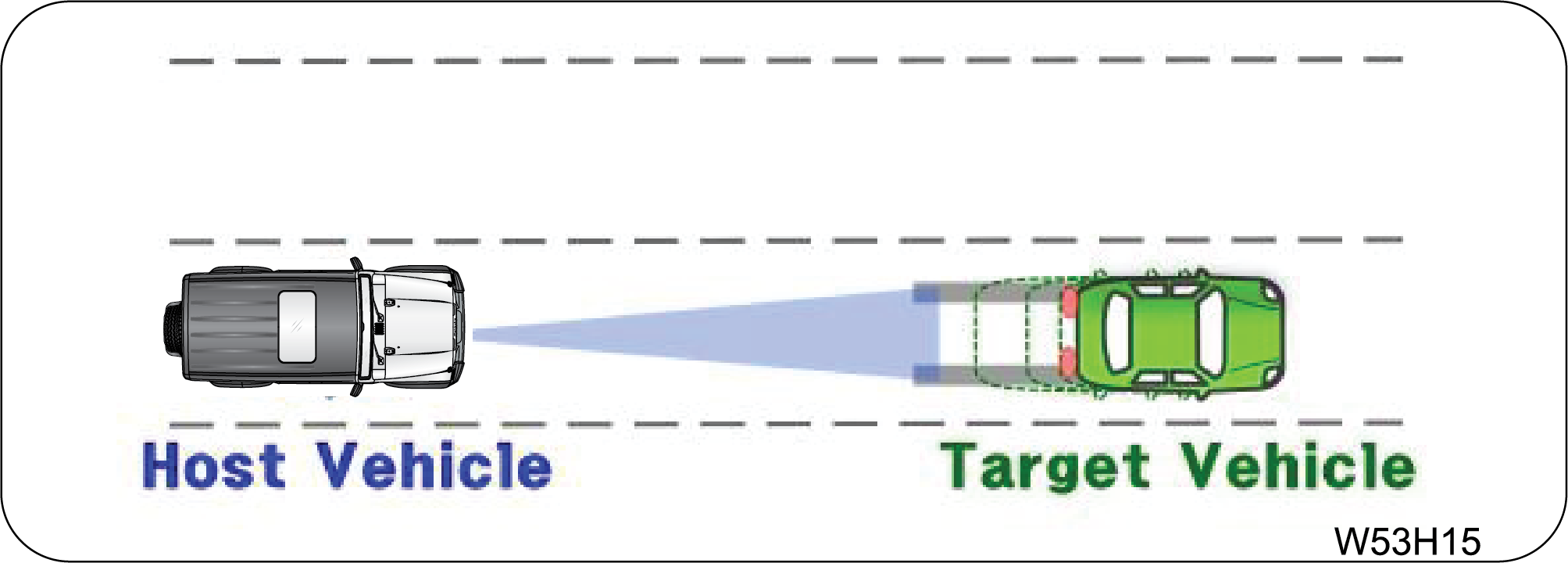

When following the front preceding vehicle, if the front preceding vehicle disappears due to a cut-out maneuver, a pop-up
message will be displayed as “Object Disappeared Pay Attention”
|
• | ACC is overridden hence Set Speed and Distance is not followed |
|
|

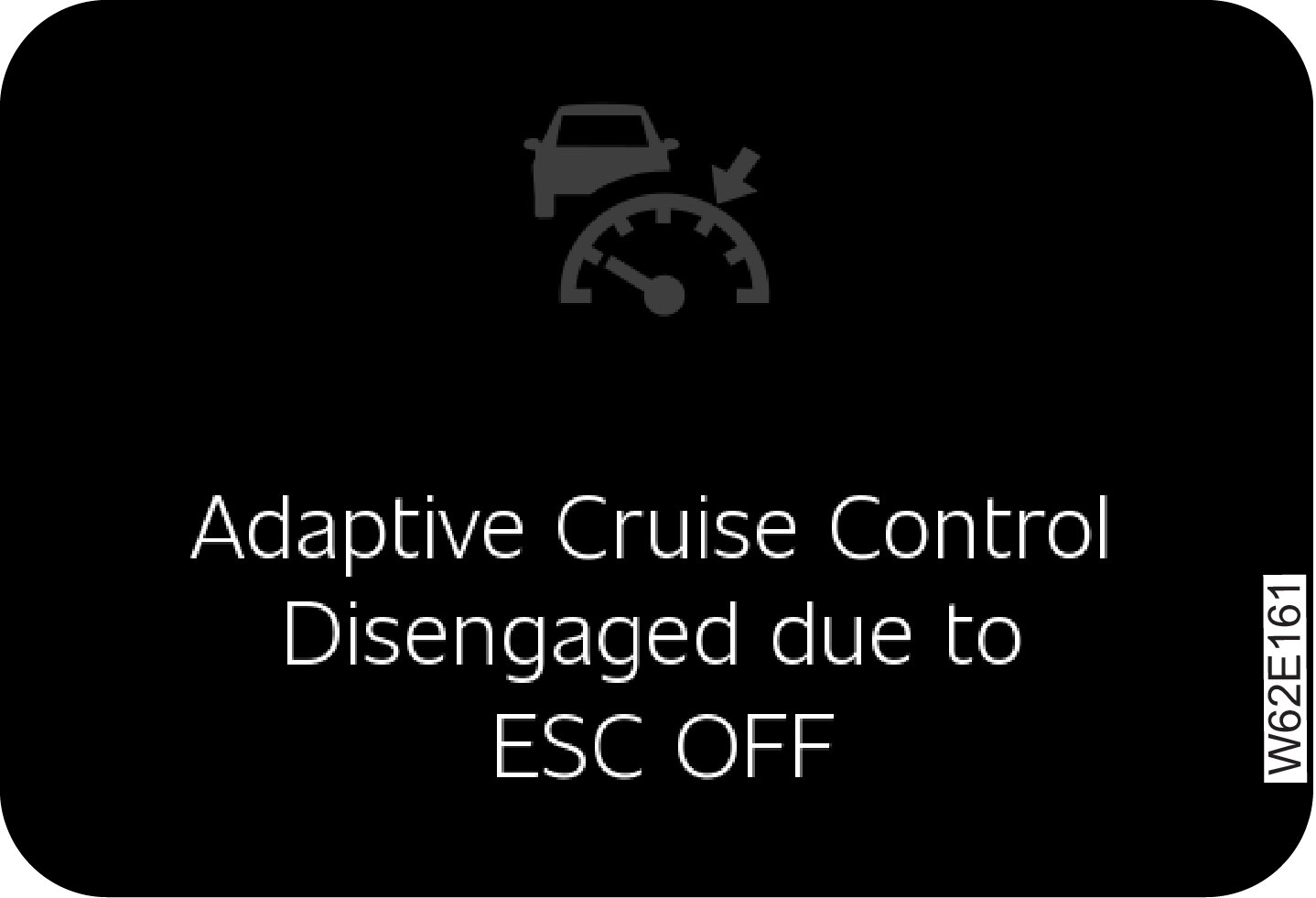

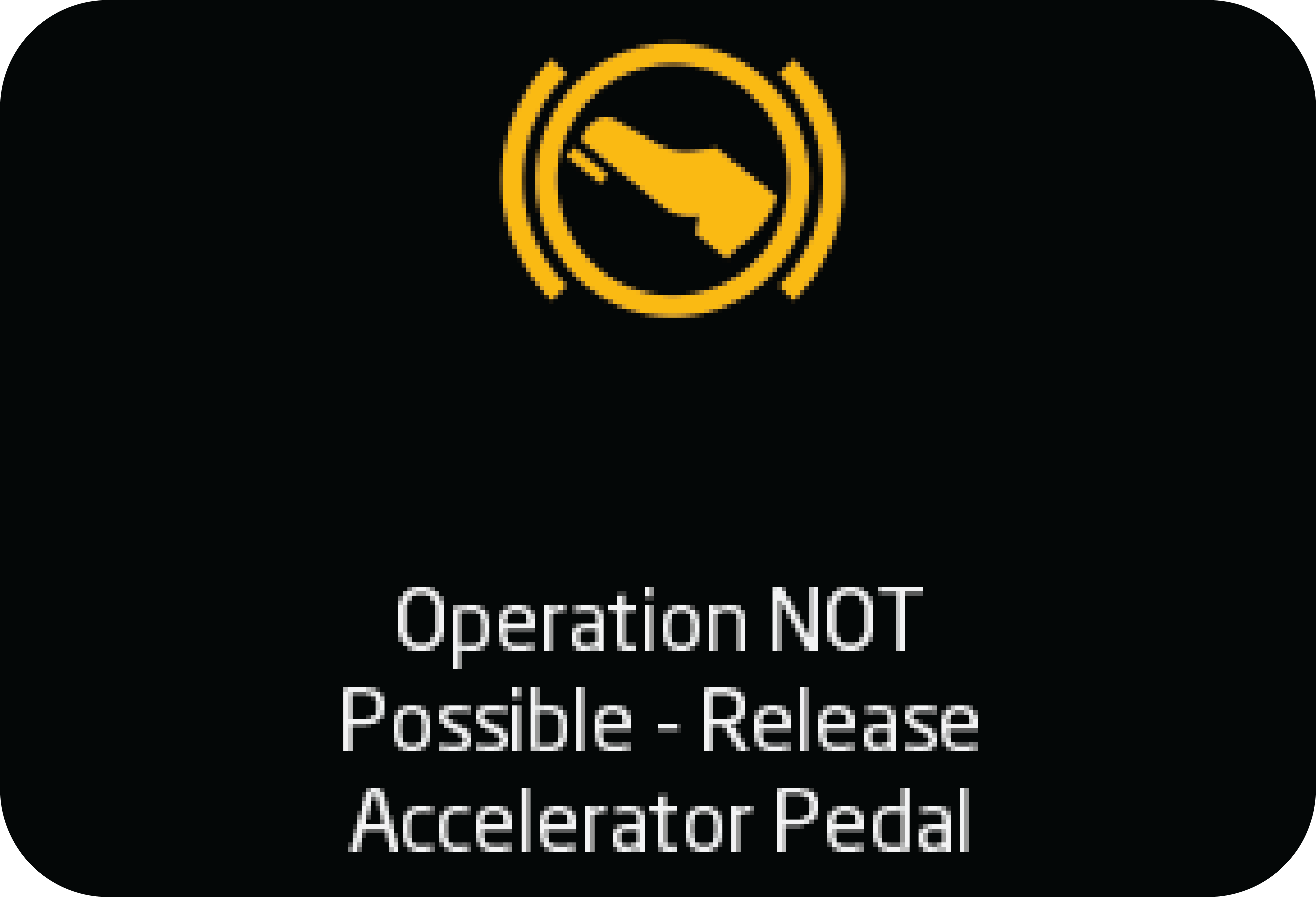

• | Set speed display will blink. |
• | Set distance display will blink. |
• | The front preceding vehicle indicator will turn off when the area ahead of the vehicle is open. |
• | When the shift lever is not in D (Drive) position. |
• | When the parking brake is applied |
• | When Brake pedal is pressed. |
• | When ESP is turned off |
• | When the radar signal is temporarily interrupted. |
• | When radar sensor area of the front bumper covered with dirt or is obstructed. |
• | When accelerator pedal is depressed for more than 60 seconds continuously. |
• | When collision mitigation system is in action. |
• | When ESP operates |
• | When driver door is open |
• | When vehicle speed exceeds maximum ACC operating speed. |
• | When driver seat belt is unbuckled |
• | When the Zoom mode is selected. |
• | The engine speed (rpm) is too high/low. |
• | When ACC is engaged, and your vehicle stopped, and after 3 seconds the front preceding vehicle moves and disappears and when the driver tries to resume ACC without the front preceding vehicle. |
• | When driver tries to resume ACC when front preceding vehicle (moving/stopped) is not in detection range. |
• | When any 4x4 drive mode is engaged |
|
In above scenarios, the driver may be alerted by an audio alert and a message in the instrument cluster that ACC function
is released/disengaged.
|
|
In some situations where ACC braking is not enough to follow the front preceding vehicle, an audio alert along with pop-up

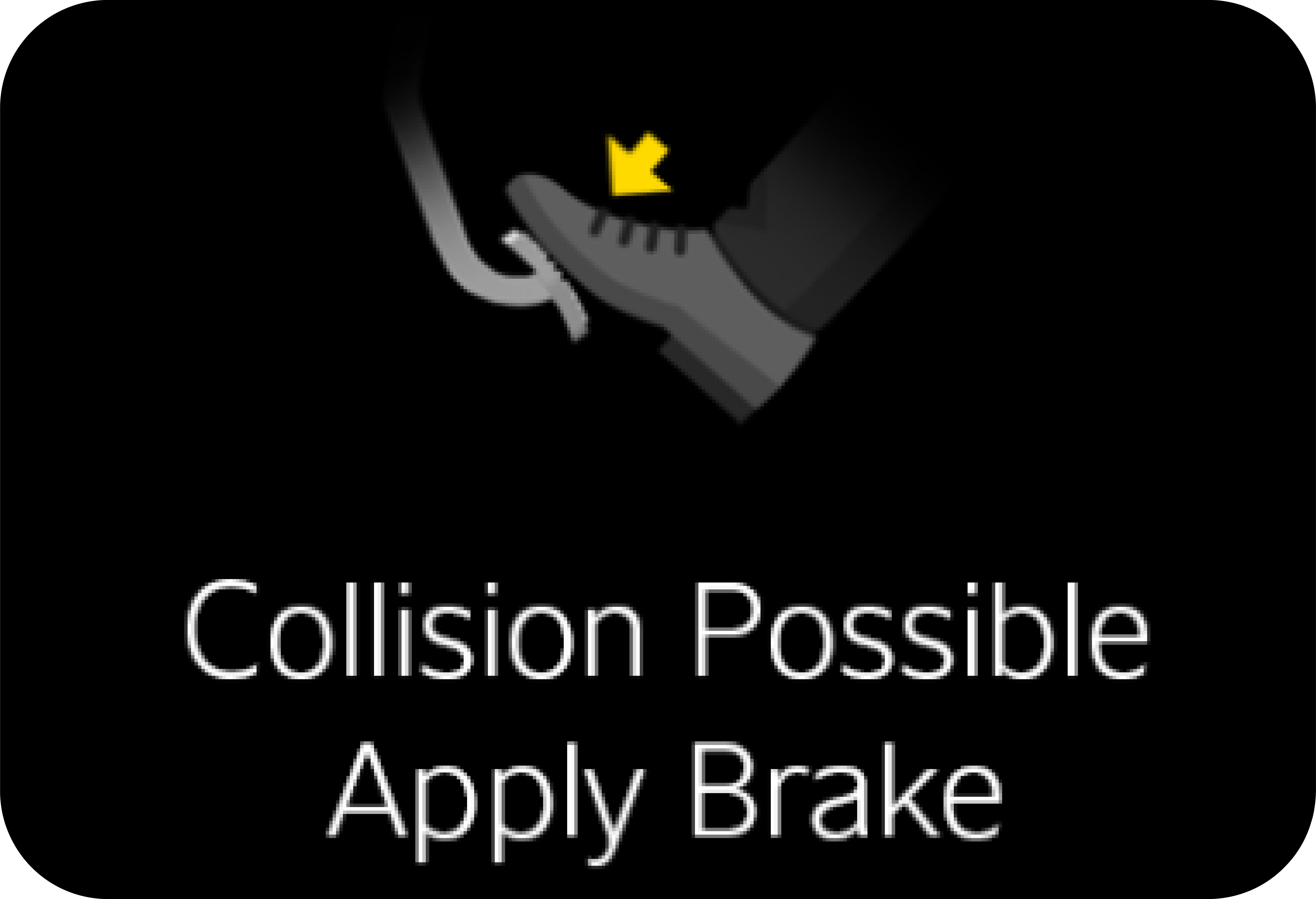

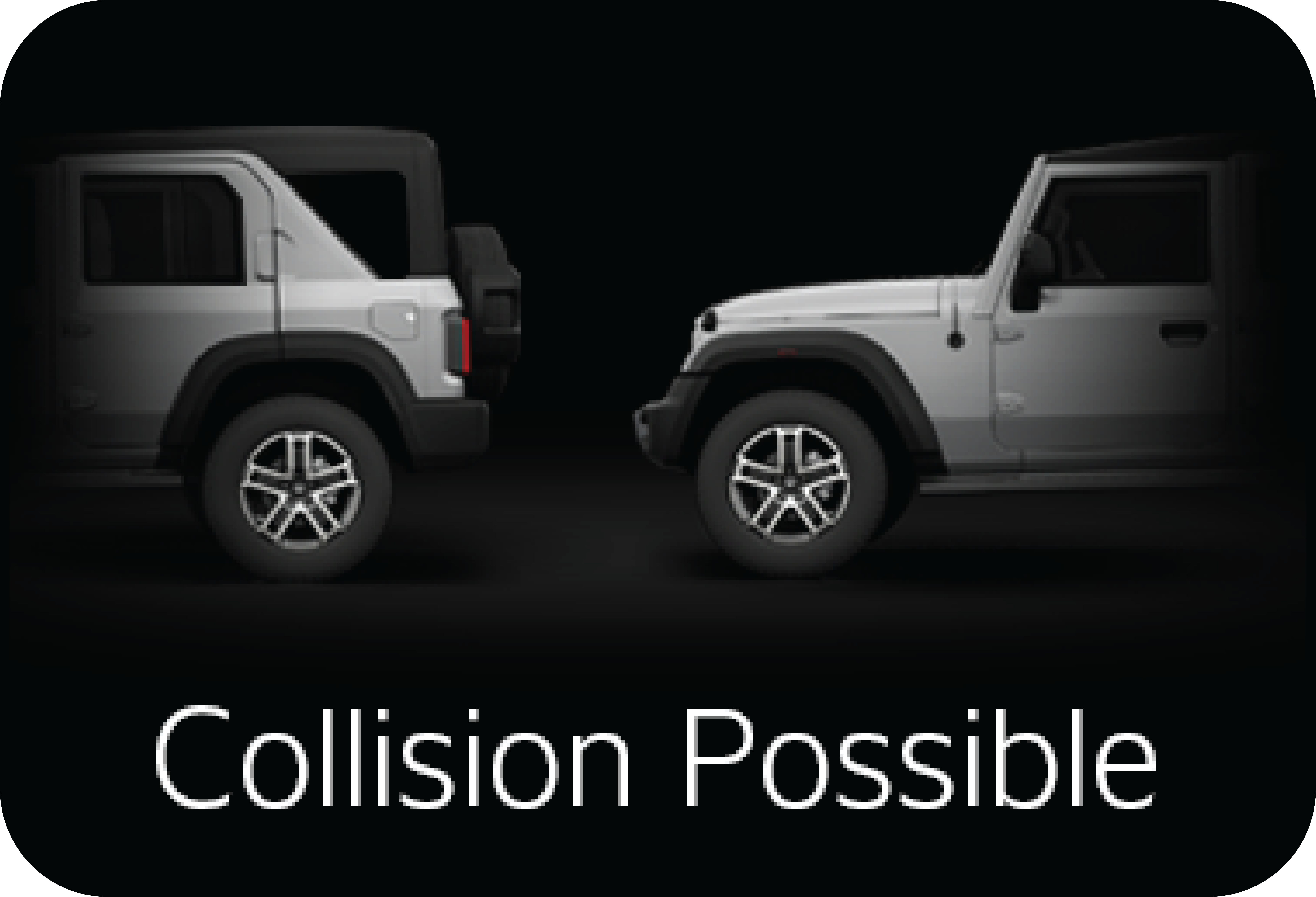

message will be given in the instrument cluster "Collision Possible Apply Brake".
|
The driver has to apply brake to keep a safe distance.
|
|
In case of temporary abnormal conditions, ACC Status telltale will illuminate in Yellow color and ACC function will be disabled
temporarily by showing up a pop-up
|
“Adaptive Cruise Control Disabled due to Radar Limitation”
|
Causes |
Action |
---|---|
The bumper in front of the radar is dirty or covered with snow/ice.
|
Clean/Clear the bumper in front of the radar.
|
Heavy rain or snow is interfering with the radar signals.
|
No action possible. Heavy precipitation may affect the function of the radar.
Do not use ACC during heavy rain or snow.
|
Clogged water or snow from the surface of the road may interface with the radar signals.
|
No action possible. A very wet or snow-covered road surface may affect the function of the radar.
Do not use ACC during these situations.
|
The bumper area in front of the radar is clean but the message remains in the display.
|
Wait a short time. It may take several minutes for the radar to detect that it is no longer obstructed.
|
|
In case of permanent failure, ACC Status telltale will illuminate in red color also and ACC function will be disabled permanently
by showing up a pop-up
|
“Adaptive Cruise Control Disabled Service Required” Contact an Mahindra Authorised Dealer immediately.
In case of collision in front bumper, the radar position may change which results in degraded ACC performance. Visit nearest
service center for radar calibration.
|

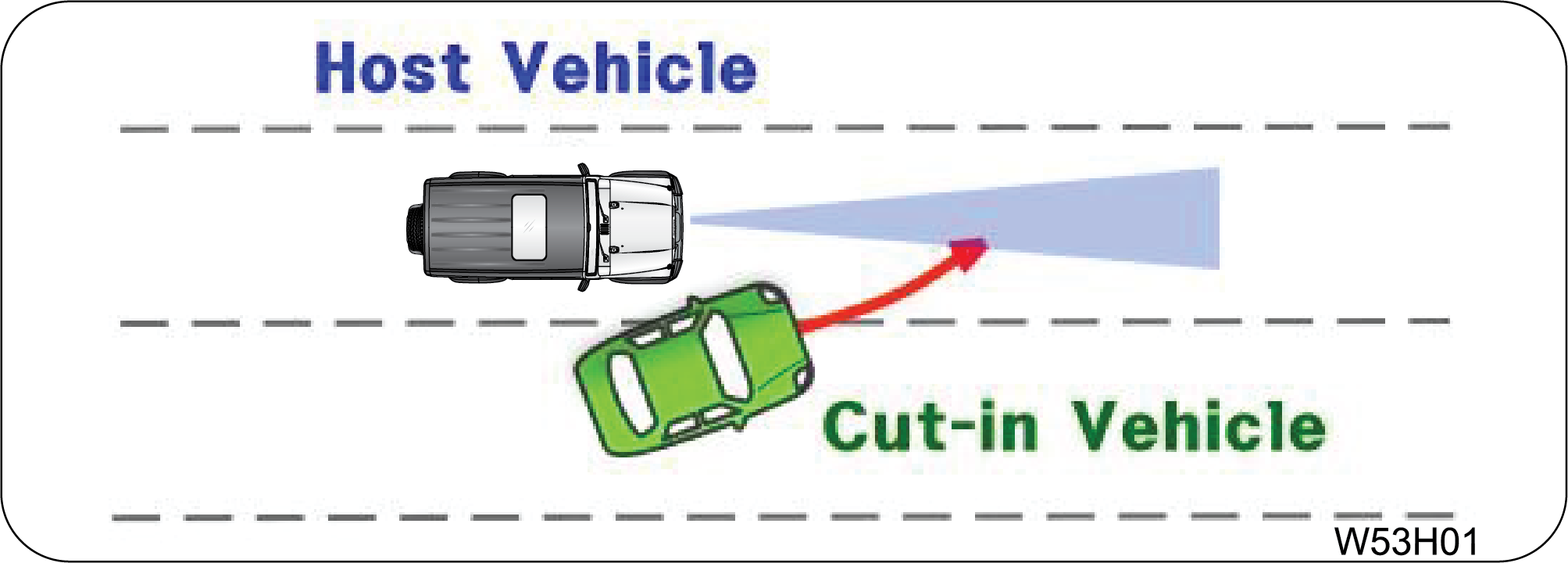

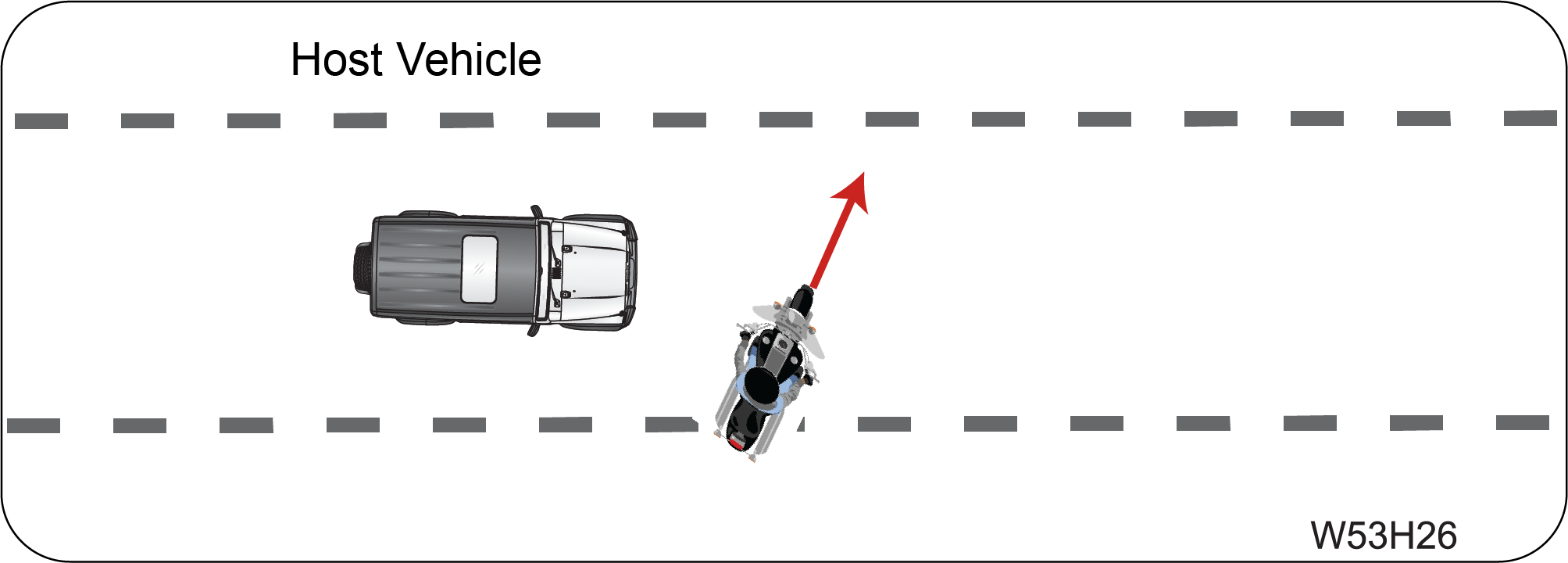

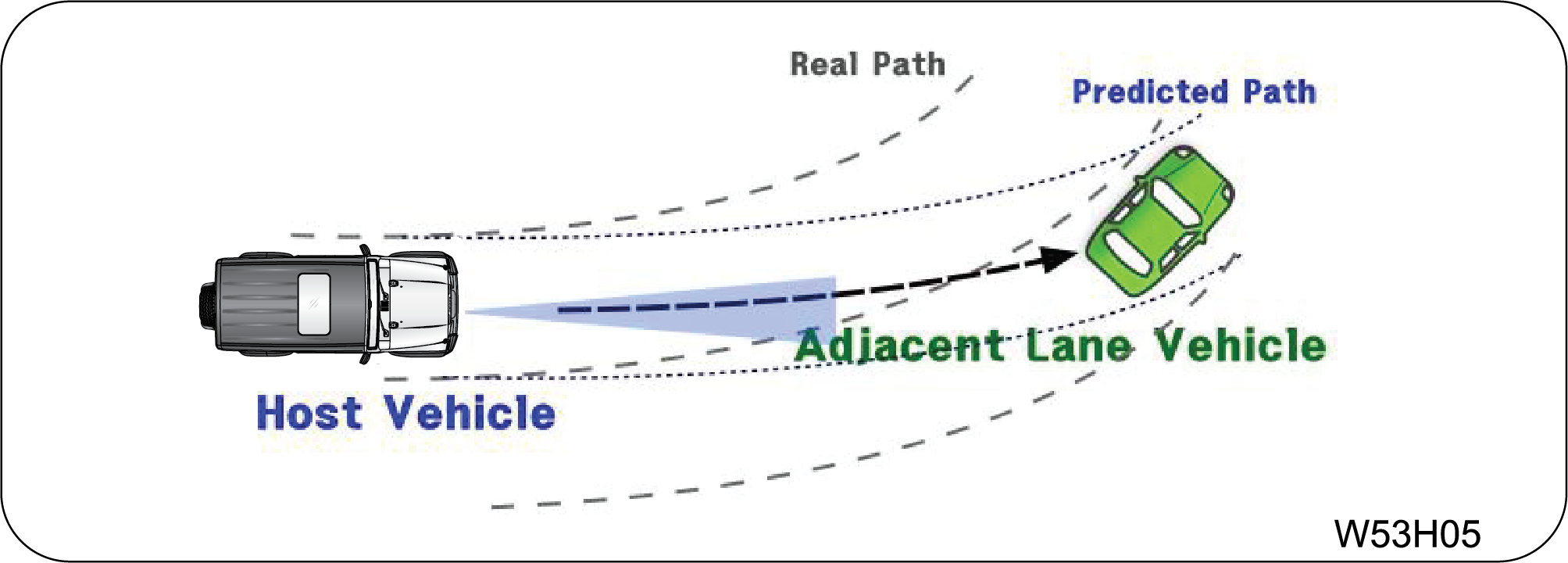

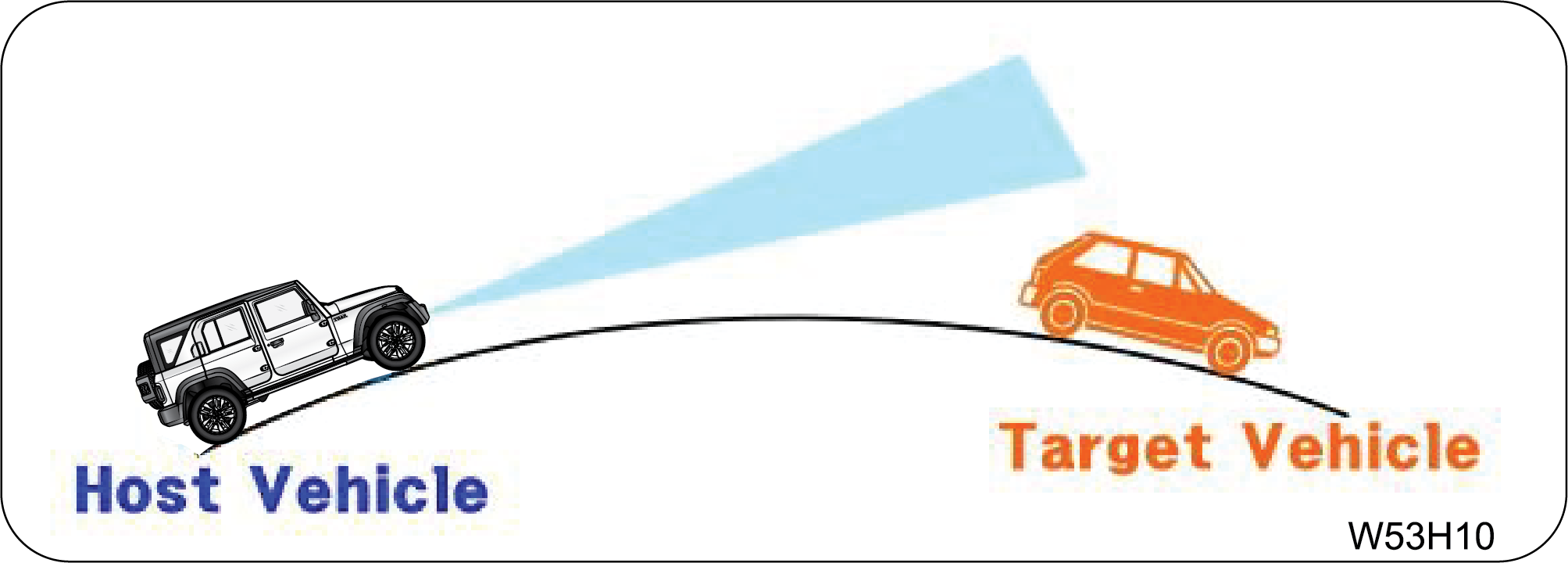

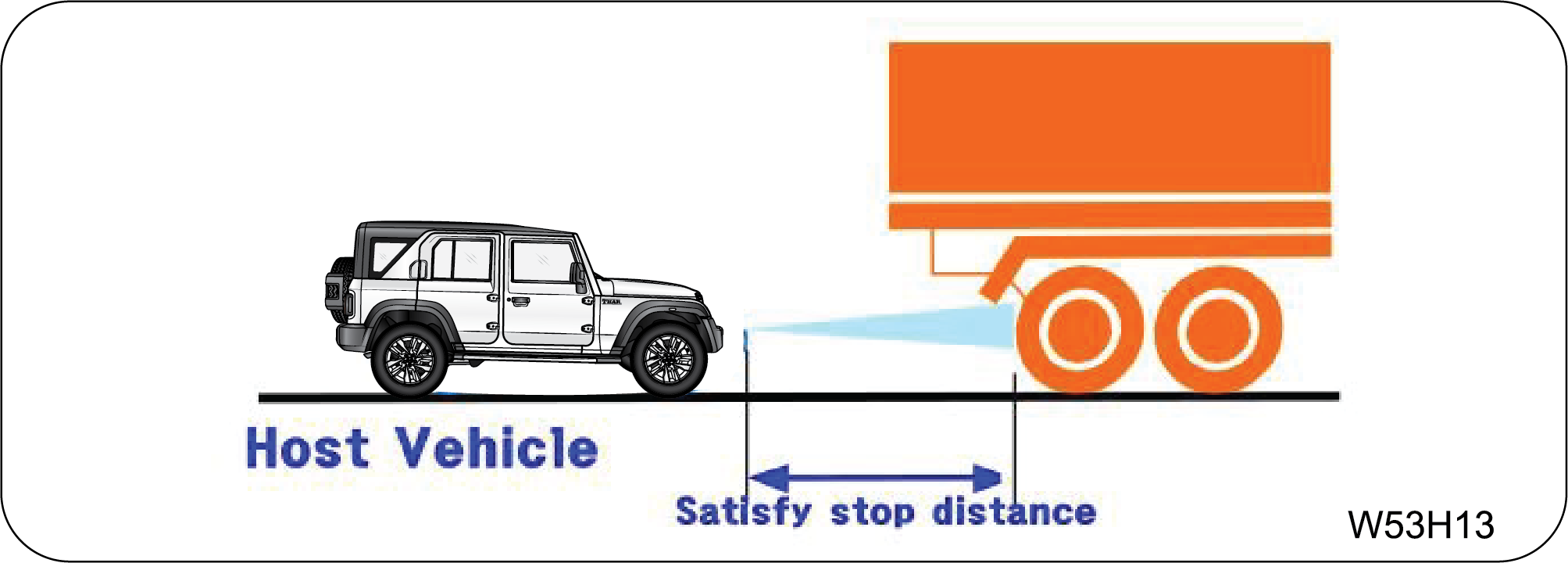

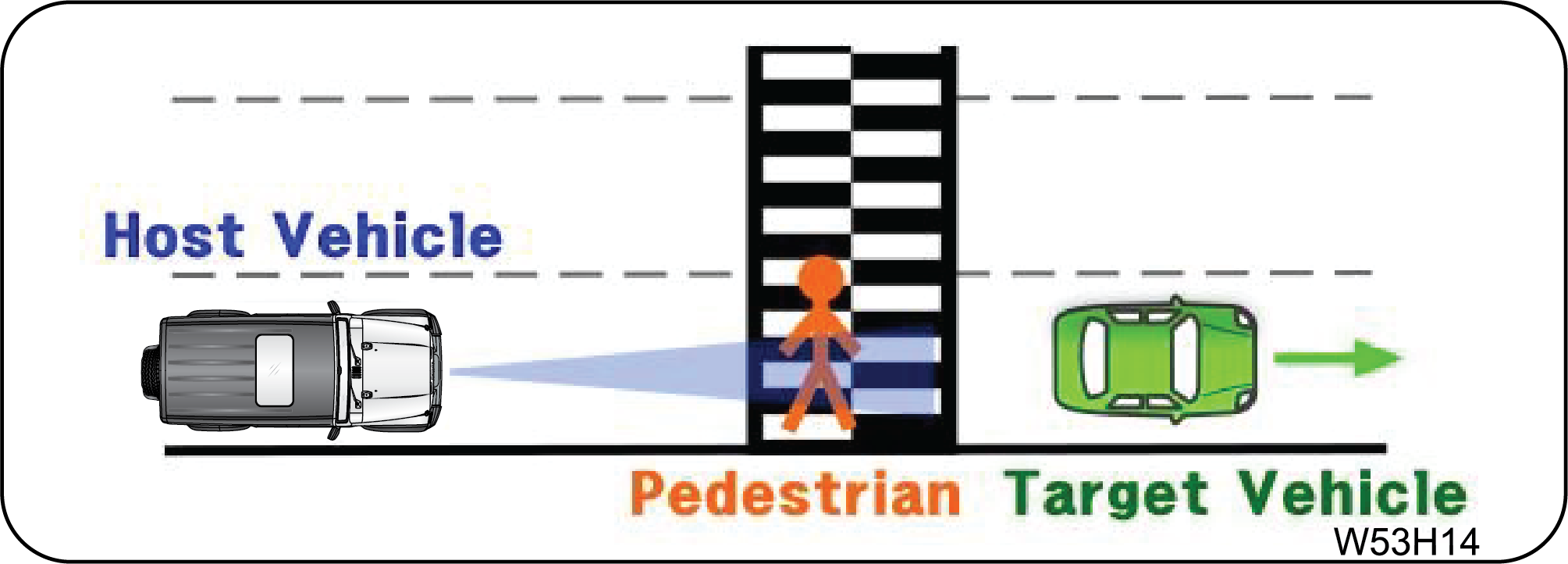

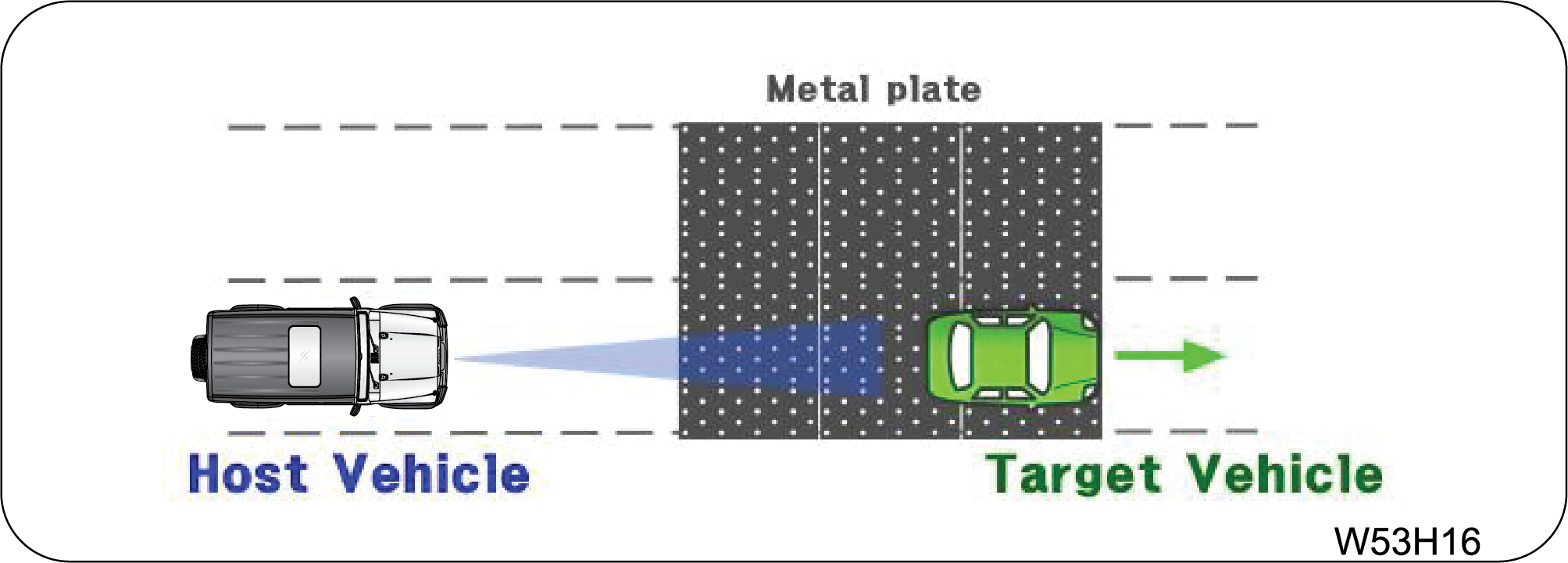

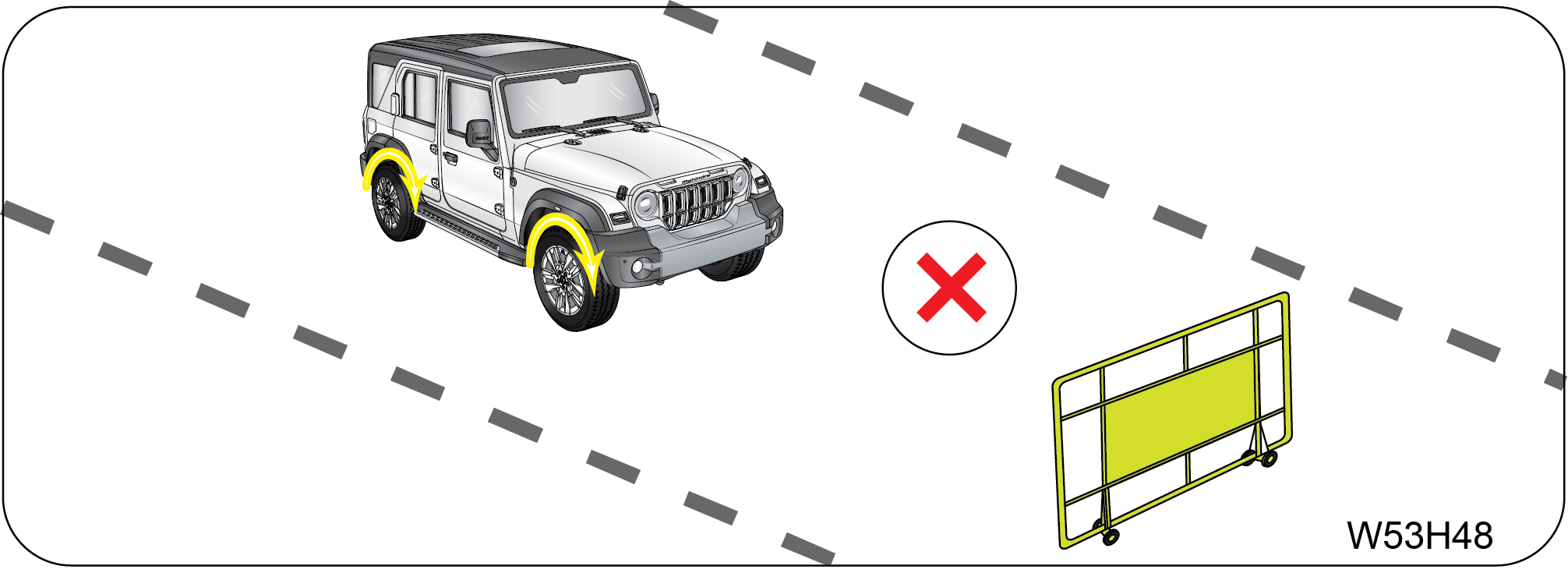

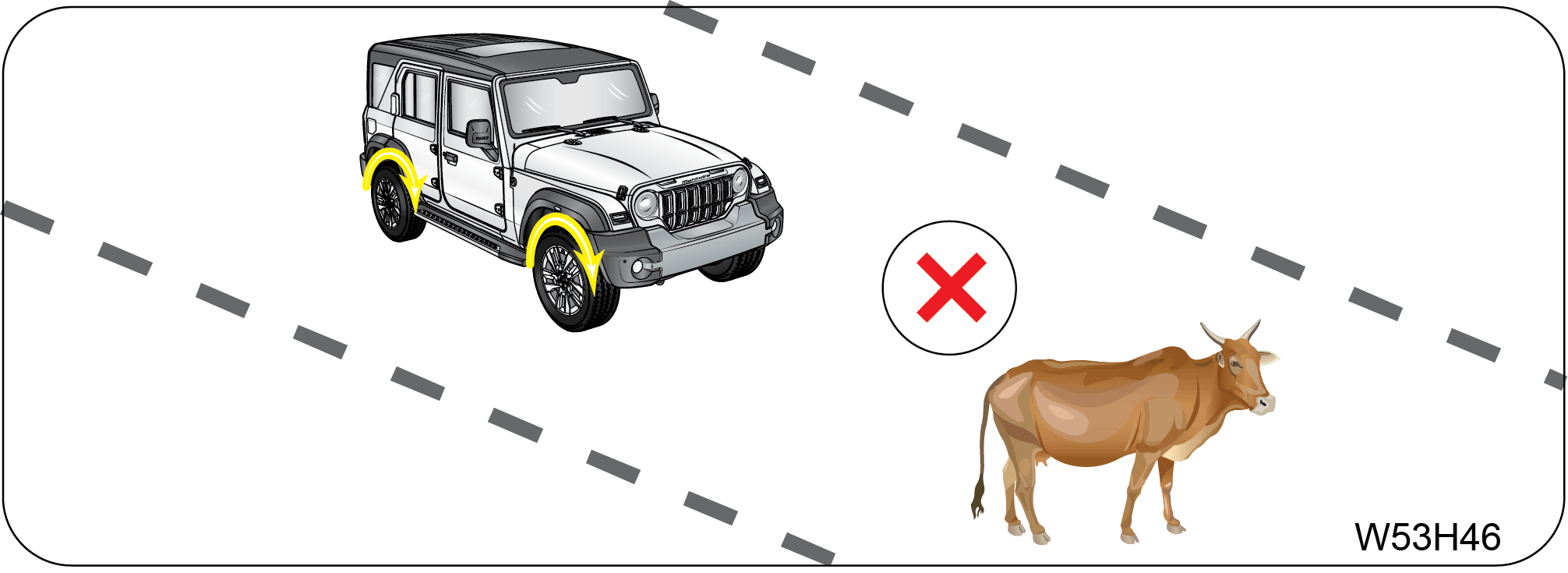

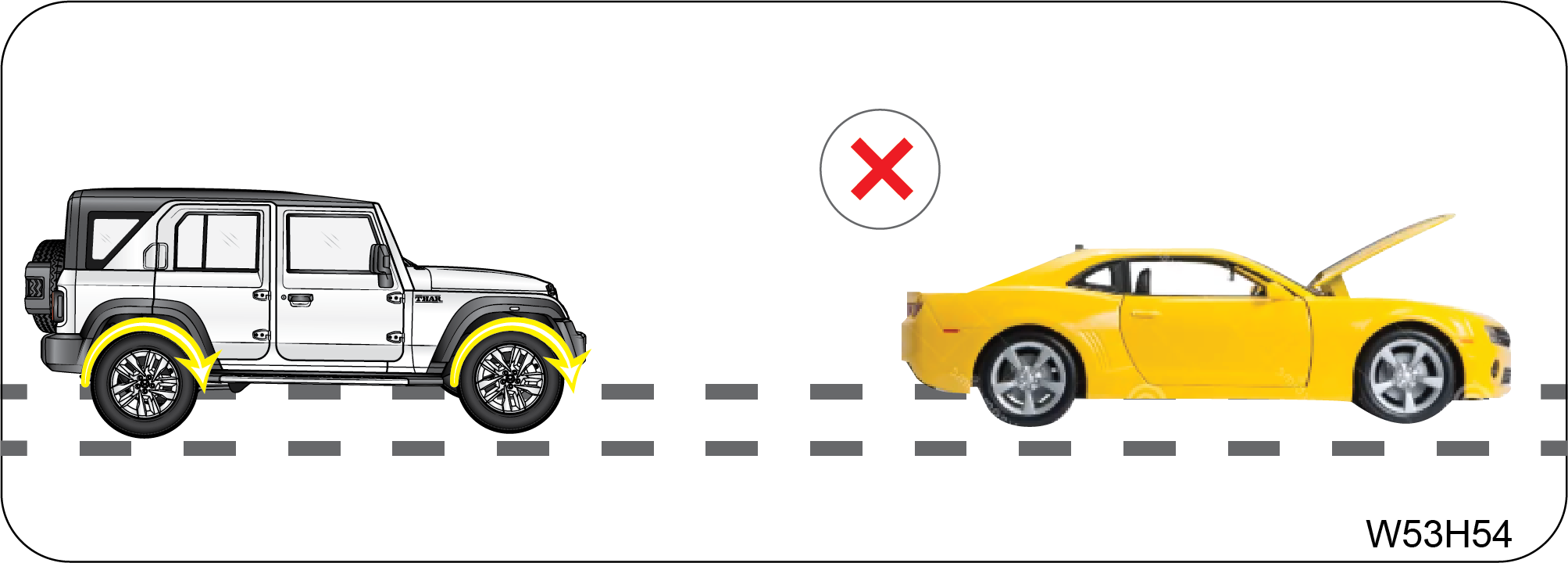

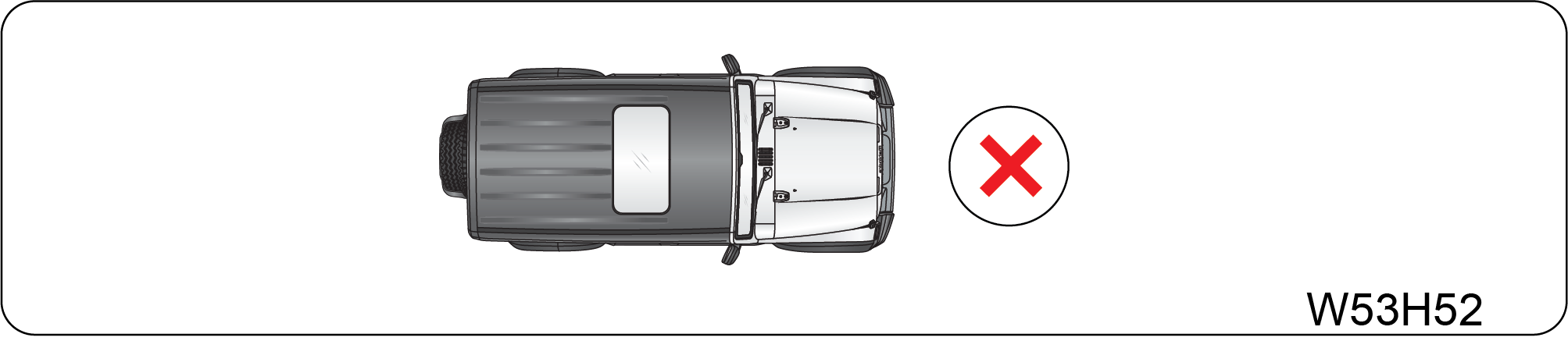

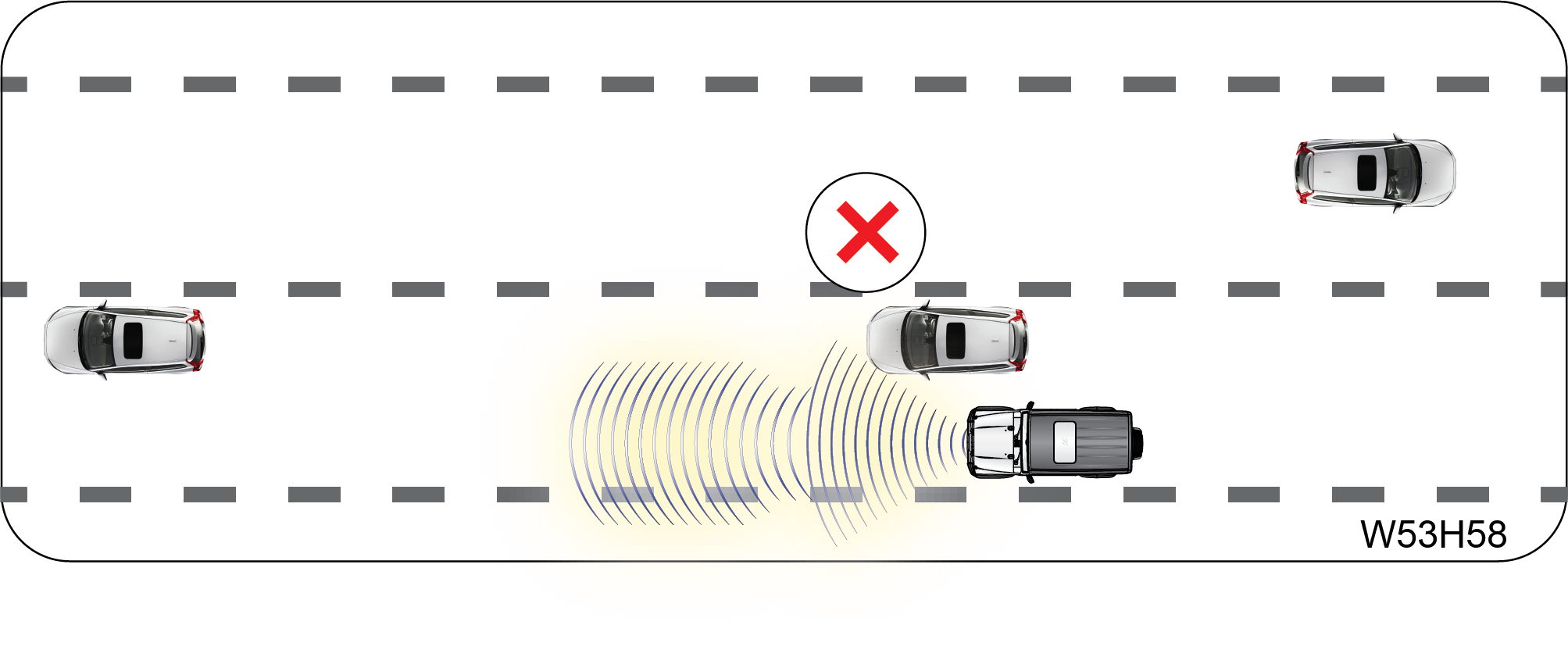

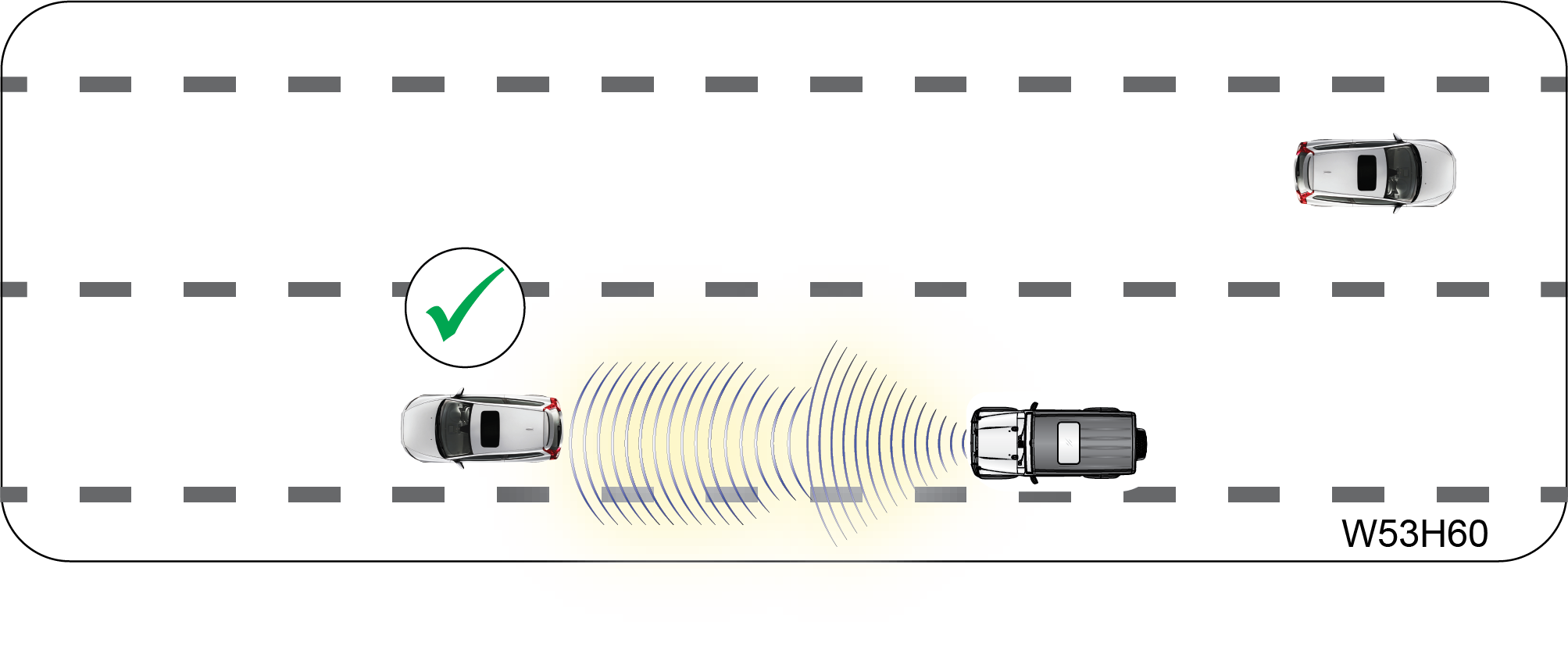

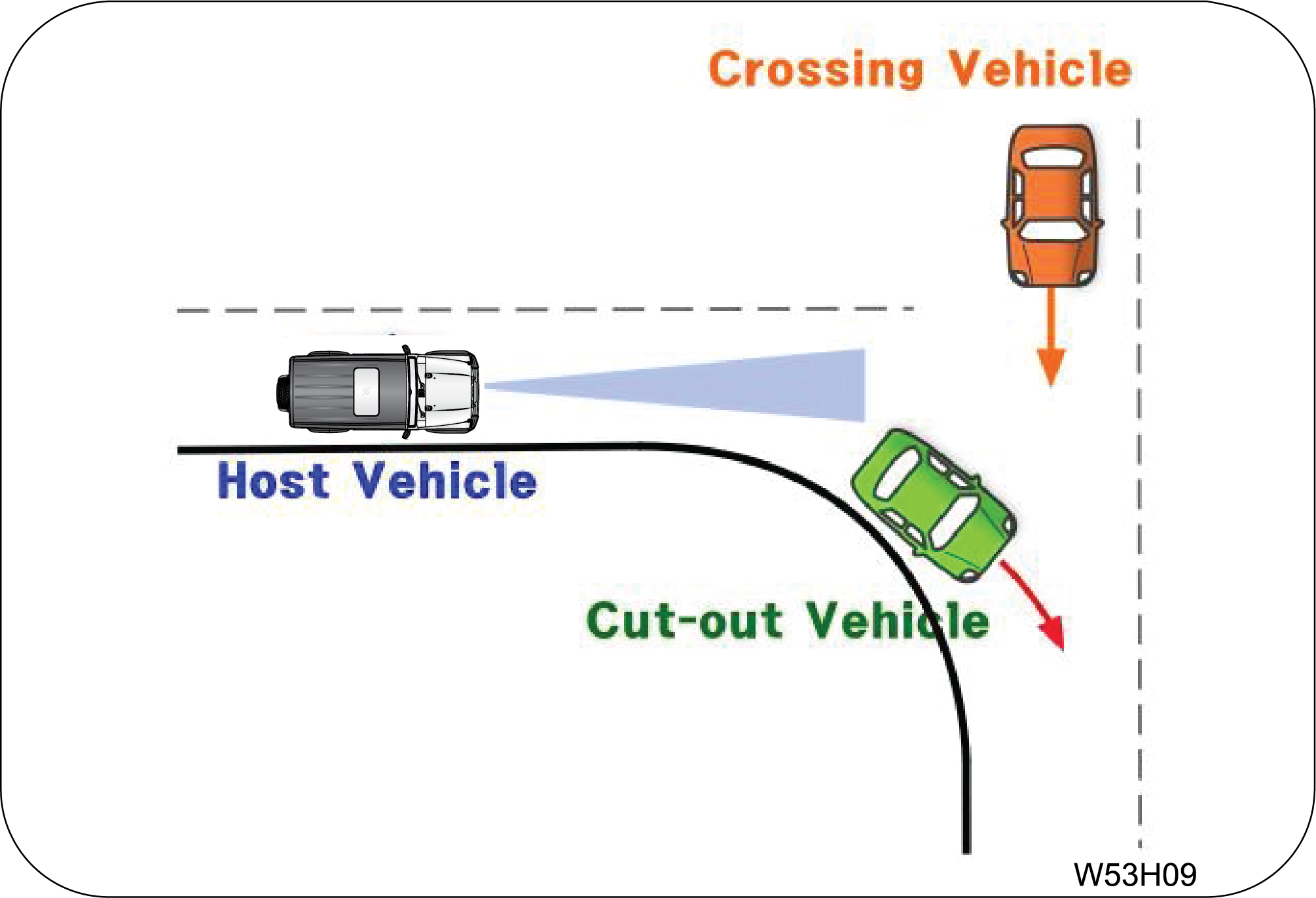

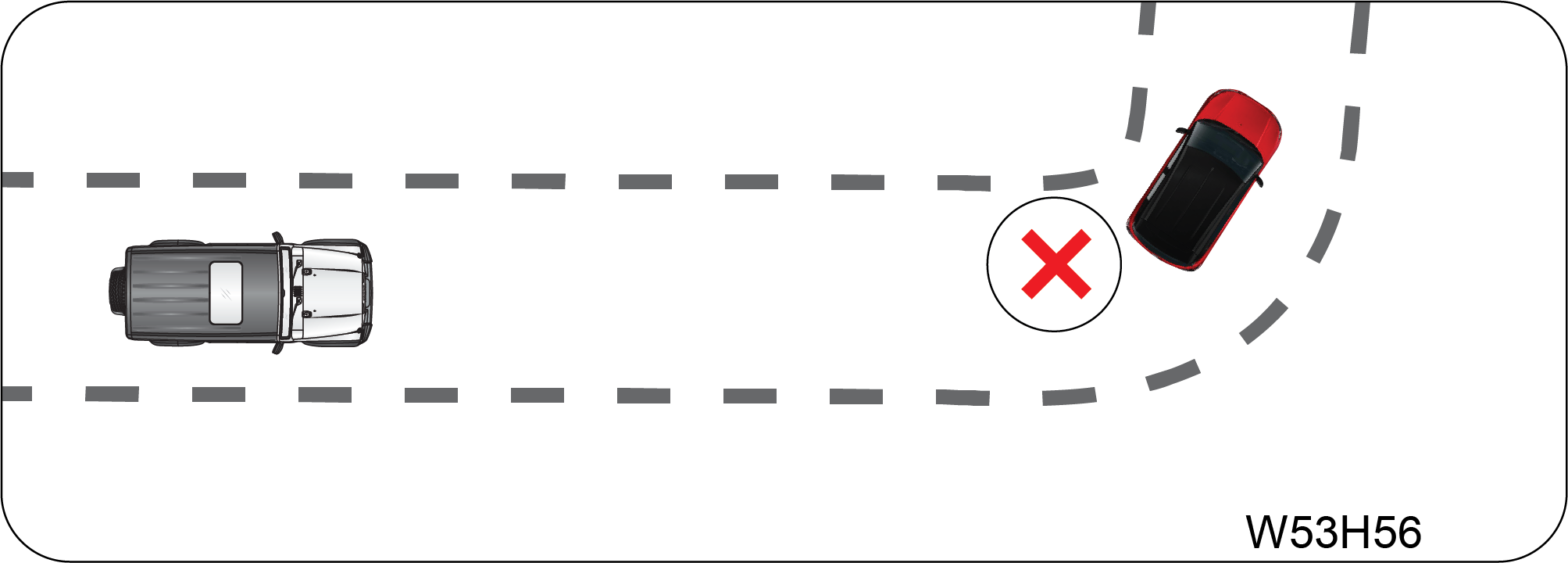

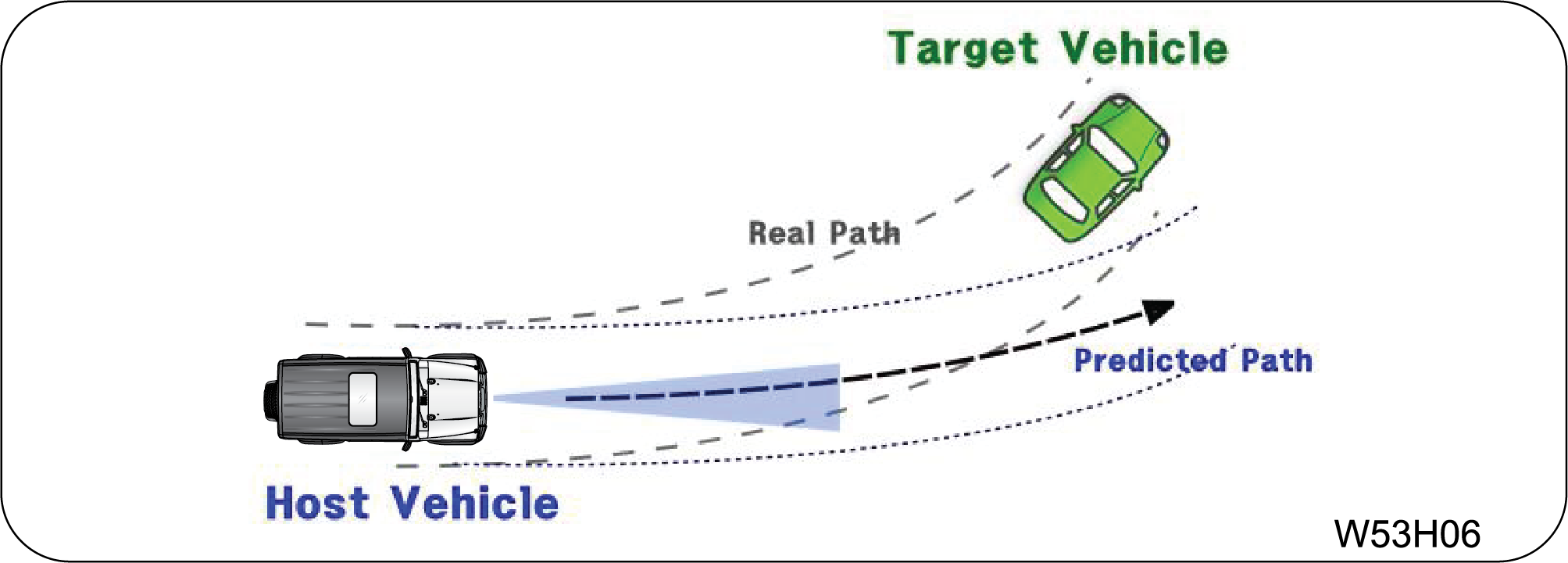

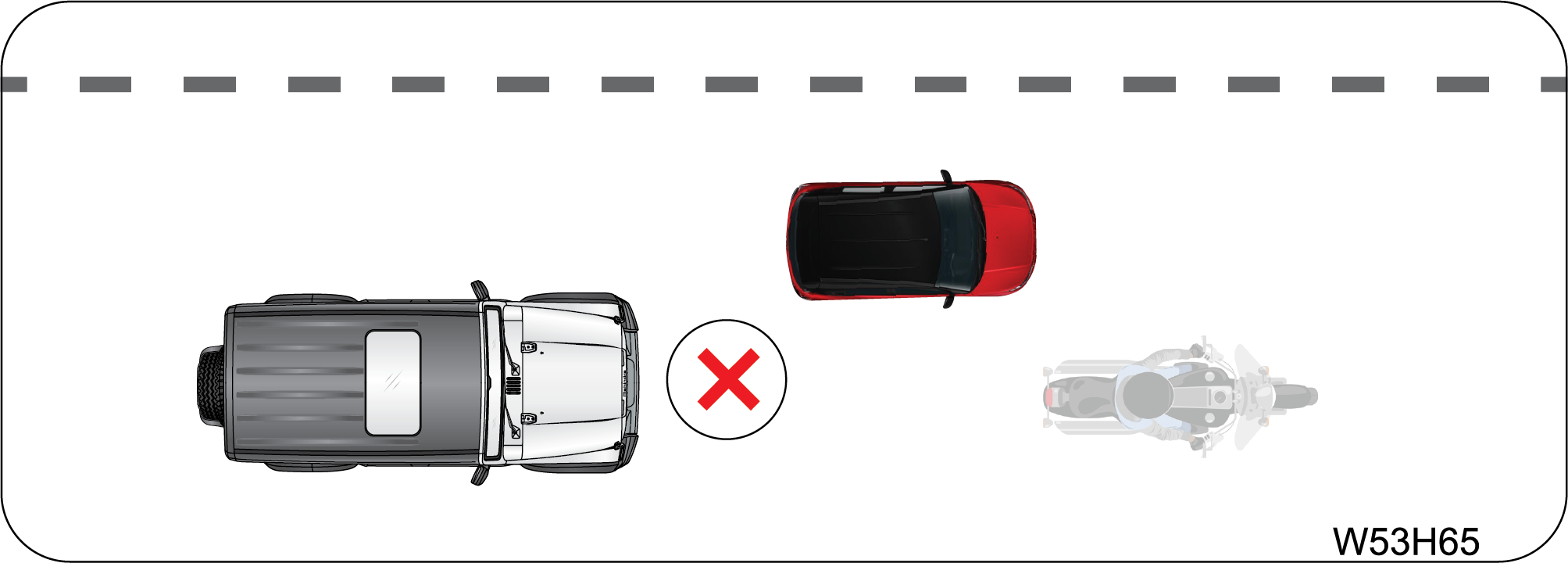

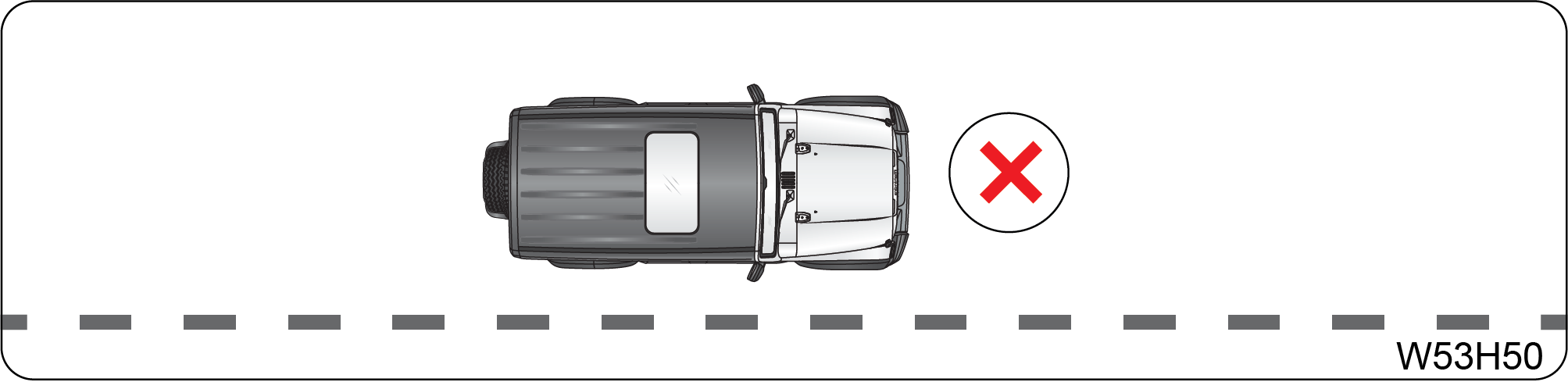

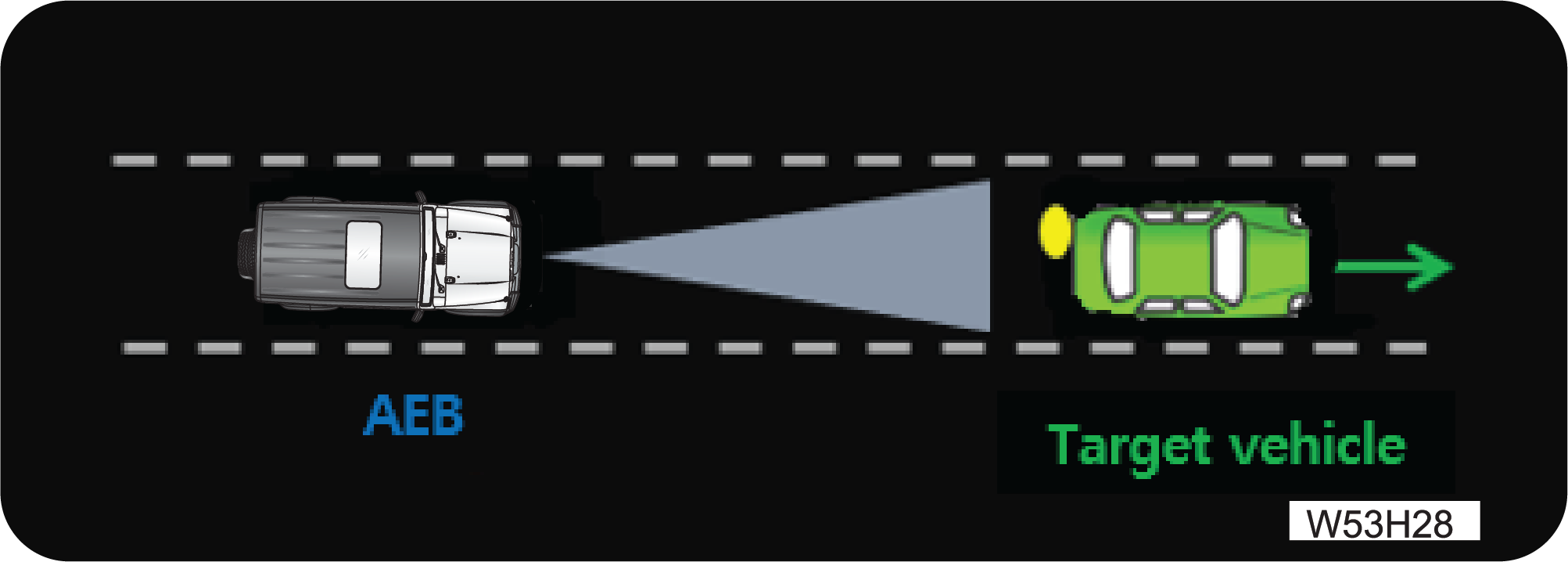

• | Adaptive Cruise Control cannot cover all driving situations and traffic, weather and road conditions. |
• | Adaptive Cruise Control is not a collision avoidance system. The driver is always responsible for applying the brakes if the system does not detect front preceding vehicle. |
• | ACC may not assist in close cut-in scenarios. |
• | Adaptive Cruise Control does not react to people or animals. It also does not react to slow moving, parked or approaching vehicles, or stationary objects. |
• | In case of a hit in bumper / full or partial blockage to RADAR, turn off ACC and get the vehicle serviced as early as possible. |
• | ACC will be disabled when trailer is connected |
• | On roads where the traffic is heavy or there are sharp curves |
• | On slippery road surfaces |
• | During bad weather (rain, fog, snow, etc.) and poor visibility. |
• | When rain, snow or dirt adhere to the bumper around the sensor |
• | On steep downhill roads (the vehicle may go beyond the set speed and in trying to maintain set speed, may result in overheating the brakes) |
• | On repeated uphill and downhill roads |
• | When traffic conditions make it difficult to keep a proper distance between vehicles because of frequent acceleration or deceleration |
• | Interference by other radar sources installed in nearby protected areas like military, airports etc. |
• | Do not use Adaptive Cruise Control in demanding driving conditions, in slippery conditions, when there is a great deal of water or slush on the road, during heavy rain or snow, in poor visibility, on winding roads or on highway on or off ramps. |
• | Close cut-in situation |
• | Situation of stopped vehicles |
• | Curve entry / exit situation |
• | Curves with larger curvature |
• | Poor visibility: In case of poor visibility, Driver must take the control of vehicle |
• | When a preceding vehicle enters an intersection |
• | When the road gradient changes |
• | Sensor cover blockage |
• | Long cargo loading vehicle |
• | Inability to recognize pedestrians |
• | Excessive braking of the preceding vehicle |
• | Detection performance deterioration due to road side structures |
• | False deceleration or no deceleration |
• | ACC does not slowdown for pot-holes and Speed breakers |
• | ACC may not slow down for road curves |
• | ACC may not slow down for barriers/blockades |
• | ACC does not slow down for crossing or merging vehicles at angles more than 30 degree |
• | ACC does not slowdown for oncoming/reversing front vehicles |
• | ACC does not slowdown for animals |
• | ACC may not reliably follow bicycle |
• | ACC cannot react to stationary target |
• | If a very slow moving target cutting in between your THAR and stationary target then there is a chance that ACC system does not pick-up the slow moving target since ACC is not able to discriminate between slow moving target and stationary target. |
• | If a target in front takes a sharp turn and goes out of Field of view, then your THAR can start to accelerate fast. |
• | ACC might not pick-up target at sharp curve |
• | When THAR follows two wheeler and two wheeler overtakes stationary target ahead, THAR may not slow down due to stationary target detection limitation. |
• | ACC cannot follow a motorized two-wheeler if two-wheeler speed is less than around 10kmph. |
• | Do not use ACC with an offset to the target vehicle. |
• | Do not use ACC to follow motorbikes where there is no space for THAR to navigate. |
• | System can detect vehicles, cyclists and pedestrians but not in all situations. System's capacity to assess certain traffic situations is a supplemental aid to the driver and does not function in all driving/traffic situations or weather/road conditions. It can never replace the driver’s attention to traffic conditions or his/her responsibility for operating the vehicle in a safe manner. Refer system limitation section for more information about system limitation. Read the manual carefully in detail before using the system. |
• | Failure to follow the warnings and instructions for proper use of the system could result in serious injury or death. |
• | The Collision Mitigation System is a supplemental aid to the driver . It is not a replacement for the driver. It is driver's responsibility to monitor traffic conditions and drive the vehicle safely. It cannot prevent accidents due to carelessness or dangerous driving techniques. |
• | System does not function in all driving, traffic, weather and road conditions. |
• | System does not detect all kind of vehicles ,bicyclists and pedestrians. |
• | System is designed to intervene as late as possible i.e. in emergency to help avoid unnecessary activation. |
• | Vehicles, Pedestrians or cyclists at an offset may not be detected by FCW/AEB system. |
• | Collision Mitigation System works on prediction of possible collision with the objects in front of vehicle by assuming the objects movements in certain directions. Sometimes the objects movement direction may not match to the prediction and the system may react early and provide warning or perform braking even though the object may not be in the host vehicle path. |
• | Only rear end of the preceding vehicles are identified by the system and warning or braking as needed will be provided by the system. System may not react or providing warning or braking for a crossing or oncoming vehicle. System may not react to a stationary vehicle if the vehicle is stationed in crossing or oncoming pose. |
|

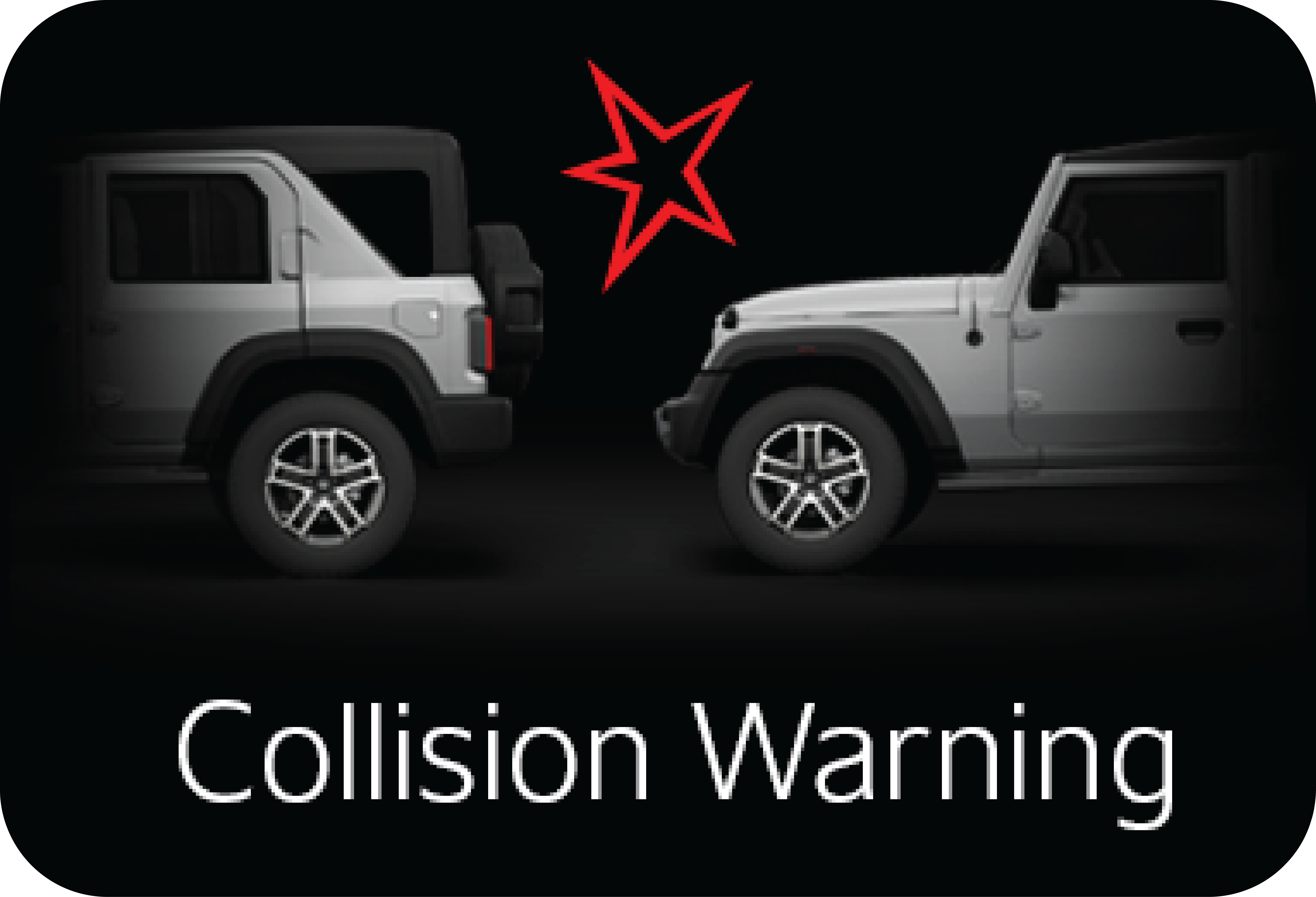

The icon displayed as visual alert may show the object in the front as car even though the system may react for cars, pedestrians
two wheelers and cyclists.
|
|
|
|
|
|

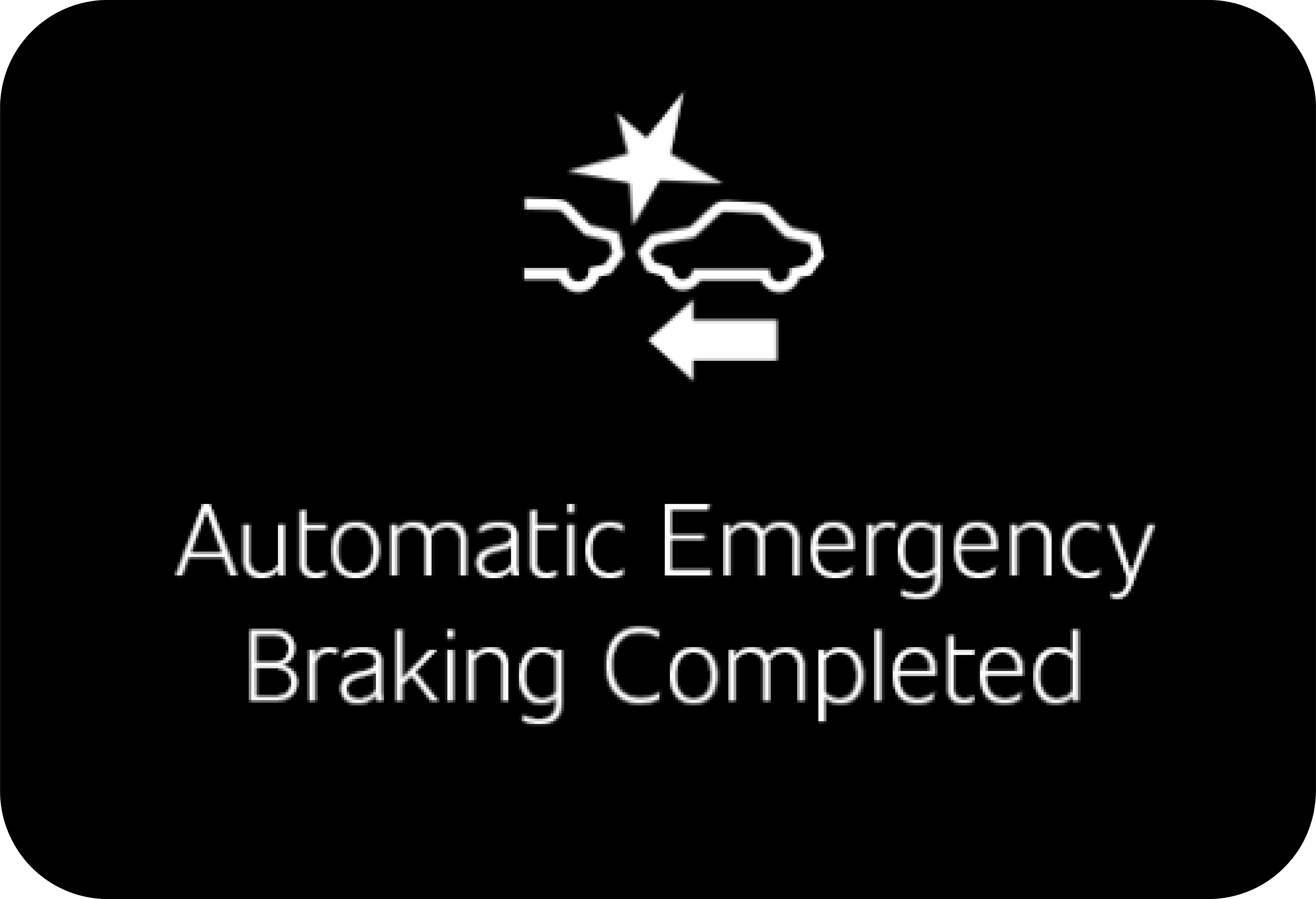

When system has applied the brakes, a pop-up message will be displayed as "Automatic Emergency Braking Completed".
|
• | When steering is applied to avoid a collision |
• | When the accelerator pedal is depressed |
• | When there is no longer a vehicle detected ahead. |
• | When driver presses and releases brake pedal. |
1. | Press the button until “Settings” displays in the instrument cluster display. Use the button to select “Driver Assistance.” Then press the OK button. |
2. | Select “Auto Emergency Braking” and press the OK button.
|
|
|
|
Warning Level settings
The driver can select the level 1 warning activation time in the instrument cluster settings for driver assistance.
|
• | No automatic system can be guaranteed to function 100% correctly in all situations. |
• | Never test Collision Mitigation System by driving toward a person or object. This could result in serious injury or death. |
• | To help make Collision Mitigation System as effective as possible, it is recommended to always use the setting "Early" |
|

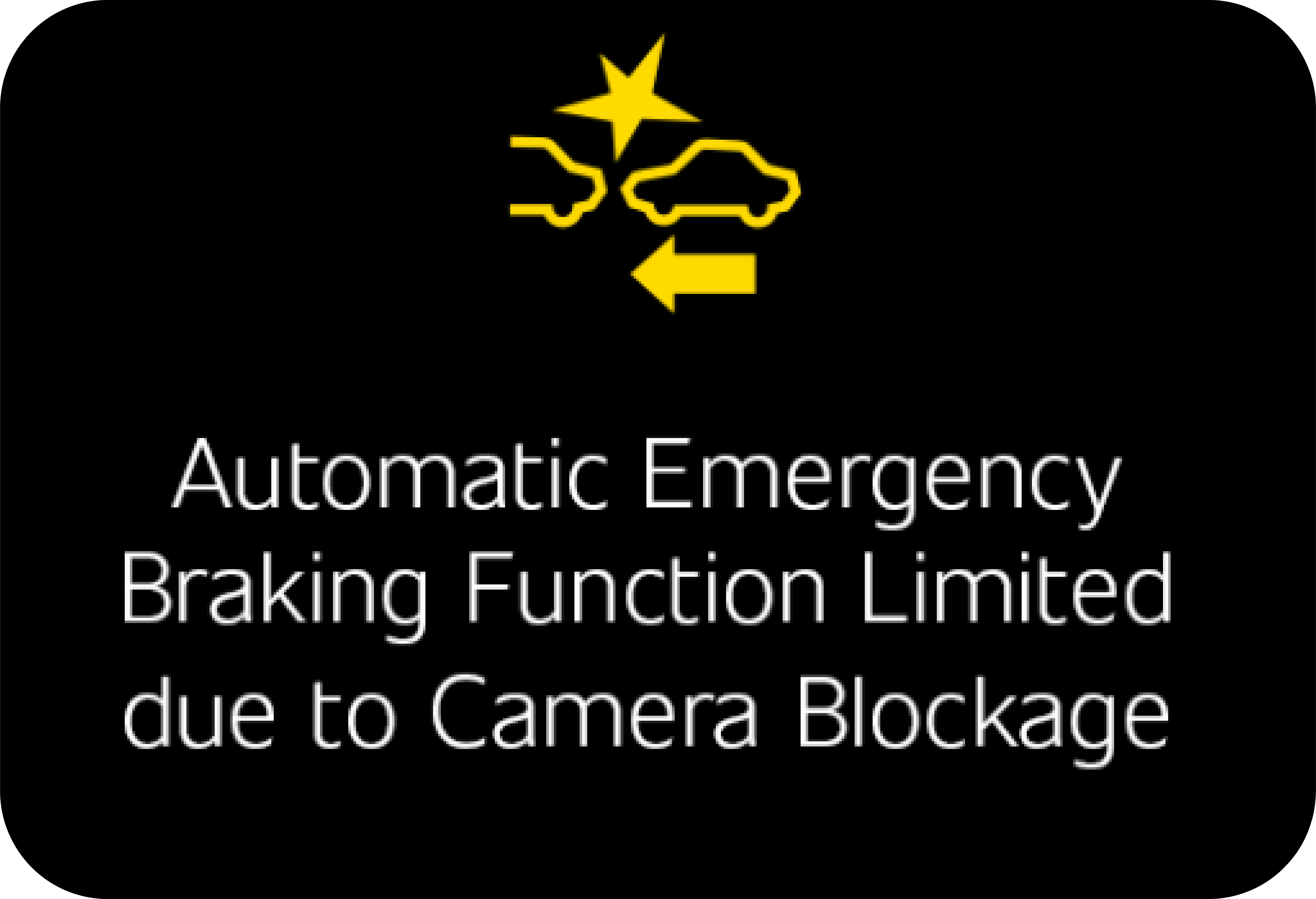

The following table lists possible causes for this message being displayed and suitable actions:
|
Cause |
Action |
---|---|
The area of the windshield in front of the camera sensor is dirty or covered by ice or snow
|
Clean the windshield or remove the ice/snow
|
Thick fog or heavy rain /snow blocks reduce the camera sensor’s range of visibility
|
No action. The driver should be extra alert in condition of this type.
|
There is dirt between the inside of the windshield and the camera sensor.
|
Have the area of the windshield cleaned by Mahindra Authorised service.
|
• | If the warning lamp continues to illuminate after above action and engine restart, have the system checked. It is recommended that you visit a Mahindra dealer for this service. |
|

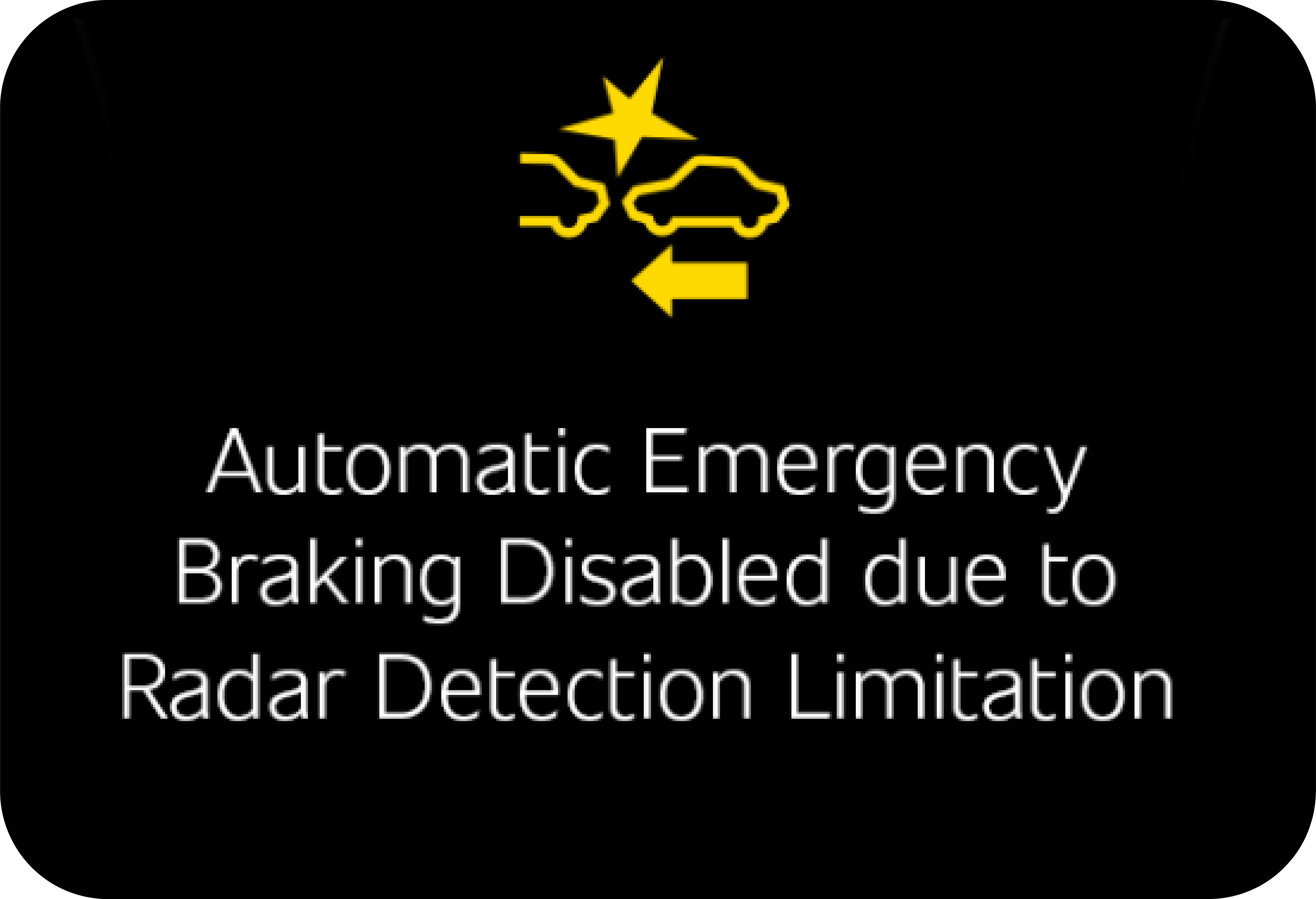

The following table lists possible causes for this message being displayed and suitable actions:
|
Cause |
Action |
The bumper in front of the radar is dirty or covered with snow/ice
|
Clean/clear the bumper in front of the radar.
|
Heavy rain or snow is interfering with the radar signals.
|
No action possible. Heavy precipitation may affect the function of the radar.
|
Swirling water or snow from the surface of the road may interface with the radar signals.
|
No action possible. A very wet or snow-covered road surface may affect the function of the radar.
|
The windshield in front of the radar is clean but the message remains in the display.
|
Wait a short time. It may take several minutes for the radar to detect that it is no longer obstructed.
|
|

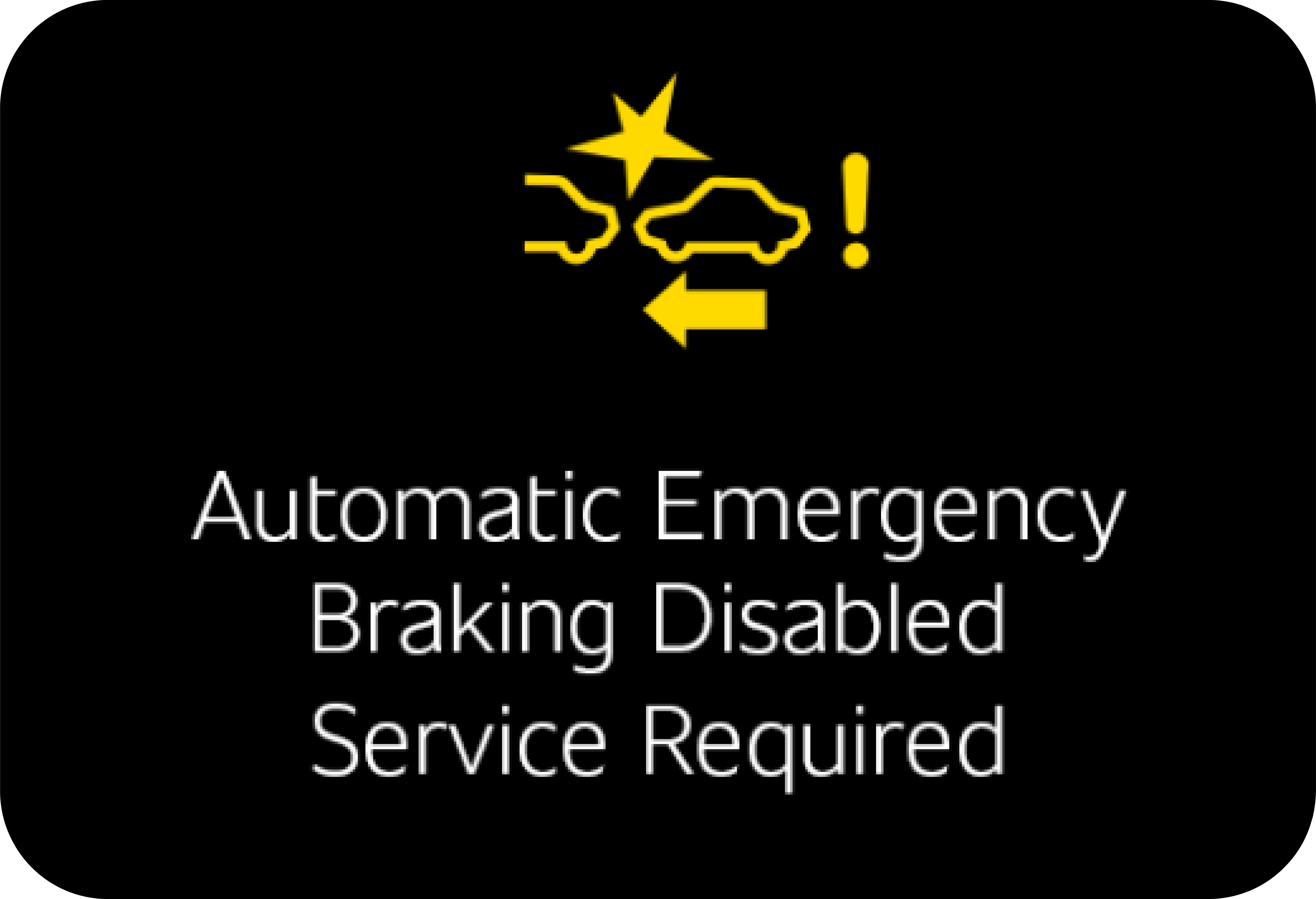

A pop up message will appear in instrument cluster that "Automatic Emergency Braking Disabled: Service required". Contact
an Mahindra Authorised Dealer immediately.
|

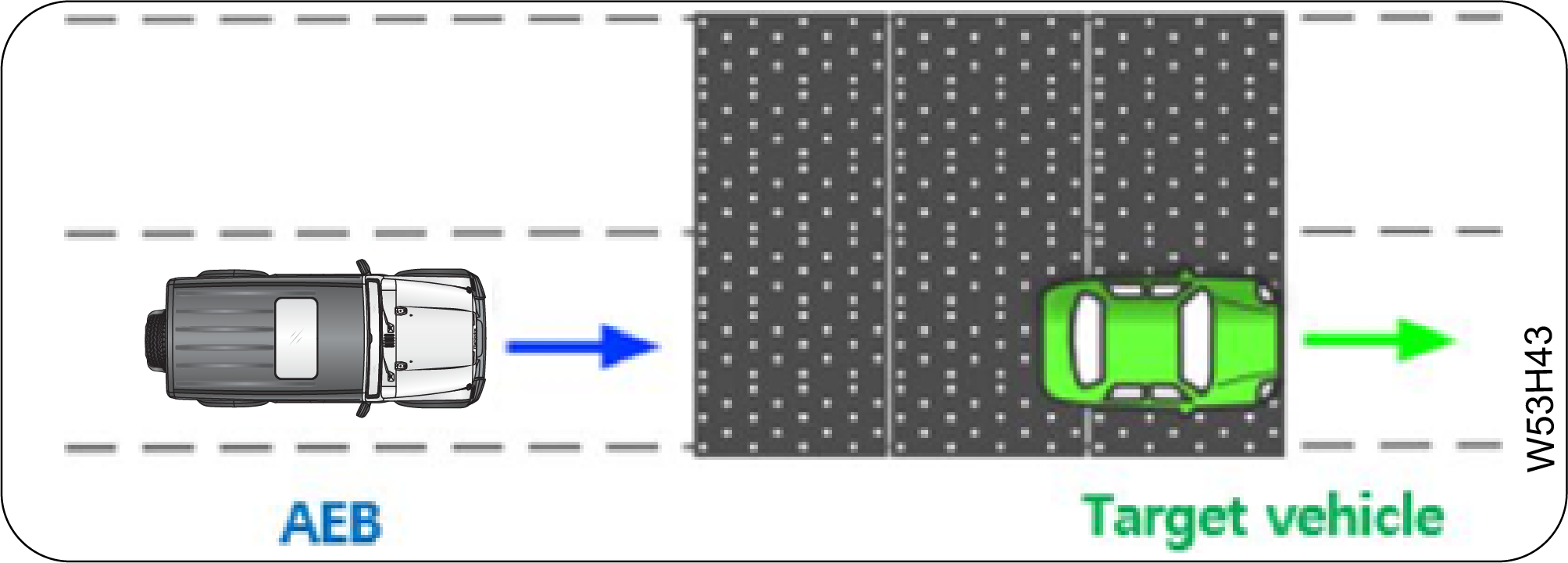

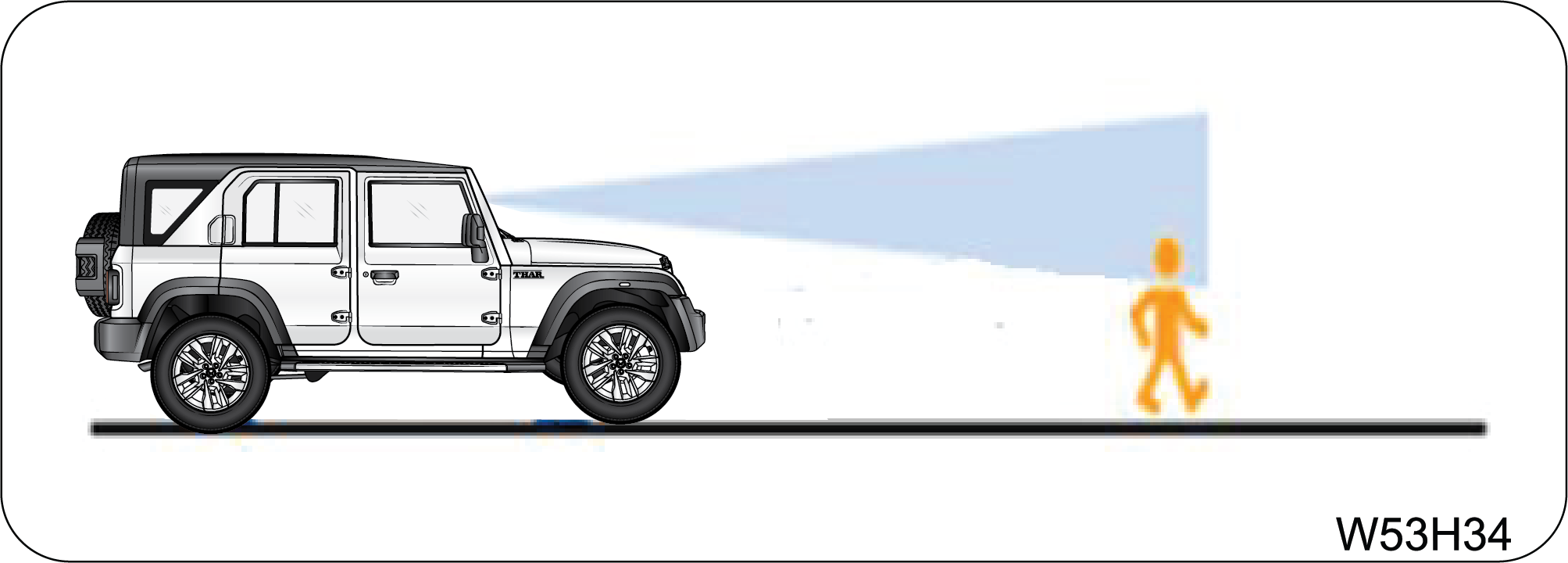

• | Collision mitigation system cannot detect all vehicles, cyclists or pedestrians under all conditions. |
• | System can not detect the following objects:
|
• | If the pedestrians has limited contrast to their immediate background, warning or braking may be delayed or not come at all. |
• | System may not react for fast moving pedestrians. |
• | System cannot detect all cyclists in all situations, such as:
|

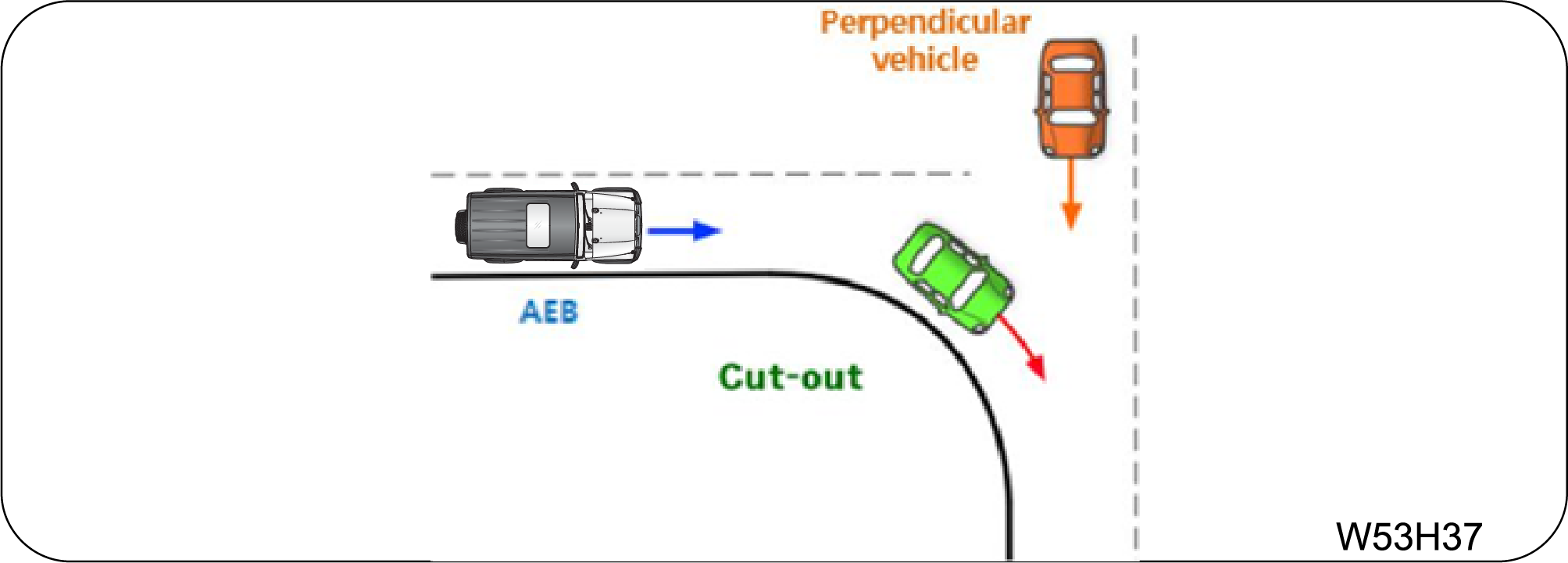

• | System may not function in junction turning scenario under below conditions:
|
• | System may not function if speed difference between the two vehicles is too small or too high |
• | System may not function properly or detect a target ahead in the following conditions:
|

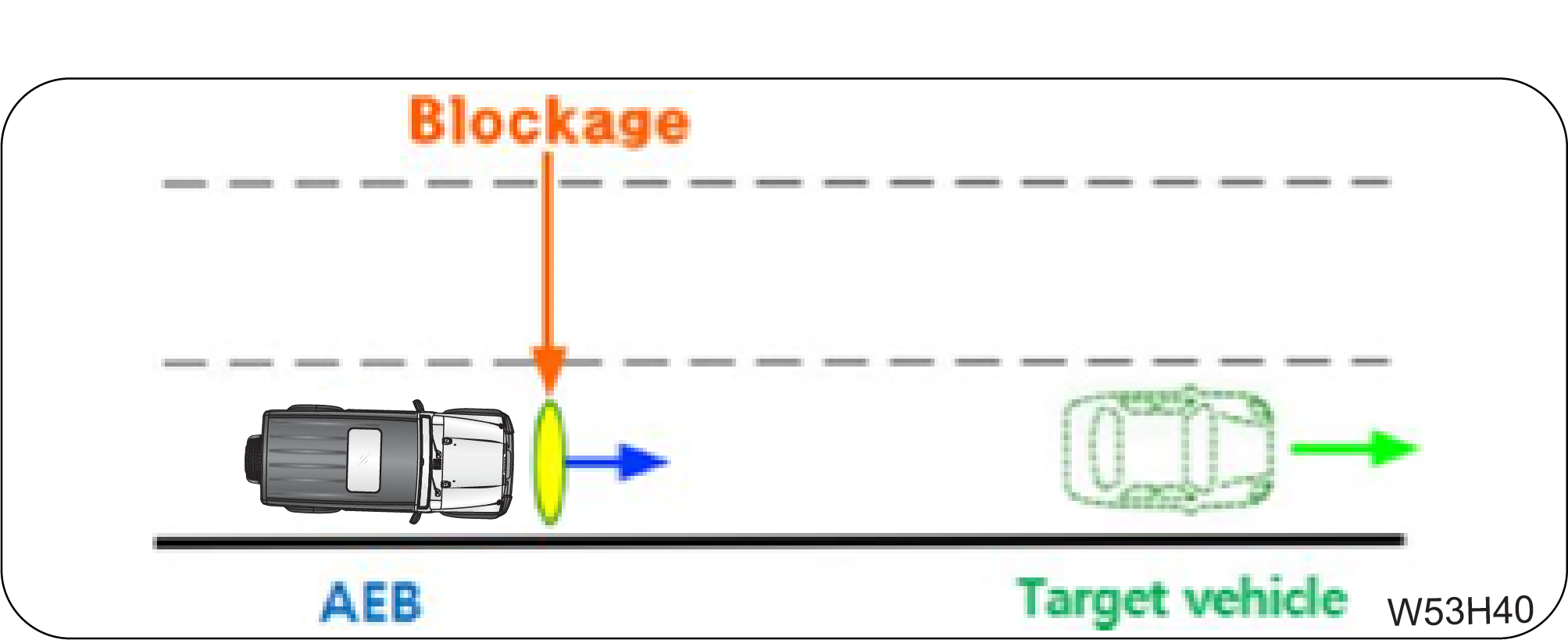

• | In case of a hit in bumper / full or partial blockage to RADAR, disable AEB and get the vehicle serviced as early as possible. |
• | AEB will be disabled when trailer is connected |
• | False decelerations or no decelerations If radar misaligned vertically or horizontally, Collision mitigation system may produce frequent false warning or deceleration
or no warning/ no deceleration for front preceding vehicle. Visit nearest service center for radar alignment.
|

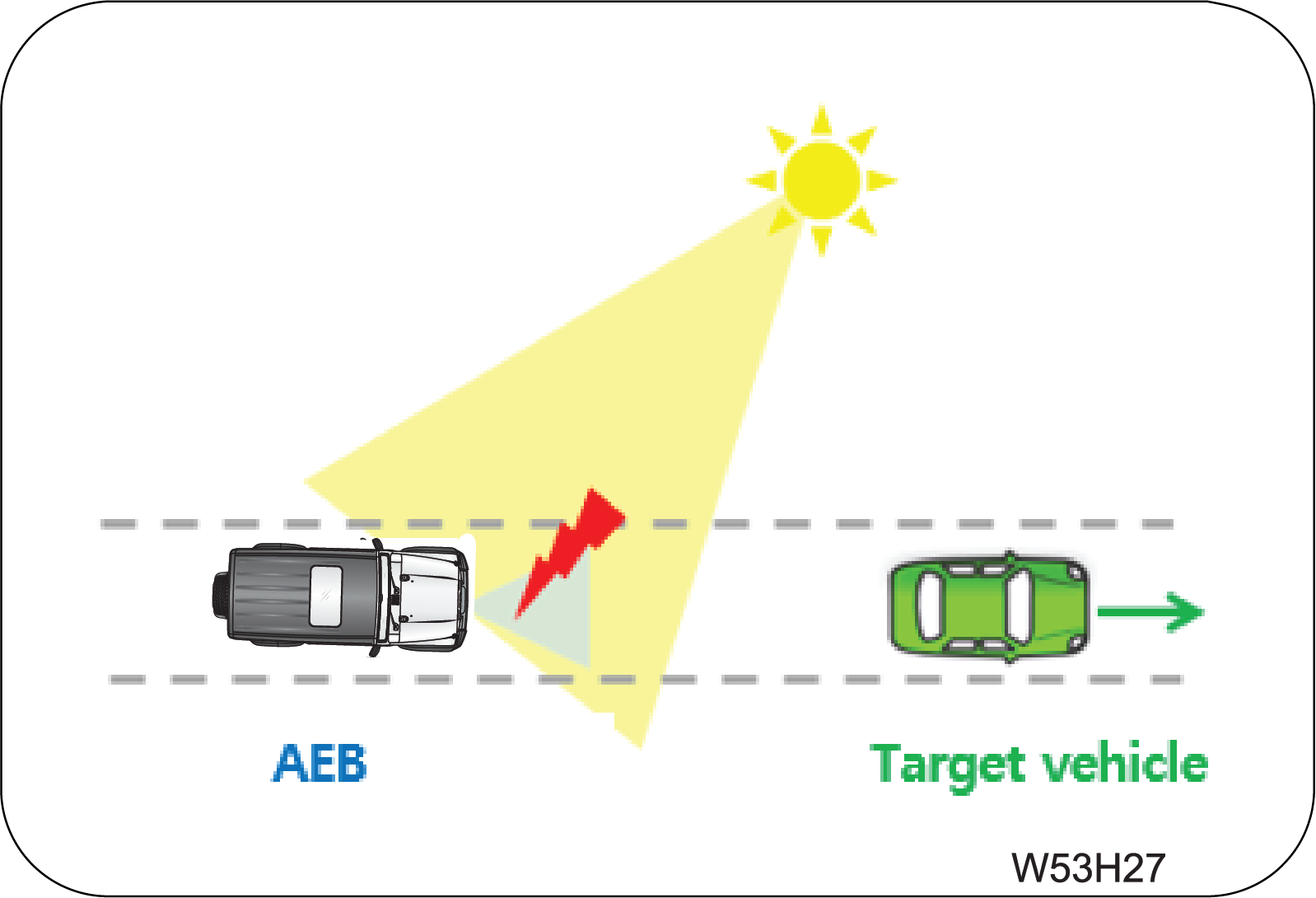

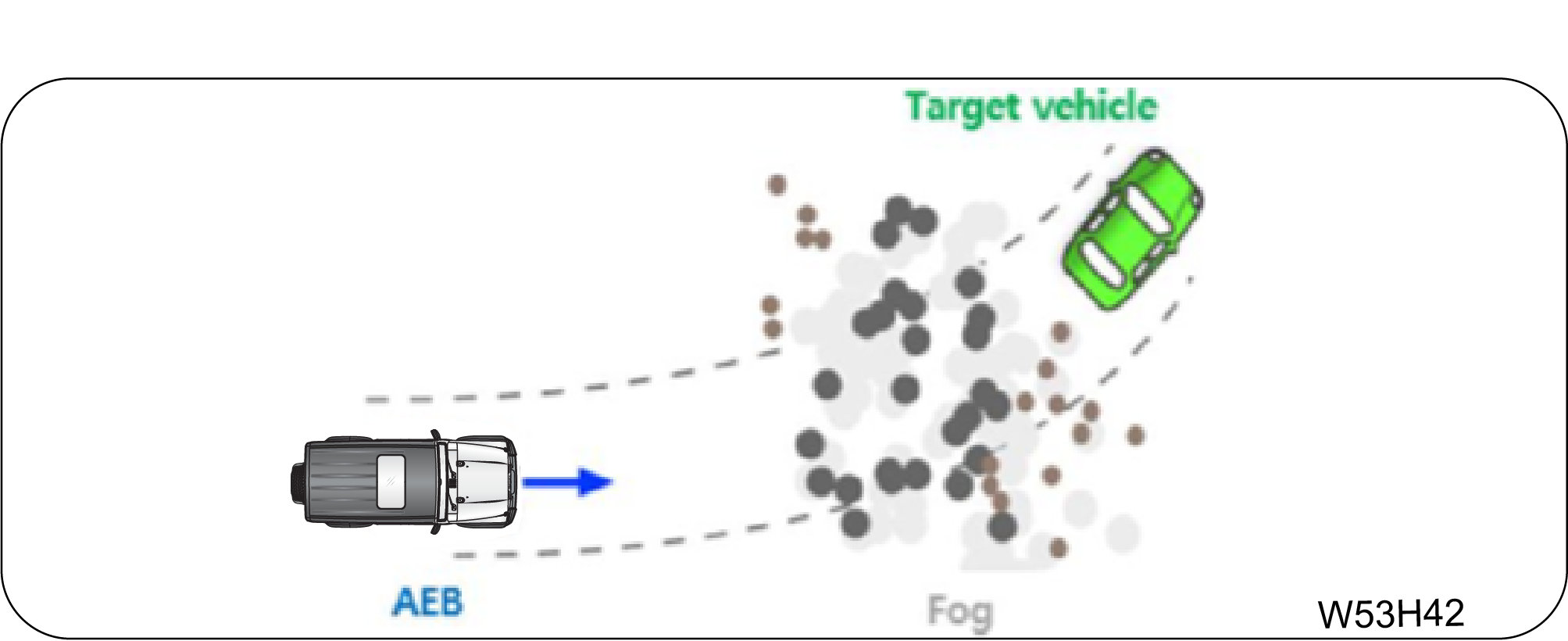

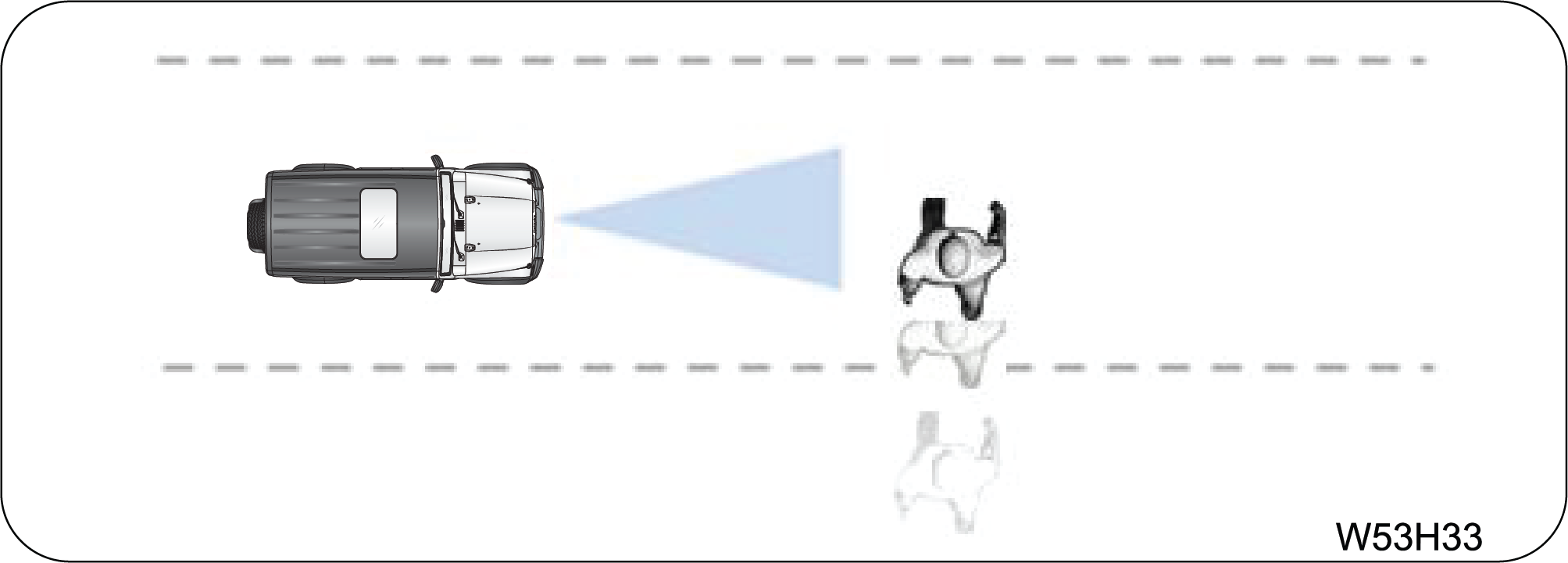

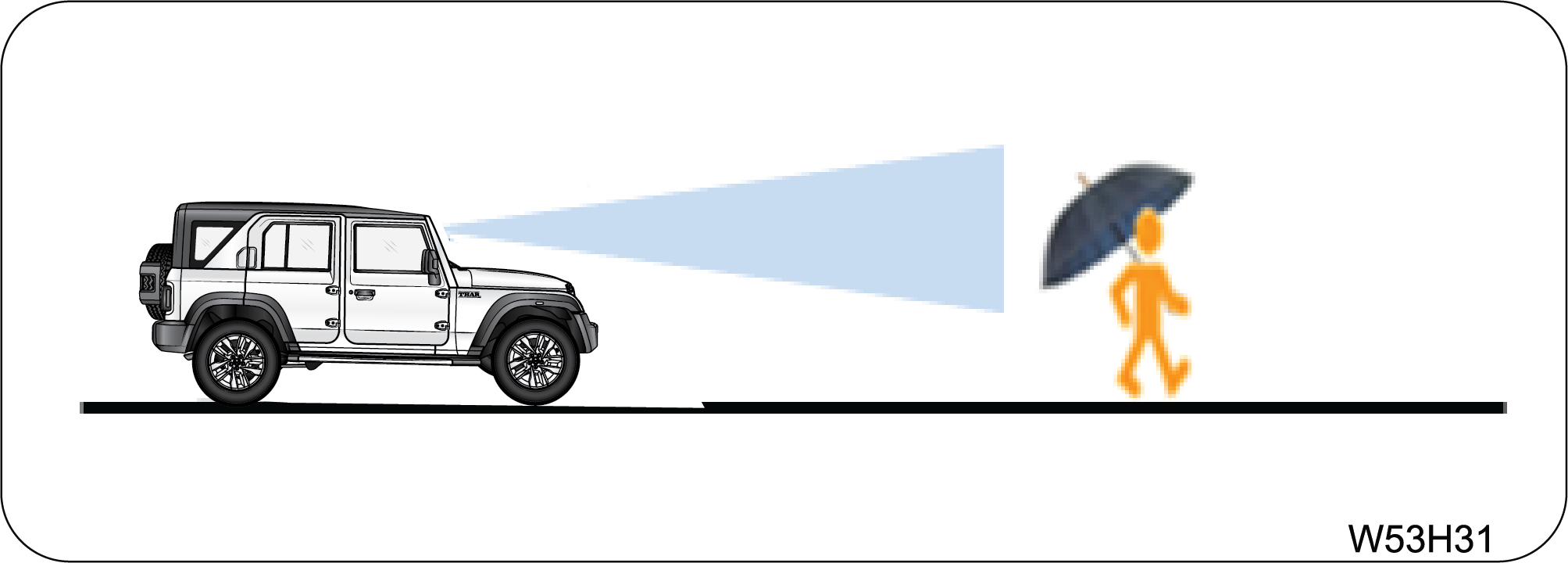

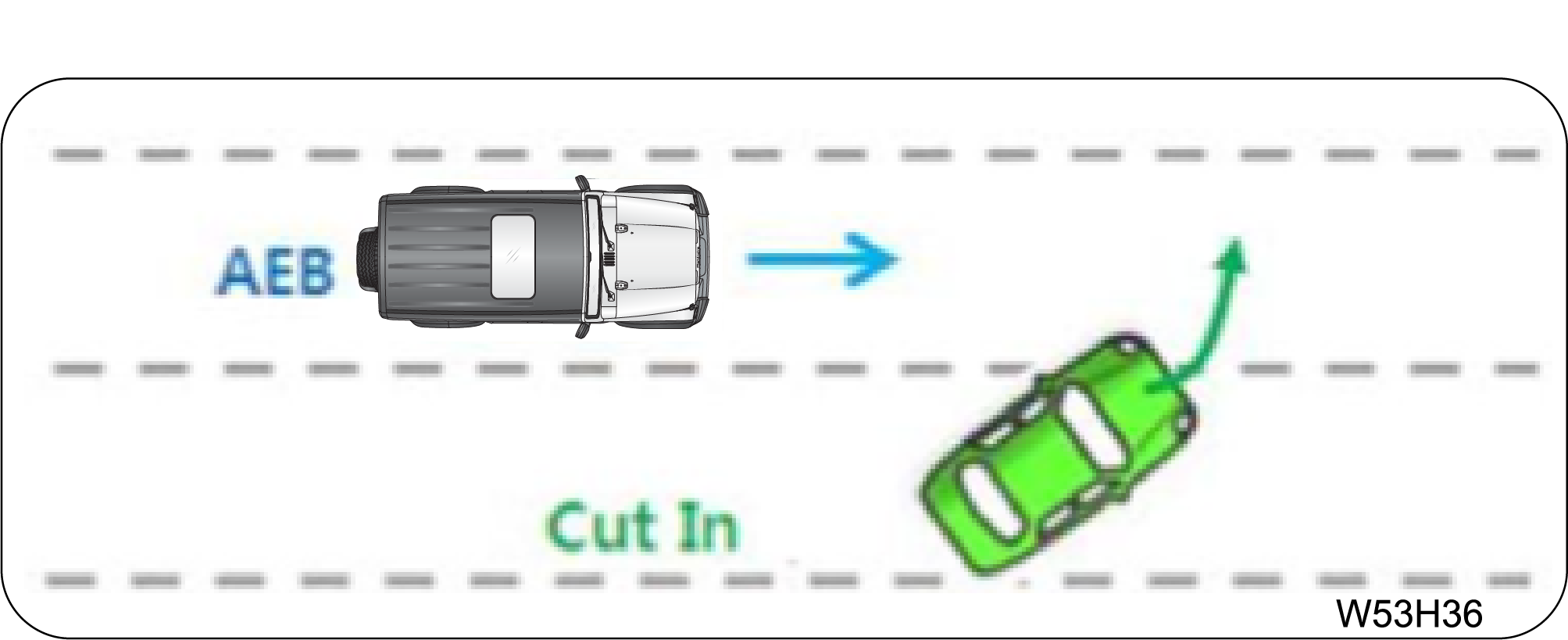

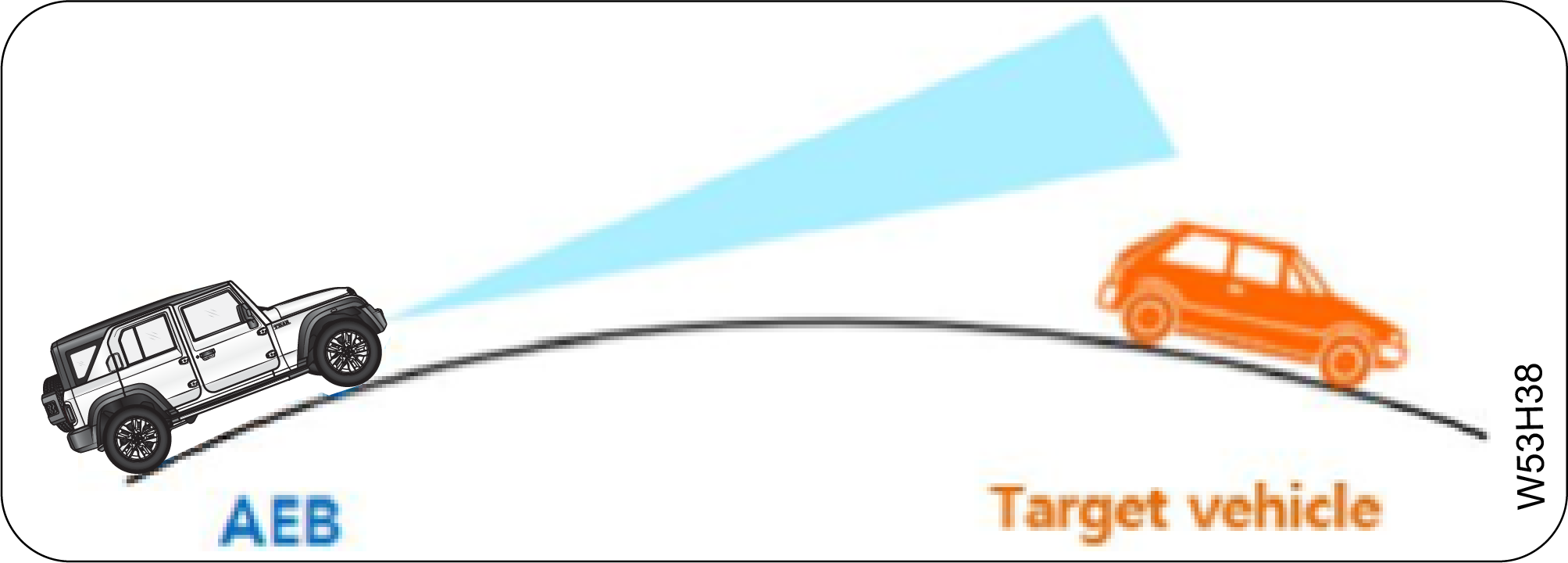

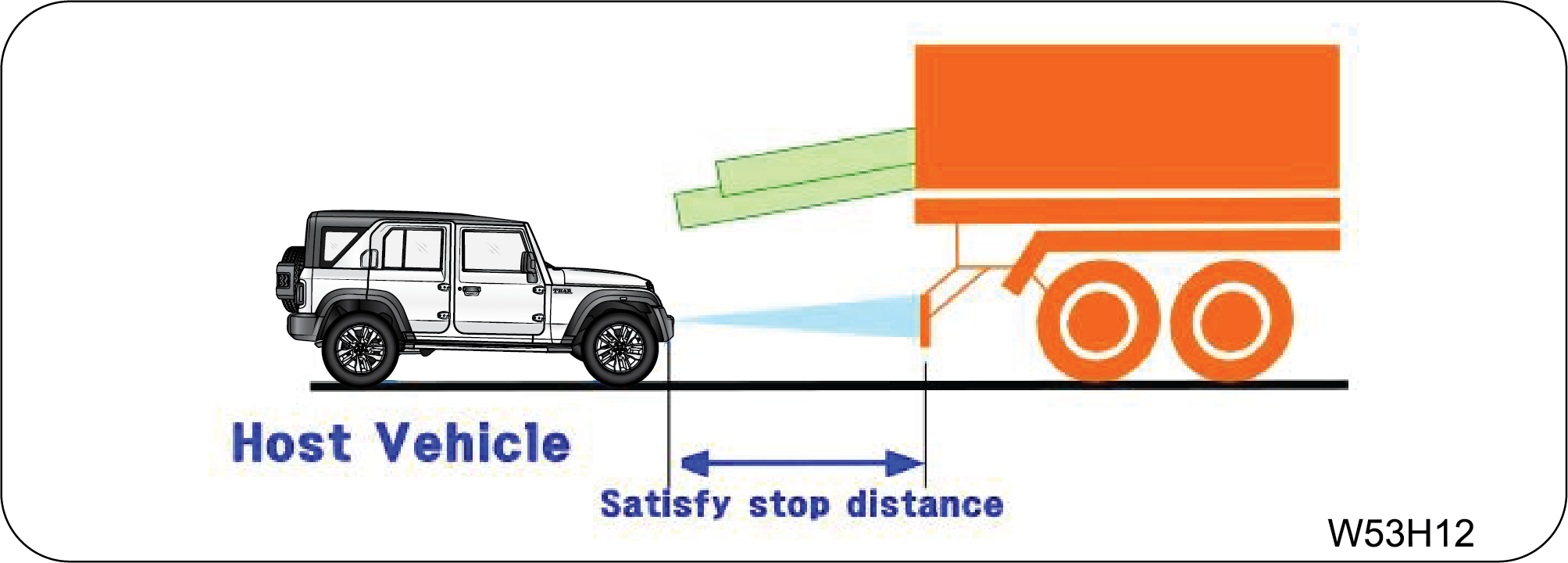

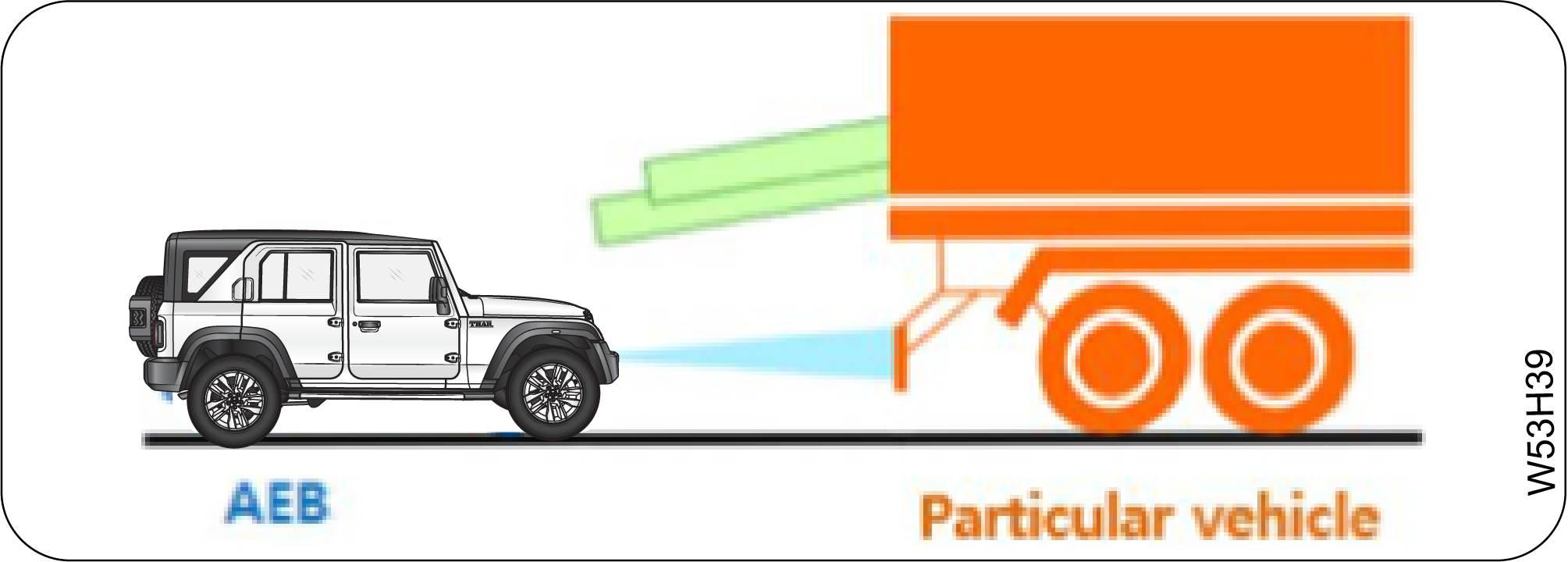

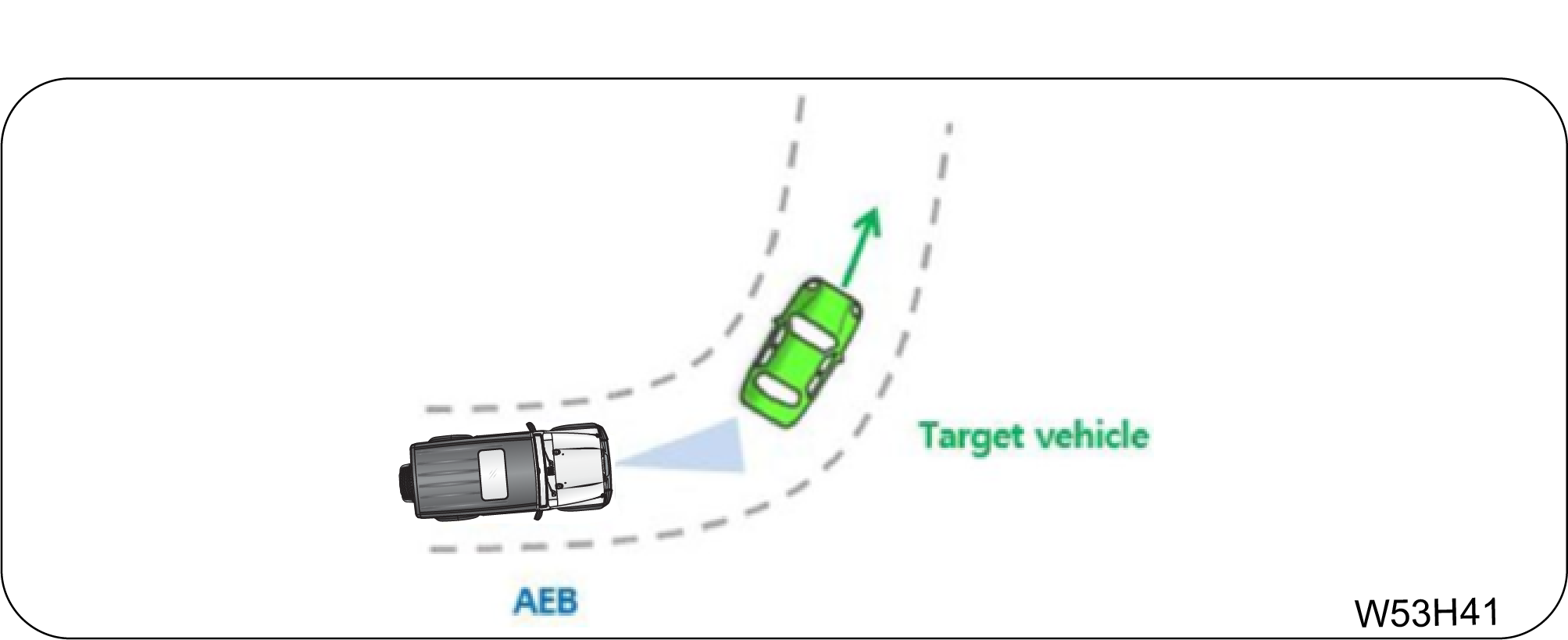

• | When any vehicle moves greater than +/- 20 deg. to host vehicle direction |
• | When it is difficult to obtain view by the camera |
• | When the tail light of the front preceding vehicle is asymmetrical at night |
• | Pedestrian suddenly jumping in to the host vehicle lane too closer to host vehicle |
• | If a part of the body of the pedestrian is a covered or standing pedestrian |
• | Difficult to distinguish pedestrians due to low illumination. |
• | Fast moving pedestrians |
• | Pedestrians with lower height |
• | Risk of collision in proximity cut-in |
• | Intersection situation |
• | The condition is that target is not detected at the road inclination change point |
• | The situation where the load is protruding from the rear of the vehicle |
• | When target can not be detected due to sensor contamination |
• | When driving on a large curve road |
• | When it is impossible to obtain the driver's field of vision |
• | Detection problems due to complicated structures around roads |
• | Collision Mitigation System does not react for pot-holes |
• | Collision Mitigation System does not function for Speed Breakers |
• | Collision Mitigation System does not function for barricades/cone/barrels |
• | Collision Mitigation System does not function for oncoming vehicles |
• | Collision Mitigation System does not function for animals |
|
|
|
|

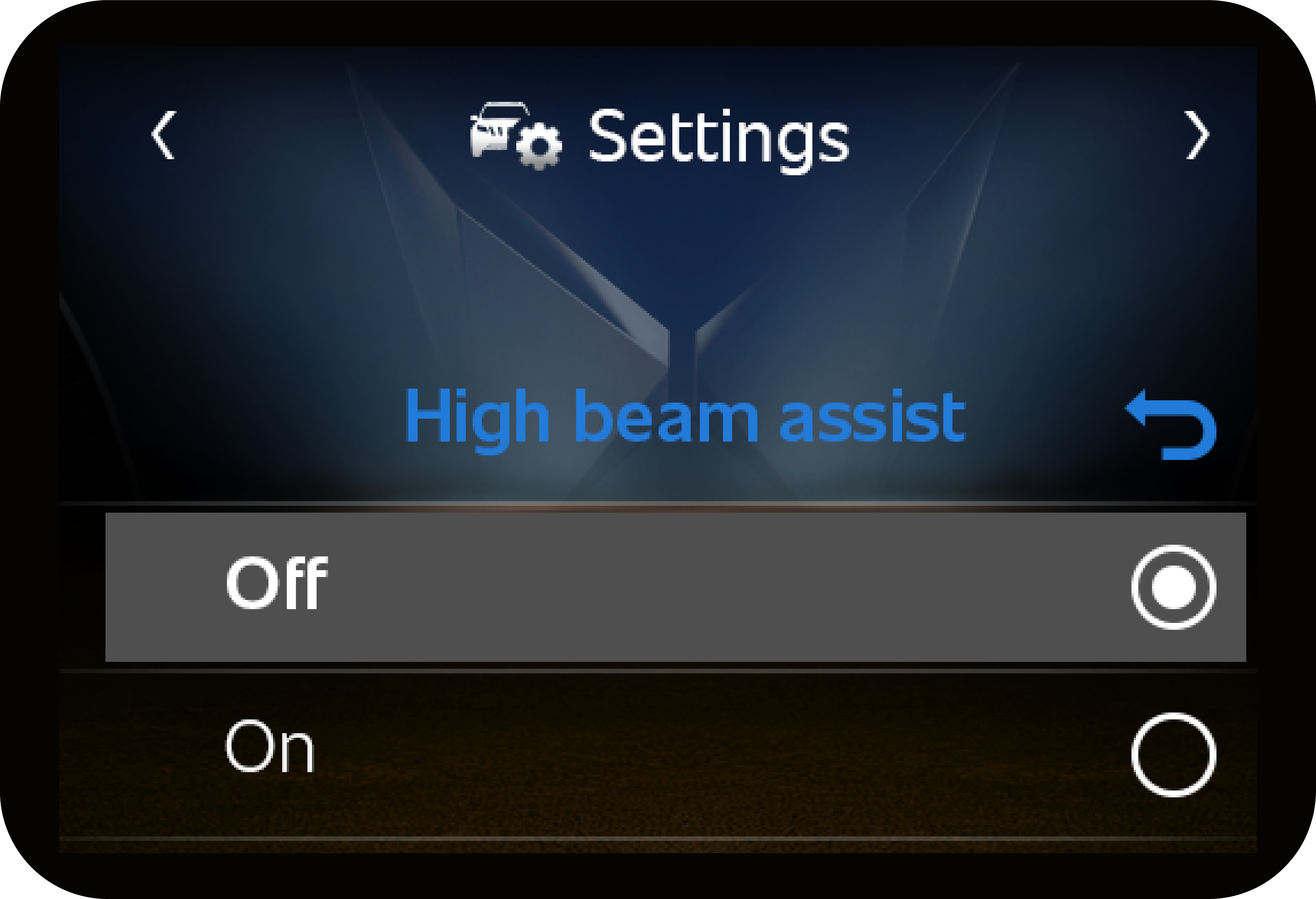

• | High beam Assist is selected through driver assistance menu |
• | Auto light switch is turned ON in the Combination Switch |
• | Night condition is detected and Low beam is already turned ON through the Light Sensor |
• | High beam switch is turned ON |
• | Vehicle speed is above 20 kmph |
• | HBA function is activated as per above conditions. |
• | No light source is detected by the camera from Oncoming/Preceding vehicle or from other light sources (depends on intensity) for few seconds. |
• | When the light from the on-coming or front preceding vehicle is not detected because of lamp damage, hidden from sight, etc. |
• | When headlights or taillights are with non-standard color or Illuminance level or shape. |
• | When the lamp of the on-coming or front preceding vehicle is covered with dust, mud, snow or water. |
• | When visibility is poor due to fog, heavy rain or snow. |
• | When head lamp aiming is not properly adjusted. |
• | When driving on a narrow-curved road or rough road. |
• | When driving downhill or uphill. |
• | When vehicle is near bright street tower lamps, reflecting sign or mirror, flashing sign lamps. |
• | When the vehicle is tilted may be due to a flat tyre or being towed. |
• | When the light from bicycle is weak or located in long distance. |
• | When the light from oncoming or preceding vehicle is very small or weak or located in low or too high position. |
• | When windshield is dirty or if any object blocks the Camera sensor. |
• | When vehicle is in Construction area due to temporarily installed reflectors. |
• | When vehicle is near traffic lights, signboards of buildings, lightning rods of construction sections, center line separation rods (reflection type), traffic signs (including variable speed LEDs), vehicle lights reflected on building glass or road reflectors. |
|
|
|
|
|
When the system recognises a speed limit sign, it displays on Instrument Cluster
|
|
After a pre-defined time, road sign display is Grayed out to indicate to driver that the sign is of past value.
|
|

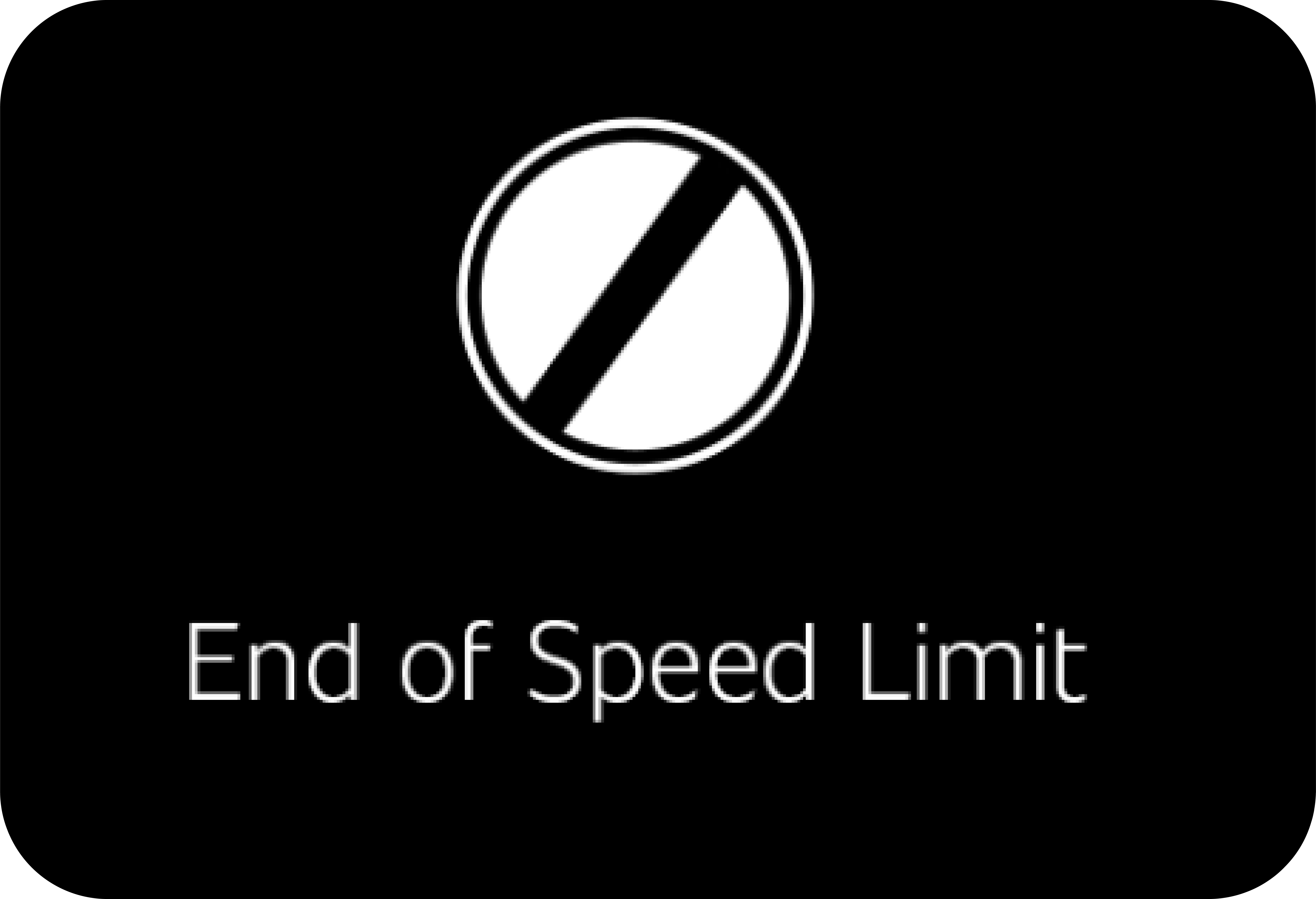

End of Speed Limit
If End of Speed Limit sign is detected, the icon in the cluster gets updated as shown in the image.
|
|

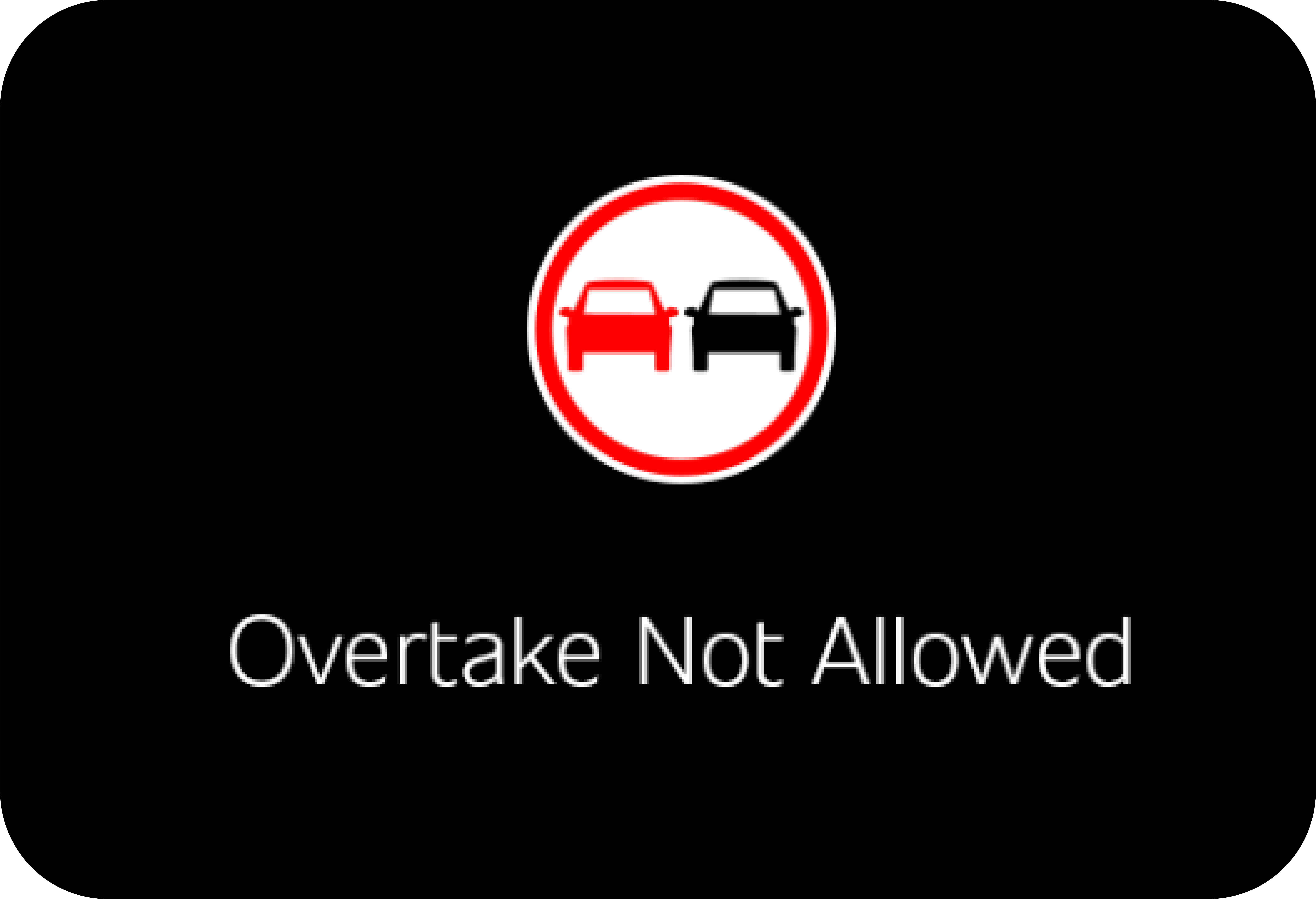

When the system recognizes an overtaking not allowed sign, it is displayed on Instrument Cluster
|
|
If system malfunctions, a pop up message will appear in Instrument Cluster that "Traffic Sign Recog. Unavailable". It is
recommended that you visit a Mahindra dealer in this case.
|
• | The traffic sign is located on a sharp curve. |
• | The traffic sign is improperly positioned (i.e being turned over, blocked by an object, or damaged). |
• | Another vehicle blocks the traffic sign. |
• | The LED light of the traffic sign is broken. |
• | The visibility is poor due to heavy rain, snow, fog or poor light around the sign. |
• | The traffic sign do not conform to the standards. |
• | The traffic sign cannot be distinguished due to shadow caused by overpass or trees. |
• | There is bright light around the traffic sign. |
• | The vehicle speed is too low or too high. |
• | There is dirt, ice or frost on the front windshield, where the camera is installed. |
• | The camera lens is blocked by an object, such as sticker, paper, or fallen leaf. |
• | Host vehicle driven right after preceding vehicle. |
• | The bus or truck, on which the speed sticker is attached, passes by your vehicle. |
• | TSR function may not detect electronic sign board. |
• | TSR function may not detect conditional sign board. |
• | TSR function may not detect rectangular sign boards. |
|
|
|
When system cannot detect lanes or if system is unavailable due to speed being less than 60 kmph, the marker lines will be
grayed out.
|
|
If the driver continues to hold the steering wheel lightly for a next intervention occurring within 3 minutes, then in addition
to the visual alert, audio alert will also be provided until the system makes sure that driver is in full control.
|
• | Do not wait for system to provide Visual /audio alerts to hold the steering wheel. Driver is always responsible to have control of the vehicle. |
• | In some rare situations when system is unable to do proper judgement, system may generate visual / audio alerts even when the driver holds the steering wheel as a precautionary measure. |
• | System will provide only a mild steering torque within the operating limits. This torque may not be sufficient during sharper curves. System may stop providing assist if it determines the torque provided is not sufficient to pull back to the lane. Driver is always responsible to steer the vehicle and bring vehicle back to lane. |
|

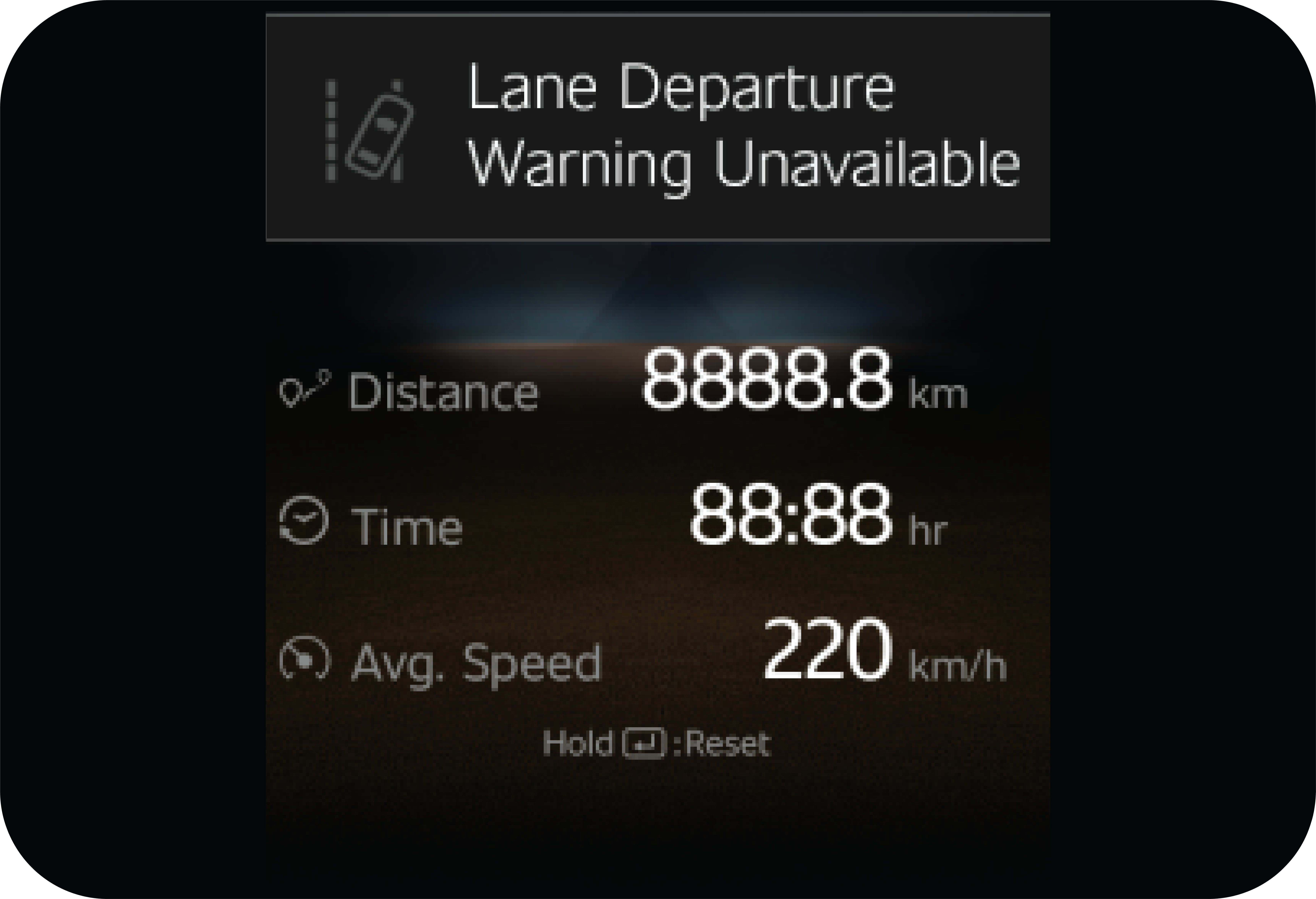

If system malfunctions in Warning Only mode, LDW indicator light will illuminate in Amber color and a pop up message will
appear in Instrument Cluster that "Lane Departure Warning Unavailable".
|
It is recommended that you visit a Mahindra dealer in this case.
|
|
If system malfunctions in Warning + Assist mode ,LKA indicator light will illuminate in Amber color and a pop up message
will appear in Instrument Cluster that "Lane Keep Assist Unavailable". It is recommended that you visit a Mahindra dealer
in this case.
|
• | Road under construction |
• | Reduced visibility due to bad weather on account of rain, fog, snow etc |
• | Roads with indistinct/faded lane markings |
• | Road sections with sharp curves |
• | Narrow roads |
• | High speed driving especially in sharp curves |
• | Road sections where there are turn lanes or when the original lane merges or separates |
• | Passing through tunnels when brightness changes suddenly. |
• | Horizontal or vertical slope |
• | Preceding vehicle obstructing lane visibility |
• | Improper headlight aiming/headlight covered with dirt |
• | Any other environmental conditions affecting camera vision |
• | Poor visibility due to sun glare or blockage in lens |
• | Lane Keep assist function will be disabled when the trailer is attached. |
• | Lane Keep assist functions will not work properly when there is a heavy cross wind. |
• | Lane Keep assist function may not work when the lane marking color is other than white and yellow. |
• | Smart Pilot Assist System is not a self-driving system. Within the limits of its capabilities, as described in this manual, it helps the driver with certain driving activities. |
• | Smart Pilot Assist system is not a replacement for proper driving procedures and is not designed to correct careless, inattentive of driver. |
• | Always observe posted speed limits and do not set the speed over them. |
• | Always keep your hands on the steering wheel so you can be ready to steer at any time. The driver is always responsible for staying in a lane and for assessing traffic situations. |
• | Smart Pilot Assist must only be used where there are clearly visible traffic lane side marker lines on both sides of the current traffic lane. In other circumstances there is an increased risk of collision with surrounding obstacles that are not detected by the system. |
|
|
• | Lane centering was active before lane detection got dropped. |
• | Preceding vehicle speed is less than around 75 kmph |
• | Preceding vehicle is close enough for system to follow. Smart Pilot Assist may stop to follow preceding vehicle if above conditions are not satisfied or if the preceding vehicle has changed the path. |

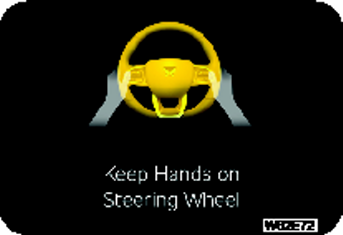

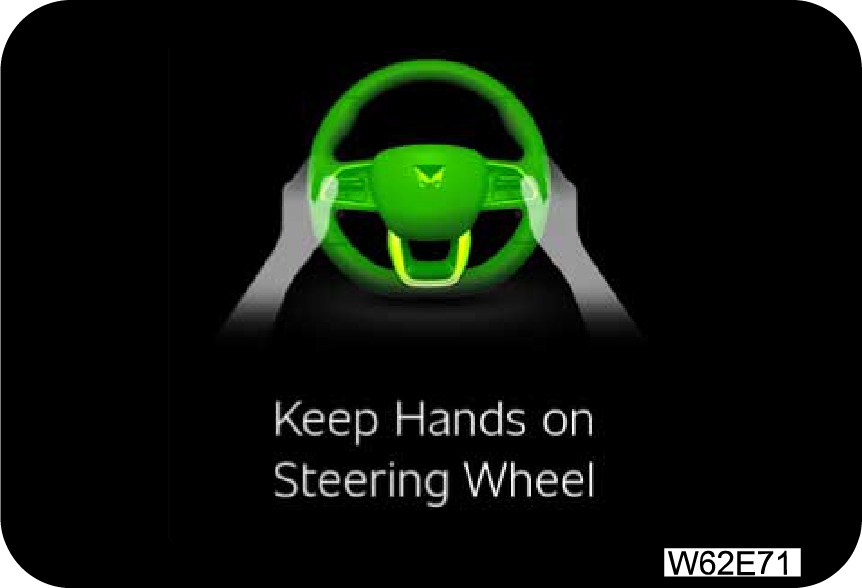

First stage warning will be provided immediately once hands off is detected
|
|
Second stage warning with audio alert will be provided if driver is not holding the steering wheel even after the first stage
warning.
|
|
Third stage warning with audio alert will be provided when driver does not hold the steering wheel even after second stage
warning . Here after Smart Pilot Assist and ACC will go to Standby
|
|
• | Do not wait for system to provide Visual /audio alerts to hold the steering wheel. Driver is always responsible to have control of the vehicle. |
• | In some rare situations when system is unable to do proper judgement, system may generate visual / audio alerts even when the driver holds the steering wheel as a precautionary measure. |
• | ACC system cancels. |
• | The maximum speed that Smart Pilot Assist supports is exceeded. |
• | When driver shifts out of Drive gear. |
• | An Automatic Emergency Braking event occurs. |
• | When turn indicator or hazard is activated. |
• | When interface systems are not available. |
• | When driver steers manually. |
• | When vehicle dynamics/road conditions are not suitable for Smart Pilot Assist Operation. |
|
When there is any failure in the system , below pop-up message appears on Instrument Cluster screen and Smart Pilot Assist
indicator illuminate in Amber color. Visit nearest Mahindra service center for assistance.
|
• | Smart Pilot Assist is unable to accurately determine lane markings due to poor visibility (heavy rain, snow, fog, etc.), or an obstructed, covered, or damaged camera or sensor. |
• | When driving on hills. |
• | The road has sharp curves or is excessively rough. |
• | Bright light (such as direct sunlight) is interfering with the camera's view. |
• | The sensors are affected by other electrical equipment or devices that generate ultrasonic waves. |
• | When driving on winding or uneven roads. |
• | When there is a lane closure due to road repairs. |
• | When driving in a makeshift or temporary lane. |
• | When driving on roads where the lane width is too narrow. |
• | On roads where there are multiple parallel lane markers; lane markers that are faded or not painted clearly; non-standard lane markers; or lane markers covered with water, dirt, snow, etc. |
• | On roads where the discontinued lane markers are still detectable. |
• | On roads where the traveling lane merges or separates. |
• | When the vehicle’s traveling direction does not align with the lane marker. |
• | When the headlights are not bright due to dirt on the lens or if the aiming is not adjusted properly. |
• | Smart Pilot Assist function will not work properly when there is a heavy cross wind. |
• | Smart Pilot Assist function may not work when the lane marking color is other than white or yellow on both the sides of the road. |
• | Before starting the vehicle, thoroughly inspect both the interior and exterior for any damages, leaks, loose parts, or foreign objects/debris. If you find any issues, contact a Mahindra Authorized Dealer for assistance. |
• | Before starting your journey, ensure that all safety devices and components are functioning properly, particularly the brakes, steering, lamps, signals, and tires. If you suspect any issues, promptly contact a Mahindra Authorized Dealer for assistance. |
• | Adjust the seat head restraint, steering wheel, and fasten the seat belt as described in this manual. Never make any seat or steering adjustments while the vehicle is in motion. |
• | Start the vehicle only when you are seated and belted in the driver's seat. |
|
An illuminator ring is provided on the face of the ignition switch to help in locating the ignition switch at night. The ring
will illuminate the moment the driver door is opened and will remain illuminated till the driver door is closed.
|
Manual Transmission (MT) |
Automatic Transmission (AT) |
|
|

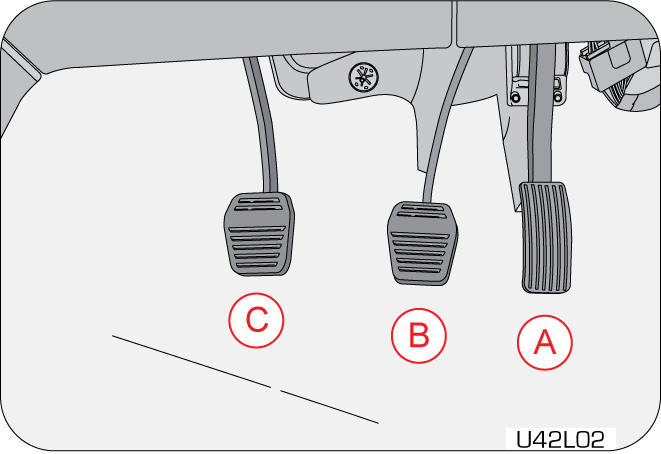

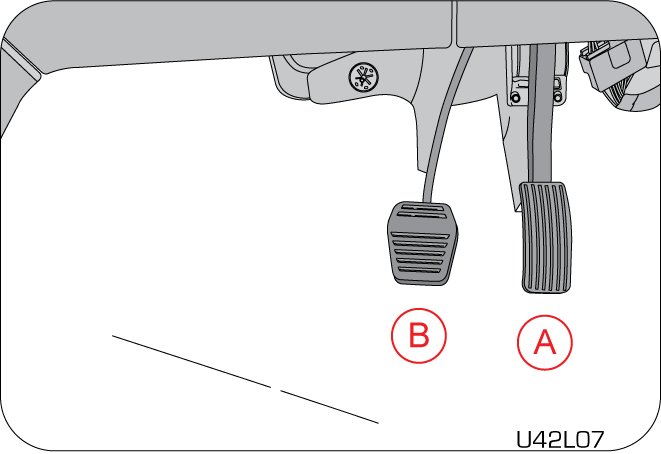

A
|
Accelerator Pedal
|
B
|
Brake Pedal
|
C
|
Clutch Pedal
|

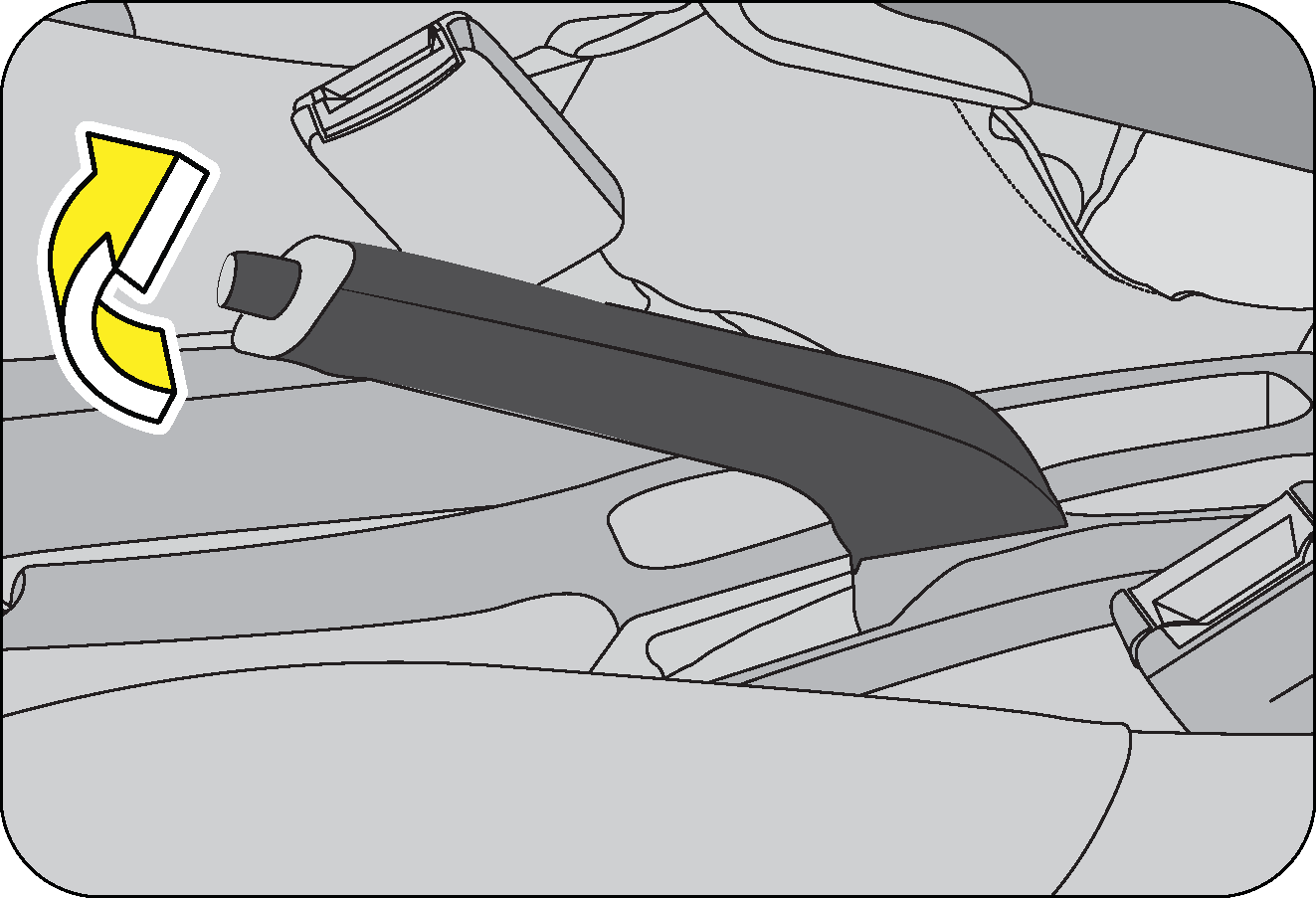

1. | Turn the ignition ON by pressing the Start Stop button or through ignition key. |
2. | Shift the gear shift lever to neutral position (for MT), to Park or Neutral position (for AT). |
3. | Apply parking brake or EPB (as applicable) |
4. | Do not press the accelerator. |
5. | Press the clutch pedal (for MT) brake pedal (for AT) and turn the key momentarily to the START position to crank the engine. Once the engine starts, release the key |
6. | For PKE: Press the clutch pedal (for MT) brake pedal (for AT) and press the start stop button to crank the engine. Once the engine starts, release the Start Stop button |
• | Do not continue cranking the ignition key after the engine has started. This will lead to damage of the starter and other engine components |
• | In PKE, if engine start/stop button is pressed without pressing the brake pedal, engine will not start and the vehicle power modes will change as follows: OFF - ON - OFF - ON |
• | If the engine start/stop button is pressed from the OFF position directly, along with the brake in depressed position, there may be a small delay in the engine cranking. This is normal and not to be taken as a fault. |
• | Never press the engine start/stop button while the vehicle is in motion except in an emergency. This will result in the engine turning off and loss of power assist for the steering and brake systems. This may lead to loss of direction control and braking function, leading to an accident. |
• | Once the engine is started, it would not stop even if the key is not inside the vehicle. Before leaving the driver seat, always make sure engine start/stop button is in OFF position and always take the Smart Key with you. Vehicle safety and security would be affected if these precautions are not followed. |
• | To prevent damage to the starter, wait 10 secs before attempting to restart the engine |
• | If the engine fails to start even after repeated attempts as per the procedure given above, contact the nearest Authorised Mahindra Dealer. |
• | All warning lamps are OFF |
• | Low oil pressure lamp is OFF |
1. | Release the parking brake / EPB (as applicable). |
2. | Press the clutch (for MT) brake (for AT). |
3. | Shift the gear lever to 1st gear (for MT), D or M (for AT). |
4. | Release the brake pedal. |
5. | Drive by releasing the clutch pedal (for MT) brake pedal (for AT) and pressing the accelerator pedal simultaneously. |
1. | Keep your right foot on the brake pedal |
2. | Turn front wheels towards the road curb |
3. | Engage the parking brake / EPB (as applicable) |
4. | Switch OFF the ignition, turn the key to the steering lock position and remove the key |
5. | Press the start stop button once to switch off the vehicle (for PKE only) |
6. | Shift the gear shift lever to 1st gear position or reverse gear position if parking on an incline (for MT), Park “P” position (for AT) |
7. | Slowly release the brake pedal |
8. | Lock your vehicle when leaving |
• | When stopping for example, at a traffic light, be sure to depress the brake pedal firmly. For your safety, apply the parking brake, too when stopping on a hill. |
• | While pressing the accelerator to raise the engine rpm in vehicle stationary condition, make sure that the gear is in "n" position. If the accelerator is operated in any other positions, the vehicle may move and cause an unexpected accident. |
• | Do not leave your vehicle unattended while the engine is running. |
• | When leaving the vehicle, stop the engine and park the vehicle with a gear engaged. If you need to leave the vehicle with the engine running, apply the parking brakes firmly, and shift the gearshift lever to the “N” position. Otherwise, the vehicle may move unexpectedly and may cause an accident. |
|
The gear shift lever shifts the transmission into various gears. The gearshift pattern is shown on the gear lever knob. The
clutch pedal should be depressed fully while shifting, and then released slowly.
|
• | Do not leave children unattended in the vehicle or with access to an unlocked vehicle. Children could move the gear shift lever, which could result in an accident or serious injury |
• | On slippery/wet road surfaces, never downshift in order to obtain braking action. This could result in a wheel slip and reduced vehicle control |
Upshifting - Diesel |
||
Shift Range |
Vehicle Road Speed (kmph) |
Engine RPM Range |
1–2
|
16
|
1600–2500
|
2–3
|
27
|
|
3–4
|
42
|
|
4–5
|
55
|
|
5–6
|
67
|
|
Down shifting - Diesel
|
||
Shift Range |
Vehicle Road Speed (kmph) |
Engine RPM Range |
6–5 |
62 |
1300–1800 |
5–4 |
51 |
|
4–3 |
39 |
|
3–2 |
24 |
|
2–1 |
13 |
Upshifting - Petrol |
||
Shift Range |
Vehicle Road Speed (kmph) |
Engine RPM Range |
1–2 |
18 |
1600 – 2200 |
2–3 |
30 |
|
3–4 |
42 |
|
4–5 |
55 |
|
5–6 |
70 |
|
Downshifting - Petrol
|
||
Shift Range |
Vehicle Road Speed (kmph) |
Engine RPM Range |
6–5 |
63 |
1100 – 1400 |
5–4 |
50 |
|
4–3 |
38 |
|
3–2 |
27 |
|
2–1 |
15 |
|
Your vehicle is equipped with 6 Speed automatic transmission having electronic controls with an Adaptive Transmission Control
Strategy.
|
P : Park position |
M : Manual Mode |
R : Reverse position |
M+ : Manual up-shift |
N : Neutral position |
M- : Manual down shift |
D : Drive position |
Movement |
Lock |
---|---|
P - R |
Yes-Brake pedal + knob button |
R - N |
No |
N - D |
No |
D - M |
No |
M - D |
No |
D - N |
No |
N - R |
Yes-Only knob button |
R - P |
Yes-Only knob button |
|
Use this position to park your vehicle, warm up the engine, or stay in a location for an extended length of time. To shift
in to any other position, first depress the brake pedal, then press knob button and move the TGS to R or N or D as desired.
|
• | Stop the vehicle completely before shifting into ‘P’ |
• | Never shift to ‘P’ when the vehicle is moving, It will damage the transmission |
• | If the lever is shifted to P when the vehicle has not come to stop and in forward motion, then a ratchet noise will be heard. This is not abnormal. However we do not recommend moving to P till the vehicle has come to standstill. As repeated, such instances can damage the internal parts |
• | To shift from the “P” position to another position, the ignition switch must be turned to “ON” and the brake pedal should be depressed. Any forcible attempts to move the selector lever from “P” without the two procedures may damage the selector lever |
|
Use this position to reverse the vehicle
To shift into 'R' from 'N', completely stop the vehicle, depress the brake pedal and press the Knob button and to shift from
'N' to 'R'.
|
• | Never shift into “R” when the vehicle is moving |
• | Please note that the vehicle may slowly move rearward when the selector lever is at “R” |
|
At this position, the engine does not transfer power to the wheels and the vehicle will not move on a flat road. However,
for safety, apply the brake when the gear is in this position.
|
• | Warm up the engine for approximately 3 minutes when the ambient temperature is below -15°C. Otherwise, shifting of gears in Forward or Reverse direction may not be smooth |
• | Never shift into “N” from the “D” position or vice versa when the vehicle is moving, or the transmission will be damaged |
• | If you have to stop on a hill and would like to use this neutral position, depress the brake pedal firmly |
• | Never attempt to move the gear selector lever to “N” when the vehicle is in motion |
|
Use this position for normal driving conditions. The transmission is automatically shifted from 1st gear up to 6th gear according
to the level of depression on the accelerator pedal
|
• | Do not abruptly drive off or sharply accelerate the vehicle immediately after shifting into “D” or the transmission will get damaged. Wait for D symbol to come in the cluster before pressing the accelerator pedal |
• | Even while the gear is in ‘D’, the vehicle can roll down an uphill according to the gradients, so you have to depress the brake |
• | Please note that the vehicle may creep forward on level ground when the selector lever is in “D”; even without pressing the
accelerator pedal and this behavior is known as forward creep. Note: Equivalent to - clutch release without acceleration in Manual Transmission)
|
|
Driving gear can be adjusted by operating/moving the shift lever in front or back direction. In manual shift mode, the user
can upshift or downshift from 1 to 6 or 6 to 1 forward gears by moving the shift lever in front or back direction.
|
• | Before leaving the Driver’s seat always make sure that the shift lever is in the P (park) position |
• | Shifting into P position while the vehicle is in motion will cause the drive wheels to lock which will cause you to lose control of the vehicle |
• | Always fully depress the brake pedal before and while shifting out of the Drive (D) position into another position (other than M Mode) to avoid inadvertent motion of the vehicle |
• | The shift from D to M (Manual Mode) and M to D can be performed while the vehicle is moving |
• | To maintain the required levels of vehicle performance and safety, the system may not execute certain gearshifts when the shift lever is operated |
• | Abruptly downshifting and using the engine brake may make the vehicle unstable, especially when driving on roads covered with snow or ice |
|
The Automatic Transmission has a shift lock system which prevents shifting the transmission from P or N into R unless the
Brake Pedal is depressed
|
• | Always start the engine while the selector lever is in “P”. For your safety, avoid starting the engine from “N” even though you can do so. |
• | Check whether or not the engine idling speed is normal. Keep the brake pedal depressed and shift into “D” or“R”. |
• | To move the vehicle, release the brake pedal and depress the accelerator pedal gradually. |
• | Do not abruptly drive off or sharply accelerate the engine after shifting into “D”. Otherwise the transmission will be damaged. Especially, when you start off after stopping, wait for a while until the “D” shift indicator comes on with the brake pedal depressed |
• | When driving on a down hill, never shift the selector lever to “N” If you try to shift the lever to “D” from “N”, a sudden gear engagement can damage the drive train |
• | HDC (Hill Descent Control) is designed for driving down a steep hill. When HDC is applied, do not shift to “N”. Otherwise, HDC will get deactivated |
• | Even though you can start the engine with the selector lever in both “P” or “N”, for your safety, always start the engine with the selector lever in “P” |
• | For your safety, always depress the brake pedal before moving the gear selector lever with the vehicle stopped |
• | Never depress the accelerator pedal when moving the gear selector |
• | If you have to stop on a hill, depress the brake pedal securely |
• | When the parking brake is released while the engine is running at a high rpm, your vehicle may abruptly move. Therefore, wait until the engine speed returns to idling. |
• | To avoid any mechanical damages or accidents, never shift into “P” or “N” while the vehicle is in motion |
• | When driving at a high speed, any sudden attempt to shift from a higher to a lower gear can severely damage the vehicle. In addition, your vehicle may lose its stability and be at / be a high risk |
• | A high engine speed can cause your vehicle to move abruptly from the parked position. To avoid this, wait until the engine rpm becomes stable |
• | When you start off on a hill after stopping and parking the vehicle, wait for a while until the “D” shift indicator comes on, with the brake pedal depressed |
• | Do not move the gear selector lever into “N” position while the HDC (Hill Descent Control) system is operating. Doing so stops the operation of HDC system |
• | Do not press the accelerator pedal and the brake pedal at the same time |
• | We suggest that right leg only should be used for operating brake and accelerator pedal. |
• | Do not use the kickdown function while driving on slippery or sharply curved roads |
• | If you use the kickdown function too frequently, the durability and fuel economy of the vehicle will get worsen |
• | Do not excessively apply the brake pedal while going down a long slope. The brake system will overheat, experience vapor lock or the fade phenomenon, and lose the braking efficiency. |
• | Be aware that the engine brake does not work when the gear selector lever is in the ‘N’ position |
• | Avoid any abrupt engine braking on slippery roads, or the tyres may slip |
TFT |
Digital |
---|---|
|
|
• | Before you drive your vehicle, please read this manual carefully. |
• | Before you start driving, check proper operation of the brakes and steering system. |
• | If, while driving, you hear any strange noise or feel unusual vibration, or if you have any concerns whatsoever, or if any warning lamps illuminate or buzzers sound, park/stop the vehicle in a safe location as soon as possible. Identify the cause and take necessary remedial action. Contact your Mahindra Authorised Dealer if necessary. |
• | Never overload or improperly load your vehicle. |
• | Always be attentive while driving and follow safe driving practices. |
• | Always maintain the recommended inflation pressure in tires. |
• | Always drive at a safe speed appropriate for given driving conditions. You must follow the speed limits. |
• | While backing up, keep a constant lookout for people, particularly children, or other obstructions or hazardous material that might be present behind the vehicle. |
• | Avoid loading any items on the roof that will raise the vehicle’s center of gravity and make your vehicle more unstable. |
• | Loaded vehicles, with a higher center of gravity, may handle differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle. |
• | Always slow down in gusty crosswinds. Because of its profile and higher center of gravity, your vehicle is more sensitive to side winds than an ordinary passenger car. Slowing down will allow you to have much better control. |
• | When driving off-road or on rugged terrain, do not drive at excessive speeds, jump, make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover causing serious injury. You are also risking expensive damage to your vehicle's suspension and chassis. |
• | Maintain steering wheel control at all times, especially on rough terrains. Sudden changes in terrain can result in abrupt steering wheel motion. Make sure you grip the steering wheel from the outside. Do not grip the spokes. |
• | If the vehicle goes from one type of surface to another (e.g. from concrete to gravel/sand/mud/snow) there will be a change in the way the vehicle responds, especially the way it responds to steering, braking and accelerating inputs. |
• | Be extremely careful while driving on loose pavements, loose sand, water, gravel, snow or ice. |
• | If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake or steering application. Ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface. |
• | It may be safer to stay on the apron or shoulder of the road and slow down gradually before returning to the pavement. You may loose control if you do not slow down or if you turn the steering wheel too sharply or abruptly. |
• | In an unavoidable emergency situation where a sudden sharp turn must be made, turn the steering wheel only as rapidly and as far as required to avoid the emergency. Excessive steering will result in less vehicle control. Additionally, smooth variations of the accelerator and/or brake pedal pressure should be utilized if changes in vehicle speed are called for. Avoid abrupt steering, acceleration or braking which could result in an increased risk of loss of vehicle control, vehicle rollover and/or personal injury. Use all available road surfaces to return the vehicle to a safe direction of travel. |
• | When driving off-road or on rugged terrains, never overspeed or make sharp turns. This may cause loss of control or vehicle rollover causing serious injury. |
• | Maintain steering wheel control at all times. Sudden changes in terrain can result in abrupt steering wheel motion. |
• | Do not drive horizontally or diagonally across steep slopes, your vehicle can tip over sideways. Driving straight up or straight down is preferred. |
• | Drive cautiously to avoid vehicle damage from concealed objects such as rocks and stumps. You should either know the terrain or map-out your route before driving in the area. |
• | Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud or water. |
|
|
• | All fluids including engine and transmission fluids required to be changed incase of water ingress and contamination |
• | Never drive through water when it flows above the bottom portion of the bumper or above the tyre centre line |
• | The engine could get damaged internally, if attempts are made to cross through deep water |
• | Wet brake discs have a lower coefficient of friction resulting in reduced braking efficiency. Dab the brake pedal while driving to remove the film of water |
• | The ground under the water might not be firm which could result the water being deeper than expected when driving the vehicle through it. |
• | Do not stop or shut OFF the engine while immersed in water. It helps in preventing water getting inside the exhaust pipes. |
• | When backing down a ramp, do not allow the exhaust tail pipe to immerse in water. |
• | Water can wash the grease from wheel bearings, causing rusting and premature failure. It may also enter the differentials, transmission and transfer case, reducing the oil's lubricating qualities. If these are submerged in water, the lubricants should be replaced as required. |
• | Water entering the transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damaging the transmission. |
• | Sand, mud/sludge that has accumulated in brake drums and around brake discs may affect braking efficiency. This may also damage brake system components. Wet brakes cannot stop the vehicle as effectively as dry brakes. Drying can be improved by driving the vehicle slowly while applying light pressure on the brake pedal. |
• | When driving through water, traction or brake capability may be limited. Always perform a maintenance inspection after each day of off-road driving that has taken you through water. |
• | After going off-road, it is always a good idea to check for damage. Completely inspect the underbody of the vehicle for any damages. |
• | Check for accumulations of plants or bushes. or polyethylene / plastic These could be a fire hazard. They might damage to fuel lines, brake tubes/hoses, etc. |
• | Inspect all the tubes/hoses and check for any fluid leakages. |
• | Get heat exchangers (radiator and condenser) cleaned. |
• | Check threaded fasteners for looseness, particularly on the chassis, drive train components, steering, suspension and brakes. Visit nearest dealer for under body check and retorqueing the fasteners. |
• | We also recommend that the vehicle be checked at the Authorised Dealer for any water entry into the transmission/ axle or the engine |
• | If any unusual vibration is experienced, check the wheels for impacted material. Impacted material can cause a wheel imbalance. Get it inspected/corrected as soon as possible. |
• | After driving through deep water, inspect your vehicle fluids and lubricants (engine oil, transmission/transfer case/axle oils) to ensure the fluids have not been contaminated. |
• | It is recommended to avoid usage of AC as it may result in fan vibrations. Removal of mud deposits through deep cleaning Immediately after off roading will resume the operation back to normal |
• | Do not over-speed |
• | Do not let the muddy slush dry up specially on radiator /condenser /fan motor etc which will cause suboptimal performance /Engine overheating due to restricted air flow |
• | Take the vehicle to a wash immediately after off roading and get it cleaned under the chassis /under bonnet components before mud dries on it. This will protect your vehicle from unforeseen breakdowns |
|
A: Cruise ON/OFF
B: Cruise Set +
C: Cruise Set –
D: Resume
|
• | The vehicle is cruising above 20 kmph - MT / 35 kmph - AT |
• | Engine RPM above 1200 |
• | Vehicle is in any gear except 1st and reverse |
• | Clutch pedal released |
• | Brake pedal released |
• | Cruise is enabled by pressing ON/OFF button |
• | Cruise is activated first time in an ignition cycle by SET + / SET - button |
• | Subsequent cruise engagements can be done by RESUME SET+ / SET - buttons in the same ignition cycle |
• | CRUISE OFF button is pressed |
• | Brake or clutch pedal depressed If the vehicle speed exceeds the cruise set speed by 20 kmph - MT / 35 kmph - AT by accelerator pedal intervention
|
• | If vehicle speed is increased by 10 kmph for more than 30 secs. by pressing the accelerator pedal When Set+ / Set- switch is pressed for more than 12 secs. (In this case, vehicle will not go into cruise mode in that ignition
cycle. In order to restore the cruise function, switch OFF the ignition, wait for 30 secs. and switch ON the ignition)
Cruise influencing error not indicated by Check Engine Lamp, OBD lamp, etc.
|
• | Press the CRUISE OFF button in the steering wheel |
• | Press the brake pedal |
• | Gear selector moved into neutral |
• | HDC or ESC becomes active |
1. | Assume, you have activated cruise mode and set the vehicle speed at 50 kmph. |
2. | Due to an obstacle or a sharp turn, you have deactivated the cruise mode either by pressing the brake pedal or by switching OFF the CRUISE control. |
3. | Vehicle comes out of the cruise mode. |
4. | When the road condition is suitable to switch over back to cruise control mode, press RESUME button once. The system activates the cruise control mode to the previous cruising speed of 50 kmph. |
5. | To resume the previous cruise set speed, the vehicle speed should be above 20 kmph - MT / 35 kmph - AT. |
|
|
|
|
|
|
|
|

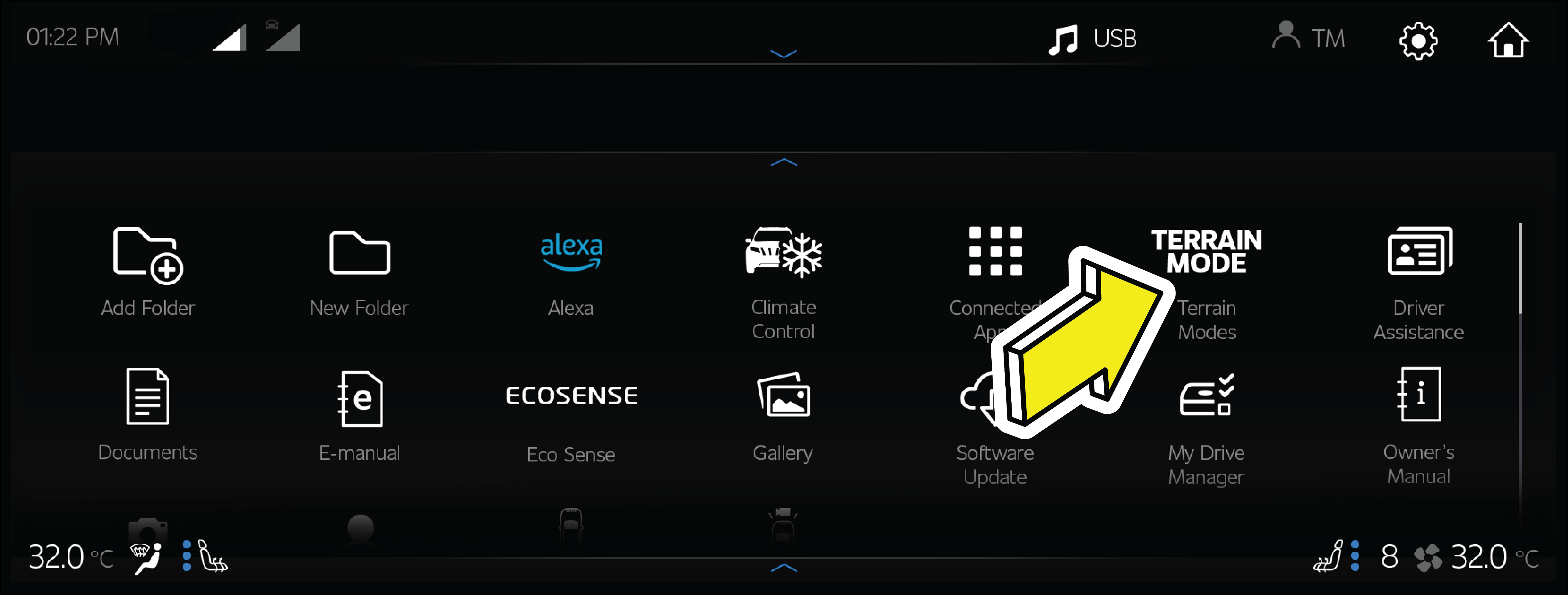

• | Normal mode is a default mode in terrain mode system. This Mode is an optimal setting for everyday driving on regular roads. This default
mode adjusts vehicle settings to prioritize comfort, fuel efficiency, and stability, ensuring a smooth and efficient driving
experience. This makes it ideal for typical driving conditions.
Cruise Control and Adaptive Cruise Control (ACC) and the Engine Stop Start (ESS) System are functional only in Normal Mode.
|
• | You can choose SNOW Mode for improved vehicle stability in low-traction conditions, ensuring better control and safety on snowy or icy roads. |
• | You can choose MUD Mode to ensure maximum torque availability at all four wheels, providing optimal traction and control in muddy conditions. |
• | You can choose SAND Mode to maintain the vehicle's momentum on soft ground, ensuring smooth and consistent movement. |
• | If the vehicle is in 2WD and user had selected any terrain mode other than normal, 'Select 4x4 mode alert' will come. User has to manually shift to 4WH or 4WL to activate any terrain modes. |
• | 4WH warning lamp turns ON in cluster |
• | Selected mode indication turns ON in cluster/Infotainment |
• | Mode activation message displays in cluster |
Mode |
Normal |
Snow |
Mud |
Sand |
2H |
Yes |
No |
No |
No |
4H |
Yes |
Yes |
Yes |
Yes |
4L |
Yes |
Yes |
Yes |
Yes |
• | Selected mode indication turns ON in cluster/Infotainment |
• | Mode activation message displays in cluster |
• | Selected mode indication turns ON in cluster/Infotainment |
• | Mode activation message displays in cluster |
ESC OFF lamp will be ON in this mode
|
• | The vehicle will automatically launch in 2nd gear if the TGS lever is in Auto mode. |
• | The driver can manually select 2nd gear to launch the vehicle using the TGS lever in Manual mode. |
• | In this mode, early upshifting of gears and late downshifting is normal and characteristic of the driving experience. |
• | Selected mode indication turns ON in cluster/Infotainment |
• | Mode activation message displays in cluster |
ESC OFF lamp will be ON in this mode
|
• | This mode provides best traction for slippery road conditions. Use this mode to drive in surfaces covered with mud. |
• | 4WL also can be selected manually based on requirements |
• | MAX speed possible in 4WH is 120 kmph & 4WL is 60 kmph |
• | Once it goes out from Mud mode , User can manually reengage the mud mode once again in the same driving cycle - only after the vehicle speed comes below 60 Kmph |
• | Selected mode indication turns ON in cluster/Infotainment |
• | Mode activation message displays in cluster |
ESC OFF lamp will be ON in this mode
|
• | This mode ensures maintains the momentum of the vehicle to keep the vehicle moving on soft ground. Use this mode to drive in surfaces covered with sand. |
• | 4WL also can be selected manually based on requirements |
• | MAX speed possible in 4WH is 120kmph & 4WL is 60kmph |
|
The 4WD system can be used for slippery & loose roads, off terrain driving, hilly terrain regions in which more traction is
required. Driving in the 4H and 4L positions on hard-surfaced roads will cause increased tire wear and damage to the driveline
components.
|
• | 2H (Two wheel drive high) |
• | 4H (Four wheel drive high) |
• | N (Neutral) |
• | 4L (Four wheel drive low) |
• | Do not believe than you can go faster than road conditions permit |
• | Do not shift to a lower gear than necessary to maintain forward motion |
• | Over-revving the engine can spin the wheels and traction will be lost. You will not be able to stop or control your vehicle |
• | Braking performance is dramatically reduced in wet/icy/slippery conditions. Avoid abrupt downshifts on slippery roads, engine braking may cause skidding and loss of control resulting in an accident |
|
Shifting Between 2H and 4H
Shifting between 2H and 4H can be made with the vehicle stopped or in motion (speed less than 4-5Kmph). If the vehicle is
in motion, release the accelerator pedal and maintain very low speed until transfer case is completely engaged.
|
1. | When the vehicle speed is 3 to 5 kmph, shift an automatic transmission in to NEUTRAL (N), or press the clutch pedal on a manual tranmission and shift the transfer case lever firmly to 4L. |
2. | Push down the 4WD shifter knob and shift the transfer case lever to the N Position, release the knob and then shift to 4L position (Do not pause with the transfer case in N (Neutral). |
3. | Once the shift is completed, Press brake to stop vehicle and place the automatic transmission in to DRIVE or release the clutch pedal on a manual transmission. |
1. | When the vehicle speed is 3 to 5 kmph, shift an automatic transmission into NEUTRAL (N), or press the clutch pedal on a manual transmission and shift the transfer case lever firmly to 4H |
2. | Shift the transfer case lever to the N position, push down the 4WD shifter knob and shift to 4H, release the knob (Do not pause with the transfer case in N (Neutral). |
3. | Once the shift is completed, Press brake to stop vehicle and place the automatic transmission into DRIVE or release the clutch pedal on a manual transmission. |
• | In heavy snow or when pulling a load, or for additional control at slower speeds, select a low gear and/or shift the transfer case to the 4L range. |
• | Over-revving the engine can spin the wheels and traction will be lost |
• | Avoid abrupt gear shifts on slippery roads, engine braking may cause skidding and loss of control |
• | While shifting between 2H-4H-2H, it is a good practice to stop the vehicle and then shift the transfer case lever |
• | While shifting from 4H to N and N to 4H, Shifter knob should be pressed down in order to avoid damage to the shift system |
• | Learn to use the power band. |
• | 4-Low (4L) is recommended for soft and boggy conditions, while 4-High (4H) may be used in places where speed may be required. For example – Sand |
• | Always use 4L to descent steep slopes to take maximum advantage of engine braking |
Terrain Modes (4WD) |
Maximum Engagement Speed |
Automatic Disengage Speed
|
Automatic Re-Engagement Speed |
4L
|
30 kmph
|
40 kmph
|
30 kmph
|
4H
|
30 kmph
|
40 kmph
|
30 kmph
|
Snow
|
30 kmph
|
40 kmph
|
30 kmph
|
Mud / Sand*
|
30 kmph
|
40 kmph
|
30 kmph
|
|
|
|
|
|
|
|
|
|
|

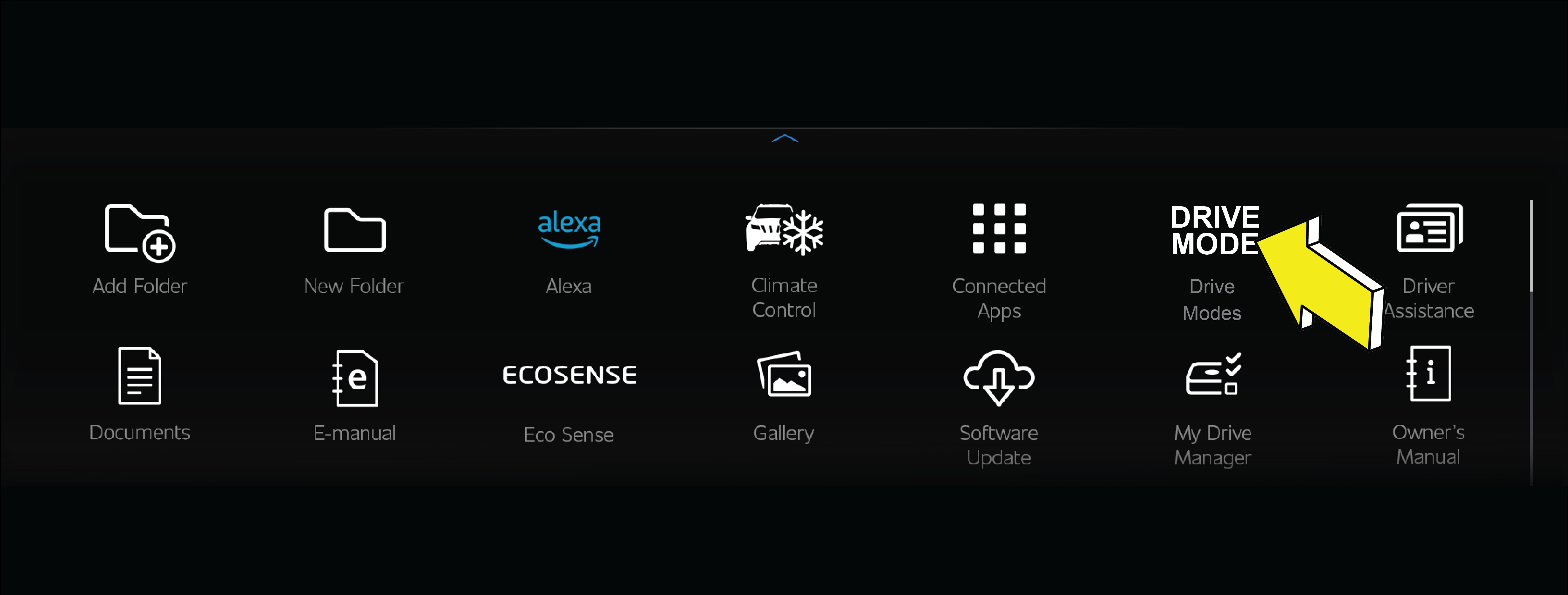

• | ZIP Mode mode is the default mode in the Drive Mode with Terrain Assist system. You can choose ZIP mode to experience a true SUV drive
that embodies the essence of the Mahindra SUV experience. This mode is set as the default for an authentic driving experience.
Cruise Control and Adaptive Cruise Control (ACC) are functional only in ZIP Mode.
|
• | You can choose ZOOM Mode for an adrenaline rush. In this mode, engine power, gear shifts, and braking all work together to provide an exhilarating
and thrilling driving experience.
The Engine Stop Start (ESS) System is functional only in ZIP and Zoom Mode.
When the vehicle is in ZOOM mode and the user attempts to activate Cruise Control or Adaptive Cruise Control, the system will
automatically switch to ZIP mode to enable these features.
|

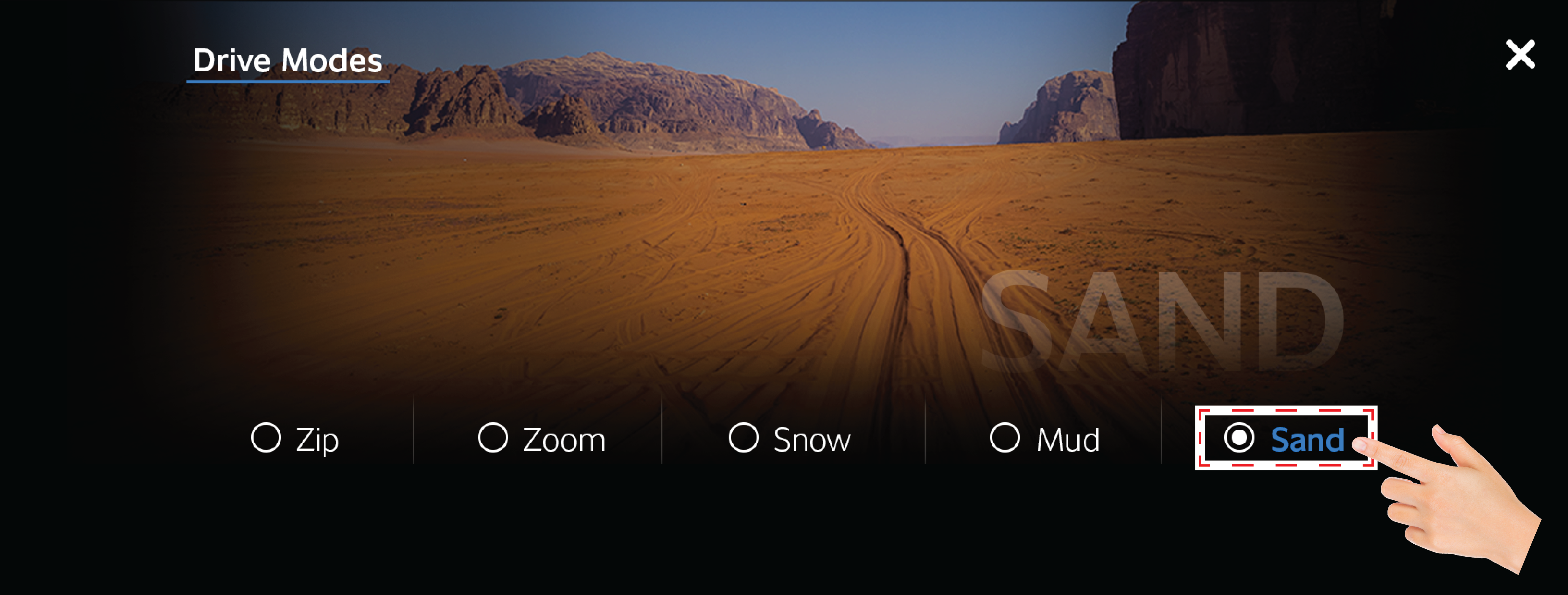

• | You can choose SNOW Mode for improved vehicle stability in low-traction conditions, ensuring better control and safety on snowy or icy roads. |
• | You can choose MUD Mode to ensure maximum torque availability, providing optimal traction and control in muddy conditions. |
• | You can choose SAND Mode to maintain the vehicle's momentum on soft ground, ensuring smooth and consistent movement. |
1. | Sensitivity of Accelerator pedal along with engine power delivery |
2. | Gear shift patterns |
3. | Steering effort |
4. | TCS Control |
ESC OFF lamp will be ON in this mode
|
• | When in Snow mode, The vehicle will automatically launch in 2nd gear if the TGS lever is in Auto mode. |
• | The driver can manually select 2nd gear to launch the vehicle using the TGS lever in Manual mode. |
• | In this mode, early upshifting of gears and late downshifting is normal and characteristic of the driving experience. |
ESC OFF lamp will be ON in this mode
|
ESC OFF lamp will be ON in this mode
|
ZIP: ZIP MODE ACTIVATED
|
MUD: MUD MODE ACTIVATED
|
ZOOM: ZOOM MODE ACTIVATED
|
SAND: SAND MODE ACTIVATED
|
SNOW: SNOW MODE ACTIVATED
|
1. | When in Cruise control or Adaptive cruise control Vehicle will always be defaulted to ZIP MODE |
2. | ON every IGNITION Cycle, vehicle will always start in ZIP MODE |
3. | IN case of any faults at vehicle level , that doesn't allow the vehicle to be in the mode of choice Customer is alerted by an alert message – “DRIVE MODE INHIBITED” in Infotainment screen and the Mode choice in the Cluster would be Blank. |
|
Engine Stop/Start system is activated/de-activated by the Engine Stop/Start button in the driver side switch bank. The LED
on the button indicates the status of the ESS system.
The ESS will be enabled by default while the ignition ON. If ESS turns off by switch, it will automatically reactivate after
the ignition is reset.
|
• | The vehicle has come to a halt at a traffic signal, is in the neutral gear and the clutch pedal is released (For MT) |
• | The vehicle has come to a halt at a traffic signal, is in the “D” mode and the brake pedal is pressed (For AT) |
• | The Engine Stop/Start lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period |
• | The Engine Stop/Start lamp will illuminate in the instrument cluster indicating the engine was stopped by the “Engine Stop/Start” System |
• | Once the signal turns green, press the clutch pedal and the engine starts immediately (For MT) |
• | Once the signal turns green, release the brake pedal and the engine starts immediately (For AT) |
• | The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on |
• | Engine Stop/Start system is in active condition by default and should not be turned off using the selection switch |
• | Bonnet is fully closed |
• | In the current ignition cycle, the vehicle has crossed 7 kmph at least once |
• | Current status of the engine is idling |
• | Vehicle speed is zero |
• | Accelerator pedal and clutch pedal are fully released (For MT) |
• | Brake pedal is fully pressed (For AT) |
• | Vehicle battery should be in healthy condition |
• | Engine is warm (Engine coolant temperature is between 25 degree C and 100 degree C). This is an extra precaution to ensure safe working of the engine |
• | Fuel temperature is less than 60 degree C (Only for Diesel Variant) |
• | Gear in neutral (For MT) |
• | Gear shift lever in “D” Mode (For AT) and vehicle should not be in slope |
• | DPF REGEN should not be in active state (Only for Diesel Variant) |
• | Vehicle should not have DEF error codes E14, E24 & E34 (Only for Diesel Variants) |
• | AT Warning telltale in OFF condition (For AT) |
• | OBD and CHECK ENGINE telltale in OFF condition |
• | Gear lever is in the neutral position, Clutch pedal is fully pressed |
• | Shift lever is moved out of “D” Mode (For AT) |
• | Brake pedal is fully released |
• | Turn the steering wheel either side by > 30 deg. |
1. | What is the advantage of the system? The Engine Stop/Start System aids in attaining better fuel efficiency on your vehicle and thus reducing your running costs.
However, the mileage improvement will depend upon various parameters such as prevailing traffic, driving patterns, etc.
|
2. | What are the other advantages of the system?
|
3. | Is it possible to start the engine through the clutch pedal for the first time? No, the engine can be cranked only with the ignition key for the first time. If the engine is stopped automatically by the
system, only then it is possible to start the engine through clutch pedal in MT.
|
4. | How to activate/deactivate the system? The system is activated by default during every ignition cycle. The LED indication on the Engine Stop/Start switch indicates
the status of the system. The system can be turned OFF or back ON using the Engine Stop/Start switch.
|
5. | Whether the system will get activated as soon as the engine is started the first time with the ignition key? No, the Engine Stop/Start system can be activated only by the Engine Stop/Start switch, provided all listed conditions (in
the previous section) are met. This is to ensure better performance of the engine in terms of fuel economy and durability.
|
6. | What is to be done, if I don’t want the system to stop my engine at traffic signals/jams? The system can be turned OFF by the Engine Stop/Start button in the central bezel switch bank.
|
7. | Whether the A/C will function, if the engine is switched off? No, the A/C will not work. However, the blower will be in operation when the ignition is ON.
|
8. | What will happen if I keep the clutch continuously pressed at traffic signals/jams? The system will not stop the engine if the clutch is continuously pressed since it indicates the driver’s intention of moving
the vehicle immediately.
|
9. | When the battery charge is low, whether the engine will be switched off? If the battery charge drops below a certain threshold level, the system will not stop the engine so as to preserve the battery
from further draining.
|
10. | Whether I will be able to operate the engine with the normal ignition key? Yes, normal operation with the ignition key is always possible.
|
11. | Whether the vehicle will start (or) stop in gear for MT? The vehicle will not start or stop automatically in gear to ensure safety. It will do so only in the neutral position of the
gear lever.
|
12. | Whether the system will stop my engine in moving traffic? No, the engine will be stopped only when the vehicle speed is zero.
|
13. | Whether the audio system will be switched OFF, when the engine shuts down? No, the audio system will not be switched OFF and you can continue to enjoy the music.
|
14. | Whether the engine will re-crank whenever the clutch pedal is pressed in MT? No, when the engine is running, the starter motor will not attempt to re-crank.
|
15. | If any component involved in the system fails, what will happen? The system has a built-in diagnostic module which understands the failure and immediately goes to bypass mode. In the bypass
mode, the engine can be turned ON and OFF by ignition key as usual.
|
|
For Diesel Variant -Use commercially available vehicular Ultra-low Sulfur Highway Diesel that meets the BIS standard (IS 1460; 2017 BS VI specification
or equivalent). Information on diesel quality can normally be found in the fuel pump.
|

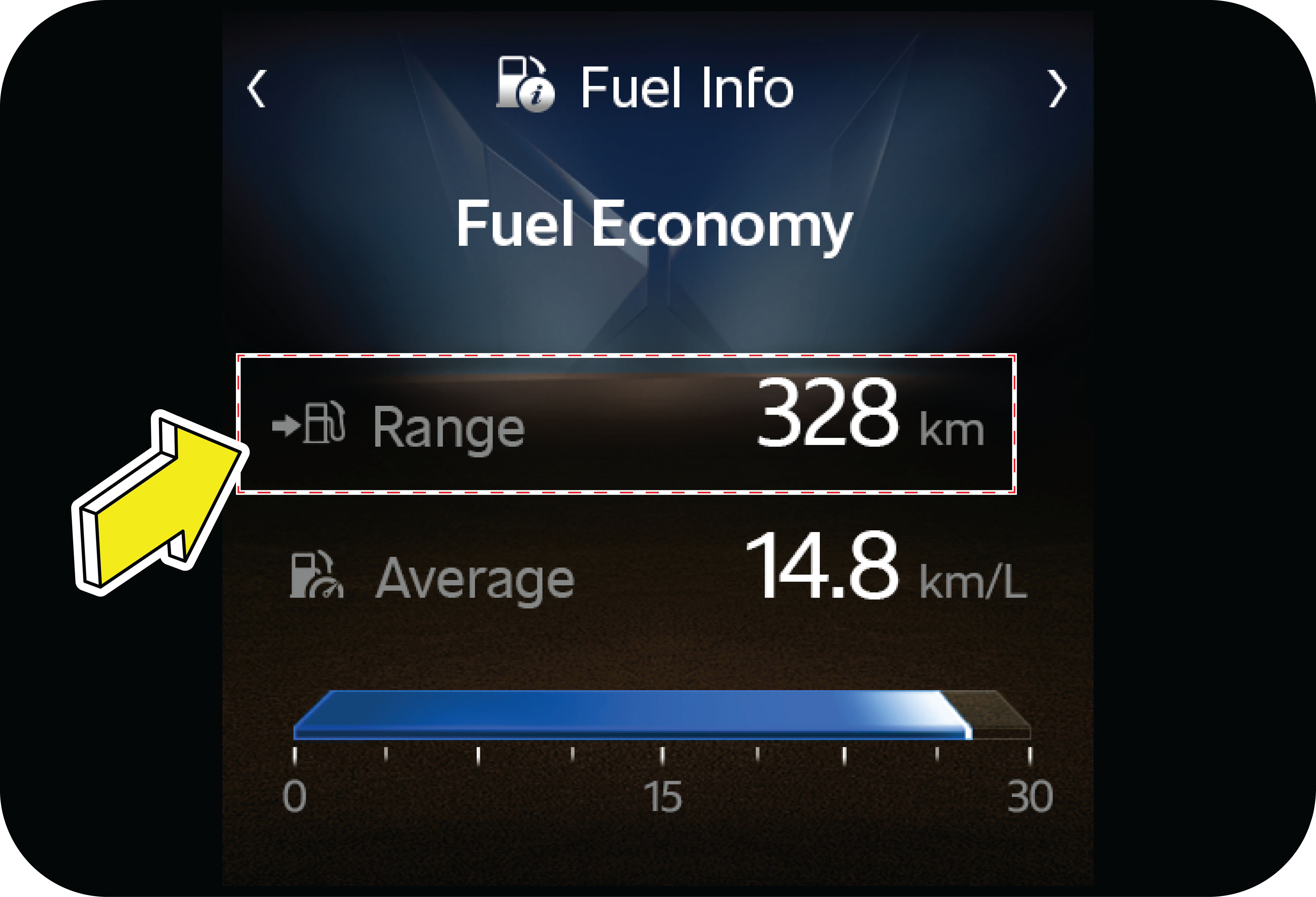

• | Smooth, moderate operation will yield savings in fuel |
• | Steady speeds without stopping will usually give the best fuel economy |
• | Ensure that the parking brake is fully released |
• | Idling for long periods of time will waste fuel |
• | Anticipate stopping; slowing down may eliminate the need to stop |
• | Sudden or hard accelerations reduce fuel economy |
• | Slow down gradually |
• | Drive at moderate speeds |
• | Revving the engine before turning it off may reduce fuel economy |
• | The air conditioner may reduce fuel economy |
• | Warming up a vehicle in neutral on cold mornings is not required and may reduce fuel economy |
• | While idling put the gear shift lever in the neutral position |
• | Resting your foot on the clutch pedal while driving will reduce fuel economy |
• | Combine errands and minimize stop-and-go driving |
• | Keep tires properly inflated. It is recommended to check your tire pressure in the morning when the tyre is cold |
• | Use recommended engine oil. Refer to the Maintenance Section for specifications and capacities |
• | Replace the fuel filter and air filter at the recommended intervals |
• | Shift gears at the recommended speeds and rpm bands only. Refer to the gear shifting speed table for further details |
• | Control the maximum speed between 90 to 100 kmph in 6th gear to achieve the best fuel efficiency |
• | Follow the recommended maintenance schedule and perform the owner maintenance checks recommended |
• | Heavily loading a vehicle or towing a trailer will reduce fuel economy |
• | Carrying unnecessary weight may reduce fuel economy |
• | Adding certain accessories to your vehicle may reduce fuel economy |
• | Four-wheel-drive operation (if equipped) is less fuel efficient than two-wheel-drive operation |
• | Driving on flat terrains offer improved fuel economy as compared to driving on hilly terrains |
• | Close windows during high speed driving for better fuel economy |
• | It is recommended to refuel in the mornings (cold weather condition) |
1. | Ensure recommended tire pressure is maintained |
2. | Refuel your vehicle till the fuel gun at the fuel station is auto-cut-off |
3. | Reset trip meter to zero |
4. | Drive at a moderate speed for a minimum distance of 150 km |
5. | Refuel at the same fuel station till the auto-cut-off mode |
6. | Assuming ‘a’ liters of fuel was filled and ‘b’ was the trip meter reading. Fuel Efficiency = b/a kmpl |
7. | We recommend that point no.2 and point no.5 should be done in cold conditions (In mornings) |
|
To apply the parking brake, pull the park brake lever up as firmly as possible. When the parking brake is applied with the
ignition ON, the brake warning lamp in the instrument cluster illuminates.
To release the parking brake, pull the parking brake lever up slightly, press the release button on the lever tip and lower
the parking brake lever completely.
|
• | The parking brake should be adjusted as per recommended maintenance schedule |
• | Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission engaged. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in physical injury. |
• | Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could accidently move the vehicle leading to accidents |
• | The parking brake should always be applied when the driver is not in the vehicle. |
|
Park the vehicle in a safe place and pull up the EPB switch.
The parking brake warning lamp on the instrument cluster and the red Illumination on the EPB switch is turned on, indicating
that the parking brake is applied.
|
|
Press down the EPB switch with the brake pedal depressed.
The parking brake warning lamp on the instrument cluster and the red Illumination on the EPB switch is turned off, indicating
that the parking brake is released.
|
1. | Ignition is turned Off. |
2. | AT vehicle –gear shifted to Park |
3. | Auto Vehicle Hold (AVH) in Active state and Driver door open. |
4. | Auto Vehicle Hold (AVH) in Active state and Driver seat belt unbuckled. |
5. | Auto Vehicle Hold (AVH) in Active state and AVH switch pressed to release AVH Active state. |
6. | Auto Vehicle Hold (AVH) in active state continuously for more than 5 minutes |
7. | Auto vehicle hold (AVH) active and engine turned OFF by engine start stop feature |
1. | Stop the vehicle |
2. | Push and hold EPB switch in release position |
3. | Holding the EPB switch in released position, turn the ignition OFF |
4. | This prevents EPB from automatically getting applied |
• | Position TGS lever in neutral (N). |
• | Push and hold the EPB switch, simultaneously press and hold the start stop button (SSB) till ignition is turned OFF. |
• | This operation prevents EPB auto apply and EPB will be in disengaged state. |
1. | Close the driver door and fasten the driver seat belt. |
2. | Shift the gear selector lever to the D / M or R position |
3. | Release the brake pedal and then depress the accelerator pedal slowly. |
4. | The EPB is released automatically, thus enabling forward or backward movement of the vehicle. |
5. | The red Illumination on the EPB switch and the brake tell-tale on cluster is turned off, indicating that the parking brake is released. |
1. | Close the driver door and fasten the driver seat belt. |
2. | Shift the gear to forward or reverse gear. |
3. | Then slowly release the clutch pedal and depress the Accelerator pedal to drive away. |
4. | The EPB is released automatically, thus enabling forward or backward movement of the vehicle. |
5. | The red Illumination on the EPB switch and the brake tell-tale on cluster is turned off, indicating that the parking brake is released. |
|
This tell-tale is turned ON in the cluster when EPB is applied properly. |
|
This tell-tale is turned ON in the cluster when there is a malfunction in the EPB system. |
• | For EPB Auto release and Drive Away always wear driver seat belt and ensure that the driver door is closed |
• | In MT vehicles, drive away with clutch alone modulation not possible, thus always modulate the clutch pedal and accelerator pedal for effective drive away. |
• | If the EPB Malfunction lamp is ON and the brake is engaged. Do not drive. |
• | Avoid using EPB after doing water wading. Please get the vehicle checked in workshop. |
• | The EPB can also be used in cases of emergency braking. Release the accelerator and Pull and hold the EPB button until your vehicle comes to standstill and EPB gets applied. This should be done only in emergency condition and not as a regular action. |
• | The braking process is interrupted when the EPB button is released or the accelerator pedal is actuated in dynamic condition |
• | The EPB AUTO release function will not be activated when the driver door or the seat belt is not fastened. |
• | Motor noise can be heard during the EPB operation, this is normal behavior. |
• | If the EPB warning lamp stays on, have the vehicle serviced at a Mahindra Dealer or Mahindra Authorised Service Centre. |
• | Do not let children or other people who are not familiar with the EPB system operate the EPB switch. There is a danger of accidents depending on the parking/stationary state of the vehicle. |
• | If you hear noises or smell a burnt odor from the related components after using the EPB emergency mode, have the vehicle checked and serviced |
Display | Operating Conditions |
---|---|
|
This message is displayed on the Cluster when the EPB switch is released without depressing the brake pedal to deactivate
EPB.
|
|
This message is displayed on the Cluster in the following conditions:
1. When the accelerator pedal is depressed to auto release EPB, with EPB Applied and driver door open/driver seat belt unbuckled.
2. When the AVH switch is depressed to activate AVH, with driver door open/driver seat belt unbuckled. |
• | Ignition is ON |
• | Vehicle speed is greater than 50 kmph |
• | Panic/sudden brake is applied and high deceleration rate is sensed |
|
The Anti-lock Braking System (also called as ABS) is designed to help prevent lock-up of the wheels and stable stopping of
vehicle during a sudden, panic emergency braking or braking on slippery road surfaces.
The ABS system takes input from wheel speed sensors and brake pedal switch to control the brake fluid pressures at the wheels
to avoid wheel lock-up. It allows vehicle to be steered during braking.
|
• | Driving on rough, gravel or snow covered roads. |
• | Driving with tyre chains installed. |
• | Driving over steps such as the joints on the road. |
• | Driving on roads where the road surface is pitted or differences in surface height. |
Symbol |
Warning Lamp/Tell Tale |
Action/Remarks |
|
EBD Malfunction Telltale
|
|
|
Both ABS and Parking brake Telltale lamp will be ON incase of EBD malfunction.
|
|
In some driving conditions, to maximise traction, it may be beneficial to de-activate ESC.
Such conditions are:
|

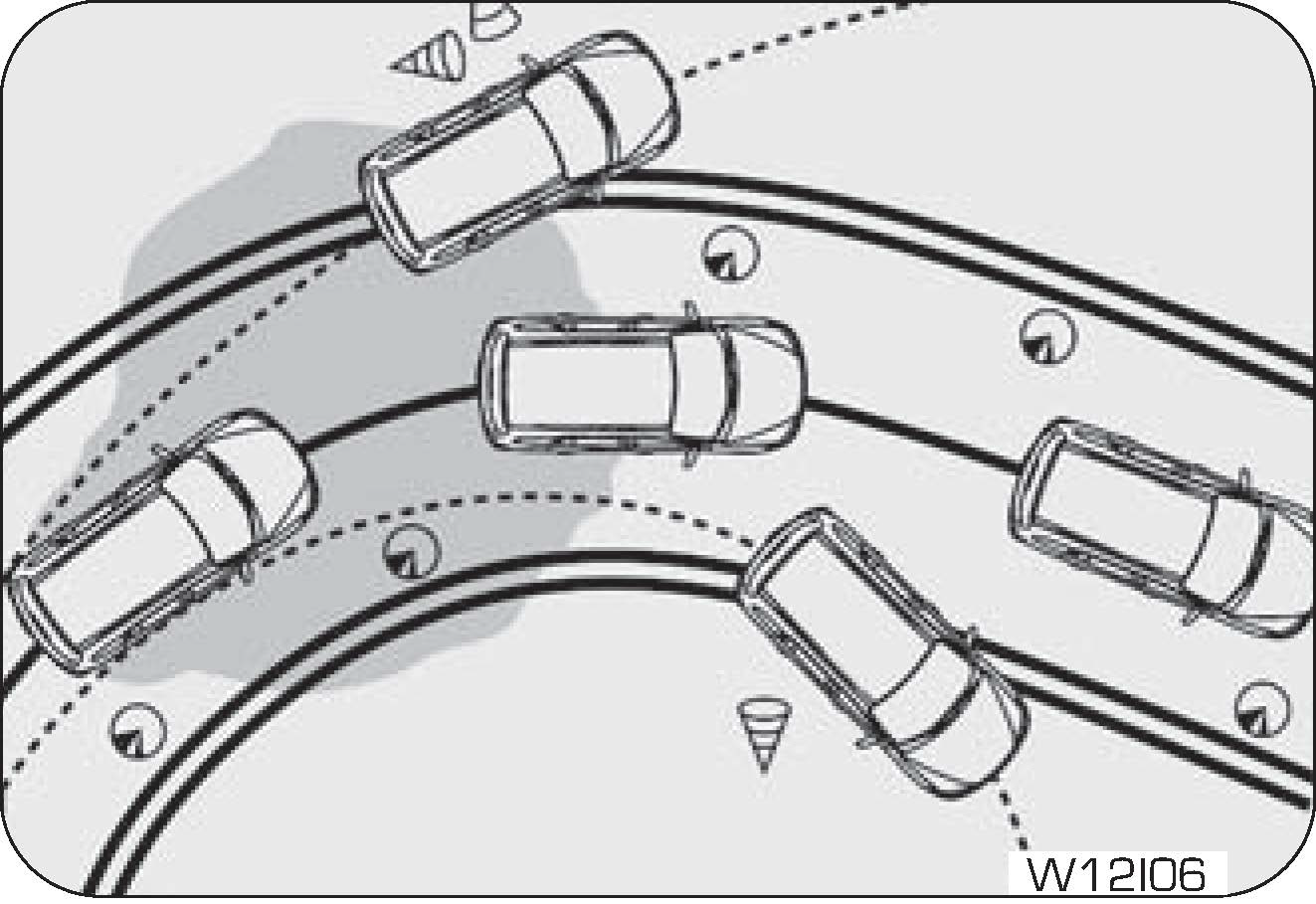

ESC |
AEBS |
|
|
|
2H and 4H Modes:
ESC ON : This is the normal operating mode for ESC in 2H & 4H range.
ESC OFF
This mode is entered by momentarily pushing the ESC OFF switch.
|
|
HDC is a user-intended function. To activate, press HDC button on the center fascia switch bank. The LED on the button illuminates
indicating the status. Press the button again to deactivate HDC.
During a descent, if the vehicle speed is more than the rated speeds (refer recommended shift speeds), HDC (if selected) automatically
operates the brakes to slow the vehicle and maintain a speed relative to the selected gear and the accelerator pedal position.
|
• | The HBA system cannot prevent collisions, the capabilities of an HBA equipped vehicle must never be exploited in a reckless or dangerous manner that could risk the user’s safety. |
• | The Safety of the vehicles always lies in the hands of the driver, never rely on the HBA feature to prevent accidents. |
• | Many factors, such as vehicle loading, road conditions and driving conditions, influence the chance that wheel lift or rollover may occur. |
• | The ROM system cannot prevent all roll overs; thus ROM equipped vehicle must never be exploited in a reckless or dangerous manner which could jeopardize the user's safety or the safety of others. |
1. | There must be a front collision detected with a certain severity, where airbags gets deployed |
2. | The impact speed must be greater than approx. 10 km/h. |
3. | The brakes, the ESC and other required electrical systems remain functional after impact. |
4. | The accelerator pedal must not be actuated. |
|
Intelligent Turn Assist (ITA) is a value-added feature that works with Terrain modes to reduce the turning radius during off-road
trailing or on low-friction surfaces.
The ITA function can be activated via the switch on the driver-side switch bank when the following conditions are met:
|
1. Doors Closed
|
5. Select Terrain mode (Snow or Sand or Mud)
|
2. Driver Seat Belt Buckled
|
6. Select Drive mode D or R
|
3. ELD should be Disabled condition
|
7. Release Parking Brake
|
4. Engage 4WL
|
8. Press the ITA switch
|
|
We suggest that once stuck and getting the vehicle off, start with the default speed specially on sand. increase the set value
gradually in mud .
To activate SCA, press the switch on the Driver Side Switch Bank. The following conditions must be met for activation:
|
1. Doors Closed
|
5. Select Drive mode D or R
|
2. Driver Seat Belt Buckled
|
6. Release Parking Brake
|
3. Engage 4WL
|
7. Press the SCA switch
|
4. Select Terrain mode (Snow or Sand or Mud)
|
• | ITA and SCA functions can be activated together for enhanced off-road performance. |
• | SCA and ELD functions can be activated together for enhanced off-road performance. |
• | Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running |
• | HPS: Heavy or uneven steering efforts may be caused by low power steering pump fluid level. Check the low power steering pump fluid level before seeking service from an Mahindra Authorised Dealer |
• | Do not fill the power steering pump reservoir above the MAX mark on the reservoir, this may result in leaks from the reservoir |
• | Under inflated tire(s) on any wheel(s) |
• | Uneven vehicle loading |
• | High crown in the center of the road |
• | High crosswinds |
• | Wheels out of alignment |
• | Wheels out of balance |
• | Loose or worn suspension components |
• | SAS (Steering Angle Sensor) calibration (EPS) |
|

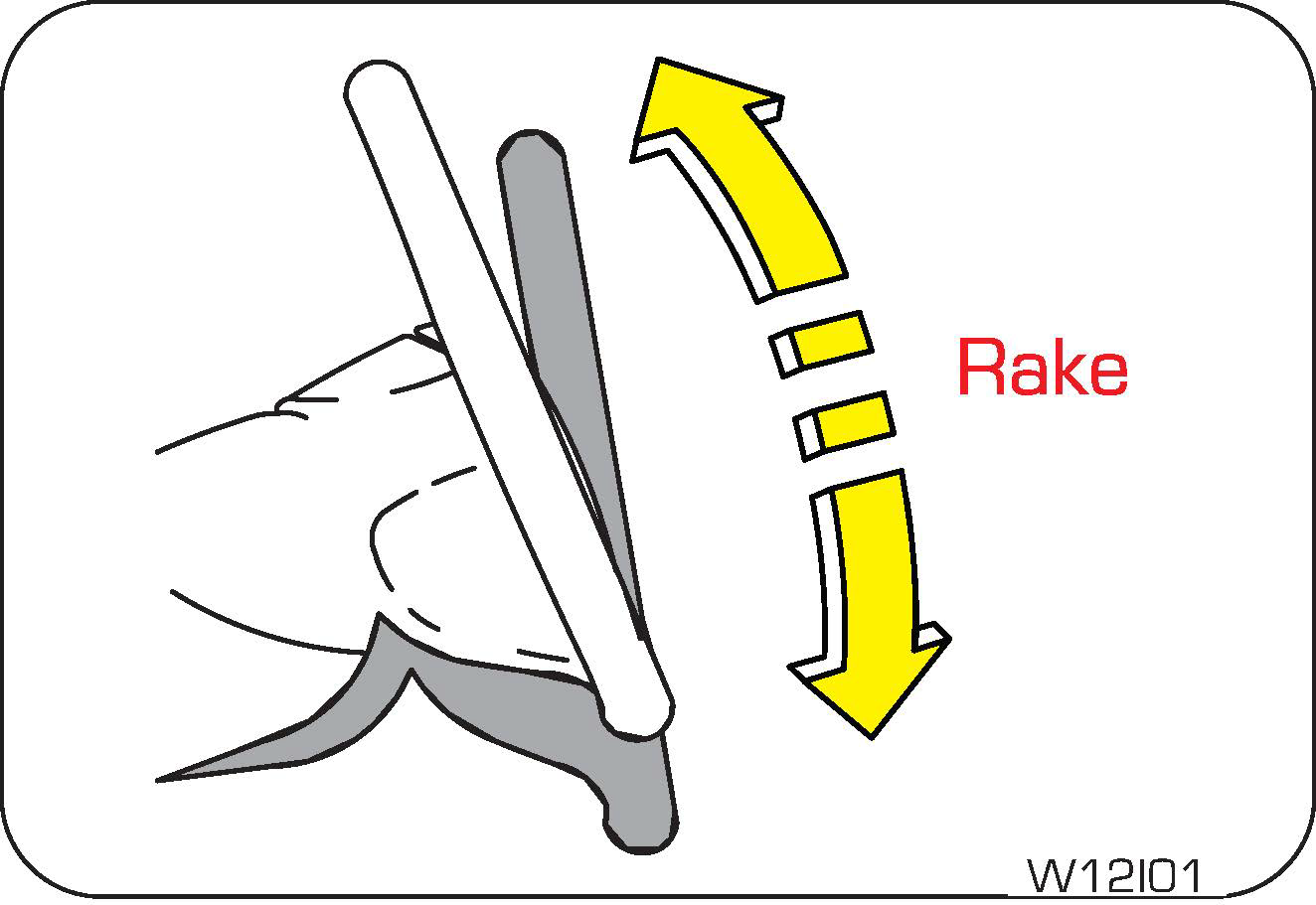

The steering wheel can be adjusted as required using the lever in the steering shroud under the steering wheel.
To tilt/adjust the steering wheel;
|
|
1. Ensure the vehicle is stationary and parking brake engaged
2. Push the steering tilt lever down to unlock
3. Raise or lower the steering wheel to the desired position
|
|

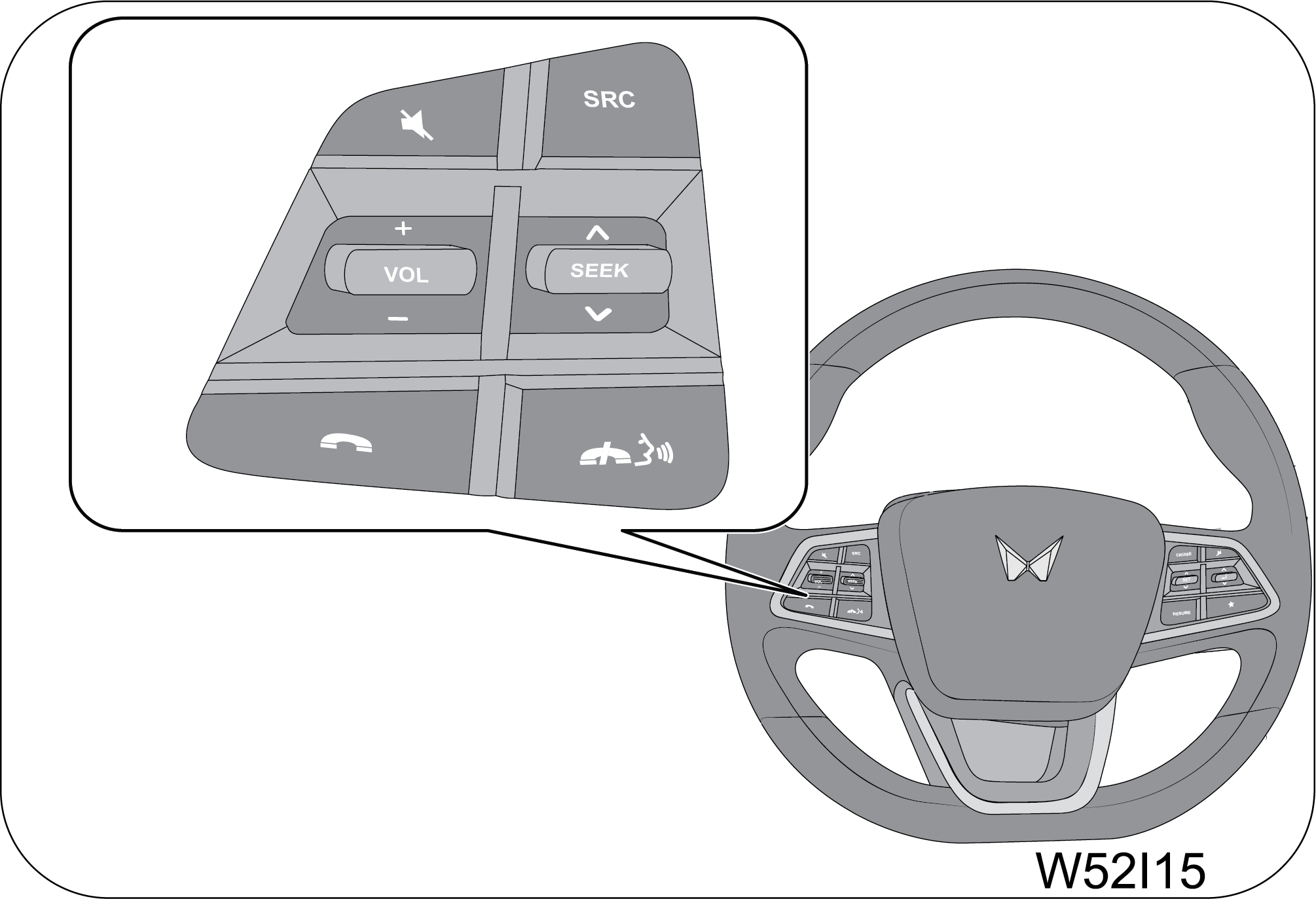

Audio control through the steering wheel switches/buttons helps the driver to operate the audio system from the steering wheel
without losing concentration.

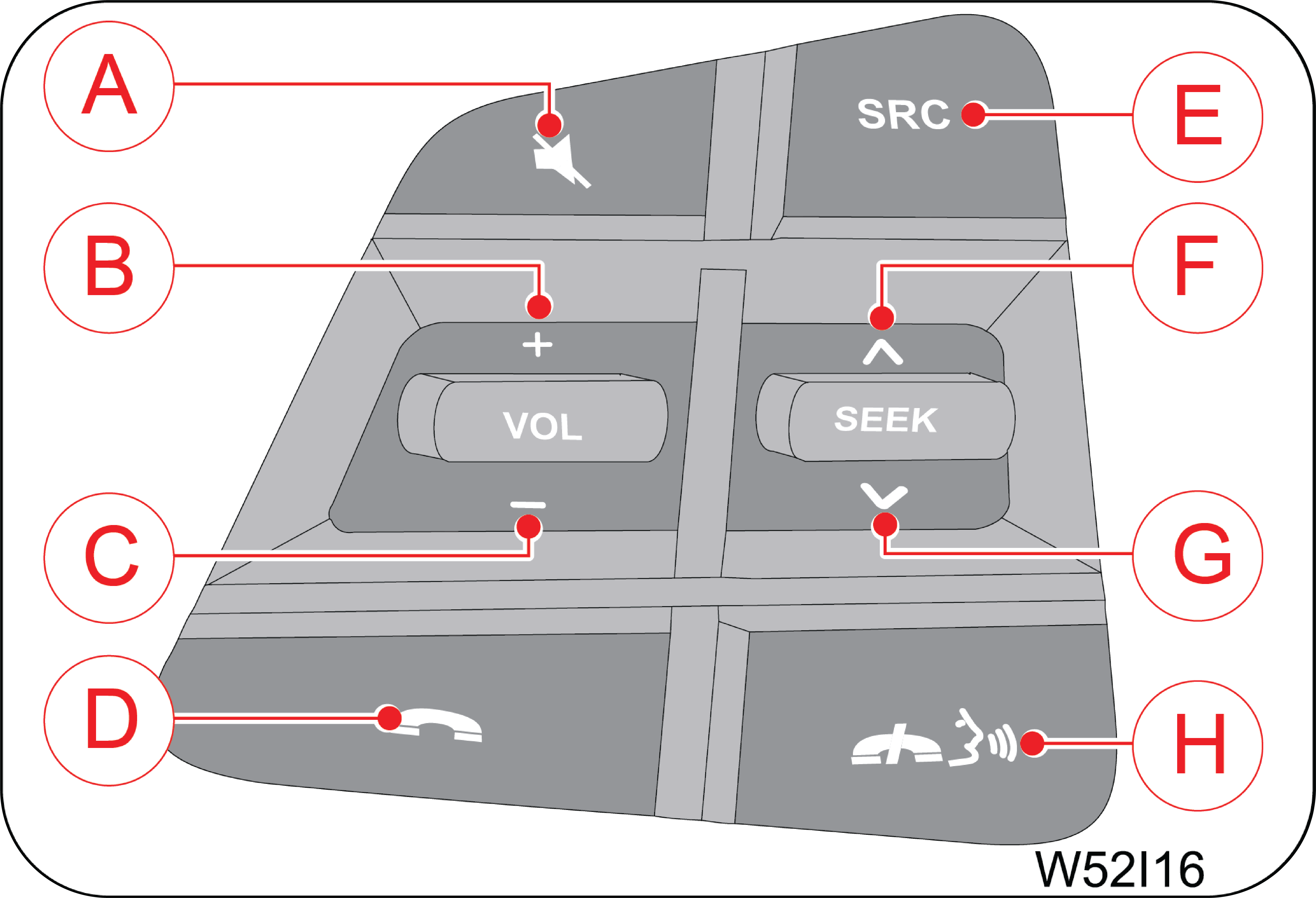

The system has four switches which are mounted on the steering wheel. Hold the Mute button to start the infotainment system.
|
|
A: Mute
B: Volume (+)
C: Volume (-)
D: Call Receive
E: Source
F: SEEK (^)
F: SEEK (v)
H: Call Disconnect/Voice Command
|

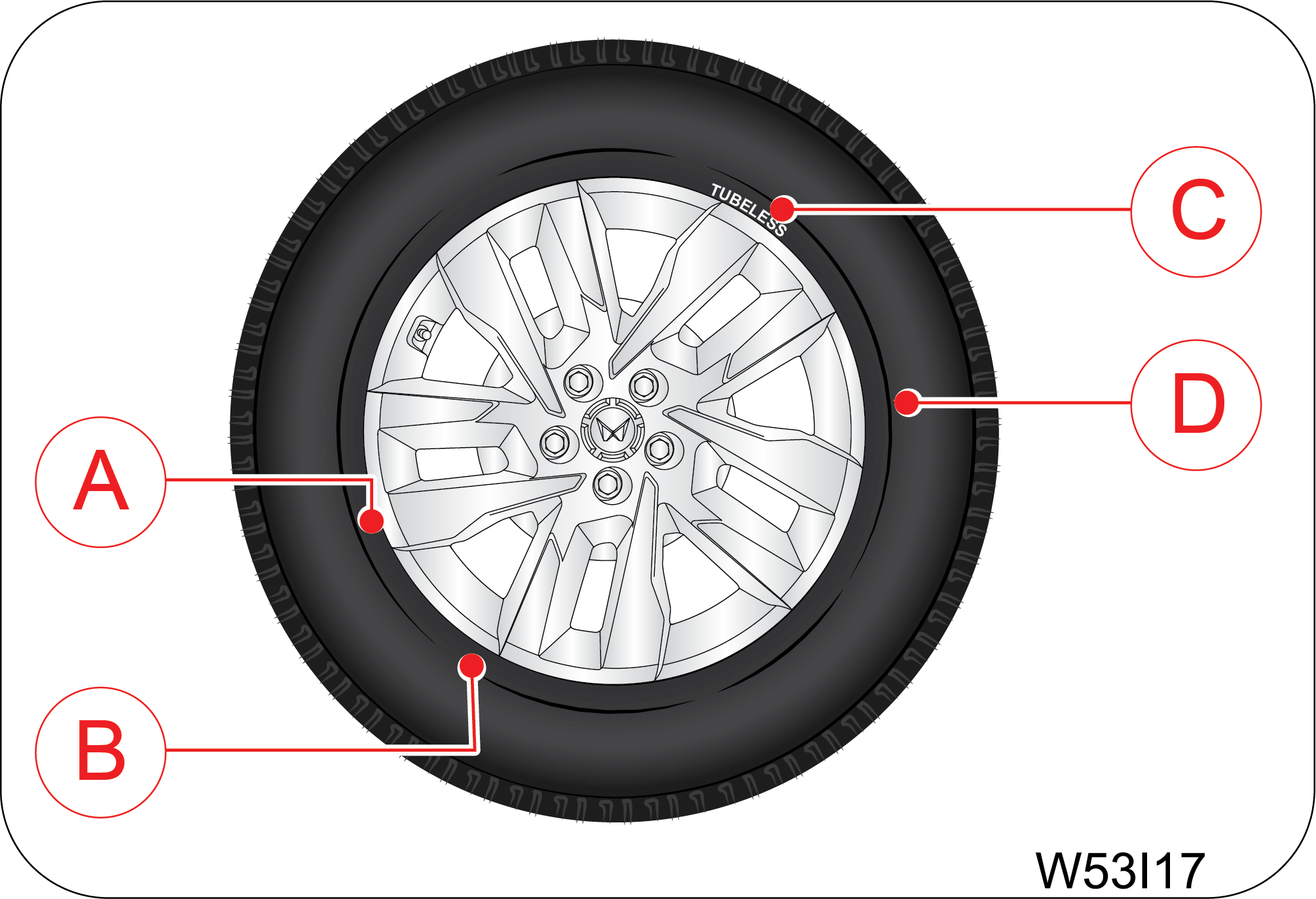

A |
Max Load Limit |
B |
Tyre Size |
C |
Radial tyres or bias-ply tyre - A radial tyre has “RADIAL/STEEL BELTED RADIAL” on the sidewall. A tyre not marked with “RADIAL”
is a bias-ply tyre.
|
D |
“TUBELESS” or “TUBE TYPE” - A tubeless tyre does not have a tube inside the tyre and air is directly filled in the tyre. A
tube type tyre has a tube inside the tyre and the tube maintains the air pressure.
|
|
Tyre rating is explained as shown the given image.
|
|
|
• | Safety |
• | Economy |
• | Ride Comfort and Vehicle Stability |
• | Driving style |
• | Tyre pressure |
• | Distance driven |
|

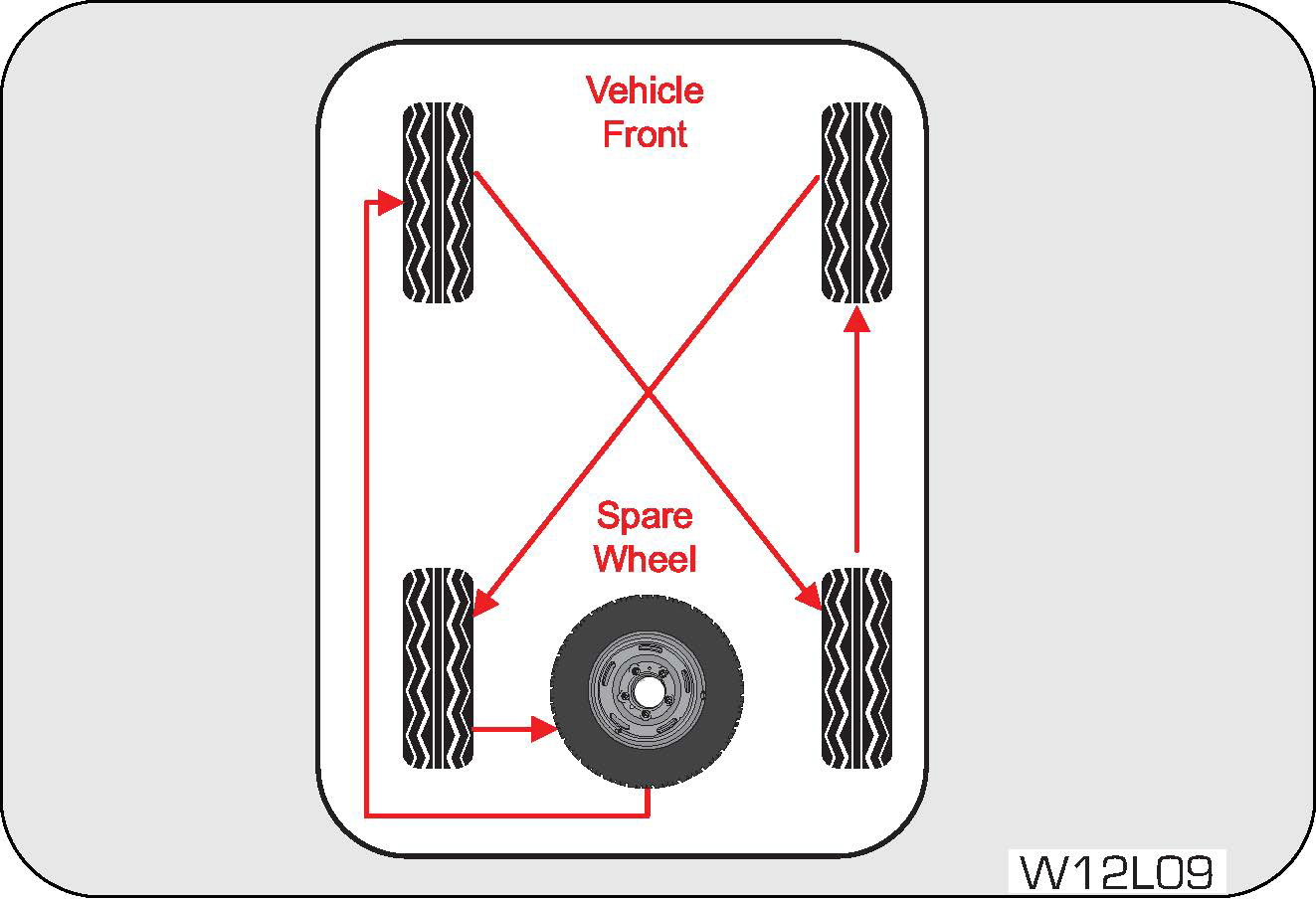

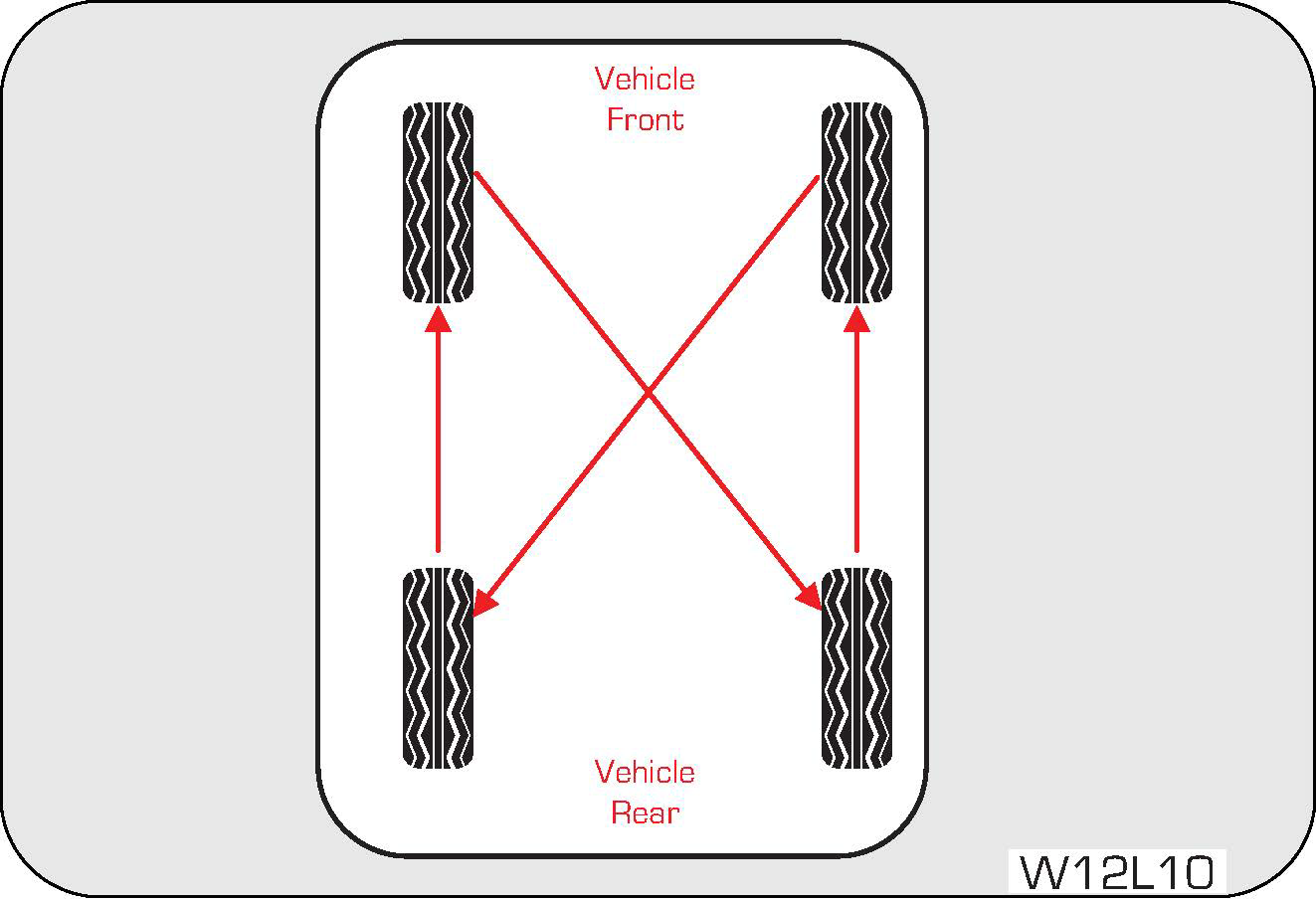

Tyres on the front and rear axles of vehicles operate at different loads and perform different steering, handling, and braking
functions. For these reasons, they wear at unequal rates and develop irregular wear patterns.
|
|
Rotation will increase tread life, help to maintain mud, snow, and wet traction levels, and contribute to a smooth, quiet
ride. Follow the recommended tyre rotation frequency for your type of driving. More frequent rotation is permissible if desired.
|

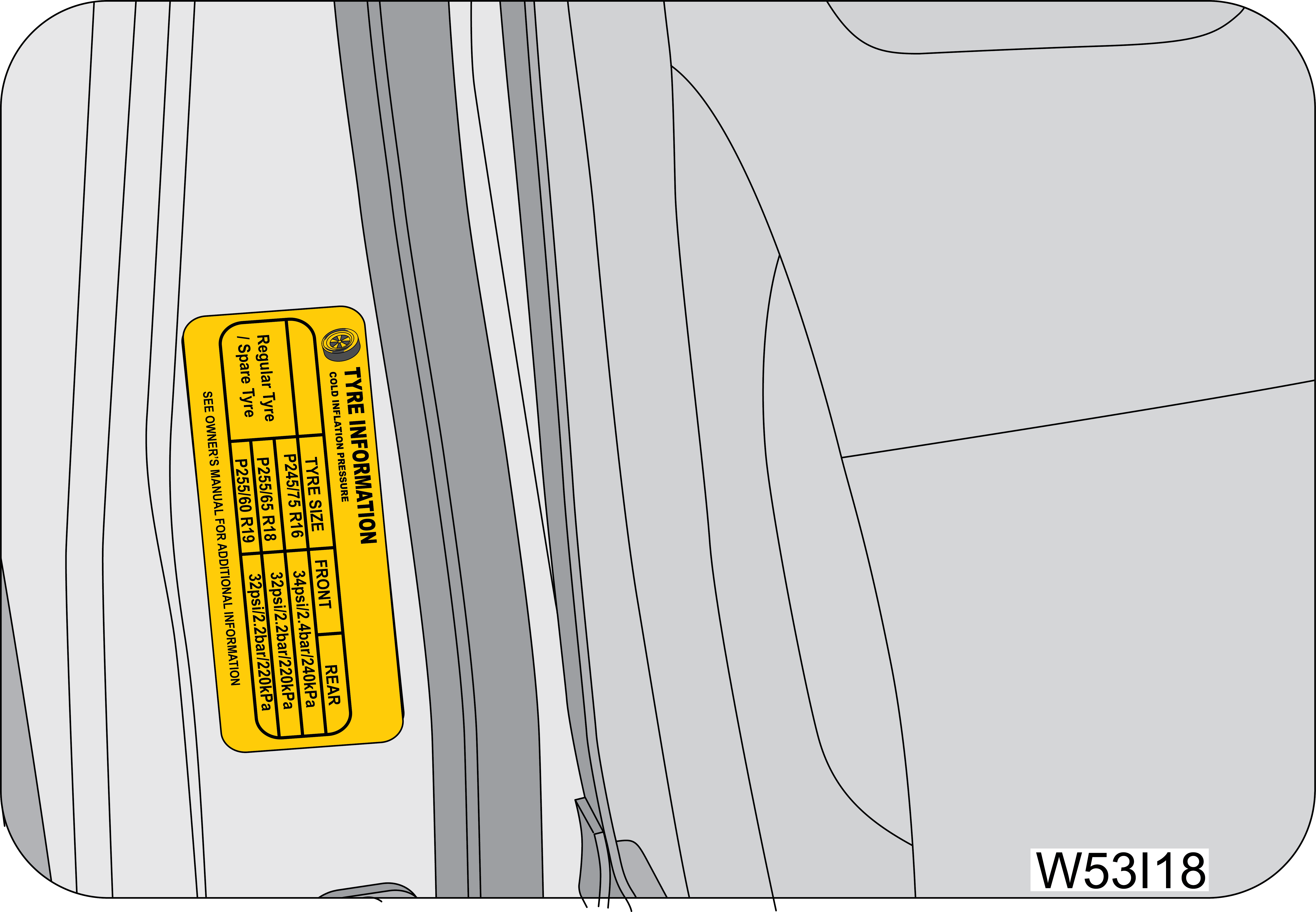

• | Adequate braking |
• | Road grip |
• | Vehicle handling |
• | Vehicle maneuvering |
• | Reduced tyre wear and tear |
• | Reduced tyre strain and safety |
• | Good fuel efficiency |
TFT |
Digital |
|
|
|
First apply lubricant (paste) or soapy water to rim hole or valve nozzle bar, as shown in the following figure (the diagram
is for reference only, and it is operated according to the degree of automation of the customer's production line)
|
|
|
1. | Line the sensor up with the rim hole and attach the TTV insertion tool to the end of the valve ready for pull in |
2. | Ensure the TTV insertion tool is positioned to the correct notch and that the sensor is pulled through in a direction parallel to the valve whole axis and NOT at an angle to it |
3. | The picture below shows a correctly fitted sensor. Note the rubber bulb of the valve resting against the rim and the front face of the enclosure is NOT touching the rim. Apply tyre soap solution to the rubber portion of the valve stem and the top of the enclosure |
4. | Place the inner tyre bead over the rim |
5. | Place the outer tyre bead over the rim |
6. | Inflate all tyres to the prescribed pressure, check the valve area for leakage and re-balance the wheels prior to installing back on the vehicle |
|
|
• | Remove the tread and ensure that the extractor forceps is inserted into the tyre at the yellow position shown below and turn
the rim clockwise.
|
• | To remove the sensor, firstly remove the screw using a T6 TORX screwdriver.
|
|
|
• | Cut the rubber bulb and attach the TTV tool to the valve. Remove the valve from the rim by pulling through the rim, or simply pull through without cutting the bulb |
• | Lift the outer tyre bead over the rim using a tyre tool |
• | Lift the inner tyre bead over the rim using the tyre tool |
• | Remove existing valve stem |
• | Low Pressure Alert |
• | High Pressure Alert |
• | High Temperature Alert |
• | Pressure Leakage Alert |
• | Sensor Signal Missing (Communication error) |
• | Tiretronics Sensor Faulty. |
• | Tyre Auto Learn |
• | Tyre Fill Assist (TFA) |
• | Tyre Pressure Imbalance |
TFT |
Digital |
|
|
• | Low pressure alert will be set only when the tyre pressure value goes below threshold. Low pressure will be set based on the temperature value. |
• | Low pressure alert in the main alert screen will pop up once for driver notification when the alert is set and the vehicle is in running condition. Otherwise the alert will remain in the information screen and alert register screen |
• | If low pressure is observed, respective tyre should be rectified with cause of low pressure and then fill air |
• | Once low pressure alert is set with tyre pressure below threshold the alert shall not be cleared until the pressure is filled to the placard value |
TFT |
Digital |
|
|
• | High pressure alert will be set only when the tyre pressure value goes above threshold |
• | High pressure alert in the main alert screen will pop up once for driver notification when the alert is set and the vehicle is in running condition. Otherwise the alert will remain in the tiretronics screen |
• | If high pressure value is observed, air has to be released from the respective tyre until the pressure reduces to the placard value |
• | The vehicle should be driven above 40 kmph for the new pressure value to be updated and the alert to be cleared |
• | Once the high pressure alert is triggered the alert shall not get cleared until the respective tyre pressure is reaches to the placard value |

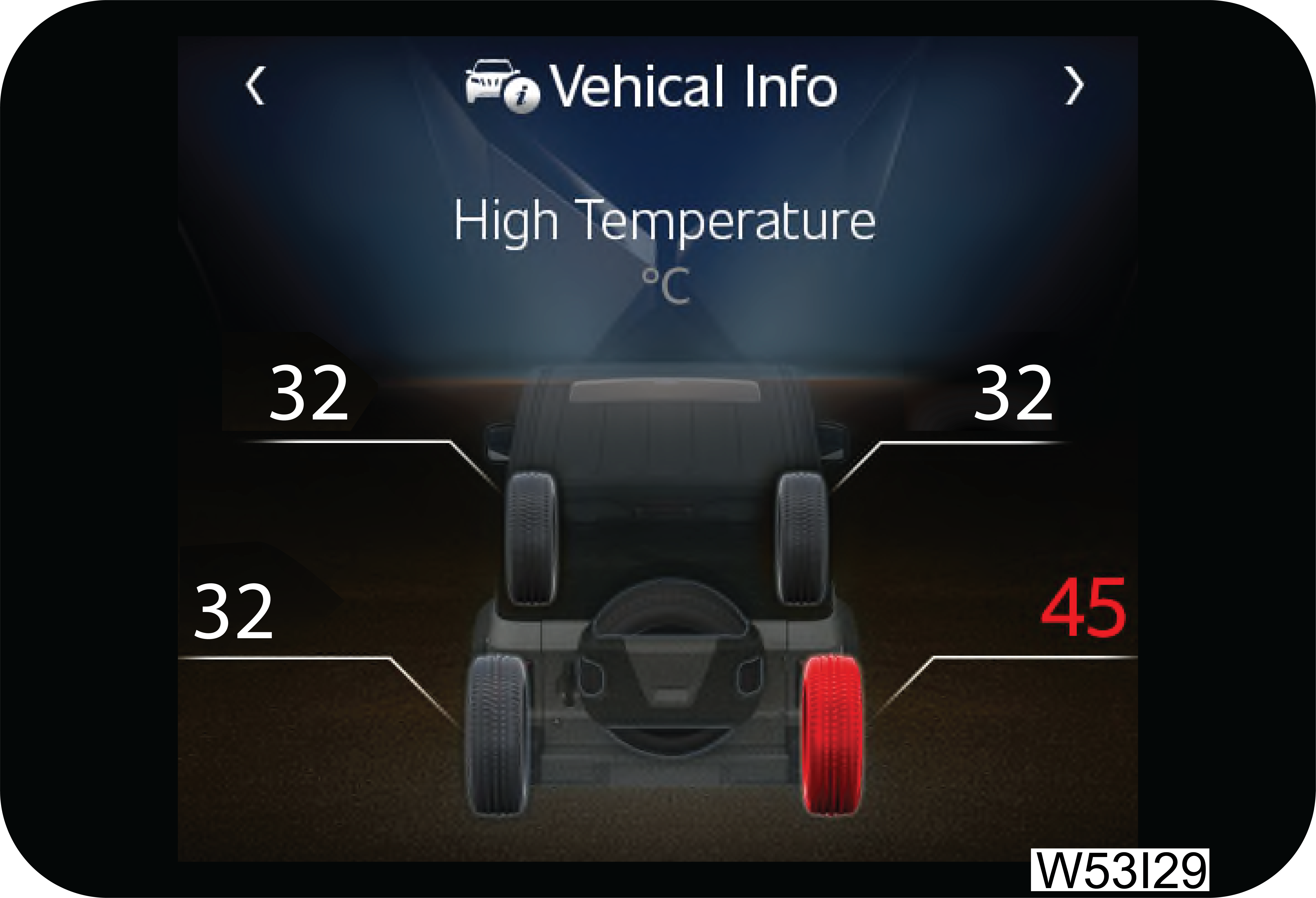

TFT |
Digital |
|
|
• | Pressure Leakage alert will be set only when the tyre pressure is leaking at a rate greater than defined threshold |
• | In the pressure leakage condition if the tyre pressure goes too below threshold then the low pressure alert will also be set |
• | The pressure leakage alert in the main alert screen will pop up once when the alert is set for driver notification and will be shown in tiretronics screen when the vehicle is in running ignition ON condition |
• | Once pressure leakage is observed the respective tyre should be observed for air leakages and the puncture condition has to be rectified. Proper placard value should be filled after puncture rectification |
• | If the vehicle is running in an extremely rocky and acute bumpy condition then fluctuating pressure leakage alert may get set which will get rectified when the vehicle runs back on a normal road. This happens due to sudden change in pressure levels due to rocky conditions |
TFT |
Digital |
|
|
• | On account of any issue in signal reception or Tiretronics sensor damage or tyres changed with out performing manual learning then the signal will not be received |
• | If the Signals from the tiretronics sensor are not received atleast once, when the vehicle is driven at a speed greater than 40kmph for more than 10 minutes, "Signal Missing" alert will be set for the respective tyre and Tiretronics Telltale will be ON. |
• | When the Tiretronics signal missing is set then perform manual learning once. If manual learning is not done successfully then the corresponding position tyres sensor needs to be checked by carefully opening the tyre |
• | If the sensor is found to be damaged then it should be replaced with a new one and manual/auto learning should be done |
• | If the Tiretronics sensor low battery/faulty is set then the corresponding position tyres sensor needs to be removed by carefully opening the tyre and replacing it with a new sensor |
• | Post replacing the new sensor, manual/auto learning should be done |
TFT |
Digital |
NA
|
|
TFT |
Digital |
NA
|
|
TFT |
Digital |
NA
|
|
1. | Manual learning should be compulsorily performed on any of the following conditions or operations done
|
2. | Once manual learning is initiated, the sensors inside the tyres need to be triggered by leaking the air from each tyre one at a time and should be completed within certain value post to each event for learning all 4 tyres |
3. | Do not perform Manual learning process at the same time on two vehicles with in the radius of 20 meters |
4. | It is mandatory that manual learning of tyres should follow the sequence of ‘front left tyre position, front right tyre, rear right tyre and rear left tyre. |
5. | It is required to ensure the tyres have pressure > 32psi and < 36psi before initiating the manual learning process |
6. | Post manual learning, all tyres should be filled to the placard pressure value |
|
1. Turn the ignition OFF. Press and hold the up button in steering wheel
2. Turn the ignition ON
|
• | Try initiating the manual learning once again |
• | Check if the reverse gear is engaged, if it is engaged disengage it |
• | Check if the Enter button is working fine |
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
TFT |
Digital |
|
|
• | The Tiretronics monitors only tyre pressure and temperature. It does not monitor conditions such as tyre wear |
• | The Tiretronics will not be able to detect an instant tyre burst and inform the driver in advance |
• | There may be the possibility of getting all the tyre location indicators on the Tiretronics display blinking along with the Tiretronics telltale, on passing environment area prone to heavy power lines and RF signal. It will come back to normal condition when interference gets cleared |
• | It is recommended to fill the pressure to 32 psi at a digital gauge station only |
• | Every 15 days, inflate all the tyres up to 32 psi and inflation should be done at cold condition/ambient temperature |
• | Pressure deviation between the Tiretronics display and gauge will depend upon the following factors:
|
• | Tiretronics measures pressure of the tyre |
• | Pressure deviation is defined for 0.5 psi (min) and 3 psi (max) |
• | If the vehicle battery/fuse is disconnected and reconnected, it will update the pressure after the vehicle is driven or sensor is activated |
• | If the vehicle tyres are rotated or any of the tyres sensors are replaced, then tires have to be learned via either manual or auto learning. Refer Tyre Auto/Manual learn process in Tiretronics section for more details |
• | If more than one tyre needs to be learned, learn all 4 tyres as per manual learning procedure |
• | Tiretronics is only a warning or indicating device. Pressure and temperature values displayed by the system is for indication prior to alert purposes only. The Tiretronics system should not be used as a measuring device to correlate or calibrate against other systems |
• | During winter or in cold conditions, there may be chances of getting a pressure alert with the corresponding tyre location indicator in the display, if the tyre pressure is near the thresholds level. i.e. between 28 psi to 24 psi. However, this alert will get cleared after driving a few kilometers depending upon the climatic condition |
Ambient Temp. (Deg C) |
Recommended Pressure Front & Rear (32 Psi Placard) |
<0
|
28
|
10
|
29
|
20
|
31
|
30
|
32
|
40
|
34
|
50
|
35
|
60
|
37
|
70
|
38
|
• | Crash — Hazard would be turned on for 30 mins |
• | Panic Braking — When the vehicle is running above 100 kmph and panic/sudden brakes are applied, hazard will turn on for 10 sec |
Front |
Rear |
|
|
• | Flat-bed equipment - Your vehicle is loaded on the back of a truck. This is the safest and best way of towing. |
• | Rear-lift equipment - The tow truck uses two pivoting arms that go under the tires (front or rear) and lift them off the ground. The other two tires remain on the ground. |
• | Sling-type equipment - The tow truck uses metal cables with hooks on both ends. These hooks go around parts of the frame or suspension and lift the end of the vehicle off the ground. This is not a good method of towing as it may damage the vehicle's suspension and body. Avoid a tow with sling type equipment |
Towing Option |
2WD |
Towing Condition |
Wheels OFF the Ground |
4WD |
---|---|---|---|---|
|
ü
|
On Trailer
|
ALL
|
ü
|
|
O
|
Flat Tow
|
NONE
|
O
|
|
O
|
Dolly Tow
|
Front
|
O
|
|
ü
|
Dolly Tow
|
REAR
|
O
|
1. | Check that the battery terminals are tight and clean |
2. | If the battery terminals are firmly fastened, Switch ON the interior lamps. |
3. | If the lamps do not illuminate, glow dim or go OFF when the starter is cranked, then it indicates a weak or discharged battery. Try jump starting. Follow ‘jump starting’ instructions given later in this chapter. |
4. | Check the fuses in the Engine Compartment Fuse Box and Central Fuse Box |
• | Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. |
• | Turn ON your hazard warning flashers and check for any malfunction lamps in the instrument cluster. |
• | Turn the ignition OFF, wait for approximately 90 seconds and try starting the engine again. |
• | . If the vehicle still does not start, contact an Mahindra Authorised Dealer. |
• | If the engine speed does not increase when the accelerator pedal is depressed, there may be a problem in the Engine Management System, electrical or electronic controls. |
• | In case of certain faults, the engine may go to limp home mode, which is indicated by the check engine lamp. |
• | Have your vehicle checked by an Mahindra Authorised Dealer as soon as possible. |
• | Progressively reduce the vehicle speed and bring the vehicle to a stop at the side of the road |
• | Turn ON the hazard warning flashers |
• | Keep the engine running at idle |
• | Engage the parking brake |
• | Switch off the air conditioner |
• | Wait till the engine coolant temperature drops sufficiently such that the needle in the temperature gauge is around halfway between C and H |
1. | Turn headlamp ON and check whether lights are dim |
2. | Try to start the vehicle and check whether engine cranks slowly or not crank at all. |
3. | Open the bonnet and locate the battery. It may be necessary to remove the disabled vehicle’s battery cables from the battery terminals and clean both cables and terminals.
Use a stiff wire brush to remove all corrosion. Reconnect the cables to the battery terminals before jump starting the vehicle.
|
4. | The positive terminal will be marked with a plus sign (+) and will usually have a RED cable attached on it. |
5. | The negative terminal will be marked with a minus sign (-) and will usually have a BLACK cable attached to it. |
6. | A standalone booster battery can be used to start the engine when the vehicle battery is low. |
7. | Take jumper cables and unwind the red and black cables. |
8. | Wear safety gear and connect one end of red clamp of the jumper cable to the positive (+) terminal of the discharged battery and other end to the positive (+) terminal of the booster battery. |
9. | Similarly, connect one end of black clamp of the jumper cable to the negative (-) terminal of the booster battery and other end to the negative (-) terminal of the discharged battery. |
10. | Once the jump starting assembly is done, crank the engine for starting. |
11. | Once the vehicle gets started, carefully remove the jumper cables in the reverse order of attachment. |
12. | Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery and the other end of the black clamp from the negative (-) terminal of the booster battery. |
13. | Similarly, disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery and the other end of the red clamp from the positive (+) terminal of the discharged battery. |
14. | Close the bonnet |
15. | Keep the vehicle's engine running and slightly accelerate the vehicle to charge the battery. |
|
|
• | Remove the jumper cables once the vehicle starts. Do this in the reverse of the order in which they were attached, and don't let any of the cables or clamps touch each other (or dangle into the engine compartment) |
• | Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery |
• | Disconnect the other end of the black clamp from the negative (-) terminal of the booster battery |
• | Disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery |
• | Disconnect the other end of the red clamp from the positive (+) terminal of the discharged battery |
• | Keep the vehicle's engine running. Run the vehicle above idle (slightly revved up with your foot on the accelerator). This should give the battery enough charge to start the vehicle again. If it does not start, either your battery might be dead or faulty alternator. |
• | Pull the Fuse box cover below the switch bank, outward to access the instrument panel fuse box |
Fuse No |
Fuse Rating |
Circuit |
---|---|---|
F34*
|
10A
|
USB FAST CHARGING
|
F35
|
–
|
ROOF LAMP/RLS
|
F36*
|
30A
|
ANTI-PINCH MOTOR
|
F37*
|
20A
|
SUNROOF B+/PANO
|
F38
|
5A
|
CRANK
|
F39
|
15A
|
INFOTAINMENT B+
|
F40
|
5A
|
DIAGNOSTIC / TELEMATICS
|
F41
|
25A
|
MBFM BATT-2
|
F42*
|
5A
|
WIRELESS CHARGER
|
F43
|
5A
|
ABS IGN/EPS ADAS-EPB/SAS
|
F44
|
5A
|
AIR BAG IGN
|
F45*
|
10A
|
INFO/DISPLAY/RVC/FVC/SVS/PKE
|
F46*
|
10A
|
ORVM/RPAS/PKE
|
F47
|
5A
|
IC/HVAC B+
|
F48
|
5A/20A
|
IMMO B+/PKE B+/MGM B+
|
F49
|
25A
|
MBFM BATT-1
|
F50
|
10A
|
4WD ACTUATOR
|
F51*
|
15A
|
AT ECU B+
|
F52
|
10A
|
IC/HVAC/MBFM/CFS/HEAD LMP/HLLD/CCFS/AIS/FATC
|
F53*
|
10A
|
INF ACC/RR USB/BRD AUDIO
|
F54
|
10A
|
REV LMP/TGS/E-MLD IGN
|
F55
|
25A
|
MBFM BATT-4
|
F56
|
25A
|
MBFM BATT-5
|
F57
|
25A
|
MBFM BATT-3
|
F58*
|
10A
|
SUNROOF/WLC IGN/AUTO IRVM/VS
|
F59*
|
5A
|
AT ECU IGN
|
F60
|
5A
|
EMS ECU IGN
|
F61
|
20A
|
POWER WINDOW REAR
|
F62*
|
5A
|
IMMO/FCM/FRM/MGM IGN
|
F63
|
15A
|
POWER SOCKET
|
F64*
|
5A
|
MBFM ACC
|
F65
|
25A
|
POWER WINDOW
|
* - If equipped
|
Relay No |
Relay Rating |
Circuit |
---|---|---|
-
|
40A
|
PKE IGNITION RELAY*
|
-
|
40A
|
ACCESSORY START RELAY 40A*
|
• | To open the fuse box cover, press the lock and push the cover back and lift it. |
|
|
Fuse puller is available in the fuse box cover.
|
|
|
Fuse No |
Fuse Rating |
Circuit |
---|---|---|
F1
|
50A
|
BATT-1
|
F2
|
50A
|
GLOW PLUG
|
F3
|
50A
|
BATT-2
|
F4
|
40A
|
STARTER
|
F5
|
40A
|
ABS MOTOR
|
F6
|
30A
|
EMS ECU
|
F7
|
40A
|
BLOWER MOTOR
|
F8
|
50A
|
COOLING FAN
|
F9
|
50A
|
BATT-3
|
F10*
|
40A
|
CF LOW
|
F11*
|
40A
|
ABS-2
|
F12
|
15A
|
H/L LH
|
F13
|
15A
|
H/L RH
|
F14
|
20A
|
HORN
|
F15
|
-
|
-
|
F16*
|
25A
|
ABS SOLENOID
|
F17*
|
10A
|
REAR FOG
|
F18*
|
15A
|
E-MLD
|
F19*
|
30A
|
BRANDED AUDIO
|
F20*
|
30A
|
POWER SEAT
|
F21
|
15A
|
AC COMP B+
|
F22
|
30A
|
BATT 4
|
F23
|
20A
|
FUEL PUMP
|
F24
|
5A
|
BMS
|
F25
|
10A
|
PCJ&VOP
|
F26
|
10A
|
EMS BATT-1
|
F27
|
10A
|
BRAKE FUSE
|
F28
|
15A
|
AC COMP
|
F29
|
5A
|
EMS ECU B+
|
F30
|
5A
|
BACKFLOW PUMP
|
F31
|
15A
|
EMS BATT -2
|
F32
|
10A
|
HFM
|
F33
|
15A
|
F5
|
50A, 40A, 25A, 20A, 15A, 10A, 10A, 5A
|
SPARE
|
|
* - If equipped
|
Relay No |
Circuit |
---|---|
R5
|
AC COMP
|
R6*
|
BACKFLOW RELAY
|
R7*
|
REAR FOG
|
R9
|
Horn
|
R10
|
FUEL PUMP
|
R11
|
BLOWER
|
R12
|
EMS ECU
|
R13
|
STARTER
|
R14*
|
COOLING FAN LOW
|
R15*
|
COOLING FAN
|
R16
|
GLOW PLUG
|
R17*
|
E-MLD
|
* - If equipped
|
|
Fuse No |
Fuse Rating |
Circuit |
---|---|---|
F1
|
50A
|
BATT-1
|
F2
|
—
|
—
|
F3
|
50A
|
BATT-2
|
F4
|
40A
|
STARTER
|
F5
|
40A
|
ABS MOTOR
|
F6
|
40A
|
EMS ECU
|
F7
|
40A
|
BLOWER MOTOR
|
F9
|
50A
|
BATT-3
|
F11*
|
40A
|
ABS-2
|
F12
|
15A
|
H/L LH
|
F13
|
15A
|
H/L RH
|
F14
|
20A
|
HORN
|
F15
|
—
|
—
|
F16*
|
25A
|
ABS SOLENOID
|
F17*
|
10A
|
REAR FOG
|
F18
|
–
|
–
|
F19*
|
30A
|
BRANDED AUDIO
|
F20*
|
30A
|
POWER SEAT
|
F21
|
15A
|
AC COMP B+
|
F22
|
30A
|
BATT4
|
F23
|
20A
|
FUEL PUMP
|
F24
|
5A
|
BMS
|
F25
|
10A
|
VBR_G
|
F26
|
30A
|
VBR_A
|
F27
|
10A
|
VBR_B
|
F28
|
10A
|
VBR_C
|
F29
|
5A
|
EMS ECU B+
|
F30
|
–
|
–
|
31
|
15A
|
VBR_D
|
32
|
15A
|
VBR_E
|
33
|
15A
|
VBR_F
|
40A, 50A, 30A, 25A, 20A, 15A,, 10A, 5A
|
SPARE
|
|
*- If equipped
|
Relay No |
Circuit |
---|---|
R5
|
AC COMP
|
R6
|
AIR COOLER
|
R7*
|
REAR FOG
|
R9
|
Horn
|
R10
|
FUEL PUMP
|
R11
|
BLOWER
|
R12
|
EMS ECU
|
R13
|
STARTER
|
R14
|
—
|
R16
|
—
|
* - If equipped
|
|
|
• | Main charging fuse – 150A (Pink colour) |
• | Bus bar fuse - 80A (White colour) |
|
Remove the floor button and Lift the floor mat provided in the luggage compartment
|
|
|
Tool kit is located below the rear seat /Tool organizer above the screw jack
|
|
Screw Driver
|
DEO Spanner 10mm x 12mm
|
Wheel Spanner
|
Fuel filter water drain plug removal tool
|
Jack Operating Lever
|
|
1. Insert your hand at top side and hold Spare wheel bezel and pull out side
|
|
2. Remove the screws with the help of a star screwdriver and rotate the plastic lock nut in the anti-clockwise direction.
|
|
3. Take out the plastic nut from a metal tube.
|

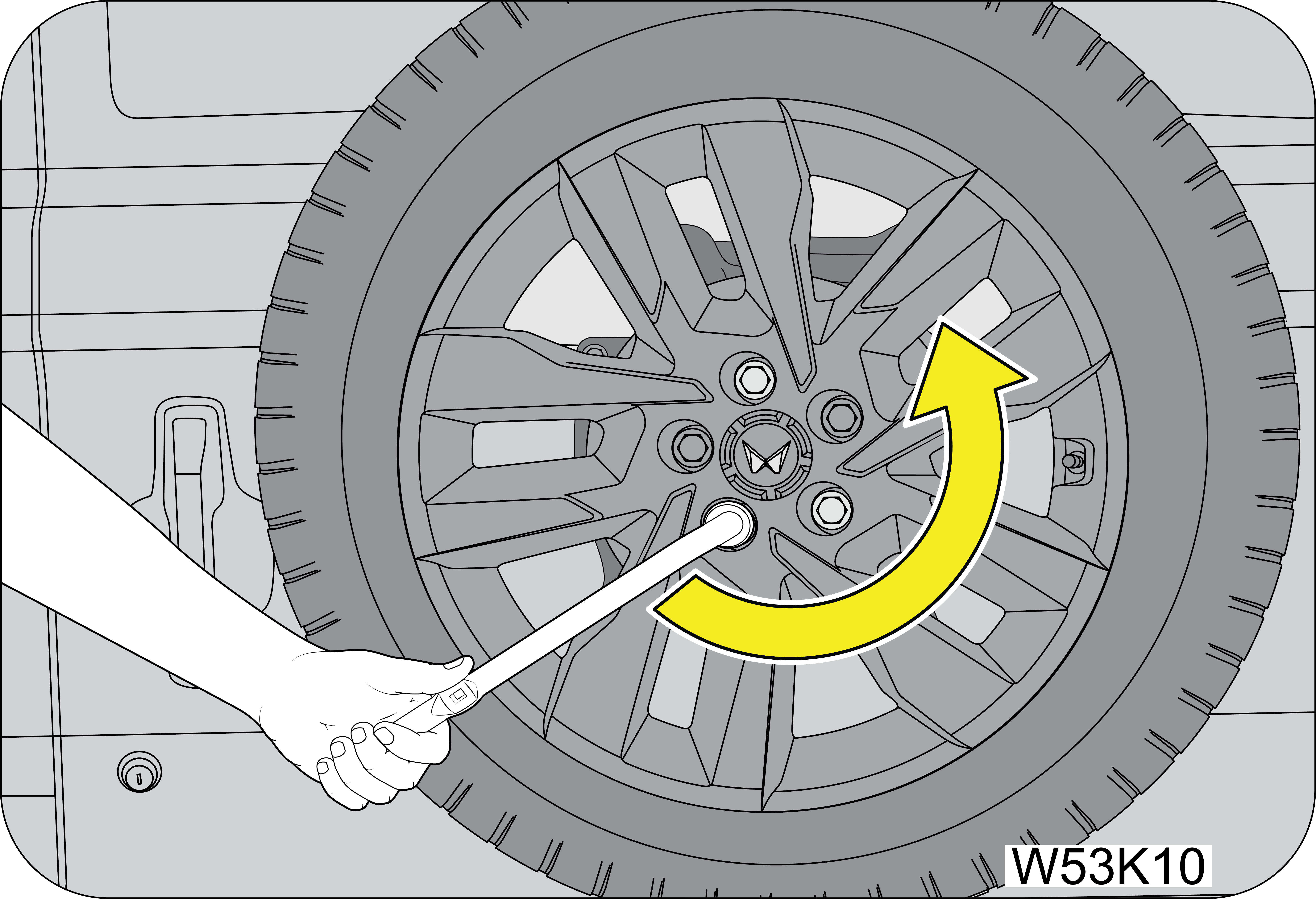

Turn the wheel nut counter clockwise to loosen as per the crisscross sequence shown.
|
|
Front jack up point - On the chassis long member behind the front wheels.
|
Rear jack up point - On either side of the rear axle.
|
|
|
A: Flat Tyre
B: Chock Blocks
|
|
• | Use the jack only for lifting the vehicle during wheel changing |
• | Do not raise the jack with any person inside the vehicle |
• | When raising the vehicle, do not place any objects on top of or underneath the jack |
• | Raise the vehicle only high enough to remove and change the wheel |
• | Follow jacking instructions |
• | Do not start or run the engine while your vehicle is supported by the jack |
Re-install the wheel nut with the tapered end inward and tighten by hand. Press the wheel inward and tighten the wheel nuts
further.
|
|
Tighten each nut a little at a time in the diagonally opposite order as shown. Repeat the process until all the nuts are
tight.
|
|
Front View
|
Rear View
|
Side View
|
Dimensions |
|
---|---|
Wheel Base
|
2850 mm
|
Overall Length
|
4428 mm (Without Spare Wheel)
|
Overall width
|
1870 mm
|
Overall Height
|
1923 mm
|
Front and Rear Track
|
1580 mm
|
The specifications are for reference only. Subject to change without prior notice
|
Diesel |
Petrol |
|
---|---|---|
Engine |
||
Model |
2.2 L m Hawk Gen–II |
2.0 L TGDi Petrol (G20) |
Displacement/Cubic Capacity |
2184 CC |
1997 CC |
Type |
Compression Ignition, 4 Stroke, DI Turbocharged Intercooler |
Positive Ignition, 4 Stroke, DI Turbocharged Intercooler |
Bore x Stroke |
84 X 98.5 / 76 X 82.5 |
83 x 92.25 |
No of Cylinders |
4 |
4 |
Max. Engine Output |
111.9 KW @ 3750 rpm (For 2WD AT & MT) / 128.6 KW @ 3500 rpm (For 4WD AT) |
119 KW @ 5000 rpm (For 2WD MT)/130 kW @ 5000 rpm(For 2WD AT) |
Max. Torque (Nm @ rpm) |
330 Nm @ 1500 - 3000 rpm (For 2WD AT & MT) / 370 Nm @1500-3000 rpm (For 4WD AT) |
330 Nm @ 1750 - 3000 rpm (For 2WD MT) 380 Nm @ 1750 - 3000 rpm (For 2WD AT) |
Clutch |
||
Type |
Single Plate, Dry Diaphragm type (MT)
Wet Multi Plate (AT) |
|
Transmission |
||
Type |
6 Speed Manual Transmission
|
|
6 Speed Automatic Transmission
|
||
No. of Gears |
6 Forward, 1 Reverse
|
|
Axles |
||
Rear Axle Ratio |
4.3 : 1
|
|
Front Axle Ratio |
4.3 : 1
|
NA
|
Wheels & Tyres |
||
Rim (Front/Rear) |
R18: 7.5J X 18 & R19: 8J X 19 |
|
Tyres (Front/Rear) |
255/65 R18 & 255/60 R19 |
|
Steering |
||
Type/Description |
Rack and Pinion Type, Power Assisted - Electric / Power Assisted -Hydraulic
|
|
Suspension |
||
Front |
Double wishbone type IFS |
|
Rear |
Multi link Coil spring suspension |
|
Shock absorbers |
Hydraulic Double Acting
|
|
Brakes |
||
Service Brake |
Hydraulic & Vacuum assisted servo |
|
Front |
Disc |
|
Rear |
Disc/Drum
|
|
Parking Brake |
Mechanical-Hand Operated (Conventional Type) (or) Electric Parking Brake (EPB)
|
|
Fuel |
||
Fuel Capacity |
57 Liters
|
|
Diesel Exhaust Fluid (DEF) Capacity |
20 Litres
|
NA
|
Electrical System |
||
System Voltage |
12 V |
|
Battery Rating
|
72 Ah |
72 Ah
|
Lamp Bulb |
Wattage |
Bulb Type |
Quantity |
---|---|---|---|
Head lamp
|
LED
|
||
Front turn indicator / Position
|
LED
|
||
Boot Lamp
|
LED
|
||
Rear lamp - REVERSE
|
12V - 16W
|
W16W
|
2
|
Rear lamp - STOP
|
12V - 21W
|
PR21W
|
2
|
Rear lamp - TAIL
|
LED
|
||
Front fog lamp
|
LED
|
||
High Mounted Stop Lamp (HMSL)
|
LED
|
||
Registration plate lamp
|
LED
|
||
Map reading lamp
|
LED
|
||
Roof lamp
|
LED
|
||
Side repeater
|
12V - 5W
|
W5W
|
2
|
• | Familiarize yourself with your vehicle by going through your Owner's Manual |
• | Take a few minutes to review this Maintenance Section |
• | Make it a habit to use this manual to record scheduled maintenance in the Service Coupon Booklet |
• | Consult with your Mahindra Authorised Dealer for all your vehicle's needs |
• | Refer to relevant sections of the manual before starting |
• | Set the parking brake |
• | Block the wheels to prevent the vehicle from moving unexpectedly |
• | Turn OFF the engine and remove the key |
• | Stay clear of hot vehicle parts |
• | Avoid repeated contact with fluids |
• | Do not let fuel, coolant and other fluids spill over electrical and hot vehicle parts |
• | Keep all open flames and other burning material like cigarettes away from the battery and all fuel related parts |
|

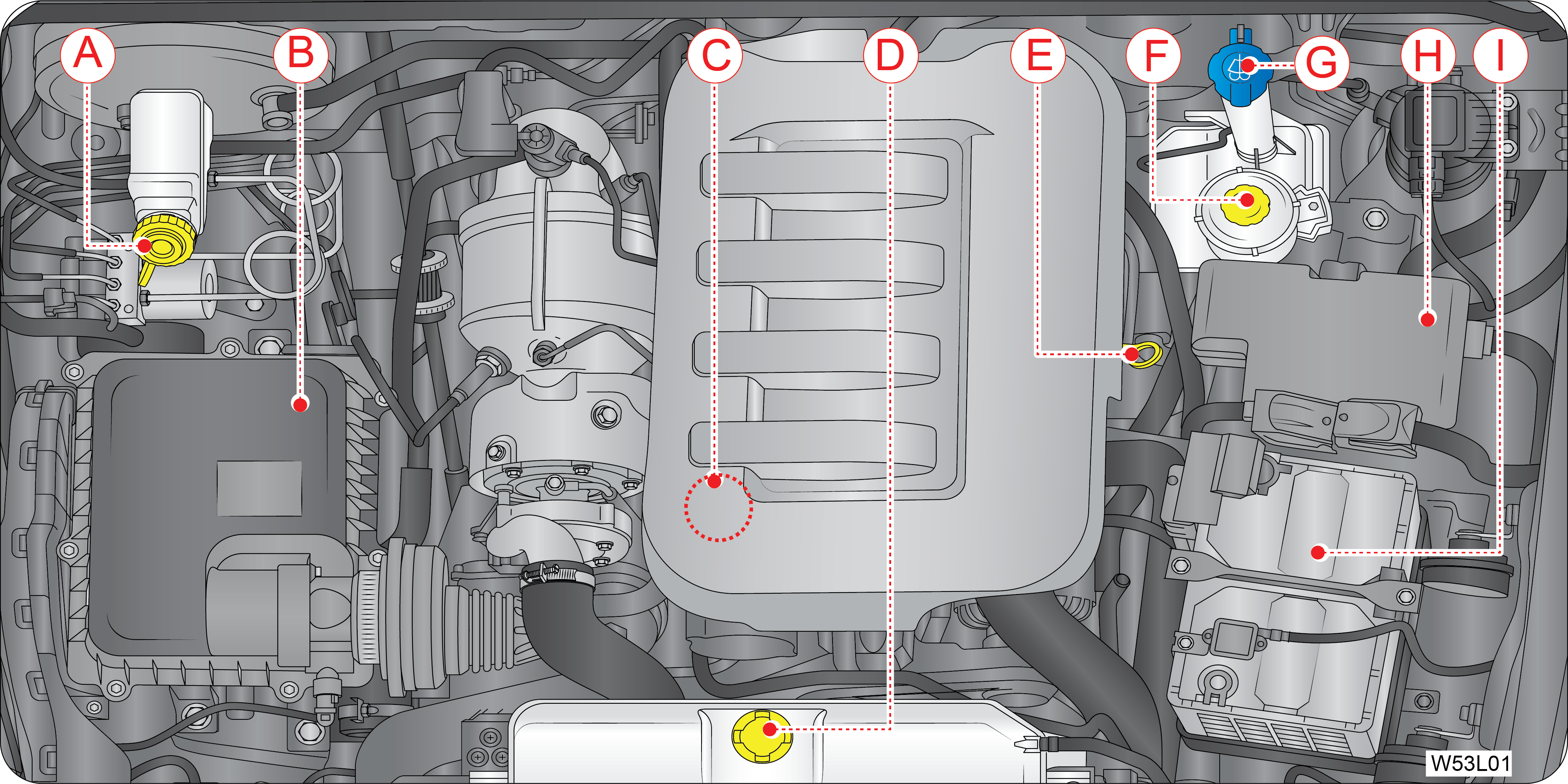

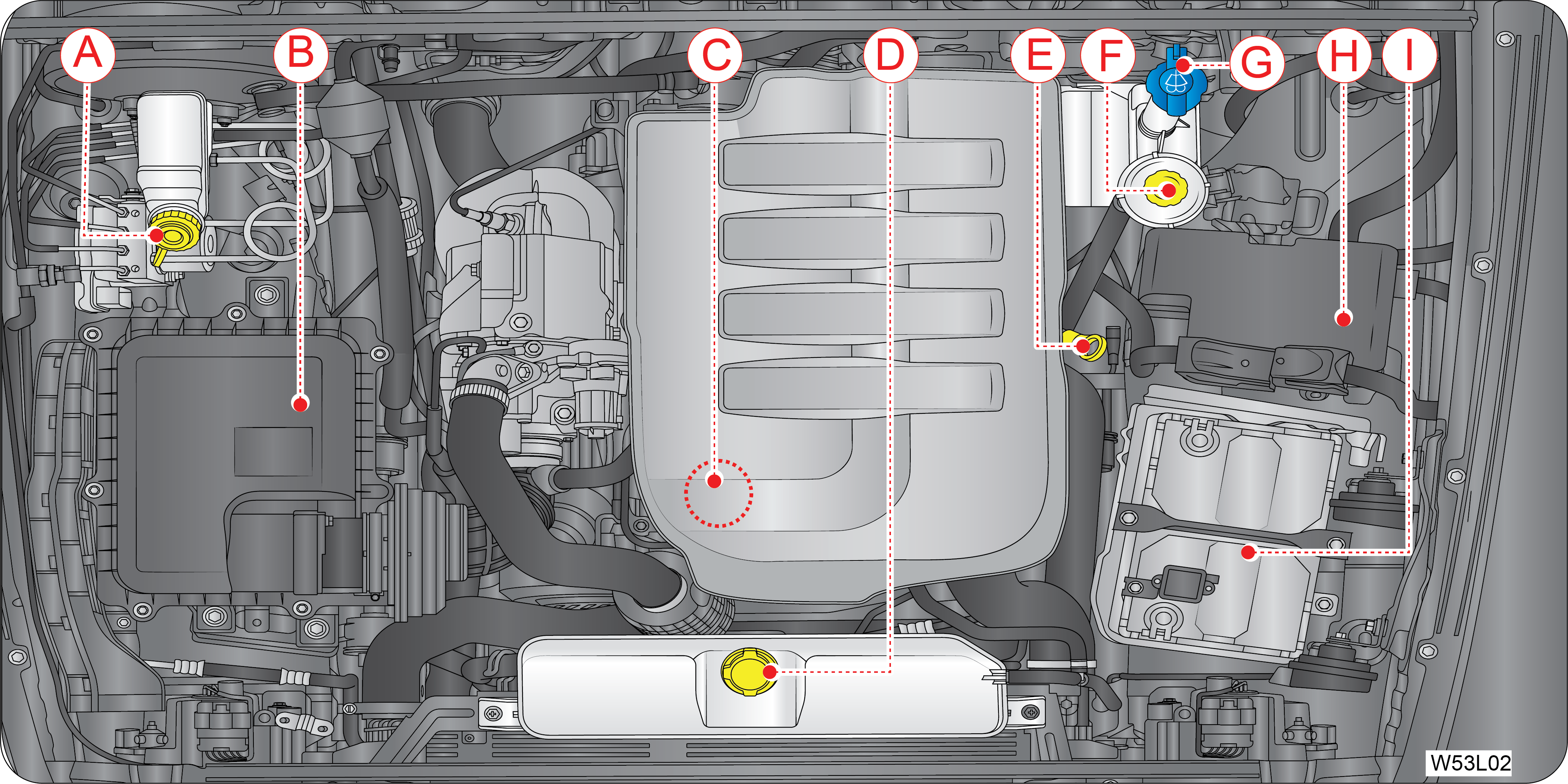

A
|
Brake/Clutch Fluid Reservoir
|
B
|
Air intake
|
C
|
Engine Oil Cap
|
D
|
Degassing Tank (Coolant Filling)
|
E
|
Dipstick
|
F
|
Power Steering Fluid Reservoir
|
G
|
Windshield Washer Fluid Reservoir
|
H
|
Engine Compartment Fuse Box
|
I
|
Battery
|
|
A
|
Brake/Clutch Fluid Reservoir
|
B
|
Air intake
|
C
|
Engine Oil Cap
|
D
|
Degassing Tank (Coolant Filling)
|
E
|
Dipstick
|
F
|
Power Steering Fluid Reservoir
|
G
|
Windshield Washer Fluid Reservoir
|
H
|
Engine Compartment Fuse Box
|
I
|
Battery
|
|
|
||||||
|
|
||||||
|
|
||||||
|
|
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
|
||||||
|
|
||||||
|
• | Oil is used to lubricate pistons, piston rings and cylinders. Thin films of oil, left over when pistons move in cylinders, are sucked into the combustion chamber due to high negative pressure generated when the vehicle is decelerating. This oil gets burnt in the combustion chamber |
• | Oil is also used to lubricate the stems of intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burnt there |
• | Engine oil consumption depends upon the viscosity and quality of the oil, and upon the conditions in which the vehicle is driven. Oil consumption will be more due to high speed driving and frequent acceleration and deceleration. A new engine may consume more oil since its pistons, piston rings and cylinder walls are not conditioned |
• | Make sure the vehicle is on level ground |
• | Turn the engine OFF and wait a few minutes for the oil to settle down into the oil sump |
• | Apply the parking brake |
• | Open the hood. Protect yourself from engine heat |
• | Locate and carefully remove the engine oil level dipstick
|
• | Wipe the dipstick with a clean cloth. Insert the dipstick fully, then remove it again |
• | If the oil level is between ‘Min ’and ‘Max’ marks, the oil level is acceptable. DO NOT ADD OIL |
• | If the oil level is below the ‘Min’ mark, add enough oil through the oil filler neck to raise the level within the ‘Min’ and ‘Max’ marks. Wait for a few minutes after every top up for the oil to settle down before checking the level. |
|
|
• | Park the vehicle on a flat-horizontal surface. Keep the parking brake fully engaged. Shut-off the engine |
• | Wait till the engine cools down and hence coolant temperature comes down to normal room temperature |
|
|
• | The coolant should be filled till the level rises above the ‘MIN’ but remain below the ‘MAX’ marking on the coolant recovery tank |
• | However if the Coolant Recovery Tank is found to be near empty, it is recommended that the system be checked at an Mahindra Authorised Dealer |
|
The brake fluid level will drop slowly as the brakes wear, and will rise when the brake components are replaced. Fluid levels
between the ‘MIN’ and ‘MAX’ lines are within the normal operating range; there is no need to add fluid. If the fluid levels
are below the ‘MIN’ mark, the performance of the systems could be compromised; the brake/clutch operation could be spongy
and gear change harder.
|
• | Release the parking brake |
• | Start the engine |
• | Move the vehicle back and forth |
|
|
1. | Park the vehicle on a level ground |
2. | Apply Parking brake and block the wheels. |
3. | Switch the ignition OFF |
4. | Turn the drain plug (Tool is available in the tool kit) anti-clockwise 3–4 rounds, but DO NOT remove the plug |
5. | Wait till the water drains (few seconds) |
6. | Turn the drain plug clockwise to close and tighten the plug firmly |
|
Check the power steering fluid level at the defined service intervals. Refer to Maintenance Chart for details.
The fluid level should be checked if a leak is suspected, abnormal noises are apparent, and/or the system is not functioning
as anticipated. Coordinate inspection efforts through an Mahindra Authorised Dealer.
|
1. | Start the engine and let it run until it reaches normal operating temperature |
2. | While the engine idles, turn the steering wheel left and right a couple of times |
3. | Turn the engine OFF |
4. | Check the power steering fluid level in the reservoir |
5. | The fluid level should be maintained between the ‘MIN’ and ‘MAX’ marks on the dipstick, integrated with the cap |
6. | If the fluid is low, add fluid in small amounts, continuously checking the level until it reaches the correct operating range. Be sure to put the cap back on the reservoir |
7. | With a clean cloth, wipe any spilled fluid from all surfaces |
|
Top up the windshield washer reservoir as and when required.
|
1. | Lift the arm and position the wiper blade at right angles to the wiper arm |
2. | Press the retaining clip in the opposite direction, disengage the wiper blade and pull it off the arm
To prevent damage to the windshield, don’t let the wiper arm slap down on to it.
|
3. | Hold the end of the rubber and pull until the tabs are free of the metal support |
4. | Carefully insert the new blade rubber. Then install the blade assembly in the reverse order of removal |
• | Keep the battery securely mounted |
• | Keep the battery top clean and dry |
• | Keep the terminals and connections clean, tight and coated with petroleum jelly or terminal grease |
• | Rinse any spilled electrolyte from the battery immediately with a solution of water and baking soda |
• | Remove the vent plugs |
• | Add distilled water to all the cells that require the fluid and secure the plugs properly |
• | Wash your vehicle regularly with cool or lukewarm water and a neutral pH soap |
• | Never use strong household detergents or soap, such as dish washing or laundry liquid. These products can discolor and spot painted surfaces |
• | Never wash a vehicle that is ‘hot to the touch’ or during exposure to strong, direct sunlight |
• | Always use a clean sponge or car wash mitt with plenty of water for best results |
• | Dry the vehicle with a chamois or soft terry cloth towel in order to eliminate water spotting |
• | It is especially important to wash the vehicle regularly during the winter months, as dirt and road salt are difficult to remove and cause damage to the vehicle |
• | Immediately remove items such as gasoline, diesel fuel, bird droppings and insect deposits; they can cause damage to the vehicle's paint work and trim over time |
• | Wash the vehicle first, using cool or lukewarm water and a neutral pH shampoo |
• | Use the custom bright metal cleaners, available at your Mahindra Authorised Dealer. Apply the product as you would wax to clean chrome parts; allow the cleaner to dry for a few minutes, and then wipe off the haze with a clean, dry rag |
• | Never use abrasive materials such as steel wool or plastic pads as they can leave scratches on the chrome surface |
• | After polishing the chrome parts, you can also apply a coating of Premium Liquid Wax, available at your Mahindra Authorised Dealer, or an equivalent quality product to help protect from environmental effects |
• | Vehicle should be washed using a car shampoo that has a mild neutral (Zero) pH with a clean sponge or microfiber cloth to avoid scratching the vehicle’s surface. |
• | Do not use detergent or hard shampoos when washing the vehicle, as they can damage the paint or finish. Instead, only use a mild, neutral pH car shampoo. |
• | External contaminants such as bird droppings, adhesives, insects, and tree sap should be removed promptly and gently from the painted surface before pre-washing. Avoid applying excessive pressure to prevent damage to the paint. |
• | Dry dust should not be wiped off, it may lead to permanent scratch marks, which are especially noticeable on matte colours compared to glossy colours. If the vehicle is very dirty, pre-wash the vehicle with only water to remove excess dirt before proceeding with a full wash. |
• | Avoid using automatic car washers with high-pressure brushes, as they can damage the vehicle's surface. It's advisable to use automatic car washers without high-pressure brushes for a gentler cleaning process. |
• | Do not apply paint protectors such as wax polish, ceramic coating, or any other surface treatments on matte painted surfaces, as they can cause permanent damage to the paint film. |
• | Avoid using paper towels, dirty, or rough cloths to clean or wipe the car, as they can cause scratches. It’s recommended to use only microfiber cloths or sponges for a safe and effective clean. |
• | It's recommended not to apply anything to the painted surface, such as stickers, foils, magnetic labels, or masking tapes, as they can cause adhesive transfer, potentially leaving permanent stains. |
• | It is advisable to protect vehicle from Greasy, Oily products which may leave stains on paint film, difficult to remove. |
• | Recommended to visit an Authorized Mahindra workshops for any paint related repairs. |
• | Mahindra dealers have the exact touch-up paint to match your vehicle's color |
• | Take your vehicle to an Mahindra Authorised Dealer for paint touch-up or paint repairs |
• | Remove particles such as bird droppings, tree sap, insect deposits, tar spots, road salt and industrial fallout before repairing paint chips |
• | Always read the instructions before using the products |
• | Clean weekly with wheel and tire cleaner, which is available at your Mahindra Authorised Dealer. Heavy dirt and brake dust accumulation may require agitation with a sponge. Rinse thoroughly with a strong stream of water |
• | Never apply any cleaning chemicals to hot or warm wheel rims or covers |
• | Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergents |
• | For routine cleaning of plastic parts |
• | For tar or grease spots |
• | For plastic head lamp lenses |
• | The windshield, rear windows and side windows may be cleaned with a non-abrasive cleaner such as Clear Spray Glass Cleaner, available at your Mahindra Authorised Dealer. |
• | The wiper blades can be cleaned with alcohol or Premium Windshield Washer Concentrate, available at your Mahindra Authorised Dealer. This washer fluid contains a special solution in addition to alcohol which helps remove the hot wax deposited on the wiper blade and windshield. Be sure to replace wiper blades when they appear worn or do not function properly. |
• | Do not use abrasives, as they may cause scratches. |
• | Do not use fuel, kerosene, or paint thinner to clean any glass parts. |
• | Avoid cleaners or polishes that increase the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection |
• | Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens |
• | Wipe up spilled liquid using a clean white cotton cloth |
• | Apply Vinyl Cleaner to the wiped area and spread around evenly |
• | Apply cleaner to a clean white cotton cloth and press the cloth onto the soiled area and allow this to set in at room temperature for 30 minutes |
• | Remove the soaked cloth, and if it is not soiled badly, use this cloth to clean the area with a rubbing motion for 60 seconds |
• | Following this, wipe area dry with a clean white cotton cloth |
• | Remove dust and loose dirt with a vacuum cleaner |
• | Remove light stains and soil with carpet and upholstery cleaner |
• | If grease or tar is present on the material, spot-clean the area first with a stain remover |
• | Do not use household cleaning products or glass cleaners, which can stain and discolor the fabric and affect the flame retardant abilities of the seat materials |
• | Do not use cleaning solvents, bleach or dye on the vehicle's safety belts, as these actions may weaken the belt webbing. |
• | To clean, use a soft cloth with a leather and vinyl cleaner. Dry the area with a soft cloth |
• | To help maintain its resiliency and color, use the leather care kit, available from an Mahindra Authorised Dealer |
• | Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners. These products may cause premature wearing of the clear, protective coating |
• | Tap the ice on the window to crack it or chip it for a good place to start scraping. You could end up cracking more than the ice and end up with a cracked or shattered windshield/ window |
• | Pour warm or hot water on the windshield to melt ice. This will crack your windshield |
• | Run it in a well ventilated area. Carbon monoxide can build up quickly |
• | Run for a minimum of 20 minutes to allow the engine to come up to the normal operating temperature. This will allow the oil to circulate and will also open up the thermostat so that your radiator anti-freeze circulates as well |
• | Start up the air conditioner and/or heater and run both for 10 minutes or so. Again, circulating fluids is essential for good life of the system |
• | If your vehicle has power steering, you may want to turn the wheels a few times to keep the fluids flowing |
1. | Navigate to alert history page by pressing the menu button in the steering wheel switch |
2. | Ensure service reminder alert is visible in the menu |
3. | Press and hold OK button. |
4. | Turn ignition OFF and turn ON. |
5. | Release OK button after 10 seconds. |
6. | Check and ensure service reminder alert is not visible in the menu |
• | To avoid short-circuits, never insert metallic objects (for instance: coins or metallic tools) into the unit. |
• | If you notice that the unit is releasing smoke or strange smell, promptly disconnect the supply and consult the nearest or Mahindra service Center. |
• | Pay attention not to let the unit fall down, and neither beat the device strongly. Internal glass components of the unit may be damaged, making it non-operative. |
• | This system has a Capacitive type touch panel. Select the desired option in the screen using his / her finger. Do not use any sharp objects on the touch screen. On selection the selected item is highlighted as an acknowledgement. |
A: Mute
|
E: Voice Command
|
B: Volume +
|
F: Up
|
C: Volume -
|
G: Down
|
D: Call Connect
|
H: Call Disconnect
|
• | SOURCE - Press SOURCE button and use UP and DOWN arrow button to toggle between TUNER, USB, BT AUDIO and MYDRIVE |
• | VOLUME CONTROL - Press ‘+’ and ‘- button to increase or decrease the volume |
• | MUTE - Press MUTE button to mute audio while in TUNER mode and pause the song while in USB mode |
• | TUNER MODE - Press the seek 'UP' / 'DOWN' button briefly: Manual Search, moves to selected channel. Press and hold the seek button 'UP' / 'DOWN' for 2 seconds to AUTO Search |
• | Call Connect - Press to accept incoming call to the paired BT phone. |
• | Call Dis Connect - Press to reject or end active call to the paired BT phone. |

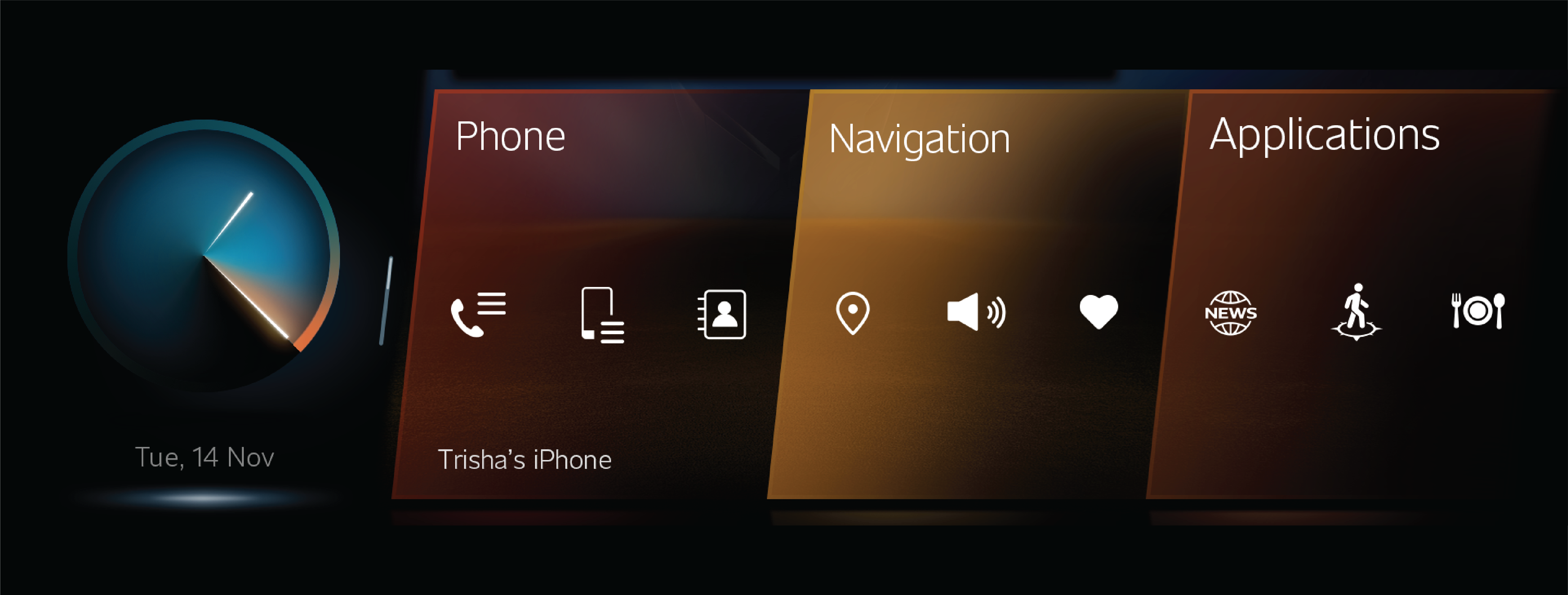

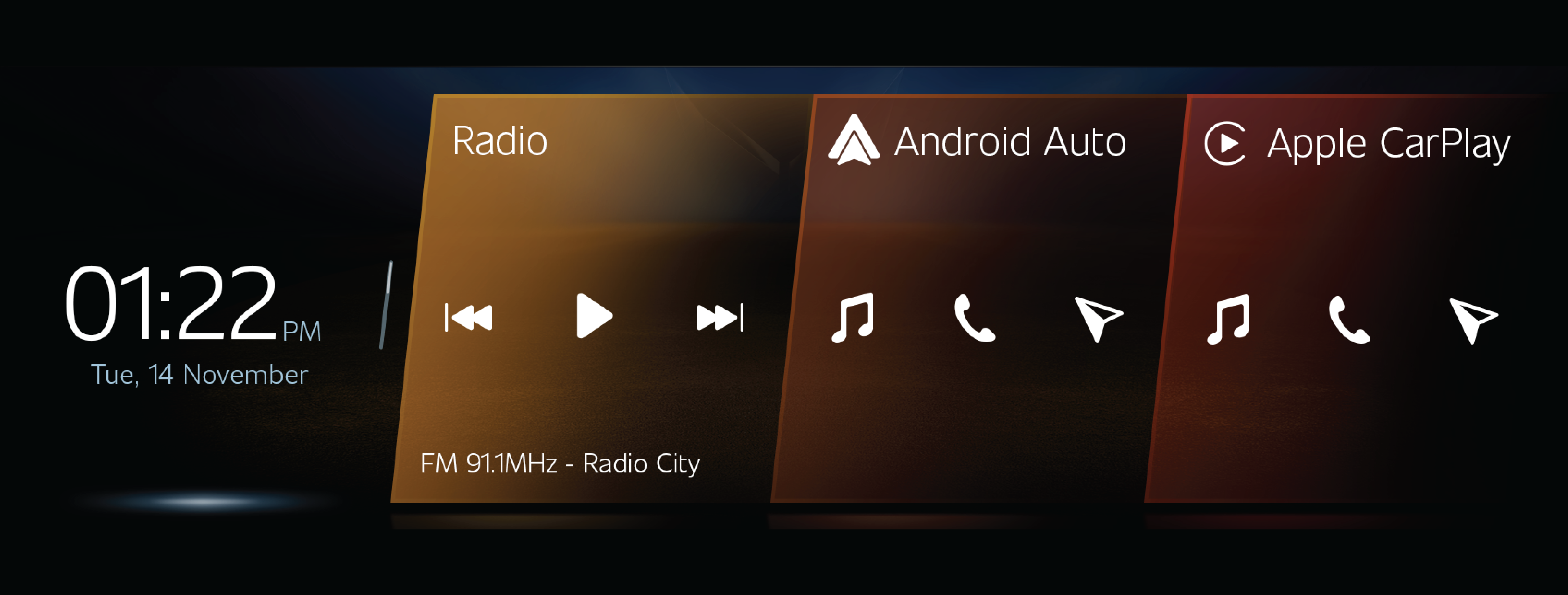

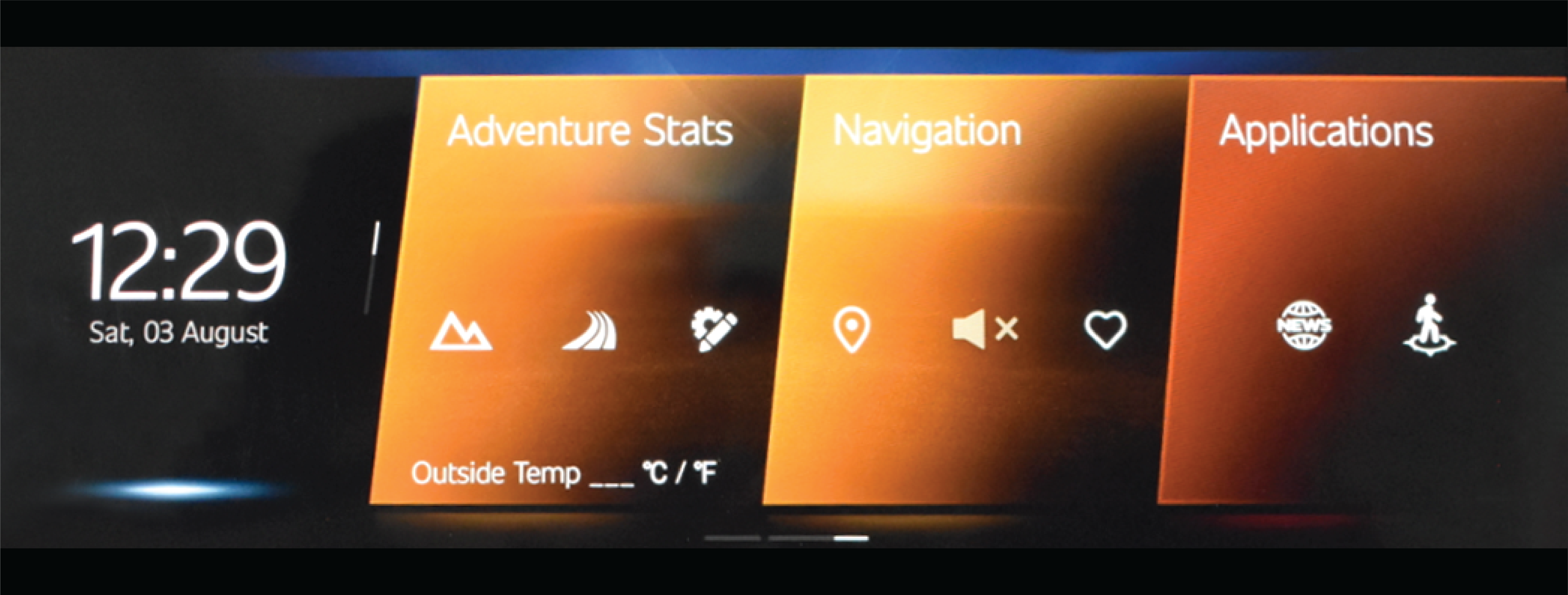

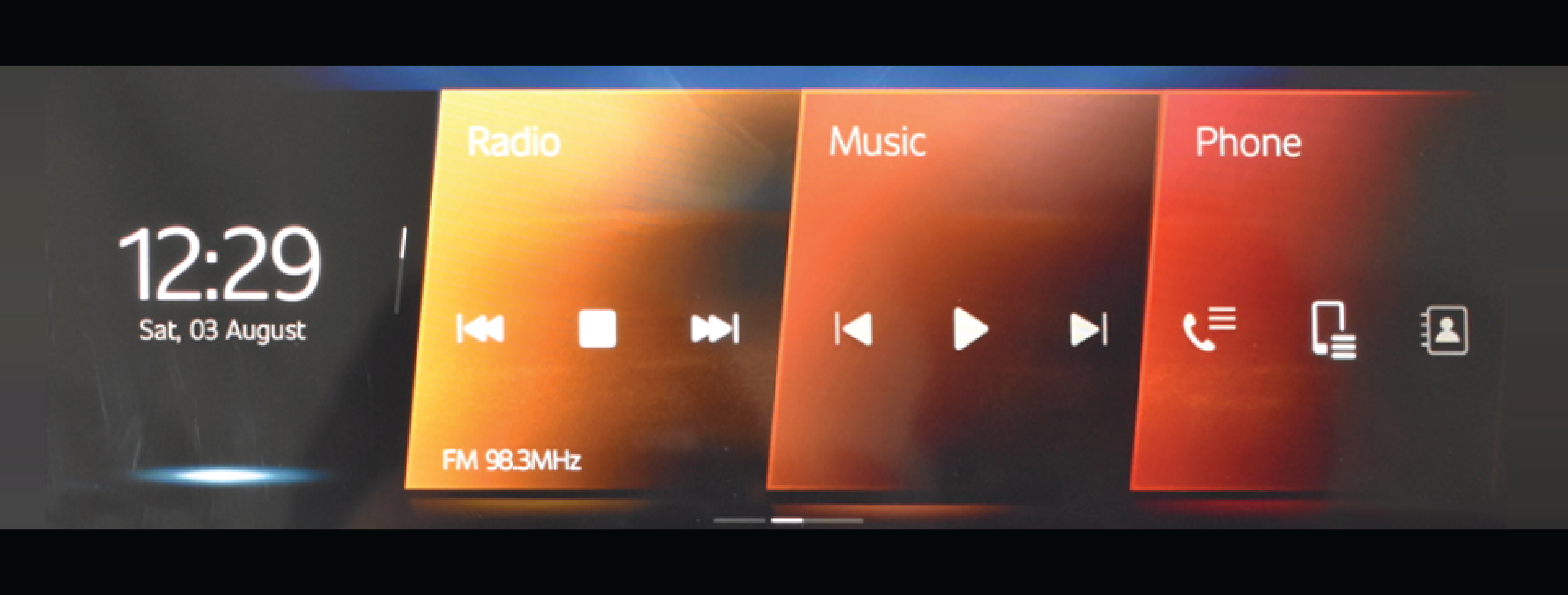

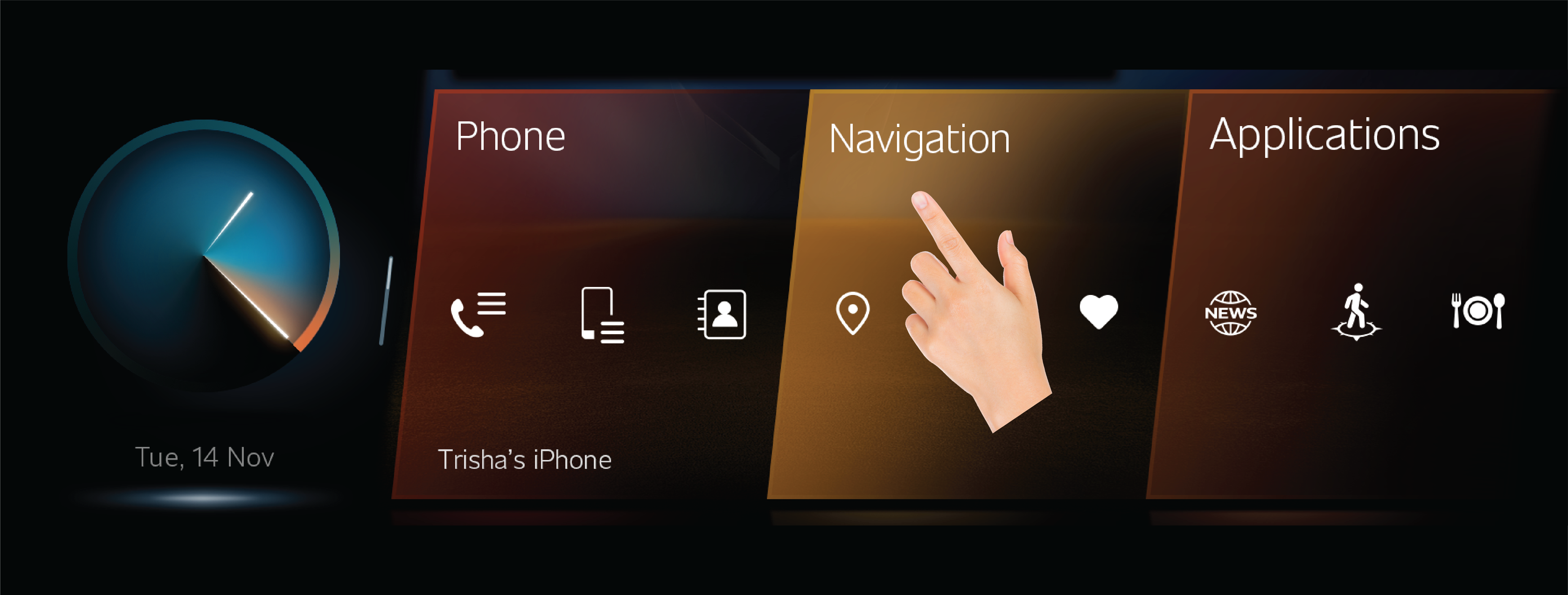

Home Screen is the main screen for the user to interact with the Infotainment System
|
|
|
|
|
|

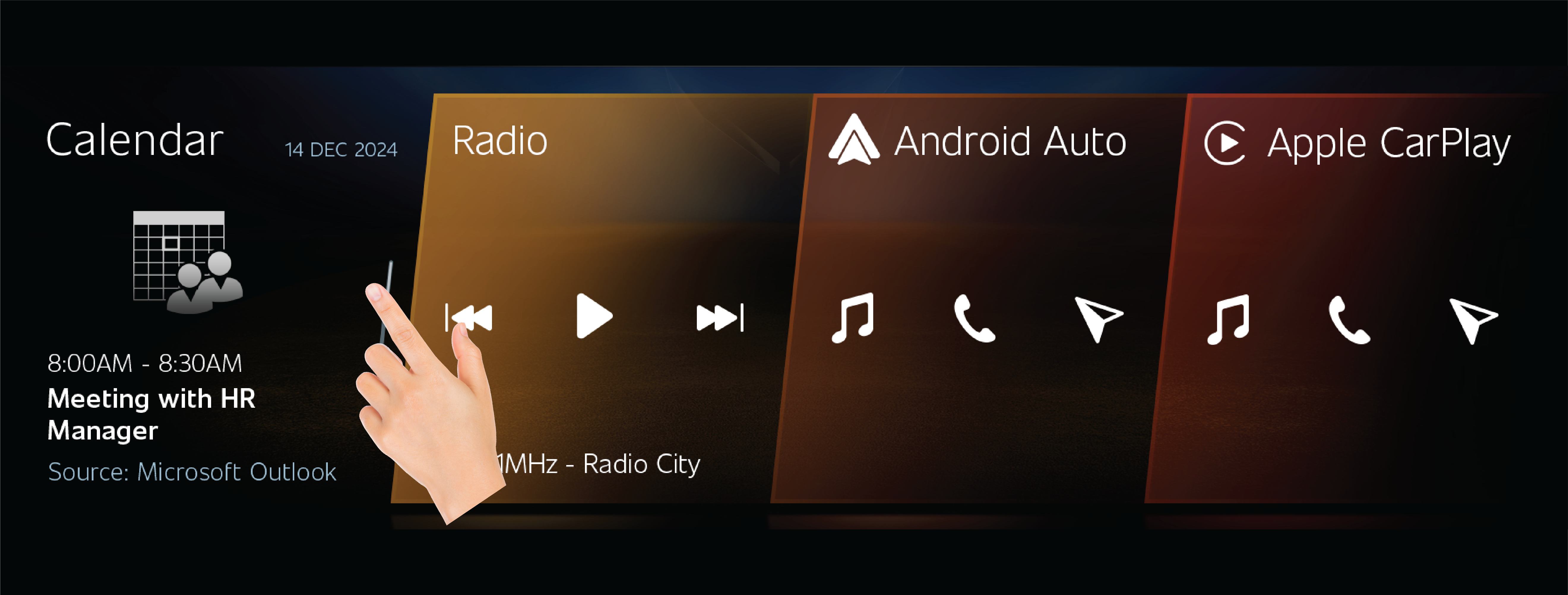

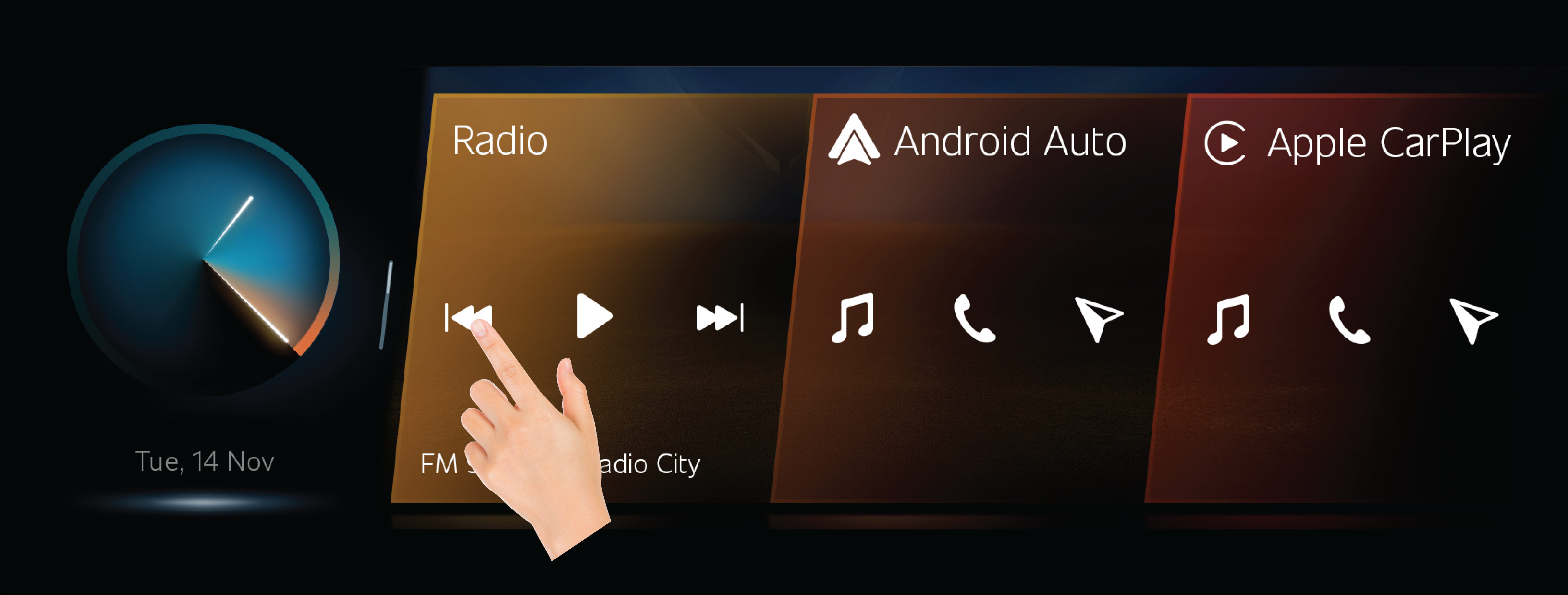

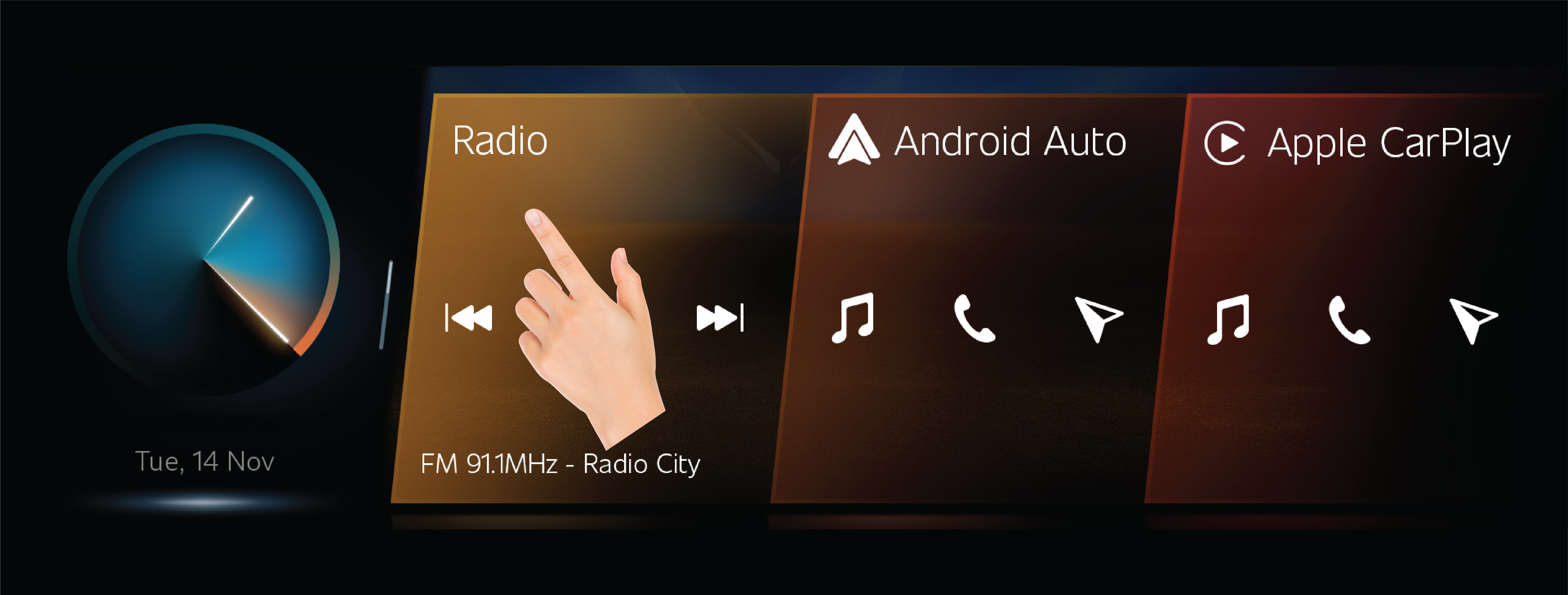

• | Touching the radio tile will open the full Radio screen, from the tile radio can be played and you can move between the radio channels. |
• | When Radio is playing, station name & frequency will be shown in Radio Tile |
|
||||
|
|
A: Mute
|
E: Voice Command
|
B: Volume +
|
F: Up
|
C: Volume -
|
G: Down
|
D: Call Connect
|
H: Call Disconnect
|

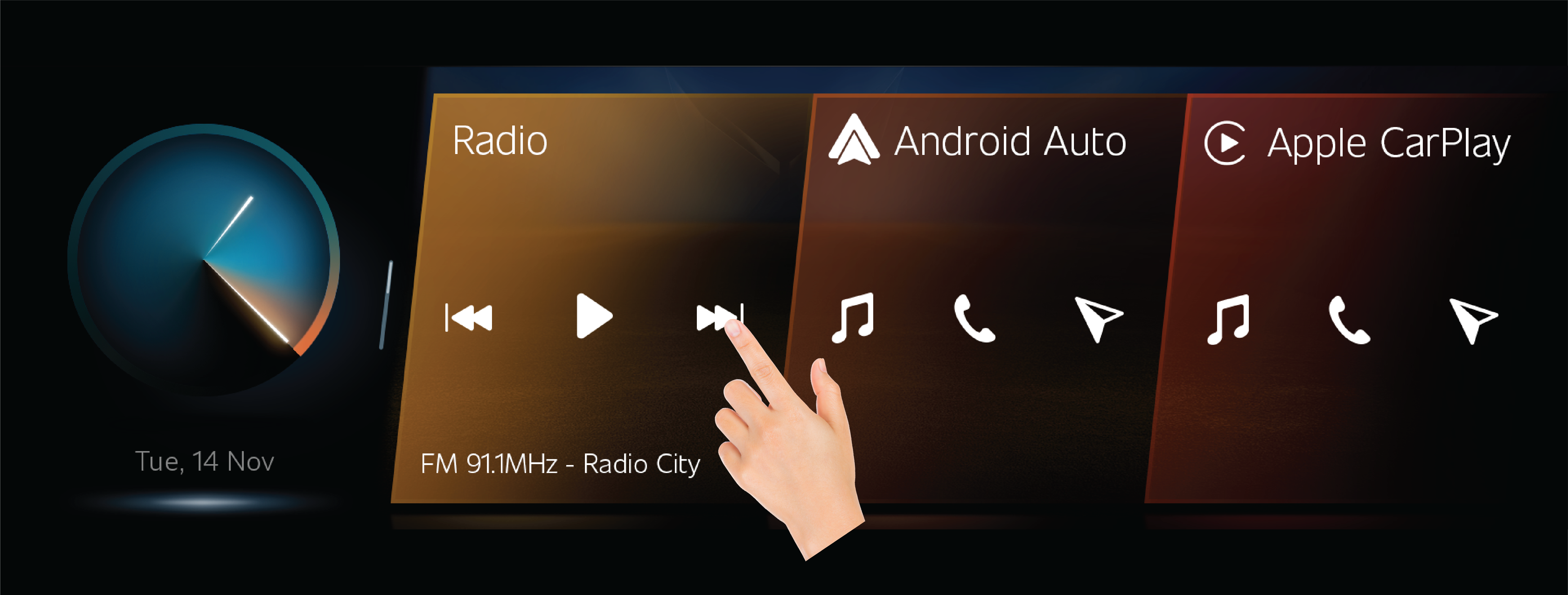

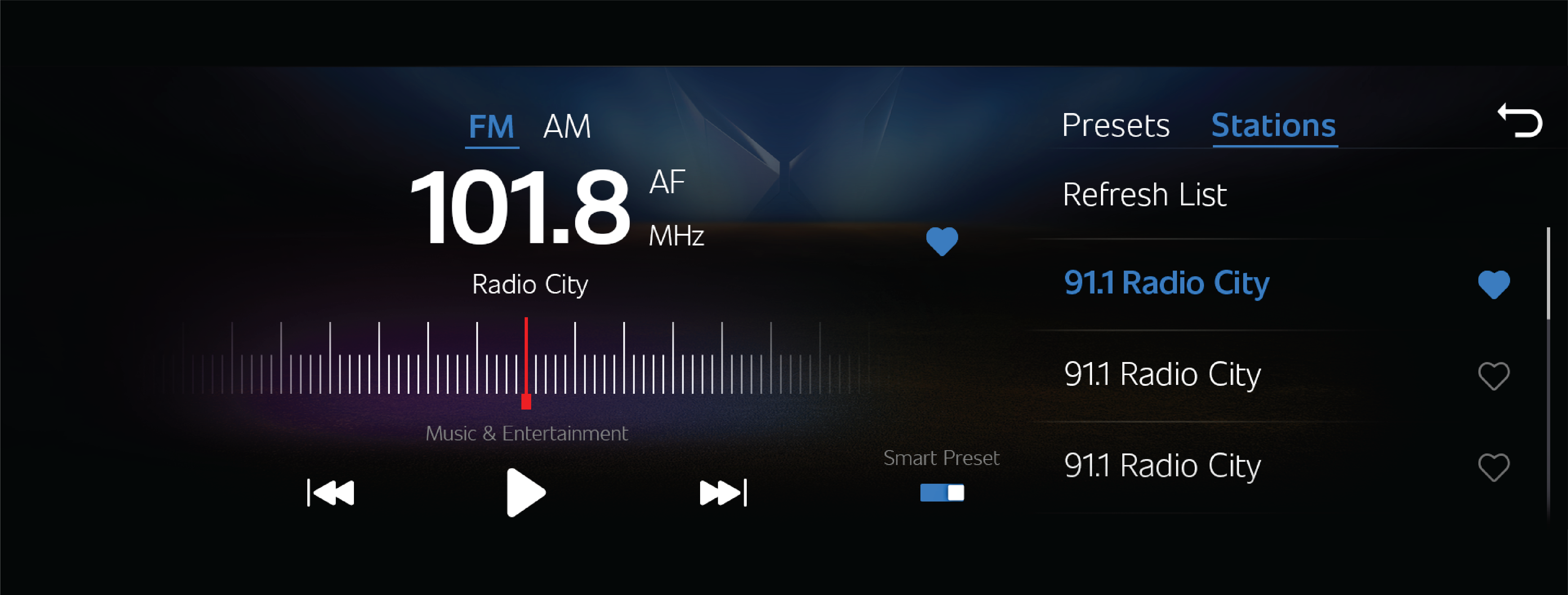

Change next/previous radio station
|
|
|
|

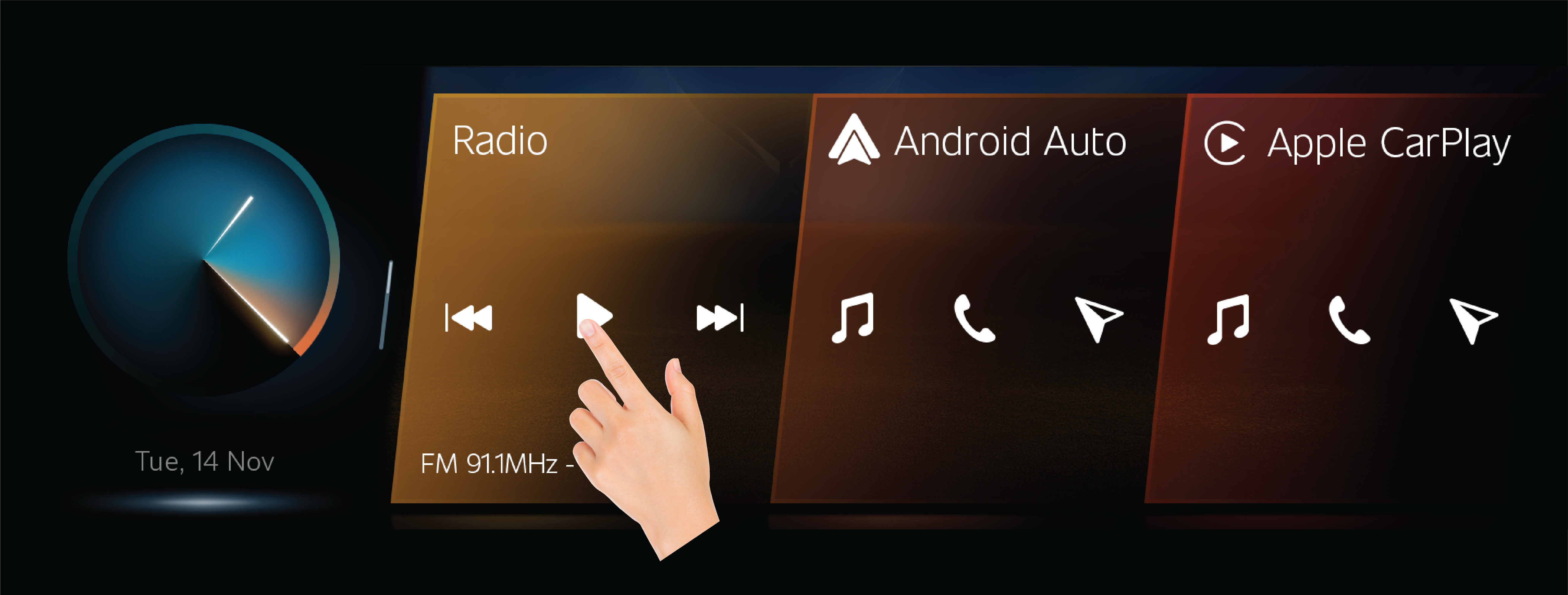

Stop button is used to stop/play the music
|
|
|

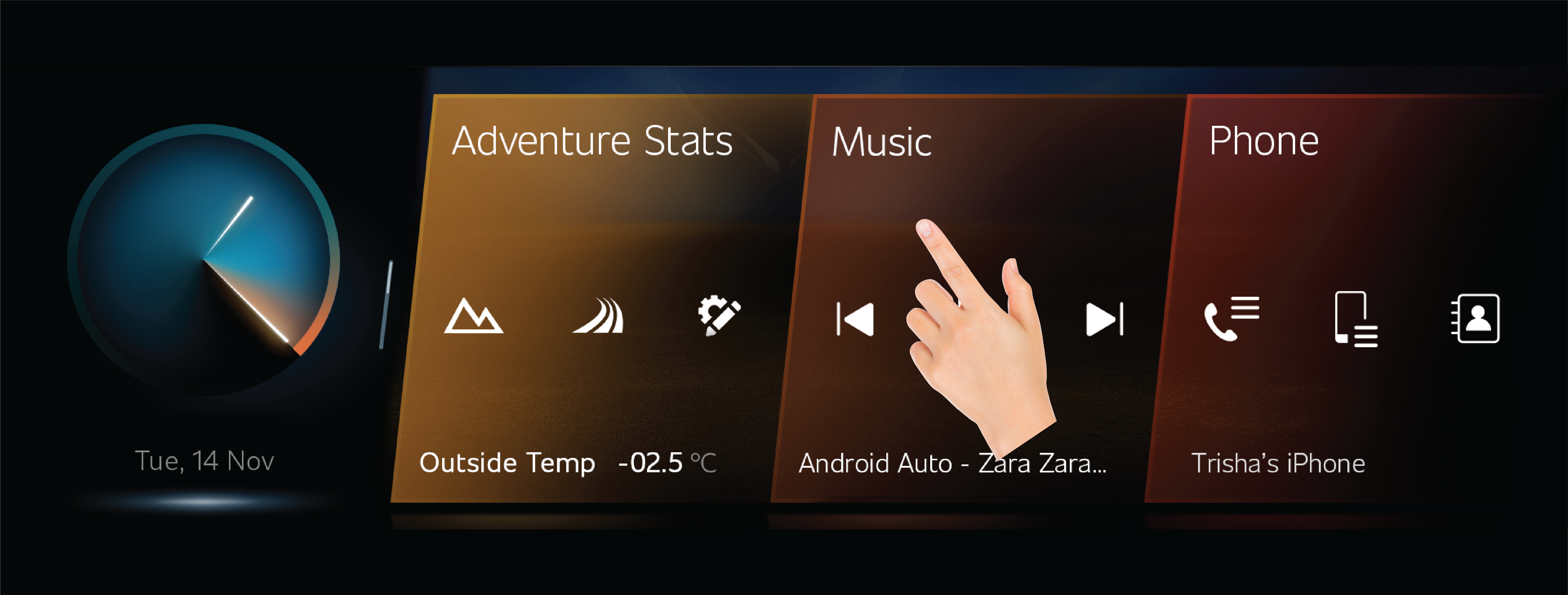

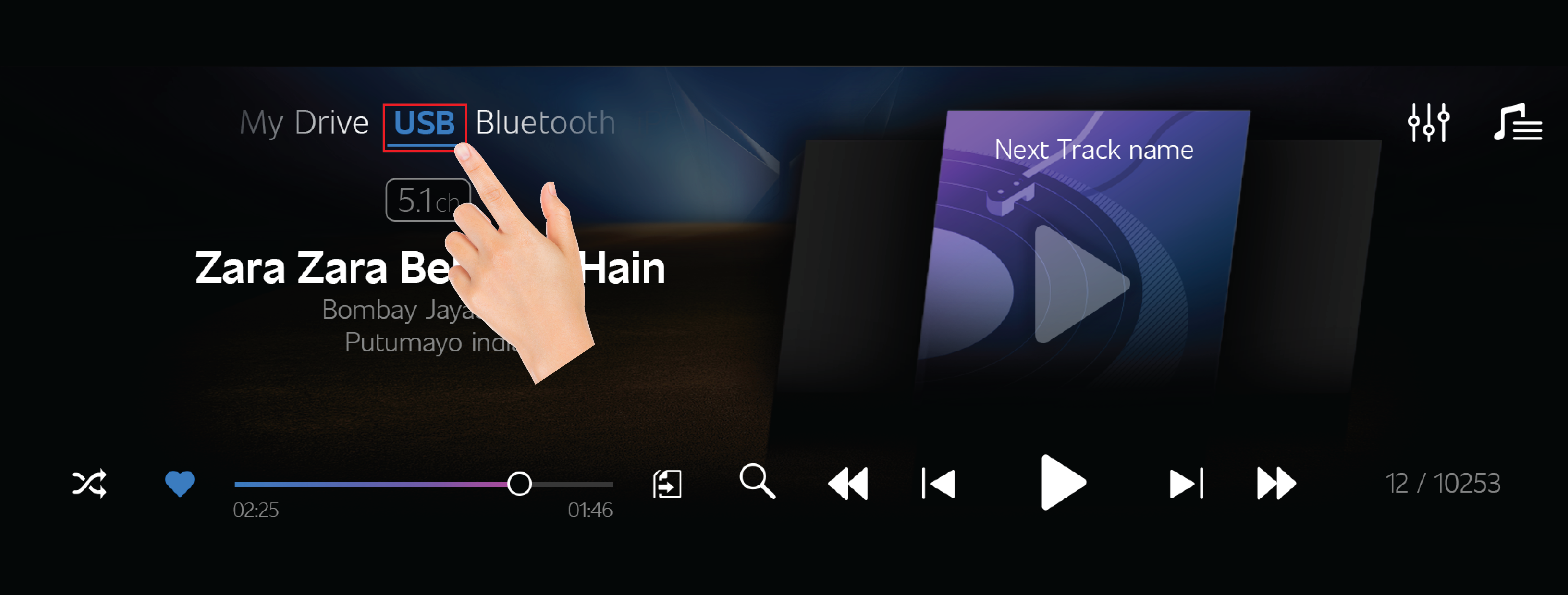

• | Touch Music tile screen to play the desired music |
• | Song name will be displayed in the screen |
• | To change a song, press the next/ previous buttons. |
• | To pause music, press pause button |
• | Music can be accessed through USB, My Drive, iPod and Bluetooth. |
|
|
|

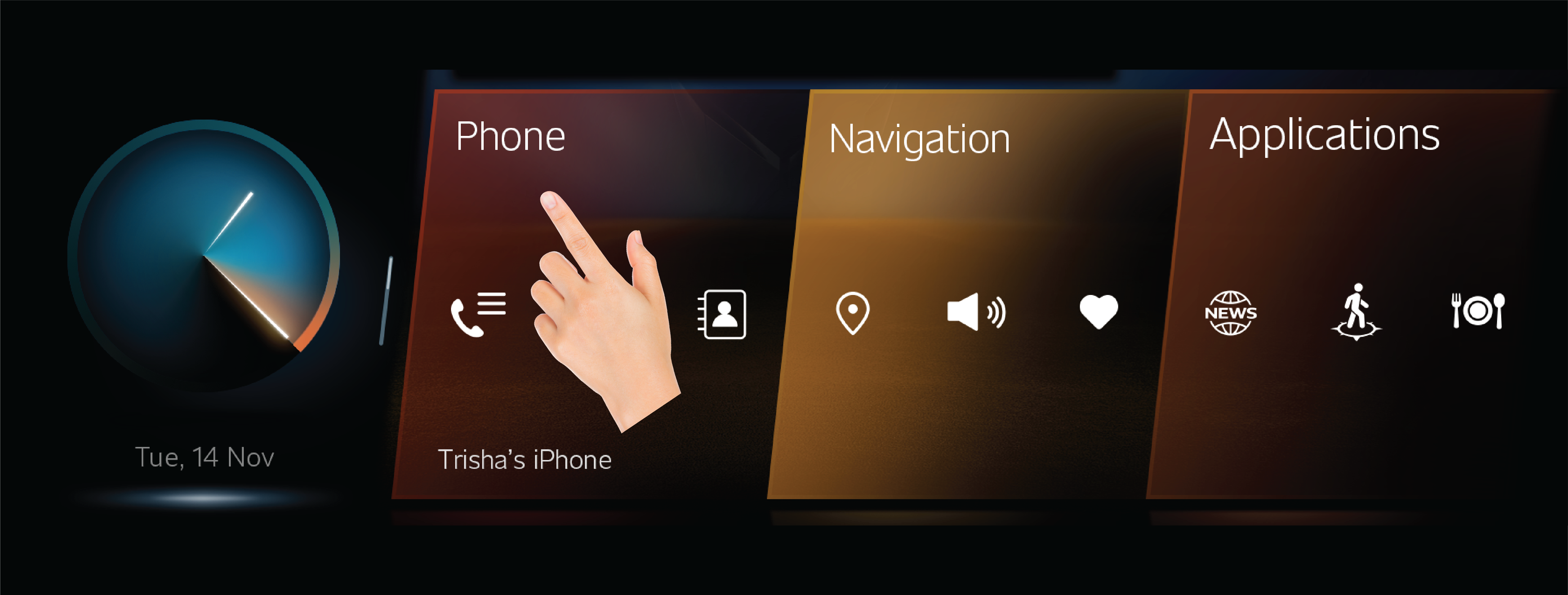

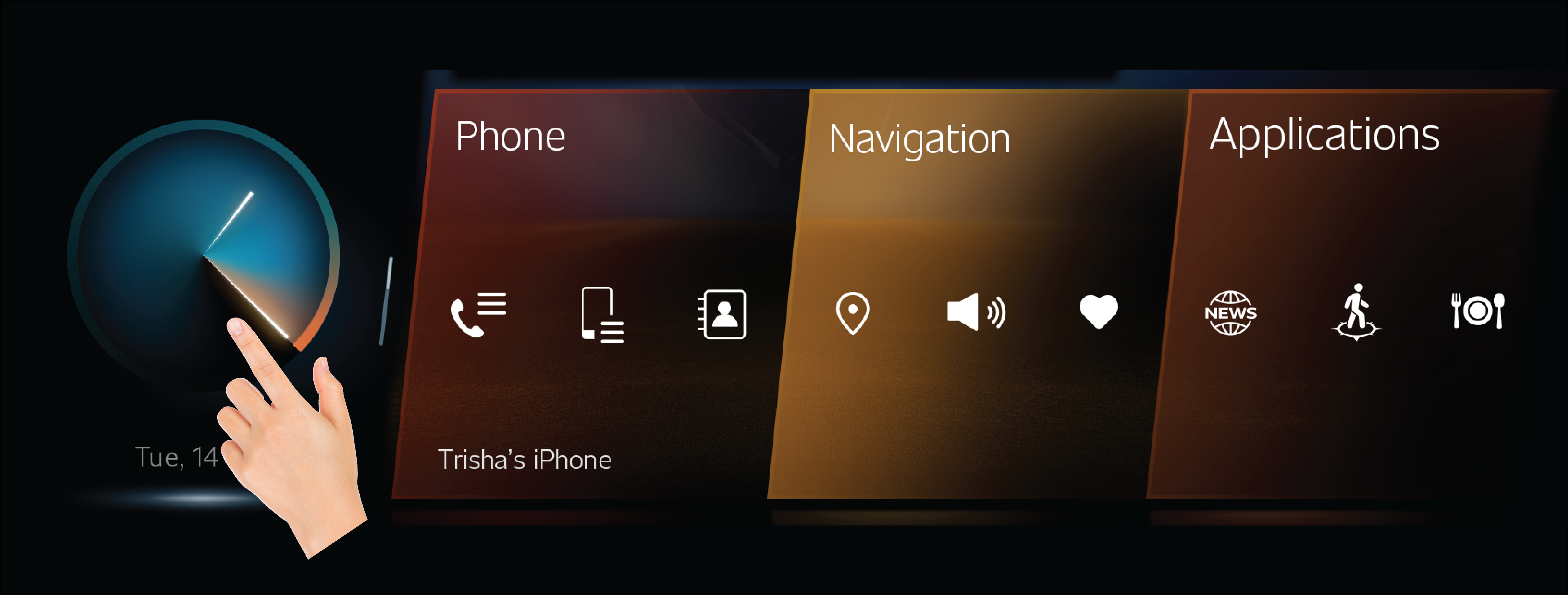

The phone tile shows the phone that is currently connected to the AdrenoX with Bluetooth.

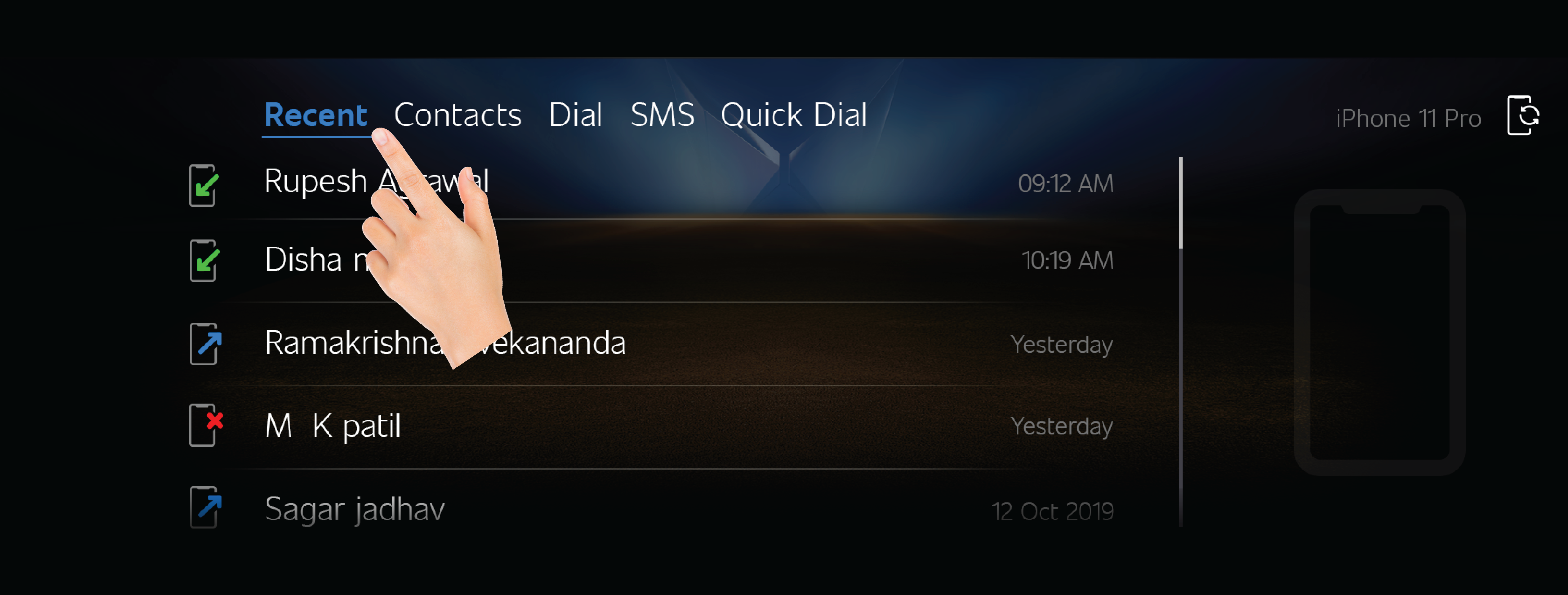

This screen will show recent call list details of person, who pair the mobile with infotainment
|
|

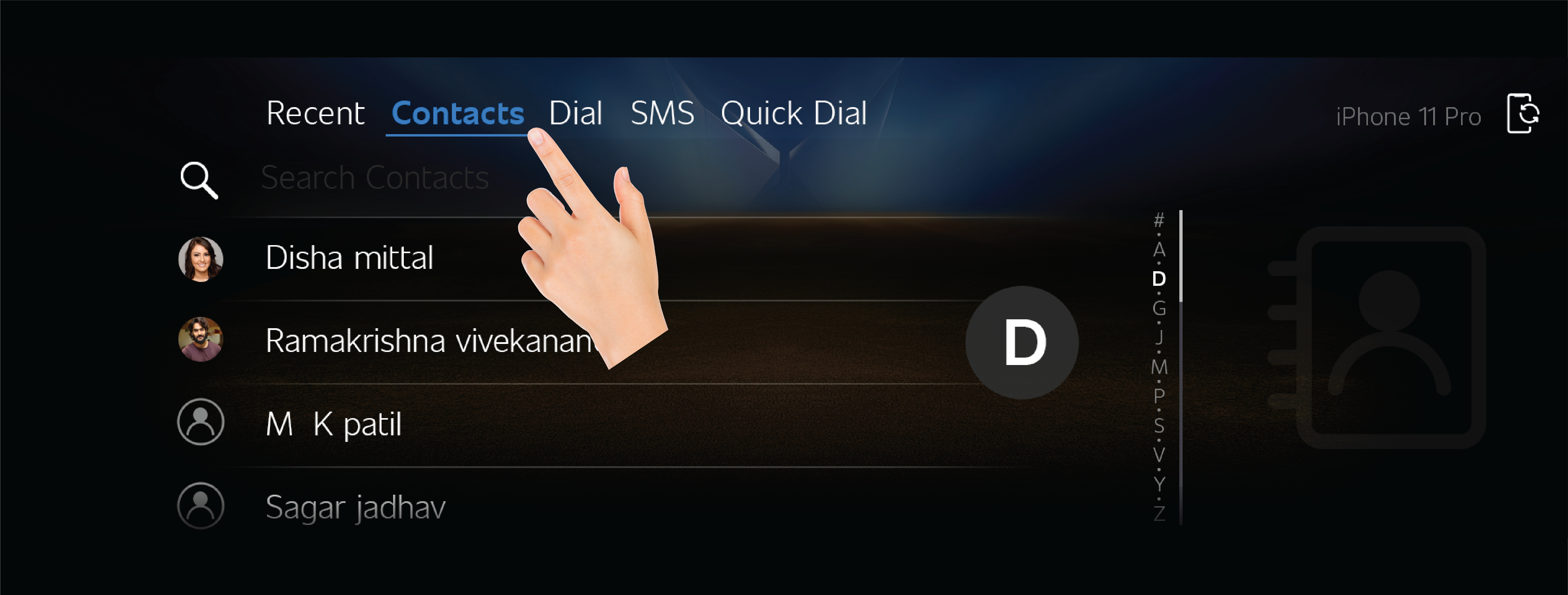

Contact details can easily be accessed by using this option
|
|

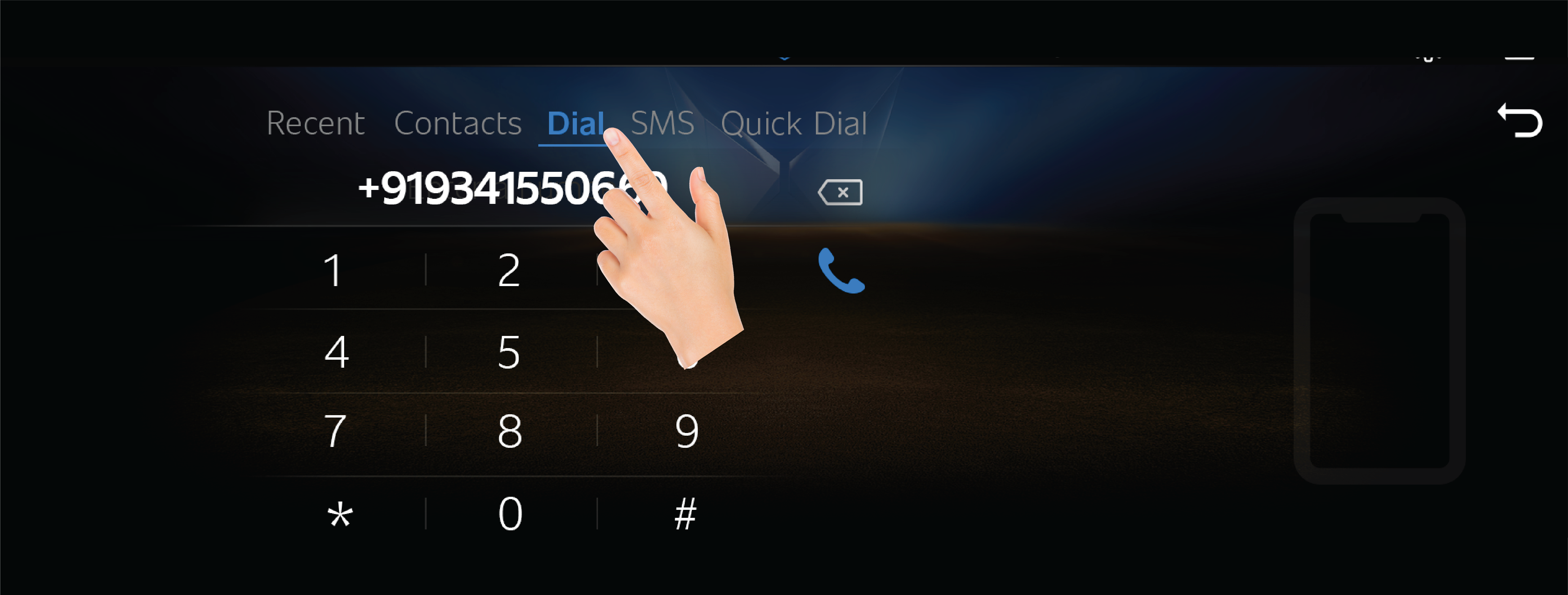

Using dial pad, we can enter new mobile number to contact a person or can find the person by tying his/her mobile number
|
|

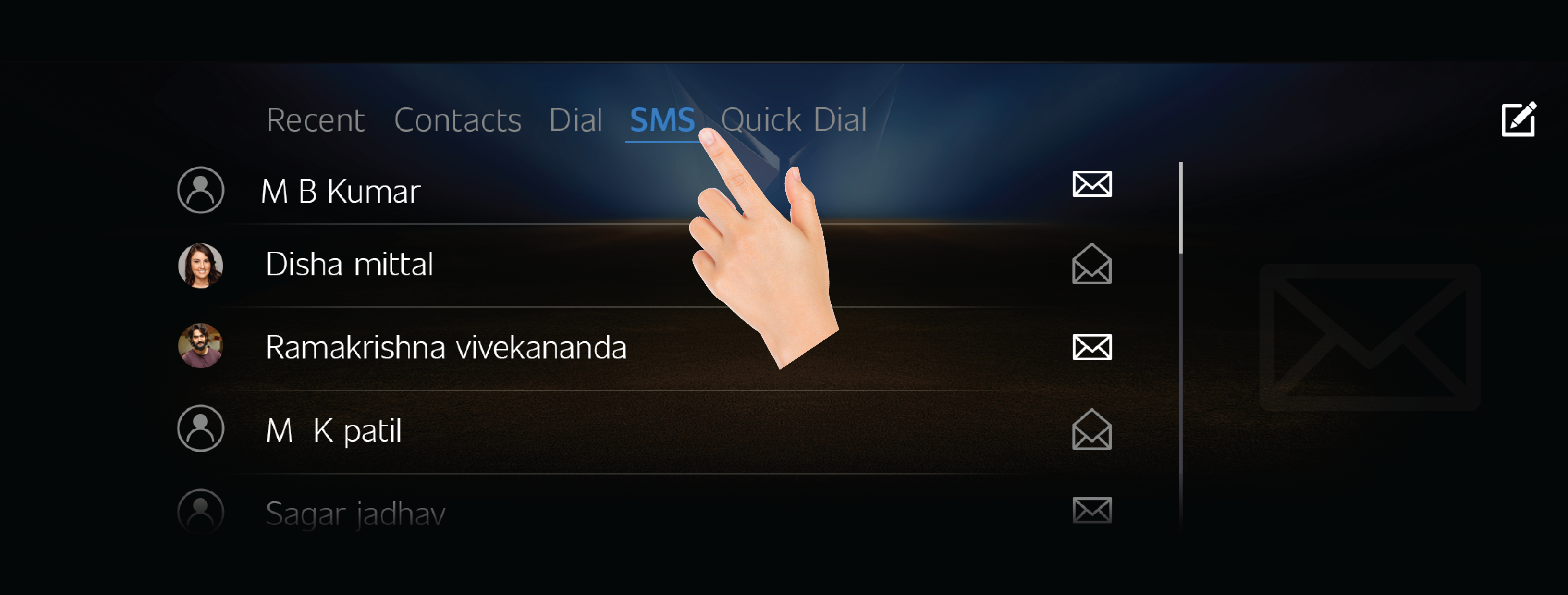

While driving or other reasons user can send a SMS to desired person
|
|

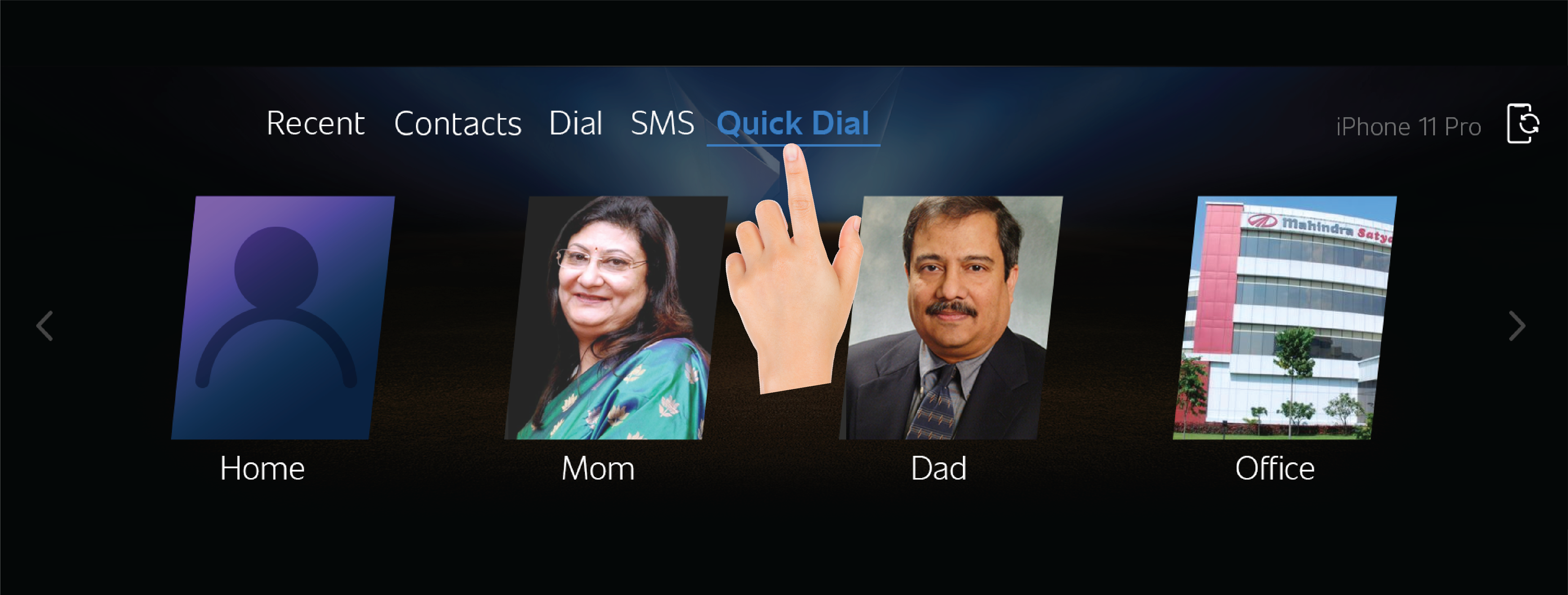

Favorites contacts can be seen in quick dial
|
|

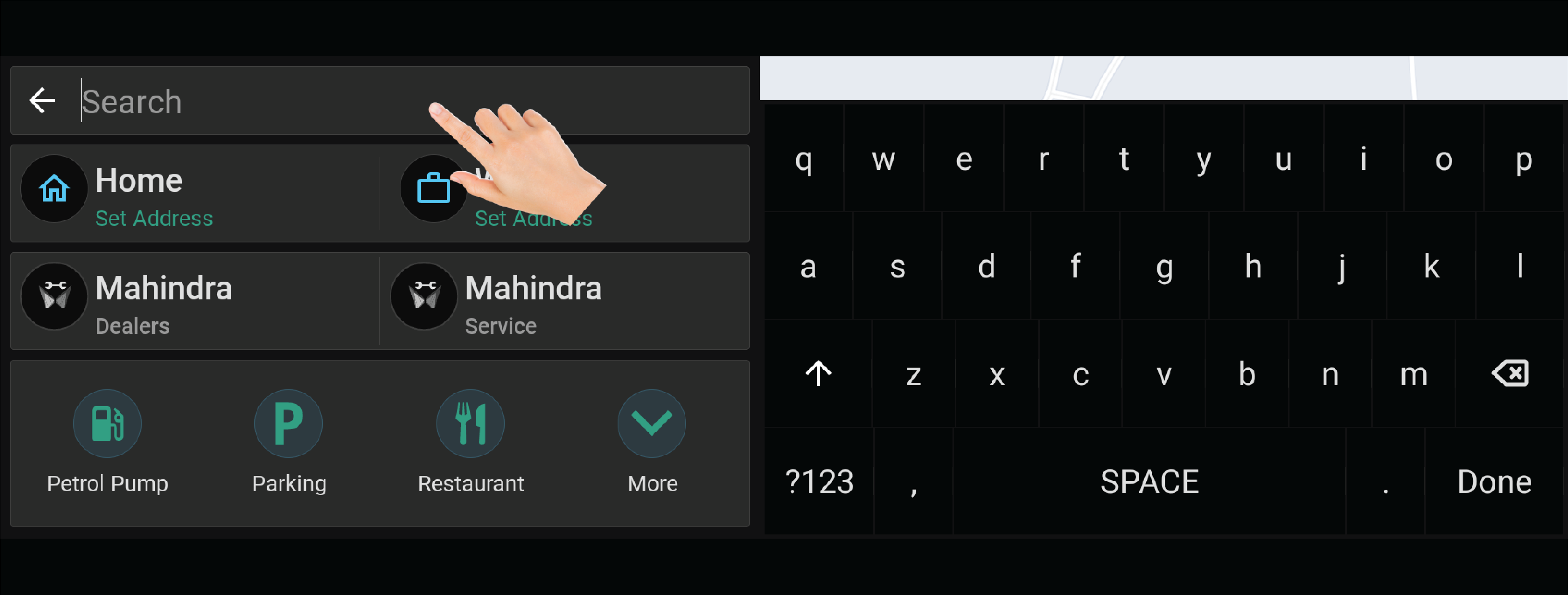

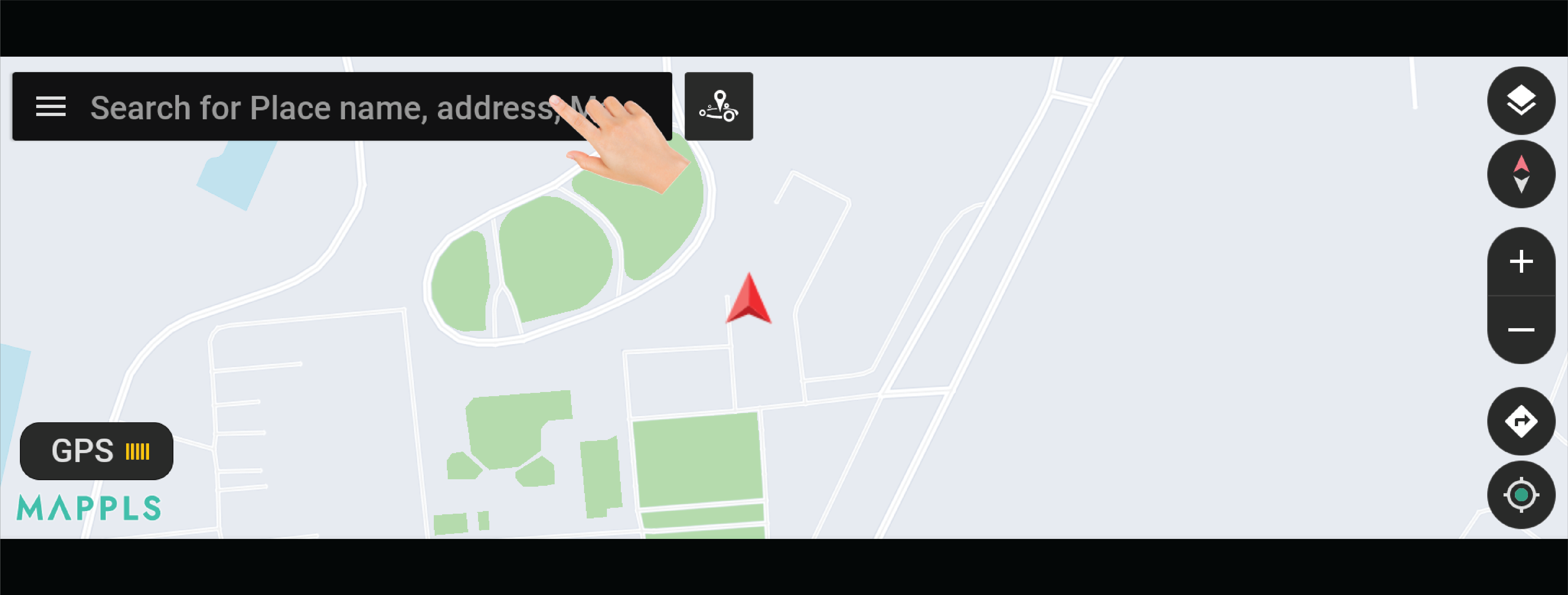

User can set the desired target by searching in search box.
|
Current location will be determined from vehicles GPS location.
|
A short summary of searched place will be displayed.
|

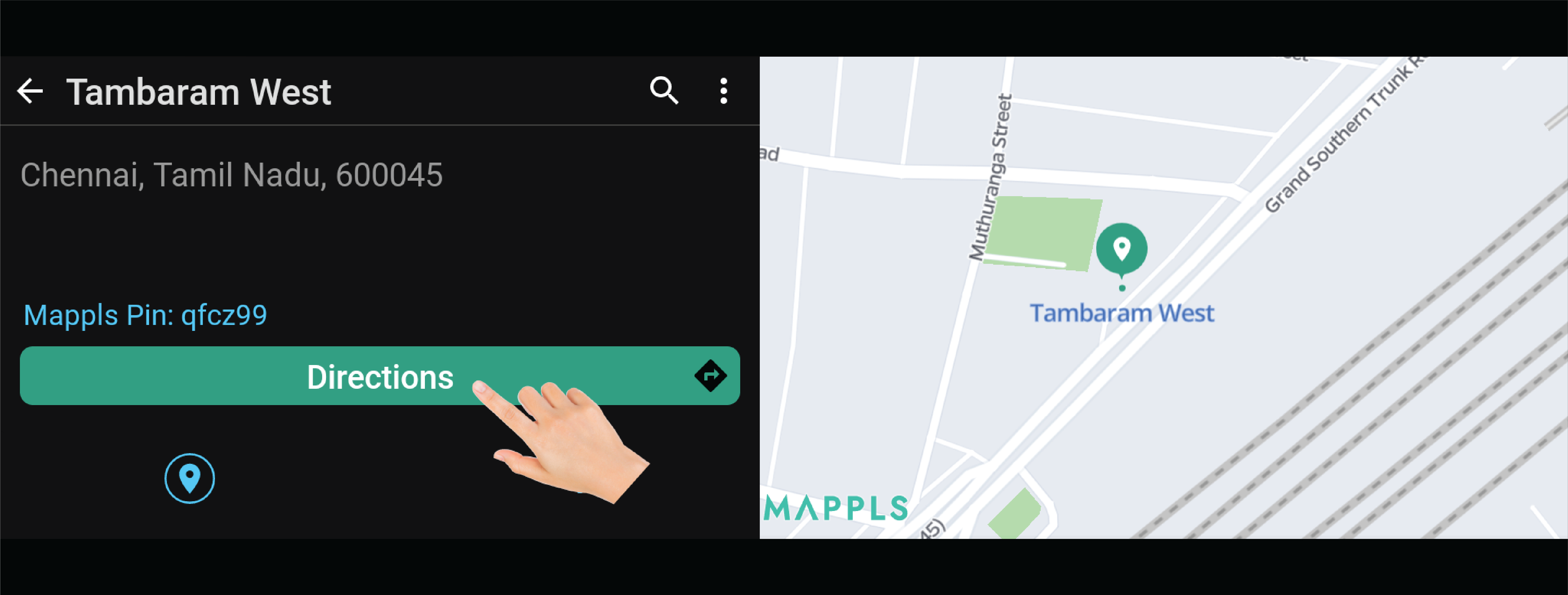

On clicking the direction button, a route map with live traffic details will be displayed. click start to enter Navigation
screen.
|
If user needs to exit the current navigation, he can click exit button.
|
|
|
|

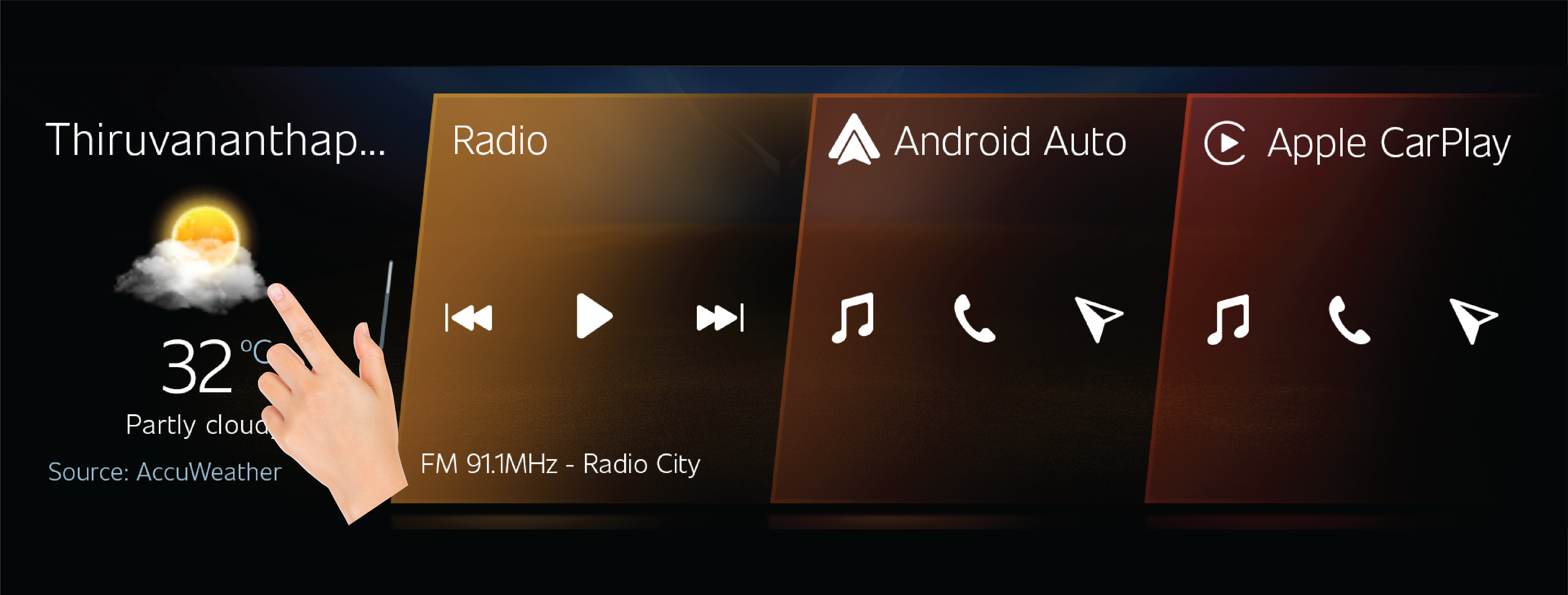

Widgets will provide quick information to the user, and it will be available in left corner of the Home screen.
|
• | The widgets display will be fixed in the left corner of the home screen. |
• | The following information will be available as part of widgets |
1. | Clock |
2. | Gallery |
3. | Weather |
4. | NEWS |
5. | Travel Explorer |
6. | Calendar |
• | Time can be displayed in the selected area |
• | Pressing the clock screen in widget will open the display settings on the clock. |
• | Time can be fixed in both Analog or digital format |
|
|
• | Scroll down the clock screen and find the gallery screen in Widget |
• | User can be able to see the photos/videos in MyDrive by press the gallery option |
|
|
|
|
|
|
|

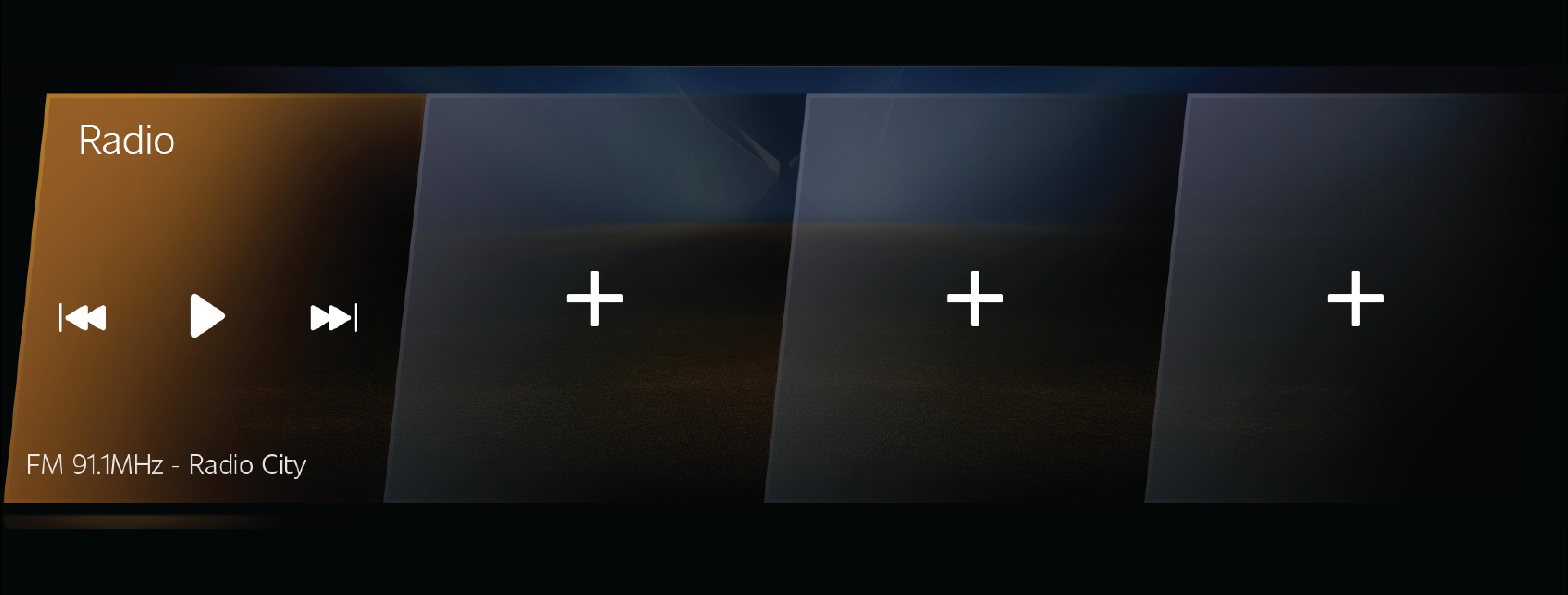

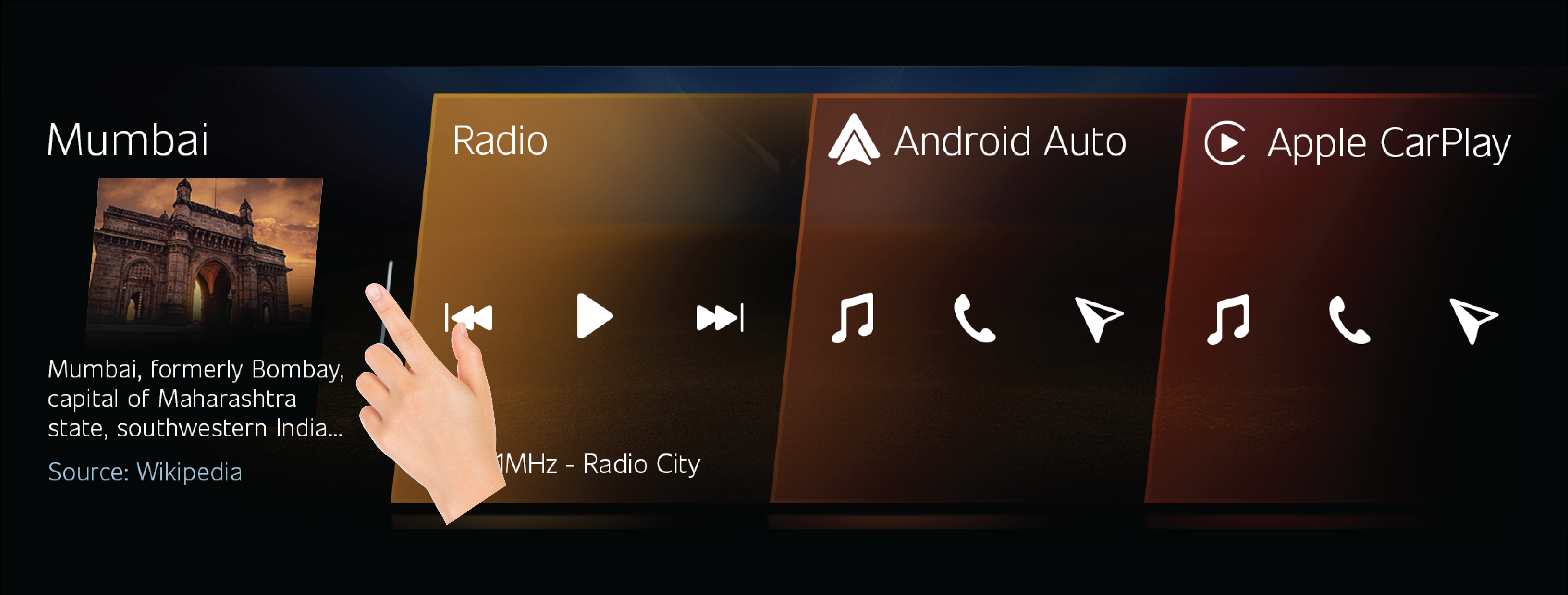

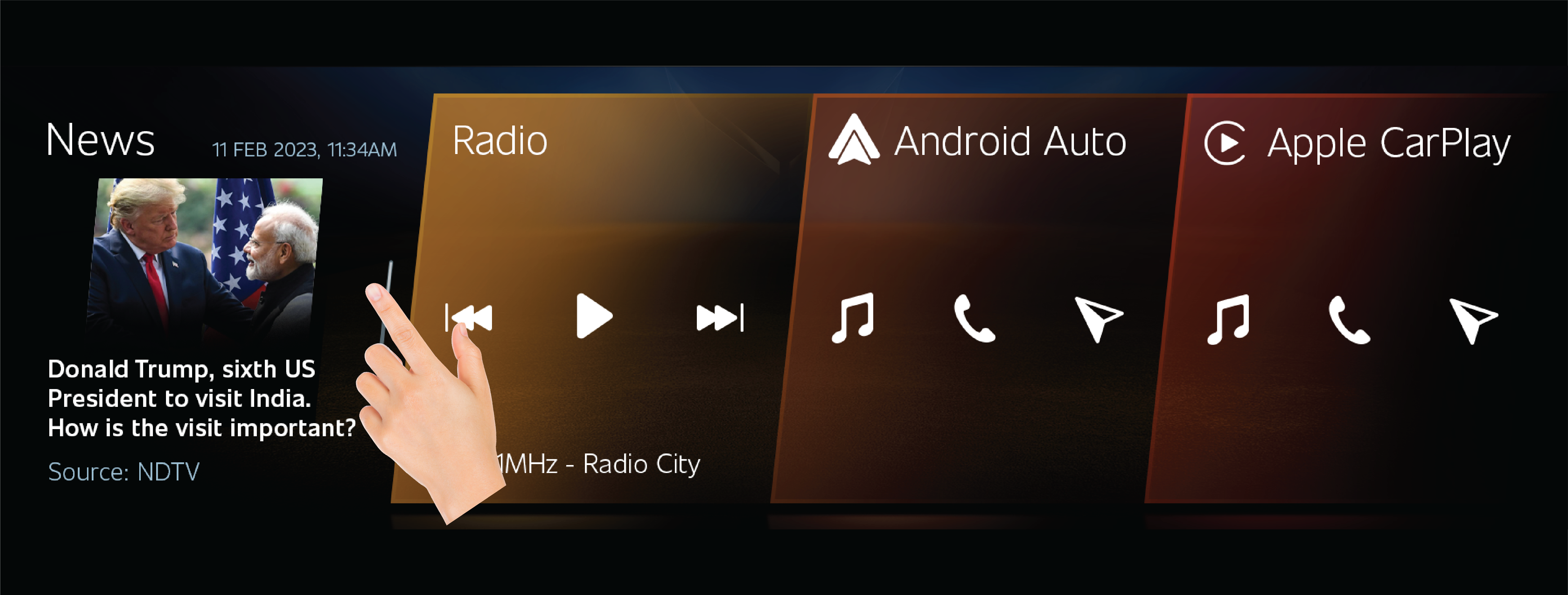

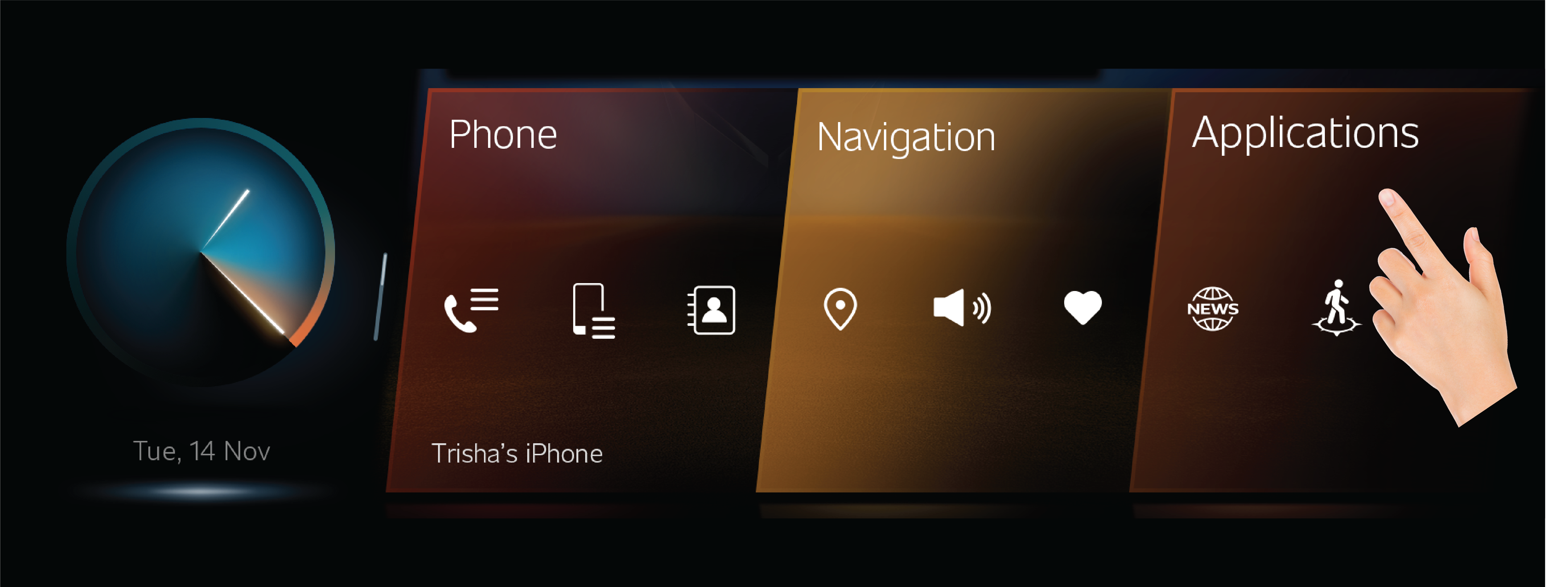

Users can access the Split screen by swiping left on the home screen.
|
|
User can set the Radio, Media, Phones, and other screens by long pressing the intended tile in Split screen.
|
|
User can set any four contents in split screen to access the feature easily.
|
|

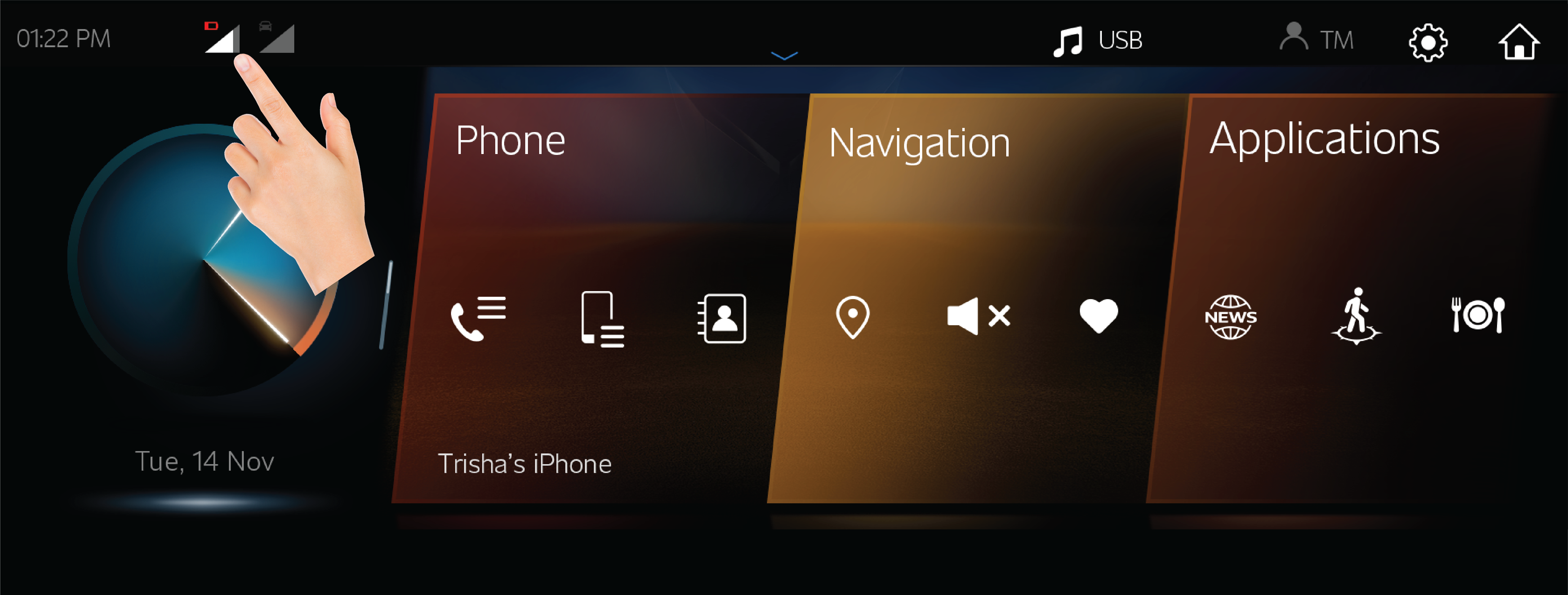

THAR ROXX infotainment has inbuilt e-SIM which is used to access Just dial, Accuweather, Horoscope,
News, and some other apps can be accessed by using the e-SIM
THAR ROXX is applicable for a free AdrenoX subscription starting from the date of KYC till a specified period based on vehicle
variant.
|
|
|
|

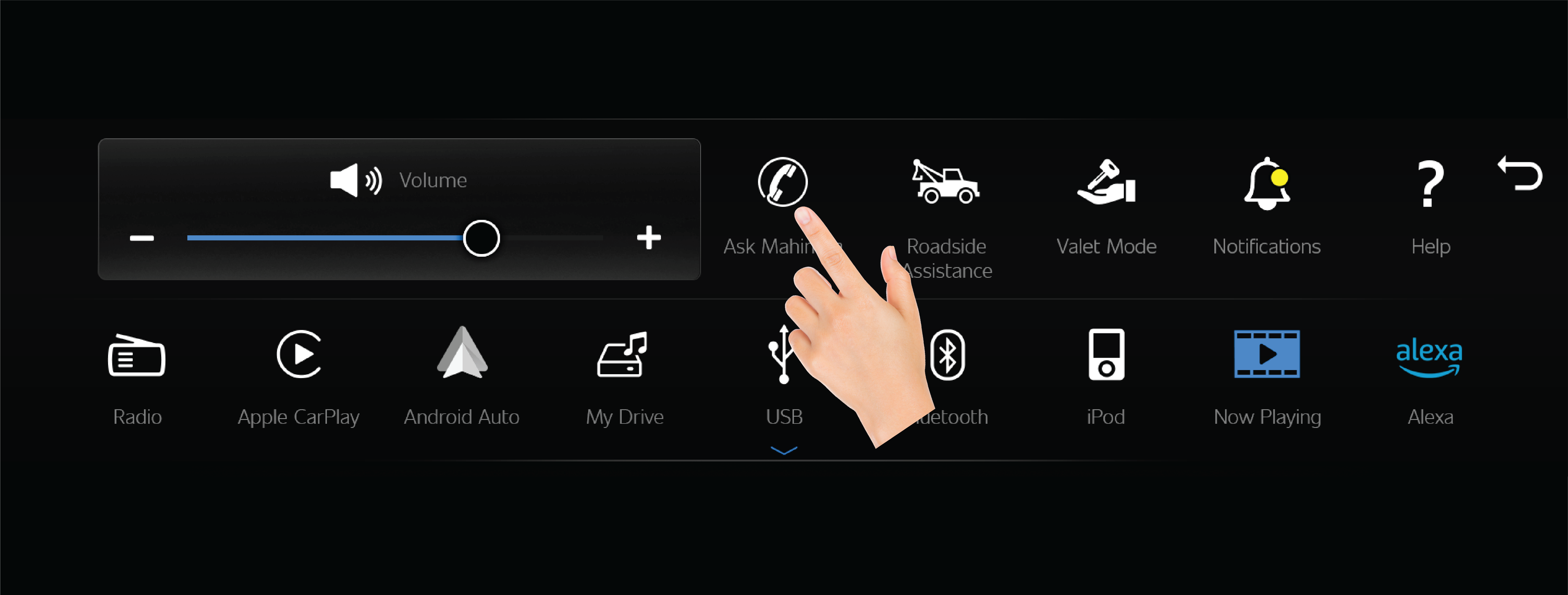

If there is any emergency, user can access the SOS
By enabling SOS in infotainment, a call will be triggered automatically from your THAR ROXX to 108 Ambulance Services for
Medical Assistance
|
|
If any abnormal condition is observed in vehicle, user can access RSA
By enabling RSA in infotainment, a call will be triggered automatically to Mahindra Roadside Assistance team
|
|

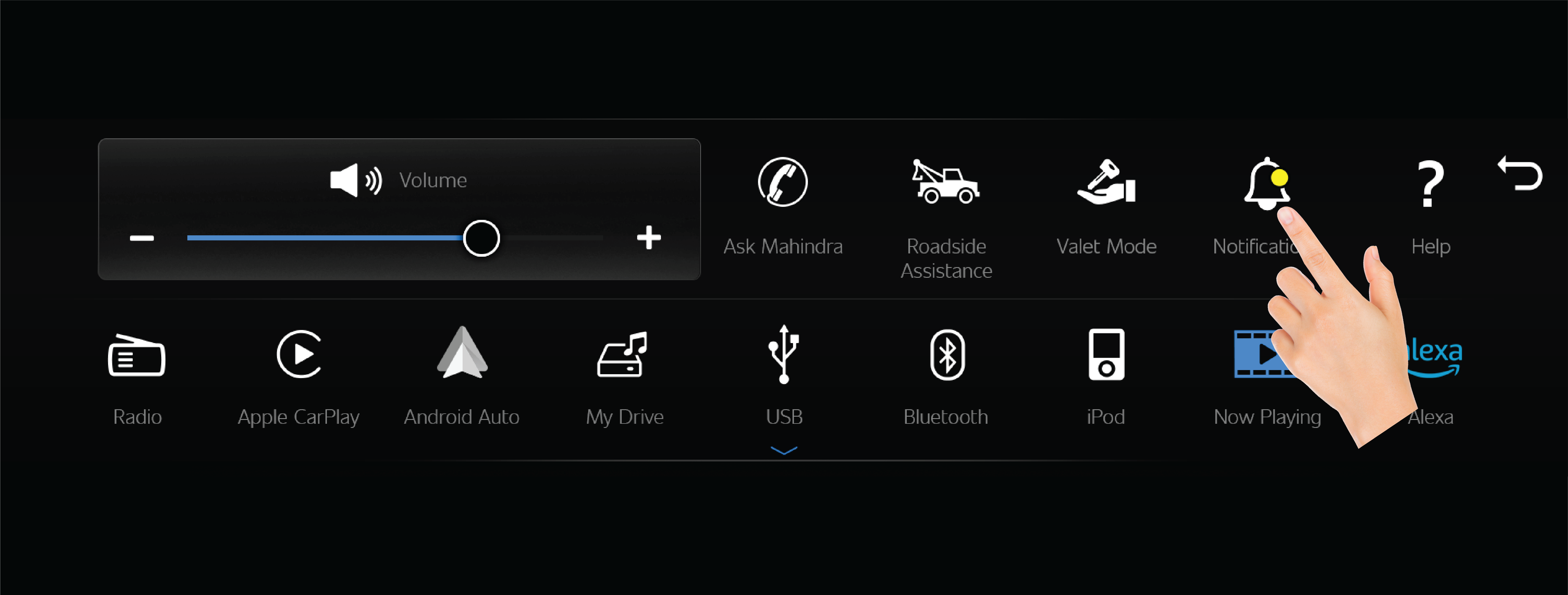

Once the Valet Mode is enabled,
|
• | Above conditions are not applicable, if user disables the valet mode. |
• | Don’t activate the valet mode during vehicle service |
|
|
|
|
|
|

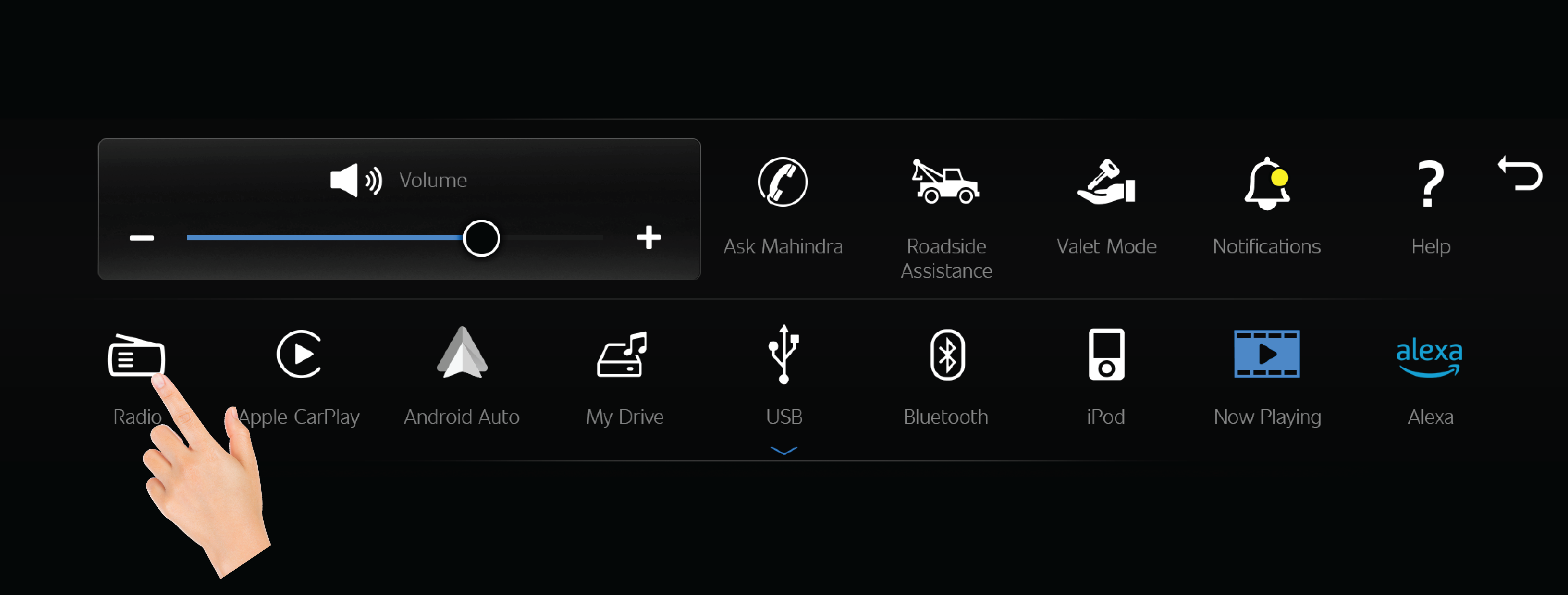

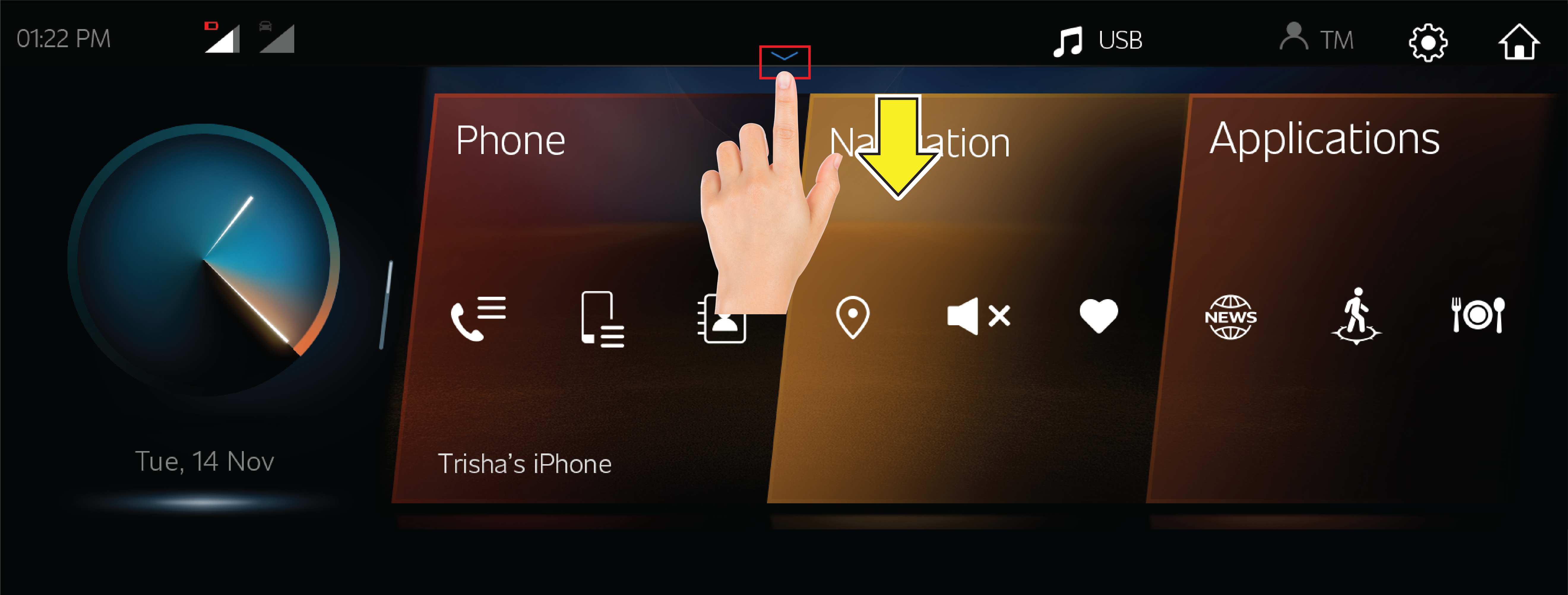

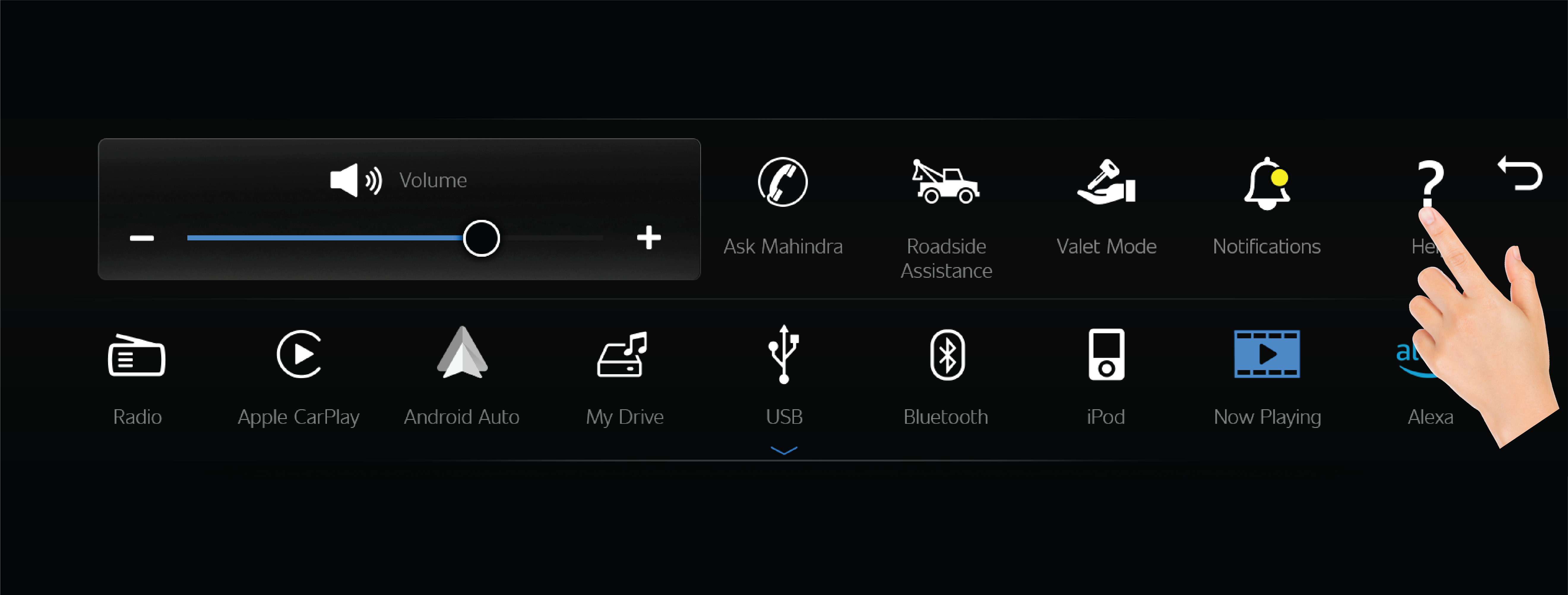

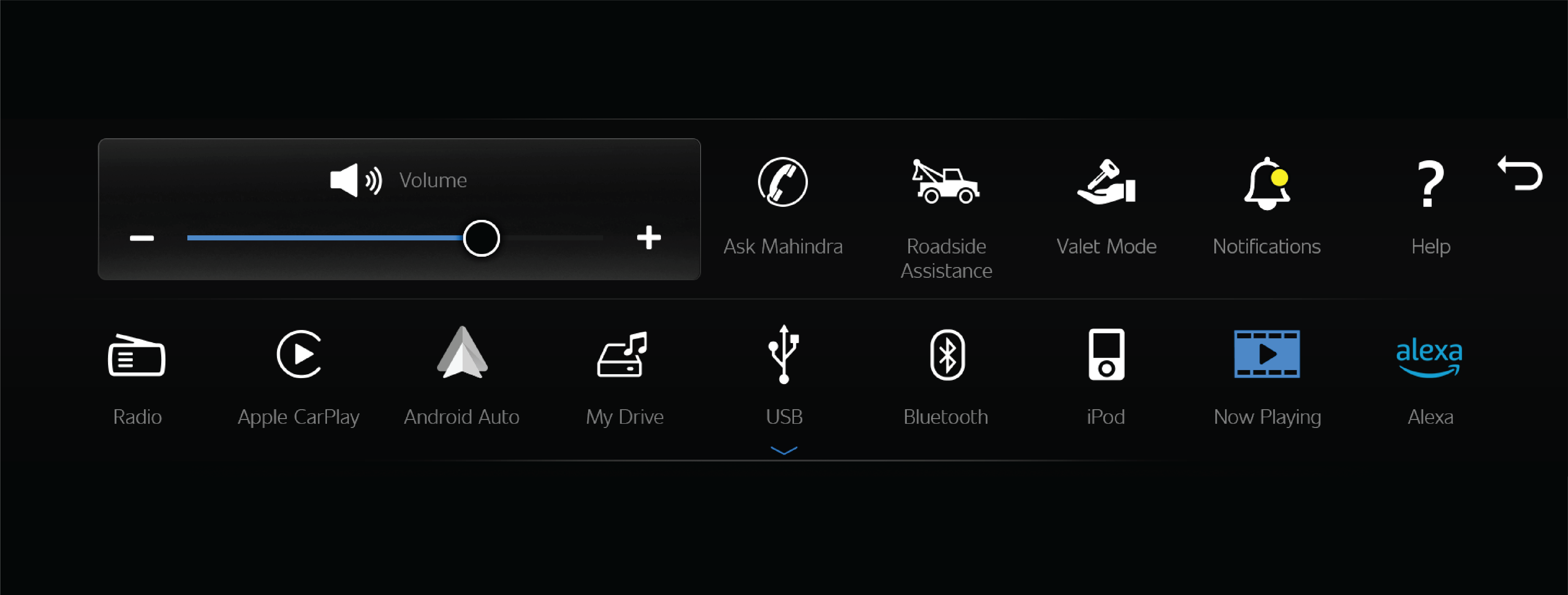

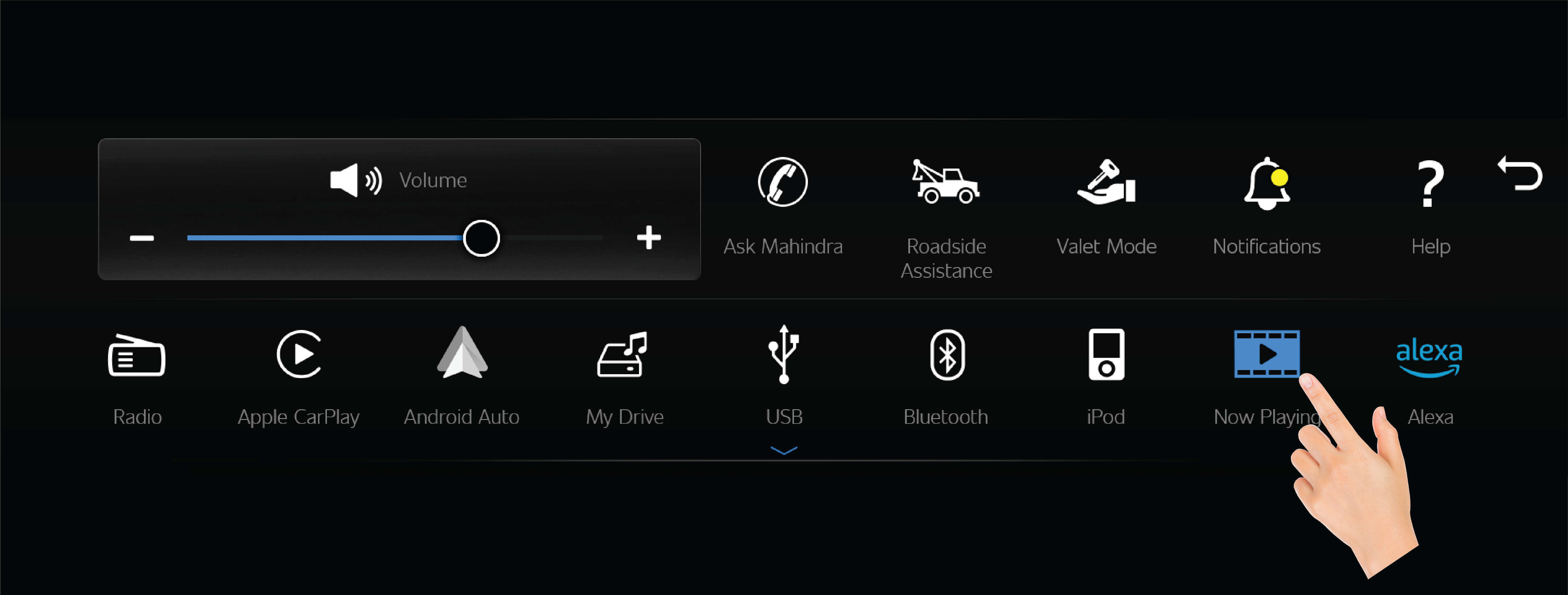

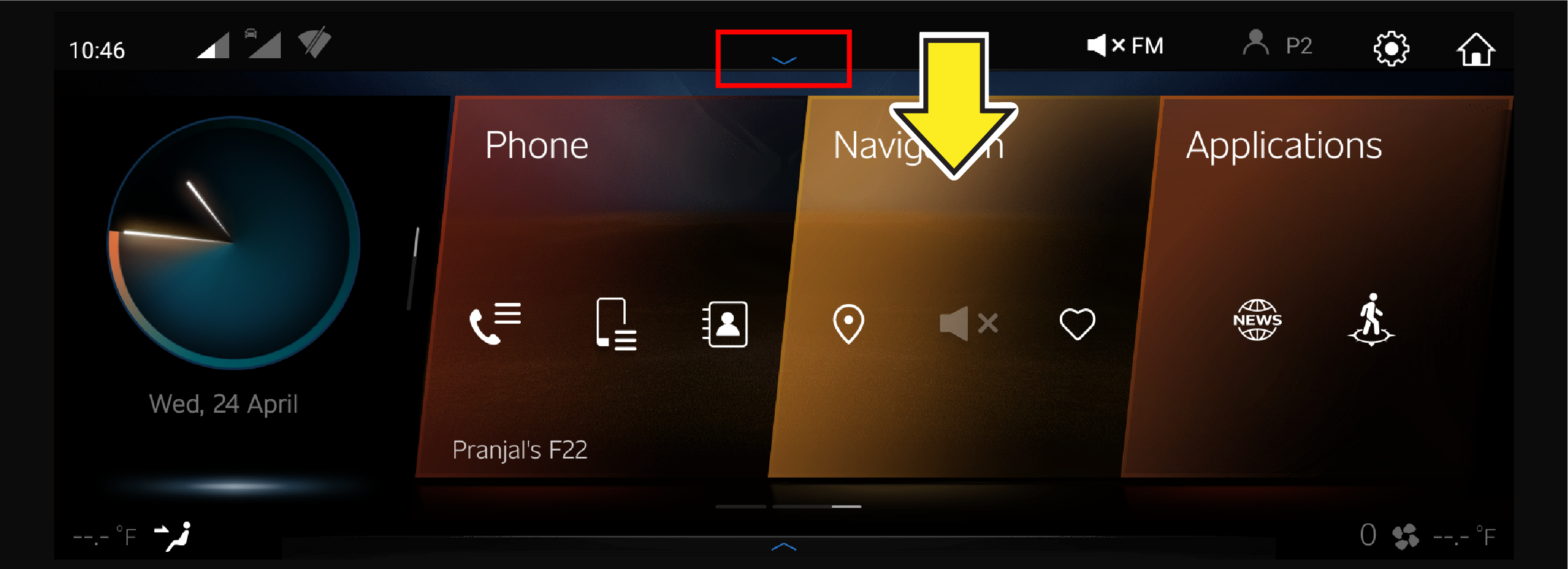

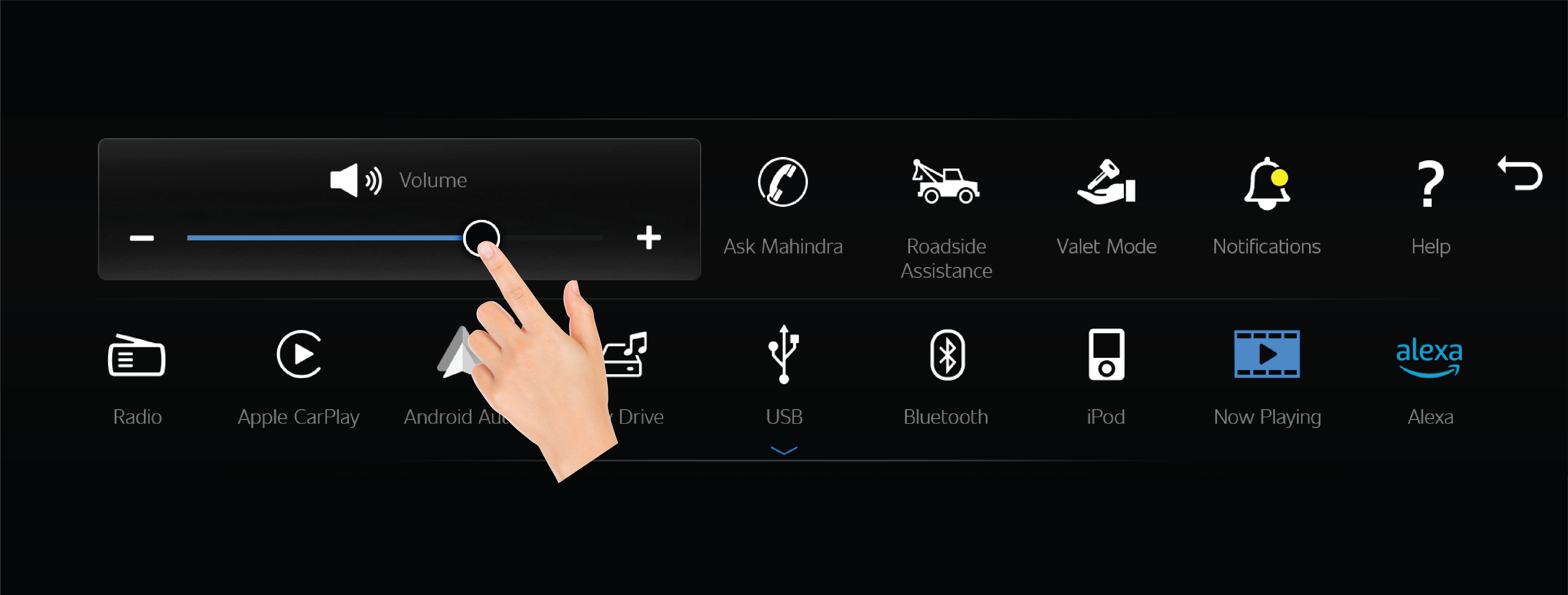

• | Radio option will be selected directly by using Quick access option |
• | Once the Radio icon is selected, then Radio screen will appear in infotainment |
|

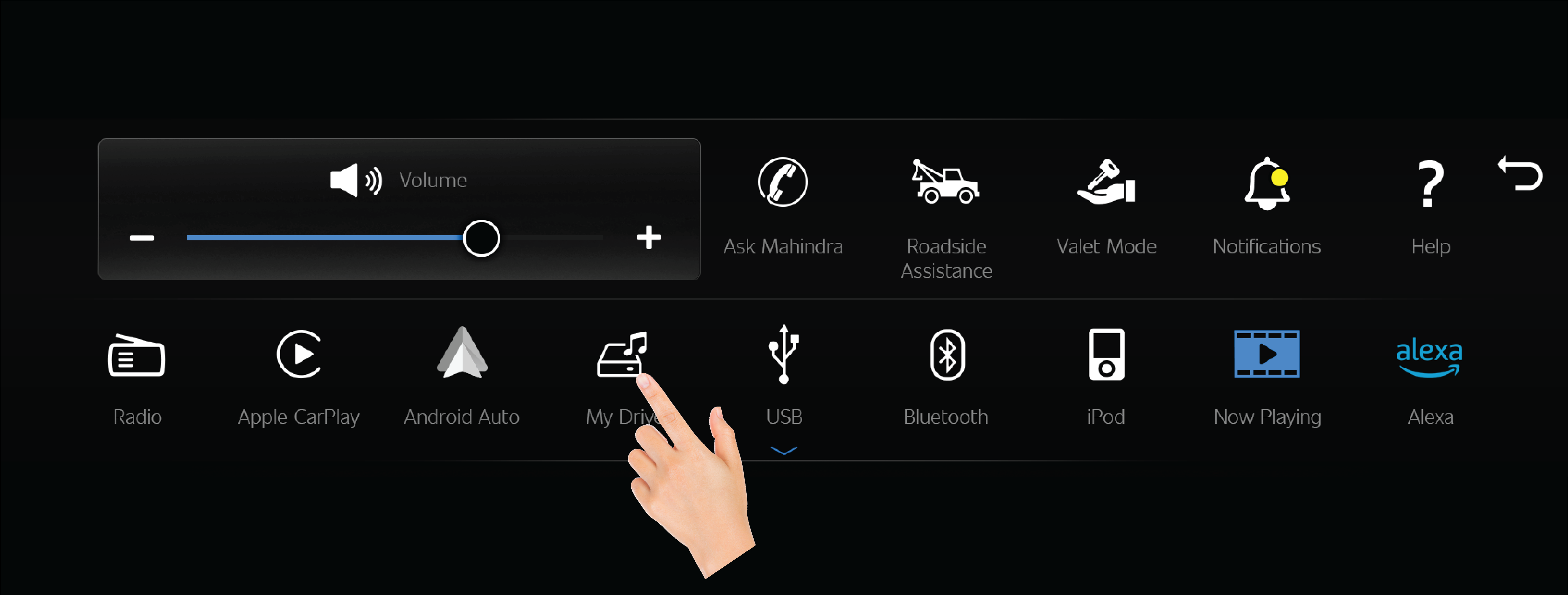

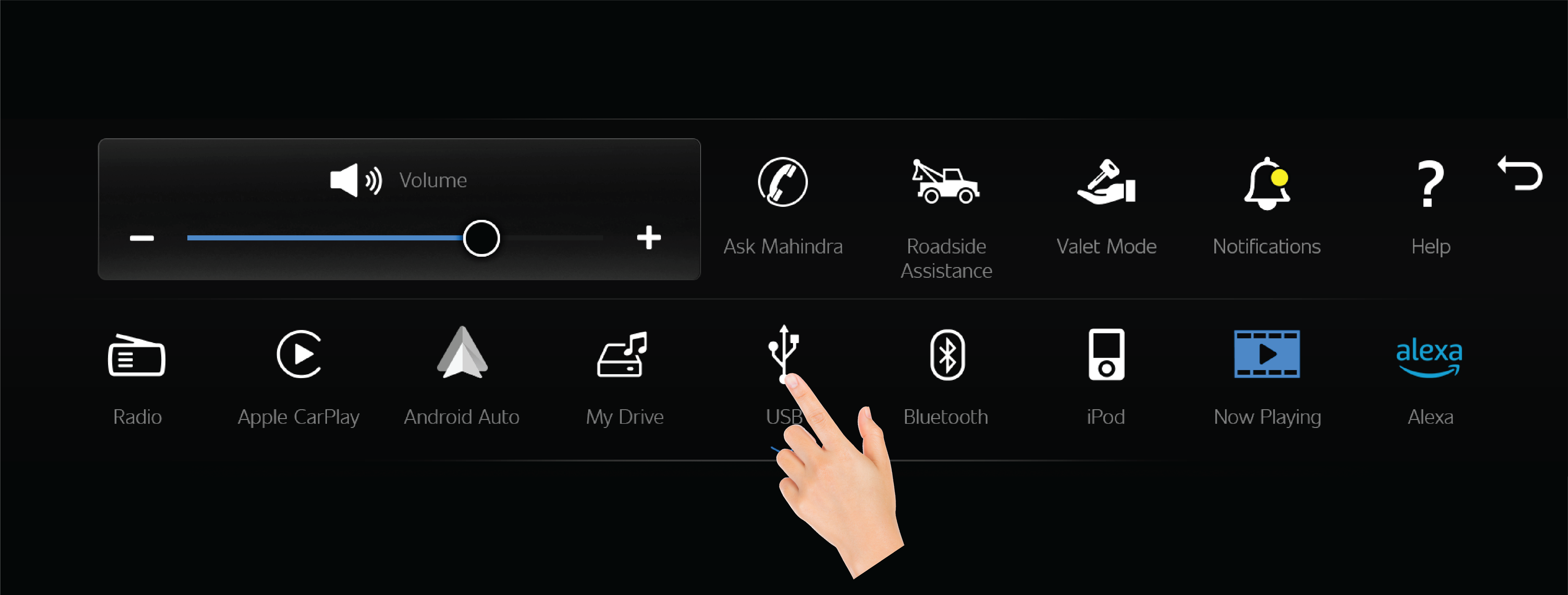

By using USB device, favorite songs can be stored in MyDrive
Press MyDrive option to enjoy the songs which is already stored in MyDrive
|
|
|
|

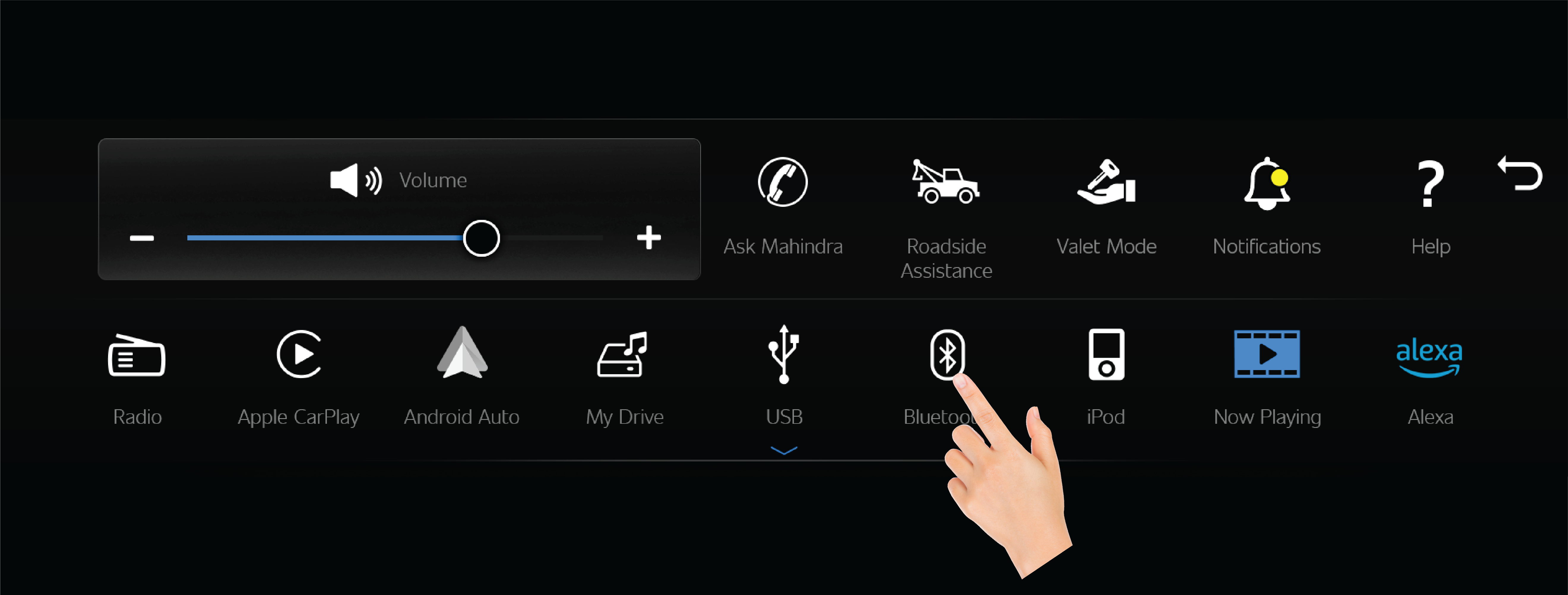

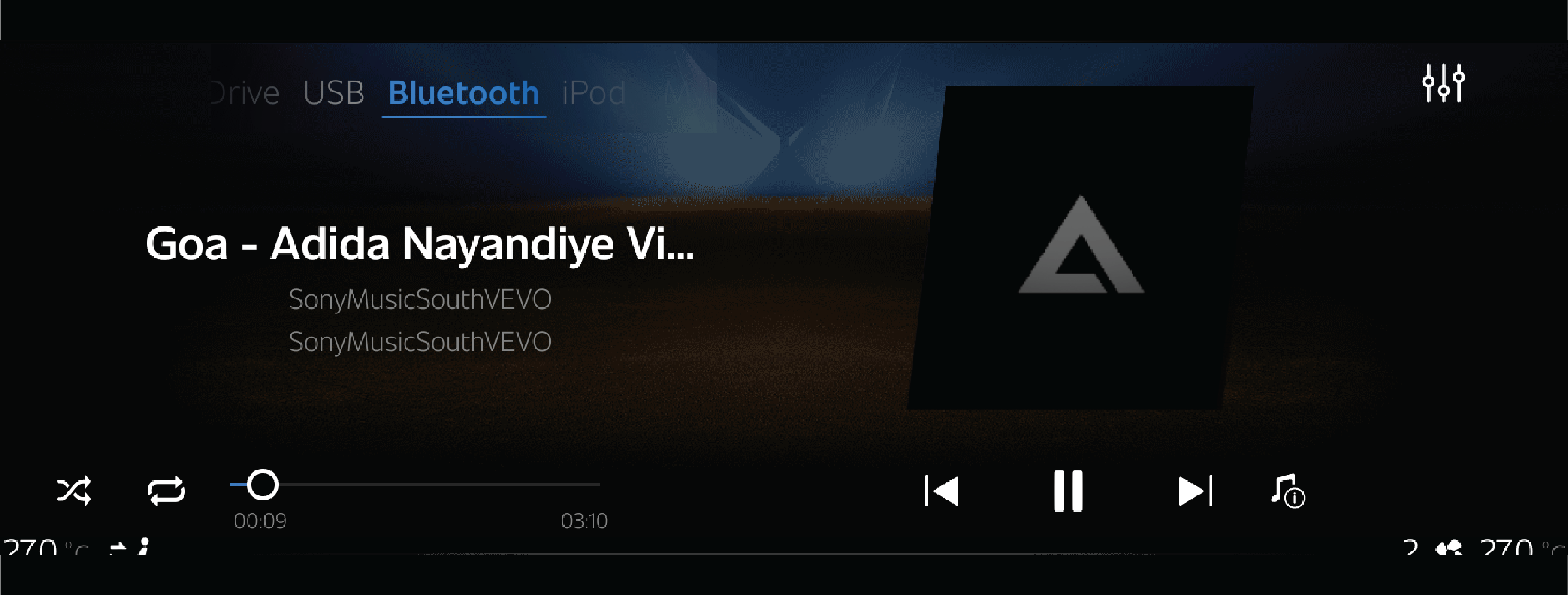

User can connect the mobile with THAR ROXX via Bluetooth
Once Mobile Bluetooth is connected with vehicle infotainment, user can play desired songs
|
|

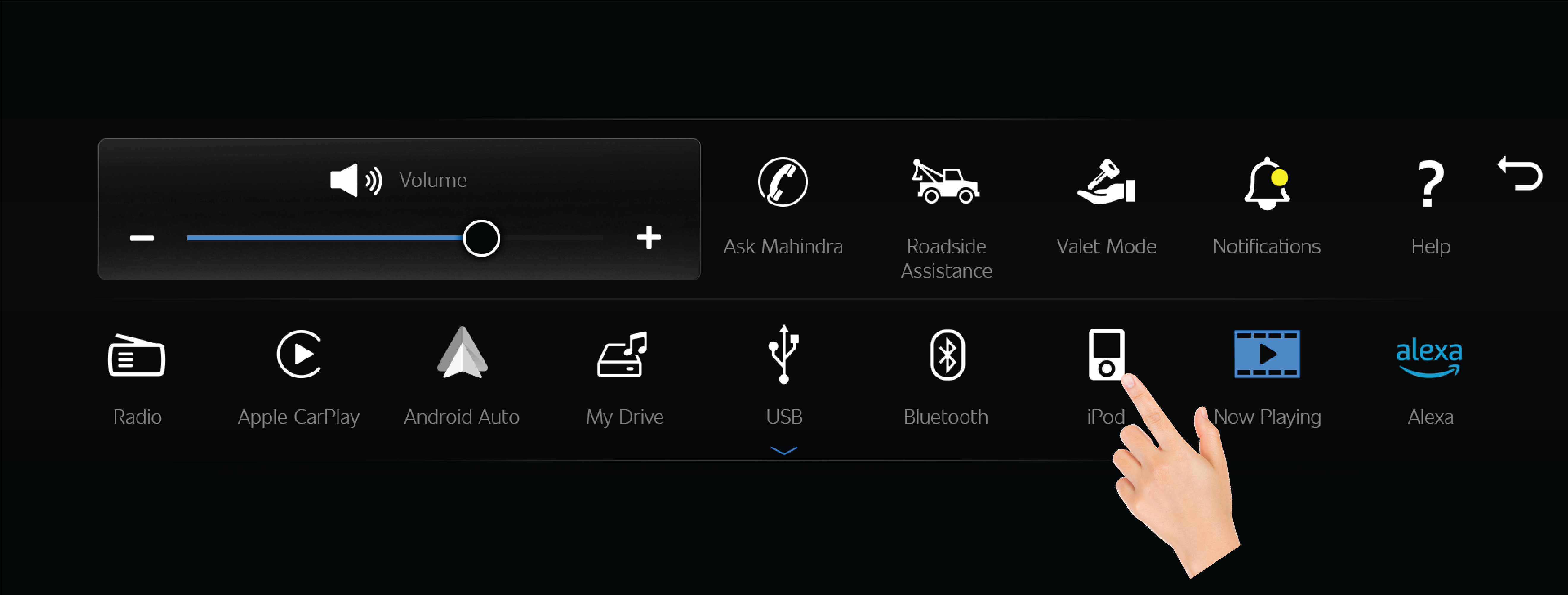

This option can be enabled only if the user have iPhone
|

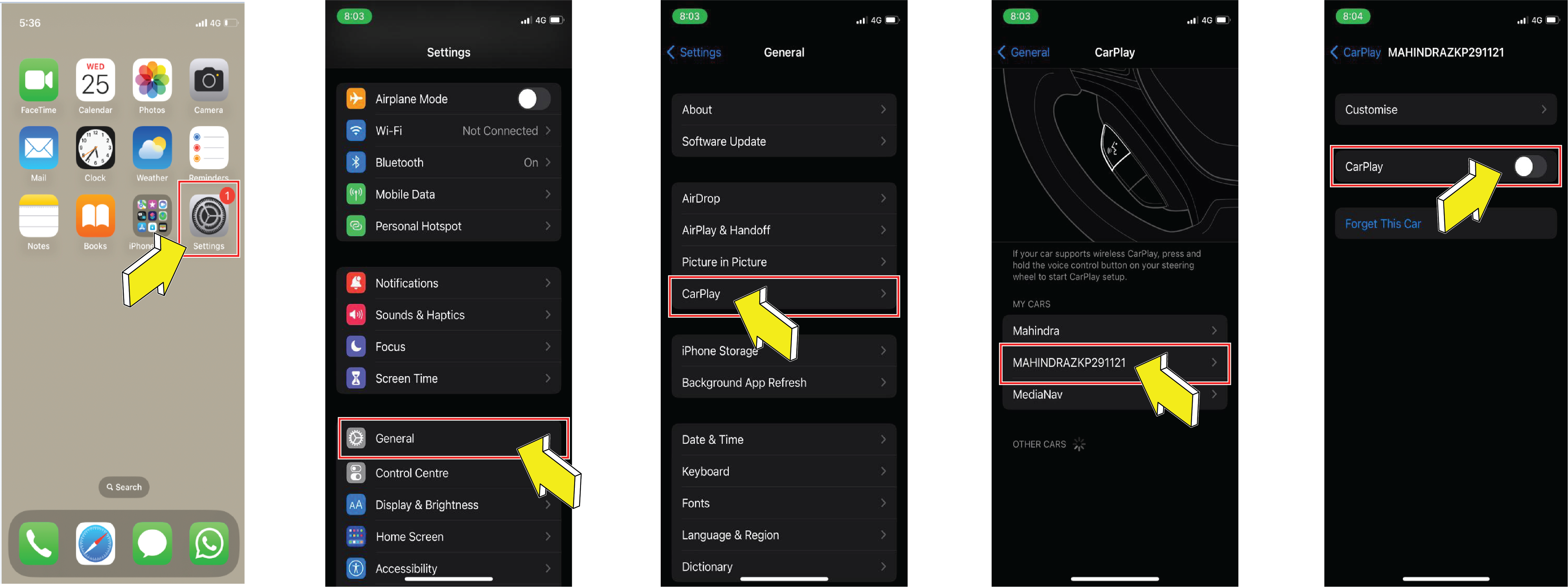

If user have iPhone, then car play application can be disabled through iPhone settings. To play the music, connect the USB
cable to media port and play songs through mobile APP.
|
|
|
|
|
• | When USB device is connected in Media Port, then user can play Videos. |
• | In App drawer, select Gallery option & select the video in gallery. Video will play automatically. |
• | User can see the video in parking condition |
• | During driving, user can see the video in infotainment up to 20 kmph speed |
|

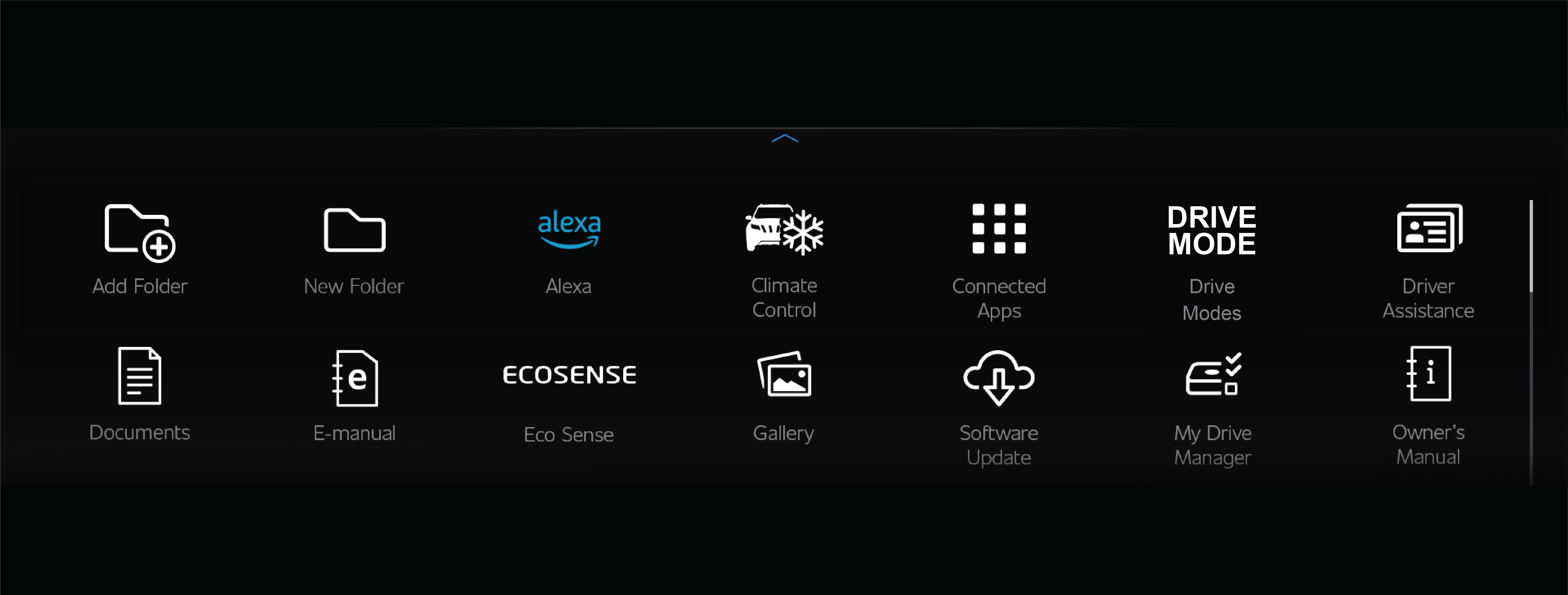

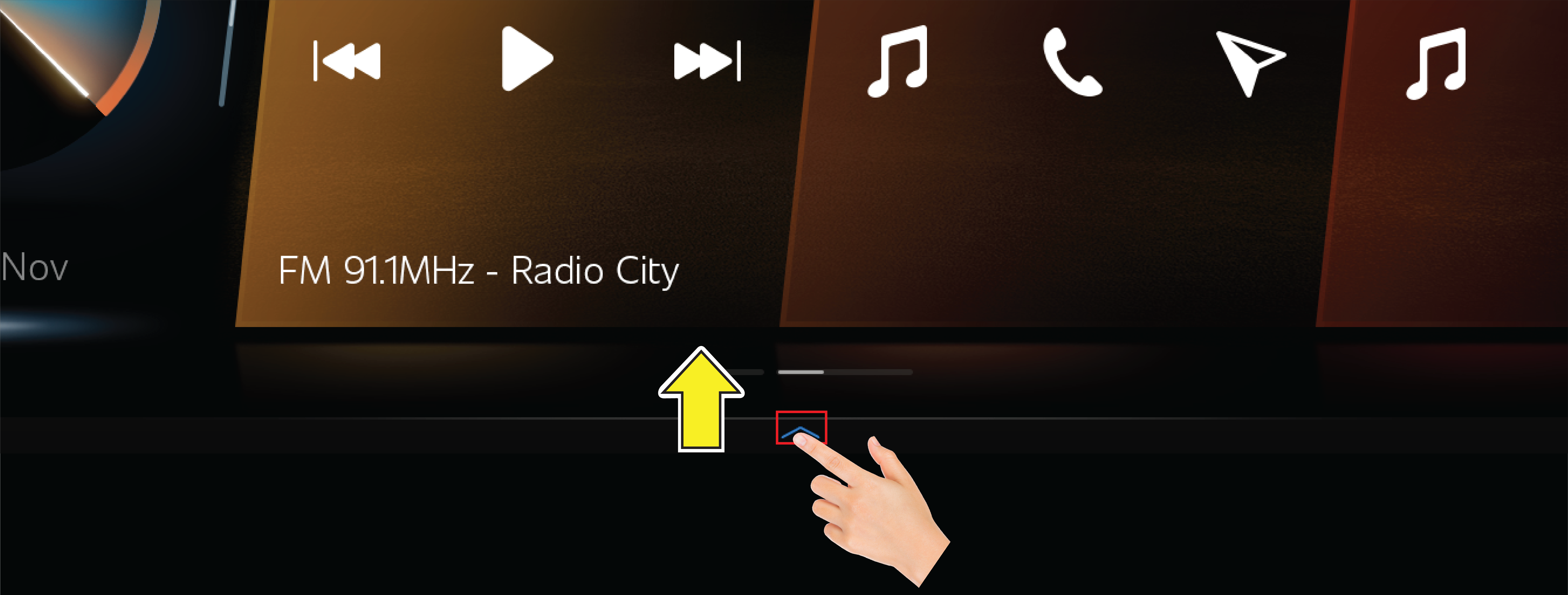

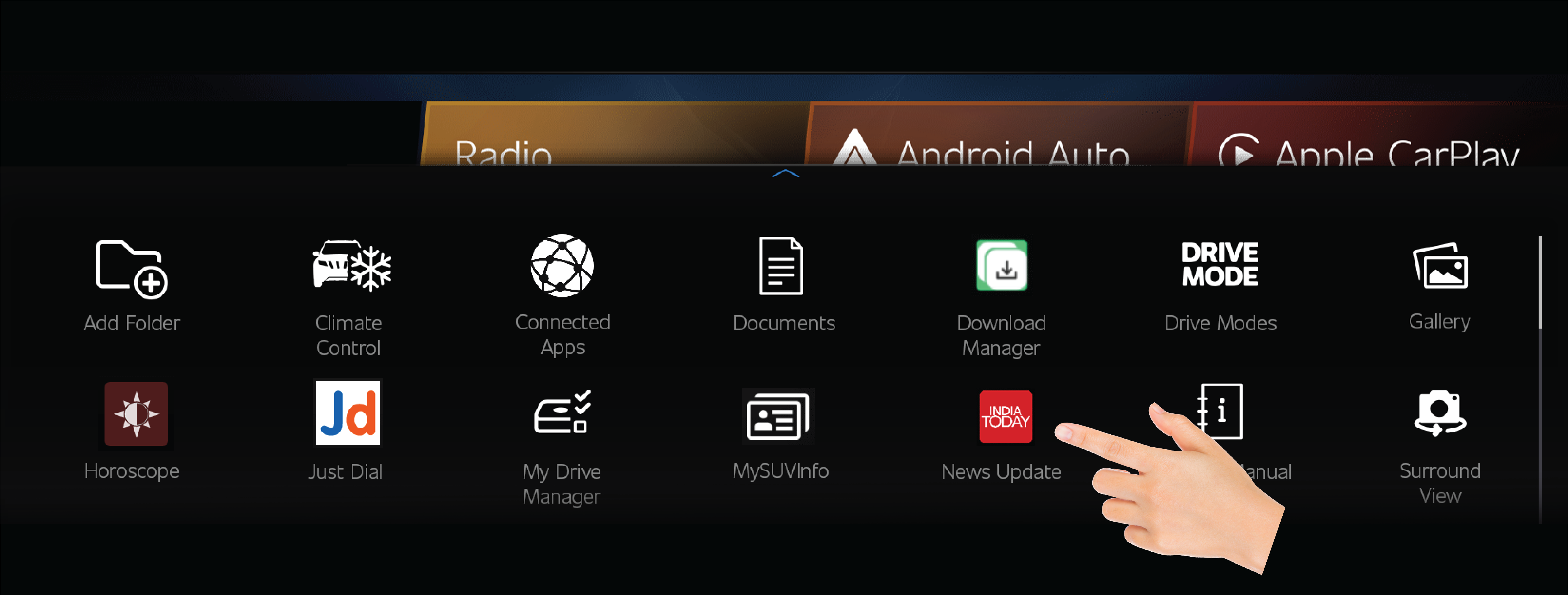

The App Drawer can be opened by dragging the screen from Down to up.
The app drawer displays all the applications available in Infotainment System.
|
|
The App Drawer allows user to browse through available apps and folders and launch selected one.
Based on the usage of Apps, reordering will be done automatically.
|
|
|

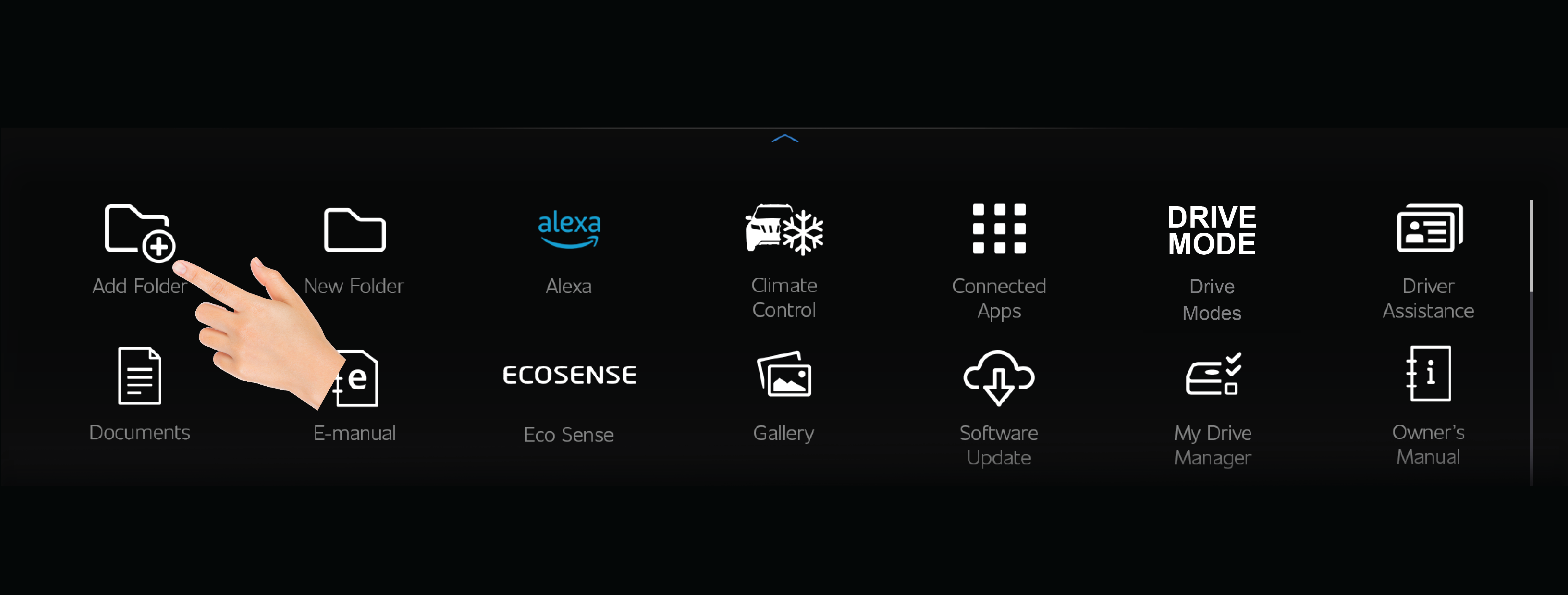

• | User can select add folder and can drag the existing apps available in app drawer to New Folder |
• | User can rename the folder as per his/her choice. |
|
|
• | User can press Climate Control option and select different modes available in THAR ROXX. |
• | Types of modes are described below |
|
Face Mode: User can access Face mode to get direct airflow through instrument panel air vents to the front row passenger.
|
|
Face & Foot Mode: User can select Face & Foot mode to get airflow from both instrument panel air vents and footwell air vents
|
|
Foot Mode: User can select Foot mode to get airflow from footwell air vents
|
|
Foot & Defogger Mode: User can select Foot & Defogger mode to get airflow from footwell air vents & Defogger vents
Defogger vent is used to clear the frost/mist, which is formed on Front windshield.
|
|
Front Defogger Mode: User can select Front Defogger mode to clear the frost/mist, which is formed on front windshield
|
|
Blower Speed Control: Blower Fan Speed can be controlled by pressing '+' or '-' button on HVAC controller.
|
|
Auto Mode: User can select auto mode by pressing the ‘Auto’ button on HVAC controller.
In AUTO mode, with respect to the surrounding condition, set temperature is automatically obtained. This is done by adjusting
the blower speed and fresh/recirculation mode to optimum level.
|
|
|
|
User can select Connected Apps and can see connected apps Features.
|
|
|
|
In Download Manager, user can know the applications of third-party app available on Infotainment Systems
User can select the required APP and view various details available in it.
|
|
|
1. | Zip Mode |
2. | Zoom Mode |
3. | Snow Mode |
4. | Mud Mode |
5. | Sand Mode |
|
ZIP Mode mode is the default mode in the Drive Mode with Terrain Assist system. You can choose ZIP mode to experience a true SUV drive
that embodies the essence of the Mahindra SUV experience. This mode is set as the default for an authentic driving experience.
|
|
ZOOM Mode: ZOOM Mode for an adrenaline rush. In this mode, engine power, gear shifts, and braking all work together to provide an exhilarating
and thrilling driving experience.
|
|
SNOW Mode: SNOW Mode for improved vehicle stability in low-traction conditions, ensuring better control and safety on snowy or icy roads.
|
|
MUD Mode: MUD Mode to ensure maximum torque availability, providing optimal traction and control in muddy conditions.
|
|
SAND Mode: SAND Mode to maintain the vehicle's momentum on soft ground, ensuring smooth and consistent movement.
|
|
|
|

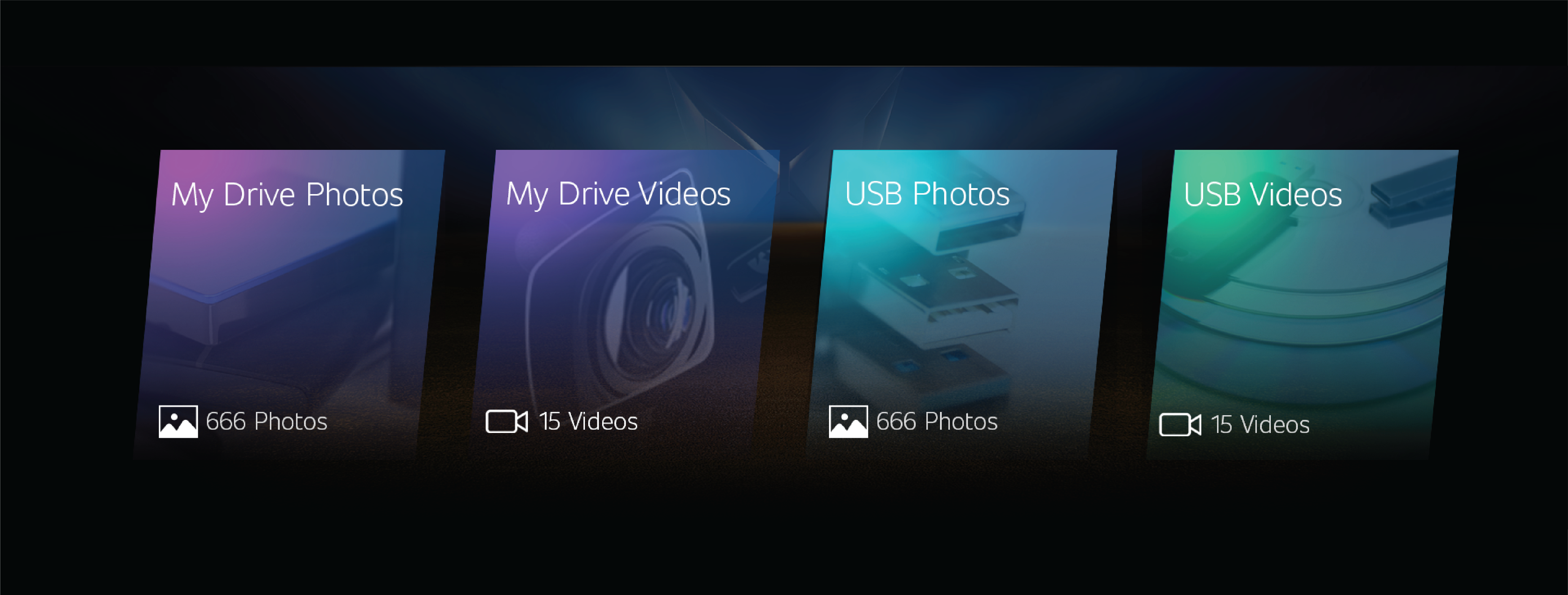

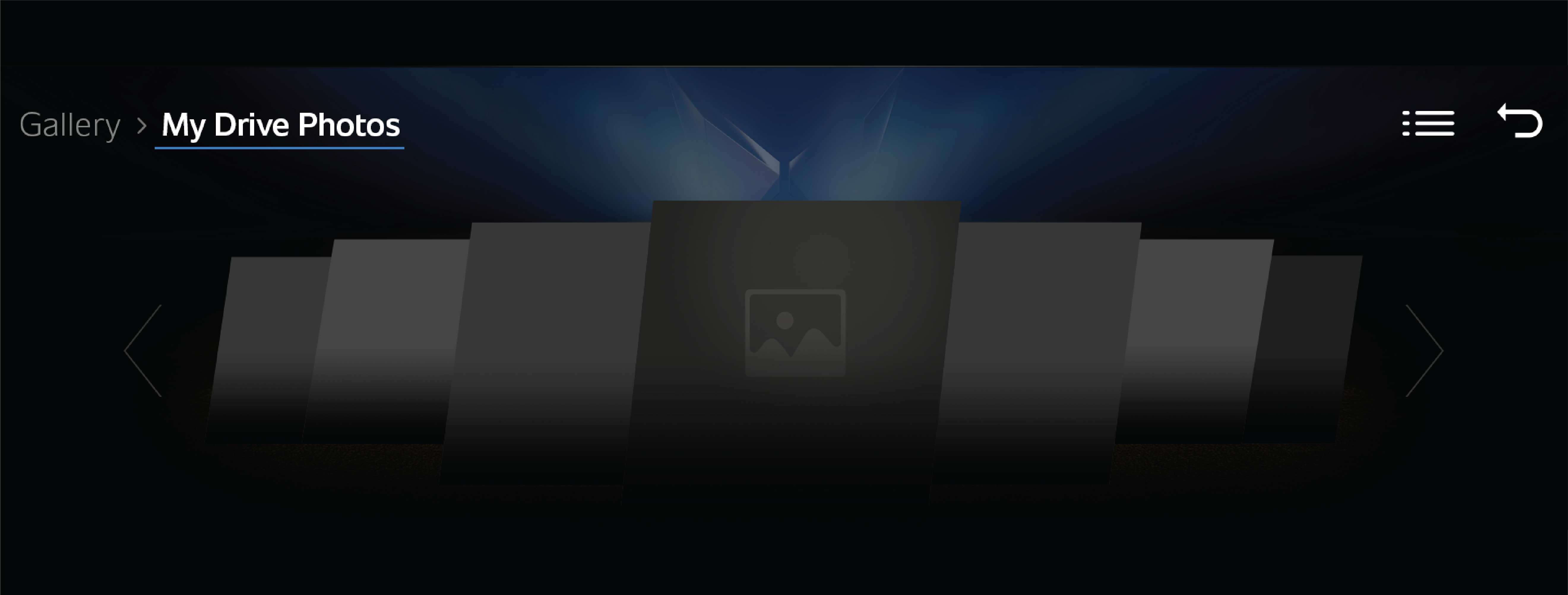

Use can select MyDrive Photos, see the list of Photos and select to see it in full screen.
Similarly, user can play the video in infotainment system.
As a safety measure, there are some limitations to play the video in infotainment.
User can see the video in parking condition
During driving, user can see the video in infotainment up to 20 kmph speed.
|
|

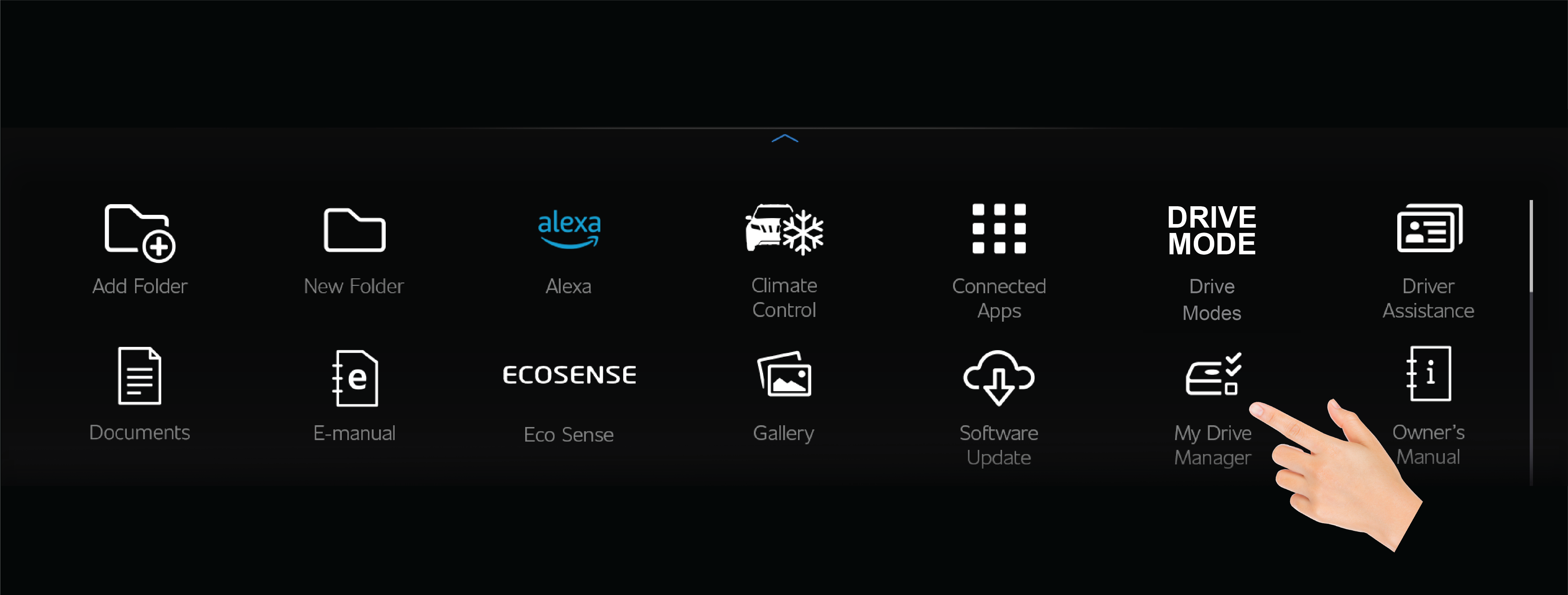

Insert USB device in Media Port & open the My Drive Manager then user can copy required songs, videos, photos and documents
to the infotainment system
|
|
Select required file from USB device & by using copy (highlighted) option, user can store the required details from USB to
the infotainment system.

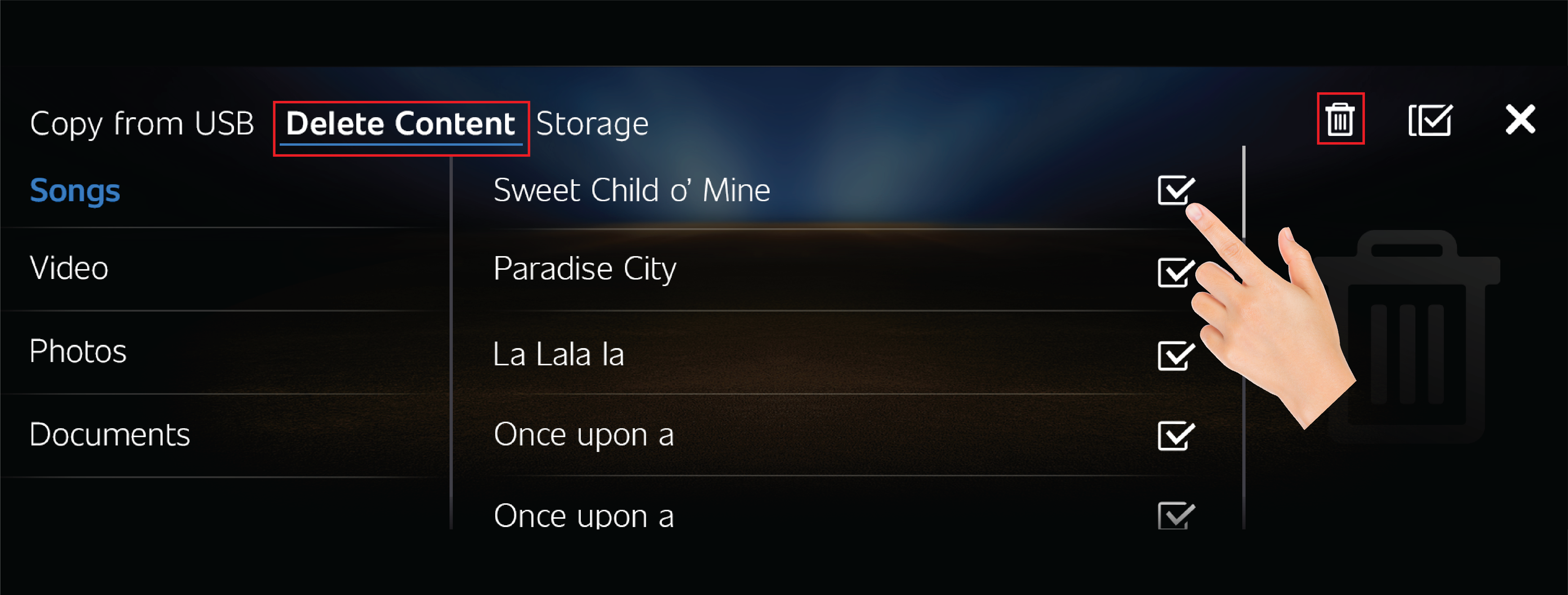

Delete content option is used to remove the unwanted files in the infotainment system
|
|

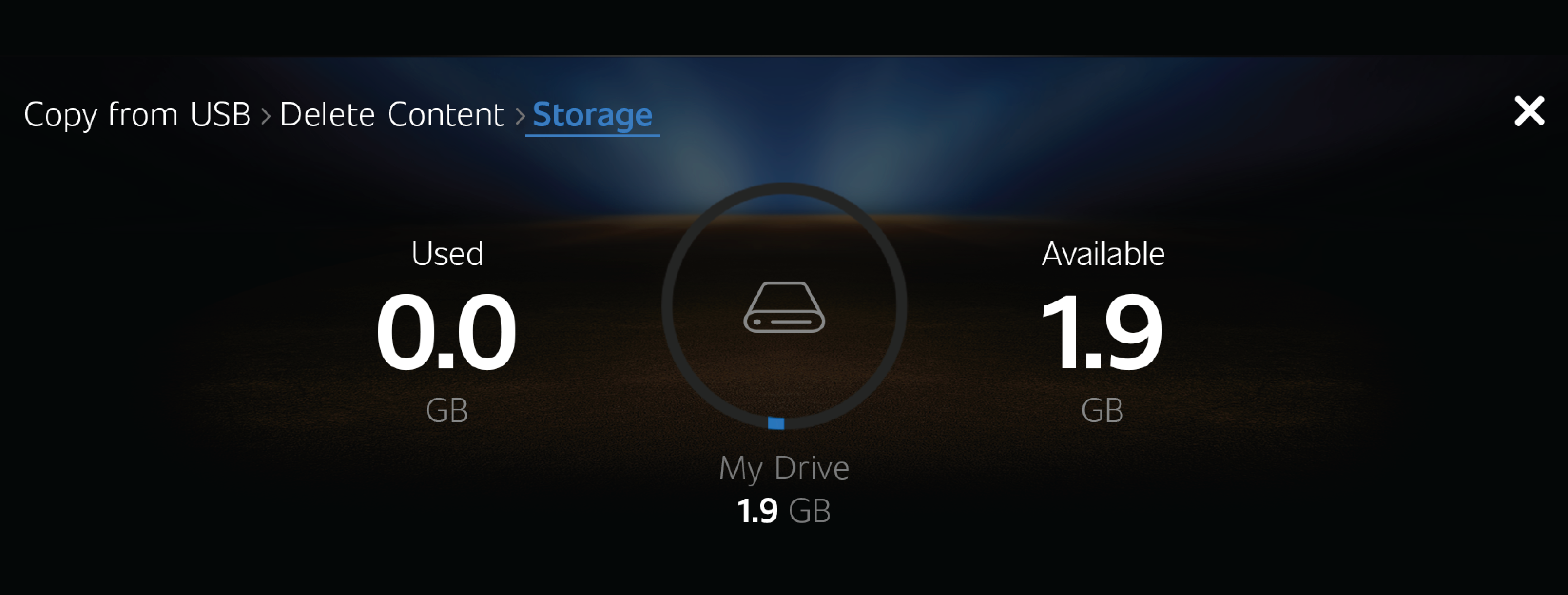

User can store max 1.9 GB data in infotainment system.
|
|
In MySUV Info option, user can know the Vehicle Details and can store License & other certificates in digital format.
|
1. Vehicle Name
|
7. Number of cylinders
|
2. Color of the vehicle
|
8. Variant details
|
3. PUC (Pollution Under Control) Expiry Date
|
9. VIN Number
|
4. Last Service Date
|
10. Model
|
5. Engine Capacity
|
11. Make
|
6. Fuel Type
|
12. Insurance Expiry Date
|
|
In Documents Wallet user can store the following details in digital format
|
|
|
|
|
|
Rear View Camera assists the user during parking in two methods
|
|
|
|
This view assist the user to drive the vehicle carefully in front area.
User can see the front surroundings while maneuvering in front.
|
|
This view assists the user with Rear surrounding view for maneuvering in rear of the vehicle.
|
|
This view helps the user to see the left side view near the front tire when parking
|
|
This view helps the user to see the right side view near the front tire when parking
|
|
This view helps the user to see the objects closer to rear bumper
|
|
This view helps the user to see the object closer to front bumper
|
|
The bird’s eye view/2D top view shows the view of the vehicle from a top-down view (as in right side of image) stitching all
the 4 camera images
|
|
|
• | The translucent (semi transparent) top view will provide the user to view the floor below the vehicle. |
• | Gently, touch the bird’s eye view, then the infotainment view changes to semi transparent view. User can view beneath the ground which will be visible once the vehicle starts moving. |
|
|
Once user touches bird’s eye view/3D top view in infotainment screen, then oval ring will appear.
In oval ring, 3D view switching 8 icons will be visible. Selecting any icon will show the 3D view in icons direction.
If there is NO action from user side, then Icon will hide automatically after 5 seconds.
|
|
|
|
User can access the Parking Guideline, Automatic Side View, Parking assistance & Drive video recordings by using SVS settings
|
|
|
• | By selecting 2D view, user can see either Front View or Rear View. 2D view is the Default view. |
• | By selecting 3D view, user can see Full View of the vehicle. |
|
|
• | When Left / Right Turn Indicator is turned ON and 3D view is active, then view will switch to 3D Left / Right in Infotainment Screen |
• | This feature can be Enabled / Disabled from SVS SETTINGS menu |
• | Vertical (Perpendicular) Parking Assistance: |
1. | Choose Vertical Parking icon from SVS-Settings. Overlays will appear on either side as in image below. |
2. | Drive ahead of the parking slot, so that camera can have the parking slot view. |
3. | Chose vertical parking button from settings. Overlays will appear on either side. |
|
|
• | Parallel Parking Assistance: |
1. | Drive ahead of the parking slot so that Camera can have the parking slot view, then choose Parallel Parking icon from SVS-Settings. |
2. | Two green rectangular boxes will appear on either side |
|
|
• | The 4 cameras installed around the vehicle captures the video and capture special event of the vehicle during driving. |
• | Recording from SVS-DVR is possible only if micro-SD card is installed |
|
|
• | Use Class 10 micro-SD card for recording the video |
• | For detailed information on the Surround View System topic, see the Interactive Owner's Manual 360° View section which is available in Mahindra’s M4U app |
|
|
|
|
|
It is a personalized profile and user can choose this option to control climate setting, preferred audio source, audio settings,
application drawer, link profile to key fob, Lock my Profile etc.
|
|
In the given screen user have two Profile and one guest profile.
|
|
User can assign person specific settings for First, Second and Guest Profiles.
|
|

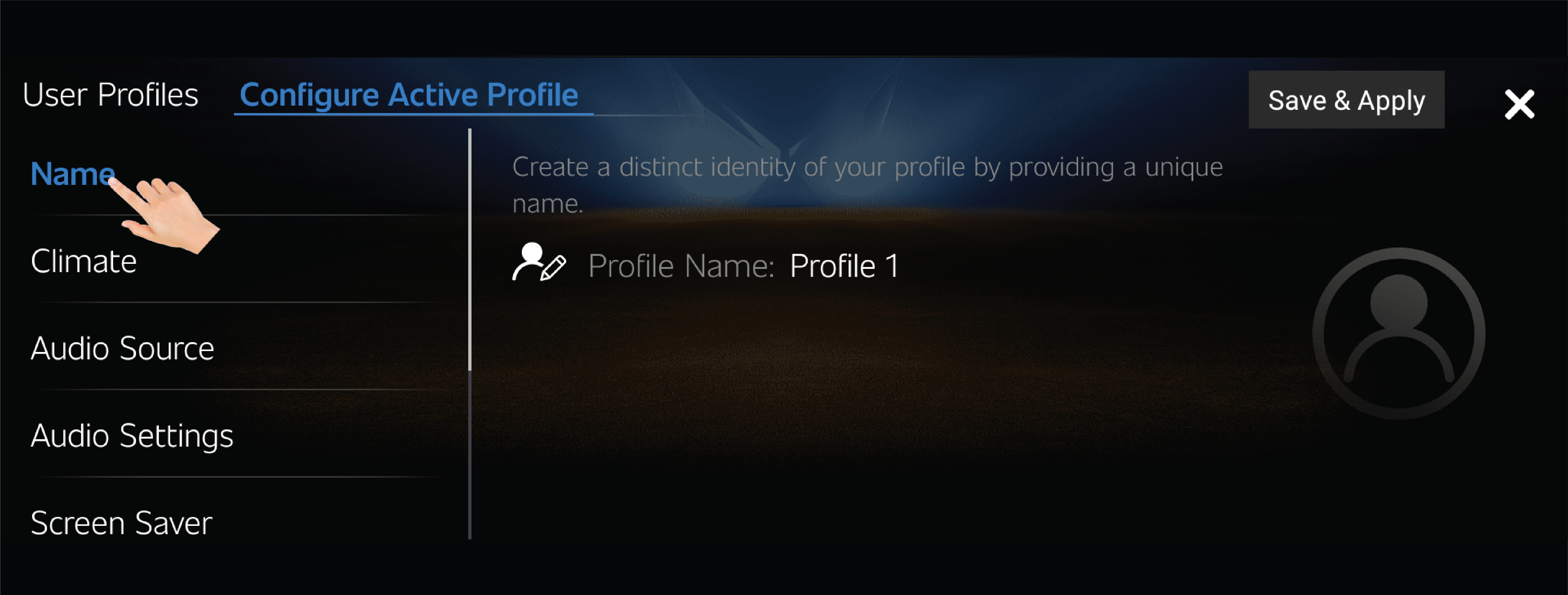

User can create a distinct identity to the profile by providing a unique name.
|
|
User can assign the comfortable climate settings according to his/her need.
|
|

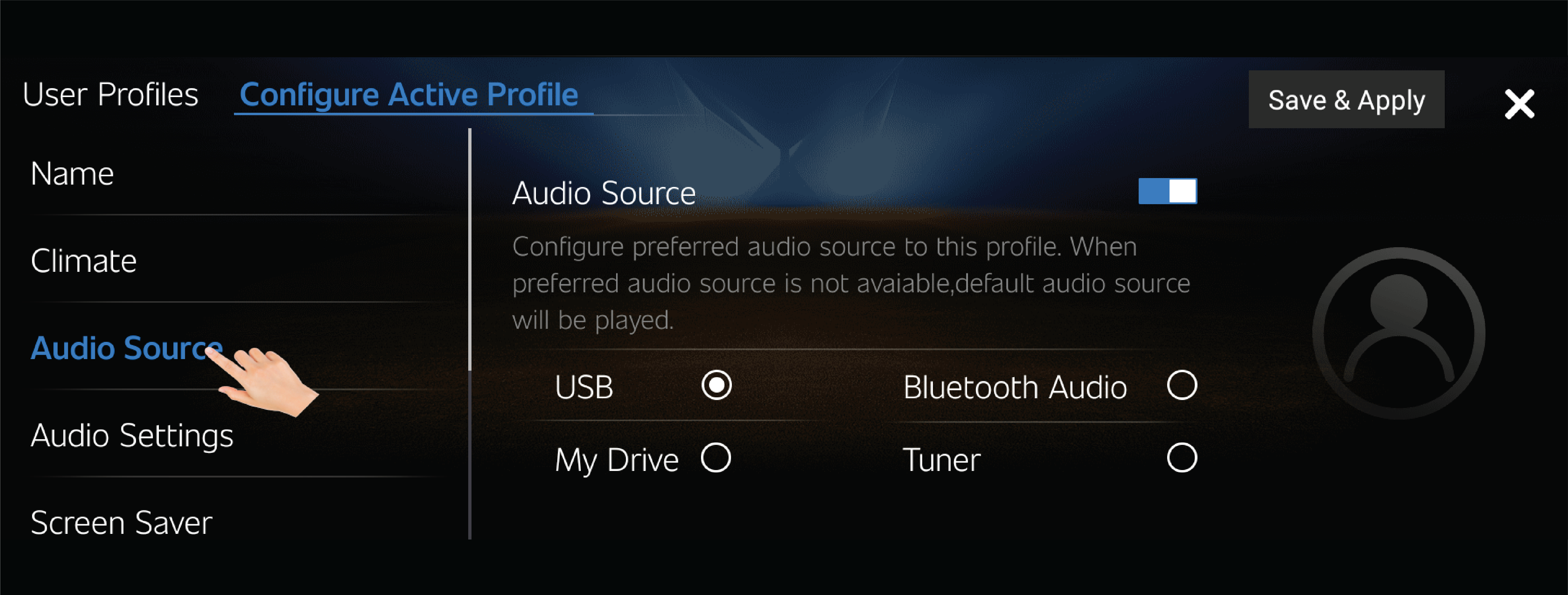

User can choose the preferred audio source for the profile. When preferred audio source is not available, default audio source
will be played.
|
|
User can be able to assign the favorite audio settings to the profile.
|
|

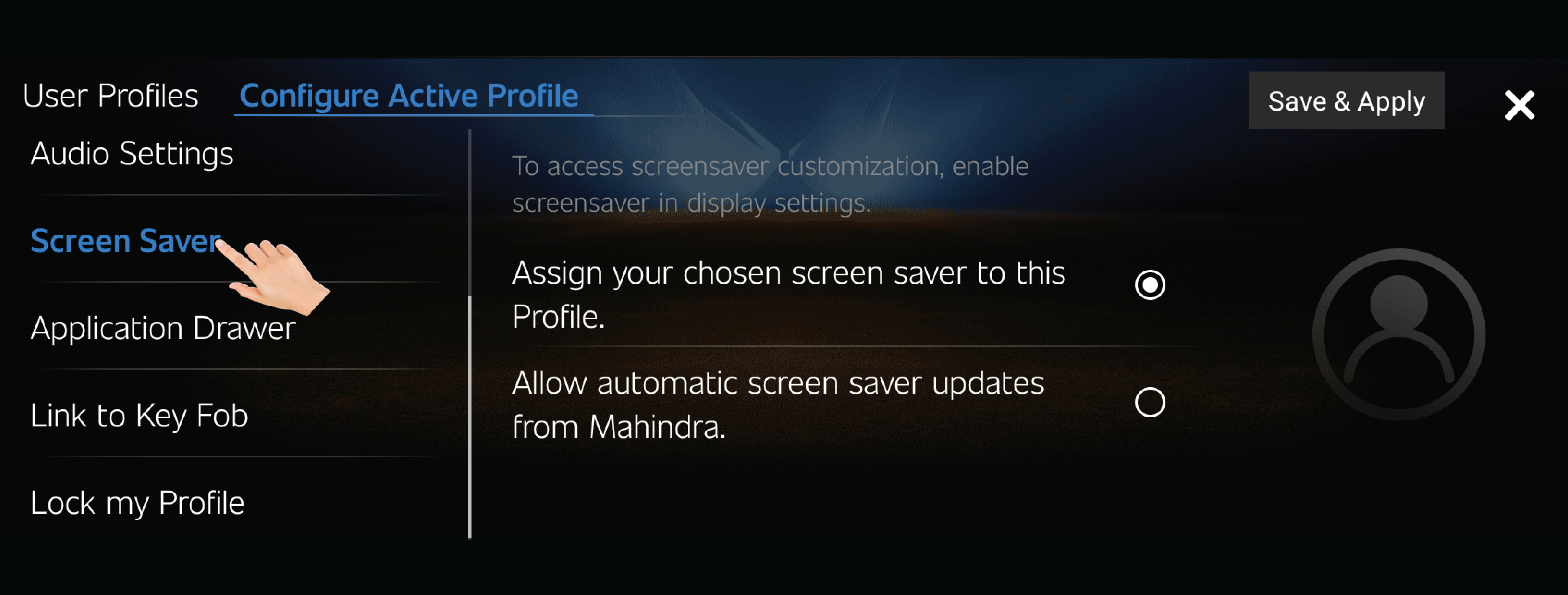

By using screen saver option, user can select the photos from gallery & make it Screen Saver.
By selecting automatic screen saver, screens can be updated automatically by M&M
|
|

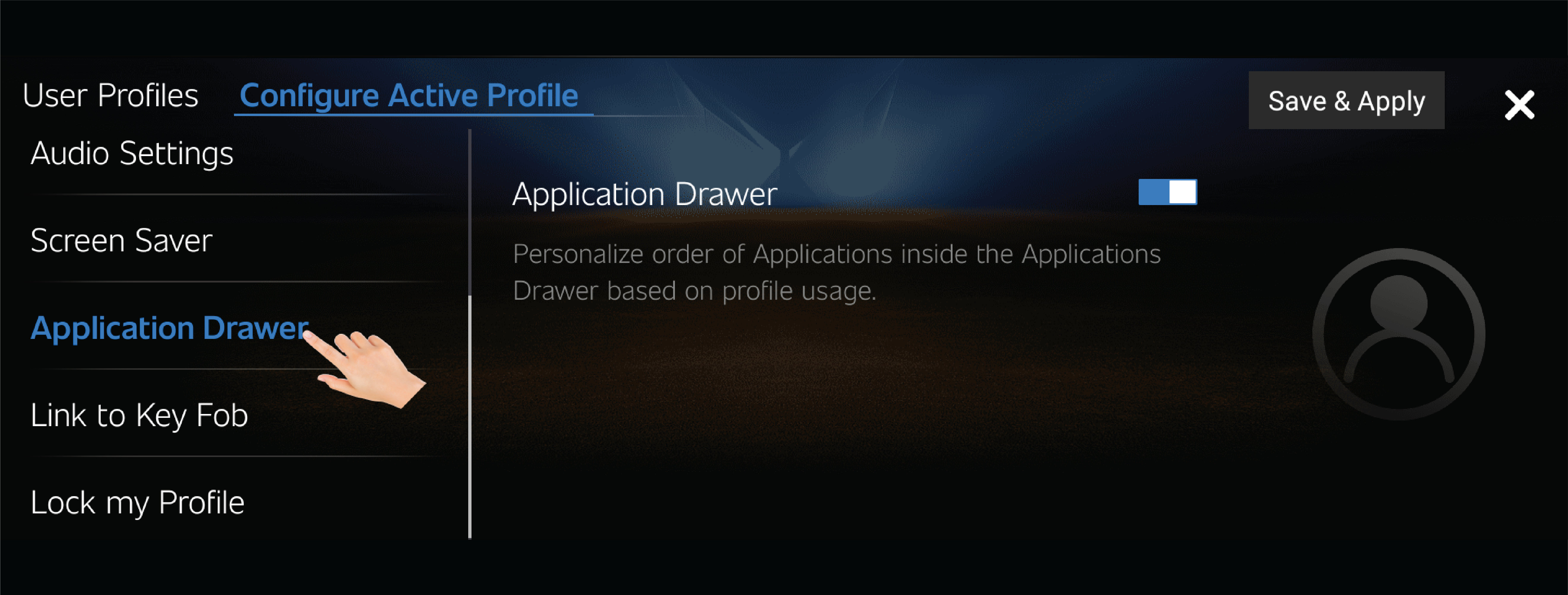

In Application Drawer user can fix the apps according to the profile usage
|
|

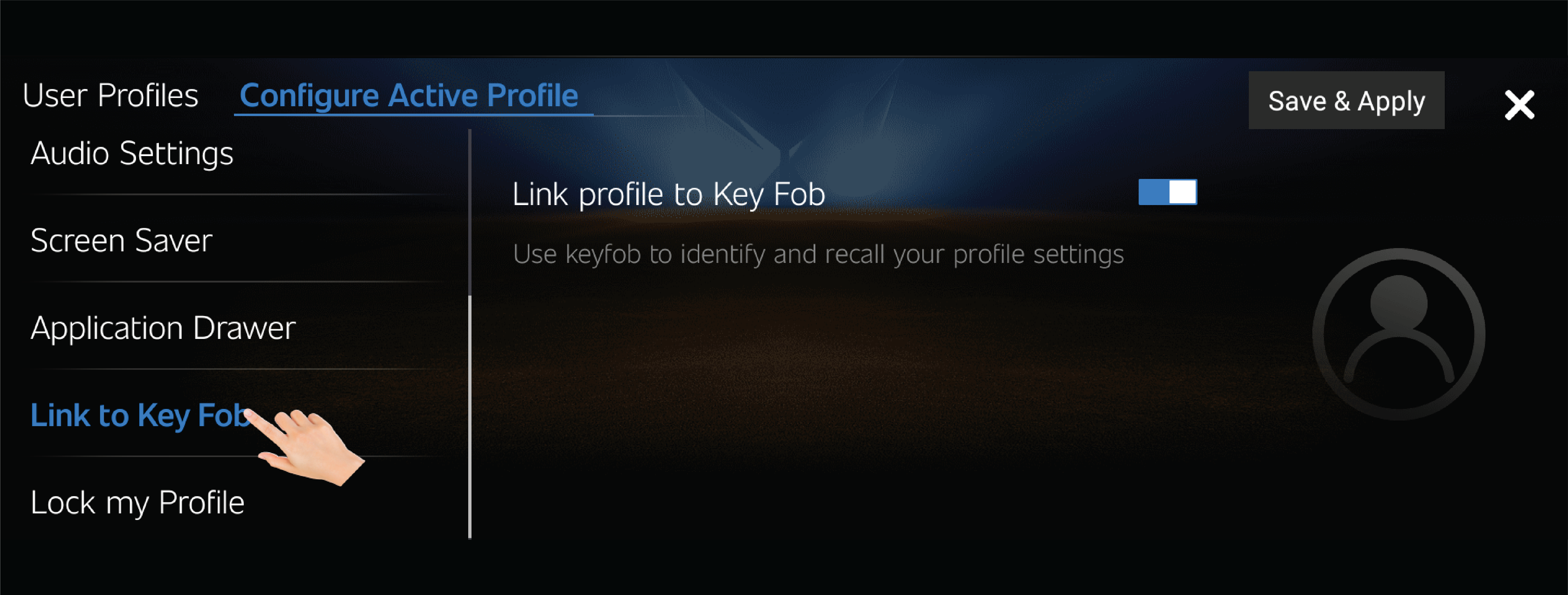

User can link the profile with the key fob. By using this setting, once user enter the vehicle with the desired key fob, then
all the saved settings will updated automatically.
|
|

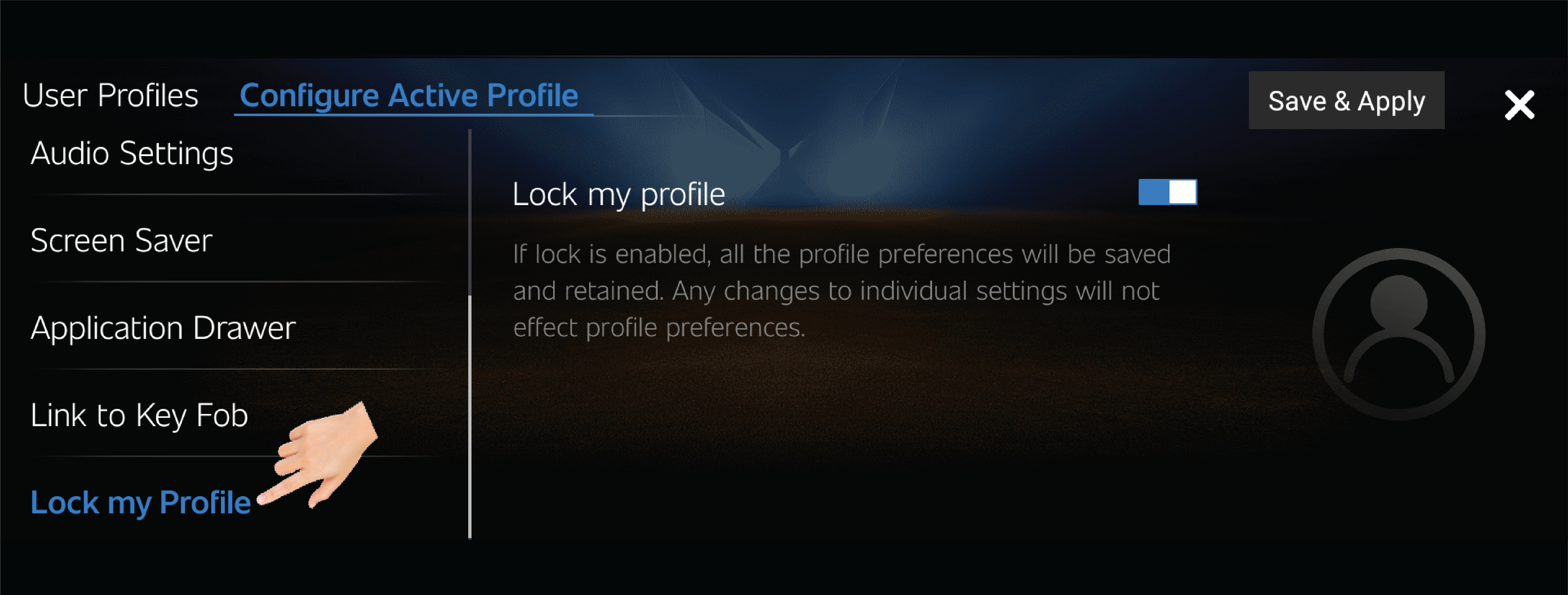

If lock settings is enabled by the user, then other user can’t change the saved details. Also, other user can't see the saved
user specific settings on infotainment screen.
|
|
|
|

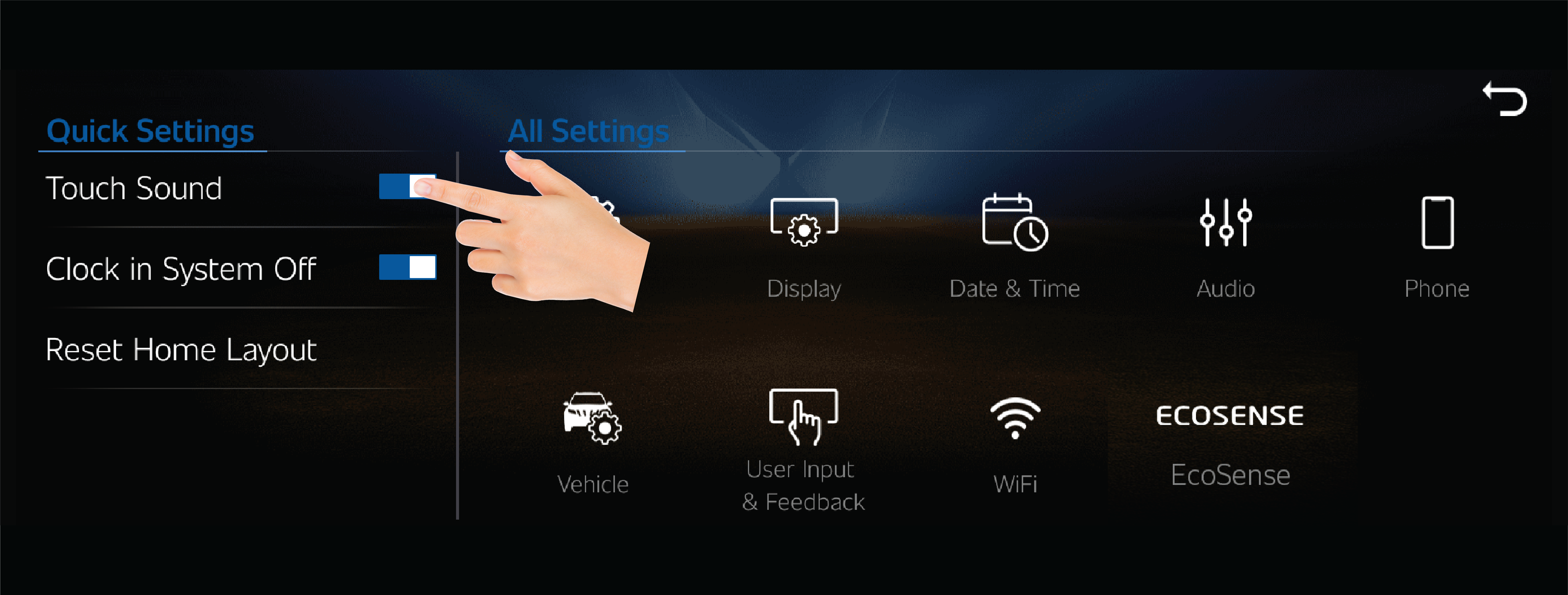

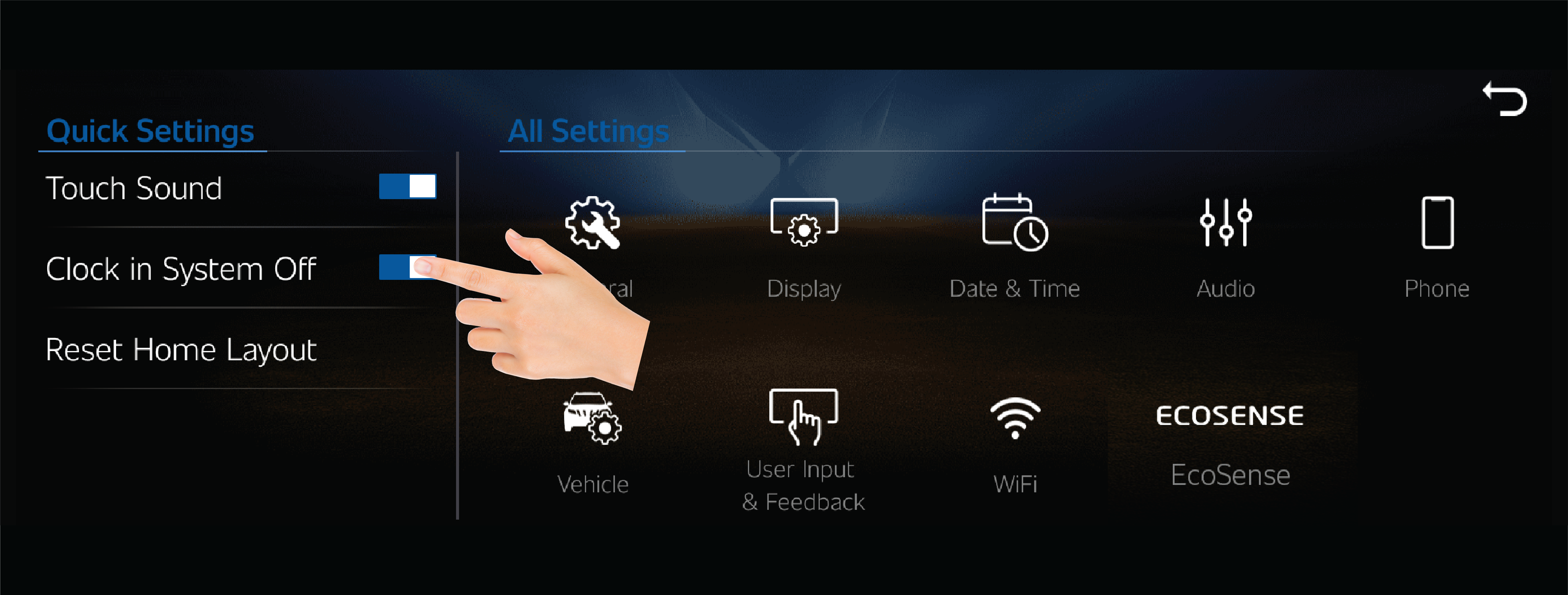

Enabling the Touch Sound will give the Touch sound, whenever user selects particular icon or app
|
|
In Home Screen, user can turn ON or turn OFF the Clock by using this option.
|
|
|
|

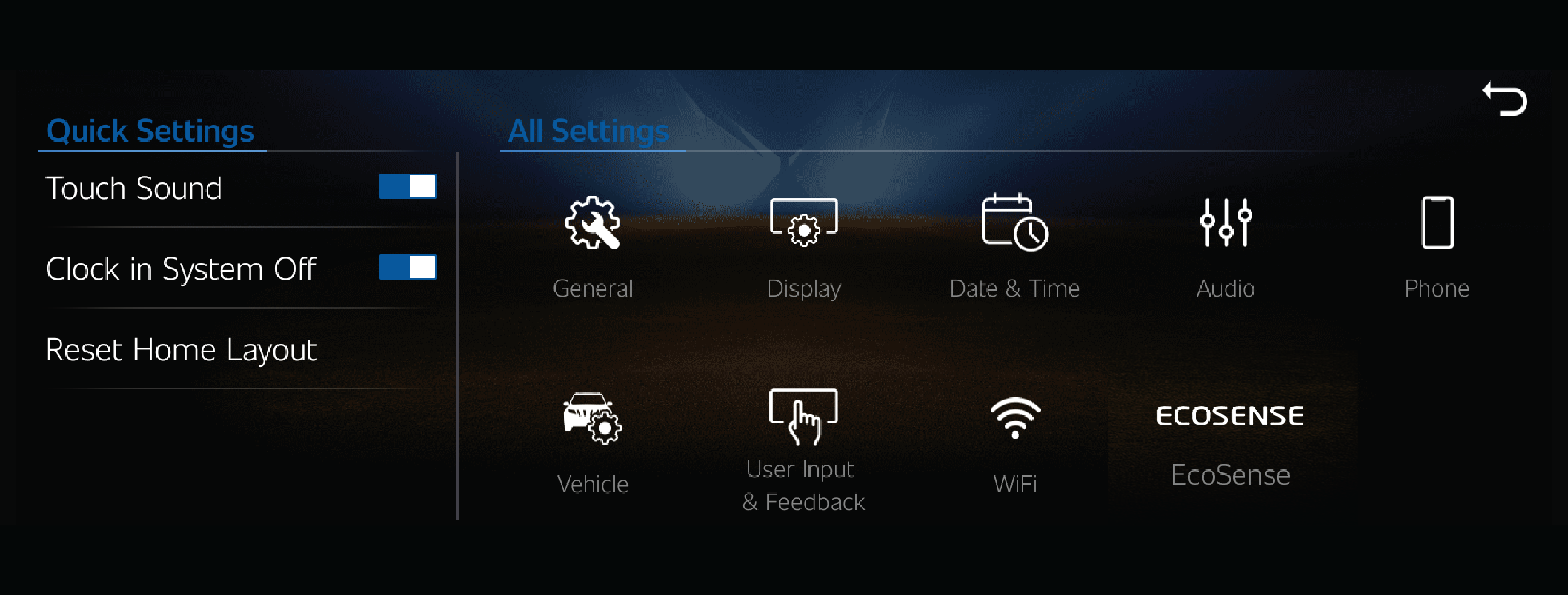

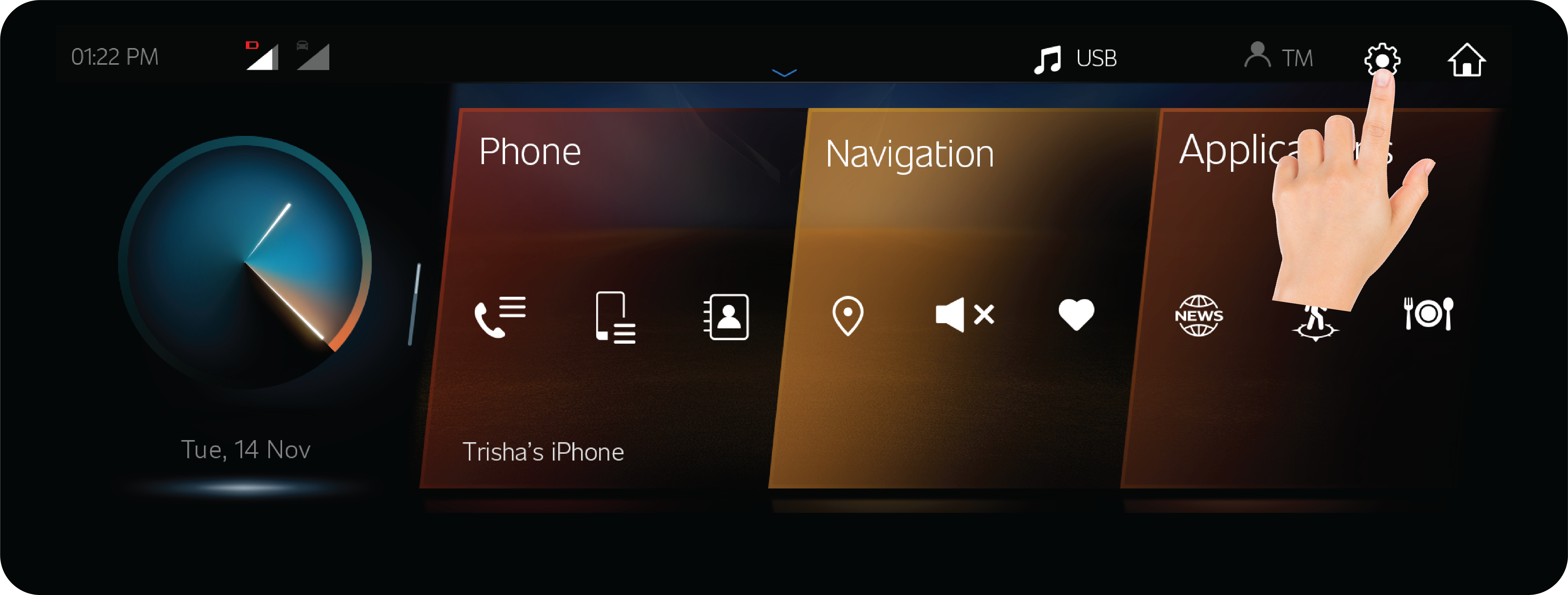

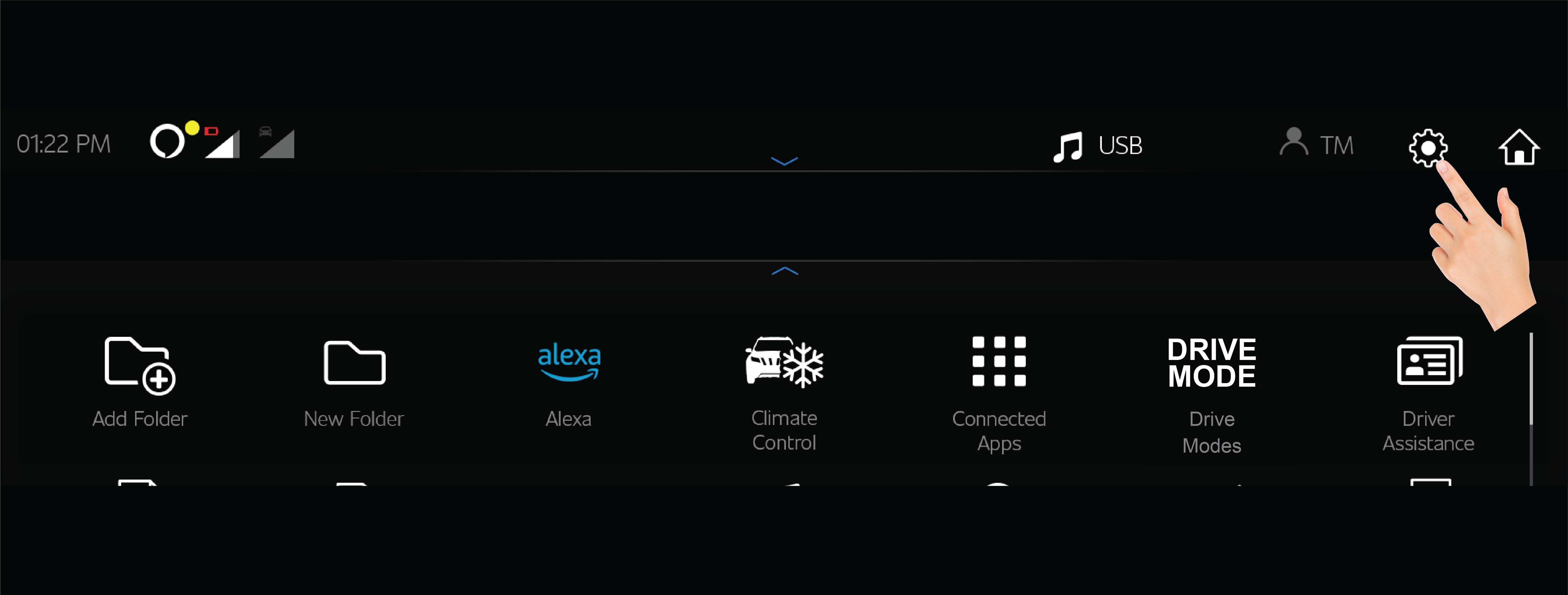

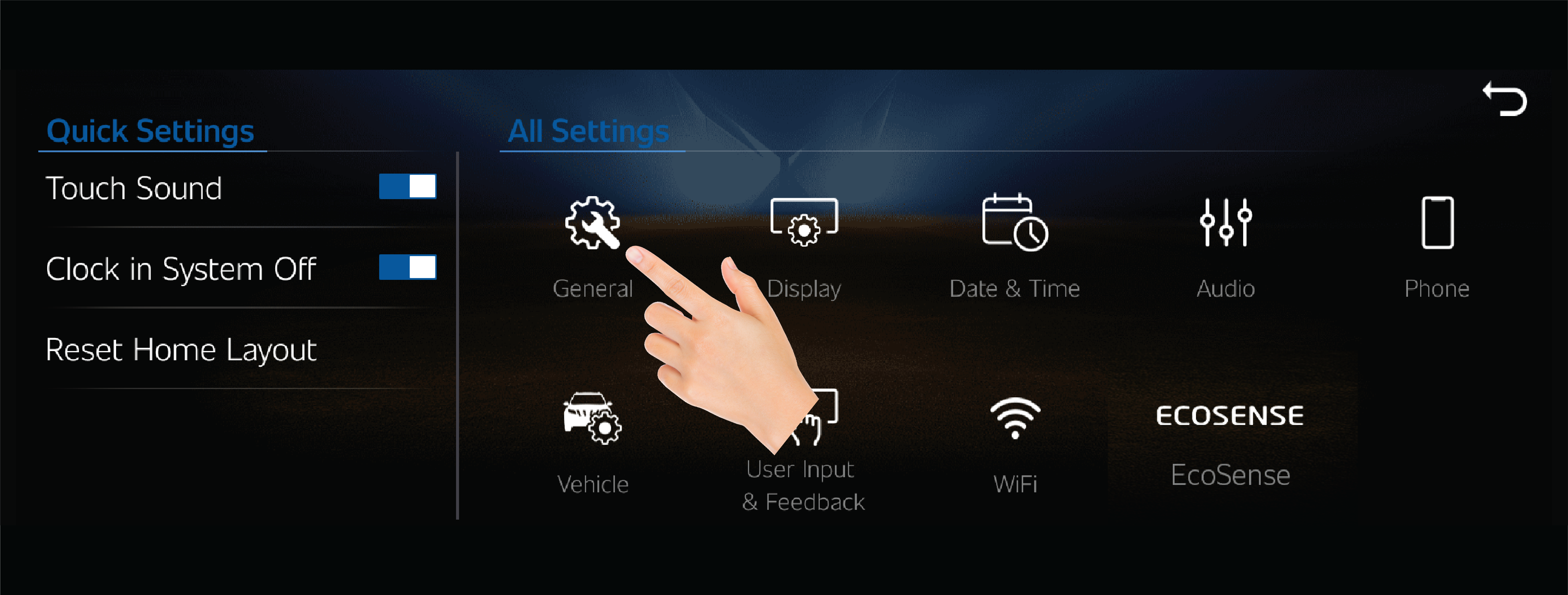

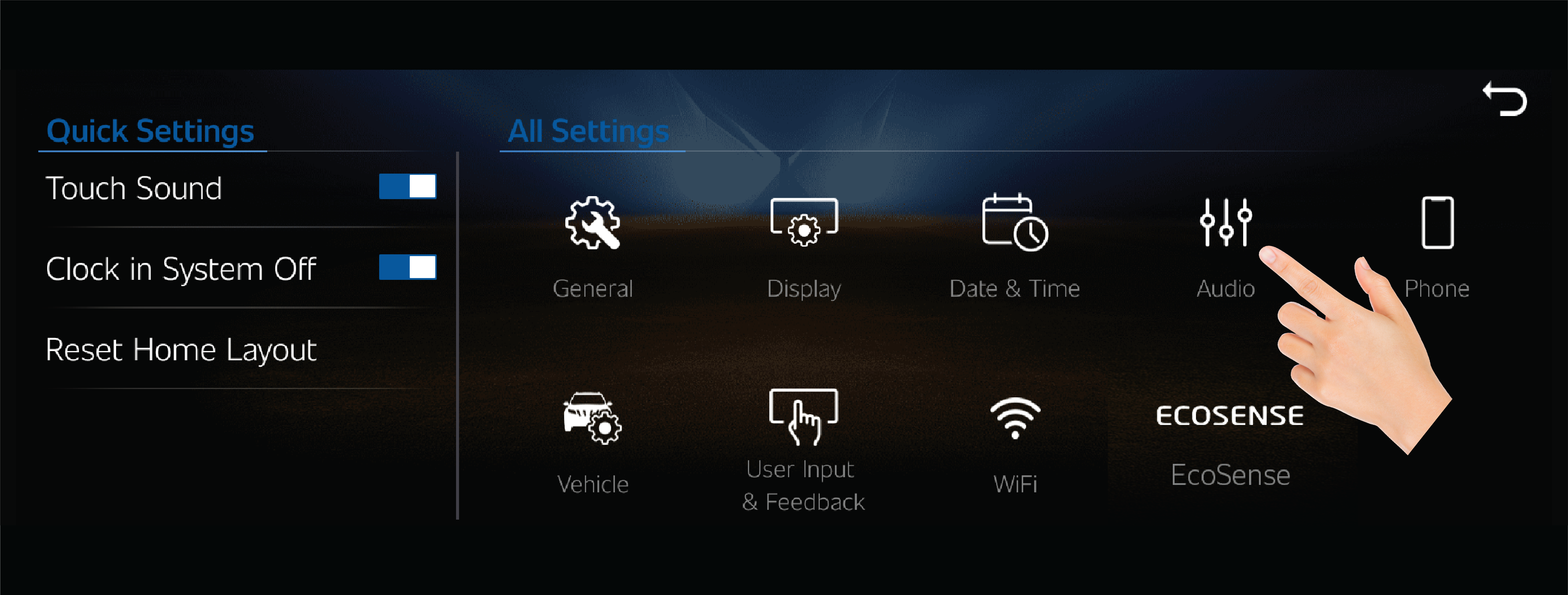

1. General
|
4. Audio
|
7. User Input & Feedback
|
2. Display
|
5. Phone
|
8. Wifi
|
3. Date & Time
|
6. Vehicle
|
9. ECOSENSE
|
|
By using General, users can perform the following functions:
|
|

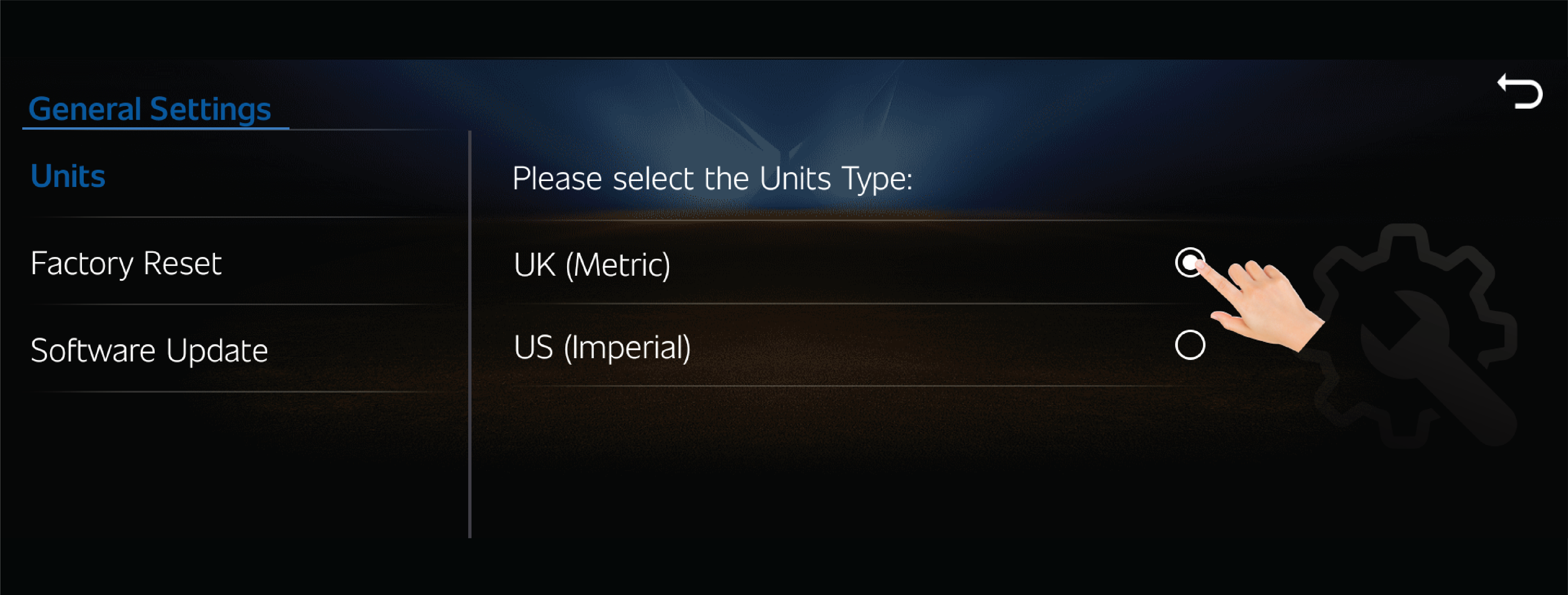

1. Units: User can select UK (Metric) and US (Imperial) to calculate the units (i.e., Km)
|
|
2. Factory Reset: If user selects 'Confirm', All settings will be restored to default factory settings
|
|

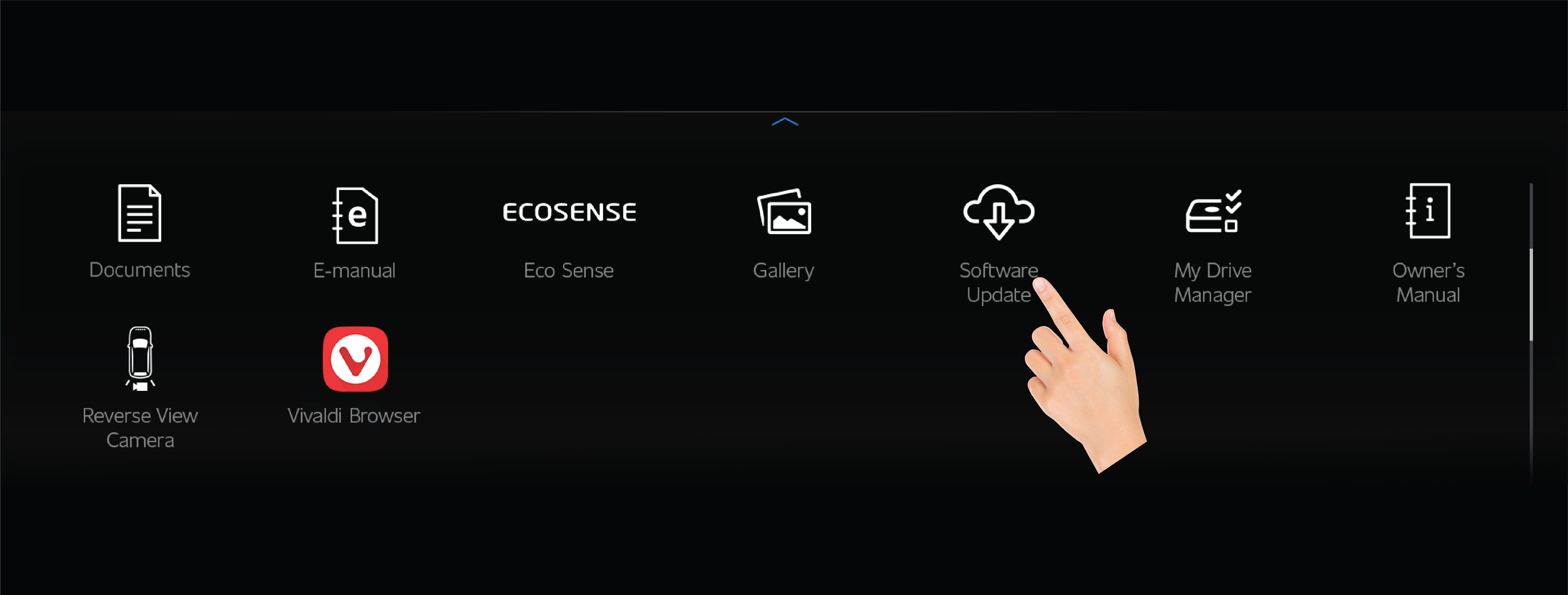

3. Software Update : If Auto Download option is enabled and if any update is available, then software update will be downloaded automatically.
|
|
List of features available in settings
|

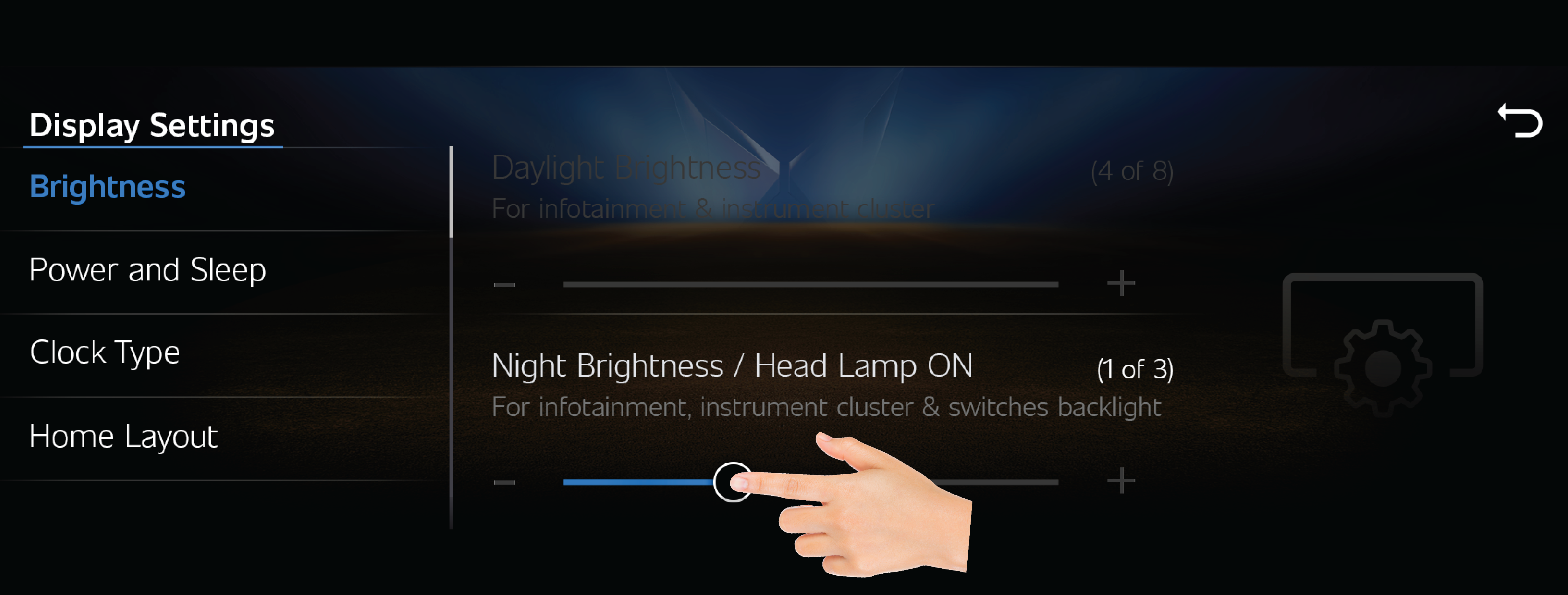

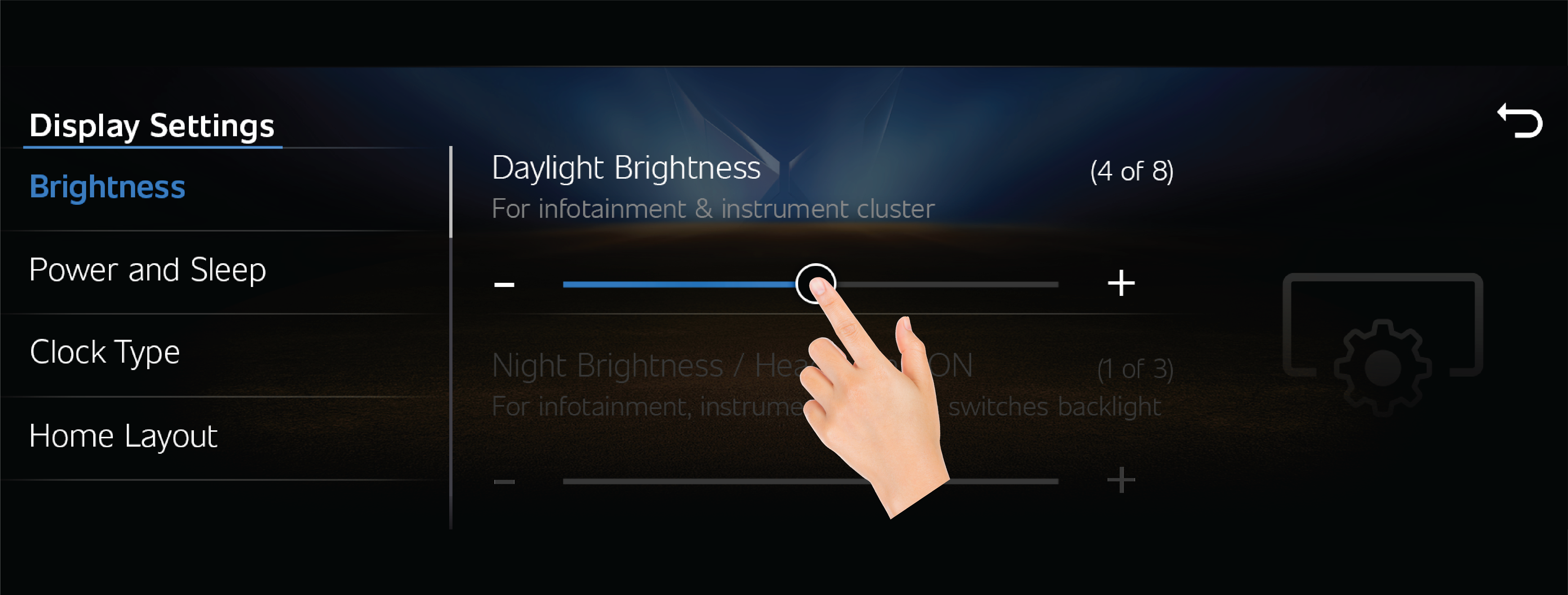

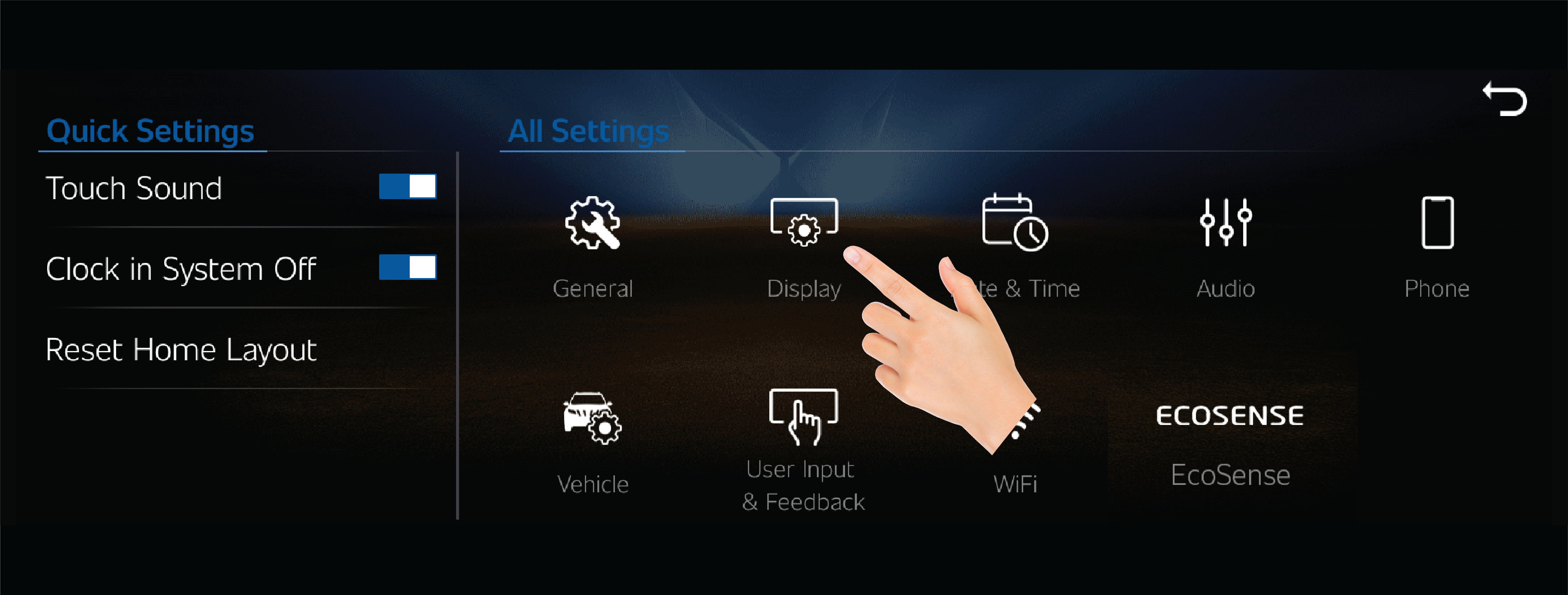

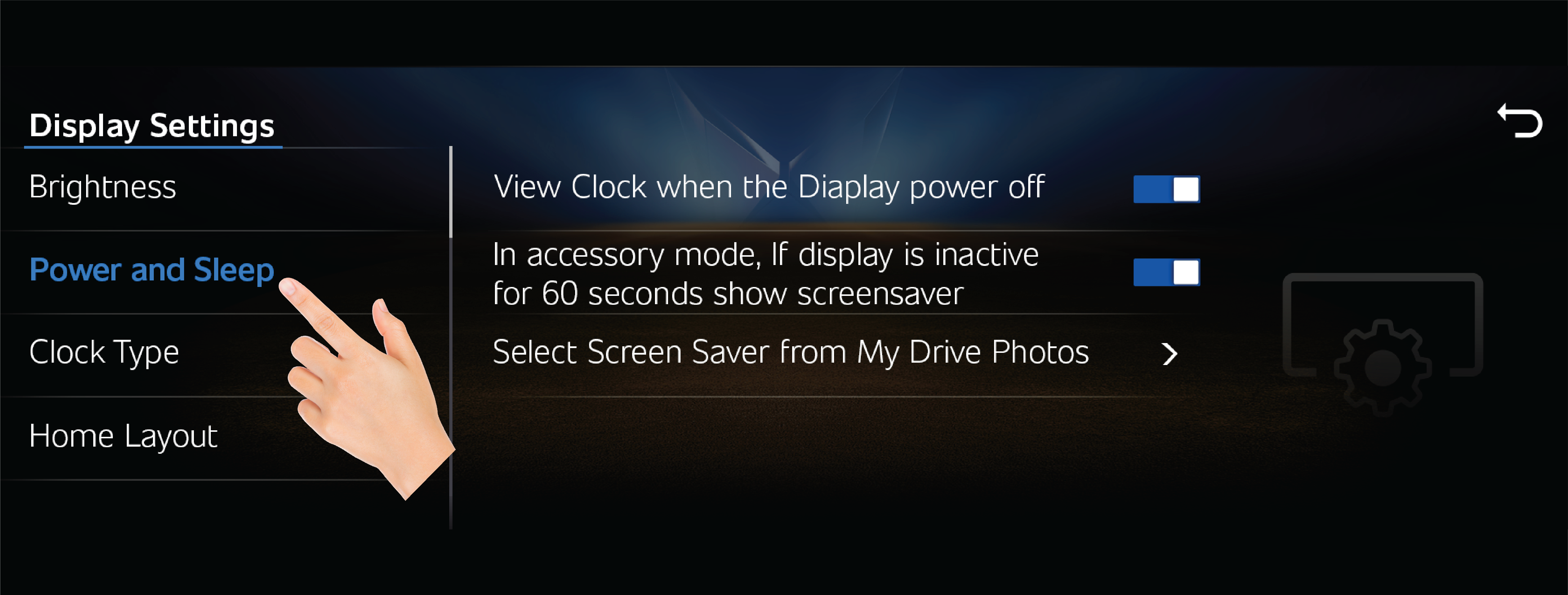

Brightness: User can increase or decrease the brightness of Infotainment and Instrument Cluster.
|
|
|
|
|
|
|

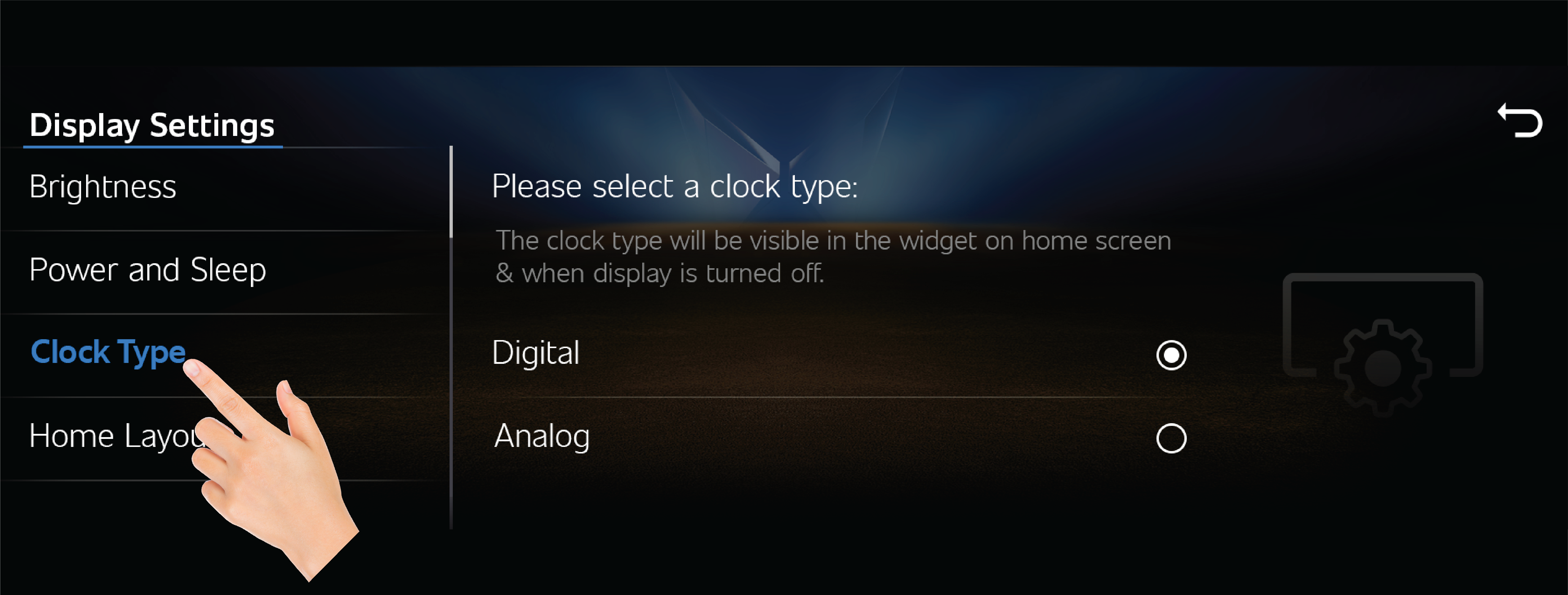

User can select the digital or analog clock as per his/her choice.
This will be reflected in home screen when infotainment system goes OFF.
|
|
In Home Layout, user can have the screen view as per his choice.

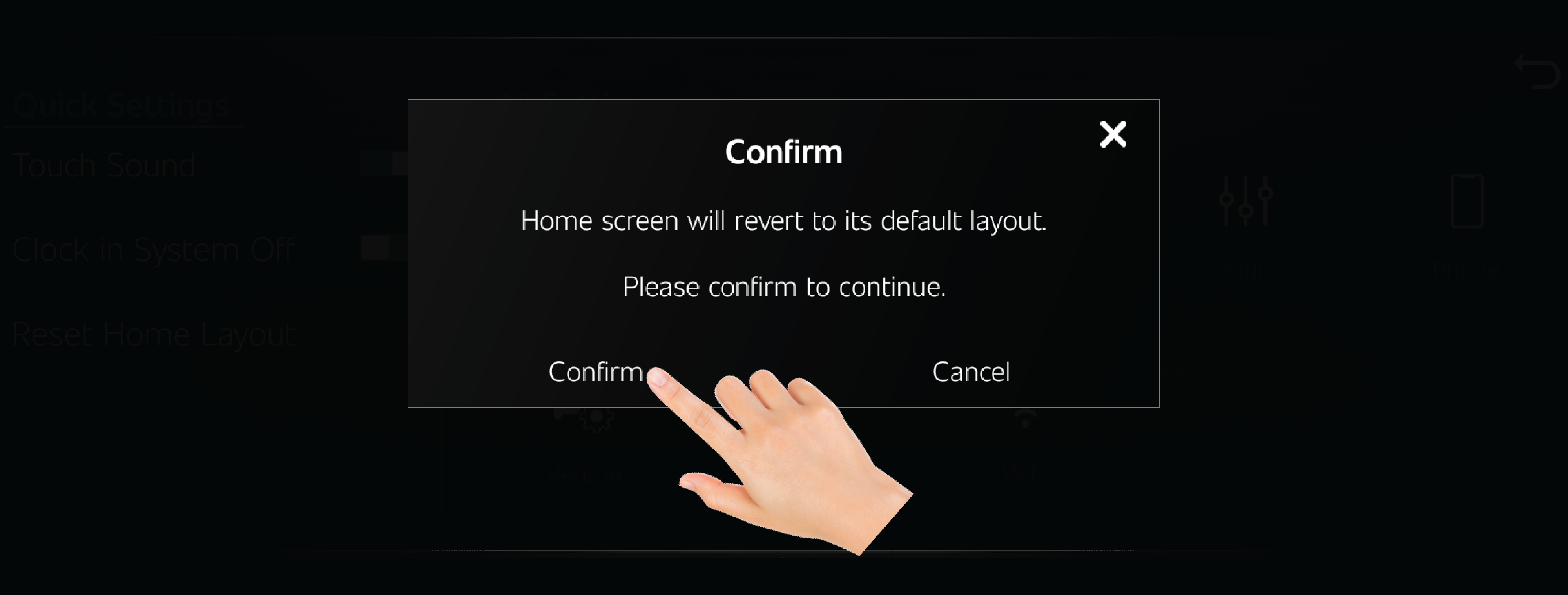

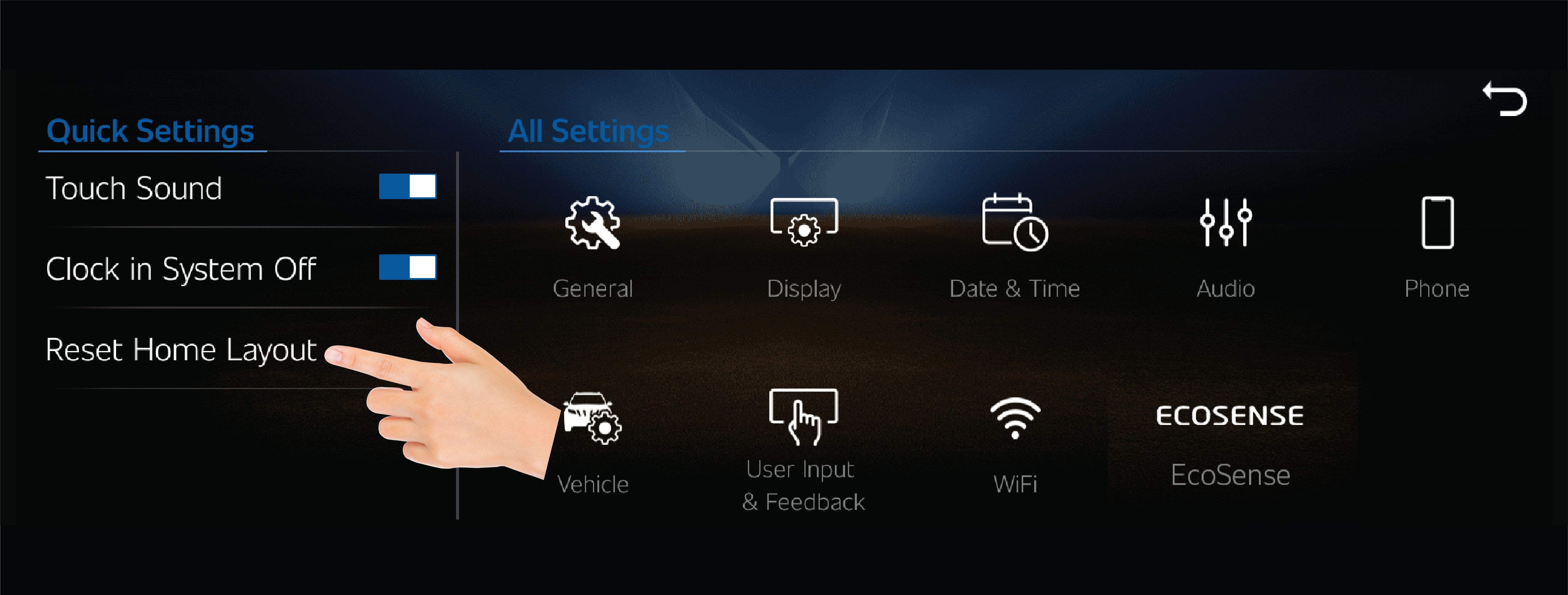

If another user wants to set the original settings, then the user can select reset option .
|
|

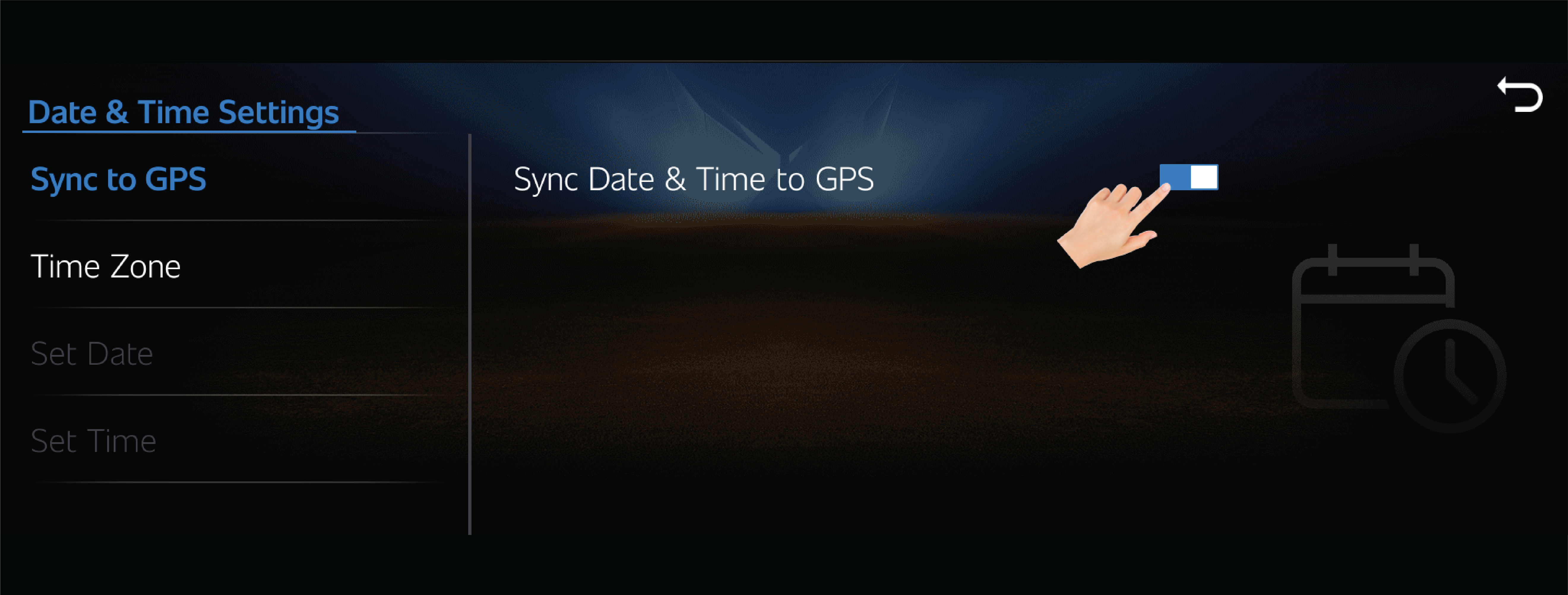

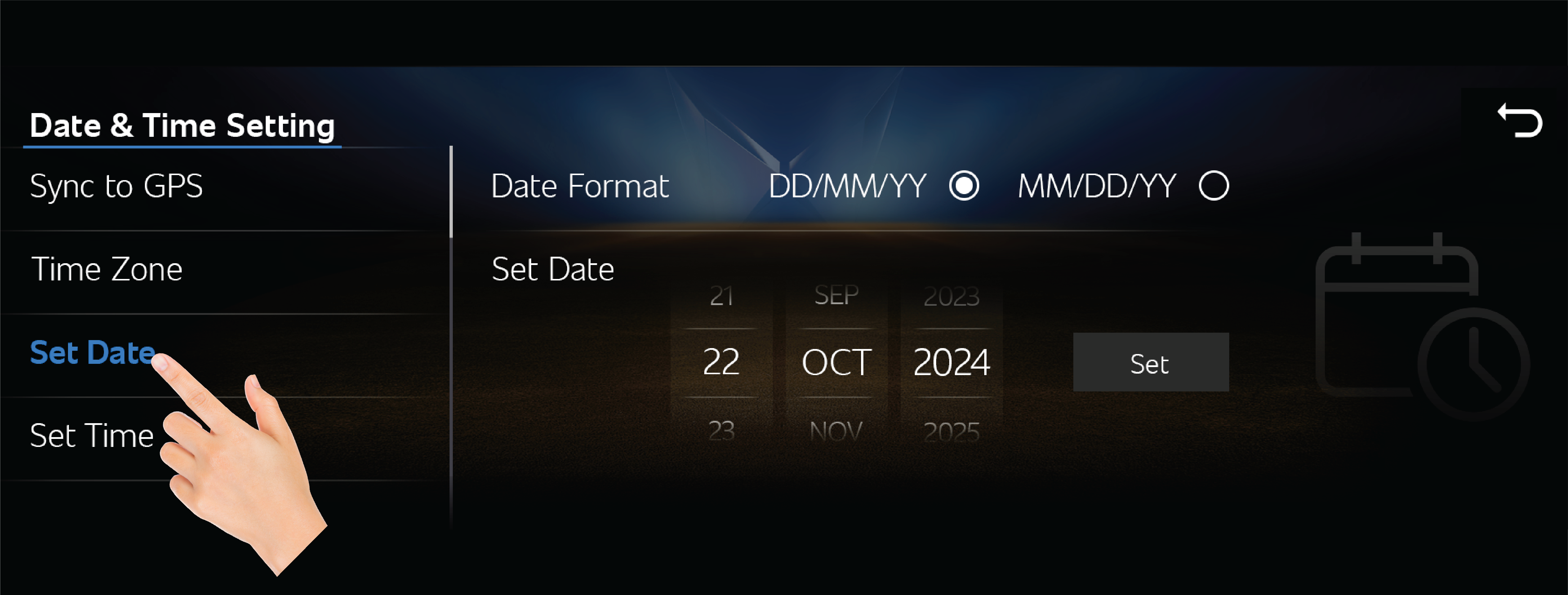

User can set the Date & Time by using this option.
|
|
Date and Time can be sync with GPS, it can be manually enabled or disabled by user
|
|

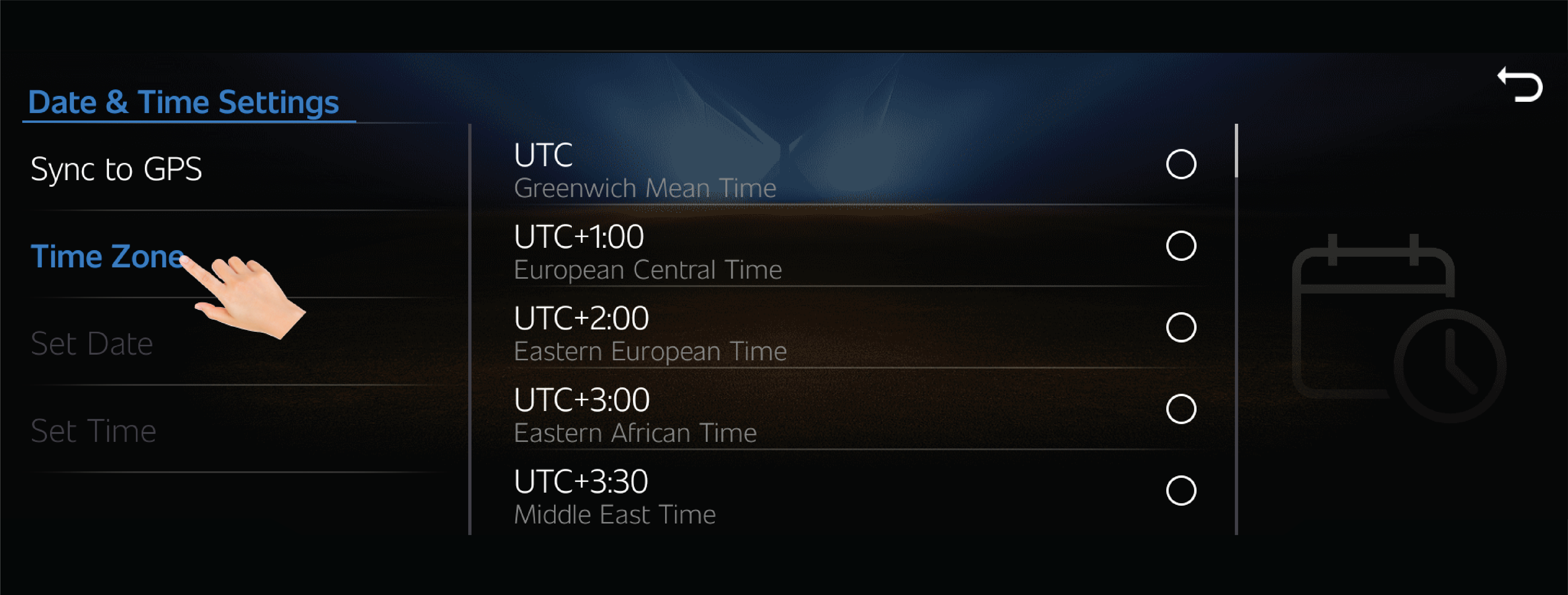

By using this option user can manually fix the different time zones
|
|
User can set and fix the Date format either in DD/MM/YY or MM/DD/YY format.
|
|
User can set and fix the Time format either in 12 Hour or 24 Hour.
|
|
|
|

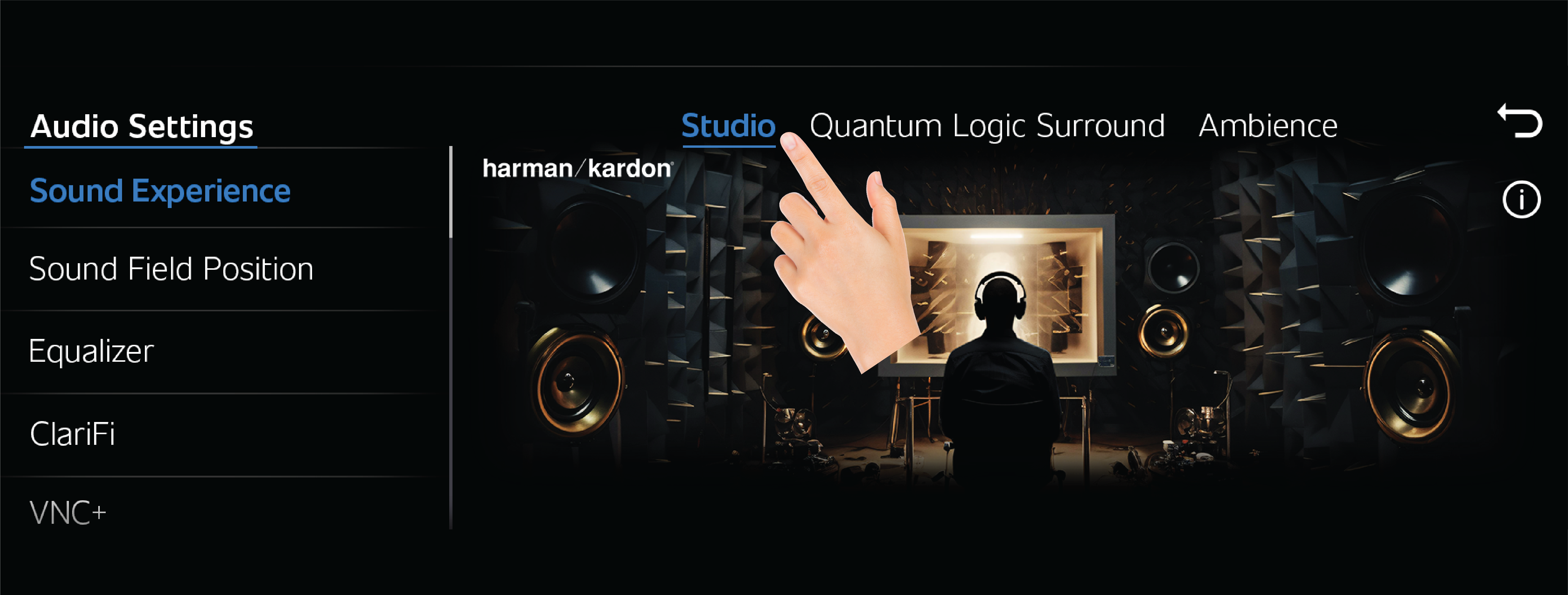

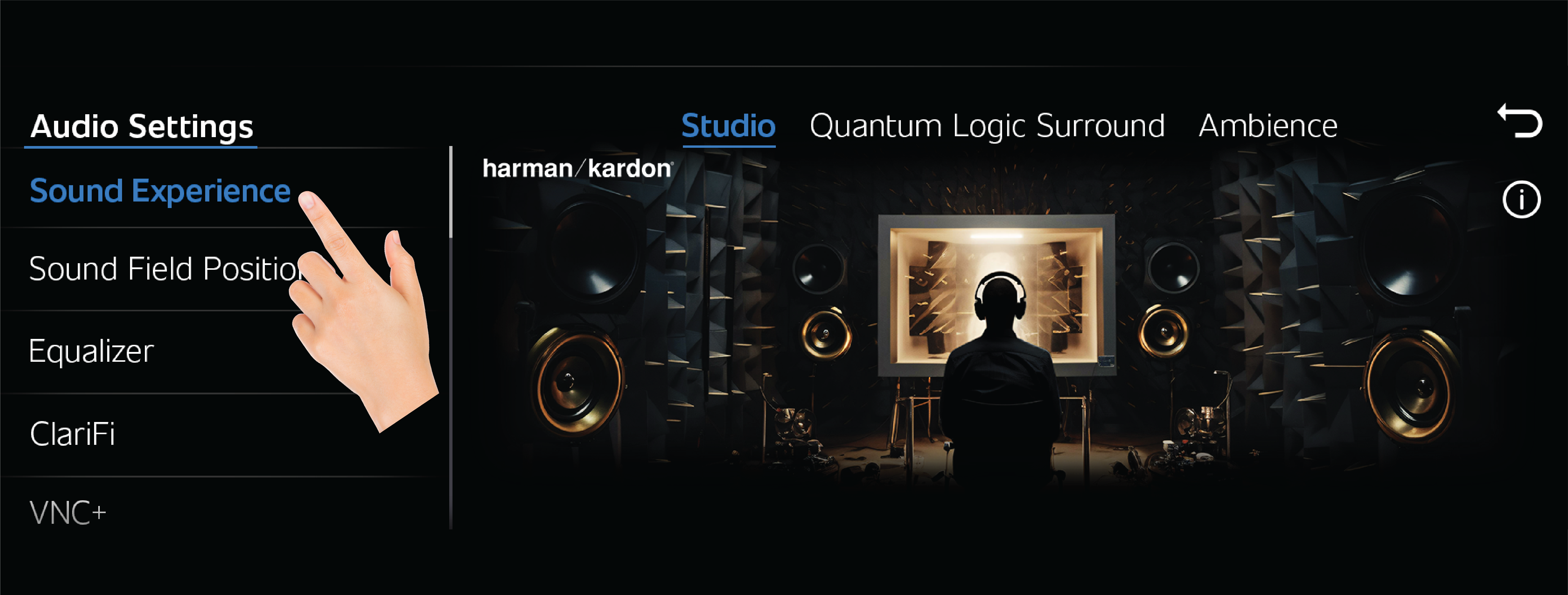

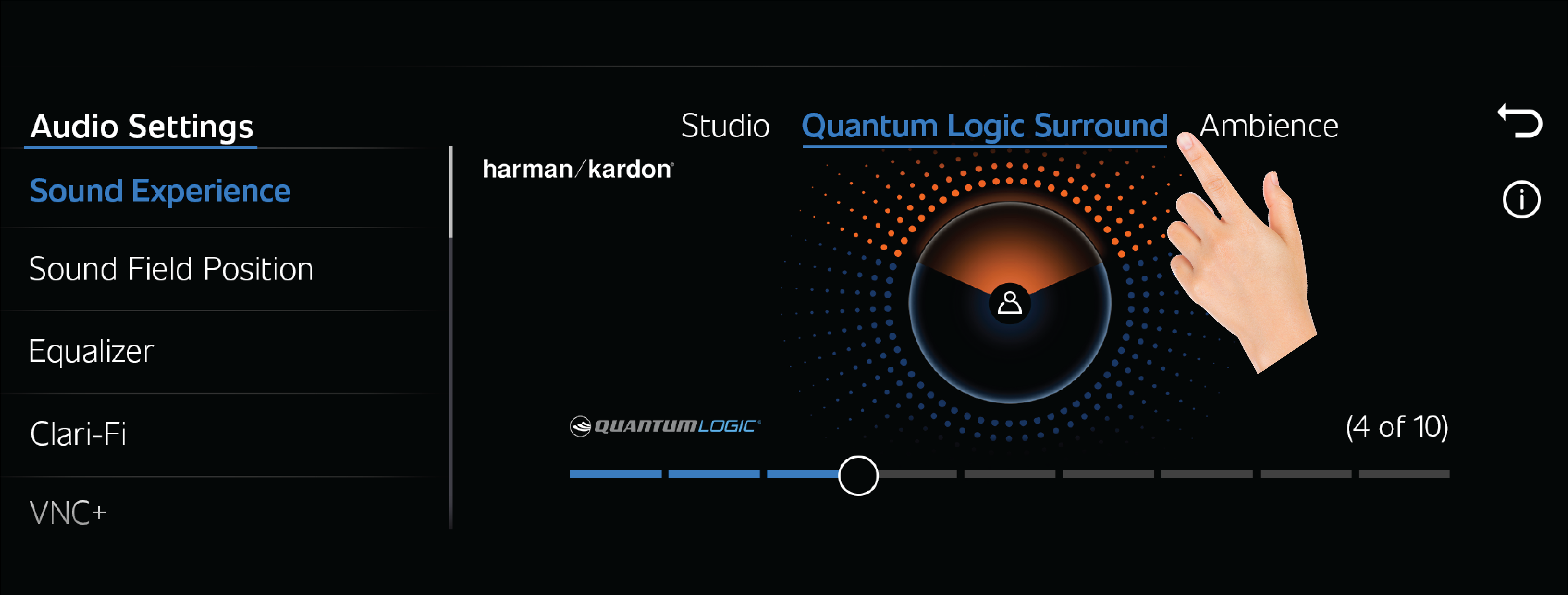

This mode will enable the user to have the experience of music inside a recording studio.
|
Sonic Expanse
|
This mode will enable the user to experience the immersive experience by extending the stereo width beyond physical boundaries
of a device. The feature will widen the sound stage across the frequency of the speaker system.
|
|

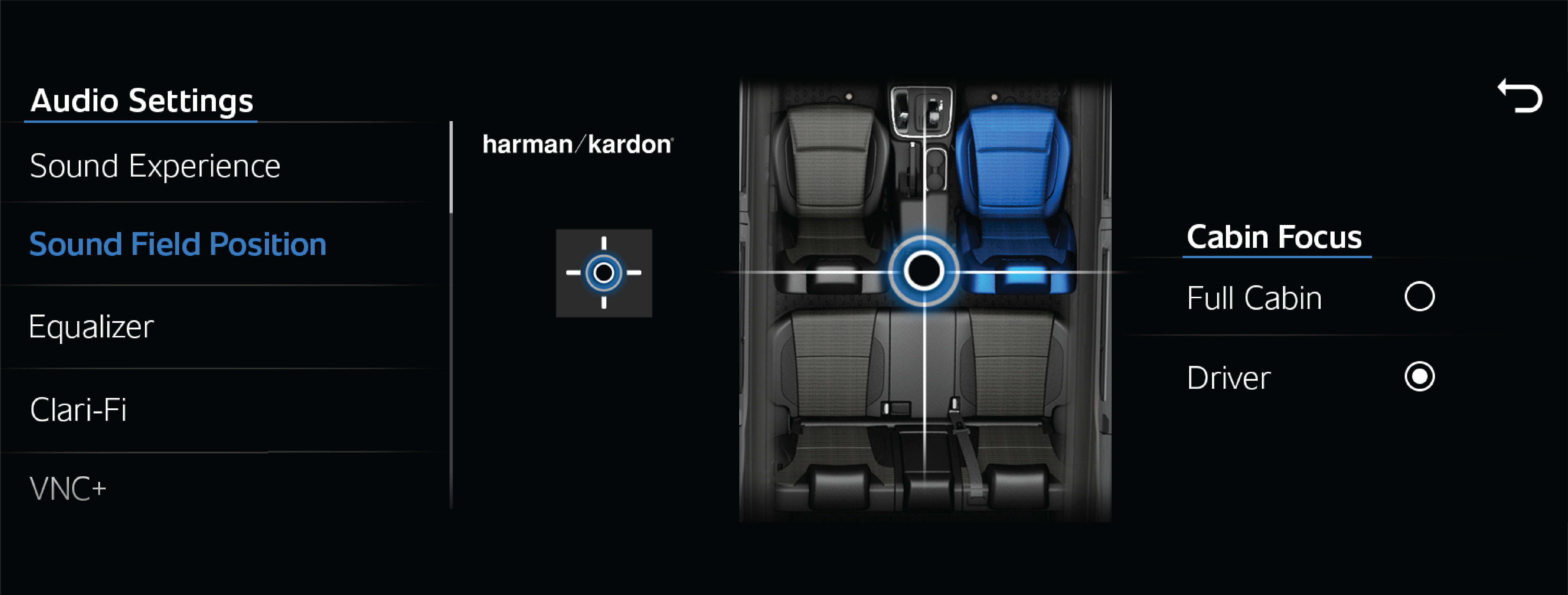

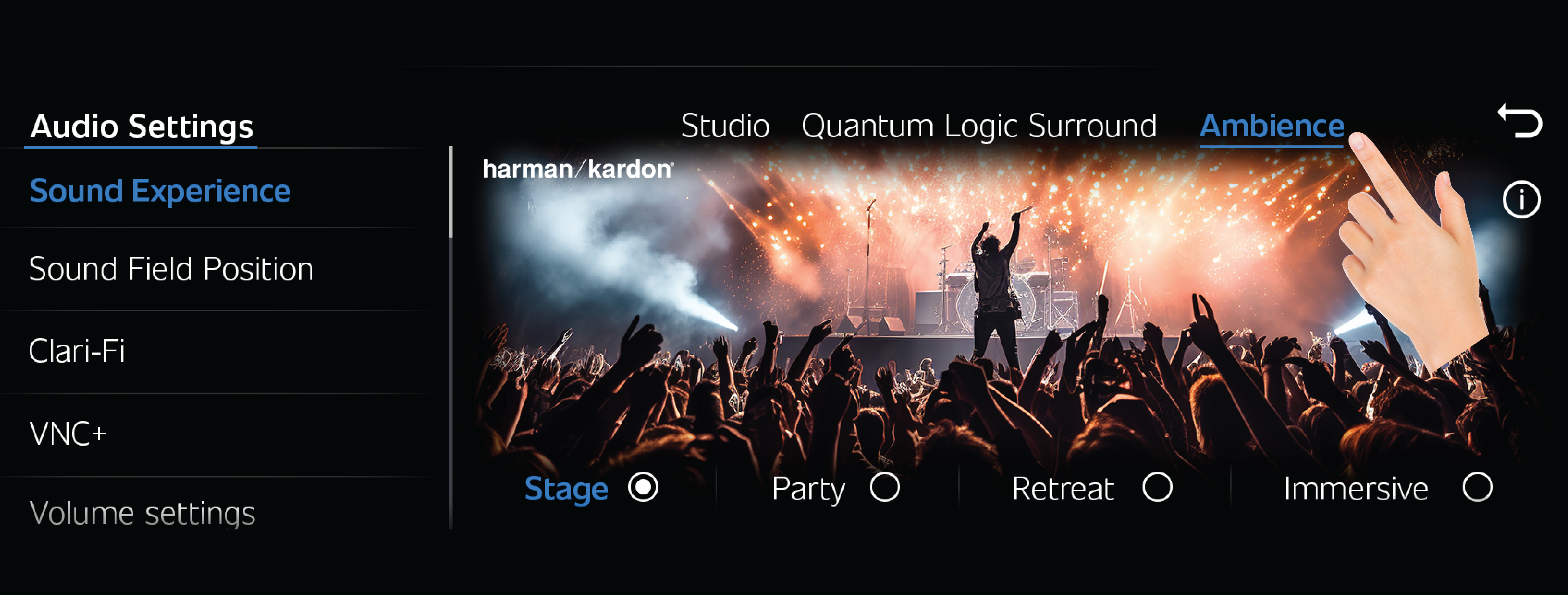

Stage : Stage mode is just like watching the musician's performance at stage, The audio shall be experienced at ear level such that
the audio source is placed at the front of the vehicle.
Party : Party Mode is Just like Disco Club, music will come from multi direction, user can feel special instrument tones like guitar,
keyboard, etc., coming from separate speakers.
User can feel the powerful and punchy sound experience.
Retreat :Gives the user the calming and soothing sound experience.
Immersive :This will give the user the improved immersive experience by enhancing the stereo audio.
|
|
User can adjust the sound according to his preferences and button center is given to get the sound balance from back to center
|
|

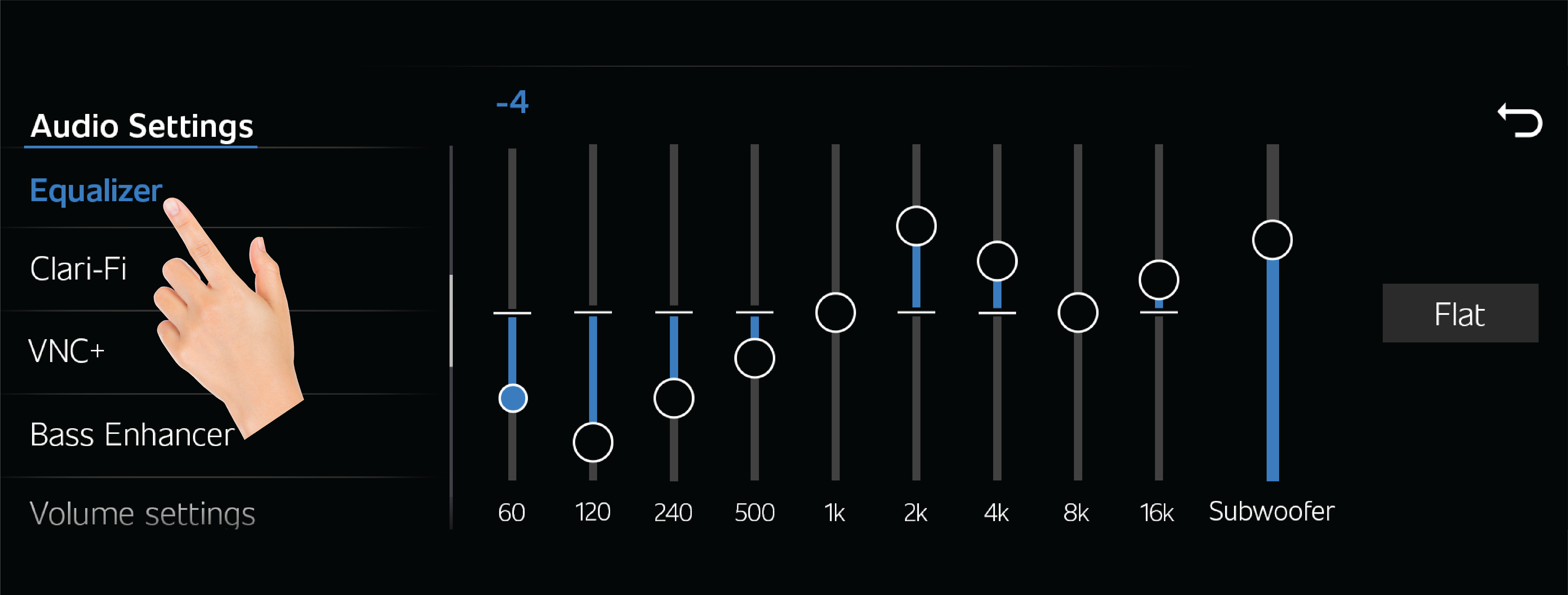

Equalizer is provided to change all frequency range settings according to preferences. Additionally, subwoofer bass can also
be adjusted here.
|
|

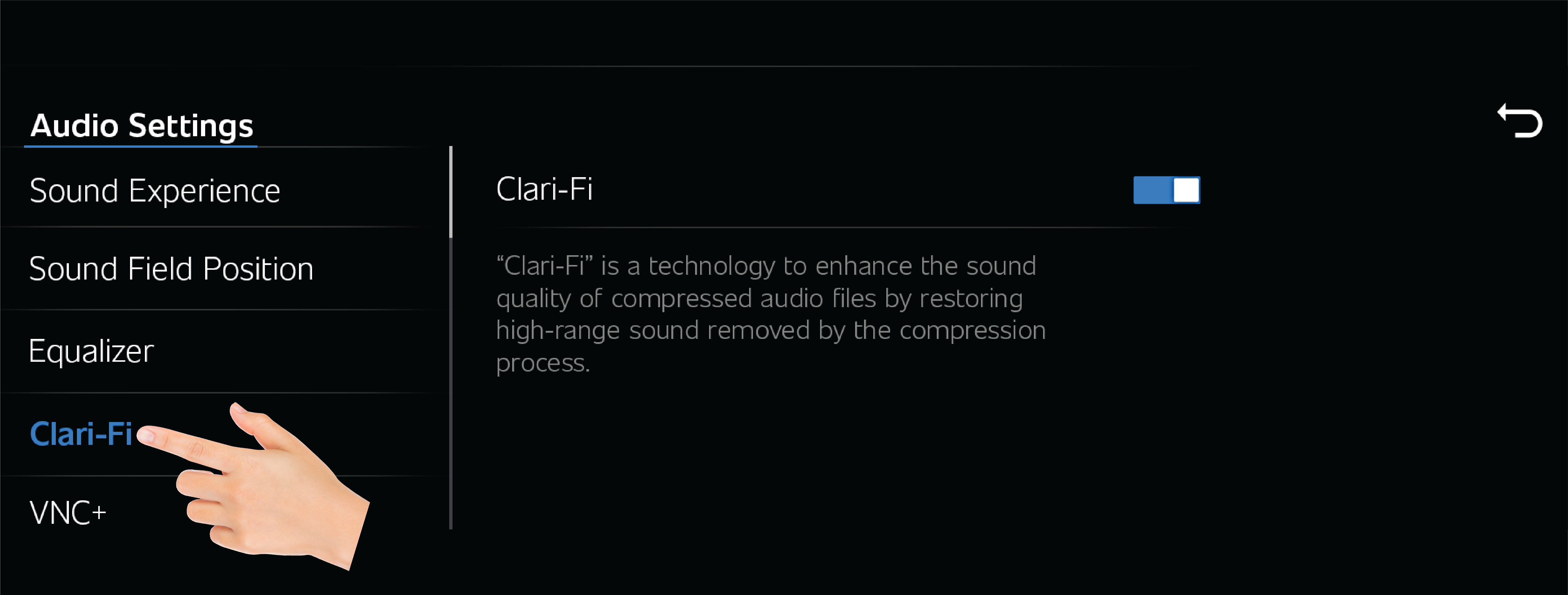

Clari-Fi analyses digital audio files in real-time and corrects waveform deficiencies based on the existing audio information.
Thereby it scales the amount of treatment based on the quality of the individual source signal "rebuilding" much of what was
lost in the compression process.
|
|

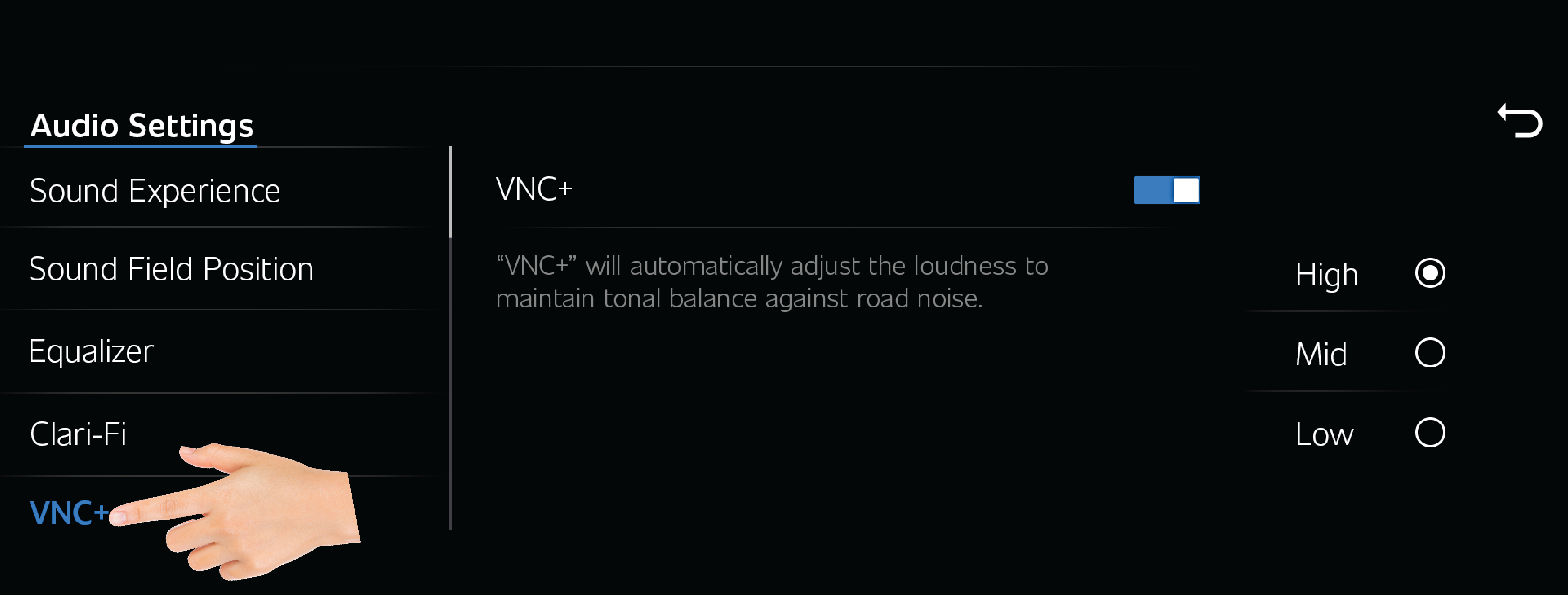

The goal of VNC+ (Vehicle Noise Compensation) is to automatically adjust the loudness to compensate vehicle noise to improve
auditory experience when driving.
|
|

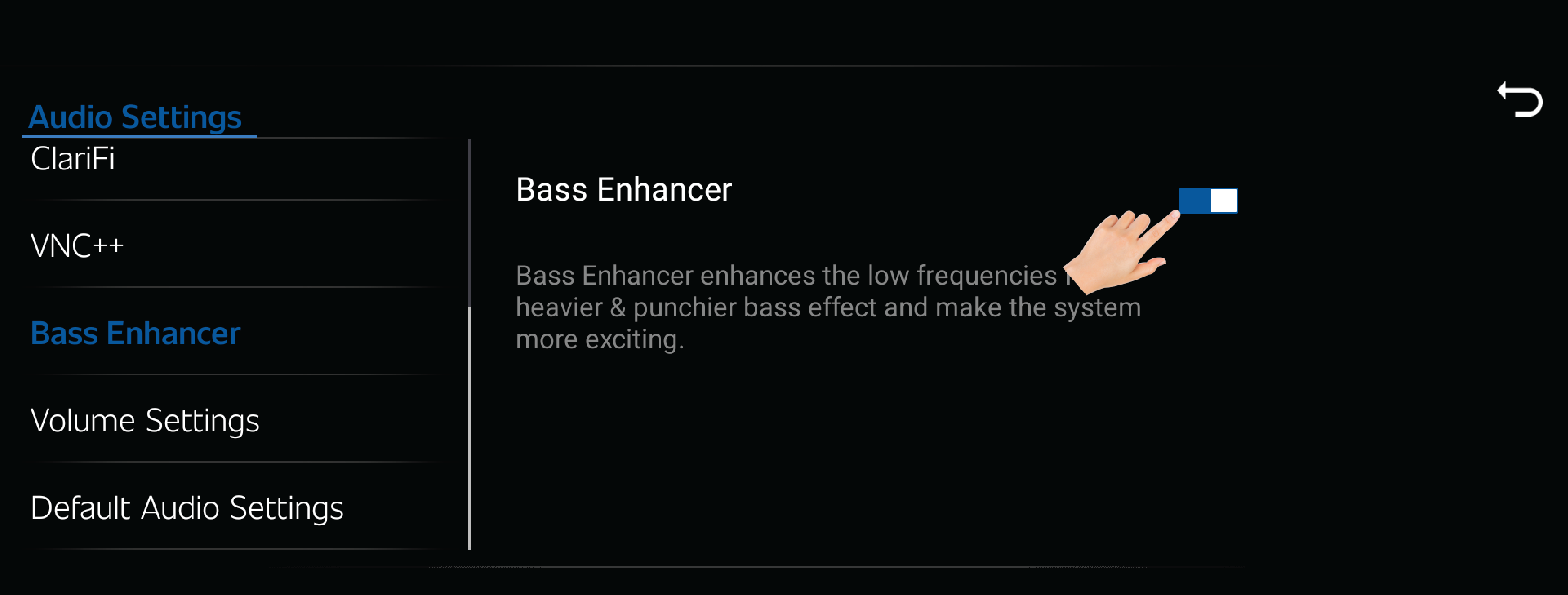

Bass Enhancer technology can be adapted to the capabilities and characteristics of the playback system as well as personal
preferences, generate subtle bass support, transparent enrichment or powerful, punchy and rich saturation.
|
|
The volume settings can be adjusted for different applications.
Each application like radio, android auto and notifications can be set with separate volume levels.
|
|
By enabling the default audio settings, the Audio settings will be restored to the default settings
|
|

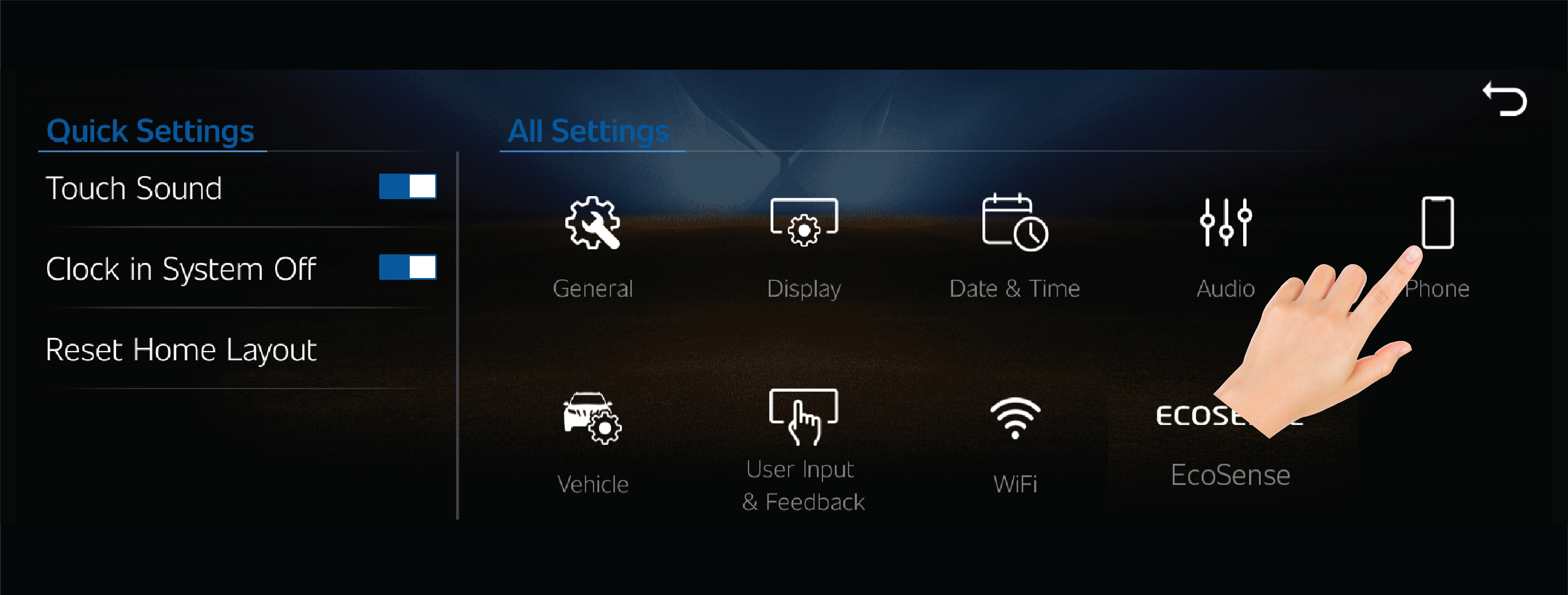

By using the Phone option, users can perform the following function
|
|

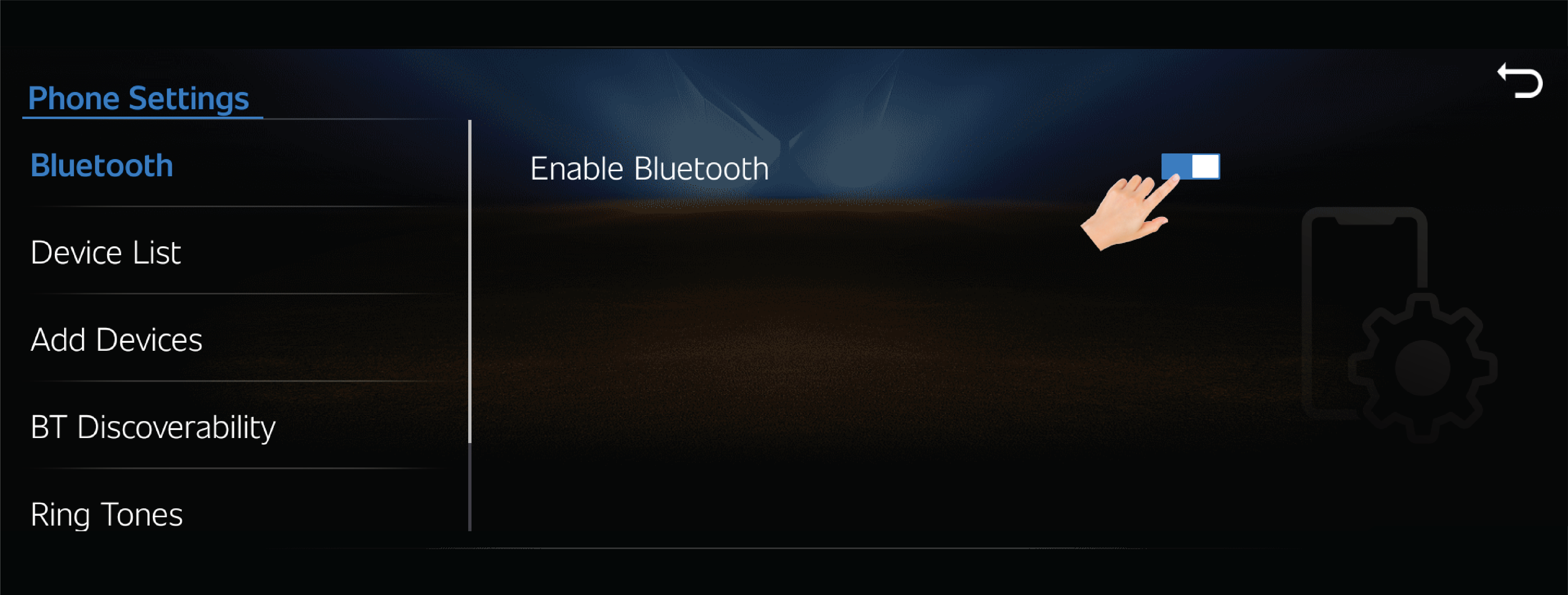

I) Bluetooth : User enable or disable Bluetooth connection according to his/her need
|
|

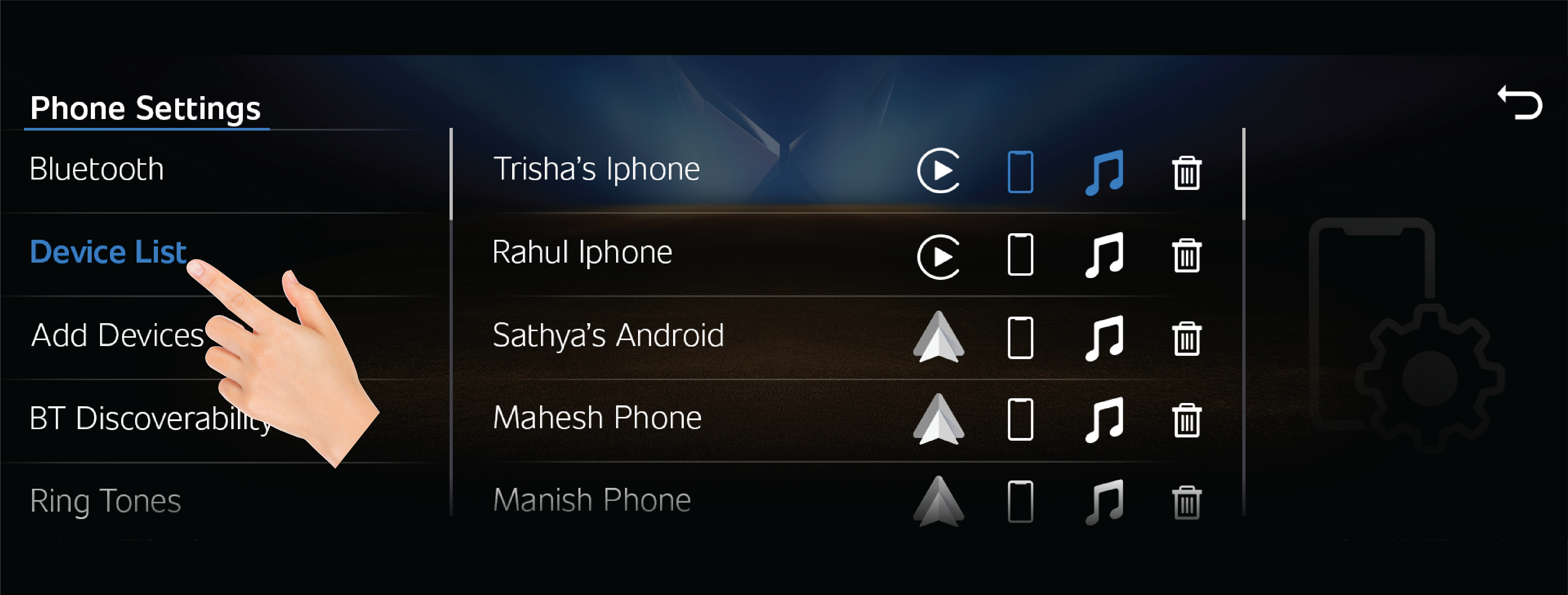

II)Device List: User can view the list of devices, already connected to vehicle infotainment.
|
|

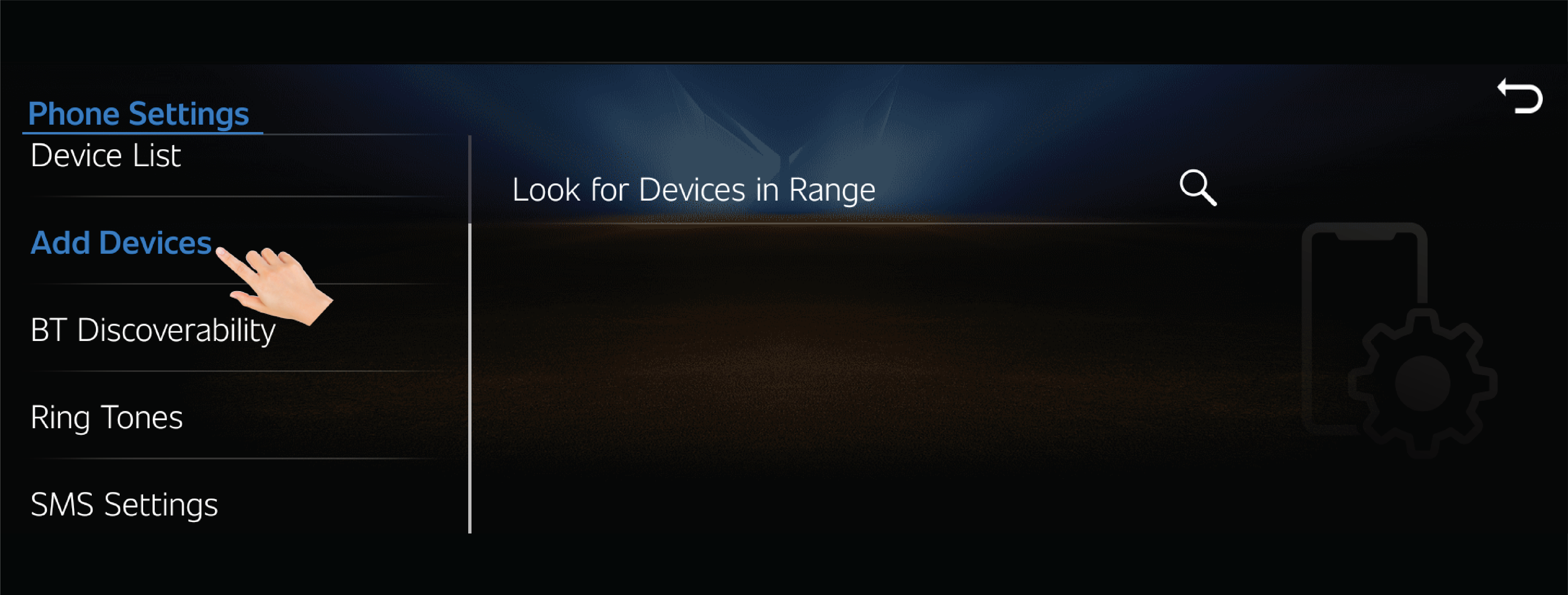

III)Add Devices: By using this option, user can find the nearby devices.
|
|

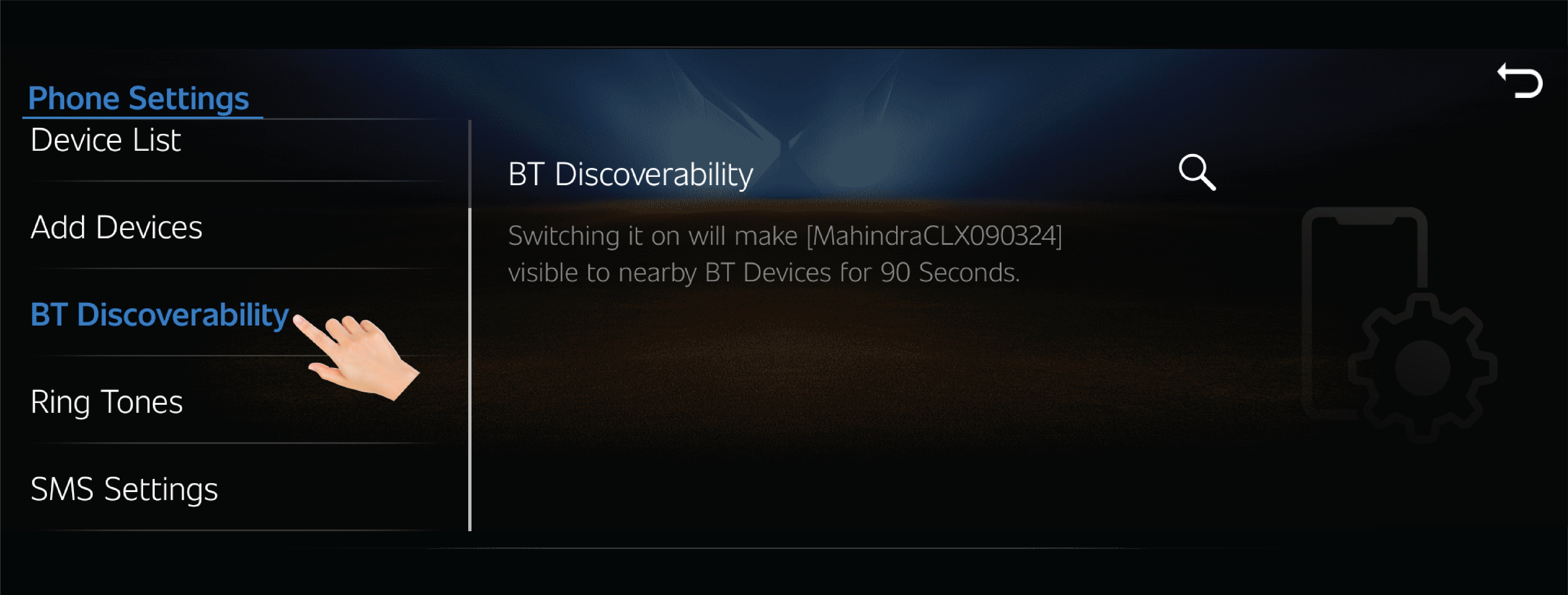

IV) BT Discoverability: Pressing BT Discoverability shows the vehicle's Bluetooth for 90 seconds to nearby devices. Once connected, Bluetooth functions
become available.
|
|

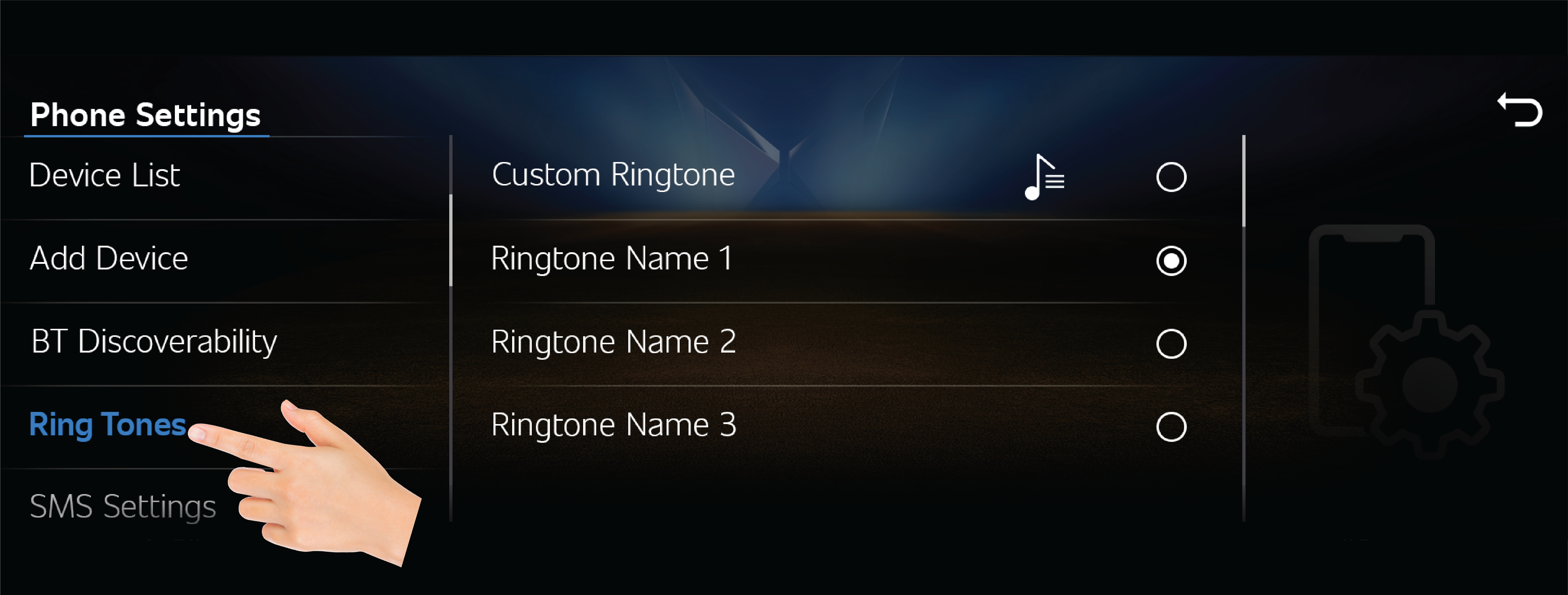

V)Ring Tone: User can fix the ringtones for incoming calls
|
|

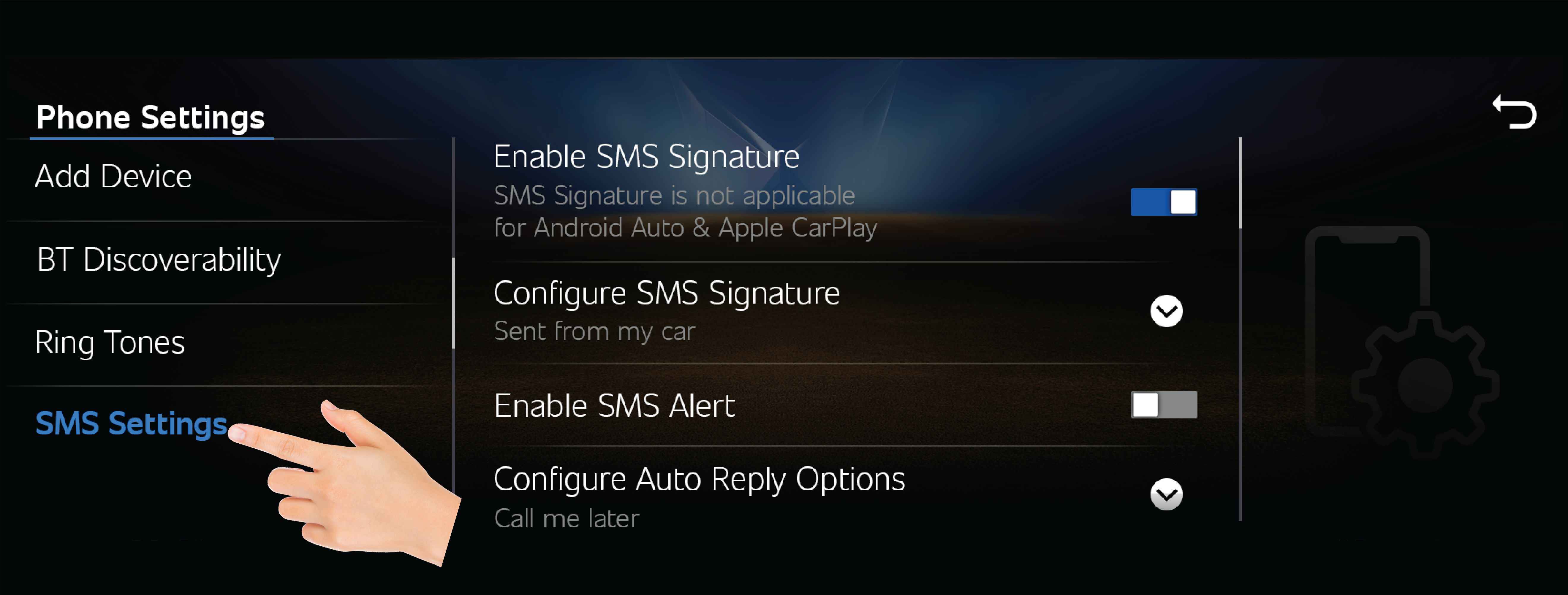

VI) SMS Settings: SMS settings in the infotainment system include configuring text message notifications, display preferences, and handling
incoming messages for an enhanced user experience.
|
|
By using the Vehicle option, users can perform the following functions.
|
|

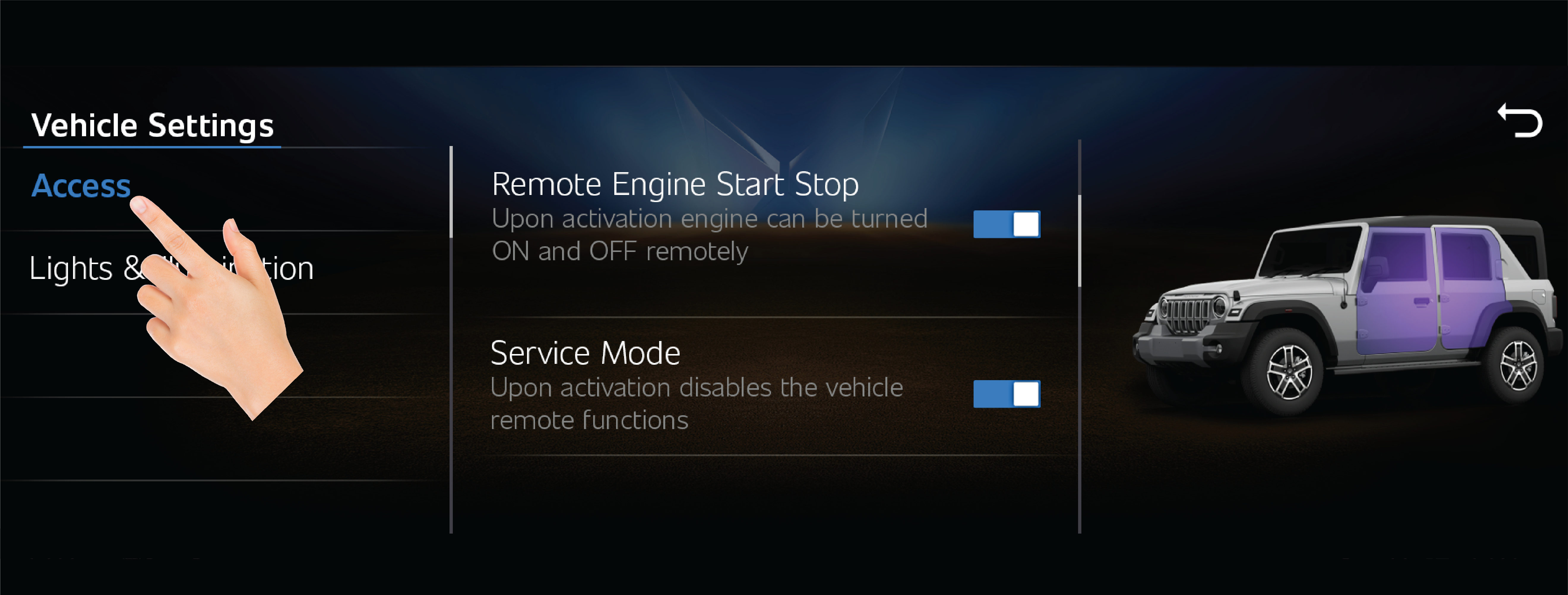

User can see following features on THAR ROXX by using access option
Selection Unlock: While activating this option only the driver door can be unlocked
Remote Engine Start Stop: activating this option can be turned ON and OFF remotely
|
|
By enabling this option DRL will be activated automatically in ignition ON for better visibility
|
|

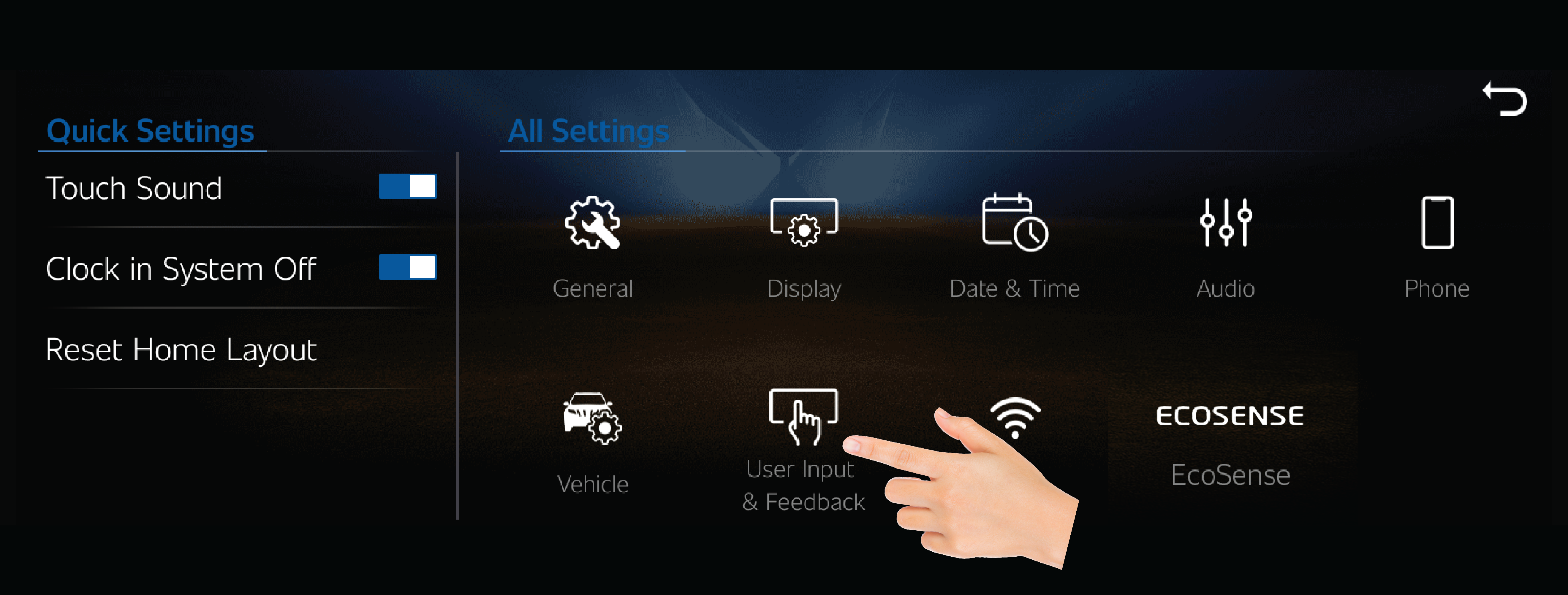

By using the User Input & Feedback option, user scan perform the following function
|
|

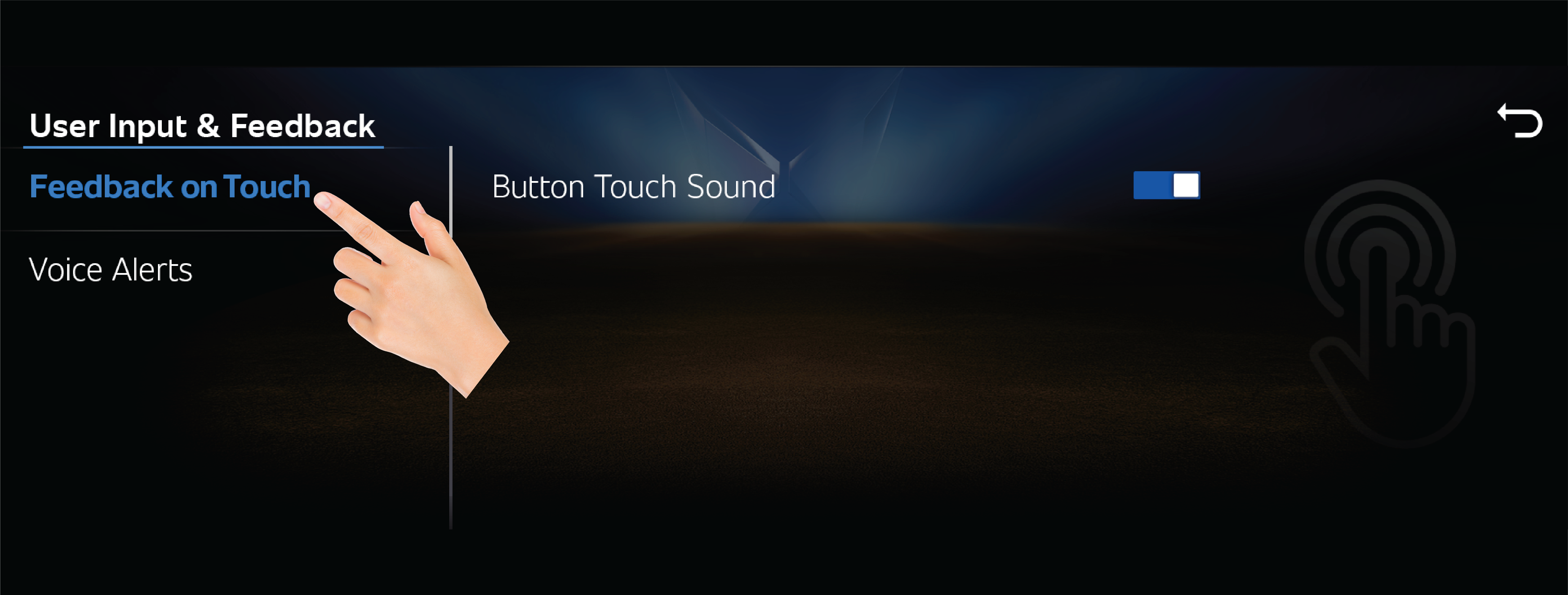

Button Touch Sound: By enabling this user can hear the touch sound while selecting any application
|
|
Voice Alerts: By enabling this, system give voice commands to user (like Welcome, goodbye, etc.,)
|
|

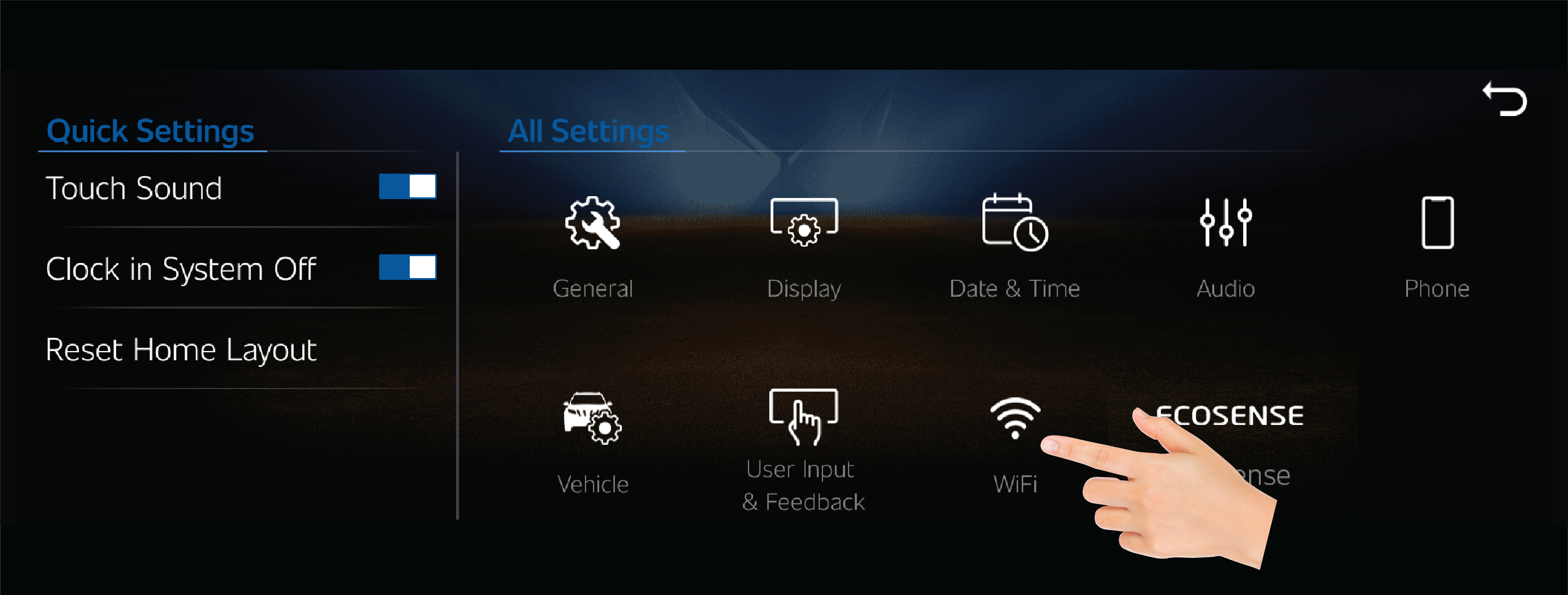

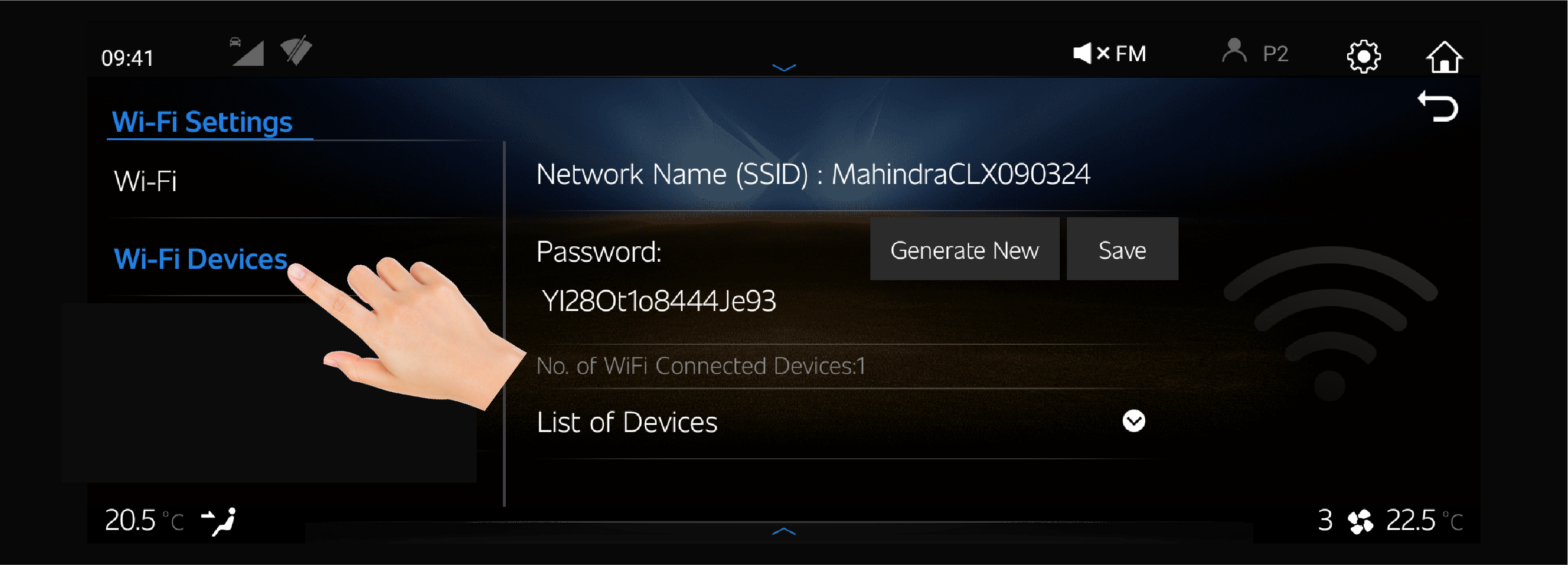

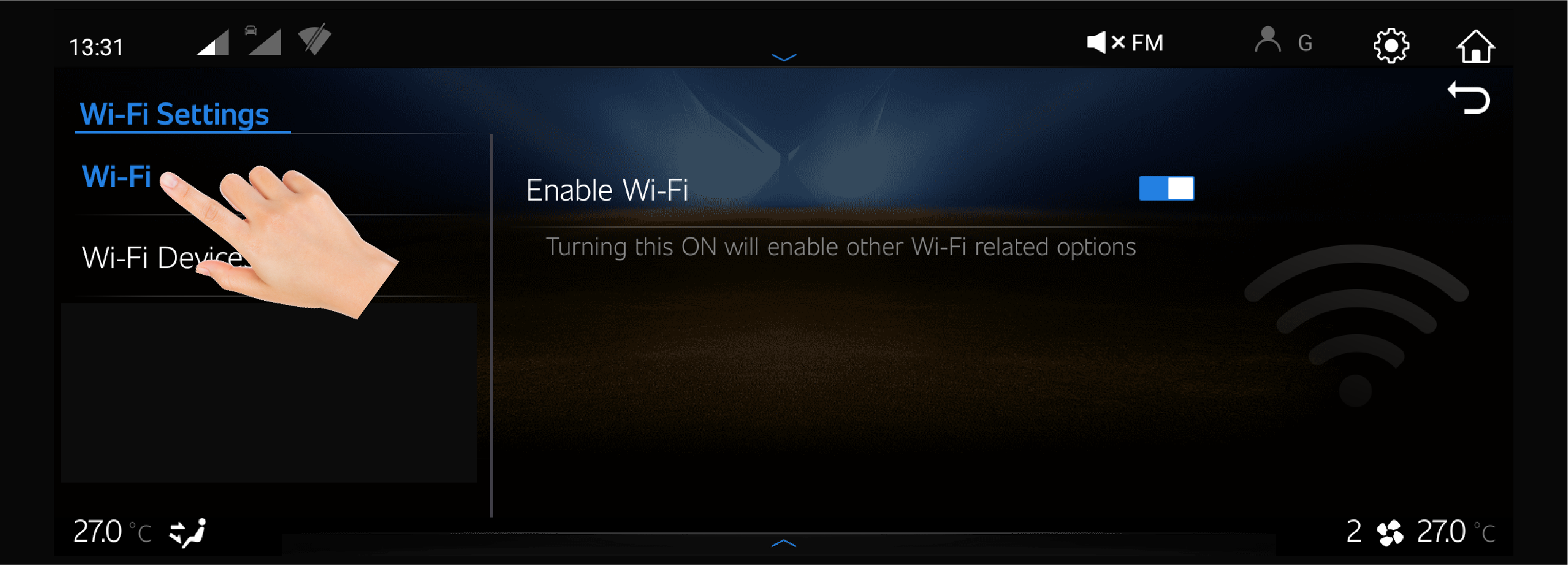

User can connect the mobile with vehicle Wi-fi
|
|
|
|
User can connect the mobile with vehicle ECOSENSE
|
1. | How to connect phone via Bluetooth in Infotainment? User can connect Bluetooth using any of the below methods, in Bluetooth settings.
Add device: Kindly ensure, Mobile device should be in Bluetooth settings screen to accept the connection Bluetooth discoverability: Kindly ensure, Mobile device start scan after discoverability is turned On |
2. | My contacts are taking time to load in IVI? Based on the Mobile device and number of contacts, loading time may vary from few seconds to few minutes
|
3. | Bluetooth Music is not playing in Infotainment? After connecting mobile device to Bluetooth, user need to select his device for media in device list and then select Bluetooth
music source in Infotainment to Play music
|
4. | Few Phone Contacts are not visible in Infotainment Screen? Ensure that your phone book contacts do not have special characters before their name. If there are such contacts, please
rename them.
|
5. | I can’t Accept or decline WhatsApp call from IVI? IVI will support Bluetooth phone voice call and supportability of WhatsApp, MS Team call depends on the controls provided
by Mobile device/app to Infotainment
|
6. | During active call, I’m getting Navigation Prompts? During call, Navigation prompts will still come so user don’t miss any direction. User can adjust the volume of navigation
prompts as required
|
7. | Next /Previous, fast forward/rewind etc. controls not working for Bluetooth music? The availability of the features/control is dependent on the Bluetooth version of phone device and music application used
in phone
|
8. | While playing USB song album art not displaying? Album art will display in the screen, only if the song has album art information
|
9. | While playing songs from USB, few files are getting skipped? If the Infotainment system comes across a corrupt music track in media source, the system might skip to next music track in
the media source
|
10. | Date & Time in my Infotainment is Incorrect? User can Sync to GPS or manually set Date & time in settings. After selecting Sync to GPS, need to drive vehicle few Kms in
open sky to ensure proper date and time based on the time zone selected.
|
11. | Sources are disabled in QAD? Source will be active only when device is connected e. g., for USB, Pen drive should be connected.
|
12. | Can I reduce the Navigation Volume? Yes, user can adjust Navigation or other source volume, in Audio Settings
|
