Owner’s Manual

Issue Date: January 2023

NOTE: Carefully read, understand and follow the instructions provided in this manual, and keep it in a safe place for future reference. If you have any doubt whatsoever regarding the use or care of your vehicle, please visit your Mahindra Dealer for assistance or advice.

This Owner's Manual should be considered as an integral part of the vehicle and should remain with the vehicle.

MAHINDRA & MAHINDRA LTD., GATEWAY BUILDING, APOLLO BUNDER, MUMBAI - 400 039

www.mahindra.com

Thank you for choosing Mahindra vehicle.

We are privileged to welcome you to the Mahindra family.

Your vehicle represents Robust Quality, Ruggedness, Safety, Precision Workmanship and Distinctive Styling , which are our traditional values.

This documents contains important information on vehicle operation, that will help you make full use of the technical features available. To exercise better control on road, we suggest you to please take time to read, understand and familiarise with vehicle and its features. Following the instructions and recommendations in this manual will help assure safe and enjoyable operation of your vehicle.

When it comes to service, note that your Mahindra Authorised Dealer knows your vehicle best, has company trained Technical Experts, Mahindra Genuine Parts and very much cares about your satisfaction.

We extend our best wishes for safe and pleasurable motoring

MAHINDRA & MAHINDRA LTD.

Important Information – Quick Reference
We strongly urge that you read the information provided in pages referred hereunder which will help in road safety and prevent inconvenience

1	Warranty Coverage..........................................................	Refer WSIG* (P.g. 14)
2	Roadside Assistance .......................................................	Refer WSIG* (P.g. 9)
3	Schedule Service (Free/Paid)...........................................	Refer WSIG* (P.g. 23)
4	Maintenance Schedule & Lubrication Chart.........	Refer WSIG* (P.g. 24 & 28)
5	Location Of Vehicle Identification Number (VIN).............	Refer (P.g. 2-23)
6	Location Of Fuse Box And Fuse Details............................	Refer (P.g. 2-5)
7	Changing A Flat Tyre.......................................................	Refer (P.g. 2-13)
8	Understanding The Warning Lamps...............................	Refer (P.g. 4-5)
9	Understanding The Airbag Function.............................	Refer (P.g. 7-1)
10	Use Of Seat Belts And Child Restraint...........................	Refer (P.g. 6-6 & 6-12)
11	Co driver lift and slide seat...........................................	Refer (P.g. 6-4)
12	Convertible Soft Top....................................................	Refer (P.g. 9-23)
13	If Your Vehicle Is Submerged.......................................	Refer (P.g. 14-22)
14	Driving Through Water.................................................	Refer (P.g. 14-23)
15	OFF Road Driving Precautions.......................................	Refer (P.g. 14-22)
16	Opening And Closing The Hood................................	Refer (P.g. 17-4)
17	Location Of Battery And Its Maintenance.................	Refer (P.g. 17-6 & 17-18)
	*Warranty & Service Information Guide

1 INTRODUCTION AND SAFETY PRECAUTIONS

1.1 Servicing and Summary Data

We suggest that you record the vehicle servicing data in the Warranty and Service Information Guide for future references.
We recommend you always use Mahindra Genuine Parts when performing repairs on the vehicle.
For all issues concerning the vehicle and for any need of Genuine spare parts, contact the Mahindra Authorised Dealer

1.2 Safety Symbols

Carefully read, understand and follow the safety symbols/ instructions given in this manual.

Legend of the Symbols : To emphasis the information and procedures regarding safety, use, maintenance, etc.,

The following symbols are used throughout the manual:

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.

NOTICE indicates important information relevant to the vehicle, the vehicle's use or to sections of this manual to which particular attention must be paid for optimum use of the vehicle.

If you see this symbol, it indicates “no,” “ do not,” “do not do this,” or “never”.

1.3 General Safety Information and Instructions

First-aid kit is placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point of time.

Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage.

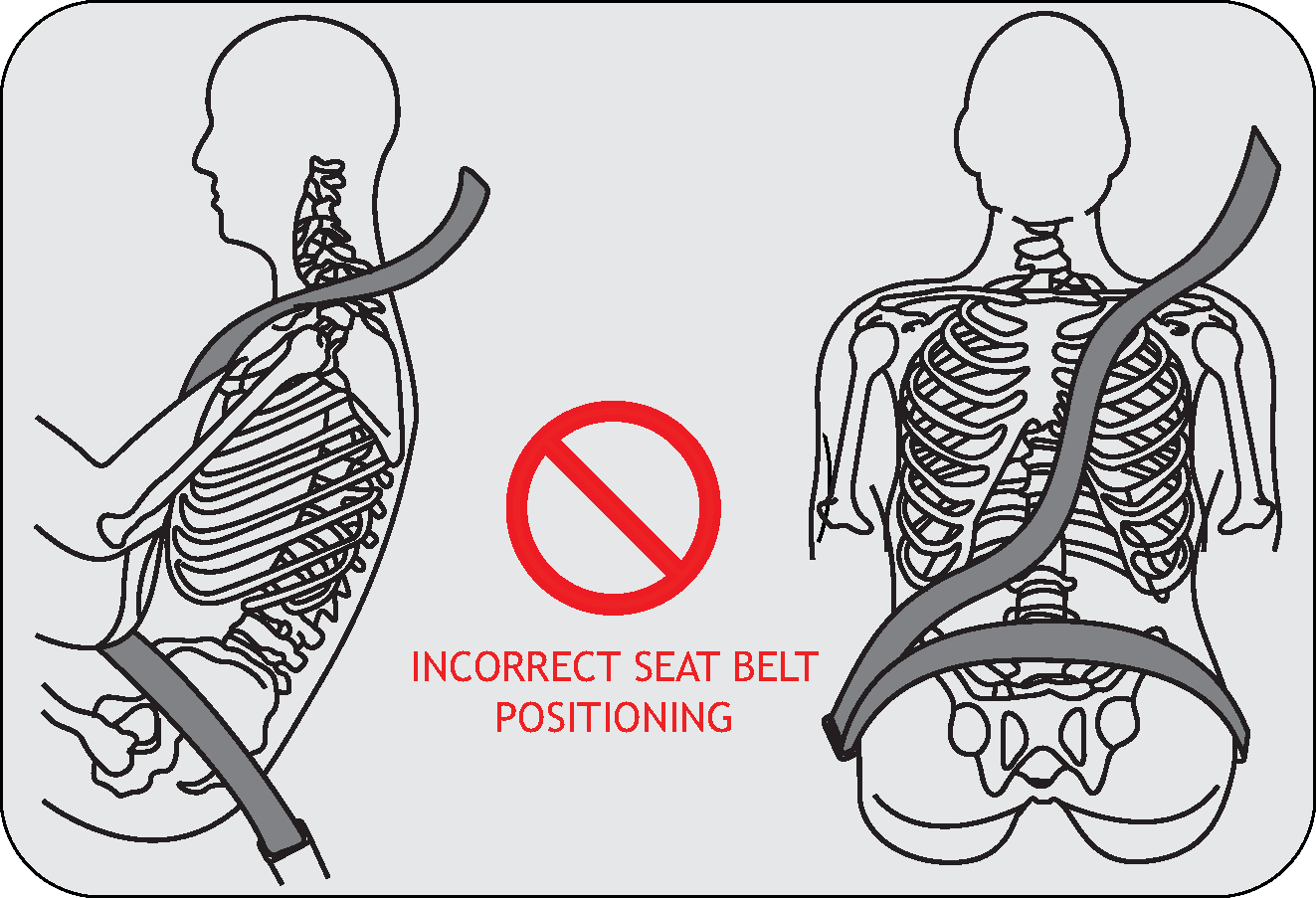

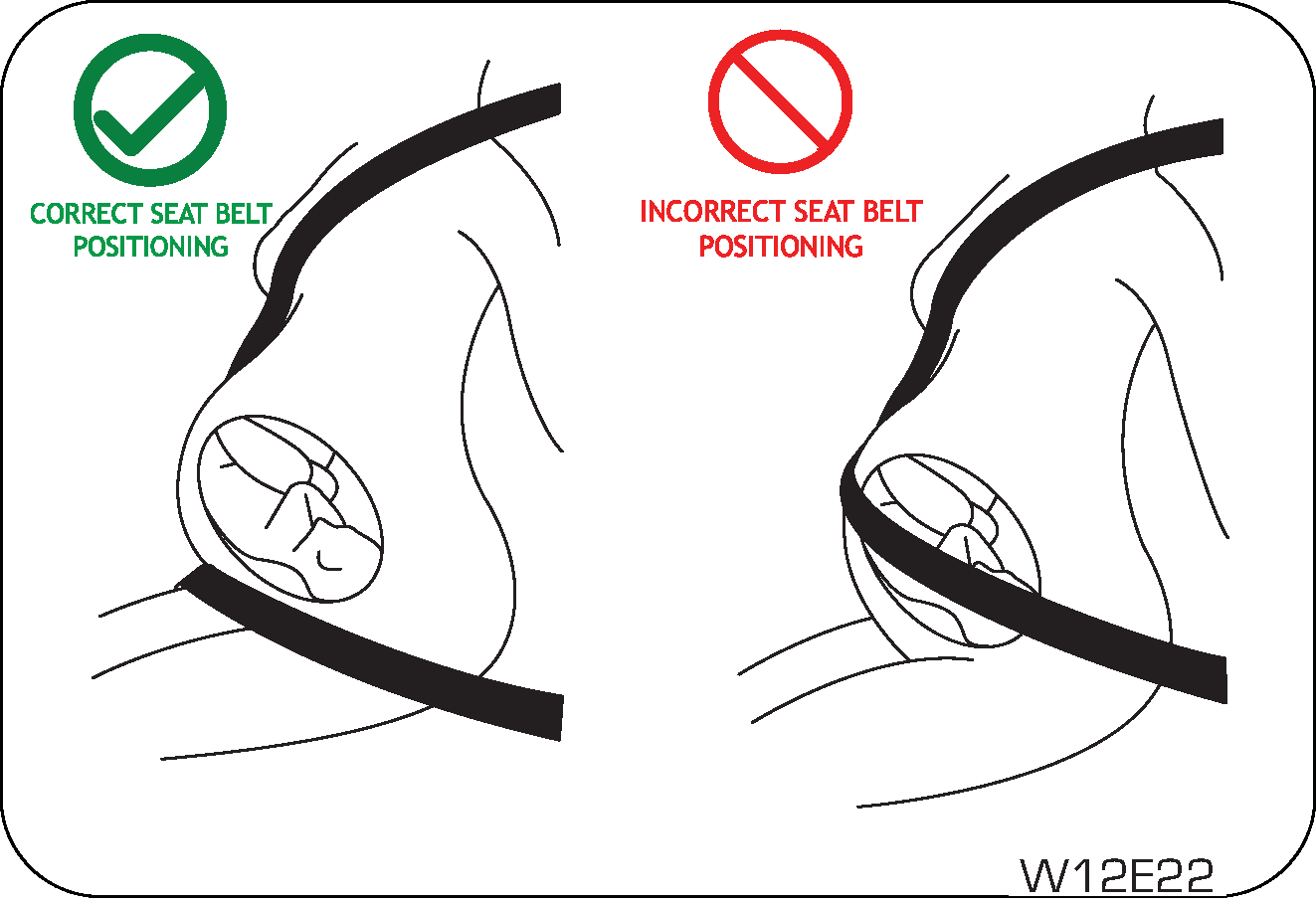

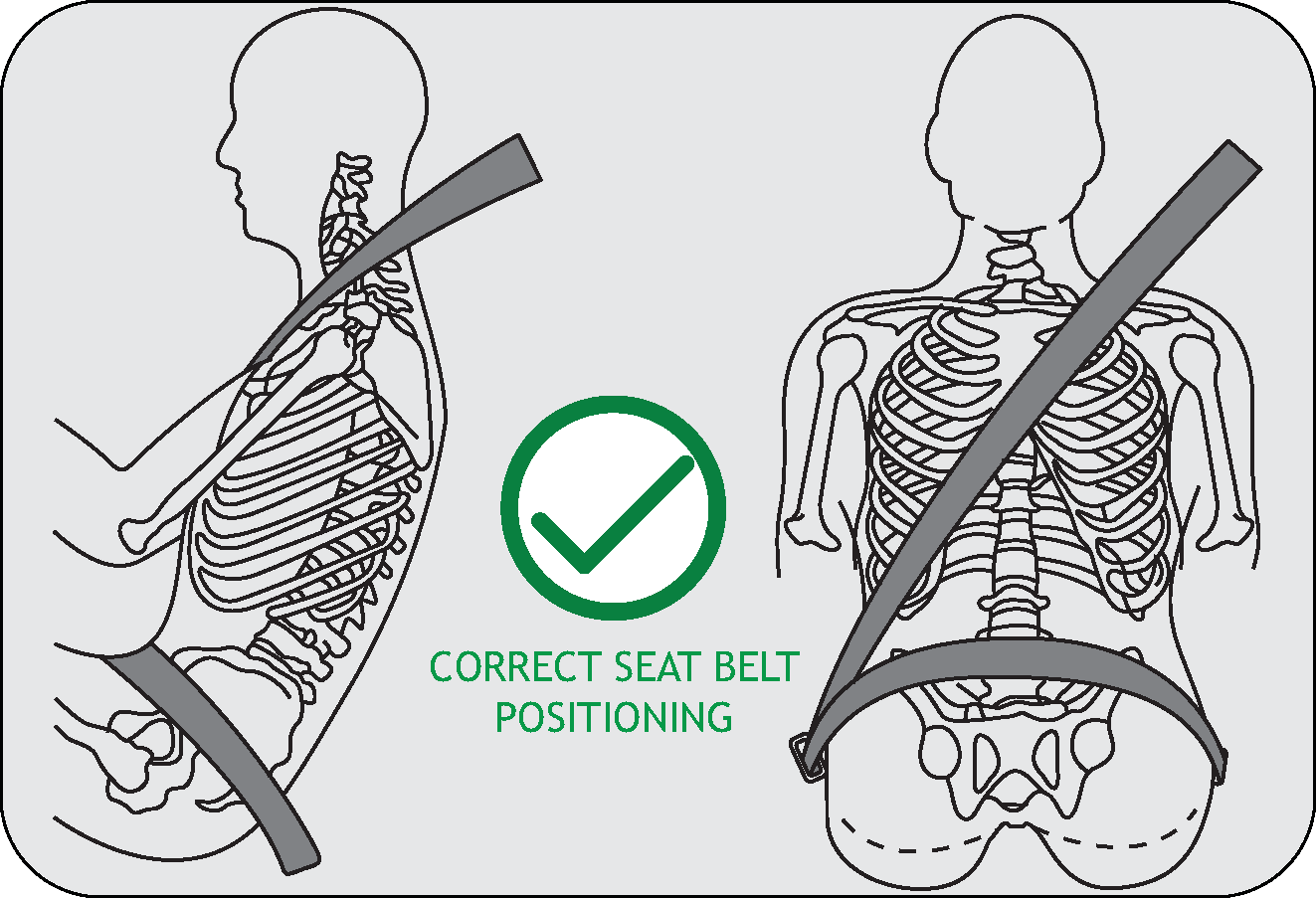

Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately.

The lifespan of Mahindra products depends on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by a Mahindra Authorised Dealer or a qualified Technician . If the inspection reveals any damage or excessive wear, immediately replace, or have the component serviced.

The vehicle identification plates are the only legal identification reference; hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. It is illegal to remove or alter the numbers in the VIN plate.

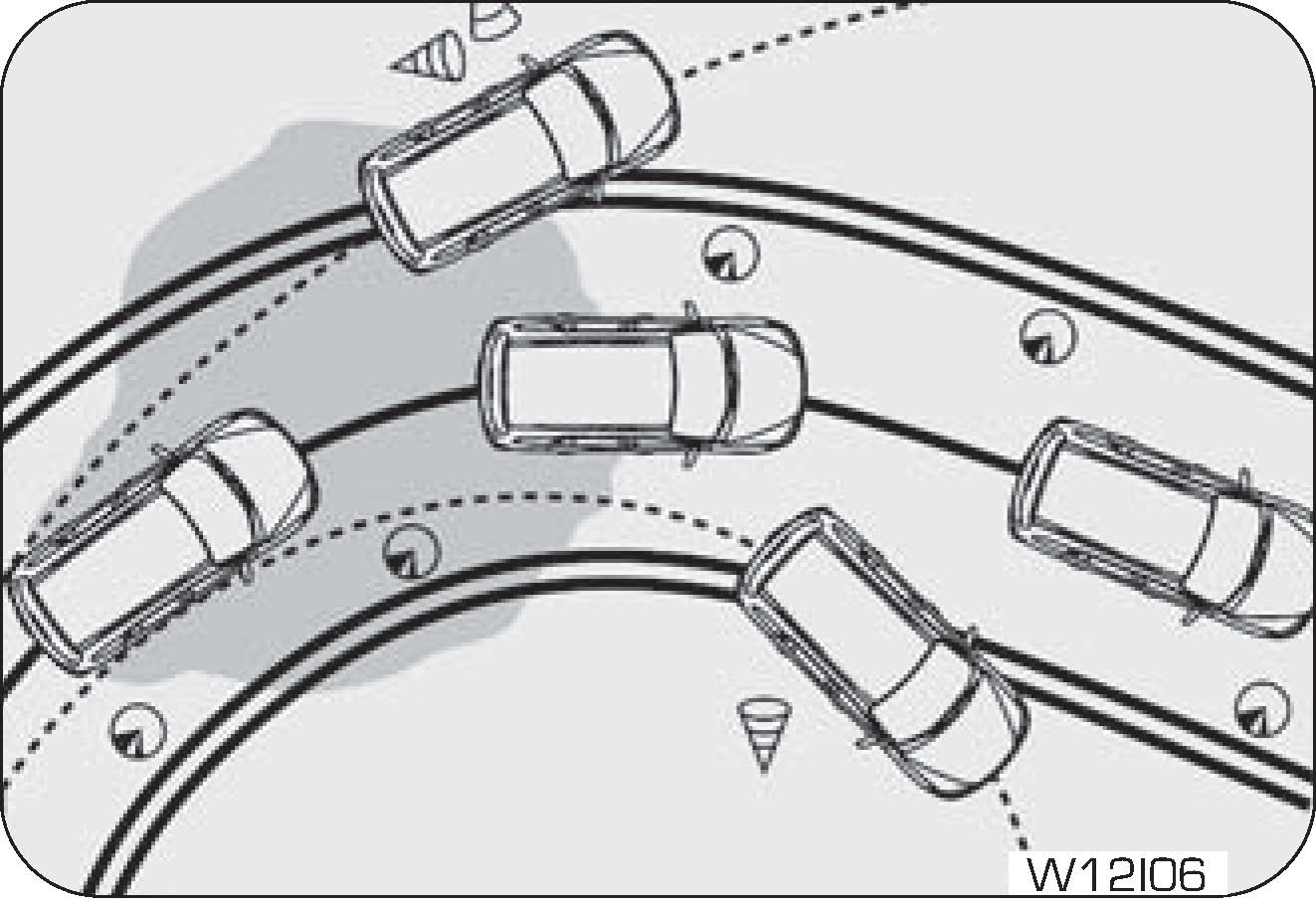

Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the center of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier.

1.4 To Users of a Mahindra Vehicle

When first driving the vehicle after long periods of non-usage, you may experience a temporary drive disturbance. This is a characteristic of the tyres and should be no reason for concern. The condition should correct itself within 5-15 kilometers. of driving. If the disturbance persists, have the vehicle checked by an Mahindra Authorised Dealer.

Driving and Drugs/Medication : Your driving ability can be seriously impaired through the use of prescription or non-prescription drugs or medication (even cough syrup). If you are taking any sort of drug or medication, be sure that it will not affect your driving ability.

Mobile Phones Warning : Use of electronic devices such as mobile phones, handheld devices, computers, portable radios or other by the driver while driving is dangerous. In exceptional condition, if use of a mobile phone is necessary despite this warning, use a handsfree system to ensure that the hands are free to drive the vehicle. Even handsfree do not ensure distraction free drive. Please comply with the legal regulations in your country, concerning the use of communication equipment in vehicles .

Driving Long Distances

When driving long distances, follow these tips to have a safe journey:

•

Take breaks at regular intervals

•

Lack of sleep or fatigue will impact your ability to drive safely

•

Exercise your eyes by shifting the focus of your eyes to different parts of the road

•

Use stimulating beverages such as coffee or tea

•

Relax and stay calm

Running-in

Driving smoothly during first 1,000 kilometers. will help to prevent abnormal and premature system wear. Proper running-in will improve the life of drivetrain and vehicle components.

A new engine may consume more oil during the first 1,000 kilometers. of running. This should be considered as a normal part of break-in and not interpreted as any problem with the engine.

Mahindra Genuine Parts

Mahindra uses high quality parts for building the vehicles. In the event that any parts need replacement, we recommend that you use only Mahindra genuine parts.

Non-Mahindra parts may harm vehicle performance and will not be covered by your Mahindra warranty.

The warranty does not cover problems caused by using non genuine parts

Mahindra Genuine Accessories

A wide selection of quality accessories are available through your Mahindra Authorised Dealer. These accessories have been specifically engineered to allow you to personalize your vehicle to suit your requirements and complement its style and aerodynamic appearance.

Each accessory is made from high quality materials and meets Mahindra's rigid engineering and safety specifications. Every Mahindra accessory installed according to the Mahindra installation provisions comes with the respective accessory warranty.

Consult your Mahindra Authorised Dealer for detailed information about accessories available for your specific model variant.

For maximum vehicle performance and safety considerations, always keep the following information in mind:

•

The company shall not be liable / responsible for any damages / injuries, including consequential damages / injuries, resulting due to fitment of unauthorised aftermarket accessories and / or tapping / cutting wires in the wiring harness When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Mahindra Authorised Dealer for specific weight information

•

Bull bars and nudge guards are not recommended

•

Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems

•

Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Mahindra Authorised Dealer and can potentially affect the vehicle performance.

Vehicle Safety

When leaving your vehicle unoccupied:

•

Always remove the ignition key when you park the vehicle

•

In case of PKE, please lock and take the key fob with you

•

Close all the windows completely and lock all the doors

•

Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors

When Sleeping in Your Vehicle

Do not sleep in a parked car with closed windows. In particular, if you stay or sleep in the car with the engine running and the air conditioner or heater turned on, you can suffocate to death

Sleeping in a closed space with the engine running puts you at high risk of suffocation from the exhausts

While sleeping, you may accidentally touch the gear shift lever or accelerator and thereby cause an accident

While sleeping in the car with the engine running, you may accidentally step on the accelerator, thereby overheating the engine and exhaust pipe and causing a fire

Hazardous Materials: Do not store any flammable items or disposable lighters in the console box or other spaces. In hot weather, they can explode and cause a fire.

Fire Extinguisher: For safety, we strongly recommend that you have fire extinguisher in your vehicle. Keep it ready for use at any time. Be familiar with how to use it

When Passing the Intersection or Railway Crossing

When passing the intersection or railway crossing, stop the vehicle to check the safety and drive through as fast as you can while using low speed gear and without shifting the gear. If the engine is turned off in the middle of the intersection or railway crossing, get someone to help you and move the car to a safe place quickly.

Do not Switch off the Engine While Driving

Do not switch off the engine while driving. Otherwise, it makes the steering wheel heavier, influence the brake performance and consequently dangerous

System Safety Mode : The protective measures including illumination of engine warning lamp and reduced engine power are taken (engine turned off in extreme case) when there is a critical fault in the system or a malfunction in the major electrical or fuel system. This indicates the system entering the safety mode to protect the vehicle’s drive system.

•

If the safety mode is activated, pull over and stop the vehicle to a safe location immediately and contact your Mahindra dealer. Then drive slowly or have the vehicle towed to a Mahindra Authorised Dealer according to the dealer’s instruction and have your vehicle checked by a Technician

•

If you continue to drive in this state, normal driving is not maintained due to the fixed engine rpm and engine can stop. But even more importantly, continued driving with this state may damage the drive system

Do Not Modify This Vehicle: If unauthorised modifications are made on the vehicle, the company is not liable for repairing the modified parts even during the term of warranty. Other part problems caused by modification are also not covered.

•

The vehicle you bought is equipped with a large number of precision parts that have passed through countless experiments and tests.

•

These parts are deeply and systematically interwoven. Therefore, if any part is modified or altered without authorization, may under perform or cause critical damage to the vehicle and human life

Protecting Our Environment: As a responsible citizens, all of us have an important role to play in protecting our environment. Judicious vehicle usage and ensuring hazardous waste disposal (including cleaning and lubrication fluids) are important steps towards this initiative.

Body Repairs: If your vehicle is in a collision, contact Mahindra Authorised Dealer to ensure that it is repaired with Mahindra Genuine Parts. Mahindra has collision repair centers that meet strict requirements for training, equipment, quality, and customer satisfaction. Some repair shops and insurance companies might suggest using non-original equipment to save money. However, these parts do not meet Mahindra’s high standards for quality, fit and corrosion resistance. In addition, non-genuine parts or equipment might lead to damages or failures of the vehicle’s systems.

End of Line Disposal

Composition: Vehicle is made from steel, Aluminum, Lead, Copper, Wood, other plastics & miscellaneous parts. These materials are reusable by recycling them through a proper procedure. Some are hazardous to environment and living beings to be disposed as per local pollution board regulations.

Disposal: As batteries are made of lead, lithium & Iron phosphate with solvents as electrolyte which are harmful. They can impact on environment and are to be disposed as per local pollution board regulations. Certain components of this vehicle such as seat belt pre-tensioner, airbag and battery may contain hazardous material. Special handling may be required for service or vehicle end-of-life disposal.

Similarly ABS & other plastic panels, materials used are to be disposed to accredited agencies for recycling.

Most of other materials are reusable, hence components are to be segregated as per their composition as hazardous and non-hazardous, disposed to accredited recycling agencies. Hence it is advised to contact Mahindra Authorised Dealer for further information

1.5 Audio/Infotainment Manual

Please refer the user e-manual in infotainment for details regarding:

•

Audio/Infotainment functions

•

Bluetooth functions

•

Hands free usage

DISCLAIMER:

All the information displays in Adventure Statistics are to induce the Adventure Spirit of user in good faith and for general information purpose only.

M&M does not make any warranties about the completeness, reliability and accuracy of this information. Any action you take upon the information, is strictly at your own risk.

M&M will not be liable for any losses and/or damages in connection with the use of this feature.

2 GENERAL

2.1 Feature Matrix

In view of our policy of continuously improving our products, we reserve the right to alter specifications, designs or features without prior notice and without any liability.

We recommend you contact the nearest Mahindra Authorised Dealer for the latest features applicable to your vehicle.

Feature	AX AC 4S ST	AX OPT 4S CT	AX OPT 4S HT	LX MT 4S CT	LX MT 4S HT	LX AT 4S CT	LX AT 4S HT
Technology
Micro Hybrid Technology (Engine Start/Stop)	ü	ü	ü	ü	ü	ü	ü
Hybrid Monochrome Analog Tacho & Speedo Cluster	ü	ü	ü
Cluster with 3.5 Inch Colour TFT				ü	ü	ü	ü
Immobiliser	ü	ü	ü	ü	ü	ü	ü
Voice Message System (VMS) *				ü	ü	ü	ü
Manual Central Locking System	ü	ü	ü	ü	ü	ü	ü
Central Locking with Remote access		ü	ü	ü	ü	ü	ü
18 cm (7”) Color Touch Screen Infotainment Display, USB/AUX , Bluetooth				ü	ü	ü	ü
Follow me home lamp	ü	ü	ü	ü	ü	ü	ü
Lead me to vehicle lamp				ü	ü	ü	ü
Front Fog Lamp				ü	ü	ü	ü
Apple Car Play				ü	ü	ü	ü
Android Auto				ü	ü	ü	ü
Ecosense with GSI in cluster				ü	ü	ü	ü
Blue Sense (App Control + Smart Watch)				ü	ü	ü	ü
Mechanical Locking Differential*				ü	ü	ü	ü
Safety
Driver and Co-Driver Air Bag	ü	ü	ü	ü	ü	ü	ü
Seat Belt Reminder	ü	ü	ü	ü	ü	ü	ü
ABS with EBD	ü	ü	ü	ü	ü	ü	ü
ESP with Active traction control				ü	ü	ü	ü
Tiretronics				ü	ü	ü	ü
Reverse Park Assist System (RPAS)	ü	ü	ü	ü	ü	ü	ü
ISOFIX/Belted Baby Seat (2nd Row)	ü	ü	ü	ü	ü	ü	ü
Seat Belt Reminder (Drvr/Codrvr)	ü	ü	ü	ü	ü	ü	ü
Style
Wheel Size	16”	16”	16”	18”	18”	18”	18”
Wheel Type (Steel)	ü	ü	ü	ü	ü
Wheel Type (Alloy)						ü	ü
Spare Wheel cover				ü	ü
Comfort & Convenience
Tiltable Steering column	ü	ü	ü	ü	ü	ü	ü
Collapsible Steering column	ü	ü	ü	ü	ü	ü	ü
Cruise Control				ü	ü	ü	ü
Back rest with map pocket	ü	ü	ü	ü	ü	ü	ü
Seat Height Adjustment (Manual)		ü	ü	ü	ü	ü	ü
Internally Adjustable Power ORVM				ü	ü	ü	ü
Power Steering	ü	ü	ü	ü	ü	ü	ü
Power Windows – Front Doors	ü	ü	ü	ü	ü	ü	ü
Steering Mounted Controls				ü	ü	ü	ü
* – If equipped

2.2 Dimensions

Front View	Rear View
Side View

Dimension & weights	AX AC 4S ST	AX OPT 4S CT
Wheel Base	2450 mm
Overall Length	3985 mm
Overall width	1820 mm	1855 mm
Overall Height	1837mm to 1920 mm
Front and Rear Track	1520 mm
The specifications are for reference only. Subject to change without prior notice

2.3 Bulb Specification

Lamp Bulb	Wattage
Head Lamp	12V H4 55/60W
Park lamp	12V W5W
Front Turn lamp	12V PY21W
Front Fog lamp	12V H16-19W
Side Turn Signal lamp	12V W5W
DRL/ Position lamp	LED: DRL 4.86W, For Position 0.54W
Tail / Stop lamp	LED: Stop 6.8W, Rear Position 0.9W
Rear Turn lamp	12V WY16W
Front Position Lamp	12V W5W
Reverse lamp	12V W16W
Registration Plate lamp	LED: 0.3W

2.4 Fuses and Relays

A fuse is the most common electric protection device. The fuse is placed in an electrical circuit, so that when current flow exceeds the rating of the circuit/fuse, it blows off. The element in the fuse melts, opening the circuit and preventing other components of the circuit from being damaged by the over current. The size of the metal fuse element determines the rating. Once a fuse blows off, it must be replaced with a new one of the same rating.

Switch the ignition and all electrical equipment OFF before touching or attempting to change a fuse.

Replacement fuse must be with the same rating as the one you have removed.

You can identify a blown fuse by a break in the filament. All fuses except high current fuses are press fit.

Never touch fuses with bare hands. Always use the fuse puller to remove and refit the fuses.

Be careful while removing the relay, to avoid damage to relay terminal — do not shake or apply excessive force .

There are 3 fuse boxes in the vehicle;

Instrument Panel Fuse Box

Engine Compartment Fuse Box

Battery Mounted Fuse Box

2.4.1 Instrument Panel Fuse Box

•

Pull the Fuse box cover below the switch bank, outward to access the instrument panel fuse box

Spare fuses are available in this fuse box location.

Fuse No	Fuse Rating	Circuit
F34	–	–
F35	–	–
F36	5A	ROOF LAMP
F37	10A	PARK
F38	5A	CRANK
F39	15A	INFO B+/AUDIO B+
F40	5A	DIAGNOSTIC
F41	20A	MBFM BATT-2
F42	–	–
F43	5A	ABS IGN
F44	5A	AIR BAG IGN
F45	5A	INFO IGN*
F46	5A	ORVM/RD/COMBI SW LIGHT
F47	5A	IC/HVAC B+
F48	5A	IMMO B+
F49	20A	MBFM BATT-1
F50	10A	4WD ACTUATOR
F51	15A	AT ECU B+*
F52	10A	IC/HVAC/MBFM/CENTER FASCIA
F53	5A	INFO ACC*
F54	10A	REV LAMP & TGS
F55	–	–
F56	_	_
F57	20A	MBFM BATT-3
F58	–	–
F59	5A	AT ECU IGN*
F60	5A	EMS ECU IGN
F61	20A	POWER WINDOW
F62	5A	IMMO IGN
F63	15A	POWER SOCKET
F64	5A	MBFM ACC
F65	25A	WIPER/COMBI SW WIPER
* - If equippd

Relay No	Circuit
R1	ACCESSORY START RELAY 40A

2.4.2 Engine Compartment Fuse Box

The engine compartment fuse box is located adjacent to the vehicle’s battery.

Follow the below steps to remove the fuse cover;

•

To open the fuse box cover, press the lock and push the cover back and lift it.

Fuse puller is available in the fuse box cover.

For Diesel Engine

Fuse No	Fuse Rating	Circuit
F1	50A	BATT-1
F2	50A	GLOW PLUG
F3	40A	BATT-2
F4	40A	STARTER
F5	40A	ABS MOTOR
F6	30A	EMS ECU
F7	40A	BLOWER MOTOR
F8	50A	COOLING FAN
F9	40A	BATT-3
F10	–	–
F11	–	–
F12	15A	H/L HI
F13	15	H/L LOW
F14	20A	HORN
F15	10A	FRONT FOG*
F16	25A	ABS SOLENOID
F17	10A	REAR FOG*
F18	–	–
F19	5A	DRL*
F20
F21	15A	AC COMP B+
F22	20A	REAR DEFOG*
F23	20A	FUEL PUMP
F24	5A	BMS
F25	10A	PCJ&VOP
F26	10A	EMS B-1
F27	10A	BRAKE FUSE
F28	15A	AC COMP
F29	5A	EMS ECU B+
F30	5A	BACKFLOW PUMP
F31	15A	EMS B-2
F32	10A	HFM
F33	15A	F5
	50A, 40A, 25A, 20A, 15A, 10A, 10A, 5A	SPARE

Relay No	Circuit
R1	H/L HI
R2	H/L LOW
R3	FRONT FOG*
R4	REAR D’STER*
R5	AC COMP
R6	BACKFLOW PUMP*
R7	REAR FOG*
R8	BRAKE LAMP*
R9	Horn
R10	FUEL PUMP
R11	BLOWER
R12	EMS ECU
R13	STARTER
R14	–
R15	–
R16	GLOW PLUG

For Petrol Engine

Fuse No	Fuse Rating	Circuit
F1	50A	BATT-1
F2	—	—
F3	40A	BATT-2
F4	40A	STARTER
F5	40A	ABS MOTOR
F6	40A	EMS ECU
F7	40A	BLOWER MOTOR
F8	50A	COOLING FAN
F9	40A	BATT-3
F10	–	–
F11	–	–
F12	15A	H/L HI
F13	15A	H/L LOW
F14	20A	HORN
F15	10A	FRONT FOG*
F16	25A	ABS SOLENOID
F17	10A	REAR FOG*
F18	–	–
F19	5A	DRL*
F20	—	—
F21	15A	AC COMP B+
F22	20A	REAR DEFOG*
F23	20A	FUEL PUMP
F24	5A	BMS
F25	10A	VBR_G/PCJ
F26	30A	VBR_A
F27	10A	VBR_B
F28	10A	VBR_C
F29	5A	EMS ECU B+
F30	–	–
31	15A	VBR_D
32	15A	VBR_E
33	15A	VBR_F
	40A, 60A, 30A, 25A, 20A, 15A,, 10A, 5A	SPARE
*- If equipped

Relay No	Circuit
R1	H/L HI
R2	H/L LOW
R3	FRONT FOG*
R4	REAR D’STER*
R5	AC COMP
R6	AIR COOLER
R7	REAR FOG*
R8	BRAKE LAMP*
R9	Horn
R10	FUEL PUMP
R11	BLOWER
R12	EMS ECU
13	STARTER
R14	–
R15	–
R16	—

2.4.3 Battery Mounted Fuse Box

The battery mounted fuse box is connected to the positive terminal of the battery.

Functionality of battery mounted fuse box is to provide short circuit protection to alternator and power supply to main engine compartment fuse box.

Battery mounted fuse box consist of following fuses:

•

Main charging fuse – 150A (Pink colour)

•

Bus bar fuse - 80A (White colour)

2.5 Flat Tyre

Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place well away from traffic. Park on a level spot with firm ground. Stop the engine and switch ON your hazard warning flashers.

Firmly apply the parking brake. Have everyone come out of the vehicle on the side away from traffic.

After stopping , use the hazard warning triangle to alert the oncoming traffic of the stopped vehicle

Never stop your vehicle in a traffic lane to change a tyre. Keep driving until you reach a safe location.

The jack provided along with the vehicle is to be used only for changing a spare tyre. It is never to be used to perform any other maintenance or repair on the vehicle.

Never place any part of your body under any portion of the vehicle when it is supported only by the jack. You could be crushed by the vehicle if it falls off a jack. Keep bystander’s away from the vehicle.

Find level, solid ground that is clear of oncoming traffic. If you cannot find a safe place to stop, it is better to drive on a flat tyre and damage the rim than it is to risk being hit by oncoming traffic.

After changing a flat tyre, never store the tyre or other equipment in the passenger compartment of the vehicle. This loose equipment could strike an occupant in the event of a sudden stop or collision. Store all of these items in the proper place.

The following sections outline the procedure for changing a flat tyre;

2.5.1 Jack

Jack Removing Procedure

The jack assembly is located behind the rear seat on the floor.

Lift the floor mat provided in the luggage compartment

To open the tool kit lid assembly (B), rotate the lid screw (A) anti clockwise direction to remove the tool kit lid assembly.

Remove the jack assembly.

Refix the jack assembly and close the tool kit lid assembly and rotate the lid screw clockwise direction to close.

Tool kit is located below the rear seat.

The tool kit consists of,

Screw Driver	DEO Spanner 10mm x 12mm
Wheel Spanner	Wrench tool for Water drain in fuel
Jack Operating Lever

2.5.2 Spare Wheel Removal

The spare wheel is mounted on the rear end of the vehicle. It is held in place by a securing nuts.

•

Loosen and remove the securing nut counter clockwise with a wheel spanner

•

Slowly support and lower the spare wheel

2.5.3 Wheel Nut Loosening

Always loosen the wheel nut before raising the vehicle.

Turn the wheel nut counter clockwise to loosen as per the crisscross sequence shown.

To get maximum leverage, fit the spanner to the nut so that the handle is on the left side. Grab the spanner near the end of the handle and push down on the handle.

Be careful that the spanner does not slip off the nut. Do not remove the nut, but loosen them by one or two turns.

Do not apply force with your legs (or stand) on the wheel spanner while loosening/tightening the wheel nuts.

2.6 Jack Points

Front jack up point - On the chassis long member behind the front wheels.

Rear jack up point - On either side of the rear axle.

2.6.1 Jacking

Position the jack at the correct jacking point. Make sure the jack is positioned on a level and solid ground. Ensure that no one is in the vehicle.

Block the wheel diagonally opposing the flat tyre to keep the vehicle from rolling when it is jacked up. While blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.

A: Flat Tyre

B: Chock Blocks

To raise the vehicle, insert the jack handle end along with the extension into the jack and turn it clockwise with the jack handle. As the jack touches the vehicle and begins to lift, check that it is properly positioned. Raise it high enough so that the spare tyre can be installed. Remember that you will need more ground clearance when putting the inflated spare tyre than when removing the flat tyre.

Make sure to locate the jack properly in the jacking point. Raising the vehicle with an improperly positioned jack will damage the underbody of the vehicle and may allow the vehicle to fall off the jack and cause personal injury.

•

Use the jack only for lifting the vehicle during wheel changing

•

Do not raise the jack with any person inside the vehicle

•

When raising the vehicle, do not place any objects on top of or underneath the jack

•

Raise the vehicle only high enough to remove and change the wheel

•

Follow jacking instructions

•

Do not start or run the engine while your vehicle is supported by the jack

Never get under the vehicle when the vehicle is supported by the jack alone.

Remove the wheel nuts. Remove the flat tyre straight off and then place it aside. Roll the spare wheel into position and align the holes of the disc/drum with the nuts. Lift the wheel and hand tighten the top wheel nut. Wiggle the wheel and press it back over the other nuts.

Re-install the wheel nut with the tapered end inward and tighten by hand. Press the wheel inward and tighten the wheel nuts further.

Before lowering the wheel hand tighten the nuts in diagonal sequence so that wheel is flush against the hub/drum

Never use oil or grease on the bolts or nuts. Doing so may lead to over tightening of the nuts, wheel bolts spanner slip, damage the nuts and also may cause personal injuries. Also, nuts may loosen and the wheels may fall off, which could cause a serious accident. If there is oil or grease on any bolt or nut, clean before installing wheel nuts.

Lower the vehicle completely and tighten the diagonally opposite wheel nuts using the wheel nuts spanner. Turn the jack handle extension anti clockwise using the jack handle to lower the vehicle, making sure the handle remains firmly fitted onto the jack handle extension. Make sure the wheel spanner is securely engaged over the nut.

Tighten each nut a little at a time in the diagonally opposite order as shown. Repeat the process until all the nuts are tight.

Do not use any other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot.

Firmly tighten the wheel nuts as per the sequence shown in the illustration , two to three times.

Improperly or loosely tightened wheel nuts are dangerous. The wheel can wobble or come off. This can result in loss of vehicle control and cause a serious accident. Always make sure all the wheel nuts are properly/securely tightened to the specified torque.

When lowering the vehicle, make sure all portions of your body are clear off the vehicle as it is lowered to the ground. Have the wheel nuts tightened with the torque spanner to 120 Nm, as soon as possible after changing wheels.

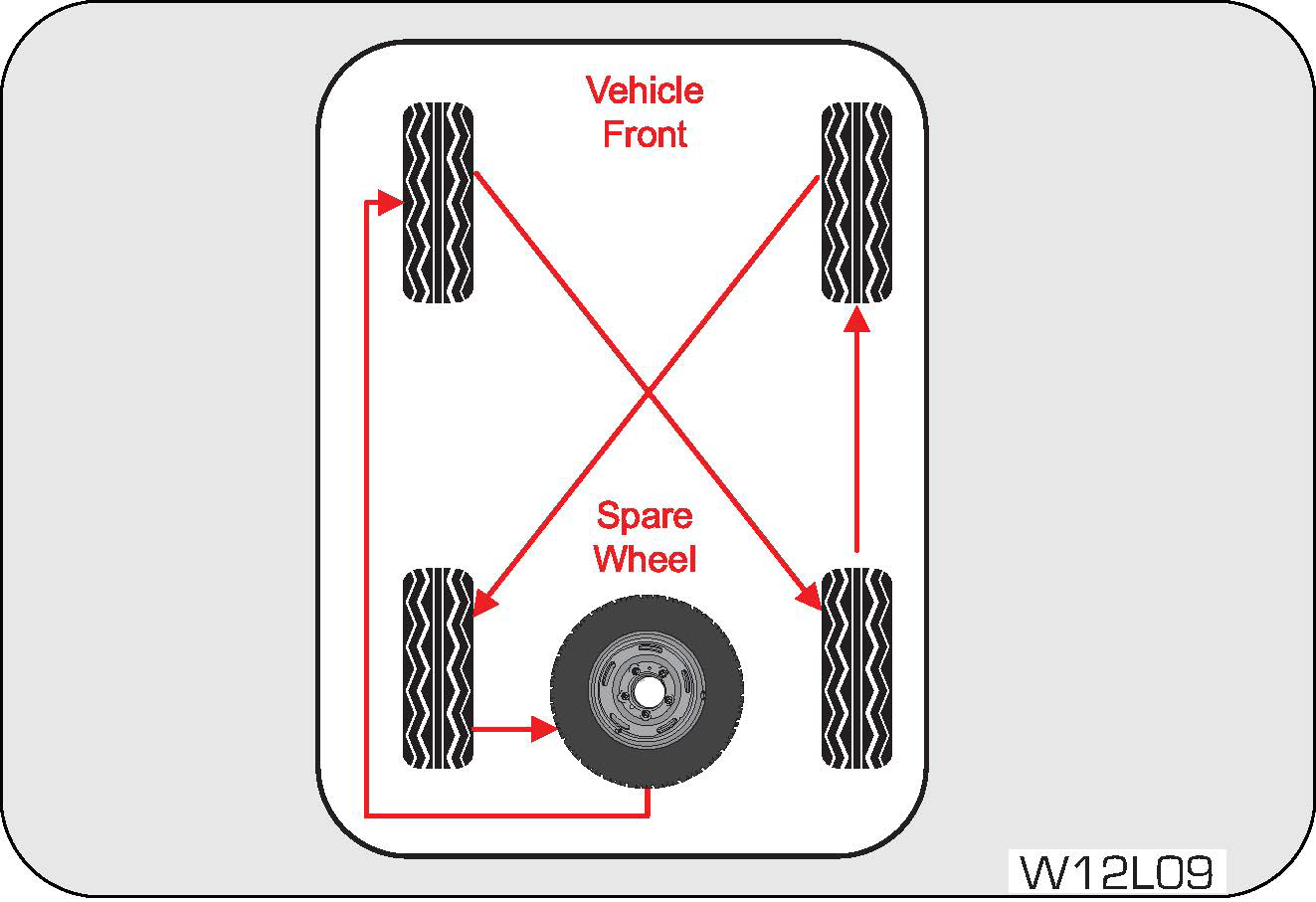

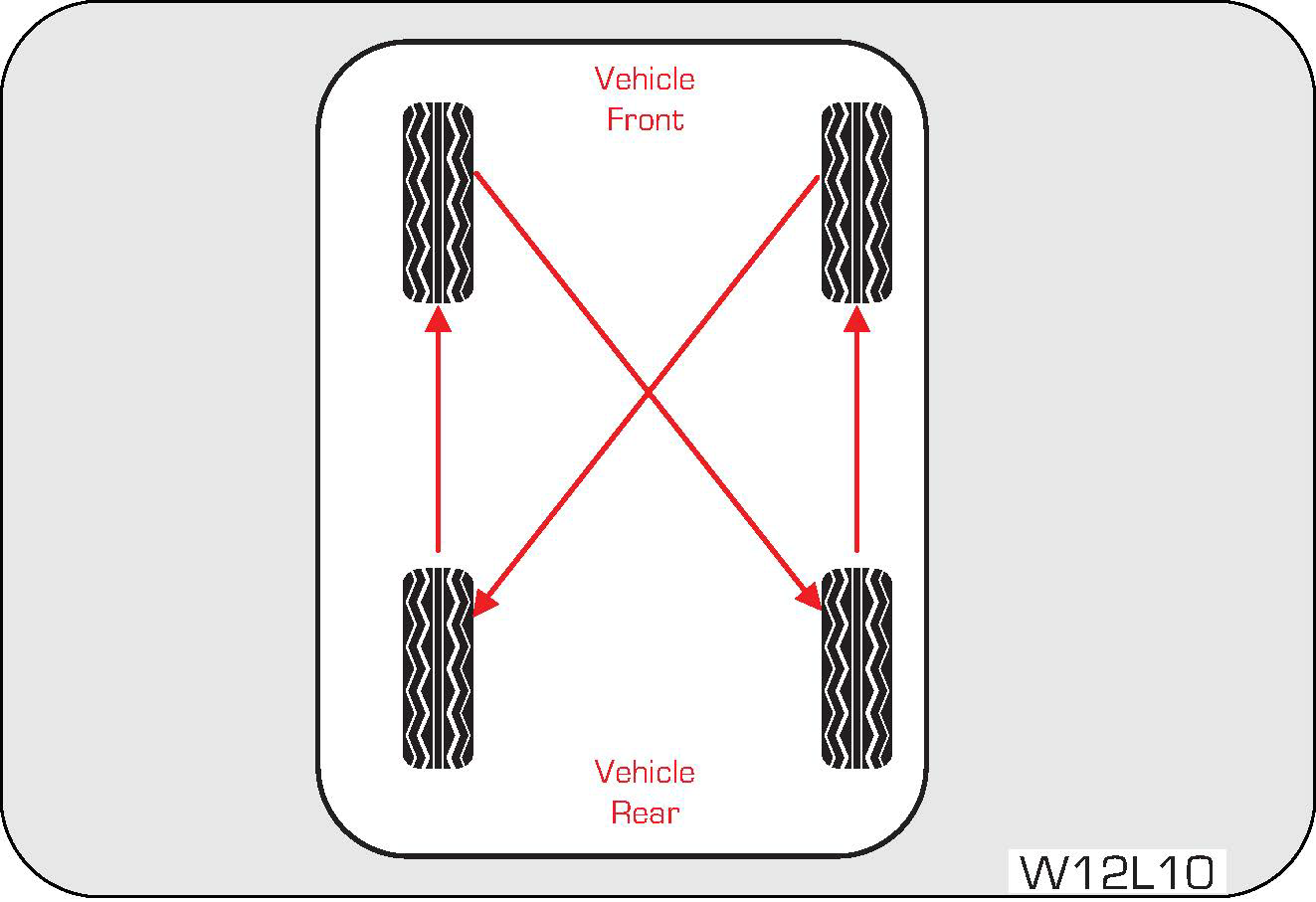

If you have rotated, repaired, changed your tyres or changed the wheel rims, retorque the wheel nuts after driving about 1,000 kms (Torque 120 Nm).

Put the wheel cap (if equipped) into position aligning the nozzle on the wheel to the nozzle clearance on the wheel cover. Tap it firmly on the sides with your hand to snap it into place.

Check the air pressure of the replaced tyre. If the pressure is lower than recommended, drive slowly to the nearest service station and inflate to the correct pressure. If it is too high, adjust it until it is correct. Always reinstall the valve cap after checking or adjusting tyre pressure. If the cap is not replaced, dirt and moisture could get into the valve core and cause air leakage. If you lose a valve cap, buy another and install it as soon as possible.

Wheel balancing to be done after tyre puncture rework.

2.6.2 Restore the Tools, Jack and Flat Tyre Securely

Restore the tools and jack back to their respective locations. Mount the flat tyre to the back door bracket at the rear of the vehicle. Firmly tighten the securing nuts. Double check to ensure the tyre is snug against the back door of the vehicle.

It is recommended to fix the flat tyre at the nearest tyre shop and swap the spare wheel back. The wheel balance and alignment differ from wheel to wheel which may lead to difference in steering and braking.

2.7 Technical Specifications

Technical Specifications
	Diesel	Petrol
Engine
Model	2.2 L mHawk Diesel Gen-II	2.0 L TGDi Petrol (G20)
Displacement/Cubic Capacity	2184 CC	1997 CC
Type	Compression Ignition, 4 Stroke, DI Turbocharged Intercooler	Spark Ignition, 4 Stroke, DI Turbocharged Intercooler
Bore x Stroke	84 x 98.5	83 x 92.25
No of Cylinders	4	4
Max. Engine Output	97 KW @ 3750 rpm (For AT & MT)	112 KW @ 5000 rpm
Max. Torque (Nm @ rpm)	300 Nm @ 1600 - 2800 rpm (For AT & MT)	300 Nm @ 1250 - 3000 rpm (For MT) 320 Nm @ 1500 - 3000 rpm (For AT)
Clutch
Type	Single Plate, Dry Diaphragm type (MT) Wet, Multi Plate (AT)
Transmission
Type	6 Speed Manual Transmission
Type	6 Speed Automatic Transmission
No. of Gears	6 Forward, 1 Reverse
Axles
Front /Rear Axle Ratio	4.3 : 1
Wheels & Tyres
Rim	R16: 6.5J X 16, R18: 7.5J X 18
Tyres	245/75 R16 & 255/65 R18
Steering
Type/Description	Rack and Pinion Type, Power Assisted - Hydraulic
Suspension
Front	Double wishbone type IFS
Rear	Multi link Coil spring suspension
Shock absorbers	Telescopic (Front/Rear)
Brakes
Service Brake	Hydraulic & Vacuum assisted servo
Front	Disc
Rear	Drum
Parking Brake	Internal expanding type on rear wheels
Fuel
Fuel Capacity	57 +/- 2 Litres
Diesel Exhaust Fluid (DEF) Capacity	20 Litres	NA
Electrical System
System Voltage	12V
Battery Rating	72Ah

2.8 Vehicle Identification Number (VIN)

Vehicle Identification Number (VIN) plate is located on the below the driver seat. Open the velcro and will find the VIN number.

2.9 Engine Number

Engine number sticker available on vacuum pump cover near Turbo charger. Engraving Engine number location is available on engine Block crankcase near starter motor.

3 VEHICLE OVERVIEW

Front Overview

A	Driver Door Handle	G	H/L High/ Low Beam
B	Outside Rear View Mirror	H	Front Tow Hook
C	Front Windshield	I	Fog / Cornering Lamp(If equipped)
D	Front Windshield Wiper	J	Turn Indicator
E	Hood Latch	K	Side Repeater
F	Hood	L	Footstep (If equipped)

Rear Overview

A	Rear Flip up Window	E	Rear swing gate handle,
B	Spare wheel	F	Rear Park Lamp/Brake Lamp
C	Rear Tow hook mounting provision	G	Rear Turn signal Lamp
D	Rear Swing Gate	H	Fuel /DEF Lid

Instrument Panel Overview

A	Side Vents
B	Passenger Airbag
C	Centre Vents
D	Infotainment Screen*
E	Steering controls —Audio*
F	Steering wheel
G	Instrument Cluster
H	Control Stalk
I	Steering Mounted - Cruise Control*
J	Headlamp Levelling/Switch Bank
K	Horn Pad/Driver Airbag
L	Center Fascia Switch Bank

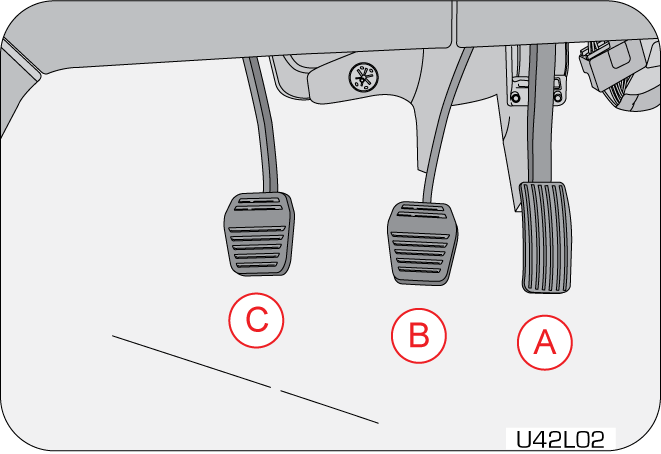

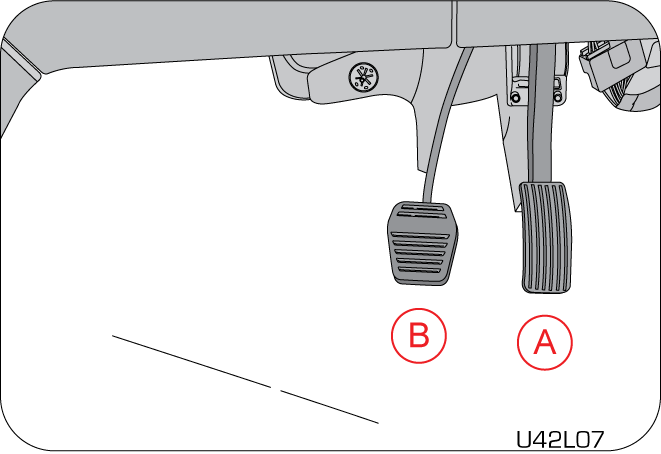

M	Accelerator/Brake/Clutch Pedal
N	12V Power Outlet
O	Transmission Gear Lever

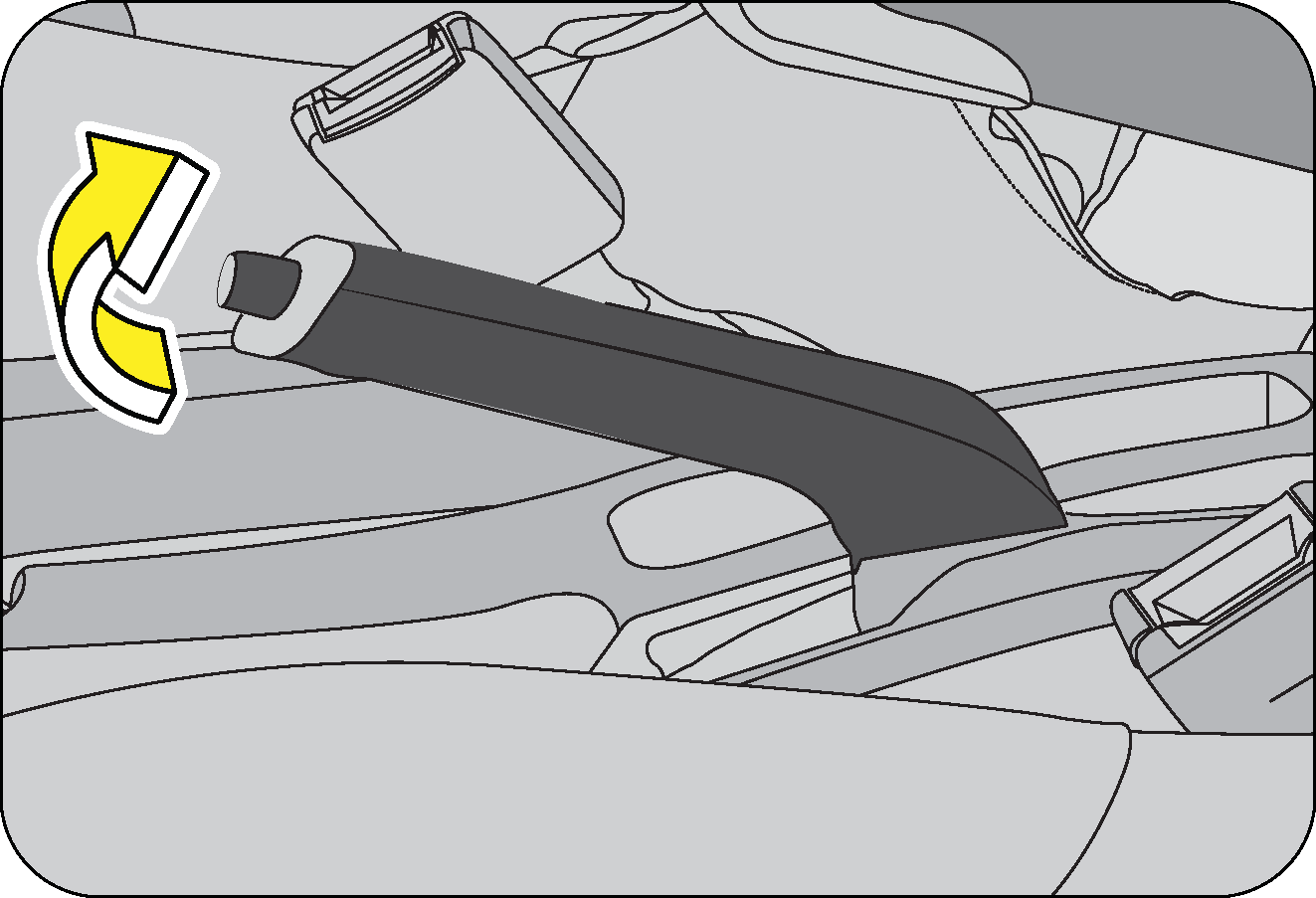

P	Parking Brake
Q	Can/Bottle holder
R	Power Window switches
S	4WD/2WD shift Lever
T	AUX/USB Port
U	HVAC Controls*
V	Glove Box
W	IP Branding Plate
* – If equipped

4 INSTRUMENT CLUSTER OVERVIEW

4.1 Instrument Cluster

Display Method:

3.5” color and monochrome Display

Two Analog gauge for Speedo and Tacho Fuel gauge and Temperature gauge part of TFT Display

A	Tachometer/RPM Gauge	E	Fuel Gauge
B	Temperature Gauge	F	Odometer
C	Warning/Telltale Lamps	G	Trip A, B & DTE
D	Speedometer	H	Gear Display

Note: Images in the cluster owner's manual is representation for high end. Low end cluster will have similar images in gray scale.

4.2 Warning Lamps Overview – Diesel

Warning Lamps Overview – Petrol

1	Left Turn Indicator	18	DEF indicator Lamp*
2	OBD Check Lamp	19	Head Lamp High Beam Lamp
3	Low Engine Oil Pressure Warning Lamp	20	Seat Belt Warning Lamp
4	Engine Start/Stop telltale*	21	Low Fuel Warning Lamp
5	Door Ajar Warning Lamp	22	High Engine Coolant Temperature Warning Lamp
6	AT Malfunction indicator Lamp*	23	HHC malfunction *
7	Airbag Warning Lamp	24	4WD Low
8	Water-in-Fuel warning Lamp*	25	HDC malfunction *
9	Battery Charging System Warning Lamp	26	Parking Brake ON/Brake Fluid Low Warning Lamp
10	Right Turn Indicator	27	ESP Warning Lamp*
11	ABS Warning Lamp	28	4WD HIGH
12	Check Engine Lamp	29	ESP OFF*
13	Overspeed Alert	30	Glow Plug Indicator*
14	DPF indicator Lamp*	31	REGEN indicator Lamp*
15	Parking Lamp	32	Cruise Control*
16	Immobiliser		Tiretronics*
17	Front Fog Lamp Indicator*	*if equipped

4.3 Warning Lamps

The phenomenon of warning lamps flashing momentarily when ignition is turned ON is called pre-check. This is self check done by the cluster at every ignition ON.

Symbol	Warning Lamp/Tell Tale	Lamp Pre-check	Lamp Status	Action/Remarks
	Left Turn Indicators	No	Slow or Fast Blinking	Indicates left turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced
	OBD Check Lamp	Yes	Continuously ON or Blinking	Telltale will always be ON till engine starts after which it will turn OFF. Telltale ON even after start of engine indicates an emission system related failure. Contact an Mahindra Authorised Dealer immediately.
	Low Engine Oil Pressure Warning Lamp	No	Continuously ON	Telltale will always be ON till engine starts after which it will turn OFF. Telltale ON even after start of engine indicates low engine oil pressure. Contact an Mahindra Authorised Dealer immediately
	Engine Start/Stop telltale*	No	Continuously ON or Blinking	CONTINUOUSLY ON: Engine is in auto stop mode Blinking: Stop/Start is about to stop the engine FAST BLINKING: Stop/Start is inhibited due to unhealthy battery conditions
	Door Ajar Warning Lamp	No	Continuously ON	Indicates one or more doors are open
	AT Malfunction indicator Lamp*	Continuously ON till Engine Starts	Continuously ON or AT Blinking	Telltale ON indicates malfunction in the automatic transmission. Contact an Mahindra Authorised Dealer immediately
	Airbag Warning Lamp	Yes	Continuously ON	Indicates malfunction of the airbag system. Contact an Mahindra Authorised Dealer immediately
	Water in Fuel warning Lamp*	Yes	Continuously ON	Indicates water in fuel filter. Drain the water from filter or contact an Mahindra Authorised Dealer for assistance
	Battery Charging System Warning Lamp	No	Continuously ON	Telltale will be ON in ignition ON But engine is OFF. If it is ON in engine ON condition, it represents malfunction in charging system. Contact an Mahindra Authorised Dealer for assistance
	Right Turn Indicators	No	Slow or Fast Blinking	Indicates right turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced
	ABS Warning Lamp	Yes	Continuously ON	Indicates malfunction of the ABS system. Contact an Mahindra Authorised Dealer immediately
	Check Engine Lamp	Yes	Continuously ON or Blinking	Indicates a potential malfunction in the Engine System, contact an Mahindra Authorised Dealer immediately
	Overspeed Alert	No	Continuously ON	Telltale will blink when vehicle is running at speed greater than 120 kmph

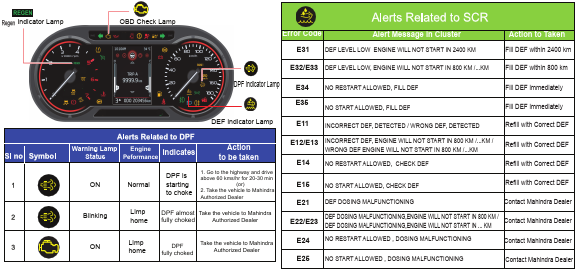

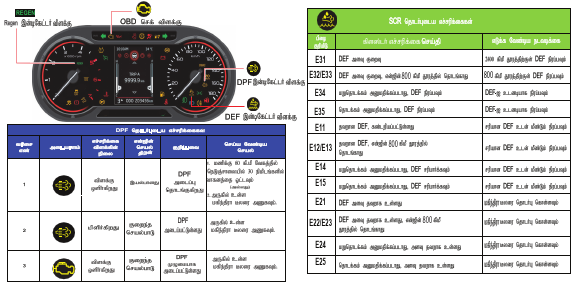

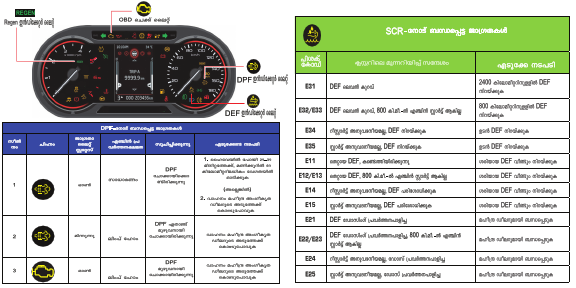

	DPF Indicator Lamp *	Yes	Continuously ON or Blinking	If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
	Parking Lamp	No	Blinking	Indicates Park Lamp is ON
	Immobilizer	No	Continuously ON or Blinking	Slow Blinking in IGN ON: vehicle has been turned on using an invalid key. Fast Blinking/Continuously ON: Indicates a system malfunction Contact an Mahindra Authorised Dealer immediately
	DEF Indicator Lamp*	Yes	Continuously ON	It indicates that either DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
	Head lamp High Beam Indicator	No	Continuously ON	Indicates Head lamp high beam is ON
	Front Fog Lamp Indicator *	No	Continuously ON or Blinking	Indicates front fog lamps are ON.
	Driver Seat Belt Warning Lamp	No	Continuously ON	Telltale ON indicates that the driver seat belt is not buckled.
	Low Fuel Warning Lamp	No	Continuously ON or Blinking	Telltale ON indicates that the fuel in the tank has reached the reserve level. Telltale blinking indicates a failure in the fuel gauge. Contact Mahindra Authorised Dealer immediately.
	High Coolant Temperature Warning Lamp	No	Continuously ON or Blinking	Telltale ON indicates that the engine coolant temperature is high. Telltale blinking indicates very high coolant temperature
	HHC Malfunction*	No	Continuously ON	Indicates malfunction of Hill Hold Control. Contact an Mahindra Authorised Dealer immediately
	4WD Low	No	Continuously ON or Blinking	Blinking: Indicates 4 wheel drive low engagement is in progress. ON: 4 Wheeldrive low is engaged.
	HDC*	No	Continuously ON	Indicates malfunction of Hill Descend Control. Contact an Mahindra Authorised Dealer immediately
	Parking Brake ON/Brake Fluid Low Warning Lamp/ EBD Malfunction	Yes	Continuously ON	Either one of the below conditions: 1. Park Brake might be engaged 2. Brake fluid level might be low 3. There is some concern in ABS/EBD failure. Please contact Mahindra Dealer.
	ESP Malfunction Warning Lamp*	Yes	Continuously ON or Blinking	Blinking: Indicates ESP has taken control of the vehicle stability Continuously ON: Indicates a malfunction in the ESP system. Contact an Mahindra Authorised Dealer immediately
	4WD High	No	Continuously ON or Blinking	Blinking: indicates 4 wheel drive high engagement is in progress. ON: 4 wheel drive high is engaged..
	ESP OFF Lamp*	Yes	Continuously ON	Indicates ESP OFF
	Glow Plug Indicator*	No	Continuously ON	Indicates a malfunction in the starting system. Contact an Mahindra Authorised Dealer immediately
	REGEN Indicator Lamp*	NO	Continuously ON or Blinking	ON: Regeneration is required Blink: Regeneration is in progress
	Cruise Control Indicator *	Yes	Continuously ON	Indicates vehicle is in Cruise mode
	Tiretronics*	Yes	Continuously ON or Blinking	Indicates low/high tyre pressure or possible malfunction in Tiretronics. Refer to Tiretronics section in INSTRUMENT CLUSTER FEATURES/WHEELS AND TYRES chapter for further details
* – If equipped

5 EMISSION CONTROL SYSTEM - Applicable for Diesel

The emission control system is a highly effective system which controls exhaust emissions from the engine and crucial for meeting emission norms specified by law.

Your vehicle is equipped with the following emission control systems for meeting BS VI emission norms.

Diesel Oxidation Catalyst (DOC)

Selective Catalytic Reduction(SCR)

Diesel Particulate Filter (DPF)

In order to ensure proper function of the emission control systems, it is mandatory to get your vehicle inspected and maintained by an Mahindra Authorised Dealer. The maintenance schedule in this manual need to be followed.

It is also extremely important to use correct grade of fuel, Confirming to IS 1460; 2017 BS VI Specification.

5.1 Diesel Oxidation Catalyst (DOC)

A diesel oxidation catalyst (DOC) is an after treatment component that is designed to convert carbon monoxide (CO) and hydrocarbons (HC) into carbon dioxide (CO2) and water (H2O).

5.2 Selective Catalytic Reduction(SCR)

Selective Catalytic Reduction (SCR) is an advanced active emission control technology system that injects a liquid-reducing agent through a special catalyst into the exhaust stream of a diesel engine. The reductant is called as Diesel Exhaust Fluid (DEF). The DEF sets off a chemical reaction that converts nitrogen oxides into nitrogen and water which is then expelled through the vehicle tailpipe.

5.2.1 Diesel Exhaust Fluid (DEF) MaxiCLEAN

To enable SCR system work efficiently and to ensure emission compliance, It is recommended to use MaxiCLEAN DEF meeting IS 17042 (or) ISO 22241 specification.
Refilling DEF is part of regular maintenance service. DEF consumption is highly dependent on driving conditions/pattern. It may be necessary to refill DEF reservoir in-between the scheduled service, You need to monitor DEF Indicator Tell Tale and symbols/text messages displayed on infotainment screen / Cluster.
MaxiCLEAN DEF is available at all the Mahindra Authorised Dealers in variable packs. Individual DEF Packs may have specific filler neck, for filling DEF in the vehicle. While refilling DEF, Ensure no spillage on the body of self and vehicle to avoid any stains or inconvenience.

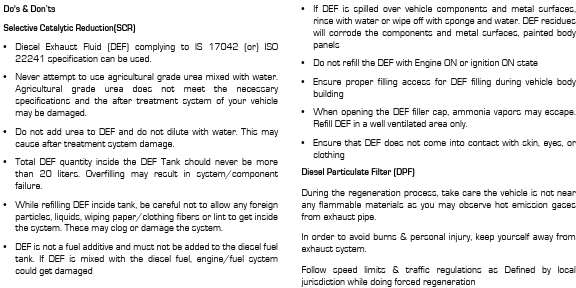

It is unlawful to tamper with or remove any component of the after treatment system. It is strongly recommended not to use DEF which is not meeting above specification. Further, this may lead to emission non-compliance and warranty will be void.

•

Use Genuine DEF MaxiCLEAN always.

•

Incase of non-availability of above Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used.

•

Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.

•

Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.

•

DEF quality and purity can be ensured only if it is stored properly. Hence ensure the storage of DEF in cool, dry place between storage.

•

Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.

•

While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.

•

If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels.

•

DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged.

•

In such a case , do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance.

5.2.2 Contamination/ Incorrect DEF

In the event that incorrect or contaminated fluid is filled inside DEF Tank, contact an Mahindra Authorised Dealer to determine the appropriate repair direction.

5.2.3 Handling of DEF

•

Ensure that DEF does not come into contact with skin, eyes, or clothing

•

Keep DEF out of the reach of children

•

In case if any part of the body is in contact with DEF, clean affected area immediately with plenty of water

•

If DEF contacted with eyes, flush with plenty of water immediately and seek medical help.

•

If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical help.

•

Don’t store DEF refill containers inside the vehicle. Ammonia vapors may escape from container which have a pungent odor and are particularly irritating for skin, mucous membranes and eyes. Inhaling ammonia vapors may cause burning eyes, nose and throat, as well as cough and watering eyes.

•

When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.

•

If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed.

5.2.4 DEF Operating Condition

DEF will freeze at -11°C (12.2°F). This is natural phenomenon. The DEF system in the vehicle is designed considering this and does not require any external heating or additives to avoid freezing.

The Diesel Exhaust Fluid (DEF) system purges to prevent damage from freezing. Do NOT disconnect battery power within 20 minutes of switching the ignition key off. Failure to comply may result in vehicle or property damage.

5.2.5 Refilling DEF

Your Vehicle DEF Filler Neck is located near the Fuel filler Neck. The DEF storage tank is located under the body.

Following below steps to refill the DEF:

1. Park the vehicle on level ground and switch OFF the ignition.

2. The fuel lid is manually locked/unlocked from outside by using conventional key.

3. Rotate the DEF filler cap in anti-clockwise direction and remove.

4. Fill DEF from the Container Pack. Each container pack has unique mouth and filling provision. Ensure utilizing the same and avoid spillage. Example. 10 Lit. Pack provided with filler tube.

5. Fill DEF as required. Maximum Storage capacity 20 litre. Minimum filling 5.0 liter.

6. Rinse with water or use sponge wetted with water to clean the components/surfaces in case of DEF spills over.

7. Put the DEF filler cap back in its place and tighten in the clock wise direction, then close the fuel lid shut.

8. Switch the ignition ON

9. Verify that there is no warning regarding DEF low level. If DEF Level Low warning is still appearing, Check enough quantity filled, If still problem persist Contact nearest Mahindra Authorised Dealer immediately.

10. DEF is being monitored through iSmart tool during regular service at dealership and quantity will be filled accordingly.

It is highly recommended to DEF filling always at Ignition off condition only

5.3 Diesel Particulate Filter (DPF)

The Diesel particulate filter (DPF) is an integral part of the vehicle exhaust gas emission reduction systems and it removes the soot from (Particulate matter) the exhaust gas. Unlike a disposable air filter, the DPF is regenerative filter. Regeneration is triggered automatically according to the driving conditions which burns of the accumulated particles/soot. In other words, the active burning by engine control system and high exhaust gas temperature caused by normal/high driving condition burns and removes the accumulated soot. The process is called as DPF Active Regeneration.

However, if the vehicle continues to be driven at either of the following conditions the accumulated soot may not be automatically removed because of low exhaust gas temperature.

Heavy traffic driving conditions, especially in city

Frequent short trips

Low speed for a long time

When more than a certain amount of soot deposited, the DPF lamp illuminates.

If the DPF lamp turns ON or Blinking while driving the vehicle, then it indicates DPF regeneration has not occurred successfully. At this moment, we suggest DPF regeneration must be done through a specific methodology. The same is as mentioned below:

Take vehicle to highway and drive for 20–30 mins @ speeds above 60 kms/hr until the lamp to turns off

(or)

Perform DPF Park Regeneration

DPF park regeneration is only possible when the REGEN telltale is ON in the instrument cluster

•

Park the vehicle safely in a well ventilated levelled open space and free of any flammable material.

•

Shift the gear lever to Neutral with the engine running and apply the parking brake.

•

REGEN screen will appear in the drive info menu of instrument cluster when the REGEN telltale is ON

•

REGEN screen will go OFF if REGEN telltale turns OFF.

•

When in the REGEN screen of the drive info menu, long Press OK button to start park regeneration.

•

Once regeneration starts, “In Progress” text will appear below REGEN. The engine idle speed will increase indicating regeneration has started..

•

Park Regeneration can take up to 30 minutes to complete. Once completed the REGEN warning lamp in the instrument cluster will turn OFF. The engine’s idling speed also returns to normal

Park Regeneration process may not start if CHECK ENGINE LAMP or OBD are ON in the cluster. Take vehicle to Mahindra authorised dealer for assistance.

When Park regeneration is happening do not press the Accelerator, Brake or Clutch pedals as this will cancel the regeneration process.

When Park regeneration is happening, switching off the ignition will cancel the regeneration process. The park regeneration process may not start if requested when the engine is switched ON again. Take the vehicle to highway and drive for 20–30 minutes @ speeds above 60kms/hr until DPF warning lamp turns OFF

(or)

Take vehicle to Mahindra authorised dealer for assistance

Diesel Fuel

It is recommended to use the regulated automotive diesel fuel confirming to IS 1460: 2017 spec only.

If the diesel fuel with high sulfur content (more than 10 PPM) and unspecified additives are used, it can cause the DPF system damage and emission warranty issues.

•

During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.

•

In order to avoid burns & personal injury, stay yourself away from exhaust system.

•

Follow speed limits & traffic regulations as defined by local jurisdiction while doing forced regeneration.

5.4 Alerts in Cluster

5.4.1 DPF Alert

DPF is clogged

DPF Alert message will appear when the DPF is clogged. Contact Mahindra Authorised Dealer immediately for assistance.

5.4.2 DEF Alert

Introduction

DEF Tell Tale will get illuminated and relevant messages will be flashed on Cluster screen due to any of the following reasons:

•

DEF level low

•

Incorrect DEF detected

•

DEF dosing malfunction

5.4.3 DEF Level Indication

When DEF level in tank fall below pre-defined values, warnings are flashed in four stages. These four warning stages are explained below:

E31	E32	E33

E34	E35

Irrespective of the warning stages, once DEF level is low, 5.0 liter of DEF needs to be filled. If the warnings continue even after refill, contact nearest Mahindra Authorised Dealer immediately.

In absence of DEF level low warning, refilling is not recommended.

Total DEF quantity inside the DEF Tank should never be more than 20 liter. Overfilling may result in system/component failure. Only Mahindra Authorised Dealer will be able to correctly determine quantity of DEF present inside tank. Hence if you are refilling the DEF yourself, fill only 5.0 liter, in case DEF Low level warning is flashed.

If the DEF warning lamp turns on due to the DEF level, refill the DEF tank. Failure to refill may cause the engine start restriction.

5.4.4 DEF Quality

If SCR system detects quality of DEF inside the tank is not meeting IS 17042 (or) ISO 22241 specification, warnings will flashed in four stages. These four warning stages are explained below:

E11	E12	E13

E14	E15

If the DEF warning lamp turns on due to the DEF quality, see contamination/incorrect fluid for corrective action. Failure to correct may cause the engine start restriction.

5.4.5 DEF Dosing Malfunction

If SCR system detects any malfunction due to failures in components or tampering, warnings are flashed in four stages. These four stages are explained below:

E21	E22	E23

E24	E25

If the DEF warning lamp turns on due to dosing malfunction, see your Mahindra Authorised Dealer to have this repaired. Failure to repair the system may cause the engine start restriction.

5.5 Regen Alerts

Regen Aborted	Regen Completed	Regen Not Started

Regen Requested	Regen Required	Regen Started

Procedure for initiating REGEN:

If REGEN telltale is ON, navigate to Above page will be available only if regeneration can be done in vehicle and REGEN TT is ON.

Hold OK to start regeneration.

Once REGEN has started, Text in page will change to REGEN In Progress.

5.6 Instrument Cluster Tell-Tale

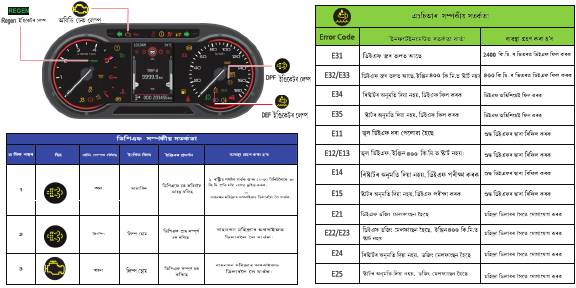

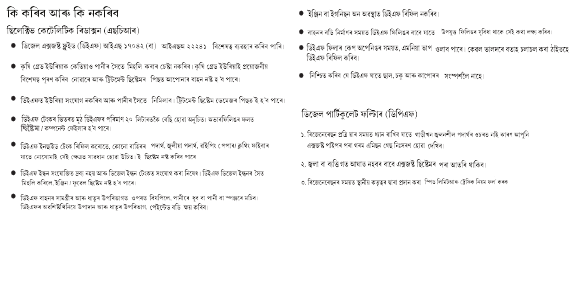

5.7 Instrument Cluster Tell-Tale -Assames

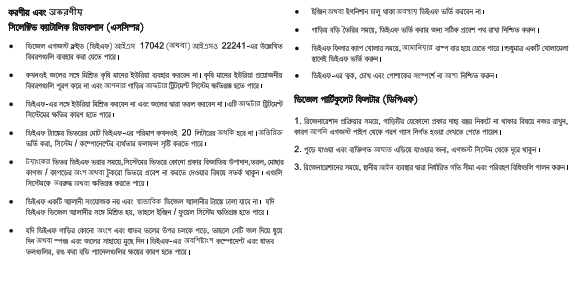

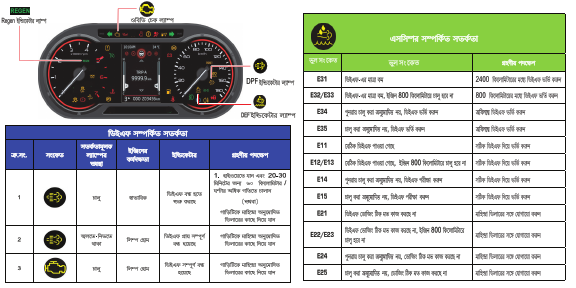

5.8 Instrument Cluster Tell-Tale -Bengali

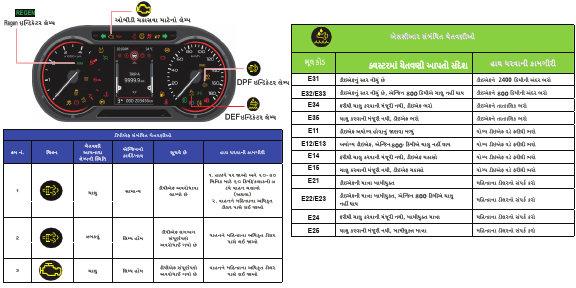

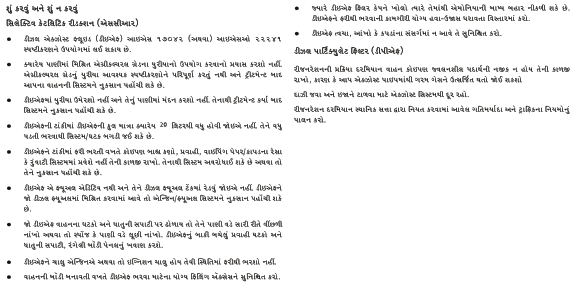

5.9 Instrument Cluster Tell-Tale-Gujarathi

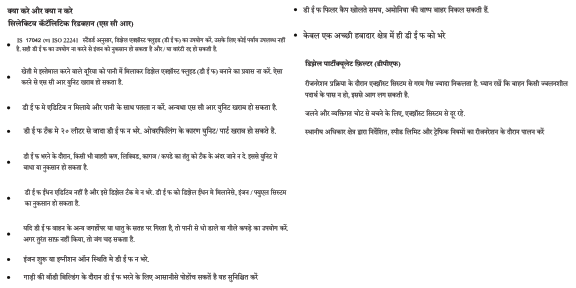

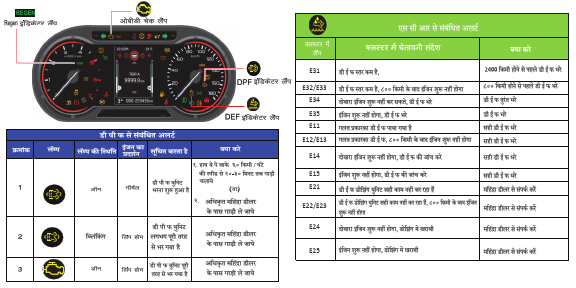

5.10 Instrument Cluster Tell-Tale-Hindi

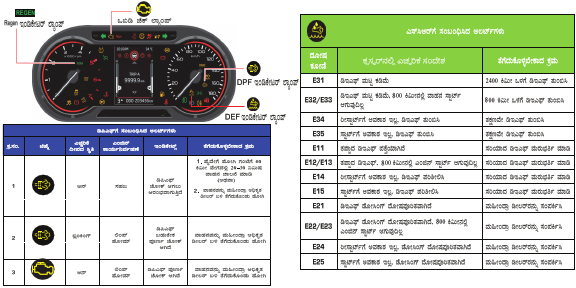

5.11 Instrument Cluster Tell-Tale-Kannada

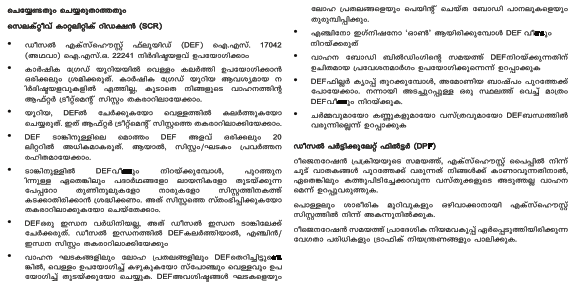

5.12 Instrument Cluster Tell-Tale-Malayalam

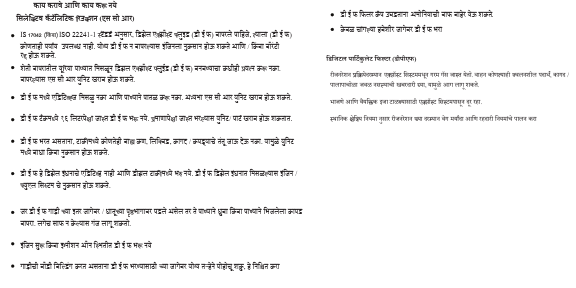

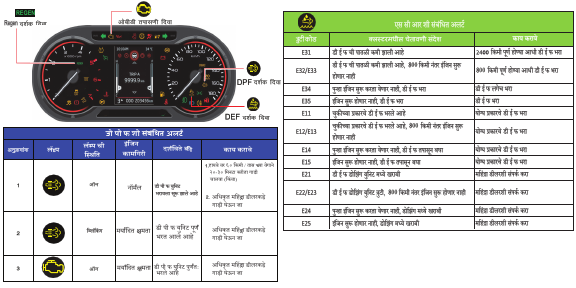

5.13 Instrument Cluster Tell-Tale-Marathi

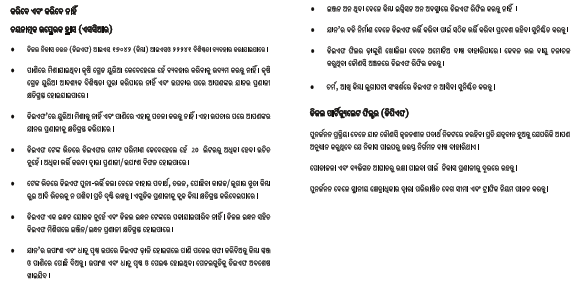

5.14 Instrument Cluster Tell-Tale-Oriya

5.15 Instrument Cluster Tell-Tale-Tamil

5.16 Instrument Cluster Tell-Tale-Telugu

6 SEATS AND SEAT BELTS

6.1 Driver seat

6.1.1 Sitting in the Correct Position

Follow the tips below for a comfortable and safe journey;

•

Sit in an upright position with the base of your spine pressed against the seat back

•

Adjust the head restraint as close as possible to the above specified position, with the top of the head restraint even with the top of your head

•

Maintain sufficient distance between yourself and the steering wheel. Maintain at least a ten inch (10") distance from the centre of the steering wheel to your chest

•

The top curve of the steering wheel should align with your chin for ideal road visibility

•

Adjust your seat and seat back angle such that your wrists rest on top of the steering wheel freely

•

Ensure your legs are in a bent position while fully depressing the clutch pedal

The seat should be adjusted while still maintaining control of the foot pedals, steering wheel and your view of the instrument panel controls.

Never adjust the driver's seat while the vehicle is in motion. The seat may unexpectedly move and cause the driver to unintentionally operate the accelerator or brake, or turn the steering wheel, causing loss of control of the vehicle, an accident or serious personal injury. Adjust the driver's seat only when the vehicle is not in motion.

Never put objects under the seats. They may interfere with the seat-lock mechanism or unexpectedly activate the seat position adjusting lever, causing the seat to suddenly move, resulting in loss of control of the vehicle, an accident or serious personal injury.

While adjusting the seat, do not put your hands under the seat or near the moving parts. This may lead to injuries.

6.1.2 Front Seat Slide

Move the seat forward or backward by lifting the adjustment lever located under the seat front and release once the desired position is reached.

While adjusting the seat, make sure the latch engages fully and the seat is locked firmly in the desired position. An unlocked seat may move in a sudden stop or collision, causing injury to the person in that seat. Push and pull on the seat to be sure it is locked.

6.1.3 Front Seat Recline

To adjust the seat back, lift the recline lever located on the outboard side of the seat, lean back and release the lever at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.

The seat belts provide maximum protection in a frontal or rear collision when the occupants are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen, or the shoulder strap may contact your neck.

When returning a extremely reclined seat back to its upright position, make sure you support the seat back while operating the lever.

6.1.4 Driver Seat Height Adjust (if equipped)

Lift/Push the seat height adjustment lever located on the outboard side of the driver seat to raise/lower the seat. Adjust the seat height such that you are able to depress the clutch pedal completely.

It is recommended to adjust the seat height only when the vehicle is stationary.

6.2 Head Restraint

Your vehicle seats are equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a collision.

Always align top of the head restraint with the top of your head or as close to it as possible. To raise/lower the head restraint, press the lock tab and pull/push the restraint up/down.

The head restraint can be pulled out completely by depressing the locking button while pulling the restraint out. To put it back, align the head restraint shafts over the holes on the seat top and push the restraint straight down till you hear the lock click.

Keep the seat back as upright as possible so the headrest is behind, not beneath, and almost touching your head.

Never drive with the head restraints not properly adjusted, head restraints removed or inserted in a flipped condition. With no support behind your head, your neck could be seriously injured in a collision.

6.3 Co-Driver Lift & Slide seat (If equipped)

Step 1 : Pull the shoulder knob to unlatch the seat

Step 2 : Push the seat to slide forward

6.3.1 Rear Seat Foldable (If equipped)

Pull the strap and fold the rear seat backrest.

6.3.2 Rear Seat Recline - 2nd Row (If equipped)

To adjust the seat back, lift the recline strap located on the outboard side of the seat, lean back and release the strap at the desired position. To return the seat back, lift the strap lean forward, and release the strap.

6.4 Seat Belts

6.4.1 General Warnings and Instructions

At least once each month, inspect the seat belt webbing for any cuts, tears, or other signs of wear (such as fraying along the edges). Also inspect the anchors, retractors, and buckles to be sure they are tight and operational.

•

All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimize the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger.

•

In a rollover crash, an un-belted person is significantly more likely prone to Injury than a person wearing a seat belt

•

In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an arm rest, a pocketbook, or any external objects should be between you and the seat belt. Improper wearing of a seat belt will reduce the protection in an accident.

•

Seat belts should be adjusted as tightly as possible, consistent with comfort to properly secure the wearer in the seat.

•

The seat belts provided for your vehicle are designed for people of adult size, must be properly used and maintained.

•

For usage of adult seat belt to secure children refer to section on manual for child seat positions and use a child restraint systems

•

Passengers should not move out of or change seats while the vehicle is in moving condition. Passenger who does not wear the seat belts will be under a high risk of thrown against the vehicle inside hard parts, against other occupants or out of the vehicle during emergency stop or collision.

•

Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash

•

An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Mahindra Authorised Dealer inspect the seat belt system after an accident

•

Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle

Never use a damaged seat belt system. A damaged seat belt will not provide protection in an accident, resulting in serious injury.

•

Seat belt systems can be prone to abuse. They are not indestructible. They must be handled with care to avoid damage

•

Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbing are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts

•

Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer

Seat Belts - Patients : Persons with serious medical conditions should also wear a seat belt. Consult your doctor for specific recommendations before travel.

Seat Belts - Pregnant Women : Pregnant women must also wear seat belts. Consult your doctor for specific recommendations.

The lap belt should be worn snugly and as low as possible over the hips. The shoulder belt should be worn across your shoulder, but never across the stomach area. When worn properly, the seat belt will protect both the mother and the foetus in an accident or emergency stop.

A pregnant woman should never wear the seat belt across the stomach area. This could lead to serious injuries to the foetus and/or the pregnant mother.

Never wear twisted seat belts. Excessive forces will be transferred from the belt to the wearer, in a collision, resulting in serious personal injury.

Each seat belt is meant for use by one person only. Using one seat belt for more than one person at a time is dangerous. The seat belt will not be able to spread the impact forces properly leading to serious injuries.

Never put a belt around a child being carried on the occupant's lap. This could lead to serious injuries.

Seat Belt Usage is Necessary to:

•

Reduce the possibility of being thrown from your vehicle

•

Reduce the possibility of injuries to upper body, lower body and legs during an accident

•

Hold the driver in a position which allows better control of the vehicle

Children who are too large for child restraint systems should always occupy the rear seat and use the vehicle seat belts. The lap portion should be fastened snug on the hips and as low as possible and the shoulder strap should be across the child's shoulder, not the neck or face. If you are unable to position the strap across the child's shoulder, the child should remain in a booster seat. Frequently check the seat belt to be sure it remains snug and in position. A squirming child could cause the seat belt to come out of position.

6.5 Fastening the Seat Belt

6.5.1 Three Point type (if equipped)

Adjust the seat as needed and sit up straight and well back in the seat. To fasten your seat belt, pull the webbing out of the retractor and insert the metal tongue into the buckle. There will be an audible “click” when the tab locks into the buckle. Pull up on the shoulder strap to tighten the lap belt across your hips. The seat belt retractor will pull in any slack in the shoulder strap. A slow and easy motion will allow the belt to extend and let you move your body around freely.

Periodically check the seat belt as you ride to be sure it remains snug and in position. If there is a sudden stop or impact, the belt will lock into position. It will also lock (restrict) if you try to lean forward too quickly.

If the driver’s seat belt is not fastened when the ignition is switched ON, the seat belt warning lamp illuminates. Refer to ‘Warning Lamps’ in the ‘Features and Control’ chapter for further details.

6.5.2 Unfastening the Seat Belt (both 3-Point )

To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.

Never insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tongue and may cause damage to the buckle mechanism, thereby making the seat belt ineffective in an accident, resulting in serious personal injury.

6.5.3 Driver Seat Belt Reminder Indication

The driver seat belt reminder warning symbol lamp will blink in instrument cluster if driver doesn’t wear the seat belt and will be continuous until belt is buckled. Chime will be activated when vehicle travels more than 500 mts or attains 25 kmph of speed while vehicle is in moving condition which will be ON for 95 Sec

6.5.4 Passenger Occupant Detection System (PODS) & Seat Belt Reminder Indication

PODS system is to detect the presence of occupant in the seat.

If Occupant is present on passenger seat and not wearing the seat belt, Seat belt reminder warning symbol lamp will glow on the center fascia switch provided in vehicle IP and will be continuous until the seat belt is buckled. Along with this warning symbol, a Chime in Cluster will be ON for 95 secs. After market seat covers also may deteriorate the detection senor performance, don’t use the non recommended/non authorized seat covers.

If child presents on passenger seat also seat belt reminder warning symbol lamp will glow and it is strongly not recommended to carry children in front seat without child restraint seat and using the adult seat belt which is provided to use for persons taller than 140cm. Always ensure Passenger Airbag is turn OFF before you carry child on passenger seat.

6.6 Child Restraint System (CRS) Fitment using the seat belt system

6.6.1 Child Restraint

When carrying infants or small children, an appropriate child restraint system should always be used. The child restraint system should be appropriate for your child’s weight and height and properly fit on the car’s seat. Accident statistics indicate that children are safer when properly restrained in the rear seat (if equipped) rather than in the front seat. If passenger seat to be use for child carrying then it is mandatory to OFF the Passenger Airbag by following the instructions and using options provided (refer the user manual)

6.6.2 Securing Methods of Child Restraint System

Child restraint systems are designed to be secured in vehicle seats by seat belts or the latch system (ISOFIX & Top tether seat - if equipped).

•

Infants and tiny children should always be restrained in an infant or child restraint system (CRS).

•

Never install a rear-facing child restraint in the front seat with front passenger airbag ON condition. A child in a rear-facing child restraint installed in the front seat can be seriously injured if the front passenger airbag deploys. Secure a rear-facing child restraint in the rear seat (if equipped).

•

A front-facing child restraint should be secured in the rear seat whenever possible. If installed in the front passenger seat, adjust the seat as far back as it will go. When installing a child restraint system, follow the instructions provided by the manufacturer..

•

When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle.

•

In a collision an unrestrained child, even a tiny baby, can become a missile inside the vehicle. The force required to hold even an infant on your lap can become so great that you could not hold the child, no matter how strong you are..

•

Do not allow a child in the cargo areas while the vehicle is moving condition.

•

If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle. Never allow a child to put the shoulder belt under an arm or behind their back

•

Please note that the three-point seat belt is designed for a person who is taller than 140 cm

6.6.3 Infant and Child Safety

Child Seat

Children that are too small to use the seat belts must be properly secured in a child restraint system (CRS).

•

Never place a rear-facing child restraint in the front passenger seat with front passenger airbag, because of the danger that an inflating passenger airbag could impact the rear-facing child restraint and kill the child. Passenger Airbag turn OFF is mandatory to use passenger seat to carry child.

•

Use only the recommended and suitable child restraint systems. Follow the manufacturer’s instructions for installation and use of the child restraint system in vehicle.

•

Do not carry your child on your lap while driving. You cannot resist against the impact pressure in an accident. The child could be crushed between you and the parts of vehicle

•

Remember that a child restraint seat left in a concealed vehicle can cause it to be very hot. Check the seating surface before putting your child in the child restraint

•

When your child restraint is not in use, remove it from the vehicle or keep it secured with a seat belt to prevent it from being thrown forward in case of a sudden stop or an accident

•

When installing a child restraint system, do not let the seat belts come across the child’s neck, follow the installation instructions

Table of Information on Child Restraint Systems Installation Suitability for Various Seating Positions

Mass Group	Restraint device figure	Front Passenger	Rear out board	Mounting method of vehicle
O ~ up to 10 kg (0 ~ 9 months)	Rear-facing child seat	U	U	3-point seat belt
O+ ~ up to 13 kg (0 ~ 2 years)	Rear-facing child seat	U	U	3-point seat belt
I ~ 9 to 18 kg (9 months ~ 4 years)	Forward-facing child seat	U	U	3-point seat belt
II ~ 15 to 25 kg (4 years ~ 6 years)	Booster seat	U	U	3-point seat belt
III ~ 22 to 36 kg (6 years ~ 12 years)	Booster seat	U	U	3-point seat belt

U: Suitable for “universal” category restraints approved for use in the mass group

UF: Suitable for forward-facing “universal” category restraints approved for use in the mass group.

L: Suitable for particular child restraints given on attached list. These restraints may be of the “semi-universal” categories

X: Seat position not suitable for children in the mass group.

It is strongly recommended to carry the children with Child Restraint System (CRS) at rear seats for good safety. Child sitting on the Passenger seat with Passenger airbag ON condition may cause serious injury or even death during collision due to airbag deployment forces. It is Must to Turn OFF the Passenger airbag before allowing to child to sit on the Passenger seat.

•

User must read and follow the instructions provided in manual for the Child Restraint System installations in vehicle using the Adult Seat belt system (or) using the ISOFIX & Top-tether feature

•

Failure to follow all the warnings and instructions could be a Serious risk to Child safety or even may lead to death, if an accident occurs.

•

Do not leave /allow children to stand in front of vehicle holding grab handle when the passenger airbag in ON condition.

•

If a child is seated in front seat it may cause serious injury or even death during accident when PAB deploys due to force

•

Never install a rearward facing child restraint system on front passenger seat when passenger airbag is ON condition while on ride.

•

Properly read and follow the instructions provided by the manufacture for installation of child restraint system.

•

Never hold a child in your lap or arms when the vehicle is moving condition, sudden braking or while collision child may thrown on away/trapped in vehicle, which could cause serious risk

•

Don’t modify the passenger seat or forcefully fit the child restraint system which is having ISOFIX fixing provision can damage the seat.

6.7 Child Restraint System (CRS) Installation Using ISOFIX & Top Tether

How to use the ISOFIX Lower Latch Anchor/ISOFIX Rods

ISOFIX Marking

Latch Anchor/ISOFIX rod

•

The ISOFIX lower latch anchors (rods) are located in rear seats bottom position. Their locations (1) are shown in the illustration

•

Insert the child restraint attachments into the ISOFIX lower latch anchors (rods) until it clicks. Refer Child seat installation manual.

•

Do not use the seat belt for installing the ISOFIX child restraint

ISOFIX system is a standardized method of fitting child seats that eliminates the need to use the standard adult seatbelt to secure the seat in the vehicle. This enables a much more secure and positive location with the added benefit of easier and quicker installation.

•

When using the “ISOFIX” lower latch system (rod), all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of un-retracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the un-retracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint.

•

Child restraint anchorages are designed to withstand only those loads imposed by correctly-fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle

How to use the Top Tether/Rear Anchor

There are two top tether rods/rear anchors on the seat base back side of the rear row front facing seats.

Remove the headrest from the rear row seat

Place the child restraint on the rear row seat

Connect the tether connector in child restraint to the top tether rod/ rear anchor. Securely tighten the child restraint by adjusting the webbing of the child restraint system (CRS) tether connector. Follow the clear instructions provide in the CRS manual

•

The top-tether/ rear anchor is the supplemental device to secure the child restraint system after engaging it by the ISOFIX rod/lower latches. Therefore, do not secure the child restraint system only with the seat back anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death.

•

If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation

•

Make sure the latches of the child restraint system are Firmly latched to the ISOFIX rod/lower latches. In this case, you can hear the “click” sound/ latch indications provided on seat.

•

Incorrectly installed child restraint system may cause an unexpected personal injury.

•

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints

•

The tether strap may not work properly if attached somewhere other than the correct top tether rod/rear anchor provided on seat back.

•

Don’t put the top tether strap over the head restraint of rear row seat which is not the correct methods and may cause risk.

•

Rock the child restraint to check if it is securely installed. Refer to instructions provided by the manufacturer of the child restraint.

•

Do not install the child restraint of such size if it hinders the operations of front seat which may cause problem to front occupants.

Table of Information on ISOFIX Child Restraint Systems Installation Suitability for Various ISOFIX Positions

Table of Vehicle Handbook Information on ISOFIX Child Restraint Systems Installation Suitability for Various ISOFIX Positions

Mass group	Size Class	Fixture	Vehicle ISOFIX Positions
Mass group	Size Class	Fixture	Front Passenger	Rear out board
Carrycot (Newborn Baby)	F	ISO/L1	N/A	X
Carrycot (Newborn Baby)	G	ISO/L2	N/A	X
Group 0: up to 10kg (~9 months)	E	ISO/R1	N/A	IL/IU
Group 0+: up to 13kg (~0 – 2 years)	E	ISO/R1	N/A
