Thank you for choosing Mahindra vehicle.
We are privileged to welcome you to the Mahindra family.
Your vehicle represents Robust Quality, Ruggedness, Safety, Precision
Workmanship and Distinctive Styling , which are our
traditional values.
This documents contains important information on vehicle operation,
that will help you make full use of the technical features
available. To exercise better control on road, we suggest you to please take time to read, understand
and familiarise with
vehicle and its features. Following the instructions and recommendations in this manual will help
assure safe and enjoyable
operation of your vehicle.
When it comes to service, note that your Mahindra Authorised Dealer
knows your vehicle best, has company trained Technical
Experts, Mahindra Genuine Parts and very much cares about your satisfaction.
We extend our best wishes for safe and pleasurable motoring
MAHINDRA & MAHINDRA LTD.
| Important Information – Quick Reference | |
|
We
strongly urge that you read the information provided in pages referred
hereunder which will help in road safety and prevent
inconvenience
|
|
1
|
Warranty
Coverage.............................................................................................
|
Refer WSIG* (P.g. 15)
|
|
2
|
Roadside Assistance
....................................................................................
|
Refer WSIG* (P.g. 11)
|
|
3
|
Schedule Service
(Free/Paid).................................................................
|
Refer WSIG* (P.g. 24)
|
|
4
|
Maintenance Schedule
Chart.................................................................................
|
Refer WSIG* (P.g. 26)
|
|
5
|
Lubricants And
Capacities.............................................................................
|
Refer WSIG* (P.g. 28)
|
|
6
|
Location Of Vehicle Identification Number
(VIN).................................................
|
Refer (P.g. 1-8)
|
|
7
|
Location Of Fuse Box And Fuse
Details............................................................
|
Refer (P.g. 10-10)
|
|
8
|
Changing A Flat
Tyre................................................................
|
Refer (P.g. 10-16)
|
|
9
|
Understanding The Warning
Lamps..........................................................
|
Refer (P.g. 3-31)
|
|
10
|
Use Of Seat Belts And Child
Restraint......................................
|
Refer (P.g. 2-9 & 2-17)
|
|
11
|
Understanding The Airbag
Function.........................................................
|
Refer (P.g. 2-21)
|
|
12
|
If Your Vehicle Is
Submerged.....................................................
|
Refer (P.g. 8-9)
|
|
13
|
Driving Through
Water..................................................................................
|
Refer (P.g. 8-9)
|
|
14
|
Opening And Closing the
Bonnet.........................................
|
Refer (P.g. 5-31)
|
|
15
|
Location Of Battery And Its
Maintenance.....................................
|
Refer (P.g. 11-16)
|
|
*Warranty and
Service Information Guide
|
1 GENERAL AND SAFETY PRECAUTION
1.1 Servicing and Summary Data
We suggest that you record the vehicle servicing data in the
Warranty and
Service Information Guide for future references
We recommend you always use Mahindra Genuine Parts when performing
repairs on the vehicle.
For all issues concerning the vehicle and for any need of Genuine
spare
parts, contact the Mahindra Authorised Dealer
1.2 Safety Symbols
Carefully read, understand and follow the safety symbols/
instructions
given in this manual.
Legend of the Symbols
To emphasis the information and procedures regarding safety, use,
maintenance, etc., the following symbols are used throughout
the manual:
DANGER indicates an
imminently
hazardous situation which, if not avoided, will
result
in death or serious injury.
WARNING indicates a
potentially
hazardous situation which, if not avoided, could
result
in death or serious injury.
CAUTION indicates a
potentially
hazardous situation which, if not avoided, may
result
in minor or moderate injury and/or property damage.
NOTICE indicates important
information relevant to the vehicle, the vehicle's use or to sections of this manual to which
particular
attention must be paid for optimum use of the vehicle.
|
If you see this symbol, it indicates “no,” “ do
not,” “do
not do this,” or “never”.
|
|
1.3 General Safety Information and
Instructions
| 1. | Carefully read, understand and follow the warnings and instructions given in this manual. This manual is an essential part of the product. Keep it in the vehicles glove box for future reference |
| 2. | First-aid kit is placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point of time. |
| 3. | Never use mobile phone while driving. This may take your focus off the road and lead to accidents |
| 4. | Please be advised that many service and repair tasks require specialized knowledge, tools and experience. General mechanical skill set may not be sufficient to properly service or repair your vehicle. If you have any doubt whatsoever regarding the ability to properly service or repair your vehicle, please contact Authorized Mahindra Dealer |
| 5. | Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately. |
| 6. | Examine tyres for excessive tread wear and uneven wear patterns. Check for stones, nails, glass, or other objects lodged in the tread and check sidewalls for any cuts, cracks, or other signs of wear. Replace as necessary |
| 7. | Always maintain the safety labels affixed to your vehicle in a good legible condition |
| 8. | All signal lamps, buzzers, shields, guards and other protective safety devices must always remain in place and in good, proper working condition |
| 9. | The lifespan of Mahindra products depends on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by a Mahindra Authorised Dealer or a qualified Technician . If the inspection reveals any damage or excessive wear, immediately replace, or have the component serviced. |
| 10. | We recommend that you use only genuine parts supplied by Mahindra. The use of non-Mahindra parts will not be covered by warranty |
| 11. | Never crawl under or be in close proximity to the vehicle when it is lifted off the ground (by a jack), unless the vehicle is properly supported with jack stands, wheel chocks and other appropriate safety devices |
| 12. | Never attempt any repairs or adjustments to any component while the vehicle is in motion. Always stop the vehicle and wait for come to complete stop before performing any repairs or adjustments |
| 13. | The vehicle identification plates are the only legal identification reference, hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. The customer is responsible for any possible tampering with the plates, which will immediately void the warranty |
| 14. | Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the center of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier. |
1.4 To Users of a Mahindra Vehicle
When first driving the vehicle after long periods of non-usage, you
may
experience a temporary drive disturbance. This is
a characteristic of the tyres and should be no reason for concern. The condition should correct
itself
within 5-15 kilometers.
of driving. If the disturbance persists, have the vehicle checked by an Mahindra Authorised Dealer.
Driving and Alcohol:
Your
driving ability can be seriously impaired by alcohol even if the blood alcohol level is far below
the
legal minimum.
Drunken driving is one of the most frequent causes of accidents.
Never drink and drive. Drinking and driving may lead to an
accident
Driving and
Drugs/Medication
Your driving ability can be seriously impaired through the use of
prescription or non-prescription drugs or medication (even
cough syrup). If you are taking any sort of drug or medication, be sure that it will not affect
your
driving ability.
Mobile Phones Warning
Use of electronic devices such as mobile phones, handheld devices,
computers, portable radios or other by the driver while
driving is dangerous. In exceptional condition, if use of a mobile phone is necessary despite this
warning, use a hands-free
system to ensure that the hands are free to drive the vehicle. Even hands-free do not ensure
distraction
free drive. Please
comply with the legal regulations in your country, concerning the use of communication equipment in
vehicles .
Driving Long Distances
When driving long distances, follow these tips to have a safe
journey:
| • | Take breaks at regular intervals |
| • | Lack of sleep or fatigue will impact your ability to drive safely |
| • | Exercise your eyes by shifting the focus of your eyes to different parts of the road |
| • | Use stimulating beverages such as coffee or tea |
| • | Relax and stay calm |
Servicing
If you have any questions concerning the proper use or maintenance
of
your vehicle, please call your Authorised Mahindra Dealer.
A list of dealers can be found in the Dealer Directory Supplement or on the Internet.
Alternatively, you can contact us on 1800-209-6006 /
customercare@mahindra.com
Running-in
Driving smoothly during first 1,000 kilometers. will help to
prevent
abnormal and premature system wear. Proper running-in
will improve the life of drivetrain and vehicle components.
A new engine may consume more oil during the first 1,000
kilometers. of
running. This should be considered as a normal part
of break-in and not interpreted as any problem with the engine.
Mahindra Genuine Parts
Mahindra uses high quality parts for building the vehicles. In the
event
that any parts need replacement, we recommend that
you use only Mahindra genuine parts.
Non-Mahindra parts may harm vehicle performance and will not be
covered
by your Mahindra warranty.
The warranty does not cover problems caused by using non genuine
parts
Any unauthorized
modifications or
alterations to this vehicle or failure to use appropriate specification and quality spare
parts could seriously affect vehicle road worthiness and safety leading to an accident,
resulting
in serious injury
Mahindra Genuine
Accessories
A wide selection of quality accessories are available through your
Mahindra Authorised Dealer. These accessories have been
specifically engineered to allow you to personalize your vehicle to suit your requirements and
complement
its style and aerodynamic
appearance.
Each accessory is made from high quality materials and meets
Mahindra's
rigid engineering and safety specifications. Every
Mahindra accessory installed according to the Mahindra installation provisions comes with the
respective
accessory warranty.
Consult your Mahindra Authorised Dealer for detailed information
about
accessories available for your specific model variant.
For maximum vehicle
performance
and safety considerations, always keep the following information in mind:
| • | The company shall not be liable / responsible for any damages / injuries, including consequential damages / injuries, resulting due to fitment of unauthorised aftermarket accessories and / or tapping / cutting wires in the wiring harness When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Mahindra Authorised Dealer for specific weight information |
| • | Bull bars and nudge guards are not recommended |
| • | Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems |
| • | Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Mahindra Authorised Dealer and can potentially affect the vehicle performance. |
Vehicle Safety
When leaving your vehicle unoccupied:
| • | Always turn OFF the ignition when you park the vehicle |
| • | Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors |
| • | Close all the windows completely and lock all the doors |
| • | Please lock and take the key fob with you |
When Sleeping in Your
Vehicle
| 1. | Do not sleep in a parked car with closed windows. In particular, if you stay or sleep in the vehicle and the air conditioner or heater turned on, you can suffocate to death |
| 2. | While sleeping, you may accidentally touch the gear shift lever or accelerator and thereby cause an accident |
Hazardous Materials: Do
not
store any flammable items or disposable lighters in the console box or other spaces. In hot
weather, they
can explode
and cause a fire.
Fire Extinguisher: For
safety,
we strongly recommend that you have fire extinguisher in your vehicle. Keep it ready for use at any
time.
Be familiar
with how to use it
When Passing the Intersection
or
Railway Crossing
When passing the intersection or railway crossing, stop the vehicle
to
check the safety and drive through carefully. If the
vehicle is turned off in the middle of the intersection or railway crossing, get someone to help
you and
move the vehicle
to a safe place quickly.
Do not Switch off the Engine
While
Driving
Do not switch off the engine while driving. Otherwise, it makes the
steering wheel heavier, influence the brake performance
and consequently dangerous
System Safety Mode : The
protective measures including illumination of engine warning lamp and reduced engine power are
taken
(engine turned off
in extreme case) when there is a critical fault in the system or a malfunction in the major
electrical or
fuel system. This
indicates the system entering the safety mode to protect the vehicle’s drive system.
| • | If the safety mode is activated, pull over and stop the vehicle to a safe location immediately and contact your Mahindra dealer. Then drive slowly or have the vehicle towed to a Mahindra Authorised Dealer according to the dealer’s instruction and have your vehicle checked by a Technician |
| • | If you continue to drive in this state, normal driving is not maintained due to the fixed engine rpm and engine can stop. But even more importantly, continued driving with this state may damage the drive system |
Do Not Modify This
Vehicle: If
unauthorised modifications are made on the vehicle, the company is not liable for repairing the
modified
parts even during
the term of warranty. Other part problems caused by modification are also not covered.
| • | The vehicle you bought is equipped with a large number of precision parts that have passed through countless experiments and tests. |
| • | These parts are deeply and systematically interwoven. Therefore, if any part is modified or altered without authorization, may under perform or cause critical damage to the vehicle and human life |
Protecting Our
Environment: As
a responsible citizens, all of us have an important role to play in protecting our environment.
Judicious
vehicle usage
and ensuring hazardous waste disposal (including cleaning and lubrication fluids) are important
steps
towards this initiative.
Body Repairs: If your
vehicle
is in a collision, contact Mahindra Authorised Dealer to ensure that it is repaired with Mahindra
Genuine
Parts. Mahindra has collision repair centers that meet strict requirements for training, equipment,
quality, and customer
satisfaction. Some repair shops and insurance companies might suggest using non-original equipment
to
save money. However,
these parts do not meet Mahindra’s high standards for quality, fit and corrosion resistance. In
addition,
non-genuine parts
or equipment might lead to damages or failures of the vehicle’s systems.
End of Life Disposal
Composition: Vehicle is made from steel, Aluminum, Lead, Copper,
Wood,
other plastics & miscellaneous parts. These materials are reusable
by recycling them through a proper procedure. Some are hazardous to environment and living beings
to be
disposed as per local
pollution board regulations.
Disposal: As batteries are made of lead, lithium & other
chemical
composites with solvents as electrolyte which are harmful, make impact
on environment are to be disposed as per local pollution board regulations. Certain components of
this
vehicle such as seat
belt pre-tensioner, airbag and battery may contain hazardous material. Special handling may be
required
for service or vehicle
end-of-life disposal.
Similarly ABS & other plastic panels, materials used are to be
disposed to accredited agencies for recycling.
Most of other materials are reusable, hence components are to be
segregated as per their composition as hazardous and non-hazardous,
disposed to accredited recycling agencies. Hence it is advised to contact Mahindra Authorised
Dealer for
further information
1.5 Audio/Infotainment Manual
Please refer the user e-manual in infotainment for details
regarding:
| • | Audio/Video functions (if equipped) |
| • | Bluetooth functions |
| • | Hands-free usage |
| • | Android Auto (if equipped) |
| • | Car Play (if equipped) |
1.6 Vehicle Identification Number
(VIN)
Vehicle Identification Number (VIN) is the legal identity of your
vehicle. The vehicle identification number is stamped on
the VIN plate riveted on the floor under the driver seat of the vehicle. Flip the cutout provided
in the
carpet to view the
VIN plate.
|
|
1.7 Engine Number
|
Petrol
|
Diesel
|
|
|
Engine Number is punched on the engine crank case adjacent to
transaxle
on the front side. The engine number is also stamped
on the VIN plate.
1.8 Front Overview
|
A
|
Side repeater*
|
|
B
|
Outside Rearview Mirror (ORVM)
|
|
C
|
Front Windshield
|
|
D
|
Front Wiper
|
|
E
|
Hood
|
|
F
|
Headlamp (Low beam)
|
|
G
|
Turn Signal Lamp
|
|
H
|
Fog Lamp*
|
|
I
|
Head Lamp High Beam
|
|
* if
equipped
|
|
1.9 Rear Overview
|
A
|
Rear Turn Indicator
|
|
B
|
Rear Windshield / Demister*
|
|
C
|
Roof Antenna*
|
|
D
|
High Mounted Stop Lamp
|
|
E
|
Rear Wiper*
|
|
F
|
Rear Parking Lamps
|
|
G
|
Reverse Lamp
|
|
H
|
Brake/Park Lamp
|
|
I
|
Reverse Parking Assistance Sensors (RPAS)
|
|
J
|
Rear Camera*
|
|
* if
equipped
|
|
1.10 Instrument Panel Overview
|
A
|
Centre Storage
|
M
|
Accelerator/Brake/Clutch Pedal*
|
|
B
|
Side Vents
|
N
|
Front Storage
|
|
C
|
Side Defrost Vents
|
O
|
Parking Brake
|
|
D
|
Front Co-passenger Airbag
|
P
|
Console Storage
|
|
E
|
Infotainment Screen*
|
Q
|
Cup Holder
|
|
F
|
Centre Vents
|
R
|
Power Outlet
|
|
G
|
Wiper Control Stalk
|
S
|
TGS Lever*/Gear Lever*
|
|
H
|
Steering Wheel
|
T
|
AUX/USB Ports*
|
|
I
|
Steering Controls*
|
U
|
HVAC Control
|
|
J
|
Instrument Cluster
|
V
|
Glove Box
|
|
K
|
Horn Pad/Driver Airbag
|
W
|
Hazard Switch
|
|
L
|
Head Lamp Levelling Switch
|
* if
applicable
|
|
1.11 Connected Car (If equipped)
Kindly refer the BLUE SENSE
PLUS mobile app for connected car related features.
1.11.1 Login &
Registration
Helps you to create account and also existing user to login into
the
account for accessing the account.
Follow the below steps for Login and Registration:
| • | You can select sign up option from login page which redirects to sign up page |
| • | Then enter registered Mobile number given in KYC form for connected services and click on Generate OTP |
| • | OTP with a validity will be send to the same mobile number |
| • | If OTP is not received, you can request the OTP again by clicking on "Resend OTP" |
| • | After entering valid OTP, click on “Verify My account” |
| • | On successful verification you will be notified with a message " Account Verified" |
| • | You will be directed to "Terms and Condition" with "I Agree" option on successful authentication |
1.11.2 Forgot & Change
Password And
Forgot & Change Pin
This Feature allows the existing user to change Password and
change
PIN.
In case user forgets the Password and PIN below flow helps to create PIN and password.
In case user forgets the Password and PIN below flow helps to create PIN and password.
1.11.3 Change your password
To Change your
password on
app if you are already logged in:
| • | Tap on the top Left corner from home screen |
| • | Click on My Account and select Change Password |
| • | Page will open with Old password, New password and Confirm Password fields |
| • | Fill all the required field and tap save button+ |
1.11.4 Forgot your password
In case you forget your password:
| • | Tap on the Forgot Password? link from login page |
| • | In forgot password page, enter the registered mobile number for connected services and click on Generate OTP |
| • | Enter the OTP and click on Next button |
| • | Enter New Password and Confirm Password and tap on Save button |
1.11.5 Change your PIN
Incase you want the change the PIN
| • | Tap on the top left corner from home screen |
| • | Click on My Account and select change PIN |
| • | Page will open with Enter Password, New PIN and Confirm PIN field |
| • | Fill all the required field and tap Save button |
1.11.6 Forgot your PIN
In case you forget your PIN :
| • | Tap on the Forgot PIN? Link from login page |
| • | In forgot PIN page with open Enter Password, New PIN and Confirm PIN field |
| • | Enter Password, New PIN and Confirm PIN and tap on Save button |
1.11.7 Features
|
FEATURE
|
DESCRIPTION
|
|---|---|
|
Check AC Status
|
Feature helps you to remotely check the
AC
status via mobile application
|
|
Check Door Alert Status
|
Allows the customer to remotely check
the
status of the vehicle
|
|
Check Distance To Empty
|
Reads Fuel information through mobile
app.
Helps to check the fuel information and
range
i.e. the distance can be covered with the available fuel in mobile
application
|
|
Create Enquiry
|
Any Query / Enquiry about the product,
Get
info on Mahindra. Send an Inquiry on any car model. Dealers will get
back to
the
customer on details
|
|
Check ODO
|
Allows the customer to remotely check
the
odometer of the vehicle
|
|
Check Tyre Pressure
|
Read Tyre Pressure through mobile
Devices
|
|
Device Unplug
|
When device is unplugged from vehicle an
alert
notification will be sent to your mobile application
|
|
Document Wallet
|
Storage and retrieval of documents such
as
Driving license, Insurance, PUC etc
|
|
Door Open Alert
|
Notify when any of the vehicle door
opens in
movement and also when you trigger for door lock and the door remains
open
unintentionally
|
|
Emergency Assist
|
In event of crash, call will be
triggered
automatically from mobile phone to emergency services i.e. 108 and SMS
will be
sent
along with location details to the emergency number configured,

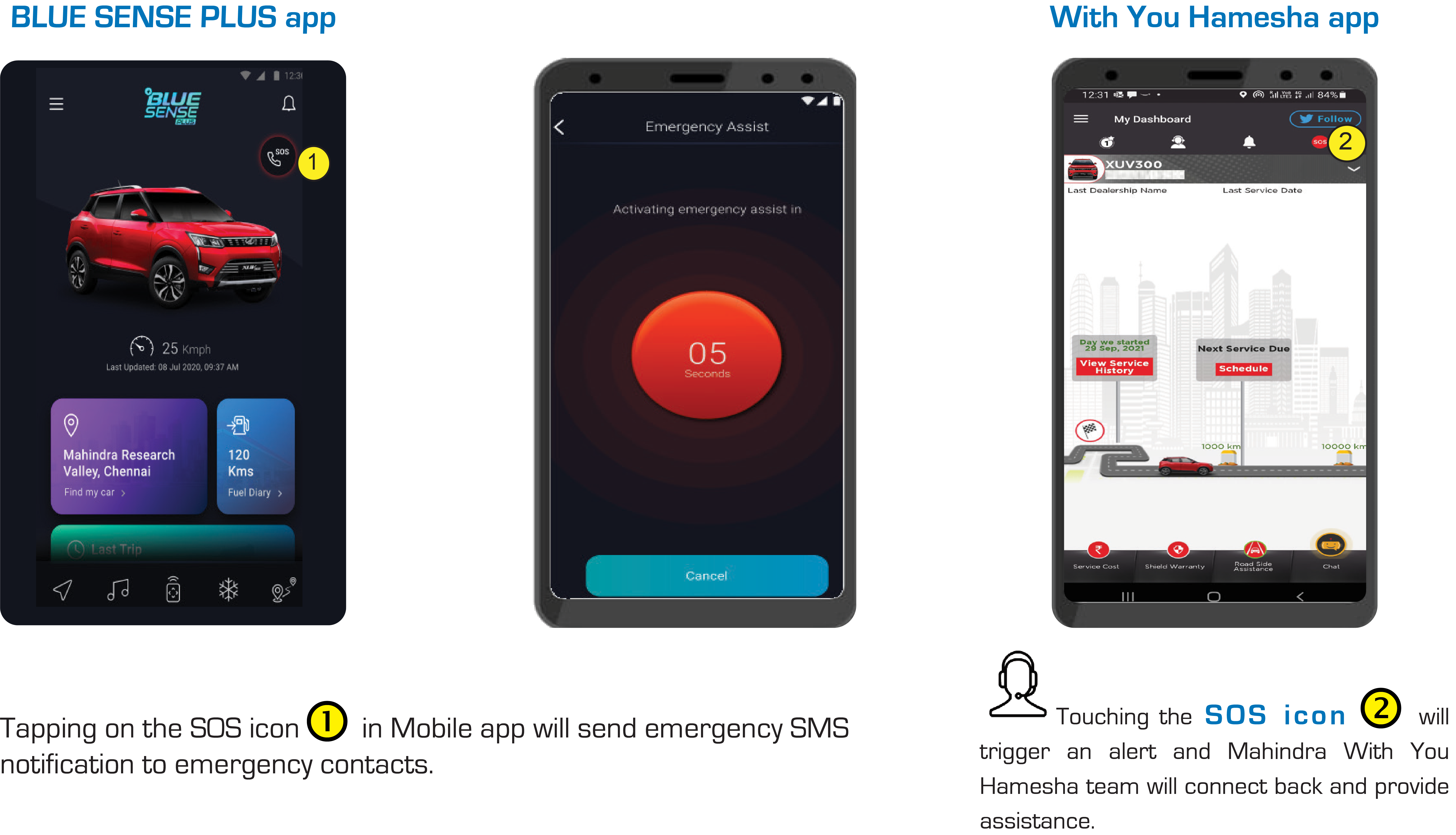

Tapping on the SOS button in Mobile app
will
send SMS notification to emergency contacts.
|
|
Engine Idle Alert
|
Alerts when unwanted engine idling is
detected
for a set period of time. Time can be configured in mobile application.
|
|
Find My Car
|
Helps to identify the location and
directs you
to your car park location.
|
|
Fuel Diary
|
Maintain systematic logs of fuel
inclusive of
time stamp, quantity of fuel, name o f the gas station, price of the
fuel etc.
Helps you to take control of your wallet
on
every fuel drop you spend !
|
|
Geo Fence
|
Alerts when your vehicle moves out of a
set
boundary area
Helps you to create virtual boundary for
any
region and will be notified whenever your vehicle moves in or out of
that
boundary.
|
|
High Engine temperature alert
|
Alerts when Engine temperature raise
beyond
the predefined limit.
|
|
In car Audio Control
|
This feature allows user to control the
audio
on car from mobile app
|
|
In car Climate Control
|
This feature allows the user to control
the
climate on car from mobile
|
|
Insurance Expiry alert
|
Suggests in prior to renew the Insurance
as
expiry date of Insurance approaches.
Notify you in prior when the insurance
is
about to expire.
|
|
Lamp Status Alert
|
Alerts when vehicle park lamp was left
in ON condition
Notify when the vehicle park lamp is left in ON condition and helps
to turn
OFF remotely via mobile application.
|
|
Live Tracking
|
GPS based vehicle tracking system for
tracking
vehicle location anywhere and at anytime
Helps to provide the real time vehicle
location when vehicle is in movement.
Helps in sharing the vehicle location
for a
set time to your family and friends
|
|
Low Fuel Assist
|
Identifies low fuel level and notify in
your
mobile application. Helps in assisting you to nearby fuel station
|
|
My Car Information
|
Essential information about the vehicle
like
VIN, Variant and so on.
|
|
Over Speed Alert
|
Alert when your car exceed the set speed
limit. This speed limit value can be set under alert configuration in
mobile
application.
|
|
Personalized Recommendation
|
Recommendations accordingly to the
persona of
user
|
|
Pit Stop
|
Provides information and navigational
access
to nearby restaurant, ATM, Mahindra Dealership and so on.
|
|
PUC Expiry
|
Notify you in prior when the PUC is
about to
expire
|
|
Remote ON/ OFF — Hazard Lamp
|
Remotely control hazard lamp via mobile
phone
|
|
Remote vehicle door lock & unlock
|
Provide access to the vehicle by
remotely
locking and unlocking the doors when vehicle is stationary
|
|
Save Route/ Save Place
|
Provision to save a route /place
|
|
Seat belt Status Alert
|
Notify you whenever the driver is not
wearing
the seat belt during vehicle movement in mobile application
|
|
Share My Location
|
Share your car's location with friends
and
family
|
|
Stolen Vehicle Tracking
|
Alert during any unauthorized access to
vehicle detected
|
|
Telematics Control Unit Unplug Alert
|
If Telematics Control Unit removed, it
generates the alert and intimate to customer.
|
|
Time Fence
|
Notify you when any movement of vehicle
is
detected during set time period
|
|
Turn by Turn Navigation
|
Voice guided Turn by Turn navigation through vehicle speakers
paired
through head unit BT
|
|
Trip Summary
|
This Feature allow the user to view the
trip
summary for allowed time period with parameter like Start time, End
time, Trip
distance, Trip Duration, start location etc
|
|
Tyre Pressure Alert
|
Alerts on excessive/very low and high
tyre
pressure and navigate to nearby fuel station
|
|
Vehicle Start/ Stop Alert
|
Notify you during when normal vehicle
start/stop event detected.
|
|
Weather Information
|
Provides weather information of location
where
the vehicle is located.
|
2 SEATS AND SAFETY
2.1 Seats
Sitting in Correct
Position
Follow the tips below for a comfortable and safe journey:
| • | Sit in an upright position with the base of your spine pressed against the seat back |
| • | The driver and front passenger seat head restraint has 6 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head |
| • | Maintain sufficient distance between yourself and the steering wheel. Maintain at least a Ten inch (10") distance from the centre of the steering wheel to your chest |
| • | The top curve of the steering wheel should align with your chin for ideal road visibility |
| • | Adjust your seat and seat back angle such that your wrists rest on the steering wheel |
| • | Ensure your legs are in bent position while fully depressing the clutch pedal |
The seat should be adjusted
while
still maintaining control of the foot pedals (able to fully depress the clutch pedal),
steering
wheel (rest the wrists on the steering wheel) and your view of the instrument panel
controls.
Never adjust the driver's seat while the vehicle is in
motion.
The seat movement may be more than expectation and cause the
driver to unintentionally operate the accelerator or brake, or turn the steering
wheel,
causing loss of control of the vehicle,
an accident or serious personal injury. Adjust the driver's seat only when the
vehicle is
stationary.
Never put objects under the seats. They may interfere with
the
seat-lock mechanism or unexpectedly activate the seat position
adjusting lever, causing the seat to suddenly move, resulting in loss of control of
the
vehicle, an accident or serious personal
injury.
While adjusting the seat, do not put your hands under the
seat or
near the moving parts. This may lead to injuries.
2.1.1 Front Seat
Front Seat Slide
To move the seat forward or backward, pull and hold the seat
slide
lever up and move the seat to the desired position. Then,
release the lever to lock.
While adjusting the seat,
make
sure the latch engages fully on both side of the fore-aft adjustment track rails and the
seat
is locked firmly in the desired position. An unlocked seat may move in a sudden stop or
collision, causing injury to the person
in that seat. Push and pull on the seat to ensure that it is locked.
Front Seat Recline
|
To change the seat back angle, lean forward
slightly
and raise the lever. Then, lean back to the desired angle and release
the lever. After adjusting, make sure the lever is returned to its original
position
and the seat back is locked.
|
The seat belts
provide
maximum protection in a frontal or rear collision when the occupants are sitting up
straight and well
back in the seats.
If you are
reclined,
the lap belt may slide past your hips and apply restraint forces directly to the
abdomen,
or the shoulder
strap may contact your neck.
The more the seat
is
reclined, the greater the risk of serious injury.
When returning the
rear-reclined seat back to its upright position, make sure you support the seat back
while
operating the
lever.
Front Seat Height Adjustment
(If
equipped)
|
The driver seat height can be raised or lowered
with
the help of height adjust handle.
|
To lower the seat cushion, push the lever down several times.
To raise the seat cushion, pull the lever up several times.
Do not adjust the height
of
seat while vehicle is in motion.
2.1.2 Passenger Seat Recline
|
To change the seat back angle, lean forward
slightly
and raise the lever. Then, lean back to the desired angle and release
the lever. After adjusting, make sure the lever is returned to its original
position
and the seat back is locked.
|
The seat belts provide
maximum
protection in a frontal or rear collision when the occupants are sitting up straight and
well
back in the seats. If you are reclined, the lap belt may slide past your hips and apply
restraint forces directly to the abdomen,
or the shoulder strap may contact your neck. The more the seat is reclined, the greater
the risk
of serious injury.
When returning the
rear-reclined seat back to its upright position, make sure you support the seat back while
operating the
lever.
2.1.3 Passenger Seat Slide
|
To move the seat forward or backward, pull and
hold the
seat slide lever up and move the seat to the desired position. Then,
release the lever to lock.
|
While adjusting the seat,
make
sure the latch engages fully on both side of the fore-aft adjustment track rails and the
seat
is locked firmly in the desired position. An unlocked seat may move in a sudden stop or
collision, causing injury to the person
in that seat. Push and pull on the seat to ensure that it is locked.
2.1.4 Rear Seat
Second row bench seat is of 60:40 split configuration and also
has a
foldable armrest.
|
|
Folding The Rear Seat
Back
To fold down the rear seat back:
| • | Insert the rear seat belt buckle and belt webbing in the storage to prevent the seat belt from being damaged |
| • | Lower the rear head restraints to the lowest position |
|
|
When the seatback is released from its holding latch, the
seatback
can completely be folded. Ensure that none of your body
parts are trapped.
|
|
| • | Fold the seat toward the front of the vehicle |
| • | To use the rear seat, lift and pull the seatback backward. Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place |
Rear Seatback Holding
Latch
Before returning the folded seat back to the normal position.
Pull the
rear seat belt out of the seat back so that the seat
belt is not jammed with the holding latch.
|
|
| • | Do not fold or unfold the rear seat when the vehicle is moving |
| • | Make sure that there is nobody on the folded seatback and in cargo area |
| • | If you put sharp or heavy objects on the seatback, there might be some damage to the seatbacks or even to the seats |
| • | Without completely lowering the second row head restraints or with excessively reclined front seat back, there may be some damage to the head restraints or the centre console if the second row seats are folded |
| • | Take care that there are no objects placed on the rear seat cushion before folding the rear seat back down as any sharp features in the object may damage the seat cover |
| • | All necessary driver’s seat adjustments should be made before any driving |
| • | Make sure that your seat is completely locked after adjusting |
| • | Any object that might damage the seat should not be placed on the seat |
| • | Removed or improperly adjusted head restraints can result in serious head and neck injuries in case of a collision. Make sure that the head restraints are in place and adjusted before driving |
| • | Do not recline the seat back more than needed for comfort while vehicle is in motion. The seat belt is the most effective when the passenger sits back and straight up in the seat. If the seat back is reclined too much, then the risks of sliding under the lap belt and getting injured are increased |
| • | Do not leave children unattended in parked vehicles. This can cause unexpected accident |
| • | You can be hurt by the edges of the mechanism of the seat when trying to get the small objects (cigarette lighters, coins, credit cards) under the seat or caught between the seat and the centre console. Wear protective gloves to prevent injury |
| • | Never try to adjust the seat while the vehicle is moving |
| • | Unexpected movement of the seat or seat back can cause loss of control |
| • | Take care not to bother the passenger behind you when adjusting the seat position |
| • | Sit upright in the centre of the seat and wear the seat belt around your hip and pelvic bones |
| • | Do not place any objects in the path of seat back movement. Any obstruction in this path prevents the seat back from being locked, causing severe injuries or death during a collision |
| • | Always raise the seat back to the proper upright position before driving |
| • | Never drive the vehicle with the seat folded. In a collision, you will be seriously killed or injured as you lose the protection the seat belt can provide |
| • | To avoid unexpected accidents including severe injuries and death, sit in the position so that the distance between the steering wheel and your chest is at least 10 inches, as long as you are comfortable with driving |
| • | Do not place a cigarette lighter on the floor or between the seats. The gas in the lighter container under the seat is potentially flammable when it is released from the container when the seat is moved |
| • | Additional cushion between you and the seat cushion reduces the frictional force and could make you slide under the seat belt. This could result in serious injury or death |
| • | Do not insert your hands under the seat or in the path of the seat movement when adjusting the seat. Your hands or fingers could get trapped between the seat and the frame |
| • | Do not ride with the seat back reclined too much. You could slide under the seat belt in a collision, which could result in severe injury or death. Also, you cannot be protected by the seat belt and the belt can strangle you or even cut into your stomach. Therefore, sit up straight in your seat by keeping your seat back upright while driving |
| • | When returning the seat back to the upright position, hold the seat back with your one hand and pull the release lever with the other hand. The more the seat back is reclined, the greater the restoring force of the seat back is. If you do not hold the seat back while adjusting the seat back, you could be injured by the restoring force |
2.1.5 Second Row Bench Seat
(If
equipped)
Loading cargo on the
seats is
dangerous. The cargo becomes a projectile that could hit and injure passengers in a sudden
stop
or collision. Cargo should always be kept on the floor.
Seat Fold
|
|
The second row seat back can folded forward for maximum cargo
space.
To fold the second row seat back down, pull the knobs at the top
both
sides of the seat firmly and push seat back forward.
2.2 Head Restraint (if equipped)
The head restraint comprises the padded portion which contacts your
head
and is inserted/locked in receptacles on the top
of the seat back.
Your vehicle seats are equipped with head restraints which are
vertically
adjustable. The purpose of these head restraints
is to help limit head motion in the event of rear collision.
Always align top of the head restraint with the top of your head or
as
close to it as possible. To lower the head restraint,
press the lock knob and push the head restraint down.
To raise the head restraint, pull it up without pressing the
release
button. To lower the head restraint, press the release
button on top of the seat back and push the head restraint down.
Removed or improperly adjusted head restraints can result in
serious
head and neck injuries in case of a collision.
Do not apply excessive force to the head restraint during
adjustment.
It may get damaged.
If possible, place the centre line of the head restraint at the
passenger’s eye level.
If the passenger is too tall or too short, adjust the head
restraints
to highest or lowest position.
2.3 Seat Belt
2.3.1 General Warnings and
Instructions
At least once each
month, inspect the seat belt webbing for any cuts, tears, or other signs of wear
(such as
fraying along
the edges). Also inspect the anchors, retractors, and buckles to be sure they are
tight
and operational.
| • | All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimize the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger. |
| • | In a rollover crash, an un-belted person is significantly more likely prone to Injury than a person wearing a seat belt |
| • | In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an arm rest, a pocketbook, or any external objects should be between you and the seat belt. Improperly worn of a seat belt will reduce the protection in an accident. |
| • | Seat
belts should be adjusted as tightly as possible, consistent with
comfort to
properly secure the wearer in the seat.
|
| • | The seat belts provided for your vehicle are designed for adults must be properly used and maintained. |
| • | For usage of adult seat belt to secure children, refer to section of manual for child seat positions and use a child restraint systems |
| • | Passengers should not move out of or change seats while the vehicle is in motion. Passenger who does not wear the seat belts will be under a high risk of thrown against the vehicle inside hard parts, against other occupants or out of the vehicle during emergency stop or collision. |
| • | Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash |
| • | An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Mahindra Authorised Dealer inspect the seat belt system after an accident |
| • | Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle |
Never use a
damaged
seat belt system. A damaged seat belt will not provide protection in an accident,
resulting in serious
injury.
| • | Seat belt systems are prone to abuse. They are not indestructible. They must be handled with care to avoid damage |
| • | Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbings are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts |
| • | Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer |
Seat Belts -
Patients:
Persons with serious medical conditions should
also wear
a seat belt. Consult your doctor for specific recommendations before
travel.
Seat Belts - Pregnant
Women: Pregnant women must also wear
seat
belts. Consult your doctor for specific recommendations.
 |
The
lap
belt should be worn snugly and as low as possible over the hips. The
shoulder belt should be worn across your shoulder,
but never across the stomach area. When worn properly, the seat belt
will
protect both the mother and the foetus in an accident
or emergency stop.
|
A pregnant
woman
should never wear the seat belt across the stomach area. This could lead to
serious
injuries to the foetus
and/or the pregnant mother.
Never wear
twisted
seat belts. Excessive forces will be transferred from the belt to the wearer, in
a
collision, resulting
in serious personal injury.
Each seat belt
is
meant for use by one person only. Using one seat belt for more than one person at
a
time is dangerous. The
seat belt will not be able to absorb the impact forces properly leading to
serious
injuries.
Never wear a
belt
around a child being carried on the occupant's lap. This could lead to serious
injuries.
Seat Belt Usage is
Necessary
to:
| • | Reduce the possibility of being out from your vehicle during an accident. |
| • | Reduce the possibility of injuries to upper body, lower body and legs during an accident |
| • | Hold the driver in a position which allows better control of the vehicle |
Children who are
too
large for child restraint systems should always occupy the rear seat and use the
vehicle
seat belts.
The lap portion should be snug fastened on the hips and as low as possible and the
shoulder belt should be rout across the
child's shoulder, not across neck or face. If you are unable to position the belt
across
the child's shoulder, the child should
be seated in a booster seat. Frequently check the seat belt to be sure it remains
snug and
in position. A squirming child
could cause the seat belt to come out of position.
2.3.2 Seat Belt Configuration
|
To protect you and your passengers in the event
of an
accident, it is highly recommended that the seat belts should be used
by all occupants inside of your vehicle.
|
Seat Belt Types with respect
to
Location
|
Seat
Location
|
Seat
Belt
Type
|
|
Driver Seat
|
Seat
belt
with Retractor Pretensioner & load limiter
(RPLL)
|
|
Co-Driver Seat
|
Seat
belt
with Retractor Pretensioner & load limiter
(RPLL)
|
|
2nd Row LH (40P)
|
Seat
belt
with Emergency Lock Retractor (ELR)
|
|
2nd Row RH (60P)
|
Seat
belt
with Emergency Lock Retractor (ELR) & Lap Seat
belt
|
Emergency Locking Retractor
(ELR): The Emergency Locking Retractor (ELR) allows the driver seat belt to freely
extend
and retract with occupant movement, yet
locks the belt during a sudden stop or upon impact.
Retractor Pretensioner &
load
limiter (RPLL): A pretensioner is designed to retract some of the webbing of a seat
belt the
instant a collision occurs, tightening the seat
belt to restrain occupants quickly and reducing the amount they are thrown forward in a moderate
or
severe frontal crash.
Load limiters help protect occupants from seat belt-inflicted
injury.
In the event of a crash, the pretensioner restrains
the occupant until certain amount of force is applied. At this point the load limiter releases
the
webbing gradually so as
not to exert too much force on the chest of the occupant.
2.3.3 Seat Belt Pretensioner
In the event of a crash being detected, the belt pretensioner
locks
the seat belt by drawing back the seat belts on the driver’s
and passenger’s torso and pelvis to prevent the driver and passenger being thrown forward. The
seat
belt pretensioner combined
with the seat belt and airbag further increases safety.
Its activation through Airbag ECU is signalled by pulling down
of the
metallic cable and removes slack in in seat belt.
To obtain the highest
degree of
protection from the action of the pretensioning device, wear the seat belt on shoulder
keeping
it firmly close to the chest and bottom part of the seat belt on pelvis.
In case of side impact collisions, front air bags are not
inflated,
but seat belt pretensioners located in the same position
with impact direction will be deployed together with side air bag
Deployed seat belt pretensioners cannot be deployed again. Have
the
deployed seat belt pretensioners replaced by an Authorised
dealer.
|
Operation of
pretensioner
|
|
|
When a severe frontal impact occurs, seat belt
pretensioners pull back the seat belts immediately to restrain the occupants
to their seats.
|
|
Operation of
load
limiter
|
After frontal collision, the load limiter
releases the
seat belt to prevent the occupant from being injured due to belt force.
|
Fastening the seat
belt
Even if seat belts are not worn, the air bag will deploy in case
of
impact, collision triggered. In addition, airbags can
protect occupants when the occupants are wearing their seat belts. Airbags may cause injuries to
occupants if they do not
wear or inappropriately use their seat belts.
| • | Before driving, all occupants should fasten their seat belts. If not, the occupants can seriously be injured in a collision or sudden manoeuvring of the vehicle |
| • | Sometimes you may have to apply strong force to pull the webbing out of the retract |
| • | Each seat belt should be used by only one occupant at a time |
| • | Seat belts and airbag’s can significantly minimise possible injury to occupants. But they cannot perfectly protect occupants from fatal collisions or injury |
| • | Modifications and improper maintenance for the safety systems could cause serious injury. The safety systems including seat belts should be checked and repaired by only a Mahindra Dealer or Mahindra Authorised Service centre |
| • | An infant or small child should always be restrained in an infant or child restraint |
2.3.4 Fastening the Seat Belt
(3-Point type)
|
|
Adjust the seat as needed, sit up straight and well back in the
seat.
To fasten your seat belt, pull the webbing out of the
retractor and insert the metal tab into the buckle. An audible “click” would be heard when the
tab
locks into the buckle.
Pull up on the shoulder strap to tighten the lap belt across your hips. The seat belt retractor
will
pull in any slack in
the shoulder strap. A slow and easy motion will allow the belt to extend and let you move your
body
around freely.
Periodically check the seat belt as you ride to be sure it
remains
snug and in position. If there is a sudden stop or impact,
the belt will lock into position. It will also lock (restrict) if you try to lean forward too
quickly.
If the driver or
co-driver seat
belt is not fastened when the ignition is switched ON, the seat belt warning lamp
illuminates
and chimes beat will turn till seat belt fastened. Refer “Warning Lamps” in the
“Instrument
Cluster Features” chapter for
further details.
2.3.5 Fastening the Seat Belt
(2-Point Lap type)
|
|
This seat belt is applicable to the second row middle passenger
seat.
Insert the tongue into the buckle until it snaps. Position
the lap belt on the hips as low as possible.
2.3.6 Seat Belt Release (both
3-Point & 2 Point)
|
|
|
To release the belt, press the buckle release button and allow
the
belt to retract. If the belt does not retract smoothly,
pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.
Never insert coins,
clips, etc.
in the buckle as this may prevent from properly latching the tongue and may cause damage
to
the buckle mechanism, thereby making the seat belt ineffective in an accident, resulting
in
serious personal injury.
2.3.7 Driver Seat Belt
Reminder
Indication
The driver seat belt reminder warning symbol lamp will blink in
instrument cluster if driver doesn’t wear the seat belt and
will be continuous until belt is buckled. Chime will be activated when vehicle travels more than
500
metres or attains 25
Kms/Hrs of speed while vehicle is in motion which will be ON for 95 seconds
2.3.8 Passenger Occupant
Detection
System (PODS) & Seat Belt Reminder Indication
|
PODS detects the presence of occupant in the
passenger
seat.
|
If Occupant is present on passenger seat and not wearing the
seat
belt, Seat belt reminder warning symbol lamp will glow on
the center fascia switch provided in vehicle instrument panel and will be continuous until the
seat
belt is buckled. It should
be noted that the PODS require a minimum weight hence children may not be detected by PODS.
Along with
this warning symbol,
a Chime in Cluster will be ON for 95 seconds. Do keep in mind that after market seat covers also
may
deteriorate the detection
senor performance, don’t use the non recommended/non authorized seat covers.
Seat belt reminder
warning lamp
for passenger seat may glow in case of child is present in passenger seat.
Strong advice not to
carry
children in front seat without child restraint seat. Also do not use adult seat belt which
is
designed
to harness person taller than 140cm Always ensure Passenger Airbag is turn OFF before you
carry
child on passenger seat. We strongly urge that
children should be in middle row using the child seats with the ISO FIX
2.3.9 Seat Belt Height
Adjuster
|
You can adjust the height of the shoulder belt
anchor
for maximum comfort and safety of both front seats. If the height of
the seat belt is too near your neck, you will not be getting the most effective
protection.
|
The shoulder portion of the belt should be adjusted so that it
lies
across your chest and midway over your shoulder nearest
to the door and not your neck.
To adjust the height of the seat belt anchor, lower or raise the
height adjuster to an appropriate position while pressing
the height adjuster button. Release the button to lock the anchor into position. Try sliding the
height adjuster to make sure
that it has locked into the position.
Adjust the shoulder belt
height
sitting well back in the seat. Do not adjust the seat belt height while vehicle is in
motion.
2.4 Infant and Child Safety
|
|
|
|
|
Mass
group
|
Restraint
device figure
|
Front
Passenger
|
Rear
centre
|
Rear
out
board
|
Mounting
method of vehicle
|
|
O ~ up to 10 kg (0 ~ 9 months)
|
Rear-facing child seat
|
U
|
U
|
U
|
3-point belt rear-facing
|
|
O+ ~ up to 13 kg (0 ~ 2 years)
|
Rear-facing child seat
|
U
|
U
|
U
|
3-point belt rear-facing
|
|
I ~ 9 to 18 kg (9 months ~ 4 years)
|
Forward-facing child seat
|
U
|
U
|
U
|
3-point
|
|
II ~ 15 to 25 kg (4 years ~ 6 years)
|
Booster seat
|
U
|
U
|
U
|
3-point
|
|
III ~ 22 to 36 kg (6 years ~ 12 years)
|
Booster seat
|
U
|
U
|
U
|
3-point
|
|
U:
Suitable for “universal” category restraints approved for use in
the
mass group.
UF:
Suitable for forward-facing “universal” category restraints
approved for
use in the mass group.
L:
Suitable for particular child restraints given on attached list.
These
restraints may be of the “semi-universal”
categories.
X:
Seat position not suitable for children in the mass
group.
|
|||||
|
Table of Vehicle
Handbook Information on ISOFIX Child Restraint Systems Installation Suitability
for
Various ISOFIX Positions
|
|||||
|
Mass
group
|
Size
Class
|
Fixture
|
Vehicle
ISOFIX Positions
|
||
|
Front
Passenger
|
Rear
centre
|
Rear
out
board
|
|||
|
Carrycot
|
F
|
ISO/L1
|
X
|
X
|
X
|
|
G
|
ISO/L2
|
X
|
X
|
X
|
|
|
Group 0 up to 10kg
|
E
|
ISO/R1
|
X
|
X
|
IUF
|
|
Group 0+ up to 13kg
|
E
|
ISO/R1
|
X
|
X
|
IUF
|
|
D
|
ISO/R2
|
X
|
X
|
IUF
|
|
|
C
|
ISO/R3
|
X
|
X
|
X
|
|
|
Group I9 to 18kg
|
D
|
ISO/R2
|
X
|
X
|
IUF
|
|
C
|
ISO/R3
|
X
|
X
|
X
|
|
|
B
|
ISO/F2
|
X
|
X
|
IUF
|
|
|
B1
|
ISO/F2X
|
X
|
X
|
IUF
|
|
|
A
|
ISO/F3
|
X
|
X
|
IUF
|
|
Key of letters be inserted in the above table
IUF: Suitable for ISOFIX forward child restraint systems of
universal
category approved for use in this mass group.
IL: Suitable for particular ISOFIX child restraint systems (CRS)
given in
attached list. These ISOFIX CRS are those of the
“specific vehicle”, “restricted” or “semi-universal” categories.
X: ISOFIX position not suitable ISOFIX child restraint systems in
this
mass group and/or this size class.
Anchorage Location
Child restraint anchor fittings are installed at the points as
shown in
the figure.
Unrestrained infants and
small
children could be injured
| • | Never transport them unless they are properly restrained |
| • | Use restrained system which meet safety standard |
| • | Follow directions provided by the manufacturer |
2.4.1 Warning for Child
Restraint
| • | Use only
the
officially approved child restraint
Mahindra is not responsible for the personal
injury and
property damage due to the defect of child restraint
|
| • | Use only the child restraint with proper type and size for your baby |
| • | Use only the child restraint at proper location |
| • | Child
restraint
has 5 categories based on the weight as below:
|
| • | Group 0 & 0+ : Rear-facing child restraint fitted on the rear seat |
| • | Group I : Forward-facing child restraint fitted on the rear seat |
| • | Group II & III : Booster seat fitted on the rear seat with seat belt fastened. Always follow the installation and use instructions provided by the manufacturer of the booster seat |
Cautions for ISOFIX
Seat
| • | The rear seatback anchor is the supplemental device to secure the child restraint system after engaging it by the lower latches. Therefore, do not secure the child restraint system only with the seatback anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death |
| • | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation |
| • | Make sure the latches of the child restraint system are latched to the lower latches. In this case, you can hear the “click” sound |
| • | The child restraint seat strap may not work properly if attached somewhere other than the correct seatback anchor |
| • | Make sure that the child restraint system is firmly secured by rocking it in different directions |
| • | Incorrectly installed child restraint system may cause an unexpected personal injury |
2.5 SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
The Supplemental Restraint System (SRS) includes airbags,
pre-tensioners
and ECU. The airbags are designed to provide further
protection to the vehicle occupants in addition to the primary protection provided by the seat
belts and
seat belt pre-tensioners.
The primary components of the system are the sensors which measure
the
crash severity. In the event of a significant frontal
impact, the SRS airbags inflate to work in conjunction with the seat belts and help reduce injuries
mainly to the driver's
and front passenger's head/chest.
Seat belts are the primary
restraint system in the vehicle. An airbag provides supplemental protection in addition to
the
seat belts.
All occupants, including the
driver, should always wear their seat belts to minimise the risk of severe injury in the
event
of a crash.
Airbags are more effective
in
reducing injuries when the seat belts are worn.
2.5.1 Airbags
Your vehicle is equipped with the following airbags:
| • | Driver’s
Airbag :
|
| • | Passenger’s
Airbag :
|
| • | Side
Curtain
Airbag (if equipped) :
|
| • | Side Seat
Airbag
(if equipped) :
|
An airbag is not designed
to
deploy in every type of crash. Depending on the type of accident or impact, the front
airbags
independently deploy thereby protecting the occupants. It is not necessary that ALL the
airbags
deploy during an accident.
To minimise the risk of severe injury in the event of a crash,
every
passenger must always wear their seat belt (see the chapter
on Seat Belts in this manual). The airbags inflate very quickly with great force. Do not
position any
part of your body too
close to airbag, you or especially children could be seriously injured/killed by a deploying
airbag.
2.5.2 Front Airbags
Your vehicle is equipped with a Supplemental Restraint System
(Airbag)
and lap/shoulder belts at both the driver and front
passenger seating positions. The indications of the system's presence are the letters “AIRBAG”
embossed on the airbag pad
cover in the steering wheel and the passenger's side front panel pad above the glove box.
The SRS is designed to deploy the front airbag only when an
impact is
sufficiently severe and when the impact angle is less
than ± 30° from the forward longitudinal axis of the vehicle.
|
Driver
Airbag
|
Front
Passenger
Airbag
|
Front airbag are not intended to deploy in side-impact, rear
impact or
rollover crashes. In addition, front airbag will not
deploy in frontal crashes which are below the prescribed deployment threshold where risk of
serious
injuries is low.
Do not place any objects
over
the airbag or between the airbag and yourself.
2.5.3 Seat Side Airbag and
Curtain
Airbag (if equipped)
|
Seat
Side
Airbag
 |
Curtain
Airbag
 |
Your vehicle is equipped with side impact airbag in both the
front
seats. The purpose of the airbag is to provide the vehicle's
driver and/or the front passenger with additional protection during side impacts or collisions.
The side impact airbag are designed to deploy only during
certain
side-impact collisions, depending on the crash severity,
angle, speed and point of impact.
| • | In the case of a side collision, the curtain airbag may be deployed together with the relevant side airbag on the side the collision occurs |
| • | The side impact airbag is supplementary to the seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side impact conditions severe enough to cause significant injury to the vehicle occupants |
| • | For best protection from the side impact airbag system and to avoid being injured by the deploying side impact airbag, all seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passengers arms and hands should be placed on their laps |
| • | Do not use any accessory seat covers. Use of seat covers could reduce or prevent the effectiveness of the system |
| • | Do not instal any accessories on the side or near the side impact airbag |
| • | Do not place any objects over the airbag or between the airbag and yourself |
| • | Do not place any objects (an umbrella, bag, etc.) between the door and the seat. Such objects may become dangerous projectiles and cause injury if the supplementary side impact airbag inflates |
2.5.4 Passenger Airbag ON/OFF
Switch
|
A
|
OFF/Deactivated
|
B
|
ON/Activated
|
The front passenger airbag is disabled (not inflatable) when
placing
the passenger airbag ON/OFF switch to “OFF” position.
This switch is located on the left side of the instrument panel, and you can see it when opening
the
front passenger door.
Press and turn this switch to operate
Passenger Airbag OFF
Indicator
This indicator comes on when turning the passenger airbag ON/OFF
switch to “OFF” position to disable the passenger airbag.
2.5.5 Airbag System
Malfunction Lamp
Airbags do not require any regular maintenance of service. The
airbag
system malfunction lamp illuminates when the ignition
is ON, and it turns OFF after about 2 secs. as self check confirming normal operations of airbag
system and malfunction lamp.
This lamp monitors airbag sensor assembly, airbag sensors,
indicator
lamp, seat belt pre-tensioner assemblies, inflators,
interconnecting wiring and power sources.
If either of the following conditions occur, there is a
malfunction of
the airbags or seat belt pre-tensioner. Immediately
contact your Authorised Mahindra Dealer.
| • | The lamp does not glow when the ignition is switched ON or glows beyond six (6) secs. after switching the ignition ON |
| • | The lamp comes ON at any other time, even briefly |
| • | The lamp comes ON intermittently |
Never make any
modifications to
your vehicle which could affect the performance of your airbag system. In particular,
changes
to the vehicle frame, bumpers, bull bar, front fenders, ride height, suspension, seat
belts,
interior trim, seats or steering
wheel (especially covers, pads or other trim), could prevent proper deployment of the
airbag. If
you need to make any modifications
to accommodate any disability you may have, please contact your Authorised Mahindra
Dealer.
Never try to open or
strike the
airbag cover. If the airbag cover is cracked or damaged in any way, the airbag may not
function
as intended. Take the vehicle to an Authorised Mahindra Dealer.
Even if the airbags do not deploy during an accident, take your
vehicle to an Authorised Mahindra Dealer for a thorough inspection
of the airbag and seat belt systems, no matter how minor the accident. The airbag system could
have
been damaged, and may
not work as intended in the future, resulting in serious injury.
2.5.6 Airbag
Inflation/Deployment
The airbag sensors constantly monitor the forward deceleration
of the
vehicle. If an impact results in a forward deceleration
beyond the designed threshold level, the system triggers the airbag inflators. This initiates a
chemical reaction which quickly
fills the airbags with non-toxic gas.
Upon deployment, tear seams moulded directly into the pad covers
separate under pressure from the expansion of the airbags.
Further opening of the covers allows full inflation of the airbags. A fully inflated airbag, in
combination with a properly
worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head
and
chest injury.
After complete inflation, the airbag immediately starts
deflating,
enabling the driver to maintain forward visibility and
the ability to manoeuvre or operate other controls.
Deployment of the airbags happen in a fraction of a second,
producing
a loud noise releasing a ‘white smoke’ and residue along
with a non-toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle
for some
time, and may cause
some minor irritation to the eyes, skin or breathing. Be sure to wash off any residue with soap
and
water as soon as possible
to prevent any potential skin irritation. If you can safely exit the vehicle, you should do so
immediately.
Airbag deployment may cause windshield to break.
| • | Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury |
| • | Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once |
| • | Do not cover the steering wheel, instrument panel with any object (e.g. dash panel covers) which may prevent the airbags from inflating properly |
| • | The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle |
The front passenger
should
never sit on the edge of the seat, stand near the glove compartment, rest feet or other
parts of
the body on the dashboard when the vehicle is moving.
The driver or front passenger who is too close to the
steering
wheel or dashboard can be seriously injured during airbag deployment.
| • | The driver must sit as far back as possible from the steering wheel while still maintaining control of the vehicle |
| • | The front passenger must sit as far back as possible from the dashboard |
| • | Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury |
 |
 |
| • | Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor |
| • | All vehicle occupants must be properly restrained using the seat belts |
| • | All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts |
| • | Front airbags can injure occupants improperly positioned in the front seats |
| • | Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual |
| • | Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags |
| • | Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses |
2.5.7 Child Restraint and
Airbag
|
|
|
“Do not use a rearward-facing child restraint on a seat
protected by
an active airbag in front of it”
In addition, do not place front-facing child restraints in the
front
passenger’s seat either. If the front passenger airbag
inflates, it could cause serious or fatal injuries to the child.
This is indicated also on stickers that are located at the
following
position:
| • | On the front passenger’s sun visor |
Extreme Hazard! Do not
use a
rear-facing child restraint on a seat protected by an active airbag in front of it!
Never hold an infant or
child
on your lap. The infant or child could be seriously injured in the event of a crash. All
infants
and children should be properly restrained in appropriate child safety seats or seat belts
in
the rear seat.
2.5.8 Airbag Deployment
Front Airbag
|
Front airbag are designed to inflate in a frontal
collision depending on the intensity, speed or angles of impact of the front
collision.
|
The images shown in this
section are for illustrative purpose only. They may not look like your model/variant or
vehicle.
2.5.9 Airbag Non-deployment
Impacts below a pre-determined threshold level may not cause the
airbag to deploy in the following cases:
Collision with Utility Poles
or
Trees -
|
Airbags may not inflate if the vehicle collides
with
objects such as utility poles or trees, where the point of impact is
concentrated to one area and the full force of the impact is not delivered to the
sensors.
|
Under-ride Situations
-
|
Running under a truck may not provide the
decelerations
necessary for airbag deployment.
|
Airbags will not inflate in this “under-ride” situation where
deceleration forces that are detected by sensors are significantly
low.
Rear-end Collisions -
|
Frontal airbags are not designed to inflate in
rear
collisions, where occupants are moved backward away from the airbags by
the force of the impact.
|
In this case, inflated airbags would not be able to provide any
additional benefit.
Frontal Impact -
|
Frontal impact beyond 30º range from head-on to
the
vehicle.
|
Potholes or Stepped Surfaces
-
|
Driving into a big pothole, stepped surface or
hitting
the far side of a hole/incline will not inflate the airbag.
|
Rollover -
|
Airbags will not inflate in rollover accidents
where
airbag deployment would not provide protection to the occupants.
|
Frontal Side Swipe Impact
-
|
Frontal offset impact to the vehicle may not
provide
the deceleration force necessary for airbag deployment.
|
In an angled collision, the force of impact may direct the
occupants
in a direction where the airbags would not be able to
provide any additional benefit, and thus the sensors may not deploy any airbags.
2.6 Airbag Service
Airbag Replacement:
Self-servicing or tampering with the airbag system is
dangerous. An airbag could accidentally deploy causing serious injuries,
or will not deploy when there is a need. Always take your vehicle to an Mahindra
Authorised
Dealer for inspection and repairs.
Removing SRS Related Parts:
We do not recommend removing the instrument
panel,
steering wheel, seats or airbag related parts or sensors by any individual
or garages which are not recommended. Airbags could accidentally activate and cause
serious
injuries, or they may not deploy
when there is a need. Visit an Mahindra Authorised Dealer if these parts must be
removed.
Airbag Disposal:
Improper disposal of an airbag or a vehicle with
live
airbags can be extremely dangerous. Approach an Mahindra Authorised
Dealer to do these jobs.
Airbag Repair:
If the front airbag cover or instrument panel
airbag
cover shows signs of damage or having been removed, the vehicle should
be towed to the nearest Mahindra Authorised Dealer for repair. Do not attempt to self
repair or
reinstall the cover.
Airbag Maintenance:
For cleaning the airbag covers/areas, use only a
soft
dry cloth or one which has been moistened with plain water. Solvents
or cleaners could adversely affect the airbag covers and proper deployment of the
system.
3 INSTRUMENT CLUSTER FEATURES
|
Diesel
|
|
|
TFT
 |
LCD
 |
|
A
|
Tachometer
|
E
|
Speedometer
|
I
|
Steering Mode Display
|
|
B
|
Tripmeter
|
F
|
Fuel Gauge
|
J
|
TDMS*
|
|
C
|
Telltales
|
G
|
Odometer
|
K
|
Door Alert
|
|
D
|
Gear Shift Indicator
|
H
|
Temperature Gauge
|
* if equipped
|
|
Petrol
|
TFT
|
LCD
|
 |
 |
|
A
|
Tachometer
|
E
|
Speedometer
|
I
|
Steering Mode Display
|
|
B
|
Tripmeter
|
F
|
Fuel Gauge
|
J
|
TDMS*
|
|
C
|
Telltales
|
G
|
Odometer
|
K
|
Door Alert
|
|
D
|
Gear Shift Indicator
|
H
|
Temperature Gauge
|
* if equipped
|
|
3.1 Tachometer
|
Diesel
|
Petrol
|
|
|
The tachometer indicates the real-time engine speed in thousands of RPM
(revolutions
per minute). Each division is 500 RPM.
Operating the engine at very high RPM may lead to excessive engine wear and low fuel economy.
Maintain
steady engine speed
below 2500 RPM and do not accelerate or decelerate abruptly.
Do not
over-accelerate the engine during idling, this can cause severe engine damage and would
be
treated as abuse of the
engine which is not covered by warranty.
3.2 Speedometer
|
The speedometer indicates the real-time road surface speed of the
vehicle in kilometres per hour.
|
The vehicle
speedometer is affected by size of the tyres used. If the size of the tyres are changed
from
those fitted at the
factory, the speedometer might not display the correct road surface speed and distance
travelled.
Over Speed Alert Buzzer
| • | Primary level: Buzzer will trigger single chime in every 2 minutes when the vehicle speed reaches 80 kmph. once primary level chime is triggered, it will continue playing until speed is reduced to 76 kmph or goes beyond 120 kmph. |
| • | Secondary level: Buzzer will trigger periodic chime when the vehicle speed reaches 120 kmph and chime will continue playing until vehicle speed is reduced to 114 kmph. Below this speed primary level chime will be triggered and will continue till 76 kmph. |
3.3 Odometer
The odometer records and displays the total distance travelled in km. Odometer
cannot
be reset.
|
LCD
|
TFT
|
 |
 |
3.4 Trip Meter
Select TRIP A / TRIP B in screen by pressing Trip
switch
in centre console. Long press of set switch will reset trip information, average speed and driving
time.
|
Variants
|
Trip A
|
Trip B
|
||
|
Min
|
Max
|
Min
|
Max
|
|
|
LCD
|
0
|
999.9
|
0
|
9999
|
|
TFT
|
0
|
9999.9
|
0
|
9999.9
|
|
LCD
|
TFT
|
 |
 |
Trip meter has to be reset
whenever
battery is disconnected due to various reasons.
Else
Average
Speed and Driving Time may not match with trip
value.
3.5 Engine Coolant Temperature Gauge
The engine coolant temperature gauge
functions only when the ignition is switched ON. It indicates the instantaneous engine
coolant temperature. The coolant temperature varies with changes in weather, load on
engine and
driving pattern.
If gauges is showing 7 or more than 7
bars,
it represents that engine is overheating. This will also be notified through blinking
or continuously ON Engine high temperature lamp.
|
LCD
|
TFT
|
 |
 |
Never remove the Degassing tank
cap when
the engine is hot. The engine coolant is under pressure and could splash on to
skin/eyes
causing severe burns. Wait for the engine to cool down before adding coolant to the
reservoir.
Do not continue driving the
vehicle with
an overheated engine. This will lead to damage of engine components and engine
seizure.
3.6 Fuel Level Gauge
|
The fuel
level
gauge functions only when the ignition is switched ON. It gives
the
status of the fuel level in the fuel tank.
F indicates the tank is full (42 litres), E indicates the tank is
empty.
|
|
|
LCD
|
TFT
|
 |
 |
When the fuel level reaches the
reserve,
the last bar will be displayed and low fuel telltale will be ON (approx 8 litres).
when the fuel tank is completely empty, last bar goes off from display and low fuel
telltale
will be blinking . The amount
of fuel required to fill the tank up may be less than the specified tank capacity, as a
small
amount of reserve fuel always
remains in the tank.
On inclines or curves, due to the movement of fuel in the tank, the fuel level may fluctuate or the last bar may flash earlier than usual. Always check the fuel level when the vehicle is on level road. If the last bar is still off and telltale is blinking even after filling sufficient fuel, contact your Authorised Mahindra Dealer as soon as possible.
On inclines or curves, due to the movement of fuel in the tank, the fuel level may fluctuate or the last bar may flash earlier than usual. Always check the fuel level when the vehicle is on level road. If the last bar is still off and telltale is blinking even after filling sufficient fuel, contact your Authorised Mahindra Dealer as soon as possible.
When all the
bars in
the display starts blinking/flashing, contact the nearest Authorised Mahindra Dealer at
the
earliest.
3.9 Clock Screens (if equipped)
In LCD, Select Clock in the screen by pressing Trip
switch on the centre console.
Steps to set time
| 1. | Long press set switch to entering time setting. First digit will be blinking. |
| 2. | Short pressing “SET” will change the value one at the time. Long press will change the value to zero. |
| 3. | Use trip switch to move to next digit. |
For high end, Clock is in sync with infotainment. Any change in infotainment
will
reflect on cluster.
3.10 Outside Ambient Temperature (if equipped)
This Screen shows the outside ambient temperature.
|
LCD
|
TFT
|
 |
 |
Changing the Units (TFT)
Once you reach to OAT screen, Long Press the SET switch to change the units. You
can
choose between degree Celsius and degree
Fahrenheit.
Changing the Units (LCD)
| 1. | Once you reach time and OAT screen, long press set switch to enter into setting mode. In setting mode, temperature will be blinking. |
| 2. | Press set switch to change units. |
3.11 Drive Information (if equipped)
In Drive Information, Drive Time and Average Speed will get displayed in screen.
Select Drive Information in screen by pressing Trip
switch on the centre console.
3.12 Gear Recommendation
Gear information shows the actual gear in which user has to drive the vehicle.
Based on the various parameters, it will also suggest to change the gear for
better
fuel economy with up/down recommendation.
|
LCD
|
TFT
|
|---|---|
 |
 |
Operating Condition
UP/DOWN arrow along with numeral recommends shifting to that gear.
3.13 Fuel Computer
In Fuel computer, Average Fuel Economy (AFE), Distance to Empty (DTE) and
Instantaneous Fuel Economy (IFE) will get displayed
in screen.
Select Fuel computer in screen by pressing Trip
switch
on the centre console.
3.13.1 Average Fuel Efficiency (AFE)
Once Fuel computer is selected, Average Fuel Efficiency is displayed on the
Screen.
AFE is calculated based on the Last AFE reset cycle.
3.14 Digital Speedo Meter (if equipped)
 |
Digital speedometer displays the speed of the vehicle
numerically. It provides immersive experience by having option to switch
off the lights of Speedometer and Tachometer.
|
Turning the lights off :
Once you reach to Digital Speedometer screen, Long Press the SET switch to turn
the
lights OFF. Long press the SET switch
to turn ON the lights again.
3.15 Cluster Setting (if equipped)
 |
 |
This allows you to change the settings related to cluster. This screen also
comes with
a timeout. You have to stop vehicle
for changing the settings.
Some setting might not be available as per configuration of the vehicle
Inside Setting Menu : Long pressing the SET switch
will
take you inside the settings option. Here you can change illumination, mood ring colour
for day and night conditions, also you can enable or disable the welcome chime. Use trip switch to
browse
through options
and set switch to enter sub menus.
Colour Setting
| • | Scroll through the screens using TRIP switch till you find settings |
| • | Long press SET switch to enter settings |
| • | Use TRIP switch to browse across the options. Select colour setting using set switch |
 |
In colour setting, you can choose from White, Red,
Yellow, Sky
blue and Blue colour for both day and night conditions.
|
Illumination Control
Illumination control feature allows you to change the brightness of the
Instrument
cluster according to light and weather
conditions. It automatically detects the day and night conditions according to park lamp input.
Also you
can customise the
illumination setting so that it doesn’t hurt your eyes.
It provides 6 level illumination control each for day and night conditions.
It provides 6 level illumination control each for day and night conditions.
 |
The default brightness after the B+ power is supplied is
level
5.
|
How to Change Illumination Setting (LCD)
| 1. | Once you reach the illumination setting screen, long press SET switch to enter into setting mode. |
| 2. | Use SET switch to change brightness. |
How to Change Illumination Setting (TFT)
| 1. | Scroll through the screens using TRIP switch till you find settings. |
| 2. | Long press SET switch to enter settings. |
| 3. | Use TRIP switch to browse across the options. Select “Brightness” option using SET Switch. |
 |
4. Adjust the Brightness level using SET Switch.
|
Over speed Flash (if equipped)
 |
When the vehicle speed is higher than the speed
configured,
the mood ring flashes. Flashing of the mood ring can be turned
OFF/ON using this setting.
|
| 1. | Scroll through the screens using TRIP switch till you find settings. |
| 2. | Long press SET switch to enter settings. |
| 3. | Use TRIP switch to browse across the options. Select “Over speed Flash” option using SET Switch. |
| 4. | Use TRIP switch to browse across the options. Select desired option using SET Switch. |
Over speed flash (if equipped) – Be safe than waiting for the warning to
come,
someone’s wait might get longer
Welcome Chime
 |
Welcome chime can be enabled/disabled using this
setting. If
the box is checked means welcome chime is enabled else disabled.
|
| 1. | Scroll through the screens using TRIP switch till you find settings. |
| 2. | Long press SET switch to enter settings. |
| 3. | Use TRIP switch to browse across the options. Turn ON/OFF “Welcome Chime” option using SET Switch. |
3.16 Mood Lighting (if equipped)
|
|
Mood lighting is especially designed to enhance your
driving
experience. I
|
t allows to customise the colour of the inner ring as per your mood.(refer
section
colour setting for changing colour of mood
ring)
This ring will also notify you when you are over-speeding (if equipped). Colour
of the
ring will change to red.
3.17 Vehicle Condition Related Warning (TFT
only)
Following are the warning information available:
|
Display
|
Operating Conditions
|
|---|---|
 |
This message is displayed when the engine check warning
lamp
is turned ON and engine has been running.
|
 |
When the engine oil pressure warning light is ON and
engine
has been running.
|
 |
This message comes on when the ESC system is faulty, and
engine has been running.
|
 |
This message comes when cruise mode is turned ON
manually
using switch.
|
 |
This message comes when cruise mode is turned OFF
manually
using switch.
|
 |
This message comes when brake fluid level is low and
engine
has been running.
|
 |
This message comes when vehicle has crossed scheduled
service
limit.
|
 |
This message comes on when the tail lamps are ON with
the
ignition in the "OFF" state.
|
 |
This message comes when passenger airbag switch has been
turned OFF.
|
 |
This message comes when fuel level warning lamp is ON or
Blinking and engine has been running.
|
 |
This message comes when either of driver or passenger
(if
occupied) seatbelt is unbuckled.
|
 |
This message comes when engine temperature high telltale
is ON
and engine has been running. Indicates that engine temperature
is high.
|
 |
This message comes when water is detected in fuel filter
and
engine has been running. It is applicable for diesel variants
only. (if equipped)
|
 |
This message comes when you are driving vehicle above
120
kmph.
|
 |
This message comes when you try to move the vehicle when
park
brake is still engaged.
|
 |
This message comes when you try to change settings while
driving the vehicle (i.e., vehicle speed is greater than 2kmph).
This message comes with a timeout of 5 secs, after that is goes to TRIP A
screen
through settings screen.
|
 |
The warning screen will be displayed if Automatic Light
functionality is turned ON.
|
 |
The warning screen will be displayed if Automatic Light
functionality is turned OFF.
|
 |
The warning screen will be displayed if Automatic Wiper
functionality is turned ON.
|
 |
The warning screen will be displayed if Automatic Wiper
functionality is turned OFF.
|
3.18 Smart Key Alerts
Refer PKE section of the owner’s manual
|
Display
|
Operating Conditions
|
|---|---|
 |
The warning will be triggered when key is inside the
vehicle
and you try to do Passive lock operation.
|
 |
The warning will be triggered when vehicle is in cranked
or in
ignition ON condition, but key is not inside the vehicle.
|
 |
The warning will be triggered when start/stop switch
stuck for
more than 1 min.
|
 |
The warning will be triggered when user need to keep the
key
in the armrest pocket and then press the start/stop switch to
turn ON the vehicle.
|
 |
The warning will be triggered when Key Fob battery is
Low.
|
 |
The warning will be triggered when any door is open and
user
trying to do passive lock operation.
|
3.19 Steering Lock Alerts (for TFT only)
|
Display
|
Operating Conditions
|
|---|---|
 |
This is a temporary malfunction of ESCL and the message
is
displayed if the vehicle needs to be attempted to start while turning
the steering wheel.
|
 |
This is a temporary malfunction of ESCL and the message
is
displayed if the steering column is not locked
|
 |
The message is displayed if the system check-up is
required
since the ESCL system is malfunctioning.
|
 |
The message is displayed if ESCL coding checkup is
required.
(Corresponding signal transmitted, with no coding between SKM
and ESCL)
|
3.20 Tyre Direction Monitoring System (TDMS)
Tyre direction monitoring system or
TDMS
assists you when vehicle has just started and you are about to move the vehicle.
It tells you about the current direction in which tyres are aligned at very beginning of
manoeuvring the vehicle. TDMS works
only when vehicle speed is zero and parking brake engaged or when vehicle speed is zero
and
vehicle is in neutral and clutch
is not engaged.
|
LCD
|
TFT
|
Operating Conditions
|
||
|---|---|---|---|---|
 |
 |
|||
|
<Level 5>
|
Tyre alignment is displayed in 6 levels (level 0 to
level 5)
depending on the alignment degree when the ignition switch is
turned to "ON" position from "OFF" position
Working conditions:
1. When vehicle speed is zero and parking brake engaged.
2. When vehicle speed is zero and vehicle is in neutral
and
clutch is not engaged.
|
|||
 |
 |
 |
 |
|
|
<Level 3>
|
||||
 |
 |
 |
 |
|
|
<Level 0>
|
||||
 |
 |
|||
3.21 Steering Mode Control Alerts
|
Mode
|
Display
|
Operating conditions
|
|
|---|---|---|---|
|
LCD
|
TFT
|
||
|
Comfort
|
 |
 |
Warning indicates that current steering mode is set to
Comfort. This warning is triggered when user press the Steering Mode
Control switch on the center console.
|
|
Normal
|
 |
 |
Warning indicates that current steering mode is set to
Normal.
This warning is triggered when user press the Steering Mode
Control switch on the center console.
|
|
Sport
|
 |
 |
Warning indicates that current steering mode is set to
Sport.
This warning is triggered when user press the Steering Mode
Control switch on the center console.
|
3.22 Welcome and Good Bye Screens
|
Display
|
Operating conditions
|
Remarks
|
 |
Pre-WELCOME sound:
When the driver's door is opened after the theft
deterrent
mode is deactivated
WELCOME sound with logo and
multicolored light in mood ring:
When the open driver's door is closed after the theft
deterrent mode is deactivated.
|
When the ignition is turned on
while
[WELCOME] is displayed.
- WELCOME sound with logo is activated for the time
remaining.
- The screen is changed to System Check screen when the
ignition is turned on.
|
 |
When the ignition is turned off. Goodbye comes with
animation.
|
|
 |
Performs system check once for 3 seconds when the
ignition is
turned on.
|
3.23 Door Open Alerts
|
Display
|
Operating Conditions
|
||
|---|---|---|---|
|
LCD
|
TFT
|
||
 |
 |
||
 |
 |
Passenger door open
High: with animation
Low: No animation
|
|
 |
 |
Driver door open
High: with animation
Low: No animation
|
|
 |
 |
Hood Open
High/Low: Blinking
|
|
 |
 |
Rear door (LH) open
High: with animation
Low: No animation
|
|
 |
 |
Rear door (RH) open
High: with animation
Low: No animation
|
|
 |
 |
Tailgate open
High/Low: Blinking
|
|
3.24 Functional Safety Alert
|
LCD
|
TFT
|
|
 |
 |
Instrument cluster shall monitor some of the internal
parameters and if misbehavior found it will enable “Contact Dealer”
alert.
Contact an Authorised Mahindra Dealer immediately when
“Contact Dealer” alert displayed in cluster.
For LCD Alert will be displayed for 1 mins
For TFT Alert will be displayed for 5 secs
|
