1 INTRODUCTION AND SAFETY PRECAUTIONS

1.1 Introduction

Dear Customer,

Congratulations on purchasing Mahindra XUV500. Your vehicle has been designed to provide years of safe and dependable service, as long as it is used and maintained in accordance with the instructions provided in this manual.

All persons who will use and/or maintain this vehicle must read, understand and follow all warnings and instructions provided in this manual. This Owner's Manual should be considered an integral part of the vehicle and should remain with the vehicle. However, nothing in this manual, and none of the safety devices installed in the vehicle, are a substitute for careful operation and common sense. Always make sure that your vehicle is in optimum working order, and take note of the road and weather conditions under which you are using your vehicle.

If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. A list of dealers can be found in the Dealer Directory Supplement.

Alternatively, you can contact Mahindra at:

•

1800-209-6006 (Toll free)

•

customercare@mahindra.com

We extend our best wishes for safe and pleasurable motoring.

Sincerely,

MAHINDRA & MAHINDRA LTD

Servicing and Summary Data

•

For all issues concerning the vehicle and for any need of spare parts, contact only the Authorised Mahindra Dealer network

•

We recommend you always use genuine Mahindra spare parts when performing repairs on the vehicle

•

We suggest that you record the vehicle data in the Service Coupon Booklet for future references

1.2 Safety Symbols

Carefully read, understand and follow the safety symbols/ instructions given in this manual.

Legend of the Symbols

To emphasise information and procedures regarding safety, use, maintenance, etc., the following symbols are used throughout the manual:

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.

NOTICE indicates important information relevant to the vehicle, the vehicle's use or to sections of this manual to which particular attention must be paid for optimum use of the vehicle.

If you see this symbol, it indicates “no”, “do not,” “do not do this,” or “never”.

1.3 General Safety Information and Instructions

Failure to follow the warnings and instructions provided in this manual could result in failure of the vehicle, an accident and/or serious personal injury.

Carefully read, understand and follow the warnings and instructions given in this manual. This manual is an essential part of the product. Keep it in the vehicles glove box for future reference.

First-aid kit placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point in time.

Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage.

Never use a mobile phone or any device with headphone while driving. This may take your focus off the road and lead to accidents.

Please be advised that many service and repair tasks require specialised knowledge, tools and experience. General mechanical aptitude may not be sufficient to properly service or repair your vehicle. If you have any doubt whatsoever regarding the ability to properly service or repair your vehicle, please contact your Authorised Mahindra Dealer or a qualified technician.

Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately.

Always start and operate the engine in a well-ventilated area. If in an enclosed area, vent the exhaust to the outside. Do not modify or tamper with the exhaust system.

Examine tyres for excessive tread wear and uneven wear patterns. Check for stones, nails, glass, or other objects lodged in the tread and check sidewalls for any cuts, cracks, or other signs of wear. Replace as necessary.

Always maintain the safety labels affixed to your vehicle in a good legible condition.

10.

All signal lamps, buzzers, shields, guards and other protective safety devices must always remain in place and in good, proper working condition.

11.

The lifespan of Mahindra products depend on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by an Authorised Mahindra Dealer or a qualified mechanic. If the inspection reveals any damage or excessive wear, immediately replace or have the component serviced.

12.

We recommend that you use only genuine parts supplied by Mahindra. The use of non-Mahindra parts will not be covered by warranty.

13.

Never crawl under or be in close proximity to the vehicle when it is lifted off the ground (by a jack), unless the vehicle is properly supported with jack stands, wheel chocks and other appropriate safety devices.

14.

Never attempt any repairs or adjustments to any component while the vehicle is in motion. Always switch off the engine, and wait for the engine to come to a complete stop before performing any repairs or adjustments.

15.

The vehicle identification plates are the only legal identification reference, hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. The customer is responsible for any possible tampering with the plates, which will immediately void the warranty.

16.

Do not attempt sharp turns, abrupt manoeuvres, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the centre of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier.

1.4 To Owner’s of a Mahindra Vehicle

When first driving the vehicle after long periods of non-use, you may experience a temporary drive disturbance. This is a characteristic of the tyres and should be no reason for concern. The condition should correct itself within 5-15 kms. of driving. If the disturbance persists, have the tyres checked by an Authorised Mahindra Dealer.

Driving and Alcohol

Your driving ability can be seriously impaired by alcohol even if the blood alcohol level is far below the legal minimum. Drunken driving is one of the most frequent causes of accidents.

Never drink and drive. Drinking and driving will lead to an accident resulting in serious personal injury.

Driving and Drugs/Medication

Your driving ability can be seriously impaired through the use of prescription or non-prescription drugs or medication (even cough syrup). If you are taking any sort of drug or medication, be sure that it will not affect your driving ability.

Mobile Phones Warning

Use of electronic devices such as mobile phones, computers, portable radios or other by the driver while driving is dangerous. In exceptional condition, if use of a mobile phone is necessary despite this warning, use a handsfree system to ensure that the hands are free to drive the vehicle. Even handsfree do not ensure that due to distraction an accident will not happen.

Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country.

Driving Long Distances

When you are driving over long distances, follow these tips so that you have a safe journey:

•

Lack of sleep or fatigue will impact your ability to drive safely

•

Exercise your eyes by shifting the focus of your eyes to different parts of the road

•

Use stimulating beverages such as coffee or tea

•

Relax and stay calm

•

Take breaks at regular intervals

Protecting Our Environment

All of us should play our part in protecting our environment. Judicious vehicle usage and ensuring hazardous waste disposal (including cleaning and lubrication fluids) are important steps towards this initiative.

Mahindra vehicles conform to existing emission norms (standards). Adhering to the periodical maintenance schedule and using Mahindra genuine parts will help retain emission performance of the vehicle and is a pre-requisite for emissions warranty coverage.

Servicing

If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. A list of dealers can be found in the Dealer Directory Supplement or on the Internet.

Alternatively, you can contact us on 1800-209-6006 / customercare@mahindra.com.

Running-in

Driving smoothly during first 1000 kms. will help to prevent abnormal and premature system wear. Proper running in will improving the life of drivetrain and vehicle components.

A new engine may consume more oil during the first 1000 kms. of running. This should be considered as a normal part of break-in and not interpreted as any problem with the engine.

Mahindra Genuine Parts

Mahindra uses high quality parts for building the vehicles.

In the event that any parts need replacement, we recommend that you use only Mahindra genuine parts.

Non-Mahindra parts may harm vehicle performance and will not be covered by your Mahindra warranty.

To avoid counterfeit parts and to protect our brand image, Mahindra genuine parts are packed in a branded carton. Look for the “Mahindra Genuine Parts” logo.

Any unauthorised modifications or alterations to this vehicle or failure to use appropriate specification and quality spare parts could seriously affect vehicle roadworthiness and safety leading to an accident, resulting in serious injury.

Mahindra Genuine Accessories

A wide selection of quality accessories are available through your Authorised Mahindra Dealer. These accessories have been specifically engineered to allow you to personalise your vehicle to suit your requirements and complement its style and aerodynamic appearance.

Each accessory is made from high quality materials and meets Mahindra's rigid engineering and safety specifications. Every Mahindra accessory installed according to the Mahindra installation provisions comes with the respective accessory warranty.

Consult your Authorised Mahindra Dealer for detailed information about accessories available for your specific model variant.

For maximum vehicle performance and safety considerations, always keep the following information in mind:

•

When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Authorised Mahindra Dealer for specific weight information

•

Bull bars and nudge guards are not recommended for variants with an airbag.

•

Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems

•

Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by a your Authorised Mahindra Dealer

Vehicle Safety

When leaving your vehicle unoccupied:

•

Always remove the ignition key when you park the vehicle

•

Close all the windows completely and lock all the doors

•

Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors

1.5 Audio/Infotainment Manual

Please refer the Audio/Infotainment manual available in the manual pouch for details regarding:

•

Audio/Video functions

•

Bluetooth functions

•

Navigation (if equipped)

2 GENERAL

2.1 Dimensions

DIMENSION & WEIGHTS	mm
Wheel Base	2700 mm
Overall Length	4585 mm
Overall Width	1890 mm
Overall Height	1785 mm
Track Width (Front & Rear)	1600 mm
Maximum GVW (Kg)	2510

2.1.1 Front View

2.1.2 Rear View

2.1.3 Side View

2.2 Bulb Specification

Lamp Bulb	Wattage	Bulb Type	No. of Bulbs per Vehicle
Head Lamp - High Beam	12V 55W	H7 55W	2
Head Lamp - Low Beam	12V 55W	H7 55W	2
DRL / Position Lamp	12V	LED	—
Turn Signal Lamp (Front)	12V 21W	PY21W	2
Static Bending Lamp	12V 55W	H1 55W	2
Fog Lamp (Front)	12V 19W	H16 19W	2
Stop / Tail Lamp	12V 21/5W	P 21/5W	2
Turn Signal Lamp (Rear)	12V 16W	WY16W	2
Reverse Lamp	12V 10W	W10W	2
Parking Lamps (Rear)	12V 5W	W5W	2
Side Marker Lamp (Rear)	12V 5W	W5W	2
Fog Lamp (Rear)	12V 21W	P 21W	2
Position Front (W5 Variant)	12V 5W	W5W	2

2.3 Fuses & Relays

A fuse is the most common electric protection device. A fuse is placed in an electrical circuit, so that when current flow exceeds the rating of the fuse, it blows off.

The element in the fuse melts, opening the circuit and preventing other components of the circuit from being damaged by the over current. The size of the metal fuse element determines the rating. Once a fuse blows off, it must be replaced with a new one.

Switch the ignition and all electrical equipment OFF before touching or attempting to change a fuse.

Fit replacement fuse with the same rating as the one you have removed.

You can identify a blown fuse by a break in the filament. All fuses except high current fuses are push fit. A fuse puller should be used to remove the fuse from its position.

2.3.1 Engine Compartment Fuse Box

Engine compartment fuse box is located adjacent to vehicle battery. Release the lock to access the fuse box contents. Remove the fuse box cover by pressing the clips from both sides using both hands simultaneously. Spare fuses are provided in the fuse box for replacement of blown fuses. Ensure the correct rating fuse is replaced with the blown fuse.

“EF” Fuses (Mini Fuses)
Fuse No.	Circuit	Fuse Rating	Colour
EF1	High Beam	15A	Blue
EF2	Low Beam LH	10A	Red
EF3	Low Beam RH	10A	Red
EF4	AC Clutch	10A	Red
EF5	Static Bending	20A	Yellow
EF6	Front Wiper	25A	Light Brown
EF7	Sensor	15A	Blue
EF8	Hose HTR	30A	Green
EF9	ECU	10A	Red
EF10	ECU	20A	Yellow
EF11	IGN 87	10A	Red
EF12	Fuel Pump/SCR	30A	Green
EF13	Front Washer	15A	Blue
EF15	ABS/ESP3	10A	Red
EF16	ECU/IGN	5A	Brown
EF17	Horn	15A	Blue
EF19	Coolant Pump	10A	Red
EF20	Front Fog Lamp	15A	Blue
EF21	Shifter Solenoid	5A	Brown
EF23	NOx/High Beam PWM Module	20A	Yellow
EF24	Low Beam PWM Module	20A	Yellow
EF25	Battery Sensor	5A	Brown
EF26	ITM/Battery	15A	Blue
EF27	TCU Battery	15A	Blue

“SF” Fuses (J Style Fuses)
	Circuit	Fuse Rating
SF1	Start/IGN SW2	30A
SF2	Cooling Fan	40A
SF3	Glow Plug	60A
SF4	ABS /ESP 1	40A
SF5	Cooling Fan 2	50A
SF6	IP B+2	50A
SF8	IP B+1	60A
SF9	Floor Fuse Box Battery	30A
SF10	ABS / ESP 2	25A

Relays
Relay No.	Circuit	Colour
K1	Start	White
K3	Low Beam	Black
K4	AC Clutch	Black
K6	Cooling Fan Low	Grey
K7	Cooling Fan High	Grey
K8	Front Wiper On	Black
K9	Front Wiper Speed	Black
K11	GNS	Black
K12	Fuel Pump/SCR Main	White
K15	Glow Plug	Grey
K17	Front Fog Lamp	Black
K18	Shifter Solenoid	White
K21	Main	Grey
PCB Relays
K2	DRL
K5	Static Bending
K10	Horn
K13	Front Washer
K22	High Beam

2.3.2 Instrument Panel Fuse Box

Fully open the driver door and slide the driver seat backwards. The main central fuse box is located on the right side of the instrument panel. Price out the securing cover to access the fuse box.

Fuses
Fuse No.	Circuit	Fuse Rating	Colour
1	Power Seat	25A	Brown
2	BEC	15A	Blue
3	Cluster/ITM	5A	Brown
4	Audio ACC	15A	Blue
5	PKE ACC	5A	Brown
6	MBFM Start	5A	Brown
7	MBFM BATT3	20A	Yellow
8	MBFM FL -Window	25A	Light Brown
9	Mirror Folding	10A	Red
10	Rear Wiper ACC	10A	Red
11	Key In	5A	Brown
12	Accessory	5A	Brown
13	Front Blower	30A	Green
14	Rear Blower	20A	Yellow
15	Rear Defogger	20A	Yellow
16	Power Socket	—	—
17	Power Socket MID	15A	Blue
18	Power Socket Front	15A	Blue
19	Rear Wiper	10A	Red
20	Rear Washer	10A	Red
21	Rear Fog lamp	5A	Brown
22	HVAC ACC	10A	Red
23	ACC Blower	5A	Brown
24	Sunroof	20A	Yellow
25	Rain-Light Sensor	5A	Brown
26	Roof / Map Lamp	5A	Brown
27	Memory-Cluster	15A	Blue
28	MBFM FR Window	25A	Light Brown
29	MBFM RR Window	25A	Light Brown
30	MBFM RL Window	25A	Light Brown
31	MBFM Battery 1	25A	Light Brown
32	MBFM Battery 2	30A	Green
33	Audio / BATT	15A	Blue
34	Airbag	15A	Blue
35	Reverse Lamp	10A	Red
36	AUD/Sunroof/Tyre (Tiretronics)/HVAC IGN	5A	Brown
37	Spare	5A	Brown
38	Spare	10A	Red
39	Spare	15A	Blue
40	Spare	20A	Yellow
41	Spare	25A	Light Brown
42	Spare	30A	Green

Relays
Relay No.	Circuit	Relay Rating	Colour
43	Rear Defogger Relay	40A	Brown
44	IGN Relay	40A	Brown
45	Accessory Relay	50A	Grey
46	Front Blower Relay	40A	Brown
47	Rear Blower Relay	20A	Blue
48	Rear Fog Lamp	20A	Blue
49	Key Lock Solenoid Relay	20A	Blue
50	Mirror Unfold Relay	20A	Black
51	Rear Wiper Relay	20A	Blue
52	Mirror Fold Relay	20A	Black
53	Rear Washer	20A	Blue
54	Not used
55	Not used
56	Not used
57	Not used
58	Reverse Lamp Relay	20A	Blue

2.3.3 Floor Fuse Box

The floor fuse box is located under the LH A-Pillar lower trim.

Fuses
Fuse No.	Circuit	Fuse Rating
1	Key Lock BATT	5A
2	PKE BATT 1	10A
3	PKE BATT 2	15A
4	TYRE BATT TIRETRONICS	5A
5	SSB BATT	5A
6	PKE IGN	5A

2.4 Flat Tyre

In case of a flat Tyre while driving, reduce your speed gradually, maintaining a straight line. Move cautiously off the road to a safe place well away from traffic. Park on a level spot with firm ground. Stop the engine and turn ON your hazard warning flashers.

Firmly apply the parking brake. Have everyone come out of the vehicle on the side away from traffic.

Never stop your vehicle in a traffic lane to change a tyre. You could be hit by an oncoming vehicle. Keep driving until you reach a safe location.

Lifting a vehicle to change a tyre or perform maintenance is very dangerous if you do not have the requisite tools, safety equipment and training. The jack provided along with the vehicle is to be used only for changing a spare tyre. It is never to be used to perform any other maintenance or repair on the vehicle.

Never place any part of your body under any portion of the vehicle when it is supported only by the jack. You could be crushed by the vehicle if it falls off a jack. Keep bystanders away from the vehicle.

Find level, solid ground that is clear of oncoming traffic. If you cannot find a safe place to stop, it is better to drive on a flat tyre and damage the rim than it is to risk being hit by oncoming traffic.

After changing a flat tyre, never store the tyre or other equipment in the passenger compartment of the vehicle. This loose equipment could strike an occupant in the event of a sudden stop or collision. Store all of these items in the proper place.

The following sections outline the procedure for changing a flat tyre;

2.4.1 Tool Kit

The tool kit is located behind the third row seats on the floor.

The tool kit consists of the following tools packed in a PVC tool bag:

•

Assembly Screw Jack

•

Jack Operating Lever

•

Wheel Spanner

•

Tow Bar

•

DEO Spanner 10mm x 12mm

•

Screw Driver

A	Jack Operating Lever
B	Wheel Spanner
C	DEO Spanner 10mm x 12mm
D	Tow Bar

The warning triangle is located on the rear door trim below the camping lamp. Rotate the two securing knobs and lower the hinged cover. Un-strap the two holding belts and remove the warning triangle pouch.

2.4.2 Spare Wheel Removal

Spare wheel is located below the floor at the rear end of the vehicle. It is held in place by a securing nut underneath the rear luggage compartment floor carpet.

•

Locate the plug covering the securing nut below the rear luggage compartment floor carpet. Remove the plug using a coin

•

Loosen the securing nut counter clockwise to winch down/lower the secured spare wheel to the ground

•

Rotate the securing bracket counter clockwise and remove it out of the spare wheel hub

•

Remove/pull away the spare wheel

To remove the wheel cover, wrap the tip of a screw driver with cloth, insert it near the lugs of the wheel cover and pry the cover away from the wheel.

Do not try to pry off the wheel cover by hand alone. Take due care in handling the wheel cover to avoid unexpected personal injury.

2.4.3 Wheel Nut Loosening

Always loosen the wheel nuts before raising the vehicle. Turn the wheel nuts counter clockwise to loosen. To get maximum leverage, fit the spanner to the nut so that the handle is on the right side. Grab the spanner near the end of the handle and push down on the handle. Be careful that the spanner does not slip off the nut. Do not remove the nuts, but loosen them by one or two turns.

Do not apply force with your legs (or stand) on the wheel spanner while tightening the wheel nuts.

Flat Tyre

Chocks Blocks

Block the wheel diagonally opposite the flat tyre to keep the vehicle from rolling when it is jacked up. When blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.

2.4.4 Jacking

Locate the jack points in the front or rear as needed. They can be identified by a slot used to fit the jack precisely.

Position the jack at the correct jacking point. Make sure the jack is positioned on a level and solid place.

To raise the vehicle, insert the jack handle end with the jack operating lever, wheel spanner square slot into the jack operating lever and turn it clockwise with the handle. As the jack touches the vehicle and begins to lift, check that it is properly positioned.

Ensure no one is in the vehicle. Raise it high enough so that the spare tyre can be installed. Remember, you will need more ground clearance when putting on the spare tyre than when removing the flat tyre.

Make sure to set the jack properly in the jacking point. Raising the vehicle with jack improperly positioned will damage the underbody of vehicle or may allow the vehicle to fall off the jack and cause personal injury.

•

Use the jack only for lifting your vehicle during wheel changing

•

When raising the vehicle, do not place any objects on top of or underneath the jack

•

Do not raise the jack with someone in the vehicle.

•

Raise the vehicle only high enough to remove and change the wheel

•

Follow jacking instructions

•

Do not start or run the engine while your vehicle is supported by the jack

Never get under the vehicle when the vehicle is supported by the jack alone.

Remove the wheel nuts. Lift the flat tyre straight off and place it aside. Roll the spare wheel into position and align the holes in the wheel with the bolts. Lift up the wheel and get at least the top bolt started through its hole. Wiggle the wheel and press it back over the other bolts.

Before putting on the wheels, remove any corrosion on the mounting surfaces with a wire brush or such. Installation of wheels without good metal to metal contact at the mounting surface can cause wheel nuts to loosen and eventually cause a wheel to come off while driving.

Reinstal the wheel nuts with the tapered end inward and tighten by hand. Press the wheel inward and tighten the wheel nuts further.

Never use oil or grease on the bolts or nuts. Doing so the spanner slips, damaging the bolts and also may cause personal injuries. Also, nuts may loosen and the wheels may fall off, which could cause a serious accident. If there is oil or grease on any bolt or nut, clean before installing wheel nuts.

Lower the vehicle completely and tighten the wheel nuts using the wheel nut spanner. Turn the jack-operating lever counter clockwise using the wheel nut spanner to lower the vehicle, making sure the handle remains firmly fitted onto the jack handle extension. Do not use other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot. Make sure the spanner is securely engaged over the nut. Tighten each nut a little at a time in the diagonally opposite order. Repeat the process until all the nuts are tight.

Improperly or loosely tightened wheel nuts are dangerous. The wheel could wobble or come off. This could result in loss of vehicle control and cause a serious accident. Always make sure all the wheel nuts are properly/securely tightened to the specified torque.

When lowering the vehicle, make sure all portions of your body and all other persons are clear off the vehicle as it is lowered to the ground. Have the wheel nuts tightened with the torque spanner to 83-104Nm, as soon as possible after changing wheels.

Put the wheel cover into position aligning the nozzle on the wheel to the nozzle clearance on the wheel cover. Tap it firmly on the sides with your hand to snap it into place.

2.4.5 Restore all the Tools, Jack and Flat Tyre Securely

Replace the tools (jack, wheel spanner, etc.) in their storage locations.

Align the spare wheel bracket to the centre hub of the wheel. Winch up the flat tyre to the floor at the rear of the vehicle. Firmly tighten the securing nut and put the floor carpet back.

Double check to ensure the tyre is snug against the rear floor of the vehicle. The spare wheel bracket/cable may be damaged if the vehicle is driven with the spare wheel loosely mounted.

Drive slowly to the nearest service station and inflate to the correct pressure. Always reinstal the valve cap after checking or adjusting tyre pressure, dirt and moisture could get into the valve core and cause air leakage or valve damage.

2.5 Technical Specifications

Technical Specifications
ENGINE - mHawk
Displacement/Cubic Capacity	2179 cc
Type	4 Stroke, Turbocharged, DI engine
Compression Ratio	16.5 ± 0.5 : 1
Max. Engine Output (kW @ rpm)	114.1 kW @ 3750 rpm
Max. Torque (Nm @ rpm)	360 Nm @ 1750 to 2800 rpm
TRANSMISSION
Type	6 Speed Automatic Transmission
No. of Gears	6 Forward, 1 Reverse
GEAR RATIOS	Transaxle Ratio	Final Drive Ratio	Overall Ratio
I	4.148	3.604	14.949
II	2.370		8.541
III	1.556		5.607
IV	1.155		4.162
V	0.859		3.095
VI	0.686		2.472
Reverse	3.394		12.231
STEERING
Type/Description	Hydraulic
Steering Wheel Diameter	380 mm
BRAKES
Service Brake	Hydraulic circuit assisted by vacuum with optional ABS/ ESP acting on all wheels and with auto adjuster, cross diagonal.
Front	Disc
Rear	Disc
Parking Brake	On rear wheels, Integral Park brake
WHEELS & TYRES
Rim	7J X 17” Regular (Alloy & Steel)
Rim	Optional 7J X 18”
Tyres	P235/65 R17
Tyres	Optional P235/60 R18
Type	Radial, Tubeless
Laden Tyre Pressure (front & rear), (kg/cm2)	Front - 2.2 kg/cm2, Rear - 2.2 kg/cm2
FUEL
Fuel Capacity	70 ± 2 litres
ELECTRICAL SYSTEM
System Voltage	12V
Battery	12V, 90/85 Ah
WEIGHTS
Maximum GVW kg	2510 kgs

2.6 Vehicle Identification Number (VIN)

Vehicle Identification Number (VIN) is the legal identity of your vehicle. The vehicle identification number is stamped on the VIN plate riveted on to the bottom of the B-Pillar on the driver side.

2.7 Engine Number

The engine number is punched on the LHS face of the crankcase adjacent to the water pump. The engine number is also stamped on the VIN plate near the bonnet release lever.

3 VEHICLE OVERVIEW

3.1 Front Overview

A	Hood
B	Windshield Wiper
C	Front Windshield
D	Ski Rail
E	Outside Rearview Mirror (ORVM)
F	Front Turn Signal Lamp
G	Head Lamp Low Beam
H	Fog Lamp
I	Static Bending Lamp*
J	Head Lamp High Beam
K	Position Lamp Guide/DRL
	* - if equipped

3.2 Rear Overview

A	Rear Windshield/ Demister
B	Rear Wiper*
C	High Mounted Stop Lamp
D	Rear Parking Lamps
E	Reverse Lamp
F	Rear Fog Lamp
G	Rear Camera
H	Reverse Park Assist System (RPAS) Sensor
I	Reflex Reflector
J	Rear Stop Lamp
K	Turn Lamp
* - if equipped

3.3 Instrument Panel Overview

A	Side Vents	J	Steering Wheel
B	Side Defrost Vents	K	Horn Pad/Driver Airbag
C	Front Co-passenger Airbag	L	Accelerator Pedal/ Brake Pedal
D	Windshield Defrost Vents	M	Parking Brake
E	Infotainment Screen	N	Transmission Gear Lever
F	Front Utility Box	O	HVAC Controls
G	Centre Vents	P	Infotainment Controls
H	Wiper Stalk	Q	Lower Glove Box
I	Instrument Cluster	R	Upper Glove Box
* if equipped

4 INSTRUMENT CLUSTER OVERVIEW

4.1 Instrument Cluster

A	Speedometer
B	Fuel Gauge
C	Odometer/Trip meter/Gear Indicator
D	Warning/Telltale Lamps
E	Tachometer/RPM Gauge
F	Temperature Gauge
G	Reset Button

4.2 Warning Lamps Overview

4.3 Warning Lamps

Sr. No.	Warning Lamp/Tell-Tale	Lamp Pre-check	Lamp Status while Engine running	Action/Remarks
A	Parking Lamp	No	Continuously ON	Indicates Parking Lamp is ON
B	AWD Lamp	No	Continuously ON	Indicates a malfunction of the AWD system. Contact an Authorised Mahindra Dealer Immediately
C	Rear Fog Lamp Indicator *	No	Continuously ON	Indicates rear fog lamp is ON
D	Left Turn Indicator	No	Slow or Fast Blinking	Indicates left turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced
E	Airbag Warning Lamp *	For about 2 seconds	Continuously ON	Indicates malfunction of the airbag system. Contact an Authorised Mahindra Dealer immediately
F	Front Fog Lamp Indicator *	No	Continuously Lamp ON	Indicates front fog lamp is ON
G	Glow Plug Indicator	For about 2 seconds	Continuously ON	Indicates a malfunction in the starting system. Contact an Authorised Mahindra Dealer immediately
H	Vehicle Armed Status Lamp	No	Blinking	Slow Blinking: Vehicle is armed with the remote Fast Blinking/Continuously ON: Indicates a system malfunction Contact an Authorised Mahindra Dealer immediately
I	Low Fuel Warning Lamp	No	Continuously ON	Indicates fuel level has reached the reserve level. Re-fuel immediately.
J	Water-in-Fuel	Yes	Continuously ON	Indicates water-in-fuel. Drain the water from filter or contact an Authorised Mahindra Dealer for assistance
K	Right Turn Indicator	No	Slow or Fast Blinking	Indicates right turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced
L	Cruise Control Indicator *	Yes	Continuously ON	Indicates vehicle is in Cruise mode
M	High Coolant Temperature Warning Lamp	Yes	Continuously ON	Engine temperature very high. Contact Authorised Mahindra Dealer immediately
N	Low Engine Oil Pressure Warning Lamp	Continuously ON till Engine Starts	Continuously ON	Indicates engine oil pressure is low. Check oil level and top-up or contact an Authorised Mahindra Dealer for assistance
O	ESP System Warning Lamp*	For About 2 Seconds	Continuously ON or Blinking	Blinking: Indicates ESC has taken control of the vehicle stability Continuously ON: Indicates a malfunction in the ESC system. Contact an Authorised Mahindra Dealer immediately
P	ABS Warning Lamp *	For About 2 Seconds	Continuously ON	Indicates malfunction of the ABS system. Contact an Authorised Mahindra Dealer immediately
Q	ESP OFF Lamp*	No	Continuously ON	Indicates ESC OFF
R	Tiretronics	For About 2 Seconds	Continuously ON or Blinking	Indicates low/high tyre pressure or possible malfunction in Tiretronics. Refer to Tiretronics section in FEATURES AND CONTROL/WHEELS AND TYRES chapter for further details
S	Check Engine Lamp	For About 2 Seconds	Continuously ON or Blinking	Indicates a potential malfunction in the EMS, contact an Authorised Mahindra Dealer immediately
T	Parking Brake ON/Brake Fluid Low Warning Lamp	Yes	Continuously ON	Either one of below conditions: 1. Park Brake might be engaged 2. Brake fluid level might be low 3. Front Brake Pads are worn Contact Authorised Mahindra Dealer immediately for assistance
U	OBD Check Lamp	Continuously ON till Engine Starts	Continuously ON	There is a potential malfunction related to emission system, contact an Authorised Mahindra Dealer immediately
V	Head Lamp High Beam Lamp	No	Continuously ON	Indicates Head lamp high beam is ON
W	AT Malfunction indicator Lamp	Continuously ON till Engine Starts	Continuously ON or Blinking	Indicates malfunction if lamp is ON after the engine starts
X	Charging System Warning Lamp	Continuously ON till Engine Starts	Continuously ON	Indicates malfunction in charging system. Contact Authorised Mahindra Dealer for assistance
Y	Door Ajar Warning Lamp	No	Continuously ON	Indicates one or more doors and/or boot/hood are open
Z	Seat Belt Warning Lamp	Yes	Continuously ON	If tell-tale is not turning OFF even after fastening the seat belt, contact an Authorised Mahindra Dealer for assistance
A1	REGEN Indicator	No	Continuously ON/Blinking	It indicates the DPF Manual Regeneration is Required. It indicates currently DPF Manual Regeneration is in progress. Follow the instructions mentioned in the ‘DIESEL EXHAUST FLUID Section”
B1	DEF Indicator Lamp	Yes	Continuously ON	It indicates that either DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
C1	DPF Indicator Lamp	Yes	Continuously ON	If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
* if equipped / select models or variants only

5 Emission Control System

The emission control system is a highly effective system which controls exhaust emissions from the engine and crucial for meeting emission norms specified by law.

Your vehicle is equipped with the following emission control systems for meeting BS VI emission norms.

Diesel Oxidation Catalyst (DOC)

Selective Catalytic Reduction(SCR)

Diesel Particulate Filter (DPF)

In order to ensure proper function of the emission control systems, it is mandatory to get your vehicle inspected and maintained by an authorized Mahindra dealer. The maintenance schedule in this manual need to be followed.

It is also extremely important to use correct grade of fuel, Confirming to IS 1460; 2017 BS VI Specification.

5.1 Diesel Oxidation Catalyst (DOC)

A diesel oxidation catalyst (DOC) is an after treatment component that is designed to convert carbon monoxide (CO) and hydrocarbons (HC) into carbon dioxide (CO2) and water (H2O).

5.2 Selective Catalytic Reduction(SCR)

Selective Catalytic Reduction (SCR) is an advanced active emission control technology system that injects a liquid-reducing agent through a special catalyst into the exhaust stream of a diesel engine. The reductant is called as Diesel Exhaust Fluid (DEF). The DEF sets off a chemical reaction that converts nitrogen oxides into nitrogen and water which is then expelled through the vehicle tailpipe.

5.2.1 Diesel Exhaust Fluid (DEF) MaxiCLEAN

To enable SCR system work efficiently and to ensure emission compliance, It is recommended to use MaxiCLEAN DEF meeting IS 17042 (or) ISO 22241 specification.

Refilling DEF is part of regular maintenance service. DEF consumption is highly dependent on driving conditions/pattern. It may be necessary to refill DEF reservoir in-between the scheduled service, You need to monitor DEF Indicator Tell Tale and symbols/text messages displayed on infotainment screen / Cluster.

MaxiCLEAN DEF is available at all the authorized Mahindra dealers in variable packs. Individual DEF Packs may have specific filler neck, for filling DEF in the vehicle. While refilling DEF, Ensure no spillage on the body of self and vehicle to avoid any stains or inconvenience.

It is unlawful to tamper with or remove any component of the after treatment system. It is strongly recommended not to use DEF which is not meeting above specification. Further, this may lead to emission non-compliance and warranty will be void.

•

Use Genuine DEF MaxiCLEAN always.

•

Incase of non-availability of above Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used.

•

Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.

•

Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.

•

DEF quality and purity can be ensured only if it is stored properly. Hence ensure the storage of DEF in cool, dry place between storage.

•

Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.

•

While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.

•

If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels.

•

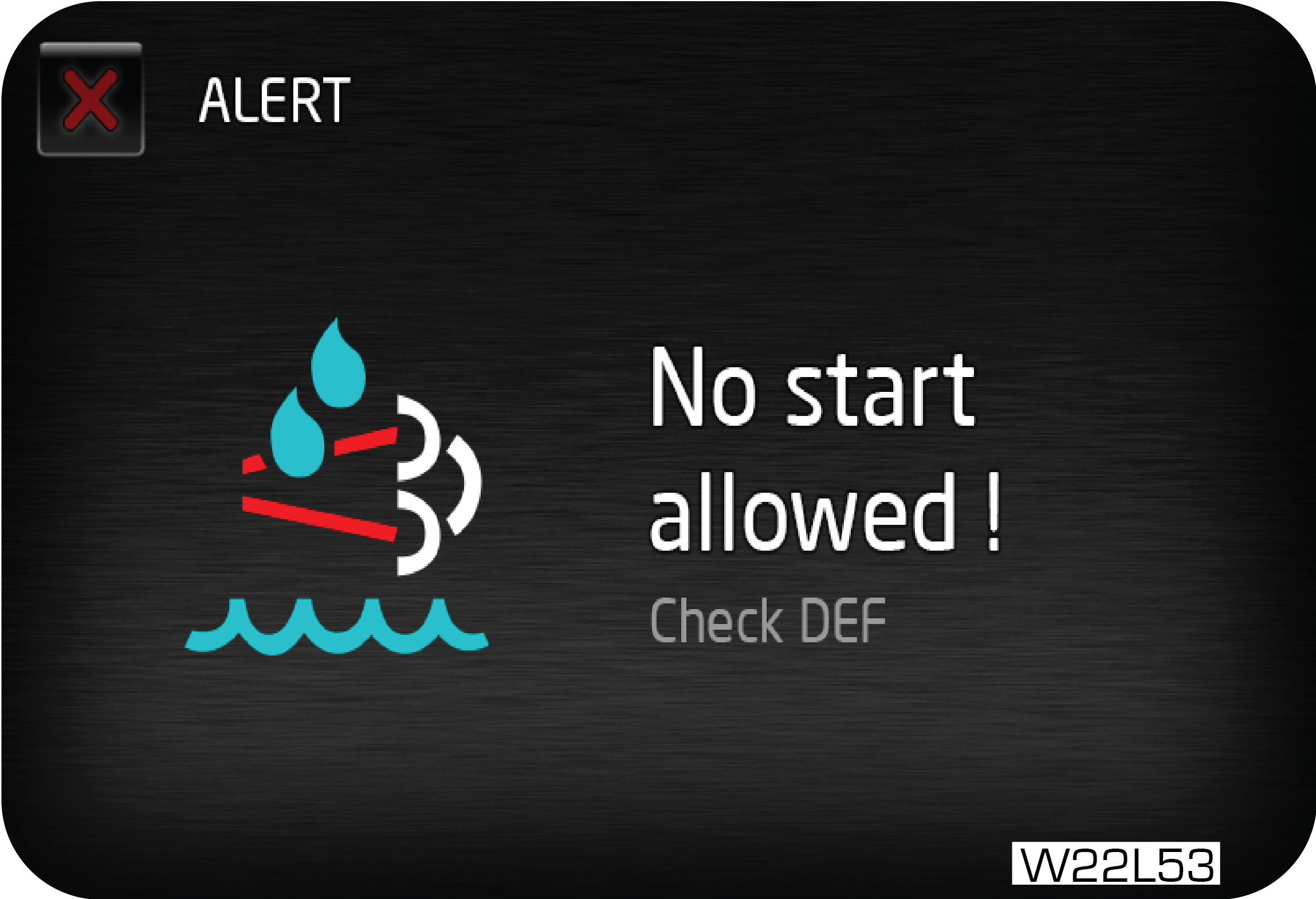

DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged.

•

In such a case , do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance.

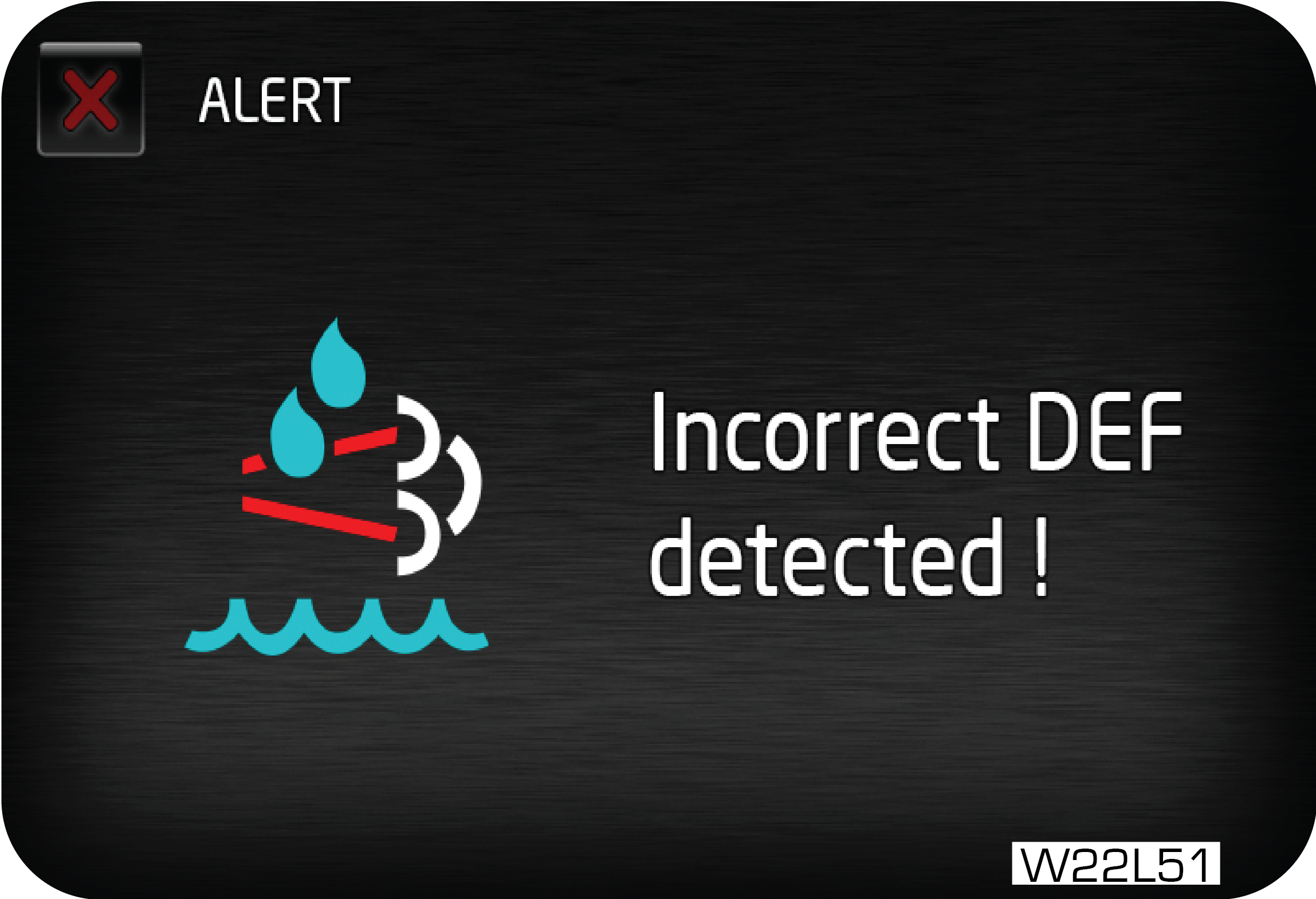

5.2.2 Contamination/ Incorrect DEF

In the event that incorrect or contaminated fluid is filled inside DEF Tank, contact an authorized M&M dealer to determine the appropriate repair direction.

5.2.3 Handling of DEF

•

Ensure that DEF does not come into contact with skin, eyes, or clothing

•

Keep DEF out of the reach of children

•

In case if any part of the body is in contact with DEF, clean affected area immediately with plenty of water

•

If DEF contacted with eyes, flush with plenty of water immediately and seek medical assistance.

•

If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical assistance.

•

Don’t store DEF refill containers inside the vehicle. Ammonia vapors may escape from container which have a pungent odor and are particularly irritating for skin, mucous membranes and eyes. Inhaling ammonia vapors may cause burning eyes, nose and throat, as well as cough and watering eyes.

•

When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.

•

If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed.

5.2.4 DEF Operating Condition

DEF will freeze at -11°C (12.2°F). This is natural phenomenon. The DEF system in the vehicle is designed considering this and does not require any external heating or additives to avoid freezing.

The Diesel Exhaust Fluid (DEF) system purges to prevent damage from freezing. Do NOT disconnect battery power within 20 minutes of switching the ignition key off. Failure to comply may result in vehicle or property damage.

5.2.5 Refilling DEF

Your Vehicle DEF Filler Neck is located inside the engine compartment. The DEF storage tank is located under the body.

Following below steps to refill the DEF:

Park the vehicle on level ground and switch OFF the ignition.

Open the hood and locate the DEF Filler Neck.

Rotate the DEF filler cap in anti-clockwise direction and remove.

Fill DEF from the Container Pack. Each container pack has unique mouth and filling provision. Ensure utilizing the same and avoid spillage. Example. 10 Lit. Pack provided with filler tube and 2 Lit. Pack provided with spout.

Fill DEF as required. Maximum Storage capacity 20 litre. Minimum filling 6.0 liter.

Rinse with water or use sponge wetted with water to clean the components/surfaces in case of DEF spills over.

Close the hood and switch the ignition ON

Verify that there is no warning regarding DEF low level. If DEF Level Low warning is still appearing, Check enough quantity filled, If still problem persist Contact nearest Authorized Mahindra Dealer immediately.

5.3 Diesel Particulate Filter (DPF)

The Diesel particulate filter (DPF) is an integral part of the vehicle exhaust gas emission reduction systems and it removes the soot from (Particulate matter) the exhaust gas. Unlike a disposable air filter, the DPF is regenerative filter. Regeneration is triggered automatically according to the driving conditions which burns of the accumulated particles/soot. In other words, the active burning by engine control system and high exhaust gas temperature caused by normal/high driving condition burns and removes the accumulated soot. The process is called as DPF Active Regeneration.

However, if the vehicle continues to be driven at either of the following conditions the accumulated soot may not be automatically removed because of low exhaust gas temperature.

Heavy traffic driving conditions, especially in city

Frequent short trips

Low speed for a long time

When more than a certain amount of soot deposited, the DPF lamp illuminates.

If the DPF lamp turns ON while driving the vehicle, then it indicates DPF regeneration has not occurred successfully. At this moment, we suggest DPF regeneration must be done through a specific methodology. The same is as mentioned below:

Take vehicle to highway and drive for 20–30 mins @ speeds above 60 kms/hr until the lamp switches OFF (or)

Take vehicle to Mahindra authorised dealer for assistance.

Diesel Fuel

It is recommended to use the automotive diesel fuel confirming to IS 1460: 2017 spec only.

If the diesel fuel with high sulfur content (more than 10 PPM) and unspecified additives are used, it can cause the DPF system damage and emission warranty issues.

•

During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.

•

In order to avoid burns & personal injury, stay yourself away from exhaust system.

•

Follow speed limits & traffic regulations as defined by local jurisdiction while doing forced regeneration.

5.4 Alerts in Infotainment

Introduction

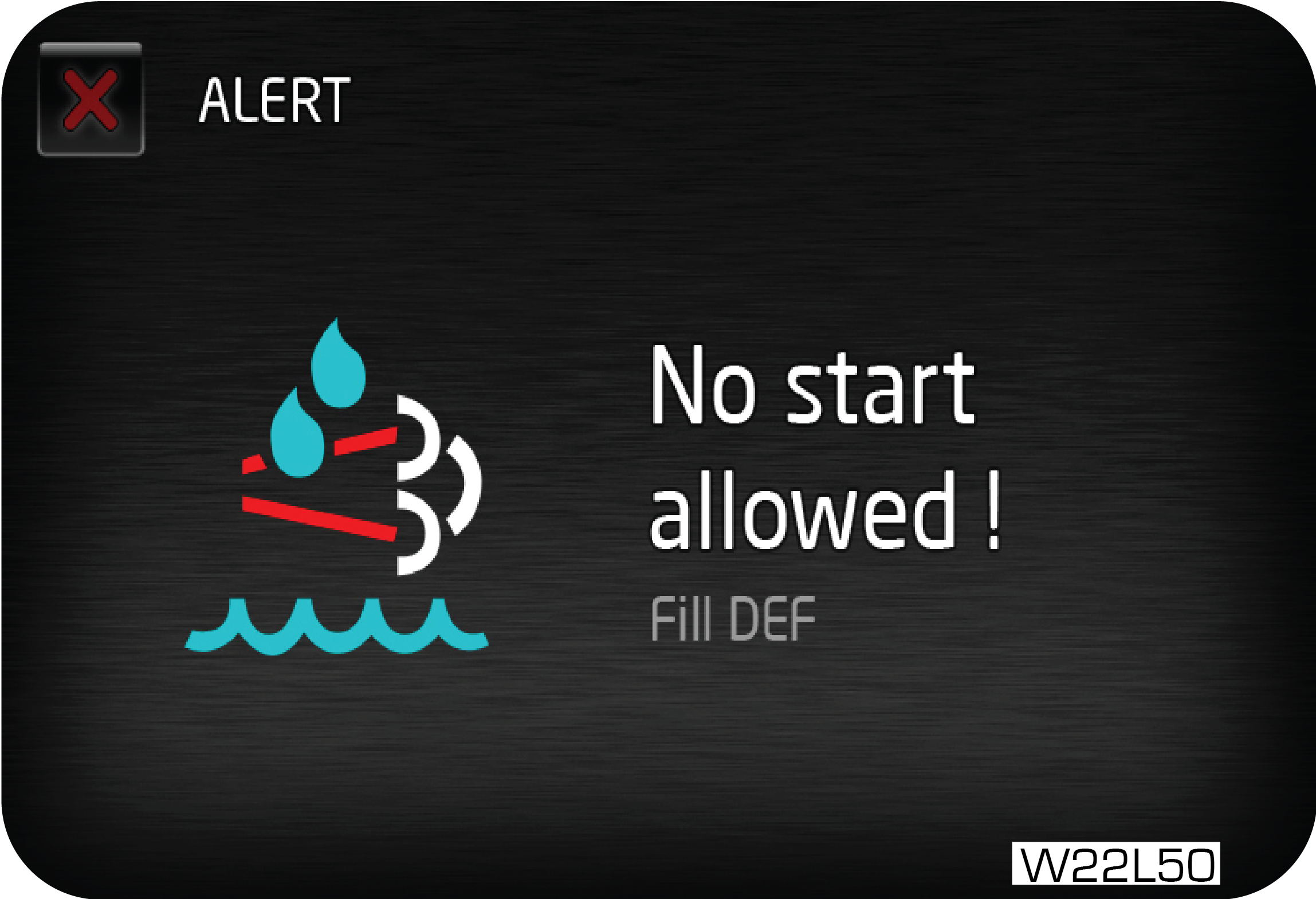

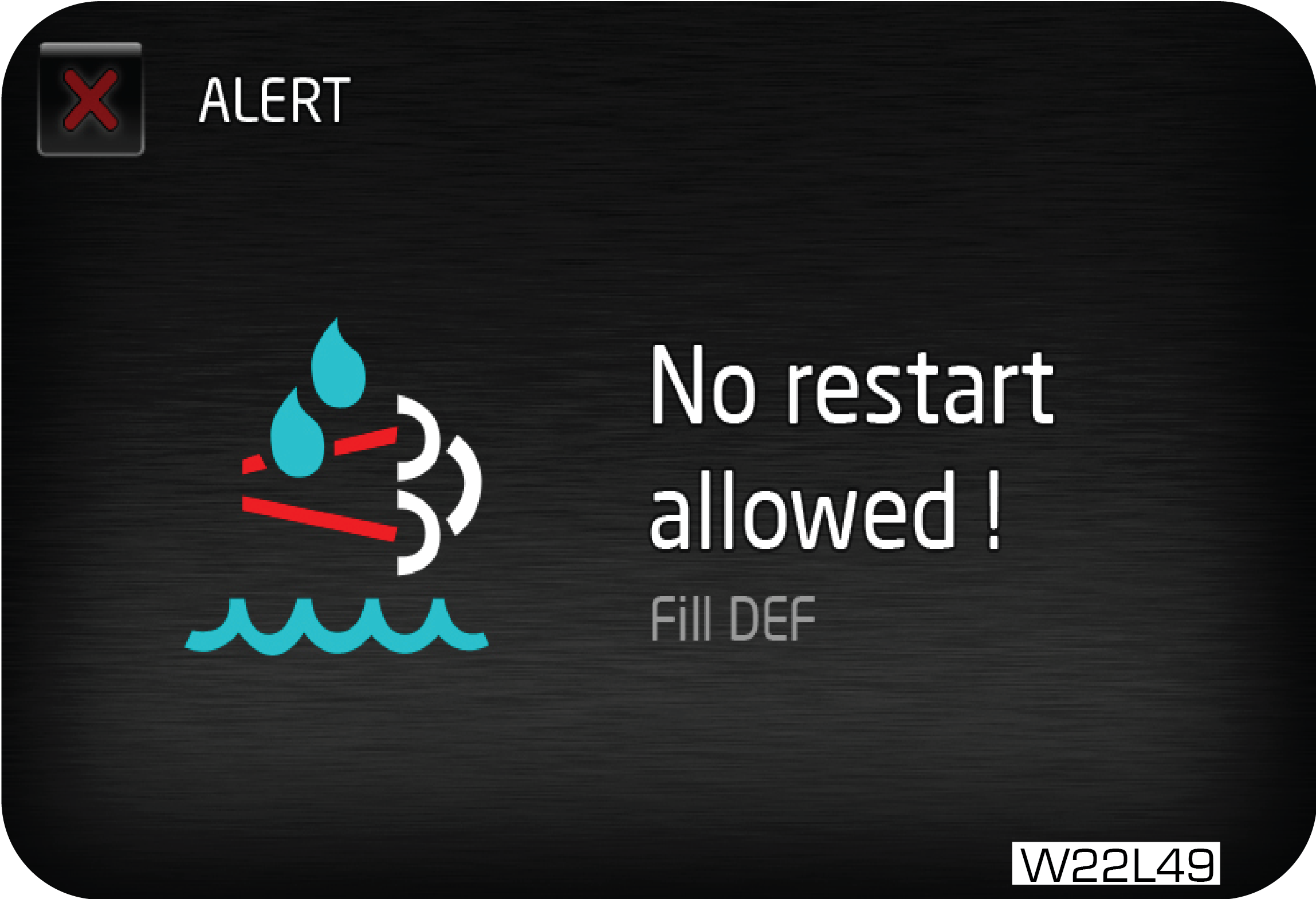

DEF Tell Tale will get illuminated and relevant messages will be flashed on infotainment screen due to any of the following three reasons:

•

DEF level low

•

Incorrect DEF detected

•

DEF dosing malfunction

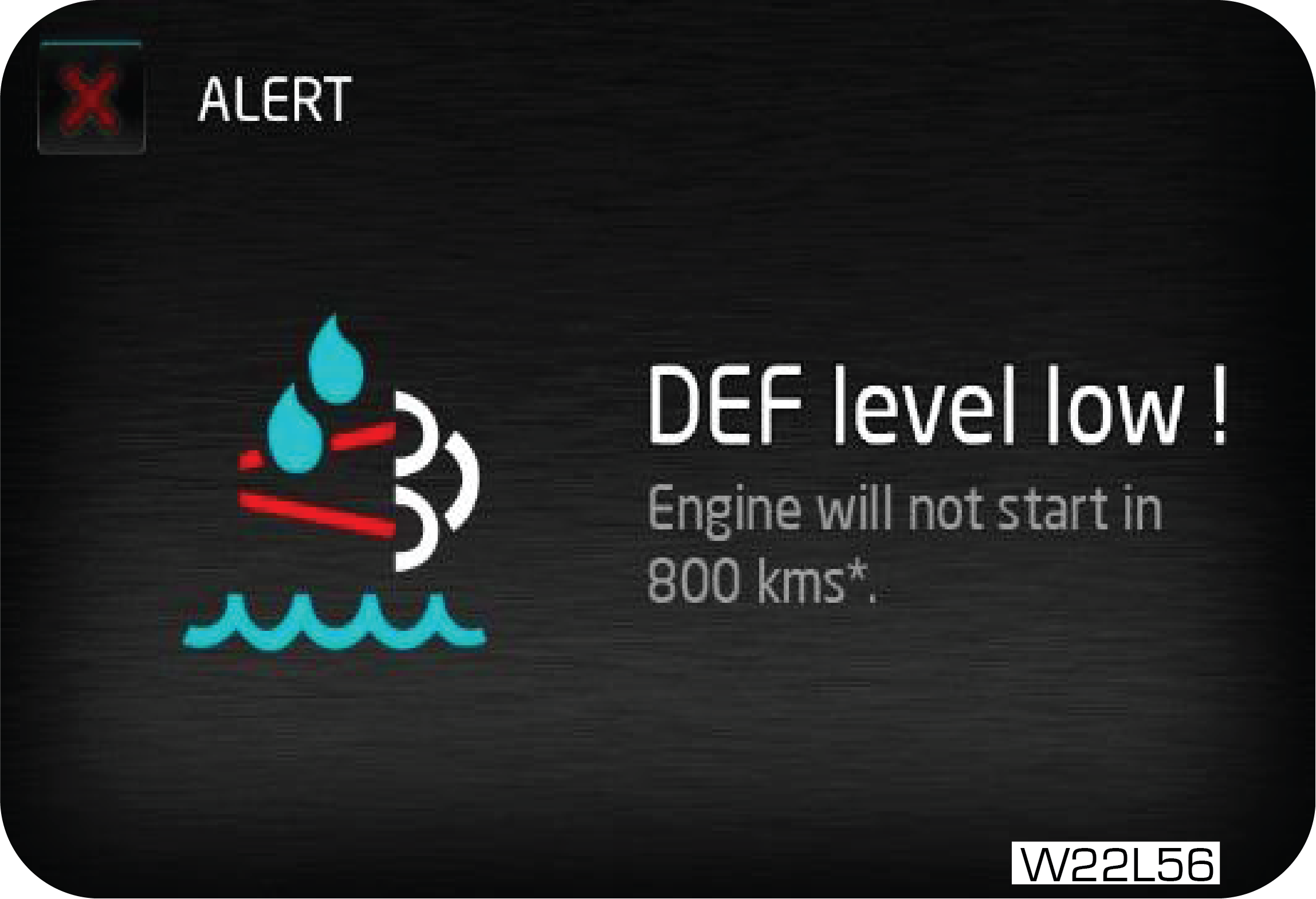

5.4.1 DEF Level Low

When DEF level in tank fall below pre-defined values, warnings are flashed in four stages. These four warning stages are explained below:

Stage 1:	Stage 3:
Stage 2:	Stage 4:

Irrespective of the warning stages, once DEF level is low, 6.0 liter of DEF needs to be filled. If the warnings continue even after refill, contact nearest authorized Mahindra dealer immediately.

In absence of DEF level low warning, refilling is not recommended.

Total DEF quantity inside the DEF Tank should never be more than 20 liter. Overfilling may result in system/component failure. Only authorized Mahindra dealer will be able to correctly determine quantity of DEF present inside tank. Hence if you are refilling the DEF yourself, fill only 6.0 liter, in case DEF Low level warning is flashed.

If the DEF warning lamp turns on due to the DEF level, refill the DEF tank. Failure to refill may cause the engine start restriction.

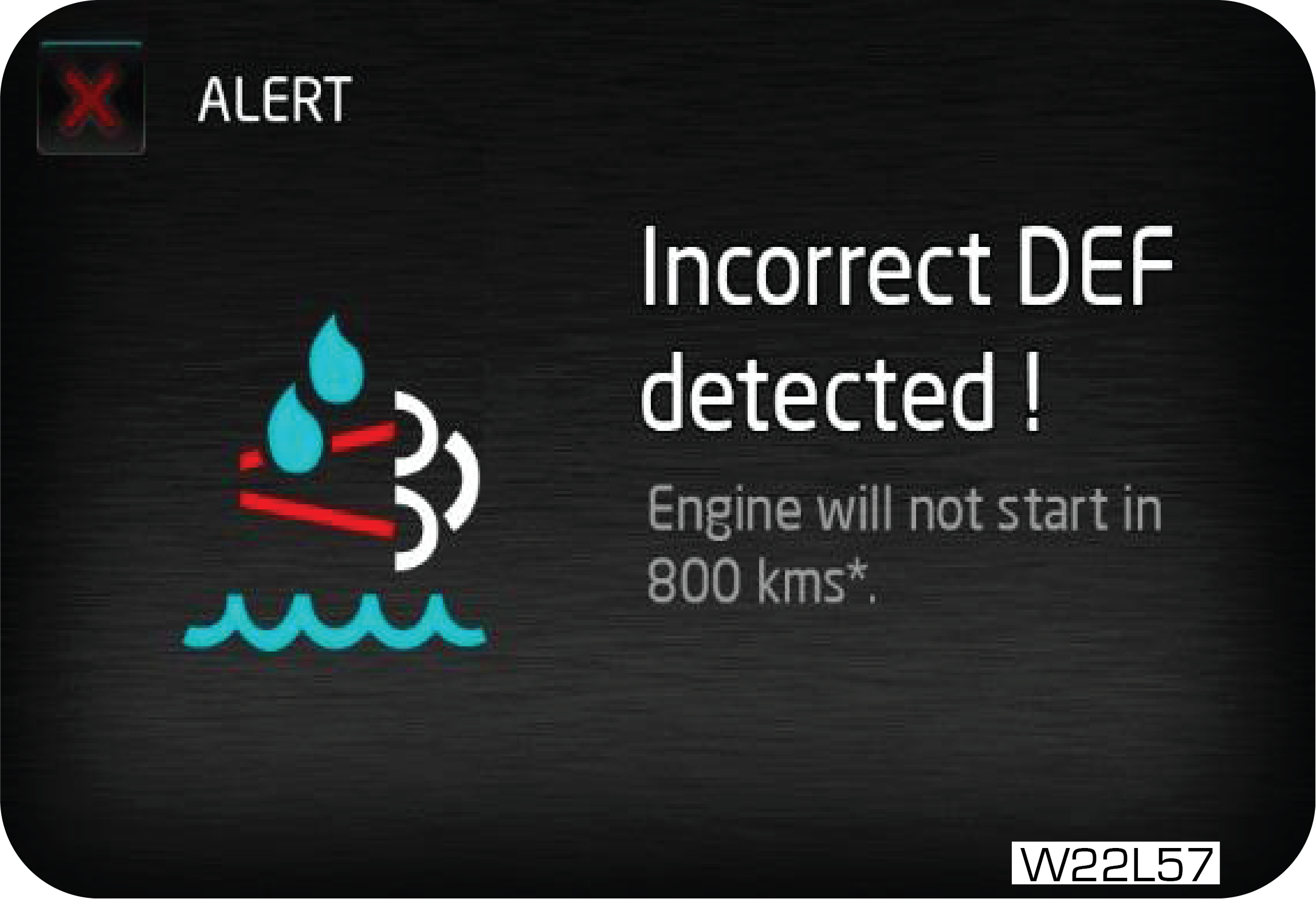

5.4.2 Incorrect DEF detected

If SCR system detects quality of DEF inside the tank is not meeting IS 17042 (or) ISO 22241 specification, warnings will flashed in four stages. These four warning stages are explained below:

Stage 1:	Stage 3:
Stage 2:	Stage 4:

If the DEF warning lamp turns on due to the DEF quality, see contamination/incorrect fluid for corrective action. Failure to correct may cause the engine start restriction.

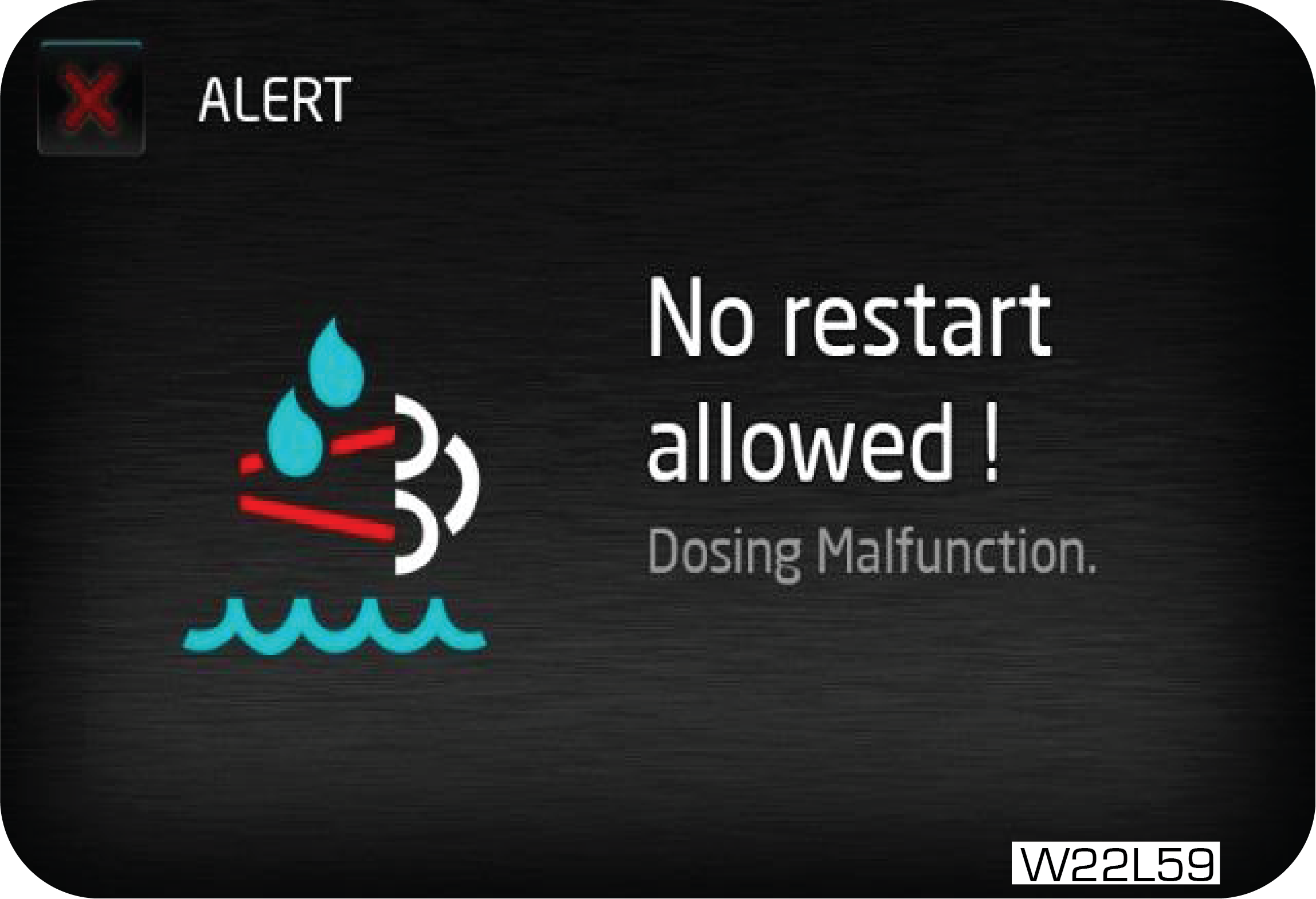

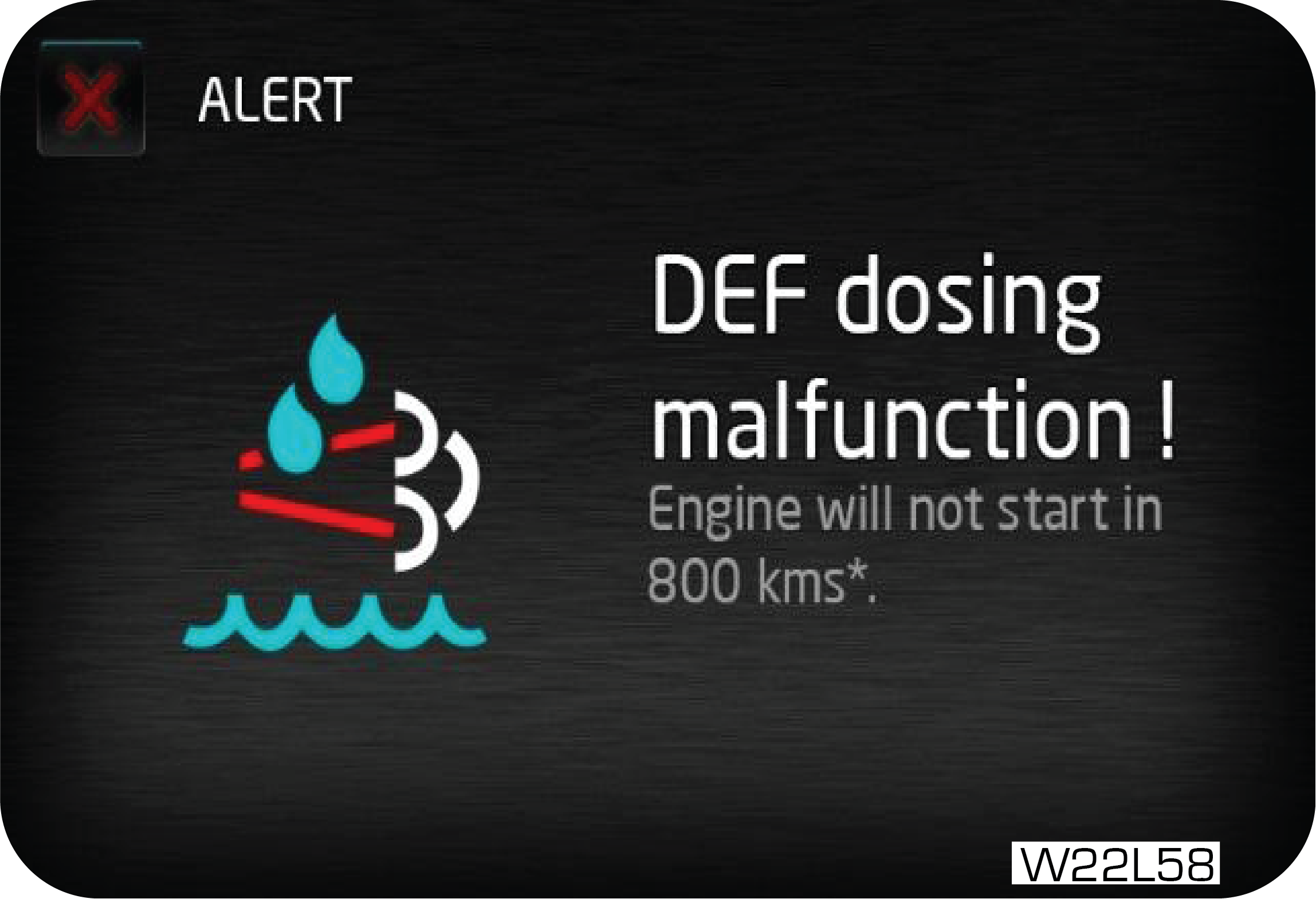

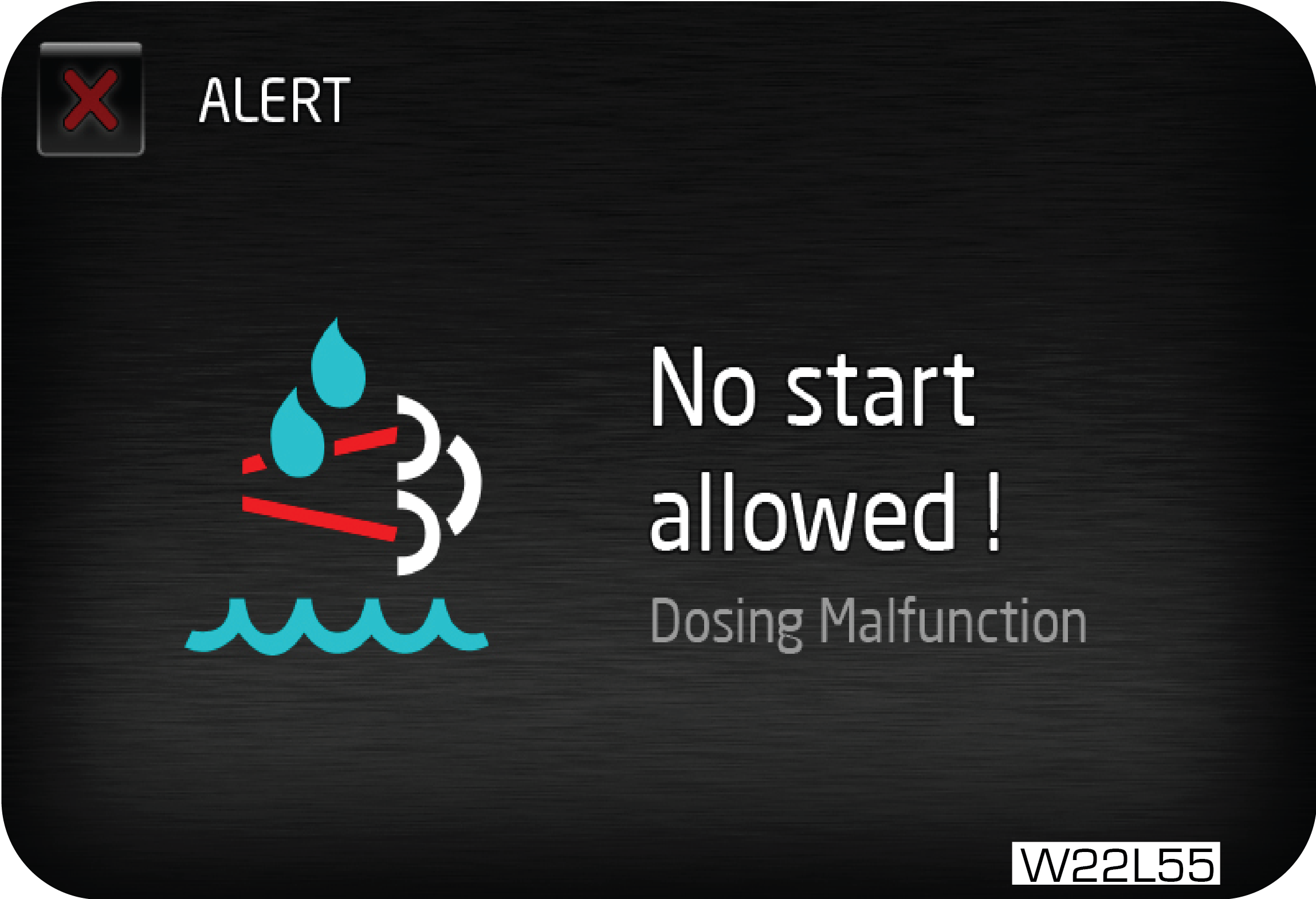

5.4.3 DEF Dosing Malfunction

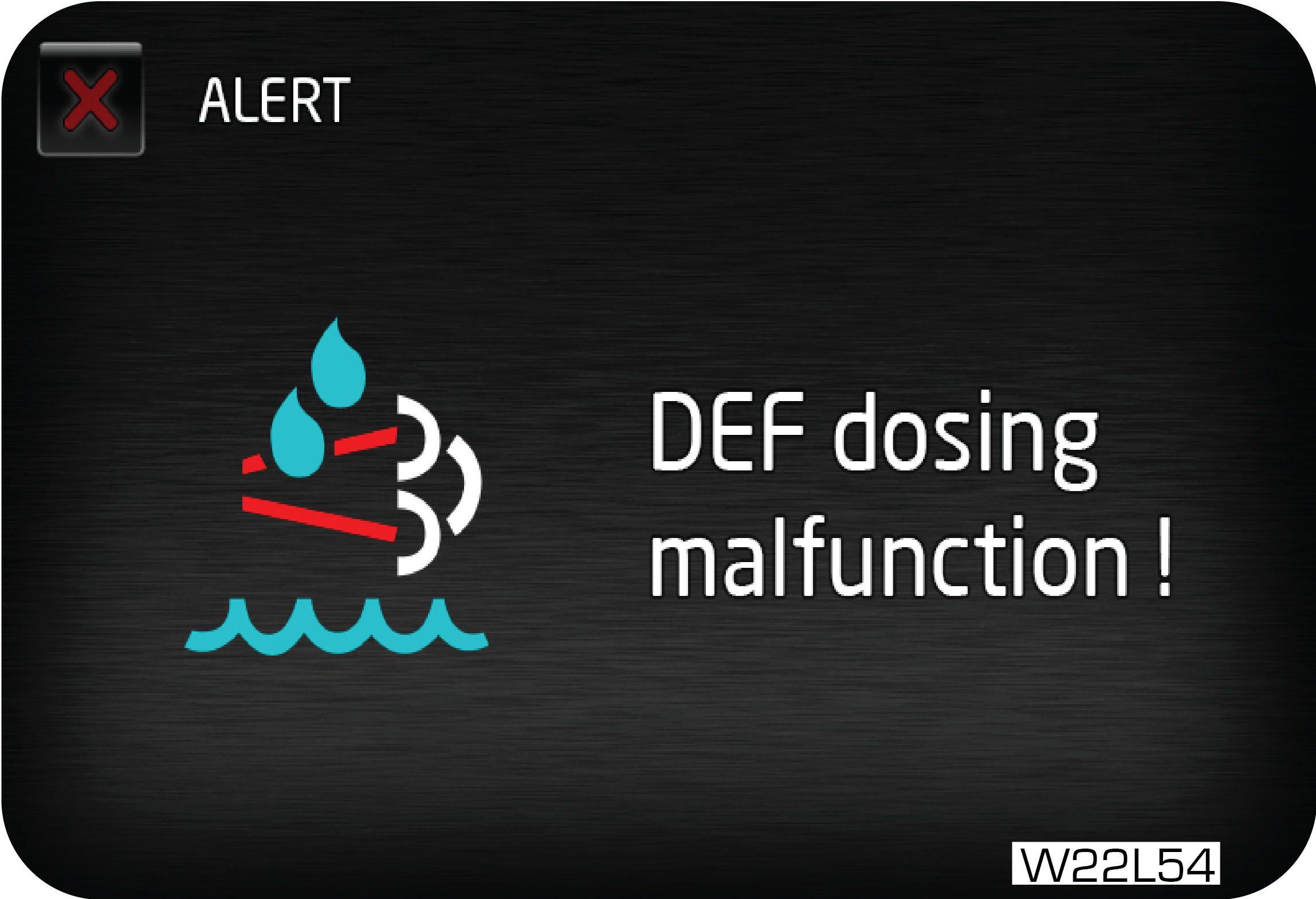

If SCR system detects any malfunction due to failures in components or tampering, warnings are flashed in four stages. These four stages are explained below:

Stage 1:	Stage 3:
Stage 2:	Stage 4:

If the DEF warning lamp turns on due to dosing malfunction, see your authorised Mahindra dealer to have this repaired. Failure to repair the system may cause the engine start restriction.

5.5 Instrument Cluster Warning Lamps

Do's & Don’ts

Selective Catalytic Reduction(SCR)

•

Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used.

•

Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.

•

Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.

•

Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.

•

While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.

•

DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged

•

If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels

•

Do not refill the DEF with Engine ON or ignition ON state

•

Ensure proper filling access for DEF filling during vehicle body building

•

When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.

•

Ensure that DEF does not come into contact with skin, eyes, or clothing

Diesel Particulate Filter (DPF)

During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.

In order to avoid burns & personal injury, keep yourself away from exhaust system.

Follow speed limits & traffic regulations as Defined by local jurisdiction while doing forced regeneration

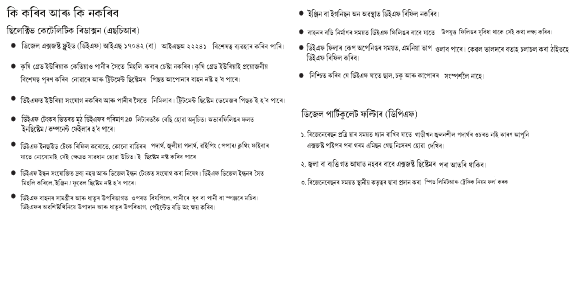

5.6 Instrument Cluster Warning Lamps - Assamse

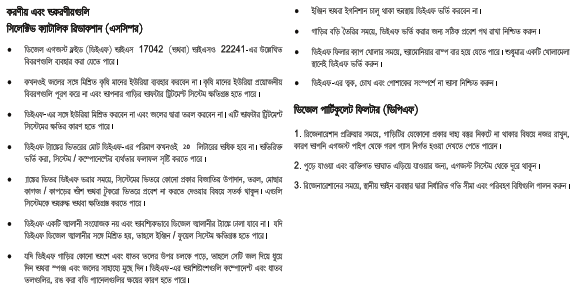

5.7 Instrument Cluster Warning Lamps - Bengali

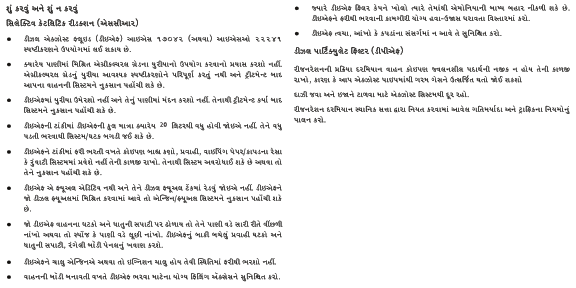

5.8 Instrument Cluster Warning Lamps - Gujarathi

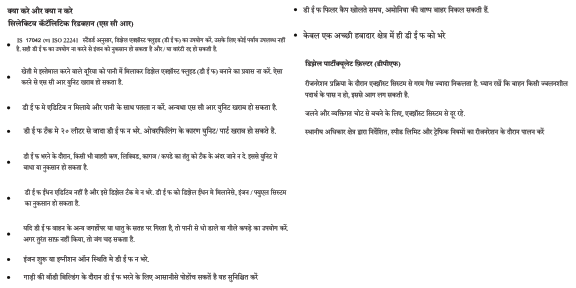

5.9 Instrument Cluster Warning Lamps - Hindi

5.10 Instrument Cluster Warning Lamps - Kannada

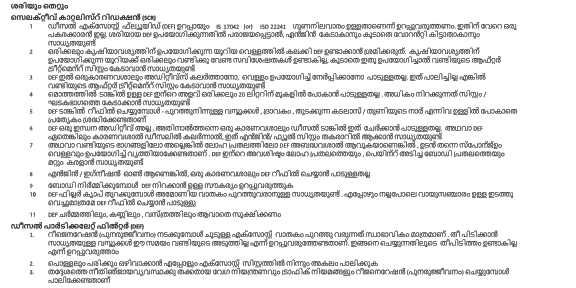

5.11 Instrument Cluster Warning Lamps - Malayalam

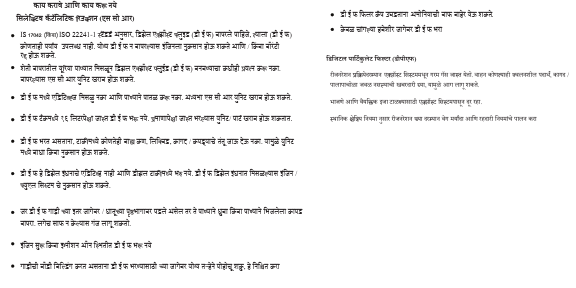

5.12 Instrument Cluster Warning Lamps - Marathi

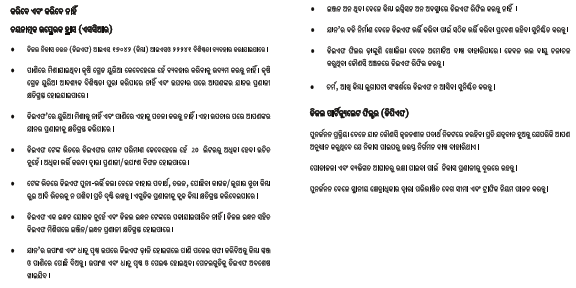

5.13 Instrument Cluster Warning Lamps - Odia

5.14 Instrument Cluster Warning Lamps - Tamil

5.15 Instrument Cluster Warning Lamps - Telugu

6 SEATS AND SEAT BELTS

6.1 Front Seats

6.1.1 Sitting in Correct Position

Follow the tips below for a comfortable and safe journey:

•

Sit in an upright position with the base of your spine pressed against the seat back

•

The driver and front passenger seat head restraint has 5 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head

•

Maintain sufficient distance between yourself and the steering wheel. Maintain at least a ten inch (10") distance from the centre of the steering wheel to your chest

•

The top curve of the steering wheel should align with your chin for ideal road visibility

•

Adjust your seat and seat back angle such that your wrists rest on the steering wheel

•

Ensure your legs are in bent position while fully depressing the clutch pedal

The seat should be adjusted while still maintaining control of the foot pedals (able to fully depress the clutch pedal), steering wheel (rest the wrists on the steering wheel) and your view of the instrument panel controls.

Never adjust the driver's seat while the vehicle is in motion. The seat may unexpectedly move and cause the driver to unintentionally operate the accelerator or brake, or turn the steering wheel, causing loss of control of the vehicle, an accident or serious personal injury. Adjust the driver's seat only when the vehicle is not in motion.

Never put objects under the seats. They may interfere with the seat-lock mechanism or unexpectedly activate the seat position adjusting lever, causing the seat to suddenly move, resulting in loss of control of the vehicle, an accident or serious personal injury.

While adjusting the seat, do not put your hands under the seat or near the moving parts. This may lead to injuries.

6.1.2 Front Seat Slide

Move the seat forward or backward by lifting the adjustment lever located under the seat front and release once the desired position is reached.

While adjusting the seat, make sure the latch engages fully and the seat is locked firmly in the desired position. An unlocked seat may move in a sudden stop or collision, causing injury to the person in that seat. Push and pull on the seat to be sure it is locked.

6.1.3 Front Seat Recline

To adjust the seat back, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.

The seat belts provide maximum protection in a frontal or rear collision when the occupants are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen, or the shoulder strap may contact your neck. The more the seat is reclined, the greater the risk of serious injury.

When returning the rear-reclined seat back to its upright position, make sure you support the seat back while operating the lever.

6.1.4 Front Seat Lumbar Adjustment (if equipped)

Both the front seat backs feature lumbar adjustment. The lumbar contour of the lumbar support can be adjusted by means of the adjusting wheel on the inner side of the seat back.

Properly adjusted lumbar support provides adequate back support essential during long journeys.

Do not use force, rotate the lumbar adjustment lever beyond the extreme stop positions in either direction.

6.1.5 Front Seat Height Adjustment

The driver seat height can be raised or lowered to three positions.

To RAISE the seat height, lift the seat height adjust handle while there is no load or prior to occupying the seat. Release the lever once the desired seat height is reached.

To LOWER the seat height, push down the seat height adjust handle while seated in the driver seat. Release the lever once the desired seat height is reached.

Do not adjust the height of seat while vehicle is in motion.

6.2 Power Seat (Driver Side only) (if equipped)

The power seat provides advanced 6-way electrical adjustments for the driver seat. It is equipped with electrically-operated power slider, power recliner and power height adjustment mechanisms.

The graphics on the switches guide you to the function it has been assigned.

•

Power seats will be operated even when the ignition switch is turned to the “OFF” position. However, to prevent battery discharge, operate your seats when the engine is running

•

Do not use two or more seat adjustment buttons simultaneously. It can damage the motor. Be sure to operate the electric seat button one by one

•

Do not forcibly operate any power adjustment switch if the seat comes in contact with other object and cannot be adjusted anymore

•

If the power seats are not operational, the seats should be checked and fixed before any driving

6.3 Head Restraint

The head restraint comprises the padded portion which contacts your head and is inserted/locked in receptacles on the top of the seat back.

Your vehicle seats are equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of rear collision.

Always align top of the head restraint with the top of your head or as close to it as possible. To raise the head restraint, press the lock knob and pull the restraint up. To lower the head restraint, press the lock knob and push the head restraint down.

The head restraint can be pulled out completely by depressing the locking button while pulling the restraint out.

Align the head restraint shafts over the holes on the seat top and push the restraint straight down till you hear the lock click.

Keep the seat back as upright as possible so the headrest is behind, not beneath, and almost touching your head.

Never drive with the head restraints not properly adjusted, head restraints removed or inserted in a flipped condition. With no support behind your head, your neck could be seriously injured in a collision.

Head restraints are provided for the front row and second row outboard occupants only.

6.4 Second Row Seats

Loading luggage on the seats is dangerous. The luggage can become a projectile that could hit and injure passengers in a sudden stop or collision. Luggage should always be kept on the floor.

To avoid serious injury, do not sit on or place objects on a folded seat back while the vehicle is moving.

6.4.1 Second Row Seat Recline

To change the second row seat back angle, lean forward slightly while raising the recline lever on the top corner of the seat back, lean back to the desired position and release the recline lever. Make sure the recline lever returns to its original position and the seat back is locked in place by rocking the seat back forward/backward.

When returning the rear-reclined seat back to its upright position, make sure you support seat back while operating the lever.

6.4.2 Second Row Seat Folding (Third Row Seat Access)

The second row seat can be flipped forward to provide more cargo space.

•

Lower the second row seat head restraint to the lowest position (else it will obstruct and hit the floor)

•

Insert the lap belt into the pocket of the seat bottom

•

Recline the seat back to full forward direction

•

Push side actuation lever (B) in forward direction for Ingress, OR

•

Pull rear actuation lever (A) for Egress

•

Push seat back to rear side of vehicle for locking

•

Pull seat back for upright position till it locks in design position

•

Push seat cushion downward by sitting on it (>45 kg) for locking seat cushion

Return the seat back to its upright position in one continuous motion to securely lock the seat and in turn avoiding seat flipping forward suddenly leading to injuries.

If this happens, release the seat lock by pulling the lever and repeat the procedure.

Be cautious when placing your hands around the seat anchors. You could pinch your hands or fingers between the seat anchor and the seat. Hold the edge of the seat when lowering it into place. Never place your hands between the seat anchor and the seat.

6.5 Third Row Seats

Access to or exit from third row seat and luggage area is possible by completely folding the second row seat. Second row seat features 60:40 split configuration. Instead of folding the complete seat back and seat cushion, the required seat alone can be folded to gain access to third row seat.

Refer to the previous sections for details regarding folding of second row seats.

6.5.1 Third Row Seat Folding

To fold the third row seat, unlock the seat back by pulling the lever on the rear of the seat back outwards.

Similarly, lower the other half of third row seat to get a completely flat surface.

Both the second row and third row seats can be folded flat to maximise the luggage space.

6.6 General Warnings and Instructions - Seat Belts

At least once each month, inspect the seat belt webbing for any cuts, tears, or other signs of wear (such as fraying along the edges). Also inspect the anchors, retractors, and buckles to be sure they are tight and operational.

•

All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimise the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger

•

In a rollover crash, an un-belted person is significantly more likely prone to injury than a person wearing a seat belt

•

In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an armrest, a pocketbook, or any external objects should be between you and the seat belt. Improper wearing of a seat belt will reduce the protection in an accident

•

Seat belts should be adjusted as tightly as possible, consistent with comfort to properly secure the wearer in the seat

•

The seat belts provided for your vehicle are designed for people of adult size, must be properly used and maintained

•

For usage of adult seat belt to secure children, refer to section on manual for child seat positions and use a child restraint system

•

Passengers should not move out of or change seats while the vehicle is moving. A passenger who is not wearing a seat belt can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle during a crash or emergency stop

•

Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash

•

An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Authorised Mahindra Dealer inspect the seat belt system after an accident

•

Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle

Never use a damaged seat belt system. A damaged seat belt will not provide protection in an accident, resulting in serious injury.

•

Seat belt systems can be prone to abuse. They are not indestructible. They must be handled with care to avoid damage

•

Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbing are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts

•

Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer

Seat Belts - Patients

Persons with serious medical conditions should also wear a seat belt. Consult your doctor for specific recommendations before travel.

Seat Belts - Pregnant Women

Pregnant women must also wear seat belts. Consult your doctor for specific recommendations.

The lap belt should be worn snugly and as low as possible over the hips. The shoulder belt should be worn across your shoulder, but never across the stomach area. When worn properly, the seat belt will protect both the mother and the foetus in an accident or emergency stop.

A pregnant woman should never wear the seat belt across the stomach area. This could lead to serious injuries to the foetus and/or the pregnant mother.

Never wear twisted seat belts. Excessive forces will be transferred from the belt to the wearer, in a collision, resulting in serious personal injury.

Each seat belt is meant for use by one person only. Using one seat belt for more than one person at a time is dangerous. The seat belt will not be able to spread the impact forces properly leading to serious injuries.

Never put a belt around a child being carried on the occupant's lap. This could lead to serious injuries.

Seat Belt Usage is necessary to:

•

Reduce the possibility of being thrown from your vehicle

•

Reduce the possibility of injuries to upper body, lower body and legs during an accident

•

Hold the driver in a position which allows better control of the vehicle

Children who are too large for child restraint systems should always occupy the rear seat and use the vehicle seat belts. The lap portion should be fastened snug on the hips and as low as possible and the shoulder strap should be across the child's shoulder, not the neck or face. If you are unable to position the strap across the child's shoulder, the child should remain in a booster seat. Frequently check the seat belt to be sure it remains snug and in position. A squirming child could cause the seat belt to come out of position.

6.7 Fastening the Seat Belt (3-Point type)

Adjust the seat as needed, sit up straight and well back in the seat. To fasten your seat belt, pull the webbing out of the retractor and insert the metal tab into the buckle. An audible “click” would be heard when the tab locks into the buckle. Pull up on the shoulder strap to tighten the lap belt across your hips. The seat belt retractor will pull in any slack in the shoulder strap. A slow and easy motion will allow the belt to extend and let you move your body around freely.

Periodically check the seat belt as you ride to be sure it remains snug and in position. If there is a sudden stop or impact, the belt will lock into position. It will also lock (restrict) if you try to lean forward too quickly.

If the driver or co-driver seat belt is not fastened when the ignition is switched ON, the seat belt warning lamp illuminates. Refer “Warning Lamps” in the “Features and Control” chapter for further details.

6.8 Fastening the Seat Belt (2-Point Lap type)

This seat belt is applicable to the second row middle passenger seat. Insert the tongue into the buckle until it snaps. Position the lap belt on the hips as low as possible.

6.9 Unfastening the Seat Belt (both 3-Point & 2-Point)

To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.

Never insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and may cause damage to the buckle mechanism, thereby making the seat belt ineffective in an accident, resulting in serious personal injury.

6.10 Seat Belt Height Adjuster

You can adjust the height of the shoulder belt anchor for maximum comfort and safety in both front seats. If the height of the seat belt is too near your neck, you will not be getting the most effective protection. The shoulder portion of the belt should be adjusted so that it lies across your chest and midway over your shoulder nearest to the door and not your neck.

To adjust the height of the seat belt anchor, lower or raise the height adjuster to an appropriate position while pressing the height adjuster button. Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into the position.

Adjust the shoulder belt height sitting well back in the seat. Do not adjust the seat belt height while vehicle is in motion.

6.11 Passenger Occupant Detection System (PODS)

PODS system is to detect the presence of occupant in the seat.

If occupant is present and not wearing seat belt, seat belt reminder warning lamp will come ON till the seat belt is buckled.

Seat belt buzzer audible warning will come ON 35 sec once, if any of the driver/co-driver seat belt is in unbuckled condition & any of the below condition are met.

•

The Vehicle is in forward motion (Vehicle speed > 15 Km/h) for 60 seconds (or)

•

The Vehicle speed has reached in forward direction for minimum 25 km/h (or)

•

Vehicle has covered 500 meters in forward motion.

6.12 Seating Positions for Child Restraint System (CRS)

Use a child restraint system only if the child is not big enough to properly wear the seat belts. Else, use the regular seat belt instead of the child restraint system. Seat the child in the rear seat and use the seat belt. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. Always secure a child in a proper child restraint system in accordance with age and size of the child as recommended by the child restraint system manufacturer.

Do not allow children to stand up or kneel on either the rear or the front seats. An unrestrained child could suffer serious injuries during emergency braking or collision.

It is also not recommended that children travel sitting on your lap as it does not provide sufficient restraint.

Mass Group	Weight of Child (kg)	Fitting the child restraint system using seat belt

Group 0	0–10	Rear-facing child restraint system on the outboard 2nd row seats using seat belt
Group 0+	up to 13
Group 1	9–18	Forward-facing child restraint system on the outboard 2nd row seats using seat belt
Group 2	15–25
Group 3	22–36

7 SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
(if equipped)

The Supplemental Restraint System (SRS) includes airbags, pre-tensioners and ECU. The airbags are designed to provide further protection to the vehicle occupants in addition to the primary protection provided by the seat belts and seat belt pre-tensioners.

The primary components of the system are the sensors which measure the crash severity. In the event of a significant frontal impact, the SRS airbags inflate to work in conjunction with the seat belts and help reduce injuries mainly to the driver's or front passenger's head/chest.

Seat belts are the primary restraint system in the vehicle. An airbag provides supplemental protection in addition to the seat belts.

All occupants, including the driver, should always wear their seat belts irrespective of presence of airbag to minimise the risk of severe injury in the event of a crash.

Airbags are more effective in reducing injuries when the seat belts are worn.

7.1 Airbags

Your vehicle has the following airbags:

•

One frontal airbag for the driver (A)

•

One frontal airbag for the front passenger (B)

•

Two side (seat) impact airbags (C) (if equipped)

•

Two curtain airbags (D) (if equipped)

Airbag Locations

•

In the steering wheel hub - Driver Airbag

•

Above the upper glove box - Passenger Airbag

•

Outboard side of driver and front passenger seats - Side Impact Airbag

•

In the inner roof rail (LH & RH) - Curtain Airbag

An airbag is not designed to deploy in every type of crash. Depending on the type of accident or impact, the front airbag, side airbag and curtain airbag independently deploy thereby protecting the occupants. It is not necessary that ALL the airbag deploy during an accident.

To minimise the risk of severe injury in the event of a crash, every passenger must always wear their seat belt (see the chapter on Seat Belts in this manual). The airbag’s inflate very quickly with great force. Do not position any part of your body too close to an airbag, you or especially children could be seriously injured by a deploying airbag.

7.2 Driver and Front Passenger Airbag

Your vehicle is equipped with a Supplemental Restraint System (Airbag) and lap/shoulder belts at both the driver and front passenger seating positions. The indications of the system's presence are the letters “SRS AIRBAG” embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.

The SRS is designed to deploy the front airbag only when an impact is sufficiently severe and when the impact angle is less than ± 30° from the forward longitudinal axis of the vehicle.

Front airbag are not intended to deploy in side-impact, rear impact or rollover crashes. In addition, front airbag will not deploy in frontal crashes which are below the prescribed deployment threshold where risk of serious injuries is low.

Do not place any objects over the airbag or between the airbag and yourself.

7.3 Side Impact Airbag

Your vehicle is equipped with side impact airbag in both the front seats. The purpose of the airbag is to provide the vehicle's driver and/or the front passenger with additional protection during side impacts or collisions.

The side impact airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and point of impact.

•

In the case of a side collision, the curtain airbag may be deployed together with the relevant side airbag on the side the collision occurs

•

The side impact airbag is supplementary to the seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side impact conditions severe enough to cause significant injury to the vehicle occupants

•

For best protection from the side impact airbag system and to avoid being injured by the deploying side impact airbag, all seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passengers arms and hands should be placed on their laps

•

Do not use any accessory seat covers. Use of seat covers could reduce or prevent the effectiveness of the system

•

Do not instal any accessories on the side or near the side impact airbag

•

Do not place any objects over the airbag or between the air bag and yourself

•

Do not place any objects (an umbrella, bag, etc.) between the door and the seat. Such objects may become dangerous projectiles and cause injury if the supplementary side impact airbag inflates

7.4 Curtain Airbag

Curtain airbag are located along both sides of the roof rails on the A & B pillars.

They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain side impact collisions.

The curtain airbag are designed to deploy depending on the crash severity, angle, speed and impact. The curtain airbag are not designed to deploy in all side impact situations, collisions from the front or rear of the vehicle or in rollover situations.

•

In the case of a side collision, the side airbag may be deployed together with the relevant curtain airbag on the side the collision occurs

•

In order for side and curtain airbag to provide the best protection, both front seat occupants and both outboard rear occupants should sit in an upright position with the seat belts properly fastened. Importantly, children should sit in a proper child restraint system in the rear seat.

•

When children are seated in the rear outboard seats, they must be seated in the proper child restraint system. Make sure to position the child restraint system as far away from the door side as possible, and secure the child restraint system in a locked position

•

Do not allow the passengers to lean their heads or bodies onto doors or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain airbag

7.5 Airbag System Malfunction Lamp

Airbags do not require any regular maintenance of service. The airbag system malfunction lamp illuminates when the ignition is ON, and it turns OFF after about two seconds as self check confirming normal operations of airbag system and malfunction lamp.

This lamp monitors airbag sensor assembly, airbag sensors, indicator lamp, seat belt pre-tensioner assemblies, inflators, interconnecting wiring and power sources.

If either of the following conditions occur, there is a malfunction of the airbags or seat belt pre-tensioner. Immediately contact your Authorised Mahindra Dealer.

•

The lamp does not glow when the ignition is switched ON or glows beyond six (6) seconds after switching the ignition ON

•

The lamp comes ON at any other time, even briefly

•

The lamp comes ON intermittently

Never make any modifications to your vehicle which could affect the performance of your airbag system. In particular, changes to the vehicle frame, bumpers, bull bar, front fenders, ride height, suspension, seat belts, interior trim, seats or steering wheel (especially covers, pads or other trim), could prevent proper deployment of the airbag. If you need to make any modifications to accommodate any disability you may have, please contact your Authorised Mahindra Dealer.

Never try to open or strike the airbag cover. If the airbag cover is cracked or damaged in any way, the airbag may not function as intended. Take the vehicle to an Authorised Mahindra Dealer.

Even if the airbags do not deploy during an accident, take your vehicle to an Authorised Mahindra Dealer for a thorough inspection of the airbag and seat belt systems, no matter how minor the accident. The airbag system could have been damaged, and may not work as intended in the future, resulting in serious injury.

7.6 Airbag Inflation/Deployment

The airbag sensors constantly monitor the forward deceleration of the vehicle. If an impact results in a forward deceleration beyond the designed threshold level, the system triggers the airbag inflators. This initiates a chemical reaction which quickly fills the airbags with non-toxic gas.

Upon deployment, tear seams moulded directly into the pad covers separate under pressure from the expansion of the airbags. Further opening of the covers allows full inflation of the airbags. A fully inflated airbag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to manoeuvre or operate other controls.

Deployment of the airbags happen in a fraction of a second, producing a loud noise releasing a ‘white smoke’ and residue along with a non-toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing. Be sure to wash off any residue with soap and water as soon as possible to prevent any potential skin irritation. If you can safely exit the vehicle, you should do so immediately.

Airbag deployment may cause windshield to break.

•

Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury

•

Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once

•

Do not cover the steering wheel, instrument panel, seats with any object (e.g. dash panel covers, seat covers) which may prevent the airbags from inflating properly

•

The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle

The front passenger should never sit on the edge of the seat, stand near the glove compartment, rest feet or other parts of the body on the dashboard when the vehicle is moving.

The driver or front passenger who is too close to the steering wheel or dashboard can be seriously injured during airbag deployment.

•

The driver must sit as far back as possible from the steering wheel while still maintaining control of the vehicle

•

The front passenger must sit as far back as possible from the dashboard

•

Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury

•

Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor

•

All vehicle occupants must be properly restrained using the seat belts

•

All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts

•

Front airbags can injure occupants improperly positioned in the front seats

•

Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual

•

Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags

•

Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses

7.7 Child Restraint and Airbag

Never place a rear-facing child restraint in the front passenger’s seat. If the airbag deploys, injuries to the child may be fatal.

In addition, do not place front-facing child restraints in the front passenger’s seat either. If the front passenger airbag inflates, it could cause serious or fatal injuries to the child.

Extreme Hazard! Do not use a rear-facing child restraint on a seat protected by an airbag in front of it!

Never put a child restraint in the front passenger’s seat. If the front passenger airbag inflates, it can cause serious or fatal injuries.

Never hold an infant or child on your lap. The infant or child could be seriously injured in the event of a crash. All infants and children should be properly restrained in appropriate child safety seats or seat belts in the rear seat.

Instal the child restraint system on the rear outboard seats, and securely lock the child restraint system in position.

Always Buckle Children (ABC) in the back seat. It is the safest place for children of any age to ride.

7.8 Airbag Deployment

The images shown in this section are for illustrative purpose only. They may not look like your model/variant or vehicle.

Front Airbag

Front airbag are designed to inflate in a frontal collision depending on the intensity, speed or angles of impact of the front collision.

Airbag Non-deployment

Impacts below a pre-determined threshold level may not cause the airbag to deploy in the following cases:

•

Collision with Utility Poles or Trees -

Airbags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated to one area and the full force of the impact is not delivered to the sensors.

•

Under-ride Situations -

Running under a truck's tailgate may not provide the decelerations necessary for airbag deployment. Airbags will not inflate in this “under-ride” situation where deceleration forces that are detected by sensors are significantly low.

Rear-end Collisions -

Frontal airbags are not designed to inflate in rear collisions, where occupants are moved backward away from the airbags by the force of the impact. In this case, inflated airbags would not be able to provide any additional benefit.

•

Frontal Impact -

Frontal impact beyond 30º range from head-on to the vehicle.

•

Potholes or Stepped Surfaces -

Driving into a big pothole, stepped surface or hitting the far side of a hole/incline will not inflate the airbag.

•

Rollover -

Airbags will not inflate in rollover accidents where airbag deployment would not provide protection to the occupants. However, side impact and curtain airbags may inflate only when severe side impact causes rollover.

•

Frontal Side Swipe Impact -

Frontal offset impact to the vehicle may not provide the deceleration force necessary for airbag deployment. In an angled collision, the force of impact may direct the occupants in a direction where the airbags would not be able to provide any additional benefit, and thus the sensors may not deploy any airbags.

7.9 Airbag Replacement

Self-servicing or tampering with the airbag system is dangerous. An airbag could accidentally deploy causing serious injuries, or will not deploy when there is a need. Always take your vehicle to an Authorised Mahindra Dealer for inspection and repairs.

7.10 Self Removing SRS Related Parts

Self removing the instrument panel, steering wheel, seats or airbag related parts or sensors is not recommended. Airbags could accidentally activate and cause serious injuries, or they may not deploy when there is a need. Visit an Authorised Mahindra Dealer if these parts must be removed.

7.11 Airbag Disposal

Improper disposal of an airbag or a vehicle with live airbags can be extremely dangerous. Approach an Authorised Mahindra Dealer to do these jobs.

7.12 Airbag Repair

If the front airbag cover or IP airbag cover shows signs of damage or having been removed, the vehicle should be towed to the nearest Authorised Mahindra Dealer for repair. Do not attempt to self repair or reinstal the cover.

7.13 Airbag Maintenance

For cleaning the airbag covers/areas, use only a soft dry cloth or one which has been moistened with plain water. Solvents or cleaners could adversely affect the airbag covers and proper deployment of the system.

8 LOCKS AND KEYS

XUV500 comes with Smart Keys. Your key number is given on the tag attached to the key. It is recommended that you record the key number and store in a safe place. The keys operate all locks in your vehicle including those of the doors.

PKE	Passive Keyless Entry

Never leave the key in the ignition switch with children in the vehicle. A child could switch on the ignition, start the engine, operate power windows and other controls, or move the vehicle, resulting in personal injuries to the bystanders and/or children seated inside.

The key blade will get heated if it is left in the ignition lock over a longer period in vehicle running condition.

8.1 Doors

8.1.1 To Open a Door from Inside

Pull the door lever away from the door and push the door outward to open.

8.1.2 To Open a Door from Outside

Pull the door handle firmly outwards to unlock and swing the door open.

8.1.3 Locking / Unlocking Individual Doors from Inside

Pull the door lever away from the door and push the door outward to open.

Lock

UnLock

Individual doors can be locked/unlocked from inside by the respective doorlock tabs. Lift the lock tab outwards to unlock or press the tab inwards to lock that particular door.

Locking the driver door from inside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.

8.1.4 Manual Locking/Unlocking Doors from Outside

The driver/co-driver door can be manually locked/unlocked from outside by using RKE blade. Remove the key from the key fob and fix it as shown in the image.

Lock

UnLock

A key hole is provided in the driver door and front passenger door, to lock/unlock the doors manually from outside.

Locking the driver door from outside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.

8.1.5 Locking / Unlocking the Back Door

The back door can be manually unlocked by the conventional key and door opened by pressing the unlock button under the rear applique.

The back door can also be unlocked using the RKE/Smart Key. Refer the relevant sections in this chapter for more details.

To close the back door, lower the back door half way down and allow it to fall on its own weight. The door is locked automatically.

8.2 Central Locking System

All doors of the vehicle can be simultaneously locked or unlocked from the driver door.

8.2.1 Central Locking/Unlocking All Doors from Outside

To manually lock/unlock all the doors from outside using the RKE, turn the key anti-clockwise (A)/clockwise (B) respectively in the driver door keyhole.

In case the back door is open when the central locking is activated, the back door will not be locked even if it is closed later.

If any other door is open when central locking is activated, the system locks the open doors when they are closed.

8.2.2 Central Locking/Unlocking All Doors from Inside

Press the driver doorlock tab down (A) to lock or lift the lock tab up (B) to unlock all doors simultaneously.

8.2.3 Child Safety Rear Door lock (If equipped)

Your vehicle is equipped with left and right side child safety rear door locks. When the lock mechanism is engaged, the rear door(s) cannot be opened from the inside. The door(s) can only be opened from the outside.

To activate the child safety right rear door lock, push the lever down (A) till you hear a distinct click indicating the activation of the child lock.

To de-activate the child safety right rear door lock, pull the lever up (B) till you hear a distinct click indicating the deactivation of the child lock.

Activate/Lock

De-activate/Unlock

If the rear doors are not operable from inside, ensure that the child safety locks have been disabled.

Mahindra strongly recommends that the child safety rear door locks be used whenever there are children travelling in the rear seat.

8.3 Passive Keyless Entry (Smart Key) / Smart Key System
(if equipped)

Passive Keyless Entry (Smart Key) System enables you to enter or exit your vehicle without the need to manually lock/unlock the doors. You can start/stop, lock or unlock the vehicle using Smart Key. To do this, you only need carry the Smart Key with you.

A	Unlock Button	C	Back Door Release Button
B	Emergency Key Release Button	D	Lock Button

RKE Panic alarm feature is not available in Smart Key variants.

The front side of the Smart Key has three control buttons: Unlock (A), Lock (D) and Back door release (C) buttons. There is also a emergency key release button (B), which releases a mechanical key for emergency purposes (E.g. when PKE battery is low). To remove the metal key, press and hold the release button (B) and pull the mechanical key out.

•

When locking or unlocking with Smart Key, the distance between the Smart Key and the corresponding door handle must not be greater than 3ft (1m).

•

Do not cover the key grip with any material that cuts off RF waves

•

Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight

•

Do not put the key in any liquid or wash it in an ultrasonic washer

•

The Smart Key can malfunction if exposed to moisture or static electricity

Carrying the Smart Key along with you, you can lock or unlock the doors and tail door and even start and stop the engine without inserting the key. Functions of the buttons on a Smart Key is similar to the remote key less entry.

Locking the vehicle:

Carry the Smart Key

Close all the doors

Press the button in the door handle

The hazard warning lights will blink once to indicate the locking (5 blinks will be provided if engine hood is open while locking)

Make sure that the doors are locked by pulling at the outside door handles

•

Key should be in the proximity of less than 0.7m from the outside door handle

•

Vehicle can be locked centrally by pressing the button in the door handle nearer to the PKE (PKE should be nearer to the triggered side). For E.g., locking/unlocking of the co-driver door is possible only if PKE is around the co-driver area

•

Even after pressing the outside door handle button, if the doors do not lock, a chime is heard along with the hazard blinking for 3 times, then one of the following situations are true:

–

A Smart Key is kept inside the vehicle

–

The vehicle/key is in IGN ON or ACC ON position

–

One of the doors not closed properly

•

On attempting to lock by pressing the button in door handle, the chime will sound for 3 times along with hazard lamp blinking 3 times if the steering is not locked

•

With the one Smart Key inside, on locking the vehicle using the remote lock button, the key which is kept inside would get deactivated completely for the security of the vehicle. In order to make the key to active again, the vehicle should be unlocked either using Smart Key or by pressing remote unlock

Unlocking the vehicle:

Carry the Smart Key

Press the button in the door handle

All doors would unlock and hazard warning lights will blink twice

•

Key should be in the proximity of less than 0.7m from the outside door handle

•

Vehicle can be unlocked centrally by pressing the button in the door handle only when the key is in same side of the door where the button is pressed

Unlocking the Tail door alone:

Carry the Smart Key

Press the trunk release button in the tail door and pull the tail door

Tail door would unlock and hazard warning lights will blink
3 times

On closing the door, tail door would get locked automatically

•

Key should be in the proximity of less than 0.7m from the outside door handle

•

Tail door can be unlocked by pressing the button in the tail door only when the key is in range from the tail door

•

Once tail door is closed, it can be unlocked for 45 secs without the key. So be cautious to lock the vehicle again if you are leaving the vehicle immediately

Mute/Unmute the Alarm/Beeps

The alarm or beeps heard when one of the doors are open can be muted/unmuted. Press the lock button for more than 3 secs. to swap between mute and unmute.

Only the door open beeps and alarm can be muted. The PKE alerts cannot be muted.

8.3.1 Engine START/STOP Button

The engine can be started or stopped by the presence of the Smart Key inside the vehicle.

Whenever the doors are opened or the door handle button is pressed, the engine start/stop button will be illuminated and go off after few seconds.

Upon any fault identification by the system in the start/stop switch, an alert would be provided in the Infotainment system along with a chime for 10 secs. Please visit the nearest Authorised Mahindra Dealer immediately to rectify the problem.

Even with the failure in the start/stop switch, vehicle's normal function may work which depends on the severity of the failure. Please visit the nearest Authorised Mahindra Dealer to rectify the problem immediately.

Engine start/stop button positions:

To operate the engine start /stop switch to its intended function, Smart Key should be inside the vehicle.

OFF

To turn off the engine, stop the vehicle and press the engine start/stop button once. Status LED in the engine start /stop button goes OFF to indicate the OFF position.

If the engine is not switching off by pressing the engine start/stop button (one press), press and hold the engine start/stop button for more than 2 seconds or rapidly press and release the engine start/stop button 3 times within 3 seconds. On doing so, the vehicle ignition status is changed to ACC position till 30 seconds, then it will change to OFF position. In this condition, the vehicle can be locked using the PKE only after 30 seconds. However you can still lock the vehicle using the mechanical key. Contact the nearest Authorised Mahindra Dealer at the earliest.

Your vehicle is equipped with electronic anti-theft steering column lock. The steering wheel locks when the engine start/stop button is in OFF position to protect against the theft. The steering wheel locks automatically when the driver door is opened or 30 secs after engine start stop button changes to OFF position. If the steering wheel is not locked properly when you open the driver door and on attempting to lock the vehicle, a warning chirp along with the hazard blinks thrice. Try locking the steering wheel again (by toggling Engine Start/Stop button). If the problem is not solved, we recommend to take the vehicle to nearest Authorised Mahindra Dealer immediately.

To switch ON the ignition, press the engine start/stop button when the switch position is in OFF/ACC without depressing the clutch pedal and with the Smart Key inside the vehicle. Status LED in the engine start/stop button will turn green to indicate the IGN ON position and the vehicle is ready for starting. Status LED colour would change to orange if the vehicle is not started within 30 secs, but the vehicle ignition remains in ON position.

Keeping the vehicle in ignition ON position for longer time without engine running, would drain the battery. Turn OFF the ignition if engine is not to be started.

Vehicle ignition would not turn to ON position on any of the following conditions:

•

If the electronic steering lock is not getting unlocked

–

A warning would be displayed in the Infotainment system along with beep sound for a few secs. If the steering wheel doesn’t unlock properly, press the start/stop button while turning the steering wheel right/left to release the tension on the lock.

Still if you are not able to turn ON the IGN, please contact the nearest Authorised Mahindra Service Centre.

•

If the key is not detected inside the vehicle or far away from the driver which is not in detectable position

–

A warning would be displayed in the infotainment system along with a beep sound for a few secs. Bring the Smart Key inside the vehicle if not in the vehicle or keep the key away from any electronic gadgets to allow the system to detect the key

–

If still the key is not detected, the key battery might be low. Press the start/stop button once and while the status LED in the button is blinking green, bring the key fob on top of the start/stop button and hold for few seconds till status LED changes to permanent green. Once start/stop status LED turns green, press Start/Stop button to turn ON IGN immediately

•

When engine start/stop button is ON or engine is in running condition with vehicle at standstill and if any door is opened, the system checks for the Smart Key. If the Smart Key is not inside the vehicle, an alert in the infotainment screen is displayed along with a chirp for 5 times to indicate key not detected inside

Bring the Smart Key inside the vehicle or keep the key in the detectable position whenever you are inside the vehicle.

Starting the vehicle

To start the engine, press the clutch and press the engine start/stop button once with the key inside the vehicle. The engine can be started from any position (OFF / ACC / ON) of the start/stop switch.

Ensure the gear lever is in neutral position before starting.

If engine start/stop button is pressed without pressing the clutch pedal, engine will not start and the vehicle power modes will change as follows: OFF→ ON →OFF→ ON

If the engine start/stop button is pressed from the OFF position directly, along with the clutch in depressed position, there may be a small delay in the engine cranking. This is normal and not to be taken as a fault.

Never press the engine start/stop button while the vehicle is in motion except in an emergency. This will result in the engine turning off and loss of power assist for the steering and brake systems. This may lead to loss of direction control and braking function, leading to an accident.

Once the engine is started, it would not stop even if the key is not inside the vehicle. Before leaving the driver seat, always make sure engine start/stop button is in OFF position and always take the Smart Key with you. Vehicle safety and security would be affected if these precautions are not followed.

In case of any failure in clutch pedal sensor, engine can be started by pressing the start/stop button continuously for 10 seconds without depressing the clutch pedal.

Emergency stop

To turn the engine OFF in an emergency, press and hold the engine start/stop button for more than 2 seconds or rapidly press and release the engine start/stop button 3 times within 3 seconds. On doing so, the vehicle ignition is changed to ACC position.

If the vehicle is still moving, you can restart the engine (without depressing the brake pedal) by: pressing the engine start/stop button, pressing the clutch, gear lever in N position.

BACK up Start

If the key fob battery is low, the key may not be detected. In such a situation, press the start/stop button once while the status LED in the button is blinking green, bring the key fob on top of the start/stop button and hold it there for few seconds till status LED changes to permanent green. Once start/stop status LED turns green, press start/stop button to turn ON IGN immediately.

If key fob battery is detected low by the system, an alert would be triggered while turning OFF the ignition. Change the battery by following the procedure as mentioned in the section for battery replacement.

Key fob battery low can be detected only if the key has been continuously used in the vehicle. Keeping the key outside the vehicle for longer duration and then using it with the drained battery cannot be detected.

8.3.2 Vehicle locking/Unlocking in an Emergency Situation

If the Smart Key does not operate normally, you can lock or unlock the doors by using the mechanical key:

To remove the mechanical key, press and hold the release button in the side of the key fob and pull the mechanical key head.

Insert the key into the keyhole in the door nearer to the door handle. Turn the key towards the rear of the vehicle to unlock and turn it towards the front to lock.

To reinstal the mechanical key, put the key into the key fob and push it until a click is heard

It is strictly not advisable to leave the key fobs in the vehicle. Vehicle can be started by any unauthorised person.

A maximum of 2 Smart Keys can be registered to a single vehicle. If you lose a key, we strictly recommend to contact Authorised Mahindra Dealer immediately to block the lost key and to get a new key.

The Smart Key may not work if any of the following occurs:

•

The Smart Key is close to a radio station, airport or an area where there is a possibility of large radio transmissions which can interfere with the normal operation of the Smart Key

•

The Smart Key is near a mobile or a cellular phone or some electronic gadgets like Laptop/Tablets. The signal from the Smart Key could be blocked by normal operation of your cell phone or smartphone. Avoid placing the Smart Key and your electronic gadgets in the same trouser or jacket pocket or in the bag and maintain adequate distance between the two devices

•

Another vehicle Smart Key is being operated close to your vehicle

•

Smart Key kept inside the glove box or top bin in the instrument panel may not be detected sometimes. Keep the Smart Key in the visible zone or in your pocket for getting it detected

•

Keep the Smart Key away from the water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer’s vehicle warranty

Make sure the vehicle ignition is in OFF state, whenever leaving the vehicle even with the key. By keeping the vehicle ignition in ON/ACC state will hamper the vehicle security.

Do not hand over the Smart Key to any unauthorised person or service provider. Your vehicle security system may be compromised in doing so.

8.4 Smart Key Battery Replacement

If the Smart Key operation is inconsistent when any of the buttons are pressed, it indicates that the Smart Key battery is weak. Follow the below procedure to change the battery in the Smart Key.

While prying the old battery out, take care not to damage the Smart Key housing

Do not touch the battery terminals or contacts by hand

Using the wrong battery can cause the Smart Key to malfunction. Be sure to use the correct battery

An inappropriately disposed battery can be harmful to the environment and human health. Dispose the battery accordingly to your local law(s) or regulations

8.5 Battery Specification

Battery Voltage	3 V
Battery Capacity	225 mAh

8.6 If Smart Key is Lost

If you have lost the programmed Smart Key, contact an Authorised Mahindra Dealer for procuring a new Smart Key.

While programming a new key set, you will have to submit all the keys available with you, to an Authorised Mahindra Dealer.

Please note that there is a limitation (max. 2 keys at a time) to the number of keys that can be ordered. The minimum timeframe required to supply the duplicate keys is 10 days after all the formalities are completed. Please contact the Authorised Mahindra Dealer to understand the formalities involved.

If you make your own duplicate key, you will not be able to deactivate the anti-theft devices or start the engine.

If the key is stolen or lost, communicate to an Authorised Mahindra Dealer for de-activating the function of the lost or stolen key. This is essential to avoid unauthorised access using the misplaced key.

Only Smart Key transmitters programmed to your vehicle electronics can be used for remote locking and unlocking of your vehicle.

8.7 Engine Immobiliser System

An Engine Immobiliser System is a security system that prevents the vehicle from being operated by an unauthorised person. The Engine immobiliser prevents the engine from being started unless it recognises signals from the correct coded key. When a wrong key is inserted or a theft attempt is detected, the alarm is set off, and the hazard lamps flash along with a siren.

The system is automatically activated when the key is removed from the ignition.

8.7.1 Features of the Immobiliser System:

•

Prevents the vehicle being started by anyone not in possession of the correct vehicle key

•

The vehicle is automatically protected after the key is removed from the ignition. At every ignition ON, if the vehicle does not recognise the correct key code, the engine check lamp will illuminate/blink and the engine cannot be started

•

The vehicle will not be protected until the key has been taken out of the ignition

If the engine check lamp flashes or remains continuously illuminated after the ignition being switched ON, there is a system malfunction. Contact an Authorised Mahindra Dealer immediately.

Inserting the correct coded key in the ignition and switching the ignition ON, automatically deactivates the system. This enables the engine to start.

In the event of the vehicle not starting with the correct key, switch off the ignition for a minimum of 1 minute and attempt to start the vehicle again.

Do not modify, remove or disassemble the engine immobiliser system. Any unauthorised changes or modifications can affect proper operation of the system and will void your warranty.

The security system will be activated only when the vehicle is locked using the Smart Key. Locking the doors with the manual key will not activate the security system.

Using the ignition key to open the door, when the vehicle was locked and armed with Smart Key will be treated as unauthorised by the system setting off the alarm. Press the unlock button on the Smart Key to cancel the alarm.

9 FEATURES AND CONTROL

9.1 Quadruple Switch

A	ORVM Fold Switch	E	Rear LH Window Switch
B	Power Window Lock	F	Rear RH Window Switch
C	Front Passenger Window	G	ORVM Perimeter Switch
D	Driver Door Window	H	ORVM Selector Switch

The quadruple power window switch on the driver door armrest/handle controls the following functions:

•

Both LH and RH ORVM folding

•

ORVM selector

•

ORVM adjustment

•

Power window functions of all doors in the vehicle

•

Power window safety switch that enables/disables power window operation of other doors when operated independently from the respective doors

9.1.1 Power Windows

Power windows can be operated only when the ignition is “ON” position. The driver can operate all the power windows in the vehicle through the quadruple switch on the driver door armrest/handle. Other passengers in the vehicle can raise or lower their respective window glasses individually by using the separate switches provided on each of the door trim pads/armrests.

To lower/raise the window glass push/pull, the power window switches respectively.

Do not operate the power windows frequently when the engine is OFF. This will drain the vehicle battery.

If you operate the switches often during a short period of time, the system might become inoperable for a certain duration to prevent damage due to overheating. The system will return to normal functioning shortly. It is recommended to operate one window switch at a time.

While operating the power windows, check for obstructions like head, hand, etc. which may lead to personal injuries.

Power Window Control after IGN OFF - The power window control will be available for 30 secs after IGN OFF condition.

9.1.2 Power Window Lock Switch

The main power window quadruple switch in the driver door trim has a power window lock switch to enable or disable operation of rear passenger and front passenger window switches. To disable the rear or front passenger power windows, press the window lock switch down. To revert to normal operation, press the window lock switch again.

9.1.3 Auto Express DOWN (Driver Side only) (if equipped)

Press the driver side power window switch down for a moment and release. The glass moves all the way down automatically. You do not need to hold the switch till the glass comes down.

9.1.4 Auto Express UP (Driver Side only) (if equipped)

Pull the driver side power window switch up for a moment and release. The glass moves all the way up automatically. You do not need to hold the switch.

The driver side power window is equipped with anti-pinch, however, please do not insert your finger during express up as it may result in injury.

If power window anti-pinch is used continuously for 15 times, the power window express feature will go to de-initialisation mode.

In case of de-initialisation, re-calibration or re-initialisation of the power window needs to be done.

Re-initialisation/Re-calibration of Power Window

Operate the window glass to topmost position and hold the power window switch for 200 milliseconds (minimum). Then, operate the power window to bring the glass to fully down position.

Same procedure of re-initialisation/re-calibration to be followed in case of express feature not working due to battery removal/power failure.

9.2 Mirrors

9.2.1 Manual ORVM (if equipped)

Integrated exterior rearview mirrors on both the sides facilitate maximum rear view information to the driver.

Fold both the ORVM’s manually while parking the vehicle in congested roads or narrow parking slots. This avoids hindrances and safeguards the ORVM’s.

9.2.2 Electric ORVM (if equipped)

A	ORVM Fold Switch	B	ORVM Selector Switch
C	ORVM Adjustment Switch (4-way)

The ORVM fold switch, ORVM adjustment switch (perimeter switch) and the Left (L)/Right (R) ORVM selector switches are located on the driver door trim/handle.

Both the ORVM’s can be electrically folded or unfolded by pressing the ORVM fold button (A).

All ORVM controls work only when ignition is ON or engine is in running condition.

The electric ORVM’s fold automatically when the vehicle is locked through PKE or unlocked through PKE and ignition switched ON.

The ORVM folding/unfolding operation is limited to 2 times / minute.

Do not fold or unfold the outside rearview mirrors manually. It may cause a malfunction of the mirror folding system.

Do not overestimate the distance of the objects that you see in the mirrors. Objects seen in convex mirrors are much closer than they appear.

Use the ORVM L/R selector switch, to select Left/Right side exterior mirror respectively. The ORVM adjustment switch adjusts the selected ORVM in the required direction. Lock the ORVM’s by setting the ORVM selector switch to the middle position.

9.2.3 Interior Mirrors

There are two interior mirrors, one is a conversation mirror (fish eye type) and other interior rearview mirror.

A	Conversation Mirror	B	Interior Rearview Mirror
C	Day/Night Adjust Tab

9.2.4 Conversation Mirror (if equipped)

The conversation mirror can be used to converse with the rear passengers in the vehicle. Press the mirror cover to lower the conversation mirror. Close the mirror back and press to lock the mirror in position.

9.2.5 Interior Rearview Mirror

The interior rearview mirror provides the rearview information to the driver and also aids during reversing.

This mirror has day and night (anti-glare) positions. The night position reduces glare from head lamps of vehicles behind you. Flip the tab (A) on the bottom edge of the mirror to select the day or night position.

9.3 Sun Visor

Sun Visors are provided for both driver and co-driver above the windshield. The sun visors can be used for either frontal or sideward shade, to reduce glare or to shut out direct rays of the sun.

Pull down the sun visor to block the glare of the sun. The sun visor can also be swivelled to the side as shown.

Sun Visor Extension

Ticket Holder

9.4 Utility Holders

9.4.1 Upper Console Tray

Do not place large or heavy objects on the foldable trays, accessing the centre console storage will be difficult. Ensure the tray cover is latched properly once closed.

Unlock the console tray cover by unlocking the tray latch (A) and lifting the cover all the way up.

Upper Console Tray

Centre Console Storage

9.4.2 Centre Console Storage/Cooler (if equipped)

Bigger objects, cans, etc. can be stored in the centre console storage. Unlock the centre console cover (which includes the upper tray console also) by unlocking the latch (B) and lift the console cover all the way up.

In select variants, a cooler (air vents) is provided in the centre console storage. You can cool cans, small bottles, etc. by opening the air vents at the bottom floor of the storage. Turn the cooler clockwise to open the air vents, or anti-clockwise to close the air vents.

OFF

Only sealed cans/bottles to be stored in the centre console storage/cooler. Any spilled beverage can damage the interior trim and electrical components/cooler.

9.4.3 Multi-box Storage

The multi-box is located above the infotainment screen in the centre console. It can be used for storing small items like mobiles, wallets, tickets, etc.

To open the lid, gently press the lid. To close, gently press the lid all the way down till it locks.

Do not store big items in the multi-box which may obstruct the proper closure of the multi-box lid. On rough or uneven roads, the lid might open up spilling the contents and leading to distraction.

9.4.4 Centre Box

The centre box is located below the HVAC/Switch bank near the gear lever. Small objects like tickets, wallet, etc. can be stored. To open, gently press the centre box lid. To close, gently press the lid all the way down till it locks.

9.4.5 Glove Box

There are two glove boxes on the co-driver side of the instrument panel:

•

Upper Glove Box

•

Lower Glove Box

Upper Glove Box

The upper glove box can be opened by gently pressing the unlock push button (A). To close, gently lower the glove box lid and press to lock.

Do not overload the glove box.

Do not store loose or small metal objects inside glove box. This will lead to rattling while the vehicle is driven on bad roads.

Lower Glove Box

The lower glove box is located just below the upper glove box. To open, gently press the unlock push button, and lower the lid. To close the glove box, raise the lid all the way up and gently press to lock the lid.

The lower glove box is illuminated automatically when it is opened and the light turns OFF when it is closed.

It is suggested to keep copies of all vehicle documents along with the Owner’s Manual Kit in the glove box for reference when needed.

To avoid the possibility of injury in case of an accident or a sudden stop, both the upper and lower glove box lids should be kept closed when the vehicle is in motion.

9.4.6 Cup Holder

The cup holder located in the floor console between the front seats, It can be used for small cups or cans that are closed or have a lid.

Only sealed cups/cans with lid to be used in the cup holders.

Use caution when using the cup holders. A spilled beverage that is very hot can injure driver or passengers. Spilled liquids can also damage interior trim and electrical components. Any spilled beverage can also startle the driver and cause a loss of control of the vehicle resulting in an accident.

9.4.7 Ashtray (if equipped)

An ashtray is provided in the cup holder. Lift the lid to use the ashtray. To empty the ashtray, firmly pull the ashtray up. Similarly, to put it back, gently press the ashtray back in the same location.

Do not use the ashtray for disposing of waste paper or other combustible items. They may catch fire when a cigarette butt is extinguished in the ashtray.

9.4.8 Second Row Seat Armrest - Cup Holder (if equipped)

The second row seats have an armrest embedded into the seat back. The armrest can be unfolded and used as a cup holder.

Only sealed or cups with lid and cans to be used in the cup holders.

Use caution when using the cup holders. A spilled beverage that is very hot can injure the passengers. Spilled liquids can also damage interior trim. Never place objects other than cups or cans in the cup holder. These objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.

9.4.9 Second Row Seat Armrest - Storage Bin (if equipped)

The second rows seats have an armrest embedded into the seat back. The armrest incorporates a storage bin with smooth operating magnetic bin cover and a cup holder.

Only sealed or cups with lid and cans to be used in the cup holders.

9.4.10 Third Row Cup Holder

The cup holders are located on both the left and right side trims below the magazine holder.

Only sealed or cups with lid and cans to be used in the cup holders.

9.4.11 Bottle and Umbrella Holder

Bottle and Umbrella holders are located on both the front door lower trims. You can use them to store umbrellas, maps, papers, small books, bottles, etc.

Only sealed/closed bottles are to be used in the bottle holders.

9.4.12 Seat Back/Magazine Pocket

The seat back pockets are located on the back of the front seats for holding lightweight papers/books/magazines, etc.

To avoid injury, do not place large or hard objects in the seat back pockets. Do not put more than 1 kg weight in seat back pockets.

9.4.13 Third Row Magazine Pocket

The third row magazine pockets are located on the trims on either side of the third row seats. They can be used for holding lightweight papers/books/magazines, etc.

Do not place large or hard objects in the magazine pockets. Do not put heavy objects in the magazine pockets.

There are two ticket, mobile or small object holders on either side of the front floor console.

9.4.14 Grip Handle (if equipped)

Foldable grip handles are provided above the front (passenger only), second row and third row outboard seats.

9.4.15 Coat Hook

The second row outboard passenger seats grip handles feature a coat hook for hanging your coat, shirts, etc.

Hang lightweight articles only. Hanging excess/bulky weight/items may cause breakage of the hook and inconvenience to the passengers.

9.4.16 Sun Glass Holder

Roof mounted sun glass holder is an integral part of the front interior lamp. Press the lid to release the latch and lower the holder. It is strategically positioned to be accessed easily by both the driver and front passenger.

Do not access the sun glass holder while you are driving. It may distract your concentration and could lead to an accident.

9.4.17 Floor Mat (if equipped)

Floor mats are provided in the front and rear foot wells to avoid stains on the floor carpet.

Always keep the floor mats in their correct position to avoid interference with the movement of the accelerator or brake pedals during driving, which may lead to accidents.

9.5 Horn

Press the pad on the steering wheel to blow/sound the horn. The horn functions even when the ignition has been switched OFF.

9.6 Interior Lamps

Interior lamps comprise front/rear roof lamps, map reading lamps, ambience lamps and ignition key ring illumination. These lamps can be used for an illuminated entry. In auto mode, the roof lamps (courtesy lamps) and ignition key ring illuminate when any of the doors are opened. Once all doors are closed, the interior lamps switch OFF.

9.6.1 Front Roof Lamp

The front roof lamps are located in the roof console above the interior rearview mirror. The roof lamp can be switched ON pressing the lens on the lamp. Press the lens again to switch OFF the roof lamp.

9.6.2 Map Reading Lamp (if equipped)

Do not leave the roof/map reading lamp in permanent ON mode. This will drain your vehicle battery.

9.6.3 Second Row Roof Lamp

The second row roof lamp is located on the roof above the second row seats. The courtesy lamp can be switched ON/OFF by the switch on the lamp.

The roof lamp switch has three operation modes to choose from:

•

The roof lamp remains permanently ON in this position irrespective of the door open status

•

The roof lamp remains in DOOR/AUTO mode in this position

•

The roof lamp remains permanently OFF in this position

A	Permanent ON	C	Permanent OFF
B	Door/Auto Mode

The operation of the courtesy lamp in Auto/Door mode is as follows:

•

Roof lamp switches ON, dims and goes OFF after a preset delay once PKE unlock is performed

•

Roof lamp switches ON when any of the doors is/are open

•

Roof lamp dims and goes OFF after 10 secs delay upon closing of all doors

•

Roof lamp dims and goes OFF immediately on PKE lock or manual key lock after all doors are closed

•

If any of the doors are not closed properly, the roof lamp switches OFF automatically once the vehicle speed > 10 kmph

•

Roof lamp goes OFF with ignition ON and all doors closed properly

The roof lamp will be turned ON in the case of an accident in a SRS equipped variant provided the roof lamp switch is in “Door/Auto” mode.

9.6.4 Ambience Lamp (Icy Blue) (if equipped)

The ambience lamps give out a light red ambience in the vehicle. They can be switched ON/OFF by the ambience button on the centre bezel switch bank.

Ambience lamps are located in the following locations:

•

Around the front roof lamp

•

Under the seat

•

Above the pedals in the driver side foot well

•

Below the door handle

•

Above the bottle holder in the inner door trim

9.6.5 Door Ajar Lamp (if equipped)

The door ajar lamp is present on all four doors. The respective door lamp illuminates when that particular door is open or improperly locked.

The door ajar lamp illuminates even in the vehicle switched OFF condition with the ignition key removed.

9.6.6 Illuminated Scuff Plates (if equipped)

The illuminated scuff plates are switched ON every time the door is opened. This can also be used as a guide light during ingress or egress.

9.6.7 Camping Lamp (if equipped)

Camping lamp aids you during brief stops in night trips and also while loading/unloading luggage in the rear. It is switched ON/OFF by pressing the switch (A) on the camp lamp.

9.6.8 Battery Saver

The battery saver feature helps in switching OFF interior lamps that are inadvertently ON for long durations. This feature works only after the vehicle is locked with the interior lamp ON. If the vehicle is improperly closed/locked, the battery saver switches OFF the lamp after a duration of 3 mins.

9.7 Power Outlet

There are two (depends on the variant) 12V power supply sockets provided for power take OFF. Electrical equipment/appliances like mobile phone charger, cigarette lighter, etc. can be used in the outlets.

The power sockets function only when the ignition is in ACC or ON positions. It is recommended to use the power sockets when the engine is ON to avoid battery drain.

The power outlets are located in the following places in the vehicle:

•

Front - In the compartment below the centre bezel switch bank (If equipped)

•

Front - USB power outlet In the compartment below the centre bezel switch bank (If equipped). This port supports Android Auto/Carplay

•

Second Row - Behind the centre console storage (if equipped)

To avoid serious injury:

•

Close the power outlet cap when not in use

•

Do not allow children to use or play with the power outlet

•

When using electrical appliances, strictly follow the manufacturer's instruction manual

•

Never use the power outlet for electric heaters while sleeping

•

Never insert foreign objects into the power outlet

•

Never use malfunctioning electrical appliances

•

Never insert inappropriate or badly fitting plugs into the power outlet

Do not modify, disassemble or repair the power outlet in any way. Doing so may result in unexpected malfunction or fire, which could cause serious damage to equipment and/or personal injuries. Contact an Authorised Mahindra Dealer for any necessary repairs.

To prevent injuries and accidents, secure all electrical appliances before use. Do not use any appliance that may:

•

Distract the driver while driving, or hamper safe driving

•

Result in a fire or burn injuries due to the appliance rolling, falling or overheating

•

Emit steam, while the windows of the passenger compartment are closed

•

Use the power outlets only when the engine is running. Remove the plug from the power outlet after using the electric device. Using the power outlets when the engine is OFF or leaving the electric device plugged in for many hours may cause the battery to drain

•

Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V

•

Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle

9.8 Instrument Panel Illumination

The instrument panel light intensity can be varied by the illumination control knob located on the RHS near the head lamp levelling switch.

Roll up/down for bright/dim intensity of illumination for the following lighting:

•

Instrument cluster

•

Ambient lamp

•

Interior switches

•

Infotainment screen/display

9.9 AUX and USB Ports

The AUX and USB ports are provided on the centre switch bezel below the infotainment controls. They can be used as an input to the music system. You can connect iPods, USB memory sticks, etc. as an input and listen to the music through the vehicle speakers.

It is recommended to connect an input device only when the vehicle is stationary. Trying to connect an input device while driving may distract your attention and lead to accidents.

9.10 Exterior Lamps

9.10.1 Lighting Control Stalk

The lighting control stalk is located on the right hand side of the steering wheel and is a part of the combination switch. It controls operations of parking lamps, head lamps, head lamp beam selection, high beam flashing, front/rear fog lamps and turn signals when the ignition switch is ON.

9.10.2 Turn Signals

Turn Signal - Left

Turn Signal - Right

9.10.3 Turn Signal - Right

•

Push the lighting control stalk clockwise (to stop position B) to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right

After you have completed your right turn, the stalk will automatically return to the neutral position switching OFF all the lamps.

9.10.4 Taking a Left turn

•

Push the lighting control stalk anti-clockwise (to stop position A) to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left

•

After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF all the lamps.

If the turn signal lamps on the instrument panel flash faster than normal, there may be a possibility that one or more of the turn signal lamp bulbs have blown. Replace the blown bulb immediately.

9.10.5 Lane Changing

To signal a lane change, move the light control stalk clockwise or anti-clockwise to the limit point of free movement of the lever and release. The turn signals will flash three times and stop.

The turn signals will continue flashing as long as the lighting control stalk is held in the limit point of free movement.

9.10.6 Lamps OFF

Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to “OFF” on the switch to switch OFF all lamps.

9.10.7 Parking Lamp ON

Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “1st detente” position on the switch to switch ON the parking lamps.

The tail lamp, license plate lamp, instrument panel illumination lamps and all interior switches are also activated when the parking lamp is switched ON.

Park/Position Lamps will not be switched off automatically. User has to turn it off manually.

9.10.8 Head Lamp ON

Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “2nd detente” position on the switch to switch ON the head lamps.

9.10.9 Head Lamp Low/High Beam

Low Beam

High Beam

Switch ON the head lamp, and push the lighting control stalk down (away) from steering wheel to switch ON the head lamp high beam or lift/pull the lighting control stalk up towards the steering wheel to switch ON the head lamp low beam. In head lamp high beam, the high beam tell-tale lamp in the instrument cluster illuminates indicating high beam option selected.

9.10.10 Head Lamp Flash

Pull the lighting control stalk (from the head lamp low beam position) towards the steering wheel to instantaneously flash the head lamp high beam. The head lamp flash works only when the head lamp is OFF or in low beam position.

9.10.11 Auto Head Lamp

The auto head lamp feature works on the outside ambient light intensity input by the RLS (Rain-Light Sensor). Based on this input, the head lamps are turned ON/OFF. For E.g.: This feature will be helpful while driving through a tunnel or poor lit area.

The RLS is located behind the interior rearview mirror on the windshield.

To turn ON the auto head lamp feature, rotate the outer rotary switch on the lighting control stalk anti-clockwise aligning the “arrow” on the stalk to the auto head lamp icon on the switch. This is indicated by the auto head lamp tell-tale in the infotainment screen.

To de-activate the auto head lamp, rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the OFF position on the switch.

There is a difference between ambient light intensity sensed by the RLS (Rain-Light Sensor) on the windshield and by the human eye. The RLS may activate the head lamps early during evening hours or may de-activate late during morning hours. This is absolutely a normal behaviour.

In case of a windshield replacement, the RLS also needs to be replaced along with the windshield. An old RLS cannot be calibrated to a new windshield.

Your vehicle head lamps are vented and moisture may be collected on the inside of the head lamp lens under certain climatic and geographical conditions. This moisture will evaporate once the head lamps have been switched ON for a few minutes.

9.10.12 Head Lamp Levelling System

When the vehicle is either fully or partially loaded, it may have an upward inclination disturbing the head lamp aiming. A correct head lamp setting provides good visibility to the driver with minimum inconvenience to other road users.

To properly aim the head lamp beam, use the head lamp leveling switch. This switch is located on the right side of the steering column shroud in the instrument panel. This switch has four positions marked as 0, 1, 2 & 3.

Switch Position	Vehicle Loading Condition
0	Driver/Driver with Front Passenger
1	Driver + Front passenger + Second row occupied
2	All seats occupied
3	All seats occupied with luggage OR Driver with luggage at extreme rear side.

Select the suitable switch position depending on the pay load as advised in the table.

The headlights can only be adjusted when the low beam is switched ON

9.10.13 Static Bending Lamp (if equipped)

Static Bending lamps are available on both the head lamps. The static bending lamp assists the driver while taking a turn. It will be activated when the head lamp is ON and steering wheel turned more than 90° at 5 kmph or 45° at 100 kmph speeds.

9.10.14 Fog Lamps (if equipped)

Fog lamps are to be used along with head lamp low beam, to improve the vision during foggy and misty conditions.

9.10.15 Fog Lamps OFF

Align the “OFF” of inner rotary switch on the lighting control stalk to the “arrow” mark on the inner fixed stalk as shown to switch OFF the fog lamps.

9.10.16 Front Fog Lamps ON

To switch ON the front fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk anti-clockwise aligning the front fog lamp icon to the “arrow” on the inner fixed stalk as shown. The rotary switch moves back to its neutral position once released.

The front fog lamp indicator in the instrument cluster indicates the operation status.

Fog lamps will turn ON only if parking lamp is ON.

9.10.17 Rear Fog Lamp

To switch ON the rear fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk clockwise aligning the rear fog lamp icon to the “arrow” on the inner fixed stalk as shown. The rotary switch moves back to its neutral position once released.

The rear fog lamp indicator in the instrument cluster indicates the operation status.

The rear fog lamps can be switched ON only along with the front fog lamps.

9.10.18 Puddle Lamp (if equipped)

Puddle lamps are provided at the bottom of the front and rear doors. They are switched ON automatically when either of the front or rear doors are opened. This illuminates the ground below the respective door thereby assisting in a safe entry and exit.

9.10.19 Entry Assist Lamp (if equipped)

Entry assist lamps are located on the bottom of both left and right ORVM’s. They provide a illumination outside the driver and front passenger doors when the FMH or LMV features are activated.

9.10.20 Follow-Me Home (FMH) (if equipped)

This feature helps the driver and passengers to easily get out of the vehicle during poor light conditions. The head lamp low beam and entry assist lamps are turned ON for about 20 seconds assisting the passengers to find their way.

To activate FMH:

•

Switch OFF the parking lamps

•

Remove the ignition key

•

Open the driver door

•

Head lamp and entry assist lamp switches ON for 20 seconds unless cancelled by UNLOCK signal.

For FMH to be activated, the vehicle should have been driven with the park lamps or auto head lamp ON before switching OFF.

To extend the FMH feature further for 20 seconds, press PKE LOCK button. This FMH extension can be availed for maximum 2 minutes from the first activation.

With FMH mode ON; First LOCK signal received from PKE will lock the doors and subsequent LOCK signal is used to toggle the head lamp ON and OFF.

With FMH mode ON, if UNLOCK signal is received twice from PKE; the feature gets deactivated and cannot be extended further. Also, the doors are unlocked and vehicle disarmed.

9.10.21 Lead Me to Vehicle (LMV) (if equipped)

LMV is the feature that switches the head lamp and entry assist lamps ON for 20 seconds helping the passengers to reach the parked vehicle safely and comfortably at night.

LMV is activated:

•

Pressing the unlock button on the PKE under poor light conditions (if vehicle is equipped with auto head lamp)

•

Pressing the unlock button on the PKE when FMH was activated while locking the vehicle previously (if vehicle is not equipped with auto head lamp)

LMV is de-activated:

•

At the end of 20 seconds after activation

•

When any door is opened

•

Ignition is switched ON

•

LOCK command is received from PKE

To extend the LMV feature further for 20 seconds, press PKE UNLOCK button. This LMV extension can be availed for maximum 2 minutes from the first activation.

With LMV mode ON; First UNLOCK signal received from PKE will unlock the doors and subsequent UNLOCK signal is used to toggle the head lamp ON and OFF.

9.10.22 Hazard Warning Lamp

The hazard warning lamp switch is located in the centre bezel switch bank on the instrument panel.

To turn the hazard warning lamp ON, push the switch in. All the turn signal lamps flash. The instrument cluster turn indicator lamps also flash indicating the same. To turn OFF, push the switch again.

Use the hazard warning lamp when your vehicle is stationary or to warn other road users to be cautious while passing your vehicle.

The turn lamps do not work when the hazard warning lamps are operational.

9.11 Windshield Wipers

9.11.1 Wiper Control Stalk

A	Flick Wipe (MIST)	D	Low Speed (LO)
B	Off	E	High Speed (HI)
C	Intermittent (INT)	F	Intermittent Speed

9.11.2 Wiper Off

The wipe function is OFF when the wiper control stalk is in neutral position (B).

9.11.3 Flick-Wipe (Mist)

Push the wipe control stalk to position (A) for a flick-wipe, hold to operate the wipe continuously (simultaneously lift the wiper stalk towards the steering wheel to operate the wash). The stalk automatically comes back to position (B) when released.

9.11.4 Intermittent (INT) Mode

Intermittent (INT) wiping is selected when the wipe control stalk is pushed down to position C. In the INT mode, the wiper operates on preset intervals.

The delay between each wipe can be varied by rotating the wiper speed intensity rotary switch (F).

9.11.5 Low Speed Wiping

Push the wipe control stalk down to the position (D) to operate the wiper at a fixed low speed.

9.11.6 High Speed Wiping

Push the wiper control stalk down to position (E) to operate the wiper at a fixed high speed.

The wipe/wash function can be activated only when the ignition is in “ON” position.

9.11.7 Auto Wipe

The auto wipe feature works by sensing water (by the RLS) on the windshield. Based on this input, the wipers are turned ON/OFF. For E.g.: this feature will be helpful when the rain is inconsistent.

The RLS (Rain-Light Sensor) is located behind the interior rearview mirror on the windshield.

To turn ON the auto wipe feature, press the outer rotary switch side/edge on the wiper control stalk. This is indicated by the auto wipe tell-tale in the infotainment screen and the wiper performing one single wipe.

The sensitivity of the RLS can be varied by the wiper speed intensity rotary switch (F) on the wiper stalk.

To de-activate the auto wipe, switch OFF the ignition or press the auto wipe switch on the wiper stalk.

There is a difference between the RLS (Rain-Light Sensor) sensing rain (water) on the windshield and the human eye sensing rain. The RLS may activate the wipers when the windshield (top band) is wet. This is absolutely a normal behaviour.

In case of a windshield replacement, the RLS also needs to be replaced along with the windshield. An old RLS cannot be calibrated to a new windshield.

9.11.8 Wipe/Wash

Pull/Lift the wiper control stalk towards the steering wheel from any position to activate wipe/wash function. Washer fluid from front washer reservoir is pumped and sprayed onto the windshield. The wipers wipe the windshield 3 times after the washer spray is stopped and wipe once after 5 secs. Hold the stalk in position for continuous spray of washer fluid.

When wiper is in OFF or Interval mode:

After completion of the wipe/wash cycle, wipers return to their bottom position.

If the wipers are in interval mode and DWELL delay is less than or equal to 5 seconds, then the wiper will continue in the interval mode.

If the wipers are in interval mode, and DWELL delay is more than 5 seconds, then a further single wipe will be performed 5 seconds after the wash/wipe cycle. After the drip wipe (last wipe), wiper returns to normal interval wipe.

9.11.9 Rear Wiper

Rotate the outer rotary switch on the wiper control stalk to align the “arrow” on the stalk to the rear wipe “ON” position to operate the rear wiper.

9.11.10 Rear Wash

The rear windshield wash & wipe operates 3 to 4 times or as long as the stalk end is turned/rotated to the rear wash position. Wiping will continue for few seconds after releasing the stalk end switch.

If you switch OFF the ignition before switching OFF the wiper, the blades stop at random on the windshield. Switch ON the ignition and move wiper stalk to 'MIST' position to return the wipers to the park position, provided the wiper stalk is in OFF position.

Using a windshield washer in freezing temperatures could be dangerous. The washer fluid could freeze on the windshield, and block your vision resulting in an accident. If you operate your vehicle in temperatures below 40C, use washer fluid with anti-freeze protection.

•

Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass

•

It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass

•

Do not operate the windshield washer for more than
10 seconds or when the reservoir is empty

9.11.11 Auto-rear Wiping

With the front wipers ON and rear wipers OFF, engaging the reverse gear activates the rear wiper.

9.11.12 Windshield Washer - Front & Rear

There are two nozzles with three adjustable washer jets in the front (below the wipers). Using a pin, the eye ball jets can be adjusted precisely for direction. Always direct the washer jet to hit the middle of the windshield. This will enable the wiper blade to wipe the complete width of the windshield.

In the rear, two nozzles with twin adjustable washer jets are provided for the rear windshield wash. Adjust the nozzle to direct the washer jet to hit the middle of rear windshield using a pin. Rear windshield washer fluid is supplied from rear washer reservoir located in the back door.

9.12 Electric Sunroof (if equipped)

A sunroof will make the driving experience more enjoyable by bringing light and sunshine into the vehicle. It provides a real open air feeling along with pure driving fun. With fresh air, your driving experience automatically becomes significantly more relaxed. A sunroof allows air to flow evenly from above the driver, which is much quieter and less intrusive than wind blowing through a side window.

9.12.1 Sunroof Sliding Operation

Sunroof Glass Control Switch - Forward/Close

Sunroof Glass Control Switch - Backward/Open

Open:

Press the switch (B): 2-step auto sliding open

When pressing the switch (B) for more than 3 seconds, the sunroof is automatically opened by two-third of its travel (first step). Again by pressing the switch (B) for more than 3 seconds, the sunroof is completely opened (second step).

To stop the sunroof movement at any point, press the sunroof switch (B) momentarily.

Press the switch (B) and hold : manual sliding open

The sunroof is opened as long as pressing the switch (B).

Press the switch(A) and hold for 3 seconds: auto sliding close

When pressing the sunroof switch(A), the sunroof is automatically closed completely. To stop the sunroof, press the switch(A) at desired position while moving.

Press the switch(A): manual sliding to close
The sunroof is closed as long as pressing the switch (A).

In cold and wet climates, the sunroof may not work properly due to freezing conditions.

After a vehicle is washed or in a rainstorm be sure to wipe off any water that is on the sunroof before operating it.

9.12.2 Sunroof Tilting Operation

Tilt up -

The rear side of the Sunroof is tilted up when pressing the switch(A), when the Sunroof is in closed condition.

Tilt down/close

The rear side of the Sunroof is closed down when pressing the switch(B), when the Sunroof is in tilt up condition.

•

Even though the sunroof can be operated when the ignition key is in the ON position (the engine is not running), operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine is running

•

When a desired sunroof operation is completed, release the switch. If you keep pressing the switch, it could cause a malfunction. Especially in winter, never operate the sunroof if moving areas are iced. Wait until the areas are deiced

•

When leaving the vehicle unattended, be sure to completely close the sunroof. Otherwise, there is a great risk of vehicle theft. Or, the interior of the vehicle will be wet when it rains or snows

•

When the sunroof is slid to its complete open position, the wind buffet phenomenon can increase. If this happens, adjust by opening the sunroof or only open two-thirds of the sunroof by using only the first step of the opening system

•

When operating the sunroof, be aware of safety conditions before operation. Parts of the body can be trapped

•

Clean up the circumference of sunroof regularly. Otherwise, operating the sunroof may cause a noise due to foreign material and dirt

•

Opening the sunroof or driving with the sunroof open after a car wash or rain may lead to water entering

•

Close the sunroof while driving in the dusty environment. The dusts or particles entered can cause operating problems

•

If a roof rack system is installed on the vehicle roof or any cargo is secured to the roof rack, do not operate the sunroof. If you are required to operate the sunroof, carefully check that the roof rack system does not interfere with the sunroof and it is safe to open the sunroof

9.12.3 Anti-Pinch Function

To prevent any body parts from being trapped by the auto-closing sunroof, an Anti-Pinch Function automatically opens the sunroof when an object is trapped.

•

The sunroof pinch protection function only operates during automatic closing, not manual closing

•

When operating the sunroof, be aware of safety conditions before operation. Parts of the body can be trapped

•

Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage

•

Anti-pinch function is not available in sunroof “Tilt” close operation

•

If you would like to carry items on the roof rack using a cross bar, do not operate the sunroof. When carrying cargo on the roof rack, do not load heavy items above the sunroof or glass roof

9.12.4 Wind Buffeting

When you drive the vehicle with the window or sunroof open at a certain position, you may feel some pressure upon your ears or hear some noises similar to those from a helicopter. This happens because of an influx in air through the window or sunroof and its resonance effect. If this happens, adjust by opening the window or sunroof.

9.12.5 Re-Calibrating the Sunroof

When the battery is disconnected/discharged or Power Failure while Operating Sunroof, the sunroof may malfunction, reset the system.

If the sunroof is stopped midway due to a discharged battery or power failure or battery has been disconnected, you need to re-calibrate the starting point of the sunroof. In addition, the following cases need the re-calibration:

•

The sunroof does not completely close or open by operating the switch once

•

The sunroof slides back to close. But the operation does not stop even after a complete close and tilts up the sunroof

•

The opening gap remarkably decreases for the sliding open or tilt up

•

The sunroof does not work

Re-Calibrating the Sunroof Starting Point

Press the switch(A) for 10 seconds while the rear side of the sunroof is tilted up, the sunroof starting point will be recalibrated with a thumping sound.

If the sunroof still does not operate properly after recalibrating the start point, bring your vehicle in to a Authorised Mahindra Service center for an inspection.

When the sunroof is completely opened with the sunroof switch and the switch is operated to the “OPEN” direction for more than 5 seconds, the sunroof cannot completely be either closed or opened by operating the switch once. The sunroof will be moving only when the switch is being operated. When this happens, re-calibrate the beginning point of the sunroof to reactivate the one touch function.

Periodically remove any dirt that may accumulate on the guide rail.

Close the sunroof when driving in dusty environments. Dust may cause a malfunction of the system.

9.12.6 Sunroof Service Checking Procedure

•

Open the Sunroof

•

Check all 4 Rail channel corners for mud or Dust/ Leaf present in it

•

Move the leafs/Dust to center of rain channel and then remove it by hand

Do not blow air in drain hose channel before cleaning it manually – as the bigger leaves my go inside and block drain hose.

•

After cleaning of all visible particles blow air into drain hose channel area to clean hose for mud in this area

•

Now pour 1 liter of water in rain channel and check if water is draining or not

If water is not draining kindly contact the Mahindra Dealer or Mahindra Authorised Service Centre.

9.13 Instrument Cluster

A	Speedometer
B	Fuel Gauge
C	Odometer/Trip meter/Gear Indicator
D	Warning/Telltale Lamps
E	Tachometer/RPM Gauge
F	Temperature Gauge
G	Reset Button

The instrument cluster comprises of the tachometer, speedometer, trip meter (A & B), Reset Button, Odometer, Fuel gauge, Coolant Temperature gauge, Warning lamps and Telltale indicators.

9.13.1 Tachometer

The tachometer indicates the real-time engine speed in thousands of RPM (revolutions per minute). Each division is 500 RPM. Operating the engine at very high RPM may lead to excessive engine wear and low fuel economy. Maintain steady engine speed below 2500 RPM and do not accelerate or decelerate abruptly.

Do not over-accelerate the engine during idling, this can cause severe engine damage and would be treated as abuse of the engine which is not covered by warranty.

9.13.2 Speedometer

The speedometer indicates the real-time road surface speed of the vehicle in kilometres per hour.

The vehicle speedometer is affected by size of the tyres used. If the size of the tyres are changed from those fitted at the factory, the speedometer might not display the correct road surface speed and distance travelled.

9.13.3 Over Speed Alert

•

Primary level: For Vehicle Speed >= 80 kmph Buzzer will trigger single chime in every 110 seconds when the vehicle speed reaches < 76 kmph primary level chime will be off..

•

Secondary level:For Vehicle speed >= 120 kmph Buzzer will trigger single chime in every 2 seconds. When the vehicle speed reaches < 114 kmph second level chime will be off and primary level chime will be active.

9.13.4 Odometer

The odometer records and displays the total distance travelled in kms. Press the reset button (A) to cycle through odometer and tripmeter displays. Odometer cannot be reset.

9.13.5 Tripmeter and Reset Button

Tripmeter displays the elapsed distance travelled since the last trip reset. There are two tripmeters (A/B) which can be reset individually as necessary.

Odometer and tripmetersare displayed only when the ignition is ON and their displays are cycled/toggled by the reset button (A).

•

To select trip A or B, press and release reset button (A) for a second

•

To shift from trip A to trip B or vice versa, press and release the reset button (A) again for a second

•

While on trip A or B, press and hold the reset button (A) for more than 1 second to reset the respective trip reading to zero

•

Pressing the reset button (A) while in trip B, displays the odometer reading. Again pressing the rest button (A), displays trip A

9.13.6 Engine Coolant Temperature Gauge

The engine coolant temperature gauge functions only when the ignition is switched ON. It indicates the instantaneous engine coolant temperature. The coolant temperature varies with changes in weather, load on engine and driving pattern. Temperature rises from Cold (C) (Blue Colour) to Hot (H) (Red Colour).

When coolant temperature reaches the red zone, the high engine coolant temperature warning lamp illuminates.

In such situations, switch OFF the AC and observe for any improvements in temperature gauge. If not, stop the vehicle and allow the engine to cool down. Check the coolant level in the coolant reservoir and top-up if required. If the engine is still heating up, contact your nearest Authorised Mahindra Dealer.

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could splash on to skin/eyes causing severe burns. Wait for the engine to cool down before adding coolant to the reservoir.

Do not continue driving the vehicle with an overheated engine. This will lead to damage of engine components and engine seizure.

9.13.7 Fuel Level Gauge

The fuel level gauge functions only when the ignition is switched ON. It gives the status of the fuel level in the fuel tank. F indicates the tank is full (70 litres), E indicates the tank is empty.

When the fuel level reaches the reserve, the last 2 bars are displayed. The last bar in the display blinks when the fuel in the tank reaches the low level (approx. 5 litres).

The amount of fuel required to fill the tank up may be less than the specified tank capacity, as a small amount of reserve fuel always remains in the tank.

On inclines or curves, due to the movement of fuel in the tank, the fuel level may fluctuate or the last bar may flash earlier than usual. Always check the fuel level when the vehicle is on level road.

If the last bar flashes even after filling sufficient fuel, contact your Authorised Mahindra Dealer as soon as possible.

When all the bars in the display starts blinking / flashing, contact the nearest Authorised Mahindra Dealer at the earliest.

9.14 Warning/Tell-tale Lamps in the Instrument Cluster

A	Parking Lamp	P	ABS Warning Lamp *
B	AWD Lamp	Q	ESP OFF Lamp*
C	Rear Fog Lamp Indicator *	R	Tiretronics
D	Left Turn Indicator	S	Check Engine Lamp
E	Airbag Warning Lamp *	T	Parking Brake ON/Brake Fluid Low Warning Lamp
F	Front Fog Lamp Indicator *	U	OBD Check Lamp
G	Glow Plug Indicator	V	Head Lamp High Beam Lamp
H	Vehicle Armed Status Lamp	W	AT Malfunction indicator Lamp
I	Low Fuel Warning Lamp	X	Charging System Warning Lamp
J	Water-in-Fuel	Y	Door Ajar Warning Lamp
K	Right Turn Indicator	Z	Seat Belt Warning Lamp
L	Cruise Control Indicator *	A1	REGEN Indicator
M	High Coolant Temperature Warning Lamp	B1	DEF Indicator Lamp
N	Low Engine Oil Pressure Warning Lamp	C1	DPF Indicator Lamp
O	ESP System Warning Lamp*
@ if equipped

** Come ON momentarily with ignition ON and will remain ON till engine is started. * Come ON momentarily with ignition ON and go OFF in few seconds.

9.15 Warning Lamps in the Instrument Cluster

9.15.1 Seat Belt Warning Lamp

The seat belt warning lamp illuminates reminding the driver and Co-driver to fasten the seat belt when the ignition is ON. The lamp will continue to illuminate till the driver and Co-driver fastens the seat belt properly.

9.15.2 Turn Lamps

The turn lamp arrows in the instrument cluster flash showing the direction indicated by the turn signals. A sudden increase in the rate of flashing indicates failure of one or more of the lamp bulbs. Have them replaced as soon as possible.

9.15.3 Airbag Warning Lamp

The airbag warning lamp in the instrument cluster illuminates when the ignition is switched ON and goes OFF in about 2 seconds once the engine is running. If the lamp remains ON continuously or flashs intermittently, contact an Authorised Mahindra Dealer immediately.

Following conditions indicate airbag malfunction:

•

Lamp fails to go OFF after engine is started

•

Lamp does not illuminate at all

•

Illuminates while driving

Contact an Authorised Mahindra Dealer immediately when the airbag warning lamp indicates a system malfunction. The airbag may not deploy when needed, which could result in serious or fatal injury, or it might deploy unexpectedly or unnecessarily, which may result in personal injury.

9.15.4 Front Fog Lamp (if equipped)

The front fog lamp telltale indicates the status of the front fog lamp. The front fog lamp can be switched ON only when the parking lamp is ON.

9.15.5 Low Fuel Warning Lamp

When the fuel level in the fuel tank falls below the reserve limit, the low fuel warning lamp is illuminated. Refuel sufficiently and the lamp goes out. If the lamp continues to remain ON even after refuelling, contact an Authorised Mahindra Dealer.

9.15.6 Glow Plug Indicator

Glow plug indicator illuminates when the ignition is turned ON. It automatically goes OFF when the glow plug reaches the required temperature. Contact an Authorised Mahindra Dealer if the glow plug lamp does not illuminate with ignition ON or illuminates while driving.

9.15.7 Vehicle Armed Status Lamp

The vehicle armed status lamp flashes intermittently (few seconds frequency) once the ignition is switched OFF and the vehicle security system is armed (when locked using the PKE).

Fast blinking indicates a malfunction in the engine immobiliser system. Contact an Authorised Mahindra Dealer immediately.

9.15.8 Rear Fog Lamp (if equipped)

The rear fog lamp telltale indicates the status of the rear fog lamp. The rear fog lamp can be switched ON only when the front fog lamp is ON.

9.15.9 High Engine Coolant Temperature Warning Lamp

The high engine coolant temperature warning lamp flashes when the coolant temperature is above 105ºC. It starts to flash at double the rate when the temperature reaches 110ºC and will be continuously ON with buzzer alert when the temperature reaches 114ºC.

The “red” bars in the temperature gauge also flash in the same frequency as the high temperature warning lamp when the above set temperature thresholds are reached.

Do not continue driving the vehicle with an overheated engine. This may result in engine damage, which will not be covered by the limited warranty.

9.15.10 Water-in-Fuel Warning Lamp

The water-in-fuel warning lamp illuminates when the accumulation of water in the fuel filter reaches the maximum permissible limit. The fuel filter needs to be drained. Contact an Authorised Mahindra Dealer.

Do not continue driving the vehicle with the Water-in-Fuel Warning Lamp ON. This may result in fuel pump / other fuel system component damage, which will not be covered by the limited warranty.

9.15.11 Cruise Indicator

The cruise control lamp illuminates when the ignition is switched ON and goes off in about 2 seconds indicating normal status. The lamp blinks if the accelerator is depressed, while in cruise mode.

When SET+ button in the steering wheel is pressed, cruise control is activated and the lamp illuminates indicating the vehicle is in cruise mode.

When CRUISE OFF button in the steering wheel is pressed, the cruise mode is deactivated and the lamp goes OFF indicating that the vehicle is not in cruise mode.

If the lamp does not illuminate when the vehicle is in cruise mode or does not go OFF when the vehicle is out of cruise mode, there is a possible malfunction in the lamp or the cruise control system. Have the vehicle checked by an Authorised Mahindra Dealer.

9.15.12 Low Engine Oil Pressure Warning Lamp

The low engine oil pressure warning lamp illuminates when the ignition is switched ON and goes off when the engine started. If the lamp remains ON even after starting the engine, or illuminates while driving, stop immediately, check the oil level after 2-3 minutes. If low, add engine oil to the “MAX” level and check status. If problem persists, contact an Authorised Mahindra Dealer immediately.

Operating the vehicle with the low oil pressure warning lamp ON could cause sudden unexpected engine failure and loss of vehicle control, resulting in an accident and/or serious personal injury.

Do not run the engine with low oil pressure warning indicator ON. This may result in engine damage, which will not be covered by the limited warranty.

9.15.13 ESP System Warning Lamp

While driving, if the ESC system warning lamp blinks, it indicates that ESP has taken control of the vehicle stability. If the lamp remains ON, it indicates the malfunction in the ESP System. Contact the nearest Authorised Mahindra Dealer.

9.15.14 ESP OFF Lamp

The ESP OFF lamp illuminates when the ESP has been switched OFF manually.

9.15.15 Tiretronics

The Tiretronics lamp illuminates if there is a tyre pressure or temperature difference in one of the tyres. The Tiretronics lamp blinks (for approx. 75 sec.) and then illuminates continuously when there is a malfunction in the Tiretronics.

9.15.16 Check Engine Lamp

The check engine lamp illuminates when the ignition is switched ON and goes out in 2 seconds indicating normal status. The lamp blinks or illuminates continuously if there is a fault in the engine management system. Switch OFF the engine immediately. Contact the nearest Mahindra dealer for necessary repairs.

9.15.17 Parking Brake Lamp

The lamp illuminates when Parking brake is engaged or when brake fluid level is low or when front brake pads are worn. If the lamp illuminates while driving, do the following:

•

Check if the parking brake is engaged. If yes, disengage it

•

Check if brake fluid level is low. If yes, top-up brake fluid to the required level

•

Front Brake pads may be worn out. Immediately get the vehicle checked at an Authorised Mahindra Dealer.

Clean the top of the brake fluid reservoir before removing the cap. Make sure no dirt, impurities or other items fall into the reservoir. Do not leave the cap off for more than a few minutes. Any contaminants, impurities or moisture in the brake fluid can affect brake operation, resulting in an accident.

If the brake warning lamp comes ON while driving, the brake system might not be working properly. The pedal might be harder to operate or might go closer to the floor and it can take longer to stop. Pull off the road carefully and stop the vehicle. Have the vehicle towed to the nearest Authorised Mahindra Dealer for checks or repairs.

Driving the vehicle with the brake warning lamp ON or when you suspect brake trouble is very dangerous and could result in serious injuries. Have your vehicle towed to an Authorised Mahindra Dealer.

9.15.18 OBD Check Lamp

The OBD check lamp illuminates when the ignition is switched ON and remains ON till the engine is started indicating normal status. If the lamp remains ON, it indicates a potential malfunction.

There may be a malfunction in:

•

The fuel management system

•

The emission control system

•

Systems which affect emissions

Such malfunctions may result in excessive emissions. Contact an Authorised Mahindra Dealer immediately.

9.15.19 Head Lamp / High Beam Lamp

The head lamp high beam telltale illuminates whenever the head lamps are switched ON to high beam or when the head lamp flash is used.

9.15.20 AT Malfunction Indicator Lamp

•

This warning lamp comes on when the ignition switch is turned on and it goes off when the engine is started.

•

If the lamp stays on or comes on while driving, some of the Transmission control components including sensors and devices may be malfunctioning.

•

If the Indicator lamp is blinking continuously, reduce the vehicle speed until the lamp stops blinking. Contact the Mahindra dealer as soon as possible.

9.15.21 Anti-lock Brake System (ABS) Malfunction Lamp (if equipped)

The ABS malfunction lamp illuminates when the ignition is switched ON and goes OFF after about 2 seconds. If the ABS malfunction lamp continues to remain ON or illuminates while driving (and the brake system warning lamp is OFF), ABS will not operate. But the brake system will still operate conventionally. In this condition, the wheels can lock during severe braking. Have the vehicle checked by an Authorised Mahindra Dealer as soon as possible.

However, if ABS malfunction lamp and brake warning lamp are simultaneously glowing, there is a severe malfunction in the ABS. Operate the vehicle with extreme care and have the vehicle checked as soon as possible at an Authorised Mahindra Dealer.

9.15.22 Battery Charging System Warning Lamp

The battery charging system warning lamp illuminates when the battery is not being charged or when there is a malfunction in the alternator.

This lamp illuminates when the ignition is switched ON and goes out as soon as the engine is started. If the lamp continues to remain ON even after starting the engine, it is an indication that the battery is not being charged or there is a malfunction in the alternator. Check the alternator drive belt for looseness/breakage. If the drive belt is okay, switch OFF all unnecessary electrical equipment and recheck. Contact an Authorised Mahindra Dealer for further assistance.

9.15.23 Door Ajar Warning Lamp

The door ajar warning lamp illuminates and the buzzer chimes 3 times when any of the doors including the hood and back door are open during ignition ON. The lamp goes OFF when all the doors are closed properly.

9.15.24 REGEN Indicator Lamp

It indicates the DPF Manual Regeneration is Required. Also it is ON when manual regeneration is in progress. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”.

9.15.25 DPF Indicator Lamp

If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”.

9.15.26 DEF Indicator Lamp

If the DEF indicator is ON in the engine running condition then DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”.

9.15.27 Reverse Parking Assistance System (RPAS) – Type 2

The RPAS is deigned to assist the user in parking or driving the vehicle with reverse gear. The display system will warn the user about the obstacles present near the vehicle rear side, so that the user can safely drive the vehicle.

When the obstacles come in the sensing range, the system starts giving the alert beeps in cluster (Applicable only for W3 Variant).

The frequency of RPAS beep alerts will increase as the obstacle comes closer to the vehicle and when the obstacle comes very close to the vehicle the alert beeps will become continuous.

10 STEERING AND BRAKES

10.1 Steering

Your vehicle is equipped with power steering. Power steering uses energy from the engine to decrease the driver's effort in steering the vehicle. The power steering system will give you good vehicle response and increased ease of manoeuvrability in tight spaces. If for some reason the power assist is interrupted, it will provide mechanical steering capability to steer the vehicle. Under these conditions, you will observe a substantial increase in steering effort, especially at very low vehicle speeds and during parking manoeuvres..

Upon initial start-up in cold weather, the power steering pump may produce noise for a short amount of time. This is due to the cold, thick fluid in the steering system. This noise should be considered normal, and it does not in any way damage the steering system.

Continued operation with reduced power steering performance could pose a safety risk to yourself and others. Have the vehicle serviced at specified intervals or whenever a power steering problem is noticed.

Do not grip the steering wheel spokes when driving off road. A bad bump could jerk the wheel and injure your hands. Keep both hands especially your thumbs on the outside of the steering wheel rim.

To help prevent damage to the power steering pump:

•

Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running

•

Heavy or uneven steering efforts may be caused by low power steering pump fluid level. Check for low power steering pump fluid level before seeking service by an Authorised Mahindra Dealer

•

Do not fill the power steering pump reservoir above the MAX mark on the reservoir, this may result in leaks from the reservoir

If the power steering system breaks down (or if the engine is turned OFF), you can still steer the vehicle manually, but it takes more effort.

If the steering wanders or pulls, check for:

•

Under inflated tyre(s) on any wheel(s)

•

Uneven vehicle loading

•

High crown in the centre of the road

•

High crosswinds

•

Wheels out of alignment

•

Wheels out of balance

•

Loose or worn suspension components

10.1.1 Tilt Steering

The steering wheel can be adjusted for both rake and reach as required using the lever in the steering shroud under the steering wheel.

To tilt/adjust the steering wheel:

Pull the tilt lever down to unlock.

Raise or lower the steering wheel to the desired position.

Pull or push the steering wheel to the desired position.

Push the tilt lever back up to its original position to lock the steering.

Improperly locked steering wheel could cause loss of control and lead to accidents. Never adjust the steering wheel while driving.

10.2 Steering Controls - Audio (if equipped)

The steering wheel also houses switches to control the main audio functions.

Refer to the Audio/Infotainment Manual for complete information on audio system features and controls.

10.2.1 Steering Audio Operations

A	Mute	C	Source Selection
B	Volume + / -	D	Up / Down or Call Selection

•

TO TURN AUDIO ON/OFF - Press the mute button for 2 seconds

•

SOURCE - Press SOURCE button to toggle between AUX, CD, TUNER & USB mode

•

VOLUME CONTROL - Press ‘+’ and ‘-’ button to increase or decrease the volume

•

MUTE - Press MUTE button to mute audio while in TUNER and AUX mode and pause the song while in CD, USB mode

•

CD USB MODE - Press 'UP' / 'DOWN' button to go to
next / previous track

TUNER MODE - Press 'UP' / 'DOWN' button to go to next / previous frequency. Press 'UP' / 'DOWN' button for 2 seconds to AUTO TUNE

10.3 Brakes

Your vehicle is equipped with disc brakes in the front and Rear wheels.

Disc brakes offer good braking capability and reduced stopping distance. Wet brake discs result in reduced braking efficiency. After a car wash or driving the vehicle through water, pump the brake pedal mildly while driving to remove the film of water from the brake pads.

Brake pads feature wear indicator. When the front brake pad is worn out, there will be an indication in the cluster; the brake warning lamp will be ON. Replace the brake pads immediately.

Driving with wet brakes is dangerous. Stopping distance increases considerably when braking.

Dry the brakes by driving at very slow speed and applying the brakes lightly until the brake performance becomes normal.

Even if the power assist (vacuum assistance) is completely lost, the brakes will still work. The brake pedal would be much harder than normal and the vehicle stopping / braking distance will be longer than usual.

10.3.1 Parking on a Hill/Incline

If you have to park facing uphill, select first gear and turn the front wheels away from the kerb. If you have to park facing downhill, select reverse gear and turn the front wheels towards the kerb. Always ensure that the vehicle is in gear and parking brakes is engaged before leaving the vehicle.

10.3.2 Parking Brake

To apply the parking brake, pull the park brake lever up as firmly as possible. When the parking brake is applied with the ignition ON, the brake warning lamp in the instrument cluster illuminates. To release the parking brake, pull the parking brake lever up slightly, press the release button on the lever tip and lower the parking brake lever completely.

The brake warning lamp indicates only the parking brake status. It does not indicate the degree of brake application. Be sure the parking brake is firmly set when parked and the gear shift lever is in gear. When parking on a hill; first apply the parking brake; after that shift the TGS lever to the P position (for AT) and gear for MT. This will avoid the load on the transmission, locking mechanism may make it difficult to move the shift lever out of gear.

Be sure the parking brake is fully disengaged before driving off. Failure to do so can lead to brake problems due to excessive heating of the rear brakes. It will also result in reduced fuel efficiency; lowered brake pad life and rear brake squeal.

•

The parking brake should be adjusted as per recommended maintenance schedule

•

Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission in gear. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in personal injury.

•

Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could move the vehicle leading to accidents

•

The parking brake should always be applied when the driver is not in the vehicle

Engaging the parking brake while the vehicle is in motion can cause the rear wheels to lock up. You could lose control of the vehicle and cause an accident.

10.4 Hazard on Panic Braking

Hazard lamps are turned ON during panic braking for 5 secs when the following conditions are met:

•

Ignition is ON

•

Vehicle speed is greater than 80 kmph

•

Panic/sudden brake is applied and high deceleration rate is sensed

10.5 Anti-Lock Brake System (ABS) (if equipped)

The Anti-lock Brake System (also called as ABS) is designed to help prevent lock-up of the wheels and stable stopping of vehicle during a sudden, panic emergency braking or braking on slippery road surfaces. The ABS system takes input from wheel speed sensors and brake pedal switch to control the brake fluid pressures at the wheels to avoid wheel lock-up. It allows vehicle to be steered during braking.

The minimum speed for ABS to function is 12 kmph. ABS is activated only during wheel lock conditions where ABS takes over and prevents wheel lock.

During the ABS operation, a slight pulsation may be felt in the brake pedal to indicate ABS is active. You may also hear motor noise from the engine compartment. It is recommended to hold the brake pedal firmly while the ABS is active rather than pumping the brake pedal.

Depressing the brake pedal on slippery road surfaces as on a manhole cover, a steel plate at a construction site, a joint in a bridge, etc. on a rainy day, tends to activate the anti-lock brake system.

The ABS warning lamp lights up when you switch ON the ignition and should go out after a few seconds. If the ABS warning lamp does not go out or if it comes ON while driving, it means there is a fault in the ABS system. In both cases, the normal braking system remains efficient, exactly as on a vehicle without ABS. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.

The ABS is not designed to shorten the stopping distance: Always drive at a moderate speed and maintain a safe distance from the vehicle in front of you. The stopping distance may be longer in the following cases:

•

Driving on rough, gravel or snow-covered roads

•

Driving with tyre chains installed

•

Driving over the steps such as the joints on the road

•

Driving on roads where the road surface is pitted or differences in surface height

Do not overestimate the Anti-lock Brake System: Although the Anti-lock Brake System assists in providing vehicle control, it is still important to drive with all due care and maintain a moderate speed and safe distance from the vehicle in front of you. There are limits to the vehicle stability and effectiveness of steering wheel operation even with ABS active.

If tyre grip performance exceeds its capability, or if hydroplaning occurs during high speed driving in the rain, the Anti-lock Brake System will not assist with vehicle control.

10.6 Electronic Brake Force Distribution (EBD) (if equipped)

EBD, as a subsystem of the ABS system, controls the effective adhesion utilisation of the rear wheels. EBD aids in distributing the brake forces more evenly leading to better vehicle stability during braking.

Typically, the front end carries more weight and EBD distributes less braking pressure to the rear brakes avoiding a lock up/skid.

For example, under light loads EBD applies less effort to the rear brakes and for heavy loads it allows full braking effort to the rear wheels.

A fault with EBD is indicated by illumination of the brake as well as ABS warning lamps. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.

10.7 Hydraulic Brake Assist (HBA) (if equipped)

ESP system recognises / identifies an emergency braking situation from the braking characteristics and thereby achieves a braking output equivalent to a full force demand at the controls. HBA automatically boosts the braking force to the maximum and helps to stop the vehicle as quickly as possible.

Pressure should be maintained on the brake pedal during entire brake application. If the brake pedal is released, HBA will stop operating.

11 HEATING, VENTILATION AND AIR-CONDITIONING SYSTEM (HVAC)

HVAC system provided in the vehicle enables occupants to automatically/manually adjust air flow distribution pattern, air flow rate, air intake mode and air temperature inside passenger compartment. By appropriately adjusting the control knobs/switches provided on the HVAC control panel, located on centre console, occupant’s comfort can be ensured. HVAC system also helps in defrosting and defogging / de-misting the windshield and windows.

Air flow direction can be further controlled by adjusting louvres of air vents. An air filter is provided at the inlet of HVAC blower.

Engine coolant is utilised to heat the cabin air. For cooling the cabin air, an air conditioning circuit based on the vapour compression refrigeration cycle is used. The air conditioning system uses a refrigerant along with a suitable lubricating oil. Although being non-ozone depleting, the refrigerant is a greenhouse gas, hence once allowed to escape in the atmosphere, it adversely affects the environment by contributing to global warming/climate change.

Refrigerant used in system is a hazardous liquefied gas and is under high pressure. The refrigerant is colourless and has ethereal or faint sweetish odour. Exposure of refrigerant to skin or eyes may cause irritation and frostbite. They can also cause suffocation, dizziness and loss of concentration. When mixed with compressed air or certain other refrigerants, it may form flammable mixture. Never try to service HVAC system yourself which would involve refrigerant handling.

- If you sleep while operating the air conditioner or heater with all the windows closed, You may suffocate to death due to lack of ventilation. When you operate the air conditioner or heater, ventilate frequently.

Multiple vents are provided for distributing the air, being force-circulated by HVAC blower, throughout the passenger compartment.

To ensure sufficient air flow and hence adequate HVAC system performance, air flow path should be kept free of obstructions. Keep system’s air intake, located near plenum appliqué, free of snow, leaves and other debris. Also keep the area in front of air vents free of any obstruction inside the cabin.

11.1 HVAC Overview

A	Side Vents
B	Windshield Defrost Vents
C	Centre Vents
D	Side Defrost Vents
E	Foot Vents
F	HVAC Controls

11.1.1 Centre/Side Vents

Adjustable Louvers

Thumb Wheel

Two centre vents are located on either side of the infotainment screen in the centre console. The two side vents are located one each at the left and right extreme ends of the instrument panel. Both the centre and side vents provide air flow to the front seat passengers.

Rotate the thumb wheel (B) left to close or right to open the air vent. Direct air to the desired direction by the adjusting Louvres(A) up/down or left/right.

11.1.2 Defrost Vents - Side/Windshield

There are four defrost vents in your vehicle: two side defrost and two windshield defrost vents. They are located just below the windshield. The side defrost vents prevent the front windows from de-misting.

11.1.3 Second/Third Row Roof Vents

Two (LH & RH) vents for the second row are provided on the B-Pillars. The vents have adjustable Louvers to direct the air flow.

The third row vents (LH & RH) are located on side trims on either side of the third row seats.

11.2 Climate Control

There are two types of climate control depending on the variant :

Automatic Climate Control

A	Temperature Control Dial	G	Front Windshield Defrost
B	Economy Button (ECon)	H	Air Distribution Mode
C	AC ON	I	Fresh Air Mode
D	Re-circulation Mode	J	Auto Mode
E	Rear AC (Third Row)	K	Blower Fan OFF
F	Blower Fan Speed Control Dial	L	Rear Windshield Defrost

Manual Climate Control

A	Temperature Control Dial	G	Front Windshield Defrost
B	Economy Button (ECon)	H	Floor Defrost Mode
C	AC ON	I	Floor Mode
D	Re-circulation Mode	J	Face Floor Mode
E	Rear AC (Third Row)	K	Face Mode
F	Blower Fan Speed Control Dial	L	Rear Windshield Defrost

11.3 Temperature Control

Cool Air

Hot Air

By operating the temperature control knob, temperature of air being discharged from various vents can be adjusted to the desired level. Engine coolant is utilised to heat, whereas the air conditioner is used to cool the air inside the AC unit. Based upon selected position of the temperature control dial, the desired discharged air temperature can be obtained.

By rotating the dial counter-clockwise and setting it to the extreme left position, cool air is discharged.

When the dial is rotated clockwise, the discharge air progressively starts getting warmer.

By rotating the dial further in the clockwise direction and setting it to the extreme right position, hot air is discharged.

11.4 Blower Speed Control

The controls differ depending on the variant (Automatic or Manual Climate Control).

For Automatic Climate Control Variants

Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.

To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).

The same is also indicated in the infotainment screen (in Automatic Climate Control equipped vehicles).

The blower speed control dial is also used to switch ON the blower alone when needed. Use the OFF button on the switch bank to switch OFF the blower.

This blower speed control does not control the air flow to third row vents.

The blower OFF button turns the blower OFF. This in turn switches OFF the AC also.

The blower alone can be switched ON by rotating the blower control dial.

For Manual Climate Control Variants

Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.

To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).

To switch OFF the blower, rotate the dial to “0”.

Third Row Blower Speed Control

A blower control is provided below the third row (RH) vent to control the air flow to the third row vents.

The third row AC is switched ON by the Rear AC button on the central switch bank. The airflow is controlled by the blower control on the third row RH side trim.

11.5 Economy Button (ECon)

ECON switch turns ON economy mode. During ECON AC operation the system automatically cuts OFF at a higher temperature than normal AC. The operation can be used during mild weather conditions for better fuel efficiency. Comfort level may be compromised during this operation.

LED on the button indicates the status of the button. Press the ECON switch again to turn OFF economy mode.

11.6 Air-conditioner ON (AC ON)

This button turns the air-conditioner ON or OFF. Adjust the temperature control dial as per the temperature requirement. LED on the button indicates the status. Push the button to turn ON/OFF the AC.

When the air conditioner is functioning, air gets cooled and de-humidified before being circulated inside the cabin. In hot weather conditions, it will take a slightly longer time to cool the interior as compared to cooler weather. Fuel consumption will be relatively higher if the vehicle is being driven with the air conditioner ON.

AC will function only when both engine and blower are switched ON.

•

In certain operating conditions when the engine gets overheated, the engine management system may switch off the air conditioner intermittently

•

The air conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system

•

During extreme cold weather conditions, the air conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold

•

When air conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle

11.7 Re-circulation Mode

To set the HVAC system to recirculation mode, press the recirculation mode button. The LED on the button illuminates, indicating the recirculation mode is active.

In this intake mode, the air from inside the passenger compartment will be sucked by the blower and utilised further to ventilate /cool / heat the cabin.

For quick cabin cooling/heating or while driving through dusty/polluted region, re-circulation mode can be selected for short periods. Driving with this mode active, may lead to better fuel economy and longer HVAC filter life.

However, running the air conditioner in re-circulation mode for long will make cabin air too dry and oxygen level drops inside cabin the turning the air stale. On the contrary, keeping air intake control in recirculation mode for long, with air conditioner switched OFF, will make cabin air too humid and are more likely to become foggy. Hence, never drive in recirculation mode for long, shift back to fresh air mode as soon as possible.

Never keep recirculation mode selected continuously for long. Prolonged use of the HVAC system in recirculation mode may cause windshield/windows to mist/fog-up, impairing visibility which can lead to an accident, endangering you and others.

11.8 Fresh Air Mode

Automatic Climate Control

To set the HVAC system to fresh air mode, press the fresh air mode button. The LED on this button illuminates, indicating that fresh air mode is active.

In this intake mode, fresh air from outside the vehicle is sucked by the blower and utilised further to ventilate /cool / heat the cabin.

Manual Climate Control

To set the HVAC system to fresh air mode, press the re-circulation mode button again. The LED on this button switches OFF, indicating that fresh air mode is active.

11.9 Rear AC

The rear AC provides cooling for the third row AC vents. Adjust the temperature control dial as per the temperature requirement. LED on the button indicates the status.

The rear AC can be switched ON only when the AC button (front/second row AC) is ON.

11.10 Auto Mode (Automatic Climate Control only)

The auto mode can be used to control the complete air conditioning operation of the vehicle automatically. The auto mode controls blower fan speeds, air intake mode, temperature and modes (vents) based on the set temperature.

All the air conditioning operations can also be controlled manually as explained in the previous sections.

11.11 Air Distribution Mode Button

Air distribution mode button allows you to select the below air flow patterns:

•

Face Mode

•

Face and Floor Mode

•

Floor Mode

•

Floor Defrost Mode

•

Defrost Mode

Depending on the variant, the operation of air distribution mode changes.

For Automatic Climate Control

Each press of mode switch changes the flow pattern accordingly.

The air distribution inside the vehicle can be chosen by the Mode button.

For Manual Climate Control

Press the required mode button on the switch bank.

11.11.1 Air Distribution - Face Mode

Air is discharged through the centre and side vents on the instrument panel, and through the second row B-pillar vents.
