  Important Information – Quick Reference

We strongly urge that you read the information provided in pages referred hereunder which will help in road safety and prevent inconvenience
1
Warranty Coverage...............................................................................................................................................
Refer WI&MG* (P.g. 12)
2
Roadside Assistance ............................................................................................................................................
Refer WI&MG* (P.g. 9)
3
Schedule Service (Free/Paid)...........................................................................................................................
Refer WI&MG* (P.g. 20)
4
Maintenance Schedule Chart............................................................................................................................
Refer WI&MG* (P.g. 22)
5
Lubricants And Capacities..................................................................................................................................
Refer WI&MG* (P.g. 25)
6
Location Of Vehicle Identification Number (VIN)......................................................................................
Refer (P.g. 2-27)
7
Location Of Fuse Box And Fuse Details........................................................................................................
Refer (P.g. 2-8)
8
Changing A Flat Tyre.............................................................................................................................................
Refer (P.g. 2-15)
9
Understanding The Warning Lamps.............................................................................................................
Refer (P.g. 4-3)
10
Use Of Seats Belts And Child Restraint.......................................................................................................
Refer (P.g. 6-10)
11
Understanding The Airbag Function..............................................................................................................
Refer (P.g. 7-1)
12
If Your Vehicle Is Submerged...........................................................................................................................
Refer (P.g. 12-6)
13
Driving Through Water.......................................................................................................................................
Refer (P.g. 12-6)
14
Opening And Closing The Hood/Bonnet.....................................................................................................
Refer (P.g. 15-4)
15
Location Of Battery And Its Maintenance..................................................................................................
Refer (P.g. 15-15)

*Warranty Information & Maintenance Guide

1 INTRODUCTION AND SAFETY PRECAUTIONS
1.1 Introduction
Dear Customer,
Congratulations on purchasing Mahindra XUV500. Your vehicle has been designed to provide years of safe and dependable service, as long as it is used and maintained in accordance with the instructions provided in this manual.
All persons who will use and/or maintain this vehicle must read, understand and follow all warnings and instructions provided in this manual. This Owner's Manual should be considered an integral part of the vehicle and should remain with the vehicle. However, nothing in this manual, and none of the safety devices installed in the vehicle, are a substitute for careful operation and common sense. Always make sure that your vehicle is in optimum working order, and take note of the road and weather conditions under which you are using your vehicle.
If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer.
Alternatively, you can contact Mahindra at:
•  1800-209-6006 (Toll free)
•  customercare@mahindra.com
We extend our best wishes for safe and pleasurable motoring.
Sincerely,
Graphic
MAHINDRA & MAHINDRA LTD
Servicing and Summary Data
•  For all issues concerning the vehicle and for any need of spare parts, contact only the Authorised Mahindra Dealer network
•  We recommend you always use genuine Mahindra spare parts when performing repairs on the vehicle
•  We suggest that you record the vehicle data in the Service Coupon Booklet for future references
1.2 Safety Symbols
Carefully read, understand and follow the safety symbols/ instructions given in this manual.
Legend of the Symbols
To emphasise information and procedures regarding safety, use, maintenance, etc., the following symbols are used throughout the manual:
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.
NOTICE indicates important information relevant to the vehicle, the vehicle's use or to sections of this manual to which particular attention must be paid for optimum use of the vehicle.
If you see this symbol, it indicates “no”, “do not,” “do not do this,” or “never”.
Graphic
1.3 General Safety Information and Instructions
Failure to follow the warnings and instructions provided in this manual could result in failure of the vehicle, an accident and/or serious personal injury.
1. Carefully read, understand and follow the warnings and instructions given in this manual. This manual is an essential part of the product. Keep it in the vehicles glove box for future reference.
2. First-aid kit placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point in time.
3. Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage.
4. Never use a mobile phone or any device with headphone while driving. This may take your focus off the road and lead to accidents.
5. Please be advised that many service and repair tasks require specialised knowledge, tools and experience. General mechanical aptitude may not be sufficient to properly service or repair your vehicle. If you have any doubt whatsoever regarding the ability to properly service or repair your vehicle, please contact your Authorised Mahindra Dealer or a qualified technician.
6. Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately.
7. Always start and operate the engine in a well-ventilated area. If in an enclosed area, vent the exhaust to the outside. Do not modify or tamper with the exhaust system.
8. Examine tyres for excessive tread wear and uneven wear patterns. Check for stones, nails, glass, or other objects lodged in the tread and check sidewalls for any cuts, cracks, or other signs of wear. Replace as necessary.
9. Always maintain the safety labels affixed to your vehicle in a good legible condition.
10. All signal lamps, buzzers, shields, guards and other protective safety devices must always remain in place and in good, proper working condition.
11. The lifespan of Mahindra products depend on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by an Authorised Mahindra Dealer or a qualified mechanic. If the inspection reveals any damage or excessive wear, immediately replace or have the component serviced.
12. We recommend that you use only genuine parts supplied by Mahindra. The use of non-Mahindra parts will not be covered by warranty.
13. Never crawl under or be in close proximity to the vehicle when it is lifted off the ground (by a jack), unless the vehicle is properly supported with jack stands, wheel chocks and other appropriate safety devices.
14. Never attempt any repairs or adjustments to any component while the vehicle is in motion. Always switch off the engine, and wait for the engine to come to a complete stop before performing any repairs or adjustments.
15. The vehicle identification plates are the only legal identification reference, hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. The customer is responsible for any possible tampering with the plates, which will immediately void the warranty.
16. Do not attempt sharp turns, abrupt manoeuvres, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the centre of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier.
1.4 To Owner’s of a Mahindra Vehicle
When first driving the vehicle after long periods of non-use, you may experience a temporary drive disturbance. This is a characteristic of the tyres and should be no reason for concern. The condition should correct itself within 5-15 kms. of driving. If the disturbance persists, have the tyres checked by an Authorised Mahindra Dealer.
Driving and Alcohol
Your driving ability can be seriously impaired by alcohol even if the blood alcohol level is far below the legal minimum. Drunken driving is one of the most frequent causes of accidents.
Never drink and drive. Drinking and driving will lead to an accident resulting in serious personal injury.
Driving and Drugs/Medication
Your driving ability can be seriously impaired through the use of prescription or non-prescription drugs or medication (even cough syrup). If you are taking any sort of drug or medication, be sure that it will not affect your driving ability.
Mobile Phones Warning
Use of electronic devices such as mobile phones, computers, portable radios or other by the driver while driving is dangerous. In exceptional condition, if use of a mobile phone is necessary despite this warning, use a handsfree system to ensure that the hands are free to drive the vehicle. Even handsfree do not ensure that due to distraction an accident will not happen.
Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country.
Driving Long Distances
When you are driving over long distances, follow these tips so that you have a safe journey:
•  Lack of sleep or fatigue will impact your ability to drive safely
•  Exercise your eyes by shifting the focus of your eyes to different parts of the road
•  Use stimulating beverages such as coffee or tea
•  Relax and stay calm
•  Take breaks at regular intervals
Protecting Our Environment
All of us should play our part in protecting our environment. Judicious vehicle usage and ensuring hazardous waste disposal (including cleaning and lubrication fluids) are important steps towards this initiative.
Mahindra vehicles conform to existing emission norms (standards). Adhering to the periodical maintenance schedule and using Mahindra genuine parts will help retain emission performance of the vehicle and is a pre-requisite for emissions warranty coverage.
Servicing
If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. A list of dealers can be found in the Dealer Directory Supplement or on the Internet.
Alternatively, you can contact us on 1800-209-6006 / customercare@mahindra.com.
Running-in
Driving smoothly during first 1000 kms. will help to prevent abnormal and premature system wear. Proper running in will improving the life of drivetrain and vehicle components.
A new engine may consume more oil during the first 1000 kms. of running. This should be considered as a normal part of break-in and not interpreted as any problem with the engine.
Mahindra Genuine Parts
Mahindra uses high quality parts for building the vehicles.
In the event that any parts need replacement, we recommend that you use only Mahindra genuine parts.
Non-Mahindra parts may harm vehicle performance and will not be covered by your Mahindra warranty.
To avoid counterfeit parts and to protect our brand image, Mahindra genuine parts are packed in a branded carton. Look for the “Mahindra Genuine Parts” logo.
Graphic
Any unauthorised modifications or alterations to this vehicle or failure to use appropriate specification and quality spare parts could seriously affect vehicle roadworthiness and safety leading to an accident, resulting in serious injury.
Mahindra Genuine Accessories
A wide selection of quality accessories are available through your Authorised Mahindra Dealer. These accessories have been specifically engineered to allow you to personalise your vehicle to suit your requirements and complement its style and aerodynamic appearance.
Each accessory is made from high quality materials and meets Mahindra's rigid engineering and safety specifications. Every Mahindra accessory installed according to the Mahindra installation provisions comes with the respective accessory warranty.
Consult your Authorised Mahindra Dealer for detailed information about accessories available for your specific model variant.
For maximum vehicle performance and safety considerations, always keep the following information in mind:
•  When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Authorised Mahindra Dealer for specific weight information
•  Bull bars and nudge guards are not recommended for variants with an airbag.
•  Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems
•  Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by a your Authorised Mahindra Dealer
Vehicle Safety
When leaving your vehicle unoccupied:
•  Always remove the ignition key when you park the vehicle
•  Close all the windows completely and lock all the doors
•  Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors
1.5 Audio/Infotainment Manual
Please refer the user e-manual in infotainment for details regarding:
•  Audio/Video functions
•  Bluetooth functions
•  Navigation (if equipped)
•  Map upgradation details
To upgrade the maps in your navigation system (if equipped), please refer the e-manual.
2 GENERAL
2.1 Dimensions
DIMENSION & WEIGHTS
mm
Wheel Base
2700 mm
Overall Length
4585 mm
Overall Width
1890 mm
Overall Height
1785 mm
Track Width (Front & Rear)
1600 mm
Maximum GVW (Kg)
2510
2.1.1 Front View
Graphic
2.1.2 Rear View
Graphic
2.1.3 Side View
Graphic
2.2 Bulb Specification
Lamp Bulb
Wattage
Bulb Type
No. of Bulbs per Vehicle
Head Lamp - High Beam
12V 55W
H7 55W
2
Head Lamp - Low Beam
12V 55W
H7 55W
2
DRL / Position Lamp
12V
LED
Turn Signal Lamp (Front)
12V 21W
PY21W
2
Static Bending Lamp
12V 55W
H1 55W
2
Fog Lamp (Front)
12V 19W
H16 19W
2
Stop / Tail Lamp
12V 21/5W
P 21/5W
2
Turn Signal Lamp (Rear)
12V 16W
WY16W
2
Reverse Lamp
12V 10W
W10W
2
Parking Lamps (Rear)
12V 5W
W5W
2
Side Marker Lamp (Rear)
12V 5W
W5W
2
Fog Lamp (Rear)
12V 21W
P 21W
2
Position Front (W5 Variant)
12V 5W
W5W
2
2.3 Fuses & Relays
A fuse is the most common electric protection device. A fuse is placed in an electrical circuit, so that when current flow exceeds the rating of the fuse, it blows off.
The element in the fuse melts, opening the circuit and preventing other components of the circuit from being damaged by the over current. The size of the metal fuse element determines the rating. Once a fuse blows off, it must be replaced with a new one.
Switch the ignition and all electrical equipment OFF before touching or attempting to change a fuse.
Fit replacement fuse with the same rating as the one you have removed.
You can identify a blown fuse by a break in the filament. All fuses except high current fuses are push fit. A fuse puller should be used to remove the fuse from its position.
Graphic
Graphic
2.3.1 Engine Compartment Fuse Box
Graphic
Engine compartment fuse box is located adjacent to vehicle battery. Release the lock to access the fuse box contents. Remove the fuse box cover by pressing the clips from both sides using both hands simultaneously. Spare fuses are provided in the fuse box for replacement of blown fuses. Ensure the correct rating fuse is replaced with the blown fuse.
Graphic
Graphic
“EF” Fuses (Mini Fuses)
Fuse No.
Circuit
Fuse Rating
Colour
EF1
High Beam
15A
Blue
EF2
Low Beam LH
10A
Red
EF3
Low Beam RH
10A
Red
EF4
AC Clutch
10A
Red
EF5
Static Bending
20A
Yellow
EF6
Front Wiper
25A
Light Brown
EF7
Sensor
15A
Blue
EF8
Hose HTR
30A
Green
EF9
ECU
10A
Red
EF10
ECU
20A
Yellow
EF11
IGN 87
10A
Red
EF13
Front Washer
15A
Blue
EF15
ABS/ESP3
10A
Red
EF16
ECU/IGN
5A
Brown
EF17
Horn
15A
Blue
EF20
Front Fog Lamp
15A
Blue
EF23
High Beam PWM Module
20A
Yellow
EF24
Low Beam PWM Module
20A
Yellow
EF25
LV BMS
5A
Brown
EF26
ITM/Battery
15A
Blue
EF27
PKE Battery
30A
Green
“SF” Fuses (J Style Fuses)
Circuit
Fuse Rating
SF1
Start/IGN SW2
30A
SF2
Cooling Fan
40A
SF3
Glow Plug
60A
SF4
ABS /ESP 1
40A
SF5
Cooling Fan 2
50A
SF6
IP B+2
50A
SF8
IP B+1
60A
SF9
IGN SW 1
30A
SF10
ABS / ESP 1
25A
Relays
Relay No.
Circuit
Colour
K1
Start
Black
K3
Low Beam
Black
K4
AC Clutch
Black
K6
Cooling Fan Low
Grey
K7
Cooling Fan High
Grey
K8
Front Wiper On
Black
K9
Front Wiper Speed
Black
K11
GNS
Black
K15
Glow Plug
Grey
K17
Front Fog Lamp
Black
K21
Main
Grey

PCB Relays
K2
DRL

K5
Static Bending

K10
Horn

K13
Front Washer

K22
High Beam

2.3.2 Instrument Panel Fuse Box
Graphic
Fully open the driver door and slide the driver seat backwards. The main central fuse box is located on the right side of the instrument panel. Price out the securing cover to access the fuse box.
Graphic
Fuses
Fuse No.
Circuit
Fuse Rating
Colour
1
Power Seat
25A
Brown
2
BEC
15A
Blue
3
Cluster/ITM
5A
Brown
4
Audio ACC
15A
Blue
5
PKE ACC
5A
Brown
6
MBFM Start
5A
Brown
7
MBFM BATT3
20A
Yellow
8
MBFM FL -Window
25A
Light Brown
9
Mirror Folding
10A
Red
10
Rear Wiper ACC*
10A
Red
11
Key In
5A
Brown
12
Accessory
5A
Brown
13
Front Blower
30A
Green
14
Rear Blower
20A
Yellow
15
Rear Defogger
20A
Yellow
16
Power Socket
17
Power Socket MID
15A
Blue
18
Power Socket Front
15A
Blue
19
Rear Wiper*
10A
Red
20
Rear Washer
10A
Red
21
Rear Fog lamp
5A
Brown
22
HVAC ACC
10A
Red
23
ACC Blower
5A
Brown
24
Sunroof
20A
Yellow
25
Rain-Light Sensor
5A
Brown
26
Roof / Map Lamp
5A
Brown
27
Memory-Cluster
15A
Blue
28
MBFM FR Window
25A
Light Brown
29
MBFM RR Window
25A
Light Brown
30
MBFM RL Window
25A
Light Brown
31
MBFM Battery 1
25A
Light Brown
32
MBFM Battery 2
30A
Green
33
Audio / BATT
15A
Blue
34
Airbag
15A
Blue
35
Reverse Lamp
10A
Red
36
AUD/Sunroof/Tyre (Tiretronics)/HVAC IGN
5A
Brown
37
Spare
5A
Brown
38
Spare
10A
Red
39
Spare
15A
Blue
40
Spare
20A
Yellow
41
Spare
25A
Light Brown
42
Spare
30A
Green
* - if equipped
Relays
Relay No.
Circuit
Relay Rating
Colour
43
Rear Defogger Relay
40A
Brown
44
IGN Relay
40A
Brown
45
Accessory Relay
50A
Grey
46
Front Blower Relay
40A
Brown
47
Rear Blower Relay
20A
Blue
48
Rear Fog Lamp
20A
Blue
49
Key Lock Solenoid Relay (Only for AT)
20A
Blue
50
Mirror Unfold Relay
20A
Black
51
Rear Wiper Relay*
20A
Blue
52
Mirror Fold Relay
20A
Black
53
Rear Washer
20A
Blue
54
Not used
55
Not used
56
Not used
57
Not used
58
Reverse Lamp Relay (Only for AT)
20A
Blue
* - if equipped
2.3.3 Floor Fuse Box (If equipped)
The floor fuse box is located under the LH A-Pillar lower trim.
Graphic
Graphic
Fuses
Fuse No.
Circuit
Fuse Rating
1
2
PKE BATT 1
10A
3
PKE BATT 2
15A
4
TYRE BATT TIRETRONICS
5A
5
SSB BATT
5A
6
PKE IGN
5A
2.4 Flat Tyre
In case of a flat tyre during driving, reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place well away from traffic. Park on a level spot with firm ground. Stop the engine and turn ON your hazard warning flashers.
Firmly apply the parking brake. Have everyone come out of the vehicle on the side away from traffic.
Never stop your vehicle in a traffic lane to change a tyre. You could be hit by an oncoming vehicle. Keep driving until you reach a safe location.
Lifting a vehicle to change a tyre or perform maintenance is very dangerous if you do not have the requisite tools, safety equipment and training. The jack provided along with the vehicle is to be used only for changing a spare tyre. It is never to be used to perform any other maintenance or repair on the vehicle.
Never place any part of your body under any portion of the vehicle when it is supported only by the jack. You could be crushed by the vehicle if it falls off a jack. Keep bystanders away from the vehicle.
Find level, solid ground that is clear of oncoming traffic. If you cannot find a safe place to stop, it is better to drive on a flat tyre and damage the rim than it is to risk being hit by oncoming traffic.
After changing a flat Tyre, never store the tyre or other equipment in the passenger compartment of the vehicle. This loose equipment could strike an occupant in the event of a sudden stop or collision. Store all of these items in the proper place.
The following sections outline the procedure for changing a flat tyre;
2.4.1 Tool Kit
The tool kit is located behind the third row seats on the floor.
Graphic
The tool kit consists of the following tools packed in a PVC tool bag:
•  Assembly Screw Jack
•  Jack Operating Lever
•  Wheel Spanner
•  Tow Bar
•  DEO Spanner 10mm x 12mm
•  Screw Driver
Graphic
A
Jack Operating Lever
B
Wheel Spanner
C
DEO Spanner 10mm x 12mm
D
Tow Bar
The warning triangle is located on the rear door trim below the camping lamp. Rotate the two securing knobs and lower the hinged cover. Un-strap the two holding belts and remove the warning triangle pouch.
Graphic
Graphic
2.4.2 Spare Wheel Removal
Spare wheel is located below the floor at the rear end of the vehicle. It is held in place by a securing nut underneath the rear luggage compartment floor carpet.
•  Locate the plug covering the securing nut below the rear luggage compartment floor carpet. Remove the plug using a coin
Graphic
Graphic
•  Loosen the securing nut counter clockwise to winch down/lower the secured spare wheel to the ground
•  Rotate the securing bracket counter clockwise and remove it out of the spare wheel hub
•  Remove/pull away the spare wheel
Graphic
Graphic
Graphic
To remove the wheel cover, wrap the tip of a screw driver with cloth, insert it near the lugs of the wheel cover and pry the cover away from the wheel.
Do not try to pry off the wheel cover by hand alone. Take due care in handling the wheel cover to avoid unexpected personal injury.
2.4.3 Wheel Nut Loosening
Graphic
Always loosen the wheel nuts before raising the vehicle. Turn the wheel nuts counter clockwise to loosen. To get maximum leverage, fit the spanner to the nut so that the handle is on the right side. Grab the spanner near the end of the handle and push down on the handle. Be careful that the spanner does not slip off the nut. Do not remove the nuts, but loosen them by one or two turns.
Do not apply force with your legs (or stand) on the wheel spanner while tightening the wheel nuts.
Graphic
A
Flat Tyre
B
Chocks Blocks
Block the wheel diagonally opposite the flat tyre to keep the vehicle from rolling when it is jacked up. When blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.
2.4.4 Jacking
Graphic
Locate the jack points in the front or rear as needed. They can be identified by a slot used to fit the jack precisely.
Position the jack at the correct jacking point. Make sure the jack is positioned on a level and solid place.
To raise the vehicle, insert the jack handle end with the jack operating lever, wheel spanner square slot into the jack operating lever and turn it clockwise with the handle. As the jack touches the vehicle and begins to lift, check that it is properly positioned.
Graphic
Ensure no one is in the vehicle. Raise it high enough so that the spare tyre can be installed. Remember, you will need more ground clearance when putting on the spare tyre than when removing the flat tyre.
Graphic
Make sure to set the jack properly in the jacking point. Raising the vehicle with jack improperly positioned will damage the underbody of vehicle or may allow the vehicle to fall off the jack and cause personal injury.
•  Use the jack only for lifting your vehicle during wheel changing
•  When raising the vehicle, do not place any objects on top of or underneath the jack
•  Do not raise the jack with someone in the vehicle
•  Raise the vehicle only high enough to remove and change the wheel
•  Follow jacking instructions
•  Do not start or run the engine while your vehicle is supported by the jack
Never get under the vehicle when the vehicle is supported by the jack alone.
Remove the wheel nuts. Lift the flat tyre straight off and place it aside. Roll the spare wheel into position and align the holes in the wheel with the bolts. Lift up the wheel and get at least the top bolt started through its hole. Wiggle the wheel and press it back over the other bolts.
Before putting on the wheels, remove any corrosion on the mounting surfaces with a wire brush or such. Installation of wheels without good metal to metal contact at the mounting surface can cause wheel nuts to loosen and eventually cause a wheel to come off while driving.
Reinstal the wheel nuts with the tapered end inward and tighten by hand. Press the wheel inward and tighten the wheel nuts further.
Graphic
Never use oil or grease on the bolts or nuts. Doing so the spanner slips, damaging the bolts and also may cause personal injuries. Also, nuts may loosen and the wheels may fall off, which could cause a serious accident. If there is oil or grease on any bolt or nut, clean before installing wheel nuts.
Lower the vehicle completely and tighten the wheel nuts using the wheel nut spanner. Turn the jack-operating lever counter clockwise using the wheel nut spanner to lower the vehicle, making sure the handle remains firmly fitted onto the jack handle extension. Do not use other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot. Make sure the spanner is securely engaged over the nut. Tighten each nut a little at a time in the diagonally opposite order. Repeat the process until all the nuts are tight.
Graphic
Improperly or loosely tightened wheel nuts are dangerous. The wheel could wobble or come off. This could result in loss of vehicle control and cause a serious accident. Always make sure all the wheel nuts are properly/securely tightened to the specified torque.
When lowering the vehicle, make sure all portions of your body and all other persons are clear off the vehicle as it is lowered to the ground. Have the wheel nuts tightened with the torque spanner to 83-104Nm, as soon as possible after changing wheels.
Put the wheel cover into position aligning the nozzle on the wheel to the nozzle clearance on the wheel cover. Tap it firmly on the sides with your hand to snap it into place.
2.4.5 Restore all the Tools, Jack and Flat Tyre Securely
Graphic
Graphic
Replace the tools (jack, wheel spanner, etc.) in their storage locations.
Align the spare wheel bracket to the centre hub of the wheel. Winch up the flat tyre to the floor at the rear of the vehicle. Firmly tighten the securing nut and put the floor carpet back.
Graphic
Double check to ensure the tyre is snug against the rear floor of the vehicle. The spare wheel bracket/cable may be damaged if the vehicle is driven with the spare wheel loosely mounted.
Graphic
Drive slowly to the nearest service station and inflate to the correct pressure. Always reinstal the valve cap after checking or adjusting tyre pressure, dirt and moisture could get into the valve core and cause air leakage or valve damage.
2.5 Technical Specifications
Technical Specifications
ENGINE - mHawk
Displacement/Cubic Capacity
2179 cc
Type
4 Stroke, Turbocharged, DI engine
Compression Ratio
16.5 ± 0.5 : 1
Max. Engine Output (kW @ rpm)
114.1 kW @ 3750 rpm
Max. Torque (Nm @ rpm)
360 Nm @ 1750 to 2800 rpm
TRANSMISSION
Type
6 Speed Synchromesh
No. of Gears
6 Forward, 1 Reverse
GEAR RATIOS
Transaxle Ratio
Final Drive Ratio
Overall Ratio
I
4.15
4.263
17.71
II
2.14
4.263
9.14
III
1.24
4.263
5.30
IV
0.95
4.263
4.05
V
1.03
3.24
3.33
VI
0.87
3.24
2.83
Reverse
4.96
3.24
16.08
STEERING
Type/Description
Hydraulic
Steering Wheel Diameter
380 mm
BRAKES
Service Brake
Hydraulic circuit assisted by vacuum with optional ABS/ ESP acting on all wheels and with auto adjuster, cross diagonal.
Front
Disc
Rear
Disc
Parking Brake
Integral Park Brake acting on Rear Wheels
WHEELS & TYRES
Rim
7J X 17” Regular (Alloy & Steel)
Optional 7J X 18”
Tyres
P235/65 R17
Optional P235/60 R18
Type
Radial Tubeless
Laden Tyre Pressure
(front & rear), (kg/cm2)
Front - 2.2 kg/cm2, Rear - 2.2 kg/cm2
FUEL
Fuel Capacity
70 ± 2 litres
ELECTRICAL SYSTEM
System Voltage
12V
Battery
12V, 90/85 Ah
WEIGHTS
Maximum GVW
2510 kgs
2.6 Vehicle Identification Number (VIN)
Graphic
Vehicle Identification Number (VIN) is the legal identity of your vehicle. The vehicle identification number is stamped on the VIN plate riveted on to the bottom of the B-Pillar on the driver side.
2.7 Engine Number
Graphic
The engine number is punched on the LHS face of the crankcase adjacent to the water pump. The engine number is also stamped on the VIN plate near the bonnet release lever.
3 VEHICLE OVERVIEW
3.1 Front Overview
Graphic



A
Hood
B
Windshield Wiper
C
Front Windshield
D
Ski Rail
E
Outside Rearview Mirror (ORVM)
F
Front Turn Signal Lamp
G
Head Lamp Low Beam
H
Fog Lamp
I
Static Bending Lamp*
J
Head Lamp High Beam
K
Position Lamp Guide/DRL

* - if equipped
3.2 Rear Overview
Graphic


A
Rear Windshield/ Demister
B
Rear Wiper*
C
High Mounted Stop Lamp
D
Rear Parking Lamps
E
Reverse Lamp
F
Rear Fog Lamp
G
Rear Camera
H
Reverse Park Assist System (RPAS) Sensor
I
Reflex Reflector
J
Rear Stop Lamp
K
Turn Lamp
* - if equipped
3.3 Instrument Panel Overview
Graphic


A
Side Vents
L
Engine Start/Stop Button *
B
Side Defrost Vents
M
Parking Brake
C
Front Co-passenger Airbag
N
12V Power Outlet
D
Windshield Defrost Vents
O
Armrest/Rear Bin Floor Console
E
Infotainment Screen*
P
Transmission Gear Lever
F
Front Utility Box
Q
HVAC Controls
G
Wiper Stalk
R
Infotainment Controls*
H
Instrument Cluster
S
Centre Vents
I
Trip Reset Button
T
Lower Glove Box
J
Light Combination Stalk
U
Upper Glove Box
K
Horn Pad/Driver Airbag
* if equipped
4 INSTRUMENT CLUSTER OVERVIEW
4.1 Instrument Cluster
Graphic



A
Speedometer
B
Fuel Gauge
C
Odometer/Trip Meter/Gear Indicator
D
Warning/Tell-tale Lamps
E
Tachometer/RPM Gauge
F
Temperature Gauge
G
Reset Button
4.2 Warning Lamps Overview
Graphic
4.3 Warning Lamps
Sr. No.
Symbol
Warning Lamp/Tell-Tale
Lamp Pre-check
Lamp Status while Engine running
Action/Remarks
A
Graphic
Parking Lamp
No
Continuously ON
Indicates Parking Lamp is ON
B
Graphic
AWD Lamp
No
Continuously ON
Indicates a malfunction of the AWD system. Contact an Authorised Mahindra Dealer Immediately
C
Graphic
Rear Fog Lamp Indicator *
No
Continuously ON
Indicates rear fog lamp is ON
D
Graphic
Left Turn Indicator
No
Slow or Fast Blinking
Indicates left turn lamp is blinking
Slow Blinking: Normal operation
Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced
E
Graphic
Airbag Warning Lamp *
For about 2 seconds
Continuously ON
Indicates malfunction of the airbag system. Contact an Authorised Mahindra Dealer immediately
F
Graphic
Front Fog Lamp Indicator *
No
Continuously Lamp ON
Indicates front fog lamp is ON
G
Graphic
Glow Plug Indicator
For about 2 seconds
Continuously ON
Indicates a malfunction in the starting system. Contact an Authorised Mahindra Dealer immediately
H
Graphic
Vehicle Armed Status Lamp
No
Blinking
Slow Blinking: Vehicle is armed with the remote
Fast Blinking/Continuously ON: Indicates a system malfunction
Contact an Authorised Mahindra Dealer immediately
I
Graphic
Low Fuel Warning Lamp
No
Continuously ON
Indicates fuel level has reached the reserve level. Re-fuel immediately.
J
Graphic
Water-in-Fuel
Yes
Continuously ON
Indicates water-in-fuel. Drain the water from filter or contact an Authorised Mahindra Dealer for assistance
K
Graphic
Right Turn Indicator
No
Slow or Fast Blinking
Indicates right turn lamp is blinking
Slow Blinking: Normal operation
Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced
L
Graphic
Cruise Control Indicator *
Yes
Continuously ON
Indicates vehicle is in Cruise mode
M
Graphic
High Coolant Temperature Warning Lamp
Yes
Continuously ON
Engine temperature very high. Contact Authorised Mahindra Dealer immediately
N
Graphic
Low Engine Oil Pressure Warning Lamp
Continuously ON till Engine Starts
Continuously ON
Indicates engine oil pressure is low. Check oil level and top-up or contact an Authorised Mahindra Dealer for assistance
O
Graphic
ESP System Warning Lamp*
For About 2 Seconds
Continuously ON or Blinking
Blinking: Indicates ESC has taken control of the vehicle stability
Continuously ON: Indicates a malfunction in the ESC system. Contact an Authorised Mahindra Dealer immediately
P
Graphic
ABS Warning Lamp *
For About 2 Seconds
Continuously ON
Indicates malfunction of the ABS system. Contact an Authorised Mahindra Dealer immediately
Q
Graphic
ESP OFF Lamp*
No
Continuously ON
Indicates ESC OFF
R
Graphic
Tiretronics
For About 2 Seconds
Continuously ON or Blinking
Indicates low/high tyre pressure or possible malfunction in Tiretronics. Refer to Tiretronics section in FEATURES AND CONTROL/WHEELS AND TIRES chapter for further details
S
Graphic
Check Engine Lamp
For About 2 Seconds
Continuously ON or Blinking
Indicates a potential malfunction in the EMS, contact an Authorised Mahindra Dealer immediately
T
Graphic
Parking Brake ON/Brake Fluid Low Warning Lamp
Yes
Continuously ON
Either one of below conditions:
1. Park Brake might be engaged
2. Brake fluid level might be low
3. Front Brake Pads are worn
Contact Authorised Mahindra Dealer immediately for assistance
U
Graphic
OBD Check Lamp
Continuously ON till Engine Starts
Continuously ON
There is a potential malfunction related to emission system, contact an Authorised Mahindra Dealer immediately
V
Graphic
Head Lamp High Beam Lamp
No
Continuously ON
Indicates Head lamp high beam is ON
W
Graphic
Engine Stop/Start Lamp
No
Continuously ON or Blinking
Continuously ON: Engine is in auto stop mode
Blinking: Engine Stop/Start is about to stop the engine
X
Graphic
Charging System Warning Lamp
Continuously ON till Engine
Continuously ON
Indicates malfunction in charging system. Contact Authorised Mahindra Dealer for assistance
Y
Graphic
Door Ajar Warning Lamp
No
Continuously ON
Indicates one or more doors and/or boot/hood are open
Z
Graphic
Seat Belt Warning Lamp
Yes
Continuously ON
If tell-tale is not turning OFF even after fastening the seat belt, contact an Authorised Mahindra Dealer for assistance
A1
Graphic
REGEN Indicator
No
Continuously ON/Blinking
It indicates the DPF Manual Regeneration is Required.
It indicates currently DPF Manual Regeneration is in progress. Follow the instructions mentioned in the ‘DIESEL EXHAUST FLUID Section”
B1
Graphic
DEF Indicator Lamp
Yes
Continuously ON
It indicates that either DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
C1
Graphic
DPF Indicator Lamp
Yes
Continuously ON
If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”
* if equipped / select models or variants only
5 Emission Control System
The emission control system is a highly effective system which controls exhaust emissions from the engine and crucial for meeting emission norms specified by law.
Your vehicle is equipped with the following emission control systems for meeting BS VI emission norms.
1. Diesel Oxidation Catalyst (DOC)
2. Selective Catalytic Reduction(SCR)
3. Diesel Particulate Filter (DPF)
In order to ensure proper function of the emission control systems, it is mandatory to get your vehicle inspected and maintained by an authorized Mahindra dealer. The maintenance schedule in this manual need to be followed.
It is also extremely important to use correct grade of fuel, Confirming to IS 1460; 2017 BS VI Specification.
5.1 Diesel Oxidation Catalyst (DOC)
A diesel oxidation catalyst (DOC) is an after treatment component that is designed to convert carbon monoxide (CO) and hydrocarbons (HC) into carbon dioxide (CO2) and water (H2O).
5.2 Selective Catalytic Reduction(SCR)
Selective Catalytic Reduction (SCR) is an advanced active emission control technology system that injects a liquid-reducing agent through a special catalyst into the exhaust stream of a diesel engine. The reductant is called as Diesel Exhaust Fluid (DEF). The DEF sets off a chemical reaction that converts nitrogen oxides into nitrogen and water which is then expelled through the vehicle tailpipe.
5.2.1 Diesel Exhaust Fluid (DEF) MaxiCLEAN
To enable SCR system work efficiently and to ensure emission compliance, It is recommended to use MaxiCLEAN DEF meeting IS 17042 (or) ISO 22241 specification.
Refilling DEF is part of regular maintenance service. DEF consumption is highly dependent on driving conditions/pattern. It may be necessary to refill DEF reservoir in-between the scheduled service, You need to monitor DEF Indicator Tell Tale and symbols/text messages displayed on infotainment screen / Cluster.
MaxiCLEAN DEF is available at all the authorized Mahindra dealers in variable packs. Individual DEF Packs may have specific filler neck, for filling DEF in the vehicle. While refilling DEF, Ensure no spillage on the body of self and vehicle to avoid any stains or inconvenience.
It is unlawful to tamper with or remove any component of the after treatment system. It is strongly recommended not to use DEF which is not meeting above specification. Further, this may lead to emission non-compliance and warranty will be void.
•  Use Genuine DEF MaxiCLEAN always.
•  Incase of non-availability of above Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used.
•  Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.
•  Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.
•  DEF quality and purity can be ensured only if it is stored properly. Hence ensure the storage of DEF in cool, dry place between storage.
•  Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.
•  While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.
•  If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels.
•  DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged.
•  In such a case , do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance.
5.2.2 Contamination/ Incorrect DEF
In the event that incorrect or contaminated fluid is filled inside DEF Tank, contact an authorized M&M dealer to determine the appropriate repair direction.
5.2.3 Handling of DEF
•  Ensure that DEF does not come into contact with skin, eyes, or clothing
•  Keep DEF out of the reach of children
•  In case if any part of the body is in contact with DEF, clean affected area immediately with plenty of water
•  If DEF contacted with eyes, flush with plenty of water immediately and seek medical assistance.
•  If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical assistance.
•  Don’t store DEF refill containers inside the vehicle. Ammonia vapors may escape from container which have a pungent odor and are particularly irritating for skin, mucous membranes and eyes. Inhaling ammonia vapors may cause burning eyes, nose and throat, as well as cough and watering eyes.
•  When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.
•  If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed.
5.2.4 DEF Operating Condition
DEF will freeze at -11°C (12.2°F). This is natural phenomenon. The DEF system in the vehicle is designed considering this and does not require any external heating or additives to avoid freezing.
The Diesel Exhaust Fluid (DEF) system purges to prevent damage from freezing. Do NOT disconnect battery power within 20 minutes of switching the ignition key off. Failure to comply may result in vehicle or property damage.
5.2.5 Refilling DEF
Your Vehicle DEF Filler Neck is located inside the engine compartment. The DEF storage tank is located under the body.
Following below steps to refill the DEF:
1. Park the vehicle on level ground and switch OFF the ignition.
2. Open the hood and locate the DEF Filler Neck.
Graphic
3. Rotate the DEF filler cap in anti-clockwise direction and remove.
4. Fill DEF from the Container Pack. Each container pack has unique mouth and filling provision. Ensure utilizing the same and avoid spillage. Example. 10 Lit. Pack provided with filler tube and 2 Lit. Pack provided with spout.
5. Fill DEF as required. Maximum Storage capacity 20 litre. Minimum filling 6.0 liter.
6. Rinse with water or use sponge wetted with water to clean the components/surfaces in case of DEF spills over.
7. Close the hood and switch the ignition ON
8. Verify that there is no warning regarding DEF low level. If DEF Level Low warning is still appearing, Check enough quantity filled, If still problem persist Contact nearest Authorized Mahindra Dealer immediately.
5.3 Diesel Particulate Filter (DPF)
The Diesel particulate filter (DPF) is an integral part of the vehicle exhaust gas emission reduction systems and it removes the soot from (Particulate matter) the exhaust gas. Unlike a disposable air filter, the DPF is regenerative filter. Regeneration is triggered automatically according to the driving conditions which burns of the accumulated particles/soot. In other words, the active burning by engine control system and high exhaust gas temperature caused by normal/high driving condition burns and removes the accumulated soot. The process is called as DPF Active Regeneration.
However, if the vehicle continues to be driven at either of the following conditions the accumulated soot may not be automatically removed because of low exhaust gas temperature.
1. Heavy traffic driving conditions, especially in city
2. Frequent short trips
3. Low speed for a long time
Graphic
When more than a certain amount of soot deposited, the DPF lamp illuminates.
If the DPF lamp turns ON while driving the vehicle, then it indicates DPF regeneration has not occurred successfully. At this moment, we suggest DPF regeneration must be done through a specific methodology. The same is as mentioned below:
1. Take vehicle to highway and drive for 20–30 mins @ speeds above 60 kms/hr until the lamp switches OFF (or)
2. Take vehicle to Mahindra authorised dealer for assistance.
Diesel Fuel
It is recommended to use the automotive diesel fuel confirming to IS 1460: 2017 spec only.
If the diesel fuel with high sulfur content (more than 10 PPM) and unspecified additives are used, it can cause the DPF system damage and emission warranty issues.
•  During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.
•  In order to avoid burns & personal injury, stay yourself away from exhaust system.
•  Follow speed limits & traffic regulations as defined by local jurisdiction while doing forced regeneration.
5.4 Alerts in Infotainment
Introduction
DEF Tell Tale will get illuminated and relevant messages will be flashed on infotainment screen due to any of the following three reasons:
•  DEF level low
•  Incorrect DEF detected
•  DEF dosing malfunction
It is unlawful to tamper with or remove any component of the after treatment system. It is strongly recommended not to use DEF which is not meeting above specification. Further, this may lead to emission non-compliance and warranty will be void.

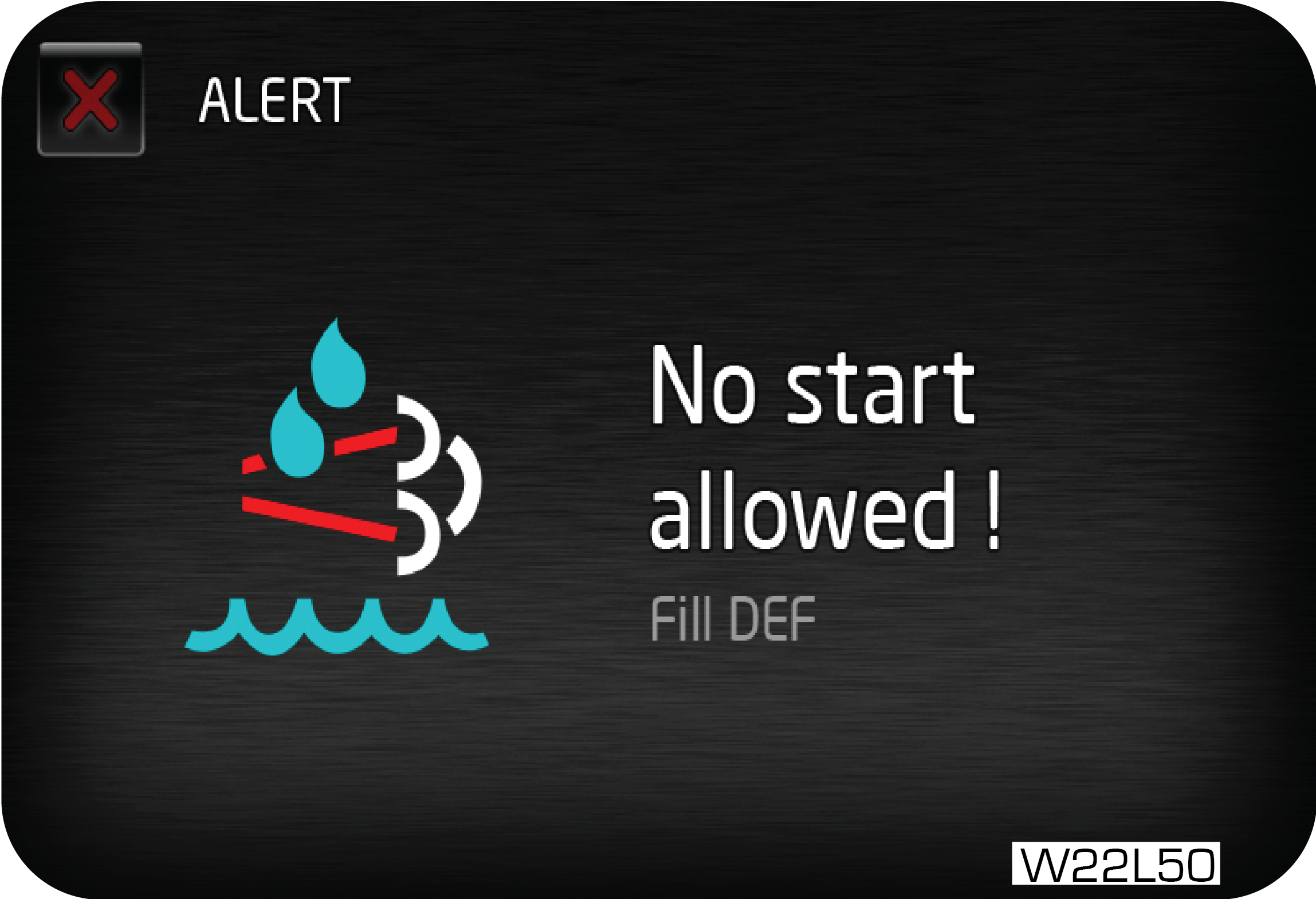

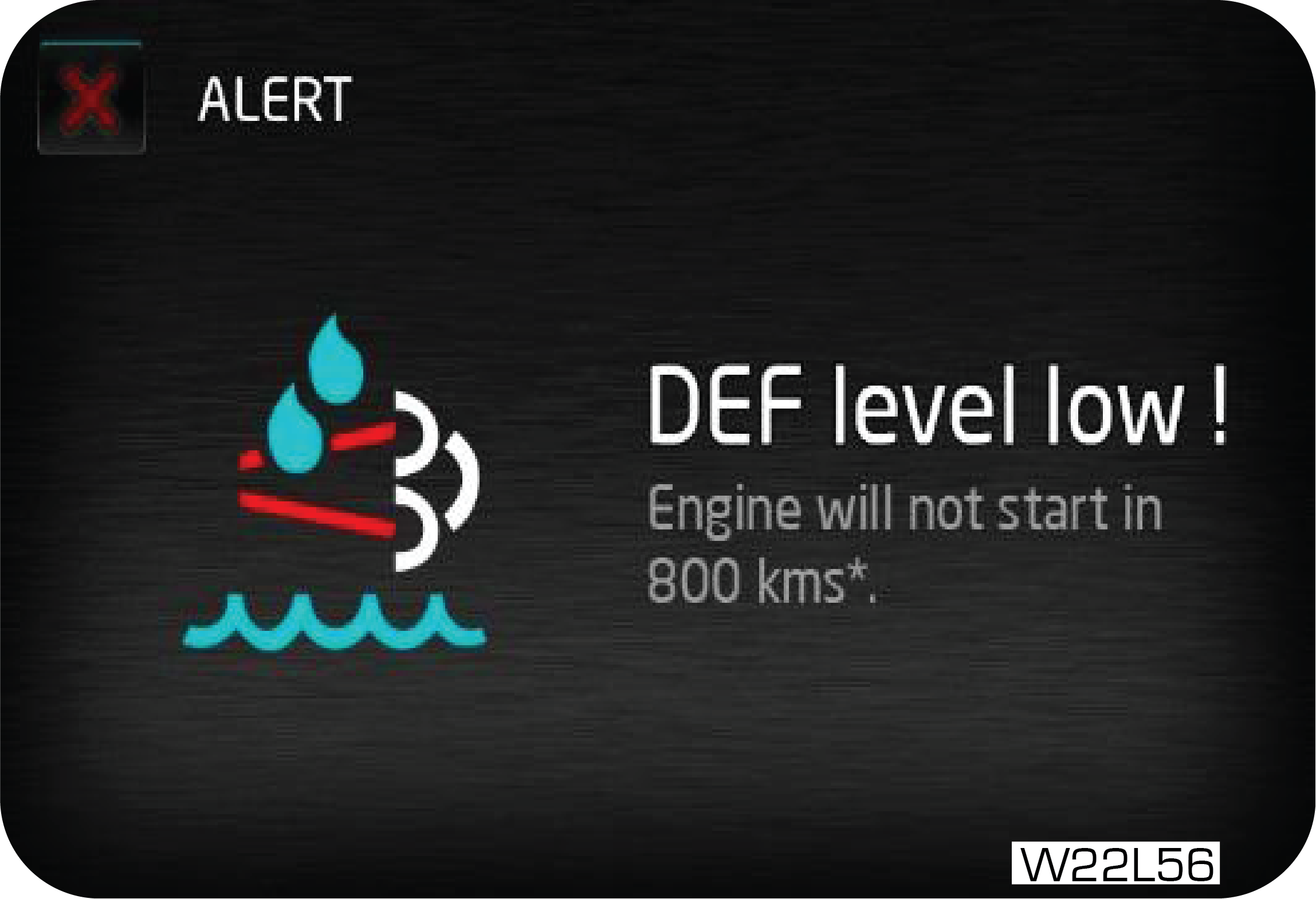

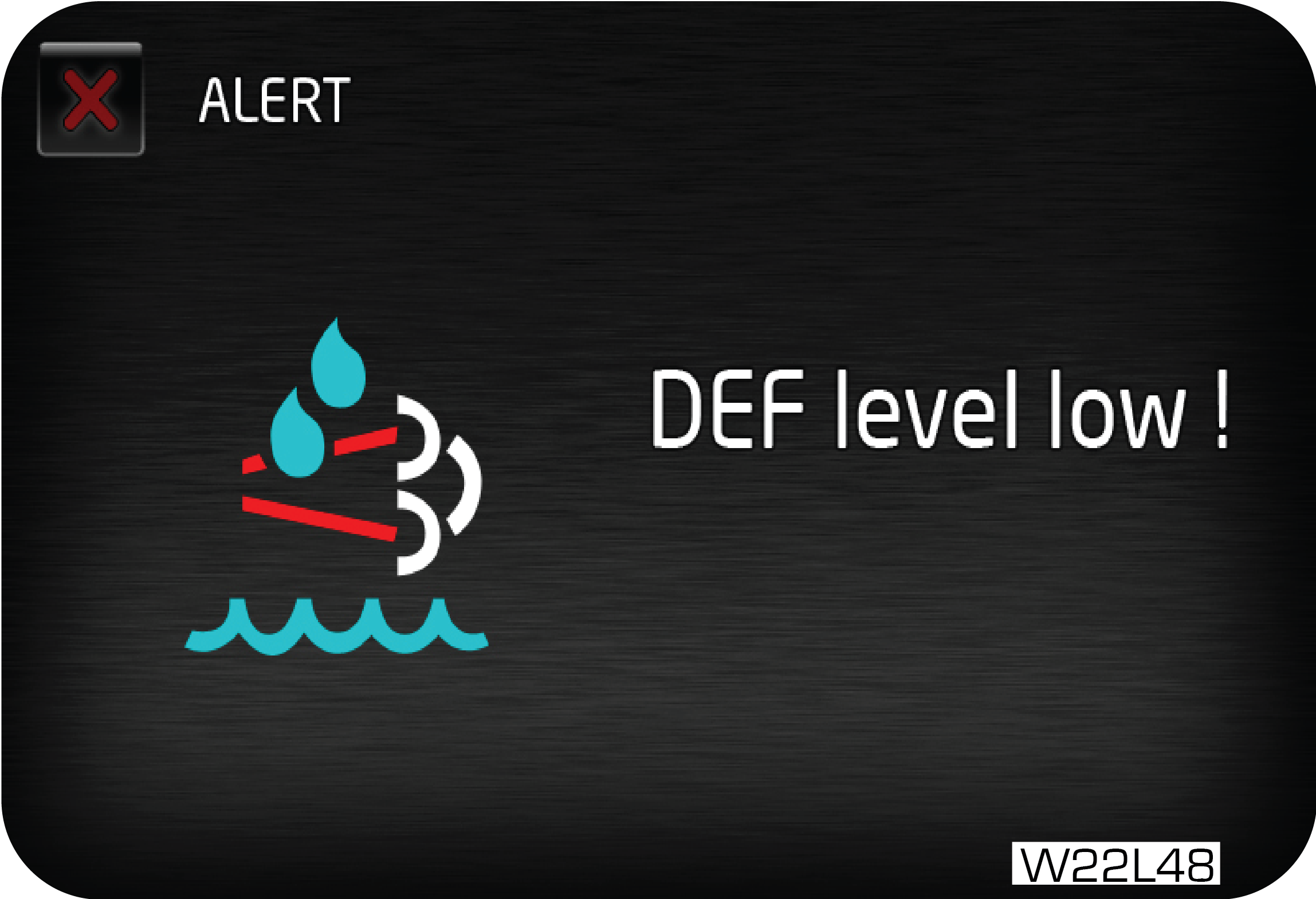

5.4.1 DEF Level Low
When DEF level in tank fall below pre-defined values, warnings are flashed in four stages. These four warning stages are explained below:
Stage 1:
Graphic
Stage 3:
Graphic
Stage 2:
Graphic
Stage 4:
Graphic
Irrespective of the warning stages, once DEF level is low, 6.0 liter of DEF needs to be filled. If the warnings continue even after refill, contact nearest authorized Mahindra dealer immediately.
In absence of DEF level low warning, refilling is not recommended.
Total DEF quantity inside the DEF Tank should never be more than 20 liter. Overfilling may result in system/component failure. Only authorized Mahindra dealer will be able to correctly determine quantity of DEF present inside tank. Hence if you are refilling the DEF yourself, fill only 6.0 liter, in case DEF Low level warning is flashed.
If the DEF warning lamp turns on due to the DEF level, refill the DEF tank. Failure to refill may cause the engine start restriction.

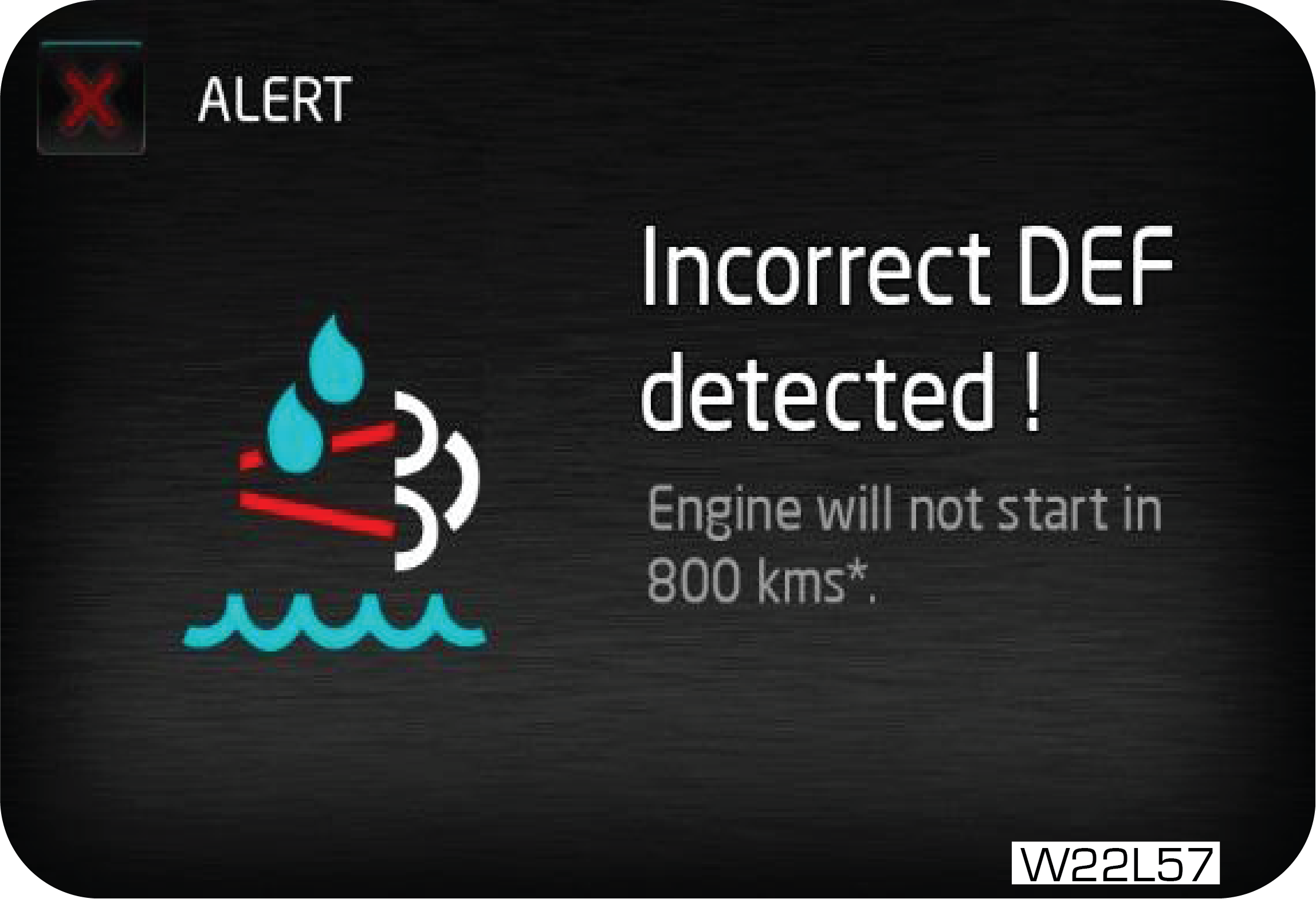

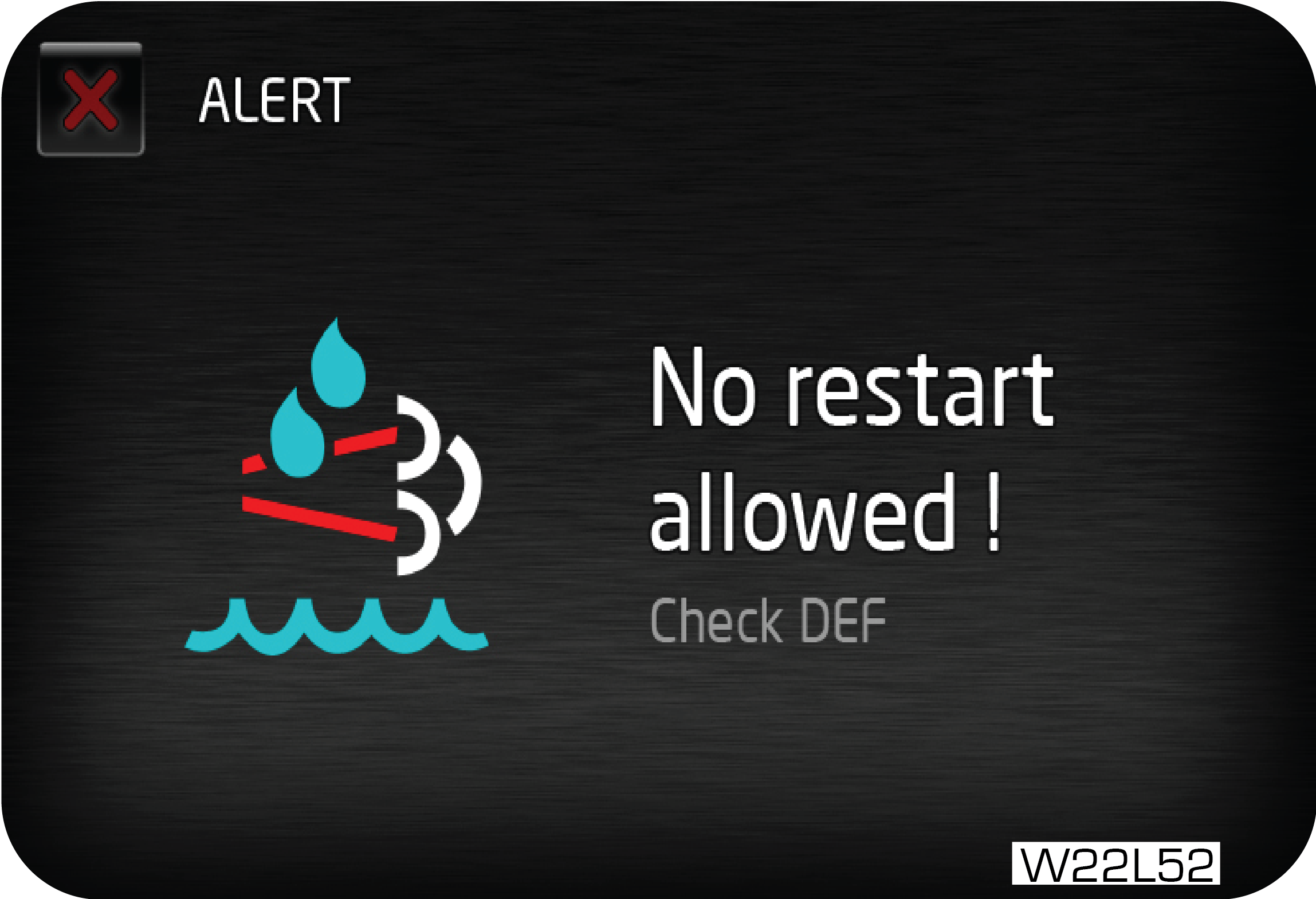

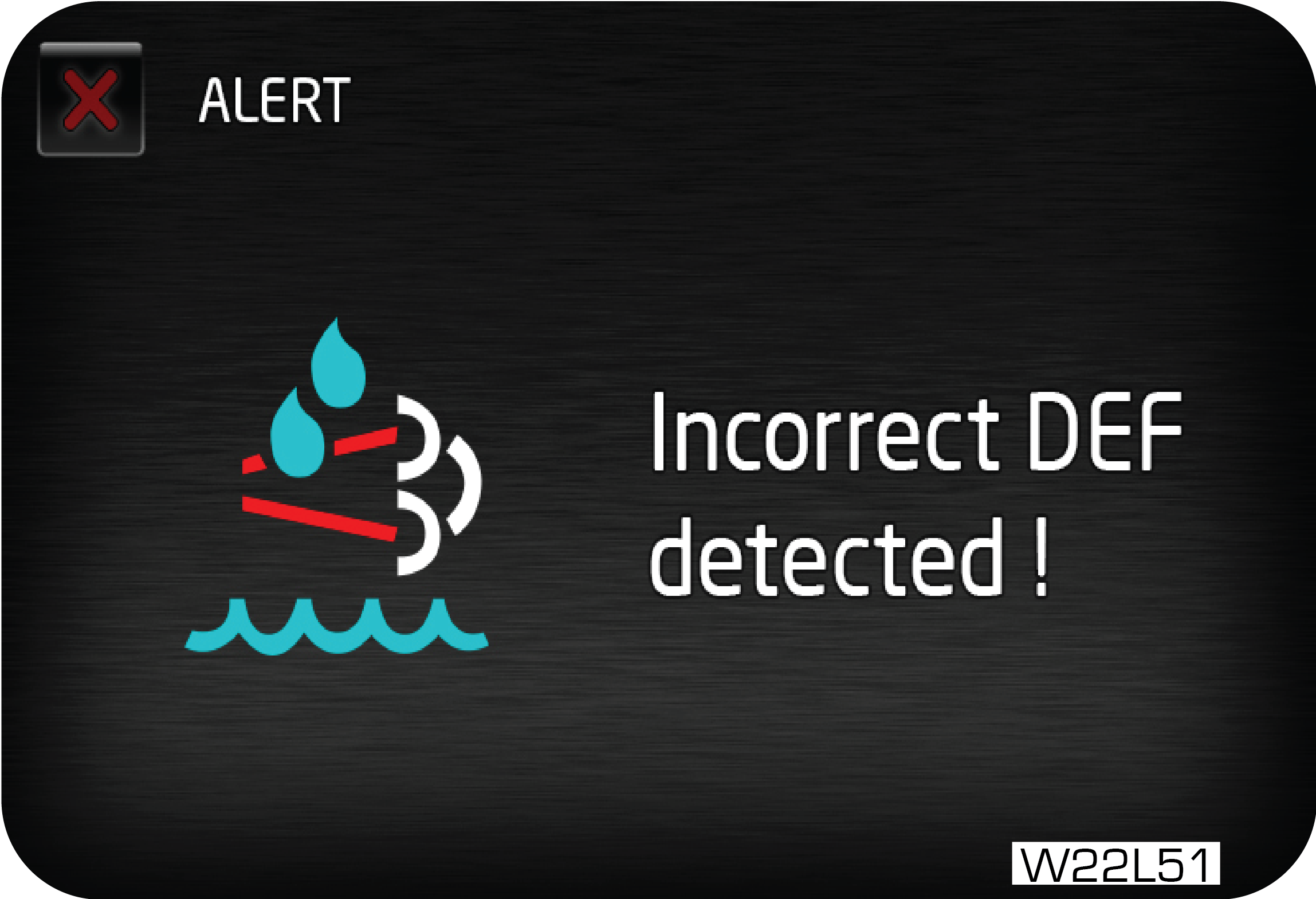

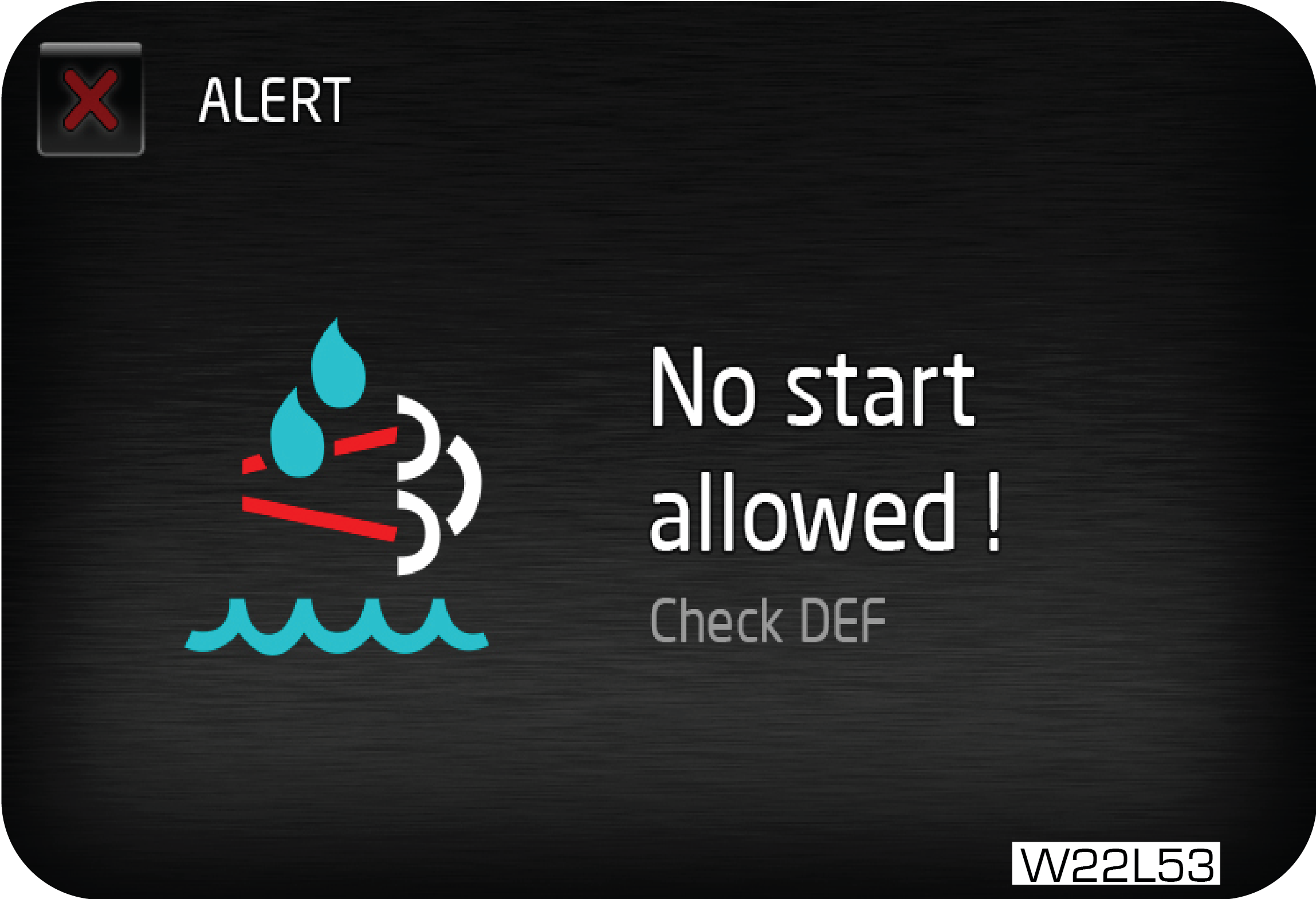

5.4.2 Incorrect DEF detected
If SCR system detects quality of DEF inside the tank is not meeting IS 17042 (or) ISO 22241 specification, warnings will flashed in four stages. These four warning stages are explained below:
Stage 1:
Graphic
Stage 3:
Graphic
Stage 2:
Graphic
Stage 4:
Graphic

If the DEF warning lamp turns on due to the DEF quality, see contamination/incorrect fluid for corrective action. Failure to correct may cause the engine start restriction.

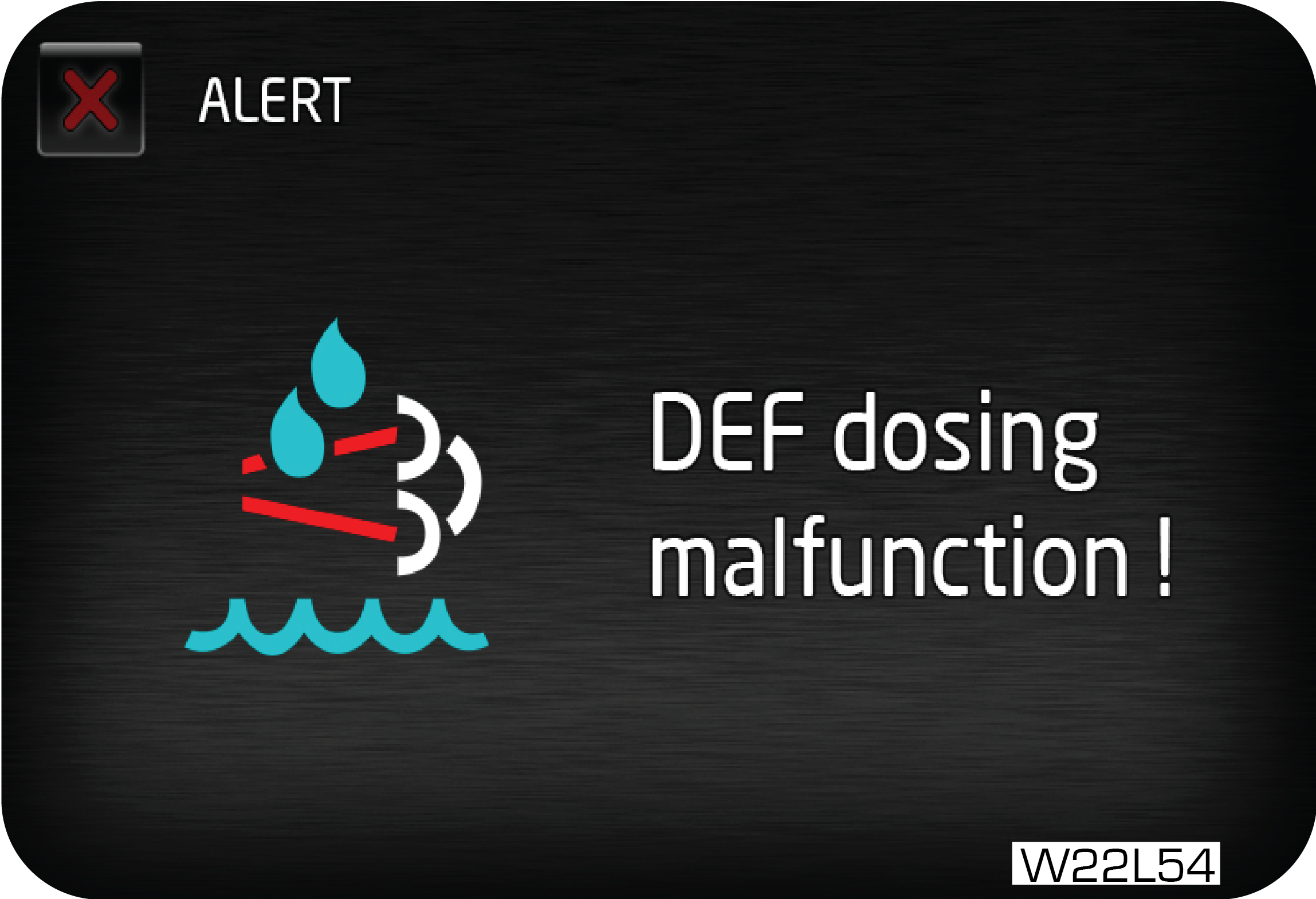

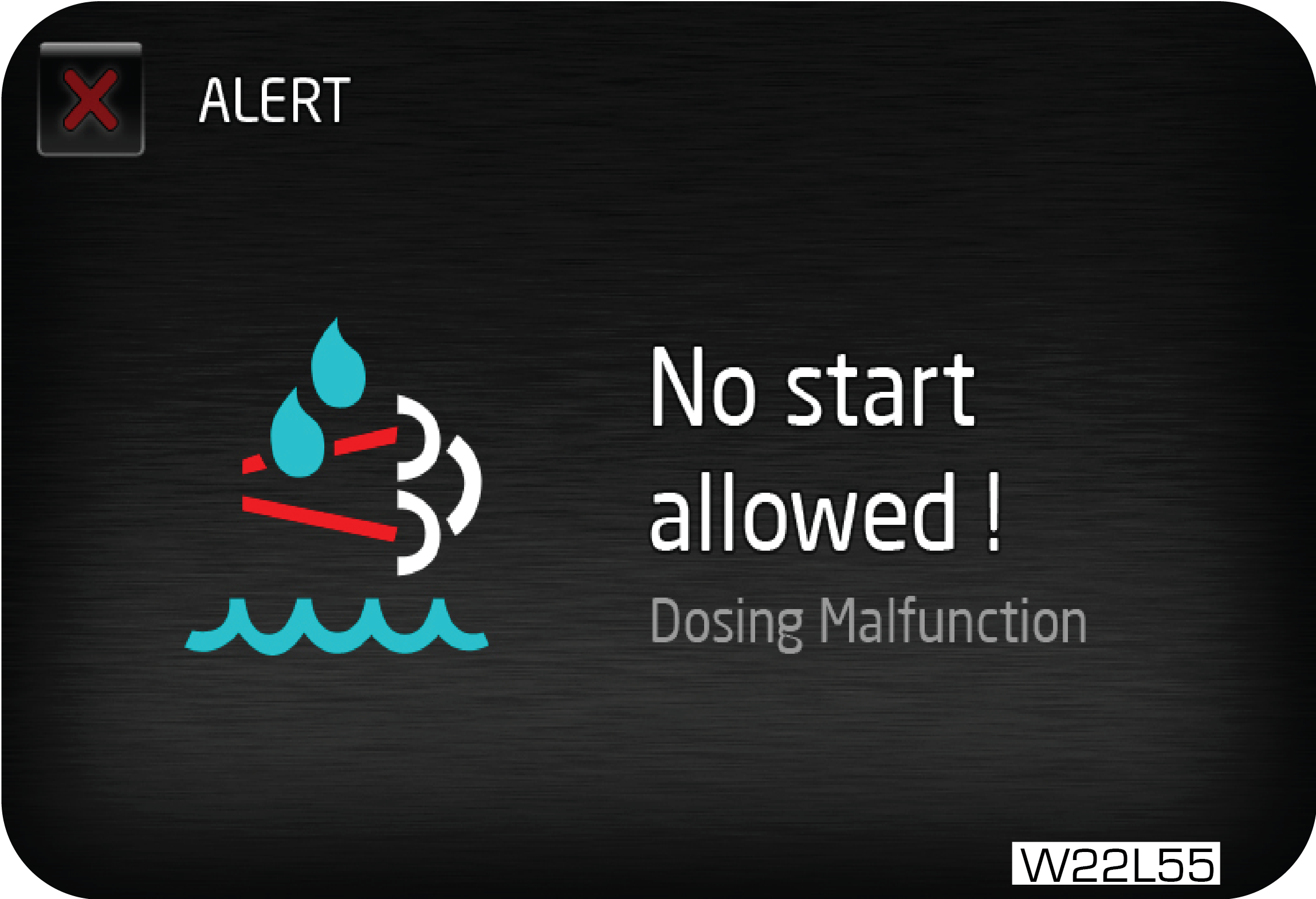

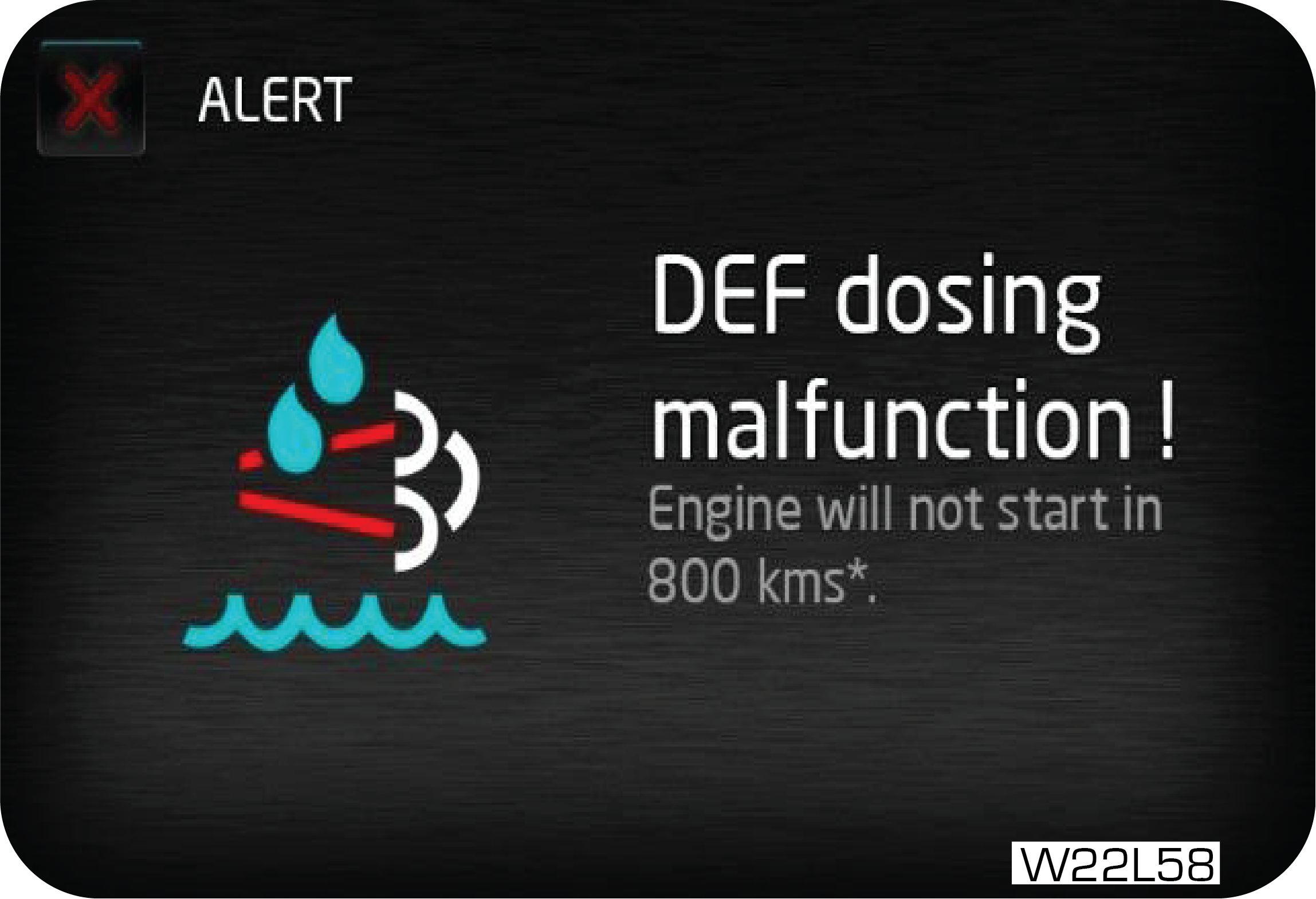

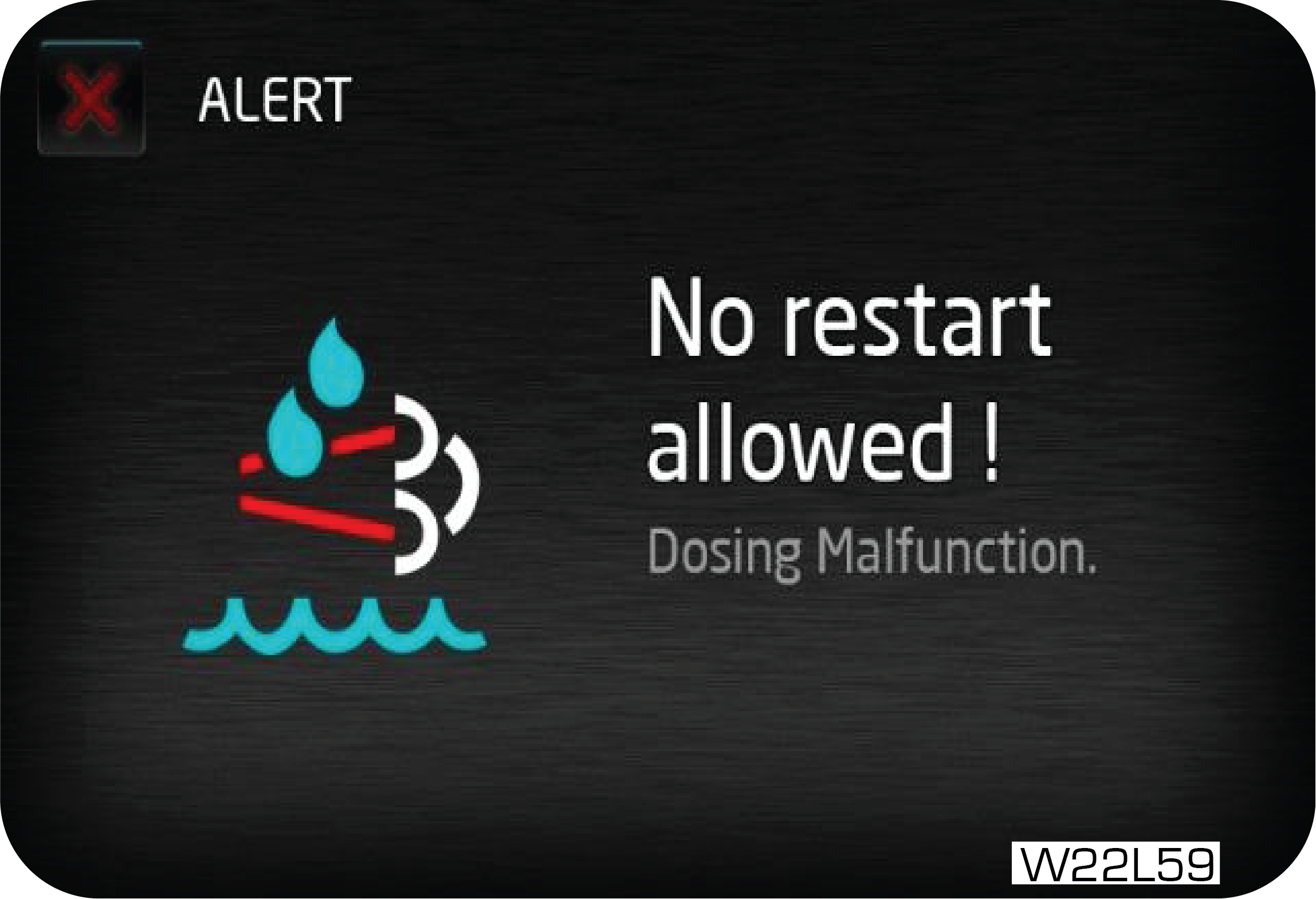

5.4.3 DEF Dosing Malfunction
If SCR system detects any malfunction due to failures in components or tampering, warnings are flashed in four stages. These four stages are explained below:
Stage 1:
Graphic
Stage 3:
Graphic
Stage 2:
Graphic
Stage 4:
Graphic

If the DEF warning lamp turns on due to dosing malfunction, see your authorised Mahindra dealer to have this repaired. Failure to repair the system may cause the engine start restriction.
5.5 Instrument Cluster Warning Lamps
Graphic
Do's & Don’ts
Selective Catalytic Reduction(SCR)
•  Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used.
•  Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged.
•  Do not add urea to DEF and do not dilute with water. This may cause after treatment system damage.
•  Total DEF quantity inside the DEF Tank should never be more than 20 liters. Overfilling may result in system/component failure.
•  While refilling DEF inside tank, be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system.
•  DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged
•  If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels
•  Do not refill the DEF with Engine ON or ignition ON state
•  Ensure proper filling access for DEF filling during vehicle body building
•  When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well ventilated area only.
•  Ensure that DEF does not come into contact with skin, eyes, or clothing
Diesel Particulate Filter (DPF)
During the regeneration process, take care the vehicle is not near any flammable materials as you may observe hot emission gases from exhaust pipe.
In order to avoid burns & personal injury, keep yourself away from exhaust system.
Follow speed limits & traffic regulations as Defined by local jurisdiction while doing forced regeneration

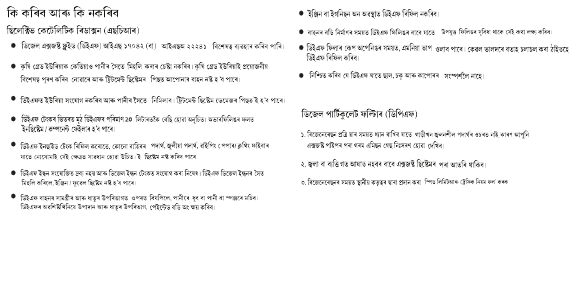

5.6 Instrument Cluster Warning Lamps - Assamse
Graphic
Graphic

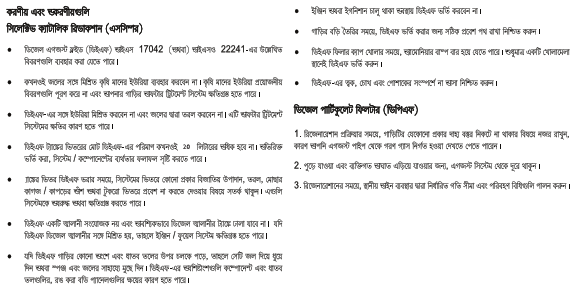

5.7 Instrument Cluster Warning Lamps - Bengali
Graphic
Graphic

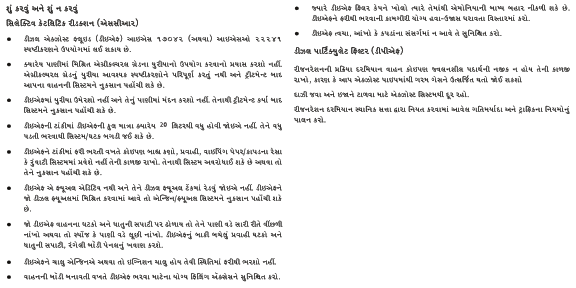

5.8 Instrument Cluster Warning Lamps - Gujarathi
Graphic
Graphic

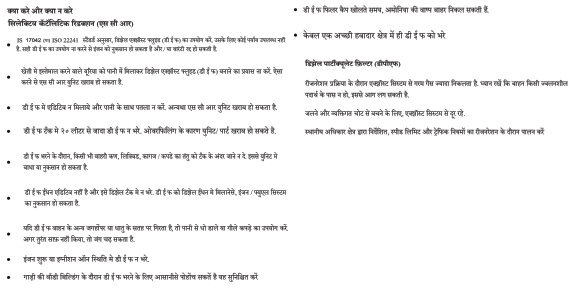

5.9 Instrument Cluster Warning Lamps - Hindi
Graphic
Graphic
5.10 Instrument Cluster Warning Lamps - Kannada
Graphic
Graphic

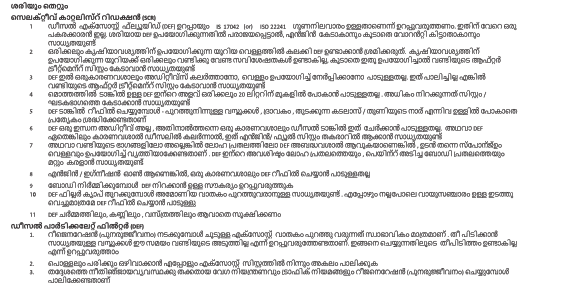

5.11 Instrument Cluster Warning Lamps - Malayalam
Graphic
Graphic

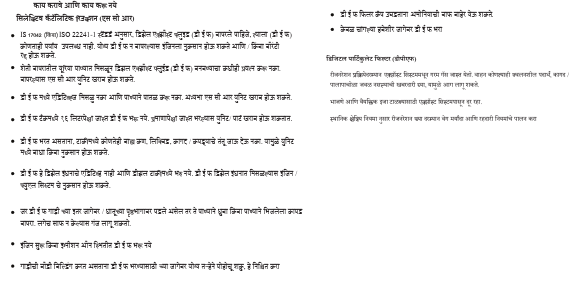

5.12 Instrument Cluster Warning Lamps - Marathi
Graphic
Graphic
5.13 Instrument Cluster Warning Lamps - Odia
Graphic
Graphic
5.14 Instrument Cluster Warning Lamps - Tamil
Graphic
Graphic
5.15 Instrument Cluster Warning Lamps - Telugu
Graphic
Graphic
6 SEATS AND SEAT BELTS
6.1 Front Seats
6.1.1 Sitting in Correct Position
Graphic
Follow the tips below for a comfortable and safe journey:
•  Sit in an upright position with the base of your spine pressed against the seat back
•  The driver and front passenger seat head restraint has 5 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head
•  Maintain sufficient distance between yourself and the steering wheel. Maintain at least a ten inch (10") distance from the centre of the steering wheel to your chest
•  The top curve of the steering wheel should align with your chin for ideal road visibility
•  Adjust your seat and seat back angle such that your wrists rest on the steering wheel
•  Ensure your legs are in bent position while fully depressing the clutch pedal
The seat should be adjusted while still maintaining control of the foot pedals (able to fully depress the clutch pedal), steering wheel (rest the wrists on the steering wheel) and your view of the instrument panel controls.
Never adjust the driver's seat while the vehicle is in motion. The seat may unexpectedly move and cause the driver to unintentionally operate the accelerator or brake, or turn the steering wheel, causing loss of control of the vehicle, an accident or serious personal injury. Adjust the driver's seat only when the vehicle is not in motion.
Never put objects under the seats. They may interfere with the seat-lock mechanism or unexpectedly activate the seat position adjusting lever, causing the seat to suddenly move, resulting in loss of control of the vehicle, an accident or serious personal injury.
While adjusting the seat, do not put your hands under the seat or near the moving parts. This may lead to injuries.
6.1.2 Front Seat Slide
Graphic
Move the seat forward or backward by lifting the adjustment lever located under the seat front and release once the desired position is reached.
While adjusting the seat, make sure the latch engages fully and the seat is locked firmly in the desired position. An unlocked seat may move in a sudden stop or collision, causing injury to the person in that seat. Push and pull on the seat to be sure it is locked.
6.1.3 Front Seat Recline
Graphic
To adjust the seat back, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.
The seat belts provide maximum protection in a frontal or rear collision when the occupants are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen, or the shoulder strap may contact your neck. The more the seat is reclined, the greater the risk of serious injury.
When returning the rear-reclined seat back to its upright position, make sure you support the seat back while operating the lever.
6.1.4 Front Seat Lumbar Adjustment (if equipped)
Graphic
Both the front seat backs feature lumbar adjustment. The lumbar contour of the lumbar support can be adjusted by means of the adjusting wheel on the inner side of the seat back.
Properly adjusted lumbar support provides adequate back support essential during long journeys.
Do not use force, rotate the lumbar adjustment lever beyond the extreme stop positions in either direction.
6.1.5 Front Seat Height Adjustment
Graphic
The driver seat height can be raised or lowered to three positions.
To RAISE the seat height, lift the seat height adjust handle while there is no load or prior to occupying the seat. Release the lever once the desired seat height is reached.
To LOWER the seat height, push down the seat height adjust handle while seated in the driver seat. Release the lever once the desired seat height is reached.
Do not adjust the height of seat while vehicle is in motion.
6.2 Power Seat (Driver Side only) (if equipped)
Graphic
The power seat provides advanced 6-way electrical adjustments for the driver seat. It is equipped with electrically-operated power slider, power recliner and power height adjustment mechanisms.
The graphics on the switches guide you to the function it has been assigned.
Graphic
•  Power seats will be operated even when the ignition switch is turned to the “OFF” position. However, to prevent battery discharge, operate your seats when the engine is running
•  Do not use two or more seat adjustment buttons simultaneously. It can damage the motor. Be sure to operate the electric seat button one by one
•  Do not forcibly operate any power adjustment switch if the seat comes in contact with other object and cannot be adjusted anymore
•  If the power seats are not operational, the seats should be checked and fixed before any driving
6.3 Head Restraint
The head restraint comprises the padded portion which contacts your head and is inserted/locked in receptacles on the top of the seat back.
Your vehicle seats are equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of rear collision.
Graphic
Always align top of the head restraint with the top of your head or as close to it as possible. To raise the head restraint, press the lock knob and pull the restraint up. To lower the head restraint, press the lock knob and push the head restraint down.
The head restraint can be pulled out completely by depressing the locking button while pulling the restraint out.
Align the head restraint shafts over the holes on the seat top and push the restraint straight down till you hear the lock click.
Keep the seat back as upright as possible so the headrest is behind, not beneath, and almost touching your head.
Never drive with the head restraints not properly adjusted, head restraints removed or inserted in a flipped condition. With no support behind your head, your neck could be seriously injured in a collision.
Head restraints are provided for the front row and second row outboard occupants only.
6.4 Second Row Seats
Graphic
Loading luggage on the seats is dangerous. The luggage can become a projectile that could hit and injure passengers in a sudden stop or collision. Luggage should always be kept on the floor.
To avoid serious injury, do not sit on or place objects on a folded seat back while the vehicle is moving.
6.4.1 Second Row Seat Recline
Graphic
To change the second row seat back angle, lean forward slightly while raising the recline lever on the top corner of the seat back, lean back to the desired position and release the recline lever. Make sure the recline lever returns to its original position and the seat back is locked in place by rocking the seat back forward/backward.
When returning the rear-reclined seat back to its upright position, make sure you support seat back while operating the lever.
6.4.2 Second Row Seat Folding (Third Row Seat Access)
Graphic
The second row seat can be flipped forward to provide more cargo space.
•  Lower the second row seat head restraint to the lowest position (else it will obstruct and hit the floor)
•  Insert the lap belt into the pocket of the seat bottom
•  Recline the seat back to full forward direction
Graphic
•  Push side actuation lever (B) in forward direction for Ingress, OR
•  Pull rear actuation lever (A) for Egress
Graphic
Graphic
•  Push seat back to rear side of vehicle for locking
•  Pull seat back for upright position till it locks in design position
•  Push seat cushion downward by sitting on it (>45 kg) for locking seat cushion
Return the seat back to its upright position in one continuous motion to securely lock the seat and in turn avoiding seat flipping forward suddenly leading to injuries.
If this happens, release the seat lock by pulling the lever and repeat the procedure.
Be cautious when placing your hands around the seat anchors. You could pinch your hands or fingers between the seat anchor and the seat. Hold the edge of the seat when lowering it into place. Never place your hands between the seat anchor and the seat.
6.5 Third Row Seats
Graphic
Access to or exit from third row seat and luggage area is possible by completely folding the second row seat. Second row seat features 60:40 split configuration. Instead of folding the complete seat back and seat cushion, the required seat alone can be folded to gain access to third row seat.
Refer to the previous sections for details regarding folding of second row seats.
6.5.1 Third Row Seat Folding
Graphic
Graphic
Graphic
To fold the third row seat, unlock the seat back by pulling the lever on the rear of the seat back outwards.
Graphic
Similarly, lower the other half of third row seat to get a completely flat surface.
Both the second row and third row seats can be folded flat to maximise the luggage space.
6.6 General Warnings and Instructions - Seat Belts
At least once each month, inspect the seat belt webbing for any cuts, tears, or other signs of wear (such as fraying along the edges). Also inspect the anchors, retractors, and buckles to be sure they are tight and operational.
•  All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimise the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger
•  In a rollover crash, an un-belted person is significantly more likely prone to injury than a person wearing a seat belt
•  In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an armrest, a pocketbook, or any external objects should be between you and the seat belt. Improper wearing of a seat belt will reduce the protection in an accident
•  Seat belts should be adjusted as tightly as possible, consistent with comfort to properly secure the wearer in the seat
Graphic
•  The seat belts provided for your vehicle are designed for people of adult size, must be properly used and maintained
•  For usage of adult seat belt to secure children, refer to section on manual for child seat positions and use a child restraint system
Graphic
•  Passengers should not move out of or change seats while the vehicle is moving. A passenger who is not wearing a seat belt can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle during a crash or emergency stop
•  Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash
•  An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Authorised Mahindra Dealer inspect the seat belt system after an accident
•  Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle
Never use a damaged seat belt system. A damaged seat belt will not provide protection in an accident, resulting in serious injury.
•  Seat belt systems can be prone to abuse. They are not indestructible. They must be handled with care to avoid damage
•  Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbing are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts
•  Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer
Seat Belts - Patients
Persons with serious medical conditions should also wear a seat belt. Consult your doctor for specific recommendations before travel.
Seat Belts - Pregnant Women
Graphic
Pregnant women must also wear seat belts. Consult your doctor for specific recommendations.
The lap belt should be worn snugly and as low as possible over the hips. The shoulder belt should be worn across your shoulder, but never across the stomach area. When worn properly, the seat belt will protect both the mother and the foetus in an accident or emergency stop.
A pregnant woman should never wear the seat belt across the stomach area. This could lead to serious injuries to the foetus and/or the pregnant mother.
Never wear twisted seat belts. Excessive forces will be transferred from the belt to the wearer, in a collision, resulting in serious personal injury.
Each seat belt is meant for use by one person only. Using one seat belt for more than one person at a time is dangerous. The seat belt will not be able to spread the impact forces properly leading to serious injuries.
Never put a belt around a child being carried on the occupant's lap. This could lead to serious injuries.
Seat Belt Usage is necessary to:
•  Reduce the possibility of being thrown from your vehicle
•  Reduce the possibility of injuries to upper body, lower body and legs during an accident
•  Hold the driver in a position which allows better control of the vehicle
Children who are too large for child restraint systems should always occupy the rear seat and use the vehicle seat belts. The lap portion should be fastened snug on the hips and as low as possible and the shoulder strap should be across the child's shoulder, not the neck or face. If you are unable to position the strap across the child's shoulder, the child should remain in a booster seat. Frequently check the seat belt to be sure it remains snug and in position. A squirming child could cause the seat belt to come out of position.
6.7 Fastening the Seat Belt (3-Point type)
Graphic
Graphic
Graphic
Adjust the seat as needed, sit up straight and well back in the seat. To fasten your seat belt, pull the webbing out of the retractor and insert the metal tab into the buckle. An audible “click” would be heard when the tab locks into the buckle. Pull up on the shoulder strap to tighten the lap belt across your hips. The seat belt retractor will pull in any slack in the shoulder strap. A slow and easy motion will allow the belt to extend and let you move your body around freely.
Periodically check the seat belt as you ride to be sure it remains snug and in position. If there is a sudden stop or impact, the belt will lock into position. It will also lock (restrict) if you try to lean forward too quickly.
If the driver or co-driver seat belt is not fastened when the ignition is switched ON, the seat belt warning lamp illuminates. Refer “Warning Lamps” in the “Features and Control” chapter for further details.
6.8 Fastening the Seat Belt (2-Point Lap type)
This seat belt is applicable to the second row middle passenger seat. Insert the tongue into the buckle until it snaps. Position the lap belt on the hips as low as possible.
Graphic
6.9 Unfastening the Seat Belt (both 3-Point & 2-Point)
Graphic
To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.
Never insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and may cause damage to the buckle mechanism, thereby making the seat belt ineffective in an accident, resulting in serious personal injury.
Graphic
6.10 Seat Belt Height Adjuster
Graphic
You can adjust the height of the shoulder belt anchor for maximum comfort and safety in both front seats. If the height of the seat belt is too near your neck, you will not be getting the most effective protection. The shoulder portion of the belt should be adjusted so that it lies across your chest and midway over your shoulder nearest to the door and not your neck.
To adjust the height of the seat belt anchor, lower or raise the height adjuster to an appropriate position while pressing the height adjuster button. Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into the position.
Adjust the shoulder belt height sitting well back in the seat. Do not adjust the seat belt height while vehicle is in motion.
6.11 Passenger Occupant Detection System (PODS)
Graphic
PODS system is to detect the presence of occupant in the seat.
Graphic
If occupant is present and not wearing seat belt, seat belt reminder warning lamp will come ON till the seat belt is buckled.
Seat belt buzzer audible warning will come ON 35 sec once, if any of the driver/co-driver seat belt is in unbuckled condition & any of the below condition are met.
•  The Vehicle is in forward motion (Vehicle speed > 15 Km/h) for 60 seconds (or)
•  The Vehicle speed has reached in forward direction for minimum 25 km/h (or)
•  Vehicle has covered 500 meters in forward motion.
6.12 Seating Positions for Child Restraint System (CRS)
Use a child restraint system only if the child is not big enough to properly wear the seat belts. Else, use the regular seat belt instead of the child restraint system. Seat the child in the rear seat and use the seat belt. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. Always secure a child in a proper child restraint system in accordance with age and size of the child as recommended by the child restraint system manufacturer.
Do not allow children to stand up or kneel on either the rear or the front seats. An unrestrained child could suffer serious injuries during emergency braking or collision.
It is also not recommended that children travel sitting on your lap as it does not provide sufficient restraint.
Mass Group
Weight of Child (kg)
Fitting the child restraint system using seat belt

Group 0
0–10
Rear-facing child restraint system on the outboard 2nd row seats using seat belt
Group 0+
up to 13
Group 1
9–18
Forward-facing child restraint system on the outboard 2nd row seats using seat belt
Group 2
15–25
Group 3
22–36
Graphic
7 SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
(If equipped)
The Supplemental Restraint System (SRS) includes airbags, pre-tensioners and ECU. The airbags are designed to provide further protection to the vehicle occupants in addition to the primary protection provided by the seat belts and seat belt pre-tensioners.
The primary components of the system are the sensors which measure the crash severity. In the event of a significant frontal impact, the SRS airbags inflate to work in conjunction with the seat belts and help reduce injuries mainly to the driver's or front passenger's head/chest.
Seat belts are the primary restraint system in the vehicle. An airbag provides supplemental protection in addition to the seat belts.
All occupants, including the driver, should always wear their seat belts irrespective of presence of airbag to minimise the risk of severe injury in the event of a crash.
Airbags are more effective in reducing injuries when the seat belts are worn.
7.1 Airbags
Your vehicle has the following airbags:
•  One frontal airbag for the driver (A)
•  One frontal airbag for the front passenger (B)
•  Two side (seat) impact airbags (C) (if equipped)
•  Two curtain airbags (D) (if equipped)
Graphic
Airbag Locations
•  In the steering wheel hub - Driver Airbag
Graphic
•  Above the upper glove box - Passenger Airbag
Graphic
•  Outboard side of driver and front passenger seats - Side Impact Airbag
Graphic
•  In the inner roof rail (LH & RH) - Curtain Airbag
Graphic
Graphic
An airbag is not designed to deploy in every type of crash. Depending on the type of accident or impact, the front airbag, side airbag and curtain airbag independently deploy thereby protecting the occupants. It is not necessary that ALL the airbag deploy during an accident.
To minimise the risk of severe injury in the event of a crash, every passenger must always wear their seat belt (see the chapter on Seat Belts in this manual). The airbag’s inflate very quickly with great force. Do not position any part of your body too close to an airbag, you or especially children could be seriously injured by a deploying airbag.
7.2 Driver and Front Passenger Airbag
Your vehicle is equipped with a Supplemental Restraint System (Airbag) and lap/shoulder belts at both the driver and front passenger seating positions. The indications of the system's presence are the letters “SRS AIRBAG” embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.
The SRS is designed to deploy the front airbag only when an impact is sufficiently severe and when the impact angle is less than ± 30° from the forward longitudinal axis of the vehicle.
Graphic
Graphic
Front airbag are not intended to deploy in side-impact, rear impact or rollover crashes. In addition, front airbag will not deploy in frontal crashes which are below the prescribed deployment threshold where risk of serious injuries is low.
Do not place any objects over the airbag or between the airbag and yourself.
7.3 Side Impact Airbag
Graphic
Your vehicle is equipped with side impact airbag in both the front seats. The purpose of the airbag is to provide the vehicle's driver and/or the front passenger with additional protection during side impacts or collisions.
The side impact airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and point of impact.
•  In the case of a side collision, the curtain airbag may be deployed together with the relevant side airbag on the side the collision occurs
•  The side impact airbag is supplementary to the seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side impact conditions severe enough to cause significant injury to the vehicle occupants
•  For best protection from the side impact airbag system and to avoid being injured by the deploying side impact airbag, all seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passengers arms and hands should be placed on their laps
•  Do not use any accessory seat covers. Use of seat covers could reduce or prevent the effectiveness of the system
•  Do not instal any accessories on the side or near the side impact airbag
•  Do not place any objects over the airbag or between the air bag and yourself
•  Do not place any objects (an umbrella, bag, etc.) between the door and the seat. Such objects may become dangerous projectiles and cause injury if the supplementary side impact airbag inflates
7.4 Curtain Airbag
Curtain airbag are located along both sides of the roof rails on the A & B pillars.
They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain side impact collisions.
The curtain airbag are designed to deploy depending on the crash severity, angle, speed and impact. The curtain airbag are not designed to deploy in all side impact situations, collisions from the front or rear of the vehicle or in rollover situations.
•  In the case of a side collision, the side airbag may be deployed together with the relevant curtain airbag on the side the collision occurs
•  In order for side and curtain airbag to provide the best protection, both front seat occupants and both outboard rear occupants should sit in an upright position with the seat belts properly fastened. Importantly, children should sit in a proper child restraint system in the rear seat.
•  When children are seated in the rear outboard seats, they must be seated in the proper child restraint system. Make sure to position the child restraint system as far away from the door side as possible, and secure the child restraint system in a locked position
•  Do not allow the passengers to lean their heads or bodies onto doors or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain airbag
7.5 Airbag System Malfunction Lamp
Graphic
Airbags do not require any regular maintenance of service. The airbag system malfunction lamp illuminates when the ignition is ON, and it turns OFF after about two seconds as self check confirming normal operations of airbag system and malfunction lamp.
This lamp monitors airbag sensor assembly, airbag sensors, indicator lamp, seat belt pre-tensioner assemblies, inflators, interconnecting wiring and power sources.
If either of the following conditions occur, there is a malfunction of the airbags or seat belt pre-tensioner. Immediately contact your Authorised Mahindra Dealer.
•  The lamp does not glow when the ignition is switched ON or glows beyond six (6) seconds after switching the ignition ON
•  The lamp comes ON at any other time, even briefly
•  The lamp comes ON intermittently
Never make any modifications to your vehicle which could affect the performance of your airbag system. In particular, changes to the vehicle frame, bumpers, bull bar, front fenders, ride height, suspension, seat belts, interior trim, seats or steering wheel (especially covers, pads or other trim), could prevent proper deployment of the airbag. If you need to make any modifications to accommodate any disability you may have, please contact your Authorised Mahindra Dealer.
Never try to open or strike the airbag cover. If the airbag cover is cracked or damaged in any way, the airbag may not function as intended. Take the vehicle to an Authorised Mahindra Dealer.
Even if the airbags do not deploy during an accident, take your vehicle to an Authorised Mahindra Dealer for a thorough inspection of the airbag and seat belt systems, no matter how minor the accident. The airbag system could have been damaged, and may not work as intended in the future, resulting in serious injury.
7.6 Airbag Inflation/Deployment
The airbag sensors constantly monitor the forward deceleration of the vehicle. If an impact results in a forward deceleration beyond the designed threshold level, the system triggers the airbag inflators. This initiates a chemical reaction which quickly fills the airbags with non-toxic gas.
Upon deployment, tear seams moulded directly into the pad covers separate under pressure from the expansion of the airbags. Further opening of the covers allows full inflation of the airbags. A fully inflated airbag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.
After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to manoeuvre or operate other controls.
Deployment of the airbags happen in a fraction of a second, producing a loud noise releasing a ‘white smoke’ and residue along with a non-toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing. Be sure to wash off any residue with soap and water as soon as possible to prevent any potential skin irritation. If you can safely exit the vehicle, you should do so immediately.
Airbag deployment may cause windshield to break.
•  Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury
•  Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once
•  Do not cover the steering wheel, instrument panel, seats with any object (e.g. dash panel covers, seat covers) which may prevent the airbags from inflating properly
•  The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle
The front passenger should never sit on the edge of the seat, stand near the glove compartment, rest feet or other parts of the body on the dashboard when the vehicle is moving.
Graphic
The driver or front passenger who is too close to the steering wheel or dashboard can be seriously injured during airbag deployment.
•  The driver must sit as far back as possible from the steering wheel while still maintaining control of the vehicle
•  The front passenger must sit as far back as possible from the dashboard
•  Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury
Graphic
Graphic
•  Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor
•  All vehicle occupants must be properly restrained using the seat belts
•  All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts
•  Front airbags can injure occupants improperly positioned in the front seats
•  Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual
•  Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags
•  Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses
7.7 Child Restraint and Airbag
Graphic
Never place a rear-facing child restraint in the front passenger’s seat. If the airbag deploys, injuries to the child may be fatal.
In addition, do not place front-facing child restraints in the front passenger’s seat either. If the front passenger airbag inflates, it could cause serious or fatal injuries to the child.
Extreme Hazard! Do not use a rear-facing child restraint on a seat protected by an airbag in front of it!
Never put a child restraint in the front passenger’s seat. If the front passenger airbag inflates, it can cause serious or fatal injuries.
Never hold an infant or child on your lap. The infant or child could be seriously injured in the event of a crash. All infants and children should be properly restrained in appropriate child safety seats or seat belts in the rear seat.
Instal the child restraint system on the rear outboard seats, and securely lock the child restraint system in position.
Always Buckle Children (ABC) in the back seat. It is the safest place for children of any age to ride.
7.8 Airbag Deployment
The images shown in this section are for illustrative purpose only. They may not look like your model/variant or vehicle.
Front Airbag
Front airbag are designed to inflate in a frontal collision depending on the intensity, speed or angles of impact of the front collision.
Graphic
Airbag Non-deployment
Impacts below a pre-determined threshold level may not cause the airbag to deploy in the following cases:
•  Collision with Utility Poles or Trees -
Graphic
Airbags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated to one area and the full force of the impact is not delivered to the sensors.
•  Under-ride Situations -
Graphic
Running under a truck's tailgate may not provide the decelerations necessary for airbag deployment. Airbags will not inflate in this “under-ride” situation where deceleration forces that are detected by sensors are significantly low.
Rear-end Collisions -
Frontal airbags are not designed to inflate in rear collisions, where occupants are moved backward away from the airbags by the force of the impact. In this case, inflated airbags would not be able to provide any additional benefit.
Graphic
•  Frontal Impact -
Frontal impact beyond 30º range from head-on to the vehicle.
Graphic
•  Potholes or Stepped Surfaces -
Driving into a big pothole, stepped surface or hitting the far side of a hole/incline will not inflate the airbag.
Graphic
•  Rollover -
Graphic
Airbags will not inflate in rollover accidents where airbag deployment would not provide protection to the occupants. However, side impact and curtain airbags may inflate only when severe side impact causes rollover.
•  Frontal Side Swipe Impact -
Graphic
Frontal offset impact to the vehicle may not provide the deceleration force necessary for airbag deployment. In an angled collision, the force of impact may direct the occupants in a direction where the airbags would not be able to provide any additional benefit, and thus the sensors may not deploy any airbags.
7.9 Airbag Replacement
Self-servicing or tampering with the airbag system is dangerous. An airbag could accidentally deploy causing serious injuries, or will not deploy when there is a need. Always take your vehicle to an Authorised Mahindra Dealer for inspection and repairs.
7.10 Self Removing SRS Related Parts
Self removing the instrument panel, steering wheel, seats or airbag related parts or sensors is not recommended. Airbags could accidentally activate and cause serious injuries, or they may not deploy when there is a need. Visit an Authorised Mahindra Dealer if these parts must be removed.
7.11 Airbag Disposal
Improper disposal of an airbag or a vehicle with live airbags can be extremely dangerous. Approach an Authorised Mahindra Dealer to do these jobs.
7.12 Airbag Repair
If the front airbag cover or IP airbag cover shows signs of damage or having been removed, the vehicle should be towed to the nearest Authorised Mahindra Dealer for repair. Do not attempt to self repair or reinstal the cover.
7.13 Airbag Maintenance
For cleaning the airbag covers/areas, use only a soft dry cloth or one which has been moistened with plain water. Solvents or cleaners could adversely affect the airbag covers and proper deployment of the system.
8 LOCKS AND KEYS
XUV500 comes with RKE’s or Smart Key depending on the variant. Your key number is given on the tag attached to the key. It is recommended that you record the key number and store in a safe place. The keys operate all locks in your vehicle including those of the doors and ignition with steering lock.
Graphic
Graphic
RKE
Remote Keyless Entry
PKE
Passive Keyless Entry
Never leave the key in the ignition switch with children in the vehicle. A child could switch on the ignition, start the engine, operate power windows and other controls, or move the vehicle, resulting in personal injuries to the bystanders and/or children seated inside.
8.1 Doors
8.1.1 To Open a Door from Inside
Pull the door lever away from the door and push the door outward to open.
Graphic
8.1.2 To Open a Door from Outside
Pull the door handle firmly outwards to unlock and swing the door open.
Graphic
8.1.3 Locking / Unlocking Individual Doors from Inside
Pull the door lever away from the door and push the door outward to open.
Graphic
A
Lock
B
UnLock
Individual doors can be locked/unlocked from inside by the respective doorlock tabs. Lift the lock tab outwards to unlock or press the tab inwards to lock that particular door.
Locking the driver door from inside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.
8.1.4 Manual Locking/Unlocking Doors from Outside
The driver/co-driver door can be manually locked/unlocked from outside by using conventional key. The key is bi-directional; you can insert it into the keyhole either way. Turn the key anti-clockwise to lock or clockwise to unlock the door.
A keyhole is provided in the driver door and front passenger door, to lock/unlock the doors manually from outside.
Locking the driver door from outside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.
8.1.5 Locking / Unlocking the Back Door
Graphic
The back door can be manually unlocked by the conventional key and door opened by pressing the unlock button under the rear applique.
The back door can also be unlocked using the RKE/Smart Key. Refer the relevant sections in this chapter for more details.
Graphic
To close the back door, lower the back door half way down and allow it to fall on its own weight. The door is locked automatically.
8.2 Central Locking System
All doors of the vehicle can be simultaneously locked or unlocked from the driver door.
8.2.1 Central Locking/Unlocking All Doors from Outside
To manually lock/unlock all the doors from outside using the conventional key, turn the key anti-clockwise /clockwise respectively in the driver door keyhole.
In case the back door is open when the central locking is activated, the back door will not be locked even if it is closed later.
If any other door is open when central locking is activated, the system locks the open doors when they are closed.
Central locking ALL the doors in the vehicle can also be done using the RKE/Smart key. Refer the relevant sections in this chapter for more details.
8.2.2 Central Locking/Unlocking All Doors from Inside
Press the driver doorlock tab down (A) to lock or lift the lock tab up (B) to unlock all doors simultaneously.
Graphic
8.2.3 Child Safety Rear Doorlock (If equipped)
Your vehicle is equipped with left and right side child safety rear doorlocks. When the lock mechanism is engaged, the rear door(s) cannot be opened from the inside. The door(s) can only be opened from the outside.
To activate the child safety right rear doorlock, push the lever down (A) till you hear a distinct click indicating the activation of the child lock.
To de-activate the child safety right rear doorlock, pull the lever up (B) till you hear a distinct click indicating the deactivation of the child lock.
Graphic
A
Activate/Lock
B
De-activate/Unlock
If the rear doors are not operable from inside, ensure that the child safety locks have been disabled.
Mahindra strongly recommends that the child safety rear doorlocks be used whenever there are children travelling in the rear seat.
8.3 Remote Keyless Entry (RKE) System
Graphic
A
Unlock Button
C
Lock Button
B
Back Door Open Button
D
Key Release Button
The front side of the RKE has three control buttons: Unlock, Lock and Search buttons. There is also a mechanical key release button (D). The Remote Keyless Entry (RKE) system operates on Radio Frequency (RF). You can insert the key into the ignition with either side up.
Graphic
8.3.1 Precautions While Handling RKE
•  Do not cover the key grip with any material that cuts off RF waves
•  Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight
•  Do not put the key in any liquid or wash it in an ultrasonic washer
8.3.2 To Lock and Arm the Vehicle with RKE
Graphic
Press the lock button on the RKE for locking and arming the vehicle. When the vehicle is successfully locked and armed using the RKE, the hazard lamps flash once. If there are any open doors, the hazard lamps flash five times along with audible beeps indicating the same.
The audible beeps heard during the door open status can be muted/unmuted by pressing the lock button on the RKE for more than 3 secs.
•  If any of the doors, except the driver door, are open while locking the vehicle with RKE, the vehicle locks all doors (doorlocks) irrespective of the open door/doors. When the open door(s) is/are closed later, the vehicle is locked and armed
•  If the driver door is open while locking the vehicle with RKE, the vehicle is not locked or armed. Close the driver door and lock the vehicle again with RKE to arm the Anti-theft system
8.3.3 Unlock and Disarm the Vehicle with RKE
Press the unlock button on the RKE to unlock and disarm the vehicle. When the vehicle is unlocked and disarmed using RKE, hazard lamps flash twice.
Graphic
8.3.4 Theft Alarm
If there was an unauthorised attempt to open/start the vehicle by someone from the time you had locked and armed the vehicle to the time you press the unlock button of RKE, the hazard lamps flash four times along with an alarm indicating the attempt. If this occurs, press the “UNLOCK” button on the RKE to disarm the security alarm.
Using the ignition key to open the door, when the vehicle was locked and armed with RKE will be treated as unauthorised by the system setting off the alarm.
When vehicle is armed by RKE, opening the door from inside by operating the door inner handle will activate the vehicle theft alarm.
Press the unlock button on the RKE to cancel the alarm.
8.3.5 Back Door Open
Graphic
Press the back door open button on the RKE to unlock the back door. The hazard lamps flash four times indicating the same.
8.3.6 Search Function
Graphic
The search function can be used to locate the vehicle in a parking lot. Press the unlock button on the RKE for more than 3 secs. continuously to activate the search function.
When the Search function is ON, the hazard lamps flash for approx. 30 secs. helping you to locate your vehicle. To extend the search, press the search button again which will flash the hazard lamps for another 30 secs. You can turn it OFF by pressing the unlock button.
The head lamps also turn ON when UNLOCK button is pressed twice (enabling the Lead Me to Vehicle (LMV) feature). For the first UNLOCK command, the doors are unlocked, and for the next UNLOCK command, the head lamps turn ON enabling you to safely board/locate the vehicle in the night.
Search function works both during Locked/Unlocked conditions of the vehicle.
8.3.7 Mute/Unmute the Alarm/Beeps
Graphic
The alarm or beeps heard when one of the doors are open can be muted/unmuted. Press the lock button for more than 3 secs. to swap between mute and unmute.
The beeps heard during the door open situation can be muted/unmuted. There are NO BEEPS during normal locking/unlocking of doors.
8.3.8 Panic Alarm Function
Graphic
The panic alarm function can be used during emergencies to draw the attention of onlookers/bystanders. Press the unlock button on the RKE for more than 3 secs. continuously when the key is in the ignition to activate the panic alarm.
8.3.9 Auto Locking
When the vehicle crosses 20 kmph road speed range with all the doors closed properly, all doors are locked automatically.
8.3.10 Auto Unlocking
All the doors are unlocked automatically, when the vehicle has halted and ignition switched OFF. If the ignition is not switched ON for the next few seconds, all the doors are locked due to auto locking, provided doors are not open.
8.3.11 Auto Re-locking
Once you press the unlock button on the RKE, if you do not open any of the doors for the next 45 secs., all the doors are re-locked automatically.
In case of an accident/collision where a SRS has been activated (E.g. airbag), all the doors are unlocked automatically (If applicable).
8.3.12 RKE Operating Range
Graphic
Using RKE, you can lock/arm or unlock/disarm the vehicle from distances approx. 30ft.(9m).
If there is reduction in RKE range, please follow the steps below:
•  Check the distance: The RKE may be too far from the vehicle. Stand closer to the vehicle during rain or bad weather
•  Check the location: Other vehicles or objects may be blocking the signals. Take a few steps to the left or right, hold the RKE higher, and try again. Moreover, closeness to a radio transmitter such as radio station tower, airport transmitter, mobile or CB radios may lead to reduction in range of RKE
•  Check the RKE battery: See battery replacement procedure, given later in this section
•  If the RKE is still not working correctly, contact an Authorised Mahindra Dealer
8.3.13 RKE Battery Replacement
If the RKE operation is inconsistent when any of the buttons are pressed, it indicates that the RKE battery is weak. The rear side of the RKE is snap fitted. Using a small screw driver or similar tool, pry or separate the two halves of the casing.
Graphic
Graphic
Pull out the batteries and discard the same. Insert new batteries of 3V type. While fitting the new battery, ensure the positive side of the batteries face up. Align both the halves of the RKE and press to snap fit. Check operation of the RKE.
While prying the RKE case, take care not to damage the battery. Do not touch the battery terminals or contacts.
Perchlorate material needs special handling and disposal. Refer to local regulations.
8.3.14  Battery Specification
Battery Voltage
3 V
Battery Capacity
225 mAh
8.3.15 If RKE is Lost
If you have lost the programmed RKE, contact an Authorised Mahindra Dealer for procuring a new RKE.
While programming a new key set, you will have to submit all the keys available with you, to an Authorised Mahindra Dealer.
Please note that there is a limitation (max. 2 keys at a time) to the number of keys that can be ordered. The minimum timeframe required to supply the duplicate keys is 10 days after all the formalities are completed. Please contact the dealer to understand the formalities involved.
If you make your own duplicate key, you will not be able to deactivate the anti-theft devices or start the engine.
If the key is stolen or lost, communicate to an Authorised Mahindra Dealer for de-activating the function of the lost or stolen key. This is essential to avoid unauthorised access using the misplaced key.
Only RKE transmitters programmed to your vehicle electronics can be used for remote locking and unlocking of your vehicle.
8.4 Passive Keyless Entry (Smart Key) / Smart Key System (if equipped)
Passive Keyless Entry (Smart Key) System enables you to enter or exit your vehicle without the need to manually lock/unlock the doors. You can start/stop, lock or unlock the vehicle using Smart Key. To do this, you only need carry the Smart Key with you.
Graphic
A
Unlock Button
C
Back Door Release Button
B
Emergency Key Release Button
D
Lock Button
RKE Panic alarm feature is not available in Smart Key variants.
The front side of the Smart Key has three control buttons: Unlock (A), Lock (D) and Back door release (C) buttons. There is also a emergency key release button (B), which releases a mechanical key for emergency purposes (E.g. when PKE battery is low). To remove the metal key, press and hold the release button (B) and pull the mechanical key out.
Graphic
•  When locking or unlocking with Smart Key, the distance between the Smart Key and the corresponding door handle must not be greater than 3ft (1m).
•  Do not cover the key grip with any material that cuts off RF waves
•  Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight
•  Do not put the key in any liquid or wash it in an ultrasonic washer
•  The Smart Key can malfunction if exposed to moisture or static electricity
Carrying the Smart Key along with you, you can lock or unlock the doors and tail door and even start and stop the engine without inserting the key. Functions of the buttons on a Smart Key is similar to the remote keyless entry.
Locking the vehicle:
1. Carry the Smart Key
2. Close all the doors
3. Press the button in the door handle
Graphic
4. The hazard warning lights will blink once to indicate the locking (5 blinks will be provided if engine hood is open while locking)
5. Make sure that the doors are locked by pulling at the outside door handles
•  Key should be in the proximity of less than 0.7m from the outside door handle
•  Vehicle can be locked centrally by pressing the button in the door handle nearer to the PKE (PKE should be nearer to the triggered side). For E.g., locking/unlocking of the co-driver door is possible only if PKE is around the co-driver area
•  Even after pressing the outside door handle button, if the doors do not lock, a chime is heard along with the hazard blinking for 3 times, then one of the following situations are true:
–  A Smart Key is kept inside the vehicle
–  The vehicle/key is in IGN ON or ACC ON position
–  One of the doors not closed properly
•  On attempting to lock by pressing the button in door handle, the chime will sound for 3 times along with hazard lamp blinking 3 times if the steering is not locked
•  With the one Smart Key inside, on locking the vehicle using the remote lock button, the key which is kept inside would get deactivated completely for the security of the vehicle. In order to make the key to active again, the vehicle should be unlocked either using Smart Key or by pressing remote unlock
Unlocking the vehicle:
1. Carry the Smart Key
2. Press the button in the door handle
3. All doors would unlock and hazard warning lights will blink twice
•  Key should be in the proximity of less than 0.7m from the outside door handle
•  Vehicle can be unlocked centrally by pressing the button in the door handle only when the key is in same side of the door where the button is pressed
Unlocking the Tail door alone:
1. Carry the Smart Key
2. Press the trunk release button in the tail door and pull the tail door
Graphic
3. Tail door would unlock and hazard warning lights will blink
3 times
4. On closing the door, tail door would get locked automatically
•  Key should be in the proximity of less than 0.7m from the outside door handle
•  Tail door can be unlocked by pressing the button in the tail door only when the key is in range from the tail door
•  Once tail door is closed, it can be unlocked for 45 secs without the key. So be cautious to lock the vehicle again if you are leaving the vehicle immediately
Mute/Unmute the Alarm/Beeps
The alarm or beeps heard when one of the doors are open can be muted/unmuted. Press the lock button for more than 3 secs. to swap between mute and unmute.
Only the door open beeps and alarm can be muted. The PKE alerts cannot be muted.
Graphic
8.4.1 Engine START/STOP Button (if equipped)
The engine can be started or stopped by the presence of the Smart Key inside the vehicle.
Graphic
Whenever the doors are opened or the door handle button is pressed, the engine start/stop button will be illuminated and go off after few seconds.
Upon any fault identification by the system in the start/stop switch, an alert would be provided in the Infotainment system along with a chime for 10 secs. Please visit the nearest Authorised Mahindra Dealer immediately to rectify the problem.
Even with the failure in the start/stop switch, vehicle's normal function may work which depends on the severity of the failure. Please visit the nearest Authorised Mahindra Dealer to rectify the problem immediately.
Graphic
Engine start/stop button positions:
To operate the engine start /stop switch to its intended function, Smart Key should be inside the vehicle.
OFF
To turn off the engine, stop the vehicle and press the engine start/stop button once. Status LED in the engine start /stop button goes OFF to indicate the OFF position.
If the engine is not switching off by pressing the engine start/stop button (one press), press and hold the engine start/stop button for more than 2 seconds or rapidly press and release the engine start/stop button 3 times within 3 seconds. On doing so, the vehicle ignition status is changed to ACC position till 30 seconds, then it will change to OFF position. In this condition, the vehicle can be locked using the PKE only after 30 seconds. However you can still lock the vehicle using the mechanical key. Contact the nearest Authorised Mahindra Dealer at the earliest.
Your vehicle is equipped with electronic anti-theft steering column lock. The steering wheel locks when the engine start/stop button is in OFF position to protect against the theft. The steering wheel locks automatically when the driver door is opened or 30 secs after engine start stop button changes to OFF position. If the steering wheel is not locked properly when you open the driver door and on attempting to lock the vehicle, a warning chirp along with the hazard blinks thrice. Try locking the steering wheel again (by toggling Engine Start/Stop button). If the problem is not solved, we recommend to take the vehicle to nearest Authorised Mahindra Dealer immediately.
ON
To switch ON the ignition, press the engine start/stop button when the switch position is in OFF/ACC without depressing the clutch pedal and with the Smart Key inside the vehicle. Status LED in the engine start/stop button will turn green to indicate the IGN ON position and the vehicle is ready for starting. Status LED colour would change to orange if the vehicle is not started within 30 secs, but the vehicle ignition remains in ON position.
Keeping the vehicle in ignition ON position for longer time without engine running, would drain the battery. Turn OFF the ignition if engine is not to be started.
Vehicle ignition would not turn to ON position on any of the following conditions:
•  If the electronic steering lock is not getting unlocked
–  A warning would be displayed in the Infotainment system along with beep sound for a few secs. If the steering wheel doesn’t unlock properly, press the start/stop button while turning the steering wheel right/left to release the tension on the lock.
Graphic
Still if you are not able to turn ON the IGN, please contact the nearest Authorised Mahindra Service Centre.
•  If the key is not detected inside the vehicle or far away from the driver which is not in detectable position
Graphic
–  A warning would be displayed in the infotainment system along with a beep sound for a few secs. Bring the Smart Key inside the vehicle if not in the vehicle or keep the key away from any electronic gadgets to allow the system to detect the key
–  If still the key is not detected, the key battery might be low. Press the start/stop button once and while the status LED in the button is blinking green, bring the key fob on top of the start/stop button and hold for few seconds till status LED changes to permanent green. Once start/stop status LED turns green, press Start/Stop button to turn ON IGN immediately
Graphic
•  When engine start/stop button is ON or engine is in running condition with vehicle at standstill and if any door is opened, the system checks for the Smart Key. If the Smart Key is not inside the vehicle, an alert in the infotainment screen is displayed along with a chirp for 5 times to indicate key not detected inside
Graphic
Bring the Smart Key inside the vehicle or keep the key in the detectable position whenever you are inside the vehicle.
Starting the vehicle
To start the engine, press the clutch and press the engine start/stop button once with the key inside the vehicle. The engine can be started from any position (OFF / ACC / ON) of the start/stop switch.
Ensure the gear lever is in neutral position before starting.
If engine start/stop button is pressed without pressing the clutch pedal, engine will not start and the vehicle power modes will change as follows: OFF→ ON →OFF→ ON
If the engine start/stop button is pressed from the OFF position directly, along with the clutch in depressed position, there may be a small delay in the engine cranking. This is normal and not to be taken as a fault.
Never press the engine start/stop button while the vehicle is in motion except in an emergency. This will result in the engine turning off and loss of power assist for the steering and brake systems. This may lead to loss of direction control and braking function, leading to an accident.
Once the engine is started, it would not stop even if the key is not inside the vehicle. Before leaving the driver seat, always make sure engine start/stop button is in OFF position and always take the Smart Key with you. Vehicle safety and security would be affected if these precautions are not followed.
In case of any failure in clutch pedal sensor, engine can be started by pressing the start/stop button continuously for 10 seconds without depressing the clutch pedal.
Emergency stop
To turn the engine OFF in an emergency, press and hold the engine start/stop button for more than 2 seconds or rapidly press and release the engine start/stop button 3 times within 3 seconds. On doing so, the vehicle ignition is changed to ACC position.
If the vehicle is still moving, you can restart the engine (without depressing the brake pedal) by: pressing the engine start/stop button, pressing the clutch, gear lever in N position.
BACK up Start
If the key fob battery is low, the key may not be detected. In such a situation, press the start/stop button once while the status LED in the button is blinking green, bring the key fob on top of the start/stop button and hold it there for few seconds till status LED changes to permanent green. Once start/stop status LED turns green, press start/stop button to turn ON IGN immediately.
Graphic
If key fob battery is detected low by the system, an alert would be triggered while turning OFF the ignition. Change the battery by following the procedure as mentioned in the section for battery replacement.
Graphic
Key fob battery low can be detected only if the key has been continuously used in the vehicle. Keeping the key outside the vehicle for longer duration and then using it with the drained battery cannot be detected.
8.4.2 Vehicle locking/Unlocking in an Emergency Situation
If the Smart Key does not operate normally, you can lock or unlock the doors by using the mechanical key:
1. To remove the mechanical key, press and hold the release button in the side of the key fob and pull the mechanical key head.
2. Insert the key into the keyhole in the door nearer to the door handle. Turn the key towards the rear of the vehicle to unlock and turn it towards the front to lock.
3. To reinstal the mechanical key, put the key into the key fob and push it until a click is heard
It is strictly not advisable to leave the key fobs in the vehicle. Vehicle can be started by any unauthorised person.
A maximum of 2 Smart Keys can be registered to a single vehicle. If you lose a key, we strictly recommend to contact Authorised Mahindra Dealer immediately to block the lost key and to get a new key.
The Smart Key may not work if any of the following occurs:
•  The Smart Key is close to a radio station, airport or an area where there is a possibility of large radio transmissions which can interfere with the normal operation of the Smart Key
•  The Smart Key is near a mobile or a cellular phone or some electronic gadgets like Laptop/Tablets. The signal from the Smart Key could be blocked by normal operation of your cell phone or smartphone. Avoid placing the Smart Key and your electronic gadgets in the same trouser or jacket pocket or in the bag and maintain adequate distance between the two devices
•  Another vehicle Smart Key is being operated close to your vehicle
•  Smart Key kept inside the glove box or top bin in the instrument panel may not be detected sometimes. Keep the Smart Key in the visible zone or in your pocket for getting it detected
•  Keep the Smart Key away from the water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer’s vehicle warranty
Make sure the vehicle ignition is in OFF state, whenever leaving the vehicle even with the key. By keeping the vehicle ignition in ON/ACC state will hamper the vehicle security.
Do not hand over the Smart Key to any unauthorised person or service provider. Your vehicle security system may be compromised in doing so.
8.5 Smart Key Battery Replacement
If the Smart Key operation is inconsistent when any of the buttons are pressed, it indicates that the Smart Key battery is weak. Follow the below procedure to change the battery in the Smart Key.
While prying the old battery out, take care not to damage the Smart Key housing
Do not touch the battery terminals or contacts by hand
Using the wrong battery can cause the Smart Key to malfunction. Be sure to use the correct battery
An inappropriately disposed battery can be harmful to the environment and human health. Dispose the battery accordingly to your local law(s) or regulations
Graphic
8.6  Battery Specification
Battery Voltage
3 V
Battery Capacity
225 mAh
8.7 If Smart Key is Lost
If you have lost the programmed Smart Key, contact an Authorised Mahindra Dealer for procuring a new Smart Key.
While programming a new key set, you will have to submit all the keys available with you, to an Authorised Mahindra Dealer.
Please note that there is a limitation (max. 2 keys at a time) to the number of keys that can be ordered. The minimum timeframe required to supply the duplicate keys is 10 days after all the formalities are completed. Please contact the Authorised Mahindra Dealer to understand the formalities involved.
If you make your own duplicate key, you will not be able to deactivate the anti-theft devices or start the engine.
If the key is stolen or lost, communicate to an Authorised Mahindra Dealer for de-activating the function of the lost or stolen key. This is essential to avoid unauthorised access using the misplaced key.
Only Smart Key transmitters programmed to your vehicle electronics can be used for remote locking and unlocking of your vehicle.
8.8 Engine Immobiliser System
An Engine Immobiliser System is a security system that prevents the vehicle from being operated by an unauthorised person. The Engine immobiliser prevents the engine from being started unless it recognises signals from the correct coded key. When a wrong key is inserted or a theft attempt is detected, the alarm is set off, and the hazard lamps flash along with a siren.
The system is automatically activated when the key is removed from the ignition.
8.8.1 Features of the Immobiliser System:
•  Prevents the vehicle being started by anyone not in possession of the correct vehicle key
•  The vehicle is automatically protected after the key is removed from the ignition. At every ignition ON, if the vehicle does not recognise the correct key code, the engine check lamp will illuminate/blink and the engine cannot be started
•  The vehicle will not be protected until the key has been taken out of the ignition
If the engine check lamp flashes or remains continuously illuminated after the ignition being switched ON, there is a system malfunction. Contact an Authorised Mahindra Dealer immediately.
Inserting the correct coded key in the ignition and switching the ignition ON, automatically deactivates the system. This enables the engine to start.
In the event of the vehicle not starting with the correct key, switch off the ignition for a minimum of 1 minute and attempt to start the vehicle again.
Do not modify, remove or disassemble the engine immobiliser system. Any unauthorised changes or modifications can affect proper operation of the system and will void your warranty.
The security system will be activated only when the vehicle is locked using the Smart Key. Locking the doors with the manual key will not activate the security system.
Using the ignition key to open the door, when the vehicle was locked and armed with Smart Key will be treated as unauthorised by the system setting off the alarm. Press the unlock button on the Smart Key to cancel the alarm.
9 FEATURES AND CONTROL
9.1 Quadruple Switch
Graphic
A
ORVM Fold Switch
E
Rear LH Window Switch
B
Power Window Lock
F
Rear RH Window Switch
C
Front Passenger Window
G
ORVM Perimeter Switch
D
Driver Door Window
H
ORVM Selector Switch
The quadruple power window switch on the driver door armrest/handle controls the following functions:
•  Both LH and RH ORVM folding
•  ORVM selector
•  ORVM adjustment
•  Power window functions of all doors in the vehicle
•  Power window safety switch that enables/disables power window operation of other doors when operated independently from the respective doors
9.1.1 Power Windows
Graphic
Power windows can be operated only when the ignition is “ON” position. The driver can operate all the power windows in the vehicle through the quadruple switch on the driver door armrest/handle. Other passengers in the vehicle can raise or lower their respective window glasses individually by using the separate switches provided on each of the door trim pads/armrests.
Graphic
To lower/raise the window glass push/pull, the power window switches respectively.
Do not operate the power windows frequently when the engine is OFF. This will drain the vehicle battery.
If you operate the switches often during a short period of time, the system might become inoperable for a certain duration to prevent damage due to overheating. The system will return to normal functioning shortly. It is recommended to operate one window switch at a time.
While operating the power windows, check for obstructions like head, hand, etc. which may lead to personal injuries.
Power Window Control after IGN OFF - The power window control will be available for 30 secs after IGN OFF condition.
9.1.2 Power Window Lock Switch
The main power window quadruple switch in the driver door trim has a power window lock switch to enable or disable operation of rear passenger and front passenger window switches. To disable the rear or front passenger power windows, press the window lock switch down. To revert to normal operation, press the window lock switch again.
Graphic
9.1.3 Auto Express DOWN (Driver Side only) (if equipped)
Press the driver side power window switch down for a moment and release. The glass moves all the way down automatically. You do not need to hold the switch till the glass comes down.
9.1.4 Auto Express UP (Driver Side only) (if equipped)
Pull the driver side power window switch up for a moment and release. The glass moves all the way up automatically. You do not need to hold the switch.
Graphic
The driver side power window is equipped with anti-pinch, however, please do not insert your finger during express up as it may result in injury.
If power window anti-pinch is used continuously for 15 times, the power window express feature will go to de-initialisation mode.
In case of de-initialisation, re-calibration or re-initialisation of the power window needs to be done.
Re-initialisation/Re-calibration of Power Window
Operate the window glass to topmost position and hold the power window switch for 200 milliseconds (minimum). Then, operate the power window to bring the glass to fully down position.
Same procedure of re-initialisation/re-calibration to be followed in case of express feature not working due to battery removal/power failure.
9.2 Mirrors
9.2.1 Manual ORVM (if equipped)
Graphic
Integrated exterior rearview mirrors on both the sides facilitate maximum rear view information to the driver.
Fold both the ORVM’s manually while parking the vehicle in congested roads or narrow parking slots. This avoids hindrances and safeguards the ORVM’s.
9.2.2 Electric ORVM (if equipped)
Graphic
A
ORVM Fold Switch
B
ORVM Selector Switch
C
ORVM Adjustment Switch (4-way)
The ORVM fold switch, ORVM adjustment switch (perimeter switch) and the Left (L)/Right (R) ORVM selector switches are located on the driver door trim/handle.
Both the ORVM’s can be electrically folded or unfolded by pressing the ORVM fold button (A).
All ORVM controls work only when ignition is ON or engine is in running condition.
The electric ORVM’s fold automatically when the vehicle is locked through RKE or unlocked through RKE and ignition switched ON.
The ORVM folding/unfolding operation is limited to 2 times / minute.
Do not fold or unfold the outside rearview mirrors manually. It may cause a malfunction of the mirror folding system.
Do not overestimate the distance of the objects that you see in the mirrors. Objects seen in convex mirrors are much closer than they appear.
Use the ORVM L/R selector switch, to select Left/Right side exterior mirror respectively. The ORVM adjustment switch adjusts the selected ORVM in the required direction. Lock the ORVM’s by setting the ORVM selector switch to the middle position.
9.2.3 Interior Mirrors
There are two interior mirrors, one is a conversation mirror (fish eye type) and other interior rearview mirror.
Graphic
A
Conversation Mirror
B
Interior Rearview Mirror
C
Day/Night Adjust Tab
9.2.4 Conversation Mirror (if equipped)
The conversation mirror can be used to converse with the rear passengers in the vehicle. Press the mirror cover to lower the conversation mirror. Close the mirror back and press to lock the mirror in position.
Graphic
Graphic
9.2.5 Interior Rearview Mirror
Graphic
The interior rearview mirror provides the rearview information to the driver and also aids during reversing.
This mirror has day and night (anti-glare) positions. The night position reduces glare from head lamps of vehicles behind you. Flip the tab (A) on the bottom edge of the mirror to select the day or night position.
9.3 Sun Visor
Sun Visors are provided for both driver and co-driver above the windshield. The sun visors can be used for either frontal or sideward shade, to reduce glare or to shut out direct rays of the sun.
Pull down the sun visor to block the glare of the sun. The sun visor can also be swivelled to the side as shown.
Graphic
A
Sun Visor Extension
B
Ticket Holder
9.4 Utility Holders
9.4.1 Upper Console Tray
Graphic
Do not place large or heavy objects on the foldable trays, accessing the centre console storage will be difficult. Ensure the tray cover is latched properly once closed.
Unlock the console tray cover by unlocking the tray latch (A) and lifting the cover all the way up.
Graphic
A
Upper Console Tray
B
Centre Console Storage
9.4.2 Centre Console Storage/Cooler (if equipped)
Bigger objects, cans, etc. can be stored in the centre console storage. Unlock the centre console cover (which includes the upper tray console also) by unlocking the latch (B) and lift the console cover all the way up.
In select variants, a cooler (air vents) is provided in the centre console storage. You can cool cans, small bottles, etc. by opening the air vents at the bottom floor of the storage. Turn the cooler clockwise to open the air vents, or anti-clockwise to close the air vents.
Graphic
Graphic
A
OFF
B
ON
Only sealed cans/bottles to be stored in the centre console storage/cooler. Any spilled beverage can damage the interior trim and electrical components/cooler.
9.4.3 Multi-box Storage
Graphic
The multi-box is located above the infotainment screen in the centre console. It can be used for storing small items like mobiles, wallets, tickets, etc.
To open the lid, gently press the lid. To close, gently press the lid all the way down till it locks.
Do not store big items in the multi-box which may obstruct the proper closure of the multi-box lid. On rough or uneven roads, the lid might open up spilling the contents and leading to distraction.
9.4.4 Centre Box
Graphic
The centre box is located below the HVAC/Switch bank near the gear lever. Small objects like tickets, wallet, etc. can be stored. To open, gently press the centre box lid. To close, gently press the lid all the way down till it locks.
9.4.5 Glove Box
There are two glove boxes on the co-driver side of the instrument panel:
•  Upper Glove Box
•  Lower Glove Box
Upper Glove Box
Graphic
The upper glove box can be opened by gently pressing the unlock push button (A). To close, gently lower the glove box lid and press to lock.
Do not overload the glove box.
Do not store loose or small metal objects inside glove box. This will lead to rattling while the vehicle is driven on bad roads.
Lower Glove Box
Graphic
The lower glove box is located just below the upper glove box. To open, gently press the unlock push button, and lower the lid. To close the glove box, raise the lid all the way up and gently press to lock the lid.
The lower glove box is illuminated automatically when it is opened and the light turns OFF when it is closed.
It is suggested to keep copies of all vehicle documents along with the Owner’s Manual Kit in the glove box for reference when needed.
To avoid the possibility of injury in case of an accident or a sudden stop, both the upper and lower glove box lids should be kept closed when the vehicle is in motion.
9.4.6 Cup Holder
Graphic
The cup holder located in the floor console between the front seats, It can be used for small cups or cans that are closed or have a lid.
Only sealed cups/cans with lid to be used in the cup holders.
Use caution when using the cup holders. A spilled beverage that is very hot can injure driver or passengers. Spilled liquids can also damage interior trim and electrical components. Any spilled beverage can also startle the driver and cause a loss of control of the vehicle resulting in an accident.
9.4.7 Ashtray (if equipped)
An ashtray is provided in the cup holder. Lift the lid to use the ashtray. To empty the ashtray, firmly pull the ashtray up. Similarly, to put it back, gently press the ashtray back in the same location.
Do not use the ashtray for disposing of waste paper or other combustible items. They may catch fire when a cigarette butt is extinguished in the ashtray.
9.4.8 Second Row Seat Armrest - Cup Holder
Graphic
The second row seats have an armrest embedded into the seat back. The armrest can be unfolded and used as a cup holder.
Only sealed or cups with lid and cans to be used in the cup holders.
Use caution when using the cup holders. A spilled beverage that is very hot can injure the passengers. Spilled liquids can also damage interior trim. Never place objects other than cups or cans in the cup holder. These objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
9.4.9 Second Row Seat Armrest - Storage Bin (if equipped)
The second rows seats have an armrest embedded into the seat back. The armrest incorporates a storage bin with smooth operating magnetic bin cover and a cup holder.
Graphic
Only sealed or cups with lid and cans to be used in the cup holders.
Use caution when using the cup holders. A spilled beverage that is very hot can injure the passengers. Spilled liquids can also damage interior trim. Never place objects other than cups or cans in the cup holder. These objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
9.4.10 Third Row Cup Holder
The cup holders are located on both the left and right side trims below the magazine holder.
Only sealed or cups with lid and cans to be used in the cup holders.
Graphic
9.4.11 Bottle and Umbrella Holder
Graphic
Bottle and Umbrella holders are located on both the front door lower trims. You can use them to store umbrellas, maps, papers, small books, bottles, etc.
Only sealed/closed bottles are to be used in the bottle holders.
9.4.12 Seat Back/Magazine Pocket
The seat back pockets are located on the back of the front seats for holding lightweight papers/books/magazines, etc.
To avoid injury, do not place large or hard objects in the seat back pockets. Do not put more than 1 kg weight in seat back pockets.
Graphic
9.4.13 Third Row Magazine Pocket
Graphic
The third row magazine pockets are located on the trims on either side of the third row seats. They can be used for holding lightweight papers/books/magazines, etc.
Do not place large or hard objects in the magazine pockets. Do not put heavy objects in the magazine pockets.
There are two ticket, mobile or small object holders on either side of the front floor console.
Graphic
9.4.14 Grip Handle (if equipped)
Graphic
Foldable grip handles are provided above the front (passenger only), second row and third row outboard seats.
9.4.15 Coat Hook
Graphic
The second row outboard passenger seats grip handles feature a coat hook for hanging your coat, shirts, etc.
Hang lightweight articles only. Hanging excess/bulky weight/items may cause breakage of the hook and inconvenience to the passengers.
9.4.16 Sun Glass Holder (if equipped)
Graphic
Graphic
Roof mounted sun glass holder is an integral part of the front interior lamp. Press the lid to release the latch and lower the holder. It is strategically positioned to be accessed easily by both the driver and front passenger.
Do not access the sun glass holder while you are driving. It may distract your concentration and could lead to an accident.
9.4.17 Floor Mat (if equipped)
Floor mats are provided in the front and rear foot wells to avoid stains on the floor carpet.
Always keep the floor mats in their correct position to avoid interference with the movement of the accelerator or brake pedals during driving, which may lead to accidents.
9.5 Horn
Press the pad on the steering wheel to blow/sound the horn. The horn functions even when the ignition has been switched OFF.
Graphic
9.6 Interior Lamps
Interior lamps comprise front/rear roof lamps, map reading lamps, ambience lamps and ignition key ring illumination. These lamps can be used for an illuminated entry. In auto mode, the roof lamps (courtesy lamps) and ignition key ring illuminate when any of the doors are opened. Once all doors are closed, the interior lamps switch OFF.
9.6.1 Front Roof Lamp
Graphic
The front roof lamps are located in the roof console above the interior rearview mirror. The roof lamp can be switched ON pressing the lens on the lamp. Press the lens again to switch OFF the roof lamp.
9.6.2 Map Reading Lamp (if equipped)
Graphic
Do not leave the roof/map reading lamp in permanent ON mode. This will drain your vehicle battery.
9.6.3 Second Row Roof Lamp
The second row roof lamp is located on the roof above the second row seats. The courtesy lamp can be switched ON/OFF by the switch on the lamp.
The roof lamp switch has three operation modes to choose from:
•  The roof lamp remains permanently ON in this position irrespective of the door open status
•  The roof lamp remains in DOOR/AUTO mode in this position
•  The roof lamp remains permanently OFF in this position
Graphic
A
Permanent ON
C
Permanent OFF
B
Door/Auto Mode
The operation of the courtesy lamp in Auto/Door mode is as follows:
•  Roof lamp switches ON, dims and goes OFF after a preset delay once RKE/PKE unlock is performed
•  Roof lamp switches ON when any of the doors is/are open
•  Roof lamp dims and goes OFF after 10 secs delay upon closing of all doors
•  Roof lamp dims and goes OFF immediately on RKE/PKE lock or manual key lock after all doors are closed
•  If any of the doors are not closed properly, the roof lamp switches OFF automatically once the vehicle speed > 10 kmph
•  Roof lamp goes OFF with ignition ON and all doors closed properly
The roof lamp will be turned ON in the case of an accident in a SRS equipped variant provided the roof lamp switch is in “Door/Auto” mode.
9.6.4 Ambience Lamp (Icy Blue) (if equipped)
The ambience lamps give out a light red ambience in the vehicle. They can be switched ON/OFF by the ambience button on the centre bezel switch bank.
Ambience lamps are located in the following locations:
•  Around the front roof lamp
Graphic
•  Under the seat
Graphic
•  Above the pedals in the driver side foot well
Graphic
•  Below the door handle
•  Above the bottle holder in the inner door trim
Graphic
9.6.5 Door Ajar Lamp (if equipped)
The door ajar lamp is present on all four doors. The respective door lamp illuminates when that particular door is open or improperly locked.
The door ajar lamp illuminates even in the vehicle switched OFF condition with the ignition key removed.
Graphic
9.6.6 Illuminated Scuff Plates (if equipped)
The illuminated scuff plates are switched ON every time the door is opened. This can also be used as a guide light during ingress or egress.
Graphic
9.6.7 Camping Lamp (if equipped)
Graphic
Camping lamp aids you during brief stops in night trips and also while loading/unloading luggage in the rear. It is switched ON/OFF by pressing the switch (A) on the camp lamp.
9.6.8 Battery Saver
The battery saver feature helps in switching OFF interior lamps that are inadvertently ON for long durations. This feature works only after the vehicle is locked with the interior lamp ON. If the vehicle is improperly closed/locked, the battery saver switches OFF the lamp after a duration of 3 mins.
9.7 Power Outlet
There are three (depends on the variant) 12V power supply sockets provided for power take OFF. Electrical equipment/appliances like mobile phone charger, cigarette lighter, etc. can be used in the outlets.
The power sockets function only when the ignition is in ACC or ON positions. It is recommended to use the power sockets when the engine is ON to avoid battery drain.
The power outlets are located in the following places in the vehicle:
•  Front - In the compartment below the centre bezel switch bank (If equipped)
Graphic
•  Front - USB power outlet In the compartment below the centre bezel switch bank (If equipped). This port supports Android Auto/Carplay
Graphic
•  Second Row - Behind the centre console storage (if equipped)
Graphic
To avoid serious injury:
•  Close the power outlet cap when not in use
•  Do not allow children to use or play with the power outlet
•  When using electrical appliances, strictly follow the manufacturer's instruction manual
•  Never use the power outlet for electric heaters while sleeping
•  Never insert foreign objects into the power outlet
•  Never use malfunctioning electrical appliances
•  Never insert inappropriate or badly fitting plugs into the power outlet
Do not modify, disassemble or repair the power outlet in any way. Doing so may result in unexpected malfunction or fire, which could cause serious damage to equipment and/or personal injuries. Contact an Authorised Mahindra Dealer for any necessary repairs.
To prevent injuries and accidents, secure all electrical appliances before use. Do not use any appliance that may:
•  Distract the driver while driving, or hamper safe driving
•  Result in a fire or burn injuries due to the appliance rolling, falling or overheating
•  Emit steam, while the windows of the passenger compartment are closed
•  Use the power outlets only when the engine is running. Remove the plug from the power outlet after using the electric device. Using the power outlets when the engine is OFF or leaving the electric device plugged in for many hours may cause the battery to drain
•  Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V
•  Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle
9.8 Instrument Panel Illumination
Graphic
The instrument panel light intensity can be varied by the illumination control knob located on the RHS near the head lamp levelling switch.
Roll up/down for bright/dim intensity of illumination for the following lighting:
•  Instrument cluster
•  Ambient lamp
•  Interior switches
•  Infotainment screen/display
9.9 AUX and USB Ports (if equipped)
Graphic
The AUX and USB ports are provided on the centre switch bezel below the infotainment controls. They can be used as an input to the music system. You can connect iPods, USB memory sticks, etc. as an input and listen to the music through the vehicle speakers.
It is recommended to connect an input device only when the vehicle is stationary. Trying to connect an input device while driving may distract your attention and lead to accidents.
9.10 Exterior Lamps
9.10.1 Lighting Control Stalk
Graphic
The lighting control stalk is located on the right hand side of the steering wheel and is a part of the combination switch. It controls operations of parking lamps, head lamps, head lamp beam selection, high beam flashing, front/rear fog lamps and turn signals when the ignition switch is ON.
9.10.2 Turn Signals
Graphic
A
Turn Signal - Left
B
Turn Signal - Right
9.10.3 Turn Signal - Right
•  Push the lighting control stalk clockwise (to stop position B) to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right
After you have completed your right turn, the stalk will automatically return to the neutral position switching OFF all the lamps.
9.10.4 Taking a Left turn
•  Push the lighting control stalk anti-clockwise (to stop position A) to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left
•  After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF all the lamps.
If the turn signal lamps on the instrument panel flash faster than normal, there may be a possibility that one or more of the turn signal lamp bulbs have blown. Replace the blown bulb immediately.
9.10.5 Lane Changing
To signal a lane change, move the light control stalk clockwise or anti-clockwise to the limit point of free movement of the lever and release. The turn signals will flash three times and stop.
The turn signals will continue flashing as long as the lighting control stalk is held in the limit point of free movement.
9.10.6 Lamps OFF
Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to “OFF” on the switch to switch OFF all lamps.
Graphic
9.10.7 Parking Lamp ON
Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “1st detente” position on the switch to switch ON the parking lamps.
The tail lamp, license plate lamp, instrument panel illumination lamps and all interior switches are also activated when the parking lamp is switched ON.
Graphic
Graphic
Park/Position Lamps will not be switched off automatically. User has to turn it off manually.
9.10.8 Head Lamp ON
Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “2nd detente” position on the switch to switch ON the head lamps.
Graphic
9.10.9 Head Lamp Low/High Beam
Graphic
A
Low Beam
B
High Beam
Switch ON the head lamp, and push the lighting control stalk down (away) from steering wheel to switch ON the head lamp high beam or lift/pull the lighting control stalk up towards the steering wheel to switch ON the head lamp low beam. In head lamp high beam, the high beam tell-tale lamp in the instrument cluster illuminates indicating high beam option selected.
9.10.10 Head Lamp Flash
Graphic
Pull the lighting control stalk (from the head lamp low beam position) towards the steering wheel to instantaneously flash the head lamp high beam. The head lamp flash works only when the head lamp is OFF or in low beam position.
9.10.11 Auto Head Lamp
The auto head lamp feature works on the outside ambient light intensity input by the RLS (Rain-Light Sensor). Based on this input, the head lamps are turned ON/OFF. For E.g.: This feature will be helpful while driving through a tunnel or poor lit area.
The RLS is located behind the interior rearview mirror on the windshield.
Graphic
To turn ON the auto head lamp feature, rotate the outer rotary switch on the lighting control stalk anti-clockwise aligning the “arrow” on the stalk to the auto head lamp icon on the switch. This is indicated by the auto head lamp tell-tale in the infotainment screen.
To de-activate the auto head lamp, rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the OFF position on the switch.
There is a difference between ambient light intensity sensed by the RLS (Rain-Light Sensor) on the windshield and by the human eye. The RLS may activate the head lamps early during evening hours or may de-activate late during morning hours. This is absolutely a normal behaviour.
In case of a windshield replacement, the RLS also needs to be replaced along with the windshield. An old RLS cannot be calibrated to a new windshield.
Your vehicle head lamps are vented and moisture may be collected on the inside of the head lamp lens under certain climatic and geographical conditions. This moisture will evaporate once the head lamps have been switched ON for a few minutes.
9.10.12 Head Lamp Levelling System
When the vehicle is either fully or partially loaded, it may have an upward inclination disturbing the head lamp aiming. A correct head lamp setting provides good visibility to the driver with minimum inconvenience to other road users.
To properly aim the head lamp beam, use the head lamp leveling switch. This switch is located on the right side of the steering column shroud in the instrument panel. This switch has four positions marked as 0, 1, 2 & 3.
Graphic
Switch Position
Vehicle Loading Condition
0
Driver/Driver with Front Passenger
1
Driver + Front passenger + Second row occupied
2
All seats occupied
3
All seats occupied with luggage OR Driver with luggage at extreme rear side.
Select the suitable switch position depending on the pay load as advised in the table.
The headlights can only be adjusted when the low beam is switched ON
9.10.13 Static Bending Lamp (if equipped)
Graphic
Static Bending lamps are available on both the head lamps. The static bending lamp assists the driver while taking a turn. It will be activated when the head lamp is ON and steering wheel turned more than 90° at 5 kmph or 45° at 100 kmph speeds.
9.10.14 Fog Lamps (if equipped)
Fog lamps are to be used along with head lamp low beam, to improve the vision during foggy and misty conditions.
9.10.15 Fog Lamps OFF
Graphic
Align the “OFF” of inner rotary switch on the lighting control stalk to the “arrow” mark on the inner fixed stalk as shown to switch OFF the fog lamps.
9.10.16 Front Fog Lamps ON
To switch ON the front fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk anti-clockwise aligning the front fog lamp icon to the “arrow” on the inner fixed stalk as shown. The rotary switch moves back to its neutral position once released.
The front fog lamp indicator in the instrument cluster indicates the operation status.
Graphic
Fog lamps will turn ON only if parking lamp is ON.
9.10.17 Rear Fog Lamp
To switch ON the rear fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk clockwise aligning the rear fog lamp icon to the “arrow” on the inner fixed stalk as shown. The rotary switch moves back to its neutral position once released.
The rear fog lamp indicator in the instrument cluster indicates the operation status.
Graphic
The rear fog lamps can be switched ON only along with the front fog lamps.
9.10.18 Puddle Lamp (if equipped)
Graphic
Puddle lamps are provided at the bottom of the front and rear doors. They are switched ON automatically when either of the front or rear doors are opened. This illuminates the ground below the respective door thereby assisting in a safe entry and exit.
9.10.19 Entry Assist Lamp (if equipped)
Entry assist lamps are located on the bottom of both left and right ORVM’s. They provide a illumination outside the driver and front passenger doors when the FMH or LMV features are activated.
Graphic
9.10.20 Follow-Me Home (FMH) (if equipped)
This feature helps the driver and passengers to easily get out of the vehicle during poor light conditions. The head lamp low beam and entry assist lamps are turned ON for about 20 seconds assisting the passengers to find their way.
To activate FMH:
•  Switch OFF the parking lamps
•  Remove the ignition key
•  Open the driver door
•  Head lamp and entry assist lamp switches ON for 20 seconds unless cancelled by UNLOCK signal.
For FMH to be activated, the vehicle should have been driven with the park lamps or auto head lamp ON before switching OFF.
To extend the FMH feature further for 20 seconds, press RKE LOCK button. This FMH extension can be availed for maximum 2 minutes from the first activation.
With FMH mode ON; First LOCK signal received from RKE will lock the doors and subsequent LOCK signal is used to toggle the head lamp ON and OFF.
With FMH mode ON, if UNLOCK signal is received twice from RKE; the feature gets deactivated and cannot be extended further. Also, the doors are unlocked and vehicle disarmed.
9.10.21 Lead Me to Vehicle (LMV) (if equipped)
LMV is the feature that switches the head lamp and entry assist lamps ON for 20 seconds helping the passengers to reach the parked vehicle safely and comfortably at night.
LMV is activated:
•  Pressing the unlock button on the RKE under poor light conditions (if vehicle is equipped with auto head lamp)
•  Pressing the unlock button on the RKE when FMH was activated while locking the vehicle previously (if vehicle is not equipped with auto head lamp)
LMV is de-activated:
•  At the end of 20 seconds after activation
•  When any door is opened
•  Ignition is switched ON
•  LOCK command is received from RKE
To extend the LMV feature further for 20 seconds, press RKE UNLOCK button. This LMV extension can be availed for maximum 2 minutes from the first activation.
With LMV mode ON; First UNLOCK signal received from RKE will unlock the doors and subsequent UNLOCK signal is used to toggle the head lamp ON and OFF.
9.10.22 Hazard Warning Lamp
The hazard warning lamp switch is located in the centre bezel switch bank on the instrument panel.
To turn the hazard warning lamp ON, push the switch in. All the turn signal lamps flash. The instrument cluster turn indicator lamps also flash indicating the same. To turn OFF, push the switch again.
Graphic
Use the hazard warning lamp when your vehicle is stationary or to warn other road users to be cautious while passing your vehicle.
The turn lamps do not work when the hazard warning lamps are operational.
9.11 Windshield Wipers
9.11.1 Wiper Control Stalk
Graphic
A
Flick Wipe (MIST)
D
Low Speed (LO)
B
Off
E
High Speed (HI)
C
Intermittent (INT)
F
Intermittent Speed
9.11.2 Wiper Off
The wipe function is OFF when the wiper control stalk is in neutral position (B).
9.11.3 Flick-Wipe (Mist)
Push the wipe control stalk to position (A) for a flick-wipe, hold to operate the wipe continuously (simultaneously lift the wiper stalk towards the steering wheel to operate the wash). The stalk automatically comes back to position (B) when released.
9.11.4 Intermittent (INT) Mode
Intermittent (INT) wiping is selected when the wipe control stalk is pushed down to position C. In the INT mode, the wiper operates on preset intervals.
The delay between each wipe can be varied by rotating the wiper speed intensity rotary switch (F).
9.11.5 Low Speed Wiping
Push the wipe control stalk down to the position (D) to operate the wiper at a fixed low speed.
9.11.6 High Speed Wiping
Push the wiper control stalk down to position (E) to operate the wiper at a fixed high speed.
The wipe/wash function can be activated only when the ignition is in “ON” position.
9.11.7 Auto Wipe
Graphic
The auto wipe feature works by sensing water (by the RLS) on the windshield. Based on this input, the wipers are turned ON/OFF. For E.g.: this feature will be helpful when the rain is inconsistent.
The RLS (Rain-Light Sensor) is located behind the interior rearview mirror on the windshield.
To turn ON the auto wipe feature, press the outer rotary switch side/edge on the wiper control stalk. This is indicated by the auto wipe tell-tale in the infotainment screen and the wiper performing one single wipe.
The sensitivity of the RLS can be varied by the wiper speed intensity rotary switch (F) on the wiper stalk.
To de-activate the auto wipe, switch OFF the ignition or press the auto wipe switch on the wiper stalk.
There is a difference between the RLS (Rain-Light Sensor) sensing rain (water) on the windshield and the human eye sensing rain. The RLS may activate the wipers when the windshield (top band) is wet. This is absolutely a normal behaviour.
In case of a windshield replacement, the RLS also needs to be replaced along with the windshield. An old RLS cannot be calibrated to a new windshield.
9.11.8 Wipe/Wash
Pull/Lift the wiper control stalk towards the steering wheel from any position to activate wipe/wash function. Washer fluid from front washer reservoir is pumped and sprayed onto the windshield. The wipers wipe the windshield 3 times after the washer spray is stopped and wipe once after 5 secs. Hold the stalk in position for continuous spray of washer fluid.
Graphic
When wiper is in OFF or Interval mode:
After completion of the wipe/wash cycle, wipers return to their bottom position.
If the wipers are in interval mode and DWELL delay is less than or equal to 5 seconds, then the wiper will continue in the interval mode.
If the wipers are in interval mode, and DWELL delay is more than 5 seconds, then a further single wipe will be performed 5 seconds after the wash/wipe cycle. After the drip wipe (last wipe), wiper returns to normal interval wipe.
9.11.9 Rear Wiper (if equipped)
Graphic
Rotate the outer rotary switch on the wiper control stalk to align the “arrow” on the stalk to the rear wipe “ON” position to operate the rear wiper.
9.11.10 Rear Wash (if equipped)
Graphic
The rear windshield wash & wipe operates 3 to 4 times or as long as the stalk end is turned/rotated to the rear wash position. Wiping will continue for few seconds after releasing the stalk end switch.
If you switch OFF the ignition before switching OFF the wiper, the blades stop at random on the windshield. Switch ON the ignition and move wiper stalk to 'MIST' position to return the wipers to the park position, provided the wiper stalk is in OFF position.
Using a windshield washer in freezing temperatures could be dangerous. The washer fluid could freeze on the windshield, and block your vision resulting in an accident. If you operate your vehicle in temperatures below 40C, use washer fluid with anti-freeze protection.
•  Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass
•  It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass
•  Do not operate the windshield washer for more than
10 seconds or when the reservoir is empty
9.11.11 Auto-rear Wiping (if equipped)
With the front wipers ON and rear wipers OFF, engaging the reverse gear activates the rear wiper.
9.11.12 Windshield Washer - Front & Rear
There are two nozzles with three adjustable washer jets in the front (below the wipers). Using a pin, the eye ball jets can be adjusted precisely for direction. Always direct the washer jet to hit the middle of the windshield. This will enable the wiper blade to wipe the complete width of the windshield.
Graphic
Graphic
In the rear, two nozzles with twin adjustable washer jets are provided for the rear windshield wash. Adjust the nozzle to direct the washer jet to hit the middle of rear windshield using a pin. Rear windshield washer fluid is supplied from rear washer reservoir located in the back door.
9.12 Electric Sunroof (if equipped)
A sunroof will make the driving experience more enjoyable by bringing light and sunshine into the vehicle. It provides a real open air feeling along with pure driving fun. With fresh air, your driving experience automatically becomes significantly more relaxed. A sunroof allows air to flow evenly from above the driver, which is much quieter and less intrusive than wind blowing through a side window.
9.12.1 Sunroof Sliding Operation
Graphic
A
Sunroof Glass Control Switch - Forward/Close
B
Sunroof Glass Control Switch - Backward/Open
Open:
Press the switch (B): 2-step auto sliding open
Graphic
Graphic
When pressing the switch (B) for more than 3 seconds, the sunroof is automatically opened by two-third of its travel (first step). Again by pressing the switch (B) for more than 3 seconds, the sunroof is completely opened (second step).
To stop the sunroof movement at any point, press the sunroof switch (B) momentarily.
Press the switch (B) and hold : manual sliding open
The sunroof is opened as long as pressing the switch (B).
Close
Press the switch(A) and hold for 3 seconds: auto sliding close
When pressing the sunroof switch(A), the sunroof is automatically closed completely. To stop the sunroof, press the switch(A) at desired position while moving.
Press the switch(A): manual sliding to close
The sunroof is closed as long as pressing the switch (A).
In cold and wet climates, the sunroof may not work properly due to freezing conditions.
After a vehicle is washed or in a rainstorm be sure to wipe off any water that is on the sunroof before operating it.
9.12.2 Sunroof Tilting Operation
Graphic
Tilt up -
The rear side of the Sunroof is tilted up when pressing the switch(A), when the Sunroof is in closed condition.
Tilt down/close
The rear side of the Sunroof is closed down when pressing the switch(B), when the Sunroof is in tilt up condition.
•  Even though the sunroof can be operated when the ignition key is in the ON position (the engine is not running), operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine is running
•  When a desired sunroof operation is completed, release the switch. If you keep pressing the switch, it could cause a malfunction. Especially in winter, never operate the sunroof if moving areas are iced. Wait until the areas are deiced
•  When leaving the vehicle unattended, be sure to completely close the sunroof. Otherwise, there is a great risk of vehicle theft. Or, the interior of the vehicle will be wet when it rains or snows
•  When the sunroof is slid to its complete open position, the wind buffet phenomenon can increase. If this happens, adjust by opening the sunroof or only open two-thirds of the sunroof by using only the first step of the opening system
•  When operating the sunroof, be aware of safety conditions before operation. Parts of the body can be trapped
•  Clean up the circumference of sunroof regularly. Otherwise, operating the sunroof may cause a noise due to foreign material and dirt
•  Opening the sunroof or driving with the sunroof open after a car wash or rain may lead to water entering
•  Close the sunroof while driving in the dusty environment. The dusts or particles entered can cause operating problems
•  If a roof rack system is installed on the vehicle roof or any cargo is secured to the roof rack, do not operate the sunroof. If you are required to operate the sunroof, carefully check that the roof rack system does not interfere with the sunroof and it is safe to open the sunroof
9.12.3 Anti-Pinch Function
To prevent any body parts from being trapped by the auto-closing sunroof, an Anti-Pinch Function automatically opens the sunroof when an object is trapped.
Graphic
•  The sunroof pinch protection function only operates during automatic closing, not manual closing
•  When operating the sunroof, be aware of safety conditions before operation. Parts of the body can be trapped
•  Never adjust the sunroof or sunshade while driving. This could result in loss of control and an accident that may cause death, serious injury, or property damage
•  Anti-pinch function is not available in sunroof “Tilt” close operation
•  If you would like to carry items on the roof rack using a cross bar, do not operate the sunroof. When carrying cargo on the roof rack, do not load heavy items above the sunroof or glass roof
9.12.4 Wind Buffeting
When you drive the vehicle with the window or sunroof open at a certain position, you may feel some pressure upon your ears or hear some noises similar to those from a helicopter. This happens because of an influx in air through the window or sunroof and its resonance effect. If this happens, adjust by opening the window or sunroof.
9.12.5 Re-Calibrating the Sunroof
When the battery is disconnected/discharged or Power Failure while Operating Sunroof, the sunroof may malfunction, reset the system.
If the sunroof is stopped midway due to a discharged battery or power failure or battery has been disconnected, you need to re-calibrate the starting point of the sunroof. In addition, the following cases need the re-calibration:
•  The sunroof does not completely close or open by operating the switch once
•  The sunroof slides back to close. But the operation does not stop even after a complete close and tilts up the sunroof
•  The opening gap remarkably decreases for the sliding open or tilt up
•  The sunroof does not work
Re-Calibrating the Sunroof Starting Point
Press the switch(A) for 10 seconds while the rear side of the sunroof is tilted up, the sunroof starting point will be recalibrated with a thumping sound.
If the sunroof still does not operate properly after recalibrating the start point, bring your vehicle in to a Authorised Mahindra Service center for an inspection.
When the sunroof is completely opened with the sunroof switch and the switch is operated to the “OPEN” direction for more than 5 seconds, the sunroof cannot completely be either closed or opened by operating the switch once. The sunroof will be moving only when the switch is being operated. When this happens, re-calibrate the beginning point of the sunroof to reactivate the one touch function.
Periodically remove any dirt that may accumulate on the guide rail.
Close the sunroof when driving in dusty environments. Dust may cause a malfunction of the system.
9.12.6 Sunroof Service Checking Procedure
•  Open the Sunroof
Graphic
•  Check all 4 Rail channel corners for mud or Dust/ Leaf present in it
Graphic
•  Move the leafs/Dust to center of rain channel and then remove it by hand
Do not blow air in drain hose channel before cleaning it manually – as the bigger leaves my go inside and block drain hose.
Graphic
•  After cleaning of all visible particles blow air into drain hose channel area to clean hose for mud in this area
•  Now pour 1 liter of water in rain channel and check if water is draining or not
If water is not draining kindly contact the Mahindra Dealer or Mahindra Authorised Service Centre.
9.13 Instrument Cluster
Graphic




A
Speedometer
B
Fuel Gauge
C
Odometer/Trip Meter/Gear Indicator
D
Warning/Telltale Lamps
E
Tachometer/RPM Gauge
F
Temperature Gauge
G
Reset Button
The instrument cluster comprises the tachometer, speedometer, trip meter (A & B), Reset Button, Odometer, Fuel gauge, Coolant Temperature gauge, Warning lamps and Telltale indicators.
9.13.1 Tachometer
Graphic
The tachometer indicates the real-time engine speed in thousands of RPM (revolutions per minute). Each division is 500 RPM. Operating the engine at very high RPM may lead to excessive engine wear and low fuel economy. Maintain steady engine speed below 2500 RPM and do not accelerate or decelerate abruptly.
Do not over-accelerate the engine during idling, this can cause severe engine damage and would be treated as abuse of the engine which is not covered by warranty.
9.13.2 Speedometer
Graphic
The speedometer indicates the real-time road surface speed of the vehicle in kilometres per hour.
The vehicle speedometer is affected by size of the tyres used. If the size of the tyres are changed from those fitted at the factory, the speedometer might not display the correct road surface speed and distance travelled.
9.13.3 Over Speed Alert
•  Primary level: For Vehicle Speed >= 80 kmph Buzzer will trigger single chime in every 110 seconds when the vehicle speed reaches < 76 kmph primary level chime will be off..
•  Secondary level:For Vehicle speed >= 120 kmph Buzzer will trigger single chime in every 2 seconds. When the vehicle speed reaches < 114 kmph second level chime will be off and primary level chime will be active.
9.13.4 Odometer
Graphic
The odometer records and displays the total distance travelled in kms. Press the reset button (A) to cycle through odometer and tripmeter displays. Odometer cannot be reset.
9.13.5 Tripmeter and Reset Button
Graphic
Graphic
Tripmeter displays the elapsed distance travelled since the last trip reset. There are two tripmeters (A/B) which can be reset individually as necessary.
Odometer and tripmetersare displayed only when the ignition is ON and their displays are cycled/toggled by the reset button (A).
•  To select trip A or B, press and release reset button (A) for a second
•  To shift from trip A to trip B or vice versa, press and release the reset button (A) again for a second
•  While on trip A or B, press and hold the reset button (A) for more than 1 second to reset the respective trip reading to zero
•  Pressing the reset button (A) while in trip B, displays the odometer reading. Again pressing the rest button (A), displays trip A
9.13.6 Engine Coolant Temperature Gauge
The engine coolant temperature gauge functions only when the ignition is switched ON. It indicates the instantaneous engine coolant temperature. The coolant temperature varies with changes in weather, load on engine and driving pattern. Temperature rises from Cold (C) (Blue Colour) to Hot (H) (Red Colour).
Graphic
When coolant temperature reaches the red zone, the high engine coolant temperature warning lamp illuminates.
In such situations, switch OFF the AC and observe for any improvements in temperature gauge. If not, stop the vehicle and allow the engine to cool down. Check the coolant level in the coolant reservoir and top-up if required. If the engine is still heating up, contact your nearest Authorised Mahindra Dealer.
Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could splash on to skin/eyes causing severe burns. Wait for the engine to cool down before adding coolant to the reservoir.
Do not continue driving the vehicle with an overheated engine. This will lead to damage of engine components and engine seizure.
9.13.7 Fuel Level Gauge
Graphic
The fuel level gauge functions only when the ignition is switched ON. It gives the status of the fuel level in the fuel tank. F indicates the tank is full (70 litres), E indicates the tank is empty.
When the fuel level reaches the reserve, the last 2 bars are displayed. The last bar in the display blinks when the fuel in the tank reaches the low level (approx. 5 litres).
The amount of fuel required to fill the tank up may be less than the specified tank capacity, as a small amount of reserve fuel always remains in the tank.
On inclines or curves, due to the movement of fuel in the tank, the fuel level may fluctuate or the last bar may flash earlier than usual. Always check the fuel level when the vehicle is on level road.
If the last bar flashes even after filling sufficient fuel, contact your Authorised Mahindra Dealer as soon as possible.
When all the bars in the display starts blinking / flashing, contact the nearest Authorised Mahindra Dealer at the earliest.
9.14 Warning/Tell-tale Lamps in the Instrument Cluster
Graphic
A
Parking Lamp
P
ABS Warning Lamp *
B
AWD Lamp
Q
ESP OFF Lamp*
C
Rear Fog Lamp Indicator *
R
Tiretronics
D
Left Turn Indicator
S
Check Engine Lamp
E
Airbag Warning Lamp *
T
Parking Brake ON/Brake Fluid Low Warning Lamp
F
Front Fog Lamp Indicator *
U
OBD Check Lamp
G
Glow Plug Indicator
V
Head Lamp High Beam Lamp
H
Vehicle Armed Status Lamp
W
Engine Stop/Start Lamp*
I
Low Fuel Warning Lamp
X
Charging System Warning Lamp
J
Water-in-Fuel
Y
Door Ajar Warning Lamp
K
Right Turn Indicator
Z
Seat Belt Warning Lamp
L
Cruise Control Indicator *
A1
REGEN Indicator
M
High Coolant Temperature Warning Lamp
B1
DEF Indicator Lamp
N
Low Engine Oil Pressure Warning Lamp
C1
DPF Indicator Lamp
O
ESP System Warning Lamp*
@ if equipped
** Come ON momentarily with ignition ON and will remain ON till engine is started. * Come ON momentarily with ignition ON and go OFF in few seconds.
9.15 Warning Lamps in the Instrument Cluster
9.15.1 Seat Belt Warning Lamp
Graphic
The seat belt warning lamp illuminates reminding the driver and Co-driver to fasten the seat belt when the ignition is ON. The lamp will continue to illuminate till the driver and Co-driver fastens the seat belt properly.
9.15.2 Turn Lamps
Graphic
The turn lamp arrows in the instrument cluster flash showing the direction indicated by the turn signals. A sudden increase in the rate of flashing indicates failure of one or more of the lamp bulbs. Have them replaced as soon as possible.
9.15.3 Airbag Warning Lamp
Graphic
The airbag warning lamp in the instrument cluster illuminates when the ignition is switched ON and goes OFF in about 2 seconds once the engine is running. If the lamp remains ON continuously or flashs intermittently, contact an Authorised Mahindra Dealer immediately.
Following conditions indicate airbag malfunction:
•  Lamp fails to go OFF after engine is started
•  Lamp does not illuminate at all
•  Illuminates while driving
Contact an Authorised Mahindra Dealer immediately when the airbag warning lamp indicates a system malfunction. The airbag may not deploy when needed, which could result in serious or fatal injury, or it might deploy unexpectedly or unnecessarily, which may result in personal injury.
9.15.4 Front Fog Lamp (if equipped)
Graphic
The front fog lamp telltale indicates the status of the front fog lamp. The front fog lamp can be switched ON only when the parking lamp is ON.
9.15.5 Low Fuel Warning Lamp
Graphic
When the fuel level in the fuel tank falls below the reserve limit, the low fuel warning lamp is illuminated. Refuel sufficiently and the lamp goes out. If the lamp continues to remain ON even after refuelling, contact an Authorised Mahindra Dealer.
9.15.6 Glow Plug Indicator
Graphic
Glow plug indicator illuminates when the ignition is turned ON. It automatically goes OFF when the glow plug reaches the required temperature. Contact an Authorised Mahindra Dealer if the glow plug lamp does not illuminate with ignition ON or illuminates while driving.
9.15.7 Vehicle Armed Status Lamp
Graphic
The vehicle armed status lamp flashes intermittently (few seconds frequency) once the ignition is switched OFF and the vehicle security system is armed (when locked using the RKE).
Fast blinking indicates a malfunction in the engine immobiliser system. Contact an Authorised Mahindra Dealer immediately.
9.15.8 Rear Fog Lamp (if equipped)
Graphic
The rear fog lamp telltale indicates the status of the rear fog lamp. The rear fog lamp can be switched ON only when the front fog lamp is ON.
9.15.9 High Engine Coolant Temperature Warning Lamp
Graphic
The high engine coolant temperature warning lamp flashes when the coolant temperature is above 105ºC. It starts to flash at double the rate when the temperature reaches 110ºC and will be continuously ON with buzzer alert when the temperature reaches 114ºC.
The “red” bars in the temperature gauge also flash in the same frequency as the high temperature warning lamp when the above set temperature thresholds are reached.
Do not continue driving the vehicle with an overheated engine. This may result in engine damage, which will not be covered by the limited warranty.
9.15.10 Water-in-Fuel Warning Lamp
Graphic
The water-in-fuel warning lamp illuminates when the accumulation of water in the fuel filter reaches the maximum permissible limit. The fuel filter needs to be drained. Contact an Authorised Mahindra Dealer.
Do not continue driving the vehicle with the Water-in-Fuel Warning Lamp ON. This may result in fuel pump / other fuel system component damage, which will not be covered by the limited warranty.
9.15.11 Cruise Indicator
Graphic
The cruise control lamp illuminates when the ignition is switched ON and goes off in about 2 seconds indicating normal status. The lamp blinks if the accelerator is depressed, while in cruise mode.
When SET+ button in the steering wheel is pressed, cruise control is activated and the lamp illuminates indicating the vehicle is in cruise mode.
When CRUISE OFF button in the steering wheel is pressed, the cruise mode is deactivated and the lamp goes OFF indicating that the vehicle is not in cruise mode.
If the lamp does not illuminate when the vehicle is in cruise mode or does not go OFF when the vehicle is out of cruise mode, there is a possible malfunction in the lamp or the cruise control system. Have the vehicle checked by an Authorised Mahindra Dealer.
9.15.12 Low Engine Oil Pressure Warning Lamp
Graphic
The low engine oil pressure warning lamp illuminates when the ignition is switched ON and goes off when the engine started. If the lamp remains ON even after starting the engine, or illuminates while driving, stop immediately, check the oil level after 2-3 minutes. If low, add engine oil to the “MAX” level and check status. If problem persists, contact an Authorised Mahindra Dealer immediately.
Operating the vehicle with the low oil pressure warning lamp ON could cause sudden unexpected engine failure and loss of vehicle control, resulting in an accident and/or serious personal injury.
Do not run the engine with low oil pressure warning indicator ON. This may result in engine damage, which will not be covered by the limited warranty.
9.15.13 ESP System Warning Lamp
Graphic
While driving, if the ESC system warning lamp blinks, it indicates that ESP has taken control of the vehicle stability. If the lamp remains ON, it indicates the malfunction in the ESP System. Contact the nearest Authorised Mahindra Dealer.
9.15.14 ESP OFF Lamp
Graphic
The ESP OFF lamp illuminates when the ESP has been switched OFF manually.
9.15.15 Tiretronics
Graphic
The Tiretronics lamp illuminates if there is a tyre pressure or temperature difference in one of the tyres. The Tiretronics lamp blinks (for approx. 75 sec.) and then illuminates continuously when there is a malfunction in the Tiretronics.
9.15.16 Check Engine Lamp
Graphic
The check engine lamp illuminates when the ignition is switched ON and goes out in 2 seconds indicating normal status. The lamp blinks or illuminates continuously if there is a fault in the engine management system. Switch OFF the engine immediately. Contact the nearest Mahindra dealer for necessary repairs.
9.15.17 Parking Brake Lamp
Graphic
The lamp illuminates when Parking brake is engaged or when brake fluid level is low or when front brake pads are worn. If the lamp illuminates while driving, do the following:
•  Check if the parking brake is engaged. If yes, disengage it
•  Check if brake fluid level is low. If yes, top-up brake fluid to the required level
•  Front Brake pads may be worn out. Immediately get the vehicle checked at an Authorised Mahindra Dealer.
Clean the top of the brake fluid reservoir before removing the cap. Make sure no dirt, impurities or other items fall into the reservoir. Do not leave the cap off for more than a few minutes. Any contaminants, impurities or moisture in the brake fluid can affect brake operation, resulting in an accident.
If the brake warning lamp comes ON while driving, the brake system might not be working properly. The pedal might be harder to operate or might go closer to the floor and it can take longer to stop. Pull off the road carefully and stop the vehicle. Have the vehicle towed to the nearest Authorised Mahindra Dealer for checks or repairs.
Driving the vehicle with the brake warning lamp ON or when you suspect brake trouble is very dangerous and could result in serious injuries. Have your vehicle towed to an Authorised Mahindra Dealer.
9.15.18 OBD Check Lamp
Graphic
The OBD check lamp illuminates when the ignition is switched ON and remains ON till the engine is started indicating normal status. If the lamp remains ON, it indicates a potential malfunction.
There may be a malfunction in:
•  The fuel management system
•  The emission control system
•  Systems which affect emissions
Such malfunctions may result in excessive emissions. Contact an Authorised Mahindra Dealer immediately.
9.15.19 Head Lamp / High Beam Lamp
Graphic
The head lamp high beam telltale illuminates whenever the head lamps are switched ON to high beam or when the head lamp flash is used.
9.15.20 Engine Stop/Start Lamp
Graphic
The Engine Stop/Start lamp flashes when the vehicle/engine is about to stop through the Engine Stop/ Start System. The lamp illuminates continuously when the vehicle/engine has been switched OFF by the Engine Stop/Start System. On restarting the vehicle / engine again by using the clutch/key, the lamp goes out.
9.15.21 Anti-lock Brake System (ABS) Malfunction Lamp (if equipped)
Graphic
The ABS malfunction lamp illuminates when the ignition is switched ON and goes OFF after about 2 seconds. If the ABS malfunction lamp continues to remain ON or illuminates while driving (and the brake system warning lamp is OFF), ABS will not operate. But the brake system will still operate conventionally. In this condition, the wheels can lock during severe braking. Have the vehicle checked by an Authorised Mahindra Dealer as soon as possible.
However, if ABS malfunction lamp and brake warning lamp are simultaneously glowing, there is a severe malfunction in the ABS. Operate the vehicle with extreme care and have the vehicle checked as soon as possible at an Authorised Mahindra Dealer.
9.15.22 Battery Charging System Warning Lamp
Graphic
The battery charging system warning lamp illuminates when the battery is not being charged or when there is a malfunction in the alternator.
This lamp illuminates when the ignition is switched ON and goes out as soon as the engine is started. If the lamp continues to remain ON even after starting the engine, it is an indication that the battery is not being charged or there is a malfunction in the alternator. Check the alternator drive belt for looseness/breakage. If the drive belt is okay, switch OFF all unnecessary electrical equipment and recheck. Contact an Authorised Mahindra Dealer for further assistance.
9.15.23 Door Ajar Warning Lamp
Graphic
The door ajar warning lamp illuminates and the buzzer chimes 3 times when any of the doors including the hood and back door are open during ignition ON. The lamp goes OFF when all the doors are closed properly.
9.15.24 REGEN Indicator Lamp
Graphic
It indicates the DPF Manual Regeneration is Required. Also it is ON when manual regeneration is in progress. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”.
9.15.25 DPF Indicator Lamp
Graphic
If the DPF indicator is ON in the engine running condition then DPF regeneration has not happened. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”.
9.15.26 DEF Indicator Lamp
Graphic
If the DEF indicator is ON in the engine running condition then DEF Level is low or incorrect DEF has been filled or DEF Dosing is malfunctioning. Follow the instructions mentioned in the “EMISSION CONTROL SYSTEM”.
9.16 Reverse Parking Assistance System (RPAS) – Type 2
The RPAS is deigned to assist the user in parking or driving the vehicle with reverse gear. The display system will warn the user about the obstacles present near the vehicle rear side, so that the user can safely drive the vehicle.
When the obstacles come in the sensing range, the system starts giving the alert beeps in cluster (Applicable only for W3 Variant).
The frequency of RPAS beep alerts will increase as the obstacle comes closer to the vehicle and when the obstacle comes very close to the vehicle the alert beeps will become continuous.
10 STEERING AND BRAKES
10.1 Steering
Your vehicle is equipped with power steering. Power steering uses energy from the engine to decrease the driver's effort in steering the vehicle. The power steering system will give you good vehicle response and increased ease of manoeuvrability in tight spaces. If for some reason the power assist is interrupted, it will provide mechanical steering capability to steer the vehicle. Under these conditions, you will observe a substantial increase in steering effort, especially at very low vehicle speeds and during parking manoeuvres..
Upon initial start-up in cold weather, the power steering pump may produce noise for a short amount of time. This is due to the cold, thick fluid in the steering system. This noise should be considered normal, and it does not in any way damage the steering system.
Continued operation with reduced power steering performance could pose a safety risk to yourself and others. Have the vehicle serviced at specified intervals or whenever a power steering problem is noticed.
Do not grip the steering wheel spokes when driving off road. A bad bump could jerk the wheel and injure your hands. Keep both hands especially your thumbs on the outside of the steering wheel rim.
To help prevent damage to the power steering pump:
•  Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running
•  Heavy or uneven steering efforts may be caused by low power steering pump fluid level. Check for low power steering pump fluid level before seeking service by an Authorised Mahindra Dealer
•  Do not fill the power steering pump reservoir above the MAX mark on the reservoir, this may result in leaks from the reservoir
If the power steering system breaks down (or if the engine is turned OFF), you can still steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•  Under inflated tyre(s) on any wheel(s)
•  Uneven vehicle loading
•  High crown in the centre of the road
•  High crosswinds
•  Wheels out of alignment
•  Wheels out of balance
•  Loose or worn suspension components
10.1.1 Tilt Steering
Graphic
The steering wheel can be adjusted for both rake and reach as required using the lever in the steering shroud under the steering wheel.
To tilt/adjust the steering wheel:
1. Pull the tilt lever down to unlock.
Graphic
2. Raise or lower the steering wheel to the desired position.
3. Pull or push the steering wheel to the desired position.
4. Push the tilt lever back up to its original position to lock the steering.
Improperly locked steering wheel could cause loss of control and lead to accidents. Never adjust the steering wheel while driving.
10.2 Steering Controls - Audio (if equipped)
Graphic
The steering wheel also houses switches to control the main audio functions.
Refer to the Audio/Infotainment Manual for complete information on audio system features and controls.
10.2.1 Steering Audio Operations
Graphic
A
Mute
C
Source Selection
B
Volume + / -
D
Up / Down or Call Selection
•  TO TURN AUDIO ON/OFF - Press the mute button for 2 seconds
•  SOURCE - Press SOURCE button to toggle between AUX, CD, TUNER & USB mode
•  VOLUME CONTROL - Press ‘+’ and ‘-’ button to increase or decrease the volume
•  MUTE - Press MUTE button to mute audio while in TUNER and AUX mode and pause the song while in CD, USB mode
•  CD USB MODE - Press 'UP' / 'DOWN' button to go to
next / previous track
TUNER MODE - Press 'UP' / 'DOWN' button to go to next / previous frequency. Press 'UP' / 'DOWN' button for 2 seconds to AUTO TUNE
10.3 Brakes
Your vehicle is equipped with disc brakes in the front and Rear wheels.
Disc brakes offer good braking capability and reduced stopping distance. Wet brake discs result in reduced braking efficiency. After a car wash or driving the vehicle through water, pump the brake pedal mildly while driving to remove the film of water from the brake pads.
Brake pads feature wear indicator. When the front brake pad is worn out, there will be an indication in the cluster; the brake warning lamp will be ON. Replace the brake pads immediately.
Driving with wet brakes is dangerous. Stopping distance increases considerably when braking.
Dry the brakes by driving at very slow speed and applying the brakes lightly until the brake performance becomes normal.
Even if the power assist (vacuum assistance) is completely lost, the brakes will still work. The brake pedal would be much harder than normal and the vehicle stopping / braking distance will be longer than usual.
10.3.1 Parking on a Hill/Incline
If you have to park facing uphill, select first gear and turn the front wheels away from the kerb. If you have to park facing downhill, select reverse gear and turn the front wheels towards the kerb. Always ensure that the vehicle is in gear and parking brakes is engaged before leaving the vehicle.
10.3.2 Parking Brake
Graphic
To apply the parking brake, pull the park brake lever up as firmly as possible. When the parking brake is applied with the ignition ON, the brake warning lamp in the instrument cluster illuminates. To release the parking brake, pull the parking brake lever up slightly, press the release button on the lever tip and lower the parking brake lever completely.
The brake warning lamp indicates only the parking brake status. It does not indicate the degree of brake application. Be sure the parking brake is firmly set when parked and the gear shift lever is in gear. When parking on a hill; first apply the parking brake; after that shift the TGS lever to the P position (for AT) and gear for MT. This will avoid the load on the transmission, locking mechanism may make it difficult to move the shift lever out of gear.
Be sure the parking brake is fully disengaged before driving off. Failure to do so can lead to brake problems due to excessive heating of the rear brakes. It will also result in reduced fuel efficiency; lowered brake pad life and rear brake squeal.
•  The parking brake should be adjusted as per recommended maintenance schedule
•  Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission in gear. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in personal injury.
•  Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could move the vehicle leading to accidents
•  The parking brake should always be applied when the driver is not in the vehicle
Engaging the parking brake while the vehicle is in motion can cause the rear wheels to lock up. You could lose control of the vehicle and cause an accident.
10.4 Hazard on Panic Braking
Hazard lamps are turned ON during panic braking for 5 secs when the following conditions are met:
•  Ignition is ON
•  Vehicle speed is greater than 80 kmph
•  Panic/sudden brake is applied and high deceleration rate is sensed
10.5 Anti-Lock Brake System (ABS) (if equipped)
Graphic
The Anti-lock Brake System (also called as ABS) is designed to help prevent lock-up of the wheels and stable stopping of vehicle during a sudden, panic emergency braking or braking on slippery road surfaces. The ABS system takes input from wheel speed sensors and brake pedal switch to control the brake fluid pressures at the wheels to avoid wheel lock-up. It allows vehicle to be steered during braking.
The minimum speed for ABS to function is 12 kmph. ABS is activated only during wheel lock conditions where ABS takes over and prevents wheel lock.
During the ABS operation, a slight pulsation may be felt in the brake pedal to indicate ABS is active. You may also hear motor noise from the engine compartment. It is recommended to hold the brake pedal firmly while the ABS is active rather than pumping the brake pedal.
Depressing the brake pedal on slippery road surfaces as on a manhole cover, a steel plate at a construction site, a joint in a bridge, etc. on a rainy day, tends to activate the anti-lock brake system.
Graphic
The ABS warning lamp lights up when you switch ON the ignition and should go out after a few seconds. If the ABS warning lamp does not go out or if it comes ON while driving, it means there is a fault in the ABS system. In both cases, the normal braking system remains efficient, exactly as on a vehicle without ABS. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.
The ABS is not designed to shorten the stopping distance: Always drive at a moderate speed and maintain a safe distance from the vehicle in front of you. The stopping distance may be longer in the following cases:
•  Driving on rough, gravel or snow-covered roads
•  Driving with tyre chains installed
•  Driving over the steps such as the joints on the road
•  Driving on roads where the road surface is pitted or differences in surface height
Do not overestimate the Anti-lock Brake System: Although the Anti-lock Brake System assists in providing vehicle control, it is still important to drive with all due care and maintain a moderate speed and safe distance from the vehicle in front of you. There are limits to the vehicle stability and effectiveness of steering wheel operation even with ABS active.
If tyre grip performance exceeds its capability, or if hydroplaning occurs during high speed driving in the rain, the Anti-lock Brake System will not assist with vehicle control.
10.6 Electronic Brake Force Distribution (EBD) (if equipped)
EBD, as a subsystem of the ABS system, controls the effective adhesion utilisation of the rear wheels. EBD aids in distributing the brake forces more evenly leading to better vehicle stability during braking.
Typically, the front end carries more weight and EBD distributes less braking pressure to the rear brakes avoiding a lock up/skid.
For example, under light loads EBD applies less effort to the rear brakes and for heavy loads it allows full braking effort to the rear wheels.
A fault with EBD is indicated by illumination of the brake as well as ABS warning lamps. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.
10.7 Hydraulic Brake Assist (HBA) (if equipped)
ESP system recognises / identifies an emergency braking situation from the braking characteristics and thereby achieves a braking output equivalent to a full force demand at the controls. HBA automatically boosts the braking force to the maximum and helps to stop the vehicle as quickly as possible.
Pressure should be maintained on the brake pedal during entire brake application. If the brake pedal is released, HBA will stop operating.
11 HEATING, VENTILATION AND AIR-CONDITIONING SYSTEM (HVAC)
HVAC system provided in the vehicle enables occupants to automatically/manually adjust air flow distribution pattern, air flow rate, air intake mode and air temperature inside passenger compartment. By appropriately adjusting the control knobs/switches provided on the HVAC control panel, located on centre console, occupant’s comfort can be ensured. HVAC system also helps in defrosting and defogging / de-misting the windshield and windows.
Air flow direction can be further controlled by adjusting louvres of air vents. An air filter is provided at the inlet of HVAC blower.
Engine coolant is utilised to heat the cabin air. For cooling the cabin air, an air conditioning circuit based on the vapour compression refrigeration cycle is used. The air conditioning system uses a refrigerant along with a suitable lubricating oil. Although being non-ozone depleting, the refrigerant is a greenhouse gas, hence once allowed to escape in the atmosphere, it adversely affects the environment by contributing to global warming/climate change.
Refrigerant used in system is a hazardous liquefied gas and is under high pressure. The refrigerant is colourless and has ethereal or faint sweetish odour. Exposure of refrigerant to skin or eyes may cause irritation and frostbite. They can also cause suffocation, dizziness and loss of concentration. When mixed with compressed air or certain other refrigerants, it may form flammable mixture. Never try to service HVAC system yourself which would involve refrigerant handling.
- If you sleep while operating the air conditioner or heater with all the windows closed, You may suffocate to death due to lack of ventilation. When you operate the air conditioner or heater, ventilate frequently.
Multiple vents are provided for distributing the air, being force-circulated by HVAC blower, throughout the passenger compartment.
To ensure sufficient air flow and hence adequate HVAC system performance, air flow path should be kept free of obstructions. Keep system’s air intake, located near plenum appliqué, free of snow, leaves and other debris. Also keep the area in front of air vents free of any obstruction inside the cabin.
11.1 HVAC Overview
Graphic


A
Side Vents
B
Centre Vents
C
Windshield Defrost Vents
D
Side Defrost Vents
E
Foot Vents
F
HVAC Controls
11.1.1 Centre/Side Vents
Graphic
Graphic
A
Adjustable Louvers
B
Thumb Wheel
Two centre vents are located on either side of the infotainment screen in the centre console. The two side vents are located one each at the left and right extreme ends of the instrument panel. Both the centre and side vents provide air flow to the front seat passengers.
Rotate the thumb wheel (B) left to close or right to open the air vent. Direct air to the desired direction by the adjusting Louvres(A) up/down or left/right.
11.1.2 Defrost Vents - Side/Windshield
Graphic
There are four defrost vents in your vehicle: two side defrost and two windshield defrost vents. They are located just below the windshield. The side defrost vents prevent the front windows from de-misting.
11.1.3 Second/Third Row Roof Vents
Graphic
Graphic
Two (LH & RH) vents for the second row are provided on the B-Pillars. The vents have adjustable Louvers to direct the air flow.
The third row vents (LH & RH) are located on side trims on either side of the third row seats.
11.2 Climate Control
There are two types of climate control depending on the variant :
Automatic Climate Control
Graphic
A
Temperature Control Dial
G
Front Windshield Defrost
B
Economy Button (ECon)
H
Air Distribution Mode
C
AC ON
I
Fresh Air Mode
D
Re-circulation Mode
J
Auto Mode
E
Rear AC (Third Row)
K
Blower Fan OFF
F
Blower Fan Speed Control Dial
L
Rear Windshield Defrost
Manual Climate Control
Graphic
A
Temperature Control Dial
G
Front Windshield Defrost
B
Economy Button (ECon)
H
Floor Defrost Mode
C
AC ON
I
Floor Mode
D
Re-circulation Mode
J
Face Floor Mode
E
Rear AC (Third Row)
K
Face Mode
F
Blower Fan Speed Control Dial
L
Rear Windshield Defrost
11.3 Temperature Control
Graphic
A
Cool Air
B
Hot Air
By operating the temperature control knob, temperature of air being discharged from various vents can be adjusted to the desired level. Engine coolant is utilised to heat, whereas the air conditioner is used to cool the air inside the AC unit. Based upon selected position of the temperature control dial, the desired discharged air temperature can be obtained.
By rotating the dial counter-clockwise and setting it to the extreme left position, cool air is discharged.
When the dial is rotated clockwise, the discharge air progressively starts getting warmer.
By rotating the dial further in the clockwise direction and setting it to the extreme right position, hot air is discharged.
11.4 Blower Speed Control
The controls differ depending on the variant (Automatic or Manual Climate Control).
For Automatic Climate Control Variants
Graphic
Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.
To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).
The same is also indicated in the infotainment screen (in Automatic Climate Control equipped vehicles).
The blower speed control dial is also used to switch ON the blower alone when needed. Use the OFF button on the switch bank to switch OFF the blower.
This blower speed control does not control the air flow to third row vents.
Graphic
The blower OFF button turns the blower OFF. This in turn switches OFF the AC also.
The blower alone can be switched ON by rotating the blower control dial.
For Manual Climate Control Variants
Graphic
Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.
To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).
To switch OFF the blower, rotate the dial to “0”.
Third Row Blower Speed Control
A blower control is provided below the third row (RH) vent to control the air flow to the third row vents.
Graphic
The third row AC is switched ON by the Rear AC button on the central switch bank. The airflow is controlled by the blower control on the third row RH side trim.
11.5 Economy Button (ECon)
Graphic
Graphic
ECON switch turns ON economy mode. During ECON AC operation the system automatically cuts OFF at a higher temperature than normal AC. The operation can be used during mild weather conditions for better fuel efficiency. Comfort level may be compromised during this operation.
LED on the button indicates the status of the button. Press the ECON switch again to turn OFF economy mode.
11.6 Air-conditioner ON (AC ON)
This button turns the air-conditioner ON or OFF. Adjust the temperature control dial as per the temperature requirement. LED on the button indicates the status. Push the button to turn ON/OFF the AC.
When the air conditioner is functioning, air gets cooled and de-humidified before being circulated inside the cabin. In hot weather conditions, it will take a slightly longer time to cool the interior as compared to cooler weather. Fuel consumption will be relatively higher if the vehicle is being driven with the air conditioner ON.
AC will function only when both engine and blower are switched ON.
Graphic
Graphic
•  In certain operating conditions when the engine gets overheated, the engine management system may switch off the air conditioner intermittently
•  The air conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system
•  During extreme cold weather conditions, the air conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold
•  When air conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle
11.7 Re-circulation Mode
Graphic
Graphic
To set the HVAC system to recirculation mode, press the recirculation mode button. The LED on the button illuminates, indicating the recirculation mode is active.
In this intake mode, the air from inside the passenger compartment will be sucked by the blower and utilised further to ventilate /cool / heat the cabin.
For quick cabin cooling/heating or while driving through dusty/polluted region, re-circulation mode can be selected for short periods. Driving with this mode active, may lead to better fuel economy and longer HVAC filter life.
However, running the air conditioner in re-circulation mode for long will make cabin air too dry and oxygen level drops inside cabin the turning the air stale. On the contrary, keeping air intake control in recirculation mode for long, with air conditioner switched OFF, will make cabin air too humid and are more likely to become foggy. Hence, never drive in recirculation mode for long, shift back to fresh air mode as soon as possible.
Never keep recirculation mode selected continuously for long. Prolonged use of the HVAC system in recirculation mode may cause windshield/windows to mist/fog-up, impairing visibility which can lead to an accident, endangering you and others.
11.8 Fresh Air Mode
Automatic Climate Control
To set the HVAC system to fresh air mode, press the fresh air mode button. The LED on this button illuminates, indicating that fresh air mode is active.
In this intake mode, fresh air from outside the vehicle is sucked by the blower and utilised further to ventilate /cool / heat the cabin.
Graphic
Manual Climate Control
Graphic
To set the HVAC system to fresh air mode, press the re-circulation mode button again. The LED on this button switches OFF, indicating that fresh air mode is active.
11.9 Rear AC
The rear AC provides cooling for the third row AC vents. Adjust the temperature control dial as per the temperature requirement. LED on the button indicates the status.
The rear AC can be switched ON only when the AC button (front/second row AC) is ON.
Graphic
11.10 Auto Mode (Automatic Climate Control only)
Graphic
The auto mode can be used to control the complete air conditioning operation of the vehicle automatically. The auto mode controls blower fan speeds, air intake mode, temperature and modes (vents) based on the set temperature.
All the air conditioning operations can also be controlled manually as explained in the previous sections.
11.11 Air Distribution Mode Button
Air distribution mode button allows you to select the below air flow patterns:
•  Face Mode
•  Face and Floor Mode
•  Floor Mode
•  Floor Defrost Mode
•  Defrost Mode
Depending on the variant, the operation of air distribution mode changes.
For Automatic Climate Control
Each press of mode switch changes the flow pattern accordingly.
Graphic
The air distribution inside the vehicle can be chosen by the Mode button.
For Manual Climate Control
Press the required mode button on the switch bank.
Graphic
11.11.1 Air Distribution - Face Mode
Graphic
Air is discharged through the centre and side vents on the instrument panel, and through the second row B-pillar vents.
Corresponding information is displayed on the infotainment screen.
11.11.2 Air Distribution - Face & Floor Mode
Air is discharged through the centre, side and foot vents on the instrument panel, and through the second row B-pillar vents.
Corresponding information is displayed on the infotainment screen.
Graphic
11.11.3 Air Distribution - Floor Mode
Graphic
Air is discharged through the foot/floor vents on the instrument panel.
Corresponding information is displayed on the infotainment screen.
11.11.4 Air Distribution - Floor Defrost Mode
Graphic
Air is discharged through the foot/floor vents, windshield vents and side defrost vents on the instrument panel.
Corresponding information is displayed on the infotainment screen.
11.11.5 Air Distribution - Defrost Mode
Graphic
Air is discharged through the windshield vents and side defrost vents on the instrument panel.
Corresponding information is displayed on the infotainment screen.
11.12 Rapid Cabin Cooling
For rapid cooling of the cabin, the following AC settings are recommended:
1. Make sure that all the windows are fully closed
2. Set the blower to maximum speed
3. Fully open the vents and adjust Louvres to direct air toward face
4. Set the air distribution control to face mode
5. Set air intake control to fresh air mode
6. Turn the air conditioner ON
7. Set the temperature control dial to extreme left (coolest) position
For faster cabin coolling, you can select re-circulated air intake mode initially. Once passenger compartment reaches a comfortable temperature, shift to fresh air mode. Also blower speed and temperature control knob can be re-adjusted as desired.
If your vehicle was parked in the hot sun with all the windows closed, drive the vehicle with windows open for the first few minutes. This will help in venting the hot interior air out and allow the air conditioner to cool the cabin quickly.
11.13 Rapid Cabin Heating
For rapid heating of the cabin, the following AC settings are recommended:
1. Make sure that all the windows are fully closed
2. Set the blower to maximum speed
3. Set the air distribution control to foot mode
4. Set air intake control to fresh air mode
5. Set the temperature control dial to extreme right (hot) position
6. For de-humidified heating, switch the air conditioner ON
For faster cabin heating, you can select re-circulated air intake mode initially. Once passenger compartment reaches a comfortable temperature, blower speed and temperature control knob can be re-adjusted as desired.
In extreme cold weather conditions, the engine coolant takes time to get heated up. Hence, it might take a while for hot air discharge, even when blower is running and temperature control dial is set to hot position.
11.14 Front Windshield Defogging/De-misting
Graphic
Front windshield glass defogger switch is located on the blower speed control dial in the central switch bank. Press the switch ‘A’ to activate the defogger. The lamp on the switch illuminates upon activation. AC is turned ON automatically (if the AC was in OFF condition).
•  Air is discharged through the windshield defroster vents and side defroster vents.
•  Fresh air mode enabled, to reduce the humidity inside the cabin (If recirculation mode was active before pressing the front defogger switch, system is switched to fresh air mode automatically).
•  Blower speed is increased to SPEED 3, if the blower speed was below speed 3 prior pressing the front defogger switch (No change to blower speed if the prior blower speed was 3 or higher before pressing the front defogger switch).
•  Temperature of the air coming out of defrost vents shall be as per the user set temperature.
•  By Pressing any of the switches ‘B’ to TURN-OFF the front defogging as soon as the fog/frost is cleared. (All setting reverts back to the one which was used before selecting the defogger mode).
11.15 Rear Windshield Defogging/De-misting
Graphic
Rear windshield glass defogger switch is located on the temperature control dial in the central switch bank. Press the switch once to activate the defogger. The lamp on the switch illuminates upon activation and the defogger heats the rear windshield clearing the fog / frost.
Switch OFF the defogger by pressing the switch once as soon as the fog / frost is cleared.
If the windshield defogger switch is not switched OFF manually, it will turn OFF automatically after a pre-defined time, based on ambient temperature.
If you want to switch the defogger ON again, press the defogger switch again.
On second and subsequent activations of the rear windshield defogger in the same ignition cycle, the defogger ON time will be half the duration of the first activation.
11.16 Points to Remember
•  For quickly defogging/de-misting/defrosting outside of windshield, it is advisable to operate the windshield wiper/washer for few times intermittently
•  If snow has deposited on windshield, use ice scraper to remove ice deposited before using wiper
•  In freezing weather, warm the windshield with the defroster before using the windshield washer. Also use a washer fluid having anti-freezing properties. These will help prevent the washer fluid from freezing on your windshield
•  Dirty/contaminated windshield would make misting / fogging-up worse. Always keep the inside and outside of windshield clean
•  Reduced air flow because of clogged HVAC filter or any other obstructions in air flow path may lead to inadequate defogging/de-misting/defrosting performance. If air flow seems to have considerably reduced, get the filter cleaned or replaced immediately. Air flow path should be kept free of obstructions
•  Reduced cooling performance from air conditioner may lead to inadequate defogging/de-misting/defrosting. If cooling effect seems to have dropped considerably, get the air conditioning system checked by an Authorised Mahindra Dealer
Your vehicle is equipped with a HVAC filter. If the AC performance is considerably low, it is recommended to have the HVAC filter checked at the nearest Authorised Mahindra Dealer.
Never operate HVAC system with the filter removed. This may result in premature failure of system components.
12 STARTING AND DRIVING THE VEHICLE
12.1 Safety Tips - Before Starting Your Vehicle
12.1.1 General
•  Before starting the vehicle, inspect the inside and outside of the vehicle; look for any damages, leaks, loose parts, foreign objects/debris. Contact an Authorised Mahindra Dealer if required
•  Before starting your journey, check the working of all safety devices/components especially brakes, steering, lamps, signals and tyres. In case you suspect any system/devices are not working properly, contact Authorised Mahindra Dealer
•  Adjust the seat headrest, steering wheel and fasten the seat belt as described in this manual. Never perform any seat / steering adjustments when the vehicle is in motion
•  Start the vehicle only when seated and belted in the driver's seat
The Engine Management System controls the engine's idle speed. When the engine starts, idle RPM runs higher than normal in order to warm the engine. The engine idle speed RPM reduces once the engine warms up.
Never start your vehicle in a closed garage or in an enclosed area. Exhaust fumes can be toxic. Always keep the garage door open or start the engine in an open area.
12.1.2 Mirror Adjustment
Ensure that the rearview mirror and both the ORVM’s are adjusted for an unobstructed view of the road behind.
12.1.3 Exterior Lamps
Have someone observe and confirm normal operation of all exterior lamps while you work on the controls from the driver seat. Also, check functioning of all lamps in the instrument panel.
12.1.4 Door Latches
Check for positive closing, latching, and locking of all doors, both from inside and outside.
12.1.5 Fluid Leaks
Check the area under the vehicle after an overnight parking for fuel, power steering fluid, brake fluid, engine coolant, oil, or other fluid leaks. If leaks are observed, contact an Authorised Mahindra Dealer.
12.2 Starting the Engine
Make sure all vehicle occupants are properly seated in their seats and have buckled their safety belts. For more information on seat, headrest positioning, safety belts and their proper usage, refer to the “Seat Belts” section in this manual.
Before cranking the engine
•  Make sure the gear shift lever is in neutral
•  Make sure the parking brake is engaged. Turn the key to IGN position but do not turn the key to start
•  Few warning lamps briefly illuminate. See “Warning Lamps in the Instrument Cluster” section for more information
1. Shift the gear shift lever to neutral position.
2. Apply parking brake.
3. Turn the ignition ON.
4. Do not press the accelerator.
5. Turn the key momentarily to the START position to crank the engine
6. Once the engine starts, release the key; it will return to the IGN position
Do not continue cranking after the engine has started. This will lead to damage of the starter and other engine components.
7. If the engine fails to start, attempt to restart after about 10 seconds.
8. If the engine fails to start even after repeated attempts as per the procedure given above, contact the nearest Authorised Mahindra Dealer.
To prevent damage to the starter, wait 10 seconds before attempting to restart the engine.
If the vehicle battery has discharged, use booster cables, a booster battery or a battery from another vehicle to start. Jump-starting a vehicle can be dangerous if done improperly. Refer to the “Jump-starting procedure” section in this manual.
If the engine still fails to start, contact an Authorised Mahindra Dealer for assistance.
The idle speed is controlled automatically and it will decrease as the engine warms up.
Observe the following when the engine is running:
•  All warning lamps are OFF
•  Low oil pressure lamp is OFF
After idling for a few seconds, release the parking brake, depress the clutch, shift the gear shift lever to 1st gear, release the service brake pedal, drive by releasing the clutch and depressing the accelerator pedal simultaneously.
12.2.1 Engine Idling - In Cold Weather
Avoid full throttle operation when the engine is cold and prolonged idling at low ambient temperatures. Long periods of idling may be harmful to your engine. Combustion chamber temperatures can drop so low that the fuel may not burn completely. Incomplete combustion allows carbon and varnish to form on piston rings and injector nozzles. Also, the unburned fuel can enter the crankcase, diluting the oil and causing rapid wear to the engine.
12.3 Stopping the Engine
Your vehicle is powered by a turbo diesel engine. Before turning the engine OFF, always allow the engine to return to normal idle speed and run for few seconds. This assures proper cooling and lubrication of the turbocharger. This is particularly necessary after any hard driving.
To reduce the risk of personal injury, before turning OFF the engine and leaving the vehicle, always:
•  Keep your right foot on the service brake pedal
•  Turn front wheels towards the road curb
•  Switch OFF the ignition, turn the key to the steering lock position and remove the key
•  Firmly engage the parking brake
•  Move the gear shift lever to 1st gear position (reverse gear if parking on an incline)
•  Slowly release the service brake pedal
•  Lock your vehicle when leaving
12.4 Exhaust Gases
Protection against exhaust gas entry into the vehicles interior is considered in the design of the exhaust system.
•  Vehicle exhaust contains Carbon Monoxide, Carbon Dioxide, Nitrogen Oxides, Hydrocarbons and Particulate Matter. These are potential environmental and health hazards
•  Avoid inhaling the exhaust gases. Carbon Monoxide is a colourless and odourless gas and can cause unconsciousness or even death
•  If the exhaust system is damaged for any reason or you notice a change in the exhaust noise, have the vehicle checked by an Authorised Mahindra Dealer immediately
•  Do not start the vehicle in a closed garage or in an enclosed area where ventilation is poor for the exhaust gases
•  Since the engine compartment and exhaust system components are hot and can ignite a fire, do not park or leave the vehicle with the engine idling over dry grass, leaves, paper, rags or any combustible material
Never keep the engine running when the vehicle is parked in an area which is not properly ventilated. This could lead to serious respiratory problems and/or death
12.5 Driving Your Vehicle
12.5.1 General Driving Precautions
Always observe the following precautions to minimise the risk of accidents leading to serious personal injury or damage to your vehicle.
•  Before you drive your vehicle, please read this manual carefully
•  Before you start driving, check proper operation of the brakes and steering system
•  If, while driving, you hear any strange noise or feel unusual vibration, or if you have any concerns whatsoever, or if any warning lamps illuminate or buzzers sound, park/stop the vehicle in a safe location as soon as possible. Identify the cause and take any necessary remedial action. Contact your Authorised Mahindra Dealer if necessary
•  Never overload or improperly load your vehicle
•  Always be attentive while driving and follow safe driving practices
•  Always maintain the recommended inflation pressure in tyres
•  Always drive at a safe speed appropriate for given driving conditions. You must follow the speed limits
•  While backing up, keep a constant lookout for people, particularly children, or other obstructions or hazardous material that might be present behind the vehicle
•  Avoid loading any items on the roof that will raise the vehicles centre of gravity and make your vehicle more unstable
•  Loaded vehicles, with a higher centre of gravity, may handle differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle
•  Always slow down in gusty crosswinds. Because of its profile and higher centre of gravity, your vehicle is more sensitive to side winds than an ordinary passenger car. Slowing down will allow you to have much better control
•  When driving off-road or on rugged terrain, do not drive at excessive speeds, jump, make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover causing serious injury. You are also risking expensive damage to your vehicle's suspension and chassis
•  Maintain steering wheel control at all times, especially on rough terrains. Sudden changes in terrain can result in abrupt steering wheel motion. Make sure you grip the steering wheel from the outside. Do not grip the spokes
•  If the vehicle goes from one type of surface to another (e.g. from concrete to gravel/sand/mud/snow) there will be a change in the way the vehicle responds, especially the way it responds to steering, braking and accelerating inputs
•  Be extremely careful when driving on pavements made slippery by loose sand, water, gravel, snow or ice
•  If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake or steering application. Ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface
•  It may be safer to stay on the apron or shoulder of the road and slow down gradually before returning to the pavement. You may lose control if you do not slow down or if you turn the steering wheel too sharply or abruptly
•  In an unavoidable emergency situation where a sudden sharp turn must be made, turn the steering wheel only as rapidly and as far as required to avoid the emergency. Excessive steering will result in less vehicle control. Additionally, smooth variations of the accelerator and/or brake pedal pressure should be utilised if changes in vehicle speed are called for. Avoid abrupt steering, acceleration or braking which could result in an increased risk of loss of vehicle control, vehicle rollover and/or personal injury. Use all available road surfaces to return the vehicle to a safe direction of travel
12.5.2 Off-Road Driving Precautions
•  When driving off-road or on rugged terrains, never overspeed or make sharp turns. This may cause loss of control or vehicle rollover causing serious injury
•  Maintain steering wheel control at all times. Sudden changes in terrain can result in abrupt steering wheel motion
•  Do not drive horizontally or diagonally across steep slopes, your vehicle can tip over sideways. Driving straight up or straight down is preferred
•  Drive cautiously to avoid vehicle damage from concealed objects such as rocks and stumps. You should either know the terrain or map-out your route before driving in the area
•  Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud or water
12.5.3 If your vehicle is submerged
If Your stationary Vehicle is Submerged up to over the bumper
Graphic
•  Contact your Mahindra Authorised Dealer immediately
•  Have the vehicle towed to nearest Mahindra Authorised Dealer to check any entry of water into the engine
•  All fluids including engine and transmission fluids required to be changed incase of water ingress and contamination
Never attempt to start the engine, without the advice from Mahindra Authorised Dealer technician.
•  Never drive through water when it flows above the bottom portion of the bumper or above the tyre centre line
•  The engine could get damaged internally, if attempts are made to cross through deep water
•  Wet brake discs have a lower coefficient or friction resulting in reduced braking efficiency. Dab the brake pedal while driving to remove the film of water
12.5.4 Driving Through Water
Although your vehicle is capable of driving through shallow water, there are a number of precautions that must be considered before entering the water.
Never drive through still water that is higher than the bottom of the axle hubs. Not following this instruction will allow water to enter vehicle components causing internal damage to the components, affecting driveability, safety, emissions and reliability.
When driving through water, drive very slowly and at constant speed, less than 8 kmph. Drive with accelerator pedal in OFF and control speed, using only the brakes. At higher speed waves can be generated by the front of the vehicle. These water waves may enter air intake, causing severe engine damage or cause a vehicle to get stalled.
You must slow down while driving through shallow water. Speeding may cause water to splash onto the windshield, impairing your vision. In extreme conditions, you may get a water wedge formation between the road and tyre causing loss of control in the vehicle.
•  The ground under the water might not be firm which could result the water being deeper than expected when driving the vehicle through it
•  Do not stop or shut OFF the engine while immersed in water. It helps in preventing water getting inside the exhaust pipes
•  When backing down a ramp, do not allow the exhaust tail pipe to immerse in water
•  Water can wash the grease from wheel bearings, causing rusting and premature failure. It may also enter the differentials, transmission and transfer case, reducing the oil's lubricating qualities. If these are submerged in water, the lubricants should be replaced as required
•  Water entering the transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damaging the transmission
•  Sand, mud/sludge that has accumulated in brake drums and around brake discs may affect braking efficiency. This may also damage brake system components. Wet brakes cannot stop the vehicle as effectively as dry brakes. Drying can be improved by driving the vehicle slowly while applying light pressure on the brake pedal
•  When driving through water, traction or brake capability may be limited. Always perform a maintenance inspection after each day of off-road driving that has taken you through water
12.5.5 Flowing Water
If the water is swift flowing and rising (as in storm run-off) avoid crossing until the water level recedes and/or the flow rate is reduced.
The flowing water can erode the streambed causing your vehicle to sink into deeper water.
Determine the exit point(s) that are downstream of your entry point to compensate for drifting.
12.5.6 After Driving Off-Road or through Water
Off-road operation puts more stress on your vehicle than does most on-road driving. Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud, or water.
•  After going off-road, it is always a good idea to check for damage. Completely inspect the underbody of the vehicle for any damages
•  Check for accumulations of plants or bushes. or polyethylene / plastic. These could be a fire hazard. They might also hide damage to fuel lines, brake tubes/hoses, etc.
•  Inspect all the tubes/hoses and check for any fluid leakages
•  Get heat exchangers (radiator and condenser) cleaned
•  Check threaded fasteners for looseness, particularly on the chassis, drivetrain components, steering, suspension and brakes. Retighten them, if required, and torque to the values specified in the ‘Repair Manual’
•  We also recommend that the vehicle be checked at the Authorised Mahindra Dealer for any water entry into the transmission/ axle or the engine
Abrasive material in any part of the brakes may cause excessive wear or unpredictable braking. You might not have full braking power when needed leading to accidents. If you have been operating the vehicle in off-road conditions, get the brakes checked and cleaned as necessary.
•  If any unusual vibration is experienced, check the wheels for impacted material. Impacted material can cause a wheel imbalance. Get it inspected/corrected as soon as possible
•  After driving through deep water, inspect your vehicle fluids and lubricants (engine oil, transmission/transfer case/axle oils) to ensure the fluids have not been contaminated
12.6 Tips for Better Fuel Economy
Give due consideration to the points listed below for better performance of vehicle and enhancement of fuel economy:
•  Smooth, moderate operation will yield savings in fuel
•  Steady speeds without stopping will usually give the best fuel economy
•  Ensure that the parking brake is fully released
•  Idling for long periods of time will waste fuel
•  Anticipate stopping; slowing down may eliminate the need to stop
•  Sudden or hard accelerations reduce fuel economy
•  Slow down gradually
•  Drive at moderate speeds
•  Revving the engine before turning it off may reduce fuel economy
•  The air conditioner may reduce fuel economy
•  Warming up a vehicle in neutral on cold mornings is not required and may reduce fuel economy
•  While idling, put the gear shift lever in the neutral position
•  Resting your foot on the clutch pedal while driving will reduce fuel economy
•  Combine errands and minimise stop-and-go driving
•  Keep tyres properly inflated. It is recommended to check your tyre pressure in the morning when the tyre is cold
•  Use recommended engine oil. Refer to the Maintenance Section for specifications and capacities
•  Replace the fuel filter and air filter at the recommended intervals
•  Shift gears at the recommended speeds and RPM bands only. Refer to the Gear Shifting Speed table for further details
•  Control the maximum speed between 90 to 100 kmph in 5th gear to achieve the best fuel efficiency
•  Follow the recommended maintenance schedule and perform the owner maintenance checks recommended
•  Heavily loading a vehicle or towing a trailer will reduce fuel economy
•  Carrying unnecessary weight may reduce fuel economy
•  Adding certain accessories to your vehicle may reduce fuel economy
•  Four-wheel-drive operation (if equipped) is less fuel efficient than two-wheel-drive operation
•  Driving on flat terrains offer improved fuel economy as compared to driving on hilly terrains
•  Close windows during high speed driving for better fuel economy
•  It is recommended to refuel in the mornings (cold weather condition)
12.6.1 How to Calculate Fuel Efficiency (Mileage)
1. Ensure recommended tyre pressure is maintained.
2. Refuel your vehicle till the fuel gun at the fuel station is auto-cut-off.
3. Reset trip meter to zero.
4. Drive at a moderate speed for a minimum distance of 150 kms.
5. Refuel at the same fuel station till the auto-cut-off mode.
6. Assuming ‘a’ litres of fuel was filled and ‘b’ was the trip meter reading. Fuel Efficiency = b/a kmpl.
7. We recommend that point no. 2 and point no. 5 should be done in cold conditions (in mornings).
12.7 Ignition Switch (if equipped)
Graphic
An illuminator ring is provided on the face of the ignition switch to help in locating the ignition switch at night. The ring will illuminate the moment the driver door is opened and will remain glowing till the driver door is closed.
The different positions of the ignition switch are:
LOCK - This is the ignition and steering lock position. The vehicle circuits and engine is completely switched OFF. The steering wheel is also locked and the key can be removed from the ignition only in this position.
ACC - The steering is unlocked and can be rotated. In this position, all electrical circuits are enabled. Use this mode when you want to listen to music, etc., with the engine temporarily switched OFF.
ON - All electrical circuits are enabled. Some of the warning or information lamps illuminate in this position. While some of the lamps will go out after a few seconds, some will continue to remain ON till the engine is started. When the vehicle is being driven, ignition switch remains in the ON position.
Do not leave the ignition in ON when the engine is OFF. This could lead to battery drain and ignition switch damage.
START - This position is to start the engine by cranking the starter motor. This is a momentary position. When the key is turned to start position, the starter cranks the engine. Once the engine is running, release the key, and the key reverts back to ON position and the starter motor disengages from the engine.
Do not continue cranking after the engine has started. This will lead to damage of the starter and other engine components.
If turning the key is difficult, jiggle the steering wheel from side to side and try again.
The key can be removed only in the LOCK position. When the key is removed, the steering column lock is activated and the steering wheel cannot be turned.
Never return the key to the LOCK position or try to remove the key, when the vehicle is in motion. Removing the key allows the steering wheel to lock. You will lose the control of the vehicle and may cause serious accident. Remove the key only when the vehicle is parked.
12.8 Transmission
The first few shifts on a new vehicle may be somewhat rough. This is a normal phenomenon, and precision shifts will develop within the initial few hundred kilometres of running.
12.8.1 Gear Lever
Your vehicle is fitted with manual transmission having six forward and one reverse gear. This shift pattern is imprinted on the gear lever knob. The transmission is fully synchronised in all forward gears, so shifting to either a higher or a lower gear is easily accomplished. The clutch pedal should be depressed fully while shifting, and then released slowly.
Graphic
12.8.2 Gear Indicator
The current gear lever position is indicated in the centre of the speedometer dial.
Graphic
12.8.3 Neutral Position
This position stops the transmission of power from the engine to drive axle. With the gear lever in neutral and brakes released, the vehicle can move freely by pushing or towing. The engine can be started in this mode. It is always recommended to keep the brake pedal depressed in this position. It is advisable to shift into neutral when the vehicle is standstill for longer durations with the engine idling.
Coasting the vehicle with the gear lever in neutral and engine ON/OFF is not recommended. In an event of panic braking, you will not have the power of engine braking to slow down the vehicle. This may lead to personal injury or accident.
Do not leave the vehicle with the gear lever in neutral position. Always engage manual parking brake before leaving the vehicle, to prevent any vehicle movement leading to possible injury to a bystander or damage to vehicle.
12.8.4 Gears 1-6
Use the gears 1 to 6 as per vehicle load, road/traffic conditions or as per requirement. The current gear selection is indicated in the cluster.
Always depress the clutch fully before moving the gear lever from the current position to any desired position. Perform up-shifts or down-shifts one gear at a time, do not jump gears.
12.8.5 Recommended Gear Shifting Speeds
Upshifting
Shift Range
Vehicle Road Speed
(kmph)
Engine RPM Range
1–2
20–25
1800–2200
2–3
35–40
3–4
45–50
4–5
55–60
5–6
65–70
Shift gears at suitable engine or road speeds to safeguard the transmission components. Avoid driving in high RPM’s (>3000 RPM).
When parking on an incline, gear alone may not be sufficient to prevent the vehicle from moving. Always set the manual parking brake in addition to shifting the gear lever into gear. It is also recommended to turn the front wheels towards the road curb.
12.8.6 Reverse
Graphic
This gear is to enable the vehicle to move in the reverse direction. Move the gear lever into this position only after the vehicle has come to a complete stop and the gear lever is in neutral position.
The reverse lock ring located immediately below the gear shift knob must be pulled upward while moving the shift lever to the reverse (R) position.
To avoid transmission damage, shift into or out of reverse gear only after the vehicle has come to a complete stop and the engine is at idle speed. It is recommended you wait approximately for three seconds in neutral gear before shifting into or out of reverse gear.
For brief stops, e.g. at traffic lights, keep the gear shift in neutral and hold the vehicle with the brake pedal. For prolonged stops, it is recommended to switch OFF the engine and apply the parking brake. When stopping the vehicle on an uphill gradient, do not hold it with the clutch/accelerator; use the brake to avoid unnecessary clutch wear/heat buildup.
Do not leave children unattended in the vehicle or with access to an unlocked vehicle. Children could move the gear lever, which could result in an accident or serious injury.
On slippery/wet road surfaces, never downshift in order to obtain braking action. This could result in a wheel slip and reduced vehicle control.
12.8.7 Uphill and Downhill Driving
To prevent the engine from labouring at a low RPM when driving uphill gradients or with your vehicle heavily loaded, downshift when necessary to maintain engine RPM within the best torque range. Similarly, while driving downhill, downshift to utilise the engine braking in an optimum manner.
12.9 Engine Idling
The idle speed is controlled automatically and it will decrease as the engine warms up.
Observe that all warning lamps are OFF when the engine is running.
After idling for a few seconds, follow the below steps to drive away:
1. Release the parking brake
2. Depress the clutch
3. Shift the gear lever to 1st gear
4. Release the service brake pedal
5. Drive by releasing the clutch and depressing the accelerator pedal simultaneously
12.9.1 Engine Idling - In Cold Weather
Avoid full throttle operation when the engine is cold and prolonged idling at low ambient temperatures. Long periods of idling may be harmful to your engine. Combustion chamber temperatures can drop so low that the fuel may not burn completely. Incomplete combustion allows carbon and varnish to form on piston rings and injector nozzles. Also, the unburned fuel can enter the crankcase, diluting the oil and causing rapid wear to the engine.
You must fuel this vehicle with Ultra Low Sulfur Diesel. For smooth functioning and reliable operation of the engine during cold weather conditions, use winter diesel for refuelling which is available at filling stations during winter months. Check with your fuel retailer for details.
The recommended engine coolant mixture will work fine till ambient temperatures do not drop below -32ºC approx. For ensuring above performance, it is a must that you use only recommended engine coolant.
12.10 All Wheel Drive (AWD) Operation (if equipped)
Graphic
In an AWD vehicle, power is transmitted to all the wheels. This is managed by the AWD System which intelligently transfers torque to all four wheels. AWD system includes electromagnetically operated clutch which is controlled by an ECU. According to the driving conditions, this system automatically delivers torque to the rear wheels.
12.10.1 AWD System
AWD system is available in two operating positions viz., AUTO mode and AWD LOCK mode.
Once the ignition key is turned ON, AWD system by default turns into AUTO mode. In AUTO mode, whenever a slippage is detected in the FRONT wheels (slippery surfaces like icy roads, wet surfaces, etc.) the torque is transferred to the REAR wheels by the AWD system.
12.10.2 AWD Lock
AWD LOCK button is located on the central bezel switch bank. The LED on the switch turns ON when the AWD Lock is activated. In this mode, fixed amount of torque is transferred to the rear wheels irrespective of the driving condition.
Graphic
The AWD warning lamp in the cluster illuminates when there is a malfunction in the AWD system.
AWD vehicles have to be towed only with the rear wheels lifted off the ground or on all four wheels. If vehicle needs to be towed by lifting the front wheels, then the propeller shaft needs to be disconnected in order to protect the coupling.
12.11 Electronic Stability Program (ESP) (if equipped)
This system enhances directional control and stability of the vehicle under various driving conditions. The ESP corrects for over-steering and under-steering behaviour of the vehicle by applying the brake of the appropriate wheel automatically. Engine power may also be reduced to assist in counteracting the condition of over-steer or under-steer and help the vehicle maintain the desired path.
ESP uses steering angle sensors and YAW rate sensor to determine the path that the driver intends to steer the vehicle and compares it to the actual path of the vehicle. When the actual path does not match the intended path, the ESP applies the brake of the appropriate wheel to assist in counteracting the condition of over-steer or under-steer.
Over-steer - When the vehicle is turning more than appropriate for the steering wheel position.
Under-steer - When the vehicle is turning less than appropriate for the steering wheel position.
The ESP cannot prevent the natural laws of physics from acting on the vehicle, nor can it increase the traction afforded by prevailing road conditions. The ESP cannot prevent accidents, including those resulting from excessive speed in turns, driving on very slippery surfaces, or hydroplaning. Only a safe, attentive, and skilful driver can prevent accidents. The capabilities of an ESP-equipped vehicle must never be exploited in a reckless or dangerous manner that could jeopardise the user’s safety or the safety of others.
12.11.1 ESP ON
Whenever the vehicle is started, the ESP system will be in active mode. This mode should be used for most driving conditions.
Graphic
When the ESP is in operation, ESP indicator lamp blinks in the instrument cluster.
When the ESP is operating, you can feel a slight pulsation in the vehicle. This is only the effect of brake control and indicates nothing unusual.
When moving out of the mud or slippery road, accelerator response may be different because ESP system controls the engine RPM to come out of this slippery road condition. This is normal.
12.11.2 ESP OFF
Graphic
In some driving conditions, to maximise traction, it may be beneficial to de-activate ESP.
Such conditions are:
•  To start in deep snow or on a loose surface
•  Driving in deep sand
•  Driving through deep mud etc.
Graphic
To de-activate ESP, press ESP OFF button on the central bezel switch bank. Once ESP OFF mode is selected, a warning indicator illuminates in the instrument cluster.
Press ESP OFF button again to activate ESP function.
Mahindra recommends that ESP be operational in all normal driving conditions.
When ESP is in OFF mode, other functions like HHC (Hill Hold Control) HBA (Hydraulic Brake Assist), HDC (Hill Descent Control), DTC (Drag Torque Control), ROM (Roll Over Mitigation) will be in working mode.
However, for safety reasons, if the ESP system detects that the vehicle is going into a unstable condition, ESP will be automatically activated on depressing the brake pedal
ESP, by default, will be in ON condition for every ignition cycle.
Graphic
If the ESP indicator blinks while driving, it indicates that ESP is working. If this indicator illuminates continuously, it indicates a malfunction in the ESP system. Drive carefully to the nearest Authorised Mahindra Dealer and get the ESP system checked.
12.12 Hill Descent Control (HDC) (if equipped)
Graphic
Assists the driver to descend a steep hill (max. 50% inclination) by means of brake intervention limiting the vehicle speed is without driver's input.
During HDC, if the wheel slip becomes excessive, ABS will be activated automatically.
HDC is a user-intended function. To activate, press HDC button on the central bezel switch bank. The LED on the button illuminates indicating the status. Press the button again to deactivate HDC.
During a descent, if the vehicle speed is more than the rated speeds (refer recommended shift speeds), HDC (if selected) automatically operates the brakes to slow the vehicle and maintain a speed relative to the selected gear and the accelerator pedal position.
HDC will also work in neutral gear, and maintains the vehicle rolling speed by operating brakes automatically. HDC will deactivate automatically, if the vehicle speed is more than 45 kmph.
While HDC is controlling the vehicle speed, descent speeds can be varied using cruise control switches mounted on the steering wheel.
To decrease speed, press and hold “SET -” button. The vehicle speed at the point of switch release will become the new descent speed.
To increase, press and hold “SET +” button. The vehicle speed at the point of switch release will become the new descent speed. Alternatively, descent speeds can be adjusted by tapping the “SET _” or “SET +” buttons. Each press of the button will adjust the speed by approximately 0.5 kmph.
The descent speed increases only if the gradient is sufficiently steep to cause the vehicle to accelerate as the braking effect is reduced. On a shallow slope, pressing the “SET +” button may result in no speed increase.
If the brake pedal is depressed when HDC is active, HDC is overridden and the brakes will perform as normal (a pulsation might be felt through the brake pedal). If the brake pedal is then released, HDC will recommence operating, if necessary.
HDC system monitors the brake temperature continuously. If brake application is continuous and brake temperatures are too high, HDC deactivates automatically. This is to ensure that the brake pads are not worn due to continuous brake application.
12.13 Hill Hold Control (HHC) (if equipped)
Hill Hold Control with acceleration sensor identifies gradients and holds the vehicle for about three to four seconds after the brakes have been released in order to prevent the vehicle from accidentally rolling backwards during a hill start.
Imagine a situation where your vehicle is stopped on an uphill incline. If you release the brake while moving off, there are chances that your vehicle may roll back. HHC helps in such situations by holding the vehicle from rolling back.
HHC operation cannot be intervened. For HHC to work, clutch pedal must be in fully pressed condition and gear engaged.
12.14 Cruise Control (if equipped)
Cruise control allows you to maintain a set speed without the need to keep your foot on the accelerator pedal. It should be used for cruising on straight, open highways. Never use it for city driving, inclines, winding roads, slippery roads, heavy rain or in bad weather conditions.
It works on the closed loop system principle to maintain the set speed of the vehicle; the system controls the fuel injection of the engine in order to maintain the set speed.
Graphic
Graphic
A
Resume
C
SET +
B
Cruise Off
D
SET -
Cruise control enhances your comfort while driving and allows you to effortlessly maintain the desired lane speed limit. Improper use of the cruise control can lead to an accident.
Cruise control is designed to operate above a vehicle speed of 20 kmph for all gears except 1st and reverse gears. The cruise lamp in the instrument cluster functions only if the cruise control is active.
Cruise control will function only under the following conditions;
•  The vehicle is cruising above 20 kmph
•  Engine RPM above 1200 RPM
•  Vehicle is in any gear except 1st and reverse
•  Clutch pedal released.
•  Brake pedal released.
•  Cruise is activated first time in an ignition cycle by SET + / SET - button
•  Subsequent cruise engagements can be done by RESUME SET+ /SET- buttons in the same ignition cycle
Cruise control is deactivated under the following conditions:
•  CRUISE OFF button is pressed
•  Brake or clutch pedal depressed
If the vehicle speed exceeds the cruise set speed by 30 kmph by accelerator pedal intervention
•  If vehicle speed is increased by 10 kmph for more than 30 secs. by pressing the accelerator pedal
When Set+/Set- switch is pressed for more than 12 secs. (In this case, vehicle will not go into cruise mode in that ignition cycle. In order to restore the cruise function, switch OFF the ignition, wait for 30 secs. and switch ON the ignition)
Cruise influencing error indicated by Check Engine Lamp, OBD lamp, etc.
12.14.1 Cruise Control Activation
Drive the vehicle to the desired cruising speed (any value greater than 20 kmph), press and hold the SET+ button until the cruise lamp in the instrument cluster illuminates.
If cruise is deactivated (e.g. by depressing brake to handle an intervention in the road etc.) in current driving cycle, reactivate the Cruise to the last active Cruise Speed by pressing the RESUME button.
Cruise control may not hold the set speed when you are going up or down hills, and the vehicle may come out of cruise control. This is indicated by the cruise lamp going OFF in the instrument cluster.
12.14.2 Cruise Control De-activation
You can cancel cruise control in any of the following ways:
•  Press the CRUISE OFF button in the steering wheel
•  Press the brake pedal
•  Gear selector moved into neutral
•  HDC or ESP becomes active
12.14.3 SET + Button
SET + button is used to activate cruise control and also to increase the cruise set speed.
To increase the speed in very small amounts, press the SET + button. Each time you press, the cruise set speed increases by about 2 kmph. When you wish to continuously increase the cruising speed, press and hold the SET + button and release when the desired speed is reached.
12.14.4 SET - Button
To decrease the speed in small amounts, press the SET - button. Each time you press, the cruise set speed decreases by about 2 kmph.
When you wish to continuously decrease the cruising speed, press and hold the SET- button. When the desired speed is reached, release the button.
If switch is pressed for more than 12 secs., the switch is assumed to be malfunctioning and the cruise functionality ceases to function in that ignition cycle. To resume functionality, ignition has to toggled.
The cruise control is a convenience system designed to assist the driver during vehicle operation. The driver must at all times remain alert of road / traffic conditions and responsible for the vehicle brake operation / steering control.
Never activate cruise control in traffic or when driven in adverse road conditions (heavy rains, windy, slippery etc.)
12.14.5 RESUME Button
With the help of RESUME, you can opt for the previous set cruising speed of the vehicle in the same ignition cycle. This is best explained with the following example:
1. Assume, you have activated cruise mode and set the vehicle speed at 50 kmph.
2. Due to an obstacle or a sharp turn, you have deactivated the cruise mode either by pressing the brake pedal or by switching OFF the CRUISE control.
3. Vehicle comes out of the cruise mode.
4. When the road condition is suitable to switch over back to cruise control mode, press RESUME button once. The system activates the cruise control mode to the previous cruising speed of 50 kmph.
5. To resume the previous cruise set speed, the vehicle speed should be above 20 kmph.
12.14.6 Override Function
This function enables user to ramp up the cruising speed to overtake front vehicle.
The cruising speed can be increased by using accelerator pedal. User has to complete this action within 30 seconds, to maintain the cruise mode. If user exceeds the 30 seconds limit, cruise mode will be deactivated.
12.15 Micro Hybrid Technology (Engine Stop/Start System)
Graphic
Engine Stop/Start system automatically “stops” and “starts” the engine when idle at signals or long traffic jams. This in turn gives a better fuel efficiency. Engine Stop/Start system is activated by the Engine Stop/Start button in the central bezel switch bank. The LED on the button indicates the status of the button.
12.15.1 How does the Engine Stop/Start System Work?
Let’s take a simple example of driving in traffic conditions within your city. Assume that your vehicle has stopped at a traffic junction due to a red signal. The following steps illustrate how the system functions:
•  The vehicle has come to a halt at a traffic signal, is in the neutral gear and the clutch pedal is released
•  The Engine Stop/Start lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period
•  The Engine Stop/Start lamp will illuminate in the instrument cluster indicating the engine was stopped by the “Engine Stop/Start” System
•  Once the signal turns green, press the clutch pedal and the engine starts immediately
•  The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on
For auto stop to happen, the following conditions are to be met:
•  Engine Stop/Start system is in active condition by default and can be turned off using the selection switch
•  Bonnet is fully closed
•  In the current ignition cycle, the vehicle has crossed 2 kmph at least once
•  Current status of the engine is idling
•  Vehicle speed is zero
•  Accelerator pedal and clutch pedal are fully released
•  Vehicle battery should be in healthy condition
•  Engine is warm (Engine coolant temperature is between 250C and 100C). This is an extra precaution to ensure safe working of the engine
•  Fuel temperature is less than 60C
•  Gear in neutral
For auto start to happen, the following conditions are to be met:
•  Vehicle should have been stopped by the Engine Stop/Start System
•  Gear lever is in the neutral position, Clutch pedal is fully de-pressed
•  Vehicle speed is zero
•  Engine Stop/Start System is in active state
•  Bonnet should be closed
12.16 Overview of the Engine Stop/Start System
Graphic
12.17 Frequently Asked Questions (FAQs)
1. What is the advantage of the system?
The Engine Stop/Start System aids in attaining better fuel efficiency on your vehicle and thus reducing your running costs. However, the mileage improvement will depend upon various parameters such as prevailing traffic, driving patterns, etc.
2. What are the other advantages of the system?
•  Since the engine is switched off during traffic signals / jams, considerable amount of CO2 release in the atmosphere is avoided. This reduces global warming and thus provides us with a cleaner atmosphere to live
•  Ability to start the engine by pressing the clutch pedal
•  Reduces noise pollution at traffic signals
3. Is it possible to start the engine through the clutch pedal for the first time?
No, the engine can be cranked only with the ignition key for the first time. If the engine is stopped automatically by the system, only then it is possible to start the engine through clutch pedal.
4. How to activate/deactivate the system?
The system is activated by default during every ignition cycle. The LED indication on the Engine Stop/Start switch indicates the status of the system. The system can be turned OFF or back ON using the Engine Stop/Start switch.
5. Whether the system will get activated as soon as the engine is started the first time with the ignition key?
No, the Engine Stop/Start system can be activated only by the Engine Stop/Start switch, provided all listed conditions (in the previous section) are met. This is to ensure better performance of the engine in terms of fuel economy and durability.
6. What is to be done, if I don’t want the system to stop my engine at traffic signals/jams?
The system can be turned OFF by the Engine Stop/Start button in the central bezel switch bank.
7. Whether the A/C will function, if the engine is switched off?
No, the A/C will not work. However, the blower will be in operation when the ignition is ON.
8. What will happen if I keep the clutch continuously pressed at traffic signals/jams?
The system will not stop the engine if the clutch is continuously pressed since it indicates the driver’s intention of moving the vehicle immediately.
9. When the battery charge is low, whether the engine will be switched off?
If the battery charge drops below a certain threshold level, the system will not stop the engine so as to preserve the battery from further draining.
10. Whether I will be able to operate the engine with the normal ignition key?
Yes, normal operation with the ignition key is always possible.
11. Whether the vehicle will start (or) stop in gear?
The vehicle will not start or stop automatically in gear to ensure safety. It will do so only in the neutral position of the gear lever.
12. Whether the system will stop my engine in moving traffic?
No, the engine will be stopped only when the vehicle speed is zero.
13. Whether the audio system will be switched OFF, when the engine shuts down?
No, the audio system will not be switched OFF and you can continue to enjoy the music.
14. Whether the engine will re-crank whenever the clutch pedal is pressed?
No, when the engine is running, the starter motor will not attempt to re-crank.
15. If any component involved in the system fails, what will happen?
The system has a built-in diagnostic module which understands the failure and immediately goes to bypass mode. In the bypass mode, the engine can be turned ON and OFF by ignition key as usual.
12.18 Fuel-BS VI
Graphic
Use commercially available vehicular Ultra-low Sulfur Highway Diesel that meets the BIS standard (IS 1460; 2017 BS VI specification or equivalent). Information on diesel quality can normally be found in the fuel pump. Please contact filling station personnel in case labels in the pump cannot be found. If the diesel fuel with high sulfur content (more than 10 PPM) and unspecified additives are used, it can cause the DPF system damage and emission warranty issues.
Do not fill the fuel tank or mix the fuel with gasoline, alcohol based fuels, kerosene, etc. This will damage the engine, fuel and exhaust system components.
If you have accidentally filled the fuel tank with incorrect or non- approved fuel, do not start the vehicle. Contact an Authorized Mahindra Dealer to have the fuel system drained completely.
12.18.1 Fuelling during Winter
During freezing weather, if fuel is not winterised or is insufficiently winterised, waxing/gelling may start in fuel, leading to interruption in fuel supply to engine. For smooth functioning and reliable operation of the engine during cold weather conditions, use winterised ULSD which are available at the filling stations during winter months. Check with your fuel retailer for further details.
Avoid inhaling fuel vapours and any skin or clothing contact. Direct skin contact with diesel or the inhalation of fuel vapour may affect your health.
Diesel is highly flammable and poisonous. It burns violently and can cause serious injury. Never allow sparks, flames or smoking materials near diesel. Turn OFF the engine before refuelling. Whenever you are around diesel, extinguish all smoking materials.
12.18.2 Minimum Fuel Requirement
It is recommended maintaining a minimum of 10 litres of fuel in the fuel tank. Driving the vehicle till the fuel tank is empty is not recommended. Always have sufficient fuel in the tank. Check the fuel level prior to starting your journey.
Never carry fuel in separate containers in the vehicle, it is dangerous and may lead to inadvertent fuel leak or spillage.
12.18.3 Fuel-Lid Opening and Closing
Graphic
The remote fuel-lid can be opened by gently pressing the fuel lid button (adjacent to the head lamp levelling switch) on the instrument panel driver side.
Fuel filler lid cannot be released when the vehicle speed is more than 20 kmph.
Fuel filler lid operation is limited to 8 times / minute. Avoid unnecessary usage of fuel filler lid button.
Turn the fuel cap counter-clockwise to open. Refuel and put the cap back in its place and tighten in the clockwise direction till three distinct clicks are heard. Close the fuel lid shut.
Graphic
Ensure the fuel cap and lid are securely closed before starting the vehicle.
12.18.4 Mechanical Override for Fuel-Lid Opening
Graphic
In the unlikely event of remote switch not opening the fuel lid, a mechanical override release is provided. It is located in the luggage compartment LH trim area behind the third row seats. Turn the knob anti-clockwise to open the fuel lid.
13 WHEELS AND TYRES
13.1 Tyre Information
Graphic
A
RADIAL TYRES OR BIAS-PLY TYRE
B
“TUBELESS” OR “TUBE TYPE”
C
TYRE SIZE
D
MAX. LOAD LIMIT
E
TREAD WEAR
13.2 Tyre Rating
Your vehicle is originally equipped with tyres supplied by a reputable manufacturer. If you ever have any questions regarding your tyres, please refer to literature supplied by the tyre manufacturer, or to the separate tyre warranty provided by the tyre manufacturer. You may also contact Authorised Mahindra Dealer directly, or the tyre manufacturer.
The tyre rating of XUV500 is:
•  235/65 R17 103/104 H/V
•  Optional P235/65 R18 103/104 H/V
Tyre rating is explained as below:
Graphic
Tyre size (Example: 235/65 R17 104H)
Callout (A) : 235 (Three-digit number) : This number gives the width in millimetres of the tyre from sidewall edge to sidewall edge. This is called as “Section Width”.
Callout (B) : 65 (Two-digit number) : This number, known as the aspect ratio, gives the tyres ratio of height to section width.
Callout (C) : R : This is the Tyre Construction Code. The “R” stands for Radial.
Callout (D) :17 (Two-digit number) : This number is the wheel or rim diameter in inches.
Callout (E) :104 (Two or three-digit number) : This number is the tyres load index. It is a measurement of how much weight each tyre can support.
Callout (F) : H : Tyre speed rating or speed symbol. Never drive the vehicle faster than the tyre speed rating. The speed rating denotes the speed at which a tyre is designed to be driven for extended periods of time under a standard condition of load and inflation pressure.
13.2.1 Speed Rating
SPEED SYMBOL
MAX. SPEED CAPABILITY
SPEED SYMBOL
MAX. SPEED CAPABILITY
KM/HR
KM/HR
L
120
T
190
M
130
U
200
N
140
H
210
P
150
V
240
Q
160
W
270
R
170
Y
300
S
180
Z
240+
13.3 Tyre Label (Vehicle Placard)
Graphic
Graphic
Tyre Label (Vehicle Placard) is located on the driver side inner B-pillar. This placard tells you important information about tyre size designed for your vehicle, and the tyre inflation pressures for the front & rear tyres.
XUV500 COLD TYRE INFLATION PRESSURE
bar/psi/kPa
TYRE
P 235/65 R17/R18
FRONT
2.2 / 32 / 220
REAR
2.2 / 32 / 220
Never overload your vehicle. Overloading can cause tyre failure, affect vehicle handling, and increase your stopping distance, resulting in an accident and/or serious personal injury.
Improper inflated tyres can adversely affect vehicle handling or can fail unexpectedly, resulting in an accident and/or serious personal injury.
13.4 Tyre Pressure
Proper Tyre inflation pressure is essential to the safe and satisfactory operation of your vehicle. Three primary areas are affected by improper Tyre pressure:
•  Safety
•  Economy
•  Ride Comfort and Vehicle Stability
Proper Tyre inflation contributes to a comfortable and safe ride. Overinflating produces a jarring and uncomfortable ride. Both underinflation and overinflation affect the stability of the vehicle and can produce a feeling of sluggish response or over responsiveness in the steering. Unequal Tyre pressures can cause erratic and unpredictable steering response or may cause the vehicle to drift left or right.
Improper inflation pressures can cause uneven wear patterns to develop across the Tyre tread. These abnormal wear patterns will reduce tread life resulting in a need for earlier Tyre replacement. Under inflation also increases Tyre rolling resistance and results in higher fuel consumption.
The proper cold Tyre inflation pressure is listed in the Tyre Label (Vehicle Placard), located on the front passenger side inner B-pillar.
13.4.1 Inspection and Adjustment Procedure
The Tyre pressure should be checked and adjusted, as well as inspected for signs of Tyre wear or visible damage, at least once a month. Use a good quality pressure gauge to check Tyre pressure. Do not make a visual judgement when determining proper inflation. Radial Tyres may look properly inflated even when they are underinflated. At the same time, each Tyre should be inspected for signs of Tyre wear or visible damage.
Inflation pressures specified on the placard are always cold Tyre inflation pressures. Cold Tyre inflation pressure is defined as the Tyre pressure after the vehicle has not been driven for at least three hours, or driven less than 1 km after a three-hour period. Check Tyre pressures more often if subject to a wide range of outdoor temperatures, as Tyre pressures vary with temperature changes. Tyre pressures change by approximately 1 psi (7 kPa) per 7°C of air temperature change. Keep this in mind when checking Tyre pressure inside a garage, especially in the winter.
When it was new, the spare Tyre in your vehicle was fully inflated. However, a spare Tyre can lose pressure over time. In order to avoid being stranded, check the spare Tyre air pressure frequently.
13.4.2 Inflating Your Tyres
Safe operation of your vehicle requires that your Tyres are properly inflated. Remember that a Tyre can lose up to half of its air pressure without appearing flat.
At least once a month or before long trips, inspect each Tyre and check the Tyre pressure with a Tyre gauge (including spare Tyre). Inflate all Tyres to the recommended inflation pressure.
Under-inflation is the most common cause of Tyre failures and may result in severe Tyre cracking, tread separation or “blowout”, with unexpected loss of vehicle control and increased risk of injury. Under-inflation increases sidewall flexing and rolling resistance, resulting in heat buildup and internal damage to the Tyre. It also may result in unnecessary Tyre stress, irregular wear, loss of vehicle control and accidents.
Always inflate your Tyres to the recommended pressure even if it is less than the maximum inflation pressure information found on the Tyre. The recommended Tyre inflation pressure is found on the Tyre Label which is located on the front passenger side inner B-pillar. Failure to follow the Tyre pressure recommendations can cause uneven tread wear patterns and adversely affect the way your vehicle handles.
If you overfill the Tyre, release air by pushing the metal stem in the centre of the valve. Then recheck the pressure.
After inspecting or adjusting the Tyre pressure, always reinstal the valve stem cap (if equipped). This will prevent moisture and dirt from entering the valve stem, which could damage the stem, resulting in an unexpected loss of Tyre pressure, an accident and/or personal injury.
13.4.3 Radial Ply Tyres
Combining radial ply Tyres with other types of Tyres on your vehicle will cause your vehicle to handle poorly, resulting in an accident and/or personal injury. Always use radial Tyres in sets of four. Never combine them with other types of Tyres.
Cuts and punctures in radial Tyres are repairable only in the tread area because of sidewall flexing. Consult your Authorised Mahindra Dealer for radial Tyre repairs.
13.4.4 Tread Wear Indicators (TWI)
Tread wear indicators are moulded into the bottom of the tread grooves. They will appear as bands when the tread depth becomes 1/16 inch (2 mm). When the indicators appear in two or more adjacent grooves, the Tyre should be replaced.
Avoid abrupt manoeuvring and braking. This can cause Tyre deterioration and lead to loss of steering or braking control.
13.4.5 Life of Tyre
The service life of a Tyre is dependent upon various factors including but not limited to:
•  Driving style
•  Tyre pressure
•  Distance driven
Tyres and the spare Tyre should be replaced after six years, regardless of the remaining tread. Failure to follow this warning can result in sudden and unexpected Tyre failure, leading to an accident and/or personal injury.
Keep dismounted Tyres in a cool, dry place with as little exposure to light as possible. Protect Tyres from contact with oil, grease and fuels.
Do not use a Tyre, wheel size or speed rating other than that specified for your vehicle on the Tyre placard. Combinations of unapproved Tyres and wheels may change suspension geometric and performance characteristics, resulting in changes to steering, handling and braking of your vehicle. This can cause unpredictable handling, stress to steering and suspension components. You could lose control of the vehicle or the Tyre can unexpectedly fail, resulting in an accident and/or personal injury.
Replacing original Tyres with Tyres of a different size may result in false speedometer and odometer readings.
13.4.6 Snow Chains
Snow chains cannot be used on these Tyres.
In case of harsh winter driving conditions, it is recommended using winter Tyres with the same specifications for better stability, safety and performance.
13.5 Tyre Rotation Recommendations
Type 1 - Applicable for all 5 Steel / 5 Alloy Wheels
Graphic
Tyres on the front and rear axles of vehicles operate at different loads and perform different steering, handling, and braking functions. For these reasons, they wear at unequal rates and develop irregular wear patterns.
Rotation will increase tread life, help to maintain mud, snow, and wet traction levels, and contribute to a smooth, quiet ride. Follow the recommended Tyre rotation frequency for your type of driving.
Type 2 - Applicable for 4 Alloy wheels and Spare wheel with Steel rim
It is recommended rotating the Tyres as per the “Maintenance Schedule”.
The suggested rotation method is the “forward-cross” shown in the diagram. The benefits of rotation are especially worthwhile with aggressive tread designs such as those on On/Off-road type Tyres.
Graphic
Rotation will increase tread life, help to maintain mud, snow, and wet traction levels, and contribute to a smooth, quiet ride. Follow the recommended Tyre rotation frequency for your type of driving. More frequent rotation is permissible if desired. The reasons for any rapid or unusual wear should be corrected prior to rotation being performed.
13.5.1 Changing a Flat Tyre
Refer to “If you have a Flat Tyre” section in the general chapter for details.
13.5.2 Wheel Tightness
When you change a wheel, remove all rust and dirt at all locations where the wheel contacts the wheel hub. Use a scraper or wire brush to be sure that you remove all rust and dirt. A loose wheel could have damaged or elongated the holes in the rim, or damaged the rim/hub assembly. If any of the wheel studs or nuts are damaged, contact the nearest Authorised Mahindra Dealer.
Always tighten the nuts in a criss-cross sequence. Never use oil or grease on your wheel studs or nuts.
Never over overtighten the nuts on the wheel stud. You could damage the stud or the nut.
Torque tighten the wheel nuts to the specified value at the nearest Authorised Mahindra Workshop.
The tyres fitted in this vehicle meet the requirements of BIS and they comply with the requirements under the Central Motor Vehicles Rules (CMVR) 1989.
13.6 Tiretronics (if equipped)
Tiretronics is an electronic system designed to monitor the air pressure inside the pneumatic tyres. This system will alert the driver if the tyre pressure falls below the low pressure or raises above high pressure warning limit for any reason, including low temperature effects and natural pressure loss through the tyre.
The Tiretronics will continue to alert the driver and will not turn off until the tyre pressure is inflated to the recommended pressure.
Low Tyre Pressure Indication
Steps:
•  Check the actual tire pressure through Blue sense app.
•  Check the ambient temperature through Blue sense app and Infotainment.
•  And compare the pressure value with respect to ambient temperature as per placard.
•  If not correct, fill the pressure as per the placard.
•  Else, Please contact nearest Authorised Mahindra Dealer for further assistance.
Recommended Tyre Pressure Value
Ambient Temp Deg C
Recommended Prec Front
Recommended Prec Rear
<0
28.0
28.0
10.0
29.1
29.1
20.0
30.6
30.6
30.0
32.0
32.0
40.0
33.5
33.5
50.0
34.9
34.9
60.0
36.4
36.4
70.0
37.8
37.8
If the vehicle was previously halted for more than 45 minutes & is driven less than 15 minutes before filling the air then the tires shall be filled  to the respective placard as per the ambient temperature  else to the next placard value.
Example: If a vehicle was halted at a ambient of 30 deg c for 50 minutes and  driven to a air filling station within 5 minutes then respective play card value will be 32.0 PSI for front & rear. Else 33.5 PSI.
13.6.1 Operation of Tiretronics
Tiretronics uses wireless technology with wheel rim mounted electronic sensors to monitor tyre pressure levels. Sensors mounted to the valve stem of each wheel, transmit tyre pressure readings to the receiver module. Receiver module in turn will communicate this information to the instrument cluster and infotainment system. Tyre locations will display as OK, if all tyre pressure and temperature are in the recommended range.
The Tiretronics has been customised only for the manufacturer’s genuine tyres and wheels. Tiretronics pressure limits and warning messages have been established for the tyre size equipped on your vehicle.
Replacement of manufacturer’s parts with a different size, type or style of components may damage the sensor and lead to incorrect readings.
Do not use aftermarket tyre sealants or balance beads if your vehicle is equipped with Tiretronics. Failure to comply may lead to sensor damage.
The Tiretronics is not intended to replace normal tyre care and maintenance or to provide warning of a tyre failure or condition.
The Tiretronics should not be used as a tyre pressure gauge while adjusting vehicle tyre pressure.
Driving with under-inflated tyres cause the tyres to overheat and may lead to tyre failure.
Under-inflated tyres reduce fuel efficiency, tyre tread life and may affect the vehicle's manoeuvrability & braking ability.
The Tiretronics is not a substitute for tyre maintenance, it is the driver's responsibility to maintain correct tyre pressure using an accurate pressure gauge, even if under-inflation has not reached the level to trigger illumination of the Tiretronics warning indicator.
13.6.2 Tiretronics Warning Lamp
Tiretronics warning lamp will blink for 75 seconds (approx.) and remain ON in the instrument cluster, if any of the below mentioned condition occurs in the tyres:
•  Sensor signal missing
•  Sensor faulty
The error is also displayed on the infotainment screen as below. If above condition occurs, contact the nearest Authorised Mahindra Dealer for further assistance.
Graphic
Examples of Tiretronics warning lamp illumination and corresponding infotainment screen display;
•  Low pressure
Graphic
•  High pressure
Graphic
•  Air leakage
Graphic
13.6.3 Tiretronics Learning
After a tyre rotation or Tiretronics sensor replacement, the receiver must be learnt, else the Tiretronics warning lamp indicates a malfunction.
Tiretronics learning button (A) is located to the left hand side of the instrument cluster.
Graphic
13.6.4 Tiretronics Learning Procedure
1. Press the Tiretronics button in the cluster and turn ignition ON along with the button pressed. The infotainment screen displays as below and Tiretronics warning lamp in the cluster starts blinking.
Graphic
2. Start removing air from front left tyre, once the tyre gets learnt, vehicle alarm and hazard lamps flash once. The infotainment screen display is as below:
Graphic
3. Repeat the above step for front right tyre, rear right tyre and rear left tyre (in the same order). Corresponding infotainment screen displays are as below:
Graphic
Graphic
Graphic
4. Start removing air from spare tyre. Once the tyre gets learnt, vehicle alarm and hazard lamps flashes to indicate all the tyres were learnt. The infotainment screen display is as below indicating all tyres were learnt successfully.
Graphic
If there were any problem in learning, the alarm and hazard lamps flash 3 to 5 times to indicate the tyre learning was not complete.
13.6.5 Tyre Swap
If a tyre was swapped with the spare tyre, system alerts the user through infotainment as below:
Graphic
Please note, if swapping is done for more than one tyre or with the other running tyres, system cannot identify the same and the system needs to be relearned.
If any one of the running tyres goes faulty, spare tyre is swapped with the running tyre and the vehicle is driven, then:
•  the system automatically recognises the swap
•  interchanges the running tyre and spare tyre data
The Tiretronics system cannot detect the absence/ missing spare tyre
14 EMERGENCIES
14.1 Hazard Warning Flashers
Graphic
The hazard warning flasher button is located in the central bezel switch bank. Press the button to turn ON the hazard warning flashers, all directional turn signals will flash to warn oncoming traffic. This is an emergency warning system and should be used only when there is an emergency. Use it when your vehicle is disabled and is a safety hazard for other motorists. Hazard warning flasher will work in all positions of the ignition key and even when the vehicle is fully locked.
With extended use, the hazard warning flasher may drain your vehicle battery.
14.2 Vehicle Does Not Start - Checks
Before making these checks, make sure you have followed the correct starting procedure and that you have sufficient fuel.
If the engine is not cranking or is cranking too slowly / intermittently
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are firmly fastened, switch ON the interior lamps.
3. If the lamps do not illuminate, glow dim or go OFF when the starter is cranked, then it indicates a weak or discharged battery. Try jumpstarting. Follow ‘jumpstarting’ instructions given later in this chapter.
4. Check the fuses in the Engine Compartment Fuse Box and Central Fuse Box.
If the engine cranks normally, but does not start
1. If the lamp illumination is normal, engine is cranking normally, but the engine does not start even after repeated cranking, it needs adjustment or repair. Contact an Authorised Mahindra Dealer.
2. During winter, use non-winter diesel or due to extreme cold conditions, the vehicle may not start. Contact an Authorised Mahindra Dealer for further assistance.
To prevent damage to the starter, do not crank the engine for more than 15 seconds at a time. Wait 10 to 15 seconds before trying again.
If the engine stalls while driving
Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. Turn ON your hazard warning flashers and check for any malfunction lamps in the instrument cluster. Turn the ignition OFF, wait for approximately 90 seconds and try starting the engine again. If the vehicle still does not start, contact an Authorised Mahindra Dealer.
If the engine stalls while running, the power assist for the brakes and steering will not work. Steering and braking will be much harder than usual.
If the engine speed does not increase
If the engine speed does not increase when the accelerator pedal is depressed, there may be a problem in the Engine Management System, electrical or electronic controls. In case of certain faults, the engine may go to limp home mode, which is indicated by the check engine lamp. Have your vehicle checked by an Authorised Mahindra Dealer as soon as possible.
14.3 Vehicle Overheating
If the needle in the temperature gauge in the instrument cluster is all the way up to the H and/or the high engine coolant temperature warning lamp is ON, your engine has overheated.
If the engine is getting overheated, the Engine Management System reduces engine power substantially and may even shut the engine OFF; it is dangerous to continue driving when the engine has overheated. You need to first cool the engine down before starting to drive again.
Follow the below instructions to cool the engine down:
•  Progressively reduce the vehicle speed and bring the vehicle to a stop at the side of the road
•  Turn ON the hazard warning flashers
•  Keep the engine running at idle
•  Engage the parking brake
•  Switch off the air conditioner
•  Wait till the engine coolant temperature drops sufficiently such that the needle in the temperature gauge is around halfway between C and H
Now switch the engine OFF and carefully open the bonnet/hood to visibly inspect the engine cooling system parts. Be cautious while doing an inspection as vehicle parts will still be too hot. Verify that the engine coolant level in the coolant recovery tank is maintained between the 'Min' and 'Max' mark. Check for possible fluid leakages. Check for damages to heat exchangers and connecting hoses. Also verify that the radiator shrouds, engine fan blades and the engine belt all are in good condition.
If any evidence of failure is observed, contact the nearest Authorised Mahindra Dealer for help. In case, no system leakage/ failure is suspected, driving can be continued.
Either due to severe operating conditions or due to any system leakages or failures, the engine can get overheated. However, if the engine is getting overheated repeatedly, even in normal operating conditions, get the vehicle checked by an Authorised Mahindra Dealer as soon as possible.
Refer to the 'High Engine Coolant Temperature' section under the 'Features and Control' chapter for details.
If the high engine coolant temperature warning is ignored, the engine shuts OFF abruptly to safeguard engine components from overheating and consequent failure. Abrupt engine shut-off can lead to uncontrollable driving condition and accidents.
Stay clear of hot and rotating vehicle parts while visually inspecting the vehicle. The coolant inside the cooling system is under high pressure and temperature. Never open the pressure cap of the degassing tank when the engine is hot. Not taking precautions may lead to serious injury to your skin/eyes.
For optimum performance of the cooling system, you must maintain the required coolant level and use only recommended engine coolant.
14.4 Jump Starting
If your vehicle's battery has run down, you may be able to start the engine by using a standalone booster battery.
But before going ahead with this procedure ensure that the battery is the cause of vehicle not starting. To confirm this, few simple tests can be conducted as follows;
•  Check the headlights - Are they dim or bright? If they are dim, it's likely your battery is dead. If your headlights are bright, you do not have a dead battery and a jump start may not help
•  Try to start your vehicle -Does it turn over very slowly, or does it crank quickly? If it cranks quickly, you do not have a dead battery and a jump start may not help. If it cranks slowly, or not at all, you probably have a dead battery
Open the bonnet and locate the battery (near the left side fender). Identify the positive and negative terminals.
•  The positive terminal will be marked with a plus sign (+) and will usually have a RED cable attached on it.
•  The negative terminal will be marked with a minus sign (-) and will usually have a BLACK cable attached to it
Check the physical condition of the battery. Inspect batteries for cracks, leaks or any other damage. If you find any of these things, do not jump start the vehicle. Call Mahindra Road Side Assistance or replace the battery. If the weather is very cold, remove the refill caps and check the condition of the electrolyte. If it seems slushy or like ice, do not attempt jump-starting until it thaws.
1. Wear safety gear (goggles or face guard and gloves) if you have it.
Graphic
It may be necessary to remove the disabled vehicle’s battery cables from the battery terminals and clean both cables and terminals. Use a stiff wire brush to remove all corrosion. Reconnect the cables to the battery terminals and jump the vehicle.
2. Untangle and unwind your jumper cables. Like your batteries, your jumper cables will probably have red and black cables and will have heavy duty clamps to connect to the battery terminals. You must make sure that the red and black ends of your jumper cables never touch each other once they are connected to the batteries; permitting them to do so can result in serious arcing and/or damage to vehicle
3. Connect the jumper cables in the order described below;
•  Connect one red clamp of the jumper cable to the positive (+) terminal of the discharged battery
•  Connect other end of the red clamp to the positive (+) terminal of the booster battery
•  Connect one black clamp of the jumper cable to the negative (-) terminal of the booster battery
•  Connect the other end of the black clamp to the negative (-) terminal of the discharged battery
•  Crank the engine for starting
•  Once the vehicle gets started, carefully remove the jumper cables in the reverse order of attachment
Graphic
Make sure none of the cables are dangling into the engine compartment, where they could be exposed to moving parts.
4. Remove the jumper cables once the vehicle starts. Do this in the reverse of the order in which they were attached, and don't let any of the cables or clamps touch each other (or dangle into the engine compartment)
•  Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery
•  Disconnect the other end of the black clamp from the negative (-) terminal of the booster battery
•  Disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery
•  Disconnect the other end of the red clamp from the positive (+) terminal of the discharged battery
Replace any positive (+) red post protective covers if applicable (You have had to remove or open these in the beginning) These covers help prevent accidental short circuiting of the battery
5. Keep the recently-disabled vehicle's engine running. Run the vehicle above idle (slightly revved up with your foot on the accelerator). This should give the battery enough charge to start the vehicle again. If it does not, you probably have a dead battery or a dying alternator
Improper jump starting procedures can result in battery explosion and acid burn hazard.
Loosely connected battery cables could damage the electronic control units.
To disconnect battery terminals wait for at least 2 minutes to allow discharge of high voltage or it could lead to personal injury.
While disconnecting, always disconnect the -VE terminal first and while connecting, always connect the -VE terminal last.
Do not connect battery terminals with opposite polarity, it will lead to alternator failure
Towing a vehicle to start could be dangerous. The vehicle being towed could surge forward when the engine starts, causing the tow vehicles to collide, injuring the occupants.
Modern vehicles with electronic management systems should not be jump started without ‘protected’ jump starter leads.
14.5 Limp Home Mode
Limp Home Mode is an emergency situation declared by the EMS (Engine Management System) due to failure of one/more critical sensors/actuators. In this mode, the EMS (Engine Management System) will revert back to basic minimum requirement (fuel quantity / injection timings) to aid the driver to bring the vehicle back to the nearest workshop. Needless to say, the drivability & fuel consumption will be greatly affected.
If vehicle acceleration worsens or if there is a drop in vehicle performance, there might be a malfunction in the engine management system which triggers/activates the Limp Home Mode. This condition is accompanied by the check engine lamp illuminating in the instrument cluster. In this mode, the vehicle speed is limited and the accelerator pedal may not function normally. It is recommended you contact an Authorised Mahindra Dealer immediately for assistance.
14.6 Towing
Front Extraction Hook
Graphic
Your vehicle comes with a front welded tow hook as shown in the image. The front recovery hook should be used when the vehicle needs to be recovered.
Rear Extraction Hook
Graphic
Graphic
Rear extraction hook is a screw on type and it is available in the tools pouch in the jack storage compartment at the rear of the vehicle.
Remove/pry out the extraction hook cover in the rear bumper using a screwdriver. Screw in the tow eye in the counter clockwise direction (tow eye is LH threaded) and tighten. Fasten a cable or chain specifically intended for use in towing vehicles to the towing hook.
The rear extraction hook should be used when your vehicle is utilised for towing other vehicles.
If your vehicle needs to be towed, call a professional towing service. If a towing service is unavailable in an emergency, your vehicle may be temporarily towed by a towing cable or chain secured to the emergency towing hook welded into the front cradle assembly of the vehicle.
14.6.1 Towing Equipment
Towing Options
Variant
2WD
AWD
Front extraction hook
Rear extraction hook eyelet
Flatbed towing
Towing by all 4 wheels
Sling type towing (front wheel lift)
Sling type towing (rear wheel lift)
Towing equipment are of two types:
•  Sling-type equipment - The tow truck uses metal cables with hooks on both ends. These hooks go around parts of the frame or suspension and lift the end of the vehicle off the ground. This is not a good method of towing as it may damage the vehicle's suspension and body. Avoid a tow with sling type equipment
•  Flat-bed equipment - Your vehicle is loaded on the back of a truck. This is the safest and best way of towing
Graphic
15 MAINTENANCE
15.1 General Owner's Information
Your vehicle has been designed for fewer maintenance requirements with longer service intervals to save both your time and money. However, each regular maintenance, as well as day-to-day care is more important to ensure a smooth, trouble-free, safe and economical operation.
It is the owner's responsibility to make sure the specified maintenance, including general maintenance service is performed. Note that both the new vehicle limited warranty and emission control system limited warranties specify that proper maintenance and care must be performed. See Service Coupon Booklet for complete warranty information.
Where to go for service?
Mahindra technicians are well trained specialists and are kept up to date with the latest service information through technical bulletins, service tips and in dealership training programmes. They learn to work on Mahindra vehicles before they work on your vehicle, rather than while they are working on it.
You can be confident that your Authorised Mahindra Dealer service department does the best job to meet the maintenance requirements on your vehicle reliably and economically.
Get the most from your vehicle with routine maintenance
Routine maintenance is the best way to help ensure you get the performance, dependability, long life and better resale value you expect from your vehicle. This is exactly why we've put together this Maintenance Section. It outlines the services required to properly maintain your vehicle and when they should be performed. The focus is on maintaining your vehicle while it's running great, which goes a long way toward preventing major repairs and expenses later.
Here are a few suggestions to help you get started on routine maintenance:
•  Familiarise yourself with your vehicle by going through your Owner's Manual
•  Take a few minutes to review this Maintenance Section
•  Make it a habit to use this manual to record scheduled maintenance in the Service Coupon Booklet
•  Consult with your Authorised Mahindra Dealer for all your vehicle's needs
15.1.1 Suggestions for Obtaining Service for your Vehicle
Prepare for the Appointment
If you have warranty work to be done, be sure to have the right papers with you. All work to be performed may not be covered by the warranty. Discuss additional charges with the service manager. Keep a maintenance log of your vehicle's service history.
Prepare a List
Make a written list of your vehicle's problems or the specific work you want done. If you've had an accident or work done that is not on your maintenance log, let the service adviser know about it.
Be Reasonable with Requests
If you list a number of items and you must have your vehicle by the end of the day, discuss the situation with the service adviser and list the items in order of priority.
15.1.2 Need Assistance?
It is recommended talking to an Authorised Mahindra Dealer service manager first. Most matters can be resolved with this process. If for some reason you are still not satisfied, talk to the general manager or owner of the dealership.
If an Authorised Mahindra Dealer is unable to resolve the concern, you may contact any Mahindra Customer Care Executive. They would need the following information:
Owner's name and address, owner's telephone number (home and office), Authorised Mahindra Dealer name, Vehicle Identification Number (VIN), vehicle delivery date and mileage.
15.1.3 Warranty Information
Read the Warranty Information given in the ‘Warranty Information & Maintenance Guide’ for the terms and provisions of Mahindra warranties applicable to this vehicle. Mahindra genuine parts, fluids, lubricants and accessories are available at any Authorised Mahindra Dealer. They will help keep the vehicle operating at its best.
15.1.4 Protect your Warranty
Routine maintenance is not only the best way to help keep your vehicle performing as intended, it's also the best way to protect your warranty. Failure to perform scheduled maintenance specified in the Service Coupon Booklet will invalidate warranty coverage on parts affected by the lack of maintenance. We can't stress enough how important it is to keep records of all maintenance. Damage or failures due to neglect or lack of proper maintenance are not covered under warranty.
Keeping maintenance records is easy with the service coupon booklet
It's important to document the maintenance of your vehicle. For your convenience to maintain records of service, the scheduled maintenance coupons are provided in the service coupon booklet. Every time you bring your vehicle in for scheduled maintenance, be sure to present this booklet and certify the work. Also record the date of service and mileage at the time of service. This will make record keeping easy and, should your vehicle ever require warranty coverage, you will have all the documentation to show you've properly maintained it.
15.1.5 Oils, Fluids and Flushing
In many cases, fluid discolouration is a normal operating characteristic by itself, and does not necessarily indicate a concern or that the fluid needs to be changed. However, discoloured fluids that also show signs of overheating and/or foreign material contamination should be inspected immediately by a qualified expert such as the factory trained technicians at your Authorised Mahindra Dealer. Your vehicle's oils and fluids should be changed at the specified intervals or in conjunction with a repair.
15.1.6 Chemicals and Additives
Non-Mahindra approved chemicals or additives are not required for factory recommended maintenance. In fact, Mahindra recommends against the use of such additive products unless specifically recommended by Mahindra for a particular application.
Your vehicle is very sophisticated and built with multiple complex performance systems. Every manufacturer develops these systems using different specifications and performance features. That's why it's important to rely on your Authorised Mahindra Dealer to properly diagnose and repair your vehicle.
When planning your maintenance services, consider your Authorised Mahindra Dealer for all your vehicle's needs.
15.1.7 Get the most from your Service and Maintenance visits
Getting your vehicle serviced at an Authorised Mahindra Dealer adds great value to your vehicle in number of ways. Hence, it is recommended to service your vehicle at an Authorised Mahindra Dealer only.
15.1.8 Maintenance Interval
Mahindra establishes recommended maintenance intervals based upon engineering testing to determine the most appropriate mileage to perform the various maintenance services. This protects your vehicle at the lowest overall cost to you. Mahindra recommends that you do not deviate from the maintenance schedules presented in this Maintenance Schedule.
15.1.9 Vehicle Self Maintenance - General Precautions
•  Refer to relevant sections of the manual before starting
•  Set the parking brake
•  Block the wheels to prevent the vehicle from moving unexpectedly
•  Turn OFF the engine and remove the key
•  Stay clear of hot vehicle parts
•  Avoid repeated contact with fluids
•  Do not let fuel, coolant and other fluids spill over electrical and hot vehicle parts
•  Keep all open flames and other burning material like cigarettes away from the battery and all fuel-related parts
Do not start/run the engine when any engine/peripheral parts are removed.
15.2 Opening and Closing the Hood
The hood release lever is located in the driver side footwell area, below the instrument panel. To open hood follow the steps below:
1. Pull the lever below the driver side instrument panel to release the hood.
Graphic
2. Lift the hood a little to access the safety latch holding the hood striker. This safety latch is located below the hood at the centre.
3. Lift the safety latch and lift the hood.
Graphic
4. Hood is supported by a stay rod.
Graphic
•  Do not open the hood immediately after a drive; the engine compartment will be very hot
•  Always double check to be sure that the hood is firmly latched before driving away. If it is not latched properly, the hood could open while the vehicle is being driven, causing a total loss of visibility, resulting in an accident
•  Do not move the vehicle with the hood in the raised position, as vision is obstructed
To close the hood, follow the below steps:
1. Remove the stay rod supporting the hood by slightly lifting the hood
2. Bring the hood near to its self-opening/closing position
3. Now, push the hood to close and ensure the primary latch is engaged
4. Before driving off, check hood is locked properly with primary latch fully engaged
Bonnet Open Hazard - When the bonnet is open and vehicle is in unlock condition:
•  Hazard lamps flash continuously to alert the user that the bonnet is open
•  Hazard cluster telltale also flashes
To stop the warning, do any one of the following:
•  Close the bonnet
•  Press the hazard button TWICE
•  Change the turn signal stalk position
•  Drive the vehicle > 10 kmph
15.3 Engine Compartment
Graphic
A
Power Steering Fluid Reservoir
G
Dipstick
B
Degassing Tank
H
Fuel Priming Pump
C
Front Windshield Washer Fluid Reservoir
I
DEF Filling Cap
D
Brake Fluid Reservoir
J
Air Filter Assembly
E
Engine Oil Cap
K
Battery
F
Engine Cover
L
Engine Compartment Fuse Box
Maintenance is classified as below:
•  General Maintenance
•  Scheduled Maintenance
15.4 General Maintenance
Exercise extreme caution when the hood is open and engine is ON.
Listed below are the general maintenance items that should be performed frequently. In addition to checking the items listed below, if you notice any unusual noise, fluid leakages, smell or vibration, you should investigate the cause or take your vehicle to your Authorised Mahindra Dealer or a qualified service shop immediately.
Make these checks only with adequate ventilation if you intend to run the engine.
In the Engine Compartment
•  Front windshield washer fluid level
•  Engine coolant level
•  Battery condition
•  Brake/Clutch fluid level
•  Engine oil level
•  Power steering fluid level
•  Fluid leaks
•  Hoses, joints and pipes for any abnormalities
Inside the Vehicle
•  Lights
•  Warning lamps
•  Windshield wipe and wash
•  Steering wheel
•  Seats
•  Seat belts
•  Accelerator pedal
•  Brake pedal
•  Brakes
•  Parking brake
•  Gear lever shift mechanism
Outside the Vehicle
•  Lamps
•  Fluid leaks
•  Doors and engine hood latches
•  Tyre inflation pressure
•  Tyre surface/thread and wheel nuts
15.5 In the Engine Compartment
15.5.1 Fluid Leaks
Check the engine compartment and the underbody of the vehicle for any leaks. If you smell fuel vapour or notice any leak, have the cause found and corrected immediately.
15.5.2 Engine Oil
Engine oil has the primary functions of lubricating and cooling the inside of the engine. It plays a major role in maintaining the engine in proper working order. Therefore, it is essential to check the engine oil regularly.
15.5.3 Engine Oil Consumption
It is normal for engines to consume some engine oil during operation.
Causes of consumption in a normal engine are as follows:
•  Oil is used to lubricate pistons, piston rings and cylinders. Thin films of oil, left over when pistons move in cylinders, are sucked into the combustion chamber due to high negative pressure generated when the vehicle is decelerating. This oil gets burnt in the combustion chamber
•  Oil is also used to lubricate the stems of intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burnt there
•  Engine oil consumption depends upon the viscosity and quality of the oil, and upon the conditions in which the vehicle is driven. Oil consumption will be more due to high speed driving and frequent acceleration and deceleration. A new engine may consume more oil since its pistons, piston rings and cylinder walls are not conditioned
15.5.4 Checking/Topping the Engine Oil
•  Make sure the vehicle is on level ground
•  Turn the engine OFF and wait a few minutes for the oil to settle down into the oil sump
•  Apply the parking brake
•  Open the hood, use stay rod to support the hood. Protect yourself from engine heat
•  Locate and carefully remove the engine oil level dipstick
•  Wipe the dipstick with a clean cloth. Insert the dipstick fully, then remove it again
•  If the oil level is between “Min” and “Max” marks, the oil level is acceptable. DO NOT ADD OIL
•  If the oil level is below or near the "Min"mark, add enough oil through the oil filler cap to raise the level within the “Min” and “Max” marks. Wait for few minutes after every top-up for the oil to settle down before checking the level
Graphic
•  Oil levels above the “Max” mark may cause engine damage/poor performance
•  Put the dipstick and the oil filler cap back and ensure it is fully/properly seated
Graphic
To avoid possible oil loss and injury due to hot blow-by gas, DO NOT operate the vehicle with the engine oil level dipstick and/or the engine oil filler cap removed.
Draining/Changing of engine oil should always be done by an Authorised Mahindra Dealer.
15.5.5 Checking/Topping Engine Coolant Level
•  Park the vehicle on flat-horizontal surface. Keep the parking brake fully engaged. Shut-off the engine
Graphic
•  Wait till the engine cools down and hence coolant temperature comes down to normal room temperature
•  The coolant level should be between “MIN” and “MAX” marking provided on the degassing tank
•  In case the coolant level is below the "MIN" marking, the coolant should be topped-up
•  The coolant should be filled till the level rises above the 'MIN' but remain below the “MAX” marking on the degassing tank
•  However if the degassing tank is found to be near empty, it is recommended that the system be checked at an Authorised Mahindra Dealer
Never open the pressure cap when the engine is hot. Hot coolant may splash resulting in serious personal injury or severe burns by the erupting liquid.
Top-up only with recommended Ready To Use (RTU) coolants for ensuring performance, anti-freezing and corrosion protection. Do not add water directly. Mixing with other brand of coolants is not recommended and should be avoided.
Draining or changing of engine coolant should always be done by an Authorised Mahindra Dealer.
15.5.6 Checking/Topping Brake/Clutch Fluid
Graphic
The brake and clutch systems are supplied fluid from the same reservoir.
The brake fluid level will drop slowly as the brakes wear, and will rise when the brake components are replaced. Fluid levels between the “MIN” and “MAX” lines are within the normal operating range; there is no need to add fluid. If the fluid levels are below the “MIN” mark, the performance of the systems could be compromised; the brake/clutch operation could be spongy and gear change harder. Top-up the recommended brake/clutch fluid till the “MAX” mark or contact an Authorised Mahindra Dealer immediately.
Carefully clean the cap on the reservoir before you remove it and be sure no debris fall in the reservoir. Do not keep the reservoir open for longer than necessary to add brake fluid.
Use only brake/clutch fluid that meets Mahindra specifications. Refer to ‘Lubricant and Capacities’ section.
Draining or changing of brake fluid should always be done by an Authorised Mahindra Dealer.
15.5.7 Checking/Topping Power Steering Fluid
Check the power steering fluid level at the defined service intervals. Refer to Maintenance Chart for details.
The fluid level should be checked if a leak is suspected, abnormal noises are apparent, and/or the system is not functioning as anticipated. Coordinate inspection efforts through an Authorised Mahindra Dealer.
Driving vehicle with power steering fluid below minimum mark will damage steering system.
Use only recommended power steering fluid. Do not use other types of power steering fluids which may damage the power steering system.
Graphic
Fluid level in the reservoir should be checked on a level surface with the engine OFF to prevent injury from moving parts and to ensure accurate fluid level reading.
Follow the below steps for checking and topping up the power steering fluid:
1. Start the engine and let it run until it reaches the normal operating temperature.
2. While the engine idles, turn the steering wheel left and right a couple of times.
3. Turn the engine OFF.
4. Check the power steering fluid level in the reservoir.
5. The fluid level should be maintained between the “MIN” and “MAX” marks.
6. If the fluid is low, add fluid in small amounts, continuously checking the level until it reaches the correct operating range. Be sure to put the cap back on the reservoir.
7. With a clean cloth, wipe any spilled fluid from all surfaces.
Changing of power steering fluid should always be done by an Authorised Mahindra Dealer.
15.5.8 Windshield Washer Fluid Top-up
Graphic
Graphic
Top-up both the front and rear (if equipped) windshield washer reservoirs as and when required.
The front windshield washer is located next to the power steering fluid reservoir in the engine bay. The rear windshield washer is located in rear luggage area LH trim behind the third row seats.
In very cold weather conditions, fill the reservoir with washer fluid premixed with anti-freeze.
If you operate your vehicle in temperatures below 4.5ºC, use washer fluid with anti-freeze protection. Failure to use washer fluid with anti-freeze protection in cold weather could result in impaired windshield vision and increase the risk of injury or accident.
15.5.9 Fuel Filter Bleeding/Priming
When the fuel level in the fuel tank falls very low, air may enter the fuel lines which leads to the engine not starting or abrupt switching OFF.
The air has to be removed from the fuel pump by priming the fuel pump. The fuel pump is located next to the air filter in the engine bay. Pump the fuel filter repeatedly using your palm and try starting the engine. If it fails, pump few more times and retry. If the engine still does not start, contact your nearest Authorised Mahindra Dealer for assistance.
Graphic
15.6 Maintenance - Inside the Vehicle
15.6.1 Lights
Make sure the headlights, stop lights, tail lights, turn signal lights and other lights are all working. Check headlight aim.
15.6.2 Warning Messages and Lamps
Check all warning lamps appearing in the instrument cluster and DDAS. Refer to the relevant sections in this manual for further details.
15.6.3 Seats
Check that all seat controls such as seat adjusters, seat back recliner, etc. operate smoothly and that all latches lock securely in any position. Check that the head restraints move up and down smoothly and that the locks hold securely in any latched position.
15.6.4 Seat Belts
Check that the seat belt system such as buckles, retractors and anchors operate properly and smoothly. Make sure the belt webbing is not cut, frayed, worn or damaged.
15.6.5 Accelerator Pedal
Check the pedal for smooth operation, uneven pedal effort or stickiness. Check the foot well and remove obstructions, if any.
15.6.6 Brake Pedal
Check the pedal for smooth operation and proper clearance. Check the foot well and remove obstructions, if any.
15.7 Maintenance - Outside the Vehicle
The following checks should be carried out from time to time, unless otherwise specified.
15.7.1 Lamps
Check and ensure proper functioning of all exterior lamps.
15.7.2 Fluid Leaks
Check the engine compartment and the underbody of the vehicle for any leaks. If you smell fuel vapour or notice any leak, have the cause found and corrected immediately.
15.7.3 Doors and Engine Hood
Check all doors and latches including the tailgate for proper functioning. Make sure the engine hood secondary latch secures the hood from opening when the primary latch is released.
15.7.4 Tyre Inflation Pressure
Check the Tyre pressure with a pressure gauge every week.
15.8 Battery
Your vehicle is equipped with a Mahindra genuine battery. For longer, trouble-free operation, keep the top of the battery clean and dry. Also, make certain the battery cables are always tightly fastened to the battery terminals.
If you see any corrosion on the battery or terminals, remove the cables from the terminals and clean with a wire brush. To prevent corrosion, apply petroleum jelly to the battery terminals. Tighten loose terminals and hold down clamp nuts only enough to keep the battery firmly in place. Tightening excessively may damage the battery terminals.
15.8.1 For Best Battery Service
•  Keep the battery securely mounted
•  Keep the battery top clean and dry
•  Keep the terminals and connections clean, tight and coated with petroleum jelly or terminal grease
•  Rinse any spilled electrolyte from the battery immediately with a solution of water and baking soda
Do not disconnect battery terminals while the engine is running. This will adversely affect all electronic controllers.
While removing the battery, always disconnect the negative terminal first. And while installing the battery, ensure the negative terminal is connected last.
It is recommended that the negative battery cable terminal be disconnected from the battery if you plan to store your vehicle for an extended period of time. This will minimise the discharge of your battery during storage.
Battery fluid is a corrosive acid solution; do not allow battery acid to contact eyes, skin or clothing. Don't lean over battery when attaching clamps or allow the clamps to touch each other. If acid splashes in the eyes or on the skin, flush contaminated area immediately with large quantities of water.
A battery generates hydrogen gas which is flammable and explosive. Keep any flame or spark away from the vent holes.
Keep batteries out of reach of children. Battery posts, terminals and related accessories contain lead and lead components. Wash hands after handling batteries.
If the battery has been disconnected or a new battery has been installed, the clock (if equipped) and the preset radio (if equipped) stations must be reset once the battery is reconnected.
The replacement battery must meet the specification of the originally fitted battery.
15.8.2 Checking the Electrolyte Level
Check the electrolyte level and specific gravity at intervals of three months. Check all the six cells for proper electrolyte levels. If the level is below the lower marker, add distilled water until the level reaches the upper marker.
Adding distilled water:
•  Remove the vent plugs
•  Add distilled water to all the cells that require the fluid and secure the plugs properly
15.9 Wiper Blades
Lift the wiper arm from its position. Expose the blade lip for inspection. Clean the wiper blade lips with water applied with a soft sponge. If the wiper blade is not wiping the glass satisfactorily or is worn-out, cut, cracked or bulging, get it replaced at an Authorised Mahindra Dealer.
15.9.1 Changing the Wiper Blade
1. Lift the arm and position the wiper blade at right angles to the wiper arm.
Graphic
2. Press the retaining clip in the opposite direction, disengage the wiper blade and pull it off the arm.
Graphic
3. Hold the end of the rubber and pull until the tabs are free of the metal support.
4. Carefully insert the new blade rubber. Then instal the blade assembly in the reverse order of removal.
To prevent damage to the windshield, don’t let the wiper arm slap down on to it.
15.10 Appearance Care and Protection
15.10.1 Washing the Exterior
•  Wash your vehicle regularly with cool or lukewarm water and a neutral pH soap
•  Never use strong household detergents or soap, such as dish washing or laundry liquid. These products can discolour and spot painted surfaces
•  Never wash a vehicle that is ‘hot to the touch’ or during exposure to strong, direct sunlight
•  Always use a clean sponge or car wash mitt with plenty of water for best results
•  Dry the vehicle with a chamois or soft terry cloth towel in order to eliminate water spotting
•  It is especially important to wash the vehicle regularly during the winter months, as dirt and road salt are difficult to remove and cause damage to the vehicle
•  Immediately remove items such as gasoline, diesel fuel, bird droppings and insect deposits; they can cause damage to the vehicle's paint work and trim over time
15.10.2 Engine Compartment
Graphic
Do not wash the engine or engine compartment with pressurised water.
15.10.3 Exterior Chrome
•  Wash the vehicle first, using cool or lukewarm water and a neutral pH shampoo
•  Use the custom bright metal cleaners, available at your Authorised Mahindra Dealer. Apply the product as you would wax to clean chrome parts; allow the cleaner to dry for a few minutes, and then wipe off the haze with a clean, dry rag
•  Never use abrasive materials such as steel wool or plastic pads as they can leave scratches on the chrome surface
•  After polishing the chrome parts, you can also apply a coating of Premium Liquid Wax, available at your Authorised Mahindra Dealer, or an equivalent quality product to help protect from environmental effects
15.10.4 Paint Chips
•  Mahindra dealers have the exact touch-up paint to match your vehicle's colour
•  Take your vehicle to an Authorised Mahindra Dealer for paint touch-up or paint repairs
•  Remove particles such as bird droppings, tree sap, insect deposits, tar spots, road salt and industrial fallout before repairing paint chips
•  Always read the instructions before using the products
15.10.5 Aluminium Wheels and Wheel Covers (if equipped)
Aluminium wheels and wheel covers are coated with a clear coat of paint finish. In order to maintain their shine:
•  Clean weekly with wheel and Tyre cleaner, which is available at your Authorised Mahindra Dealer. Heavy dirt and brake dust accumulation may require agitation with a sponge. Rinse thoroughly with a strong stream of water
•  Never apply any cleaning chemicals to hot or warm wheel rims or covers
•  Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergents
15.10.6 Plastic (Non-painted) Exterior Parts
Use only approved products to clean plastic parts. These products are available with your Authorised Mahindra Dealer. You can use these cleaners:
•  For routine cleaning of plastic parts
•  For tar or grease spots
•  For plastic head lamp lenses
15.10.7 Windows and Wiper Blades
The front/rear windshield, side windows and the wiper blades should be cleaned regularly. If the wipers do not wipe properly, substances on the vehicle's glass or the wiper blades may be the cause. These may include hot wax treatments used by commercial car washes, water repellent coatings, tree sap, or other organic contamination; these contaminants may cause squeaking or chatter noise from the blades, and streaking and smearing of the windshield.
To clean these items follow these tips:
•  The windshield, rear windows and side windows may be cleaned with a non-abrasive cleaner such as Clear Spray Glass Cleaner, available at your Authorised Mahindra Dealer
•  The wiper blades can be cleaned with alcohol or Premium Windshield Washer Concentrate, available at your Authorised Mahindra Dealer. This washer fluid contains a special solution in addition to alcohol which helps remove the hot wax deposited on the wiper blade and windshield. Be sure to replace wiper blades when they appear worn or do not function properly
•  Do not use abrasives, as they may cause scratches
•  Do not use fuel, kerosene, or paint thinner to clean any glass parts
If you cannot remove those streaks after cleaning with the glass cleaner or if the wipers chatter and move in a jerky motion, clean the outer surface of the windshield and the wiper blades using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaning solution. After cleaning, rinse the windshield and wiper blades with clean water. The windshield is clean if beads do not form when you rinse the windshield with water.
Do not use sharp objects, such as a razor blade, to remove decals, as it may cause damage to the glass or rear windshield heater grid lines (if equipped).
15.10.8 Instrument Panel/Interior Trim and Cluster Lens
Do not use chemical solvents or strong detergents when cleaning the steering wheel or instrument panel.
Clean the instrument panel, interior trim areas and cluster lens with soap and water using soft microfiber / cotton cloth / sponge, then with a clean and dry white cotton cloth; you may also use Dash and Vinyl Cleaner on the instrument panel and interior trim areas.
•  Avoid cleaners or polishes that increase the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection
•  Do not use household or glass cleaners as these may damage the finish of the instrument panel, interior trim and cluster lens
If a staining liquid like coffee/juice has been spilled on the instrument panel or on the interior trim surfaces, clean as follows:
•  Wipe up spilled liquid using a clean white cotton cloth
•  Apply vinyl cleaner to the wiped area and spread around evenly
•  Apply cleaner to a clean white cotton cloth and press the cloth onto the soiled area and allow this to set in at room temperature for 30 minutes
•  Remove the soaked cloth, and if it is not soiled badly, use this cloth to clean the area with a rubbing motion for 60 seconds
•  Following this, wipe area dry with a clean white cotton cloth
15.10.9 Interior Maintenance
For fabric, carpets, cloth seats, safety belts and seats:
•  Remove dust and loose dirt with a vacuum cleaner
•  Remove light stains and soil with carpet and upholstery cleaner
•  If grease or tar is present on the material, spot-clean the area first with a stain remover
•  Do not use household cleaning products or glass cleaners, which can stain and discolour the fabric and affect the flame retardant abilities of the seat materials
•  Do not use cleaning solvents, bleach or dye on the vehicle's safety belts, as these actions may weaken the belt webbing.
15.10.10 Leather Seats (where applicable)
Your leather seating surfaces have a clear, protective coating over the leather:
•  To clean, use a soft microfiber / cotton / sponge cloth with a leather and vinyl with approved cleaners. Dry the area with a soft cloth
•  To help maintain its resiliency and colour, use the leather care kit, available from an Authorised Mahindra Dealer
•  Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners. These products may cause premature wearing of the clear, protective coating
In some instances, a colour or dye transfer can occur when wet clothing comes in contact with leather upholstery. If this occurs, clean the leather immediately to avoid permanent staining.
15.10.11 Underbody
Flush the complete underside of your vehicle frequently. Keep body and door drain holes free from packed dirt. You can also use an anti-corrosion spray for the underbody to avoid rusting and corrosion especially for vehicles in coastal places.
15.11 Air Conditioning System Maintenance
Your vehicle's air-conditioning is a sealed system. Any major maintenance, such as recharging should be done by a qualified technician. However, you can do a few things by yourself to make sure the air conditioning works efficiently.
Run the air-conditioning system at least once a week, even during the cold weather months. Run it for at least ten minutes with the engine running at normal operating temperature. This circulates the lubricating oil contained in the refrigerant.
Whenever you get the air-conditioning system serviced, make sure the service facility uses a refrigerant recycling system. This system captures the refrigerant for re-use. Releasing the refrigerant into the atmosphere may cause damage to the environment.
15.12 Vehicle Storage
If you are leaving your vehicle for more than 2 weeks you may want to take stopping to protect your battery. Disconnect the negative cable from the battery. Anytime you store your vehicle, or keep it out of service (i.e. vacation) for two weeks or more, run the air conditioning system at idle for about five minutes in the fresh air mode and high blower speed setting. This will ensure adequate system lubrication to minimise the possibility of compressor damage when the system is started again.
It is recommended storing the vehicle in a covered, clean, dry, well levelled, ventilated and closed place.
15.13 Winter Care
15.13.1 Dealing with Ice
Make sure you have window ice scrapers and de-icers for the locks. When you're stuck, having a small shovel is useful to dig out of the snow. The weight of a bag of sand in the trunk will give added traction in rear-wheel drive vehicles and can be used to sprinkle on the snow and ice to gain better traction. And don't forget personal protection such as a warm coat, hat, gloves and a blanket, in case you get stuck in a storm.
15.13.2 Keep Enough Fuel in the Tank
Never let the fuel level in the tank drop below the half-full mark. A sudden storm with unexpected heavy rains could leave you stranded for hours. Having adequate fuel supply will allow you to idle the engine from time to time to keep warm.
Do not:
•  Tap the ice on the window to crack it or chip it for a good place to start scraping. You could end up cracking more than the ice and end up with a cracked or shattered windshield/window
•  Pour warm or hot water on the windshield to melt ice. This will crack your windshield
15.13.3 During Winter Storage
Start the engine occasionally, here are a few pointers to keep in mind:
•  Run it in a well-ventilated area. Carbon monoxide can build up quickly
•  Run for a minimum of 20 minutes to allow the engine to come up to the normal operating temperature. This will allow the oil to circulate and will also open up the thermostat so that your radiator anti-freeze circulates as well
•  Start up the air conditioner and/or heater and run both for 10 minutes or so. Again, circulating fluids is essential for good life of the system
•  If your vehicle has power steering, you may want to turn the wheels a few times to keep the fluids flowing
15.13.4 Exterior
Wash and wax your car to provide an extra layer of protection to your paint.
15.13.5 Vinyl and Rubber
Use a good conditioner on all vinyl and rubber parts to prevent from drying out.
15.13.6 Interior
Clean the glass, shampoo the carpets, dig in between the seats to see what's there, clean the upholstery in all nooks and corners.
15.13.7 Engine
Check all hoses and wires to make sure everything is in good condition and replace any that need to be. The last thing to do is to make sure the internal components of the engine remain lubricated and don't corrode.
If the engine is being started after a very long period of non-use, warm up the engine at an idle speed for 2-3 minutes before driving the vehicle.
15.14 Bulb Replacements
15.14.1 Head Lamp Bulb Replacement
The head lamp bulb can be replaced without removing the head lamp assembly from the vehicle. The head lamp assembly has been removed here for illustration purpose only.
To replace the head lamp bulb:
•  Ensure ignition is switched OFF
•  Remove rear dust cover from the head lamp
•  Remove the bulb assembly with connector from the head lamp by unlocking the wire clamp
•  Detach the bulb assembly from the wiring connector near to the head lamp
•  Insert the connector into the new bulb (of the same wattage), and follow the reverse procedure to assemble the bulb assembly in the headlight assembly
•  Clamp the bulb assembly by wire clamp properly
Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol.
To avoid burning yourself, do not replace the light bulbs when they are hot. Halogen bulbs have pressurised gas inside and are to be handled with special care. Mishandling it may cause the bulb to burst or shatter. Hold the bulb with its metal/plastic holder/base and do not touch the glass part with bare hands.
Using bulbs with units of higher output capacity/wattage is illegal and may damage your vehicle’s electrical system.
Replacement bulbs must meet the specification of originally fitted bulbs.
15.15 Projector Head Lamp - Type 1
Graphic
A
Turn Signal Lamp
D
Static Bending Lamp
B
Head Lamp Low Beam (Projector)
E
Head Lamp High Beam
C
Position Lamp / DRL

Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol.
To avoid burning yourself, do not replace the light bulbs when they are hot. Halogen bulbs have pressurised gas inside and are to be handled with special care. Mishandling it may cause the bulb to burst or shatter. Hold the bulb with its metal/plastic holder/base and do not touch the glass part with bare hands.
Using bulbs with units of higher output capacity/wattage is illegal and may damage your vehicle’s electrical system. Replacement bulbs must meet the specification of originally fitted bulbs.
15.16 Projector Head Lamp - Type 2
Graphic
A
Head Lamp High Beam
C
Head Lamp Low Beam (Projector)
B
Static Bending Lamp
D
Turn Signal Lamp
15.17 Maintenance Schedule Chart
Description Change Interval Distance Covered in km x 1000
1 10 20 30 40 50 60 70 80 90 100
Free Service Paid Service
Engine
Engine Oil Replace at every 10000 km
Change as per the km (or) 1 year whichever is earlier
I R R R R R R R R R R
Change engine oil in 5000km (or) 6 months (whichever is earlier), if the vehicle is continuously operating under severe operating conditions as mentioned in page NO.18, Note-5 of the Warranty Information and Maintenance Guide
Engine Oil Filter  Replace at every 10000 km
Change along with engine oil
  R R R R R R R R R R
Auto Tensioner & Belt Replace every 100000 km             I   I   R
Coolant - Level, Leak & Hoses Replace every 80000 km
Change as per the km or 3 years whichever is earlier
I I I I I I I I R I I
Air, Fuel & Exhaust
Air Filter Element Replace every 30000 km
Under extreme operating conditions replace air filter every 20,000 km
  C C R C C R C C R C
Fuel Filter Replace every 30000 km       R     R     R
Drain Water In Fuel Filter Inspect at all services except every 30000 km I I I   I I   I I   I
Exhaust Pipe Mountings and Damage/Leakage Inspect at 1000, 20000 and then every 20000 km I   I   I   I   I   I
Diesel Exhaust Fluid (DEF) Filling Check fluid level and add required quantity I I I I I I I I I I I
If vehicle covers less than 10000 Km in 2 years, then replace DEF in 2nd year end
Transaxle
Transaxle Oil Replace every 100000 km
Change as per the km (or) 3 years whichever is earlier
                    R
Brakes
Brake and Clutch Fluid-Level Replace every 40000 km
Replace as per the km or 2 years whichever earlier, with recommended brands
I I I I R I I I R I I
Brake and Clutch Switch Setting Inspect every service  I I I I I I I I I I I
Parking Brake Adjust at 1000, 20000 and then every 20000 km A   A   A   A   A   A
Front and Rear Brake Pads / Caliper Inspect every 10000 km   I I I I I I I I I I
Suspension
Front Suspension Bolts Torque Inspect at 1000, 20000 and then every 20000 km I   I   I   I   I   I
Rear Suspension Bolts Torque Inspect at 1000, 20000 and then every 20000 kmp I   I   I   I   I   I
Front Suspension Bushes Inspect every 40000 km         I       I
Rear Suspension Arms and Links Inspect every 40000 km         I       I
Steering
Power Steering Fluid- Level Check Inspect every service I I I I I I I I I I I
Wheel Alignment*   At 40000 kms, earlier if abnormal wear is noticed@
Tyre Rotation* Inspect at every 10000 km   I I I I I I I I I I
Wheel Balancing*   Inspect when abnormal condition is noted
Electrical
Battery Health Check Inspect at every 10000 km   I I I I I I I I I I
All Light, Horns, Wipers and Washers Inspect every Service  I I I I I I I I I I I
Service Reminder Indicator Reset Inspect every service  I I I I I I I I I I I
Head Light Aiming Inspect at 1000 km I
HVAC
Particle Filter Replace every 10000 km   R R R R R R R R R R
Water Drain Pipe Inspect every service  I I I I I I I I I I I
Final Inspection
Tyre Pressure Inspect every service  I I I I I I I I I I I
Sunroof Run Channel # Clean at 1000 km then every 10000 km C C C C C C C C C C C
Sunroof Drain Hoses for Blockage # Inspect at 1000 km then every 10000 km I I I I I I I I I I I
Under Body, Nuts and Bolts for Tightness Inspect every service  I I I I I I I I I I I
Door Alignment Inspect 1000,10000 and then every 10000 km I I I I I I I I I I I
Road Test Inspect every service  I I I I I I I I I I I
Check DTC Check at every service and Record in RO/DMS I I I I I I I I I I I
Legends
I = Inspect and Correct A= Adjust R = Replace C = Clean * - On chargeable basis # - if applicable
@ Suggest to carry Wheel Alignment at Mahindra Authorised Service Centre
15.18 Lubricants and Capacities
System
Lubricant
Capacity
Specification
Remarks
Engine Oil MAHINDRA "MAXIMILE ULTRA"
Gen-NXT Technology Genuine Engine Fluid
6.0 litres Special Engine Fluid . Always use "MAXIMILE ULTRA" genuine engine oil. This is specially developed for your BSVI vehicle engine’s optimum performance and fuel efficiency.
. In extreme cases of emergency and non-availability of above oil, we suggest to use "Maximile Feo" engine oil, take the vehicle to nearest Mahindra Authorised Service centre and replace the oil with "Maximile Ultra"
. No other brand / grade oil recommended
Engine Cooling MAHINDRA "MAXIMILE ULTRA COOL"
GENUINE LONG LIFE COOLANT(READY TO USE COOLANT. NO NEED TO MIX WATER)
~5.5 litres
Brand Specific. Don't use other Coolants / Water for top up. In case of emergency, Coolant meeting JIS K2234 Specification should be used (30% Concentration Diluted with Distilled water) and coolant change period has to be reduced as 30,000 KM
Transaxle Oil MAHINDRA "MAXIMILE SYNTEC F2"
NEW GENERATION GENUINE TRANSMISSION OIL
3.0 litres
Special Manual Transmission Fluid In case of genuine oil non-availability, manual transmission oil meeting API GL-4 SAE 80W-90 specification is suggested. This alternate oil or other brand may not provide equivalent performance of recommended genuine oil. Drain Interval should be reduced as 20,000 km.
Power Steering
MAHINDRA "MAXIMILE POWER STEERING FLUID"
GENUINE POWER STEERING FLUID
0.75 litre
In case of non-availability of Genuine fluid, SHELL MAKE "SPIRAX S3 ATF MD3" / CALTEX MAKE "TEXAMATIC 1888" can be used. NO OTHER BRANDS RECOMMENDED
Brake and Clutch MAHINDRA "MAXIMILE DOT 4"
Genuine Brake Fluid
1.0 litre
If Maximile DOT 4 brake fluid is not available and in emergency conditions, use Brake Fluid Meeting SAE J1703 FMVSS NO.116 DOT 4 OR IS 8654 TYPE-2 Specification. Change it at 30,000 km or 2 years whichever is earlier
Diesel Exhaust fluid Maxi CLEAN
Genuine Diesel Exhaust Fluid
16.0 Lit
In case of genuine Diesel Exhaust Fluid (DEF) non-availability, DEF confirming to IS 17042 (or) ISO 22241 specification only can be used.
Recommended Fuel Diesel fuel confirming to IS 1460:2017 BS VI or equivalent
70 +/- 2 liters
We do not recommend any supplementary fuel additive to improve the engine performance. Avoid using any market available fuel additives as it may harm your engine performance, parts and emission warranty. Usage of any such additives will not cover your vehicle warranty claim.
