Important Information – Quick Reference | |
We
strongly urge that you read the information provided in pages referred
hereunder which will help in road safety and prevent
inconvenience
|
1
|
Warranty
Coverage.............................................................................................
|
Refer WSIG* (P.g. 15)
|
2
|
Roadside Assistance
....................................................................................
|
Refer WSIG* (P.g. 10)
|
3
|
Schedule Service
(Free/Paid).................................................................
|
Refer WSIG* (P.g. 23)
|
4
|
Maintenance Schedule
Chart.................................................................................
|
Refer WSIG* (P.g. 24)
|
5
|
Lubricants And
Capacities.............................................................................
|
Refer WSIG* (P.g. 28)
|
6
|
Location Of Vehicle Identification Number
(VIN).................................................
|
Refer (P.g. 1-7)
|
7
|
Location Of Fuse Box And Fuse
Details............................................................
|
Refer (P.g. 10-10)
|
8
|
Changing A Flat
Tyre................................................................
|
Refer (P.g. 10-17)
|
9
|
Understanding The Warning
Lamps..........................................................
|
Refer (P.g. 3-35)
|
10
|
Use Of Seat Belts And Child
Restraint......................................
|
Refer (P.g. 2-12)
|
11
|
Understanding The Airbag
Function.........................................................
|
Refer (P.g. 2-27)
|
12
|
If Your Vehicle Is
Submerged.....................................................
|
Refer (P.g. 6-8)
|
13
|
Driving Through
Water..................................................................................
|
Refer (P.g. 6-8)
|
14
|
Opening And Closing the
Bonnet.........................................
|
Refer (P.g. 5-23)
|
15
|
Location Of Battery And Its
Maintenance.....................................
|
Refer (P.g. 11-8 & 11-16)
|
*Warranty and
Service
Information Guide
|
||
Note: In view of our policy of continuously improving our
products, we reserve the right to alter specifications, designs or features
without prior notice and without liability. We recommend you to refer the Variant
Matrix
in the Brand official website or
contact the nearest Authorised Mahindra Dealer for the list of features applicable
to your
vehicle.
|
||
The vehicle's
software
and security measures are subject to ongoing development. Similar to computers and
mobile
device operating
systems, the software and security features of the car might also receive irregular
updates.
|
If you see this symbol, it indicates “no,” “ do
not,” “do
not do this,” or “never”.
|
|
1. | First-aid kit is placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point of time. |
2. | Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage. |
3. | Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately. |
4. | The lifespan of Mahindra products depends on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by a Mahindra Authorised Dealer or a qualified Technician . If the inspection reveals any damage or excessive wear, immediately replace, or have the component serviced. |
5. | The vehicle identification plates are the only legal identification reference; hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. It is illegal to remove or alter the numbers in the VIN plate. |
6. | Do not attempt sharp turns, abrupt maneuvers, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the center of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier. |
• | Take breaks at regular intervals |
• | Lack of sleep or fatigue will impact your ability to drive safely |
• | Exercise your eyes by shifting the focus of your eyes to different parts of the road |
• | Use stimulating beverages such as coffee or tea |
• | Relax and stay calm |
• | The company shall not be liable / responsible for any damages / injuries, including consequential damages / injuries, resulting due to fitment of unauthorised aftermarket accessories and / or tapping / cutting wires in the wiring harness When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Mahindra Authorised Dealer for specific weight information |
• | Bull bars and nudge guards are not recommended |
• | Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems |
• | Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Mahindra Authorised Dealer and can potentially affect the vehicle performance. |
• | Always remove the ignition key when you park the vehicle |
• | In case of PKE, please lock and take the key fob with you |
• | Close all the windows completely and lock all the doors |
• | Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors |
1. | Do not sleep in a parked car with closed windows. In particular, if you stay or sleep in the car with the engine running and the air conditioner or heater turned on, you can suffocate to death |
2. | Sleeping in a closed space with the engine running puts you at high risk of suffocation from the exhausts |
3. | While sleeping, you may accidentally touch the gear shift lever or accelerator and thereby cause an accident |
4. | While sleeping in the car with the engine running, you may accidentally step on the accelerator, thereby overheating the engine and exhaust pipe and causing a fire |
• | If the safety mode is activated, pull over and stop the vehicle to a safe location immediately and contact your Mahindra dealer. Then drive slowly or have the vehicle towed to a Mahindra Authorised Dealer according to the dealer’s instruction and have your vehicle checked by a Technician |
• | If you continue to drive in this state, normal driving is not maintained due to the fixed engine rpm and engine can stop. But even more importantly, continued driving with this state may damage the drive system |
• | The vehicle you bought is equipped with a large number of precision parts that have passed through countless experiments and tests. |
• | These parts are deeply and systematically interwoven. Therefore, if any part is modified or altered without authorization, may under perform or cause critical damage to the vehicle and human life |
VIN
Plate
|
VIN
Punch
|
|
|
Petrol
|
Diesel
|
|
|
• | Customer must produce valid mobile number, communication address & email ID for KYC registration. for registration purpose. |
• | Preferred mobile number entered during the KYC process will be the login for Adrenox mobile app. |
• | After successful KYC registration, customer must download the “ADRENOX connect” mobile application from Google Play store or iOS app store. |
• | You can select sign up option from login page which redirects to sign up page |
• | Then enter registered Mobile number given in KYC form for connected services and click on Generate OTP |
• | OTP with a validity will be sent to the same mobile number |
• | If OTP is not received, you can request the OTP again by clicking on "Resend OTP" |
• | After entering valid OTP, click on “Verify My account” |
• | On successful verification you will be notified with a message " Account Verified" |
• | You will be directed to "Terms and Condition" with "I Agree" option on successful authentication |
• | Tap on the Forgot Password? link from login page |
• | In forgot password page, enter the registered mobile number for connected services and click on Generate OTP |
• | Enter the OTP and click on Next button |
• | Enter New Password and Confirm Password and tap on Save button |
• | Tap on the top Left corner from home screen |
• | Click on My Account and select Change Password |
• | Page will open with Old password, New password and Confirm password fields |
• | Fill all the required field and tap on save button |
FEATURE
|
DESCRIPTION
|
---|---|
Alerts
|
|
Over Speed Alert
|
When your car exceeds the set speed
limit.
This speed limit value can be set under alert configuration in mobile
application
|
High Engine Temperature Alert
|
Alerts when Engine temperature beyond
the
predefined limit
|
Tyre Pressure Alert
|
Alerts on excessive/very low and high
tyre
pressure and navigate to nearby petrol station
|
Lamp Status Alert
|
Alerts when vehicle park lamp left
in ON condition while locking
the
vehicle
Notifies when the vehicle park lamp is
left in
ON condition and helps to turn OFF remotely via mobile application
|
Vehicle Start/Stop Alert
|
Notifies when normal vehicle start /stop
event
is detected
|
Door Open Alert
|
Notifies when any of the doors open
while
vehicle is moving and also when you trigger for door lock and the door
remains
open
unintentionally
|
Geo-Fence Alert
|
Alerts when your vehicle moves out of a
set
boundary area
Helps you to create virtual boundary for
any
region and will be notified whenever your vehicle moves in or out of
that
boundary
|
Unauthorised vehicle entry Alert
|
Alerts the user when any unauthorized
entry in
the vehicle is detected
|
Low Fuel Alert
|
Identifies low fuel level and notifies
in your
mobile application. Helps you to nearby fuel station
|
Route Deviation Alert
|
Alerts the user when the vehicle
deviates from
the pre-defined path
|
Time Fencing Alert
|
Notifies you when any movement of
vehicle is
detected during set time period
|
Seat Belt Alert
|
Notifies you whenever the driver/
co-driver is
not wearing the seat belt during vehicle movement in mobile application
|
Driver Drowsiness Alert
|
Alerts the user when the driver is
detected to
be drowsy while driving
|
Insurance expiry Alert
|
Suggests in advance to renew the
Insurance as
expiry date of Insurance approaches
Notifies you in advance when the
insurance is
about to expire
|
PUC expiry Alert
|
Notifies you in advance when the PUC is
about
to expire
|
Engine Idle Alert
|
Alerts when engine idling is detected
for a
set period of time. Time can be configured in mobile application
|
Service reminder
|
This feature alert’s the user for
service due
|
PKE / RKE low battery alert
|
This feature alert’s the user when key
battery
is low
|
Low DEF alert
|
This feature alert’s the user when DEF
level
is low
|
DPF choke alert
|
This feature alert’s the user when
Diesel
Particulate filter is about to choke
|
Brake pad wear alert
|
This feature alert’s the user when Front
Brake
Pad is worn out
|
Park brake not applied alert
|
This feature alert’s the user when
he/she
forgets to apply park brake after parking the vehicle
|
Location
Based Service
|
|
Live tracking
|
GPS based vehicle tracking system for
tracking
vehicle’s location anywhere and at any point of time
Helps to provide the real time vehicle
location when vehicle is in movement
Helps in sharing the vehicle location
for a
set time to your family and friends
|
Save Route / Save Place
|
Provision to save a route /place
|
Find my car
|
Helps to identify the vehicle’s location
and
directs you to locate your vehicle
|
Share my car location
|
Share your car's location with friends
and
family
|
Push to car
|
Allows the user to push routes/location
from
the mobile app to the vehicle
|
Sync location on SUV
|
Provides updates of any upcoming event
by
syncing with the calendar
|
Ecosense
|
Provides the details about the driving
behavior for each trip
|
Eco Sence Leader Board
|
Based on Eco score, The user’s driving
pattern
will be ranked for Country, state & district wise
|
Trip History
|
Provides detailed information about the
trips
|
Weekly Report
|
Provides details about various vehicle
parameters for a defined time period
|
Trip Replay
|
Provides glimpse of the trip in a form
of a
short video
|
Pit Stops
|
Provides information and navigational
access
to nearby restaurant, ATM, Mahindra Dealership and so on
|
Read
Vehicle Status
|
|
Check door status
|
Allows the user to view the current
status of
the vehicle door
|
Check tyre pressure
|
Allows the user to view the current
status of
tyre pressure
|
Check lamp status
|
Allows the user to view the current
status of
the lamp
|
Check ODO
|
Allows the customer to check the
odometer of
the vehicle
|

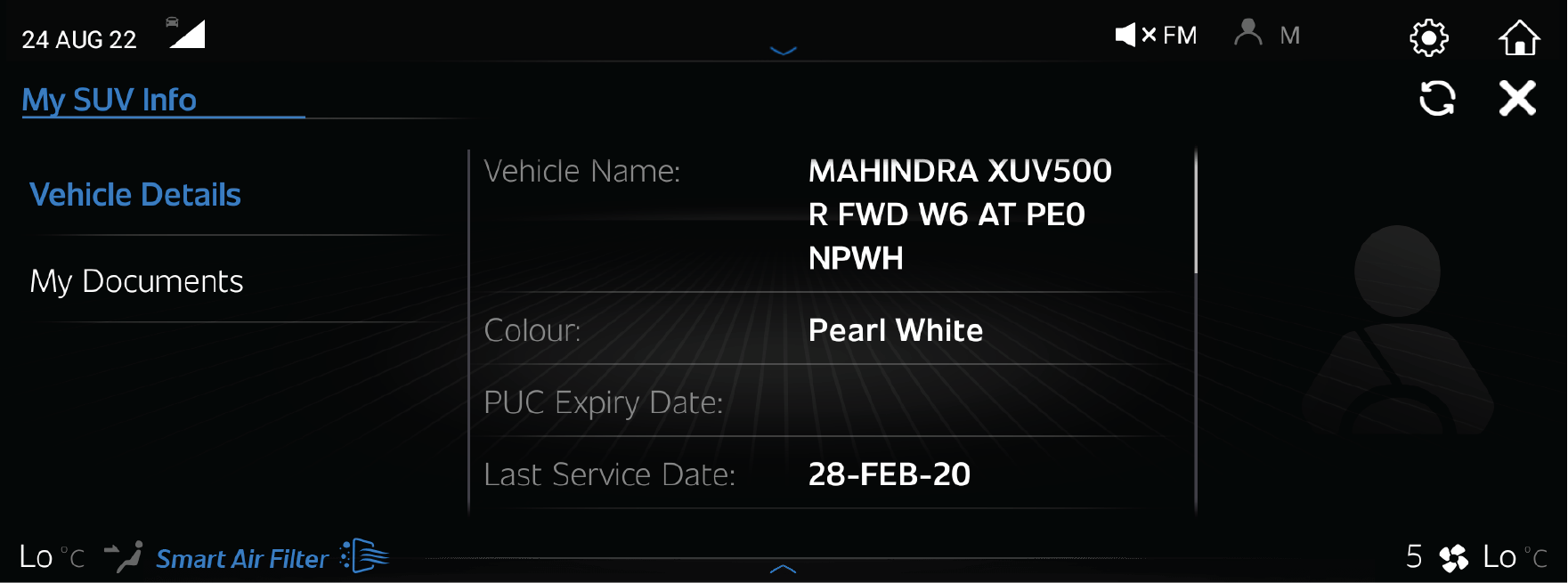

My SUV info
|
Essential information about the vehicle
like
VIN, Variant and so on
|
Check AC Status
|
Allows the user to view the current
status of
the AC
|
Check Distance to empty
|
Helps to check distance to empty range
i.e.
the distance can be covered with the available fuel
|
Seat Belt Status
|
Helps the user to check the
Driver/Co-Driver
seat belt is buckled or not
|
Safety
|
|
E-Call
|
In case of accident, Emergency call will
be
triggered from vehicle, SMS will be sent to With You Hamesha &
Emergency
contacts
along with the current vehicle location.
|
SOS Button
|
In case of SOS is initiated, SOS call
will be
triggered from vehicle, SMS will be sent to With You Hamesha &
Emergency
contacts
along with the current vehicle location
|

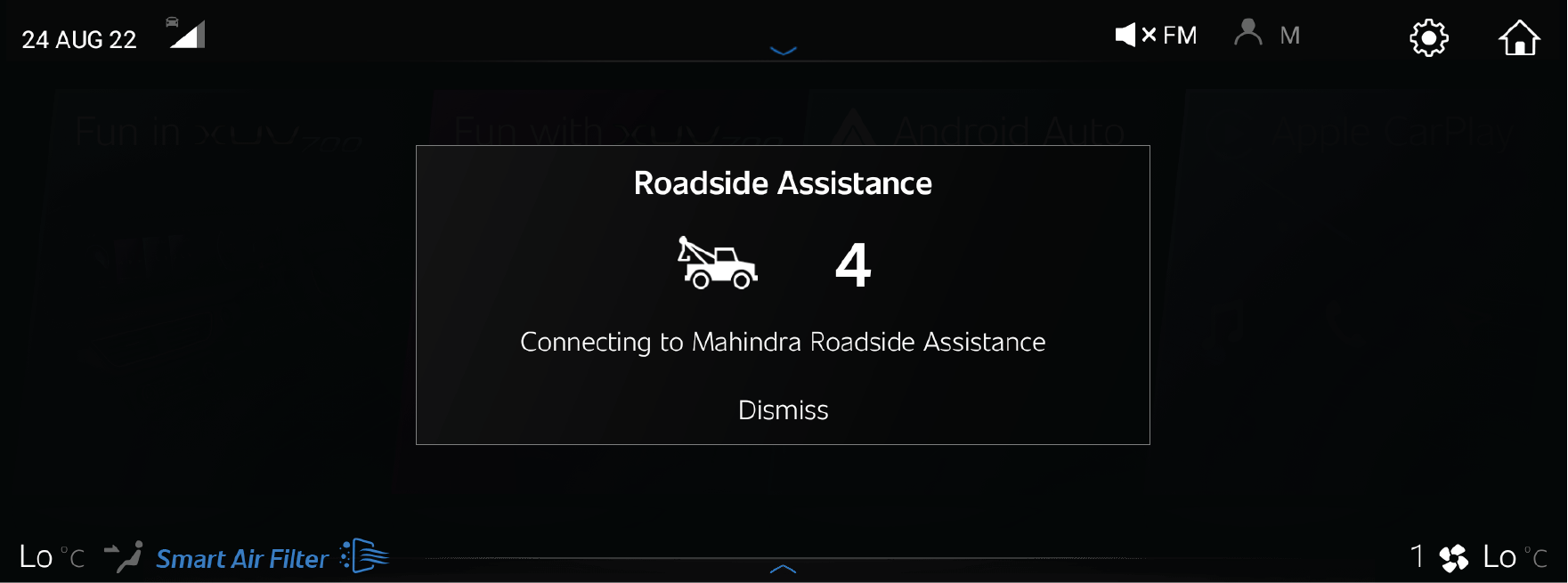

Road Side Assistance
|
Allows the user to reach out for help in
case
of vehicle breakdown
|
Remote
Function
|
|

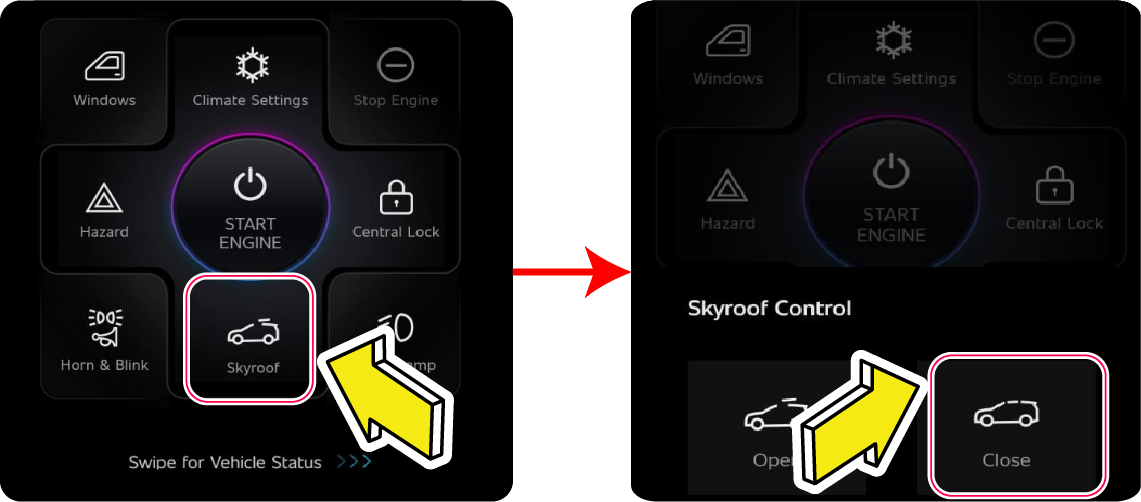

Remote Skyroof control
|
Allows the user to remotely control
Skyroof
using mobile app
|
Remote Start/ Stop
|
Allows the user to remotely start or
stop the
vehicle using mobile app
|
Remote Climate control
|
Allows the user to remotely configure
the in-
vehicle temperature during remote start using mobile app
|
Remote Window Up/Down
|
Allows the user to remotely control the
Driver
window (with anti-pinch) using mobile app
|
Remote Door Lock/Unlock
|
Provide access to the vehicle by
remotely
locking and unlocking the doors when vehicle is stationary
|
Remote Lamp On/Off
|
Allows the user to remotely turn on or
off the
lamps using mobile app
|
Locate my SUV
|
Allows the user to remotely locate the
vehicle
by turning on the horn and lights
|

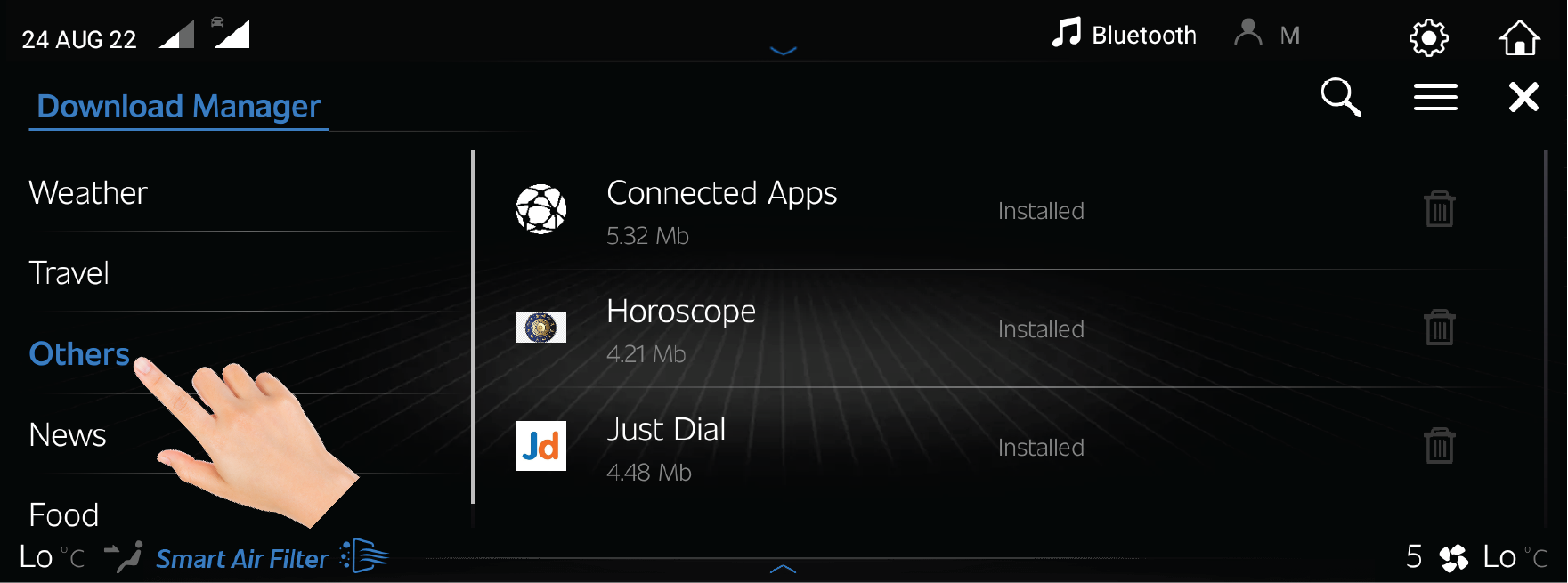

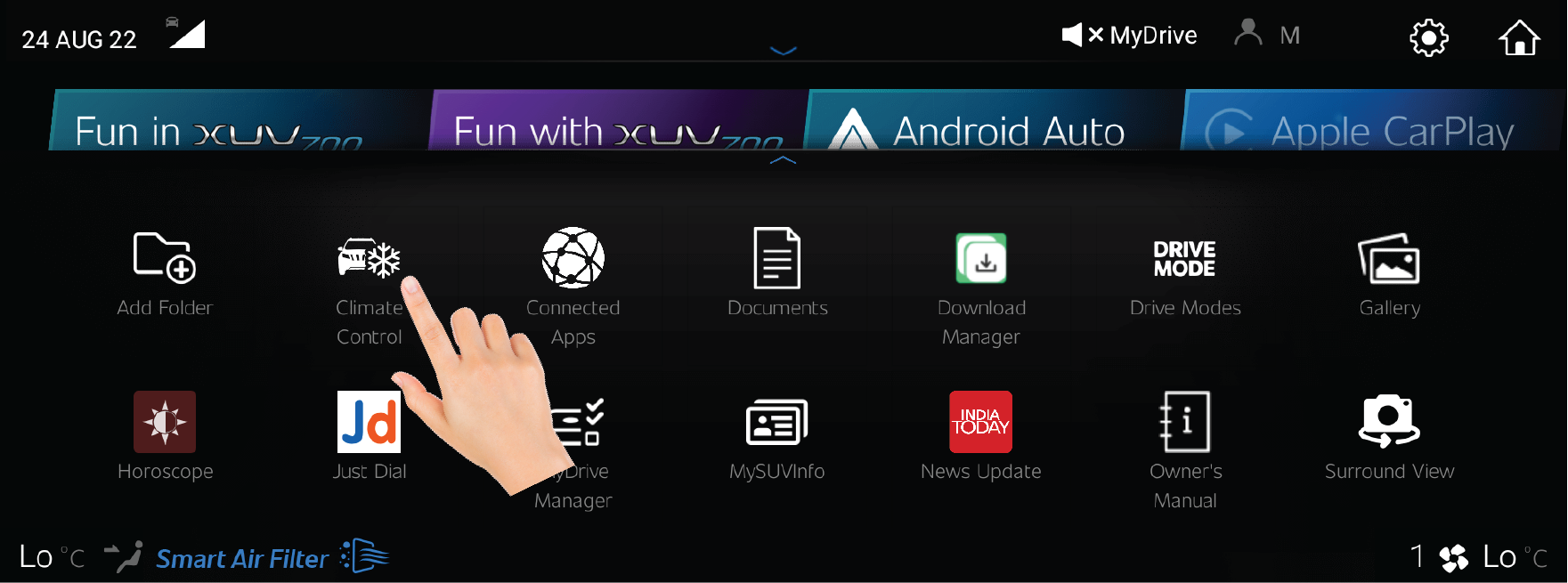

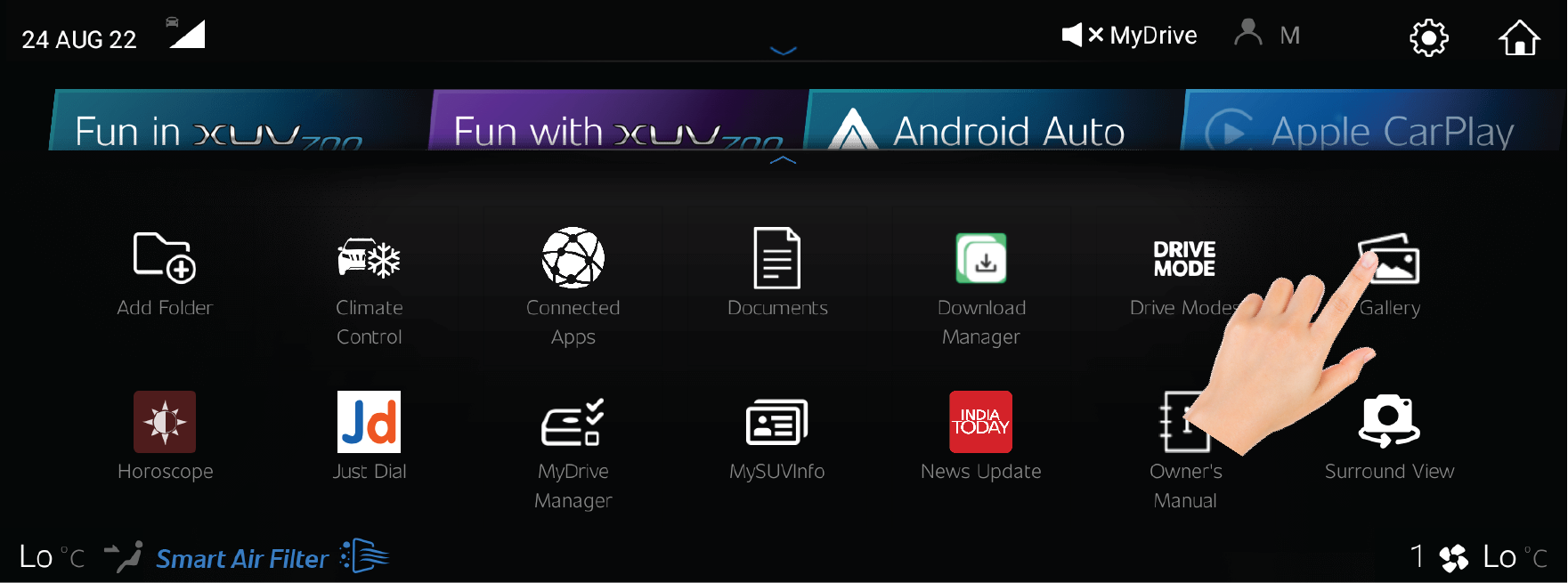

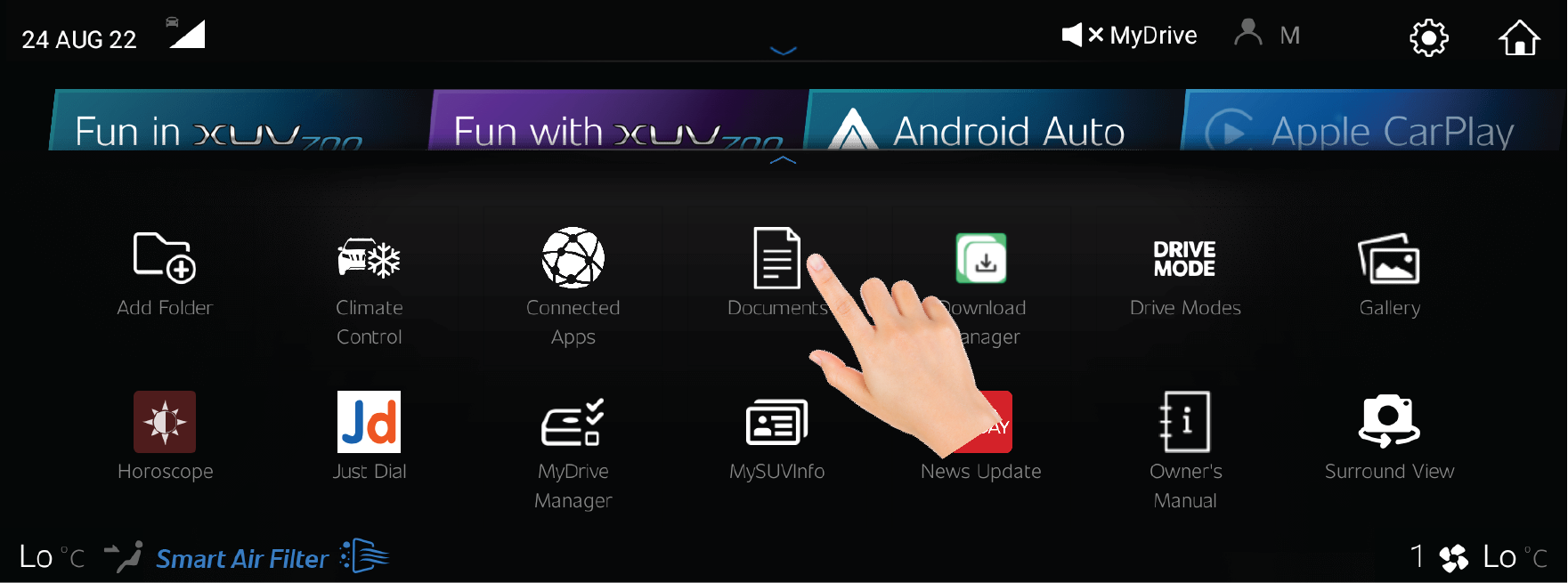

APK
Features
|
|

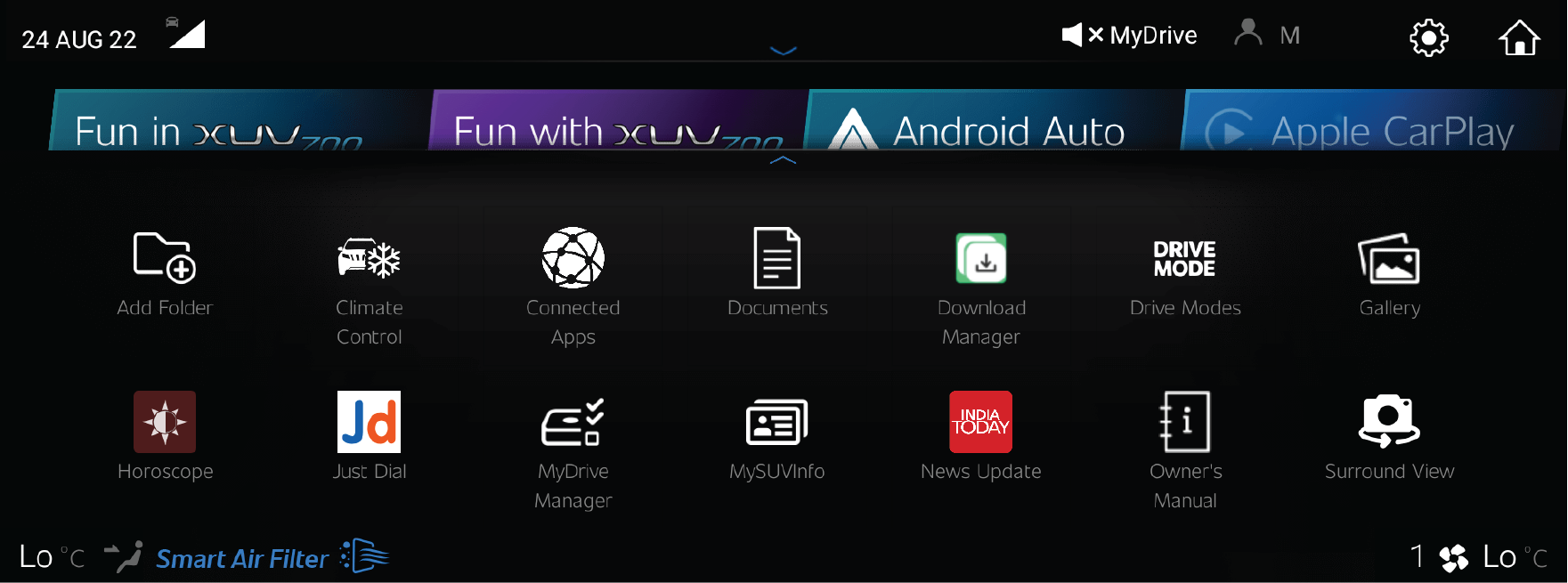

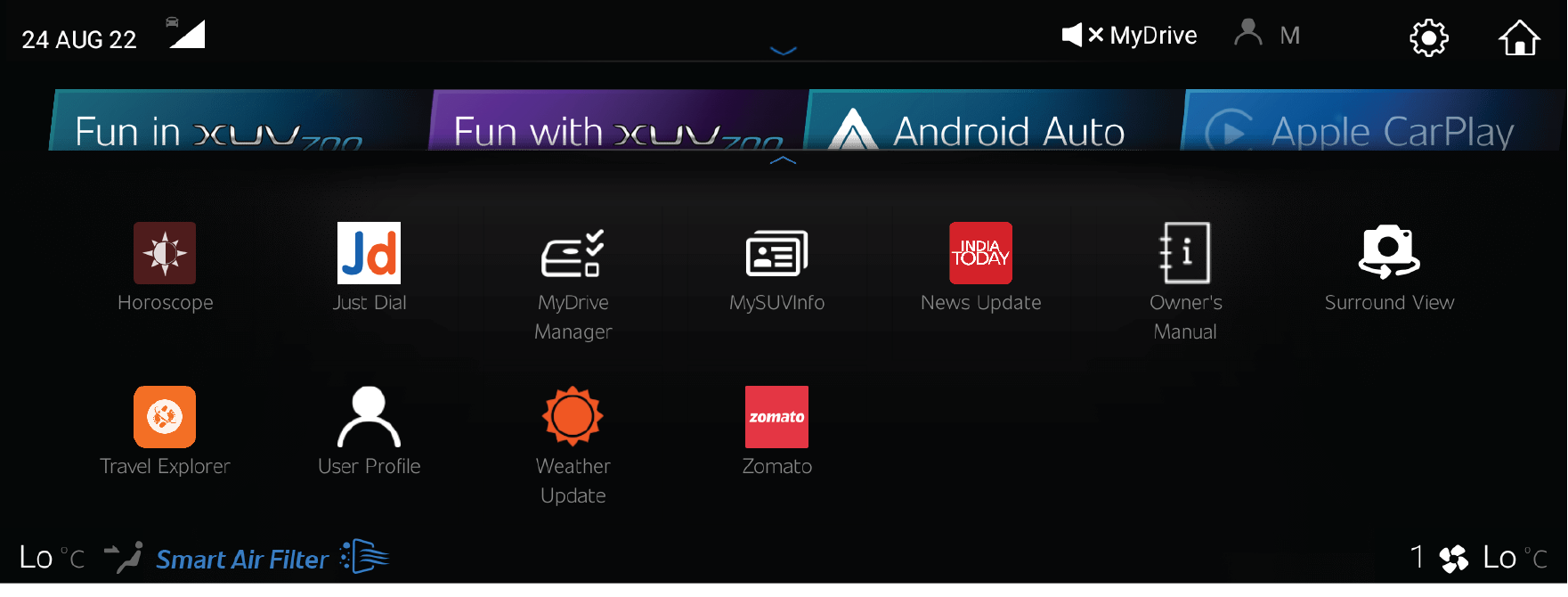

Horoscope
|
Allows the user to view daily fortune as
per
his/her zodiac sign.
|
Just dial
|
Allows the user to search for various
services
using the Just Dial app in the infotainment
|

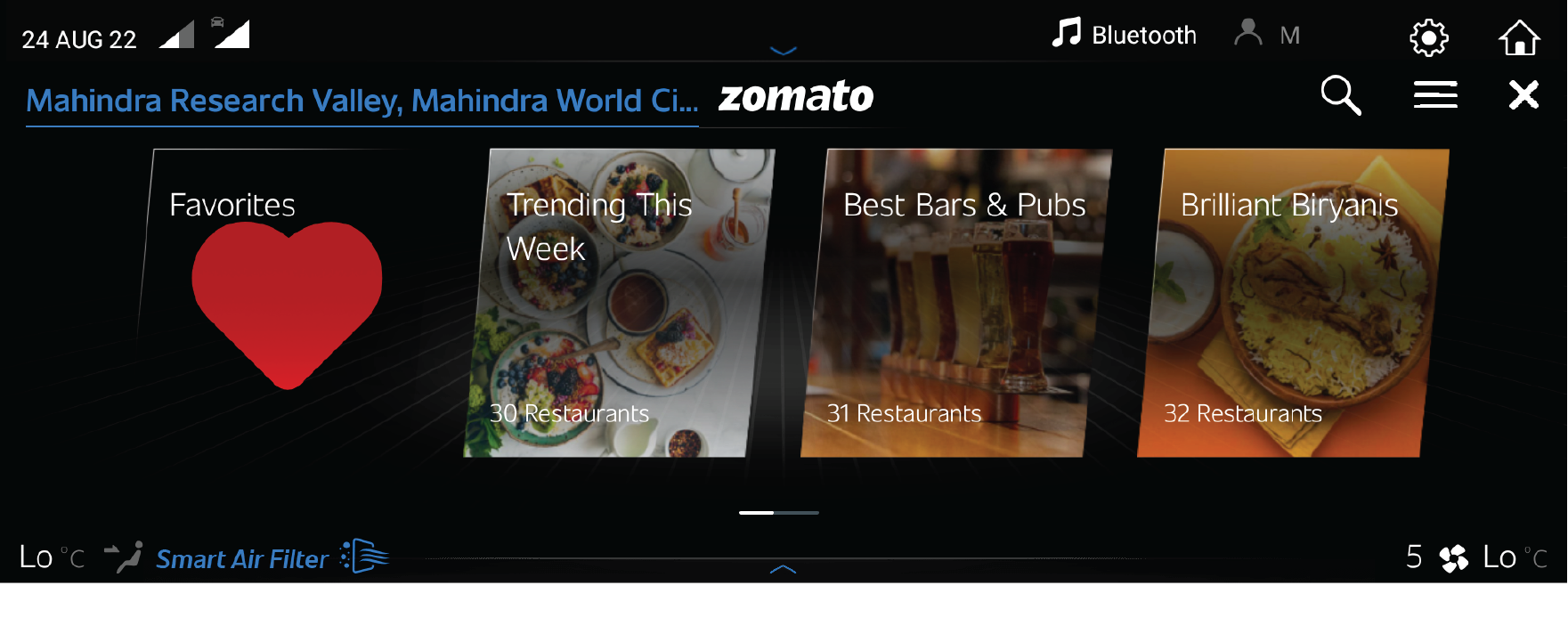

Zomato
|
Allows the user to search for various
restaurants and cuisines using Zomato app in the infotainment
|

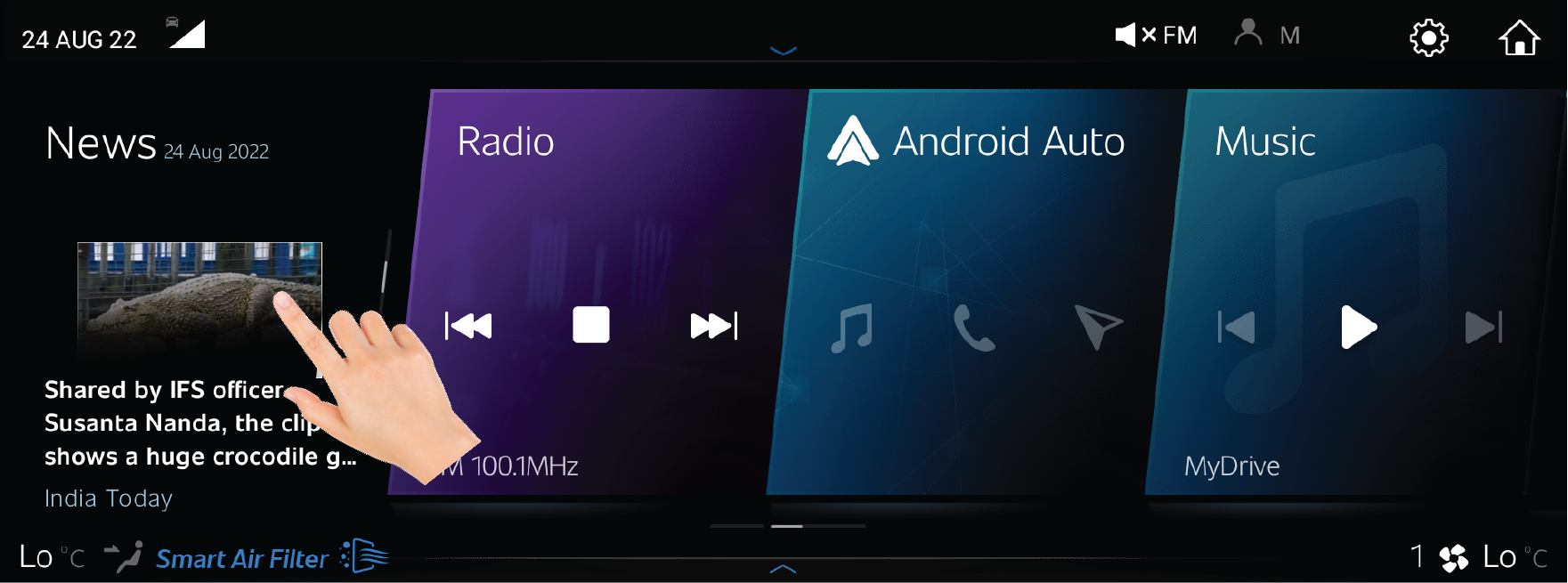

India Today
|
Allows the user to browse through news
using
India Today app in the infotainment
|

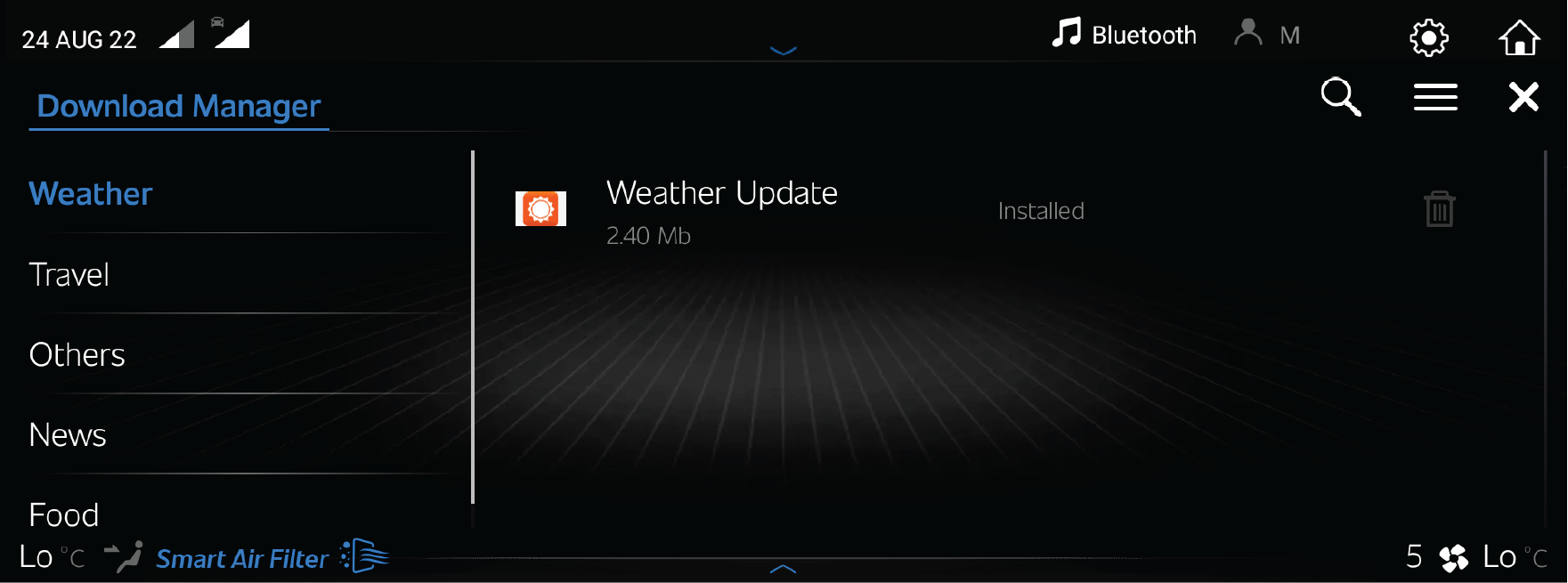

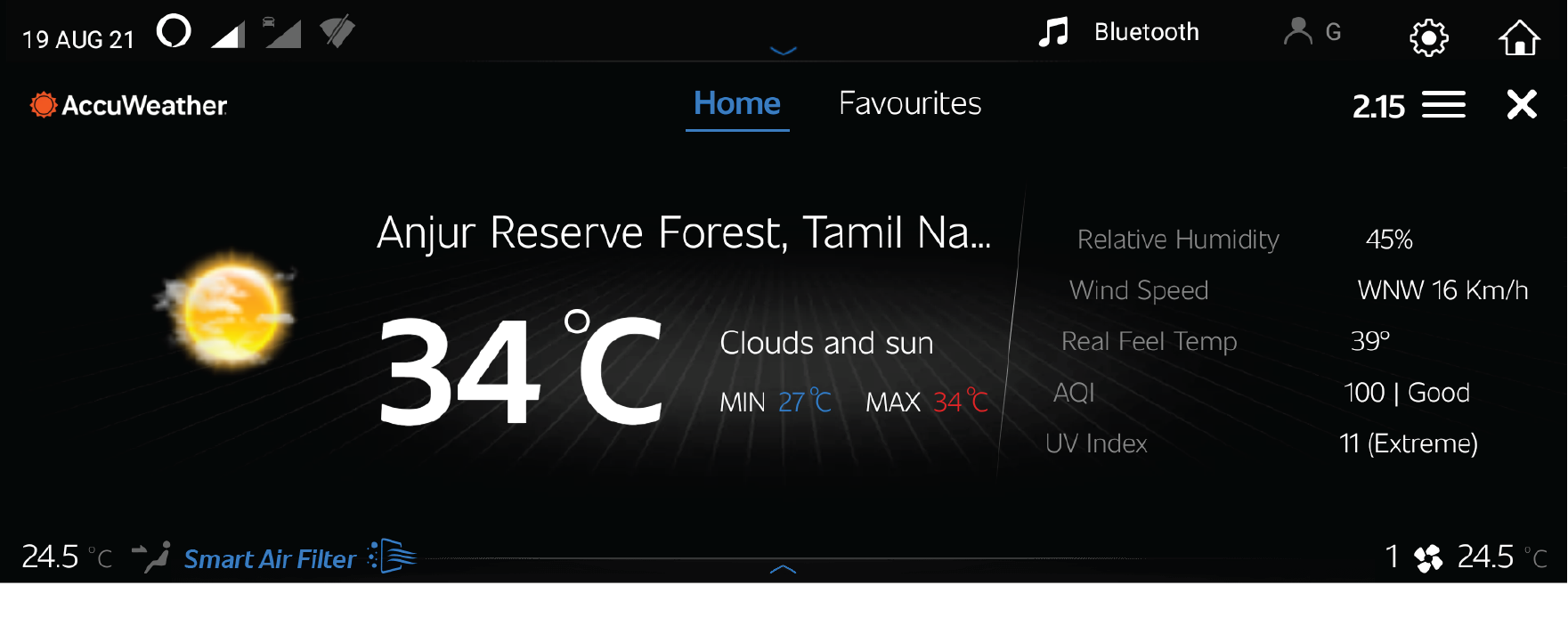

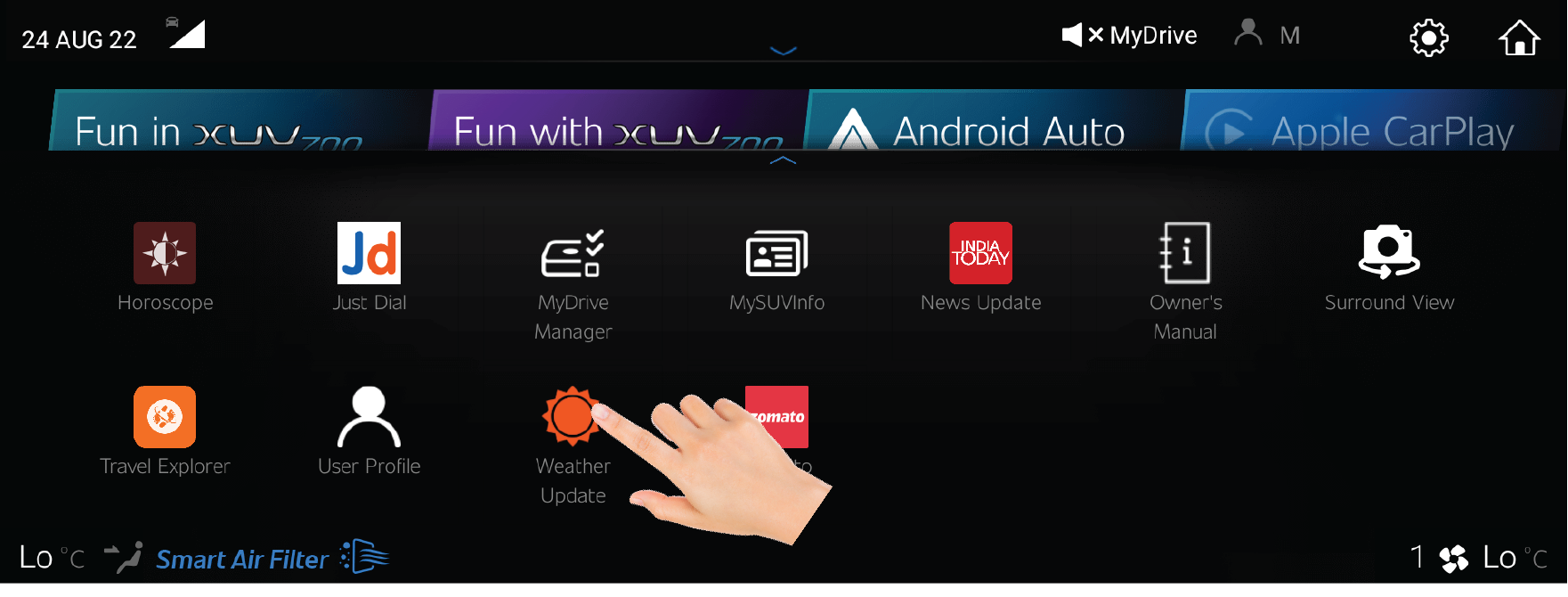

Weather Update
|
Allows the user to view weather
information
using the Accuweather app in the infotainment
|

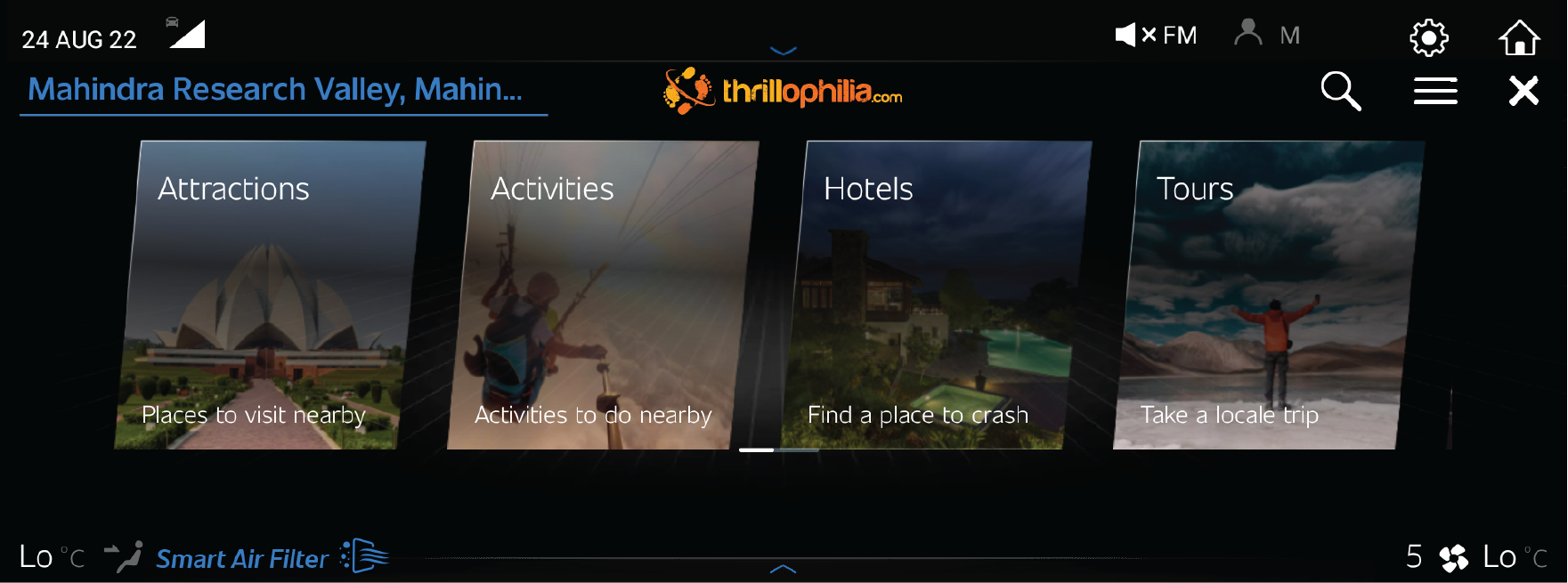

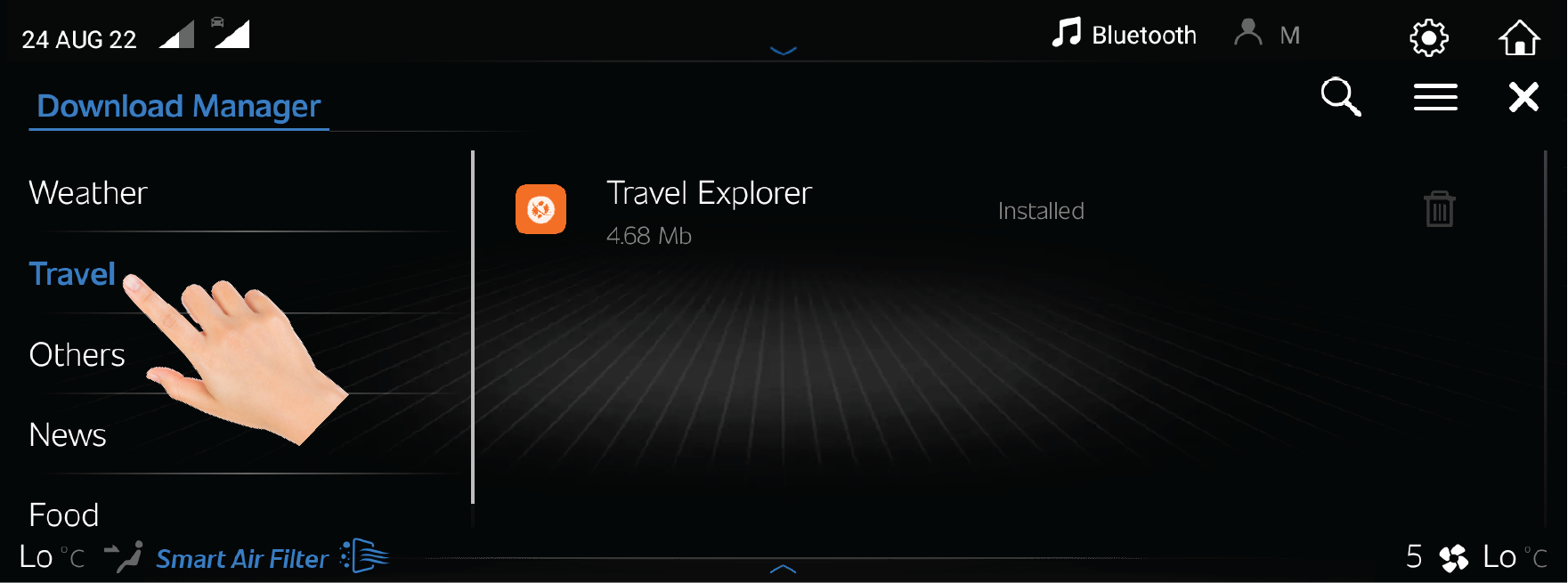

Travel Explorer
|
Allows the user to search for amusement
places
and more using the Travel Advisor app in the infotainment
|
Others
|
|
ETA
|
Allows the user to know the Estimated
Time of
Arrival of your vehicle at your current mobile location.
|

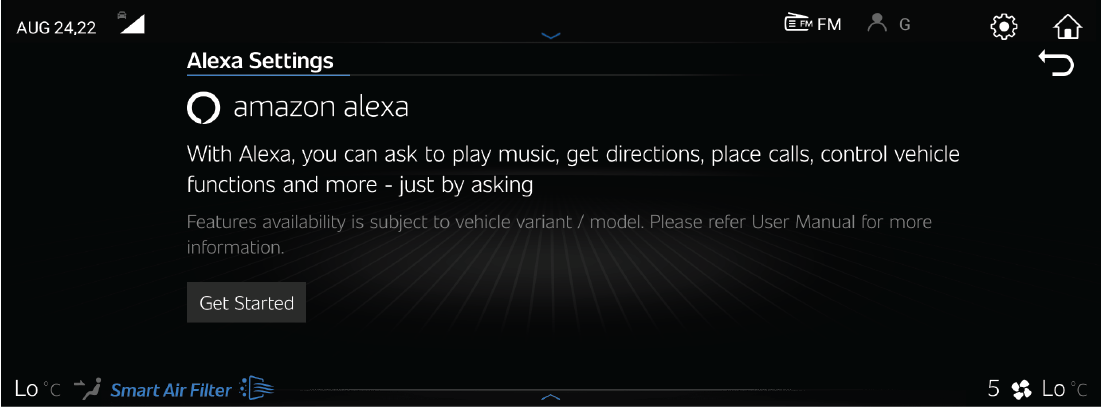

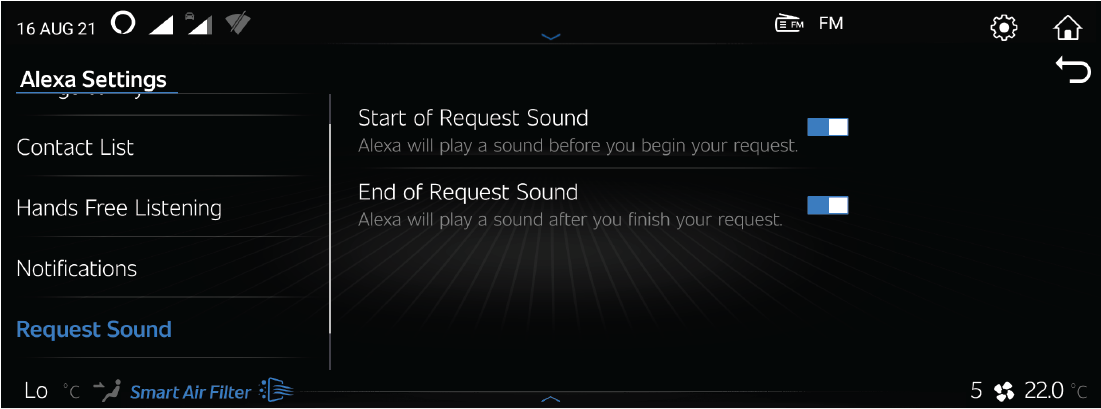

In-Home Alexa
|
Allows the user to check the vehicle
status
and perform remote function using Alexa (voice commands)
|
Valet Mode
|
Allows the user to set the vehicle in a
predefined state when giving the vehicle for valet parking. The default
PIN to
access
the Valet mode will be 1234
|
Contact us
|
Any Query / Enquiry about the product,
Get
info on Mahindra. Send an Inquiry on any car model. Dealers will get
back to
the
customer on details
|
Smart Home Control
|
Allows the user to control the smart
appliances via vehicle location
|
Log Book - Fuel(Fuel Diary)
|
Maintains a systematic log of the all
the fuel
filling events and provides a clear representation of the fuel filled
and the
amount spent
|

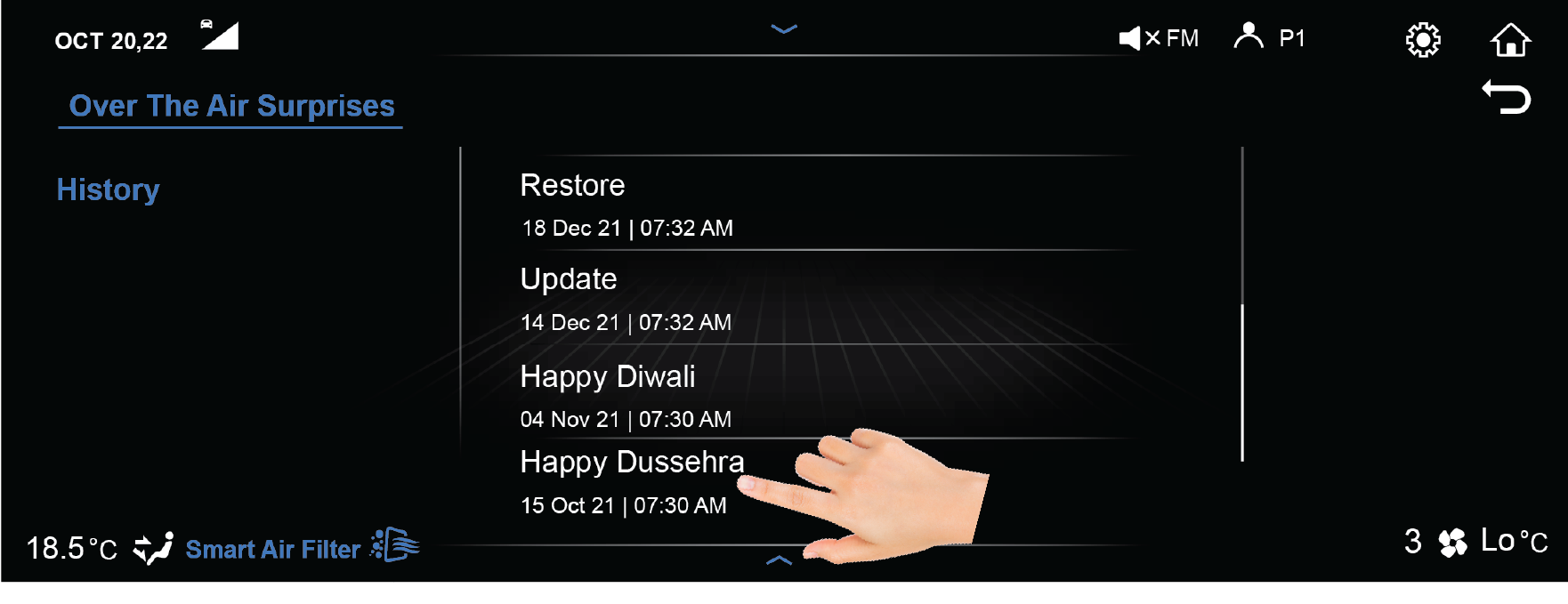

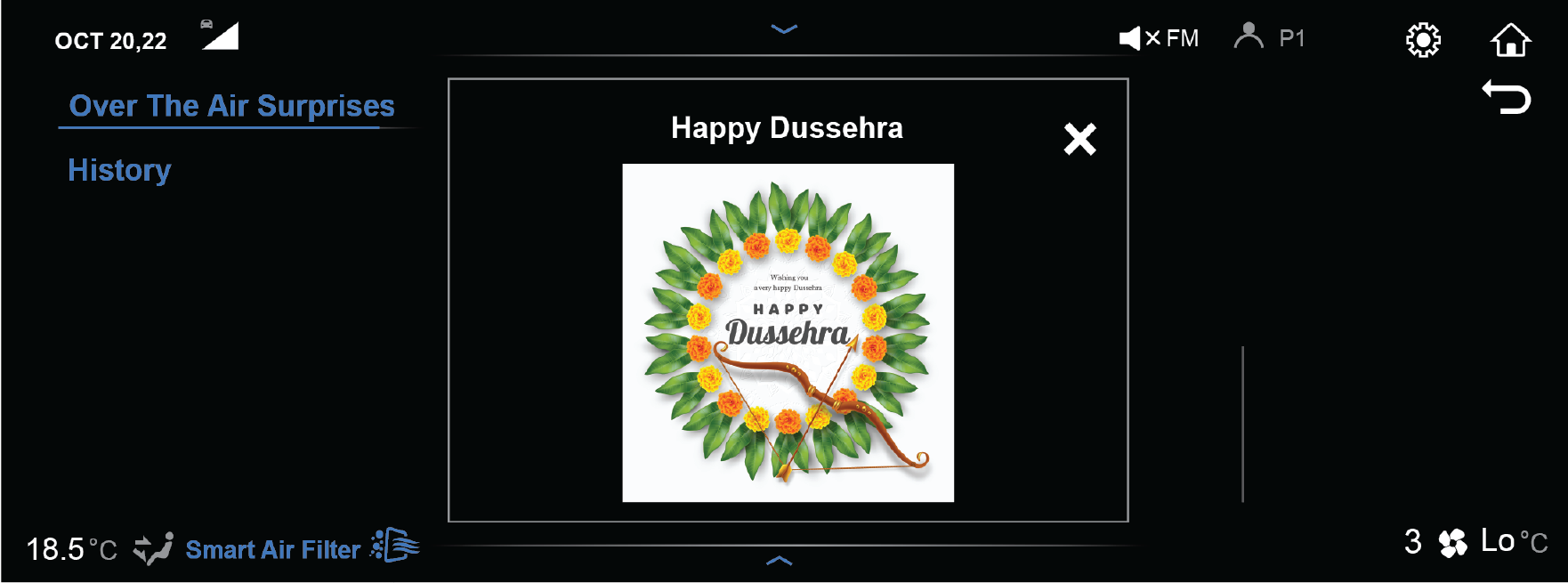

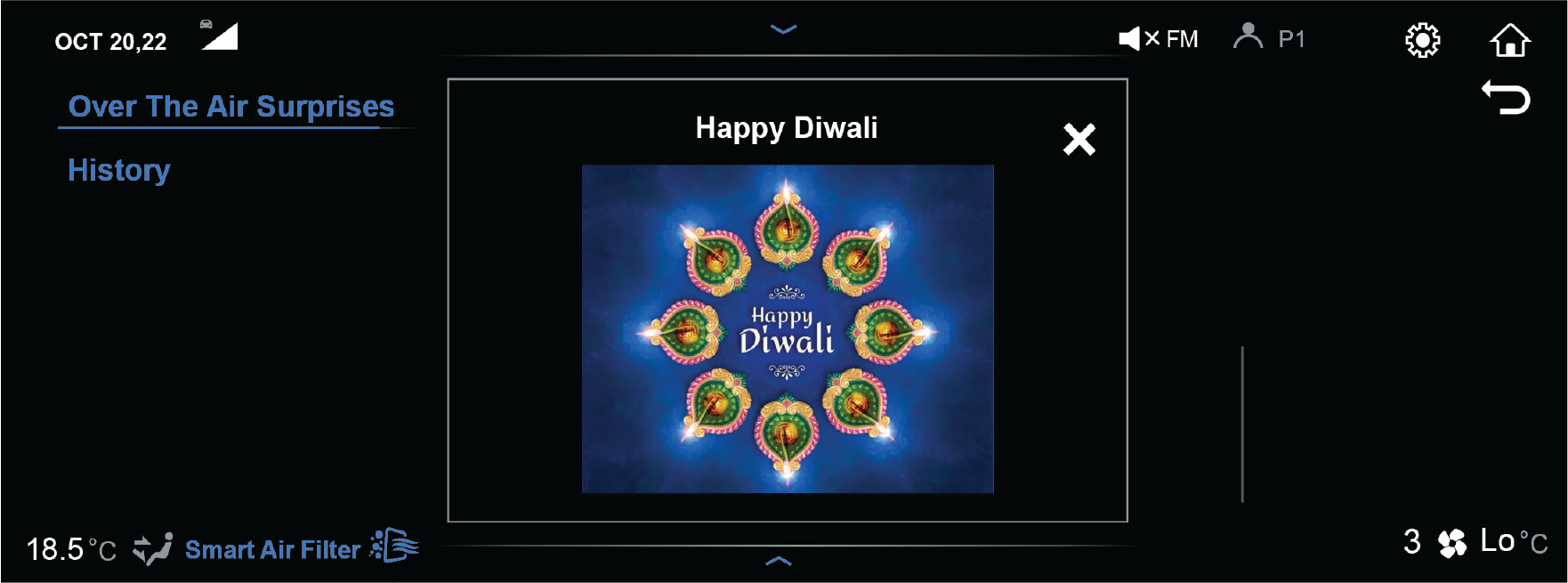

Greetings
|
Greetings to the user on special
occasions
|
Do-Not Disturb
|
Avoids distraction while driving by not
pushing any AdrenoX Connect app notification when mobile is detected in
the
vehicle
|

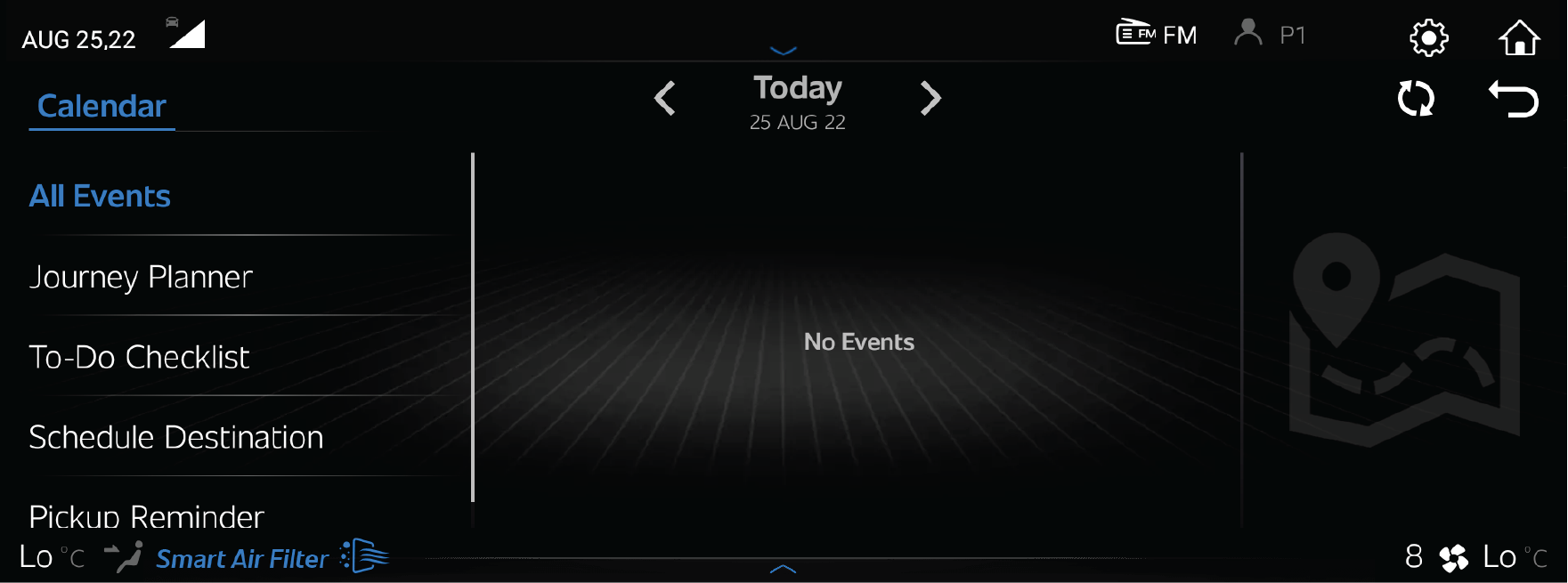

Journey Planner
|
Allows the user to plan a journey by
providing
some basic information
|
Request app Access
|
Allows the user to share the vehicle
access to
two more users
|

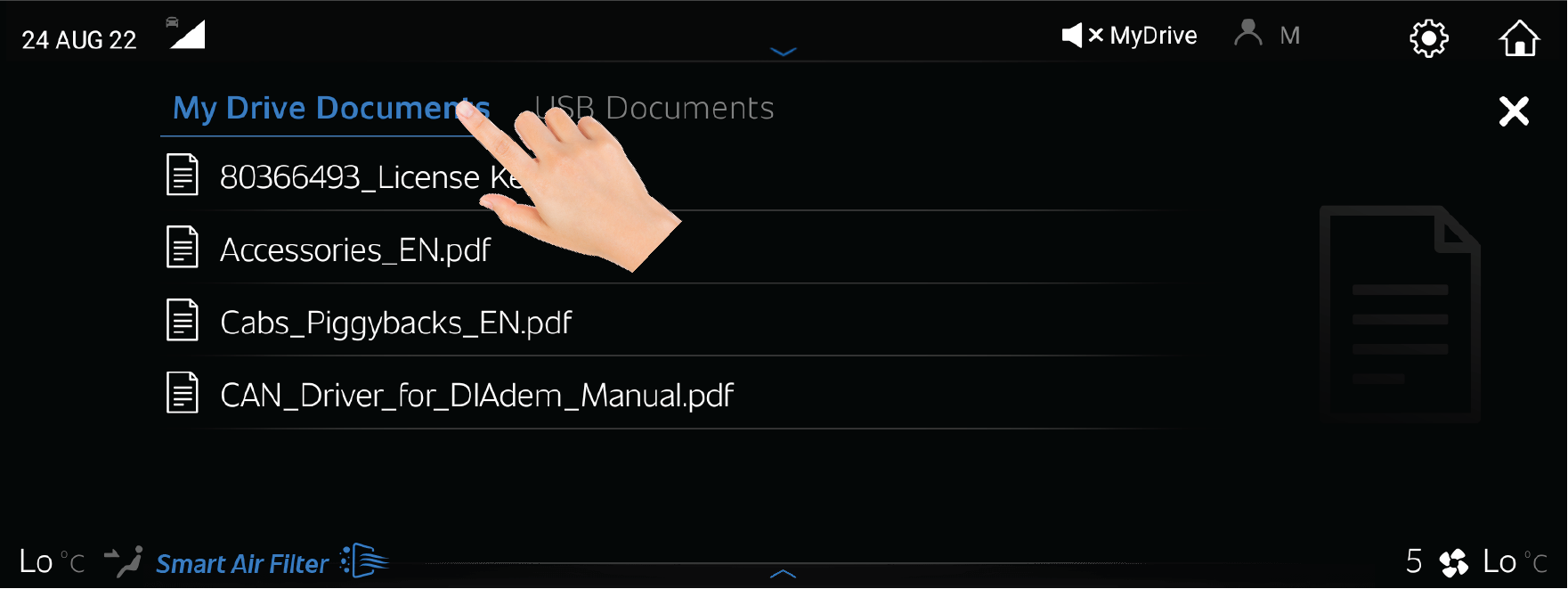

My Documents
|
Storage and retrieval of documents such
as
Driving license, Insurance, PUC etc
|

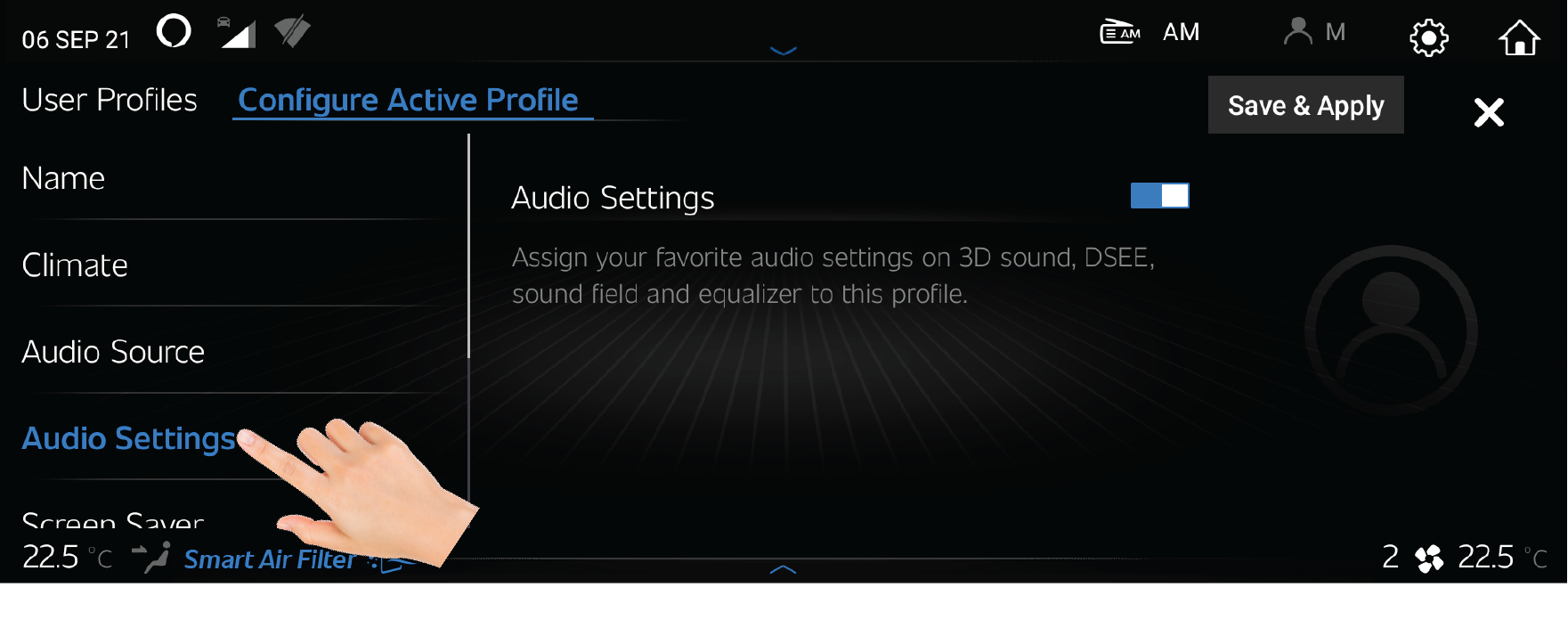

Profile Manager
|
Allows the user to connect the mobile
app
profiles with the vehicle profile thereby providing sync between both
|
To-do list
|
Allows the user to create time
based/location-
based events that remind the user at the specified time
|
Smart Wearables
|
Allows the user to perform all the read
and
remote functions through the smart watch (applicable for both Android
and iOS)
|
Pick up Reminder
|
Allows the user to create an event that
reminds the user at the specified time
|
Service Booking
|
Allows the user to schedule a service by
directing to the With You Hamesha app
|

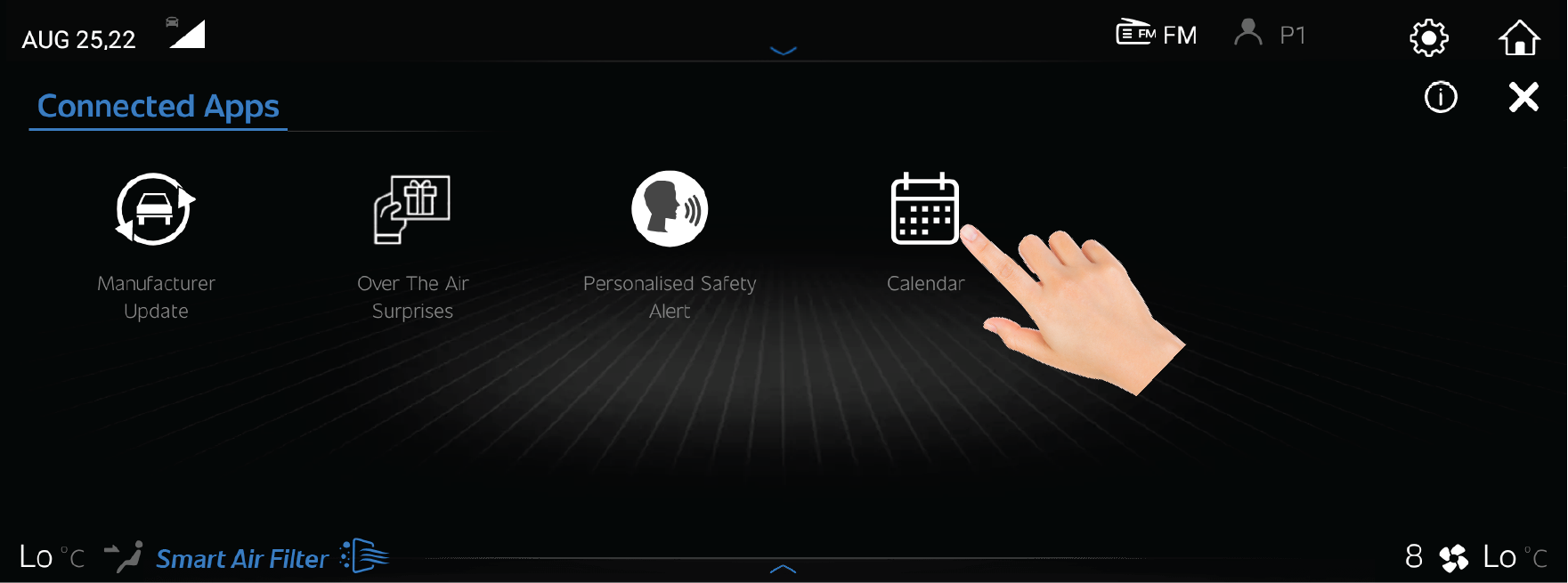

Personalised Safety Alert
|
Alerts the user via a personalised
beloved
ones voice prompt when the vehicle crosses the speed limit
|
Toll Dairy
|
This Feature helps to check the toll
amount
for the selected route & toll amount can be recharged via Adrenox
App as
well.
Feature also provides you alert whenever your toll balances goes low.
|
Personalised Greetings
|
Personalised welcome message, which will
be
configurable by the user & he/she will be welcomed with the audio
uploaded
by
them (Ex: Kids voice, Fav music, Fav hero dialogues)
|
Feature Auto Suggestion
|
This Feature analysis user last 3 months
feature usage pattern & suggest user on the non —utilised feature.
|
Mahindra – Lens
|
This feature is Visual search tool to
know
your XUV700 tell tail lights better
|
Ask Mahindra
|
This feature helps the customer to
connect
with Mahindra executive for any queries/support related to vehicle.
|

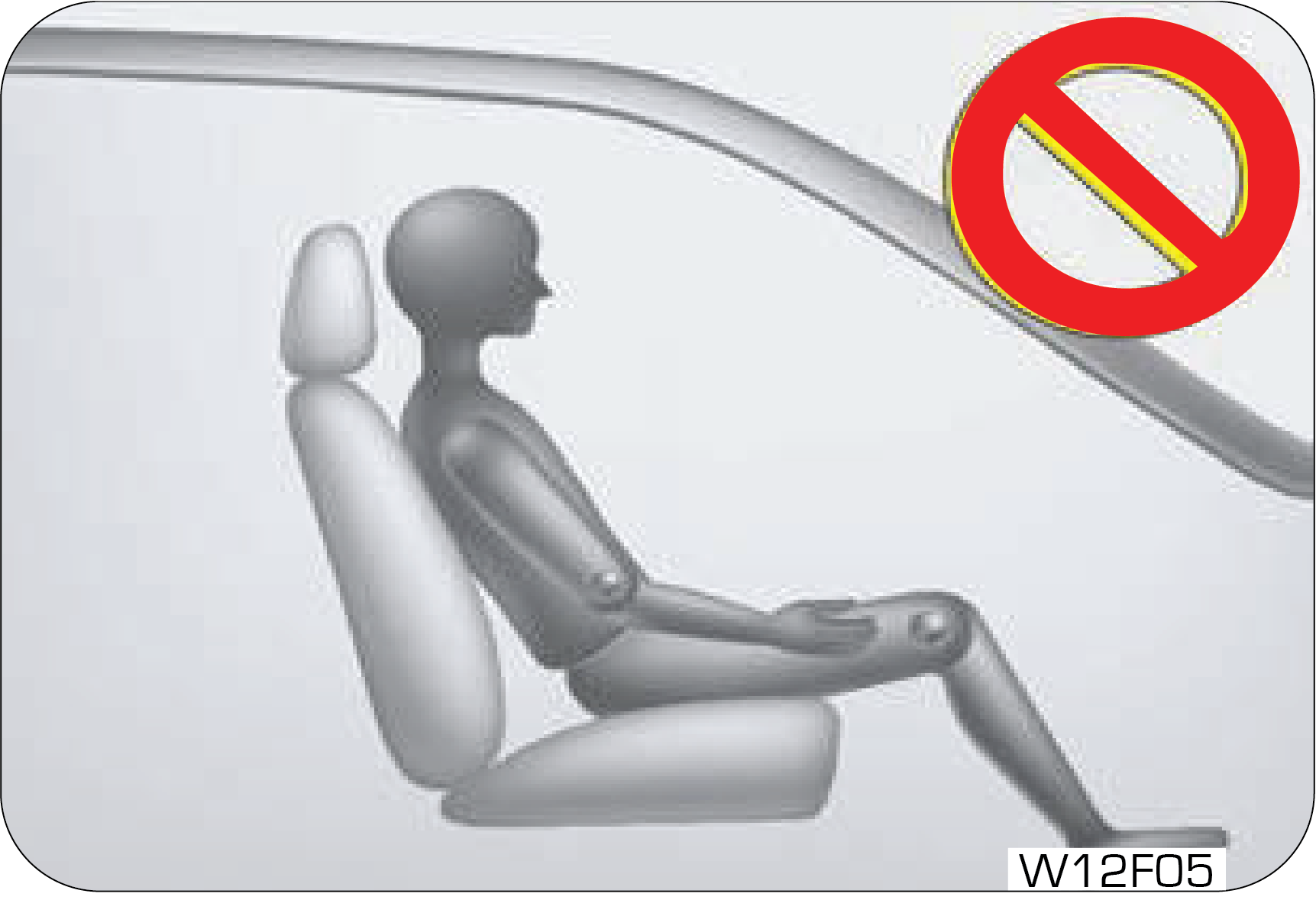

• | Sit in an upright position with the base of your spine pressed against the seat back |
• | The driver and front passenger seat head restraint has 5 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head |
• | Maintain sufficient distance between yourself and the steering wheel. Maintain at least a Ten inch (10") distance from the centre of the steering wheel to your chest |
• | The top curve of the steering wheel should align with your chin for ideal road visibility |
• | Adjust your seat and seat back angle such that your wrists rest on the steering wheel |
• | Ensure your legs are in bent position while fully depressing the clutch pedal |
|
Move the seat forward or backward by lifting the
adjustment lever located under the seat front and release once the desired
position is reached.
|
|
To adjust the seat back, lift the lever located
on the
outboard side of the seat, lean back, and release the lever at the
desired position.
To return the seat back, lift the lever, lean
forward
and release the lever.
|
|
The driver seat height can be raised or lowered
with
the help of height adjust handle.
|
|
The driver seat back features lumbar adjustment.
The
lumbar contour of the lumbar support can be adjusted by means of the
adjusting wheel on the outer side of the seat cushion.
|
• | The ventilated seat uses the interior air for ventilation. Make sure that it is used together with the air conditioner |
• | The ventilated seat is not a cooling/heating seat which blows out cold air from it |
• | Don’t put your hand in the bottom of the cushion when the ventilated seat is in operation. Otherwise, the running ventilation fan may cause you to be frightened or injured |
• | If there is any problem with the seat ventilation system, Contact Mahindra Authorised service center for further assistance. |
• | Do not place any sharp or heavy object on the passenger seat as this could damage the ventilation system by cracking the seat upholstery. |
• | If any liquid spills, clean it up right away. Wait until the seat is dry before using the air ventilation feature. The performance of the seat ventilation system may be impacted by liquid contact. |
• | Do not use the ventilated seat in the
following
situations:
|
• | Never use a solvent to clean the seats, including petrol, paint thinner, benzene, alcohol or alcohol-based products. |
• | The battery can be discharged if the seat ventilation system is used for a long time with the ignition mode ON and without engine running |
• | In above condition, the ventilated seat will operate for a short period of time and will be turned off for better functionality of ventilation fan |
• | If small vent holes on the surface of the seat cushions and seatbacks are clogged with dust and dirt, the air flow from the ventilated seat may weaken. In this case, clean the seat surface by the vacuum cleaner |

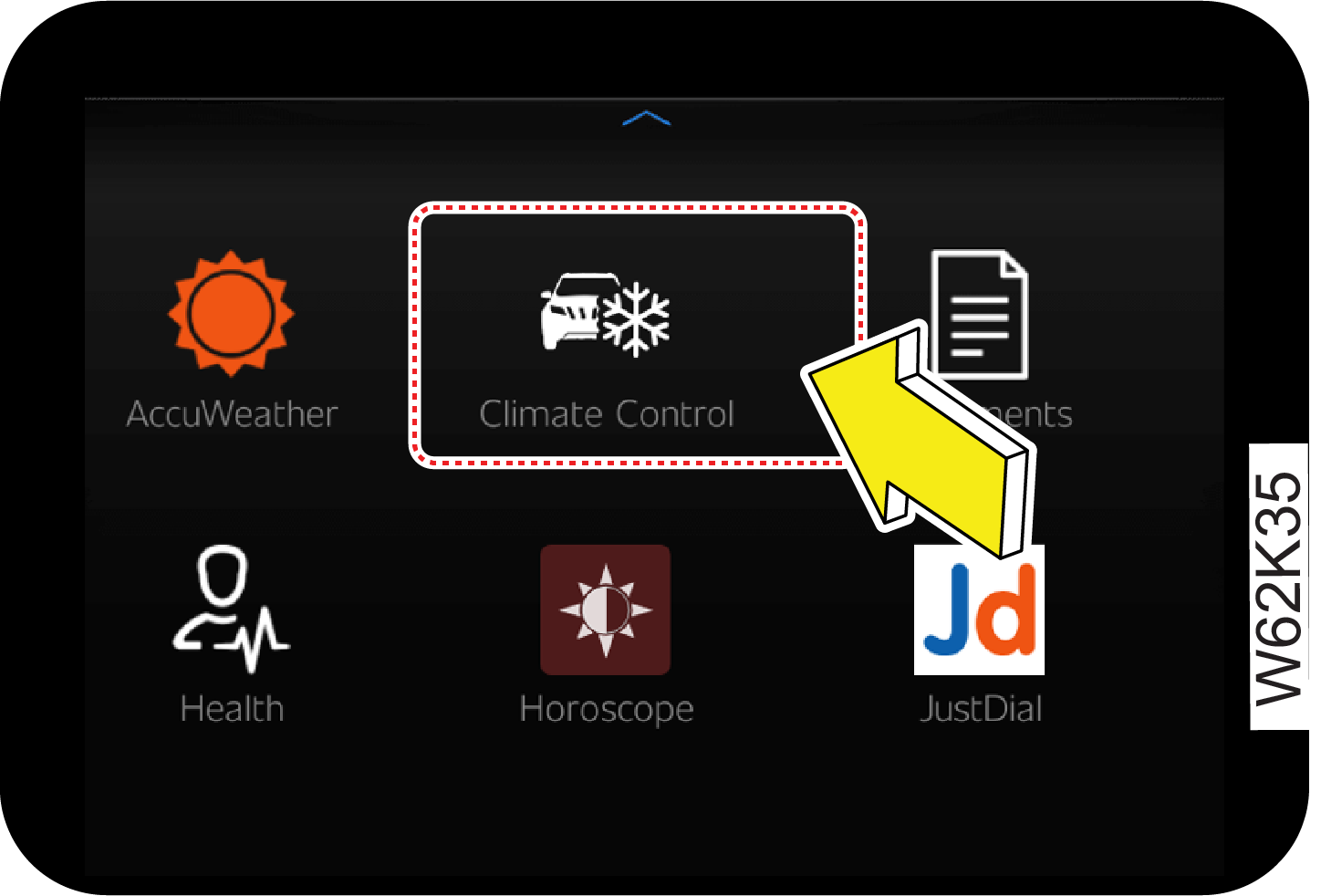

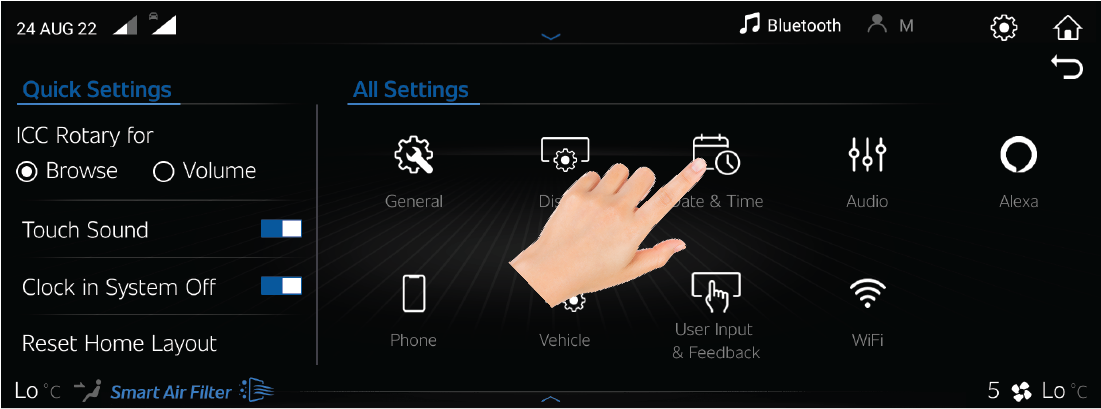

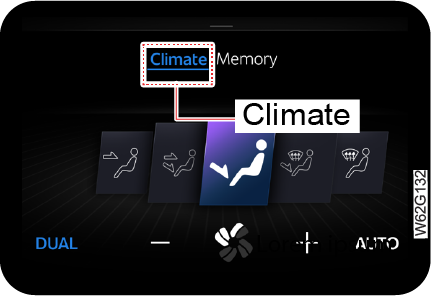

• | Go to setting page in infotainment Screen then select climate control. |
• | Enable the Driver and Co-driver seat ventilation feature based on the requirement. |
|
The Power seat provides advanced 6-way electrical
adjustments for the driver seat.
|
Seat
Adjustment
|
ORVM
Adjustment
|
|
|
• | The driver seat always move to its most rearward point of travel regardless of the current position |
• | The final seat position will not be always the same when using easy access function. There will be some differences within the acceptable range depending on the occupant's weight and vehicle power supply status. This is completely normal and not a fault |
• | Make sure that the parking brake is applied before adjusting the seat position or operating easy access function so that the vehicle cannot move |
• | Do not operate seat memory switch or other switch while the easy access function is activated as it can cause malfunctioning of the easy access function |
• | If the outside rearview mirror control switch is operated while setting up the driver seat and outside rearview mirror position, the memory setting will be cancelled. |
• | If you do not press any memory switch within 5 seconds,. after pressing the driver seat position memory switch, the memory setting will be cancelled |
|
In Ignition ON condition, user needs to press and
hold
any restore button (1, 2 or 3) shall take the Seat and ORVM to previously
stored memory location and you will get acoustic confirmation (chime) from
cluster.
|
• | Adjust the driver's seat only when the vehicle is stationary, otherwise there is a risk of accident. The seat should be adjusted so that the brake/ clutch pedal can be pressed fully. |
• | Be cautious when adjusting the seat, you may suffer injuries without paying proper attention while adjusting seat. |
• | Driver side electric seat can be adjusted in ignition off also, children should never be left unattended in the vehicle, as there is a risk of injury! |
• | Power seats will be operated even when the ignition switch is turned to the “OFF” position. However, to prevent battery discharge, we suggest that you adjust your seats when the engine is running |
• | Do not forcibly operate any power adjustment switch if the seat comes in contact with any other object and cannot be adjusted anymore. |
• | If the power seats are not operational, the seats should be checked and fixed before driving |

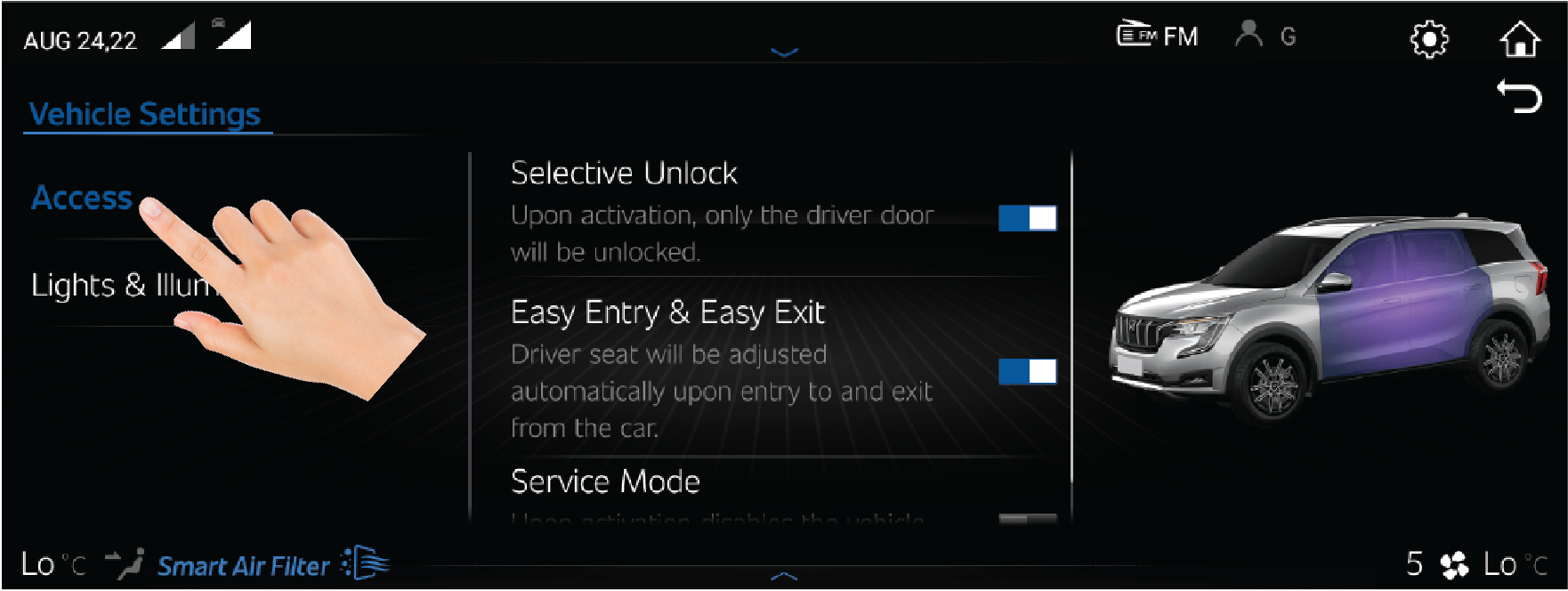

• | Easy Entry/Exit function once enabled, remains active until it is disabled. Be cautious during this operation as the rear seat passenger could get injured. |
• | Do not put any luggage/water bottles below driver seat as they can obstruct power seat movement or damage seat mechanism/motor |
• | Do not remove vehicle battery while seat is in motion |
|
The Co-Driver Seat is equipped with an Ergo
lever. This
lever enables you to move the unoccupied Co-Driver seat forward, in
order to increase the leg room behind the Co-Driver seat.
|
60:40
Seat
|
Captain
Seat
|
|
|
|
To change the second row seat back angle, lean
forward
slightly while raising the recline lever on the side of the seat cushion,
lean back to the desired position and release the recline lever.
|
|
|
60/40 Seat
(Exit
Access)
|
|
|
|
Captain Seat
(Exit
Access)
|
|
|
|
• | To tumble the Second Row 40P/Captain seat while sitting on the Third Row seat, pull the lever behind the 40P/Captain backrest. |
• | In order to use the 2nd Row Seat to load cargo, first tumble the seat as explained above. Then, push the seat downward of the vehicle (>45 kg) until the two latches underneath the seat lock onto the floor. |
|
|
• | To tumble the seat from the back folded (cargo) condition, first make the seat back upright. Then operate the one-touch fold and tumble lever. |
|
|
|
The 2nd Row 60P seat back can be folded to load
cargo
on top of it. Operate the lever on the side of the 60P seat. This lever
actuates the backrest fold mechanism. Release the lever once the backrest has
folded
completely.
|
|
|
• | To open the armrest, simply pull on the tab given at the top of the armrest (as shown). |
• | When armrest is not required, push back the armrest into the 60P backrest. |
• | Pull the strap rearwards to unlock the seat back as shown in below image |
• | Then push the backrest forwards to fold it. |
• | To open the seat back, simply pull the backrest rearwards until it gets locked in position. |
|
|
|
|
|
Access to or exit from third row seat is possible
by
completely folding the second row seat. Second row seat features 60:40
split configuration. The Second row 40P seat can be tumbled to gain access to
third row
seat.
|
To
Fold
|
To
Open
|
|
|
|
Always align top of the head restraint with the top
of
your head or as close to it as possible. To raise the head restraint,
pull the restraint up.
|
• | All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimize the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger. |
• | In a rollover crash, an un-belted person is significantly more likely prone to Injury than a person wearing a seat belt |
• | In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an arm rest, a pocketbook, or any external objects should be between you and the seat belt. Improperly worn of a seat belt will reduce the protection in an accident. |
• | Seat
belts should be adjusted as tightly as possible, consistent with
comfort to
properly secure the wearer in the seat.
|
• | The seat belts provided for your vehicle are designed for adults must be properly used and maintained. |
• | For usage of adult seat belt to secure children, refer to section of manual for child seat positions and use a child restraint systems |
• | Passengers should not move out of or change seats while the vehicle is in motion. Passenger who does not wear the seat belts will be under a high risk of thrown against the vehicle inside hard parts, against other occupants or out of the vehicle during emergency stop or collision. |
• | Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash |
• | An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Mahindra Authorised Dealer inspect the seat belt system after an accident |
• | Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle |
• | Seat belt systems are prone to abuse. They are not indestructible. They must be handled with care to avoid damage |
• | Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbings are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts |
• | Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer |
|
The
lap
belt should be worn snugly and as low as possible over the hips. The
shoulder belt should be worn across your shoulder,
but never across the stomach area. When worn properly, the seat belt
will
protect both the mother and the foetus in an accident
or emergency stop.
|
• | Reduce the possibility of being out from your vehicle during an accident. |
• | Reduce the possibility of injuries to upper body, lower body and legs during an accident |
• | Hold the driver in a position which allows better control of the vehicle |
|
|
Seat
Belt
Types with respect to Location
|
|
Seat
Location
|
Seat
Belt
Type
|
Driver
Seat
|
Seat
belt
with Retractor Pretensioner & load limiter (RPLL), & Anchor
Pretensioner
|
Co-Driver
Seat
|
Seat
belt
with Retractor Pretensioner & load limiter
(RPLL)
|
2nd
Row LH
(40P)
|
Seat
belt
with Emergency Lock Retractor (ELR)
|
2nd
Row RH
(60P)
|
Seat
belt
with Emergency Lock Retractor (ELR) & Lap Seat
belt
|
2nd
Row
Captain Seat LH / RH
|
Seat
belt
with Emergency Lock Retractor (ELR)
|
3rd
Row LH /
RH
|
Seat
belt
with Emergency Lock Retractor (ELR)
|
|
This vehicle is provided with a anchor
pretensioner for
driver seat (in the sill board area) and is used to help to protect
occupant in the sever crash events .
|
|
Operation of
pretensioner
When a severe frontal impact occurs, seat belt
pretensioners pull back the seat belts immediately to restrain the occupants
to their seats.
|
|
Operation of
load
limiter
After frontal collision, the load limiter
releases the
seat belt to prevent the occupant from being injured due to belt force.
|
• | Before driving, all occupants should fasten their seat belts. If not, the occupants can seriously be injured in a collision or sudden manoeuvring of the vehicle |
• | Sometimes you may have to apply strong force to pull the webbing out of the retract |
• | Each seat belt should be used by only one occupant at a time |
• | Seat belts and airbag’s can significantly minimise possible injury to occupants. But they cannot perfectly protect occupants from fatal collisions or injury |
• | Modifications and improper maintenance for the safety systems could cause serious injury. The safety systems including seat belts should be checked and repaired by only a Mahindra Dealer or Mahindra Authorised Service centre |
• | An infant or small child should always be restrained in an infant or child restraint |
|
|
|
|
|
|
|
PODS detects the presence of occupant in the
passenger
seat.
|
|
You can adjust the height of the shoulder belt
anchor
for maximum comfort and safety of both front seats. If the height of
the seat belt is too near your neck, you will not be getting the most effective
protection.
|
|
|
• | Insert the child restraint attachments into the ISOFIX lower latch anchors (rods) until it clicks. Refer Child seat installation manual. |
• | Do not use the seat belt for installing the ISOFIX child restraint |
• | When using the “ISOFIX” lower latch system (rod), all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of un-retracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the un-retracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint. |
• | Child restraint anchorages are designed to withstand only those loads imposed by correctly-fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle |
|
There are two top tether rods/rear anchors on the
seat
base back side of the rear row front facing seats.
|
1. | Remove the headrest from the rear row seat |
2. | Place the child restraint on the rear row seat |
3. | Connect the tether connector in child restraint to the top tether rod/ rear anchor. Securely tighten the child restraint by adjusting the webbing of the child restraint system (CRS) tether connector. Follow the clear instructions provide in the CRS manual |
• | The top-tether/ rear anchor is the supplemental device to secure the child restraint system after engaging it by the ISOFIX rod/lower latches. Therefore, do not secure the child restraint system only with the seat back anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death. |
• | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation |
• | Make sure the latches of the child restraint system are Firmly latched to the ISOFIX rod/lower latches. In this case, you can hear the “click” sound/ latch indications provided on seat. |
• | Incorrectly installed child restraint system may cause an unexpected personal injury. |
• | Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints |
• | The tether strap may not work properly if attached somewhere other than the correct top tether rod/rear anchor provided on seat back. |
• | Don’t put the top tether strap over the head restraint of rear row seat which is not the correct methods and may cause risk. |
• | Rock the child restraint to check if it is securely installed. Refer to instructions provided by the manufacturer of the child restraint. |
• | Do not install the child restraint of such size if it hinders the operations of front seat which may cause problem to front occupants. |
Table of
Information
on Child Restraint Systems (CRS) Using The Seat Belt
|
|||
|
|
|
|
Mass
group
|
Restraint
Device Figure
|
Seating
position
|
Mounting
method of vehicle
|
||||||
---|---|---|---|---|---|---|---|---|---|
Passenger
Seat
|
Second
Row
|
Third
Row
|
|||||||
Activated
front Passenger Airbag
|
Deactivated
front Passenger Airbag
|
Left
|
Centre
|
Right
|
Left
|
Right
|
|||
Group
0
Up to 10 kg |
Rear Facing Child Seat
|
X
|
U
|
U
|
X
|
U
|
X
|
X
|
3 - Point Seat Belt
|
Group 0+
Up to 13 kg |
Rear Facing Child Seat
|
X
|
U
|
U
|
X
|
U
|
X
|
X
|
3 - Point Seat Belt
|
Group I
9 to 18 kg |
Forward Facing Child Seat
|
U
|
X
|
U
|
X
|
U
|
X
|
X
|
3 - Point Seat Belt
|
Group
II
15 to 25 kg |
Booster Seat
|
U
|
X
|
U
|
X
|
U
|
X
|
X
|
3 - Point Seat Belt
|
Group III
22 to 36 kg |
Booster Seat
|
U
|
X
|
U
|
X
|
U
|
X
|
X
|
3 - Point Seat Belt
|
Table of
Information
on Child Restraint Systems (CRS) Using ISOFIX & Top Tether
|
|||
|
|
|
|
Mass
group
|
Restraint
Device Figure
|
Seating
position
|
Mounting
method of vehicle
|
|||||
---|---|---|---|---|---|---|---|---|
First
Row
|
Second
Row
|
Third
Row
|
||||||
Left
|
Left
|
Centre
|
Right
|
Left
|
Right
|
|||
Group
0
Up to 10 kg |
Rear Facing Child Seat
|
X
|
IU
|
X
|
IU
|
X
|
X
|
ISOFIX & Top Tether
|
Group 0+
Up to 13 kg |
Rear Facing Child Seat
|
X
|
IU
|
X
|
IU
|
X
|
X
|
ISOFIX & Top Tether
|
Group I
9 to 18 kg |
Forward Facing Child Seat
|
X
|
IU/IUF
|
X
|
IU/IUF
|
X
|
X
|
ISOFIX & Top Tether
|
Group
II
15 to 25 kg |
Booster Seat
|
X
|
IUF
|
X
|
IUF
|
X
|
X
|
ISOFIX & Top Tether
|
Group III
22 to 36 kg |
Booster Seat
|
X
|
IUF
|
X
|
IUF
|
X
|
X
|
ISOFIX & Top Tether
|
Table of
Information
on ISOFIX Child Restraint Systems Installation Suitability for Various ISOFIX
Positions
|
|||
|
|
|
|
Table of Vehicle
Handbook Information on ISOFIX Child Restraint Systems Installation Suitability
for
Various ISOFIX Positions
|
Mass
group
|
Size
Class
|
Fixture
|
Vehicle
ISOFIX Positions
|
---|---|---|---|
Rear
outboard
|
|||
Carry cot (Newborn Baby)
|
F
|
ISO/L1
|
X
|
G
|
ISO/L2
|
X
|
|
Group 0: up to 10 kg (~9 months)
|
E
|
ISO/R1
|
IU
|
Group 0+: up to 13 kg (~0 – 2 years)
|
E
|
ISO/R1
|
IU
|
D
|
ISO/R2
|
IU
|
|
C
|
ISO/R3
|
IU
|
|
Group I 09 to 18 kg (~9 months – 4 years)
|
D
|
ISO/R2
|
IU
|
C
|
ISO/R3
|
IU
|
|
B
|
ISO/F2
|
IUF
|
|
B1
|
ISO/F2X
|
IUF
|
|
A
|
ISO/F3
|
X
|
E -
ISO/R1:
Infant-Size Rearward-Facing Child Restraint System
F
-ISO/L1: Left
Lateral Facing position Child Restraint System (carry-cot)
G -
ISO/L2:
Right Lateral Facing position Child Restraint System
(carry-cot)
|
|
Use
the
manufacturer recommended Child Restraint System (CRS) and locations to
fit in
vehicle. Please read the installation
instructions provided in manual carefully before
use.
|
|
Anchorage
Location
: Child restraint anchor
fittings are
installed at the points as shown in the figure.
|
|
|
|
• | Never transport them unless they are properly restrained |
• | Use restrained system which meet safety standard |
• | Follow directions provided by the manufacturer |
• | Use only the approved Child Restraint System (CRS) for better safety of your child. |
• | Mahindra is not responsible for the personal injury and property damage due to the defect of child restraint system. |
• | Use the proper type of child restraint system suitable for the weight and size for your baby. |
• | Use the child restraint system at recommended seating location only and follow the instructions. |
• | Child restraint has 5 categories based on the weight as below: |
1
|
GROUP 0 : 0 ~ 10 KG
|
4
|
GROUP II : 15 ~ 25 KG
|
2
|
GROUP 0+ : 0 ~ 13 KG
|
5
|
GROUP III : 22 ~ 36 KG
|
3
|
GROUP I : 9 ~ 18 KG
|
• | Group 0 & 0+ : Rear-facing child restraint fitted on the rear seat (use of ISOFIX with Base & Support Leg is recommended). |
• | Group I: Forward-facing child restraint fitted on the rear seat (use of ISOFIX & Top Tether is recommended). |
• | Group II & III: Booster seat fitted on the rear seat with seat belt fastened. Always follow the installation procedure and use instructions provided by the manufacturer of the booster seat. |
• | The anchor provided on rear seat base back is the supplemental device to secure the child restraint system after engaging it by the lower latches. Therefore, do not secure the child restraint system only with the seat back anchors. The increased load may cause the hooks or anchors to break, causing serious injury or death. |
• | If a child restraint is not properly secured to the vehicle and a child is not properly restrained in the child restraint, the child could be seriously injured or killed in a collision. Always follow the instructions provided by the manufacturer for installation. |
• | Make sure the latches of the child restraint system are latched to the lower latches. In this case, you can hear the “click” sound and color indications. |
• | The child restraint seat strap may not work properly if attached somewhere other than the correct seat back anchor provided on the rear seat base back side behind the seat carpet. Follow the instructions provided on the seat back for the details of anchor location. |
• | Make sure that the child restraint system is firmly secured by rocking it in different directions. |
• | Incorrectly installed child restraint system may cause an unexpected personal injury. |
|
A: Knee
airbag
for the driver (if equipped)
B: Front
Passenger Airbag
C: Driver
Airbag
D:Two
side
(seat) impact airbags (if equipped)
E: Two
curtain
airbags (if equipped)
|
|
|
|
|
|
|
|
Your vehicle is equipped with side impact airbag
in
both the front seats. The purpose of the airbag is to provide the vehicle's
driver and/or the front passenger with additional protection during side impacts
or
collisions.
|
|
|
• | In the case of a side collision, the curtain airbag may be deployed together with the relevant side airbag on the side the collision occurs |
• | The side impact airbag is supplementary to the seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side impact conditions severe enough to cause significant injury to the vehicle occupants |
• | For best protection from the side impact airbag system and to avoid being injured by the deploying side impact airbag, all seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passengers arms and hands should be placed on their laps |
• | Do not use any accessory seat covers. Use of seat covers could reduce or prevent the effectiveness of the system |
• | Do not install any accessories on the side or near the side impact airbag |
• | Do not place any objects over the airbag or between the air bag and yourself |
• | Do not place any objects (an umbrella, bag, etc.) between the door and the seat. Such objects may become dangerous projectiles and cause injury if the supplementary side impact airbag inflates |
|
|
• | In the case of a side collision, the side airbag may be deployed together with the relevant curtain airbag on the side the collision occurs |
• | In order for side and curtain airbag to provide the best protection, both front seat occupants and outboard rear occupants should sit in an upright position with the seat belts properly fastened. Importantly, children should sit in a proper child restraint system in the rear seat |
• | When children are seated in the rear outboard seats, they must be seated in the proper child restraint system. Make sure to position the child restraint system as far away from the door side as possible, and secure the child restraint system in a locked position |
• | Do not allow the passengers to lean their heads or bodies onto doors or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain airbag |
|
|
|
|
• | The lamp does not glow when the ignition is switched ON or glows beyond six (6) seconds after switching the ignition ON |
• | The lamp comes ON at any other time, even briefly |
• | The lamp comes ON intermittently |
• | Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury |
• | Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once |
• | Do not cover the steering wheel, instrument panel, seats with any object (e.g. dash panel covers, seat covers) which may prevent the airbags from inflating properly |
• | The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle |
|
|
|
|
• | The front passenger must sit as far back as possible from the dashboard |
• | Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury |
• | Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor |
• | All vehicle occupants must be properly restrained using the seat belts |
• | All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts |
• | Front airbags can injure occupants who are improperly positioned in the front seats |
• | Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual |
• | Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags |
• | Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses |
|
|
|
Collision with Utility Poles or Trees : | |
|
Airbags may not inflate if the vehicle collides
with
objects such as utility poles or trees, where the point of impact is
concentrated to one area and the full force of the impact is not delivered to the
sensors.
|
Frontal
Impact :
|
|
|
Frontal impact beyond 30º range from head-on to the vehicle.
|
|
In an angled collision, the force of impact may
direct
the occupants in a direction where the airbags would not be able to
provide any additional benefit, and thus the sensors may not deploy any airbags.
|
|
Airbags will not inflate in this “under-ride”
situation
where deceleration forces that are detected by sensors are significantly
low.
|
|
Frontal airbags are not designed to inflate in
rear
collisions, where occupants are moved backward away from the airbags by
the force of the impact. In this case, inflated airbags would not be able to
provide
any additional benefit.
|
|
Driving into a big pothole, stepped surface or
hitting
the far side of a hole/incline will not inflate the airbag.
|
|
Airbags will not inflate in rollover accidents
where
airbag deployment would not provide protection to the occupants. However,
side impact and curtain airbags may inflate only when severe side impact causes
rollover.
|
Type 1
|
Type 2
|
High | Low |
|
|
High | Low |
|
|
High | Low |
|
|
High | Low |
|
|
|
This Screen shows the outside ambient temperature and we can
change
units based on infotainment setting.
|
Type 1 | Type 2 | Operating Conditions |
---|---|---|
|
|
UP/DOWN arrows recommend to up shift / down shift
the
drive gear.
|
|

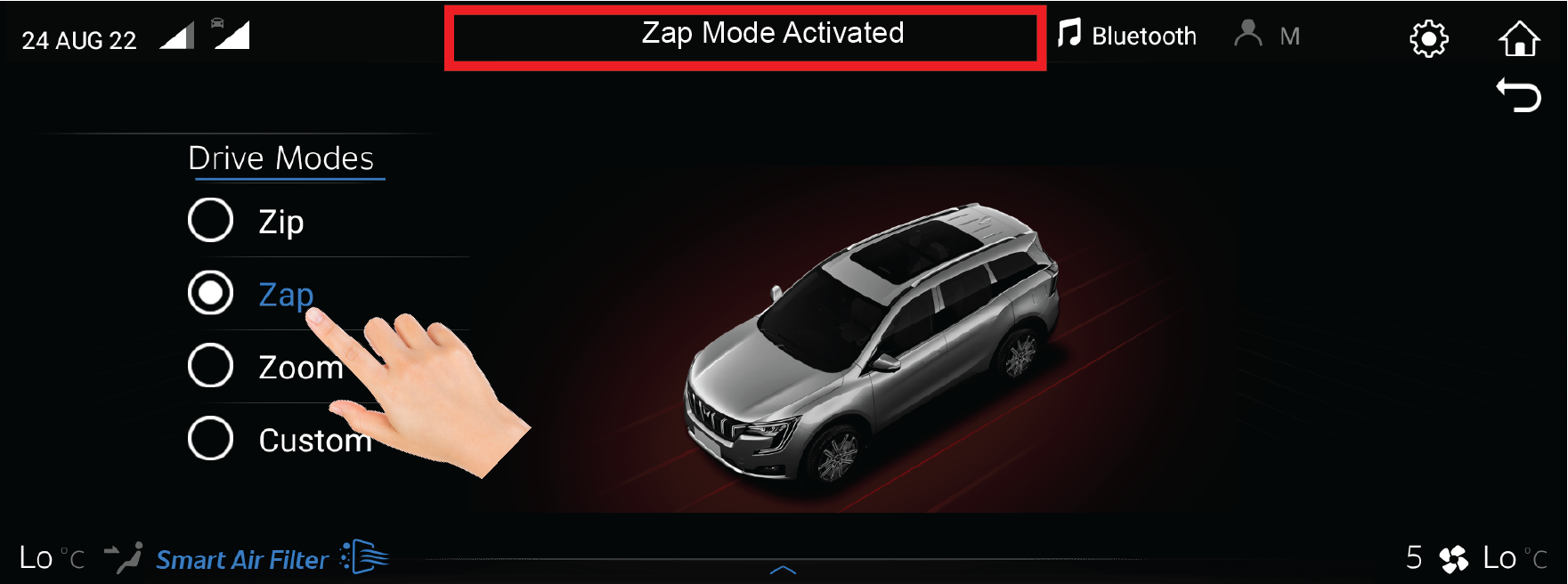

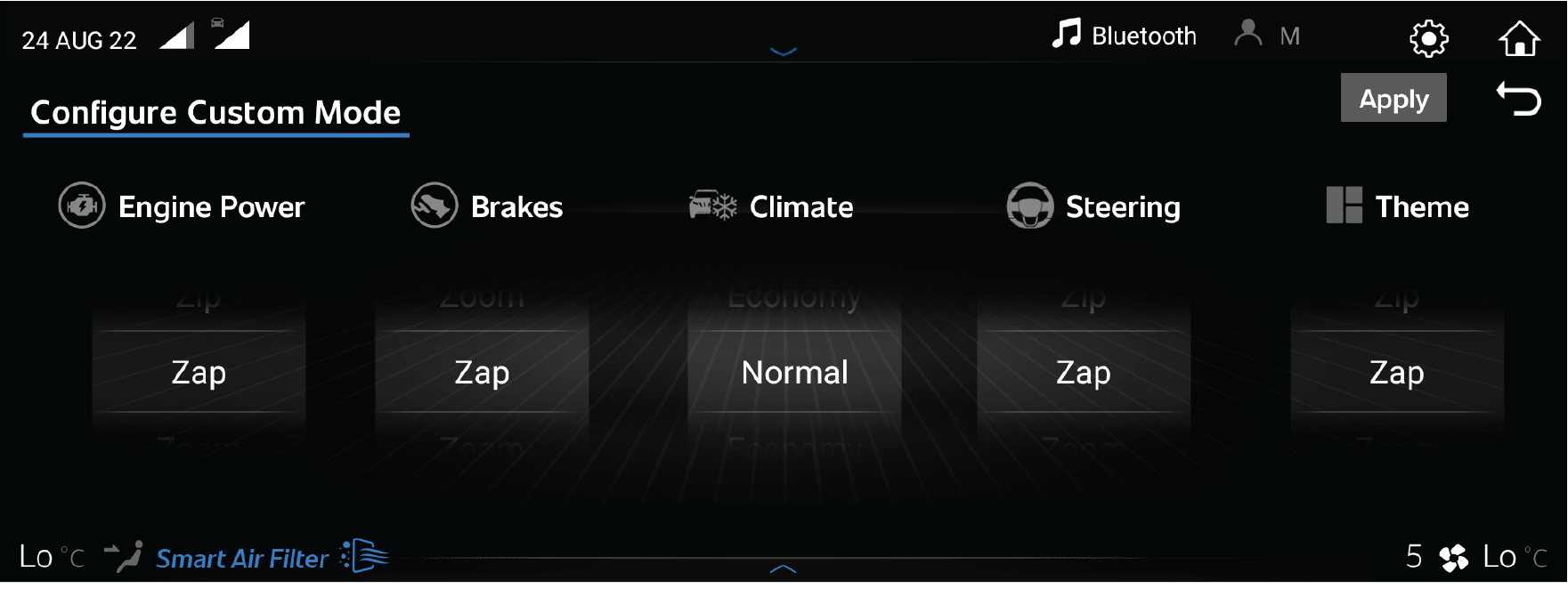

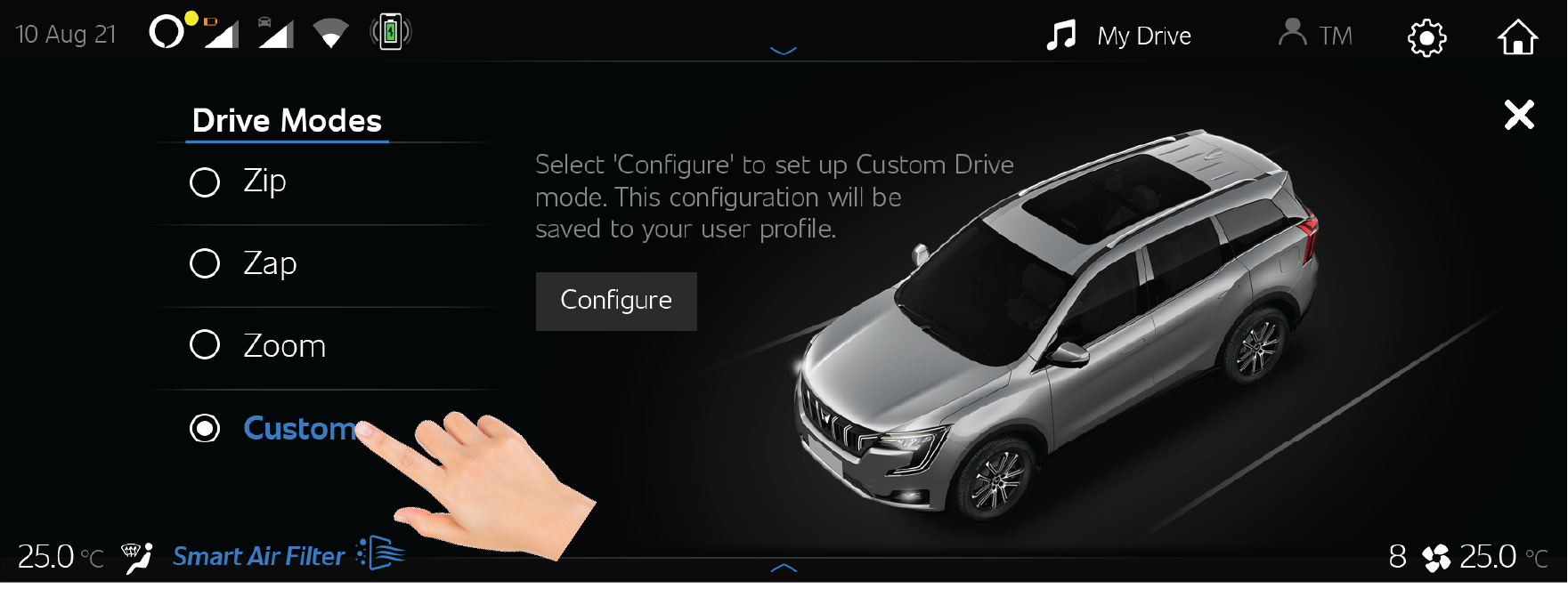

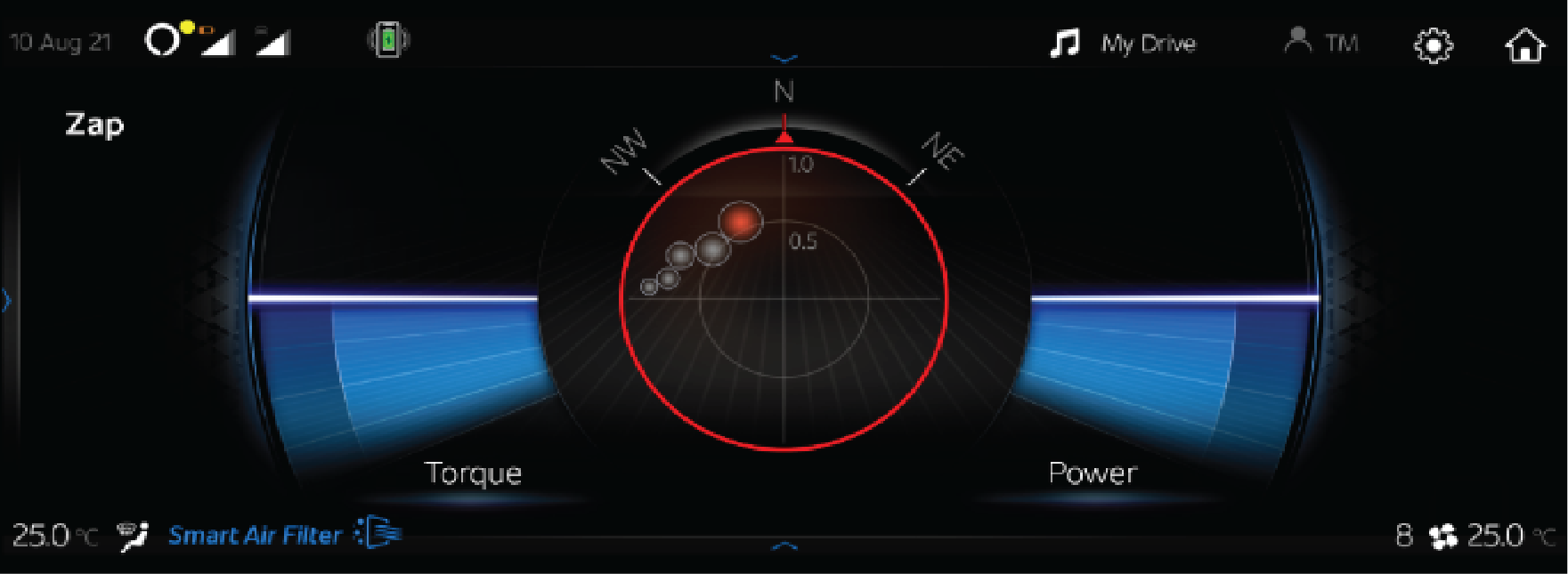

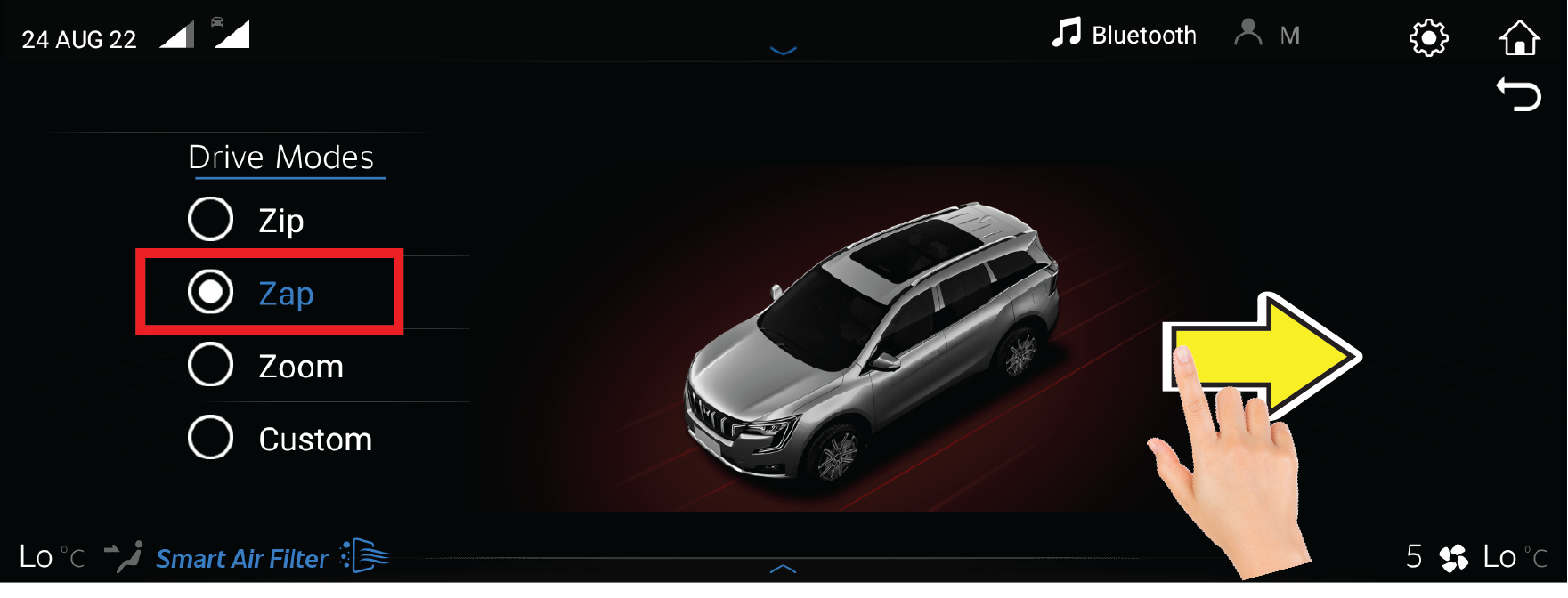

Drive modes shall change driving characteristics by changing
elements
such as Engine power, Traction control, Climate control
and Steering weight settings.
|
|
|
|

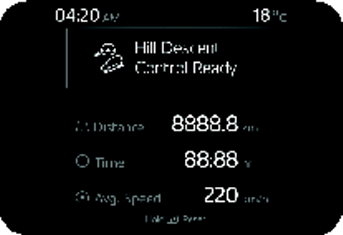

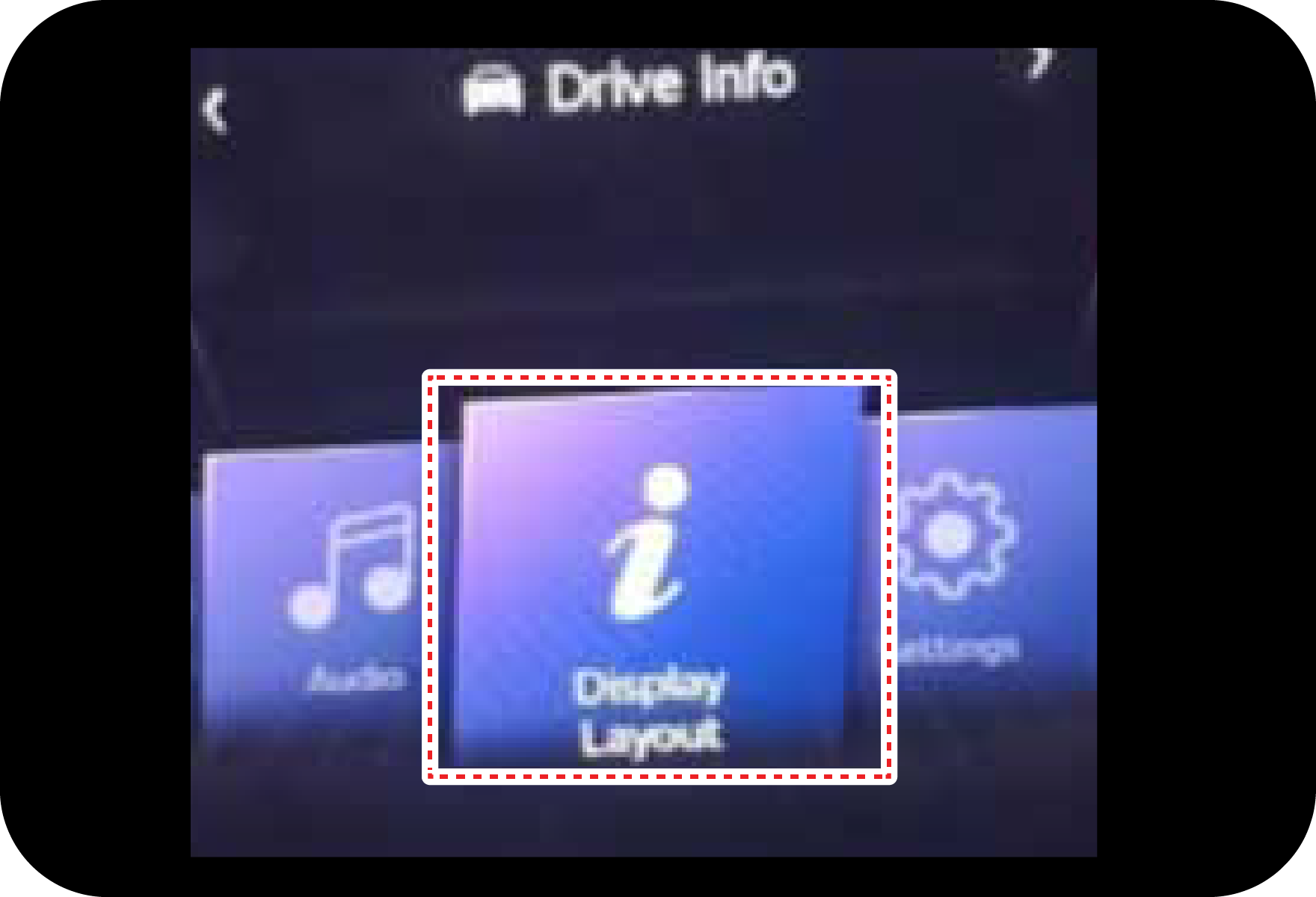

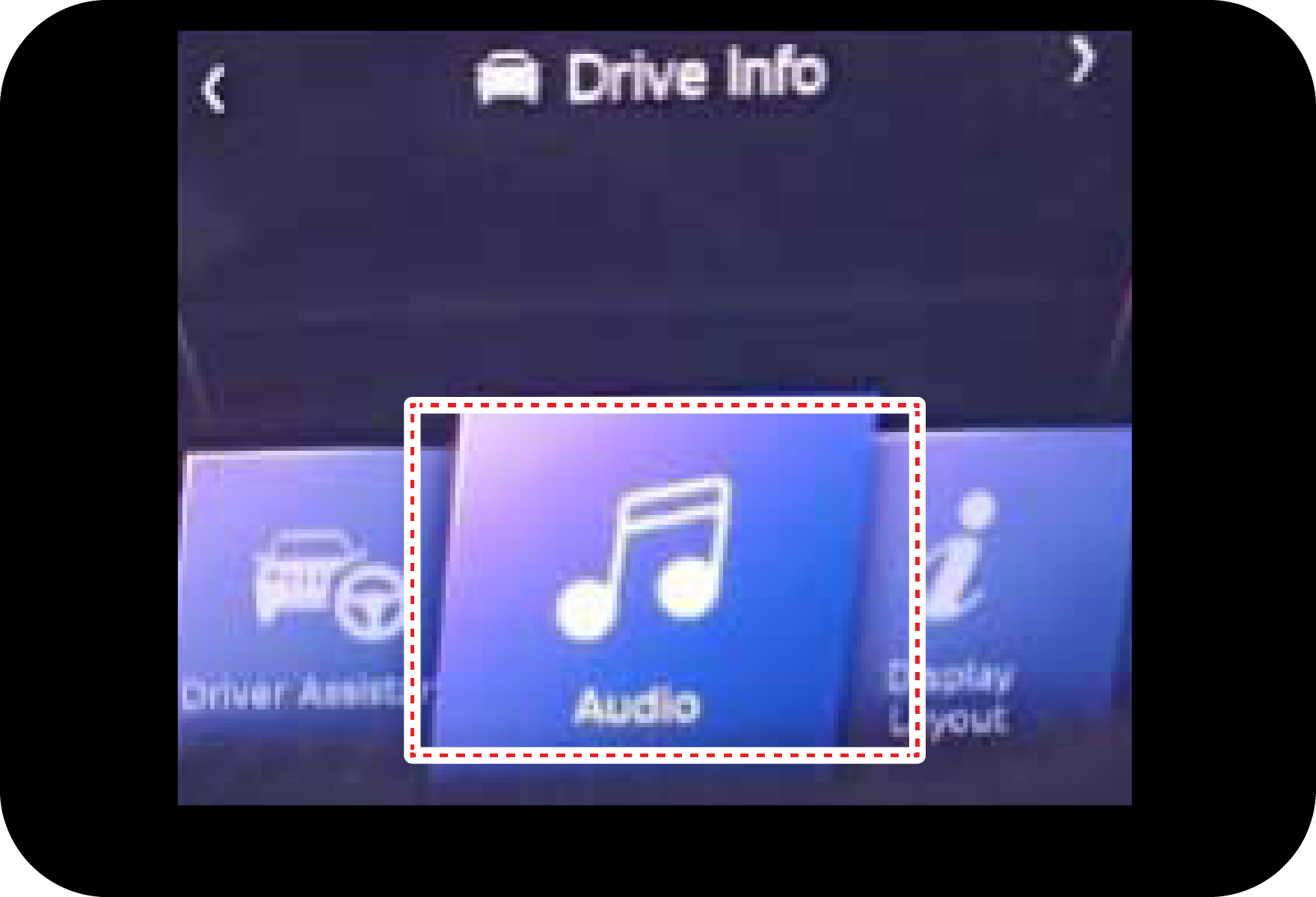

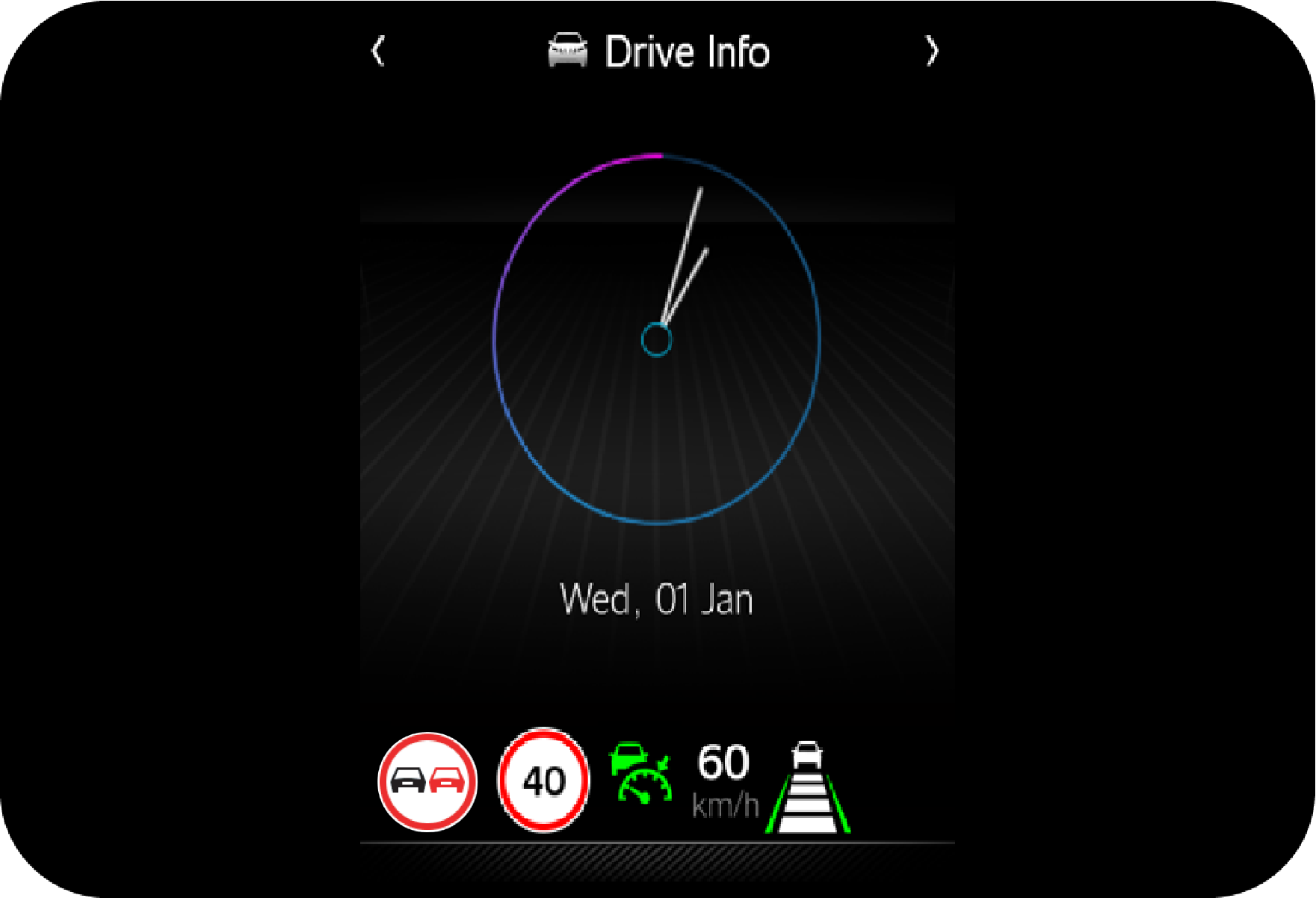

Drive info can be accessed by pressing MENU button in Steering Wheel/Driver side switch bank.
Use OK button to enter Drive info page.
|
|
|
|

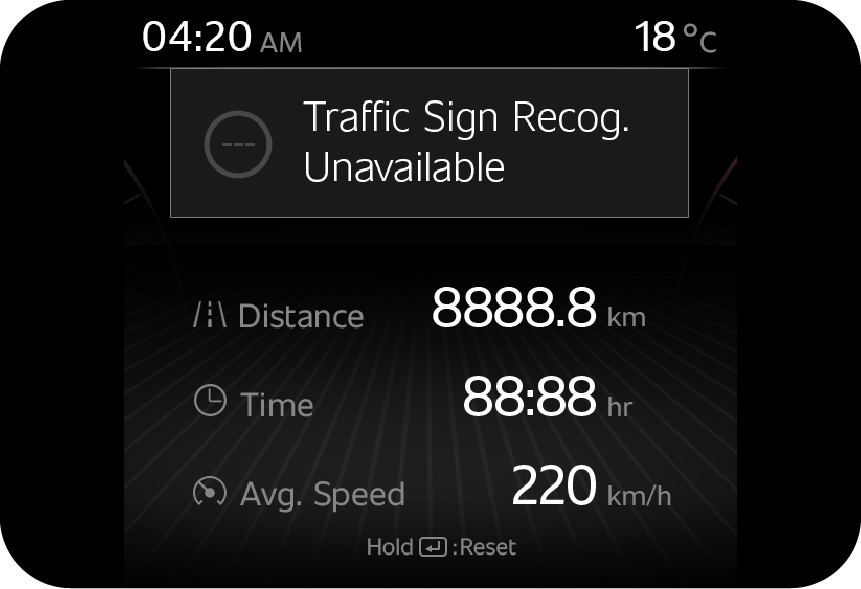

Drive Duration is the elapsed time from the start of this trip
cycle.
Drive time is part of trip page. Drive time will reset along
with
trip reset.
|
|
Average Speed is calculated based on the total distance
covered and
time taken from the start of this trip cycle. Average
speed info is part of trip page. Average speed will reset along with trip reset.
|

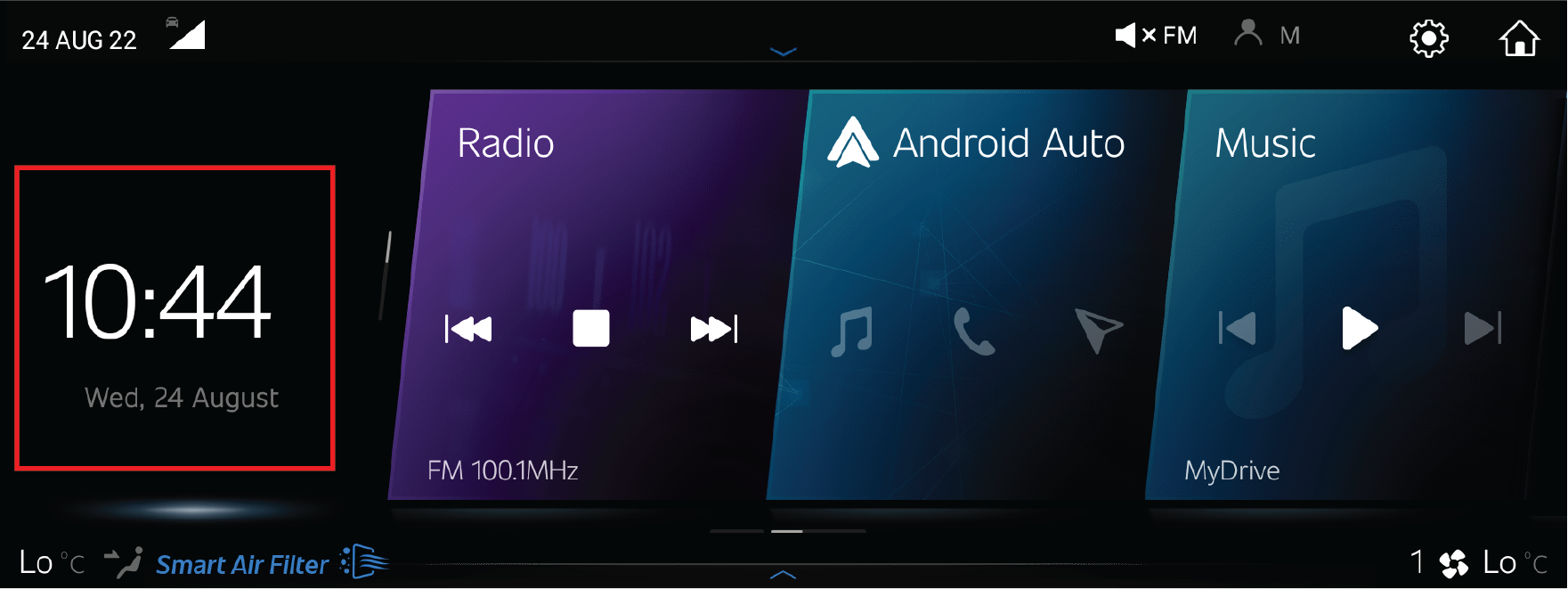

The time on the clock & date is in sync with the
infotainment.
Any change in infotainment will reflect on the cluster. Refer
settings for changing clock type.
|
|
|
|
|
Cluster will display the 5 level of driver attention level
based on
drive Pattern
5 Attention Bars - Indicates that the driver is Completely
Awake.
|
|
4 Attention Bars - Indicates that the driver is Quite Awake.
|
|
3 Attention Bars - Indicates that the driver is Neither Awake
nor
Sleepy.
|
|
2 Attention Bars - Indicates that the driver is slightly
sleepy and
can stay awake with effort.
|
|
1 Attention Bars - Indicates that the driver is extremely
Sleepy and
cant stay awake
|
|

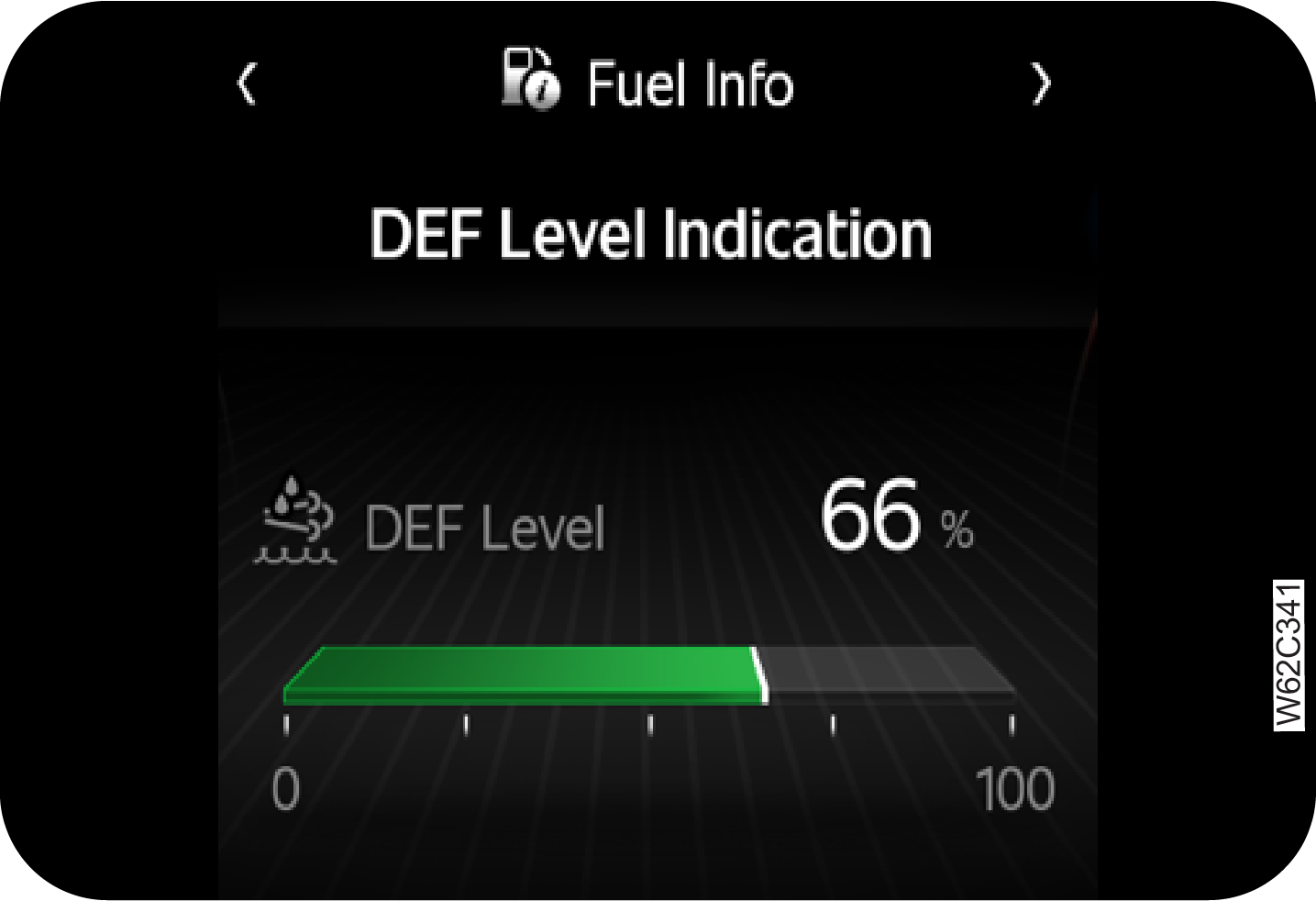

It displays data related to fuel consumption pattern of vehicle.
Use OK button to enter Fuel info page.
|
|
Distance to Empty is the approximate distance that can be
covered
with the available fuel.
|
|
AFE can be reset by long press of OK button in Steering
wheel/driver
side switch bank.
Additional options to change AFE reset to every ignition ON or
after
every fuel refill are present in the settings menu.
|
|
Instantaneous Fuel Economy is calculated based on your current
driving pattern. Higher value on display means vehicle is consuming
less fuel, lower value on display implies it is consuming more fuel.
|
|
|
|

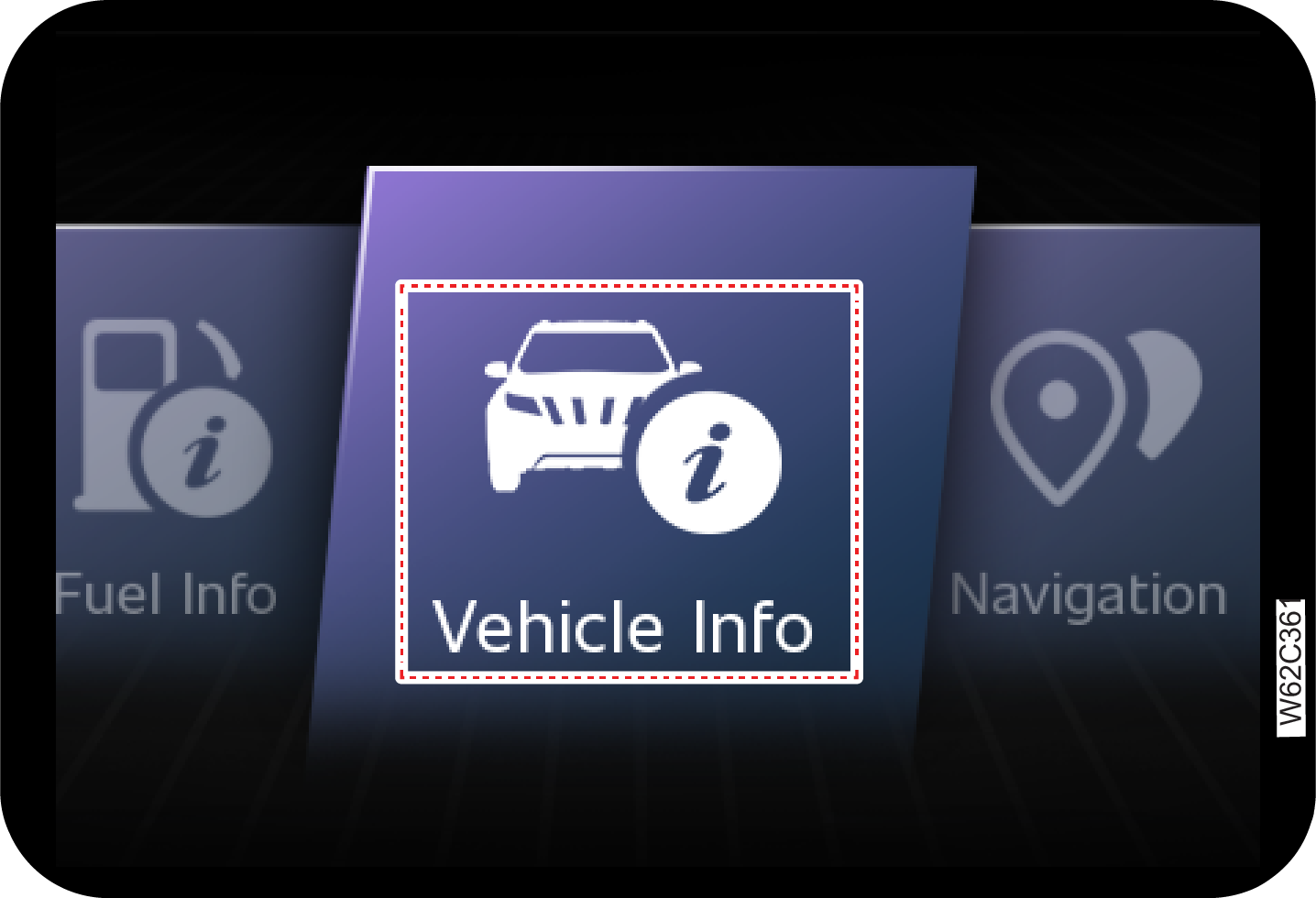

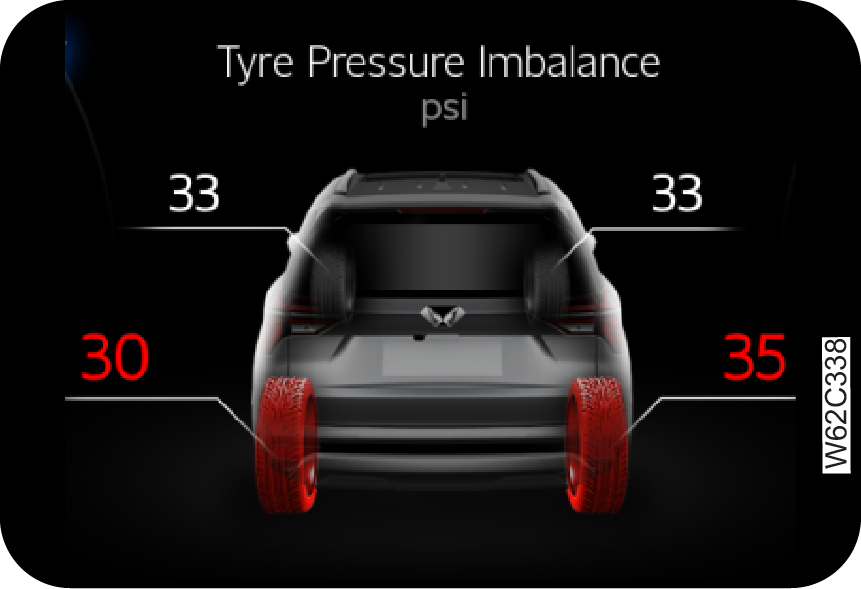

It displays data
related to

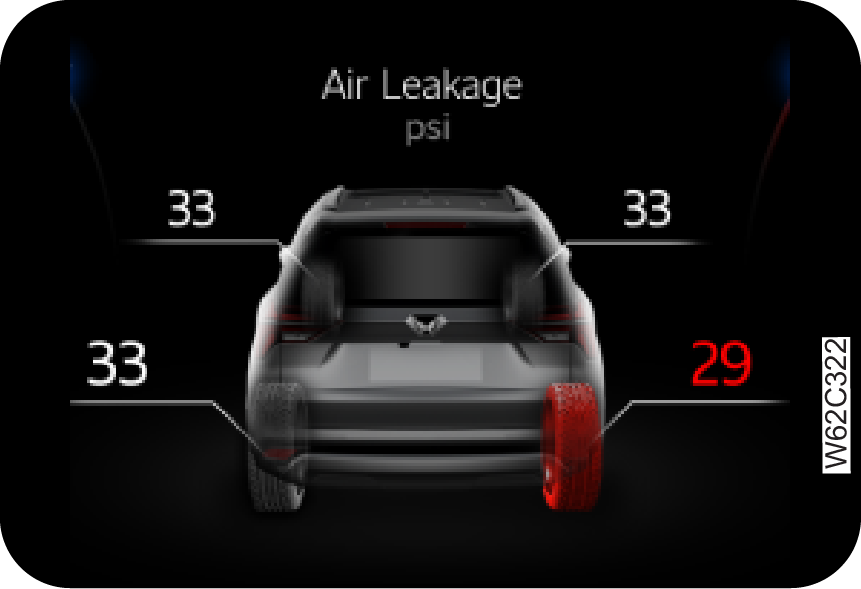

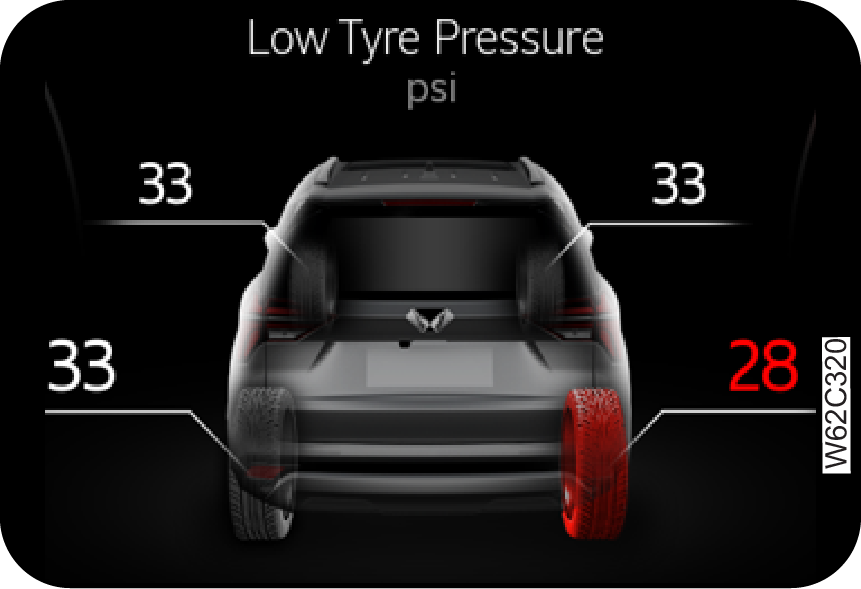

vehicle information like TPMS , Roll & Pitch and AWD Torque
distribution.
Use OK button to enter
Vehicle info page.
|
|
|
|

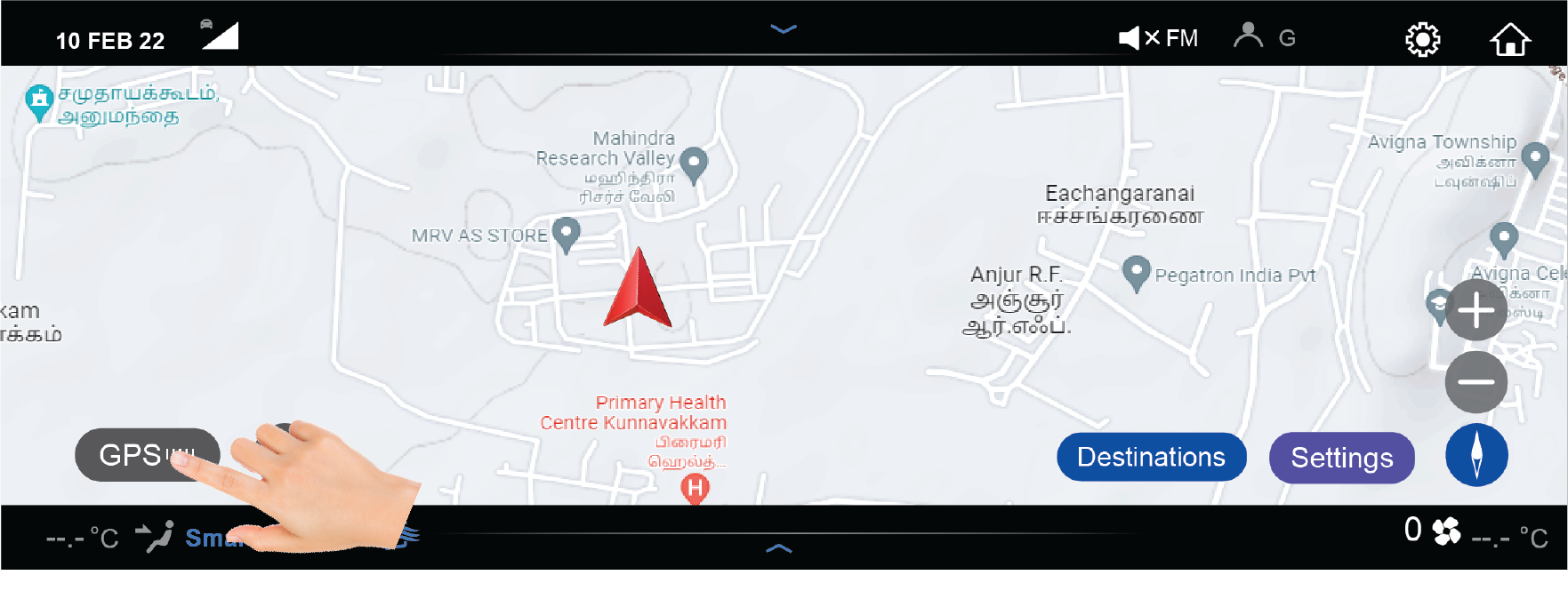

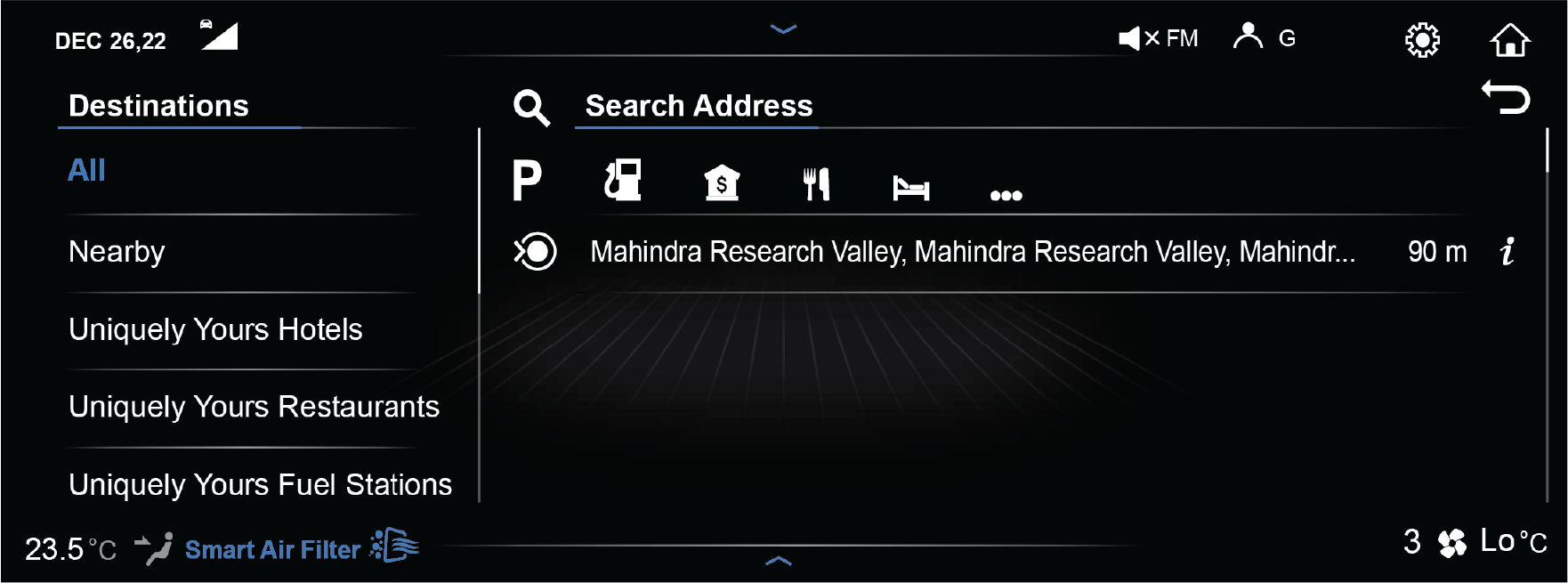

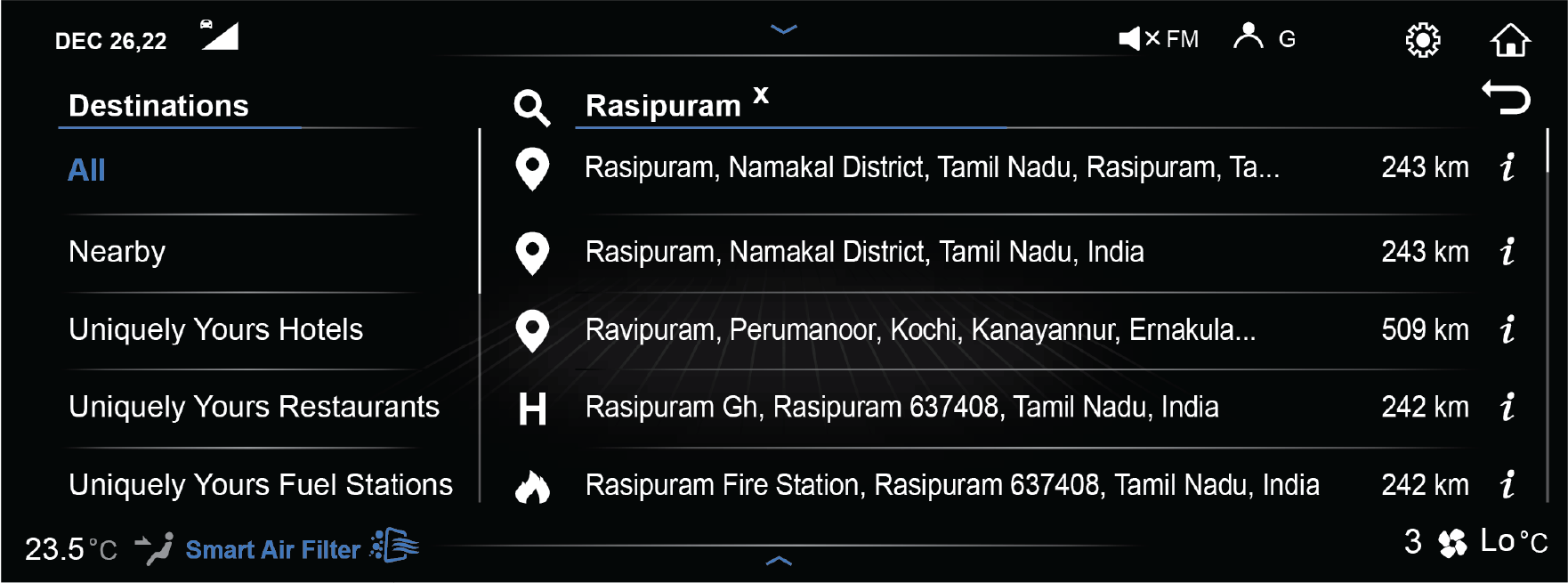

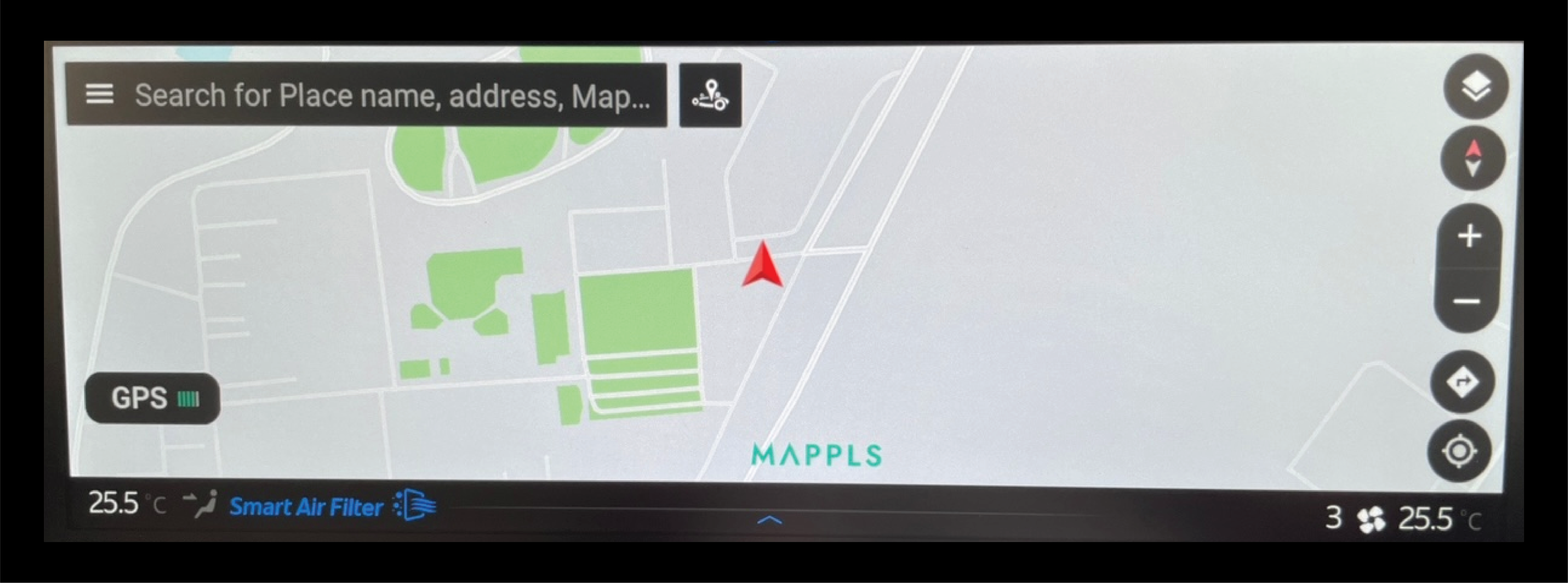

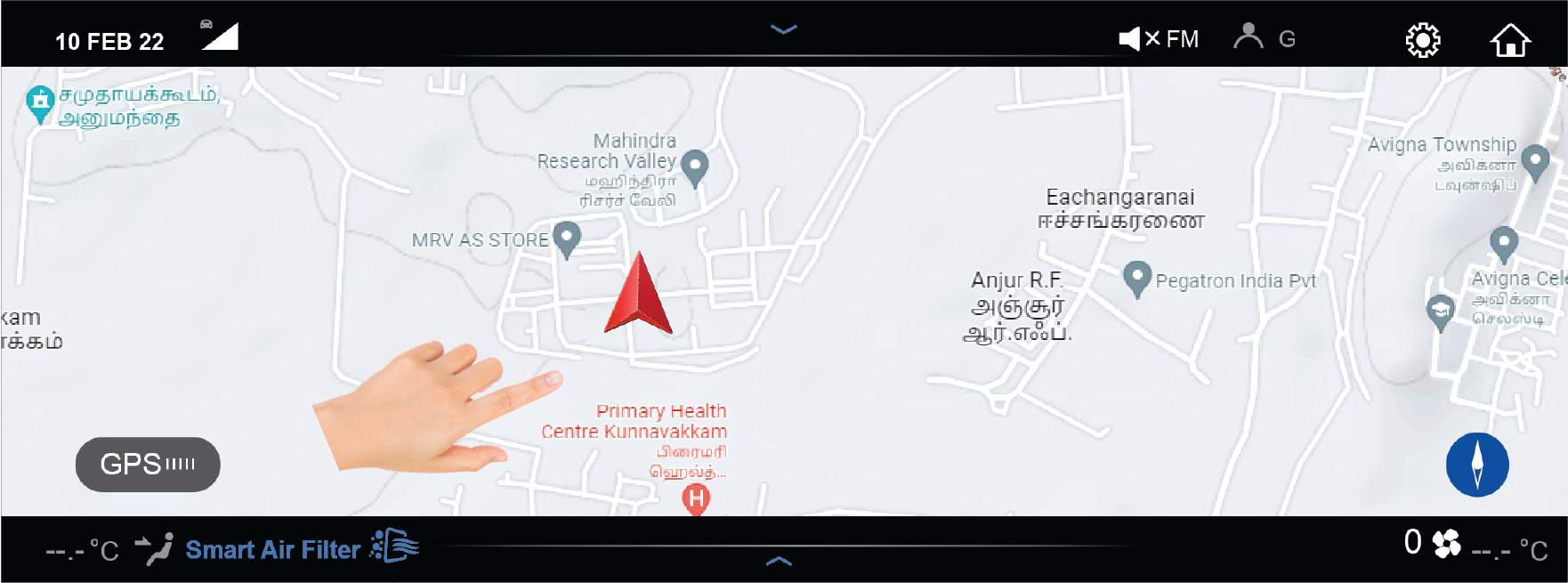

Navigation can be accessed by pressing MENU button in Steering
wheel/driver side switch bank. It displays data related to
map view which is displayed in infotainment. Use OK button to enter Navigation page.
|

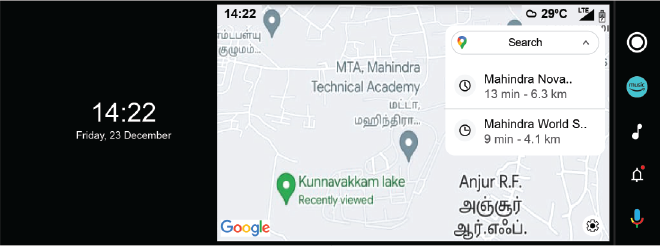

Partial Screen Navigation
|
Turn by Turn Navigation
|
|
|
|

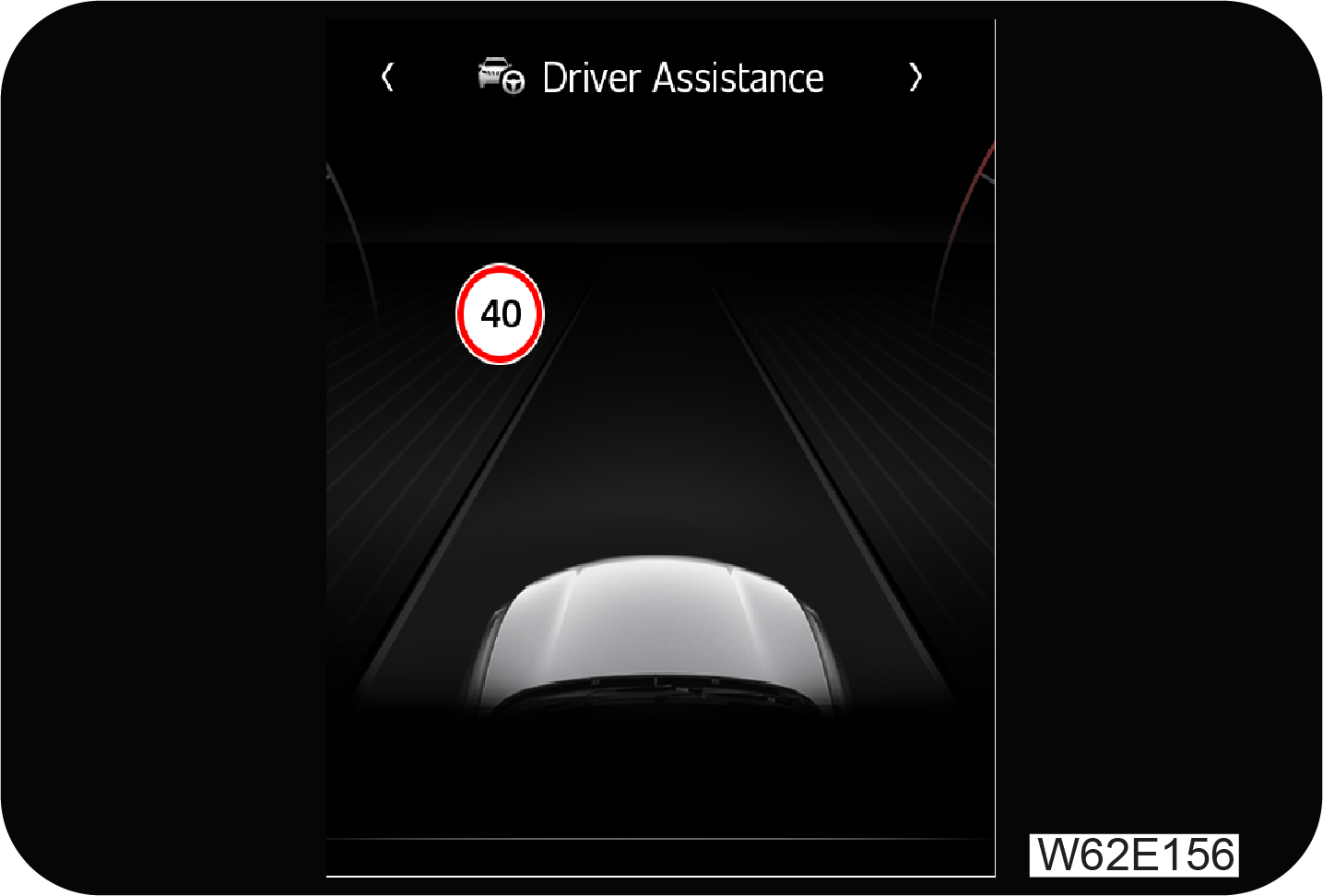

Driver Assistance can
be
accessed by pressing MENU button in Steering wheel
switches.
Use OK button to enter
Drive
page
|
Driver Assistance Menu
View
|
Non Driver Assistance Menu
View
|
|
|
|

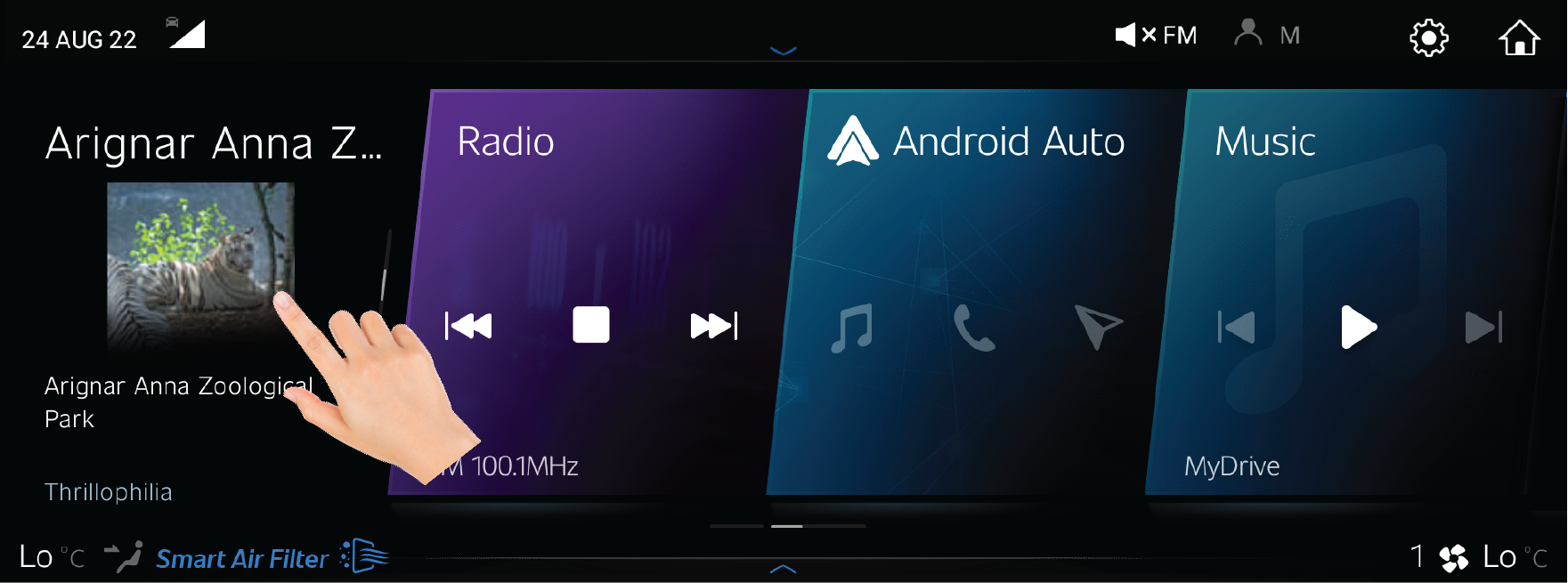

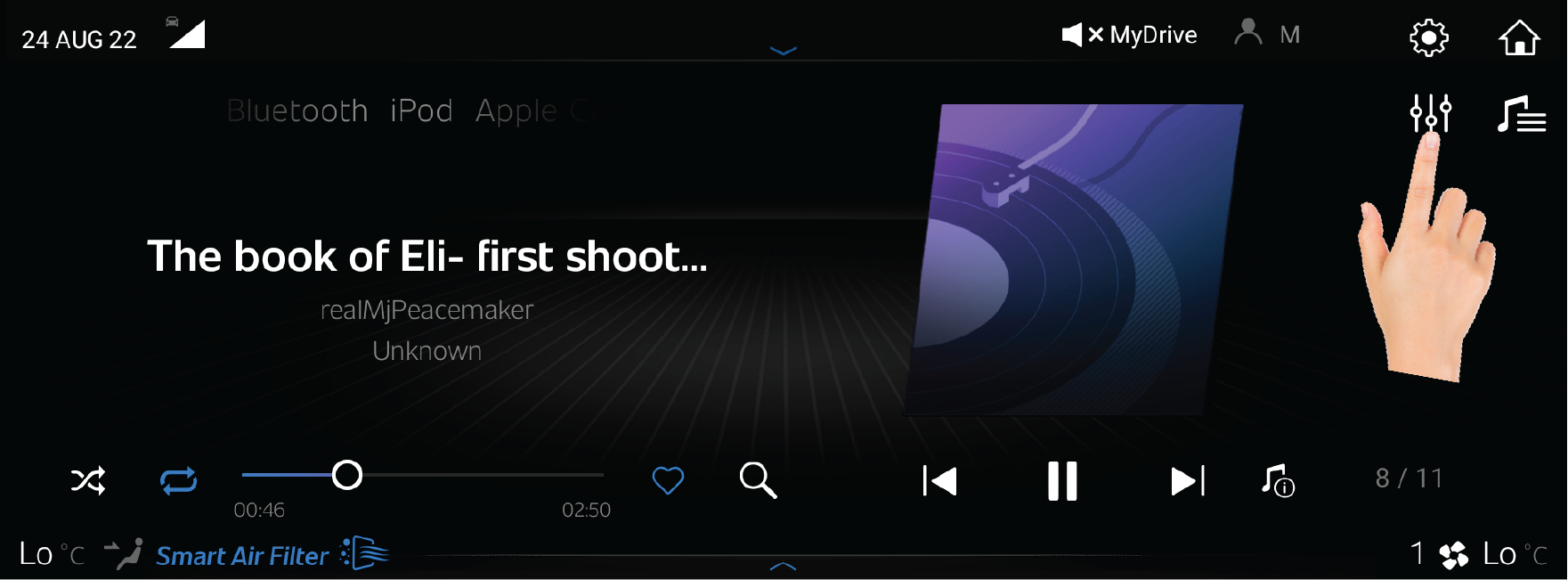

Audio can be accessed by pressing MENU button in Steering
wheel/driver
side switch bank.
Use OK button to enter Audio page
|

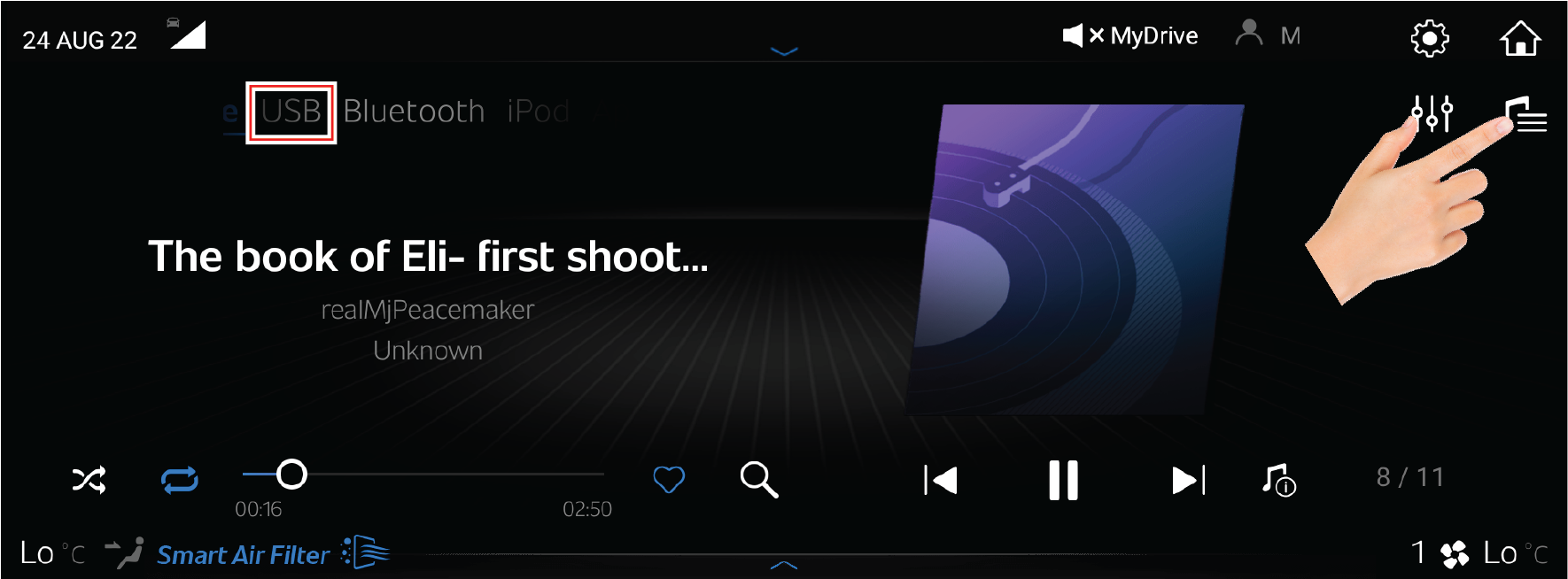

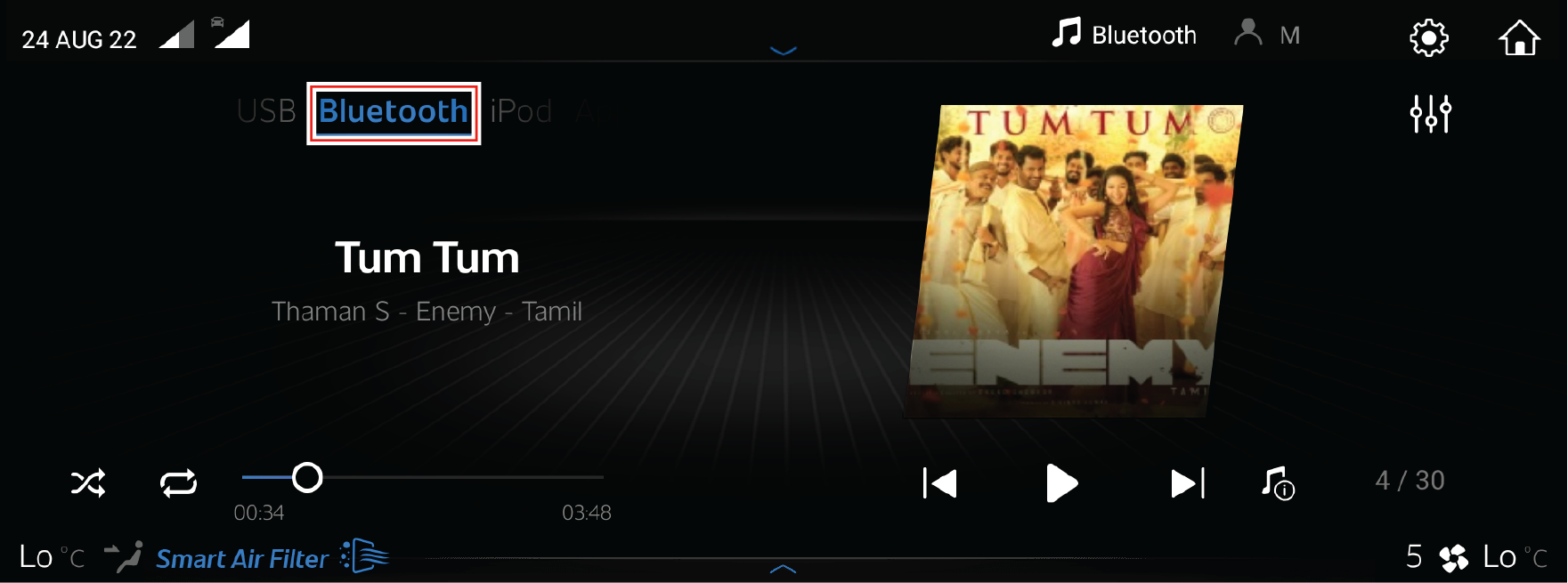

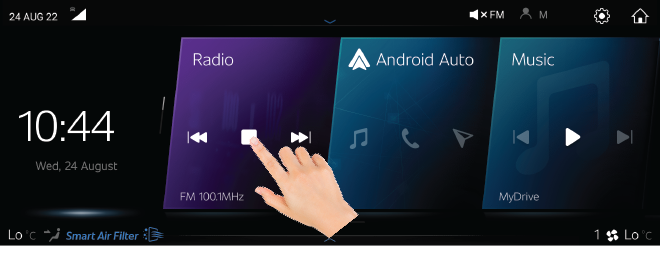

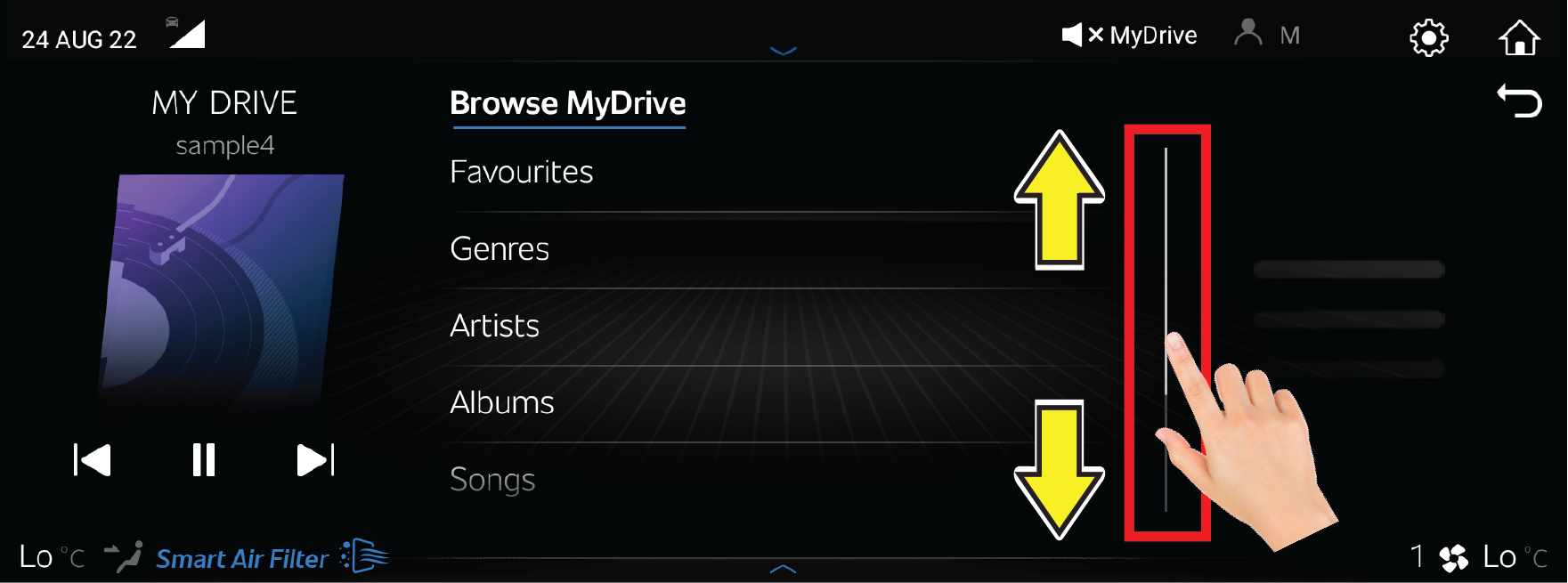

This below pages will display current media source which is
playing
your music like AM / FM, USB & Bluetooth.
|
|
|
|
|
Display Layout can be accessed by pressing MENU button in
Steering
wheel/driver side switch bank.
Use OK button to enter Display Layout page
Display layout provides immersive experience by having
different
skin option based on user choice.
|
|
Settings can be accessed by pressing MENU switch
|
|

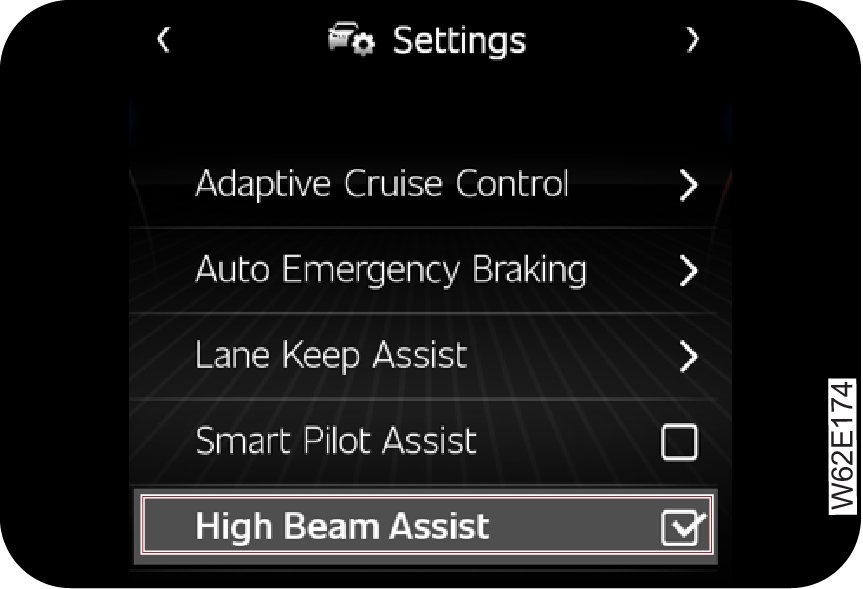

1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
Driver Assistance option.
|
|

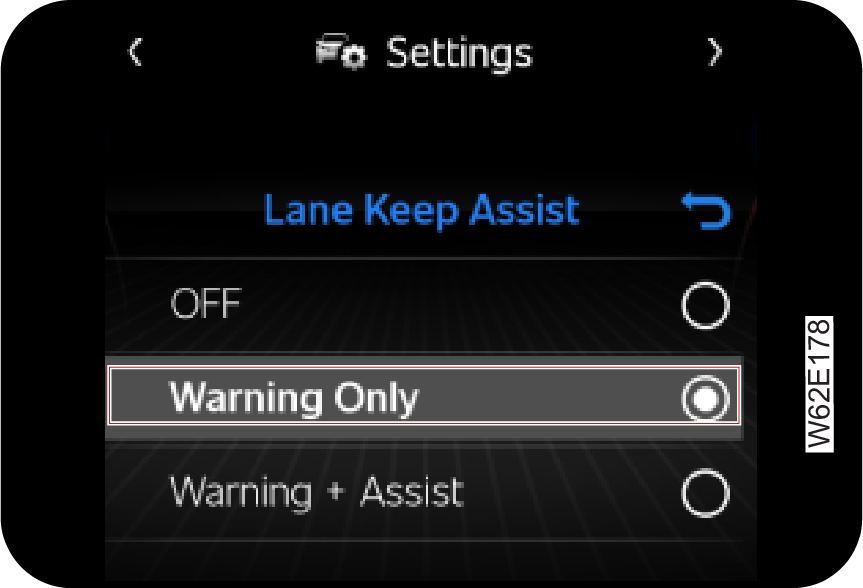

3. Press OK to enter Driver Assistance option. Use Up/Down
button to
navigate driver assistance features and press OK button
to select the corresponding feature options.
|
|
4. Use Up/Down button to navigate to the options and press OK
button
to select the corresponding option.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
AFE Auto Reset option
|
|
3. Press OK to enter AFE Auto Reset option. Use Up/Down button
to
navigate to the option. Press OK to select.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
Passenger Airbag option
|
|
3. Press OK to Select following screen will appear. Use
Up/Down
button to navigate to the option. Press OK to select, a pop-up
will appear to confirm the selection
|
|
4. Press OK to select a option. Confirm your selection by
selecting
Ok or Cancel.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to

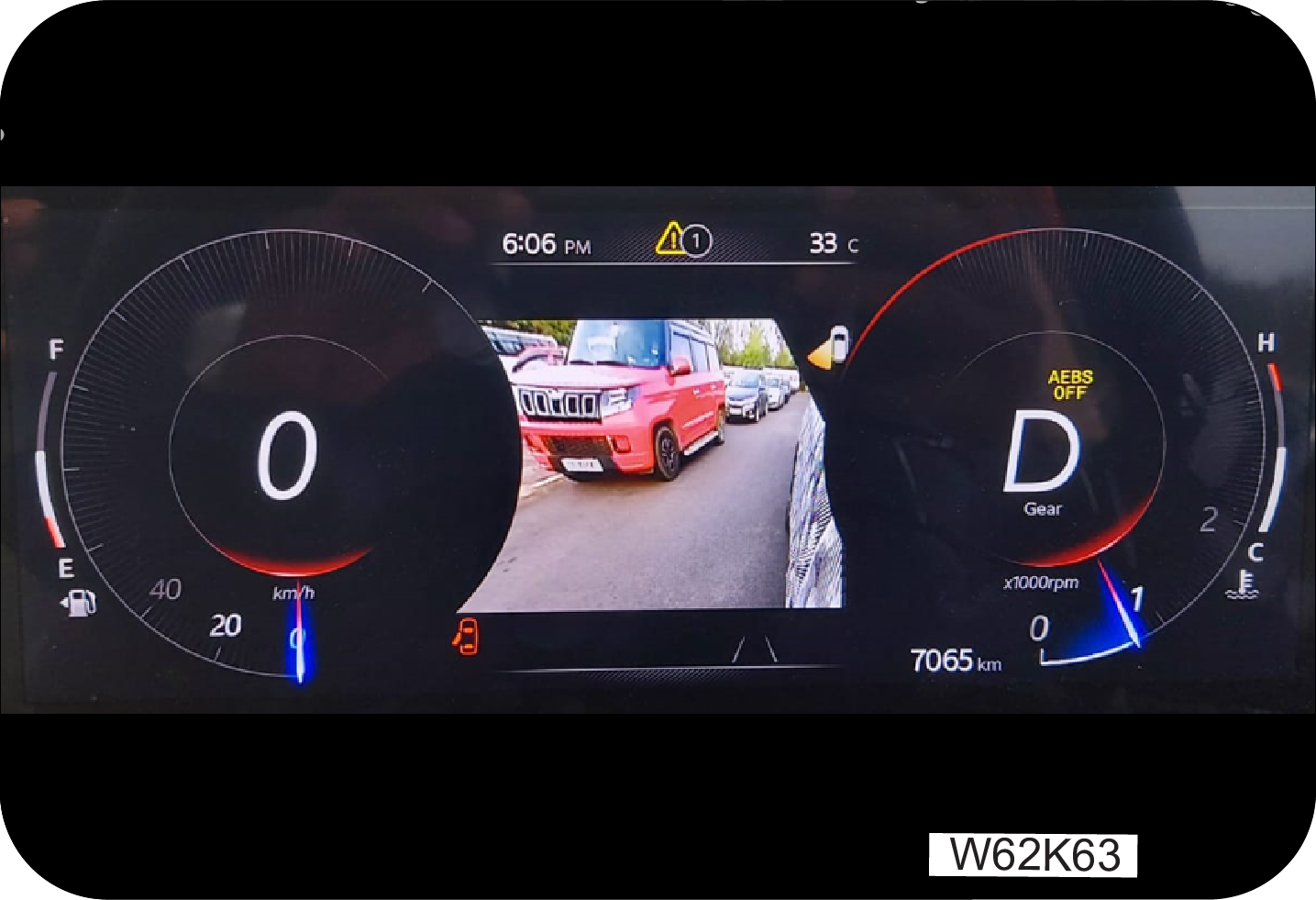

Blind View Monitoring Option
|
|
3. Press OK to Enable / Disable the Blind View Monitoring
Option.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
Drowsiness Detection Option
|
|
3. Press OK to Enable / Disable the Drowsiness Detection
Option.
|
|

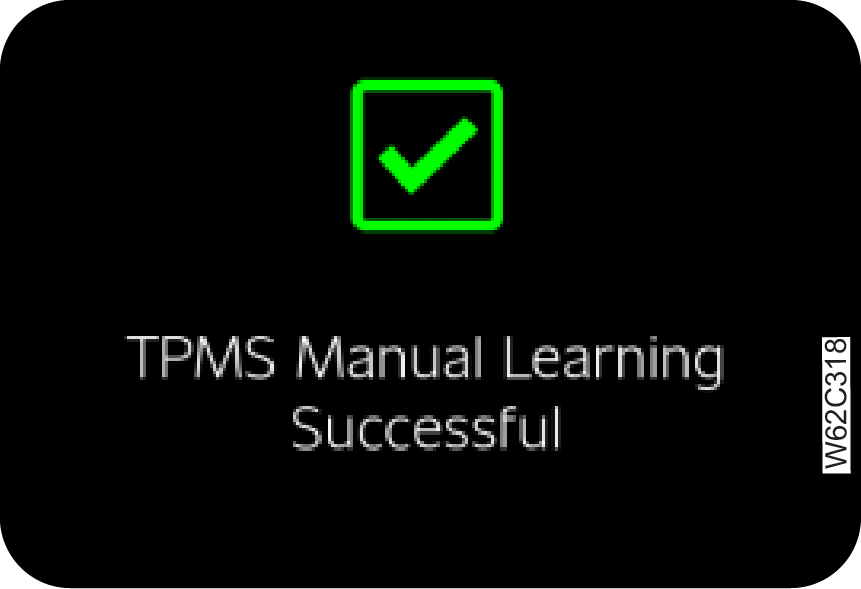

1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
TPMS-Auto Learn Option
|
|
3. Press OK to Enable / Disable the TPMS-Auto Learn Option.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
Tyre Fill Assist Option
|
|
3. Press OK to Enable / Disable the Tyre Fill Assist Option.
|
|

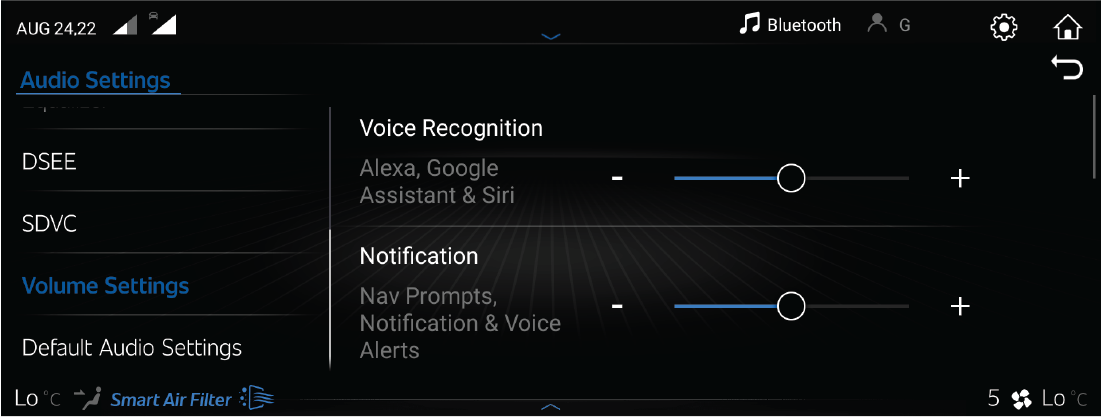

1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down
button to
navigate to Sound Option.
|
|
3. Press ok to enter Sound Option. Use Up/Down
button
to navigate to the option. Press OK to enter Sound Options
|
|
4. Use Up/Down button to navigate to the option.
Press
OK to select.
|
|
5. Use Up/Down button to Select the volume Level.
Press
OK to enter Volume Option.
|
|
6. Up/Down button to select the volume levels.
Press OK
to select. Once selected it will return to previous page.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
Clock Type Option.
|
|
3. Press ok to enter Clock Type option. Use Up/Down button to
navigate to the option. Press OK to select.
|
|
1. Navigate to Setting menu using MENU button.
|
|
2. Press OK to enter setting. Press Up/Down button to navigate
to
Factory Reset Option.
|
|
3. Press OK to Select following screen will appear. Use Down
button
to select Confirm. Press OK to start factory reset process.
|
1. | To go to the main settings screen from any settings menu, use Up/Down buttons to go to the top of the menu screen and press the OK button. |
2. | In the settings screen, if no option is selected for a long time. The screen will go to the previous displayed screen. |
|
Alert History can be accessed by pressing MENU button in Steering
wheel/driver side switch bank.
Use OK button to enter Alert History page
|
|
Alert history allows to check any active applicable vehicle
warnings in
the instrument cluster display.
|
Display | Operating Conditions |
---|---|
|
This alert is displayed when any doors are open and show
the
door identified as open.
|
|
This alert is displayed when the check engine warning
telltale
is ON and engine is running.
|
Display | Operating Conditions |
---|---|
|
This alert is displayed when engine temperature high
telltale
is ON and engine is running.
|
|
This alert is displayed when an ABS related malfunction
is
detected. 50
|
|
This alert is displayed when low brake fluid is detected
and
engine is running.
|
|
This alert is displayed when the park lamp is ON and the
ignition is turned OFF.
|
|
This alert is displayed when low fuel warning telltale
is ON
or blinking and engine is running.
|
|
This alert is displayed when the engine oil pressure
warning
telltale is ON and engine is running.
|
|
This alert is displayed when either of driver or
passenger (if
occupied) seatbelt is unbuckled.
|
|
This alert is displayed when water is detected in fuel
filter
and engine is running. It is applicable for the diesel variant
only.
|
|
This alert is displayed when passenger airbag is turned
OFF.
|
|
This alert is displayed when brake EBD related
malfunction is
detected.
|
|
This alert is displayed when the ESP malfunction is
detected
and engine is running.
|
|
This alert is displayed when EPS related malfunction is
detected
|
|
This alert is displayed when Skyroof is left open at
ignition
off.
|
|
The alert is displayed when ignition is off, driver door
is
open and the driver has forgotten their phone in the wireless
charging tray.
|
|
This alert is displayed when AWD system related
malfunction is
detected.
|
|
This alert is displayed when Zip drive mode is
activated.
|
|
This alert is displayed when Zap drive mode is
activated.
|
|
This alert is displayed when Zoom drive mode is
activated.
|
|
This alert is displayed when Custom drive mode is
activated.
|
|
Instrument cluster shall monitor some of the internal
parameters and if any malfunction is detected it will display the “Contact
Dealer” alert.
Contact a Mahindra Authorised Dealer immediately when
“Contact
Dealer” alert is displayed in cluster.
|
|
The alert is displayed when the driver becomes very
drowsy and
is not able to stay awake. The alert indicates the driver to
take an immediate break.
|
|
This alert is displayed when malfunction in Attention
Assist
system is detected.
|
|
This alert is displayed when any front brake pad is
detected
as worn out and needs to be replaced.
|
|
This alert is displayed when the Hill Descent Control
function
is not available because of a malfunction in the system.
|
|
This alert is displayed when the Hill Hold Control
function is
not available because of a malfunction in the system.
|
|
This alert is displayed when the vehicle is driven above
120
kmph.
|
|
This alert is displayed when you try to move the vehicle
and
the park brake is still engaged.
|
|
This alert is displayed 200 Kms before the scheduled
service
limit.
|
|
This alert is displayed when a coin or metallic object
is
placed on the wireless charging tray & the phone is kept on the
object leading to poor charging of phone. This will also be displayed if
the
phone is detected in a incorrect position on
the charging tray. Adjust the phone to allow it to charge optimally.
|
|
This alert is displayed when a NFC enabled card is
placed on
the wireless charging tray & a phone is placed on top of. Kindly
remove the card to protect the card.
|
|

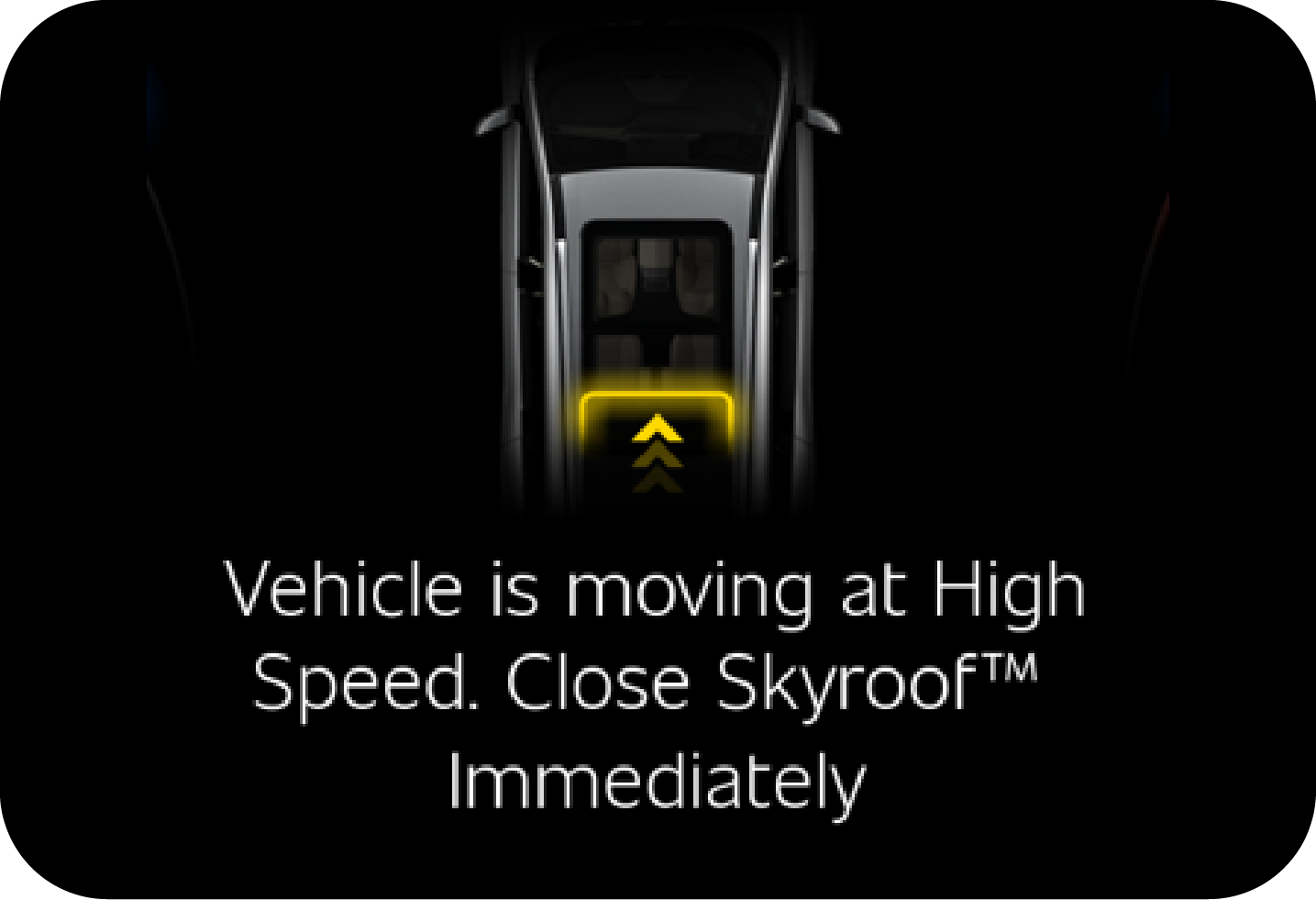

This alert is displayed when the Skyroof is open and
vehicle
speed in high.
|
|
Rain Sensor/Non Rain Sensor
Variant: This alert will displayed when low wipe is ON for more
than 10
seconds or high wipe is ON for more than 5 seconds in both
RLS & Non RLS variants.
|
Display
|
Operating
Conditions
|
---|---|
|
This message comes when auto light is turned OFF.
|
|
This message comes when auto light is turned ON.
|
|
This message comes when auto wiper is turned OFF.
|
|
This message comes when auto wiper is turned ON.
|
|

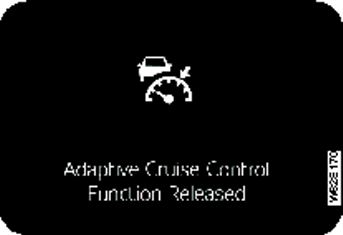

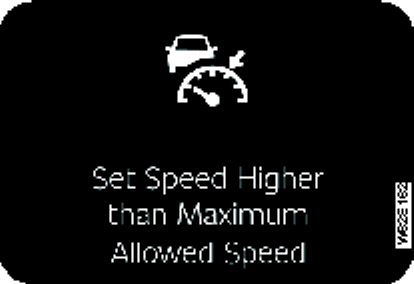

This message comes when cruise mode is turned ON.
|
|
This message comes when cruise mode is turned OFF.
|
|
This message comes when brake pedal is pressed when in
cruise
mode or if trying to activate cruise control when vehicle speed
is below the cruise threshold.
|
|
This message comes when cruise mode is ON and
accelerator
pedal is pressed to overtake.
|
|
This message comes on when HDC function is enabled by
pressing
the HDC switch and the conditions for HDC are met . The brakes
will then maintain the vehicle speed while descending the Hill
|
|
This message comes on when the Hill Descent Control is
disabled manually by pressing the HDC Switch.
|
|
This message comes on when the Hill Descent Control is
enabled
manually by pressing the HDC Switch and is ready to control,
but the conditions for HDC are not met yet.
|
<Level 5>
|
|
|
|
<Level 3>
|
|
|
|
<Level 0>
|
|
|
Left Side
|
Right Side
|
|
|
Favorite Feature
|
Non–Favorite Feature
|
|
|
|
|
Sr. No.
|
Symbol
|
Warning Lamp/Telltale
|
Lamp Pre-check
|
Lamp Status while Engine
running
|
Action/Remarks
|
---|---|---|---|---|---|
1
|
|
Left Turn Indicator
|
No
|
Slow or Fast Blinking
|
Indicates
left turn
lamp is blinking
Slow Blinking: Normal operation Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced |
2
|
|
Right Turn Indicator
|
No
|
Slow or Fast Blinking
|
Indicates
right
turn lamp is blinking
Slow Blinking: Normal operation Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced |
3
|
|
Cruise Control telltale*
|
No
|
Continuously ON
|
Indicates
vehicle
is in Cruise mode
|
4
|
|

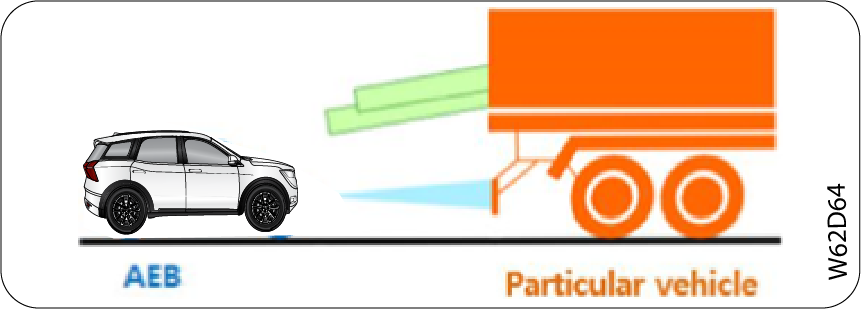

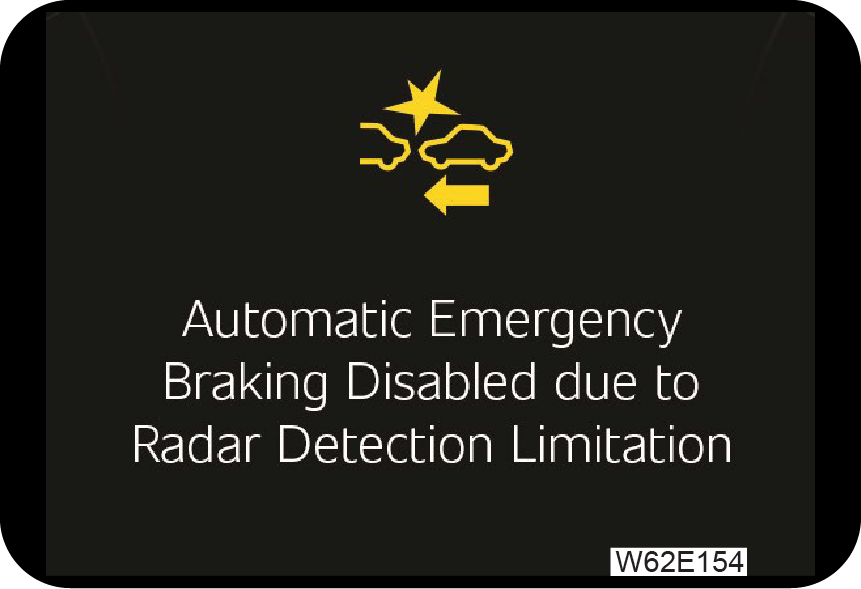

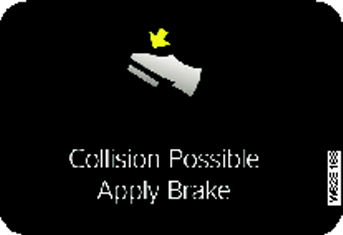

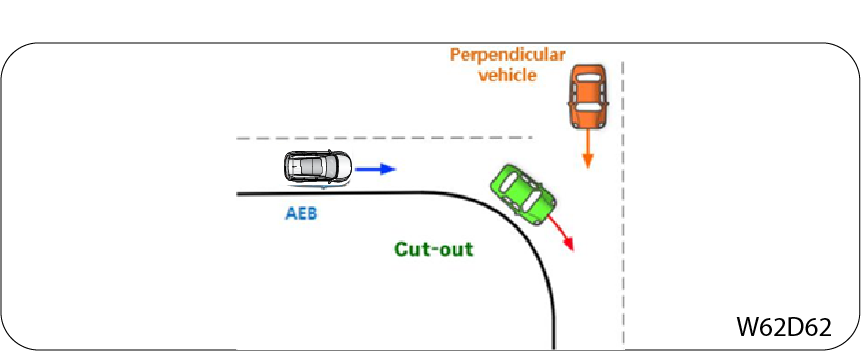

Automatic Emergency Braking System Malfunction*
|
No
|
Continuously ON
|
Indicates
temporary
or permanent fault in Automatic Emergency braking system. Contact
a
Mahindra Authorised Dealer immediately.
|
5
|
|
Water-in-Fuel Warning telltale*
|
No
|
Continuously ON
|
Indicates
water-in-fuel. Drain the water from filter or contact an Mahindra
Authorised Dealer for assistance
|
6
|
|
Immobiliser lamp
|
No
|
Continuously ON / Blinking
|
SLOW
BLINKING:
Vehicle is armed with the remote
FAST BLINKING/CONTINUOUSLY ON: Indicates a system malfunction Contact an Mahindra Authorised Dealer immediately |
7
|
|
ABS Warning telltale
|
Yes
|
Continuously ON
|
Indicates
malfunction of the ABS system. Contact a Mahindra Authorised
Dealer
immediately
|
8
|
|
Park Brake / EBD / Low Brake Fluid Telltale / EPB* /
Brake pad
worn out*
|
Yes
|
Continuously ON
|
Either one of
the
below conditions:
1. Park Brake might be engaged 2. Brake fluid level might be low 3. There is a malfunction in brake EBD. 4. Front Brake Pad wear worn out. Please contact Mahindra Dealer immediately. |
9
|
|
Parking Lamp telltale
|
No
|
Continuously ON
|
Indicates
Park Lamp
is ON
|
10
|
|
Airbag Warning telltale
|
Yes
|
Continuously ON
|
Indicates
malfunction of the airbag system. Contact a Mahindra Authorised
Dealer
immediately
|
11
|
|
HHC Malfunction*
|
No
|
Continuously ON
|
Indicates
malfunction of Hill Hold Control. Contact a Mahindra Authorised
Dealer
immediately
|
12
|
|
Door Ajar Warning telltale
|
No
|
Continuously ON
|
Indicates any
doors, boot or hood are open
|
13
|
|
Low Fuel Warning telltale
|
No
|
Continuously ON/Blinking
|
Indicates
fuel
level has reached the reserve level. Refuel
immediately
|
14
|
|
ESP OFF telltale*
|
No
|
Continuously ON
|
Indicates ESP
has
been switched OFF
|
15
|
|
ESP Malfunction Warning telltale*
|
Yes
|
Continuously ON or Blinking
|
BLINKING:
Indicates
ESP has taken control of the vehicle stability
CONTINUOUSLY ON: Indicates a malfunction in the ESP system. Contact a Mahindra Authorised Dealer immediately |
16
|
|
Front Fog Lamp telltale*
|
No
|
Continuously Lamp ON
|
Indicates
front fog
lamp is ON
|
17
|
|

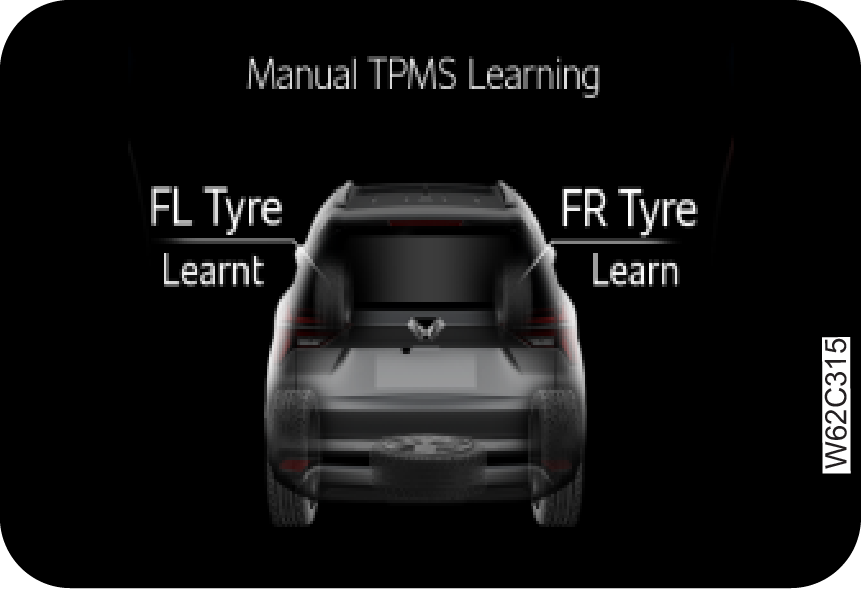

Tiretronics telltale*
|
No
|
Continuously ON or Blinking
|
Indicates
low/high
tyre pressure or possible malfunction in Tiretronics. Refer to
Tiretronics section in INSTRUMENT CLUSTER
FEATURES/WHEELS AND TYRES chapter for further
details
|
18
|
|
Seat Belt Warning telltale
|
No
|
Continuously ON
|
If telltale
is not
turning OFF even after fastening the seat belt, contact an
Mahindra
Authorised Dealer for assistance
|
19
|
|

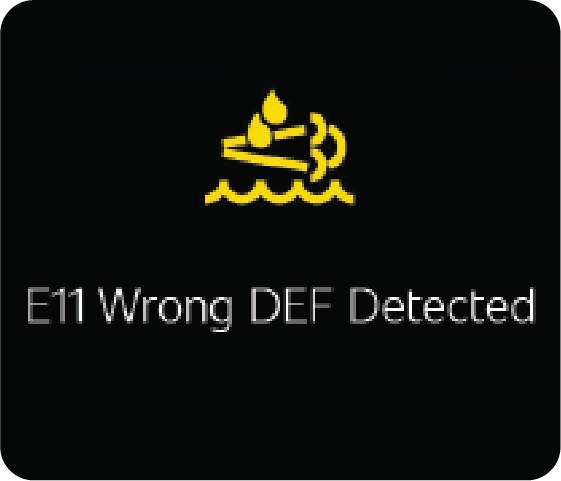

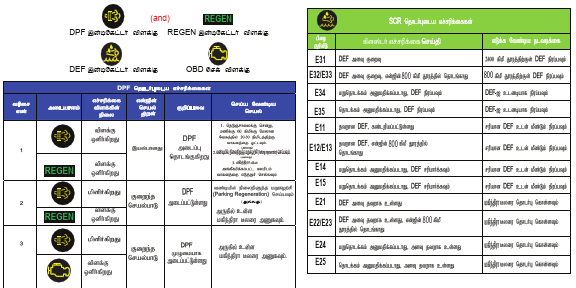

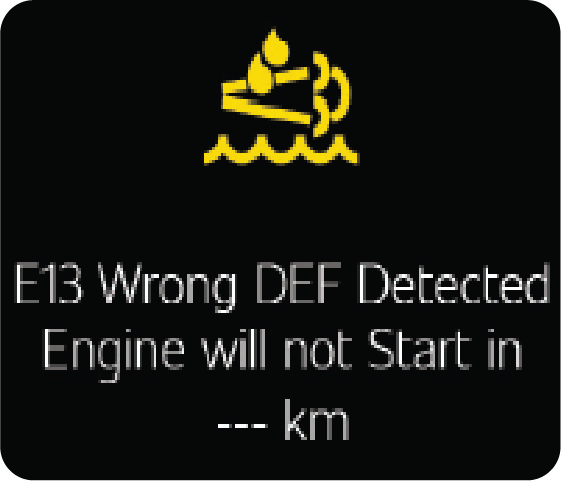

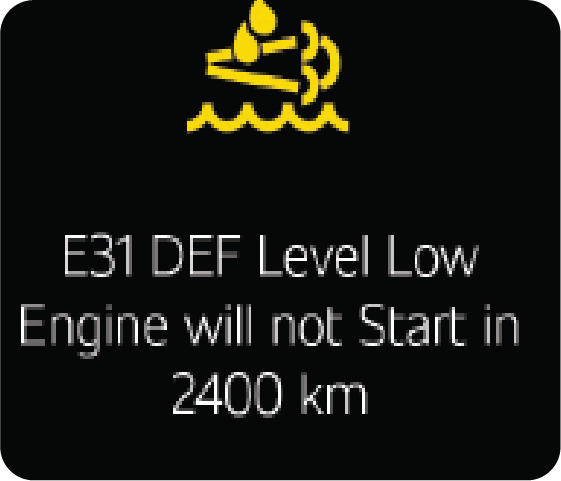

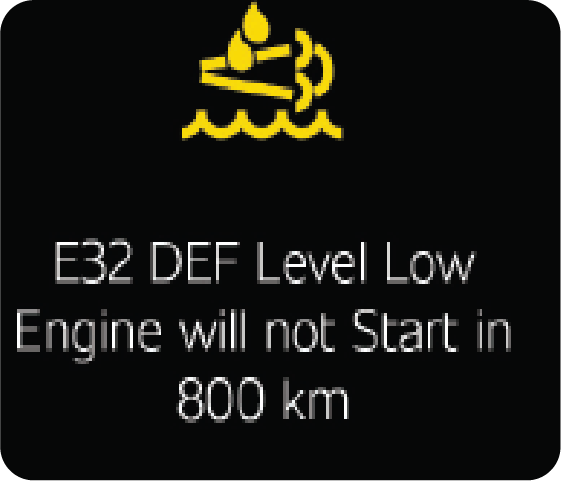

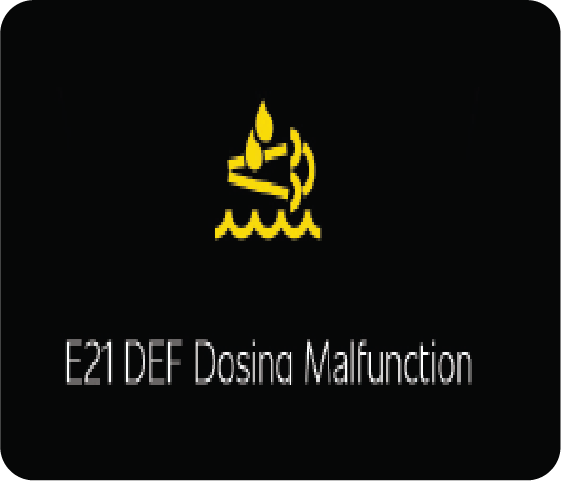

SCR/DEF malfunction telltale*
|
No
|
Continuously ON
|
It indicates
that
either DEF Level is low or incorrect DEF has been filled or DEF
Dosing
is malfunctioning. Follow the instructions
mentioned in the ‘EMISSION CONTROL SYSTEM”
|
20
|
|

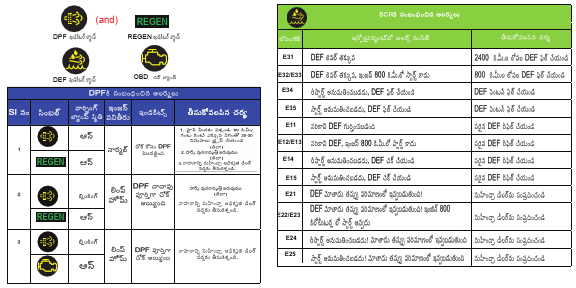

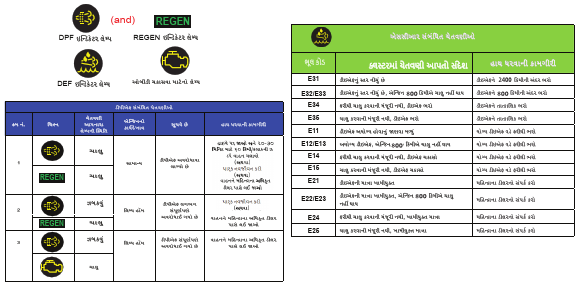

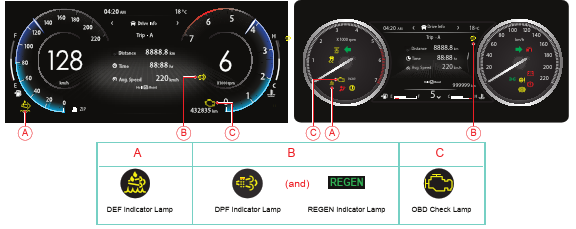

DPF telltale*
|
No
|
ON/Blink
|
If the DPF
indicator is ON in the engine running condition then DPF
regeneration
has not happened. Follow the instructions
mentioned in the “EMISSION CONTROL SYSTEM”
|
21
|
|
Glow Plug telltale*
|
No.
|
Continuously ON
|
Indicates
glow
plugs are active.
|
22
|
|
Head Lamp High Beam
|
No
|
Continuously ON
|
Indicates
Head lamp
high beam is ON
|
23
|
|
OBD telltale
|
Yes
|
Continuously ON or Blinking
|
Telltale will
be ON
till engine starts. After engine starts, if is still ON there is a
potential malfunction related to emission
system, contact an Mahindra Authorised Dealer
immediately
|
24
|
EPS Warning telltale*
|
Yes
|
Continuously ON
|
Indicates
malfunction on Electronic Power steering system. Contact a
Mahindra
Authorised Dealer immediately
|
|
25
|
|
Low Engine Oil Pressure Warning telltale
|
No
|
Continuously ON
|
Telltale will
be ON
in ignition ON But engine is OFF. In engine ON condition, it
indicates
engine oil pressure is low. Check
oil level and top-up or contact an Mahindra Authorised Dealer for
assistance
|
26
|
|
Check Engine telltale
|
Yes
|
Continuously ON or Blinking
|
Indicates a
potential malfunction in the EMS, contact an Mahindra Authorised
Dealer
immediately
|
27
|
|
Battery Charging System Warning telltale
|
No
|
Continuously ON
|
Indicates
malfunction in charging system. Contact Mahindra Authorised Dealer
for
assistance
|
28
|
|
High Engine Coolant Temperature Warning telltale
|
No
|
Continuously ON or Blinking
|
Engine
temperature
very high. Contact Mahindra Authorised Dealer
immediately
|
29
|
|
REGEN telltale*
|
NO
|
ON/Blink
|
ON:
Regeneration is
required
Blink: Regeneration is in progress |
30
|
|
AT Warning telltale*
|
No
|
Continuously ON or Blink
|
Telltale is
used to
indicate an AT fault. Telltale Continuous ON means AT Fault.
Contact
Mahindra Authorised Dealer immediately
if the MIL Lamp doesn’t turn off after an ignition reset.
Blinking
Telltale
implies overheating of clutch due to abuse conditions. This is
only to
warn the customer and to prevent
clutch damage. Telltale will turn off once the clutch temperature
has
becomes normal.
|
31
|
|
HDC Malfunction telltale*
|
No
|
Continuously ON
|
Indicates
malfunction of Hill Hold Control. Contact a Mahindra Authorised
Dealer
immediately
|
32
|
|
Rear Fog lamp telltale*
|
No
|
Continuously ON
|
Indicates
Rear fog
lamp is ON
|
33
|
|
Engine Start/Stop telltale*
|
No
|
Continuously ON or Blinking
|
CONTINUOUSLY
ON:
Engine is in auto stop mode Blinking: Stop/Start is about to stop
the
engine FAST BLINKING: Stop/Start is inhibited
due to
unhealthy battery conditions
|
34
|
|

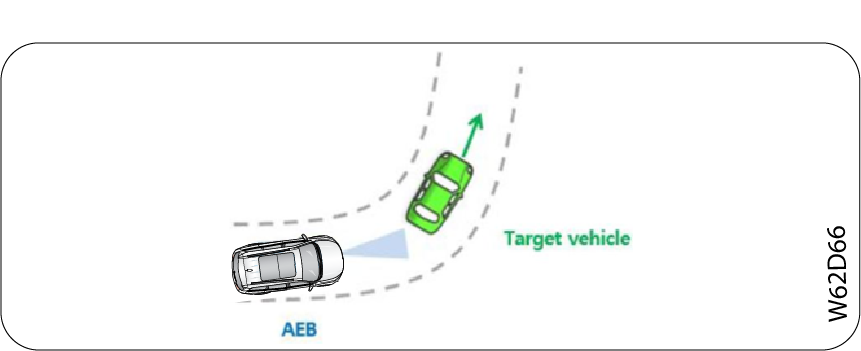

Automatic Emergency Braking System OFF telltale*
|
No
|
Continuously ON
|
Indicates AEB
system is turned off by user.
|
35
|
|
Lane Keep Assist System*(LKA)
|
No
|
Continuously ON
|
Indicates LKA
system is in Standby state
|
|
No
|
Continuously ON or Blinking
|
Indicates LKA
system is in Active state Blinking: LKA system providing Warning
to the
user
|
||
|
No
|
Continuously ON or Blinking
|
LKAS System
fail/Malfunction. This warning message is displayed if there is a
problem with LKAS system.Contact a Mahindra
Authorised Dealer immediately Blinking: Camera not calibrated
properly
|
||
36
|
|
Lane Departure Warning System*(LDW)
|
No
|
Continuously ON
|
Indicates LDW
system is in Standby state
|
|
No
|
Continuously ON or Blinking
|
Indicates LDW
system is in Active state Blinking: LDW system providing Warning
to the
user
|
||
|
No
|
Continuously ON or Blinking
|
LDW System
fail/Malfunction. This warning message is displayed if there is a
problem with LDWS system. Contact a Mahindra
Authorised Dealer immediately Blinking: Camera not calibrated
properly
|
||
37
|
|
Smart Pilot Assist*
|
No
|
Continuously ON
|
Indicates
Smart
Pilot Assist is in Standby state
|
|
No
|
Continuously ON or Blinking
|
Indicates
Smart
Pilot Assist is in Active state
|
||
|
No
|
Continuously ON
|
Smart Pilot
Assist
system fail/Malfunction. This warning message is displayed if
there is a
problem with SPA system. Contact
a Mahindra Authorised Dealer immediately
|
||
38
|
|

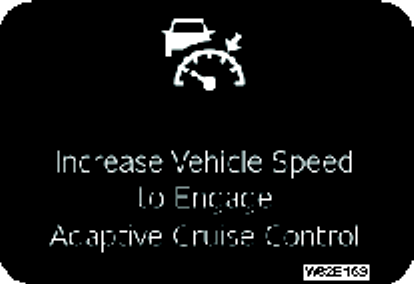

Adaptive Cruise Control*
|
No
|
Continuously ON
|
Indicates
Adaptive
cruise control system is in standby state.
|
|
No
|
Continuously ON
|
Indicates
Adaptive
cruise control system is in active state.
|
||
|
No
|
Continuously ON
|
Indicates
Adaptive
cruise control system temporarily not available due to temporary
abnormal condition. Check if radar is
blocked and clean.
|
||
|
No
|
Continuously ON
|
Indicates
malfunction of Adaptive cruise control system. Contact a Mahindra
Authorised Dealer immediately.
|
||
39
|
|
Auto High Beam Boost*
|
No
|
Continuously ON
|
Indicates
Auto
headlamp booster is in active state when the vehicle speed crosses
80kmph with high beam ON
|
40
|
|
High Beam Assist*
|
No
|
Continuously ON
|
Indicates
high beam
assist function is enabled/active.
|
41
|
|
Auto Vehicle Hold*
|
No
|
Continuously ON
|
Indicates
Auto
Vehicle Hold in standby Mode.
|
|
No
|
Continuously ON
|
Indicates
Auto
Vehicle Hold in Active Mode.
|
||
|
No
|
Continuously ON
|
Indicates
malfunction of Auto Vehicle Hold. Contact a Mahindra Authorised
Dealer
immediately
|
||
42
|
AWD Malfunction*
|
No
|
Continuously ON
|
Indicates
malfunction of AWD. Contact a Mahindra Authorised Dealer
immediately
|
|
43
|
|
EPB Malfunction*
|
Yes
|
Continuously ON
|
Indicates
malfunction of Electric Parking Brake. Contact a Mahindra
Authorised
Dealer immediately
|
* if equipped / select models or
variants only
|
• | Check if the parking brake/ Electric parking brake is engaged. If yes, disengage it |
• | Check if brake fluid level is low. If yes, top-up brake fluid to the required level |
• | Check if front brake pad is worn out. If yes, replace the front brake pads |
• | Lamp fails to go OFF after engine is started |
• | Lamp does not illuminate at all |
• | Illuminates while driving |
• | The fuel management system |
• | The emission control system |
• | Systems which affect emissions |
• | This warning lamp comes on when the ignition switch is turned on and it goes off when the engine is started. |
• | If the lamp stays ON or comes ON while driving, some of the Transmission control components including sensors and devices may be malfunctioning. |
• | If the Indicator lamp is blinking continuously, reduce the vehicle speed until the lamp stops blinking. Contact the Mahindra dealer as soon as possible. |
|
Illuminates
|
LDW system is in Standby mode
|
|
Illuminates
|
LDW system is in Active state
|
|
Illuminates
|
LDW system is in Not Working/Fail state
|
• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
|
Illuminates
|
LKA system is in Standby state
|
|
Illuminates
|
LKA system is in Active state
|
|
Illuminates
|
LKA system is in Not Working/Fail state
|
• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
• | If the problem is not solved, we recommend you to contact an Mahindra Authorised Dealer for further assistance. |
• | Check if the system is affected by the weather. (e.g. fog, heavy rain, etc.) |
• | Check if there is foreign matter on the Front camera lens. |
|
Illuminates
|
ACC system is in Standby state
|
|
Illuminates
|
ACC system is in Active state
|
|
Illuminates
|
ACC system temporarily not available due to temporary abnormal
condition
|
|
Illuminates
|
ACC system is Not Working/Fail State
|
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
|
Illuminates
|
SPA system is in Standby state
|
|
Illuminates
|
SPA system is in Active state
|
|
Illuminates
|
SPA system is in Not Working/Fail state
|
• | Check the radar sensor and cover and clean them by using a soft cloth. |
• | Check if there is foreign matter on the Front camera lens. |
|
Illuminates
|
There is a malfunction in AVH
|
|
Illuminates
|
AVH is in Standby mode
|
|
Illuminates
|
AVH is in Active mode
|

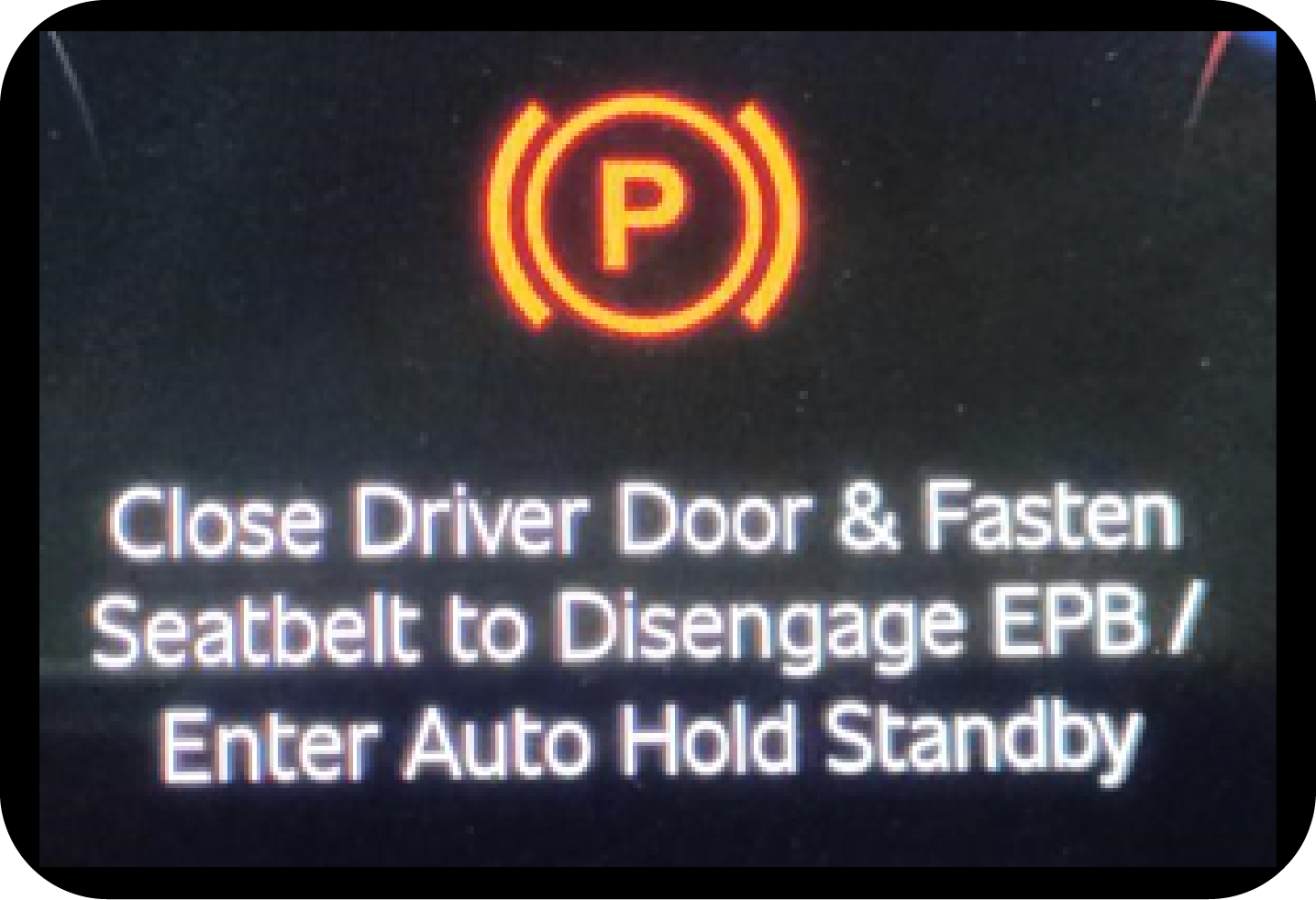

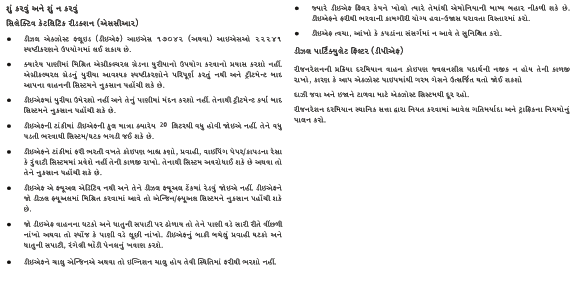

• | When the AUTO HOLD switch is operated, the AUTO HOLD system will be switched to READY mode and the "AUTO HOLD" indicator on the instrument cluster will be illuminated in white. |
• | Operating the AUTO HOLD switch again turns off the indicator and deactivates the AUTO HOLD system. |
1. | Crankcase emission control system |
2. | Evaporative emission control system |
3. | Exhaust emission control system |
1. | Diesel Oxidation Catalyst (DOC) |
2. | Selective Catalytic Reduction(SCR) |
3. | Diesel Particulate Filter (DPF) |
• | Use Genuine DEF MaxiCLEAN always. |
• | Incase of non-availability of the above mentioned MaxiCLEAN Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used. |
• | Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after treatment system of your vehicle may be damaged. |
• | Total DEF quantity inside the DEF Tank should never exceed 20 liters. Overfilling may result in system/component failure. |
• | DEF quality and purity can be ensured only if it is stored as per recommendations. Hence ensure to store DEF in a cool, dry place. |
• | Do not add urea to DEF and do not dilute with water. This may cause damage to the after treatment system. |
• | While refilling DEF be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system. |
• | While refilling DEF, use only the pipe supplied with the MaxiCLEAN. Do not use any funnel or container. Any contamination with Diesel or oils will cause malfunction of the after treatment system. |
• | If DEF accidently spill over vehicle components or metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components, metal surfaces and painted body panels. |
• | DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged. |
• | In such a case, do not start the engine and immediately contact nearest Mahindra Authorised Dealer for assistance. |
• | Ensure that DEF does not come into contact with skin, eyes, or clothing |
• | Keep DEF out of the reach of children |
• | In case if any part of the body comes in contact with DEF, clean affected area immediately with plenty of water |
• | If DEF comes in contact with eyes, flush with plenty of water immediately and seek medical help. |
• | If DEF is swallowed, rinse mouth immediately with plenty of water, drink plenty of water immediately and seek medical help. |
• | Refrain from storing DEF refill containers inside the vehicle. Ammonia vapors may escape from the container which have a pungent odor and are particularly irritating to the skin, mucous membranes and eyes. Inhaling ammonia vapors may cause irritation to the eyes, nose and throat, as well as cough. |
• | When opening the DEF filler cap, ammonia vapors may escape. Therefore ensure to refill DEF in a well- ventilated area only. |
• | If Diesel Exhaust Fluid is spilled on metal surfaces rinse and clean immediately with water. Failure to do so may leave permanent corrosive stains on the metal surfaces which cannot be removed. |
|
2. Press the key fob unlock button and Press the
fuel lid
gently once to open.
|
• | DEF level low |
• | Incorrect DEF detected |
• | DEF dosing malfunction |
E31
|
E32
|
E33
|
|
|
|
E34
|
E35
|
|
|
|
E11
|
E12
|
E13
|
|
|
|
E14
|
E15
|
|
|
|
E21
|
E22
|
E23
|
---|---|---|
|
|
|
E24
|
E25
|
|
|
|
|
|
• | Follow speed limits & traffic regulations as defined by local jurisdiction while driving. |
• | Park the vehicle safely in a well ventilated levelled open space and free of any flammable material. |
• | Shift the gear lever to Neutral with the engine running and apply the parking brake. |
• | Access the Drive info menu in the instrument
cluster and
press the down button to go to the REGEN screen, REGEN screen will
appear only when the REGEN telltale is ON.
|
• | REGEN screen will go OFF if REGEN telltale turns OFF. |
• | When in the REGEN screen of the drive info menu, long Press OK button on the steering wheel or the driver side switch bank to start park regeneration. |
• | Once regeneration starts, “In Progress” text will
appear
below REGEN. The engine idle speed will increase indicating regeneration
has started.
|
• | Park Regeneration can take up to 30 minutes to complete. Once completed the REGEN telltale in the instrument cluster will turn OFF. The engines idling speed also returns to normal. |
• | To abort the Park regeneration in case of any emergency, turn OFF the ignition or press any of the Accelerator, Brake or Clutch Pedals. |
• | If the Park Regeneration gets aborted by itself or does not start, contact an Authorised Mahindra Dealer for assistance. |
• | During the regeneration process, ensure not to park the vehicle close to any flammable materials as you may observe hot emission gases from exhaust pipe. |
• | To avoid burns & personal injury, keep yourself away from exhaust system. |

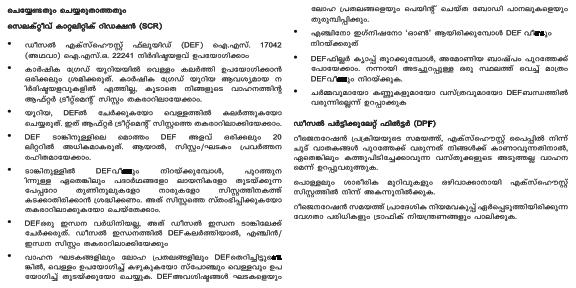

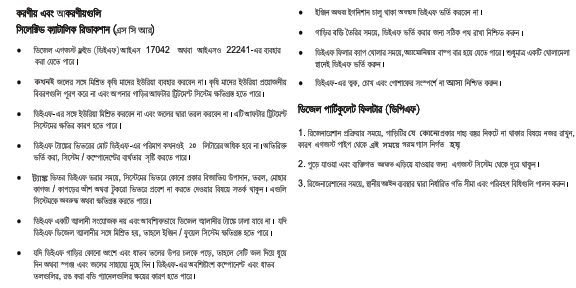

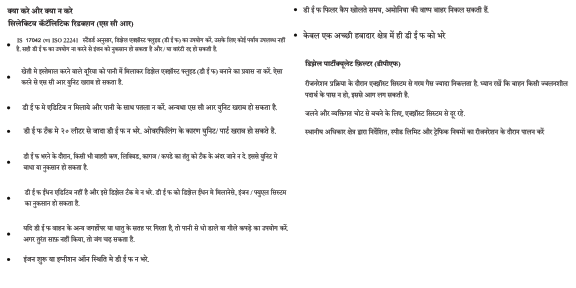

• | Diesel Exhaust Fluid (DEF) complying to IS 17042 (or) ISO 22241 specification can be used. |
• | Never attempt to use agricultural grade urea mixed with water. Agricultural grade urea does not meet the necessary specifications and the after-treatment system of your vehicle may be damaged. |
• | Do not add urea to DEF and do not dilute with water. This may cause damage to the treatment system. |
• | Total DEF quantity inside the DEF tank should never exceed 20 liters. Overfilling may result in system/component failure. |
• | While refilling DEF inside tank be careful not to allow any foreign particles, liquids, wiping paper/clothing fibers or lint to get inside the system. These may clog or damage the system. |
• | DEF is not a fuel additive and must not be added to the diesel fuel tank. If DEF is mixed with the diesel fuel, engine/fuel system could get damaged |
• | If DEF is spilled over vehicle components and metal surfaces, rinse with water or wipe off with sponge and water. DEF residues will corrode the components and metal surfaces, painted body panels |
• | Do not refill the DEF with Engine ON or ignition ON state |
• | When opening the DEF filler cap, ammonia vapors may escape. Refill DEF in a well - ventilated area only. |
• | Ensure that DEF does not come into contact with skin, eyes, or clothing |
|
Your key tag
number is given on the tag attached to the key. It is recommended that you
record
the key tag number and store
in a safe place. The keys operate all locks in your vehicle including those of
the
doors and ignition with steering lock.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• | Door handle will return to its original position when the vehicle is locked by RKE / PKE key fob or the vehicle speed exceeds 7 kmph |
|
Pull the door lever away from the door and push
the
door outward to open.
|
|
A: Lock
B: Unlock
|
Individual
doors can be locked/unlocked from inside by the respective door lock
tabs.
Lift the lock tab outwards to unlock
or press the tab inwards to lock that particular
door.
|
|
Push the handle slightly as shown in the image.
|
|
Pull the handle firmly outwards and grip &
pull the
handle further to gain access for the key.
|
|
The driver door can be manually locked/unlocked
from
outside by using conventional key. The key is bidirectional; you can
insert it into the keyhole either way. Turn the key anti-clockwise to lock or
clockwise
to unlock the door.
|
|
Push the handle slightly as shown in the image.
|
|
Push handle as shown in the Picture and grip
& pull
the handle further to gain access for the key.
|
|
The driver door can be manually locked/unlocked
from
outside by using conventional key. The key is bidirectional; you can
insert it into the keyhole either way. Turn the key anti-clockwise to lock or
clockwise
to unlock the door.
|
|
Press the Tailgate release button for 1 second on
the
remote to unlock the tail door. The hazard lamp flash three times indicating
the same.
|
|
Then press the tail gate release switch on the
bottom
of the tailgate within 45 second as shown in the illustration and pull
tailgate to open.
|
|
Your vehicle is equipped with the emergency
tailgate
safety release lever located on the bottom of the tailgate inside. In
an emergency condition the passenger can open the tailgate from inside the
vehicle.
|
1. | Insert the mechanical key into the hole. |
2. | Slide the mechanical key to the left side and hold the key in the same position to open the tail gate. |
|
Press the driver door lock tab down (A) to lock
or lift
the lock tab up (B) to unlock all doors simultaneously.
|
• | Vehicle speed is below 7 kmph - On actuating master actuator lock manually, master actuator will get lock & unlock immediately for the first time. On actuating master actuator lock again, vehicle will get locked. |
• | Vehicle speed above 7 kmph - On actuating master actuator lock manually, vehicle will get locked for the first time itself. |
|
A: Activate/Lock
B:De-activate/Unlock
|
|
A: LED
B: Lock
C: Tailgate Release / Search
D: Unlock
|
• | Do not cover the key grip with any material that cuts off RF signal |
• | Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or bonnet under direct sunlight |
• | Do not put the key in any liquid or wash it in an ultrasonic washer |
|
Press the LOCK button on the RKE key fob for
locking
and arming the vehicle.
|
|
Press the UNLOCK button on the RKE key fob to
unlock
and disarm the vehicle.
|
• | All doors are closed properly |
• | Vehicle speed is greater than 7 kmph |
• | When Ignition is switched from ON to OFF, OR In the event of a crash |
• | No door status change for 45 seconds after unlocking the vehicle using RKE/PKE |
|
Press the Tailgate button on the key fob 2 times
within
2 seconds to locate the vehicle in a parking lot. Search alarm can
also bring attention to the vehicle and surrounding area, warning about an
intruder or
seek for help.
|
• | Pressing any button on the key fob again switches OFF the alarm |
• | Pressing the UNLOCK button switches OFF the alarm and disarms/unlocks all doors |
|
The chirps can be muted / unmute. Press the LOCK
&
UNLOCK buttons together for 3 sec. to toggle between MUTE / UNMUTE mode.
Hazard lamps will flash once to indicate unmute to mute condition.
|
• | Alarm chirps can be heard during Auto Re-lock (1 Chirp) |
• | RKE Lock when door open (5 Chirps) |
• | RKE Unlock if there was a theft attempt during the lock (armed) period (4 Chirps) |
• | Only hazard would flash and alarm chirps would not be audible. |
|
Using RKE key fob , you can lock/arm or
unlock/disarm
the vehicle from distances approximately 9 m (30 ft) This is in open
area.
|
|
A: LED
B: Lock
C: Tailgate Release / Search
D: Unlock
|
• | While locking and unlocking the vehicle Passively, the distance between the Smart Key and the corresponding door handle must not be greater than 3ft (1m). |
• | Do not cover the key grip with any material that cuts off RF waves |
• | Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or bonnet under direct sunlight |
• | Do not put the key in any liquid or wash it in an ultrasonic washer |
• | The PKE can malfunction if exposed to moisture or static electricity |
|
3. Push the handle to lock the vehicle
|
• | Key should be in the proximity of less than 0.7 m from the outside door handle |
• | Vehicle can be locked centrally by pressing the door handle with the PKE key fob in the proximity (PKE key fob should be nearer to the triggered side). For E.g., locking/unlocking of the driver door is possible only if PKE is around the driver area |
• | Even after
pressing the outside door handle button, if the doors do not lock, a chime is
heard
along with the hazard blinking
for 5 times, then one of the following situations are possible
reason:
|
• | On attempting to lock by pressing the button in door handle, an alert will displayed in cluster, if the steering is not locked |
• | With the one PKE Key fob inside, on locking the vehicle using other key fob/2nd key fob, the key which is kept inside would get deactivated completely for the security of the vehicle. To make the key active again, the vehicle should be unlocked either using PKE or by pressing remote unlock using the other key fob with which previously the vehicle was locked. |
• | On performing PKE passive lock with key fob in your possession in ignition ON state, "Key Not in Vehicle" alert will be triggered in cluster along with chirp & hazard lamps flash for 5 times and vehicle will remain in unlock state. |
• | On performing key fob remote lock with all doors closed in ignition ON state, no alert will be triggered and vehicle will remain in unlock state. |
1. | Carry the PKE Key fob |
2. | Press the button in the door handle |
3. | All doors would unlock and Front DRL & Tail lamps flash twice. |
• | Key should be in the proximity of less than 0.7 m from the outside driver door handle |
• | Vehicle can be unlocked centrally by pressing the door handle only when the key is in same side of the driver door handle is pressed |
|
2. Press the trunk release button in the tail door
and
pull the tail door
|
• | Key should be in the proximity of less than 0.7 m from the outside door handle |
• | Tail door can be unlocked by pressing the button in the tail door only when the key is in range from the tail door |
|
The engine can be started or stopped by pressing
the
Start Stop Switch (SSS), with the valid PKE Key Fob inside the vehicle.
|
|
Upon any fault identification by the system in
the
start/stop switch (SSS), an alert would be provided in the instrument cluster
for few seconds. Please visit the nearest Mahindra Authorised Dealer immediately
to
rectify the problem.
|
OFF
|
ACC
|
ON
|
|
|
|
• | If the electronic steering lock is not getting unlocked |
• | A warning would be displayed in the cluster
screen
for few seconds.
Still if you are not able to turn ON the IGN,
please
contact the nearest Authorised Mahindra Service Centre.
|
• | When engine start/stop button is ON or engine
is in
running condition with vehicle at standstill and if any door is opened
& closed, the system checks for the PKE Key fob.
|
|
Now place the key fob in the key fob tray with
the
Clutch(MT)/Brake(AT) pedal pressed and then push the Start-Stop switch
twice to Start the engine.
|
|
If key fob battery is detected low by the PKE
system,
an alert would be triggered. Change the battery by following the procedure
as mentioned in the section for battery replacement.
|
• | If the vehicle is close to a radio station, airport, or an area where there is a possibility of large radio transmissions which can interfere with the normal operation of the PKE/RKE |
• | The PKE Key Fob is near a mobile or a cellular phone or some electronic gadgets like Laptop/Tablets. The signal from the PKE/RKE could be blocked by normal operation of your cell phone or smartphone . Avoid placing the PKE/RKE and your electronic gadgets in the same trouser or jacket pocket or in the bag and maintain adequate distance between the two devices |
• | Another vehicle PKE key fob is being operated close to your vehicle |
• | PKE Key Fob kept inside the glove box or top bin in the instrument panel may not be detected sometimes. Keep the PKE Key Fob in the visible zone or in your pocket for getting it detected |
• | Keep the PKE key fob away from the water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer’s vehicle warranty |
Display | Operating Conditions |
---|---|
|
The warning will be triggered when the
vehicle
Ignition is in ON condition with the Brake pedal pressed & the user
is
pressing
SSS to start Vehicle & Gear position is not in park or neutral. (If
equipped)
|
Display | Operating Conditions |
---|---|
|
The warning will be triggered when
vehicle
Ignition ON or Engine running condition, user is pressing SSS to turn
OFF
Vehicle
& Gear position is not in park. (If equipped)
|
|
The warning will be triggered when Start
Stop
switch is Malfunction . Kindly contact the nearest Mahindra dealer
|
|
The warning will be triggered when Key
fob is
not getting detected by the system. Users need to keep the key in the
armrest
Key fob Tray and then press the start/stop switch to turn ON the
vehicle.
|
|
The warning will be triggered when
vehicle
ignition in OFF condition. When user tries to lock the vehicle using
driver
door
PKE trigger switch, but key is inside the vehicle.
|
|
The warning will be triggered when
vehicle is
in cranked or in ignition ON condition, but key is not inside the
vehicle.
|
|
The warning will be triggered when Key
Fob
battery is Low.
|
|
This is information to user In Ignition
on to
start Car by pressing Brake pedal along with SSS Press AT variant.
|
|
This is information to user In Ignition
on to
start Car by pressing Clutch pedal along with SSS press MT variant.
|
Display
|
Operating
Conditions
|
---|---|
|
A warning will be displayed in the
Instrument
cluster. If the steering wheel doesn’t unlock properly, press the
start/stop
button while turning the steering wheel right/left to release the
tension on
the lock.
|
|
If the electronics Steering Wheel not
getting
locked even though all locking conditions are satisfy then this warning
is
displayed.
|
|
A warning will be displayed in the
Instrument
cluster. If the steering wheel lock unit has system failure. in this
case
please
contact Mahindra dealership to check system failure.
|
|
A warning will be displayed in the
Instrument
cluster. If the steering wheel does not pair with PKE ECU. in this case
please
contact Mahindra dealership to check system.
|
Battery Voltage
|
3 V
|
Battery Capacity
|
225 mAh
|
Battery Model No.
|
2032
|
|
The rear side of the Remote is snap fitted. Flip
open the
key blade and use two fingers on the side of the fob and gently
pry open the battery cover.
|
|
|
|
This message is displayed only when the PKE system
fails
to detect the key fob which is inside the vehicle when the user is
trying to Switch ON the ignition.
|
• | Prevents the vehicle being started by anyone not in possession of the correct vehicle key |
• | The vehicle is automatically protected after the key is removed from the ignition/vehicle in PKE. At every ignition ON, if the vehicle does not recognize the correct key code, the engine check lamp will blink and security tell tale lamp will illuminate and the engine cannot be started. |
• | The vehicle will not be protected until the key has been taken out of the ignition/vehicle in PKE. |
|
1. Pull the lever below the driver side instrument
panel
to release the bonnet.
|
|
2. Lift the bonnet a little to access the safety
latch
holding the bonnet striker. This safety latch is located below the
bonnet at the center.
|
|
3. Lift the safety latch and lift the bonnet.
4. bonnet is supported by a stay rod.
|
1. | Remove the stay rod supporting the bonnet by slightly lifting the bonnet |
2. | Bring the bonnet near to its self-opening/closing position |
3. | Now, push the bonnet to close and ensure the primary latch is engaged |
4. | Before driving off, check bonnet is locked properly with primary latch fully engaged |
• | Hazard lamps flash continuously to alert the user that the bonnet is open |
• | Hazard cluster telltale also flashes |
• | Close the bonnet |
• | Press the hazard button TWICE |
• | Change the turn signal stalk position |
• | Drive the vehicle > 10 km/hr. |
|
1. Press the UNLOCK button on RKE/PKE.
|
|
2. Then press the fuel lid gently once to open.
|
Diesel
|
Petrol
|
|
|
Diesel should be filled in diesel filler cap.
|
Petrol should be filled in petrol filler cap.
|
Diesel should not be filled in blue (DEF) filler
cap.
|
Follow the below process to open the fuel lid
manually in
case of any issue in electrical circuits:
1. Press and Open the trim cover on Left side of
luggage
compartment.
|
|
|
2. Unhook and Pull the blue color knob as shown in
the
illustration to unlock the fuel lid manually.
|
• | Make sure the gear shift lever is in Neutral/Park mode |
• | Ensure that the parking brake / EPB is engaged. Turn the key to IGN position but do not turn the key to start |
1. | Turn the ignition ON by pressing the start stop button or through ignition key |
2. | Shift the gear shift lever to Park or Neutral position, if found in any other position |
3. | Apply parking brake / EPB, if found not applied |
4. | Do not press the accelerator |
5. | Depress the brake pedal and press the start stop button or Turn the key momentarily to the START position to crank the engine |
6. | Once the engine starts, release the Start Stop Button or key. |
1. | Turn the ignition ON by pressing the start stop button or through ignition key |
2. | Shift the gear shift lever to neutral position. if found in any other position |
3. | Apply parking brake / EPB, if found not applied |
4. | Do not press the accelerator. |
5. | Depress the clutch pedal and press the start stop button or Turn the key momentarily to the START position to crank the engine |
6. | Once the engine starts, release the Start Stop Button or key |
• | All warning lamps are OFF |
• | Low oil pressure lamp is OFF |
1. | Release the parking brake / EPB (Electric Parking Brake) |
2. | Depress the clutch |
3. | Shift the gear lever to 1st gear |
4. | Release the brake pedal |
5. | Drive by releasing the clutch and depressing the accelerator pedal simultaneously |
1. | Release the parking brake / EPB (Electric Parking Brake) |
2. | Depress the Brake pedal |
3. | Shift the gear lever to D or R or M |
4. | Drive by releasing the brake pedal and depressing the accelerator pedal simultaneously |
• | Keep your right foot on the brake pedal |
• | Turn front wheels towards the road curb |
• | Switch OFF the ignition, turn the key to the steering lock position and remove the key |
• | Press the start stop button once to switch off the vehicle (for PKE only) |
• | Engage the parking brake / EPB |
• | Move the gear shift lever to 1st gear position (reverse gear if parking on an incline). |
• | Slowly release the brake pedal |
• | Lock your vehicle when leaving |
• | Keep your right foot on the service brake pedal |
• | Turn front wheels towards the road curb |
• | Engage the parking brake / EPB |
• | Shift the gear lever to Park “P” position |
• | Switch OFF the ignition, turn the key to the steering lock position and remove the key |
• | Press the start stop button once to switch off the vehicle (for PKE only) |
• | Slowly release the brake pedal |
• | Lock your vehicle when leaving |
• | Vehicle exhaust contains Carbon Monoxide, Carbon Dioxide, Nitrogen Oxides, Hydrocarbons and Particulate Matter. These are potential environmental and health hazards |
• | Avoid inhaling the exhaust gases. Carbon Monoxide is a colorless and odorless gas and can cause unconsciousness or even death |
• | If the exhaust system is damaged for any reason or you notice a change in the exhaust noise, have the vehicle checked by an Mahindra Authorised Dealer immediately |
• | Do not start the vehicle in a closed garage or in an enclosed area where ventilation is poor for the exhaust gases |
• | Since the engine compartment and exhaust system components are hot and can ignite a fire, do not park or leave the vehicle with the engine idling over dry grass, leaves, paper, rags or any combustible material |
MT
|
AT
|
|
|
A: Accelerator Pedal
|
B: Brake Pedal
|
C: Clutch Pedal
|
• | Before you drive your vehicle, please read this manual carefully |
• | Before you start driving, check proper operation of the brakes and steering system |
• | If, while driving, you hear any strange noise or feel unusual vibration, or if you have any concerns whatsoever, or if any warning lamps illuminate or buzzers sound, park/stop the vehicle in a safe location as soon as possible. Identify the cause and take any necessary remedial action. Contact your Mahindra Authorised Dealer if necessary |
• | Never overload or improperly load your vehicle |
• | Always be attentive while driving and follow safe driving practices |
• | Always maintain the recommended inflation pressure in tyres |
• | Always drive at a safe speed appropriate for given driving conditions. You must follow the speed limits |
• | While backing up, keep a constant lookout for people, particularly children, or other obstructions or hazardous material that might be present behind the vehicle |
• | Avoid loading any items on the roof that will raise the vehicles center of gravity and make your vehicle more unstable |
• | Loaded vehicles, with a higher center of gravity, may handle differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle |
• | Always slowdown in gusty crosswinds. Because of its profile and higher center of gravity, your vehicle is more sensitive to side winds than an ordinary passenger car. Slowing down will allow you to have much better control |
• | When driving in off-road or on rugged terrain, do not drive at excessive speeds, jump, make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover causing serious injury. You are also risking expensive damage to your vehicle's suspension and chassis |
• | Maintain steering wheel control at all times, especially on rough terrains. Sudden changes in terrain can result in abrupt steering wheel motion. Make sure you grip the steering wheel from the outside. Do not grip the spokes |
• | If the vehicle goes from one type of surface to another (e.g. from concrete to gravel/sand/mud/snow) there will be a change in the way the vehicle responds, especially the way it responds to steering, braking and accelerating inputs |
• | Be extremely careful when driving on pavements made slippery by loose sand, water, gravel, snow or ice |
• | If your vehicle goes off the edge of the pavement, slow down, but avoid severe brake or steering application. Ease the vehicle back onto the pavement only after reducing your speed. Do not turn the steering wheel too sharply while returning to the road surface |
• | It may be safer to stay on the apron or shoulder of the road and slow down gradually before returning to the pavement. You may lose control if you do not slow down or if you turn the steering wheel too sharply or abruptly |
• | In an unavoidable emergency situation where a sudden sharp turn must be made, turn the steering wheel only as rapidly and as far as required to avoid the emergency. Excessive steering will result in less vehicle control. Additionally, smooth variations of the accelerator and/or brake pedal pressure should be utilized if changes in vehicle speed are called for. Avoid abrupt steering, acceleration or braking which could result in an increased risk of loss of vehicle control, vehicle rollover and/or personal injury. Use all available road surfaces to return the vehicle to a safe direction of travel |
• | When driving in off-road or on rugged terrains, never over speed or make sharp turns. This may cause loss of control or vehicle rollover causing serious injury |
• | Always maintain steering wheel control, Sudden changes in terrain can result in abrupt steering wheel motion |
• | Drive cautiously to avoid vehicle damage from concealed objects such as rocks and stumps. You should either know the terrain or map-out your route before driving in the area |
• | Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud or water |
|
Contact your Mahindra Authorised Dealer
immediately.
Have the vehicle towed to nearest Mahindra Authorised Dealer to check
any entry of water into the engine
|

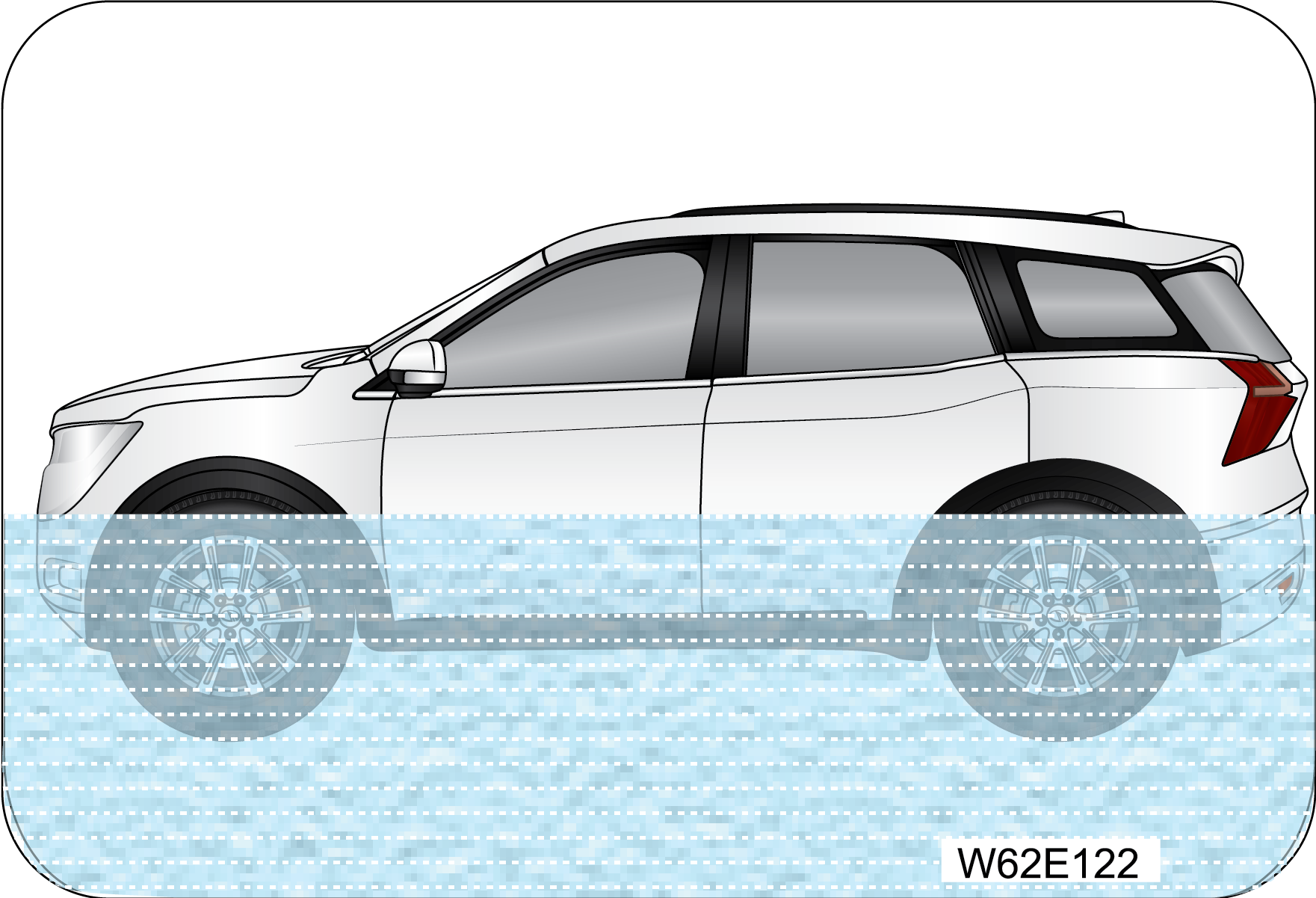

• | Never drive through water when it flows above the bottom portion of the bumper or above the tyre center line |
• | The engine could get damaged internally if attempts are made to cross through deep water |
• | Wet brake discs have a lower coefficient or friction resulting in reduced braking efficiency. Tab the brake pedal while driving to remove the film of water |
• | The ground under the water might not be firm which could result the water being deeper than expected when driving the vehicle through it |
• | Do not stop or shut OFF the engine while immersed in water. It helps in preventing water getting inside the exhaust pipes |
• | When backing down a ramp, do not allow the exhaust tail pipe to immerse in water |
• | Water can wash the grease from wheel bearings, causing rusting and premature failure. It may also enter the differentials, transmission, and transfer case, reducing the oil's lubricating qualities. If these are submerged in water, the lubricants should be replaced as required |
• | Water entering the transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damaging the transmission |
• | Sand, mud/sludge that has accumulated in around brake discs may affect braking efficiency. This may also damage brake system components. Wet brakes cannot stop the vehicle as effectively as dry brakes. Drying can be improved by driving the vehicle slowly while applying light pressure on the brake pedal |
• | When driving through water, traction or brake capability may be limited. Always perform a maintenance inspection after each day of off-road driving that has taken you through water |
• | After going off-road, it is always a good idea to check for damage. Completely inspect the underbody of the vehicle for any damages |
• | Check for accumulations of plants or bushes. or polyethylene / plastic. These could be a fire hazard at high temperatures. |
• | Inspect all the tubes/hoses and check for any fluid leakages |
• | Get heat exchangers (radiator and condenser) cleaned |
• | We also recommend that the vehicle be checked at the Mahindra Authorised Dealer for any water entry into the transmission / axle or the engine. |
• | If any unusual vibration is experienced, check the wheels for impacted material. Impacted material can cause a wheel imbalance. Get it inspected/corrected as soon as possible |
• | After driving through deep water, inspect your vehicle fluids and lubricants (engine oil, transmission/transfer case/axle oils) to ensure the fluids have not been contaminated |
• | Ensure that your vehicle is maintained as per recommendation (Refer to Warranty and Service Information Guide) |
• | Ensure that the tyre pressures are as per
recommendation (Ref to sticker on door pillar or Page 6-56 or Warranty and Service Information Guide) |
• | Ensure parking brakes are released fully |
• | Use Engine Start-Stop feature to the maximum (Ref Page no 6-29), if applicable |
• | Drive with all the windows closed to reduce aerodynamic drag |
• | Accelerate smoothly with a light foot on the accelerator |
• | Anticipate stops and slow down in coasting mode before applying brake |
• | In manual transmission, shift gears at the right speeds (Ref page 6-15 for gear shift indication prompts) |
• | Fitting roof carrier will increase drag and reduce fuel mileage |
• | Driving at speeds above 80 Kms/hr reduces fuel mileage |
• | Do not rest the left foot on the clutch pedal in manual transmission vehicles as it will reduce the fuel mileage as well as damage clutch/transmission components |
• | Do not attempt to use brakes with the left foot in Automatic transmission vehicles |
MX/AX3/AX5
|
AX7/AX7L
|
|
|
• | The Fuel mileage value is displayed in the cluster as AFE (Average Fuel Economy) in Kms/lit. |
• | The AFE can be set to multiple modes. |
• | Refer to Page 3-12 for the procedure for resetting AFE modes. |
|
An illuminator ring is provided on the face of the
ignition switch to help in locating the ignition switch at night. The ring
will illuminate the moment the driver door is opened and will remain glowing till
the
driver door is closed.
|
|
Horn will get activated when horn switch/pad is
pressed
It will get deactivated when horn switch/pad is
released
or after 10 sec of continuously pressing.
|
|
Your vehicle is fitted with manual transmission
having
six forward and one reverse gear. This shift pattern is imprinted on
the gear lever knob.
|
Display
|
|
---|---|
High
|
Low
|
|
|
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
1–2
|
16
|
1600–2000
|
2–3
|
27
|
|
3–4
|
42
|
|
4–5
|
54
|
|
5–6
|
70
|
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
2–1
|
14
|
1000–1200
|
3–2
|
25
|
|
4–3
|
40
|
|
5–4
|
52
|
|
6–5
|
61
|
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
1–2
|
18
|
1600–2300
|
2–3
|
30
|
|
3–4
|
44
|
|
4–5
|
54
|
|
5–6
|
70
|
Shift Range | Vehicle Road Speed (kmph) | Engine RPM Range |
---|---|---|
2–1
|
14
|
1000–1200
|
3–2
|
25
|
|
4–3
|
40
|
|
5–4
|
52
|
|
6–5
|
61
|
|
This gear is to enable the vehicle to move in the
reverse direction. Move the gear lever into this position only after the
vehicle has come to a complete stop and the gear lever is in neutral position.
|
|
Your vehicle is equipped with 6 Speed automatic
transmission having Electric controls with an Adaptive Transmission Control
Strategy.
|
P : Park position
|
M : Manual Shift
|
R : Reverse position
|
M+ : Manual up-shift
|
N : Neutral position
|
M- : Manual down shift
|
D : Drive position
|
Movement | Possibility |
P-R
|
Yes-Brake pedal + knob button
|
R-N
|
No
|
N-D
|
No
|
D-M
|
No
|
M-D
|
No
|
D-N
|
No
|
N-R
|
Yes-Only knob button
|
R-P
|
Yes-Only knob button
|
|
Use this position to park your vehicle, warm up
the
engine, or stay in a location for an extended length of time.
|
• | Stop the vehicle completely before shifting into “P” |
• | Never shift to “P” when the vehicle is moving, To avoid damage to transmission |
• | If the lever is shifted to P when the vehicle has not come to stop and in forward motion, then a ratchet noise will be heard. This is not abnormal. However we do not recommend moving to P till the vehicle has come to standstill . As repeated such instances can damage the internal parts |
• | To shift from the “P” position to another position, the ignition switch must be turned to “ON” and the brake pedal should be depressed. Any forcible attempts to move the selector lever from “P” without the two procedures may damage the selector lever |
|
Use this position to drive the vehicle in reverse
To shift into “R” from “P” or “N” (with the knob
button
press), completely stop the vehicle and depress the brake pedal. When

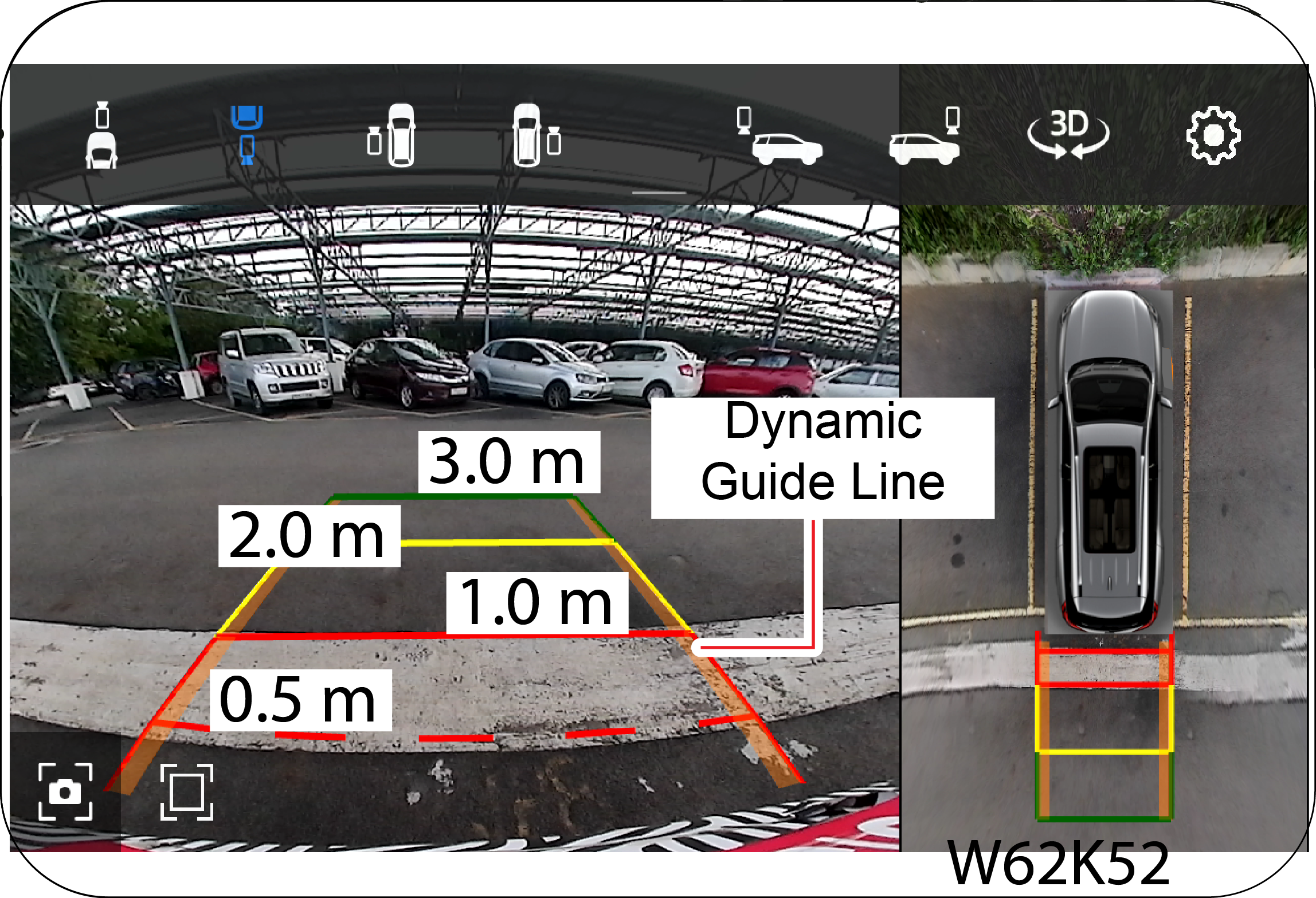

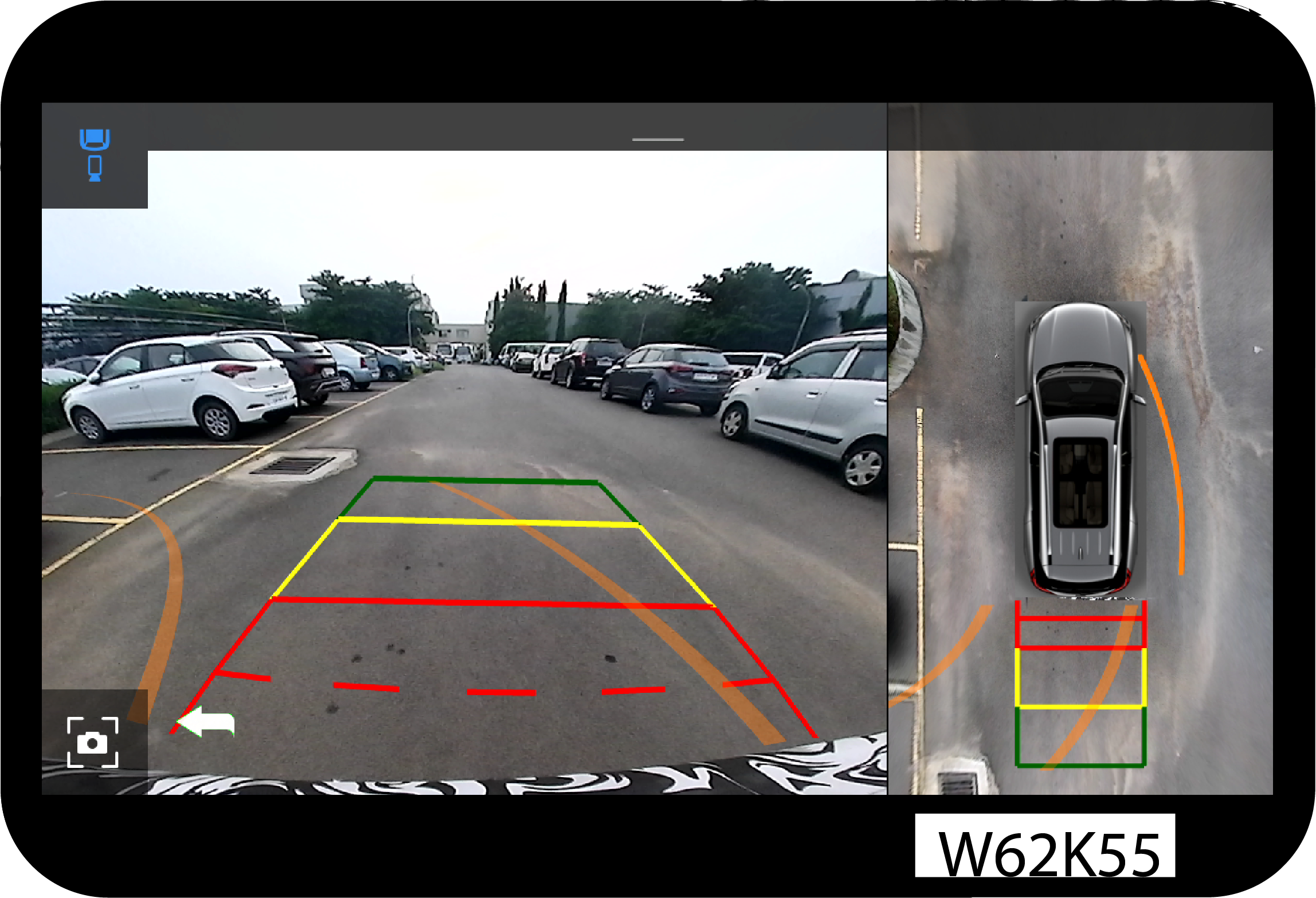

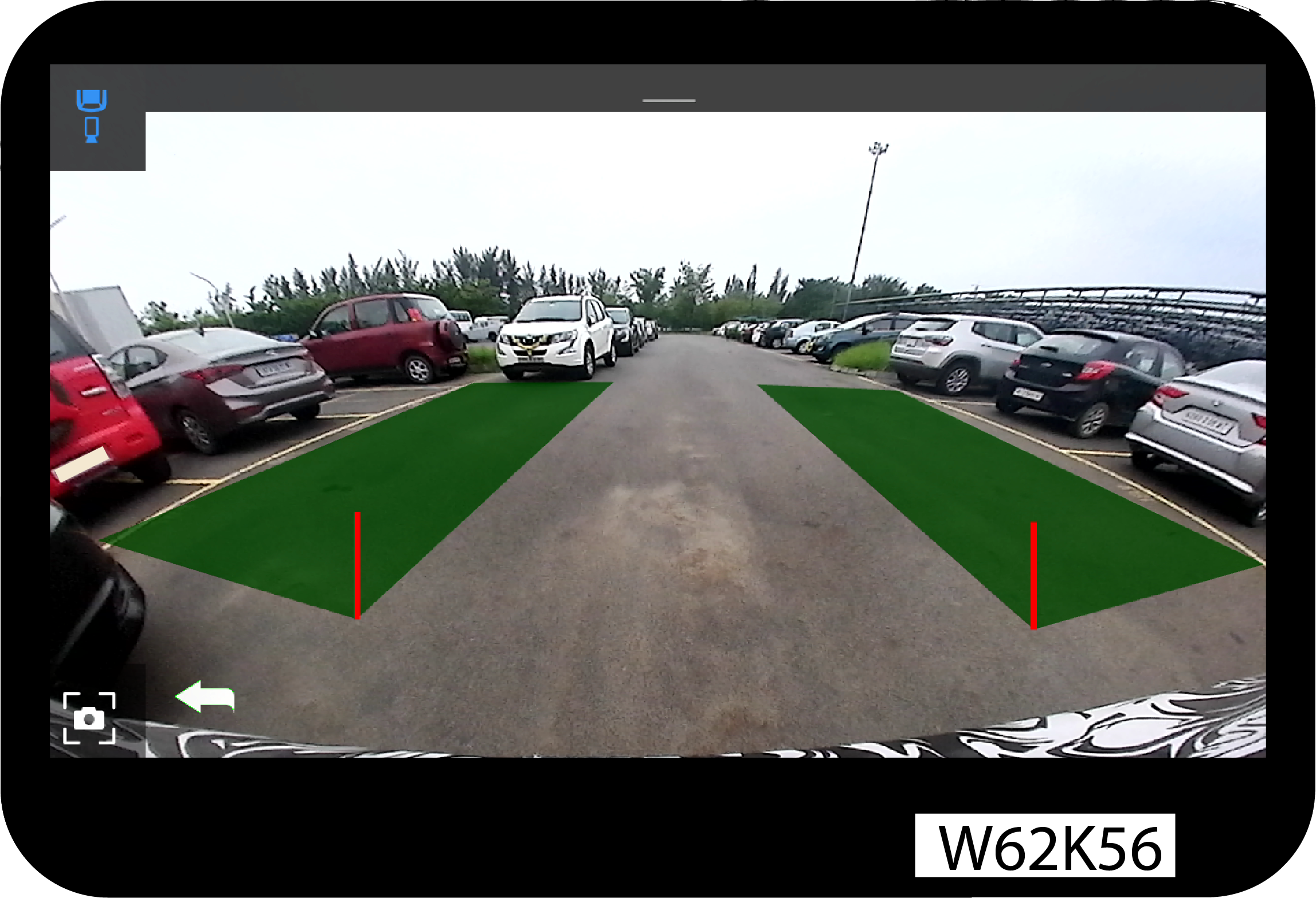

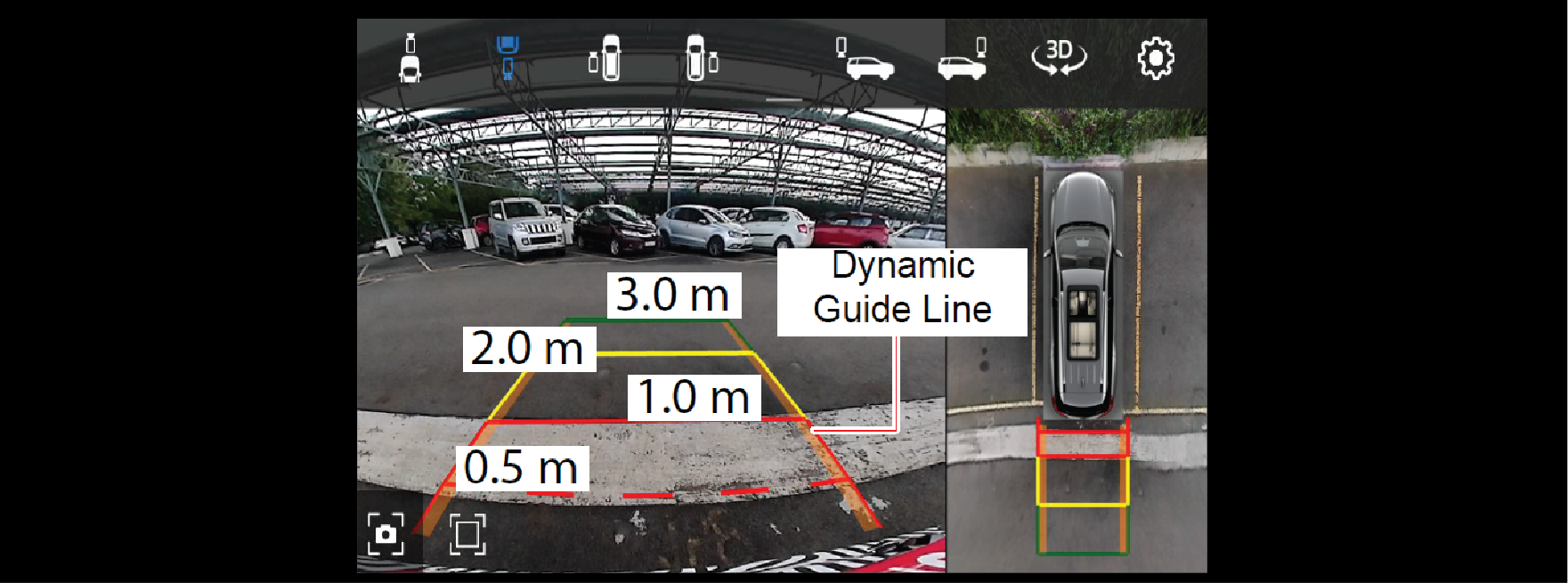

the shift lever is in “R”, parking aid system will be automatically activated.
|
• | Never shift into “R” when the vehicle is moving |
• | Please note that the vehicle may slowly move backward when the selector lever is at “R” |
|
At this position, the engine does not transfer
power to
the wheels and the vehicle will not move on a flat road. However,
for safety, apply the brake when the gear is in this position.
|
• | Warm up the engine for approximately 3 minutes when the ambient temperature is below -15°C. Otherwise, shifting of gears in Forward or Reverse direction may not be smooth |
• | If you have to stop on a hill and would like to use this neutral position, depress the brake pedal firmly |
• | Never attempt to move the gear selector lever to “N” when the vehicle is in motion |
|
Use this position for normal driving conditions.
The
transmission is automatically shifted from 1st gear up to 6th gear according
to the level of depression on the accelerator pedal
|
• | Do not abruptly drive off or sharply accelerate the vehicle immediately after shifting into “D” or the transmission will be damaged. Wait for D symbol to come in the cluster before pressing the accelerator pedal |
• | Even while the gear is in “D”, the vehicle can roll down an uphill according to the gradients, so you have to depress the brake |
• | Please note that the vehicle may creep forward on level ground when the selector lever is in “D” even without pressing the accelerator pedal and this behavior is known as forward creep |
|
To shift to manual mode move the lever in left
side
from “D” position. Driving gear can be adjusted by operating the shift
lever in front or back direction.
|
• | Before leaving the Driver’s seat always make sure that the shift lever is in the P (park) position |
• | Shifting into P position while the vehicle is in motion will cause the drive wheels to lock which will cause you to lose control of the vehicle |
• | Always fully depress the brake pedal before and while shifting out of the Drive (D) position into another position (other than M Mode) to avoid inadvertent motion of the vehicle |
• | The shift from D to M (Manual Mode) and M to D can be performed while the vehicle is moving |
• | Never press accelerator pedal when moving the gear shifter lever |
• | To maintain the required levels of vehicle performance and safety, the system may not execute certain gearshifts when the shift lever/ tip switch is operated |
• | Abruptly downshifting and using the engine brake may make the vehicle unstable, especially when driving on roads covered with snow or ice |
|
The Ignition Key cannot be removed from the key
barrel
unless the shift lever is in the P (Park) position.
|
|
|
• | Always start the engine while the selector lever is in “P”. For your safety, avoid starting the engine from “N” even though you can do so. |
• | Check whether or not the engine idling speed is normal. Keep the brake pedal depressed and shift into “D” or “R”. |
• | To move the vehicle, release the brake pedal and depress the accelerator pedal gradually. |
• | Do not abruptly drive off or sharply accelerate the engine after shifting into “D”. Otherwise the transmission will be damaged. Especially, when you start off after stopping, wait for a while until the “D” shift indicator comes on with the brake pedal depressed |
• | When driving on a down hill, never shift the selector lever to “N” If you try to shift the lever to “D” from “N”, a sudden gear engagement can damage the drive train |
• | HDC (Hill Descent Control) is designed for driving down a steep hill. When HDC is applied, do not shift to “N”. Otherwise, HDC will be deactivated |
• | For your safety, always depress the brake pedal before moving the gear selector lever with the vehicle stopped |
• | Never depress the accelerator pedal when moving the gear selector |
• | If you have to stop on a hill, depress the brake pedal fully |
• | To avoid any mechanical damages or accidents, never shift into “P” or “N” while the vehicle is in motion |
• | A high engine speed can cause your vehicle to move abruptly from the parked position. To avoid this, wait until the engine rpm becomes stable |
• | When you start off on a hill after stopping and parking the vehicle, wait for a while until the “D” shift indicator comes on, with the brake pedal depressed |
• | Do not press the accelerator pedal and the brake pedal at the same time |
• | We suggest that right leg only should be used for brake pedal operation |
• | Do not use the kick-down function while driving on slippery or sharply curved roads |
• | If you use the kick-down function too frequently, the fuel economy of the vehicle will get worse |
|
In an AWD vehicle, power is transmitted to all the
wheels.
This is managed by the AWD System which intelligently transfers
torque to all four wheels.
|
• | You can choose ZAP mode to experience a TRUE SUV drive, a drive that is true to the Mahindra SUV experience. This is the default mode. |
• | You can choose ZIP mode for a normal comfortable city drive. The Engine Power and shift points (in AT) will be suitable for traffic conditions. |
• | You can choose ZOOM Mode for the Adrenaline Rush. Engine Power, Gear shifts , Braking will all work together to give you an absolute THRILL to your driving experience. |
1. | Sensitivity of Accelerator pedal along with engine power delivery |
2. | Gear shift patterns |
3. | Steering effort |
4. | TCS Control |
1. | When in Cruise control or Adaptive cruise control Vehicle will always be defaulted to ZAP MODE |
2. | ON every IGNITION Cycle, vehicle will always start in ZAP MODE |
3. | IN case of any faults at vehicle level , that doesn't allow the vehicle to be in the mode of choice Customer is alerted by an alert message – “DRIVE MODE INHIBITED” in Infotainment screen and the Mode choice in the Cluster would be Blank. |
|
Engine Stop/Start system is activated by the
Engine
Stop/Start button in the driver side switch bank. The LED on the button
indicates the status of the button.
|
• | The vehicle has come to a halt at a traffic signal, is in the neutral gear and the clutch pedal is released |
• | The Engine Stop/Start lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period |
• | The Engine Stop/Start lamp will illuminate in the instrument cluster indicating the engine was stopped by the “Engine Stop/Start” System |
• | Once the signal turns green, press the clutch pedal and the engine starts immediately |
• | The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on |
• | Engine Stop/Start system is in active condition by default and should not be turned off using the selection switch |
• | Bonnet is fully closed |
• | In the current ignition cycle, the vehicle has crossed 7 kmph at least once |
• | Current status of the engine is idling |
• | Vehicle speed is zero |
• | Accelerator pedal and clutch pedal are fully released |
• | Vehicle battery should be in healthy condition |
• | Engine is warm (Engine coolant temperature is between 25 degree C and 100 degree C). This is an extra precaution to ensure safe working of the engine |
• | Fuel temperature is less than 60 degree C |
• | Gear in neutral |
• | DPF REGEN should not be in active state |
• | Vehicle should not have DEF error codes E14, E24 & E34l |
• | OBD and CHECK ENGINE telltale in OFF condition |
• | Vehicle should have been stopped by the Engine Stop/Start System |
• | Gear lever is in the neutral position, Clutch pedal is fully de-pressed |
• | Vehicle speed is zero |
• | Engine Stop/Start System is in active state |
• | Bonnet should be closed |
|
Engine Stop/Start system is activated by the
Engine
Stop/Start button in the driver side switch bank. The LED on the button
indicates the status of the button.
|
• | The vehicle has come to a halt at a traffic signal, is in the “D” Mode and the brake pedal is pressed |
• | The Engine Stop/Start lamp in the cluster will blink indicating that the engine is going to stop shortly. The engine will shut down automatically after a specific time period |
• | The Engine Stop/Start lamp will illuminate in the instrument cluster indicating the engine was stopped by the “Engine Stop/Start” System |
• | Once the signal turns green, release the brake pedal and the engine starts immediately |
• | The indicator in the cluster goes OFF indicating that the engine has started again and you are ready to drive on |
• | Engine Stop/Start system is in active condition by default and should not be turned off using the selection switch |
• | Bonnet is fully closed |
• | In the current ignition cycle, the vehicle has crossed 10 kmph at least once |
• | Current status of the engine is idling |
• | Vehicle speed is zero |
• | Brake pedal is fully pressed |
• | Vehicle battery should be in healthy condition |
• | Engine is warm (Engine coolant temperature is between 25 degree C and 100 degree C). This is an extra precaution to ensure safe working of the engine |
• | Fuel temperature is less than 60 degree C |
• | Gear shift Lever in ‘D’ mode |
• | Vehicle should not be in slope |
• | DPF REGEN should not be in active state |
• | Vehicle should not have DEF error codes E14, E24 & E34l |
• | AT Warning telltale in OFF condition |
• | OBD and CHECK ENGINE telltale in OFF condition |
• | Vehicle should have been stopped by the Engine Stop/Start System |
• | Gear lever is in ‘D’ mode and brake pedal is fully released |
• | Vehicle speed is zero |
• | Engine Stop/Start System is in active state |
• | Bonnet should be closed |
1. | What is the advantage of the system?
The Engine Stop/Start System aids in attaining
better
fuel efficiency on your vehicle and thus reducing your running costs.
However, the mileage improvement will depend upon various parameters such as
prevailing
traffic, driving patterns, etc.
|
2. | What are the other advantages of the system?
|
3. | Is it possible to start the engine through the
clutch
pedal for the first time?
No, the engine can be cranked only with the
ignition
key for the first time. If the engine is stopped automatically by the
system, only then it is possible to start the engine through clutch pedal in MT
|
4. | How to activate/deactivate the system?
The system is activated by default during every
ignition cycle. The LED indication on the Engine Stop/Start switch indicates
the status of the system. The system can be turned OFF or back ON using the
Engine
Stop/Start switch.
|
5. | Whether the system will get activated as soon
as the
engine is started the first time with the ignition key?
No, the Engine Stop/Start system can be activated
only
by the Engine Stop/Start switch, provided all listed conditions (in
the previous section) are met. This is to ensure better performance of the engine
in
terms of fuel economy and durability.
|
6. | What is to be done, if I don’t want the system
to
stop my engine at traffic signals/jams?
The system can be turned OFF by the Engine
Stop/Start
button in the central bezel switch bank.
|
7. | Whether the A/C will function, if the engine is
switched off?
No, the A/C will not work. However, the blower
will be
in operation when the ignition is ON.
|
8. | What will happen if I keep the clutch
continuously
pressed at traffic signals/jams?
The system will not stop the engine if the clutch
is
continuously pressed since it indicates the driver’s intention of moving
the vehicle immediately.
|
9. | When the battery charge is low, whether the
engine
will be switched off?
If the battery charge drops below a certain
threshold
level, the system will not stop the engine so as to preserve the battery
from further draining.
|
10. | Whether I will be able to operate the engine
with the
normal ignition key?
Yes, normal operation with the ignition key is
always
possible.
|
11. | Whether the vehicle will start (or) stop in
gear for
MT?
The vehicle will not start or stop automatically
in
gear to ensure safety. It will do so only in the neutral position of the
gear lever.
|
12. | Whether the system will stop my engine in
moving
traffic?
No, the engine will be stopped only when the
vehicle
speed is zero.
|
13. | Whether the audio system will be switched OFF,
when
the engine shuts down?
No, the audio system will not be switched OFF and
you
can continue to enjoy the music.
|
14. | Whether the engine will re-crank whenever the
clutch
pedal is pressed in MT?
No, when the engine is running, the starter motor
will
not attempt to re-crank.
|
15. | If any component involved in the system fails,
what
will happen?
The system has a built-in diagnostic module which
understands the failure and immediately goes to bypass mode. In the bypass
mode, the engine can be turned ON and OFF by ignition key as usual.
|
|
For
Diesel: Use
commercially available vehicular Ultra-low Sulfur Highway Diesel that meets the BIS
standard (IS 1460; 2017 BS VI specification
or equivalent). Information on diesel quality can normally be found in the fuel
pump.
|
1. | Front brake pad : The Front brake pads are equipped with Electronic Pad Wear Sensors, thus when the brake pads are worn out, the brake warning lamp on cluster will turn ON. Replace the brake pads as soon as possible |
2. | Rear Brake Pad : The rear brake pads are equipped with Mechanical Pad Wear Sensors, thus when the brake pads are worn out, there will be a metallic rubbing noise from the rear brake pads. Replace the brake pads as soon as possible |
|
When parking on an uphill, turn the front wheels
away
from the Kerb/Pavement
|
|
When parking on a downhill, turn the front wheels
towards the Kerb/Pavement.
|
|
To apply the parking brake, pull the park brake
lever
up as firmly as possible. When the parking brake is applied with the
ignition ON, the parking brake warning lamp in the instrument cluster
illuminates.
|
• | Engaging the parking brake while the vehicle is in motion can cause the rear wheels to lock up. You could lose control of the vehicle and cause an accident |
• | Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission in gear. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in personal injury |
• | Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could move the vehicle leading to accidents |
• | The parking brake should always be applied when the driver is not in the vehicle |
|
Park the vehicle in a safe place and pull up the
EPB
switch.
|
|
Press down the EPB switch with the brake pedal
depressed.
|
1. | Ignition is turned Off. |
2. | AT vehicle –gear shifted to Park |
3. | Auto Vehicle Hold (AVH) in Active state and Driver door open. |
4. | Auto Vehicle Hold (AVH) in Active state and Driver seat belt unbuckled. |
5. | Auto Vehicle Hold (AVH) in Active state and AVH switch pressed to release AVH Active state. |
6. | Auto Vehicle Hold (AVH) in active state continuously for more than 5 minutes |
7. | Auto vehicle hold (AVH) active and engine turned OFF by engine start stop feature |
1. | Stop the vehicle |
2. | Push and hold EPB switch in release position |
3. | Holding the EPB switch in released position, turn the ignition OFF |
4. | This prevents EPB from automatically getting applied |
• | Position TGS lever in neutral (N). |
• | Push and hold the EPB switch, simultaneously press and hold the start stop button (SSB) till ignition is turned OFF. |
• | This operation prevents EPB auto apply and EPB will be in disengaged state. |
1. | Close the driver door and fasten the driver seat belt. |
2. | Shift the gear selector lever to the D / M or R position |
3. | Release the brake pedal and then depress the accelerator pedal slowly. |
4. | The EPB is released automatically, thus enabling forward or backward movement of the vehicle. |
5. | The red Illumination on the EPB switch and the brake tell-tale on cluster is turned off, indicating that the parking brake is released. |
1. | Close the driver door and fasten the driver seat belt. |
2. | Shift the gear to forward or reverse gear. |
3. | Then slowly release the clutch pedal and depress the Accelerator pedal to drive away. |
4. | The EPB is released automatically, thus enabling forward or backward movement of the vehicle. |
5. | The red Illumination on the EPB switch and the brake tell-tale on cluster is turned off, indicating that the parking brake is released. |
|
This tell-tale is turned ON in the
cluster
when EPB is applied properly.
|
|
This tell-tale is turned ON in the
cluster
when there is a malfunction in the EPB system.
|
• | For EPB Auto release and Drive Away always wear driver seat belt and ensure that the driver door is closed |
• | In MT vehicles, drive away with clutch alone modulation not possible, thus always modulate the clutch pedal and accelerator pedal for effective drive away. |
• | If the EPB Malfunction lamp is ON and the brake is engaged. Do not drive. |
• | Avoid using EPB after doing water wading. Please get the vehicle checked in workshop. |
• | The EPB can also be used in cases of emergency braking. Release the accelerator and Pull and hold the EPB button until your vehicle comes to standstill and EPB gets applied. This should be done only in emergency condition and not as a regular action. |
• | The braking process is interrupted when the EPB button is released or the accelerator pedal is actuated in dynamic condition |
• | The EPB AUTO release function will not be activated when the driver door or the seat belt is not fastened. |
• | Motor noise can be heard during the EPB operation, this is normal behavior. |
• | If the EPB warning lamp stays on, have the vehicle serviced at a Mahindra Dealer or Mahindra Authorised Service Centre. |
• | Do not let children or other people who are not familiar with the EPB system operate the EPB switch. There is a danger of accidents depending on the parking/stationary state of the vehicle. |
• | If you hear noises or smell a burnt odor from the related components after using the EPB emergency mode, have the vehicle checked and serviced |
AVH Off – AVH switch is not pressed, thus AVH is
not
available.
|
|
|
AVH Standby – AVH is available but is in standby
mode.
|
|
AVH Active – AVH is available and is
controlling/holding the vehicle in standstill.
|
|
AVH Faulty – Indicates some fault in AVH,
because
of which AVH not available
|
• | Engine ON |
• | Driver door closed and Driver seat belt buckled. |
|
|
|
Press the AUTO HOLD switch with AUTO HOLD
activated to
deactivate the feature
|
1. | Pressing the AUTO HOLD switch turns on the AUTO HOLD indicator on cluster (white). |
2. | Depress the brake pedal while driving to stop the vehicle. |
3. | The color of AUTO HOLD indicator on the instrument cluster is changed from white to green and the brake is applied. |
4. | Slowly depress the accelerator pedal when driving off. |
5. | The color of AUTO HOLD indicator on the instrument cluster is changed from green to white and the brake is released. |
• | When driving off on a downhill by depressing the accelerator pedal, be careful as the vehicle can accelerate suddenly and on uphill sufficient accelerator pedal input to be provided for overcoming the gradient. |
• | Do not depress the accelerator pedal abruptly with the AUTO HOLD function is activated. Otherwise, the parking brake is released, and the vehicle can accelerate suddenly |
• | If the EPB warning lamp is turned on or there is a fault in the EPB system, have the vehicle checked and serviced at a Mahindra Dealer or Mahindra Authorised Service Centre. If parking the vehicle is required in an emergency, pull over the vehicle on a flat surface and chock the wheels after shifting the gear selector lever to the P position |
• | The Controlled Deceleration for parking is a safety feature. |
• | The CDP functions can be made used in any case such as Brake pedal/Brake Booster/Master Cylinder failure because of which sufficient brake force can’t be achieved through the brake pedal. |
• | In such conditions, pulling the EPB Switch triggers the ESP Control unit to generate a pressure build up in the brake system which produces the braking force at individual wheels to bring the vehicle to an emergency stop. |
• | For unintentional application, if the codriver or any other person pulls the EPB switch without driver’s notice in dynamic condition, The CDP function can be overridden by the driver by pressing Accelerator pedal. |
• | The CDP functionality having a high rate of deceleration, anyone other than the driver must be advised not to pull the EPB switch in any case while driving. |
• | The CDP function is a safety feature and must be used in the cases of emergency only. |
• | If the EPB system detects any rolling after EPB is applied, the motor on caliper re-clamps the disc to avoid any rolling. |
• | As an added feature, to avoid roll away due the reduction in clamp force due to decrease in temperature, the EPB motor on caliper re-clamps the disc multiple times based on the temperature. |
Display | Operating Conditions |
---|---|
|
This message is displayed on the Cluster
when
the EPB switch is released without depressing the brake pedal to
deactivate
EPB.
|
|
This message is displayed on the Cluster
in
the following conditions:
1. When the accelerator pedal is
depressed to
auto release EPB, with EPB Applied and driver door open/driver seat belt
unbuckled.
2. When the AVH switch is depressed to
activate AVH, with driver door open/driver seat belt unbuckled.
|
• | Ignition is ON |
• | Vehicle speed is greater than 60 kmph |
• | Panic/sudden brake is applied and high deceleration rate is sensed |
• | Driving on rough, gravel or snow-covered roads |
• | Driving with tyre chains installed |
• | Driving over the steps such as the joints on the road |
• | Driving on roads where the road surface is potholes or large differences in surface height |
|
Over-steer -
When the vehicle is turning more than appropriate for the steering wheel position.
Under-steer -
When the vehicle is turning less than appropriate for the steering wheel position.
|
|
In some driving conditions, to maximize traction,
it
may be beneficial to de-activate ESP.
|
• | To start in deep snow or on a loose surface |
• | Driving in deep sand |
• | Driving through deep mud etc. |
• | The HBA system cannot prevent collisions, the capabilities of an HBA equipped vehicle must never be exploited in a reckless or dangerous manner that could risk the user’s safety. |
• | The Safety of the vehicles always lies in the hands of the driver, never rely on the HBA feature to prevent accidents. |
|
This System assists the driver to descend a steep
slope by
means of brake intervention limiting the vehicle speed without
driver's input on brakes. This does not replace cruise control
|
• | SET Speed — This is the driver desired speed at which vehicle should descent. This can be set using HDC switch or brake/accelerator pedals.(example: when the driver activates HDC at a speed of 30 kmph, then set speed will be 30 kmph). HDC will limit vehicle descent speed to set value). |
• | If driver presses the accelerator pedal and increases the speed from 30 kmph to 34 kmph and then releases the accelerator pedal. Now the new SET speed will be 34 kmph |
• | Similarly, if the driver applies brake and reduces the speed from 30 kmph to 10 kmph and then releases the brake pedal, now the new SET speed will be 10 kmph |
• | If the vehicle cruise speed is with in the HDC active region, similarly the set speed can be modified using cruise +/- buttons (by tapping the “SET —” or “SET +” buttons. Each press of the button will adjust the speed by approximately 0.5 kmph) |
1. | The Vehicle must be equipped with HHC |
2. | The vehicle must be on sufficient gradient |
3. | The Parking brake must not be applied |
• | Vehicle Facing Uphill – Gear should be in Forward |
• | Vehicle Facing Downhill – Gear should be in Reverse |
• | In some situations, when the conditions are not met, the HHC may not get activated. In such cases slight rolling may occur. |
• | The Safety of the vehicles always lies in the hands of the driver, never rely on the HHC system to prevent rolling. |
• | The HFC system cannot prevent collisions, the capabilities of an HFC equipped vehicle must never be exploited in a reckless or dangerous manner that could jeopardize the user’s safety. |
• | The Safety of the vehicles always lies in the hands of the driver, never rely on the HFC feature to prevent road accidents. |
• | Many factors, such as vehicle loading, road conditions and driving conditions, influence the chance that wheel lift or rollover may occur. |
• | The ROM system cannot prevent all roll overs; thus ROM equipped vehicle must never be exploited in a reckless or dangerous manner which could jeopardize the user's safety or the safety of others. |
1. | Vehicle speed above 70kmph. |
2. | Accelerator Pedal must be pressed. |
3. | The Wipers must be in ON condition (Low/High Speed) |
• | The system will not be able to sense water splashed on disc from situations such as water wash or water puddles. |
• | It is suggested that the driver dry the brakes in the above said conditions by driving at very slow speed and applying the brakes lightly until the brake performance becomes normal. |
1. | There must be a front collision detected with a certain severity, where airbags gets deployed |
2. | The impact speed must be greater than approx. 10 km/h. |
3. | The brakes, the ESP and other required electrical systems remain functional after impact. |
4. | The accelerator pedal must not be actuated. |
• | The vehicle is stopped and the ignition switched off. |
• | The vehicle is stopped, the seat belt removed, and the driver's door opened. |
• | The vehicle is stopped for more than 15 minutes. |
|
This alert comes in the display of instrument
cluster when
the system detects the driver is quiet sleepy or very sleepy,
along with audible signal.
|
• | When the vehicle is driven continuously for more than 2 hours and if the system detects driver as “Quite Sleepy”, an alert message along with audio signal appears in the instrument cluster. Cluster will display the alert message till the user presses the “OK” button from steering wheel switch. |
• | After pressing the OK button, if break is not detected by the system for next 15 minutes, alert message will repeat again. If the drowsiness is continuously sensed and if the system detects driver as “Very Sleepy”, next level alert message & audio signal will be triggered along with steering wheel haptic feedback. |
Driver
Attention Level
|
Description
|
---|---|
|
Very Awake
|
|
Quite Awake
|
|
Neither Awake nor Sleepy
|
|
Quite Sleepy
|
|
Very Sleepy
|
• | The driving ability is always the driver's responsibility. Never drive if you feel tired. |
• | The system may not detect all cases where a break is needed. |
• | Therefore, take regular, sufficient breaks during long trips. |
• | There will be no system warning during the so-called micro-sleep. |
• | In some situations, the system can evaluate the steering behavior incorrectly and therefore falsely display a break recommendation. |
• | The system is designed primarily for use on highways. |
|
A: RADIAL TYRES OR BIAS-PLY TYRE
B: “TUBELESS” OR “TUBE TYPE”
C: TYRE SIZE
D: MAX. LOAD LIMIT
E: TREAD WEAR
|
• | 235/65 R17 103/104 V/H |
• | Optional P235/60 R18 103/104 V/H |
• | Temporary Spare Tyre T155/90 R18 113M |
SPEED SYMBOL | MAX. SPEED CAPABILITY |
---|---|
KM/HR | |
L
|
120
|
M
|
130
|
N
|
140
|
P
|
150
|
Q
|
160
|
R
|
170
|
S
|
180
|
T
|
190
|
U
|
200
|
H
|
210
|
V
|
240
|
W
|
270
|
Y
|
300
|
Z
|
240+
|
|
Tyre Label (Vehicle Placard) is located on the
driver
side inner B-pillar. This placard tells you important information about
tyre size designed for your vehicle, and the tyre inflation pressures for the
front
& rear tyres.
|
Regular Tyre | Temporary Tyre | |
Dynamic Rolling radius (mm)
|
358 +/- 5
|
358 +/- 5
|
• | Safety |
• | Economy |
• | Ride Comfort and Vehicle Stability |
• | Over or under inflation may reduce the tyre life |
• | Do not correct the tyre pressure immediately after the vehicle is stopped after operation, server handling or long distance drive. Check the inflation pressure when the vehicle is idle for 3 hours or 10 minutes of driving after 3 hours in idle condition |
• | Do not drive the vehicle with lower pressure than recommended, which may lead to over heating of sidewall resulting in tyre damage |
• | Check the tyre pressures once in a month or before long distance travels |
• | Check your tyres regularly for any damages or cut on the sidewall. Please replace the tyres immediately. |
• | Driving style |
• | Tyre pressure |
• | Distance driven |
|
Tyres on the front and rear axles of vehicles
operate
at different loads and perform different steering, handling, and braking
functions. For these reasons, they wear at unequal rates and develop irregular
wear
patterns.
|
|
Rotation will increase tread life, help to
maintain
mud, snow, and wet traction levels, and contribute to a smooth, quiet
ride. Follow the recommended tyre rotation frequency for your type of driving.
|
Regular
Tyre
|
Temporary
Tyre
|
|
|
• | Temporary Spare Wheel provided specifically designed for your vehicle. |
• | Do not use more than one Temporary Spare Wheel simultaneously. |
• | Drive the shortest possible distance with Temporary Spare Wheel. |
• | While using Temporary spare wheel reduce speed, Avoid sharp cornering, Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking. |
• | The vehicle becomes lower when driving with the Temporary Spare tyre compared to when driving with standard tyres. Be careful when driving over uneven road surfaces. |
• | Inflate the tyres as per manufacturers recommendation, refer Tyre pressure label on the door panel |
• | TPMS is not provided in temporary spare wheel |
• | Do not fit tyre chains to the Temporary
spare
tyre. Tyre chains may damage the vehicle body and adversely affect driving performance. |
• | Tyre to be loaded within the max allowable load limit specified by the load rating index marked on the tyre. |
• | Tyre to be operated with in the speed limit specified by the speed rating index marked on the tyre |
• | The tread depth of temporary tyre is lesser compared to regular tyre. Hence do not use the temporary tyre for longer distance than recommended. Repair & refit the regular tyre as soon as possible. |
• | Recommended to drive Max 50 km in a stretch or reach nearest Mahindra authorised dealer |
• | Adequate braking |
• | Road grip |
• | Vehicle handling |
• | Vehicle maneuvering |
• | Reduced tyre wear and tear |
• | Reduced tyre strain and safety |
• | Good fuel efficiency |
|
|
|
First apply lubricant (paste) or soapy water to
rim
hole or valve nozzle bar, as shown in the following figure (the diagram
is for reference only, and it is operated according to the degree of automation
of the
customer's production line)
|
|
|
1. | Line the sensor up with the rim hole and attach the TTV insertion tool to the end of the valve ready for pull in |
2. | Ensure the TTV insertion tool is positioned to the correct notch and that the sensor is pulled through in a direction parallel to the valve whole axis and NOT at an angle to it |
3. | The picture below shows a correctly fitted sensor. Note the rubber bulb of the valve resting against the rim and the front face of the enclosure is NOT touching the rim. Apply tyre soap solution to the rubber portion of the valve stem and the top of the enclosure |
4. | Place the inner tyre bead over the rim |
5. | Place the outer tyre bead over the rim |
6. | Inflate all tyres to the prescribed pressure, check the valve area for leakage and re-balance the wheels prior to installing back on the vehicle |
|
|
• | Remove the tread and ensure that the extractor
forceps is inserted into the tyre at the yellow position shown below and turn
the rim clockwise.
|
• | To remove the sensor, firstly remove the screw
using
a T6 TORX screwdriver.
|
|
|
• | Cut the rubber bulb and attach the TTV tool to the valve. Remove the valve from the rim by pulling through the rim, or simply pull through without cutting the bulb |
• | Lift the outer tyre bead over the rim using a tyre tool |
• | Lift the inner tyre bead over the rim using the tyre tool |
• | Remove existing valve stem |
• | Low Pressure Alert |
• | High Pressure Alert |
• | High Temperature Alert |
• | Pressure Leakage Alert |
• | Sensor Signal Missing (Communication error) |
• | Tiretronics Sensor Faulty. |
• | Tyre Auto Learn |
• | Tyre Fill Assist (TFA) |
• | Tyre Pressure Imbalance |
|
Low pressure monitoring is to indicate low tyre
pressure. Please note the following points.
|
• | Low pressure alert will be set only when the tyre pressure value goes below threshold. Low pressure will be set based on the temperature value. |
• | Low pressure alert in the main alert screen will pop up once for driver notification when the alert is set and the vehicle is in running condition. Otherwise the alert will remain in the information screen and alert register screen |
• | If low pressure is observed, respective tyre should be rectified with cause of low pressure and then fill air |
• | Once low pressure alert is set with tyre pressure below threshold the alert shall not be cleared until the pressure is filled to the placard value |
|
High pressure monitoring is to indicate high
pressure
alert. Please note the following points.
|
• | High pressure alert will be set only when the tyre pressure value goes above threshold |
• | High pressure alert in the main alert screen will pop up once for driver notification when the alert is set and the vehicle is in running condition. Otherwise the alert will remain in the tiretronics screen |
• | If high pressure value is observed, air has to be released from the respective tyre until the pressure reduces to the placard value |
• | The vehicle should be driven above 40 kmph for the new pressure value to be updated and the alert to be cleared |
• | Once the high pressure alert is triggered the alert shall not get cleared until the respective tyre pressure is reaches to the placard value |
|
Pressure leakage monitoring is to indicate
pressure
leakage in any of the vehicle tyres. Please note the following points.
|
• | Pressure Leakage alert will be set only when the tyre pressure is leaking at a rate greater than defined threshold |
• | In the pressure leakage condition if the tyre pressure goes too below threshold then the low pressure alert will also be set |
• | The pressure leakage alert in the main alert screen will pop up once when the alert is set for driver notification and will be shown in tiretronics screen when the vehicle is in running /ignition ON condition |
• | Once pressure leakage is observed the respective tyre should be observed for air leakages and the puncture condition has to be rectified. Proper placard value should be filled after puncture rectification |
• | If the vehicle is running in an extremely rocky and acute bumpy condition then fluctuating pressure leakage alert may get set which will get rectified when the vehicle runs back on a normal road. This happens due to sudden change in pressure levels due to rocky conditions |
|
When the vehicle runs in speed above 40kmph,
Tiretronics system receives signal from all the Tiretronics sensor installed
in all running tyres.
|
• | On account of any issue in signal reception or Tiretronics sensor damage or tyres changed with out performing manual learning then the signal will not be received |
• | If the Signals from the tiretronics sensor are not received atleast once, when the vehicle is driven at a speed greater than 40kmph for more than 10 minutes, "Signal Missing" alert will be set for the respective tyre and Tiretronics Telltale will be ON. |
• | When the Tiretronics signal missing is set then perform manual learning once. If manual learning is not done successfully then the corresponding position tyres sensor needs to be checked by carefully opening the tyre |
• | If the sensor is found to be damaged then it should be replaced with a new one and manual/auto learning should be done |
• | If the Tiretronics sensor low battery/faulty is set then the corresponding position tyres sensor needs to be removed by carefully opening the tyre and replacing it with a new sensor |
• | Post replacing the new sensor, manual/auto learning should be done |
|
|
|
During Air Filling in tyre, Hazard lamps shall
blink
until placard value reaches.
During air filling If tyre Pressure has reached
the
Placard Value, then Horn shall activate one time
|
|
During driving if the system identifies tyre
Pressure
imbalance on front two tyres / Rear two tyres then Instrument Cluster
shall popup Tyre Pressure imbalance warning.
|
|
|
1. | Manual learning should be compulsorily
performed on
any of the following conditions or operations done
|
2. | Once manual learning is initiated, the sensors inside the tyres need to be triggered by leaking the air from each tyre one at a time and should be completed within certain value post to each event for learning all 4 tyres |
3. | Do not perform Manual learning process at the same time on two vehicles with in the radius of 20 meters |
4. | It is mandatory that manual learning of tyres should follow the sequence of ‘front left tyre position, front right tyre, rear right tyre and rear left tyre. |
5. | It is required to ensure the tyres have pressure > 32psi and < 36psi before initiating the manual learning process |
6. | Post manual learning, all tyres should be filled to the placard pressure value |
|
1. Turn the ignition OFF. Press and hold the up
button
in steering wheel
2. Turn the ignition ON
|
• | Try initiating the manual learning once again |
• | Check if the reverse gear is engaged, if it is engaged disengage it |
• | Check if the Enter button is working fine |
|
Starting from
Front
Left Tyre: Start leaking the air from the front left for 30 to 40 sec
and
stop for 5 sec. Repeat until the tyre gets learnt
|
|
Learning the
Front
Right Tyre: Start leaking the air from the front right for 30 to 40 sec
and
stop for 5 sec. Repeat until the tyre gets learnt.
|
|
Learning the
Rear
Right Tyre: Start leaking the air from the rear right for 30 to 40 sec
and
stop for 5 sec. Repeat until the tyre gets learnt.
|
|
Completing
the
Learning with Rear Left Tyre: Start leaking the air from the rear left
tyre
for 30 to 40 sec and stop for 5 sec. Repeat until the tyre gets learnt.
|
|
If rear left tyre is also learned, then 1 siren
chirp
is heard and ALL tyres show learned at respective tyre positions and
‘All tyres Learned successfully’ in the centre of the screen.
|
|
If learning is not successful at any point of
time, or
at any point of time during the learning process if the learning takes
more than 90 secs of time for each tyre position then the system shall exit the
learning mode and show the ‘TPMS Manual Learning
Not Successful’ screen.
|
• | The Tiretronics monitors only tyre pressure and temperature. It does not monitor conditions such as tyre wear |
• | The Tiretronics will not be able to detect an instant tyre burst and inform the driver in advance |
• | There may be the possibility of getting all the tyre location indicators on the Tiretronics display blinking along with the Tiretronics telltale, on passing environment area prone to heavy power lines and RF signal. It will come back to normal condition when interference gets cleared |
• | It is recommended to fill the pressure to 32 psi at a digital gauge station only |
• | Every 15 days, inflate all the tyres up to 32 psi and inflation should be done at cold condition/ambient temperature |
• | Pressure deviation between the Tiretronics
display
and gauge will depend upon the following factors:
|
• | Tiretronics measures pressure of the tyre |
• | Pressure deviation is defined for 0.5 psi (min) and 3 psi (max) |
• | If the vehicle battery/fuse is disconnected and reconnected, it will update the pressure after the vehicle is driven or sensor is activated |
• | If the vehicle tyres are rotated or any of the tyres sensors are replaced, then tires have to be learned via either manual or auto learning. Refer Tyre Auto/Manual learn process in Tiretronics section for more details |
• | If more than one tyre needs to be learned, learn all 4 tyres as per manual learning procedure |
• | Tiretronics is only a warning or indicating device. Pressure and temperature values displayed by the system is for indication prior to alert purposes only. The Tiretronics system should not be used as a measuring device to correlate or calibrate against other systems |
• | During winter or in cold conditions, there may be chances of getting a pressure alert with the corresponding tyre location indicator in the display, if the tyre pressure is near the thresholds level. i.e. between 28 psi to 24 psi. However, this alert will get cleared after driving a few kilometers depending upon the climatic condition |
Ambient Temp. (Deg C)
|
Recommended Pressure Front & Rear
(32 Psi
Placard)
|
<0
|
28
|
10
|
29
|
20
|
31
|
30
|
32
|
40
|
34
|
50
|
35
|
60
|
37
|
70
|
38
|
RPAS
Sensors
|
|
|
Two RPAS sensors are located at the rear bumper to
assist
driver for hassle-free parking.
|
• | RPAS is an aiding system. Under no circumstances mahindra will accept any responsibility or can be held liable for any direct or indirect, incidental or consequential damage caused by this system |
• | System will not sense pot holes, trenches or drainages which are below the ground level |
• | Applying paint over the sensor will affect the performance of the system |
• | The vehicle should be in IGN ON state to activate the reverse parking assistance system |
• | RPAS will be activated automatically when reverse gear is engaged and deactivate when reverse gear is disengaged |
• | When the obstacles come in the sensing range, the systems starts giving the indication based on the distance and direction of the obstacles as defined in the detecting zones. The closer the obstacles, more display bars illuminate & frequency of beeps increases. |
|
RPAS display on the instrument cluster gives the
following information:
|
• | Right zone indicates obstacle on right side |
• | If obstacle is in centre then both left & Right zone will get highlight |
|
2. Change the gear to reverse (engage the reverse
gear).The RPAS will be displayed as like below in the Instrument cluster.
|
|
4. Display bars in the respective direction will
glow
according to obstacles in its path
|
|
6. The RPAS distance displayed will be the
minimum of
distances sensed by left and right sensors. And 120 cm is the maximum
detection range.
|
• | Obstacle at left at 70 cm |
• | Obstacle at right at 101 cm |
|
Since obstacle is at 70 cm in left - minimum
distance
is shown in the distance indicator.
|
|
1. If display bars in any one of the sides are
displayed with cross marks, contact an Mahindra Authorised Dealer
|
|
2. If all display bars are displayed with cross
marks,
contact an Mahindra Authorised Dealer.
|
|
3. Obstacle in the blind zone cannot be sensed by
the
system.
|
|
4. Please check the condition of the obstacle
behind
your vehicle before reversing. In some cases, the display may be not
as same as reality due to the installed sensor level, obstacle shape and
reflection
condition.
|
|
5. Point B will be detected sooner or later, but
A may
not be detected at all.3. Point B will be detected sooner or later,
but A may not be detected at all.
|
|
6. Not all obstacles are detected from 120 cm.
For
instance, a person is detected from 75 cm because of the weak reflection
or absorption of the waves of the clothes.
|
|
7. The distance indication may move up and down
due to
different sizes of the obstacle at different positions.
|
|
8. Though the obstacle is in the sensing zone,
obstacle
may not be detected since the ultrasonic waves are not reflected back
to the sensor.
|
|
9. The obstacle of a conical shape may not be
detected,
since the ultrasonic waves get deflected away.
|
• | System may not sense obstacles like wire mesh, handrail, small objects which are below the bumper level |
• | System may not sense obstacles with cotton or spongy surface, which will absorb ultrasonic waves emitted by RPAS |
• | System performance is dependent on the reflection angle of the obstacle |
• | System may give false alert without obstacles while reversing the vehicle on grasslands, gravels and bumpy roads considering it to be an obstacle |
• | System may alert you by sensing the ground when the bumper is not fitted in its intended position or when the vehicle is overloaded |
• | System may give false signal while the vehicle moves from plain ground to a slope terrain and vice versa |
• | System may give false signal by sensing the ground when the bumper is tilted more from the normal position or when the vehicle is heavily overloaded |
• | System may give false signal an alarm during heavy rain, snow and heavy wind conditions |
• | The
shape
of the obstacle may prevent a sensor from detecting it. Some obstacles
for
example as follows:
|
• | Depending upon the shape of the obstacle and other environmental factors, the detection distance may shorten or detection may be impossible |
• | Obstacles may not be detected if they are too close to the sensor |
• | Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once |
• | Because of other ultrasonic sources, sensor may give false alarm for e.g., sweeping machines, high pressure steam cleaners and neon lights |
• | Due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves, the vicinity of the vehicle is noisy. It may cause sensor to give false alarm |
|
Rear View Camera is located under tail gate
applique.
Rear View Camera assists the driver while reversing
&
manoeuvring the Car at lower speeds. It has the following features:
|
1. | Normal View |
2. | Zoom-in View |
3. | Full View |
4. | Merged Corner View |
5. | Left Corner View |
6. | Right Corner View |
7. | Static & Dynamic Guidelines |
8. | Parking assistance
|
|
It overcomes limitation of IRVM, where ground is
visible only after a distance from vehicle rear. Whereas with the RVC, the
ground will be visible right after 15 cm to 30 cm from Vehicle’s Rear
|

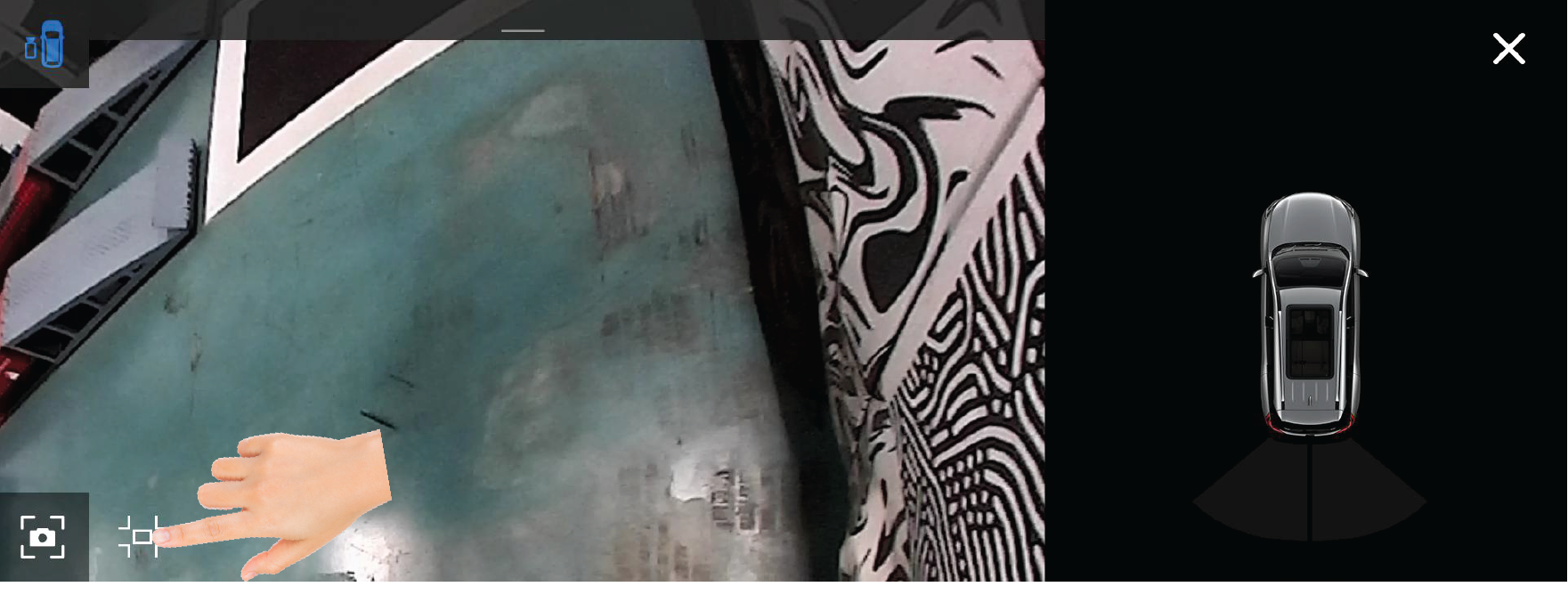

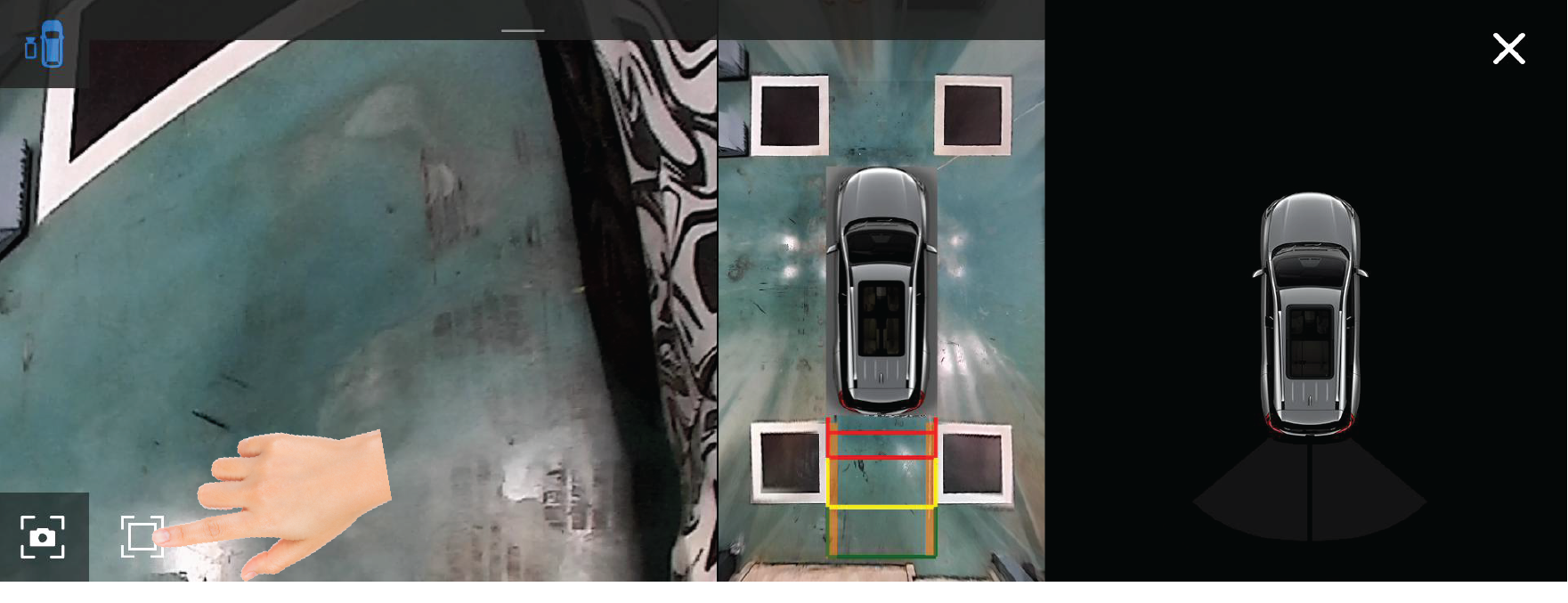

2. Zoom-In
View
|
Press Zoom-In button to view objects closer and
press
Zoom-Out button to go back to the normal parking view.
|
3. Full
View/Wider
View
|
By selecting Full View Icon Rear View camera
provides
about 170 deg horizontal wide rear view of vehicle's rear surrounding
on the Infotainment screen.
|

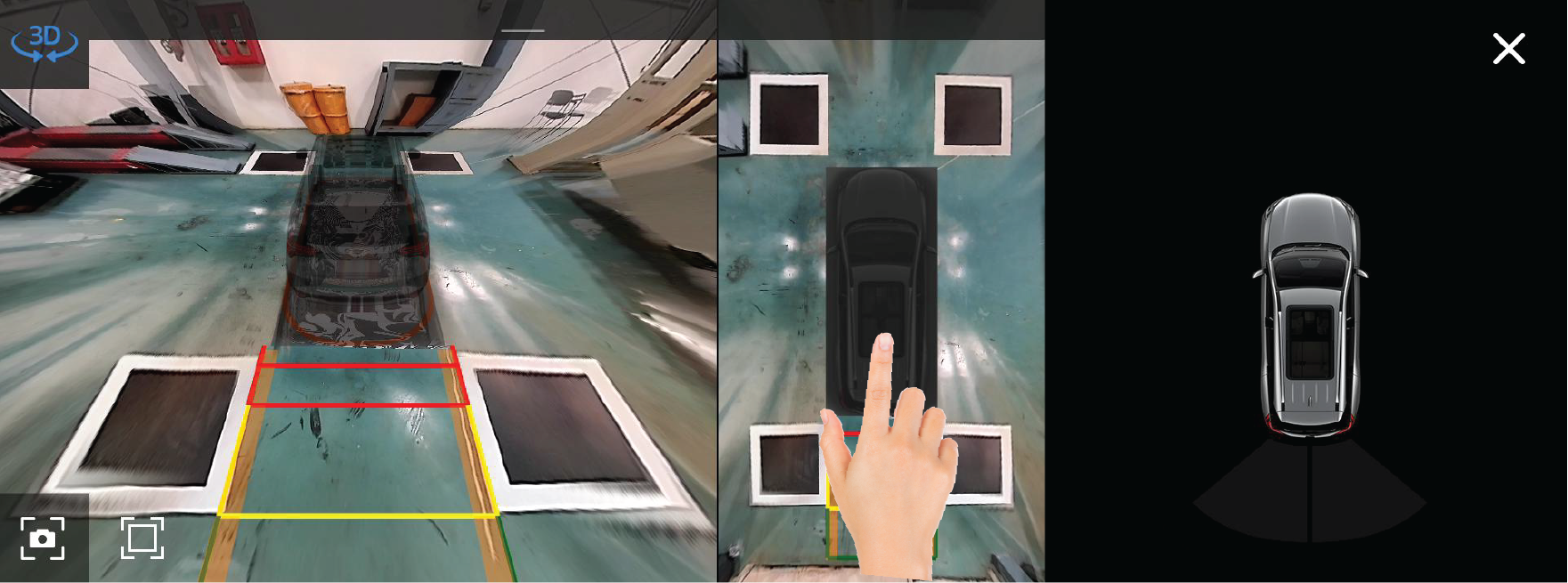

4. Merged
Corner
View
|
By selecting Merged Corner Rear View camera
provides a
wide view focussed on the left and right corners to provide a better
visibility of crossing traffic for safe manouvre.
|
5. Left
Corner
View
|
If user wants to focus on the left side crossing
traffic, then "Left Corner View" icon can be pressed to select the view.
|
6. Right
Corner
View
|
If user wants to focus on the left side crossing
traffic, then "Left Corner View" icon can be pressed to select the view.
|
|

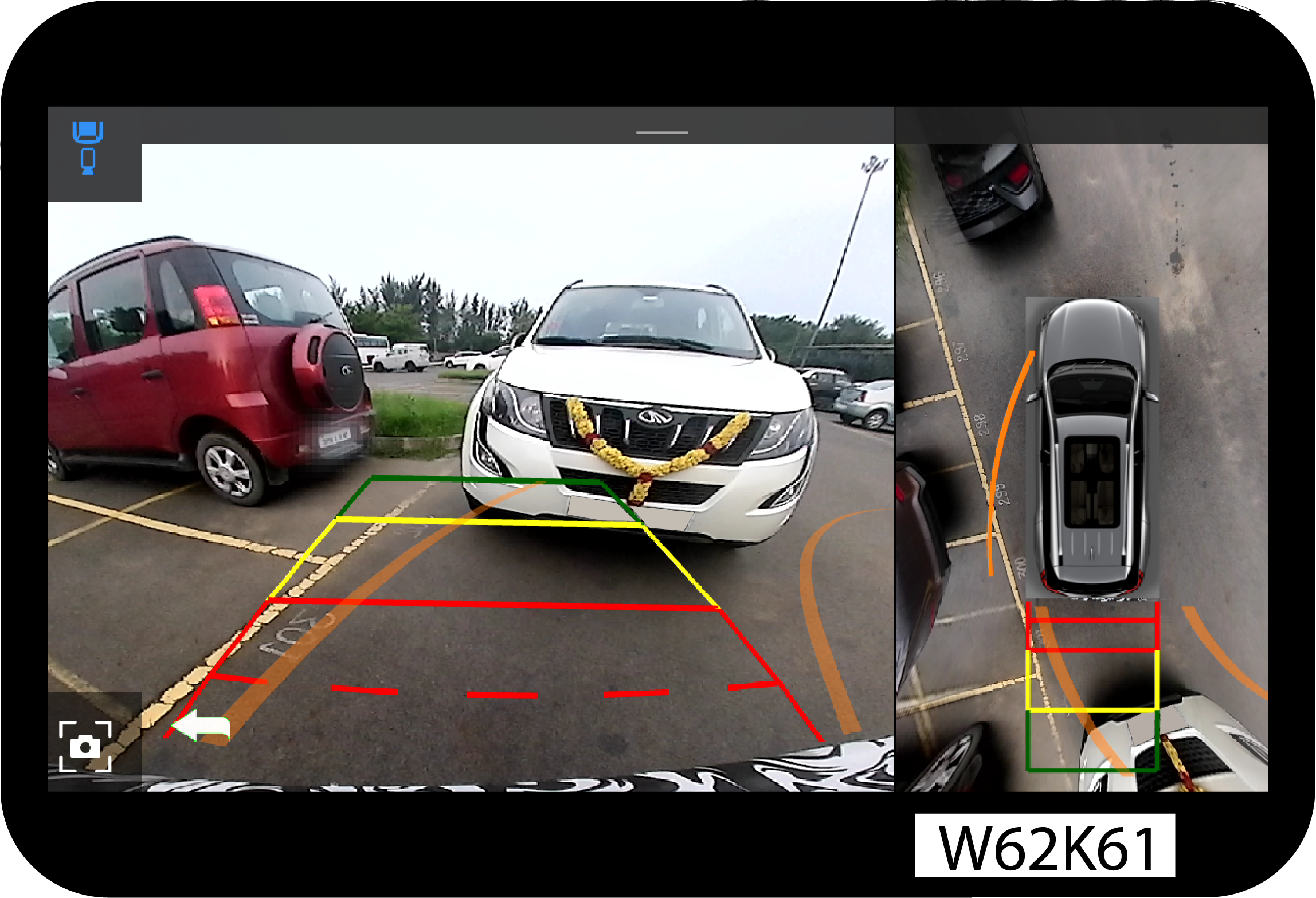

Dynamic
Guidelines (orange color in below image) indicate path, the vehicle
will
traverse with current steering position. As per the steering
angle movement, dynamic guidelines move and show the vehicle predicted moving
direction
to help the driver.
|

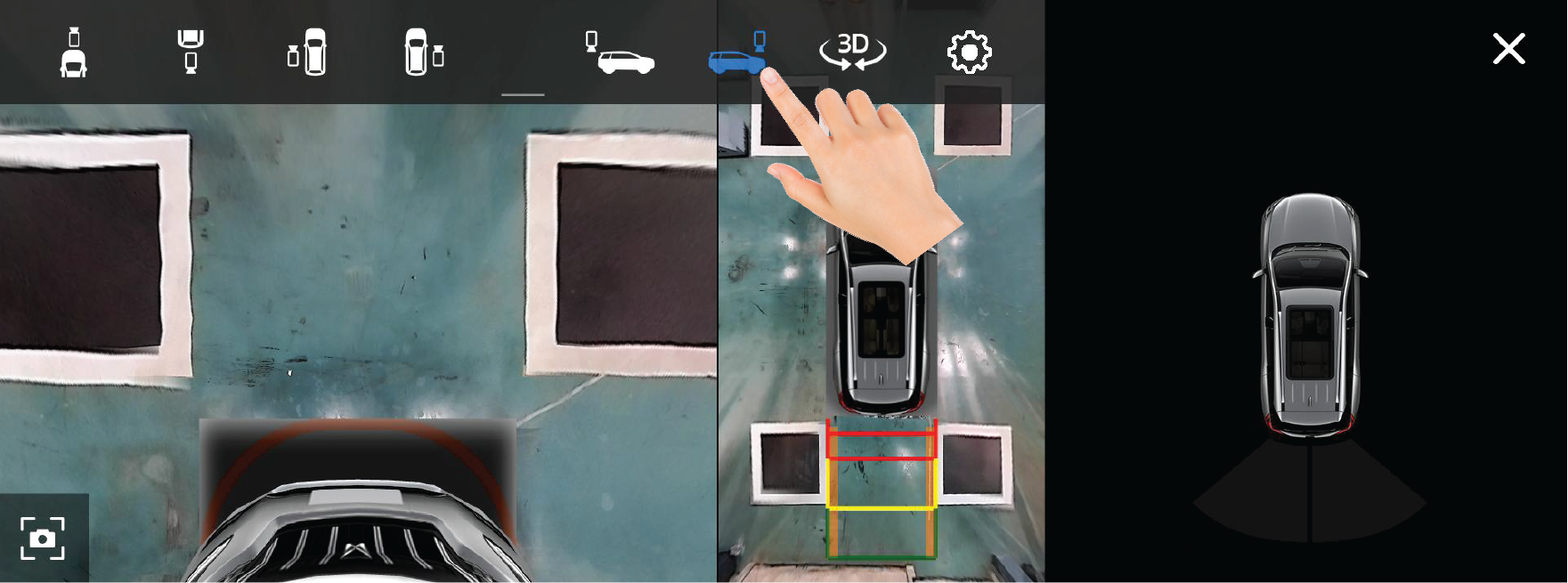

A. Selecting
Parking Slot
|
Drive ahead of the parking slot, until it is
fully
visible. Now select “Parallel Parking”
Icon from infotainment. After selection,
Infotainment
displays below screen image1.
|
B. Setting
the
steering angle:
|
Drive the vehicle Forward or Backward and ensure
the
greenish -blue rectangle [consider right rectangle if parking image
slot is on right side and consider left rectangle if parking slot is on left
side], is
placed in the parking slot. Make sure
obstacles are not present
|
• | Now start turning the steering wheel towards the direction in which parking slot is present. A shorter rectangle box will appear which will change the color according to the steering position. |
|
When the box is green(image 2), stop turning the
steering wheel and hold the position.
|
C. Complete
Parking
|
With current steering position, start moving the
vehicle backward. An orange arc line will appear. When the orange arc (image
3)touches the parking slot end position, stop the vehicle
|
• | Now rotate the steering wheel to maximum in the opposite direction. Arc is then replaced by dynamic and static parking line. Continue backing the vehicle with the help of dynamic guideline. |
|
|
Selecting
Parking
Slot
|
Drive ahead of the parking slot, until it is
fully
visible. Now select “Vertical
|
|
Turn steering wheel to the maximum position,
towards
direction of the parking slot. Pink/ blue overlay disappears, and the
dynamic and static overlay appears on the screen as shows in the image.
|
|
You can also view vehicle’s rear surrounding, by
selecting Rear View Camera option present on Infotainment Screen, irrespective
of the gear position.
|
• | If the driver is not in Parallel or Vertical Parking mode and Infotainment has entered ‘RVC Mode’ by reverse gear option, then RVC mode exits when reverse gear is disengaged |
• | If the driver is not in Parallel or Vertical Parking mode and Infotainment has entered ‘RVC Mode’, due to “Rear View Camera” selection present on the Infotainment, then RVC mode can be exited, by selecting the Cancel button appearing on the screen |
• | Irrespective of RVC entry conditions, when Parallel or Vertical Parking Mode is active, driver can exit the RVC Mode using Cancel button that appears, whenever vehicle is in forward gear |
• | RVC Mode is exited, whenever vehicle is in forward gear and vehicle speed exceeds 20 kmph. |
• | When ignition is off. |
• | In case of any RVC-related issues, the Infotainment displays ‘ Please Contact Service Centre’ and vehicle needs to be taken to the Service Centre. Avoid using the Rear-View Camera under these circumstances. |
• | If rear of your vehicle is damaged or if the Camera position is changed, please contact the nearest Mahindra Authorised Service Center immediately. |
• | Rear view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C) |
• | Under certain circumstances given below, the rear view camera system will work with limitation or will not function fully: |
• | If the rear of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Mahindra Authorised Service Center |
• | Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid rear view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle |
• | The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera |
• | Images shown on the display is a mirror-inverted manner, as like the rearview mirror. Make sure that no persons or animals or any objects/materials are in the manoeuvring area. Pay attention and ensure safety before manoeuvring the car. Driver is legally responsible for their car |
• | The rear view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately |
• | Avoid using of rear view camera, if you are having eye colour blindness or impaired colour vision |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car |
• | It is driver’s responsibility to identify the suitable parking area to park car safely |
• | Rear view video is shown, whenever reverse gear is applied, but it cannot be used as a rear view monitoring system, which cannot replace the driver for looking into exterior and interior view mirrors |
• | Under inflated tyre(s) on any wheel(s) |
• | Uneven vehicle loading |
• | High crown in the centre of the road |
• | High crosswinds |
• | Wheels out of alignment |
• | Wheels out of balance |
• | Loose or worn suspension components |
|
The steering wheel can be adjusted for both rake
and
reach as required using the lever in the steering shroud under the steering
wheel.
|
|
1. Pull the tilt lever down to unlock.
2. Raise or lower the steering wheel to the
desired
position.
|
A: Mute
|
E: Source
|
B: Volume +
|
F: SEEK UP
|
C: Volume -
|
G: SEEK DOWN
|
D: Call Connect
|
H: Voice / Call Disconnect
|

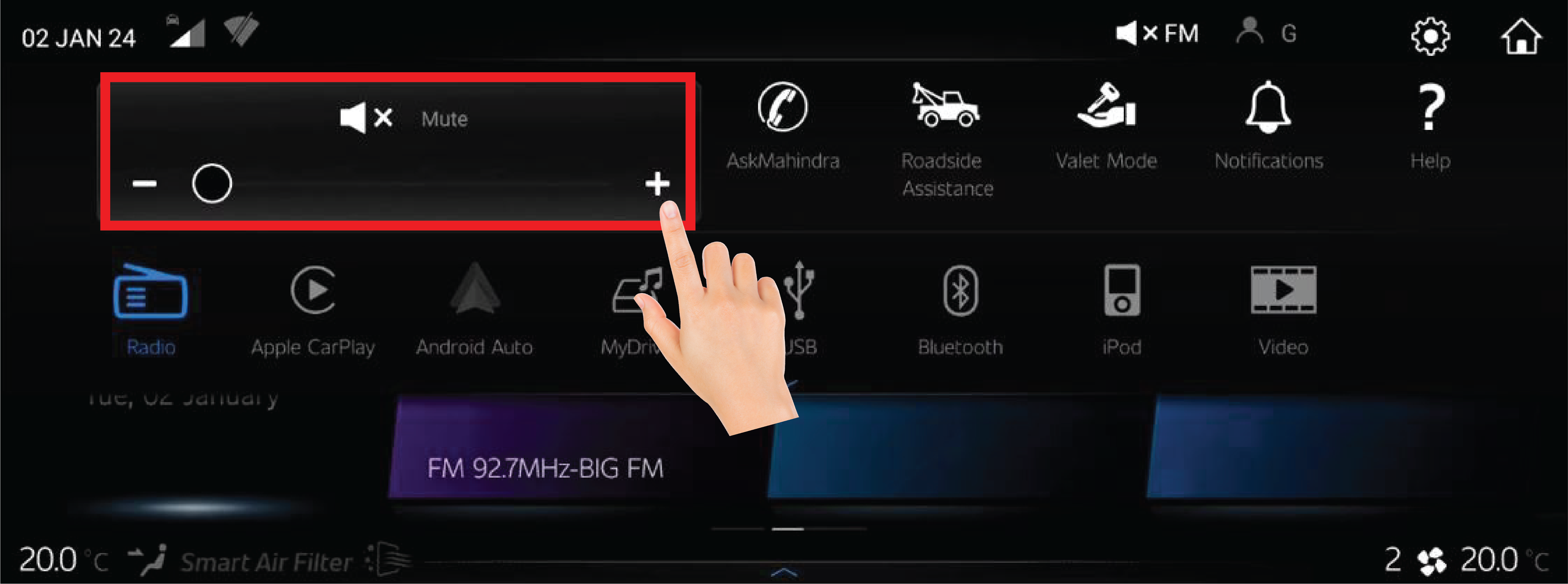

• | Mute - Press MUTE button to mute the audio playing in Infotainment while in TUNER mode and pause the song while in USB mode |
• | Volume Control - Press ‘+’ and ‘- button to increase or decrease the volume |
• | Call Connect - Press to accept the incoming call to paired the BT phone to enable the driver to open the contact list in infotainment and make the call |
• | Source - Press SOURCE button to toggle between TUNER, USB, BT AUDIO and MYDRIVE |
• | Seek UP/Down - Press the seek UP/DOWN button can be used for toggling UP/DOWN the menu list of Infotainment. |
• | Call Dis Connect - Press to reject or end active call to the paired BT phone. |
|
|
A
|
CRUISE ON/OFF
|
D
|
CRUISE RESUME
|
B
|
SET +
|
E
|
CLUSTER MENU/MODE
|
C
|
SET –
|
• | The vehicle is cruising above 20kmph - MT / 35kmph - AT |
• | Engine RPM above 1200 RPM |
• | Vehicle is in any gear except 1st and reverse |
• | Clutch pedal released. |
• | Brake pedal released. |
• | Cruise is enabled by pressing ON/OFF button |
• | Cruise is activated first time in an ignition cycle by SET + / SET - button |
• | Subsequent cruise engagements can be done by RESUME SET+ /SET- buttons in the same ignition cycle |
• | CRUISE OFF button is pressed |
• | Brake or clutch pedal depressed |
• | If the vehicle speed exceeds the cruise set speed by 20kmph - MT / 35kmph - AT by accelerator pedal intervention |
• | If vehicle speed is increased by 10 kmph for more than 30 seconds by pressing the accelerator pedal |
• | When Set+/Set- switch is pressed for more than 12 seconds (In this case, vehicle will not go into cruise mode in that ignition cycle. In order to restore the cruise function, switch OFF the ignition, wait for 30 seconds and switch ON the ignition) |
• | Cruise influencing error indicated by Check Engine Lamp, OBD lamp, etc. |
• | Press the CRUISE OFF button in the steering wheel |
• | Press the brake pedal |
• | Gear selector moved into neutral |
• | HDC or ESP becomes active |
1. | Assume, you have activated cruise mode and set the vehicle speed at 50 kmph. |
2. | Due to an obstacle or a sharp turn, you have deactivated the cruise mode either by pressing the brake pedal or by switching OFF the CRUISE control. |
3. | Vehicle comes out of the cruise mode. |
4. | When the road condition is suitable to switch over back to cruise control mode, press RESUME button once. The system activates the cruise control mode to the previous cruising speed of 50 kmph. |
5. | To resume the previous cruise set speed, the vehicle speed should be above 20kmph - MT / 35kmph - AT. |
|
The ADAS system gives enormous benefits to driver,
however
the driver shall remain solely responsible for the safe maneuvering
of the car. He must remain vigilant throughout the drive.
|
1
|
Adaptive Cruise Control (ACC)
|
2
|

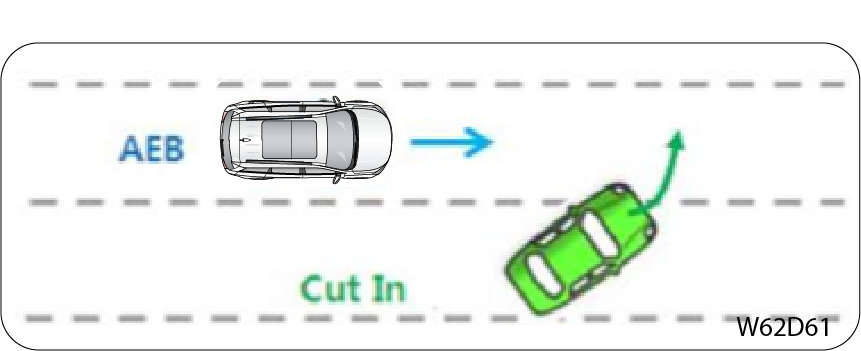

Collision mitigation System (AEB/FCW)
|
3
|
High Beam Assist (HBA)
|
4
|
Traffic Sign Recognition (TSR)
|
5
|
Lane Keep Assist System (LKA/LDW)
|
6
|
Smart Pilot Assist (SPA)
|
|
Camera
Maintenance
To avoid incorrect, partial or disabled ADAS
functionality due to Camera sensor failure, following points to be taken care
of.
|
• | The outer area of the windshield must be cleaned regularly and to be kept free of dirt, oil, ice, water drops etc. |
• | If there is condensation in the inner side of windshield in front of Camera, use the de-mister to clear it. |
• | If there is any other dirt in the inner side of windshield in front of Camera, contact Mahindra Service Centre for cleaning. |
• | Stickers, window tinting, electronic toll devices or similar objects should not be attached on the windshield in front of camera. |
• | If the Camera needs to be removed or replaced, contact Mahindra Service Centre only. |
• | If the windshield portion in front of camera has any cracks/scratches/stone chips, it should be taken to Mahindra Service Centre for complete windshield replacement. |
• | If the vehicle met with any accident or impact, particularly for the front side, contact Mahindra Service Centre to check for any damage / calibration errors in the Camera. |
• | In case any modification to be done for Camera, beauty cover, Inside Rear View Mirror or Ceiling, contact Mahindra Service Centre. |
• | Any external object/accessories should not be installed on the hood area as it may affect the Camera’s field of view. |
• | Ensure that flag post on the bonnet is not blocking the camera view. |
• | The head lamps should not be modified and in case of head lamp replacement, head lamp aiming should be by Mahindra Service Centre only |
• | If the Windshield or Camera is replaced, the Camera must be recalibrated at Authorised Mahindra Service Centre only. |
• | The Radar surface and bumper area in front of radar must be cleaned regularly and to be kept free of dirt, oil, ice, water etc. |
• | Any external object should not be installed on the front grill or front bumper area as it may affect Radar’s performance. |
• | Ensure that the number plate is not blocking the radar sensor. |
• | Avoid any kind of customization to the front bumper and Radar like attaching stickers, installing flags or metallic objects, painting etc. |
• | If the vehicle met with any accident or impact, particularly for the front side, contact Mahindra Service Centre to check for any damage to the Radar unit. |
• | If the Radar sensor needs to be removed or replaced, contact Mahindra Service Centre only. |
• | If any rework done on front bumper or Radar, the Radar must be recalibrated by Authorised Mahindra Service Center only. |
• | ACC is an aid to assist the driver. It is not a collision avoidance system. |
• | Always drive carefully and attentively when using the ACC system. Read and understand the Owner’s Manual thoroughly before using the system. |
• | ACC is designed to be a supplementary driving aid. It is not, however, intended to replace the driver's attention and judgement. The driver is responsible for observing all traffic and safety rules, including maintenance of safe distance and speed and must intervene if Adaptive Cruise Control does not maintain a suitable speed or suitable distance to the vehicle ahead |
• | It is the driver’s responsibility to stay alert and to be in control of the vehicle at all times. |
• | Improper use of ACC can lead to a crash. |
• | ACC has limited braking capability and may not stop the vehicle in time to avoid a collision, if the front preceding vehicle decelerates quickly or a new vehicle cuts-in front always be prepared to apply brake. |
• | Failure to follow the alerts and instructions for proper use of system could result in serious injury. |
• | Always observe posted speed limits and do not set the speed over them. |
• | Use ACC in appropriate roads with proper lane marking and sign boards. |
• | Do not use ACC in busy areas where multiple road users cross the vehicles intended path. |
• | When two wheeler cuts out, ACC may not be able to identify the vehicle in front of two-wheeler. |
• | ACC may not be able to stop behind stopped vehicles. |
• | ACC may not be always able to follow two wheeler. |
|
The ACC switches on the steering wheel consists
of five
switches which are used for ACC Operation.
|
• | To Toggle between ACC ON and OFF |
• | To set desired speed |
• | To increase Set speed when ACC is active |
• | To select the time gap to the front preceding vehicle between Level 4 to Level 1. |
• | To set desired speed |
• | To decrease Set speed when ACC is active |
• | To resume ACC to previous Set Speed. |
|
Display
|
---|---|
|
ACC Indicator
|
|
Set Speed
|
|
Time Gap
|
|
front preceding vehicle Indicator
|
|
Press CRUISE switch to activate ACC feature. This
turns
ACC to Standby Mode.
|
|
|
|
|
• | The vehicle will not maintain previous set speed or previous time gap to the vehicle ahead. |
• | Press the ON/OFF switch again to deactivate ACC feature. |
• | If ACC indicator illuminates in red , there could be a problem with ACC system. visit nearby mahindra service center. |
How to set
Desired
Speed
|
||||
|
Drive the vehicle to the desired speed (minimum
10
kmph) and Press Set+/Set- switch
|
|||
|
|
• | ACC will maintain the vehicle speed as set by the driver. Once set, it will be confirmed by the ACC telltale light. After that no accelerator pedal input from driver need to be given. |
• | Set speed will be displayed as set by driver. |
• | Time interval bars will be displayed. |
• | If Set+/Set- switch is pressed when vehicle speed is below 30 kmph then ACC Set Speed will be initialized to 30 kmph. |
• | When there is a front preceding vehicle, user can set desired speed by pressing SET+/- switch below 30 kmph as there is no minimum desired speed requirement |
• | When front preceding vehicle and your vehicle are in stopped condition , apply brake and press SET+/SET-. Note that ACC will remain in standstill until the front preceding vehicle moves. |
Condition
|
Alert
|
---|---|
When traveling below 10 kmph and a vehicle ahead
is not
Detected
|
|
When front preceding vehicle is very close or far
away
from host vehicle.
When the shift lever is not in D (Drive)
Position
When the brakes are operated by the driver
|
|
When braking system unavailable.
|
|
When driving above maximum ACC operational speed
limit.
|
|
When driver door is open.
|
|
When Collision Mitigation System is unavailable.
|
|
When driver seat belt is not buckled.
|
|
ACC
interacts with other systems, such as braking, steering, EMS (Engine
Management System), ACC Switch etc. If any of these
systems are not functioning properly, ACC cannot be activated.
|
• | Press and quickly release the SET+ switch to increase the set speed by 1 kmph |
• | Press and hold the SET+ switch to increase the set speed by 10 kmph. The set speed will be increased to the next nearest multiple of 10. Continuous hold / stuck of SET +/- button for 60 sec will turn OFF ACC. |
• | Release the switch when the desired set speed reached. |
• | Press and quickly release the SET- switch to decrease the set speed by 1 kmph |
• | Press and hold the SET- switch to decrease the set speed.by 10 kmph. The set speed will be decreased to the next nearest multiple of 10 |
• | Release the switch when the desired set speed reached. |
• | The set time gap value of the current ignition/driving cycle will be used for the next ignition/driving cycle. |
• | When the system is used for the first time after starting the engine, the time gap value is set to the maximum value (Level 4). |
|
If it takes more than 3 seconds for the front
preceding
vehicle to begin moving again, ACC will be set to Standby and the
stop-hold function will activate. A pop-up alert message “Press Resume Switch or
Pedal
to Accelerate” will be displayed
for driver to resume.
|
1. | Press RESUME button |
2. | Slightly tap the accelerator pedal |
3. | Increase the speed above 10 kmph and press the RESUME button |
|
When following the front preceding vehicle, if
the
front preceding vehicle disappears due to a cut-out maneuver, a pop-up
message will be displayed as “Object Disappeared Pay Attention”
|
• | ACC is overridden hence Set Speed and Distance is not followed |
|
|
• | Set speed display will blink. |
• | Set distance display will blink. |
• | The front preceding vehicle indicator will turn off when the area ahead of the vehicle is open. |
• | When the shift lever is not in D(Drive) position. |
• | When the parking brake is applied |
• | When Brake pedal is pressed. |
• | When ESP is turned off |
• | When the radar signal is temporarily interrupted. |
• | When radar sensor area of the front bumper covered with dirt or is obstructed. |
• | When accelerator pedal is depressed for more than 60 seconds continuously. |
• | When collision mitigation system is in action. |
• | When ESP operates |
• | When driver door is open |
• | When vehicle speed exceeds maximum ACC operating speed. |
• | When driver seat belt is unbuckled |
• | When the Zoom mode is selected. |
• | The engine speed (rpm) is too high/low. |
• | When ACC is engaged, and your vehicle stopped, and after 3 seconds the front preceding vehicle moves and disappears and when the driver tries to resume ACC without the front preceding vehicle. |
• | When driver tries to resume ACC when front preceding vehicle (moving/stopped) is not in detection range. |
|
In above scenarios, the driver may be alerted by
an
audio alert and a message in the instrument cluster that ACC function
is released/disengaged.
|
|
In some situations where ACC braking is not
enough
to follow the front preceding vehicle, an audio alert along with pop-up
message will be given in the instrument cluster "Collision Possible Apply
Brake".
|
The driver has to apply brake to keep a safe
distance.
|
|
In case of temporary abnormal conditions, ACC
Status
telltale will illuminate in Yellow color and ACC function will be disabled
temporarily by showing up a pop-up
|
“Adaptive Cruise Control Disabled due to Radar
Limitation”
|
Causes
|
Action
|
---|---|
The bumper in front of the radar is dirty or
covered
with snow/ice.
|
Clean/Clear the bumper in front of the radar.
|
Heavy rain or snow is interfering with the radar
signals.
|
No action possible. Heavy precipitation may
affect the
function of the radar.
Do not use ACC during heavy rain or snow.
|
Clogged water or snow from the surface of the
road may
interface with the radar signals.
|
No action possible. A very wet or snow-covered
road
surface may affect the function of the radar.
Do not use ACC during these situations.
|
The bumper area in front of the radar is clean
but the
message remains in the display.
|
Wait a short time. It may take several minutes
for the
radar to detect that it is no longer obstructed.
|
|
In case of permanent failure, ACC Status
telltale
will illuminate in red color also and ACC function will be disabled
permanently
by showing up a pop-up
|
“Adaptive Cruise Control Disabled Service
Required”
Contact an Mahindra Authorised Dealer immediately.
In case of collision in front bumper, the radar
position may change which results in degraded ACC performance. Visit nearest
service center for radar calibration.
|
• | Adaptive Cruise Control cannot cover all driving situations and traffic, weather and road conditions. |
• | Adaptive Cruise Control is not a collision avoidance system. The driver is always responsible for applying the brakes if the system does not detect front preceding vehicle. |
• | ACC may not assist in close cut-in scenarios. |
• | Adaptive Cruise Control does not react to people or animals. It also does not react to slow moving, parked or approaching vehicles, or stationary objects. |
• | In case of a hit in bumper / full or partial blockage to RADAR, turn off ACC and get the vehicle serviced as early as possible. |
• | ACC will be disabled when trailer is connected |
• | On roads where the traffic is heavy or there are sharp curves |
• | On slippery road surfaces |
• | During bad weather (rain, fog, snow, etc.) and poor visibility. |
• | When rain, snow or dirt adhere to the bumper around the sensor |
• | On steep downhill roads (the vehicle may go beyond the set speed and in trying to maintain set speed, may result in overheating the brakes) |
• | On repeated uphill and downhill roads |
• | When traffic conditions make it difficult to keep a proper distance between vehicles because of frequent acceleration or deceleration |
• | Interference by other radar sources installed in nearby protected areas like military, airports etc. |
• | Do not use Adaptive Cruise Control in demanding driving conditions, in slippery conditions, when there is a great deal of water or slush on the road, during heavy rain or snow, in poor visibility, on winding roads or on highway on or off ramps. |
• | Close cut-in situation |
• | Situation of stopped vehicles |
• | Curve entry / exit situation |
• | Curves with larger curvature |
• | Poor visibility |
• | When a preceding vehicle enters an intersection |
• | When the road gradient changes |
• | Sensor cover blockage |
• | Long cargo loading vehicle |
• | Inability to recognize pedestrians |
• | Excessive braking of the preceding vehicle |
• | Detection performance deterioration due to road side structures |
• | False deceleration or no deceleration |
• | ACC does not slowdown for pot-holes and Speed breakers |
• | ACC may not slow down for road curves |
• | ACC may not slow down for barriers/blockades |
• | ACC does not slow down for crossing or merging vehicles at angles more than 30 degree |
• | ACC does not slowdown for oncoming/reversing front vehicles |
• | ACC does not slowdown for animals |
• | ACC may not reliably follow bicycle |
• | ACC cannot react to stationary target |
• | If a very slow moving target cutting in between your XUV700 and stationary target then there is a chance that ACC system does not pick-up the slow moving target since ACC is not able to discriminate between slow moving target and stationary target. |
• | If a target in front takes a sharp turn and goes out of Field of view, then your XUV700 can start to accelerate fast. |
• | ACC might not pick-up target at sharp curve |
• | When XUV700 follows two wheeler and two wheeler overtakes stationary target ahead, XUV700 may not slow down due to stationary target detection limitation. |
• | ACC cannot follow a motorized two-wheeler if two-wheeler speed is less than around 10kmph. |
• | Do not use ACC with an offset to the target vehicle. |
• | Do not use ACC to follow motorbikes where there is no space for XUV700 to navigate. |
• | System can detect vehicles, cyclists and pedestrians but not in all situations. System's capacity to assess certain traffic situations is a supplemental aid to the driver and does not function in all driving/traffic situations or weather/road conditions. It can never replace the driver’s attention to traffic conditions or his/her responsibility for operating the vehicle in a safe manner. Refer system limitation section for more information about system limitation. Read the manual carefully in detail before using the system. |
• | Failure to follow the warnings and instructions for proper use of the system could result in serious injury or death. |
• | The Collision Mitigation System is a supplemental aid to the driver . It is not a replacement for the driver. It is driver's responsibility to monitor traffic conditions and drive the vehicle safely. It cannot prevent accidents due to carelessness or dangerous driving techniques. |
• | System does not function in all driving, traffic, weather and road conditions. |
• | System does not detect all kind of vehicles ,bicyclists and pedestrians. |
• | System is designed to intervene as late as possible i.e. in emergency to help avoid unnecessary activation. |
• | Vehicles, Pedestrians or cyclists at an offset may not be detected by FCW/AEB system. |
• | Collision Mitigation System works on prediction of possible collision with the objects in front of vehicle by assuming the objects movements in certain directions. Sometimes the objects movement direction may not match to the prediction and the system may react early and provide warning or perform braking even though the object may not be in the host vehicle path. |
• | Only rear end of the preceding vehicles are identified by the system and warning or braking as needed will be provided by the system. System may not react or providing warning or braking for a crossing or oncoming vehicle. System may not react to a stationary vehicle if the vehicle is stationed in crossing or oncoming pose. |
|
|
|
|
|
|
|
When system has applied the brakes, a pop-up message
will
be displayed as "Automatic Emergency Braking Completed".
|
• | When steering is applied to avoid a collision |
• | When the accelerator pedal is depressed |
• | When there is no longer a vehicle detected ahead. |
• | When driver presses and releases brake pedal. |
1. | Press the button until “Settings” displays in the instrument cluster display. Use the button to select “Driver Assistance.” Then press the OK button. |
2. | Select “Auto Emergency Braking” and press the OK
button.
|
|
|
|

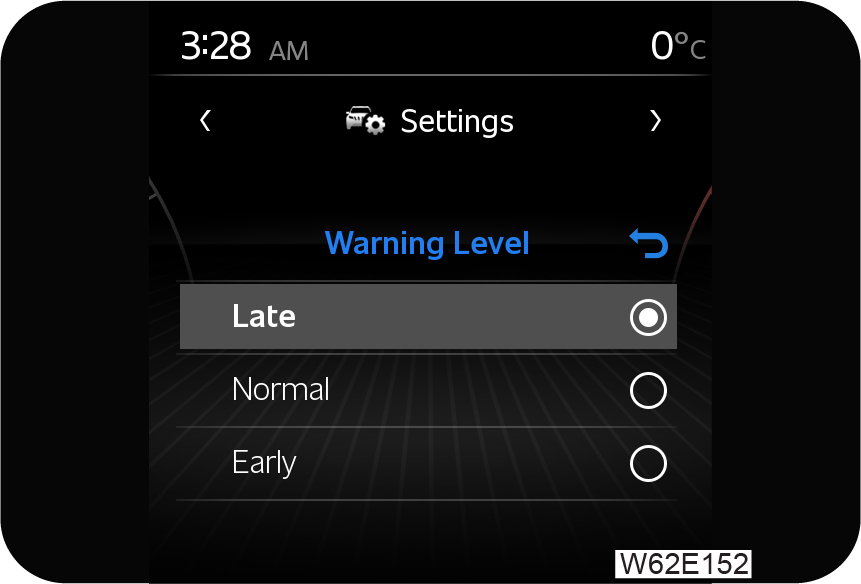

The driver can select the level 1 warning activation
time
in the instrument cluster settings for driver assistance.
|
• | No automatic system can be guaranteed to function 100% correctly in all situations. |
• | Never test Collision Mitigation System by driving toward a person or object. This could result in serious injury or death. |
• | To help make Collision Mitigation System as effective as possible, it is recommended to always use the setting "Early" |
|
The following table lists possible causes for this
message
being displayed and suitable actions:
|
Cause
|
Action
|
---|---|
The area of the windshield in front of the camera
sensor
is dirty or covered by ice or snow
|
Clean the windshield or remove the ice/snow
|
Thick fog or heavy rain /snow blocks reduce the
camera
sensor’s range of visibility
|
No action. The driver should be extra alert in
condition
of this type.
|
There is dirt between the inside of the windshield
and the
camera sensor.
|
Have the area of the windshield cleaned by Mahindra
Authorised service.
|
• | If the warning lamp continues to illuminate after above action and engine restart, have the system checked. It is recommended that you visit a Mahindra dealer for this service. |
|
The following table lists possible causes for this
message
being displayed and suitable actions:
|
Cause
|
Action
|
The bumper in front of the radar is dirty or covered
with
snow/ice
|
Clean/clear the bumper in front of the radar.
|
Heavy rain or snow is interfering with the radar
signals.
|
No action possible. Heavy precipitation may affect
the
function of the radar.
|
Swirling water or snow from the surface of the road
may
interface with the radar signals.
|
No action possible. A very wet or snow-covered road
surface may affect the function of the radar.
|
The windshield in front of the radar is clean but
the
message remains in the display.
|
Wait a short time. It may take several minutes for
the
radar to detect that it is no longer obstructed.
|
|
A pop up message will appear in instrument cluster
that
"Automatic Emergency Braking Disabled: Service required". Contact
an Mahindra Authorised Dealer immediately.
|
• | Collision mitigation system cannot detect all vehicles, cyclists or pedestrians under all conditions. |
• | System can not detect the following
objects:
|
• | If the pedestrians has limited contrast to their immediate background, warning or braking may be delayed or not come at all. |
• | System may not react for fast moving pedestrians. |
• | System cannot detect all cyclists in all
situations,
such as:
|
• | System may not function in junction turning
scenario
under below conditions:
|
• | System may not function if speed difference between the two vehicles is too small or too high |
• | System may not function properly or detect a
target
ahead in the following conditions:
|
• | In case of a hit in bumper / full or partial blockage to RADAR, disable AEB and get the vehicle serviced as early as possible. |
• | AEB will be disabled when trailer is connected |
• | False
decelerations or no decelerations
If radar misaligned vertically or horizontally,
Collision mitigation system may produce frequent false warning or deceleration
or no warning/ no deceleration for front preceding vehicle. Visit nearest service center for radar
alignment.
|
• | When any vehicle moves greater than +/- 20 deg. to host vehicle direction |
• | When it is difficult to obtain view by the camera |
• | When the tail light of the front preceding vehicle is asymmetrical at night |
• | Pedestrian suddenly jumping in to the host vehicle lane too closer to host vehicle |
• | If a part of the body of the pedestrian is a covered or standing pedestrian |
• | Difficult to distinguish pedestrians due to low illumination. |
• | Fast moving pedestrians |
• | Pedestrians with lower height |
• | Risk of collision in proximity cut-in |
• | Intersection situation |
• | The condition is that target is not detected at the road inclination change point |
• | The situation where the load is protruding from the rear of the vehicle |
• | When target can not be detected due to sensor contamination |
• | When driving on a large curve road |
• | When it is impossible to obtain the driver's field of vision |
• | Detection problems due to complicated structures around roads |
• | Collision Mitigation System does not react for pot-holes |
• | Collision Mitigation System does not function for Speed Breakers |
• | Collision Mitigation System does not function for barricades/cone/barrels |
• | Collision Mitigation System does not function for oncoming vehicles |
• | Collision Mitigation System does not function for animals |
|
|
|
|
• | High beam Assist is selected through driver assistance menu |
• | Auto light switch is turned ON in the Combination Switch |
• | Night condition is detected and Low beam is already turned ON through the Light Sensor |
• | High beam switch is turned ON |
• | Vehicle speed is above 20 kmph |
• | HBA function is activated as per above conditions. |
• | No light source is detected by the camera from Oncoming/Preceding vehicle or from other light sources (depends on intensity) for few seconds. |
• | When the light from the on-coming or front preceding vehicle is not detected because of lamp damage, hidden from sight, etc. |
• | When headlights or taillights are with non-standard color or Illuminance level or shape. |
• | When the lamp of the on-coming or front preceding vehicle is covered with dust, mud, snow or water. |
• | When visibility is poor due to fog, heavy rain or snow. |
• | When head lamp aiming is not properly adjusted. |
• | When driving on a narrow-curved road or rough road. |
• | When driving downhill or uphill. |
• | When vehicle is near bright street tower lamps, reflecting sign or mirror, flashing sign lamps. |
• | When the vehicle is tilted may be due to a flat tyre or being towed. |
• | When the light from bicycle is weak or located in long distance. |
• | When the light from oncoming or preceding vehicle is very small or weak or located in low or too high position. |
• | When windshield is dirty or if any object blocks the Camera sensor. |
• | When vehicle is in Construction area due to temporarily installed reflectors. |
• | When vehicle is near traffic lights, signboards of buildings, lightning rods of construction sections, center line separation rods (reflection type), traffic signs (including variable speed LEDs), vehicle lights reflected on building glass or road reflectors. |
|
|
|
|
When the system recognises a speed limit sign, it
displays
on Instrument Cluster
|
|
After a pre-defined time, road sign display is
Grayed out
to indicate to driver that the sign is of past value.
|
|
If
system
malfunctions, a pop up message will appear in Instrument Cluster that
"Traffic
Sign Recog. Unavailable". It is
recommended that you visit a Mahindra dealer in this case.
|
• | The traffic sign is located on a sharp curve. |
• | The traffic sign is improperly positioned (i.e being turned over, blocked by an object, or damaged). |
• | Another vehicle blocks the traffic sign. |
• | The LED light of the traffic sign is broken. |
• | The visibility is poor due to heavy rain, snow, fog or poor light around the sign. |
• | The traffic sign do not conform to the standards. |
• | The traffic sign cannot be distinguished due to shadow caused by overpass or trees. |
• | There is bright light around the traffic sign. |
• | The vehicle speed is too low or too high. |
• | There is dirt, ice or frost on the front windshield, where the camera is installed. |
• | The camera lens is blocked by an object, such as sticker, paper, or fallen leaf. |
• | Host vehicle driven right after preceding vehicle. |
• | The bus or truck, on which the speed sticker is attached, passes by your vehicle. |
• | TSR function may not detect electronic sign board. |
• | TSR function may not detect conditional sign board. |
• | TSR function may not detect rectangular sign boards. |
|
|
|
When system cannot detect lanes or if system is
unavailable due to speed being less than 60 kmph, the marker lines will be
grayed out.
|
|
If the driver continues to hold the steering
wheel
lightly for a next intervention occurring within 3 minutes, then in addition
to the visual alert, audio alert will also be provided until the system makes
sure that
driver is in full control.
|
• | Do not wait for system to provide Visual /audio alerts to hold the steering wheel. Driver is always responsible to have control of the vehicle. |
• | In some rare situations when system is unable to do proper judgement, system may generate visual / audio alerts even when the driver holds the steering wheel as a precautionary measure. |
• | System will provide only a mild steering torque within the operating limits. This torque may not be sufficient during sharper curves. System may stop providing assist if it determines the torque provided is not sufficient to pull back to the lane. Driver is always responsible to steer the vehicle and bring vehicle back to lane. |
|
If
system
malfunctions in Warning Only mode, LDW indicator light will illuminate
in
Amber color and a pop up message will
appear in Instrument Cluster that "Lane Departure Warning Unavailable".
|
It is recommended that you visit a Mahindra dealer
in this
case.
|
|
If
system
malfunctions in Warning + Assist mode ,LKA indicator light will
illuminate in
Amber color and a pop up message
will appear in Instrument Cluster that "Lane Keep Assist Unavailable".
It is
recommended that you visit a Mahindra dealer
in this case.
|
• | Road under construction |
• | Reduced visibility due to bad weather on account of rain, fog, snow etc |
• | Roads with indistinct/faded lane markings |
• | Road sections with sharp curves |
• | Narrow roads |
• | High speed driving especially in sharp curves |
• | Road sections where there are turn lanes or when the original lane merges or separates |
• | Passing through tunnels when brightness changes suddenly. |
• | Horizontal or vertical slope |
• | Preceding vehicle obstructing lane visibility |
• | Improper headlight aiming/headlight covered with dirt |
• | Any other environmental conditions affecting camera vision |
• | Poor visibility due to sun glare or blockage in lens |
• | Lane Keep assist function will be disabled when the trailer is attached. |
• | Lane Keep assist functions will not work properly when there is a heavy cross wind. |
• | Lane Keep assist function may not work when the lane marking color is other than white and yellow. |
• | Smart Pilot Assist System is not a self-driving system. Within the limits of its capabilities, as described in this manual, it helps the driver with certain driving activities. |
• | Smart Pilot Assist system is not a replacement for proper driving procedures and is not designed to correct careless, inattentive of driver. |
• | Always observe posted speed limits and do not set the speed over them. |
• | Always keep your hands on the steering wheel so you can be ready to steer at any time. The driver is always responsible for staying in a lane and for assessing traffic situations. |
• | Smart Pilot Assist must only be used where there are clearly visible traffic lane side marker lines on both sides of the current traffic lane. In other circumstances there is an increased risk of collision with surrounding obstacles that are not detected by the system. |
|
|
• | Lane centering was active before lane detection got dropped. |
• | Preceding vehicle speed is less than around 75 kmph |
• | Preceding vehicle is close enough for system to follow. Smart Pilot Assist may stop to follow preceding vehicle if above conditions are not satisfied or if the preceding vehicle has changed the path. |
First stage warning will be provided immediately
once
hands off is detected
|
|
Second stage warning with audio alert will be
provided if
driver is not holding the steering wheel even after the first stage
warning.
|
|
Third stage warning with audio alert will be
provided when
driver does not hold the steering wheel even after second stage
warning . Here after Smart Pilot Assist and ACC will go to Standby
|
|
• | Do not wait for system to provide Visual /audio alerts to hold the steering wheel. Driver is always responsible to have control of the vehicle. |
• | In some rare situations when system is unable to do proper judgement, system may generate visual / audio alerts even when the driver holds the steering wheel as a precautionary measure. |
• | ACC system cancels. |
• | The maximum speed that Smart Pilot Assist supports is exceeded. |
• | When driver shifts out of Drive gear. |
• | An Automatic Emergency Braking event occurs. |
• | When turn indicator or hazard is activated. |
• | When interface systems are not available. |
• | When driver steers manually. |
• | When vehicle dynamics/road conditions are not suitable for Smart Pilot Assist Operation. |
|
When
there
is any failure in the system , below pop-up message appears on
Instrument
Cluster screen and Smart Pilot Assist
indicator illuminate in Amber color. Visit nearest Mahindra service
center for
assistance.
|
• | Smart Pilot Assist is unable to accurately determine lane markings due to poor visibility (heavy rain, snow, fog, etc.), or an obstructed, covered, or damaged camera or sensor. |
• | When driving on hills. |
• | The road has sharp curves or is excessively rough. |
• | Bright light (such as direct sunlight) is interfering with the camera's view. |
• | The sensors are affected by other electrical equipment or devices that generate ultrasonic waves. |
• | When driving on winding or uneven roads. |
• | When there is a lane closure due to road repairs. |
• | When driving in a makeshift or temporary lane. |
• | When driving on roads where the lane width is too narrow. |
• | On roads where there are multiple parallel lane markers; lane markers that are faded or not painted clearly; non-standard lane markers; or lane markers covered with water, dirt, snow, etc. |
• | On roads where the discontinued lane markers are still detectable. |
• | On roads where the traveling lane merges or separates. |
• | When the vehicle’s traveling direction does not align with the lane marker. |
• | When the headlights are not bright due to dirt on the lens or if the aiming is not adjusted properly. |
• | Smart Pilot Assist function will not work properly when there is a heavy cross wind. |
• | Smart Pilot Assist function may not work when the lane marking color is other than white or yellow on both the sides of the road. |
|
The driver door switch bank is located on the driver
door
armrest/handle and controls and the various functions:
|
A
|
ORVM Folding/Unfolding Switch
|
B
|
ORVM Adjustment Switch
|
C
|
Driver Door Window Switch
|
D
|
Co–driver Door Window Switch
|
E
|
Rear RH Window Switch
|
F
|
Rear LH Window Switch
|
G
|
Door Lock/Unlock Switch
|
H
|
Window Lock Switch
|
|
|
|
To disable the rear passenger power windows,
press the
window lock switch down.
To revert to normal operation, press the window
lock
switch again.
|
|
The Door lock/unlock switch is located on the
driver
door trim. Driver can simultaneously lock/unlock all the doors by pressing
this switch as shown in the image.
|
|
This feature consists of three functions:
|
|
The interior rear view mirror provides the rear
view
information to the driver through the rear windshield. It also assists
during reversing.
|
|
Exterior Rear view mirror on both left and right
sides
provides the maximum side rear view information to the driver.
|
|
|
• | The doors locked with the remote from outside the vehicle |
|
|
|
|
• | Mirror is already in folded condition and ORVM switch is neutral condition and IGN is turned ON |
|
Fold down the third-row seats. (refer to “Folding
the
third-row seat” section)
Fold down the second-row seats. (refer to
“Folding the
second-row seat” section)
|
5
Seats
Luggage Lid and Utility Bin:
|
|
Luggage
Lid
|
Utility
Bin
|
|
|
Luggage Net
(if
equipped)
|
|
|
To prevent items from shifting towards the rear
quarter
trim, you can use the 4 hooks located in the rear quarter trim to
attach the luggage net.
|
|
|
|
|
|
Glove Box
Lamp (if
equipped): This lamp is located inside the Glove box below the TAB
Holder. It
will get switched ON when Glove box is opened and switch
OFF when it is closed.
|
|
Tab Holder:
Tab holder is available in Glove box area. You can place the Tab inside the Tab
holder.
|
|
You can use the console storage by lifting the
console
lid with the knob.
|
|
|
|
In select variants, a cooler (air vents) is
provided in
the Console Storage. You can cool cans, small bottles, etc. by opening
the air vents. Turn the cooler clockwise to open the air vents, or anti-clockwise
to
close the air vents.
|
|
|
Second row
cup
holder and armrest (if equipped)
|
|
|
|
• | To open the armrest, simply pull on the tab given at the top of the armrest (as shown). |
• | When armrest is not required, push back the armrest into the 60P backrest. |
|
The Cup holders are located on both the left and
right-side trims.
|
|
Bottle and Umbrella holders are located on both
the
front door lower trims. You can use them to store umbrella, maps, papers,
small books, bottles, etc.
|
|
The seat back pockets are located on the back of
the
front seats for holding lightweight papers/books/magazines, etc.
|
To
avoid
injury, do not place large or hard objects in the seat back pockets.
Do not
put more than 1 kg weight in seat back
pockets.
|
|
Hanging
excess/bulky weight/items may cause breakage of the hook and
inconvenience
to the passengers. Hang light weight articles
only..
|
|
|
Use the sun visor to shield the direct sunlight
through
the front or side windows. It is available on both driver and co–
driver side
|
|
|
To shield the sunlight through the windshield, pull
it
downward.
|
|
To shield the sunlight through the side window, pull
it
downward, unsnap it from the bracket and swing it to the side.
|
Vanity mirror is in the Sun visor.
|
|
|
Swing the sun visor down and slide the cover to
open
and close the vanity mirror.
|
|
Lamp above the sun visor will be ON once you
slide and
open the vanity mirror.
|
Sl.
No.
|
Switches
|
---|---|
A
|
Passenger Air Bag ON indication
|
B
|
Passenger Air Bag OFF indication
|
C
|
Passenger seat belt indication
|
D
|
Hazard Switch
|
E
|
Home Screen*/ SVS*/ Rear Camera*
|
F
|
Display Off
|
G
|
Drive Mode
|
* - if equipped
|
Type
1
|
Type
2
|
|
|
A
|
Dummy
|
F
|
Scroll Down*
|
B
|
ESP OFF
|
G
|
HDC ON
|
C
|
Scroll UP*
|
H
|
ESS OFF
|
D
|
Cluster Menu/Mode*
|
||
E
|
SET*/AWD*
|
*-if equipped
|
|

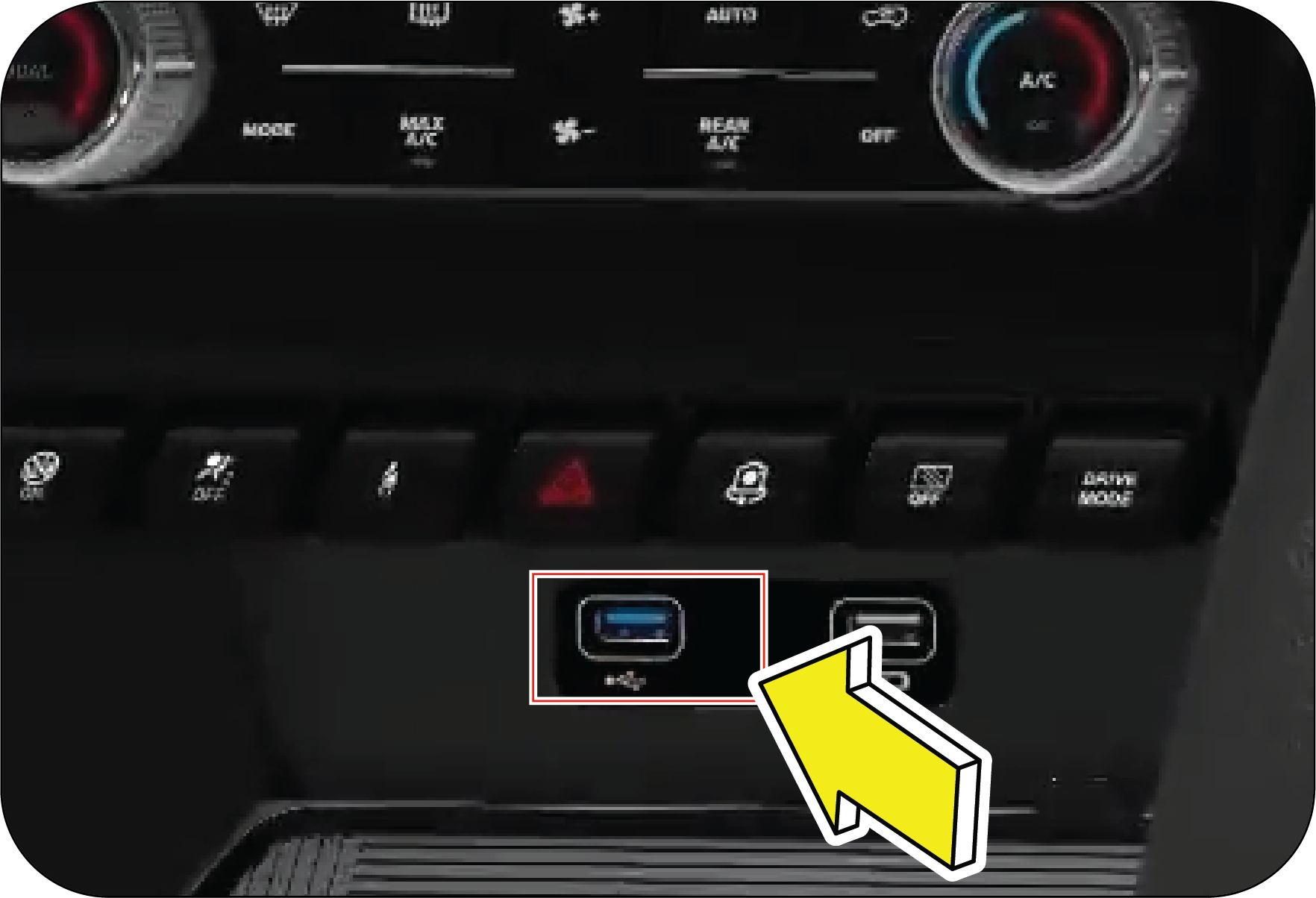

A: LH - USB Port
B: RH - Charging USB Port (if equipped)
|
|
An additional USB outlet is provided on the rear
side of
the floor console below the second row AC vents.
It can be used only for charging and it is intended
to be
used by second row passengers.
|
|
The 12V Power outlet socket is provided below the
third
row (RH) AC vents. Electrical equipment/appliances like mobile charger,
cigarette lighter etc., can be used in the outlet.
|
• | Close the power outlet cap when not in use |
• | Do not allow children to use or play with the power outlet |
• | When using electrical appliances, strictly follow the manufacturer's instruction manual |
• | Never use the power outlet for electric heaters while sleeping |
• | Never insert foreign objects into the power outlet |
• | Never use malfunctioning electrical appliances |
• | Never insert inappropriate or badly fitting plugs into the power outlet |
• | Distract the driver while driving, or hamper safe driving |
• | Result in a fire or burn injuries due to the appliance rolling, falling or overheating |
• | Emit steam, while the windows of the passenger compartment are closed |
• | Use the power outlets only when the engine is running. Remove the plug from the power outlet after using the electric device. Using the power outlets when the engine is OFF or leaving the electric device plugged in for many hours may cause the battery to drain |
• | Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V |
• | Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle |
|
A wireless mobile charging unit is located in front
of the
center console below the front USB ports.
|
A
|
Media / Menu
|
B
|
Favourite
|
C
|
Home / Back
|
D
|
Phone and Connectivity
|
E
|
Rotary Knob/Scroll Knob
|
S.No
|
Button
|
Event
Type
|
Event
|
Action
|
---|---|---|---|---|
1
|
Media
|
Push
|
Short
|
Display current media screen if active
|
Push
|
Long
|
Display source shortcut screen
|
||
2
|
Favorite
|
Push
|
Short
|
Recall favorite stored screen/page
|
Push
|
Long
|
Store current page/screen as favorite
|
||
3
|
Home/Back
|
Push
|
Short
|
Go One level up if applicable or else no action
|
Push
|
Long
|
Display HOME screen
|
||
4
|
Phone and Connectivity
|
Push
|
Short/Long
|
When Bluetooth OFF: Phone button press shall Turn ON
Bluetooth and Show Device list screen.
|
Push
|
Long
|
When Bluetooth ON, but no device connected: Show
Device
list screen
|
||
5
|
Left
|
5-way Push type
|
Short
|
Move the Point of focus to left by 1 item
|
Long Press
|
Move the Point of focus to left by 1 item
continuously until the press
|
|||
Right
|
Short
|
Move the Point of focus to right by 1 item
|
||
Long Press
|
Move the Point of focus to right by 1 item
continuously until the press
|
|||
Up
|
Short
|
Move the Point of focus to UP by 1 item
|
||
Long Press
|
Move the Point of focus to UP by 1 item
continuously
until the press
|
S.No
|
Button
|
Event
Type
|
Event
|
Action
|
---|---|---|---|---|
5
|
Down
|
Double Press
|
Open App drawer
|
|
Short
|
Move the Point of focus to DOWN by 1 item
|
|||
Long Press
|
Move the Point of focus to DOWN by 1 item
continuously until the press
|
|||
OK/Power
|
Double Press
|
Open Quick Application Drawer in infotainment
screen.
|
||
Short
|
In Power On mode, select current items in Point of
Focus
In Power Off mode, toggle System On/Off
|
|||
Long
|
Toggle System On/Off
|
|||
Scroll Knob (When controlling Volume)
|
Rotary Knob
|
Clicks, Direction
|
Increase volume of current Audio functionality by as
many
steps in case of clockwise direction
Decrease volume of current Audio functionality by as
many
steps in case of counter clockwise direction
|
|
Scroll Knob (When controlling Input)
|
Clicks, Direction
|
Move Point of Focus to the right/down by as many
counts in
case of clockwise direction
Move Point of Focus to the left/up by as many counts
in
case of counter clockwise direction
|
||
Note: The Intelli command center will
primarily work for Infotainment
functionality.
|
|
A: LHS reading lamp
B: Door/ Auto Mode
C: SOS calling
D: Roof Lamp ON
E: RHS reading lamp
|
|
The front roof lamps are located in the roof
console
above the interior rearview mirror.
|
|
Map
reading
lamps are located on the both sides of the roof near the grab handle
above the
second-row seats.
|
|
The eCall system automatically notifies the
emergency
services if your car is involved in an accident. You can also call the
emergency services manually by pressing the SOS button.
|
|
The front roof lamp is in the roof console above
the
front seats. The courtesy lamp can be switched on using the middle switch
(B) on the lamp.
|
|
The center roof lamps can be switched ON by
pressing
the switch on it. To switch it OFF press the switch again.
|
• | Push the lighting control stalk clockwise to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right |
• | Push the lighting control stalk anti-clockwise to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left |
• | After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF turn indicator lamp. |
• | Do not clean the sensor with detergent or wax |
• | On a foggy, snowy, rainy, or cloudy day, be sure to use manual mode. The turning on or off time of the lamps varies depending on the weather, season, or circumstances |
• | Any aftermarket sunfilm or spray may cause the lighting system to malfunction |
• | When the switch is turned to the “AUTO” position, room, tail, and head lights might blink for a very short time. It is a normal phenomenon recognising the automatic setting |
• | There may be a difference between ambient light intensity sensed by the RLS sensor and the human eye. Hence it is possible that during low light conditions, the head lamp is activated early as the RLS sensor senses it as low intensity. This is a normal behaviour. |
A
|
Low Beam
|
B
|
High Beam
|
|
To properly aim the head lamp beam, use the head
lamp
levelling switch. This switch is located on the right side of the steering
column shroud in the instrument panel. This switch has four positions marked as
0, 1, 2
& 3.
|
Switch
Position
|
Vehicle
Loading Condition
|
---|---|
0
|
Driver/Driver with Front Passenger
|
1
|
Driver + Front passenger + Second row
occupied
|
2
|
All seats occupied
|
3
|
All seats occupied with luggage OR
Driver with
luggage at extreme rear side
|
|
When the switch is in the Auto mode and high
beam. Then
when the vehicle speed crosses 80 Kmph the high beam intensity and
reach increases. The higher reach of the beam is helpful to have vision for the
higher
speed
|
|
Cornering lamps are integrated in both the
Fog
lamps.
Respective side Cornering lamps turn ON when a
sharp
turn is taken.
They help in illuminating the road in the
direction of
turn.
|
• | Ignition ON |
• | Head lamp is ON |
• | Sharp turn taken |
|
Puddle lamps are provided at the bottom of the
front
doors. They are switched ON automatically when the front doors are opened.
This illuminates the ground below the respective door thereby assisting in a safe
entry
and exit.
|
|
Use the hazard warning lamp when your vehicle is
stationary or to warn other road users to be cautious while passing your
vehicle.
|
• | Ignition transition from ON to OFF |
• | Park lamp is OFF |
• | Ignition key is out |
• | Driver door open within 3 mins from KEY OUT |
• | Head lamp would turn ON only if the ambience light is found dark by the light sensor |
• | The first RKE/PKE LOCK command will be used for locking all doors |
• | Successive RKE/PKE LOCK commands will be used for toggling the current status of the head lamp low beam |
• | Each time FMH is extended the head lamp low beam will be kept/turned on for the next 20 seconds |
• | Park lamp transition from OFF to ON |
• | Ignition off to any other state |
• | FMH ON 20 seconds expires |
• | FMH Max time is 3 minutes expires |
• | Switch OFF the parking lamps |
• | Remove the ignition key |
• | FMH can be activated by pressing lock button in key fob twice. First press locks the vehicle & second press enables head lamp low beam for 20 seconds. |
• | Pressing unlock button in key fob disables FMH feature & unlocks the vehicle. |
• | Switch ON the parking lamps |
• | Switch the ignition key to either ACC or ON in position |
• | Press the RKE unlock/lock button once |
• | Head lamp switches ON for 20 secs. and switched OFF automatically |
• | Pressing the unlock button on the RKE two times |
• | Switch ON the parking lamps |
• | Switch the ignition key to either ACC or ON in position |
• | Press the RKE lock/unlock button once |
• | Head lamp switches ON for 20 secs. and switched OFF automatically |
• | All doors including bonnet and tail door must be closed and locked. |
• | Vehicle Automatic transmission should be in P (Park) OR Manual transmission (gear in neutral Position) with EPB applied . |
• | Ignition must be in OFF position. |
• | Sufficient Fuel and battery charge for the car to start. |
|
A: Flick- Wipe (MIST)
B: Off
C: Intermittent (INT)/AUTO
D: Low Speed (LO)
E: High Speed (HI)
F: Rotary Switch
|
• | Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass |
• | It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass |
• | Do not operate the windshield washer for more than 10 secs. or when the reservoir is empty |
|
There are two nozzles with triple adjustable
washer
jets in the front (on the bonnet). Using a pin, the eyeball jets can be
adjusted precisely for direction.
|
Always
direct the washer jet to hit the middle of the windshield. This will
enable
the wiper blade to wipe the complete width
of the windshield.
|
|
In the rear, one nozzle with triple adjustable
washer
jets are provided for the rear windshield wash.
|
Switch
Position
|
Switch
Press
|
Operation
|
---|---|---|
1
|
Short Press
|
Sunshade Express Open
|
Long Press
|
Sunshade Manual Open
|
|
2
|
Short Press
|
Skyroof Express Open
|
Long Press
|
Skyroof Manual Open
|
|
3
|
Short Press
|
Skyroof Express Close
|
Long Press
|
Skyroof Manual Close
|
|
4
|
Short Press
|
Sunshade Express Close
|
Long Press
|
Sunshade Manual Close
|
|
0 & 5
|
—
|
Switch Home/Neutral Position
|
6
|
Short Press
|
Tilt Up
|
7
|
Short Press
|
Tilt Down
|
|
Pull the switch to position (1) for Rollo Shade
Express
(one touch) open. Manual (long press) open to stop at desired position.
|
|
Push the switch to position (4) for Rollo Shade
Express
(one touch) Close to close Rollo Shade completely. Manual (long press)
Close to stop at desired position.
|
|
Pull the switch to position (2) for skyroof
Express
(one touch) opened. Manual (long press) open to stop at desired position.
|
|
|
• | Sunshade will be open followed by skyroof. |
• | Skyroof / Sunshade movement can be stopped by pressing lock/unlock button during movement. |
|
Push the switch to position (3) for skyroof
Express
(one touch) Close. Manual (long press) Close to stop at desired position.
|
|
|
• | Skyroof / Sunshade movement can be stop by pressing lock/unlock button during movement |
• | Skyroof /Sunshade movement can be stop by pressing lock/unlock button during movement |
|
If Rain
sensor is
equipped: In auto wipe mode or wiper LOW or HIGH mode, when wiper is ON
for
predefined time, cluster will request user feedback for
closing the skyroof. Using Steering “selection button/ center button” user can
choose
to close the Skyroof.
|
|
|
|
User can open and close skyroof via Voice command
through Alexa during Ignition ON
|
|
User can open and close skyroof via mobile phone
with
authorized application in Ignition OFF
|
|
Tilt/Rotate Up the switch to position (6) for
skyroof
Tilt Open
Tilt/Rotate Down the switch to position (7) for
skyroof
Tilt Close
|
• | Pinch protection can help reduce the risk of pinching injuries when closing the power skyroof.. |
• | If the power skyroof closing meets resistance or there is something in the way, the power skyroof opens again immediately. |
• | Check why the power skyroof did not close & avoid such incident in future for your safety |
• | Try to close the power skyroof again |
• | Without pinch protection, the power skyroof will close with enough force to cause serious personal injury. |
• | Always be careful when closing the power skyroof. |
• | Pinch protection cannot prevent fingers or other parts of the body from being pressed against the edge of the roof; may result in injuries |
• | If the power skyroof malfunctions, pinch protection may not function properly. Visit an Mahindra Authorised Dealer or an authorized Mahindra Service Facility for assistance. |
• | The express (One Touch) / Manual (long press) skyroof and Rollo Shade Close function may not work due to - |
• | Consecutive several attempts to close skyroof and Rollo Shade. |
• | Pinch protection is only for closing skyroof and Rollo shade. |
• | Excessive Ice / Dirt accumulation on the skyroof Glass / guiderails. |
• | Emergency close feature can be used, if Sliding skyroof or Rollo shade consecutive reversal movement observed 3 times within 10 sec then continue with step 2 as below to use Emergency close feature. |
• | On the 4th attempt continuously push the skyroof close switch - position (3) or Rollo shade close switch - position (4) until it closes completely to ensure occupant privacy, safety & theft prevention from skyroof open window. This is Emergency Close Feature. (Never keep your hands or head in the skyroof window while performing this operation it may cause severe injury, since Anti-pinch function will not work at this 4th attempt). |
• | Once the skyroof or Rollo Shade is completely closed, release the switch. |
• | Alternatively, User may wait for min. 30 secs before operating skyroof and Rollo Shade, then skyroof can be operated with Normal Functions. |
• | If the skyroof doesn’t operate as above, Visit Mahindra Authorised Dealer for assistance. |
1. | Turn ON the ignition (Pre condition shall be Close position for both skyroof and Rollo shade) |
2. | Close the skyroof fully by pushing ‘skyroof close switch’ (3) and keep the switch pushed for 1-2 seconds after the roof is fully closed, till clicking sound comes from skyroof . |
3. | Close the Rollo shade fully by pushing ‘ Rollo Shade close switch’ (4) and keep the switch pushed for 1-2 seconds after the Rollo shade is fully closed, till clicking sound comes from Rollo shade. |
4. | The Initializing command is complete, Check if the Express open/close features are working. |
1. | Self-learning must be performed when skyroof/ rollo sunshade assembly is replaced or when false anti-pinch reversal movement (reversal without any obstruction) is noticed |
2. | Close the skyroof fully by pushing ‘skyroof close switch’ and keep the switch pushed continuously. Do not release the switch and wait for following actions to perform. |
3. | Sliding skyroof will start opening after 5 sec pause and close automatically. Release the Switch to complete the procedure. |
4. | Close the Rollo fully by pushing ‘Rollo Shade close switch’ and keep the switch pushed continuously. Do not release the switch and wait for following actions to perform. |
5. | Rollo will start opening after 5 sec pause and close automatically. Release the Switch to complete the procedure. |
6. | The Self learning command is complete. |
• | To help prevent damage, remove ice and snow from the skyroof before opening or tilting it in winter season. |
• | Always close the skyroof before leaving the vehicle or if it begins to rain. If the skyroof is open or tilted, rain could enter the vehicle interior and cause extensive damage to the electrical system. This could result in further vehicle damage. |
• | Remove leaves and other objects from the skyroof guiderails regularly either by hand or using a vacuum cleaner. |
• | If the power skyroof malfunctions, pinch protection may not function properly. See an Mahindra Authorised Dealer or an authorized Mahindra Service Facility. |
• | The Rollo Shade can be opened and closed independently when the sliding skyroof is in closed position. |
• | During sliding skyroof Express (one touch) open/tilt operation, Rollo Shade will also open in synchronization with sliding skyroof (Express - Complete Open Feature). |
• | Improper use of the power skyroof can result in serious personal injury. |
• | Always make sure that no one is in the Path/Cutout of the power skyroof when it is Closing or Opening |
• | Always take the key with you while leaving the vehicle. |
• | Never leave children or disabled persons in the vehicle – particularly if they have access to the vehicle key. Unsupervised use of the remote control vehicle key makes it possible to lock the vehicle, start the engine, turn on the ignition and operate the skyroof . |
• | Never stand or sit on skyroof glasses or roof. This can cause severe damage and would be treated as abuse of the skyroof which will not be covered in warranty. |
• | Never keep the Luggages / weights on top of the roof/skyroof |
• | Any wet area found on the headliner should be reported to an Mahindra Authorised Dealer Immediately |
|
|
|
|
|
|
• | Now pour 1 liter of water in rain channel and check if water is draining or not |
• | High Pressure washer nozzle jets should not be directed towards skyroof seals and Rubber components. |
• | Do not use High pressure water on skyroof area. |
• | It is recommended to wipe the seals with damp micro fiber cloth during cleaning. |
• | Skyroof rails and drain area should be cleaned using air blower. |
• | Skyroof & Power Window Smart Close- During ignition off with all doors closed, if the key fob lock button is pressed for more than 1 second, then doors will get locked and Skyroof & power window will get closed automatically. |
• | Skyroof & Power Window Smart Open- During ignition off, if the key fob unlock button is pressed for more than 1 second, then doors will get unlocked and Skyroof & Power window will be opened along with blower ON in fresh air mode (for approximately 40 seconds) |
1. | Ignition is off and |
2. | Doors in locked state and |
3. | Key fob is not inside the vehicle |
|
User set
PIN
will be required to execute AdrenoX commands
|
|
A
|
Temperature control Knob
|
B
|
Air distribution/Mode switches
|
C
|
Front defogger switch
|
D
|
Blower speed control knob
|
E
|
Rear Defogger switch
|
F
|
Rear A/C switch
|
G
|
Recirculation mode switch
|
H
|
Economy Mode switch
|
I
|
A/C switch
|
• | In certain operating conditions when the engine gets overheated, the engine management system may switch off the air conditioner intermittently |
• | The air conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system |
• | During extreme cold weather conditions, the air conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold |
• | When air conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle |
• | Face Mode — When face mode switch is pressed, air is discharged from the Center vents, second row vents and side vents. This mode is most suitable for directing air flow towards the face of the passengers |
• | Face-Foot Mode — When Face-Foot mode switch is pressed, air is discharged from the Center vents, second row vents, Foot vents and side vents. This mode is most suitable for directing air flow towards both the face and feet of passengers at the same time |
• | Foot Mode — When foot mode switch is pressed, air is discharged from the two foot vents. This mode is most suitable for directing air flow towards the feet of passengers seated on front seats |
• | Foot and Front Defogger Mode — When foot and front defogger mode switch is pressed air is discharged from the foot vents, side defogger vents and windshield defogger vents. This mode is most suitable for directing air flow towards the feet of passengers while de-misting/defogging. |
• | Front Defogger Mode — When Front Defogger mode switch is pressed air is discharged from the side defogger vents and windshield defogger vents. This mode is most suitable for directing air flow towards the front windshield to ensure de-misting / defogging. |
A
|
Co–Driver Temp control Knob
|
H
|
A/C ON Switch
|
B
|
Front defogger switch
|
I
|
OFF switch
|
C
|
Rear Defogger switch
|
J
|
Rear A/C switch
|
D
|
Blower speed control Switches
|
K
|
MAX A/C Switch
|
E
|
Auto Mode Switch
|
L
|
Mode Switch
|
F
|
Recirculation Mode Switch
|
M
|
Dual mode switch
|
G
|
Driver temp control knob
|
|
Below mentioned switches/knobs in DATC control
panel is
pressed/Rotated, respective icons and changes are displayed in the
infotainment screen.
|
• | If you press the DUAL mode switch, the indicator lamp lights up and DUAL mode indicator on the infotainment displays comes on |
• | When the driver temperature control knob is rotated, the driver side temperature on the infotainment display is adjusted as desired and when co-driver temperature control knob is rotated, co-driver side temperature on the infotainment display is adjusted as desired |
• | While the DUAL mode switch is operating, its indicator lamp turns ON and the lamp turns off when the DUAL mode switch is turned OFF. |
|
Face-Mode
|
|
Foot-Mode
|
|
Face/Foot-Mode
|
|
Foot/Defogger-Mode
|
1. | In cabin temperature is set to minimum |
2. | Blower fan speed is set to Max |
3. | Air intake mode is set to recirculation mode |
4. | Air distribution mode is set to Face mode |
1
|
Co–driver Temp Control Knob
|
3
|
Driver Temp Control Knob
|
2
|
Auto Indicator ON
|
1. | Press the AUTO switch. |
2. | AUTO indicator is displayed on the Infotainment Screen. |
3. | Set the desired cabin temperature with the temperature control knob. |
4. | The temperature of the passenger compartment is automatically maintained according to the set temperature. |
5. | If the driver and co-driver require different temperatures in their respective zones, the same can be done by pressing the dual mode Switch and subsequently, setting different temperatures using temperature control. |
1
|
Co–driver Temp Control Knob
|
4
|
Recirculation Mode Switch
|
2
|
Mode Switch
|
5
|
Driver Temp Control Knob
|
3
|
Blower Control Speed Switch
|
1. | Press AC ON switch |
2. | Set the desired temperature by rotating the temperature control knob |
3. | Adjust the blower speed by pressing the blower speed control switches |
4. | Select the air flow by pressing the air distribution/mode switch |
5. | Select the air source mode by pressing recirculation mode switch |
|
|
• | Under Climate control screen select Climate icon |
• | All HVAC setting can be changed by pressing respective symbols or buttons in climate screen |
|
|
|
Remote cooling feature allows user to control
Cabin
climate settings from outside the vehicle.
|
|
Remote cooling starts by automatically once we
press
"start engine" button in the Adrenox connect mobile App
|
• | All Doors closed |
• | Gear is in PARK position |
• | Fuel level is greater than 10 liters |
• | Vehicle should be in Standstill |
• | All Doors closed |
• | EPB is Engaged |
• | Fuel level is greater than 10 liters |
• | Vehicle should be in Standstill |
• | Gear is in Neutral |
|
When vehicle is started remotely using Adrenox
connect
mobile App, By default Cabin climate settings will be changed to 18
deg C in Auto mode.
In remote Engine start condition user will have
access
to control below Cabin climate setting under Climate settings
|
1. | Duration time : User can select the time duration for which remote cooling will be active using Adrenox connect mobile App, Duration can be selected from minimum of 2 mins to maximum of 15 mins. |
2. | Cabin Temperature settings: User can change temperature settings during Remote cooling |
3. | Front defrost: User can Activate /De-activate front defrost during remote cooling by selecting front defrost option in mobile app |
4. | Rear Defrost: User can Activate /De-activate Rear defrost during remote cooling by selecting Rear defrost option in Adrenox connect mobile App, |
|
Remote cooling can be De-activated by using
Mobile App.
if vehicle is already in Remote start condition by Pressing start
engine button, Remote cooling will be deactivated.
In Mobile App customer will get notification if
Remote
cooling is failed.
|
• | Make sure that all the windows are fully closed |
• | Fully open the vents and adjust Louvres to direct air toward face |
• | Turn ON AC |
• | Press MAX AC Switch |
• | Make sure that all the windows are fully closed |
• | Set the blower to maximum speed |
• | Fully open the vents and adjust Louvres to direct air toward face |
• | Set the air distribution control to face mode |
• | Set air intake control to recirculation mode |
• | Turn the air conditioner ON |
• | Set the temperature control knob to extreme left (coolest) position |
1. | Make sure that all the windows are fully closed. |
2. | Set the blower to maximum speed. |
3. | Set the air distribution control to foot mode. |
4. | Set air intake control to recirculation mode. |
5. | Set the temperature control knob to extreme right (hot) position. |
6. | For de-humidified heating, switch the air conditioner ON. So on rainy conditions if the heater is ON then also keep the AC ON. |
• | For quickly defogging/de-misting outside of front windshield, it is advisable to operate the windshield wiper/washer for few times intermittently |
• | If snow has deposited on windshield, use ice scraper to remove ice deposited before using wiper |
• | In freezing weather, warm the front windshield with the defogger before using the windshield washer. Also use a washer fluid having anti-freezing properties. These will help prevent the washer fluid from freezing on your windshield |
• | Dirty/contaminated windshield would make misting / fogging-up worse. Always keep the inside and outside of windshield clean |
• | Reduced air flow because of clogged HVAC filter or any other obstructions in air flow path may lead to inadequate defogging/de-misting performance. If air flow seems to have considerably reduced, get the filter cleaned or replaced immediately. Air flow path should be kept free of obstructions |
• | Reduced cooling performance from air conditioner may lead to inadequate defogging/de-misting. If cooling effect seems to have dropped considerably, get the air conditioning system checked by an Mahindra Authorised Dealer |
• | The cameras in Surround View System provide only the view and do not detect or alarm if any obstacles are in the view. Driver must check for the surrounding for any possible collisions with obstacles. |
• | There is a noticeable blind area of about 20cm where the cameras cannot see around the periphery of the vehicle. Driver must be careful to check for any obstacles in the blind areas. |
• | Surround View System provides the views by stitching the views from the four cameras with respect to their geometric orientations. If the position or the installation angle of any of the camera is changed e.g. after a collision, then do not use the feature for safety reasons as the image stitching may not be correct. |
• | If the exterior mirror is folded or out of place then image stitching may not be correct. |
• | Use the Surround View System only when all the doors and the tailgate are closed. |
• | The area around the vehicle is shown using the camera images and the car image is a standard graphic shown by the system. Hence the car image shown on the screen is not real and may not represent your actual vehicle. |
• | Objects and obstacles above the camera height or out of the field of view of the cameras are not displayed. |
• | Camera lenses distort the actual view surroundings to capture more coverage. The objects appear are altered and may not be dimensionally same as real as on the screen. |
• | The accuracy of the orientation decreases when the vehicle is raised/lowered based on the occupant’s weight. |
• | Press SVS Hard Switch on center fascia
switch
bank.
|
• |
|
• | System activates when the engine is running and the shift lever is in the R (Reverse) position regardless of vehicle speed or switch position. |
|
|
• | When driver activates SVS through Reverse gear or at lower speeds (< 15 km/h) then SVS display goes off if vehicle speed exceeds 15 km/h while driving forward. |
• | To display the icon bar, touch the notch in top middle of screen. |
• | Touch an icon 1-8 to select a desired view. |
• |
When you touch car model in the bird’s eye
view
area, an oval will appear with 8 camera icons to switch different 3D views.
|
|
|
Sl. No
|
Icons
|
Description
|
---|---|---|
1.
|
|
This view assists you with front surroundings
view for
maneuvering in front of the vehicle.
|
2.
|
|
This view assists you with front surroundings
view for
maneuvering in rear of the vehicle.
|
3.
|
|
This view helps you with left side view near the
front
tire when parking.
|
4.
|
|
This view helps you with right side view near the
front
tire when parking.
|
5.
|
|
This view helps you to see the objects closer to
rear
bumper.
|
6.
|
|
This view helps you to see the objects closer to
front
bumper.
|
7.
|
|
In these views, you can see the areas surrounding
the
vehicle in 3D.
|
8.
|
|
You can have each camera wider view (almost 180
degree
view) by pressing this icon which helps in crossing junctions.
Also When you are in 3D surroundings mode , you
can
have 3D surroundings in full screen view by pressing this icon.
you can exit full screen view by touching icon.
|
9.
|
Refer Image No: W62K47
|
This view is bird’s eye view / 2D top view which
gives
top down view of vehicle surrounding by stitching all four camera images.
|
10.
|
Refer Image No: W62K47
|
When you touch this area, front surroundings view
will
be seen in the left screen area
|
11.
|
When you touch this area, rear surroundings will
be
seen in the left screen area
|
|
12.
|
When you touch this area, left surroundings will
be
seen in the left screen area
|
|
13.
|
When you touch this area, right surroundings will
be
seen in the left screen area
|
|
14.
|
|
You can view SVS settings option using this Icon.
|
15.
|
|
You can capture screen shot of Infotainment
screen
using this Icon.
|
|
To select default view, touch SVS Settings icon
and
then touch
|
|

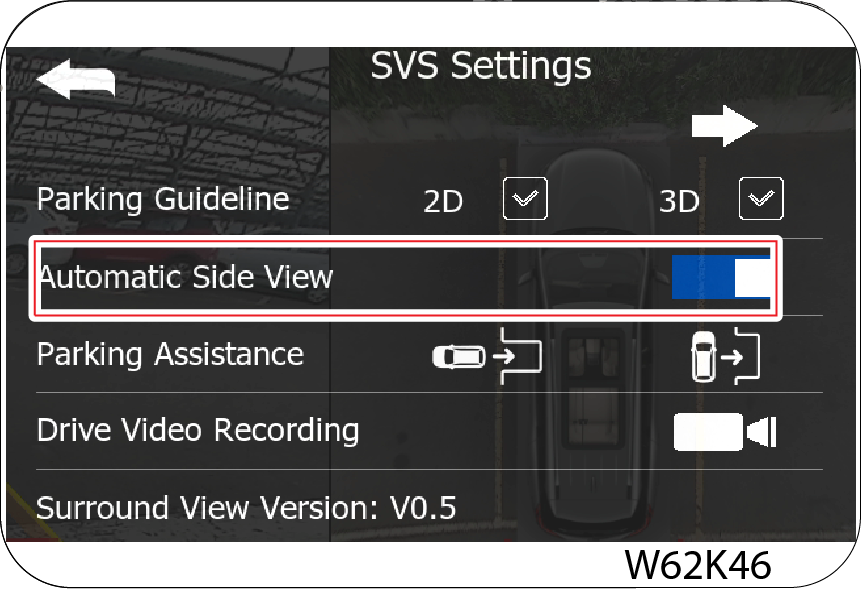

Touch SVS settings icon and enable Automatic Side
View.
You can see left/right 3D view in Infotainment when left/right turn
indicator is activated in forward /D gear.
|
|
Until the vehicle moves, the bottom portion is
shown as
black opaque box
Touch again on SVS car in bird’s eye view to
revert to
opaque car model.
|
|
Dynamic Guidelines indicate the path the vehicle
will
traverse with the current steering angle.
|
• | Static Guidelines indicate the placement of the vehicle with respect to the parking slot. |
• | During parking, you can compare the Static guidelines against the Parking Slot Lines to know if your vehicle placement is in line with the parking slot lines. |
• | Color coding (Red,Yellow,Green) on the static lines help in assessing the distance of the obstacles [at the ground plane] from the vehicle’s boundary. |
|
You can select from settings to have parking
guidelines (Static and Dynamic) in 2D or/and 3D Views.
|
• | It is driver’s responsibility to identify the suitable parking area to park car safely. |
|
Choose Vertical Parking icon from SVS settings.
Below
overlays (Ref Img No: W62K54) will
appear on
either side.
|
• | Move the vehicle either forward or backward so that the end point of the shortest arc [either blue or green, based on the side in which the vehicle will be parked], is coinciding with the parking slot line. (Blue arc line as shown in the image Ref. Img. No. W62K54) |
• | Once it is done, turn the steering wheel in the direction of the parking slot, till the rack end/extreme end move of steering wheel. |
• | Start Reversing the vehicle until the static lines are parallel to the parking slot lines. Then, keep the steering straight, and reverse car until the vehicle is in final position in the slot. Parking is Complete |
• | Steering will be straight if both dynamic and static lines are overlapping |
|
|
• | Drive ahead of the parking slot, so that Camera can have the parking slot view and choose Parallel parking icon from settings. |
|
Two green rectangular boxes will appear on
either
side as below image (Ref Img. No.
W62K56).
|
• | Move the vehicle forward or backward, so that the one of the rectangular box is placed inside the parking slot |
• | Make sure there are no obstacles in the green parking slot after orange pole. |
• | Turn the steering wheel in the direction in which parking is intended. |
• | Hold the steering in the current position once selecting the parking area after turning the steering wheel as the area color turns green as in below image screens. |
|
|
|
|
|
|
• | Continue reversing the vehicle until the static lines are parallel to the parking slot lines. Then, keep the steering straight, and keep reversing the vehicle until the vehicle is in final position in the slot. Parking is Complete |
|
|
Left
Side
|
Right
Side
|
|
|
|

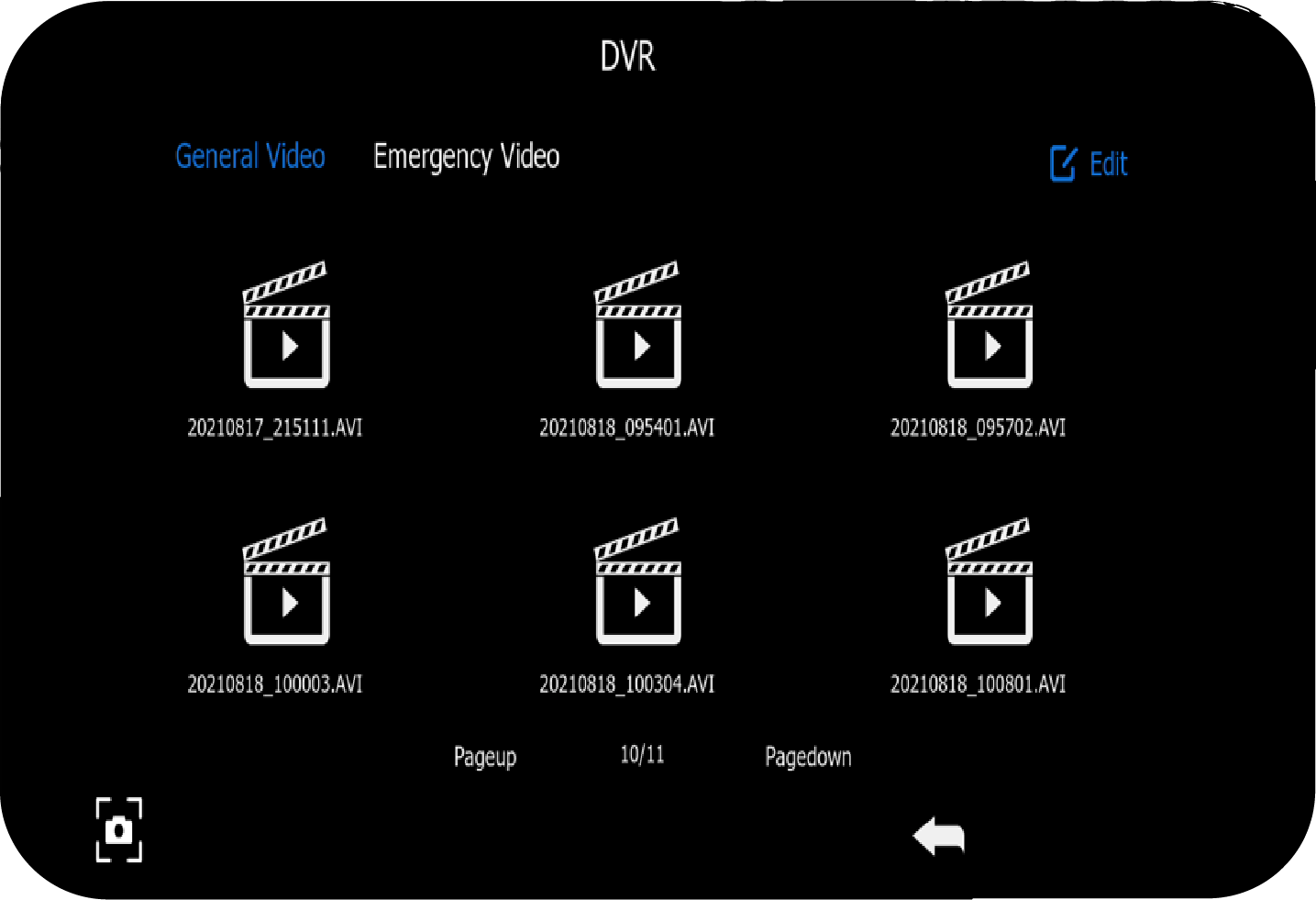

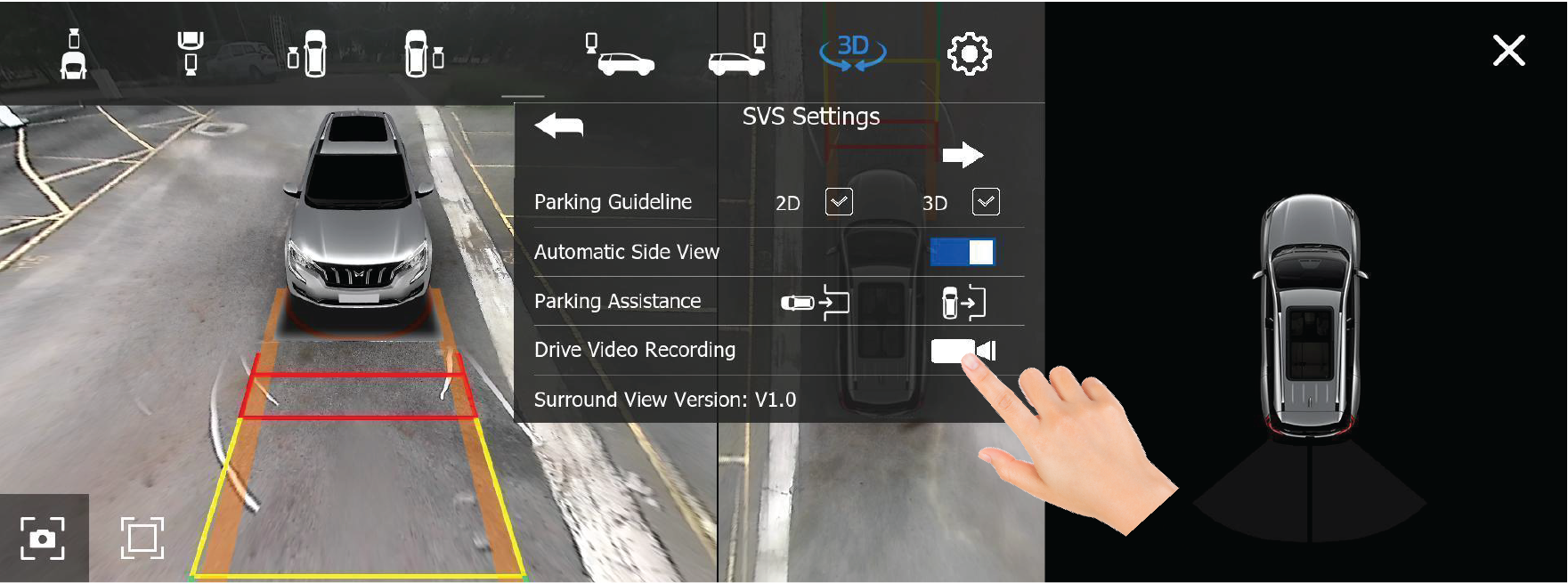

A: General Video
B: Emergency Video
|
• | Under DVR interface, click "Emergency Video" folder or "General Video" folder to replay any video file. |
• | Saved video file name is as per date and
time of
recorded video. Video files are saved with .AVI file extension.
Eg. File Name - 20151203_163028.AVI
20151203 - YYYYMMDD (Y-Year, M-Month, D-Day)
163028 - HHMMSS (H-Hour,M-Minute, S-Second)
|
• | Click the “edit” button to delete/move video files. |
|
Playback and editing interface show as below:
|
|
1: To close a video
2: To replay previous video
3: To play video fast backward
4: Pause/play
5: To play video slow forward
6: To replay next video
|
|
|
• | When there is any error in system/camera lost connection, the corresponding camera view on screen shows green color with an icon indicating camera error. Visit nearest Mahindra Service Center for assistance. |
• | In case of malfunction , system shows a pop-up message "Please Contact Service Center" |
• | Surround View System is subject to certain system limitation and may be unavailable or only partially available in the following situations: |
• | Video may get blur if camera is exposed to bright light and area around is dark/shadowed. |
• | SVS Camera images are reproduced slightly delayed and not in real time due to processing and stitching. |
• | Sometimes during SVS activation , you may not see stable video feed as some parameters update happens. |
• | When SVS is used in the area with AC light sources , black bands might be seen running in the video feed. |
• | If video file is corrupted , you may observe black screen while replaying the video and system will reset to default view. |
• | During video playback, you may observe green screen sometimes. |
• | DVR may not record properly if the power is interrupted in between of usage. e.g during crash, low battery, removal of battery and other reasons. |
• | Use SD card as fresh and formatted before first use and do not swap SD cards frequently. |
• | SVS is only a supplementary function and may display obstacles from a distorted perspective. |
• | Avoid using SVS if you are having eye color blindness or impaired color vision. |
• | Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases, avoid using guidelines to judge the distance. Since it leads to mis-adjustments and increase the risk of collision with your car. |
• | SVS video is shown based on driver activation but it cannot be used to see a complete surrounding view which cannot replace the driver for looking into exterior and interior view mirrors. |
• | Some obstacles are hard to depict and thus very difficult recognize due to stitched images, hence sole-reliance on the system may result in a collision. |
• | Always keep all camera lens clean. Foreign materials on the camera lens can cause system error and reduced visibility. |
• | Always use clean water & soft nonabrasive cloth to clean the lens |
• | Don’t clean the camera lens and the area around the cameras with a power washer. |
• | When SVS parts need to be replaced due to damage/ non-functioning / any other reason or abnormal video with "No Panoramic Calibration" text , Visit nearest Mahindra Service Center for recalibration. |
• | Always clean camera lens smoothly and don’t apply much pressure. |
|
The hazard warning flasher button is in the central
bezel
switch bank. Press the button to turn ON the hazard warning flashers,
all directional turn signals will flash to warn oncoming traffic.
|
Front
Tow
Hook
|
Rear
Tow
Hook
|
|
|
Towing
Option
|
2WD
|
Towing
Condition
|
Wheels
OFF the Ground
|
All
Wheel Drive Models
|
---|---|---|---|---|
Flat Bed Towing
|
ü
|
On Trailer
|
ALL
|
ü
|
Flat Towing
|
O
|
Flat Tow
|
NONE
|
O
|
Sling Type Towing (Front Wheel Lift)
|
ü
|
Dolly Tow
|
Front
|
O
|
Sling Type Towing (Rear Wheel Lift)
|
O
|
REAR
|
O
|
In case of emergencies, driver/customer can follow
the
below steps to connect with our Emergency assistance service either
from the car or through mobile phone.
|
1. | Check that the battery terminals are tight and clean. |
2. | If the battery terminals are firmly fastened, switch ON the interior lamps. |
3. | If the lamps do not illuminate, glow dim or go OFF when the starter is cranked, then it indicates a weak or discharged battery. Try jumpstarting. Follow ‘jump starting’ instructions given later in this chapter. |
4. | Check the fuses in the Engine Compartment Fuse Box and Instrument Panel Fuse Box. |
• | Reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place. |
• | Turn ON your hazard warning flashers and check for any malfunction lamps in the instrument cluster. |
• | Turn the ignition OFF, wait for approximately 90 seconds and try starting the engine again. |
• | . If the vehicle still does not start, contact an Mahindra Authorised Dealer. |
• | If the engine speed does not increase when the accelerator pedal is depressed, there may be a problem in the Engine Management System, electrical or electronic controls. |
• | In case of certain faults, the engine may go to limp home mode, which is indicated by the check engine lamp. |
• | Have your vehicle checked by an Mahindra Authorised Dealer as soon as possible. |
• | Progressively reduce the vehicle speed and bring the vehicle to a stop at the side of the road |
• | Turn ON the hazard warning flashers |
• | Keep the engine running at idle |
• | Engage the parking brake |
• | Switch off the air conditioner |
• | Wait till the engine coolant temperature drops sufficiently such that the temperature gauge is around halfway between C and H |
1. | Turn headlamp ON and check whether lights are dim |
2. | Try to start the vehicle and check whether engine cranks slowly or not crank at all. |
3. | Open the bonnet and locate the battery.
It may be necessary to remove the disabled
vehicle’s
battery cables from the battery terminals and clean both cables and terminals.
Use a stiff wire brush to remove all corrosion. Reconnect the cables to the
battery
terminals before jump starting the vehicle.
|
4. | The positive terminal will be marked with a plus sign (+) and will usually have a RED cable attached on it. |
5. | The negative terminal will be marked with a minus sign (-) and will usually have a BLACK cable attached to it. |
6. | A standalone booster battery can be used to start the engine when the vehicle battery is low. |
7. | Take jumper cables and unwind the red and black cables. |
8. | Wear safety gear and connect one end of red clamp of the jumper cable to the positive (+) terminal of the discharged battery and other end to the positive (+) terminal of the booster battery. |
9. | Similarly, connect one end of black clamp of the jumper cable to the negative (-) terminal of the booster battery and other end to the negative (-) terminal of the discharged battery. |
10. | Once the jump starting assembly is done, crank the engine for starting. |
11. | Once the vehicle gets started, carefully remove the jumper cables in the reverse order of attachment. |
12. | Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery and the other end of the black clamp from the negative (-) terminal of the booster battery. |
13. | Similarly, disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery and the other end of the red clamp from the positive (+) terminal of the discharged battery. |
14. | Close the bonnet |
15. | Keep the vehicle's engine running and slightly accelerate the vehicle to charge the battery. |
|
|
• | Remove the jumper cables once the vehicle starts. Do this in the reverse of the order in which they were attached, and don't let any of the cables or clamps touch each other (or dangle into the engine compartment) |
• | Disconnect the black clamp of the jumper cable from the negative (-) terminal of the discharged battery |
• | Disconnect the other end of the black clamp from the negative (-) terminal of the booster battery |
• | Disconnect the red clamp of the jumper cable from the positive (+) terminal of the booster battery |
• | Disconnect the other end of the red clamp from the positive (+) terminal of the discharged battery |
• | Keep the vehicle's engine running. Run the vehicle above idle (slightly revved up with your foot on the accelerator). This should give the battery enough charge to start the vehicle again. If it does not start, either your battery might be dead or faulty alternator. |
|

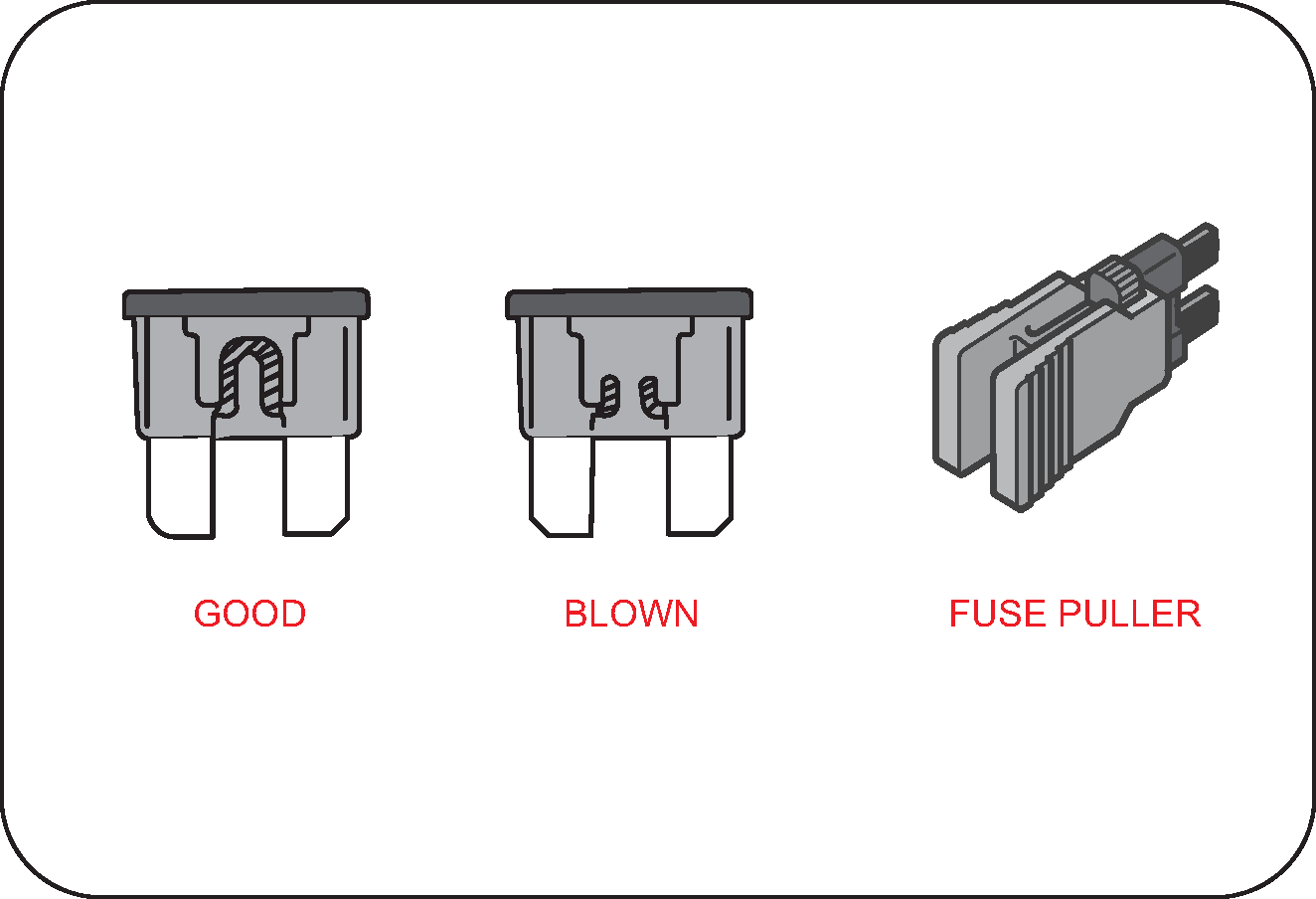

Switch the ignition and all electrical equipment OFF
before touching or attempting to change a fuse.
|
|
Fuse puller is available at the engine compartment
fuse
box .
|
|
|
“EF”
Fuses (Mini Fuses)
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F1
|
EMS Batt 1 (Diesel)
|
15A
|
EMS Batt 1 (Petrol)
|
30A
|
|
F2
|
EMS Batt 2 (Diesel)
|
10A
|
VVTIN/EX, VOP, Canister (Petrol)
|
10A
|
|
F3
|
HFM/FMU/FEED Pump Relay (Diesel)
|
10A
|
Ignition Coils (Petrol)
|
15A
|
|
F4
|
BMS*
|
5A
|
F5
|
Spare
|
—
|
F6
|
EMS ECU Permanent Batt
|
5A
|
F7
|
Spare
|
—
|
F8
|
Horn
|
20A
|
F9
|
Head Lamp Batt +ve 1/ DRL RH
|
10A
|
F10
|
Head Lamp Batt +ve 2/ DRL LH
|
10A
|
F11
|
TCU Batt (AT only)
|
15A
|
F12
|
EMS Loads – Relay /WIF/EGR BP (Diesel)
|
15A
|
EMS Loads – Lambda/(Petrol)
|
10A
|
|
F13
|
Brake Lamp (Switch)
|
10A
|
“EF”
Fuses (Mini Fuses)
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F14
|
Front Blower
|
40A
|
F15
|
Spare
|
—
|
F16
|
ABS Valve (ABS ESP)
|
25A
|
ABS Valve (ESP EPB)
|
40A
|
|
F17
|
Spare
|
—
|
F18
|
ABS Pump
|
40A
|
F19
|
Spare
|
—
|
F20
|
EMS Main
|
40A
|
F21 – F24
|
Spare
|
—
|
F25
|
SCR Relay (Diesel)
Intercooler Fan (Petrol)
|
10A
|
F26 – 29
|
Spare
|
_
|
F30
|
AC compressor EVDC
|
10A
|
F31
|
Fuel Pump
|
20A
|
F32–F35
|
Spare
|
_
|
F36
|
Shifter Solenoid (AT Only)
|
5A
|
F37
|
Starter
|
30A
|
F38
|
Glow plug (Diesel Only)
|
50A
|
“EF”
Fuses (Mini Fuses)
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F39
|
Main Batt-3
|
60A
|
F40
|
Cooling Fan Low Speed
|
40A
|
F41
|
Main Batt - 2
|
60A
|
F42
|
Main Batt - 4
|
60A
|
F43
|
Main Batt - 1
|
60A
|
F44
|
ABS IGN
|
5A
|
F45
|
TCU IGN (AT Only)
|
5A
|
F46
|
EMS IGN
|
5A
|
F47
|
Water Pump/SCR Relay*(Diesel)
|
15A
|
Turbo Rec Valve /IC Fan Relay (Petrol)
|
10A
|
|
F48
|
NOx (Diesel)
|
10A
|
EMS Relay Loads (Petrol)
|
5A
|
|
F49
|
EPS
|
125A
|
F50
|
Radiator Fan (High Speed)
|
60A
|
F51
|
Alternator
|
150A
|
Relays
|
||
---|---|---|
Relay
No.
|
Relay
Type
|
Application Detail
|
R2
|
ISO Power Relay (70A)
|
Cooling Fan High Speed
|
R3
|
ISO Power Relay (70A)
|
Glow Plug (Diesel Only)
|
R6
|
Ultra Micro Relay (20A)
|
Intercooler Fan (Petrol Only)
|
R8
|
Ultra Micro Relay (20A)
|
Shifter Solenoid (AT Only)
|
R11
|
Ultra Micro Relay (20A)
|
Fuel pump
|
R13
|
Ultra Micro Relay (20A)
|
Horn relay
|
R14
|
Mini Relay (40A)
|
EMS main
|
R15
|
Mini Relay (40A)
|
Cooling fan low speed
|
R16
|
Mini Relay (40A)
|
Front blower
|
R22
|
ISO Micro Relay (35A)
|
Starter
|
R23
|
Ultra Micro Relay (20A)
|
AC compressor
|
R25
|
Ultra Micro Relay (20A)
|
SCR (diesel only)
|
R1,R4, R5, R7, R9, R10, R12, R17, R18,
R19,
R20, R21, R24, R26 & R27
|
Spares
|
|
|
|
|
|
|
• | Using a star screw driver, loosen and remove the IP driver lower trim bottom mounting star screws. |
|
|
• | Partially detach the IP driver lower trim assembly. |
• | Remove all the electrical connectors from IP driver lower trim and outward the panel to access the Instrument Panel fuse box. |
Fuses
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F1
|
Spare
|
20A
|
F2
|
Rear Power Window
|
30A
|
F3
|
Power Window LH
|
30A
|
F4
|
Spare
|
15A
|
F5
|
Accessory Power
|
25A
|
F6
|
Power Window RH
|
30A
|
F7
|
ORVM Switch, WLC
|
5A
|
F8
|
Spare
|
5A
|
F9
|
360 Camera Batt
|
5A
|
F10
|
ITM Batt
|
15A
|
F11
|
Roof Lamp Batt
|
5A
|
F12
|
Spare
|
10A
|
F13
|
Spare
|
10A
|
F14
|
Infotainment Batt
|
15A
|
F15
|
MBFM Batt 5
|
15A
|
F16
|
MBFM Batt 1
|
25A
|
F17
|
MBFM Batt 2
|
30A
|
F18
|
Flush Handle Batt 1
|
10A
|
F19
|
PKE Batt1 / Immo Batt
|
10A
|
F20
|
ICC Batt
|
5A
|
F21
|
IGN - HVAC, Amplifier, Infotainment
|
5A
|
F22
|
IGN - MBFM, Gateway, Cluster, Display
|
5A
|
Fuses
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F23
|
MBFM Batt 4
|
20A
|
F24
|
Skyroof Batt
|
20A
|
F25
|
Gateway Batt
|
5A
|
F26
|
Batt - Cluster Display
|
7.5A
|
F27
|
Pke Batt 2/ Ignition Switch Batt
|
10A
|
F28
|
Batt Power Seat Switch, OBD, HVAC
|
5A
|
F29
|
RLS Batt
|
5A
|
F30
|
Rear Blower Batt
|
10A
|
F31
|
Batt - Key Lock Solenoid AT and ITS
|
5A
|
F32
|
Spare
|
20A
|
F33
|
Flush Handle Batt 2
|
10A
|
F34
|
ESCL Batt
|
7.5A
|
F35
|
Eng Comp IGN
|
5A
|
F36
|
IGN - Airbag
|
5A
|
F37
|
IGN - APAS, 360/RVC, Flush Handle
|
5A
|
F38
|
IGN - WLC, Radar, Windshield Camera
|
5A
|
F39
|
IGN - EPS
|
5A
|
F40
|
IGN - CB Switch, Reverse Lamp MT, DS
Switch
|
7.5A
|
F41
|
IGN - PKE/IMMO
|
5A
|
F42
|
IGN - ITM, EPB Switch, Power Seat
|
5A
|
F43
|
IGN - Reverse Lamp AT
|
10A
|
Fuses
|
||
---|---|---|
Fuse
No.
|
Circuit
|
Fuse
Rating
|
F44
|
ACC - Amp, HVAC, Infotainment
|
5A
|
F45
|
SPARE
|
25A
|
F46
|
ACC - Power Seat Vent
|
10A
|
F47
|
ACC - Rear Power Socket
|
15A
|
F48
|
Front Power USB
|
5A
|
F49
|
ACC - PKE, ICC
|
5A
|
F50
|
Start
|
5A
|
F51
|
MBFM Batt3
|
25A
|
F52
|
Spare
|
30A
|
F53
|
Power Seat Batt
|
15A
|
F54
|
Amplifier Batt
|
30A
|
* - if equipped
|
|
It is placed in the tool kit organizer behind the
rear
seats on the floor.
|
A
|
Jack Assembly
|
B
|
Wheel Spanner
|
C
|
DEO Spanner 10mm x 12mm
|
D
|
Diesel Filter water drain Tool*
|
E
|
Screwdriver
|
F
|
Jack Operating Lever
|
G
|
Tow Bar
|
* –
Diesel
Variant Only
|
|
|
|
|
|
Locate the plug covering the securing nut below
the
rear luggage compartment floor carpet and remove the plug
|
|
Loosen the securing nut anticlockwise to winch
down/lower the secured spare wheel to the ground
|
|
|
• | Tilt and Remove the securing bracket out of the spare wheel hub |
• | Remove/pull away the spare wheel |
• | Temporary Spare Wheel provided is specifically designed for your vehicle. |
• | Do not use more than one Temporary Spare Wheel simultaneously. |
• | Drive the shortest possible distance with Temporary Spare Wheel. |
• | While using Temporary spare wheel reduce speed, Avoid sharp cornering, Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking. |
• | Do not drive at speeds in excess of 80 km/h when a Temporary Spare Wheel is installed on the vehicle. |
|
Always
loosen the wheel bolts before raising the vehicle. Turn the wheel bolts
anti-clockwise to loosen as per the sequence.
|
|
A:
Flat Tyre
B:
Chocks
Blocks
|
|
Locate the jack points in the front or rear as
needed.
They can be identified by a slot used to fit the jack precisely.
|
|
Position the jack at the correct jacking point.
Make
sure the jack is positioned on a level and solid place.
|
|
To raise the vehicle, insert the jack handle into
the
jack. Fit the other end of the lever into the square slot of the wheel
spanner and turn it clockwise to expand the jack.
|
• | Use the jack only for lifting your vehicle during wheel changing |
• | When raising the vehicle, do not place any objects on top of or underneath the jack |
• | Do not raise the jack with someone in the vehicle |
• | Raise the vehicle only high enough to remove and change the wheel |
• | Follow jacking instructions |
• | Do not start or run the engine while your vehicle is supported by the jack |
|
Reinstall the
wheel
bolts with the tapered end inward and tighten by hand. Press the wheel inward
and
tighten the wheel bolts
further.
|
|
Tighten each
bolt a
little at a time in the diagonally opposite order as shown. Repeat the process
until
all the bolts are
tight.
|
|
|
Technical
Specifications
|
||
---|---|---|
ENGINE
|
Diesel
(MT/AT/AWD)
|
Petrol
(MT/AT)
|
Displacement/Cubic Capacity
|
2184 cc
|
1997 cc
|
Type
|
4 Stroke, Turbocharged, DI engine
|
4 Stroke, Gasoline Direct Injection
|
Compression Ratio
|
16 ± 0.5: 1
|
9.5 ± 0.5: 1
|
Max. Engine Output
|
114 kW @ 3750 rpm or
136 kW @ 3500 rpm
|
149.2 kW @ 5000 ± 50 rpm
|
Max. Torque
|
360 Nm @ 1500 to 2800 rpm or
420 Nm @ 1600 to 2800 rpm or
450 Nm @ 1750 to 2800 rpm
|
380 Nm @ 1750 to 3000 rpm
|
TRANSMISSION
|
||
Type
|
6 Speed Manual/Automatic
|
|
No. of Gears
|
6 Forward, 1 Reverse
|
|
STEERING
|
||
Type/Description
|
Column mounted Electric Power Steering
|
|
SUSPENSION
|
||
Type/Description
|
Front:
Coil Spring with side load compensation on McPherson Strut with Double
acting
Hydraulic Shock Absorber
Rear:
Multi Link Control Blade Suspension with Double acting Hydraulic Shock
Absorber
& Linear Coil Spring
|
|
BRAKES
|
||
Service Brake
|
Hydraulic & Vacuum assisted Booster
with ABS
(Standard) & with ESP (Optional)
|
|
Front/Rear
|
Disc
|
|
Parking Brake
|
Mechanical Hand Operated (Conventional
Type)
(or)Electric Parking brake
|
|
WHEELS
&
TYRES
|
||
Rim
|
Regular
(Alloy & Steel) –7J X 17”, Optional – 7J X 18”, Spare wheel –4.5J x 18
|
|
Tyres
|
Regular
– P235/65 R17, Optional – P235/60 R18, Spare Wheel –T155 /90 R18
|
|
Type
|
Radial Tubeless
|
|
Laden Tyre Pressure (Psi)
|
Front /
Rear
- 32 (Up to 5 Persons), Front
/
Rear - 35 (6 Persons to Fully Laden)
Spare
Wheel
Tyre – 60
|
|
FUEL
|
||
Fuel Tank Capacity
|
60 liters
|
|
DEF Tank Capacity
|
20 liters (only for Diesel)
|
|
ELECTRICAL
SYSTEM
|
||
System Voltage
|
12V
|
|
Battery Rating
|
90 Ah
|
Lamp
Bulb
|
Wattage
|
Bulb
Type
|
No. of
Bulbs
per Vehicle
|
---|---|---|---|
Head Lamp - High Beam
|
12V 55W
|
H7 55W/LED
|
2
|
Head Lamp - Low Beam
|
12V 55W
|
H7 55W/LED
|
2
|
DRL / Position Lamp
|
LED
|
—
|
|
Turn Signal Lamp (Front)
|
12V 24W
|
PY24W
|
2
|
Turn Signal Lamp (Front)
|
LED
|
||
Turn Signal Lamp (Front)
|
Sequential LED Light blade
|
||
Turn Signal Lamp (Rear)
|
LEDs
|
||
Side Turn Indicator Lamp
|
LEDs
|
||
Front Position Lamp
|
12V 5W
|
W5W
|
2
|
Front Fog Lamp
|
LEDs
|
||
Front Cornering Lamp
|
LEDs
|
||
Rear Position Lamp - Tail gate
|
LEDs
|
||
Rear Position Lamp - Quarter slide
|
LEDs
|
||
Stop Lamp - Body Side
|
12V 21W
|
P21W
|
2
|
Reverse Lamp
|
12V 16W
|
W16W
|
2
|
Registration Plate Lamp
|
LEDs
|
||
High Mounted Stop Lamp
|
LEDs
|
• | Familiarize yourself with your vehicle by going through your Owner's Manual |
• | Take a few minutes to review this Maintenance Section |
• | Make it a habit to use this manual to record scheduled maintenance in the warranty and Service Information Guide |
• | Consult with your Mahindra Authorised Dealer for all your vehicle's needs |
• | Refer to relevant sections of the manual before starting |
• | Set the parking brake |
• | Block the wheels to prevent the vehicle from moving unexpectedly |
• | Turn OFF the engine and remove the key |
• | Stay clear of hot vehicle parts |
• | Avoid repeated contact with fluids |
• | Do not let fuel, coolant and other fluids spill over electrical and hot vehicle parts |
• | Keep all open flames and other burning material like cigarettes away from the battery and all fuel-related parts |
A
|
Windshield Washer Fluid
Reservoir
|
D
|
Engine Oil filling
Cap
|
G
|
Engine Compartment Fuse
Box
|
B
|
Degassing Tank
|
E
|
Engine Oil Dipstick
|
||
C
|
Brake
Fluid Reservoir
|
F
|
Battery
|
A
|
Windshield Washer Fluid
Reservoir
|
D
|
Engine Oil filling
Cap
|
G
|
Engine Compartment Fuse
Box
|
B
|
Degassing Tank
|
E
|
Engine Oil Dipstick
|
||
C
|
Brake
Fluid Reservoir
|
F
|
Battery
|
• | Front windshield washer fluid level |
• | Engine coolant level |
• | Battery condition |
• | Brake/Clutch fluid level |
• | Engine oil level |
• | Fluid leaks |
• | Hoses, joints and pipes for any abnormalities |
• | Lights |
• | Warning lamps |
• | Windshield wiper and wash |
• | Steering wheel |
• | Seats/Seat belts |
• | Accelerator pedal/Brake pedal |
• | Brakes |
• | Parking brake |
• | Gear lever shift mechanism |
• | Lamps |
• | Fluid leaks |
• | Doors and engine bonnet latches |
• | Tyre inflation pressure |
• | Tyre surface/thread and wheel Bolts |
• | Oil is used to lubricate pistons, piston rings and cylinders. Thin films of oil, left over when pistons move in cylinders, are sucked into the combustion chamber due to high negative pressure generated when the vehicle is decelerating. This oil gets burnt in the combustion chamber |
• | Oil is also used to lubricate the stems of intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burnt there |
• | Engine oil consumption depends upon the viscosity and quality of the oil, and upon the conditions in which the vehicle is driven. Oil consumption will be more due to high speed driving and frequent acceleration and deceleration. A new engine may consume more oil since its pistons, piston rings and cylinder walls are not conditioned |
• | Make sure the vehicle is on ground level |
• | Turn the engine OFF and wait a few minutes for the oil to settle down into the oil sump |
• | Apply the parking brake |
• | Open the bonnet, use stay rod to support the bonnet. Protect yourself from engine heat |
• | Locate and carefully remove the engine oil level dipstick |
• | Wipe the dipstick with a clean cloth. Insert the dipstick fully, then remove it again |
• | If
the oil
level is between “Min” and
“Max” marks, the oil level is
acceptable. DO NOT ADD
OIL
|
• | To access the engine oil filling remove the engine top cover. |
• | If the oil level is below or near the "Min" mark, add enough oil through the oil filler cap to raise the level within the “Min” and “Max” marks. Wait for few minutes after every top-up for the oil to settle down before checking the level |
|
|
• | Park the vehicle on flat-horizontal surface. Keep the parking brake fully engaged. Shut-off the engine |
• | Wait till the engine cools down and hence coolant temperature comes down to normal room temperature |
|
|
• | In case the coolant level is below the "MIN" marking, the coolant should be topped-up |
• | The coolant should be filled till the level rises above the 'MIN' but remain below the “MAX” marking on the degassing tank |
• | However, if the degassing tank is found to be near empty, it is recommended that the system be checked at Mahindra Authorised Dealer |
|
The brake fluid level will drop slowly as the
brakes
wear and will rise when the brake components are replaced. Fluid levels
between the “MIN” and “MAX” lines are within the normal operating range; there is
no
need to add fluid.
|
|
|
1. | Park the vehicle on a ground level |
2. | Apply Parking brake and block the wheels. |
3. | Switch off the ignition |
4. | Turn the drain plug (Tool is available in the tool kit) anti-clockwise 3–4 rounds, but DO NOT remove the plug |
5. | Wait till the water drains (few seconds) |
6. | Turn the drain plug clockwise to close and tighten the plug firmly |
• | Keep the battery securely mounted |
• | Keep the battery top clean and dry |
• | Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease |
• | Rinse any spilled electrolyte from the battery immediately with a solution of water and baking soda |
• | Remove the vent plugs |
• | Add distilled water to all the cells that require the fluid and secure the plugs properly |
1. | Lift the arm and position the wiper blade at
right
angles to the wiper arm.
|
2. | Press the retaining clip in the opposite direction, disengage the wiper blade and pull it off the arm. |
3. | Hold the end of the rubber and pull until the tabs are free of the metal support. |
4. | Carefully insert the new blade rubber. Then install the blade assembly in the reverse order of removal. |
• | Wash your vehicle regularly with cool or lukewarm water and a neutral pH soap |
• | Never use strong household detergents or soap, such as dish washing or laundry liquid. These products can discolor and spot painted surfaces |
• | Never wash a vehicle that is ‘hot to the touch’ or during exposure to strong, direct sunlight |
• | Always use a clean sponge or car wash mitt with plenty of water for best results |
• | Dry the vehicle with a chamois cloth or soft terry cloth towel in order to eliminate water spotting |
• | It is especially important to wash the vehicle regularly during the winter months, as dirt and road salt are difficult to remove and cause damage to the vehicle |
• | Immediately remove items such as gasoline, diesel fuel, bird droppings and insect deposits; they can cause damage to the vehicle's paint work and trim over time |
• | Wash the vehicle first, using cool or lukewarm water and a neutral pH shampoo |
• | Use the custom bright metal cleaners, available at your Mahindra Authorised Dealer. Apply the product as you would wax to clean chrome parts; allow the cleaner to dry for a few minutes, and then wipe off the haze with a clean, dry rag |
• | Never use abrasive materials such as steel wool or plastic pads as they can leave scratches on the chrome surface |
• | After polishing the chrome parts, you can also apply a coating of Premium Liquid Wax, available at your Mahindra Authorised Dealer, or an equivalent quality product to help protect from environmental effects |
• | Mahindra dealers have the exact touch-up paint to match your vehicle's color |
• | Take your vehicle to an Mahindra Authorised Dealer for paint touch-up or paint repairs |
• | Remove particles such as bird droppings, tree sap, insect deposits, tar spots, road salt and industrial fallout before repairing paint chips |
• | Always read the instructions before using the products |
• | Clean weekly with wheel and Tyre cleaner, which is available at your Mahindra Authorised Dealer. Heavy dirt and brake dust accumulation may require agitation with a sponge. Rinse thoroughly with a strong stream of water |
• | Never apply any cleaning chemicals to hot or warm wheel rims or covers |
• | Do not use hydrofluoric acid-based or high caustic-based wheel cleaners, steel wool, fuels or strong household detergents |
• | The windshield, rear windows and side windows may be cleaned with a non-abrasive cleaner such as Clear Spray Glass Cleaner, available at your Mahindra Authorised Dealer |
• | The wiper blades can be cleaned with alcohol or Premium Windshield Washer Concentrate, available at your Mahindra Authorised Dealer. This washer fluid contains a special solution in addition to alcohol which helps remove the hot wax deposited on the wiper blade and windshield. Be sure to replace wiper blades when they appear worn or do not function properly |
• | Do not use abrasives, as they may cause scratches |
• | Do not use fuel, kerosene, or paint thinner to clean any glass parts |
• | Remove dust and loose dirt with a vacuum cleaner |
• | Remove light stains and soil with carpet and upholstery cleaner |
• | If grease or tar is present on the material, spot-clean the area first with a stain remover |
• | Do not use household cleaning products or glass cleaners, which can stain and discolor the fabric and affect the flame- retardant abilities of the seat materials |
• | Do not use cleaning solvents, bleach or dye on the vehicle's safety belts, as these actions may weaken the belt webbing. |
• | It is recommended to use soft and micro-fiber lint free cloth to clean the display visible surface. |
• | Wipe gently. Do not rub, as the optical film is sensitive to scratch formation. |
• | Be careful for scratch by hard matter like finger nail or steel wool. |
• | Do not try to peel off the optical film or coating on the screen, since it is attached strongly. |
• | Do not add another commercial optical film on to the display visible area. |
• | Do not touch the screen with oily/dirty/wet moisturized fingers as the optical film is very sensitive to stains. Incase of such an event please clean with soft cloth immediately. |
• | The display visible surface must not come in contact with sharp objects or regular day to day ornaments like finger rings, watches, bracelets, bangles, car keys etc… |
• | When you find a scratch on the screen, do not wipe it strongly. Otherwise it will worsen. |
• | Display surface is not so strong for chemical agent. Glass cleaner including alkali or acid, sunscreen must not be used. Alcoholic thinner, petrol, abrading agent must not be used. This may cause discoloration or strain. |
• | Antiseptic solution must not be used for cleaning, since it is not pure alcohol. This may cause stains and/ or discoloration. |
• | Avoid cleaners or polishes that increase the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection |
• | Do not use household or glass cleaners as these may damage the finish of the instrument pane and interior trim |
• | Wipe up spilled liquid using a clean white cotton cloth |
• | Apply vinyl cleaner to the wiped area and spread around evenly |
• | Apply cleaner to a clean white cotton cloth and press the cloth onto the soiled area and allow this to set in at room temperature for 30 minutes |
• | Remove the soaked cloth, and if it is not soiled badly, use this cloth to clean the area with a rubbing motion for 60 seconds |
• | Following this, wipe area dry with a clean white cotton cloth |
• | To clean, use a soft microfiber / cotton / sponge cloth with a leather and vinyl with approved cleaners. Dry the area with a soft cloth |
• | To help maintain its resiliency and color, use the leather care kit, available from an Mahindra Authorised Dealer |
• | Do not use household cleaning products, alcohol solutions, solvents or cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based leather conditioners. These products may cause premature wearing of the clear, protective coating |
• | Run it in a well-ventilated area. Carbon monoxide can build up quickly |
• | Run for a minimum of 20 minutes to allow the engine to come up to the normal operating temperature. This will allow the oil to circulate and will also open up the thermostat so that your radiator anti-freeze circulates as well |
• | Start up the air conditioner and/or heater and run both for about 10 minute. Again, circulating fluids is essential for good life of the system |
• | Ensure ignition is switched OFF |
• | Remove rear dust cover from the head lamp |
• | Remove the bulb assembly with connector from the head lamp by unlocking the wire clamp |
• | Detach the bulb assembly from the wiring connector near to the head lamp |
• | Insert the connector into the new bulb (of the same wattage), and follow the reverse procedure to assemble the bulb assembly in the headlight assembly |
• | Clamp the bulb assembly by wire clamp properly |
• | To avoid short-circuits, never insert metallic objects (for instance: coins or metallic tools) into the unit. |
• | If you notice that the unit is releasing smoke or strange smell, promptly disconnect the supply and consult the nearest or Mahindra service Center. |
• | Pay attention not to let the unit fall down, and neither beat the device strongly. Internal glass components of the unit may be damaged, making it non-operative. |
• | This system has a Capacitive type touch panel. Select the desired option in the screen using his / her finger. Do not use any sharp objects on the touch screen. On selection the selected item is highlighted as an acknowledgement. |
A: Mute
|
E: Source
|
B: Volume +
|
F: SEEK UP
|
C: Volume -
|
G: SEEK DOWN
|
D: Call Connect
|
H: Voice / Call Disconnect
|
1. | Mute switch is for muting the audio playing in Infotainment |
2. | Volume control can be done with the help of this switch to increase the volume, move the switch upwards and to decrease it move the switch downwards. |
3. | Call connect is used to accept the incoming call & also it enable the driver to open the contacts list in Infotainment & make the call. |
4. | Source switch is used to change the source of audio playing in the Infotainment whether USB or FM. |
5. | Seek up/down switch can be used for toggling up/down the menu list of Infotainment. |
6. | Call Disconnect switch is used when the call is over, and the user wants to cut it then switch can be pressed. |
|

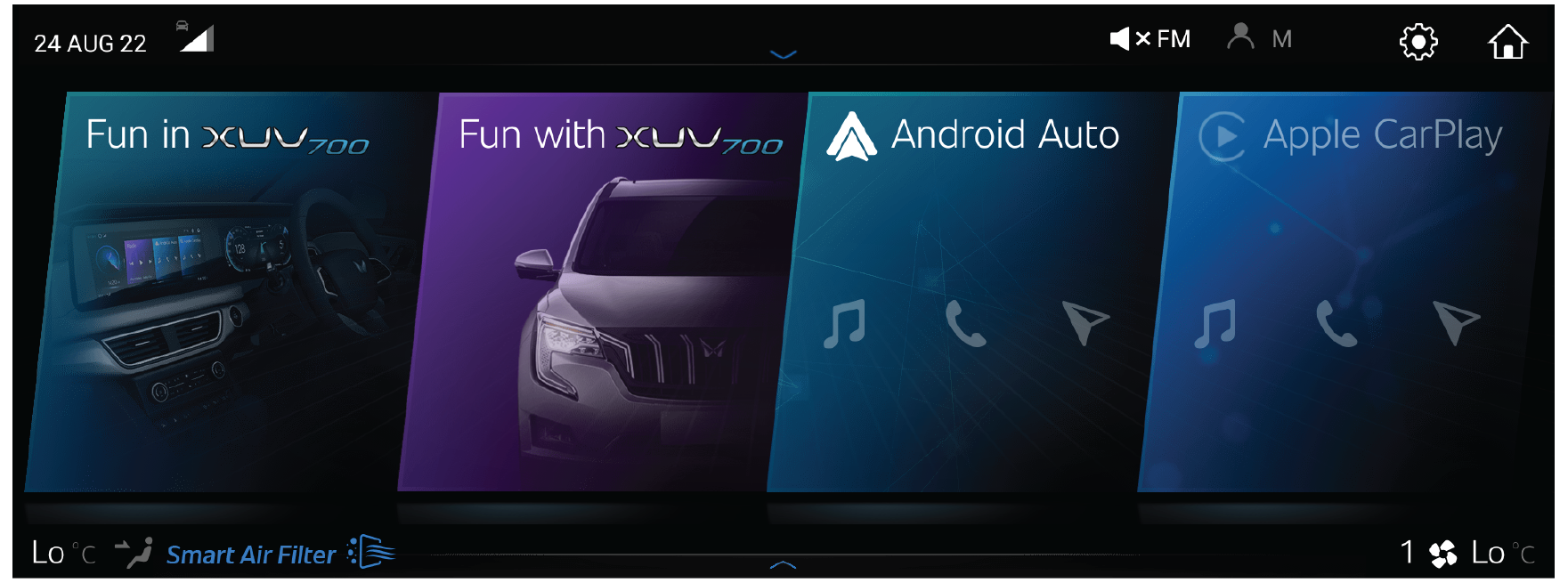

The AdrenoX Screen can be split in to 4 sections
|
Fun in XUV700
|
Android Auto
|
Fun with XUV700
|
Apple Carplay
|
|
|
|
|
Fun in XUV 700 shows all the media, phone,
navigation,
3rd party application options.
|
||||||||||||||||

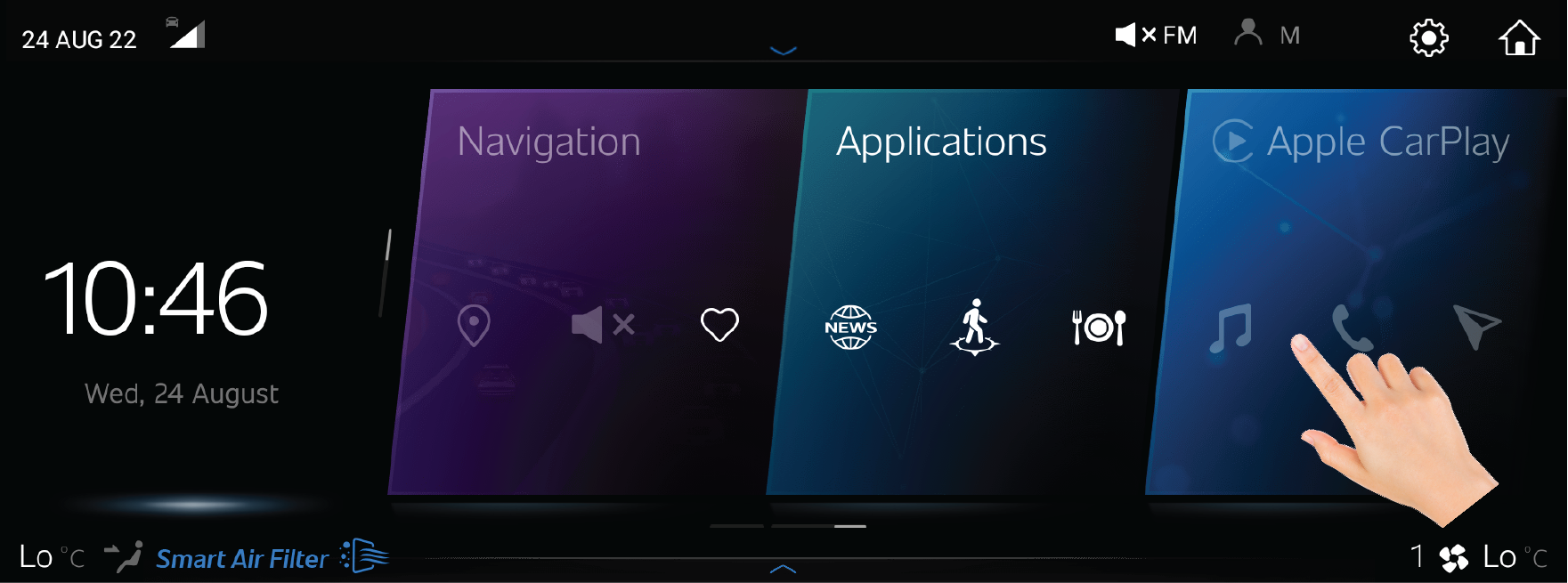

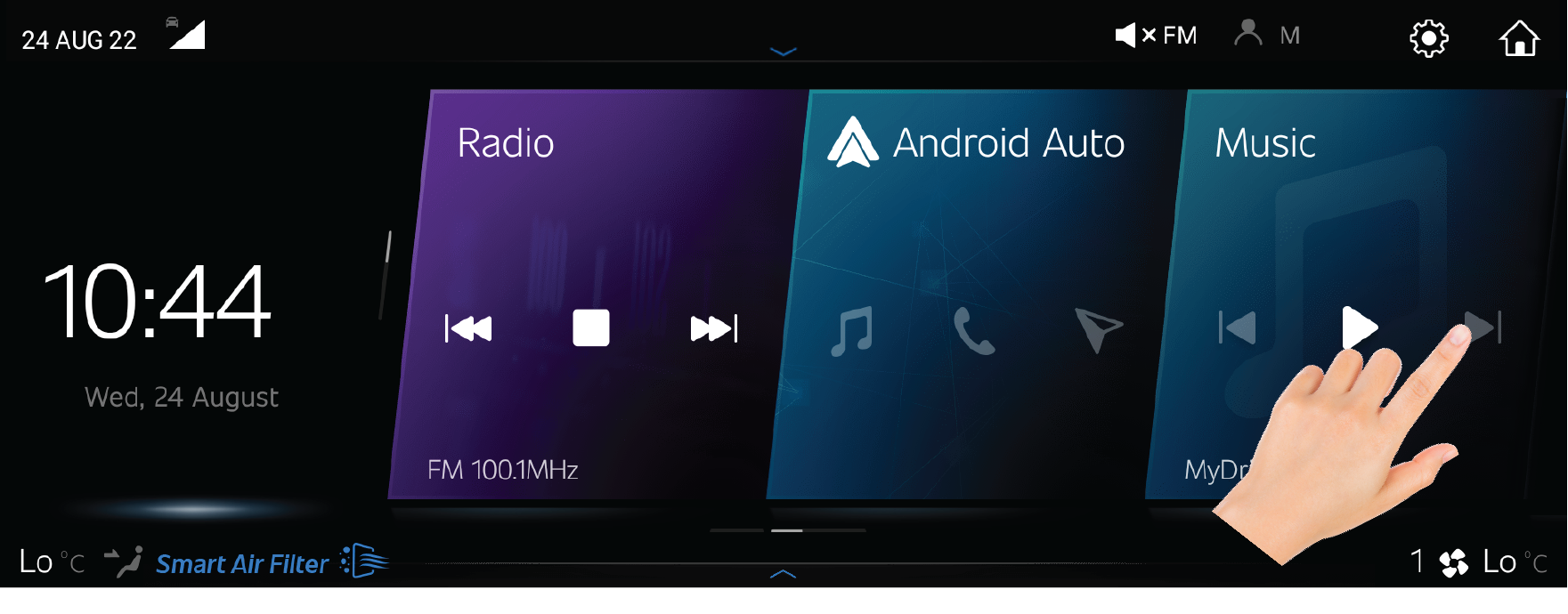

Home Screen
Details
Home Screen is the main screen for the user to
interact
with the Infotainment System
|
|
|
|
|

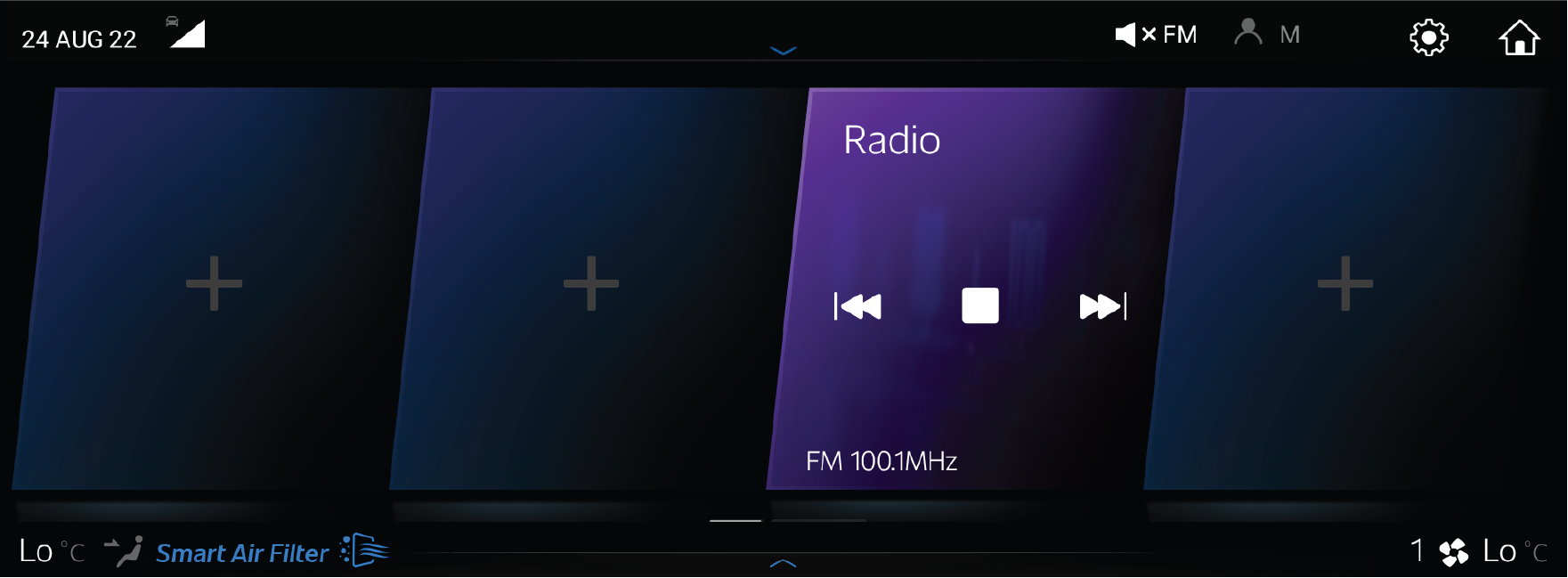

The Radio tile allows quick access to radio
features and the Radio menu.
|
||||||
|
|
||||
|
|
A: Mute
|
E: Source
|
B: Volume +
|
F: UP
|
C: Volume —
|
G: DOWN
|
D: Call Connect
|
G: Voice/Call Disconnect
|
Change next/previous radio station
|
|
|
|
Stop button is used to stop/play the music
|
|
|
||||||||||||||||||||||||
|
Android Auto will connect automatically in
XUV700 in
2-ways.

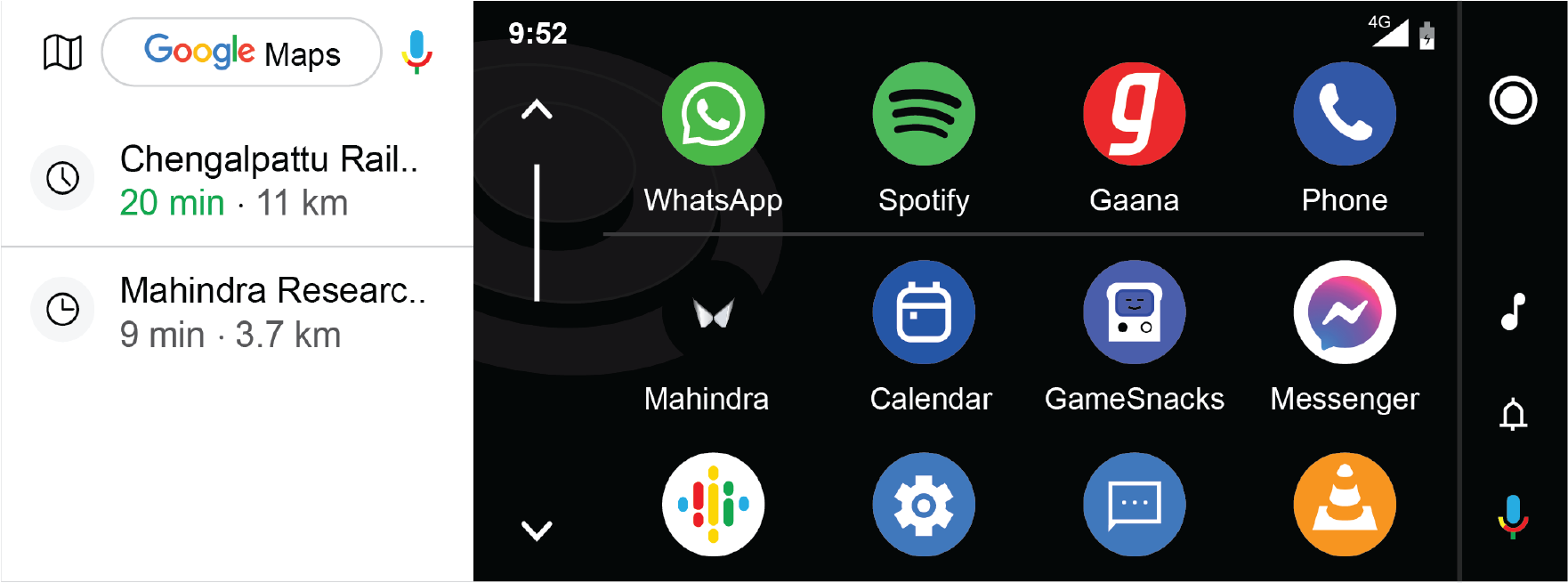

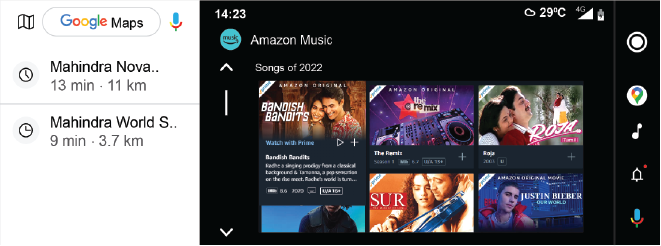

Below screen will appear in XUV700
infotainment
system.
|
|||||||
|
|
||||||
Features:

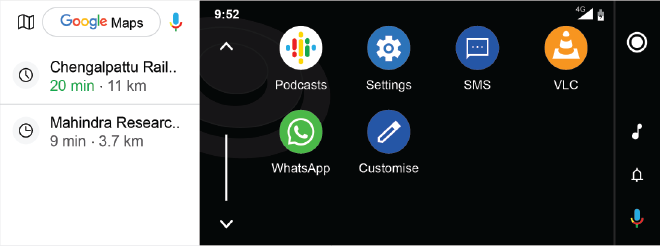

User can be able to find in-build apps in
infotainment screen
By using the apps, user can make call to their
contacts by using phone books.
Navigation system can be accessed to find the
desired location.
Music can be played by using in build mobile
app
|
|
|
Using Mahindra icon, user can able to switch
from
Android Auto to vehicle Home screen
|
|
|
|
Shortcut
icon in
Android Auto:
Shortcut icon is enabled only when Android
Auto is
connected to infotainment

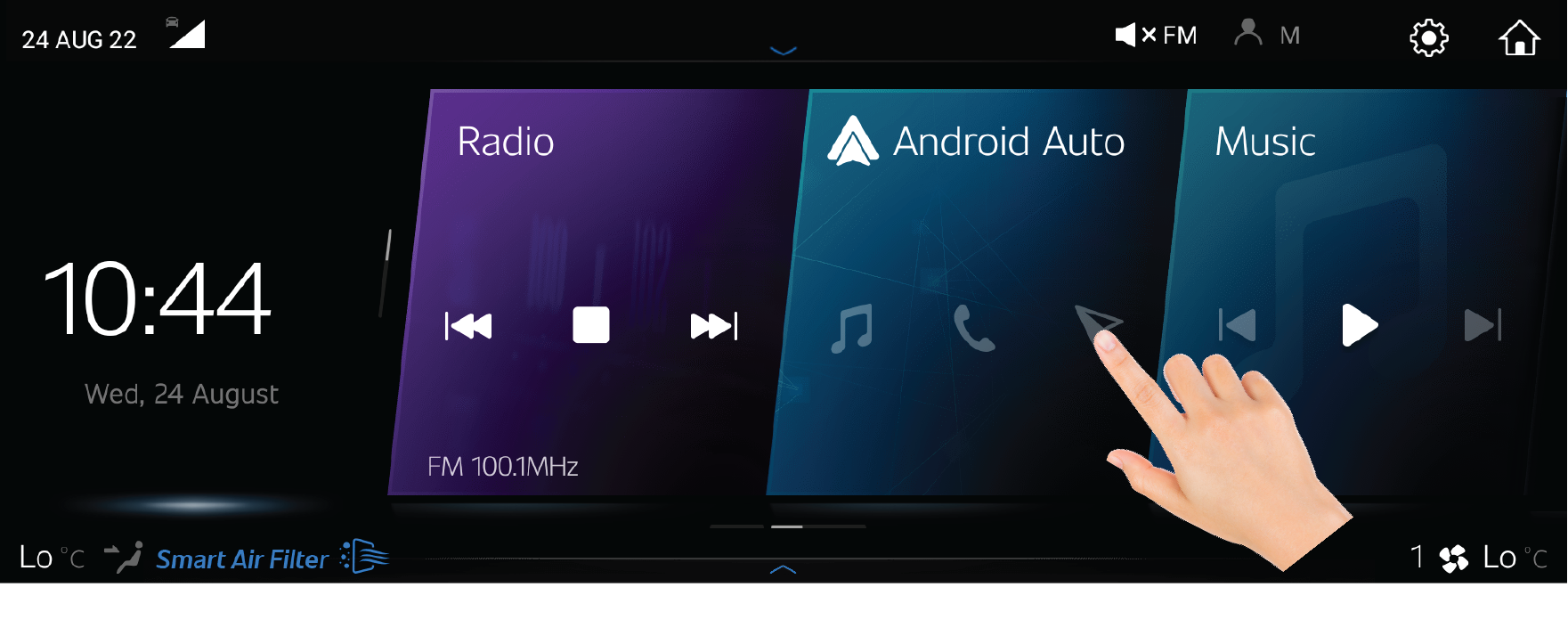

Shortcut icon in Android Auto tile is used to
access
-
1. Music
|
|
|
|
|
|
3. Navigation
|
|
|
|
|
|
|
|
|
|
|
Song can be paused/played
|
|
|
|
|
|

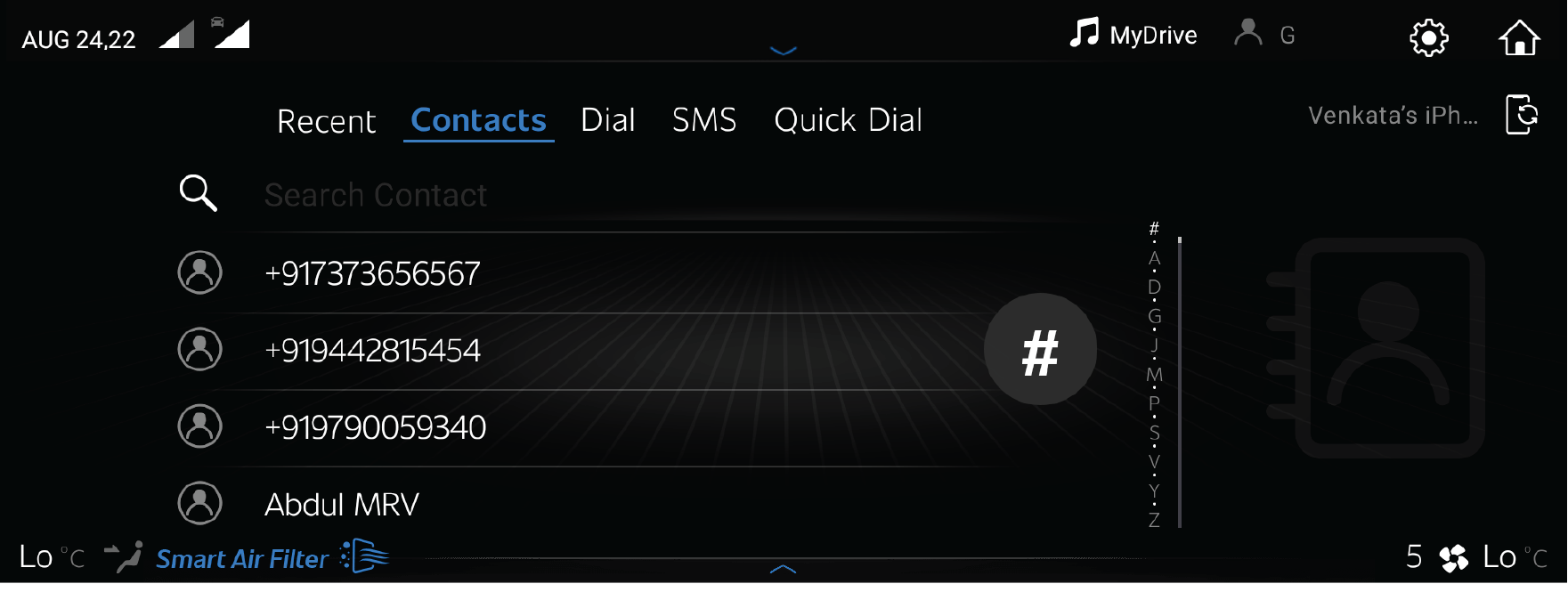

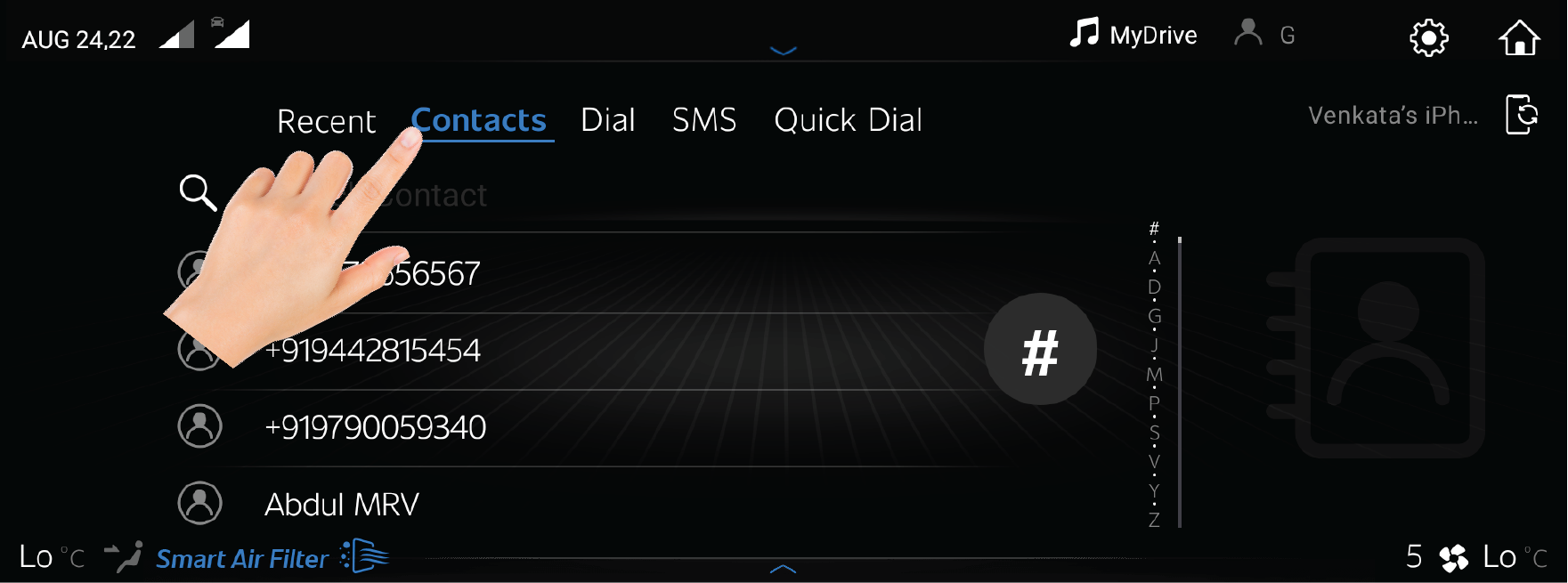

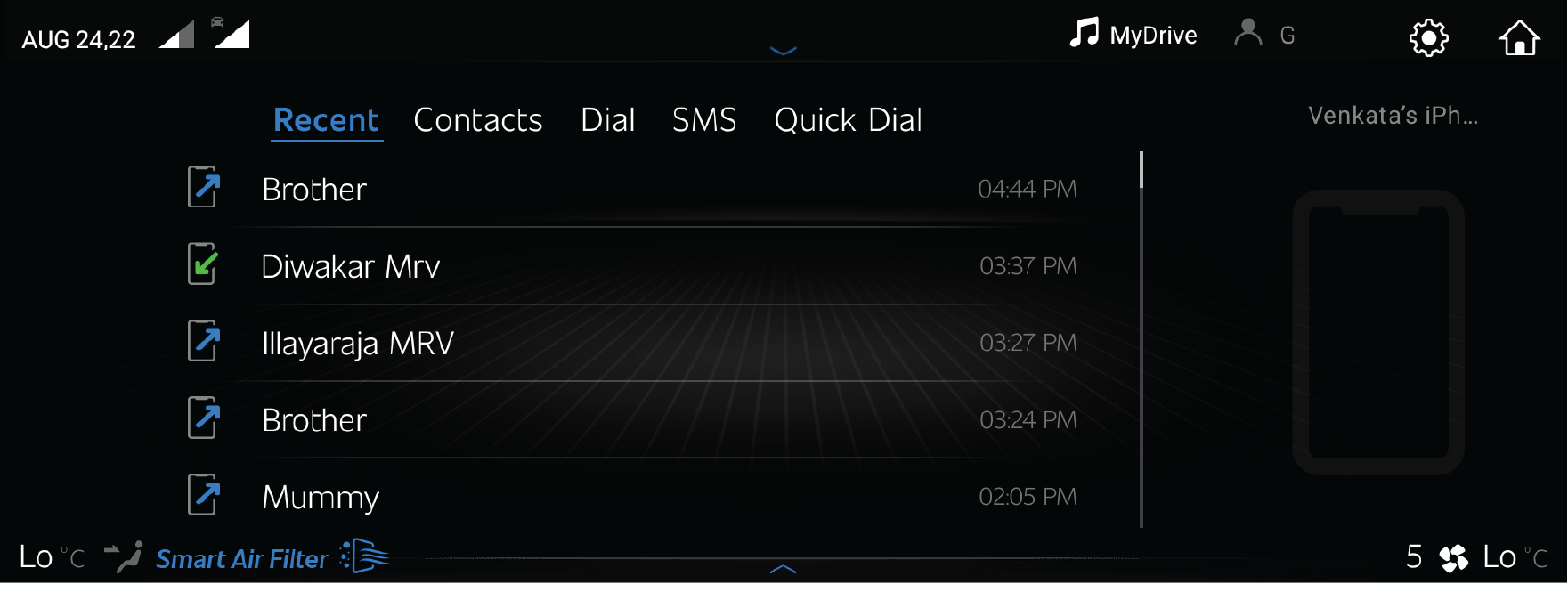

Contact details can easily be accessed by
using this
option
|
|

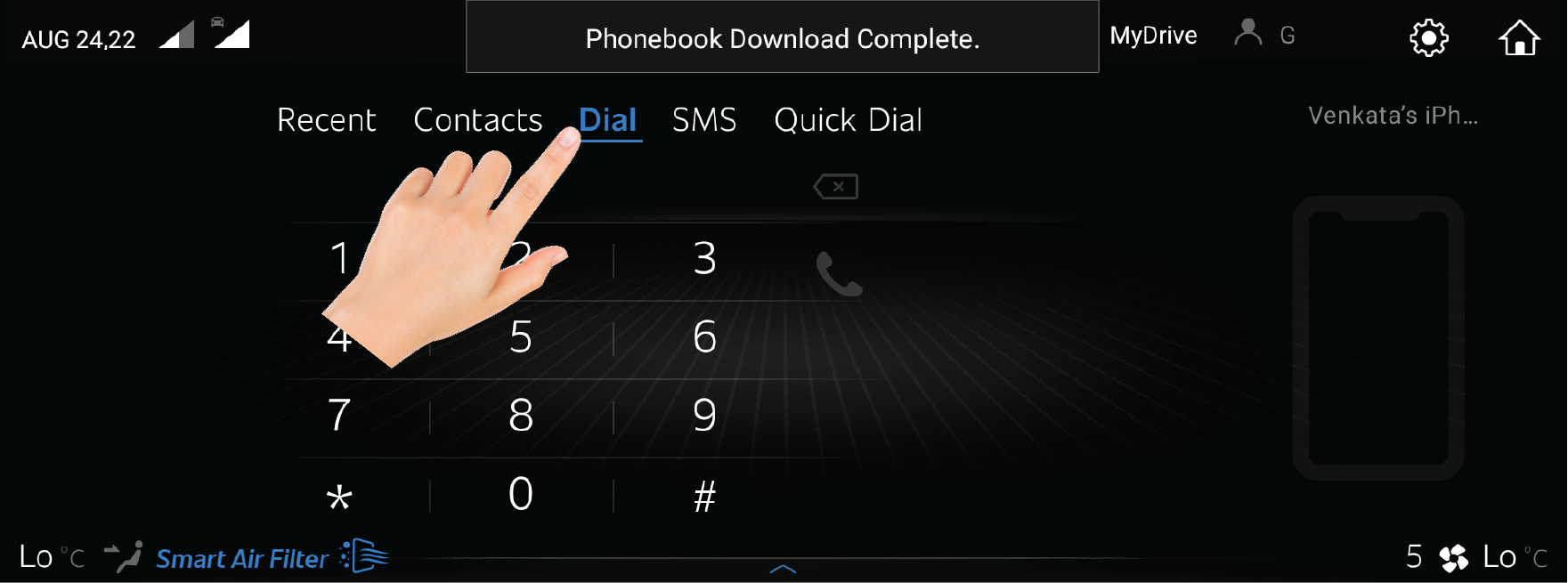

Using dial pad, we can enter new mobile number
to
contact a person or can find the person by tying his/her mobile number
|
|
While driving or other reasons user can send a
SMS
to desired person
|
|
Favorites contacts can be seen in quick dial
|

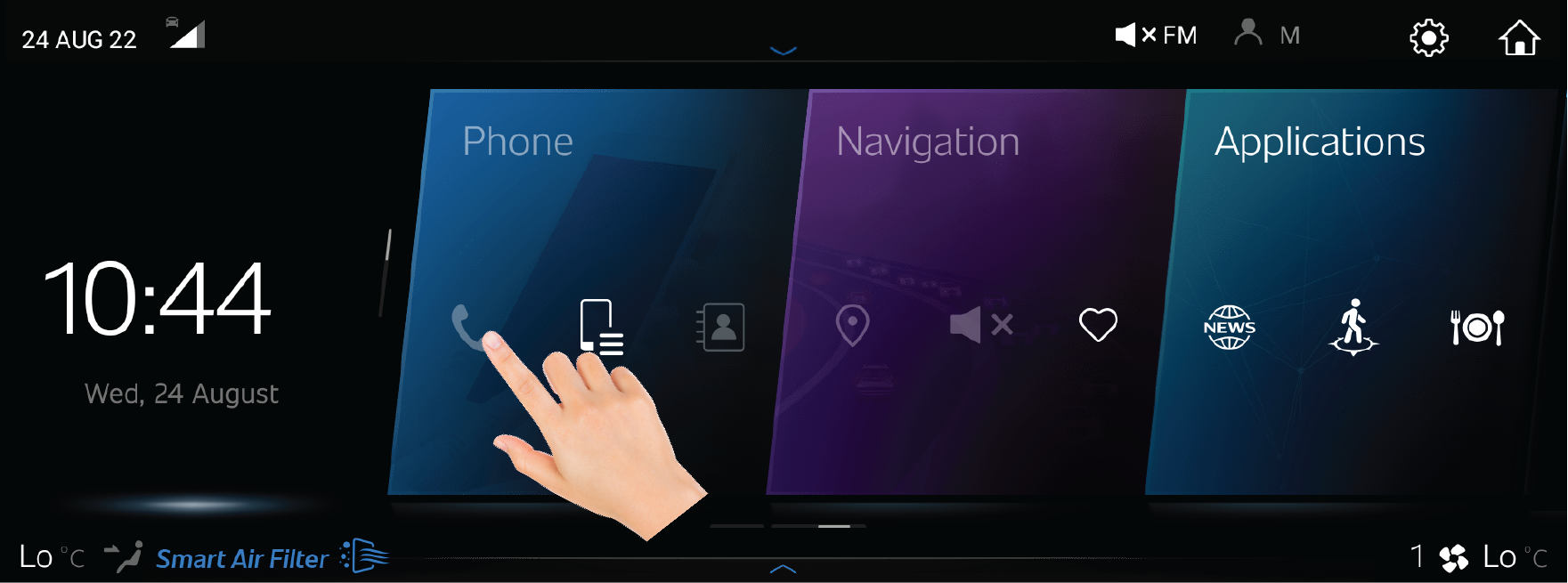

Shortcut icons in the tile is used to access
|
First icon will take the user to Recent Phone
|
|
|
|
|
|
|
|
|
|
|
|
|
2. User can enter the desired destination in
the
search bar
|
3. Then route map will be available in screen
|
|
|
|

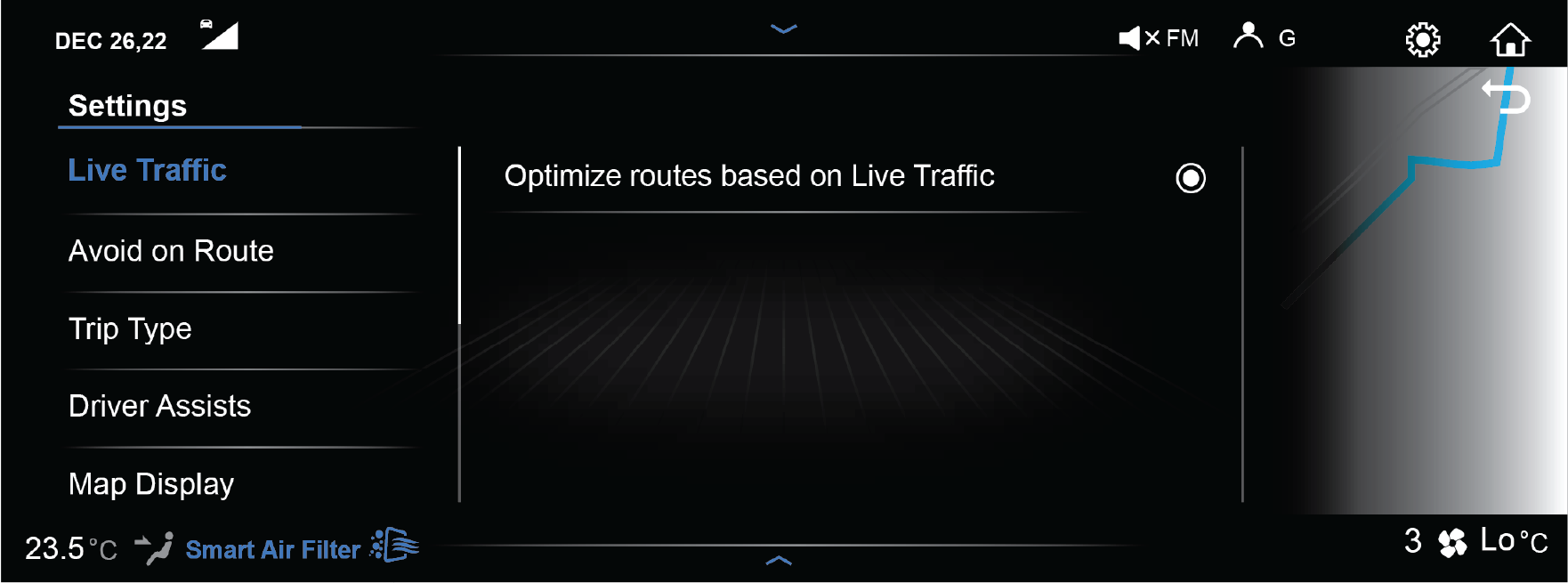

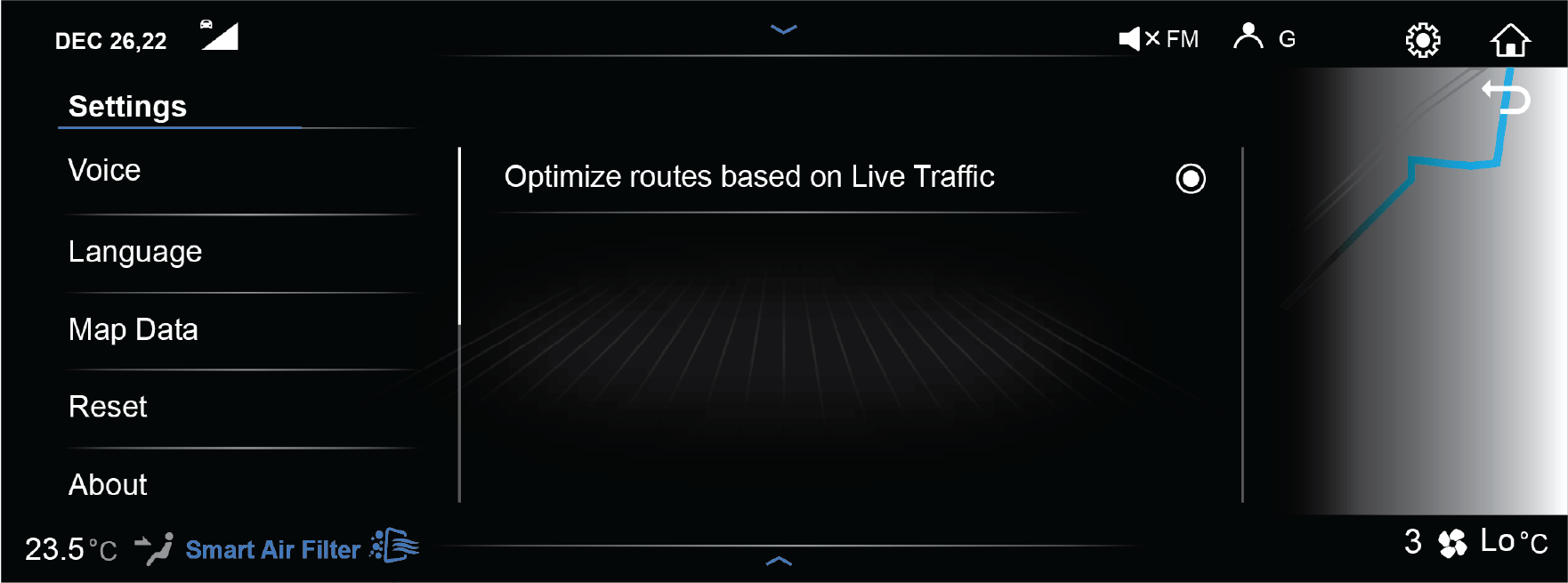

User can select the settings option & use
the
below listed option in settings
|
|
1. Live Traffic
2. Avoid on Route 3. Trip Type 4. Driver Assist 5. Map Display |
|
6. Voice
7. Language
8. Map Data
9. Reset
10. About
|
|
|
|
|
|
|
|

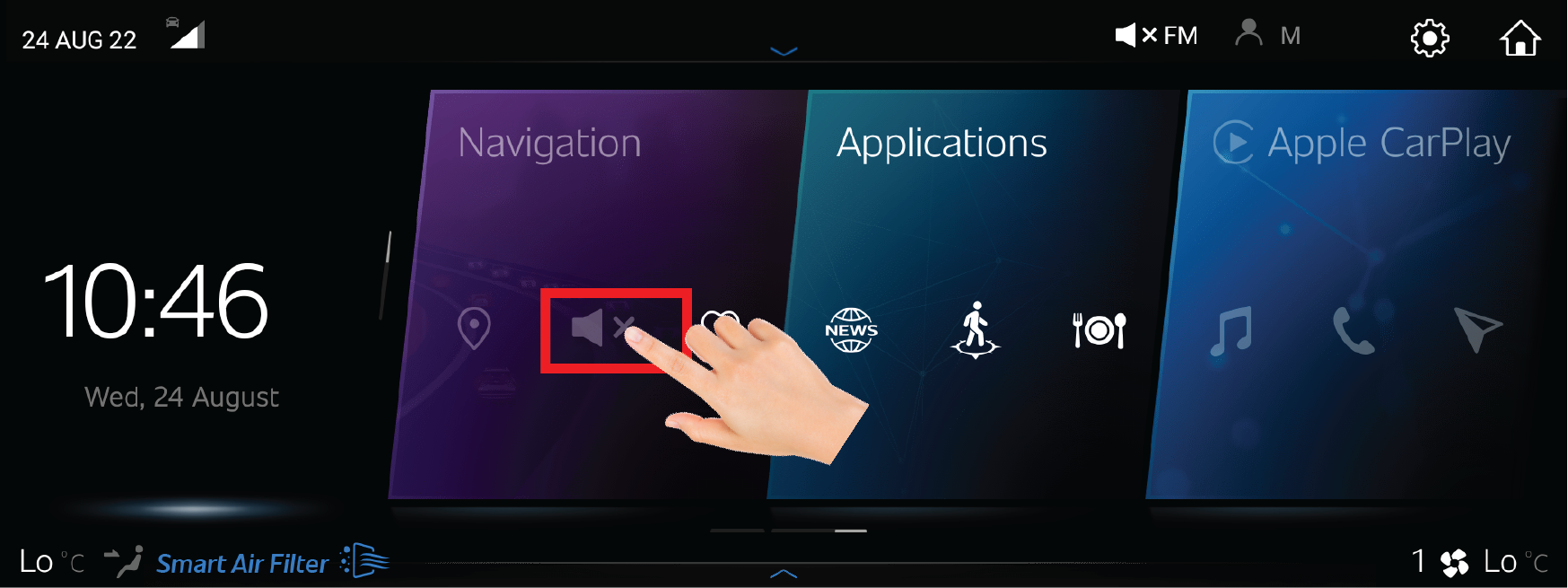

2. Can switch ON/OFF the voice by using mute
button
|
|
|
|
|
• | Navigation in XUV700 is powered by MAPPLS AUTO. |
• | If any route is currently set up for navigation, it will display the turn-by-turn directions. |
• | MAPPLS AUTO functionality depends on user maintaining a subscription to the configured e-SIM at regular intervals |
|
|

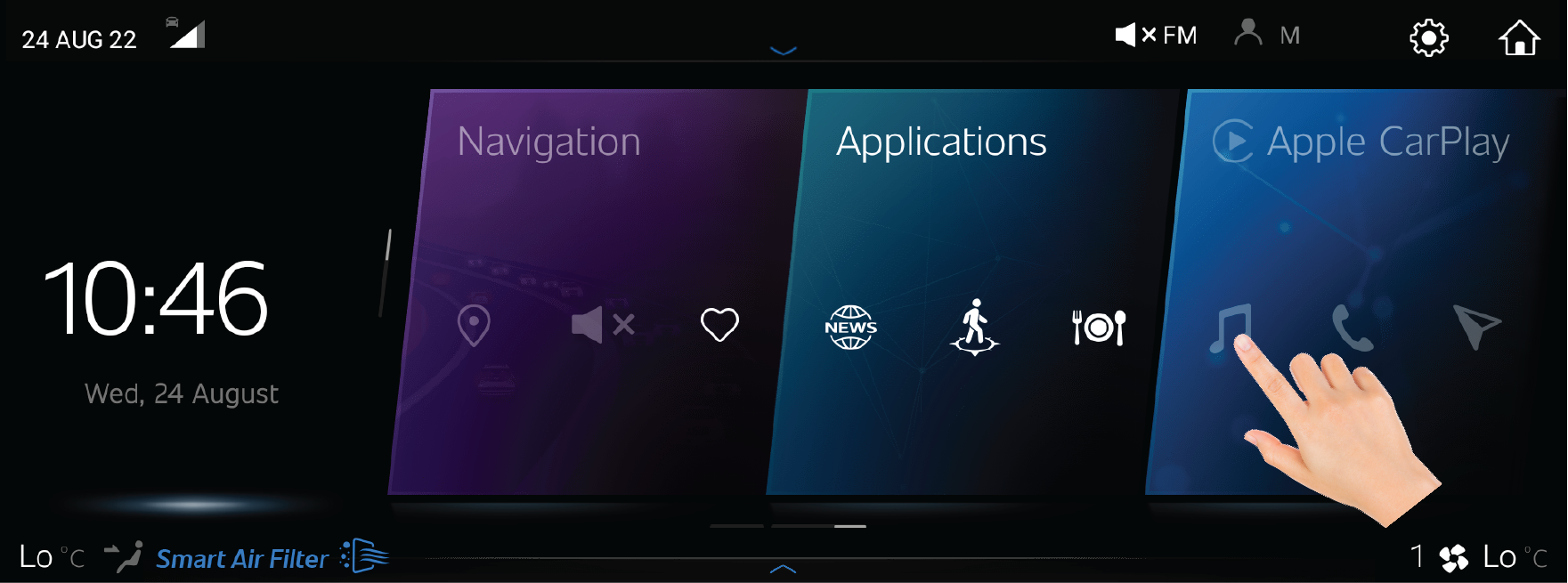

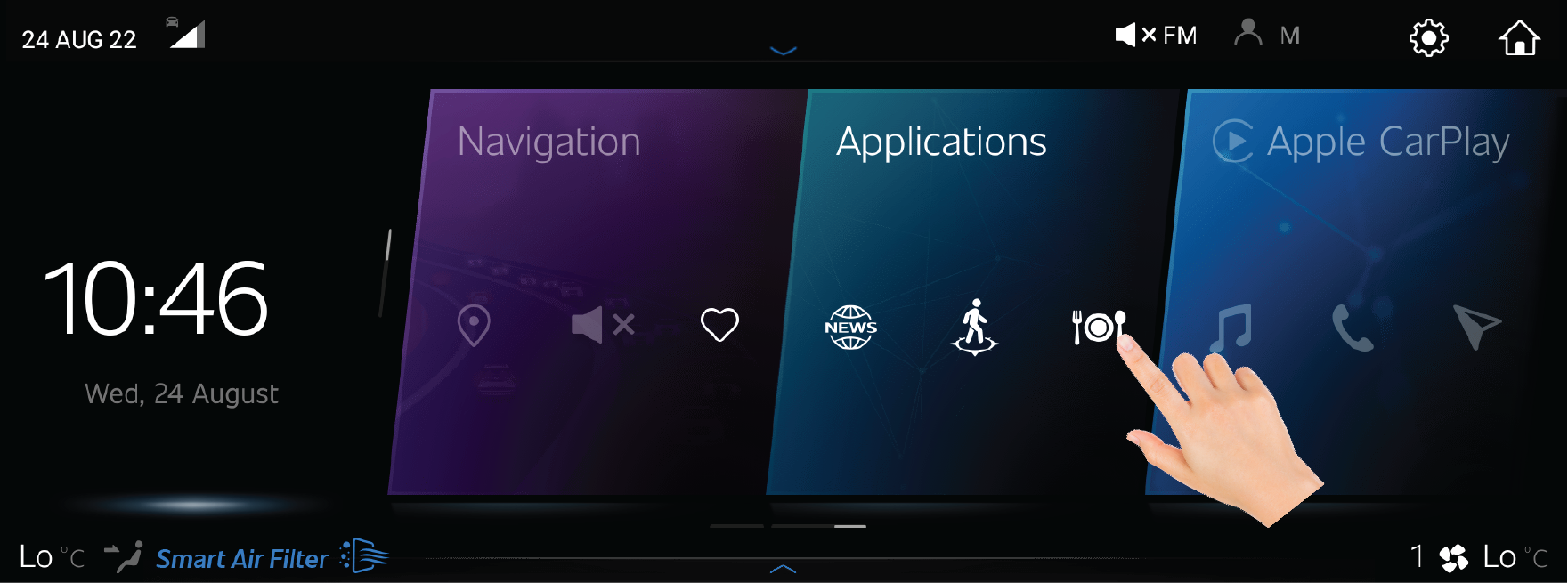

• | The Applications tile allows the user to open all available 3rd party applications. |
• | Touching the Applications tile will open the app drawer. |
• | It has quick options to open News, Music & food apps. |
• | By pressing Application tile, App Drawer screen will open automatically |
|
|
1. | India Today APP will open by pressing the NEWS icon |
2. | User can listen live NEWS regarding various topics (Business, Live NEWS, Top NEWS, Sports, etc.,) |
Travel
Explorer:
|
|
|
|
1. Thrillophilia App will open by pressing the
Travel Explorer icon
|
2. Users can find near by Hotels, famous
locations
etc., that can be explored by using Thrillophilia
|
Zomato:
|
|
|
|
1. Zomato App will open by pressing the food
icon
|
2. User can find near by restaurants by using
the
above app
|
• | Apple Car Play brings out the best of in-car infotainment technology by linking the user’s iPhone™ device with the Mahindra infotainment system. |
• | Apple Car Play focuses on safety & minimizes user distraction by projecting select iPhone functionality on to the vehicle infotainment system. |
• | It allows the user to access, and control select applications of iPhone, using various inputs on the vehicle such as touch, steering wheel controls and voice. |
• | Examples of some applications of the Apple device that can be controlled include Music, Navigation, Phone call and Google search |
• | It enhances the XUV700 driving experience & enables the user to stay focused on the road with simple, intuitive interfaces, integrated steering wheel controls and a powerful speech recognition. |
• | This makes it safer and easier to interact with the phone while driving. |
|
|
|
|
|
User can find some in-build apps in Apple Car
Play.
Using the apps, user can :
- make call to their contacts by using phone
books
- access Navigation system to find the desired
location
- play Music by using in-build mobile app
- use Siri voice assistance (Apple phone user)
|
|
|
|
|
|
|
|
|
|
Widgets are screens that provide quick
information from
the AdrenoX system.
|
• | The widgets display will be fixed in the left corner of the Fun in XUV700 screen. |
• | The following information will be available as part of widgets |
1. | Clock |
2. | Health |
3. | Gallery |
4. | Weather |
5. | NEWS |
6. | Travel Explorer |
7. | Calendar |
• | Time can be displayed in the selected area |
• | Pressing the clock screen in widget will open the display settings on the clock. |
• | Time can be fixed in both Analog or digital format |
|
|
• | Scroll down the Radio and find the Health screen in Widget |
• | User can connect the mobile or smart watch with vehicle via Bluetooth |
• | Whenever the device is in the Bluetooth range, then user can be able to see all the listed features |
|
|
• | Scroll down the Health screen and find the gallery screen in Widget |
• | User can be able to see the photos/videos in gallery by press the gallery option |
|
|
• | Scroll down the gallery screen and find the Weather screen in Widget |
• | Users can view weather information by selecting the weather icon on the widget |
|
|
• | Scroll down the Weather screen and find the NEWS screen in Widget |
• | User can know the day-to-day news using India Today app by selecting the NEWS app in widget |
|
|
|
Users can access the Split screen by swiping left
on
the home screen.
|
|
User can set the Radio, Media, Phones, and other
screens by long pressing the intended tile in Split screen.
|
|
User can set any four contents in split screen to
access the features easily
|
|
User can select different drive modes as per
his/her
convenience by using the Fun with XUV700 option.
Fun with XUV700 menu displays engine power &
torque, selected drive mode, compass, a G force meter and digital lap time
|
|
Touch Fun with XUV700 screen & user can
find the
different drive mode option
|
|
After selecting the Zip mode, swipe right side
of
the screen
|
|
Then a user can find the Trip information
screen
By using the Trip information, user can know
the
driving details such as Trip Distance, Top Speed, Average Speed, Fuel Economy
and how many times the brake pedal is pressed in the last driving cycle.
|
|
By swiping the screen to the right side then
user
can be able to see the lap timer option.
|
|
Lap timer measures within how many minutes the
user
can reach the maximum speed (very useful in racing track and testing track)
|
|
Select Zap option in drive mode screen
|
|
After selecting the Zap mode swipe the right
side of
the screen
|
|
Then user can find the vehicle performance
display
screen
Vehicle performance screen consists of Engine
Power,
Torque, G-meter, and Compass
|
|
By swiping the screen to the right side, user
can be
able to see the lap timer option
Lap timer measures within how many minutes the
user
can reach the maximum speed (very useful in racing track and testing track)
|
|
Select Zoom option in drive mode screen
After selecting the Zoom mode swipe the right
side
of the screen
|
|
Then user can find the vehicle performance
display
screen
|
|
Vehicle performance screen consists of Engine
Power,
Torque, G-meter, and Compass
By swiping the screen to the right side, user
can be
able to see the lap timer option
Lap timer measures within how many minutes the
user
can reach the maximum speed (very useful in racing track and testing track)
|
|
Select Custom option in drive mode screen
After selecting the Custom mode, select
configure
option
Then user can find configure custom mode
|
|
Swipe the screen left side for two times
and
again go back to drive mode screen
|
|
XUV700 infotainment has inbuilt e-SIM which is
used to
access Zomato, Just dial, Accuweather, Horoscope, News, and some other
apps can be accessed by using the e-SIM
User can use this as a mobile network by
connecting the
vehicle’s Wi-Fi to mobile
Based upon OEM standards, SIM subscriptions can
be
varied for all variants
|
|
|
|
User can increase, decrease or mute the volume
by
using Volume Control option
|
|
|
|
By operating the Ask Mahindra icon, a call
will be
triggered automatically from your XUV700 to Mahindra Support Centre for:
1. Explanation on features and functions.
2. Guidance or assistance for usage of in-car
features.
3. Assisting customers with guiding them to
nearest
workshop.
|
CAUTION:
Some Infotainment features may not work when
the Ask
Mahindra call is in progress
|
|
|
|
|
• | Infotainment screen will not be accessible, |
• | The vehicle speed will not go beyond 80 Kmph, |
• | Geofencing alert will be triggered to the user's mobile when an unknown person drives the vehicle over 5 Km. |
• | Above conditions are not applicable, if user disables the valet mode. |
• | Don’t activate the valet mode during vehicle service |
|
|
• | User mobile should pair with XUV700 via Bluetooth |
• | Notification will be shown by clicking the notification icon only if the user’s mobile is paired with XUV700 |
|
|
• | Using Help option user can know the unknown alerts and telltale details in Owners Manual or Infotainment Manual |
|
|
• | Radio option will be selected directly by using Quick access option |
• | Once the Radio icon is selected, then Radio screen will appear in infotainment |
By using pen drive, favorite songs can be
stored in
My Drive
|
Press My Drive option to enjoy the songs which
is
already stored in My Drive
|
|
|
By selecting the equalizer icon, Audio
settings will
be opened. User can adjust the Bass, Mid, Treble & Sub woofer.
|
|
|
|
By selecting the Browse folder user can see
the
Favorites, Genres, Artist, Album, Songs, Composers
|
|
|
|
|
Media port is available below the center
switch
bezel where USB device can be connected.
|
|
|
|
|
|
|
User can connect the mobile with XUV700 via
Bluetooth
|
Once Mobile Bluetooth is connected with
vehicle
infotainment, user can play desired songs
|
|
|
By selecting the equalizer icon, Audio
settings will
be opened. User can adjust the Bass, Mid, Treble & Subwoofer.
|
|
|
|
|
|
If user have iPhone, then car play application
can
be disabled through iPhone settings. To play the music, connect the USB
cable to media port and play songs through mobile APP.
|
|
|
|
|
|
|
|
|
• | When USB device is connected in Media Port, then user can play Videos. |
• | In App drawer, select Gallery option & select the video in gallery. Video will play automatically |
• | User can see the video in parking condition |
• | During driving, user can see the video in infotainment up to 20 kmph speed |
|
The App Drawer can be opened by dragging the
screen
from Down to up.
The app drawer displays all the applications
available
in Infotainment System.
|
|
|
The App Drawer allows user to browse through
available
apps and folders and launch selected one.
Based on the usage of Apps, reordering will be
done
automatically
|
|
|
• | User can select add folder and can drag the existing apps available in app drawer to New Folder |
• | User can rename the folder as per his/her choice. |
|
|
• | User can press Climate Control option and select different modes available in XUV700. |
• | Types of modes are described below |
|
User can access Face mode to get direct
airflow
through instrument panel air vents to the front row passenger.
|
|
User can select Face & Foot mode to get
airflow
from both instrument panel air vents and footwell air vents
|
|
User can select Foot mode to get airflow from
footwell air vents
|
|
User can select Foot & Defogger mode to
get
airflow from footwell air vents & Defogger vents
Defogger vent is used to clear the frost/mist,
which
is formed on Front windshield.
|
|
User can select Front Defogger mode to clear
the
frost/mist, which is formed on front windshield
|
|
User can select Re-circulation mode by
pressing the
Re-circulation mode icon
In re-circulation mode, air is re-circulated
in
passenger compartment If it is OFF, fresh air is supplied in passenger
compartment.
|
|
Blower Fan Speed can be controlled by pressing
'+'
or '-' button on HVAC controller.
|
|
User can select auto mode by pressing the
‘Auto’
button on HVAC controller.
In AUTO mode, with respect to the surrounding
condition, set temperature is automatically obtained. This is done by
adjusting
the blower speed and fresh/recirculation mode to optimum level.
|
|
Smart Air Filter is used to convert the
polluted air
into non polluted air
|
|
|
|
Enable the Driver and Co-driver seat
ventilation
feature based on the requirement.
Once enable the seat ventilation, user will be
able
to modify the airflow with three different level. The default level will
be OFF.
For every short press on the seat ventilation
icon,
the levels shall be changed by one step to another step like Level 3 →Level
2 → Level 1 → OFF →Level 1 → Level 2 →Level 3→ Level 2 →Level 3 → OFF
|
|
The long press on the Seat Ventilation Icon,
to turn
it OFF.
Again, a short press on the same icon will
enable
the feature with Last stored Level.
|
|
HVAC system is turned off when the user
presses the
power button.
Press the power button to restart the HVAC
system
|
|
User can select Connected Apps and can see
Manufacturer Update, Over The Air Surprises, Personalized Safety Alerts and
Calendar.
|
|
|
|
User can select Manufacturer Update and enter
in
Manufacturer Update screen
|
|
1.
History: Previous updates from organization can be stored in the
history
|
|
2. Advertisement: Service Offers can be shared by
manufacturer
by using this feature. This feature can be enabled / disabled by the user
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Personalized
Safety Alert
|
|
|
|
|
1. Settings:
User can able to save the voice and can able to enable or disable the
option
|
|
2. History:
Previous details are available in History section.
|
|
|
|
|
|
1. My
Drive
Documents: In this folder user can store the important details like
License, Aadhar Card, Pan Card, etc.. in digital format.
|
|
2. USB
Documents: Connect the pen drive in file transfer socket and then
user can
access important files which are available in pen drive.
|
|
|
|
Weather - User can know the weather updates in
their
locality by using Weather condition app
|
|
Travel - By using Travel explorer application
user
can explore nearby places or search the places as per his/her requirement.
|
|
Others - In others user can find Connected
Cars,
Horoscope and Just dial applications
|
|
News - By using NEWS app user can listen the
daily
NEWS
|
|
Zomato - User can find the near by restaurants
and
order their foods
|
|
|
1. | Zip mode |
2. | Zap mode |
3. | Zoom mode |
4. | Custom mode |
|
After activating the Zip mode, the vehicle is
suitable to drive in normal comfortable city condition and in traffic
condition.
|
|
After activating the Zap mode, the user can
experience the TRUE Mahindra SUV drive experience.
|
|
Zoom mode can be activated by the user to
drive the
vehicle on highways and enjoy the thrilling driving experience.
|
|
|
|
|
|
|
|
Use can select MyDrive Photos, see the list of
Photos and select to see it in full screen.
Similarly, user can play the video in
infotainment
system.
As a safety measure, there are some
limitations to
play the video in infotainment.
User can see the video in parking condition
During driving, up to 20 kmph user see the
video
in infotainment
|
By using the Horoscope app user can view daily
fortune as per his/her zodiac sign
|
|
|
|
Insert USB device in Media Port & open the
My
Drive Manager then user can copy required songs, videos, photos and documents
to the infotainment system
|
|
|
|
|
Select required file from USB device & by
using
copy (highlighted) option, user can store the required details from USB to
the infotainment system.
|
|
Delete content option is used to remove the
unwanted
files in the infotainment system
|
|
User can store max 1.9 GB data in infotainment
system.
|
|
|
|
|
1. Vehicle Name
|
8. Number of cylinders
|
2. Color of the vehicle
|
9. Variant details
|
3. Primary User
|
10. VIN Number
|
4. PUC (Pollution Under Control) Expiry Date
|
11. Model
|
5. Last Service Date
|
12. Make
|
6. Engine Capacity
|
13. Insurance Expiry Date
|
7. Fuel Type
|
|
In My Documents user can store the following
details
in digital format
|
|
|
|
|
|
|
|
This view assist the user to drive the vehicle
carefully in front area.
User can see the front surroundings while
maneuvering in front.
|
|
This view assists the user with Rear
surrounding
view for maneuvering in rear of the vehicle.
|
|
This view helps the user to see the left side
view
near the front tire when parking
|
|
This view helps the user to see the right side
view
near the front tire when parking
|
|
This view helps the user to see the objects
closer
to rear bumper
|
|
This view helps the user to see the object
closer to
front bumper
|
|
The bird’s eye view/2D top view shows the view
of
the vehicle from a top-down view (as in right side of image) stitching all
the 4 camera images
|
|
|
• | The translucent (semi transparent) top view will provide the user to view the floor below the vehicle. |
• | Gently, touch the bird’s eye view, then the infotainment view changes to semi transparent view. User can view beneath the ground which will be visible once the vehicle starts moving. |
|
|
|
Once user touches bird’s eye view/3D top view
in
infotainment screen, then oval ring will appear.
In oval ring, 3D view switching 8 icons will
be
visible. Selecting any icon will show the 3D view in icons direction.
If there is NO action from user side, then
Icon will
hide automatically after 5 seconds.
|
|
|
|
User can access the Parking Guideline,
Automatic
Side View, Parking assistance & Drive video recordings by using SVS
settings
|
|
|
• | By selecting 2D view, user can see either Front View or Rear View. 2D view is the Default view. |
• | By selecting 3D view, user can see Full View of the vehicle. |
|
|
• | When Left / Right Turn Indicator is turned ON and 3D view is active, then view will switch to 3D Left / Right in Infotainment Screen |
• | This feature can be Enabled / Disabled from SVS SETTINGS menu |
• | Vertical (Perpendicular) Parking Assistance: |
1. | Choose Vertical Parking icon from SVS-Settings. Overlays will appear on either side as in image below. |
2. | Drive ahead of the parking slot, so that camera can have the parking slot view. |
3. | Chose vertical parking button from settings. Overlays will appear on either side. |
|
|
• | Parallel Parking Assistance: |
1. | Drive ahead of the parking slot so that Camera can have the parking slot view, then choose Parallel Parking icon from SVS-Settings. |
2. | Two green rectangular boxes will appear on either side |
|
|
• | The 4 cameras installed around the vehicle captures the video and capture special event of the vehicle during driving. |
• | Recording from SVS-DVR is possible only if micro-SD card is installed |
|
|
• | Use Class 10 micro-SD card for recording the video |
• | For detailed information on the Surround View System topic, see the Interactive Owner's Manual 360° View section which is available in Mahindra’s With You Hamesha app |
|
|
|
|
Travel Explorer takes the user thrillophilia
app and
it helps the user to find near by hotels, famous location etc.,
|
|
|
It is a personalized profile and user can
choose
this option to control climate setting, preferred audio source, audio
settings,
application drawer, link profile to key fob, Lock my Profile etc.
|
|
In the given screen user have two Profile and
one
guest profile.
|
|
User can adapt person specific settings for
First,
Second and Guest Profiles.
|
|
User can create a distinct identity to the
profile
by providing a unique name.
|
|
User can assign the comfortable climate
settings
according to his/her need.
|
|
User can choose the preferred audio source for
the
profile. When preferred audio source is not available, default audio source
will be played.
|
|
User can be able to assign the favorite audio
settings to the profile.
|
|
By using screen saver option, user can select
the
photos from gallery & make it Screen Saver.
By selecting automatic screen saver, screens
can be
updated automatically by M&M
|
|
In Application Drawer user can fix the apps
according to the profile usage
|
|
User can link the profile with the key fob. By
using
this setting, once user enter the vehicle with the desired key fob, then
all the saved settings will updated automatically.
|
|
If lock settings is enabled by the user, then
other
user can’t change the saved details. Also, other user can't see the saved
user specific settings on infotainment screen.
|
|
|
|
Browse : Using ICC knob user can rotate clockwise
or
Anti clockwise direction to choose the option and press ICC button to
select the option
|
|
Volume: Using ICC Knob user can rotate the ICC
knob in
clockwise or Anti clockwise direction to increase or decrease the volume
|
|
Enabling the Touch Sound will give the Touch
sound,
whenever user selects particular icon or app
|
|
In Home Screen, user can turn ON or turn OFF the
Clock
by using this option.
|
|
Home screen will revert to its default layout
whenever
user selects this option.
|
All
Setting
|
List of details available in All Settings
|
1. General
|
4. Audio
|
7. Vehicle
|
2. Display
|
5. Alexa
|
8. User Input & Feedbacks
|
3. Date & Time
|
6. Phone
|
9. Wifi
|
|
User can select UK (Metric) and US (Imperial) to
calculate the units (i.e., Km)
|
|
If user selects 'Confirm', All settings will be
restored to default factory settings
|
|
Software
Update
If Auto Download option is enabled and any update
is
available, then software update will happen automatically.
|
List of features available in settings
|
|
|
Brightness
User can increase or decrease the brightness of
Infotainment and Instrument Cluster.
|
|
|
|
User can select the digital or analog clock as
per
his/her choice.
This will be reflected in home screen when
infotainment
system goes OFF.
|
|
In Home Layout, user can have the screen view as
per
his choice.
If another user wants to set the original
settings,
then the user can select reset option .
|
|
|
|
Date and Time can be sync with GPS, it can be
manually
enabled or disabled by user
|
|
By using this option user can manually fix the
different time zones
|
|
User can set and fix the Date format either in
DD/MM/YY
or MM/DD/YY format.
|
|
User can set and fix the Time format either in 12
Hour
or 24 Hour.
|
|
|
|
One big sound stage, with immersive feeling just
like
watching artist performance at premium position
Immersive sound mode provides an experience to
the
listener to understand the sound and music coming from speakers, which
will come from an multiple points.
|
|
Higher and Wider sound stage just like watching
the
musician's performance at the first-row seat
One big sound stage for all occupants
|
|
Just like Disco Club, music will come from multi
direction without sound stage (music will come from particular distance)
NO sound image localization (user can feel the special instruments like guitar,
keyboard, etc.,)
|
|
In Breezy Mode, all the passengers in vehicle can
enjoy
the music performance stage close to their seat row.
|
|
User can hear the normal sound just like normal
speakers and Sound Field Size option gets disabled when user select the 3D
OFF option
|
|
User can adjust the sound according to his
preferences
and button center is given to get the sound balance from back to center
|
|
|
|
|
Equalizer is provided to change BMT (Bass, Mid,
Treble)
settings according to preferences. Additionally, subwoofer is provided
to have more Bass
|
|
DSEE is a new settings which will enhance the
quality
of old recorded songs to DVD quality.
Compressed or low-quality music removed during
the
compression process (CD to MP3 format) can be restored into high range
sound by using this technology.
|
|
Speed Dependent Volume Control will automatically
adjust the loudness and quality of the music according to speed of the vehicle
by removing the road noise.
|
|
User can increase or decrease the volume for the
Voice
recognition (Alexa & Google Assistance), Notification, Phones, Media
|
|
|
|
|
|
Enter the 6-digit code that you receive from the
XUV700
infotainment screen
|
|
|
|
|
|
To make calls through Alexa, phone need to be
paired
and then contacts shall be uploaded to Alexa cloud when device is enabled.
|
|
Alexa can be invoked by either pressing PTT (Push
to
Talk) button in SWC (Steering Wheel Control) or simply saying “Alexa”.
To invoke Alexa through voice, setting need to be enabled.
|
|
On any screen, whenever any notification comes,
yellow
dot will appear on Alexa icon
|
|
Before you begin any request to Alexa, particular
sound
to Alexa device is customized before and after your request.
If enabled, device will play a sound before you
begin
or end your request.
|
|
In case if you don’t want to use Alexa, you can
sign
out any time in settings
|
|
|
|
User enable or disable Bluetooth connection
according
to his/her need
|
|
User can view the list of devices, already
connected to
vehicle infotainment
|
|
By using this option, user can find the nearby
devices.
|
|
When BT Discoverability option is pressed,
vehicle's
Bluetooth device will be shown to nearby devices for 90 seconds.
Once any mobile device is connected, Bluetooth
functionalities are available.
|
|
User can fix the ringtones for incoming calls
|
|
User can pre-define a small text that will appear
as a
signature at the bottom of every text message.
Whenever new message is getting composed or reply
is
getting sent, signature texts will appear automatically.
|
|
User can add a text in bottom that this message
is send
from my car.
|
|
Incoming SMS can be seen by enabling this option
in
vehicle
|
|
While driving, user can fix a message, I’m in
driving
or I’ll call you back.
|
|
When user's phone is connected with ALEXA &
all the
contacts are synced with paired Alexa device, then SMS Readout option
is enabled and Alexa can read the SMS.
|
|
|
|
User can see following features on XUV700 by
using
access option
|
|
While activating this option only the driver door
can
be unlocked
|
|
Driver seat can be adjusted automatically
during
entry & exit
|
|
By enabling this all the remote functions
in
XUV700 will get deactivated
|
|
Daytime
Running
Lamp:
By enabling this option DRL will be activated
automatically for better visibility
|
|
|
|
By using ICC Rotary Knob, user can select two
functions
:
Volume: By enabling this, user can adjust the
volume by
rotating the ICC Knob
Browse:
1. By enabling this, user can shift the app by
rotating
the knob either in clockwise or in Anti-clockwise direction
2. User can select the desired app by pressing
the ICC
knob
|
|
Button Touch Sound: By enabling this user can
hear the
touch sound while selecting any application
|
|
Voice Alerts: By enabling this, user can give
voice
commands through Alexa (Alexa: Open Skyroof, Alexa: Close Skyroof, etc...)
|
1. | How to connect phone via Bluetooth in
Infotainment?
User can connect Bluetooth using any of the below
methods, in Bluetooth settings.
Add
device:
Kindly ensure, Mobile device should be in bluetooth settings screen to accept the
connection
Bluetooth
discoverability: Kindly ensure, Mobile device start scan after
discoverability
is turned On
|
2. | My contacts are taking time to load in IVI?
Based on the Mobile device and number of contacts,
loading time may vary from few seconds to few minutes
|
3. | Bluetooth Music is not playing in
Infotainment?
After connecting mobile device to bluetooth, user
need to
select his device for media in device list and then select bluetooth
music source in Infotainment to Play music.
|
4. | Few Phone Contacts are not visible in Infotainment
Screen?
Ensure that your phone book contacts do not have
special
characters before their name. If there are such contacts, please
rename them.
|
5. | I can’t Accept or decline Whatsapp call from
IVI?
IVI will support bluetooth phone voice call and
supportability of Whatsapp, MS Team call depends on the controls provided
by Mobile device/app to Infotainment
|
6. | During active call, I’m getting Navigation
Prompts?
During call, Navigation prompts will still come so
user
don’t miss any direction. User can adjust the volume of navigation
prompts as required
|
7. | Next /Previous, fast forward/rewind etc. controls
not
working for Bluetooth music?
The availability of the features/control is
dependent on
the Bluetooth version of phone device and music application used
in phone.
|
8. | While playing USB song album art not
displaying?
Album art will display in the screen, only if the
song has
album art information
|
9. | While playing songs from USB, few files are
getting
skipped?
If the Infotainment system comes across a corrupt
music
track in media source, the system might skip to next music track in
the media source.
|
10. | Date & Time in my Infotainment is
Incorrect?
User can Sync to GPS or manually set Date & time
in
settings. After selecting Sync to GPS, need to drive vehicle few Kms in
open sky to ensure proper date and time based on the time zone selected.
|
11. | Sources are disabled in QAD?
Source will be active only when device is connected
e.g.,
for USB, Pendrive should be connected.
|
12. | Can I reduce the Navigation Volume?
Yes, user can adjust Navigation or other source
volume, in
Audio Settings.
|
13. | Not able to control Volume using ICC?
User need to select Volume instead of Browse in ICC
rotary
Quick settings.
|
14. | Alexa not responding to my query?
Few of the Alexa In car control commands might not
work
based on the vehicle variant (AC, Window, Sunroof & etc.,).
Also Alexa might not hear your query, in case
background
music or noise is High.
|
15. | How to connect Alexa?
Step 1:
Click
on the settings button in Infotainment Home Screen
Step 2:
Click
and open Alexa icon
Step
3:Click on
the “Get started” button to get the code
Step
4:Provide
sometime to system to fetch code from internet.
Step 5:
Infotainment will display code to activate.
Step 6 &
7:
Open mobile browser and Go to url : www.amazon.com/code and login to your amazon
account(If new user please create amazon
account). Enter the code seen in the screen in the box provided and click on
continue
button.
Step
8:Once
login is successfully user will see screen with “Done” button. Press “Done” to
complete.
|
16. | What all vehicle related commands I can use for
Alexa?
Following are vehicle specific commands that user
can use
based on the vehicle variant
In car controls
(Works
only inside the car with or without internet connection)
|
17. | What are all different Online commands categories
Alexa
Support?
Following are the Online command categories for
Alexa
(Works only with internet connection inside the car)
|
18. | How to use Mahindra Alexa custom skills for XUV700
?
Prerequisite –
Step 1:
Step 2:
Click on ‘In-Home Alexa’ under the Settings menu
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
Step 9:
Step 10:
Click on ‘Manage account permissions’
Step 11:
Step 12:
Once permissions are granted the following screen
will be
displayed.
Step 13:
Once this is done, user can experience or use the
Remote
Commands through Alexa enabled devices
|
19. | How to navigate in Owner’s Manual App?
User can go to required page, by typing the page
number
based on the Table of Contents in the header bar and then press Done
as shown below.
|
20. | Whether ICC Switch control will work on Documents?
User are advised to use touch for Document reading.
ICC
control will not work on Documents and Apps like Owner’s Manual.
|
• | Log in to the Amazon Alexa App using the same Amazon ID which was previously used to activate Alexa in the infotainment (Refer SI-00789 for details) |
• | Click on the ‘More’ button at the bottom of the screen |
• | Under the settings page, click on ‘Music & Podcasts’ under the ALEXA PREFERNECES to change the default services |
• | Amazon Music would be preselected as Default Services |
• | Click on the ‘Default Services’ option |
• | Under MUSIC, click on ‘Change’ button to change the default services from Amazon music to user’s preferred choice |
• | Select the preferred music services from the list to set as default for Alexa |
Acronym
|
Description
|
---|---|
BT
|
Blue tooth
|
SWC
|
Steering Wheel control
|
ICC
|
Intelli Command Control
|
IVI
|
In Vehicle Infotainment
|
