Owner’s Manual

1 INTRODUCTION AND SAFETY PRECAUTIONS

1.1 Introduction

Dear Customer,

Congratulations on purchasing Mahindra MARAZZO. Your vehicle has been designed to provide years of safe and dependable service, as long as it is used and maintained in accordance with the instructions provided in this manual.

All persons who will use and/or maintain this vehicle must read, understand and follow all warnings and instructions provided in this manual. This Owner's Manual should be considered an integral part of the vehicle and should remain with the vehicle. However, nothing in this manual, and none of the safety devices installed in the vehicle, are a substitute for careful operation and common sense. Always make sure that your vehicle is in optimum working order, and take note of the road and weather conditions under which you are using your vehicle.

If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. A list of dealers can be found in the Dealer Directory Supplement.

Alternatively, you can contact Mahindra at:

•

1800-209-6006 (Toll free)

•

customercare@mahindra.com

We extend our best wishes for safe and pleasurable motoring.

Sincerely,

MAHINDRA & MAHINDRA LTD

Servicing and Summary Data

•

For all issues concerning the vehicle and for any need of spare parts, contact only the Authorised Mahindra Dealer network

•

We recommend you always use genuine Mahindra spare parts when performing repairs on the vehicle

•

We suggest that you record the vehicle data in the Warranty and Information Guide for future references

1.2 Safety Symbols

Carefully read, understand and follow the safety symbols/ instructions given in this manual.

Legend of the Symbols

To emphasise information and procedures regarding safety, use, maintenance, etc., the following symbols are used throughout the manual:

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury and/or property damage.

NOTICE indicates important information relevant to the vehicle, the vehicle's use or to sections of this manual to which particular attention must be paid for optimum use of the vehicle.

If you see this symbol, it indicates “no,” “do not,” “do not do this,” or “never”.

1.3 General Safety Information and Instructions

Failure to follow the warnings and instructions provided in this manual could result in failure of the vehicle, an accident and/or serious personal injury.

Carefully read, understand and follow the warnings and instructions given in this manual. This manual is an essential part of the product. Keep it in the vehicle’s glove box for future reference.

First-aid kit placed in the glove box of the vehicle. Ensure it is not taken out of the vehicle at any point in time.

Please note that throughout this manual, reference is made that “an accident” could occur. An accident could cause you or a bystander to sustain personal injury, or result in property damage.

Never use a mobile phone or any device with headphone while driving. This may take your focus off the road and lead to accidents.

Please be advised that many service and repair tasks require specialised knowledge, tools and experience. General mechanical aptitude may not be sufficient to properly service or repair your vehicle. If you have any doubt whatsoever regarding the ability to properly service or repair your vehicle, please contact your Authorised Mahindra Dealer or a qualified technician.

Inspect the seat belt system periodically, checking for cuts, frays or wear in the seat belt webbing, or loose buckles, retractors, anchors or other loose parts. Damaged parts must be replaced immediately.

Always start and operate the engine in a well-ventilated area. If in an enclosed area, vent the exhaust to the outside. Do not modify or tamper with the exhaust system.

Examine tyres for excessive tread wear and uneven wear patterns. Check for stones, nails, glass, or other objects lodged in the tread and check sidewalls for any cuts, cracks, or other signs of wear. Replace as necessary.

Always maintain the safety labels affixed to your vehicle in a good legible condition.

10.

All signal lamps, buzzers, shields, guards and other protective safety devices must always remain in place and in good, proper working condition.

11.

The lifespan of Mahindra products depend on many factors. Improper use, abuse or harsh use in general may compromise the integrity of the vehicle and significantly reduce its lifespan. The vehicle is also subject to wear over a period of time. Please have your vehicle regularly inspected by an Authorised Mahindra Dealer or a qualified mechanic. If the inspection reveals any damage or excessive wear, immediately replace or have the component serviced.

12.

We recommend that you use only genuine parts supplied by Mahindra. The use of non-Mahindra parts will not be covered by warranty.

13.

Never crawl under or be in close proximity to the vehicle when it is lifted off the ground (by a jack), unless the vehicle is properly supported with jack stands, wheel chocks and other appropriate safety devices.

14.

Never attempt any repairs or adjustments to any component while the vehicle is in motion. Always switch off the engine, and wait for the engine to come to a complete stop before performing any repairs or adjustments.

15.

The vehicle identification plates are the only legal identification reference, hence it is necessary to keep them in good condition. Never modify data on the plates or remove them. The customer is responsible for any possible tampering with the plates, which will immediately void the warranty.

16.

Do not attempt sharp turns, abrupt manoeuvres, or other unsafe driving actions that can cause loss of vehicle control. When the vehicle is fully loaded, drive at a slow speed, especially when turning. Note that the centre of gravity of the vehicle changes when the vehicle is fully loaded, and also if luggage is mounted on the roof carrier.

1.4 To Owners of a Mahindra Vehicle

When first driving the vehicle after long periods of non-use, you may experience a temporary drive disturbance. This is a characteristic of the tyres and should be no reason for concern. The condition should correct itself within 5-15 kms. of driving. If the disturbance persists, have the tyres checked by an Authorised Mahindra Dealer.

Driving and Alcohol

Your driving ability can be seriously impaired by alcohol even if the blood alcohol level is far below the legal minimum. Drunken driving is one of the most frequent causes of accidents.

Never drink and drive. Drinking and driving will lead to an accident resulting in serious personal injury.

Driving and Drugs/Medication

Your driving ability can be seriously impaired through the use of prescription or non-prescription drugs or medication (even cough syrup). If you are taking any sort of drug or medication, be sure that it will not affect your driving ability.

Mobile Phones Warning

Use of electronic devices such as mobile phones, computers, portable radios or other by the driver while driving is dangerous. In exceptional condition, if use of a mobile phone is necessary despite this warning, use a handsfree system to ensure that the hands are free to drive the vehicle. Even handsfree do not ensure that due to distraction an accident will not happen.

Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country.

Driving Long Distances

When you are driving over long distances, follow these tips so that you have a safe journey:

•

Lack of sleep or fatigue will impact your ability to drive safely

•

Exercise your eyes by shifting the focus of your eyes to different parts of the road

•

Use stimulating beverages such as coffee or tea

•

Relax and stay calm

•

Take breaks at regular intervals

Protecting Our Environment

All of us should play our part in protecting our environment. Judicious vehicle usage and ensuring hazardous waste disposal (including cleaning and lubrication fluids) are important steps towards this initiative.

Mahindra vehicles conform to existing emission norms (standards). Adhering to the periodical maintenance schedule and using Mahindra genuine parts will help retain emission performance of the vehicle and is a pre-requisite for emissions warranty coverage.

Servicing

If you have any questions concerning the proper use or maintenance of your vehicle, please call your Authorised Mahindra Dealer. A list of dealers can be found in the Dealer Directory Supplement or on the Internet.

Alternatively, you can contact us on 1800-209-6006 / customercare@mahindra.com.

Running-in

Driving smoothly during first 1,000 kms. will help to prevent abnormal and premature system wear. Proper running-in will improving the life of drivetrain and vehicle components.

A new engine may consume more oil during the first 1,000 kms. of running. This should be considered as a normal part of break-in and not interpreted as any problem with the engine.

Mahindra Genuine Parts

Mahindra uses high quality parts for building the vehicles.

In the event that any parts need replacement, we recommend that you use only Mahindra genuine parts.

Non-Mahindra parts may harm vehicle performance and will not be covered by your Mahindra warranty.

To avoid counterfeit parts and to protect our brand image, Mahindra genuine parts are packed in a branded carton. Look for the “Mahindra Genuine Parts” logo.

Any unauthorised modifications or alterations to this vehicle or failure to use appropriate specification and quality spare parts could seriously affect vehicle roadworthiness and safety leading to an accident, resulting in serious injury.

Mahindra Genuine Accessories

A wide selection of quality accessories are available through your Authorised Mahindra Dealer. These accessories have been specifically engineered to allow you to personalise your vehicle to suit your requirements and complement its style and aerodynamic appearance.

Each accessory is made from high quality materials and meets Mahindra's rigid engineering and safety specifications. Every Mahindra accessory installed according to the Mahindra installation provisions comes with the respective accessory warranty.

Consult your Authorised Mahindra Dealer for detailed information about accessories available for your specific model variant.

For maximum vehicle performance and safety considerations, always keep the following information in mind:

•

When adding accessories, equipment, passengers and luggage to your vehicle, do not exceed the total weight capacity of the vehicle or of the front and rear axle. Consult Authorised Mahindra Dealer for specific weight information

•

Bull bars and nudge guards are not recommended

•

Accessories causing any change in vehicle specifications like wheel rims, bull bars, etc., may affect the performance of safety systems

•

Mobile communication systems such as two-way radios, telephones and theft alarms that are equipped with radio transmitters and installed in your vehicle should comply with the local regulations and should be installed only by your Authorised Mahindra Dealer

Vehicle Safety

When leaving your vehicle unoccupied:

•

Always remove the ignition key when you park the vehicle

•

Close all the windows completely and lock all the doors

•

Do not leave any valuables in your vehicle. If you must leave something in your vehicle, hide them and securely lock all the doors

1.5 Audio/Infotainment Manual

Please refer the user e-manual in infotainment for details regarding:

•

Audio/Video functions

•

Bluetooth functions

•

Navigation (if equipped)

•

Map upgradation details

•

Handsfree usage

To upgrade the maps in your navigation system (if equipped), please refer the Infotainment manual.

2 GENERAL

2.1 Feature Matrix

In view of the policy of continuously improving our products, we reserve the right to alter specifications or designs without prior notice and without liability/obligation. Illustrations do not show the vehicle in the standard form. Please be aware that this manual may apply to various models/variants. As a result you may find some explanations for equipment not installed on your vehicle. All the information, illustration, and specifications in this manual are based on the latest product information available at the time of publication.
We recommend you to contact the nearest Authorised Mahindra Dealer for latest features applicable to your vehicle.

FEATURE	M2	M4	M6	M8
Technology
Driver Information System (DIS)	4.2" Monochrome IBN Negative Screen	4.2" Monochrome IBN Negative Screen	4.2" IPS Colour TFT Screen	4.2" IPS Colour TFT Screen
Mahindra Blue Sense App		ü	ü	ü
Take a break Reminder (@250 Km/2.5 Hrs Non-stop Driving, Whichever is Earier)			ü	ü
Android Auto				ü
Voice Recognition for Infotainment & SMS Read Out				ü
ECO Sense			ü	ü
DTS Certified				ü
Turn By Turn Navigation Indicator in Cluster (With on Board Navigation)			ü	ü
Audio System With FM/AM+AUX+USB+iPOD+MP3		4.2" Audio System	7" Resistive Feather Touch	7" Capacitive + Capsense + Haptics
CarPlay				ü
Voice Messaging System (Alerts)		ü	ü	ü
Front Tweeters (2 Nos.)				ü
E-Manual			ü	ü
Light Intensity Control (Interior)			ü	ü
Cornering Lamp			ü	ü
Engine Immobiliser	ü	ü	ü	ü
Daytime Running Lamp (DRL)				ü
Roof Antenna		ü	ü	ü
Personal Reminder (Anniversary, Birthday, Vehicle Anniversary)			ü	ü
Clock	Digital	Digital	Digital / Analog	Digital / Analog
Stopwatch			ü	ü
Comfort
Steering Mounted Cruise Control				ü
Steering Mounted Audio, Phone & Cluster Controls			ü	ü
HVAC	Manual	Manual	Manual	FATC
Rear Air-Conditioner (Diffused Air Circulation) (2nd & 3rd Row On Roof)	ü	ü	ü	ü
Electric Power Assisted Steering (EPAS)	ü	ü	ü	ü
Power-Foldable ORVMs				ü
Adjustable ORVMs	Manual	Electric	Electric	Electric
Seat Upholstery	Fabric	Fabric	Premium Fabric	Leatherette
Seat Height Adjustment Front Row		Driver Seat	Driver Seat	Driver Seat
Multi-Point Lumbar Support Front Row			ü	ü
Style
Alloy Wheels			16”	17” (Machined Alloys)
Spare Wheel	16” Steel	16” Steel	16” Steel	17”
Full Wheel Caps		ü
Front & Rear Fog Lamps (With Access Cover for Tow Hook)			ü	ü
Convenience
Power Windows	ü	ü	ü	ü
Power Windows With Express Up-Down & Anti-Pinch				Driver Side Only
Central Locking Including Lift Gate	ü	ü	ü	ü
Flip Key - RKE			ü	ü
Conversation Mirror			ü	ü
Illuminated Passenger Side Vanity Mirror			ü	ü
Rear Window Sunshade (2nd Row)				ü
Front Power Outlet	12V Socket	12V Socket, 1 USB	12V Socket, 1 USB	12V Socket, 2 USB
Front Media Outlet		1 USB, 1 AUX	1 USB, 1 AUX	2USB, 1AUX
Rear Power Outlet (1 USB Charging only)	ü	ü	ü	ü
Rear Wiper & Washer		ü	ü	ü
Head Lamps (Twin Chamber - Multi Focal Reflectors Halogen)	ü	ü
Head Lamps (Twin Chamber With Projector Low Beam)			ü	ü
Luggage Lamp			ü	ü
Follow-Me-Home Head Lamps			ü	ü
3rd Row Reading Light			ü	ü
Welcome Lamps				ü
Fuel Lid Opener - Push To Open	ü	ü	ü	ü
Bottler Holders 2 Front & 2 Rear	ü	ü	ü	ü
Sunglass Holder			ü	ü
Molded Storage on Front Door for Map/Magazine with Integrated Cup/ Bottle Holder	ü	ü	ü	ü
Centre Console with Tambor Door			ü	ü
Cool Glove Box with Illumination				ü
ECO Mode	ü	ü	ü	ü
Safety
Dual Airbags (Driver & Co-Driver)	ü	ü	ü	ü
Passenger Airbag OFF Switch & Indication	ü	ü	ü	ü
ABS With Electronic Brake Distribution (EBD) & Brake Assist (BA)	ü	ü	ü	ü
ISOFIX Child Seat Mount	ü	ü	ü	ü
Reverse Park Assist System (RPAS)			ü	ü
Rear Camera With Steering Adaptive Parking Guidelines Display				ü
Impact Sensing Auto Door Unlock	ü	ü	ü	ü
Speed Sensing Auto Door Lock	ü	ü	ü	ü
Rear Defogger With Auto Timer			ü	ü
Emergency Call			ü	ü
Side Impact Beams	ü	ü	ü	ü
Crumple Zones for Crash Protection	ü	ü	ü	ü
Seat Belt Remainder Alert For Driver Seat	ü	ü	ü	ü

2.2 Lubricants and Capacities

System	Lubricant	Capacity	Specification	Remarks
Engine Oil	MAHINDRA "MAXIMILE FEO" NEW GENERATION GENUINE ENGINE OIL	6.0 litres	Special Engine Fluid	Always use "MAXIMILE FEO" new generation Mahindra genuine engine oil. This is specially developed for your engine’s optimum performance and fuel efficiency. In extreme cases of emergency and non-availability of above oil, we suggest Engine Oil meeting minimum API CH-4 SAE 15W-40 specification can be used and replaced at 10,000 kms. This alternate oil or other Brand will not provide equivalent performance of above Genuine oil
Engine Cooling	MAHINDRA "MAXIMILE ULTRA COOL" (READY TO USE COOLANT. NO NEED TO MIX WATER)	~4.0 litres	Brand Specific. Don’t use other coolants / water for top-up. In case of emergency, coolant meeting JIS K-2234 specification should be used (30% concentration diluted with distilled water) and coolant change period to be reduced to 30,000 kms
Transaxle Oil	MAHINDRA "MAXIMILE SYNTEC F2" NEW GENERATION GENUINE TRANSMISSION OIL	1.75 litres	Special Manual Transmission Fluid	In case of emergencies and if recommended MAXIMILE brand is not available oil change interval to be reduced to 20,000 kms if oil meets minimum of API GL-4 SAE 80W-90, Alternate oils other than Maximile may not provide required transmission or shift performance.
Brake and Clutch	MAHINDRA "MAXIMILE DOT 4" GENUINE BRAKE FLUID	1.5 litre (including bleeding)	If Maximile DOT 4 brake fluid is not used and in emergency conditions, use Brake Fluid Meeting SAE J1703 FMVSS NO.116 DOT 4 OR IS 8654 TYPE-2 Specification and change it at 30,000 kms or 2 years whichever earlier
Recommended Fuel	Diesel conforming to Indian standard IS 1460; 2017 BS IV specification or equivalent	45 litres	—

2.3 Dimensions

Dimension & Weights	mm
Wheel Base	2760 mm
Overall Length	4585 mm
Overall Width	1866 mm
Overall Height	1774 mm
Track Width (Front & Rear)	1600 mm

2.3.1 Front View

2.3.2 Rear View

2.3.3 Side View

2.4 Bulb Specification

Lamp Bulb	Wattage	Bulb Type	No. of Bulbs per Vehicle
Head Lamp - High Beam	12V 55W	H7 55W	2
Head Lamp - Low Beam	12V 55W	H7 55W	2
Turn Signal Lamp (Front)	12V 21W	WY21W	2
Position Lamp	12V 5W	W5W	2
Front Fog/Cornering Lamp	12V 35W	H8 35W	2
Stop Lamp	12V 21W	P 21W/5W	2
Turn Signal Lamp (Rear)	12V 10W	WY10W	2
Reverse Lamp	12V 10W	W10W	2
Parking Lamp (Rear)	12V 5W	P 21W/5W	2
Fog Lamp (Rear)	12V 21W	P21W	2

2.5 Fuses & Relays

A fuse is the most common electric protection device. A fuse is placed in an electrical circuit, so that when current flow exceeds the rating of the fuse, it blows off.

The element in the fuse melts, opening the circuit and preventing other components of the circuit from being damaged by the over current. The size of the metal fuse element determines the rating. Once a fuse blows off, it must be replaced with a new one.

Switch the ignition and all electrical equipment OFF before touching or attempting to change a fuse.

The replacement fuse rating should be the same as the one you are replacing.

You can identify a blown fuse by a break in the filament. All fuses except high current fuses are push fit. A fuse puller should be used to remove the fuse from its position.

Fuse puller is available at both Engine compartment and Instrument panel fuse boxes.

2.5.1 Engine Compartment Fuse Box

Engine compartment fuse box is located adjacent to vehicle battery.

To open the fuse box cover press the lock on engine side and push the cover back and lift it.

Spare fuses are provided in the fuse box for replacement of blown fuses. Ensure the correct rating fuse is replaced with the blown fuse.

Fuse Layout :

FUSES
FUSE NO.	CIRCUIT	FUSE RATING
F1	CAB BATT. 1	60A
F2	GLOW PLUG	40A
F3	CAB BATT. 2	60A
F4	STARTER SOLENOID	40A
F5	ABS MOTOR	40A
F6	EMS MAIN RELAY I/P	30A
F7	COOLING FAN	60A
F8	ABS SOLENOID	25A
F9	CAB BATT. 3	60A
F10	NOT USED	NOT USED
F11	NOT USED	NOT USED
F12	HIGH BEAM	15A
F13	LOW BEAM	15A
F14	HORN	15A
F15	FOG/CORNERING LAMP	10A
F16	NOT USED	NOT USED
F17	NOT USED	NOT USED
F18	NOT USED	NOT USED
F19	NOT USED	NOT USED
F20	NOT USED	NOT USED
F21	NOT USED	NOT USED
F22	NOT USED	NOT USED
F23	FUEL FEED PUMP	15A
F24	AC CLUTCH	10A
F25	NOT USED	NOT USED
F26	EMS BATT. 1	10A
F27	AC PR SW	5A
F28	EGR/FMU/BPA	15A
F29	STOP LAMP	15A
F30	NOT USED	NOT USED
F31	EMS BATT. 2	10A
F32	HFM	10A
F33	AC RELAY COIL	10A

RELAY NO.	CIRCUIT	RELAY TYPE/RATING
R1	COOLING FAN HIGH RELAY	ISO MAXI/12V-70A
R2	GLOW PLUG RELAY	ISO MAXI/12V-70A
R3	COOLING FAN LOW RELAY	ISO MAXI/12V-70A
R4	STARTER SOLENOID RELAY	ISO MINI/12V-40A
R5	GNS RELAY	ISO MINI/12V-35A
R6	NOT USED	NOT USED
R7	EMS ECU RELAY	ISO MINI/12V-40A
R8	NOT USED	NOT USED
R9	HEAD LAMP LOW BEAM	ISO MICRO/12V-20A
R10	HORN RELAY	ISO MICRO/12V-20A
R11	FRONT FOG LAMP RELAY RH	ISO MICRO/12V-20A
R12	NOT USED	NOT USED
R13	AC COMPRESSOR RELAY	ISO MICRO/12V-20A
R14	FRONT FOG LAMP RELAY LH	ISO MICRO/12V-20A
R15	FUEL FEED PUMP RELAY	ISO MICRO/12V-20A
R16	HEAD LAMP HI BEAM	ISO MICRO/12V-20A

2.5.2 Instrument Panel Fuse Box

This fuse box as located below the Instrument panel on the driver side. To access the fuse box, pull out the top panel as shown in image to access the fuse box.

Fuse puller is available at the left side of fuse box.

Fuse Layout :

FUSES
FUSE NO.	CIRCUIT	FUSE RATING
F34	POWER WINDOW	40A
F35	BLWR MOTOR	40A
F36	MBFM-2	5A
F37	DIAGNOSTIC	5A
F38	INFOTAINMENT B+	15A
F39	CRANK	5A
F40	PARK	10A
F41	TAILGATE ACTUATOR	10A
F42	EPS	5A
F43	POWER FOLD/ANTI PINCH	15A
F44	MBFM-1	20A
F45	IMMO/ ITS B+	5A
F46	IC/FATC B+	10A
F47	ORVM SW IP, HL COMBI IP, RR AC RL COIL IP, FR BLWR RLY COIL IP, DEMISTR RLY COIL IP	10A
F48	ITS/RVC/INFO IGN	5A
F49	AIRBAG	10A
F50	ABS	5A
F51	REAR FOG	10A
F52	REAR DEFOGGER	20A
F53	KEY IN	5A
F54	INTERIOR LAMP	10A
F55	REVERSE	10A
F56	INFOTAINMENT ACC	5A
F57	MBFM/IC/ETC/FATC IGN	5A
F58	POWER WINDOW REAR	30A
F59	REAR AC	30A
F60	MBFM-3	20A
F61	NOT USED	NOT USED
F62	POWER ECO/PAB LED	5A
F63	REAR WIPER	10A
F64	IMMO/EMS IGN	10A
F65	P/O FRONT	15A
F66	FATC/MBFM ACC	5A
F67	WIPER FRONT	25A
F68	SPARE	5A
F69	SPARE	10A
F70	SPARE	15A
F71	SPARE	20A
F72	SPARE	25A
F73	SPARE	30A

RELAYS
RELAY NO.	CIRCUIT	RELAY RATING
R9	BLOWER RELAY	ISO MINI/12V-40A
R10	NOT USED	NOT USED
R11	DEMISTER RELAY	ISO MICRO/12V-20A
R12	LIFT GATE RELAY	ISO MICRO/12V-20A

2.5.3 Battery Mounted Fuse Box

The battery mounted fuse box is connected to the positive terminal of the battery. Functionality of this battery mounted fuse box is to provide short circuit protection to alternator, power supply to engine compartment fuse box and also to the EPS motor.

Battery mounted fuse box consists of following fuses:

In the above image– 80 amp (Pos D) fuse connects to engine room fuse box.

150 amps (Pos B) fuse connects to alternator B positive.

80 amps (Pos A) fuse connects to EPS motor.

2.6 Flat Tyre

In case of a flat tyre during driving, reduce your speed gradually, keeping a straight line. Move cautiously off the road to a safe place well away from traffic. Park on a level spot with firm ground. Stop the engine and turn ON your hazard warning flashers.

Firmly apply the parking brake. Have everyone come out of the vehicle on the side away from traffic.

Never stop your vehicle in a traffic lane to change a tyre. Risk of being hit by an oncoming vehicle. Keep driving until you reach a safe location.

Lifting a vehicle to change a tyre or perform maintenance is very dangerous if you do not have the requisite tools, safety equipment and training. The jack provided along with the vehicle is to be used only for changing a spare tyre. It is never to be used to perform any other maintenance or repair on the vehicle.

Never place any part of your body under any portion of the vehicle when it is supported only by the jack. You could be crushed by the vehicle if it falls off a jack. Keep bystanders away from the vehicle.

Find level, solid ground that is clear of oncoming traffic. If you cannot find a safe place to stop, it is better to drive on a flat tyre and damage the rim than it is to risk being hit by oncoming traffic.

After changing a flat tyre, never store the tyre or other equipment in the passenger compartment of the vehicle. This loose equipment could strike an occupant in the event of a sudden stop or collision. Store all of these items in the proper place.

The following sections outline the procedure for changing a flat tyre;

2.6.1 Tool Kit

The tool kit is located in under the second row right side seat.

The tool kit consists of the following tools packed in a PVC tool bag:

•

Screw Driver

•

Jack Operating Lever

•

Tow Bar

•

DEO Spanner 10mm x 12mm

•

Wheel Spanner

A	PVC Bag	D	Tow Bar
B	Screw Driver	E	Deo Spanner 10mm X 12mm
C	Jack Operating Lever	F	Wheel Spanner

Jack is located on the left side of the luggage compartment. To remove the Jack out follow the below process:

•

Fold the 3rd row Left side seat and pull out the trim cover snaps as shown in the illustration

•

Unstrap the Velcro which holds the jack

•

Lift the jack upwards inside the trim

•

Slide the bottom of jack towards out of the trim and take out.

2.6.2 Spare Wheel Removal

Spare wheel is located below the floor at the rear end of the vehicle. It is held in place by a securing nut underneath the rear luggage compartment floor carpet.

Follow the below steps to remove the Spare wheel from vehicle:

•

Locate the plug covering the securing nut on the rear end panel trim.

•

Remove the plug using flat screw driver or a coin by rotating in anti-clockwise direction

•

Rotate and Loosen the securing nut counter clockwise to winch down/lower the secured spare wheel to the ground

•

Remove the securing bracket by tilting it and take out of the spare wheel hub

•

Remove/pull away the spare wheel out of vehicle

2.6.3 Wheel Nut Loosening

Center Wheel Cap (If applicable) - Remove the wheel cap by inserting the flat screw driver in the slot provided in wheel cap .

Full Wheel Cover (If applicable) - Remove the full wheel cover by pulling the lugs of the wheel cover.

Do not try to pry off the wheel cover by hand alone. Take due care in handling the wheel cover to avoid unexpected personal injury.

Always loosen the wheel nuts before raising the vehicle. Turn the wheel nuts counter clockwise to loosen. To get maximum leverage, fit the spanner to the nut so that the handle is on the right side. Grab the spanner near the end of the handle and push down on the handle. Be careful that the spanner does not slip off the nut. Do not remove the nuts, but loosen them by one or two turns.

Do not apply force with your legs (or stand) on the wheel spanner while tightening the wheel nuts.

Block the wheel diagonally opposite the flat tyre to keep the vehicle from rolling when it is jacked up. When blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.

2.7 Jack Points

Front jack up point - On the chassis long member behind the front wheels.

Rear jack up point - On the chassis long member in front side of rear wheels.

2.7.1 Jacking

Position the jack at the correct jacking point. Make sure the jack is positioned on a level and solid ground. Ensure that no one is in the vehicle.

Block the wheel diagonally opposing the flat tyre to keep the vehicle from rolling when it is jacked up. While blocking the wheel, place a wheel block in front of one of the front wheels or behind one of the rear wheels.

Flat Tyre

Chock Blocks

To raise the vehicle, insert the jack handle into the jack and rotate it clockwise with the wheel spanner(Insert the slot provided in wheel spanner and jack handle end). As the jack touches the vehicle and begins to lift, check that it is properly positioned. Raise it high enough so that the spare tyre can be installed. Remember that you will need more ground clearance when putting the inflated spare tyre than when removing the flat tyre.

Make sure to locate the jack properly in the jacking point. Raising the vehicle with an improperly positioned jack will damage the jack and may allow the vehicle to fall off the jack and cause personal injury.

•

Use the jack only for lifting the vehicle during wheel changing

•

Do not raise the jack with any person inside the vehicle

•

When raising the vehicle, do not place any objects on top of or underneath the jack

•

Raise the vehicle only high enough to remove and change the wheel

•

Follow jacking instructions

•

Do not start or run the engine while your vehicle is supported by the jack

Never get under the vehicle when the vehicle is supported by the jack alone.

Remove the wheel nuts. Remove the flat tyre straight off and then place it aside. Roll the spare wheel into position and align the holes of the disc with the bolts. Lift the wheel and hand tighten the top wheel nut. Wiggle the wheel and press it back over the other bolts.

Re-instal the wheel nuts with the tapered end inward and tighten by hand. Press the wheel inward and tighten the wheel nuts further.

Before lowering the wheel, hand tighten the nuts in diagonal sequence so that wheel is flush against the hub/drum.

Never use oil or grease on the bolts or nuts. Doing so may lead to over tightening of the nuts, wheel nut spanner slip, damage the bolts and also may cause personal injuries. Also, nuts may loosen and the wheels may fall off, which could cause a serious accident. If there is oil or grease on any bolt or nut, clean before installing wheel nuts.

Rotate the jack handle anti clockwise using the wheel spanner to lower the vehicle, making sure the handle remains firmly fitted onto the wheel spanner. Lower the vehicle completely and tighten the diagonally opposite wheel nuts using the wheel nut spanner. Make sure the wheel spanner is securely engaged over the nut. Tighten each nut a little at a time in the diagonally opposite order as shown. Repeat the process until all the nuts are tight. Do not use any other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot.

Firmly tighten the wheel nuts as per the sequence shown in the illustration , two to three times.

Improperly or loosely tightened wheel nuts are dangerous. The wheel can wobble or come off. This can result in loss of vehicle control and cause a serious accident. Always make sure all the wheel nuts are properly/securely tightened to the specified torque.

When lowering the vehicle, make sure all portions of your body are clear off the vehicle as it is lowered to the ground. Have the wheel nuts tightened with the torque spanner to 120 Nm, as soon as possible after changing wheels.

If you have rotated, repaired, changed your tyres or changed the wheel rims, re-torque the wheel nuts after driving about 1,000 kms (Torque 120 Nm).

Put the wheel cap (if equipped) into position aligning the nozzle on the wheel to the nozzle clearance on the wheel cover. Tap it firmly on the sides with your hand to snap it into place.

Check the air pressure of the replaced tyre. If the pressure is lower than recommended, drive slowly to the nearest service station and inflate to the correct pressure. If it is too high, adjust it until it is correct. Always re-instal the valve cap after checking or adjusting tyre pressure. If the cap is not replaced, dirt and moisture could get into the valve core and cause air leakage. If you lose a valve cap, buy another and instal it as soon as possible.

Wheel balancing and Wheel Alignment to be done after tyre puncture rework.

Steering centering calibration (Steering Angle Sensor) to be performed if you have done Wheel Alignment, repaired, changed your tyres or changed the wheel rims. Contact an Authorised Mahindra Dealer for assistance.

2.8 Restore all the Tools, Jack and Flat Tyre Securely

Restore the tools and Jack in their respective storage locations.

Jack Re-fitment:

•

Insert the jack by sliding the top portion inside the trim

•

Lift the jack upwards inside the trim

•

Tighten the Strap of the Velcro with the jack

•

Fix the trim cover and unfold the 3rd row left seat

Align the spare wheel bracket to the centre hub of the wheel. Winch up the flat tyre to the floor at the rear of the vehicle. Firmly tighten the securing nut and refit the plug on the rear end panel trim.

Double check to ensure the tyre is snug against the rear floor of the vehicle. The spare wheel bracket/cable may be damaged if the vehicle is driven with the spare wheel loosely mounted.

Drive slowly to the nearest service station and inflate to the correct pressure. Always reinstall the valve cap after checking or adjusting tyre pressure, dirt and moisture could get into the valve core and cause air leakage or valve damage.

Replace the original tyre once punture/rework done. Provided spare wheel in the vehicle should be used only as temporary.

2.9 Vehicle Identification Number (VIN)

Vehicle Identification Number (VIN) is the legal identity of your vehicle. The vehicle identification number is stamped on the VIN plate riveted on to the bottom of the B-Pillar on the driver side.

2.10 Engine Number

The engine number sticker is pasted on top of cam cover. The engine number is also stamped on the VIN plate riveted on to the bottom of the B-Pillar on the driver side.

2.11 Technical Specifications

Technical Specifications
ENGINE - D15 1.5 Litre
Displacement/Cubic Capacity	1497 cc
Type	DI Turbocharged Intercooled
Compression Ratio	16 (± 0.5): 1
Max. Engine output, (kW @ RPM)	90.2 kW @ 3500 RPM (Power Mode)
Max. Engine output, (kW @ RPM)	73.3 kW @ 3500 RPM (Economy Mode)
Max. Torque (Nm @ RPM)	300 Nm @ 1750 - 2500 RPM
Max. Torque (Nm @ RPM)	200 Nm @ 1575 - 3000 RPM
TRANSMISSION
Type	Manual
No. of Gears	6 Forward, 1 Reverse
GEAR RATIOS	Transaxle Ratio	Overall Ratio
I	4.15	17.10
II	2.30	9.47
III	1.46	6.03
IV	1.03	4.24
V	0.80	3.31
VI	0.66	2.71
Reverse	2.93	15.74
STEERING
Type/Description	Electric Power Assisted Steering
Steering Wheel Diameter	385±3
BRAKES
Service Brake	Hydraulic Vacuum Assisted with ABS Function
Front	Disc
Rear	Disc
Parking Brake	Mechanical, Acting on rear Wheels
WHEELS & TYRES
Rim	6JX16 – Steel / 6.5JX16 - Alloy, 6.5JX17 - Alloy
Tyres	P215/65 R16 98 H /T, P215/60 R17 96 H
Type	Radial Tubeless
Laden Tyre Pressure (front & rear), (kg/cm2)	Front - 2.25 kg/cm 2, Rear - 2.25 kg/cm 2 ( for R16 tyre)
Laden Tyre Pressure (front & rear), (kg/cm2)	Front - 2.46 kg/cm 2, Rear - 2.46 kg/cm 2 ( for R17 tyre)
FUEL
Fuel Capacity	45 litres
ELECTRICAL SYSTEM
System Voltage	12V
Battery	65Ah

3 VEHICLE OVERVIEW

3.1 Front Overview

A	Hood
B	Windshield Wiper
C	Front Windshield
D	Outside Rearview Mirror (ORVM)
E	Side Indicator Lamp
F	Head Lamp Low Beam
G	Parking Lamp / DRL*
H	Fog Lamp* / Cornering Lamp*
I	Head Lamp High Beam
J	Front Indicator Lamp
* if equipped

3.2 Rear Overview

A	Rear Windshield / Demister
B	High Mounted Stop Lamp
C	Roof Antenna*
D	Rear Wiper*
E	Rear Parking Lamps
F	Reverse Lamp
G	Brake/Park Lamp
H	Rear Fog Lamp*
I	Rear Turn Indicator
J	Rear Camera*
* if equipped

3.3 Instrument Panel Overview

A	Side Vents	K	ECO / Head Lamp Levelling Switches
B	Side Defrost Vents	L	Accelerator/ Brake/ Clutch Pedal
C	Windshield Defrost Vents	M	Parking Brake
D	Front Co-passenger Airbag	N	Power Outlet/AUX/USB Port*
E	Infotainment Screen *	O	Storage box with Tambour Door
F	Centre Vents	P	USB Charger*
G	Steering Controls*	Q	Gear Lever
H	Instrument Cluster	R	Hazard Switch
I	Horn Pad/Driver Airbag	S	HVAC Controls
J	Steering Wheel	T	Glove Box
* if equipped

4 INSTRUMENT CLUSTER OVERVIEW

4.1 Instrument Cluster

M2, M4

M6, M8

A	Tachometer	D	Fuel Gauge	G	Gear Indicator
B	Temperature Gauge	E	Speedometer	H	Mode Switch
C	Warning/Tell-tale Lamps	F	Odometer / Tripmeter	I	Set Switch

4.2 Warning Lamps Overview

4.3 Warning Lamps

Sr. No.	Warning Lamp/Tell-Tale	Lamp Pre-check	Lamp Status while Engine running	Action/Remarks
A	Left Turn Indicator	No	Slow or Fast Blinking	Indicates right turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One /more right turn lamp bulb has fused. Have the bulb replaced
B	ECO Lamp	No	Continuously ON	Indicates that your vehicle is running in Economy mode. If lamp does not turn ON after pressing ECO switch or If lamp ON without pressing ECO switch, contact an authorized Mahindra dealer immediately
C	Airbag Warning Lamp *	For about 2 secs.	Continuously ON	Indicates malfunction of the airbag system. Contact an Authorised Mahindra Dealer immediately
D	ABS Warning Lamp	For about 2 secs.	Continuously ON	Indicates malfunction of the ABS system. Contact an Authorised Mahindra Dealer immediately
E	Right Turn Indicator	No	Slow or Fast Blinking	Indicates left turn lamp is blinking Slow Blinking: Normal operation Fast Blinking: One / more left turn lamp bulb has fused. Have the bulb replaced
F	Battery Charging System Warning Lamp	Continuously ON till Engine	Continuously ON	Indicates malfunction in charging system. Contact Authorised Mahindra Dealer for assistance
G	Water-in-Fuel	Yes	Continuously ON	Indicates water-in-fuel. Drain the water from filter or contact an Authorised Mahindra Dealer for assistance
H	EPS Warning Lamp	After Pre-check Continuously ON till Engine Starts	Continuously ON	Indicates malfunction on Electronic Power steering system. Contact an Authorized Mahindra dealer immediately.
I	Vehicle Armed Status Lamp	No	Blinking	Slow Blinking: Vehicle is armed with the remote Fast Blinking/Continuously ON: Indicates a system malfunction Contact an Authorised Mahindra Dealer immediately
J	Parking Lamp	No	Continuously ON	Indicates Parking Lamp is ON
K	Front Fog Lamp Indicator *	No	Continuously Lamp ON	Indicates front fog lamp is ON
L	High Engine Coolant Temperature Warning Lamp	Yes	Continuously ON	Engine temperature very high. Contact Authorised Mahindra Dealer immediately
M	Rear Fog Lamp Indicator *	No	Continuously ON	Indicates rear fog lamp is ON
N	Door Ajar Warning Lamp	No	Continuously ON	Indicates one or more doors and/or boot/hood are open
O	Parking Brake ON/Brake Fluid Low Warning Lamp	Yes	Continuously ON	Either one of below conditions: 1. Park Brake might be engaged 2. Brake fluid level might be low
P	Low Fuel Warning Lamp	No	Continuously ON	Indicates fuel level has reached the reserve level. Re-fuel immediately.
Q	Low Engine Oil Pressure Warning Lamp	Continuously ON till Engine Starts	Continuously ON	Indicates engine oil pressure is low. Check oil level and top-up or contact an Authorised Mahindra Dealer for assistance
R	OBD Check Lamp	Continuously ON till Engine Starts	Continuously ON	There is a potential malfunction related to emission system, contact an Authorised Mahindra Dealer immediately
S	Seat Belt Warning Lamp	Yes	Continuously ON	If tell-tale is not turning OFF even after fastening the seat belt, contact an Authorised Mahindra Dealer for assistance
T	Check Engine Lamp	For about 2 secs.	Continuously ON or Blinking	Indicates a potential malfunction in the EMS, contact an Authorised Mahindra Dealer immediately
U	Glow Plug Indicator	For about 2 secs.	Continuously ON	Indicates a malfunction in the starting system. Contact an Authorised Mahindra Dealer immediately
V	Cruise Control Indicator *	Yes	Continuously ON	Indicates vehicle is in Cruise mode
W	Head Lamp High Beam Lamp	No	Continuously ON	Indicates Head lamp high beam is ON
* if equipped / select models or variants only

5 SEATS AND SEAT BELTS

5.1 Front Seats

5.1.1 Sitting in Correct Position

Follow the tips below for a comfortable and safe journey:

•

Sit in an upright position with the base of your spine pressed against the seat back

•

The driver and front passenger seat head restraint has 5 positions. Adjust it as close as possible to the above specified position, with the top of the head restraint even with the top of your head

•

Maintain sufficient distance between yourself and the steering wheel. Maintain at least a ten inch (10") distance from the centre of the steering wheel to your chest

•

The top curve of the steering wheel should align with your chin for ideal road visibility

•

Adjust your seat and seat back angle such that your wrists rest on the steering wheel

•

Ensure your legs are in bent position while fully depressing the clutch pedal

The seat should be adjusted while still maintaining control of the foot pedals (able to fully depress the clutch pedal), steering wheel (rest the wrists on the steering wheel) and your view of the instrument panel controls.

Never adjust the driver's seat while the vehicle is in motion. The seat may unexpectedly move and cause the driver to unintentionally operate the accelerator or brake, or turn the steering wheel, causing loss of control of the vehicle, an accident or serious personal injury. Adjust the driver's seat only when the vehicle is not in motion.

Never put objects under the seats. They may interfere with the seat-lock mechanism or unexpectedly activate the seat position adjusting lever, causing the seat to suddenly move, resulting in loss of control of the vehicle, an accident or serious personal injury.

While adjusting the seat, do not put your hands under the seat or near the moving parts. This may lead to injuries.

5.1.2 Front Seat Slide

Move the seat forward or backward by lifting the adjustment lever located under the seat front and release once the desired position is reached.

While adjusting the seat, make sure the latch engages fully and the seat is locked firmly in the desired position. An unlocked seat may move in a sudden stop or collision, causing injury to the person in that seat. Push and pull on the seat to be sure it is locked.

5.1.3 Front Seat Recline

To adjust the seat back, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward, and release the lever.

The seat belts provide maximum protection in a frontal or rear collision when the occupants are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen, or the shoulder strap may contact your neck. The more the seat is reclined, the greater the risk of serious injury.

When returning the rear-reclined seat back to its upright position, make sure you support the seat back while operating the lever.

5.1.4 Front Seat Lumbar Adjustment (if equipped)

Both the front seat backs have lumbar adjustment feature. The lumbar contour of the lumbar support can be adjusted by means of the adjusting wheel on the inner side of the seat back.

Properly adjusted lumbar support provides adequate back support essential during long journeys.

Do not use force, rotate the lumbar adjustment lever beyond the extreme stop positions in either direction.

5.1.5 Front Seat Height Adjustment (if equipped)

The driver seat height can be raised or lowered as per comfort.

To RAISE the seat height, lift the seat height adjust handle upwards repeatedly, release the lever once the desired seat height is reached.

To LOWER the seat height, push down the seat height adjust handle repeatedly. Release the lever once the desired seat height is reached.

Do not adjust the height of seat while vehicle is in motion.

5.2 Head Restraint

The head restraint comprises the padded portion which contacts your head and is inserted/locked in receptacles on the top of the seat back.

Your vehicle seats are equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of rear collision.

Always align top of the head restraint with the top of your head or as close to it as possible. To raise the head restraint, press the lock knob and pull the restraint up. To lower the head restraint, press the lock knob and push the head restraint down.

The head restraint can be pulled out completely by depressing the locking button while pulling the restraint out.

Align the head restraint shafts over the holes on the seat top and push the restraint straight down till you hear the lock click.

Keep the seat back as upright as possible, so the headrest is behind, not beneath, and almost touching your head.

Never drive with the head restraints not properly adjusted, head restraints removed or inserted in a flipped condition. With no support behind your head, your neck could be seriously injured in a collision.

Head restraints are provided for Front row, Second row and Third row outboard occupants.

5.3 Second Row Captain Seats (if equipped)

Loading luggage on the seats is dangerous. The luggage can become a projectile that could hit and injure passengers in a sudden stop or collision. Luggage should always be kept on the floor.

To avoid serious injury, do not sit on or place objects on a folded seat back while the vehicle is moving.

5.3.1 Second Row Seat Recline

To change the second row seat back angle, lift the lever located on the outboard side of the seat, lean back, and release the lever at the desired position. To return the seat back, lift the lever, lean forward and release the lever. Make sure the recline lever returns to its original position and the seat back is locked in place by rocking the seat back forward/backward.

When returning the rear-reclined seat back to its upright position, make sure you support seat back while operating the lever.

5.3.2 Second Row Seat Folding (Third Row Seat Access)

The second row seat on left hand side can be flipped forward to provide way to access to the third row.

•

Lower the second row seat head restraint to the lowest position (else it will obstruct and hit the floor while folding)

•

Lift the lever located on the outward side of the seat to fold and flip the seat

•

As the seat leans forward halfway through, foldable seat lock gets unlocked to enable it to flip / fold

•

For Ingress, lift the lever by holding it at the bottom

•

For Egress, pull the lever by holding at the top of the lever

•

Push seat back to rear side of vehicle for locking

•

Pull seat back for upright position till it locks in desired position

•

Push seat cushion downward by sitting on it (>45 kg) for locking seat cushion

Return the seat back to its upright position in one continuous motion to securely lock the seat and in turn avoiding seat flipping forward suddenly leading to injuries.

If this happens, release the seat lock by pulling the lever and repeat the procedure.

Be cautious when placing your hands around the seat anchors. You could pinch your hands or fingers between the seat anchor and the seat. Hold the edge of the seat when lowering it into place. Never place your hands between the seat anchor and the seat.

5.4 Second Row Bench Seat (if equipped)

Second row bench seat is of 60:40 split configuration. The required seat back rest alone can be adjusted as per convenience.

5.4.1 Second Row Seat Recline

When returning the rear-reclined seat back to its upright position, make sure you support seat back while operating the lever.

5.4.2 Second Row Seat Folding (Third Row Seat Access)

The second row seat on left hand side can be flipped forward to provide way to access to the third row.

•

Lower the second row seat head restraint to the lowest position (else it will obstruct and hit the floor while folding)

•

Turn the lever towards counter clockwise as shown in image to fold and flip the seat

•

As the seat leans forward halfway through, foldable seat lock gets unlocked to enable it to flip / fold

•

Push seat back to rear side of vehicle for locking

•

Pull seat back cushion for upright position till it locks in desired position

•

Push seat bottom cushion downward by sitting on it (>45 kg) for proper locking seat cushion

Return the seat back to its upright position in one continuous motion to securely lock the seat and in turn avoiding seat flipping forward suddenly leading to injuries.

If this happens, release the seat lock by turn the lever and repeat the procedure.

5.5 Third Row Seats

Access to or exit from third row seat and luggage area is possible by completely folding the second row left hand side seat. Second row features captain seats (Individual seat configuration). Though both seats can be folded, only left hand side seat alone can be folded and flipped to gain access to third row seat.

5.5.1 Third Row Seat Folding

The third row seats can be folded flat to maximise the luggage space.

To fold the third row seat, unlock the seat back by pulling the lever on the rear of the seat back outwards.

Similarly, lower the other half of third row seat to get a completely flat surface.

5.6 Seat Belts

5.6.1 General Warnings and Instructions

At least once each month, inspect the seat belt webbing for any cuts, tears, or other signs of wear (such as fraying along the edges). Also inspect the anchors, retractors, and buckles to be sure they are tight and operational.

•

All occupants, including the driver, should always wear their seat belt no matter how short the trip in order to minimise the risk of severe injury in the event of a crash. In an accident, an un-belted passenger becomes a projectile, and can cause serious injury to himself or another passenger

•

In a rollover crash, an un-belted person is significantly more likely prone to injury than a person wearing a seat belt

•

In order to be properly buckled, you must always sit up straight and keep your feet on the floor in front of you. The lap part must be worn low and tight across your hips, just touching the top of your thighs. While fastening the seat belt, the shoulder strap of the seat belt must pass over your chest and top of your shoulder. It must never touch your neck, face, the side of your shoulder, arm, or pass under your arm. The belt must always be flat against your body and not twisted in any way. Nothing, such as an armrest, a pocketbook, or any external objects should be between you and the seat belt. Improper wearing of a seat belt will reduce the protection in an accident

•

Seat belts should be adjusted as tightly as possible, consistent with comfort to properly secure the wearer in the seat

•

The seat belts provided for your vehicle are designed for people of adult size, must be properly used and maintained

•

For usage of adult seat belt to secure children, refer to section on manual for child seat positions and use a child restraint system

•

Passengers should not move out of or change seats while the vehicle is moving. A passenger who is not wearing a seat belt can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle during a crash or emergency stop

•

Do not use any accessories on seat belts or modify in any way the seat belt system. Devices claiming to improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash

•

An accident or emergency stop, can damage your seat belt system, even if the accident is “minor”. Please have your Authorised Mahindra Dealer inspect the seat belt system after an accident

•

Please be aware that any unsecured item in your vehicle, such as your pet, unsecured child restraint system, a laptop or mobile phones, can become a projectile in the event of an accident or sudden stop, causing injuries to occupants in the vehicle

Never use a damaged seat belt system. A damaged seat belt will not provide protection in an accident, resulting in serious injury.

•

Seat belt systems can be prone to abuse. They are not indestructible. They must be handled with care to avoid damage

•

Keep the belts clean and dry. Belt retraction may become difficult if the belts and webbing are soiled. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners. These chemicals will severely weaken the belts

•

Retractors in 3-point type seat belts retract the seat belts when not in use. The inertia lock and coil spring allow the belts to remain comfortable on users during normal driving. During accidents or abrupt stops, inertia locks restrict the sudden forward movement of the wearer

Seat Belts - Patients

Persons with serious medical conditions should also wear a seat belt. Consult your doctor for specific recommendations before travel.

Seat Belts - Pregnant Women

Pregnant women must also wear seat belts. Consult your doctor for specific recommendations.

The lap belt should be worn snugly and as low as possible over the hips. The shoulder belt should be worn across your shoulder, but never across the stomach area. When worn properly, the seat belt will protect both the mother and the foetus in an accident or emergency stop.

A pregnant woman should never wear the seat belt across the stomach area. This could lead to serious injuries to the foetus and/or the pregnant mother.

Never wear twisted seat belts. Excessive forces will be transferred from the belt to the wearer, in a collision, resulting in serious personal injury.

Each seat belt is meant for use by one person only. Using one seat belt for more than one person at a time is dangerous. The seat belt will not be able to spread the impact forces properly leading to serious injuries.

Never put a belt around a child being carried on the occupant's lap. This could lead to serious injuries.

Seat Belt Usage is necessary to:

•

Reduce the possibility of being thrown from your vehicle

•

Reduce the possibility of injuries to upper body, lower body and legs during an accident

•

Hold the driver in a position which allows better control of the vehicle

Children who are too large for child restraint systems should always occupy the rear seat and use the vehicle seat belts. The lap portion should be fastened snug on the hips and as low as possible and the shoulder strap should be across the child's shoulder, not the neck or face. If you are unable to position the strap across the child's shoulder, the child should remain in a booster seat. Frequently check the seat belt to be sure it remains snug and in position. A squirming child could cause the seat belt to come out of position.

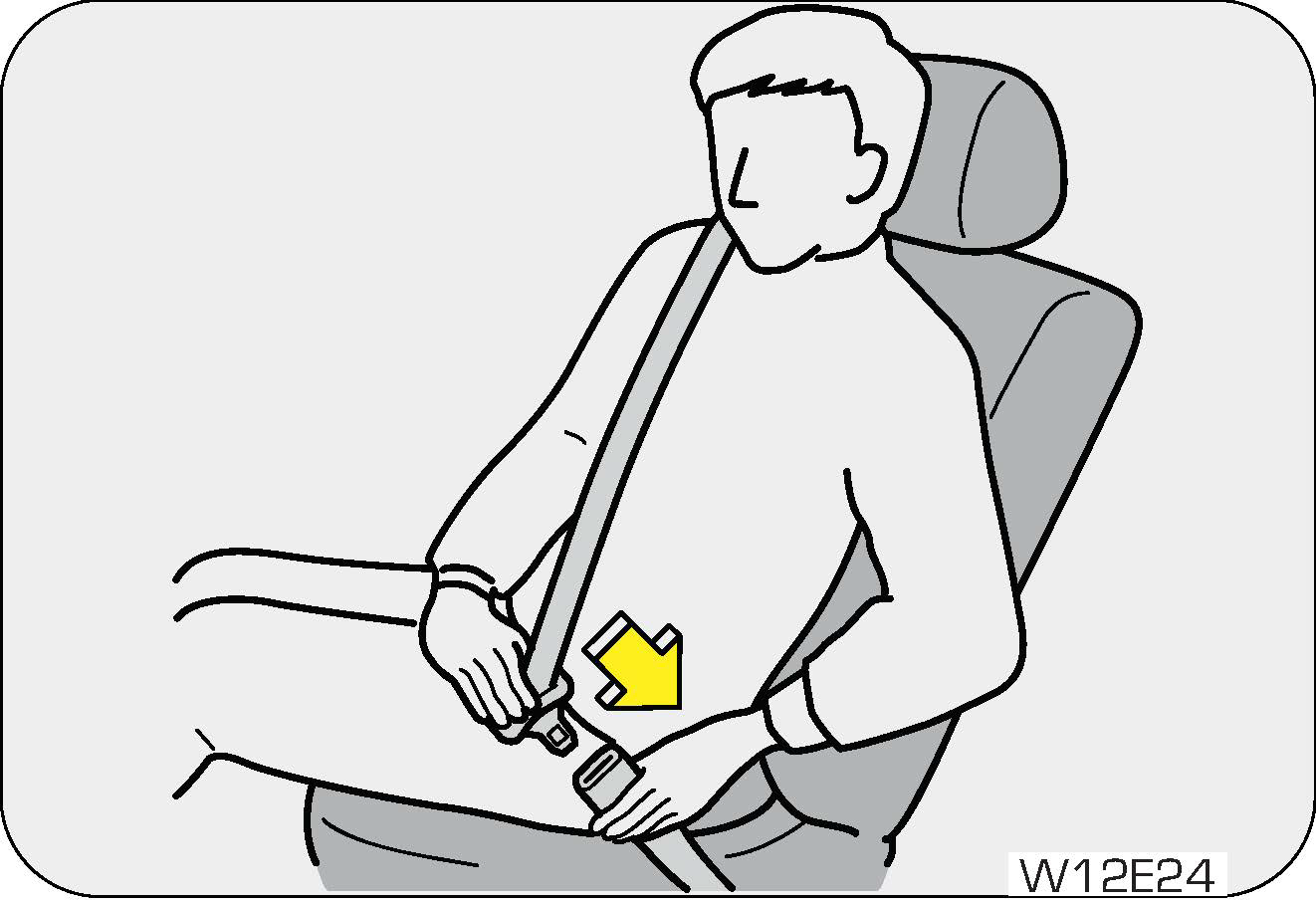

5.6.2 Fastening the Seat Belt (3-Point type)

Adjust the seat as needed, sit up straight and well back in the seat. To fasten your seat belt, pull the webbing out of the retractor and insert the metal tab into the buckle. An audible “click” would be heard when the tab locks into the buckle. Pull up on the shoulder strap to tighten the lap belt across your hips. The seat belt retractor will pull in any slack in the shoulder strap. A slow and easy motion will allow the belt to extend and let you move your body around freely.

Periodically check the seat belt as you ride to be sure it remains snug and in position. If there is a sudden stop or impact, the belt will lock into position. It will also lock (restrict) if you try to lean forward too quickly.

If the driver or co-driver seat belt is not fastened when the ignition is switched ON, the seat belt warning lamp illuminates and chimes beat will turn till seat belt fastened. Refer “Warning Lamps” in the “Features and Control” chapter for further details.

5.6.3 Unfastening the Seat Belt (Both 3-Point & 2-Point)

To release the belt, press the buckle release button and allow the belt to retract. If the belt does not retract smoothly, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.

Never insert coins, clips, etc. in the buckle as this may prevent you from properly latching the tab and may cause damage to the buckle mechanism, thereby making the seat belt ineffective in an accident, resulting in serious personal injury.

5.7 Seating Positions for Child Restraint System (CRS)

Use a child restraint system only if the child is not big enough to properly wear the seat belts. Else, use the regular seat belt instead of the child restraint system. Make child to seat in the rear seat and use the child anchor or seat belt. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. Always secure a child in a proper child restraint system in accordance with age and size of the child as recommended by the child restraint system manufacturer

Do not allow children to stand up or kneel on either the rear or the front seats. An unrestrained child could suffer serious injuries during emergency braking or collision.

It is also not recommended that children travel sitting on your lap as it does not provide sufficient restraint.

Mass Group	Child Seating Position Table
	Front Passenger		Rear Passenger
	PAB ON	PAB OFF	Rear LH Outboard	Rear RH outboard
Group 0 up to 10 kg	Ø	Rear-facing child restraint system using belt	Rear-facing child restraint system using ISOFIX
Group 0+ up to 13 kg	Ø
Group II 9 up to 18 kg	Ø
Group II 15 up to 25 kg	Ø	Forward-facing child restraint system using belt
Group III 22 up to 36 kg	Ø
	PAB - Passenger Airbag

5.8 Child Restraint System (CRS) using ISOFIX (if equipped)

Legend:

IU — Suitable position for using universal rearward facing child restraint system using “ISOFIX and Top tether”.

IUF— Suitable position for using universal forward facing child restraint system using “ISOFIX and Top tether”

Ø — Not Suitable position for using child restraint system using “ISOFIX and Top tether”

Mass Group	Child Seating Position Table
	Front Passenger		Rear Passenger
	PAB ON	PAB OFF	Rear LH Outboard	Rear Centre	Rear RH outboard
Group 0 up to 10 kg	Ø	U	IL / IUF	Ø	IL / IUF
Group 0+ up to 13 kg	Ø	U	IL / IUF	Ø	IL / IUF
Group II 9 up to 18 kg	Ø	U	IL / IUF	Ø	IL / IUF
Group II 15 up to 25 kg	Ø	UF	_	_	_
Group III 22 up to 36 kg	Ø	UF	_	_	_
	PAB - Passenger Airbag

Location of ISOFIX & Top tether

•

Always perform the installation and removal of the child seat using the “ISOFIX and Top Tether” system as stated in the instructions from the manufacturer of the child seat

•

If child seat interfere with front seat, please adjust the front seat position and seat back to clear the interference

6 SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

The Supplemental Restraint System (SRS) includes airbags, pre-tensioners and ECU. The airbags are designed to provide further protection to the vehicle occupants in addition to the primary protection provided by the seat belts and seat belt pre-tensioners.

The primary components of the system are the sensors which measure the crash severity. In the event of a significant frontal impact, the SRS airbags inflate to work in conjunction with the seat belts and help reduce injuries mainly to the driver's and front passenger's head/chest.

Seat belts are the primary restraint system in the vehicle. An airbag provides supplemental protection in addition to the seat belts.

All occupants, including the driver, should always wear their seat belts to minimise the risk of severe injury in the event of a crash.

Airbags are more effective in reducing injuries when the seat belts are worn.

6.1 Airbags

Your vehicle is equipped with the following airbags:

•

A frontal airbag for the driver in Steering wheel hub

•

A frontal airbag for the front passenger in the passenger side instrument panel

They are indicated by “AIRBAG” embossed on the covers.

An airbag is not designed to deploy in every type of crash. Depending on the type of accident or impact, the front airbags independently deploy thereby protecting the occupants. It is not necessary that ALL the airbags deploy during an accident.

To minimise the risk of severe injury in the event of a crash, every passenger must always wear their seat belt (see the chapter on Seat Belts in this manual). The airbags inflate very quickly with great force. Do not position any part of your body too close to airbag, you or especially children could be seriously injured/killed by a deploying airbag.

6.2 Driver and Front Passenger Airbag

Your vehicle is equipped with a Supplemental Restraint System (Airbag) and lap/shoulder belts at both the driver and front passenger seating positions. The indications of the system's presence are the letters “AIRBAG” embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.

The SRS is designed to deploy the front airbag only when an impact is sufficiently severe and when the impact angle is less than ± 30° from the forward longitudinal axis of the vehicle.

Front airbag are not intended to deploy in side-impact, rear impact or rollover crashes. In addition, front airbag will not deploy in frontal crashes which are below the prescribed deployment threshold where risk of serious injuries is low.

Do not place any objects over the airbag or between the airbag and yourself.

6.3 Passenger Airbag Switch

ON/Activated

OFF/Deactivated

Passenger airbag (PAB) can be switched OFF/deactivated manually by ignition key when there is no passenger in co-driver seat or if any child sitting on co-driver seat.

PAB ON/OFF switch is located on the left side surface of the instrument panel.

•

Customer should deactivate when there is no passenger in
co-driver seat or if any child sitting on co-driver seat

•

When switch is in OFF condition tell-tale will be ON on IP switch bank and message will come in cluster only high and high plus variants

•

Once the PAB is made off, If customer wants to activate again then PAB deactivation switch to made ON manually by using key

Co-Driver Seat Belt Reminder

PAB Deactivation Indicator

•

To operate the switch vehicle key should be used

6.4 Airbag System Malfunction Lamp

Airbags do not require any regular maintenance of service. The airbag system malfunction lamp illuminates when the ignition is ON, and it turns OFF after about 3 seconds. as self check confirming normal operations of airbag system and malfunction lamp.

This lamp monitors airbag sensor assembly, airbag sensors, indicator lamp, seat belt pre-tensioner assemblies, inflators, interconnecting wiring and power sources.

If either of the following conditions occur, there is a malfunction of the airbags or seat belt pre-tensioner. Immediately contact your Authorised Mahindra Dealer.

•

The lamp does not glow when the ignition is switched ON or glows beyond six (6) secs. after switching the ignition ON

•

The lamp comes ON at any other time, even briefly

•

The lamp comes ON intermittently

Never make any modifications to your vehicle which could affect the performance of your airbag system. In particular, changes to the vehicle frame, bumpers, bull bar, front fenders, ride height, suspension, seat belts, interior trim, seats or steering wheel (especially covers, pads or other trim), could prevent proper deployment of the airbag. If you need to make any modifications to accommodate any disability you may have, please contact your Authorised Mahindra Dealer.

Never try to open or strike the airbag cover. If the airbag cover is cracked or damaged in any way, the airbag may not function as intended. Take the vehicle to an Authorised Mahindra Dealer.

Even if the airbags do not deploy during an accident, take your vehicle to an Authorised Mahindra Dealer for a thorough inspection of the airbag and seat belt systems, no matter how minor the accident. The airbag system could have been damaged, and may not work as intended in the future, resulting in serious injury.

6.5 Airbag Inflation/Deployment

The airbag sensors constantly monitor the forward deceleration of the vehicle. If an impact results in a forward deceleration beyond the designed threshold level, the system triggers the airbag inflators. This initiates a chemical reaction which quickly fills the airbags with non-toxic gas.

Upon deployment, tear seams moulded directly into the pad covers separate under pressure from the expansion of the airbags. Further opening of the covers allows full inflation of the airbags. A fully inflated airbag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to manoeuvre or operate other controls.

Deployment of the airbags happen in a fraction of a second, producing a loud noise releasing a ‘white smoke’ and residue along with a non-toxic gas. This does not indicate a fire. This smoke may remain inside the vehicle for some time, and may cause some minor irritation to the eyes, skin or breathing. Be sure to wash off any residue with soap and water as soon as possible to prevent any potential skin irritation. If you can safely exit the vehicle, you should do so immediately.

Airbag deployment may cause windshield to break.

•

Do not modify, remove, strike or open the seat belt pre-tensioner assemblies, airbag sensor or surrounding area or wiring. Failure to follow these instructions may prevent them from activating correctly, cause sudden operation of the system or disable the system, which could result in serious injury

•

Parts of the airbag module (steering wheel hub, airbag cover and inflator) may be hot for several minutes after deployment. The airbags inflate only once

•

Do not cover the steering wheel, instrument panel with any object (e.g. dash panel covers) which may prevent the airbags from inflating properly

•

The airbags inflate with considerable force. While the system is designed to reduce serious injuries, primarily to the head and chest, it may also cause other, less severe injuries to the face, chest, arms and hands. These are usually in the nature of minor burns or abrasions and swelling, but the force of a deploying airbag can also cause more serious injuries, especially if an occupant's hands, arms, chest or head is in close proximity to the airbag module at the time of deployment. Sit straight and well back into the seat. Move your seat as far back as practical to allow room for airbag inflation, while still allowing you to properly operate/drive the vehicle

The front passenger should never sit on the edge of the seat, stand near the glove compartment, rest feet or other parts of the body on the dashboard when the vehicle is moving.

The driver or front passenger who is too close to the steering wheel or dashboard can be seriously injured during airbag deployment.

•

The driver must sit as far back as possible from the steering wheel while still maintaining control of the vehicle

•

The front passenger must sit as far back as possible from the dashboard

•

Sitting improperly or out of position can cause occupants to be shifted too close to a deploying airbag, strike the interior structure or be thrown from the vehicle resulting in serious injury

•

Always sit upright with the seat back in an upright position, on the seat cushion centre with your seat belt on, legs comfortably extended and your feet on the floor

•

All vehicle occupants must be properly restrained using the seat belts

•

All infants and children must be placed in the rear seat of the vehicle in a child restraint seat and be properly restrained by seat belts

•

Front airbags can injure occupants improperly positioned in the front seats

•

Even with airbags, improperly belted and un-belted occupants can be severely injured when the airbag inflates. Always follow the precautions about seat belts, airbags and occupant safety contained in this manual

•

Do not modify the front seats. Modification of the front seats could interfere with the operation of the supplemental restraint system or side impact airbags

•

Do not place items under the front seats. Placing items under the front seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses

6.6 Child Restraint and Airbag

Never place a rear-facing child restraint in the front passenger’s seat. If the airbag deploys, injuries to the child may be fatal.

In addition, do not place front-facing child restraints in the front passenger’s seat either. If the front passenger airbag inflates, it could cause serious or fatal injuries to the child.

Extreme Hazard! Do not use a rear-facing child restraint on a seat protected by an airbag in front of it!

Never put a child restraint in the front passenger’s seat. If the front passenger airbag inflates, it can cause serious or fatal injuries.

Never hold an infant or child on your lap. The infant or child could be seriously injured in the event of a crash. All infants and children should be properly restrained in appropriate child safety seats or seat belts in the rear seat.

Instal the child restraint system on the rear outboard seats, and securely lock the child restraint system in position with the help of ISOFIX.

Always Buckle Children (ABC) in the back seat. It is the safest place for children of any age to ride.

6.7 Airbag Deployment

The images shown in this section are for illustrative purpose only. They may not look like your model/variant or vehicle.

Front Airbag

Front airbag are designed to inflate in a frontal collision depending on the intensity, speed or angles of impact of the front collision.

Airbag Non-deployment

Impacts below a pre-determined threshold level may not cause the airbag to deploy in the following cases:

•

Collision with Utility Poles or Trees -

Airbags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated to one area and the full force of the impact is not delivered to the sensors.

•

Under-ride Situations -

Running under a truck's may not provide the decelerations necessary for airbag deployment. Airbags will not inflate in this “under-ride” situation where deceleration forces that are detected by sensors are significantly low.

Rear-end Collisions -

Frontal airbags are not designed to inflate in rear collisions, where occupants are moved backward away from the airbags by the force of the impact. In this case, inflated airbags would not be able to provide any additional benefit.

•

Frontal Impact -

Frontal impact beyond 30º range from head-on to the vehicle.

•

Potholes or Stepped Surfaces -

Driving into a big pothole, stepped surface or hitting the far side of a hole/incline will not inflate the airbag.

•

Rollover -

Airbags will not inflate in rollover accidents where airbag deployment would not provide protection to the occupants.

Frontal Side Swipe Impact -

Frontal offset impact to the vehicle may not provide the deceleration force necessary for airbag deployment. In an angled collision, the force of impact may direct the occupants in a direction where the airbags would not be able to provide any additional benefit, and thus the sensors may not deploy any airbags.

6.8 Airbag Replacement

Self-servicing or tampering with the airbag system is dangerous. An airbag could accidentally deploy causing serious injuries, or will not deploy when there is a need. Always take your vehicle to an Authorised Mahindra Dealer for inspection and repairs.

6.9 Self Removing SRS Related Parts

Self removing the instrument panel, steering wheel, seat belts or airbag related parts or sensors is not recommended. Airbags could accidentally activate and cause serious injuries, or they may not deploy when there is a need. Visit an Authorised Mahindra Dealer if these parts must be removed.

6.10 Airbag Disposal

Improper disposal of an airbag or a vehicle with live airbags can be extremely dangerous. Approach an Authorised Mahindra Dealer to do these jobs.

6.11 Airbag Repair

If the front airbag cover or IP airbag cover shows signs of damage or having been removed, the vehicle should be towed to the nearest Authorised Mahindra Dealer for repair. Do not attempt to self repair or reinstal the cover.

6.12 Airbag Maintenance

For cleaning the airbag covers/areas, use only a soft dry cloth or one which has been moistened with plain water. Solvents or cleaners could adversely affect the airbag covers and proper deployment of the system.

7 LOCKS AND KEYS

Your MARAZZO vehicle comes with Remote Flip key. The keys operate all locks in your vehicle including those of the doors and ignition with steering lock. We advise you to keep one of these keys in a safe place for emergency use, but not in the vehicle. Should you lose your keys or if you need replacement keys, they can be ordered through an Authorised Mahindra Dealer.

RKE	Remote Keyless Entry

Key Number Tag:

Your key number is shown on the Aluminium tag attached to the key. It is recommended that you record the key number and store in a safe place.

There is a limitation (max 2 keys at a time) to the number of keys that can be programmed. The minimum timeframe required to supply the duplicate keys is 20 days after all the formalities are completed. Please contact the Authorised Mahindra Dealer to understand the formalities involved.

Never leave the key in the ignition switch with children in the vehicle. A child could switch on the ignition, start the engine, operate power windows and other controls, or move the vehicle, resulting in personal injuries to the bystanders and/or children seated inside.

7.1 Doors

7.1.1 To Open a Door from Inside

Pull the door lever away from the door and push the door outward to open.
	A : Lock B : Unlock

7.1.2 To Open a Door from Outside

Pull the door handle firmly outwards to unlock and swing the door open.

7.1.3 Locking / Unlocking Individual Doors from Inside

Individual doors can be locked/unlocked from inside by the respective door lock tabs. Lift the lock tab outwards to unlock or press the tab inwards to lock that particular door.
	A : Lock B : Unlock

Locking the driver door from inside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.

7.1.4 Manual Locking / Unlocking Doors from Outside

The driver/co-driver door can be manually locked/unlocked from outside by using conventional key. The key is bi-directional; you can insert it into the keyhole either way. Turn the key anti-clockwise to lock or clockwise to unlock the door.

A : Lock

B : Unlock

A keyhole is provided in the driver door to lock/unlock the doors manually from outside.

Locking the driver door from outside activates the central locking system, thereby locking ALL the doors of the vehicle. Refer to Central Locking section for further details.

7.1.5 Locking / Unlocking the Back Door

Press the back door open button on the Remote to unlock the back door. The hazard lamps flash three times indicating the same. Then press the switch on the bottom of the back door as shown in the illustration and pull back door to open.

To close the back door, lower the back door half way down and allow it to fall on its own weight. The door will be locked automatically.

7.2 Central Locking System

All doors of the vehicle including fuel lid can be simultaneously locked or unlocked from the driver door.

7.2.1 Central Locking / Unlocking All Doors from Outside

To manually lock/unlock all the doors from outside using the conventional key, turn the key anti-clockwise /clockwise respectively in the driver door keyhole.

A : Lock

B : Unlock

If any doors are open when central locking is activated, the system locks the open doors when they are closed.

Central locking ALL the doors in the vehicle can also be done using the Remote key. Refer the relevant sections in this chapter for more details.

7.2.2 Central Locking / Unlocking All Doors from Inside

Press the driver door lock tab down (A) to lock or lift the lock tab up (B) to unlock all doors simultaneously.

A : Lock

B : Unlock

7.2.3 Child Safety Rear Door Lock

Your vehicle is equipped with left and right side child safety rear door locks. When the lock mechanism is engaged, the rear door(s) cannot be opened from the inside. The door(s) can only be opened from the outside.

To activate the child safety right rear door lock, push the lever down (A) till you hear a distinct click indicating the activation of the child lock.

To de-activate the child safety right rear door lock, pull the lever up (B) till you hear a distinct click indicating the deactivation of the child lock.

A : Activate/Lock

B : De-activate/Unlock

If the rear doors are not operable from inside, ensure that the child safety locks have been disabled.

Mahindra strongly recommends that the child safety rear door locks be used whenever there are children travelling in the rear seat.

7.3 Remote Keyless Entry (RKE) System (Flip Key With Remote)

The front side of the Remote has three control buttons: Unlock, Lock and Trunk button. There is also a mechanical key release button (E).

The Remote Keyless Entry (RKE) system operates on Radio Frequency (RF). You can insert the key into the ignition with either side up.

	A : LED B : Lock / Search (Long press >1 sec) C : Trunk button D : Unlock E : Mechanical key release button
Press the mechanical key release button to open the key blade.

7.3.1 Precautions While Handling Remote key

•

Do not cover the key grip with any material that cuts off RF waves

•

Do not leave the key exposed to high temperatures for a long period, such as on the dashboard or hood under direct sunlight

•

Do not put the key in any liquid or wash it in an ultrasonic washer

7.3.2 Remote key Status LED

LED present on Remote would be indicating the user about the Remote lock/unlock/trunk button input and also health of Remote battery.

7.3.3 To Lock and Arm the Vehicle with Remote

Press the lock button on the Remote for locking and arming the vehicle.

When the vehicle is successfully locked and armed using the Remote, the hazard lamps flash once.

If there are any doors open, the hazard lamps flash five times along with audible beeps indicating the same.

The audible beeps heard during the door open status can be muted/unmuted by pressing the lock and trunk button on the Remote together for more than 1 sec.

•

If any of the doors, except the driver door, are open while locking the vehicle with Remote , the vehicle locks all doors (door locks) irrespective of the open door/doors. When the open door(s)
is/are closed later, the vehicle is locked and armed

•

If the driver door is open while locking the vehicle with Remote, the vehicle is not locked or armed. Close the driver door and lock the vehicle again with Remote to arm the Theft detent system

7.3.4 Unlock and Disarm the Vehicle with Remote

Press the unlock button on the Remote to unlock and disarm the vehicle. When the vehicle is unlocked and disarmed using Remote , Hazard lamps or Front and Rear Park lamps flash twice based on the variant.

7.3.5 Theft Alarm

If there was an unauthorised attempt to open/start the vehicle by someone from the time you had locked and armed the vehicle to the time you press the unlock button of Remote, the hazard lamps flash four times along with an alarm indicating the attempt.

If this occurs, press the “UNLOCK” button on the Remote to disarm the security alarm.

Using the ignition key to open the door, when the vehicle was locked and armed with Remote will be treated as unauthorised by the system setting off the alarm.

When vehicle is armed by Remote , opening the door from inside by operating the door inner handle will activate the vehicle theft alarm. Press the unlock button on the Remote to cancel the alarm.

7.3.6 Back Door Open

Press the back door open button on the Remote to unlock the back door. The hazard lamps flash three times indicating the same.

After pressing the button, open the trunk door by pressing the Trunk release switch on trunk door before Auto Re-locking

7.3.7 Search Function

The search function can be used to locate the vehicle in a parking lot. Press the Lock button on the Remote for more than 1 sec. continuously to activate the search function.

When the Search function is ON, the hazard lamps flash for approx. 30 secs. helping you to locate your vehicle. To extend the search, press the search button again which will flash the hazard lamps for another 30 secs. Again press the Lock button on the Remote for more than 1 sec. continuously to de-activate the search function.

The head lamps also turn ON when UNLOCK button is pressed twice (enabling the Lead Me to Vehicle (LMV) feature). For the first UNLOCK command, the doors are unlocked, and for the next UNLOCK command, the head lamps turn ON enabling you to safely board/locate the vehicle in the night.

Search function works both during Locked/Unlocked conditions of the vehicle.

7.3.8 Mute/Unmute the Alarm/Beeps

The alarm or beeps heard when one of the doors are open can be muted/unmuted. Press the lock and Trunk buttons together for more than 3 secs. to swap between mute and unmute. Hazard lamps will flash once to indicate the change in status.

The beeps heard during the door open situation can be muted/unmuted. There are NO BEEPS during normal locking/unlocking of doors.

7.3.9 Panic Alarm Function

The panic alarm function can be used during emergencies to draw the attention of onlookers/bystanders. Press the lock button on the Remote for more than 1 sec. continuously when the key is in the ignition to activate the panic alarm.

7.3.10 Auto Locking

This feature enables all doors to lock automatically, when all doors are closed and vehicle speed greater than 20 kmph.

7.3.11 Auto Unlocking

All doors are unlocked automatically, when the vehicle is halted, key is removed from ignition.

In Airbag variants, in an unfortunate event of an accident, Auto Unlock of doors takes place if the crash conditions are met.

7.3.12 Auto Re-locking (If applicable)

After unlocking the vehicle using Remote , if none of the doors are opened in 45 secs., Auto re-lock of all doors will happen.

In case of an accident/collision where a SRS has been activated (E.g. airbag), all the doors are unlocked automatically .

7.3.13 Auto Re-lock on Master Actuator Unlock

Once Auto locking happened and if the Master Actuator was unlocked at any vehicle speed, next Auto lock will reoccur when the vehicle speed goes below 5 kmph and again crosses 20 kmph with all the doors in closed condition.

7.3.14 Auto Re-lock On Any Door Open

Once Auto locking is occurred, and if any door is opened when vehicle speed is less than 5 kmph, Auto Lock will reoccur only when vehicle speed crosses 20 kmph in all doors closed and master actuator in lock condition.

7.3.15 Anti Lockout

This feature will not allow the doors to lock, when in ignition On condition, if any door is open and someone tries to lock the doors by using inside master actuator.

However, if repeatedly attempt to lock for 3 times then, doors will get locked.

7.3.16 CDL Unlock

Central Door Locking system unlocks the doors when user presses the master actuator on driver door or by turning off the Ignition key and taken out of key barrel.

There are no visual indications for this operation.

7.3.17 Auto Unlock On Ignition OFF

When Ignition is switched off, all doors will get unlocked automatically, if locked.

There are no visual indications for this operation.

7.3.18 Auto Unlock Upon Crash

In vehicles equipped with airbags, Auto Unlock of doors takes place in case of an unfortunate event of an accident and airbags are deployed.

7.3.19 Thermal Protection

Door lock mechanism does not respond to remote/CDL requests, if Lock / Unlock are performed 8 or more times within 20 secs.

Lock / Unlock will not happen for 20 secs. and after lapse of this time limit, it will function normally.

7.3.20 Remote key Operating Range

Using Remote, you can lock/arm or unlock/disarm the vehicle from distances approx. 30ft.(9m).

If there is reduction in Remote range, please follow the steps below:

•

Check the distance: The Remote key may be too far from the vehicle. Stand closer to the vehicle during rain or bad weather

•

Check the location: Other vehicles or objects may be blocking the signals. Take a few steps to the left or right, hold the Remote key higher, and try again. Moreover, closeness to a radio transmitter such as radio station tower, airport transmitter, mobile or CB radios may lead to reduction in range of Remote key

•

Check the Remote key battery: See battery replacement procedure, given later in this section

•

If the Remote key is still not working correctly, contact an Authorised Mahindra Dealer

7.3.21 Battery Specification

Battery Voltage	3 V
Battery Capacity	225 mAh

7.3.22 Remote key Battery Replacement

If the Remote key operation is inconsistent when any of the buttons are pressed, it indicates that the Remote battery is weak. The rear side of the Remote is snap fitted. Using a small screw driver or similar tool, pry or separate the two halves of the casing.

Pull out the batteries and discard the same. Insert new batteries as per the recommended specification. While fitting the new battery, ensure the positive side of the batteries face up. Align both the halves of the Remote and press to snap fit. Check operation of the Remote key.

While prying the Remote case, take care not to damage the battery. Do not touch the battery terminals or contacts.

Perchlorate material needs special handling and disposal. Refer to local regulations.

7.3.23 If Remote key is Lost

If you have lost the programmed Remote key, contact an Authorised Mahindra Dealer for procuring a new Remote key.

While programming a new key set, you will have to submit all the keys available with you, to an Authorised Mahindra Dealer.

Please note that there is a limitation (max. 2 keys at a time) to the number of keys that can be ordered. The minimum timeframe required to supply the duplicate keys is 20 days after all the formalities are completed. Please contact the Authorised Mahindra Dealer to understand the formalities involved.

If you make your own duplicate key, you will not be able to deactivate the theft detent devices or start the engine.

If the key is stolen or lost, communicate to an Authorised Mahindra Dealer for de-activating the function of the lost or stolen key. This is essential to avoid unauthorised access using the misplaced key.

Only Remote key transmitters programmed to your vehicle electronics can be used for remote locking and unlocking of your vehicle.

7.4 Theft Detent Warning System

7.4.1 Arming of Vehicle

Once all the doors are closed and locked with remote by pressing lock button , Theft Detent warning system would get activated.

7.4.2 Theft Detent Trigger

If any one tries to manipulate the Ignition or manually opens the doors, Theft Detent warning system alarm is activated by blinking the turn lamps and blowing siren for 27 secs.

Once the alarm is triggered, it can be disabled by pressing unlock button on remote or switching on the Ignition by using valid key.

7.5 Engine Immobiliser System

An Engine Immobiliser System is a security system that prevents the vehicle from being operated by an unauthorised keys. The Engine immobiliser prevents the engine from being started unless it recognises signals from the correct coded key. When a wrong key is inserted or a theft attempt is detected, the alarm is set off, and the hazard lamps flash along with a siren.

The system is automatically activated when the key is removed from the ignition.

7.5.1 Features of the Immobiliser System:

•

Prevents the vehicle being started by anyone not in possession of the correct vehicle key

•

The vehicle is automatically protected after the key is removed from the ignition. At every ignition ON, if the vehicle does not recognise the correct key code, the engine check lamp will illuminate/blink and the engine cannot be started

•

The vehicle will not be protected until the key has been taken out of the ignition

If the engine check lamp flashes or remains continuously illuminated after the ignition being switched ON, there is a system malfunction. Contact an Authorised Mahindra Dealer immediately.

Inserting the correct coded key in the ignition and switching the ignition ON, automatically deactivates the system. This enables the engine to start.

In the event of the vehicle not starting with the correct key, switch off the ignition for a minimum of 1 minute and attempt to start the vehicle again.

Do not modify, remove or disassemble the engine immobiliser system. Any unauthorised changes or modifications can affect proper operation of the system and will void your warranty.

The security system will be activated only when the vehicle is locked using the Smart Key. Locking the doors with the manual key will not activate the security system.

Using the ignition key to open the door, when the vehicle was locked and armed with Smart Key will be treated as unauthorised by the system setting off the alarm. Press the unlock button on the Smart Key to cancel the alarm.

8 FEATURES AND CONTROL

8.1 Quadruple Switch

A : ORVM

B : Front LH Passenger Window

C : Rear LH Window Switch

D : Driver Door Window

E : Rear RH Window Switch

F : Power Window Lock

The quadruple power window switch on the driver door armrest/handle controls the following functions:

•

Both LH and RH ORVM folding

•

ORVM selector

•

ORVM adjustment

•

Power window functions of all doors in the vehicle

•

Power window safety switch that enables/disables power window operation of rear doors when operated independently from the respective doors

8.1.1 Power Windows

Power windows can be operated only when the ignition is “ON” position.

The driver can operate all the power windows in the vehicle through the quadruple switch on the driver door armrest/handle.

Other passengers in the vehicle can raise or lower their respective window glasses individually by using the separate switches provided on each of the door trim pads/armrests.

To lower/raise the window glass push/pull, the power window switches respectively.

Do not operate the power windows frequently when the engine is OFF. This will drain the vehicle battery.

If you operate the switches often during a short period of time, the system might become inoperable for a certain duration to prevent damage due to overheating. The system will return to normal functioning shortly.

It is recommended to operate one window switch at a time.

While operating the power windows, check for obstructions like head, hand, etc. which may lead to personal injuries.

Power Window Control after IGN OFF - The power window control will be available for 30 secs after IGN OFF condition.

8.1.2 Power Window Lock Switch

The main power window quadruple switch in the driver door trim has a power window lock switch to enable or disable operation of rear passenger window switches.

To disable the rear passenger power windows, press the window lock switch down.

To revert to normal operation, press the window lock switch again.

8.1.3 Smart Power Window with Anti-Pinch (applicable for driver door only) (if equipped)

Smart power window is one of the significant safety features with the anti-pinch function, which automatically reverses the direction of glass if an obstruction is detected during the express up mode.

This feature consists of three functions:

•

Auto UP

•

Auto DOWN

•

Anti-Pinch during Auto UP

Auto UP

Pull the power window switch up for a moment and release. The glass moves all the way up automatically. You do not need to hold the switch till the glass closes.

Auto DOWN

Press the power window switch down for a moment and release. The glass moves all the way down automatically. You do not need to hold the switch till the glass comes down.

Anti-Pinch during Auto UP

During Auto Up if any obstacle is detected with the force value ranging between 70~100 N (~7-10 kg), the controller senses the load and reverses the direction of the glass to downward direction for almost full stroke length.

However, if the force against the glass is less than the specified value, then this function does not operate.

If power window anti-pinch is used continuously for more than 20 times, the power window express feature will have thermal cut off and it will not operate for 20 secs and after that for one cycle it will operate and once the temperature comes to nominal then it will start operating normally

8.2 Mirrors

8.2.1 Manual ORVM (if equipped)

Integrated exterior rearview mirrors on both the sides facilitate maximum rear view information to the driver.

Both the ORVMs are hinged and can be manually folded or unfolded. This avoids hindrances in narrow areas and parking slots. Make sure that you fully engage the mirror in its support, while folding or unfolding.

Objects seen in convex mirrors are much closer than they appear. Do not overestimate the distance of the objects that you see in the mirrors.

8.2.2 Electric ORVM (if equipped)

The electric exterior mirror adjustment switch is located on the driver door trim/handle. The joystick on the switch can be used to select the left/right mirror and also to adjust the respective mirror.

8.2.3 Electric Foldable ORVM (if equipped)

Mirror Fold Function

To fold the ORVM assembly, rotate the joystick to lock position as shown in the below figure

ORVM will get fold automatically when:

•

Key is in out condition, Mirror is already in unfold condition and RKE LOCK is pressed or

•

IGN in ON condition and mirror is already in unfolded condition and ORVM switch is OFF to ON

Mirror Unfold Function

To unfold the ORVM assembly, rotate the joystick from lock to L or R position as shown in the below figure

ORVM will get unfold automatically when:

•

IGN in ON condition, Mirror is already in folded condition and ORVM switch is ON to OFF or

•

Key is in out condition, Mirror is already in folded condition and ORVM switch is OFF condition and IGN is made ON

8.3 Interior Mirrors

There are two interior mirrors, one is a conversation mirror (fish eye type) and other interior rearview mirror.

A	Conversation Mirror	C	Day/Night Adjust Tab
B	Interior Rearview Mirror

8.3.1 Conversation Mirror (if equipped)

The conversation mirror can be used to converse with the rear passengers in the vehicle. Press the mirror cover to lower the conversation mirror. Close the mirror back and press to lock the mirror in position.

8.3.2 Interior Rearview Mirror

The interior rearview mirror provides the rearview information to the driver and also aids during reversing.

This mirror has day and night (anti-glare) positions. The night position reduces glare from head lamps of vehicles behind you. Flip the tab (A) on the bottom edge of the mirror to select the day or night position.

8.4 Sun Visor

Sun Visors are provided for both driver and co-driver above the windshield. The sun visors can be used for either frontal or sideward shade, to reduce glare or to shut out direct rays of the sun.

Pull down the sun visor to block the glare of the sun. The sun visor can also be swivelled to the side as shown.



A : Sun Visor Extension B : Ticket Holder

In certain variants, a vanity mirror is provided on the back of the front passenger sun visor.

Light above the Sun visor will be ON once you slide and open the Vanity mirror.

8.5 Sun Shade(if equipped)

Sun Shades are provided on both the rear door trim. The Sun Shades can be used for sideward shade, to reduce glare or to shut out direct rays of the sun.

Lift the Sun Shade by holding the handle (A) and to block the glare of the sun and lock it over the slot (B) provided.

8.6 Utility Holders

8.6.1 Console Tray(if equipped)

Console tray provided on centre console can be closed by sliding the door.

Do not place large or heavy objects on the foldable trays, accessing the centre console storage will be difficult.

Ensure the tray cover is latched properly once closed.

8.6.2 Multi Storage Box (if equipped)

The multi storage box is located on top of Instrument Panel above the infotainment screen.

It can be used for storing small items like mobiles, wallets, tickets, etc.

Do not store big items in the multi storage box. On rough or uneven roads, spilling the contents and leading to distraction.

8.6.3 Glove Box

The glove box is located just below the Left side of Instrument panel. To open, gently pull the lever and lower the lid. To close the glove box, raise the lid all the way up and gently press to lock the lid.

It is suggested to keep copies of all vehicle documents along with the Owner’s Manual Kit in the glove box for reference when needed. There is also a pen holder inside the glove box for convenience.

To avoid the possibility of injury in case of an accident or a sudden stop, glove box lids should be kept closed when the vehicle is in motion.

In select variants, a cooler (air vents) is provided in the glove box. You can cool cans, small bottles, etc. by opening the air vents. Turn the cooler clockwise to open the air vents, or anti-clockwise to close the air vents.

OFF

Only sealed cans/bottles to be stored in the cooler. Any spilled beverage can damage the interior trim and electrical components/cooler.

8.6.4 Cup Holders (if equipped)

Centre Console Cup Holder :

The cup holder located in the floor console between the front seats, It can be used for small cups or cans that are closed or have a lid.

Third row Cup holder :

The cup holders are located on both the left and right side trims.

Only sealed cups/cans with lid to be used in the cup holders.

Use caution when using the cup holders. A spilled beverage that is very hot can injure driver or passengers. Spilled liquids can also damage interior trim and electrical components. Any spilled beverage can also startle the driver and cause a loss of control of the vehicle resulting in an accident.

8.6.5 Bottle Holders

Bottle holders are located on both the front door lower trims. You can use them to store maps, papers, small books, bottles, etc.

Only sealed/closed bottles are to be used in the bottle holders.

8.6.6 Seat Back/Magazine Pocket

The seat back pockets are located on the back of the front seats for holding lightweight papers/books/magazines, etc.

To avoid injury, do not place large or hard objects in the seat back pockets. Do not put more than 1 kg weight in seat back pockets.

8.6.7 Grip Handle

Foldable grip handles are provided above the front (passenger only), second row and third row outboard seats.

8.6.8 Coat Hook

The second row outboard passenger seats grip handles feature a coat hook for hanging your coat, shirts, etc.

Hang lightweight articles only. Hanging excess/bulky weight/items may cause breakage of the hook and inconvenience to the passengers.

8.6.9 Second Row Captain Seat Armrest (if equipped)

The second row seats have an armrest which can be folded.

8.6.10 Sun Glass Holder

Roof mounted sun glass holder is an integral part of the front interior lamp.

Press the lid to release the latch and lower the holder. It is strategically positioned to be accessed easily by both the driver and front passenger.

Do not access the sun glass holder while you are driving. It may distract your concentration and could lead to an accident.

8.7 Horn

Press the pad on the steering wheel to blow/sound the horn.

The horn functions even when the ignition has been switched OFF.

8.8 Interior Lamps

Interior lamps comprise front/rear roof lamps, map reading lamps, ambience lamps and ignition key ring illumination. These lamps can be used for an illuminated entry. In auto mode, the roof lamps (courtesy lamps) and ignition key ring illuminate when any of the doors are opened. Once all doors are closed, the interior lamps switch OFF.

8.8.1 Front Roof Lamp

The front roof lamps are located in the roof console above the interior rearview mirror.

The roof lamp can be switched ON pressing the lens on the lamp. Press the lens again to switch OFF the roof lamp.

A : Permanent ON

B : Door/Auto Mode

C : Permanent OFF

8.8.2 Reading Lamp (if equipped)

Reading lamp is provided on the both sides of roof for third row occupants.

Press the lamp once to switch ON.

Do not leave the roof reading lamp in permanent ON mode. This will drain your vehicle battery.

8.8.3 Second Row Roof Lamp

The second row roof lamp is located on the roof above the second row seats. The courtesy lamp can be switched ON/OFF by the switch on the lamp.

The roof lamp switch has three operation modes to choose from:

•

The roof lamp remains permanently ON in this position irrespective of the door open status

•

The roof lamp remains in DOOR/AUTO mode in this position

•

The roof lamp remains permanently OFF in this position

A	Permanent OFF	C	Permanent ON
B	Door/Auto Mode

The operation of the courtesy lamp in Auto/Door mode is as follows:

•

Roof lamp switches ON, dims and goes OFF after a preset delay once RKE/PKE unlock is performed

•

Roof lamp switches ON when any of the doors is/are open

•

Roof lamp dims and goes OFF after 20 secs delay upon closing of all doors

•

Roof lamp dims and goes OFF immediately on RKE lock or manual key lock after all doors are closed

•

If any of the doors are not closed properly, the roof lamp switches OFF automatically once the vehicle speeds > 20 kmph

•

Roof lamp goes OFF with ignition ON and all doors closed properly

The roof lamp will be turned ON in the case of an accident in a SRS equipped variant provided the roof lamp switch is in “Door/Auto” mode.

8.8.4 Boot Lamp (if equipped)

The Boot lamp is located in the right side of rear luggage space area.

This lamp will get switched ON when Boot is opened and switch OFF when it is closed.

8.8.5 Glove Box Lamp (if equipped)

This lamp is located inside the Glove box.

It will get switched ON when Glove box is opened and switch OFF when it is closed.

8.9 Power Outlet

The 12V power supply socket is provided for power take OFF. Electrical equipment/appliances like mobile phone charger, cigarette lighter, etc. can be used in the outlets.

The power sockets function only when the ignition is in ACC or ON positions. It is recommended to use the power sockets when the engine is ON to avoid battery drain.

The power outlet are located in the compartment below the centre bezel switch bank.

To avoid serious injury:

•

Close the power outlet cap when not in use

•

Do not allow children to use or play with the power outlet

•

When using electrical appliances, strictly follow the manufacturer's instruction manual

•

Never use the power outlet for electric heaters while sleeping

•

Never insert foreign objects into the power outlet

•

Never use malfunctioning electrical appliances

•

Never insert inappropriate or badly fitting plugs into the power outlet

Do not modify, disassemble or repair the power outlet in any way. Doing so may result in unexpected malfunction or fire, which could cause serious damage to equipment and/or personal injuries. Contact an Authorised Mahindra Dealer for any necessary repairs.

To prevent injuries and accidents, secure all electrical appliances before use. Do not use any appliance that may:

•

Distract the driver while driving, or hamper safe driving

•

Result in a fire or burn injuries due to the appliance rolling, falling or overheating

•

Emit steam, while the windows of the passenger compartment are closed

•

Use the power outlets only when the engine is running. Remove the plug from the power outlet after using the electric device. Using the power outlets when the engine is OFF or leaving the electric device plugged in for many hours may cause the battery to drain

•

Do not use the power outlet to connect electric accessories or equipment that are not designed to operate on 12V

•

Some electronic devices can cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and may interfere with other electronic systems or devices in your vehicle

8.10 AUX and USB Ports

The AUX and USB ports are provided on the centre switch bezel below the infotainment controls and on the rear side of centre console.

Front USBs can be used as an input to the music system. You can connect iPods, USB memory sticks, etc. as an input and listen to the music through the vehicle speakers.



A : Front USB Ports B : AUX C : Rear USB Ports (USB 1– 1Amp Op, USB 2– 2Amp Op)

Rear USB is only for charging.

It is recommended to connect an input device only when the vehicle is stationary. Trying to connect an input device while driving may distract your attention and lead to accidents.

8.11 Exterior Lamps

8.11.1 Lighting Control Stalk

The lighting control stalk is located on the right hand side of the steering wheel and is a part of the combination switch.

It controls operations of parking lamps, head lamps, head lamp beam selection, high beam flashing, front/rear fog lamps and turn signals when the ignition switch is ON.

Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to “O” on the switch to switch OFF all lamps.

8.11.2 Turn Signals

A : Turn Signal - Left

B : Turn Signal - Right

Taking a Right Turn :

•

Push the lighting control stalk clockwise to indicate a right turn. The instrument cluster arrow lamp pointing towards the right flashes along with the right side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards right

After you have completed your right turn, the stalk will automatically return to the neutral position switching OFF all the lamps.

Taking a Left Turn :

•

Push the lighting control stalk anti-clockwise to indicate a left turn. The instrument cluster arrow lamp pointing towards the left flashes along with the left side turn signal lamps (front, rear & ORVM) with chime indicating your intention of turning towards left

•

After you have completed your left turn, the stalk will automatically return to the neutral position switching OFF all the lamps

If the turn signal lamps on the instrument panel flash faster than normal, there may be a possibility that one or more of the turn signal lamp bulbs have blown. Replace the blown bulb immediately.

8.11.3 Parking Lamp ON

Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “1st detente” position on the switch to switch ON the parking lamps.

The tail lamp, license plate lamp, instrument panel illumination lamps and all interior switches are also activated when the parking lamp is switched ON.

Park/Position Lamps will not be switched off automatically. User has to turn it off manually.

8.11.4 Head Lamp ON

Rotate the outer rotary switch on the lighting control stalk clockwise aligning the “arrow” on the stalk to the “2nd detente” position on the switch to switch ON the head lamps.

8.11.5 Head Lamp Low/High Beam

Switch ON the head lamp, and push the lighting control stalk down (away) from steering wheel to switch ON the head lamp high beam or lift/pull the lighting control stalk up towards the steering wheel to switch ON the head lamp low beam. In head lamp high beam, the high beam tell-tale lamp in the instrument cluster illuminates indicating high beam option selected.

A : Low Beam

B : High Beam

8.11.6 Head Lamp Flash

Pull the lighting control stalk (from the head lamp low beam position) towards the steering wheel to instantaneously flash the head lamp high beam. The head lamp flash works only when the head lamp is OFF or in low beam position.

8.11.7 Head Lamp Levelling System

When the vehicle is either fully or partially loaded, it may have an upward inclination disturbing the head lamp aiming. A correct head lamp setting provides good visibility to the driver with minimum inconvenience to other road users.

To properly aim the head lamp beam, use the head lamp levelling switch. This switch is located on the right side of the steering column shroud in the instrument panel. This switch has four positions marked as 0, 1, 2 & 3.

Switch Position	Vehicle Loading Condition
0	Driver/Driver with Front Passenger
1	Driver + Front passenger + Second row occupied
2	All seats occupied
3	All seats occupied with luggage OR Driver with luggage at extreme rear side

Select the suitable switch position depending on the pay load as advised in the table.

The headlights can only be adjusted when the low beam is switched ON

8.11.8 Power ECO Switch

Power economy switch helps you to improve the fuel efficiency of the vehicle. It is located on the driver panel next to the Head lamp levelling switch.

Press the switch gently once to switch between modes. The ECO mode is indicated by LED illumination in the switch. Whenever ECO switch is pressed in vehicle, the ECO lamp will turn ON in Cluster and it will indicate that the vehicle is running in economy mode.

Power or Economy mode can be changed at any time in vehicle running condition. Select the suitable mode depending on the requirement.

If the vehicle is in ECO mode, when engine is switched off and restarted, still vehicle will be in ECO mode. ECO ON or OFF is indicated by the light in the ECO mode button.

8.11.9 Instrument Panel Switch Pack

SI No.	Switches
A	Passenger Seat belt indication
B	Passenger Airbag De-activation status
D	Hazard Switch
C,E,F & G	Dummy Switches

•

When Passenger buckles to seat belt, then indication will go OFF otherwise it will be ON

•

When PAB switch in ON position, then Passenger air bag De- activation status will be OFF

8.11.10 Cornering Lamp (if equipped)

Cornering lamps are integrated in both the Fog lamps.

Respective side Cornering lamps turn ON when a sharp turn is taken.

They help in illuminating the road in the direction of turn.

The following conditions are to be met for the lamps to switch ON:

•

Ignition ON

•

Head lamp is ON

•

Sharp turn taken

Both side Cornering lamp will turn ON during Respective side Cornering lamp activation if Foglamp switch is ON.

8.11.11 Daytime Running Lamp (DRL) (if applicable)

To enable DRL;

•

In day time whenever the engine is in running condition and park switch is in OFF position, DRL is enabled

To disable DRL;

•

Whenever the engine is in running condition and park lamp is ON, DRL will get switch to park mode

8.11.12 Global Intensity Control (If applicable)

Backlights intensity can be controlled to have pleasant view in the cabin.

Intensity is adjusted by using infotainment system, in ignition on and park lamp on condition.

Backlights can be put off by turning the park lamp position to off.

8.11.13 Fog Lamps (if equipped)

Fog lamps are to be used along with head lamp low beam, to improve the vision during foggy and misty conditions.

8.11.14 Front Fog Lamps ON

To switch ON the front fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk clockwise aligning the front fog lamp icon to the “arrow” on the inner fixed stalk as shown.

The front fog lamp indicator in the instrument cluster indicates the operation status.

Fog lamps will turn ON only if parking lamp is ON.

8.11.15 Fog Lamps OFF

Align the “O” of inner rotary switch on the lighting control stalk to the “arrow” mark on the inner fixed stalk as shown to switch OFF the fog lamps.

8.11.16 Rear Fog Lamp

To switch ON the rear fog lamps, first switch ON the parking lamps, rotate the inner rotary switch on the lighting control stalk clockwise aligning the rear fog lamp icon to the “arrow” on the inner fixed stalk as shown.

The rear fog lamp indicator in the instrument cluster indicates the operation status.

The rear fog lamps can be switched ON only along with the front fog lamps.

8.11.17 Welcome Lamp (if equipped)

Welcome lamp located on the bottom of both left and right ORVM’s.

They provide illumination outside the front doors either RKE is unlocked or any of the door are open.

8.11.18 Follow-Me Home (FMH) (if equipped)

This feature helps the driver and passengers to easily get out of the vehicle during poor light conditions. The head lamp low beam and entry assist lamps are turned ON for about 20 secs. assisting the passengers to find their way.

To activate FMH:

•

Switch OFF the parking lamps

•

Remove the ignition key

•

Press the RKE lock button 2 times

•

Head lamp and entry assist lamp switches ON for 20 secs. unless cancelled by UNLOCK signal

For FMH to be activated, the vehicle should have been driven with the park lamps or auto head lamp ON before switching OFF.

To extend the FMH feature further for 20 secs., press RKE LOCK button. This FMH extension can be availed for maximum 3 minutes from the first activation.

With FMH mode ON; First LOCK signal received from RKE will lock the doors and subsequent LOCK signal is used to toggle the head lamp ON and OFF.

To deactivate FMH:

•

Switch ON the parking lamps

•

Switch the ignition key to either ACC or ON in position

•

Press the RKE lock button 2 times

•

Head lamp and entry assist lamp switches ON for 20 secs. and switched OFF automatically

With FMH mode ON, if UNLOCK signal is received twice from RKE; the feature gets deactivated and cannot be extended further. Also, the doors are unlocked and vehicle disarmed.

8.11.19 Lead Me to Vehicle (LMV) (if equipped)

LMV is the feature that switches the head lamp and entry assist ON for 20 secs. helping the passengers to reach the parked vehicle safely and comfortably at night.

LMV is activated:

•

Pressing the unlock button on the RKE two times under poor light conditions (if vehicle is equipped with auto head lamp)

•

Pressing the unlock button on the RKE two times when FMH was activated while locking the vehicle previously (if vehicle is not equipped with auto head lamp)

LMV is de-activated:

•

At the end of 20 secs. after activation

•

When any door is opened

•

Ignition is switched ON

•

LOCK command is received from RKE

To extend the LMV feature further for 20 secs., press RKE UNLOCK button. This LMV extension can be availed for maximum 3 minutes from the first activation.

With LMV mode ON; First UNLOCK signal received from RKE will unlock the doors and subsequent UNLOCK signal is used to toggle the head lamp ON and OFF.

8.11.20 Hazard Warning Lamp

The hazard warning lamp switch is located in the centre bezel switch bank on the instrument panel.

To turn the hazard warning lamp ON, push the switch in. All the turn signal lamps flash. The instrument cluster turn indicator lamps also flash indicating the same. To turn OFF, push the switch again.

Use the hazard warning lamp when your vehicle is stationary or to warn other road users to be cautious while passing your vehicle.

The turn lamps do not work when the hazard warning lamps are operational.

8.12 Windshield Wipers

8.12.1 Wiper Control Stalk

A : High Speed (HI)

B : Low Speed (LO)

C : Intermittent (INT)

D : Off

E : Flick-Wipe (MIST)

8.12.2 Wiper Off

The wipe function is OFF when the wiper control stalk is in neutral position (B).

8.12.3 Flick-Wipe (Mist)

Push the wipe control stalk to position (A) for a flick-wipe, hold to operate the wipe continuously (simultaneously lift the wiper stalk towards the steering wheel to operate the wash). The stalk automatically comes back to position (B) when released.

8.12.4 Intermittent (INT) Mode

Intermittent (INT) wiping is selected when the wipe control stalk is pushed down to position C. In the INT mode, the wiper operates on preset intervals.

The delay between each wipe can be varied by rotating the wiper speed intensity rotary switch (F).

8.12.5 Low Speed Wiping

Push the wipe control stalk down to the position (D) to operate the wiper at a fixed low speed.

8.12.6 High Speed Wiping

Push the wiper control stalk down to position (E) to operate the wiper at a fixed high speed.

The wipe/wash function can be activated only when the ignition is in “ON” position.

8.12.7 Wipe/Wash

Pull/Lift the wiper control stalk towards the steering wheel from any position to activate wipe/wash function. Washer fluid from front washer reservoir is pumped and sprayed onto the windshield. The wipers wipe the windshield 3 times after the washer spray is stopped and wipe once after 5 secs. Hold the stalk in position for continuous spray of washer fluid.

When wiper is in OFF or Intermittent mode:

After completion of the wipe/wash cycle, wipers return to their bottom position.

If the wipers are in Intermittent mode and DWELL delay is less than or equal to 5 secs., then the wiper will continue in the Intermittent mode.

If the wipers are in Intermittent mode, and DWELL delay is more than 5 secs., then a further single wipe will be performed 5 secs. after the wash/wipe cycle. After the drip wipe (last wipe), wiper returns to normal Intermittent wipe.

8.12.8 Rear Wiper

Rotate the outer rotary switch on the wiper control stalk to align the “arrow” on the stalk to the rear wipe “ON” position to operate the rear wiper.

8.12.9 Rear Wash

The rear windshield wash & wipe operates 3 to 4 times or as long as the stalk end is turned/rotated to the rear wash position. Wiping will continue for few secs. after releasing the stalk end switch.

If you switch OFF the ignition before switching OFF the wiper, the blades stop at random on the windshield. Switch ON the ignition and move wiper stalk to 'MIST' position to return the wipers to the park position, provided the wiper stalk is in OFF position.

Using a windshield washer in freezing temperature could be dangerous. The washer fluid could freeze on the windshield, and block your vision resulting in an accident. If you operate your vehicle below freezing temperatures , use washer fluid with anti-freeze protection.

•

Do not operate the wipers when the windshield is dry. It may lead to scratches on the glass

•

It is recommended not to use the wiper when the windshield glass is covered with debris, snow or leaves. Clean the glass before using the wiper to avoid damage to the wiper blades and glass

•

Do not operate the windshield washer for more than
10 secs. or when the reservoir is empty

8.12.10 Windshield Washer - Front & Rear

There are two nozzles with two adjustable washer jets in the front (on the bonnet). Using a pin, the eye ball jets can be adjusted precisely for direction. Always direct the washer jet to hit the middle of the windshield. This will enable the wiper blade to wipe the complete width of the windshield.

In the rear, one nozzle with twin adjustable washer jets are provided for the rear windshield wash. Adjust the nozzle to direct the washer jet to hit the middle of rear windshield using a pin. Rear windshield washer fluid is supplied from front washer reservoir located in the Engine compartment.

9 INSTRUMENT CLUSTER FEATURES

TFT Type

LED Type

A	Tachometer	D	Fuel Gauge	G	Gear Indicator
B	Temperature Gauge	E	Speedometer	H	Mode Switch
C	Warning/Tell-tale Lamps	F	Odometer / Tripmeter	I	Set Switch
The instrument cluster comprises the Tachometer, Speedometer, Trip Meter (A & B), Set/Mode switch, Odometer, Fuel Gauge, Coolant Temperature Gauge, Warning Lamps and Telltale Indicators.

9.1 Tachometer

The tachometer indicates the real-time engine speed in thousands of RPM (revolutions per minute). Each division is 250 RPM. Operating the engine at very high RPM may lead to excessive engine wear and low fuel economy. Maintain steady engine speed below 2500 RPM and do not accelerate or decelerate abruptly.

Do not over-accelerate the engine during idling, this can cause severe engine damage and would be treated as abuse of the engine which is not covered by warranty.

9.2 Speedometer

The speedometer indicates the real-time road surface speed of the vehicle in kilometres per hour.

The vehicle speedometer is affected by size of the tyres used. If the size of the tyres are changed from those fitted at the factory, the speedometer might not display the correct road surface speed and distance travelled.

9.3 Trip / Odometer

TFT Type

Select ODO / TRIP meter in screen by pressing Menu switch (A) on steering wheel.

Select between ODO / Trip A / Trip B / Trip AC by toggling the Scroll switch (B).

LED Type

Press the MODE button on Cluster switch to cycle through Odometer and Trip meter displays.

9.4 Odometer

The odometer records and displays the total distance travelled in kms. Odometer cannot be reset.

TFT Type

LCD Type

9.5 Tripmeter

Trip meter displays the elapsed distance travelled since the last trip reset.

TFT Type

Select between Trip A, Trip B and Trip AC by toggling Scroll switch (B) on steering wheel.

Press and hold OK switch for 2.5 secs. to reset trip to zero.

LCD Type

Select between Trip A, Trip B and Trip AC by toggling MODE switch (B) on instrument cluster.

The trip meters A, B & AC meter can be reset to zero by pressing SET (A) button for more than 3 secs.

9.6 Engine Coolant Temperature Gauge

The engine coolant temperature gauge functions only when the ignition is switched ON. It indicates the instantaneous engine coolant temperature. The coolant temperature varies with changes in weather, load on engine and driving pattern. Temperature rises from Cold (C) (white Colour) to Hot (H) (Red Colour).

TFT Type

When coolant temperature reaches the red zone, the high engine coolant temperature warning lamp illuminates.

In such situations, switch OFF the AC and observe for any improvements in temperature gauge. If not, stop the vehicle and allow the engine to cool down. Check the coolant level in the coolant reservoir and top-up if required. If the engine is still heating up, contact your nearest Authorised Mahindra Dealer.

Never remove the Degassing tank cap when the engine is hot. The engine coolant is under pressure and could splash on to skin/eyes causing severe burns. Wait for the engine to cool down before adding coolant to the reservoir.

Do not continue driving the vehicle with an overheated engine. This will lead to damage of engine components and engine seizure.

9.7 Fuel Level Gauge

The fuel level gauge functions only when the ignition is switched ON. It gives the status of the fuel level in the fuel tank. F indicates the tank is full (45 litres), E indicates the tank is empty.

TFT Type

When the fuel level reaches the reserve, the level of Fuel will be displayed in RED colour. The Red display indicates the fuel in the tank reaches the low level (approx. 5 litres).

LED Type

When the fuel level reaches the reserve, the last 2 bars are displayed. The last bar in the display blinks when the fuel in the tank reaches the low level (approx. 5 litres).

The amount of fuel required to fill the tank up may be less than the specified tank capacity, as a small amount of reserve fuel always remains in the tank.

On inclines or curves, due to the movement of fuel in the tank, the fuel level may fluctuate or the last bar may flash earlier than usual. Always check the fuel level when the vehicle is on level road.

If the last bar flashes even after filling sufficient fuel, contact your Authorised Mahindra Dealer as soon as possible.

When all the bars in the display starts blinking / flashing, contact the nearest Authorised Mahindra Dealer at the earliest.

9.8 Clock Screens

TFT Type

Select Clock screen in screen by pressing Menu button (A) on steering wheel.

Digital /Analog/ Stopwatch displays can be selected by toggling the Scroll switch.

Digital Clock

Digital clock can be selected only through Clock type in setting menu

Analog Clock (If equipped)

Analog clock can be selected only through Clock type in setting menu

Date and clock setting will not be available in TFT cluster. Change in Date and clock in infotainment will be reflected in cluster automatically

Stop Watch (If equipped)

Stop watch can be accessed through scroll button (B) in clock screen.

Reset and Pause Stop watch by pressing OK button (C) in steering wheel. Short press for Pause and Long press for Reset.

9.9 Fuel Computer

In Fuel computer, Average Fuel Efficiency (AFE) and Distance to Empty (DTE) will get displayed in screen.

Select Fuel computer in screen by pressing Menu button (A) in steering wheel.

TFT Type

9.10 Average Fuel Efficiency (AFE)

Once Fuel computer is selected, Average Fuel Efficiency is displayed on the Screen.

AFE is calculated based on the Last TRIP cycle.

9.11 Distance to Empty (DTE)

Distance to Empty is the approximate distance can be covered with the available fuel. This display can be selected by toggling Scroll button (B) in steering wheel.

9.12 Drive Information (if equipped)

In Drive Information, Drive Duration and Average Speed will get displayed in screen.

Select Drive Information in screen by pressing Menu button (A) in steering wheel.

9.12.1 Drive Duration

Drive Duration is the elapsed time from the start of this trip cycle.

Once Drive Information is selected, Drive Duration is displayed on the Screen.

9.12.2 Average Speed (If equipped)

Average Speed is calculated based on the total distance covered and time taken from the start of this trip cycle. This display can be selected by toggling Scroll button (B) on steering wheel.

9.13 Warning History (If equipped)

In Warning History, all alerts registered in memory will get displayed. If anything is going abnormal in the driving cycle is displayed in cluster.

Press Menu button (A) and select Warning History screen in cluster.

TFT Type

Following are the warning information available.

9.14 Full Screen Alerts (if equipped)

Press Menu button (A) and select Full Screen Alerts screen in cluster. Following are the warning information available.

Alerts

9.15 Turn By Turn (TBT) Alerts (if equipped)

Press Menubutton (A) and select TBT Alerts screen in cluster.

This will only get enabled when in the infotainment a destination is selected.

Alerts

9.16 Special Alerts (if equipped)

Press Menu button (A) and select Special Alerts screen in cluster.

Following are the Special Alerts information available.

Door Open Alerts
Bonnet open	Right Rear Door open	Right Front Door open	All Doors open
Tailgate open	Left Front Door open	Left Rear Door open

Steering Alerts

Reminder Alerts

9.17 Settings

Settings can be accessed through pressing menu button (A) on steering wheel switch.

9.17.1 Clock setting

Settings menu will be accessible only when vehicle is stationary.

Select clock through Scroll button B on steering wheel.

Selection between Analog and Digital displays can be done through scroll (B) and OK (C) button.

Clock and calendar is in sync with infotainment. Any change in infotainment will reflect on cluster.

9.17.2 Anniversary Reminder (if equipped)

•

Anniversary schedule can be accessed through pressing menu button (A) on steering wheel switch

•

Select the required anniversary reminder from the list displayed through scroll button (B)

•

Once slot selected, press OK button (C) on Steering wheel switch

•

To Enter name select ‘Set Name’ through scroll down button (B) and press OK (C). Then it will enter into ‘Set Name’ page

Enter the name via combination of scroll Button (B) and OK button (C). Select confirm to enter the name.

•

Set the Date by combination of scroll Button (B) and OK button (C)

Select confirm to set birthday reminder

Same action is applicable for below reminders as well.

•

Wedding anniversary

•

Vehicle anniversary

•

Personal Reminder (Has to be accessed through menu [A] button)

Resetting Anniversary reminders

Select the anniversary you want to reset by following steps

•

Once the slot is selected. Press and hold OK button (C) for 3 secs. Below message will popup

•

To reset select ‘Reset’ and press OK button (C) to confirm

9.17.3 Alert Description (If equipped)

Take a break will appear if the vehicle is driven more than 2hrs 30 mins continuously or 250 kms without taking break more than 10 mins.

9.18 Warning / Tell-tale Lamps in the Instrument Cluster

A	Right Turn Indicator	M	Rear Fog Lamp Indicator @ *
B	ECO Lamp	N	Door Ajar Warning Lamp
C	Airbag Warning Lamp *	O	Parking Brake ON/Brake Fluid Low Warning Lamp
D	ABS Warning Lamp *	P	Low Fuel Warning Lamp
E	Left Turn Indicator	Q	Low Engine Oil Pressure Warning Lamp
F	Battery Charging System Warning Lamp	R	OBD Check Lamp
G	Water-in-Fuel Warning Lamp	S	Seat Belt Warning Lamp
H	EPS Warning Lamp	T	Check Engine Lamp
I	Vehicle Armed Status Lamp	U	Glow Plug Indicator
J	Parking Lamp	V	Cruise Control Indicator @ *
K	Front Fog Lamp Indicator *	W	Head Lamp High Beam Lamp
L	High Engine Coolant Temperature Warning Lamp
@ if equipped * Come ON momentarily with ignition ON and go OFF in few secs.

9.18.1 Park Lamp

The Park lamp indicator illuminates whenever park lamp is switched ON through Combination switch. During ignition OFF if park lamp is ON with driver door open, buzzer alert will be audible for 6 secs.

9.18.2 ECO Lamp ( if available)

Whenever ECO switch is pressed in vehicle the ECO lamp will turn ON in Cluster and it will indicate that the vehicle is running in economy mode. If ECO switch is pressed but still ECO lamp is not turning ON or without pressing ECO switch if ECO lamp is ON, contact an authorized Mahindra dealer immediately.

9.18.3 Seat Belt Warning Lamp

The seat belt warning lamp illuminates and the buzzer chimes reminding the driver to fasten the seat belt when the ignition is ON. The lamp will continue to illuminate till the driver fastens the seat belt properly.

For the co driver lamp will be centre console.

9.18.4 Turn Lamps

The turn lamp arrows in the instrument cluster flash showing the direction indicated by the turn signals. A sudden increase in the rate of flashing indicates failure of one or more of the lamp bulbs. Have them replaced as soon as possible.

9.18.5 Airbag Warning Lamp

The airbag warning lamp in the instrument cluster illuminates when the ignition is switched ON and tell tale goes off in 4 secs. irrespective of engine condition. If the lamp remains ON continuously or flash intermittently, contact an Authorised Mahindra Dealer immediately.

Following conditions indicate airbag malfunction:

•

Lamp fails to go OFF after engine is started

•

Lamp does not illuminate at all

•

Illuminates while driving

Contact an Authorised Mahindra Dealer immediately when the airbag warning lamp indicates a system malfunction. The airbag may not deploy when needed, which could result in serious or fatal injury, or it might deploy unexpectedly or unnecessarily, which may result in personal injury.

9.18.6 Front Fog Lamp (if equipped)

The front fog lamp telltale indicates the status of the front fog lamp. The front fog lamp can be switched ON only when the parking lamp is ON.

9.18.7 Low Fuel Warning Lamp

When the fuel level in the fuel tank falls below the reserve limit, the low fuel warning lamp is illuminated. Refuel sufficiently and the lamp goes out. If the lamp continues to remain ON even after refuelling, contact an Authorised Mahindra Dealer.

9.18.8 Glow Plug Indicator

Glow plug indicator illuminates when the ignition is turned ON and Glow plug is activated. It automatically goes OFF when the glow plug reaches the required temperature. Contact an Authorised Mahindra Dealer if the glow plug lamp does not illuminate with ignition ON or illuminates while driving.

9.18.9 Vehicle Armed Status Lamp

The vehicle armed status lamp flashes intermittently (few secs. frequency) once the ignition is switched OFF and the vehicle security system is armed (when locked using the RKE).

Fast blinking indicates a malfunction in the engine immobiliser system. Contact an Authorised Mahindra Dealer immediately.

9.18.10 Rear Fog Lamp (if equipped)

The rear fog lamp telltale indicates the status of the rear fog lamp. The rear fog lamp can be switched ON only when the front fog lamp is ON.

9.18.11 High Engine Coolant Temperature Warning Lamp

The high engine coolant temperature warning lamp flashes when the coolant temperature is above 108ºC. It starts to flash a when the temperature reaches 110ºC and will be continuously ON with buzzer alert when the temperature reaches 113ºC.

The “red” bars in the temperature gauge also flash in the same frequency as the high temperature warning lamp when the above set temperature thresholds are reached.

Do not continue driving the vehicle with an overheated engine. This may result in engine damage, which will not be covered by the limited warranty.

9.18.12 Water-in-Fuel Warning Lamp

The water-in-fuel warning lamp illuminates when the accumulation of water in the fuel filter reaches the maximum permissible limit. The fuel filter needs to be drained. Contact an Authorised Mahindra Dealer.

Do not continue driving the vehicle with the Water-in-Fuel Warning Lamp ON. This may result in fuel pump / other fuel system component damage, which will not be covered by the limited warranty.

9.18.13 Cruise Indicator

The cruise control lamp illuminates when the ignition is switched ON and goes off in about 2 secs. indicating normal status. The lamp blinks if the accelerator is depressed, while in cruise mode.

When SET+ button in the steering wheel is pressed, cruise control is activated and the lamp illuminates indicating the vehicle is in cruise mode.

When CRUISE OFF button in the steering wheel is pressed, the cruise mode is deactivated and the lamp goes OFF indicating that the vehicle is not in cruise mode.

If the lamp does not illuminate when the vehicle is in cruise mode or does not go OFF when the vehicle is out of cruise mode, there is a possible malfunction in the lamp or the cruise control system. Have the vehicle checked by an Authorised Mahindra Dealer.

9.18.14 Low Engine Oil Pressure Warning Lamp

The low engine oil pressure warning lamp illuminates when the ignition is switched ON and goes off when the engine started. If the lamp remains ON even after starting the engine, or illuminates while driving, stop immediately, check the oil level after 2-3 minutes. If low, add engine oil to the “MAX” level and check status. If problem persists, contact an Authorised Mahindra Dealer immediately.

Operating the vehicle with the low oil pressure warning lamp ON could cause sudden unexpected engine failure and loss of vehicle control, resulting in an accident and/or serious personal injury.

Do not run the engine with low oil pressure warning indicator ON. This may result in engine damage, which will not be covered by the limited warranty.

9.18.15 Check Engine Lamp

The check engine lamp illuminates when the ignition is switched ON and goes out in 3 secs. indicating normal status. The lamp blinks or illuminates continuously if there is a fault in the engine management system. Switch OFF the engine immediately. Contact the nearest Authorised Mahindra Dealer for necessary repairs.

9.18.16 Parking Brake Lamp

The lamp illuminates when Parking brake is engaged or when brake fluid level is low or when front brake pads are worn. If the lamp illuminates while driving, do the following:

•

Check if the parking brake is engaged. If yes, disengage it

•

Check if brake fluid level is low. If yes, top-up brake fluid to the required level

Clean the top of the brake fluid reservoir before removing the cap. Make sure no dirt, impurities or other items fall into the reservoir. Do not leave the cap off for more than a few minutes. Any contaminants, impurities or moisture in the brake fluid can affect brake operation, resulting in an accident.

If the brake warning lamp comes ON while driving, the brake system might not be working properly. The pedal might be harder to operate or might go closer to the floor and it can take longer to stop. Pull off the road carefully and stop the vehicle. Have the vehicle towed to the nearest Authorised Mahindra Dealer for checks or repairs.

Driving the vehicle with the brake warning lamp ON or when you suspect brake trouble is very dangerous and could result in serious injuries. Have your vehicle towed to an Authorised Mahindra Dealer.

9.18.17 OBD Check Lamp

The OBD check lamp illuminates when the ignition is switched ON and remains ON till the engine is started indicating normal status. If the lamp remains ON, it indicates a potential malfunction.

There may be a malfunction in:

•

The fuel management system

•

The emission control system

•

Systems which affect emissions

Such malfunctions may result in excessive emissions. Contact an Authorised Mahindra Dealer immediately.

9.18.18 Head Lamp / High Beam Lamp

The head lamp high beam telltale illuminates whenever the head lamps are switched ON to high beam or when the head lamp flash is used.

9.18.19 Anti-Lock Brake System (ABS) Malfunction Lamp (if equipped)

The ABS malfunction lamp illuminates when the ignition is switched ON and goes OFF after about 2 secs. If the ABS malfunction lamp continues to remain ON or illuminates while driving (and the brake system warning lamp is OFF), ABS will not operate. But the brake system will still operate conventionally. In this condition, the wheels can lock during severe braking. Have the vehicle checked by an Authorised Mahindra Dealer as soon as possible.

However, if ABS malfunction lamp and brake warning lamp are simultaneously glowing, there is a severe malfunction in the ABS. Operate the vehicle with extreme care and have the vehicle checked as soon as possible at an Authorised Mahindra Dealer.

9.18.20 EPS Warning Lamp

EPS warning lamp Indicates malfunction on Electric Power steering system. Contact an Authorized Mahindra dealer immediately.

When EPS is failed. vehicle can still be driven with increase in steering effort.

9.18.21 Battery Charging System Warning Lamp

The battery charging system warning lamp illuminates when the battery is not being charged or when there is a malfunction in the alternator.

This lamp illuminates when the ignition is switched ON and goes out as soon as the engine is started. If the lamp continues to remain ON even after starting the engine, it is an indication that the battery is not being charged or there is a malfunction in the alternator. Check the alternator drive belt for looseness/breakage. If the drive belt is okay, switch OFF all unnecessary electrical equipment and recheck. Contact an Authorised Mahindra Dealer for further assistance.

9.18.22 Door Ajar Warning Lamp

The door ajar warning lamp illuminates when any of the doors including the hood and back door are open during ignition ON. The buzzer chimes when the vehicle speed more than 2 kmph. The lamp and chime goes OFF when all the doors are closed properly.

10 REVERSE PARKING ASSIST SYSTEM (RPAS)
(if equipped)

Reverse parking assistance system is provided to aid the driver while parking the vehicle in reverse at a speed of less than 5kmph.

While reversing, RPAS will detect the obstacles at the rear side of the vehicle within the sensing zone, which cannot be viewed through the internal rear view mirror and the outside rear view mirrors.

The RPAS will then alert the driver by sending out sound alarms at different frequency to indicate proximity of the obstacle from the vehicle.

The alert sound level is proportional to the distance.

Lesser the distance, shorter the interval between beeps.

10.1 RPAS Sensors

Four RPAS sensors are located at the rear bumper to assist driver for hassle-free parking.

Magnetic devices present in the detection range could vastly affect the sensor performance and the distance displayed may not be accurate.

Always keep the sensors clean and free from ice formation, dust, water etc. for proper working of the system.

Do not press or shock the sensors by hitting or using a high-pressure water gun while washing. The sensors could be damaged.

10.2 Driving and Operation

•

RPAS is an aiding system. Under no circumstances mahindra will accept any responsibility or can be held liable for any direct or indirect, incidental or consequential damage caused by this system

•

System will not sense pot holes, trenches or drainages which are below the ground level

•

Repainting of the sensor will affect the performance of the system

Activation & De-activation of RPAS

•

The vehicle should be in IGN ON state to activate the reverse parking assistance system

•

RPAS will be activated automatically when reverse gear is engaged and deactivate when reverse gear is disengaged

•

When the obstacles come in the sensing range, the systems start giving the indication based on the distance and direction of the obstacles as defined in the detecting zones. The closer the obstacles, more display bars illuminated & beeps alerts

10.3 RPAS Information on Infotainment

RPAS display on the infotainment screen gives the following information:

•

Left Corner zone indicates obstacle on left side

•

Left Centre zone indicates obstacle left centre side

•

Right Centre zone indicates obstacle on right centre side

•

Right Corner zone indicates obstacle on right side

12 bars in centre and 8 bars in corner indicate how close the obstacle is from the vehicle rear bumper, with bar 1 being very close and bar 12 being distant.

Centre sensor coverage range is 120 cm and corner sensor coverage range is 80 cm

10.4 Operation of RPAS

Start the vehicle (IGN is turned ON)

Change the gear to reverse (engage the reverse gear).The RPAS will be displayed as like below in the infotainment screen.

Start moving the vehicle in the reverse direction

Display bars in the respective direction will glow according to obstacles in its path

Distance indicator will display the distance in multiples of 2 cm, whichever is shortest

The Beep sound can be heard from the driver side speaker. Frequency of the beep will increase if obstacle comes closer (crossing each display bar) and the sound will be continuous if any of the obstacle is less than 50 cm.

The RPAS distance displayed will be the minimum of distances sensed by left and right sensors. And 120 cm is the maximum detection range.

For Example:

Assume 2 obstacles are placed as mentioned below:

•

Obstacle at left at 76 cm

•

Obstacle at right at 98 cm

On engaging the gear in reverse, infotainment will display as below:

Since obstacle is at 76 cm in right - minimum distance is shown in the distance indicator.

Along with this beep sound can be heard from driver side speaker. Frequency of the beep will increase if obstacle comes closer and the sound will be continuous if any of the obstacles is less than 50 cm.

10.5 Pay Attention

If display bars in any one of the sides are displayed with cross marks, contact an Authorised Mahindra Dealer

If all display bars are displayed with cross marks, contact an Authorised Mahindra Dealer.

Obstacle in the blind zone cannot be sensed by the system.

Please check the condition of the obstacle behind your vehicle before reversing. In some cases, the display may be not as same as reality due to the installed sensor level, obstacle shape and reflection condition.

Point B will be detected sooner or later, but A may not be detected at all.

Not all obstacles are detected from 120 cm. For instance, a person is detected from 75 cm because of the weak reflection or absorption of the waves of the clothes.

The distance indication may move up and down due to different sizes of the obstacle at different positions.

Though the obstacle is in the sensing zone, obstacle may not be detected since the ultrasonic waves are not reflected back to the sensor.

The obstacle of a conical shape may not be detected, since the ultrasonic waves get reflected away.

10.6 Limitations of RPAS

•

System may not sense obstacles like wire mesh, handrail, small objects which are below the bumper level

•

System may not sense obstacles with cotton or spongy surface, which will absorb ultrasonic waves emitted by RPAS

•

System performance is dependent on the reflection angle of the obstacle

•

System may give false alert without obstacles while reversing the vehicle on grasslands, gravels and bumpy roads considering it to be an obstacle

•

System may alert you by sensing the ground when the bumper is not fitted in its intended position or when the vehicle is overloaded

•

System may give false signal while the vehicle moves from plain ground to a slope terrain and vice versa

•

System may give false signal by sensing the ground when the bumper is tilted more from the normal position or when the vehicle is heavily overloaded

•

System may give false signal an alarm during heavy rain, snow and heavy wind conditions

•

The shape of the obstacle may prevent a sensor from detecting it. Some obstacles for example as follows:

–

Sharply-angled objects

–

Tall or curved curb

–

Low obstacles (with height of 40 cm above ground level)

–

Tall obstacles with upper sections projecting outwards in the direction of the vehicle

•

Depending upon the shape of the obstacle and other environmental factors, the detection distance may shorten or detection may be impossible

•

Obstacles may not be detected if they are too close to the sensor

•

Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once

•

Because of other ultrasonic sources, sensor may give false alarm for e.g., sweeping machines, high pressure steam cleaners and neon lights

•

Due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves, the vicinity of the vehicle is noisy. It may cause sensor to give false alarm

11 REAR VIEW CAMERA (RVC) (if equipped)

Rear View Camera is located under the tail gate applique.

Rear View Camera assists the driver when reversing & manoeuvring the Car at lower speeds. It has the following features:

•

Wider Rear View

•

Zoom-In View

•

Static & Dynamic Guidelines

•

Parking Assistance with Voice Guidance [Parallel & Perpendicular Parking]

•

RPAS Sensor Overlays

11.1 Feature Description

11.1.1 Wider Rear View

Rear view camera (RVC) provides a wider 125 Deg Horizontal View and 98 Deg Vertical View.

It overcomes the limitation of IRVM, where the ground is visible only after a distance from the vehicle rear. Whereas with the RVC, the ground will be visible right after 30 cm, from the Vehicle’s Rear.

11.1.2 Zoom-In View

Press the Zoom-In button to view objects closer and press the Zoom-Out button to go back to the normal parking.

11.1.3 Static & Dynamic Guidelines

•

Static Guidelines indicate the placement of the vehicle with respect to the ground plane.

For example

During parking, we can compare the Static Guidelines against the Parking Slot Lines, to know if our vehicle placement is in line with the parking slot lines. Dynamic Guidelines indicate the path the vehicle will traverse with the current steering angle.

•

Dynamic Guidelines indicate the path the vehicle will traverse with the current steering angle

This will help the driver in adjusting the steering, so that the vehicle does not hit any obstacles on its way.

Colour coding on the dynamic lines help in assessing the distance of the obstacles from the vehicles’ rear. In the RVC Video, if the Red coloured section of the Dynamic Line falls on the object, then the Object is within 1 metre distance from the vehicle’s rear. Likewise Yellow indicates 1-2 mts, Green indicates 2-5 mts.

11.1.4 Parking Assistance with Voice Guidance

This feature assists the driver during parallel and angular parking. It assists the driver during parking, through visual overlays and voice guidance.

Normal Parking

Select the CAR Info Tab from the home screen and then Rev Cam option. By default, the normal parking mode is selected.

Angle Parking

This parking guides the driver to park the vehicle in a right angle parking slot, and also helps to park into 60 degree parking slots.

Select the CAR Info Tab from the home screen and then Rev Cam option.

Choose the angle parking function —

After selection of the Angle parking feature, then Infotainment display’s the below screen:

After selection, then start driving the vehicle to front of the selected parking slot and bring the vehicle to a standstill, when the vehicle back side ahead of the selected parking slot and display shows the selected slot.

Choose the target position to park —

Drive the vehicle backward and ensure the green OR blue overlay approaching the edge of the target parking slot. Stop the vehicle when the guided arc connects to the parking slot edge as shown. Turn the steering wheel to the maximum position, the green/blue overlay disappears and the dynamic/static overlay appears on the screen.

Drive the vehicle backward, and finish the parking —

Drive the vehicle backward, turn the steering wheel back to the initial position when the static overlay becomes parallel to the target parking spot as shown. Continue backing until the whole vehicle is over the target parking spot as shown:

Press Exit button to go to Infotainment functions.

Parallel Parking

This parking guides the driver to park the vehicle between the free spaces available (more than 6 m length) from one rear end of vehicle bumper parked to another vehicle bumper parked in parking area as shown. Select the CAR Info Tab from the home screen and then Rev Cam option:

Choose the “Parallel parking” function on HMI

After selection, the infotainment displays the below screen:

Start driving the vehicle in forward gear to front of the selected parking slot in a way that vehicle rear side is facing the selected parking slot and camera shows the selected slot. Choose the parking position on right side/left side and make sure that no obstacles/vehicles are in the blue box area after the red pole. The red pole should match with the front/rear bumper of the parked vehicle. Red pole is used as a reference for the desired starting position as shown.

Ensure there is enough space (min. 3 ft) sideways between your vehicle and the parked vehicle before engaging reverse.

Parking in selected slot

Start adjusting the steering wheel to desired side (left/right) and confirm the parking area. Keep adjusting the steering wheel until the box colour turns to green colour as shown.

Green colour: Represents suitable parking location. You can try an attempt to park.

Red colour: Represents unsafe/potential risk parking. Your vehicle may hit the side of the vehicle already parked.

Blue colour: Represents unsafe/potential risk parking. Final parking length will be larger than the desired length of parking space. May lead to wrong vehicle direction movement.

Green/Blue/Red colours in this mode show are for guiding the vehicle to the parking slot and it would not detect the obstacles or alert the driver in that zone. It is the sole responsibility of the user to ensure there are no obstacles/vehicles which can lead to damage while parking.

Parking

Once the box turns to green colour, hold the steering wheel in the same position and start driving back. Green colour box is replaced with an arc line when the vehicle starts moving. When the arc touches the parking slot end position, stop the vehicle and rotate the steering wheel to the maximum in the opposite direction. Arc is then replaced by dynamic & static parking lines. Continue to park the vehicle in the same steering wheel position.

Complete parking

Return the steering wheel to centre, and back the vehicle to the desired area when the fixed parking guideline becomes parallel to the desired parking slot.

Press Exit button to go to Infotainment functions.

Voice Guidance during Parking Assistance

To make the parking assistance user-friendly, voice guidance is given when you select parking assistance. RVC publishes a signal ‘Guided Voice Request’, which shall be used by the infotainment to play the voice guidance.

11.2 Screen View Selection

11.2.1 Full View with Options ribbon on the top

11.2.2 Full View

11.2.3 Split View with RPAS Overlays

11.3 Entry and Exit Conditions

11.3.1 Auto Entry

Whenever you apply the reverse gear, the infotainment will enter into ‘Rear View Camera Mode’ and displays the video.

11.3.2 Manual Entry

You can view the reverse video, by selecting Reverse View Camera Option present on the Infotainment Screen, irrespective of the gear position.

Below is the path:

Home → Car-Info → Reverse View Camera

You cannot enter into RVC Mode, through the infotainment screen button, if the vehicle is in forward gear and vehicle speed exceeds 20 kmph

11.3.3 Auto Exit

•

If Infotainment has entered ‘RVC Mode’ due to reverse gear, then the exit out of the mode happens only when you disengage reverse gear

•

If Infotainment has entered ‘RVC Mode’ due to manual entry, and the vehicle is in forward gear and vehicle speed exceeds 20 kmph, then the Infotainment will exit the ‘RVC Mode’

11.3.4 Manual Exit

If Infotainment has entered ‘Reverse View Camera Mode’ due to Manual entry, then the screen will show a cancel button, which can be used to exit the ‘RVC Mode’, at any point of time.

11.4 Camera Fitment Location

11.4.1 Camera Maintenance

Always keep the Camera lens clean from dust. Presence of dirt in lens may lead to poor image quality.

Always use clear water & soft nonabrasive cloth to clean the lens.

Don’t clean the camera lens and the area around the rear view camera with a power washer.

•

In case of any RVC-related issues, the Infotainment shall display ‘Contact Service Centre’. If you happen to see such a message, then the vehicle needs to be taken to the Service Centre. Avoid using the Rear-View Camera under these circumstances

•

If Camera is not working, then the Infotainment display will be shown with Blue screen with only RPAS distance information alone in the display

11.5 System Limitations

•

The reverse view camera may not operate normally, when you drive in the extremely high or low temperature area. (Operating temperature: -20°C ~ 65°C)

•

Under certain circumstances given below, the rear view camera system will work with limitation or will not function fully

— In heavy rain, snow or fog.

— At night or in very dark places.

— If the camera is exposed to very bright light sources.

— Display may flicker, if the camera area is lit by LED or fluorescent lighting.

•

If there is a sudden change in temperature, from cold to hot areas

•

If the camera lens got dirty or obstructed

•

If the rear of your vehicle got damaged. And if the Camera position and the settings got changed. Please contact the nearest Authorized Mahindra Service Center

•

Camera image reproduced slightly delayed and not in real time due to processing. As the display is 2-dimensional, pointed and protruding obstacles are hard to depict and thus very difficult to recognise. Please avoid reverse view camera in the above situation. It could you otherwise injure others or damage objects and your vehicle.

•

The performance gets affected sometimes due to deposition of ice, dust, heavy rain, heavy wind, heavy exhaust on the camera

•

Images shown on the display is a mirror-inverted manner, as like the rearview mirror. Make sure that no persons or animals and any objects/materials in the manoeuvring area. Pay attention and ensure safety before manoeuvring the Car. Driver is legally responsible for their car

•

The reverse view camera is only a supplementary function and may display obstacles from a distorted perspective & inaccurately

•

Avoid using of rear view camera, if you are having eye colour blindness or impaired colour vision

•

Objects above the ground or hanged may appear to be far away than they are. But in reality, objects shall be closer to your car. In such cases avoid using guidelines to judge the distance. Since it leads to miss-adjustments and increase the risk of collision with your car

•

It is driver’s responsibility to identify the suitable parking area to park his car safely

•

Rear-view video is shown, whenever reverse gear is applied, but it cannot be used as a rear-view monitoring system, which cannot replace the driver for looking into exterior and interior view mirrors

Rear View Camera is only meant to aid the driver and to enhance convenience while parking. It does not in any way replace the driver’s abilities and driving skills while using this system.

Under any circumstances, Mahindra accepts no responsibility and cannot be held liable for any direct or indirect, incidental or consequential damage caused by this system.

12 STEERING AND BRAKES

12.1 Steering

Your vehicle is equipped with an Electric power steering system (EPS). There is no fluid reservoir to check or fill. EPS uses energy from the battery to decrease the driver's effort in steering the vehicle. The EPS system will give you good vehicle response and increased ease of manoeuvrability in tight spaces. If for some reason the power assist is interrupted, it will provide mechanical steering capability to steer the vehicle. Under these conditions, you will observe a substantial increase in steering effort.

When driving in rough/off roads, hold the steering wheel rim, do not hold the wheel spokes. A sudden bump can jerk/turn the wheel and injure your hand. This may also lead to loss of vehicle control.

The EPS warning light should only be illuminated with the ignition ON before starting the engine.

If the warning light remains illuminated after the engine has been started, there will be no assistance from power steering. The vehicle may be driven using the mechanical steering system although it is not recommended as the effort to turn the steering wheel will be significantly high. In this case, contact an Authorised Mahindra Dealer immediately.

Keep both hands on the steering wheel, with the thumbs resting on the outer wheel rim.

To help prevent damage to the power steering motor:

•

Never hold the steering wheel to the extreme right or the extreme left for more than a few secs. when the engine is running

If the Electric power steering system breaks down (or if the engine is turned OFF), you can still steer the vehicle manually, but it takes more effort.

If the steering wanders or pulls, check for:

•

Under inflated tyre(s) on any wheel(s)

•

Uneven vehicle loading

•

High crown in the centre of the road

•

High crosswinds

•

Wheels out of alignment

•

SAS (Steering Angle Sensor) calibration

•

Wheels out of balance

•

Loose or worn suspension components

12.1.1 Tilt Steering

The steering wheel can be adjusted for rake as required using the lever in the steering shroud under the steering wheel.

To tilt/adjust the steering wheel:

Pull the tilt lever down to unlock.

Raise or lower the steering wheel to the desired position.

Push the tilt lever back up to its original position to lock the steering.

Improperly locked steering wheel could cause loss of control and lead to accidents. Never adjust the steering wheel while driving.

12.2 Steering Controls - Audio (if equipped)

The steering wheel also houses switches to control the main audio functions.

12.2.1 Steering Audio Operations

A	Mute	D	Source Selection (SRC)
B	Volume + / - (Toggle Type)	E	Seek Up / Down (Toggle Type)
C	Call Disconnect (Push Type)	F	Call Connect / VCT (Push Type)

•

TO TURN AUDIO ON/OFF - Press the mute button for 2 secs.

•

SOURCE - Press SOURCE button to toggle between AUX, CD, TUNER & USB mode

•

VOLUME CONTROL - Press ‘+’ and ‘-’ button to increase or decrease the volume

•

MUTE - Press MUTE button to mute audio while in TUNER and AUX mode and pause the song while in USB mode

•

USB MODE - Press 'UP' / 'DOWN' button to go to
next / previous track

TUNER MODE - Press 'UP' / 'DOWN' button to go to next / previous frequency. Press 'UP' / 'DOWN' button for 2 secs. to AUTO TUNE

12.3 Brakes

Your vehicle is equipped with disc brakes in the front and rear wheels.

Disc brakes offer good braking capability and reduced stopping distance. Wet brake discs result in reduced braking efficiency. After a car wash or driving the vehicle through water, pump the brake pedal mildly while driving to remove the film of water from the brake pads.

Brake pads feature mechanical wear indicator. When the brake pad is worn, metallic squeal noise is heard indicating the pad wear. Have them replaced immediately.

Driving with wet brakes is dangerous. Stopping distance increases considerably when braking.

Dry the brakes by driving at very slow speed and applying the brakes lightly until the brake performance becomes normal.

Even if the power assist (vacuum assistance) is completely lost, the brakes will still work. The brake pedal would be much harder than normal and the vehicle stopping / braking distance will be longer than usual.

12.3.1 Parking on a Hill/Incline

If you have to park facing uphill, select first gear and turn the front wheels away from the kerb. If you have to park facing downhill, select reverse gear and turn the front wheels towards the kerb. Always ensure that the vehicle is in gear and parking brakes is engaged before leaving the vehicle.

12.3.2 Parking Brake

To apply the parking brake, hold and pull the park brake lever up as firmly as possible. When the parking brake is applied with the ignition ON, the brake warning lamp in the instrument cluster illuminates. To release the parking brake, pull the parking brake lever up slightly, press the release button on the bottom of the lever and lower the parking brake lever completely.

The brake warning lamp indicates only the parking brake status. It does not indicate the degree of brake application. Be sure the parking brake is firmly set when parked and the gear shift lever is in gear. When parking on a hill; first apply the parking brake; after that shift the gear lever to 1st gear. This will avoid the load on the transmission, locking mechanism may make it difficult to move the shift lever out of gear.

Be sure the parking brake is fully disengaged before driving off. Failure to do so can lead to brake problems due to excessive heating of the rear brakes. It will also result in reduced fuel efficiency; lowered brake pad life and rear brake squeal.

•

The parking brake should be adjusted as per recommended maintenance schedule

•

Always apply the parking brake when leaving the vehicle, and be certain to leave the transmission in gear. Failure to do so may allow the vehicle to roll and cause damage, hit a bystander resulting in personal injury

•

Leaving unattended children in a vehicle is dangerous for a number of reasons. Children should be warned not to touch the parking brake or the gear shift lever. Do not leave the key in the ignition. A child could move the vehicle leading to accidents

•

The parking brake should always be applied when the driver is not in the vehicle

Engaging the parking brake while the vehicle is in motion can cause the rear wheels to lock up. You could lose control of the vehicle and cause an accident.

12.4 Hazard on Panic Braking

Hazard lamps are turned on automatically, upon panic braking when the vehicle speed is greater than 100 kmph. Hazard Lamps will flash for 5 secs. to indicate oncoming traffic.

12.5 Hazard Activation Upon Crash

Hazard lamps are turned on automatically in case of an unfortunate event of an accident where Airbags are deployed. In such a scenario, the hazard lamps will be on for 30 min or it can be turned off by operating Hazard switch (Off to On) or Ignition reset (Ignition Off and On)

Once activated hazard remains on for 30 minutes by default

Deactivation

•

30 minutes since activation is elapsed

•

Hazard switch On to Off transition is made

•

IGN turned Off and again turned On

12.6 Vehicle Breakdown Warning

In case of a brake down, hazards would be turned on automatically to indicate oncoming traffic. This feature will come into action upon opening the bonnet when vehicle speed is less than 5 kmph.

12.7 Anti-Lock Brake System (ABS)

The Anti-lock Brake System (also called as ABS) is designed to help prevent lock-up of the wheels and stable stopping of vehicle during a sudden, panic emergency braking or braking on slippery road surfaces. The ABS system takes input from wheel speed sensors and brake pedal switch to control the brake fluid pressures at the wheels to avoid wheel lock-up. It allows vehicle to be steered during braking.

The minimum speed for ABS to function is 12 kmph. ABS is activated only during wheel lock conditions where ABS takes over and prevents wheel lock.

During the ABS operation, a slight pulsation may be felt in the brake pedal to indicate ABS is active. You may also hear motor noise from the engine compartment. It is recommended to hold the brake pedal firmly while the ABS is active rather than pumping the brake pedal.

Depressing the brake pedal on slippery road surfaces as on a manhole cover, a steel plate at a construction site, a joint in a bridge, etc. on a rainy day, tends to activate the anti-lock brake system.

The ABS warning lamp lights up when you switch ON the ignition and should go out after a few secs. If the ABS warning lamp does not go out or if it comes ON while driving, it means there is a fault in the ABS system. In both cases, the normal braking system remains efficient, exactly as on a vehicle without ABS. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.

The ABS is not designed to shorten the stopping distance: Always drive at a moderate speed and maintain a safe distance from the vehicle in front of you. The stopping distance may be longer in the following cases:

•

Driving on rough, gravel or snow-covered roads

•

Driving with tyre chains installed

•

Driving over the steps such as the joints on the road

•

Driving on roads where the road surface is pitted or differences in surface height

Do not overestimate the Anti-lock Brake System: Although the Anti-lock Brake System assists in providing vehicle control, it is still important to drive with all due care and maintain a moderate speed and safe distance from the vehicle in front of you. There are limits to the vehicle stability and effectiveness of steering wheel operation even with ABS active.

If tyre grip performance exceeds its capability, or if hydroplaning occurs during high speed driving in the rain, the Anti-lock Brake System will not assist with vehicle control.

12.8 Electronic Brake Force Distribution (EBD)
(if equipped)

EBD, as a subsystem of the ABS system, controls the effective adhesion utilisation of the rear wheels. EBD aids in distributing the brake forces more evenly leading to better vehicle stability during braking.

Typically, the front end carries more weight and EBD distributes less braking pressure to the rear brakes avoiding a lock up/skid.

For example, under light loads EBD applies less effort to the rear brakes and for heavy loads it allows full braking effort to the rear wheels.

A fault with EBD is indicated by illumination of the brake as well as ABS warning lamps. The vehicle should be examined as soon as possible by an Authorised Mahindra Dealer.

13 HEATING, VENTILATION AND AIR-CONDITIONING SYSTEM (HVAC)

HVAC system provided in the vehicle enables occupants to automatically/manually adjust air flow distribution pattern, air flow rate, air intake mode and air temperature inside passenger compartment. By appropriately adjusting the control knobs/switches provided on the HVAC control panel, located on centre console, occupant’s comfort can be ensured. HVAC system also helps in defrosting and defogging / de-misting the windshield and windows.

Air flow direction can be further controlled by adjusting louvres of air vents. An air filter is provided at the inlet of HVAC blower.

Engine coolant is utilised to heat the cabin air. For cooling the cabin air, an air-condititioning circuit based on the vapour compression refrigeration cycle is used. The air-condititioning system uses a refrigerant along with a suitable lubricating oil. Although being non-ozone depleting, the refrigerant is a greenhouse gas, hence once allowed to escape in the atmosphere, it adversely affects the environment by contributing to global warming/climate change.

Refrigerant used in system is a hazardous liquefied gas and is under high pressure. The refrigerant is colourless and has ethereal or faint sweetish odour. Exposure of refrigerant to skin or eyes may cause irritation and frostbite. They can also cause suffocation, dizziness and loss of concentration. When mixed with compressed air or certain other refrigerants, it may form flammable mixture. Never try to service HVAC system yourself which would involve refrigerant handling.

Multiple vents are provided for distributing the air, being force-circulated by HVAC blower, throughout the passenger compartment.

To ensure sufficient air flow and hence adequate HVAC system performance, air flow path should be kept free of obstructions. Keep system’s air intake, located near plenum appliqué, free of snow, leaves and other debris. Also keep the area in front of air vents free of any obstruction inside the cabin.

13.1 HVAC Overview

A	Side Defrost Vents
B	Windshield Defrost Vents
C	Side Vents
D	Centre Vents
E	Foot Vents
F	HVAC Controls

13.1.1 Centre/Side Vents

Adjustable Louvres

Thumb Wheel

Two centre vents are located on top of the infotainment screen in the centre console. The two side vents are located one each at the left and right extreme ends of the instrument panel. Both the centre and side vents provide air flow to the front seat passengers.

Rotate the thumb wheel (B) left to close or right to open the air vent. Direct air to the desired direction by the adjusting Louvres(A) up/down or left/right.

13.1.2 Defrost Vents - Side/Windshield

There are four defrost vents in your vehicle: two side defrost and two windshield defrost vents. They are located just below the windshield. The side defrost vents prevent the front windows from de-misting.

13.1.3 Second/Third Row Roof Vents

For second row cooling HVAC blower unit/vents are mounted on the centre of the roof. The vents have adjustable Louvres to direct the air flow.

The Roof mounted HVAC blower unit/vents supplies cooling to 2nd and 3rd row passengers.

13.2 Climate Control

There are two types of climate control depending on the variant:

Automatic Climate Control

A	Temperature Control Dial	G	Front Windshield Defrost
B	Economy Button (ECon)	H	Air Distribution Mode
C	AC ON	I	Fresh Air Mode
D	Re-circulation Mode	J	Auto Mode
E	Rear AC (2nd and 3rd row)	K	Blower Fan OFF
F	Blower Fan Speed Control Dial	L	Rear Windshield Defrost

Manual Climate Control

A	Temperature Control Dial	G	Front Windshield Defrost
B	Economy Button (ECon)	H	Floor Defrost Mode
C	AC ON	I	Floor Mode
D	Re-circulation Mode	J	Face Floor Mode
E	Rear AC (2nd and 3rd row)	K	Face Mode
F	Blower Fan Speed Control Dial	L	Rear Windshield Defrost

13.3 Temperature Control

Cool Air

Hot Air

By operating the temperature control knob, temperature of air being discharged from various vents can be adjusted to the desired level. Engine coolant is utilised to heat, whereas the air-conditioner is used to cool the air inside the AC unit. Based upon selected position of the temperature control dial, the desired discharged air temperature can be obtained.

By rotating the dial counter-clockwise and setting it to the extreme left position, cool air is discharged.

When the dial is rotated clockwise, the discharged air progressively starts getting warmer.

By rotating the dial further in the clockwise direction and setting it to the extreme right position, hot air is discharged.

13.4 Blower Speed Control

The controls differ depending on the variant (Automatic or Manual Climate Control).

For Automatic Climate Control Variants

Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.

To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).

The same is also indicated in the infotainment screen (in Automatic Climate Control equipped vehicles).

The blower speed control dial is also used to switch ON the blower alone when needed. Use the OFF button on the switch bank to switch OFF the blower.

This blower speed control does not control the air flow to third row vents.

The blower OFF button turns the blower OFF. This in turn switches OFF the AC also.

The blower alone can be switched ON by rotating the blower control dial.

For Manual Climate Control Variants

Blower force-circulates air through the HVAC unit and distributes it throughout the passenger compartment.

To increase the blower speed, rotate the control dial clockwise (B) and to reduce the blower speed, rotate the dial counter clockwise (A).

To switch OFF the blower, rotate the dial to “0”.

Second and Third Row Blower Speed Control

A blower control is provided on the HVAC module mounted on Roof. This vent is to control the air flow to the third row vents.

Second and third row AC is switched ON by the Rear AC button on the central switch bank. The airflow is controlled by the blower control on the Roof mounted blower unit.

13.5 Economy Button (ECon)

ECON switch turns ON economy mode. During ECON AC operation, the system automatically cuts OFF at a higher temperature than normal AC. The operation can be used during mild weather conditions for better fuel efficiency. Comfort level may be compromised during this operation.

LED on the button indicates the status of the button. Press the ECON switch again to turn OFF economy mode.

13.6 Air-Conditioner ON (AC ON)

This button turns the air-conditioner ON or OFF. Adjust the temperature control dial as per the temperature requirement. LED on the button indicates the status. Push the button to turn ON/OFF the AC.

When the air-conditioner is functioning, air gets cooled and de-humidified before being circulated inside the cabin. In hot weather conditions, it will take a slightly longer time to cool the interior as compared to cooler weather. Fuel consumption will be relatively higher if the vehicle is being driven with the air-conditioner ON.

AC will function only when both engine and blower are switched ON.

•

In certain operating conditions when the engine gets overheated, the engine management system may switch off the air-conditioner intermittently

•

The air-conditioner should be operated at least for ten minutes once every fortnight, even during winter months. This allows AC system components to get lubricated periodically and ensures optimum system

•

During extreme cold weather conditions, the air-conditioner may not function until temperature of the air near the evaporator rises above a predefined threshold

•

When air-conditioner is ON, moisture is extracted from the air. The resulting condensate is drained off from the vehicle. It is therefore normal, if you see a small pool of water under your vehicle

13.7 Re-circulation Mode

To set the HVAC system to recirculation mode, press the recirculation mode button. The LED on the button illuminates, indicating the recirculation mode is active.

In this intake mode, the air from inside the passenger compartment will be sucked by the blower and utilised further to ventilate /cool / heat the cabin.

For quick cabin cooling/heating or while driving through dusty/polluted region, re-circulation mode can be selected for short periods. Driving with this mode active, may lead to better fuel economy and longer HVAC filter life.

However, running the air-conditioner in re-circulation mode for long will make cabin air too dry and oxygen level drops inside the cabin turning the air stale. On the contrary, keeping air intake control in recirculation mode for long, with air-conditioner switched OFF, will make cabin air too humid and are more likely to become foggy. Hence, never drive in recirculation mode for long, shift back to fresh air mode as soon as possible.

Never keep recirculation mode selected continuously for long. Prolonged use of the HVAC system in recirculation mode may cause windshield/windows to mist/fog-up, impairing visibility which can lead to an accident, endangering you and others.

13.8 Fresh Air Mode

Automatic Climate Control

To set the HVAC system to fresh air mode, press the fresh air mode button. The LED on this button illuminates, indicating that fresh air mode is active.

In this intake mode, fresh air from outside the vehicle is sucked by the blower and utilised further to ventilate/cool/heat the cabin.

Manual Climate Control

To set the HVAC system to fresh air mode, press the re-circulation mode button again. The LED on this button switches OFF, indicating that fresh air mode is active.

13.9 Rear AC

The rear AC provides cooling for the second and third row AC vents. LED on the button indicates the status.

The rear AC can be switched ON only when the AC button (front/second row AC) is ON.

13.10 Auto Mode (Automatic Climate Control only)

The auto mode can be used to control the complete air-conditioning operation of the vehicle automatically. The auto mode controls blower fan speeds, air intake mode, temperature and modes (vents) based on the set temperature.

All the air-conditioning operations can also be controlled manually as explained in the previous sections.

13.11 Air Distribution Mode Button

Air distribution mode button allows you to select the below air flow patterns:

•

Face Mode

•

Face and Floor Mode

•

Floor Mode

•

Floor Defrost Mode

•

Defrost Mode

Depending on the variant, the operation of air distribution mode changes.

For Automatic Climate Control

Each press of mode switch changes the flow pattern accordingly.

The air distribution inside the vehicle can be chosen by the Mode button.

For Manual Climate Control

Press the required mode button on the switch bank.

13.11.1 Air Distribution - Face Mode

Air is discharged through the centre and side vents on the instrument panel, and through the roof vents.
